MP: 000416.240 |
Created April 28, 2017
Total Accidents: 3
Crossing
DOT #: 352273R
TOTAL
DAILY TRAINS: 11 (AS OF 2016)
Page created by: freebrickproductions
This crossing is located on the CSX S&NA South Subdivision Main 2.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | NEG electronic | NEG electronic |
| Base: | WCH | WCH |
| Light Frames: | 6 - 12x24" WCH w/ WCH 2nd Gen LEDs | 4 - 12x24" WCH w/ WCH 2nd Gen LEDs |
| Gate Lights: | 3 - RECOs | 3 - RECOs |
| Gate Mechanism: | Invensys Rail | Invensys Rail |
| Gate Striping: | Vertical | Vertical |
1 |
2 |
3 |
4 |

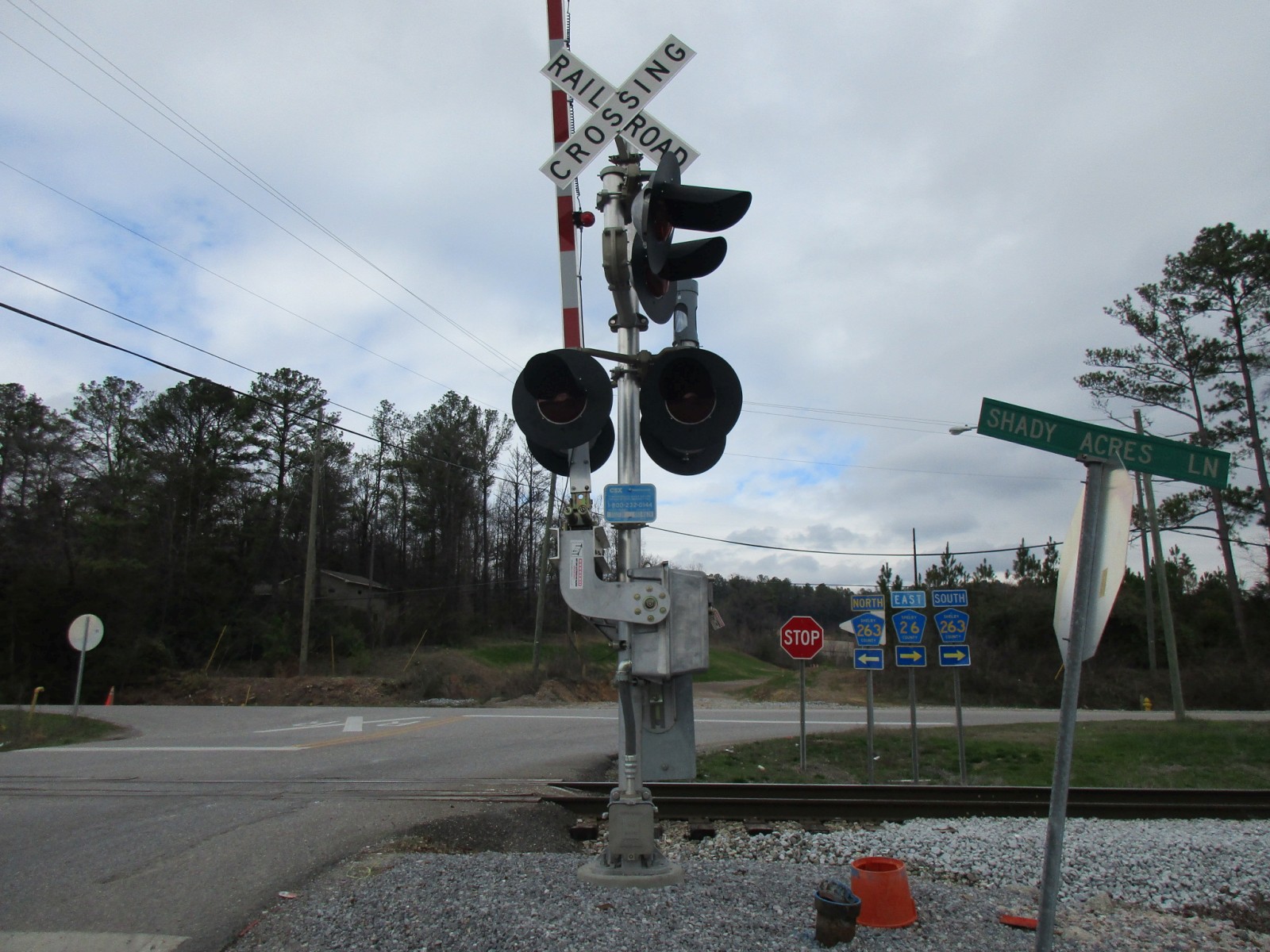

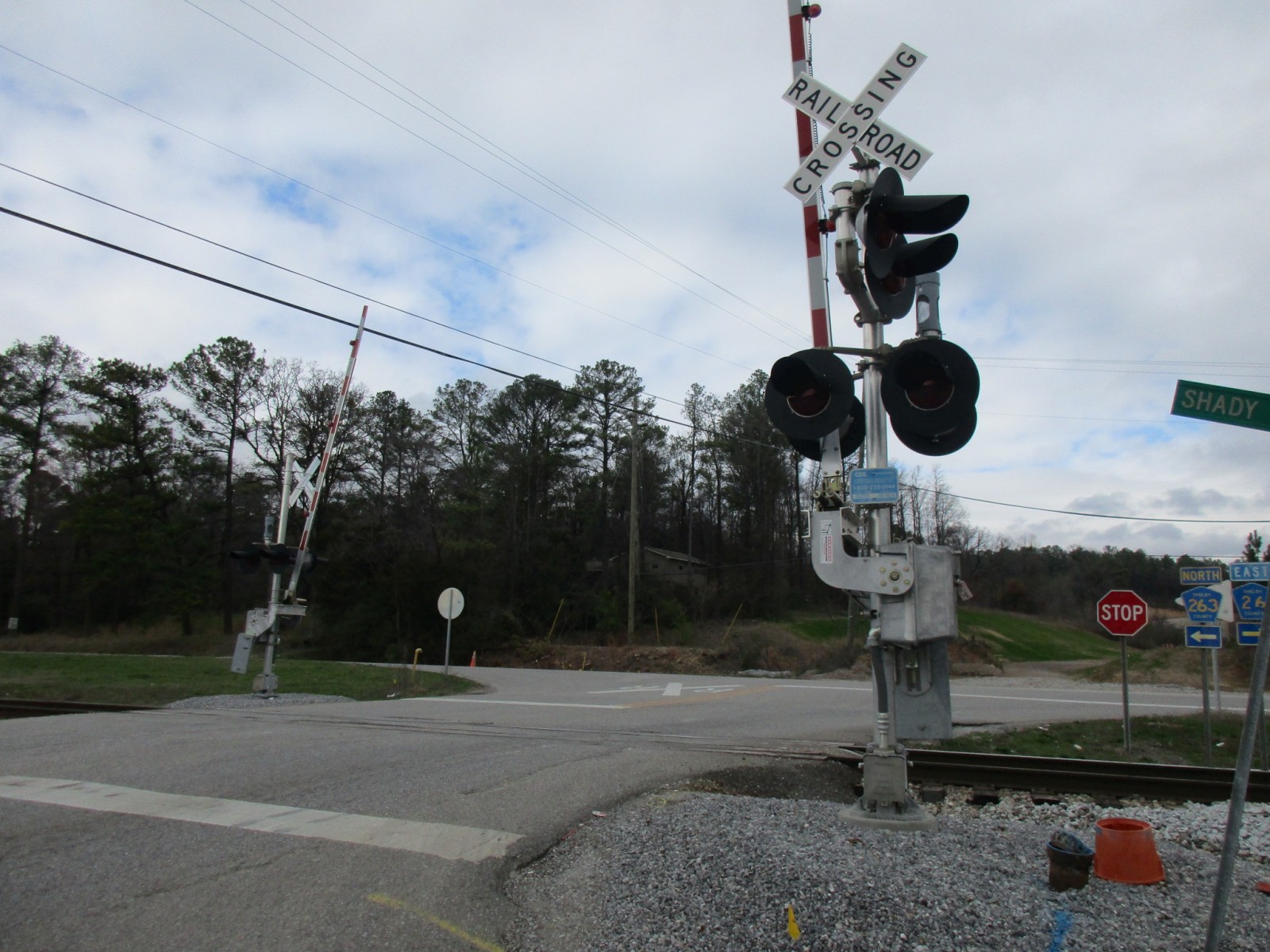

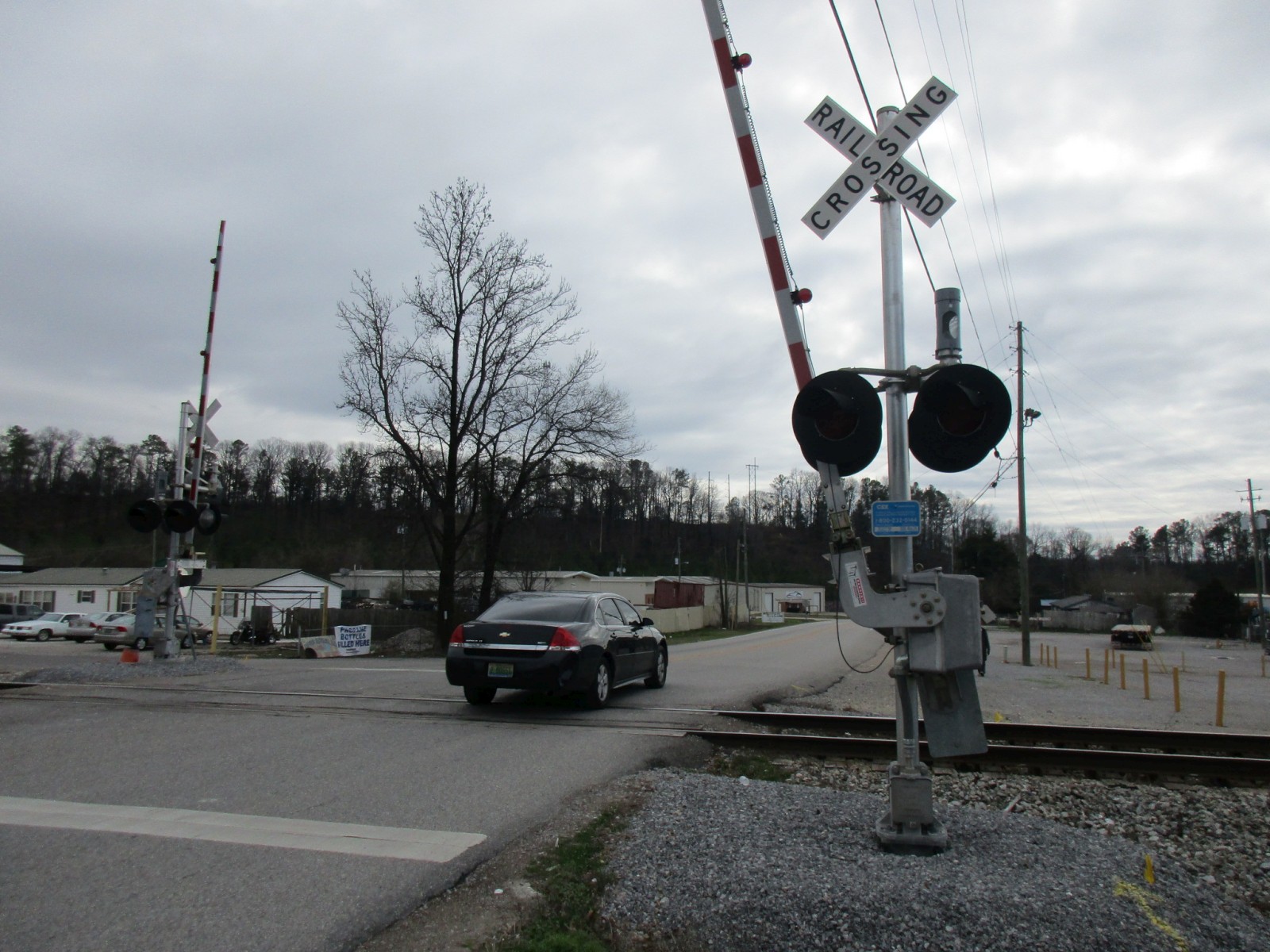

Overviews of the crossing with some signals installed in 2014 (replacing crossbucks). |

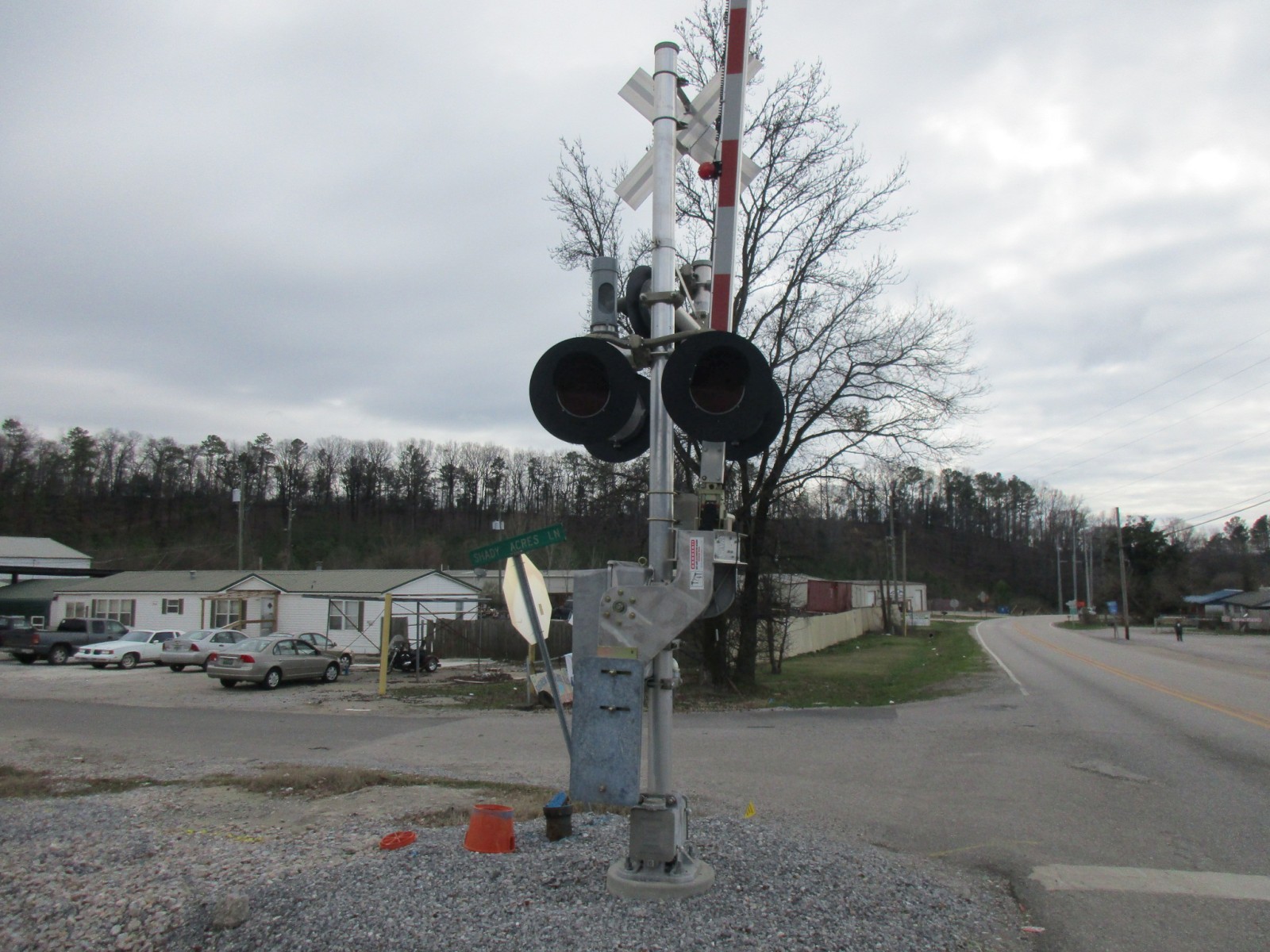

The first signal. |
||
5 |
6 |
7 |
8 |

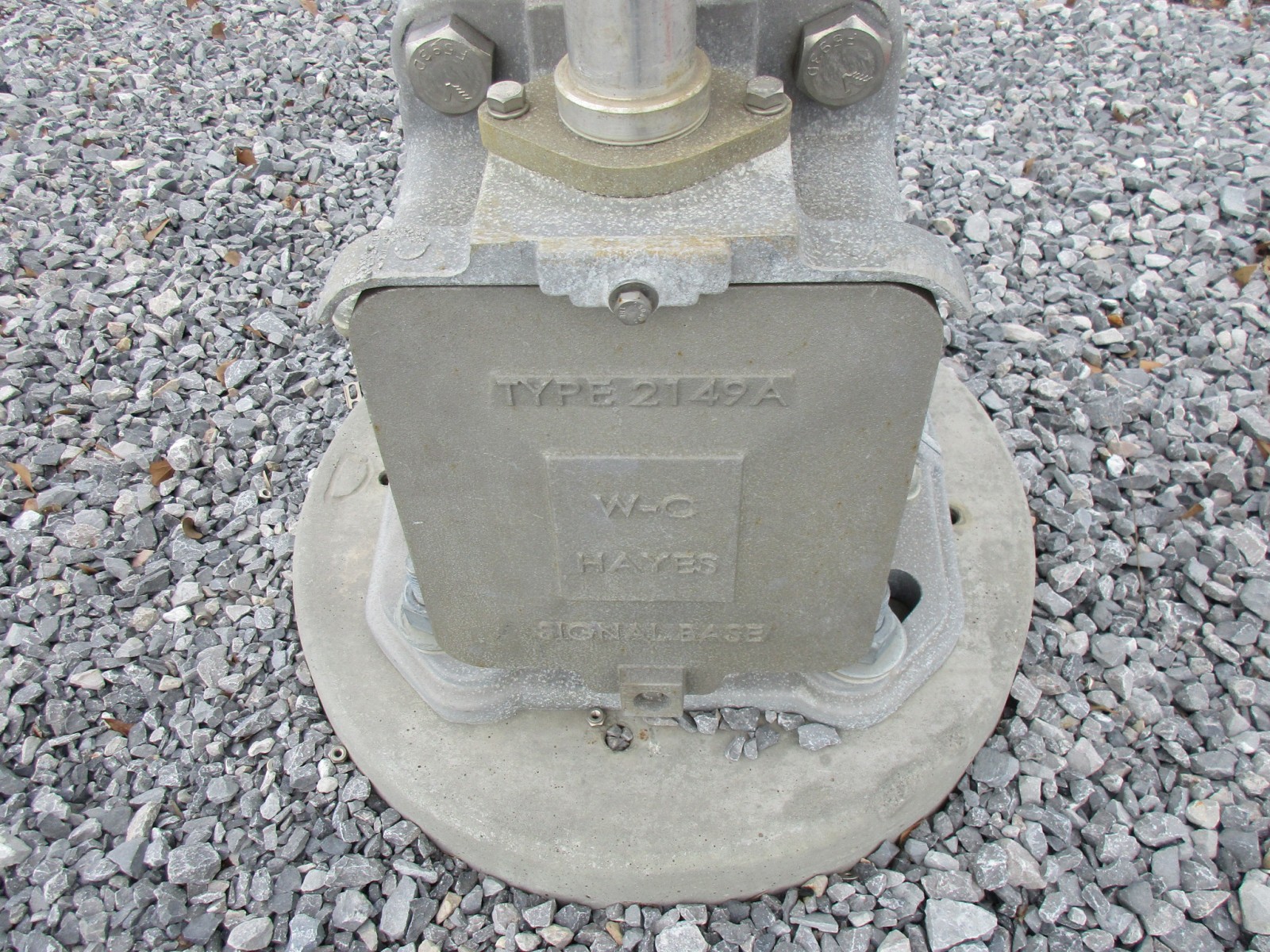

It has a WCH base. |

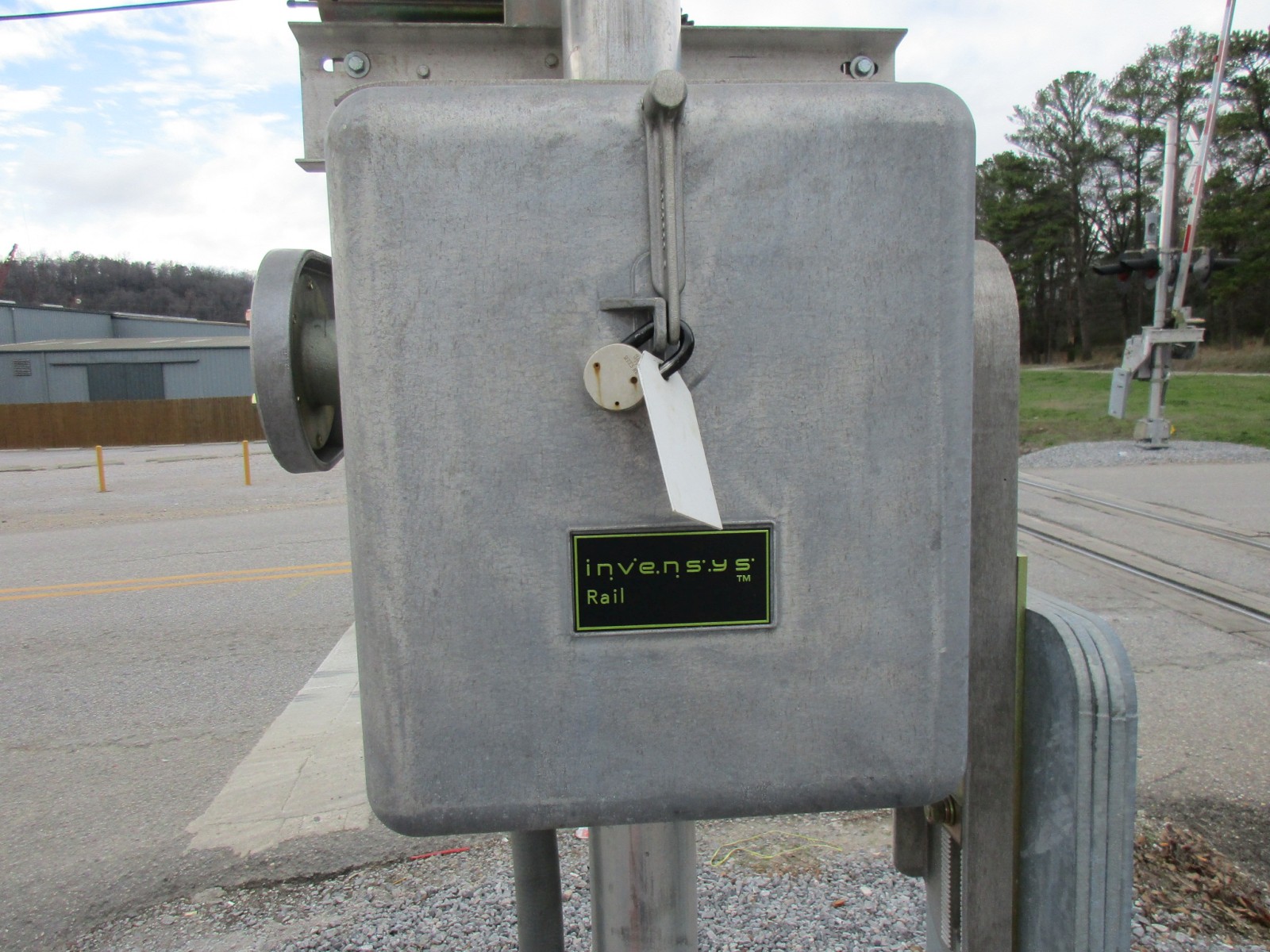

An Invensys Rail gate mechanism. |

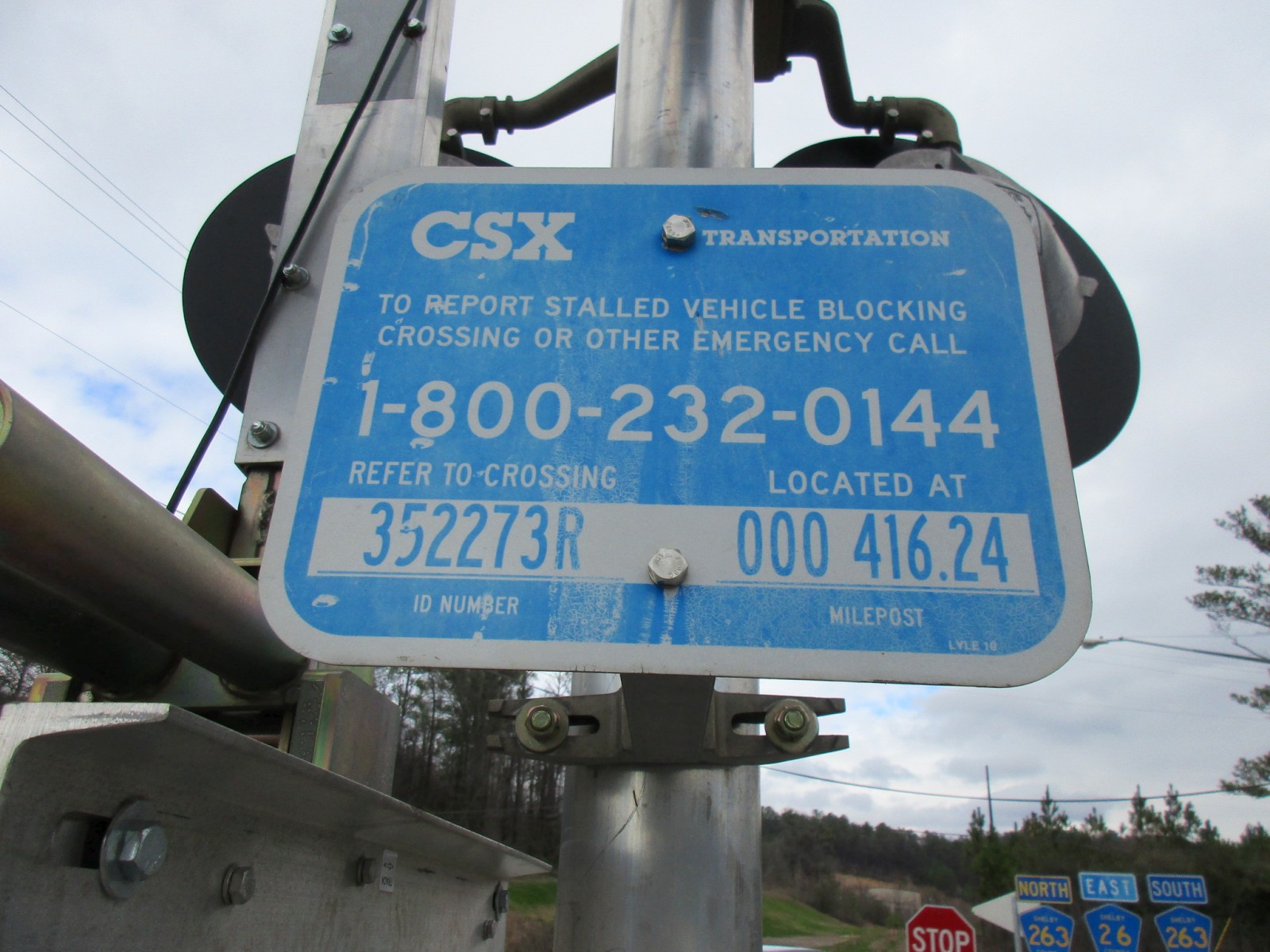

The emergency information. |

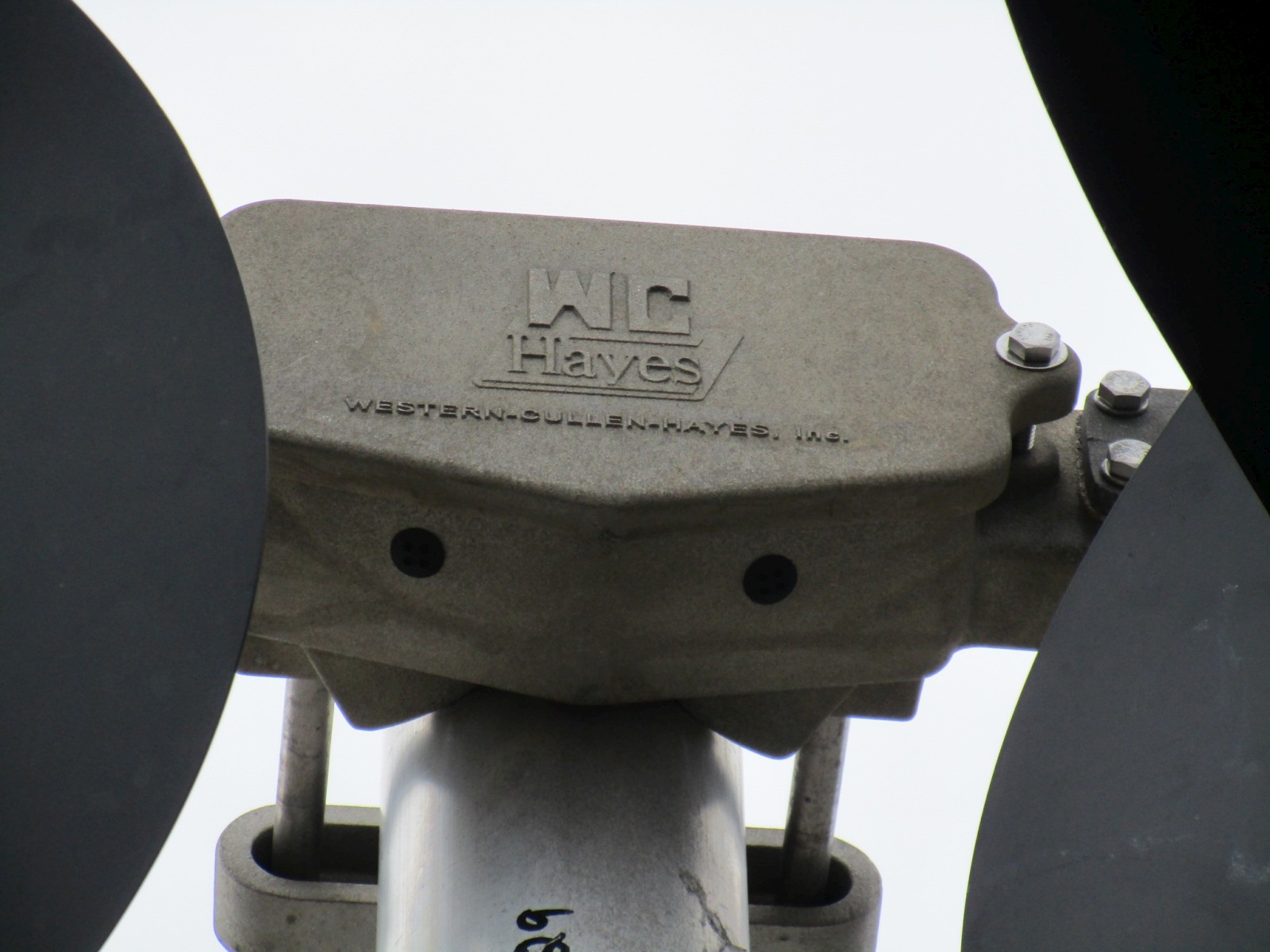

A WCH junction box! |
9 |
10 |
11 |
12 |

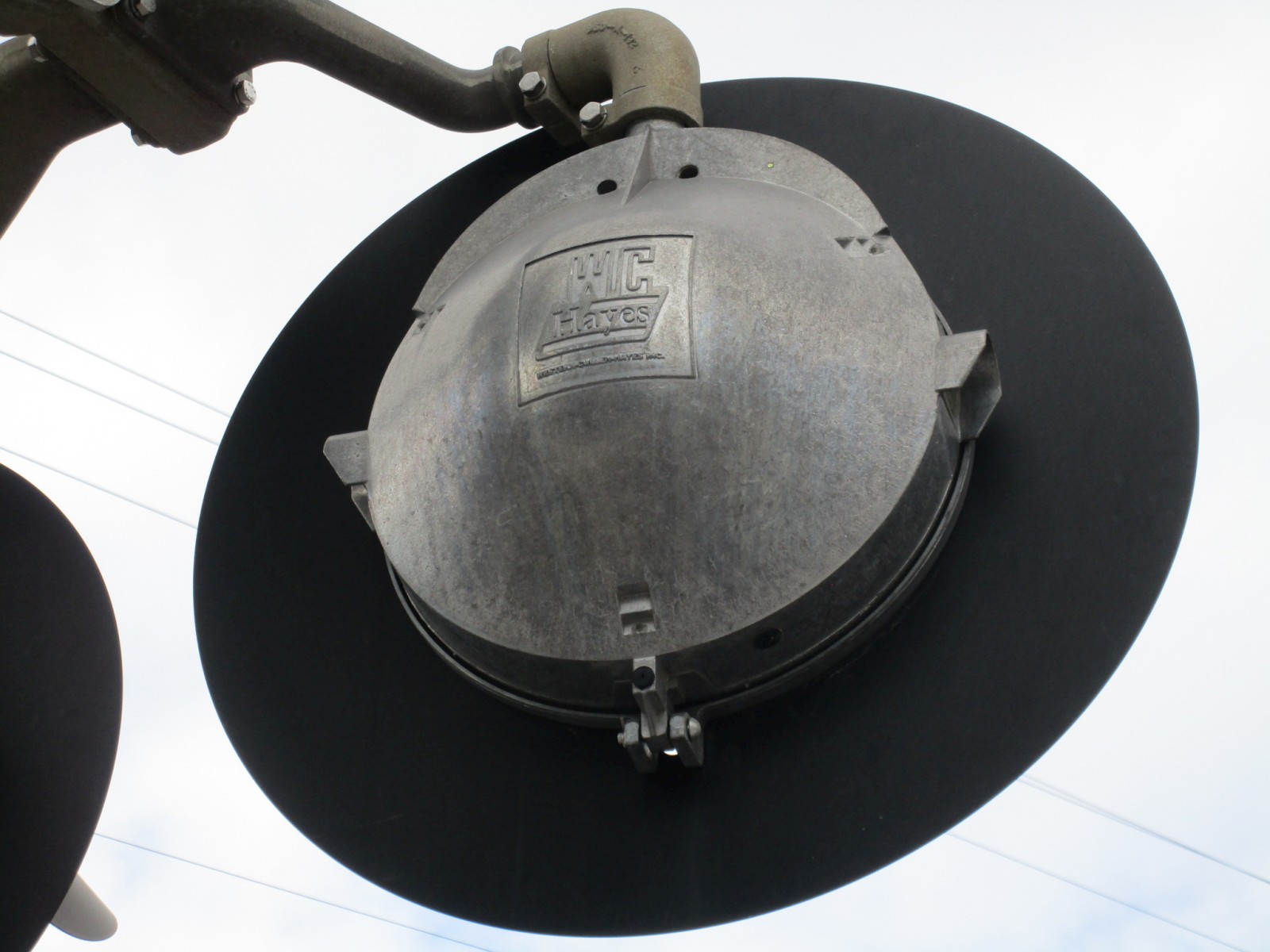

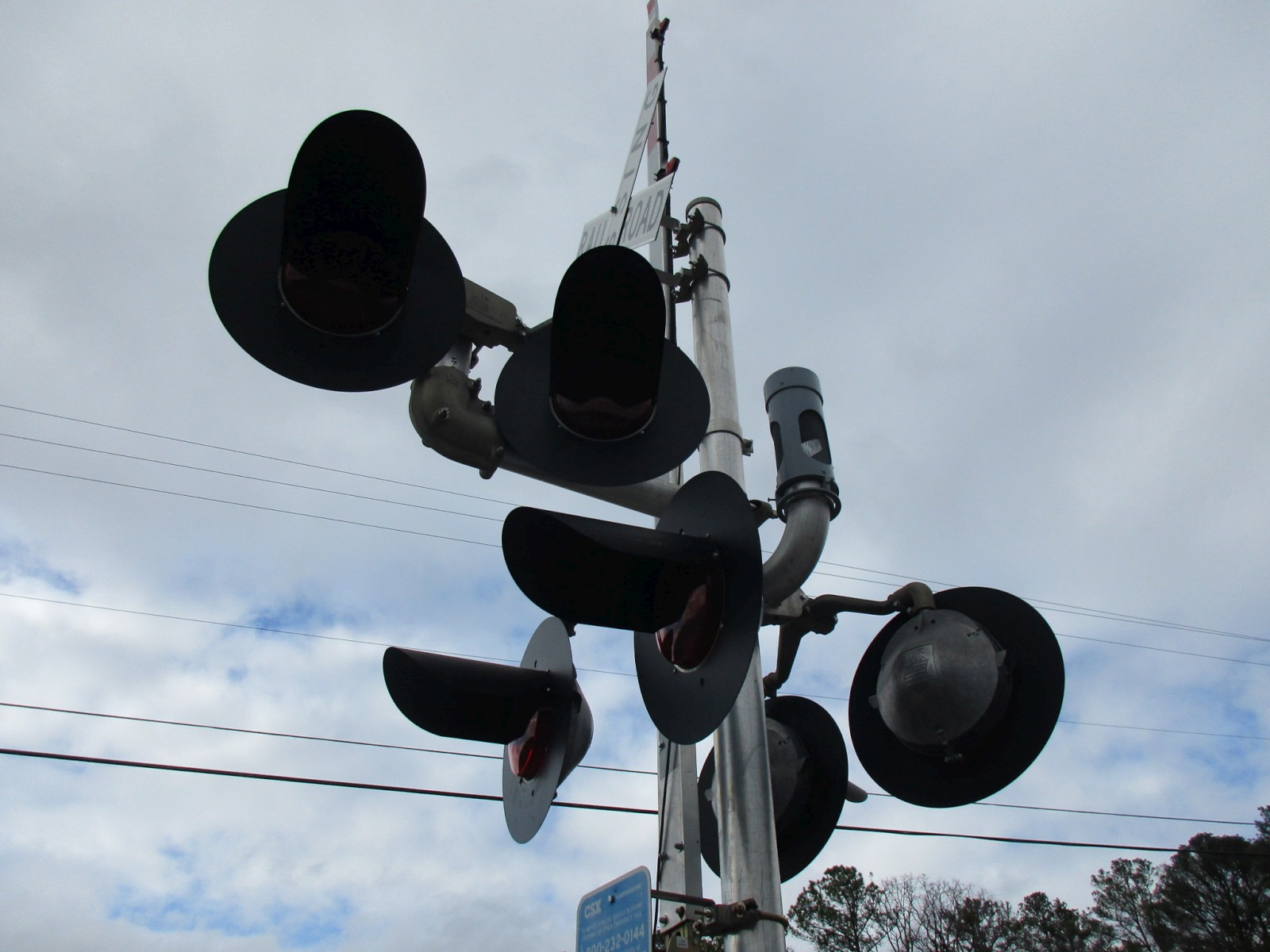

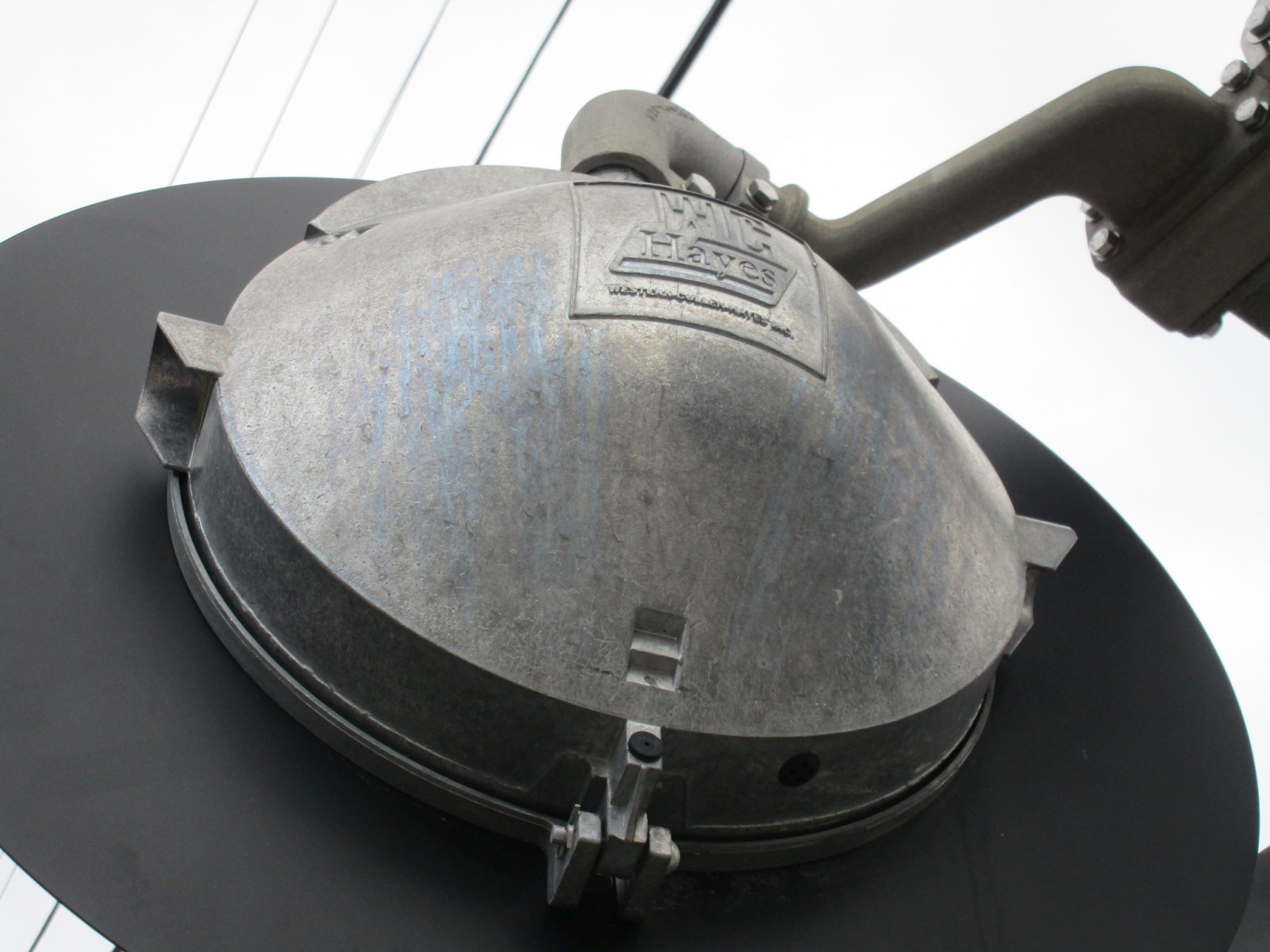

The lights are WCH 12x24 inch lights with WCH 2nd Generation LEDs. |

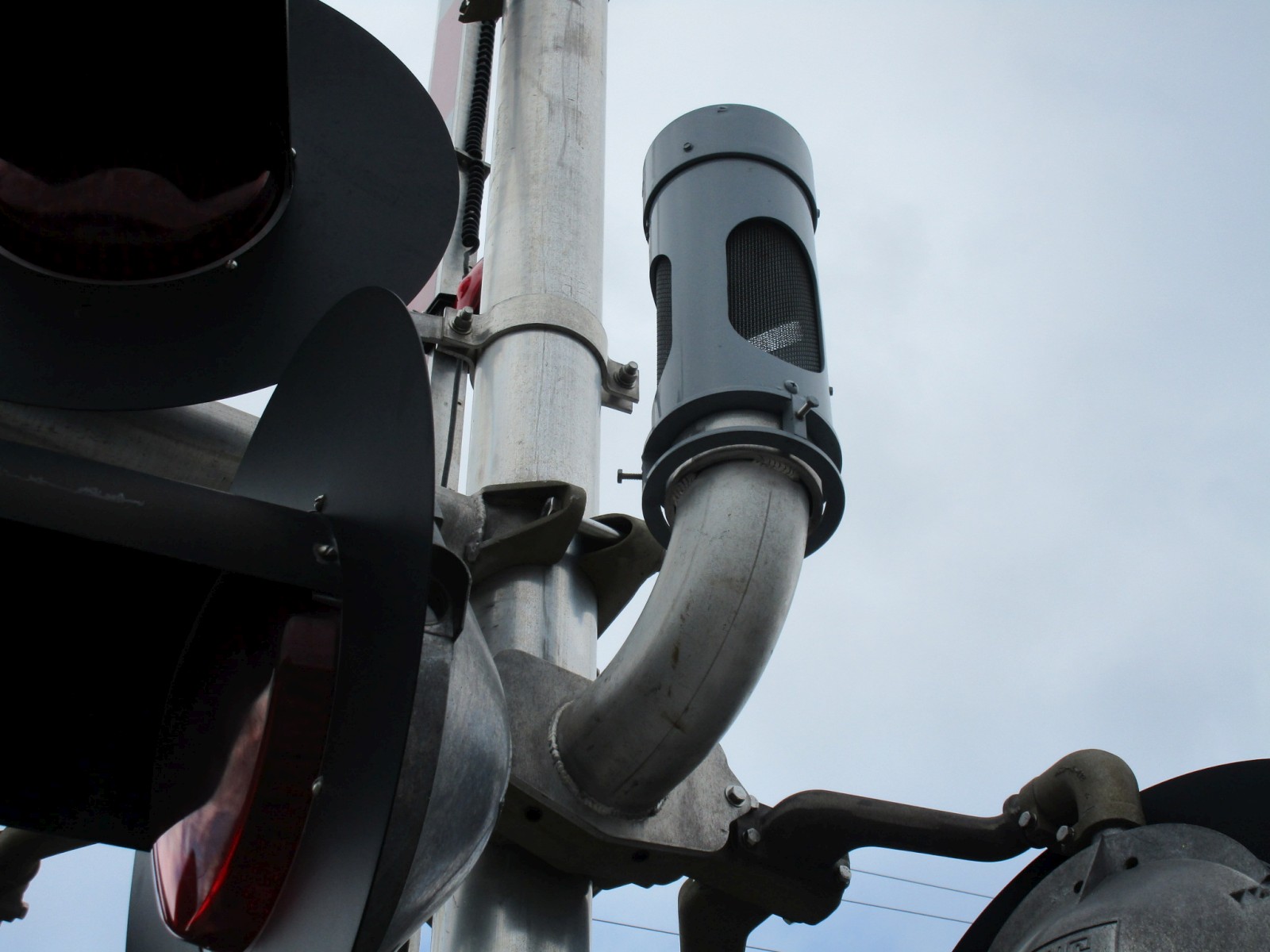

This signal uses an NEG electronic bell. |

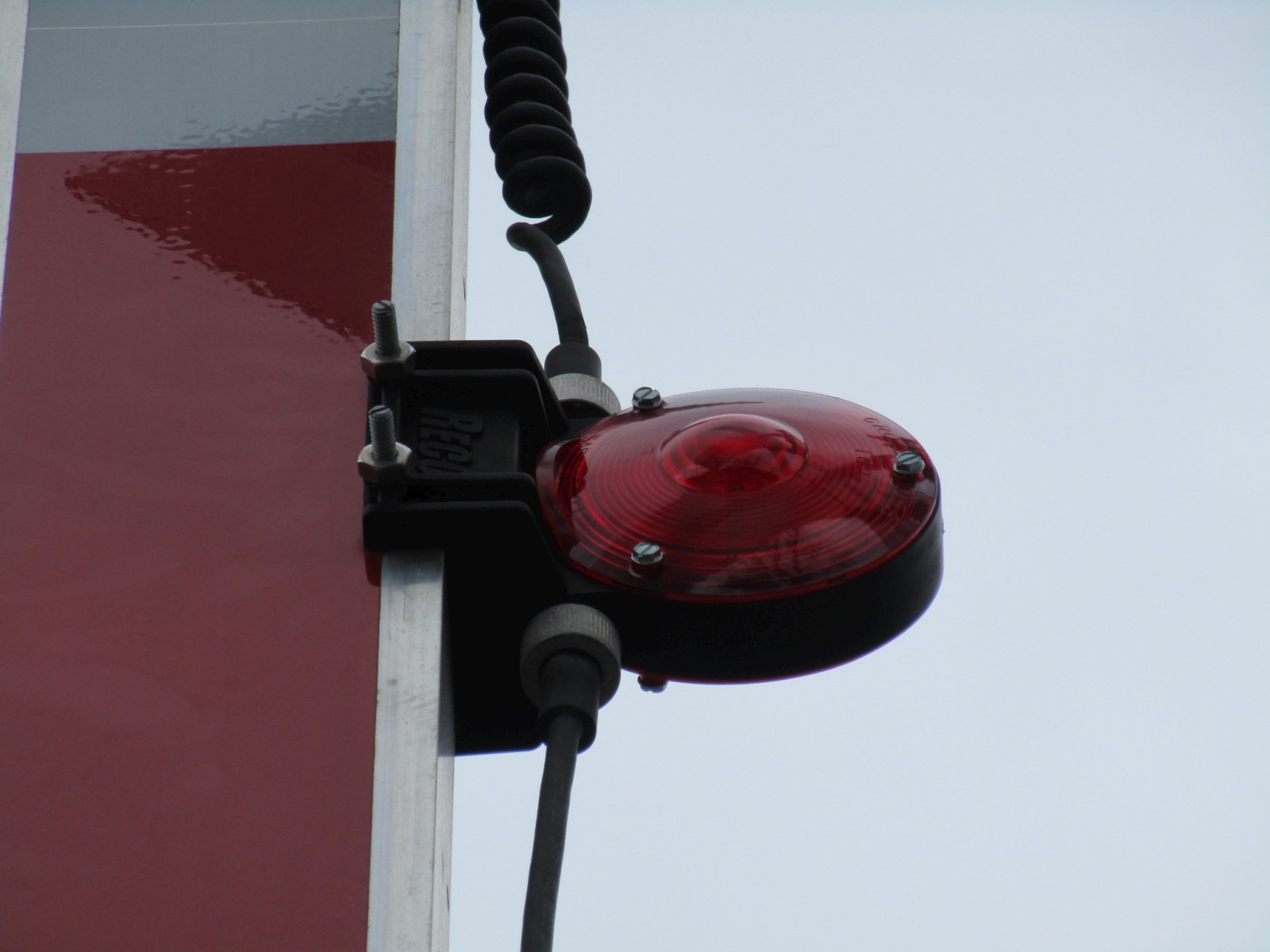

The gate lights are from RECO. |
|
13 |
14 |
15 |
16 |

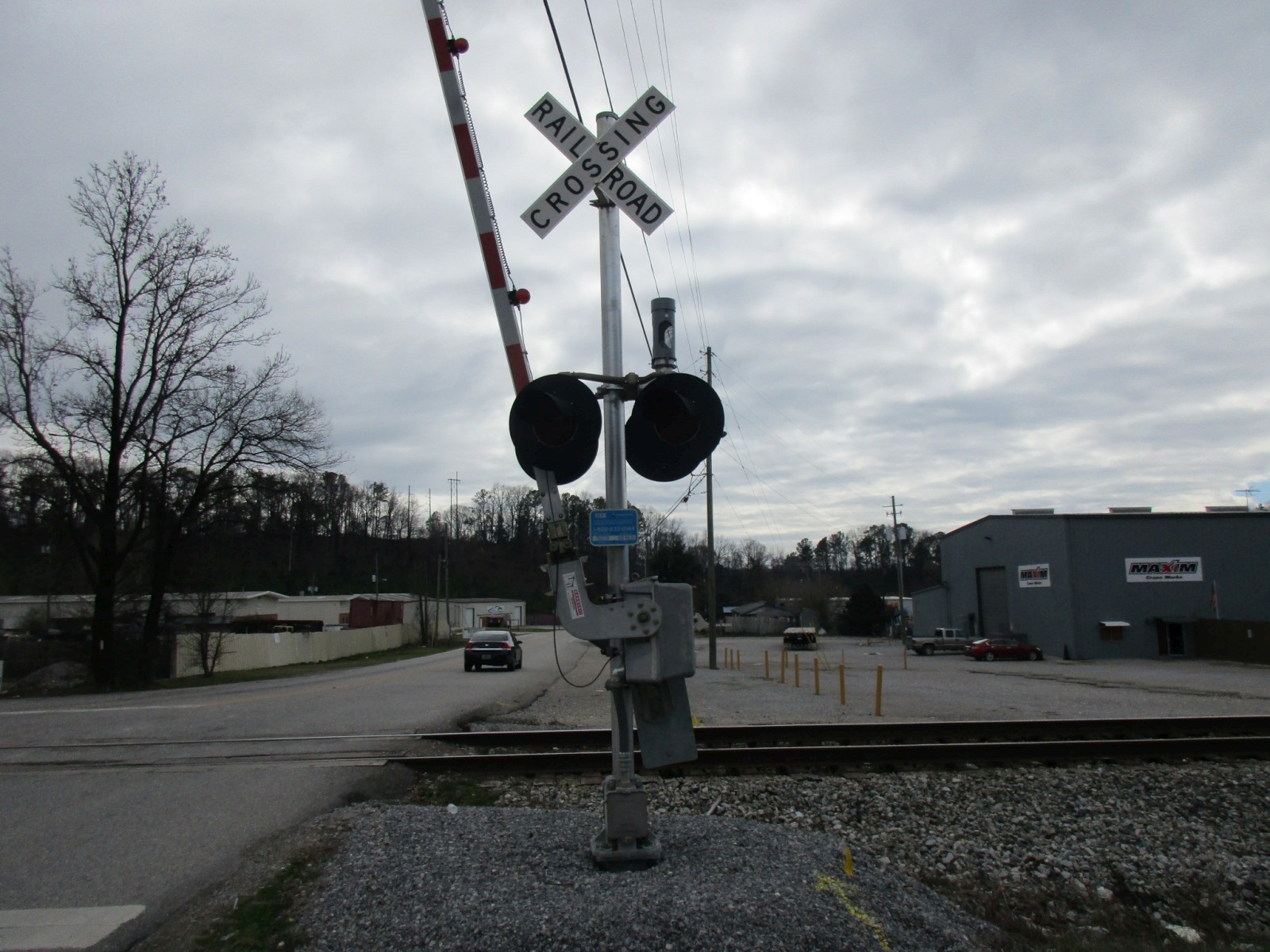

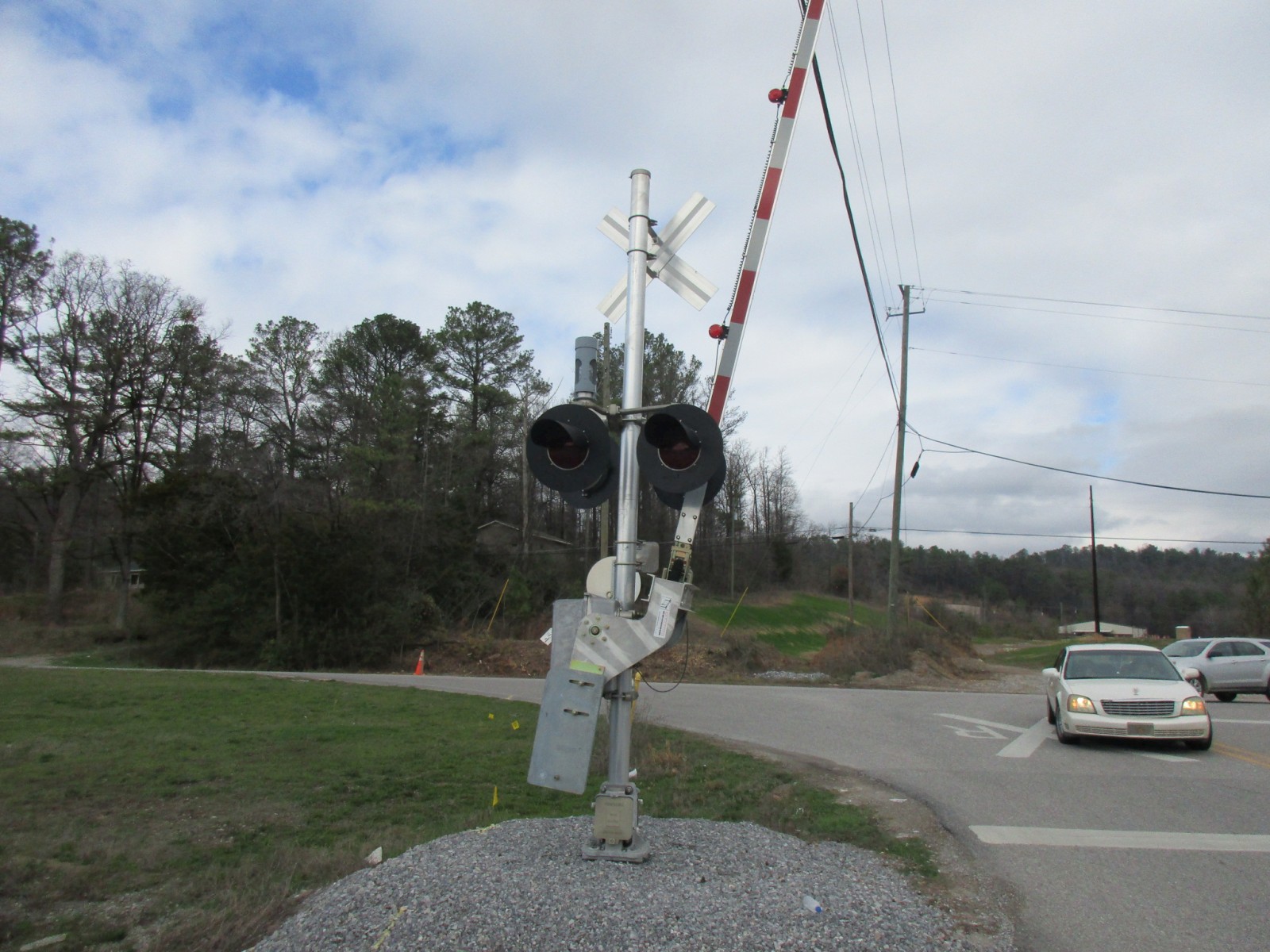

The second signal. |

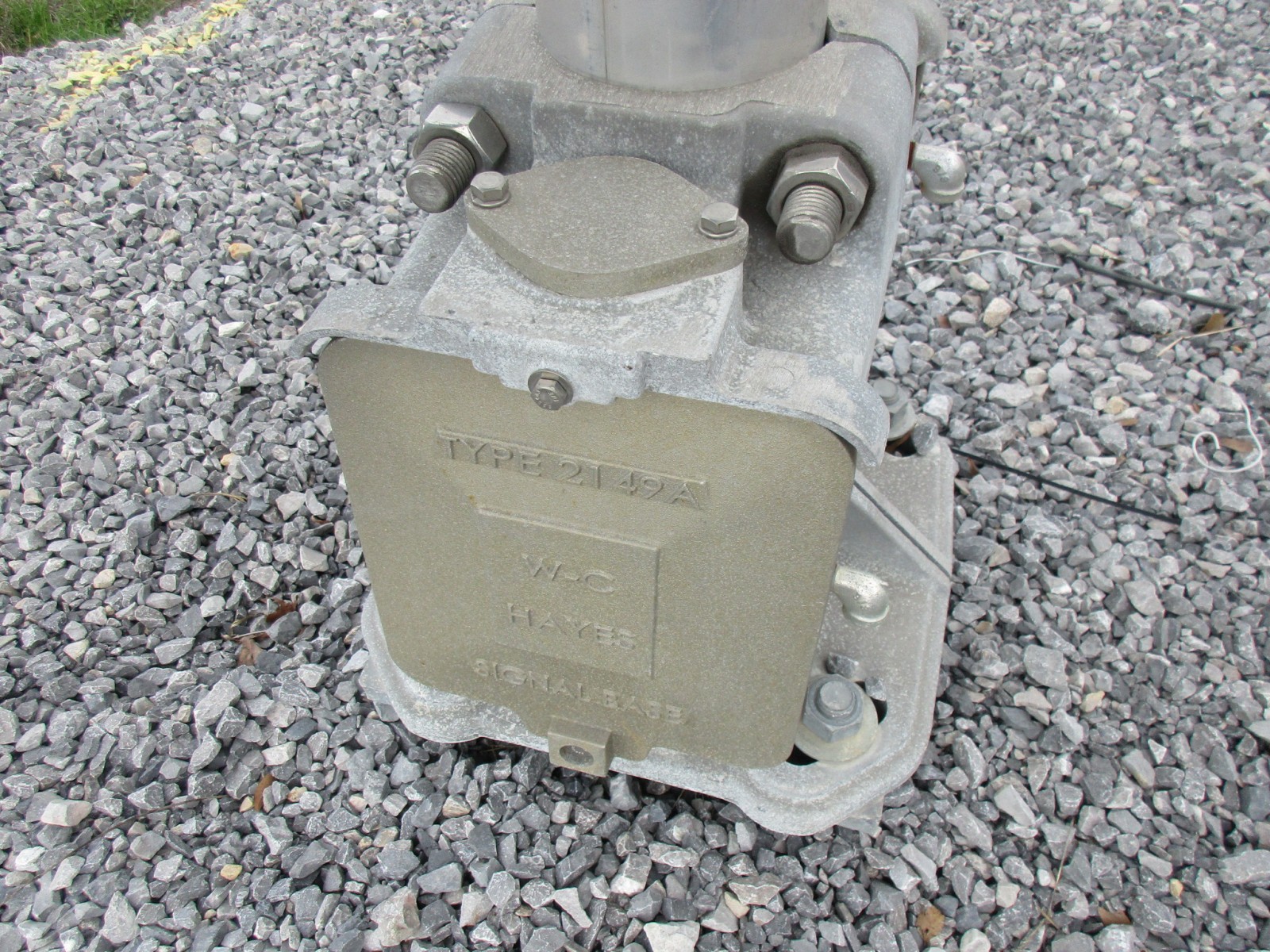

Another WCH base. |

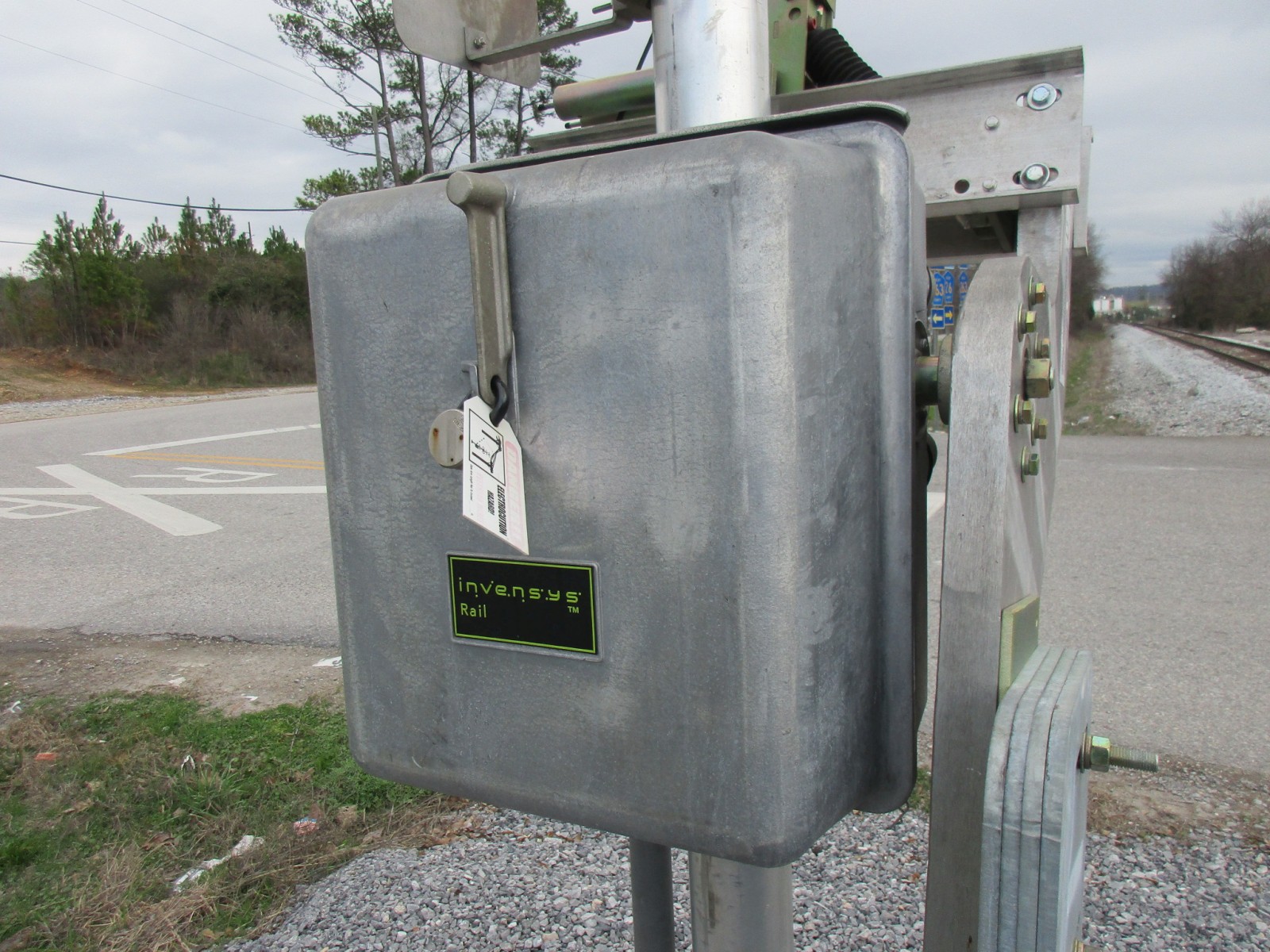

Another Invensys Rail gate mechanism. |
|
17 |
18 |
19 |
20 |

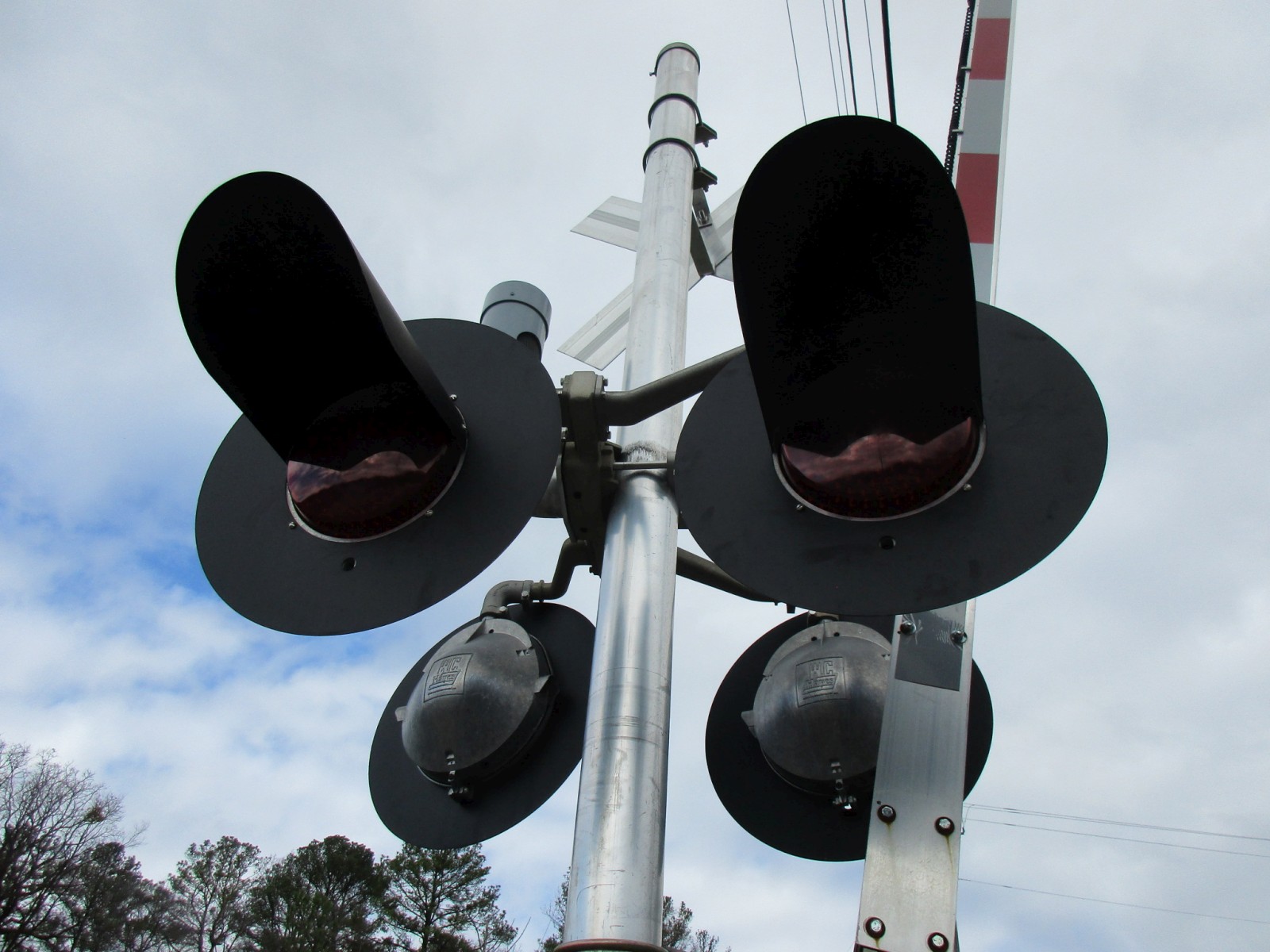

More WCH 12x24 inch lights with WCH 2nd Generation LEDs over here. |

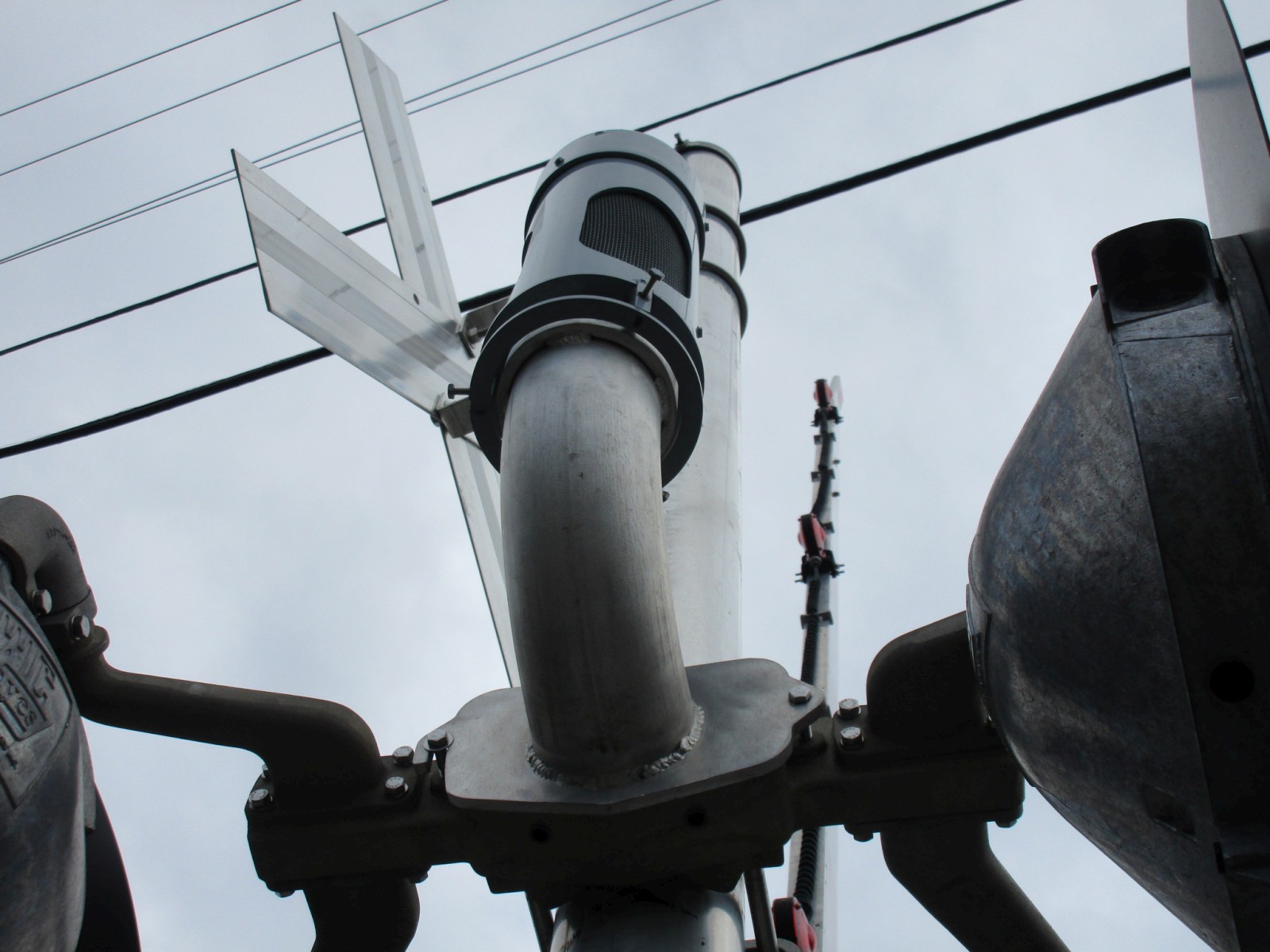

Another NEG electronic bell. |

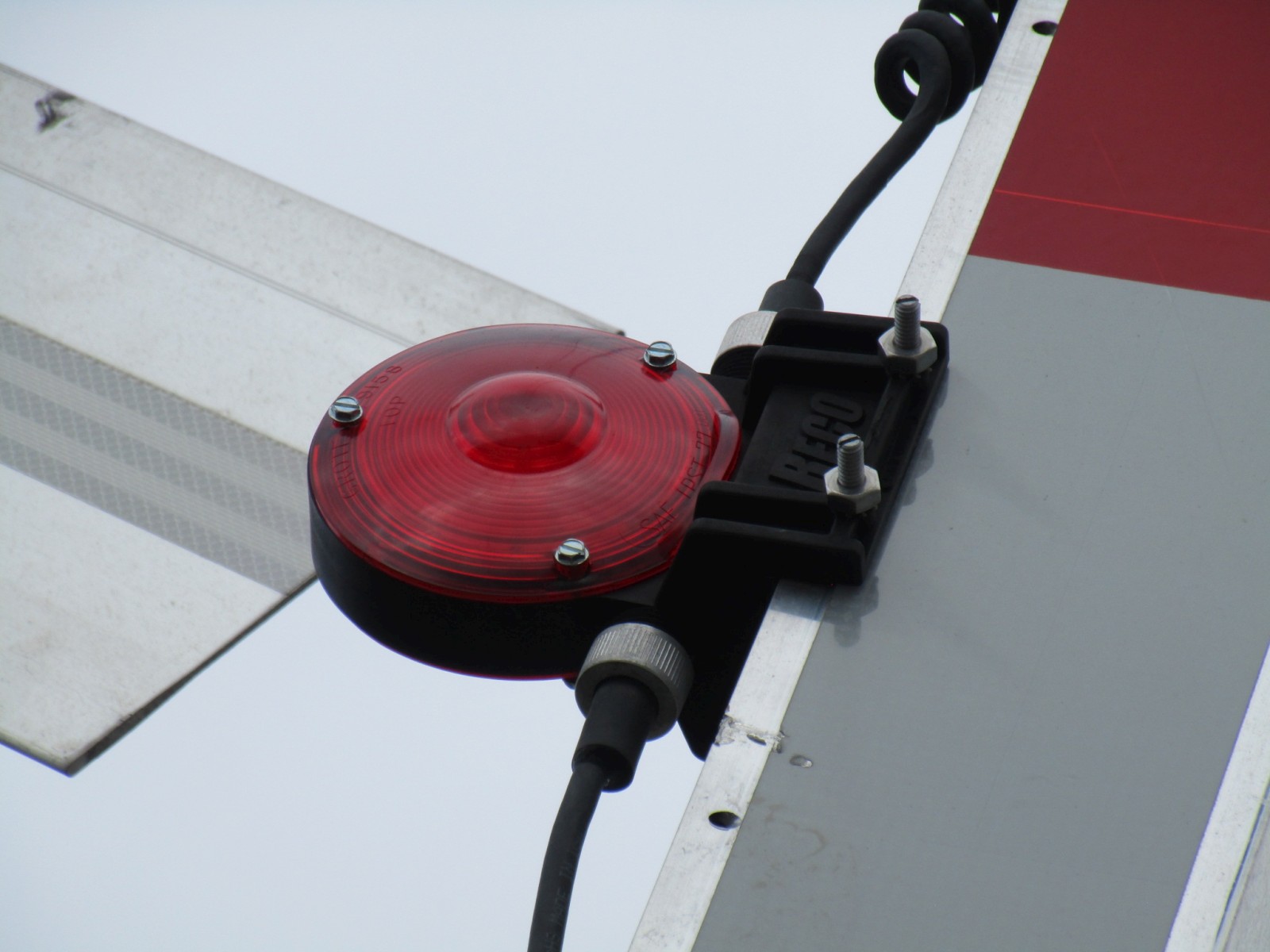

More RECO gate lights on this signal. |
|
21 |
22 |
23 |

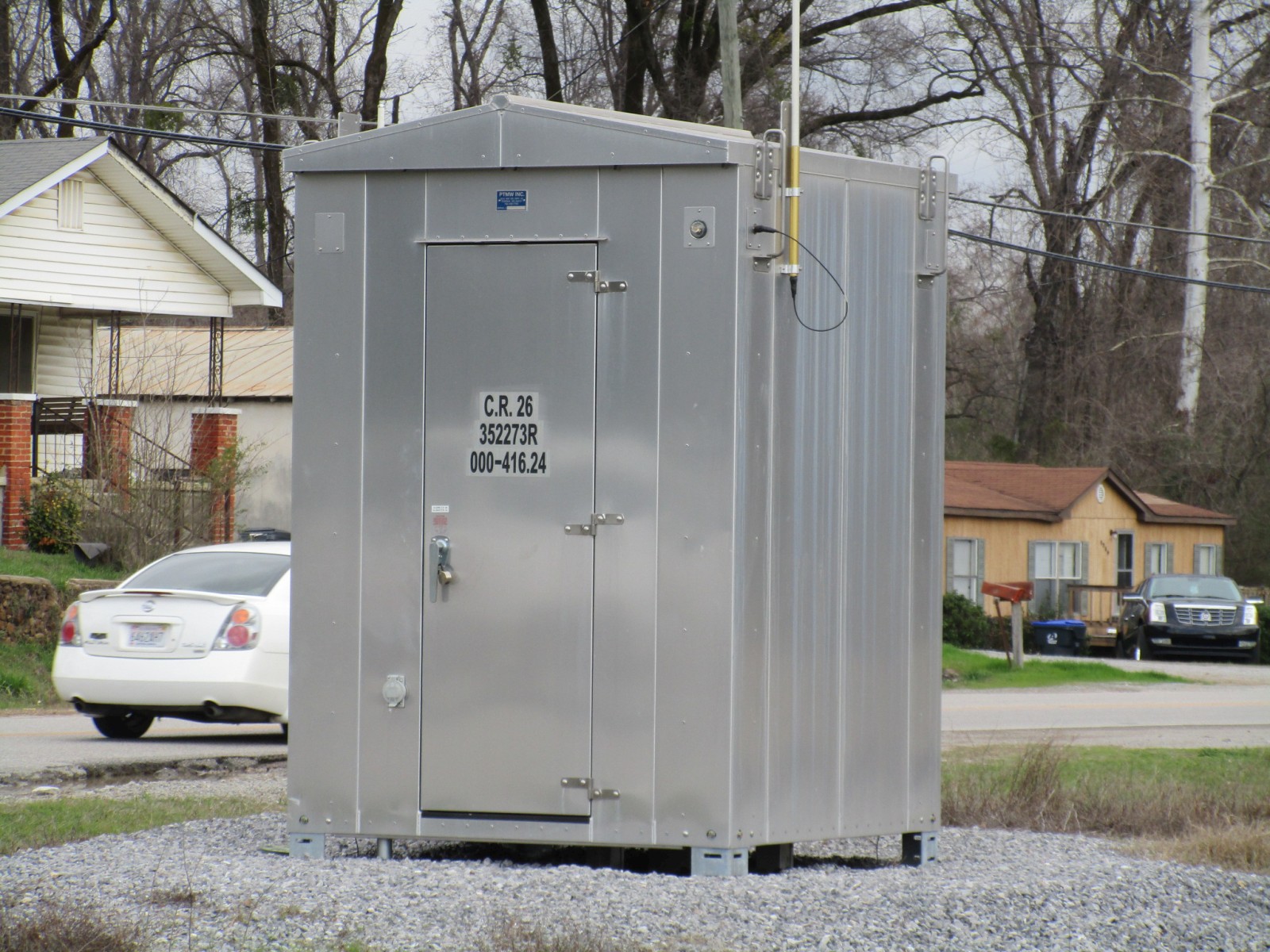

The relay case. |

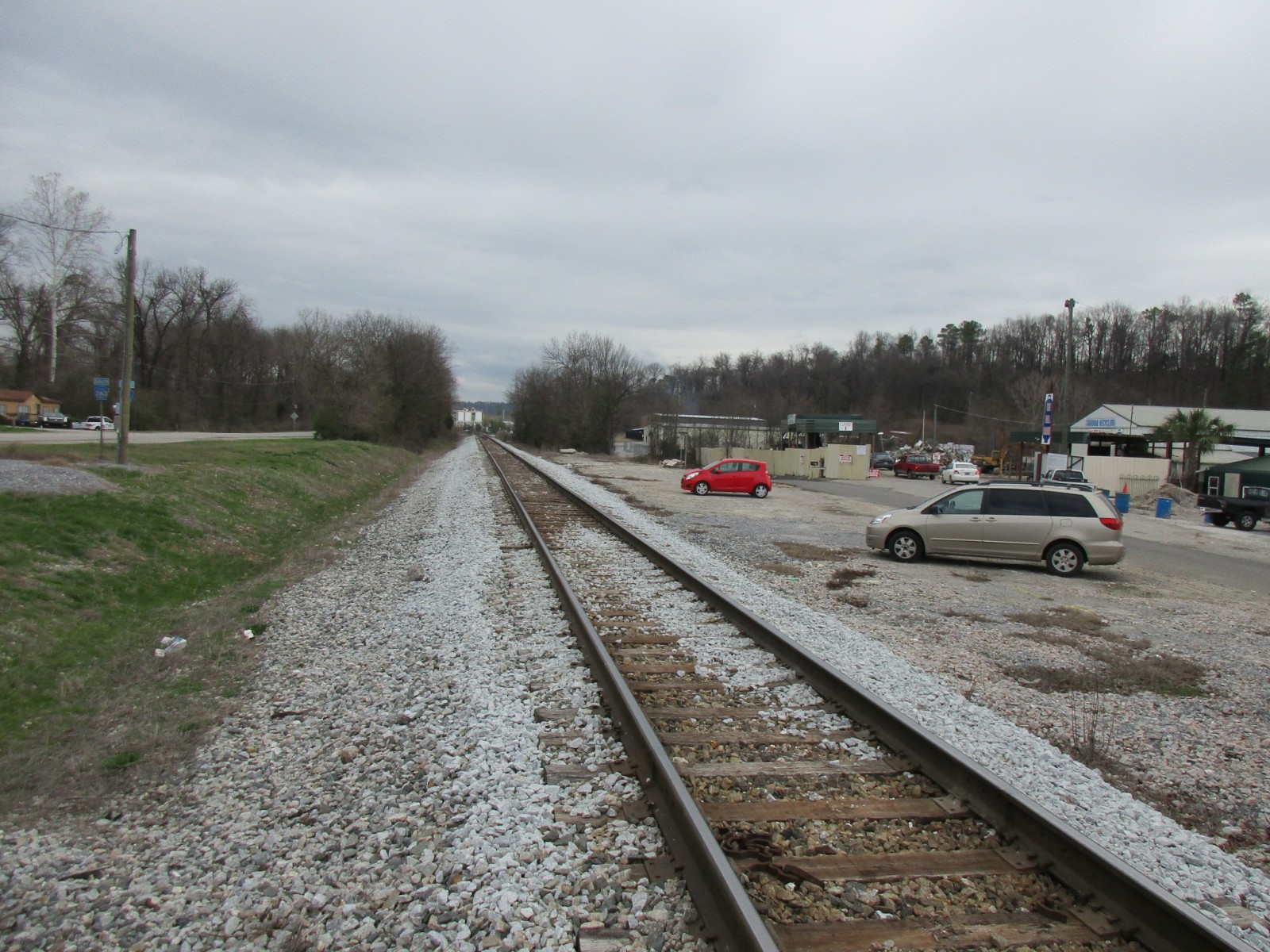

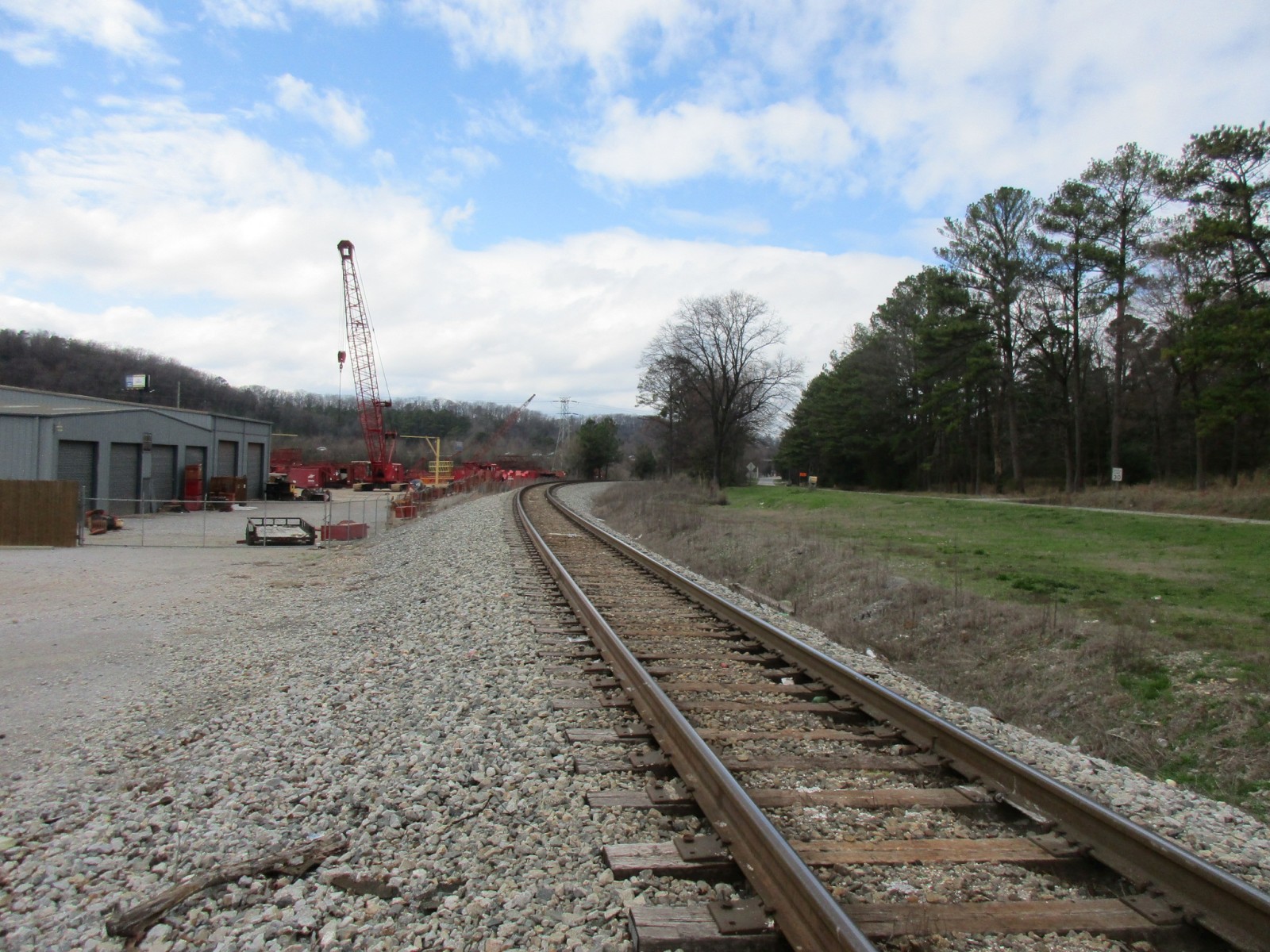

Track view looking south towards Shady Acres Road & 1st Street. |
Track view looking north towards Montevallo Road #2. |
All pictures were taken on 2-18-17.
