MP:  0415.16



Created April 28, 2017



Total Accidents:   3
Crossing DOT #:  352266F
TOTAL DAILY TRAINS:   18   (AS OF 2016)



Page created by: freebrickproductions



This crossing is located on the CSX S&NA South Subdivision Main 1.



>>>>>>>>>>>>>	Signal #1	Signal #2
Bell:	General Signals electronic	N/A
Cantilever:	Lincoln Industries	Lincoln Industries
Light Frames:	10 - 12x24" Safetran	10 - 12x24" Safetran
Base:	Safetran	Safetran
Gate Lights:	3 - RECOs	3 - RECOs
Gate Mechanism:	Safetran 2000s	Safetran 2000s
Gate Striping:	Diagonal + Vertical	Diagonal



1	2	3	4

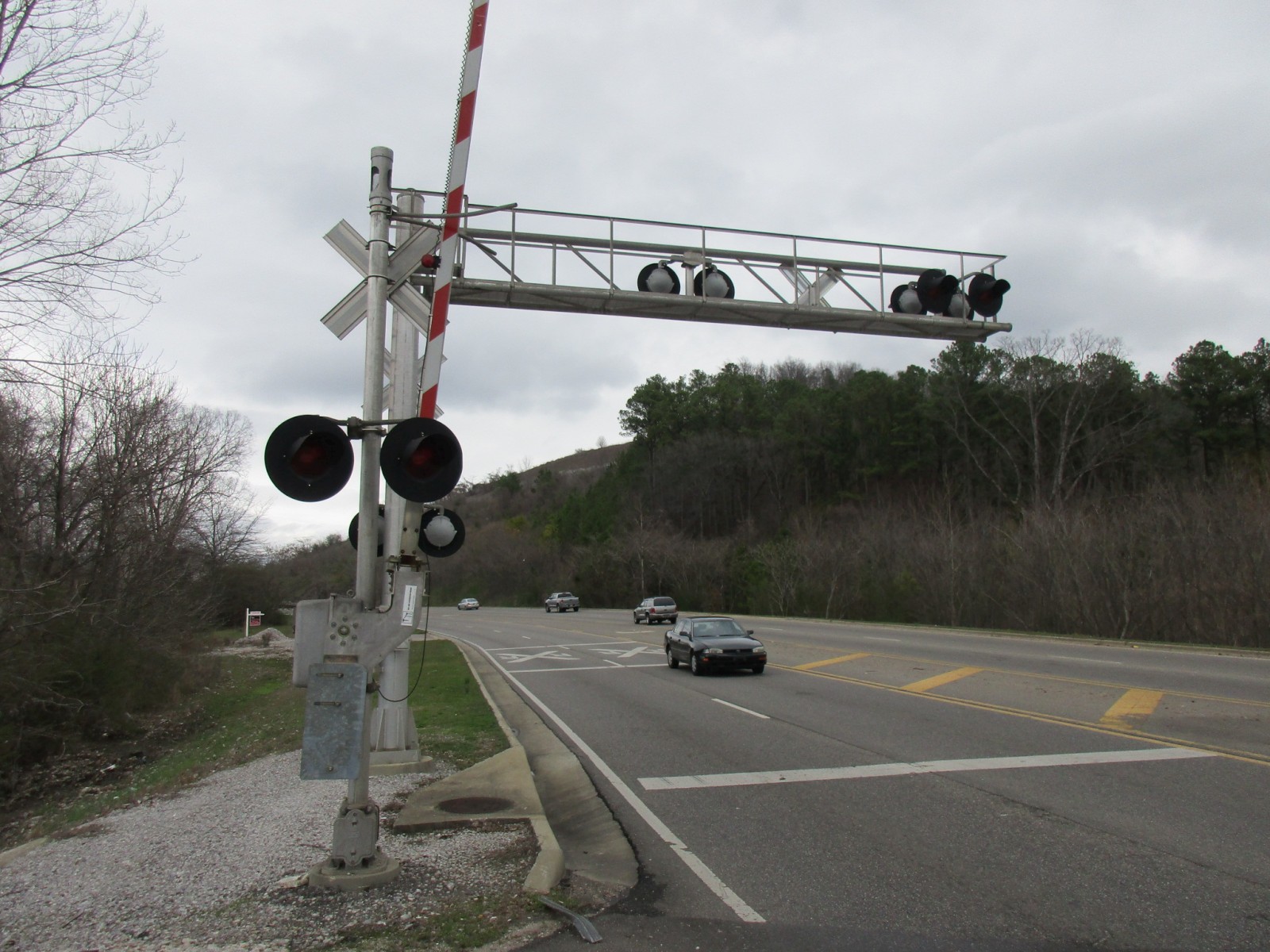

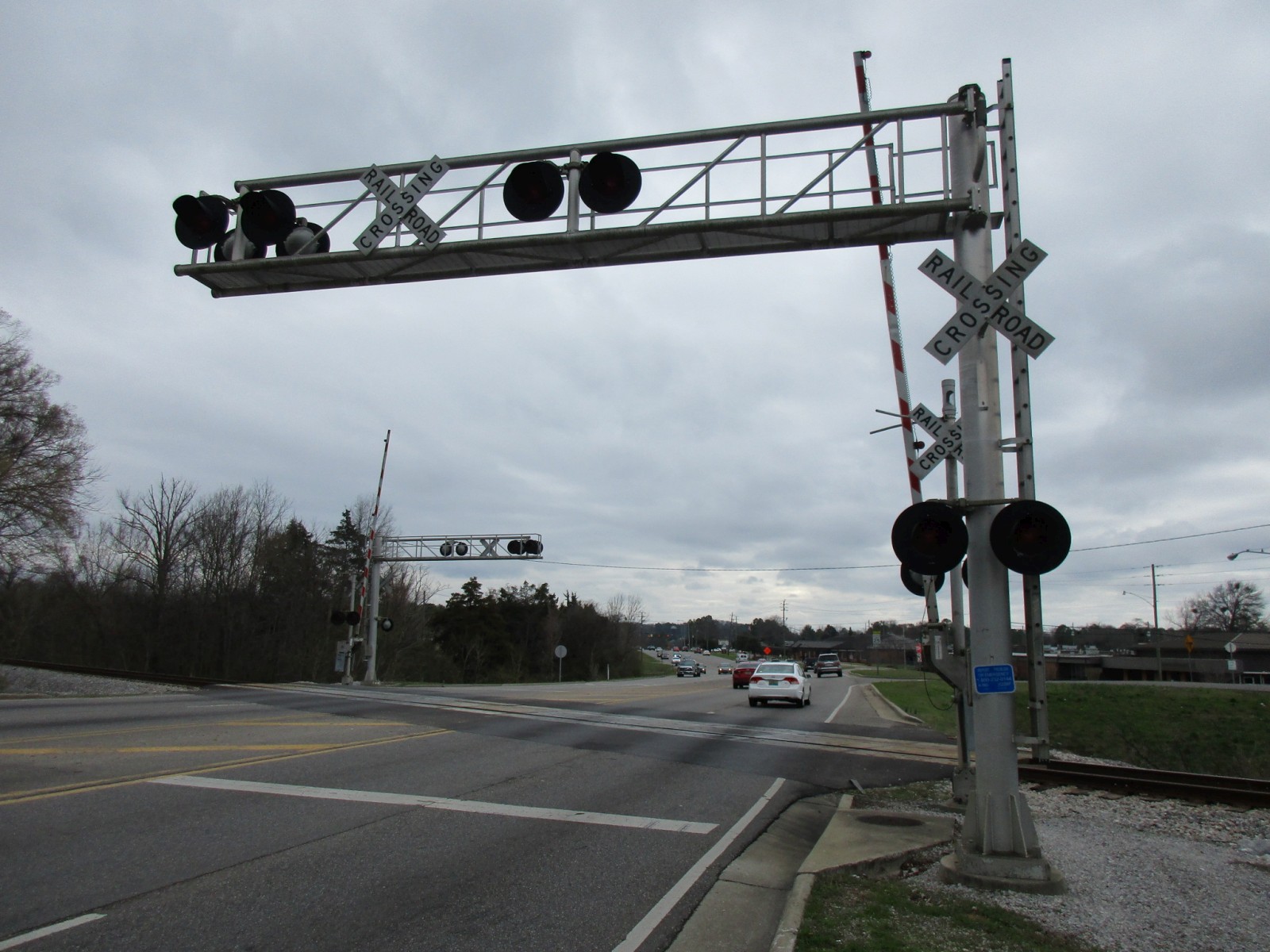

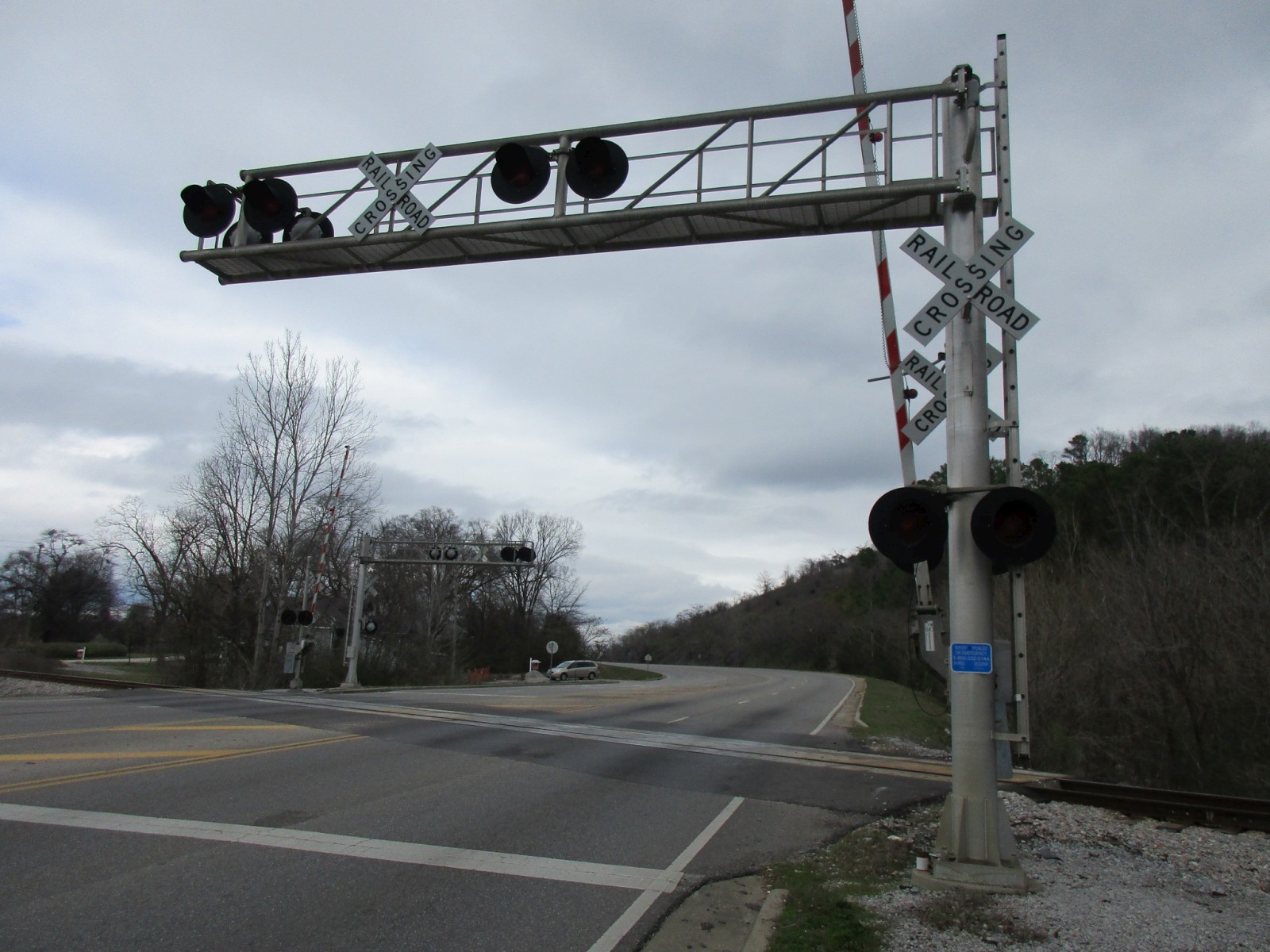

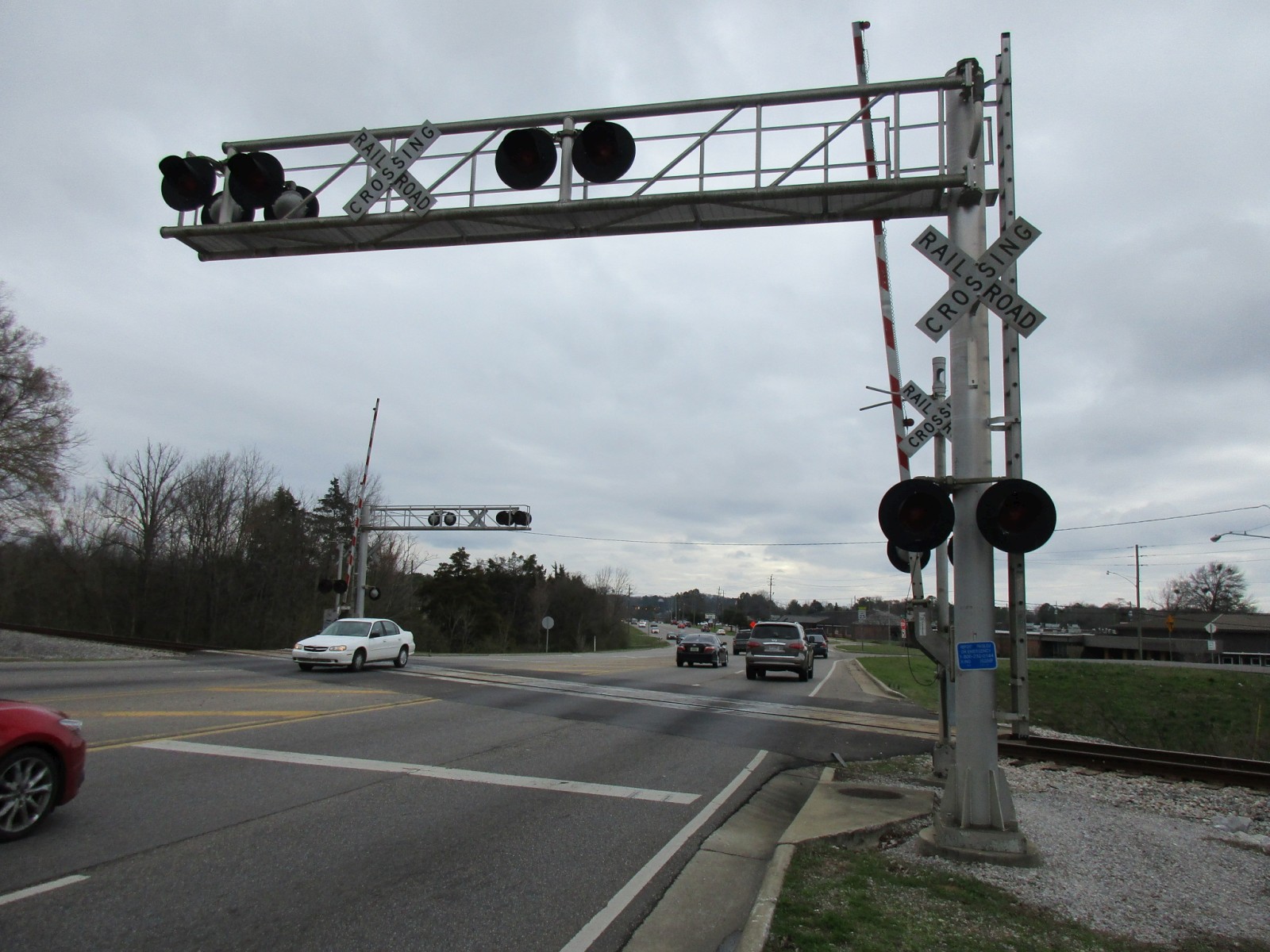

Overviews of the crossing.		The first signal.

5	6	7	8

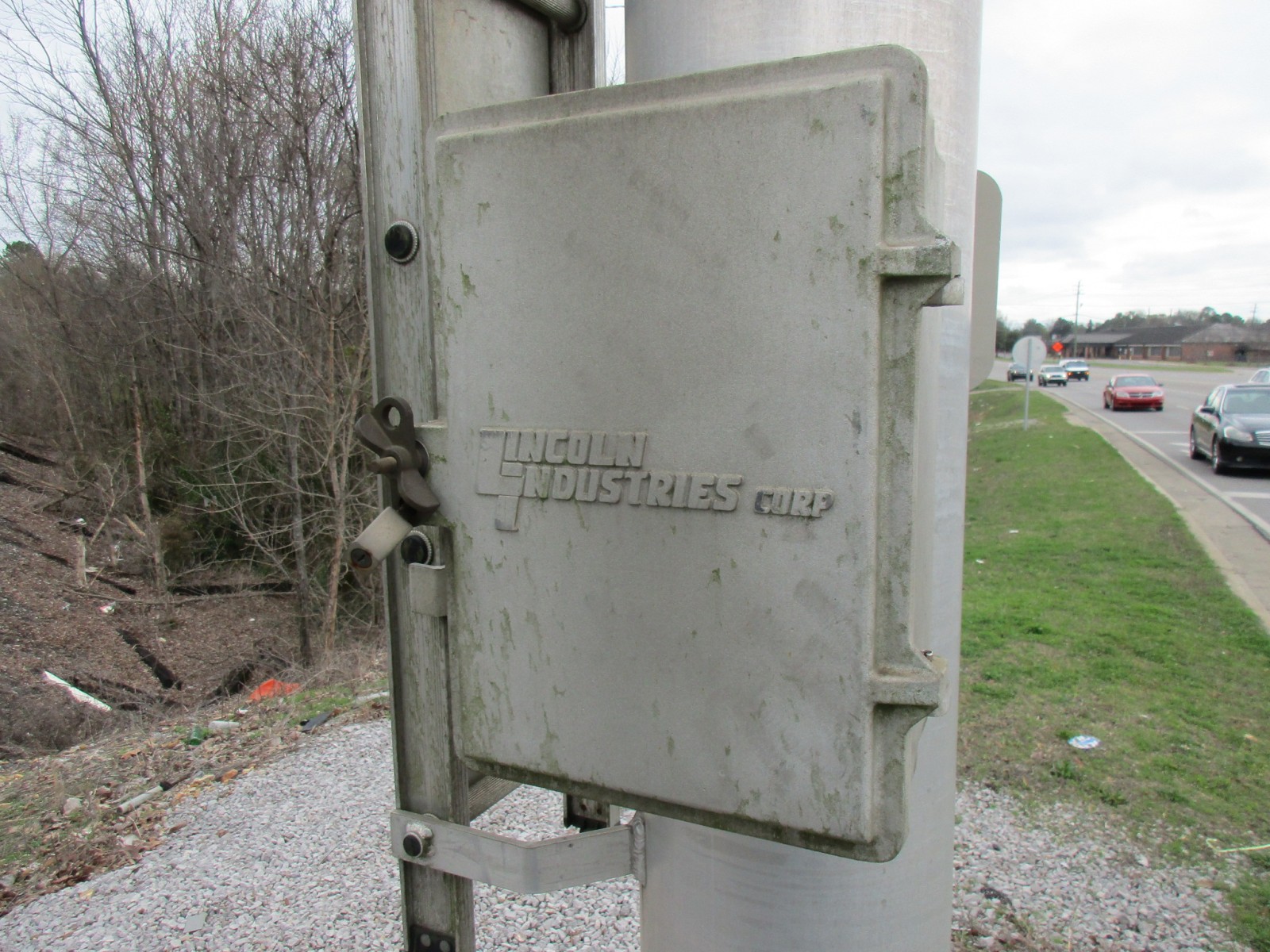

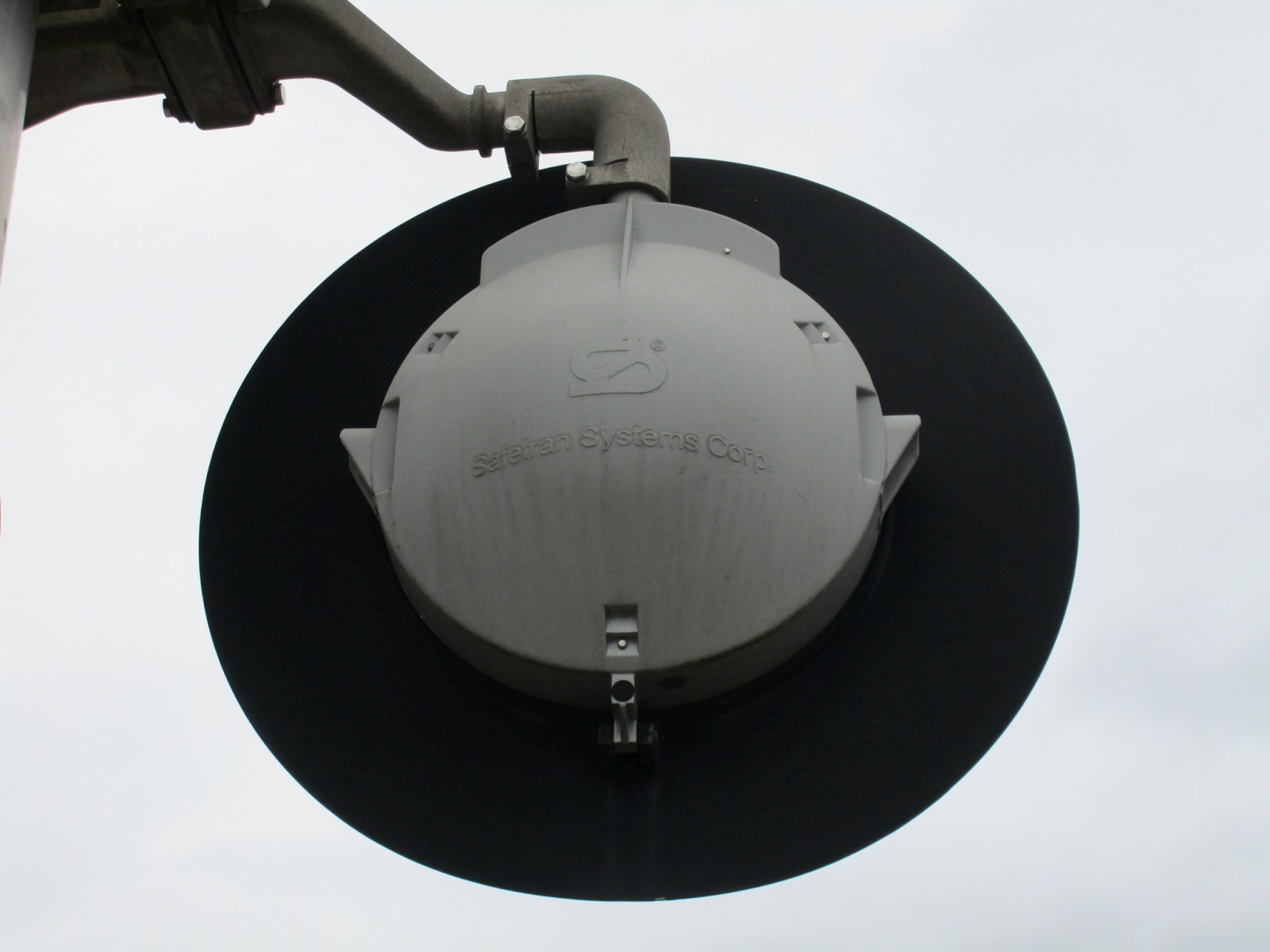

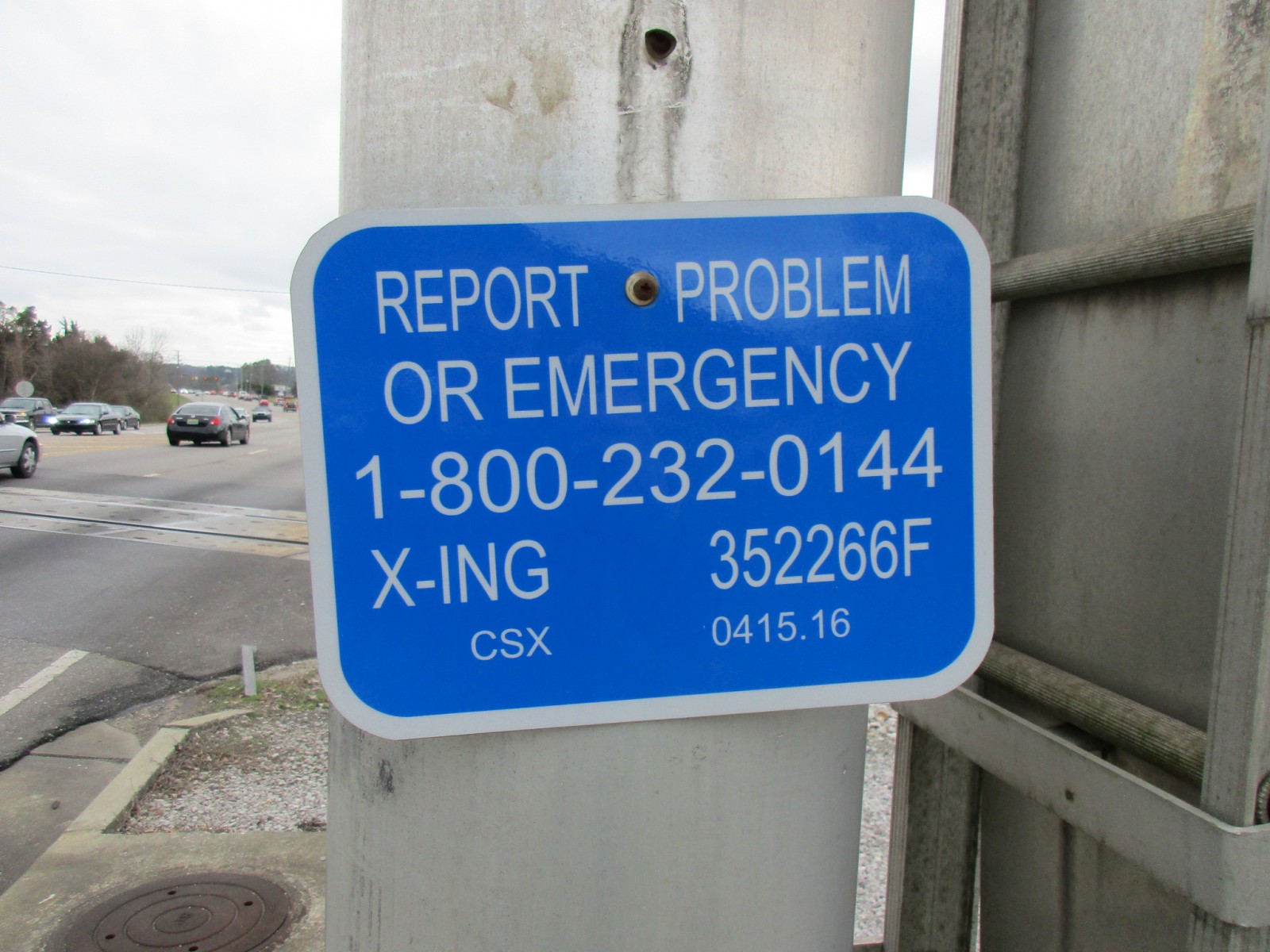

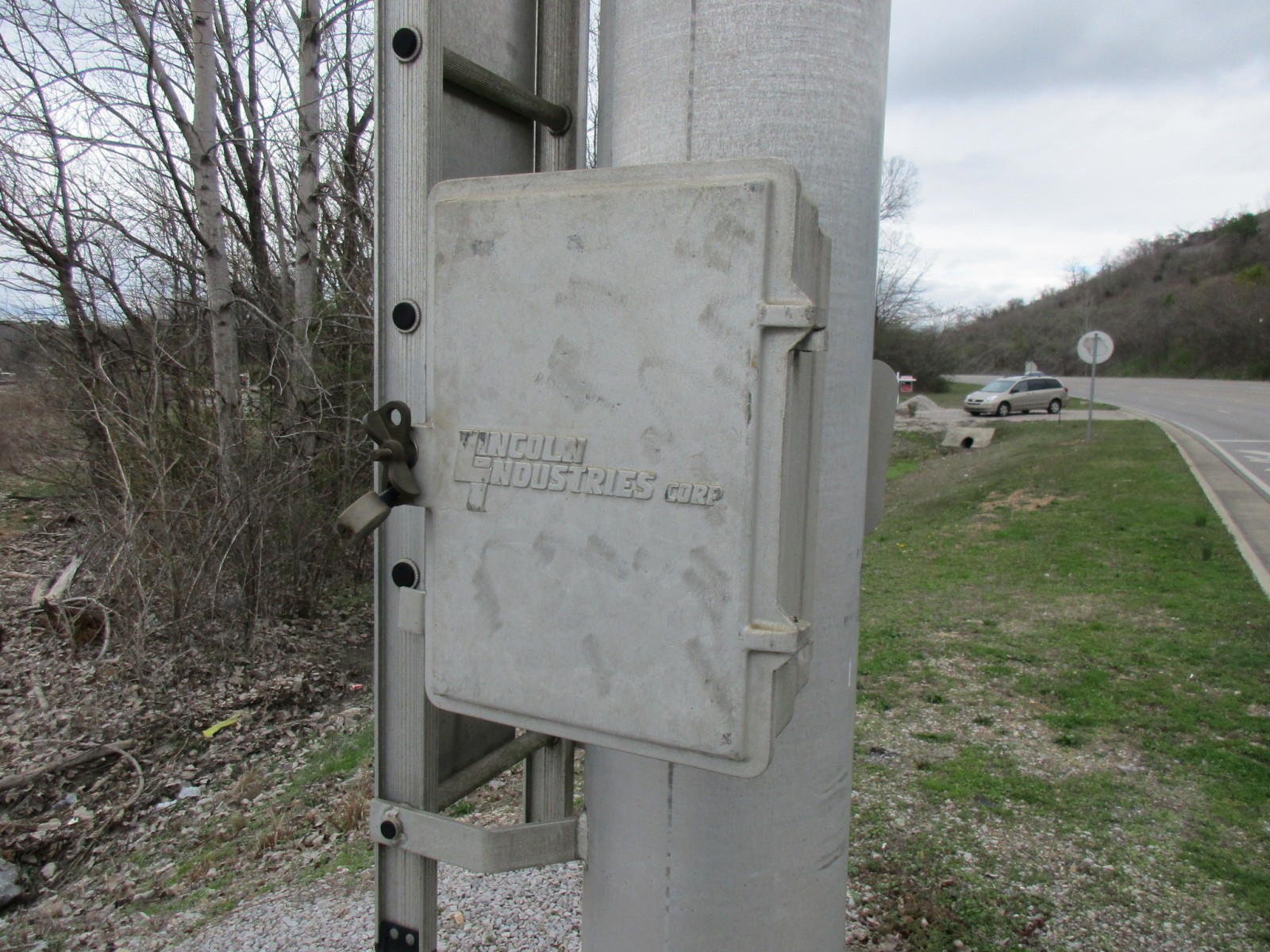

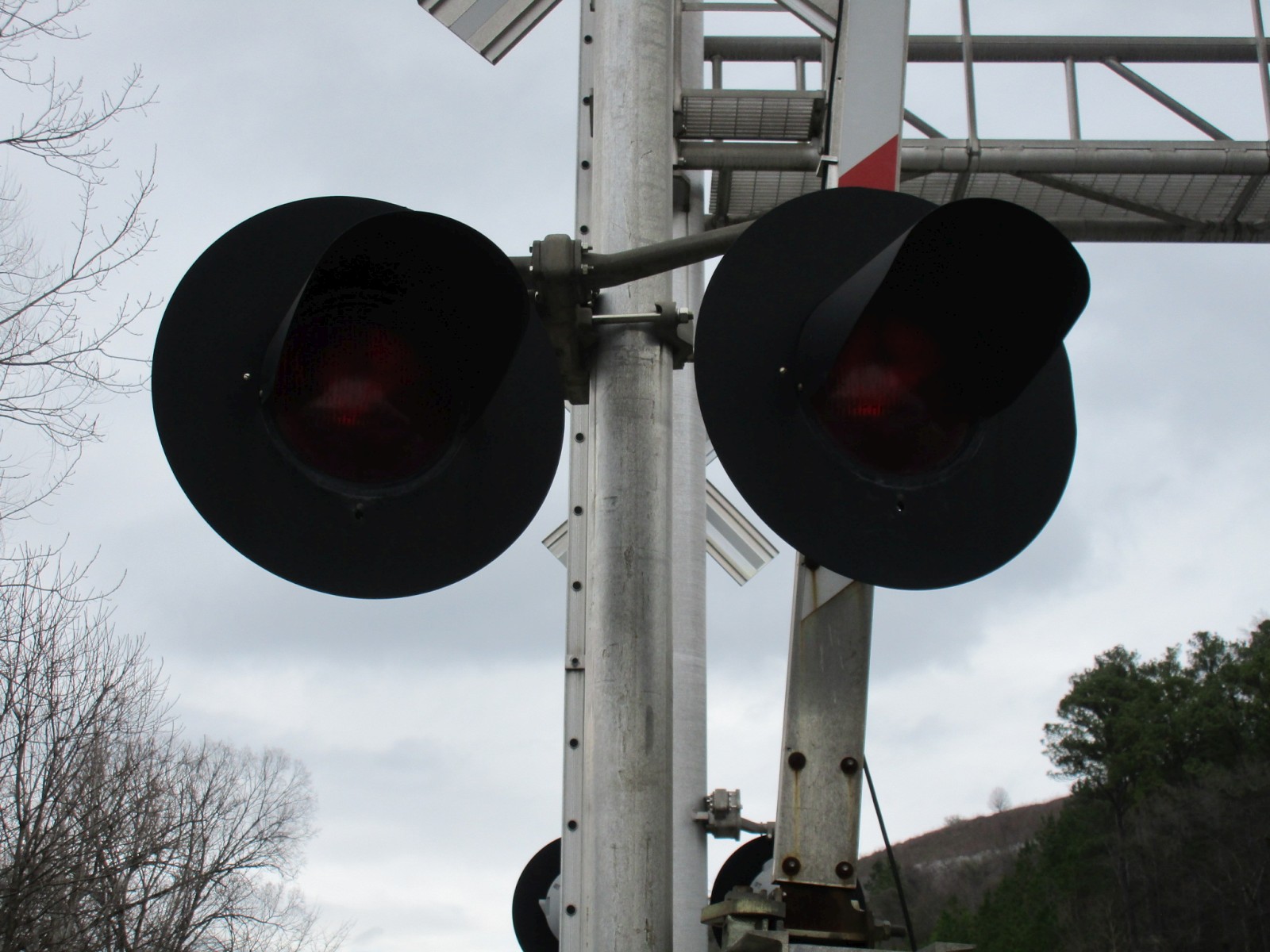

This is a Lincoln Industries cantilever.	The emergency information.	The mast lights are Safetran 12x24 inch lights.

9	10	11	12

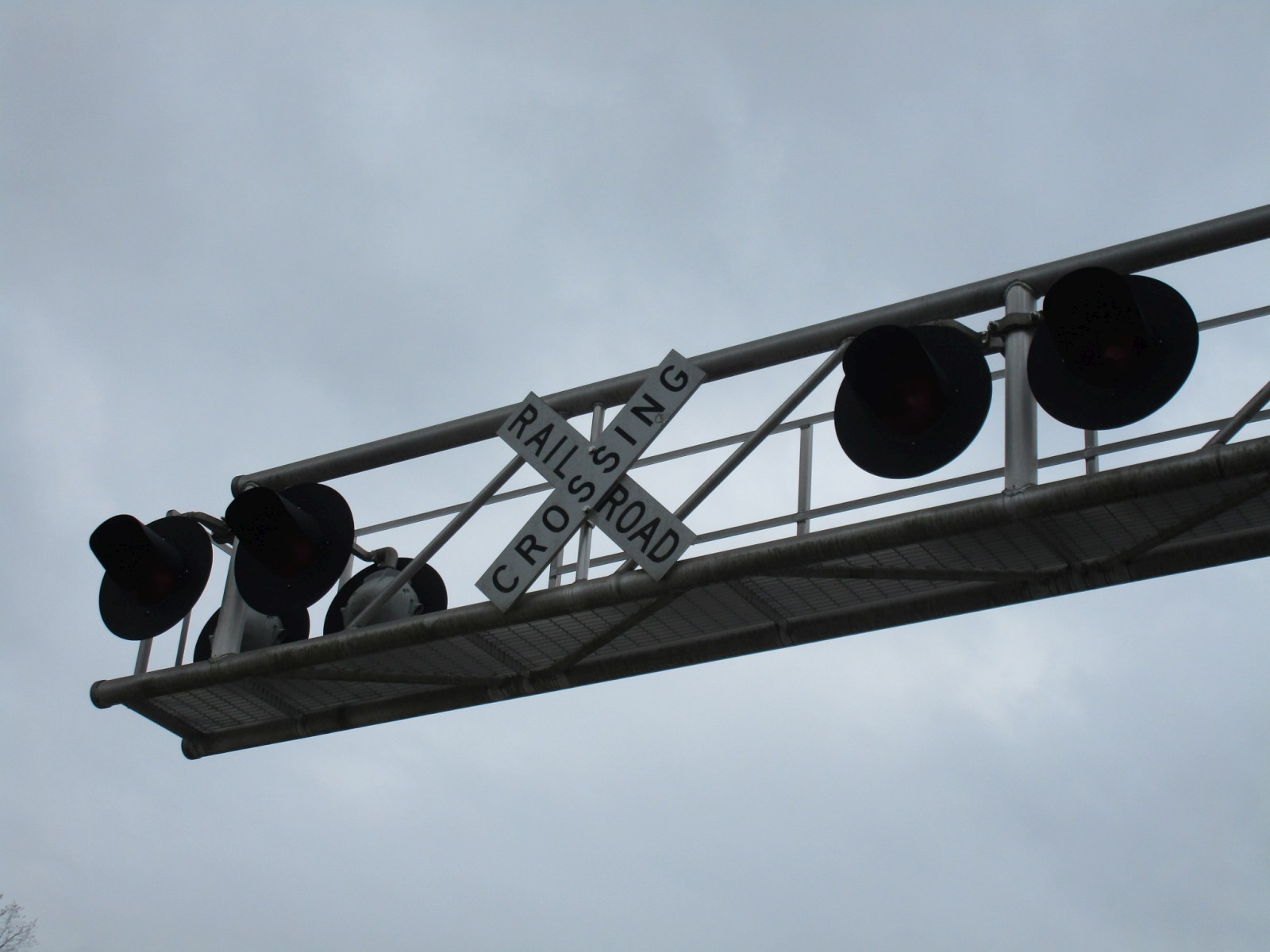

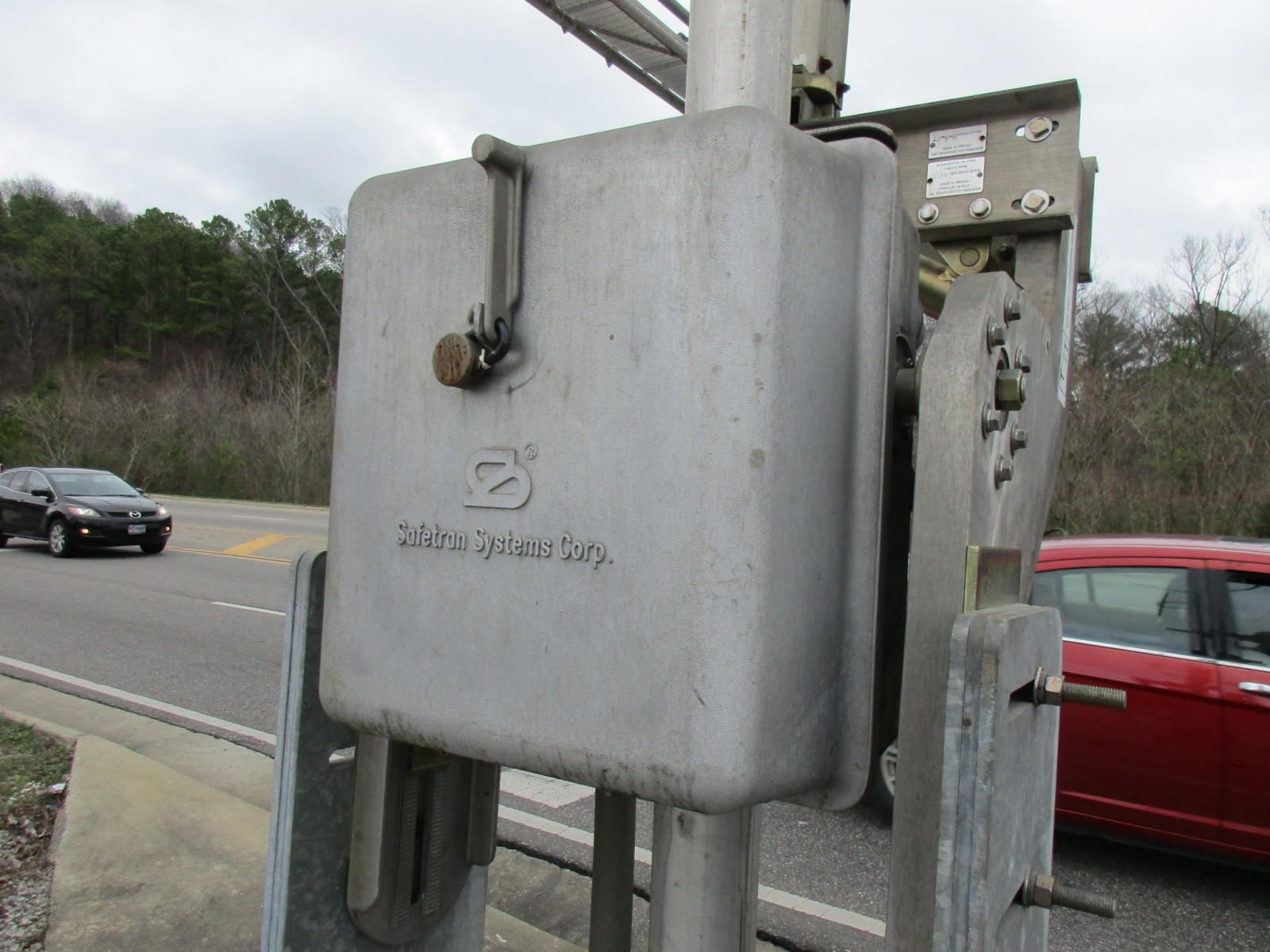

The overhead lights are more Safetran 12x24 inch lights.		A Safetran base.	The gate mechanism is from Safetran.

13	14	15	16

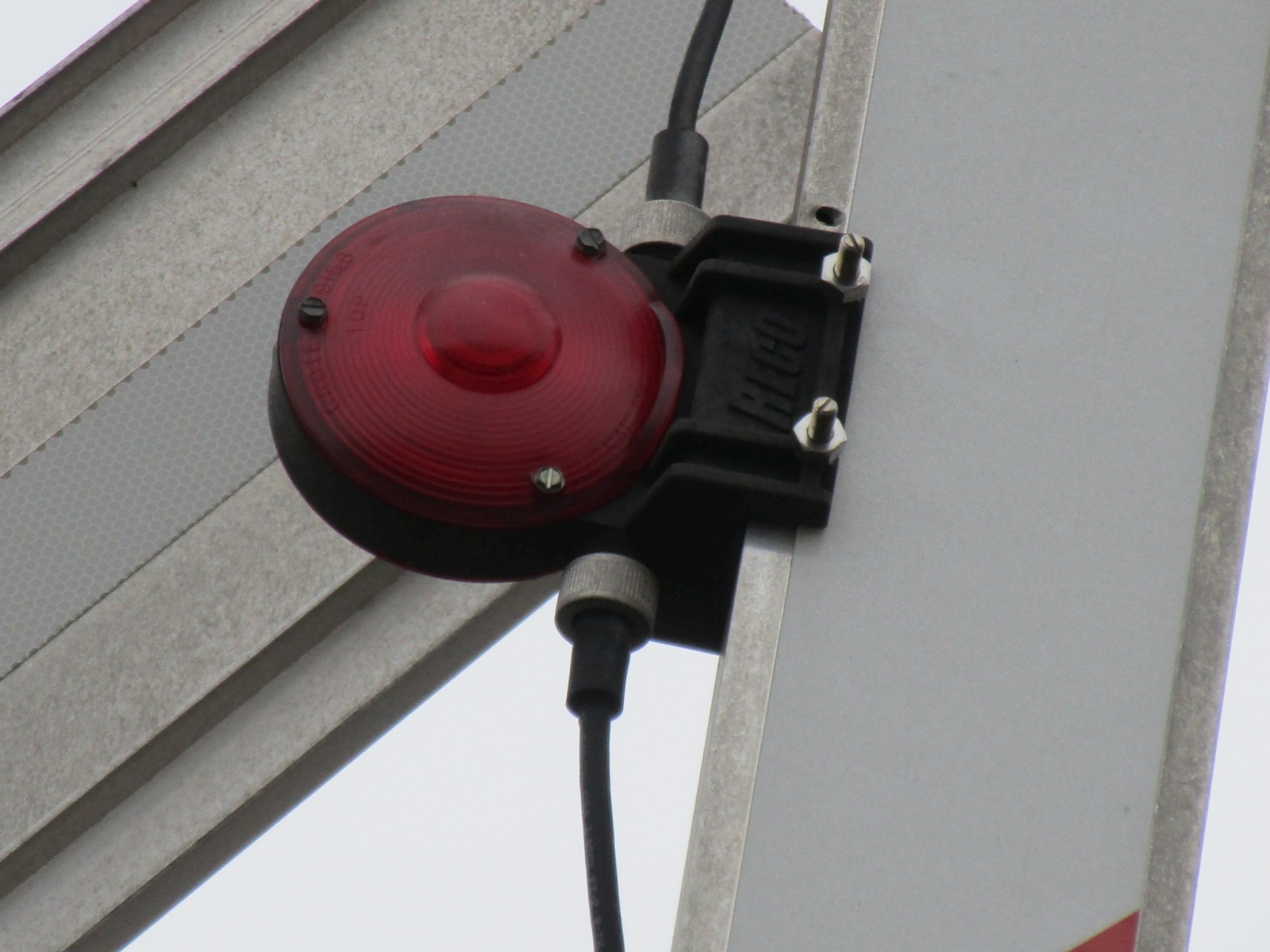

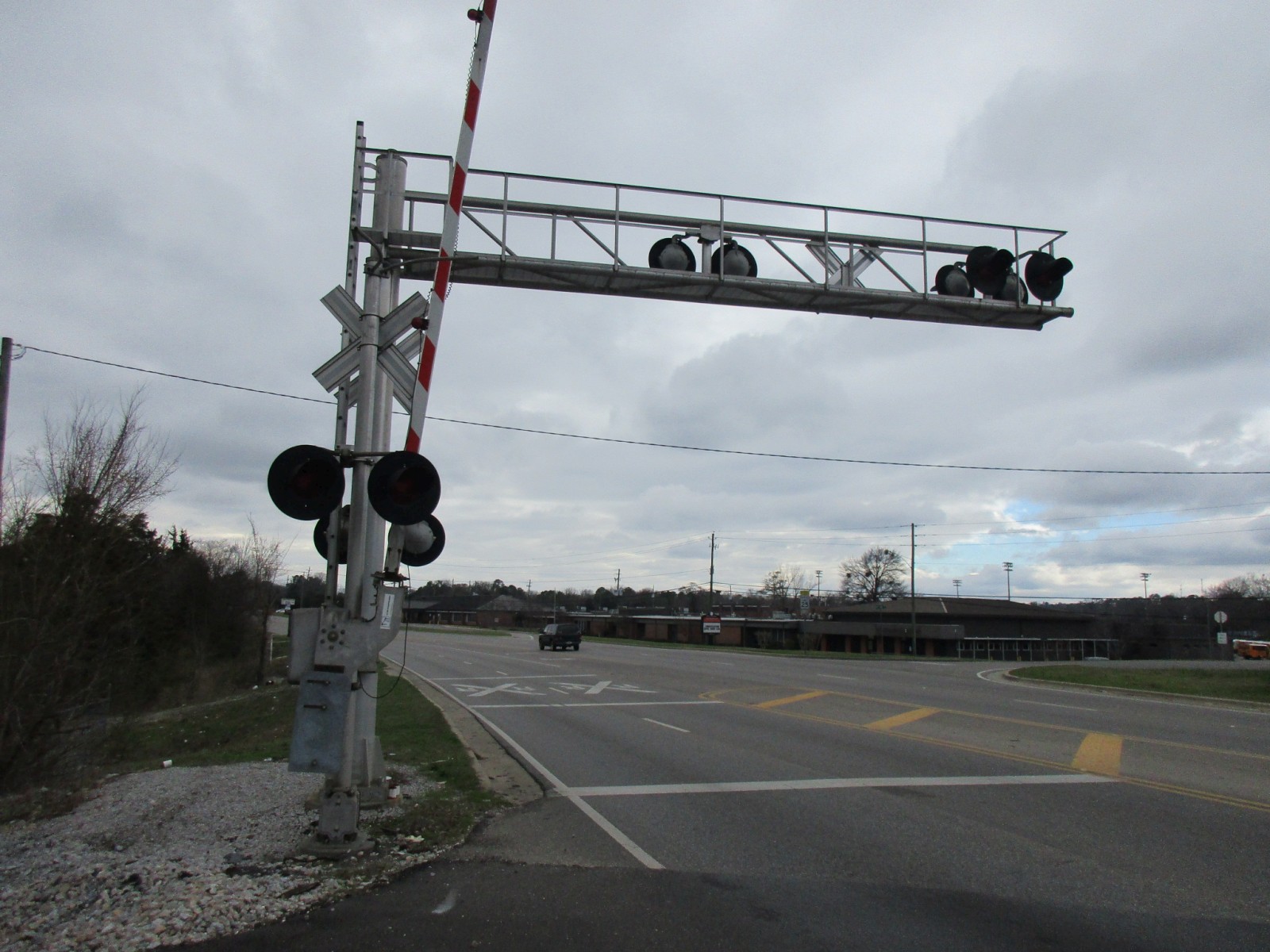

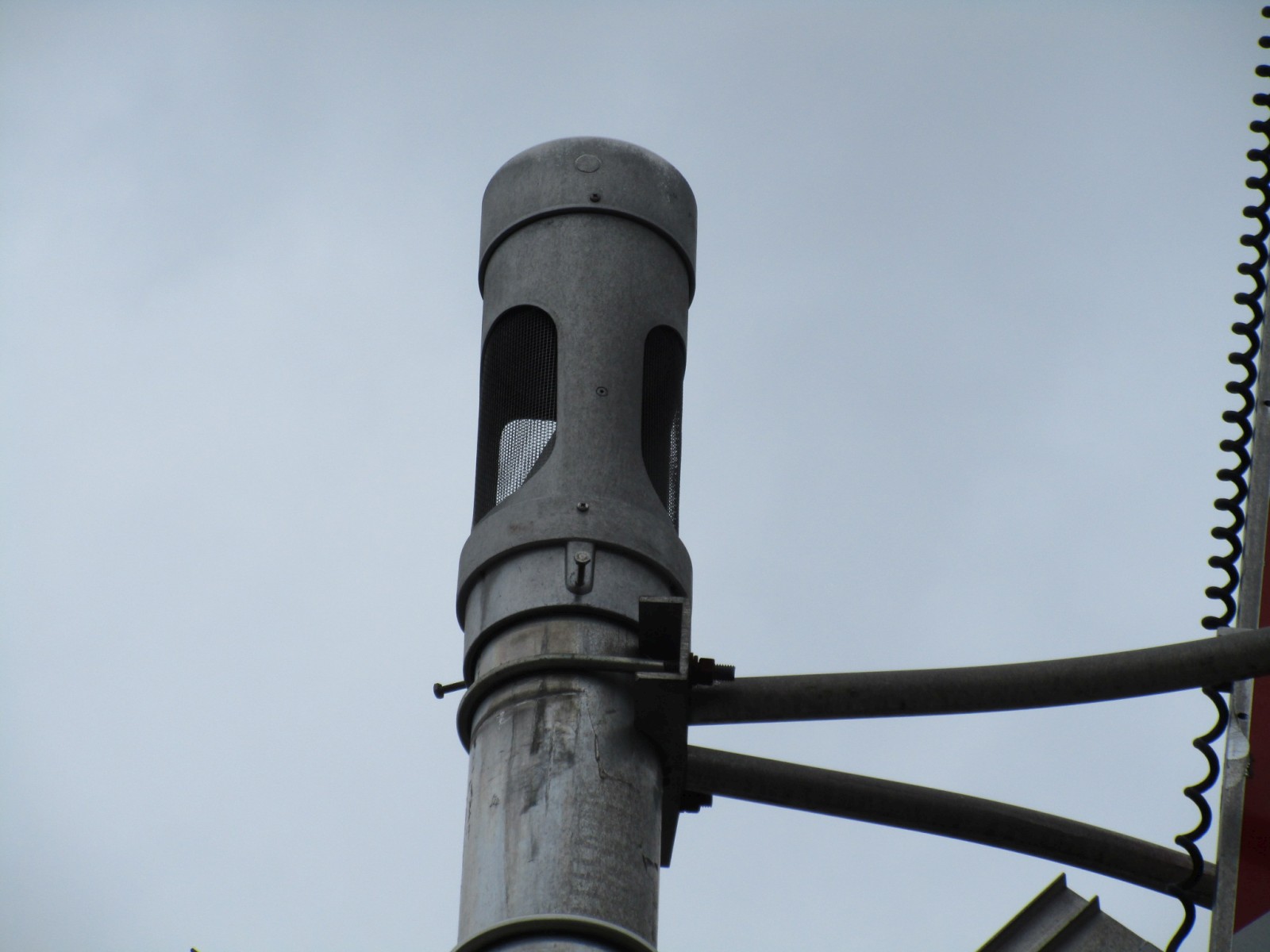

The bell here is a General Signals electronic bell.	The gate lights are from RECO.	The second signal.

17	18	19	20

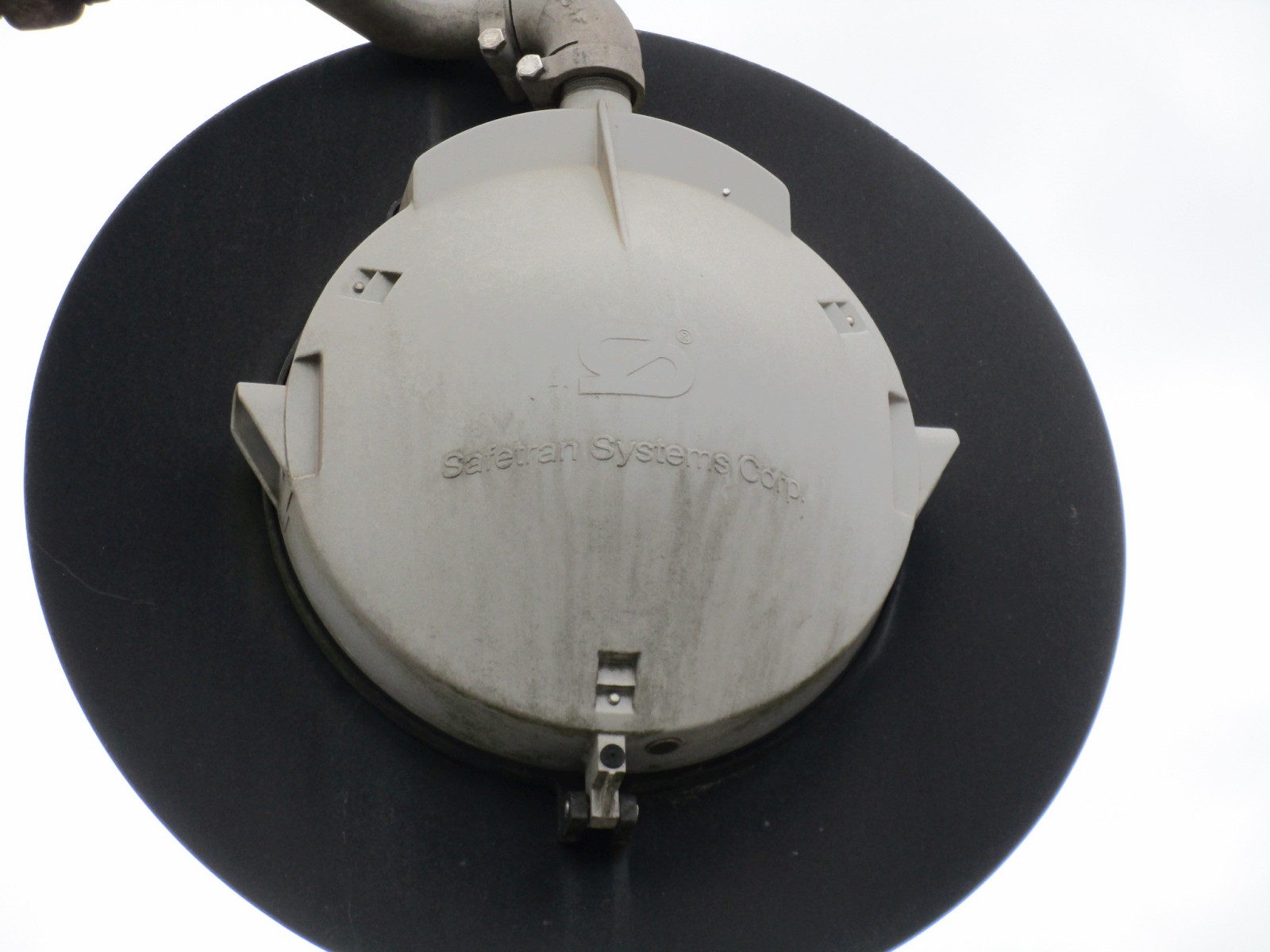

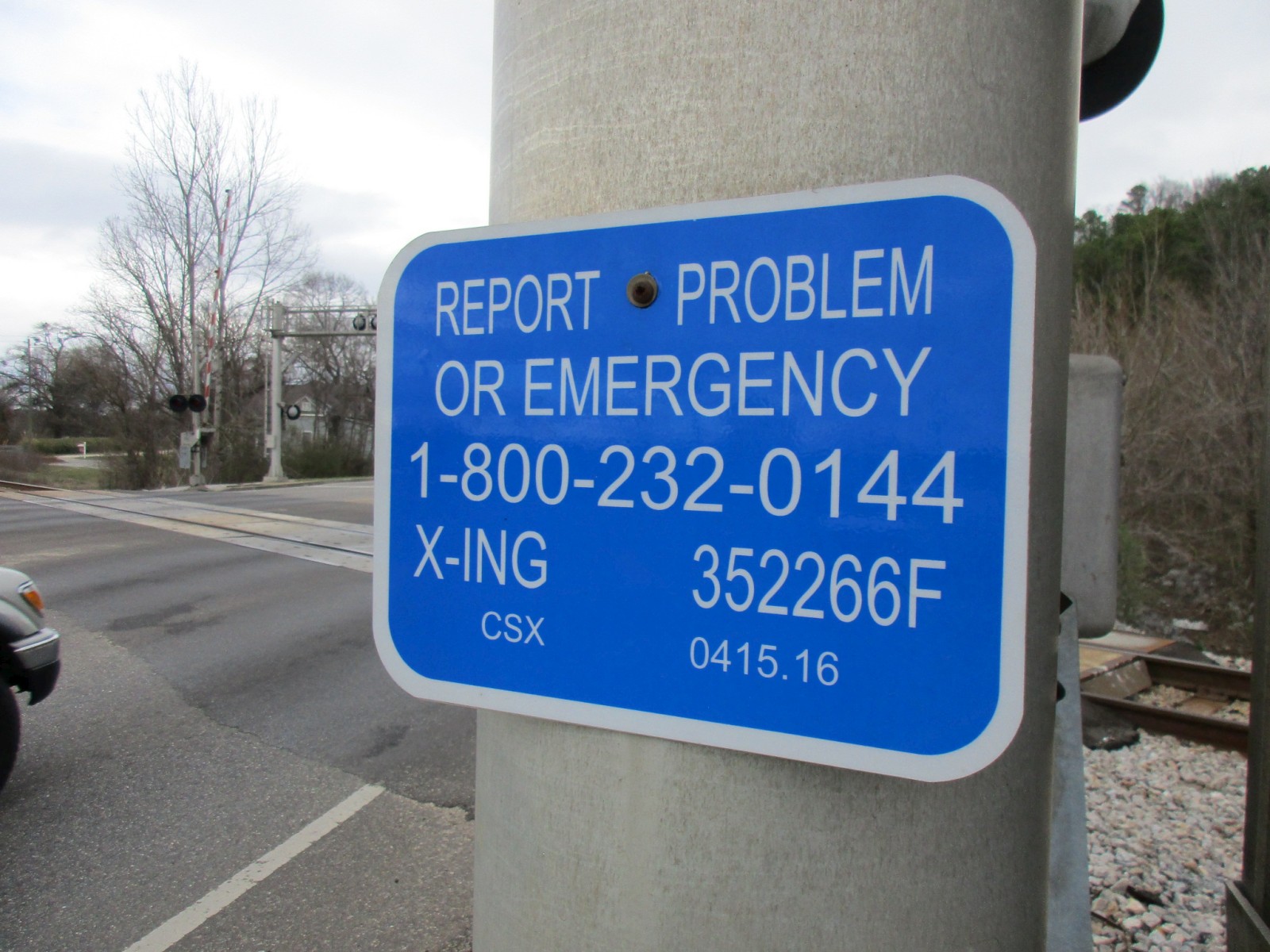

Another Lincoln Industries cantilever.	The emergency information.	The mast lights are even more Safetran 12x24 inch lights.

21	22	23	24

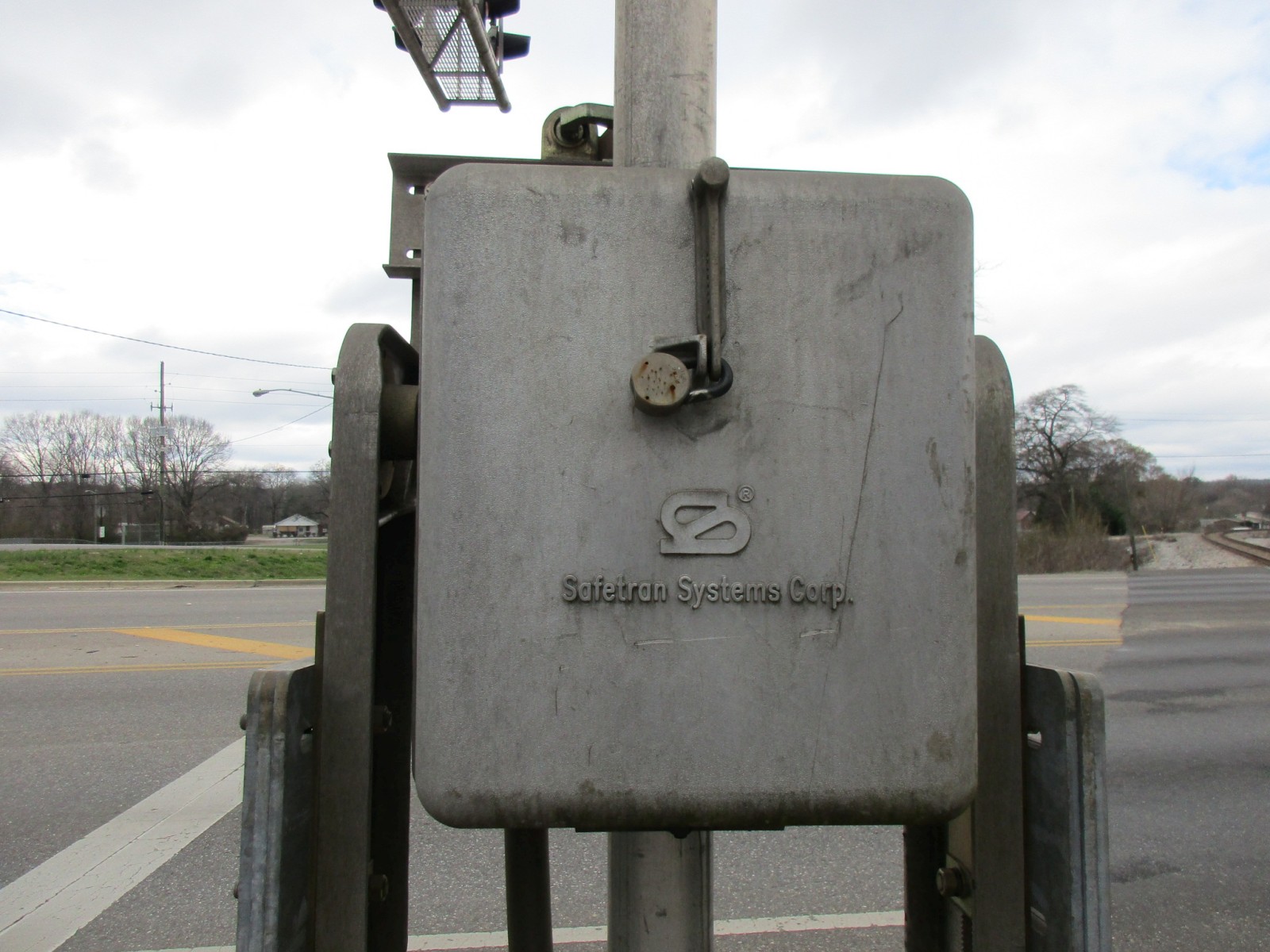

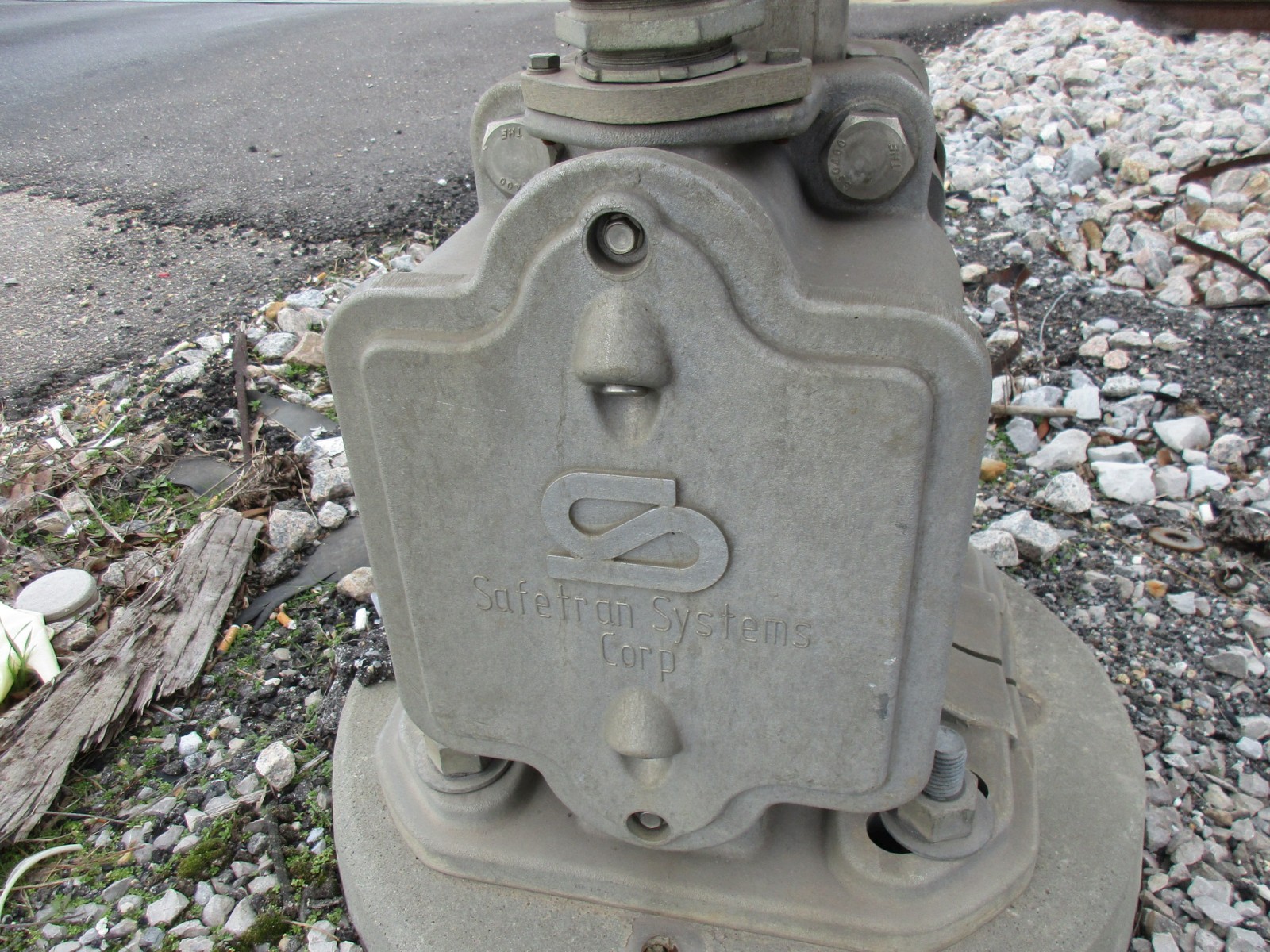

The overhead lights are still more Safetran 12x24 inch lights.		Another Safetran base.	Another Safetran gate mechanism.

25	26	27	28

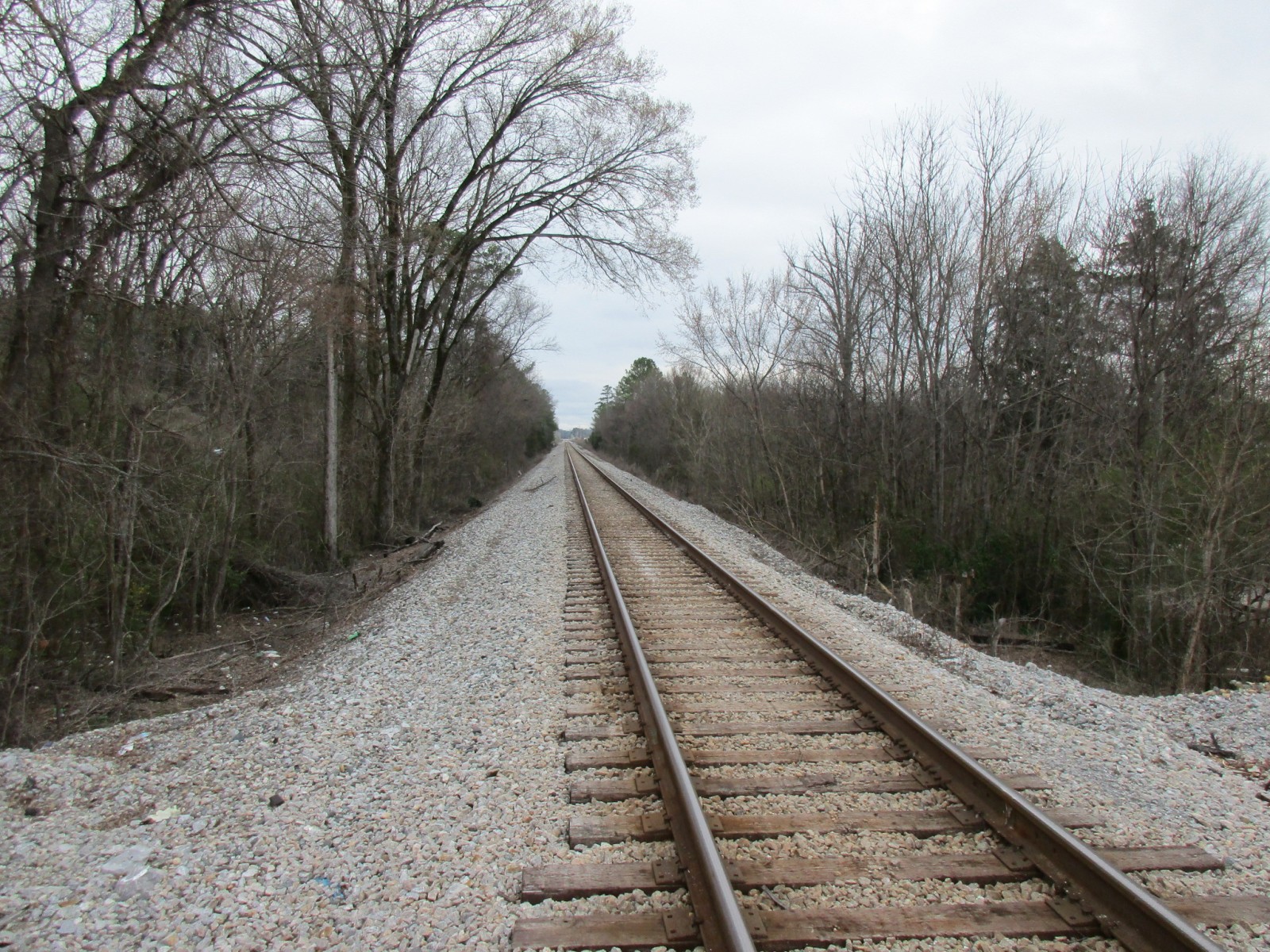

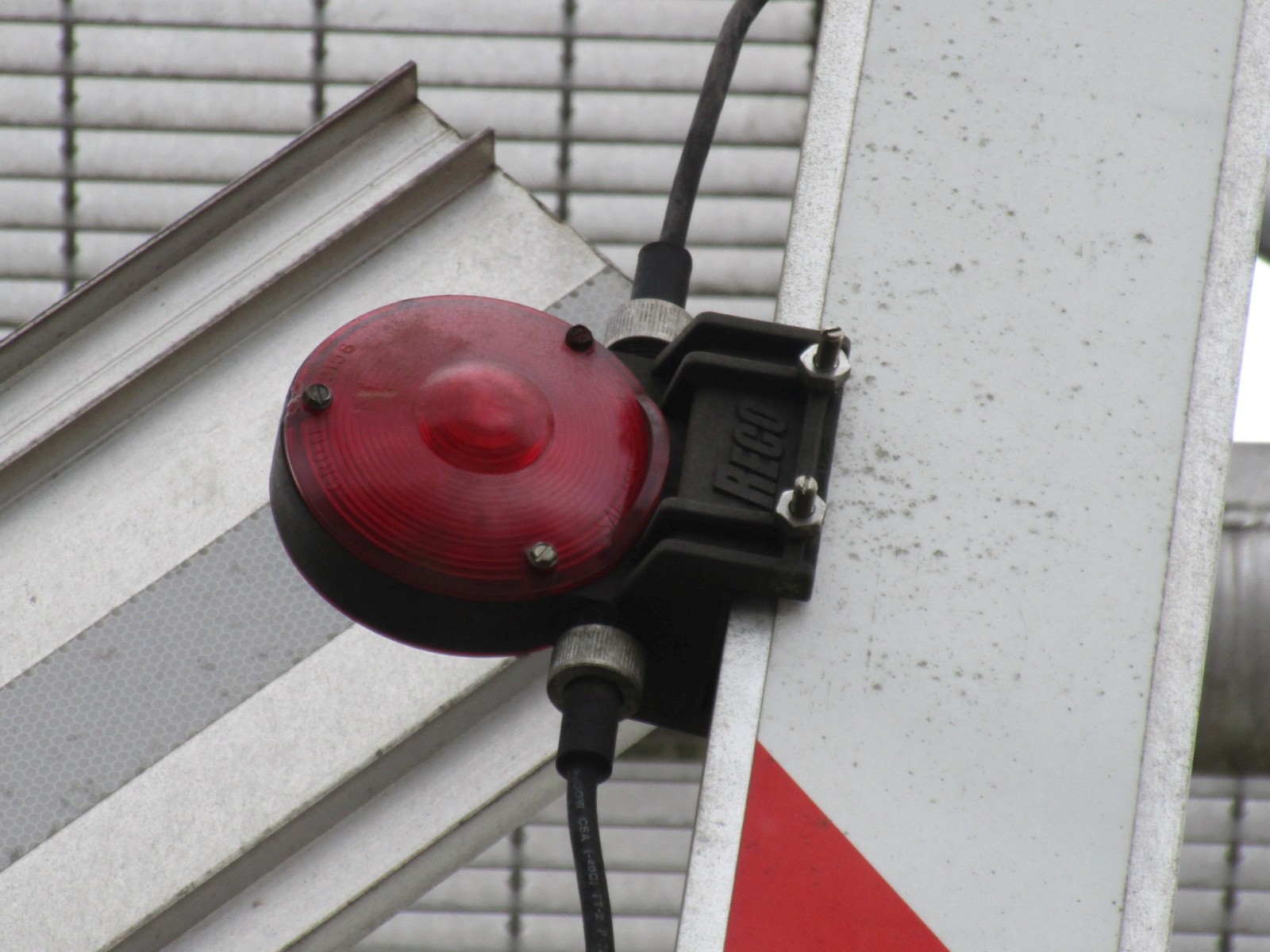

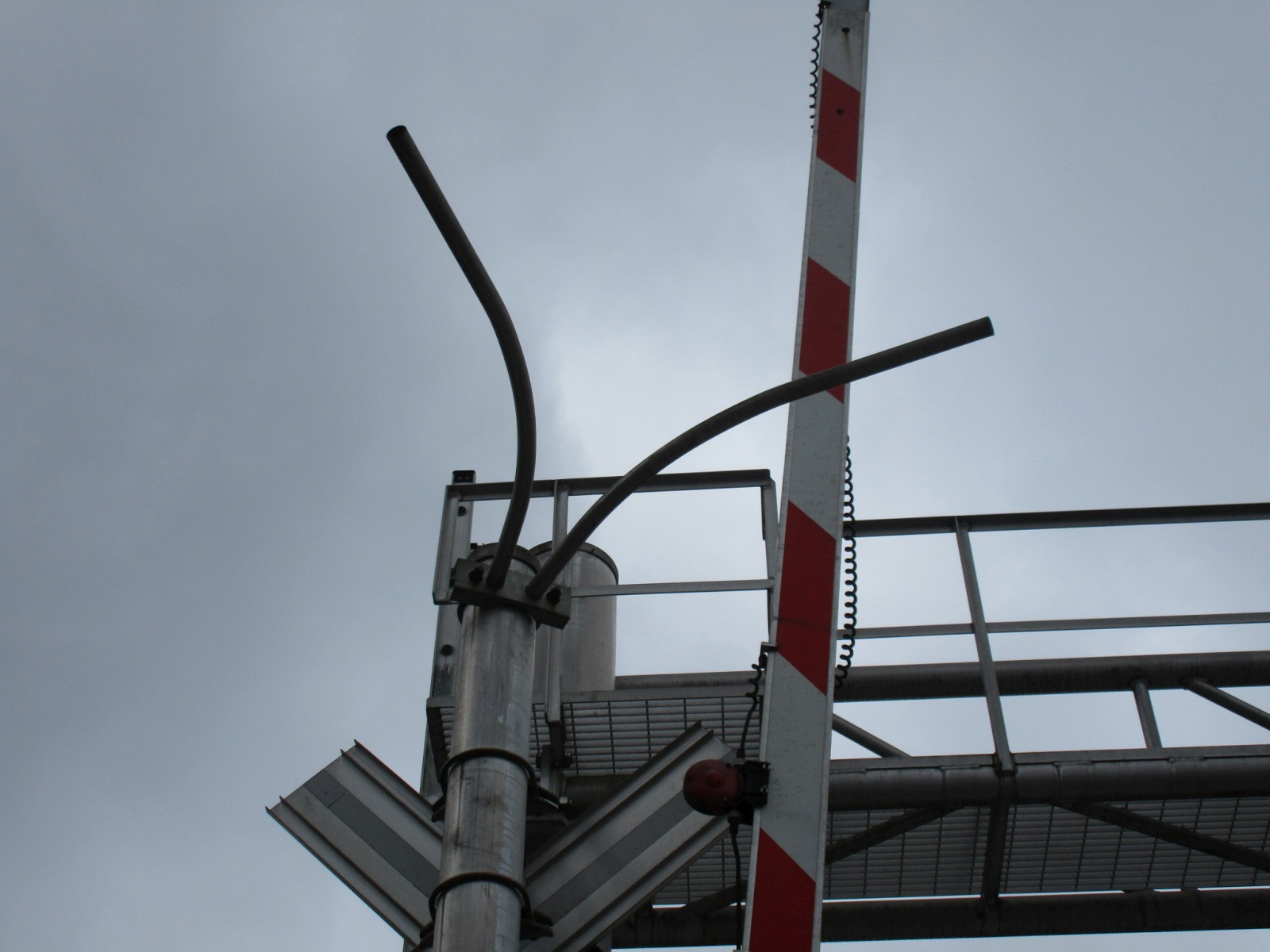

The gate lights are also from RECO.	This wind-gaurd needs to be corrected!	Track view looking north towards 11th Avenue.	Track view looking south towards Fulton Springs Road #1.

29

The relay case.



All pictures were taken on 2-18-17.
