MP: XXB118.810 |
Created November 25, 2019
Total Accidents: 11
Crossing
DOT #: 831203Y
TOTAL
DAILY TRAINS: 7 (AS OF 2018)
Page created by: freebrickproductions
This crossing is located on the CSX AWP Subdivision.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | Safetran Type 2 electronic | N/A |
| Base: | Safetran | WCH |
| Light Frames: | 4 - 12x24" Safetran | 3 - 12x24" WCH w/ Leotek EV Series LEDs 1 - 12x24" WCH w/ a WCH 2nd Gen LED 4 - 12x24" Safetran w/ WCH 2nd Gen LEDs |
| Gate Lights: | 3 - RECOs | 3 - NEG LEDs |
| Gate Mechanism: | Safetran 2000s | Siemens Sticker Style 2 |
| Gate Striping: | Vertical | Vertical |
1 |
2 |
3 |
4 |

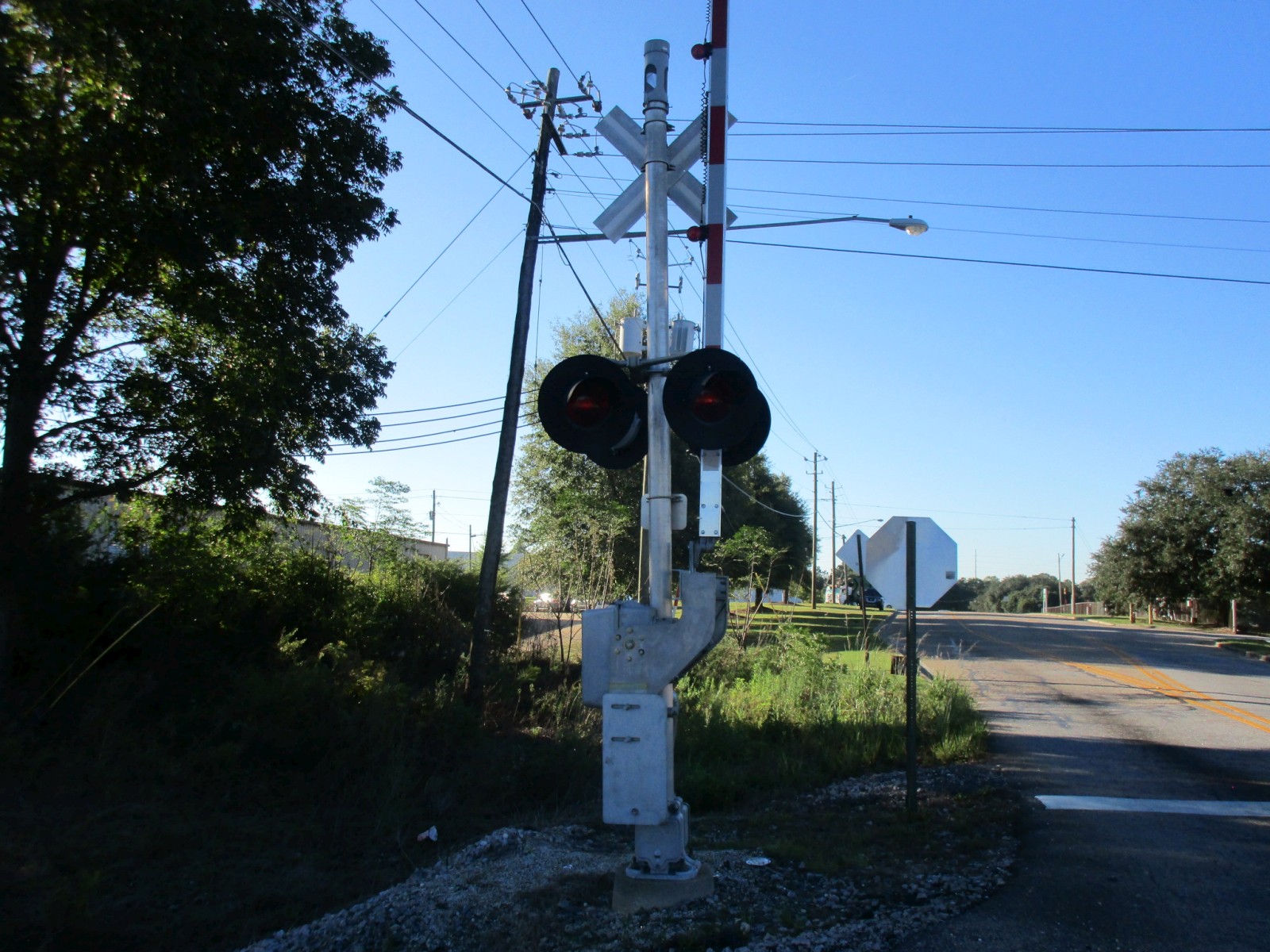

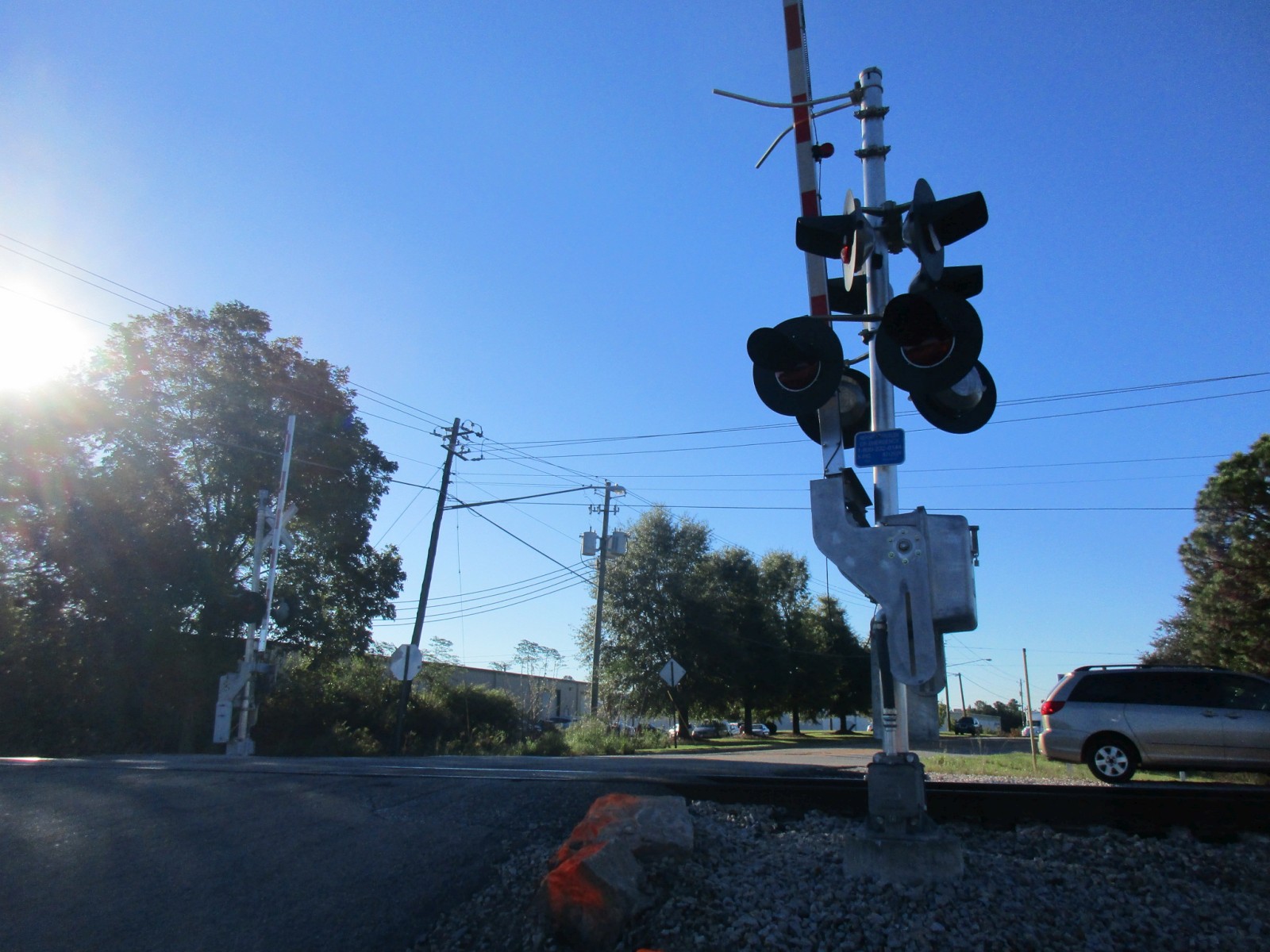

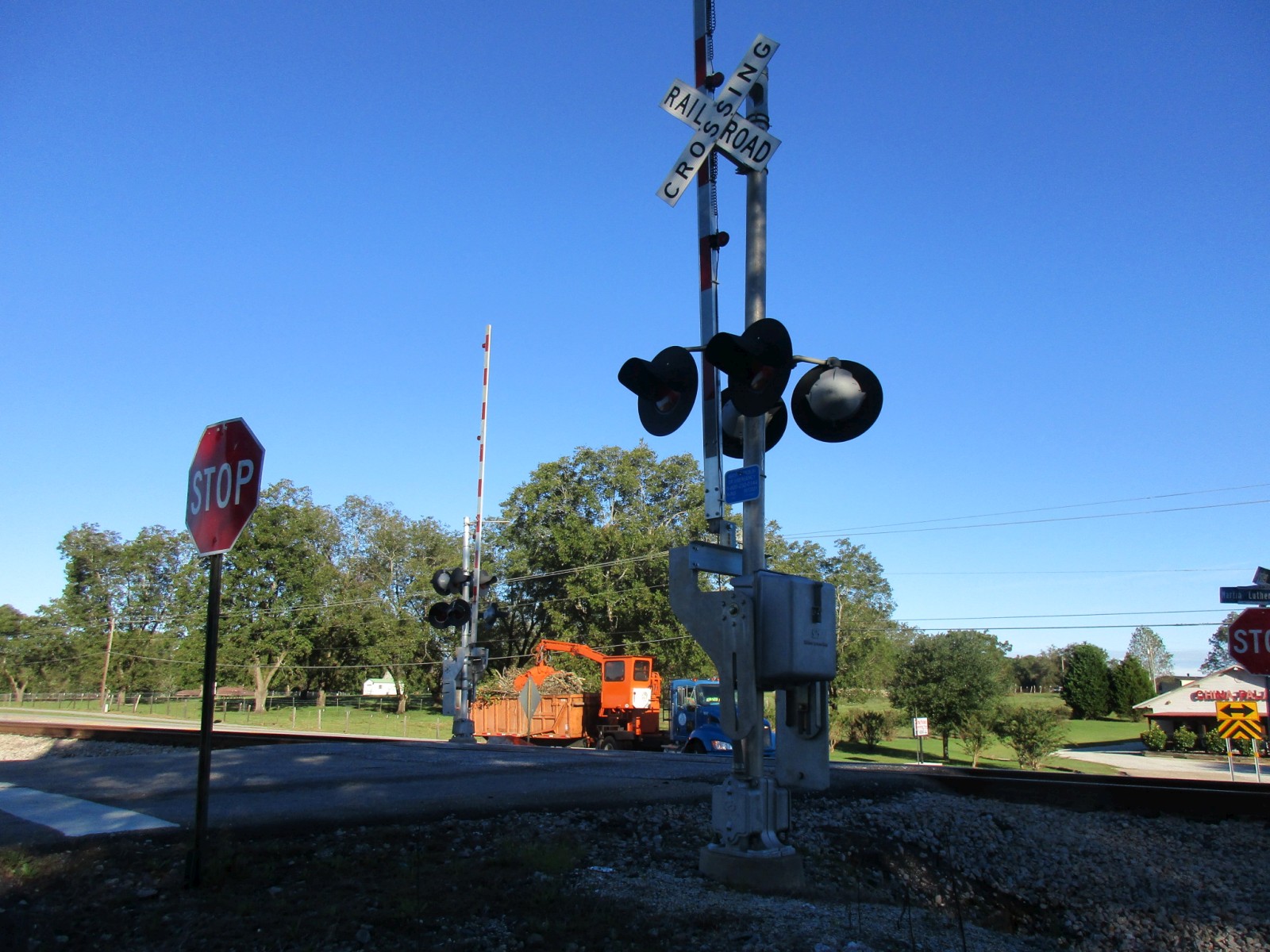

Overviews of the crossing. |

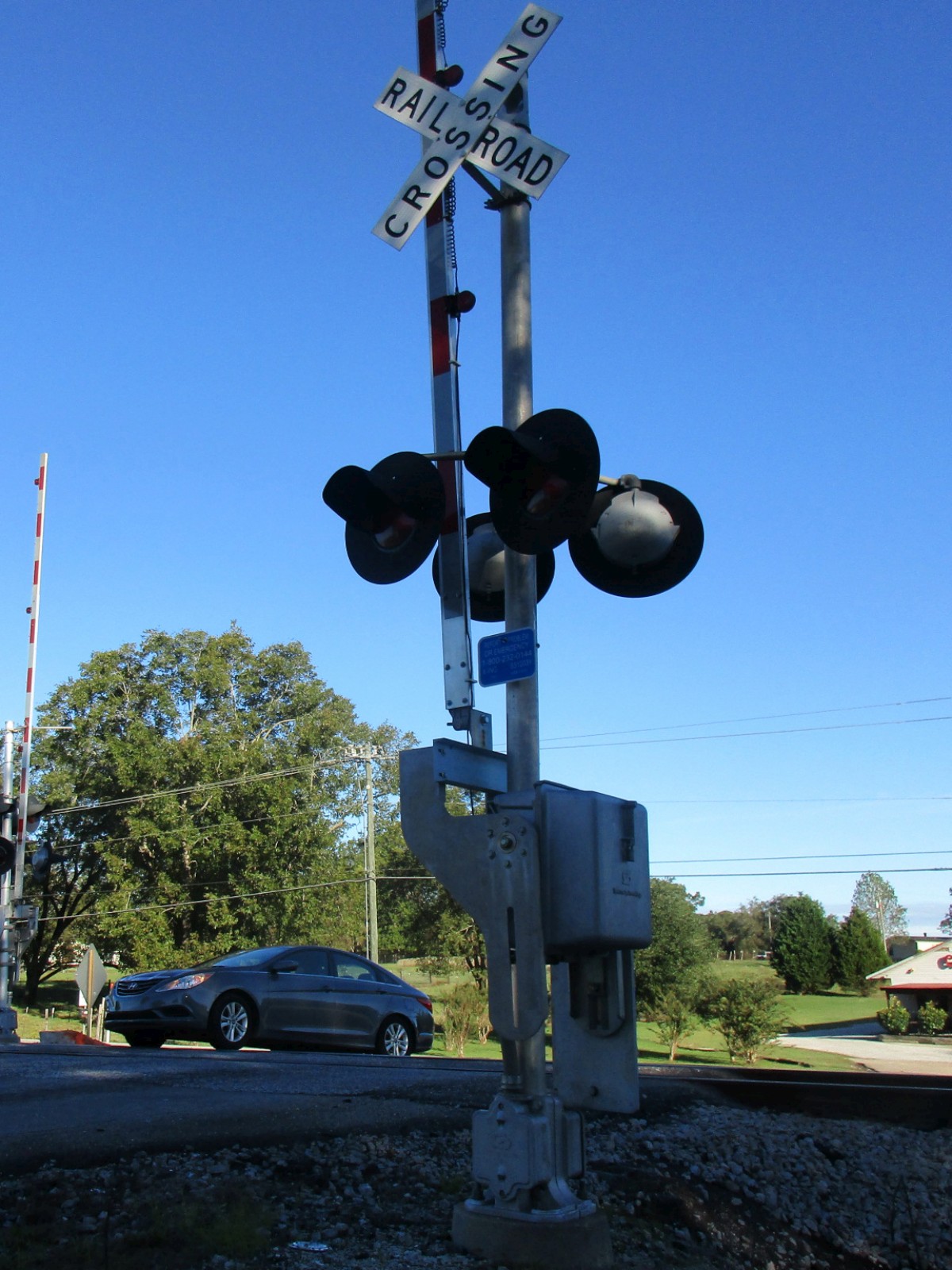

The first signal. |
||
5 |
6 |
7 |
8 |

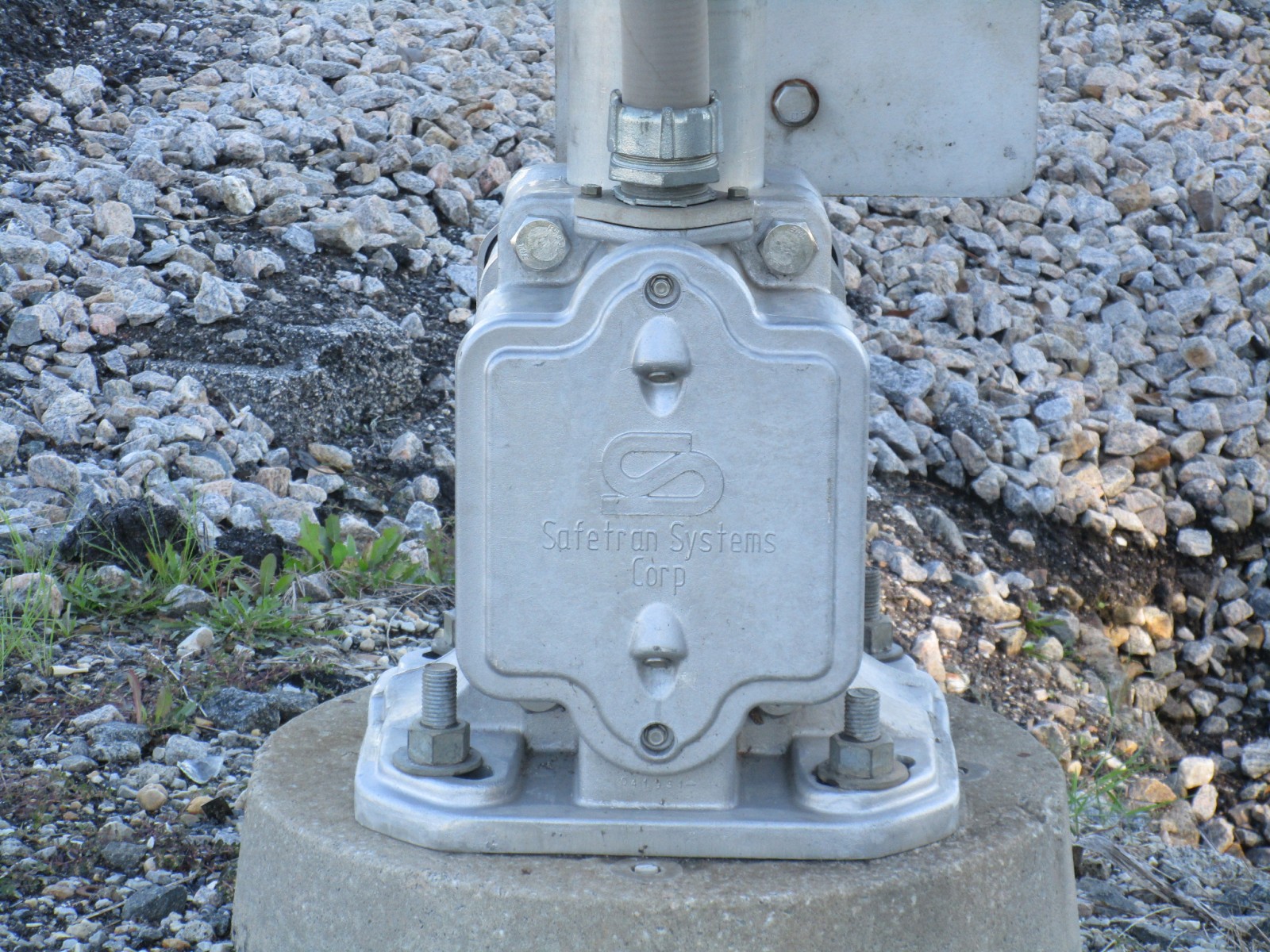

It has a Safetran base. |

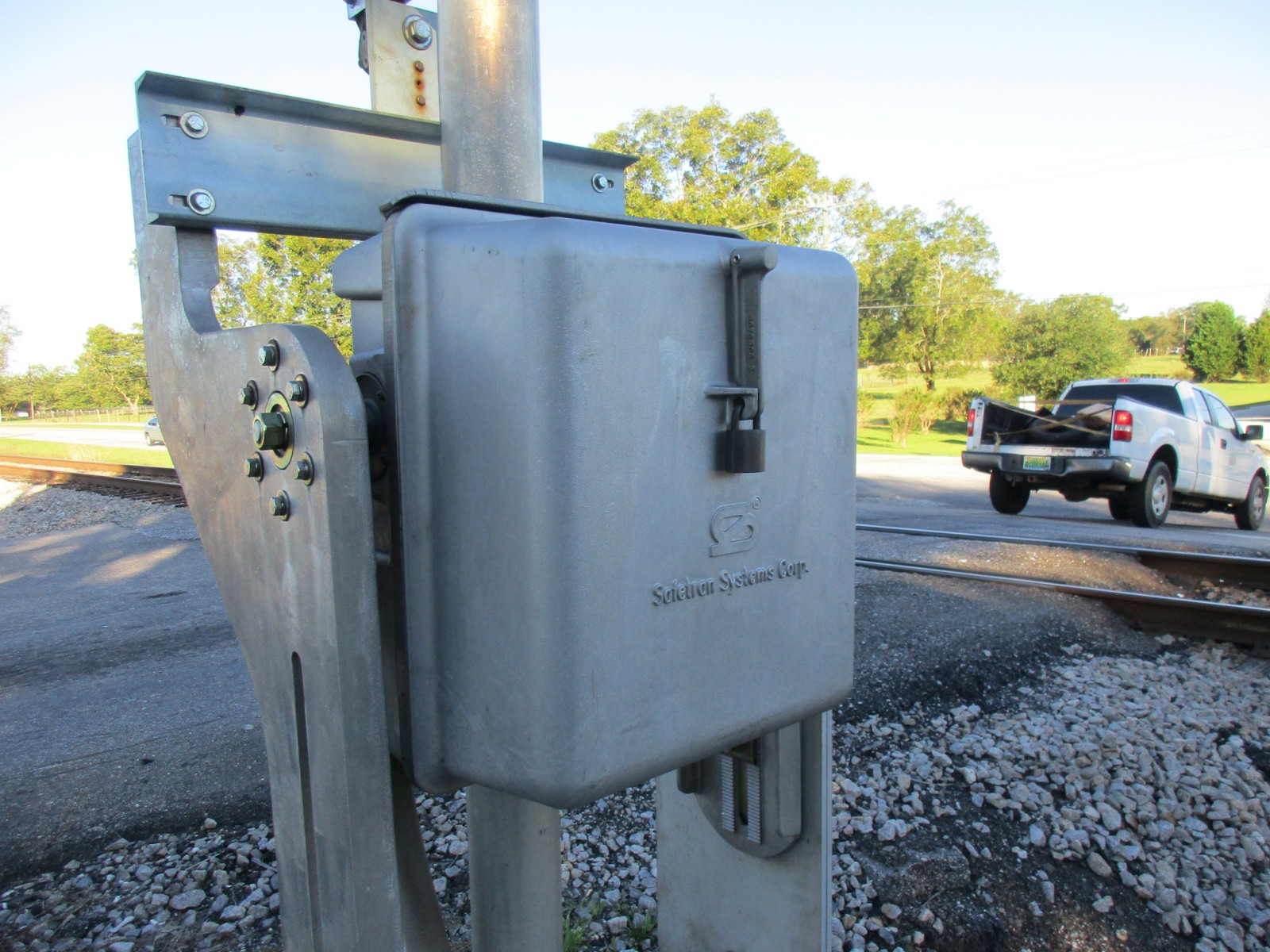

A Safetran gate mechanism. |

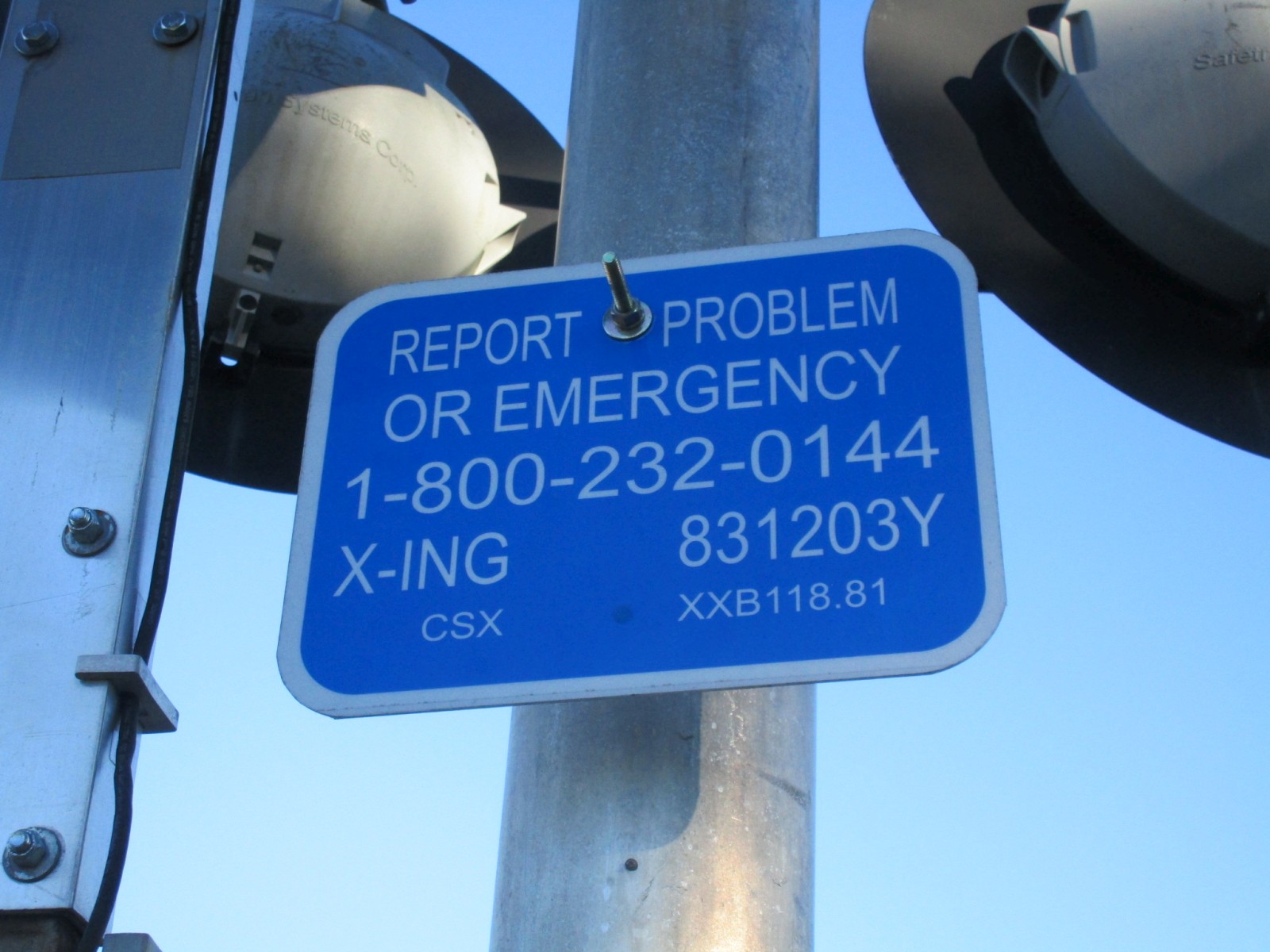

The emergency information. |

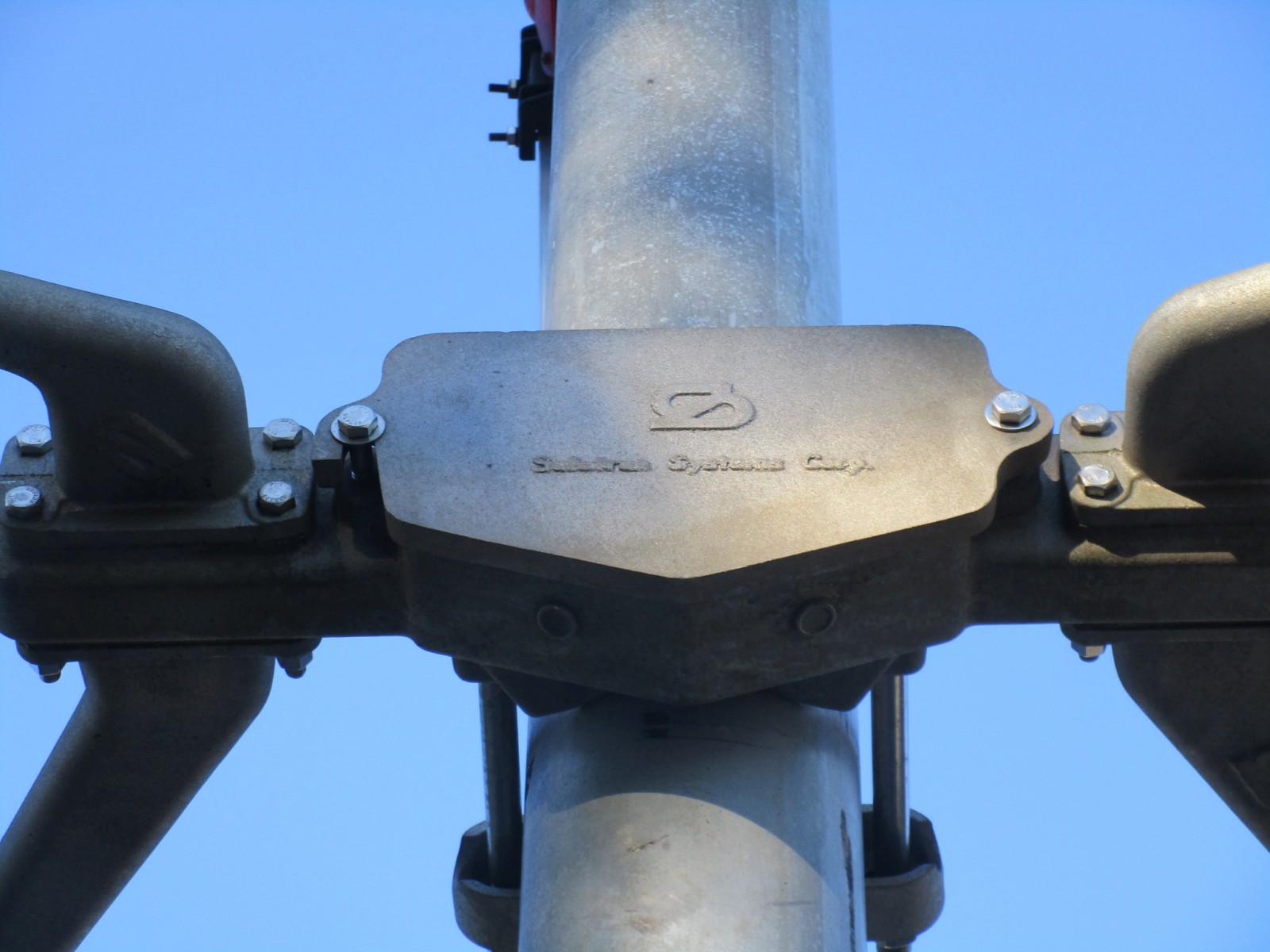

A Safetran bracket. |
9 |
10 |
11 |
12 |

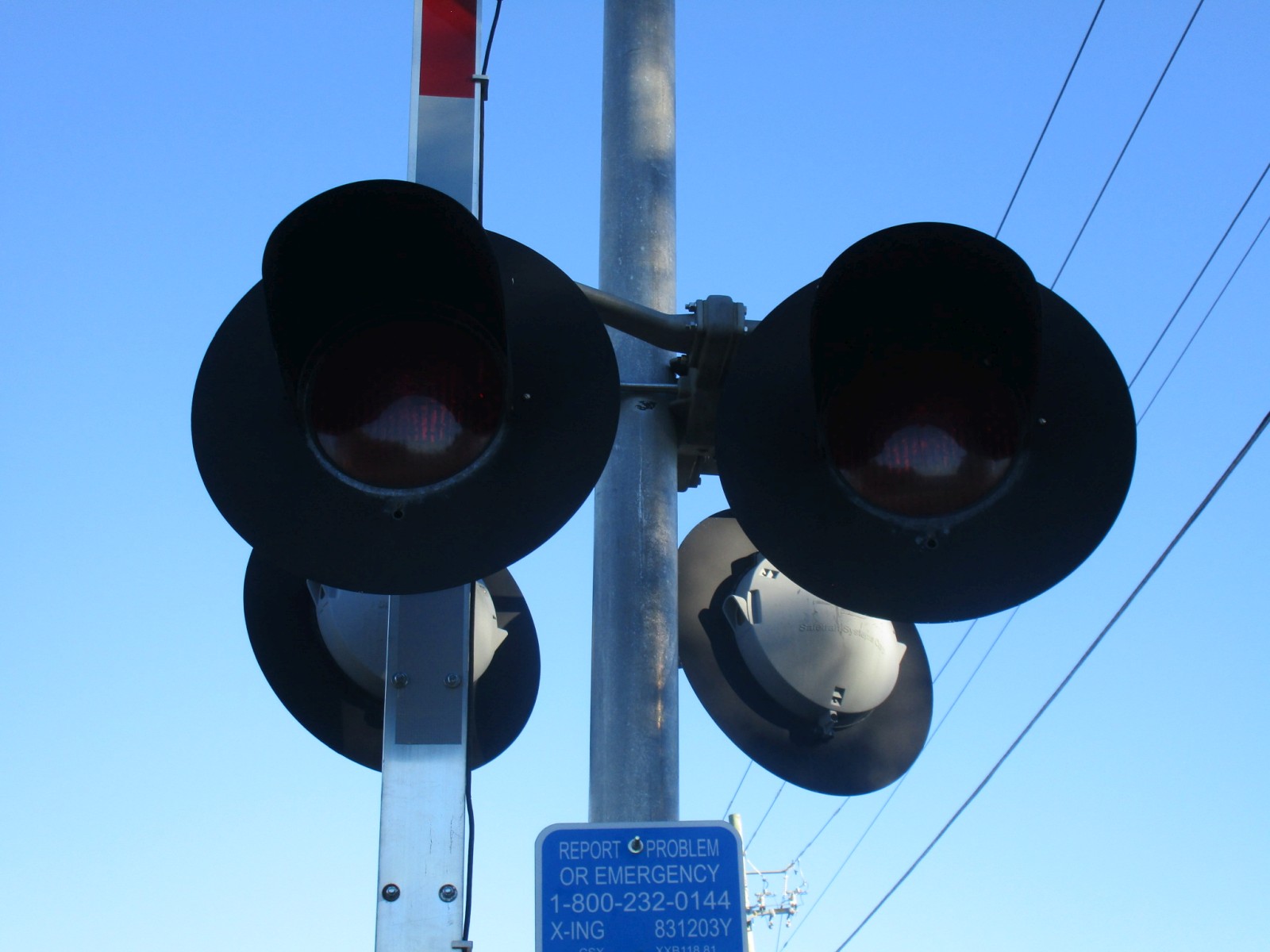

This signal has all Safetran 12x24 inch incandescent lights. |

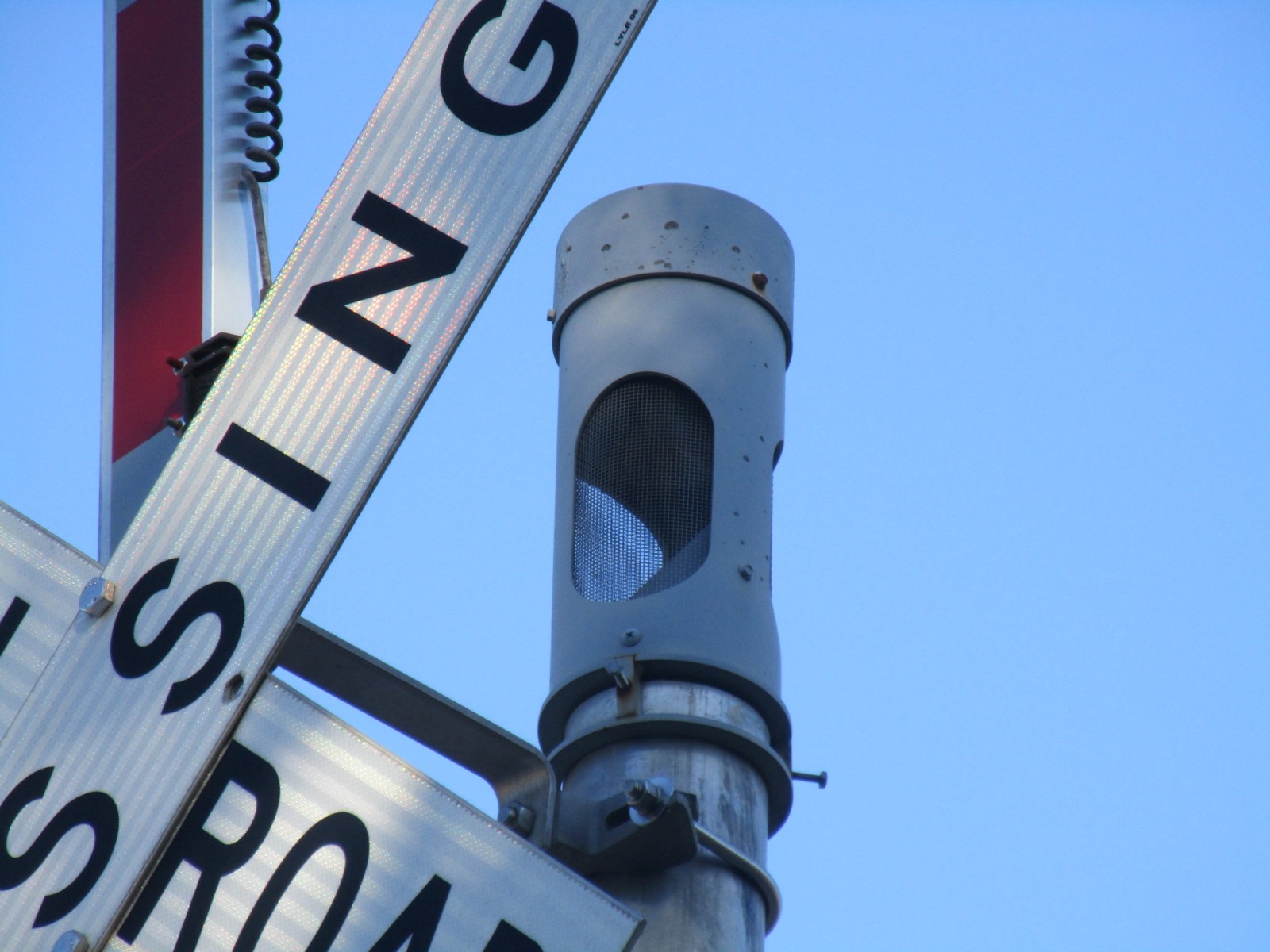

A Safetran Type 2 e-bell over here. |

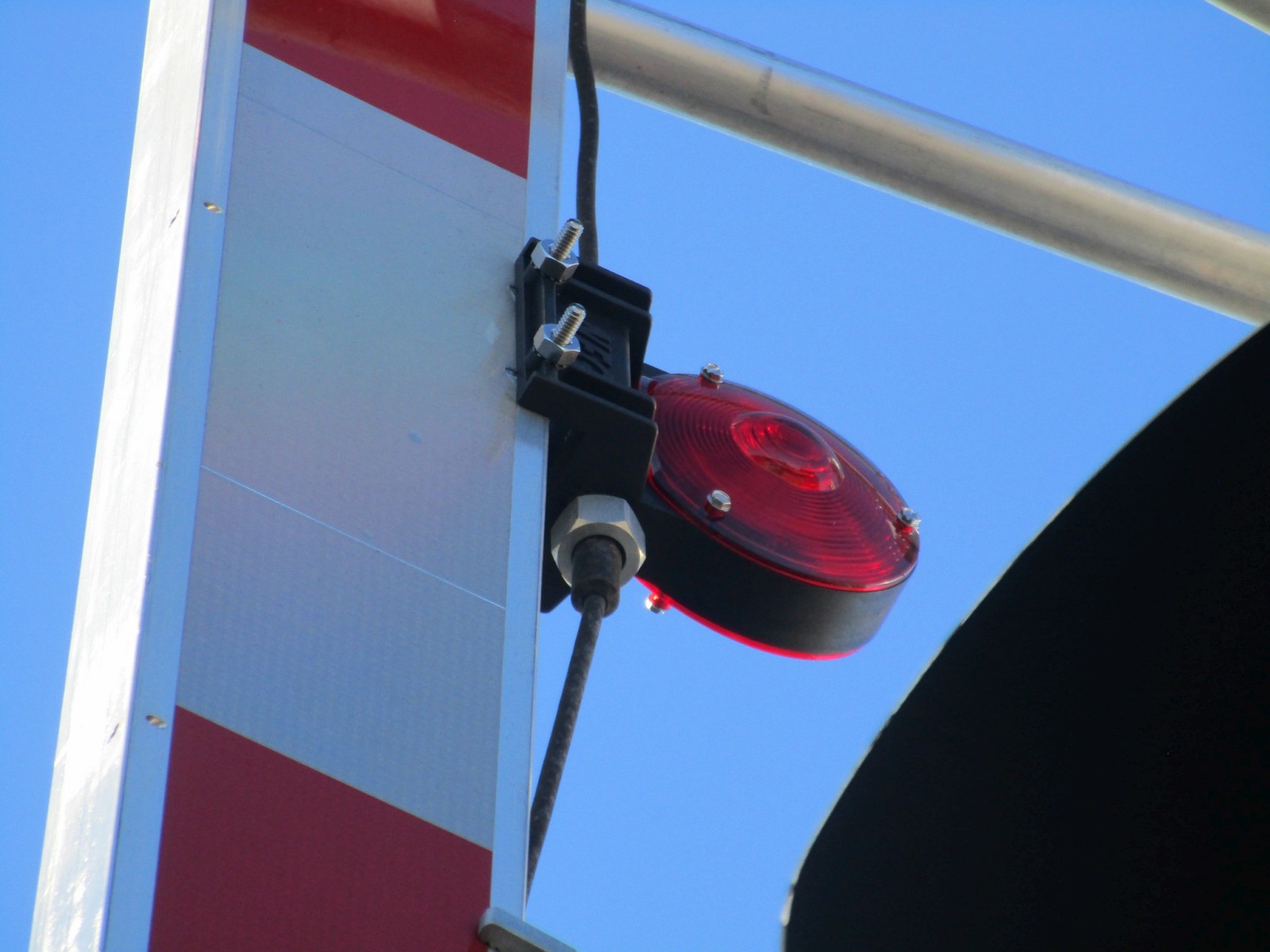

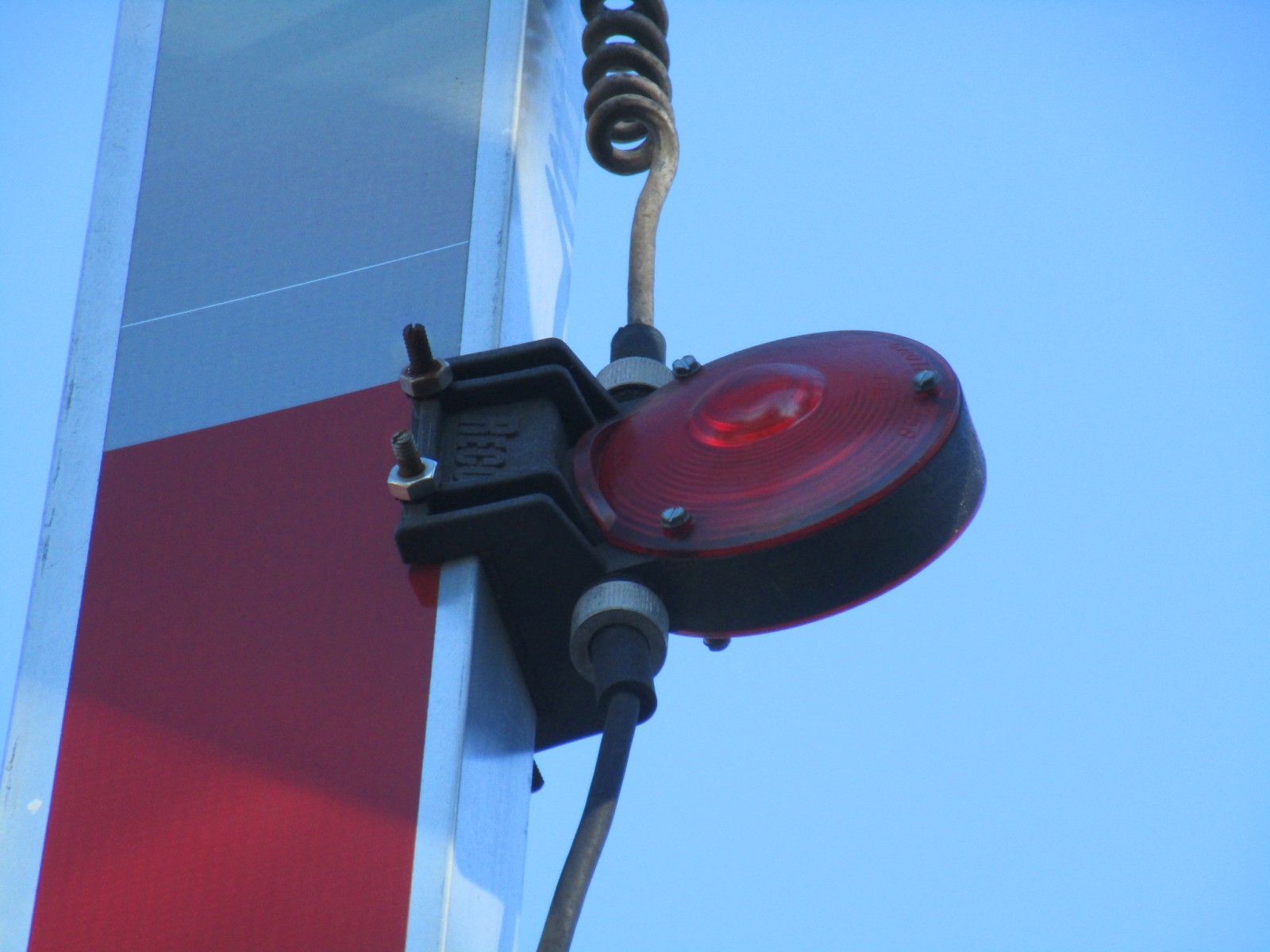

This signal uses RECO gate lights. |
|
13 |
14 |
15 |
16 |

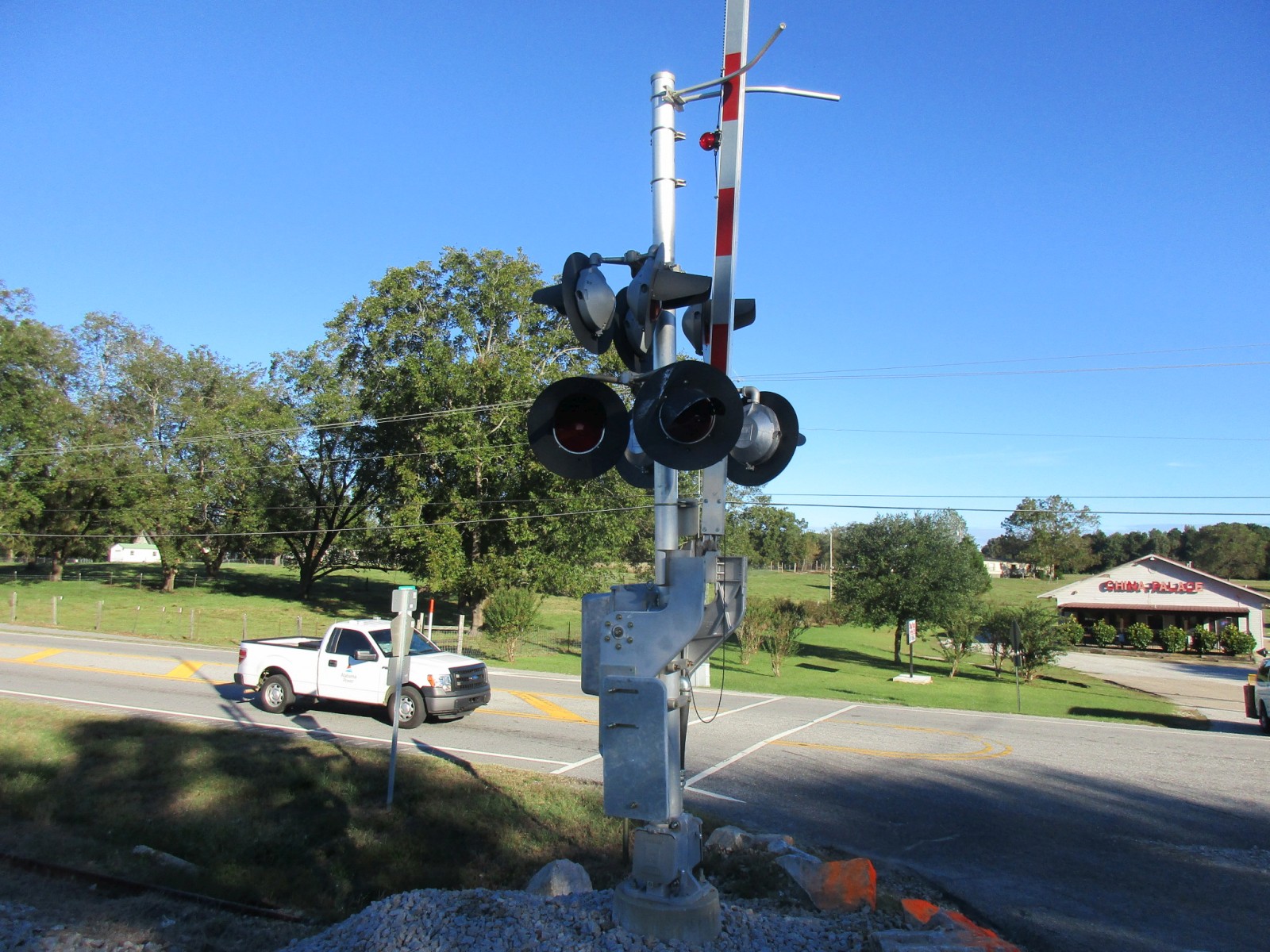

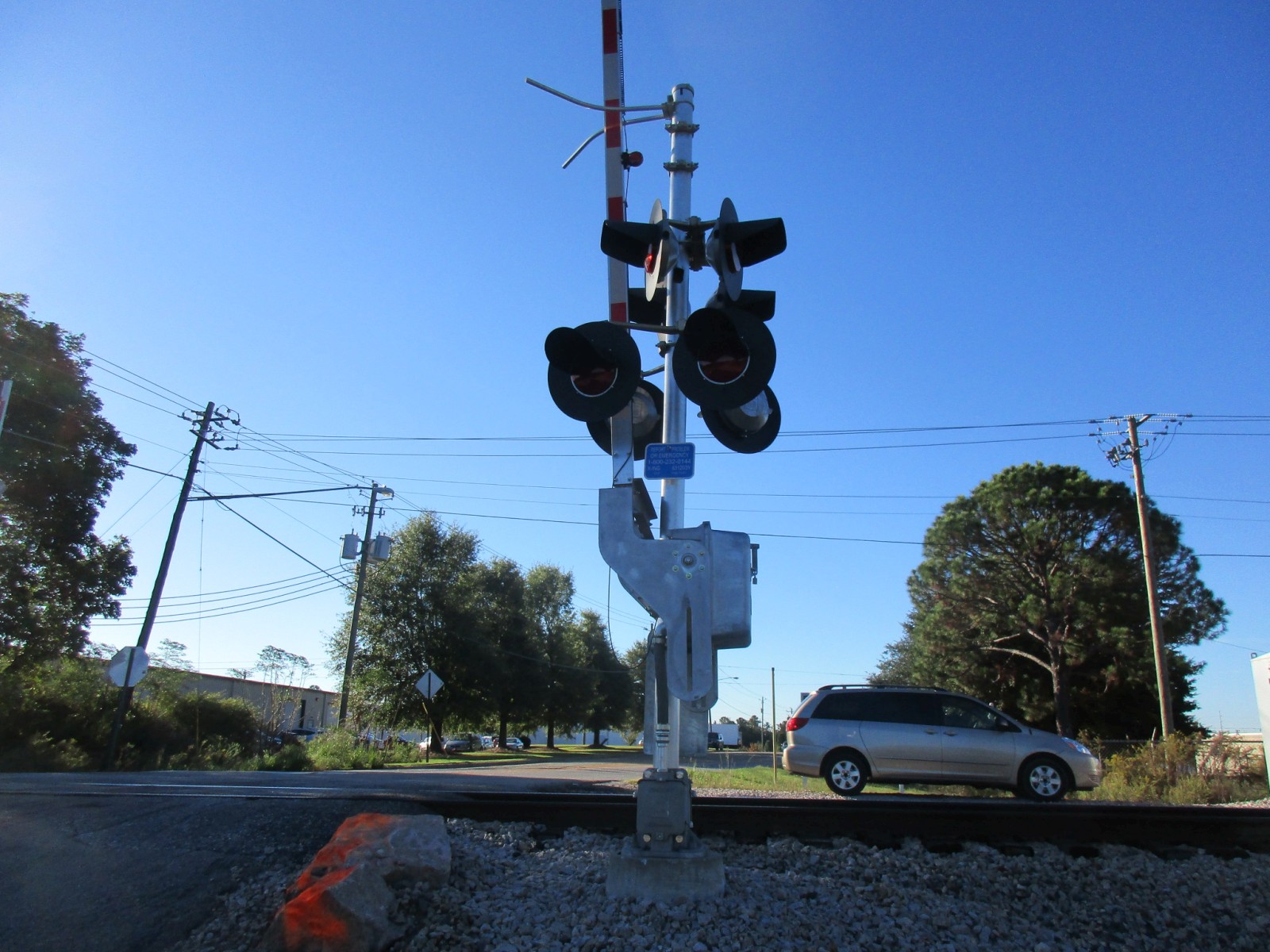

The second signal, which is missing its crossbuck! |

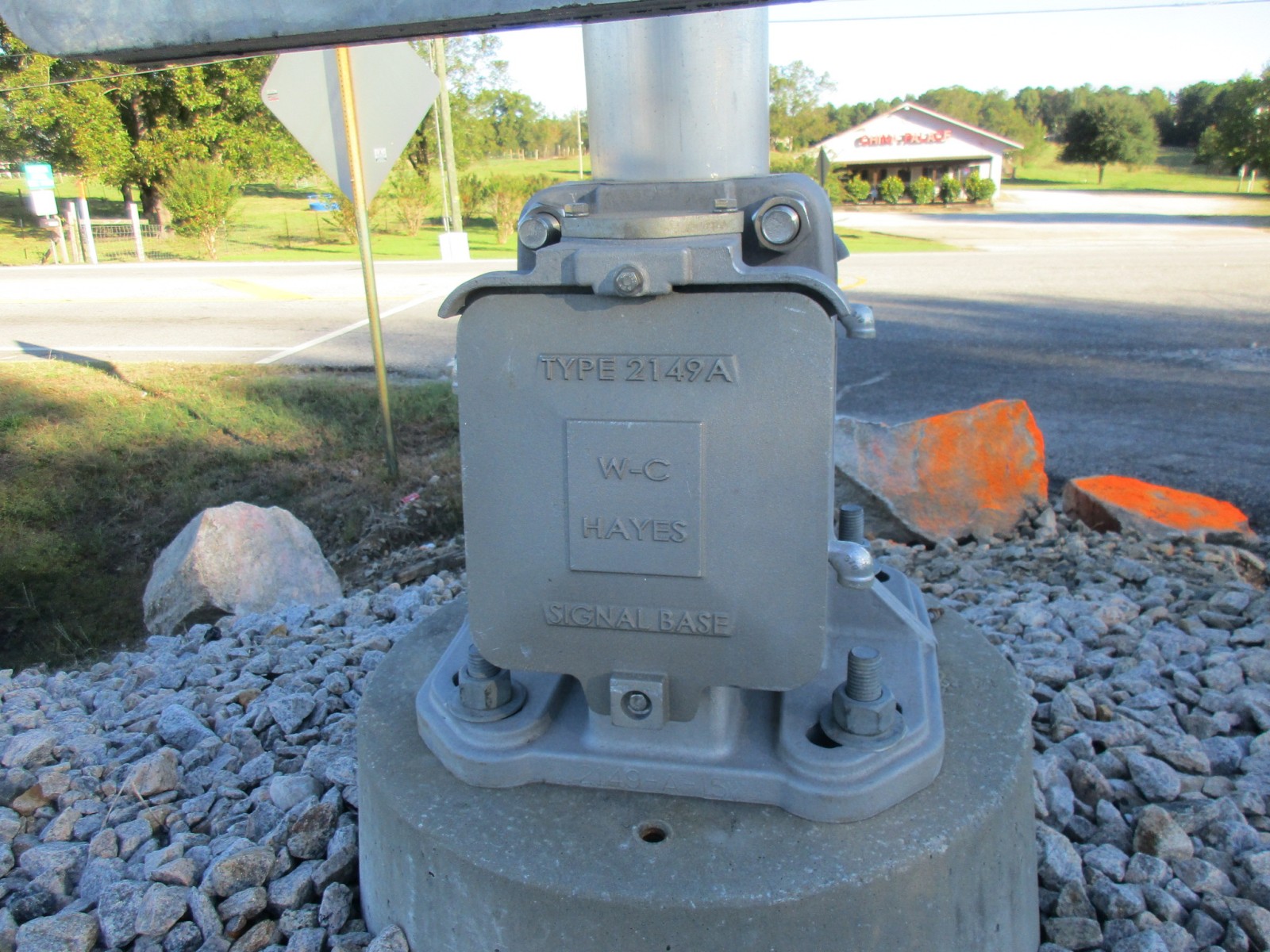

It has a WCH base. |

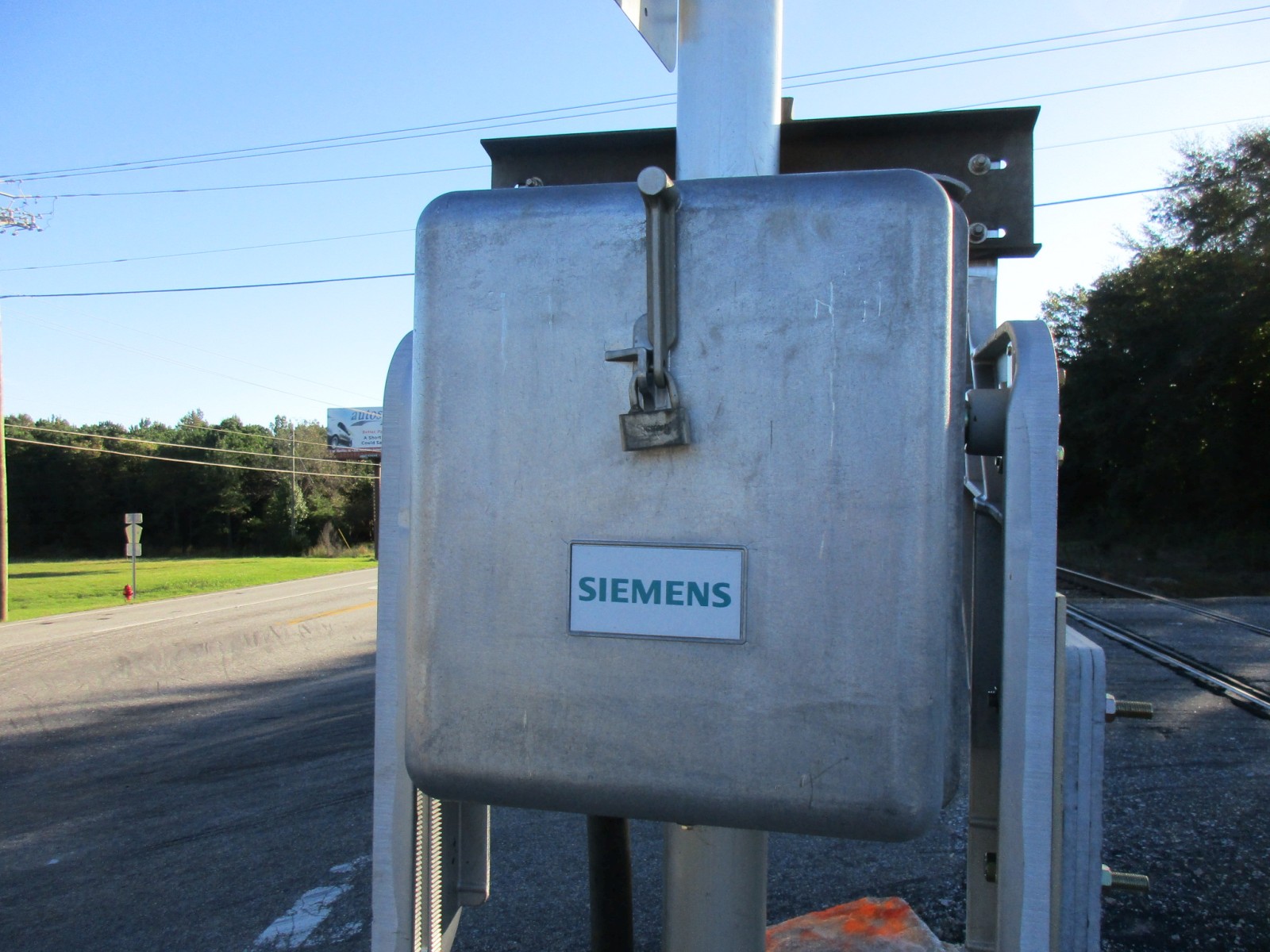

A Siemens gate mechanism. |
|
17 |
18 |
19 |
20 |

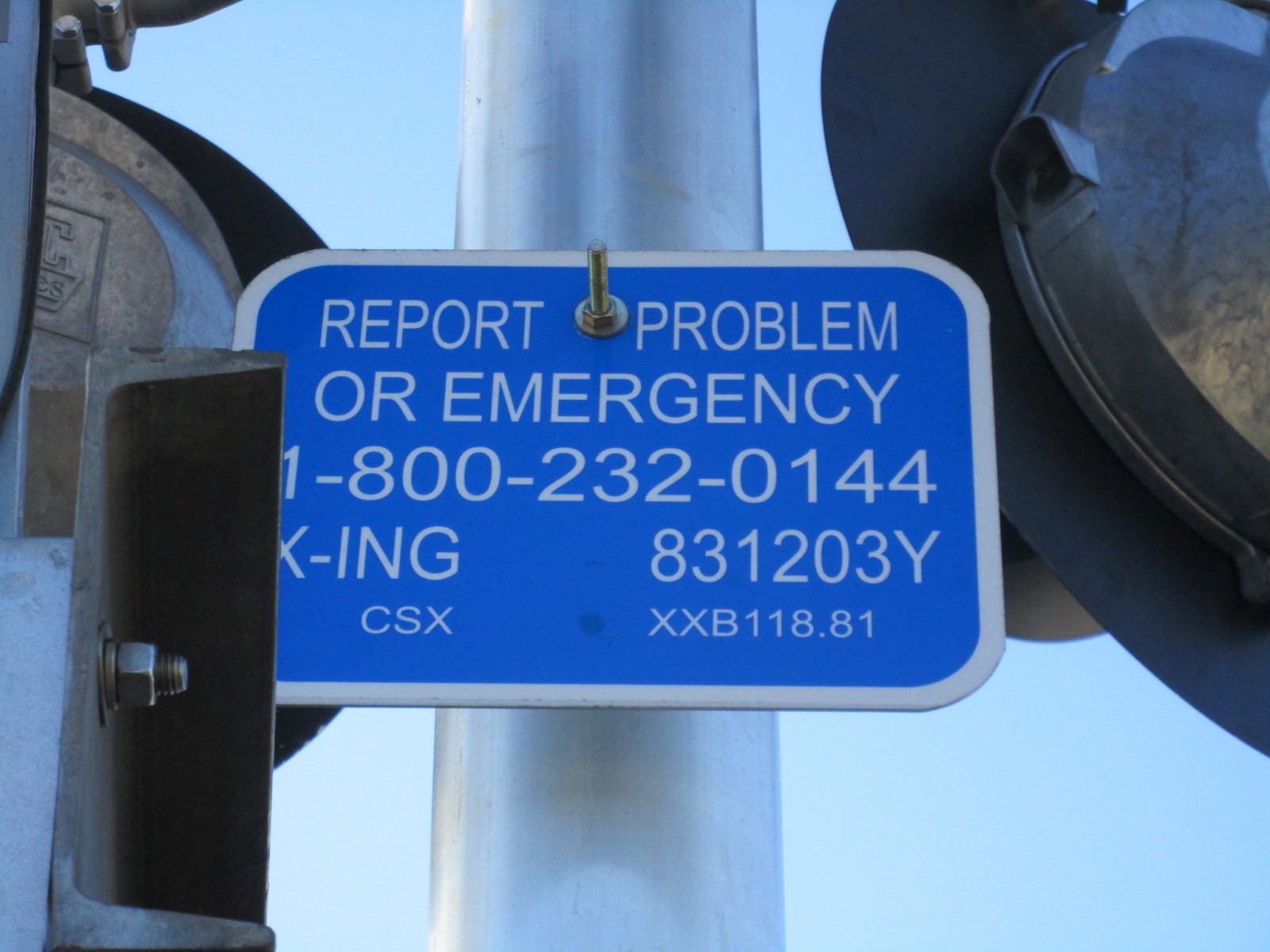

The emergency information. |

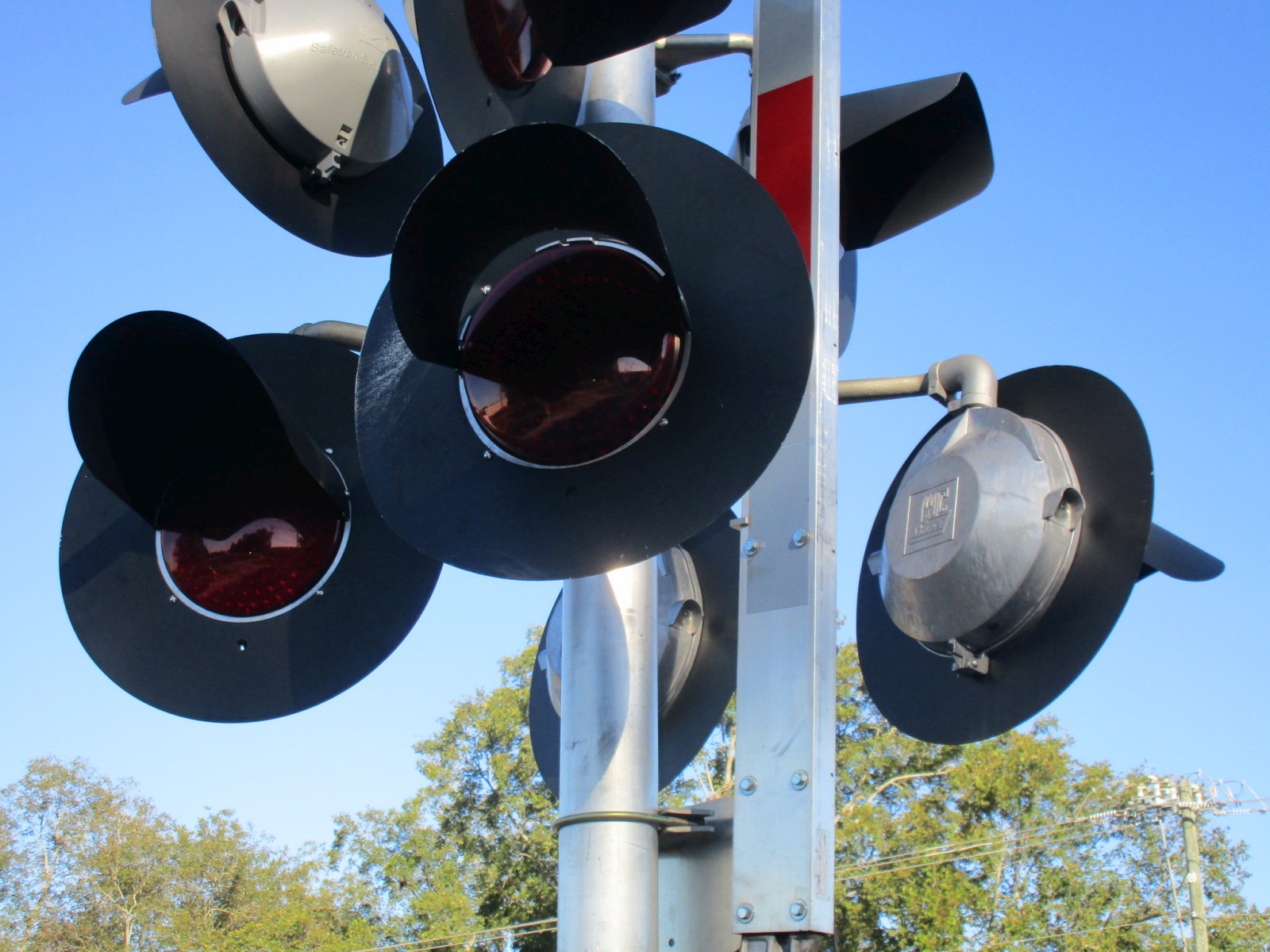

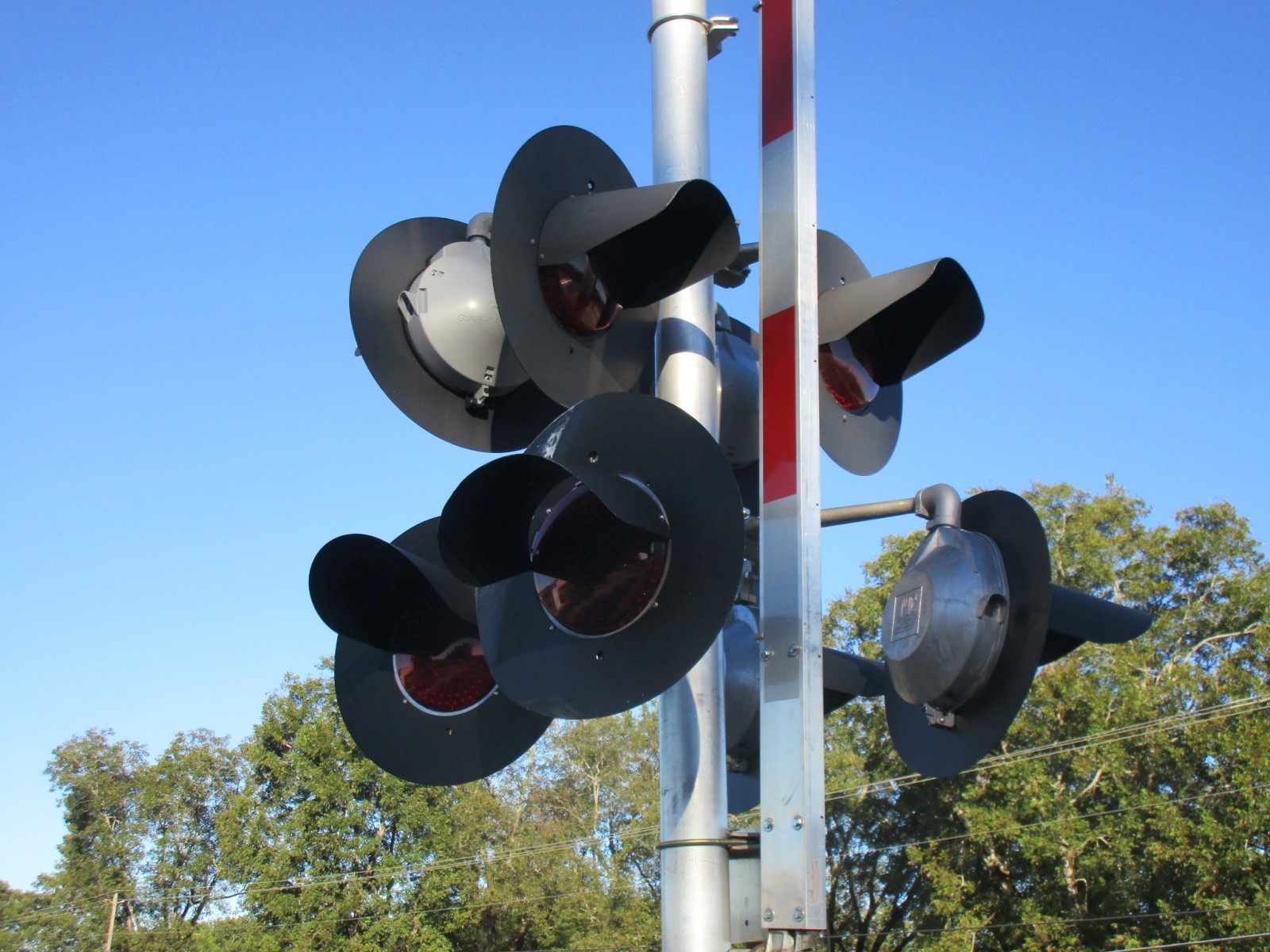

The lights are all 12x24 inch. |
The main lights are from WCH and use a mixture of what appears to be WCH 2nd Generation and Leotek EV Series LEDs. |
|
21 |
22 |
23 |
24 |

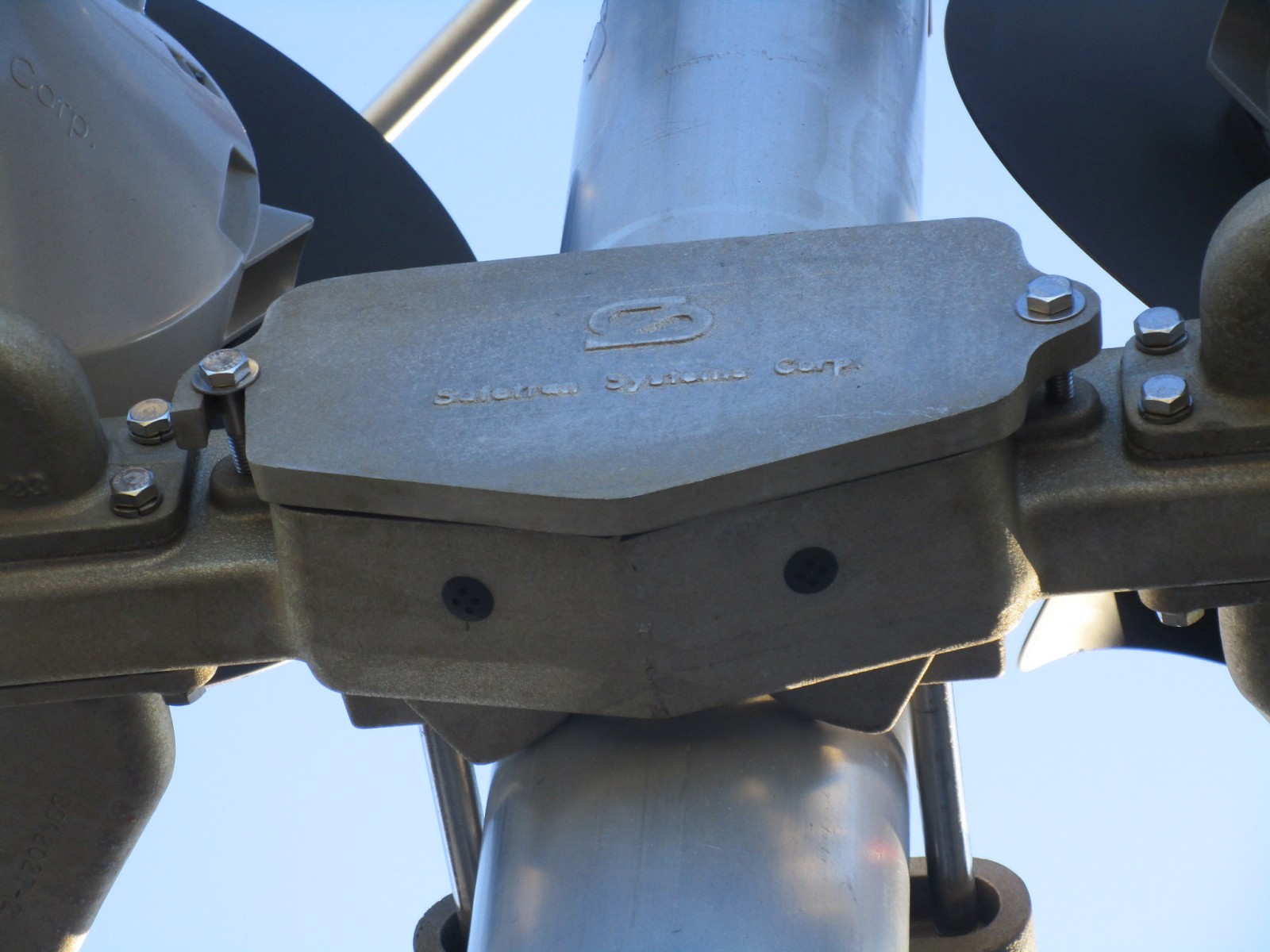

The main lights are on a Safetran bracket. |

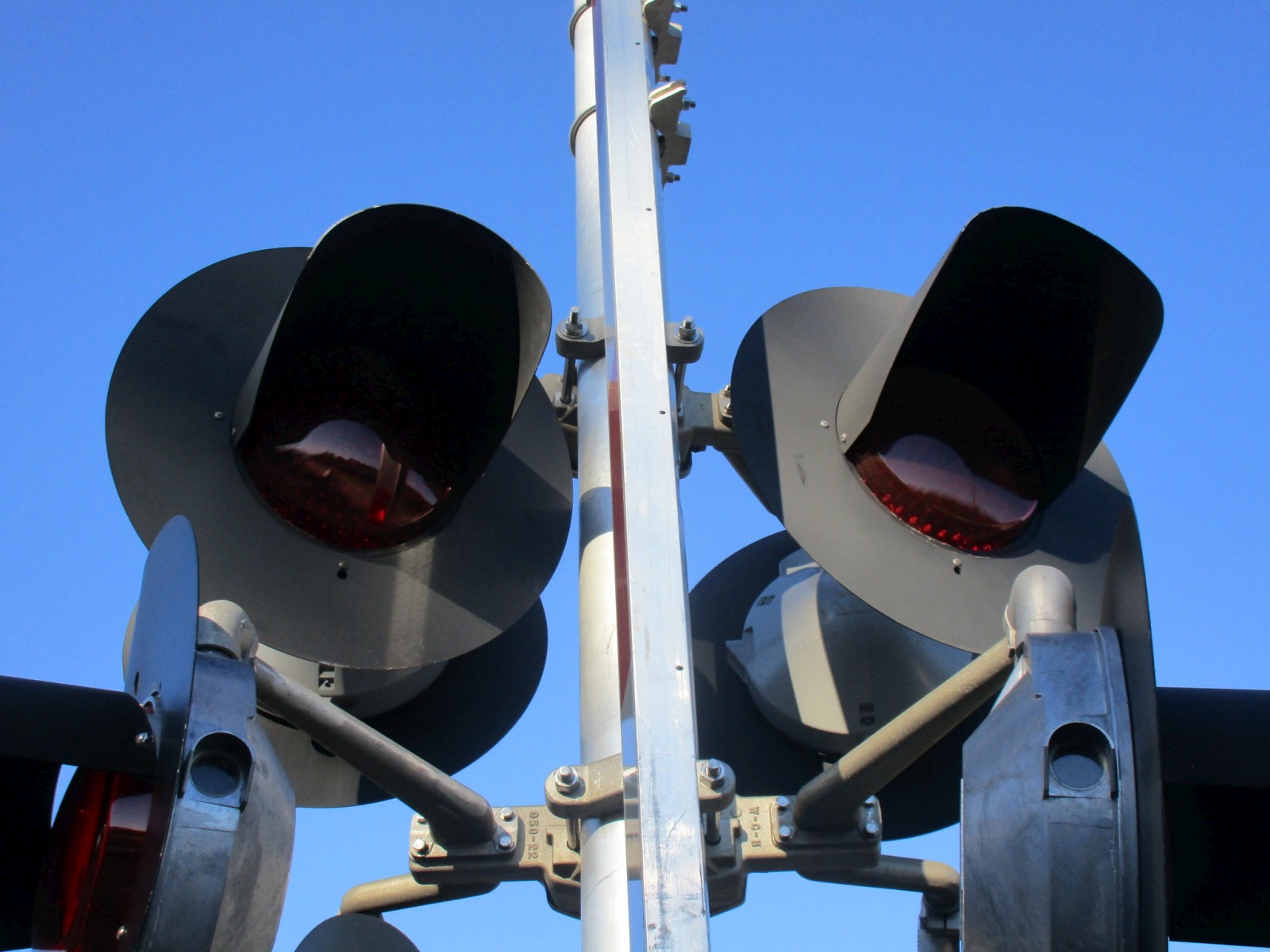

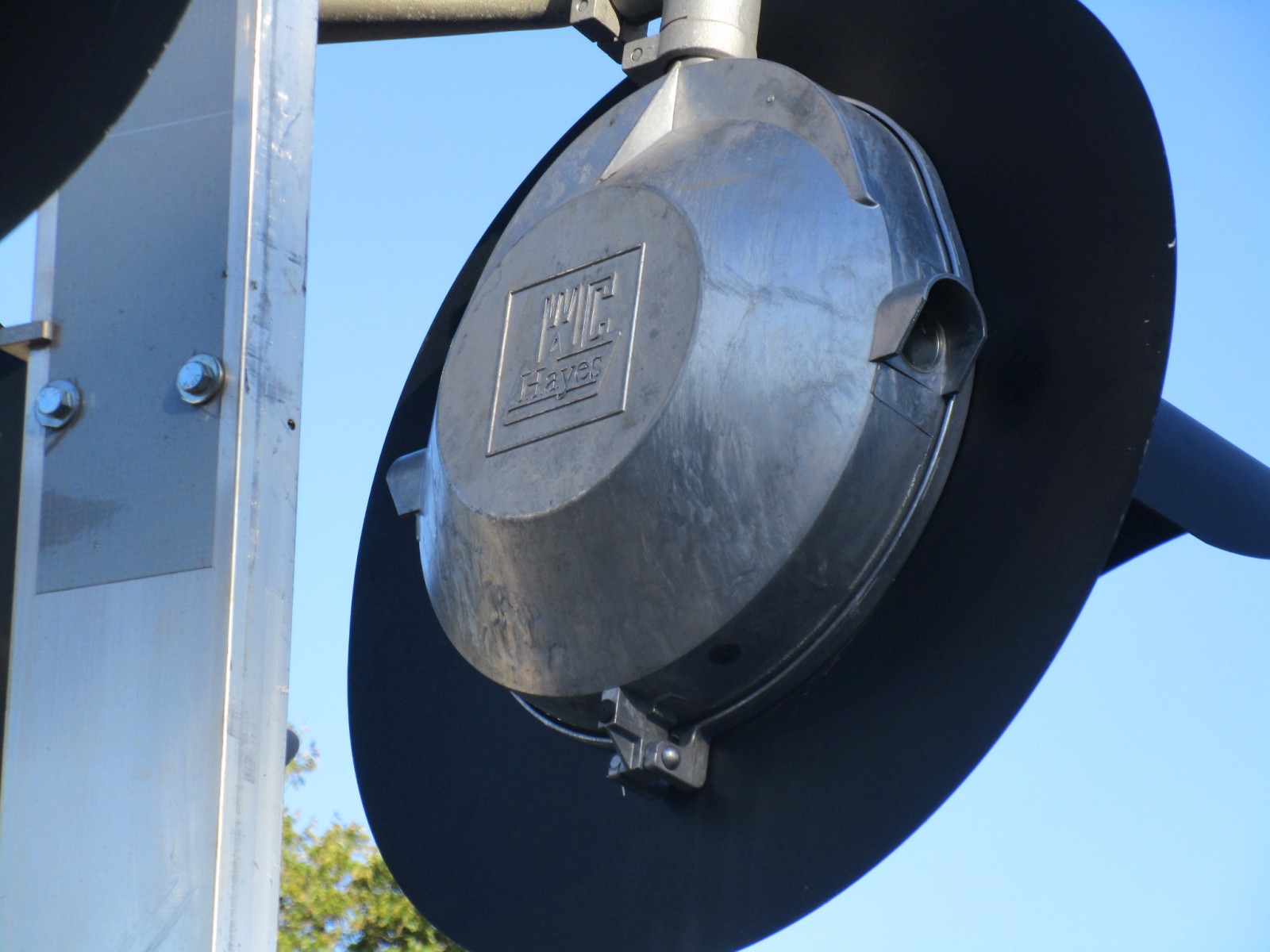

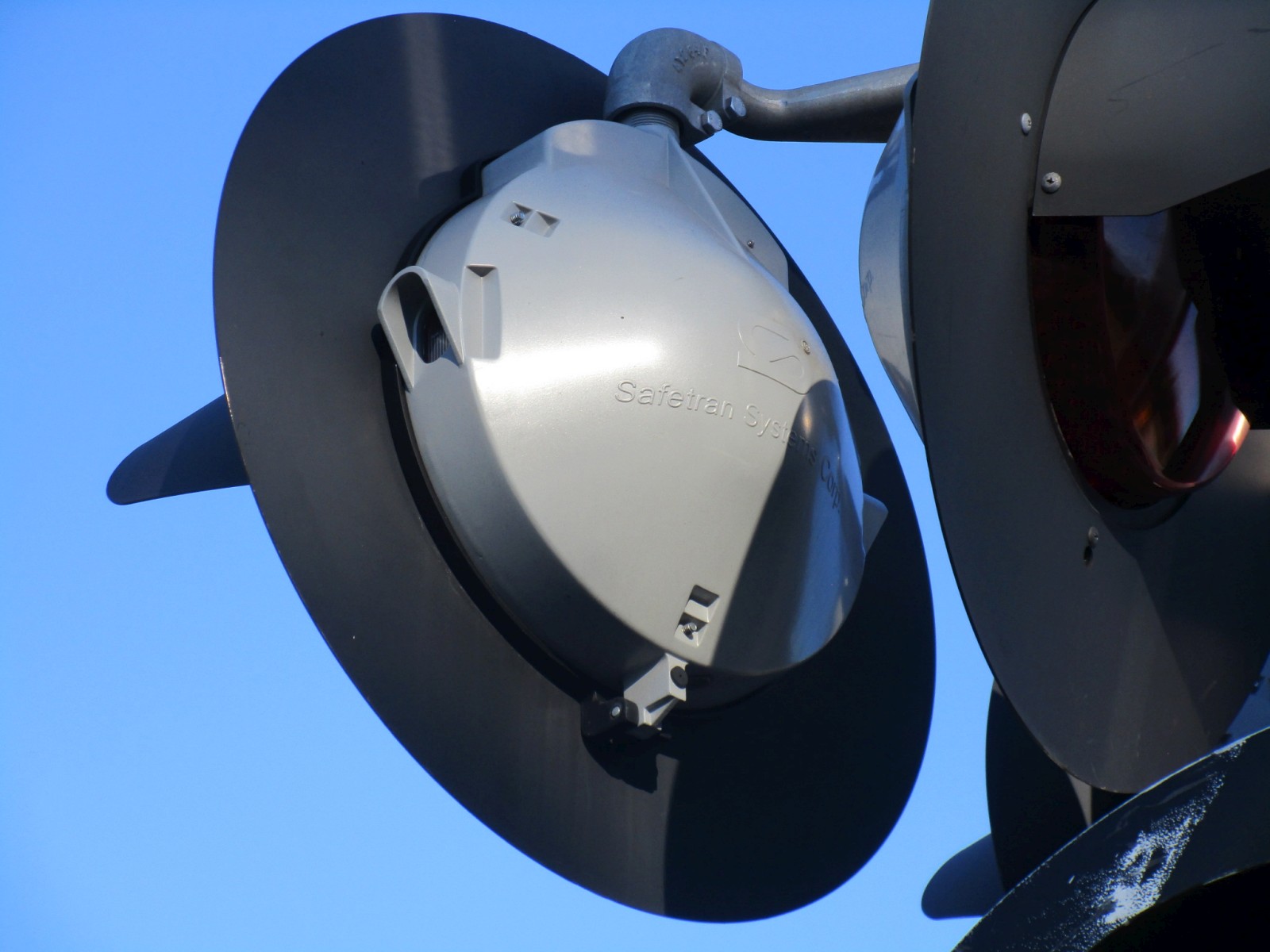

The side lights are all Safetran 12x24 inch lights with WCH 2nd Generation LEDs. |

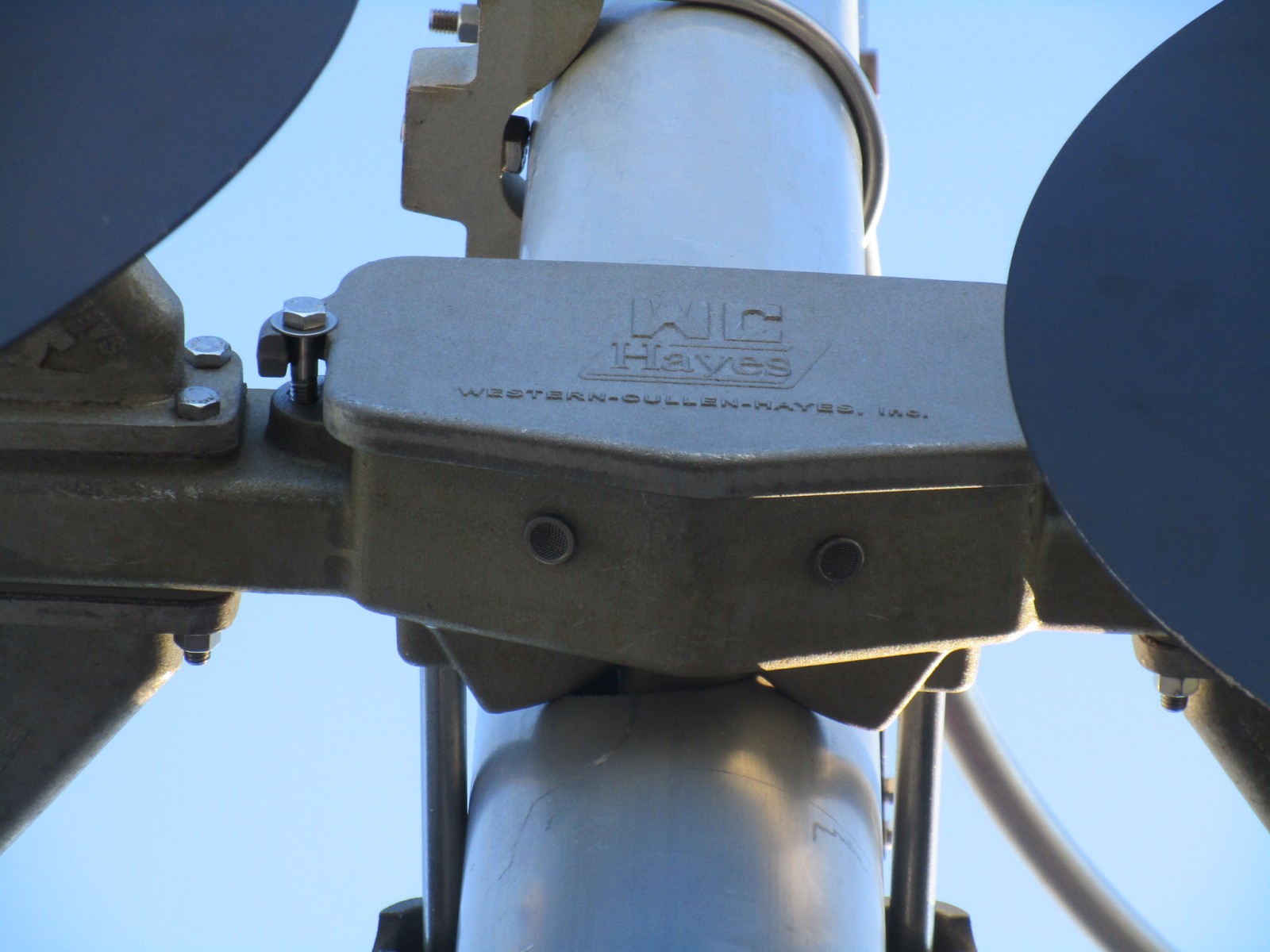

The side lights are on a WCH bracket! |
|
25 |
26 |
27 |
28 |
NEG LED gate lights over here. |

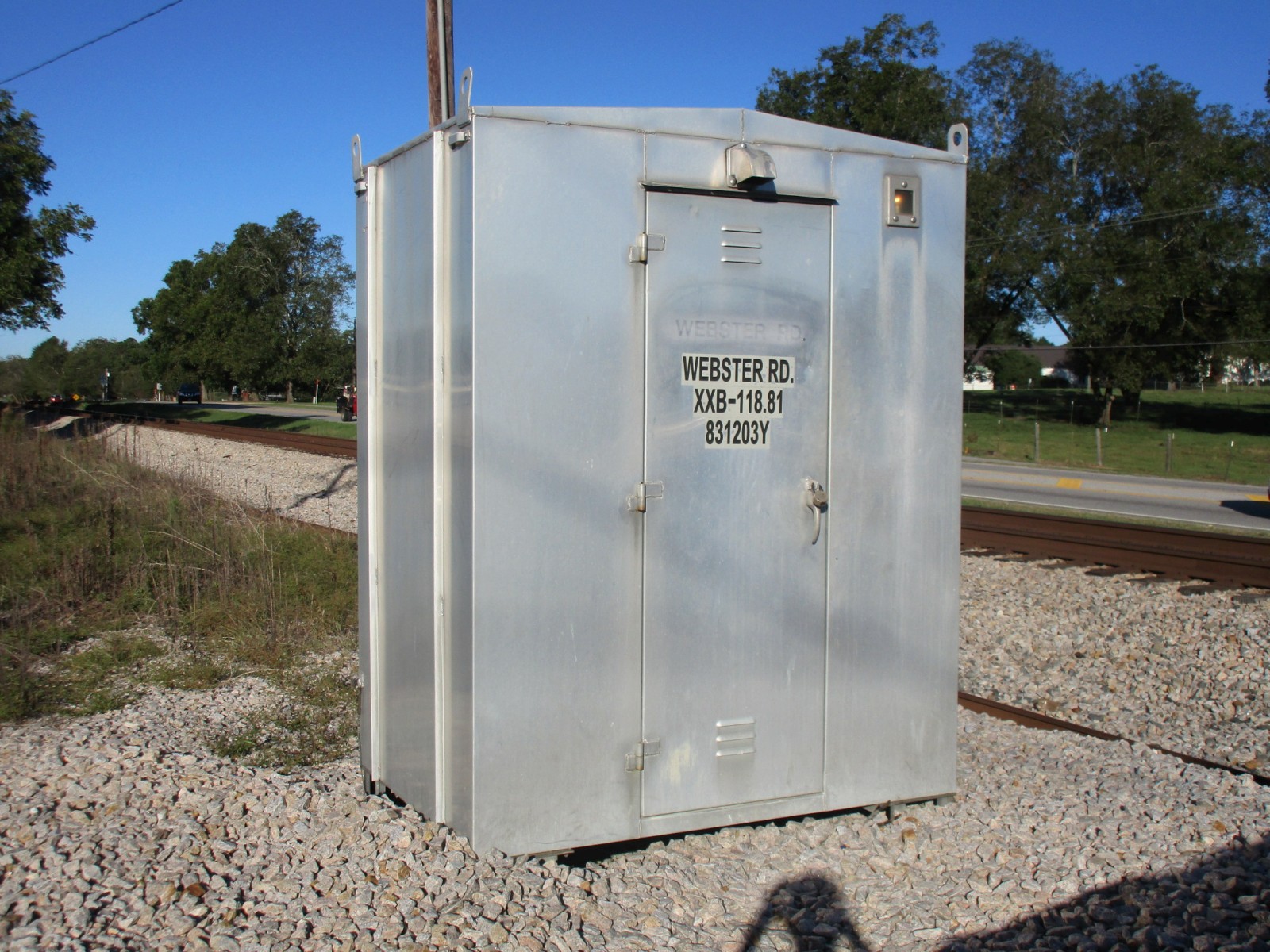

The relay case. |

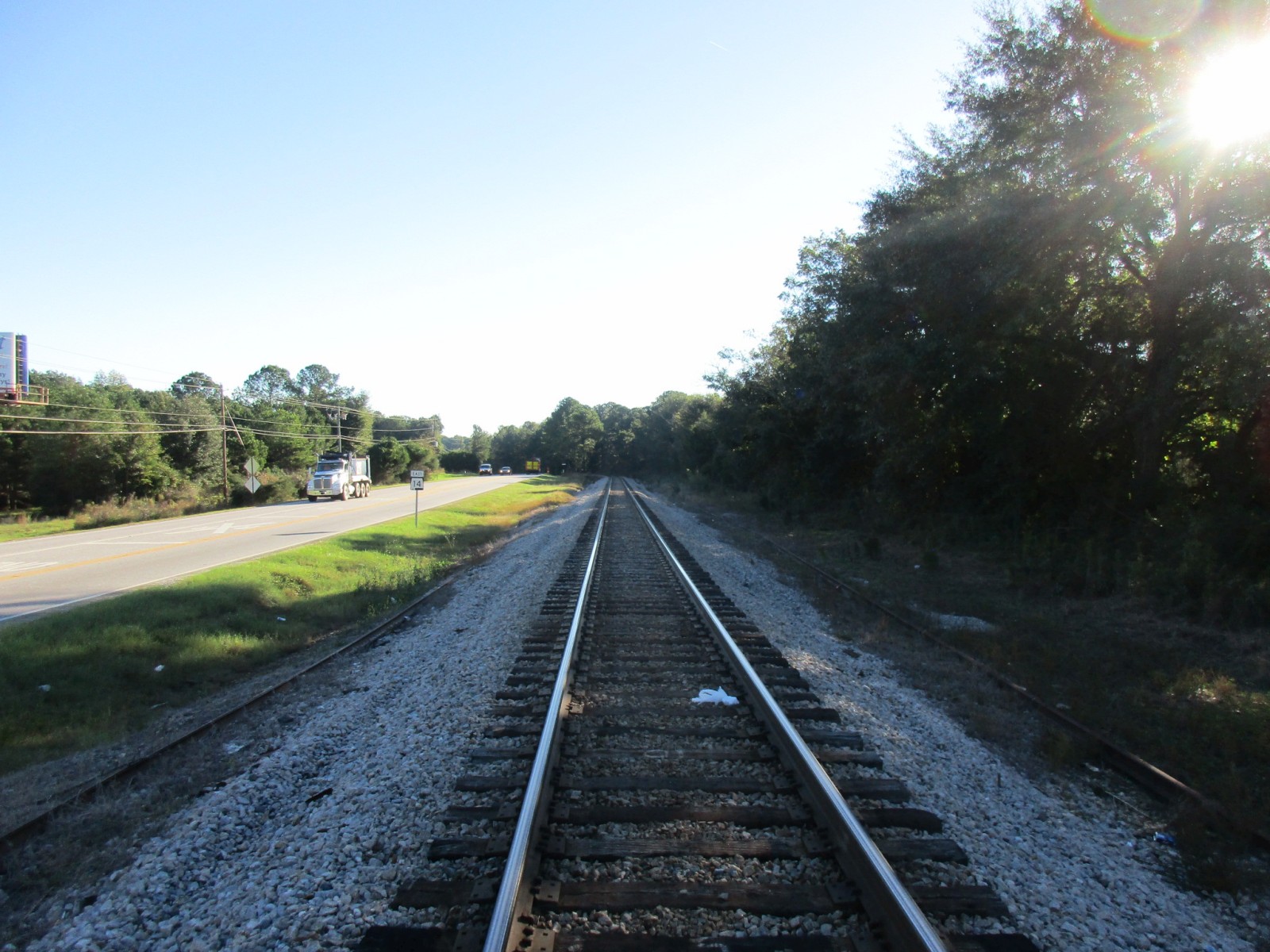

Track view looking east towards Byrd Street. |

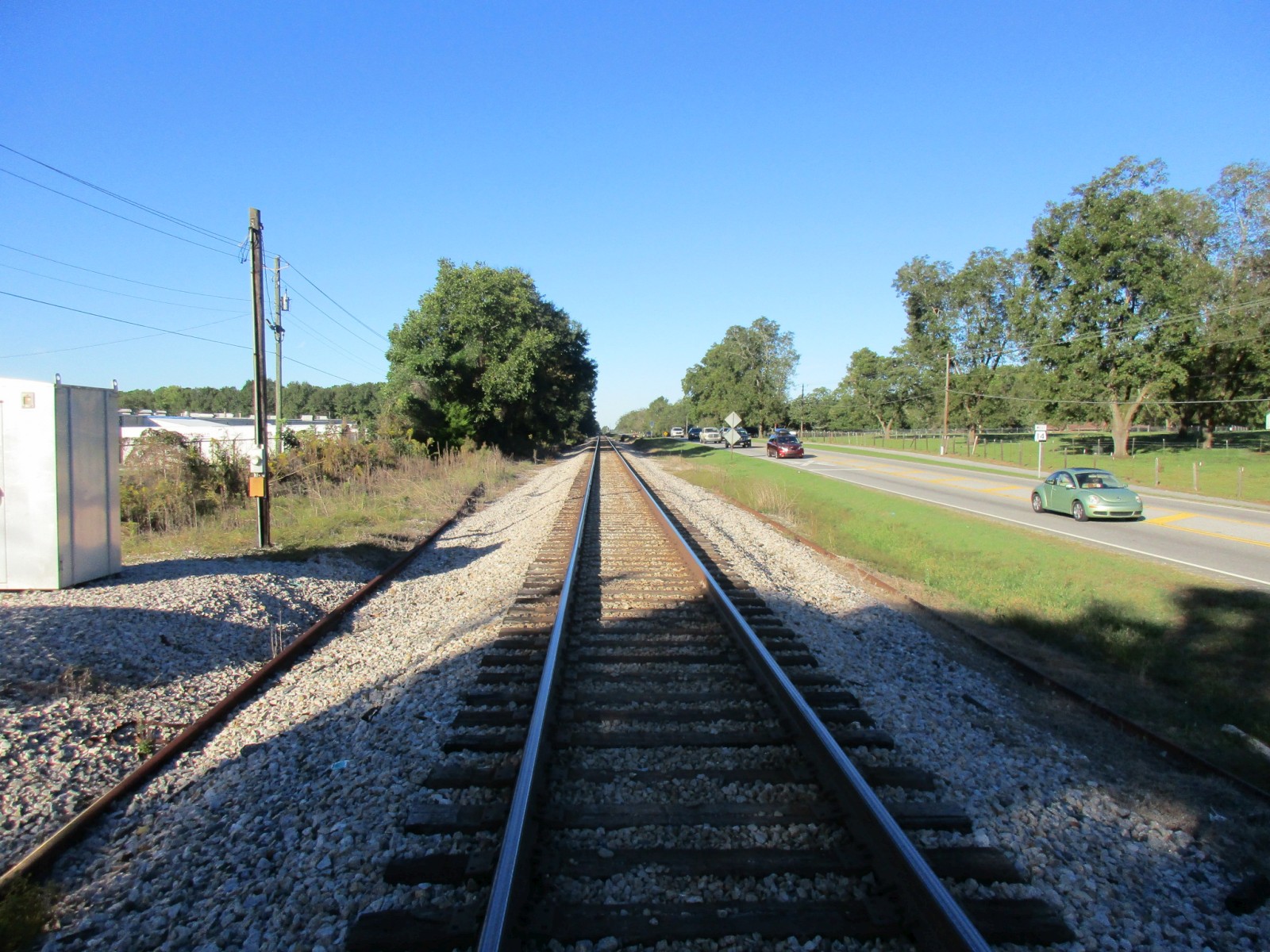

Track view looking west towards CR 55. |
All pictures were taken on 10-18-18.
