MP:  00L395.010



Created October 31, 2020



Total Accidents:   12
Crossing DOT #:  352602M
TOTAL DAILY TRAINS:   4   (AS OF 2020)



Page created by: freebrickproductions



This crossing is located on the CSX Birmingham Mineral Subdivision.



>>>>>>>>>>>>> Signal #1 Signal #2
Bell: NEG electronic General Signals Type 1 electronic
Cantilever: Lincoln Industries Lincoln Industries
Light Frames:

6 - 12x24" WCH

2 - 12x24" Safetran

6 - 12x24" WCH

2 - 12x24" Safetran
Base: Safetran Safetran
Gate Lights: 3 - NEG LEDs 3 - RECOs
Gate Mechanism: Safetran mid-90s Safetran mid-90s
Gate Striping: Vertical Diagonal



1

2

3

4

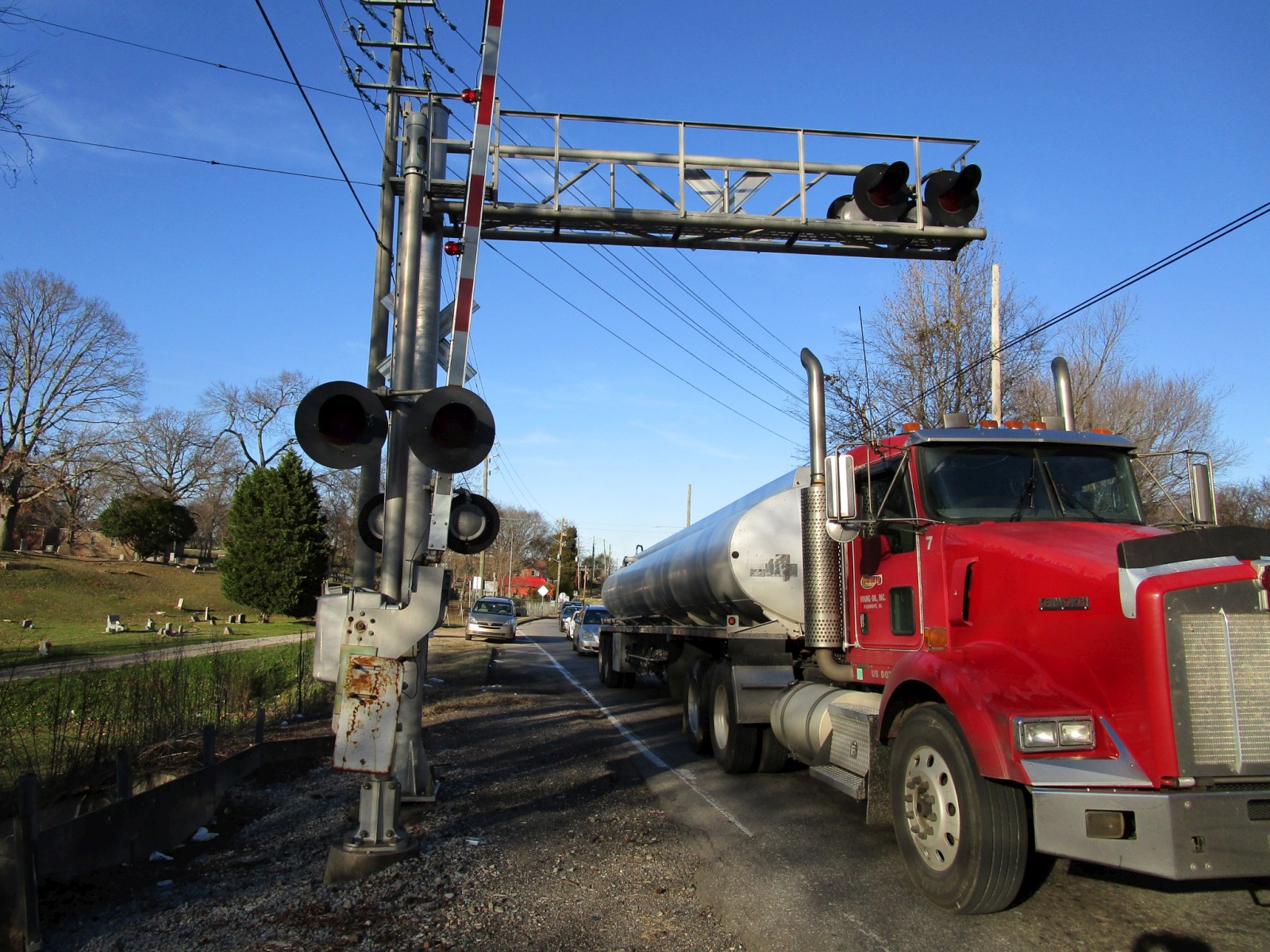

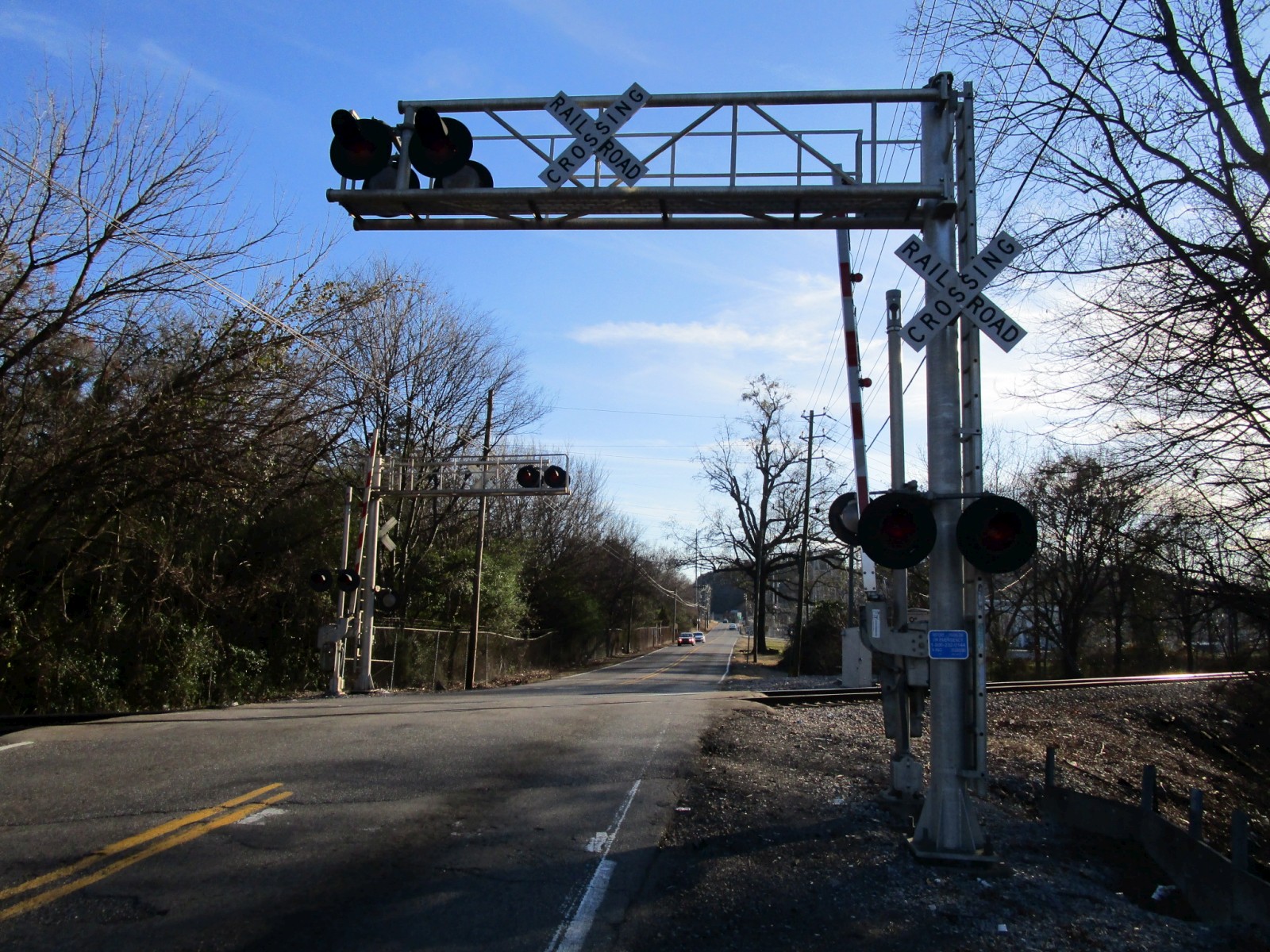

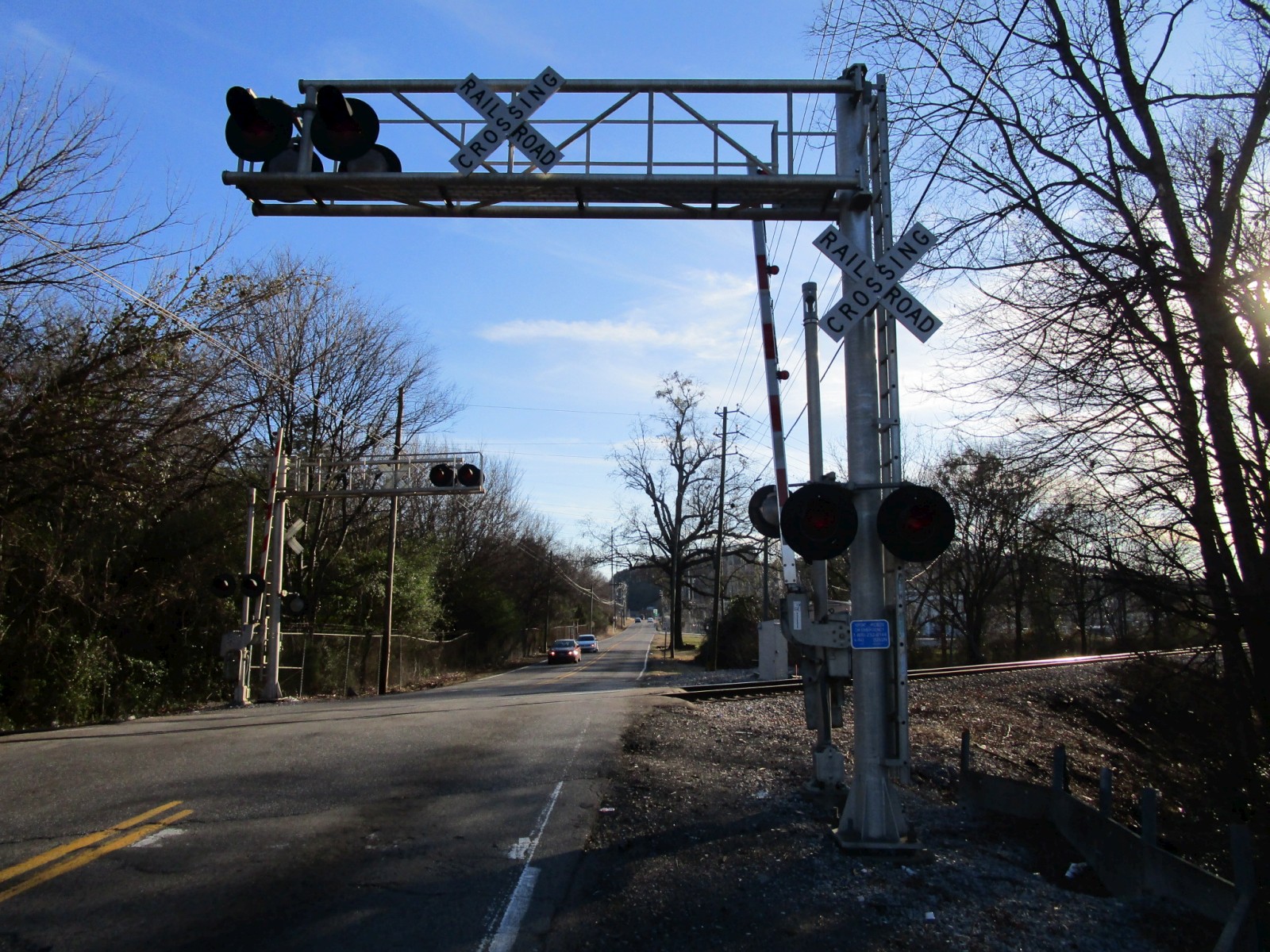

Overviews of the crossing.
The first signal.

5

6

7

8

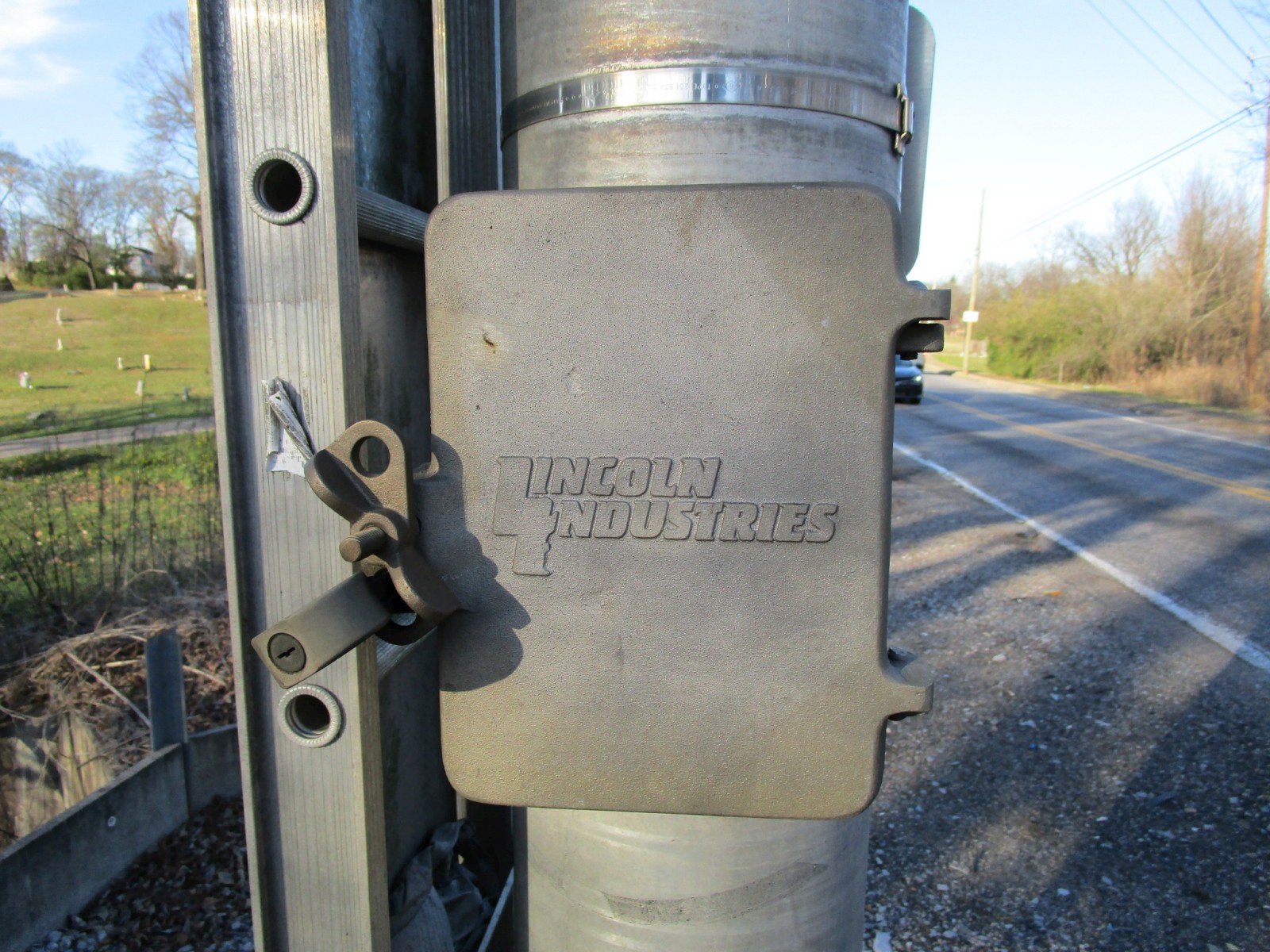

It's a Lincoln Industries cantilever.

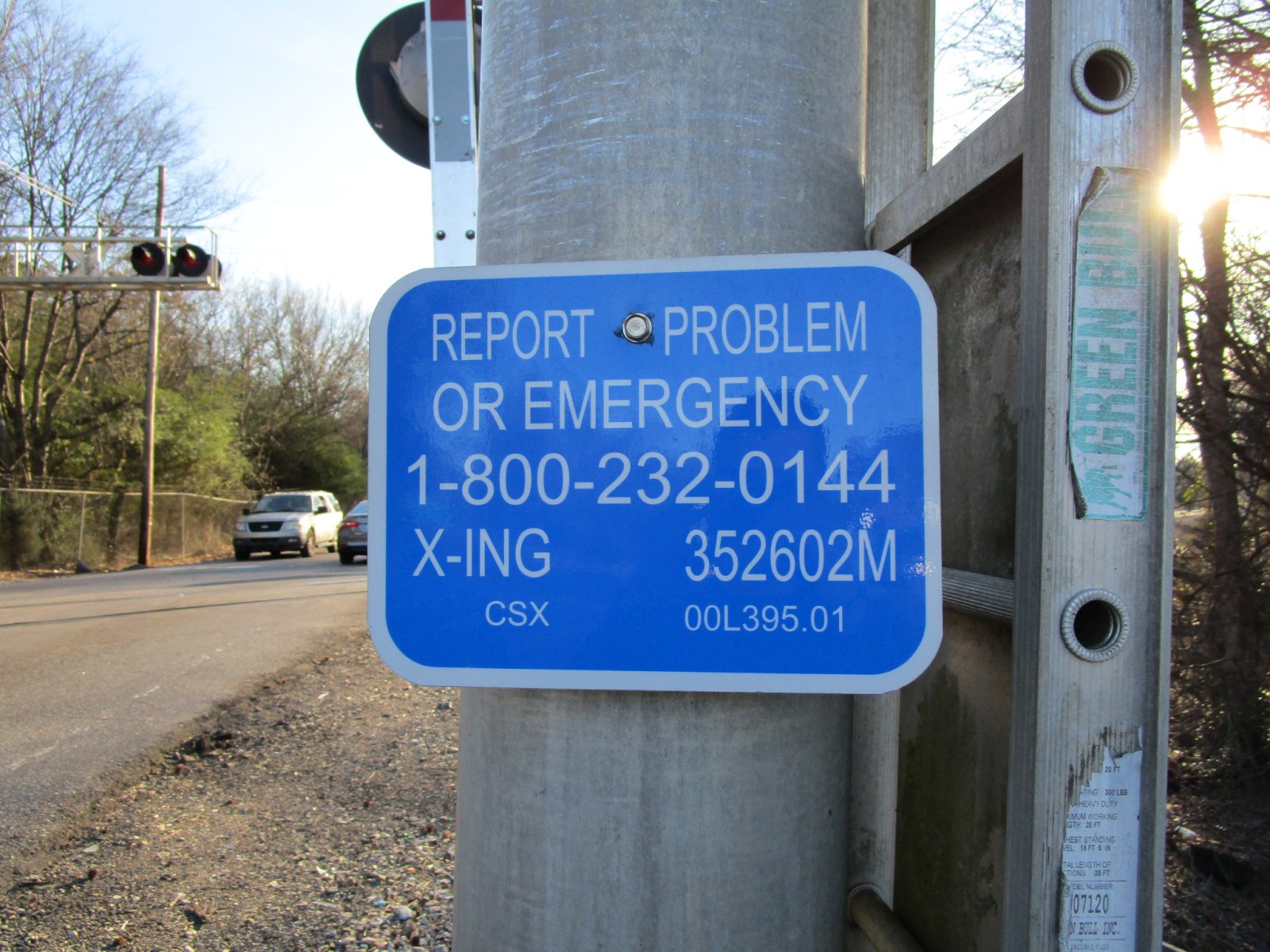

The emergency information.

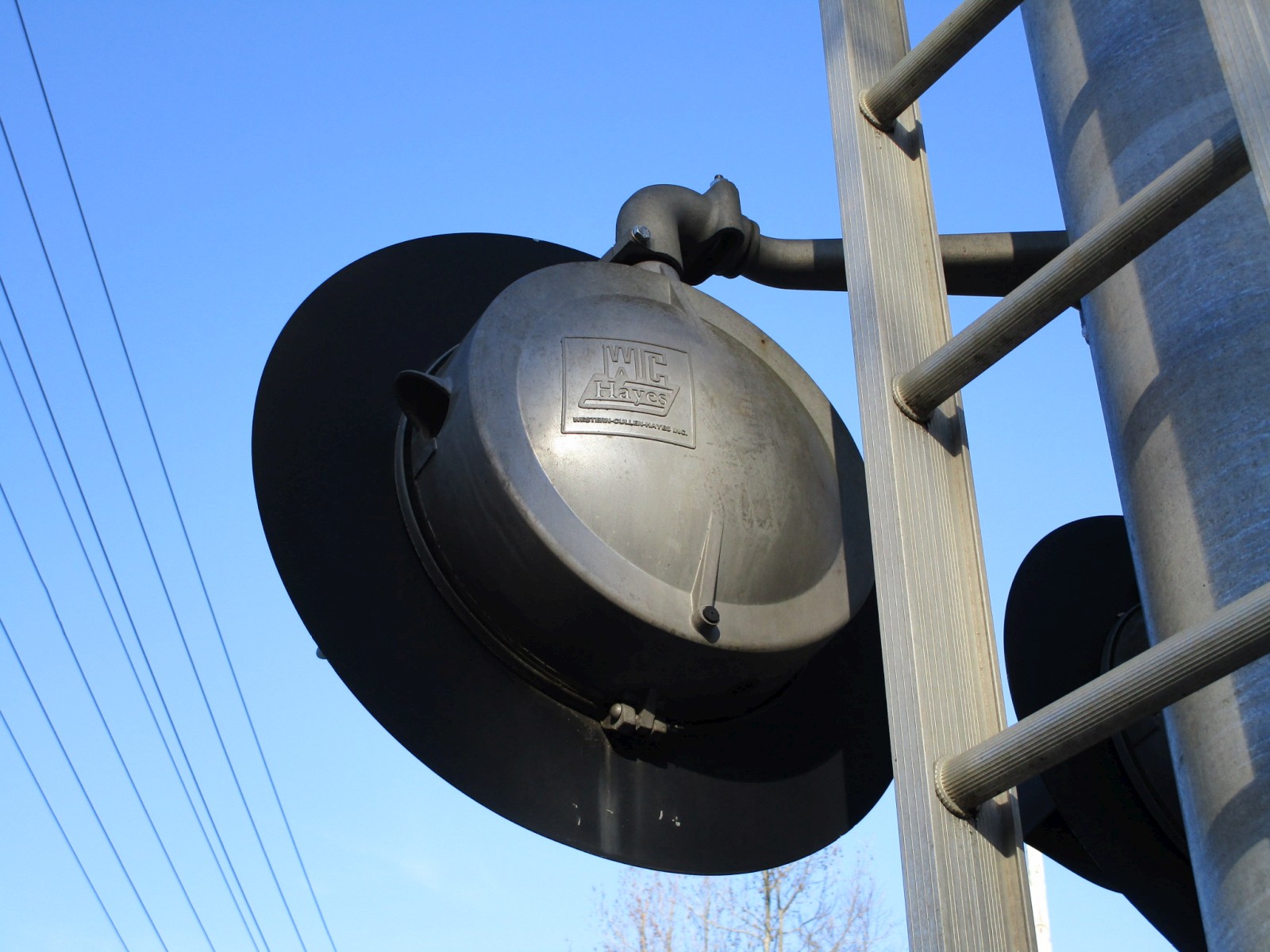

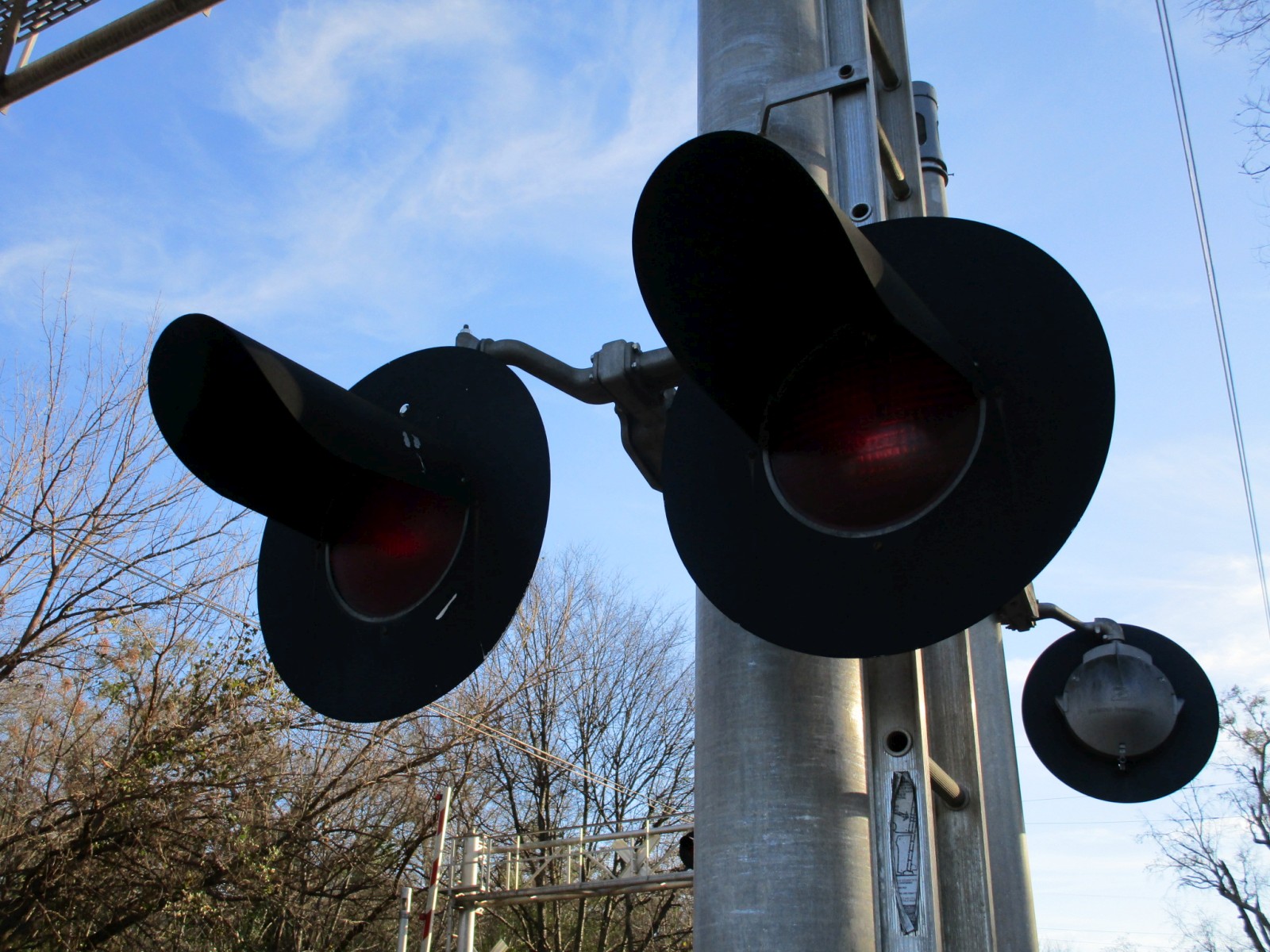

The front pair of mast lights are a pair of WCH 12x24 inch lights!

9

10

11

12

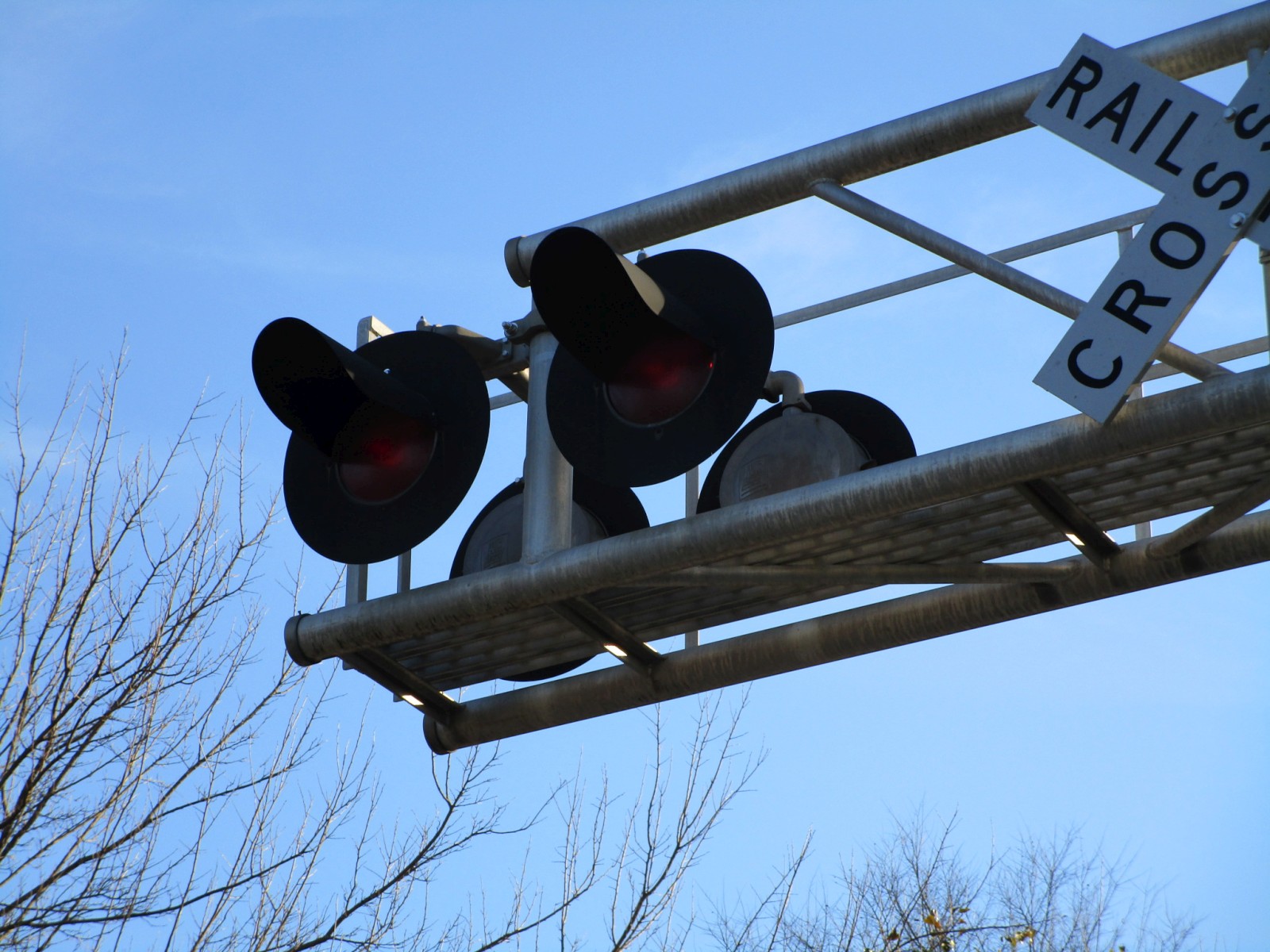

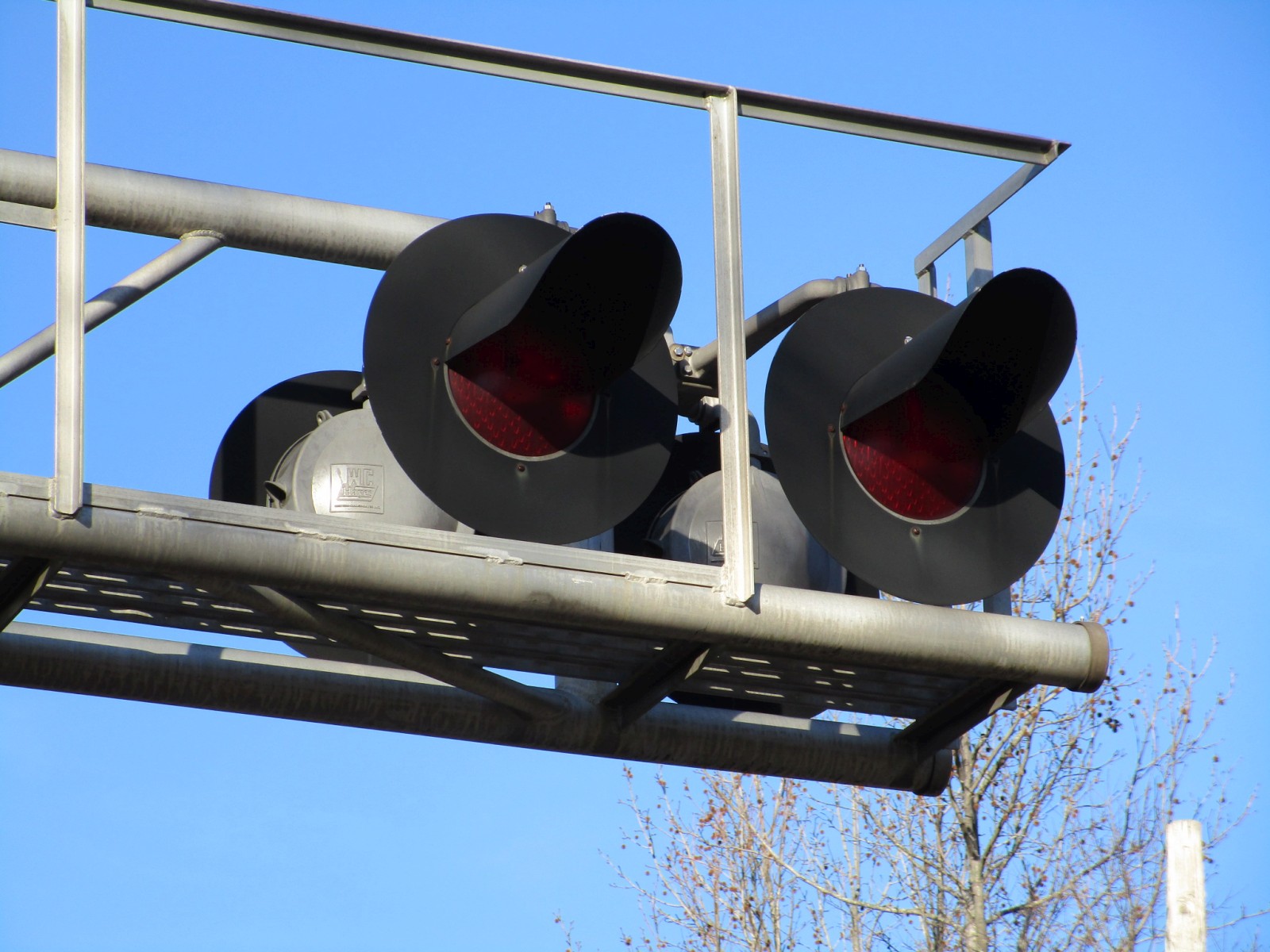

The overhead lights are more WCH 12x24 inch lights!

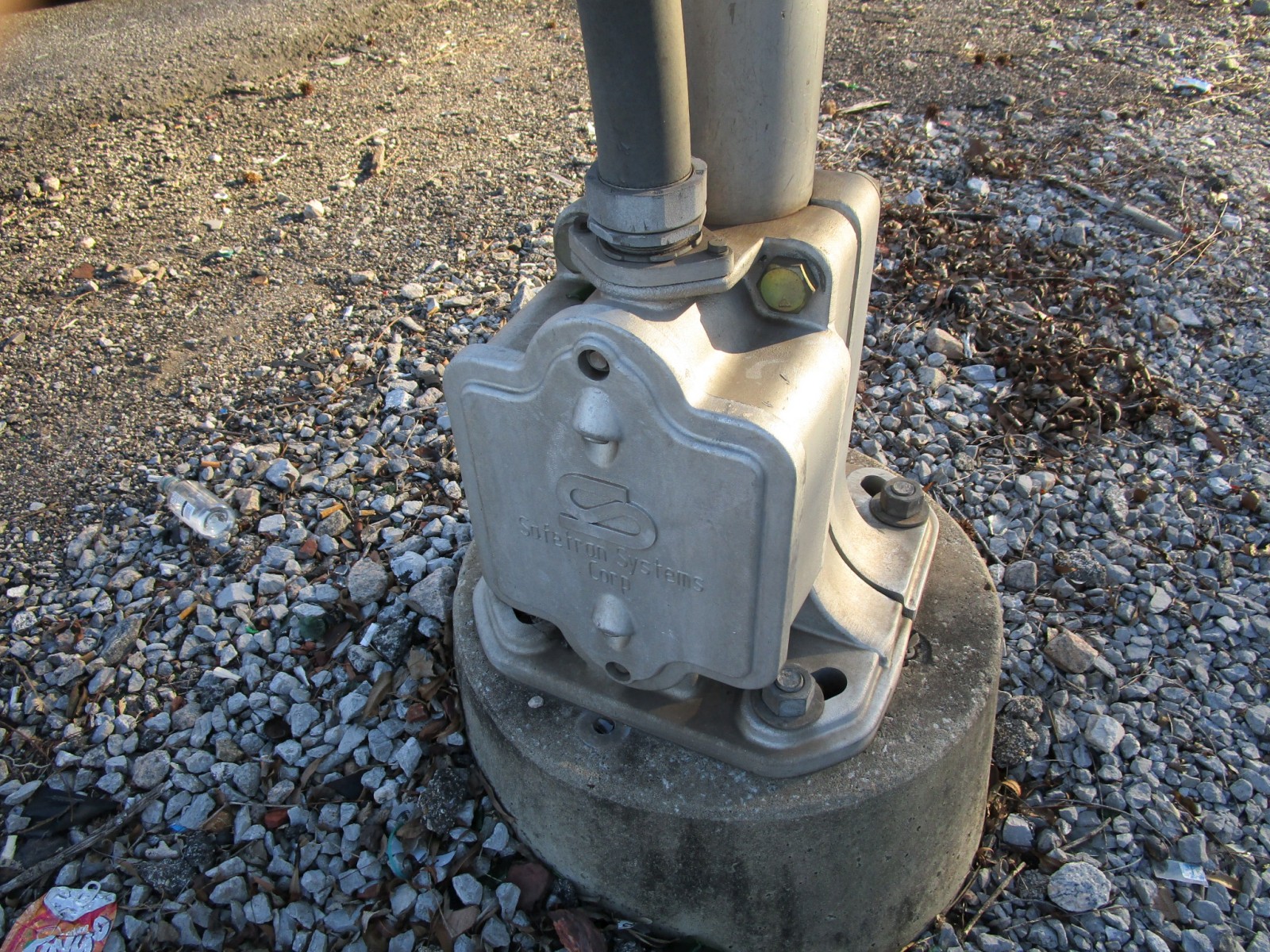

A Safetran base.

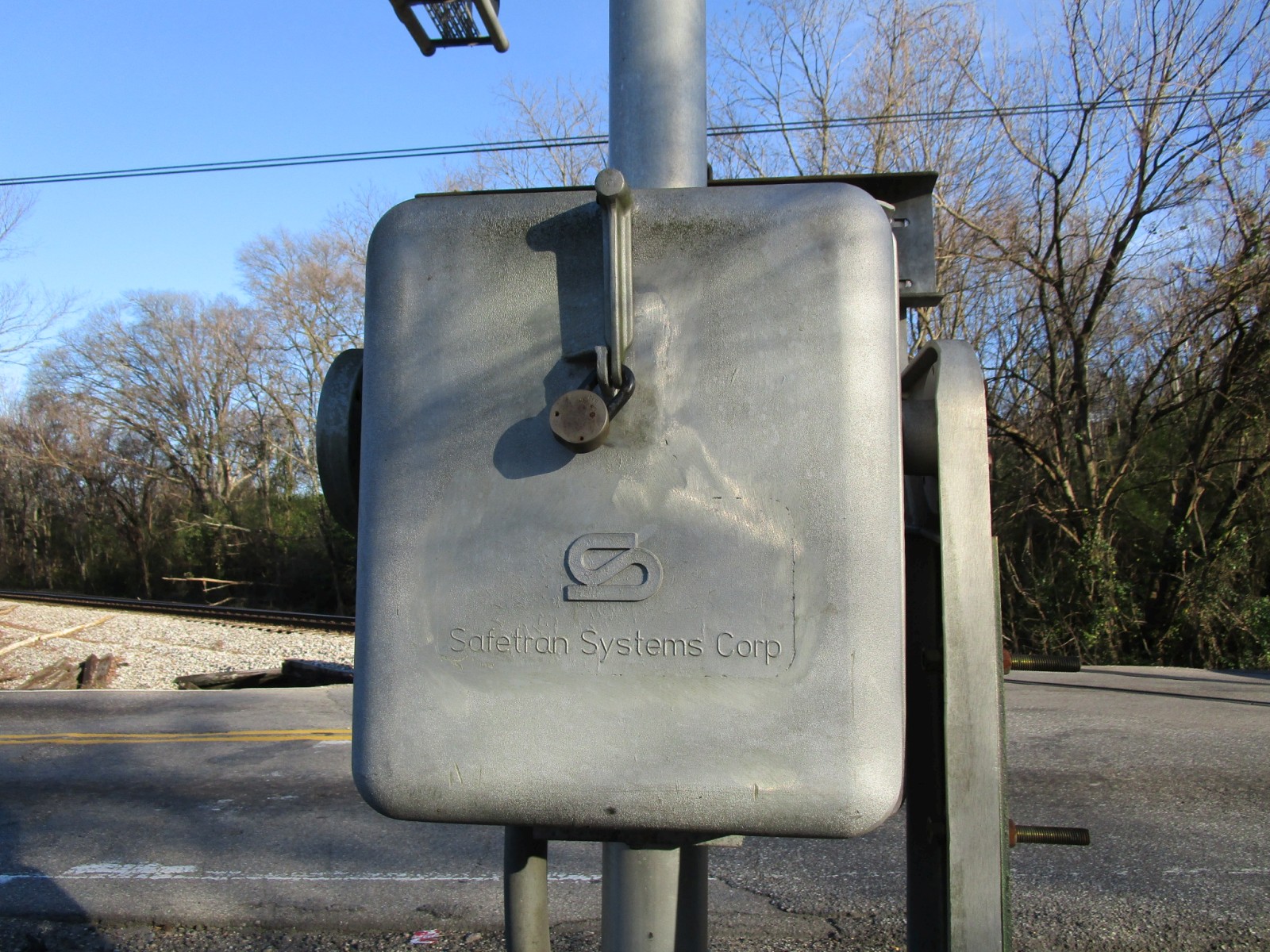

A Safetran gate mechanism.

13

14

15

16

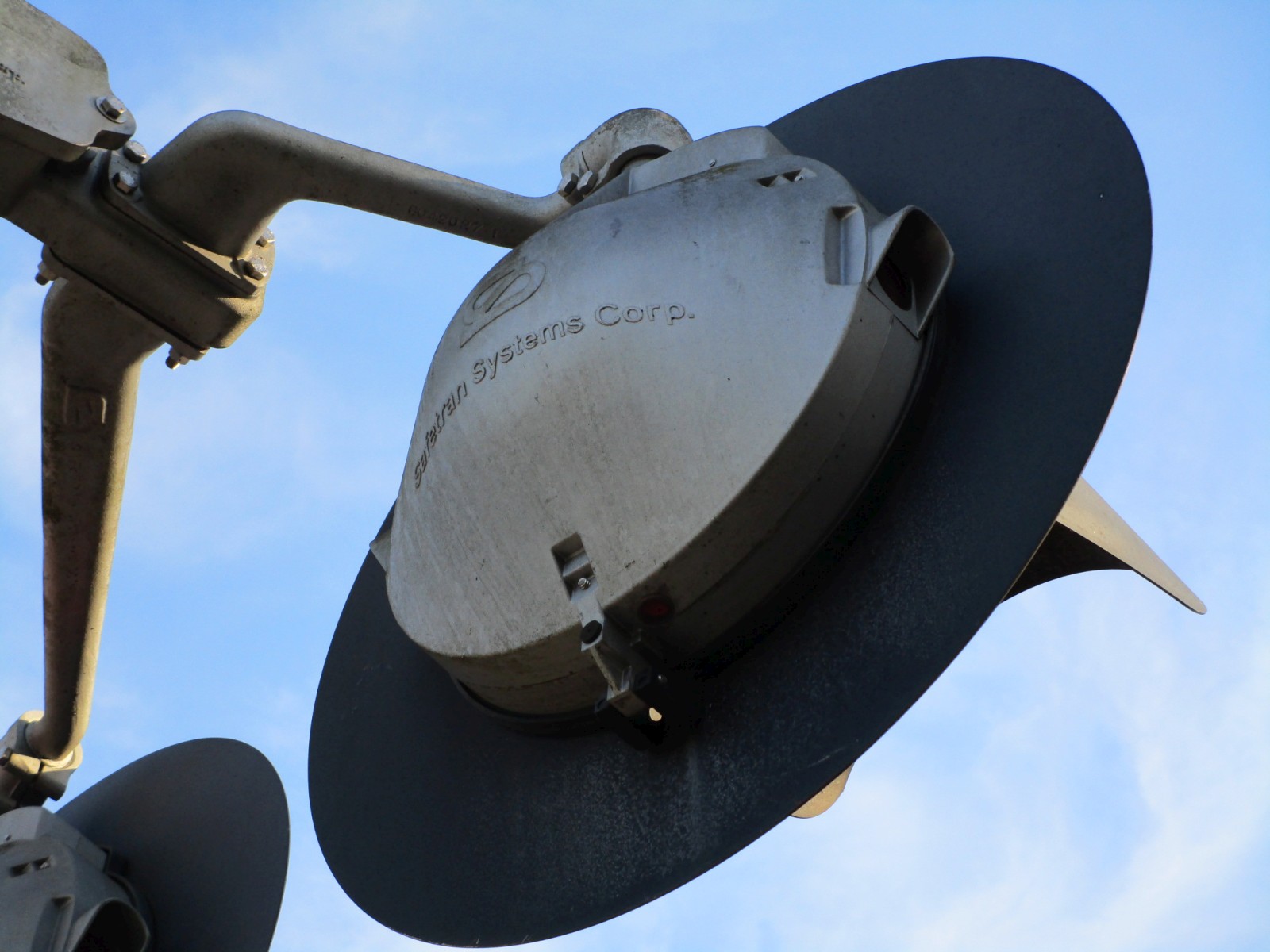

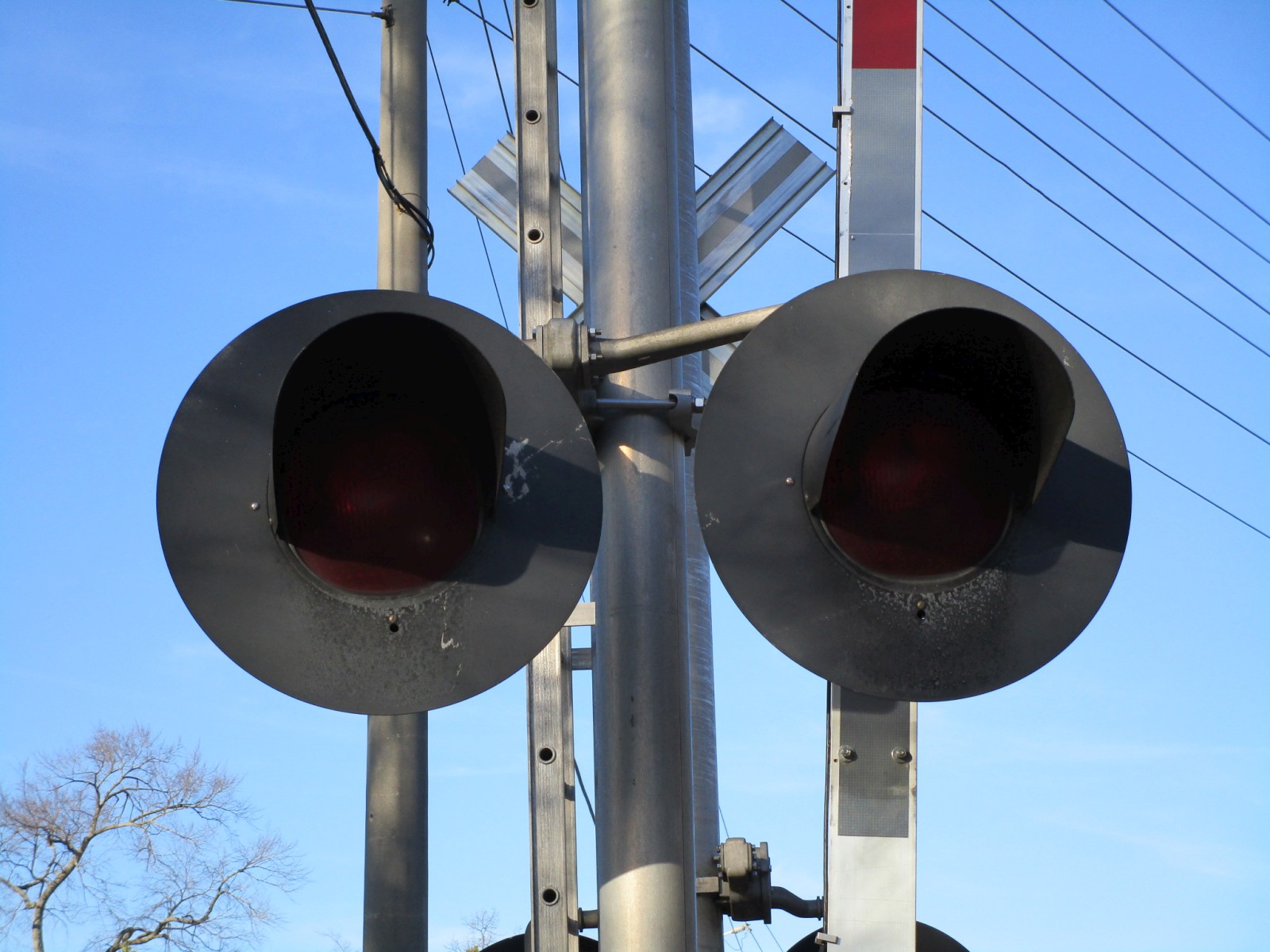

The rear lights are a pair of Safetran 12x24 inch lights.

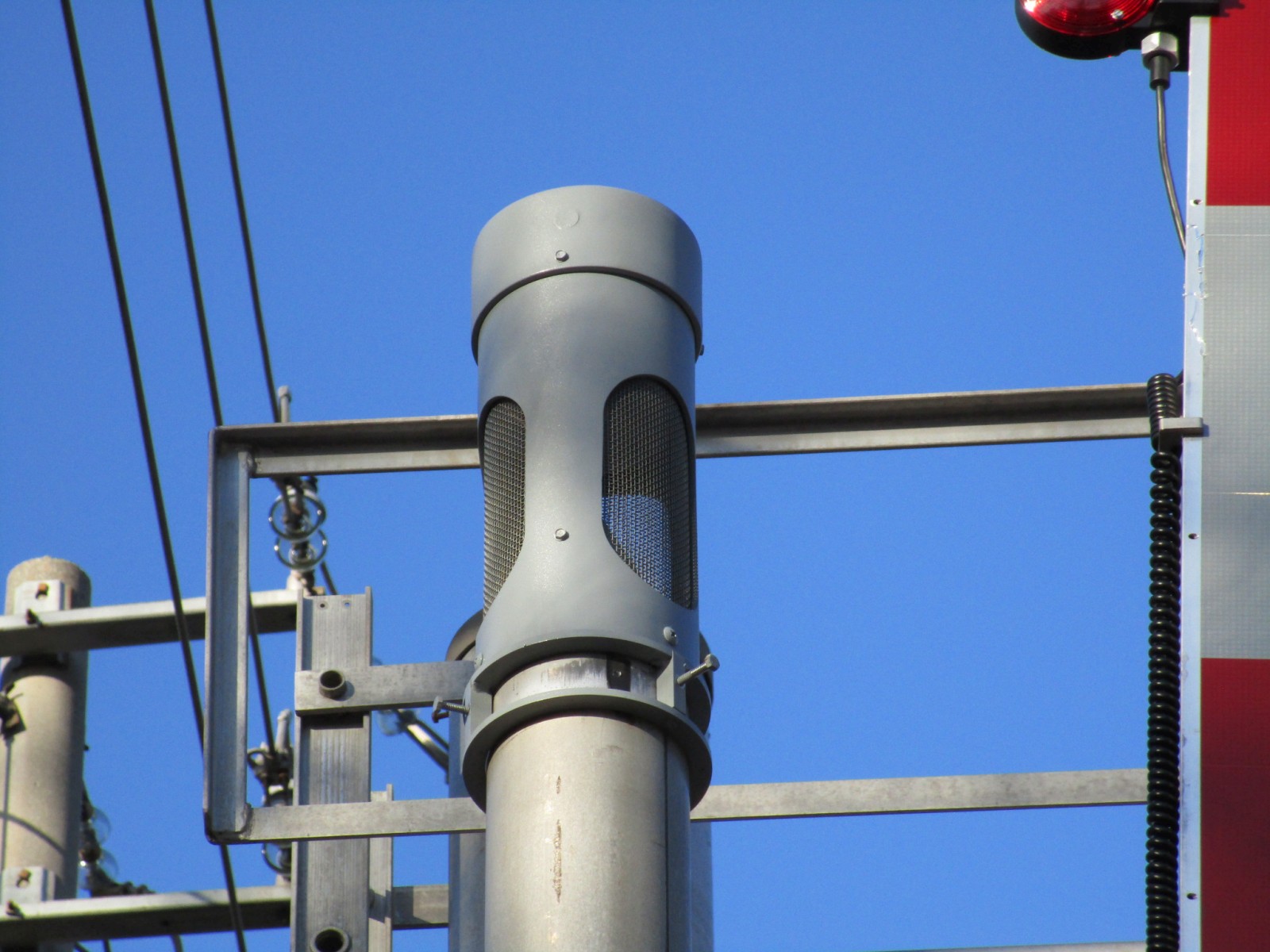

This signal uses an NEG e-bell.

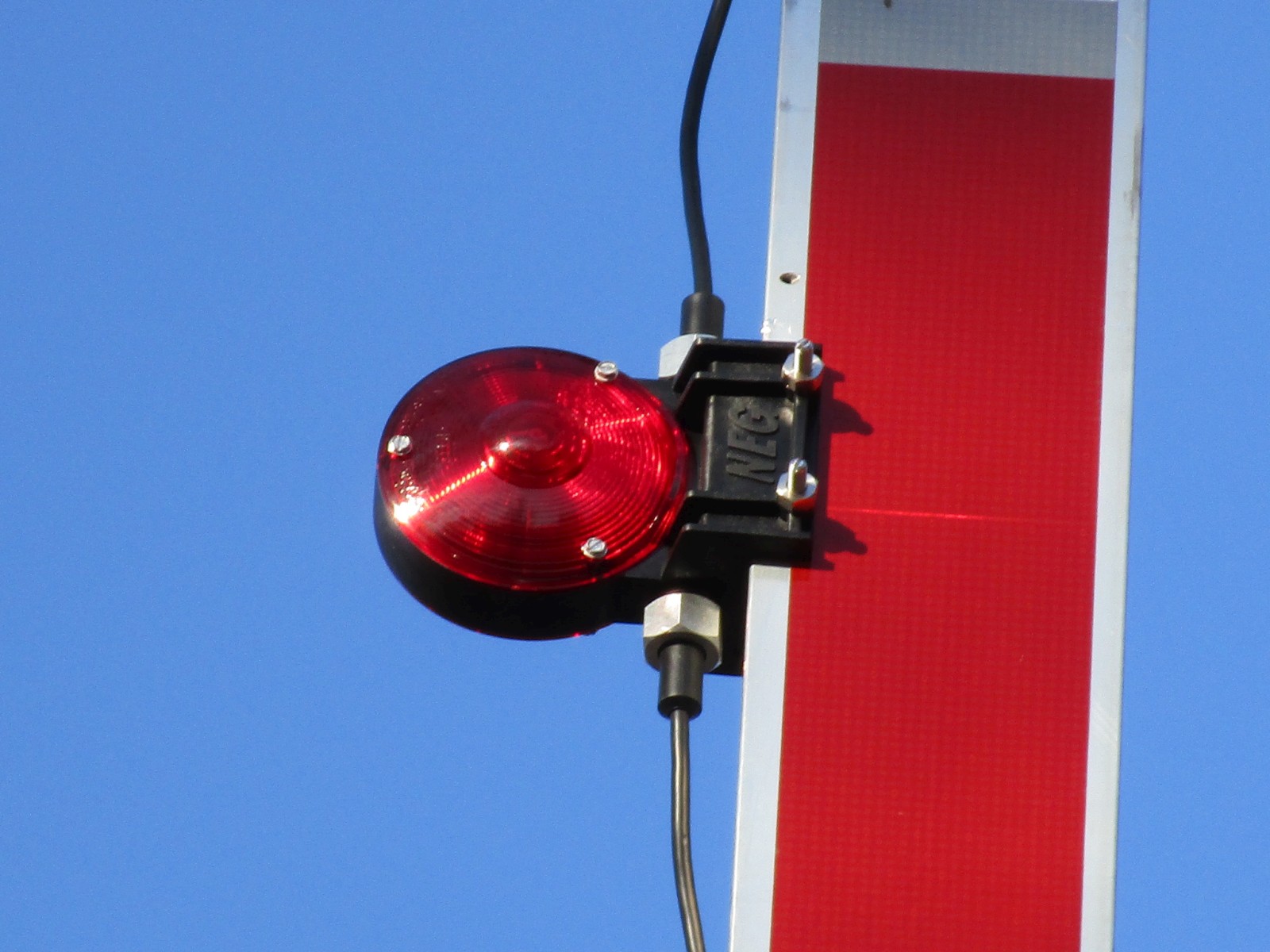

The gate lights here are NEG LEDs.

17

18

19

20

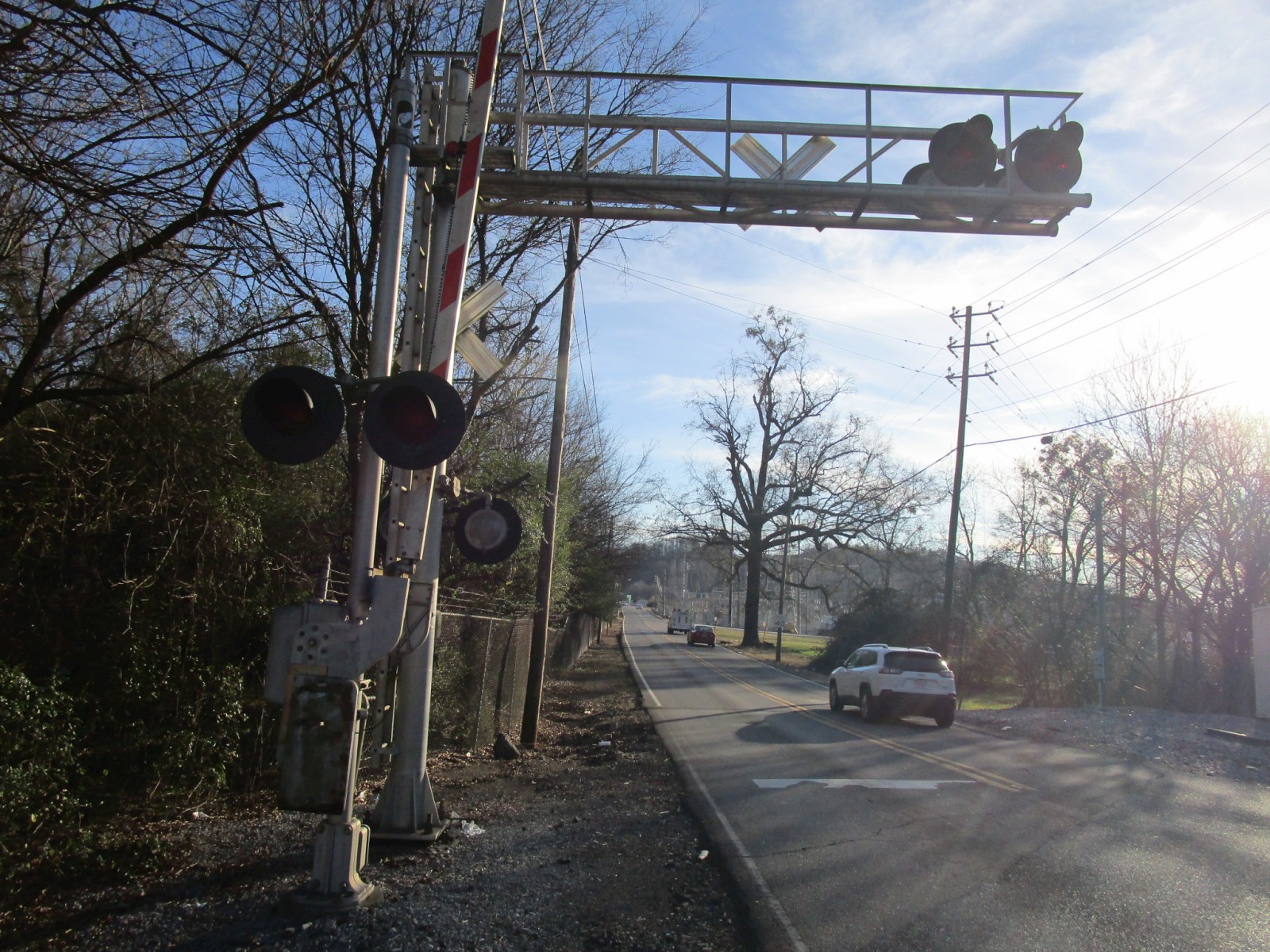

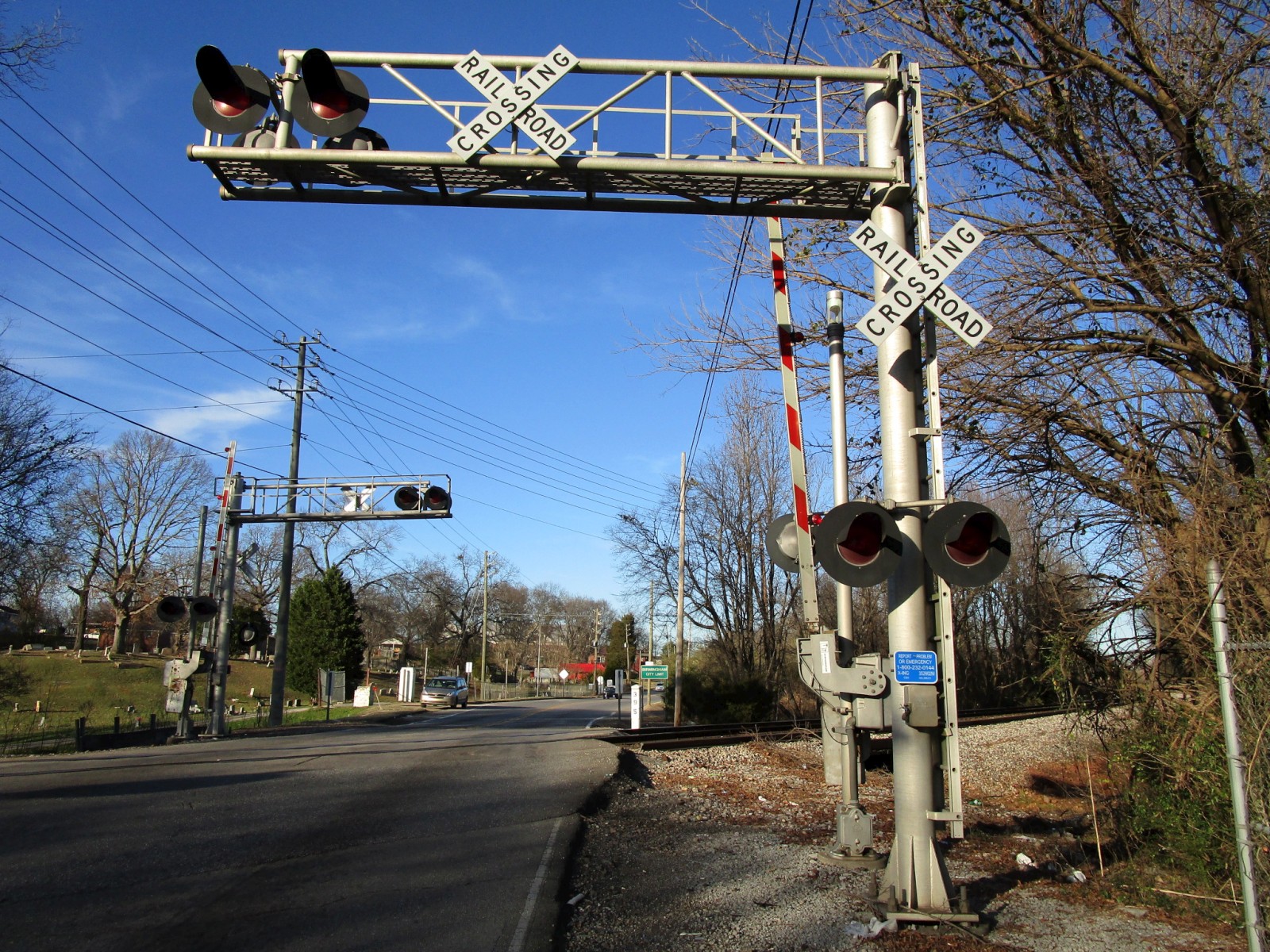

The second signal.
It's another Lincoln Industries cantilever.

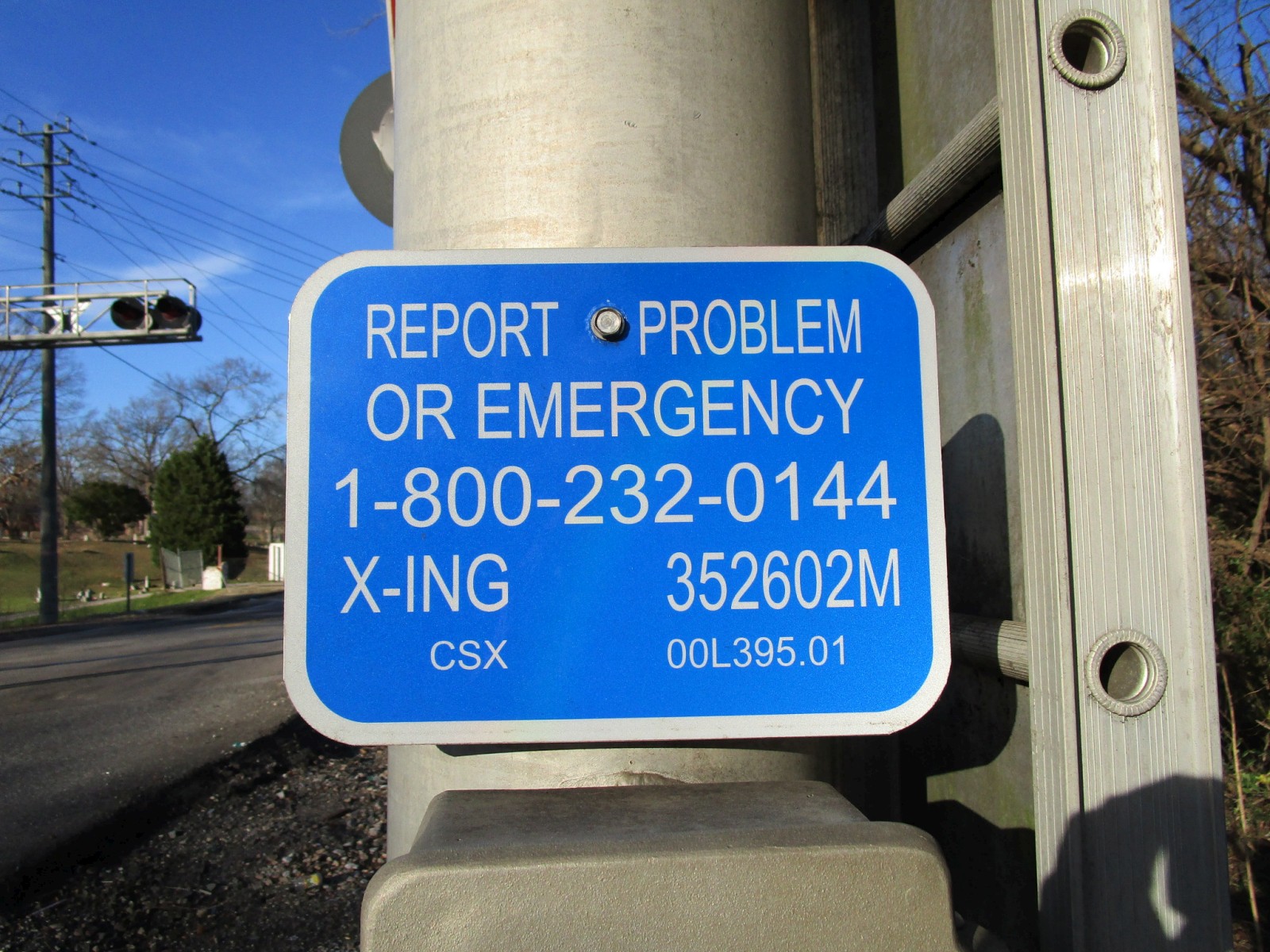

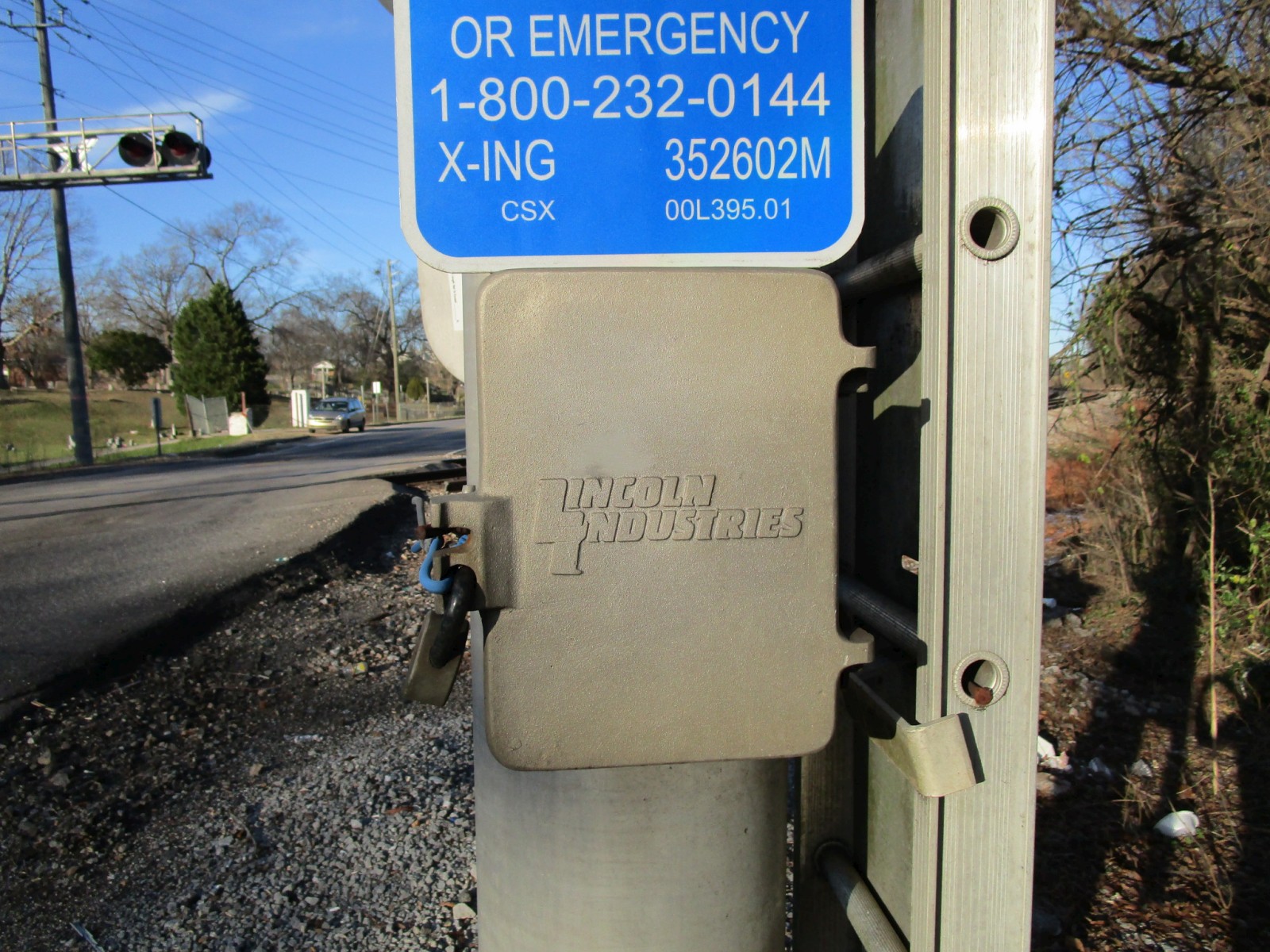

The emergency information.

21

22

23

24

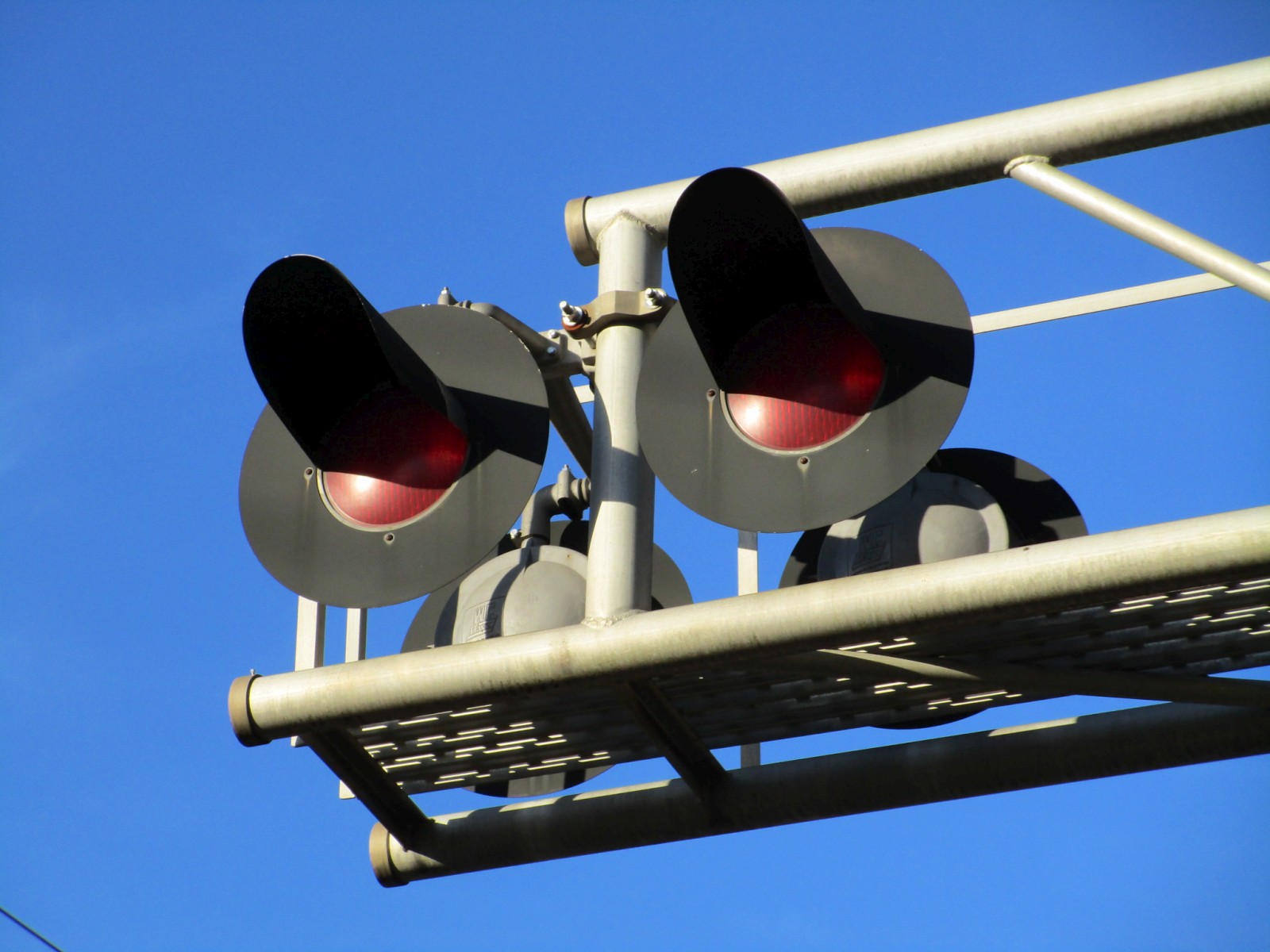

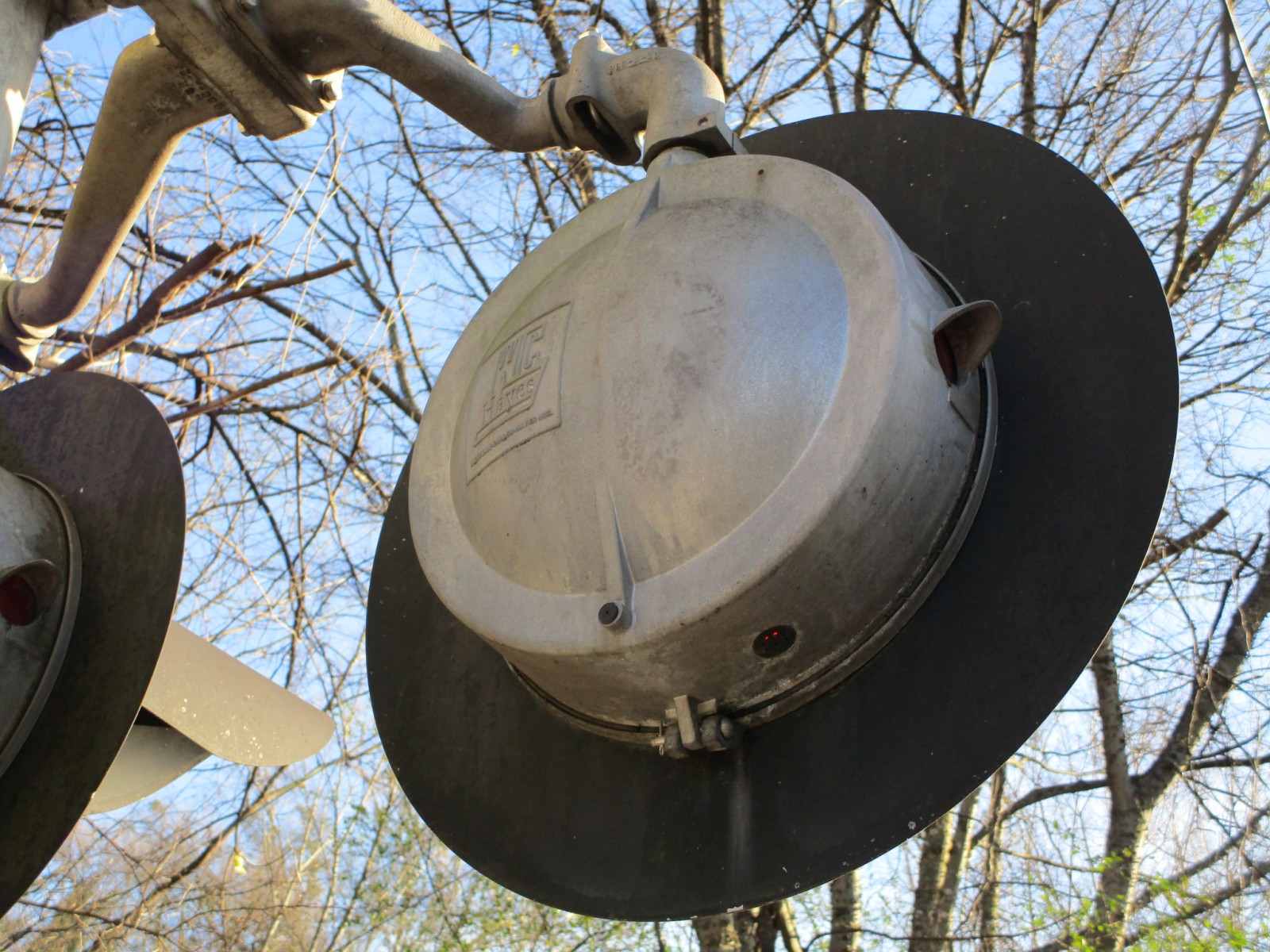

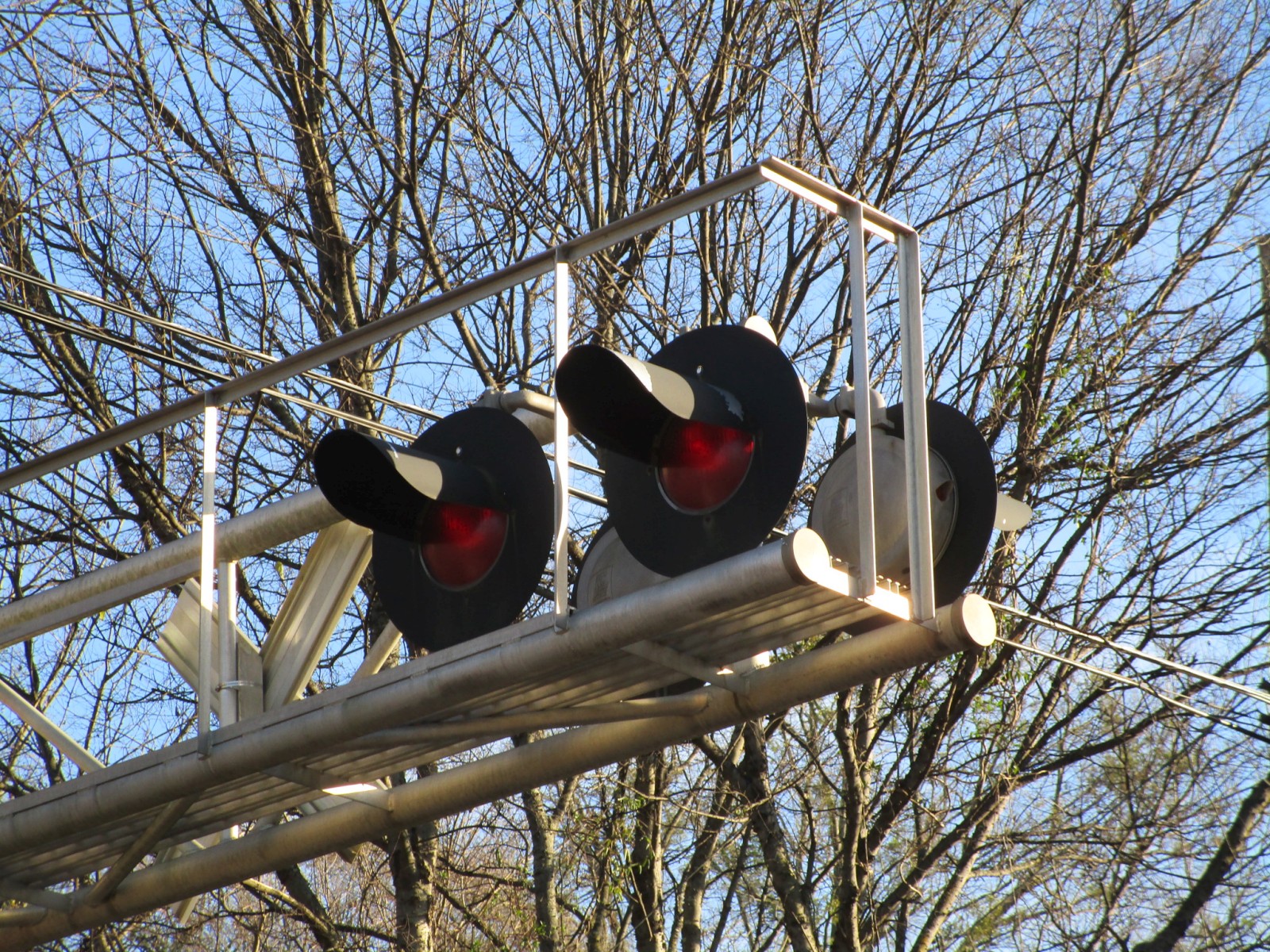

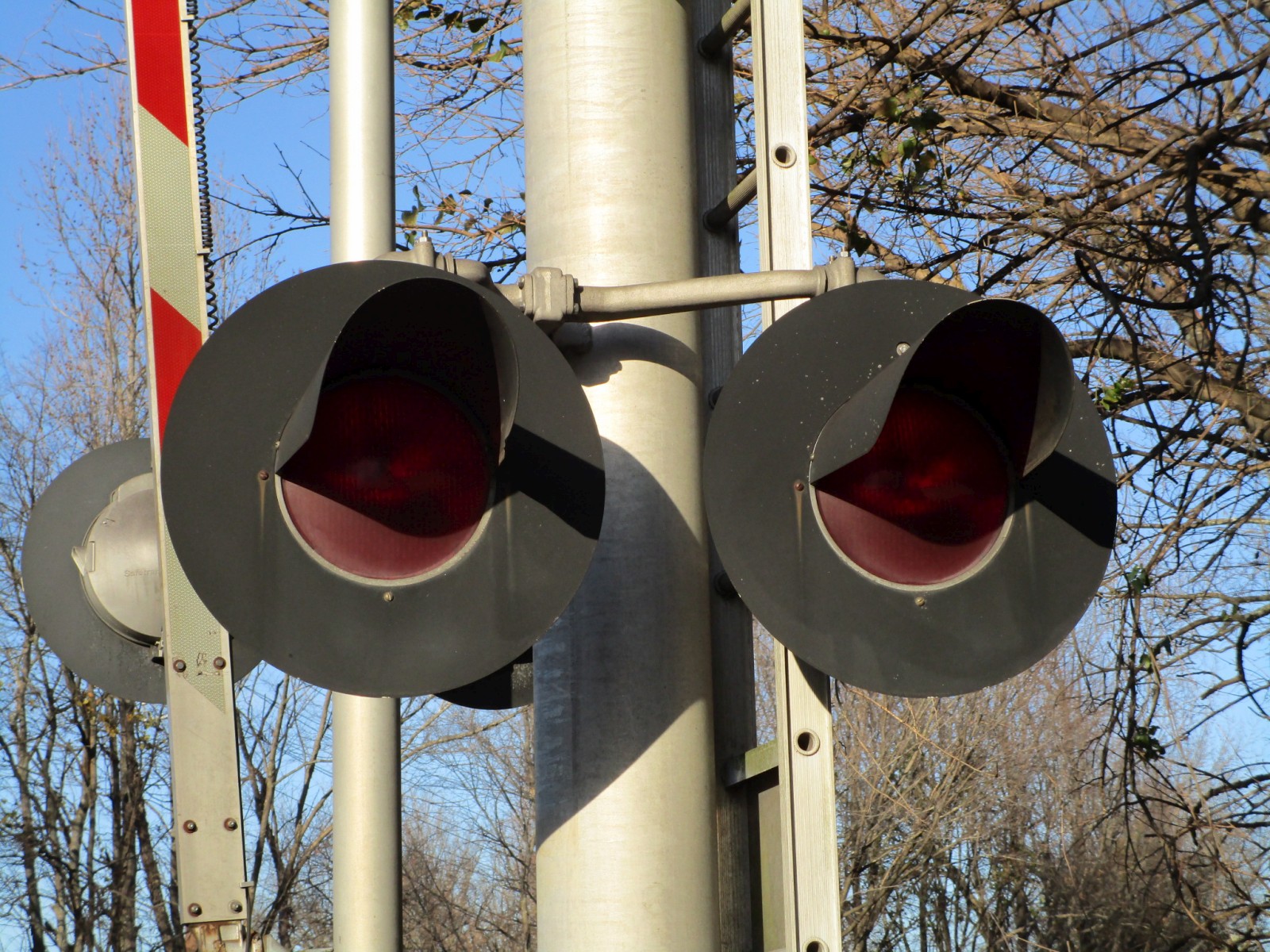

The cantilever has even more WCH 12x24 inch lights!

25

26

27

28

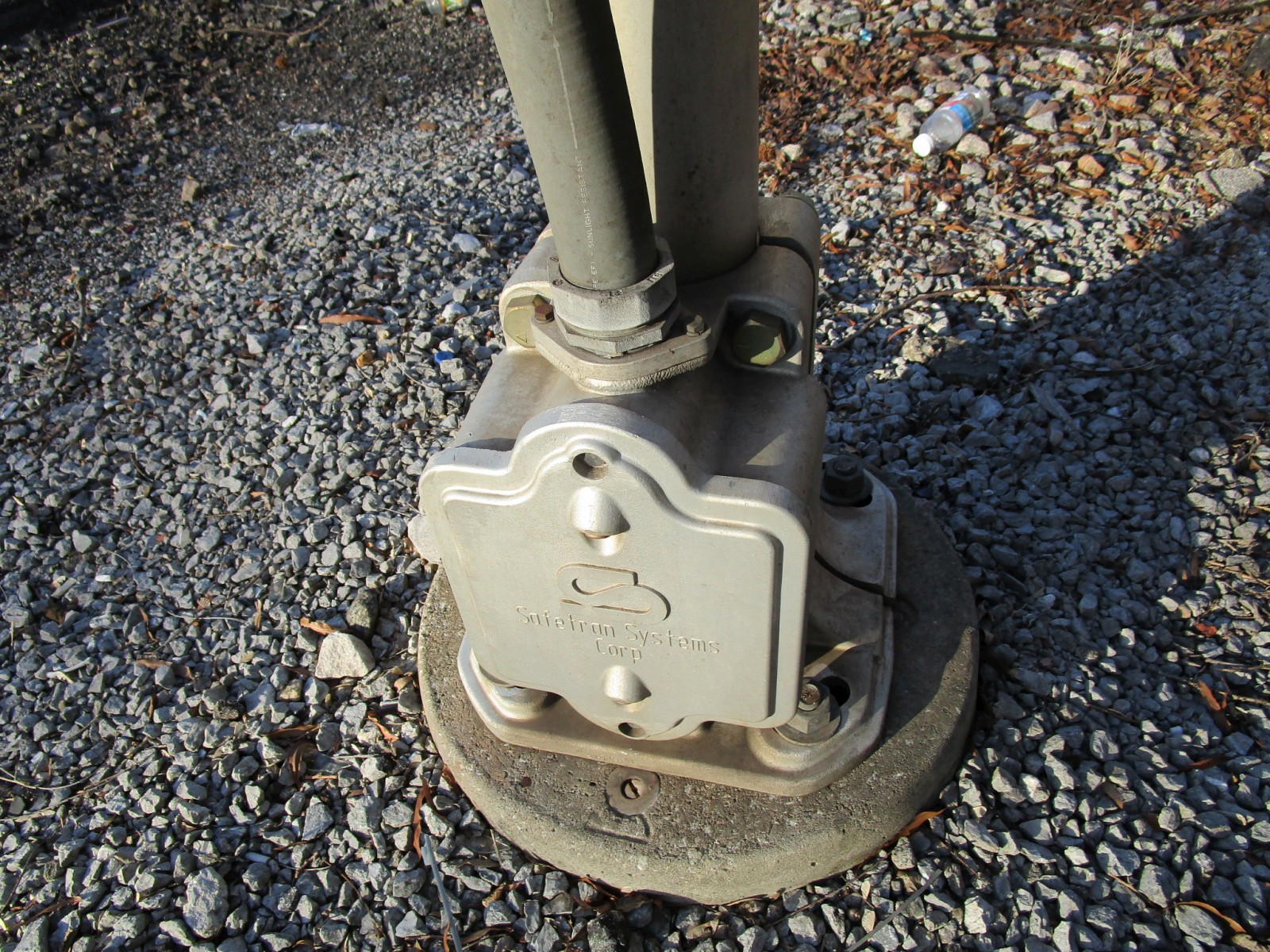

Another Safetran base.

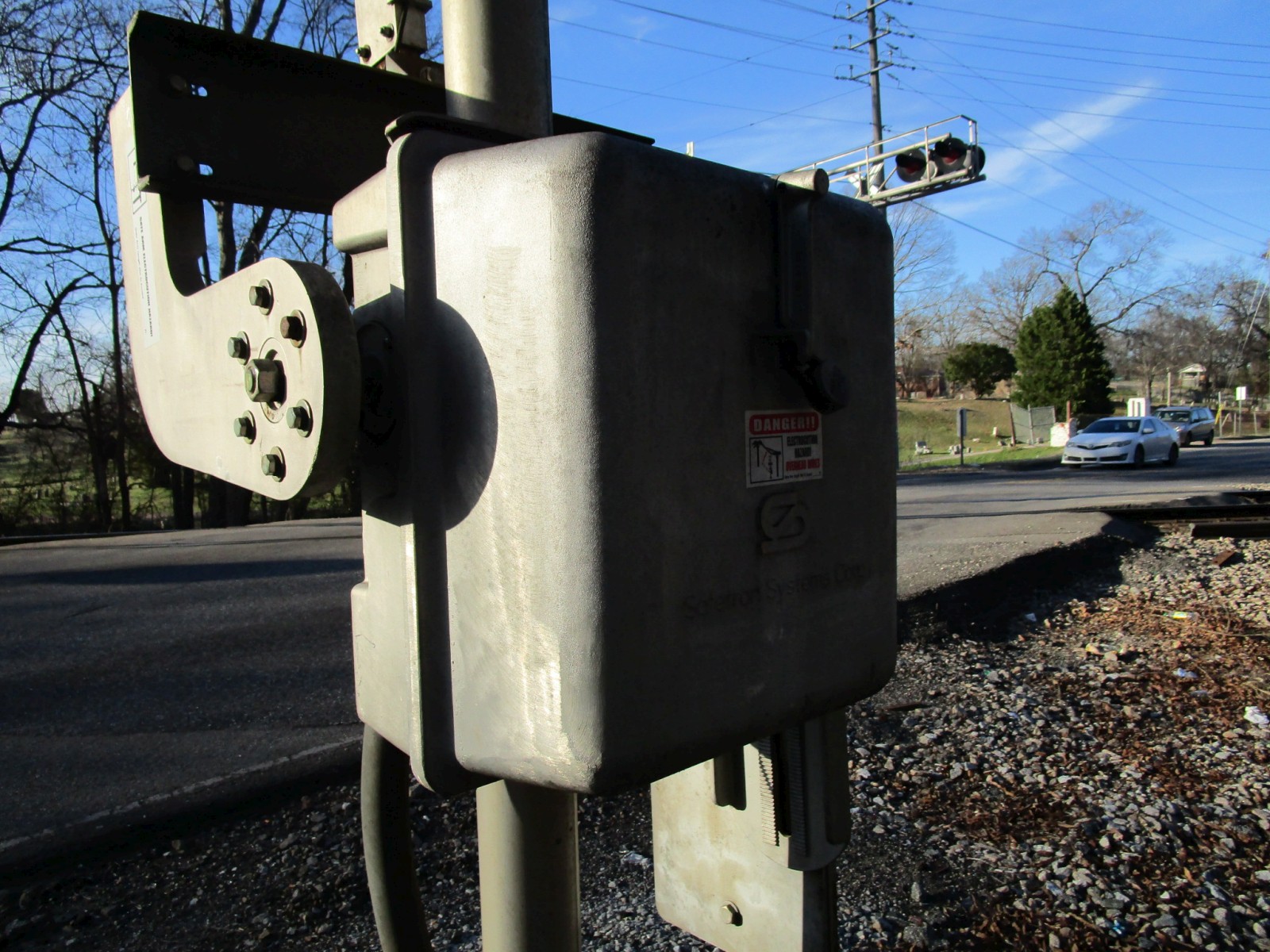

Another Safetran gate mechanism.

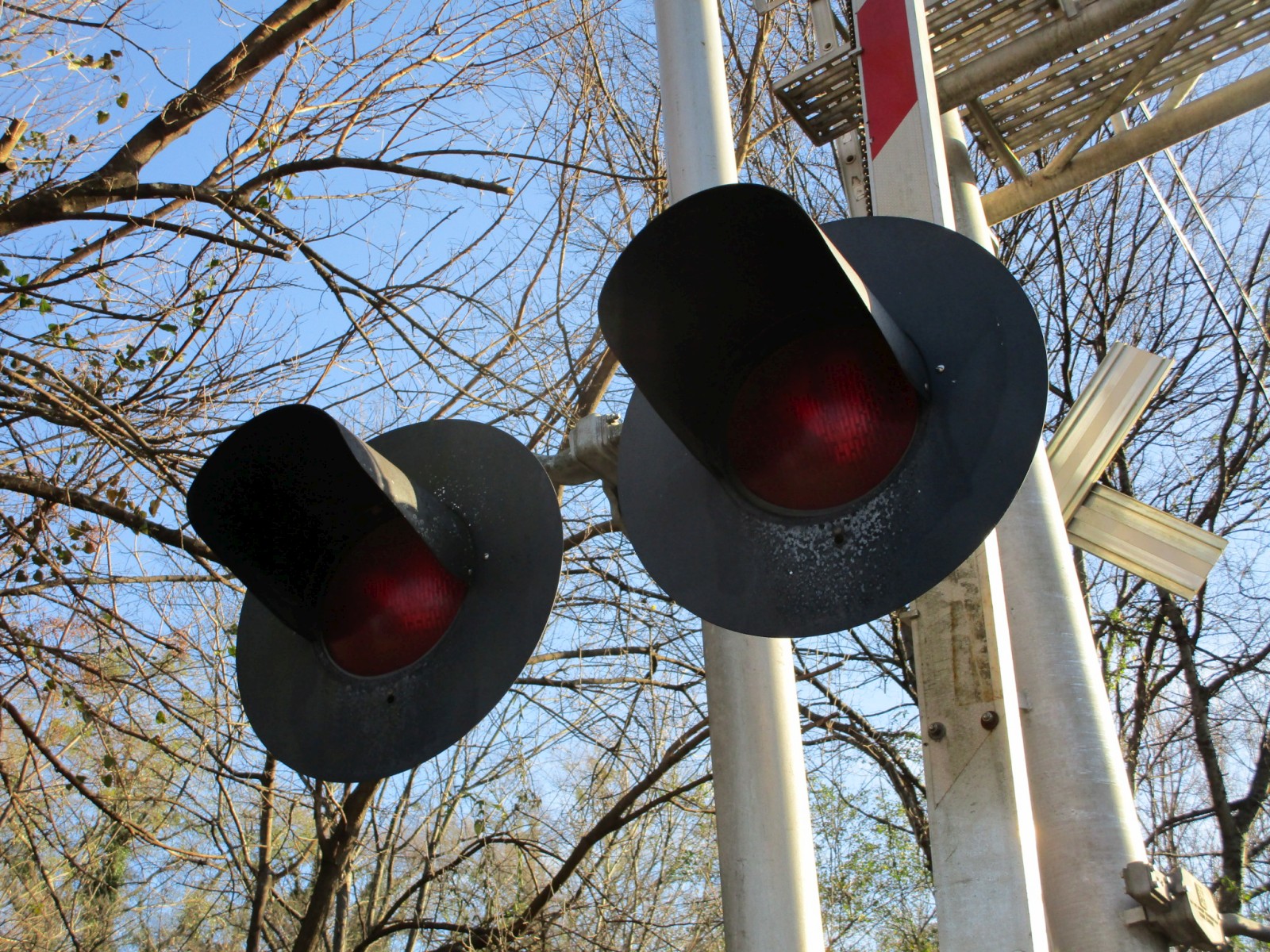

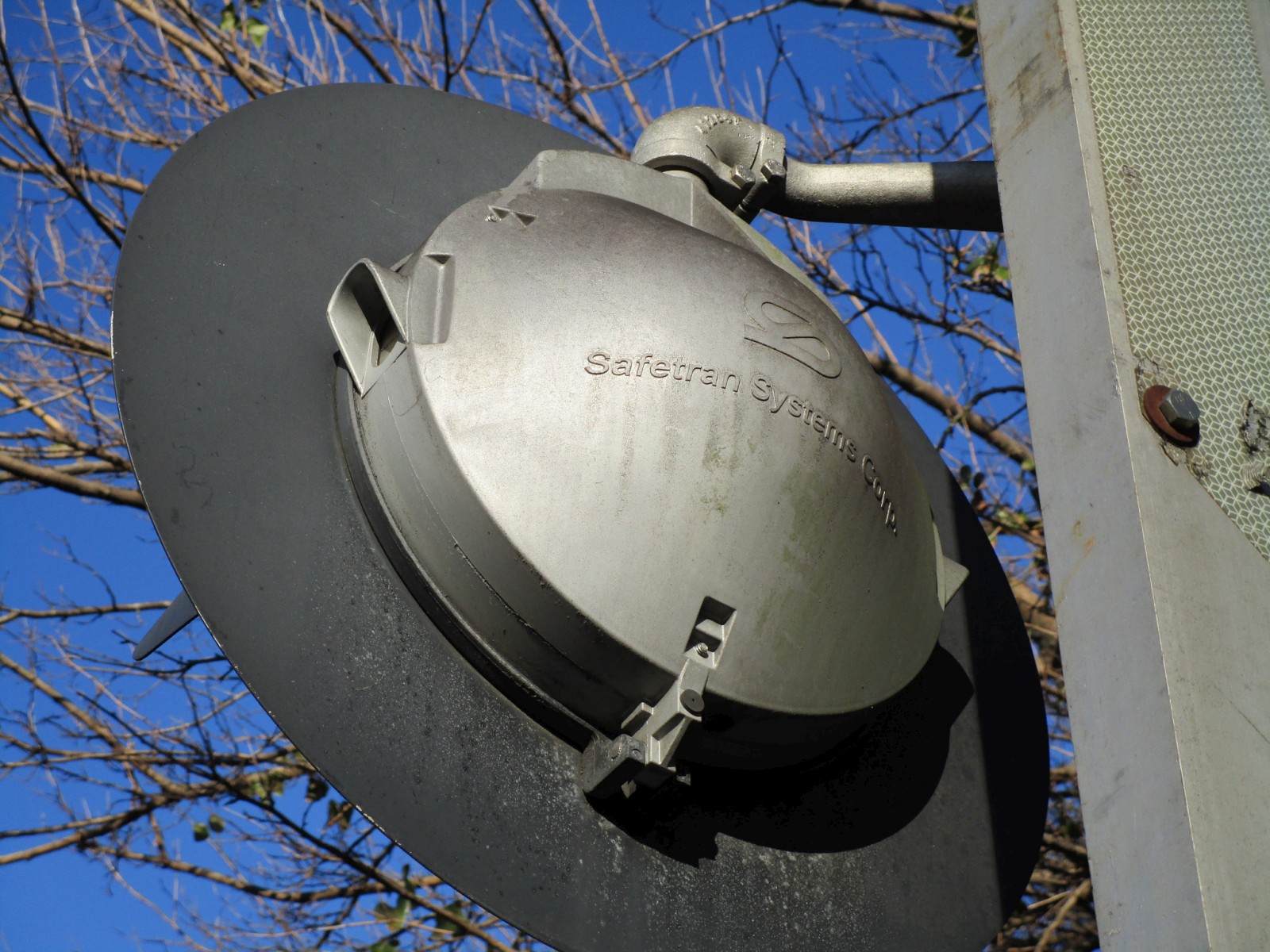

The rear lights are another pair of Safetran 12x24 inch lights.

29

30

31

32

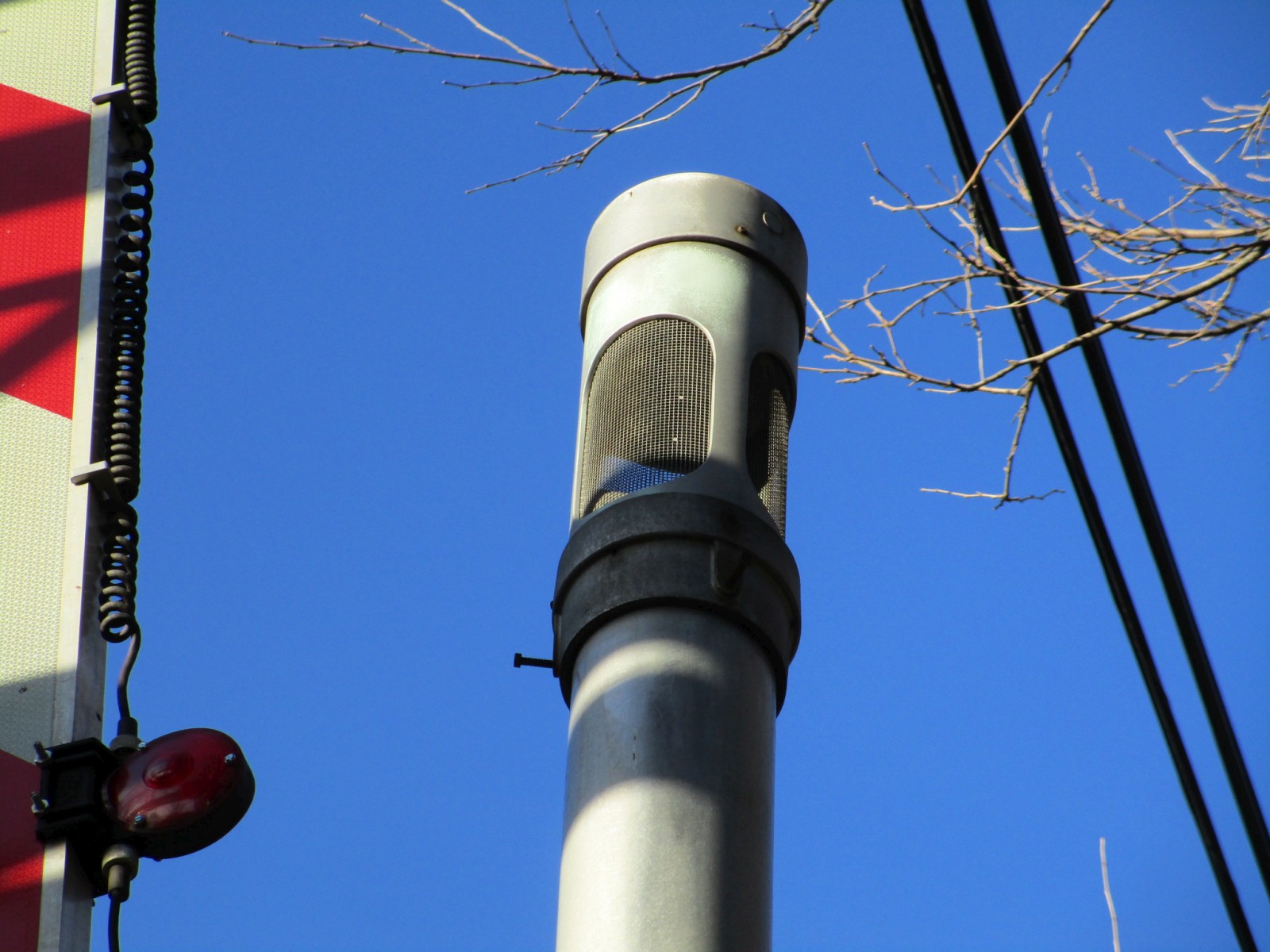

A General Signals e-bell is found over here.

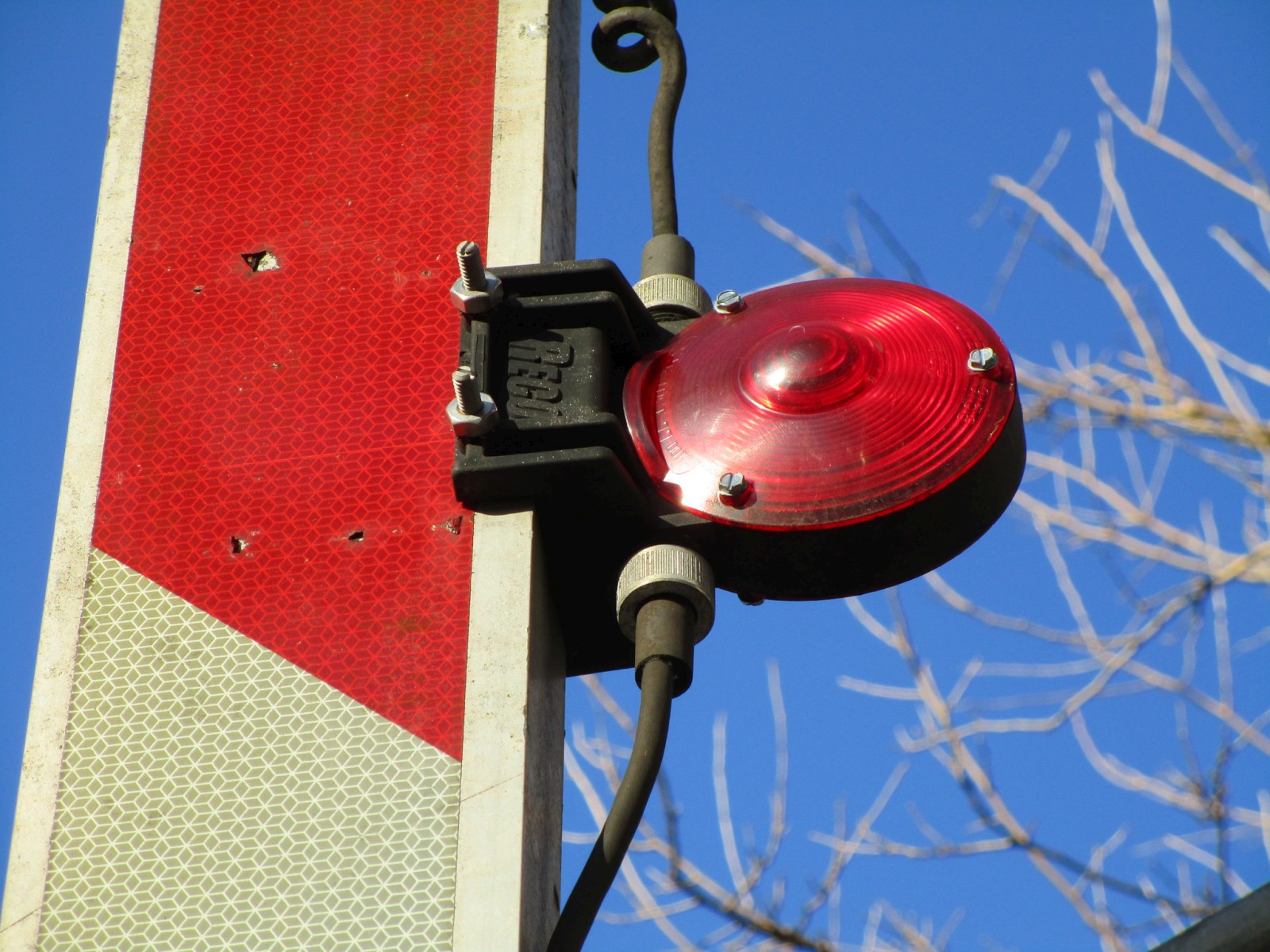

This signal uses RECO gate lights.

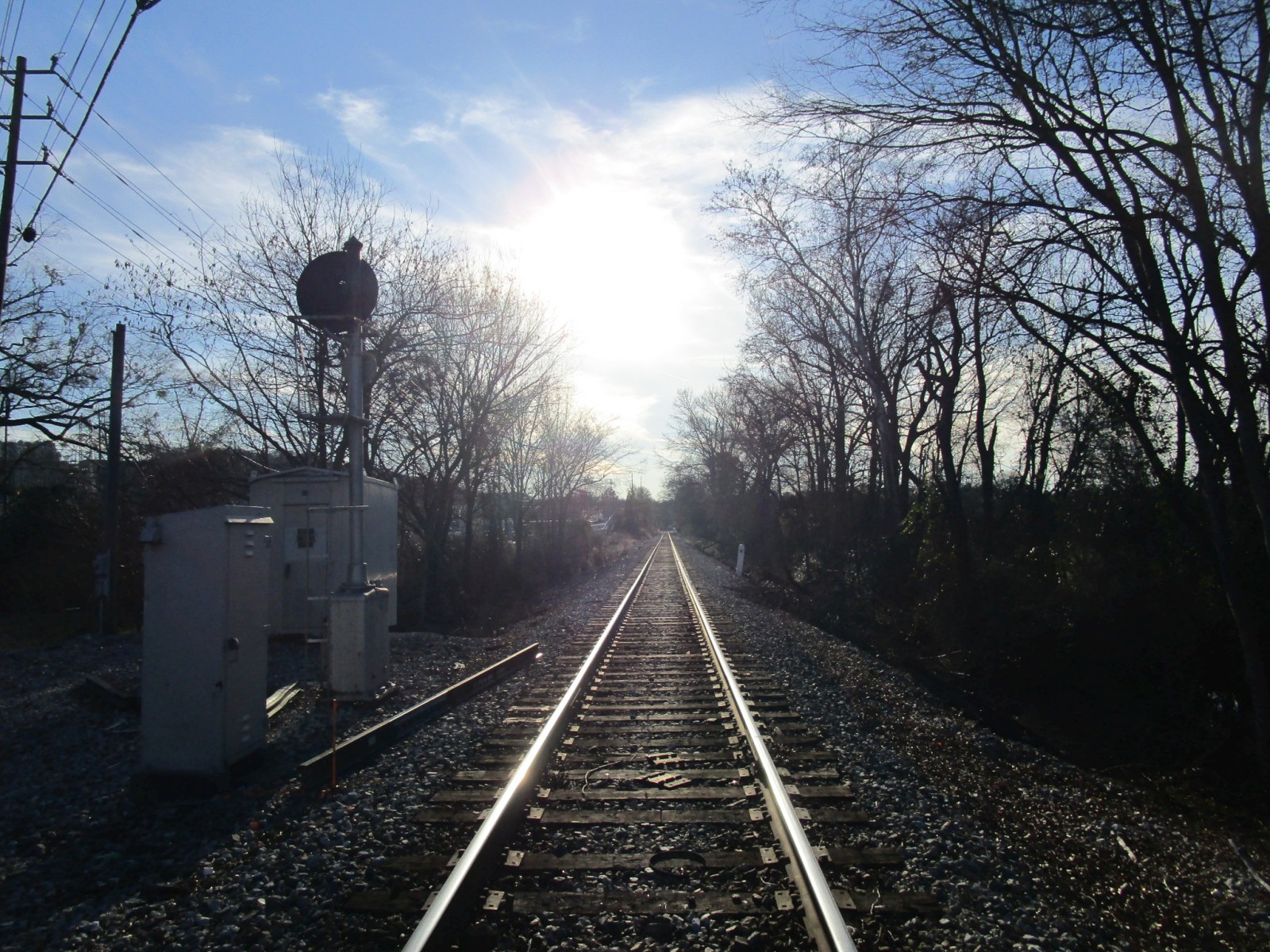

Looking southwest towards 12th Street #1.
Looking northeast towards 17th Avenue.

33

34

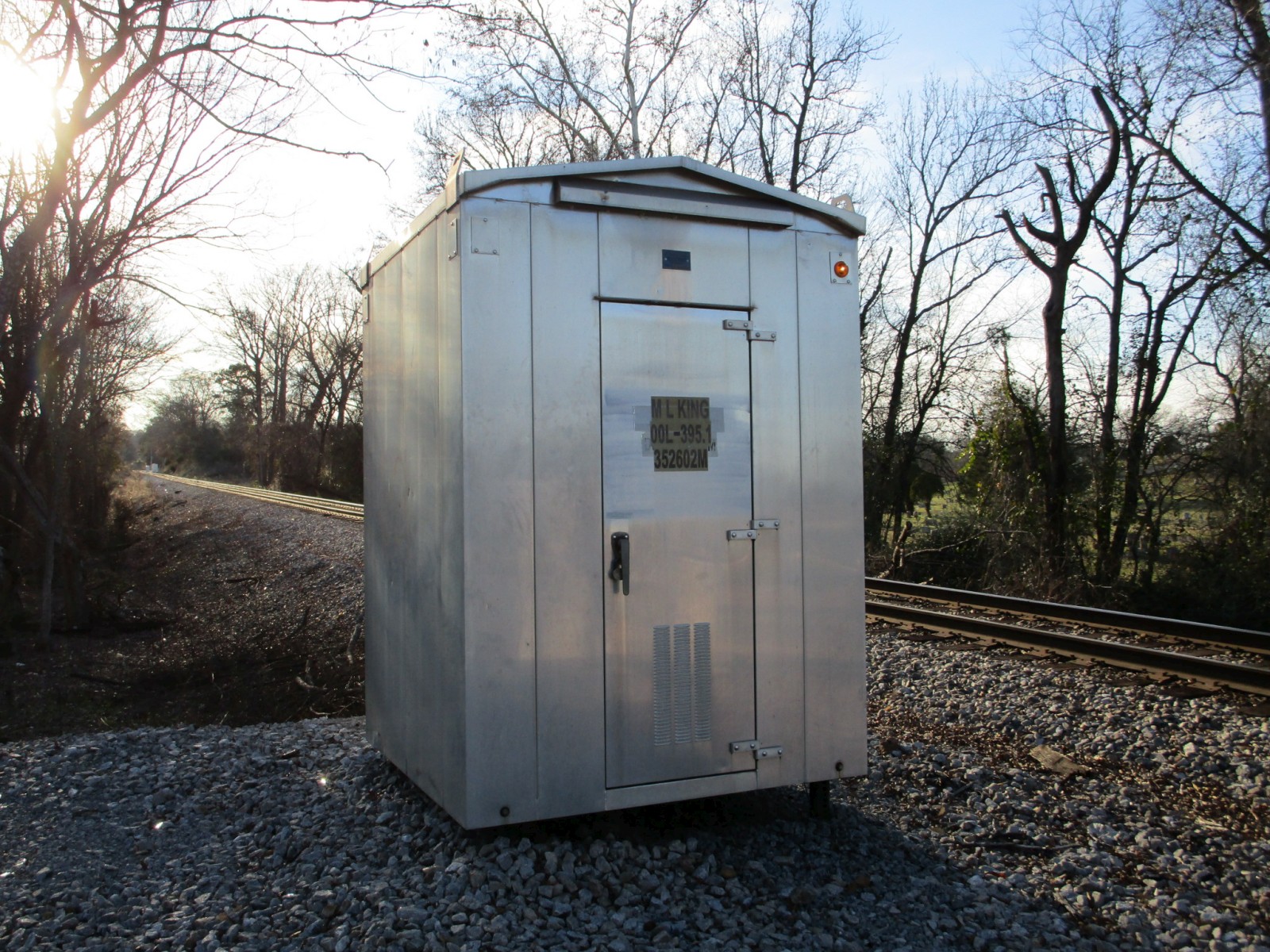

The relay case.

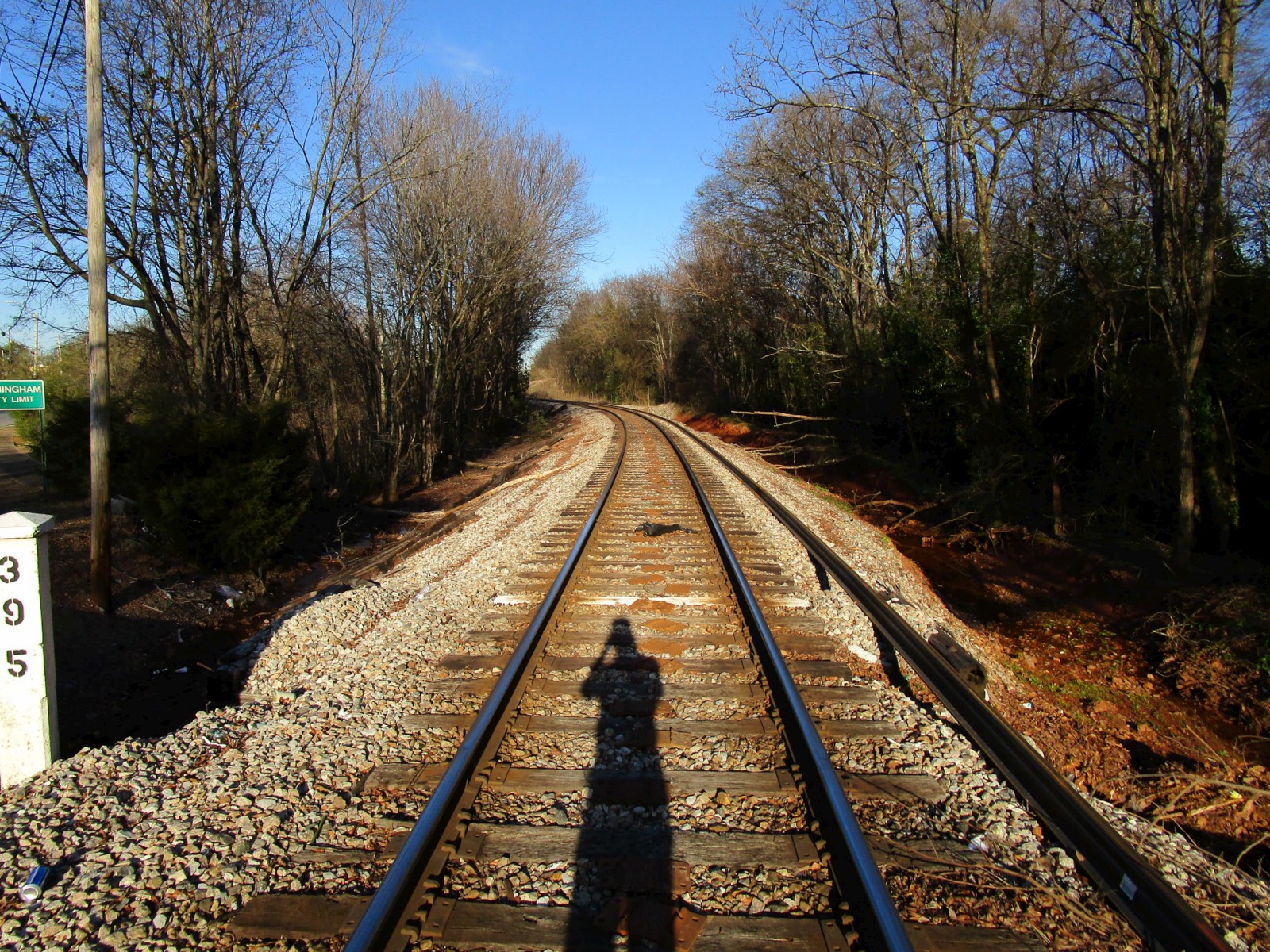

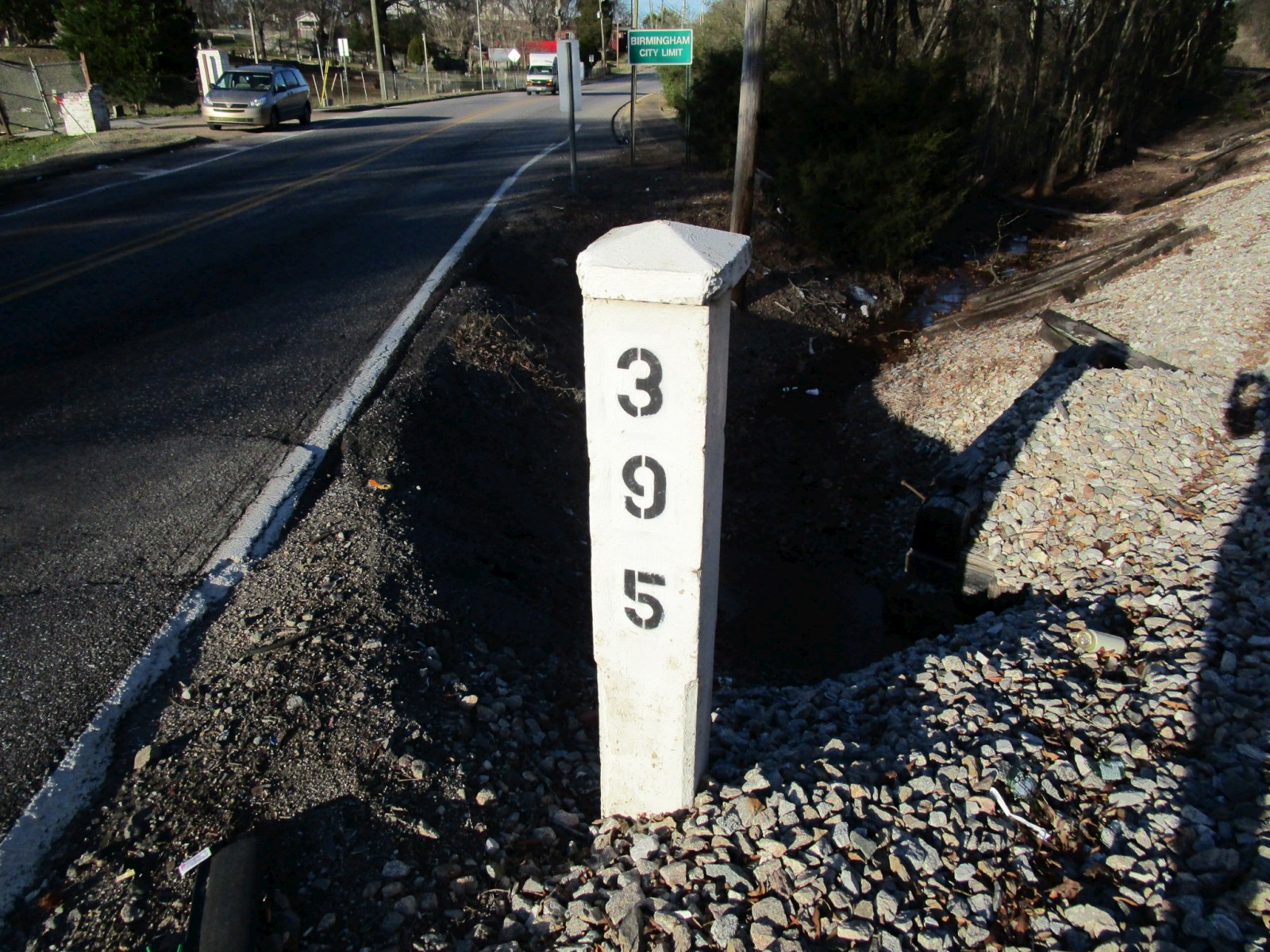

Milepost 395 stands next to this crossing.

35

36

37

38

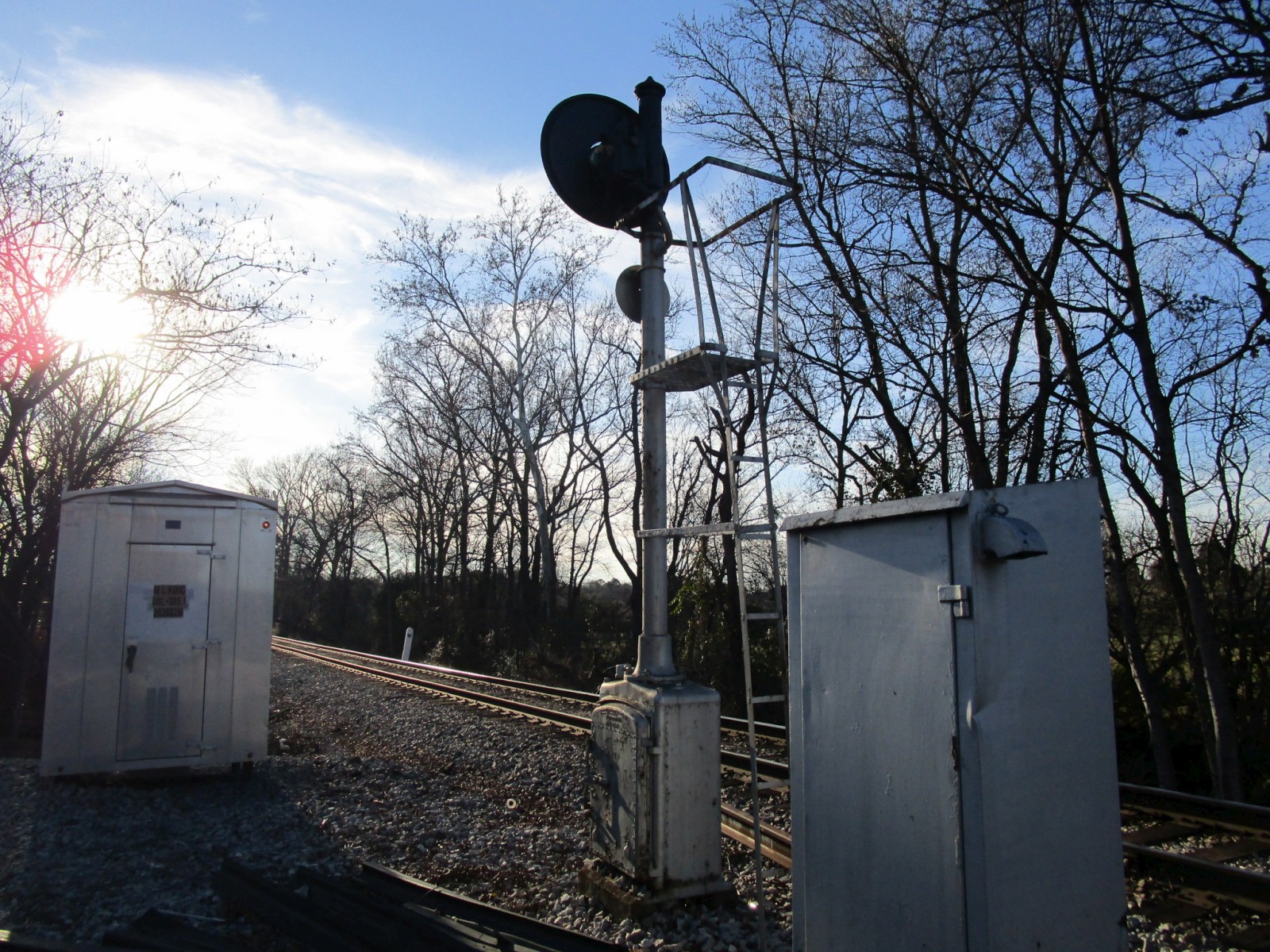

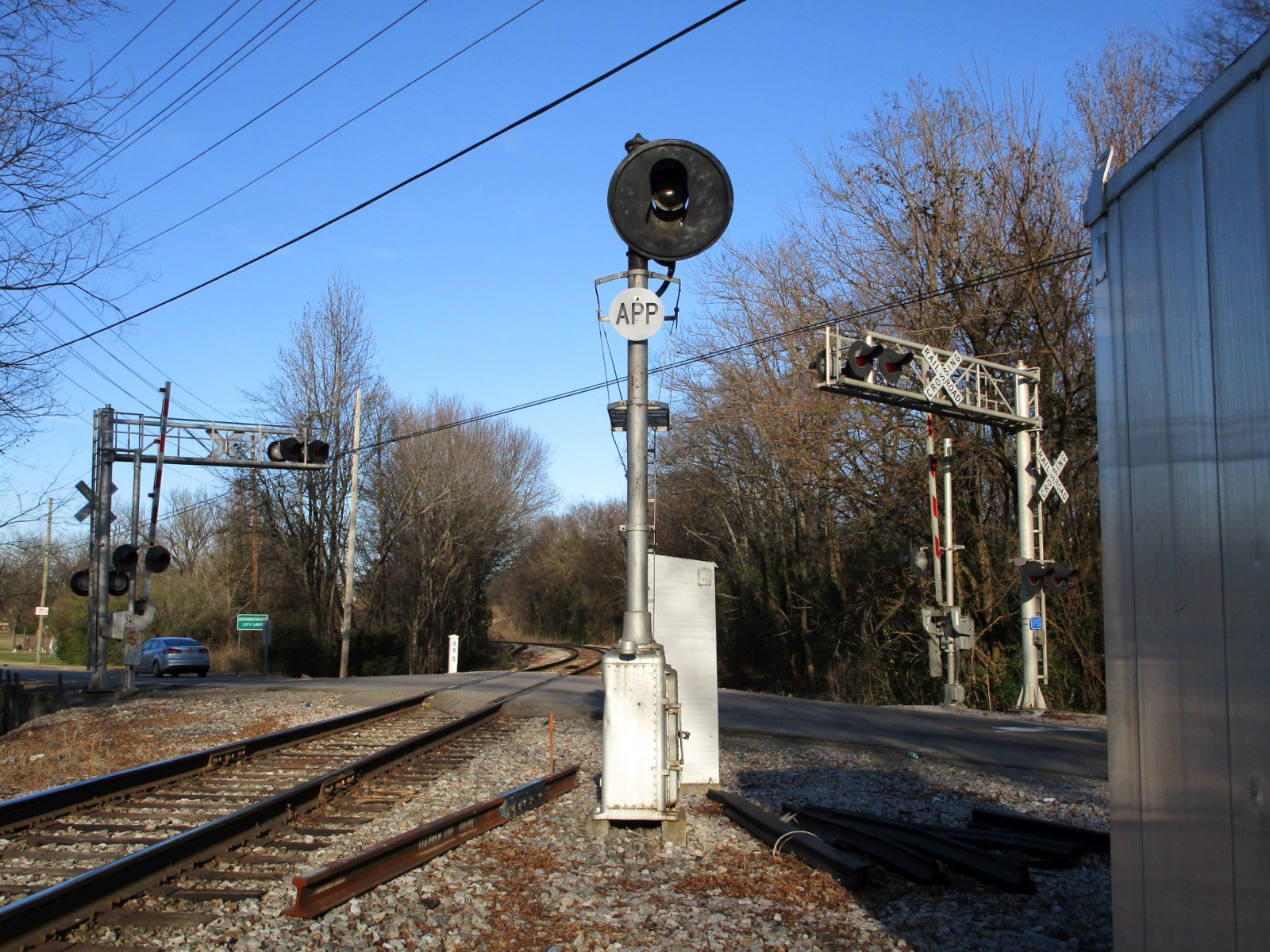

An old L&N-era Searchlight signal stands next to the crossing!

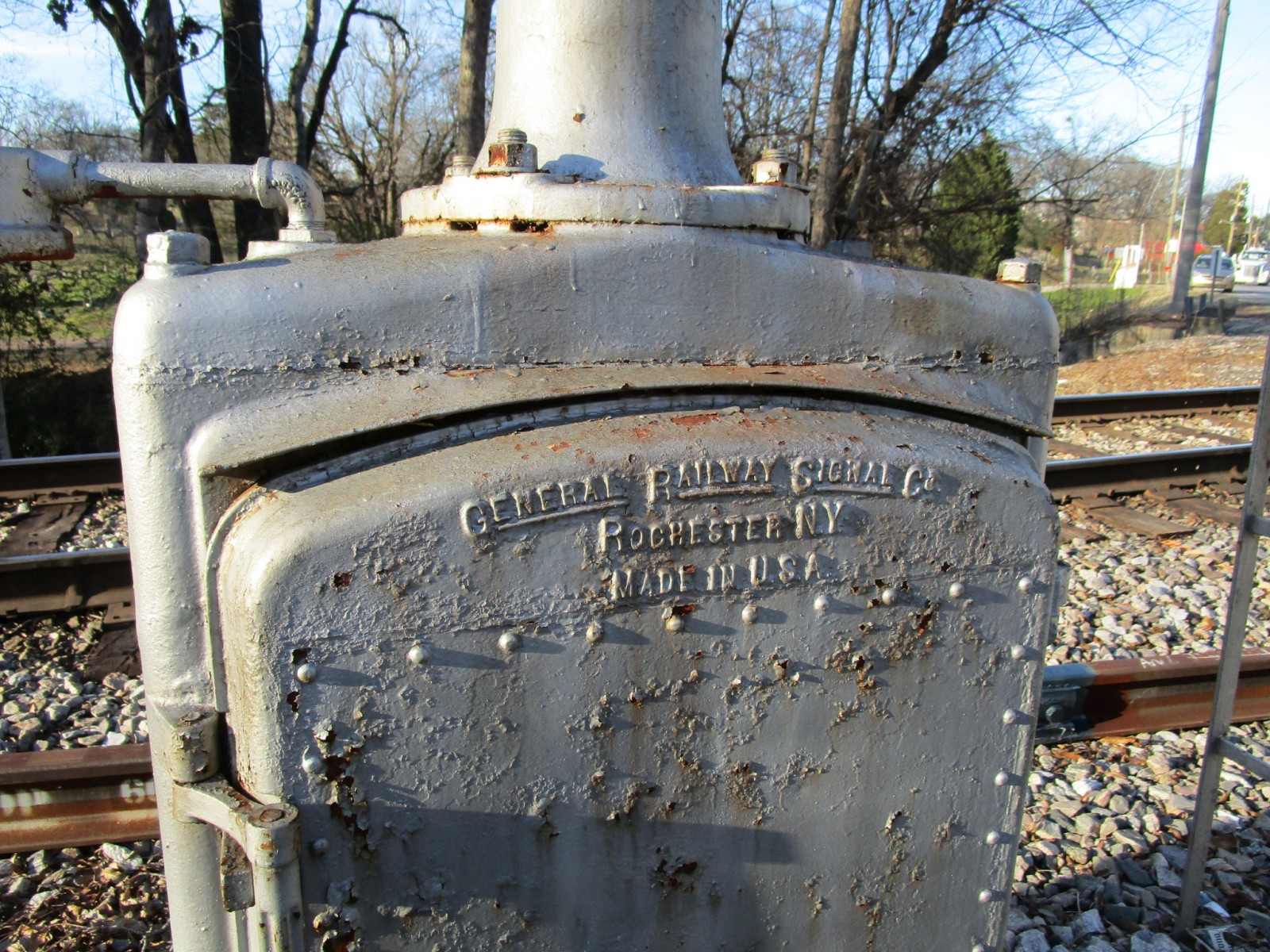

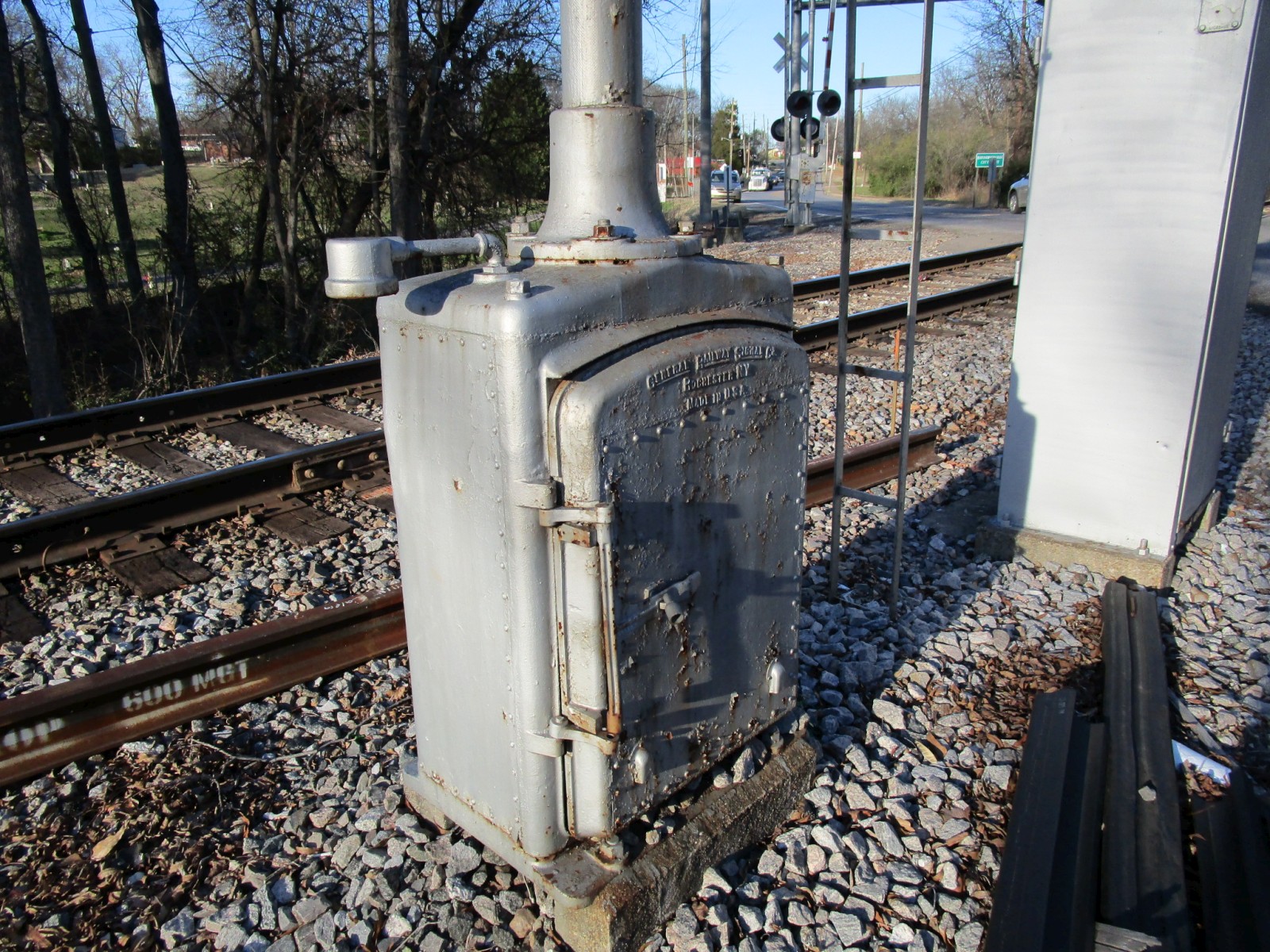

It's mounted on a GRS relay case.

39

40

41

42

43

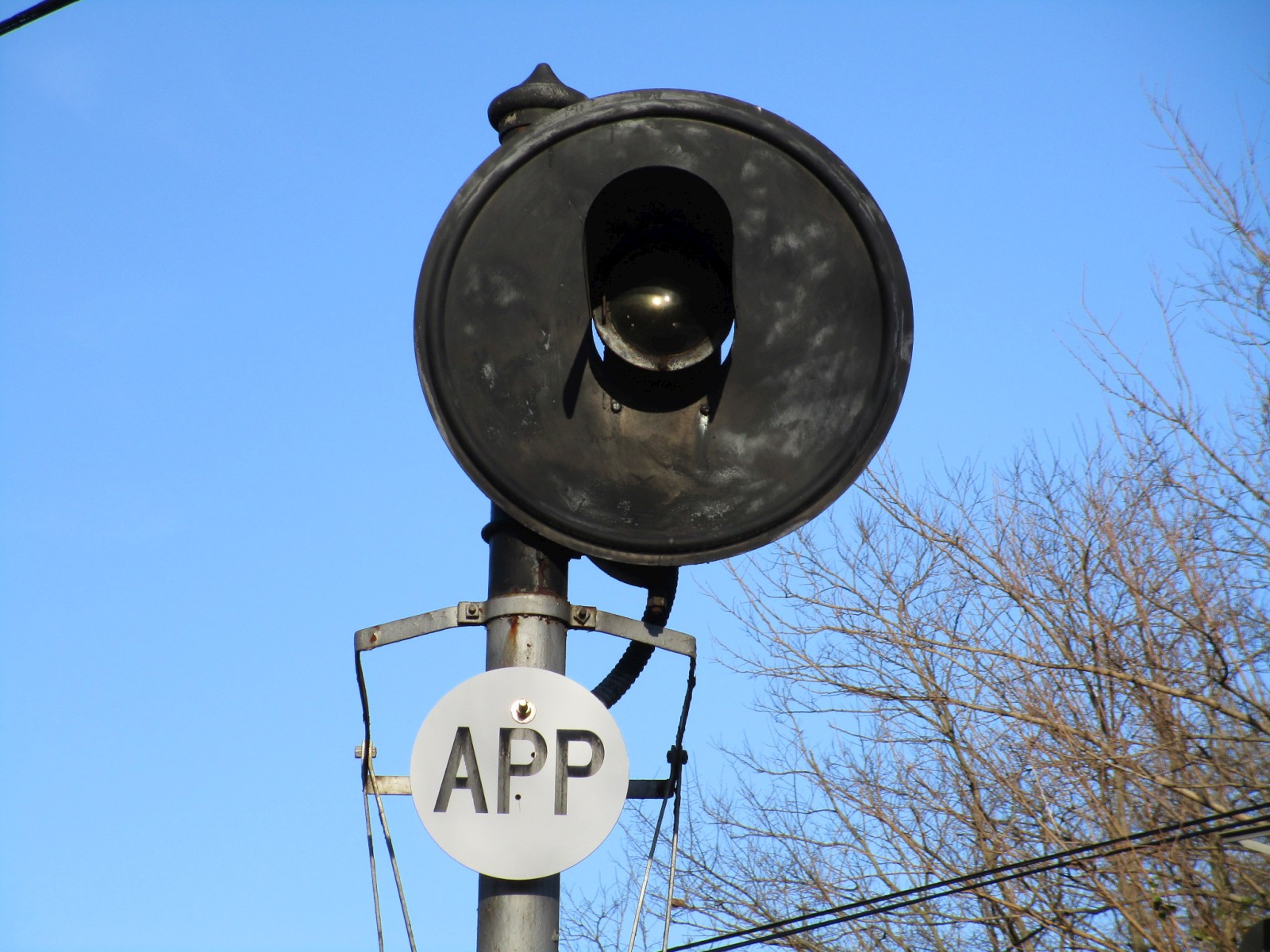

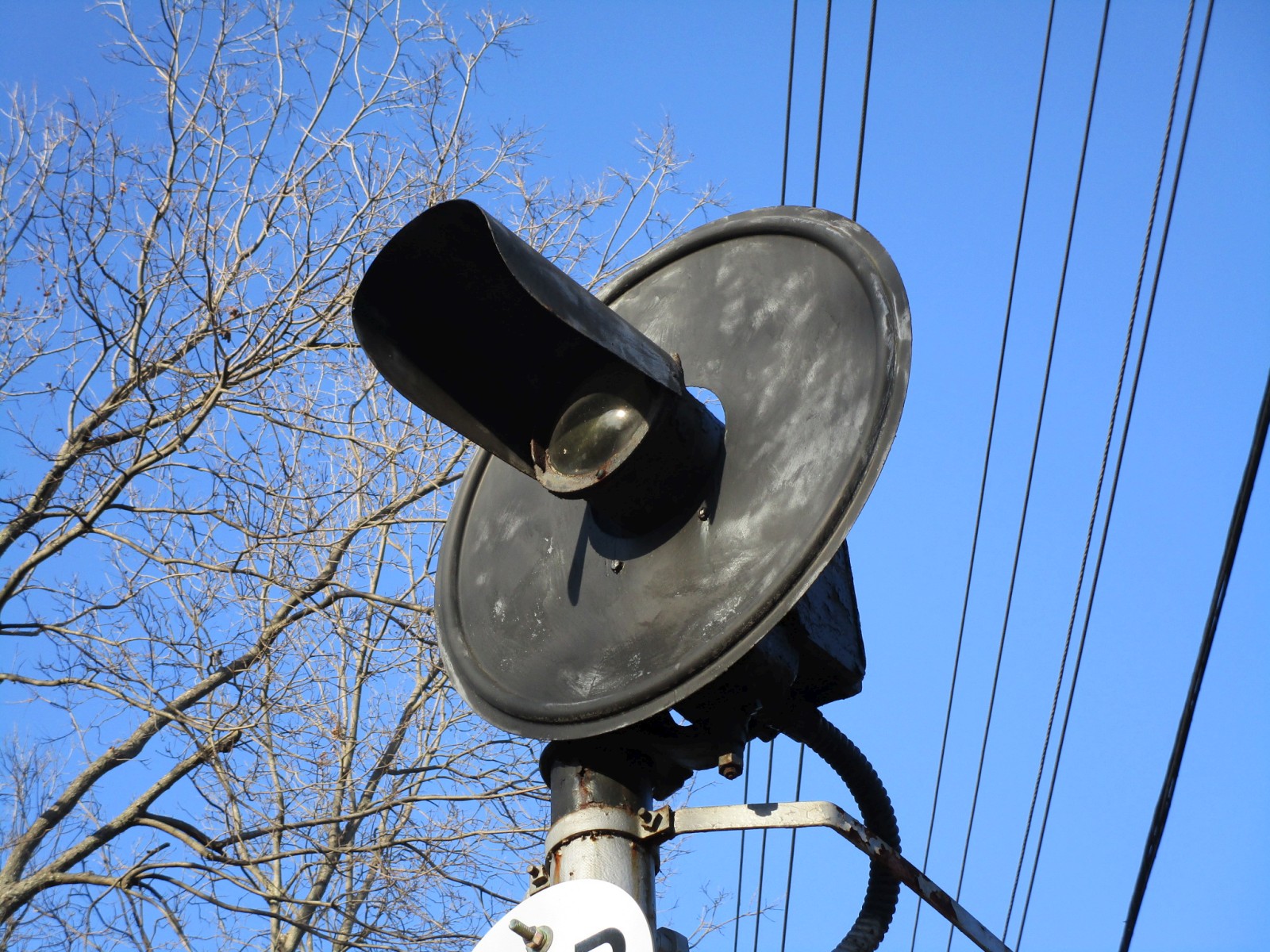

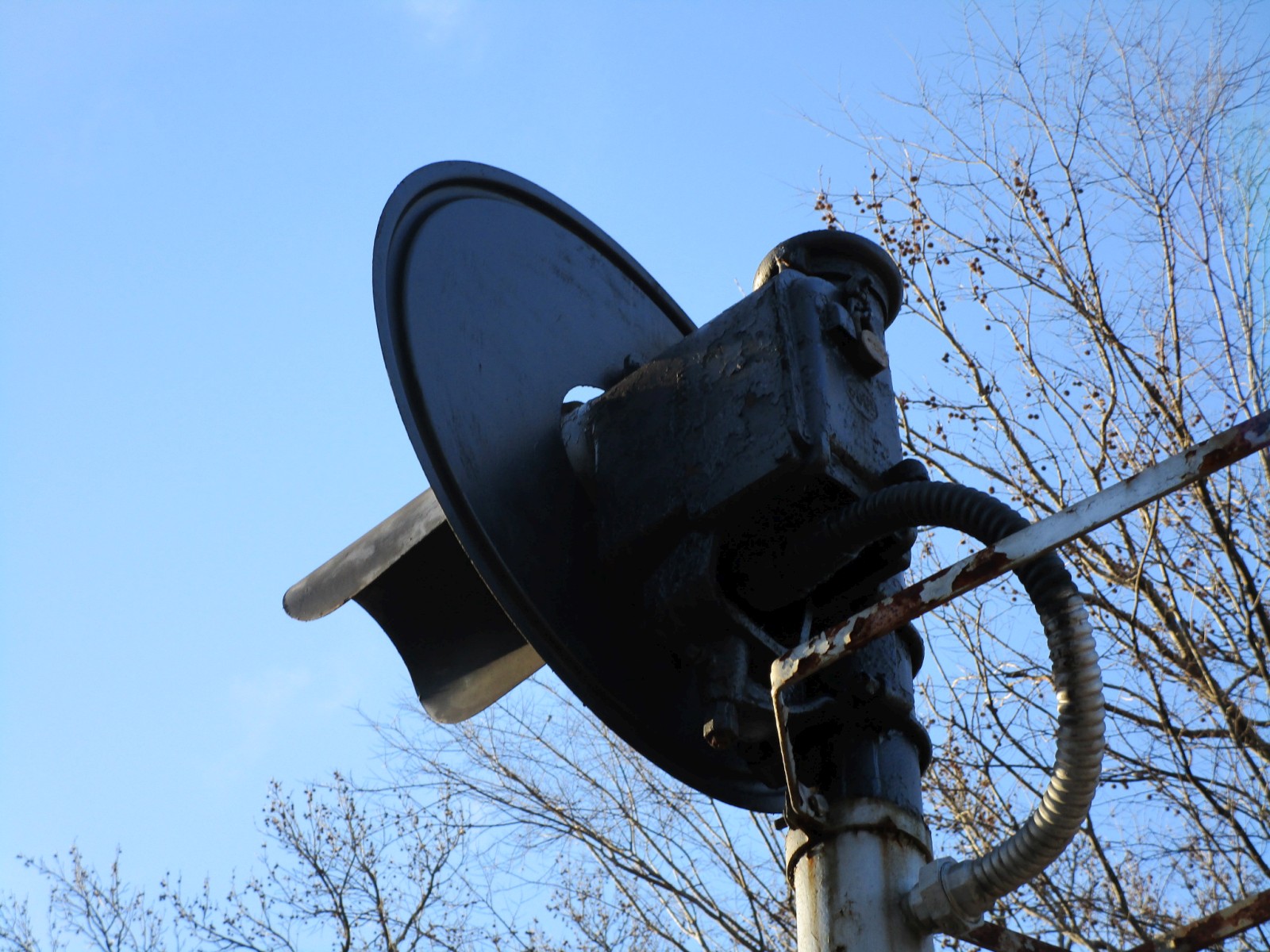

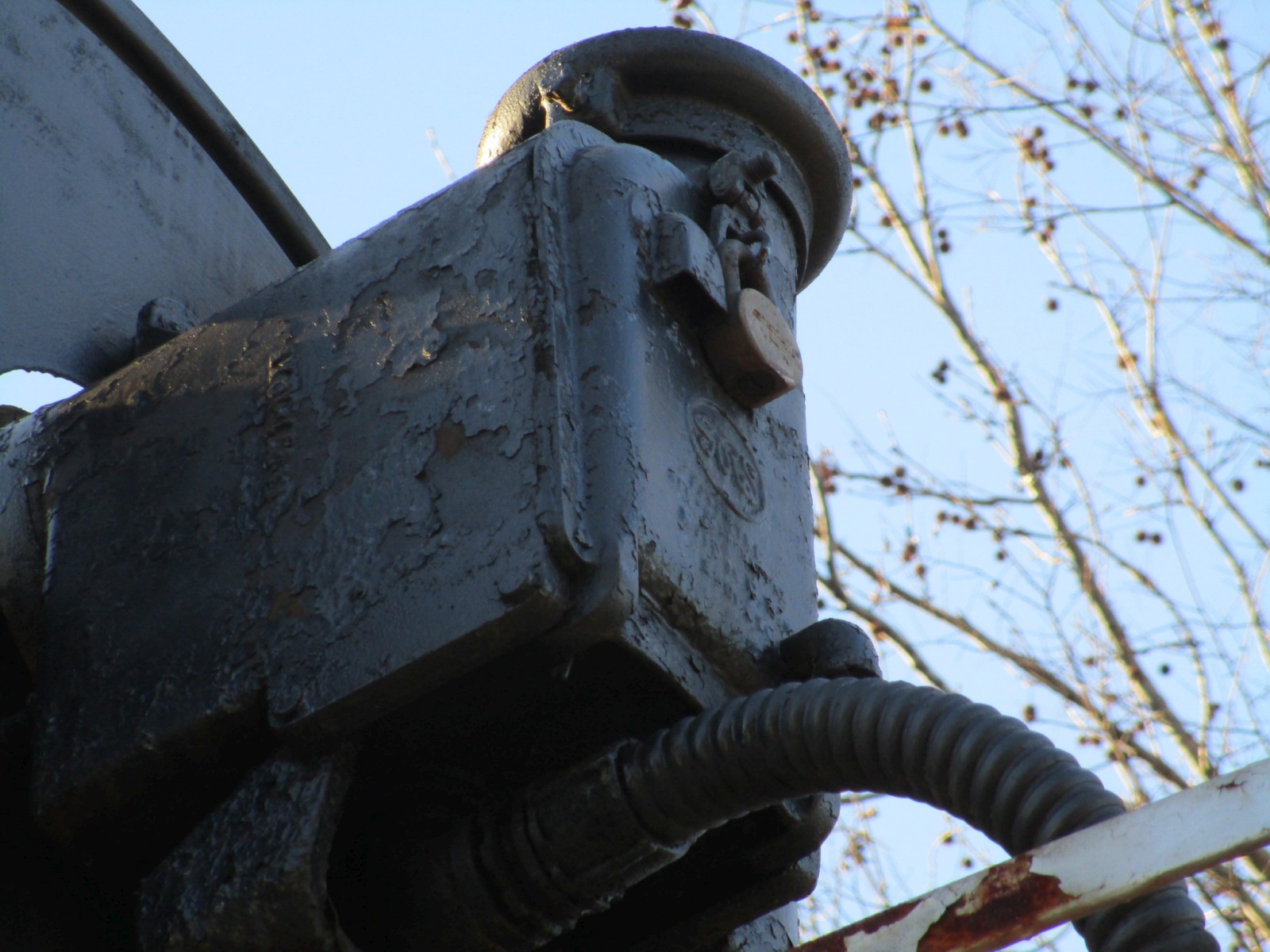

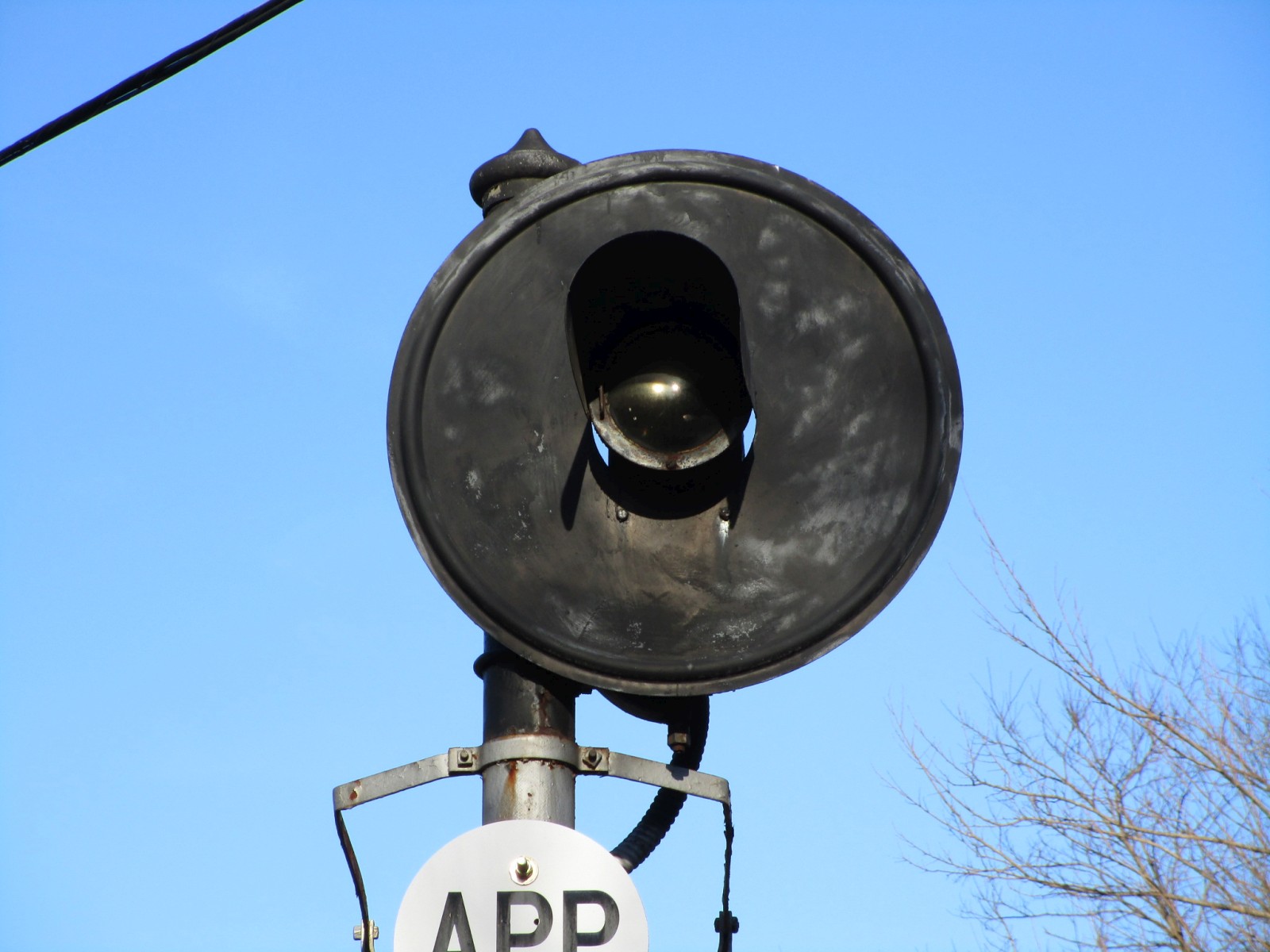

The searchlight head itself is also from GRS!

44

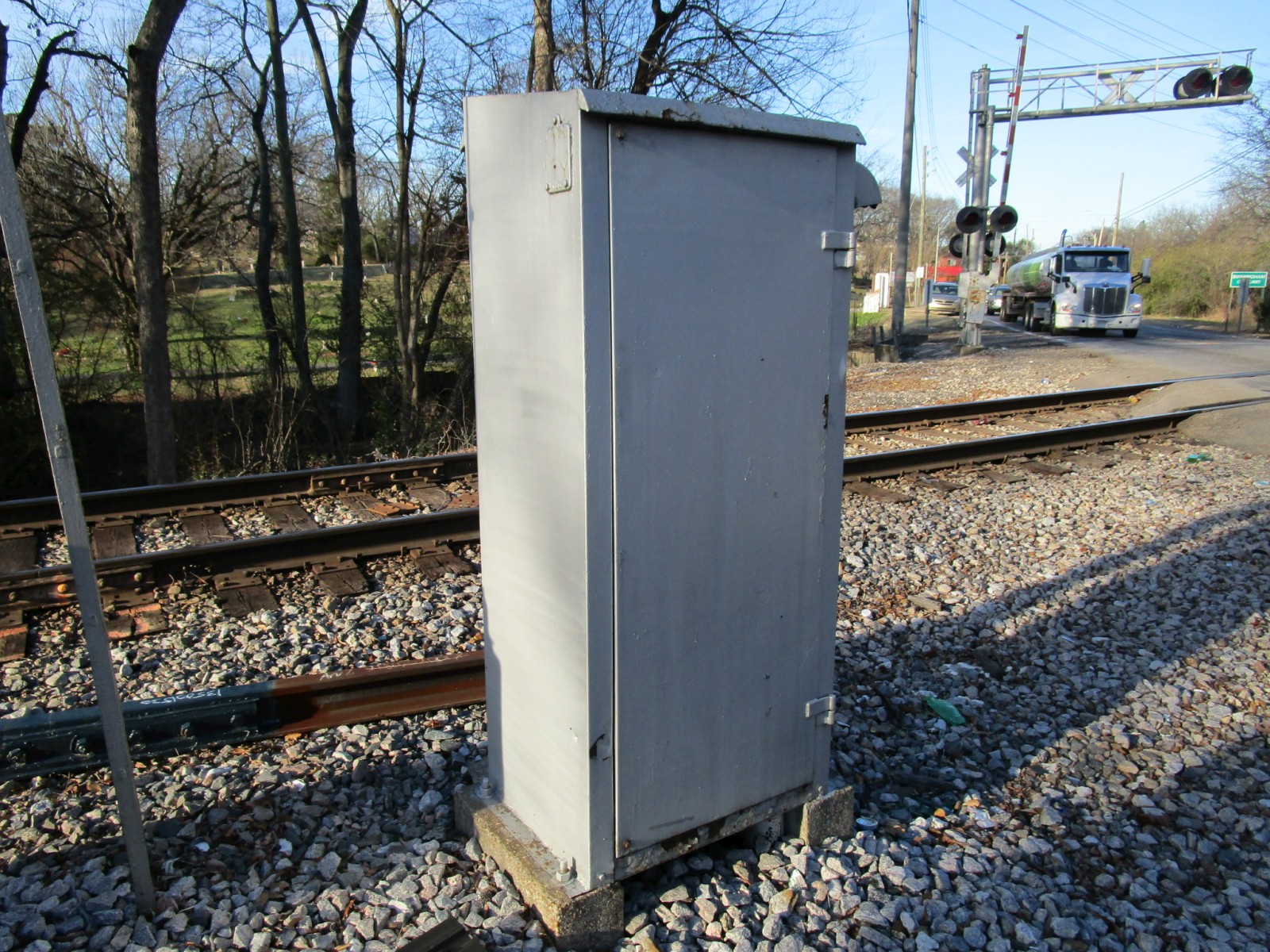

A newer relay case, which I'm guessing replaced the original GRS one at some point.



All pictures were taken on 1-8-20.
