MP: A326.70 |
Updated March 6, 2021
Total Accidents: 5
Crossing
DOT #: 731783R
TOTAL
DAILY TRAINS: 14 (AS OF 2022)
Page created by: freebrickproductions
This crossing is located on the NS Memphis District East End.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | Safetran Type 3 electronic | N/A |
| Base: | Safetran | Safetran |
| Light Frames: | 4 - 12x20" Safetran 2 - 12x20" Hawker-Siddeley Safetran |
2 - 12x20" Safetran 2 - 12x24" Hawker-Siddeley Safetran |
| Gate Lights: | 3 - RECOs | 3 - RECOs |
| Gate Mechanism: | Safetran mid-90s | Safetran mid-90s |
| Gate Striping: | Vertical | Vertical |
1 |
2 |
3 |
4 |

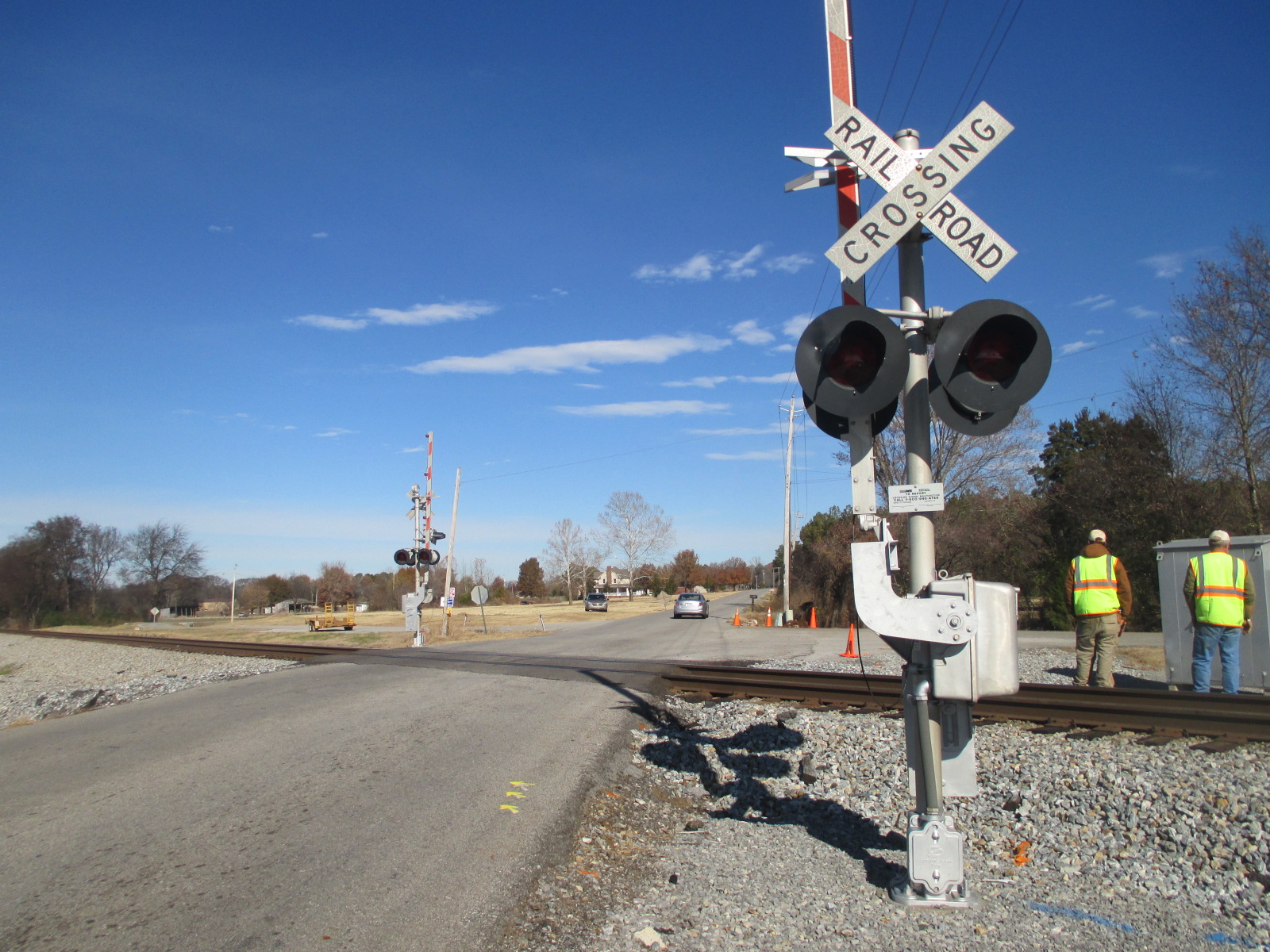

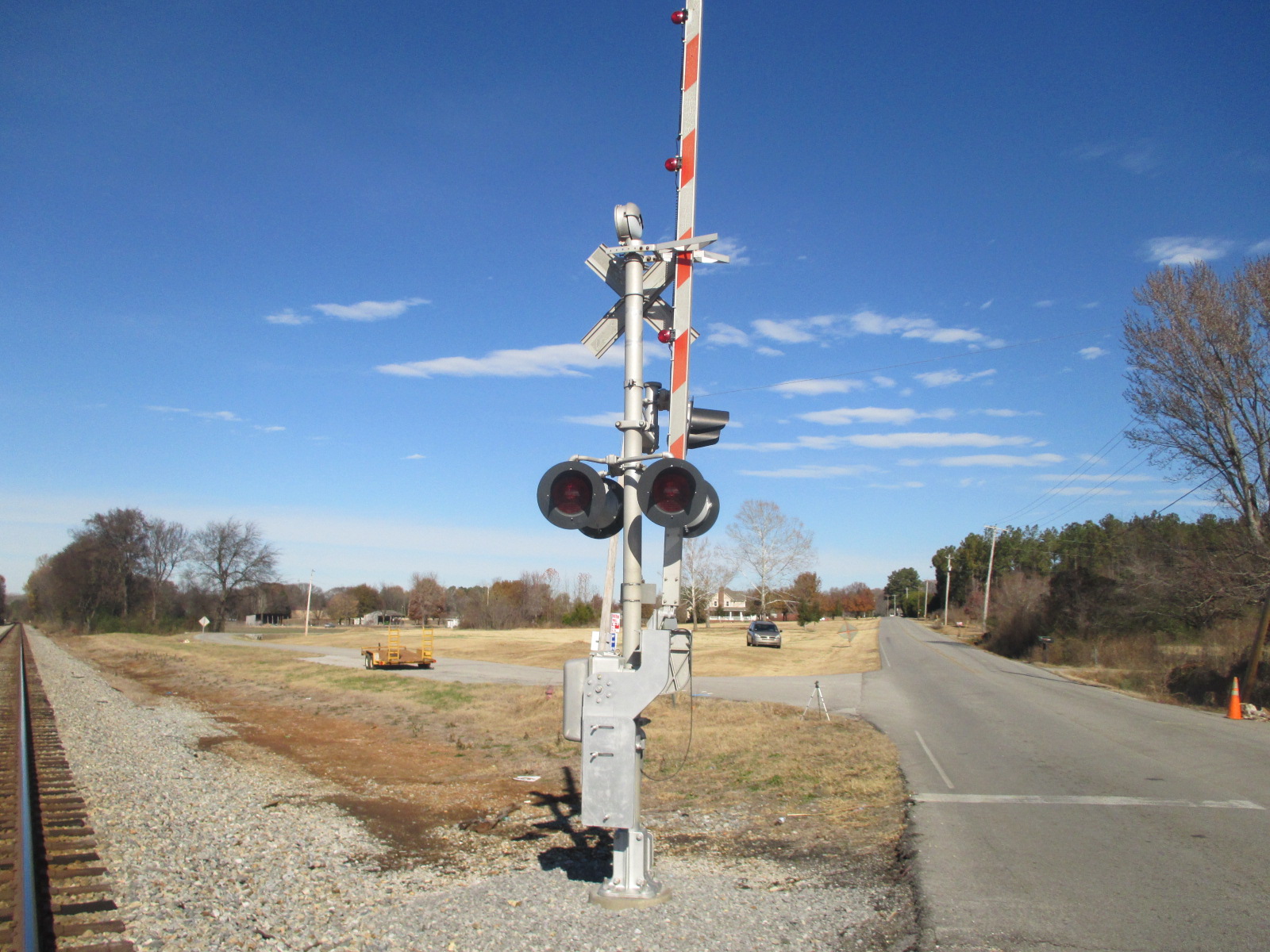

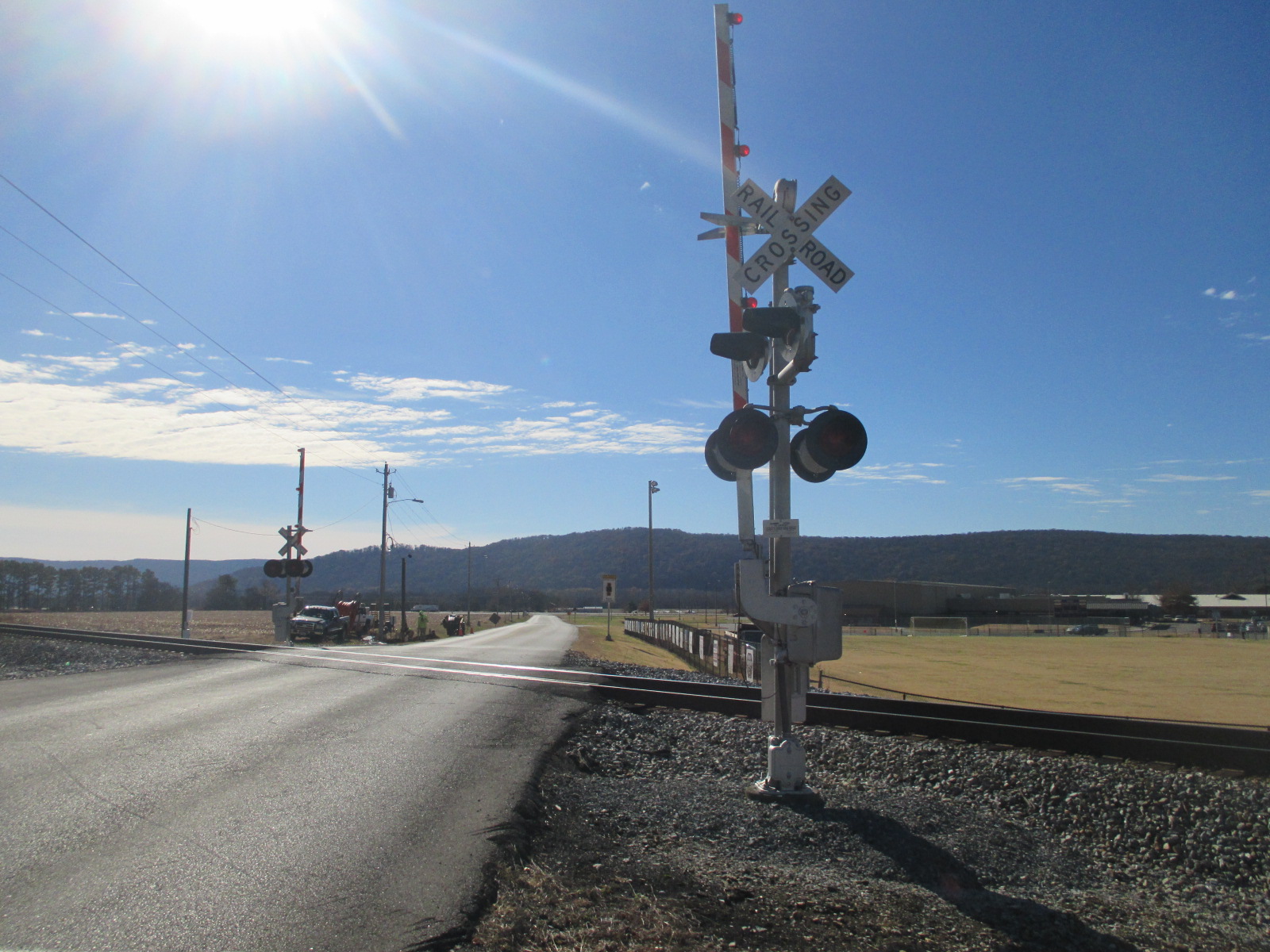

Overviews of the crossing. |

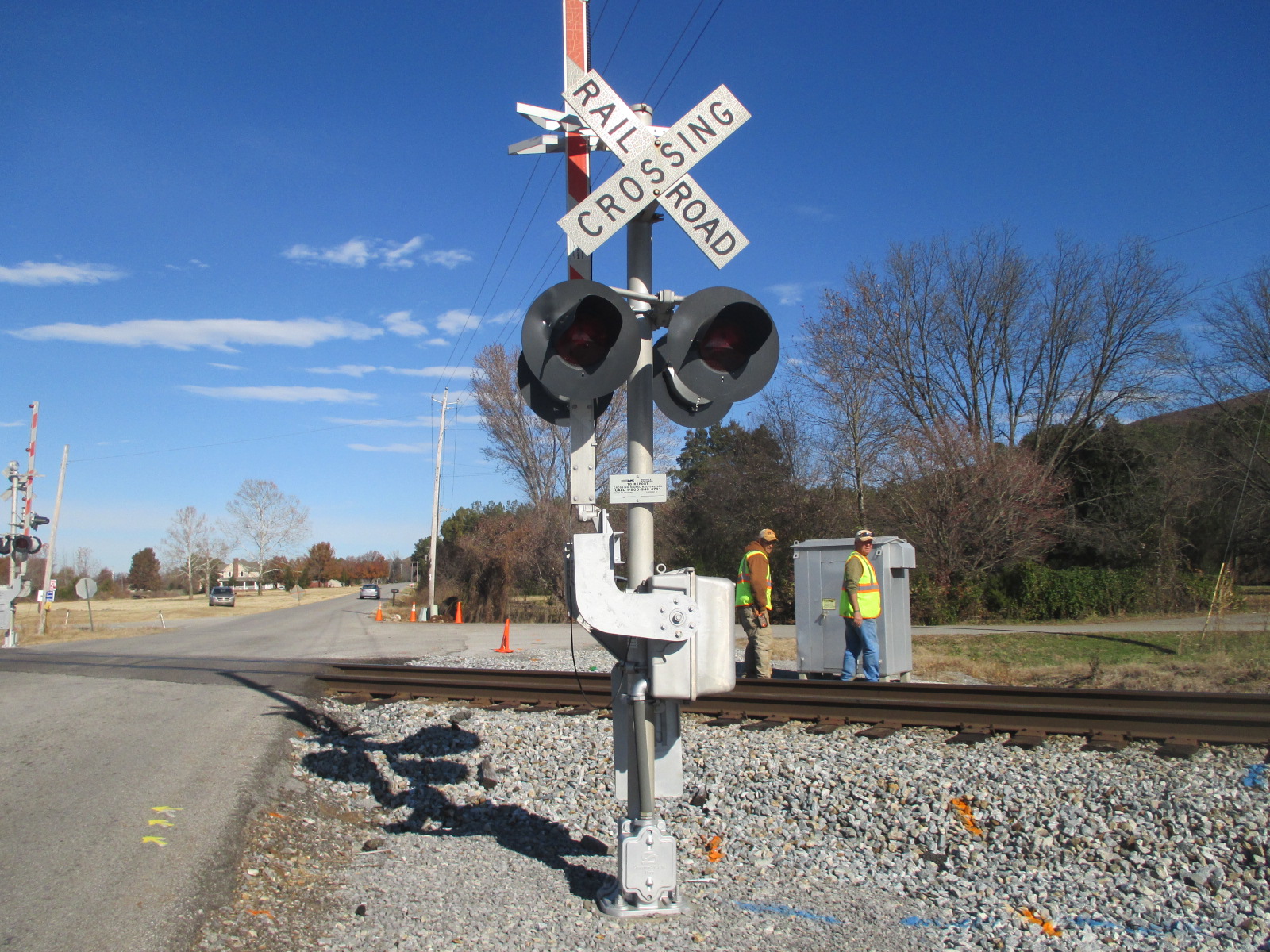

The first signal. |
||
5 |
6 |
7 |
8 |

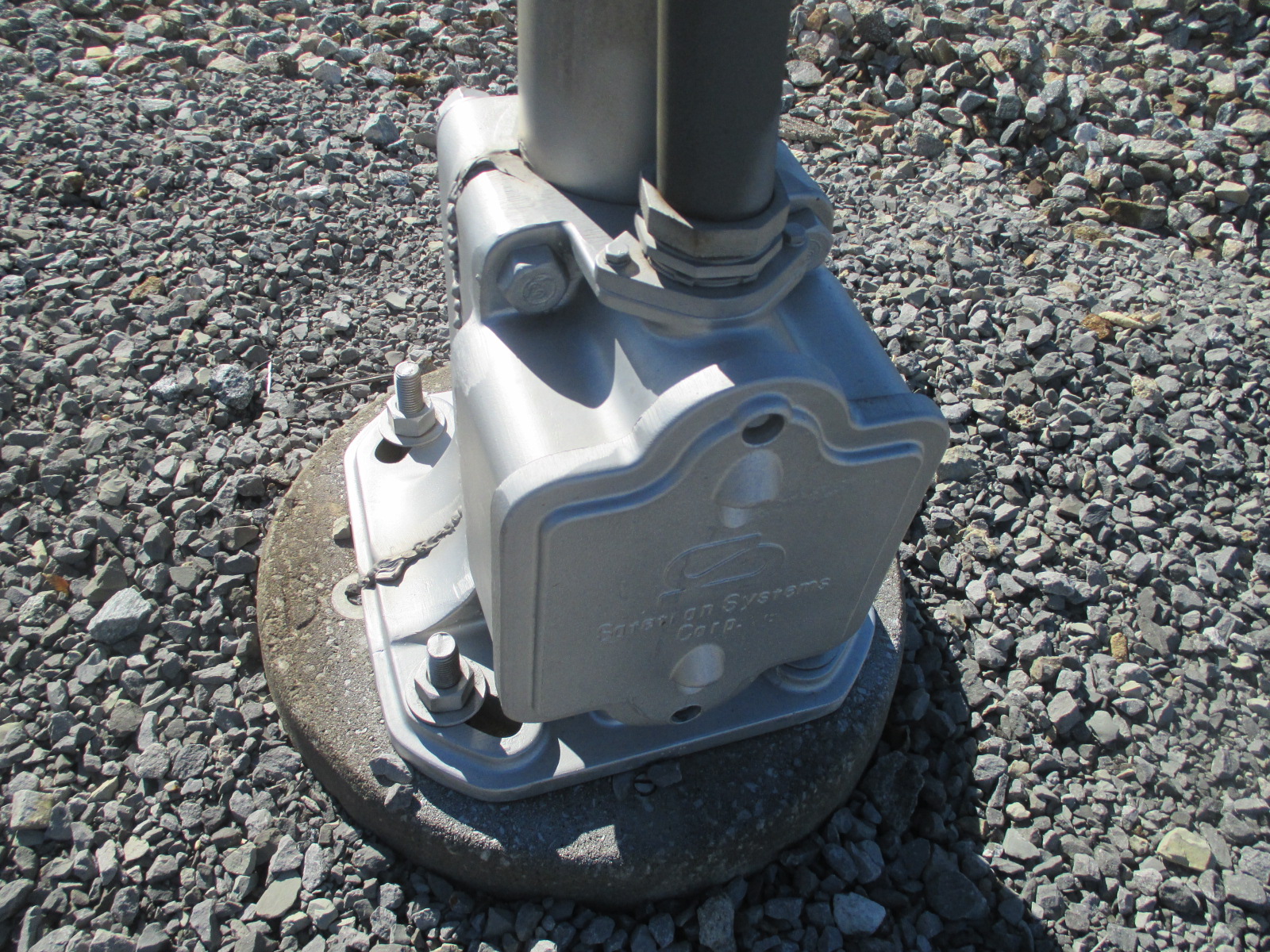

It has a Safetran base. |

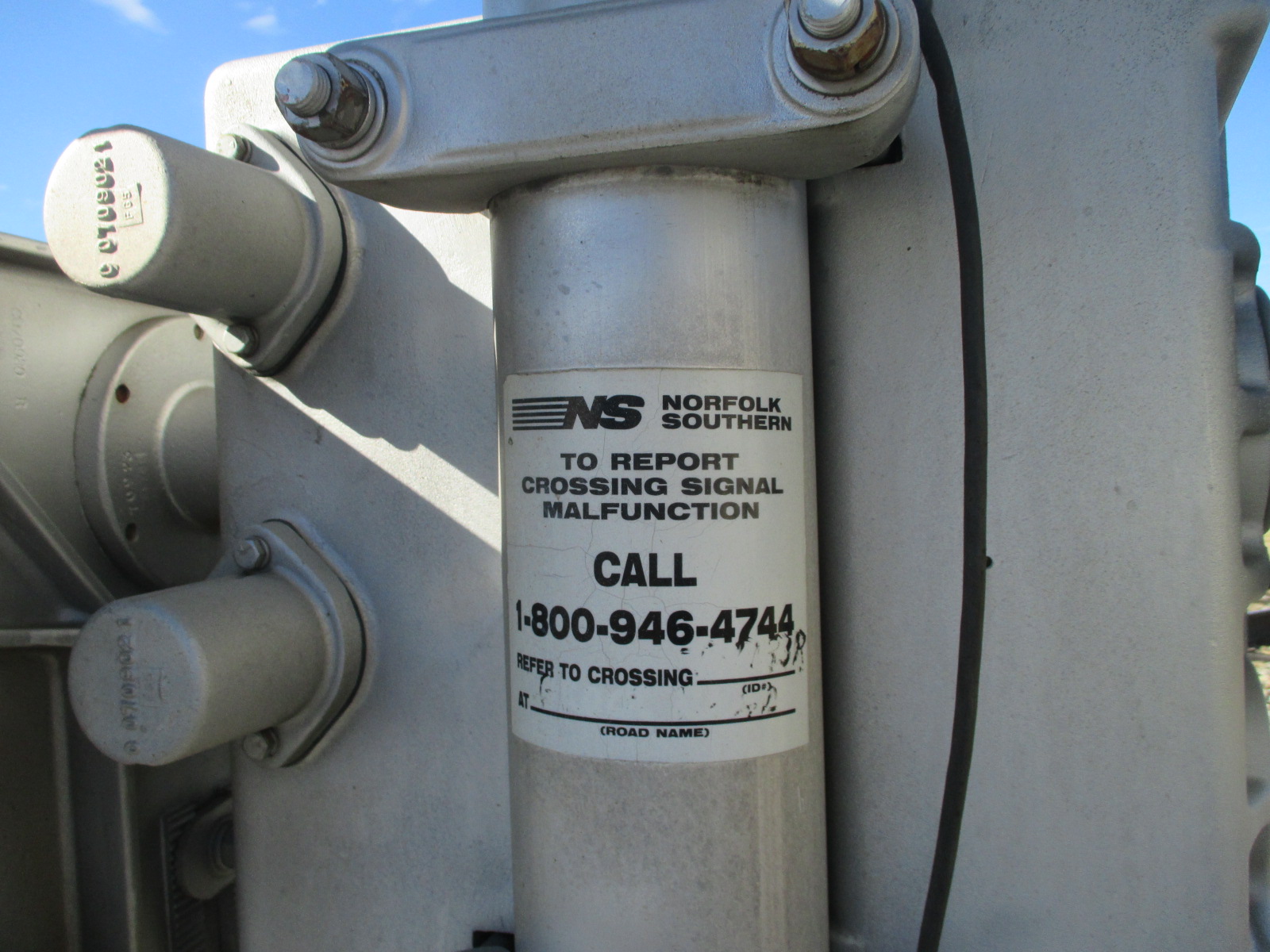

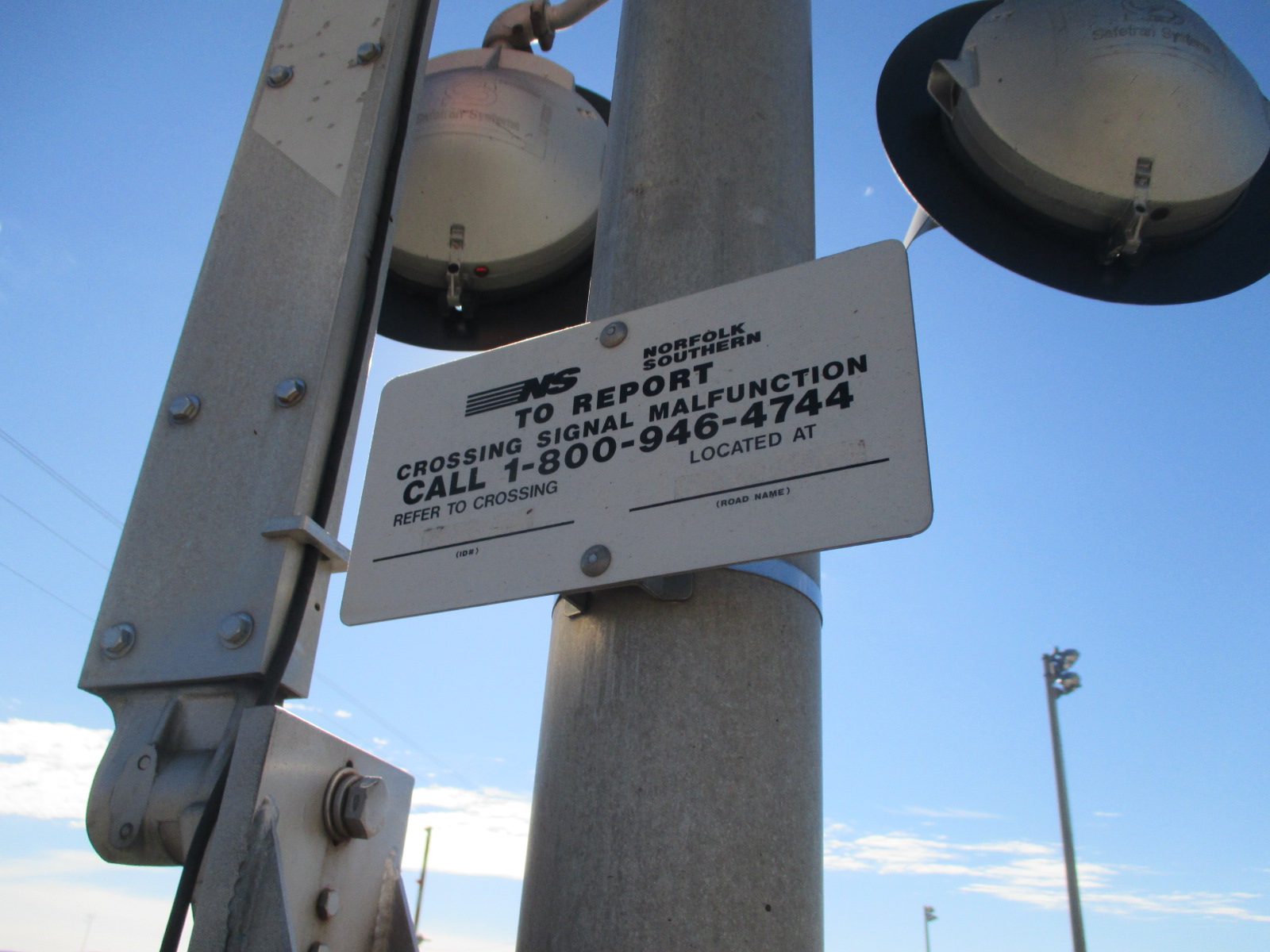

Some fading emergency information. |

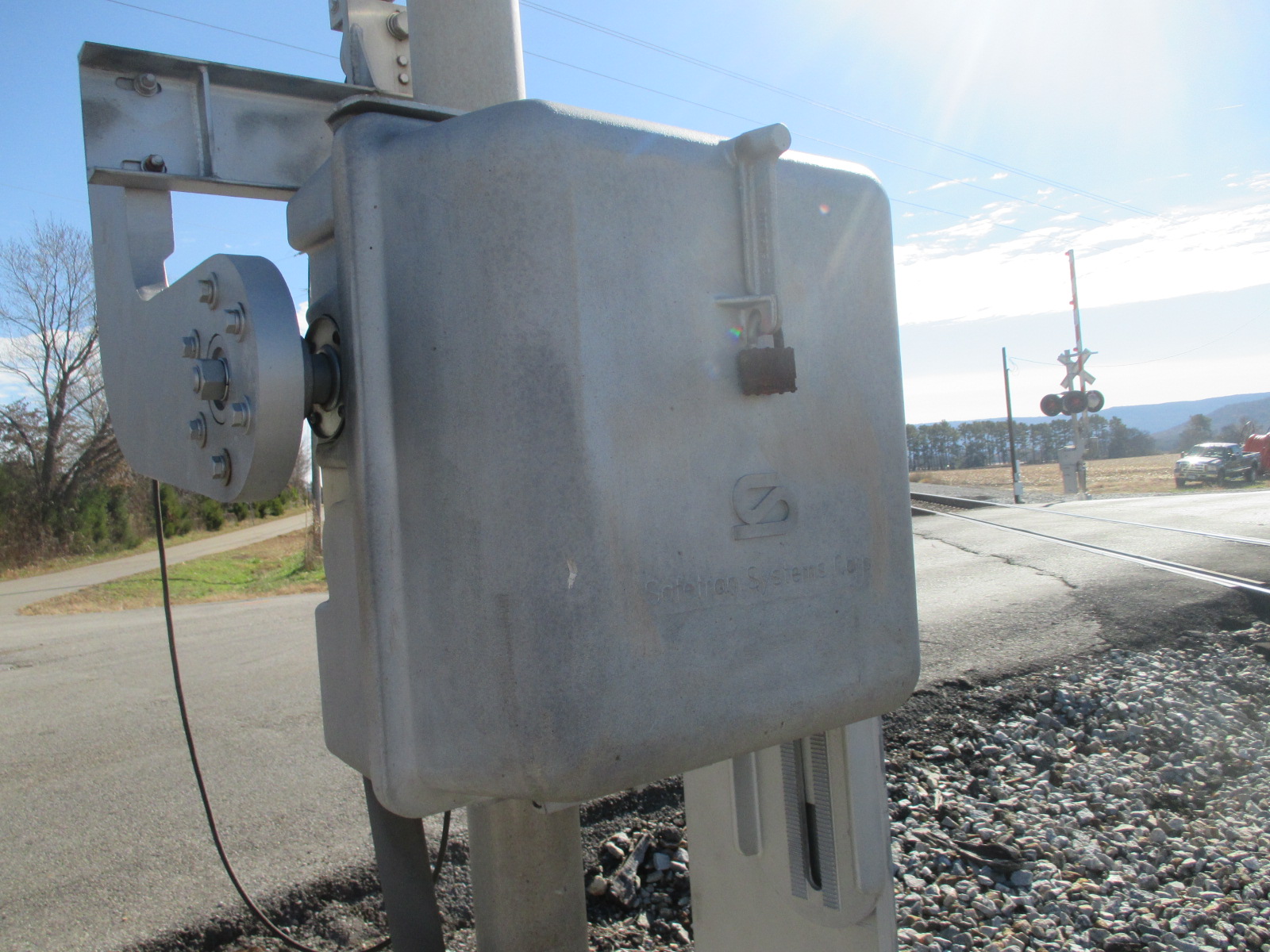

This signal has a Safetran gate mechanism. |
Some more emergency information. |
9 |
10 |
11 |
12 |

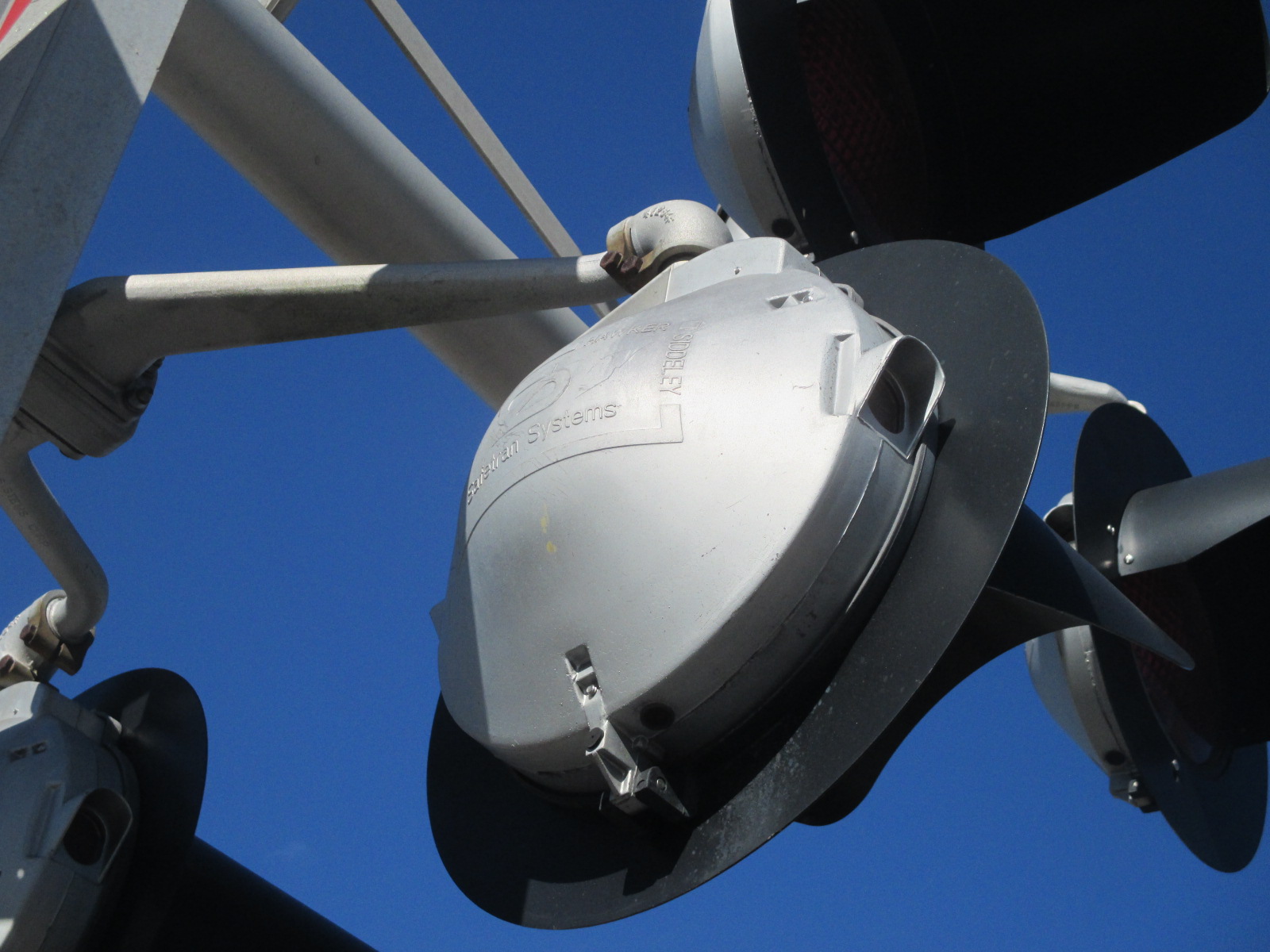

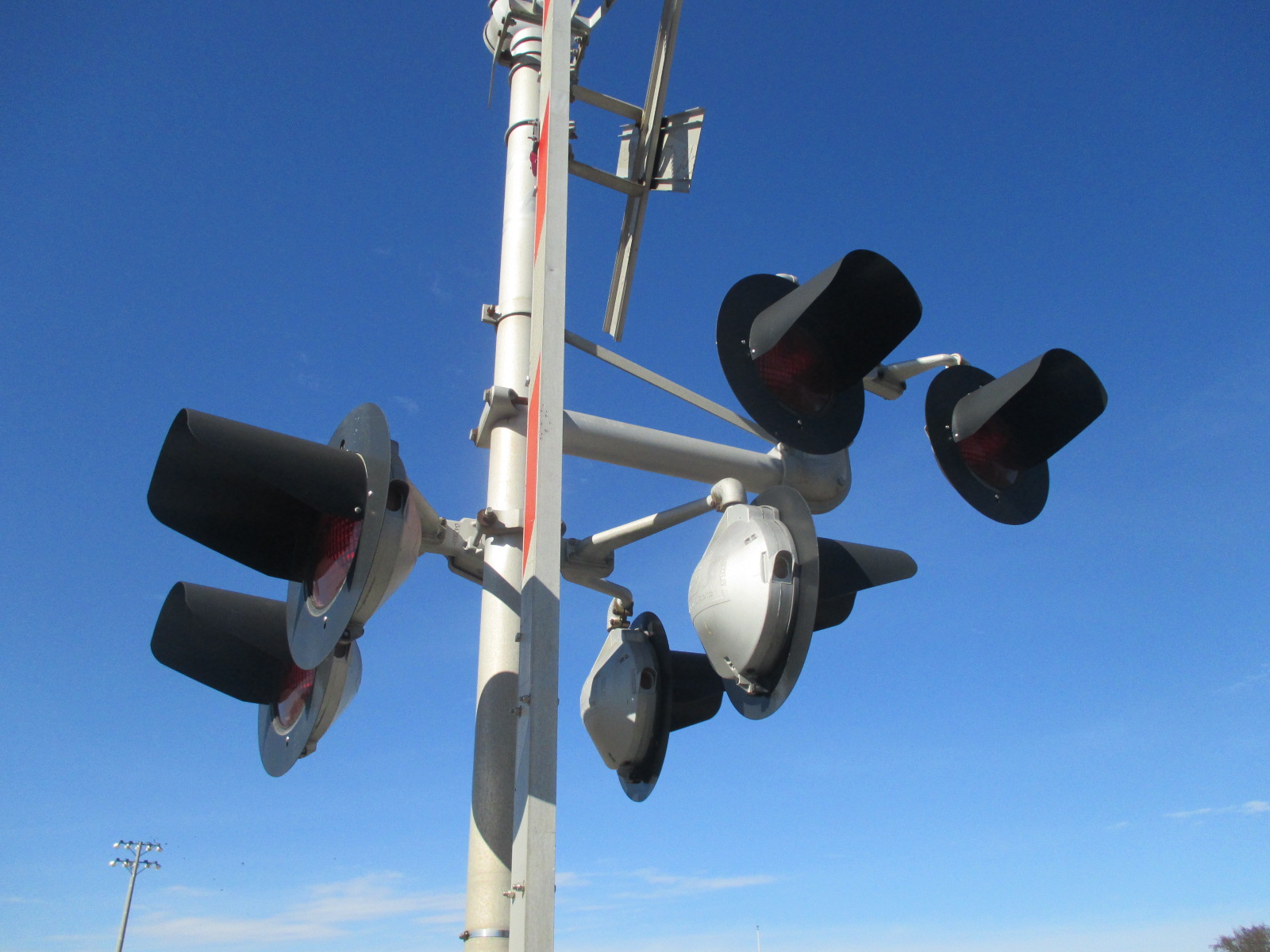

The lights on this signal are Safetran 12x20 inch lights. |
It also has a Safetran mechanical bell. |
||
13 |
14 |
15 |
16 |

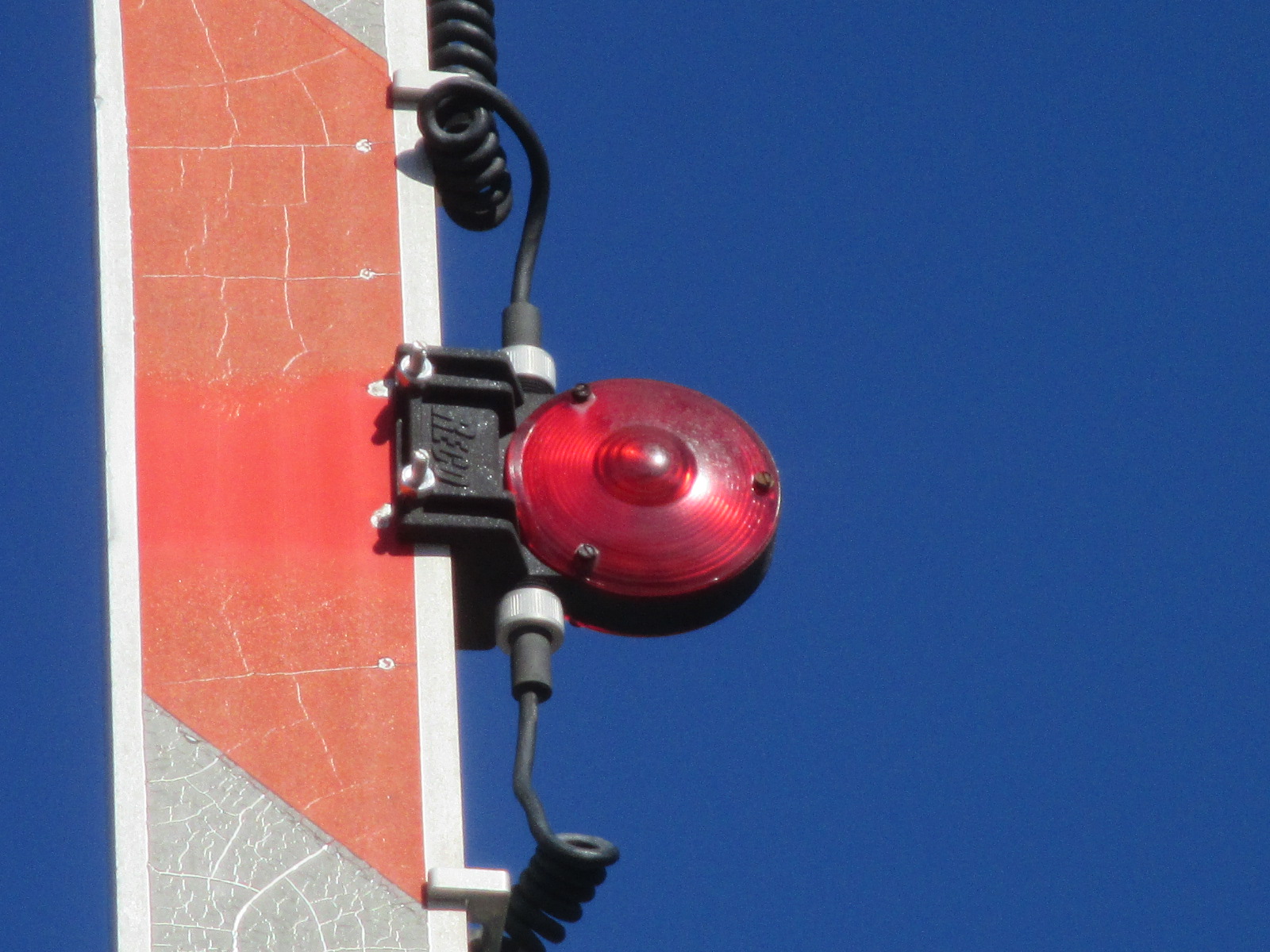

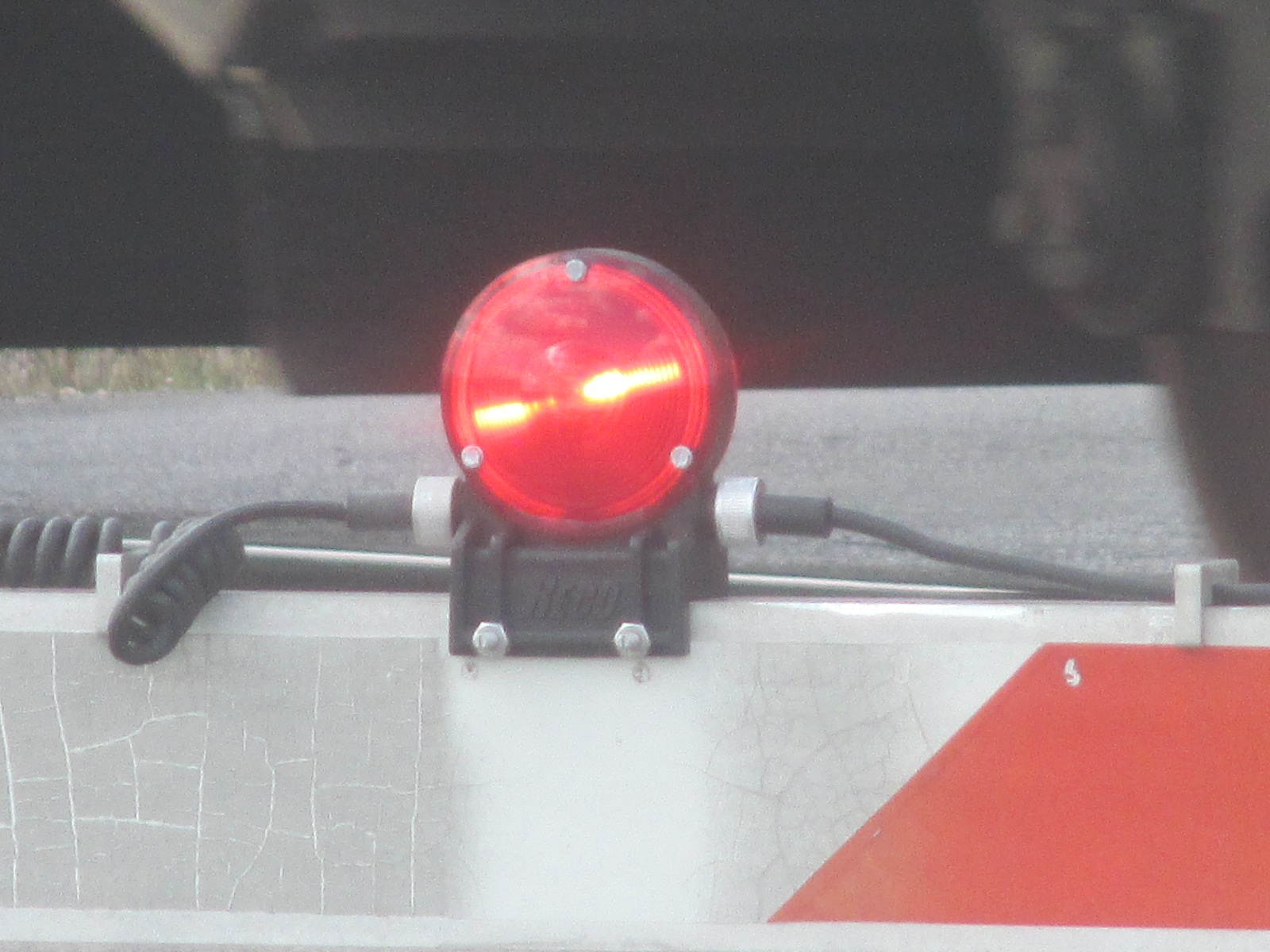

The gate lights are RECO gate lights. |
The second signal. |

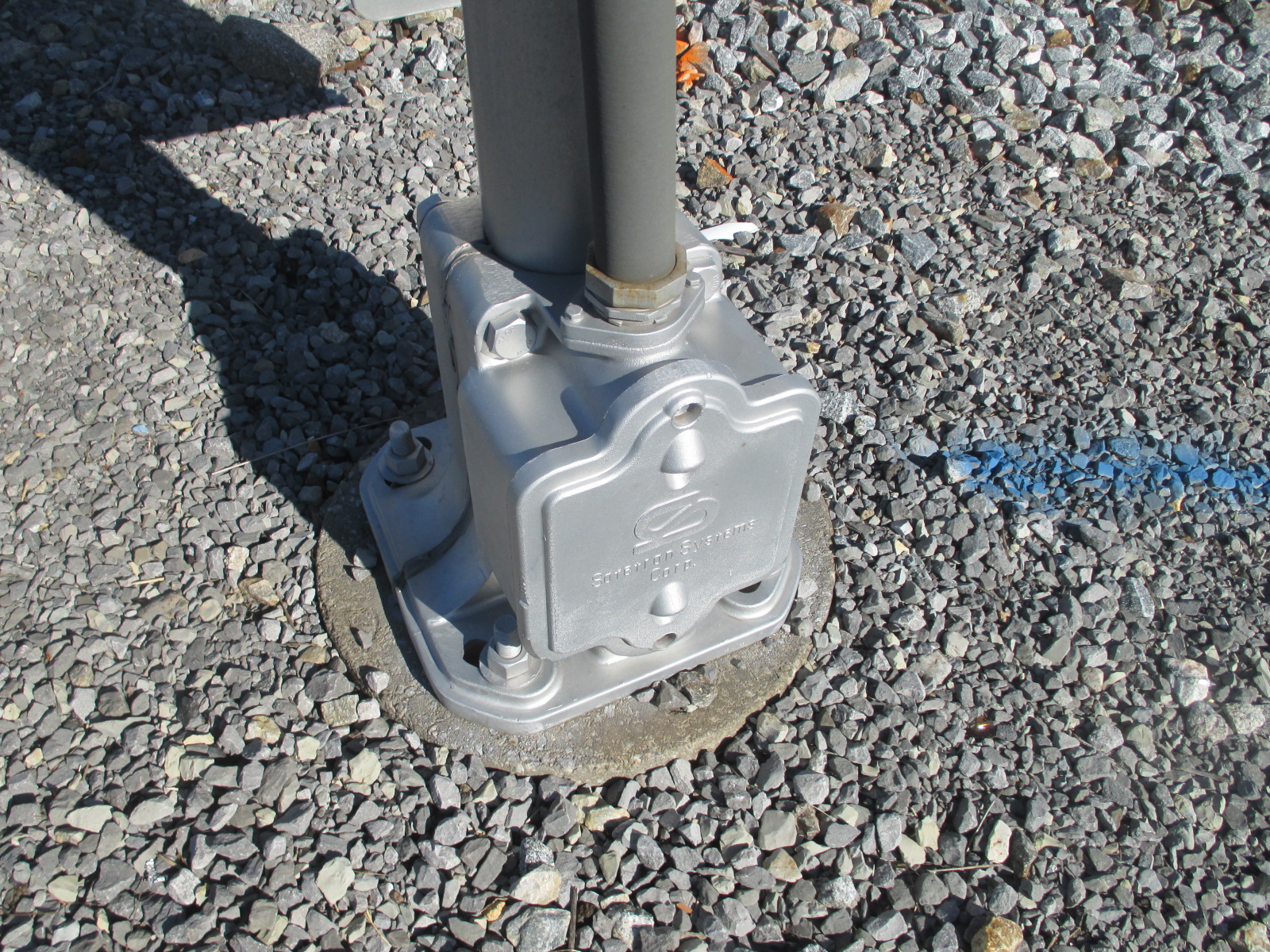

It has a Safetran base. |
|
17 |
18 |
19 |
20 |
The emergency information. |

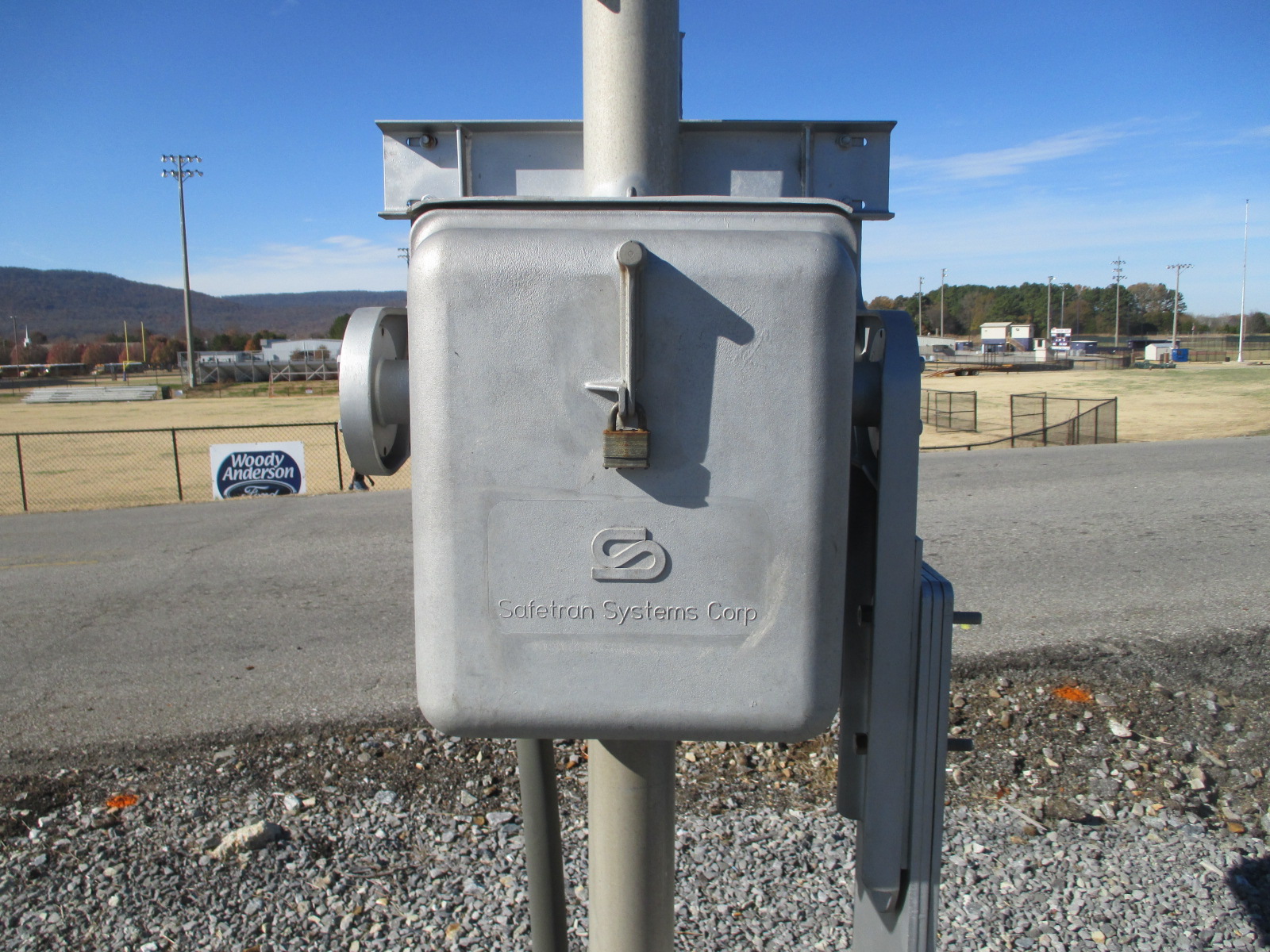

This signal has a Safetran gate mechanism as well. |
The lights on this signal are 12x24 inch. |
|
21 |
22 |
23 |
24 |
They were made by Safetran too. |

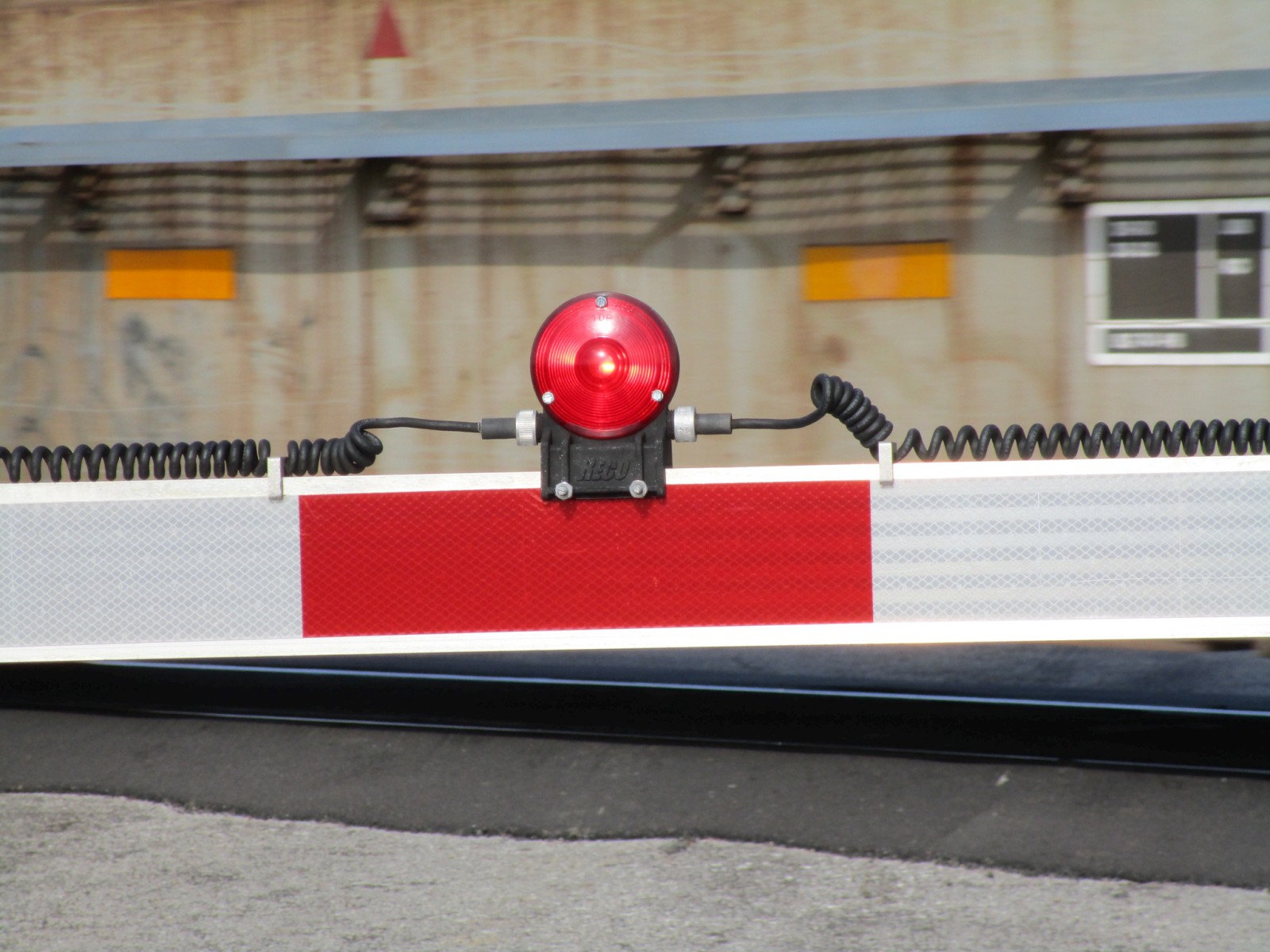

This signal also has RECO gate lights. |
The relay case. |
Track view looking northwest towards Brownsboro Road. |
25 |
26 |
27 |
28 |
Track view looking southeast towards Stone Road. |

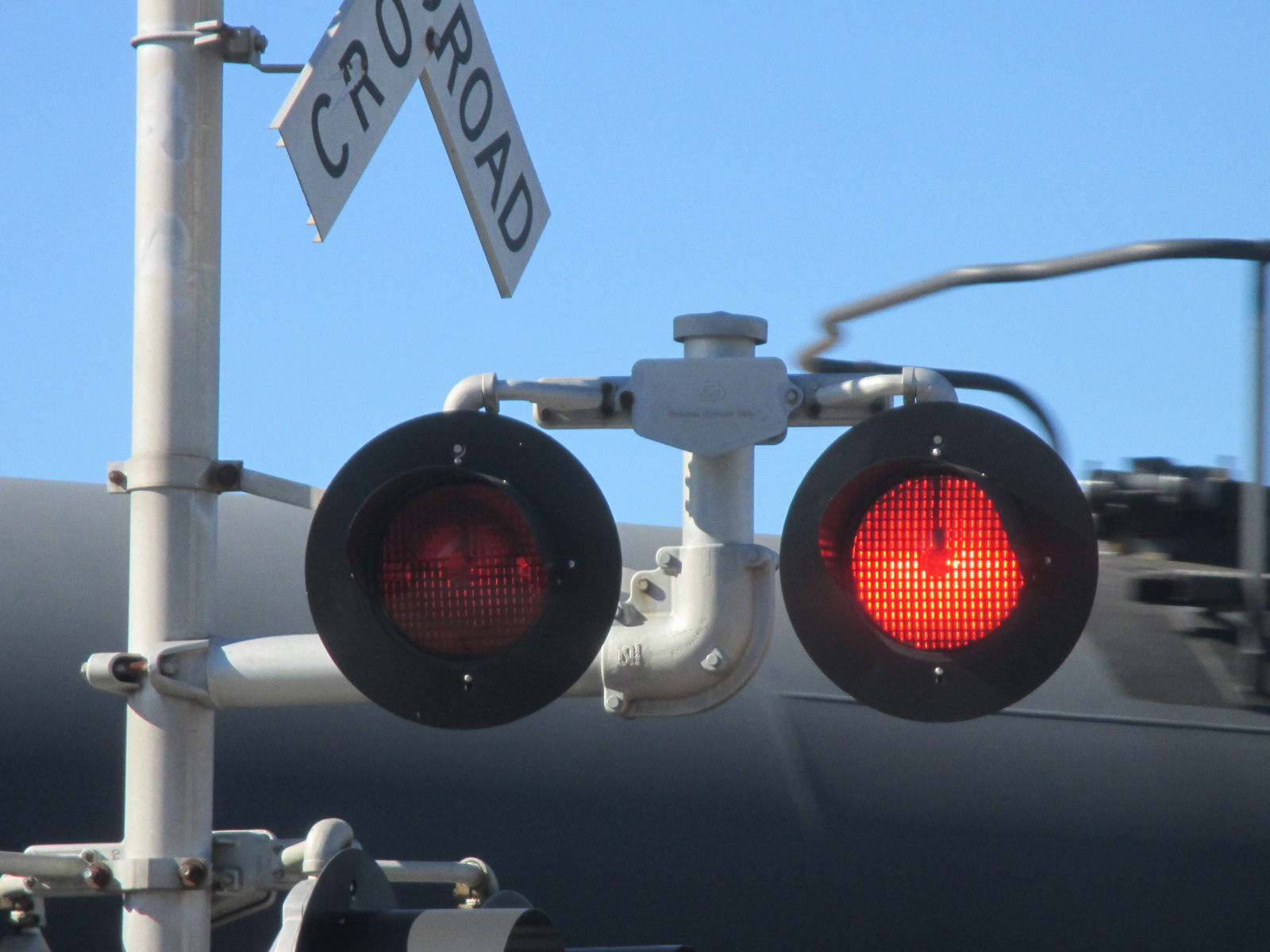

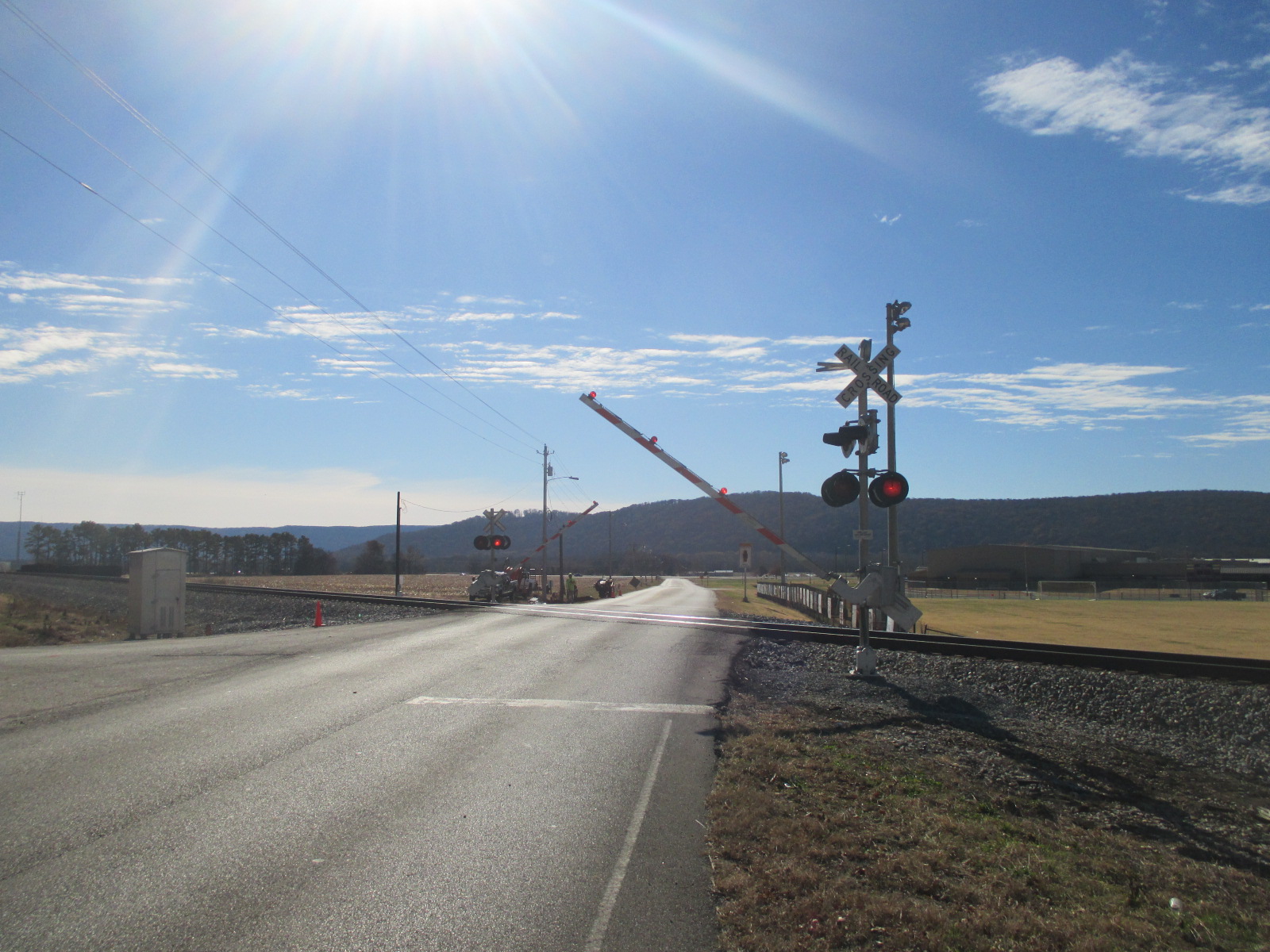

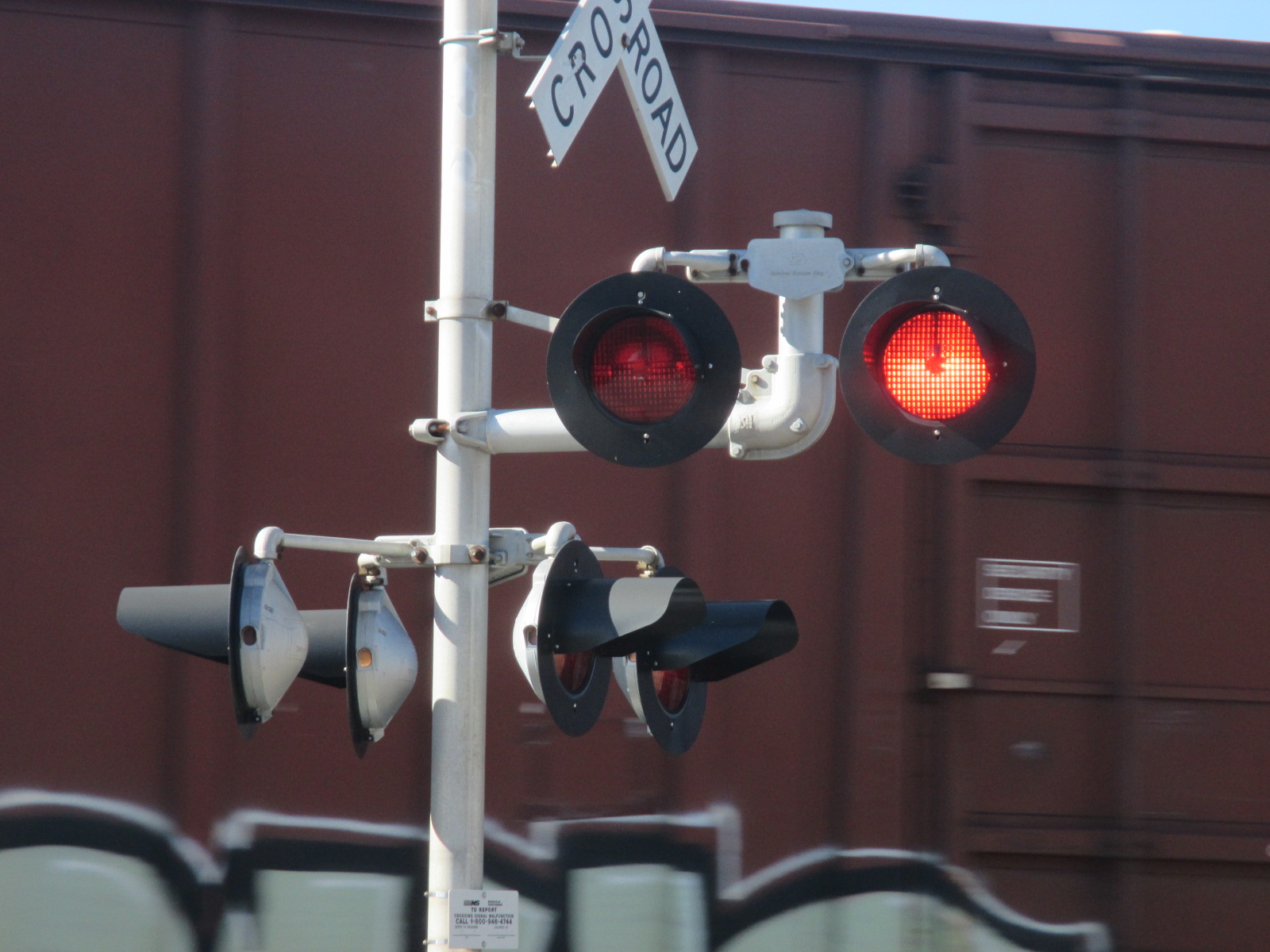

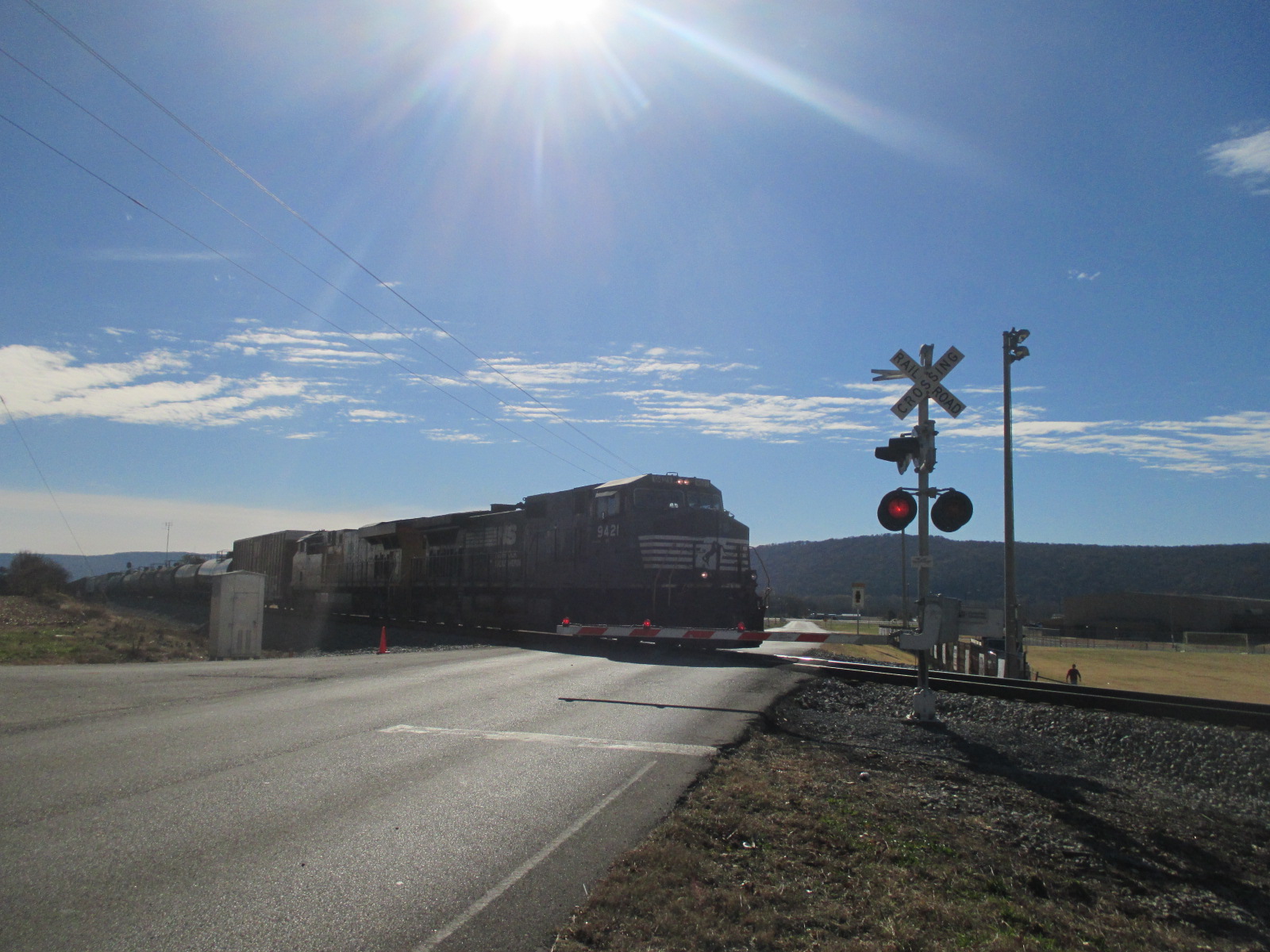

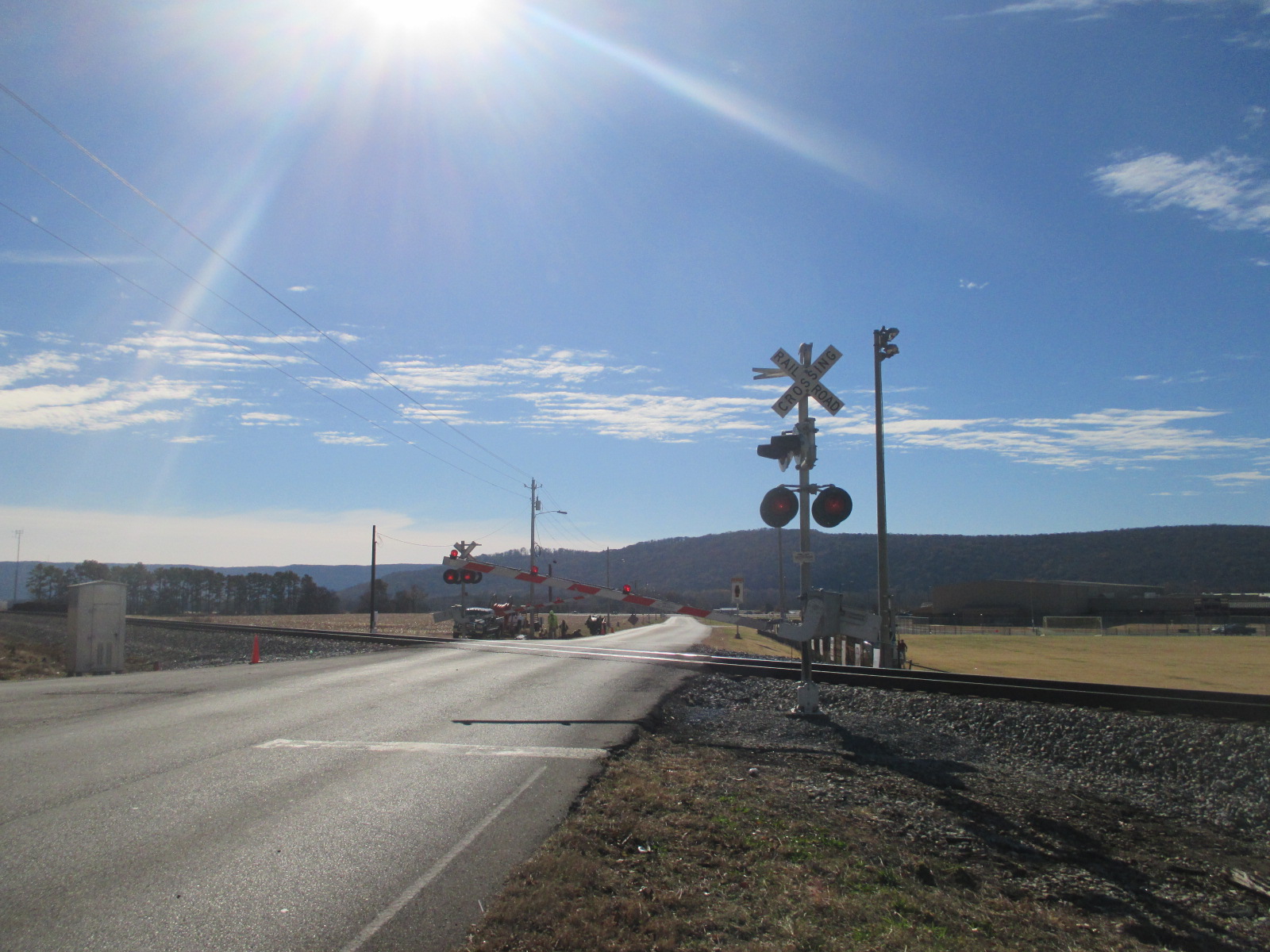

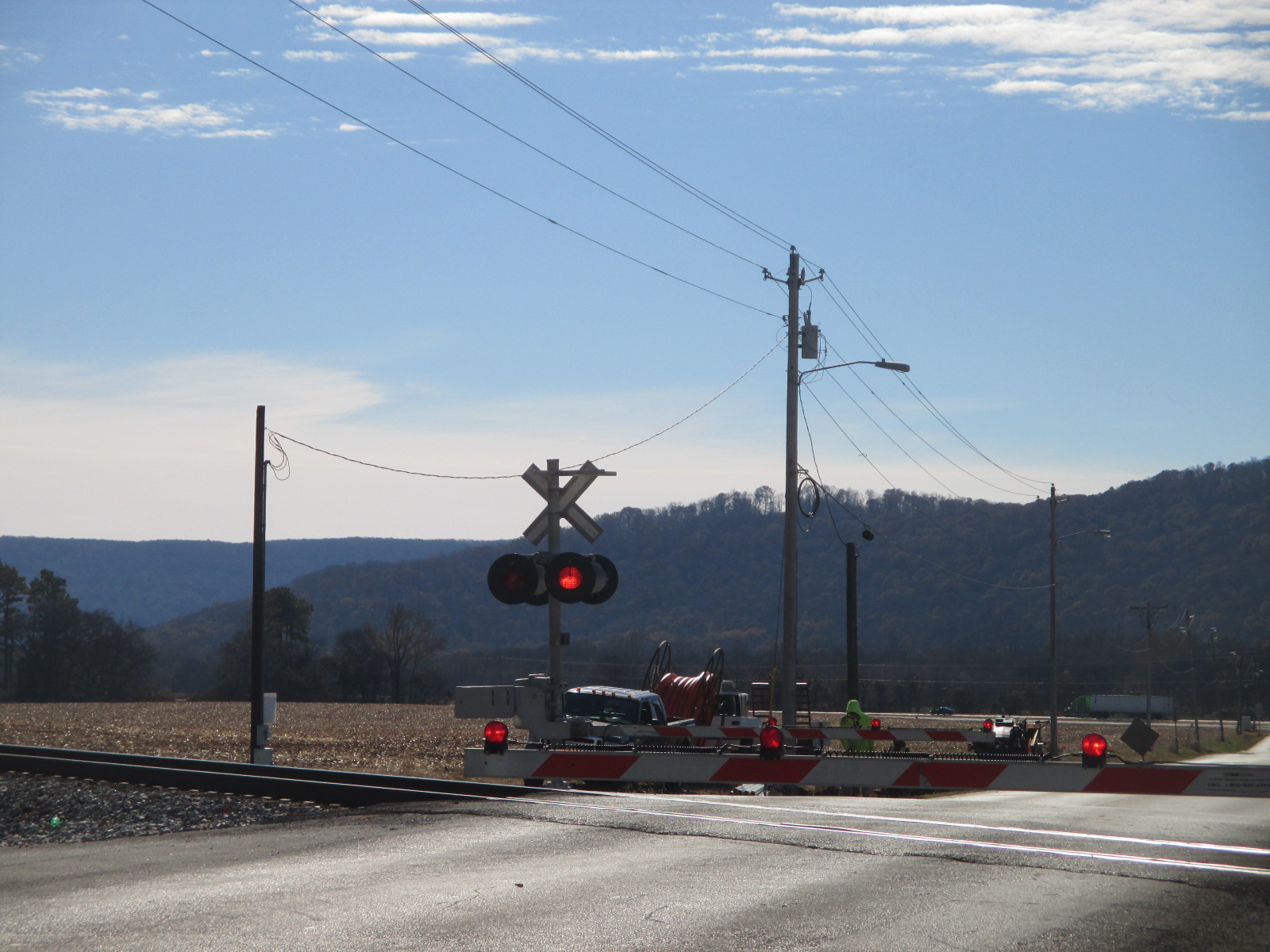

Action shots. |
||
29 |
30 |
31 |
32 |
33 |
34 |
35 |
36 |

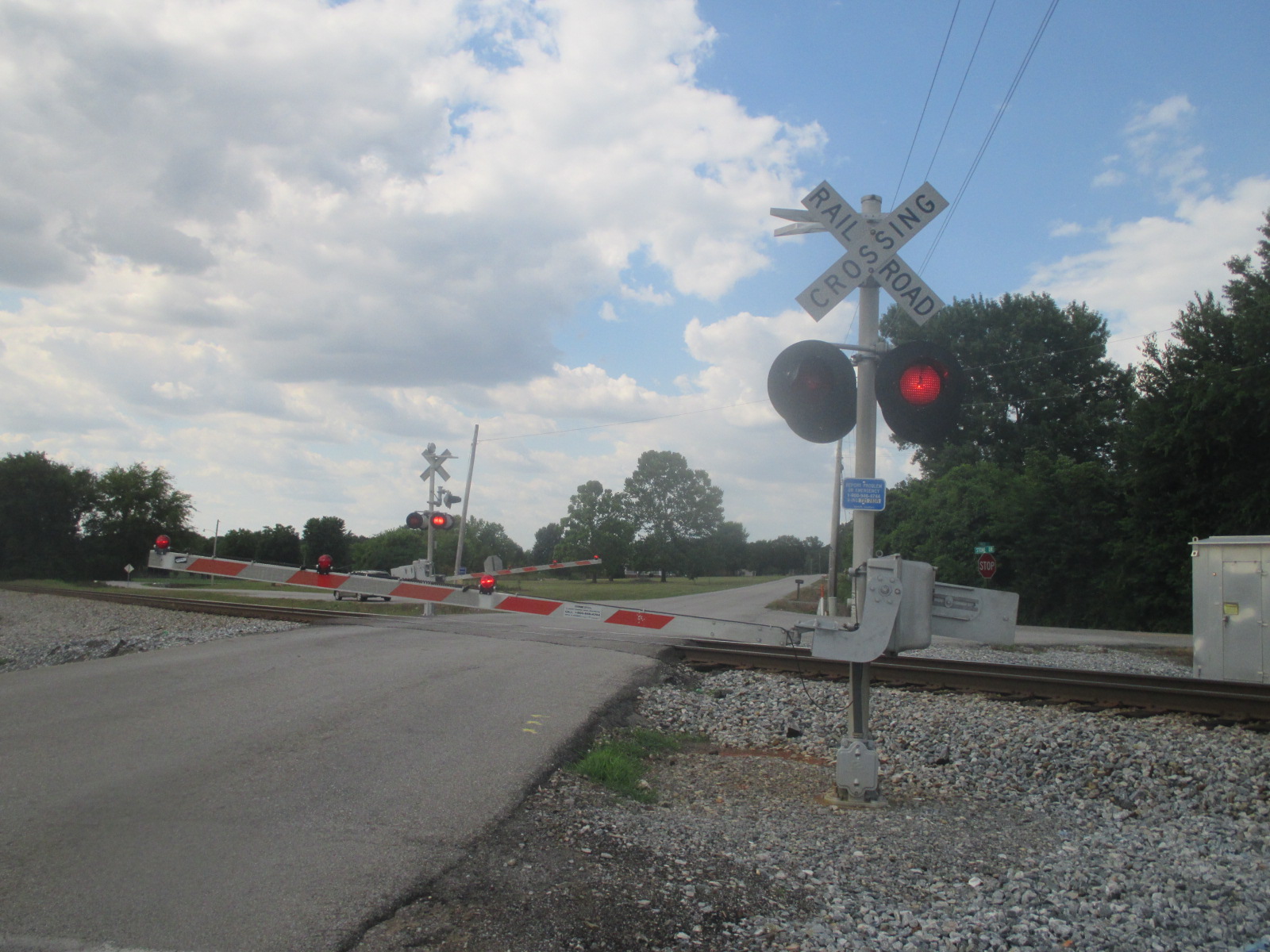

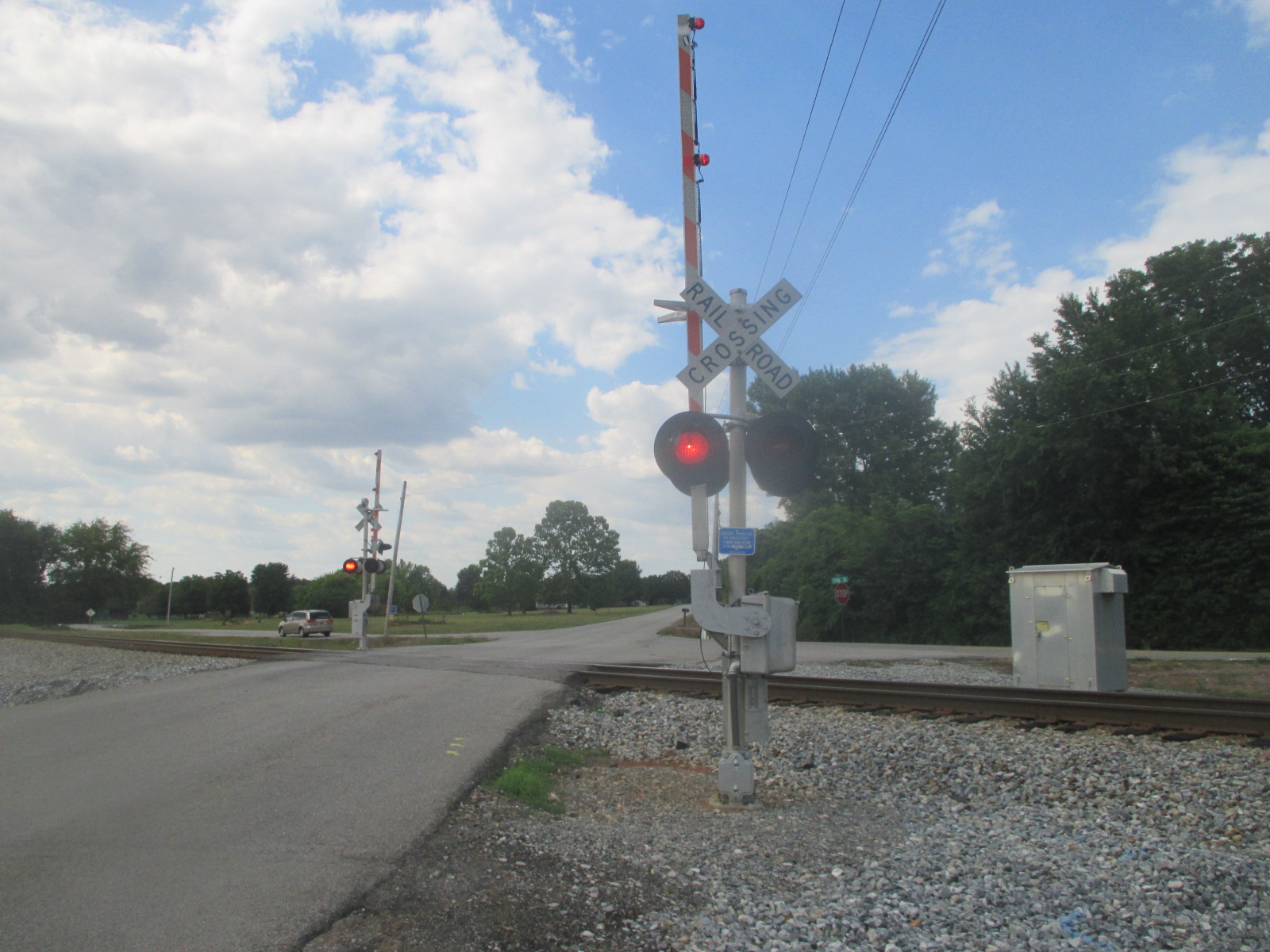

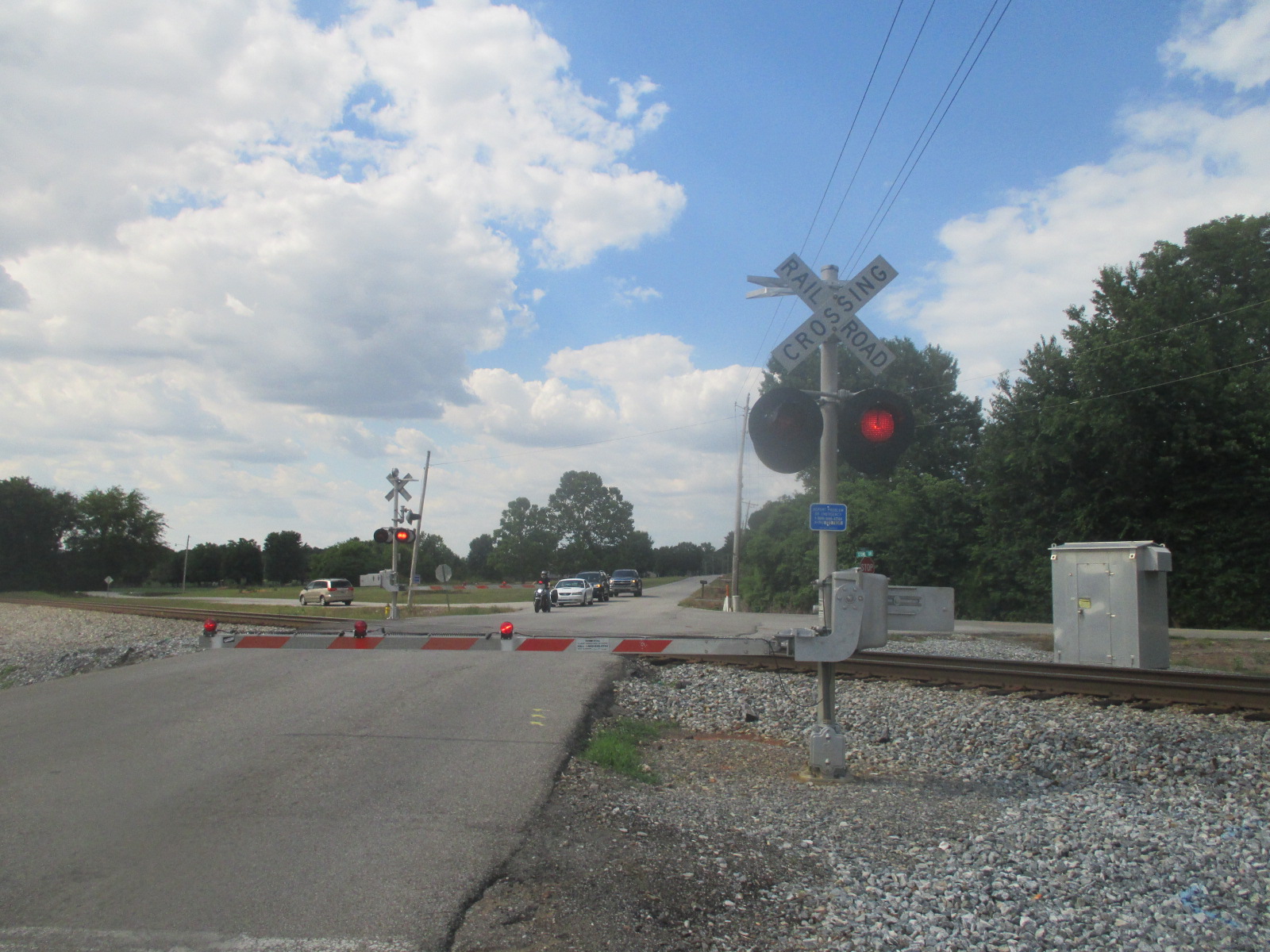

A return trip on 6-20-16 catches the crossing in action again. No changes have been made to the crossing. |
|
37 |
38 |
39 |
40 |

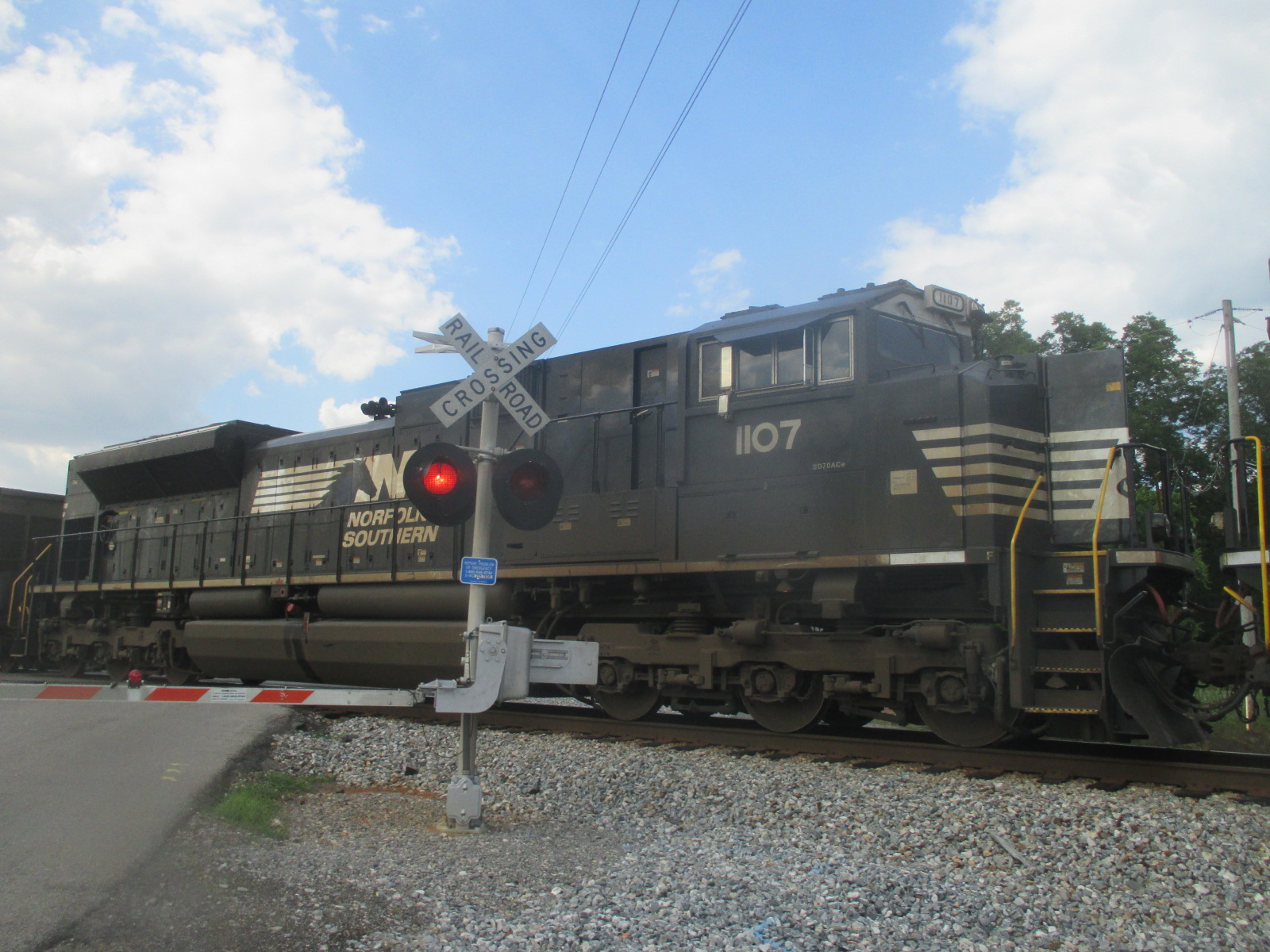

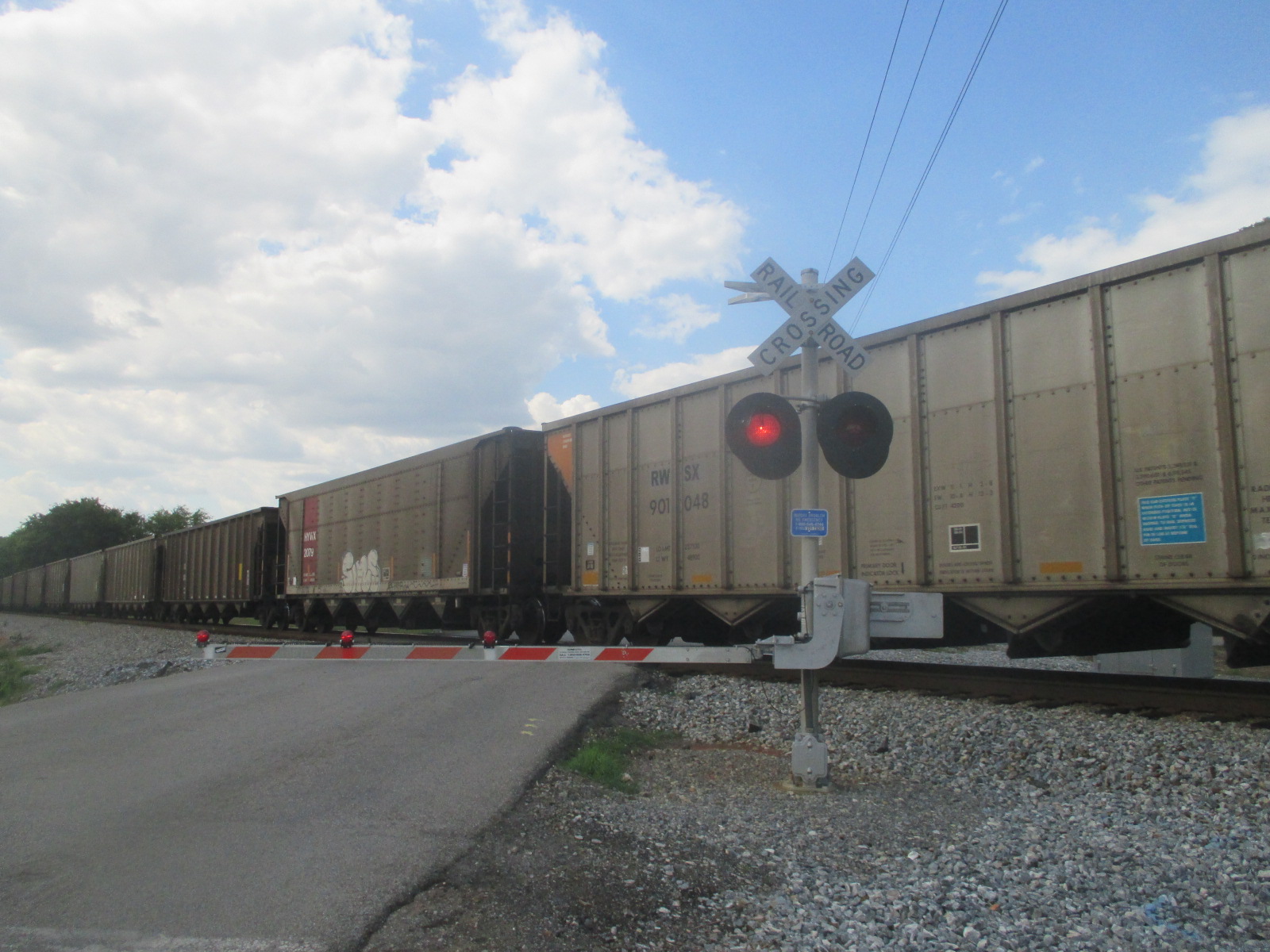

A coal train with all NS power comes through to pull into Brock Siding. |
|||
41 |
42 |
43 |
44 |
45 |
46 |
47 |
48 |

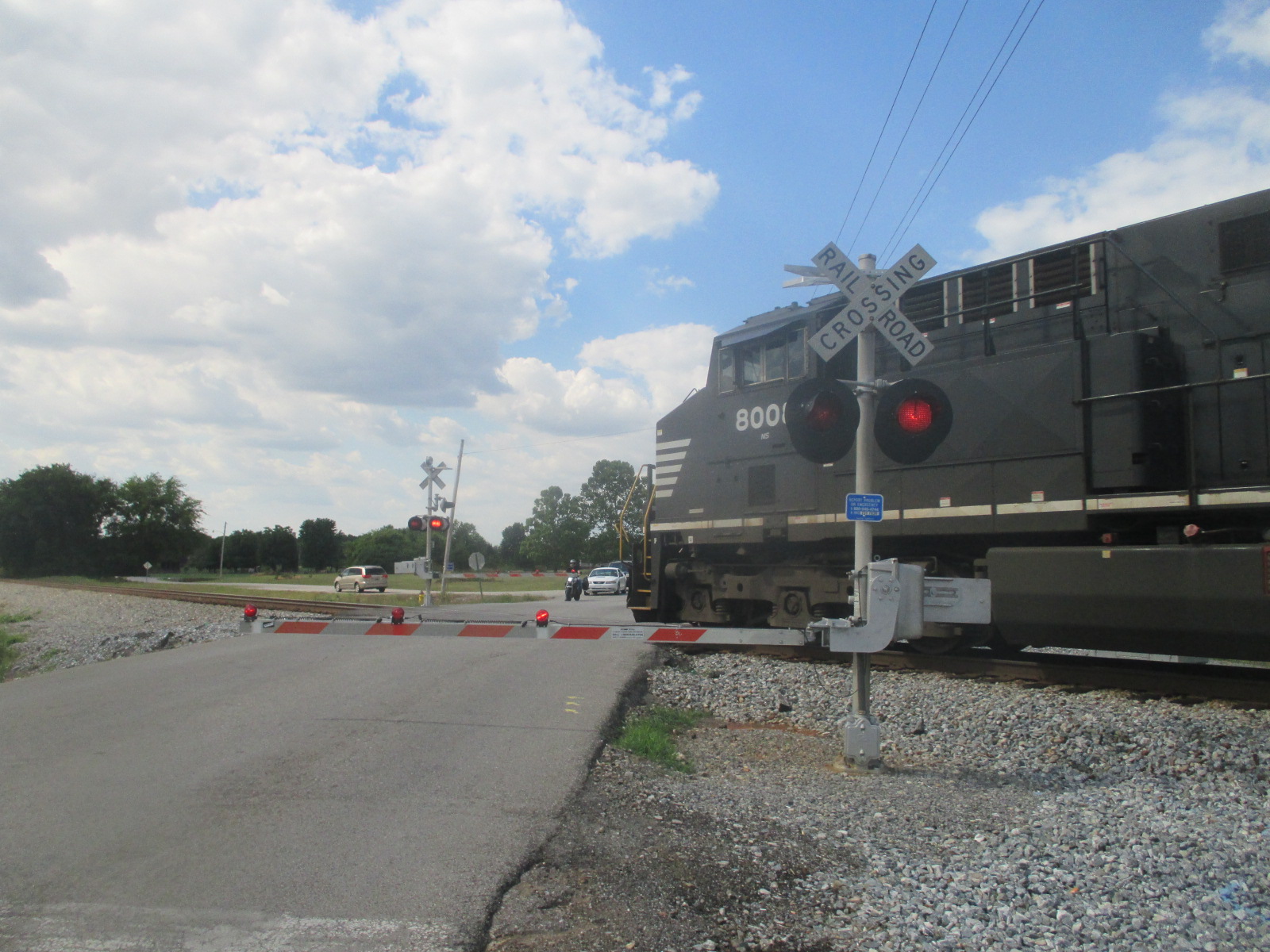

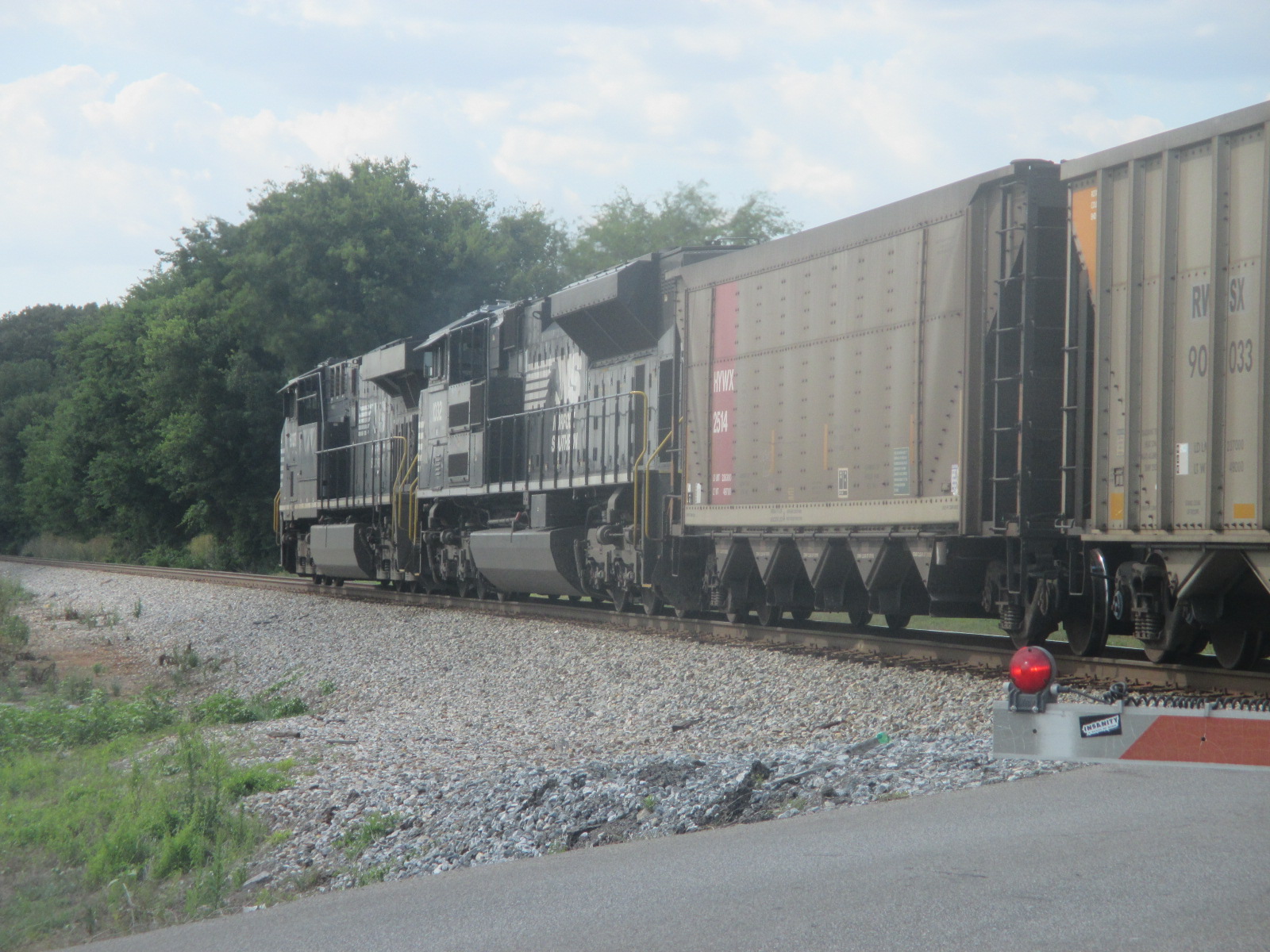

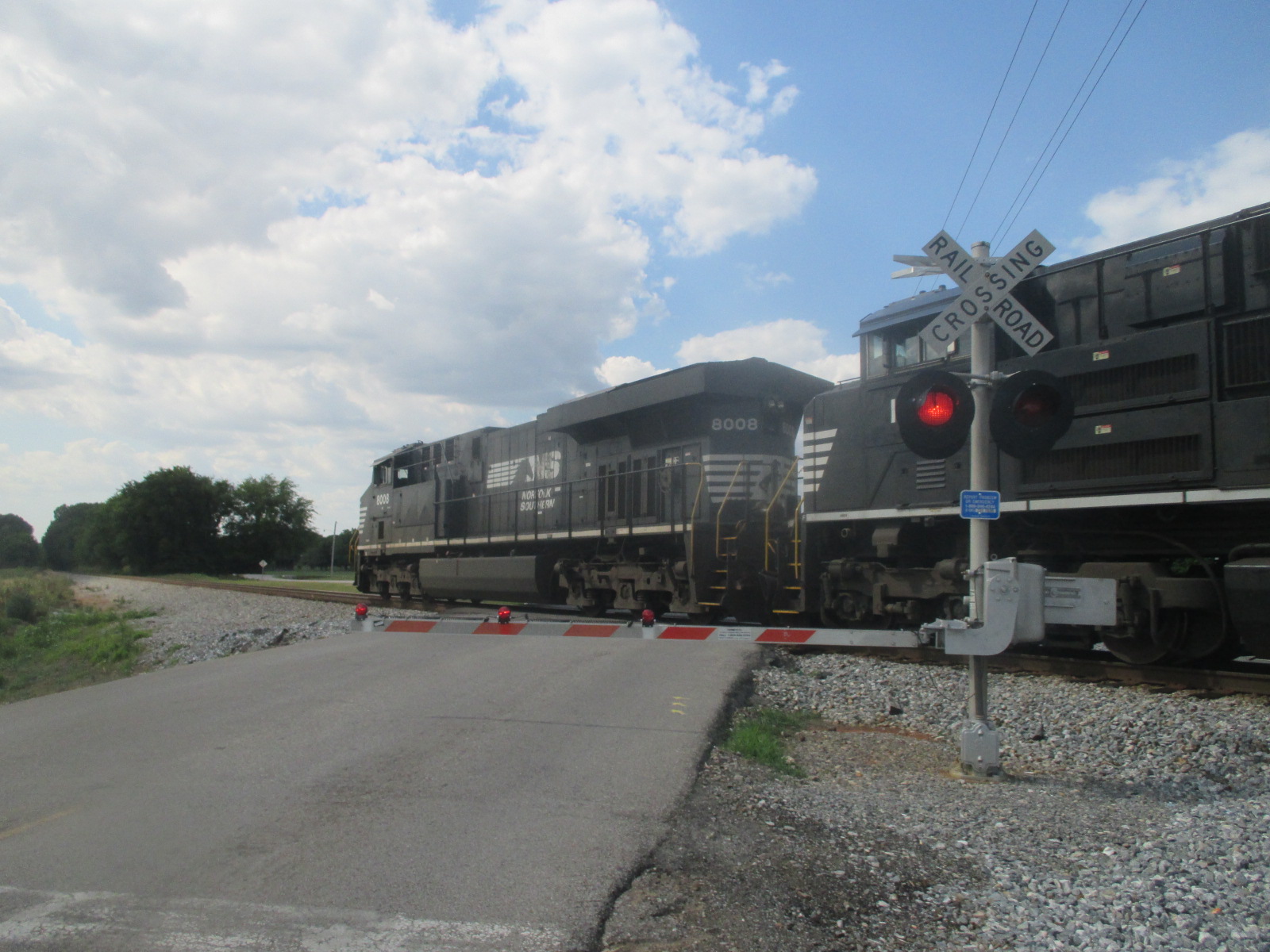

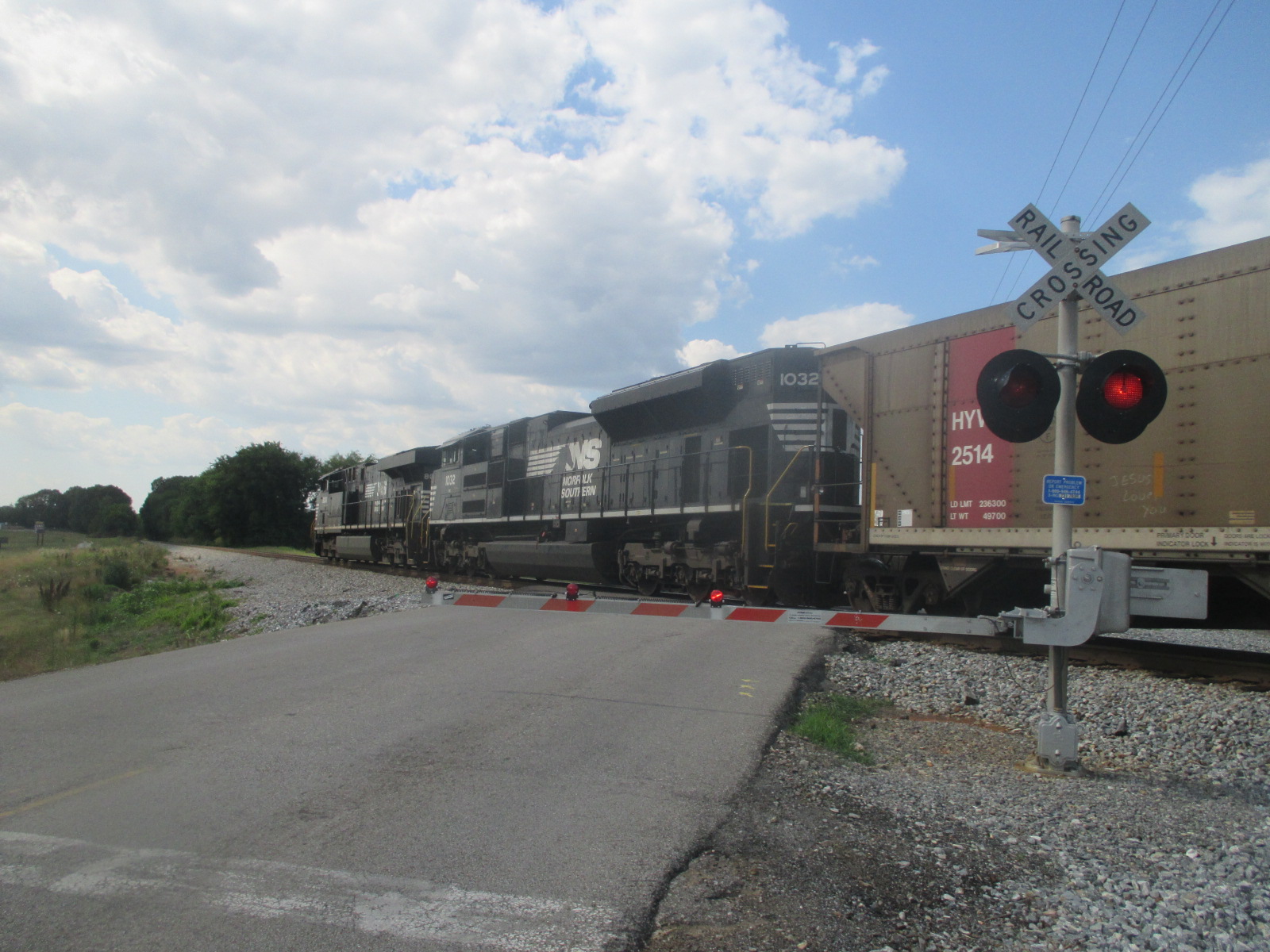

The DPUs crawl past the crossing. |
|||
49 |
50 |
One more shot of the DPUs. |
51 |
52 |

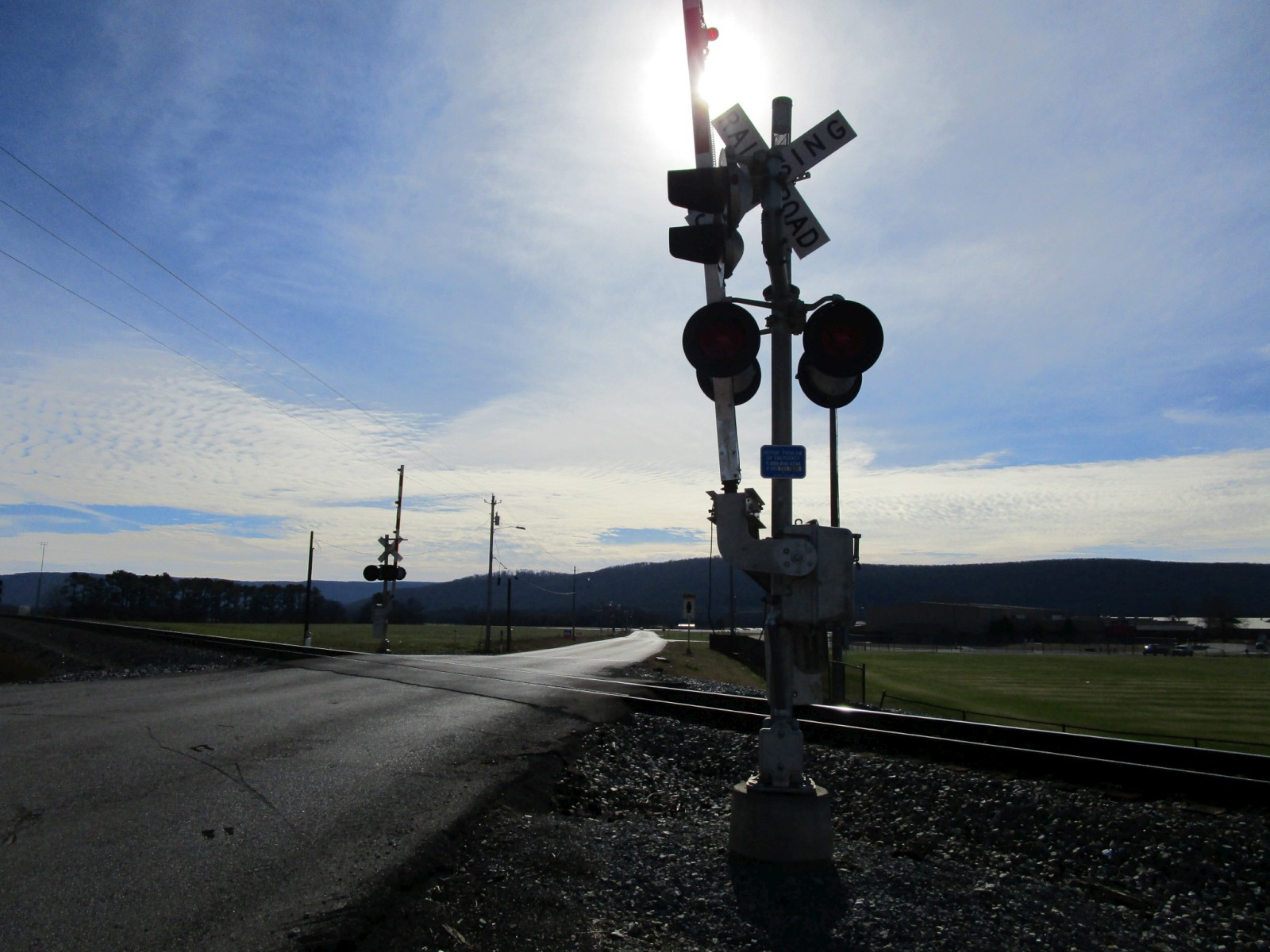

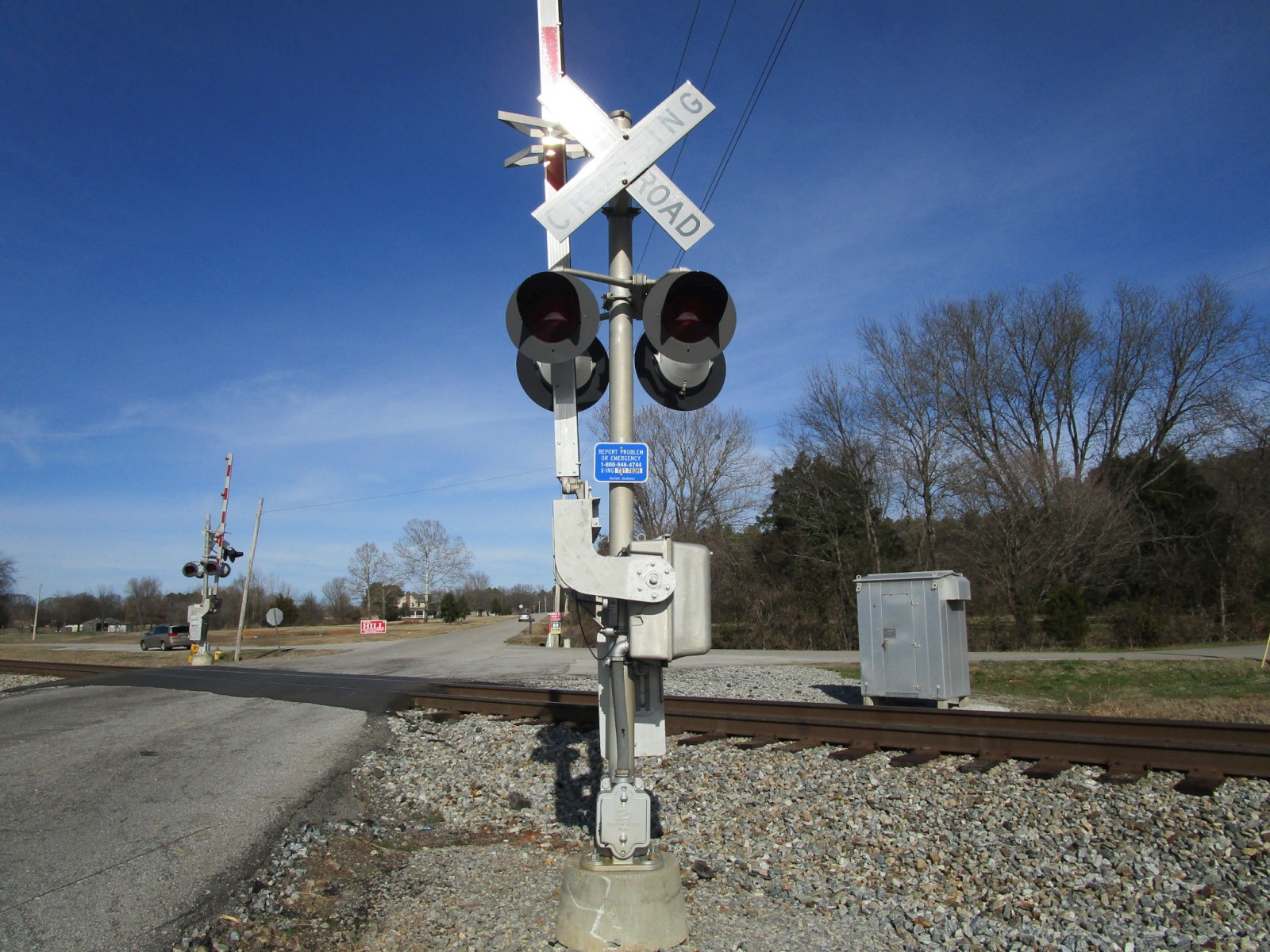

Another return trip on 1-1-20 finds some changes to the crossing, including a pair of new foundations for the signals. |
|
53 |
54 |
55 |
56 |

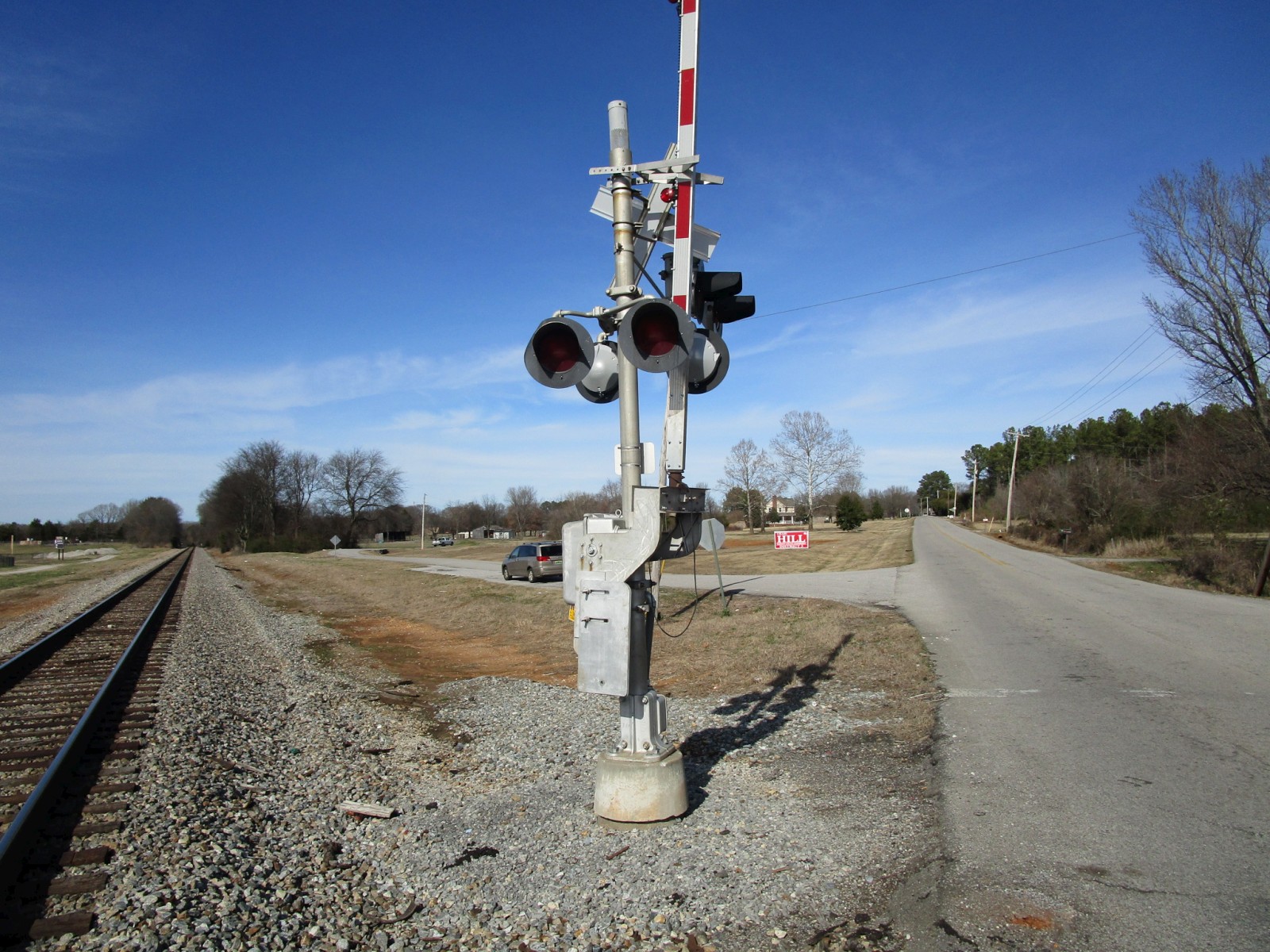

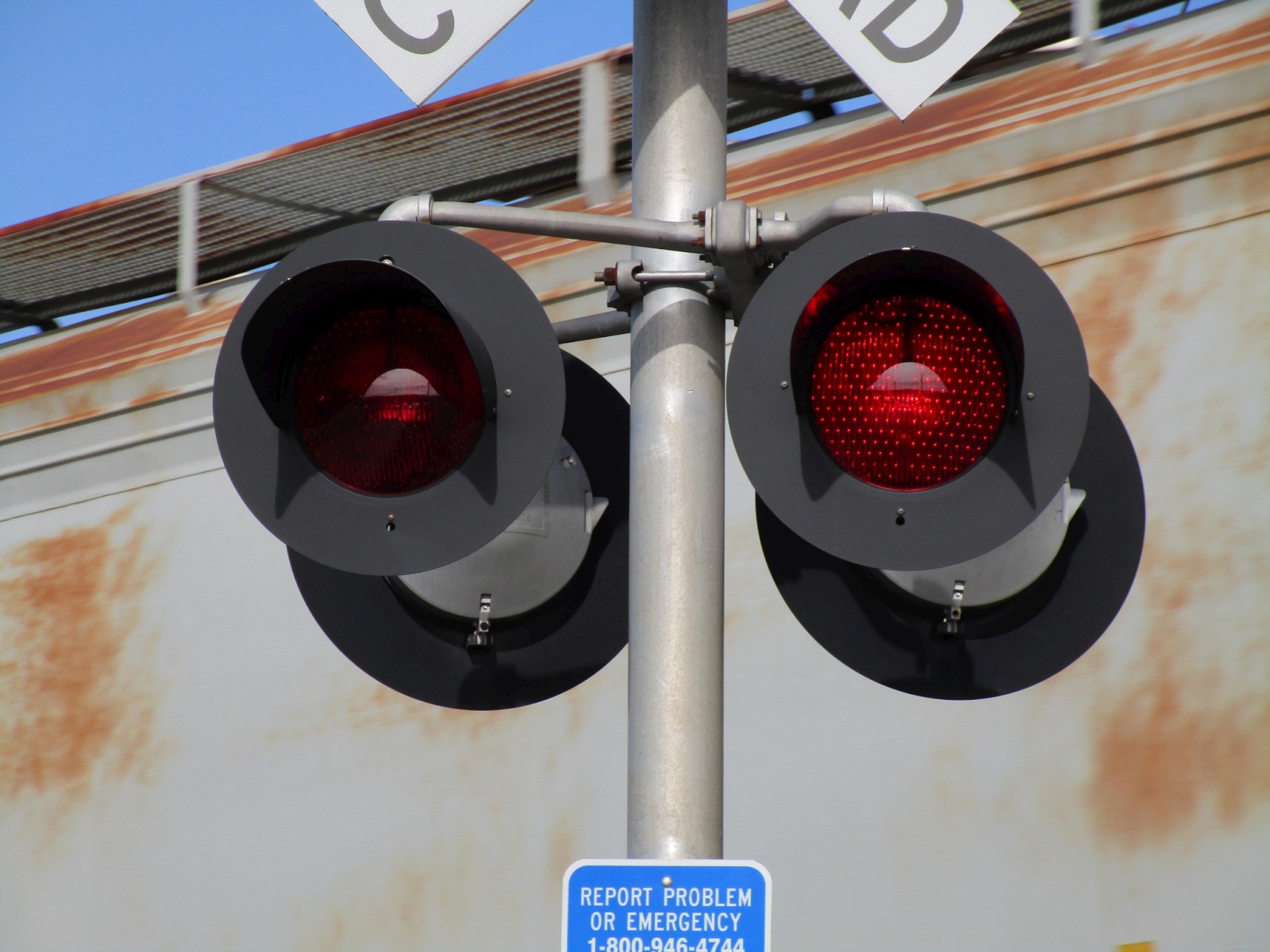

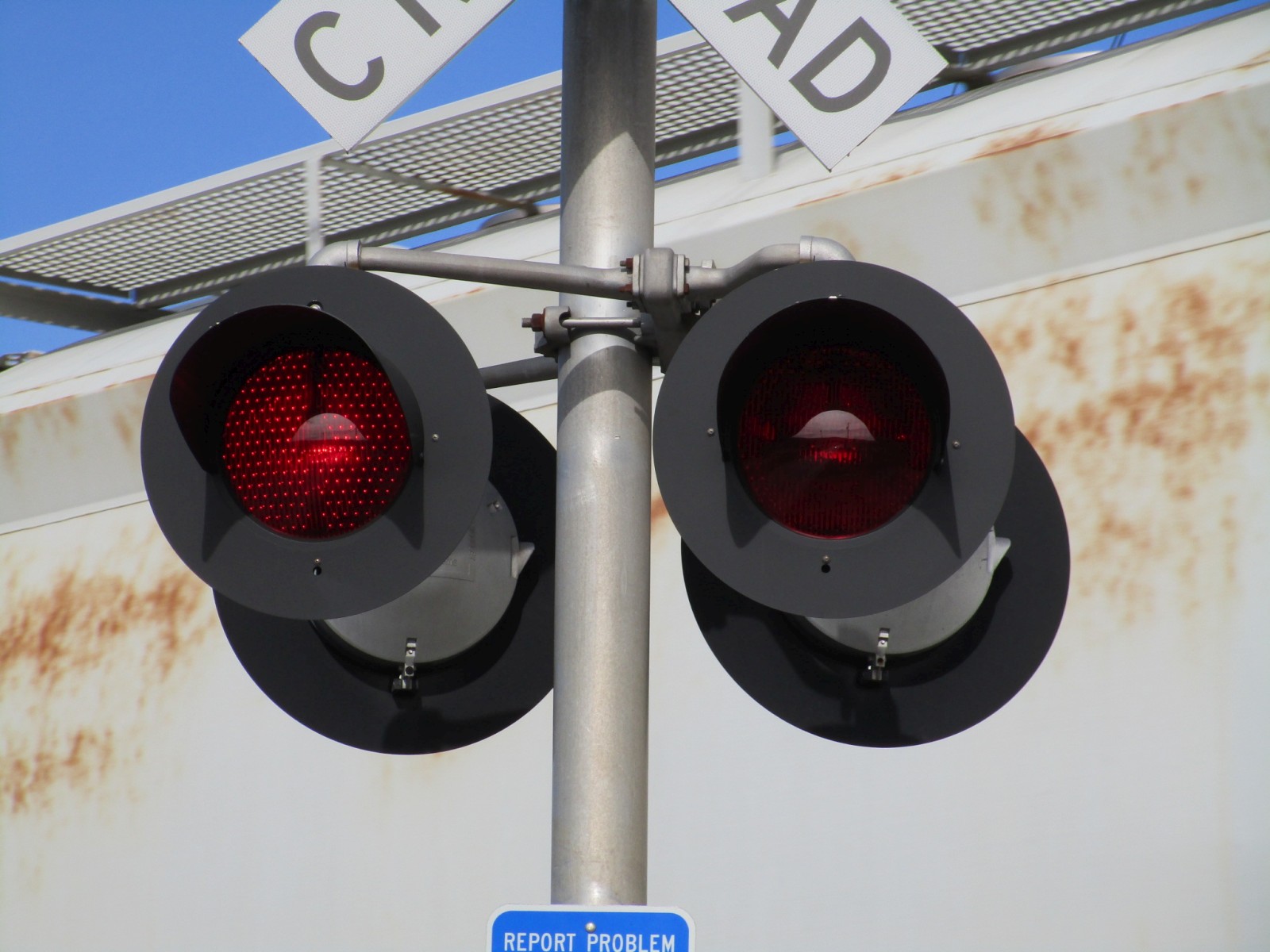

The northbound signal has had its front pair of lights replaced with newer Safetran 12x20 inch lights. |
|||
57 |
58 |
59 |
60 |

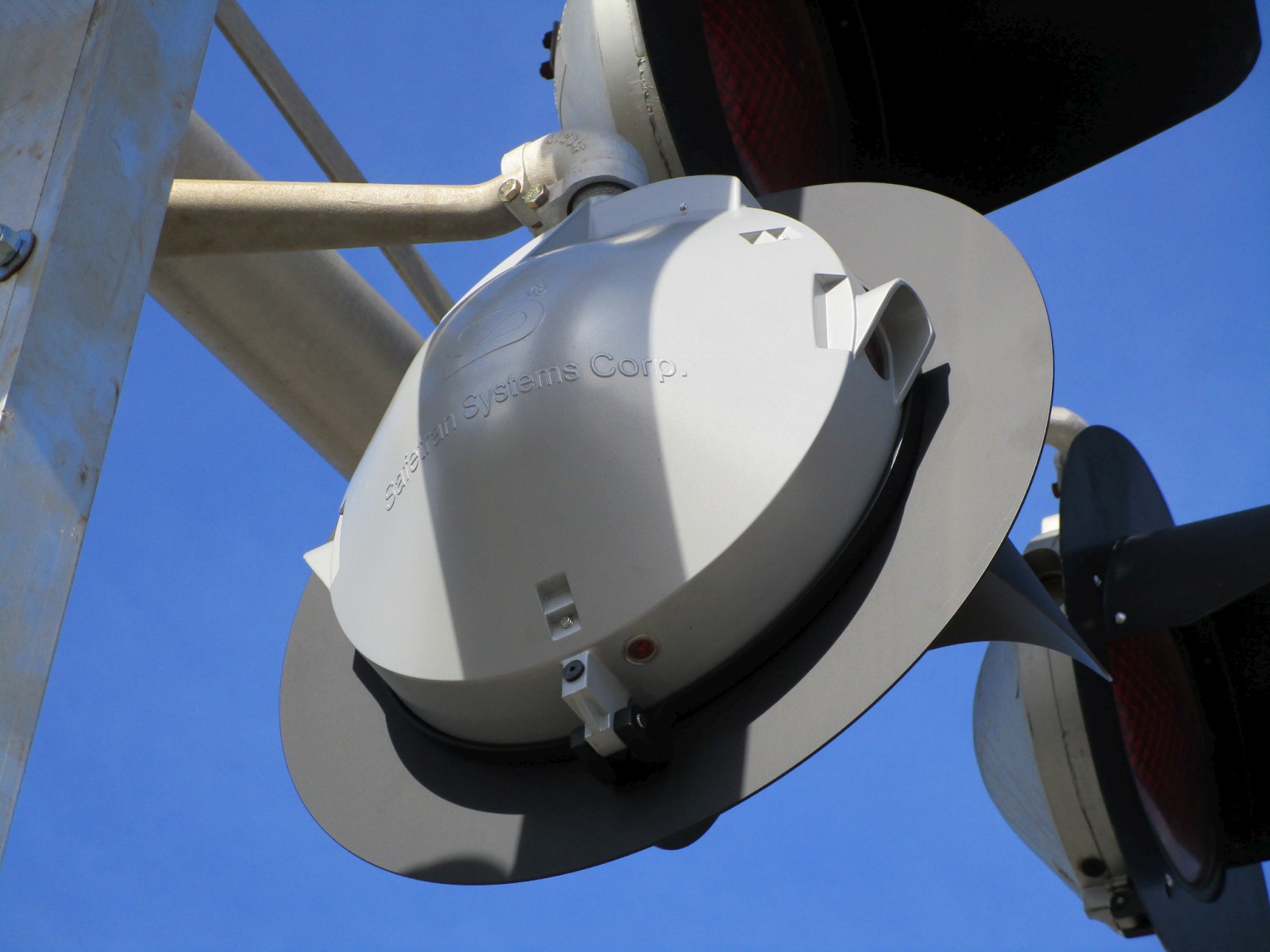

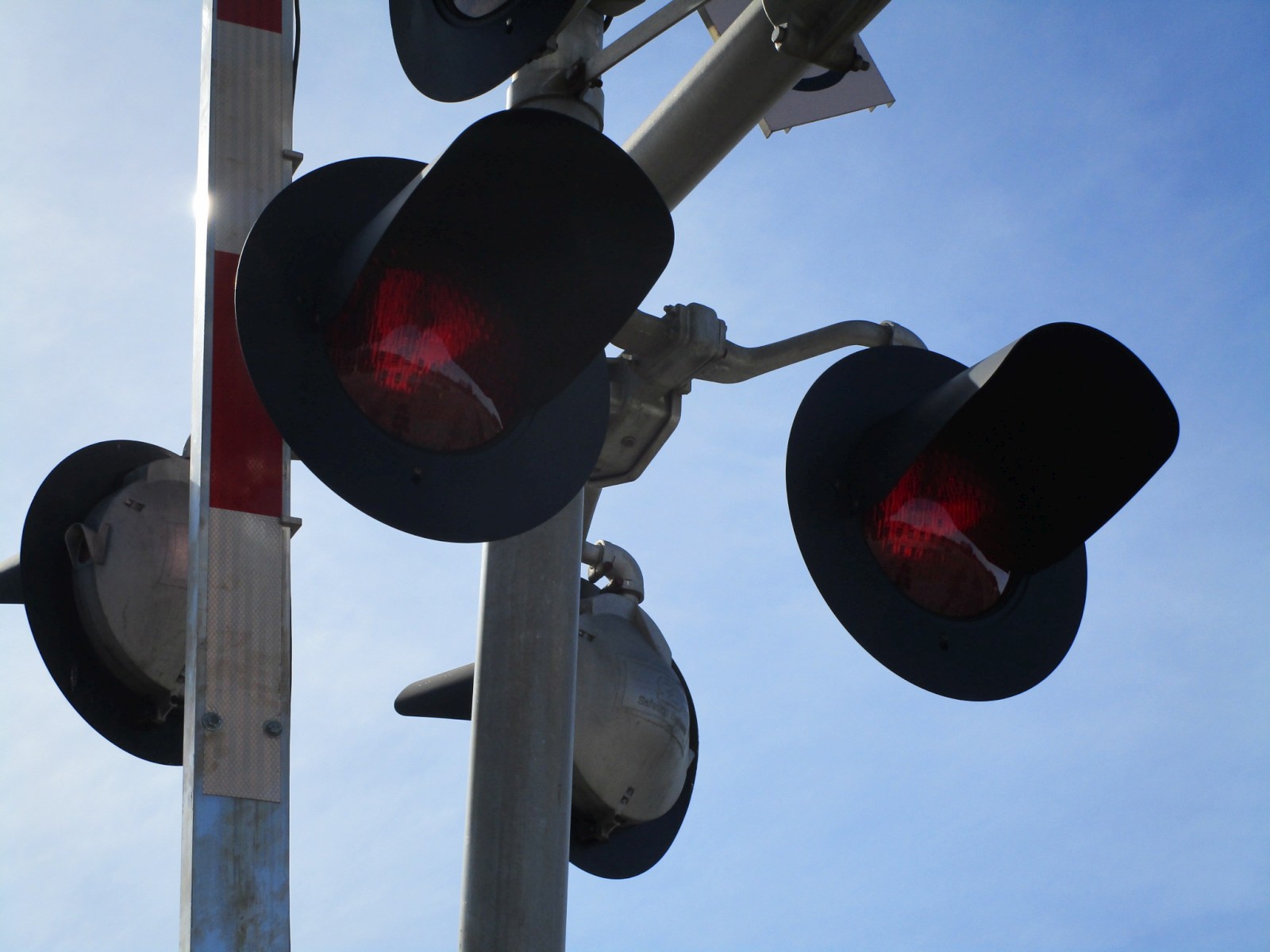

The southbound signal here also had its front pair of lights replaced with newer Safetran 12x20 inch lights! |
|||
61 |
62 |
63 |
64 |

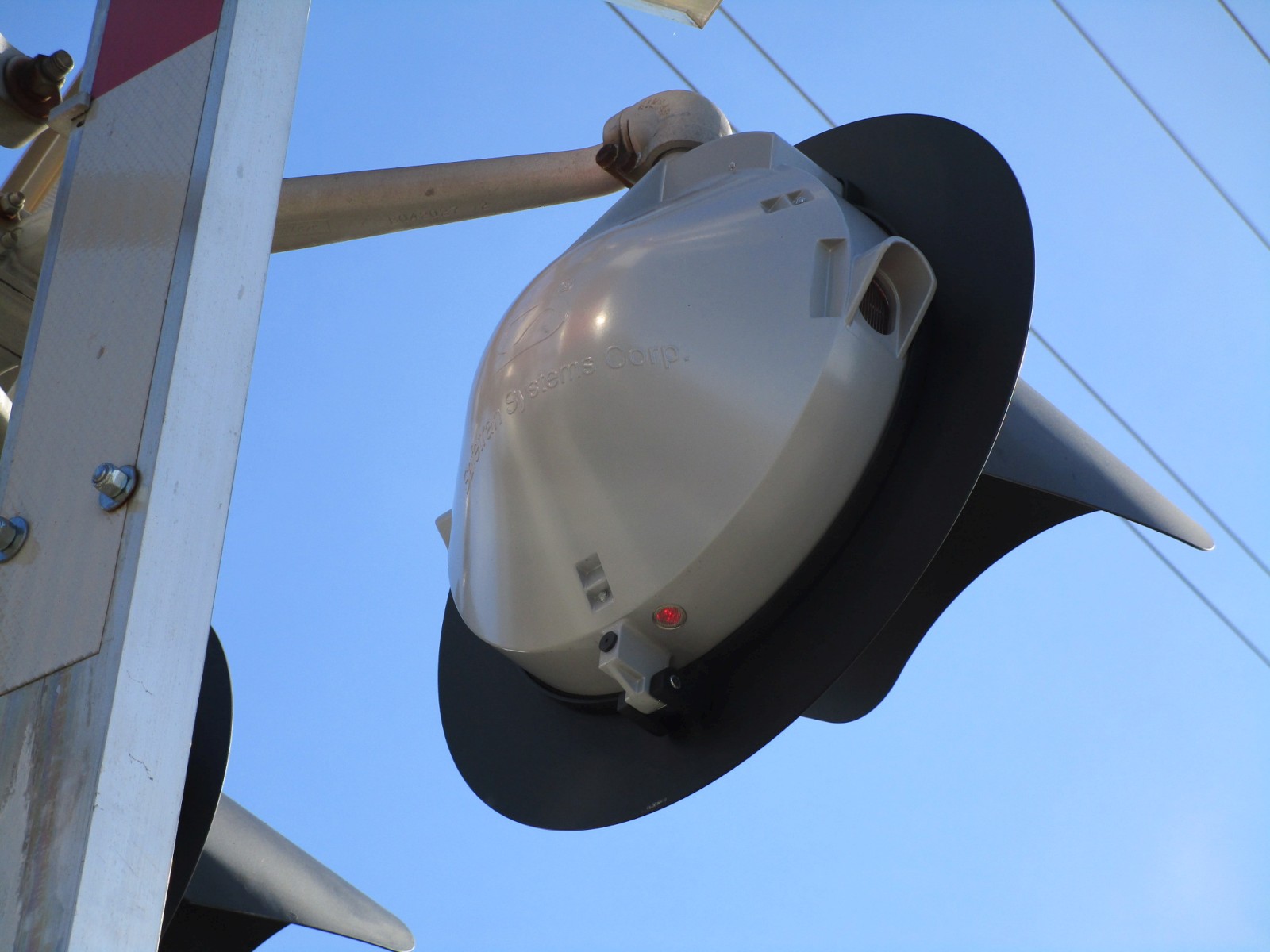

The Safetran mechanical bell here was also replaced with a re-used Safetran Type 3 e-bell. |
The relay case. |

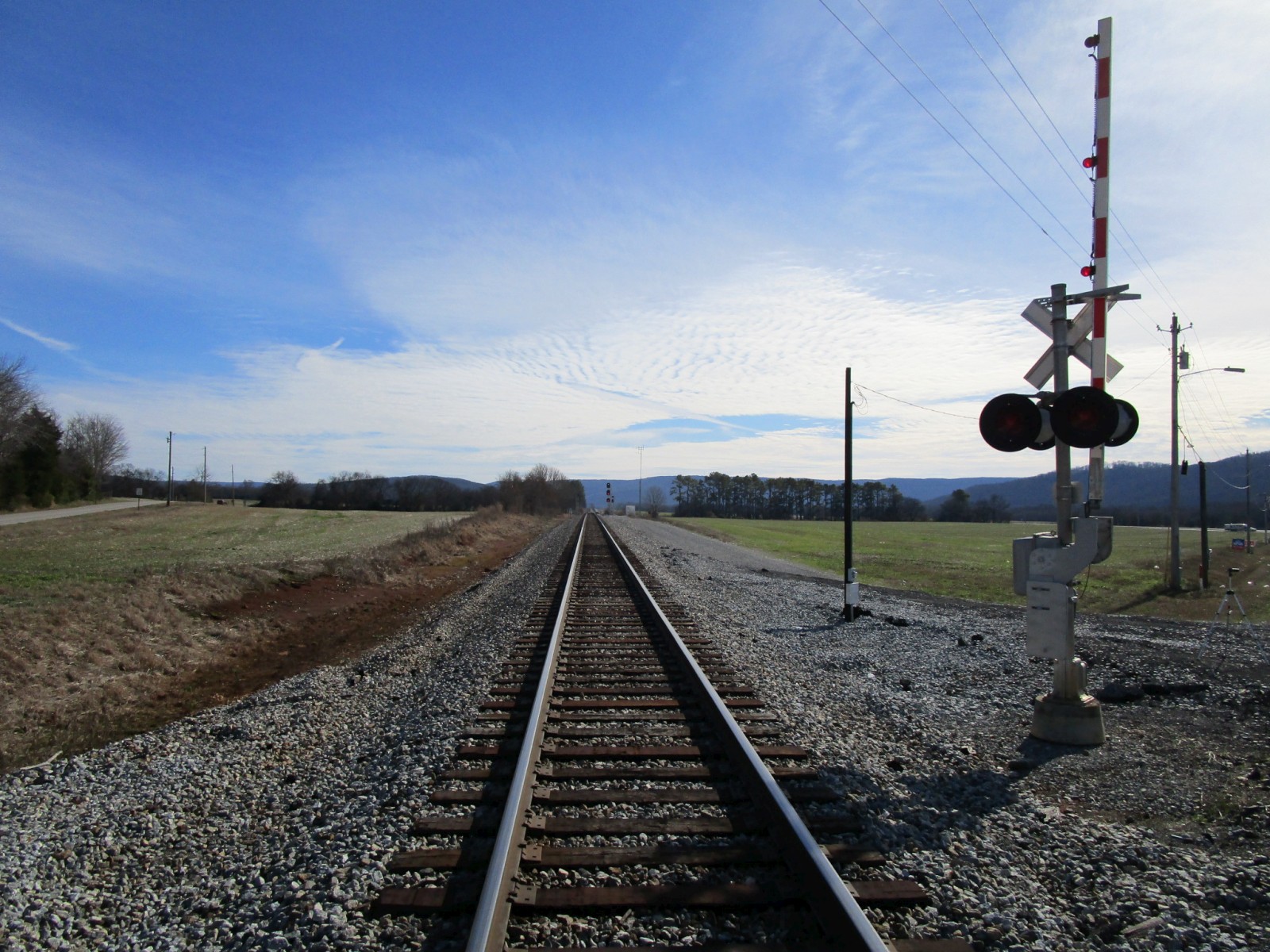

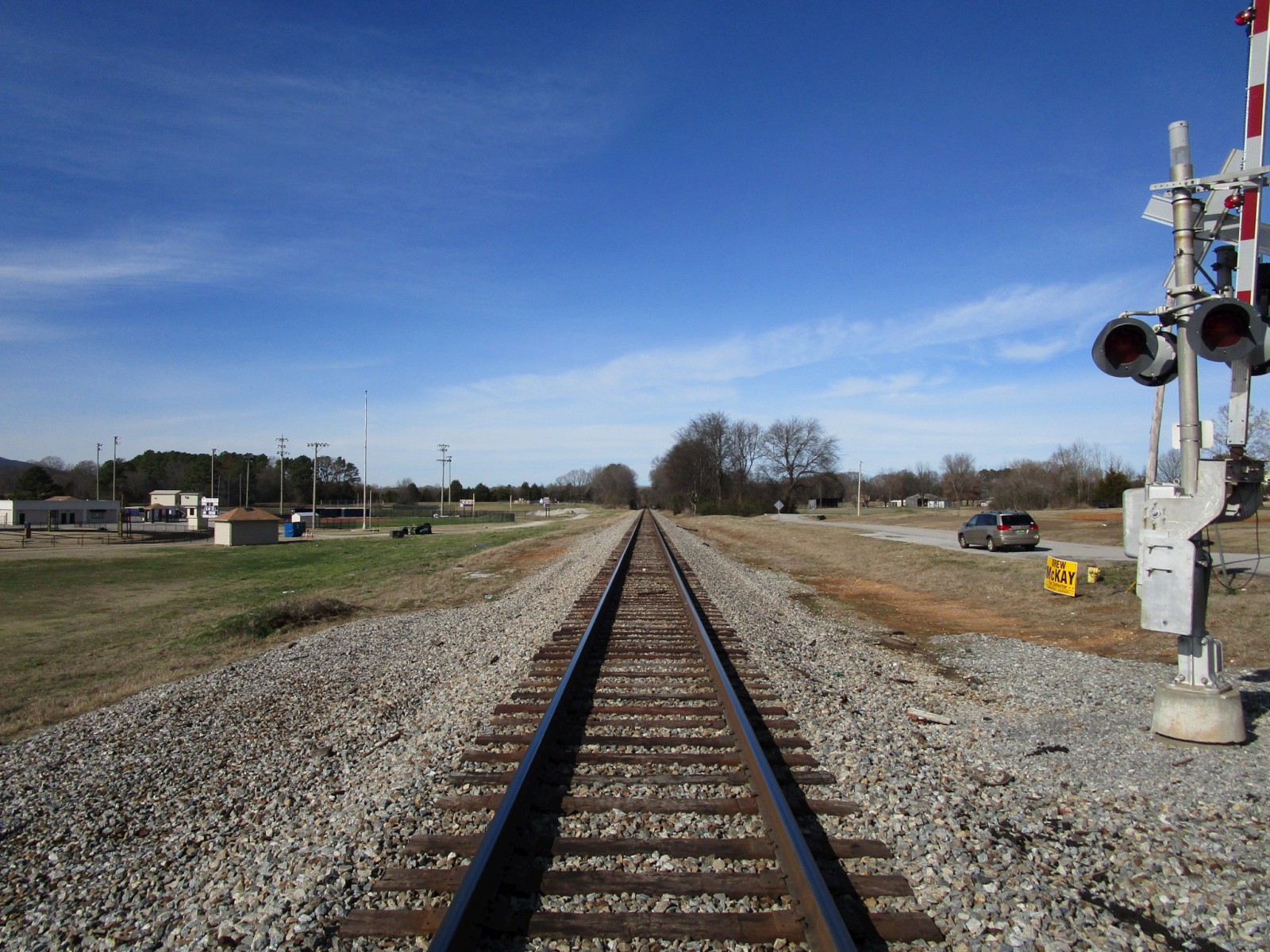

Track views. |
|
65 |
66 |
67 |
68 |

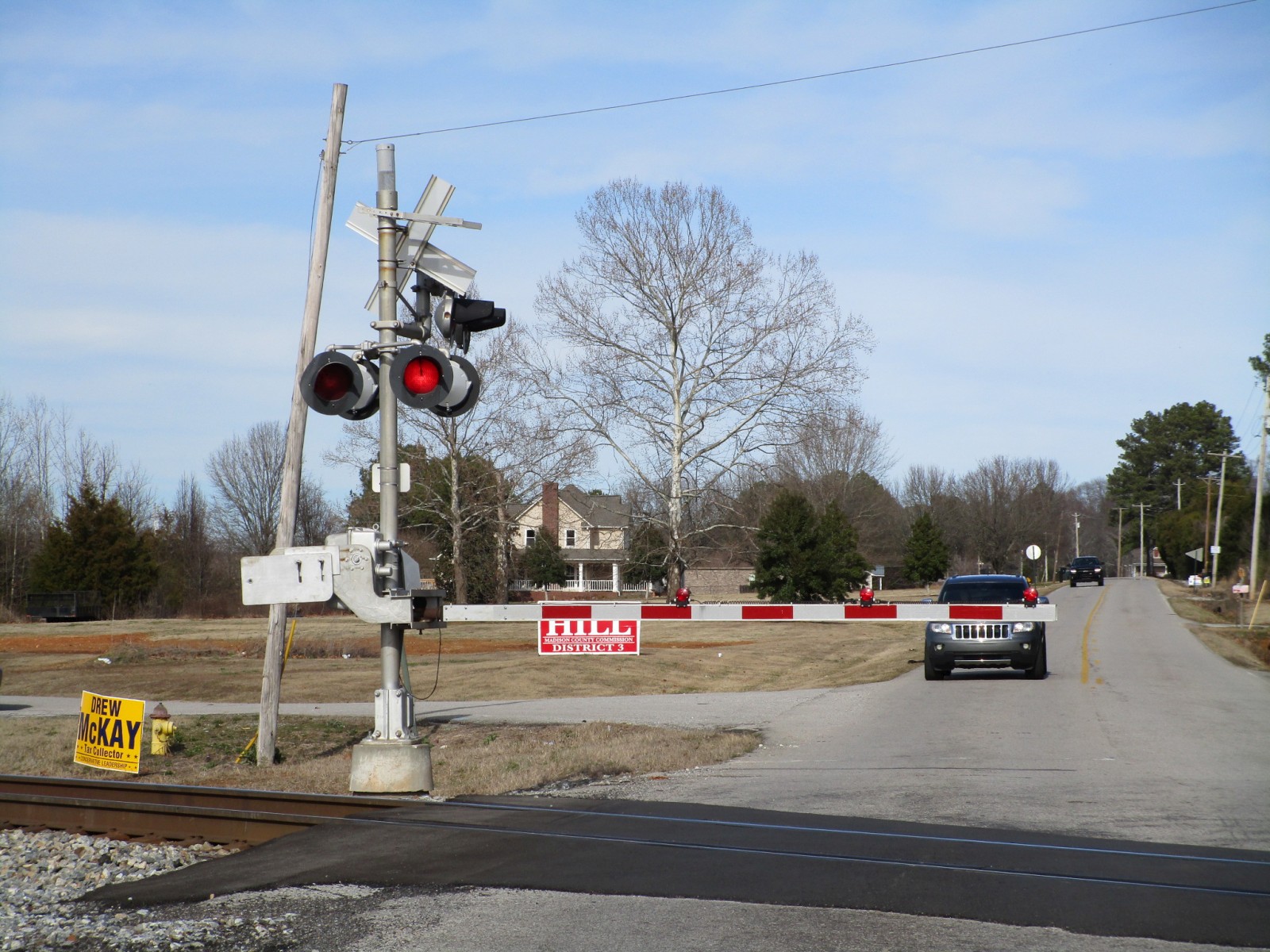

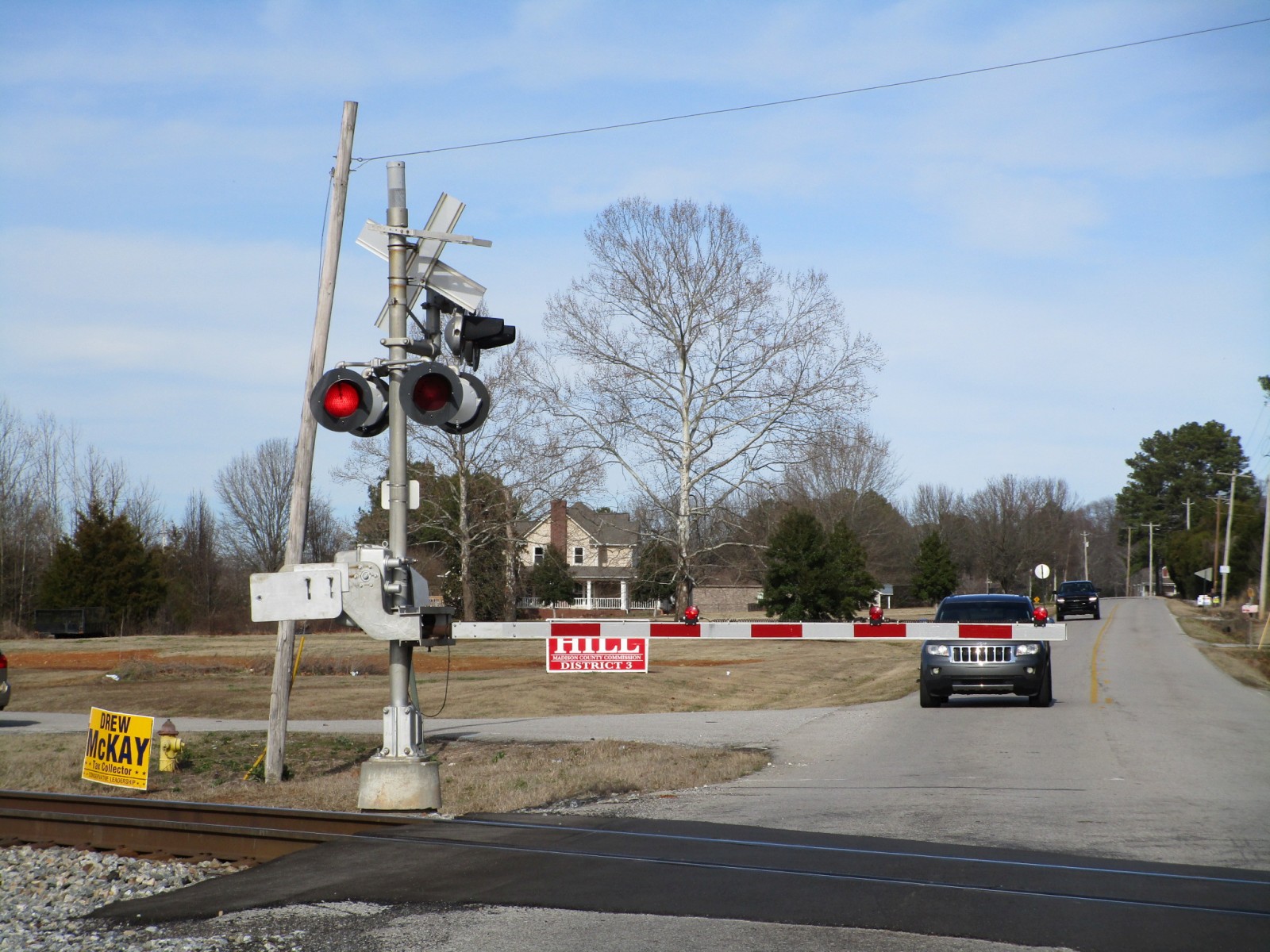

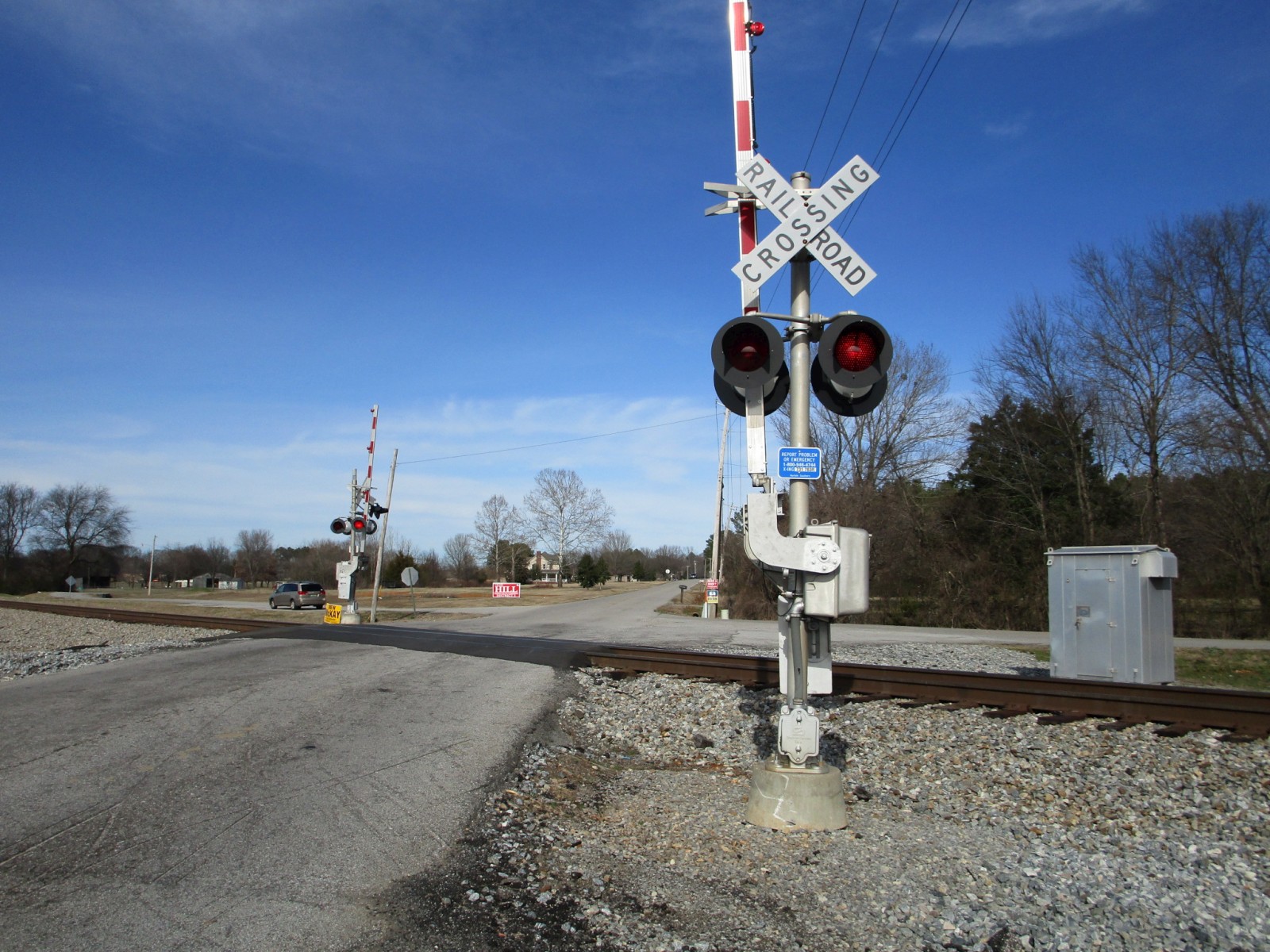

The crossing activates! |
|||
69 |
70 |
71 |
72 |

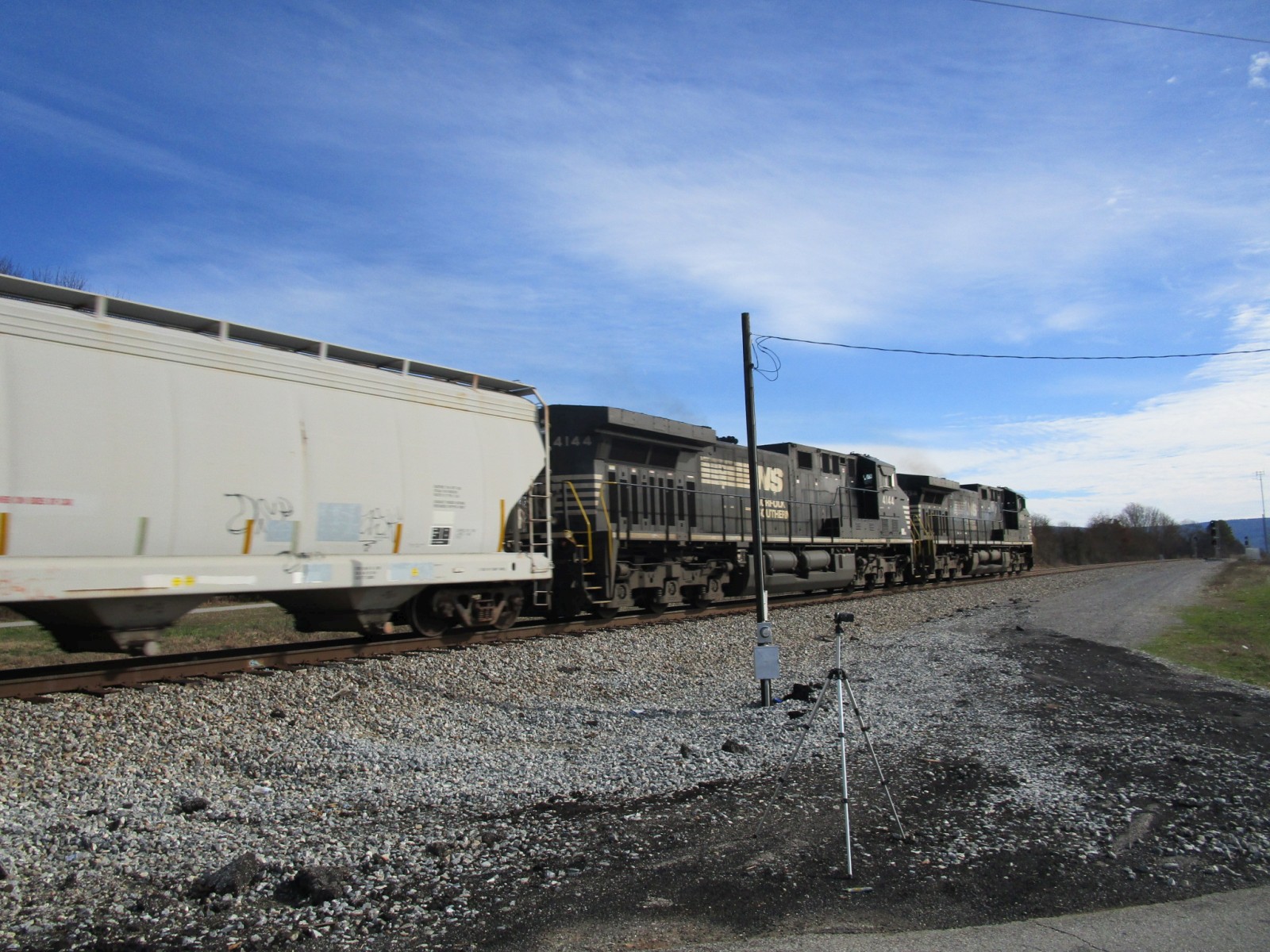

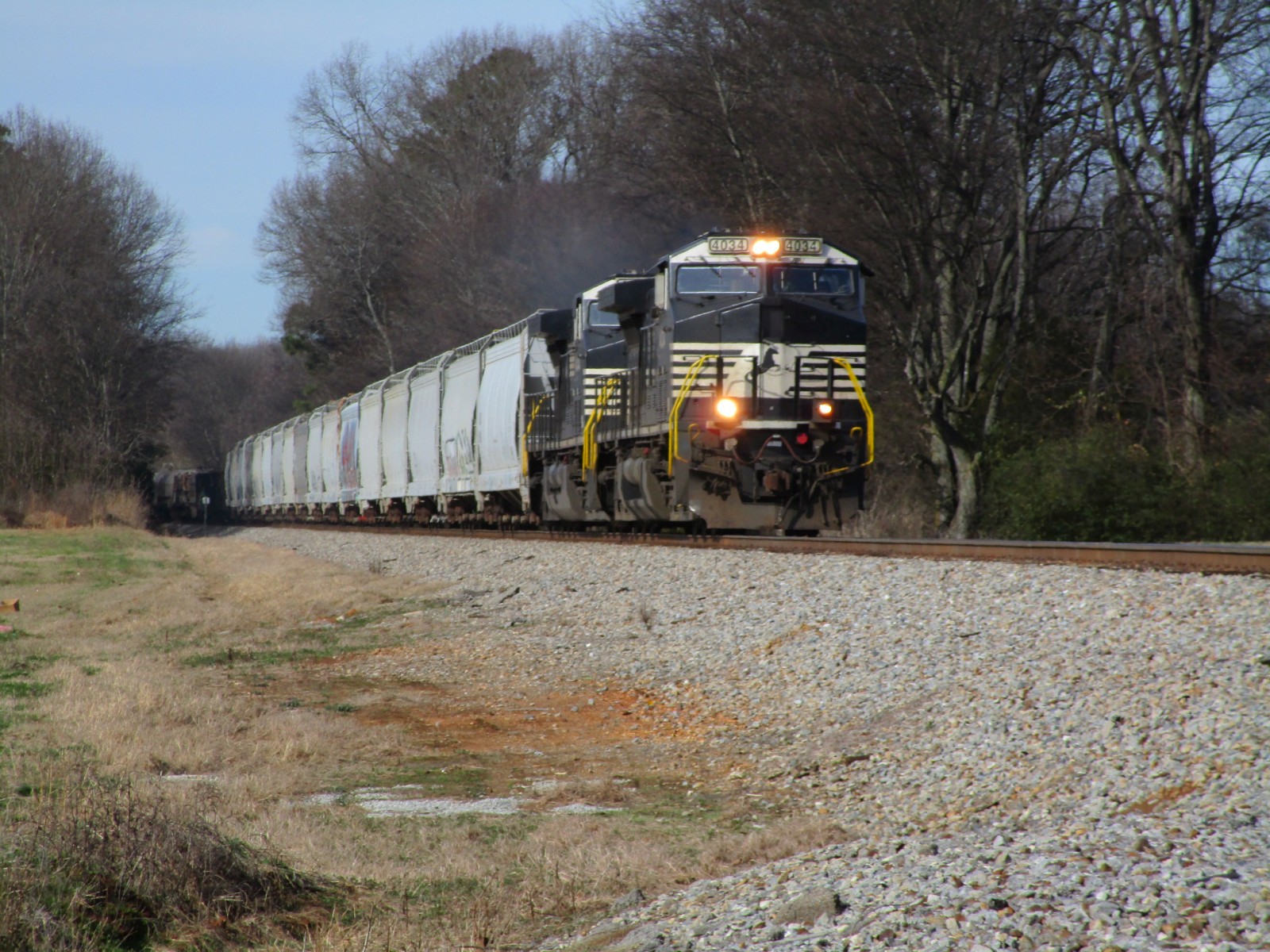

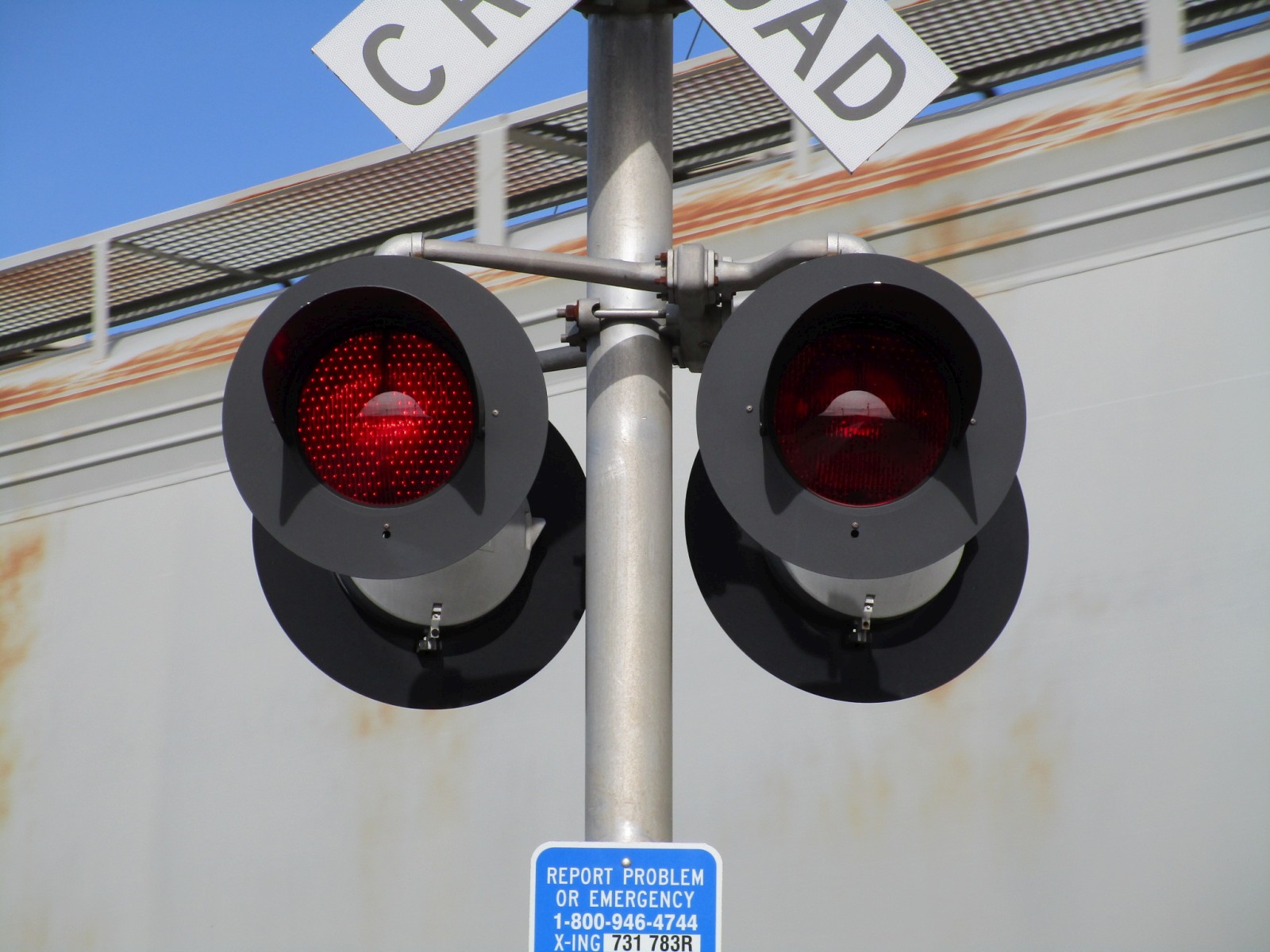

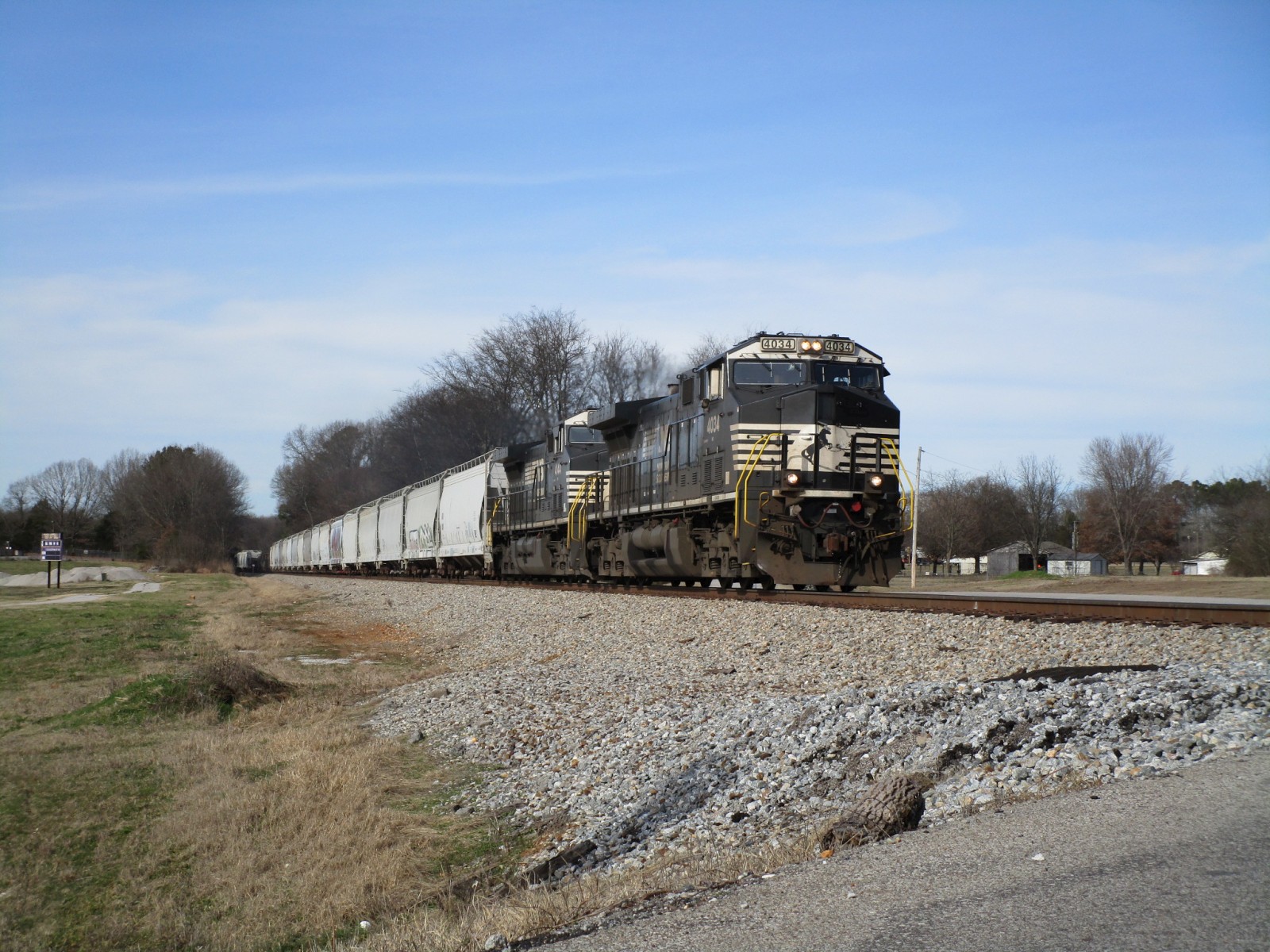

NS 362 comes through with a pair of AC44C6Ms for power! |
|||
73 |
74 |
75 |
76 |
77 |
78 |
79 |
80 |
81 |
82 |
83 |
84 |

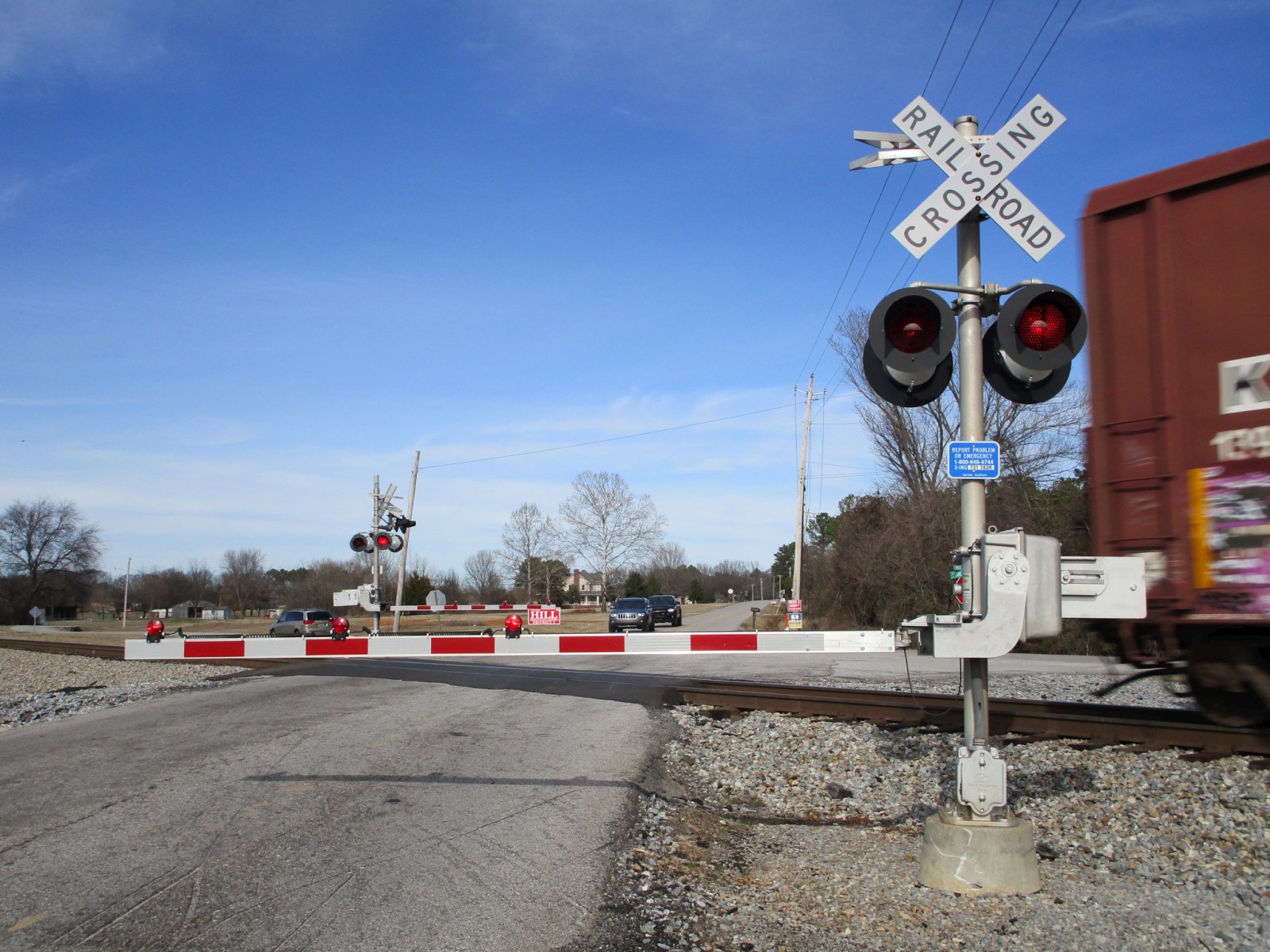

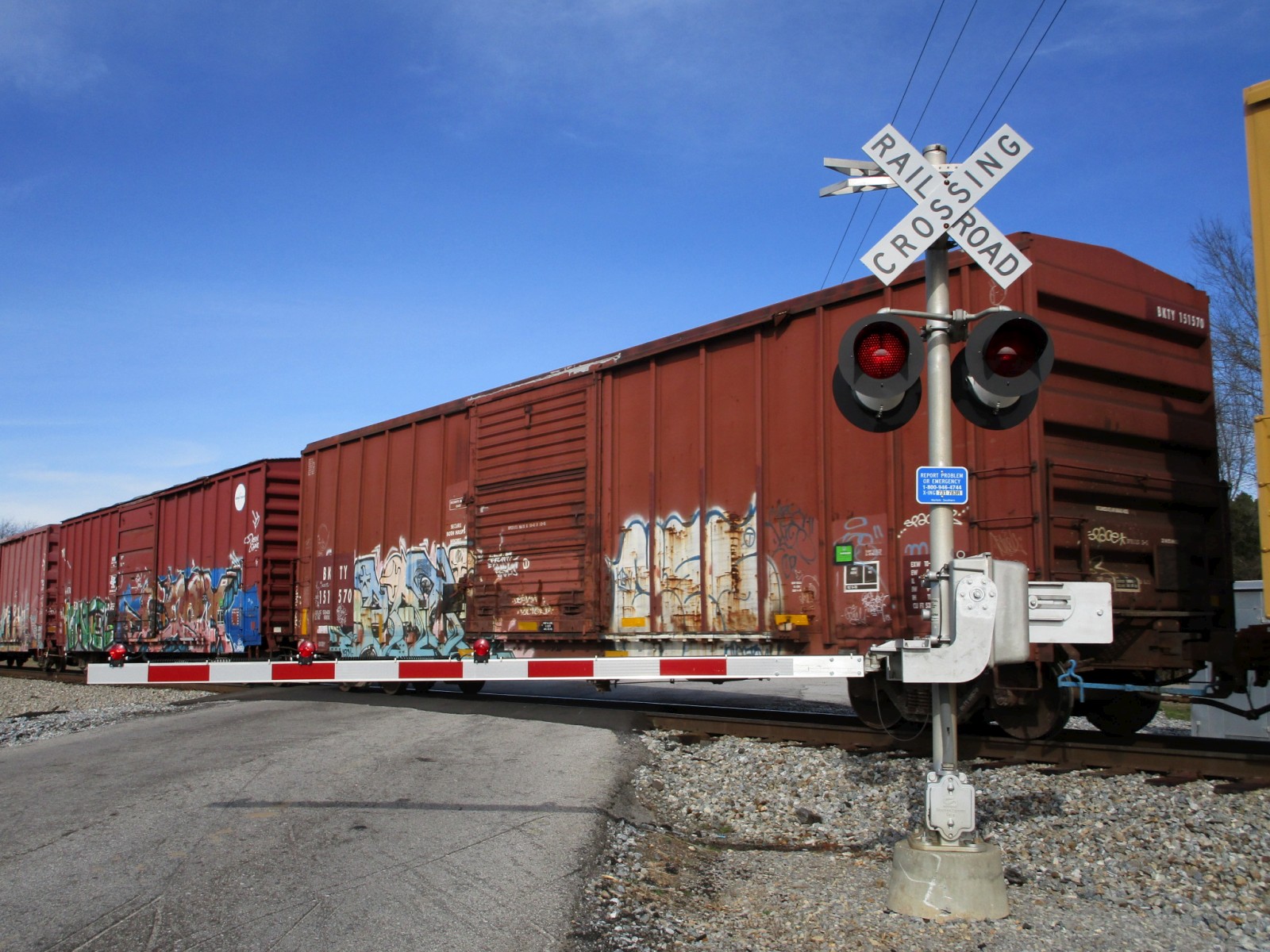

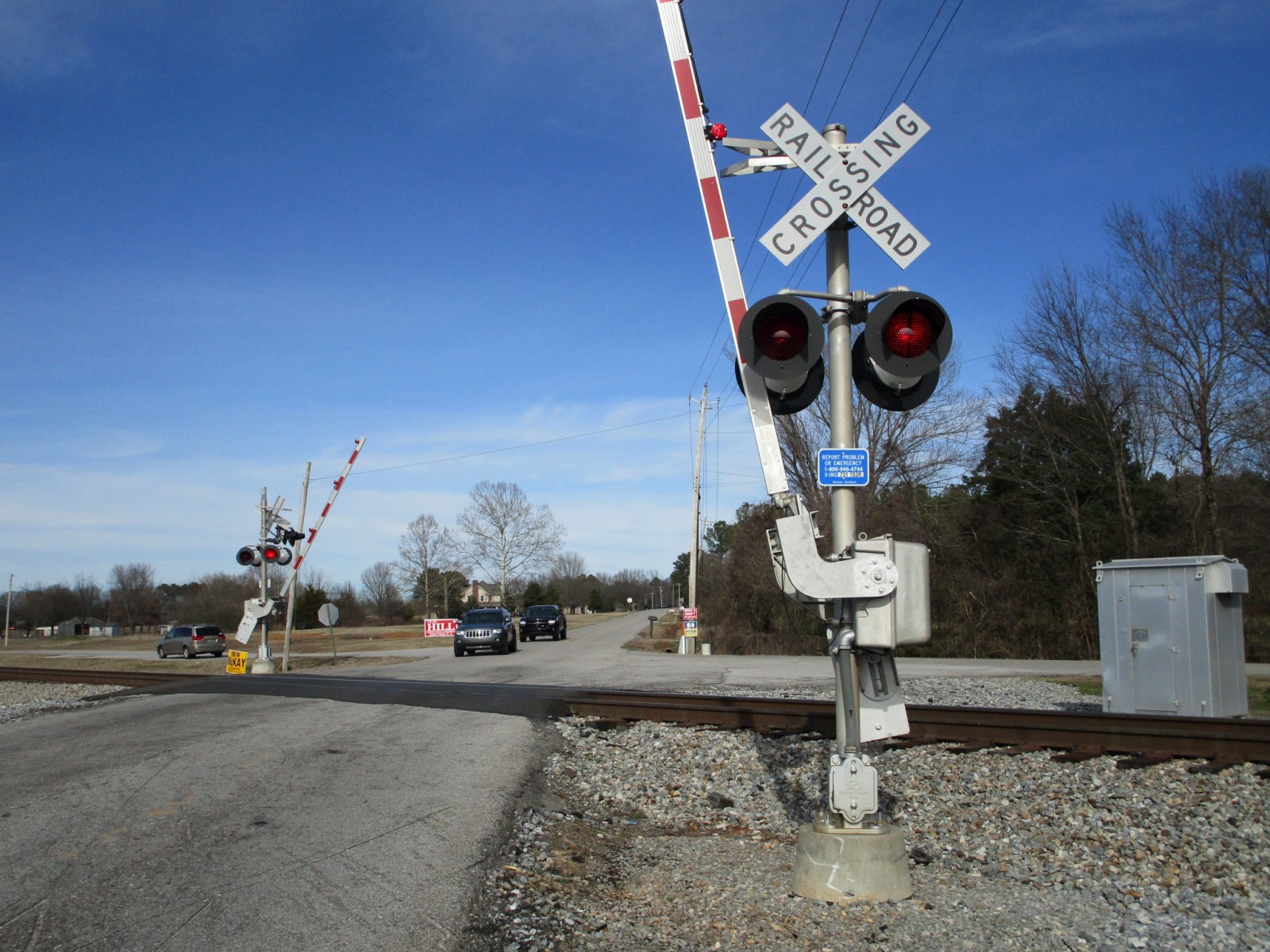

The train passes and the gates rise. |
|||
Pictures 1-34 and the first video were taken on 11-25-14.
Pictures 35-50 and the second video were taken on 6-20-16.
The third video was taken on 5-13-17.
The fourth video was taken on 3-11-18.
Pictures 51-84 and the fifth video were taken on 1-1-20.
