MP: 0425.03 |
Updated June 25, 2018
Total Accidents: 2
Crossing
DOT #: 352291N
TOTAL
DAILY TRAINS: 17 (AS OF 2016)
Page created by: freebrickproductions
This crossing is located on the CSX S&NA South Subdivision.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | NEG electronic | NEG electronic |
| Base: | WCH | WCH |
| Light Frames: | 4 - 12x24" WCH w/ WCH 2nd Gen LEDs | 4 - 12x24" WCH w/ WCH 2nd Gen LEDs |
| Gate Lights: | 3 - RECO | 3 - RECO |
| Gate Mechanism: | Invensys Rail | Invensys Rail |
| Gate Striping: | Vertical | Vertical |
1 |
2 |
3 |
4 |

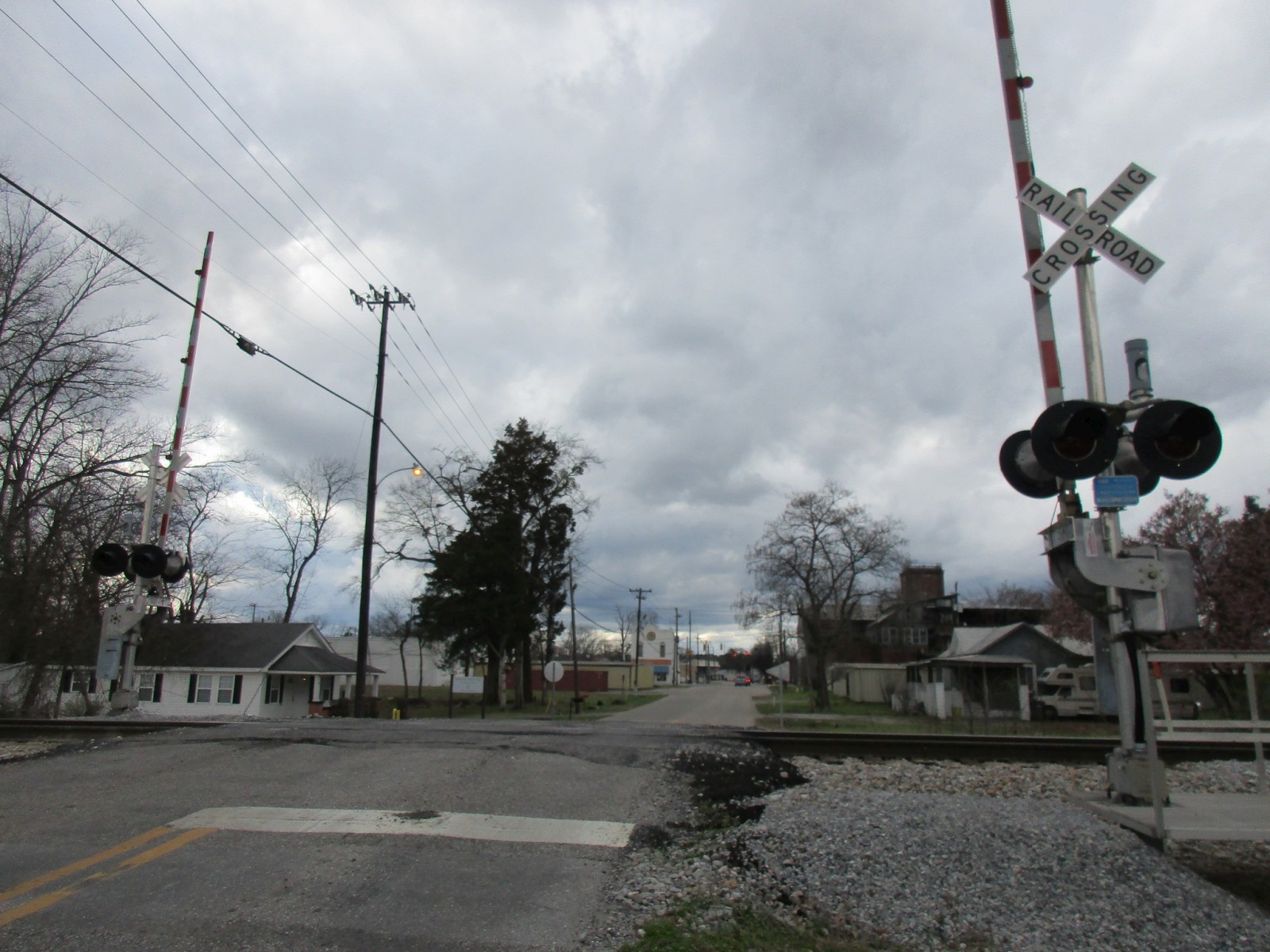

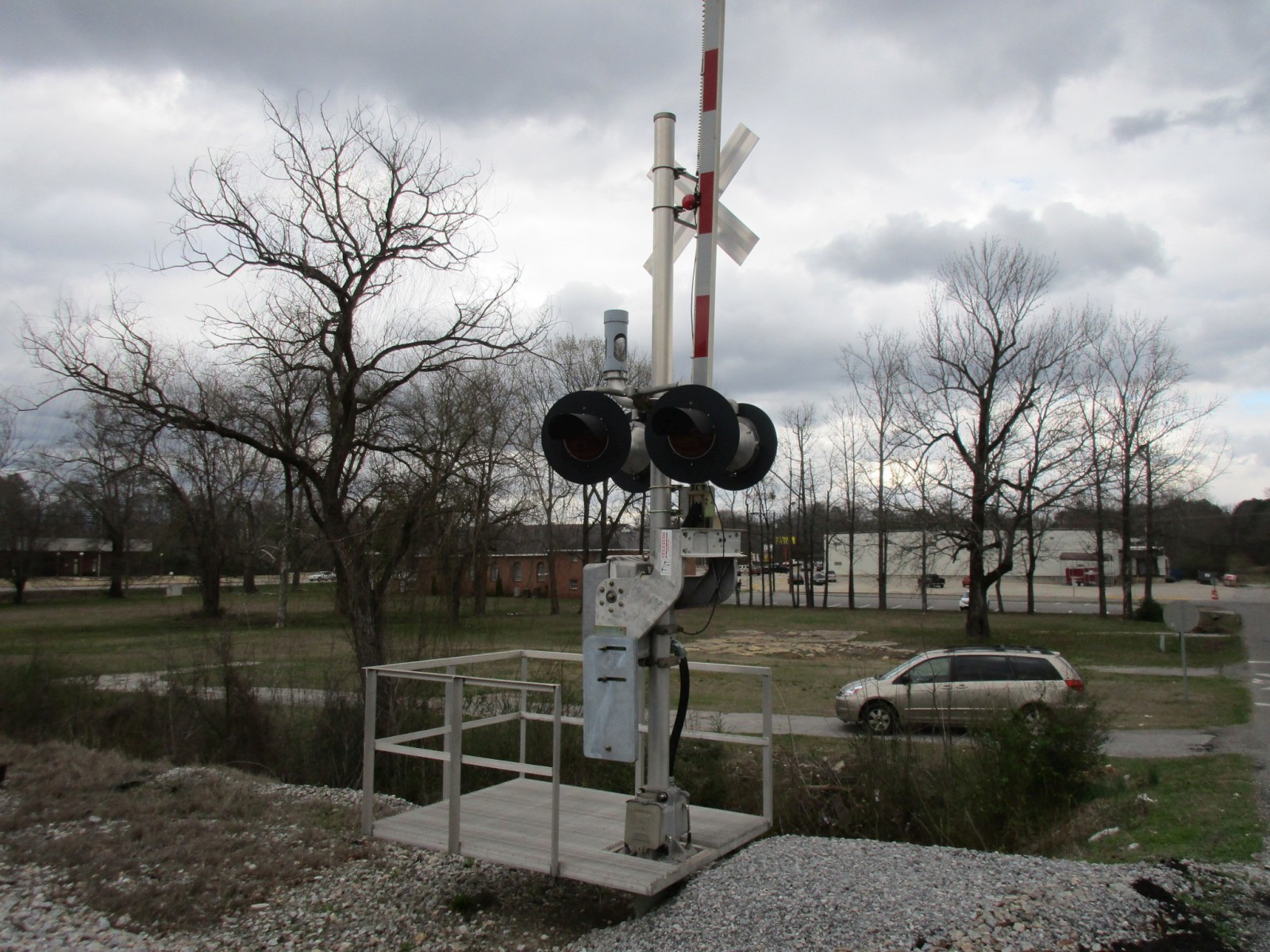

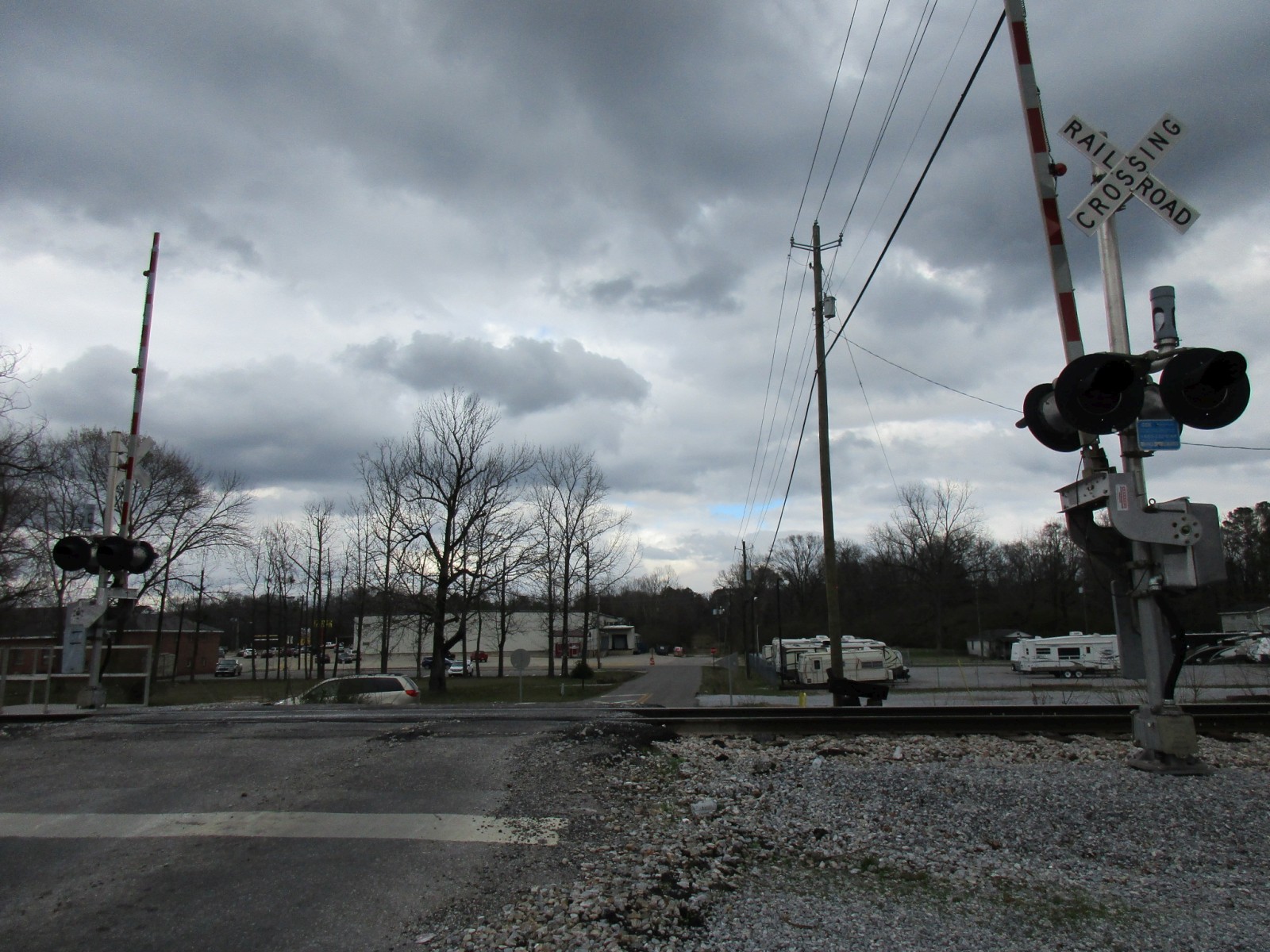

Overviews of the crossing. |

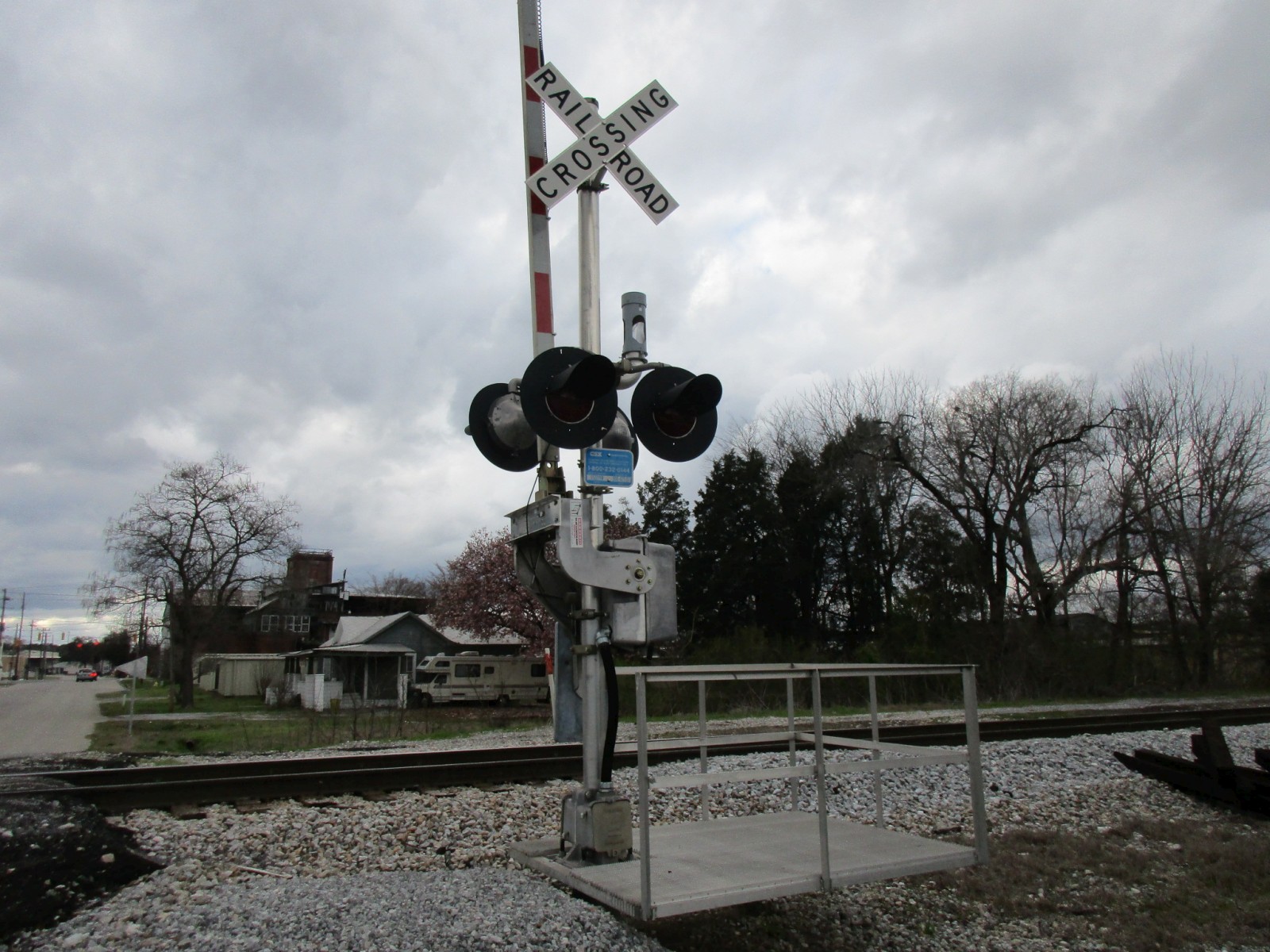

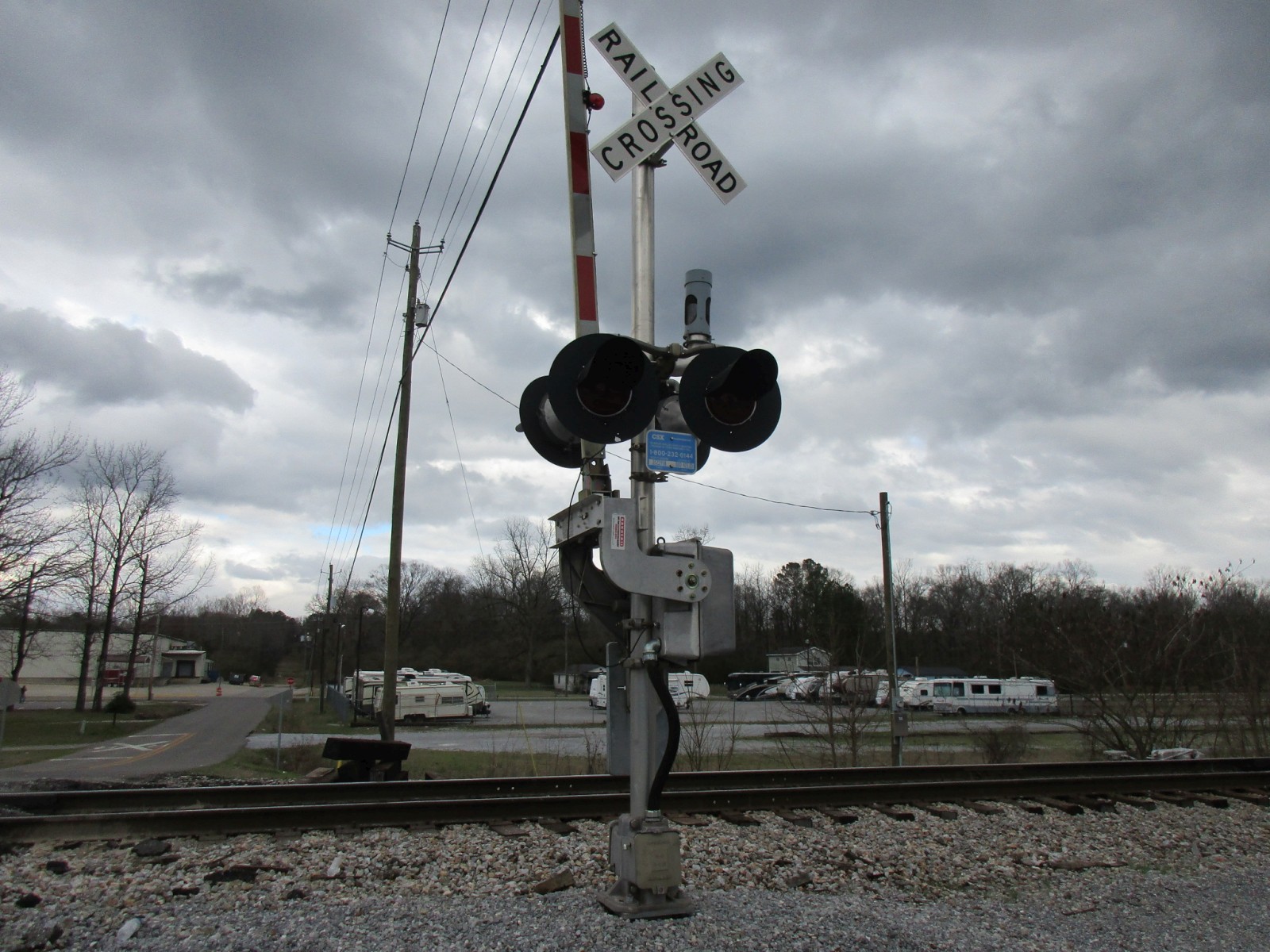

The first signal. |
||
5 |
6 |
7 |
8 |

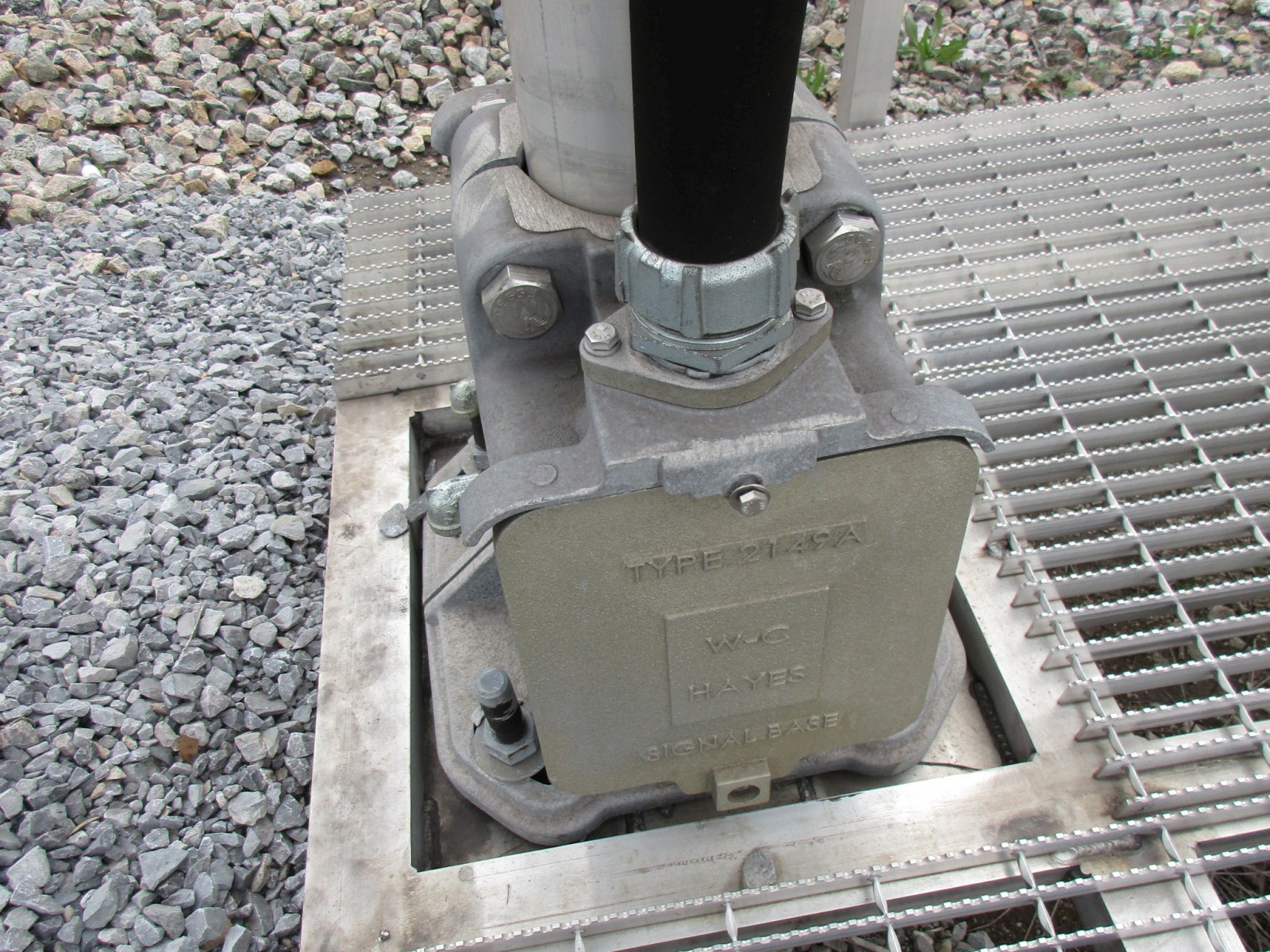

It has a WCH base. |

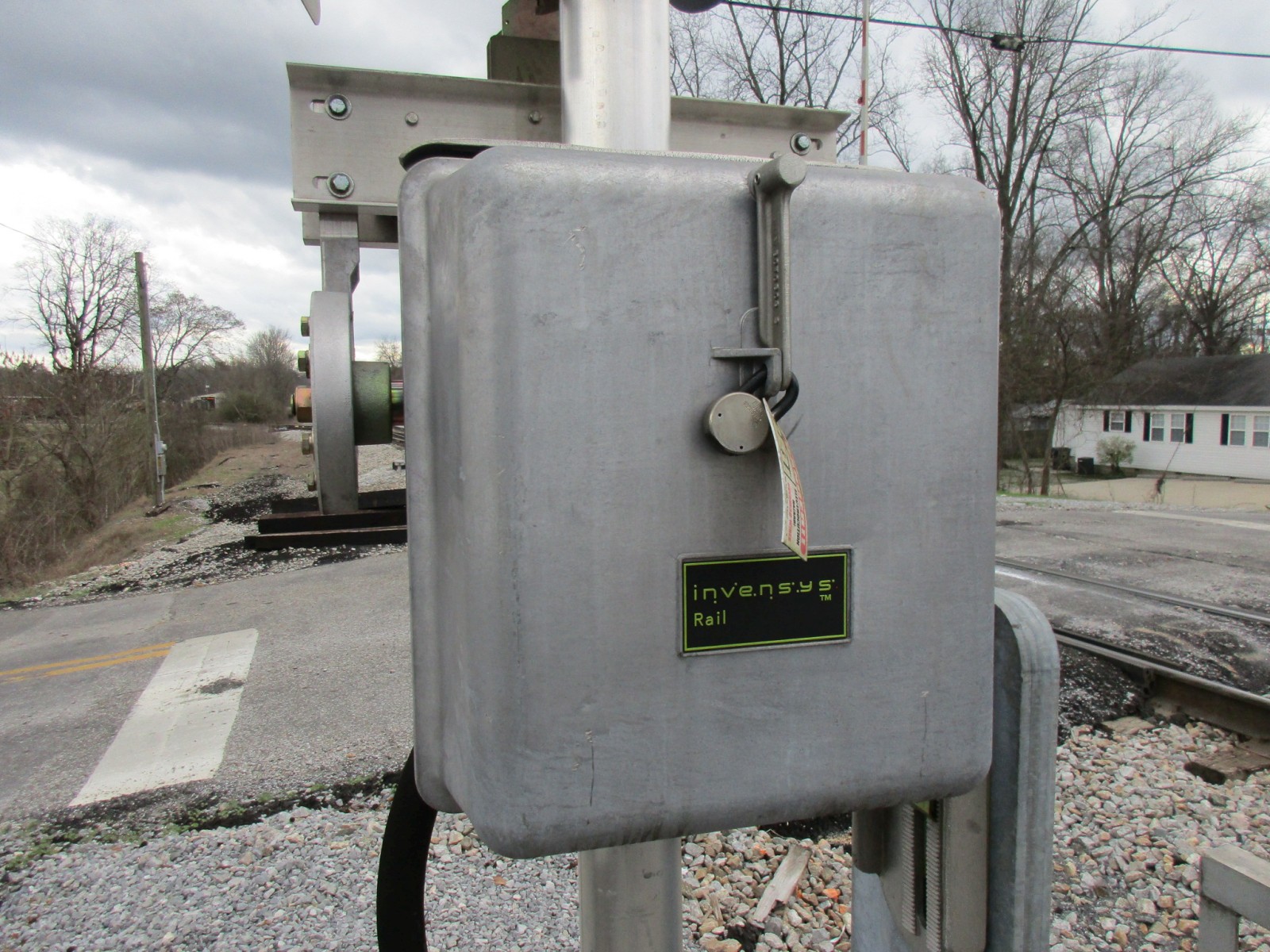

The gate mechanism is from Invensys Rail. |

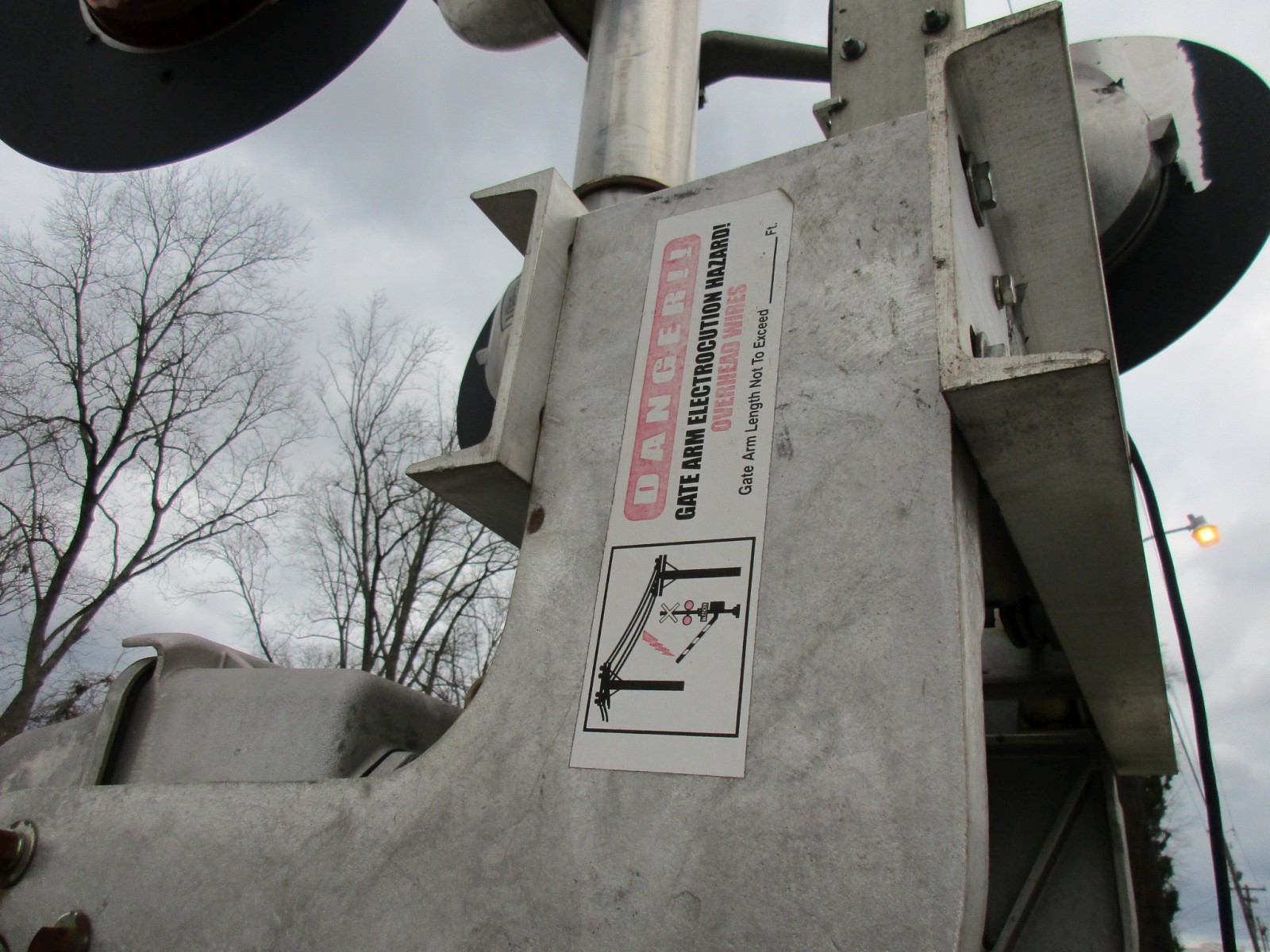

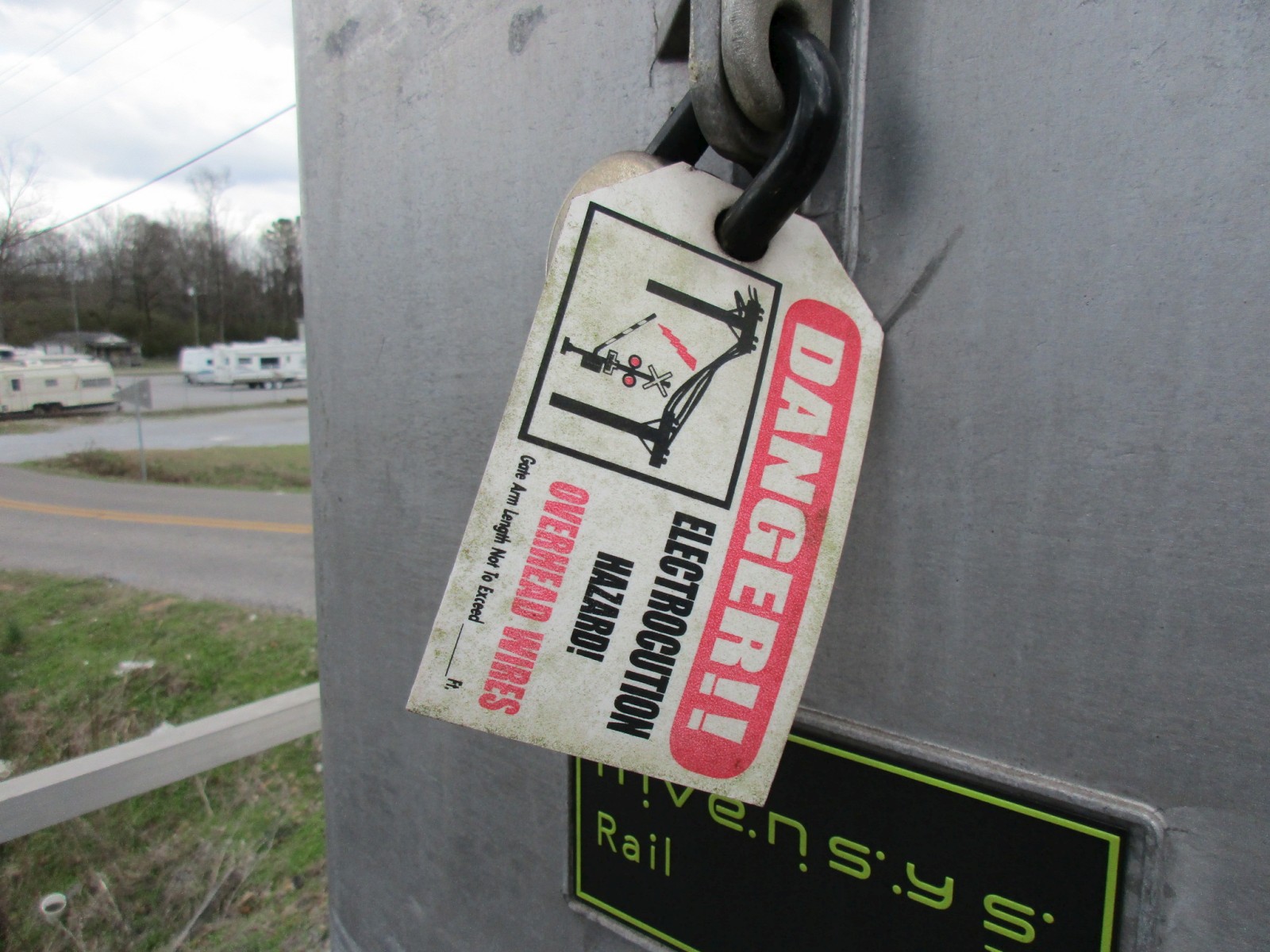

A warning about overhead power lines. |

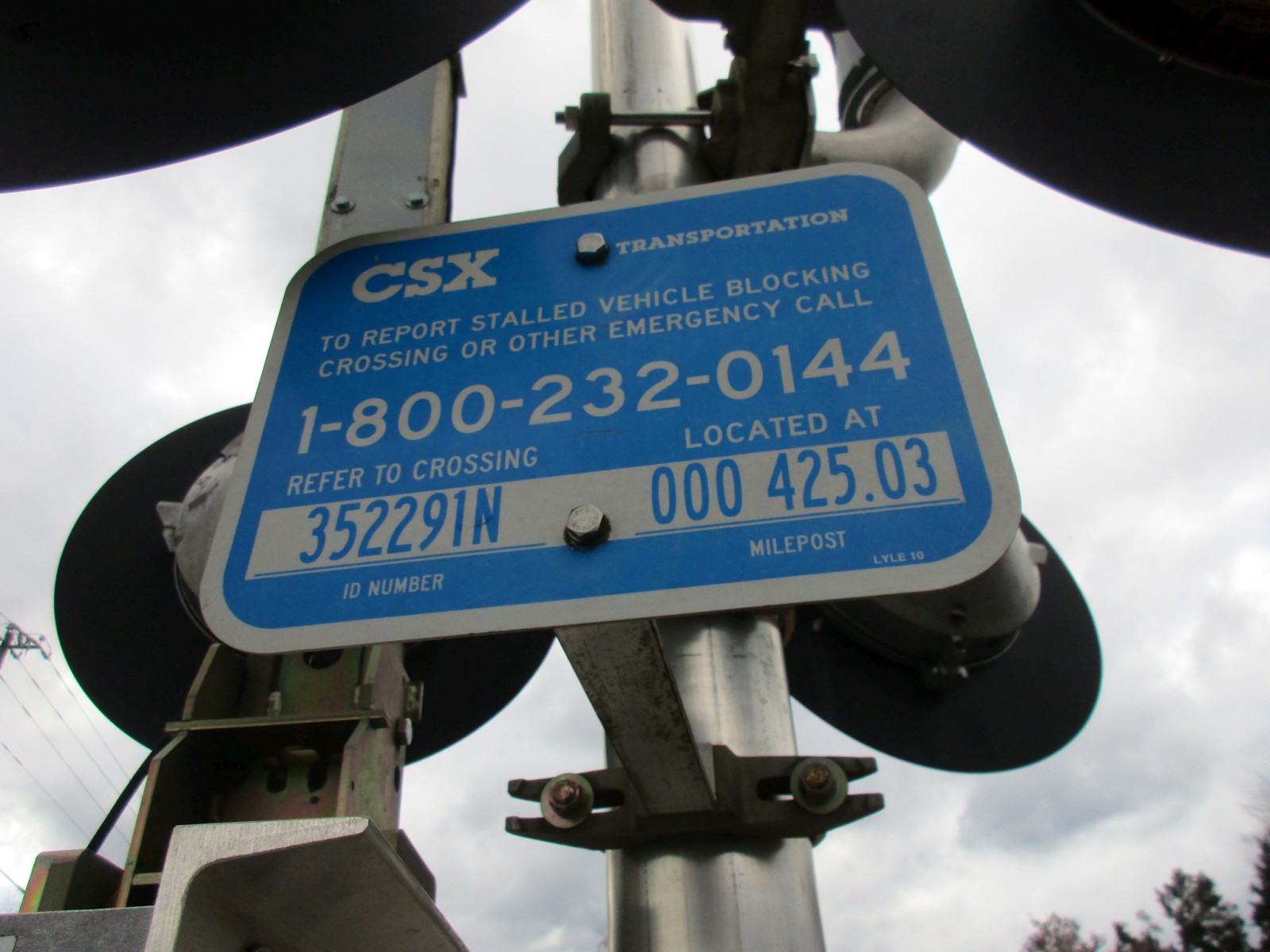

The emergency information. |
9 |
10 |
11 |
12 |

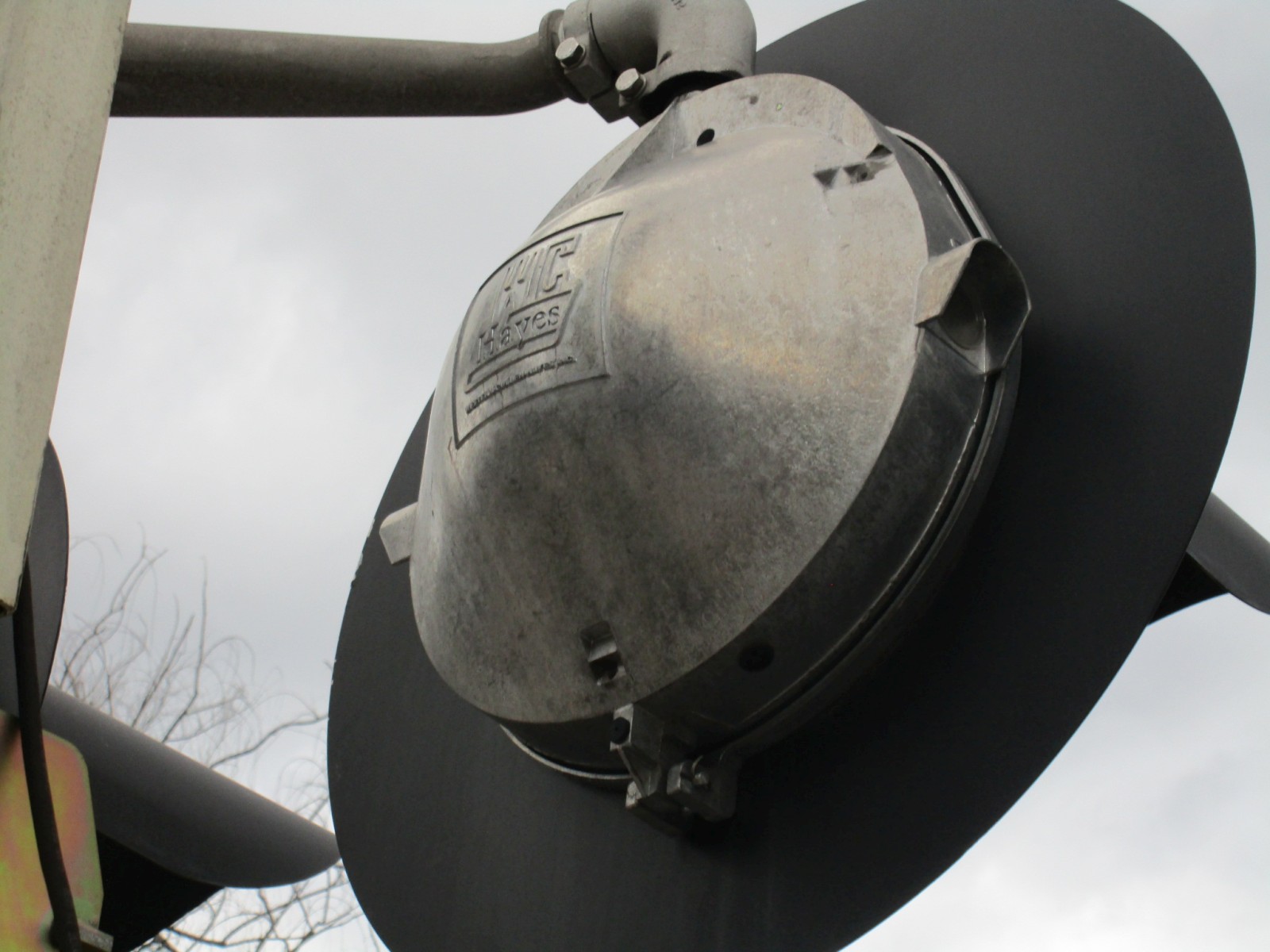

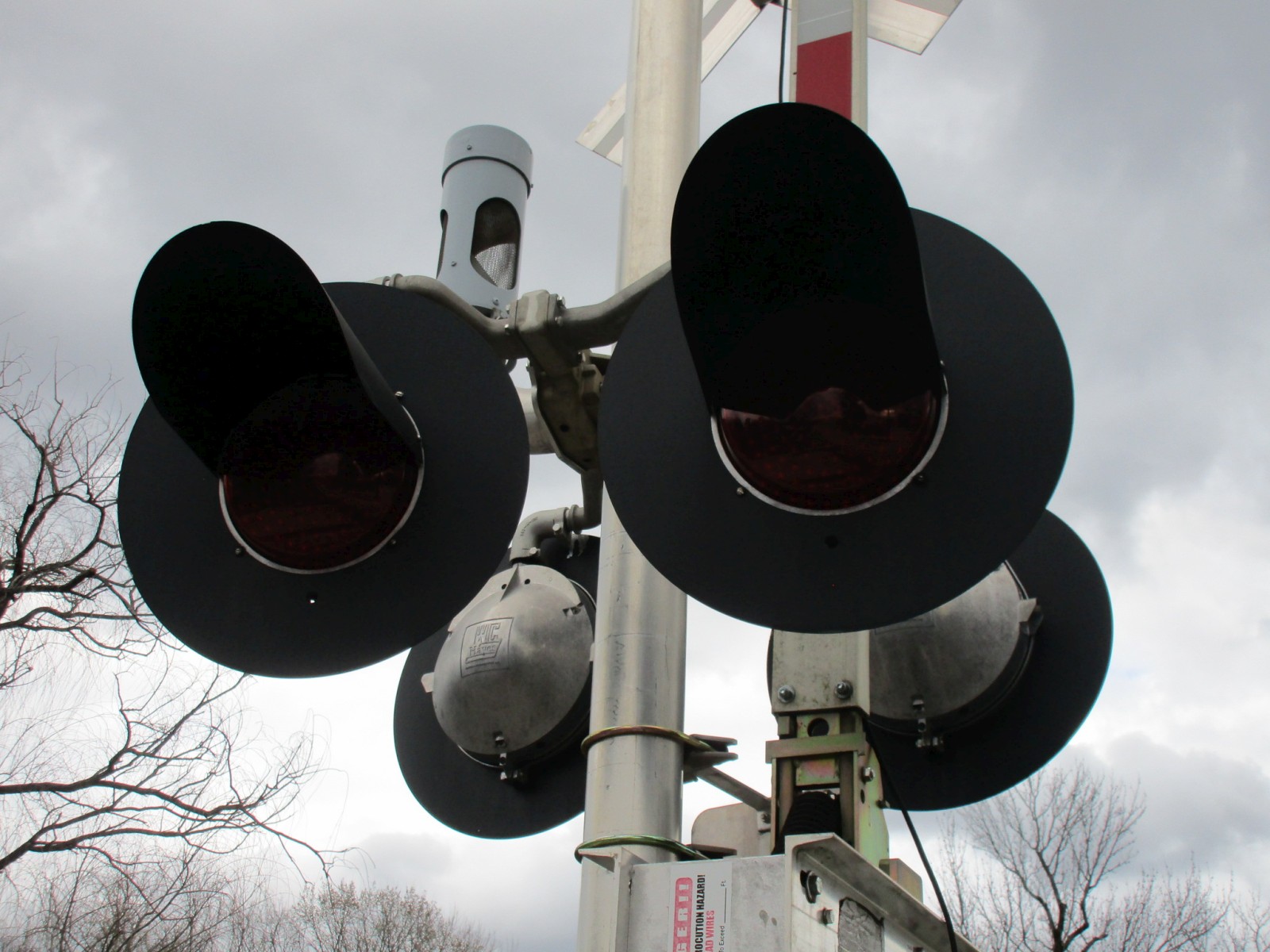

The lights are WCH 12x24 inch lights with WCH 2nd Generation LEDs. |

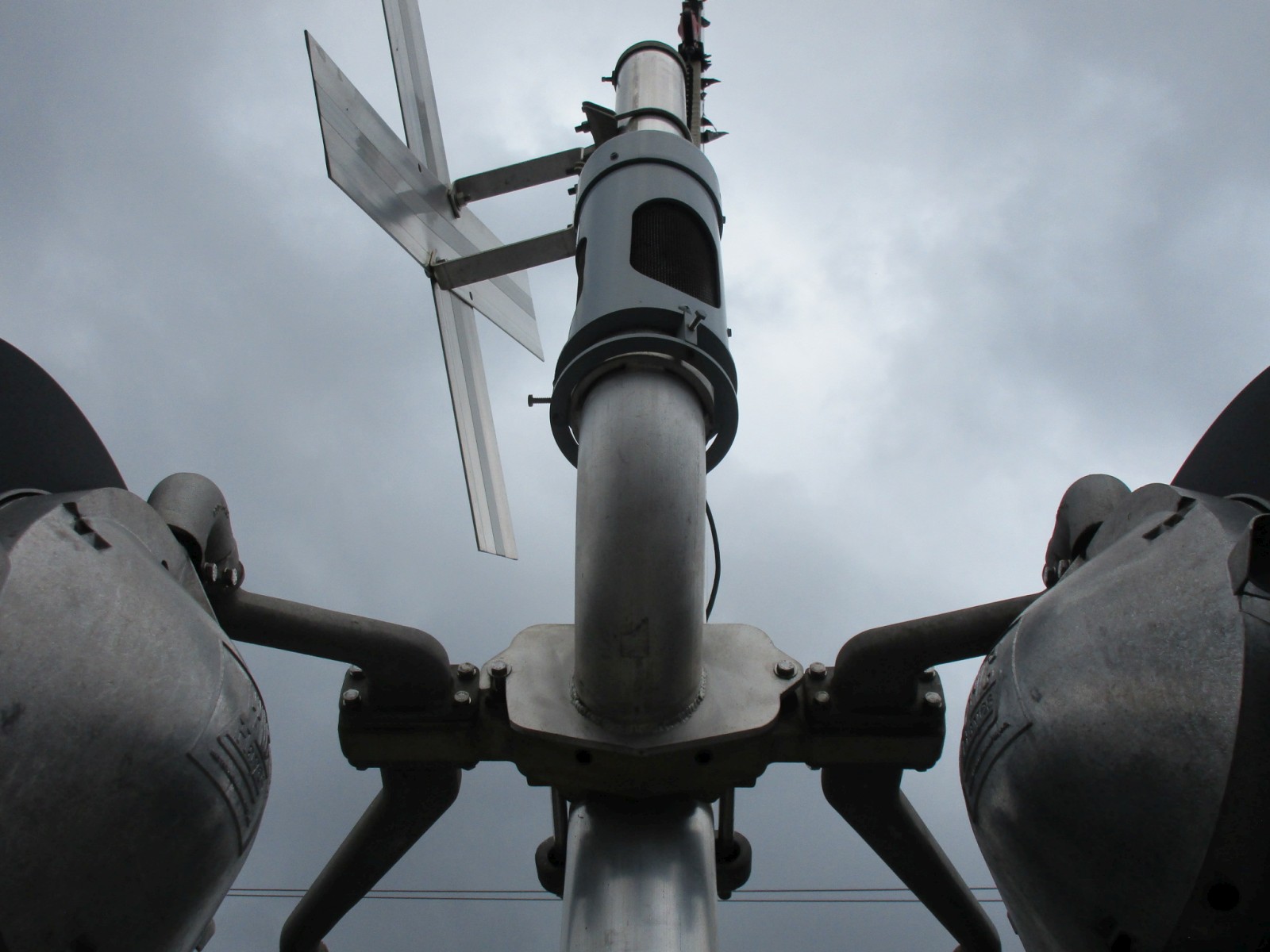

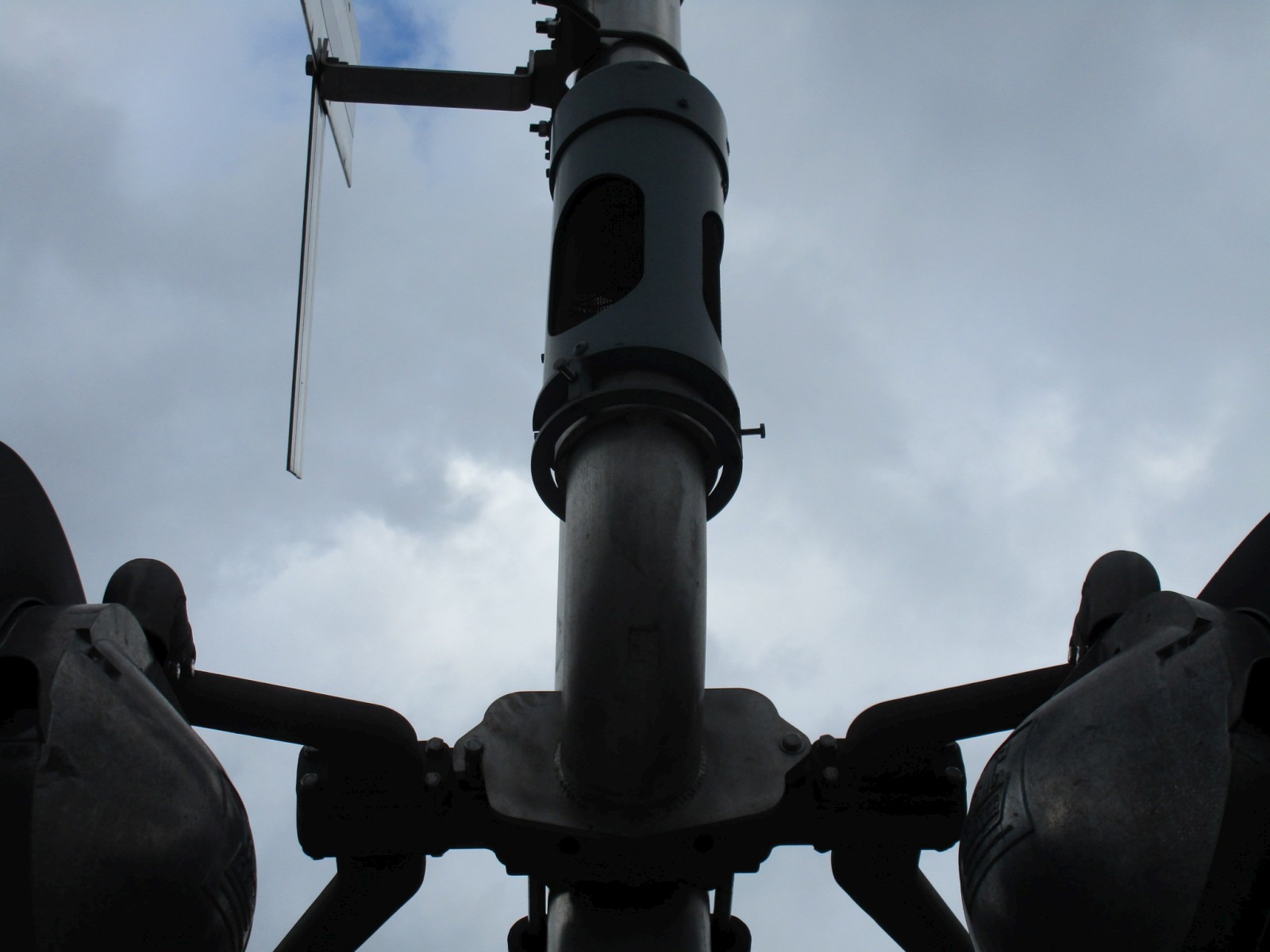

The bell is an NEG electronic bell. |

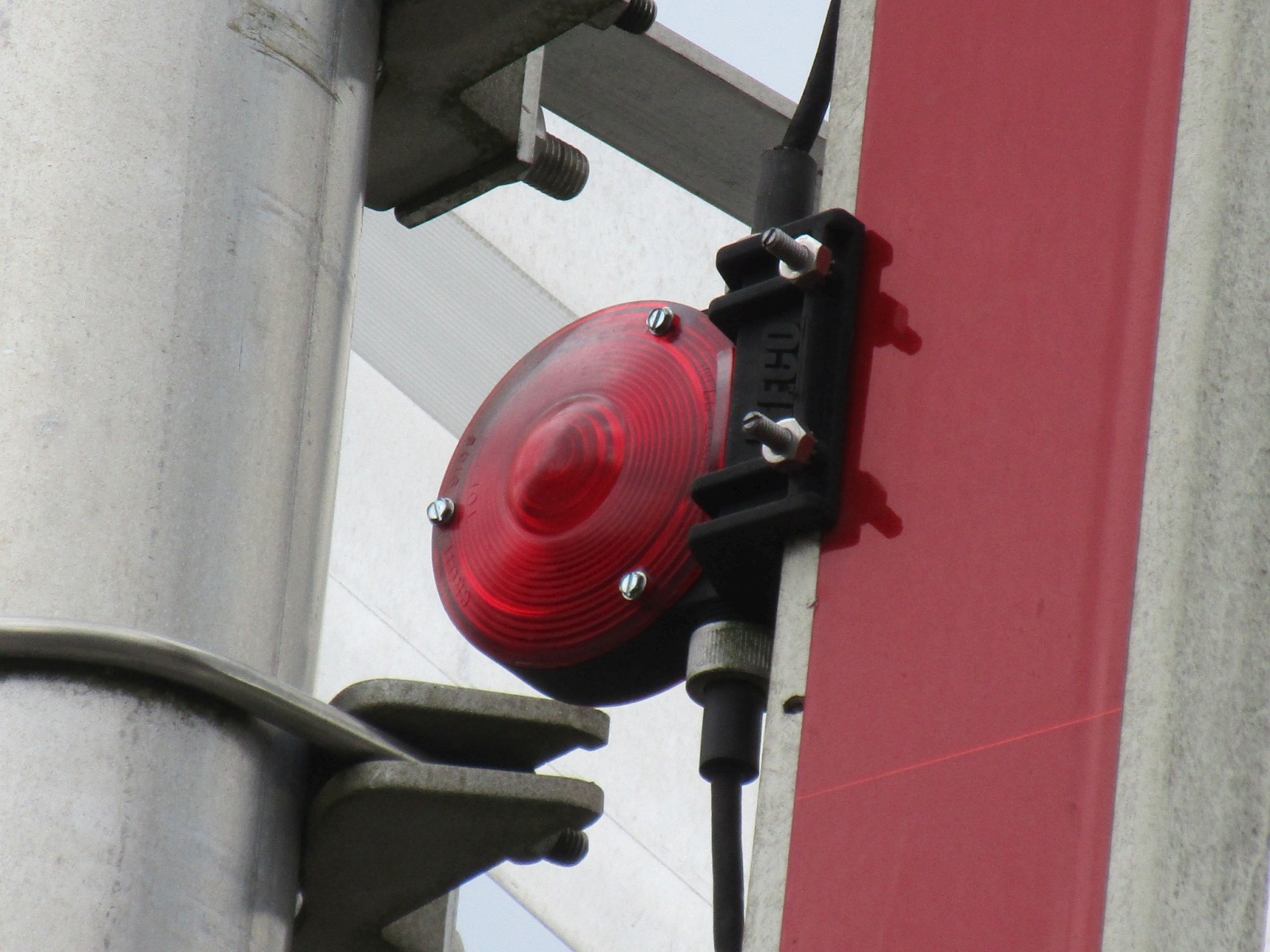

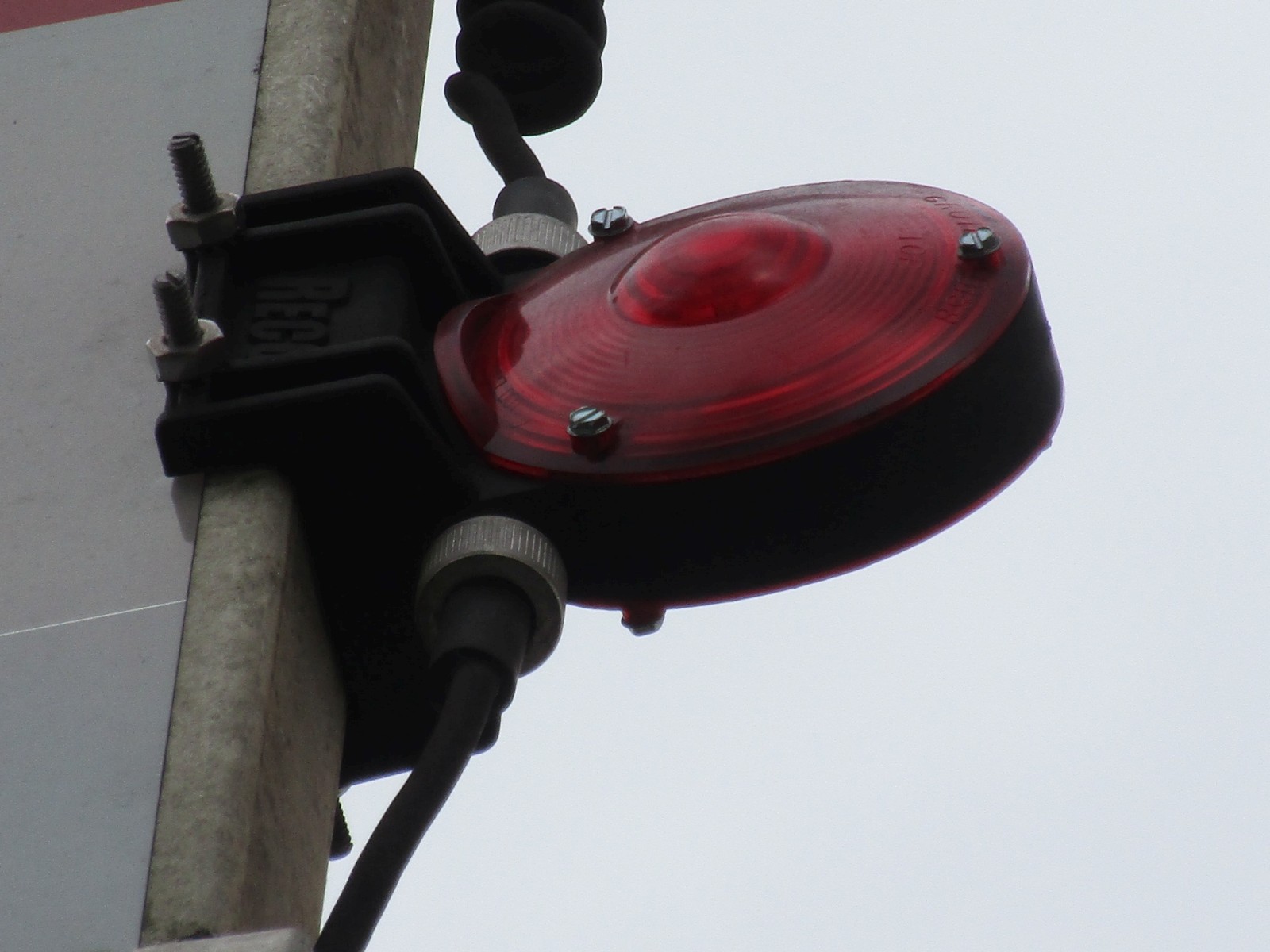

The gate lights are from RECO. |
|
13 |
14 |
15 |
16 |

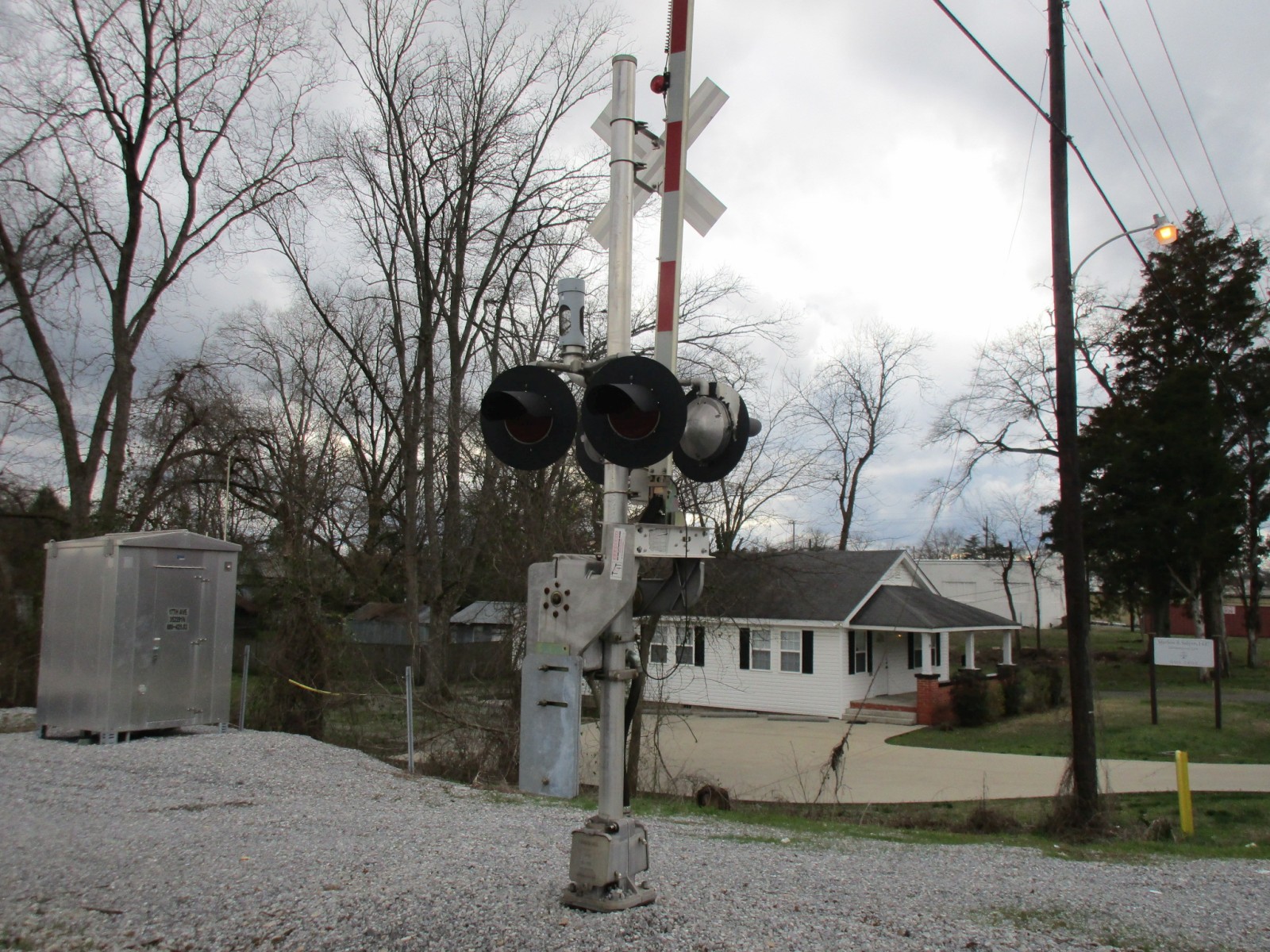

The second signal. |

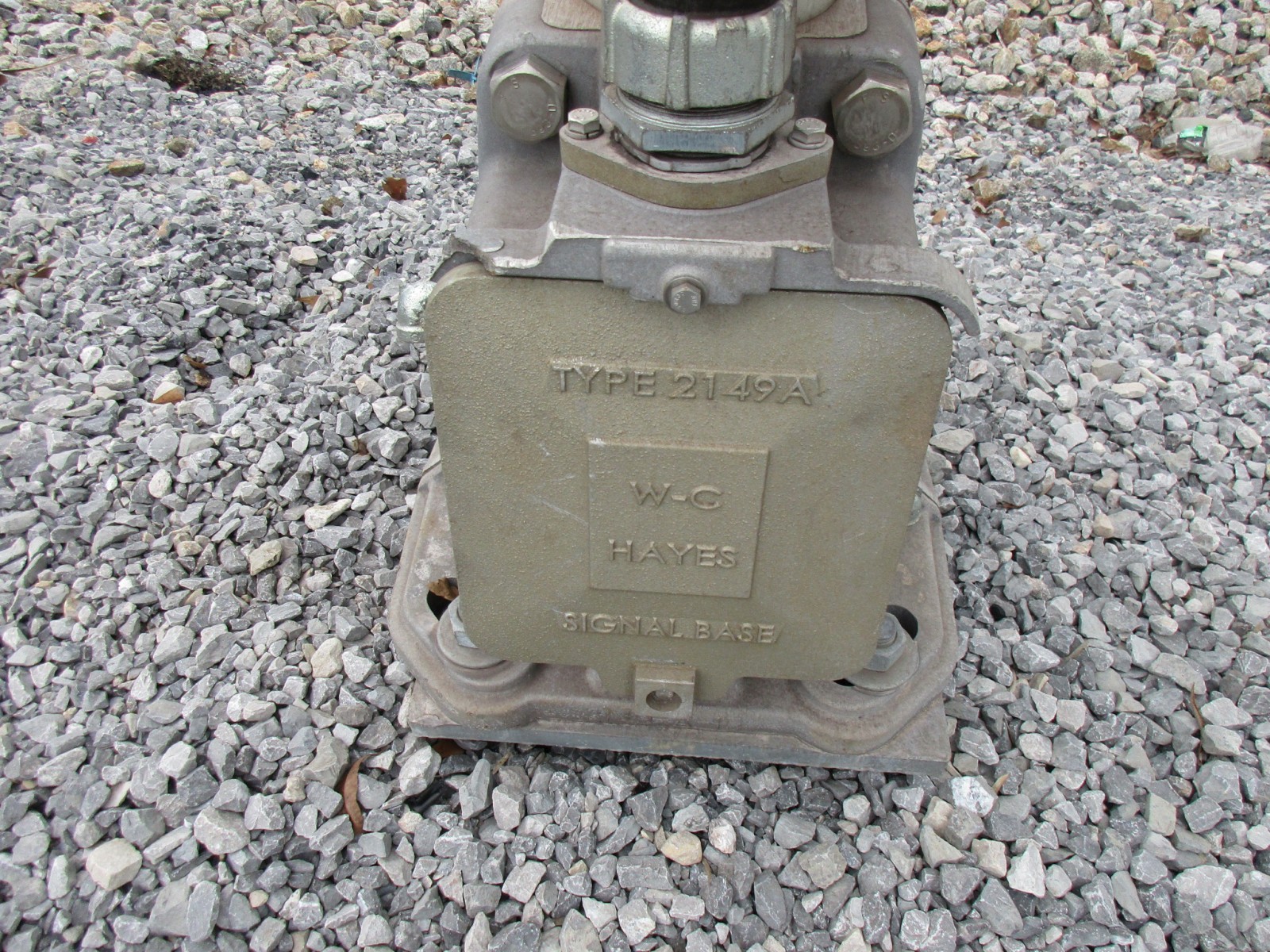

It has another WCH base. |

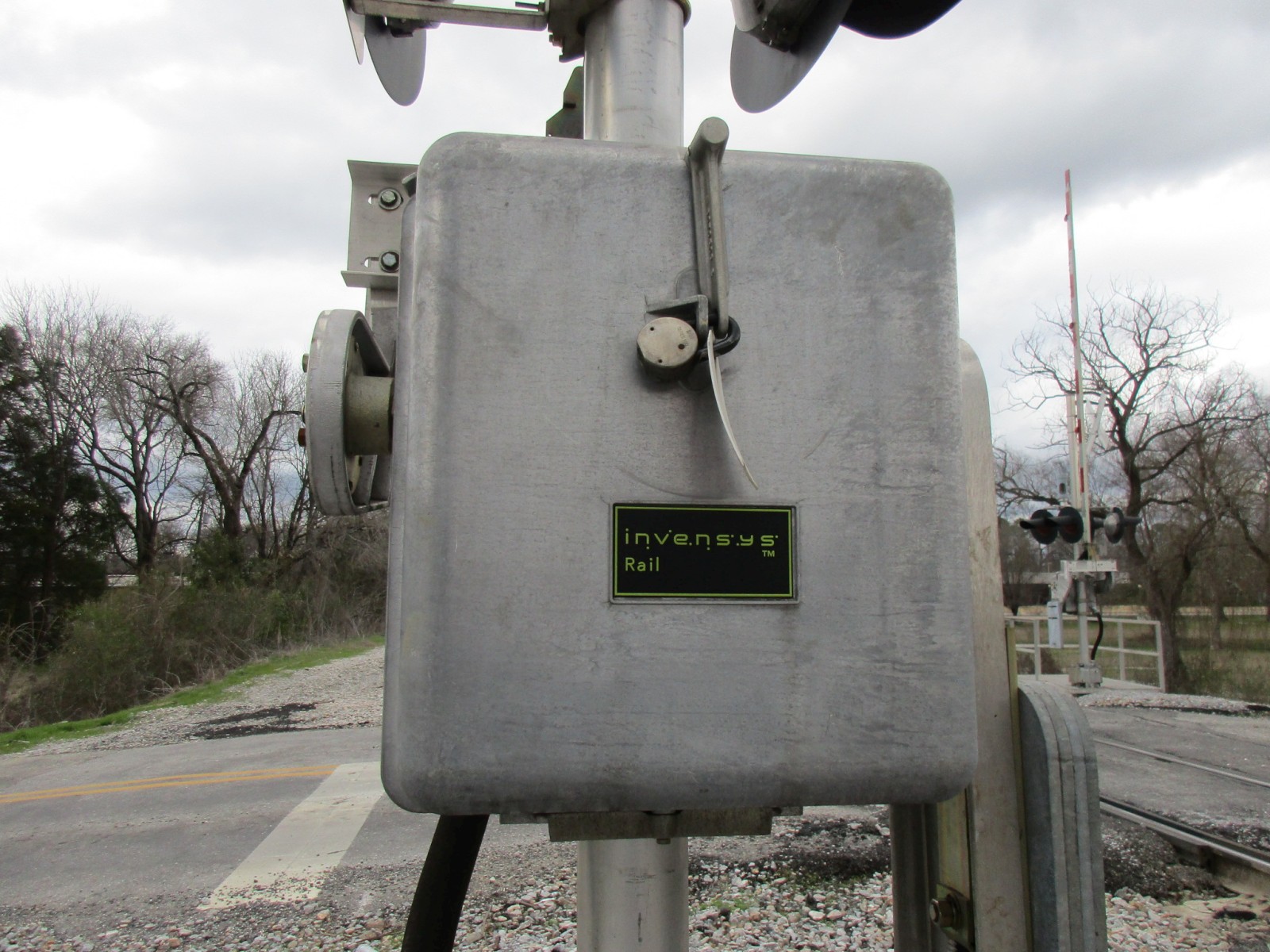

Another Invensys Rail gate mechanism. |
|
17 |
18 |
19 |
20 |

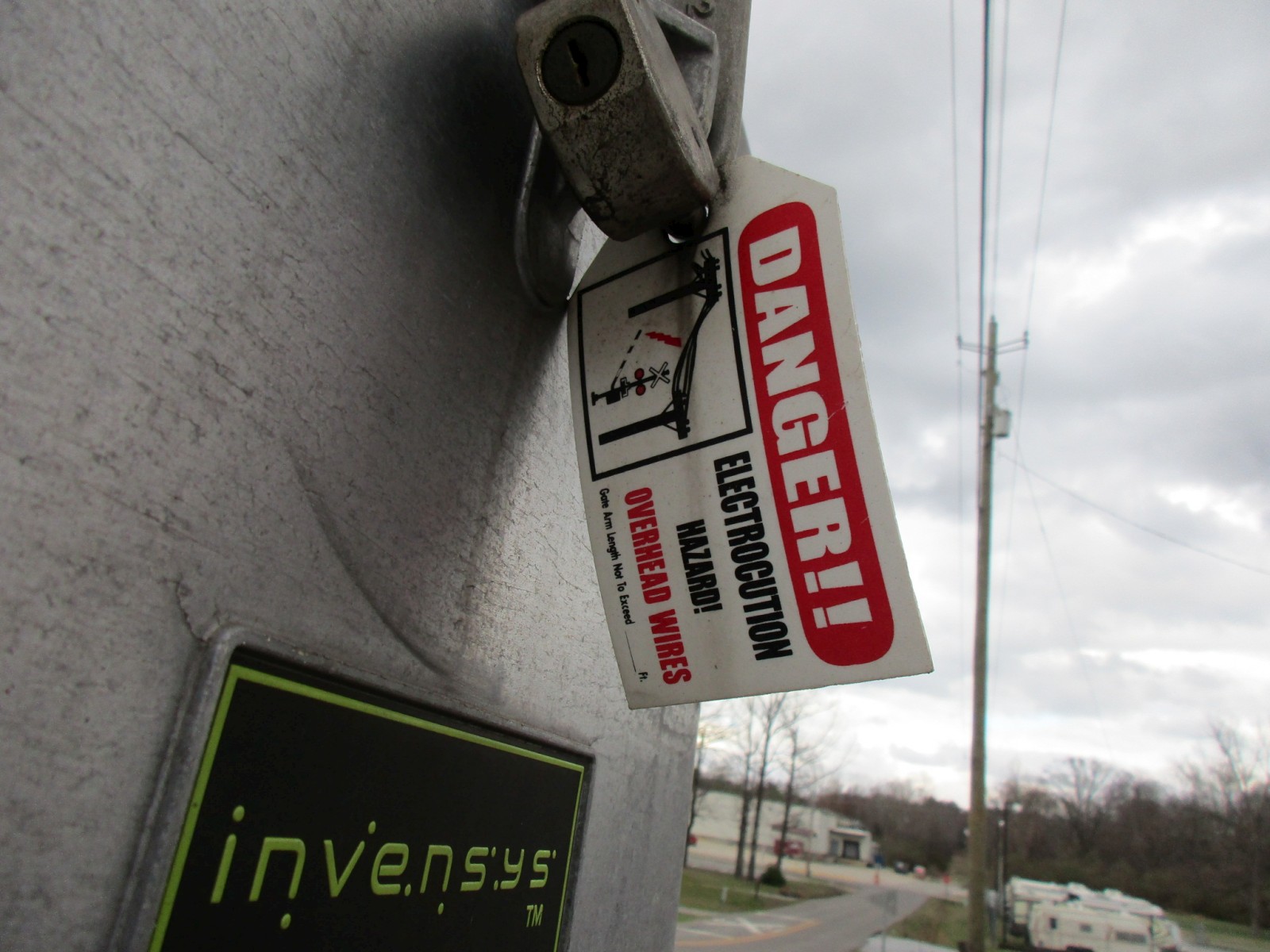

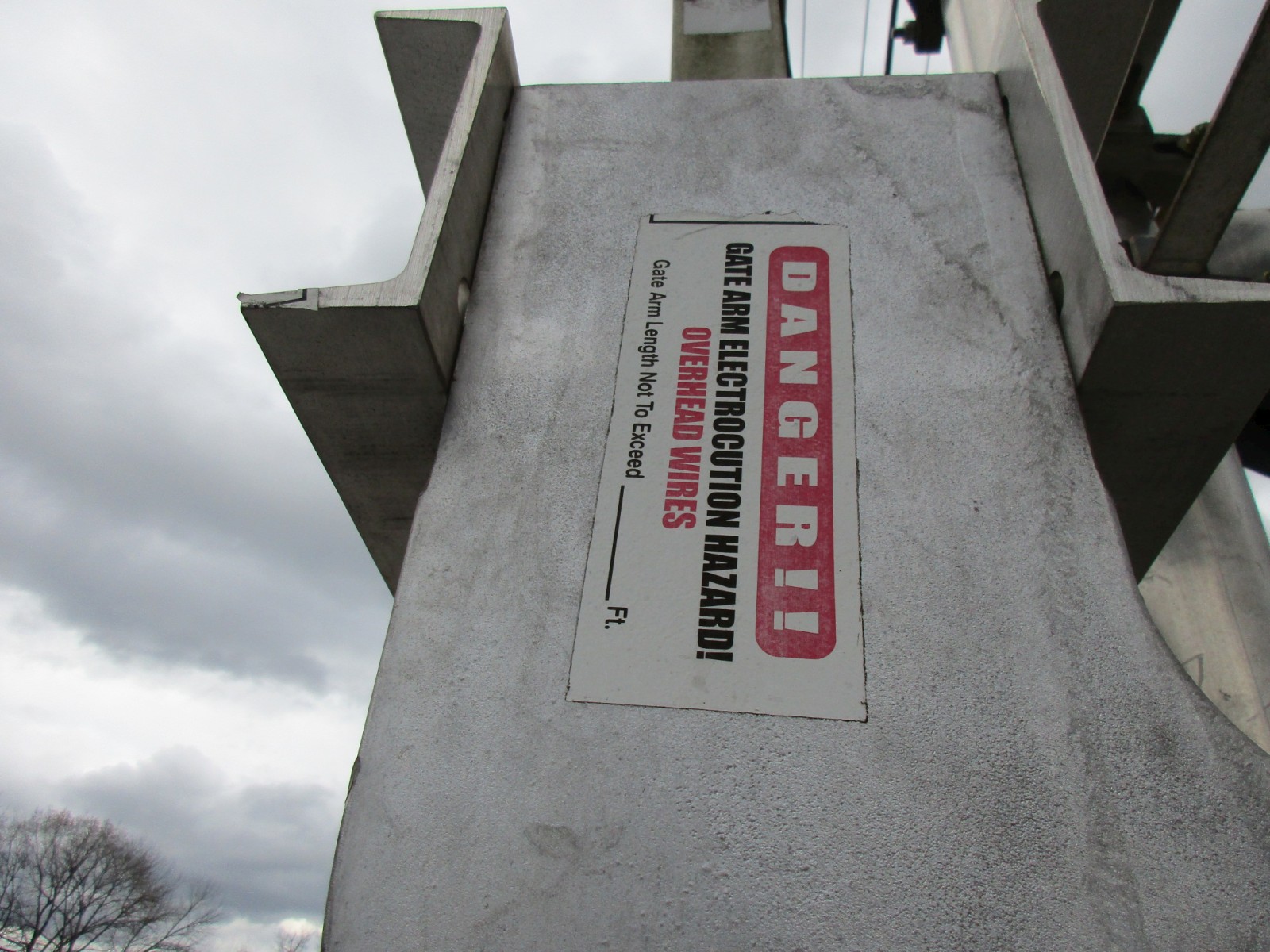

More warnings about overhead power lines. |

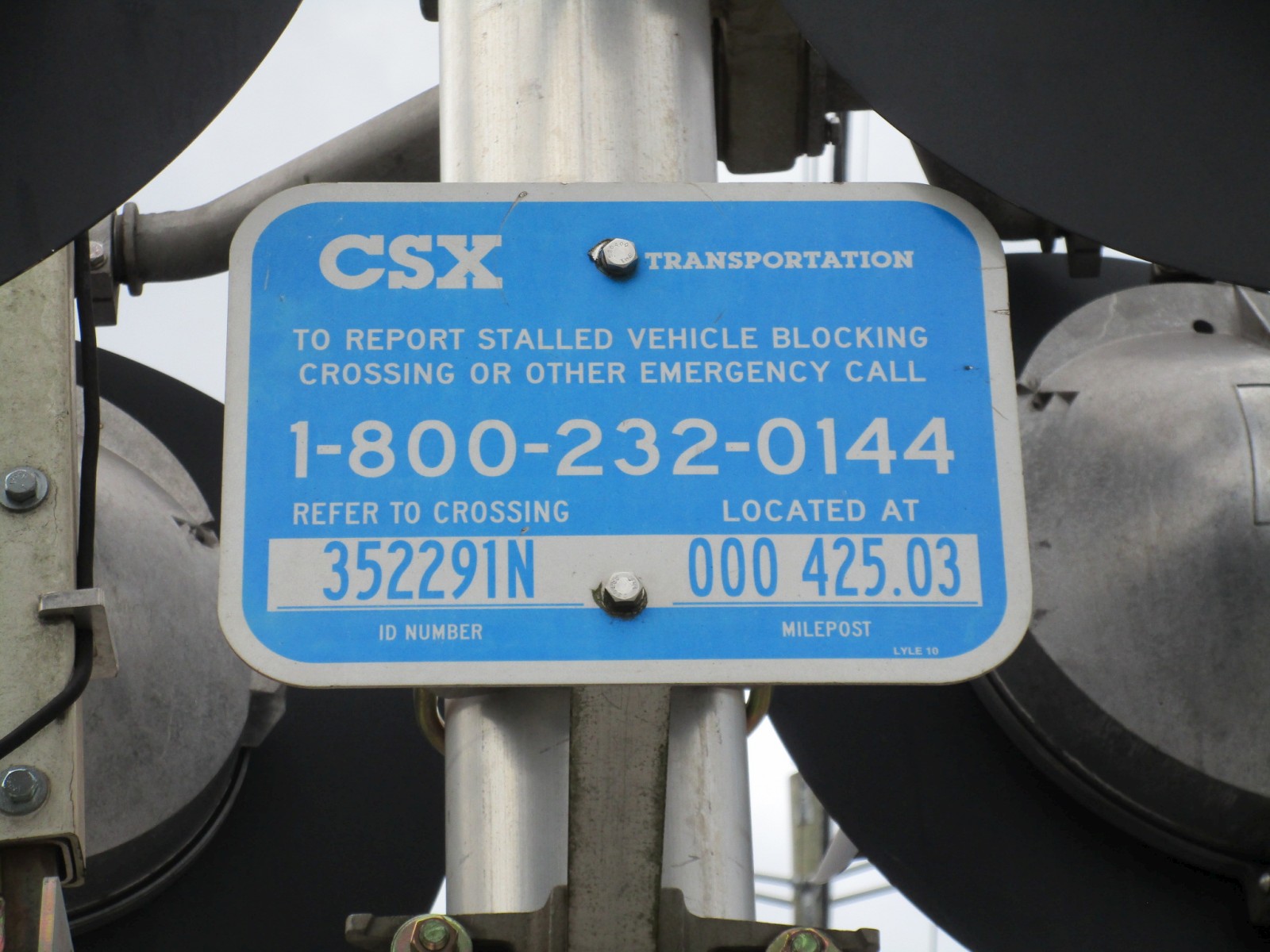

The emergency information. |
||
21 |
22 |
23 |
24 |

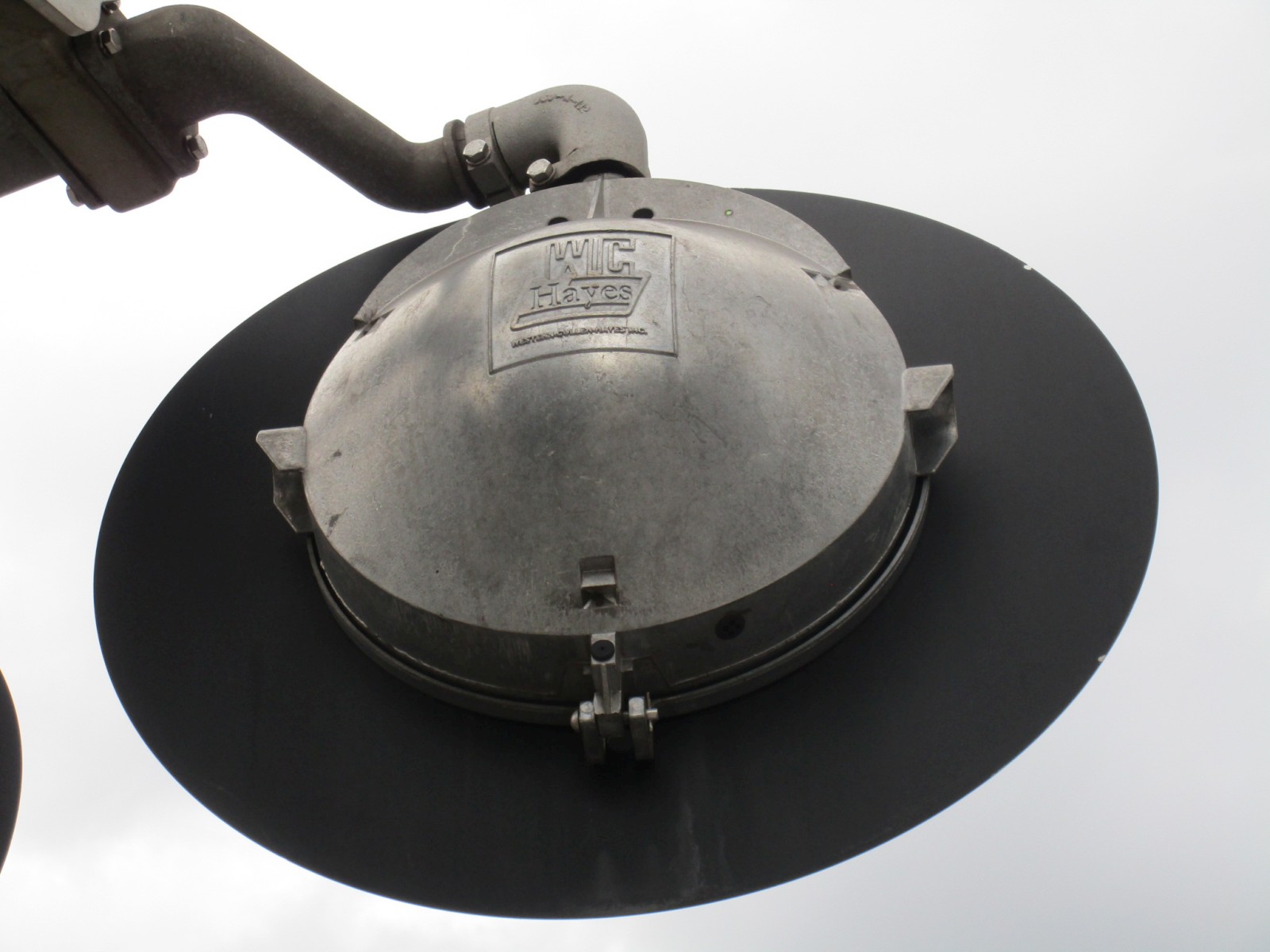

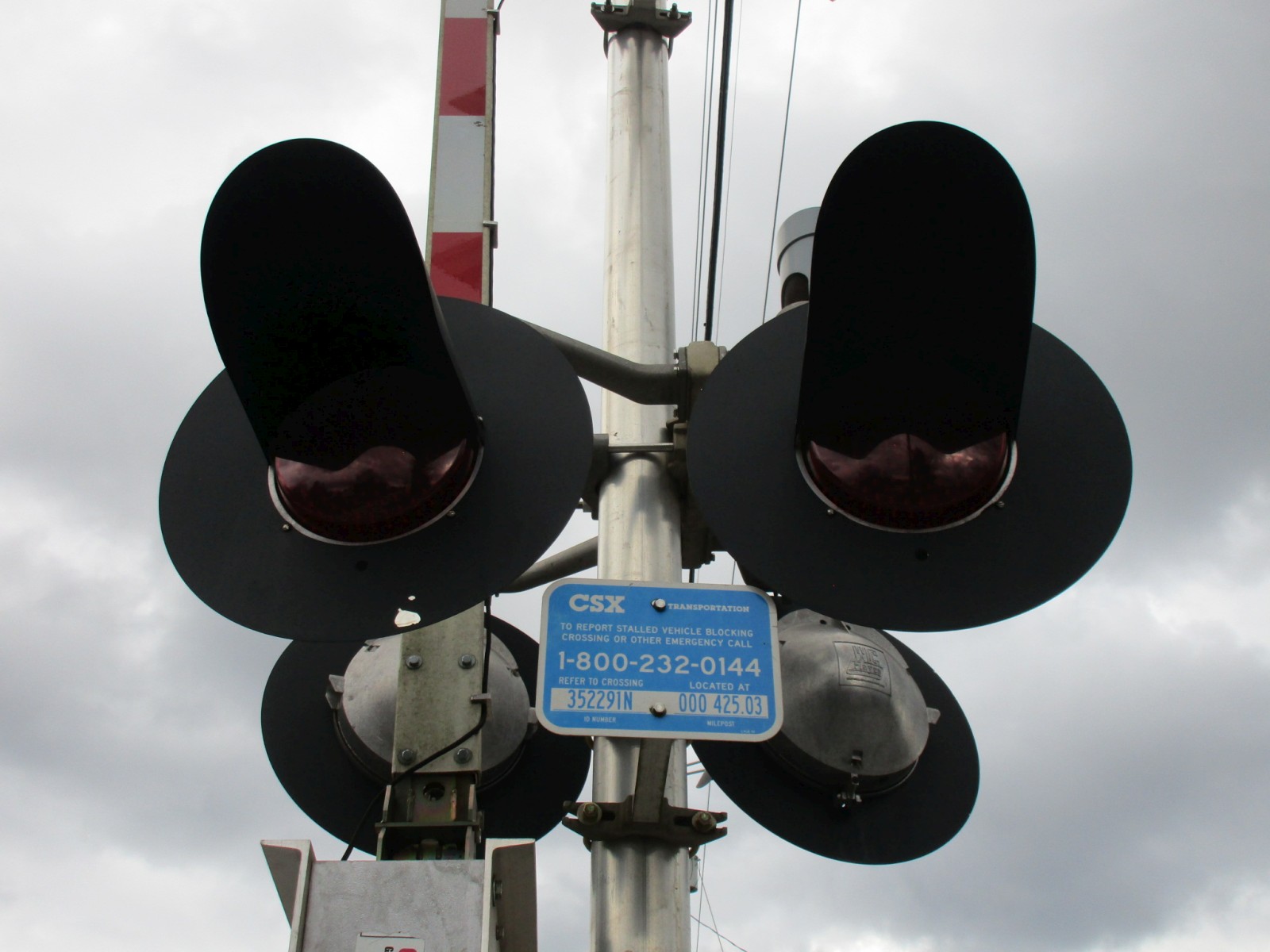

This signal has more WCH 12x24 inch lights with WCH 2nd Generation LEDs. |
Another NEG electronic bell over here. |
This signal uses more RECO gate lights. |
|
25 |
26 |
27 |
28 |

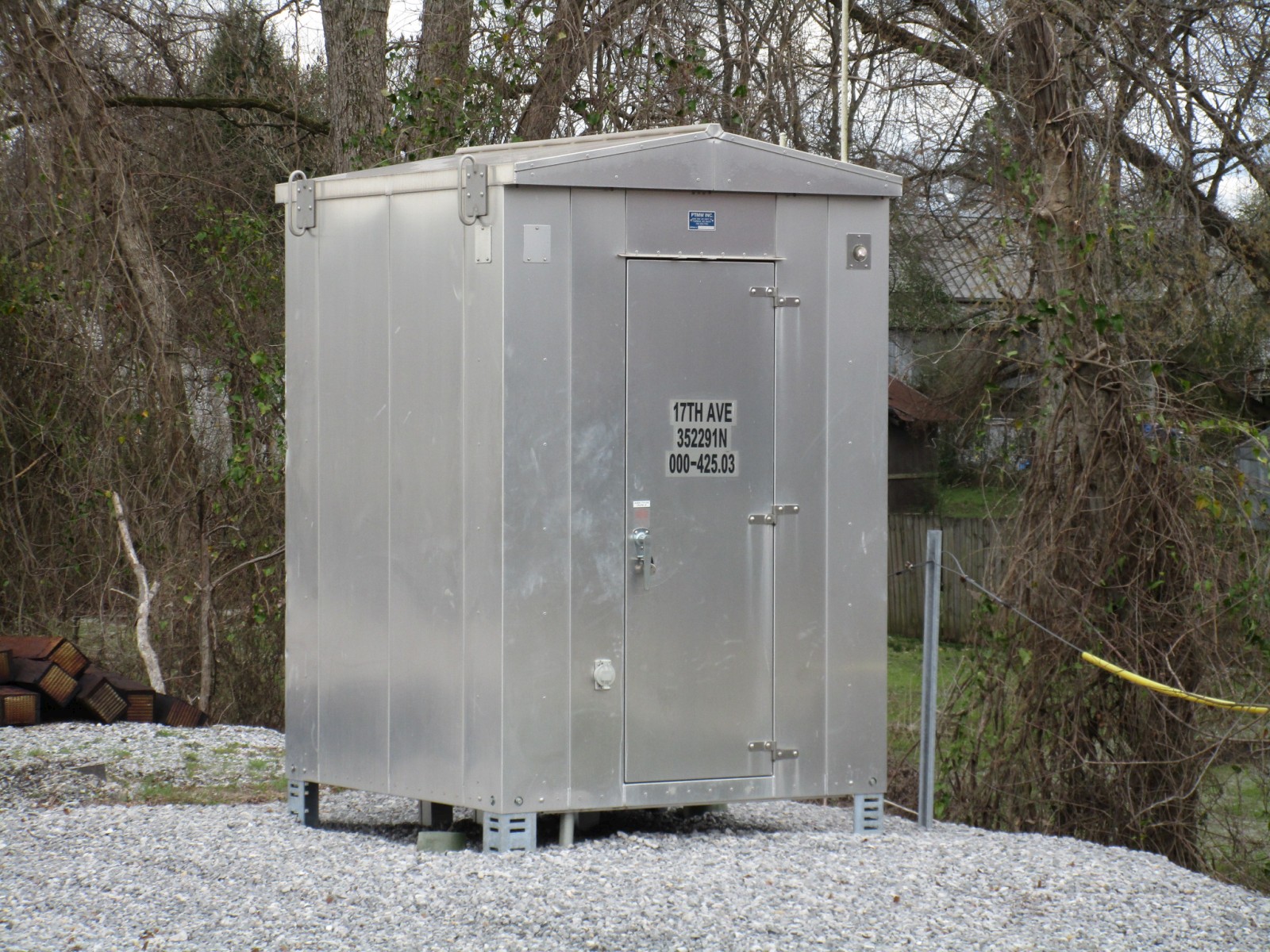

The relay case. |

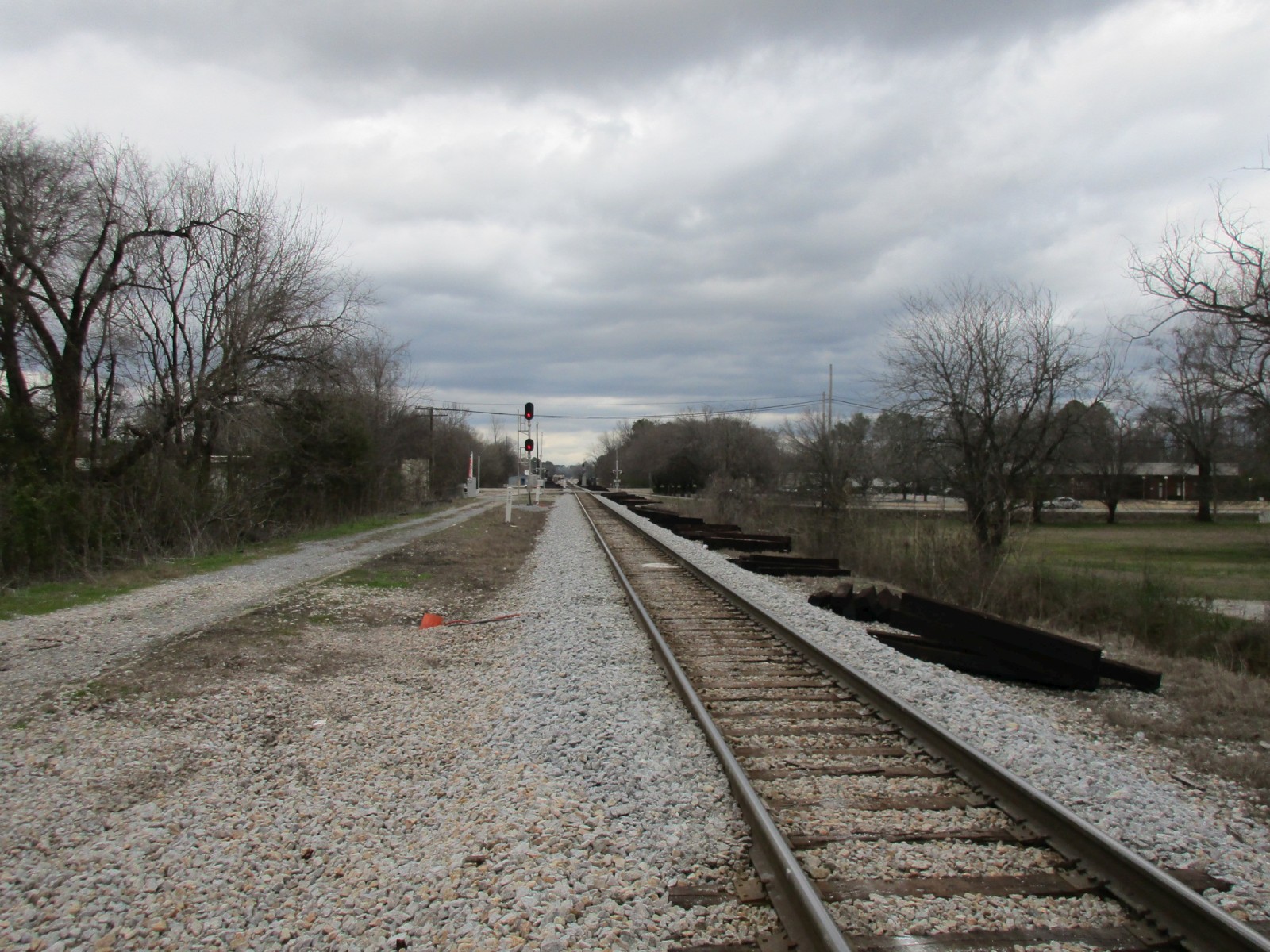

Track view looking north towards AL 25 #1. |

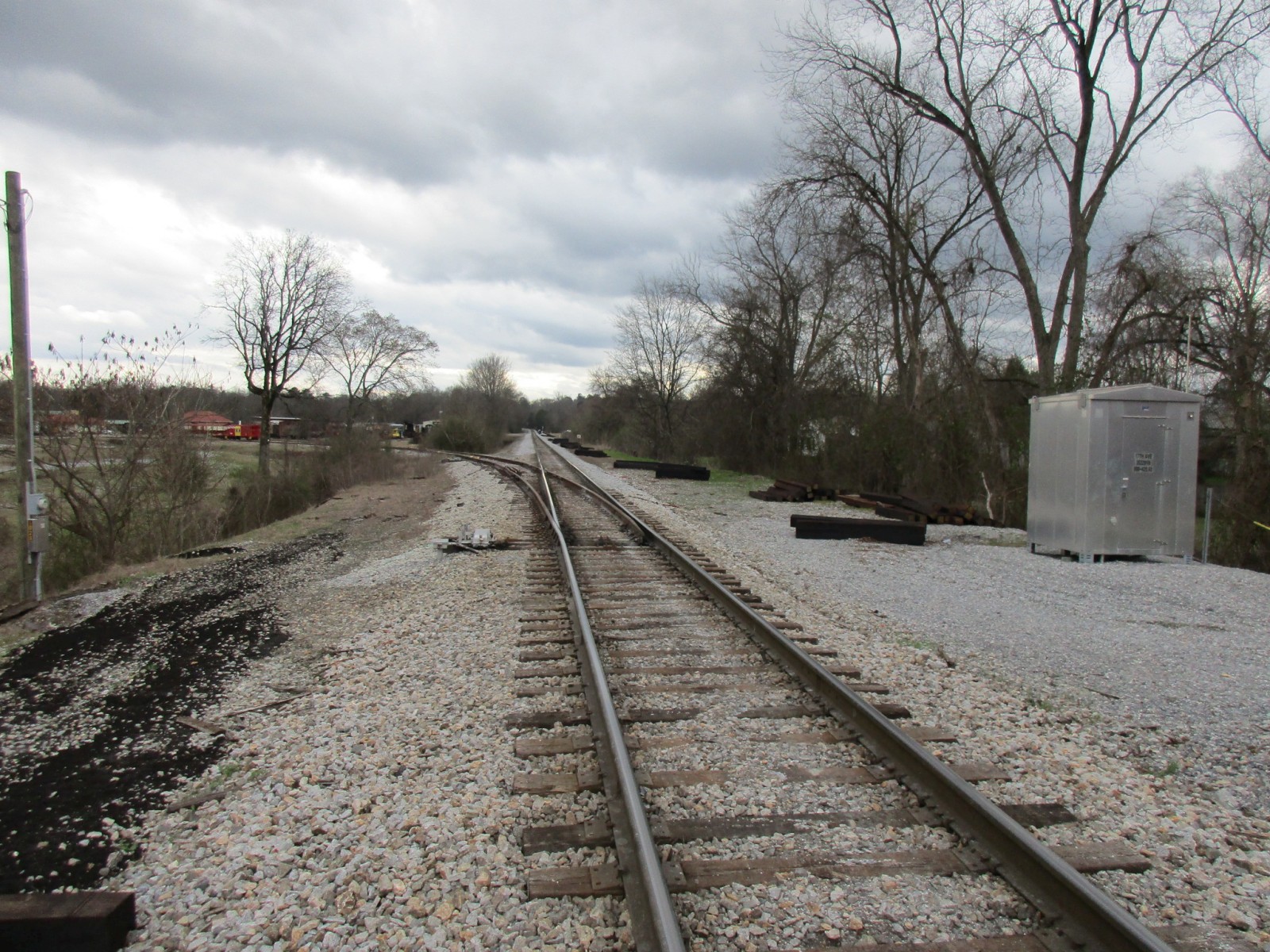

Track view looking south towards 20th Avenue. |

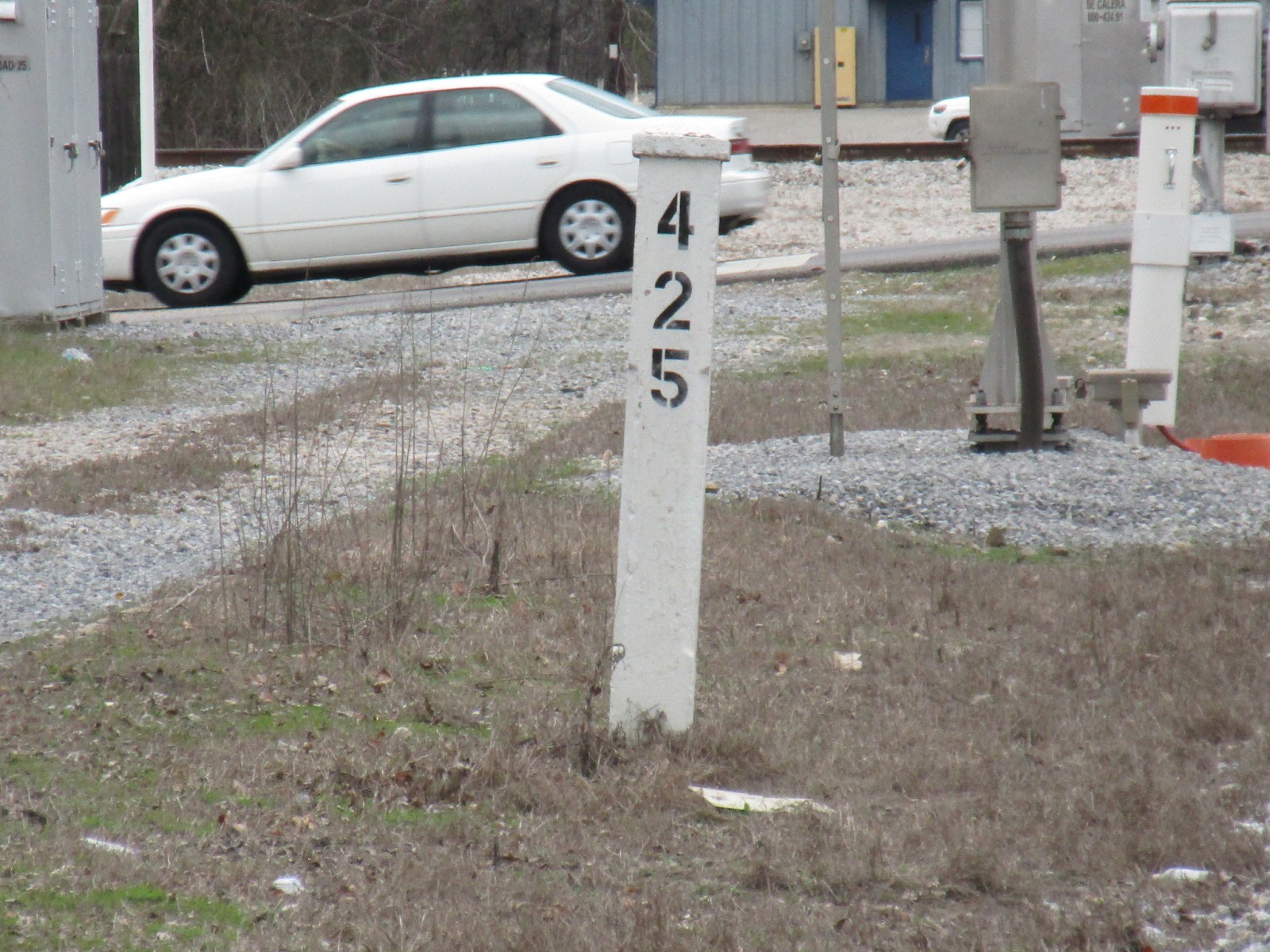

A mile post near the crossing. |
29 |
30 |

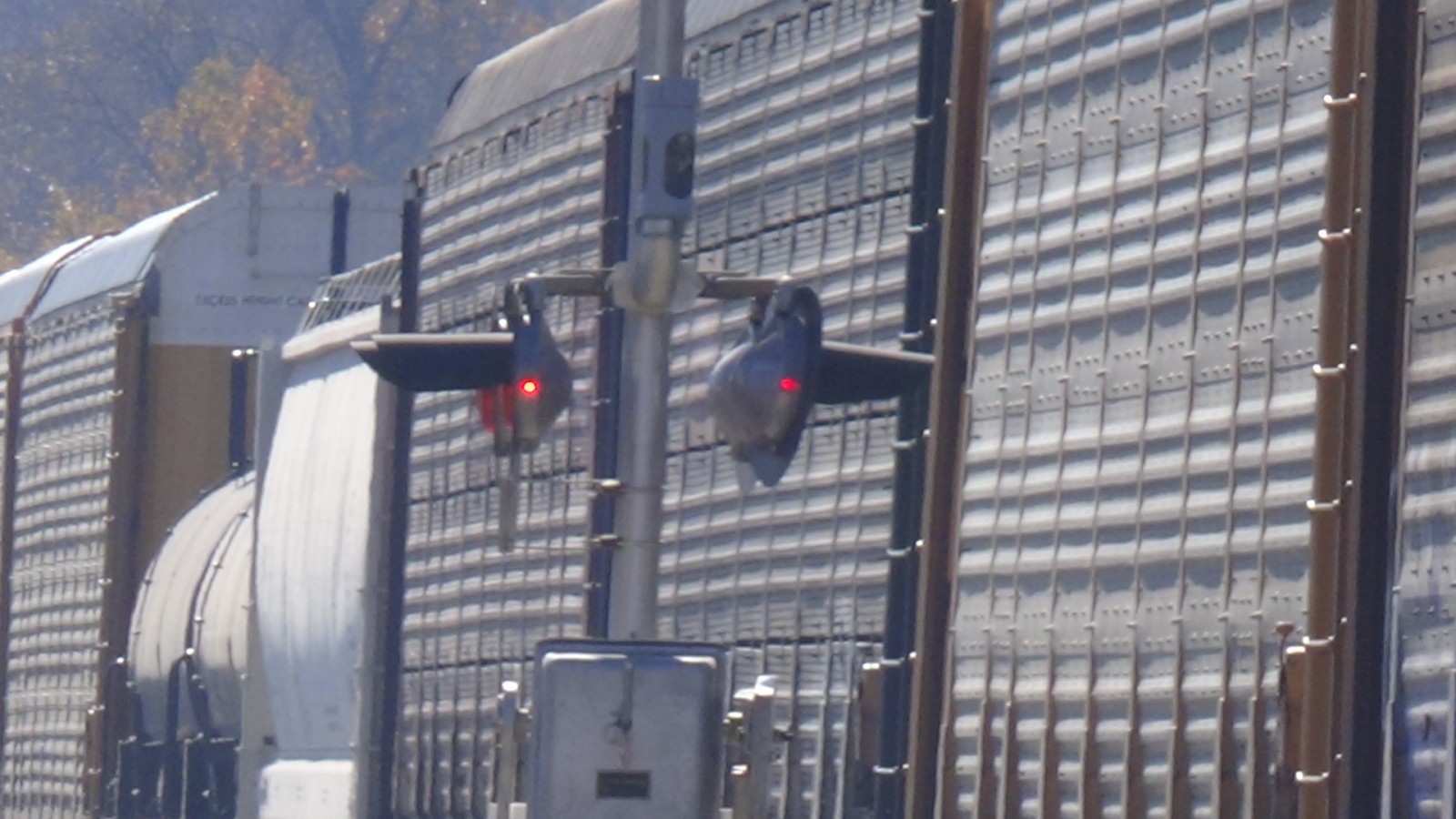

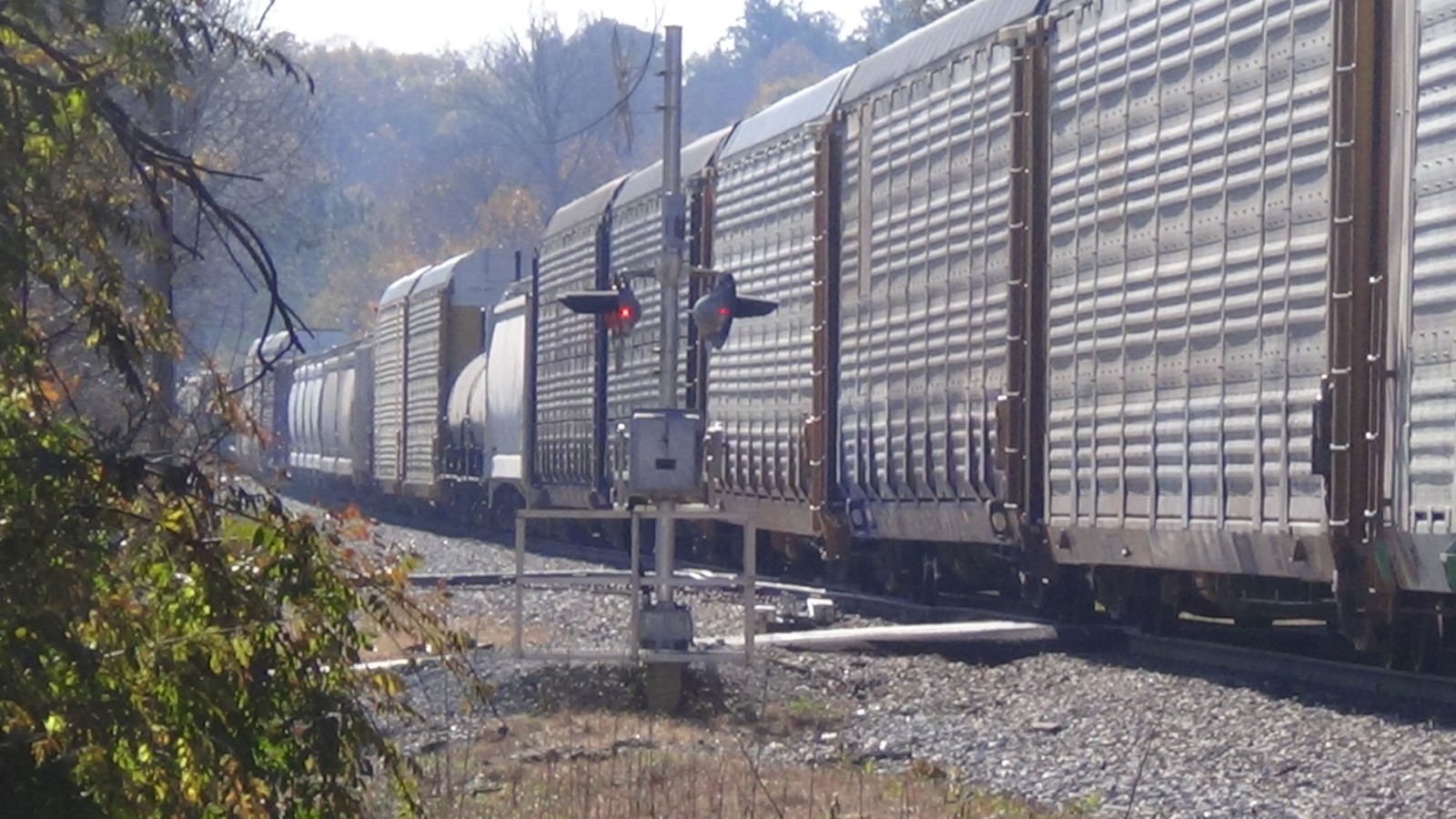

Some shots of the crossing in action, as seen from AL 25 #1, on 11-29-17. |
|
Pictures 1-28 were taken on 2-18-17.
Pictures 29 and 30 were taken on 11-29-17.
