MP: 0433.87 |
Created June 25, 2018
Total Accidents: 2
Crossing
DOT #: 352308P
TOTAL
DAILY TRAINS: 17 (AS OF 2017)
Page created by: freebrickproductions
This crossing is located on the CSX S&NA South Subdivision.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | NEG electronic | NEG electronic |
| Base: | WCH | WCH |
| Light Frames: | 4 - 12x24" WCH w/ WCH 2nd Gen LEDs | 4 - 12x24" WCH w/ WCH 2nd Gen LEDs |
| Gate Lights: | 3 - RECO LEDs | 3 - RECO LEDs |
| Gate Mechanism: | Safetran 2000s | Safetran 2000s |
| Gate Striping: | Vertical w/ Diagonal tip | Vertical w/ Diagonal tip |
1 |
2 |
3 |
4 |

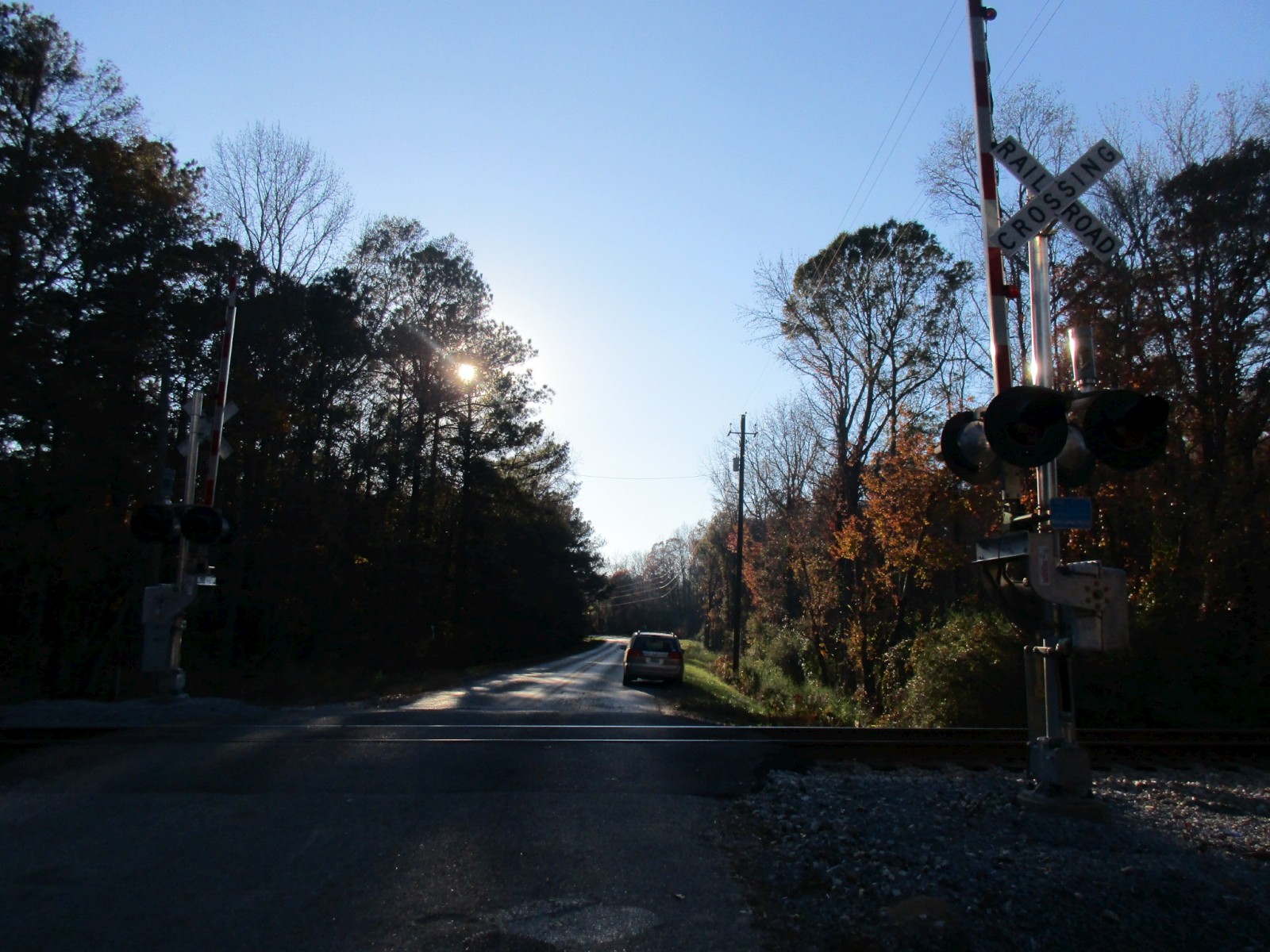

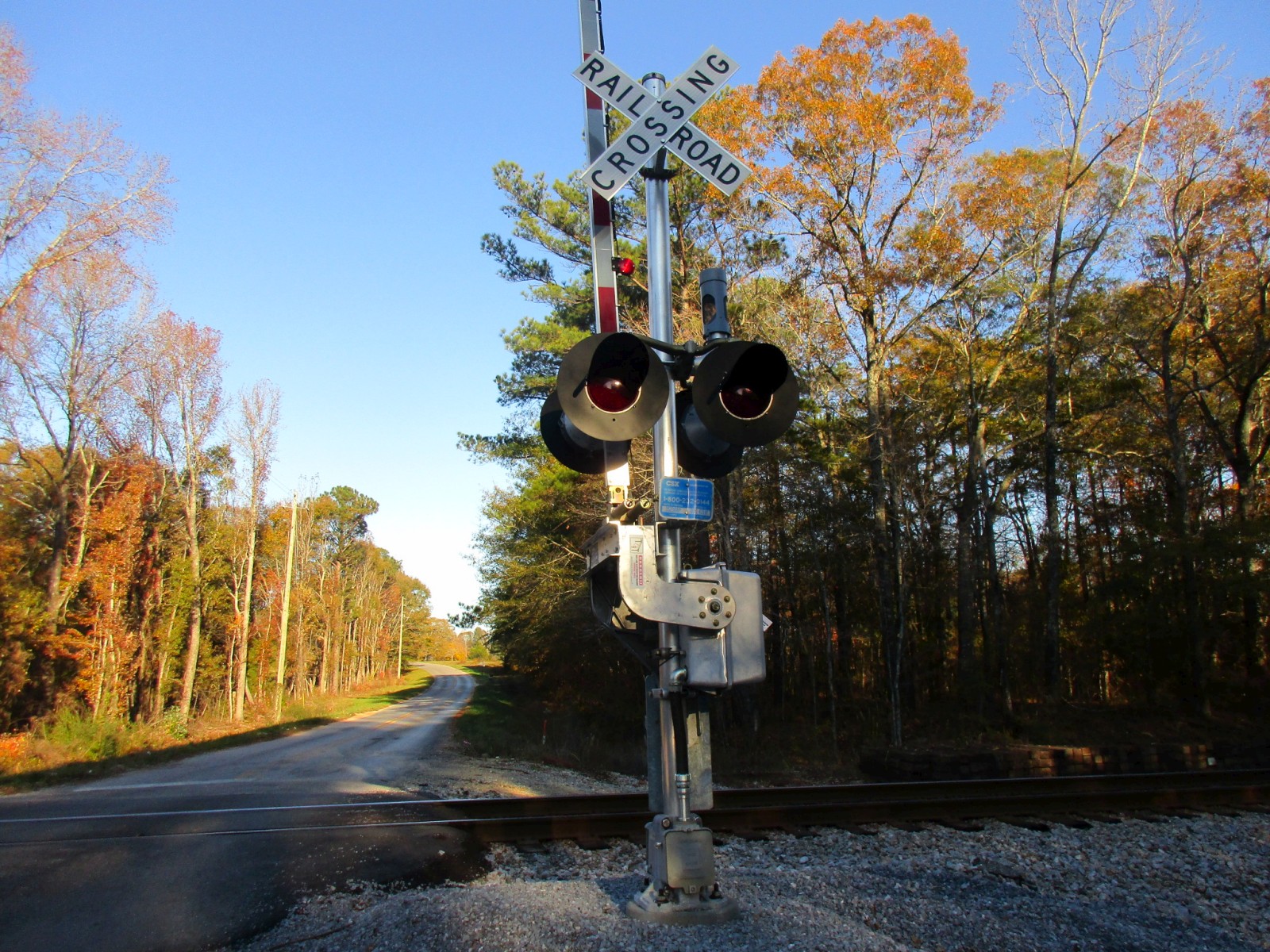

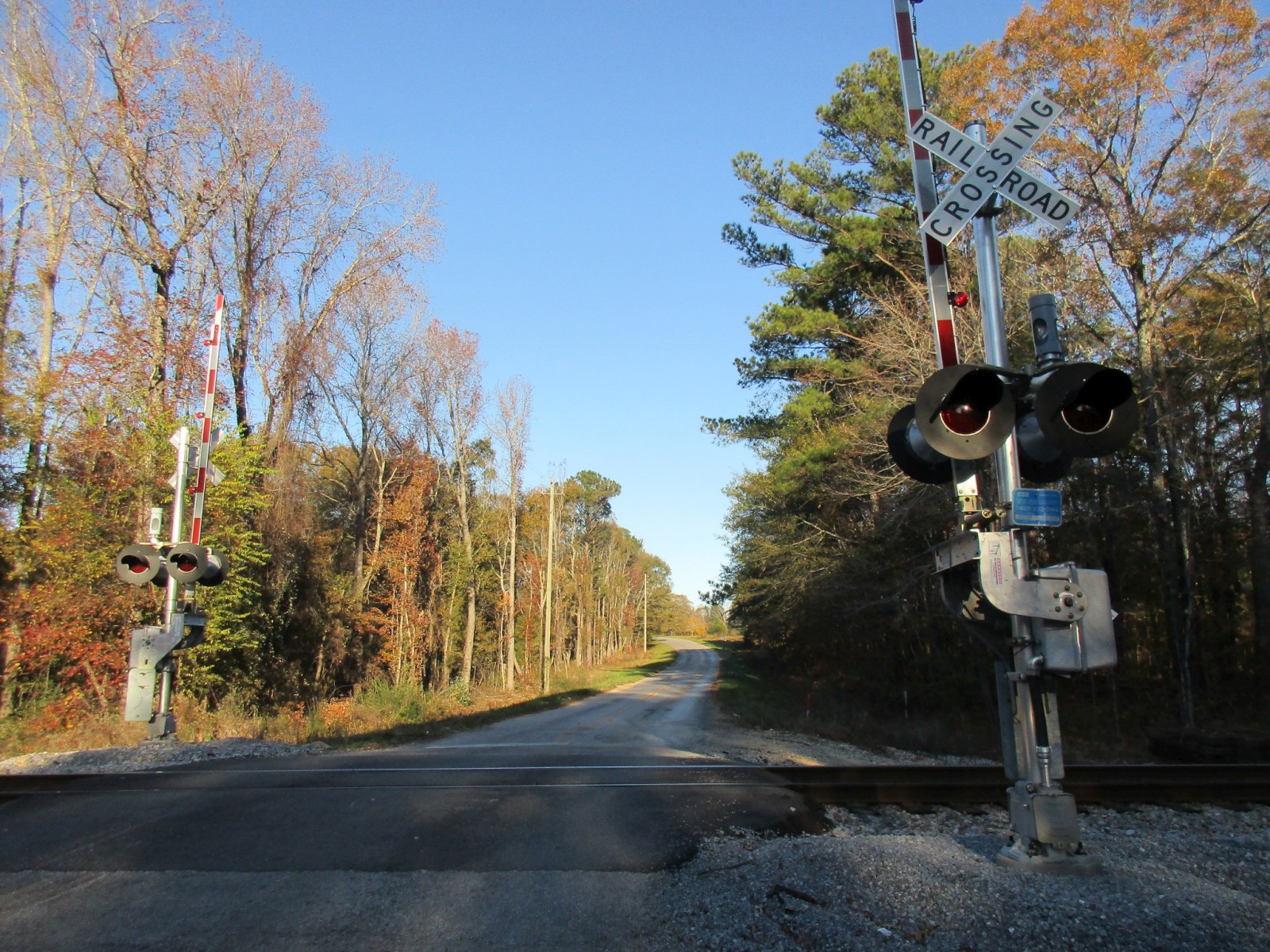

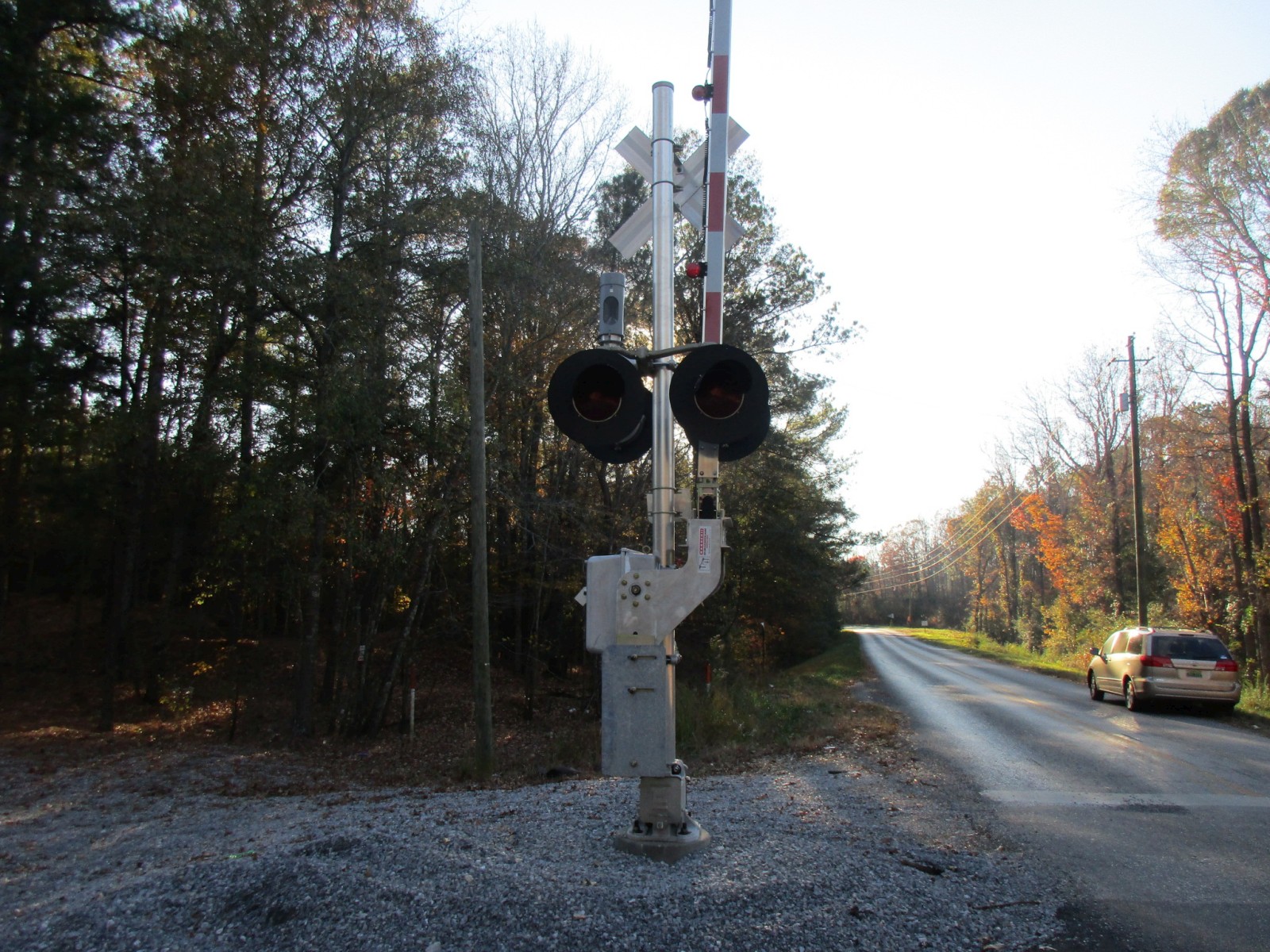

Overviews of this 2014 CSX install, which replaced some crossbucks back in September of that year. |

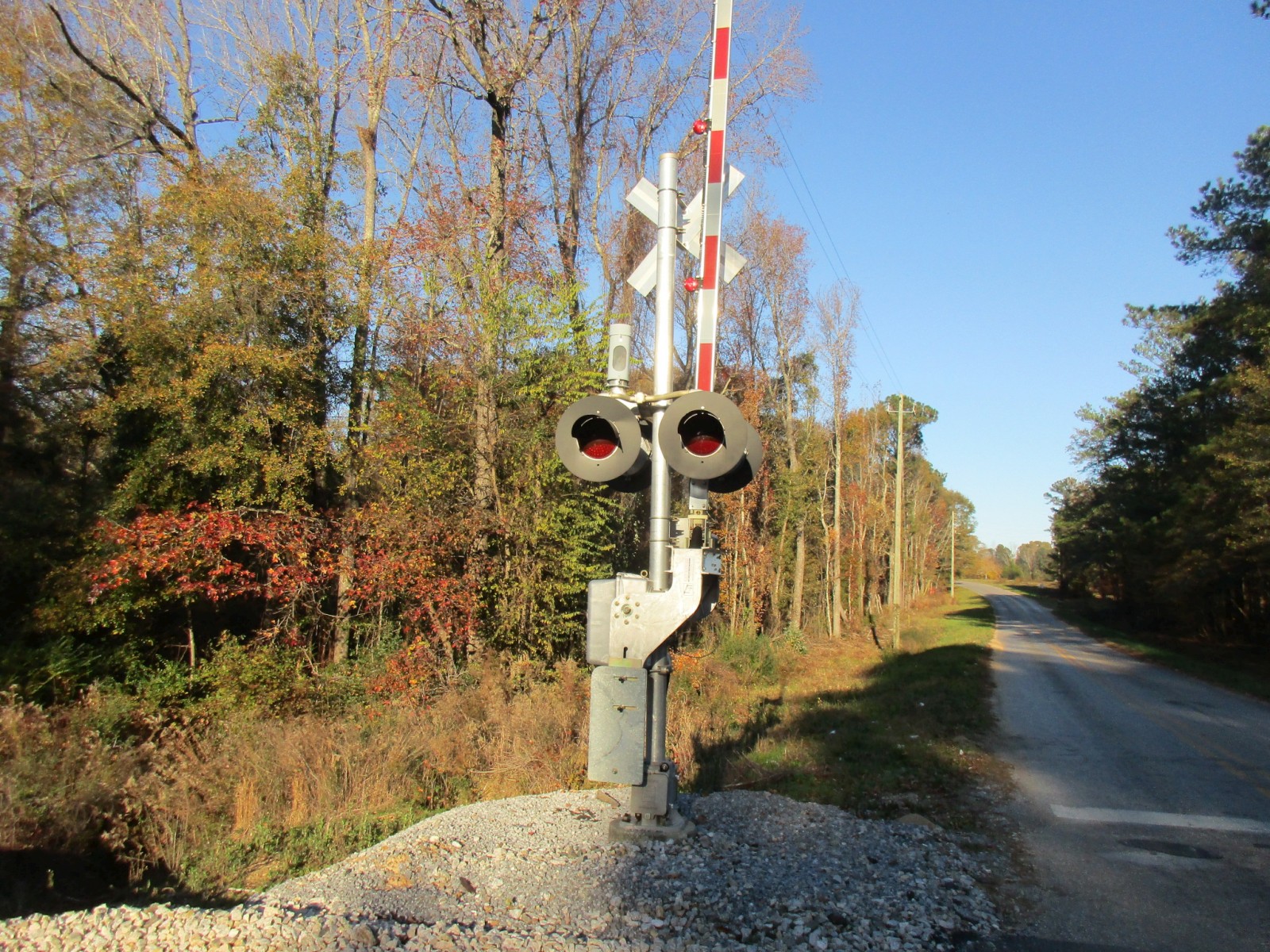

The first signal. |
||
5 |
6 |
7 |
8 |

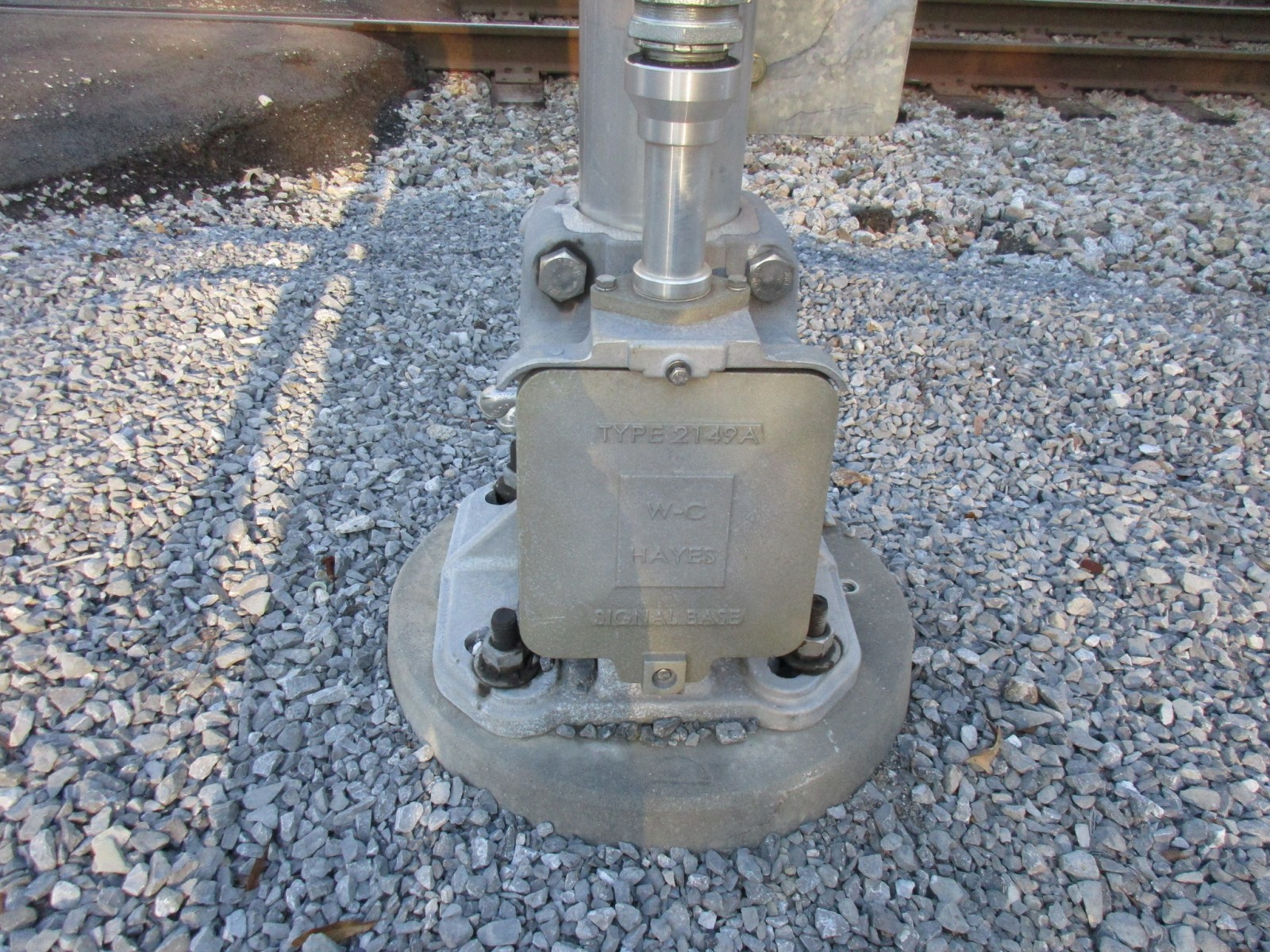

It has a WCH base. |

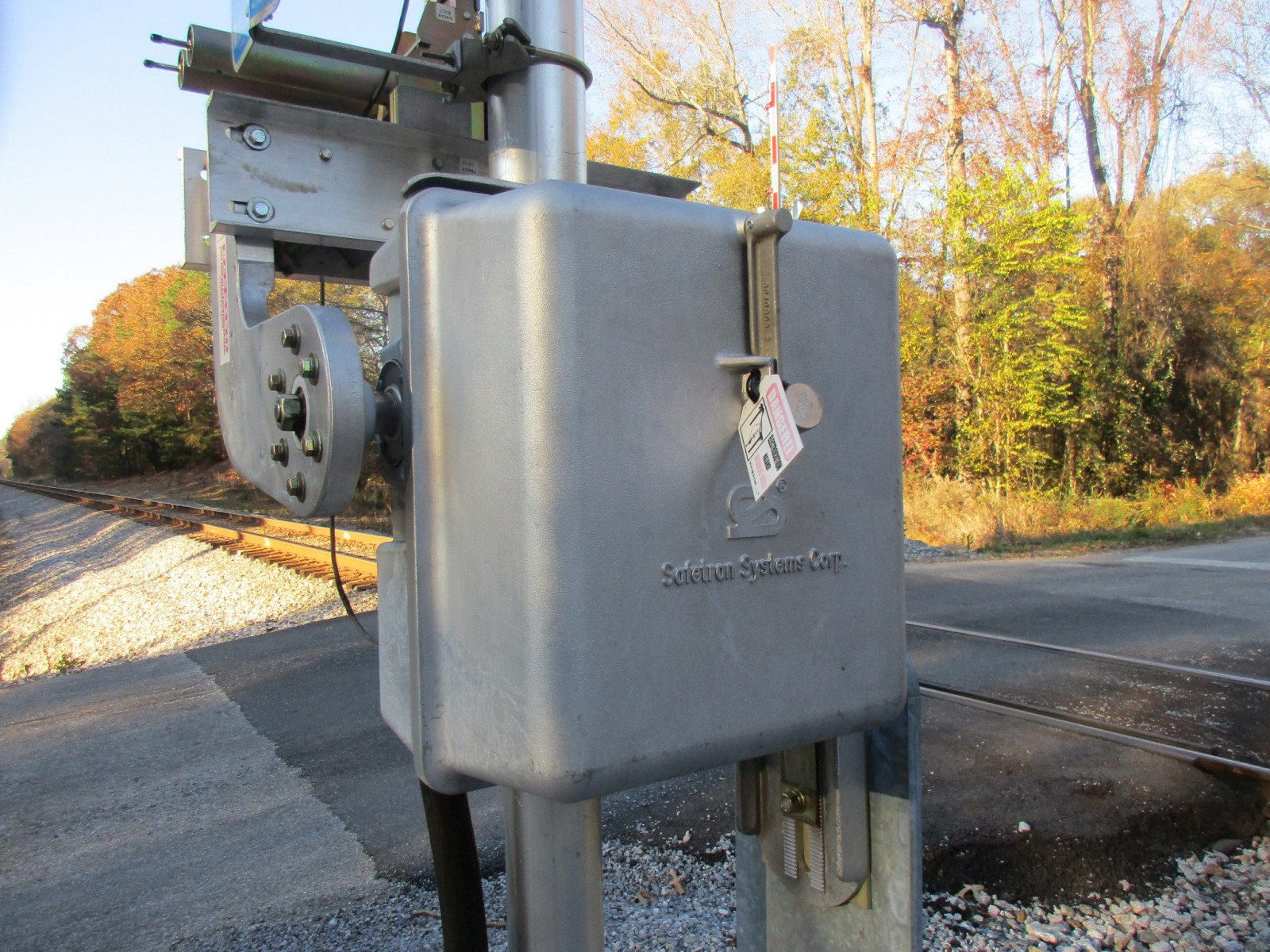

This signal has a Safetran gate mechanism. |

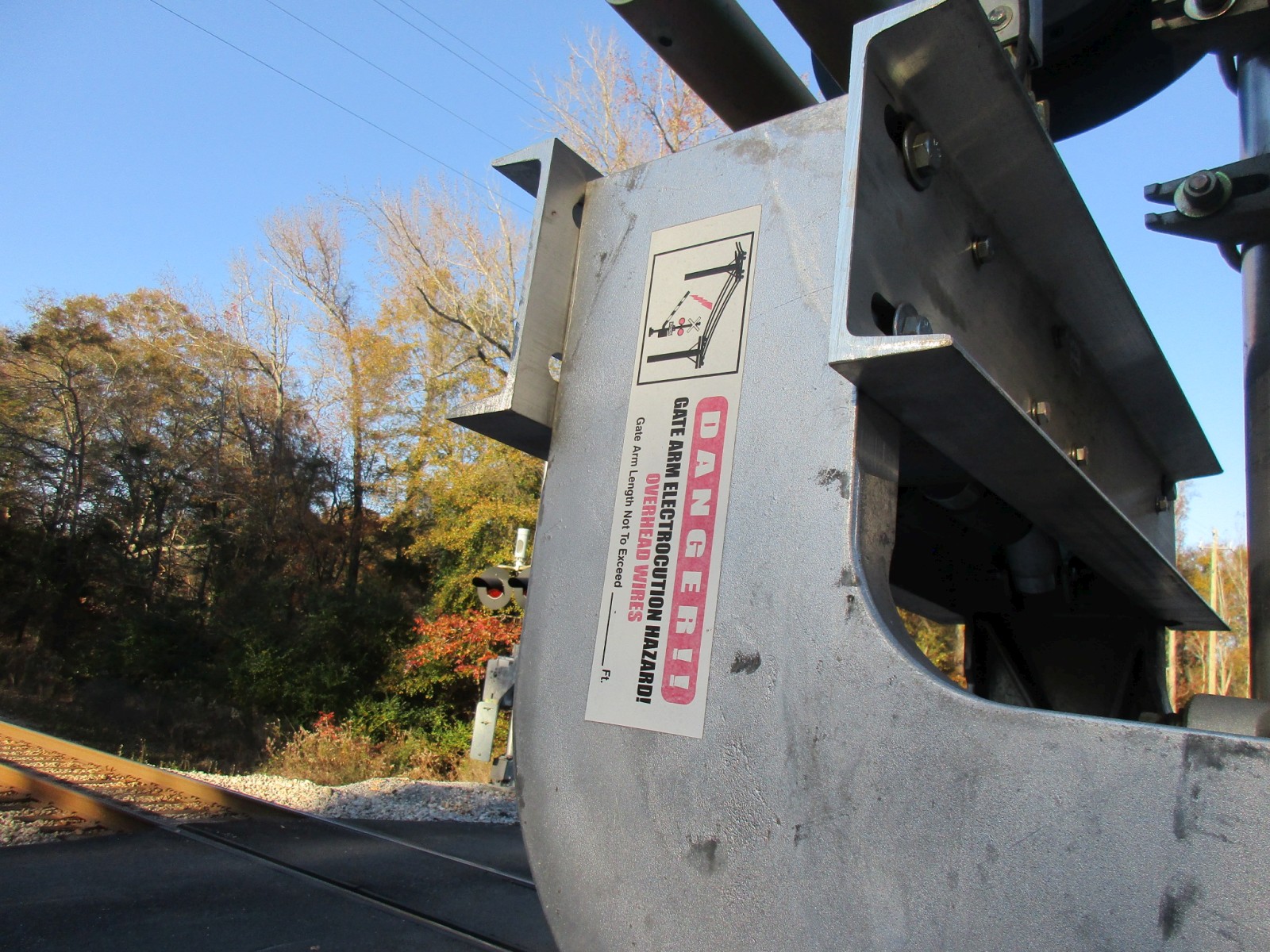

A warning about overhead powerlines. |

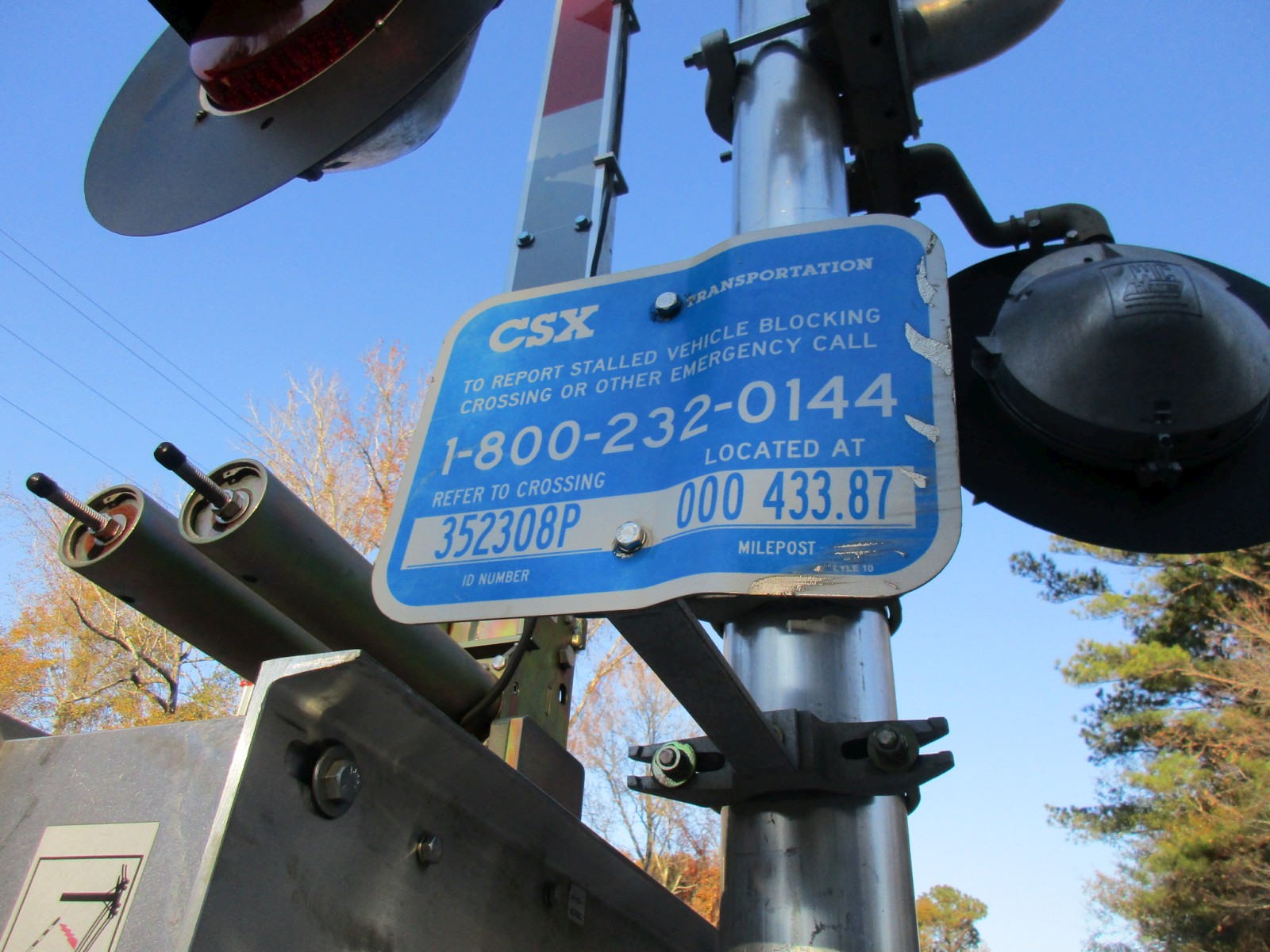

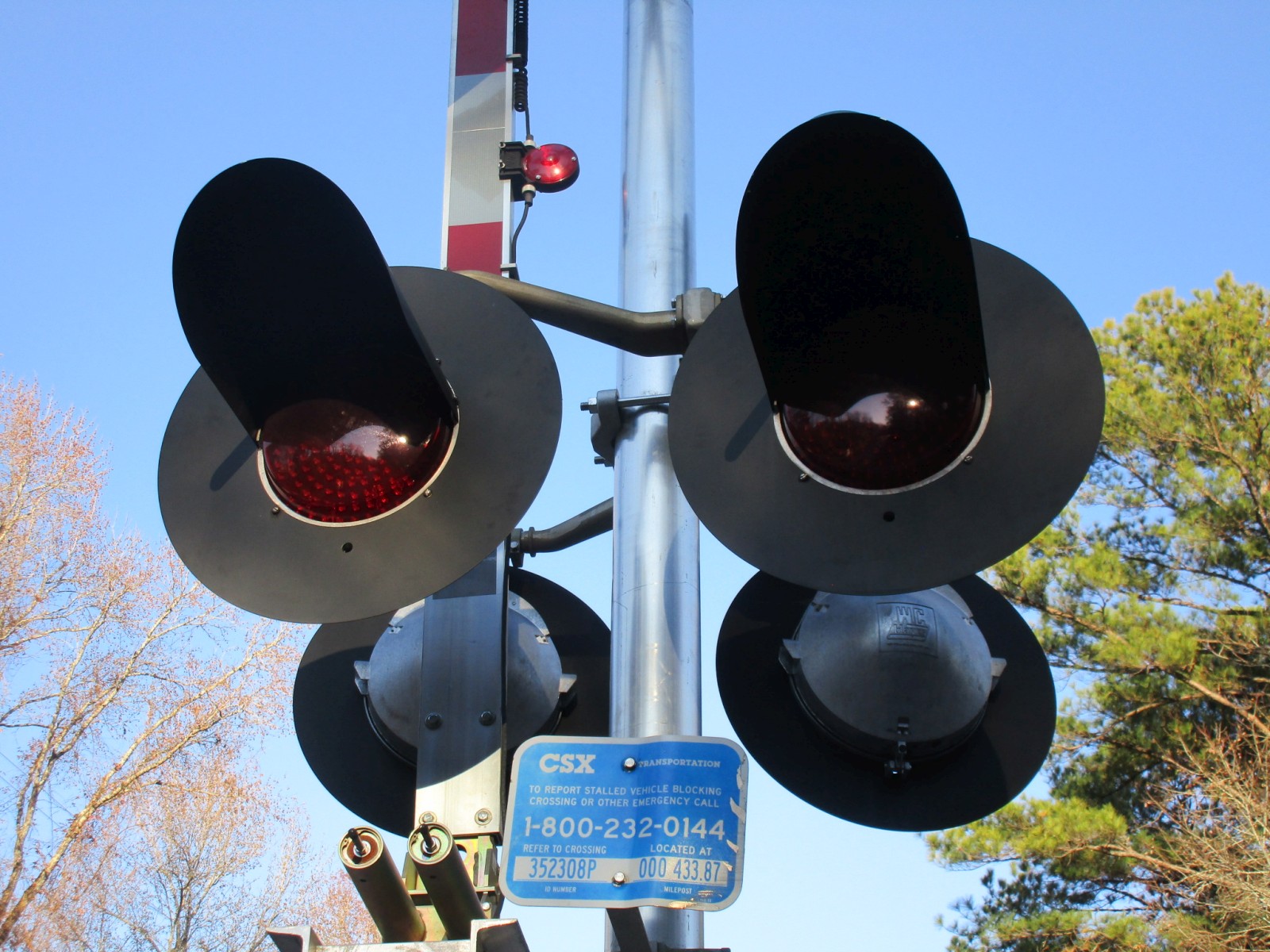

The emergency information. |
9 |
10 |
11 |
12 |

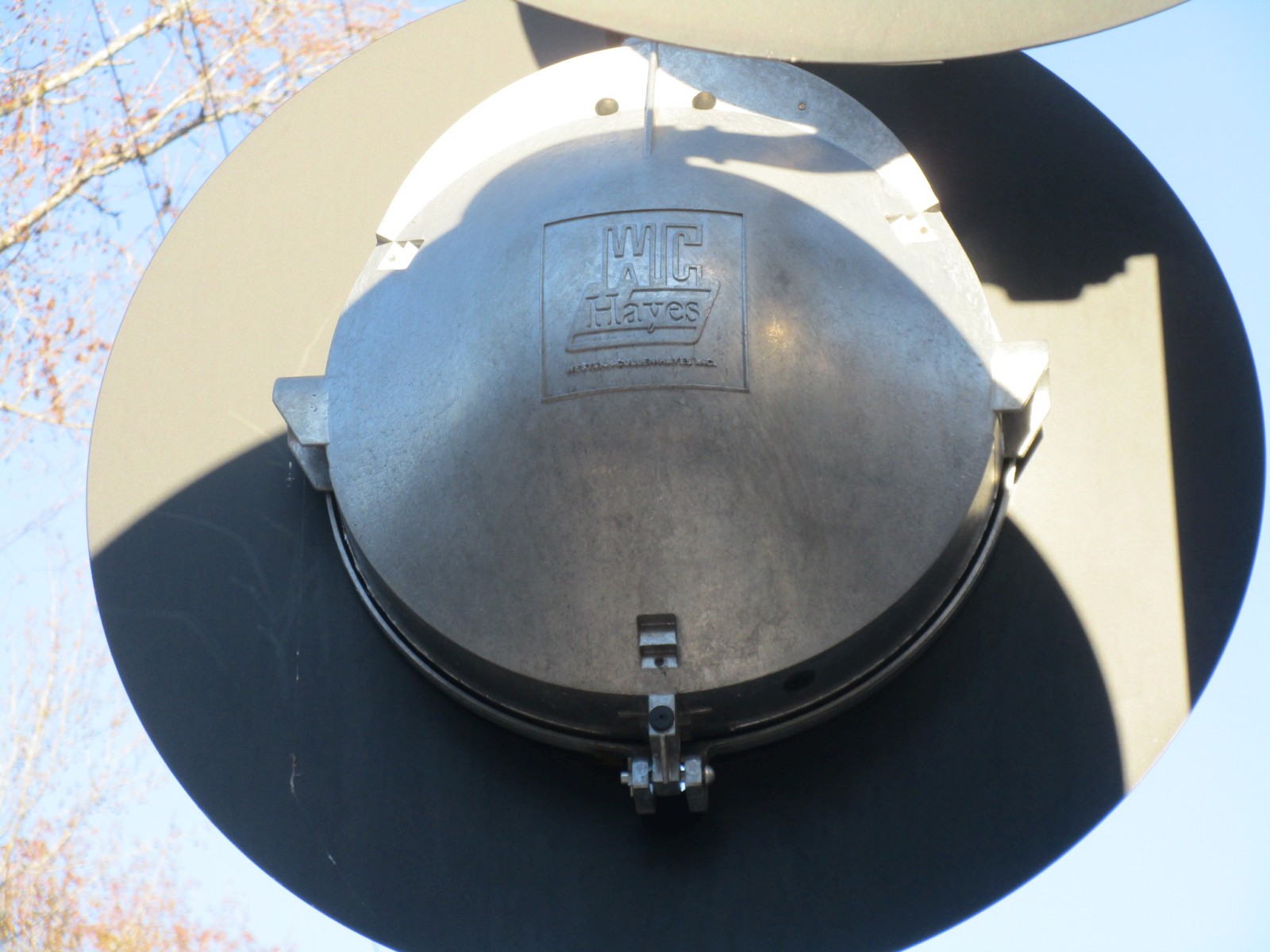

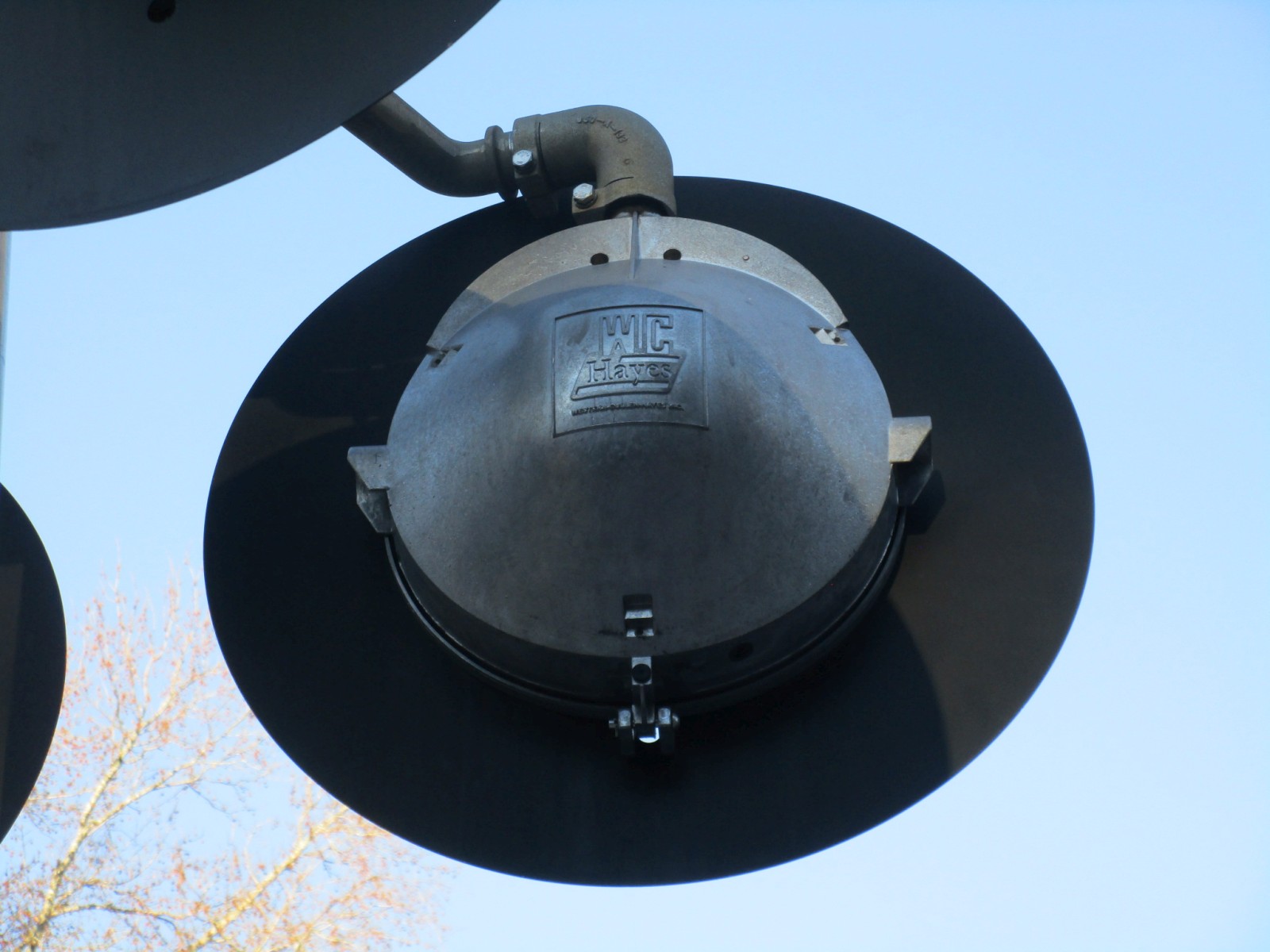

This signal has all WCH 12x24 inch lights with WCH 2nd Generation LEDs. |

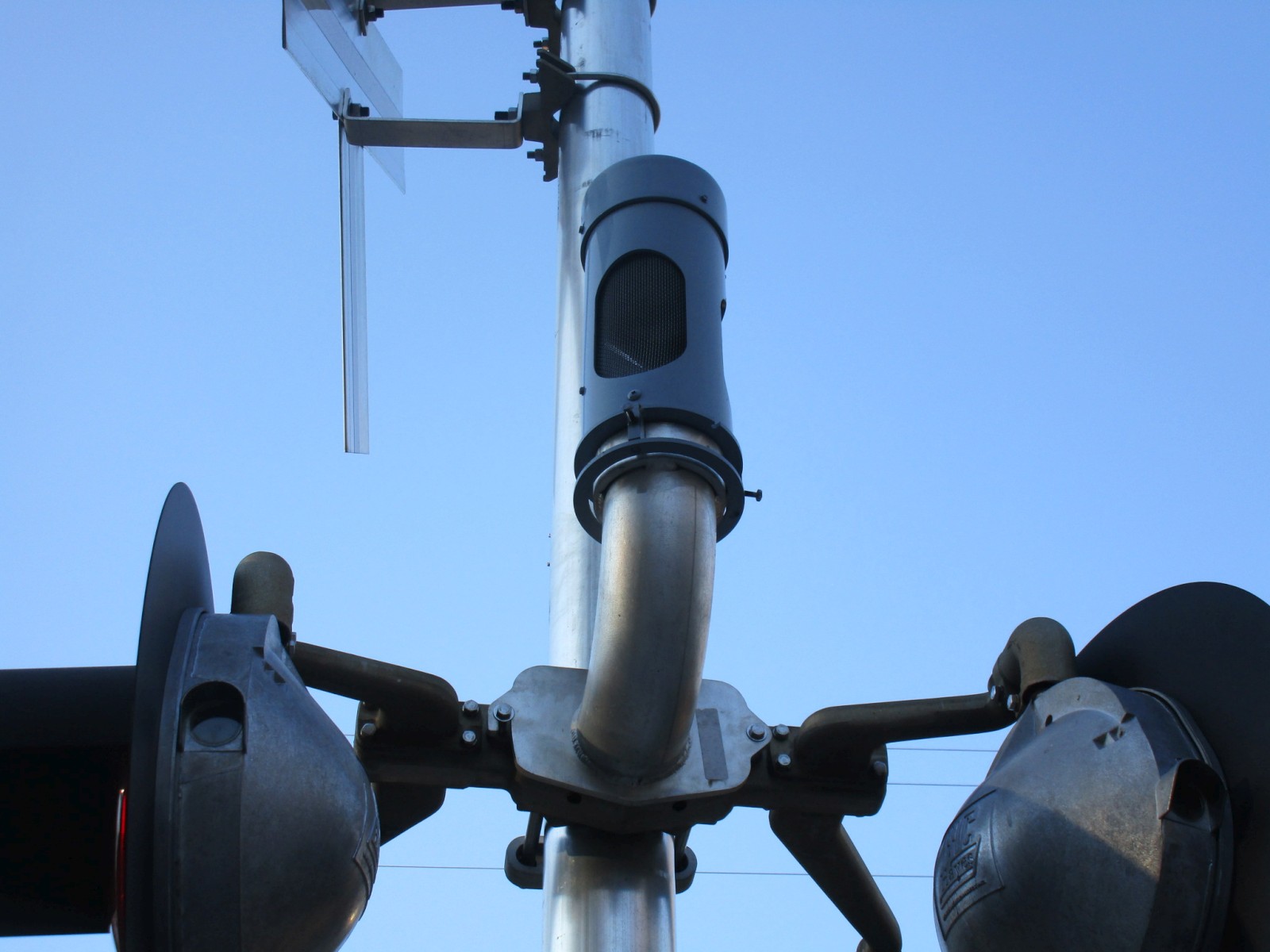

This bell is an NEG electronic bell. |

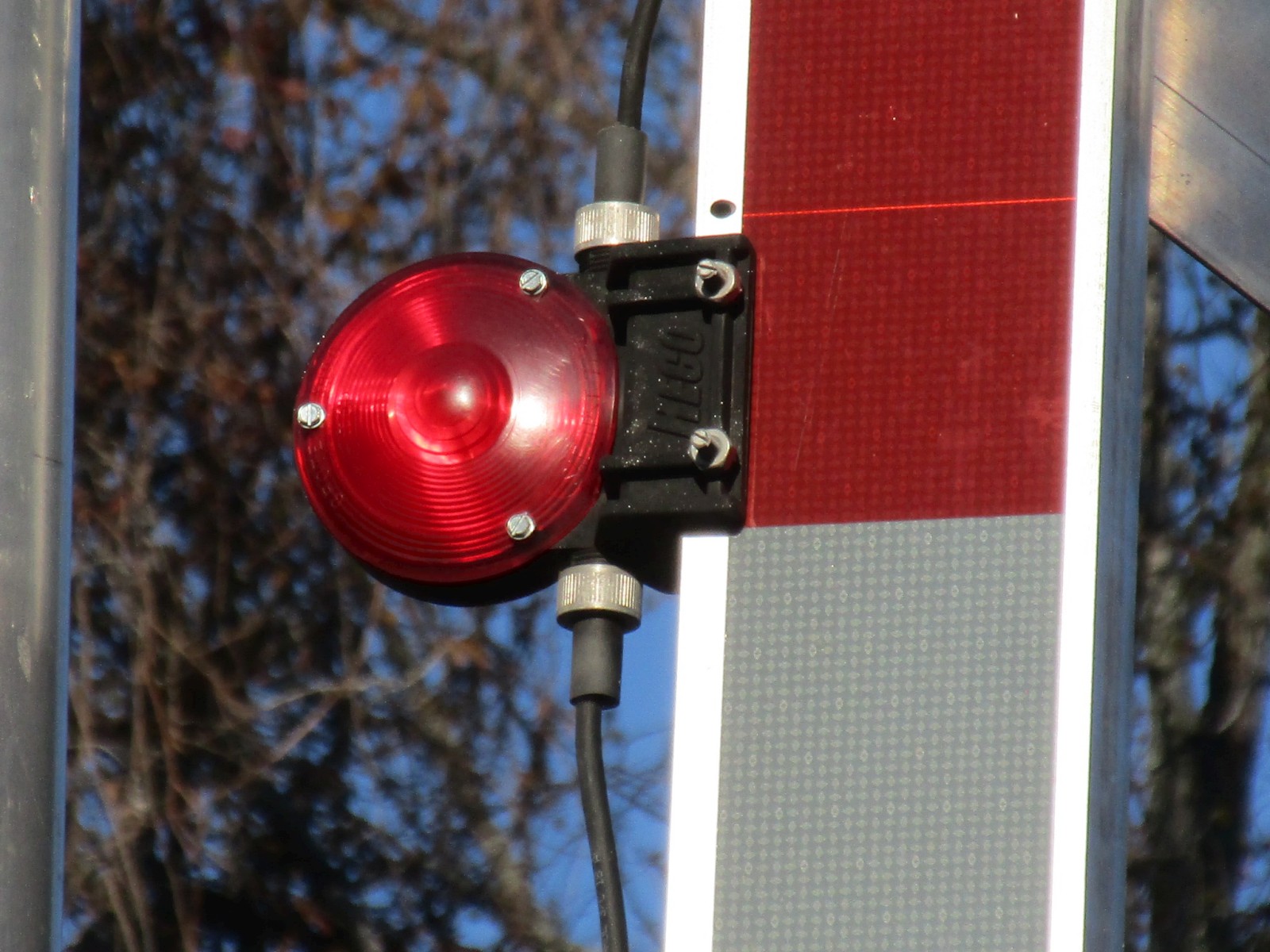

This signal uses RECO gate lights. |
|
13 |
14 |
15 |
16 |

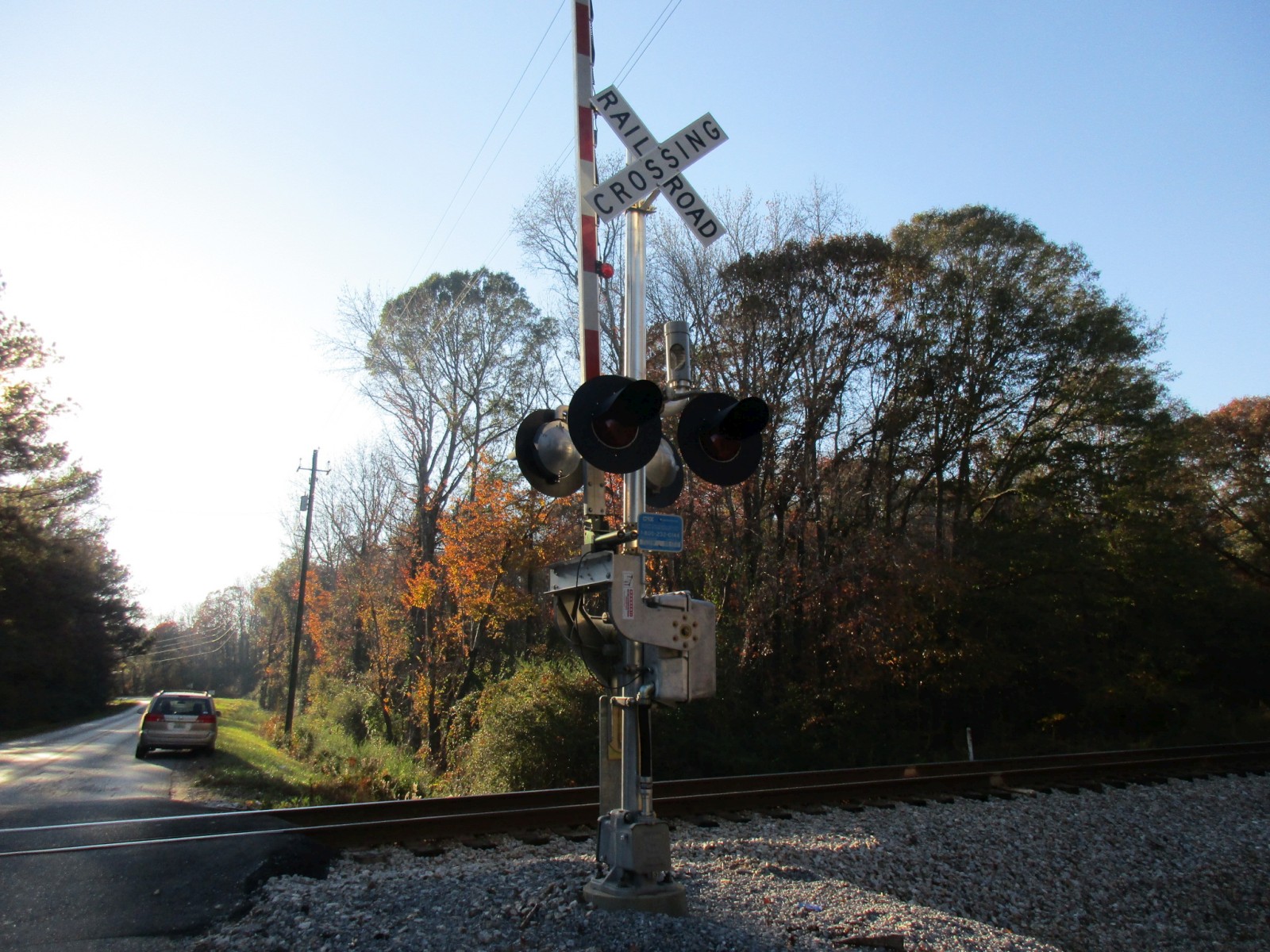

The second signal. |

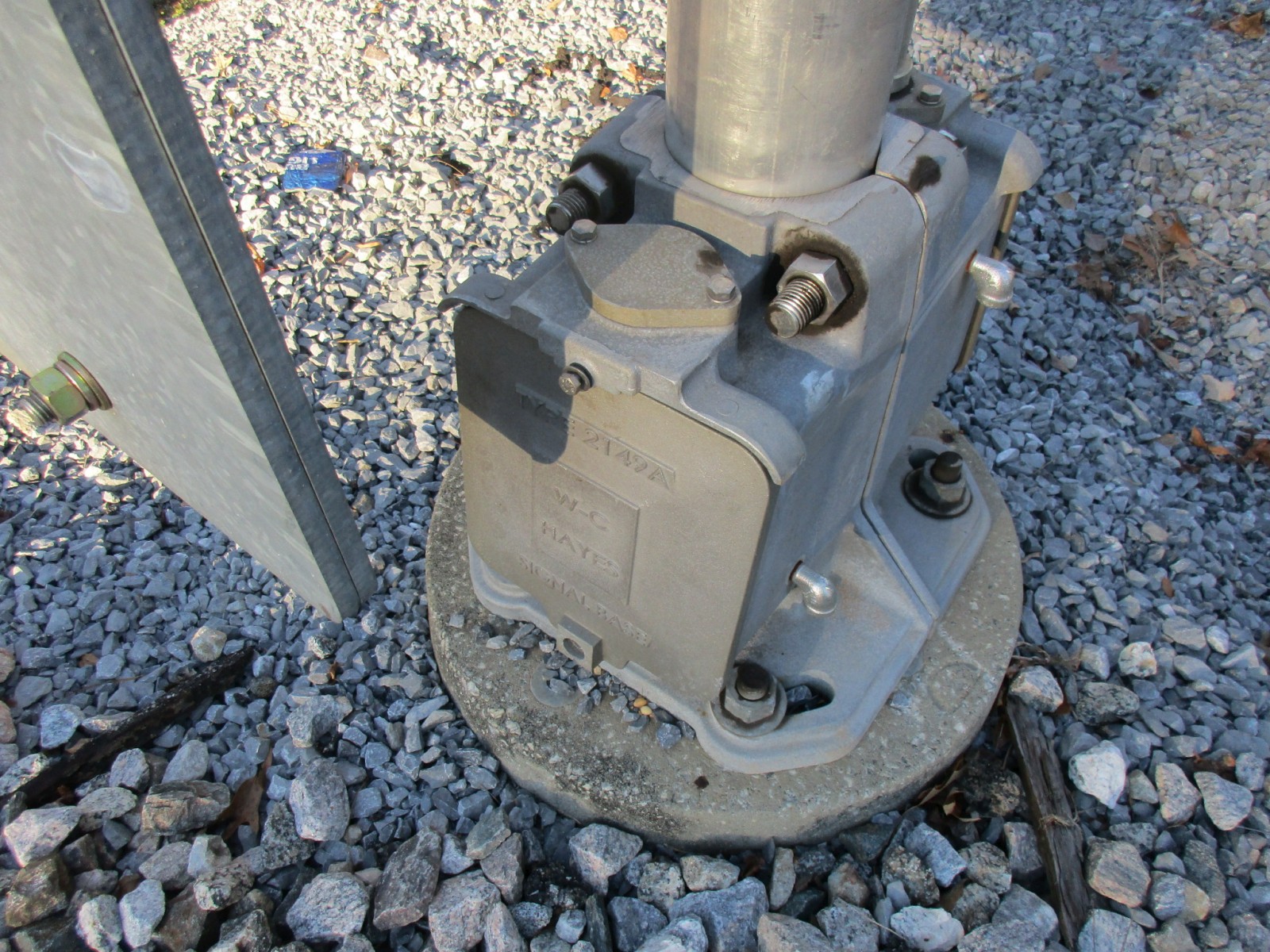

Another WCH base. |

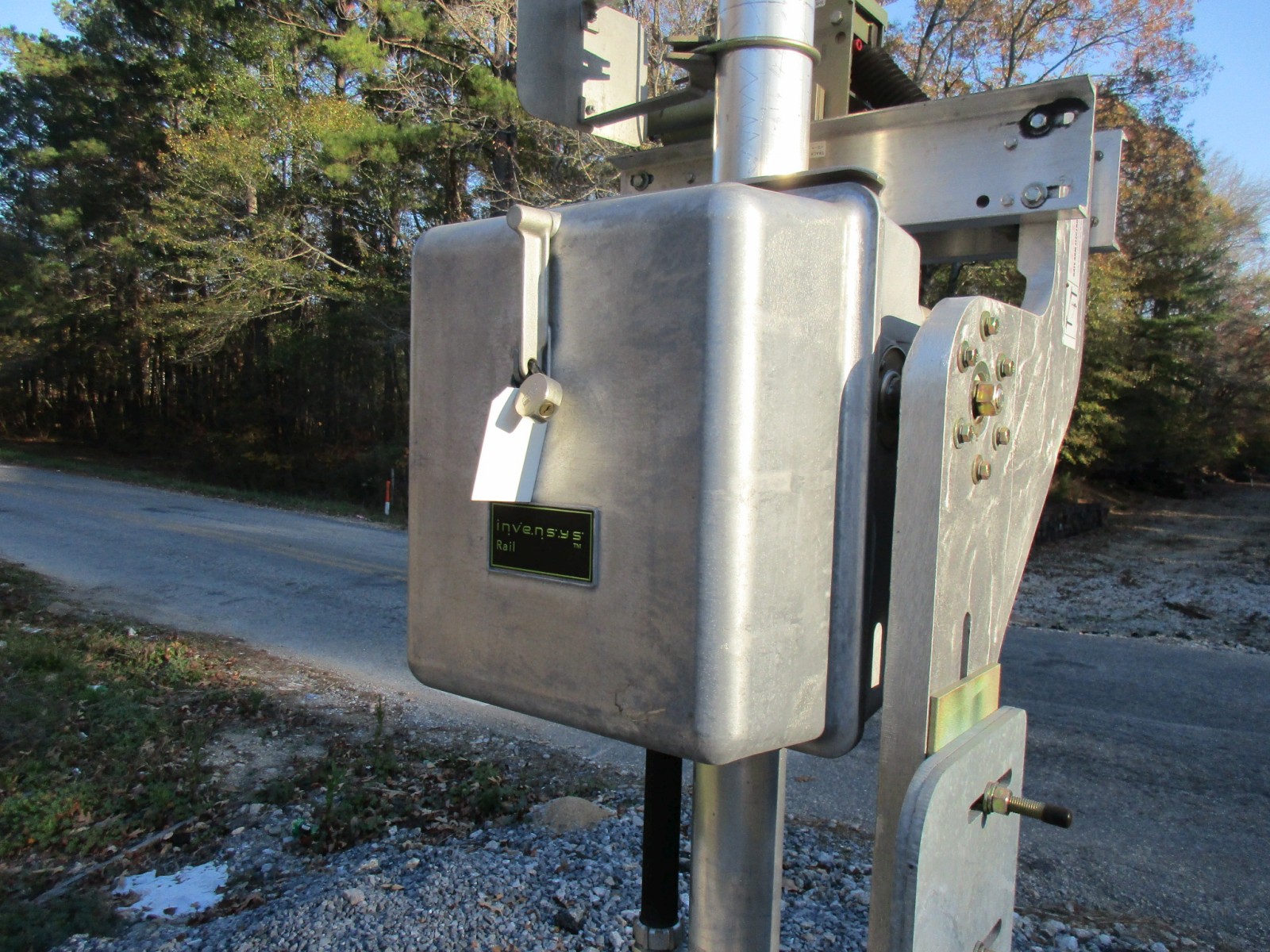

This signal uses an Invensys Rail gate mechanism. |
|
17 |
18 |
19 |
20 |

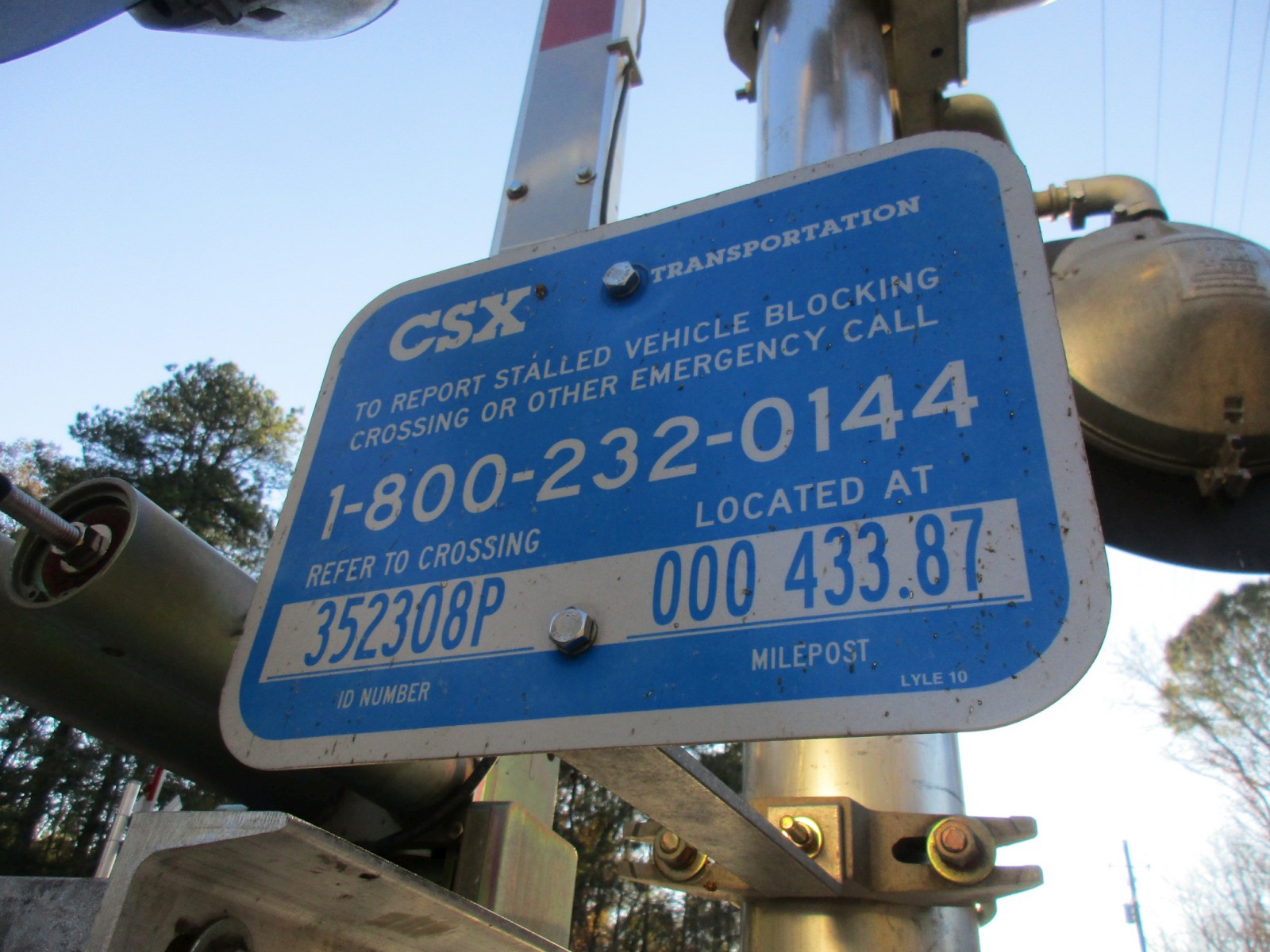

The emergency information. |

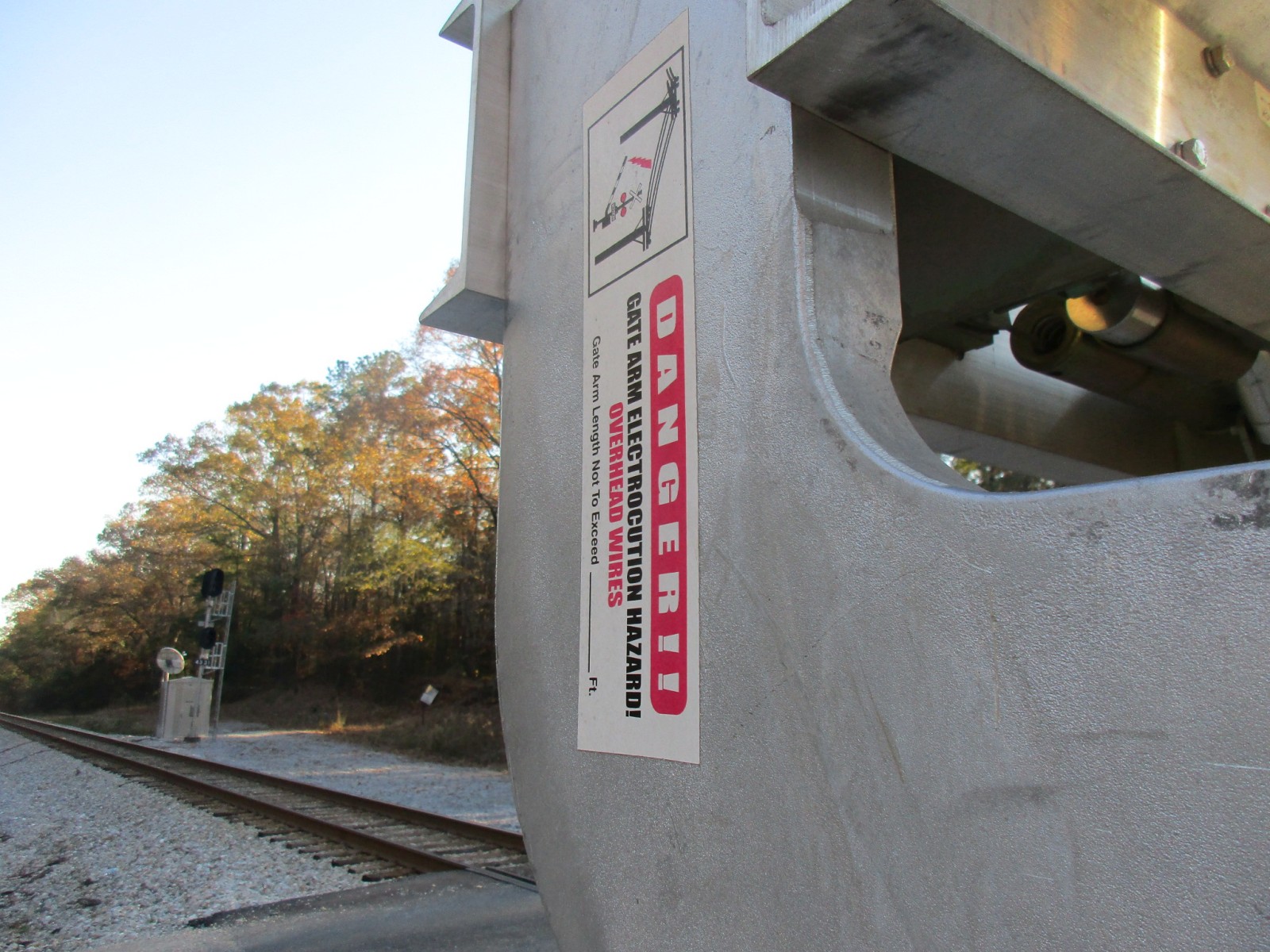

A warning about overhead powerlines. |

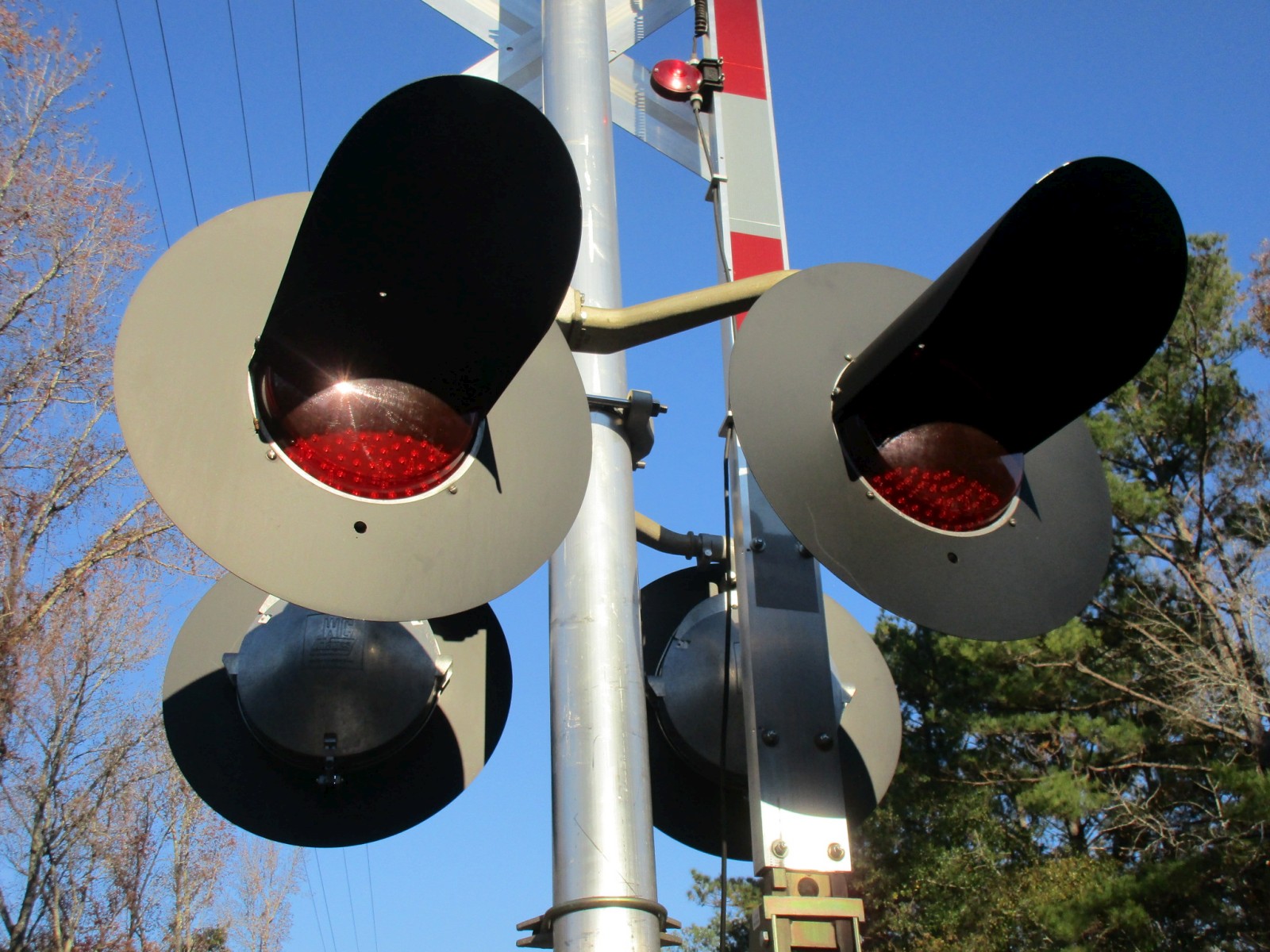

This signal uses more WCH 12x24 inch lights with WCH 2nd Geneartion LEDs. |
|
21 |
22 |
23 |
24 |

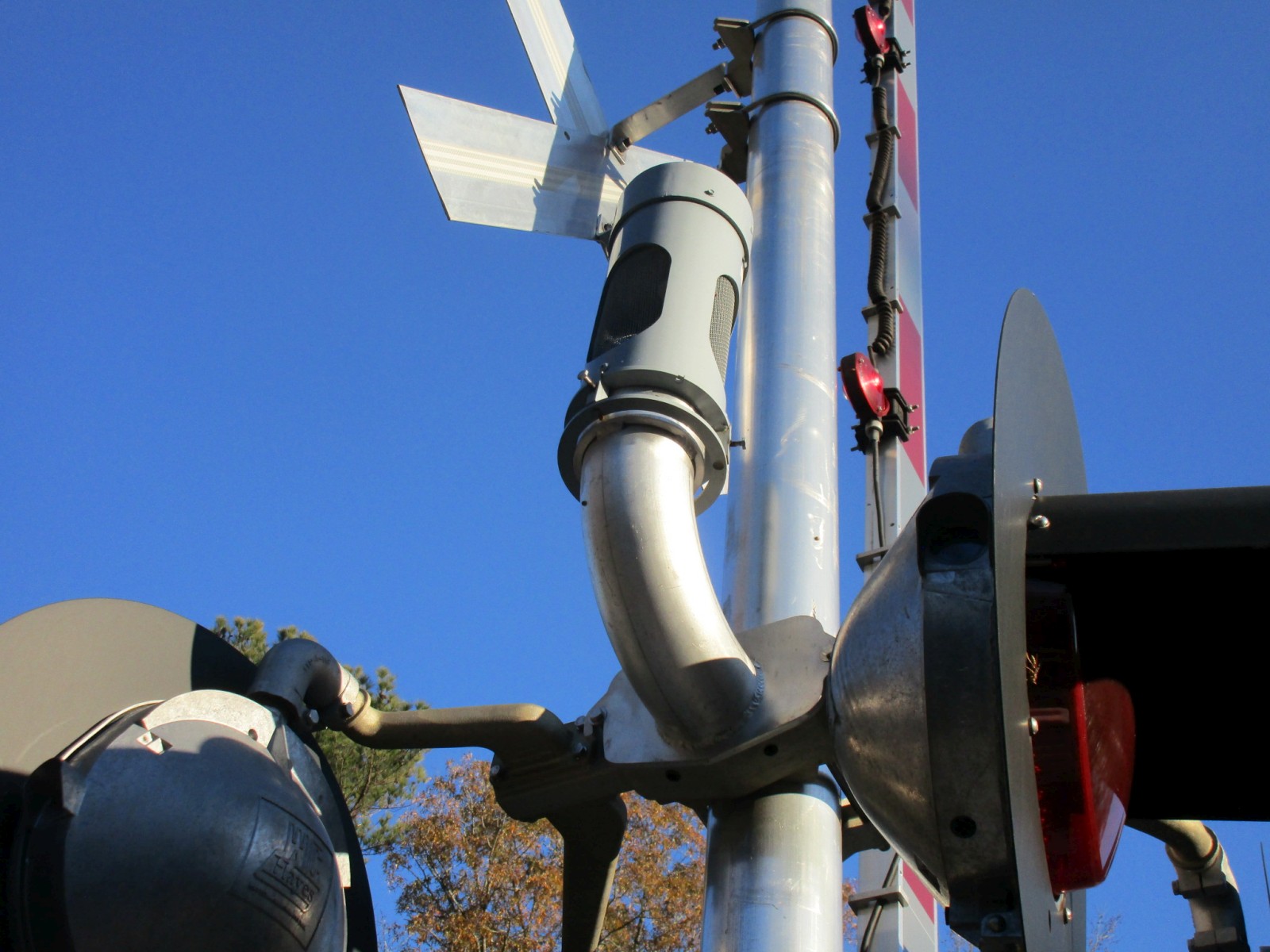

Another NEG e-bell over here. |
More RECO gate lights on this signal. |

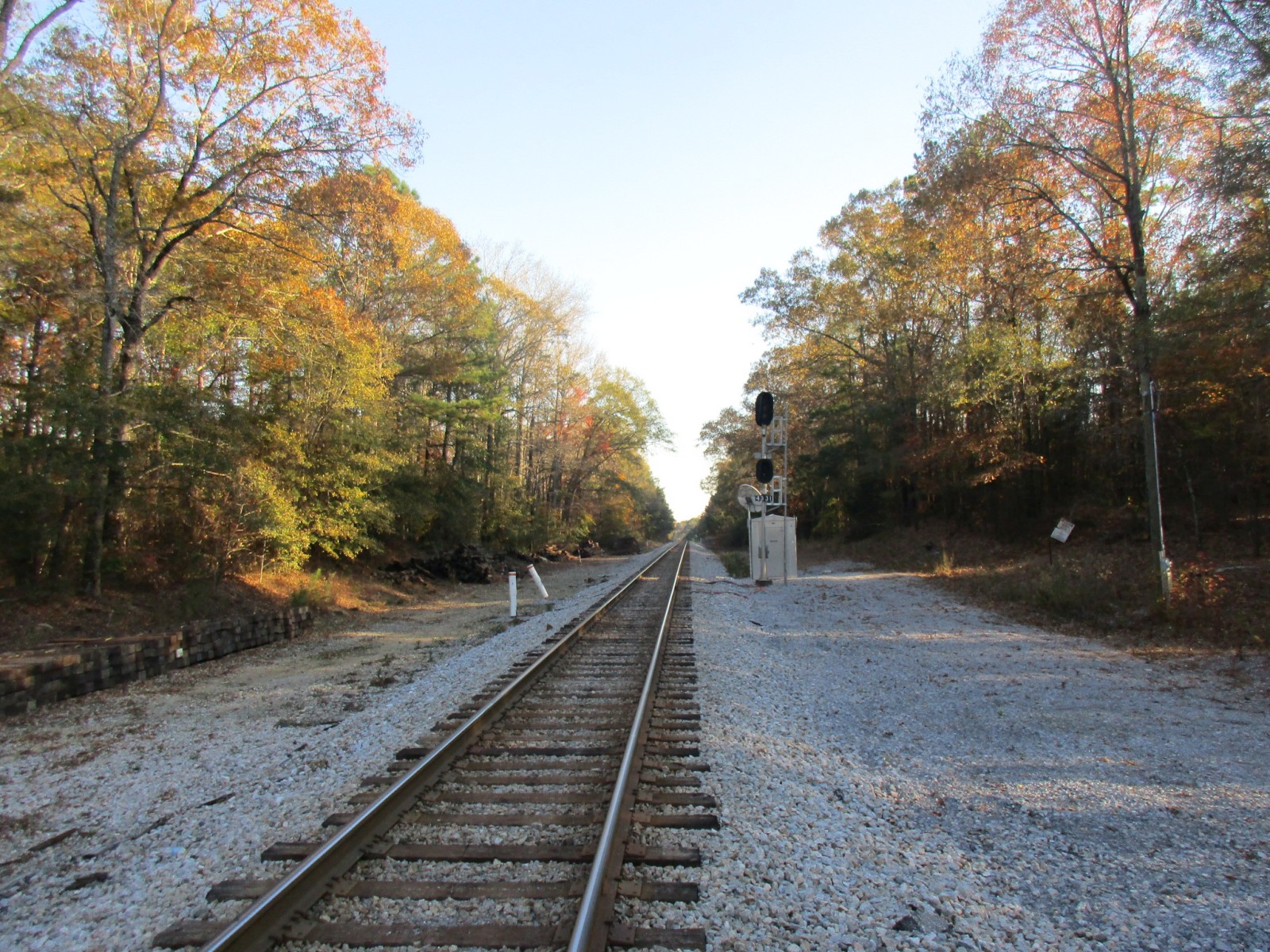

Track view looking south towards Patton Street in Jemison. |

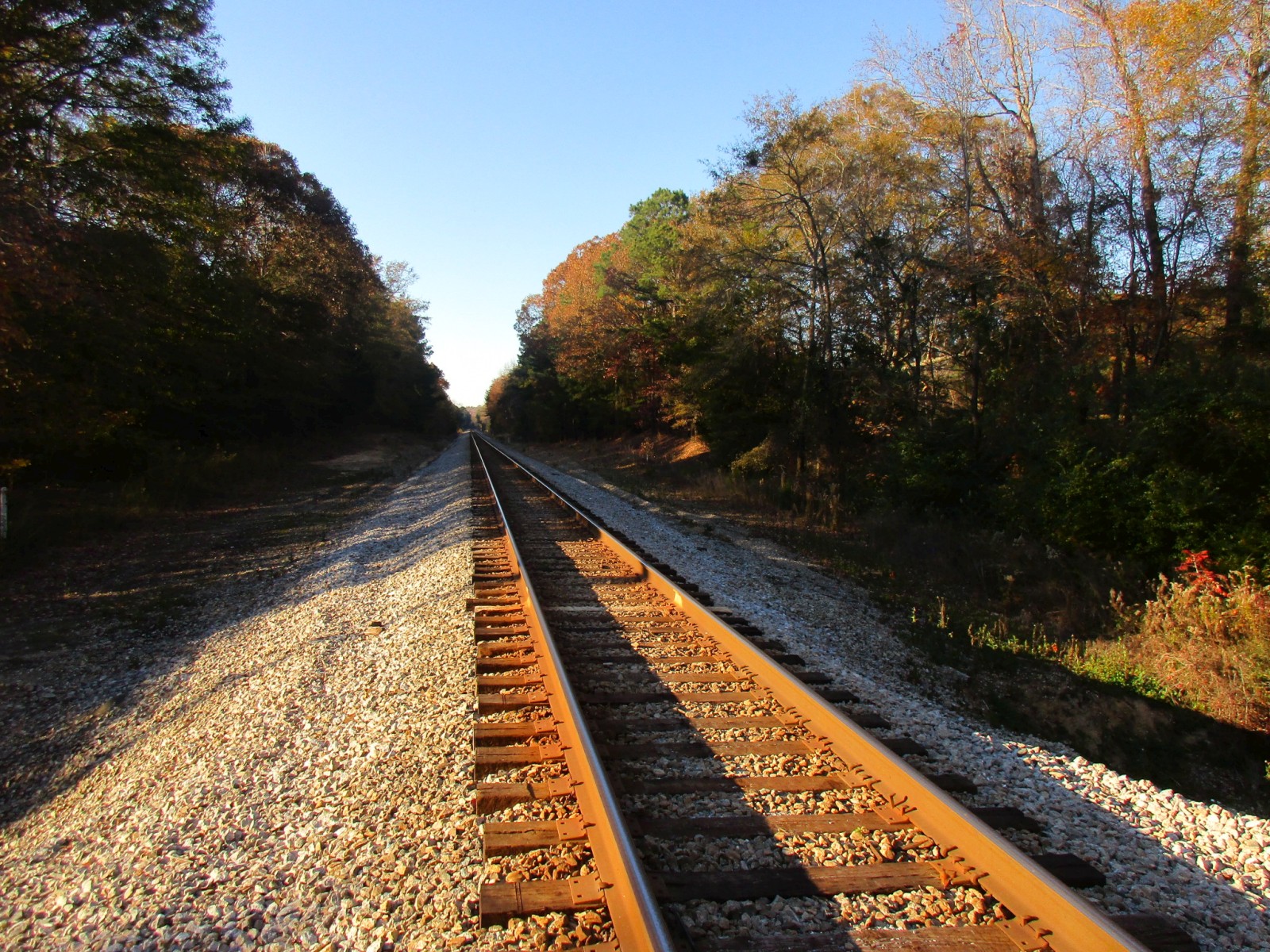

Track view looking north towards 23rd Street in Calera. |
Oddly enough, if I recall correctly, there weren't any relay cases at the crossing, so the signals likely share the relay case with the block signals just up the tracks.
All pictures were taken on 11-28-17.
