MP: ANJ950.550 |
Created June 25, 2018
Total Accidents: 6
Crossing
DOT #: 639424B
TOTAL
DAILY TRAINS: 20 (AS OF 2018)
Page created by: freebrickproductions
This crossing is located on the CSX Lineville Subdivision.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | Safetran Type 2 electronic | Safetran Type 2 electronic |
| Cantilever: | Lincoln Industries | Lincoln Industries |
| Light Frames: | 6 - 12x24" Safetran w/ Dialight Ball LEDs 2 - 12x24" Safetran |
6 - 12x24" Safetran w/ Dialight Ball LEDs 2 - 12x24" Safetran |
| Base: | Safetran | Safetran |
| Gate Lights: | 3 - RECO LEDs | 3 - RECO LEDs |
| Gate Mechanism: | Safetran 2000s | Safetran 2000s |
| Gate Striping: | Vertical | Vertical |
1 |
2 |
3 |
4 |

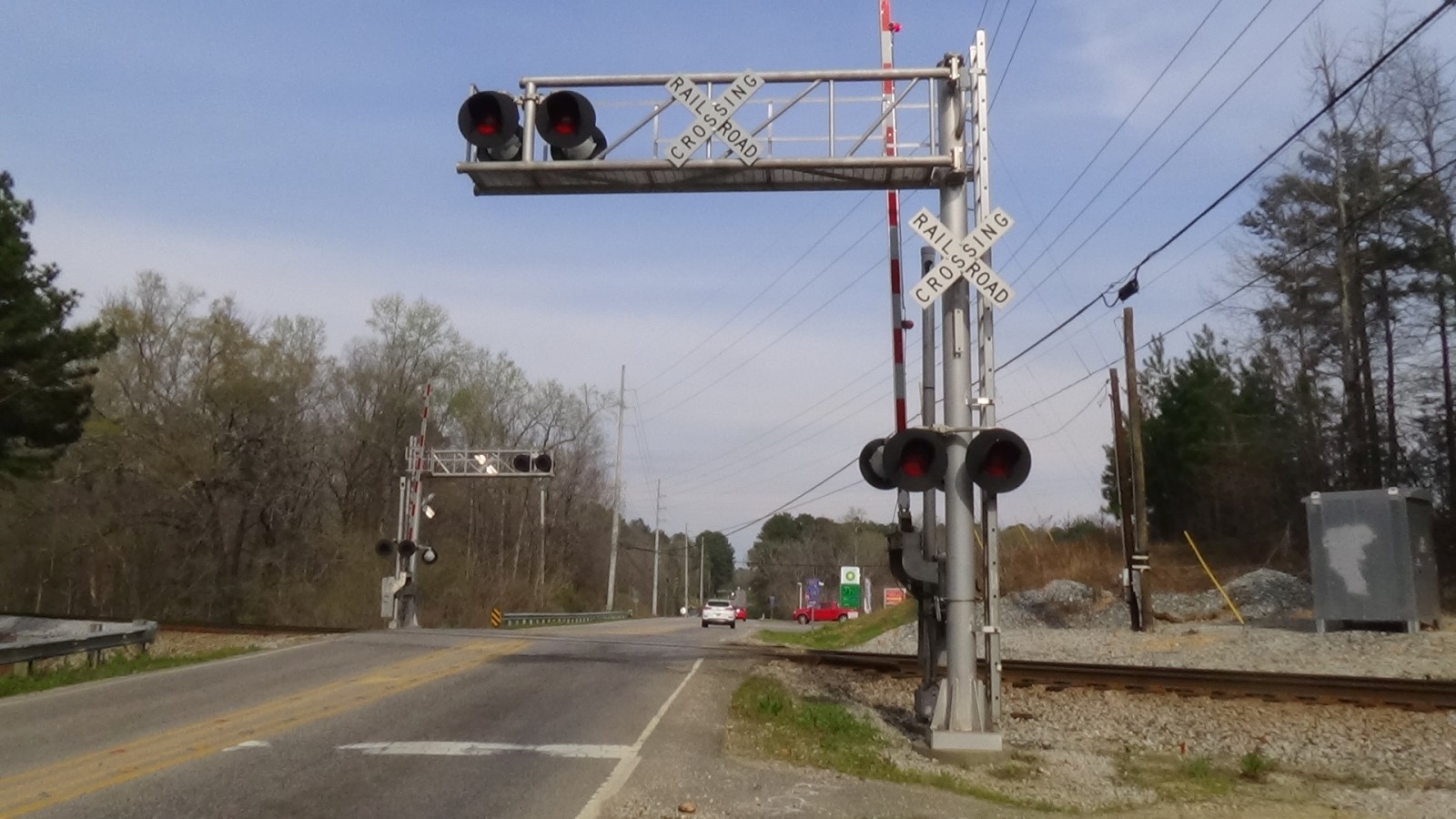

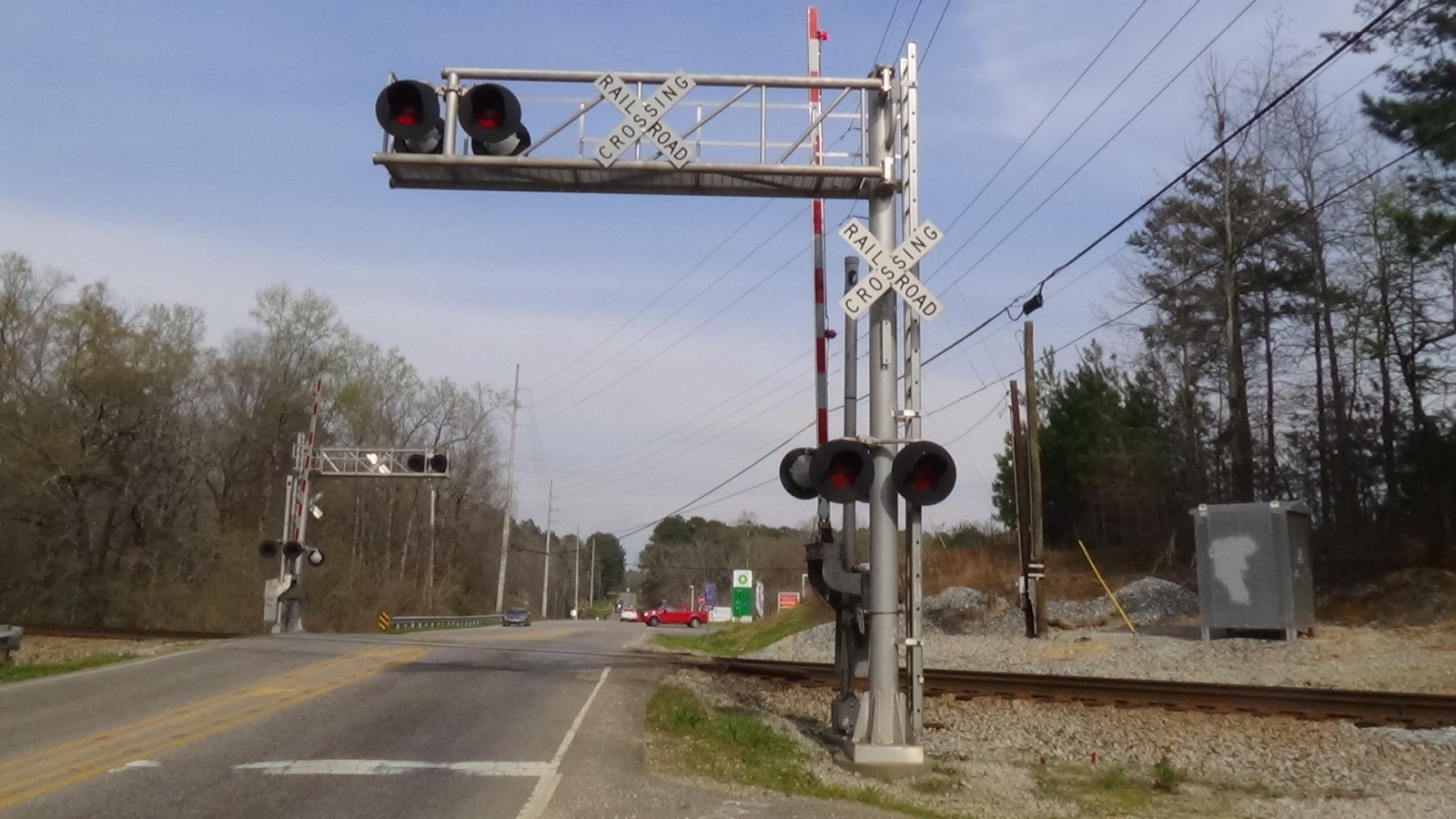

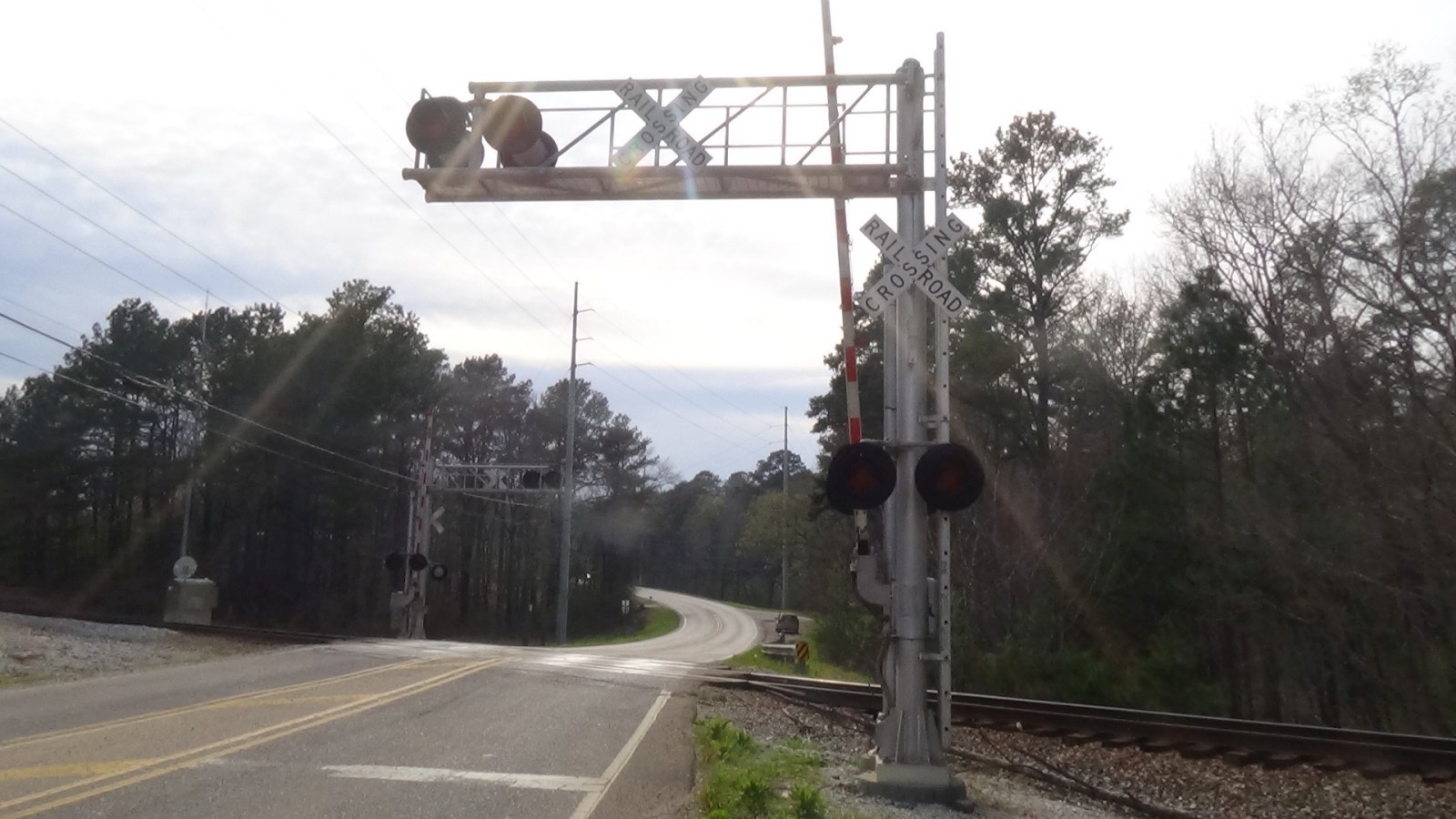

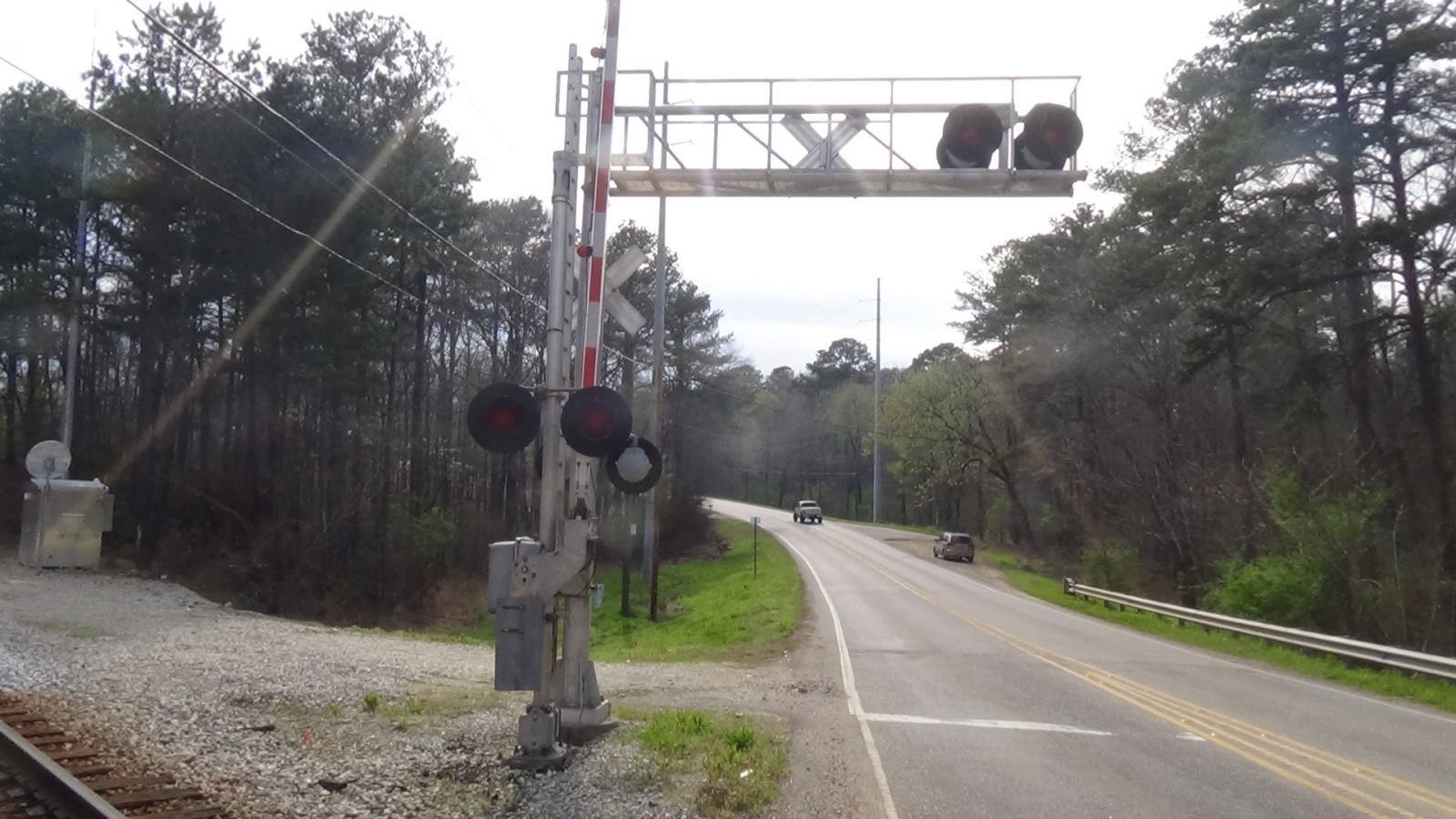

Overviews of the crossing. |
The first signal. |
||
5 |
6 |
7 |
8 |

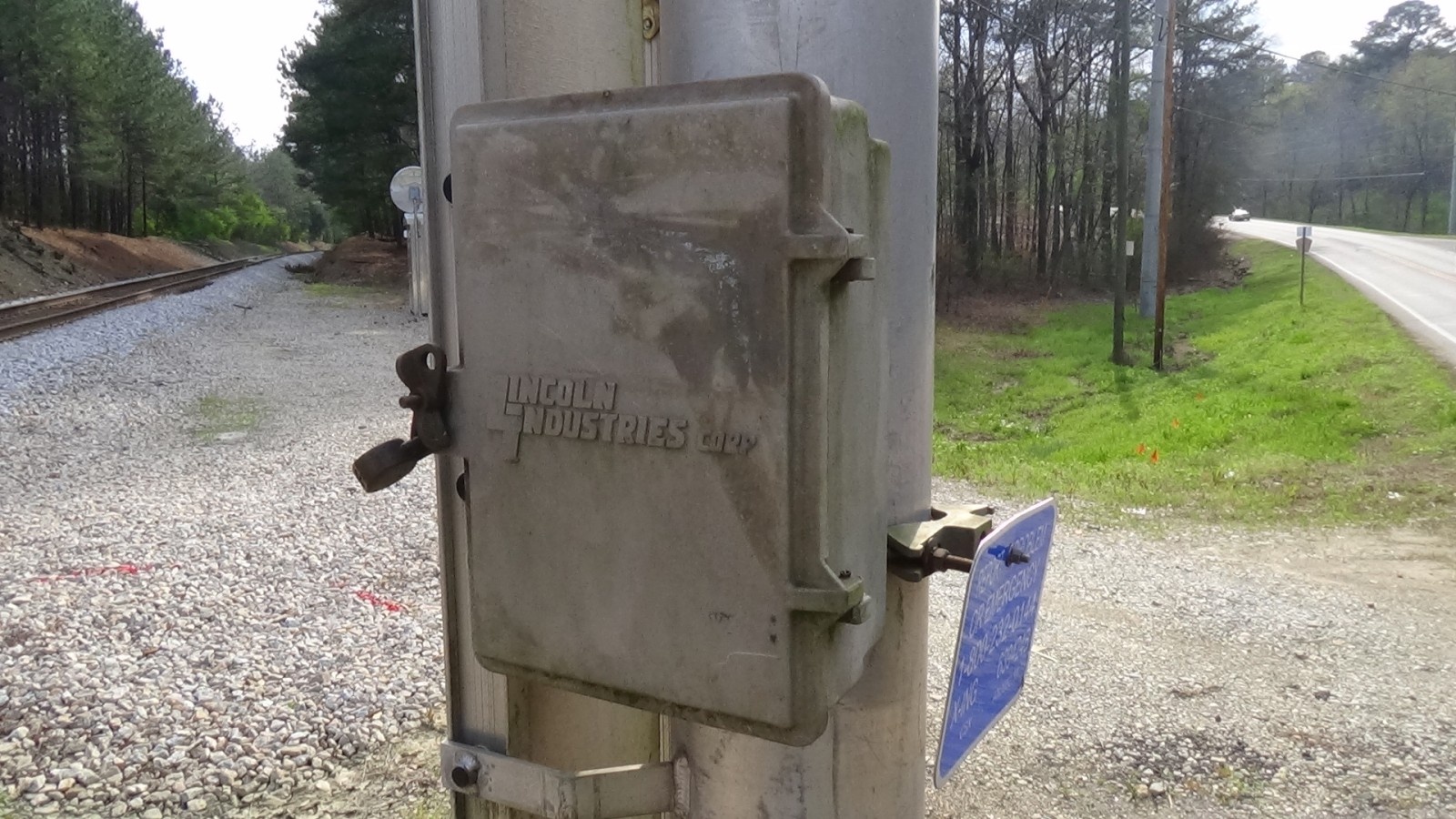

A Lincoln Industries cantilever. |

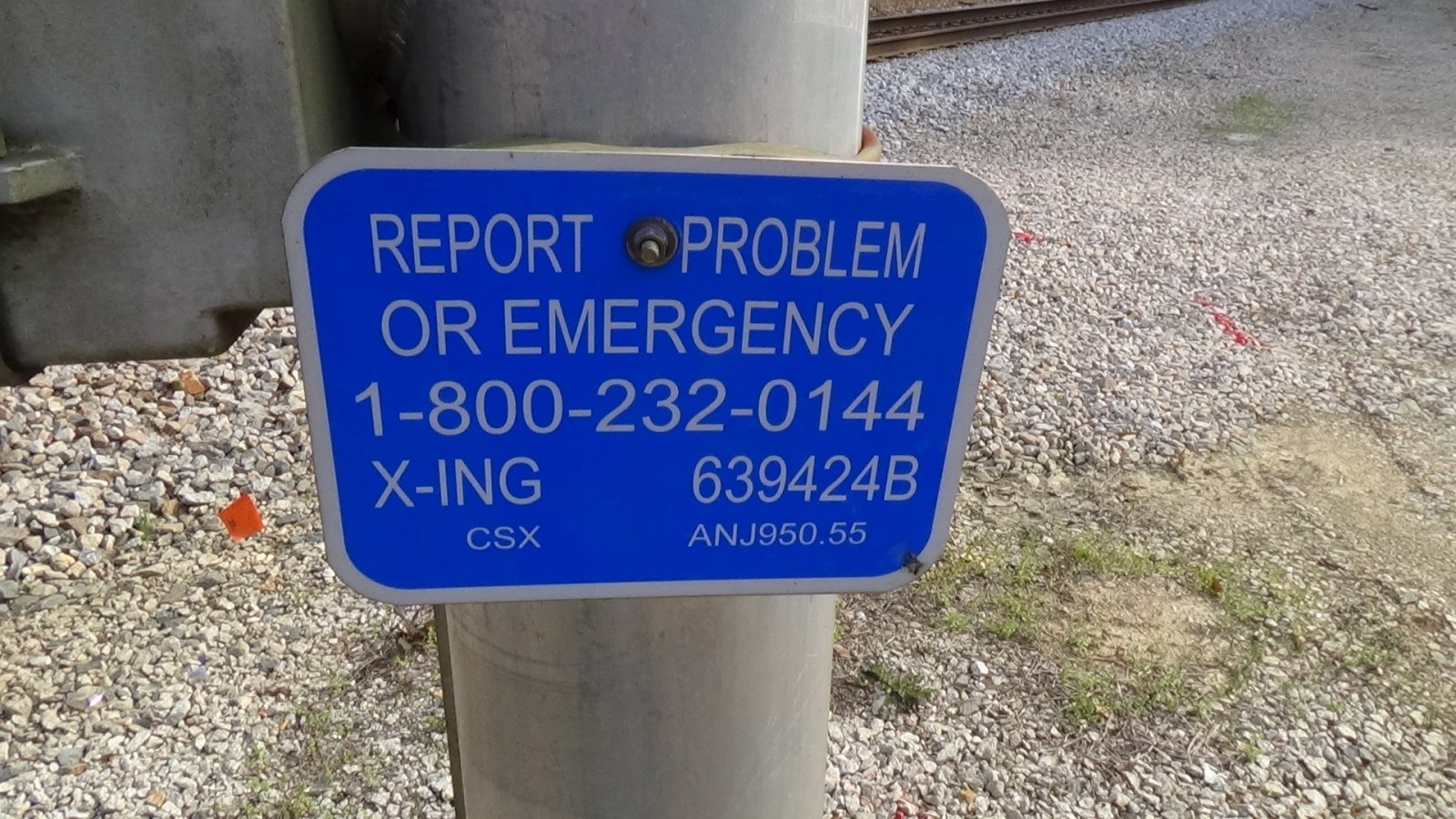

The emergency information |

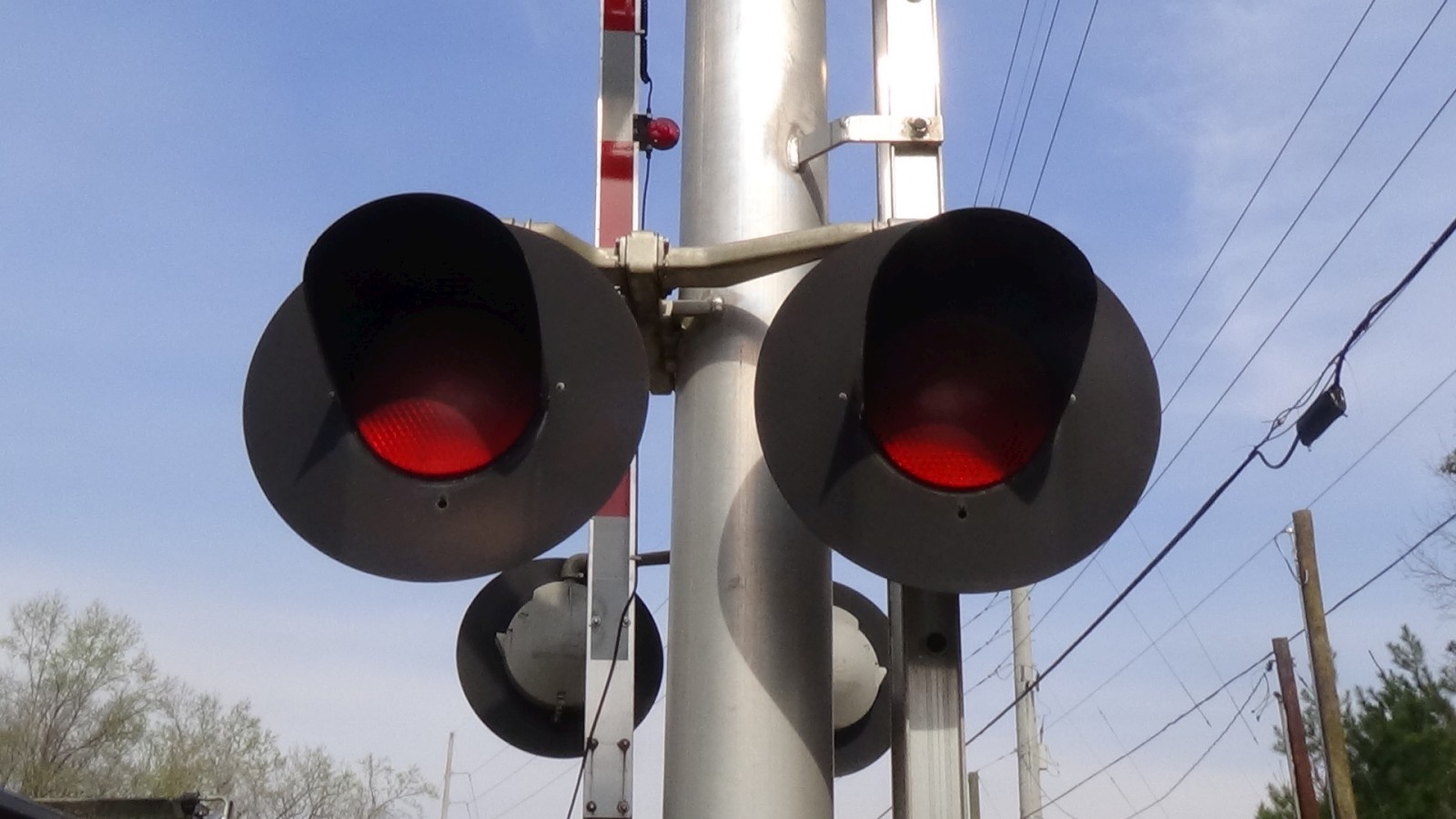

The front mast lights are Safetran 12x24 inch lights with Dialight Ball LEDs. |
|
9 |
10 |
11 |
12 |

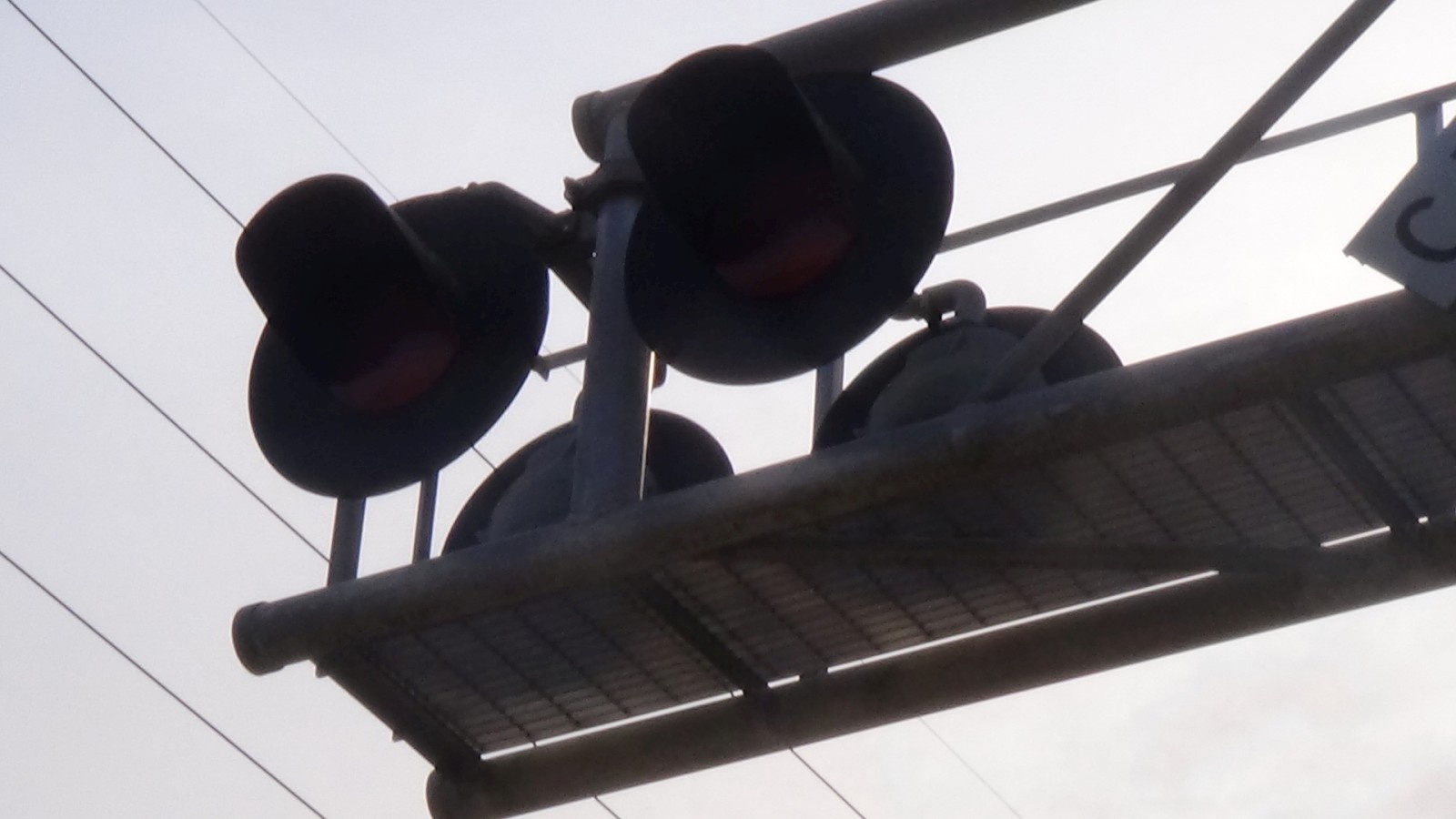

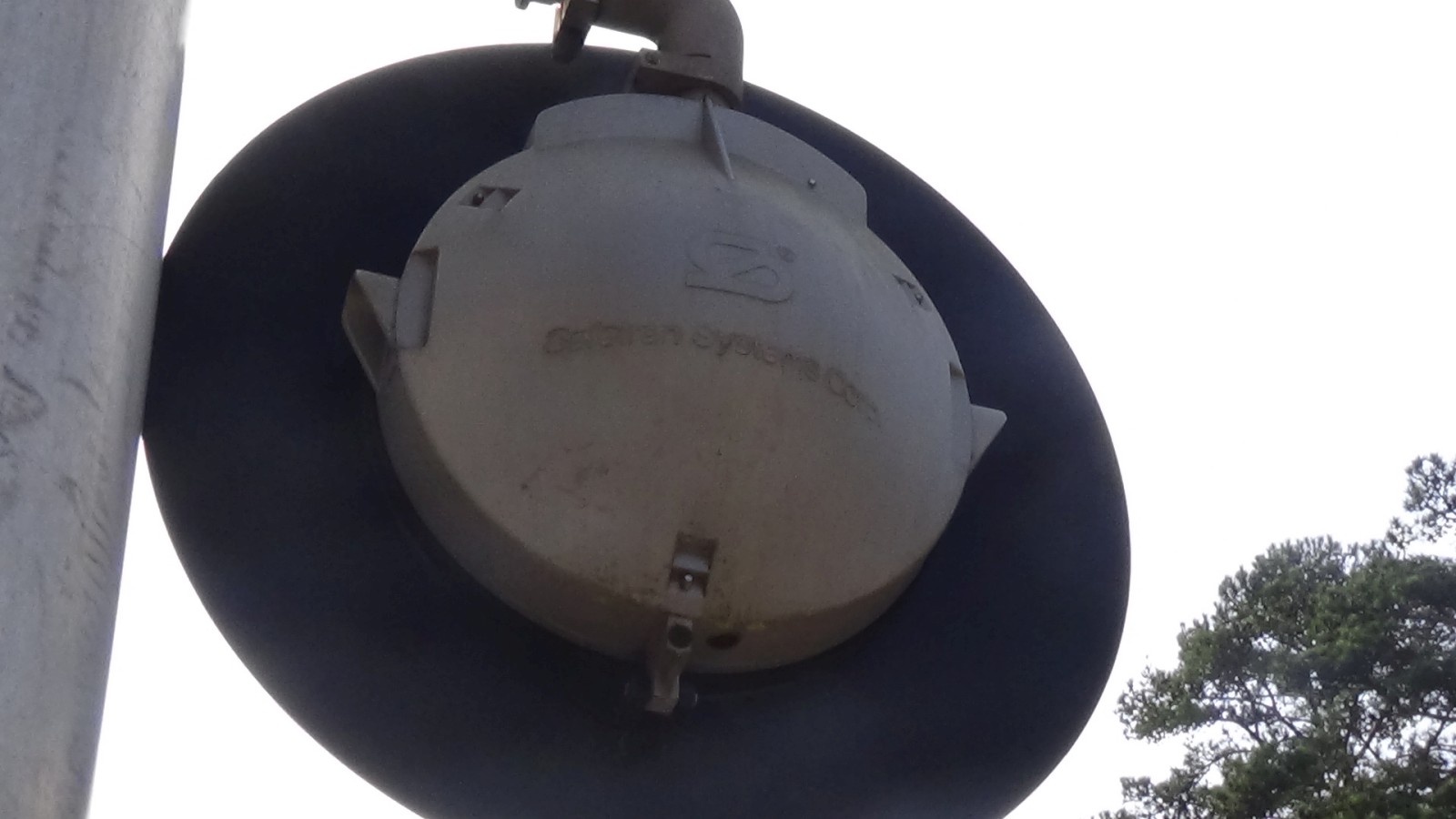

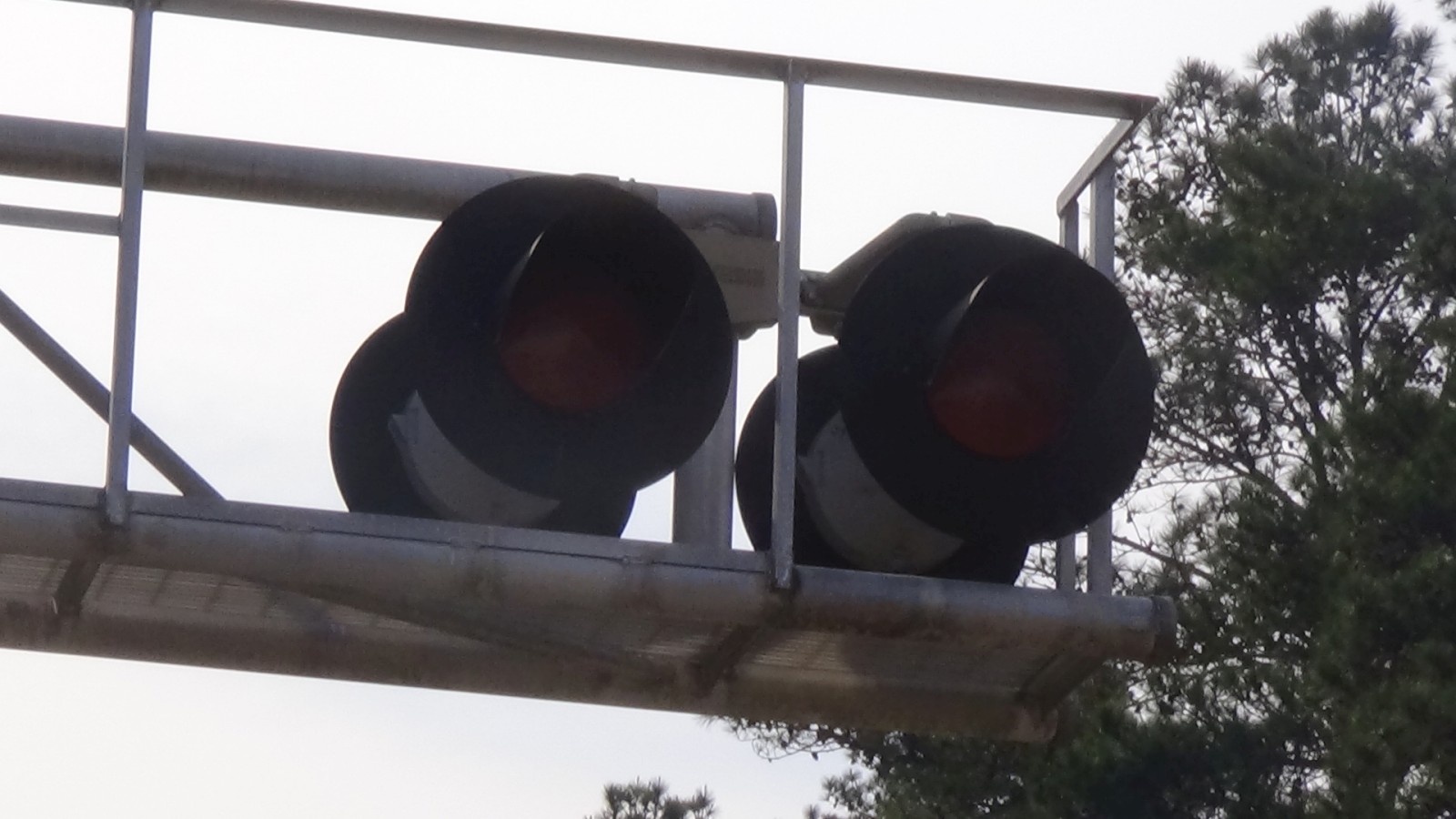

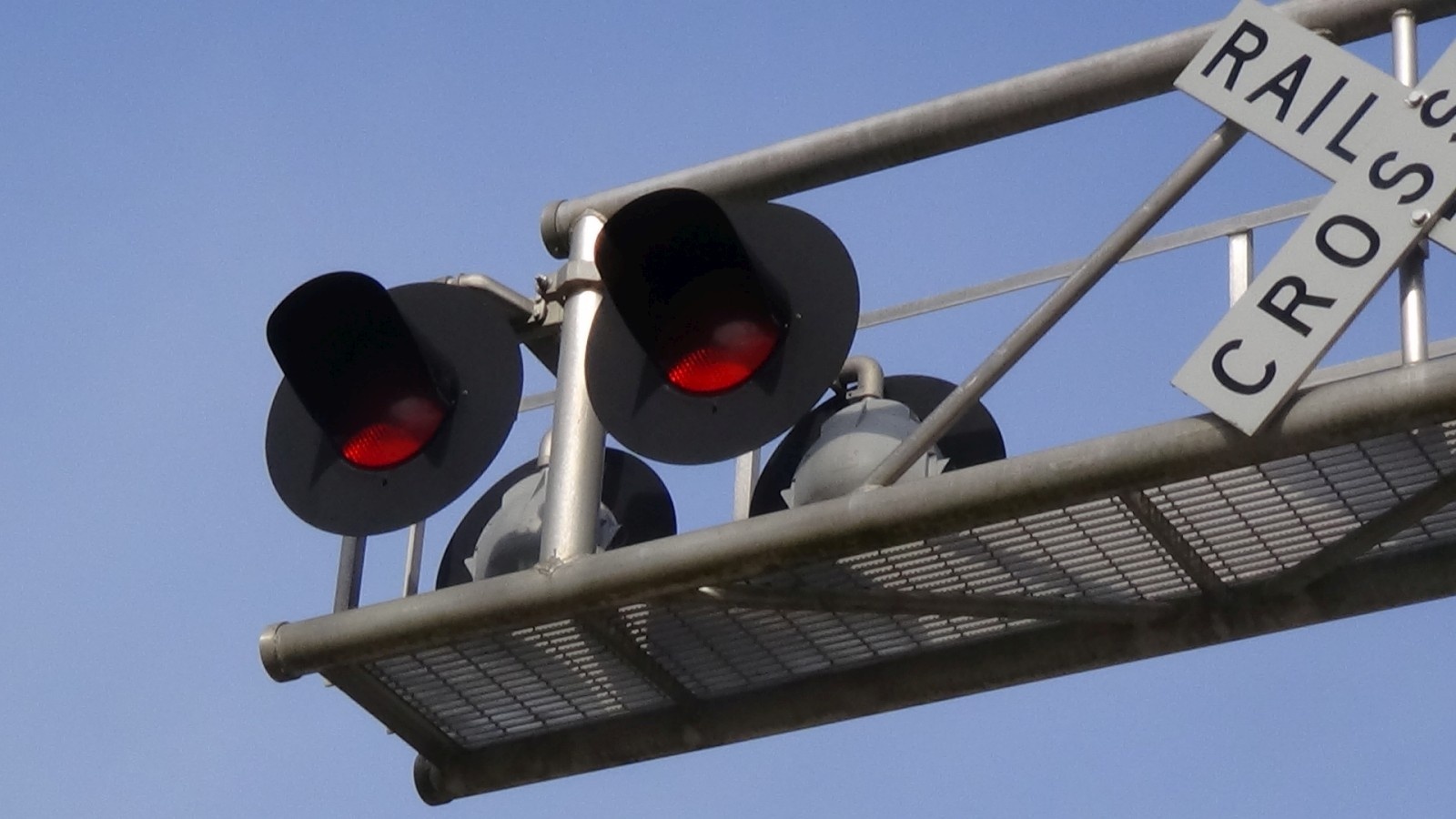

The overhead lights are more Safetran 12x24 inch lights with Dialight Ball LEDs. |

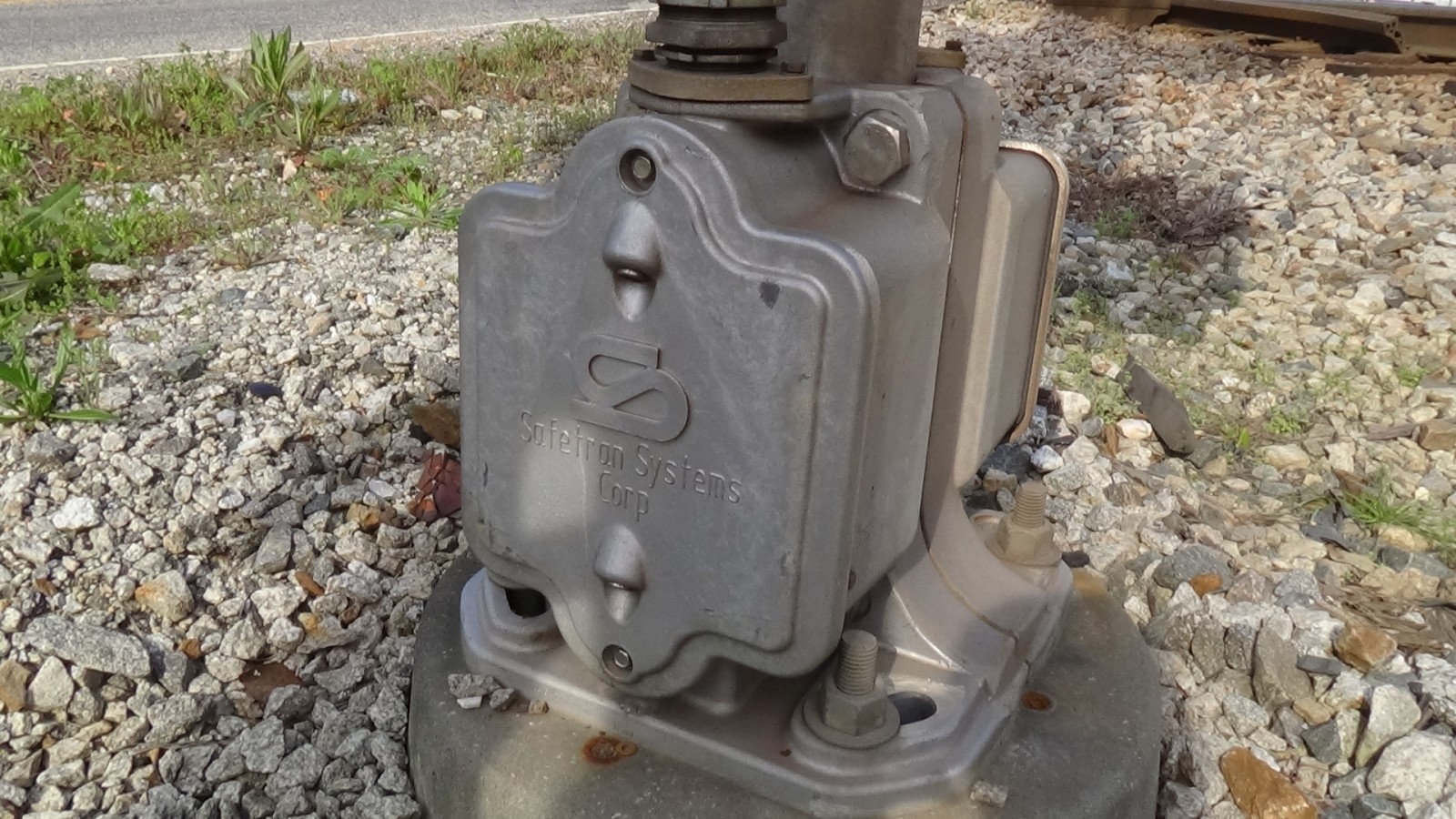

A Safetran base. |
A Safetran gate mechanism. |
|
13 |
14 |
15 |
16 |

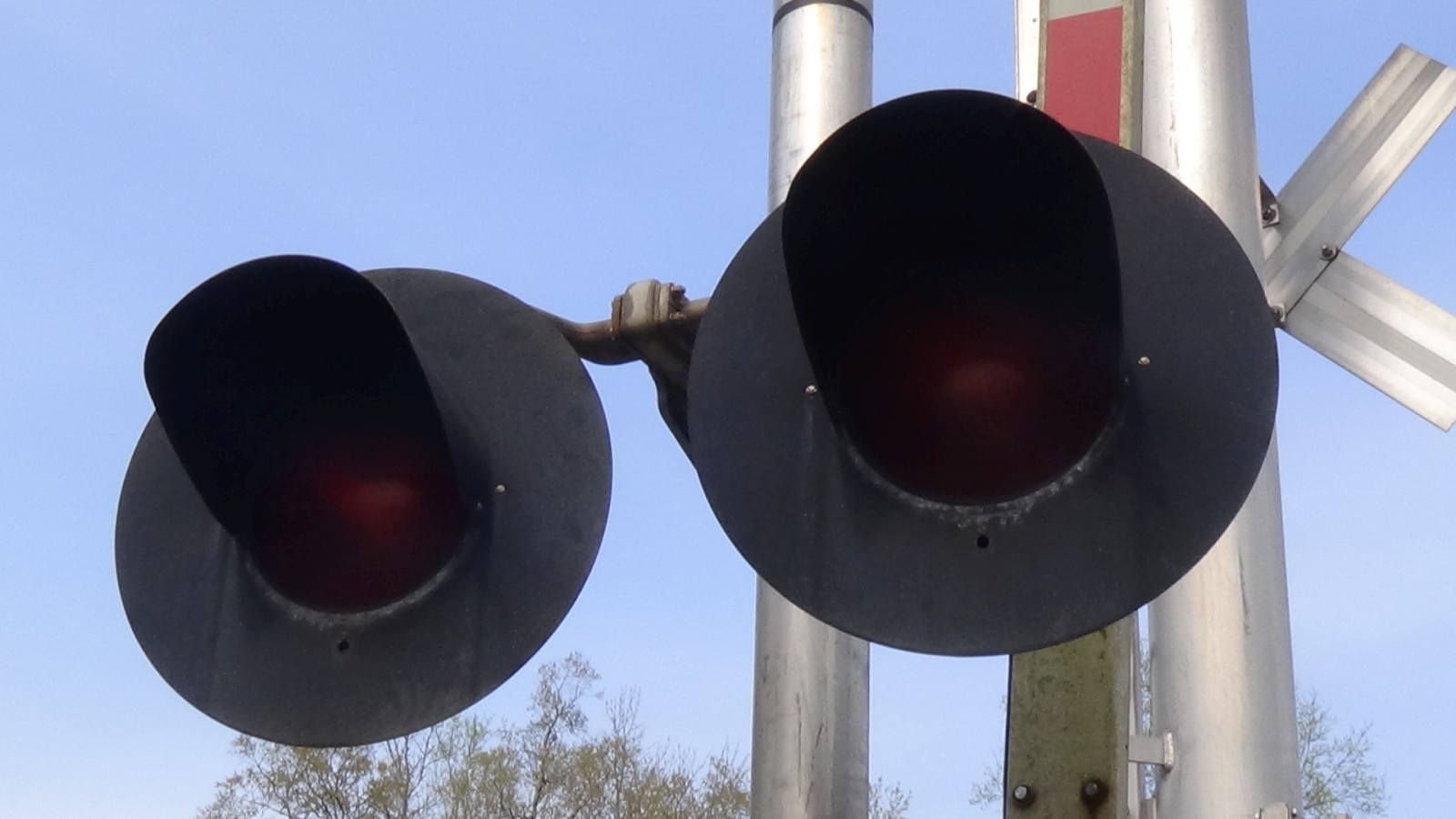

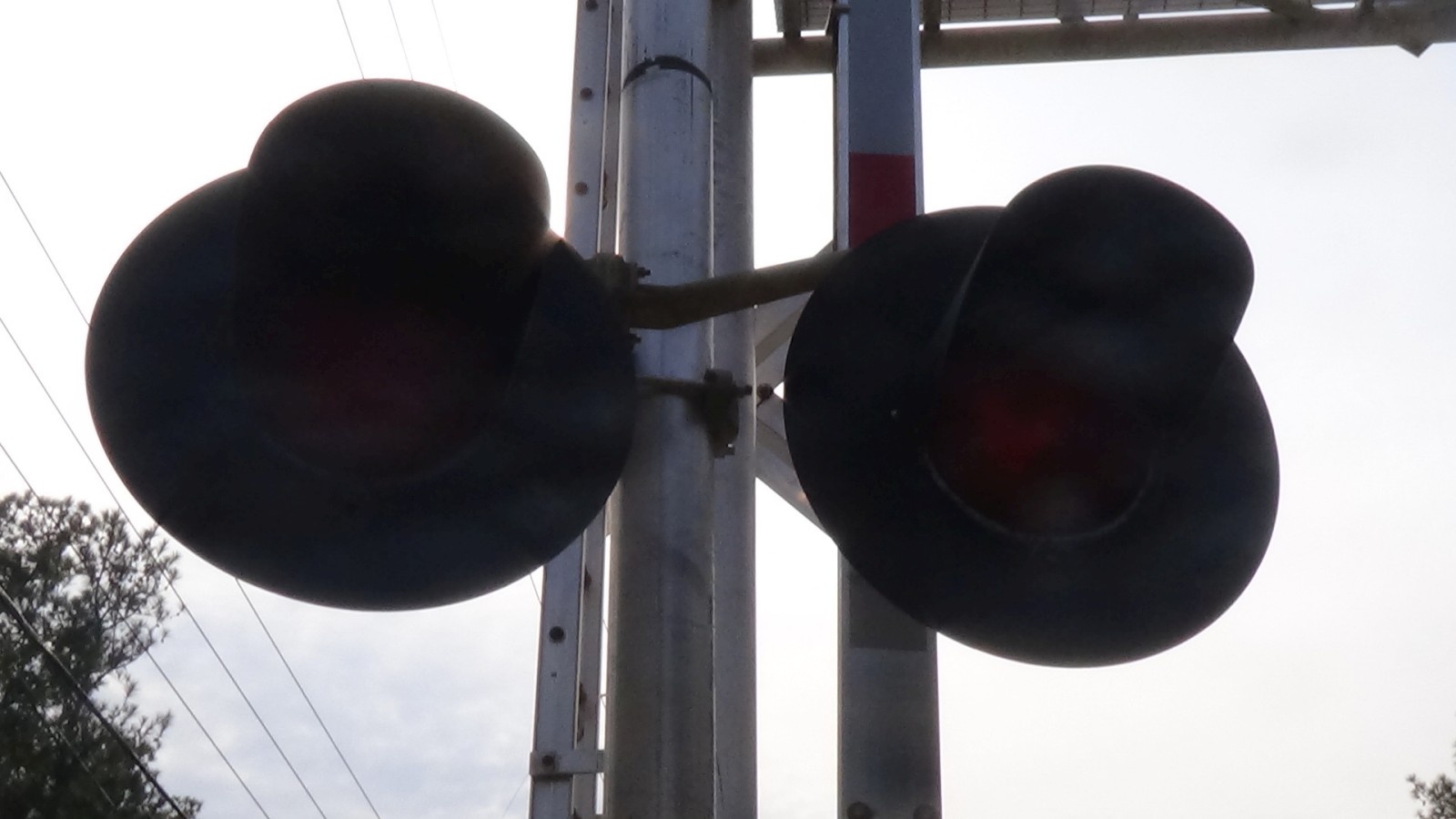

The rear mast lights are Safetran 12x24 inch incandescent lights. |

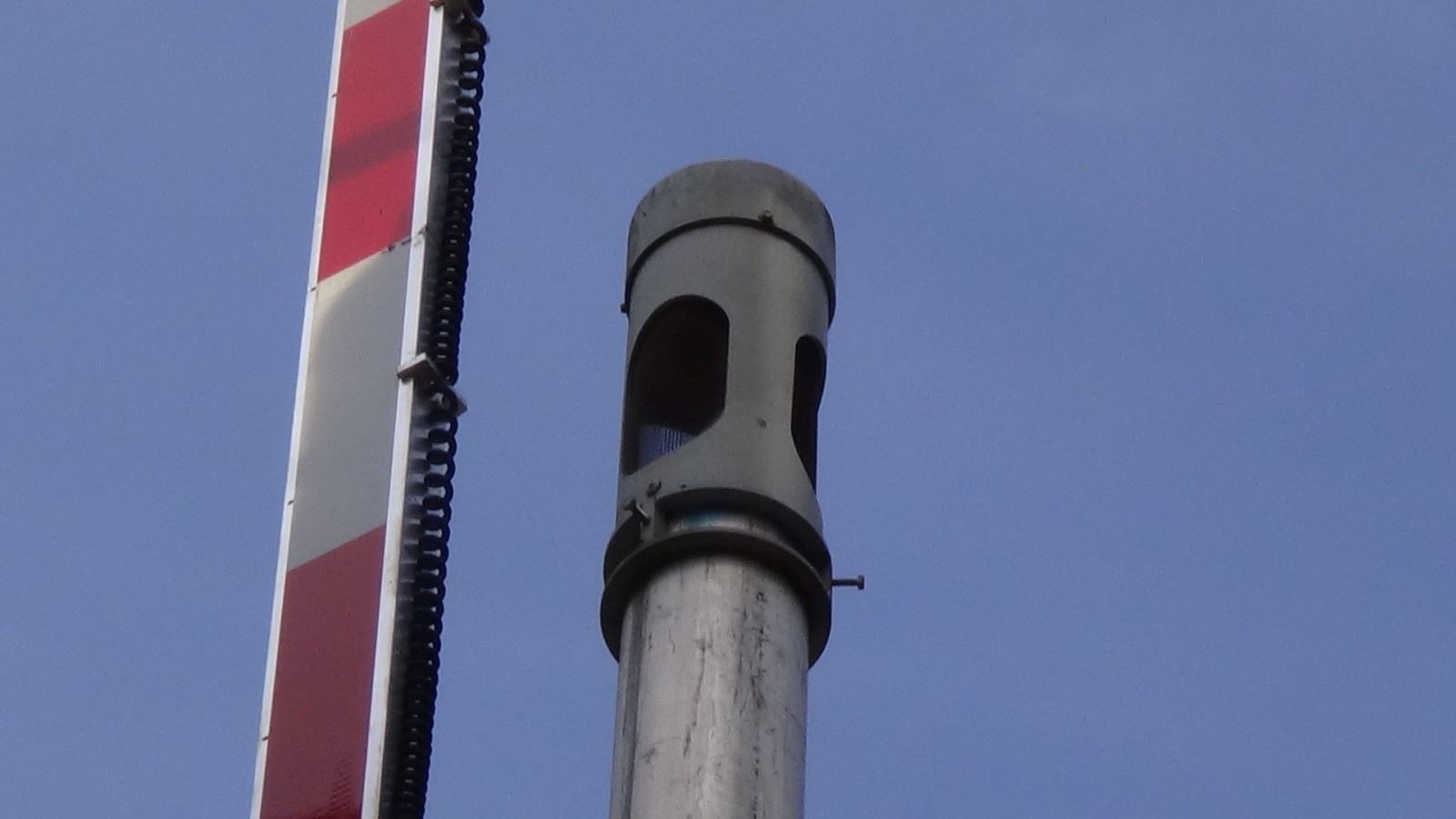

This signal has a Safetran Type 2 electronic bell. |

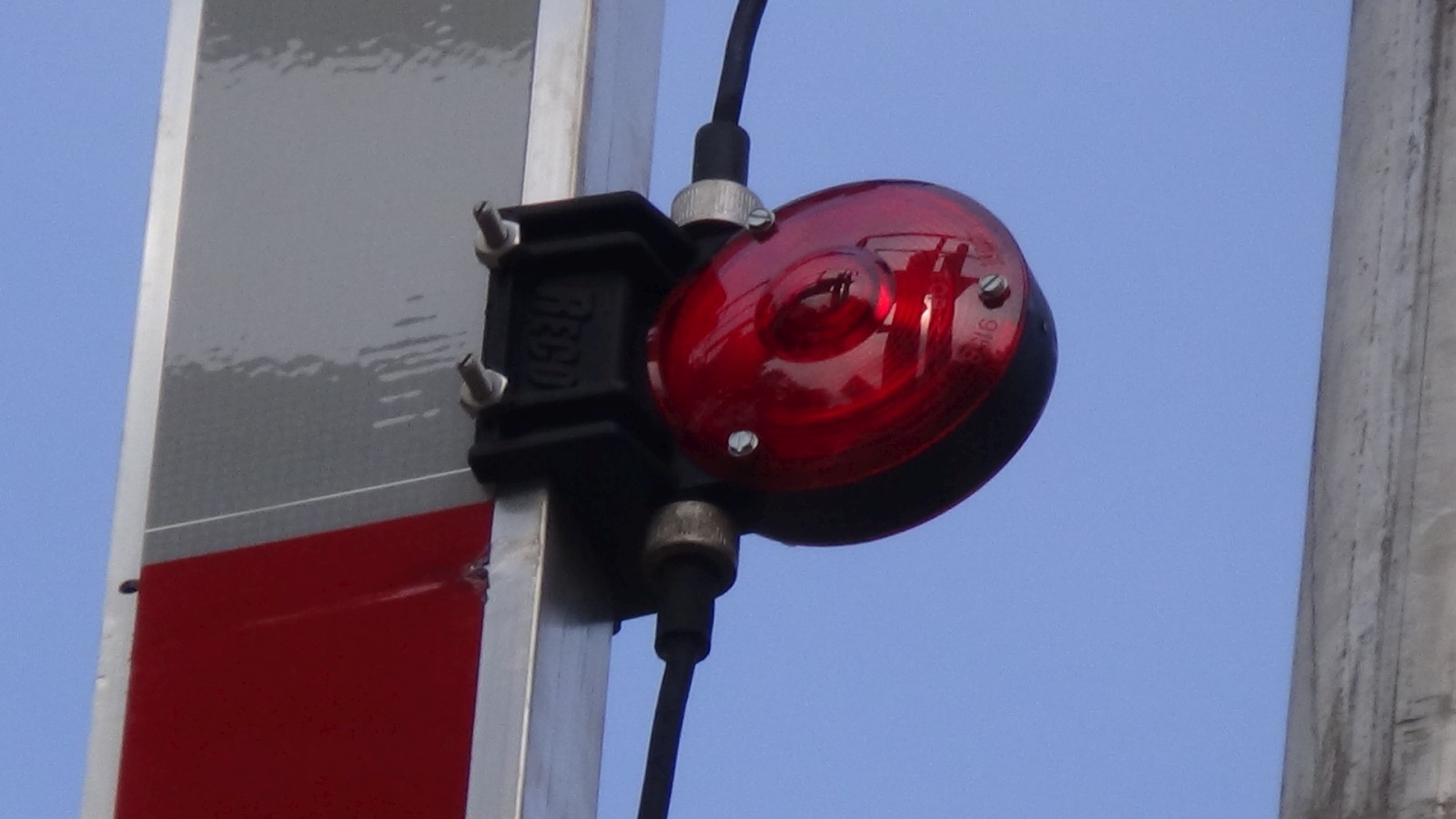

The gate lights are RECO LED gate lights. |
|
17 |
18 |
19 |
20 |
The second signal. |

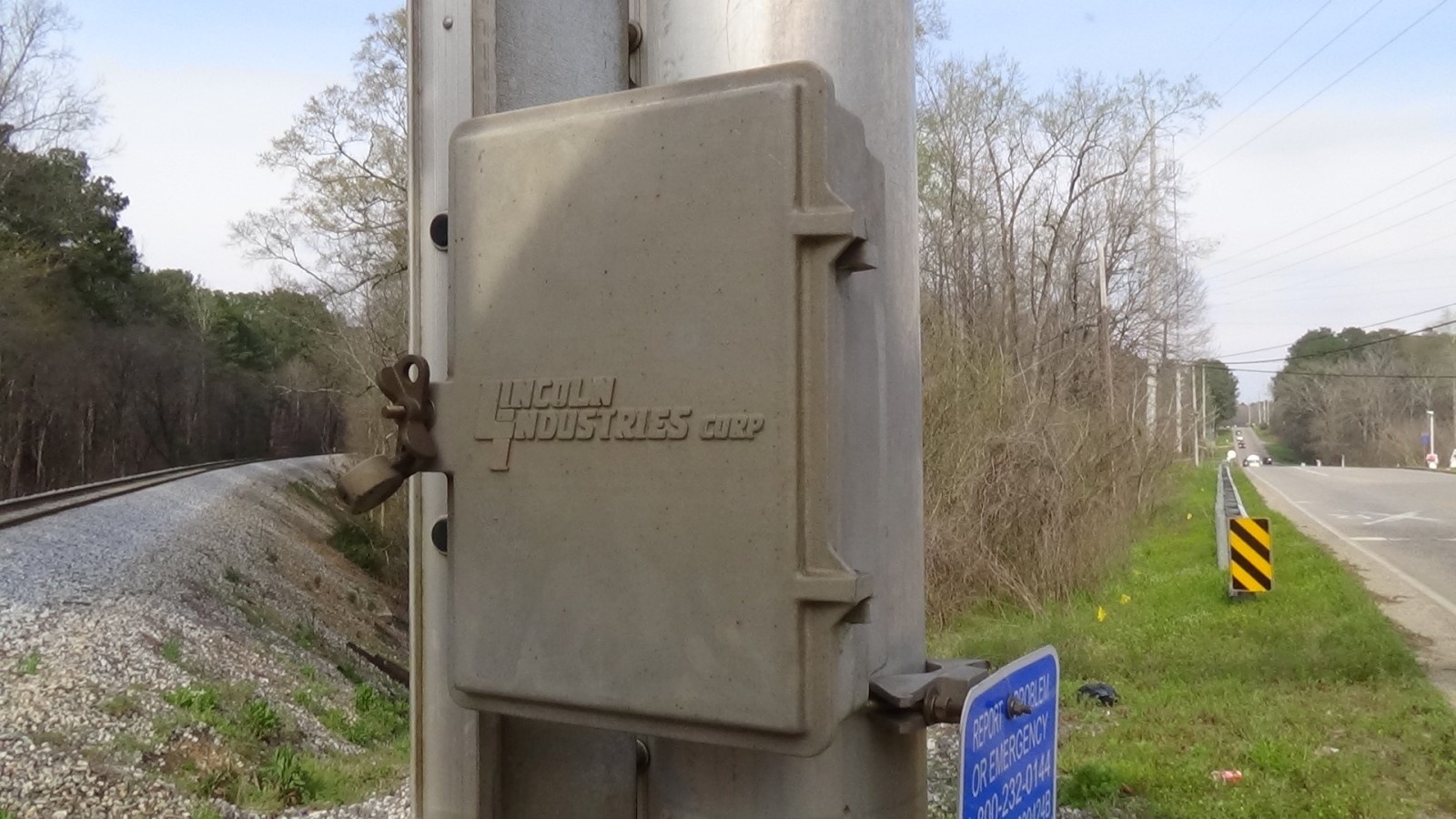

It's another Lincoln Industries cantilever. |
The emergency information |
|
21 |
22 |
23 |
24 |

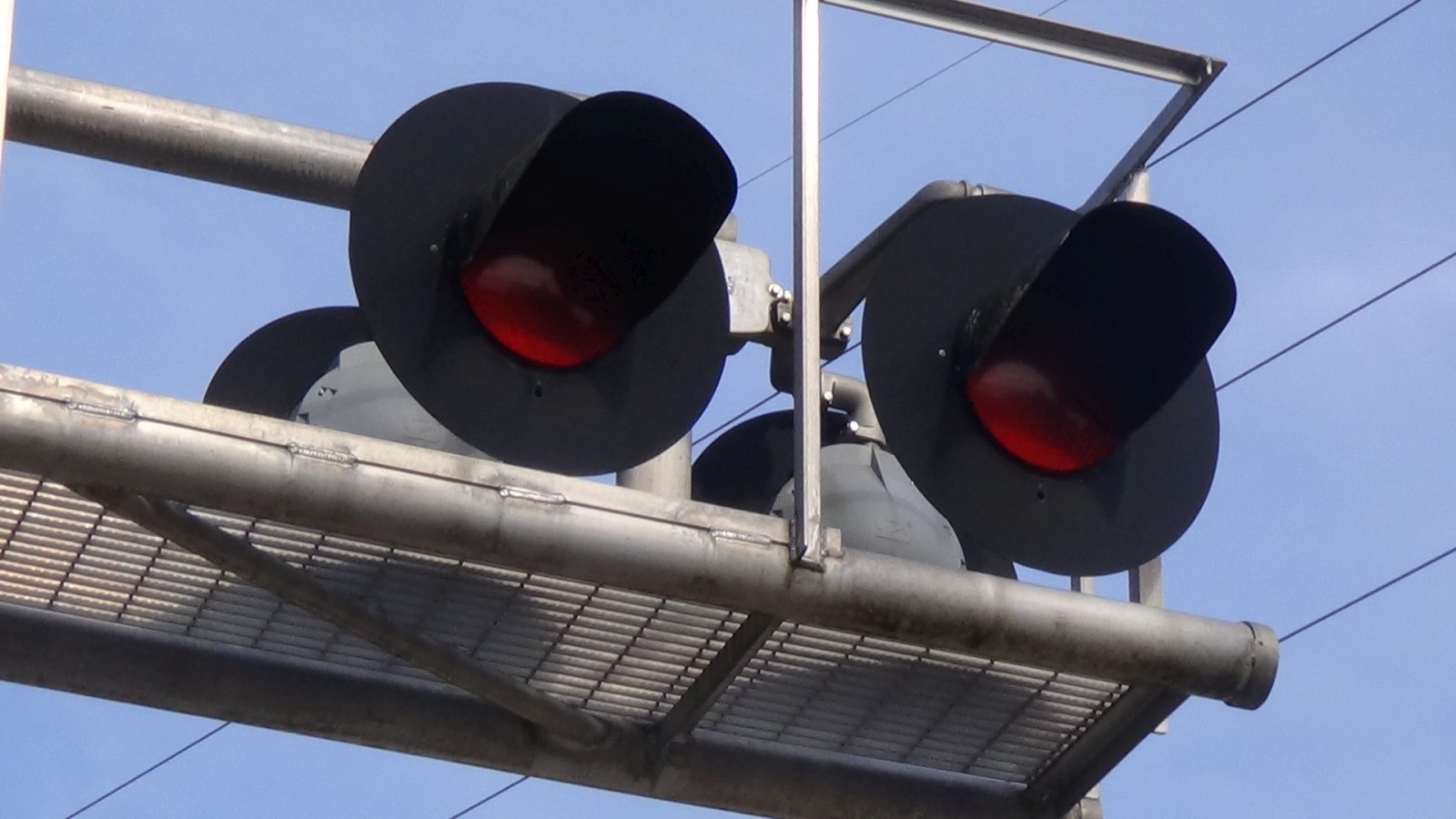

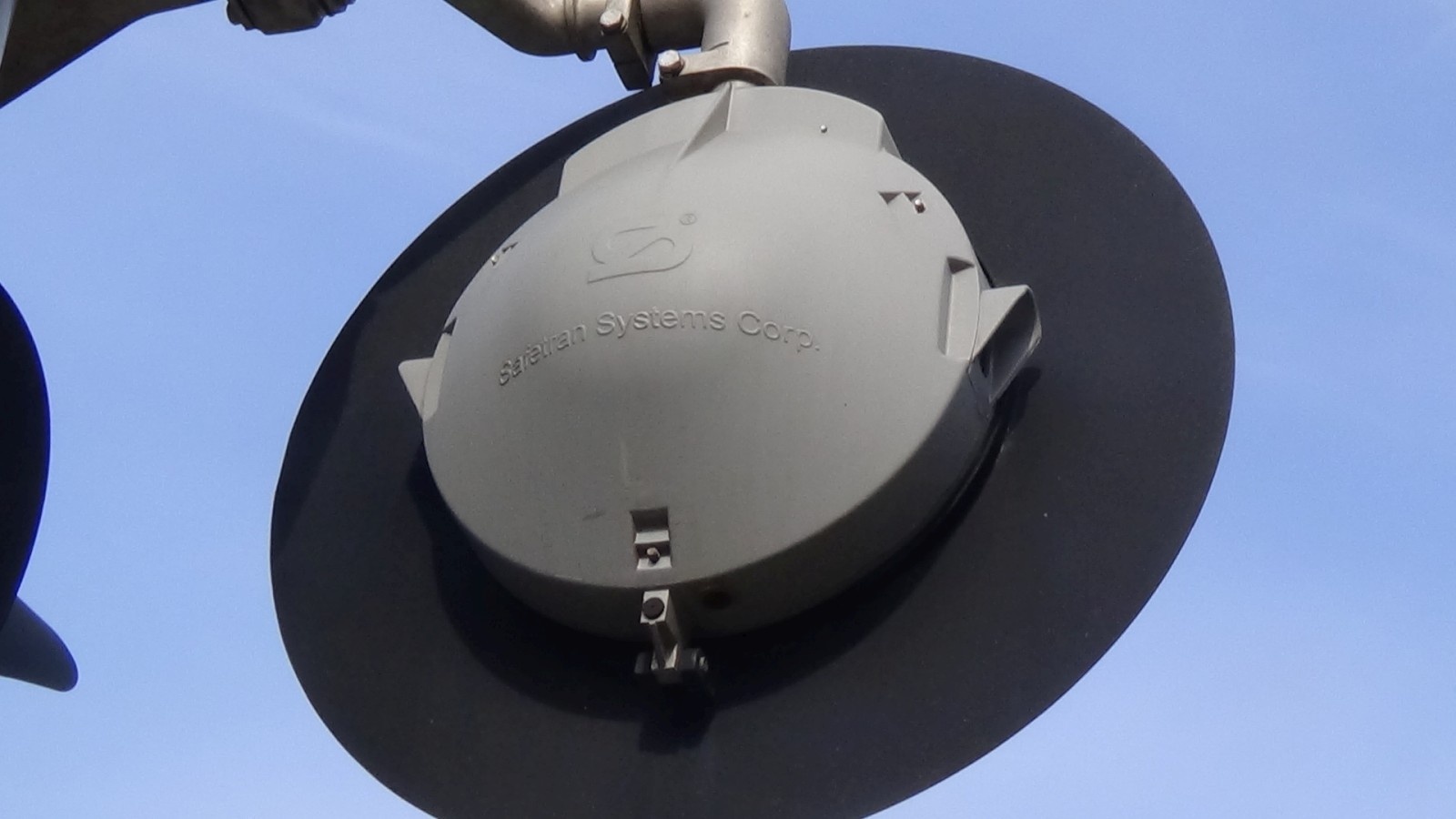

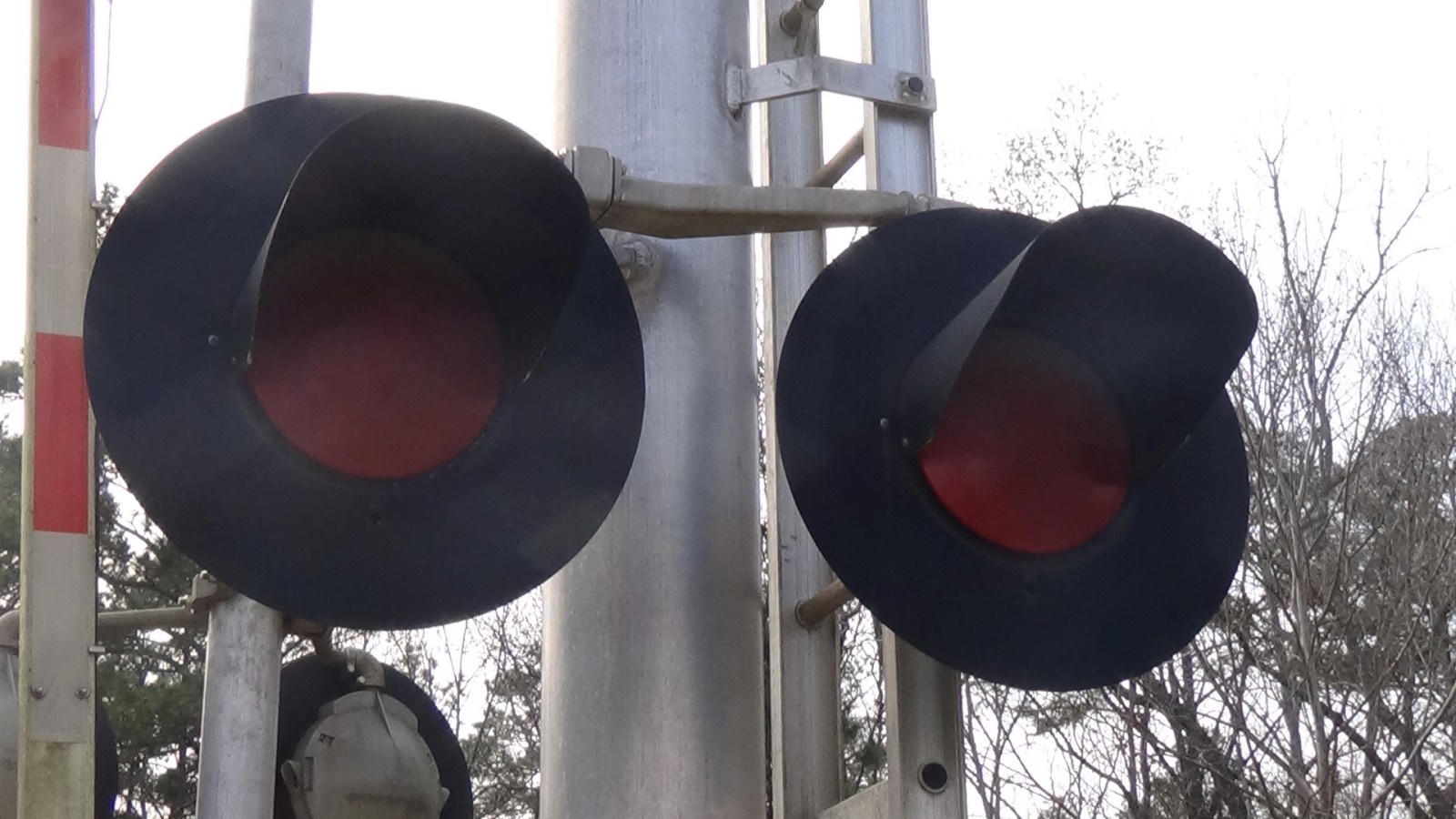

The lights on the cantilever's mast (the front mast lights) and the overhead lights are more Safetran 12x24 inch lights with Dialight Ball LEDs. |
|||
25 |
26 |
27 |
28 |
Another Safetran base. |

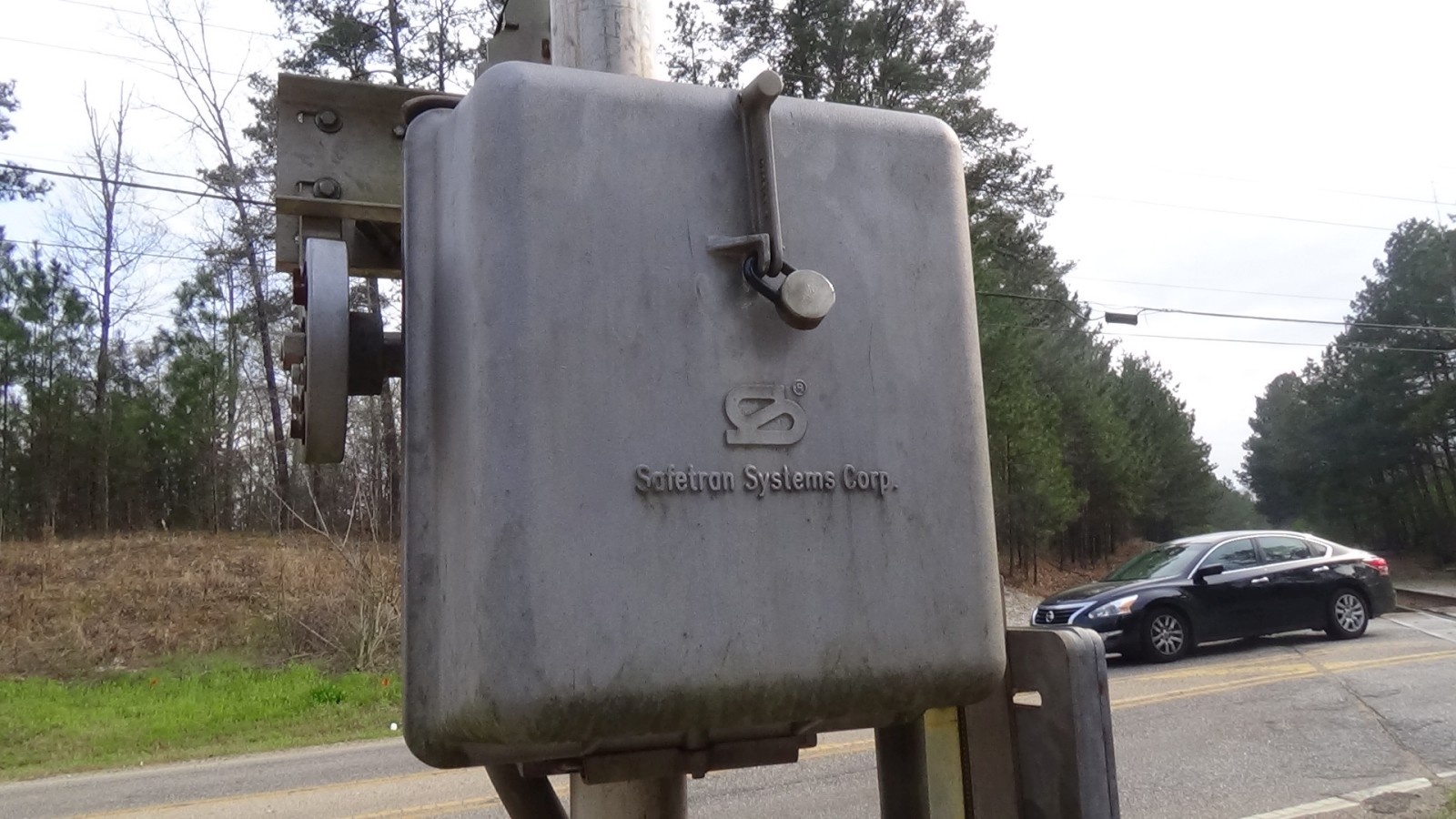

Another Safetran gate mechanism. |

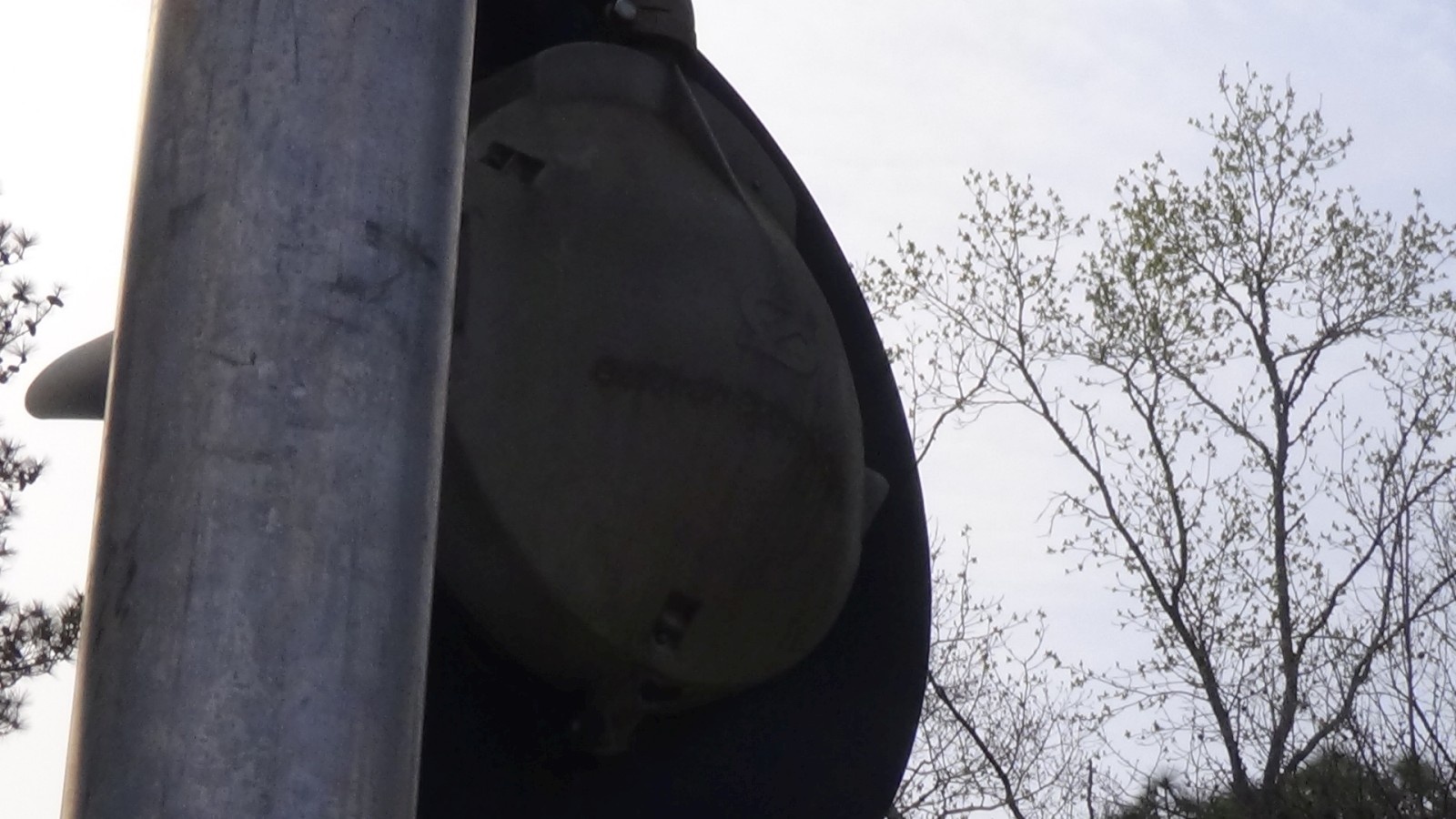

The rear mast lights on this signal are another pair of Safetran 12x24 inch incandescent lights. |
|
29 |
30 |
31 |
32 |
Another Safetran Type 2 electronic bell over here. |
More RECO LED gate lights on this signal. |

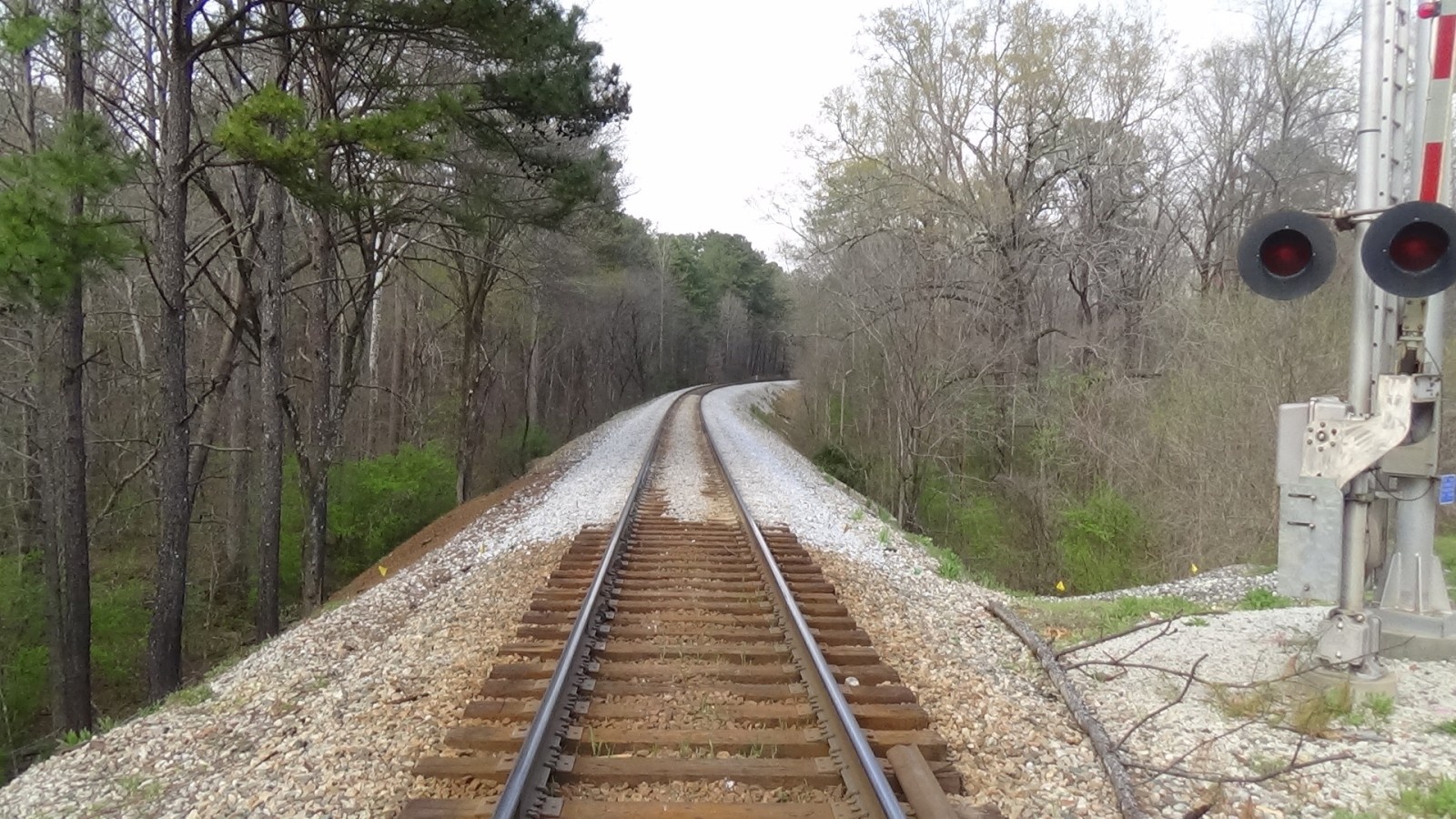

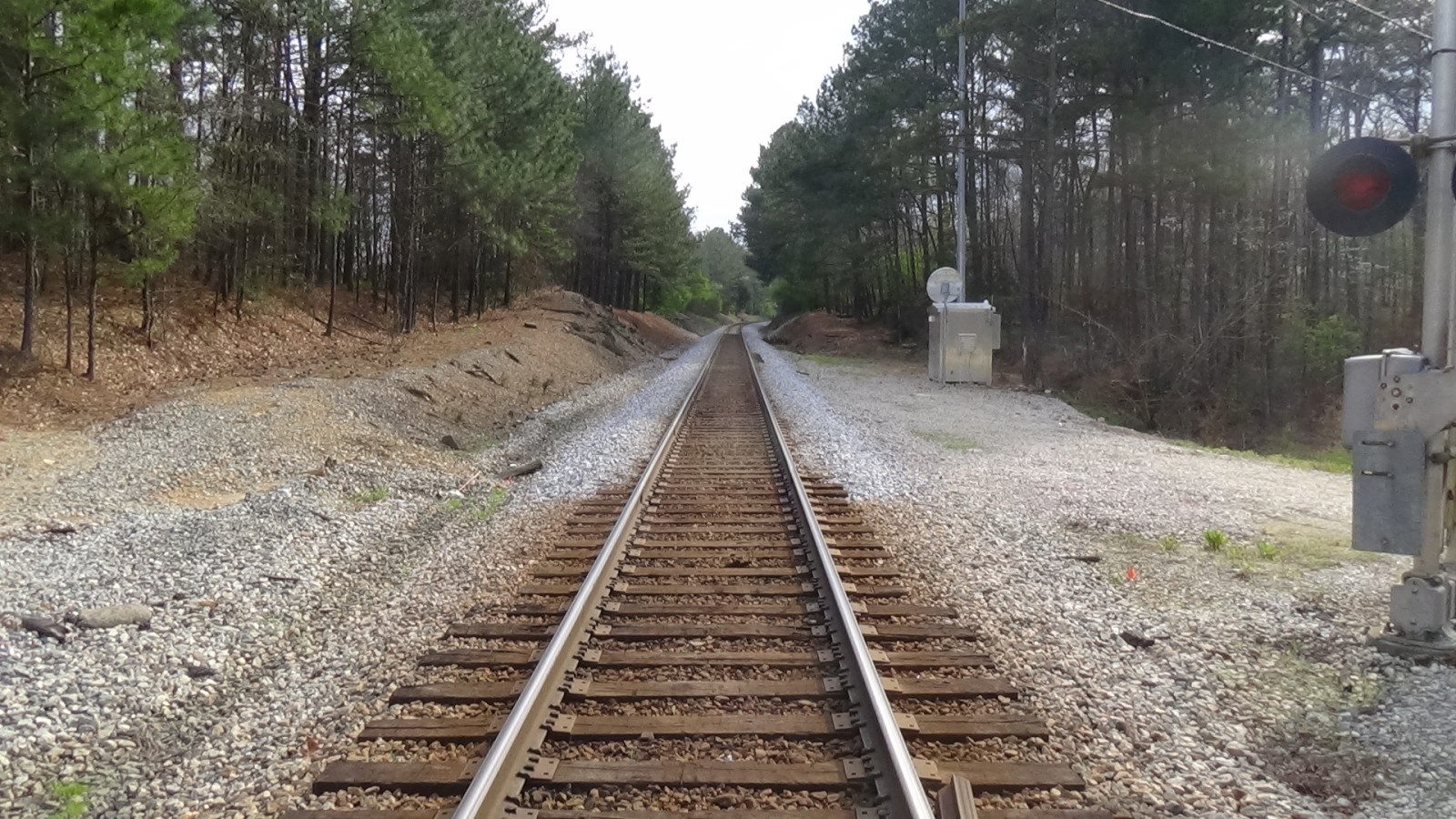

Track view looking south towards Weatherly Way in Pelham, AL. |
Track view looking north towards CR 47. |
33 |

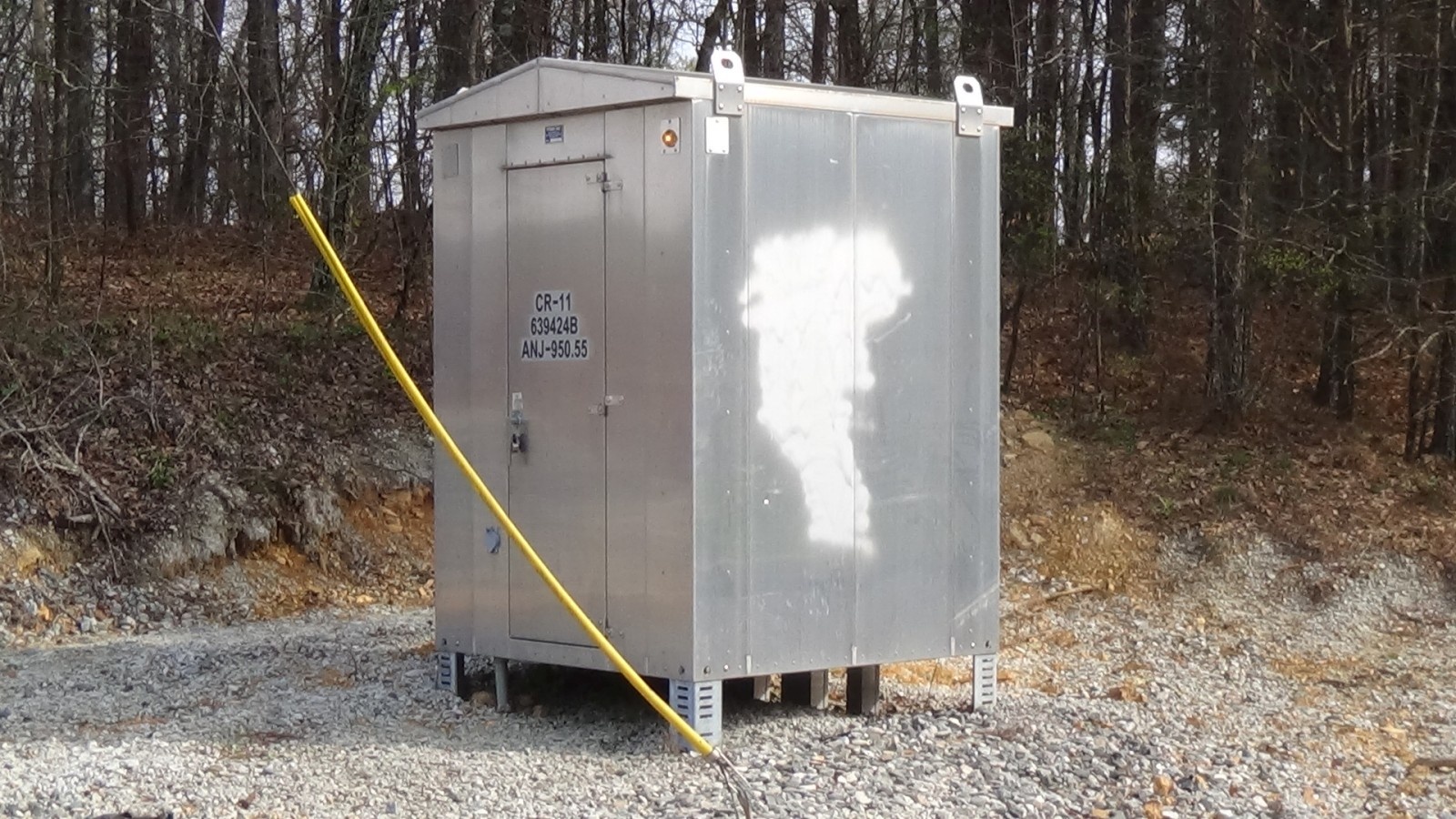

The relay case. |
All pictures were taken on 3-23-18.
