MP: A421.710 |
Updated December 13, 2022
Total Accidents: 1
Crossing
DOT #: 731979K
TOTAL
WEEKLY TRAINS: 2 (AS OF 2021)
Page created by: freebrickproductions
This crossing is located on an unnamed branch line off of the NS Memphis District West End.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | General Signals Type 2 electronic | General Signals Type 2 electronic |
| Base: | 2 - Safetran | 1 - Safetran |
| Light Frames: | 6 - 12x20" Safetran w/ GE Uniform Look LEDs | 4 - 12x20" Safetran w/ GE Uniform Look LEDs |
| Gate Lights: | 3 - RECO LEDs | 1 - NEG LED 2 - RECO LEDs |
| Gate Mechanism: | Siemens Sticker Style 2 | Siemens Sticker Style 2 |
| Gate Striping: | Vertical | Vertical |
1 |
2 |
3 |
4 |

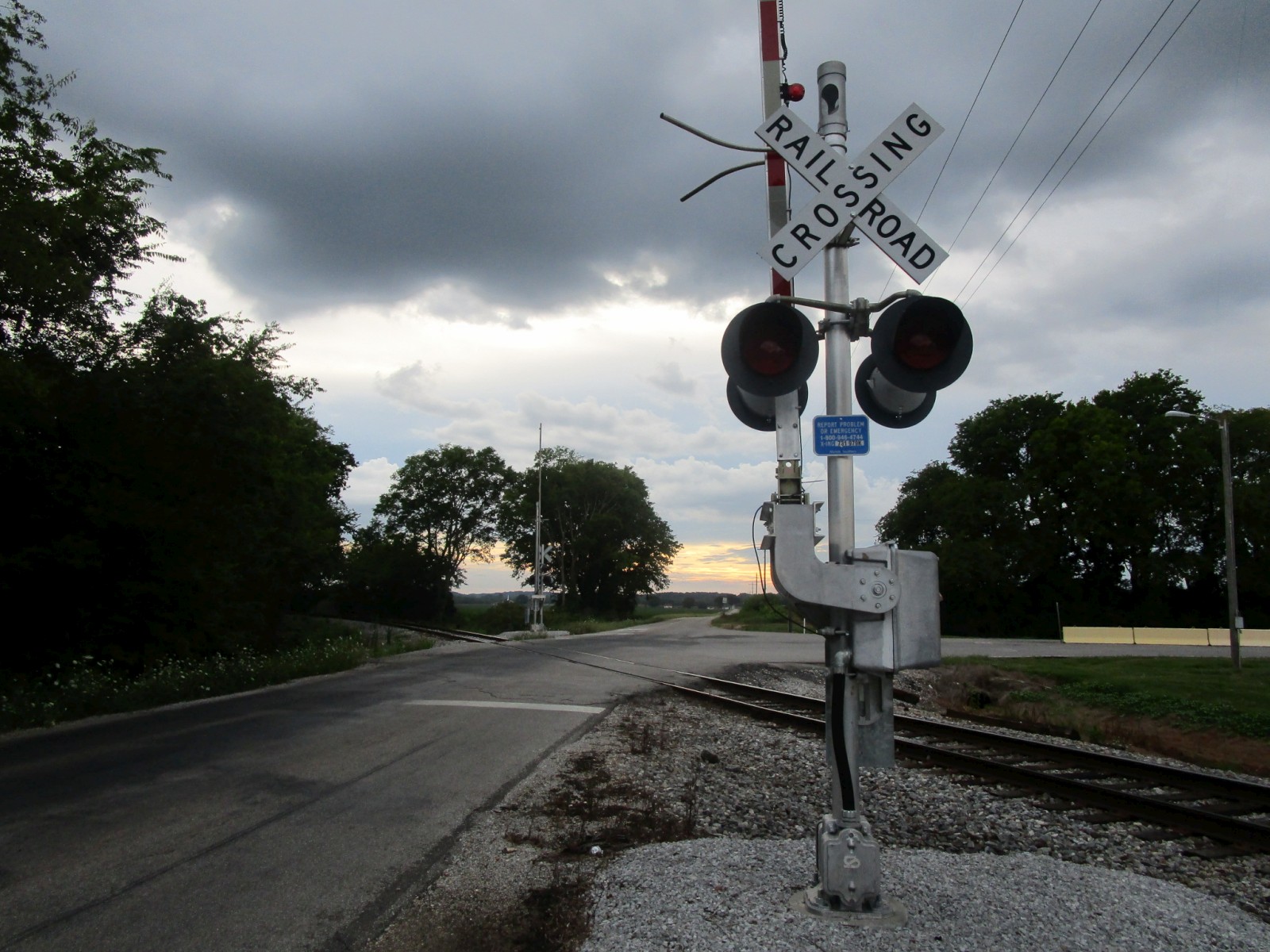

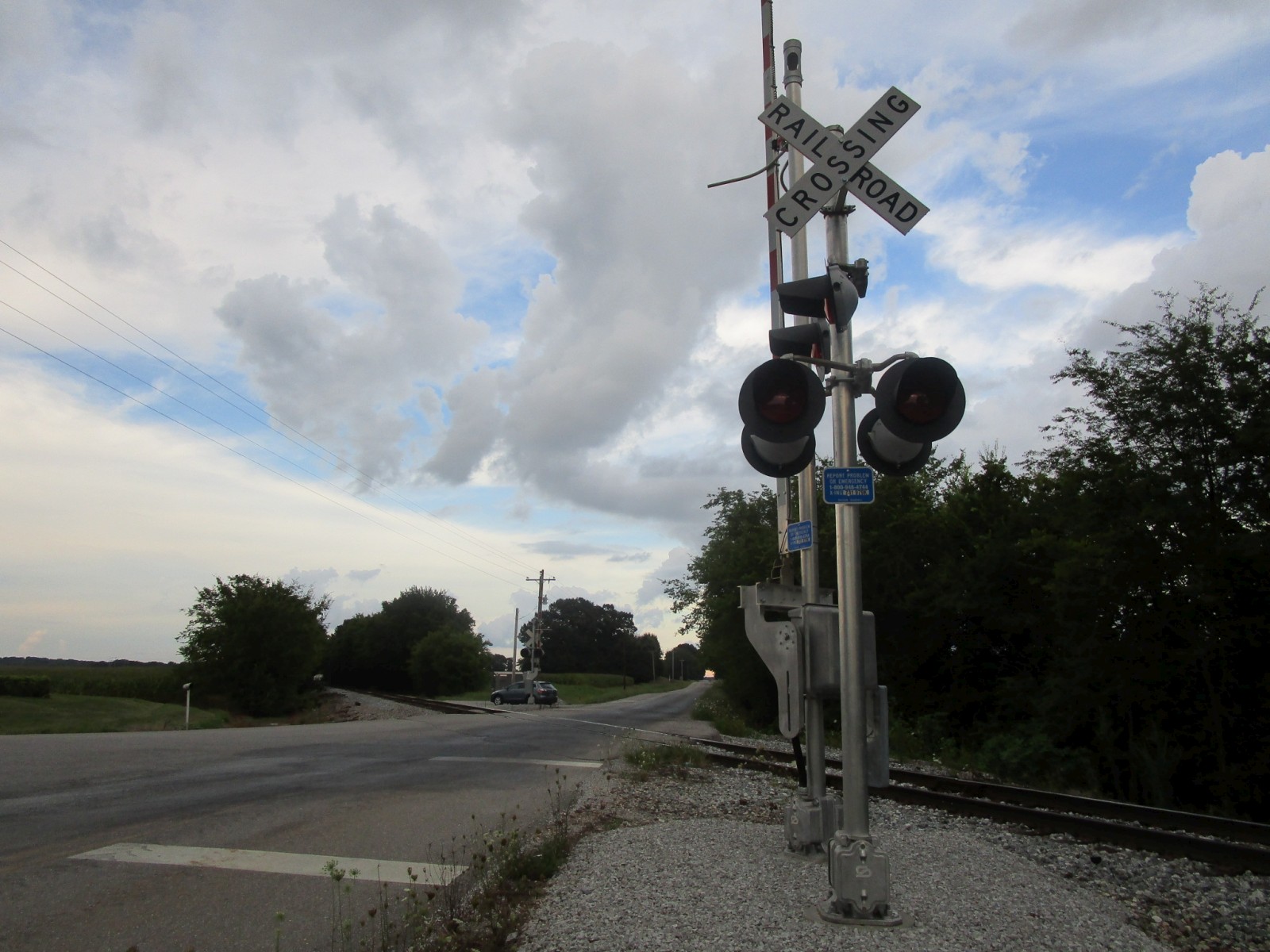

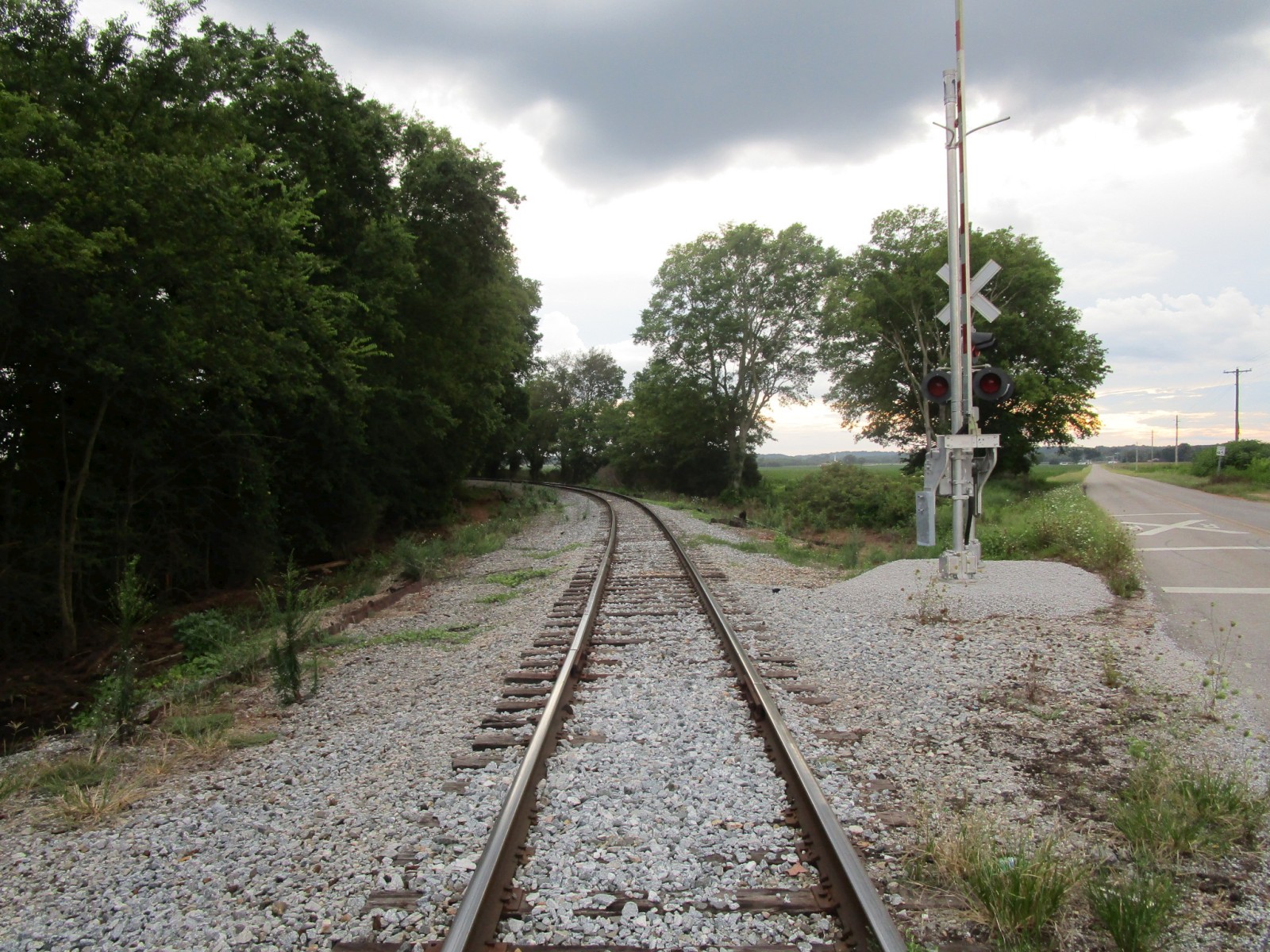

Overviews of the crossing. |

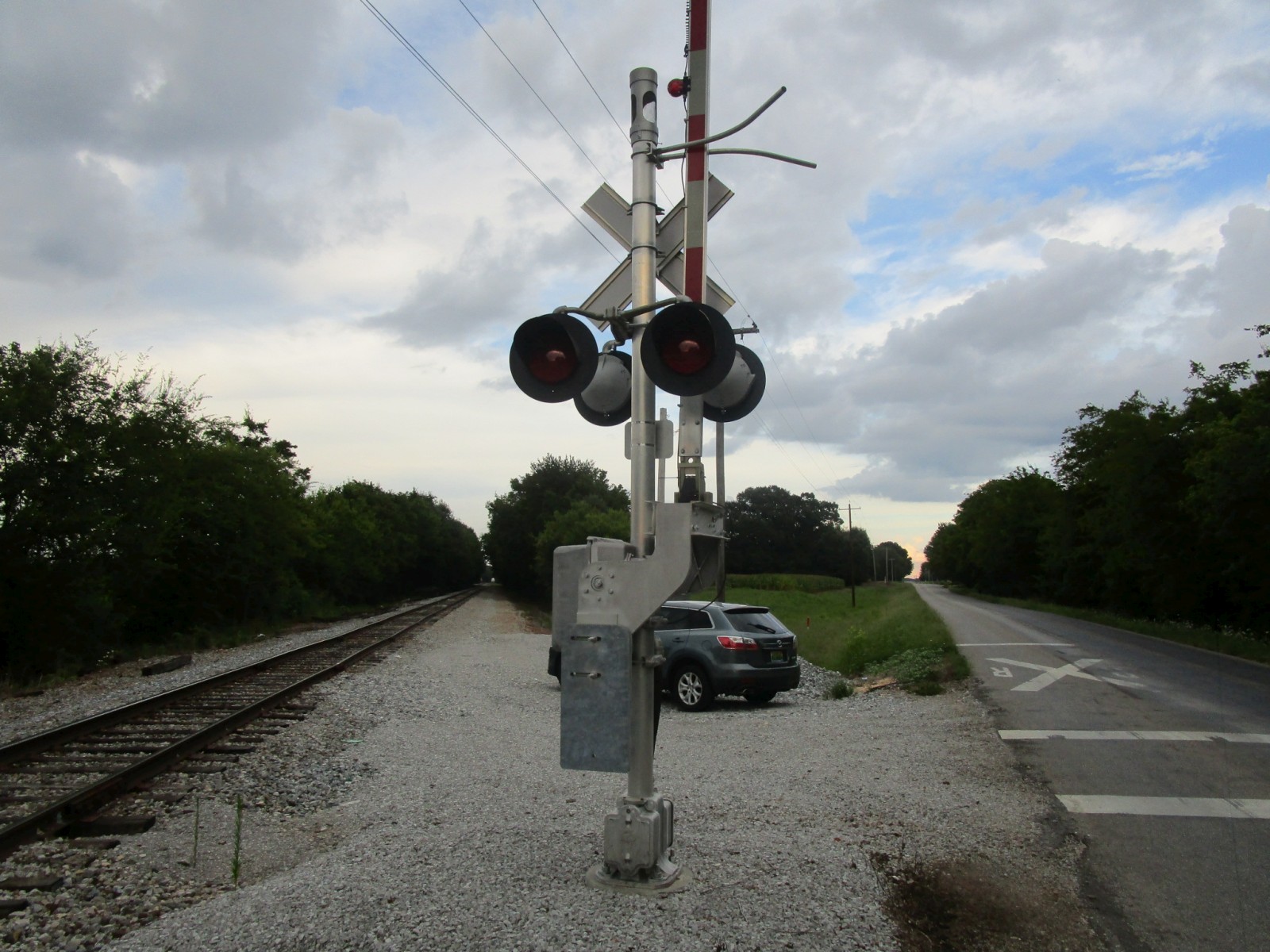

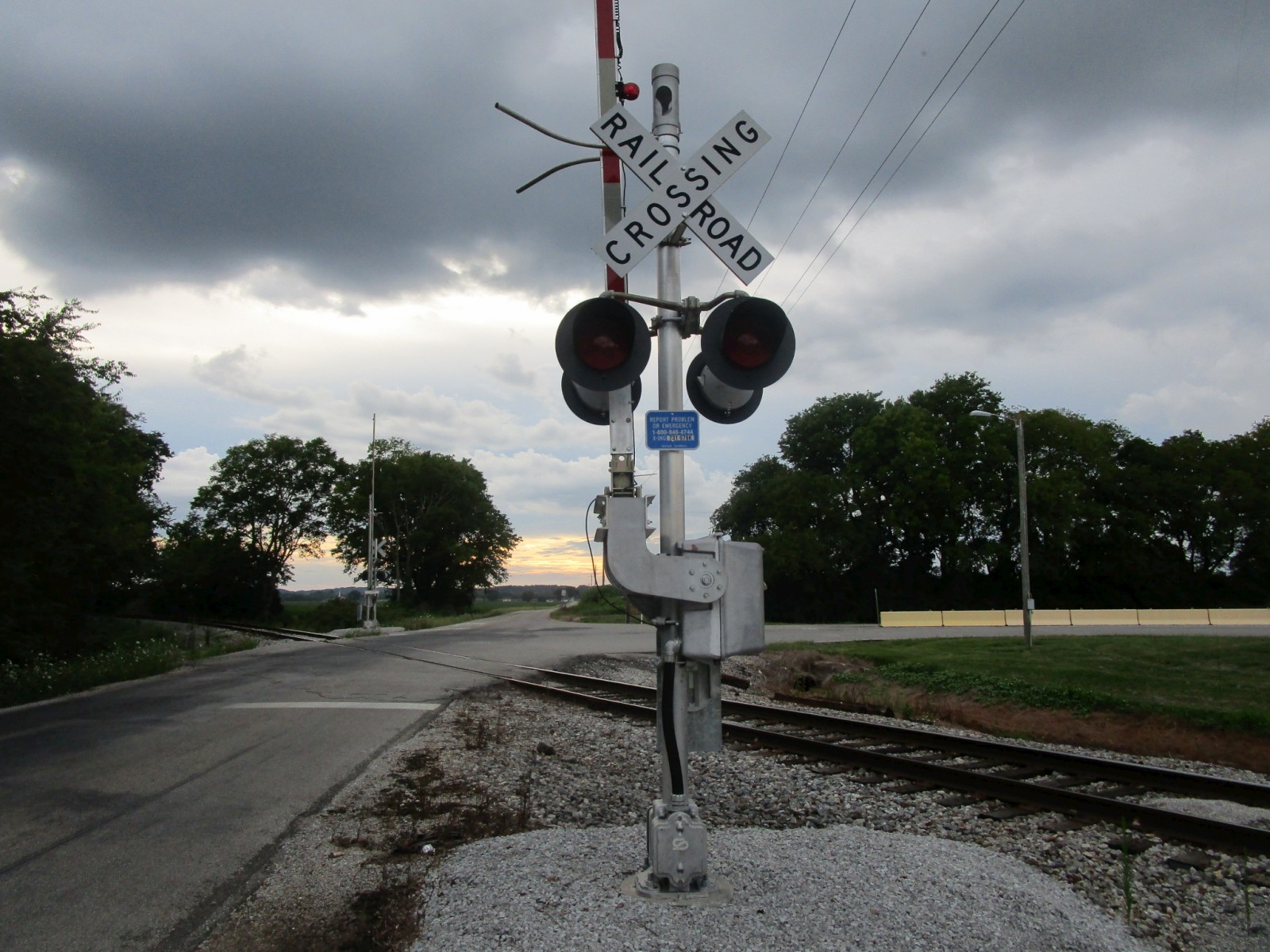

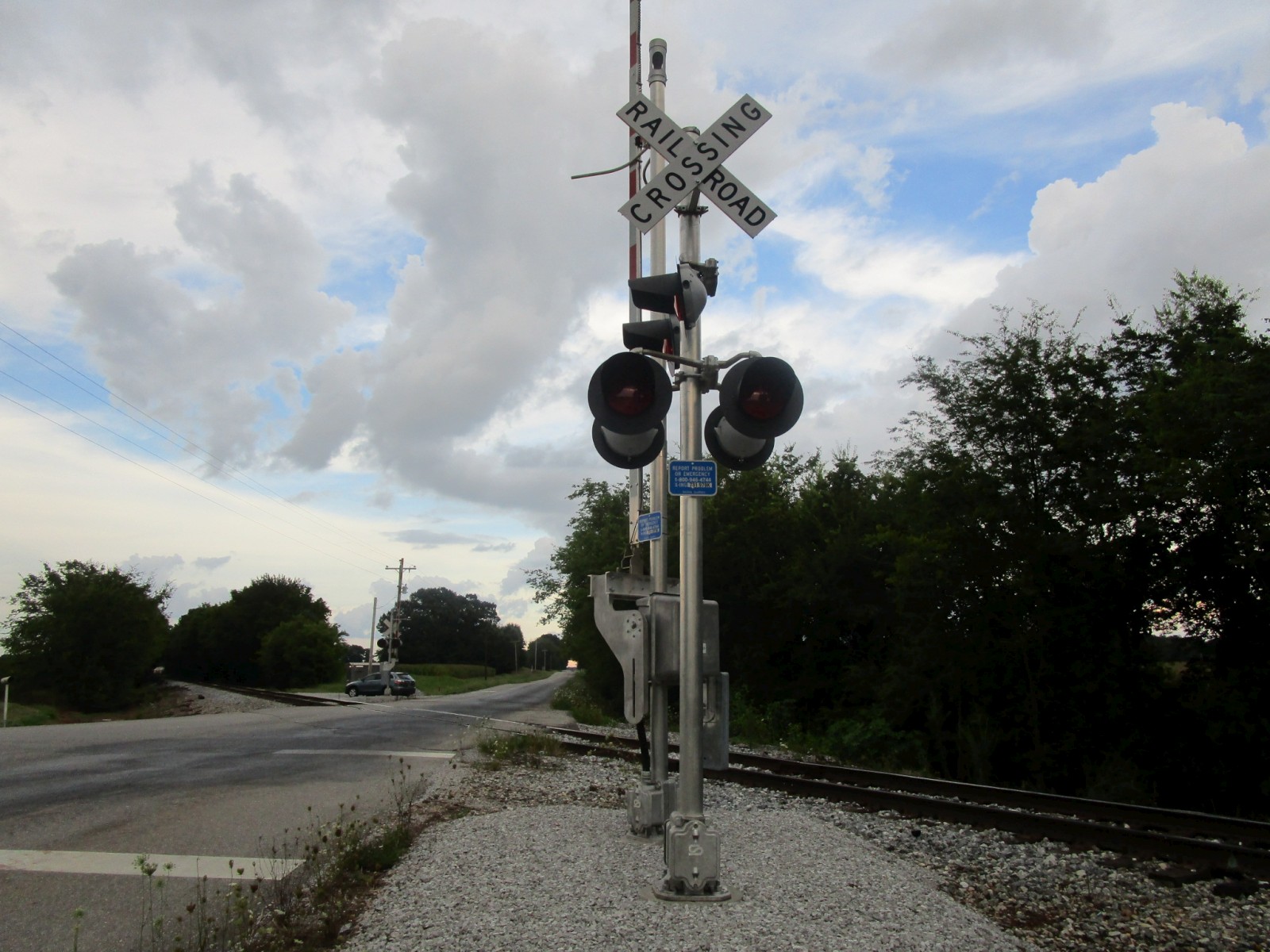

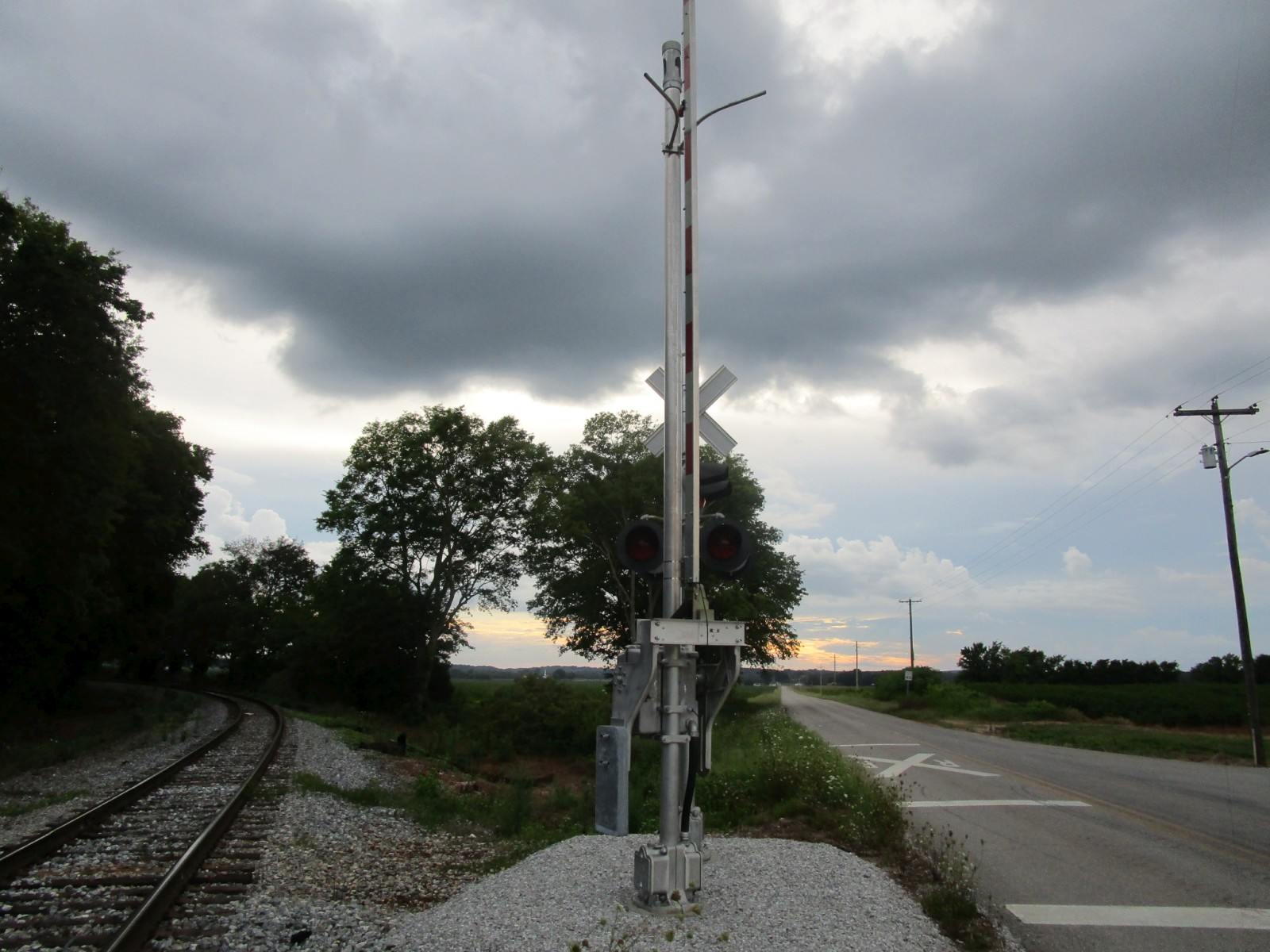

The first signal, which is a somewhat unusual double-mast install. |
||
5 |
6 |
7 |
8 |

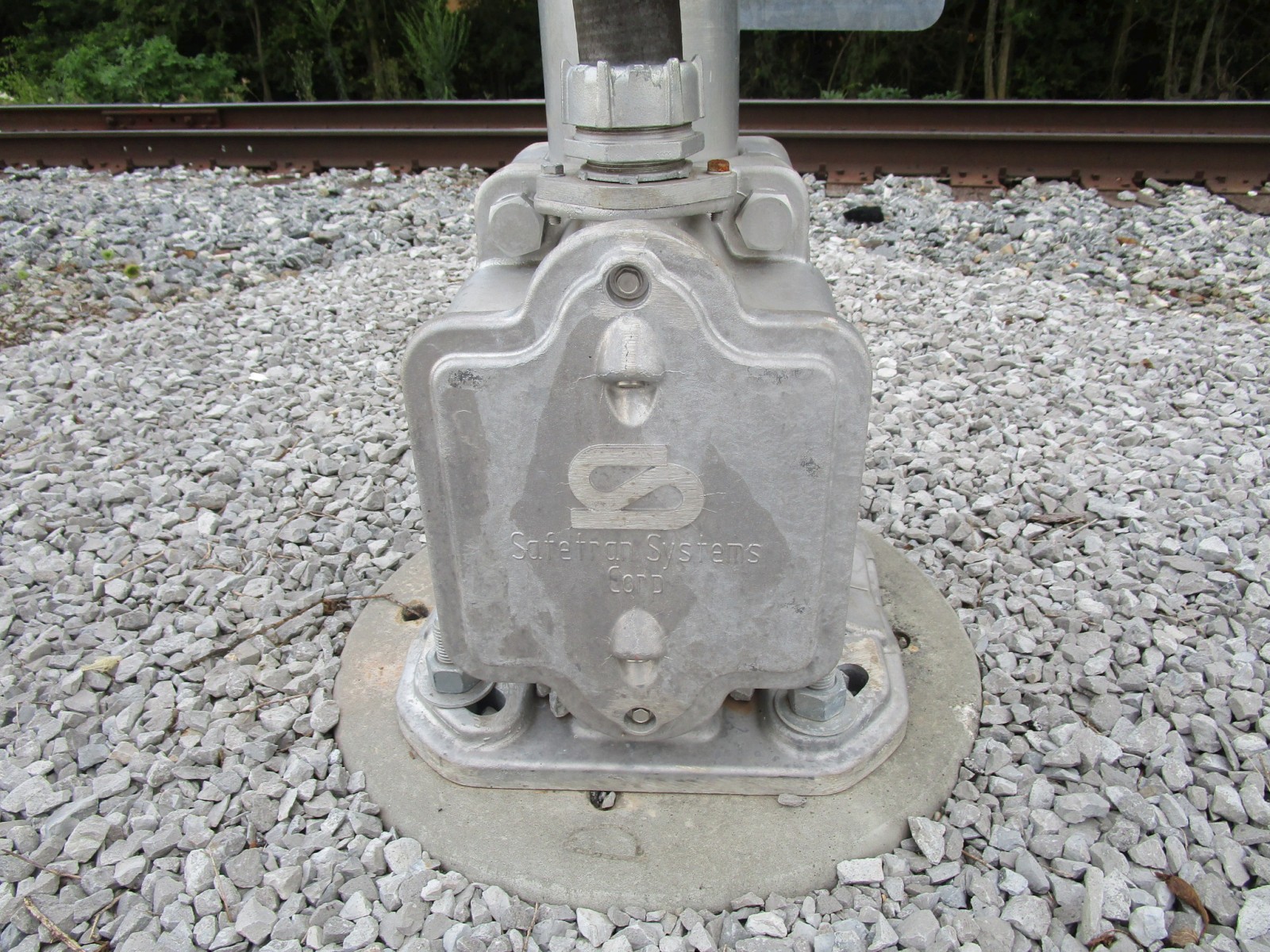

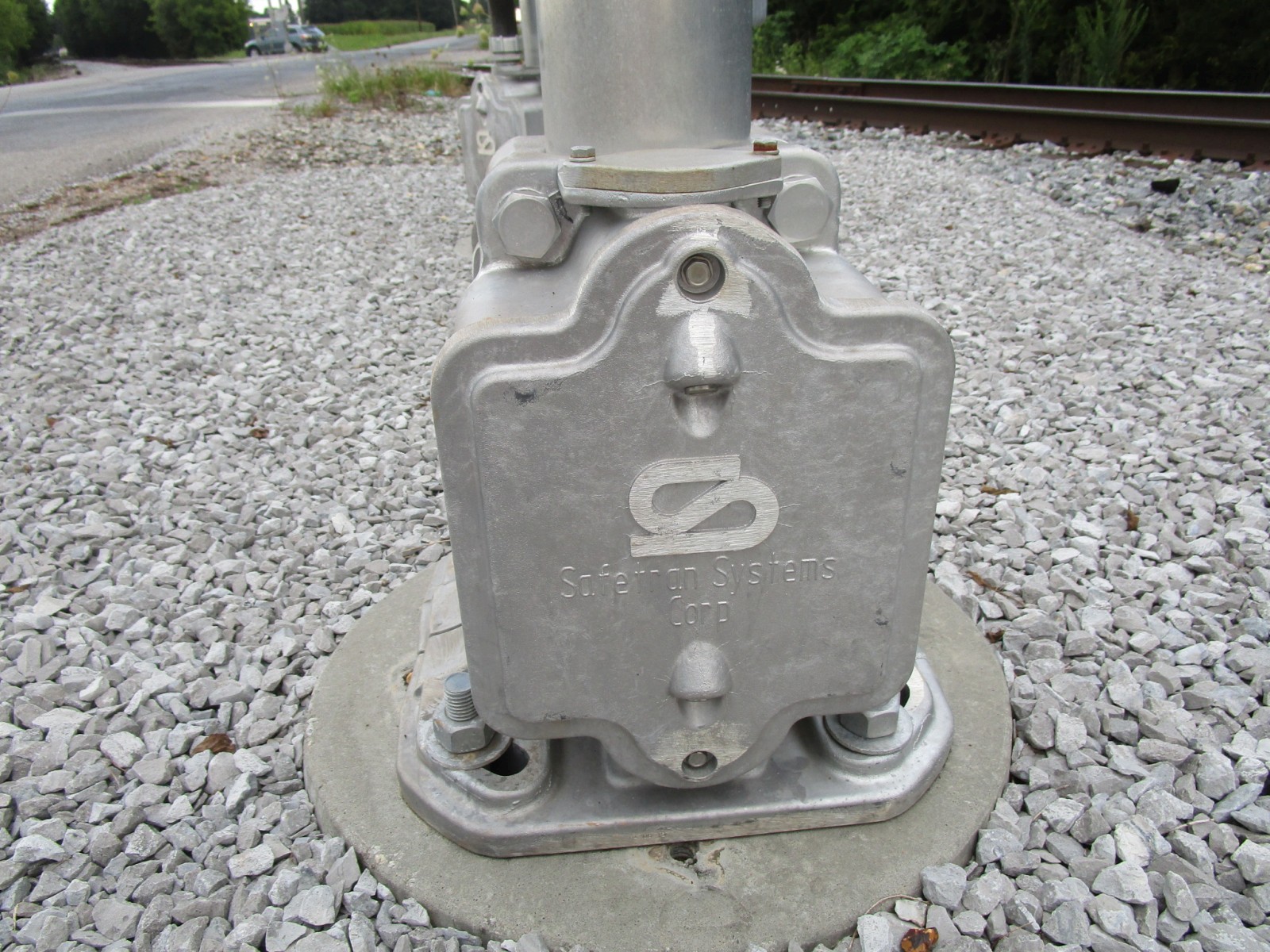

It has a Safetran base. |

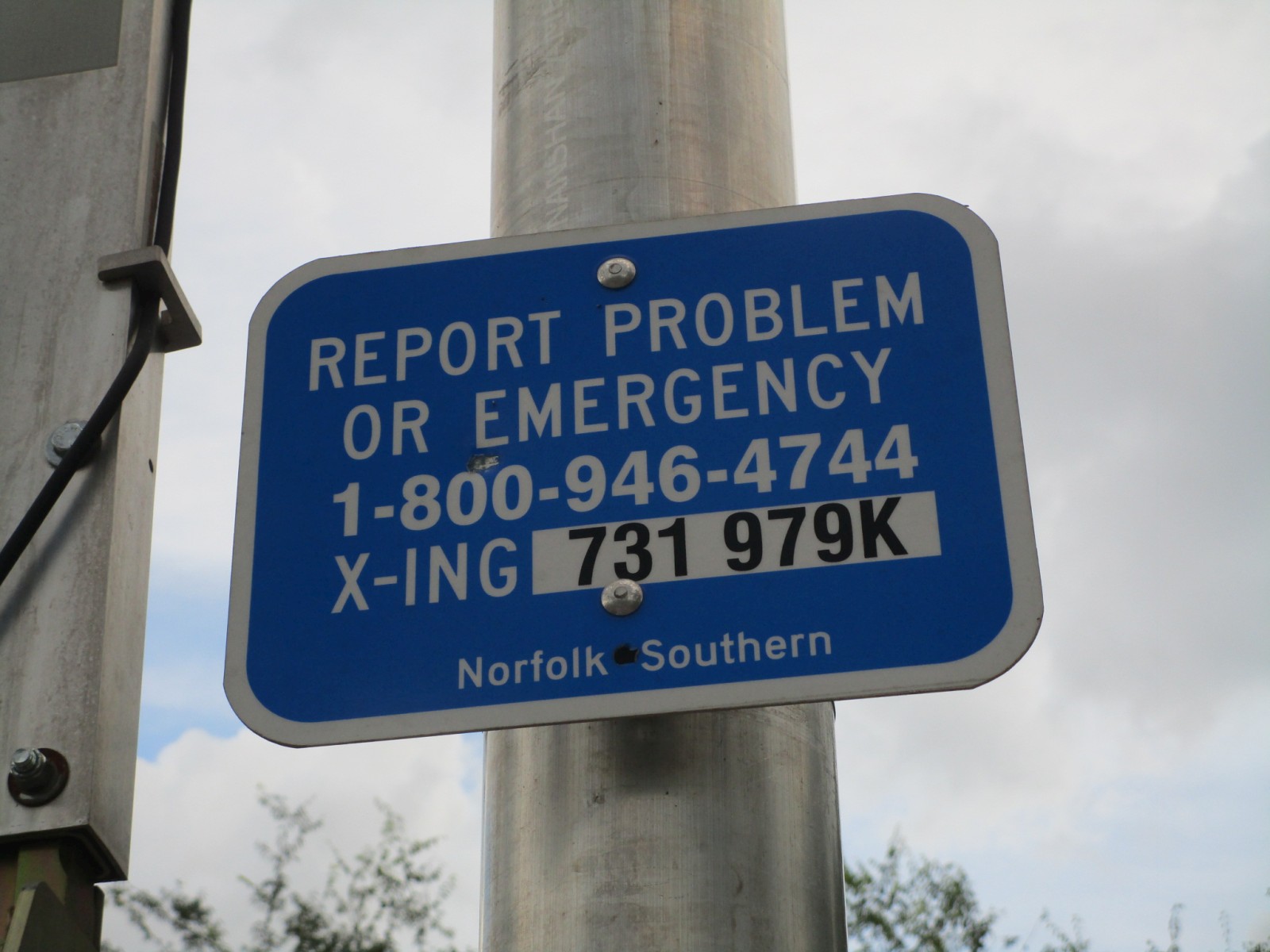

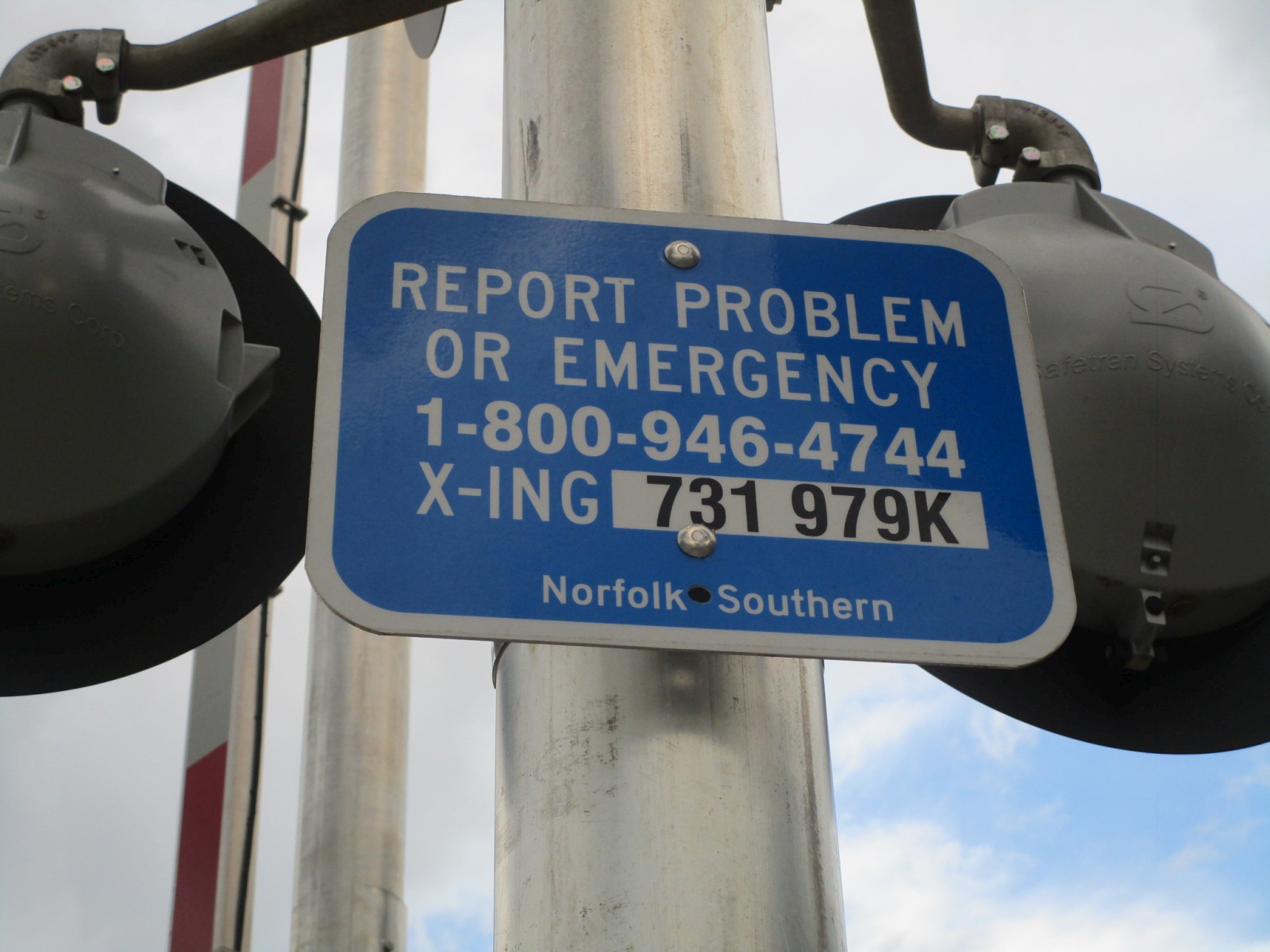

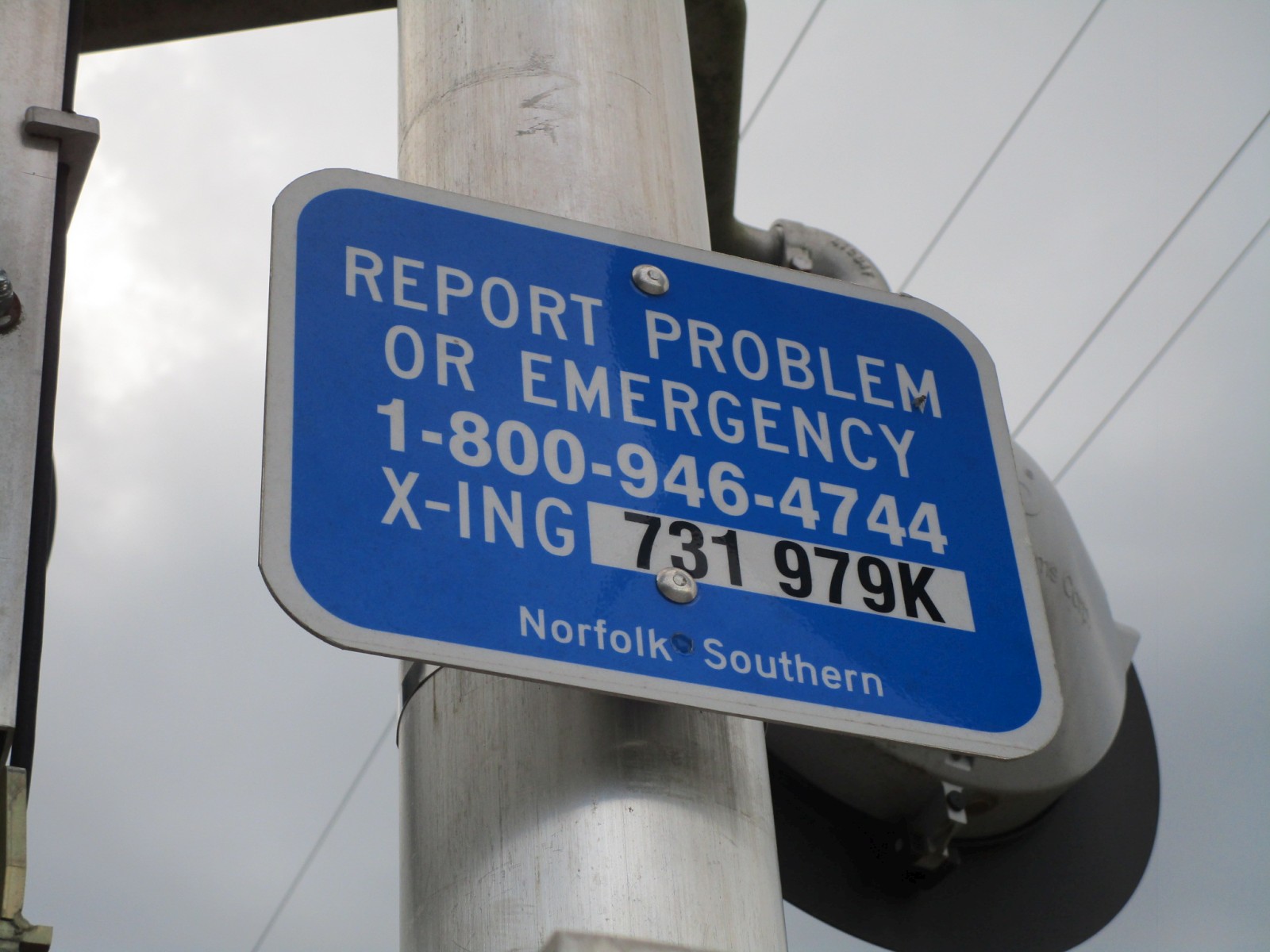

The emergency information. |

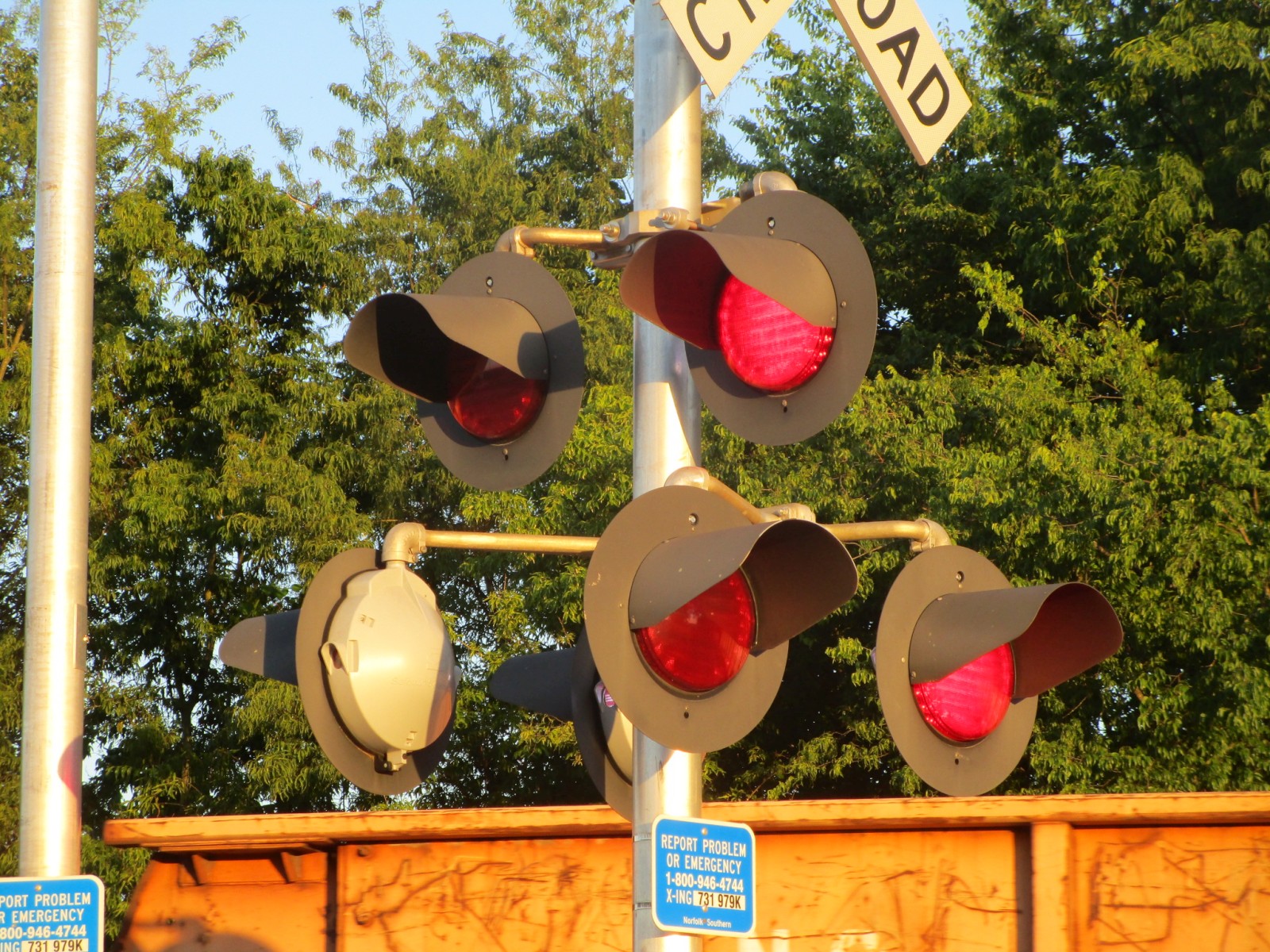

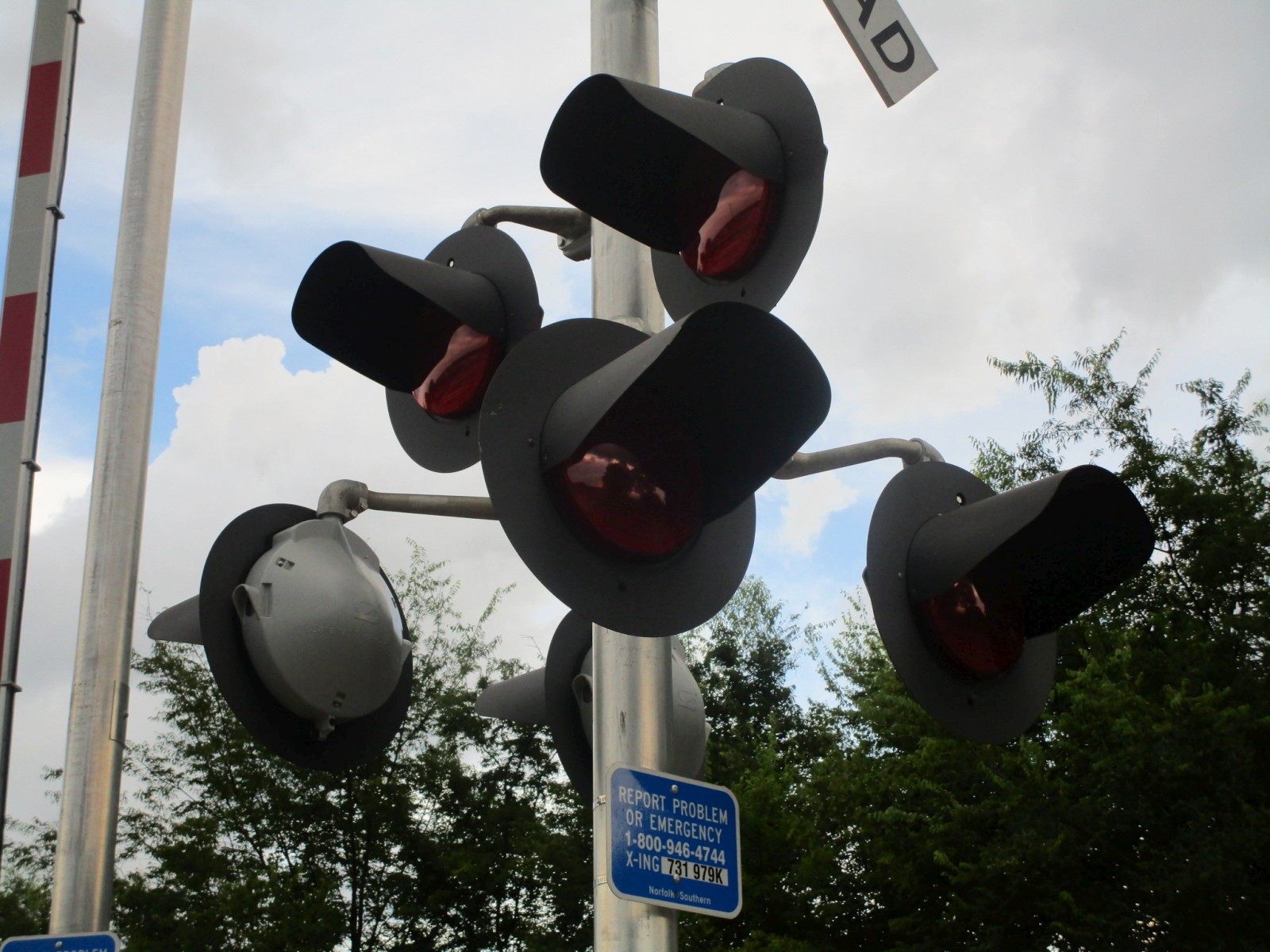

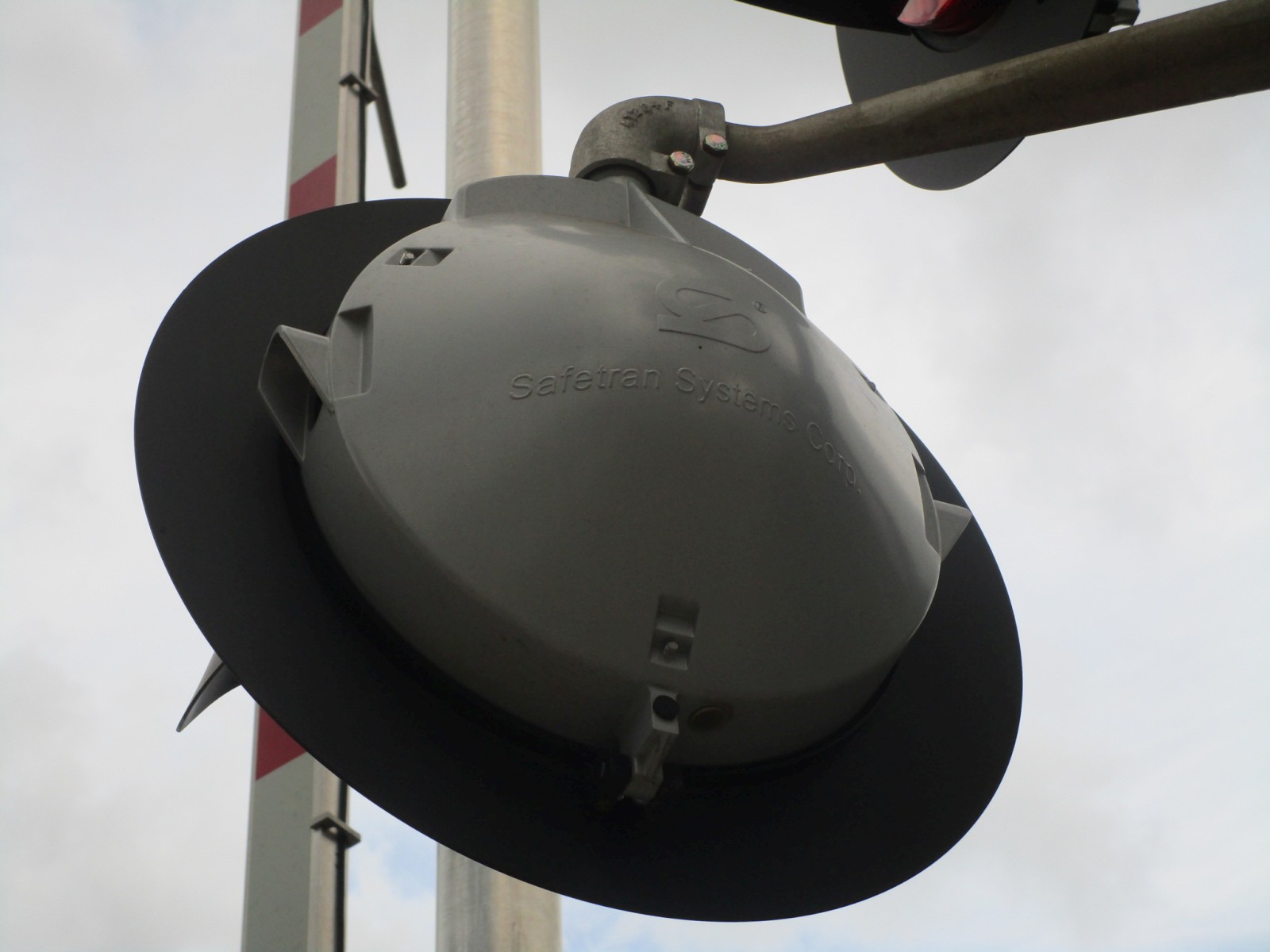

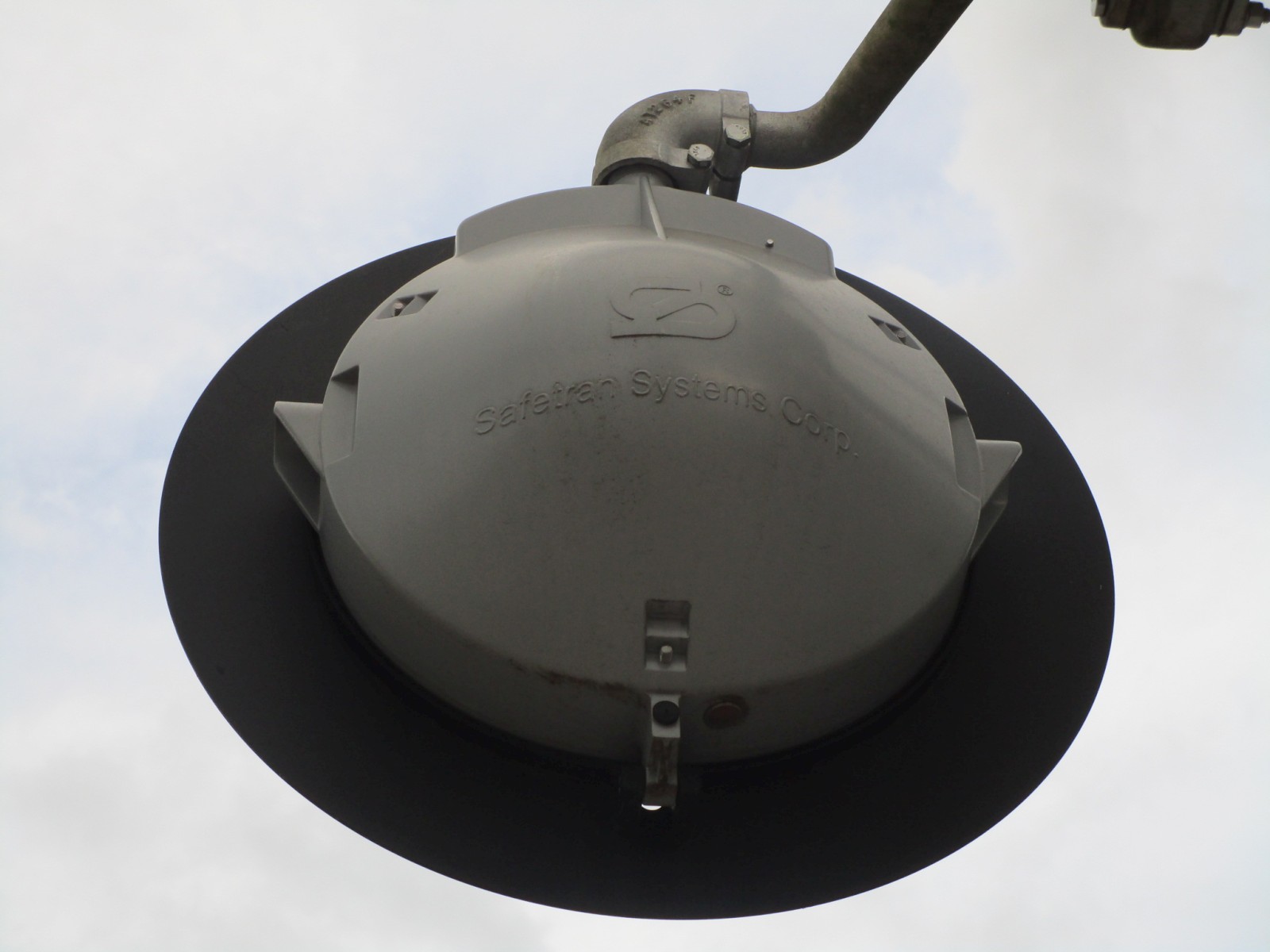

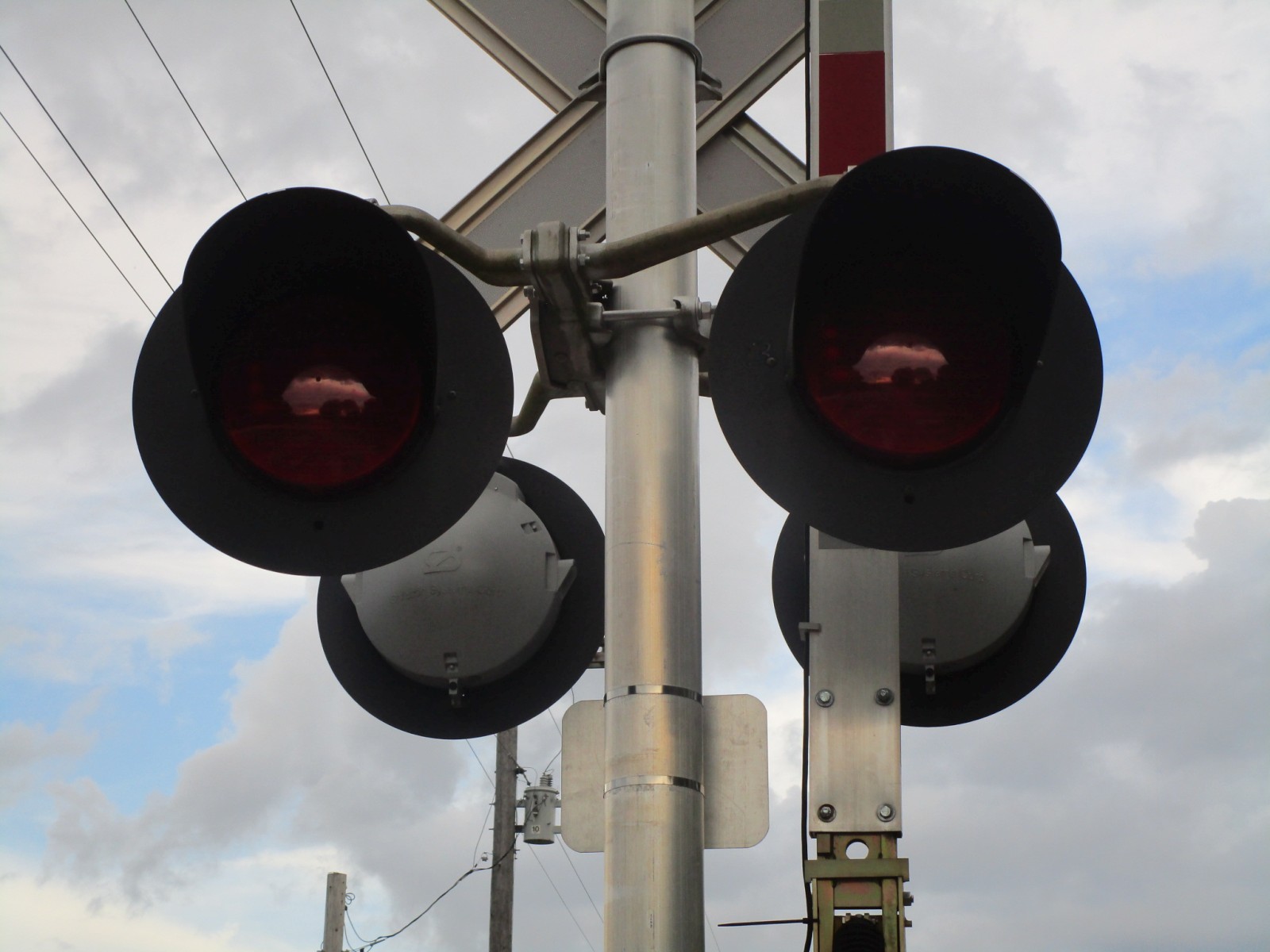

The lights are all Safetran 12x20 inch lights with GE Uniform Look LEDs. |
|
9 |
10 |
11 |
12 |

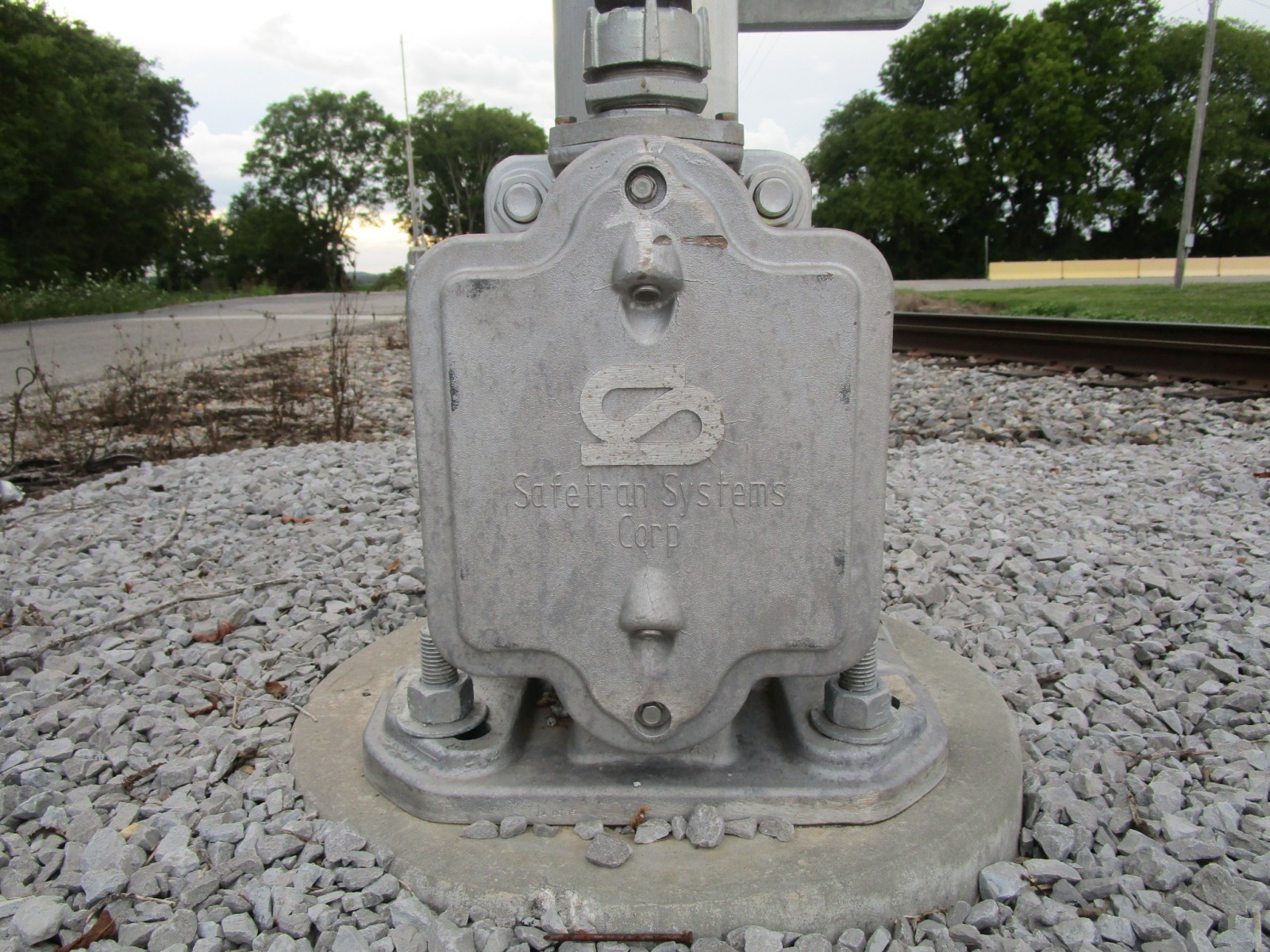

Another Safetran base. |

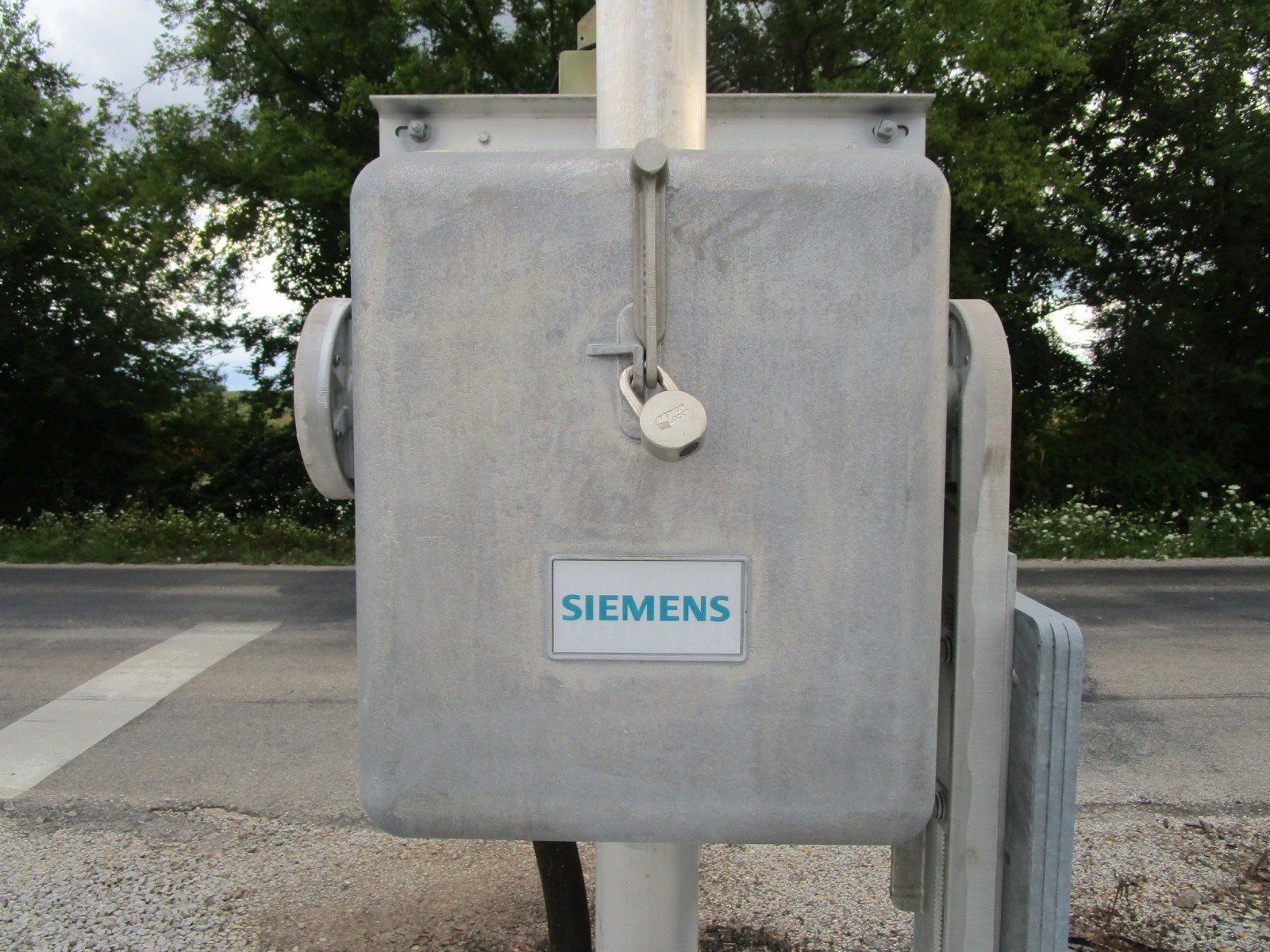

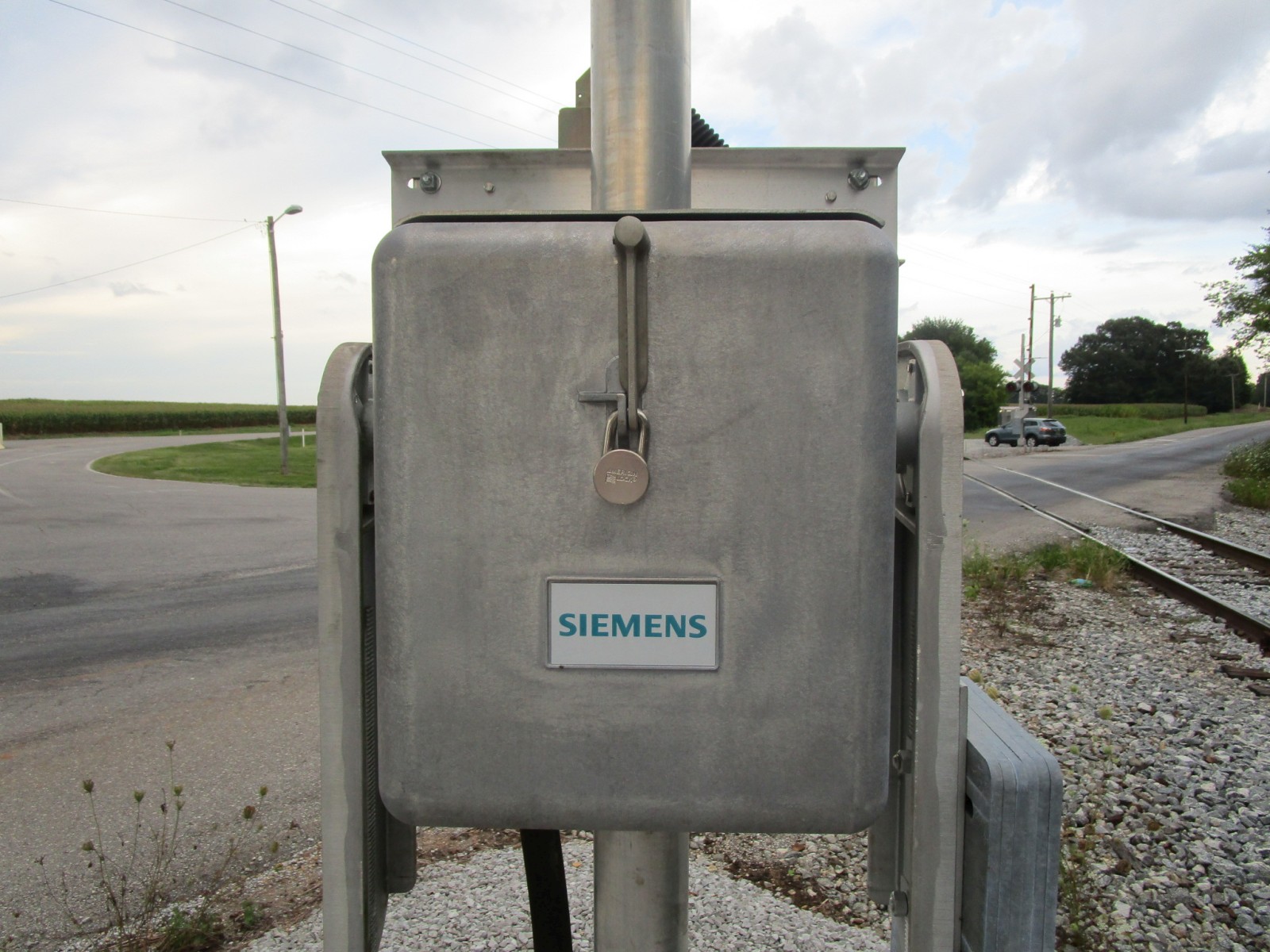

A Siemens gate mechanism. |
More emergency information. |

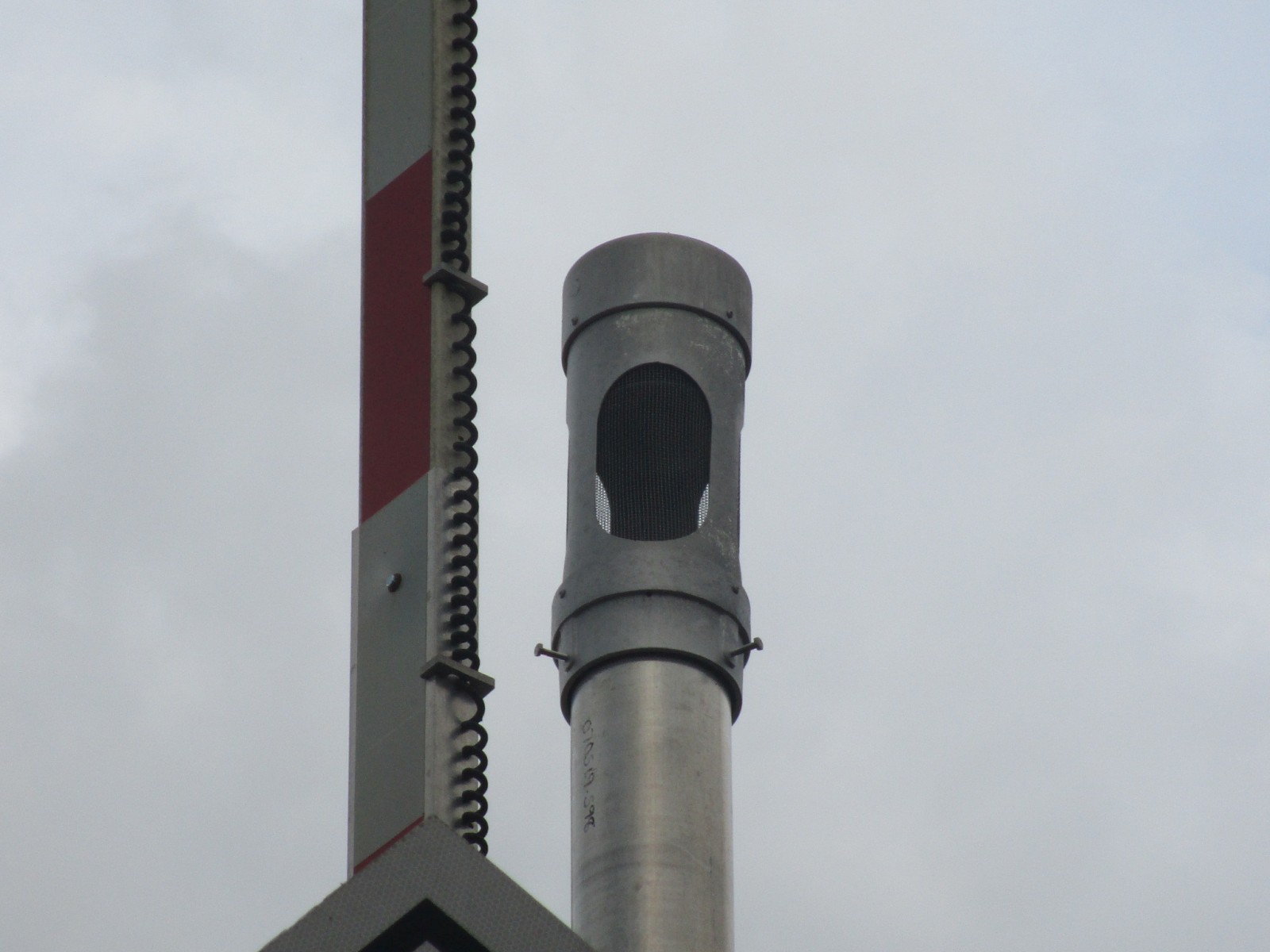

This signal has a General Signals Type 2 e-bell. |
13 |
14 |
15 |
16 |

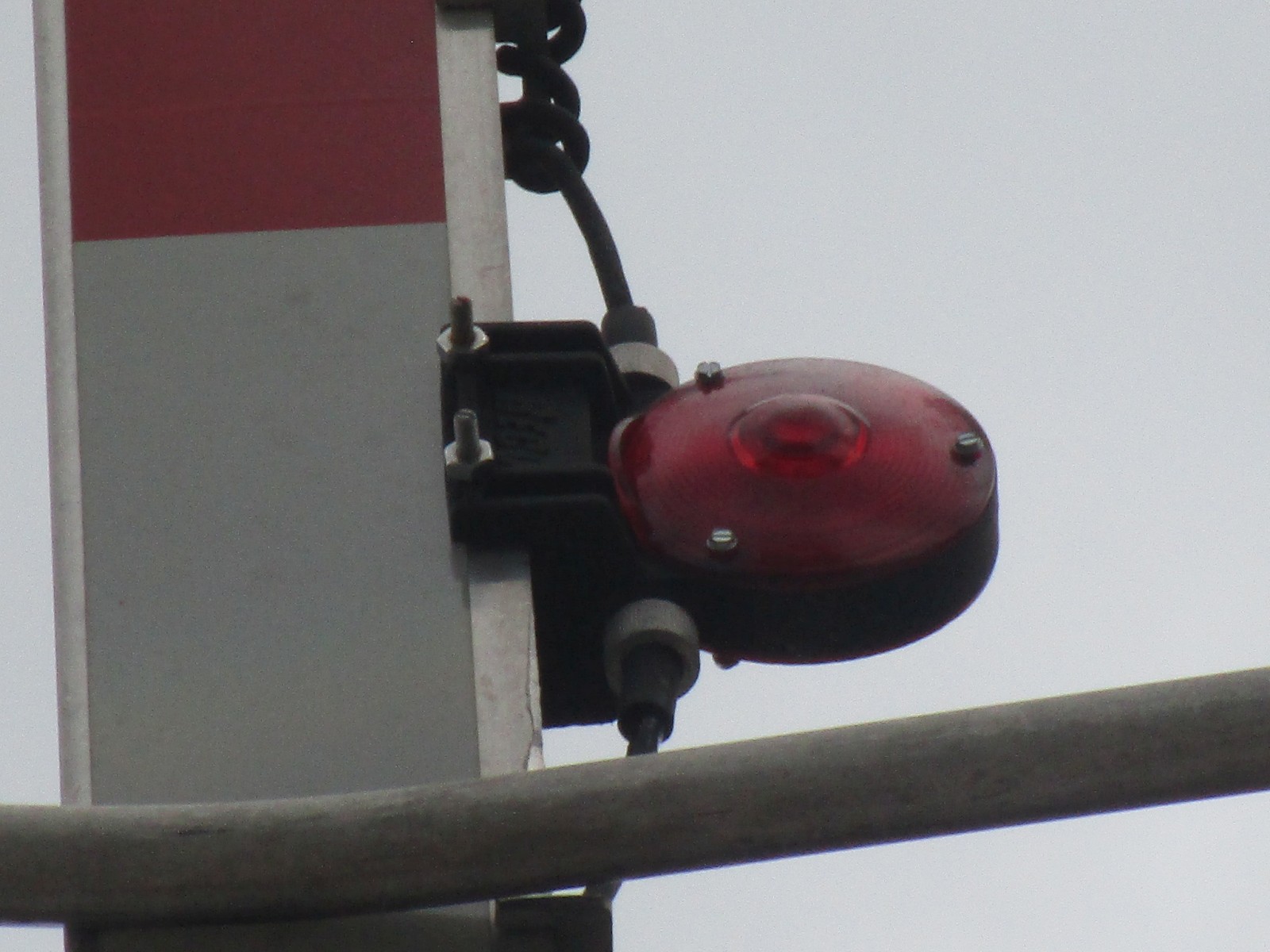

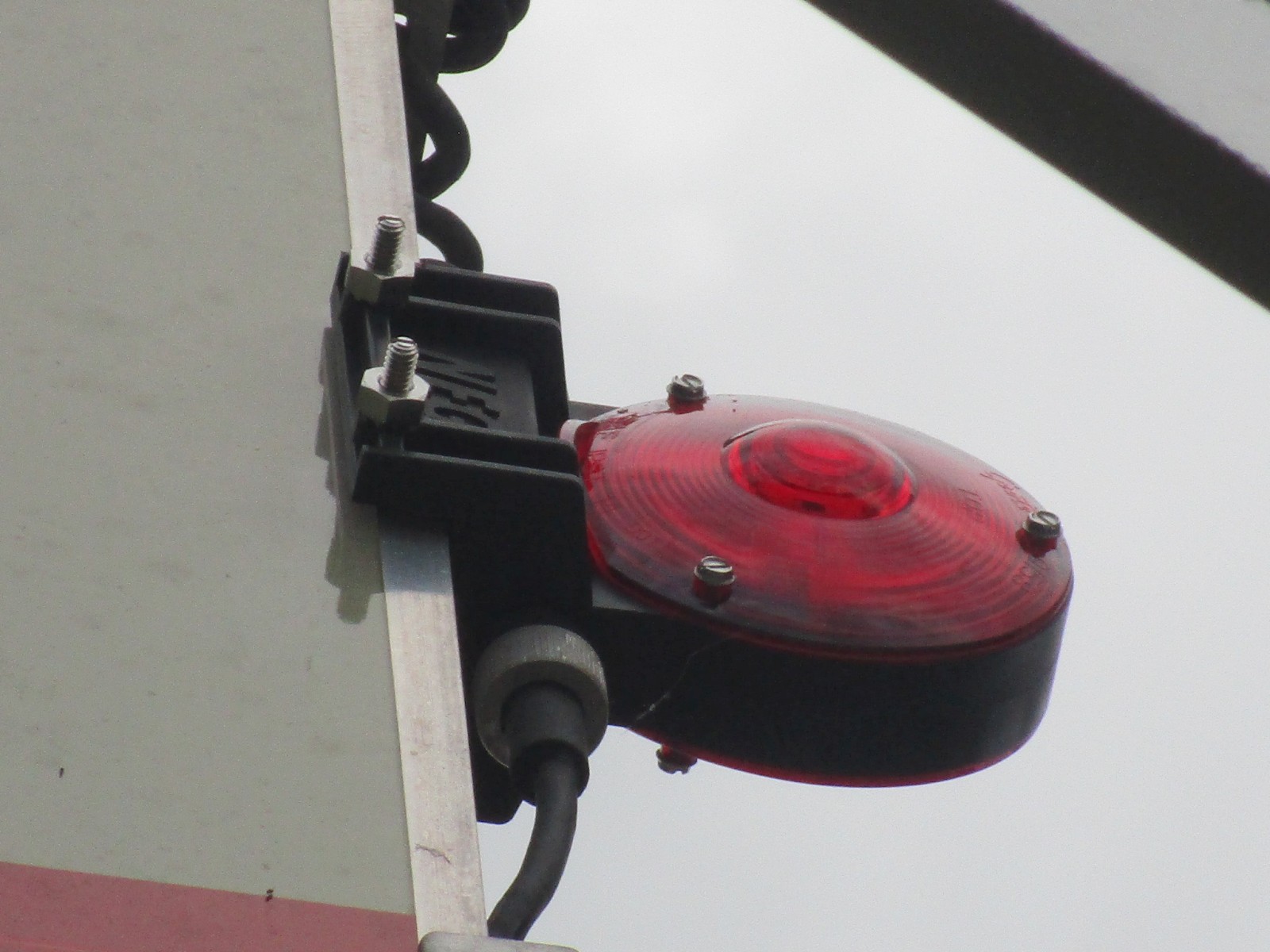

The LED gate lights are from RECO. |
The second signal. |
It has yet another Safetran base. |
|
17 |
18 |
19 |
20 |
Another Siemens gate mechanism. |
The emergency information. |

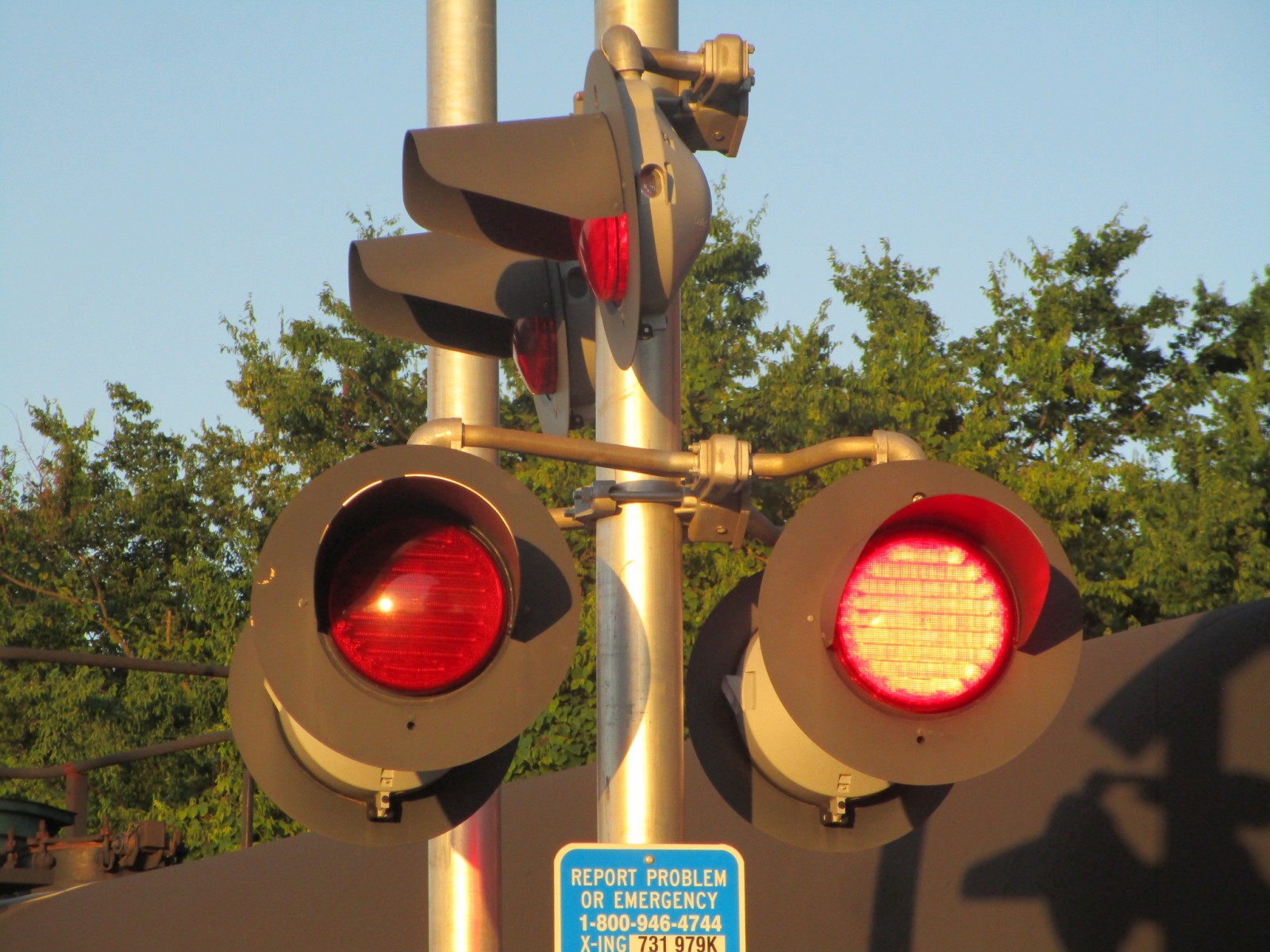

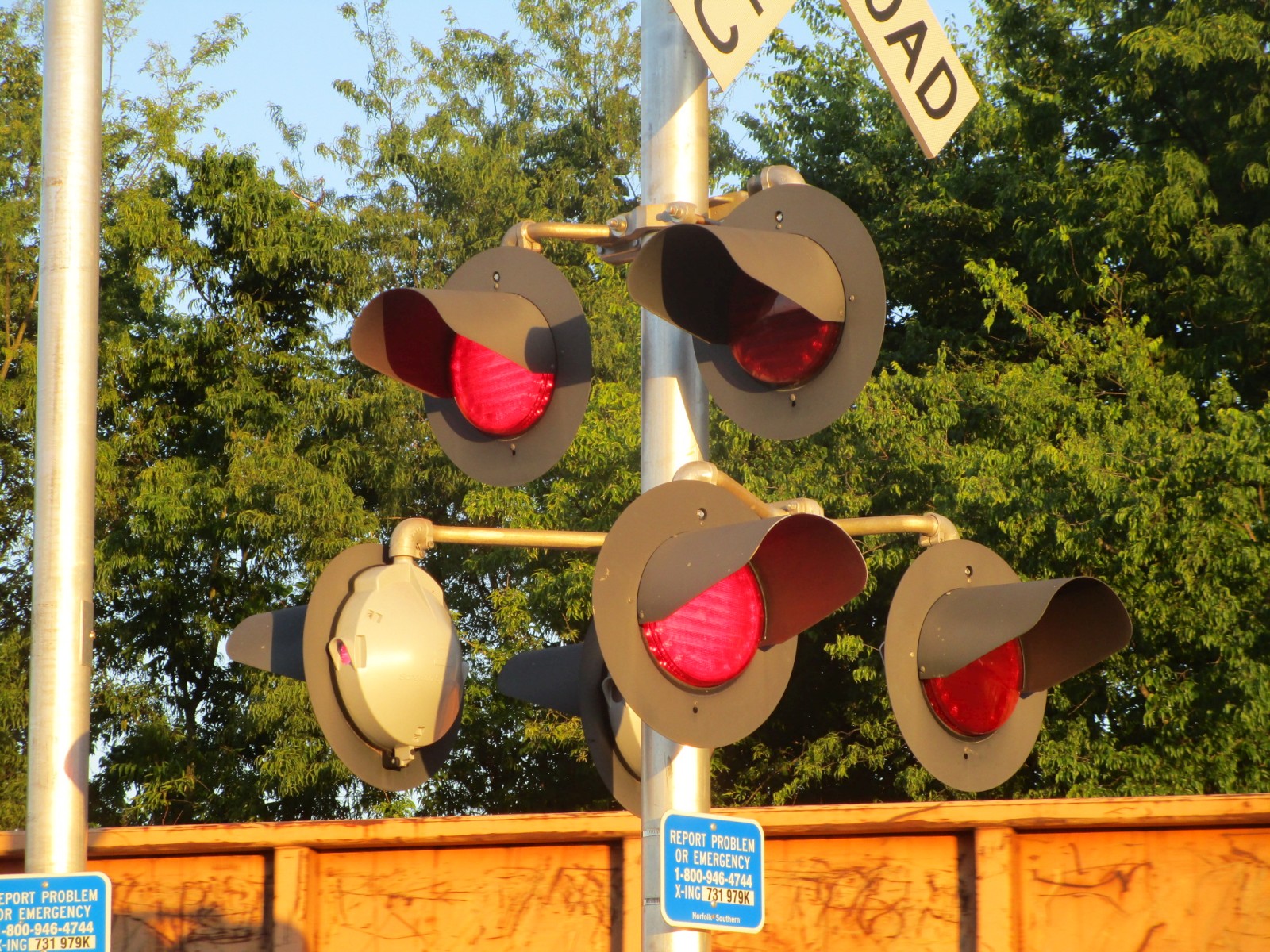

It has more Safetran 12x20 inch lights with GE Uniform Look LEDs. |
|
21 |
22 |
23 |
24 |

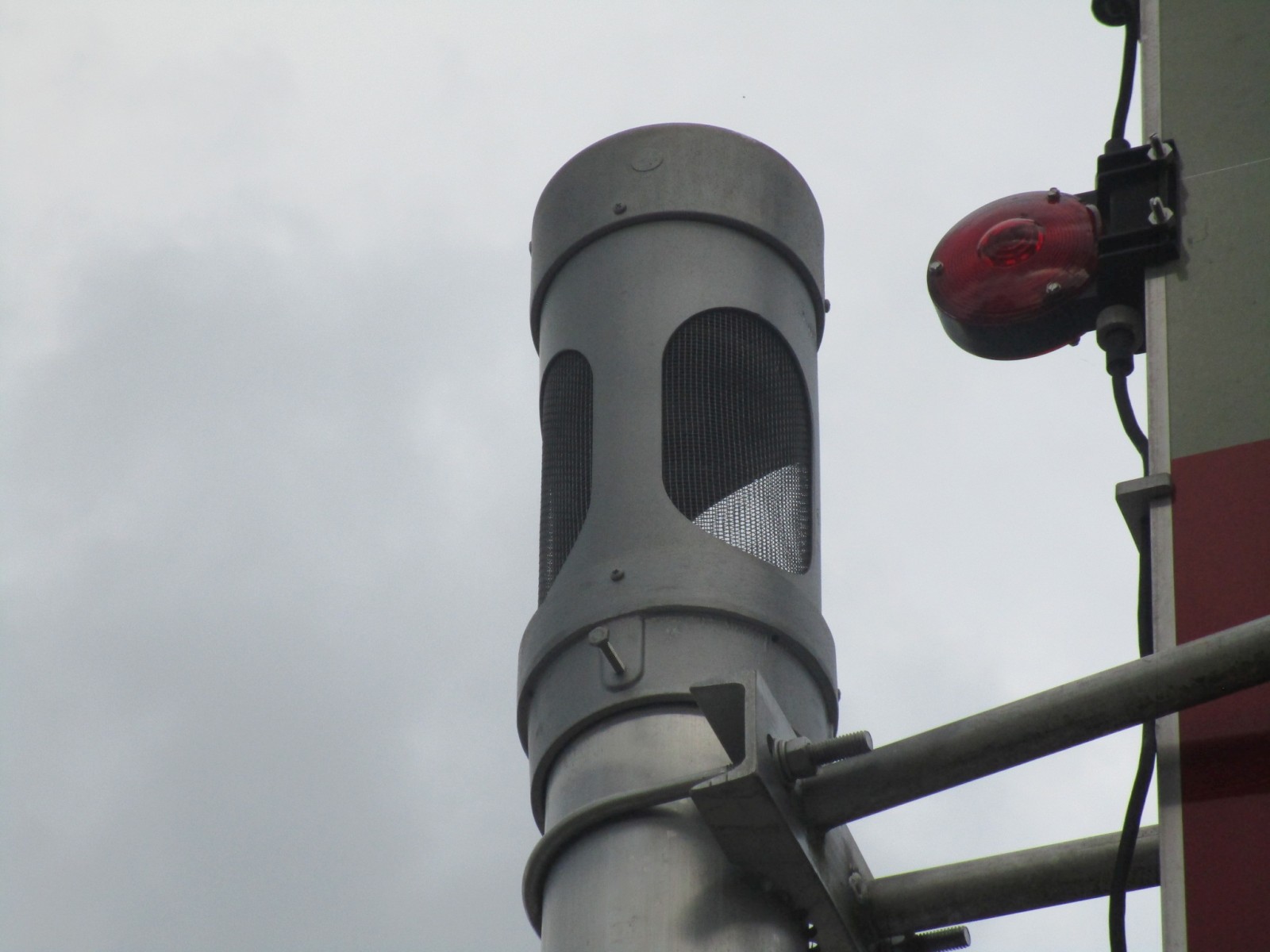

Another General Signals Type 2 e-bell over here. |

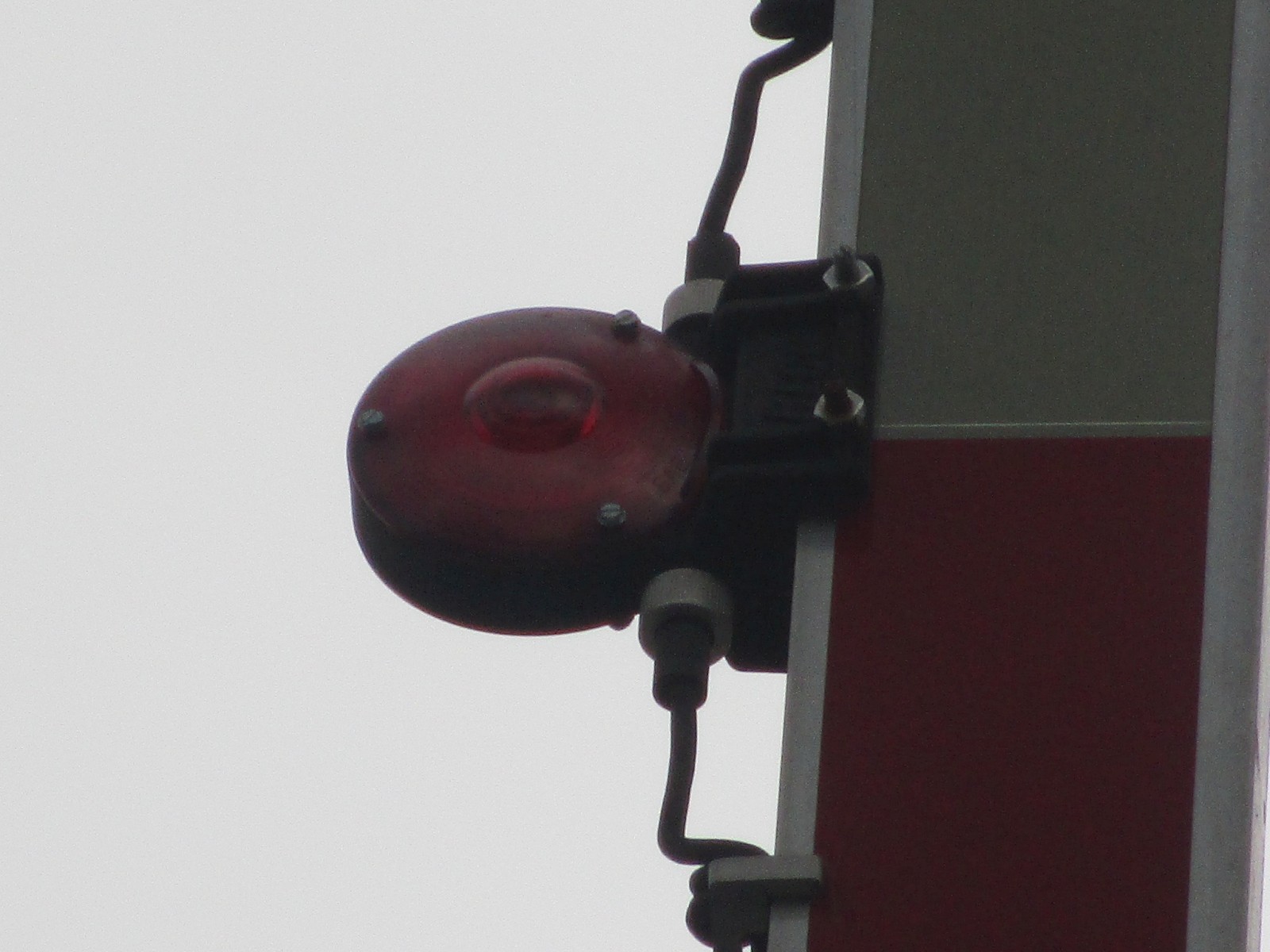

This signal has a mixture of an NEG LED gate light and RECO LED gate lights. |

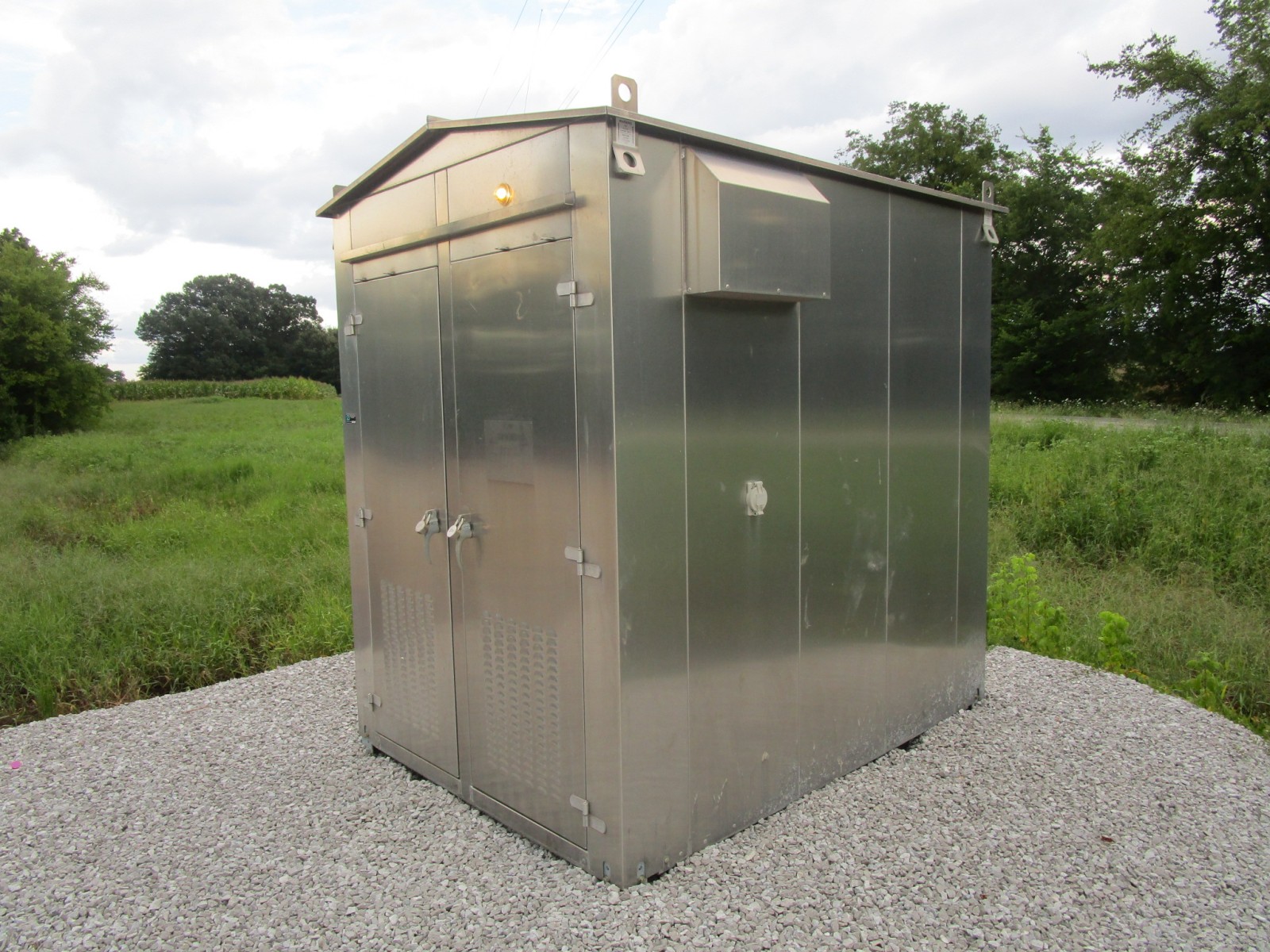

The relay case. |
|
25 |
26 |

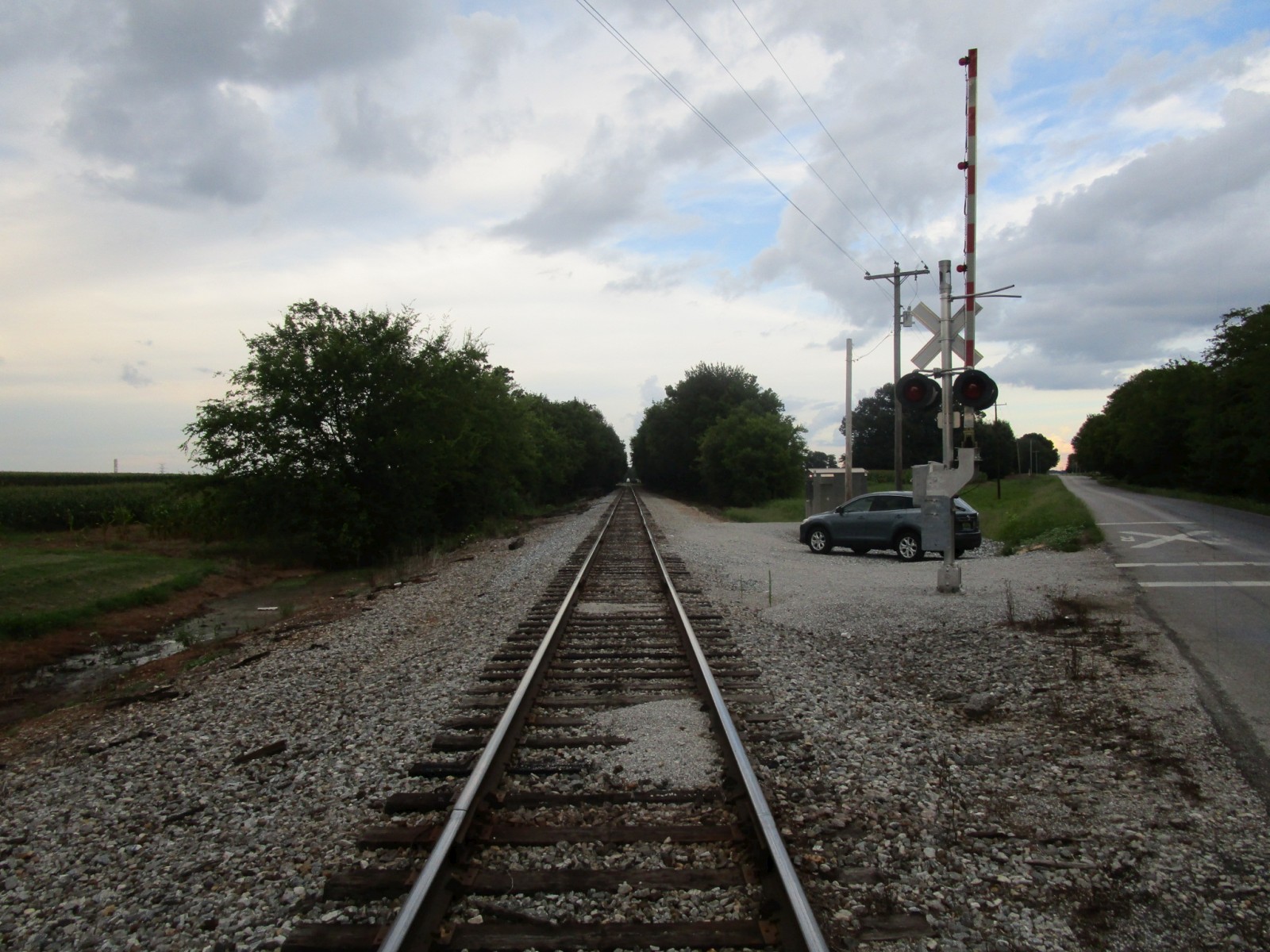

Looking southwest towards 6th Street. |
Looking northeast. |
27 |
28 |
29 |

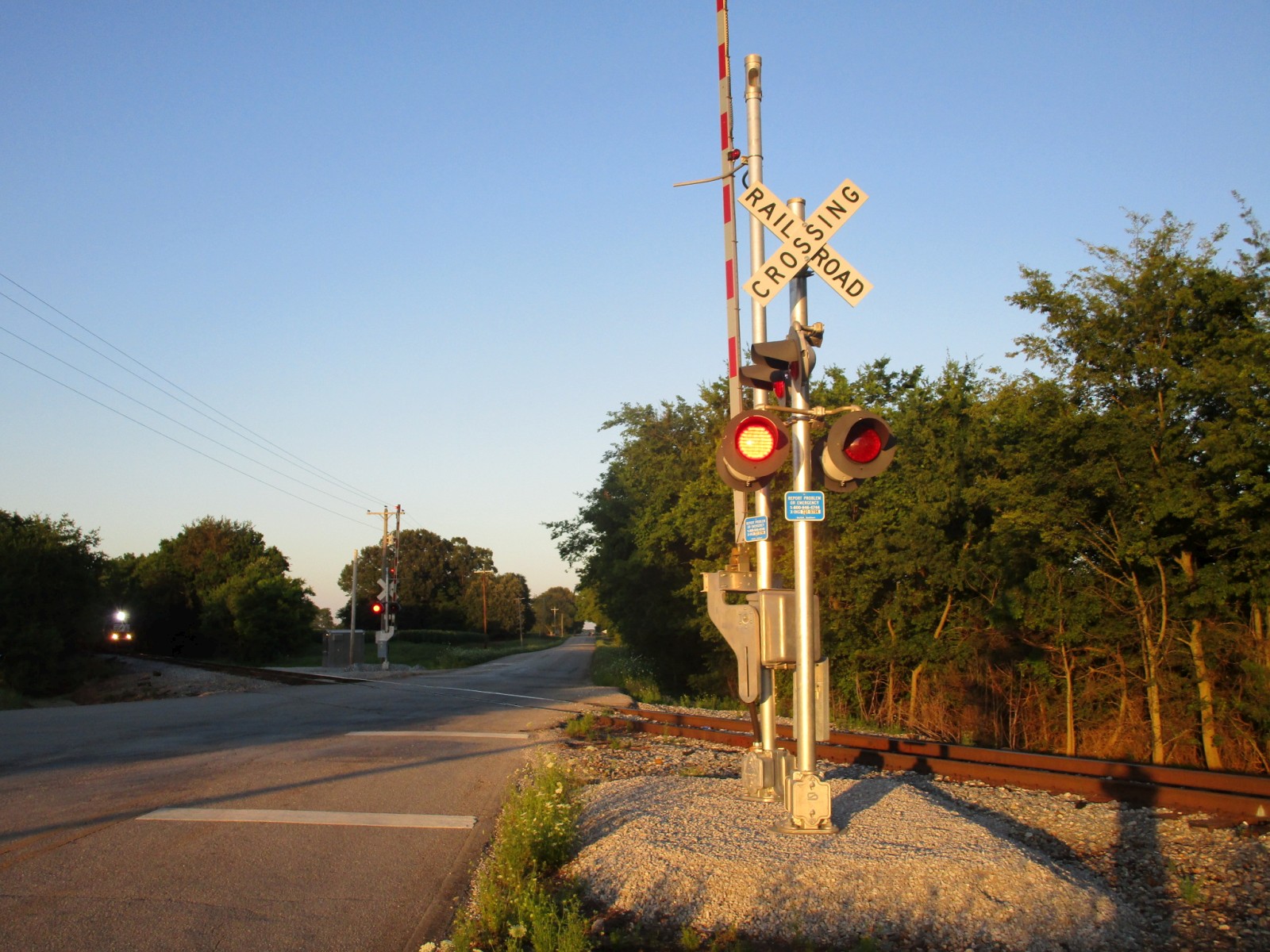

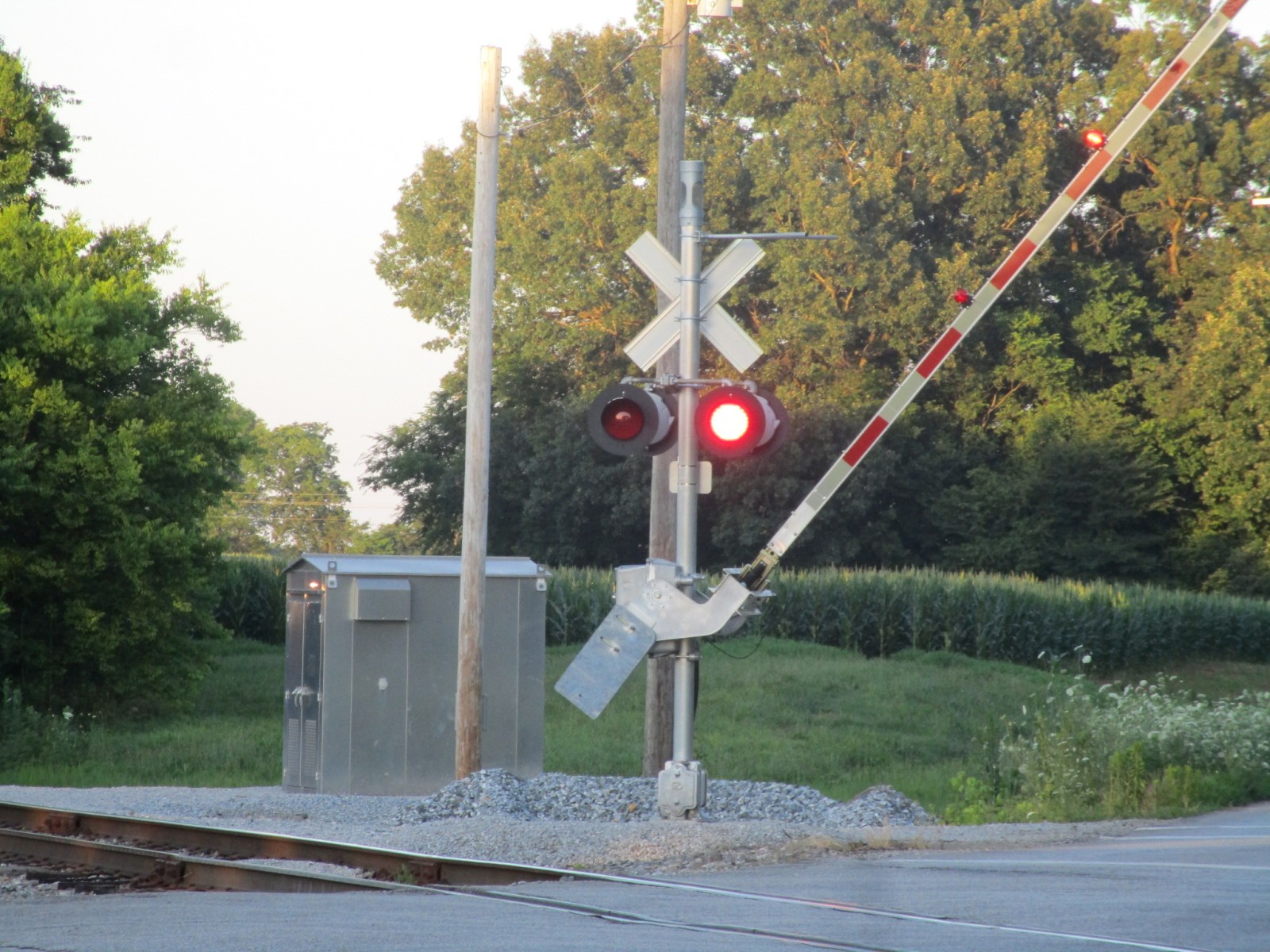

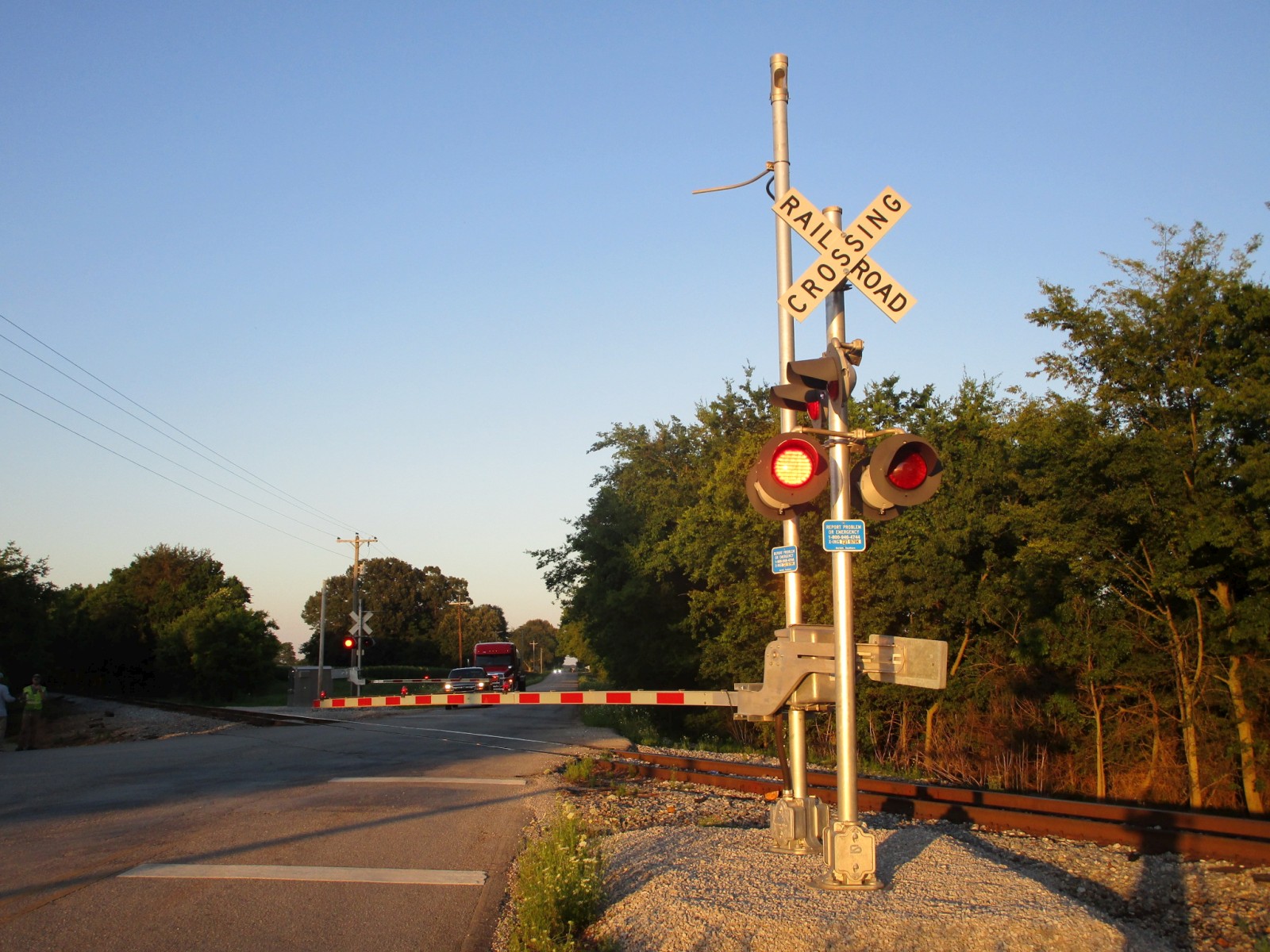

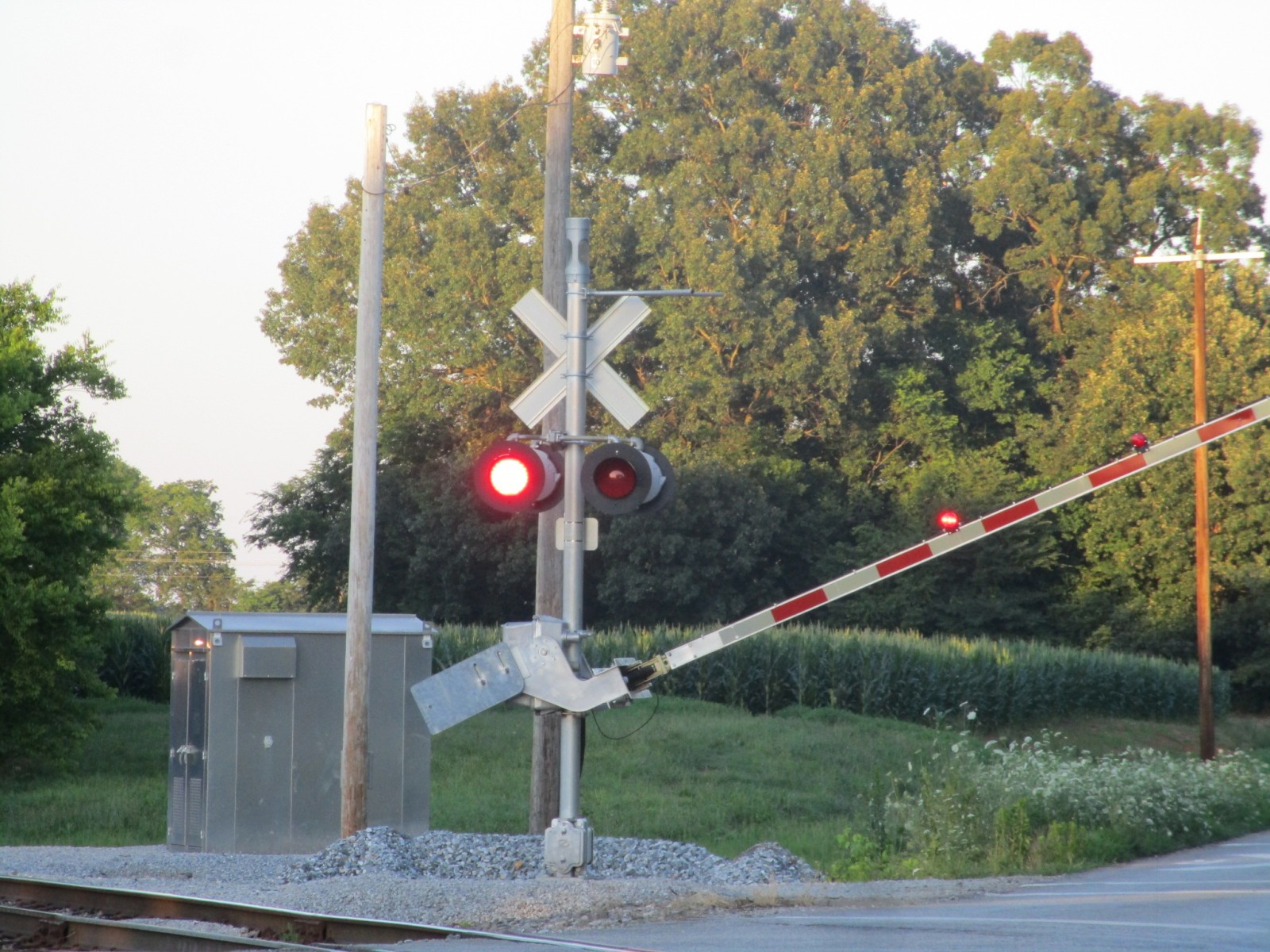

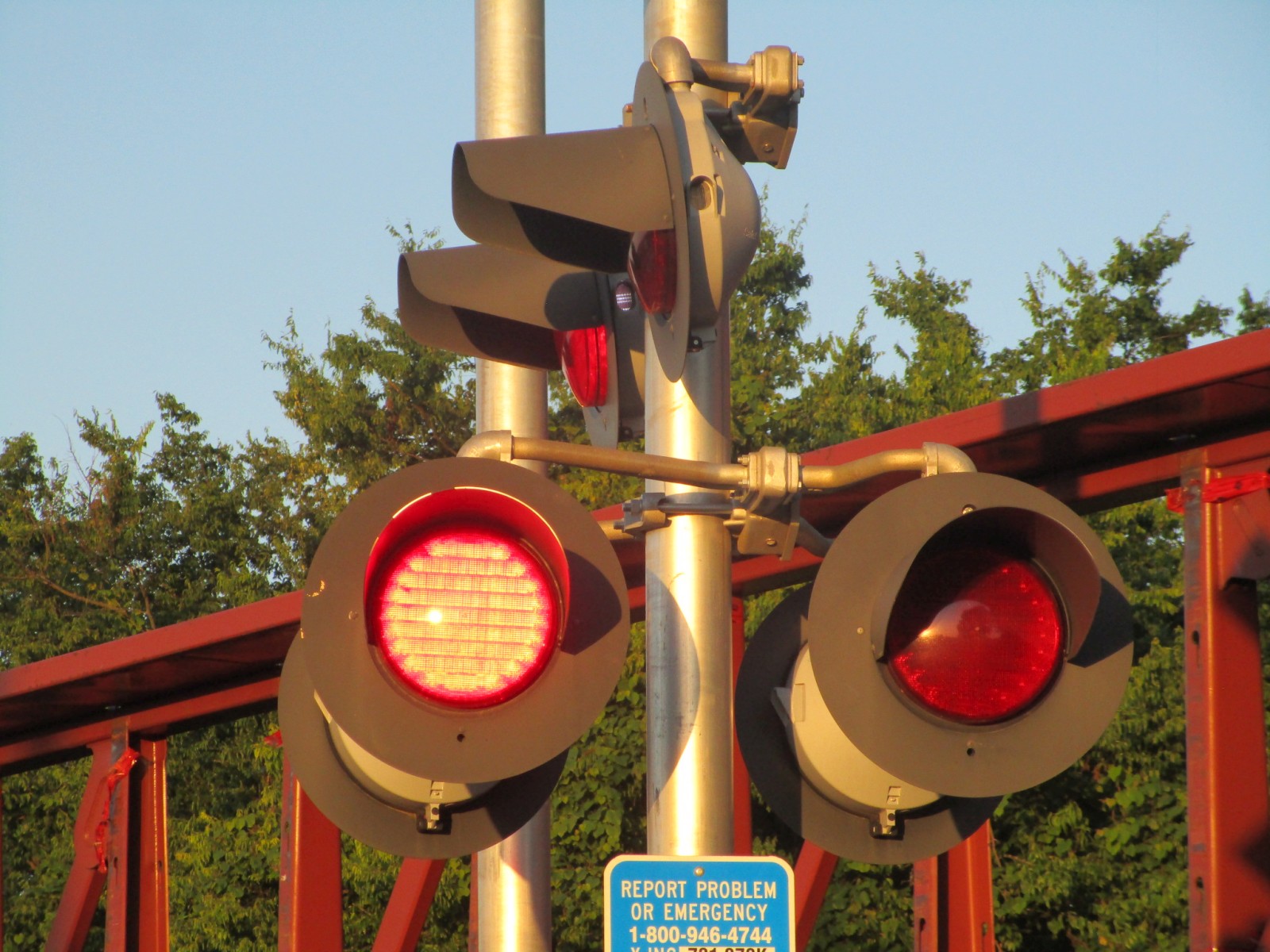

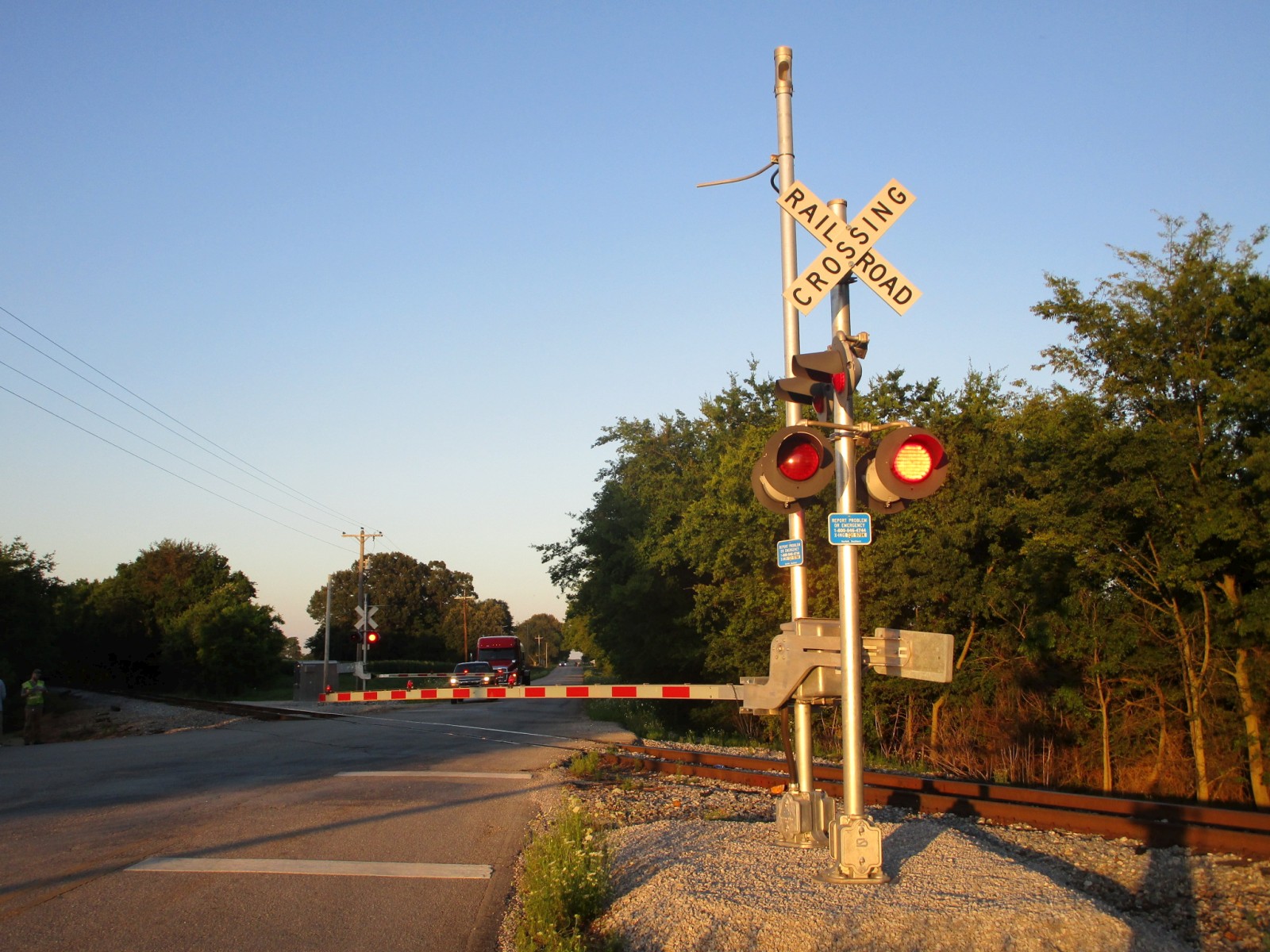

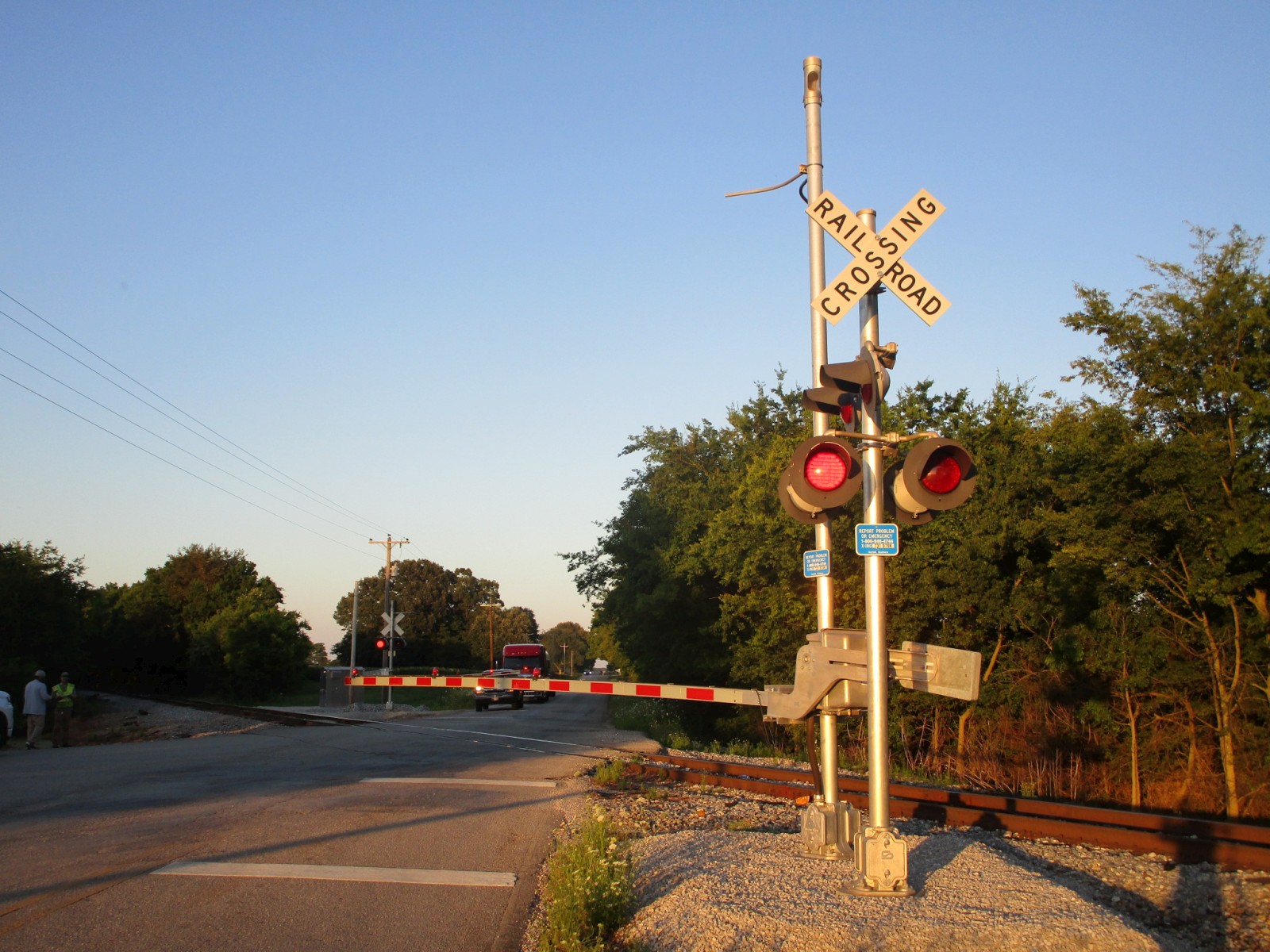

A return trip to the crossing on 6-14-21 catches the crossing in action! |
||
30 |
31 |
32 |
33 |
34 |
35 |
36 |

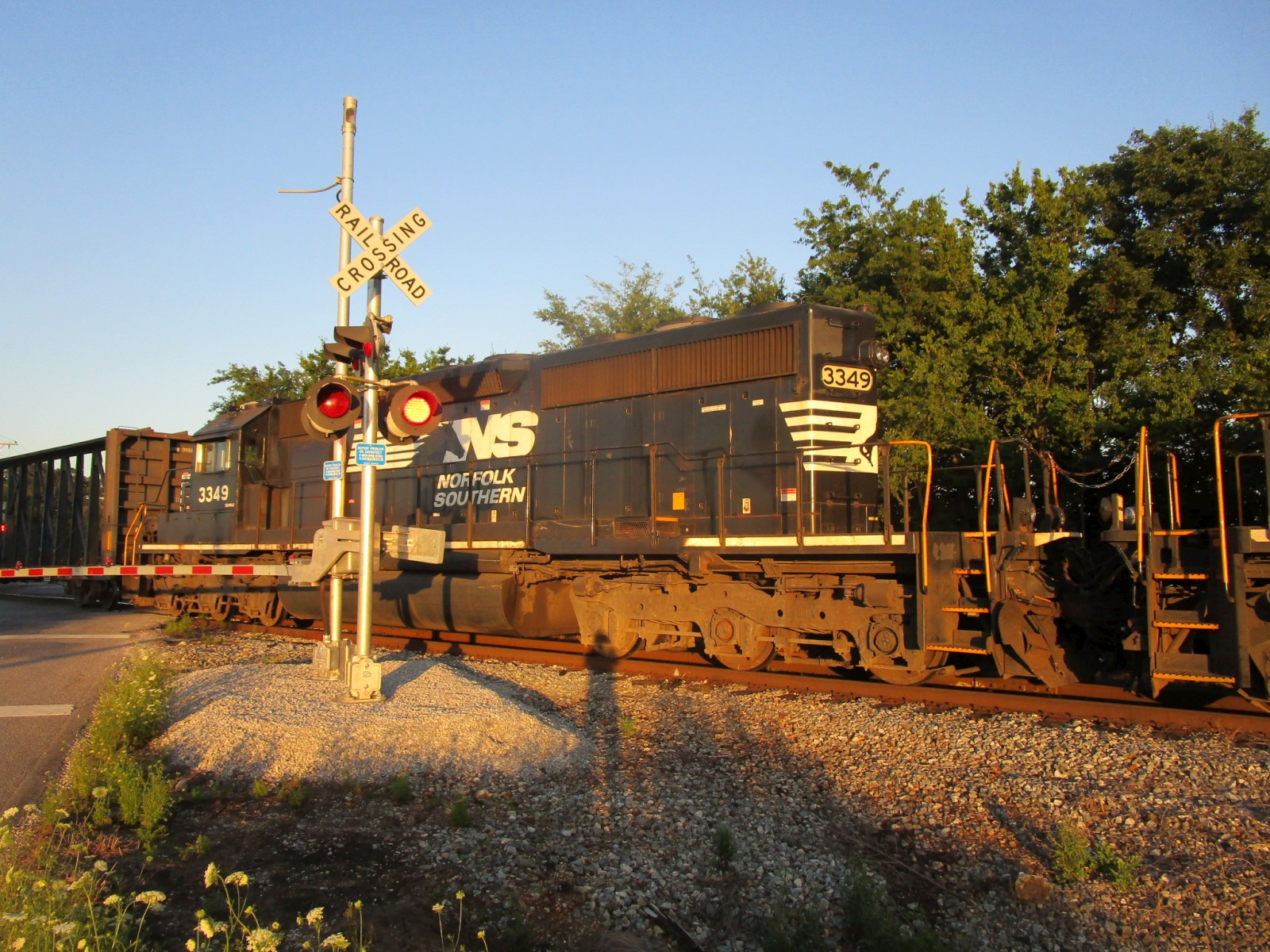

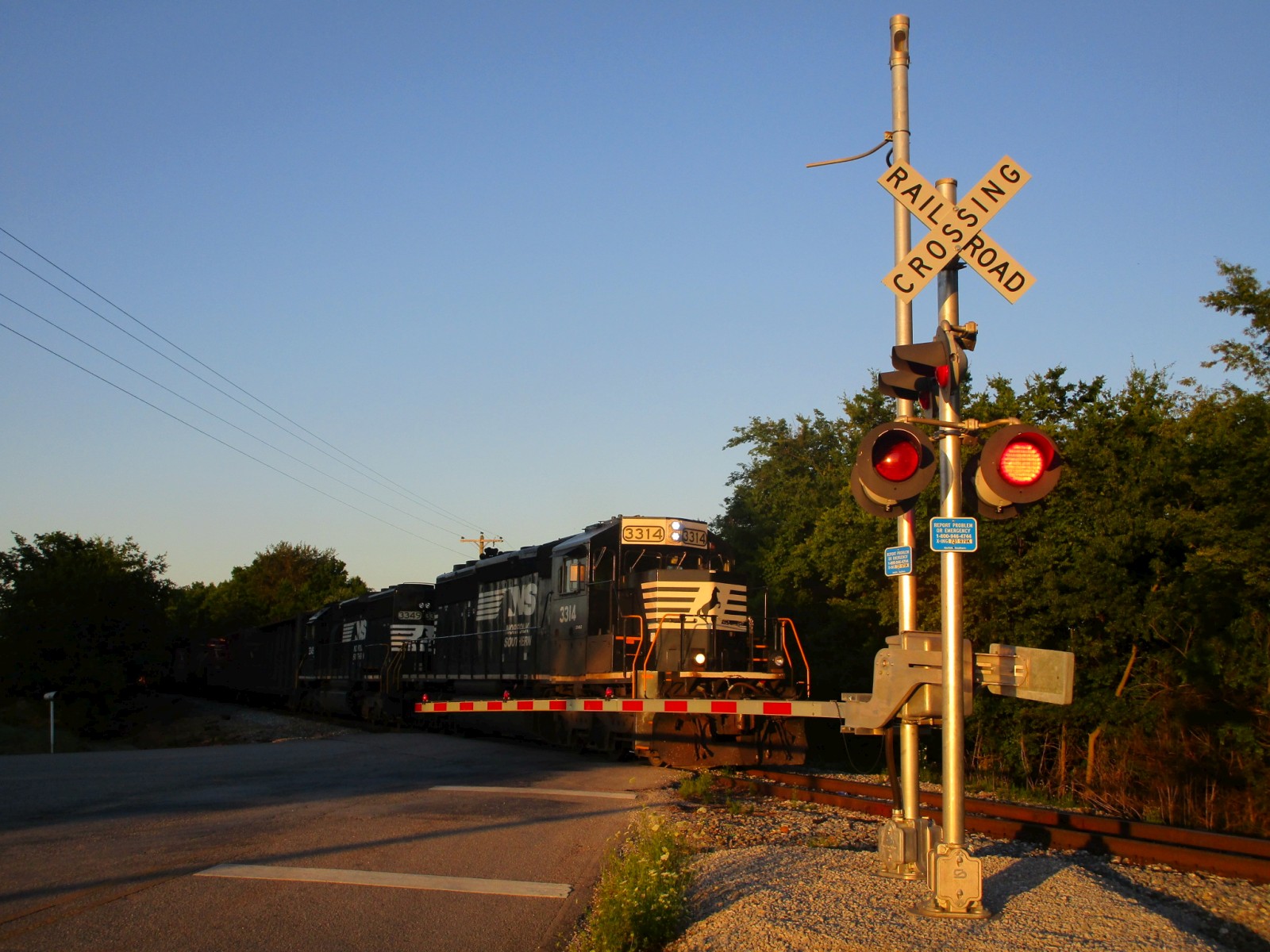

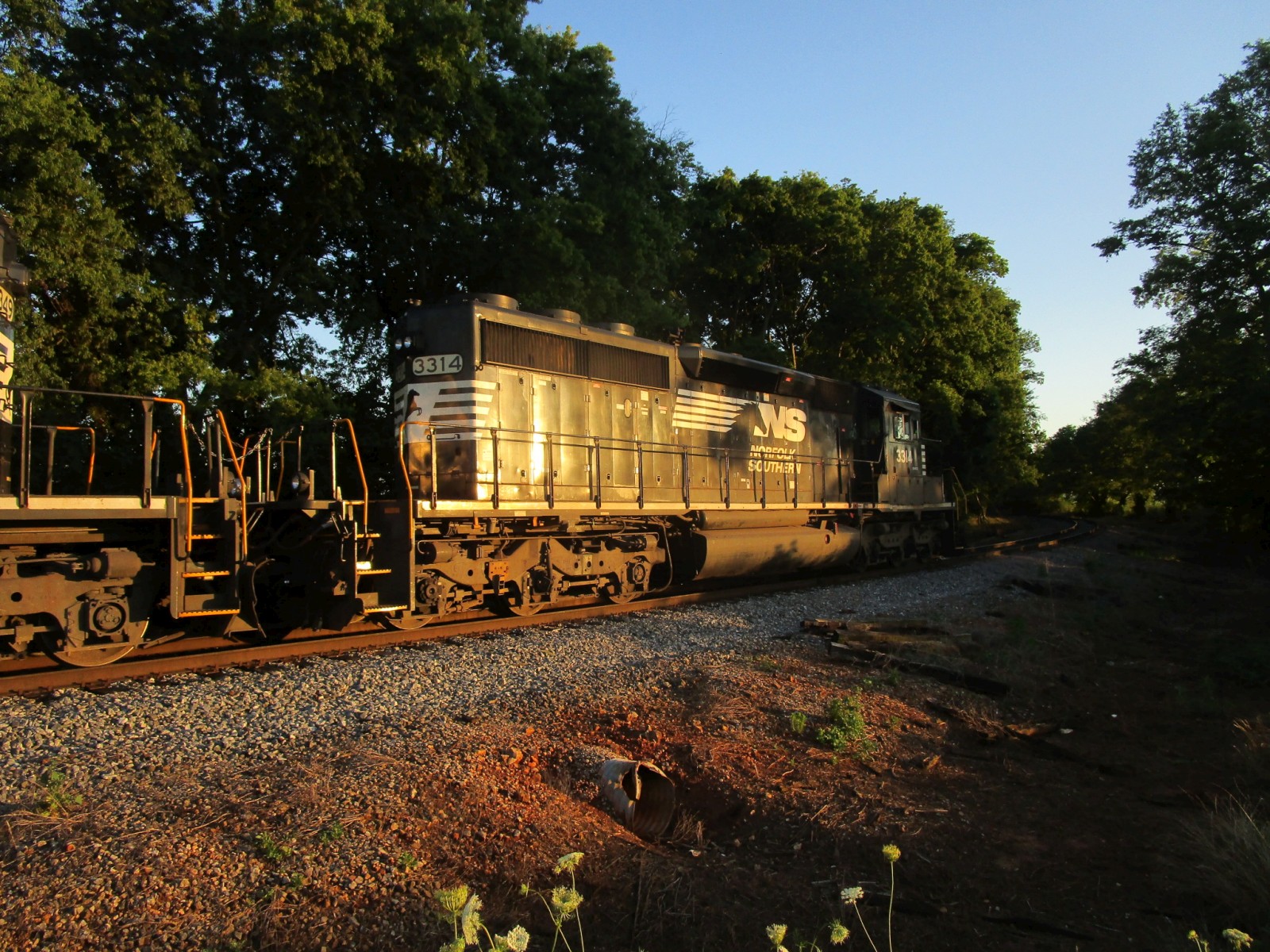

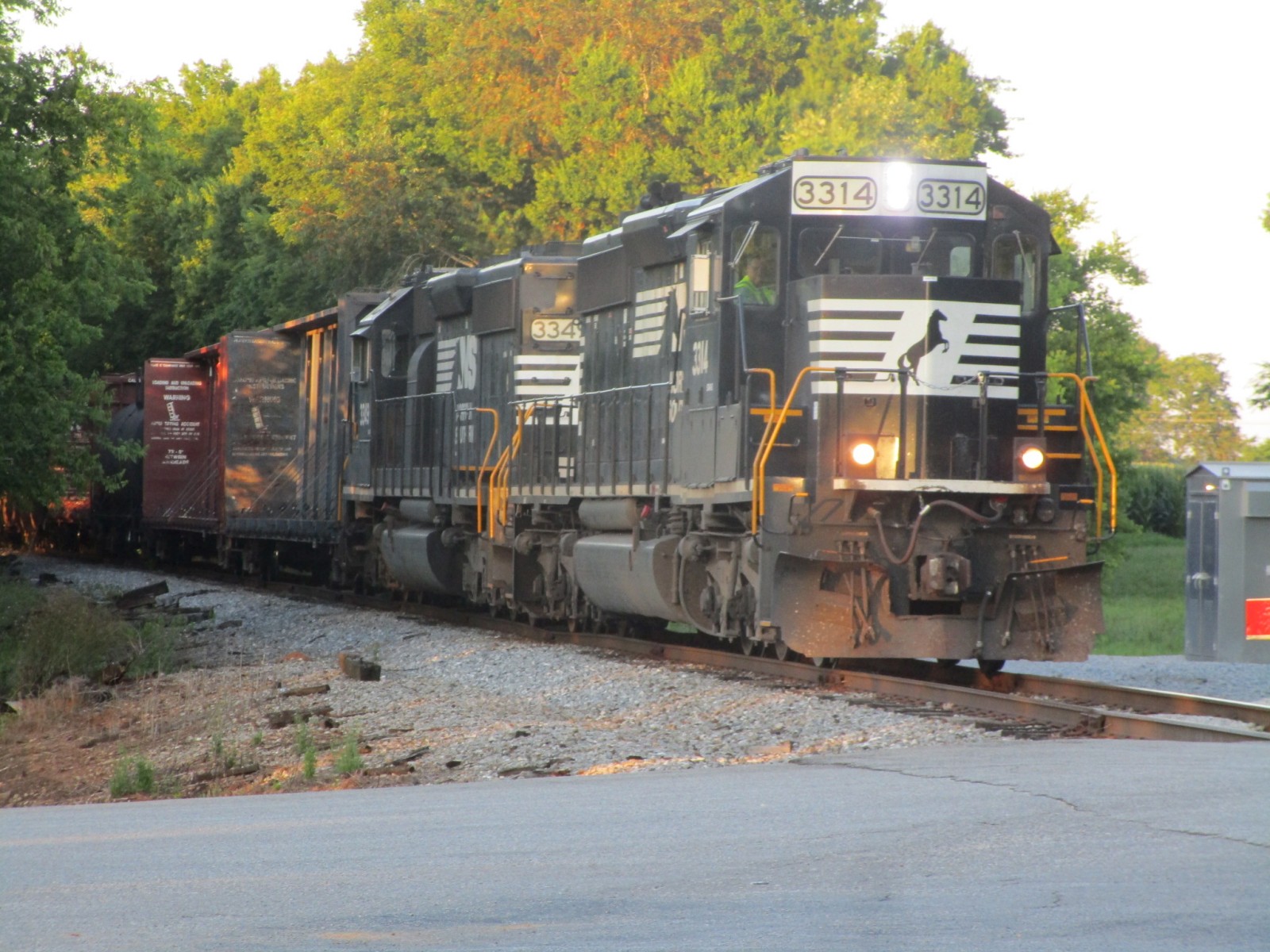

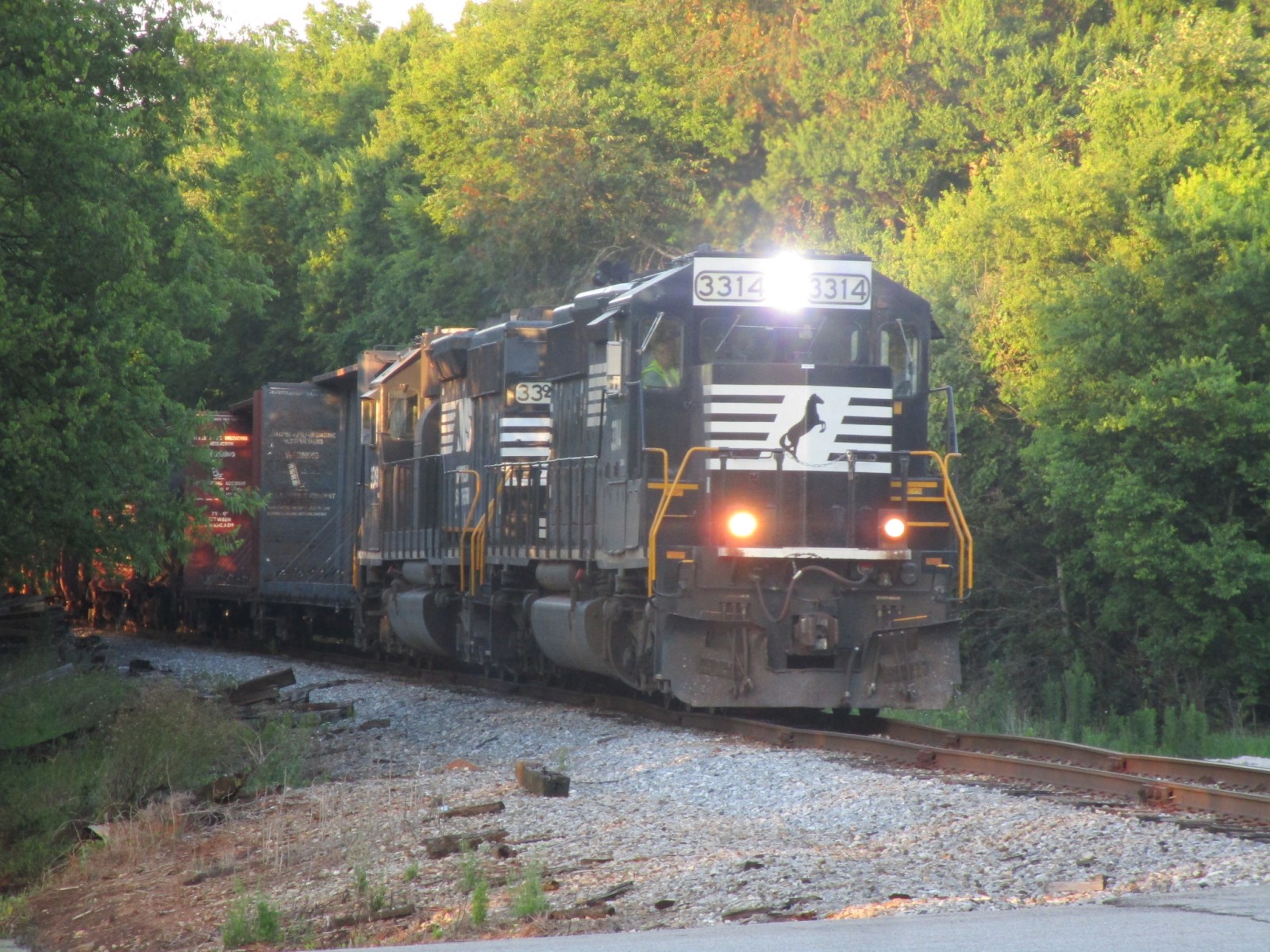

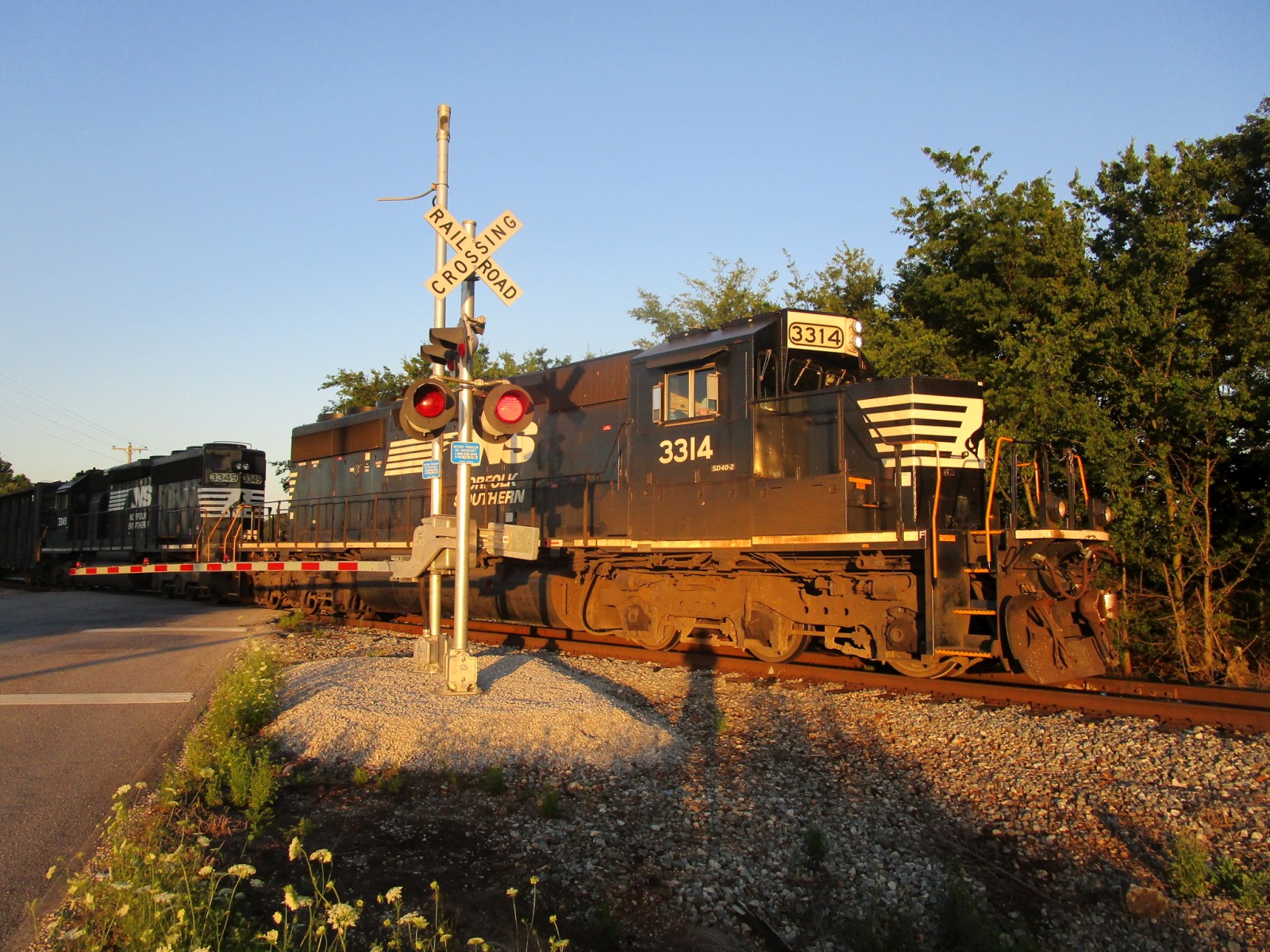

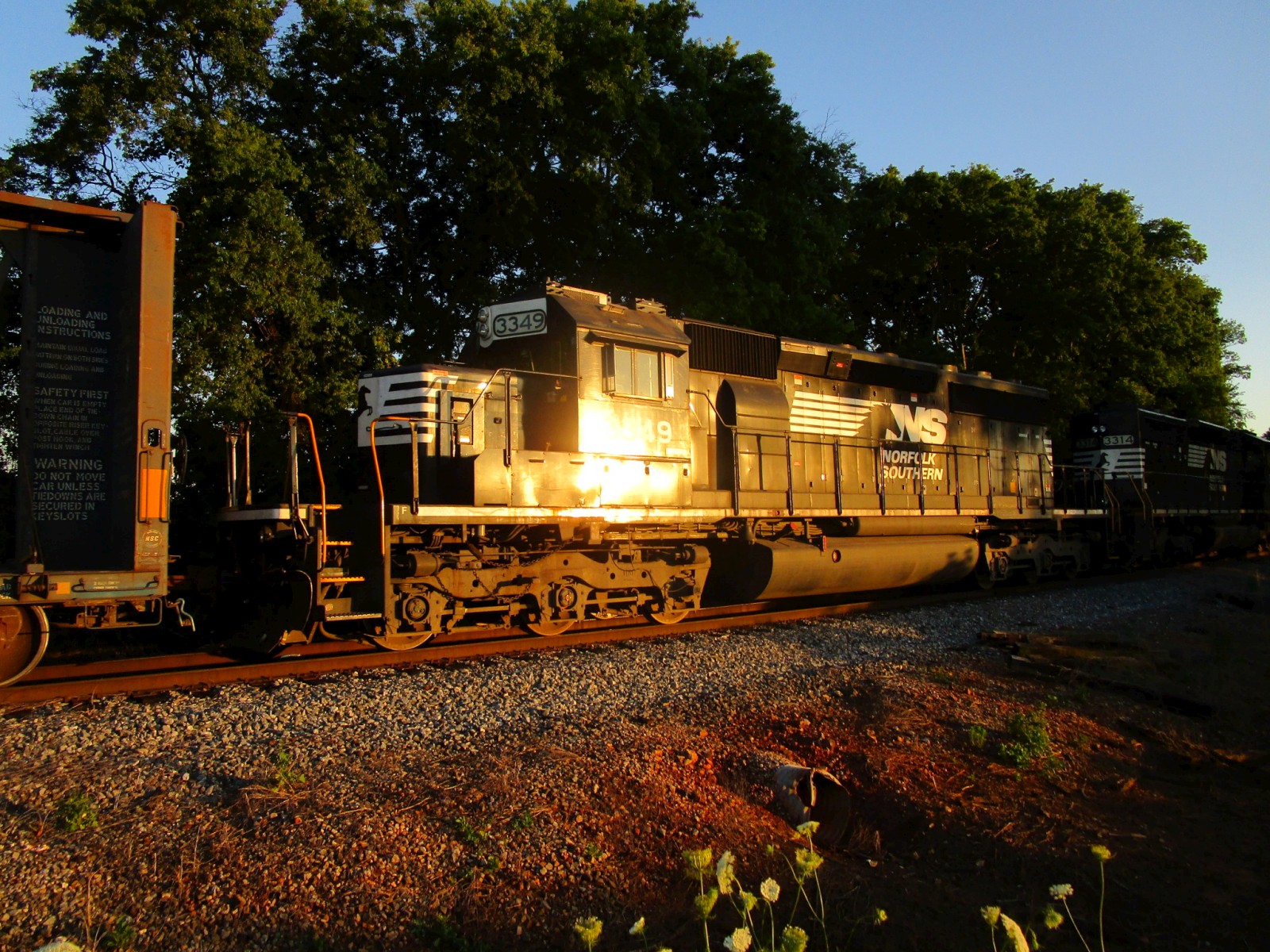

NS A83 comes through with a pair of SD40-2s for power! |
|||
37 |
38 |
39 |
40 |
41 |
42 |
43 |
44 |

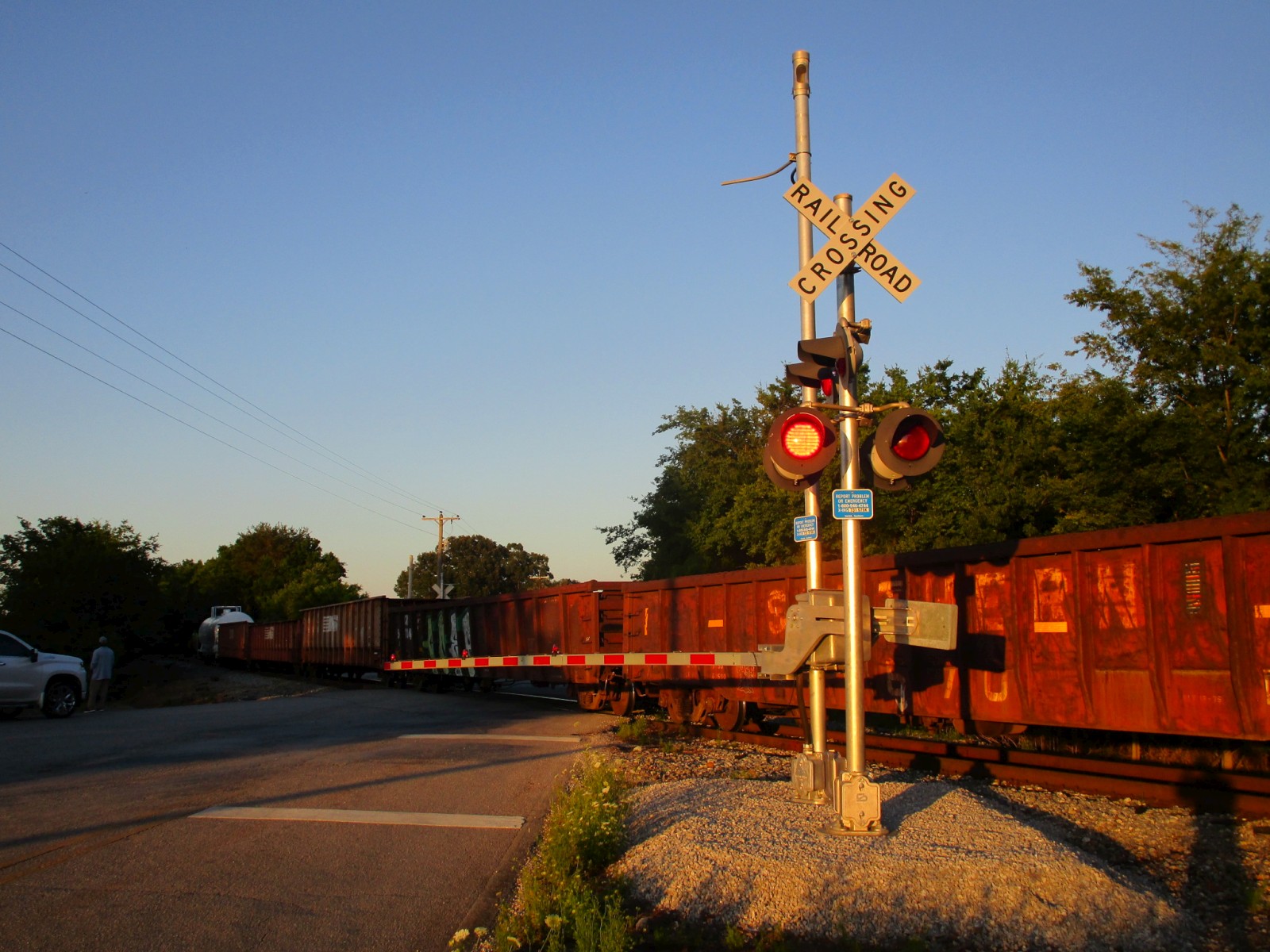

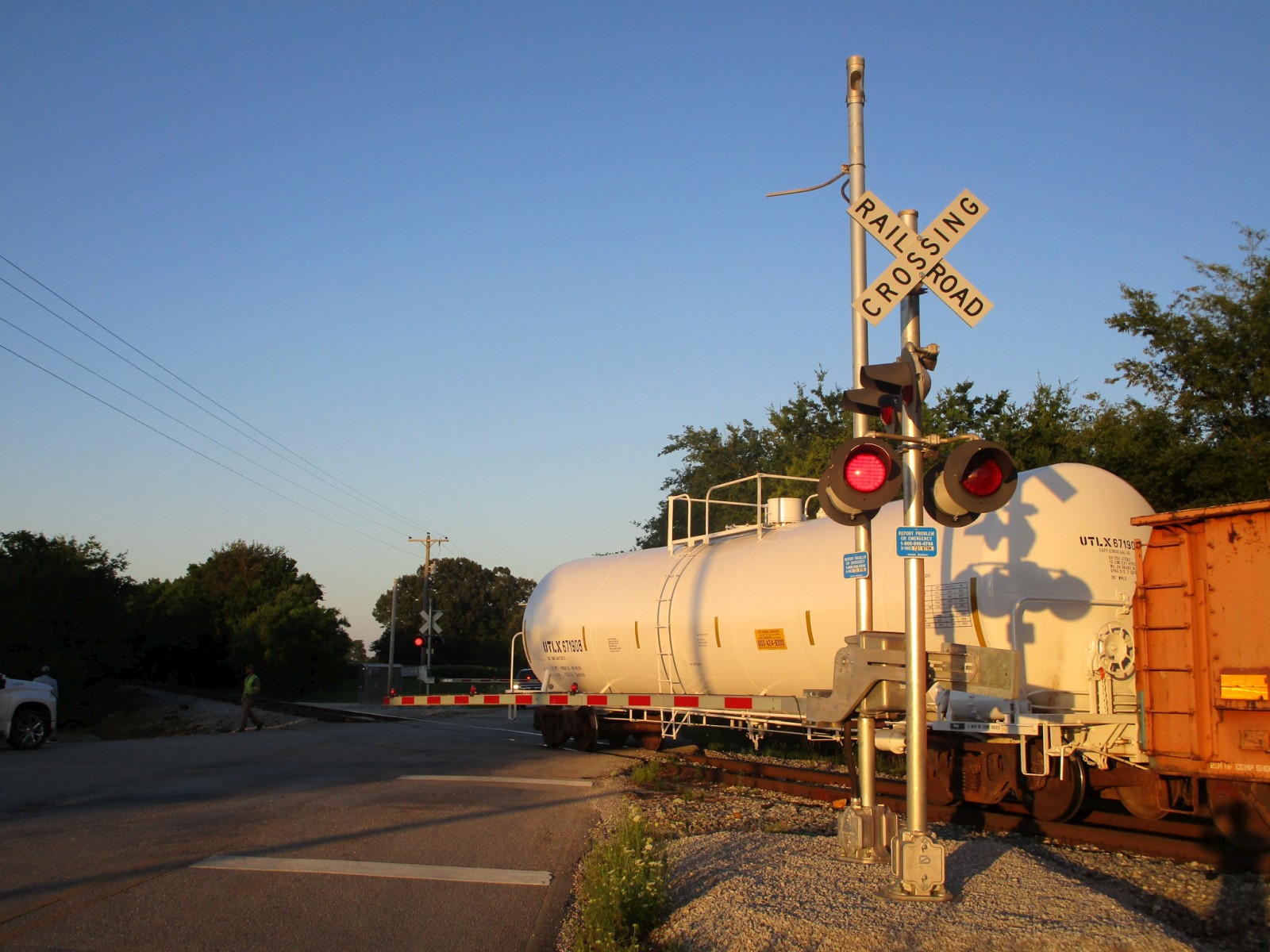

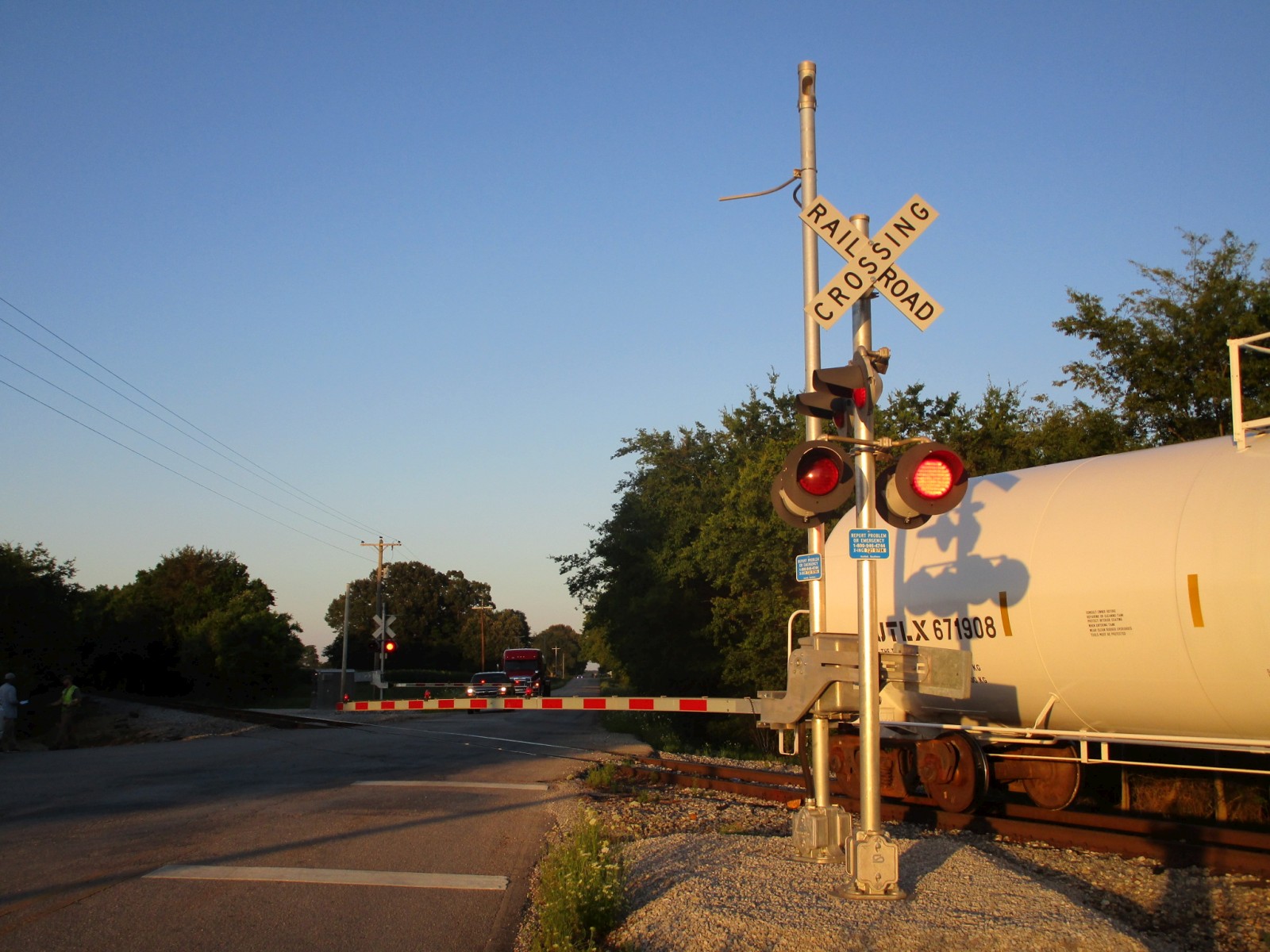

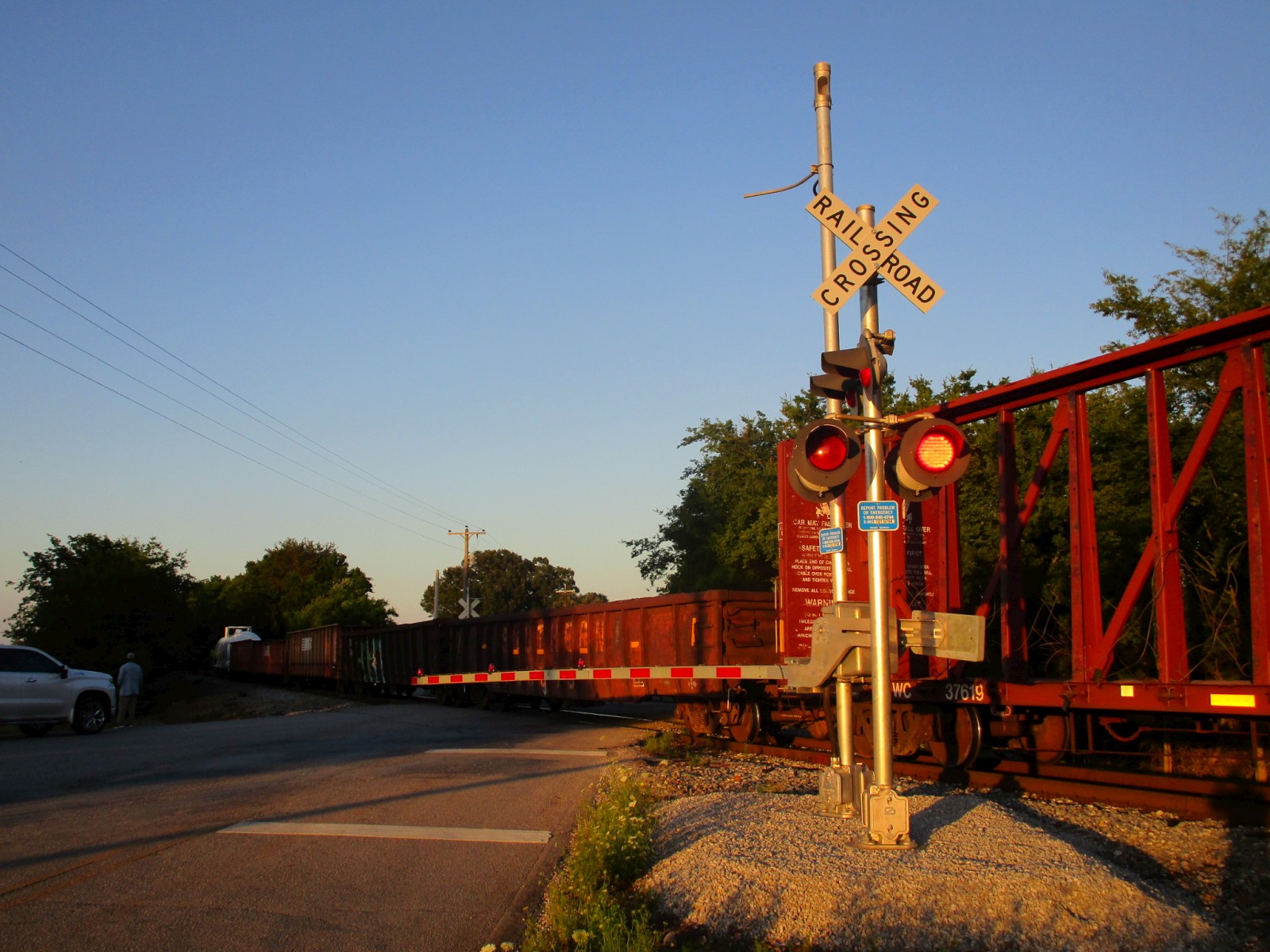

The train passes... |
|||
45 |
46 |
47 |
48 |
49 |
50 |
51 |
52 |

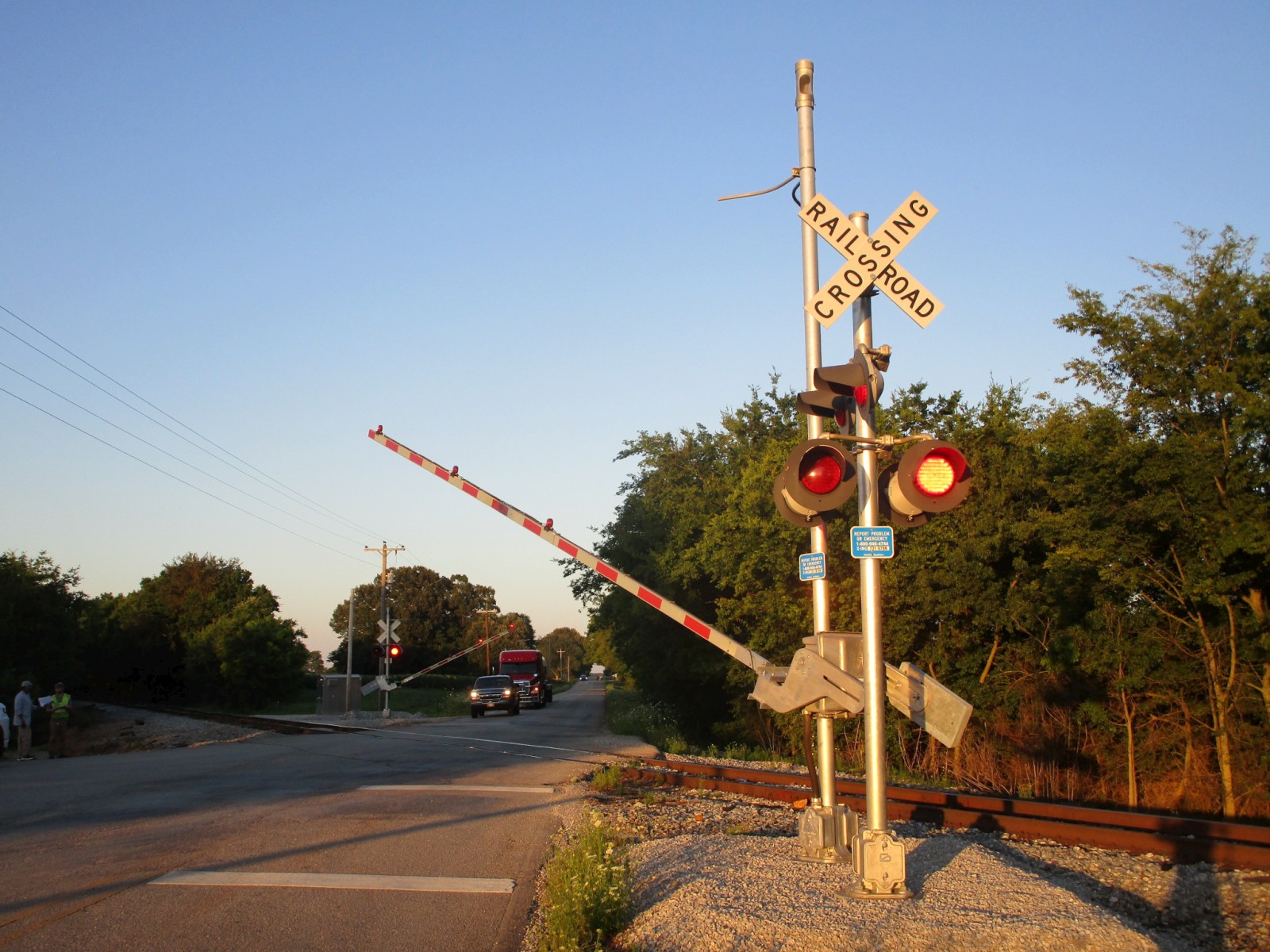

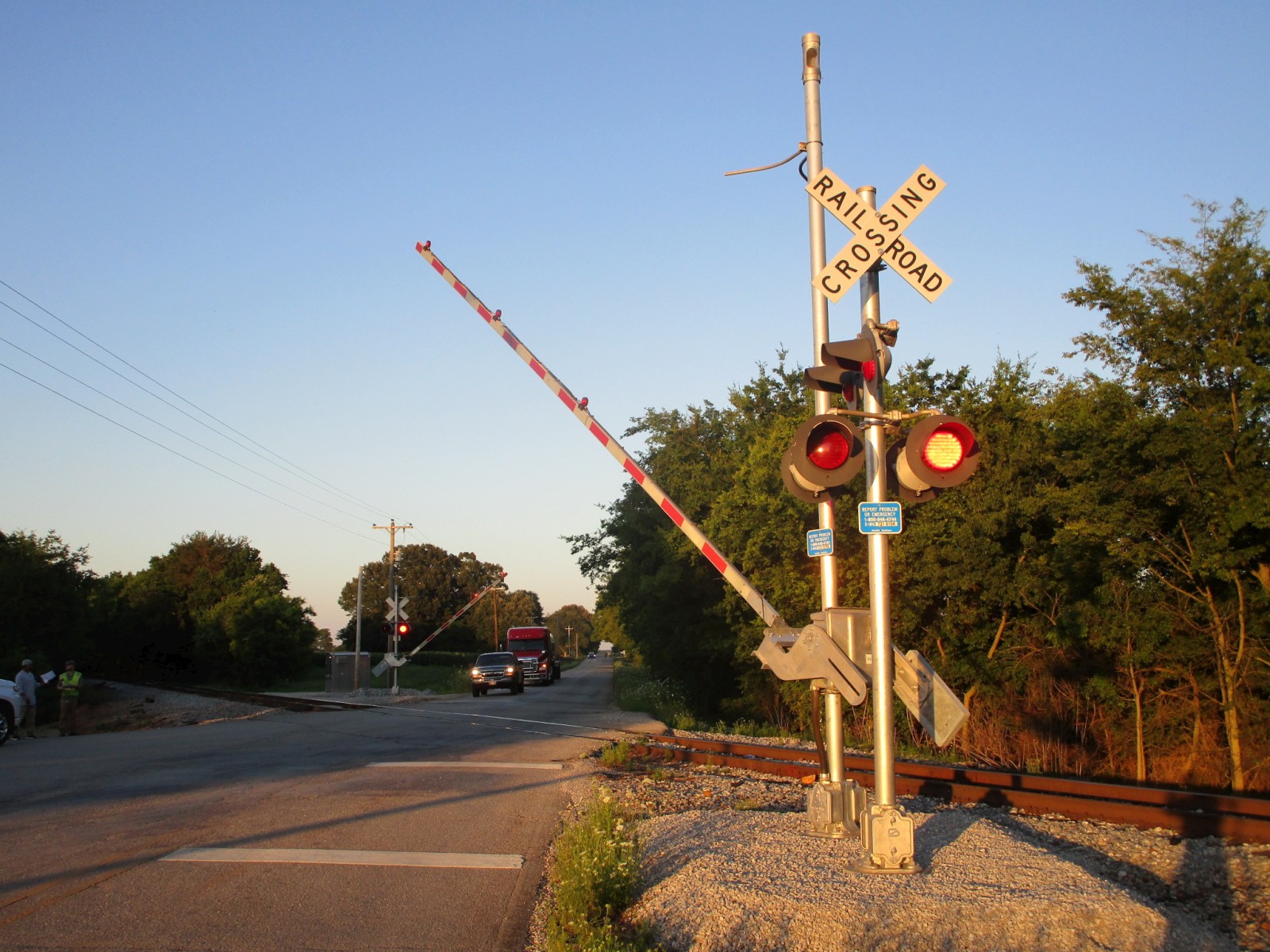

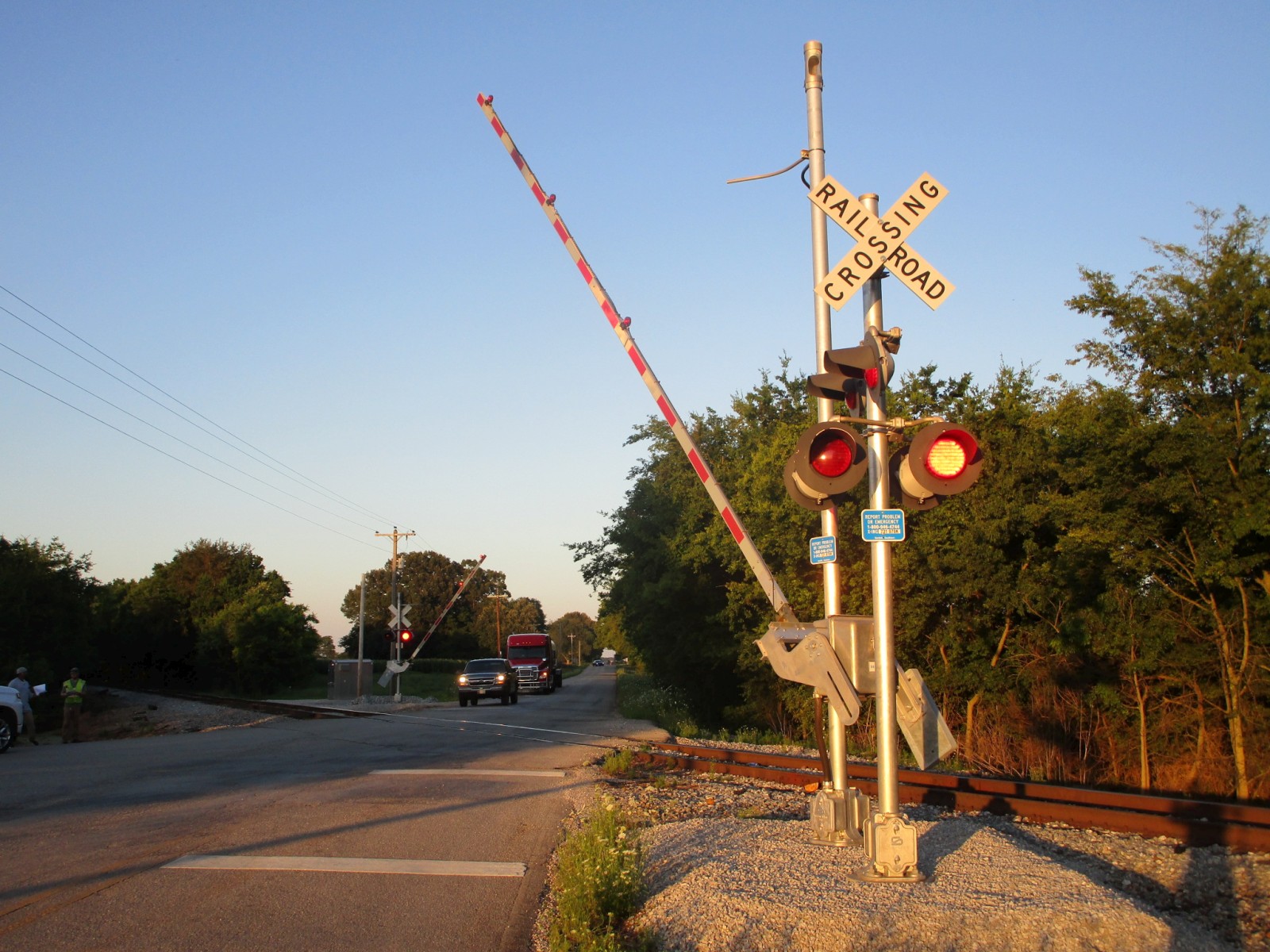

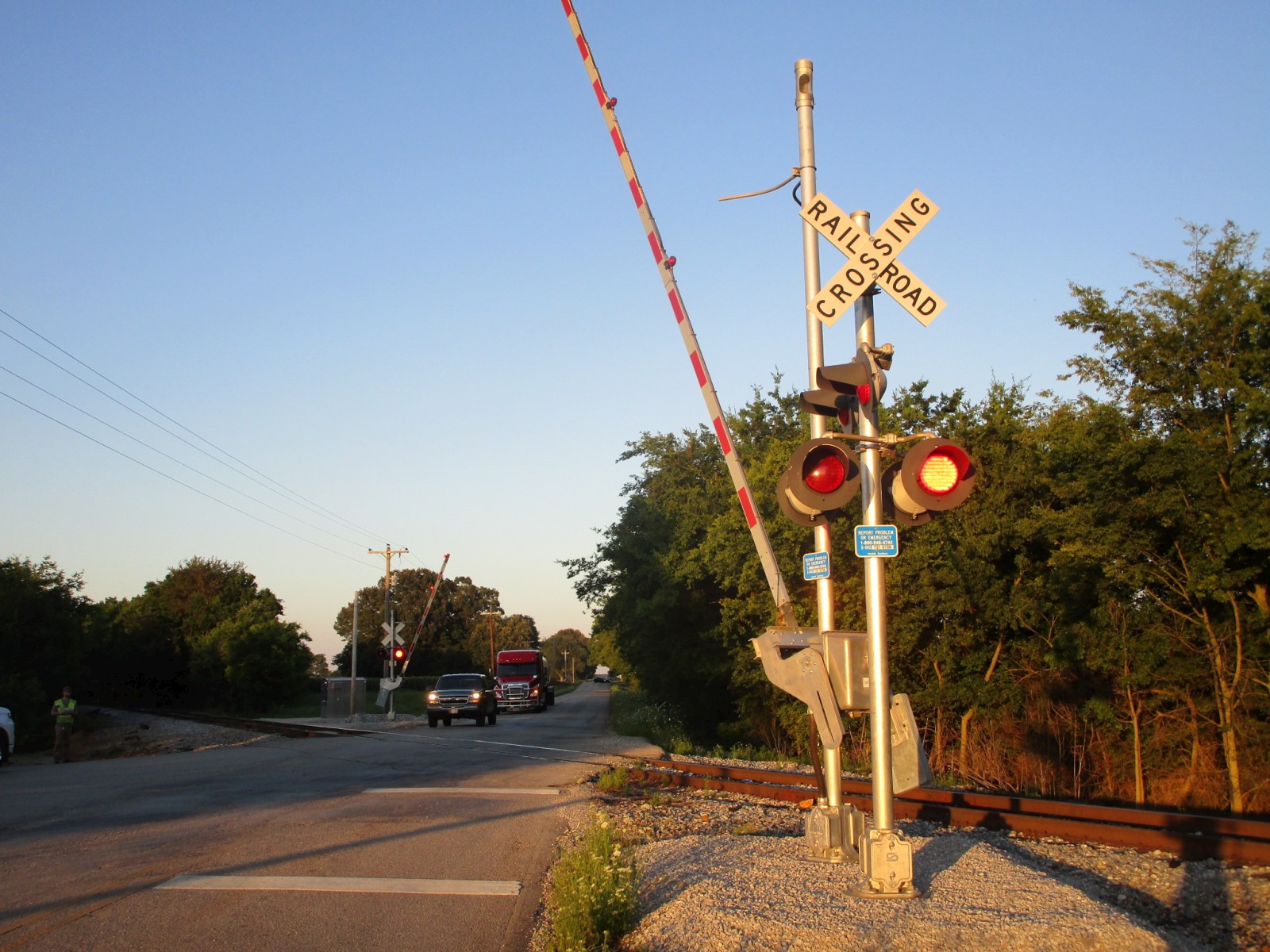

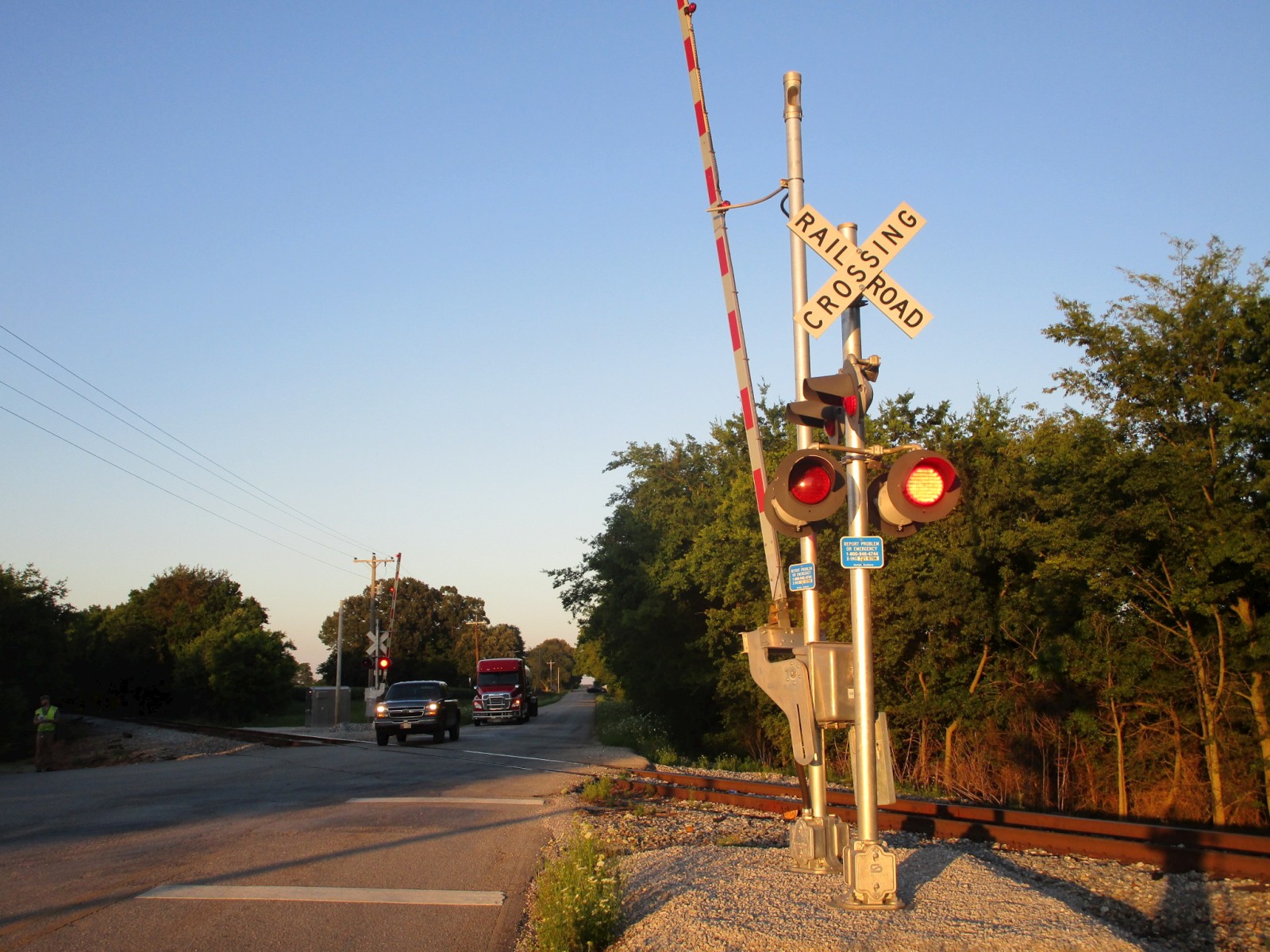

...and the gates rise. |
|||
Pictures 1-26 were taken on 7-29-20.
Pictures 27-52 and the video were taken on 6-14-21.
