MP: A422.30 |
Created December 25, 2016
Total Accidents: 5
Crossing
DOT #: 731982T
TOTAL
DAILY TRAINS: 18 (AS OF 2016)
Page created by: freebrickproductions
This crossing is located on the NS Memphis District West End.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | General Signals Type 3 electronic | General Signals Type 3 electronic |
| Base: | Siemens | Siemens |
| Light Frames: | 8 - 12x20" Safetran w/ GE Uniform Look LEDs | 6 - 12x20" Safetran w/ GE Uniform Look LEDs |
| Gate Lights: | 3 - RECO LEDs | 3 - RECO LEDs |
| Gate Mechanism: | Siemens Sticker Style 2 | Siemens Sticker Style 2 |
| Gate Striping: | Vertical | Vertical |
1 |
2 |
3 |
4 |

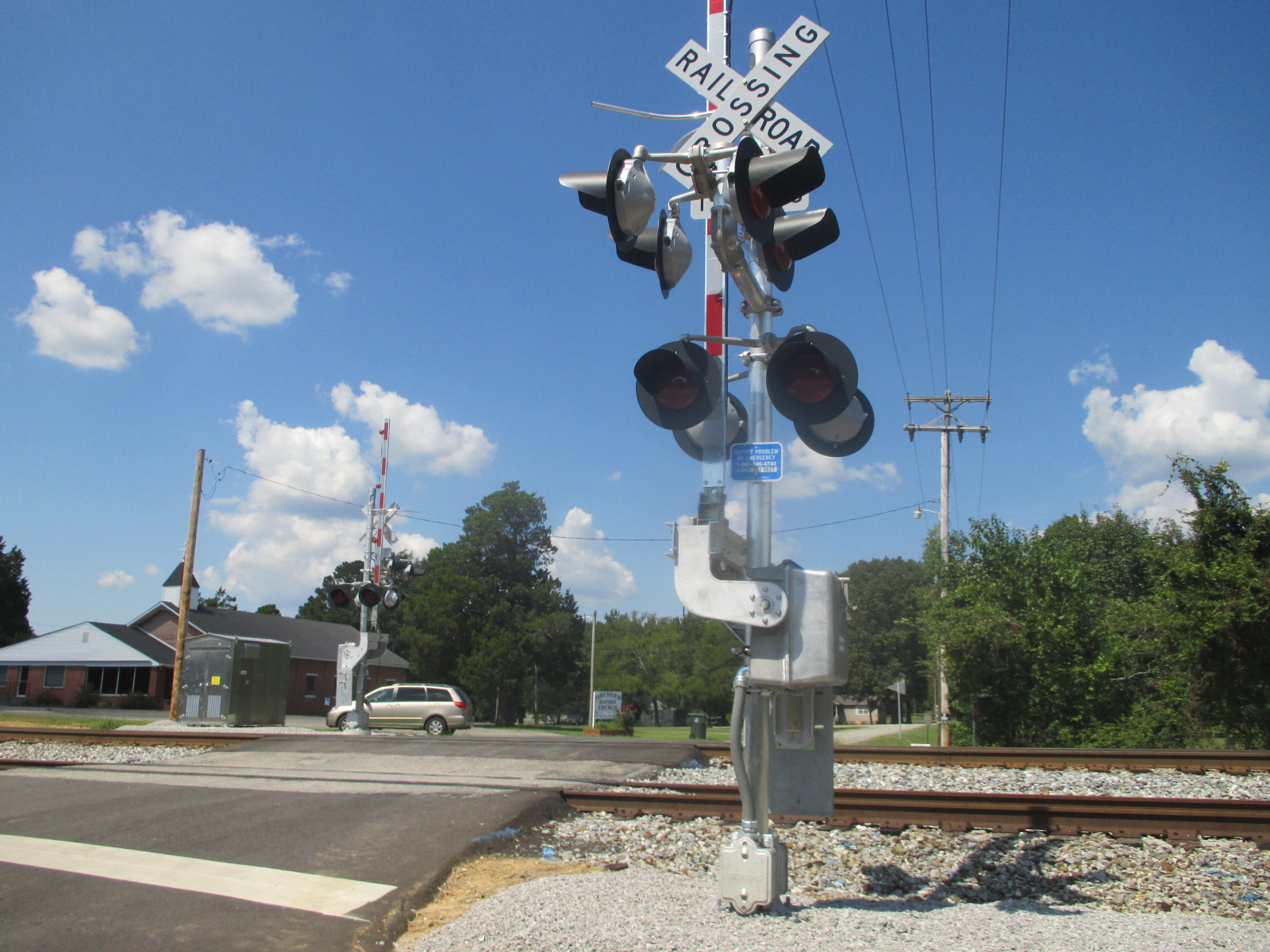

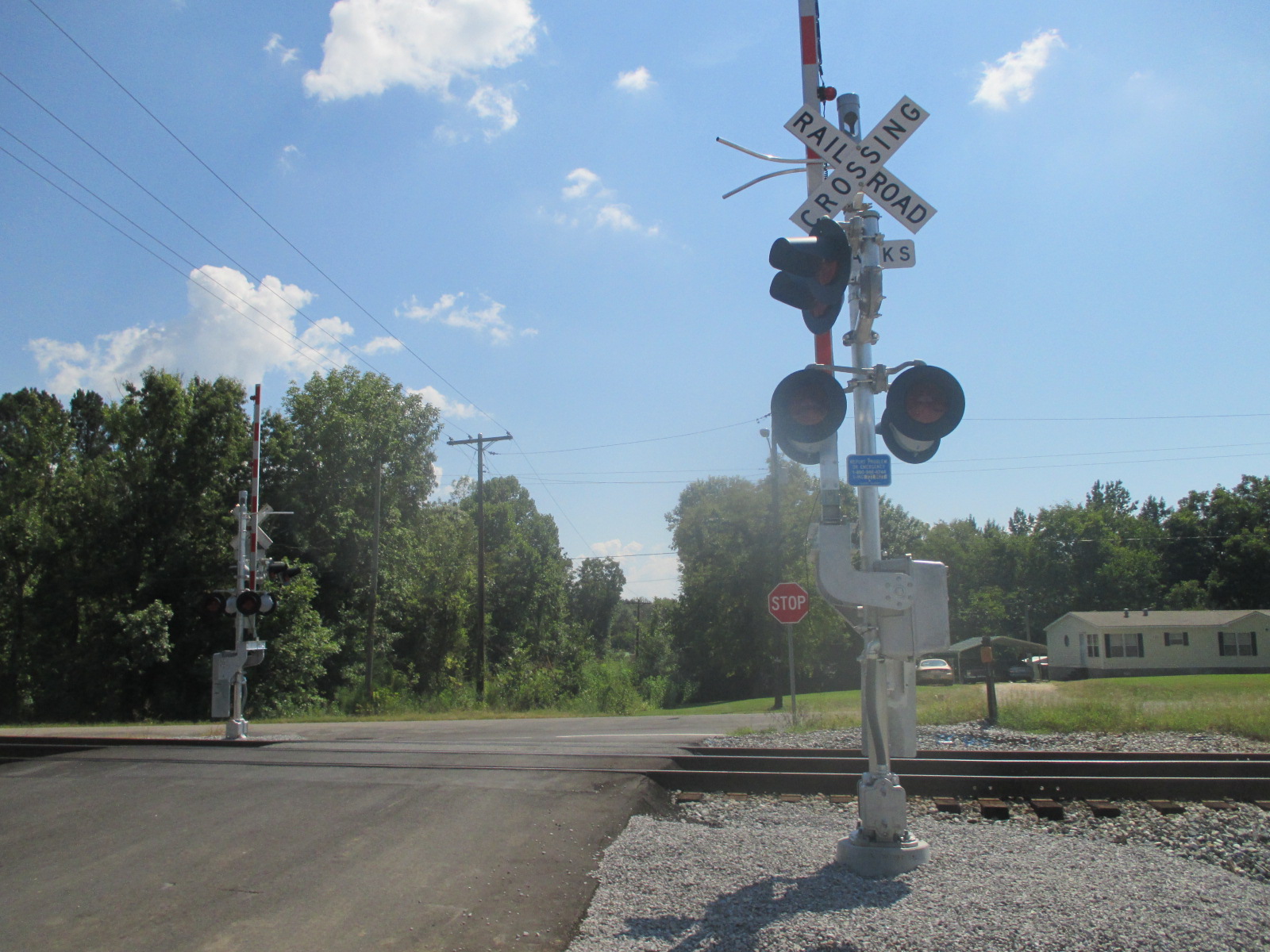

Overviews of the crossing. |

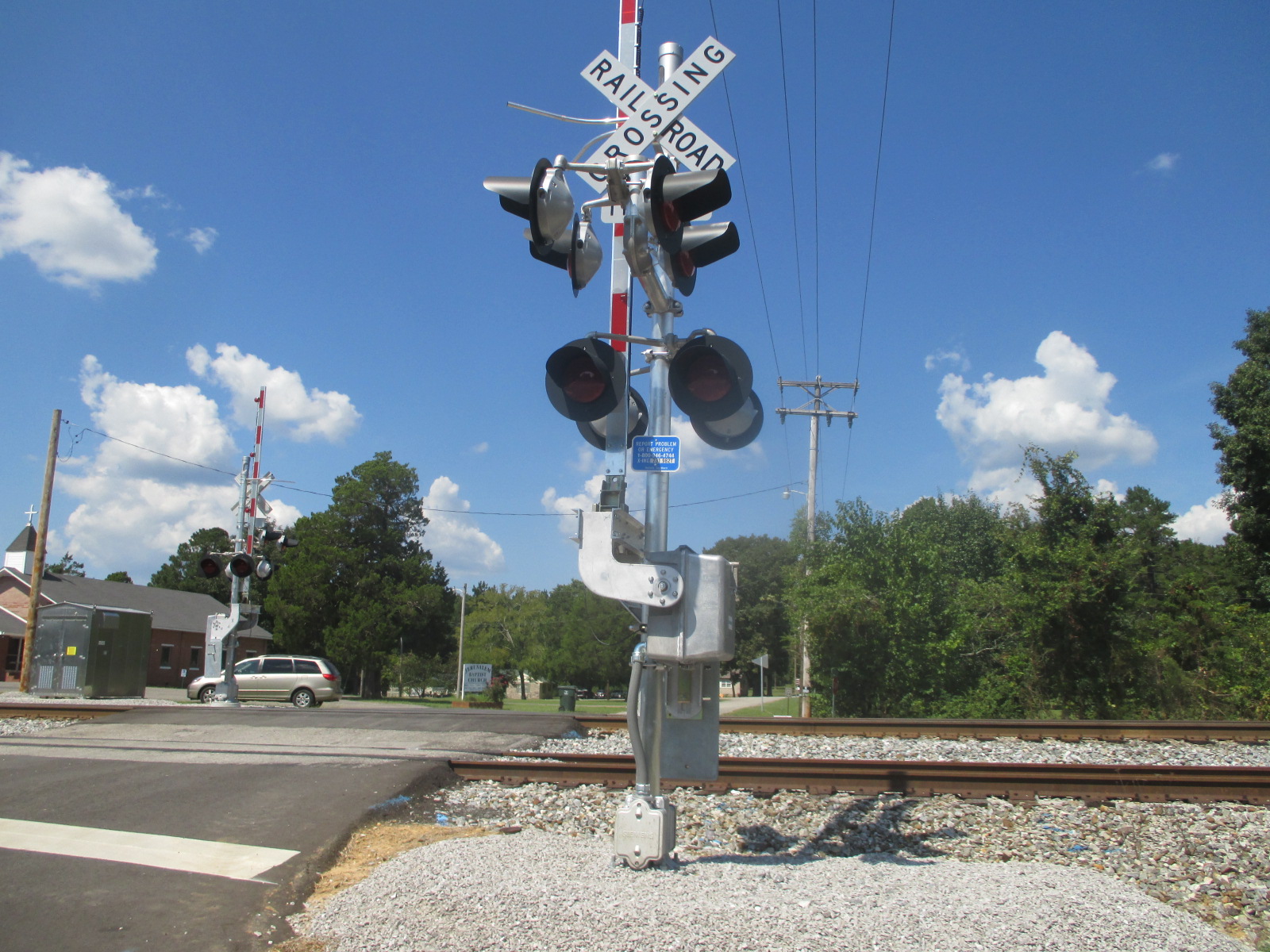

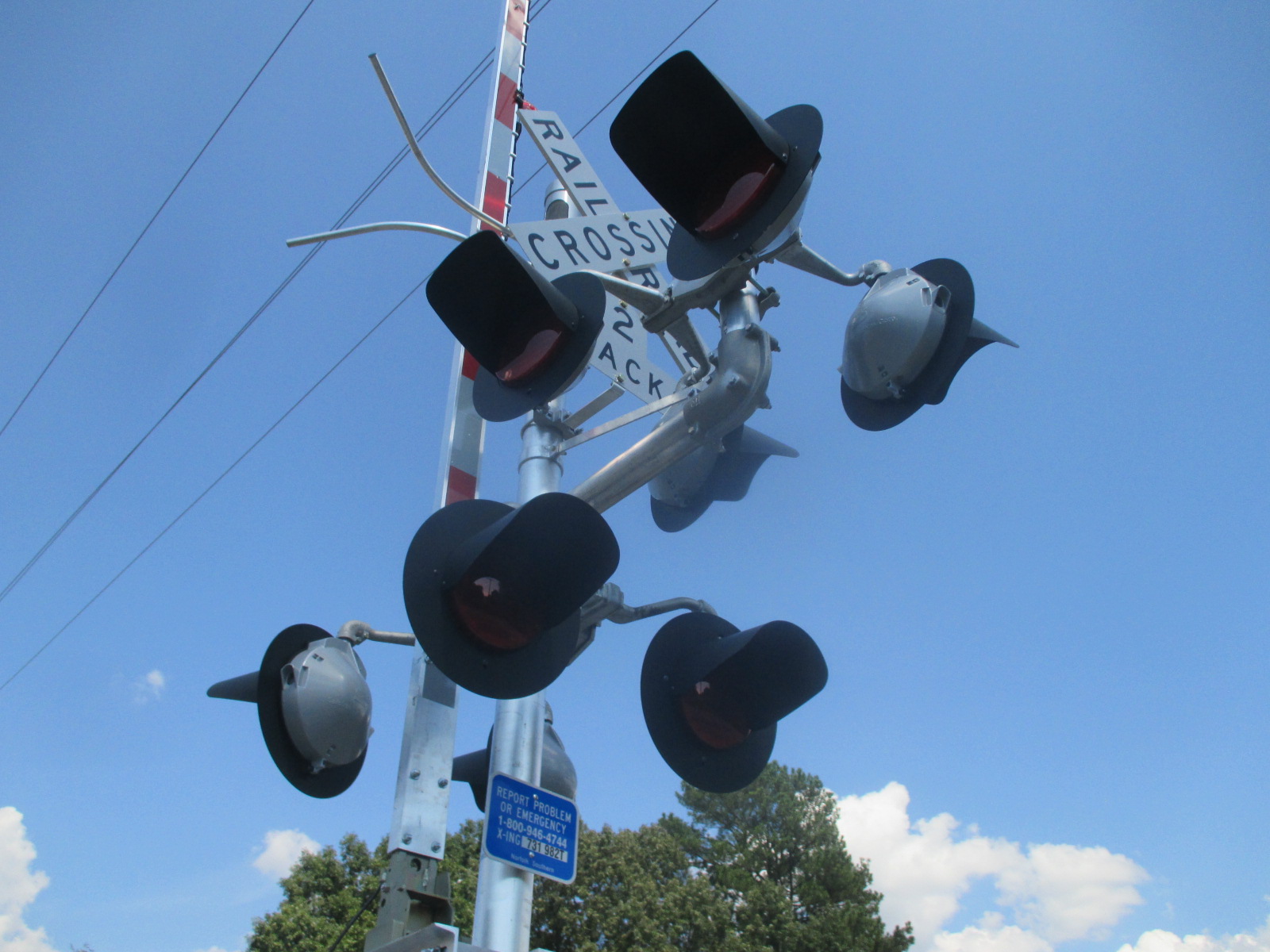

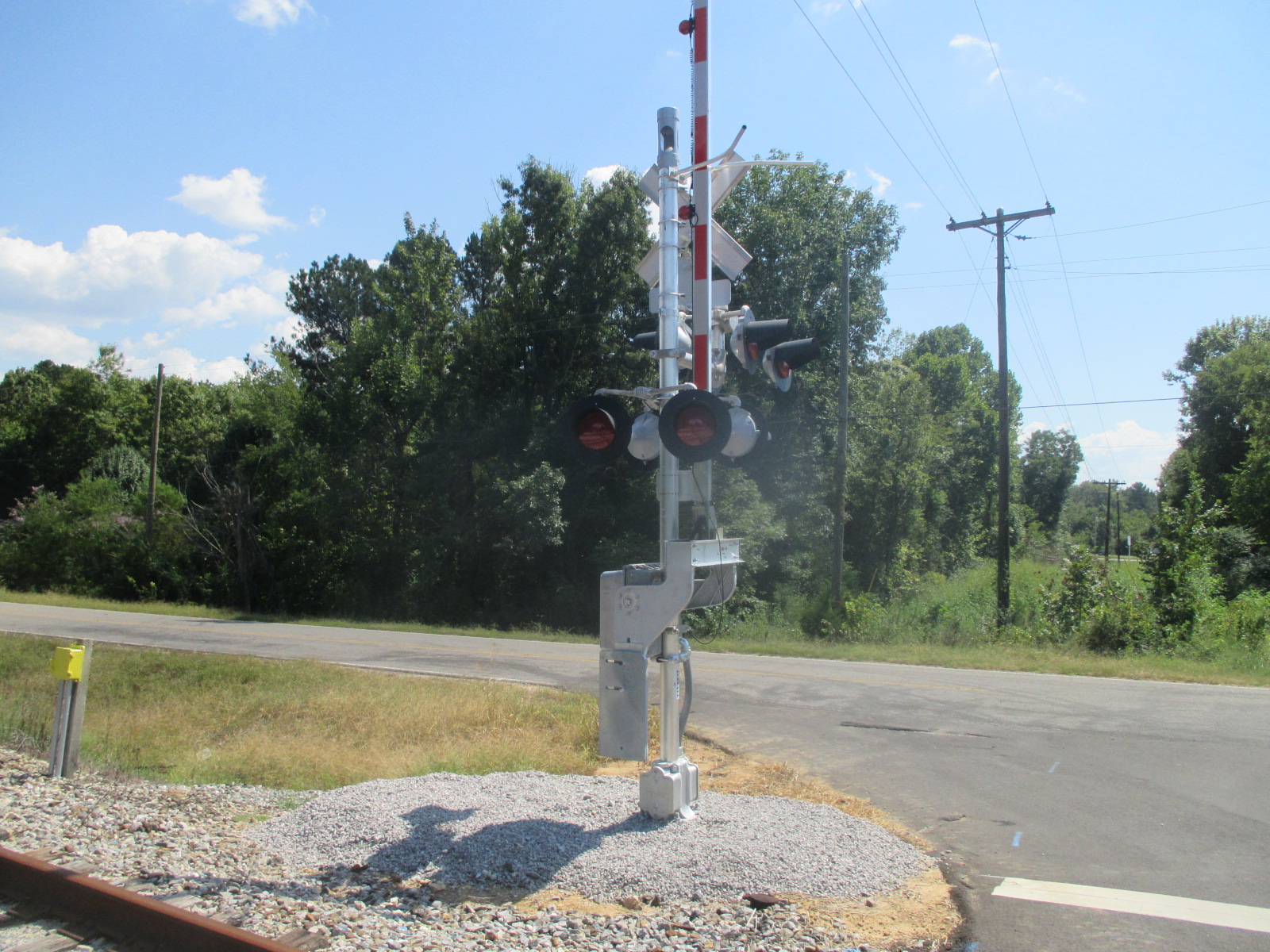

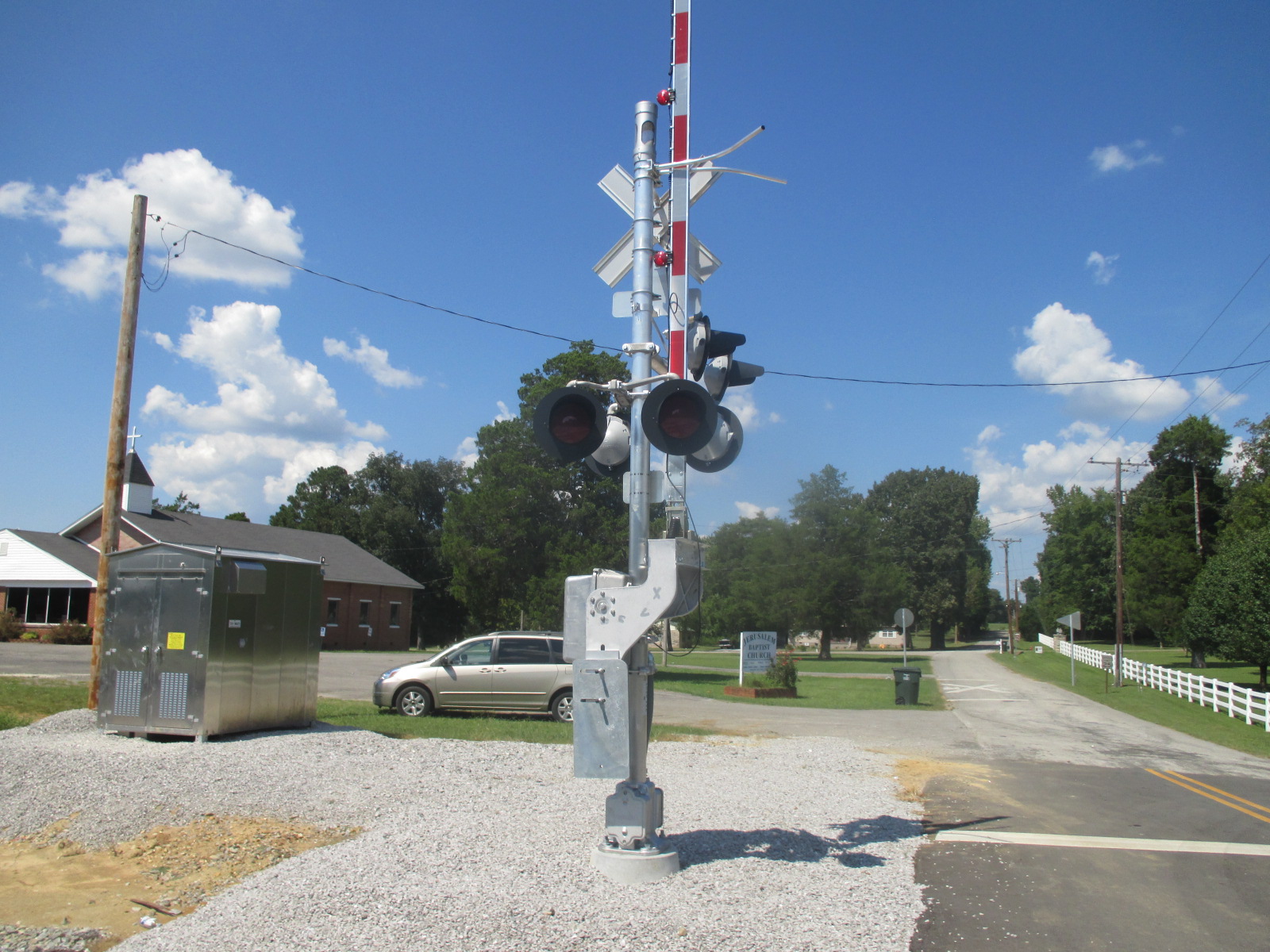

The first signal. |
||
5 |
6 |
7 |
8 |

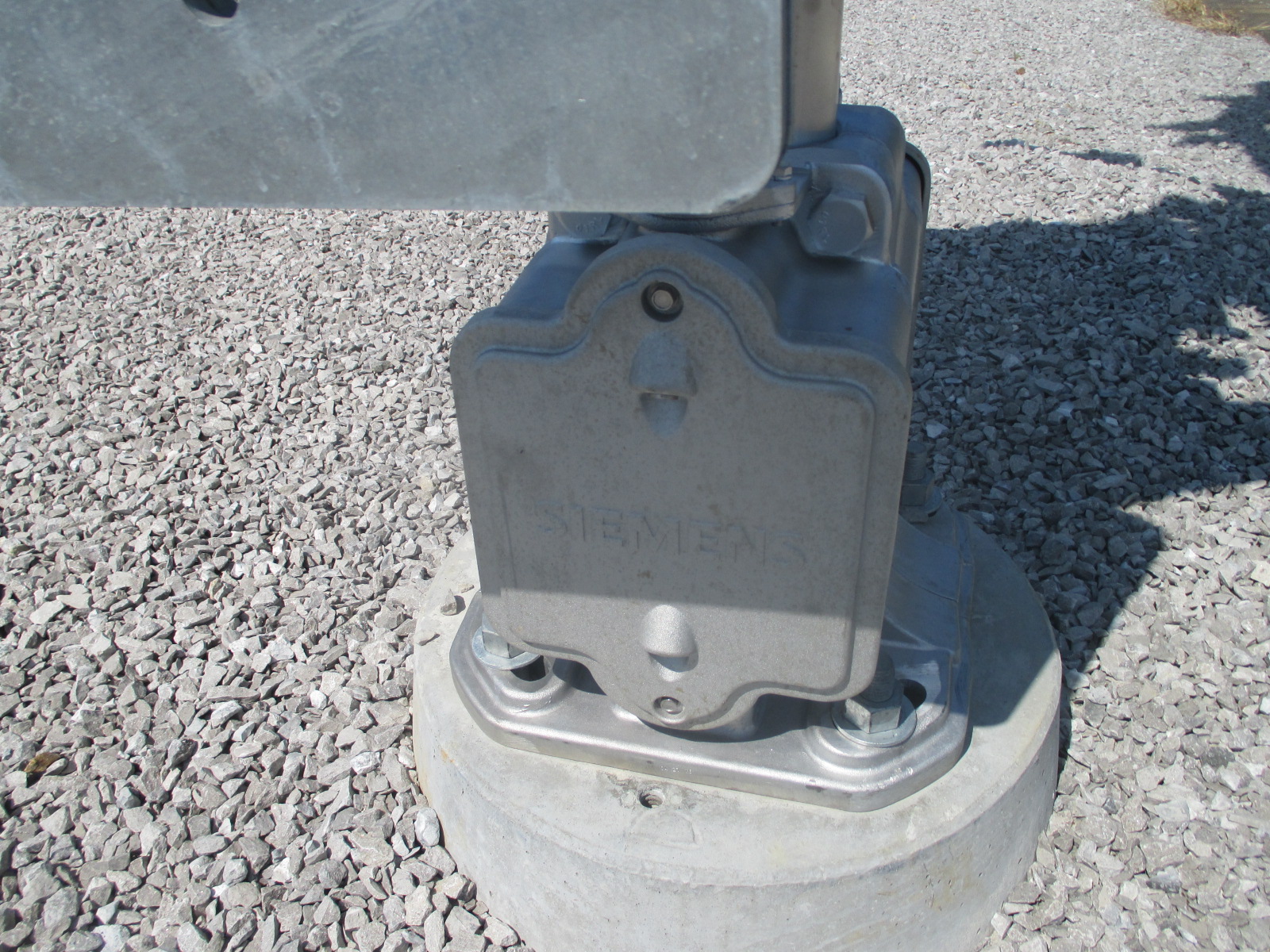

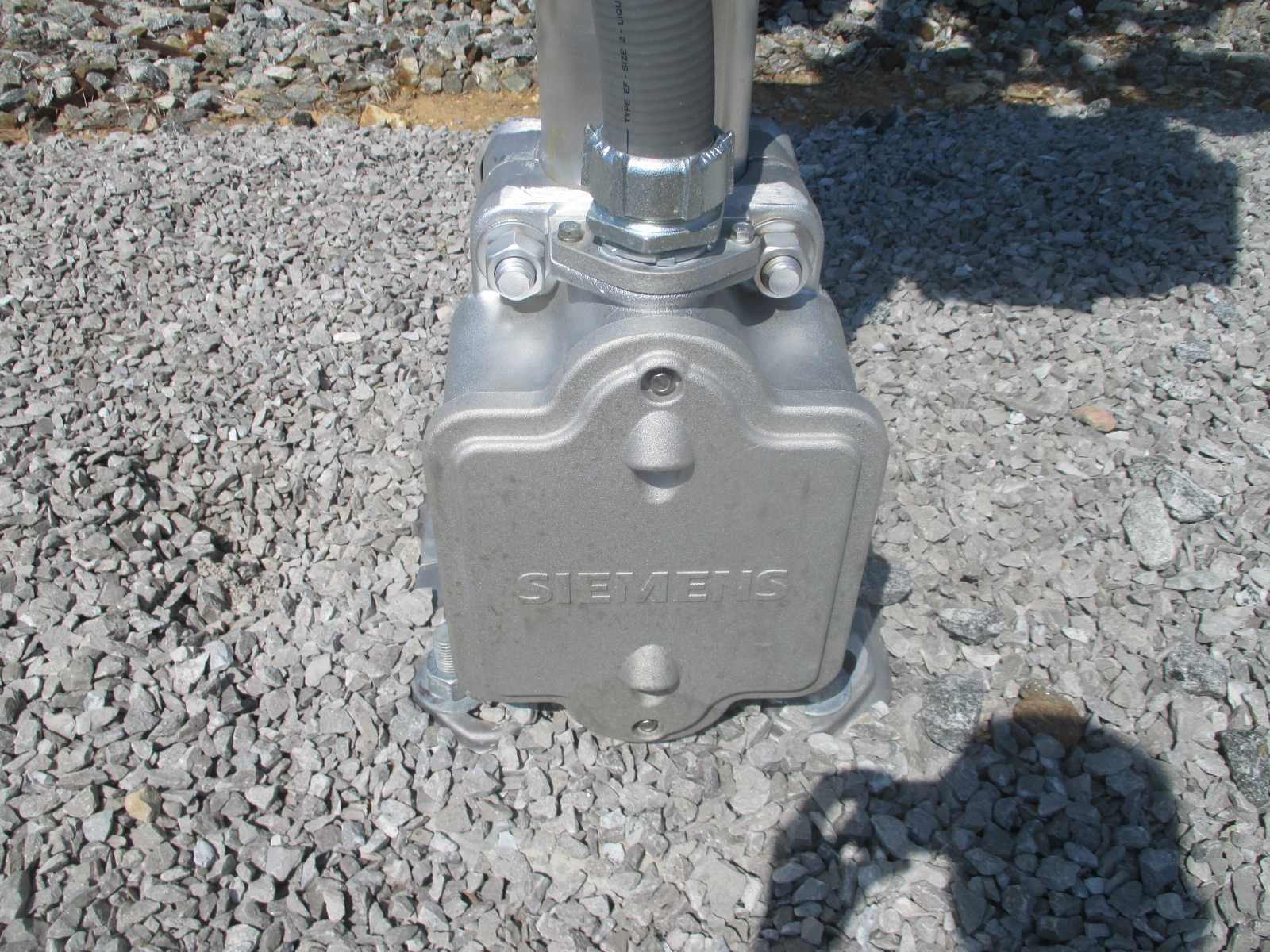

It's got a Siemens base. |

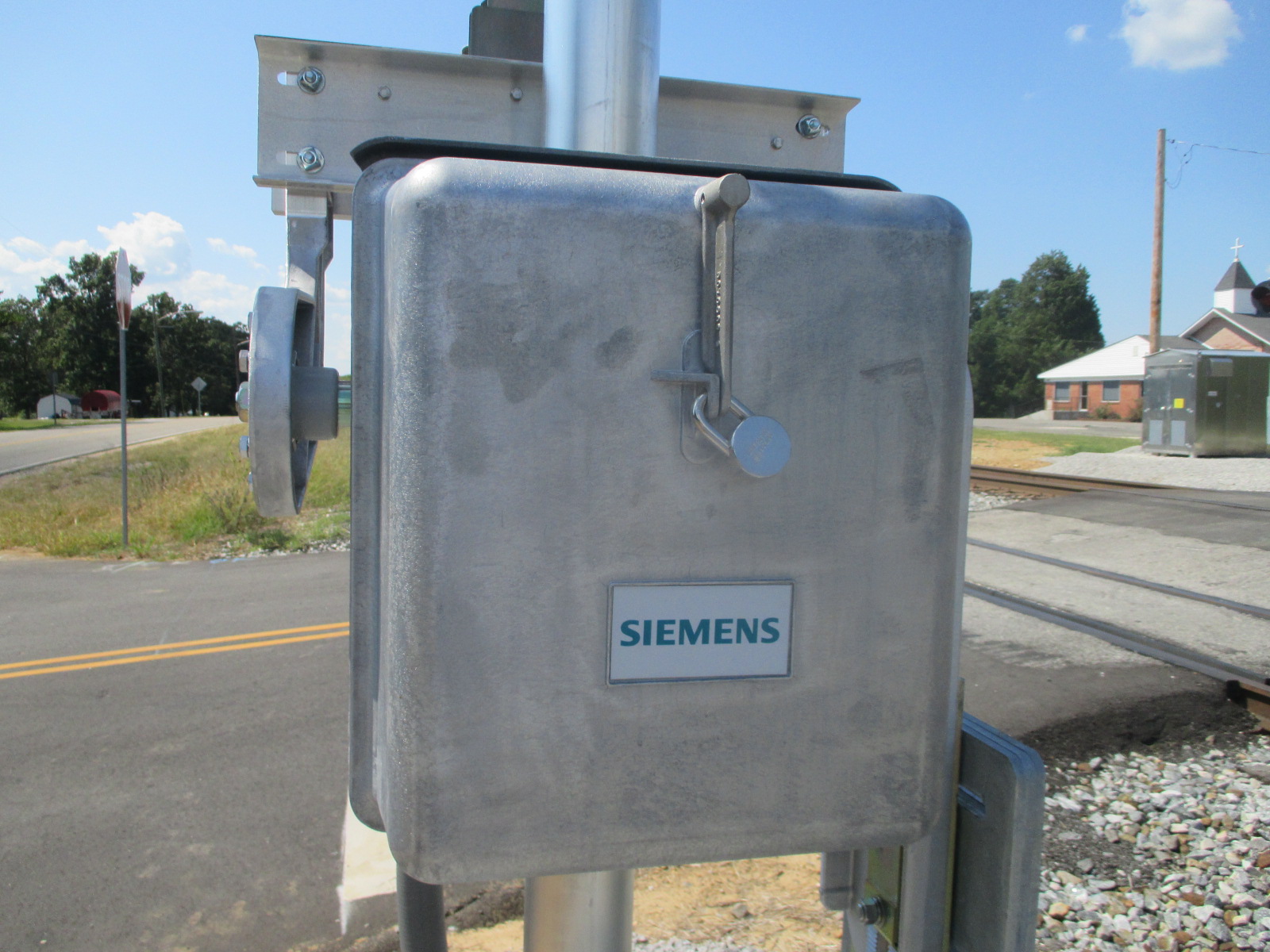

The gate mechanism is from Siemens. |

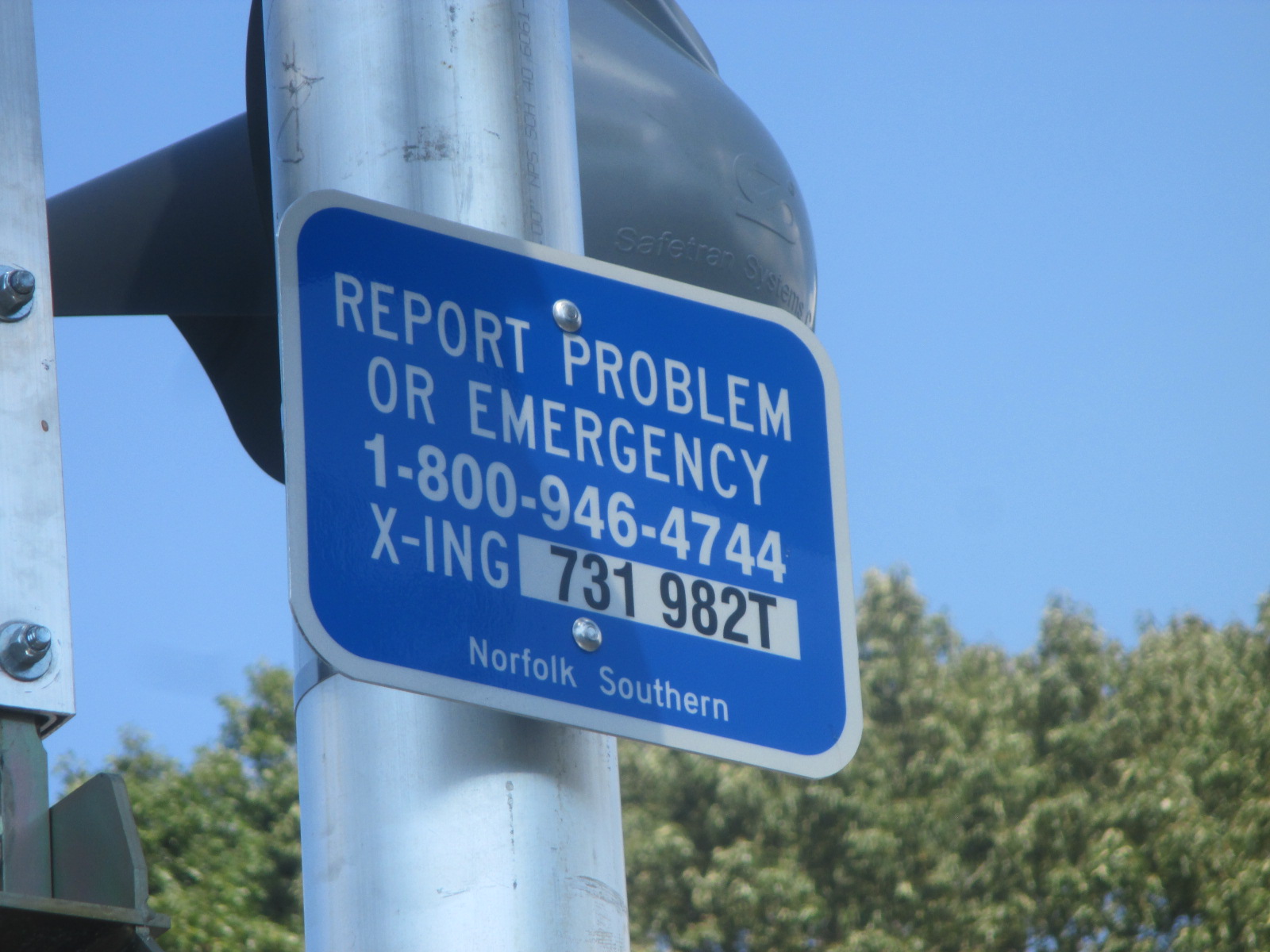

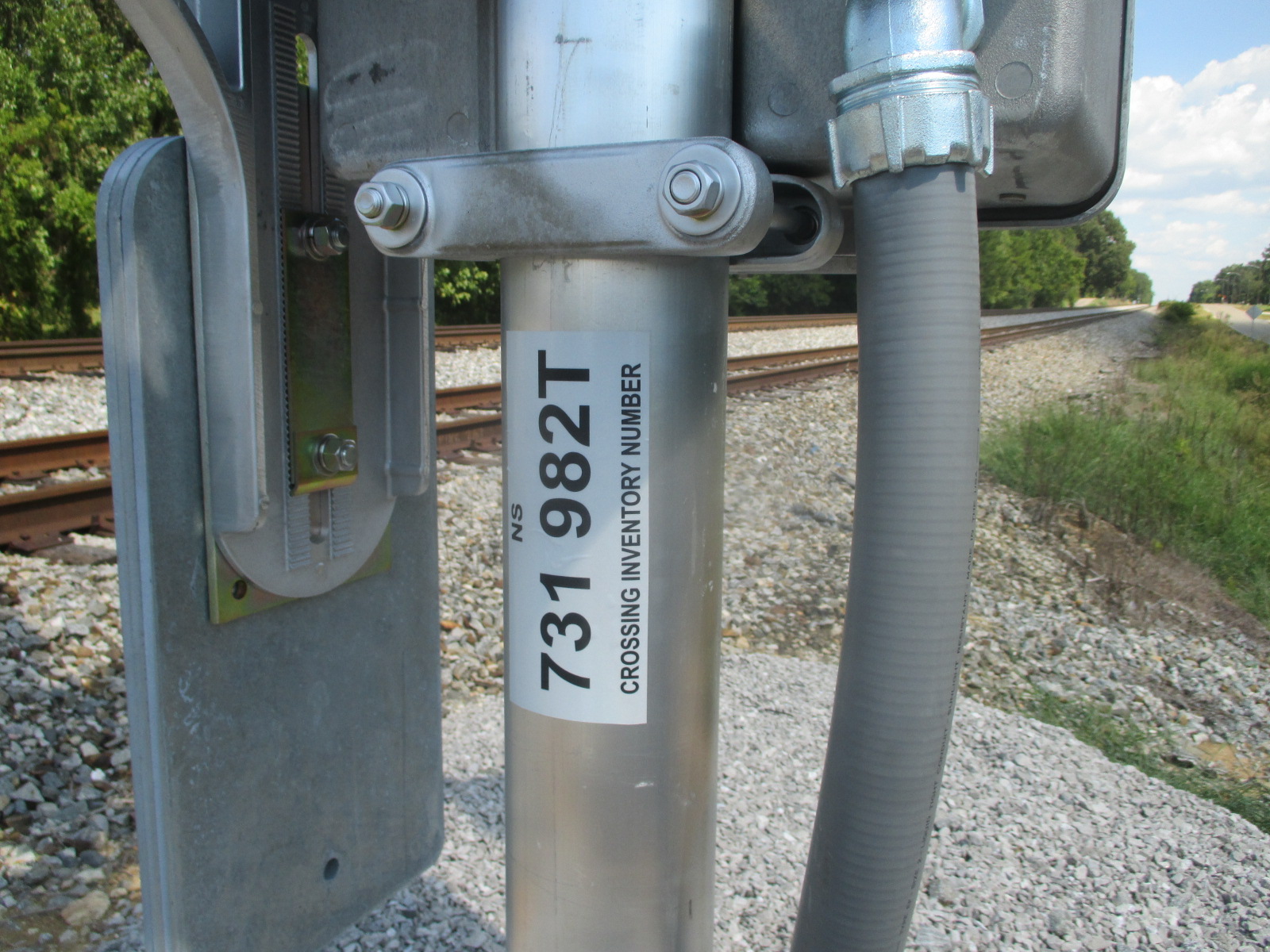

A DOT tag and the emergency information. |
|
9 |
10 |
11 |
12 |

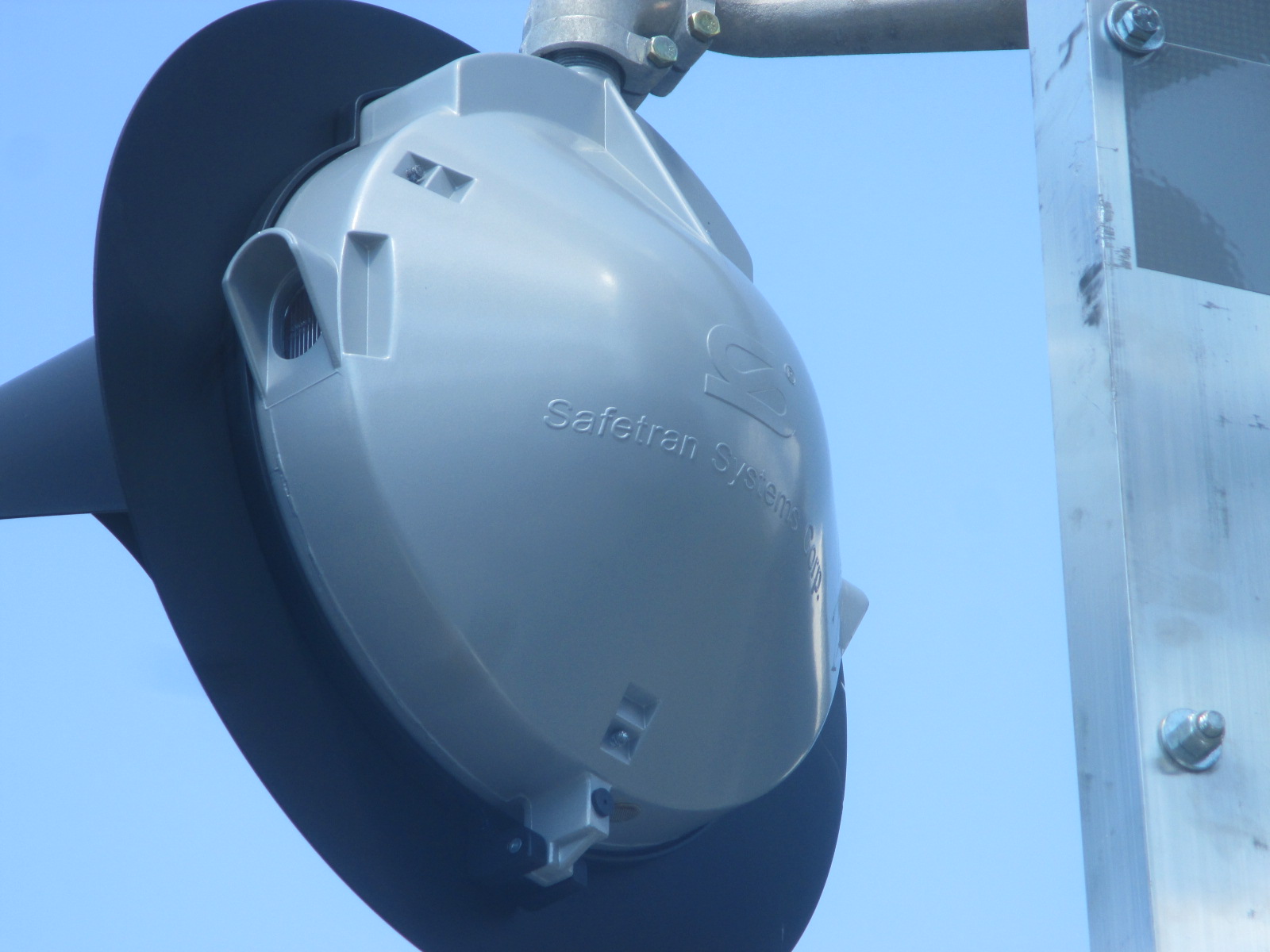

This signal has Safetran 12x20 inch lights with GE Uniform Look LEDs. |

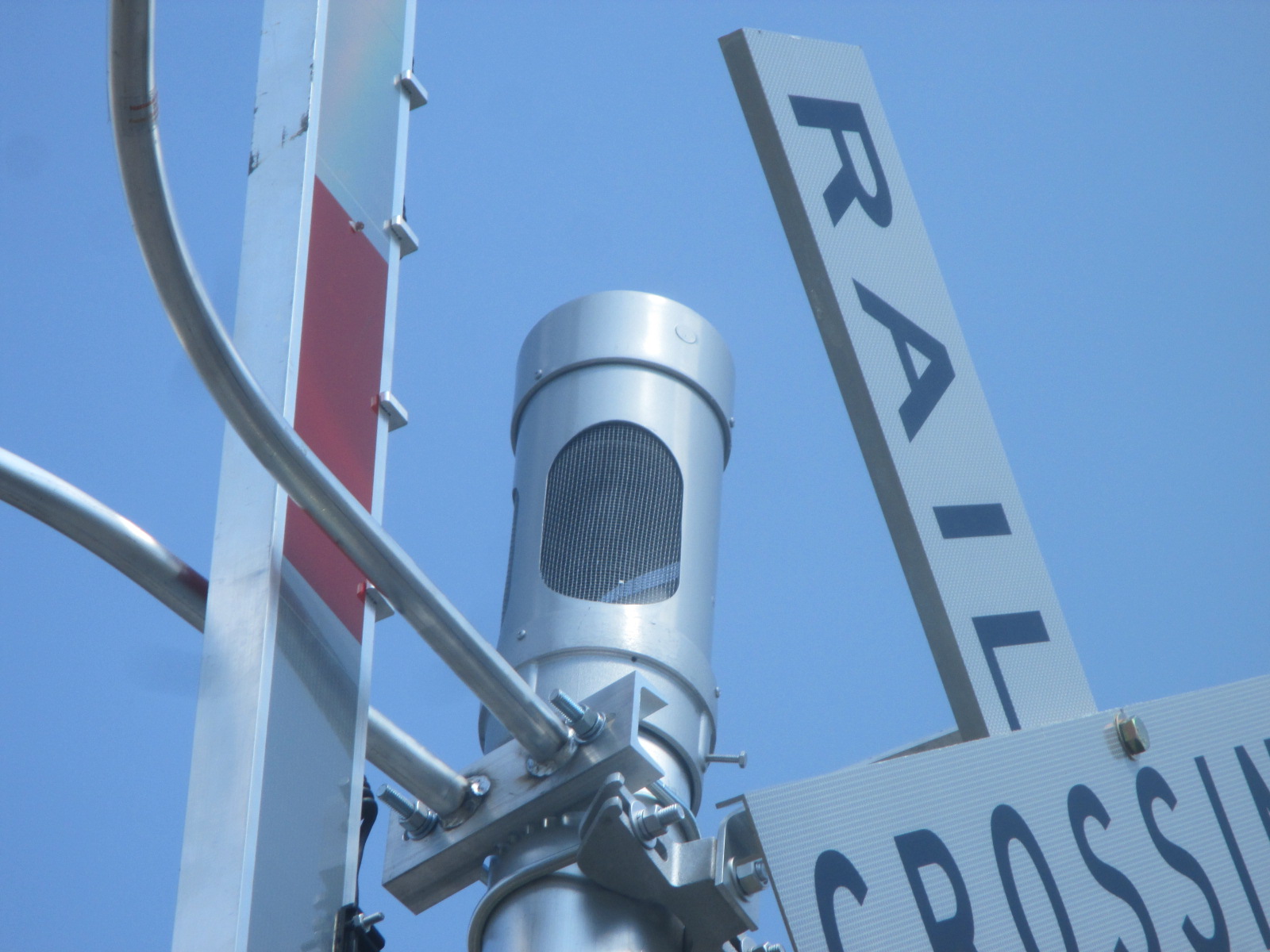

The bell here is a General Signals Type 3 electronic bell. |

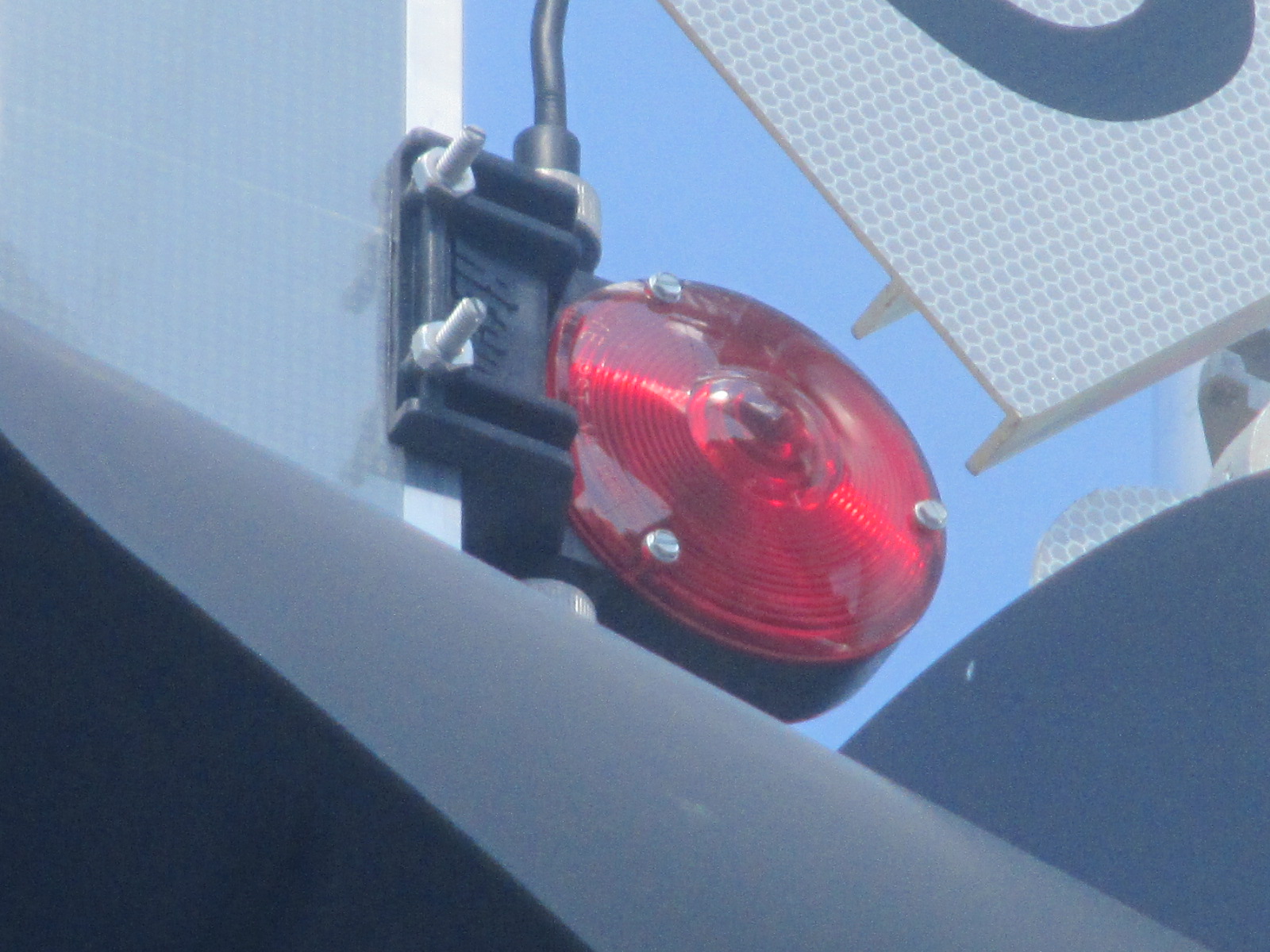

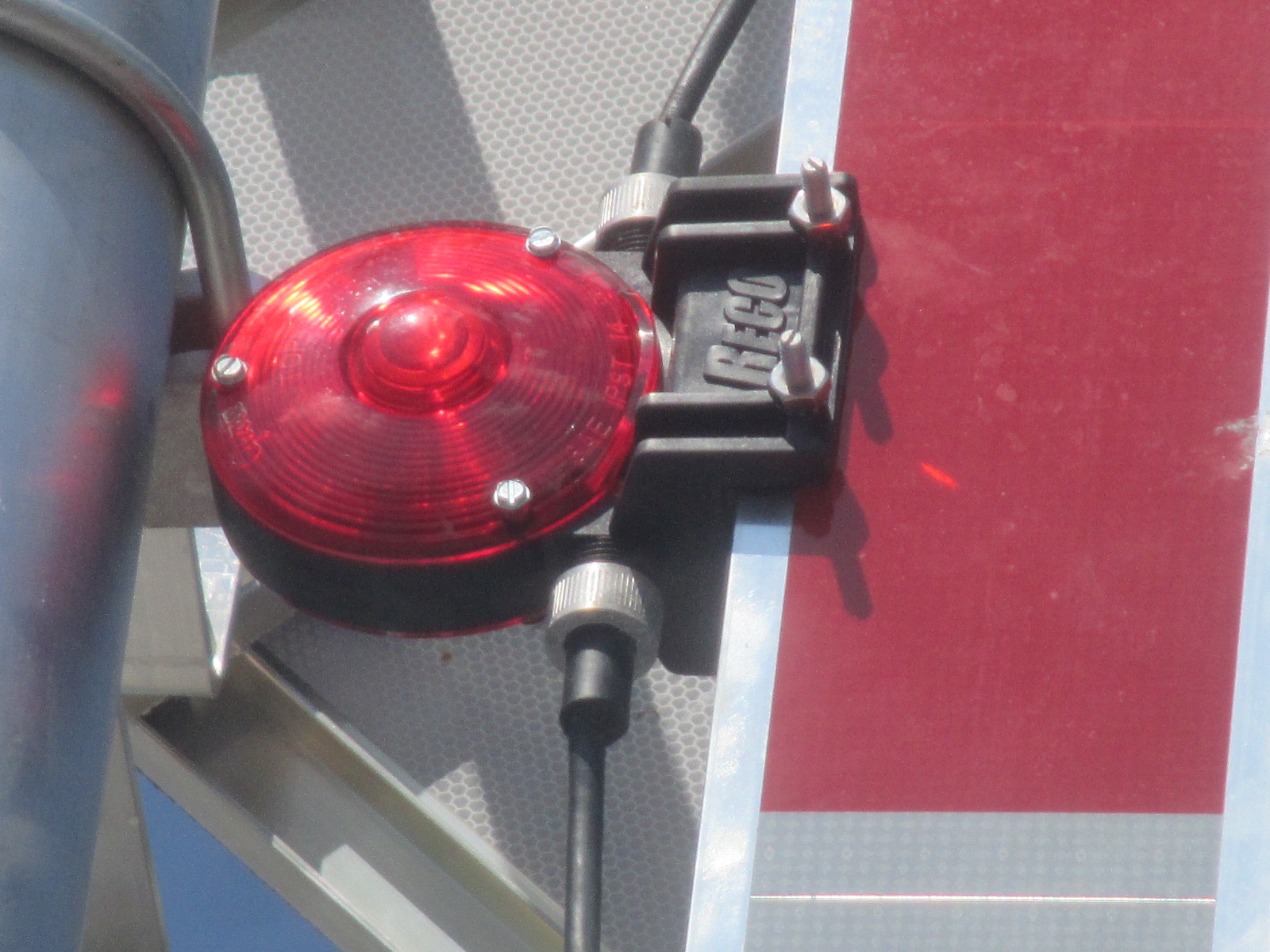

The gate lights are RECO LED gate lights. |
|
13 |
14 |
15 |
16 |

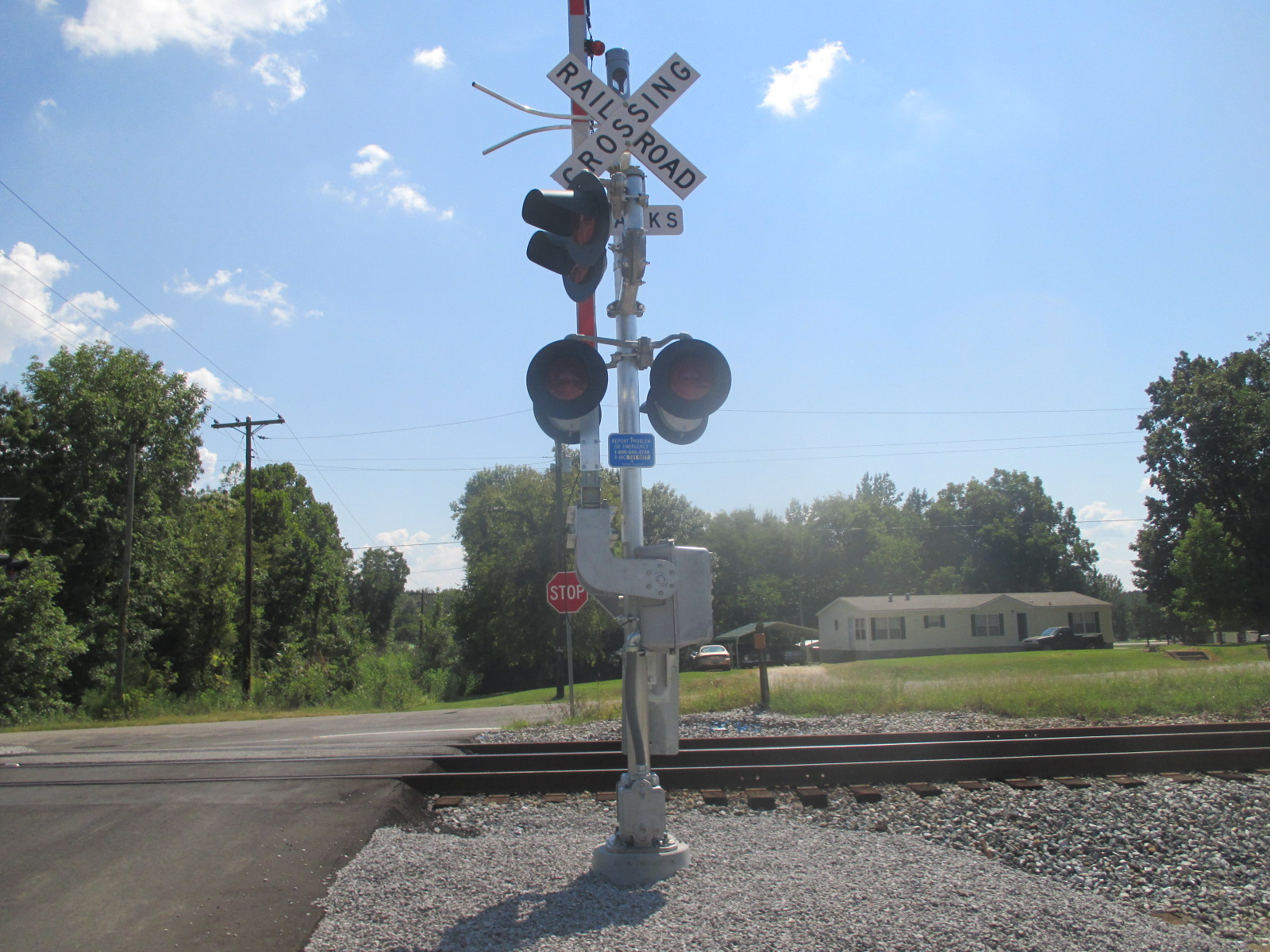

The second signal. |
Another Siemens base. |

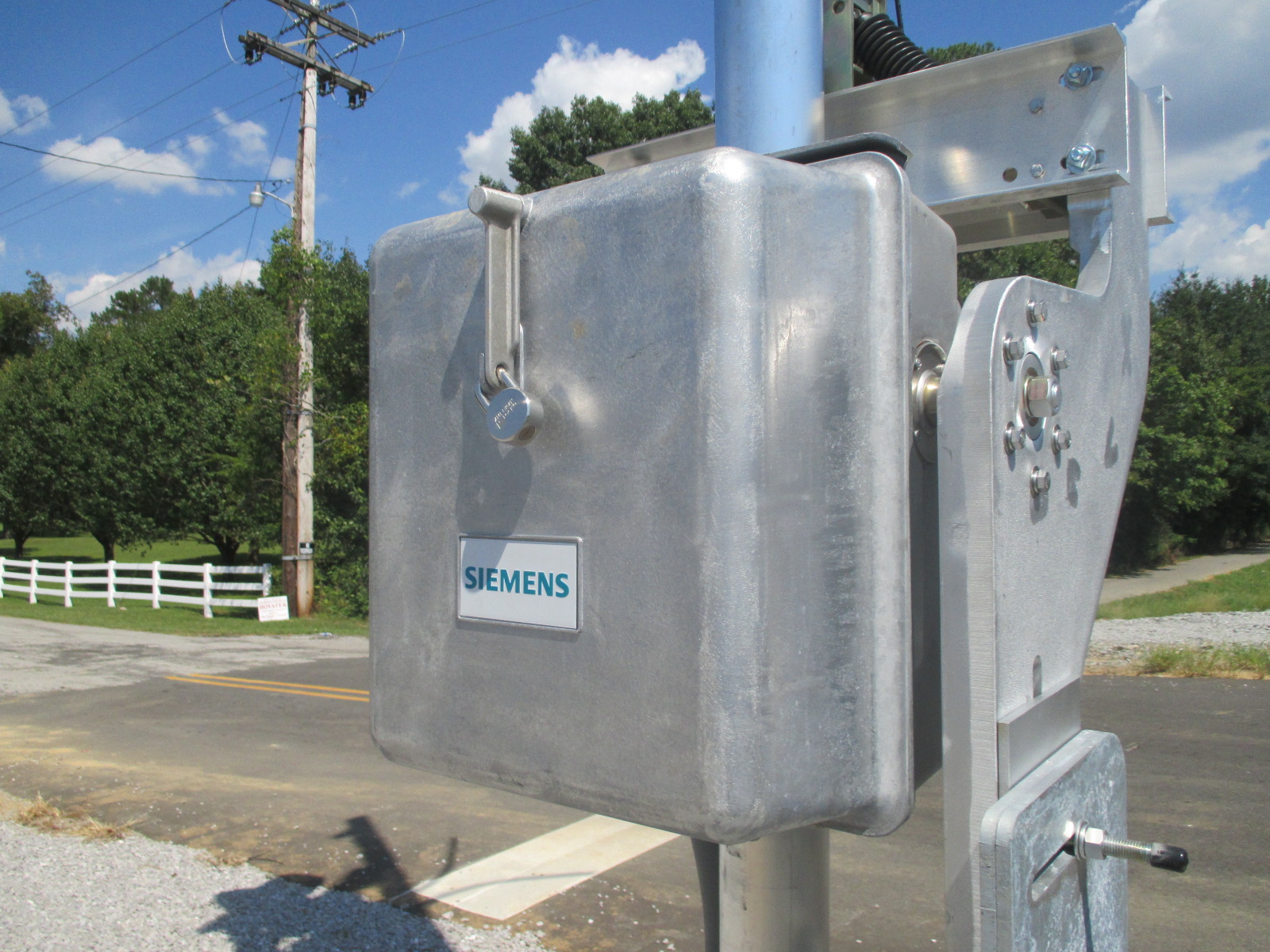

Another Siemens gate mechanism. |
|
17 |
18 |
19 |
20 |

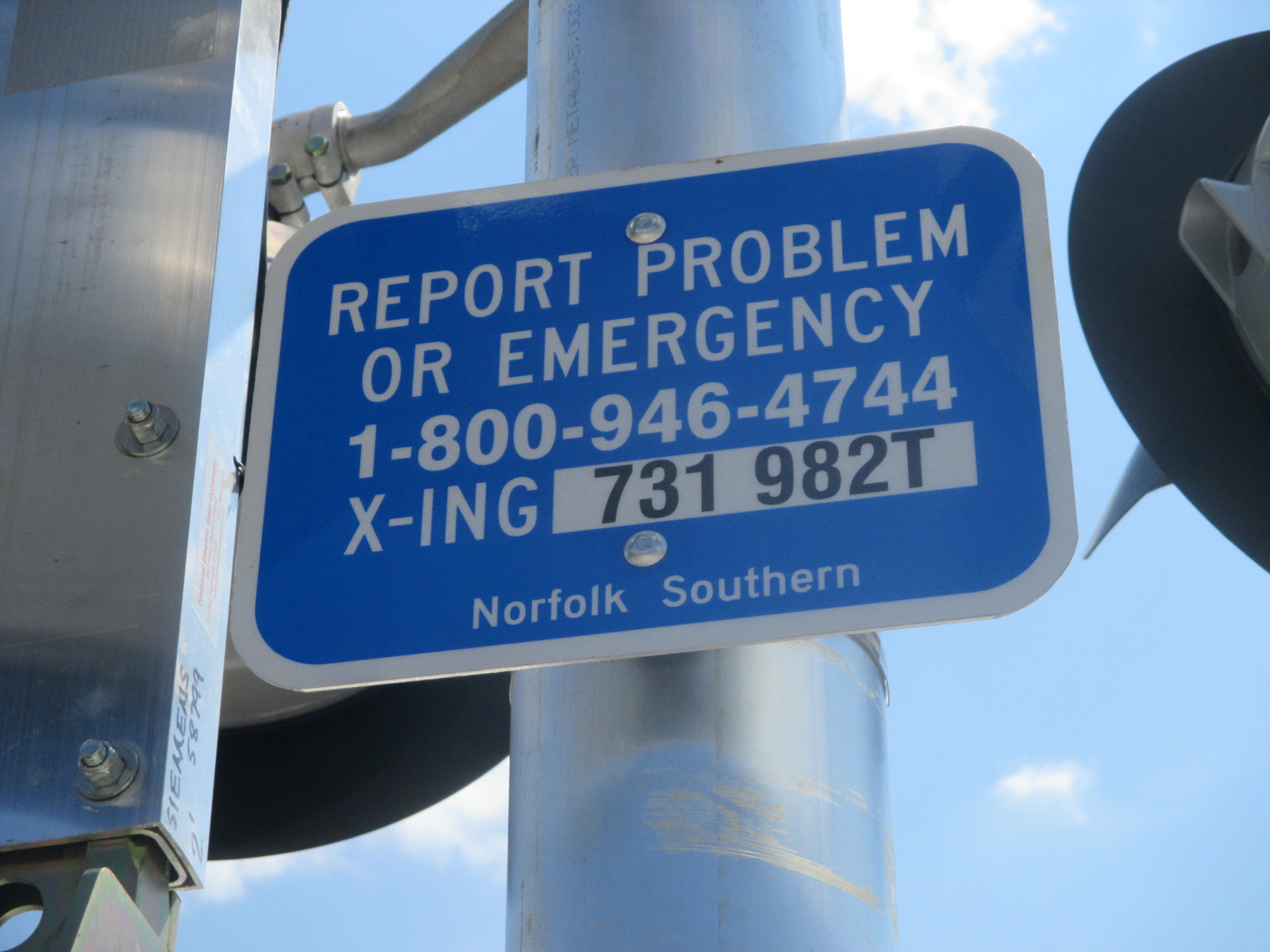

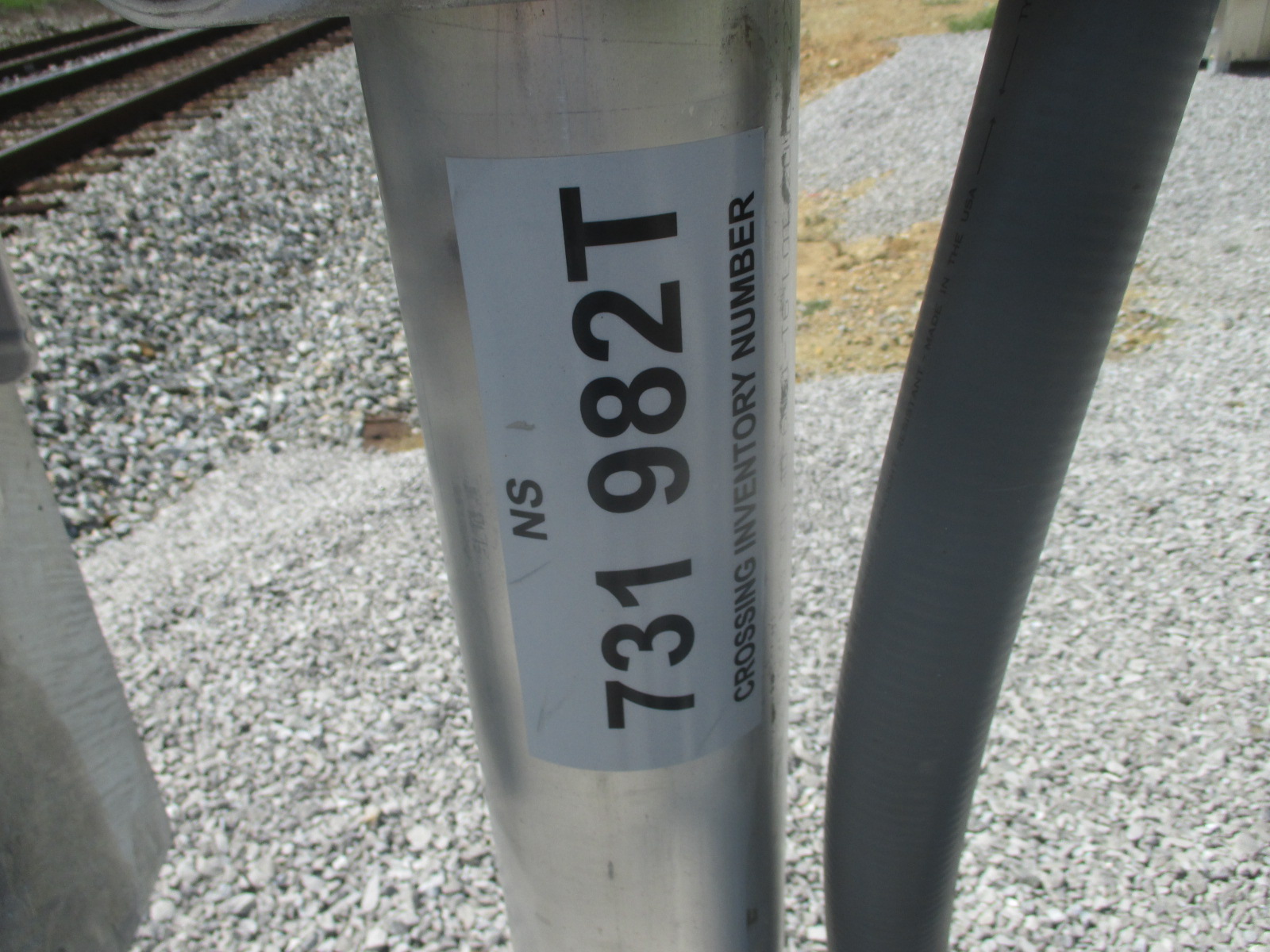

A DOT tag and the emergency information. |

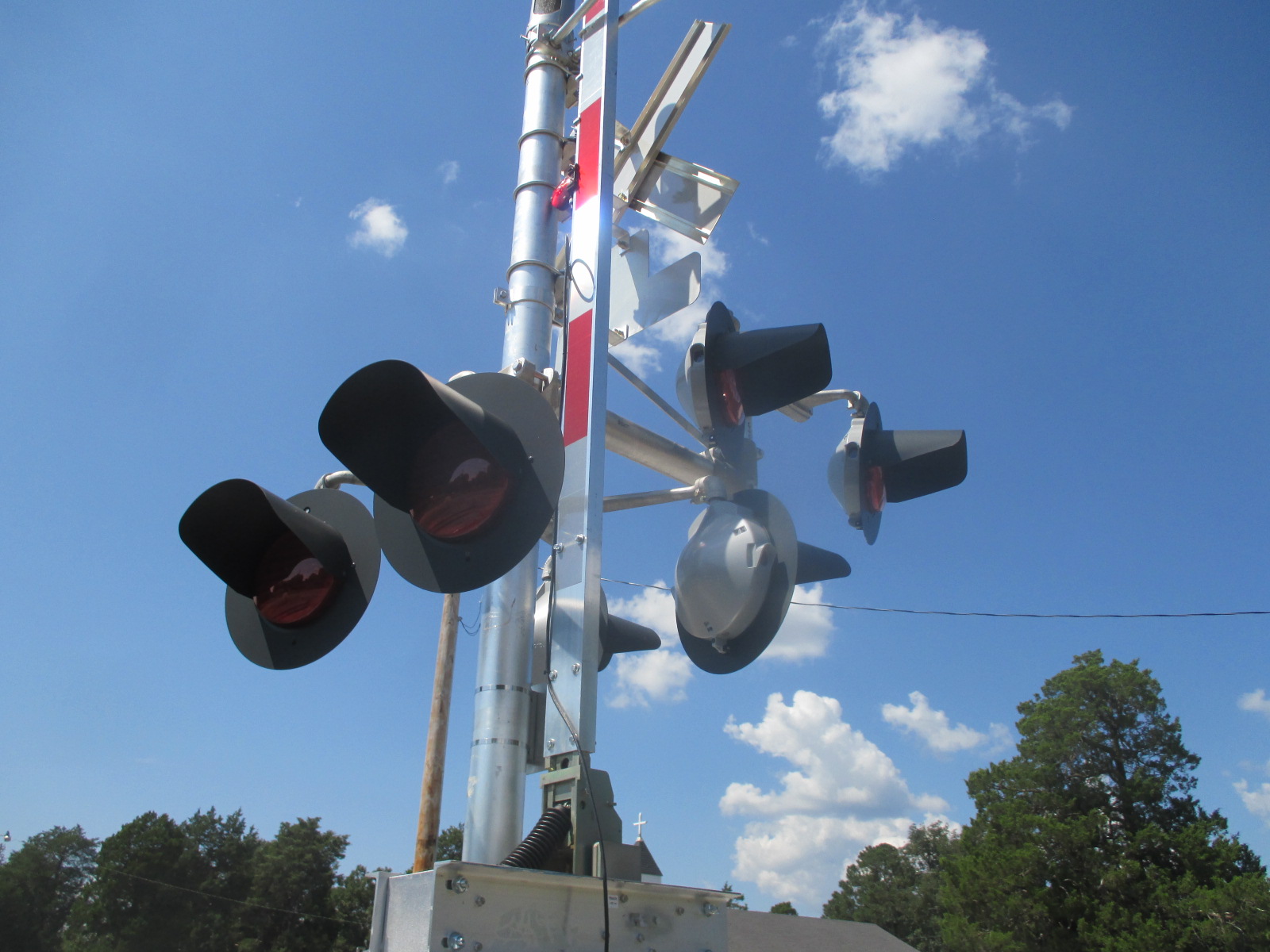

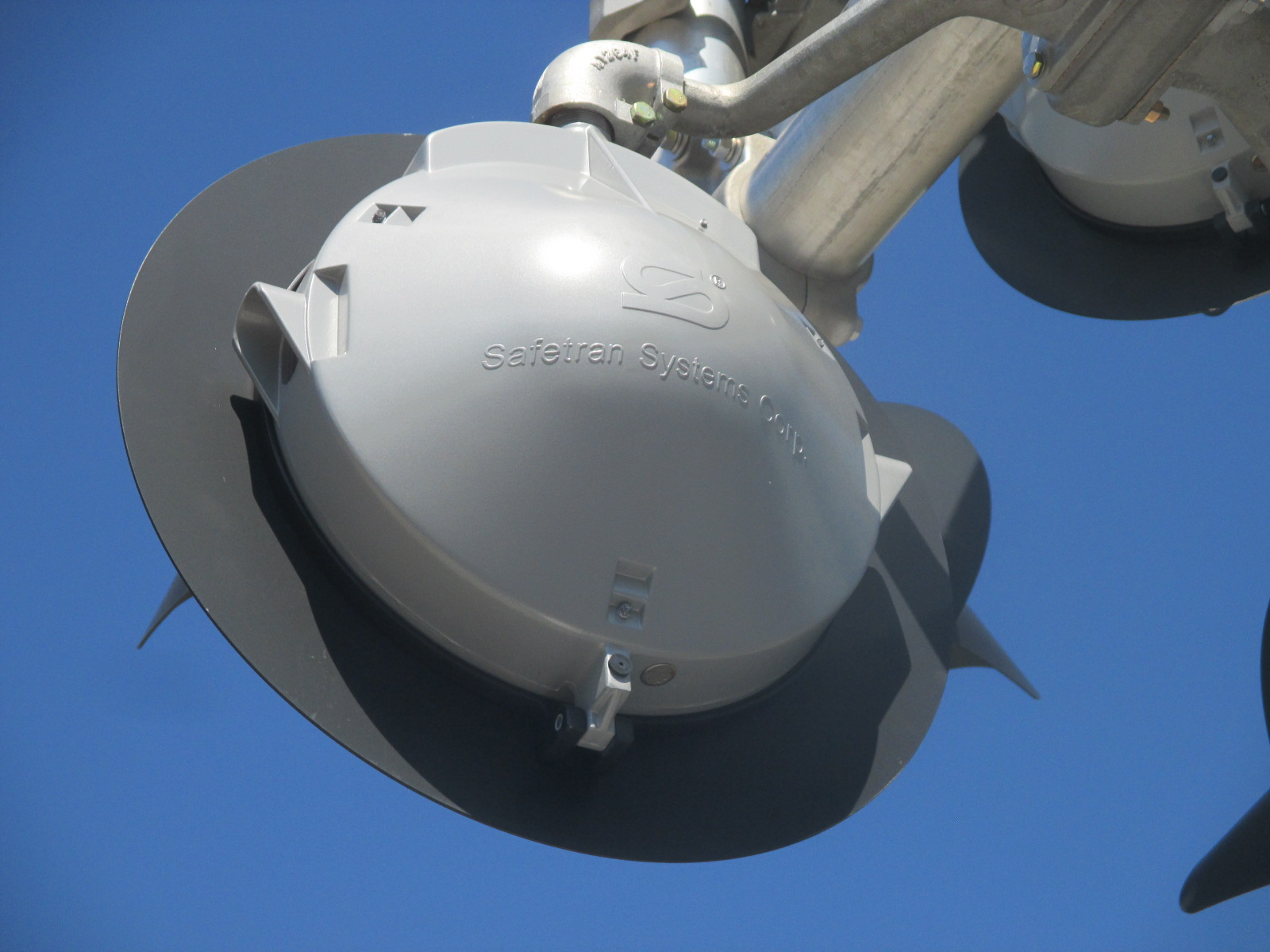

This signal has more Safetran 12x20 inch lights with GE Uniform Look LEDs. |
||
21 |
22 |
23 |
24 |

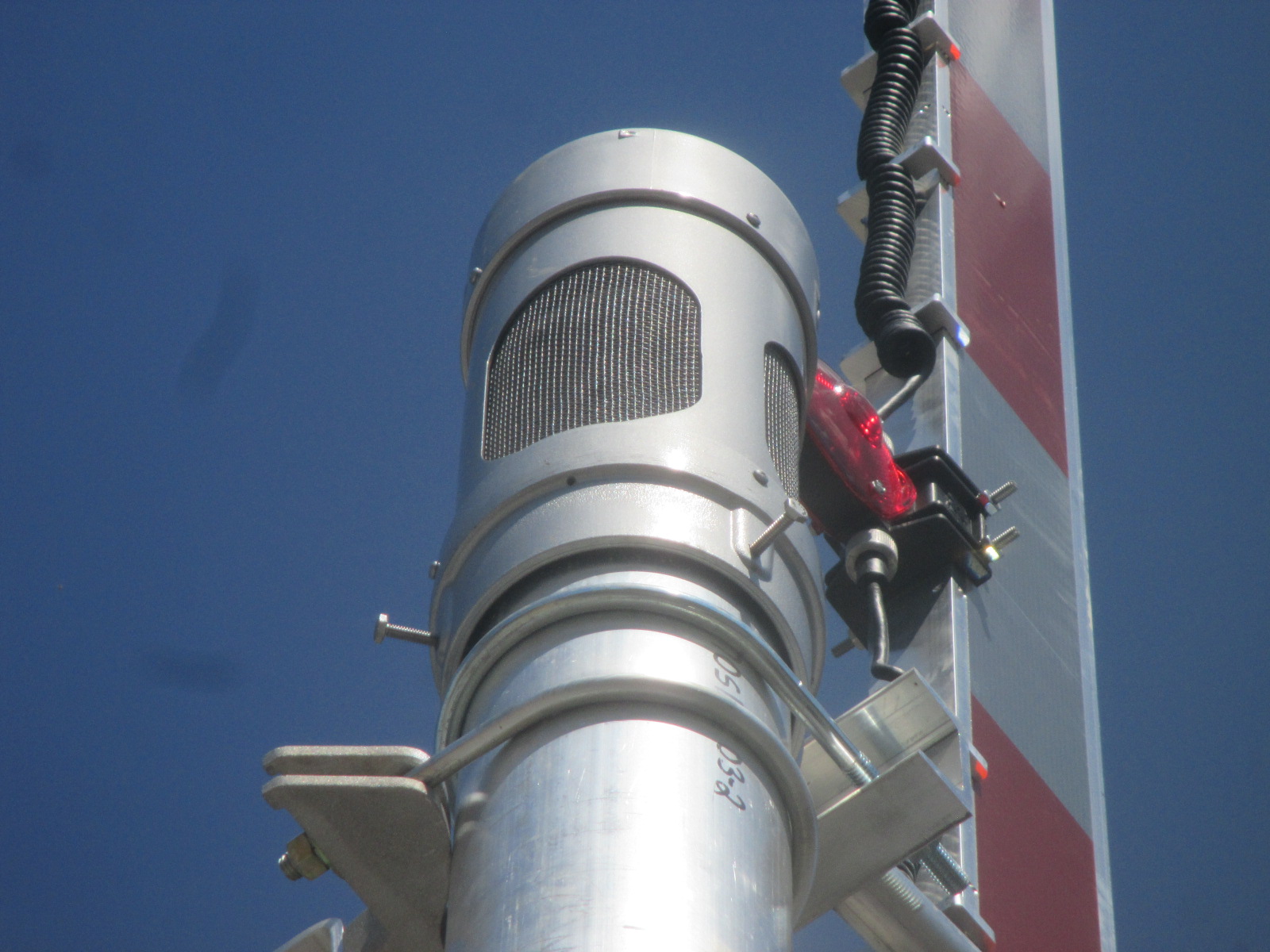

Another General Signals Type 3 electronic bell is on this signal. |
More RECO LED gate lights over here. |

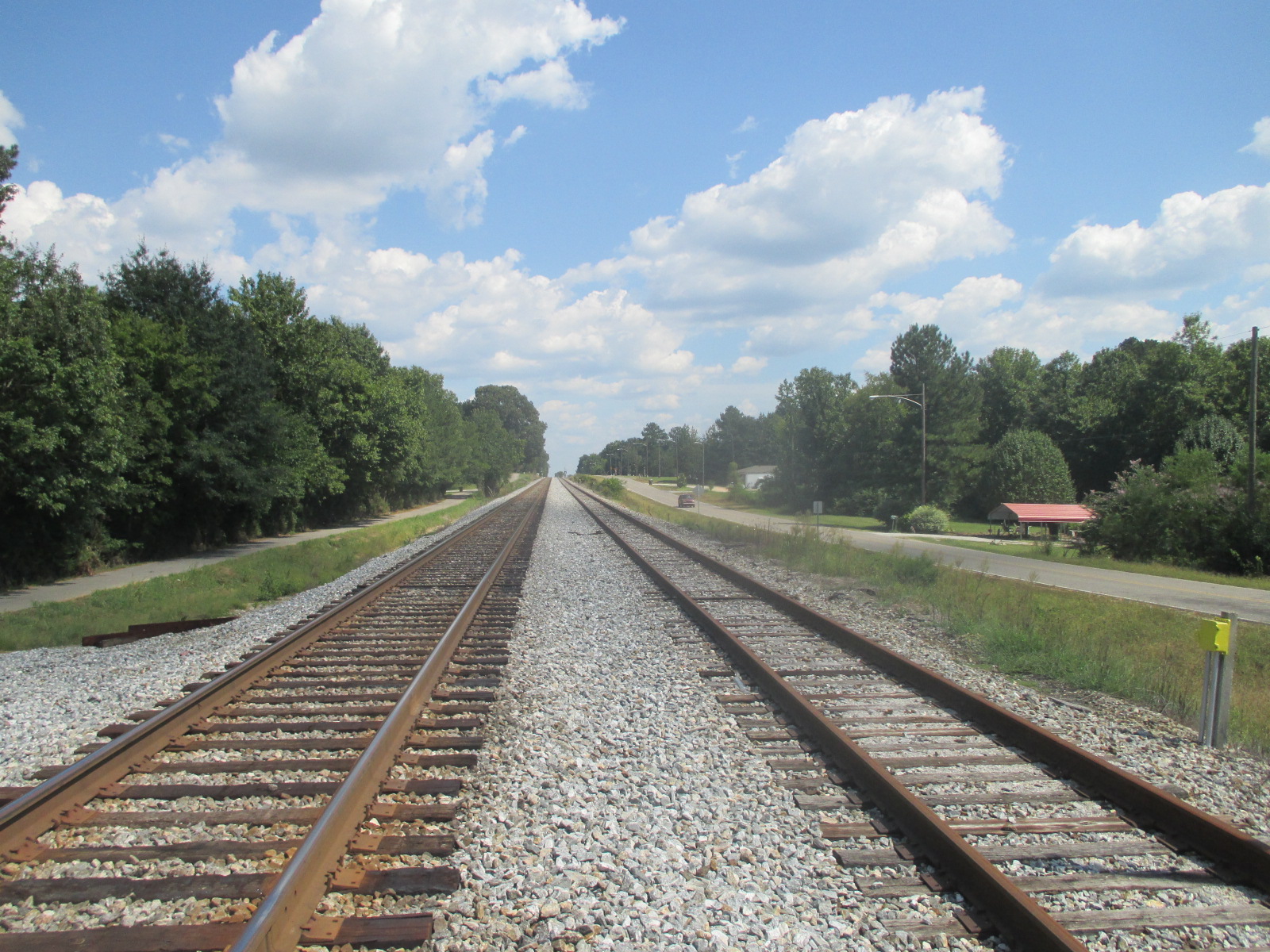

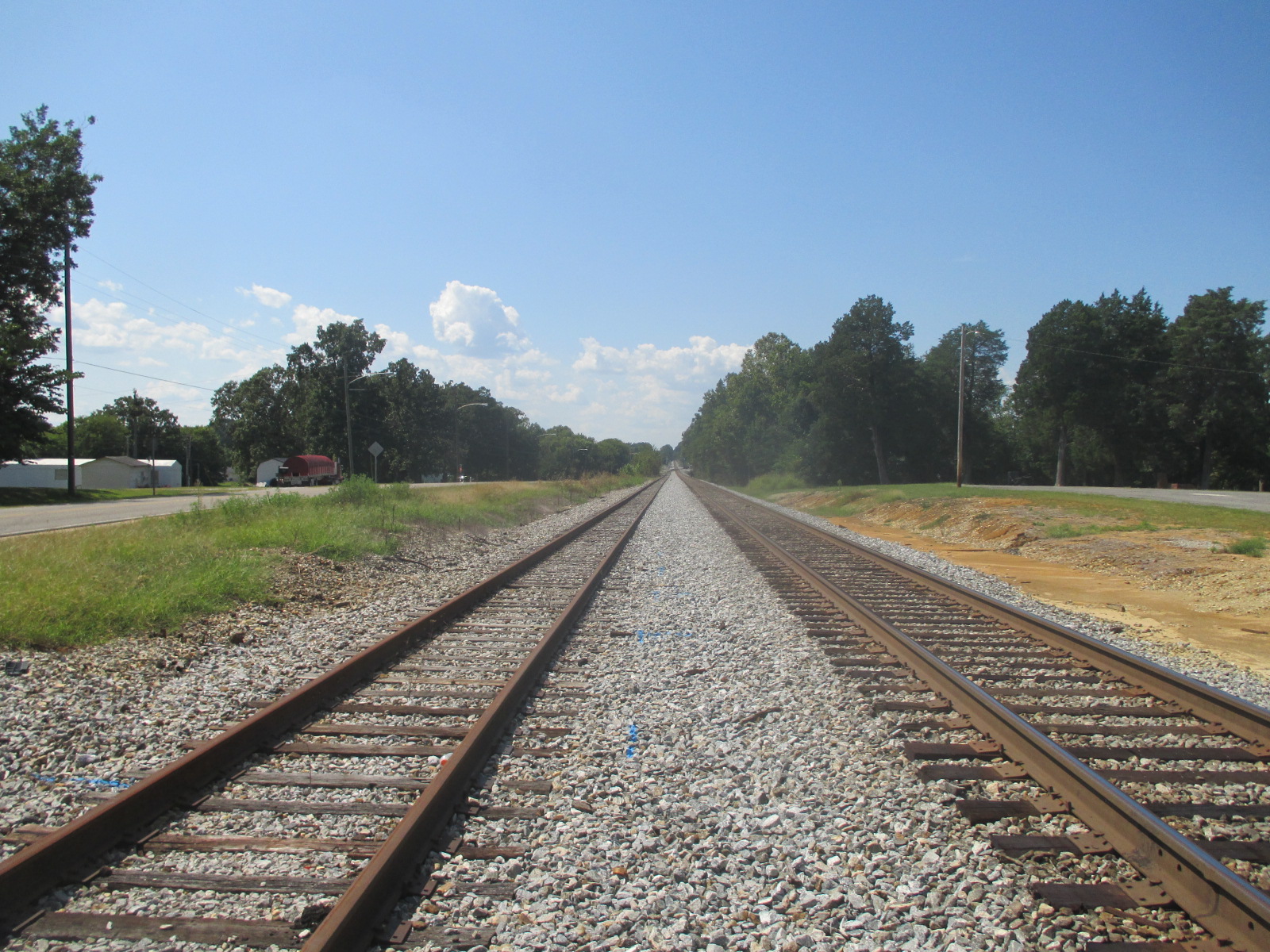

Looking east towards Middle School Road. |
Looking west towards North Pike. |
25 |
26 |
27 |
28 |

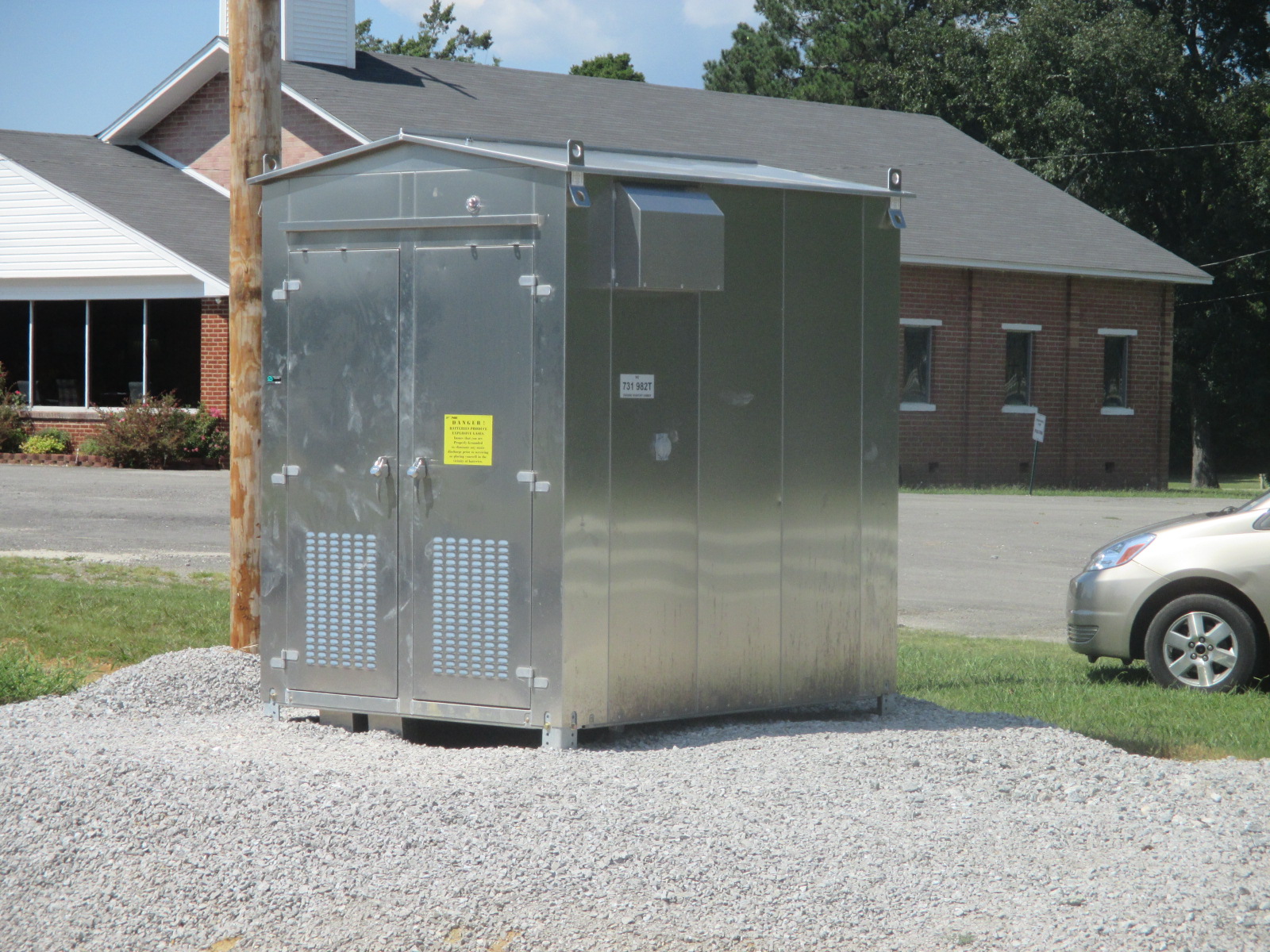

The relay case. |

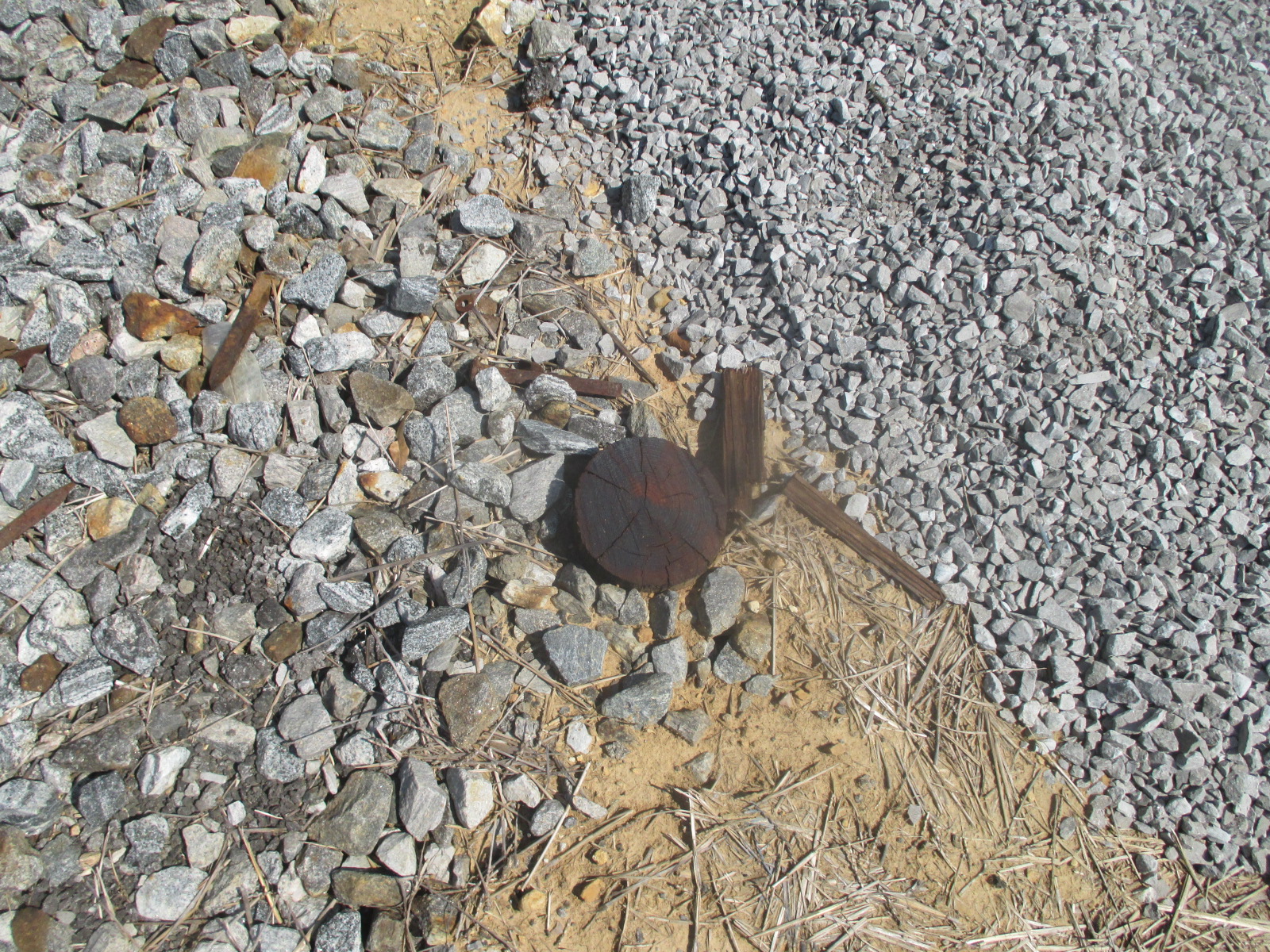

This stump is the remains of one of the crossbucks. |

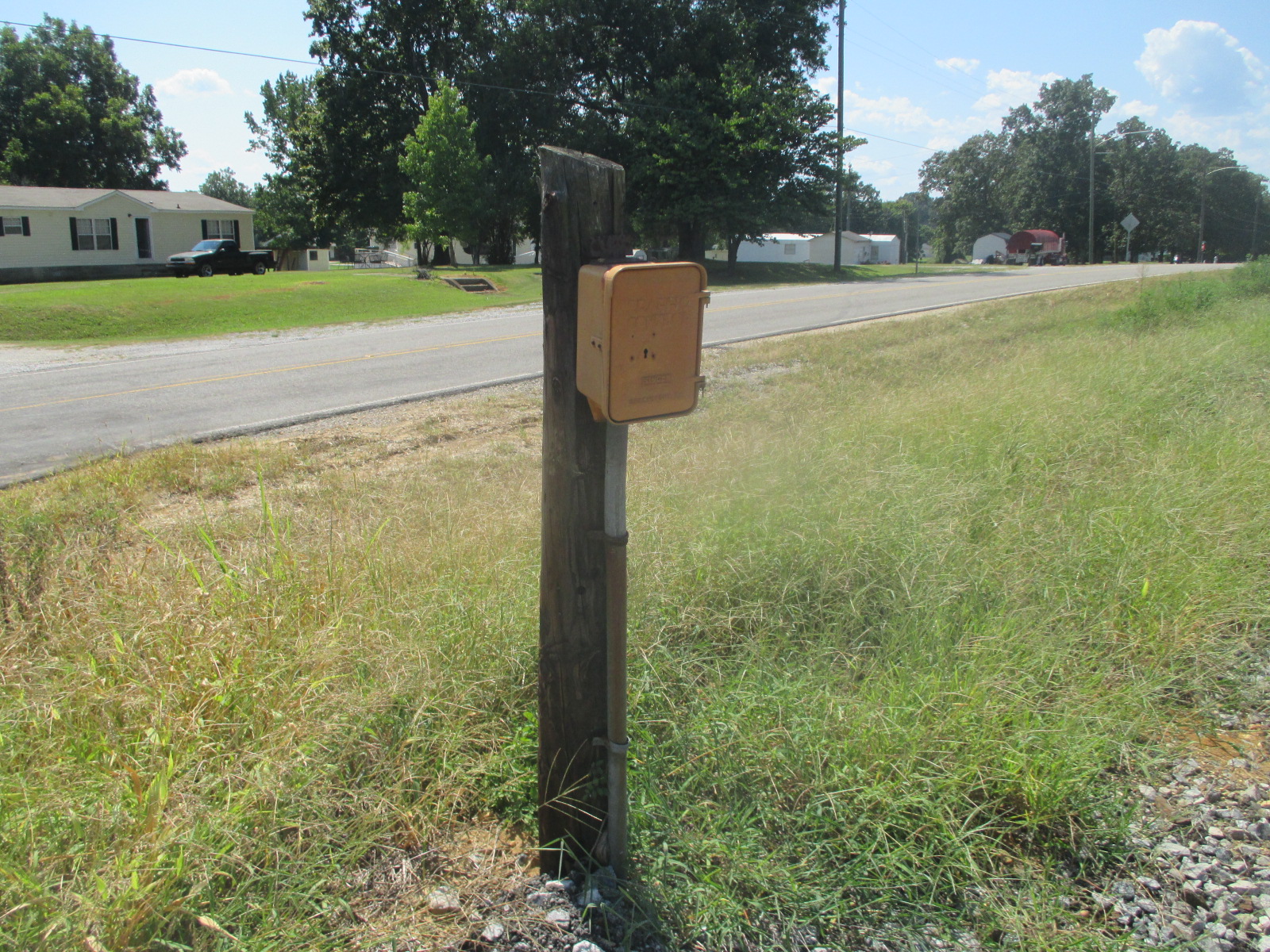

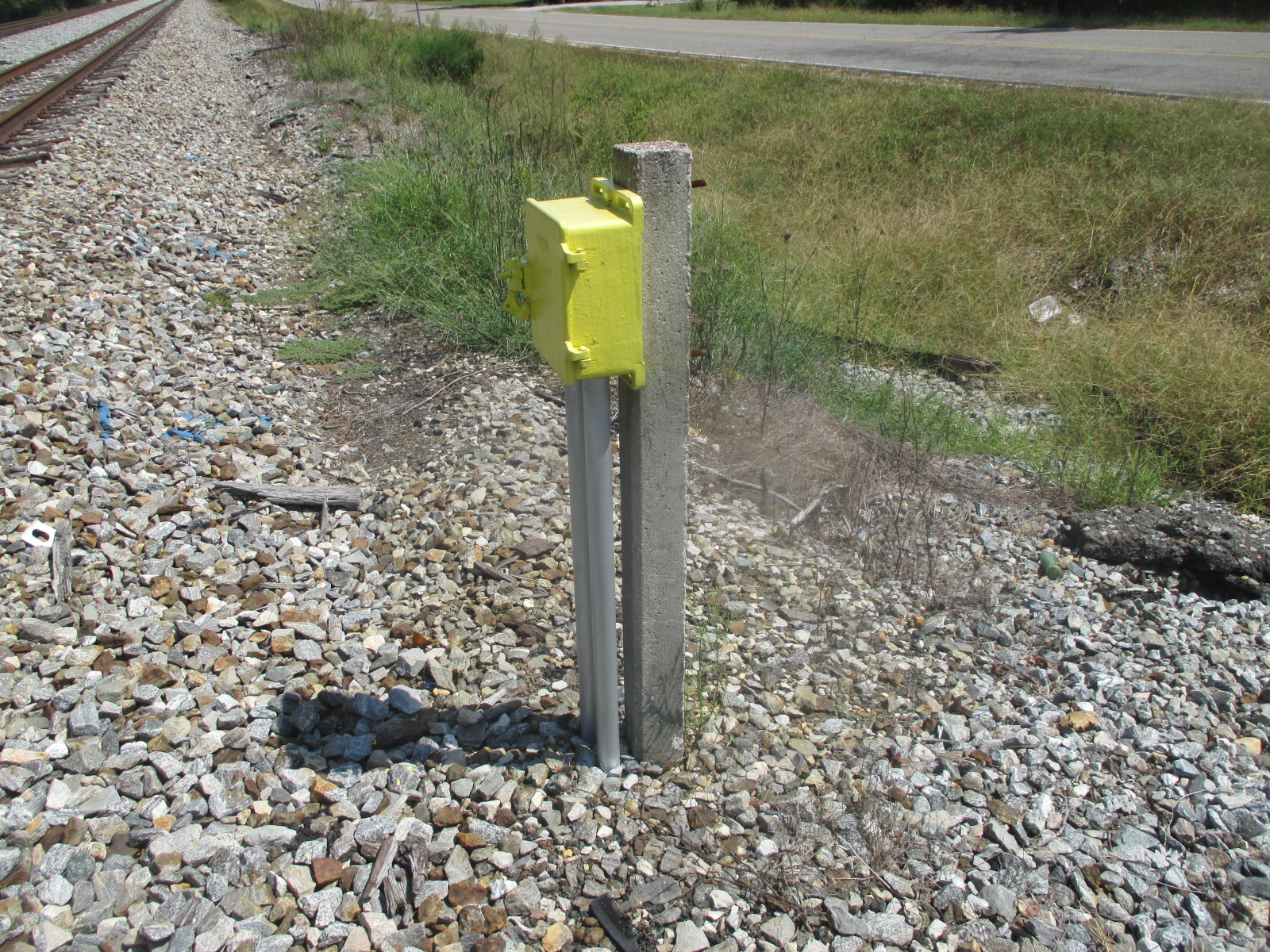

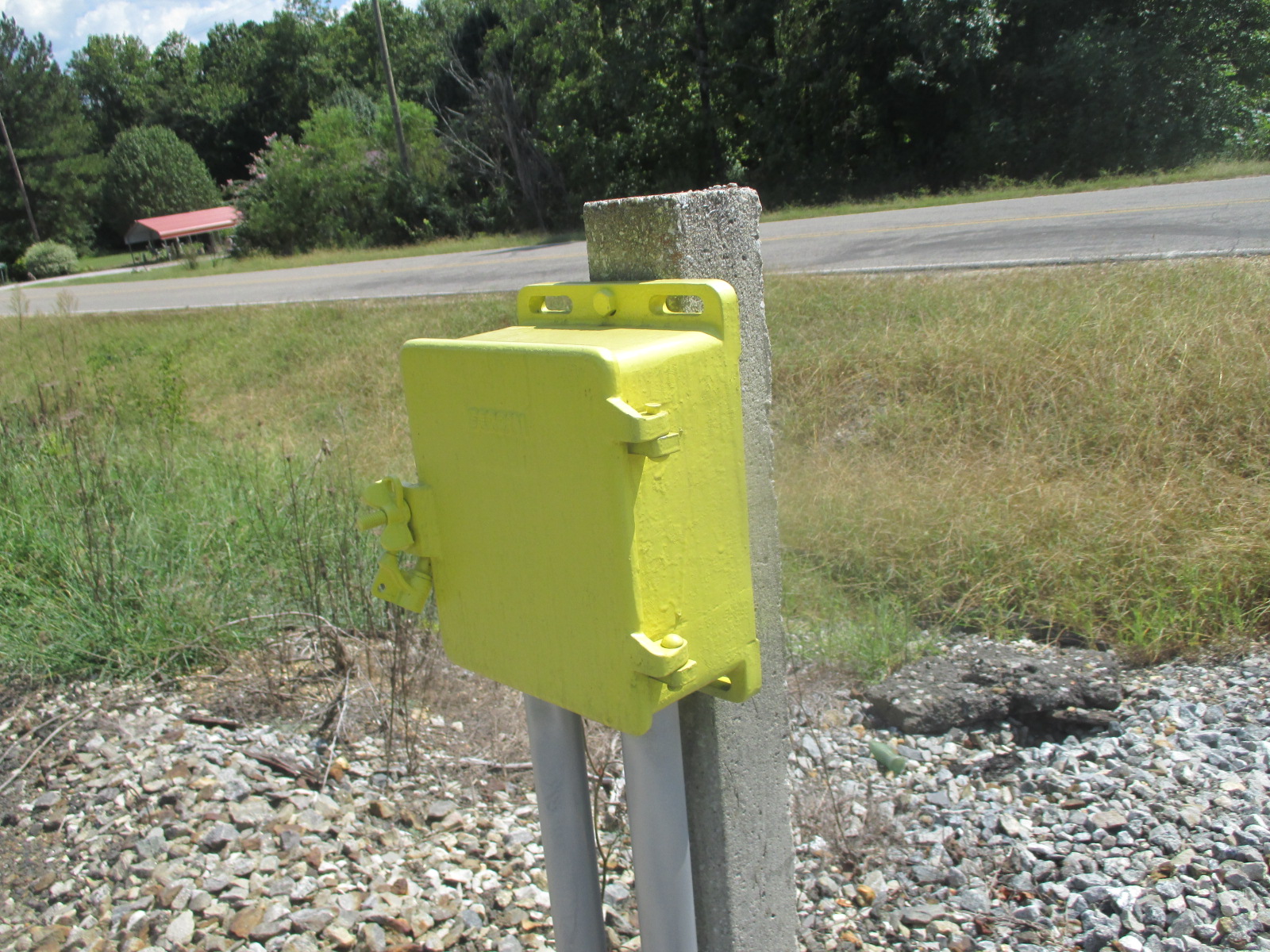

A small box next to the crossing. |
|
29 |
30 |
31 |
32 |

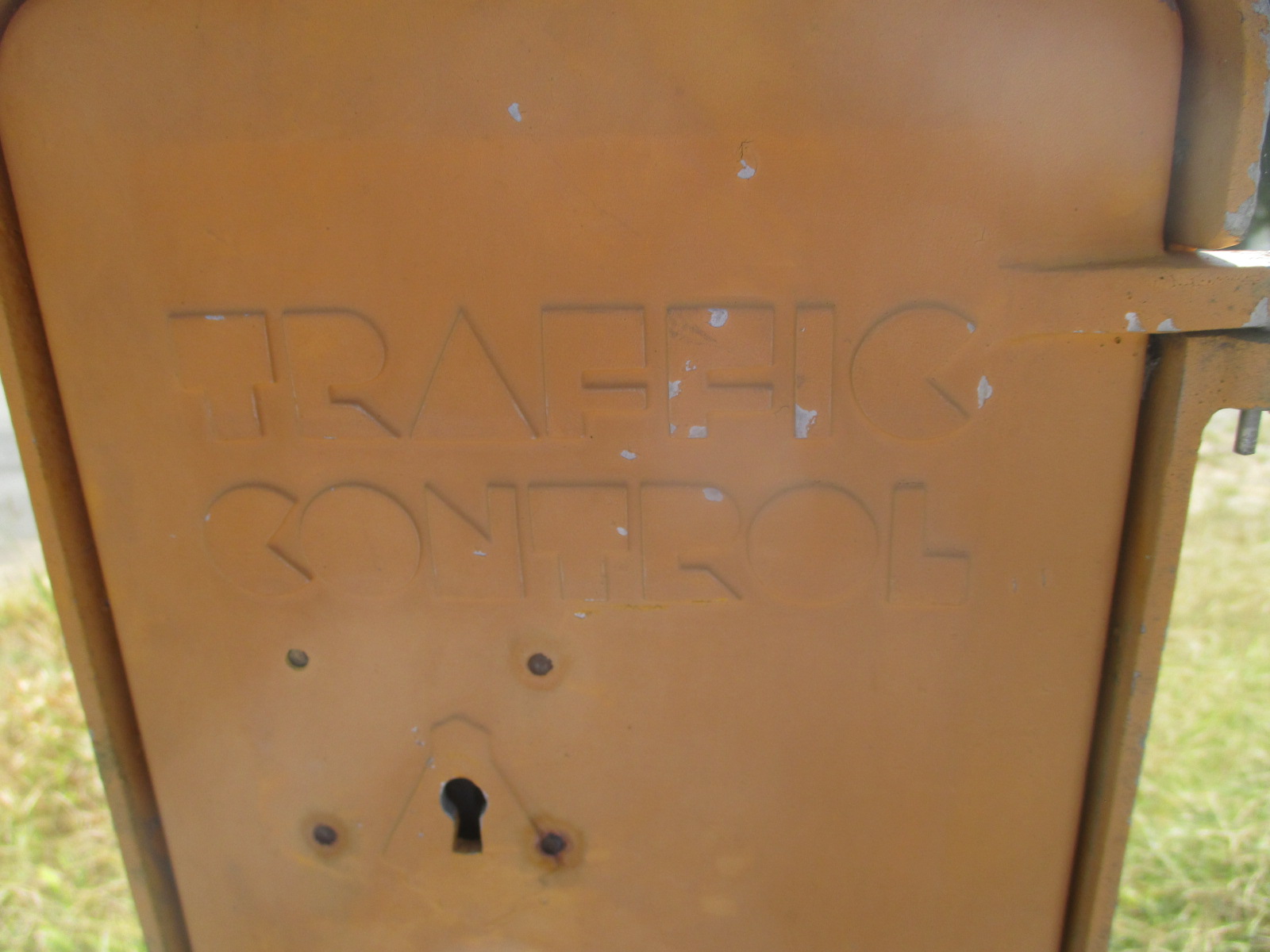

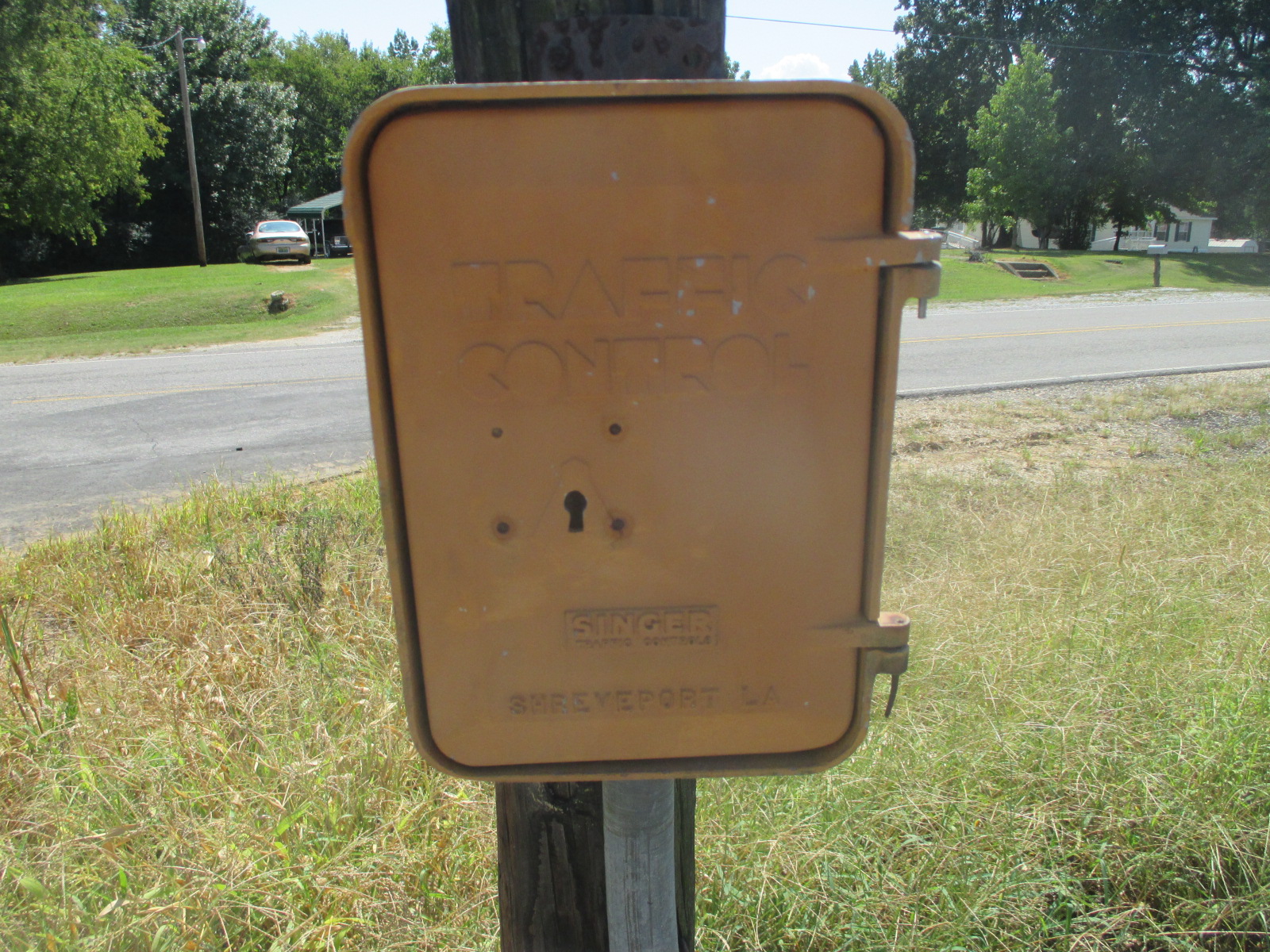

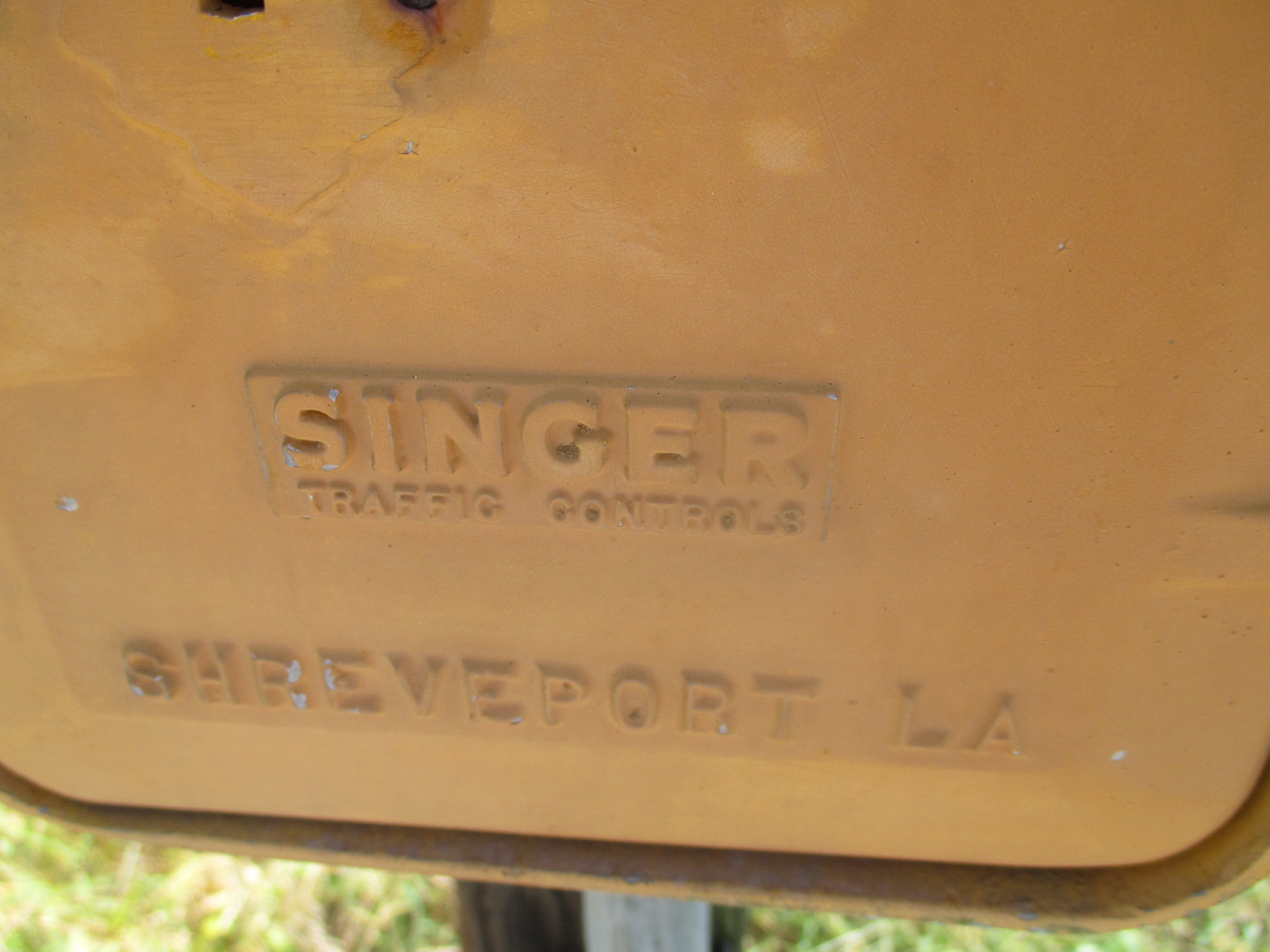

There used to be some beacons here in the past and this flasher cabinet from Singer controlled them. The box in Pictures 27 and 28 may be related to this. |
|||
All pictures were taken on 9-5-16.
