MP: A420.50 |
Updated June 25, 2018
Total Accidents: 8
Crossing
DOT #: 731975H
TOTAL
DAILY TRAINS: 22 (AS OF 2016)
Page created by: freebrickproductions
This crossing is located on the NS Memphis District West End.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | General Signals Type 2 electronic | General Signals Type 2 electronic |
| Base: | Safetran | Safetran |
| Light Frames: | 8 - 12x20" Safetran | 4 - 12x20" Safetran |
| Gate Lights: | 3 - RECOs | 3 - RECOs |
| Gate Mechanism: | Safetran 2000s | Safetran 2000s |
| Gate Striping: | Vertical | Vertical |
1 |
2 |
3 |
4 |

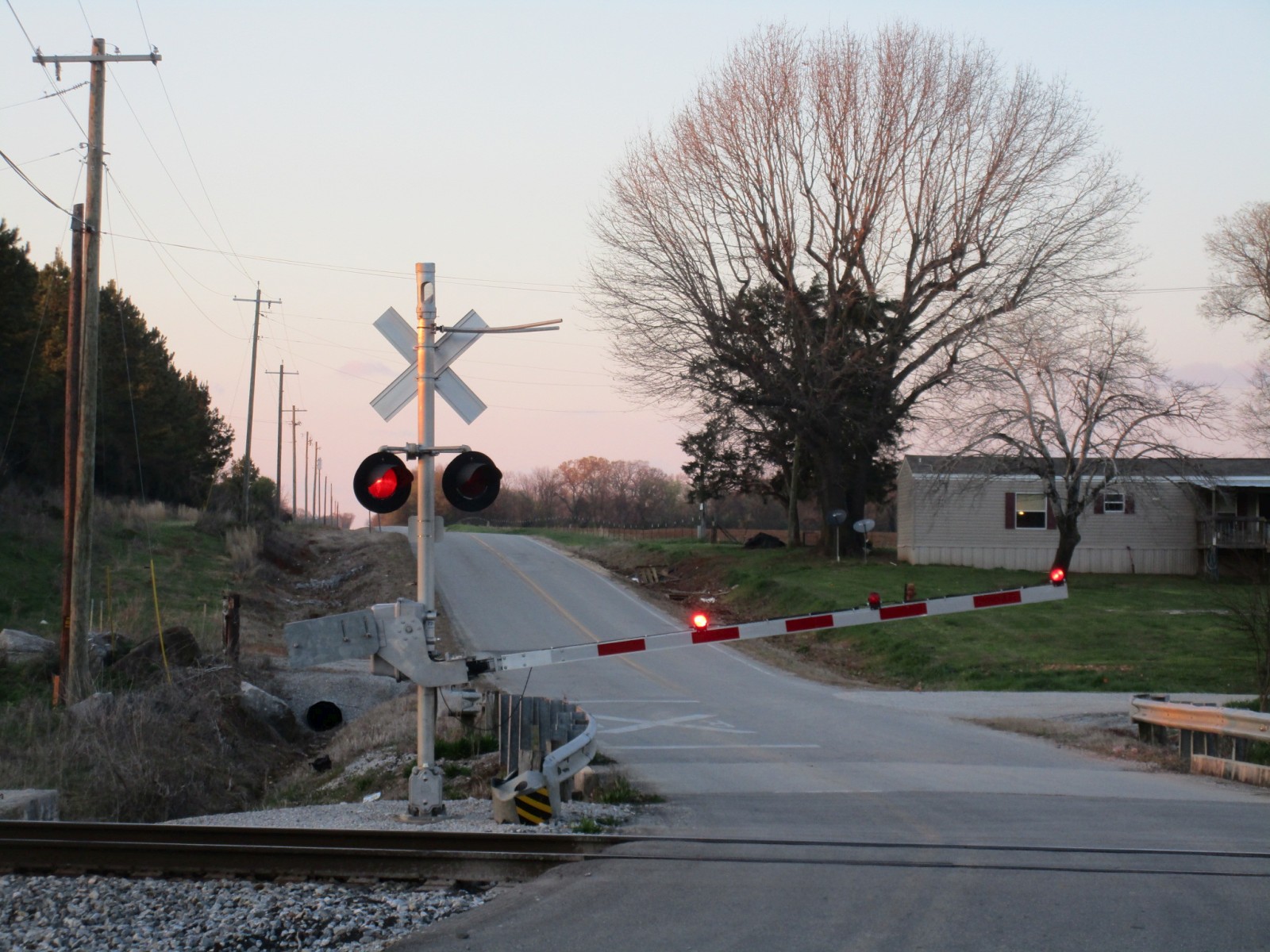

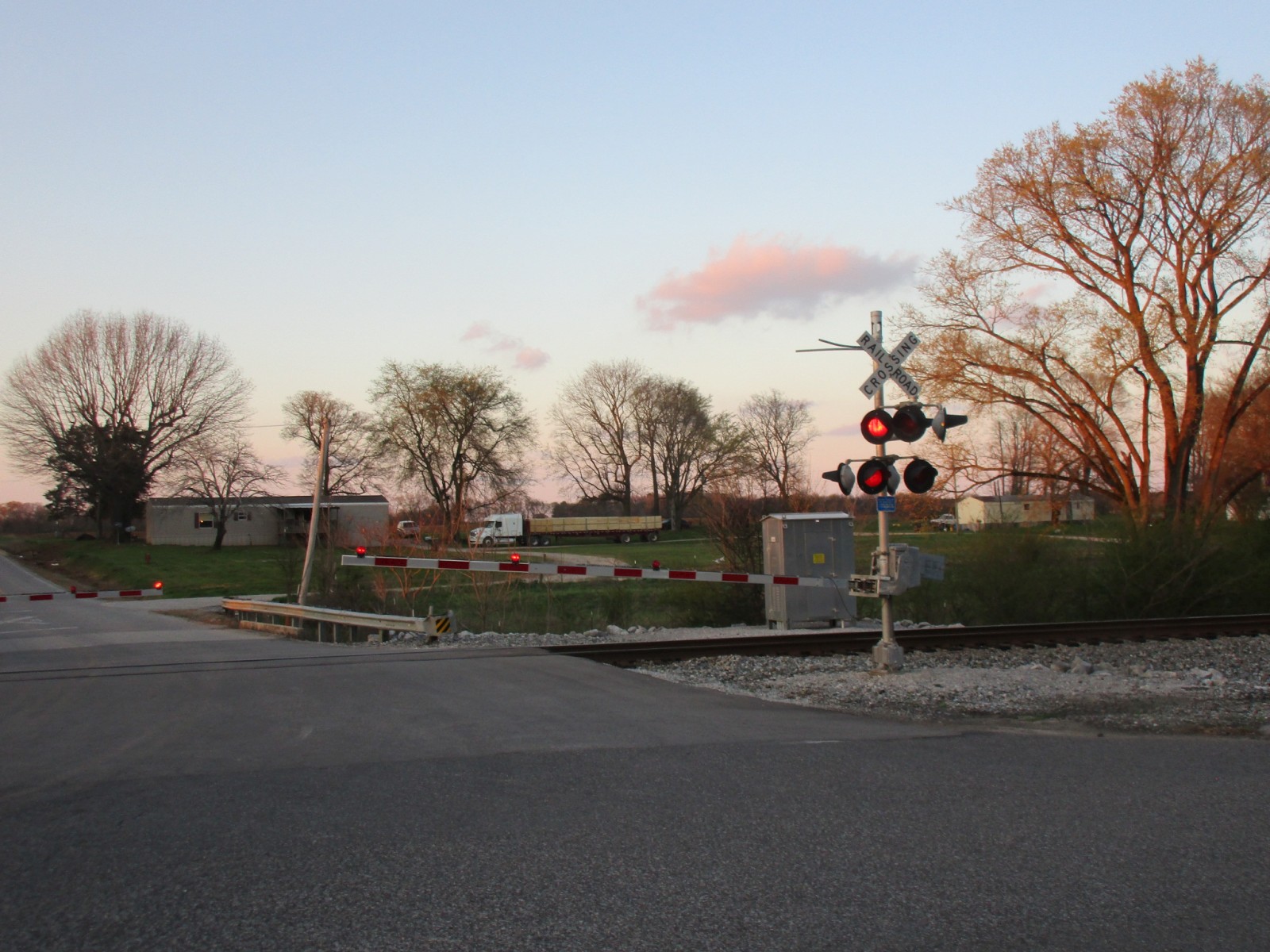

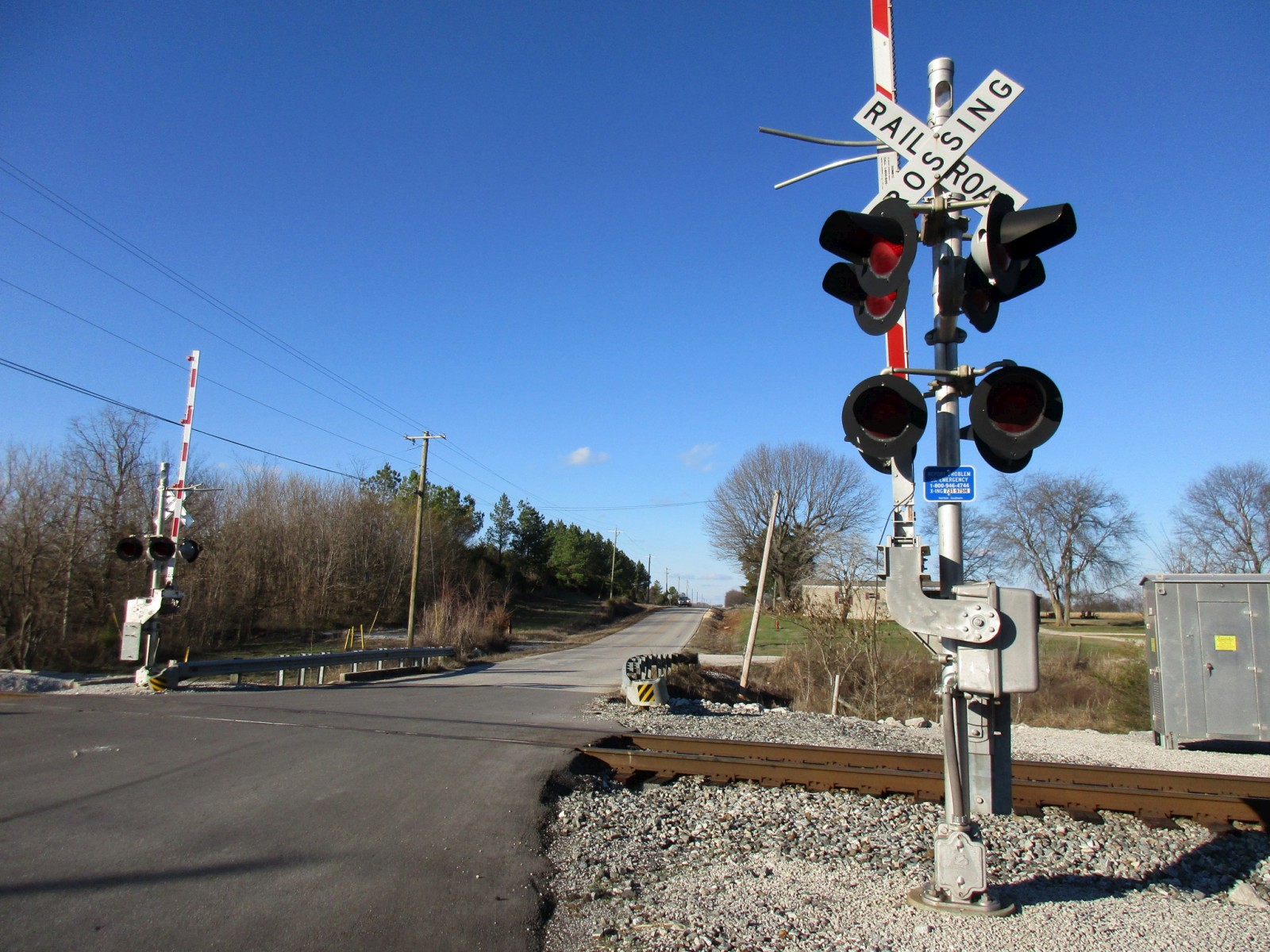

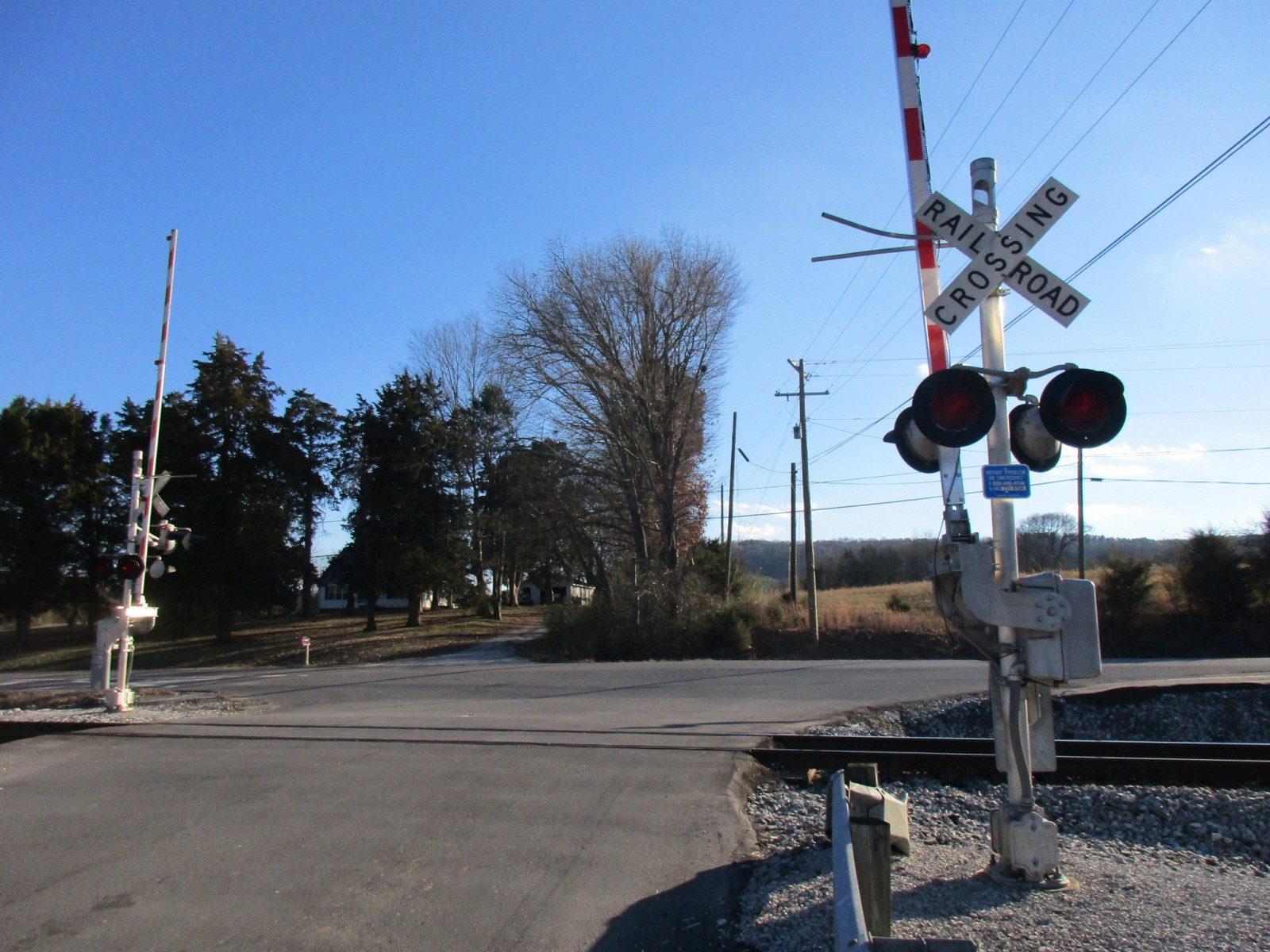

Overview of this crossing with signals from 2003. |

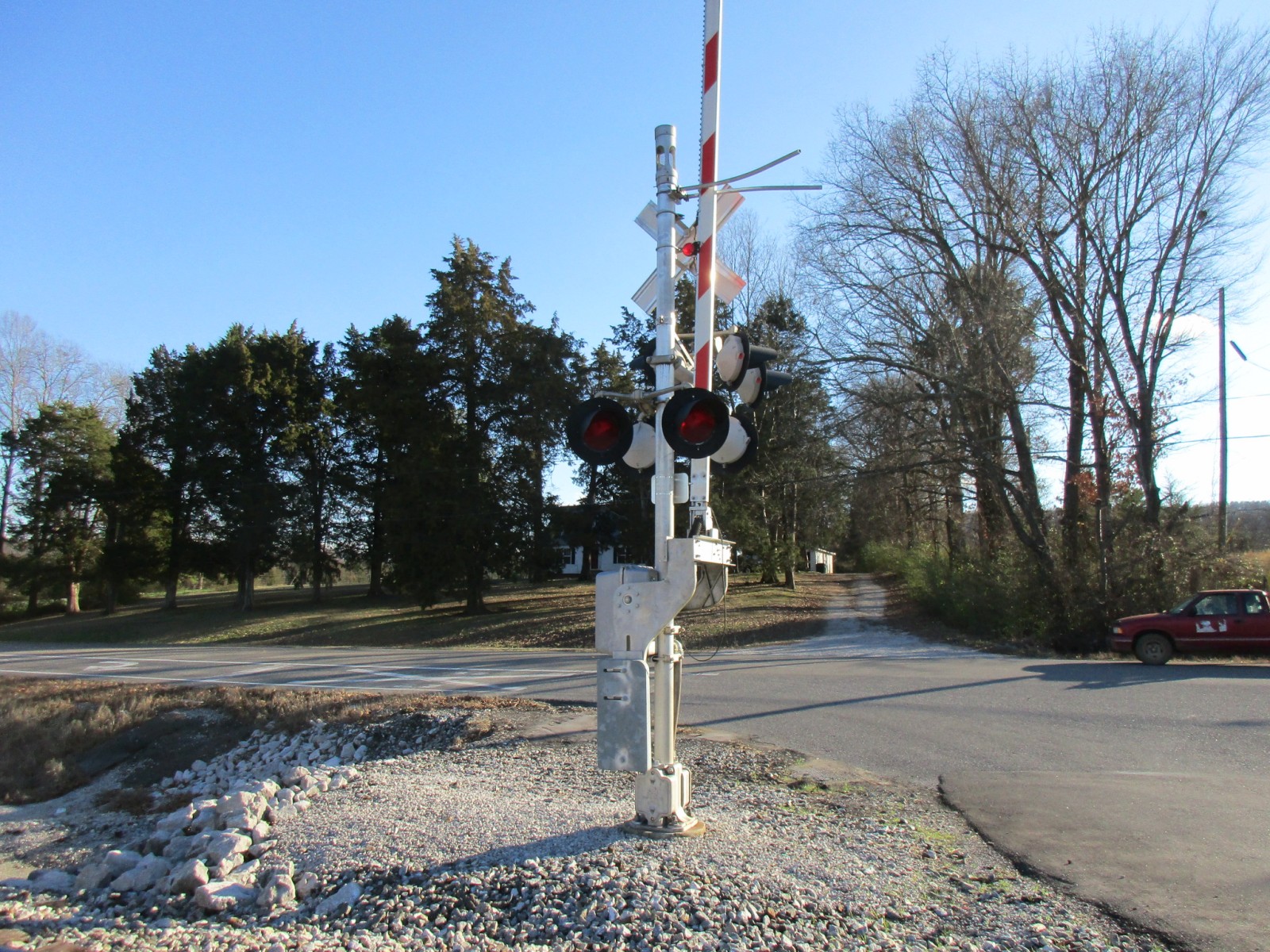

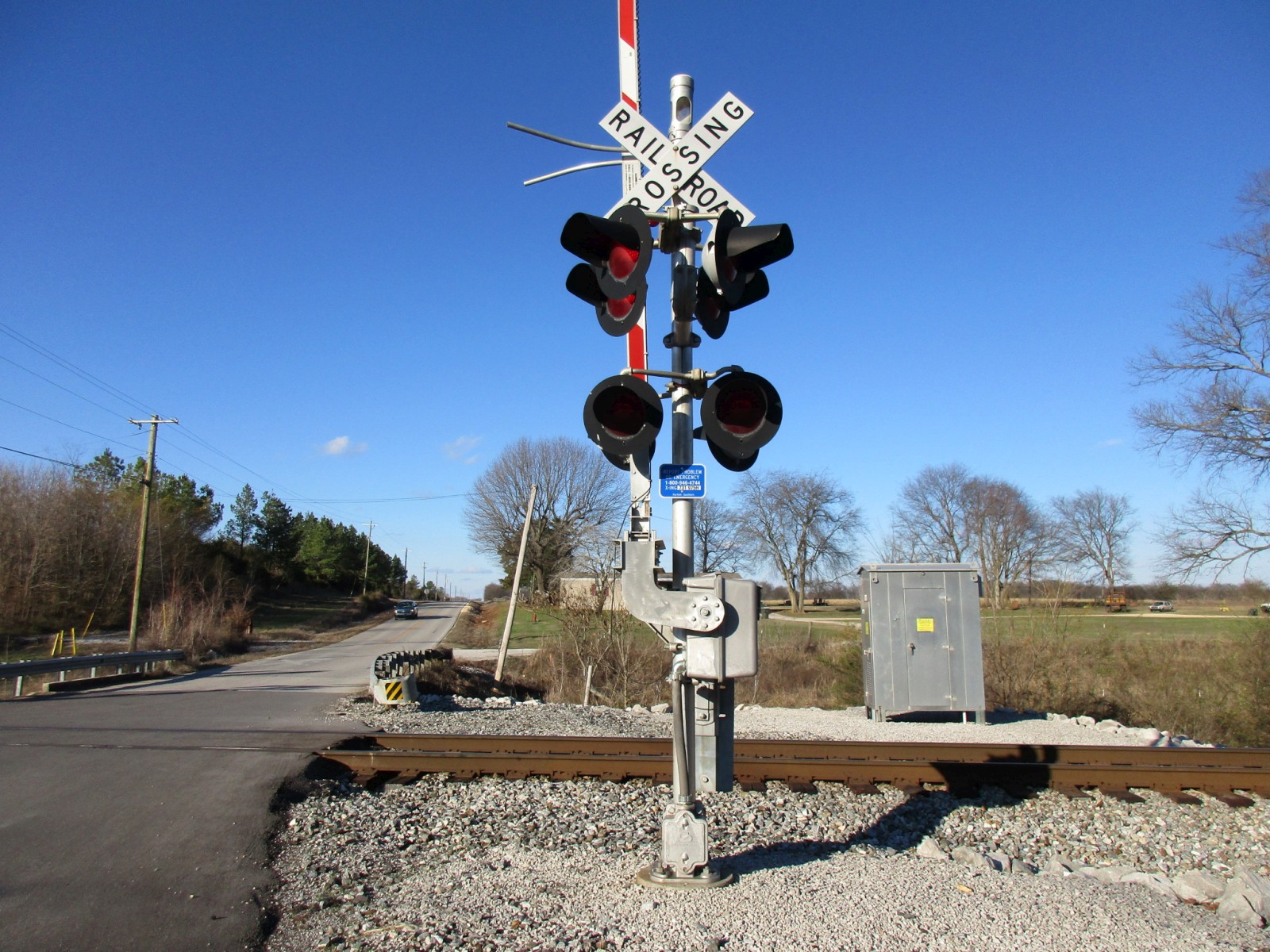

The first signal. |
||
5 |
6 |
7 |
8 |

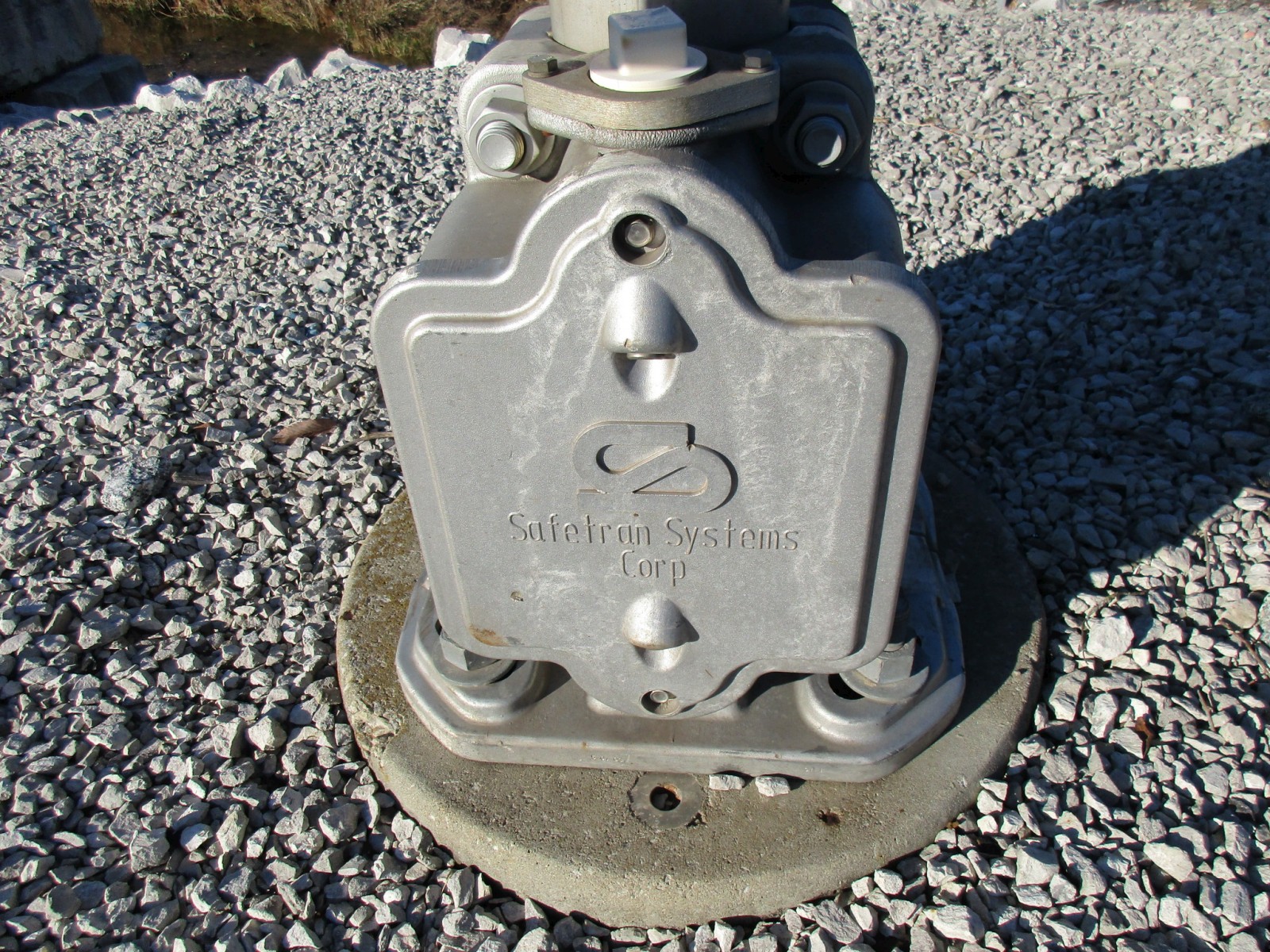

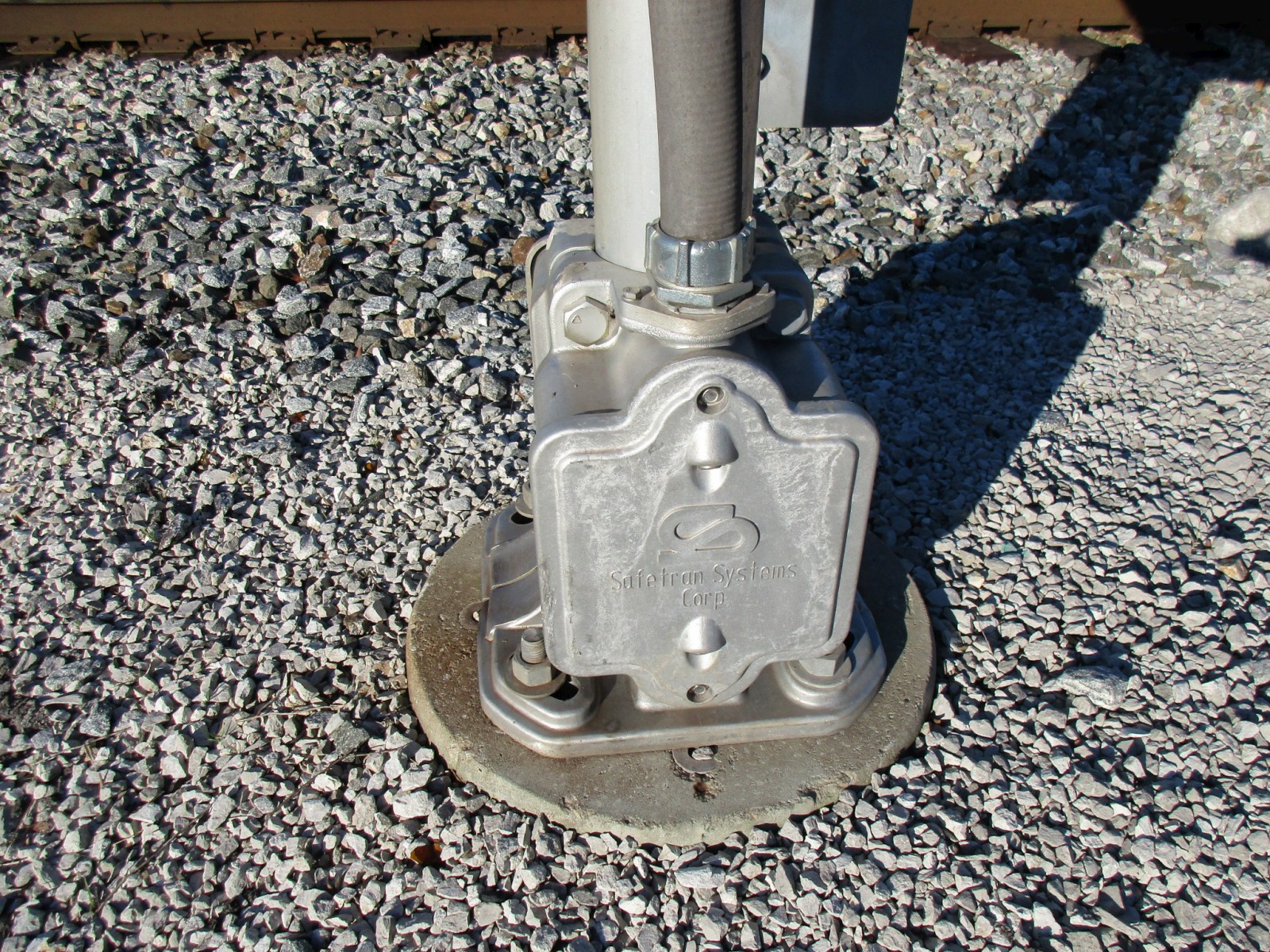

A Safetran base. |

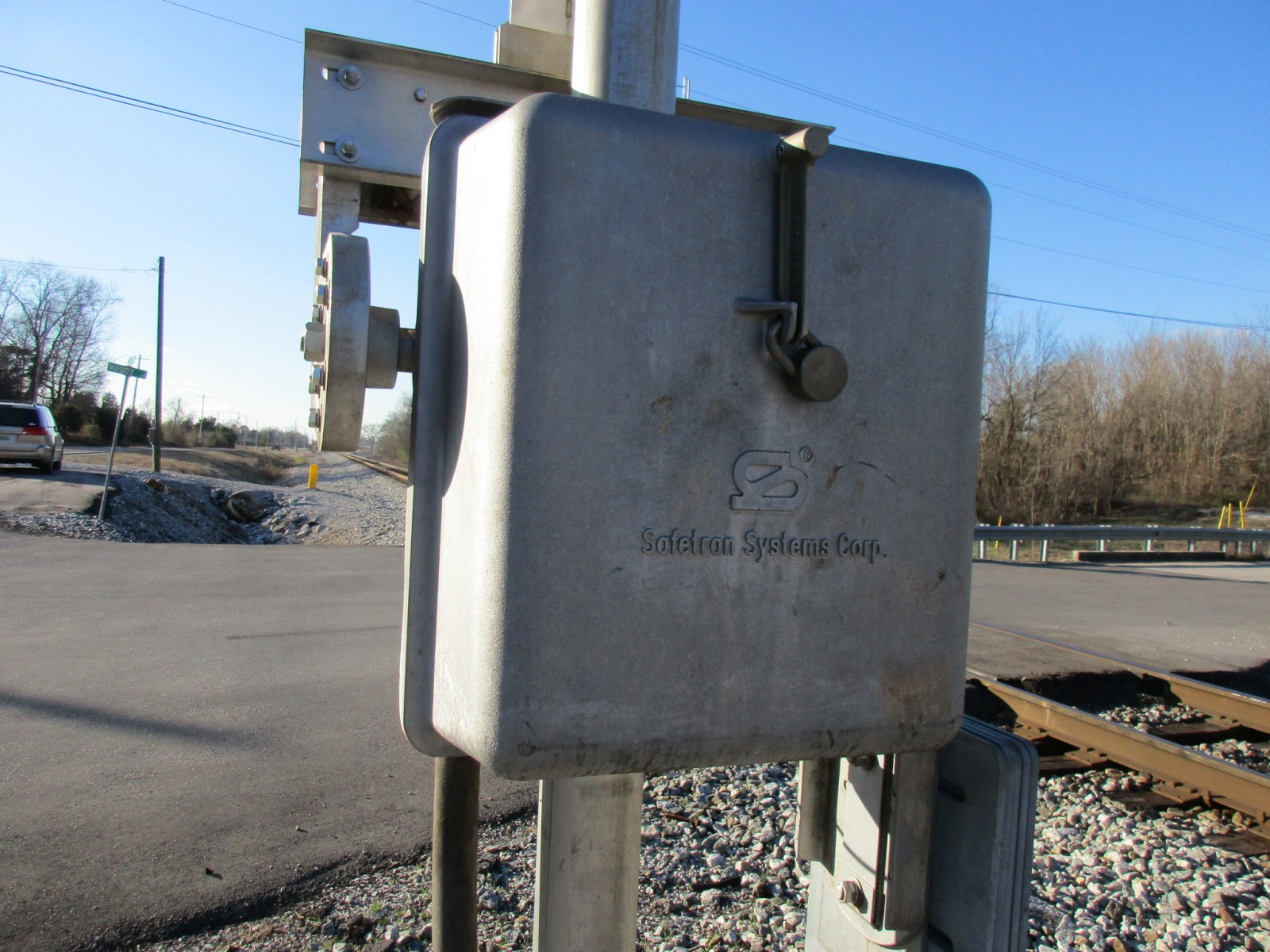

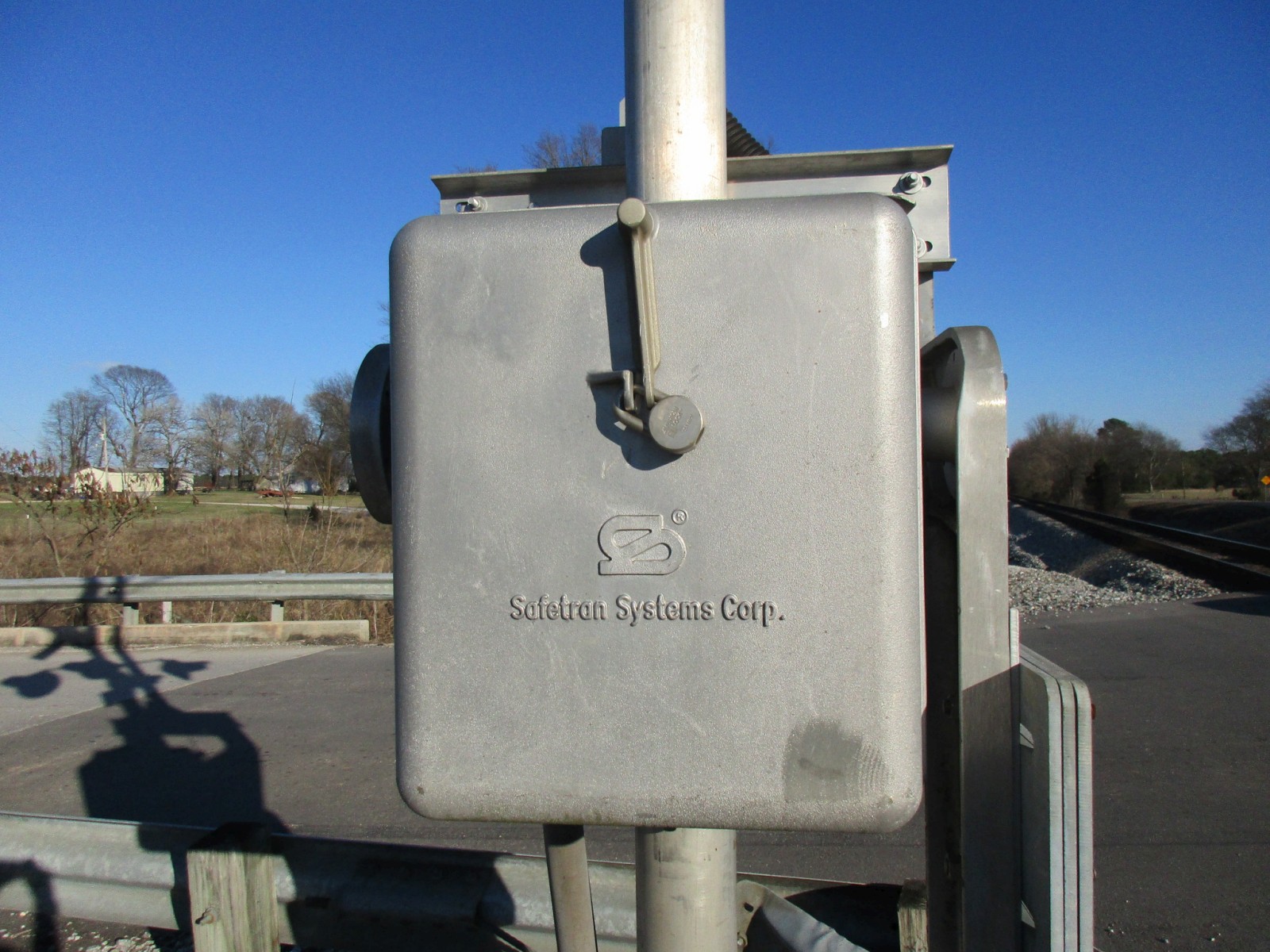

A Safetran gate mechanism. |

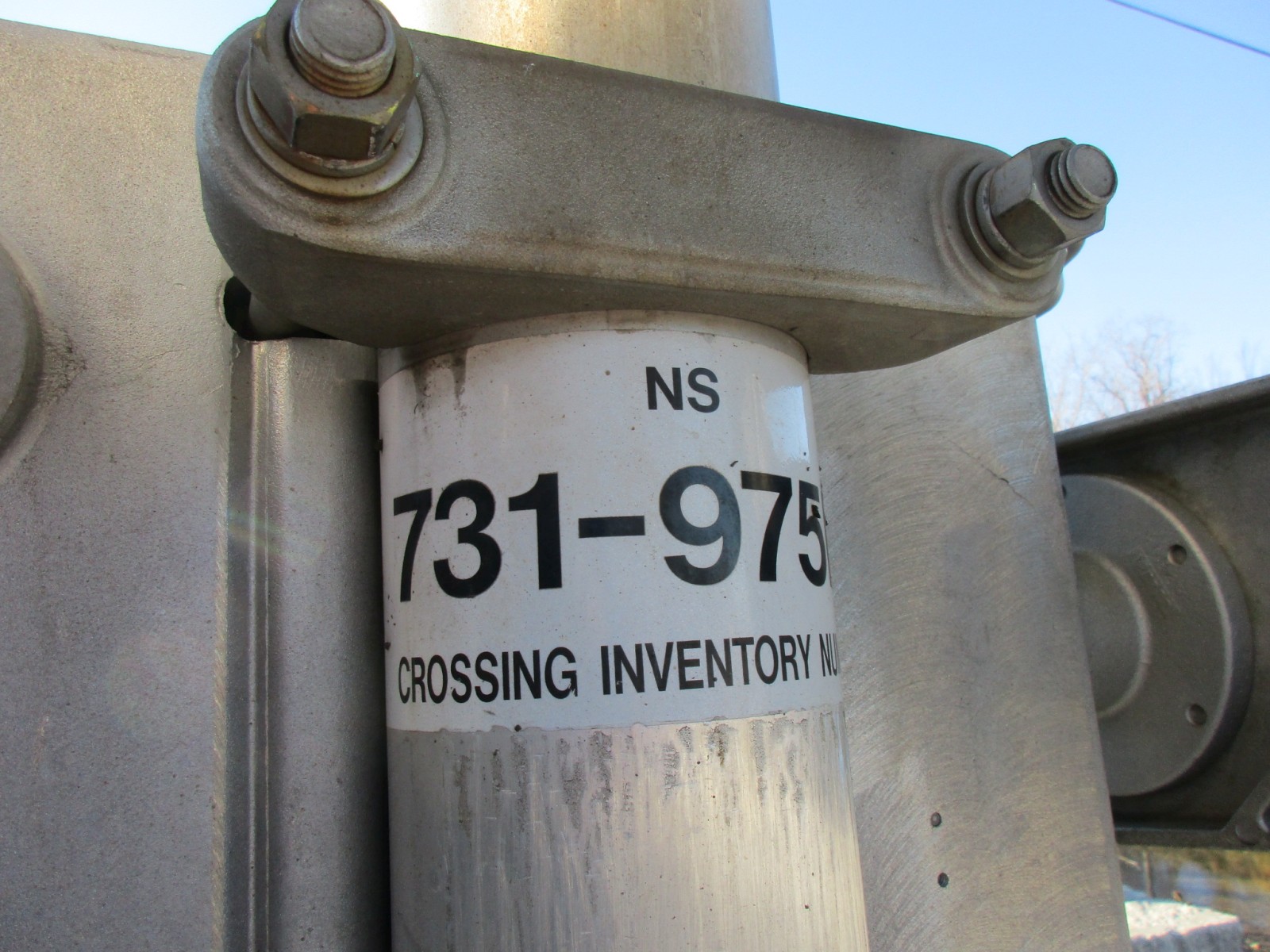

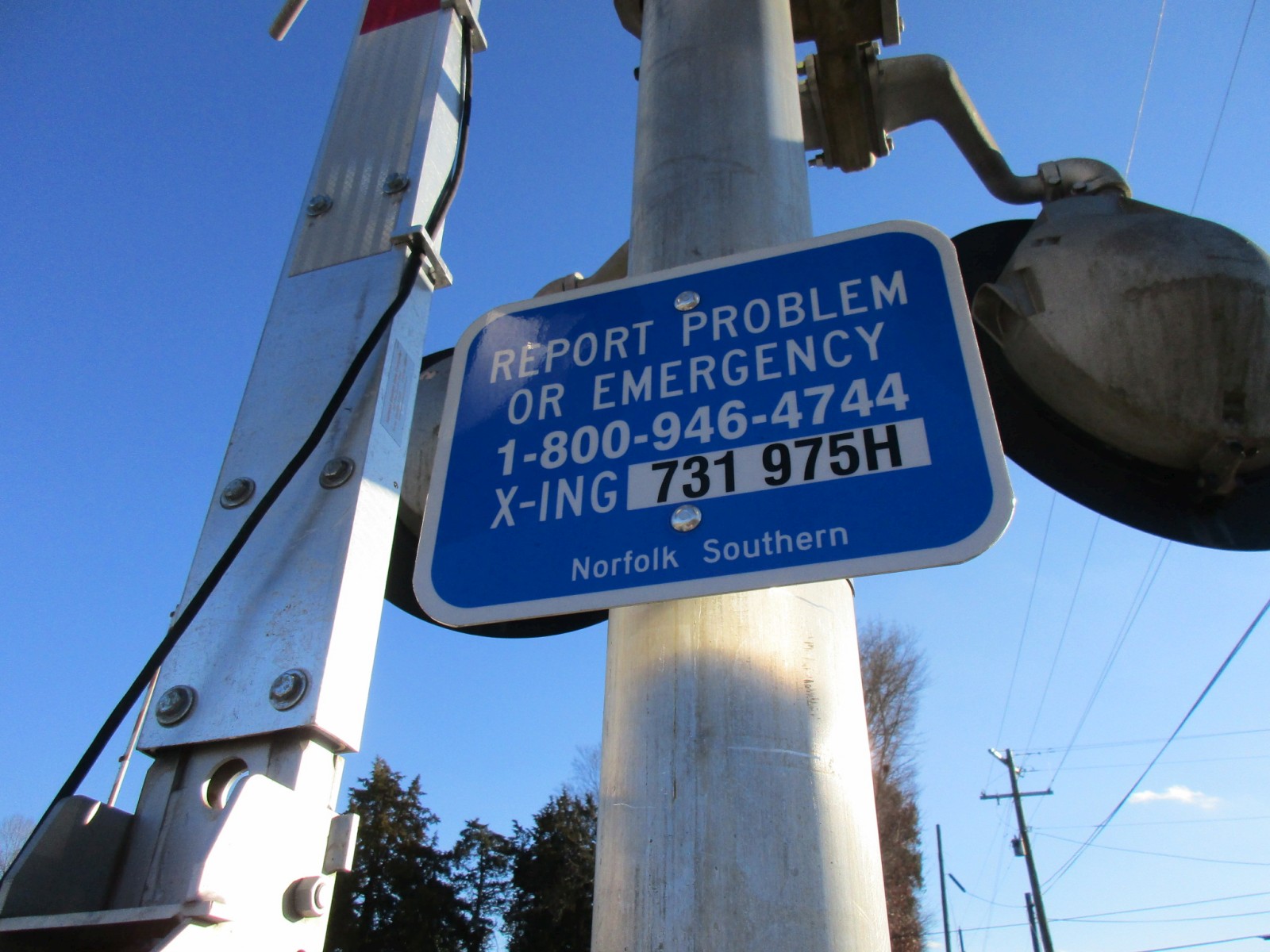

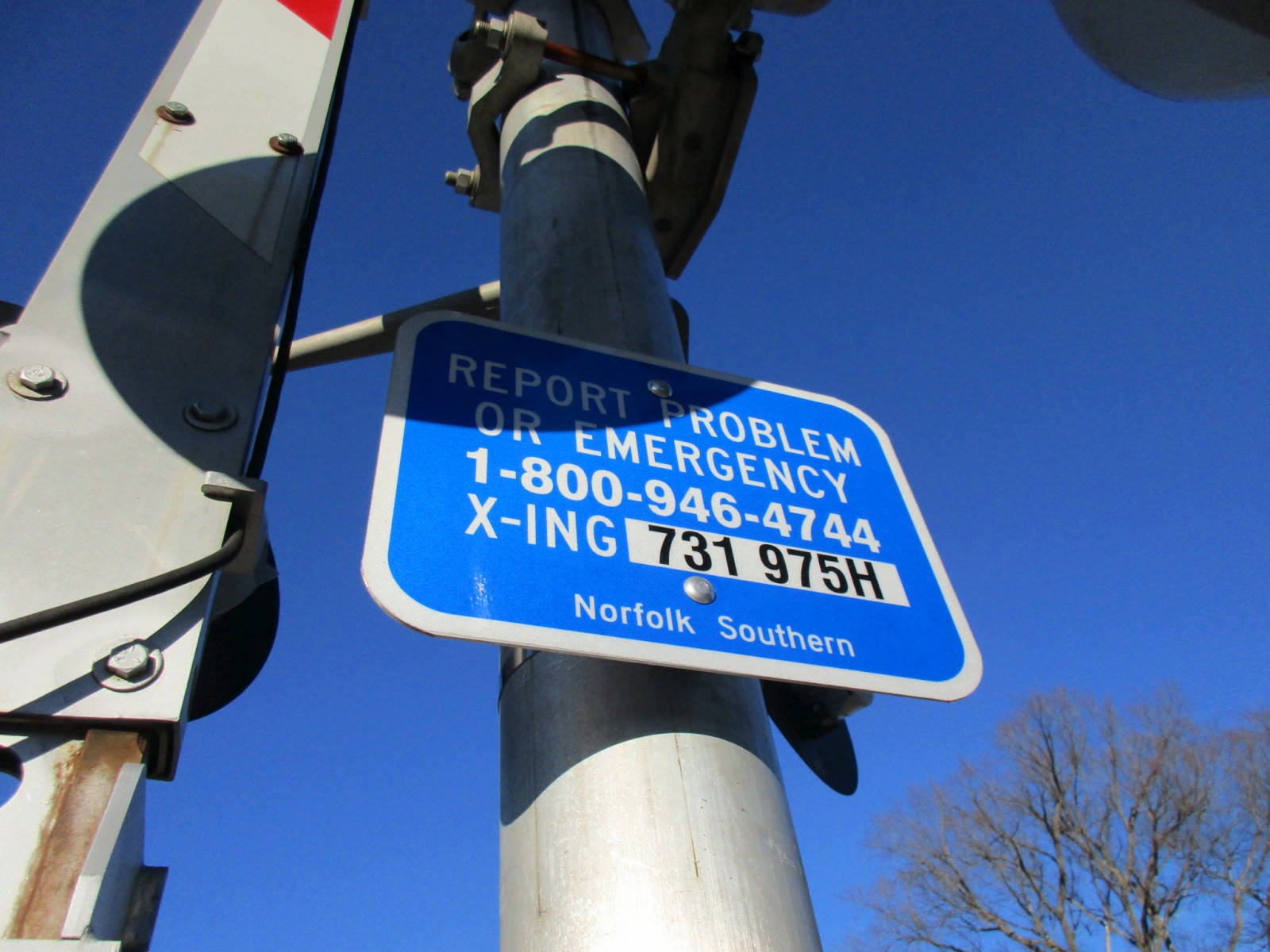

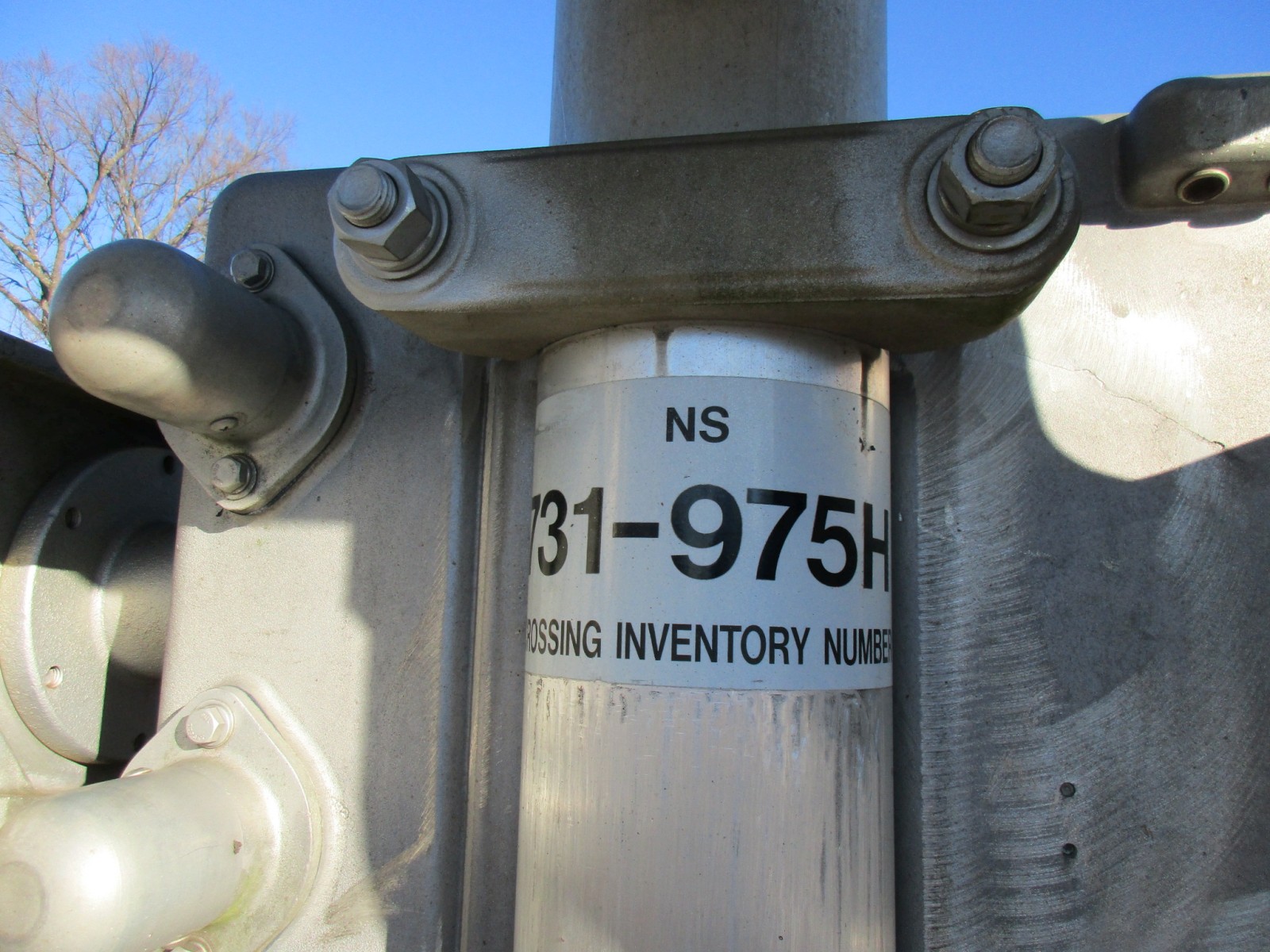

A DOT tag and the emergency information. |
|
9 |
10 |
11 |
12 |

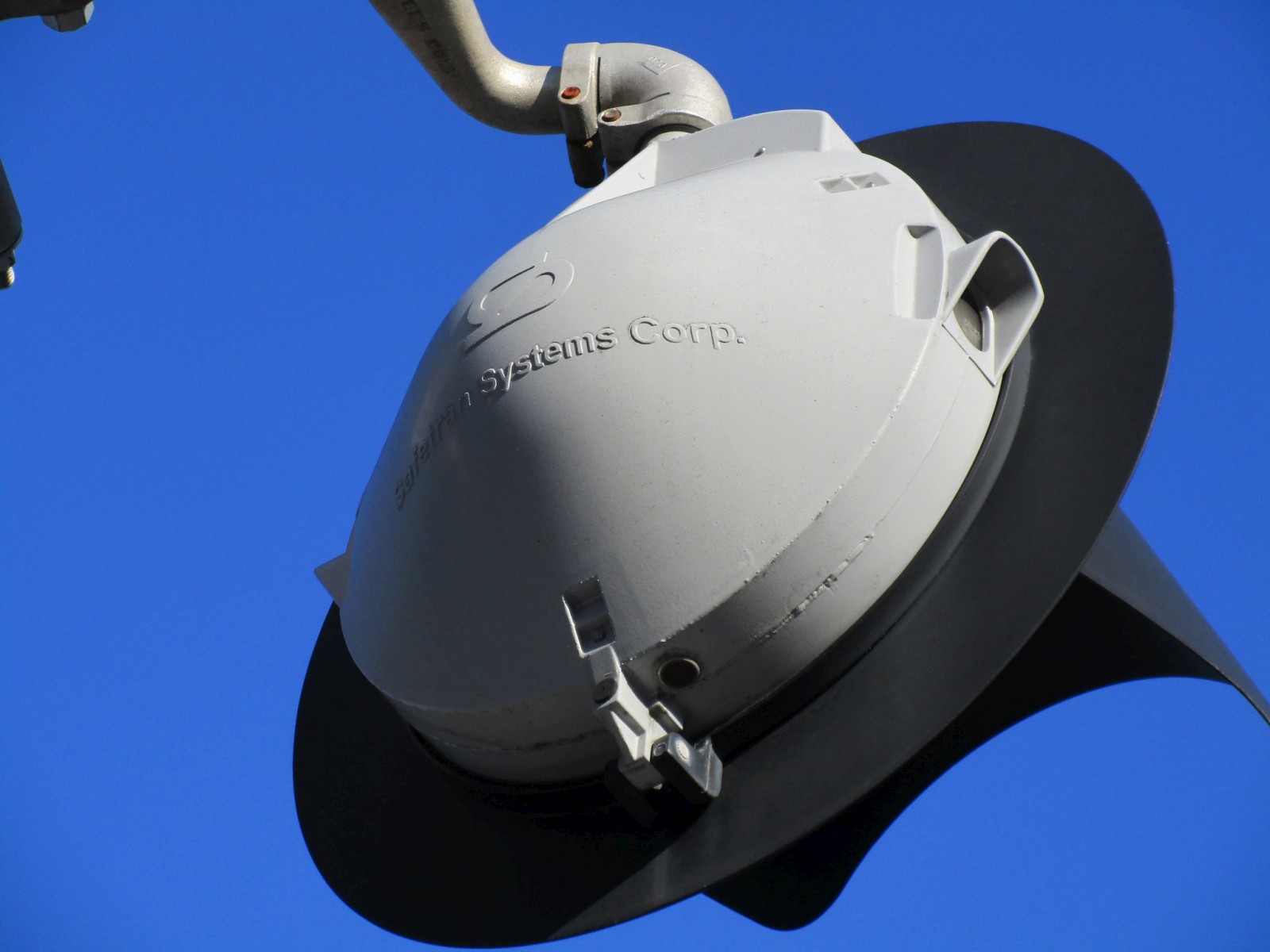

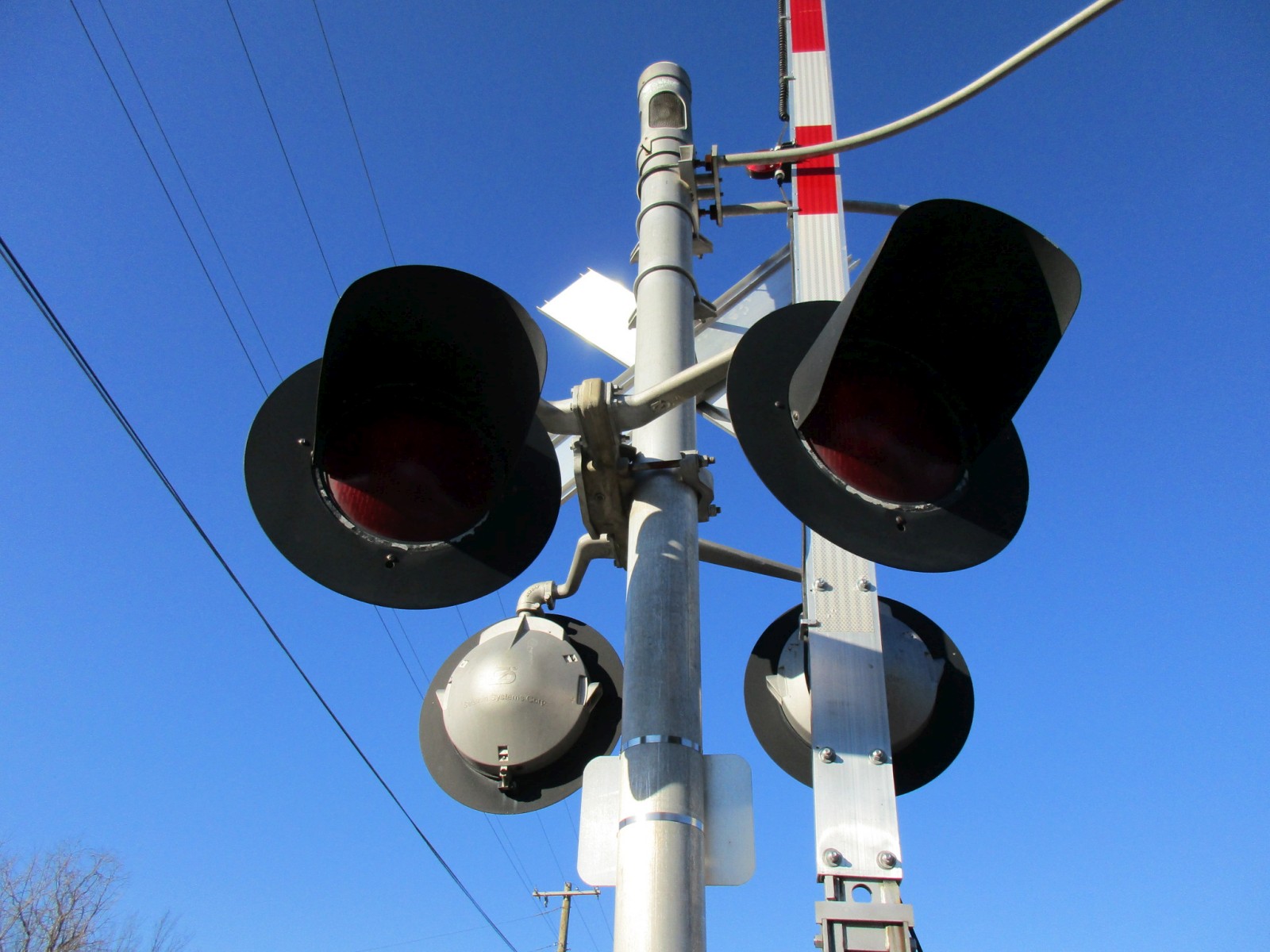

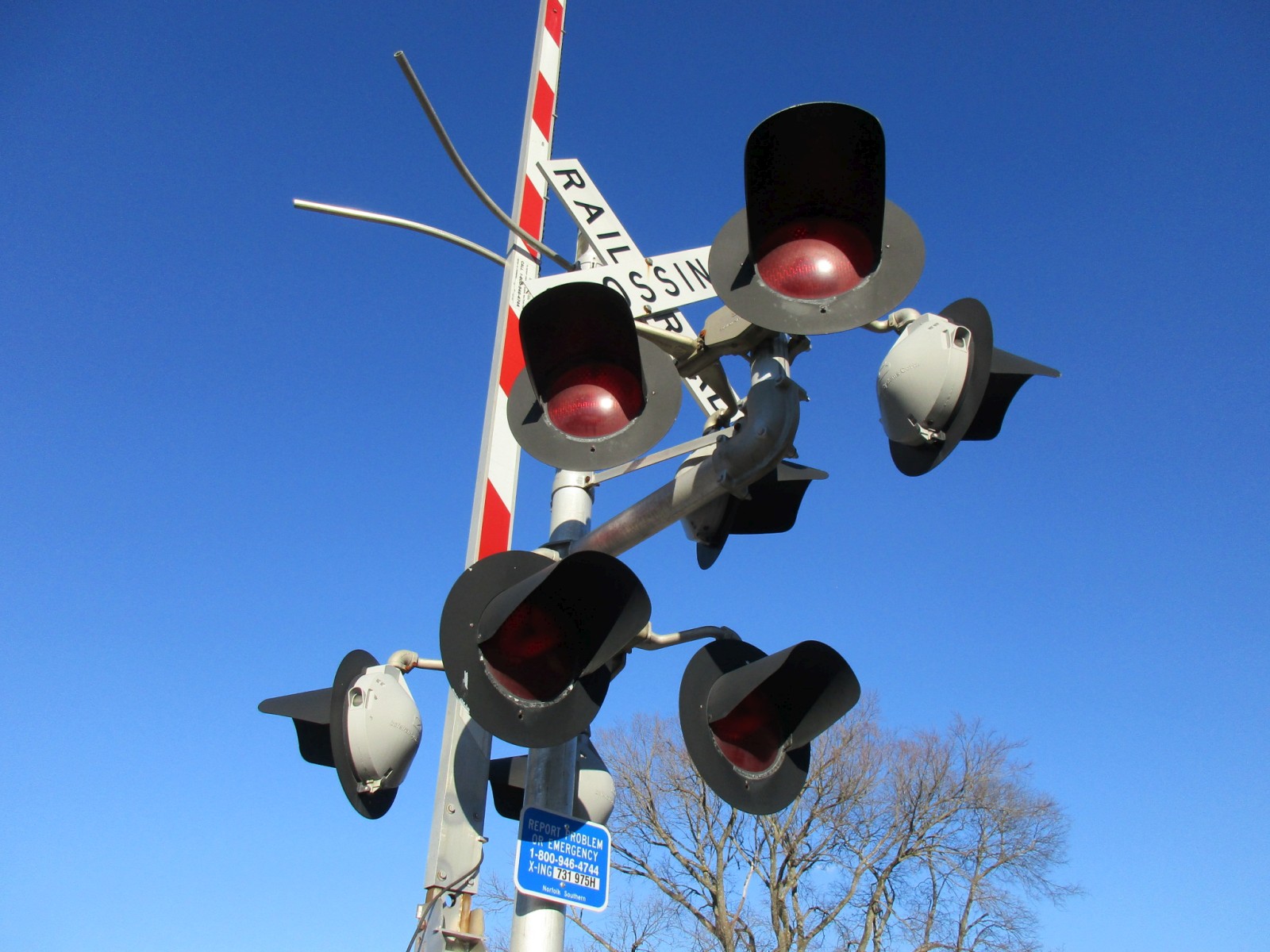

This signal has Safetran 12x20 inch lights. |

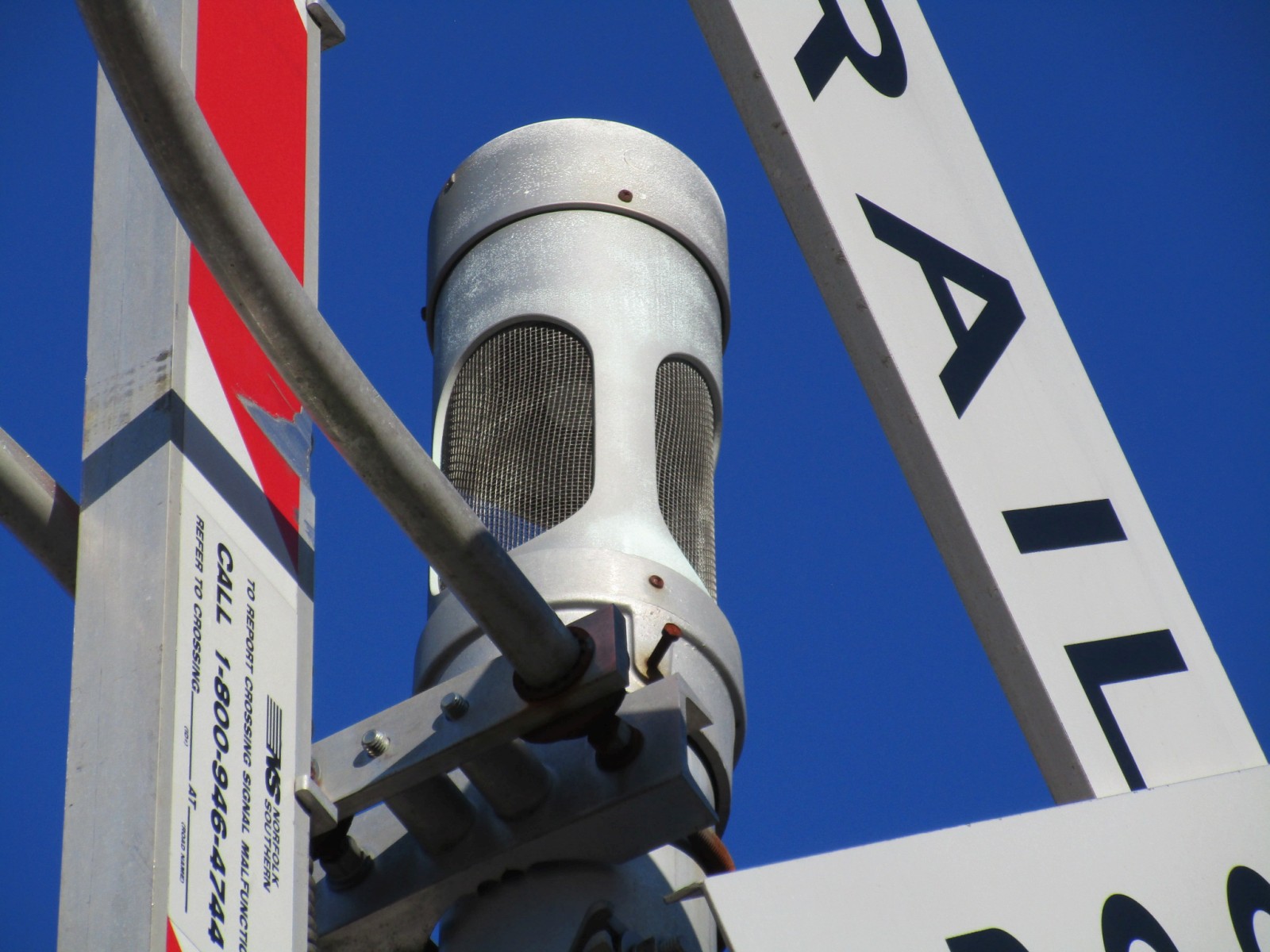

The bell is a General Signals Type 2 electronic bell. |

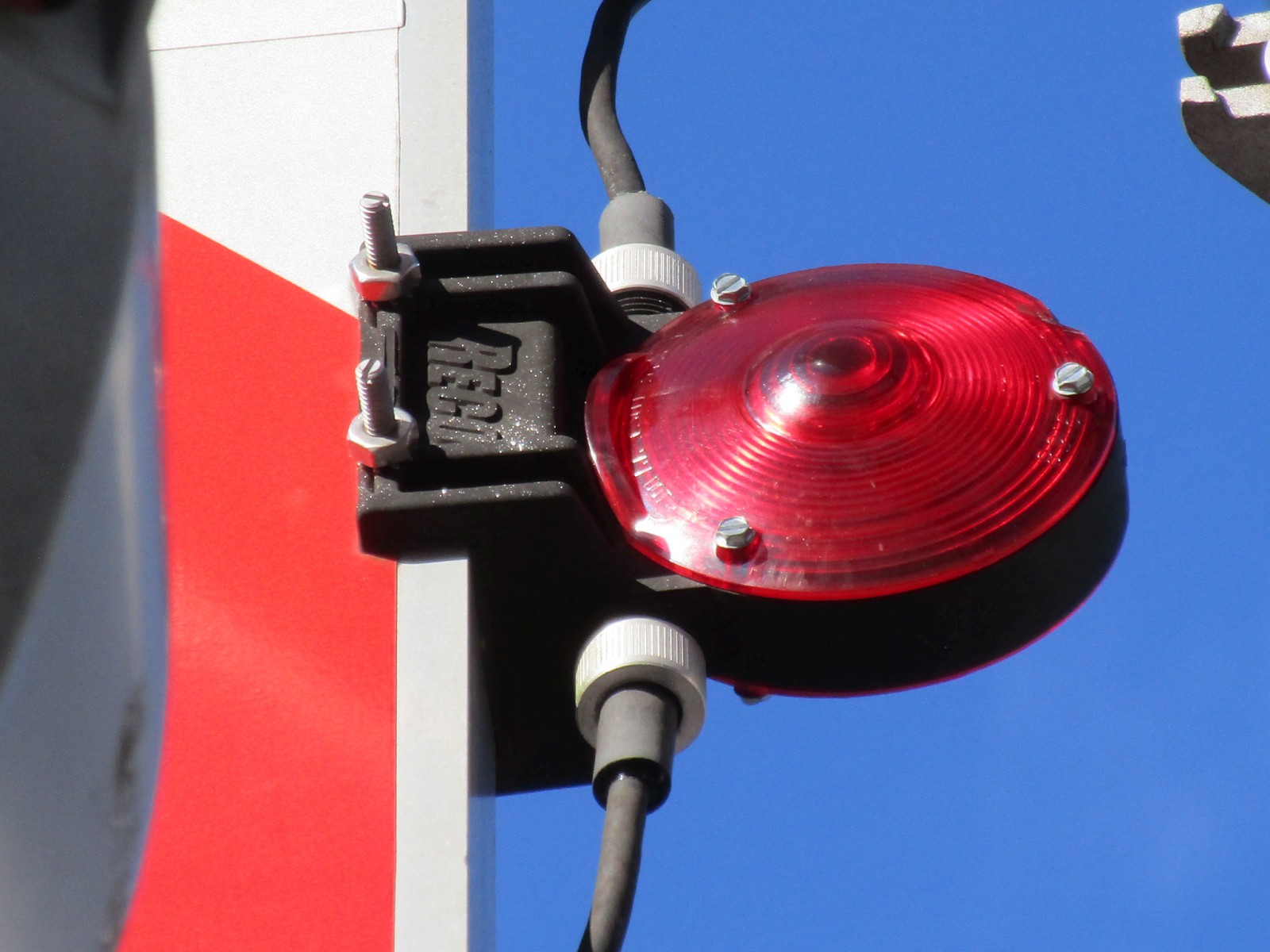

The gate lights are from RECO. |
|
13 |
14 |
15 |
16 |

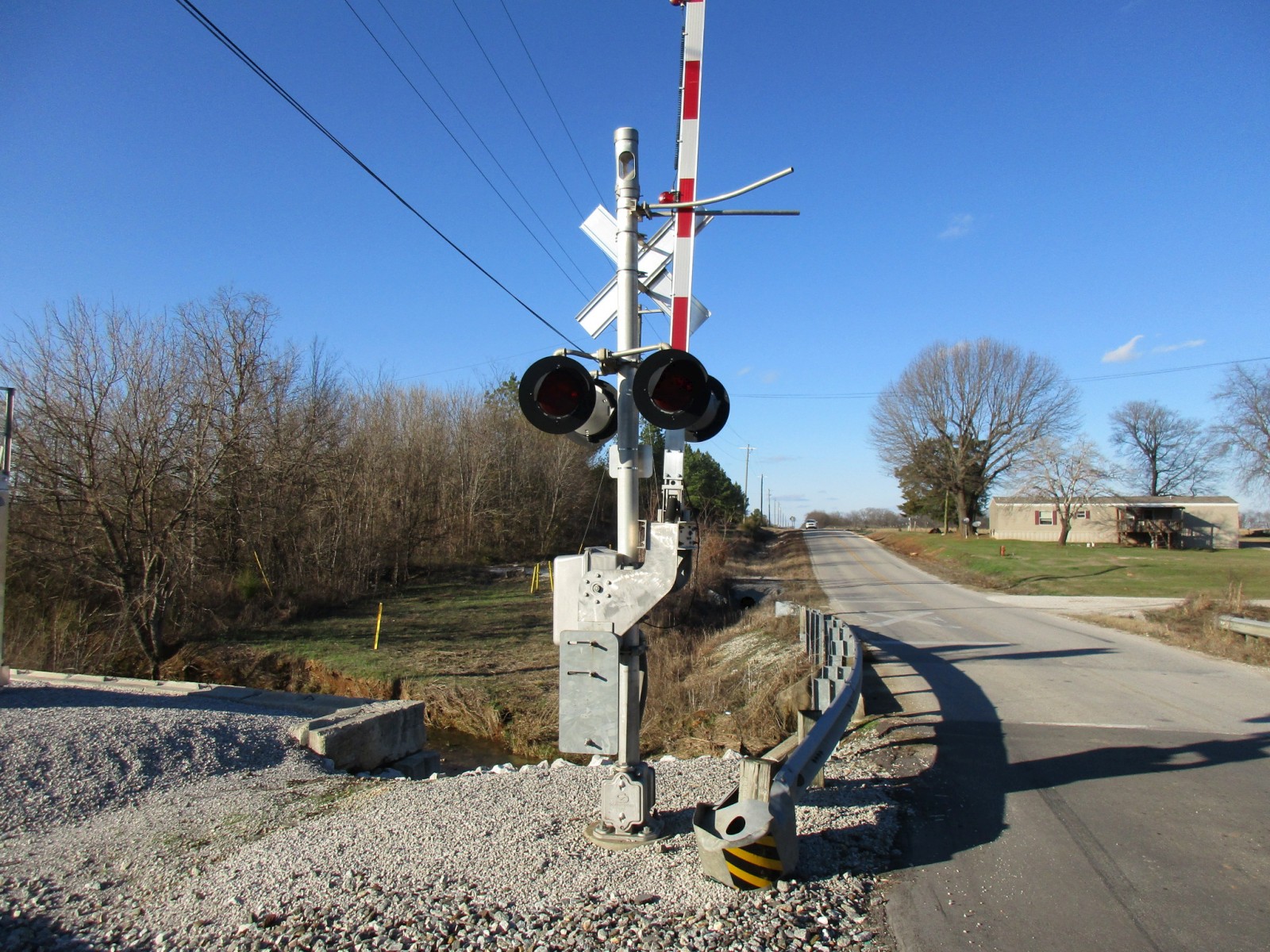

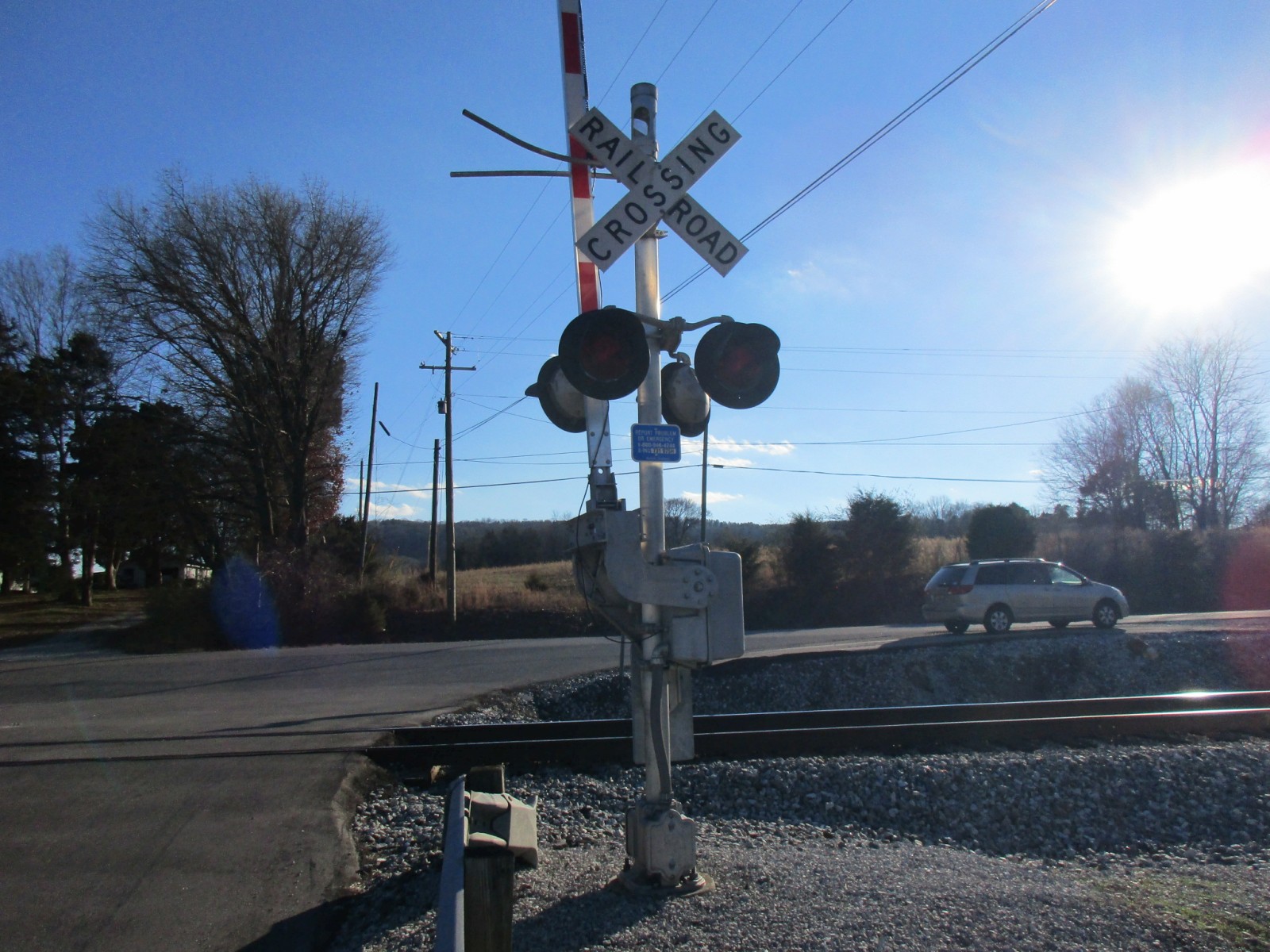

The second signal. |
It has another Safetran base. |
Another Safetran gate mechanism. |
|
17 |
18 |
19 |
20 |
A DOT tag and the emergency information. |

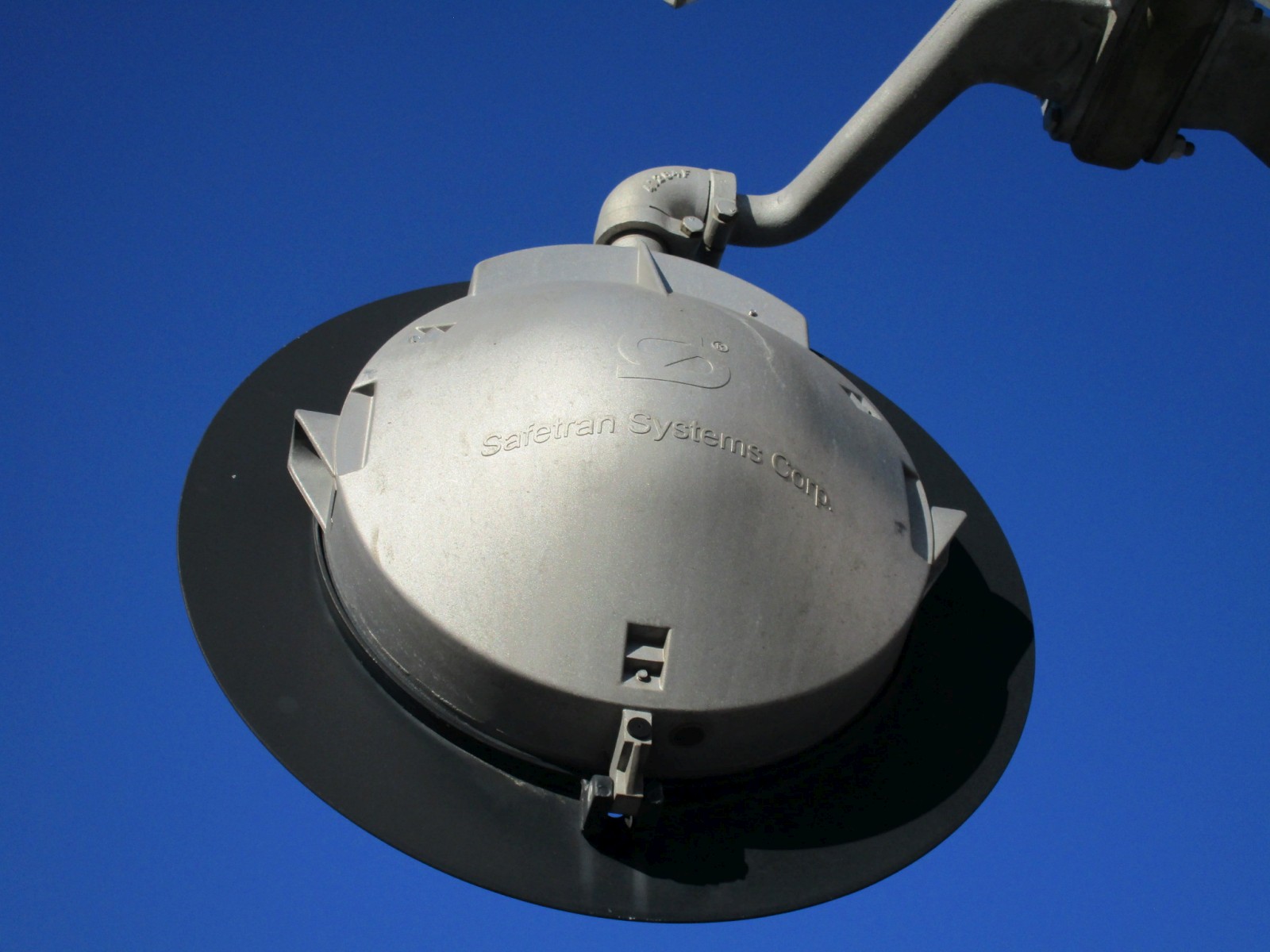

More Safetran 12x20 inch lights here. |
||
21 |
22 |
23 |
24 |

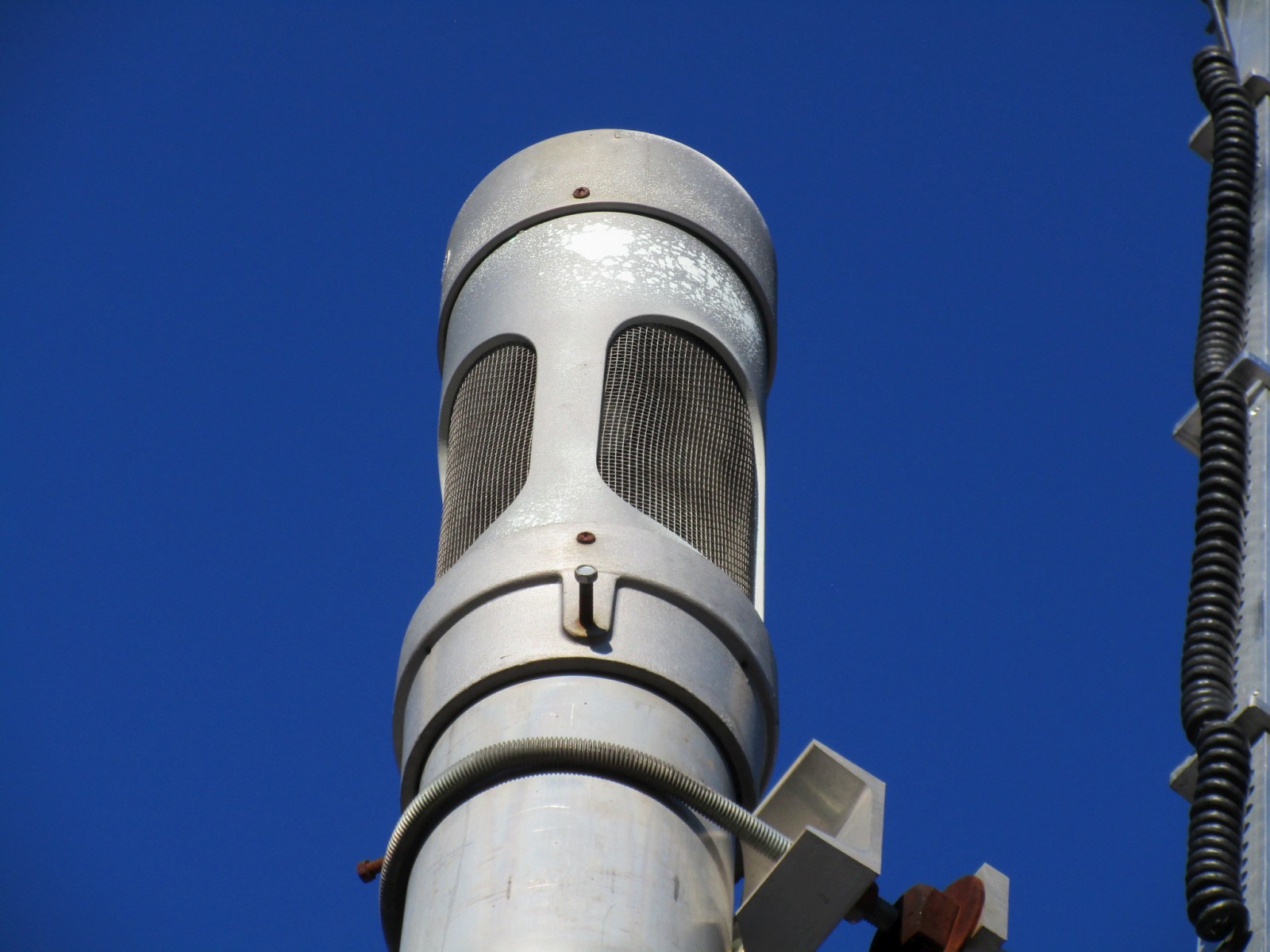

Another General Signals Type 2 electronic bell. |

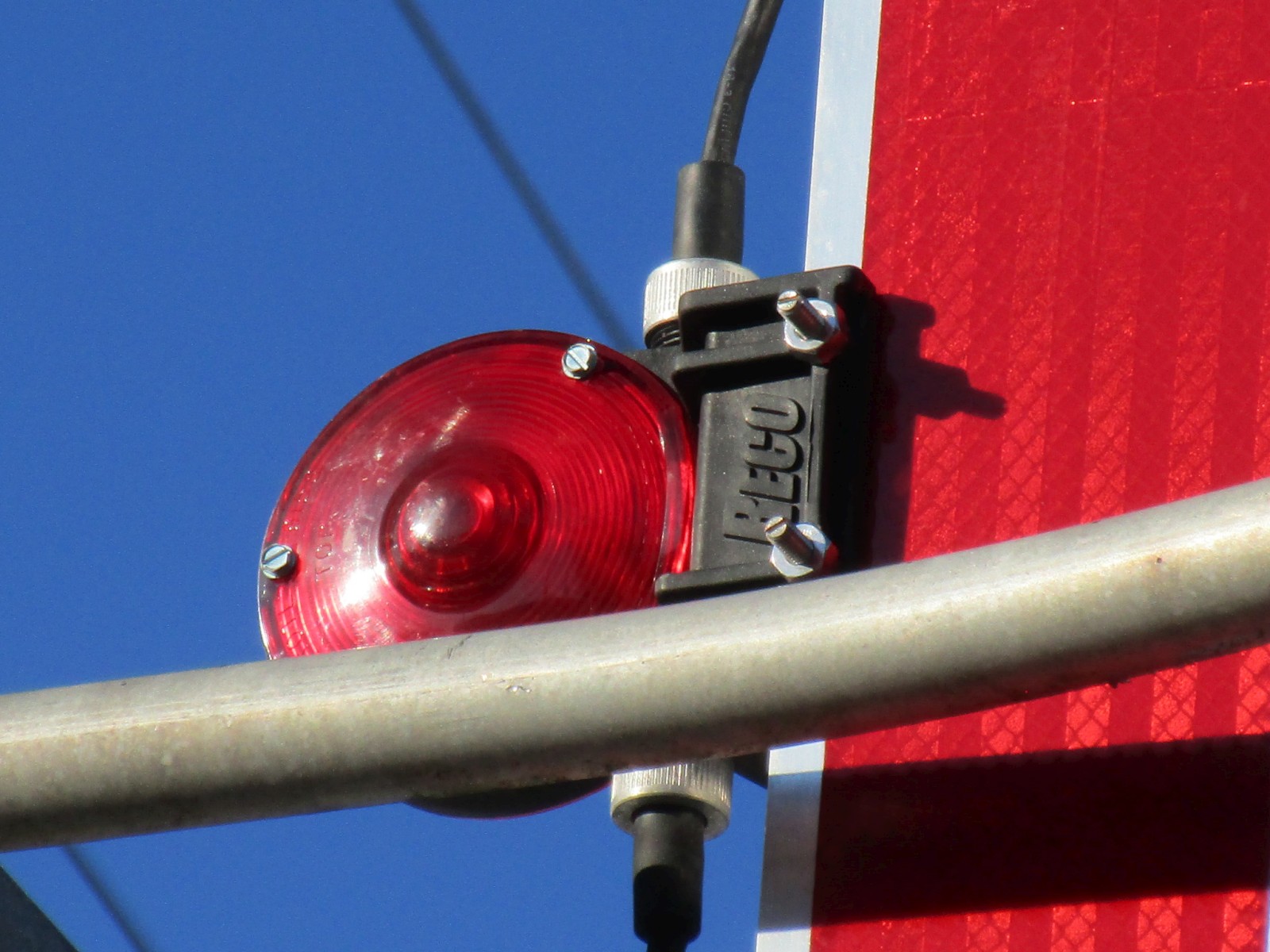

More RECO gate lights. |

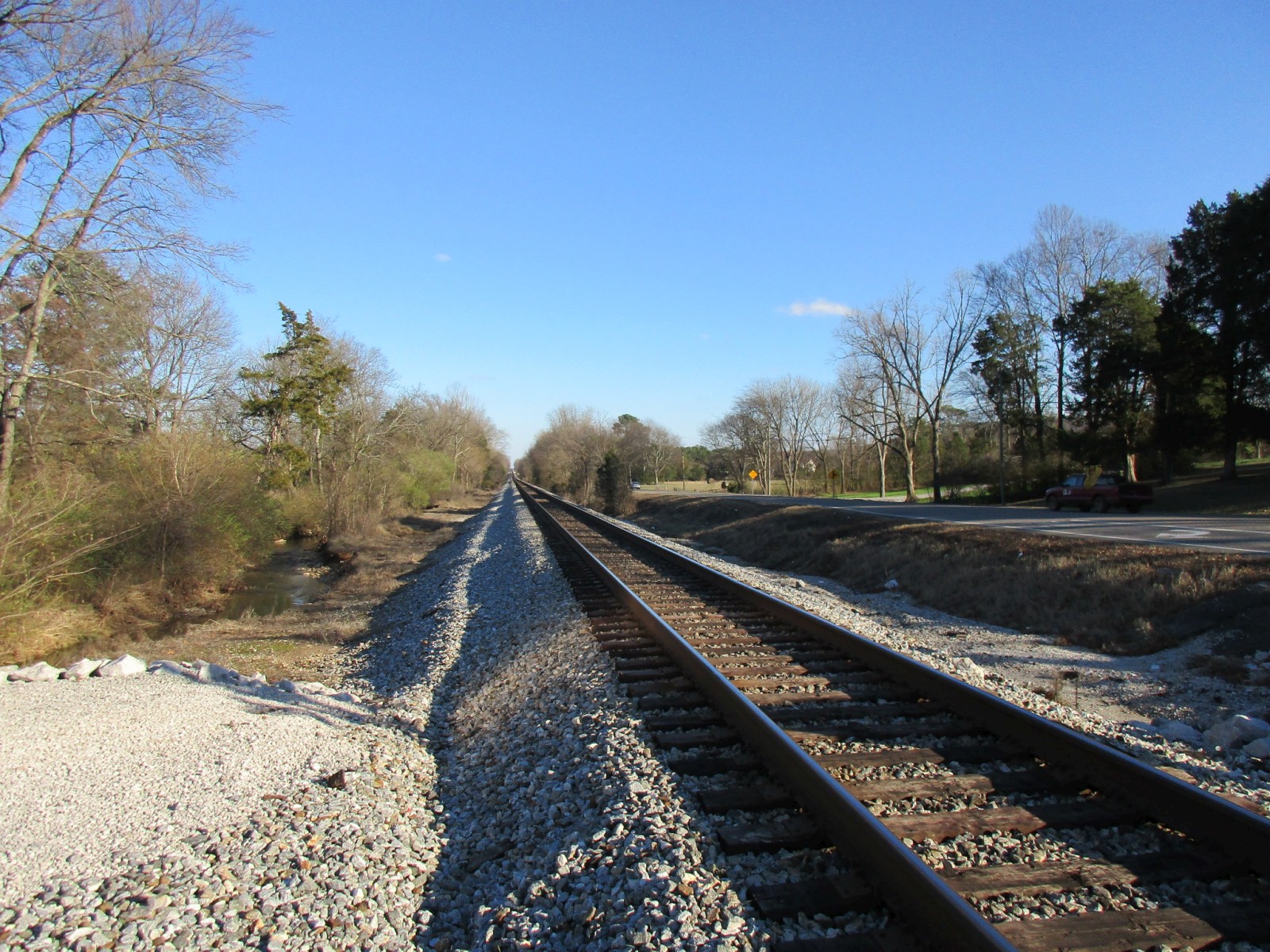

Track view looking east towards Mulberry Lane in Barton. |
Track view looking west towards Vulcan Road. |
25 |
26 |
27 |
28 |

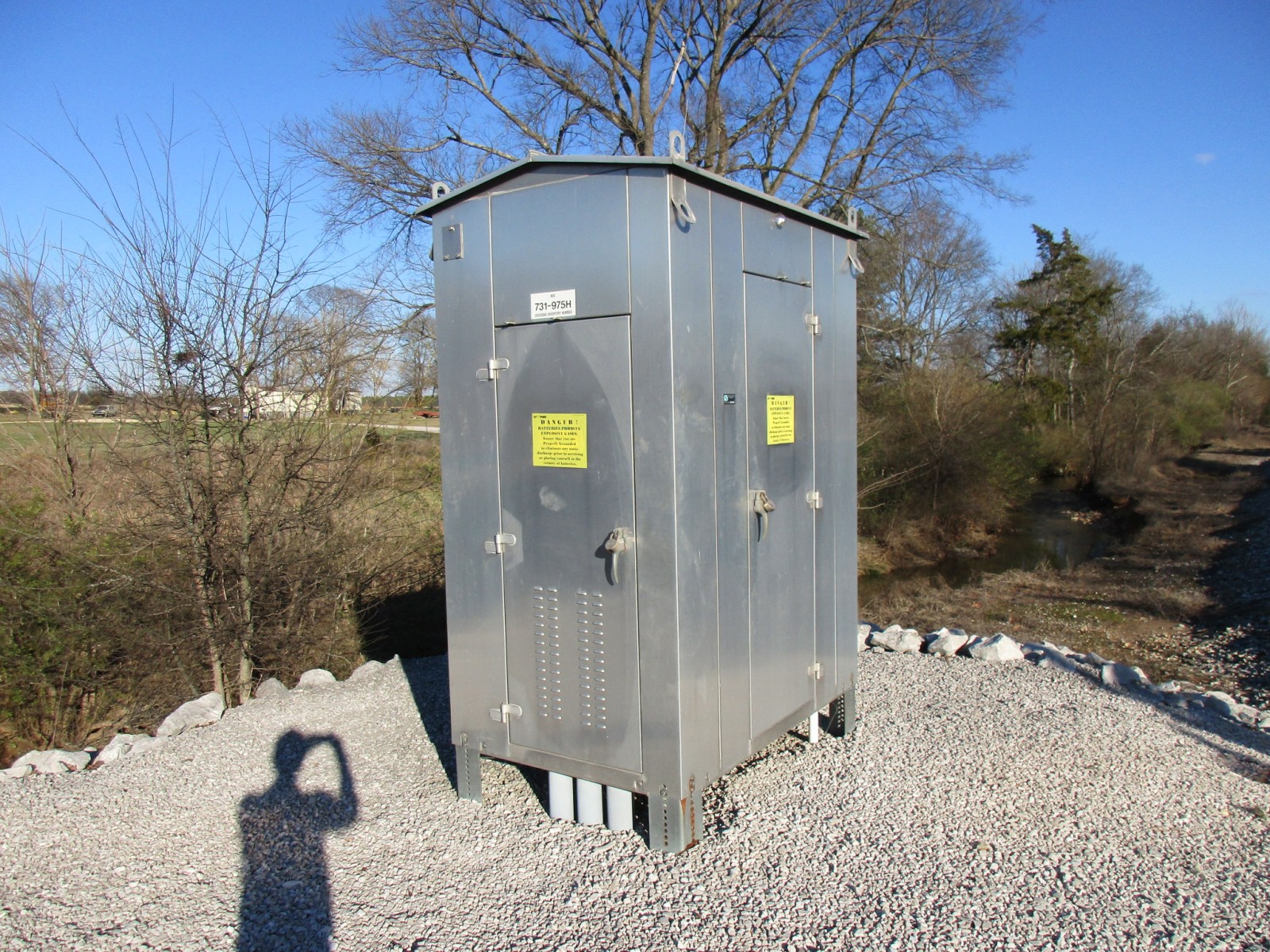

The relay case. |

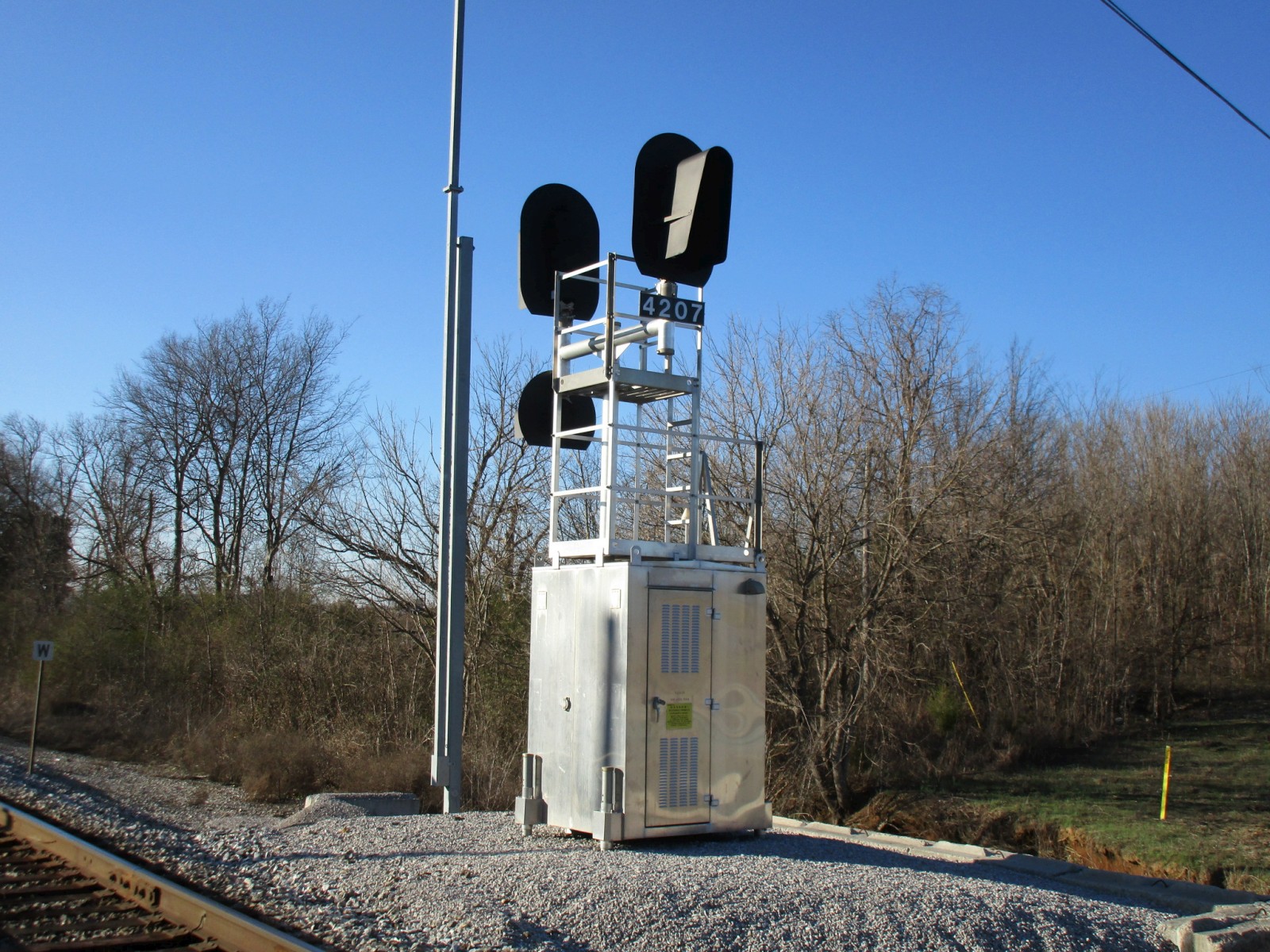

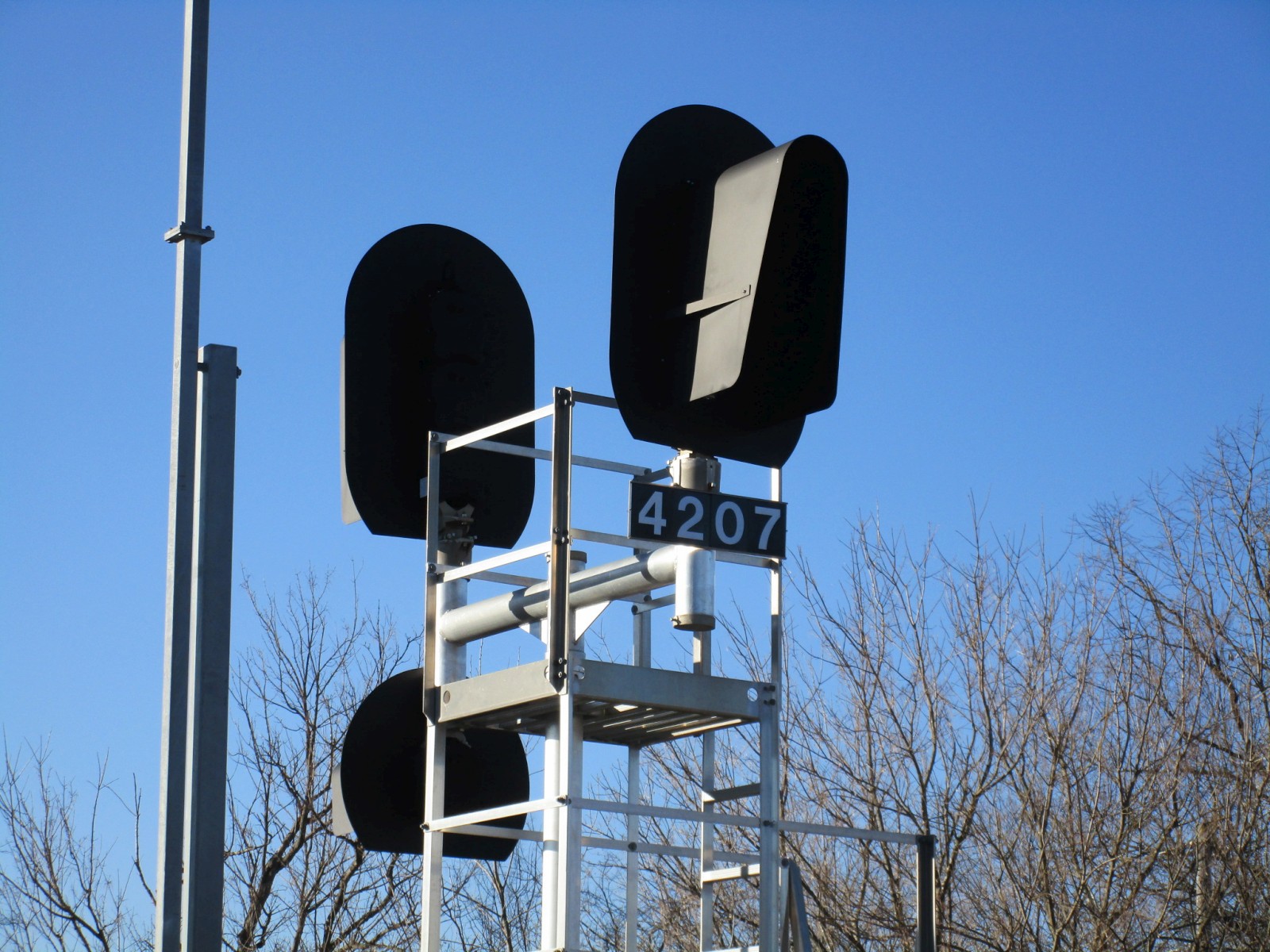

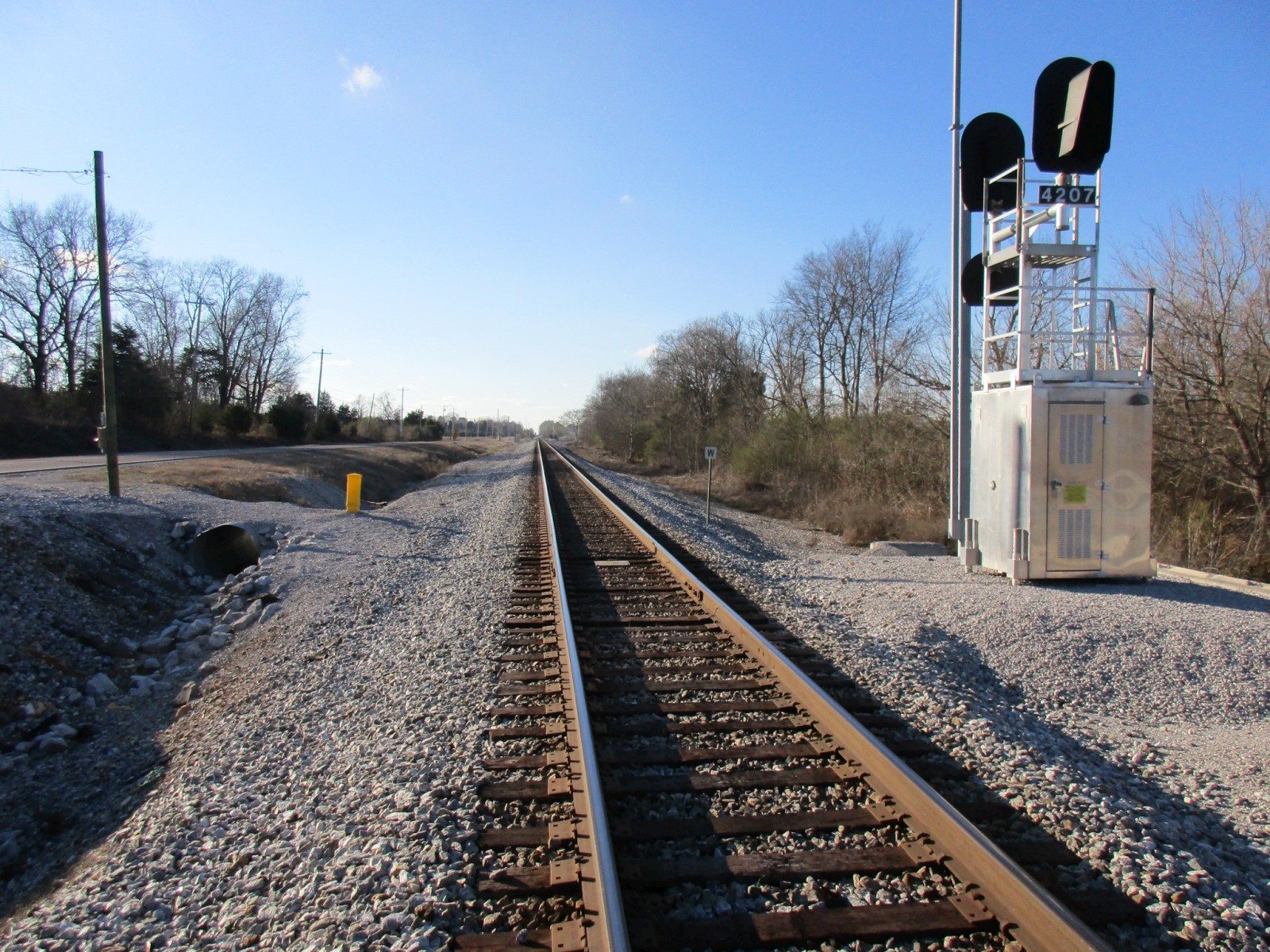

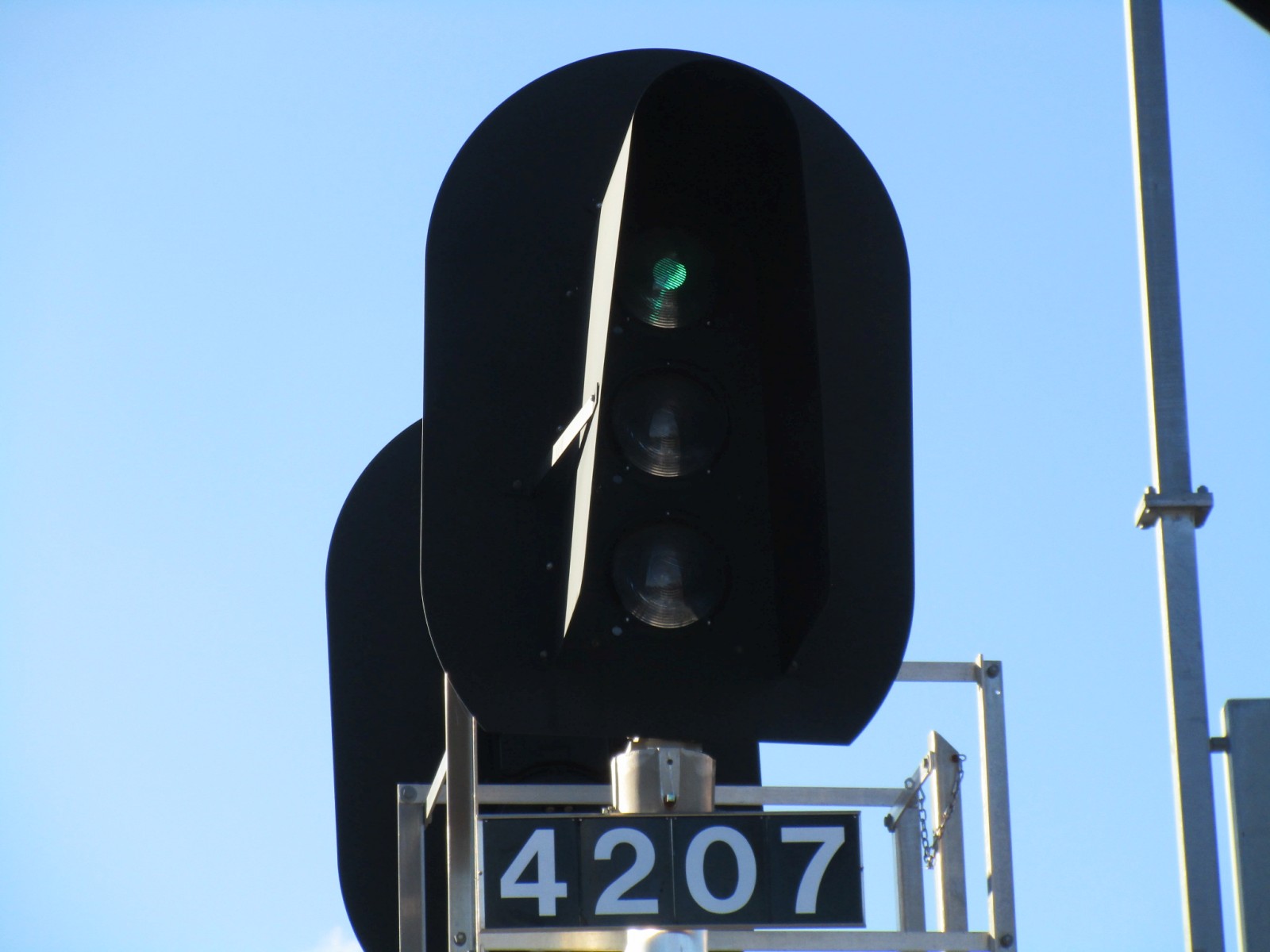

An automatic block signal right next to the crossing. Like most of NS's signals, this one is lit 24/7. |
||
29 |
30 |
31 |
32 |

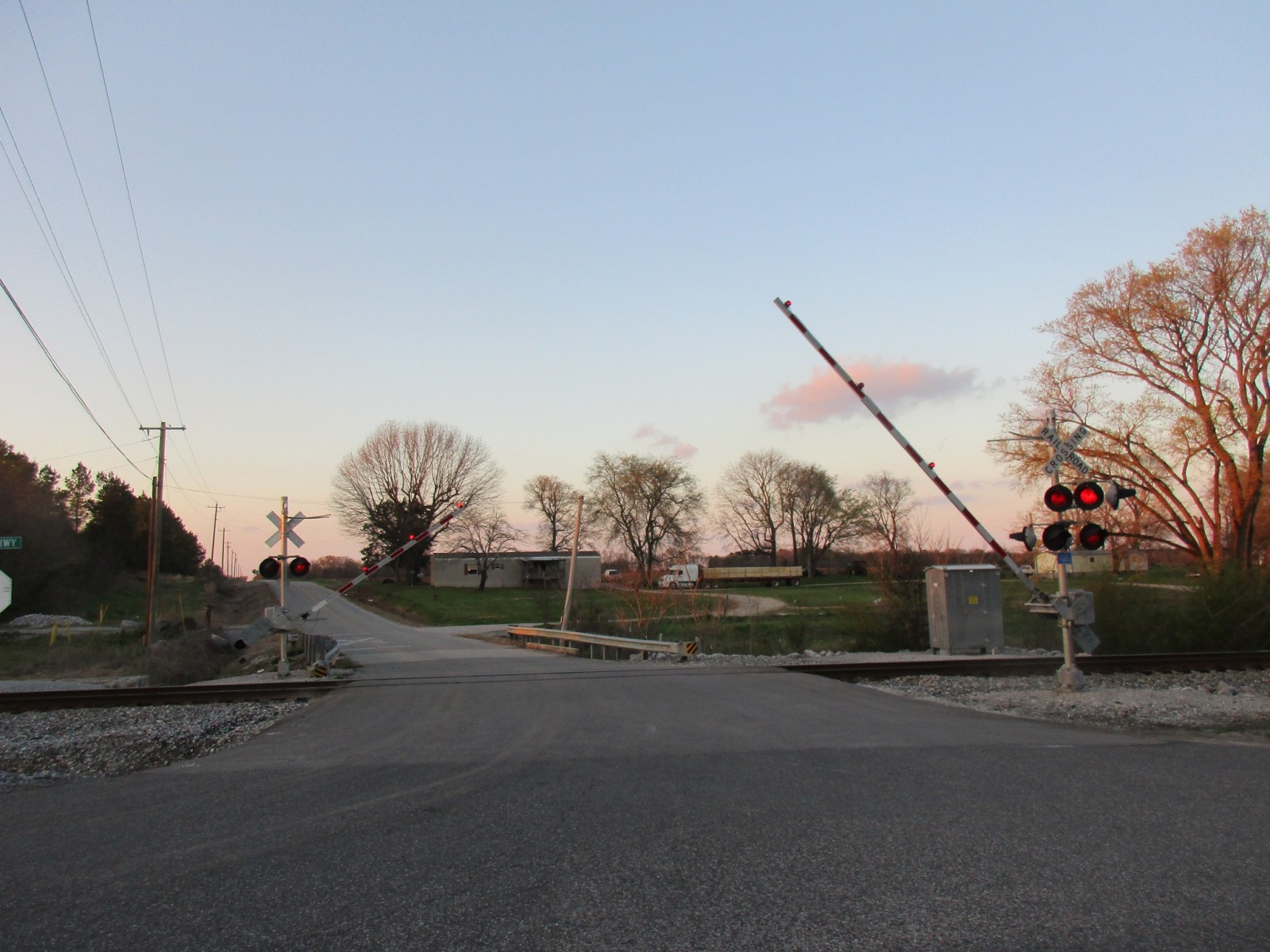

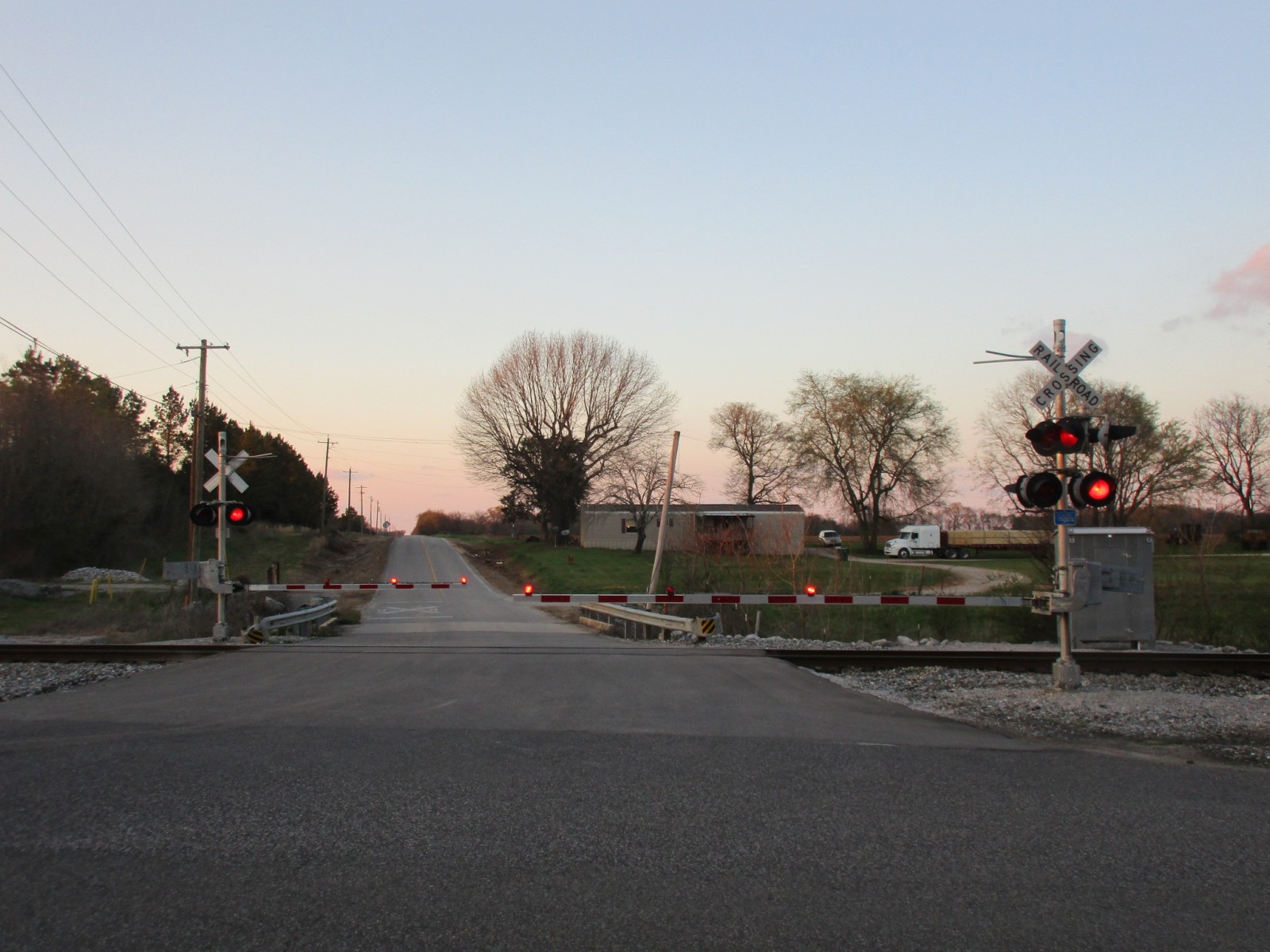

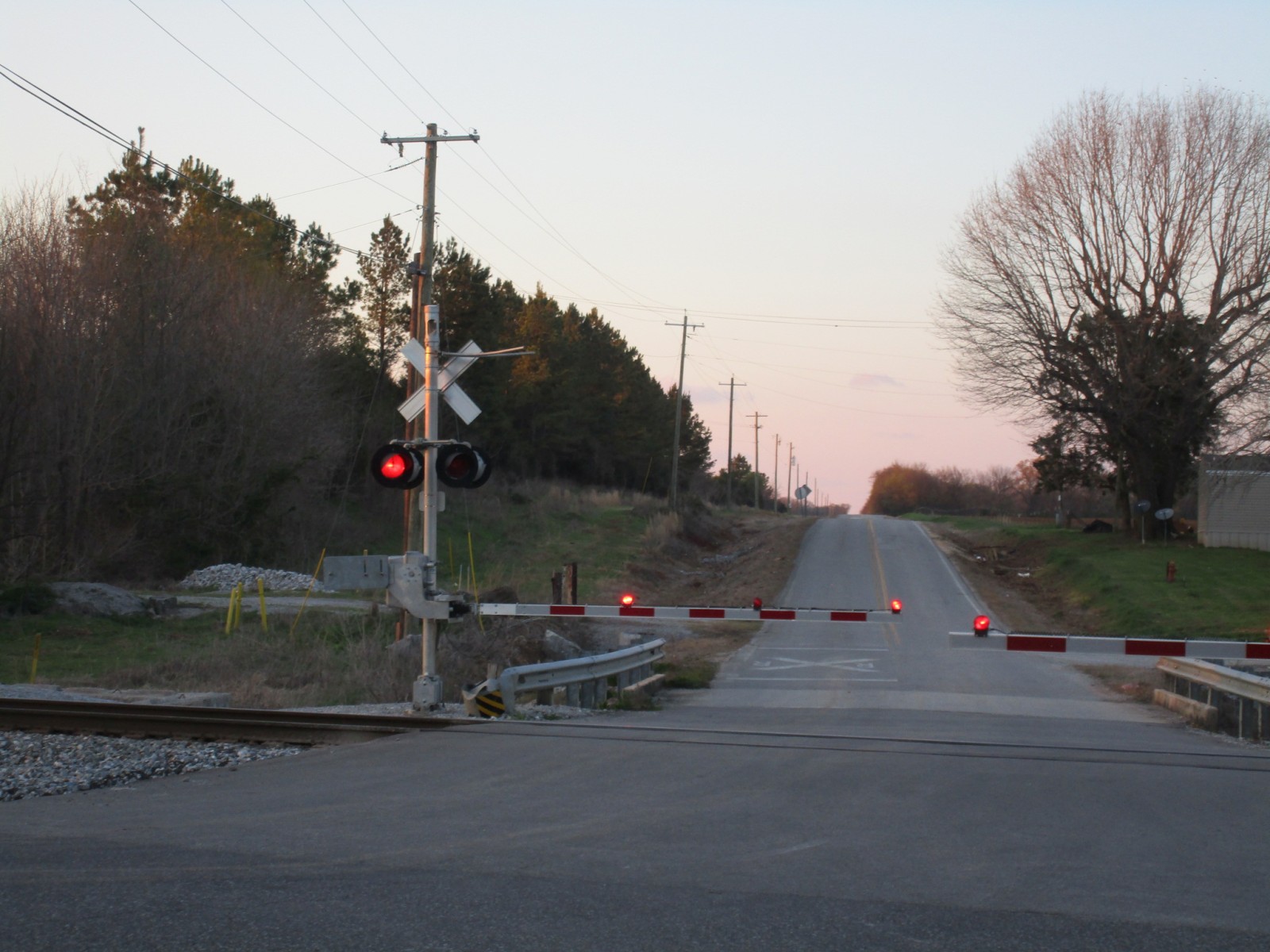

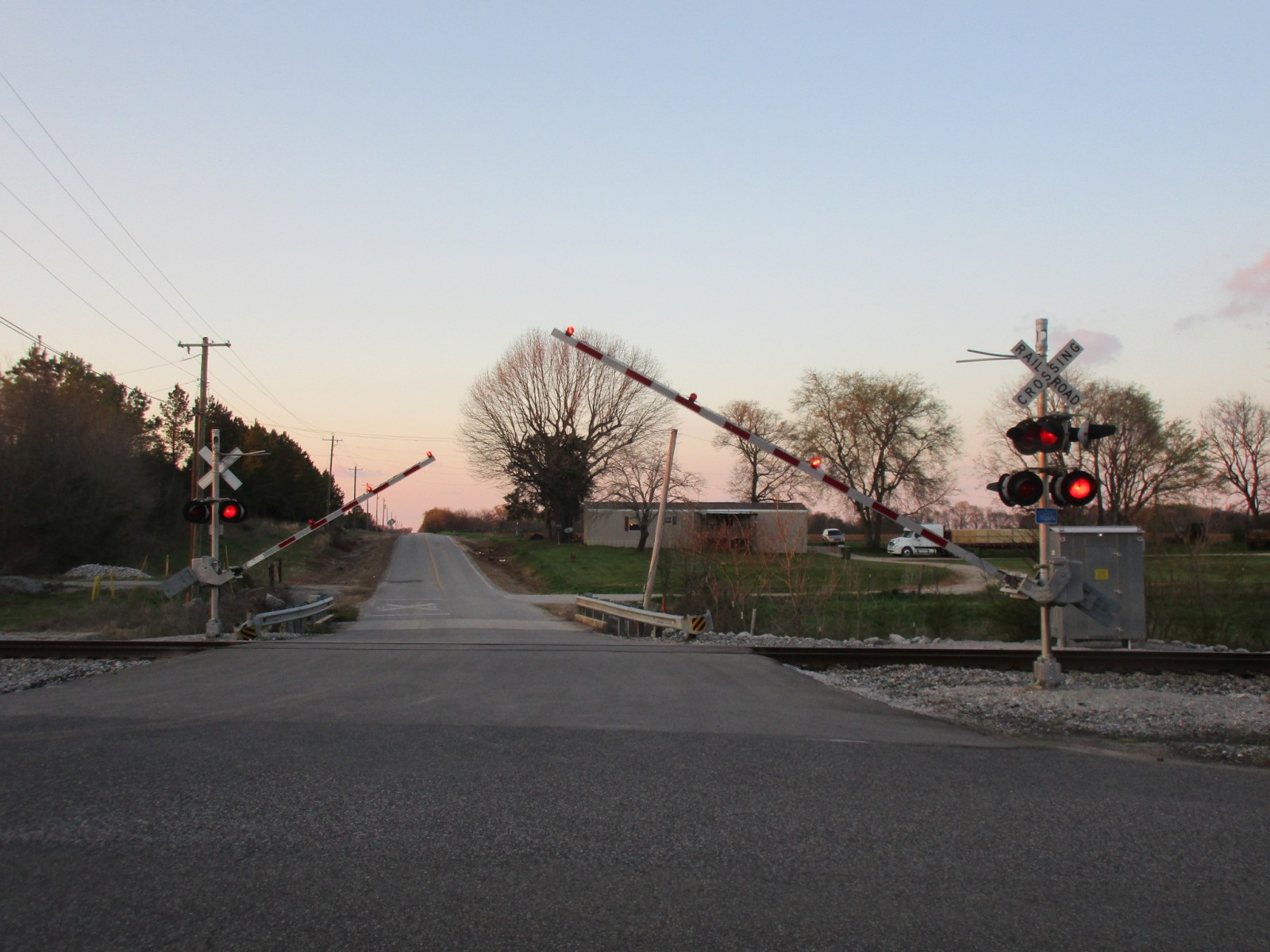

A return trip on 3-21-18 catches the crossing in action! |
|||
33 |
34 |
35 |
36 |

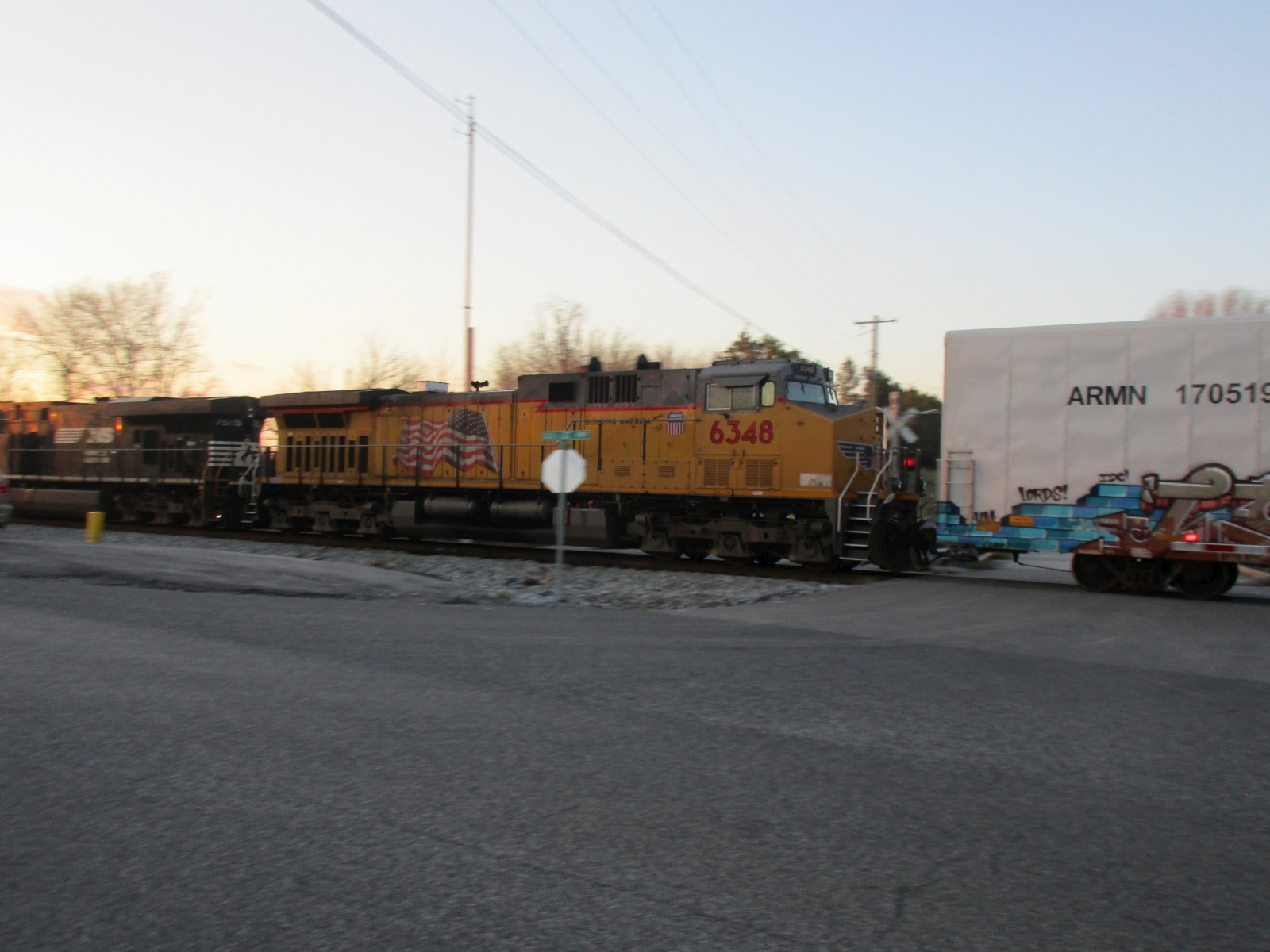

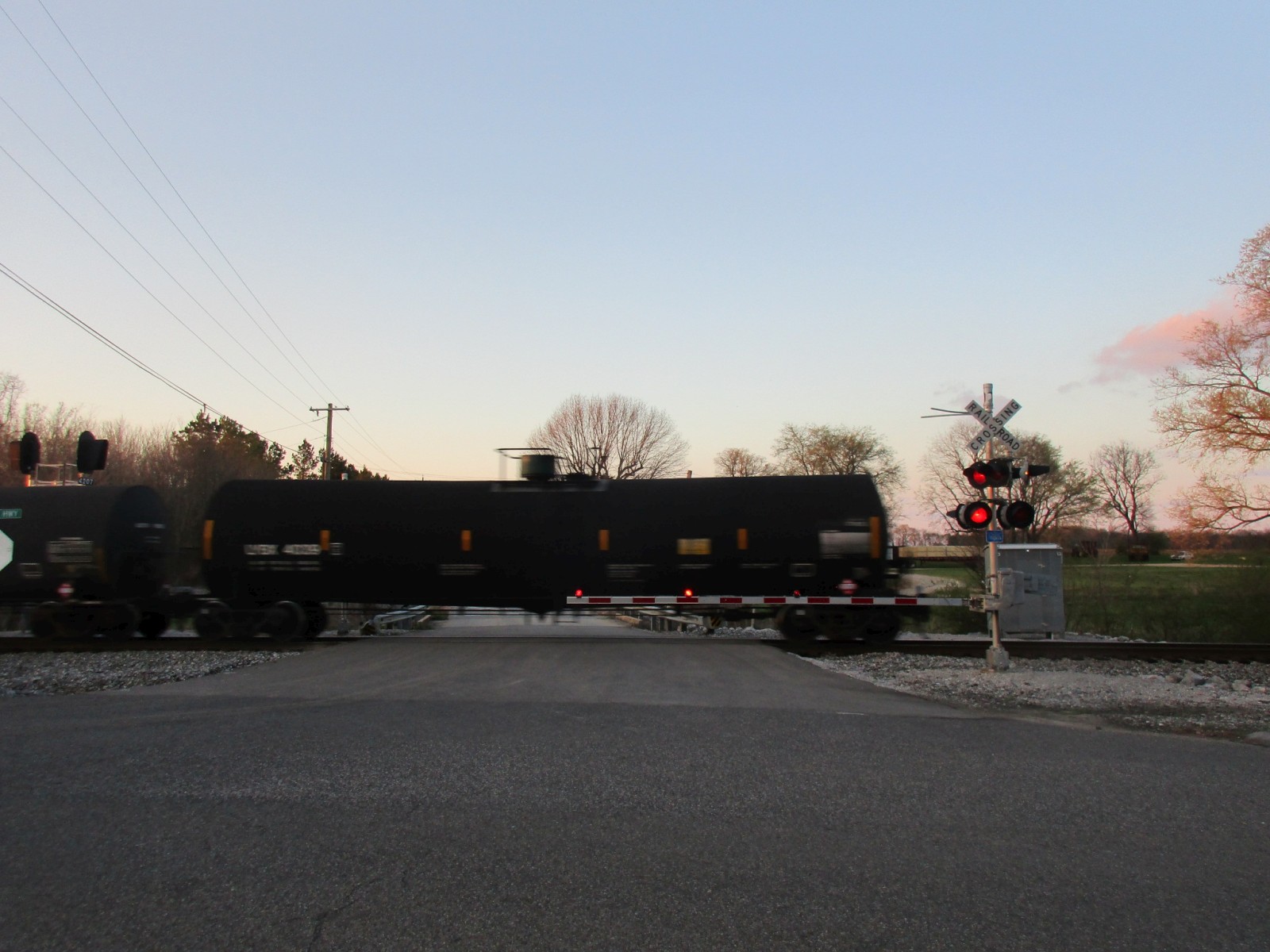

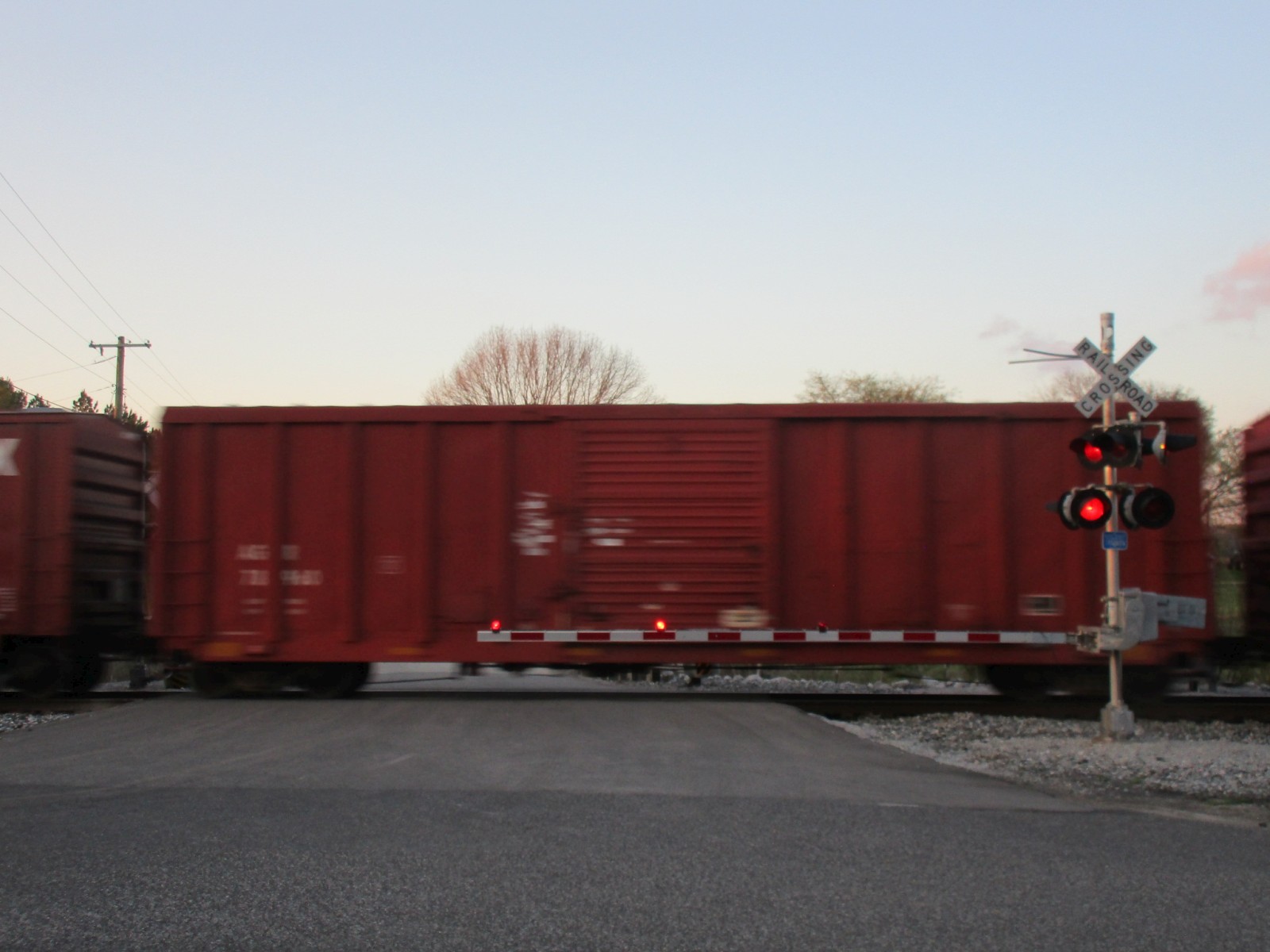

The train is a westbound NS mixed freight with an NS ES44DC leading a UP AC44CW. |
|||
37 |
38 |
39 |
40 |

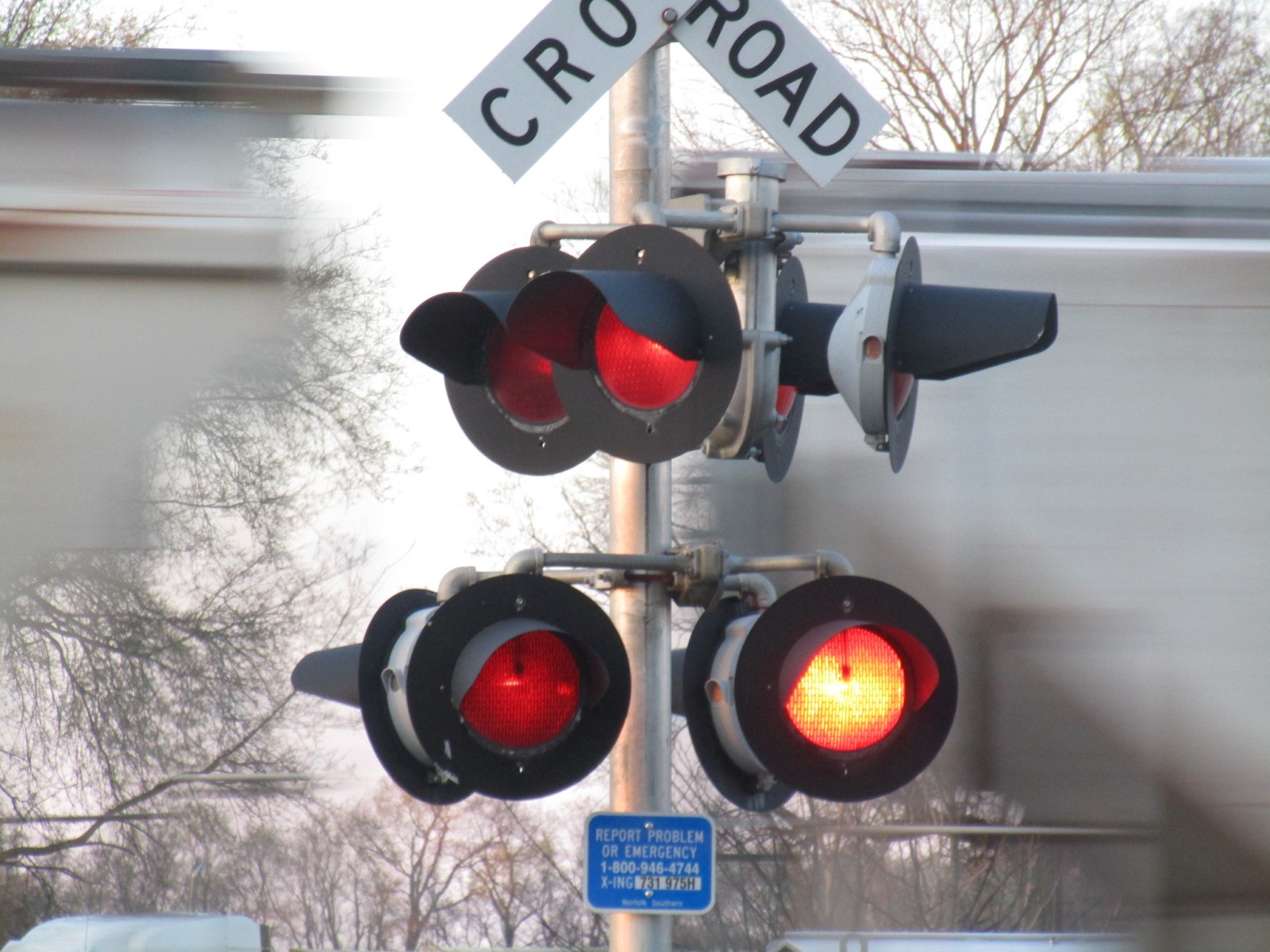

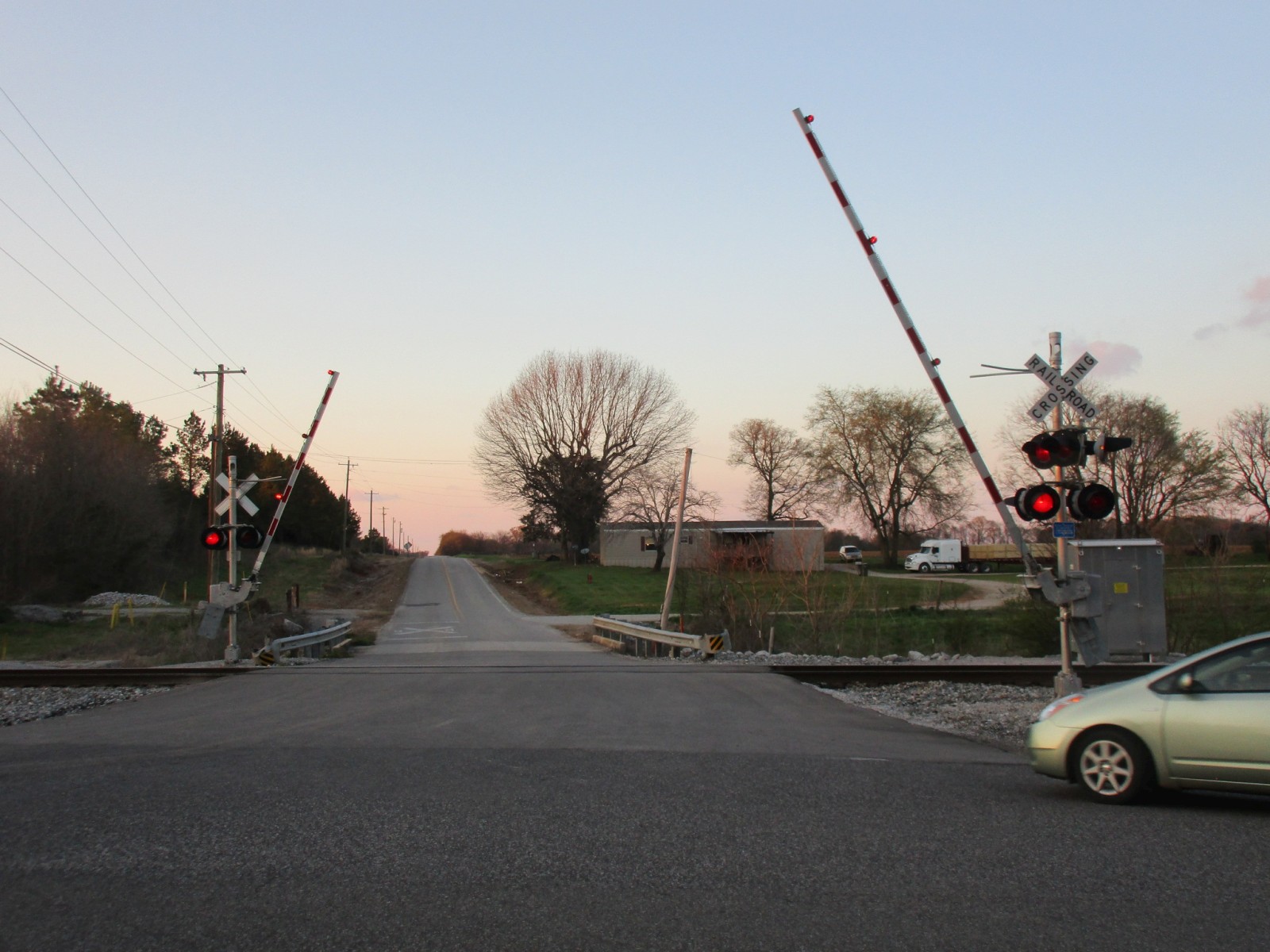

The train passes and the gates rise. |
|||
41 |
42 |
Pictures 1-28 were taken on 1-26-17.
Pictures 29-42 and the video were taken on 3-21-18.
