MP: A420.80 |
Updated March 6, 2021
Total Accidents: 0
Crossing
DOT #: 916940W
TOTAL
DAILY TRAINS: 22 (ESTIMATED)
Page created by: freebrickproductions
This crossing is located on the NS Memphis District West End.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | Safetran Type 3 electronic | dead General Signals electronic |
| Base: | Safetran | Safetran |
| Light Frames: | 4 - 12x20" Safetran | 4 - 12x20" Safetran |
| Gate Lights: | 3 - NEGs | 3 - NEGs |
| Gate Mechanism: | Safetran mid-90s | Safetran mid-90s |
| Gate Striping: | Vertical | Vertical |
1 |
2 |
3 |
4 |

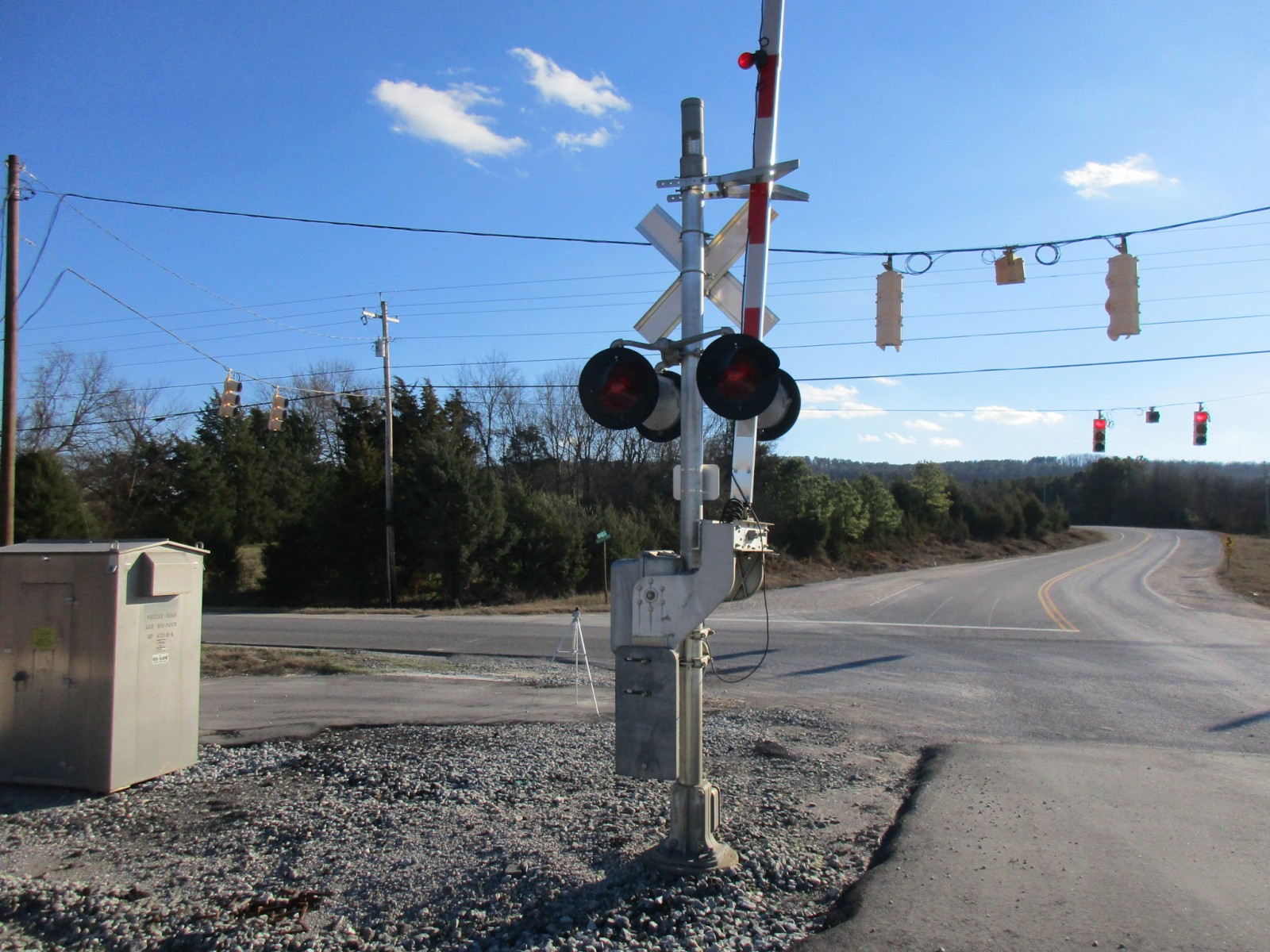

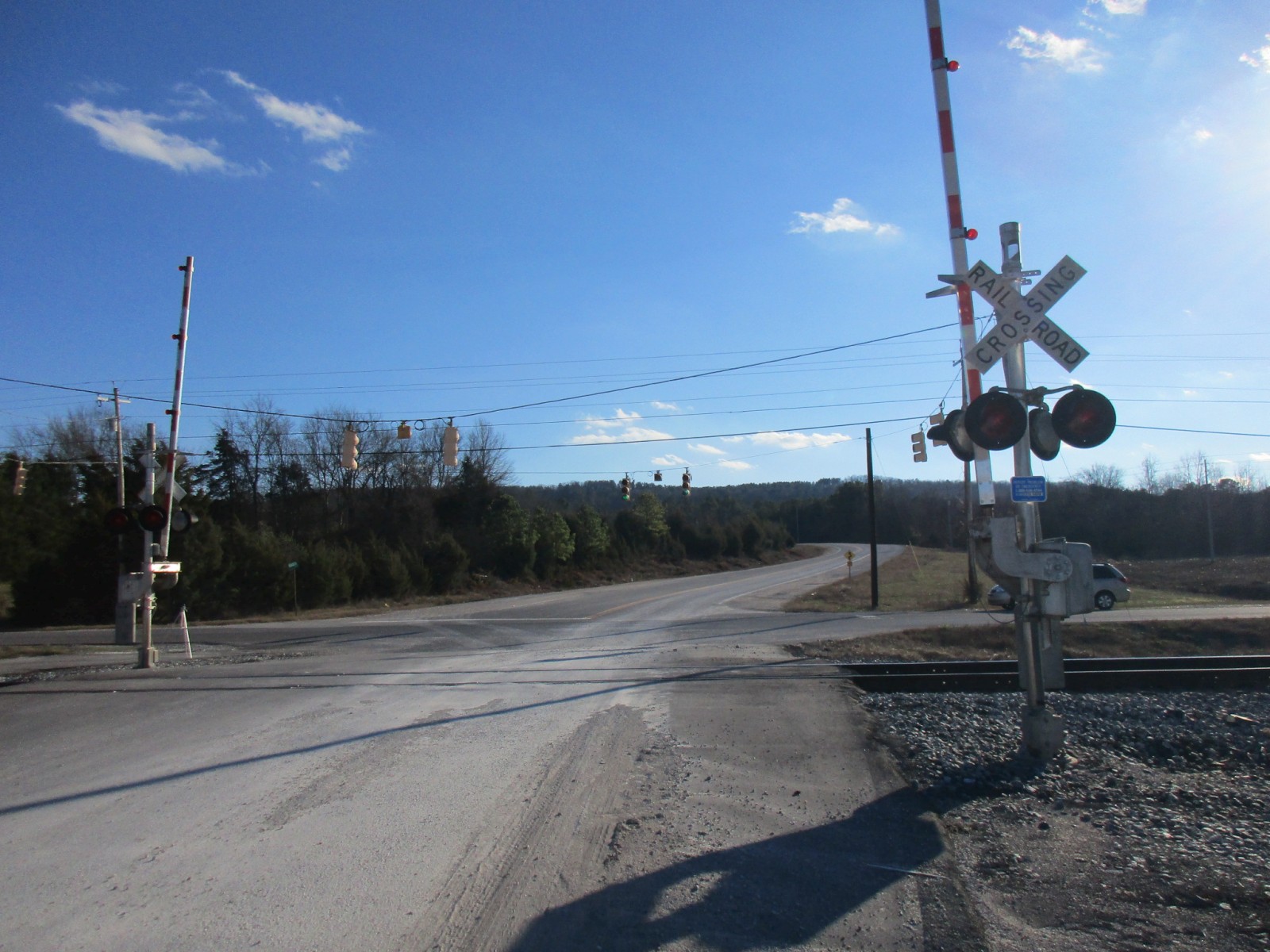

Overviews of the crossing. |

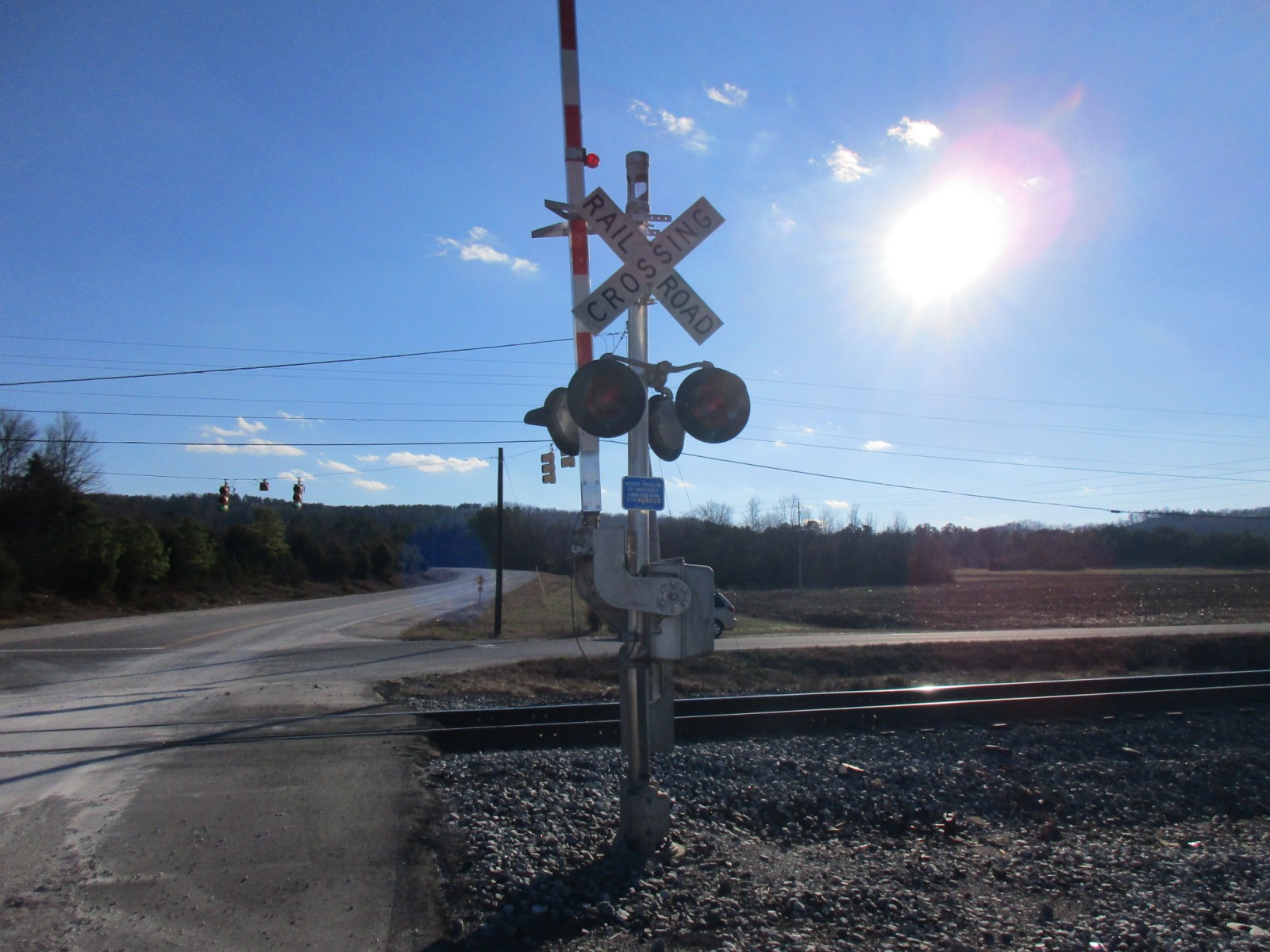

The first signal. |
||
5 |
6 |
7 |
8 |

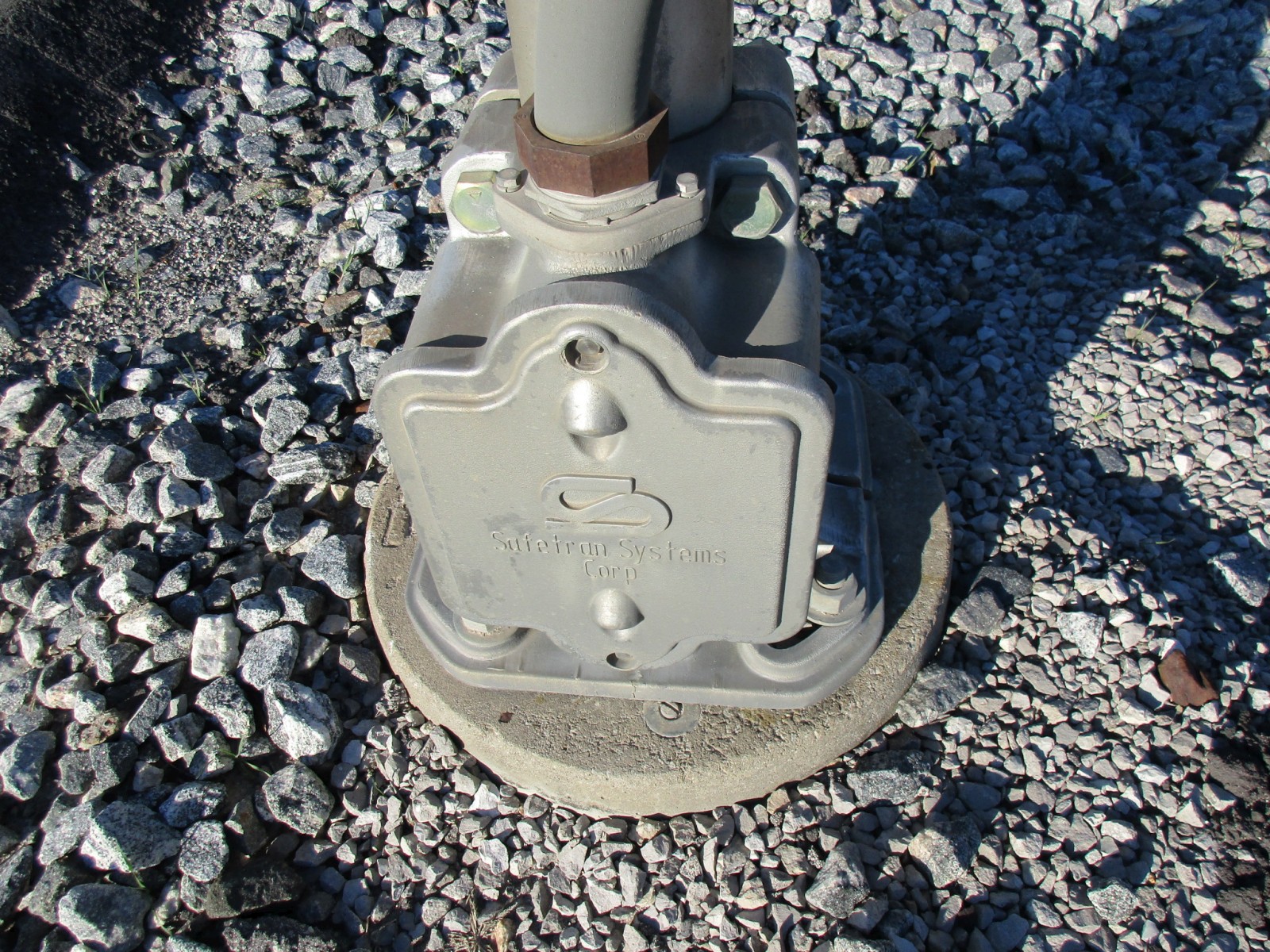

A Safetran base. |

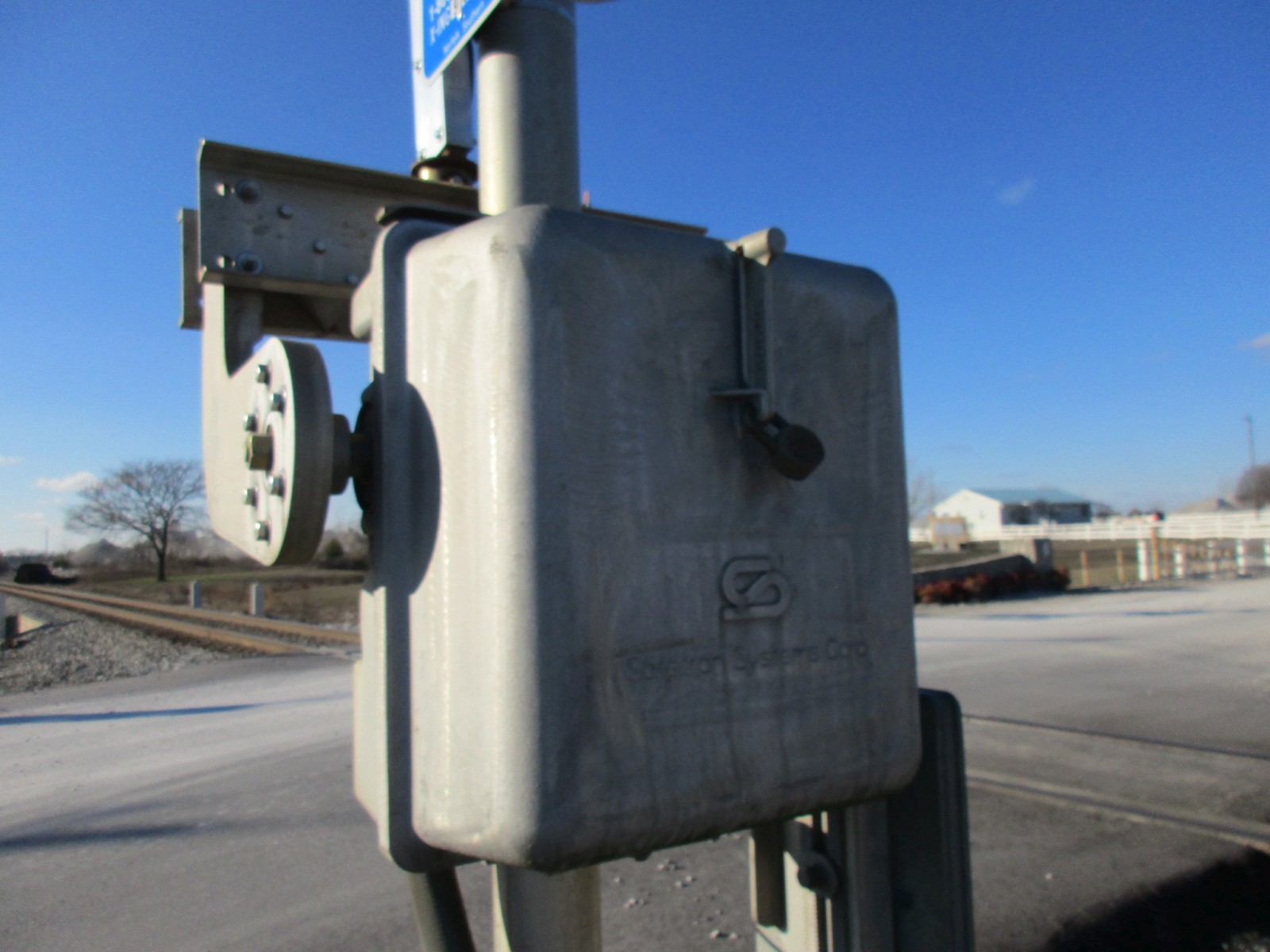

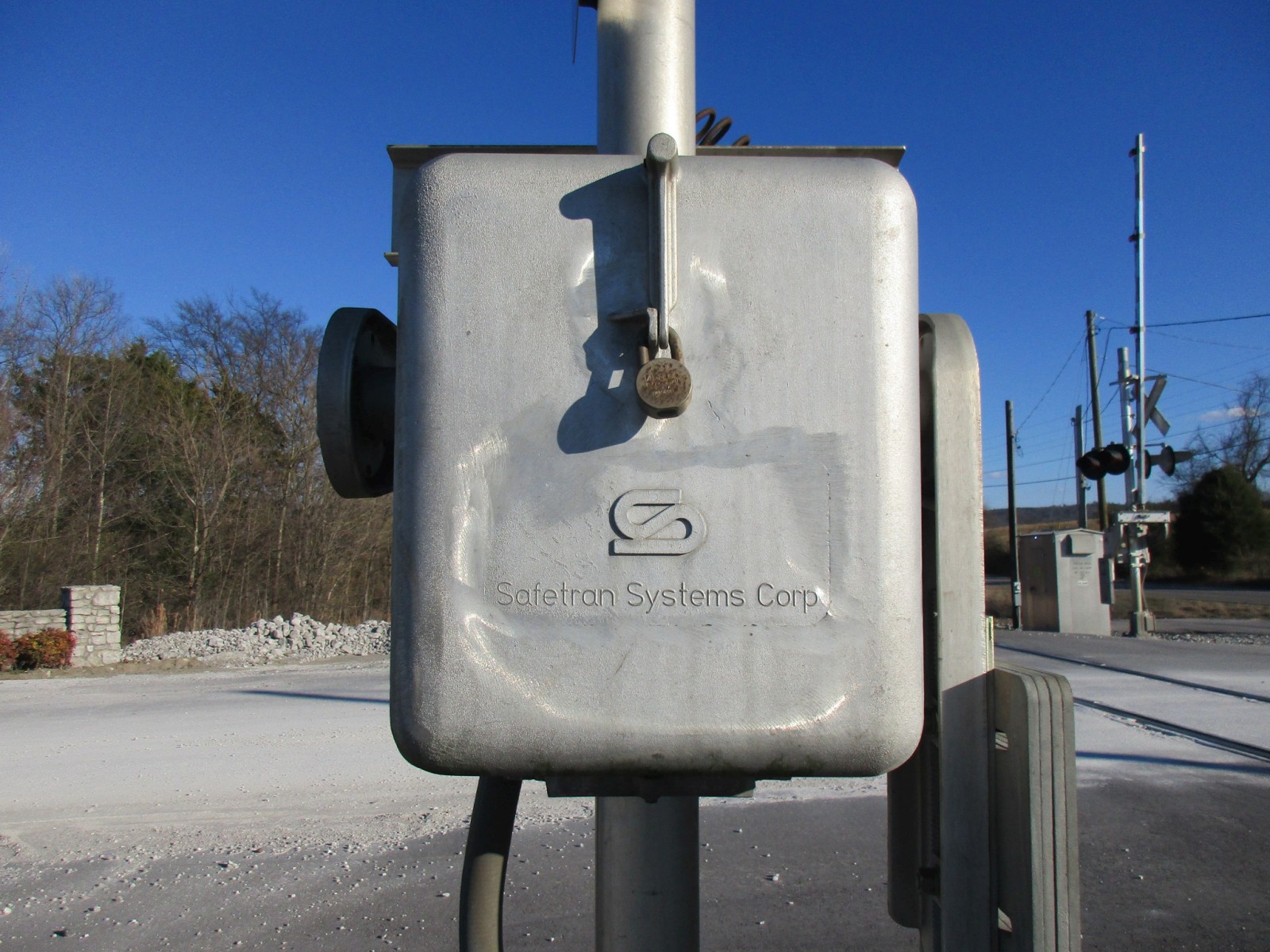

A Safetran gate mechansim. |

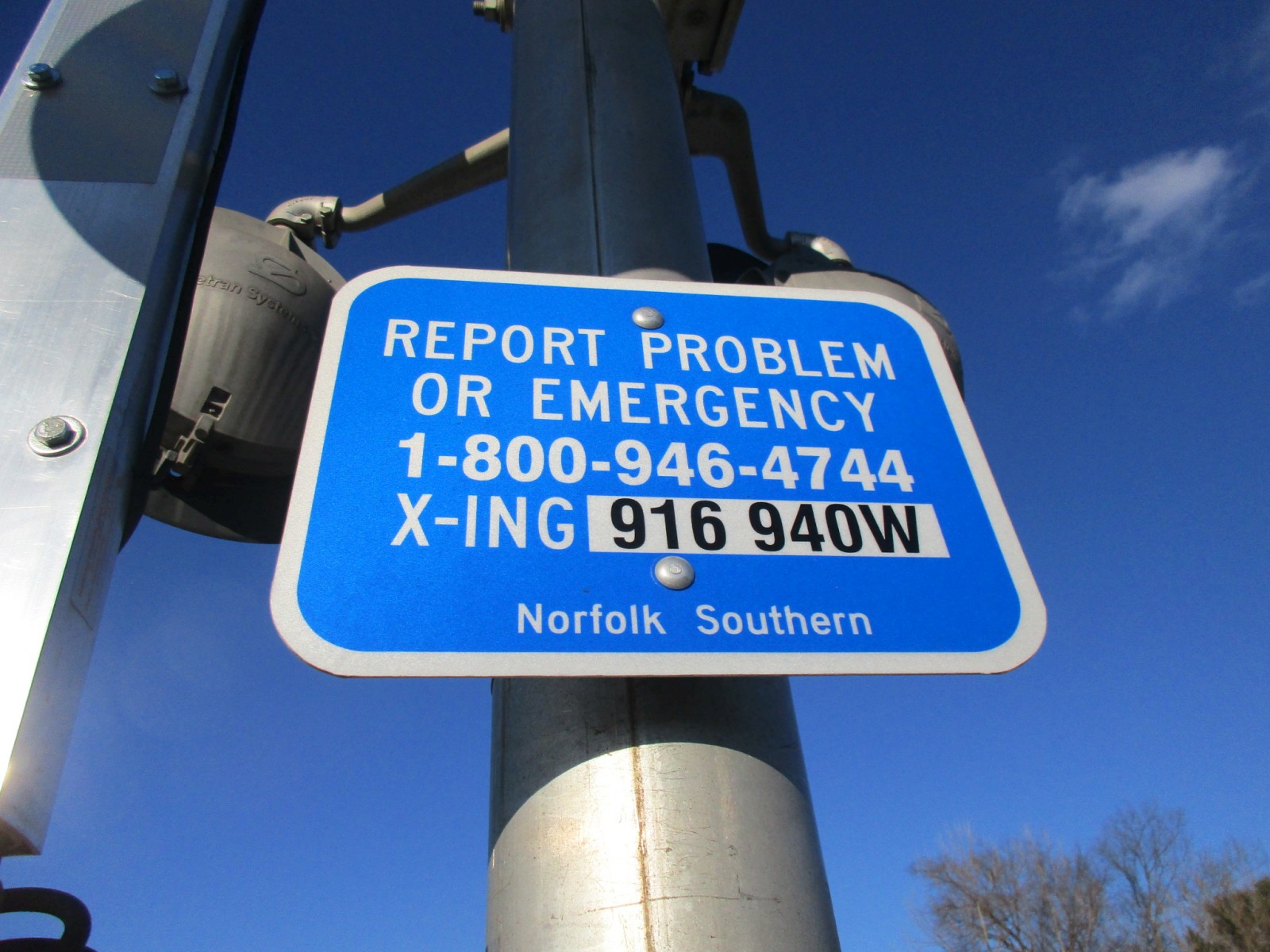

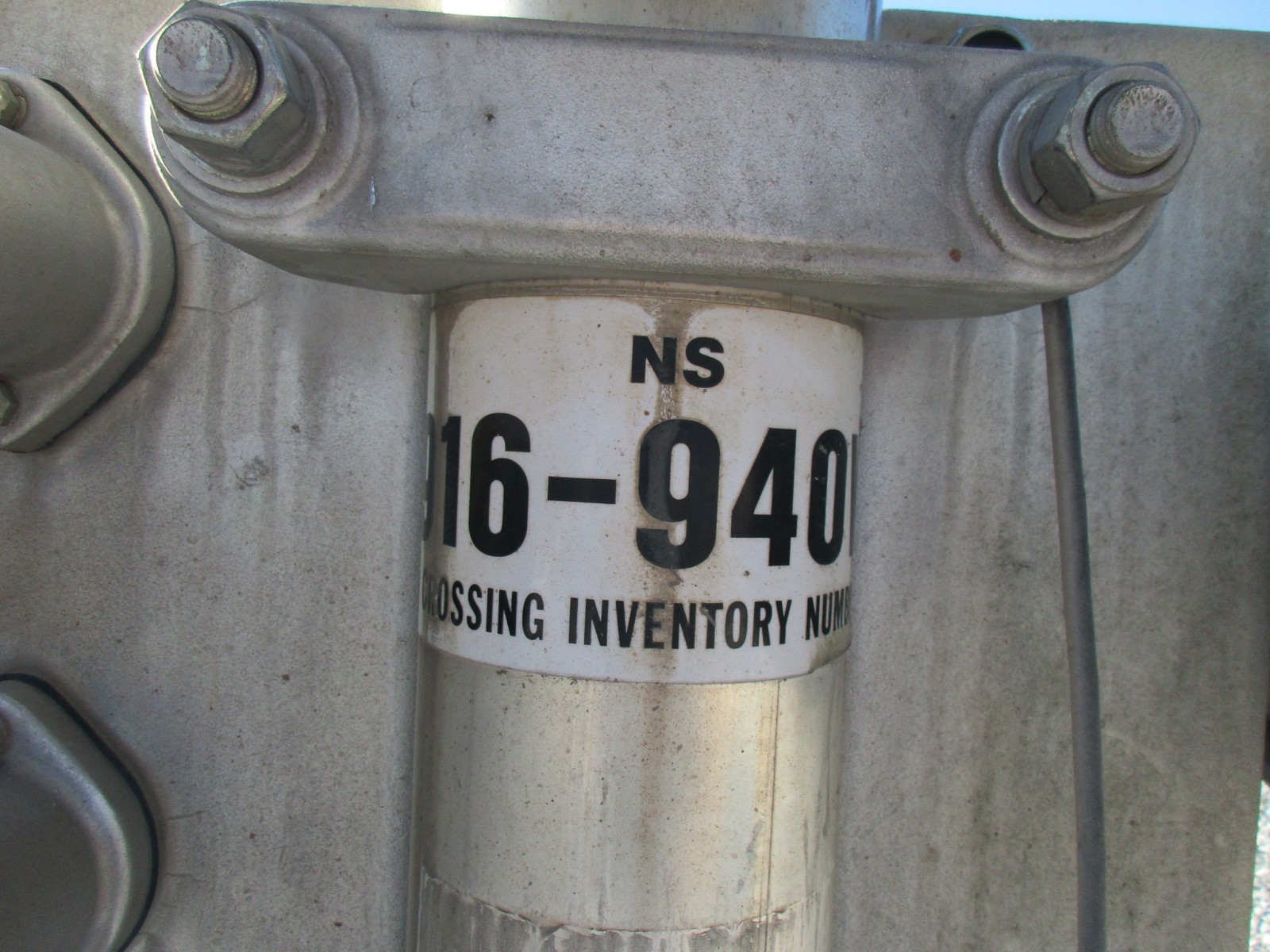

The DOT tag and emergency information. |
|
9 |
10 |
11 |
12 |

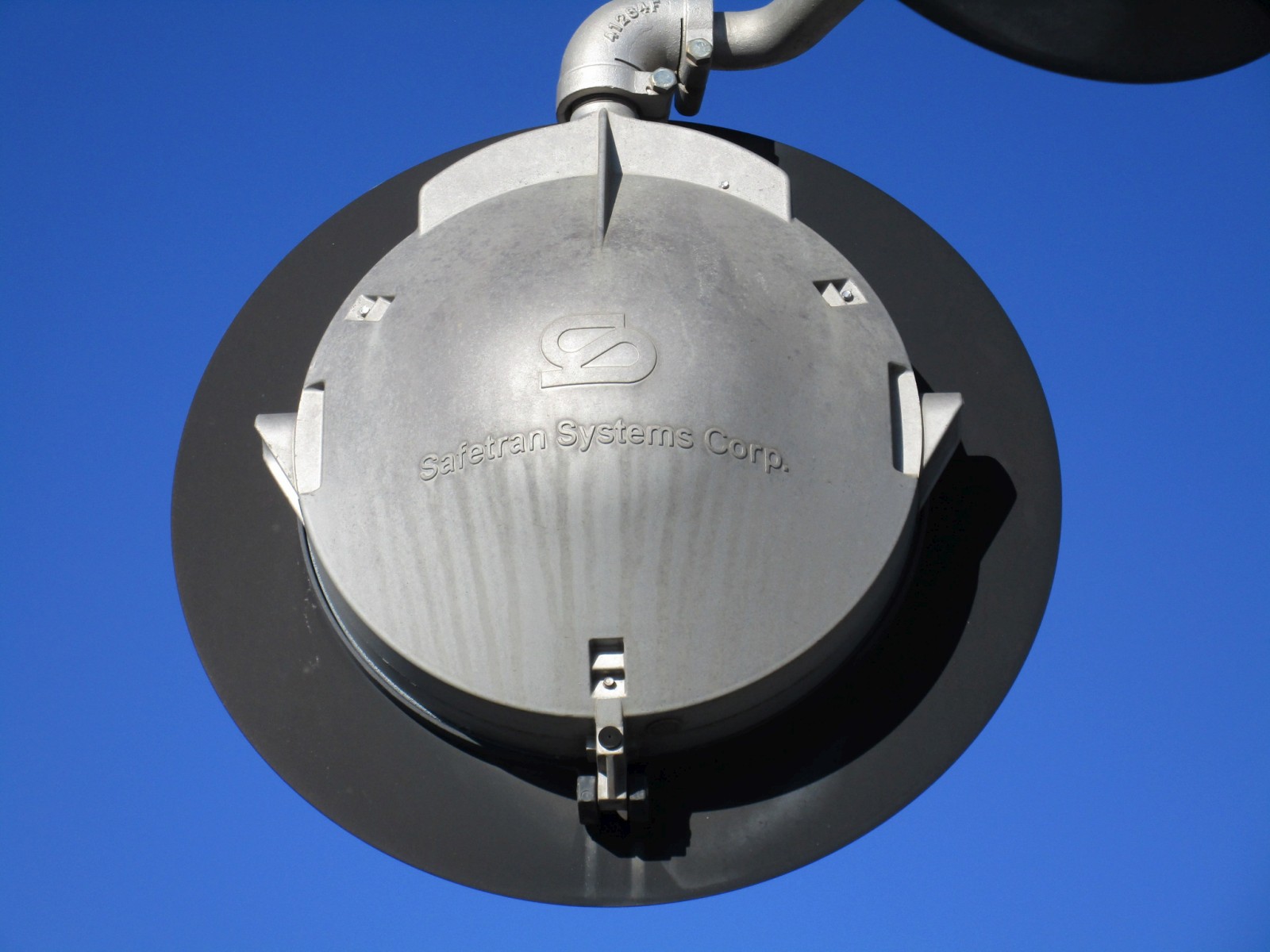

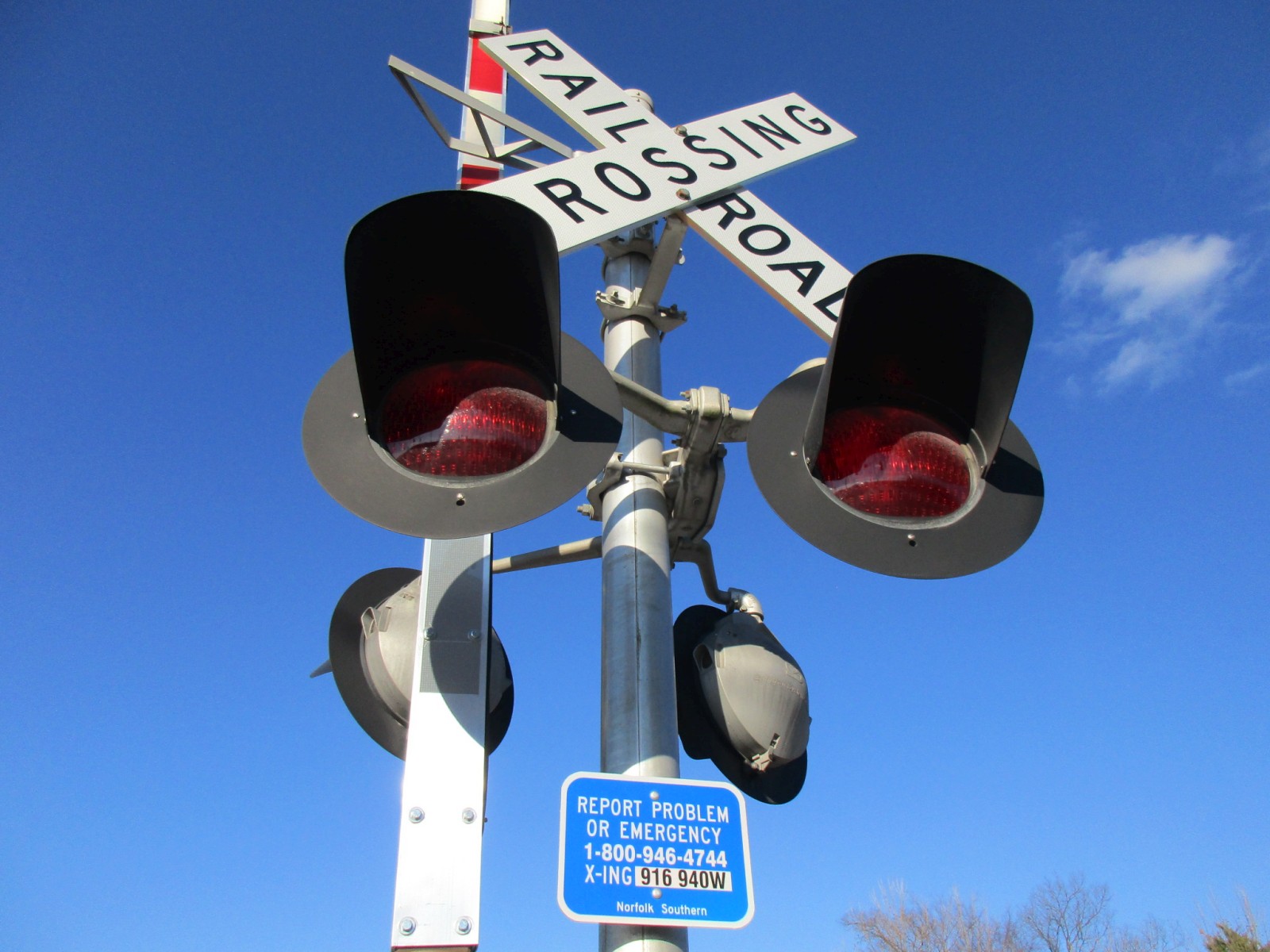

The lights are Safetran 12x20 inch lights. |

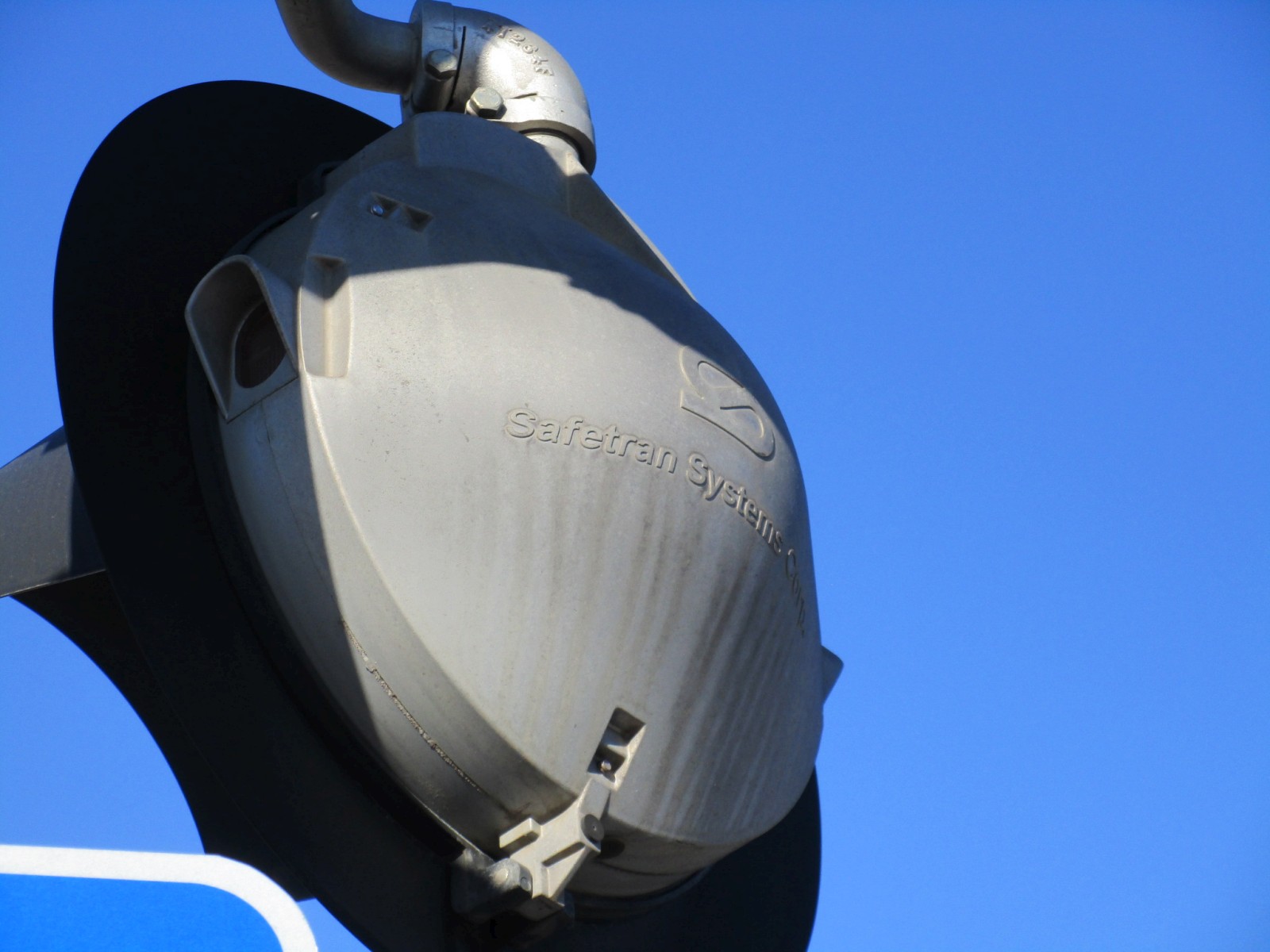

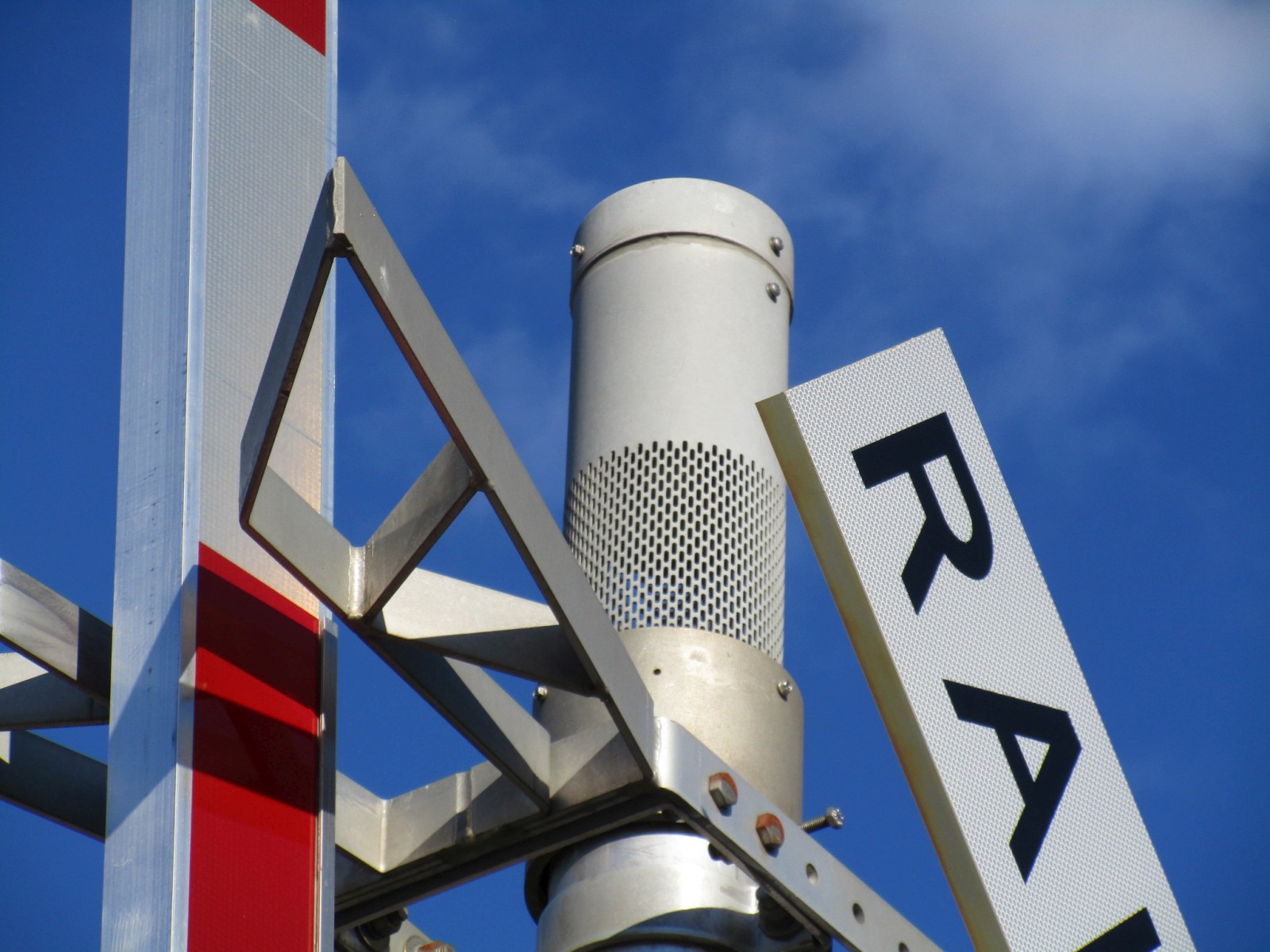

The bell on this signal is a Safetran Type 3 e-bell. |

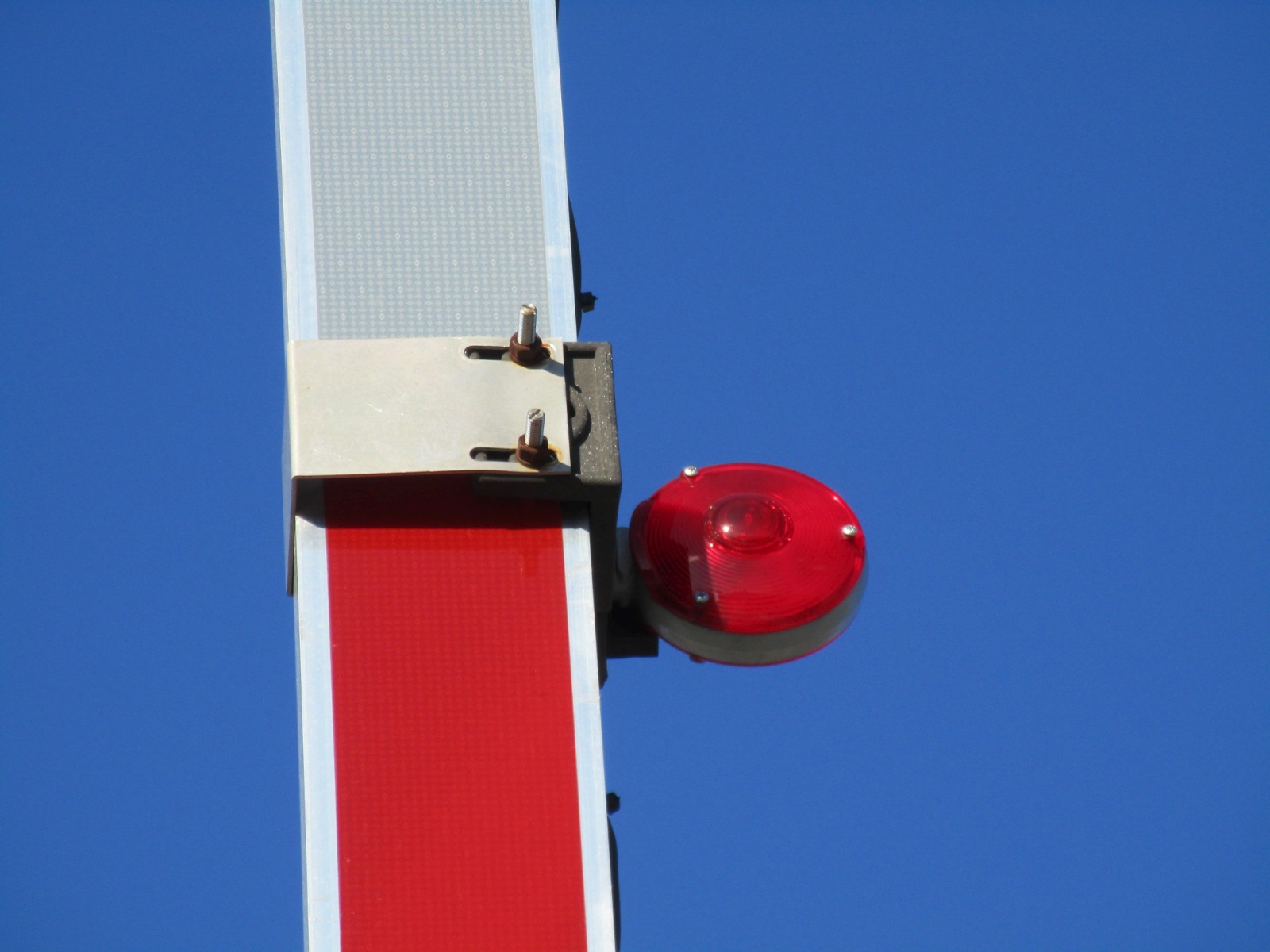

NEG gate lights here. |
|
13 |
14 |
15 |
16 |

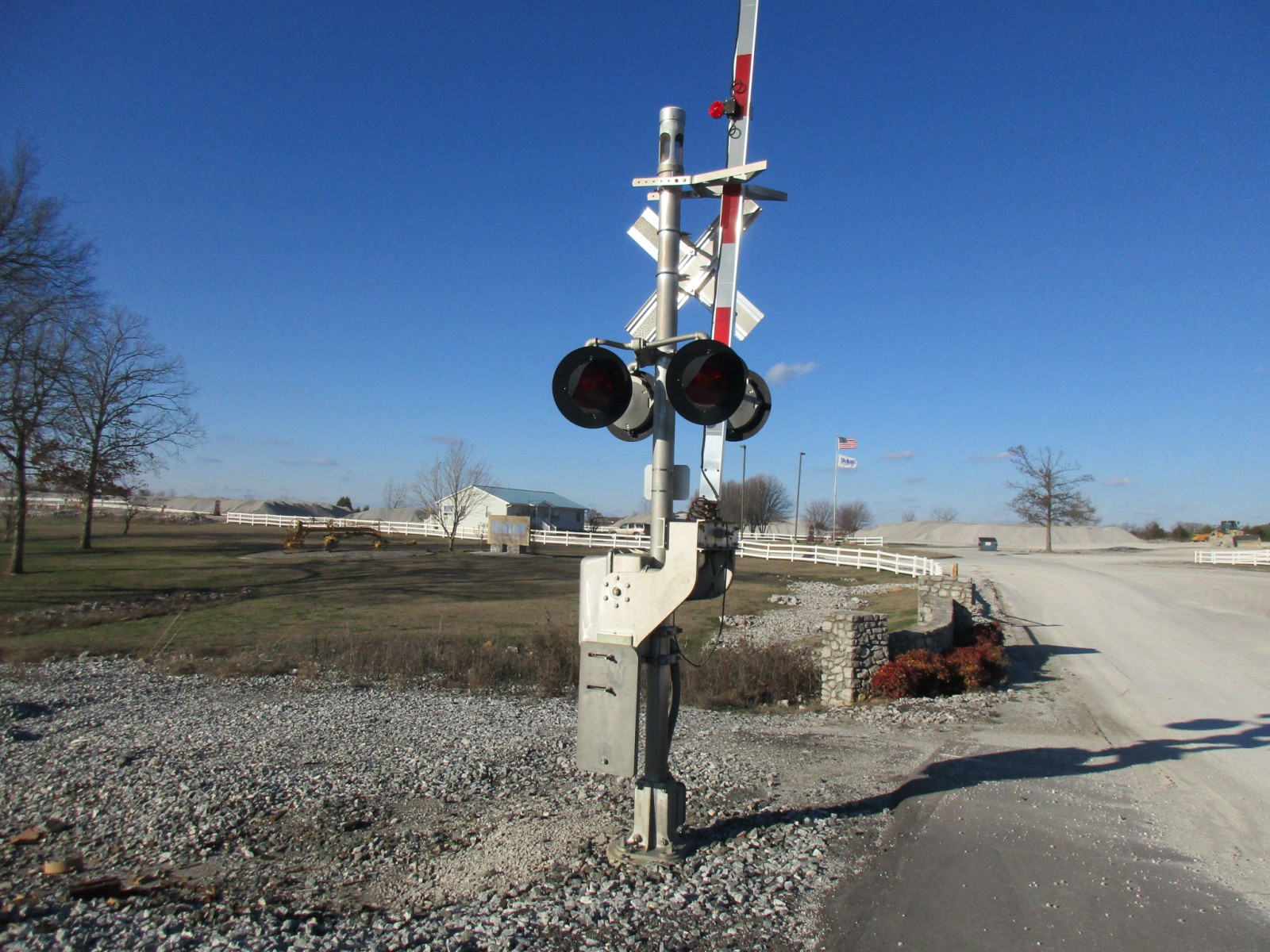

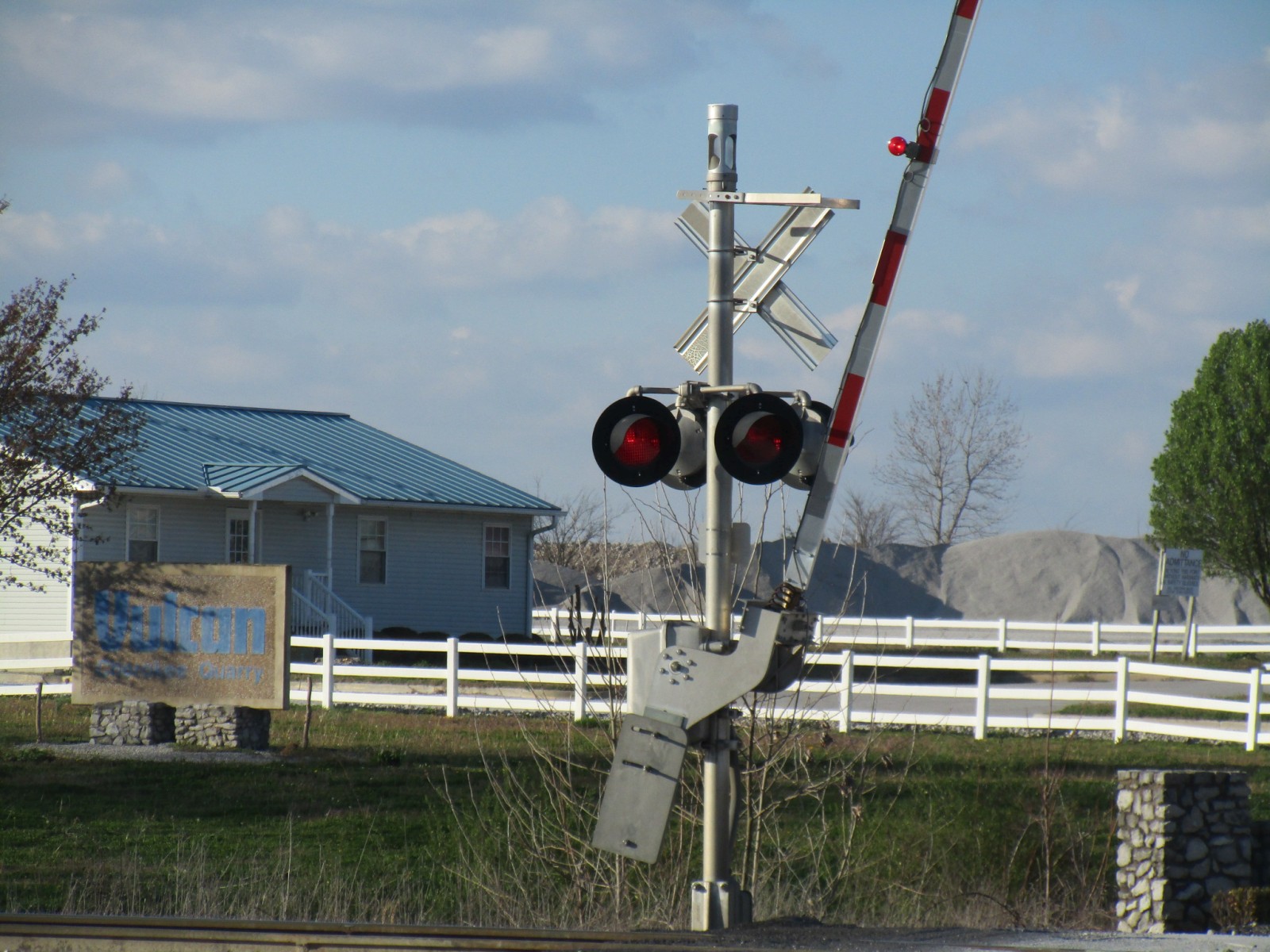

The second signal. |
Another Safetran base. |
Another Safetran gate mech. |
|
17 |
18 |
19 |
20 |

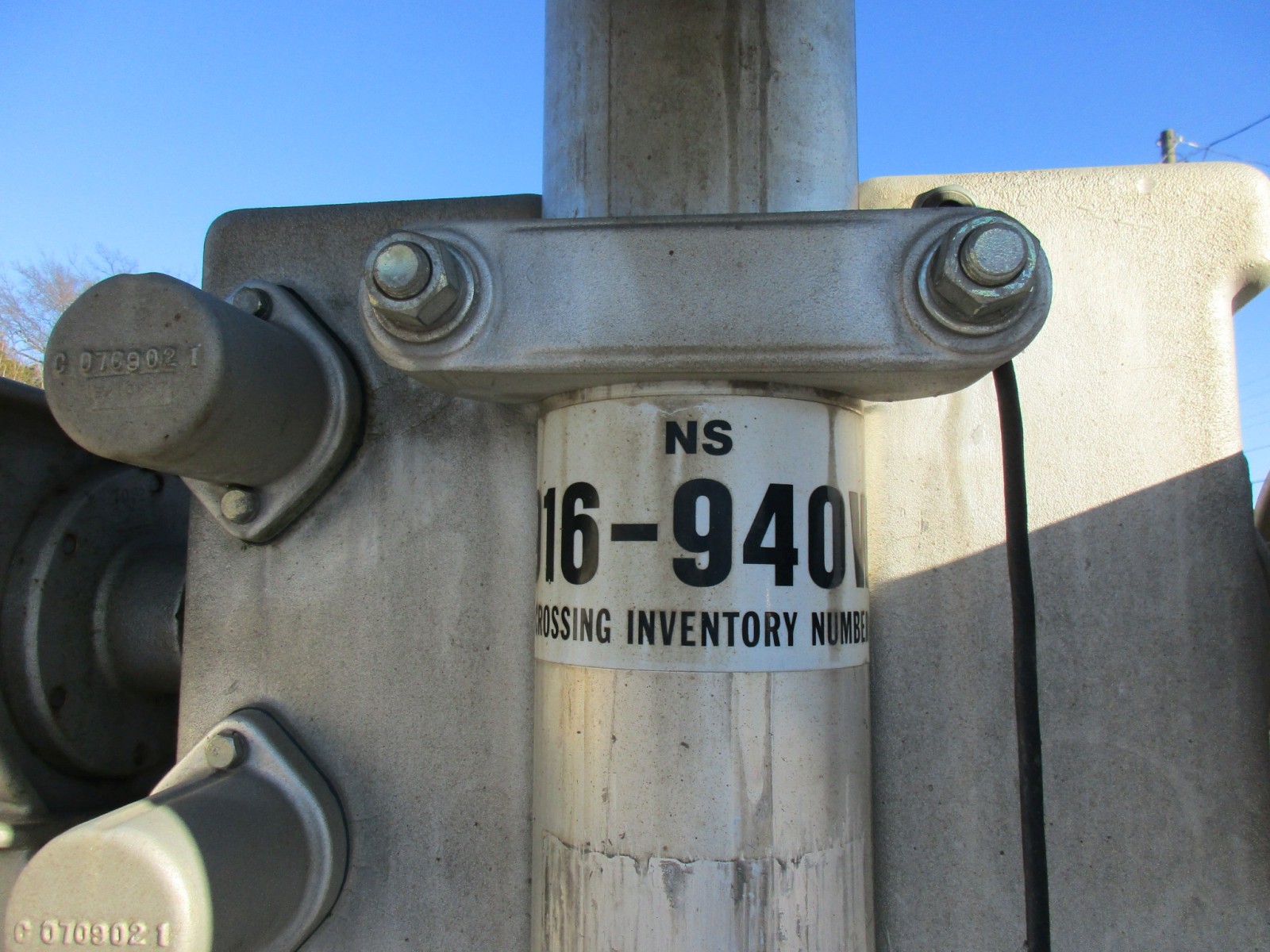

The DOT tag and emergency information. |

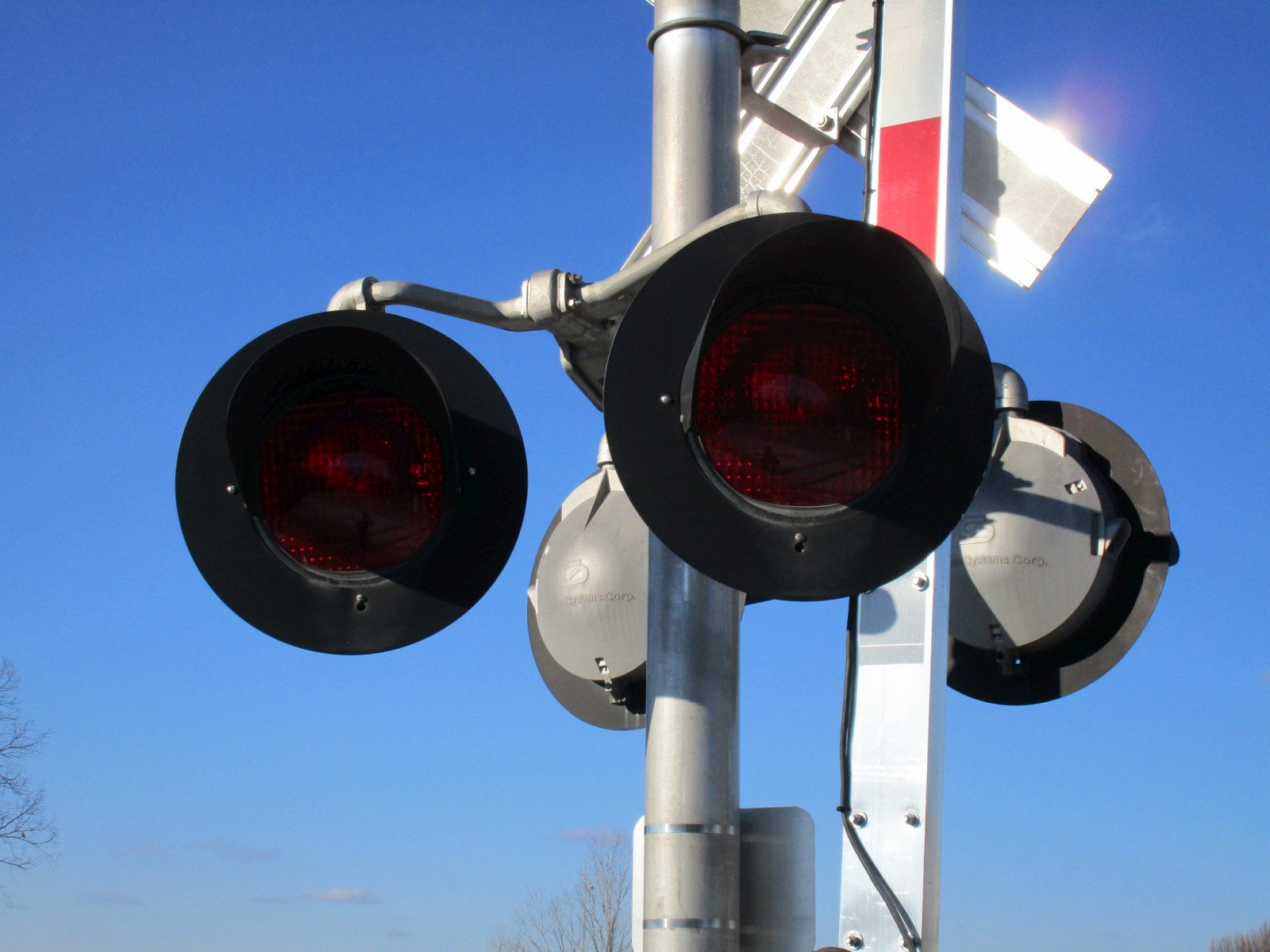

The lights are Safetran 12x20 inch lights as well. |
||
21 |
22 |
23 |
24 |

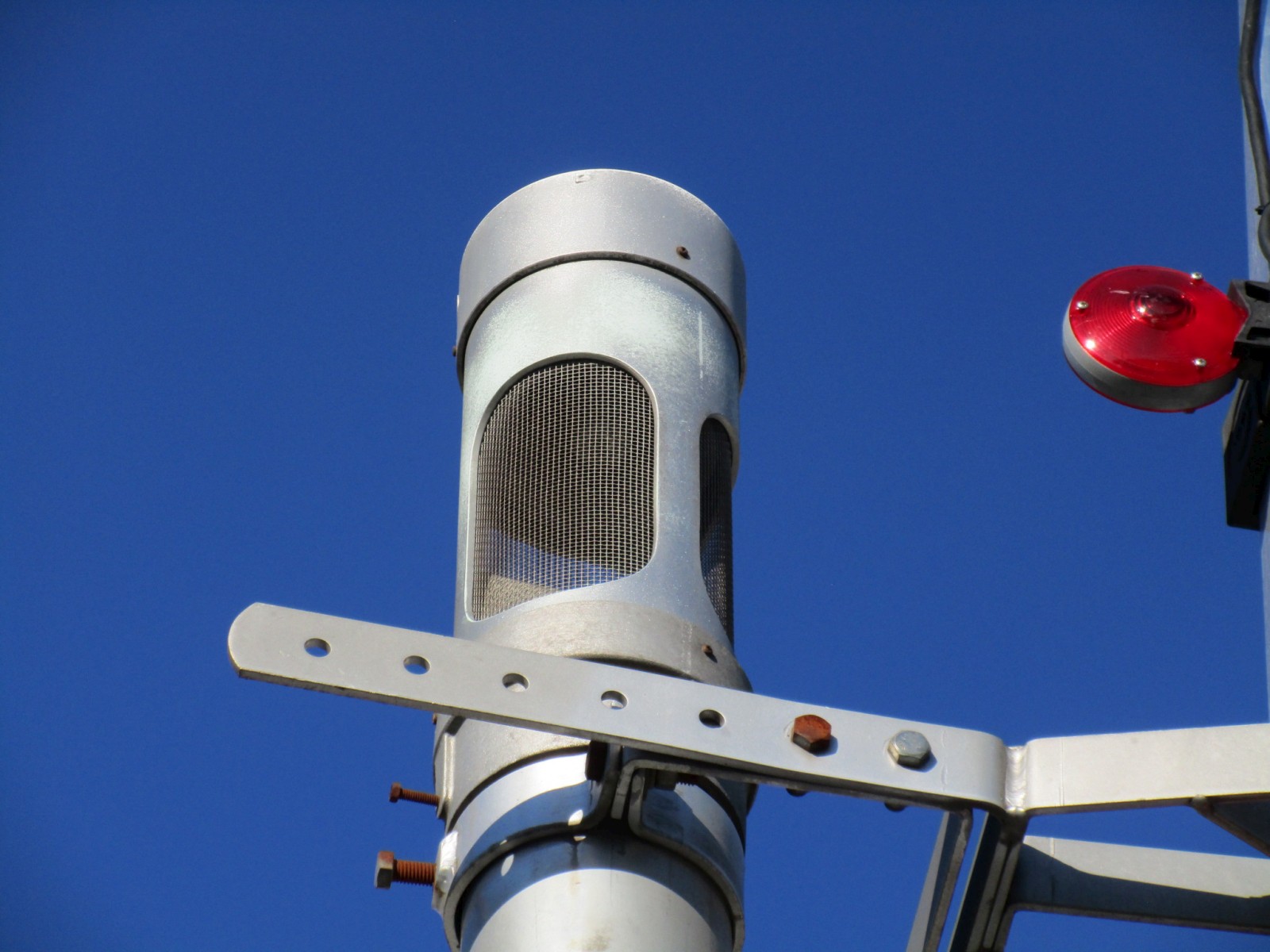

This signal has a dead General Signals electronic bell. |

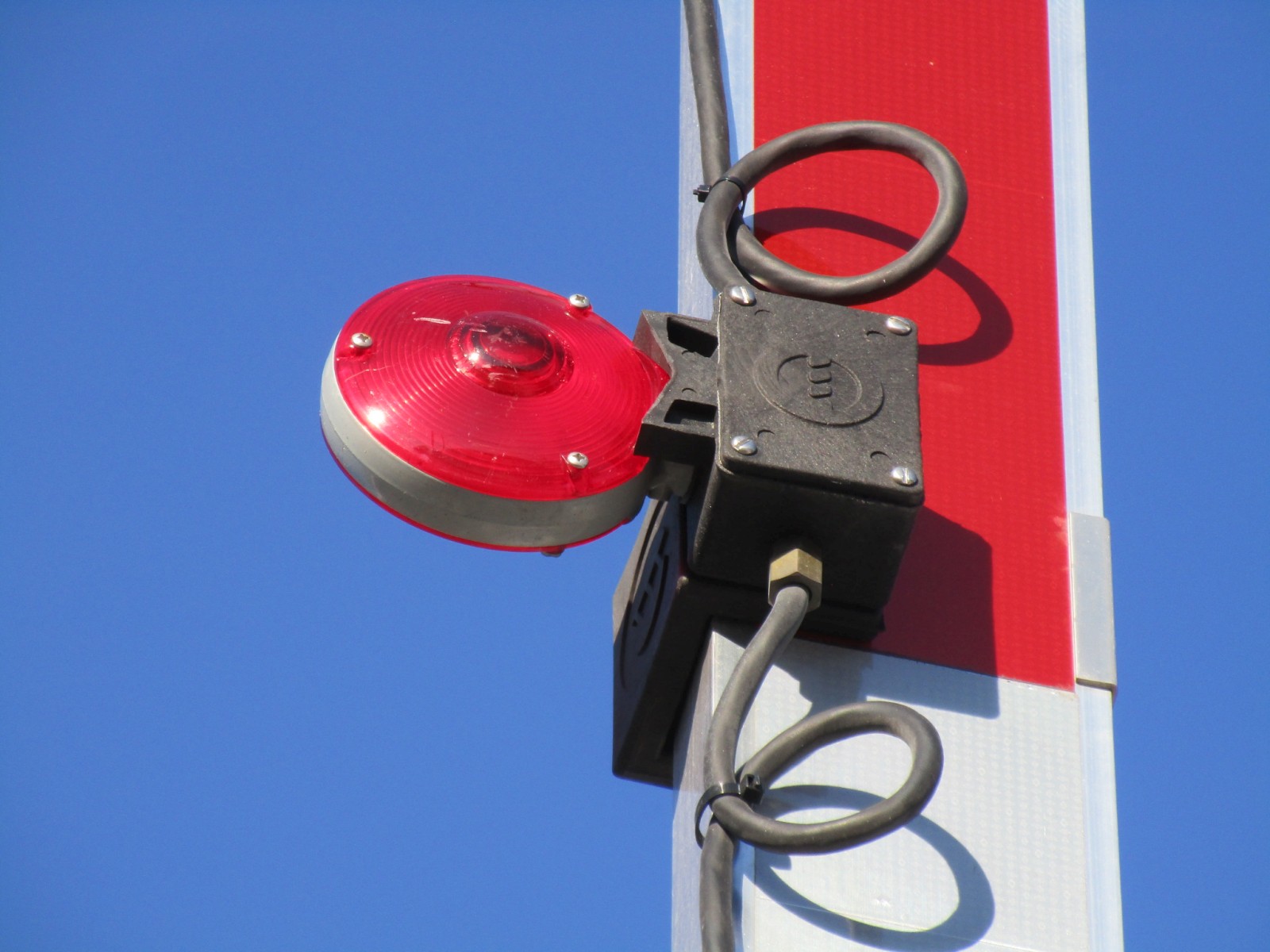

More NEG gate lights over here. |

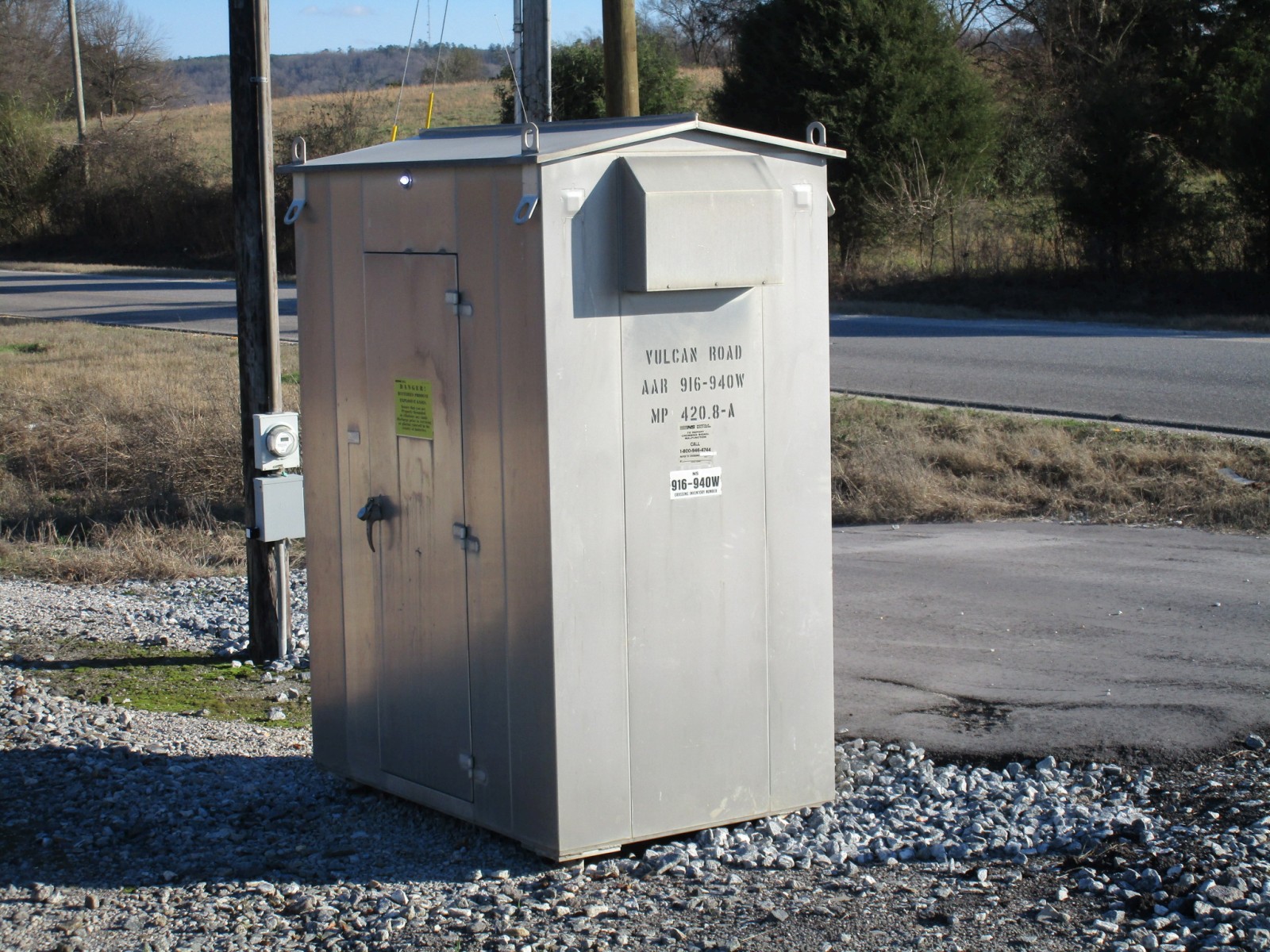

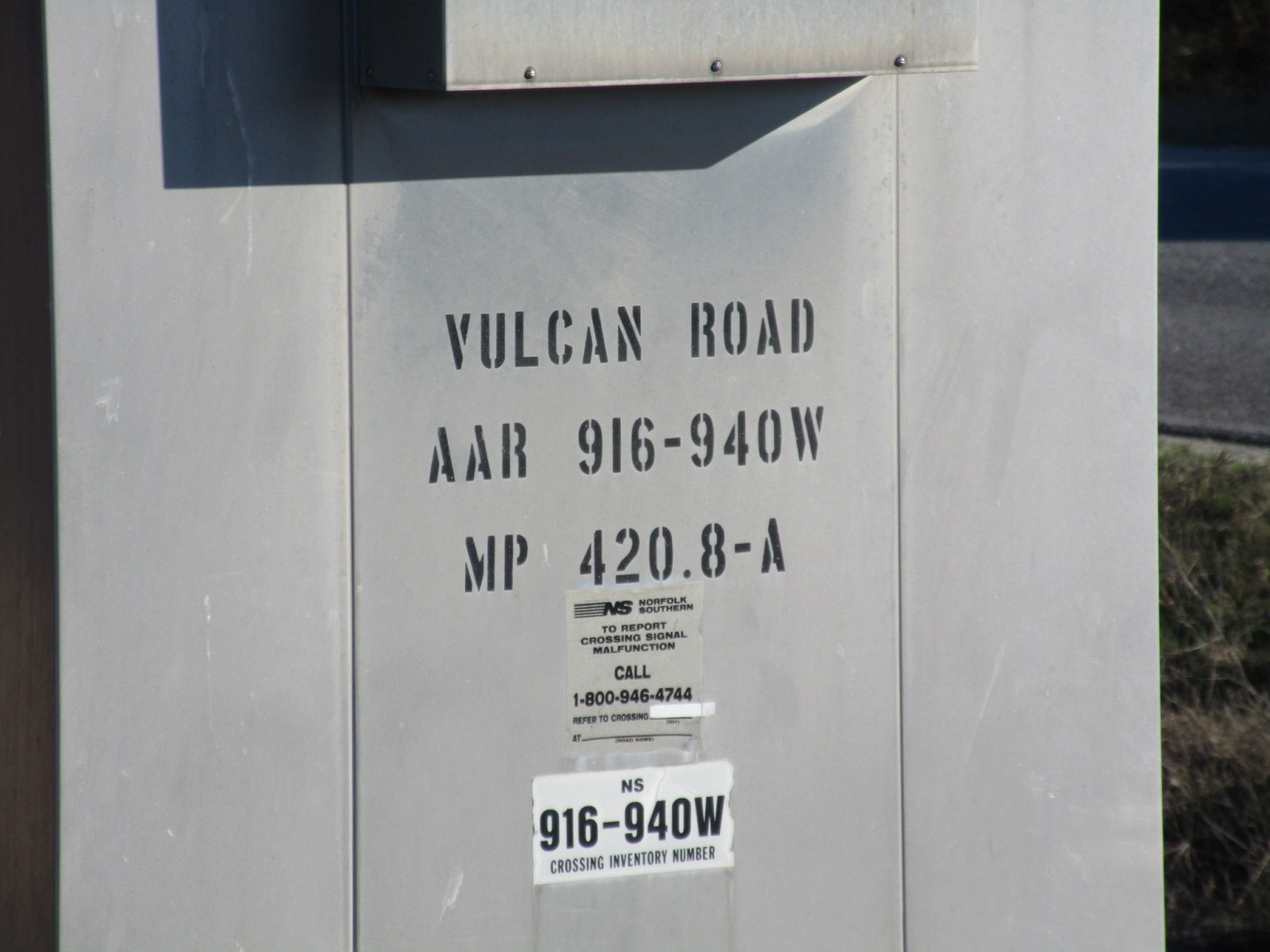

The relay case with the street name on it once and the DOT number on it twice. |
|
25 |
26 |

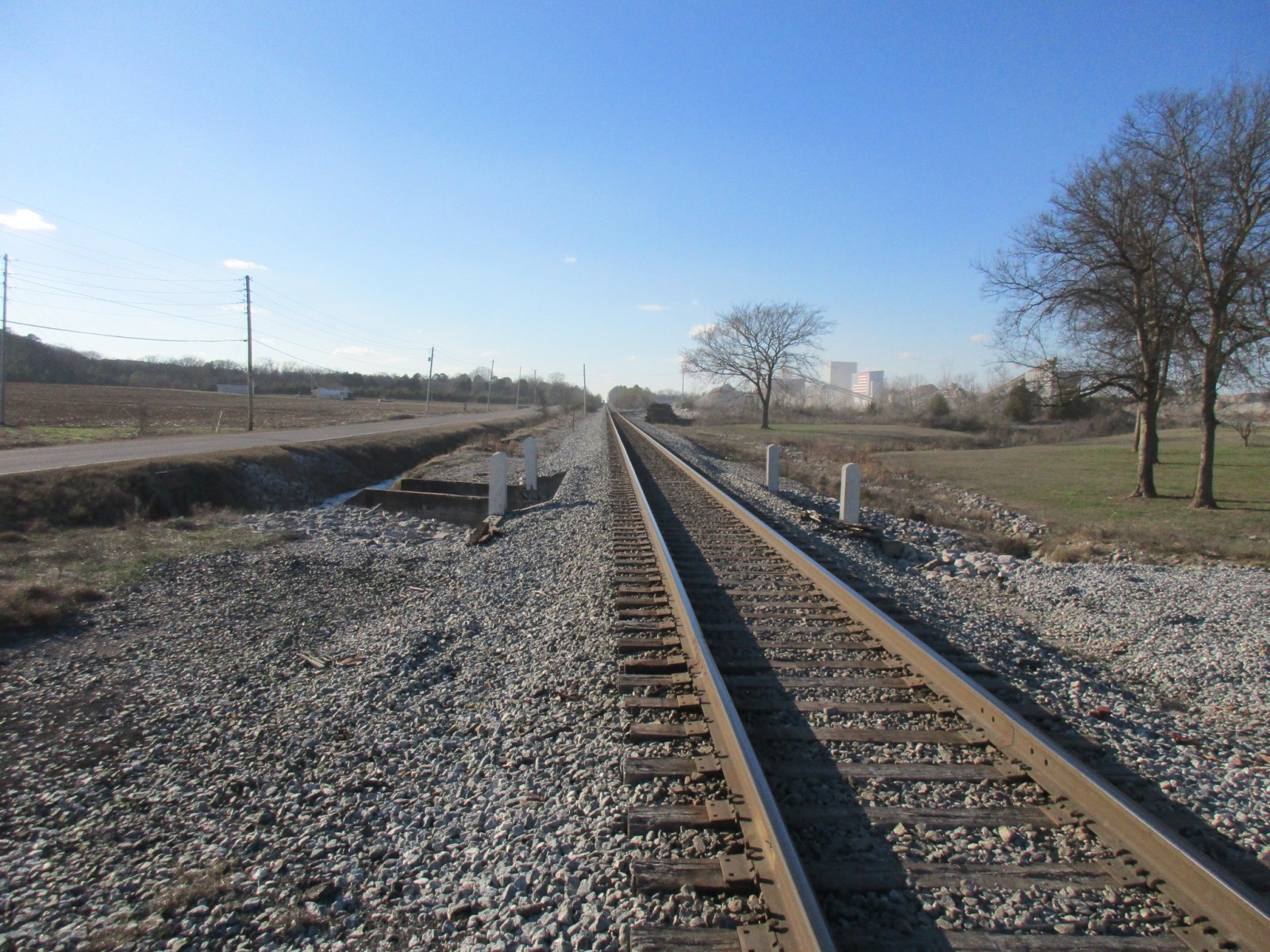

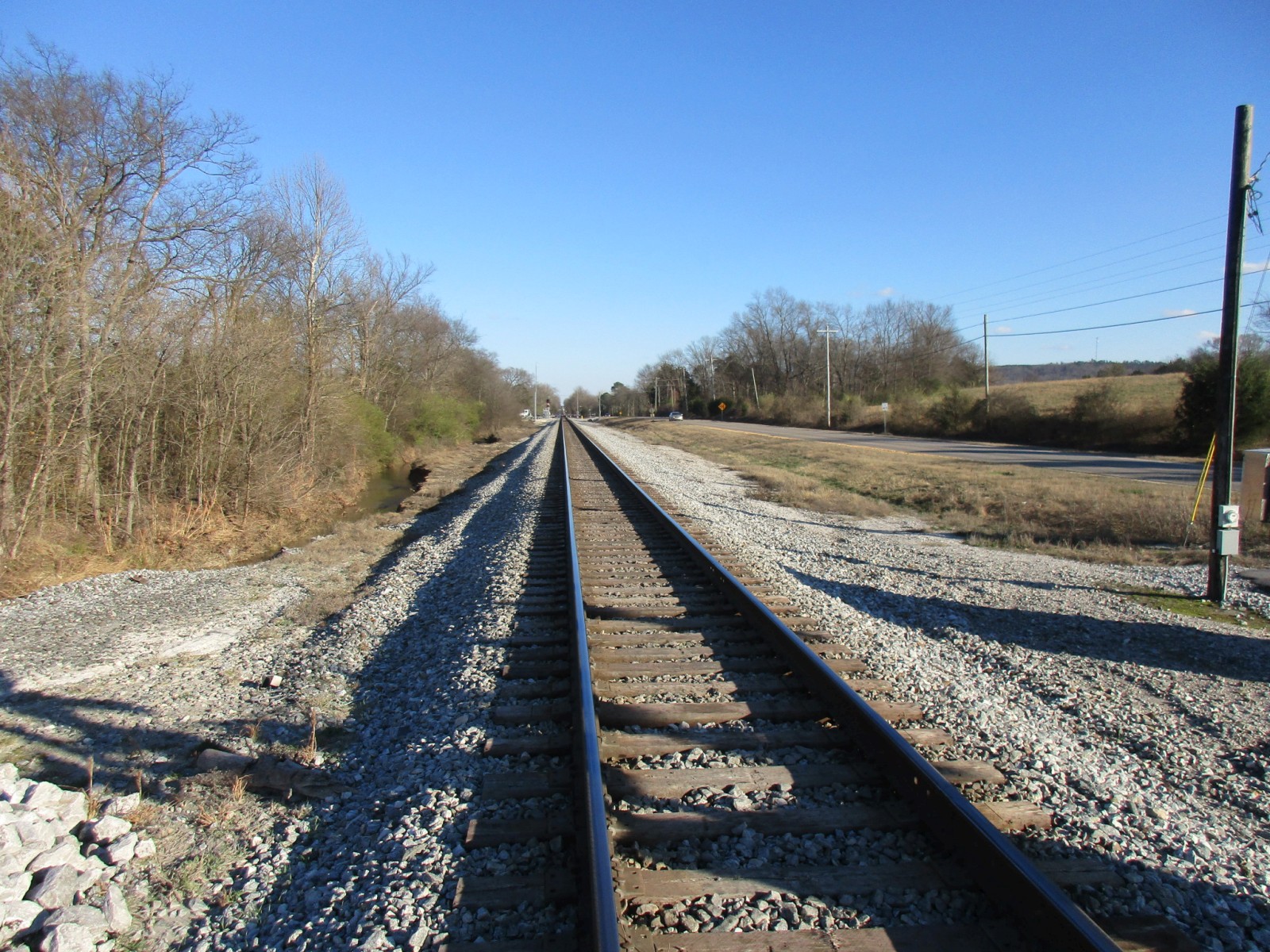

Track view looking east towards Moody Lane. |
Track view looking west towards Middle School Road and 6th Street. |
27 |
28 |

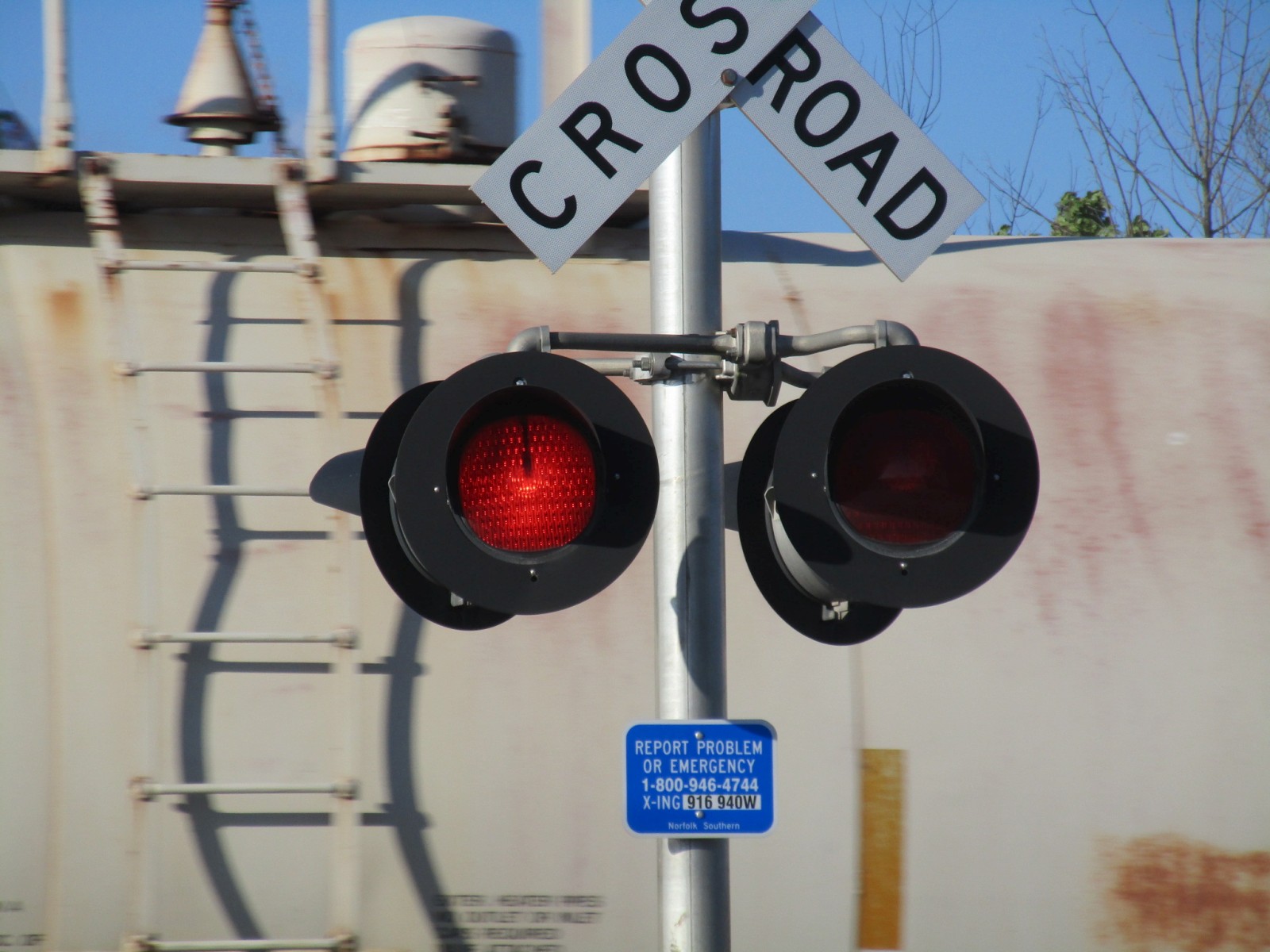

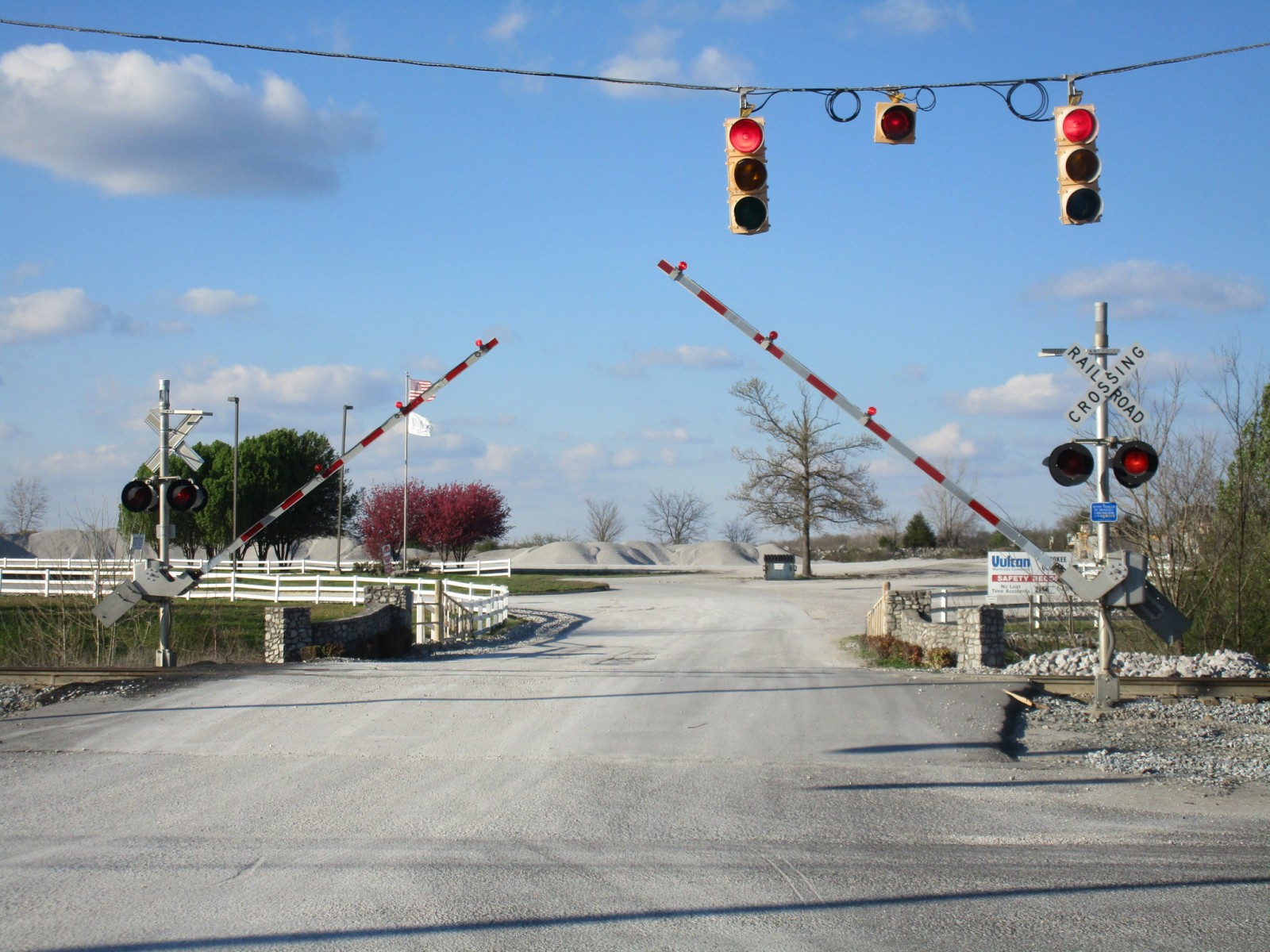

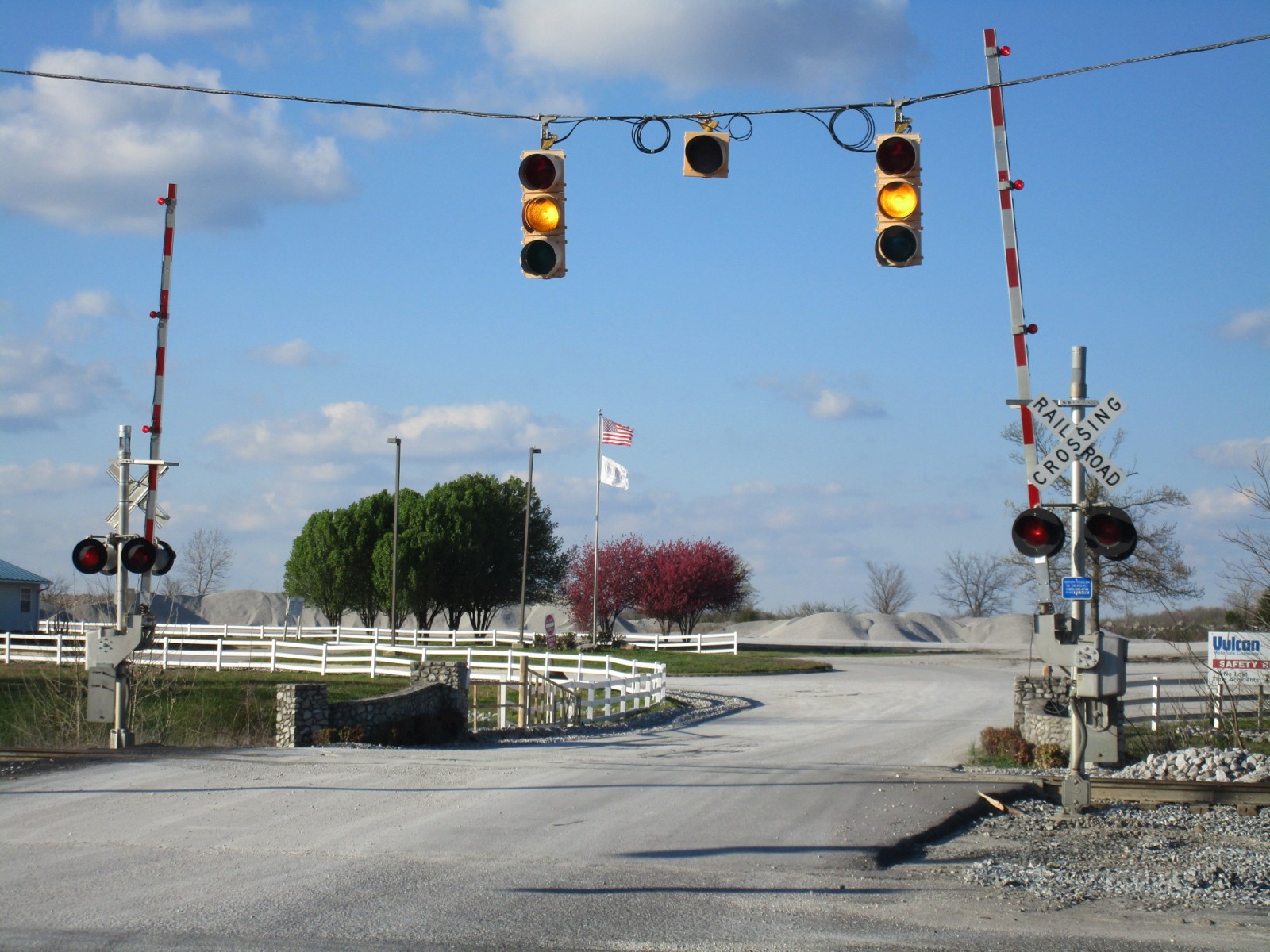

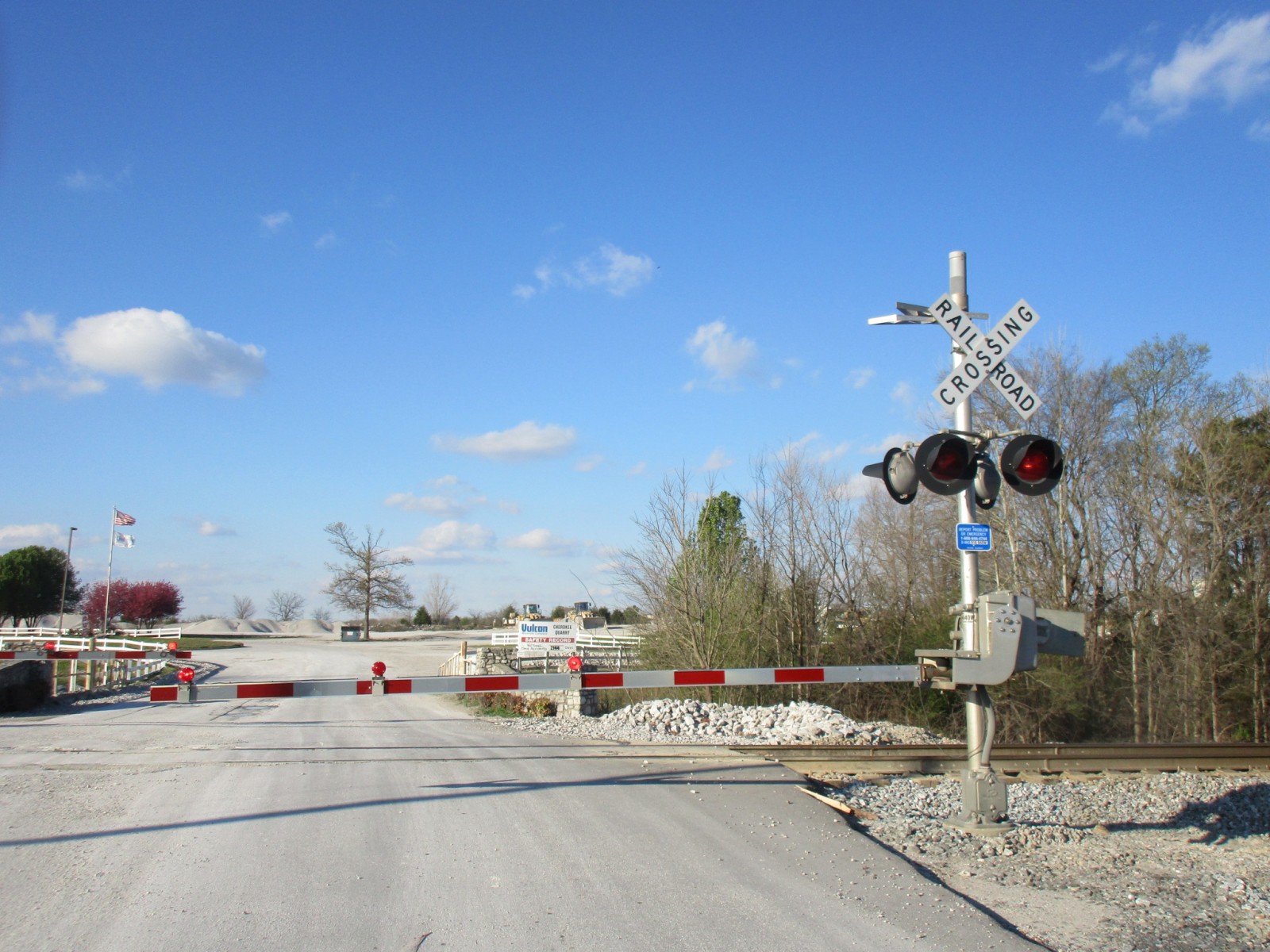

A return trip on 3-21-18 catches the crossing in action! |
|
29 |
30 |
31 |
32 |

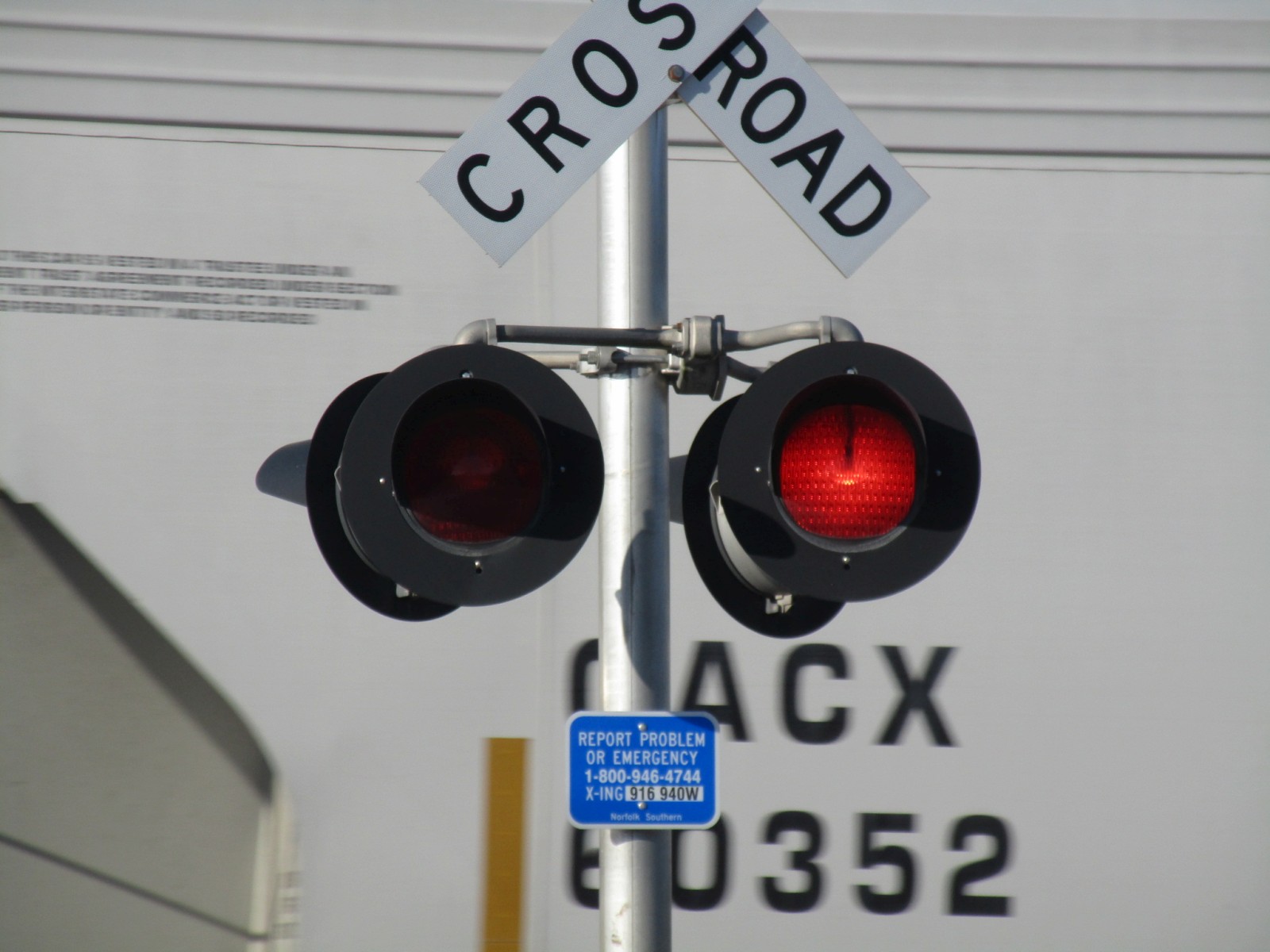

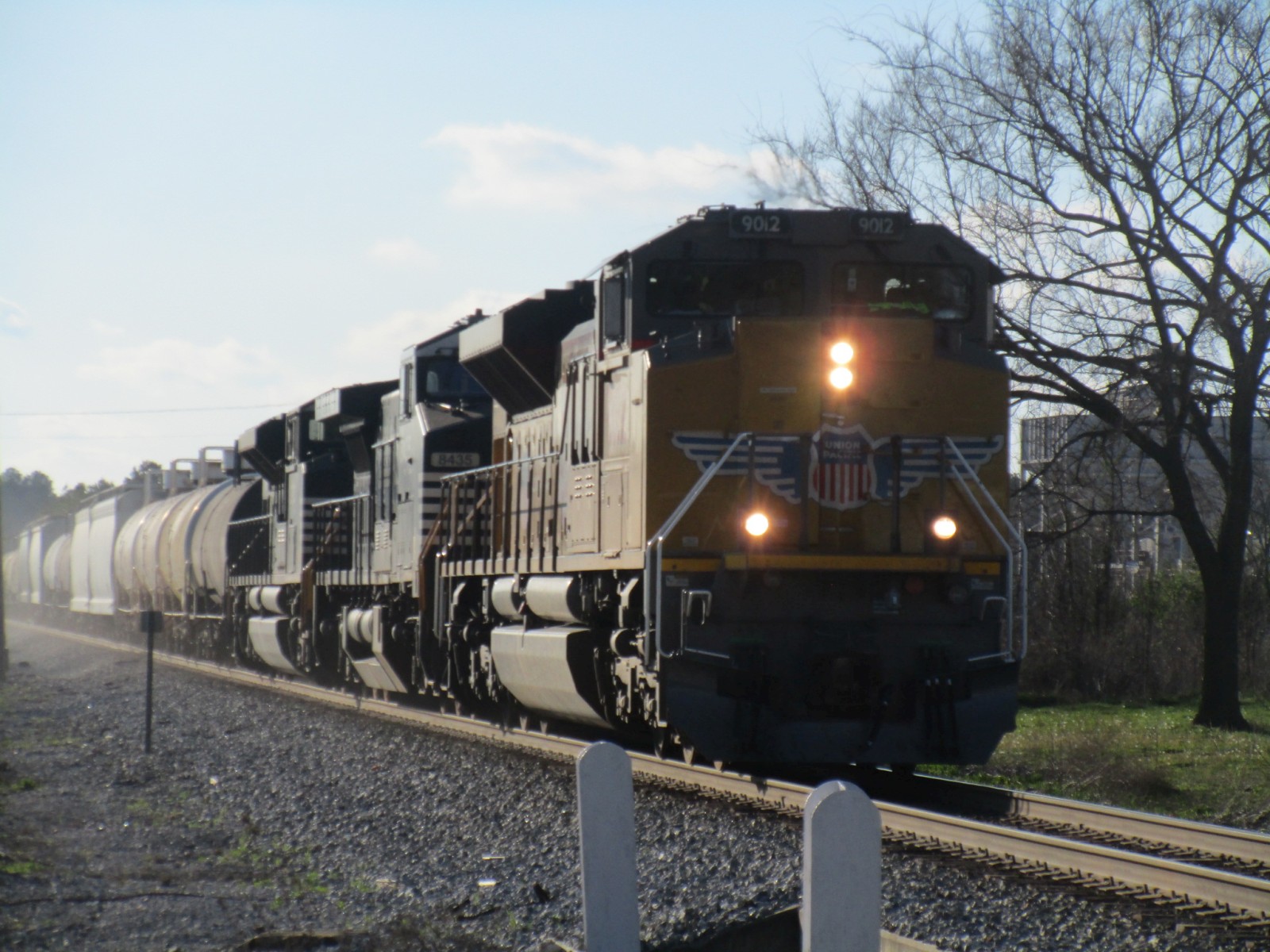

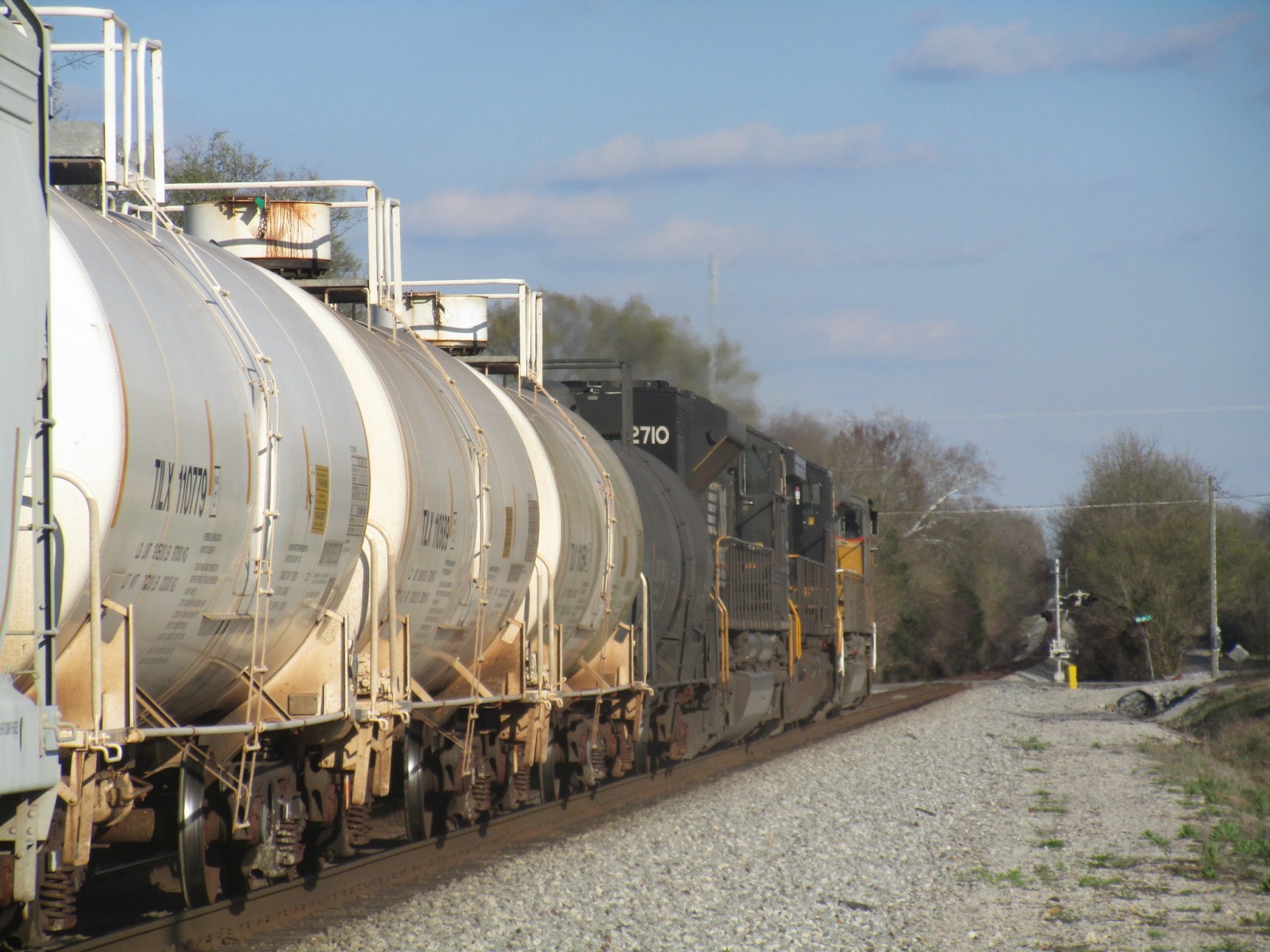

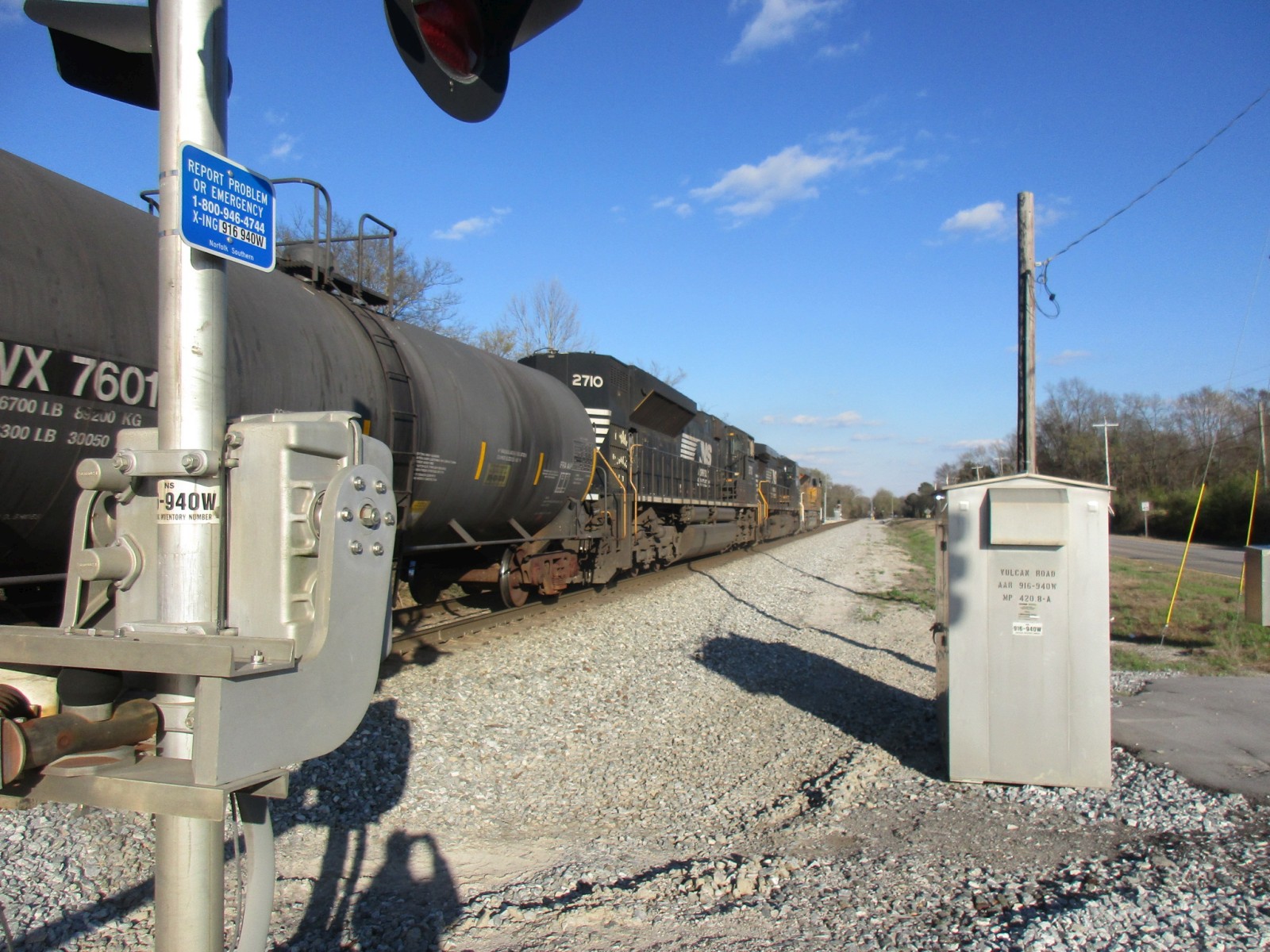

The train is an eastbound mixed freight with a UP SD70ACe leading. |
|||
33 |
34 |
35 |
36 |
37 |
38 |
39 |
40 |

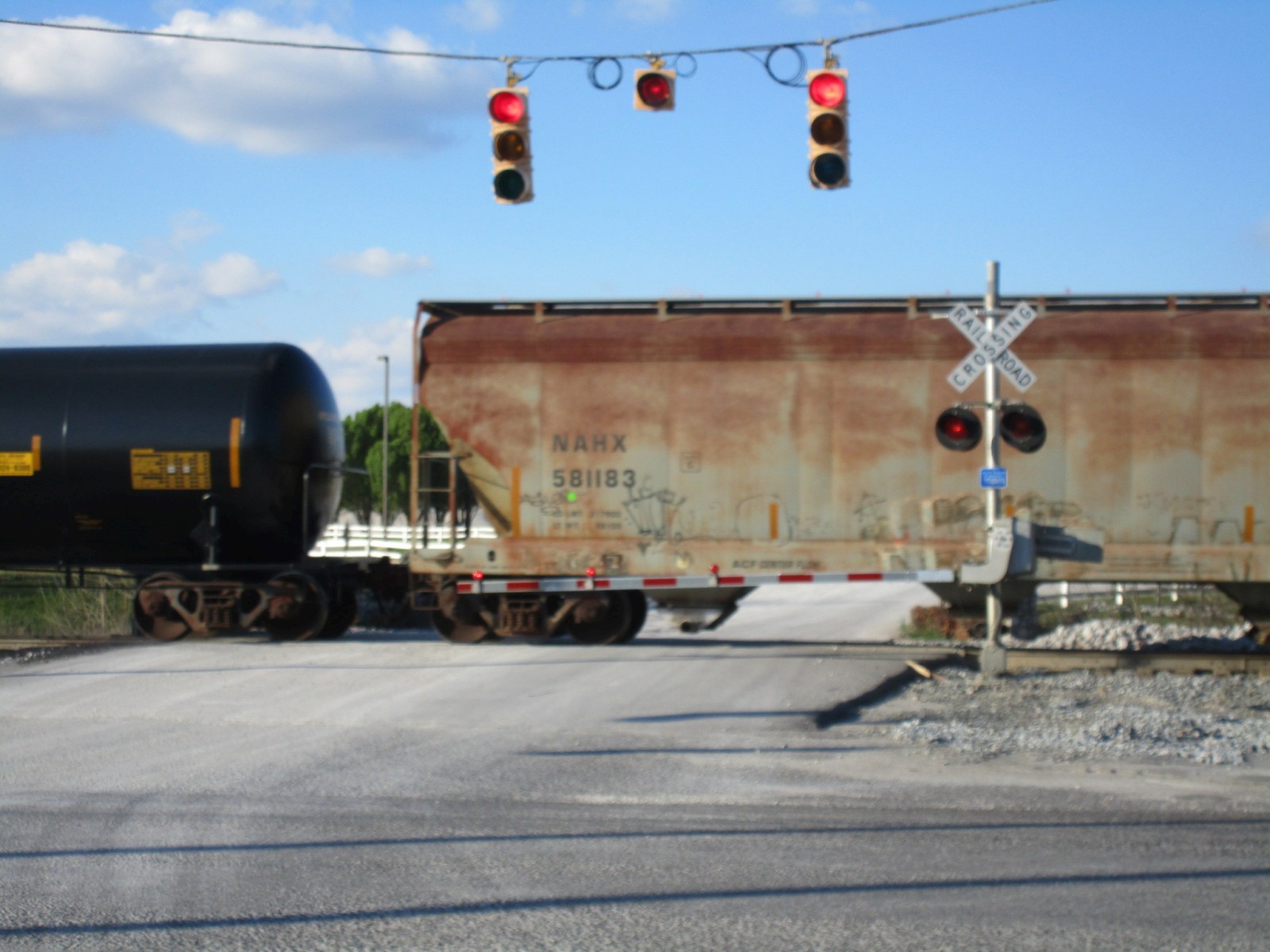

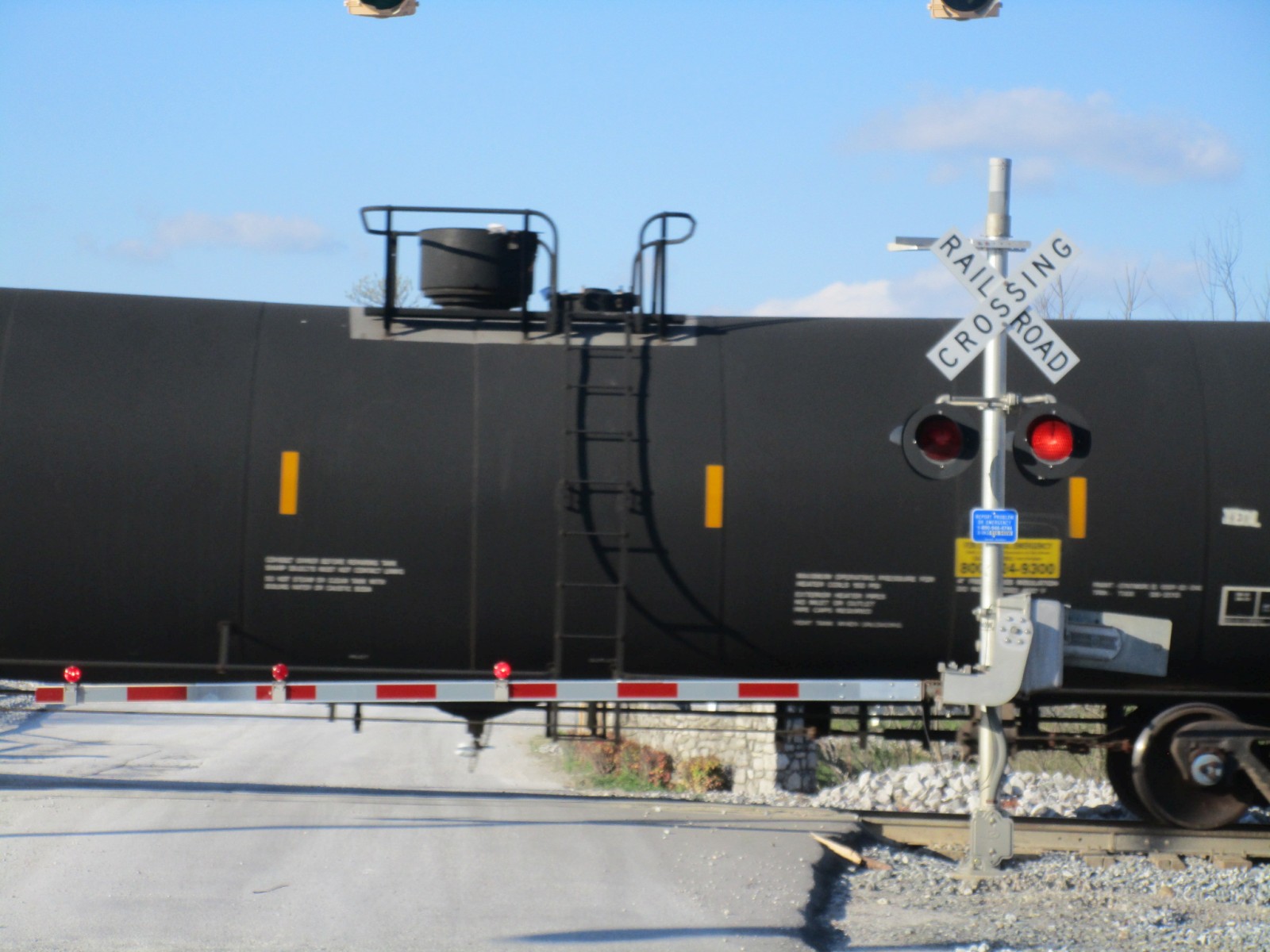

The train passes... |
|||
41 |
42 |

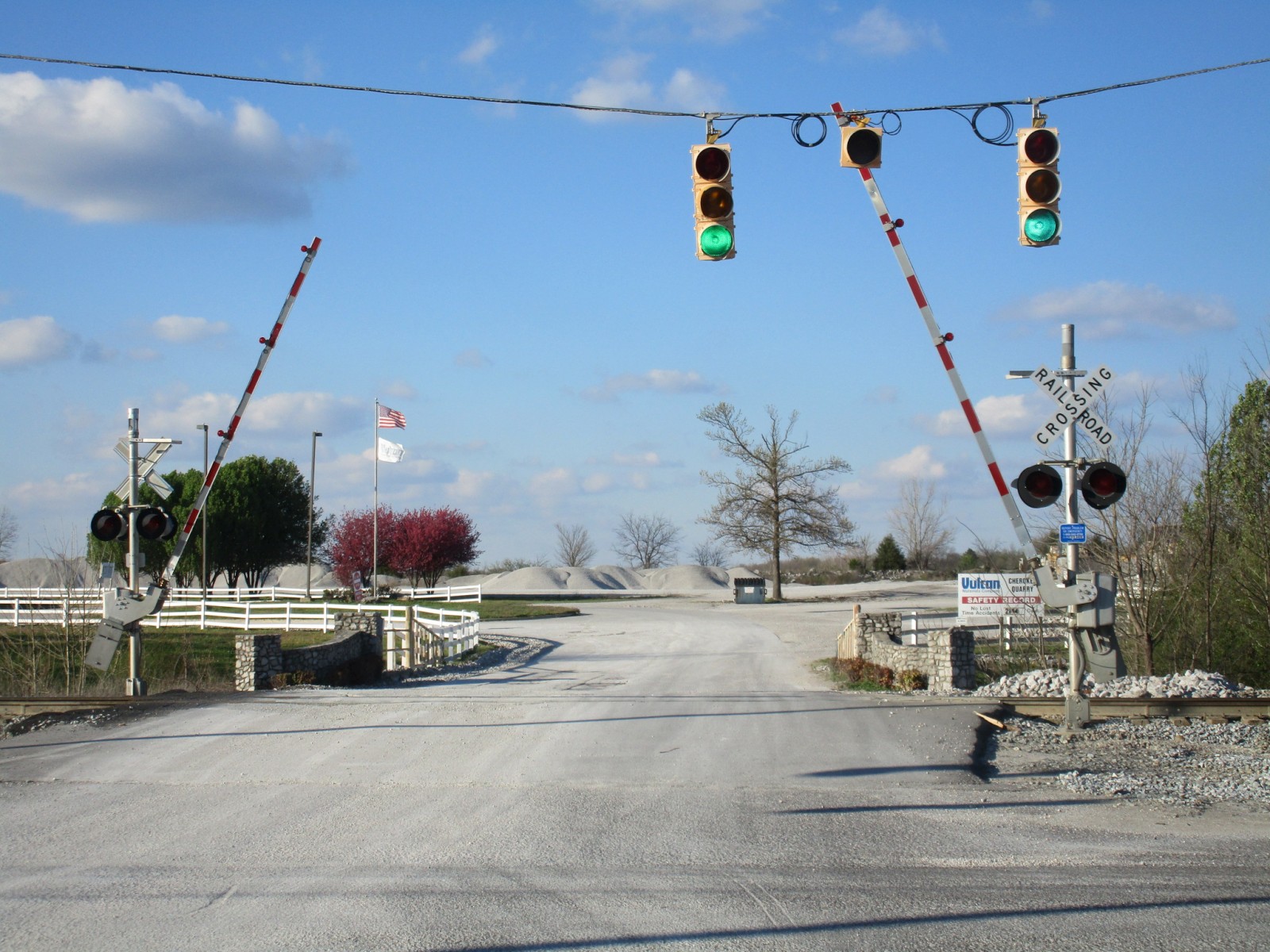

...and the signals shut off. |
|
Pictures 1-26 were taken on 1-26-17.
Pictures 27-42 and the first video were taken on 3-21-18.
The second video was taken on 7-29-20.
