MP: 000442.070 |
Created June 25, 2018
Total Accidents: 1
Crossing
DOT #: 352330C
TOTAL
DAILY TRAINS: 11 (AS OF 2017)
Page created by: freebrickproductions
This crossing is located on the CSX S&NA South Subdivision.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | NEG electronic | NEG electronic |
| Base: | WCH | WCH |
| Light Frames: | 4 - 12x24" WCH w/ Leotek EV Series LEDs | 4 - 12x24" WCH w/ Leotek EV Series LEDs 4 - 12x24" WCH w/ WCH 2nd Gen LEDs |
| Gate Lights: | 3 - RECO | 3 - RECO |
| Gate Mechanism: | Siemens Sticker Style 2 | Siemens Sticker Style 2 |
| Gate Striping: | Vertical | Vertical |
1 |
2 |
3 |
4 |

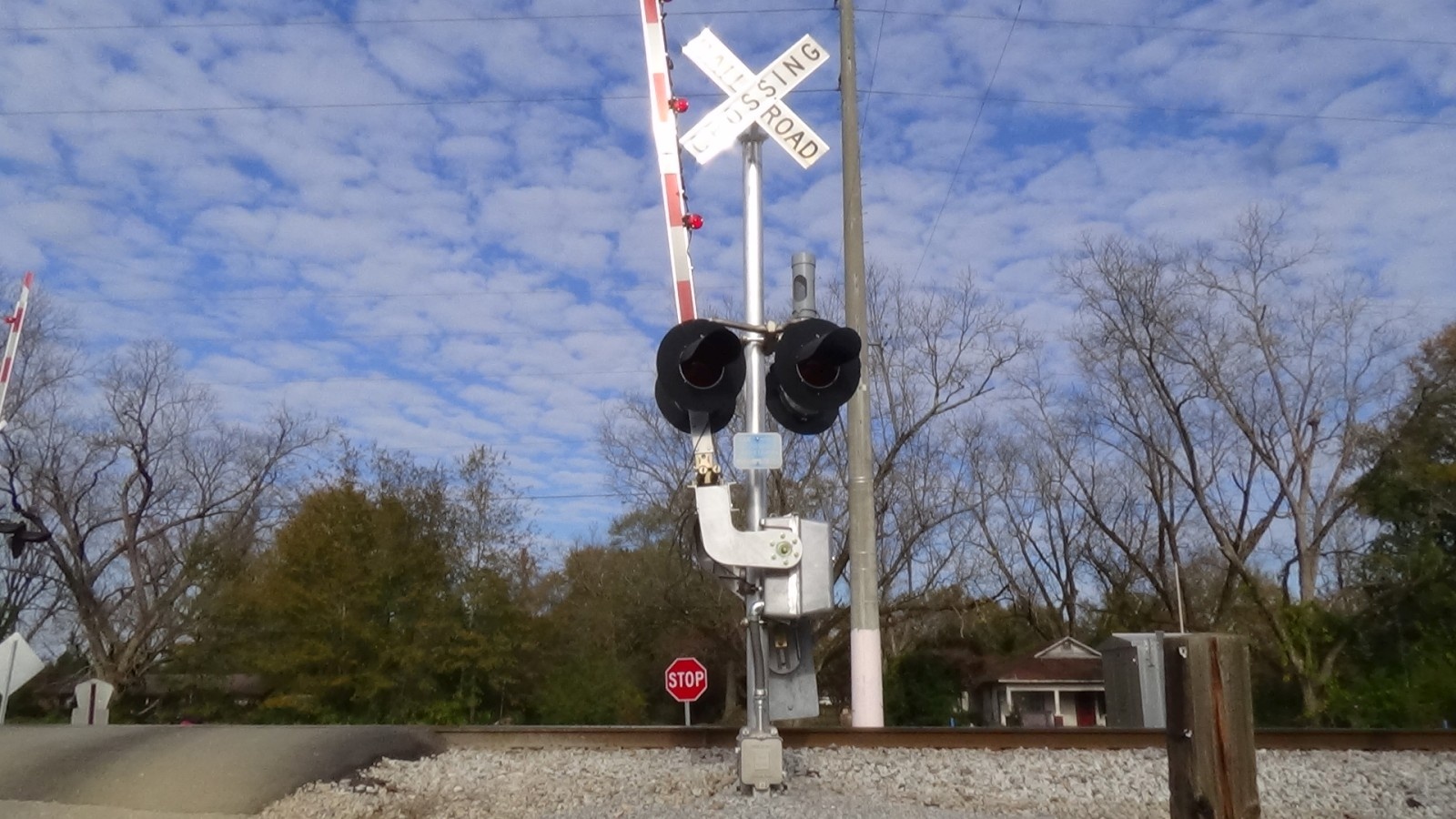

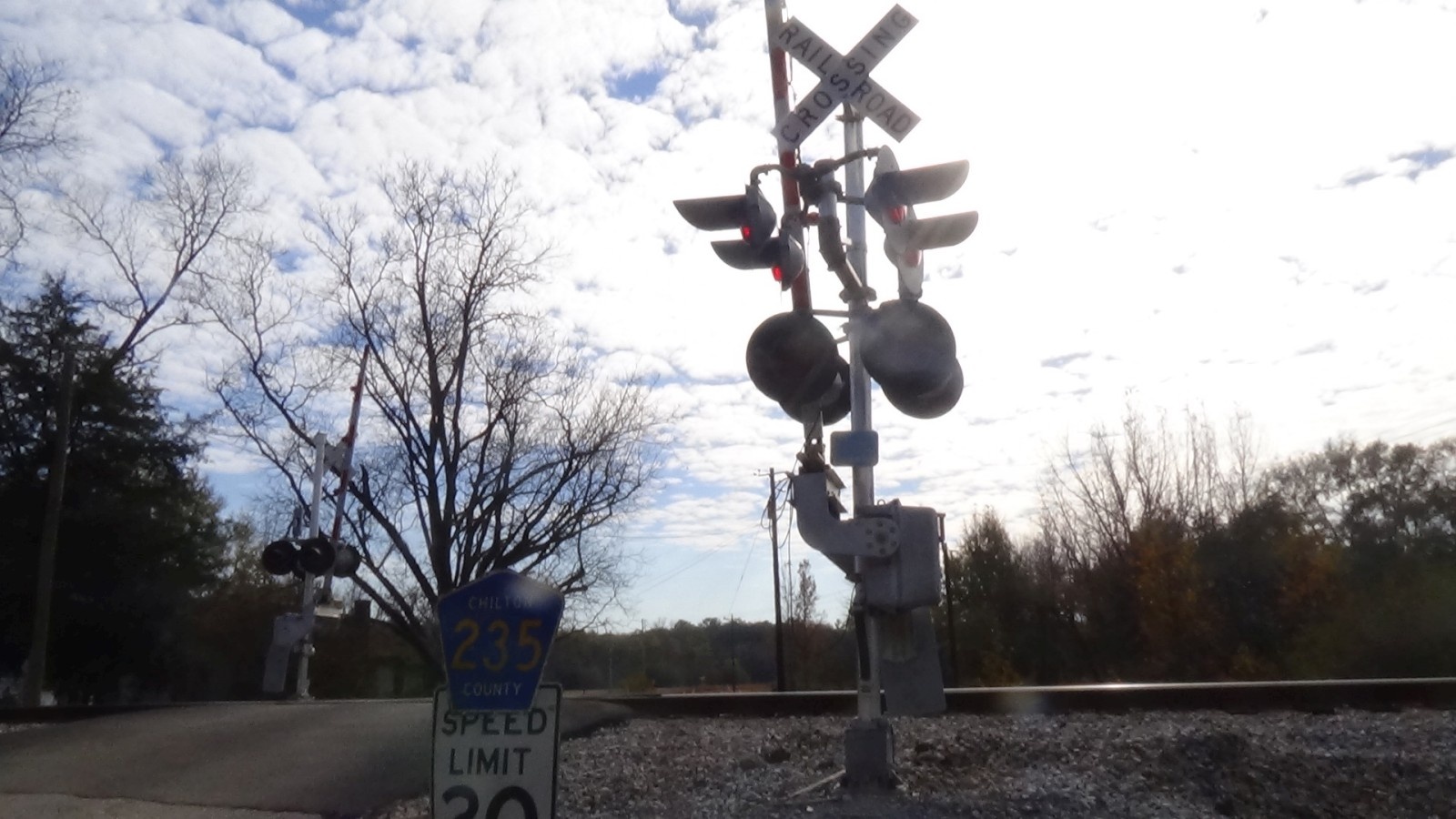

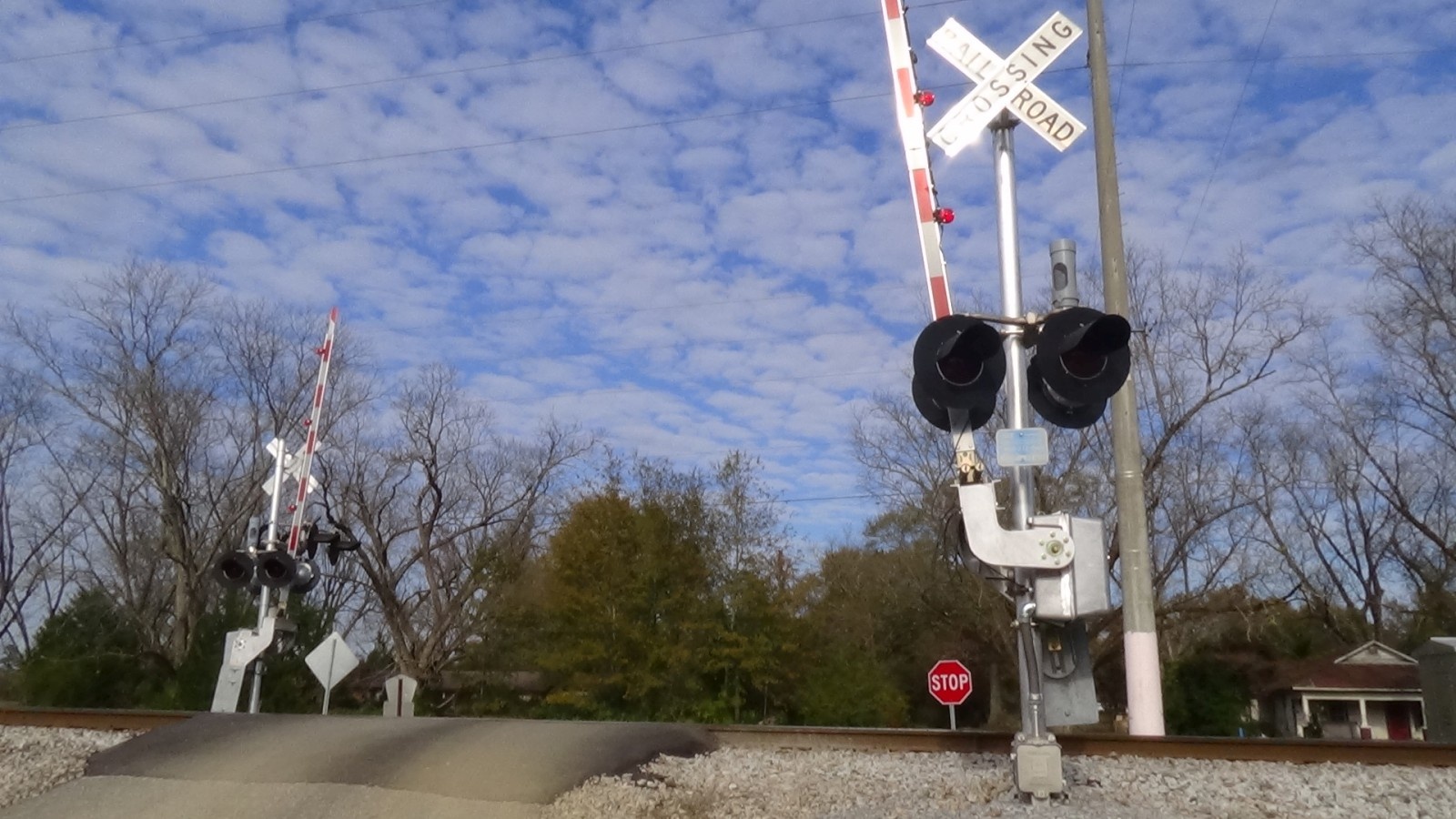

Overviews of the crossing, which was upgraded from crossbucks to these signals in 2016. |

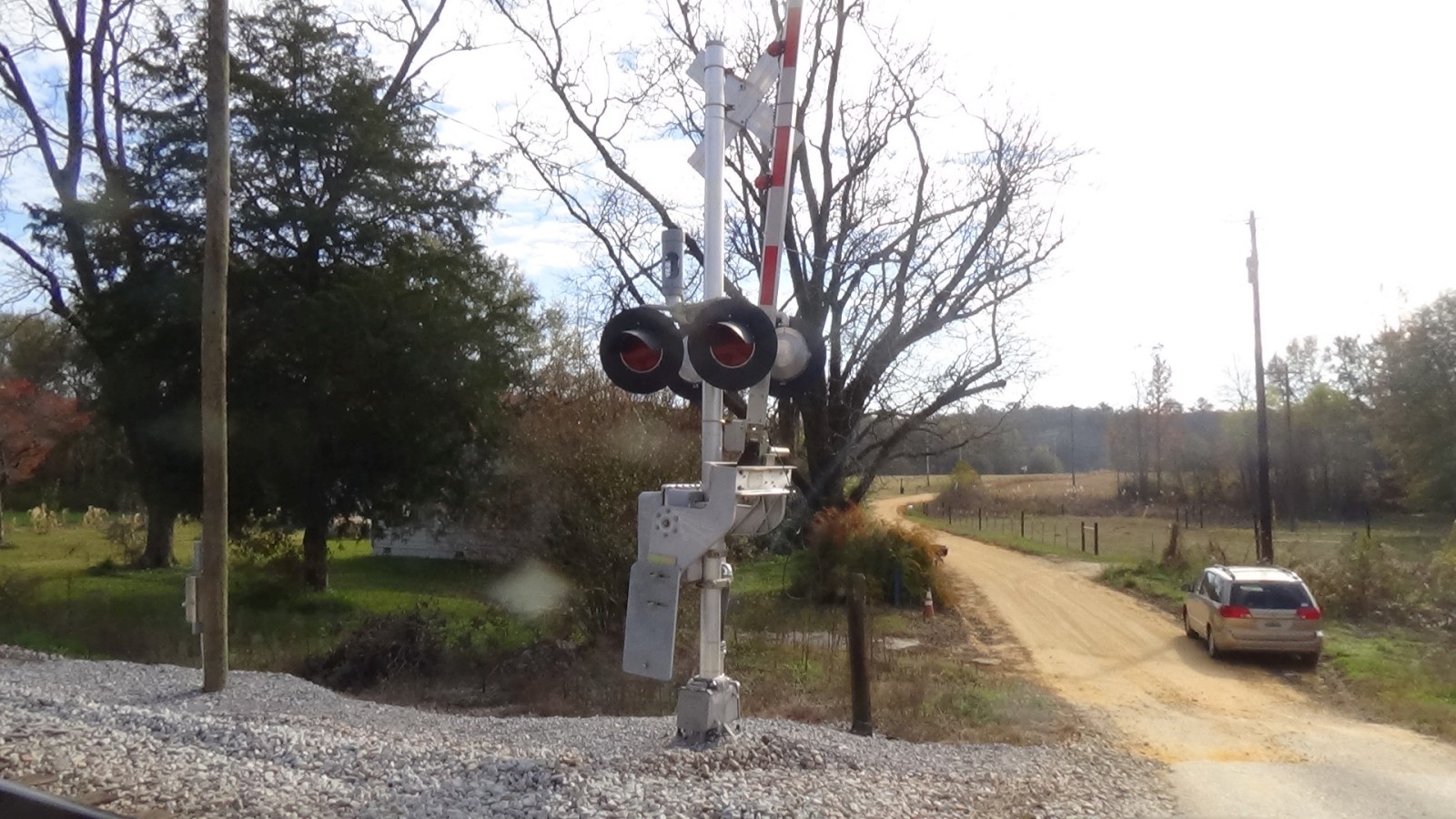

The first signal. |
||
5 |
6 |
7 |
8 |

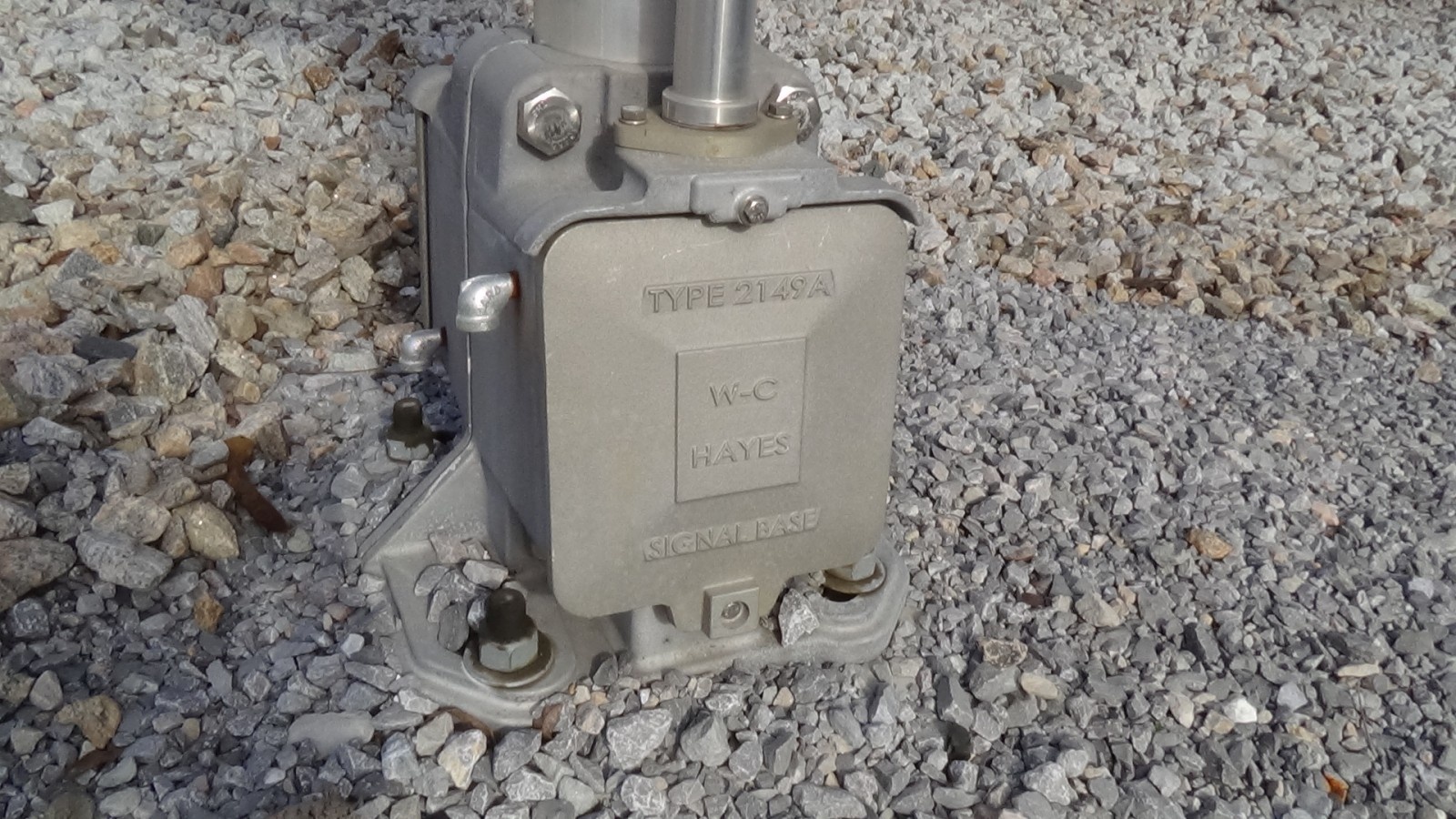

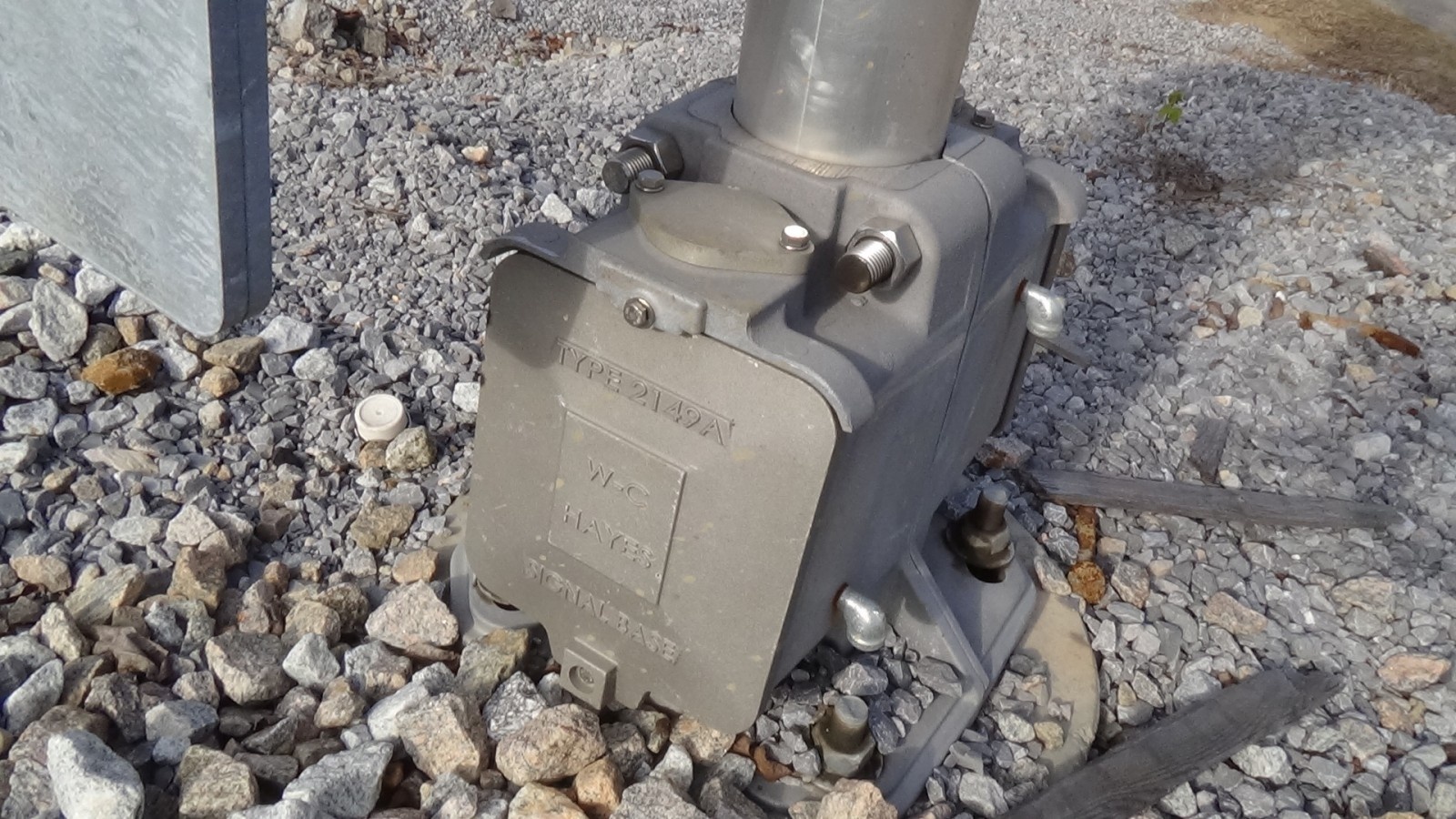

It has a WCH base. |

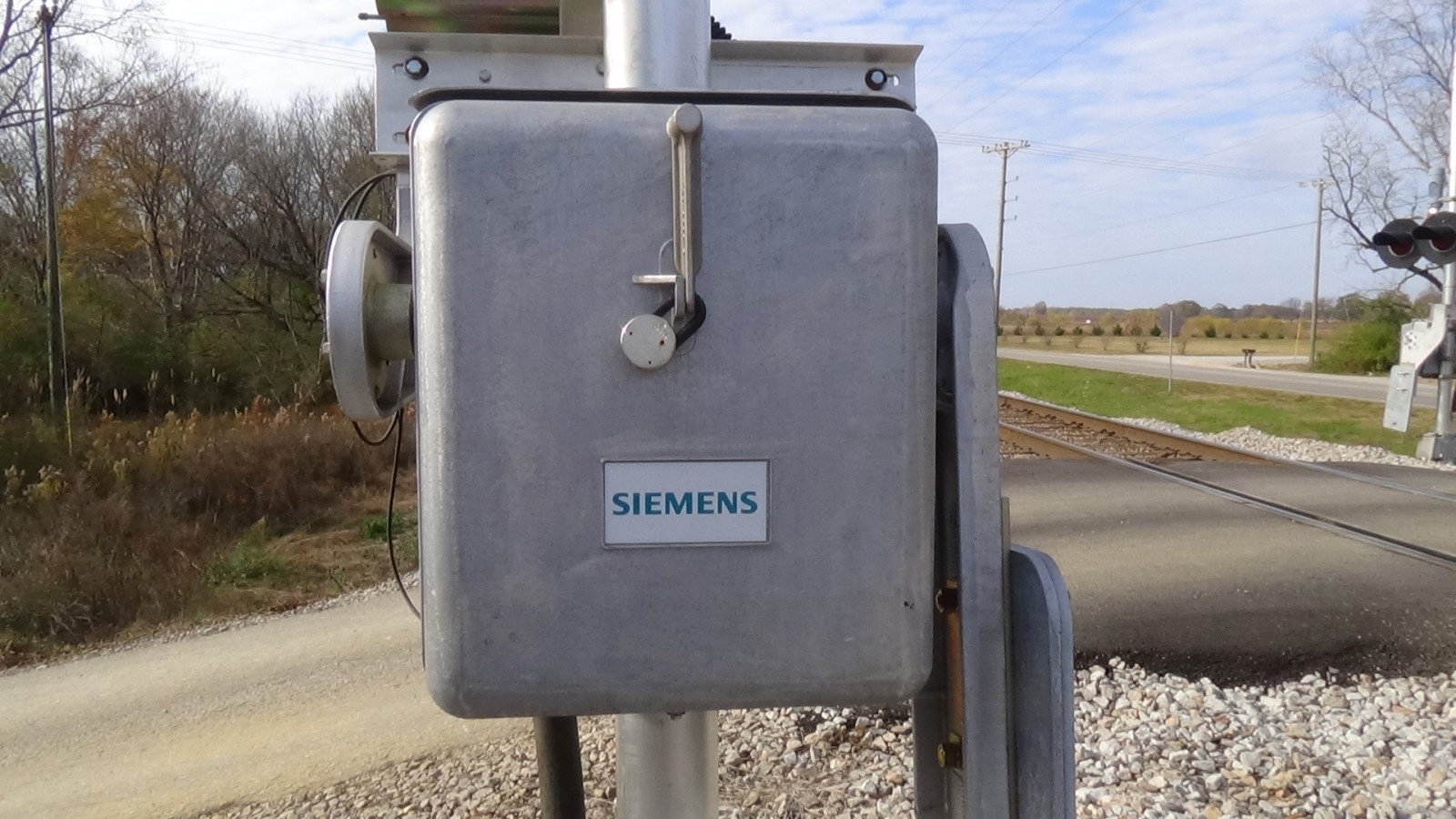

A Siemens gate mechanism. |

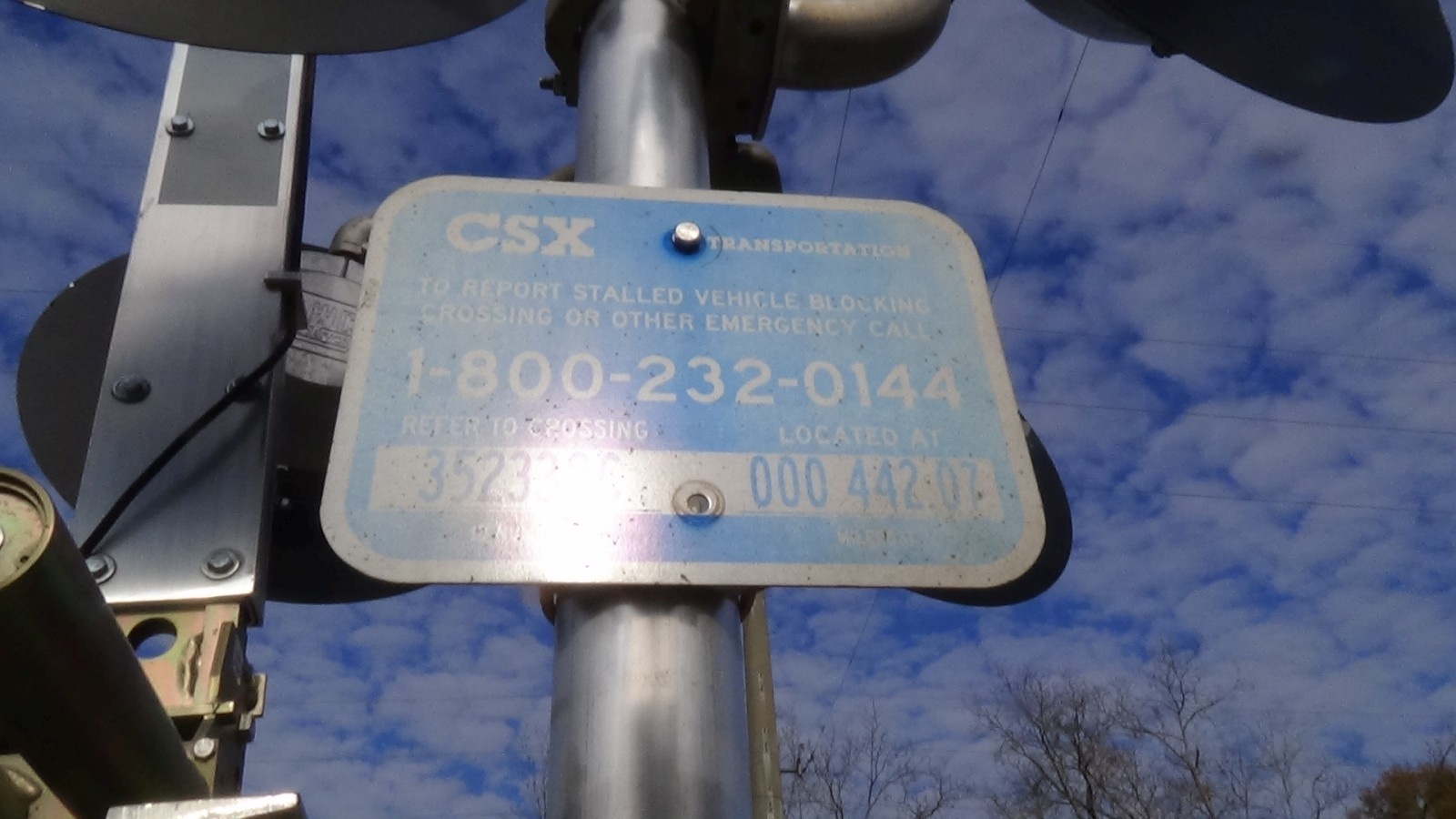

The emergency information. |
9 |
10 |
11 |
12 |

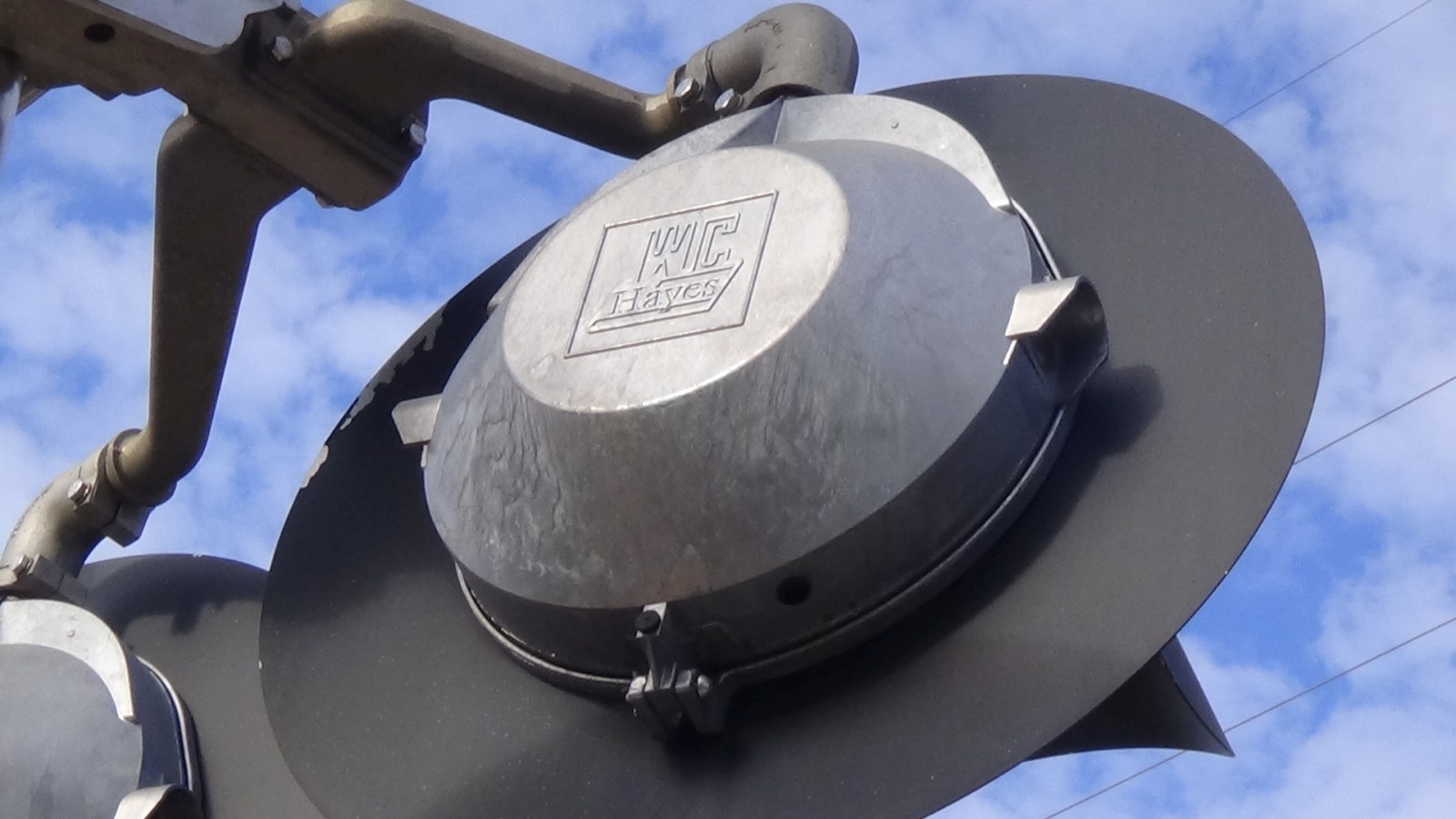

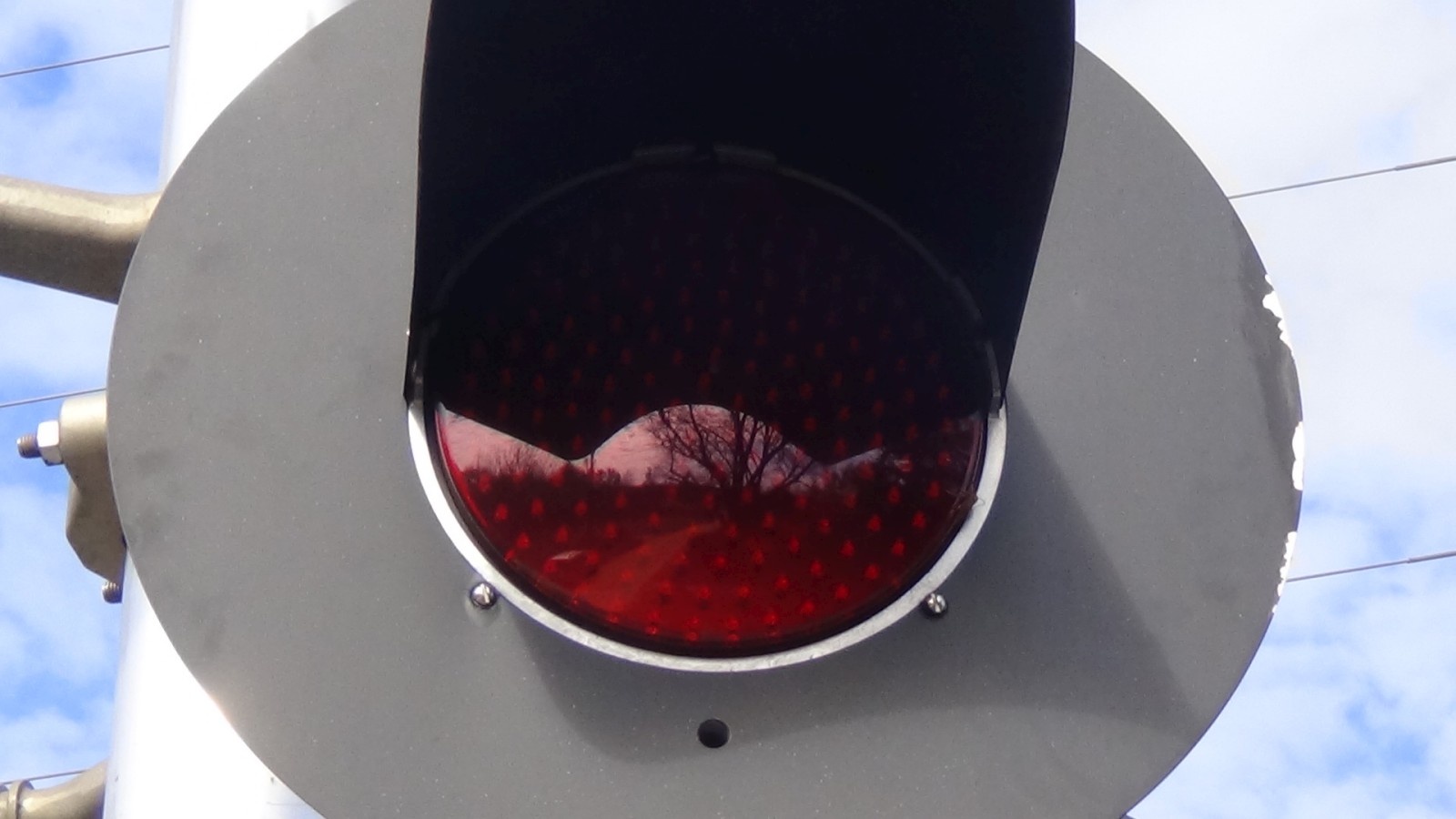

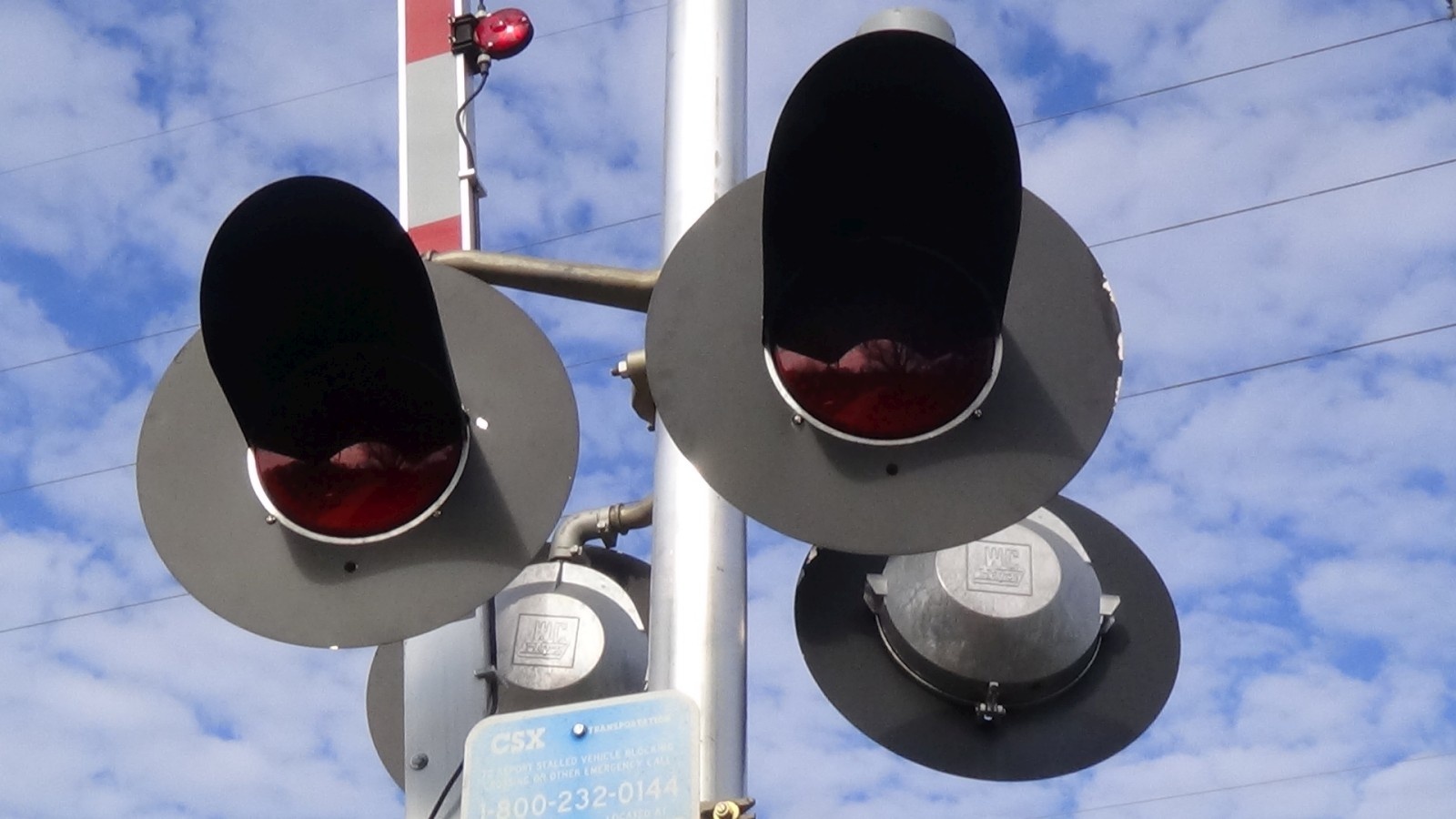

This signal uses newer WCH 12x24 with Leotek EV Series LEDs. |

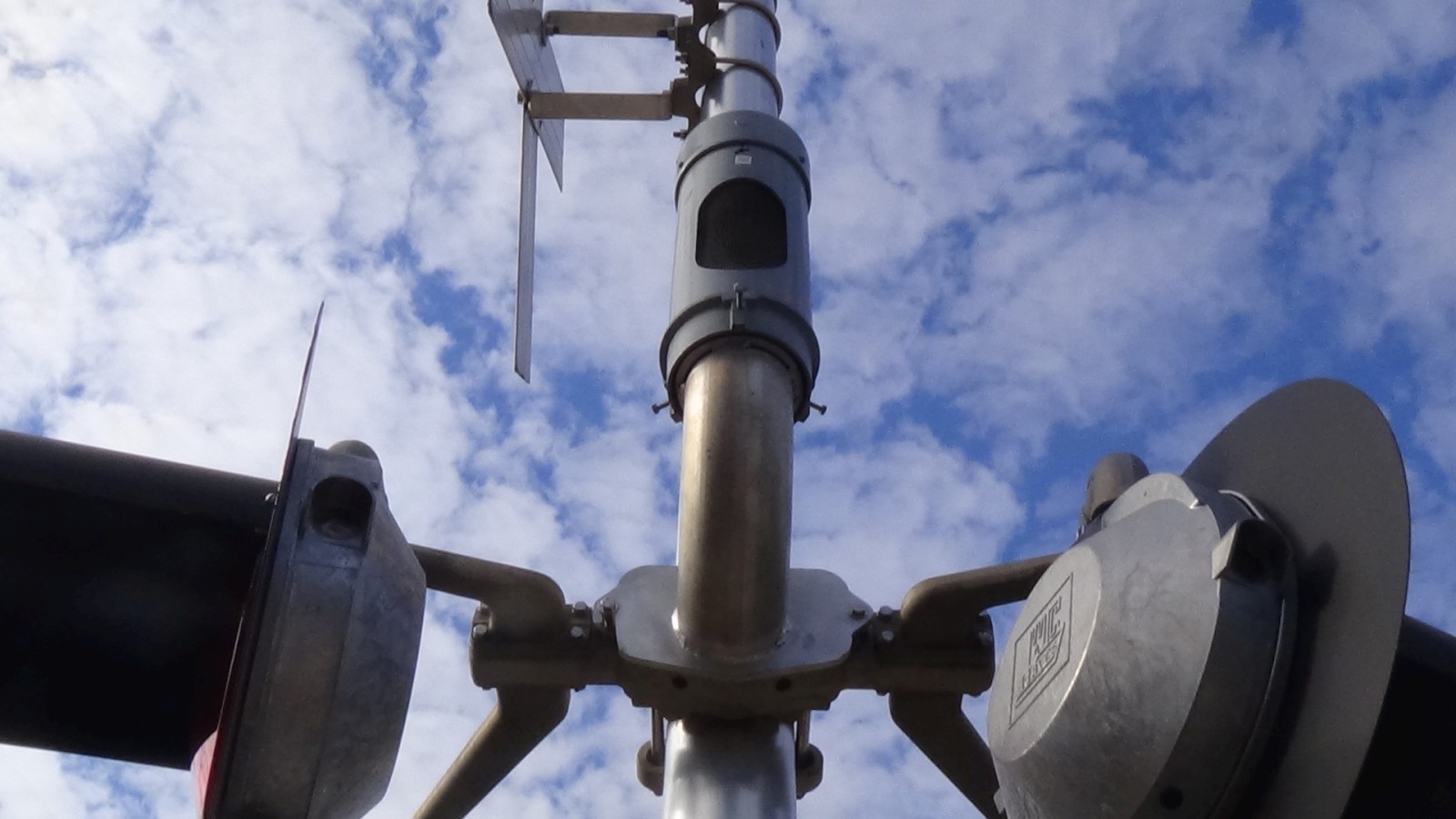

An NEG electronic bell. |

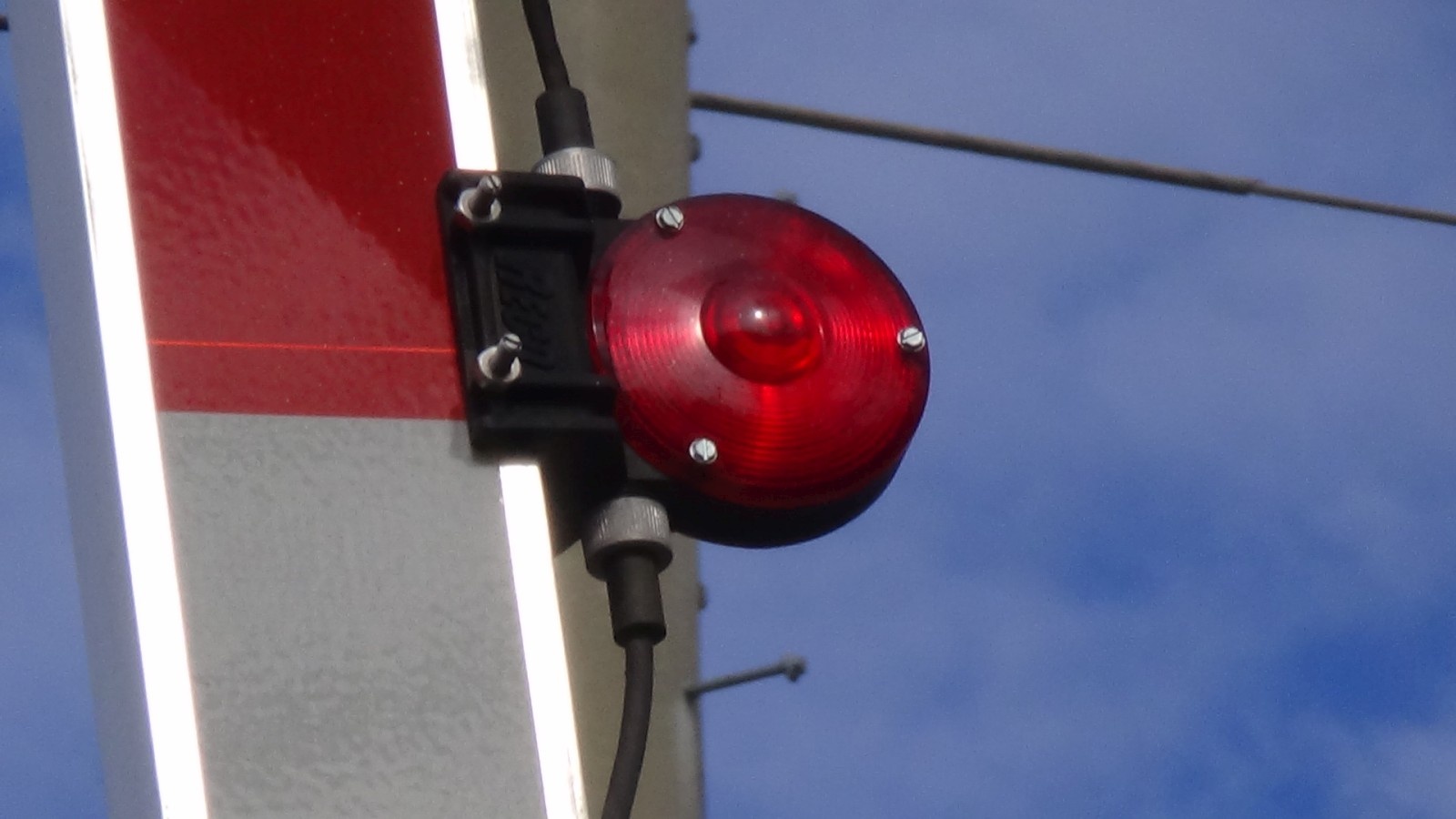

RECO gate lights on this signal. |
|
13 |
14 |
15 |
16 |

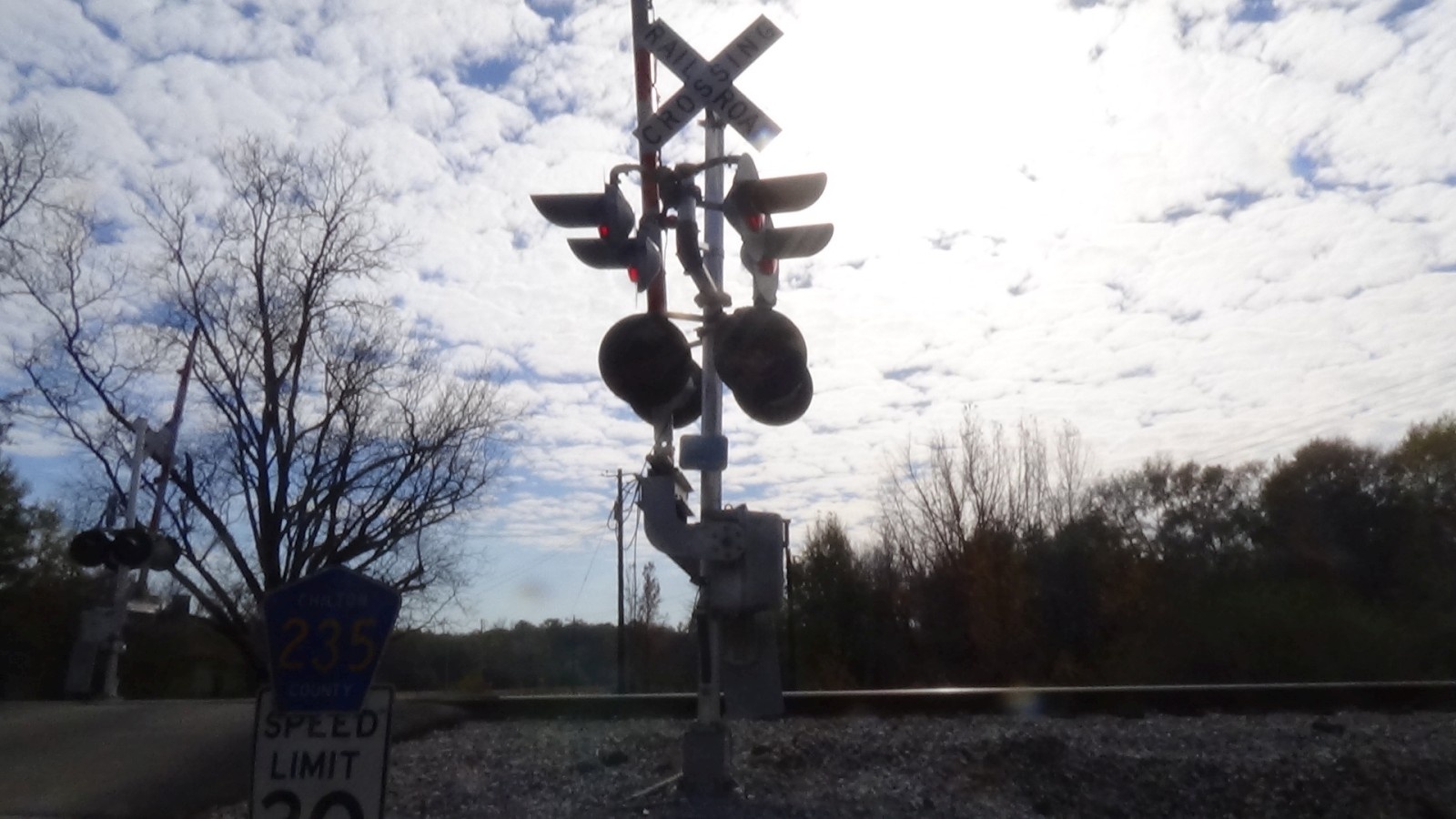

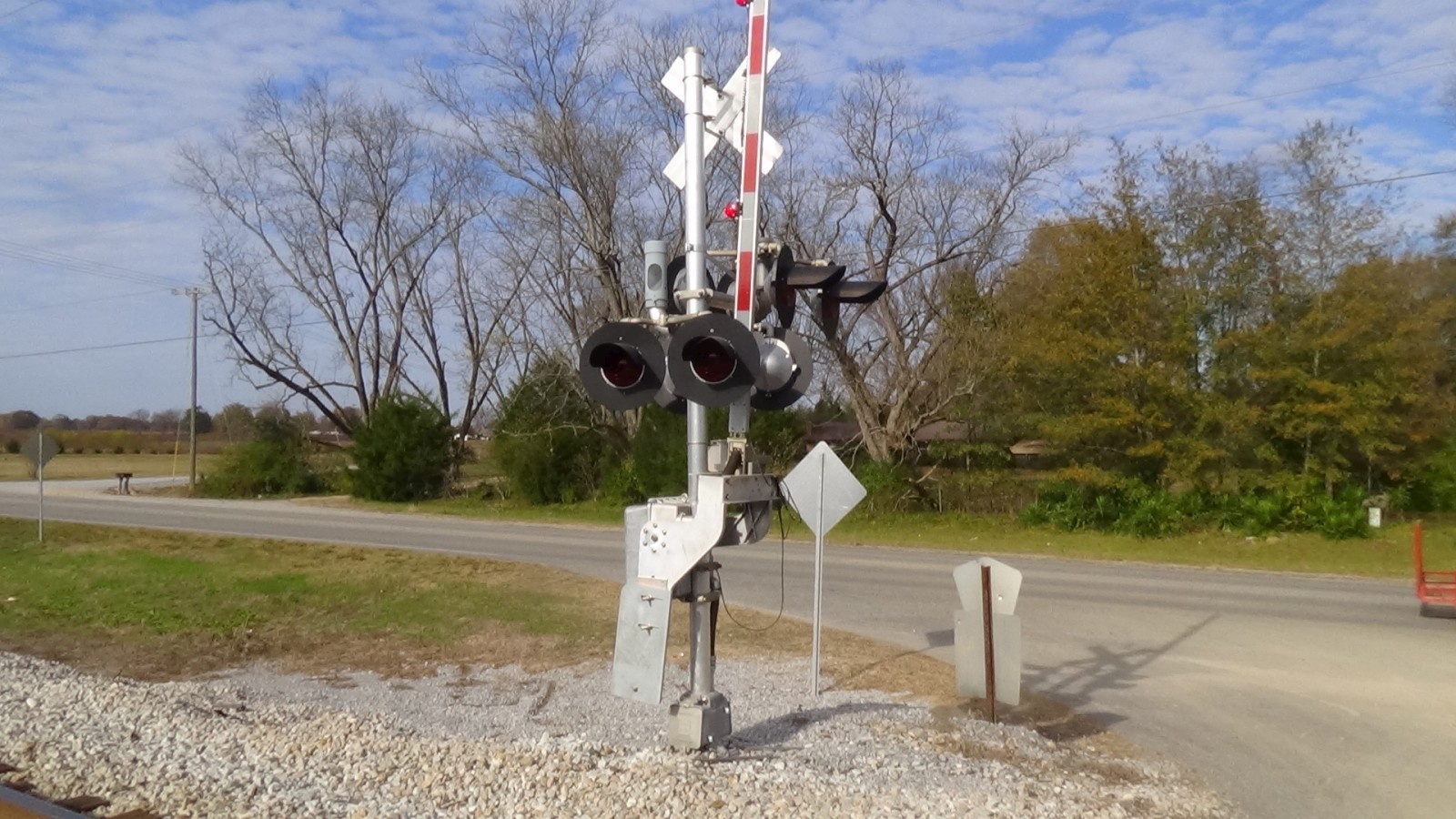

The second signal. |
Another WCH base. |

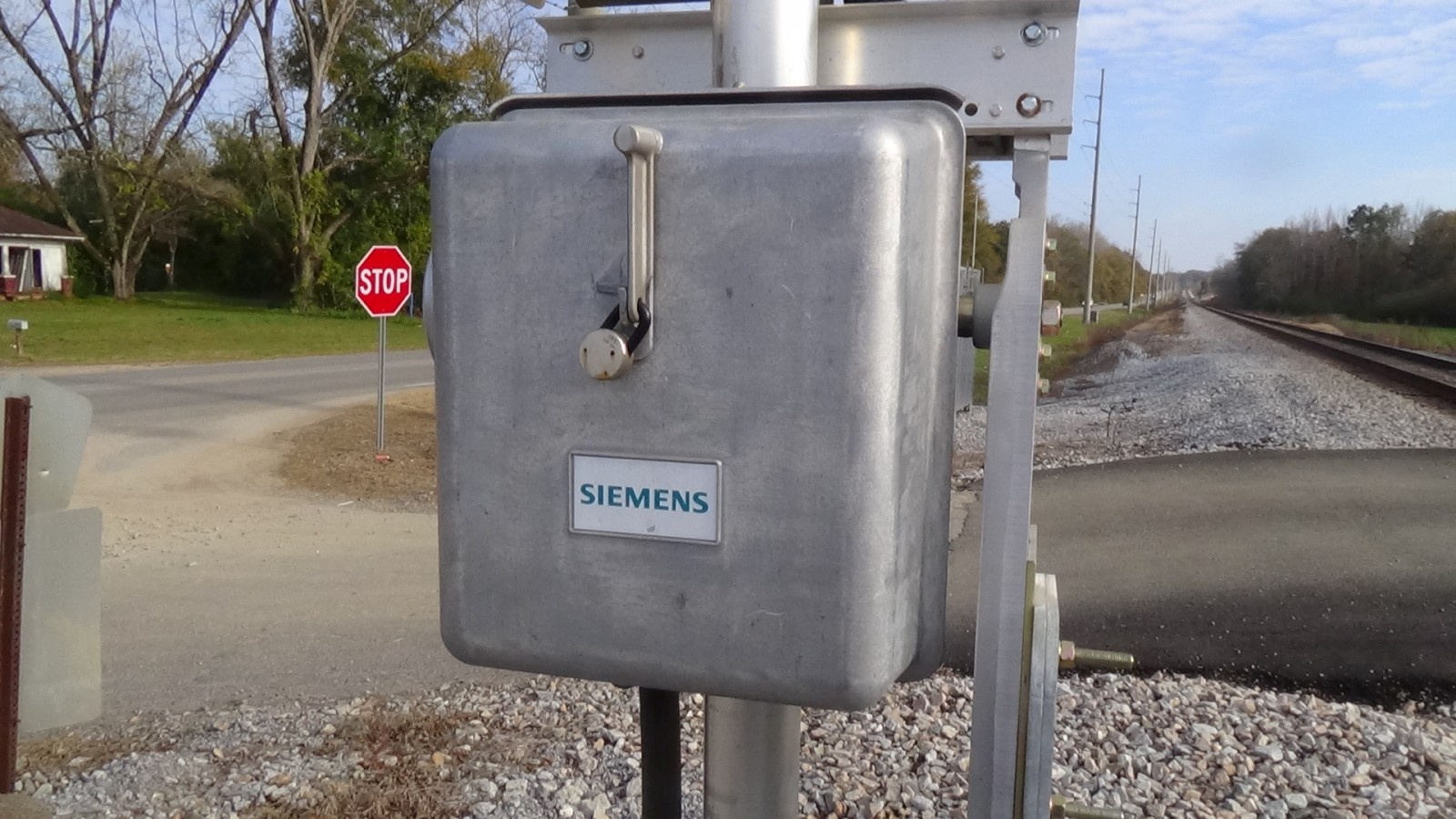

Another Siemens gate mechanism. |
|
17 |
18 |
19 |
20 |

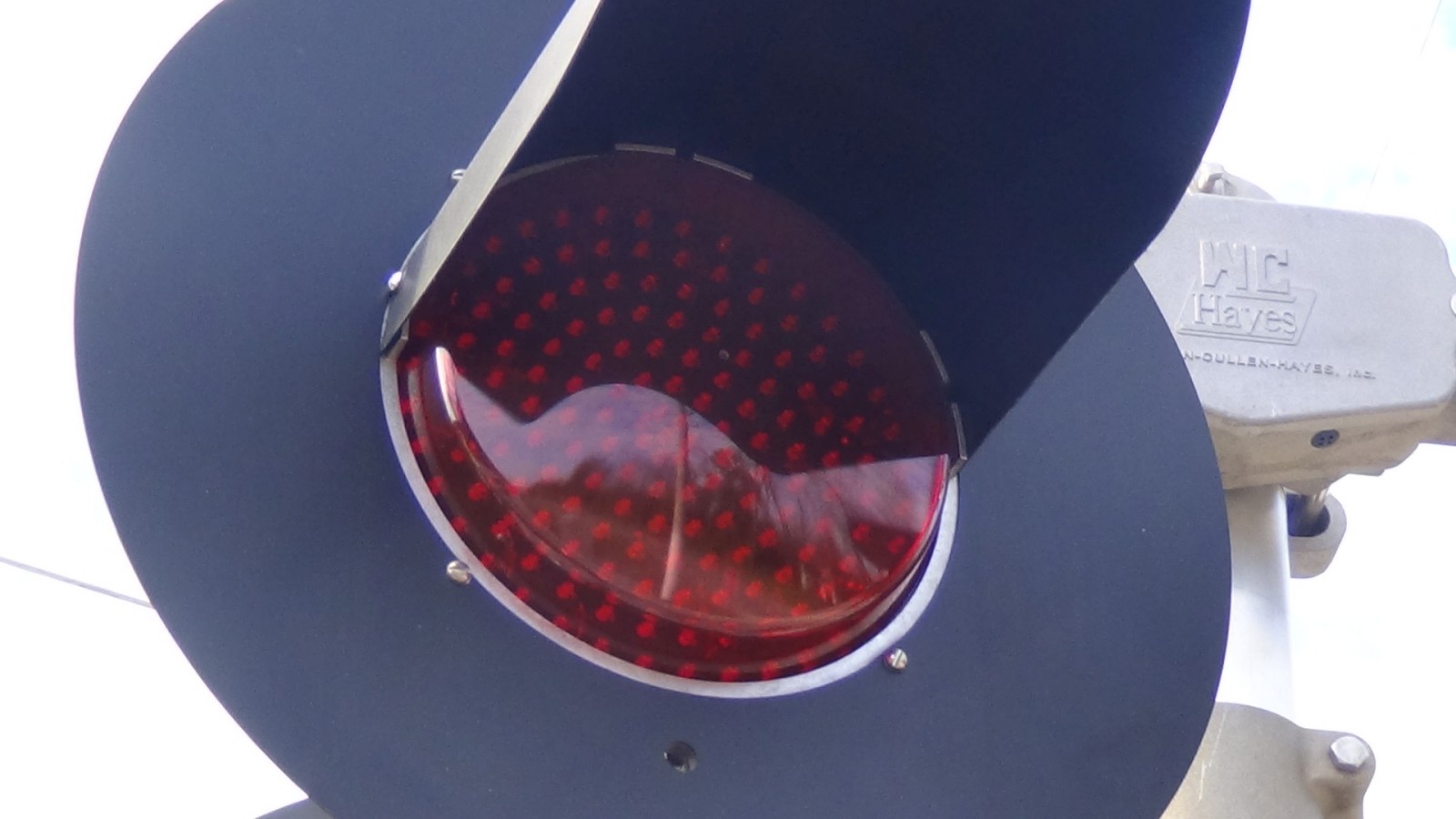

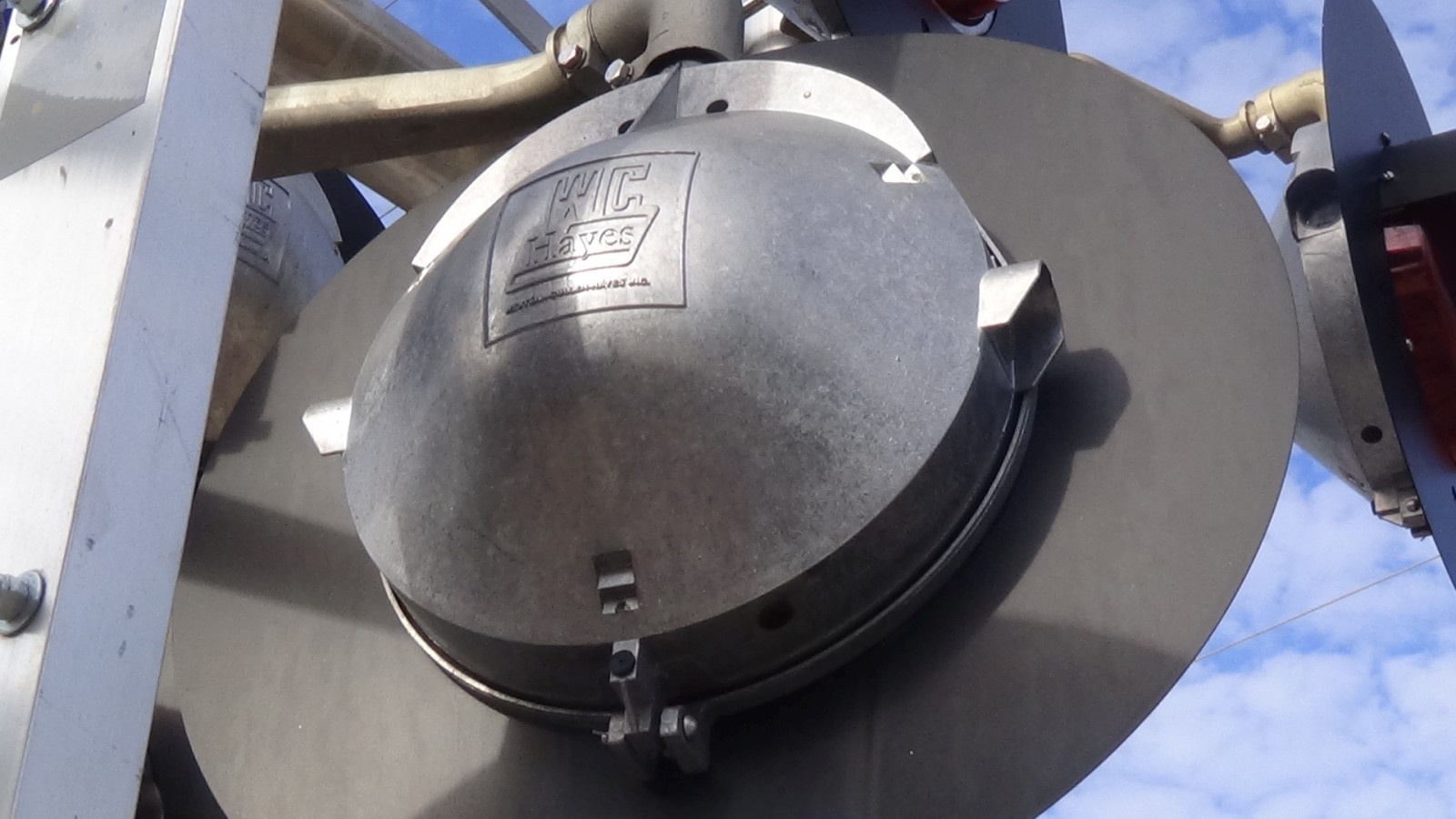

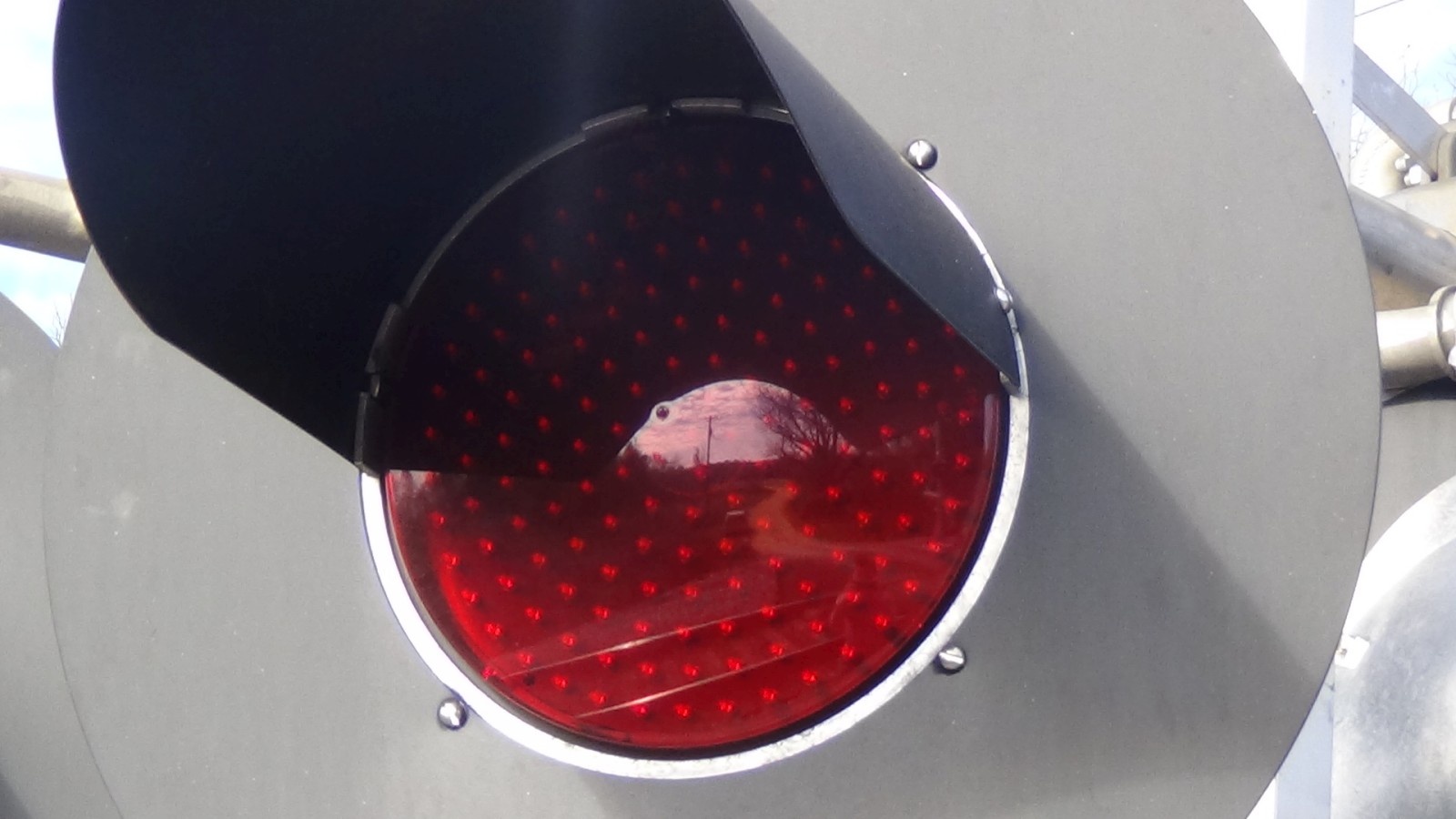

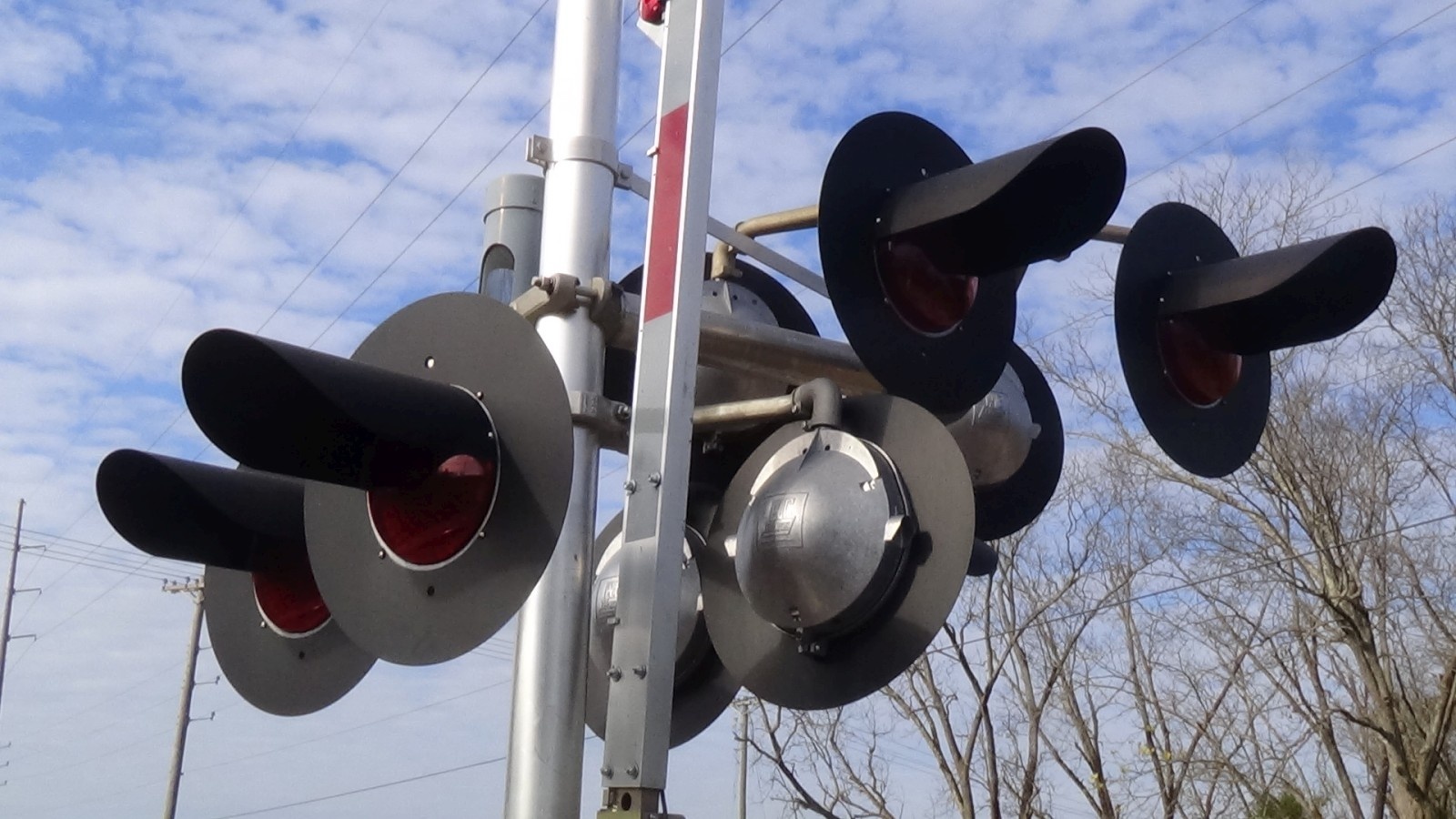

This signal has older WCH 12x24 inch lights with a mixture of Leotek EV Series LEDs and WCH 2nd Generation LEDs! |
|||
21 |
22 |
23 |
24 |

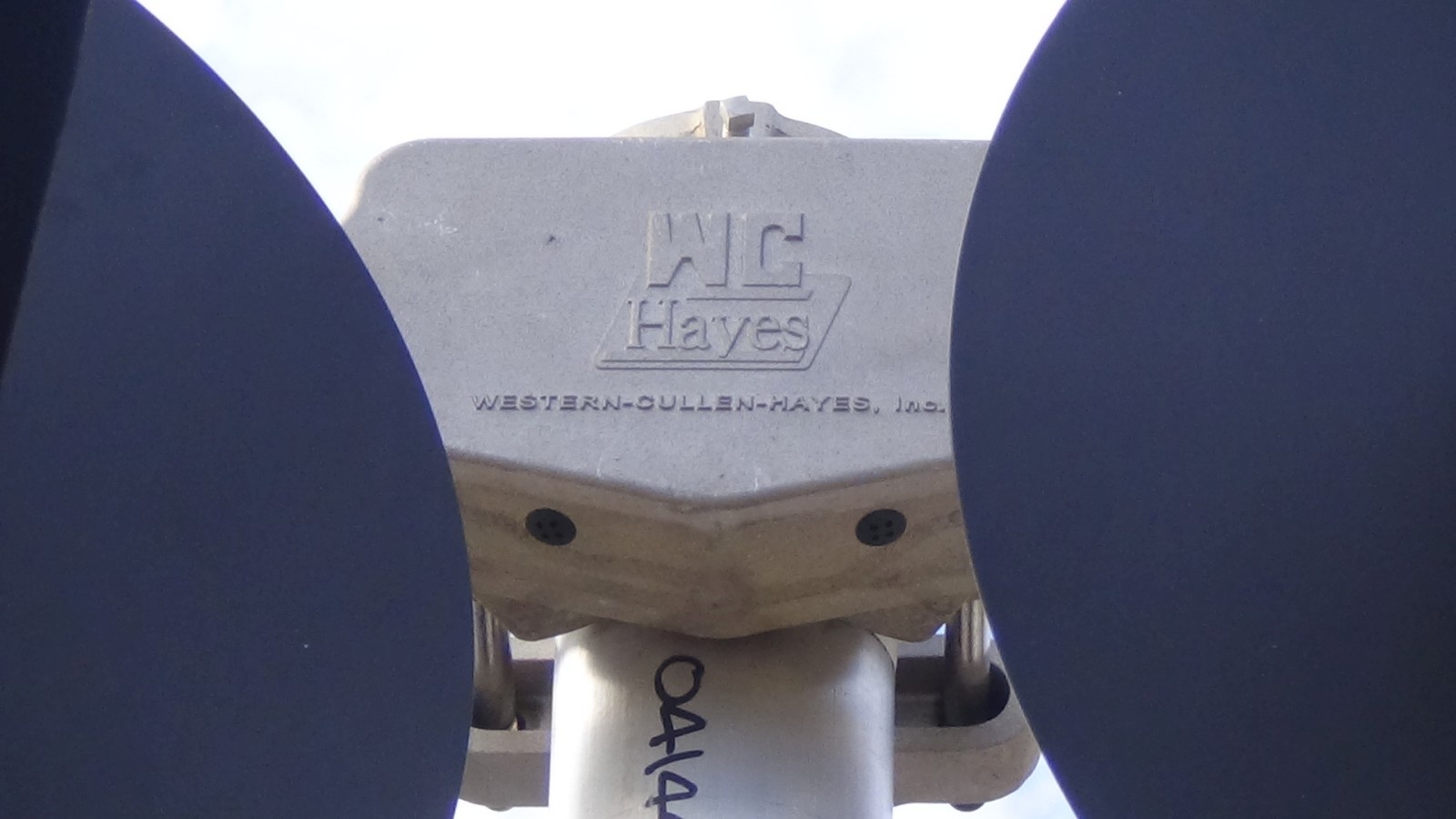

A WCH junction box for the side lights. |

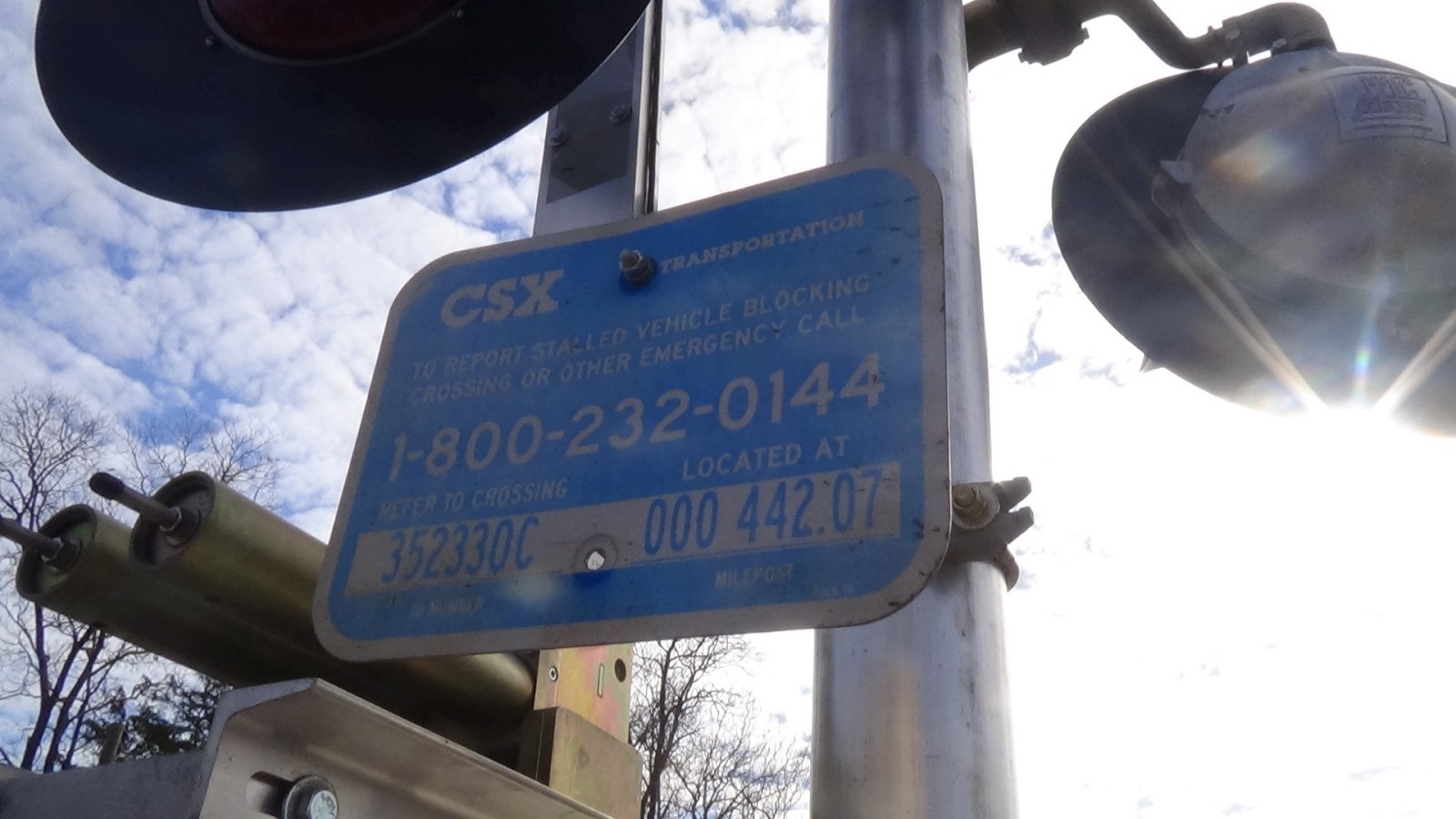

The emergency information. |

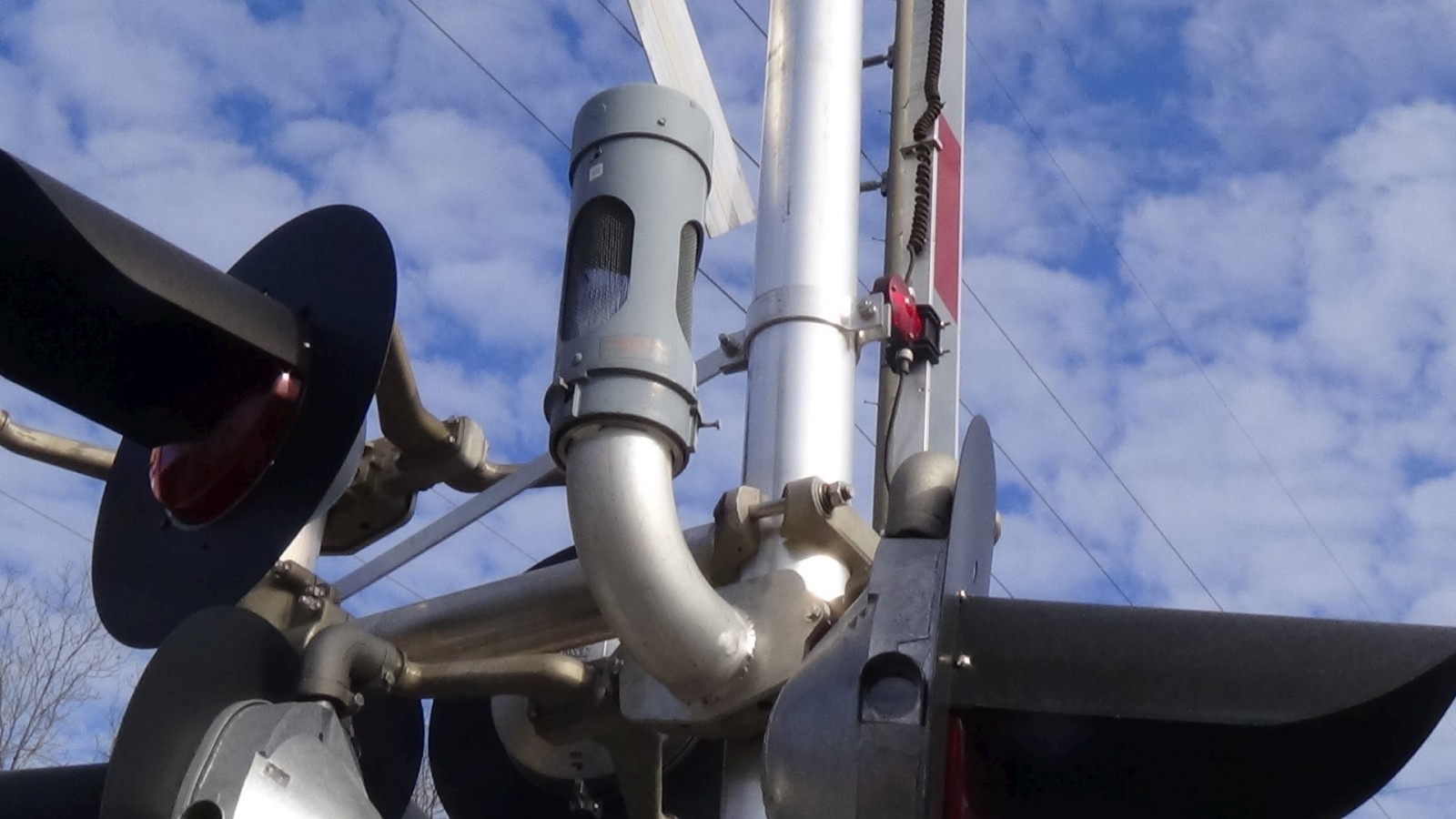

Another NEG e-bell. |

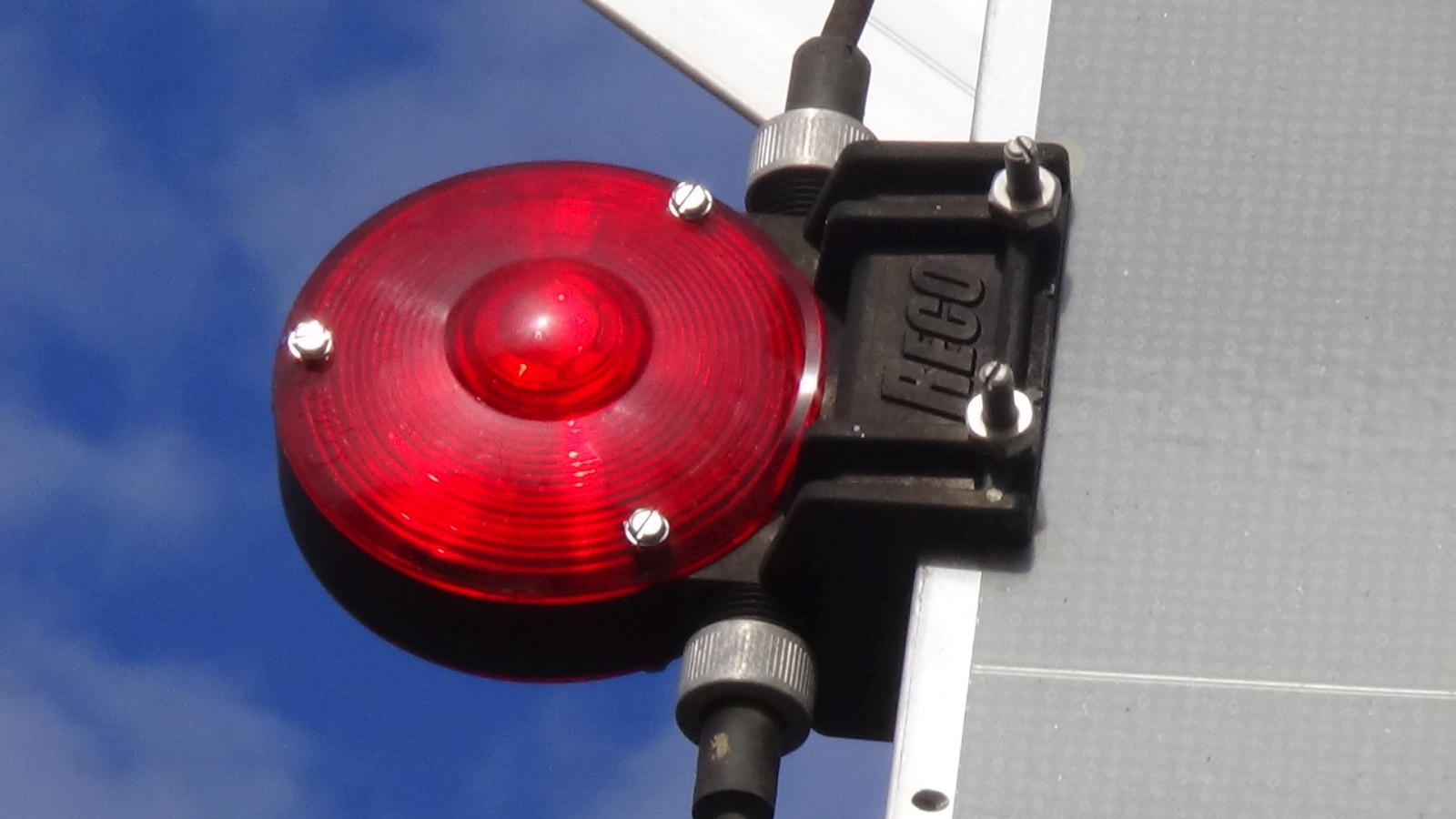

More RECO gate lights on this signal. |
25 |
26 |
27 |

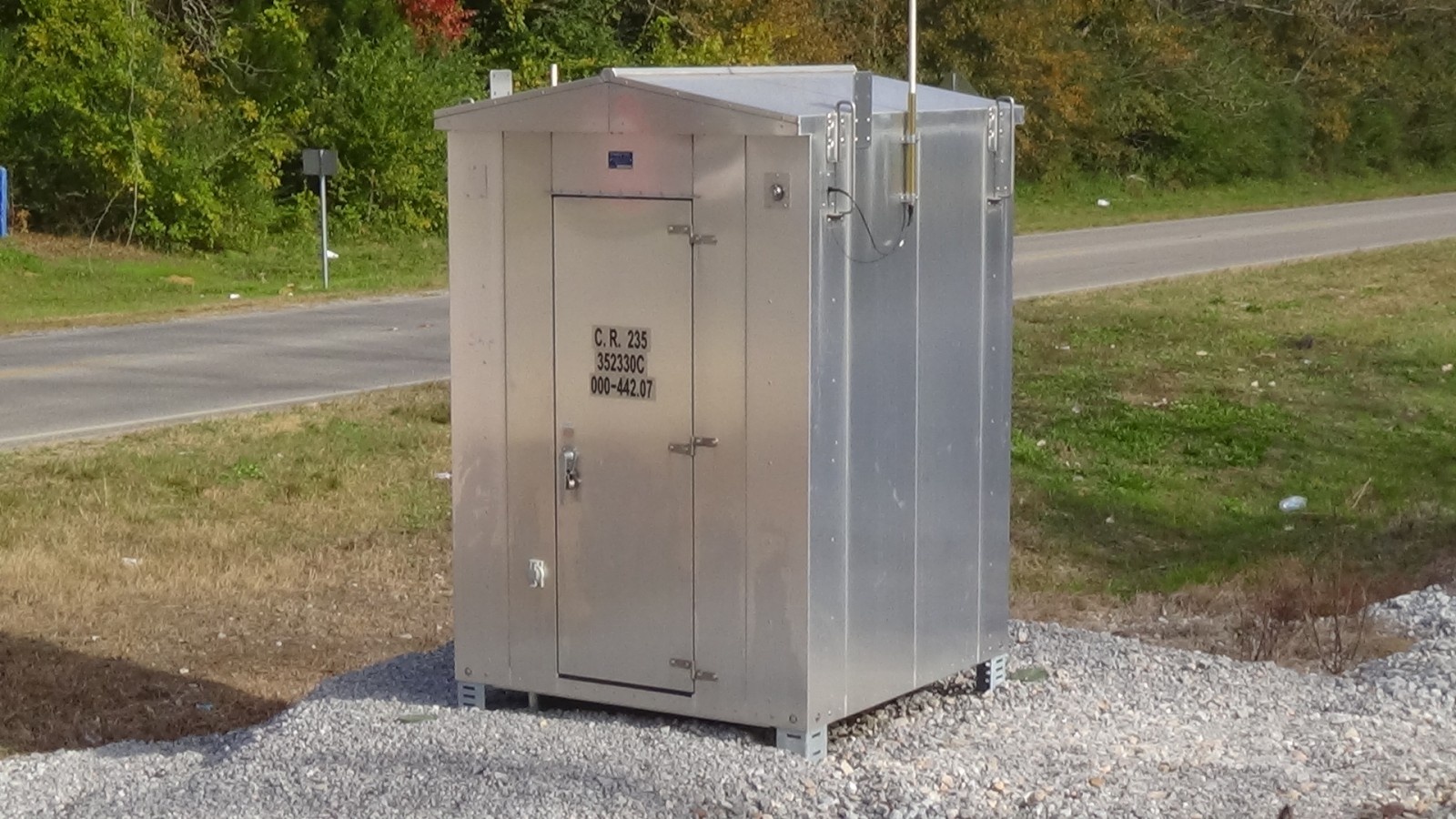

The relay case. |

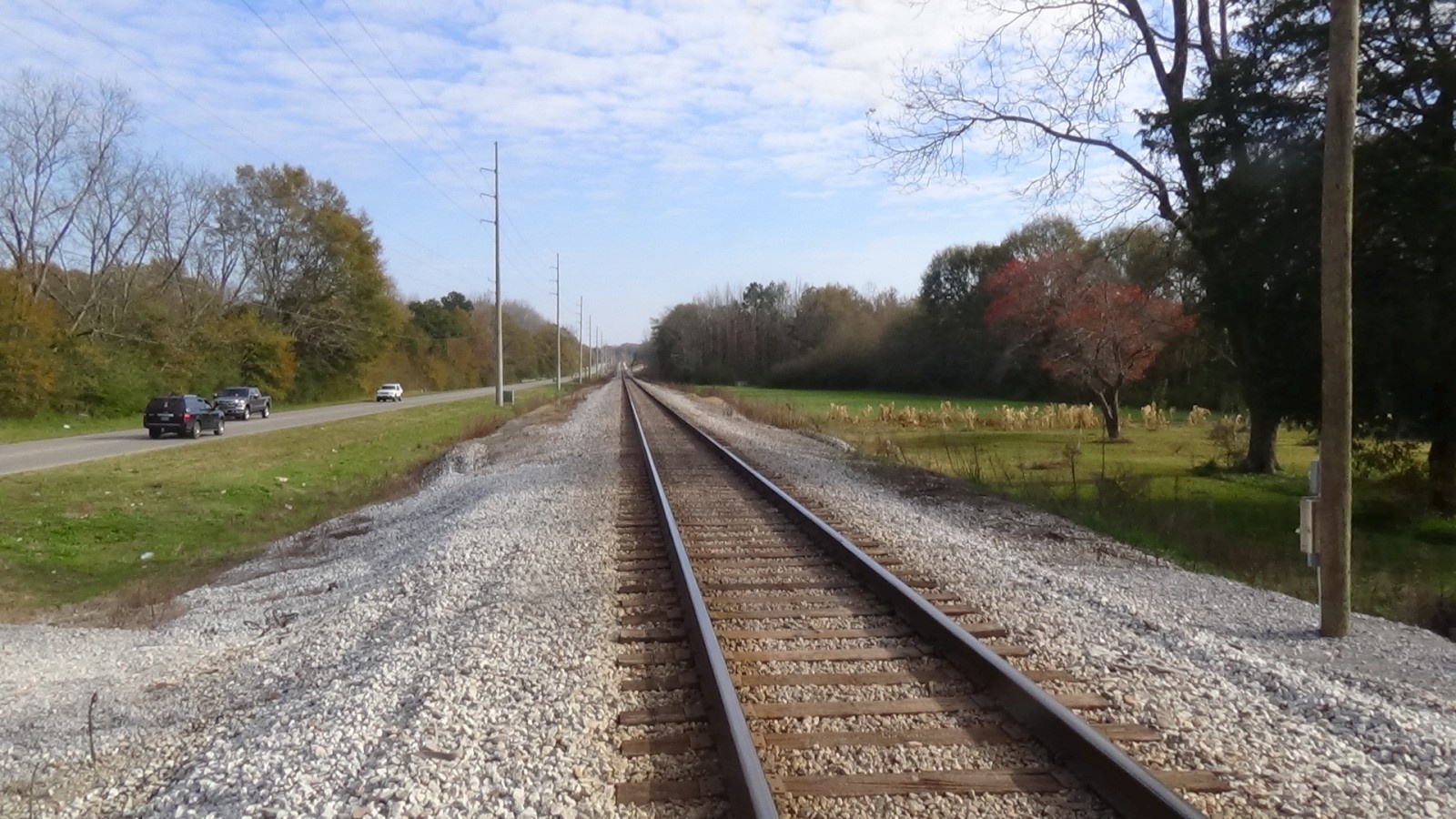

Track view looking south towards Lomax Drive in Clanton, AL. |

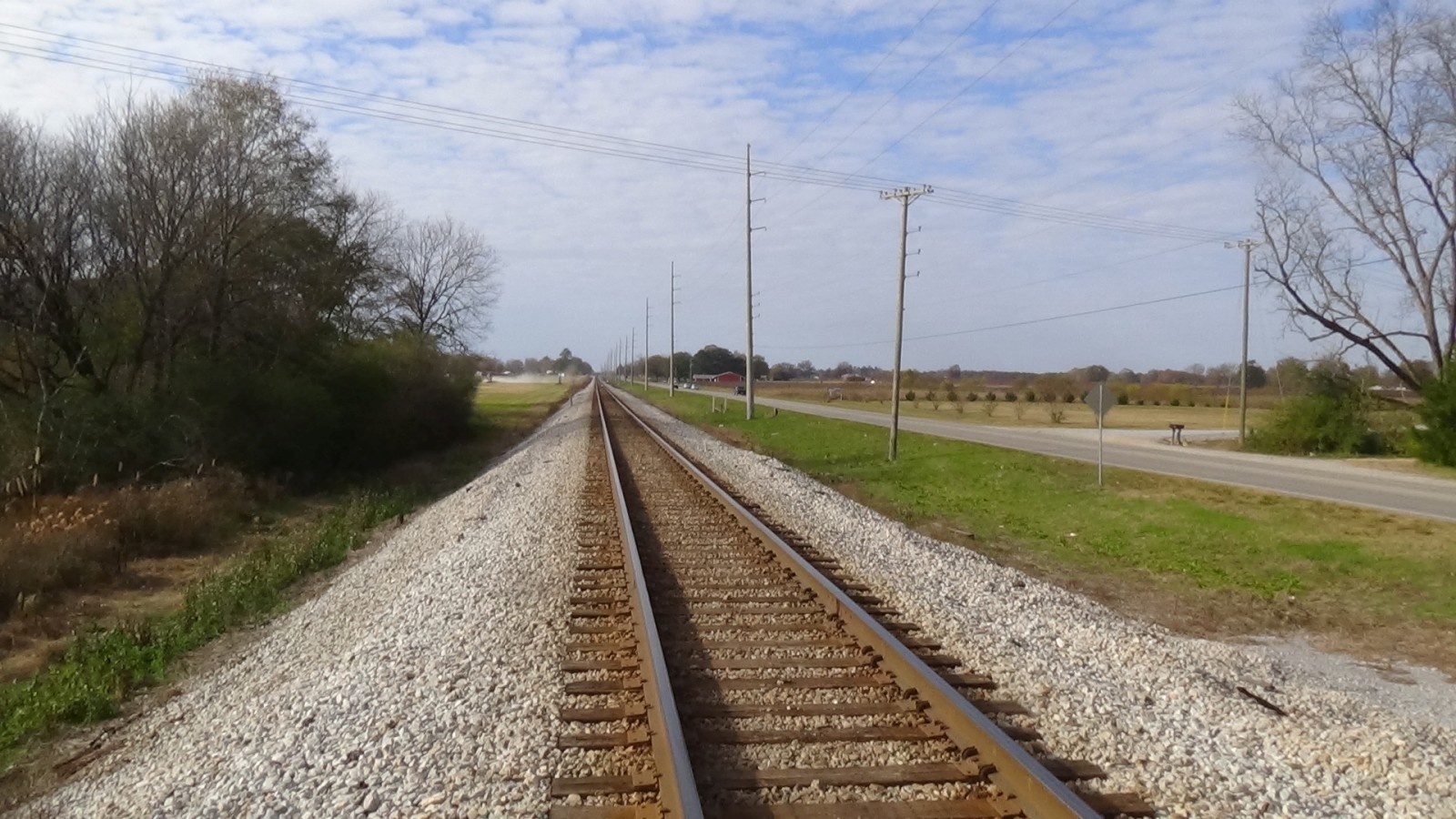

Track view looking north towards CR 29 near Thorsby, AL. |
28 |
29 |
30 |

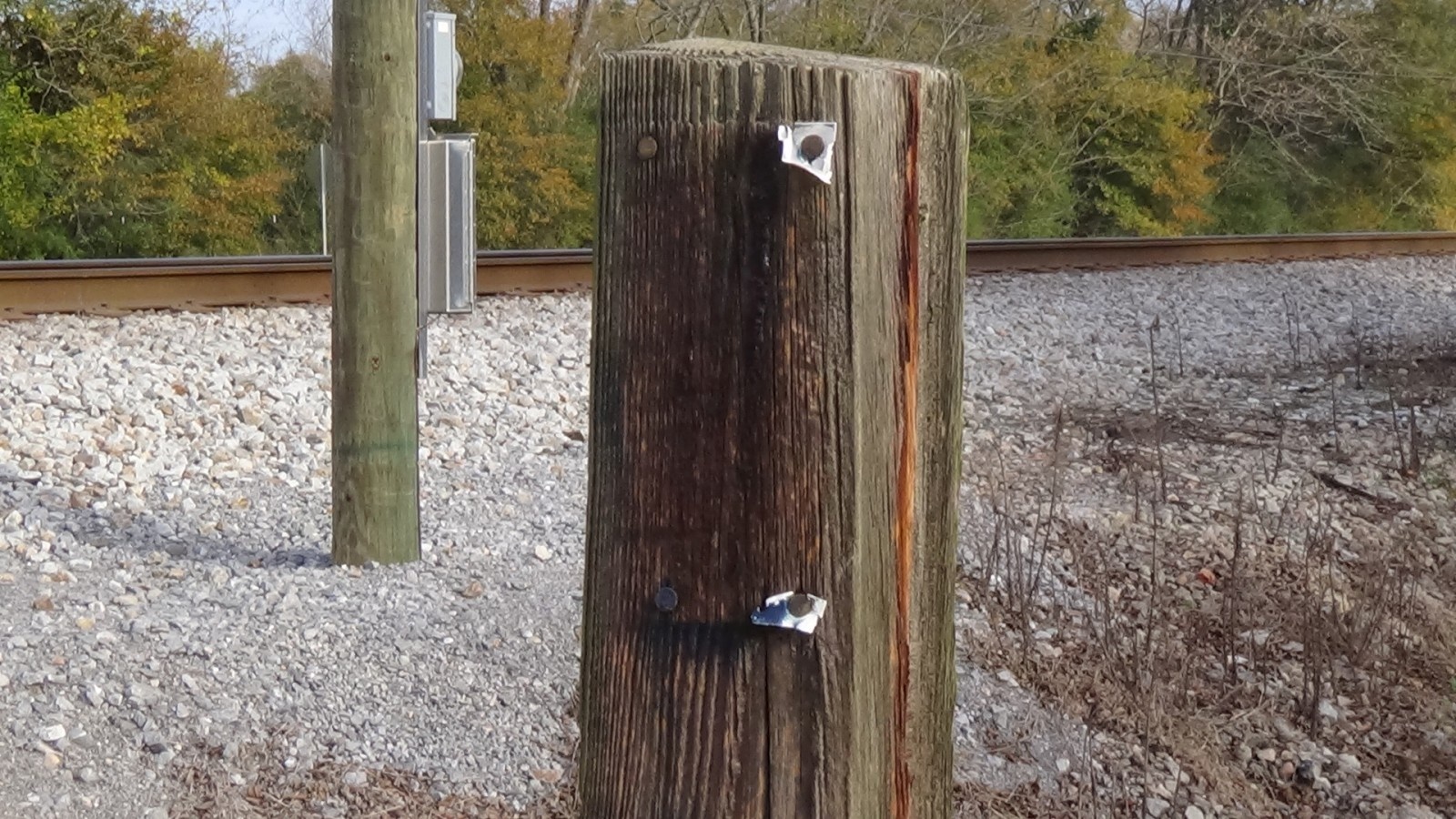

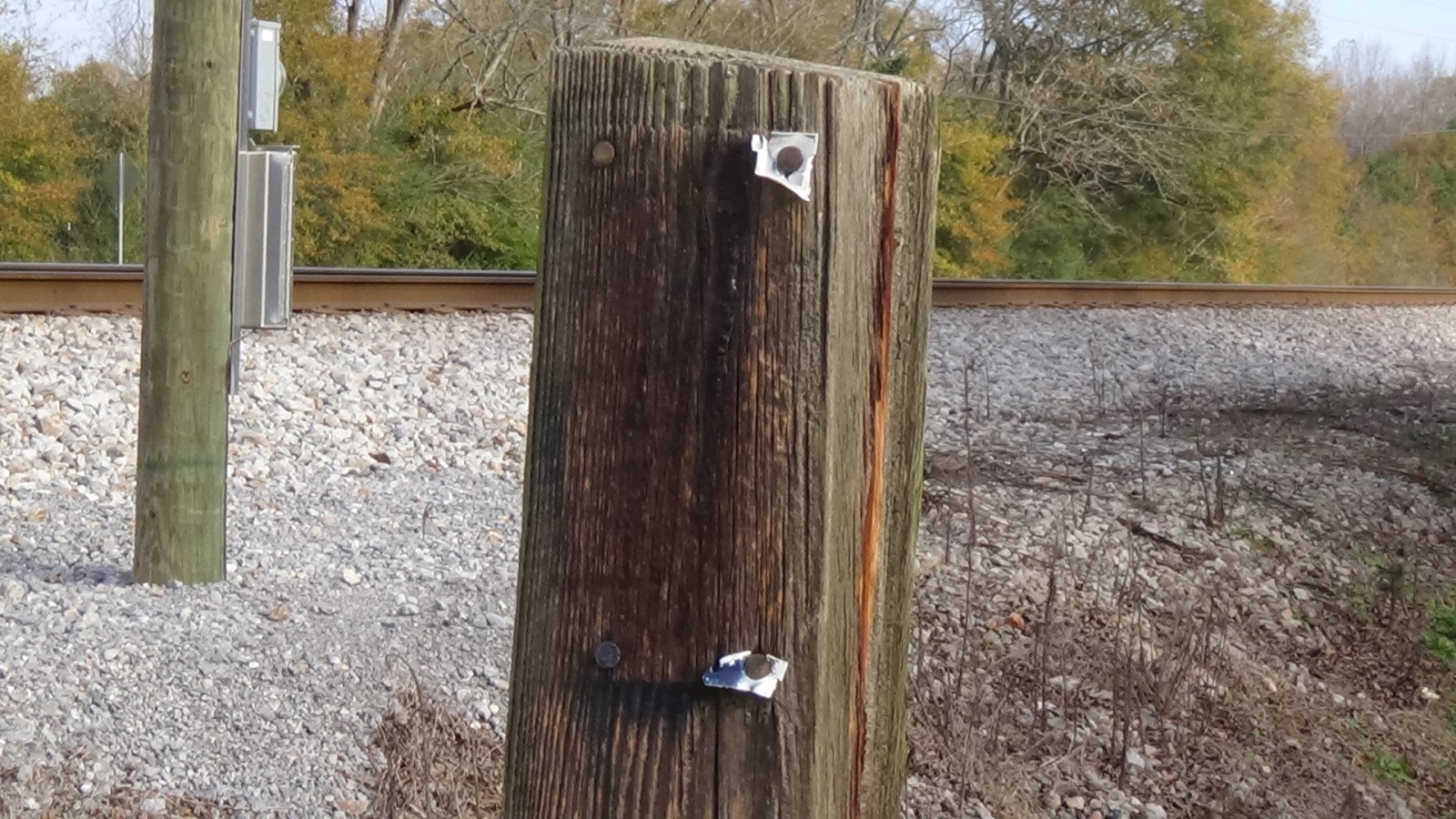

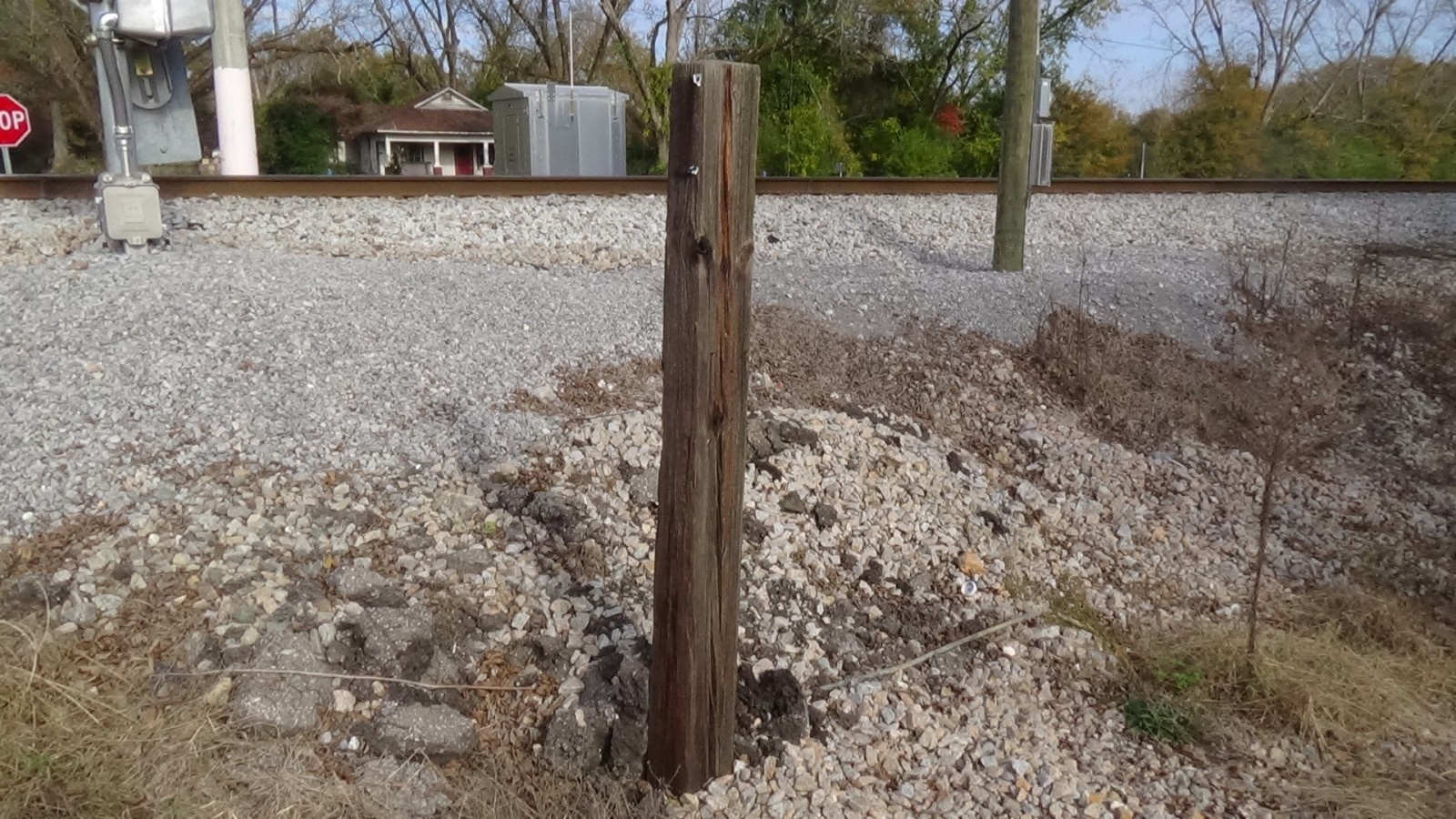

This wooden stump with the remains of an L&N DOT tag on the side is all that's left of the pair of crossbucks that used to be here.
|
||
All pictures were taken on 11-29-17.
