MP: 000445.34 |
Created June 25, 2018
Total Accidents: 2
Crossing
DOT #: 352336T
TOTAL
DAILY TRAINS: 14 (AS OF 2017)
Page created by: freebrickproductions
This crossing is located on the CSX S&NA South Subdivision.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | NEG electronic | NEG electronic |
| Base: | WCH | WCH |
| Light Frames: | 4 - 12x24" WCH w/ WCH 2nd Gen LEDs | 4 - 12x24" WCH w/ WCH 2nd Gen LEDs |
| Gate Lights: | 3 - RECOs | 3 - RECOs |
| Gate Mechanism: | Invensys Rail | Invensys Rail |
| Gate Striping: | Vertical | Vertical |
1 |
2 |
3 |
4 |

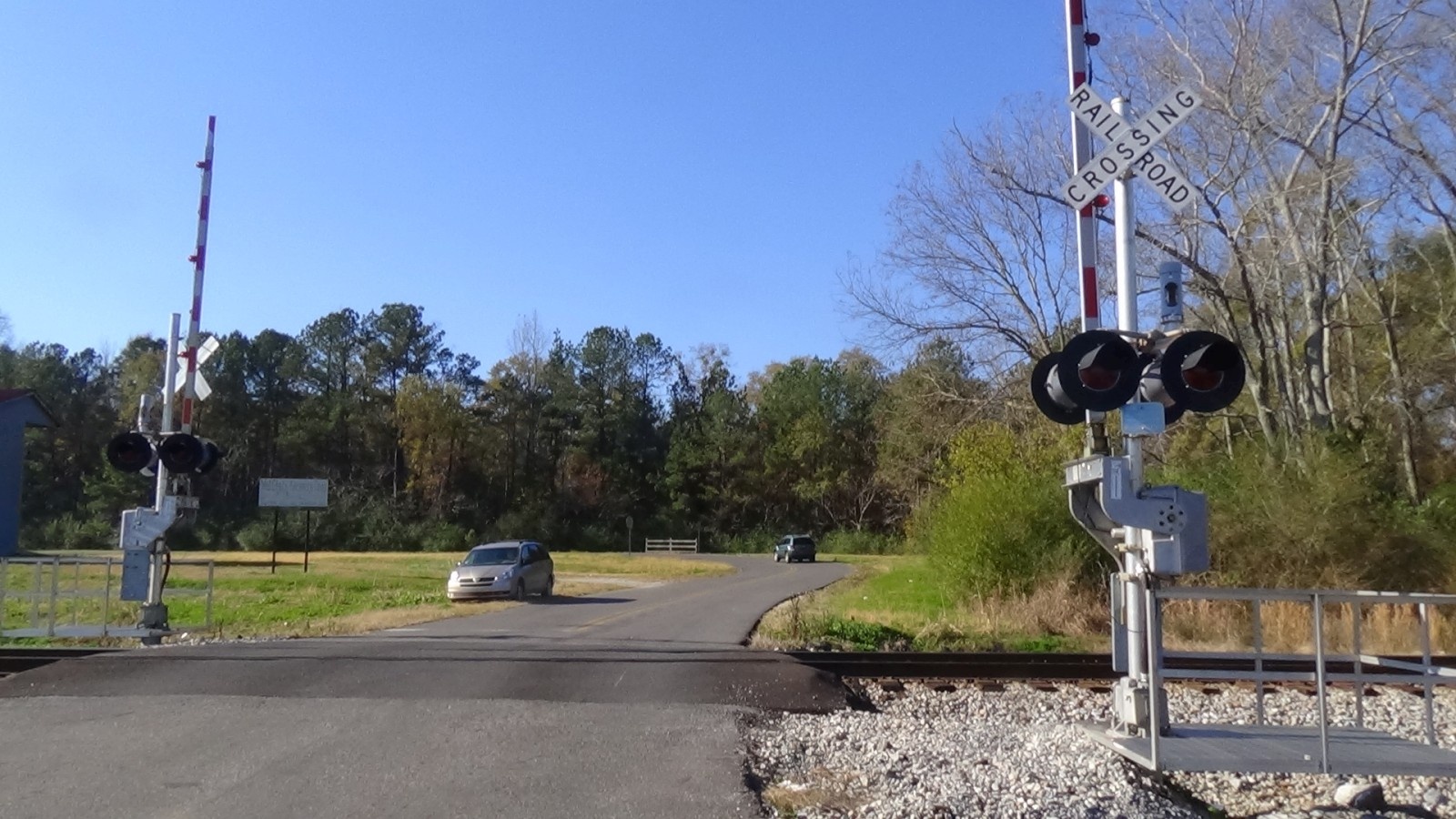

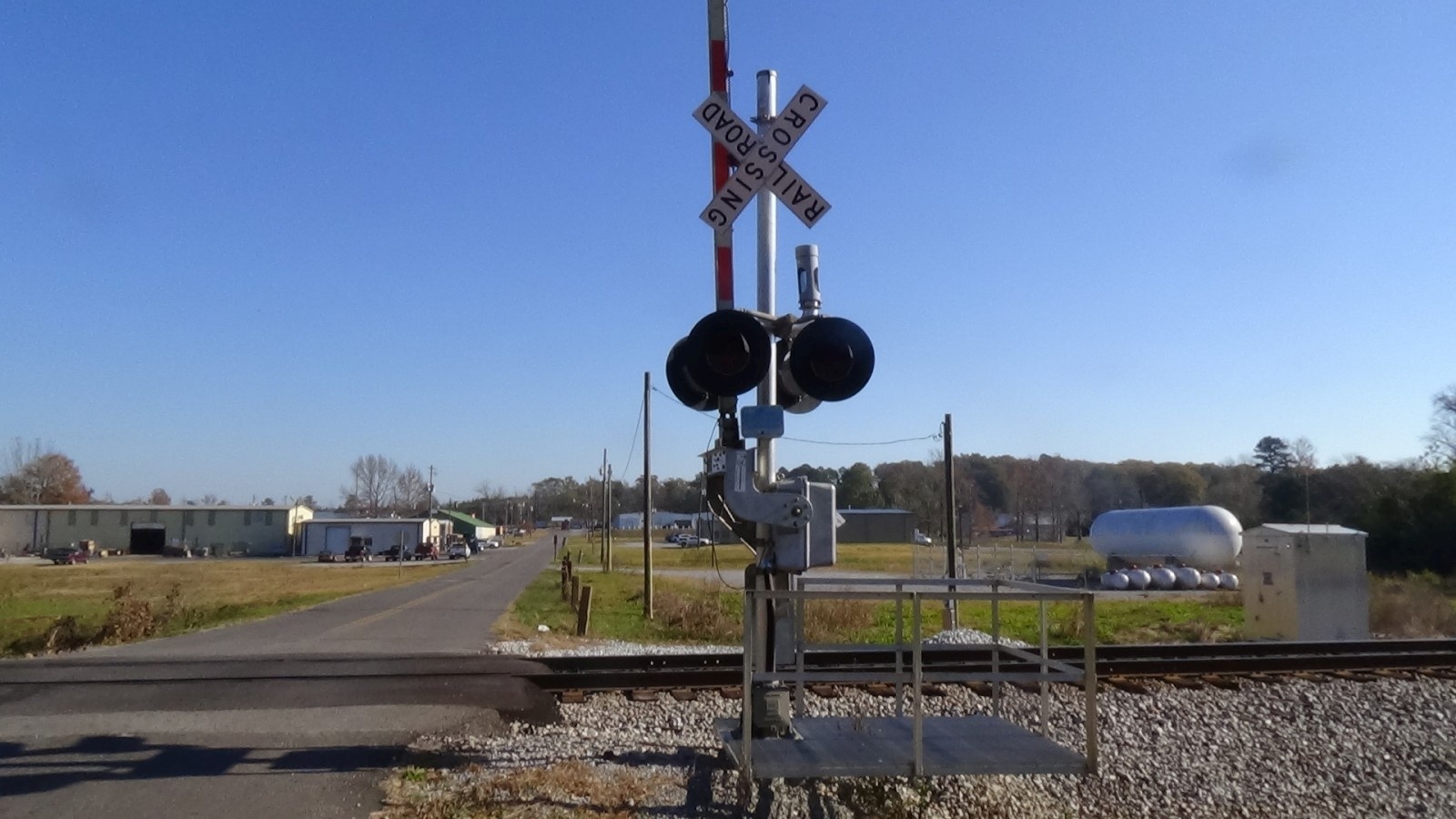

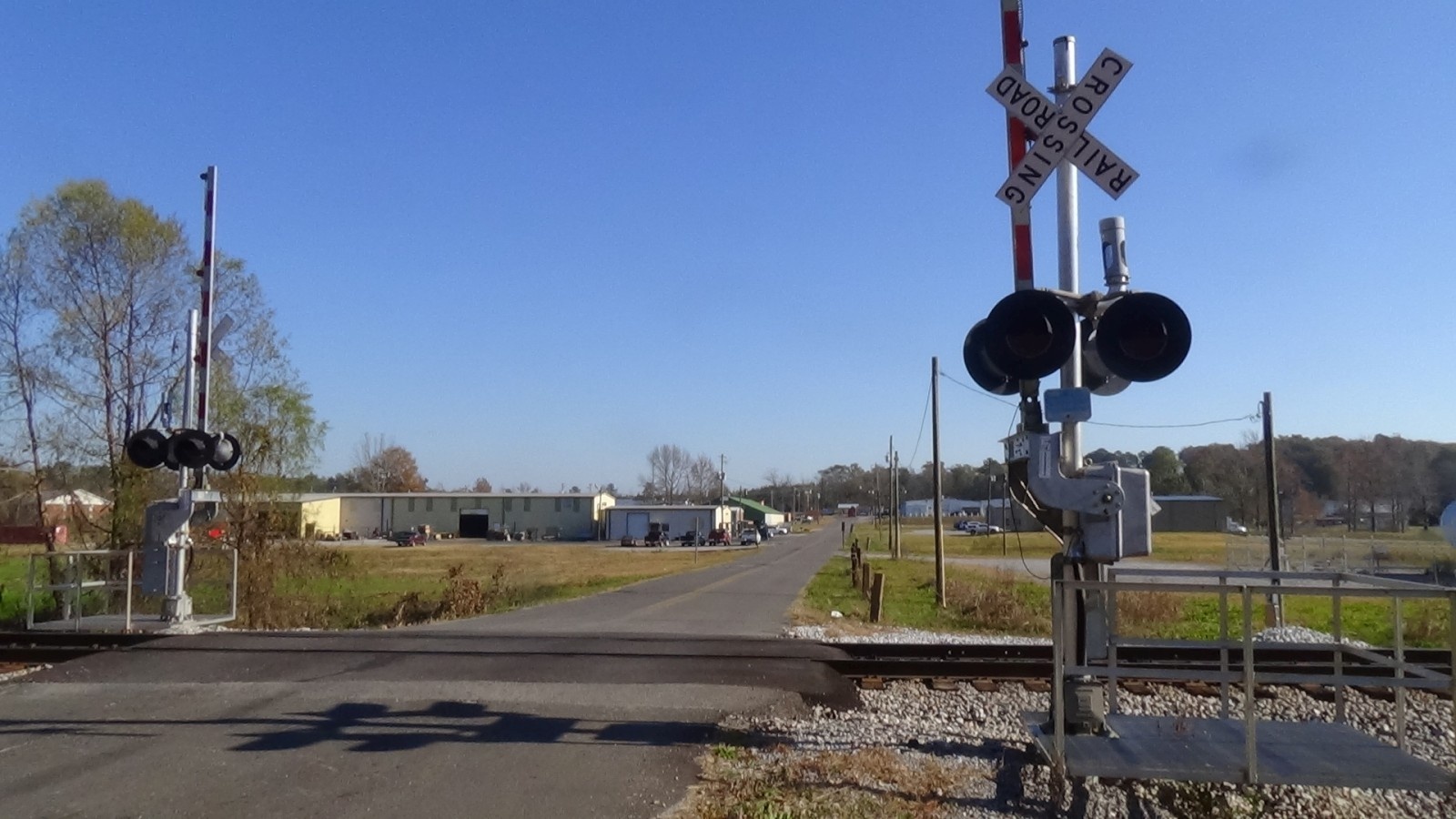

Overviews of this crossing, with a pair of CSX signals from 2012. |

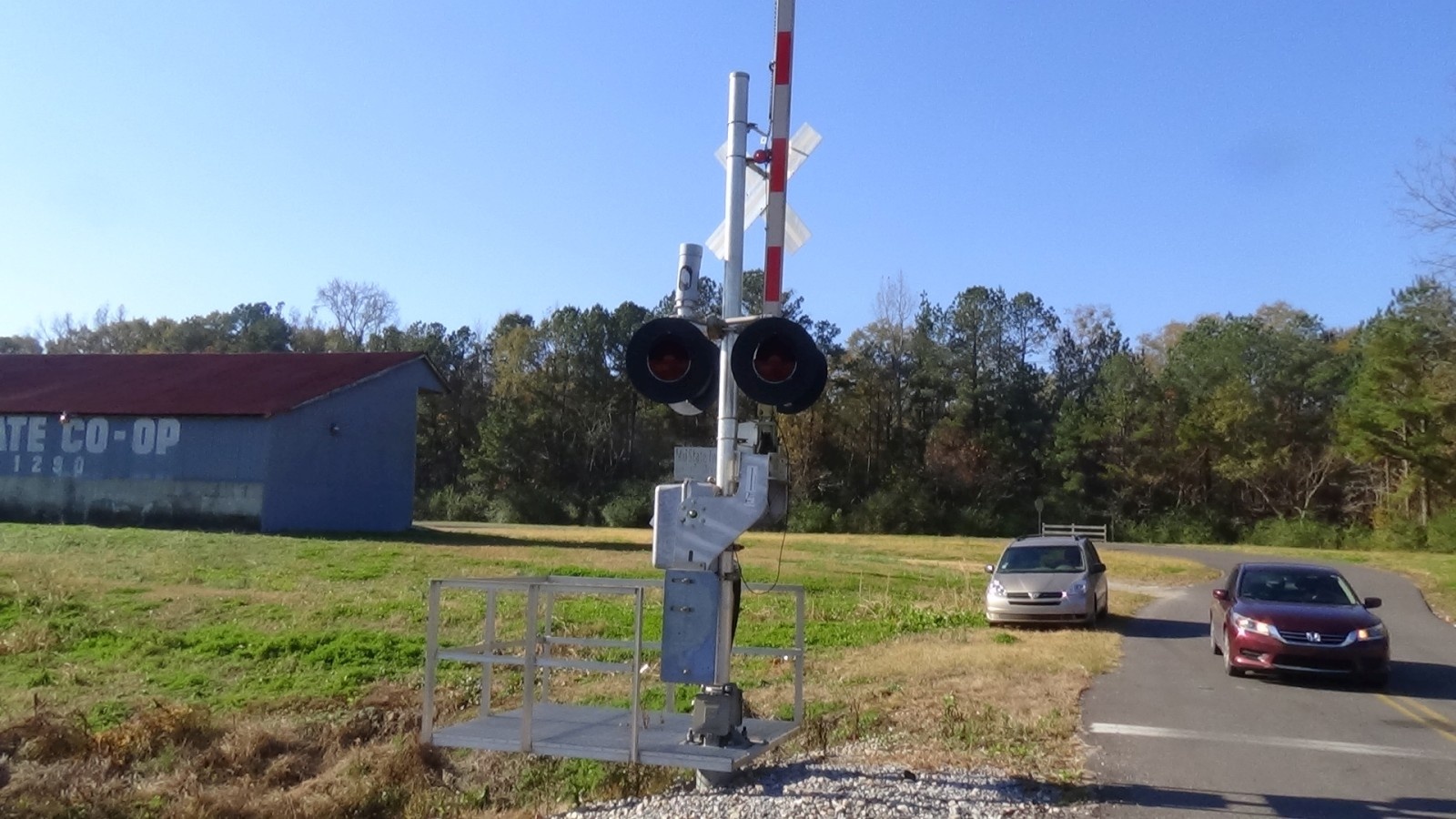

The first signal. |
||
5 |
6 |
7 |
8 |

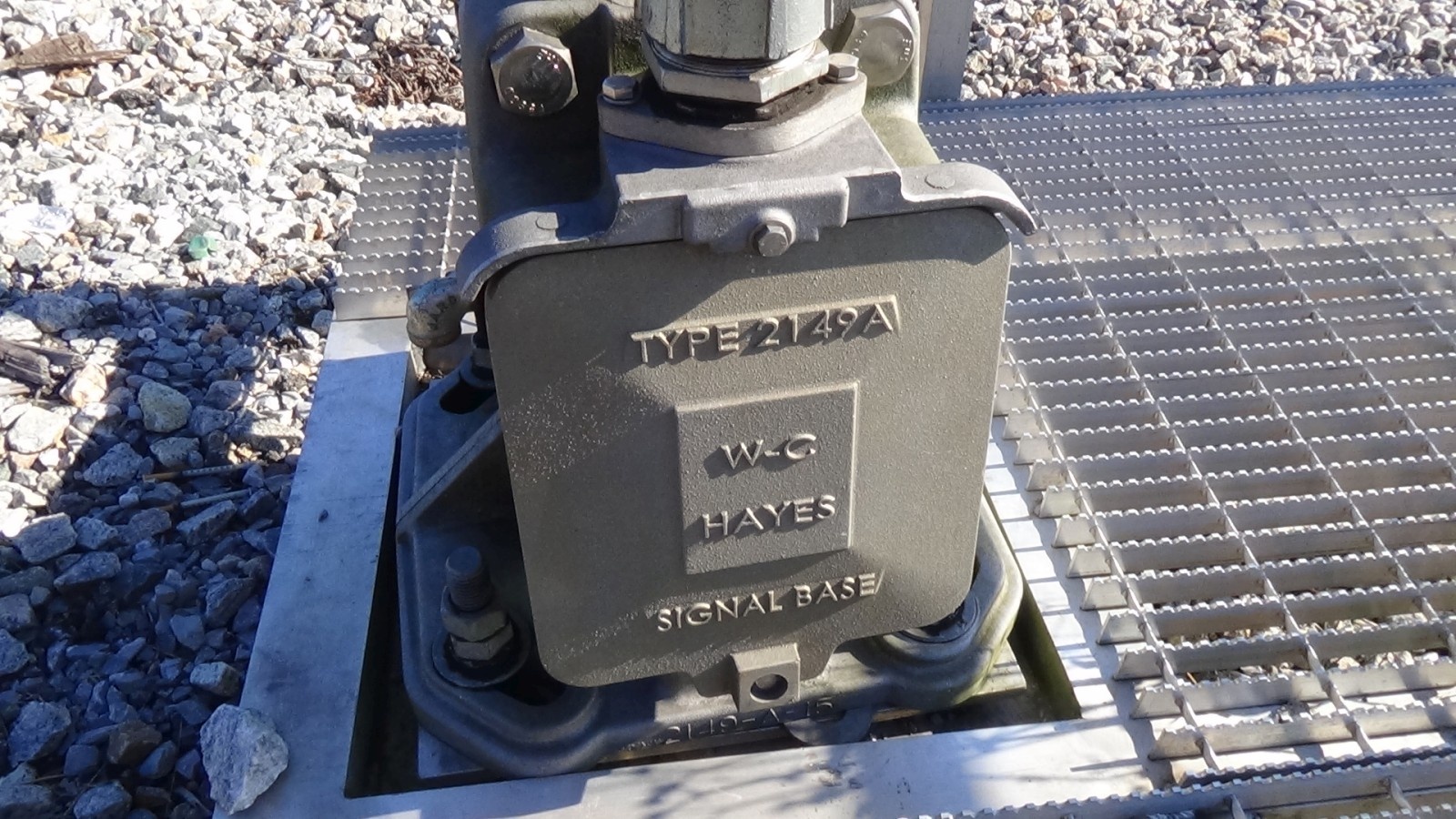

It has a WCH base. |

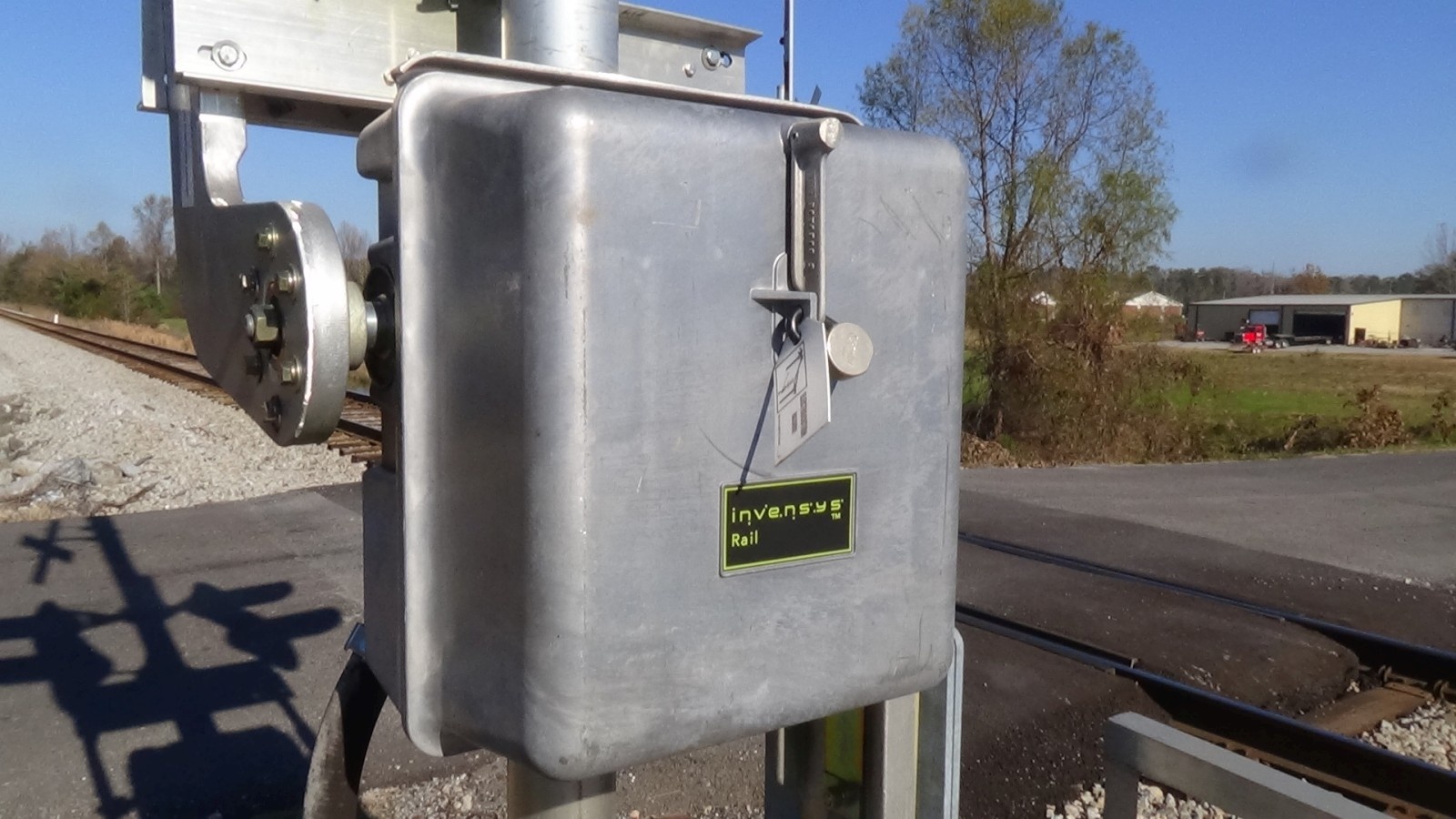

An Invensys Rail gate mechanism. |

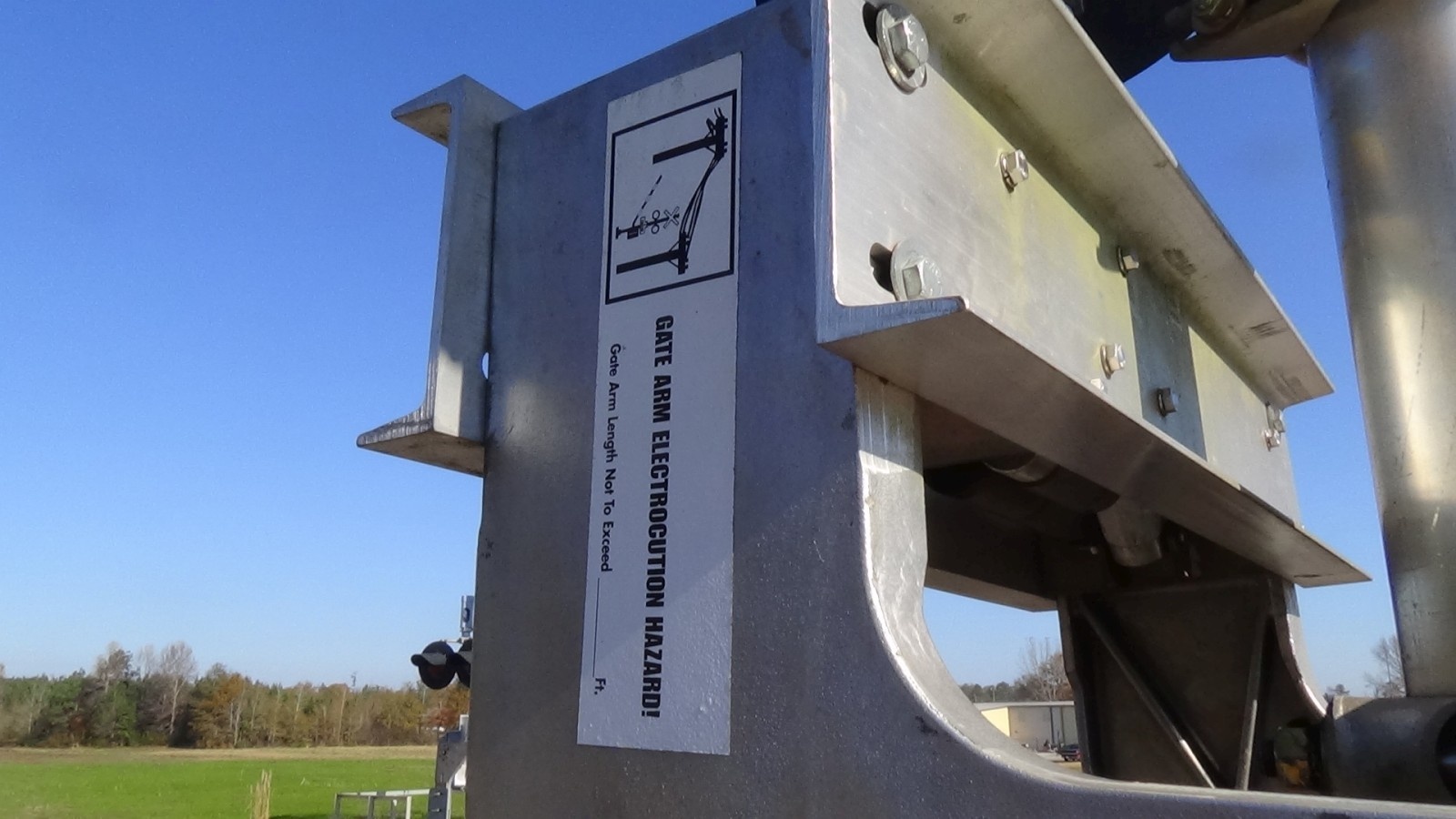

A warning sticker about overhead power lines. |

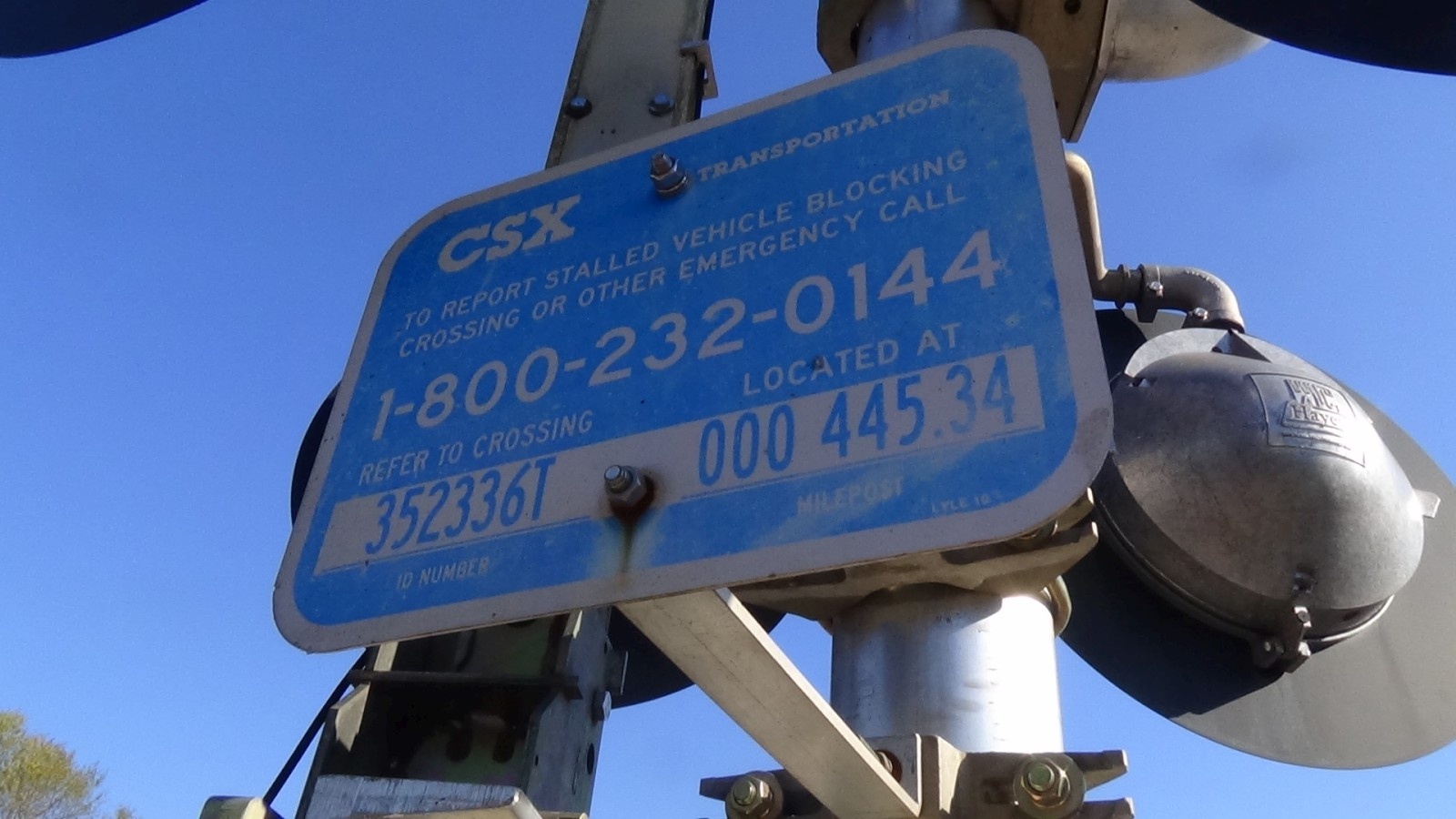

The emergency information. |
9 |
10 |
11 |
12 |

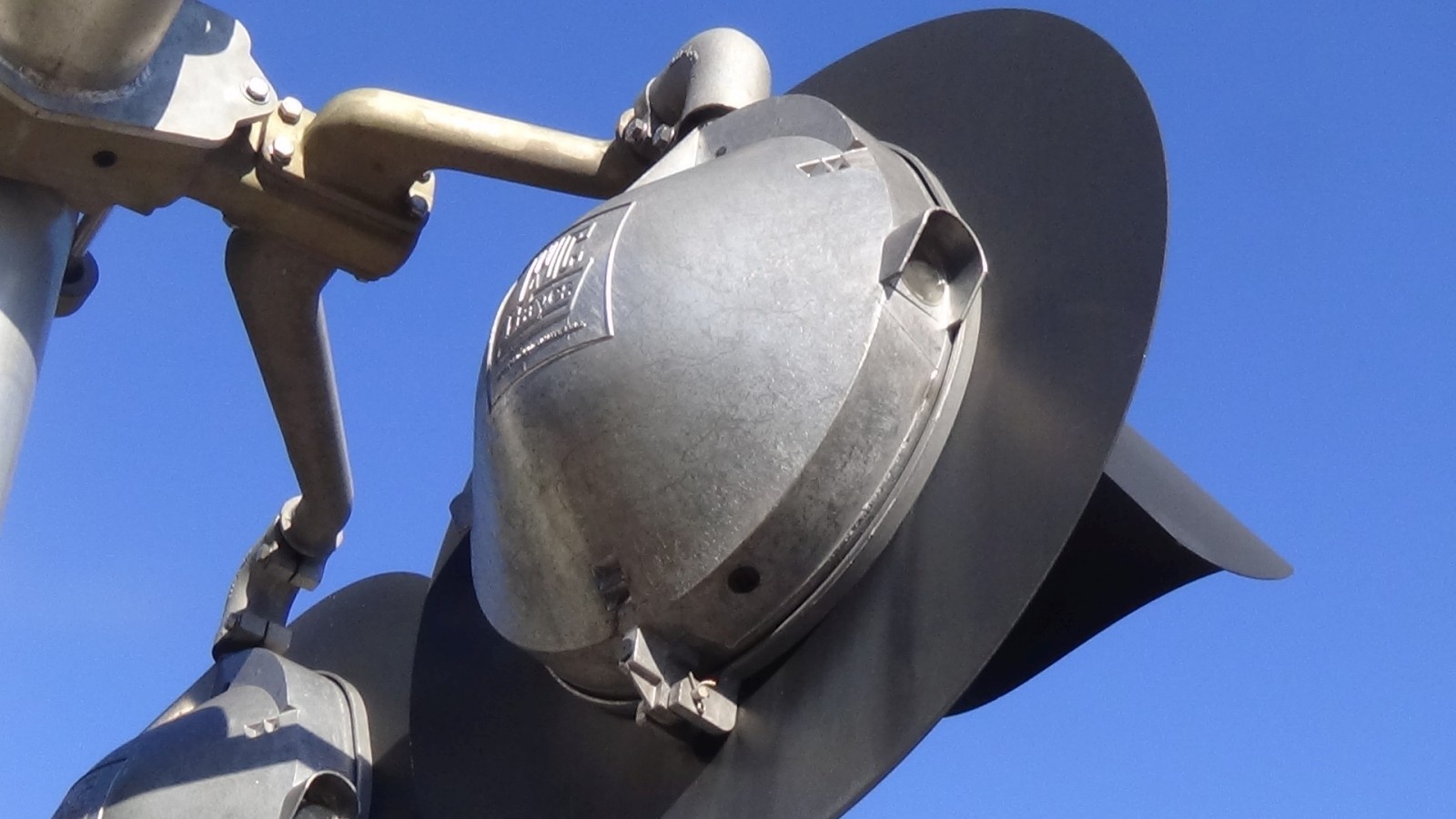

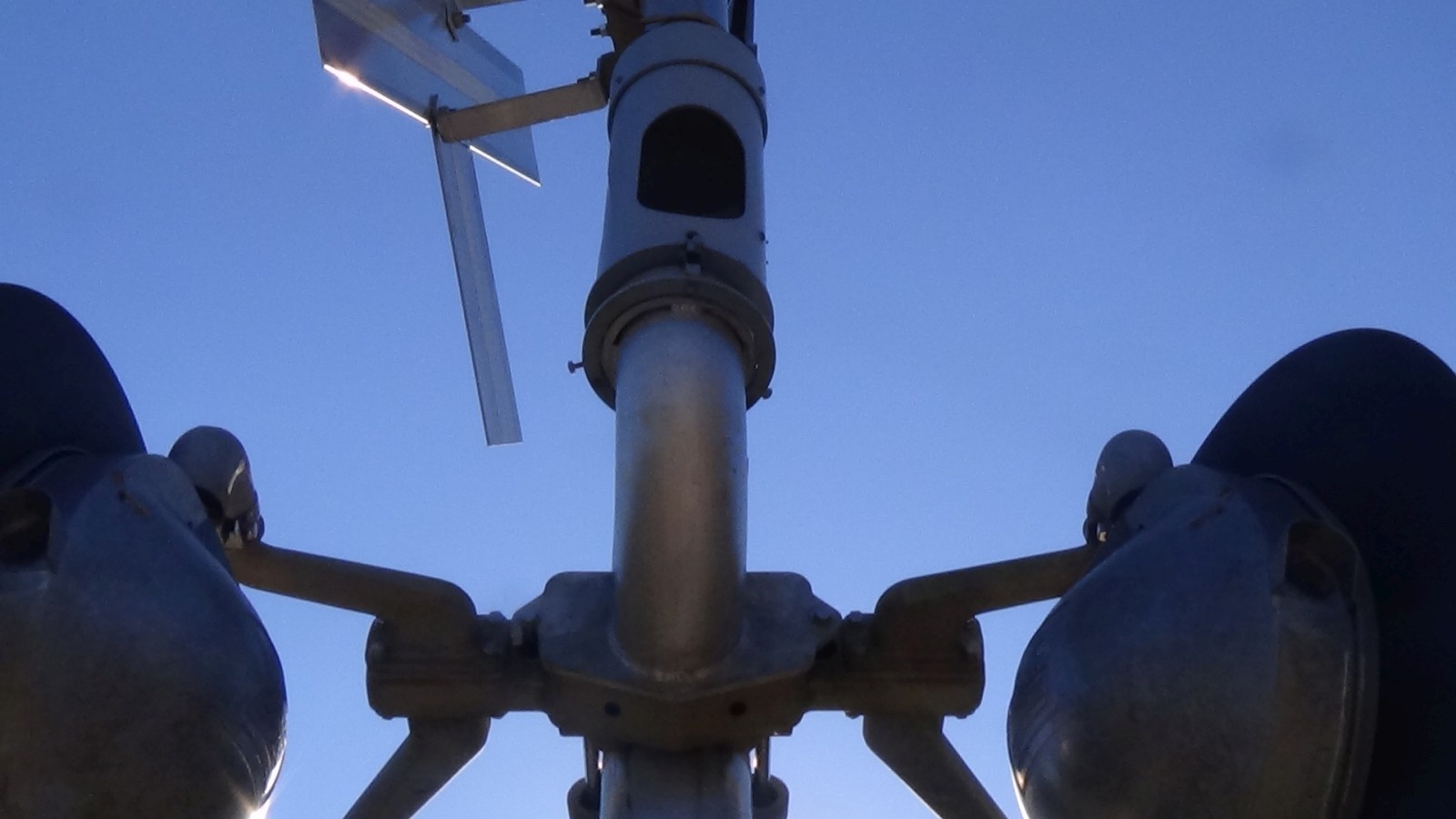

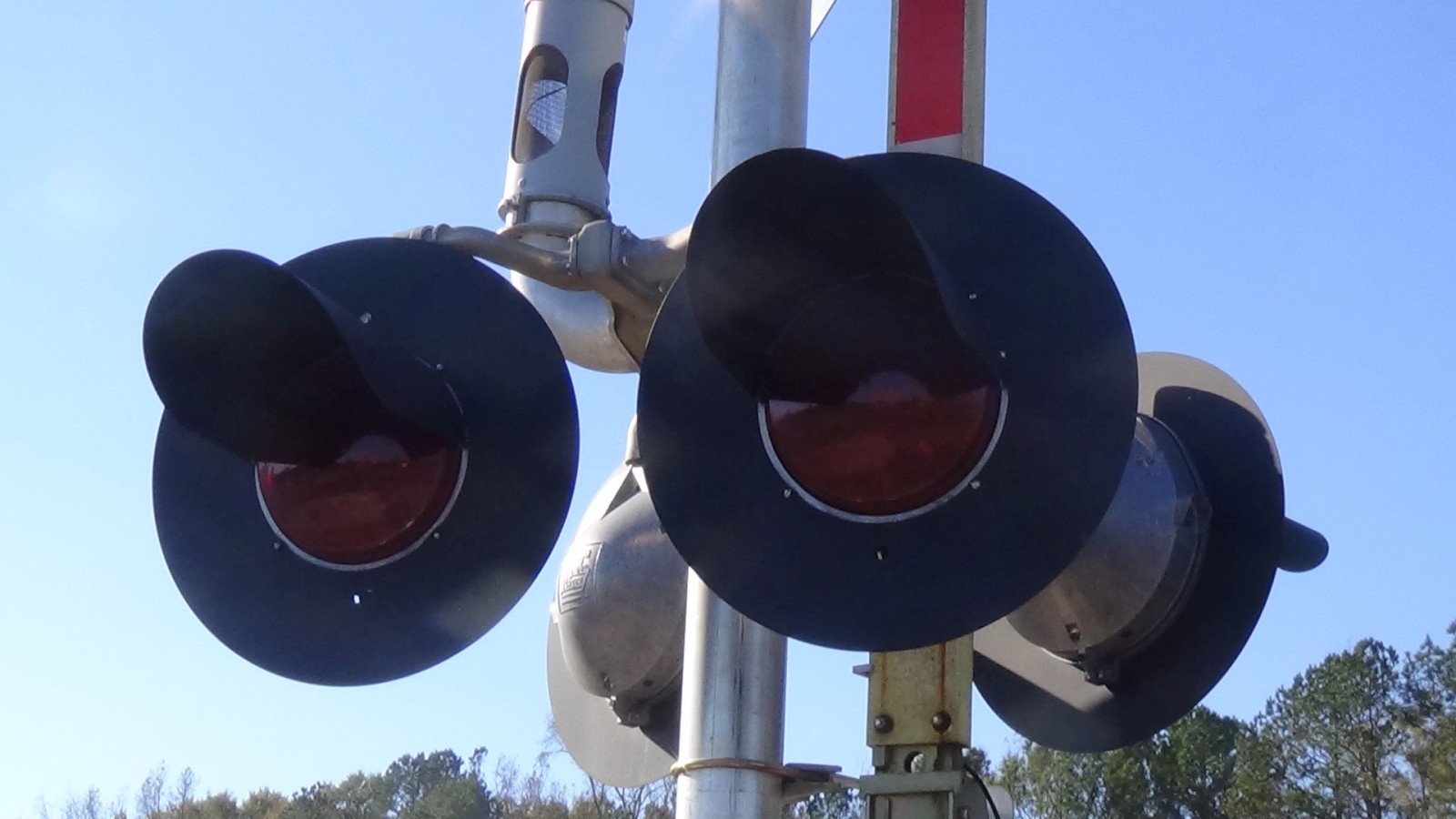

This signal uses WCH 12x24 inch lights with WCH 2nd Generation LEDs. |

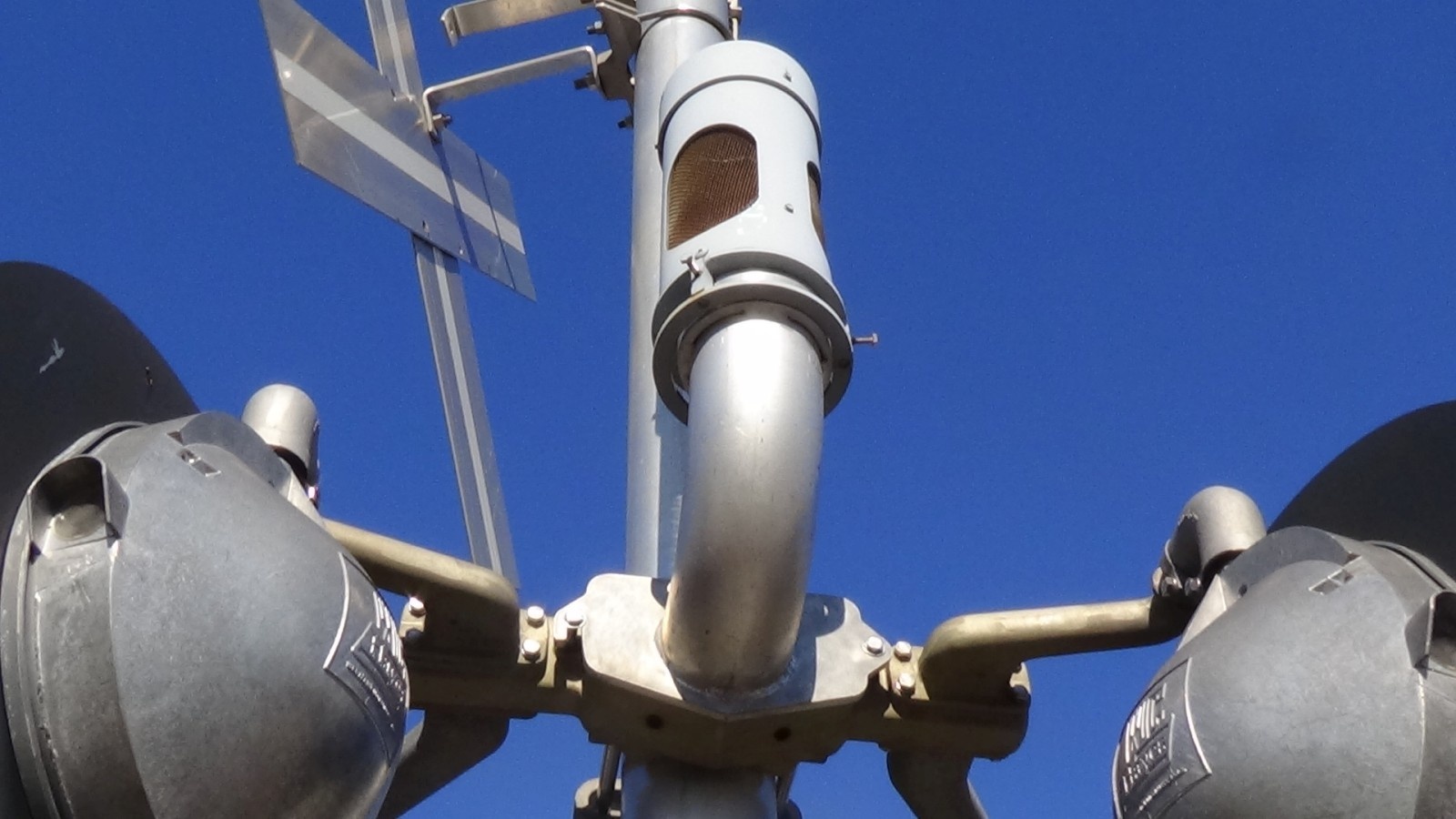

An NEG electronic bell here. |

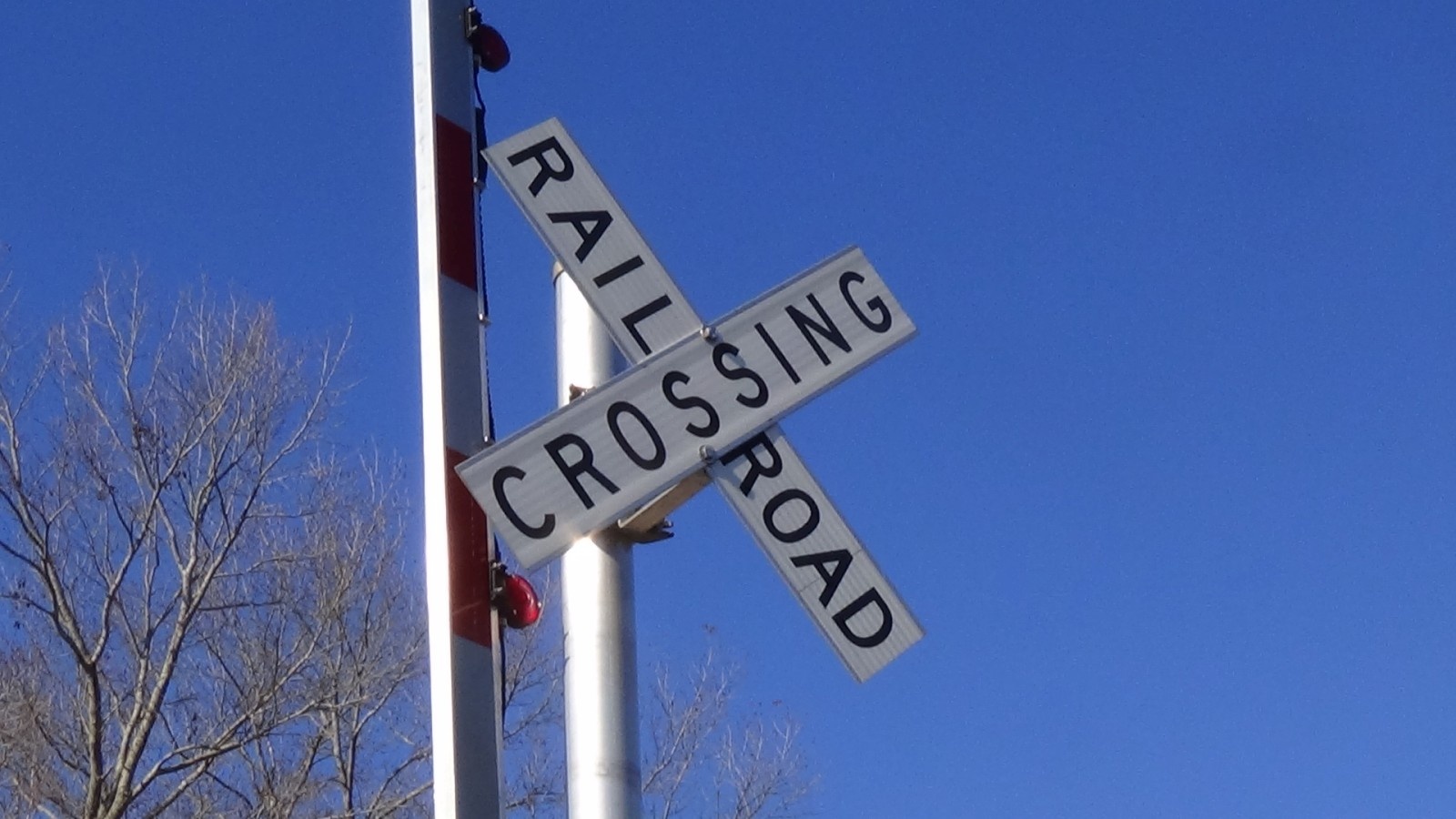

This crossbuck's missing a bolt! |
|
13 |
14 |
15 |
16 |

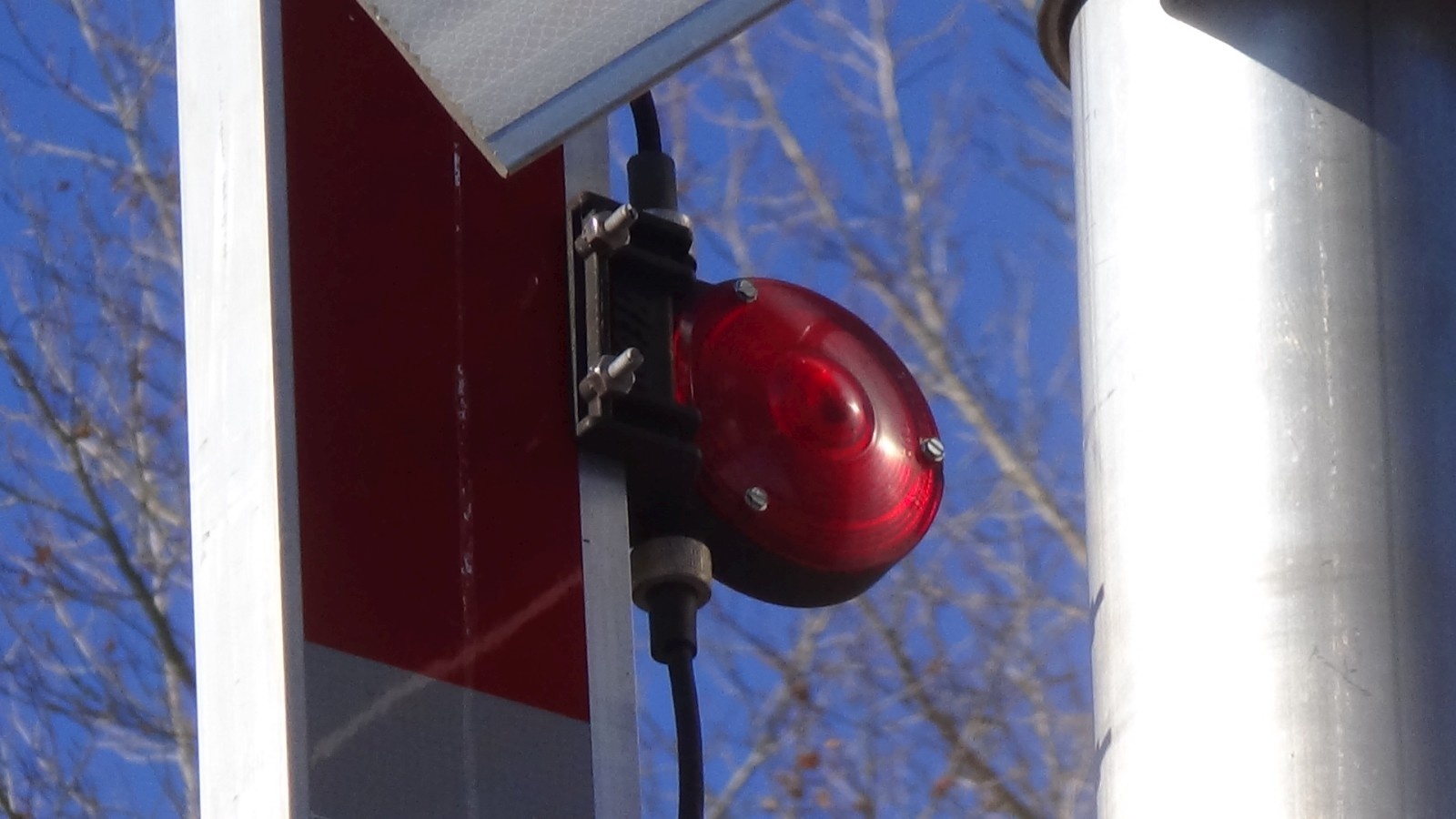

RECO gate lights on this signal. |

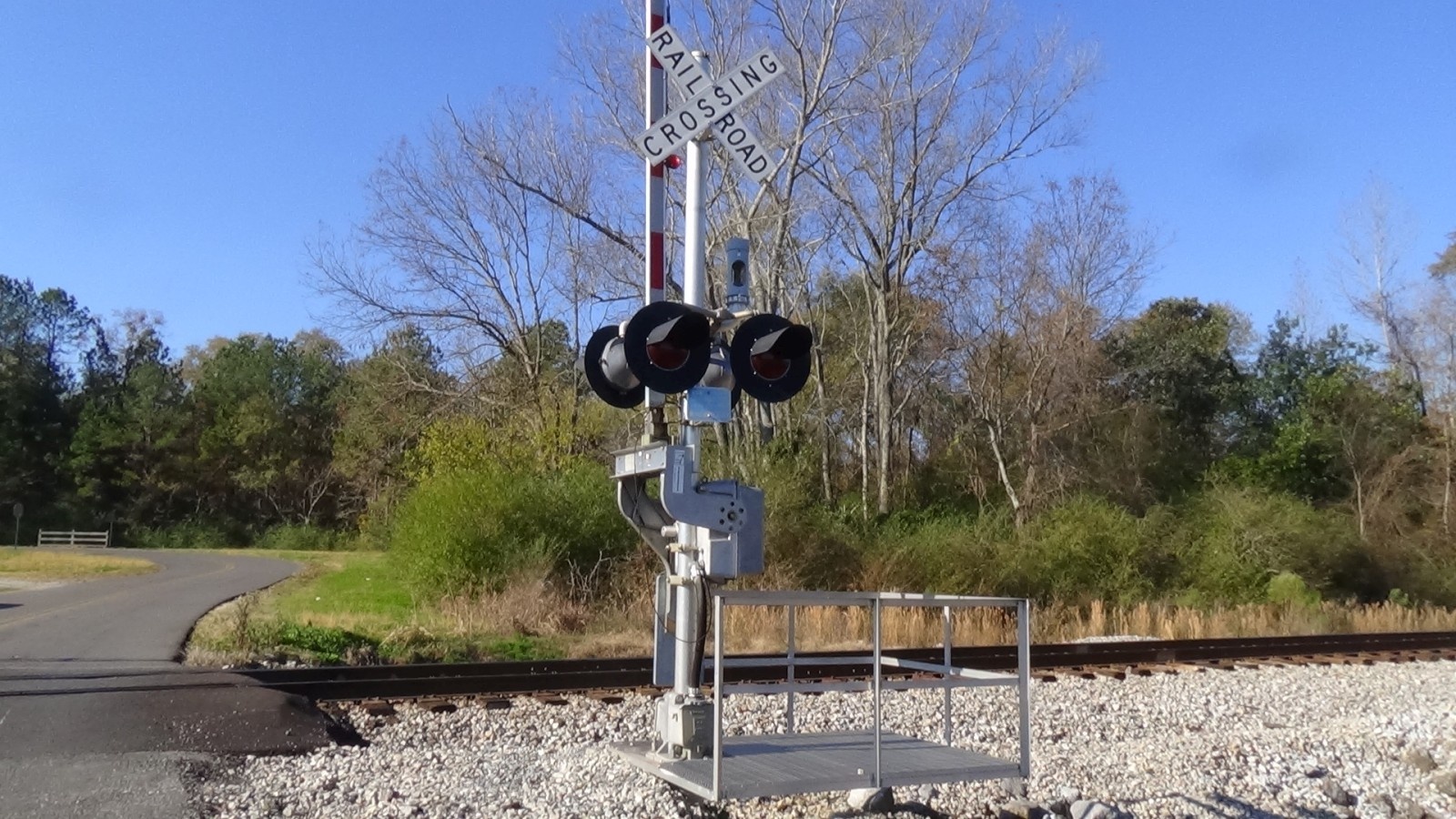

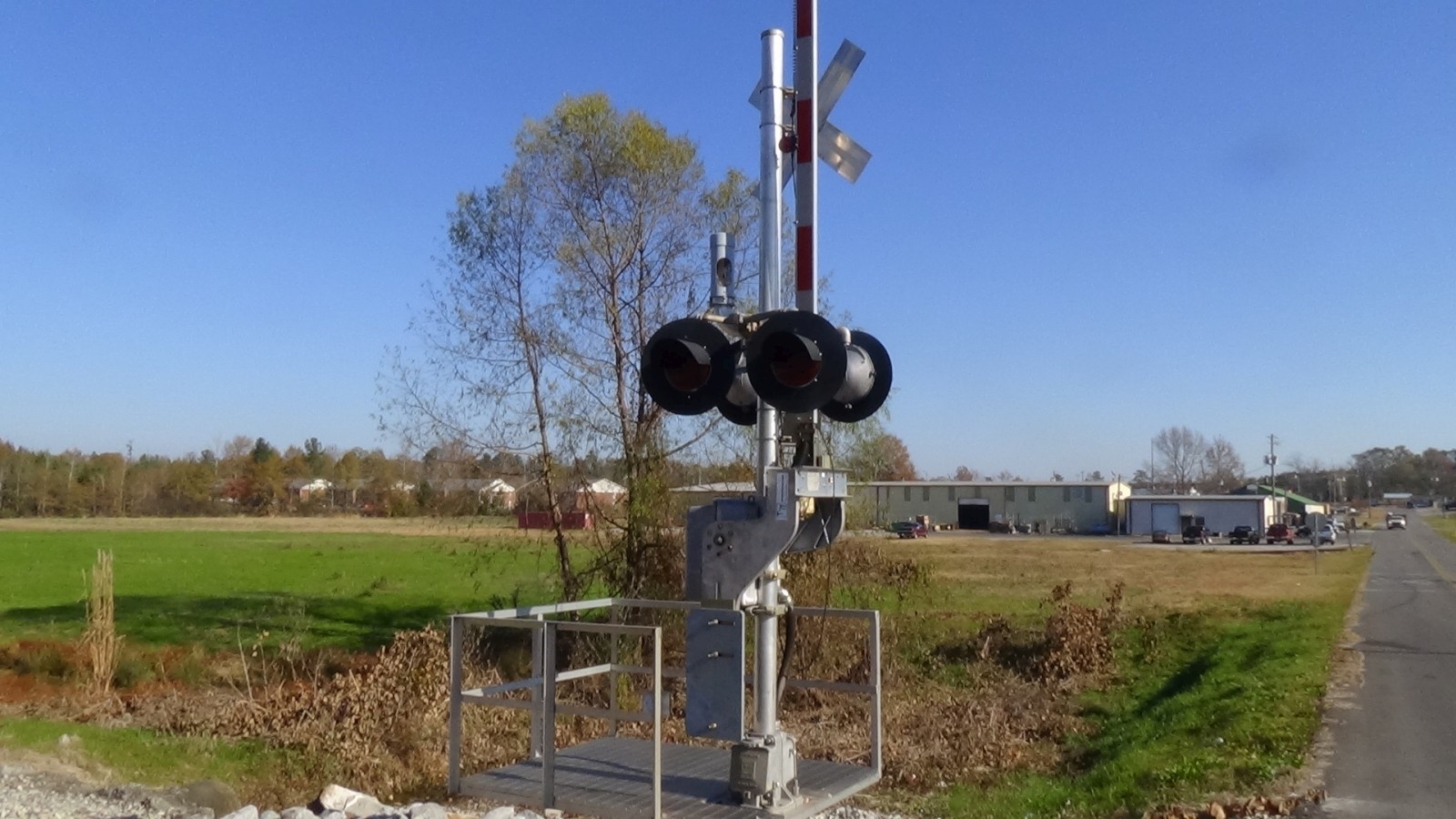

The second signal. |

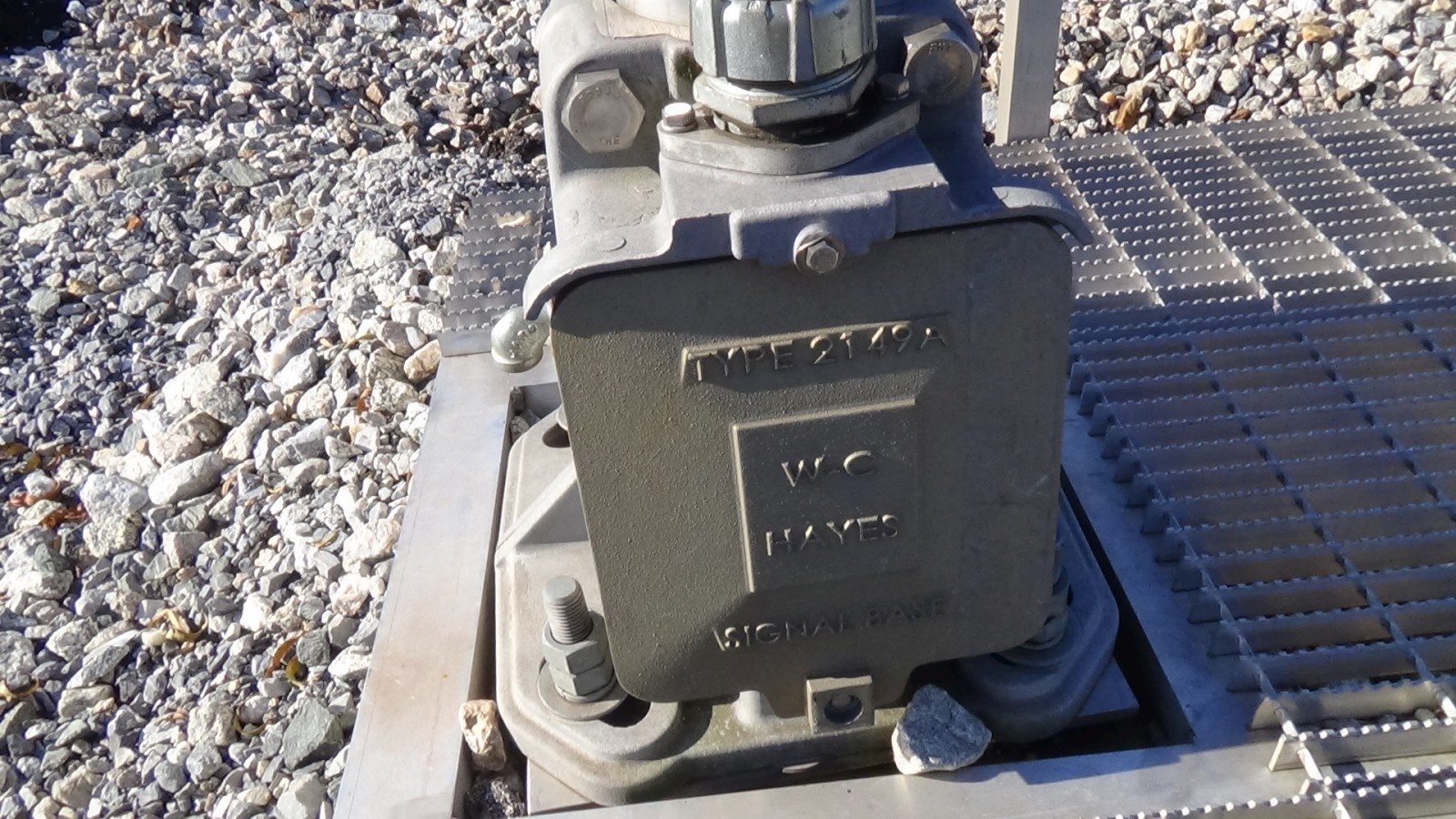

It uses another WCH base. |
|
17 |
18 |
19 |
20 |

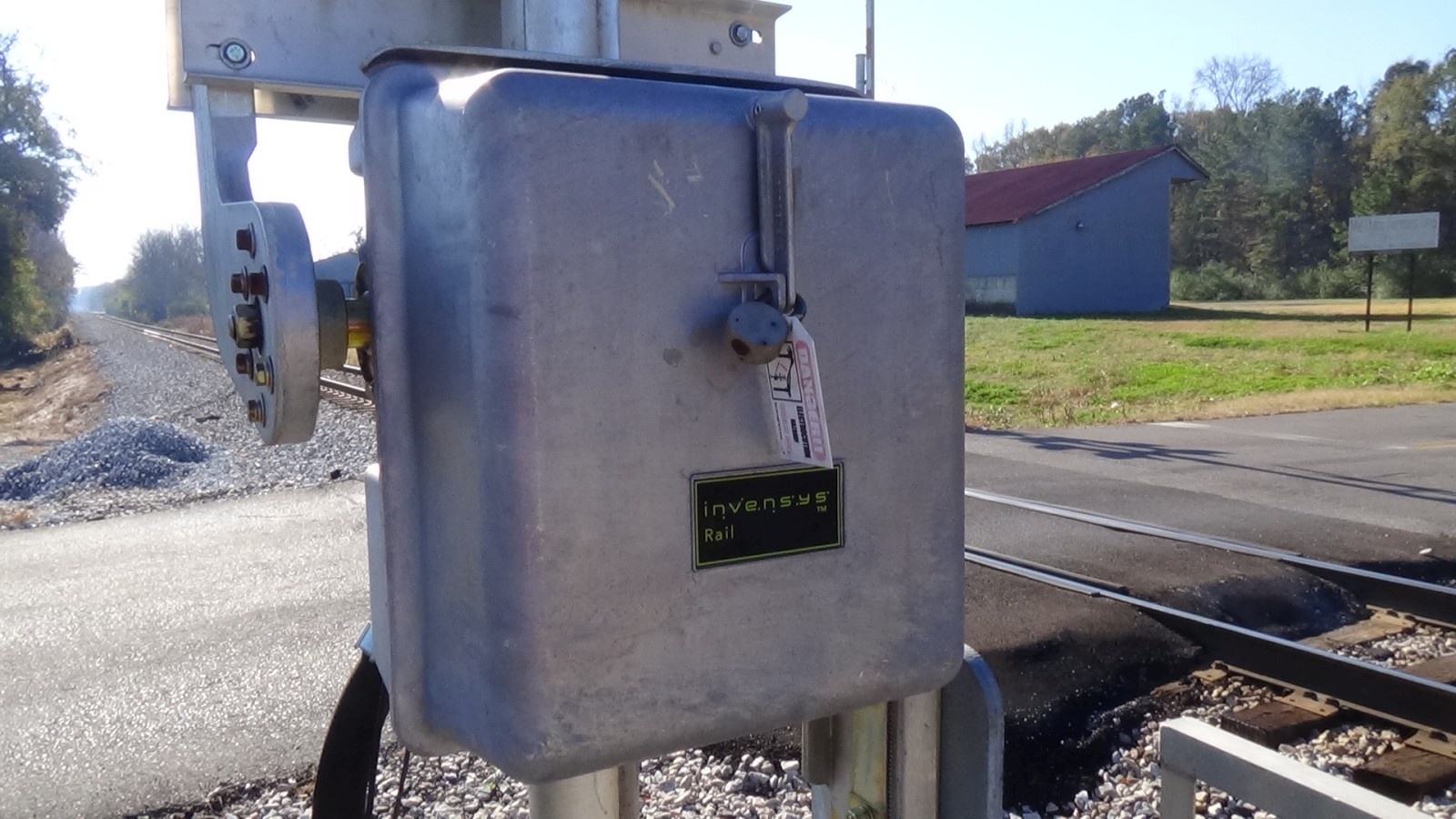

Another Invensys Rail gate mechanism. |

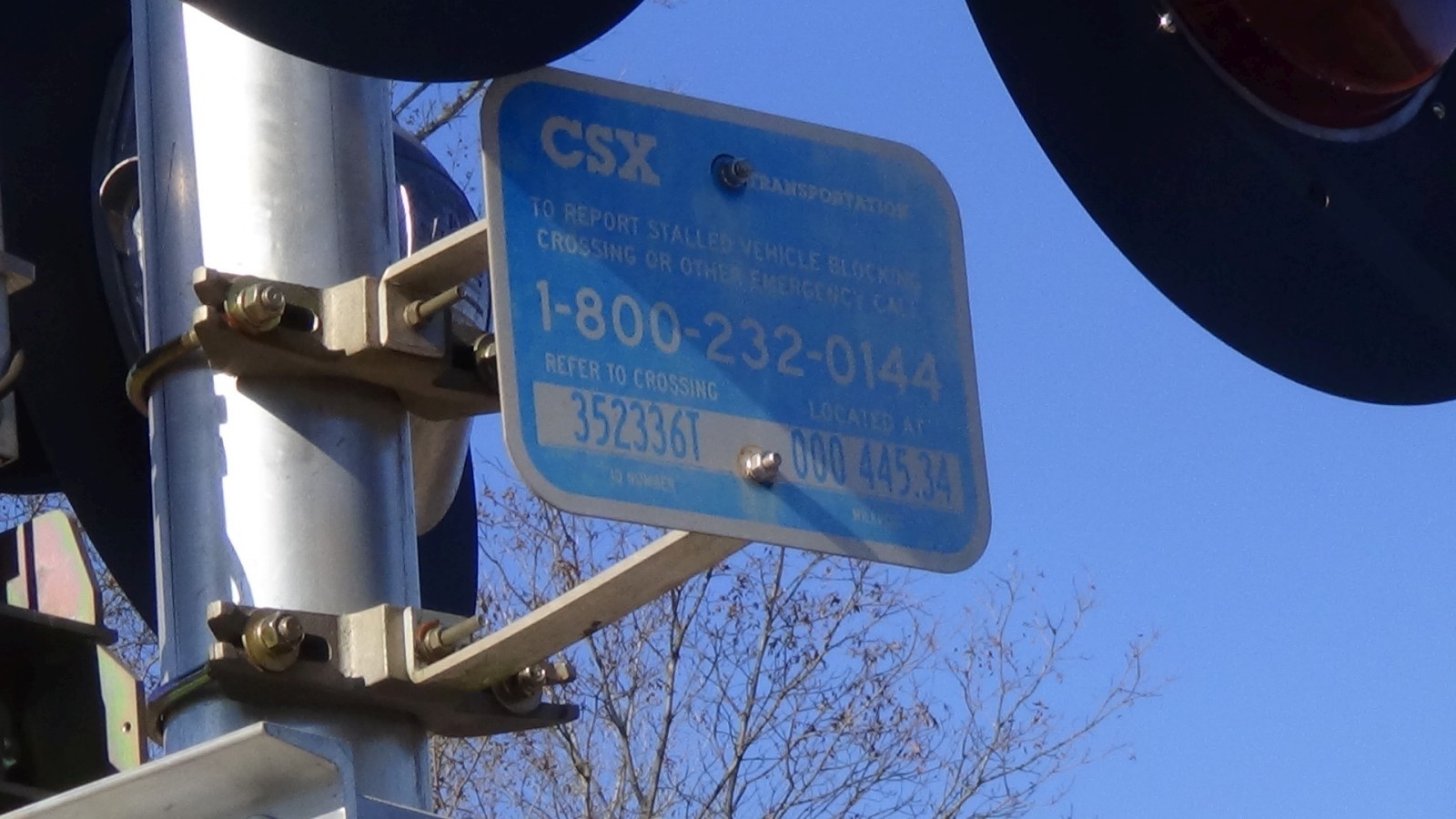

The emergency information. |

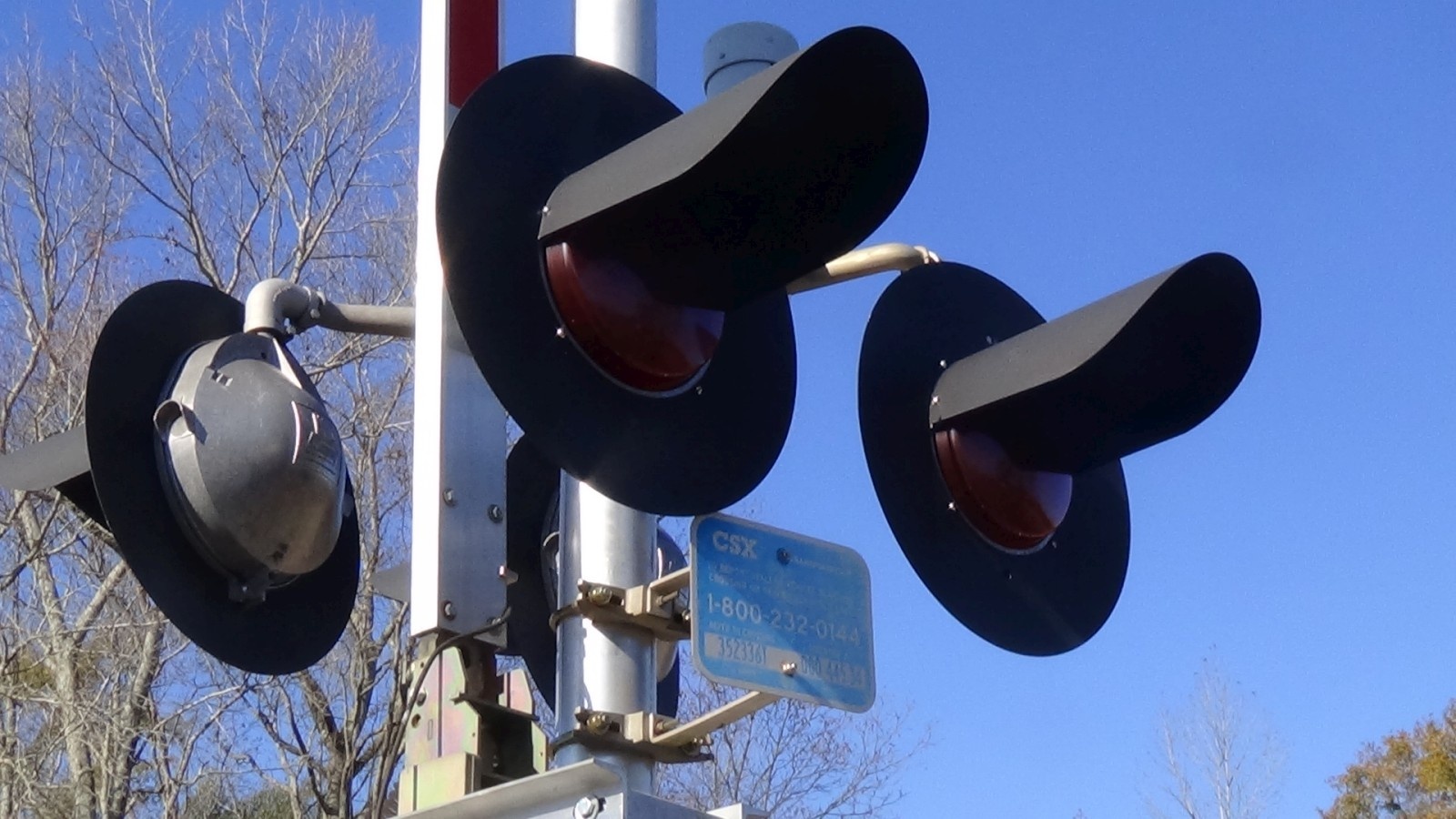

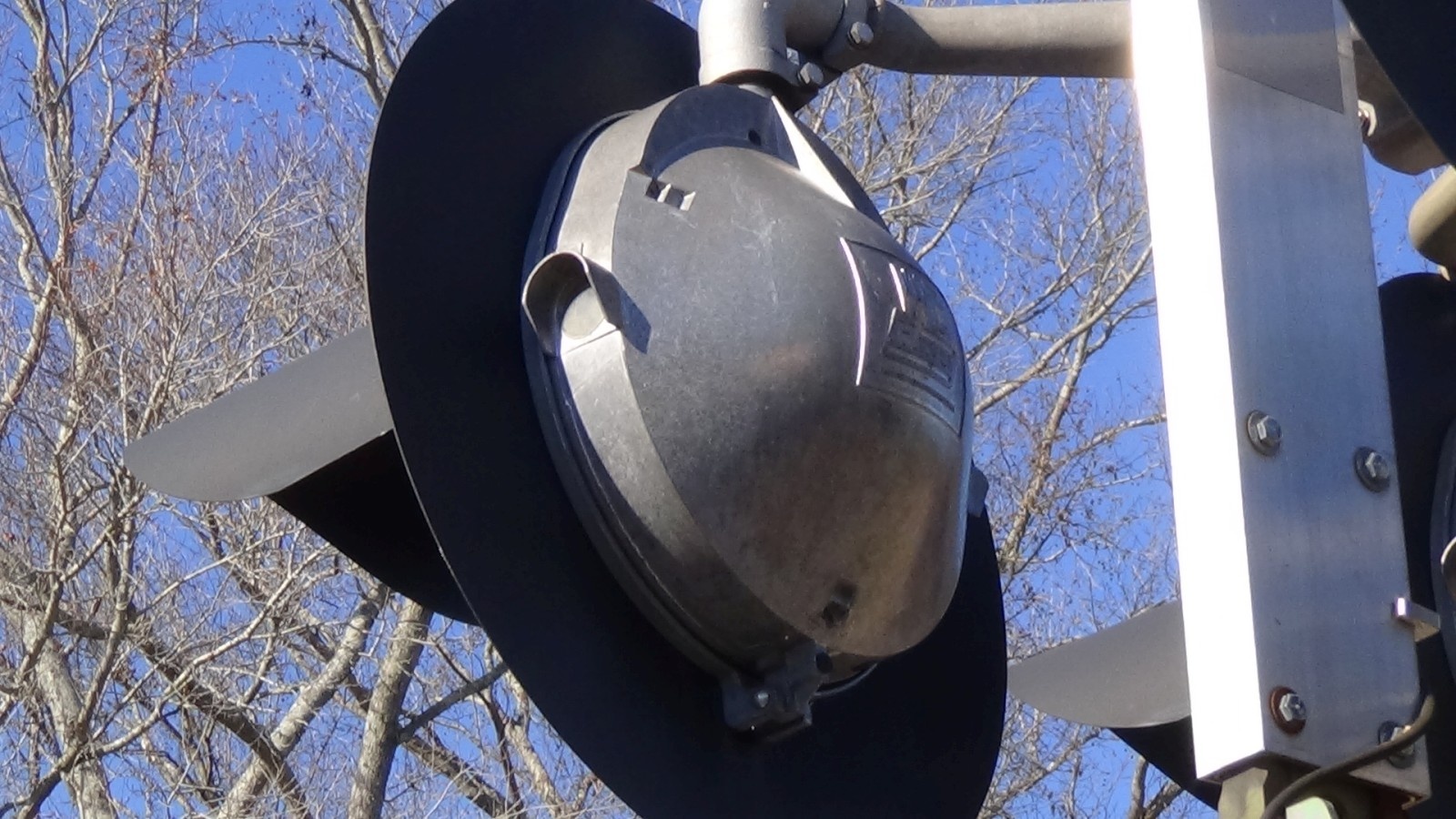

More WCH 12x24 inch lights with WCH 2nd Generation LEDs on this signal. |
|
21 |
22 |
23 |
24 |
Another NEG electronic bell over here. |

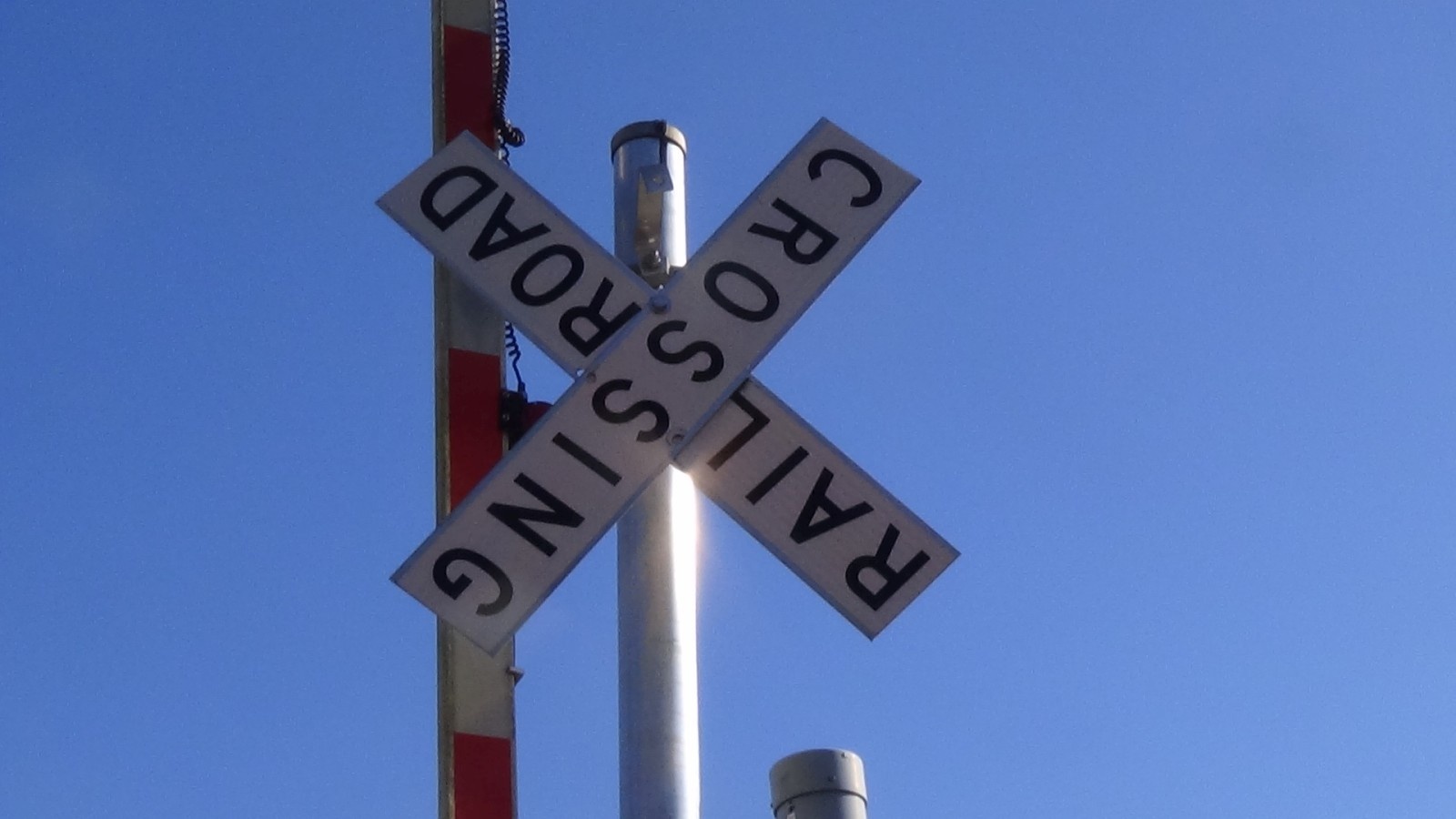

This crossbuck's fine. |
More RECO gate lights on this signal. |

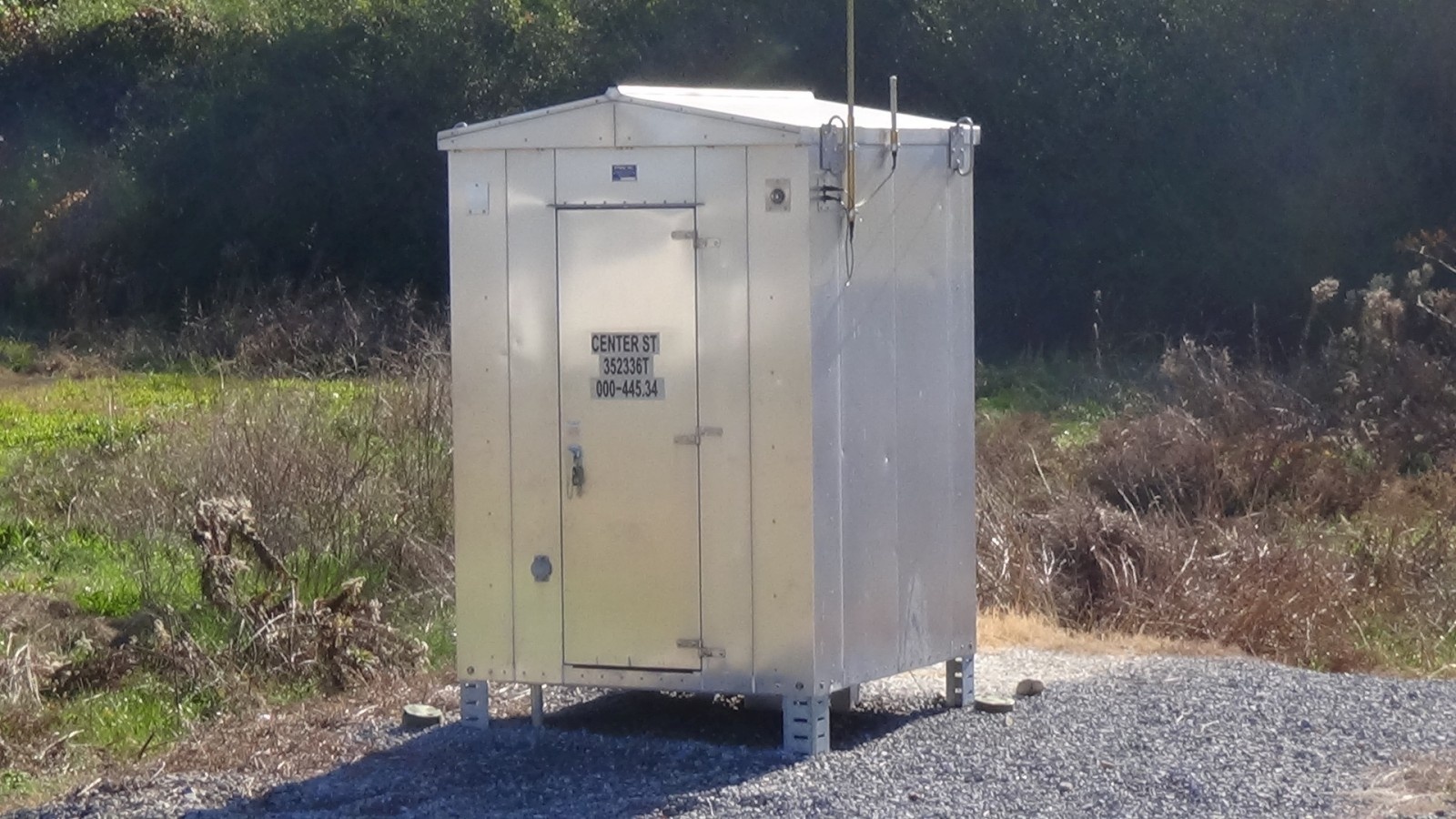

The relay case. |
25 |
26 |

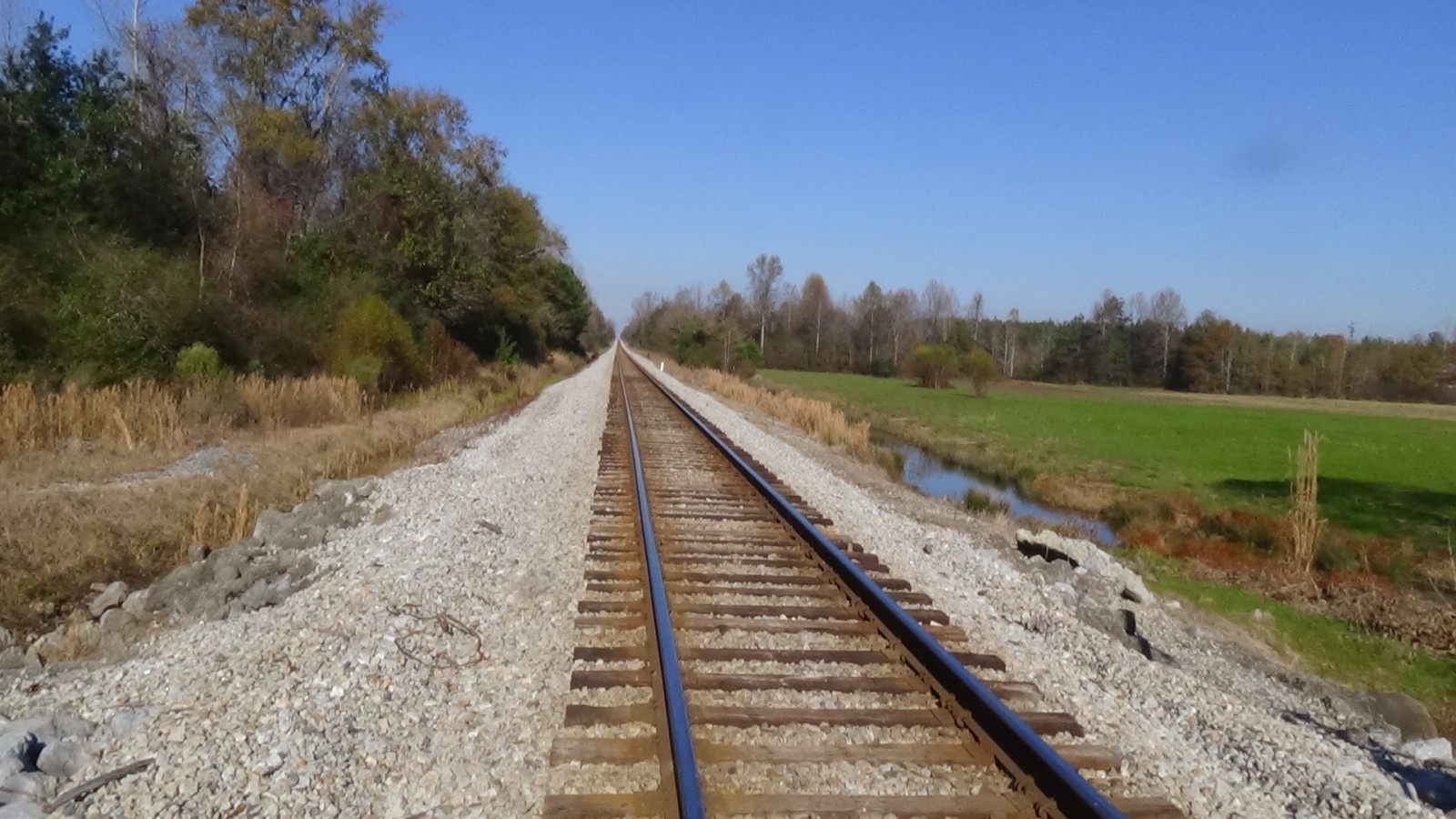

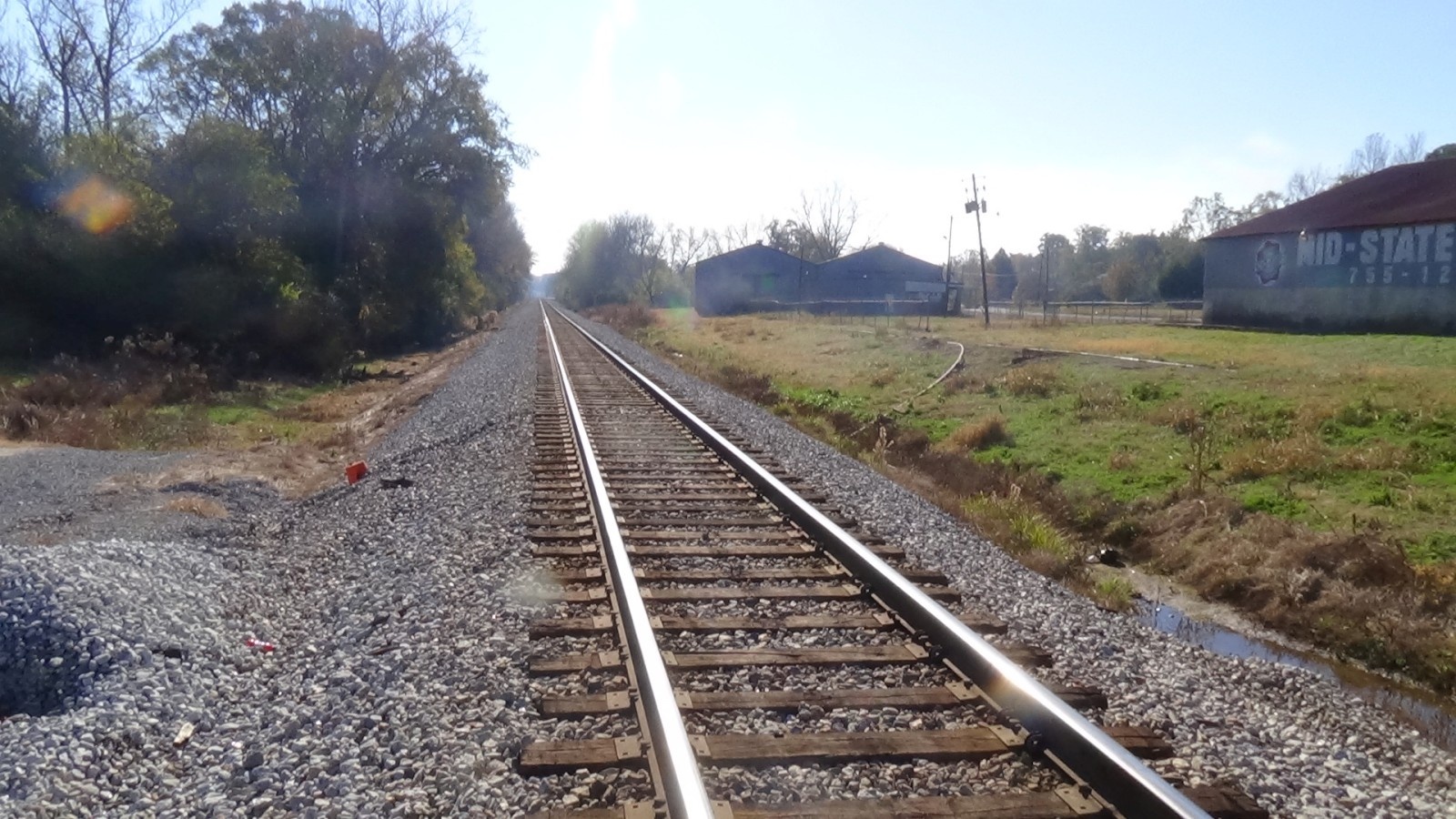

Track view looking north towards Lomax Drive. |
Track view looking south towards 16th Avenue. |
All pictures were taken on 11-29-17.
