MP: 000447.490 |
Updated December 13, 2022
Total Accidents: 1
Crossing
DOT #: 352341P
TOTAL
DAILY TRAINS: 12 (AS OF 2017)
Page created by: freebrickproductions
This crossing is located on the CSX S&NA South Subdivision.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | General Signals Type 2 electronic | N/A |
| Cantilever: | Lincoln Industries | N/A |
| Light Frames: | 6 - 12x24" WCH 2 - 12x24" Hawker-Siddeley Safetran |
8 - 12x24" Hawker-Siddeley Safetran |
| Base: | Safetran | Safetran |
| Gate Lights: | 3 - NEG LEDs | 3 - NEG LEDs |
| Gate Mechanism: | Safetran mid-90s | Safetran mid-90s |
| Gate Striping: | Vertical | Vertical |
1 |
2 |
3 |
4 |

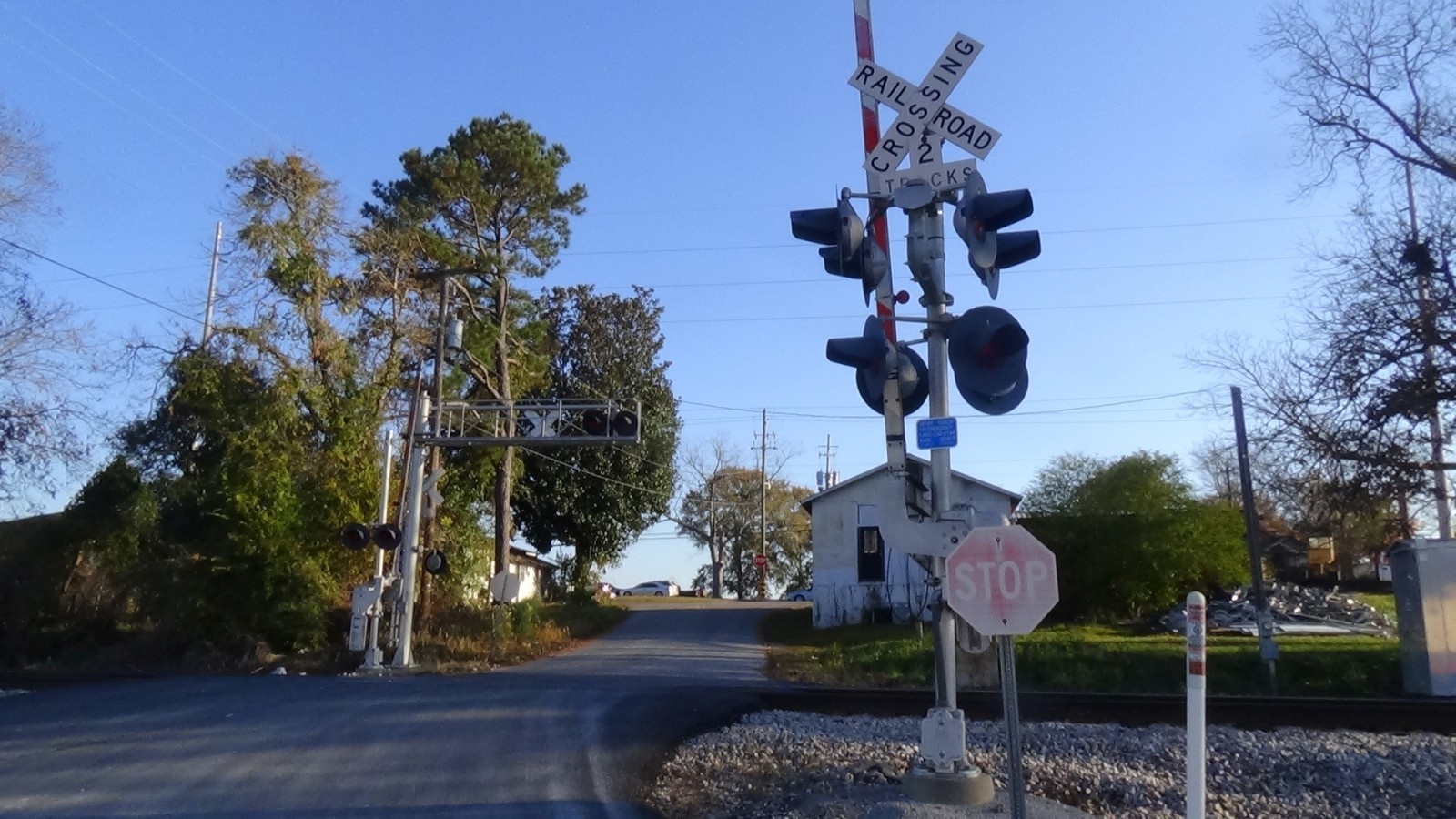

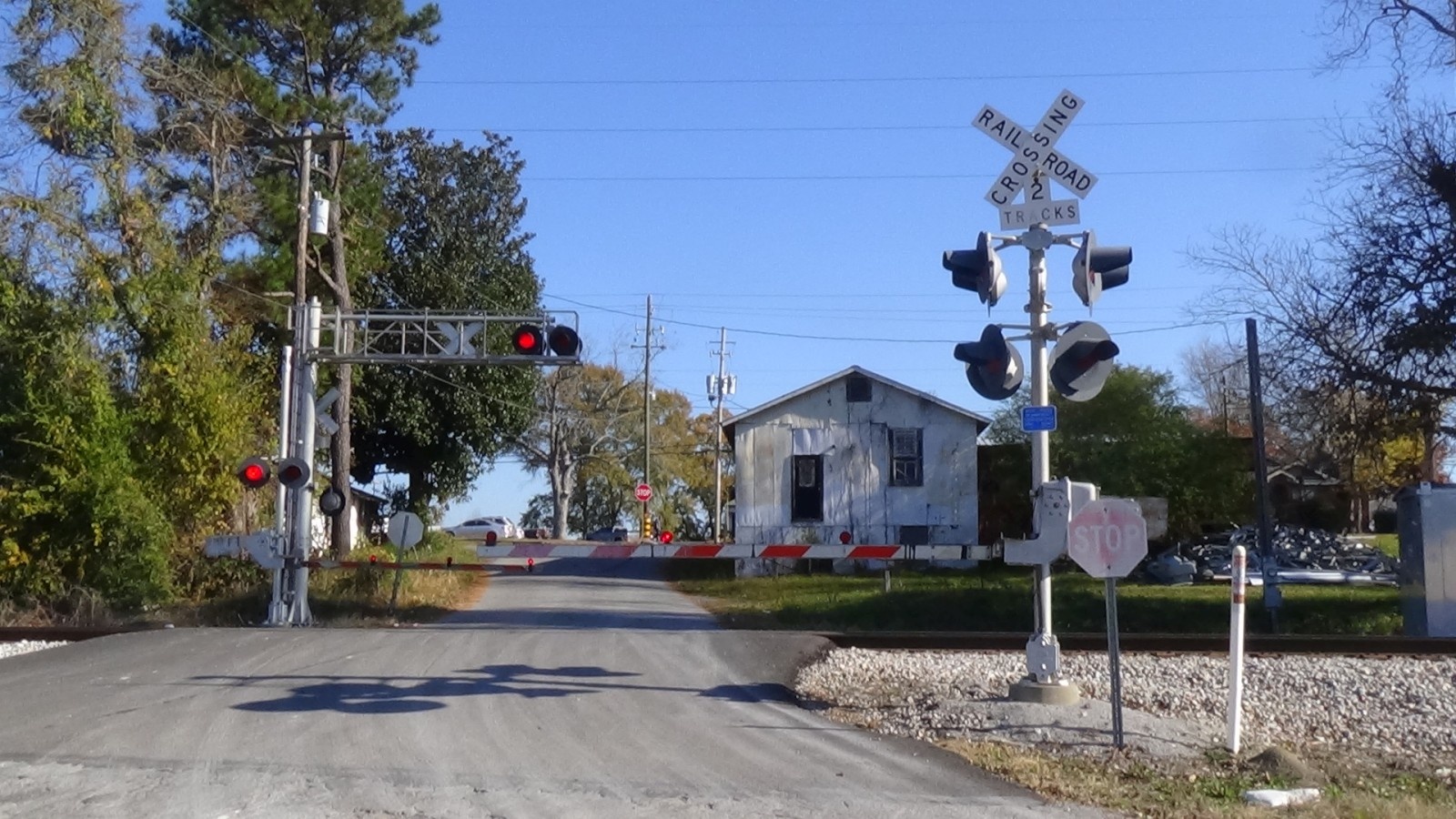

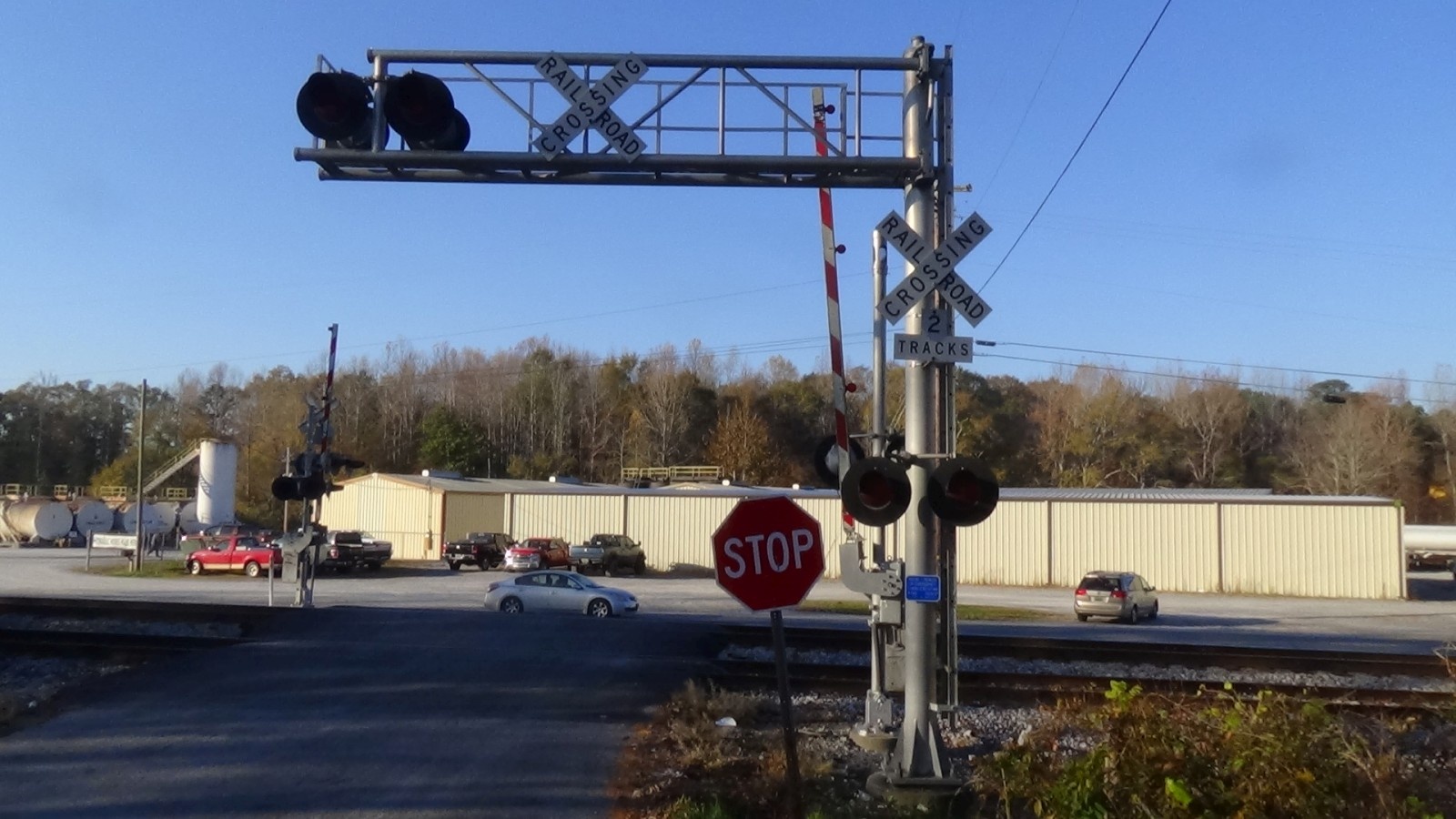

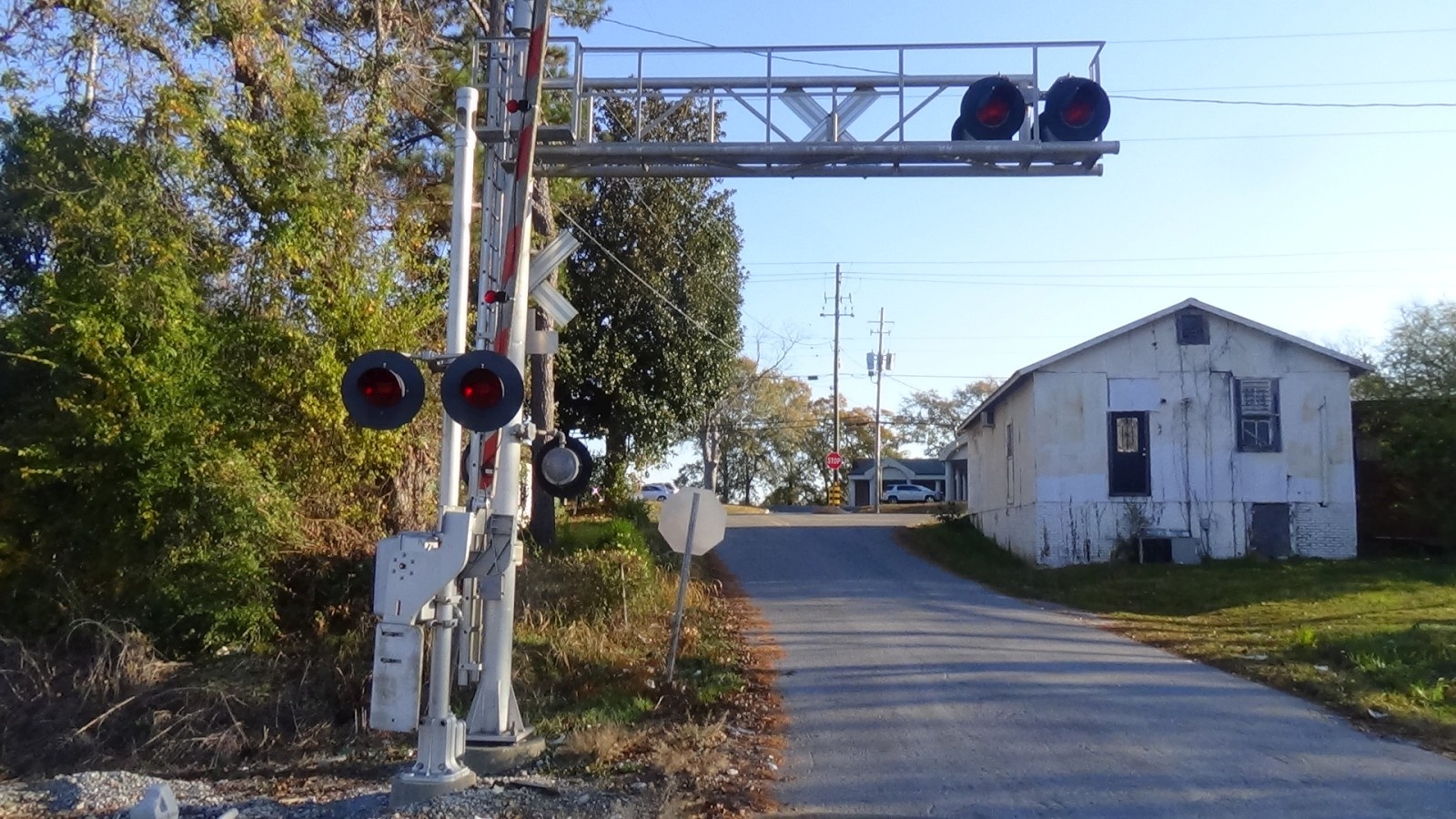

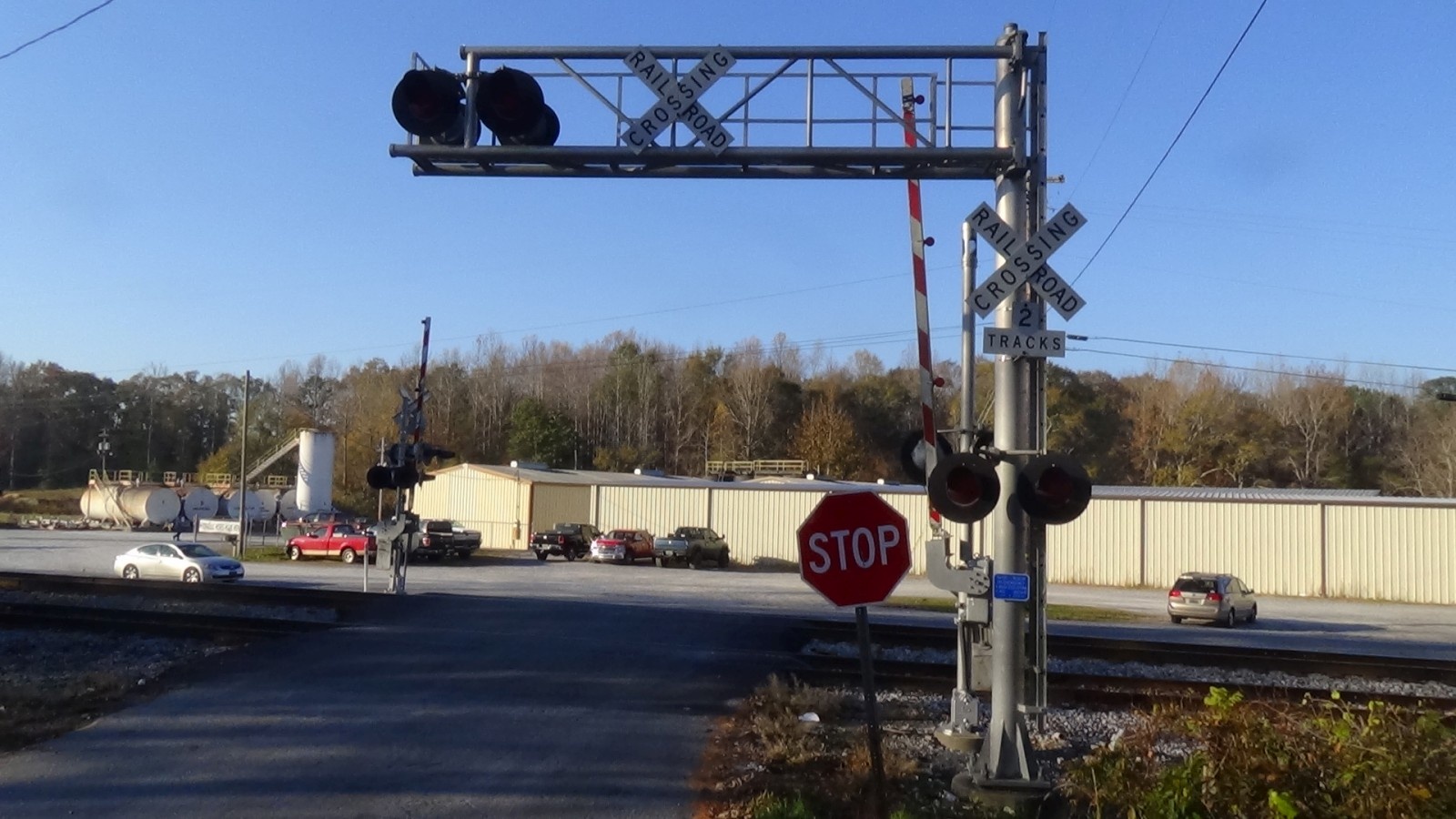

Overviews of this almost-pure 1990s CSX install. |
The first signal. |
||
5 |
6 |
7 |
8 |

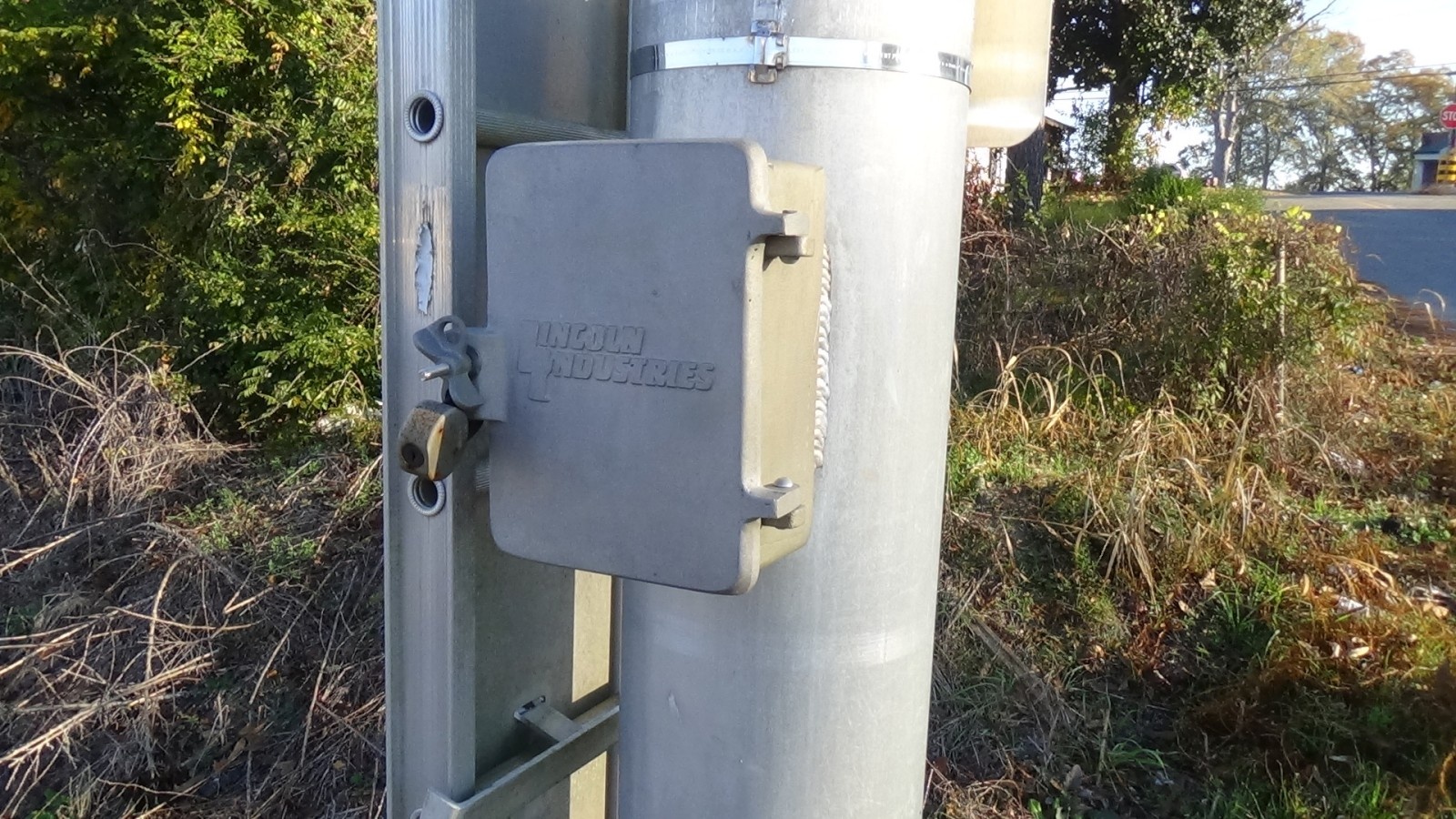

It's a Lincoln Industries cantilever. |

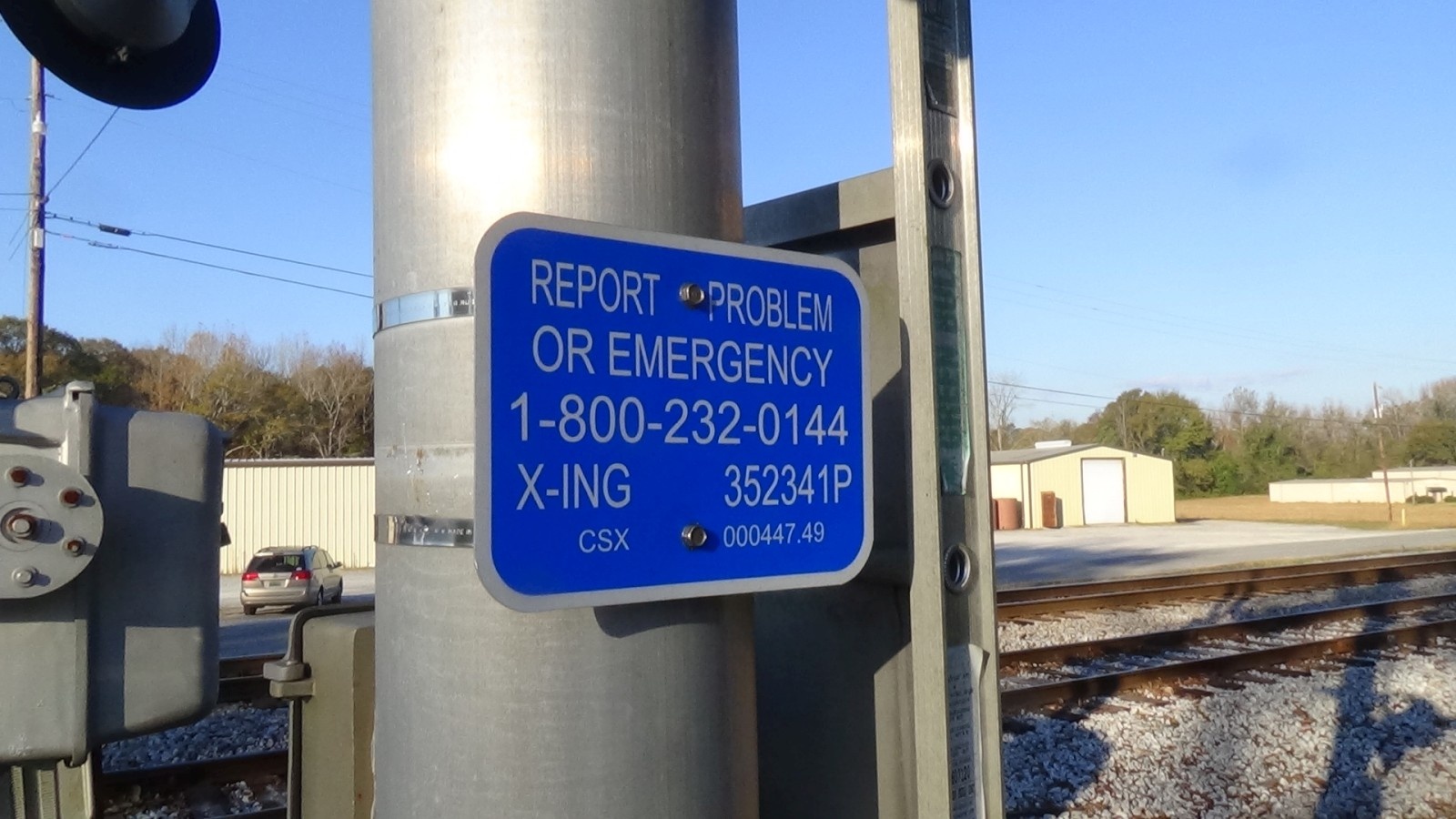

The emergency information. |

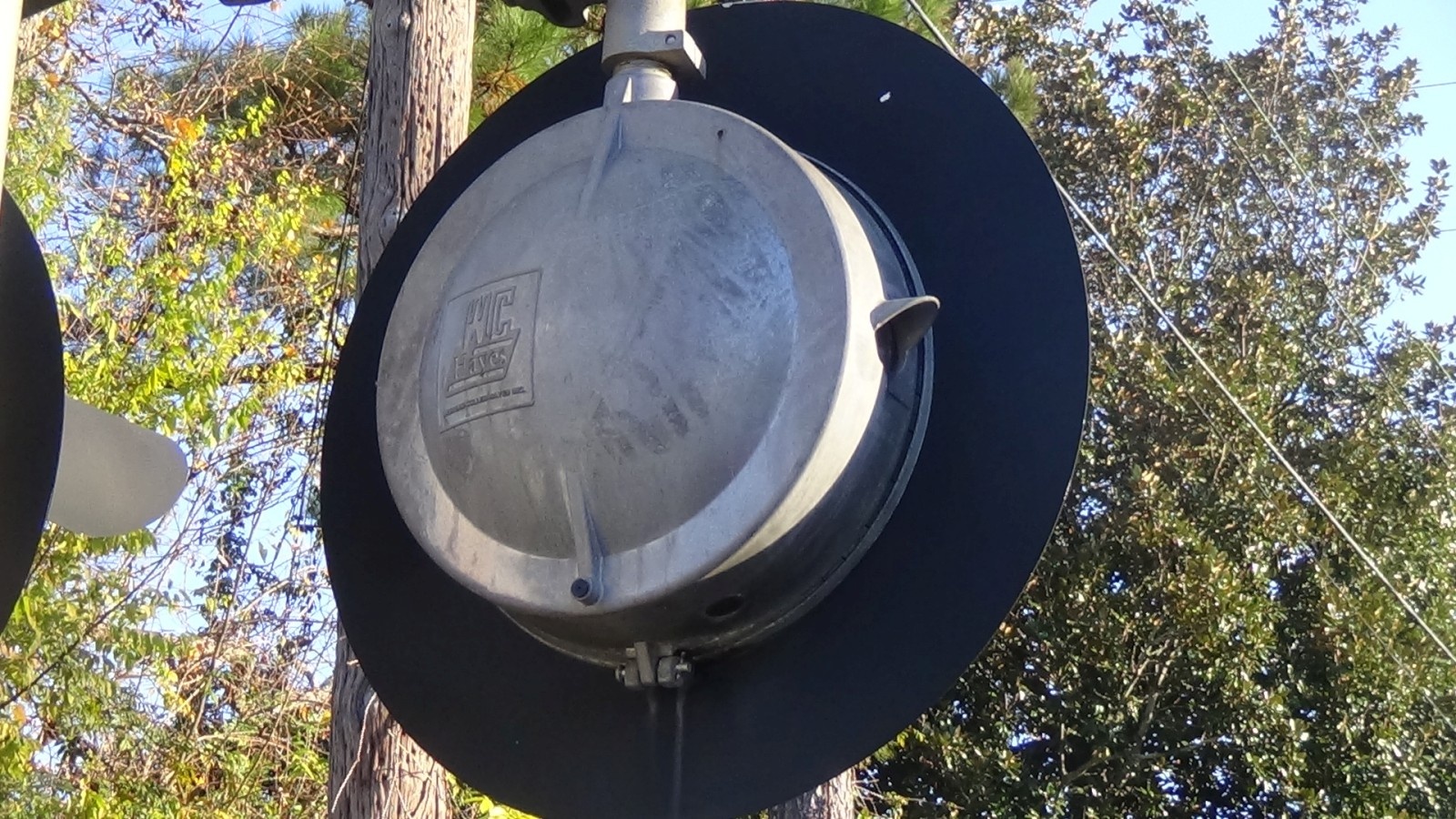

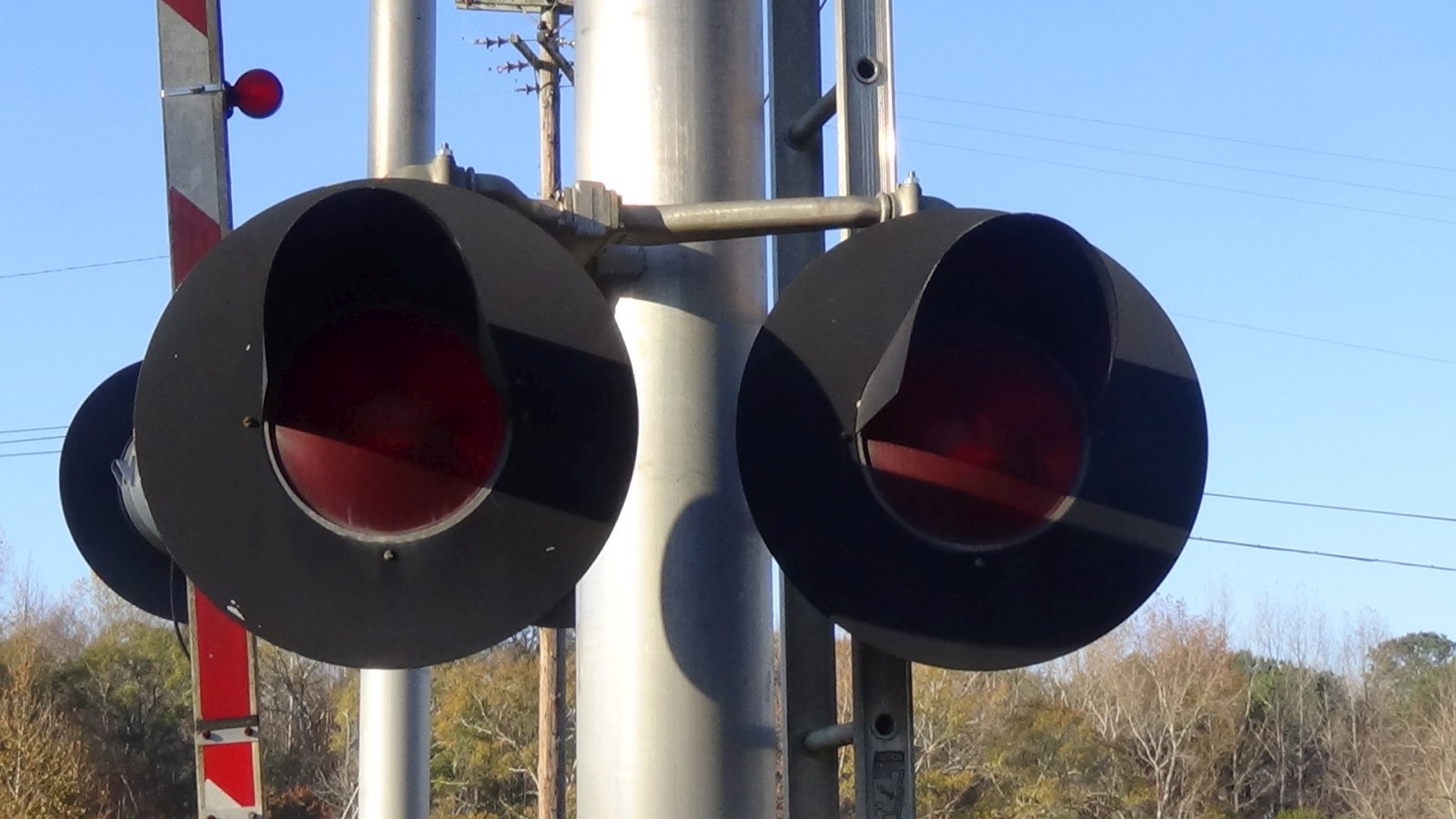

The front mast lights are WCH 12x24 inch lights! |
|
9 |
10 |
11 |
12 |

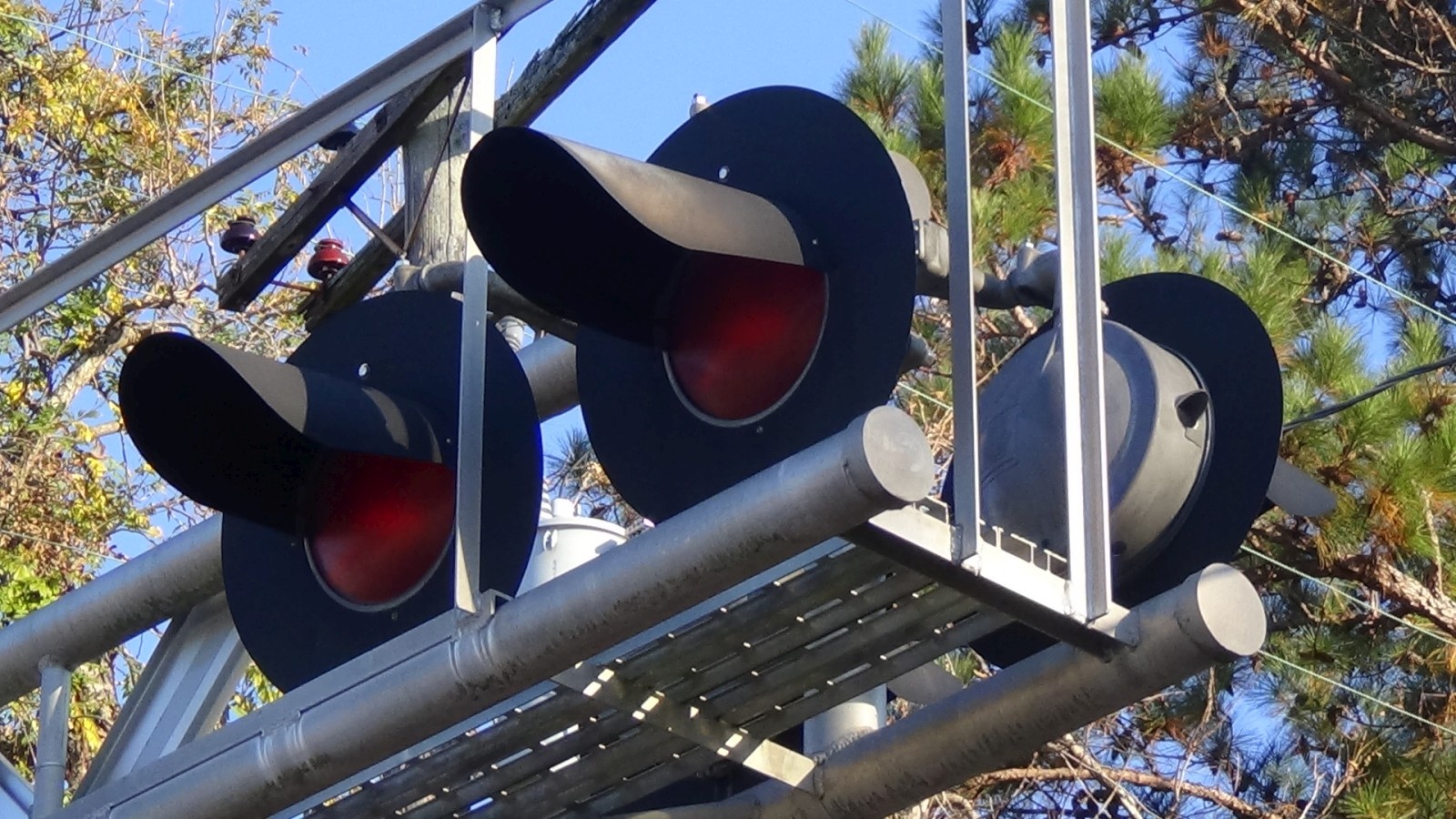

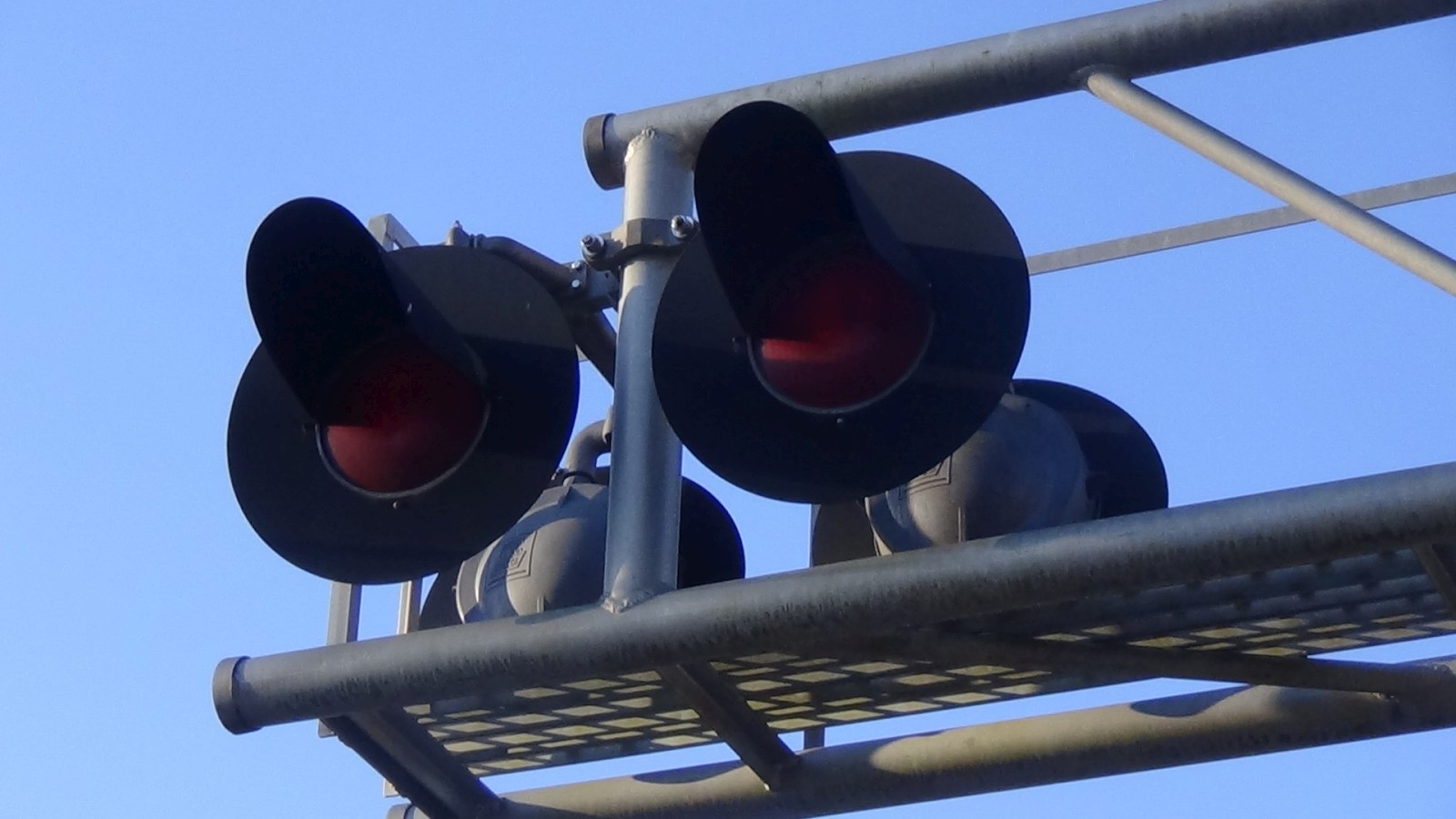

The overhead lights are more WCH 12x24 inch lights! |

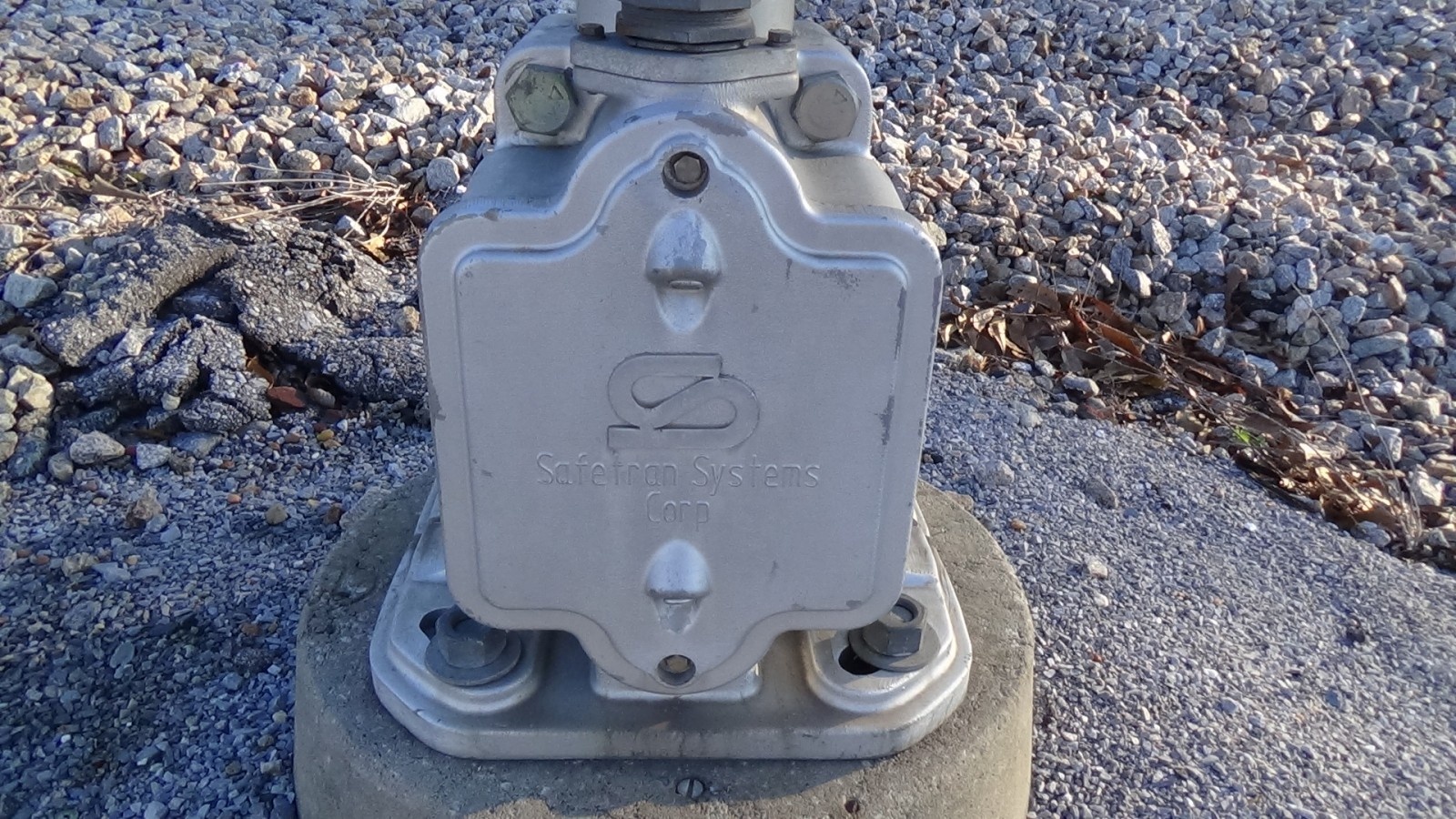

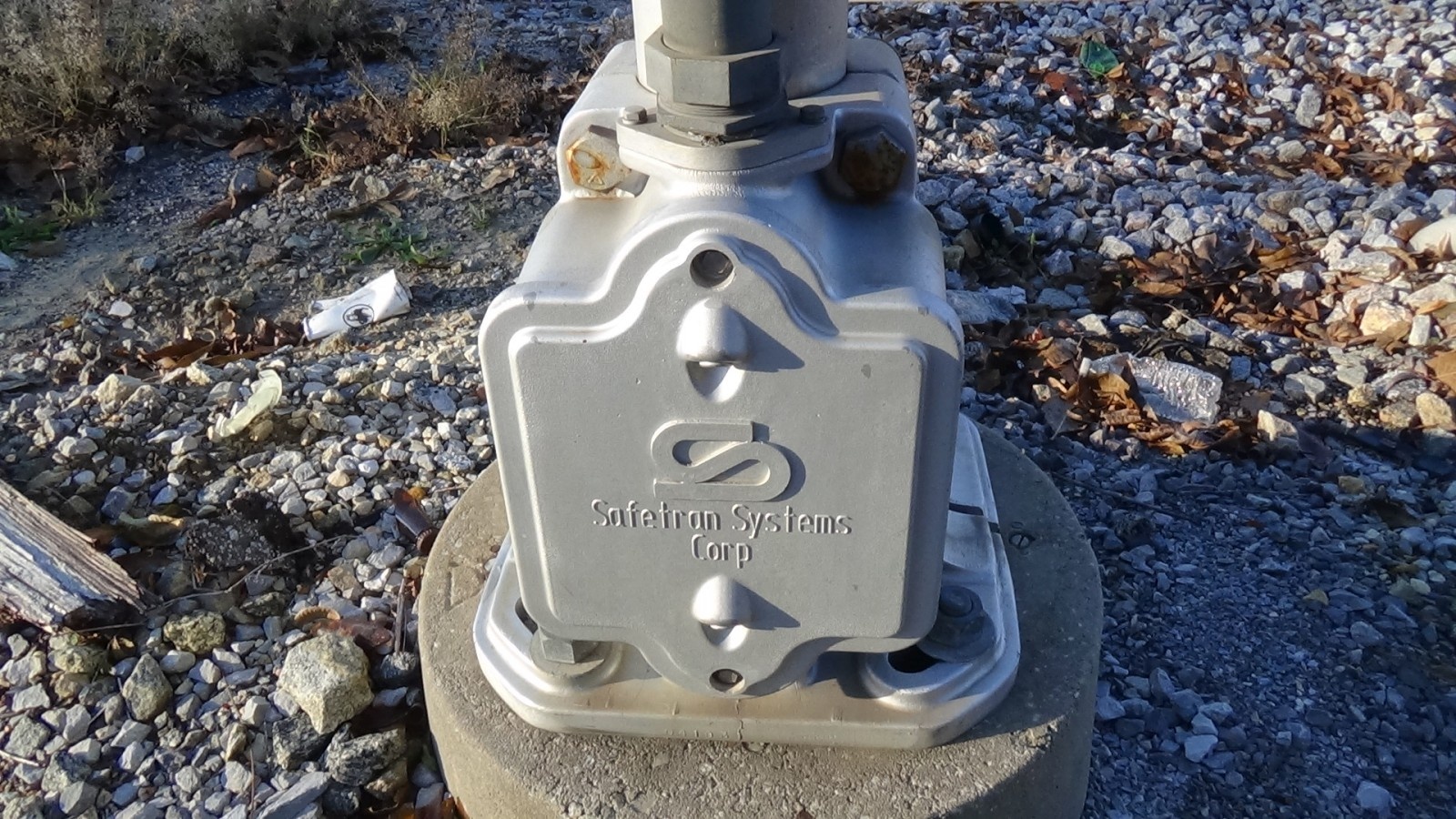

A Safetran base. |

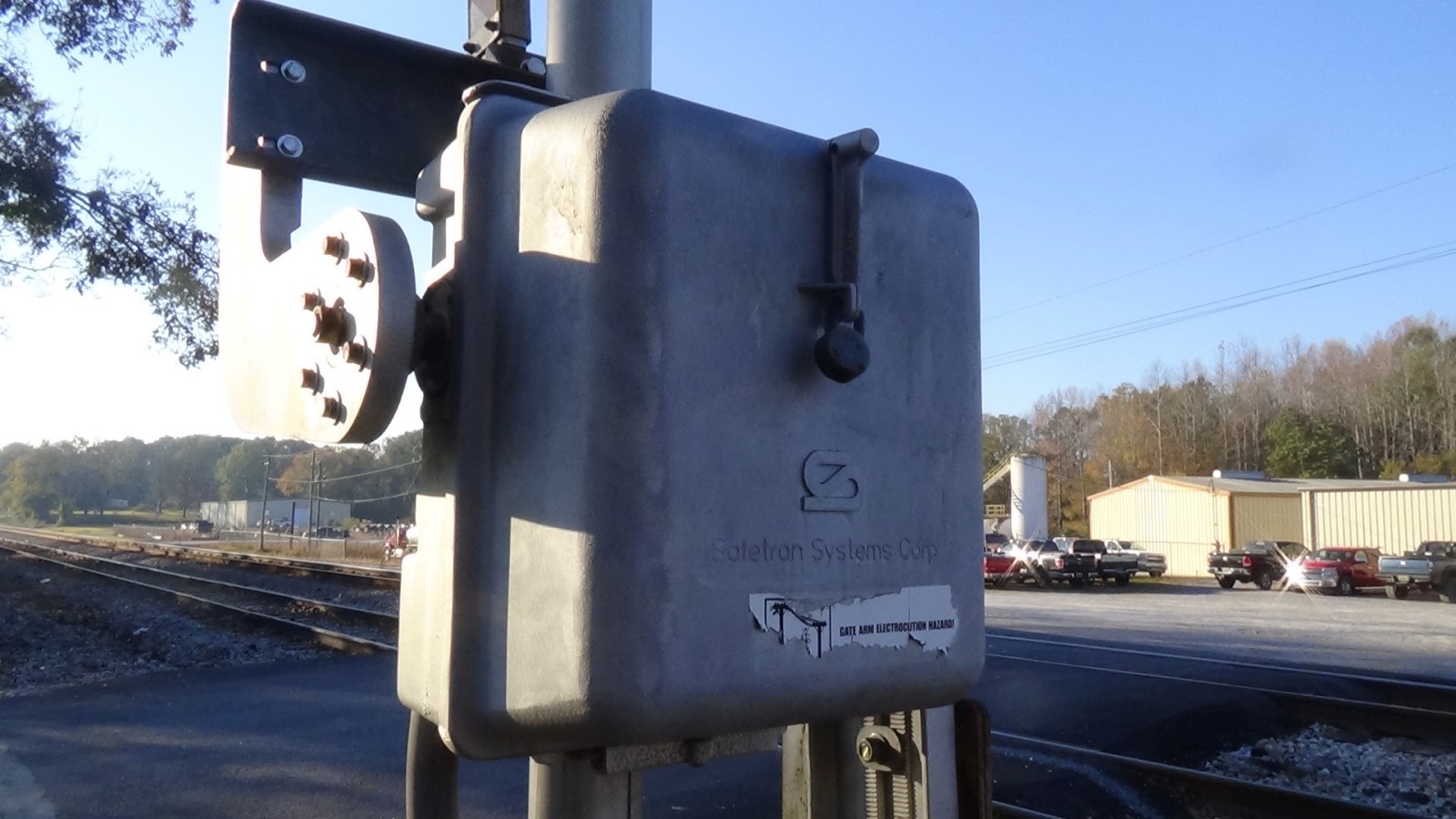

A Safetran gate mechanism. |
|
13 |
14 |
15 |
16 |

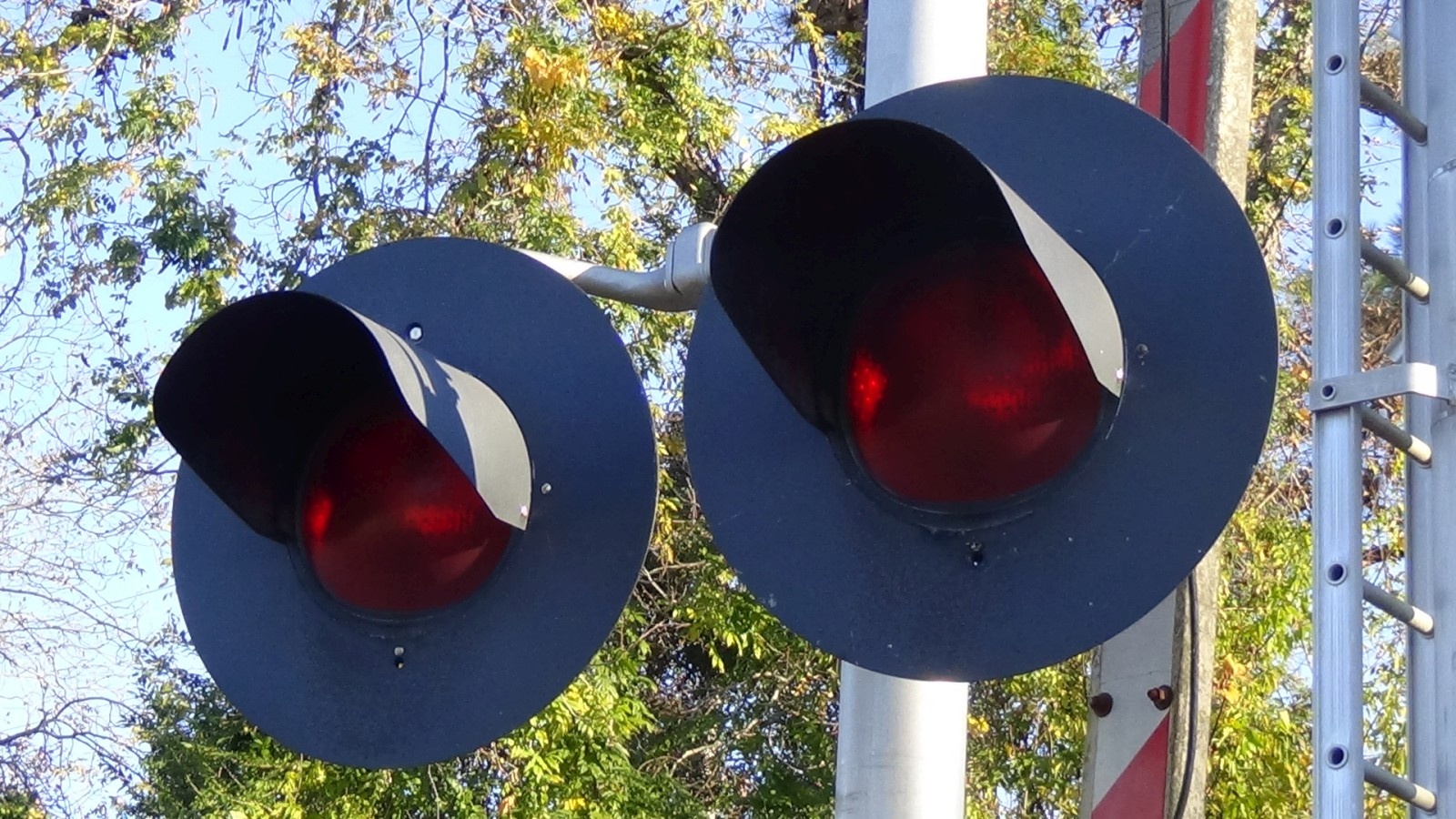

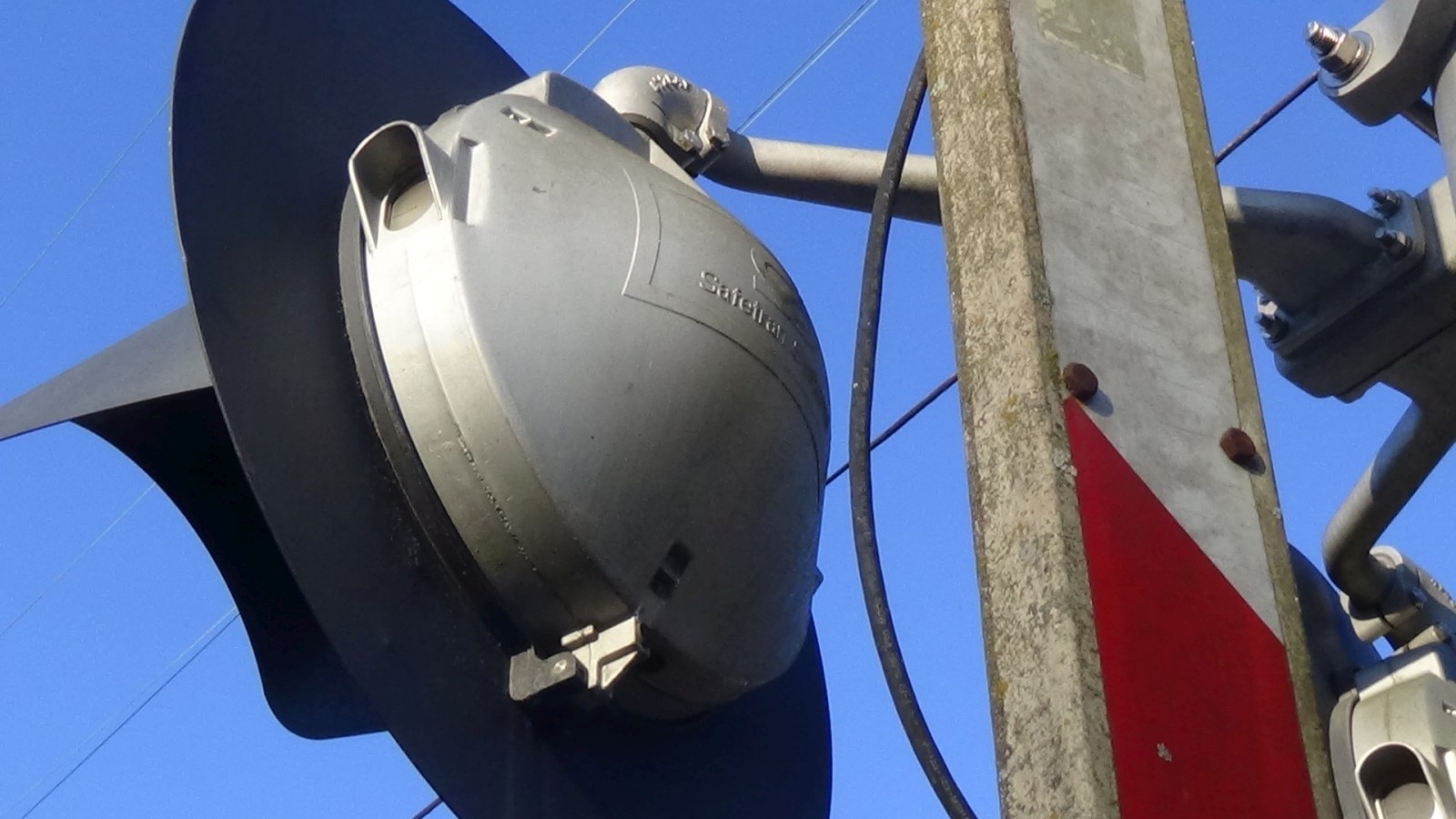

The rear mast lights are Safetran 12x24 inch lights. |

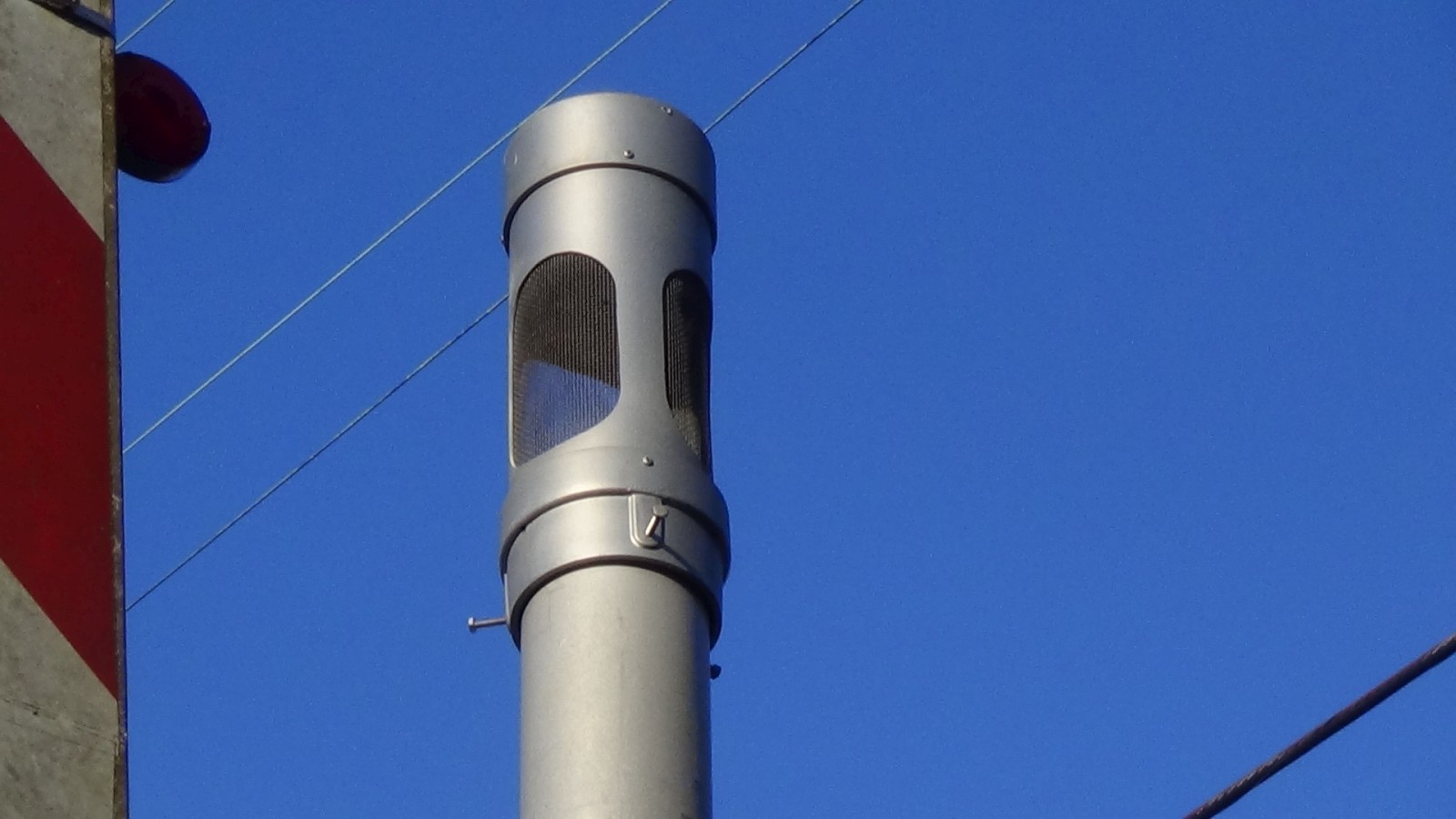

The bell is a General Signals Type 2 electronic bell. |

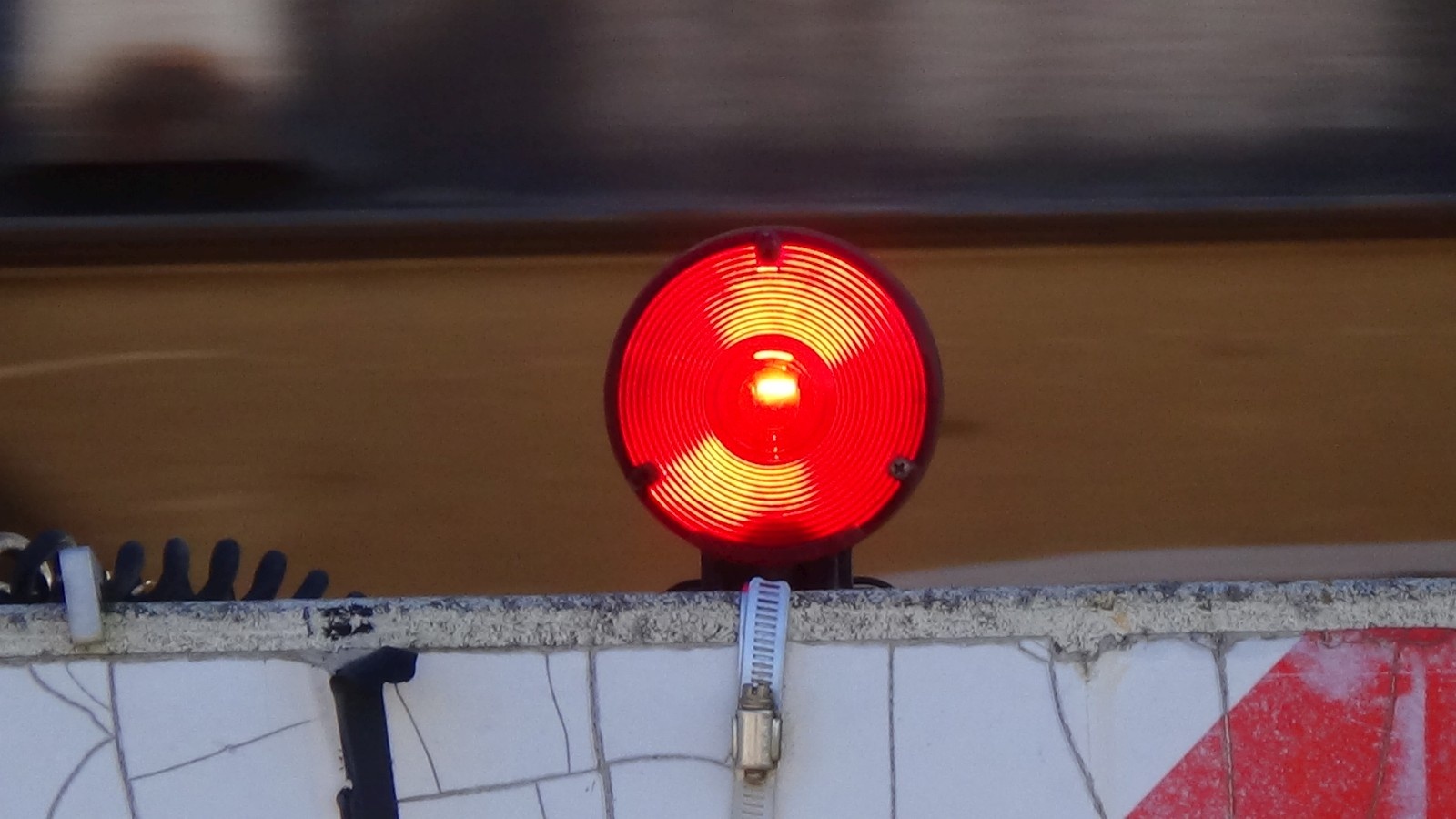

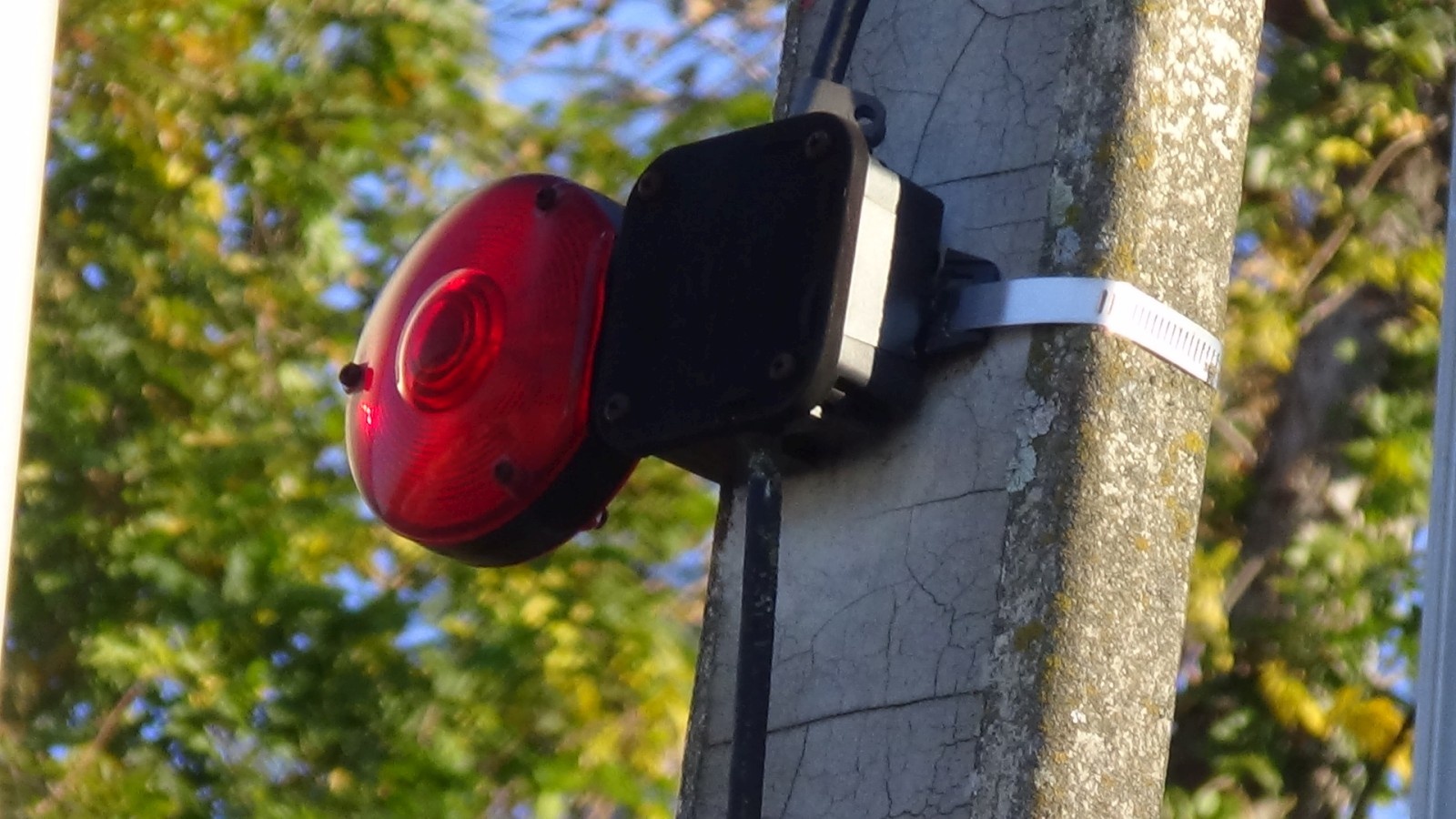

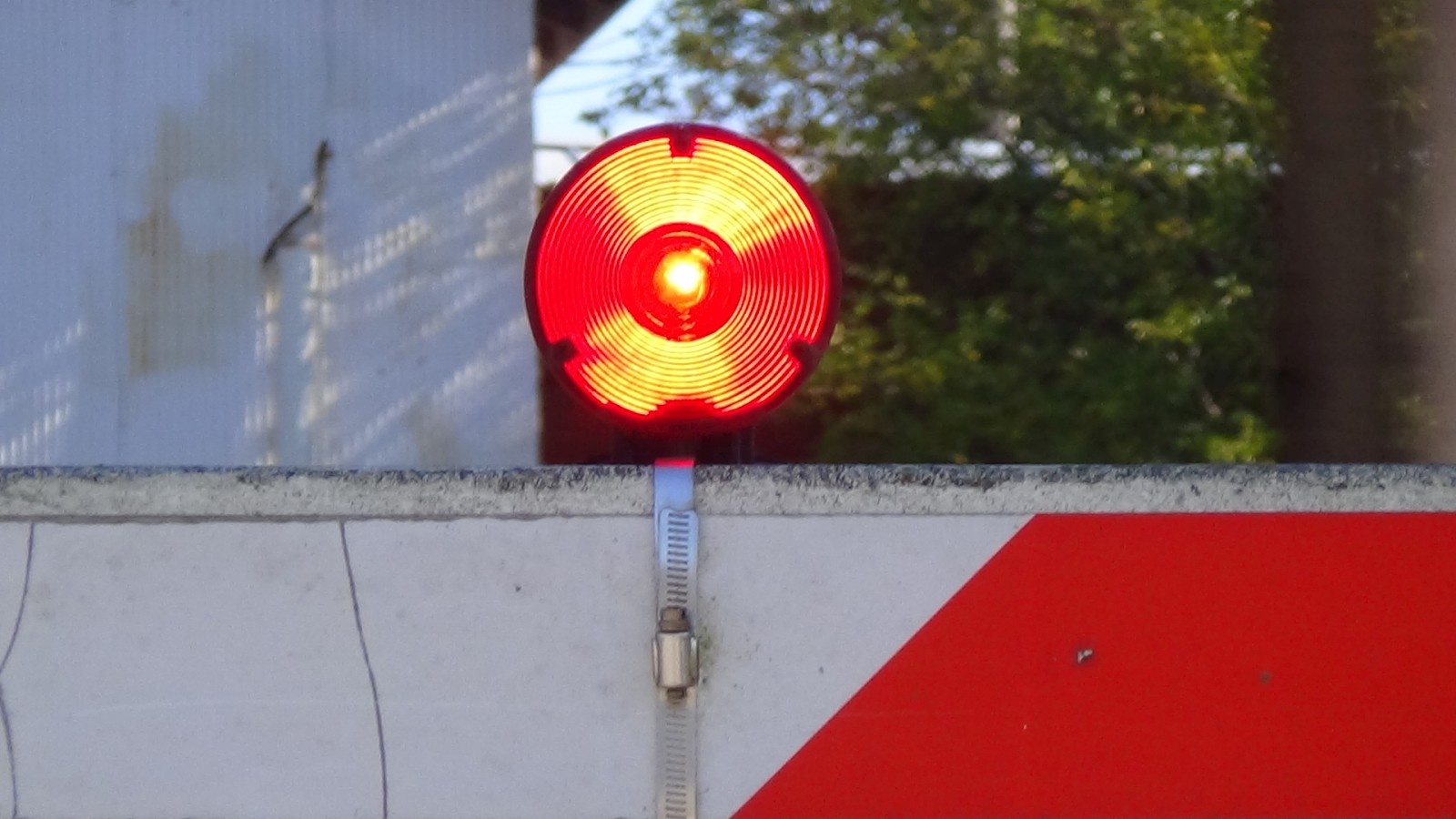

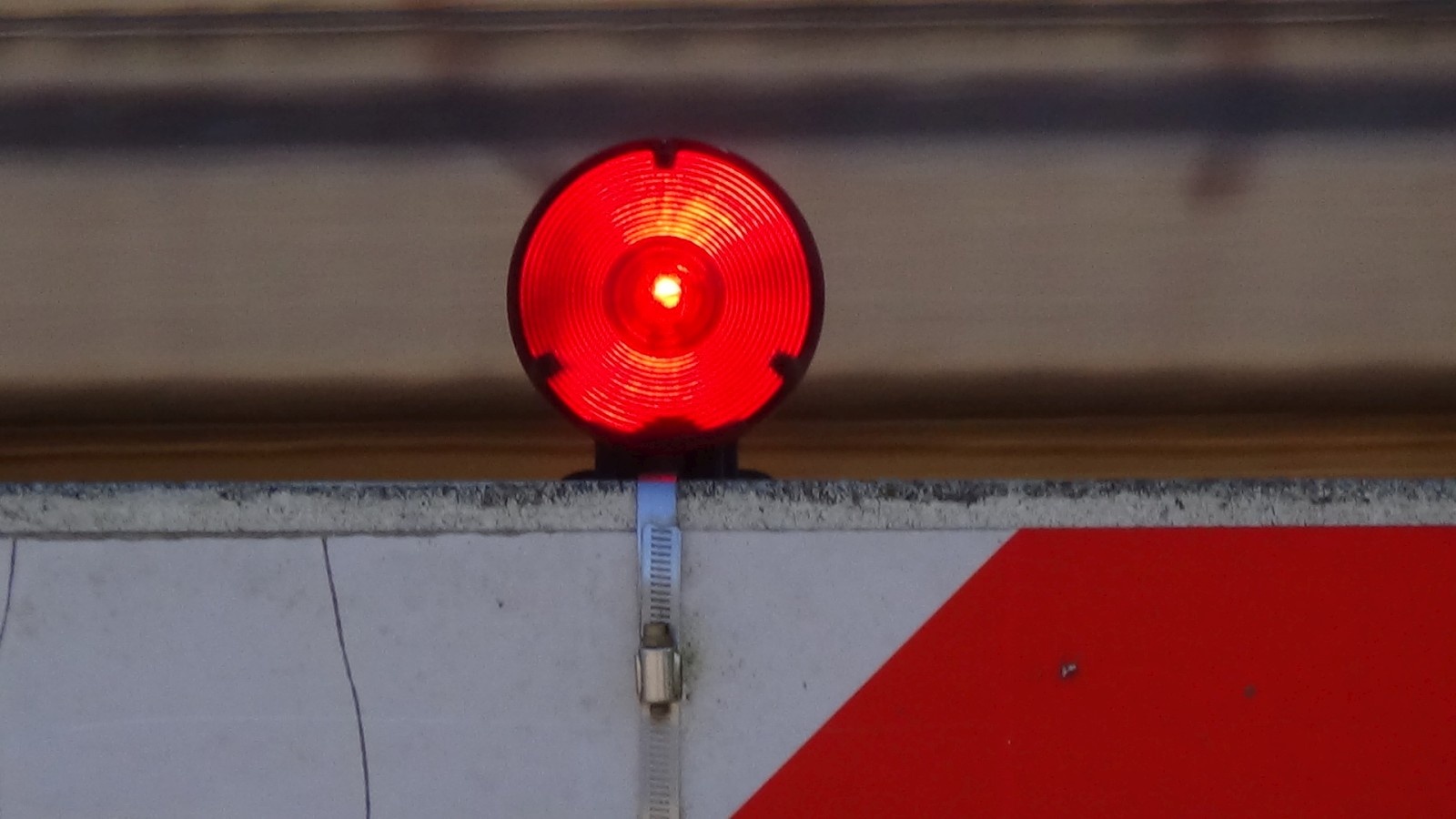

These gate lights are all Safetran incandescent gate lights! |
|
The only non-original things at this crossing are the bell and emergency information signs! Everything else here is entirely original to the 1990s install!
17 |
18 |
19 |
20 |

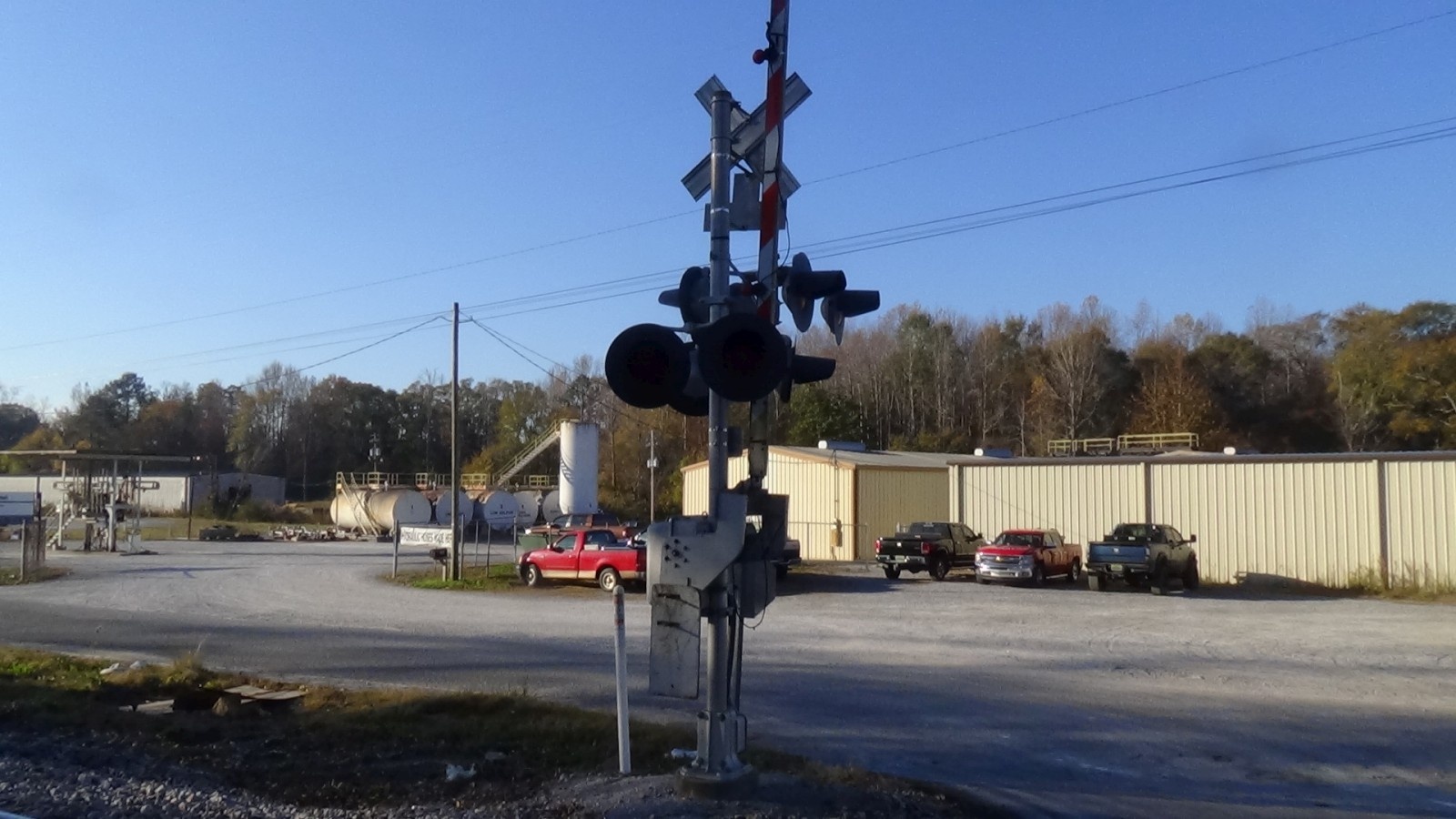

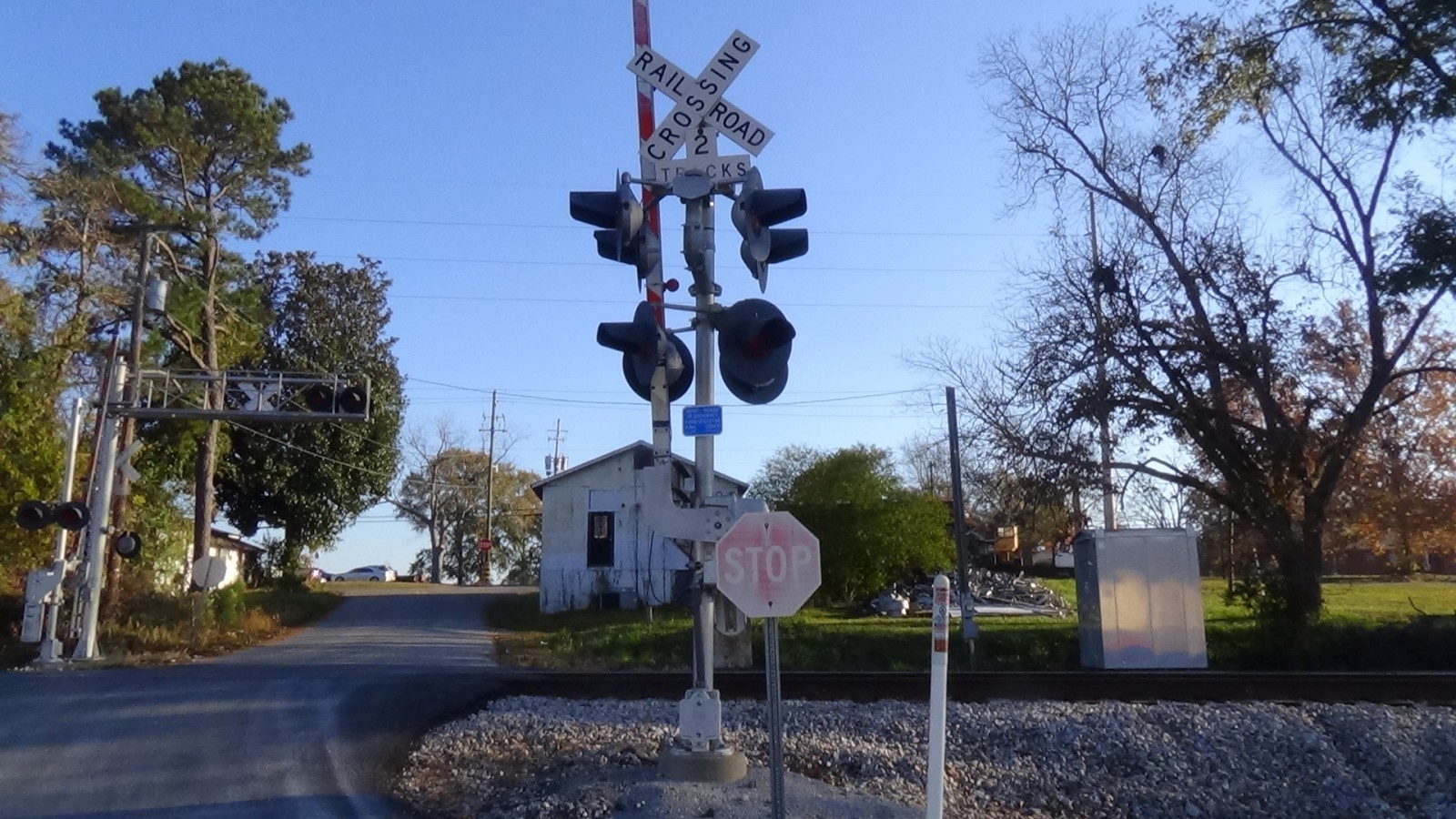

The second signal. |
Another Safetran base. |

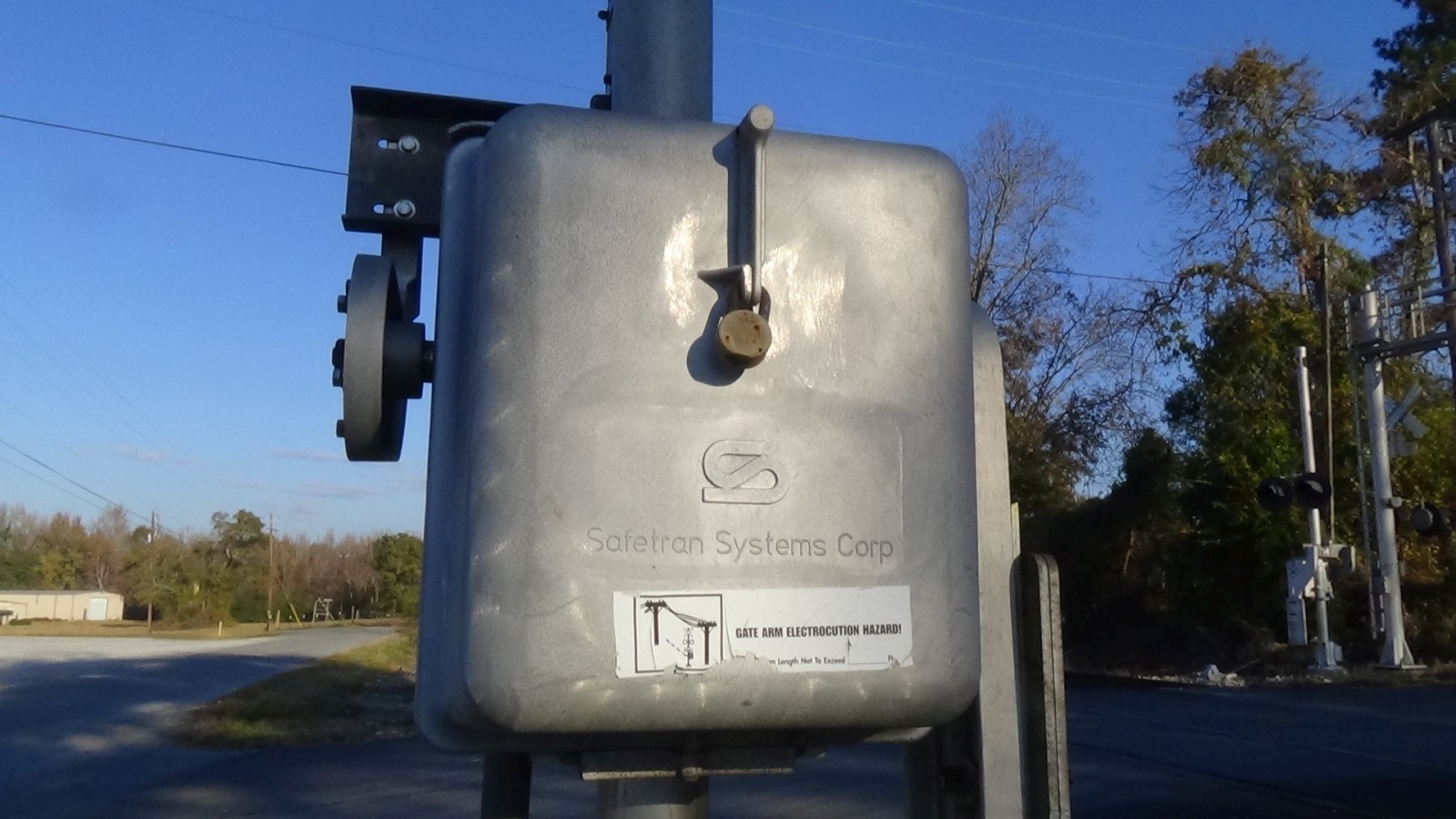

Another Safetran gate mechanism. |
|
21 |
22 |
23 |
24 |

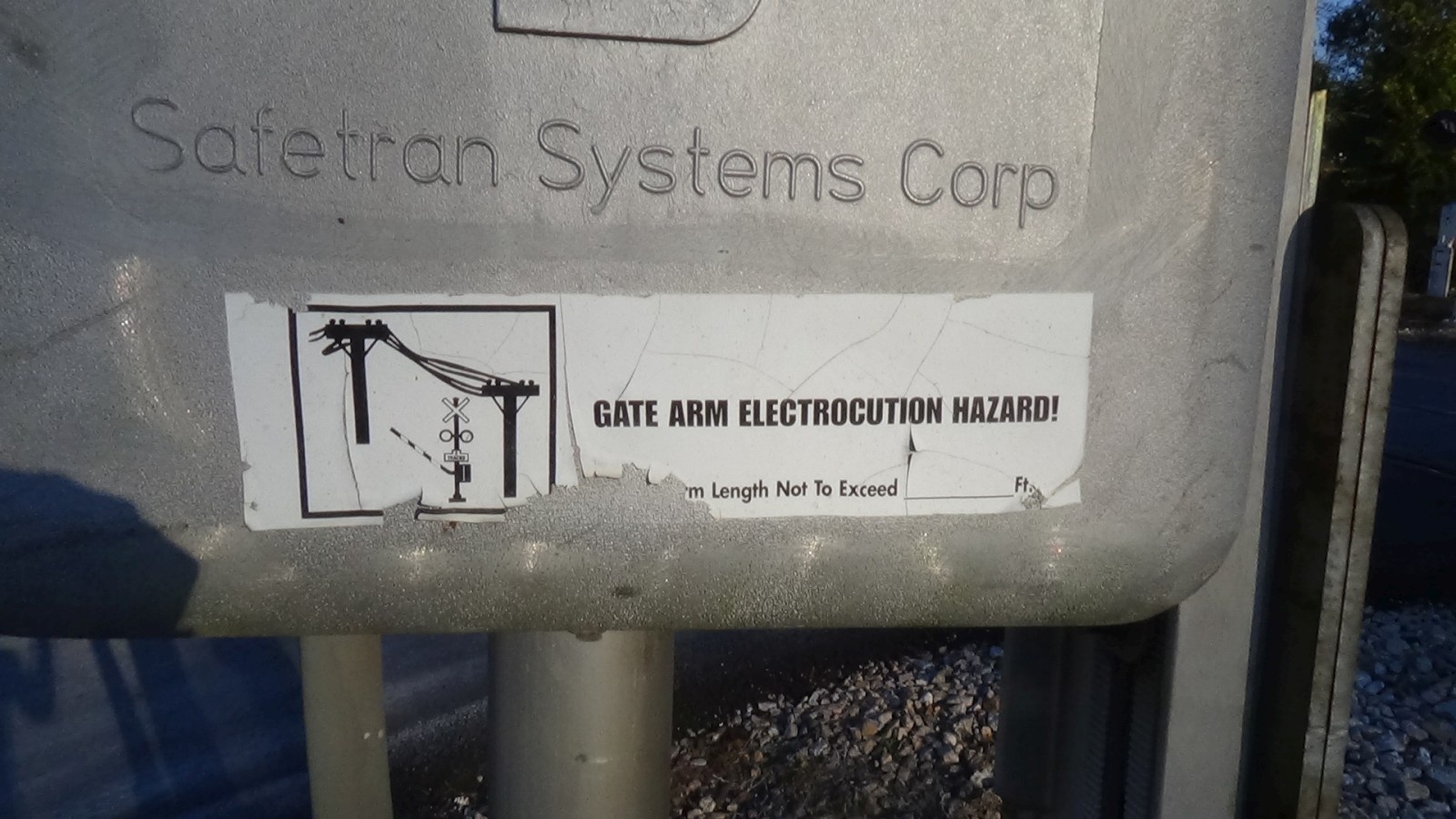

A warning sticker about overhead power lines. |

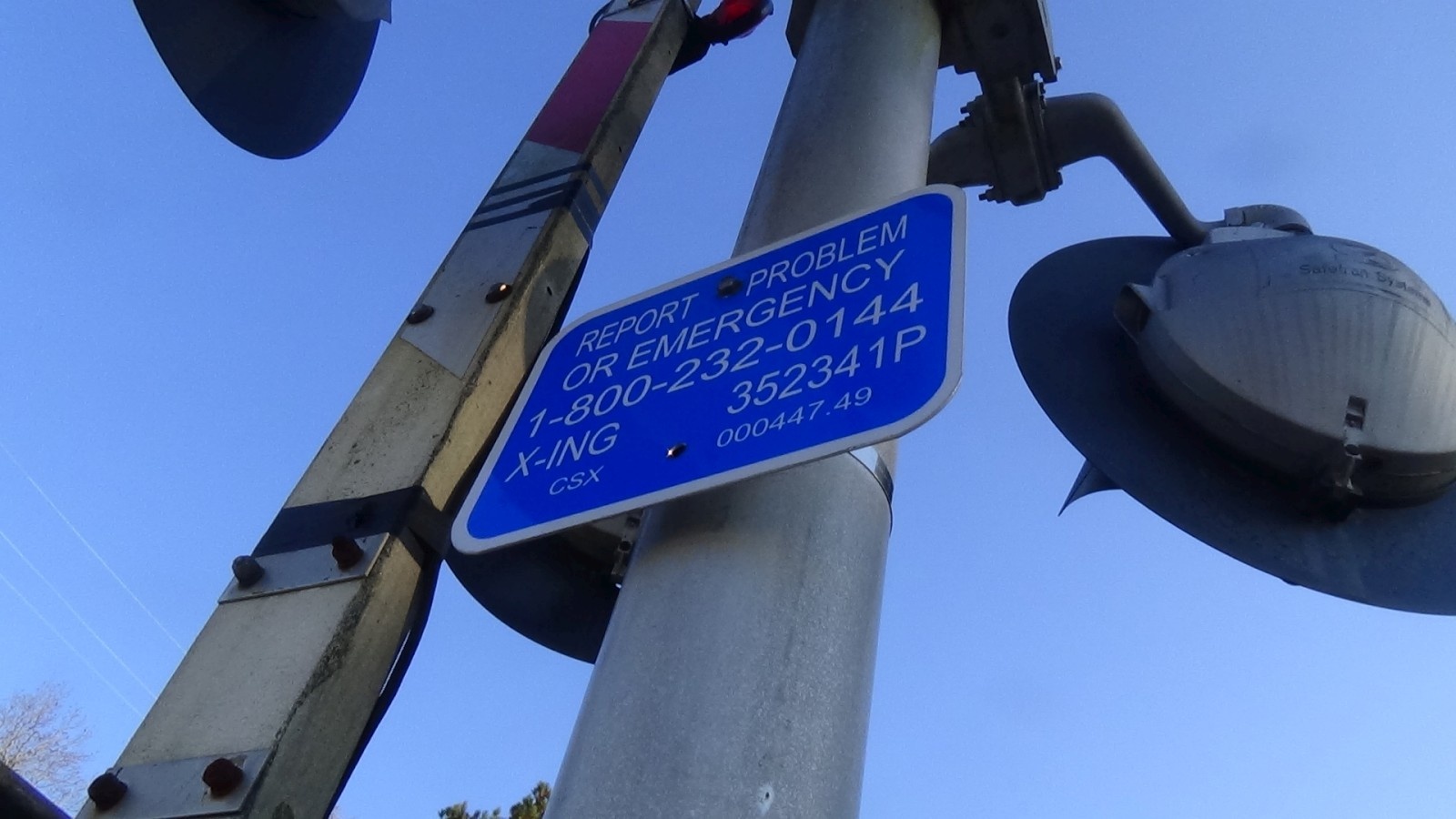

The emergency information. |

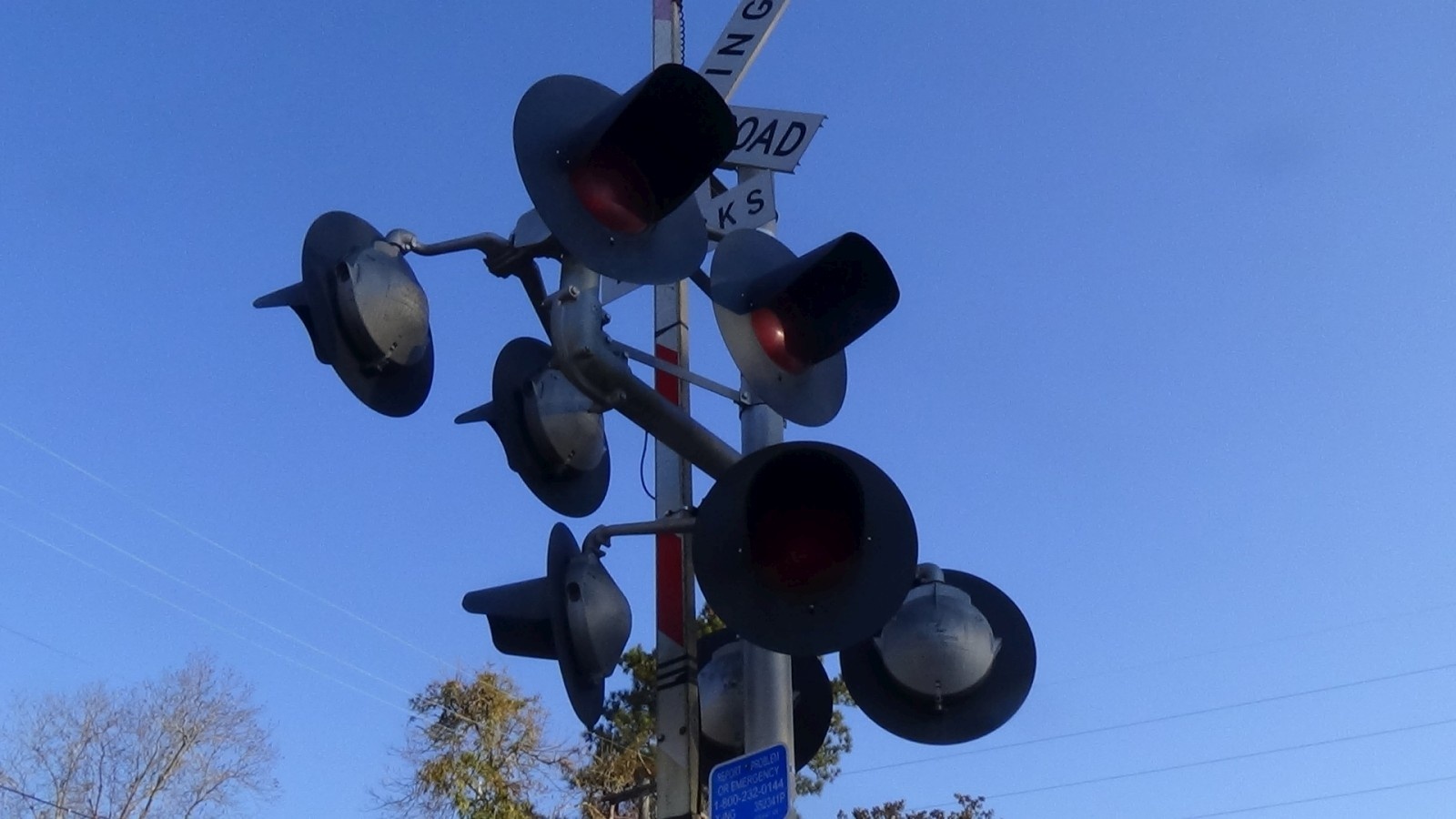

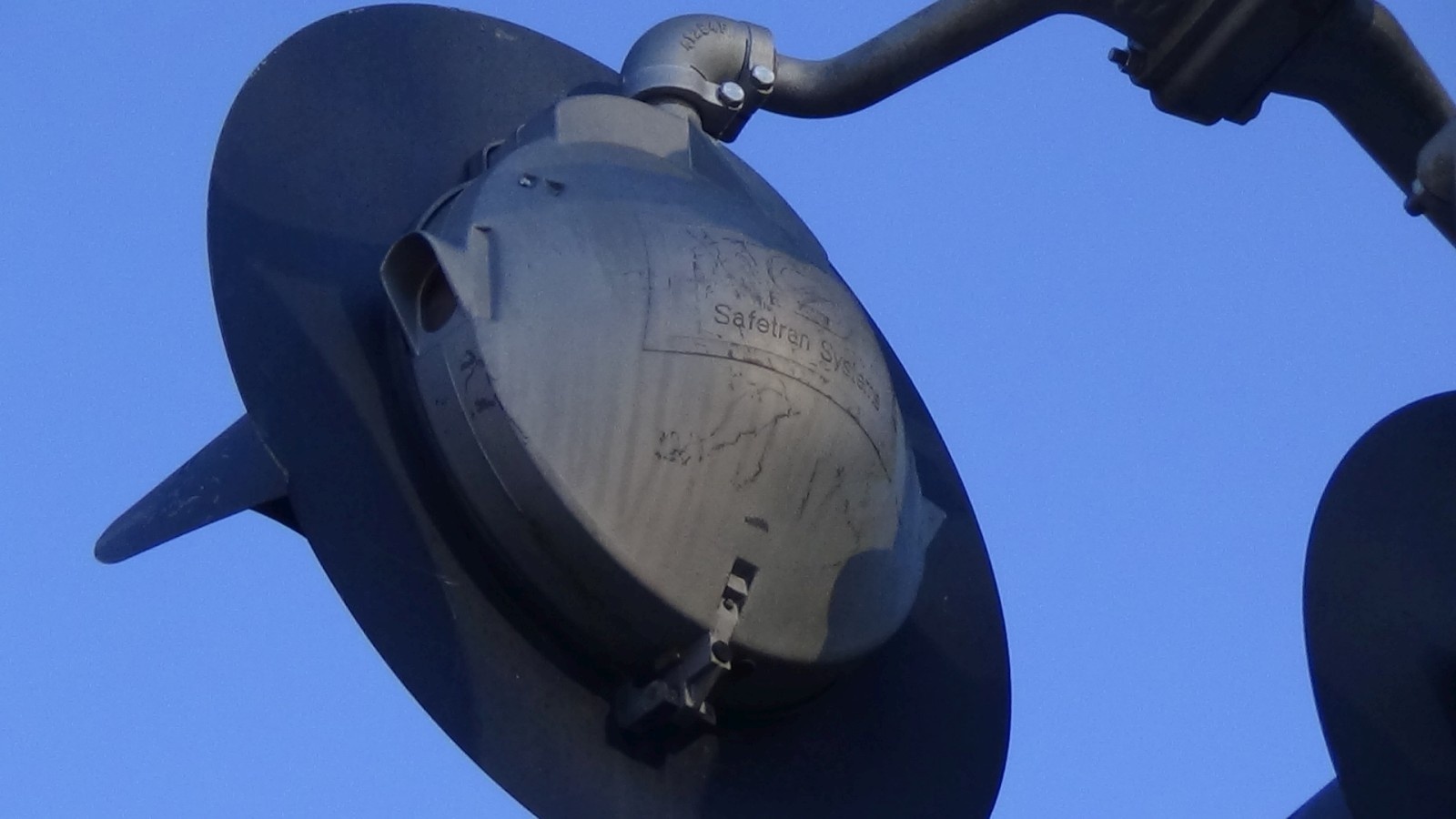

This signal has all Safetran 12x24 inch lights, with the "front" lights being positioned rather poorly, IMO. |
|
25 |
26 |
27 |
28 |

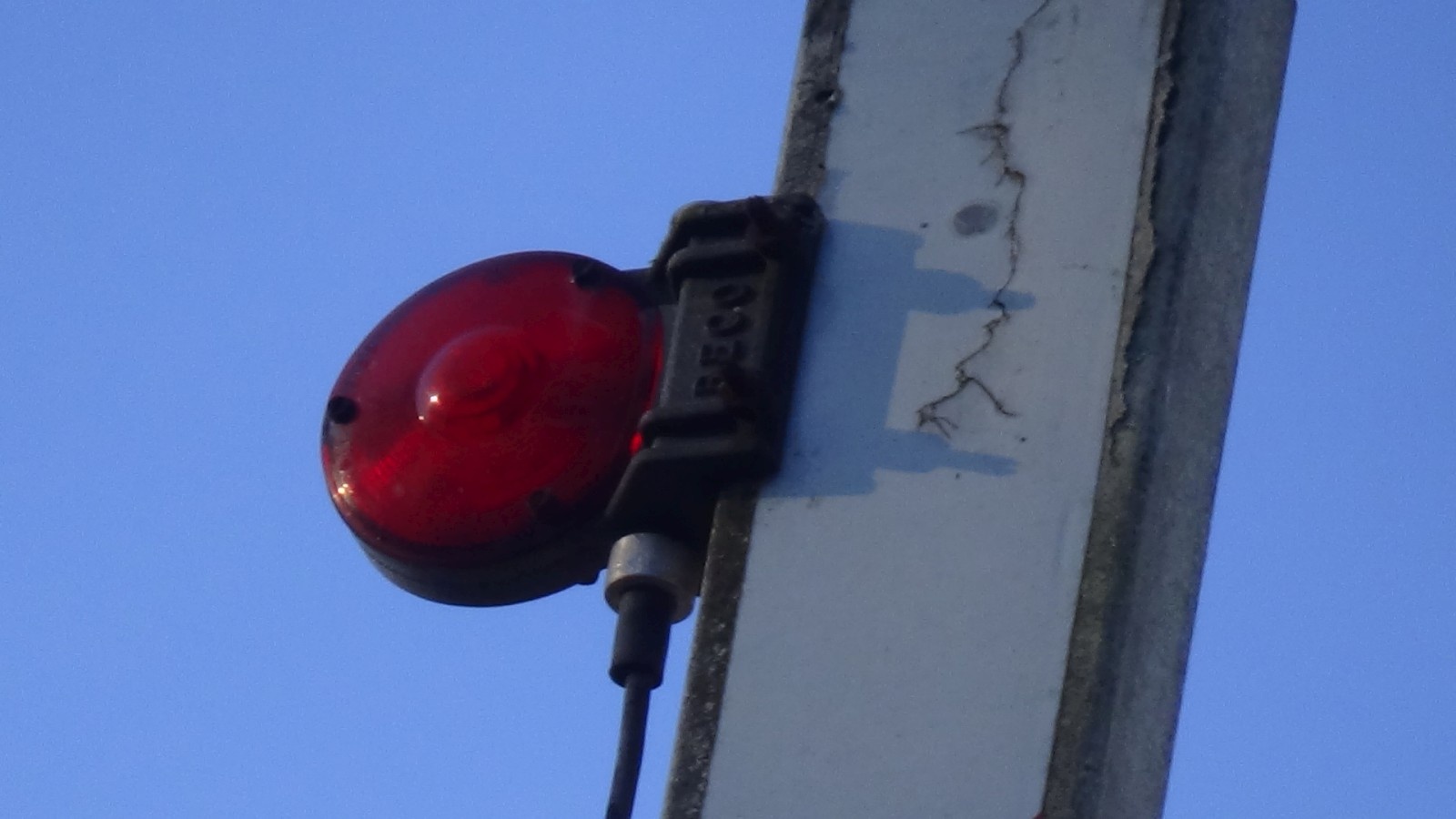

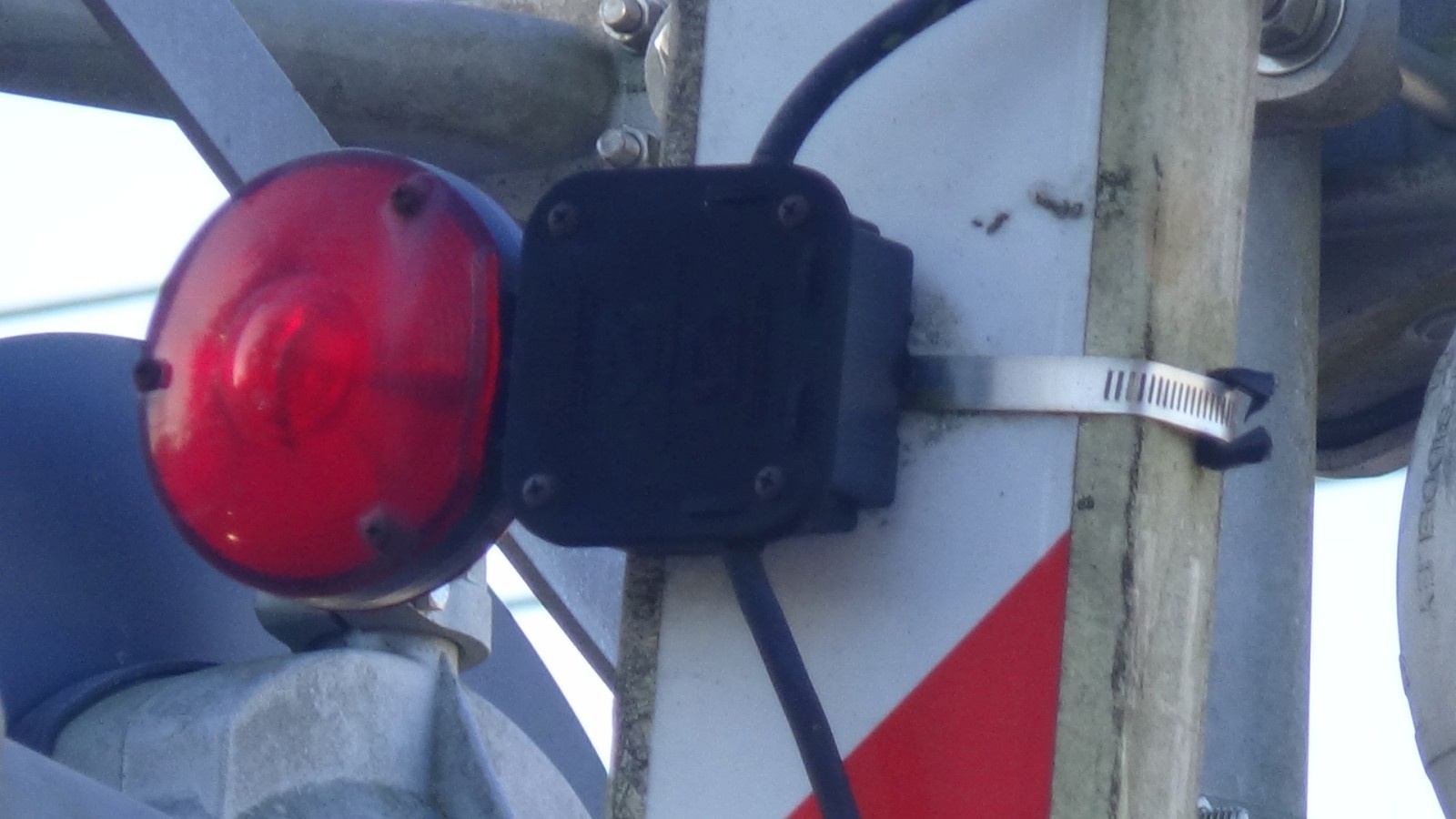

The gate lights are two Safetran incandescent gate lights and a RECO incandescent gate light (with a blown bulb)! |

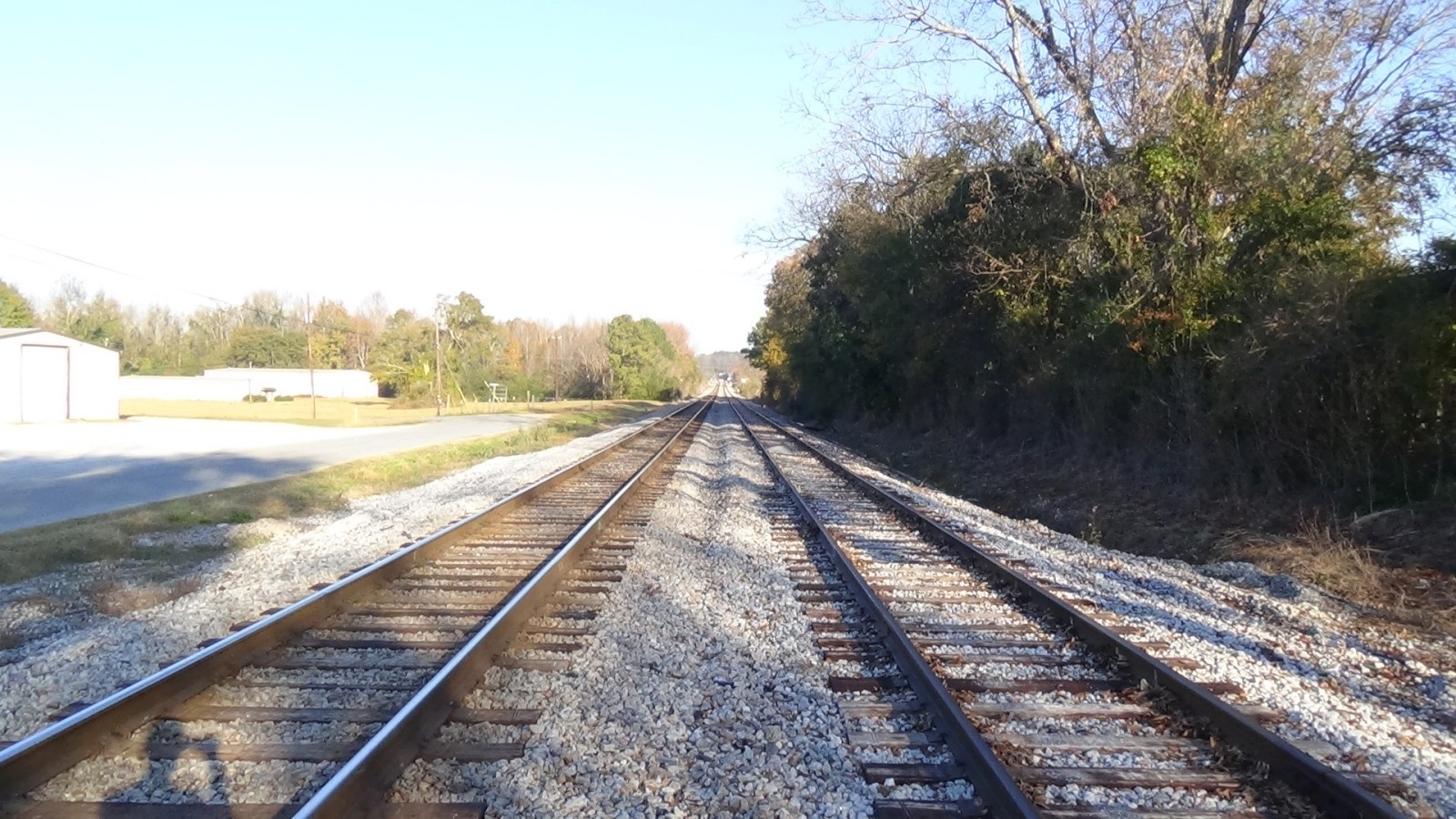

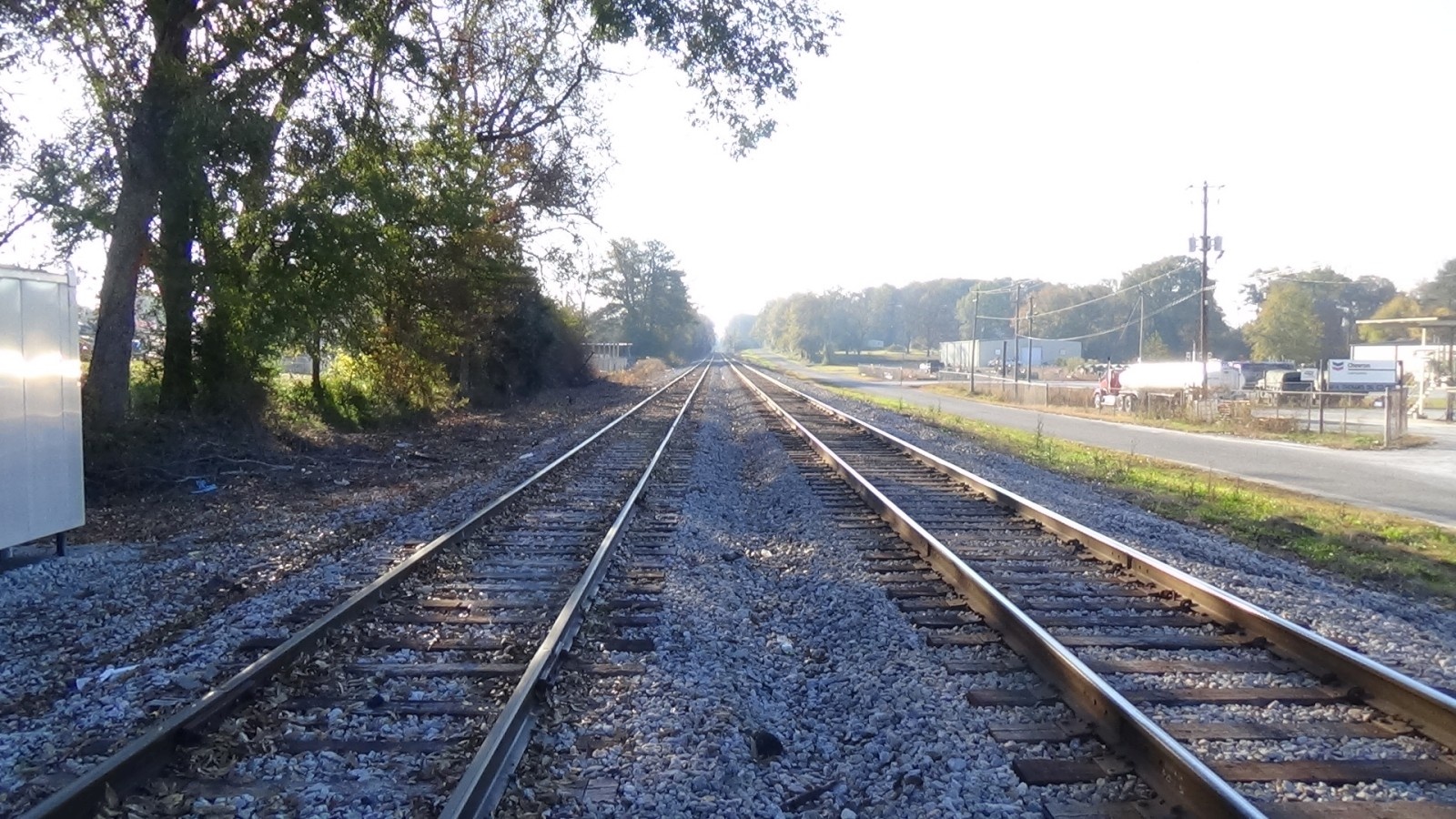

Track view looking north towards Jackson Avenue. |
Track view looking south towards Logan Road. |
|
29 |
30 |
31 |
32 |

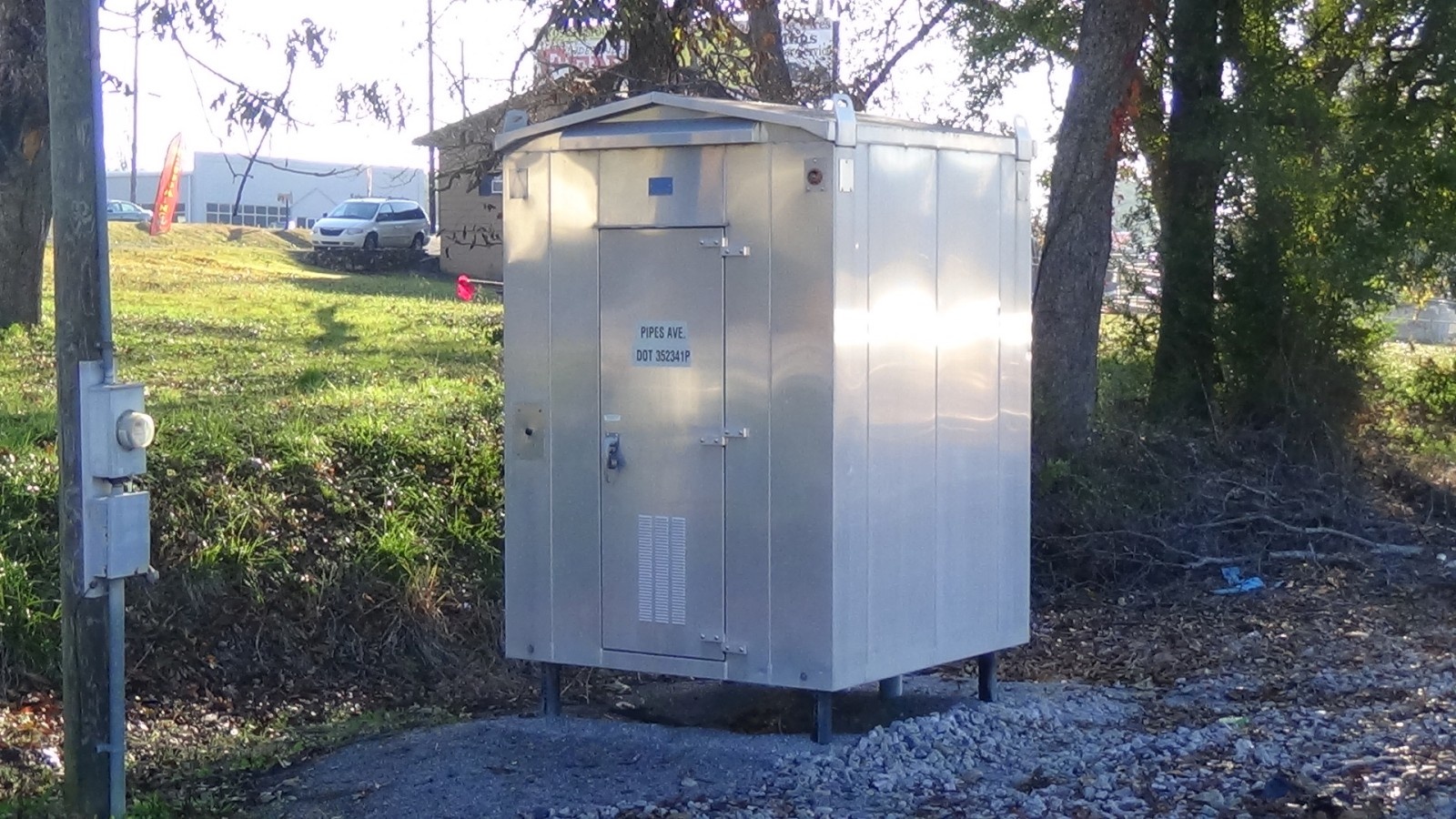

The relay case with the street name on it. |

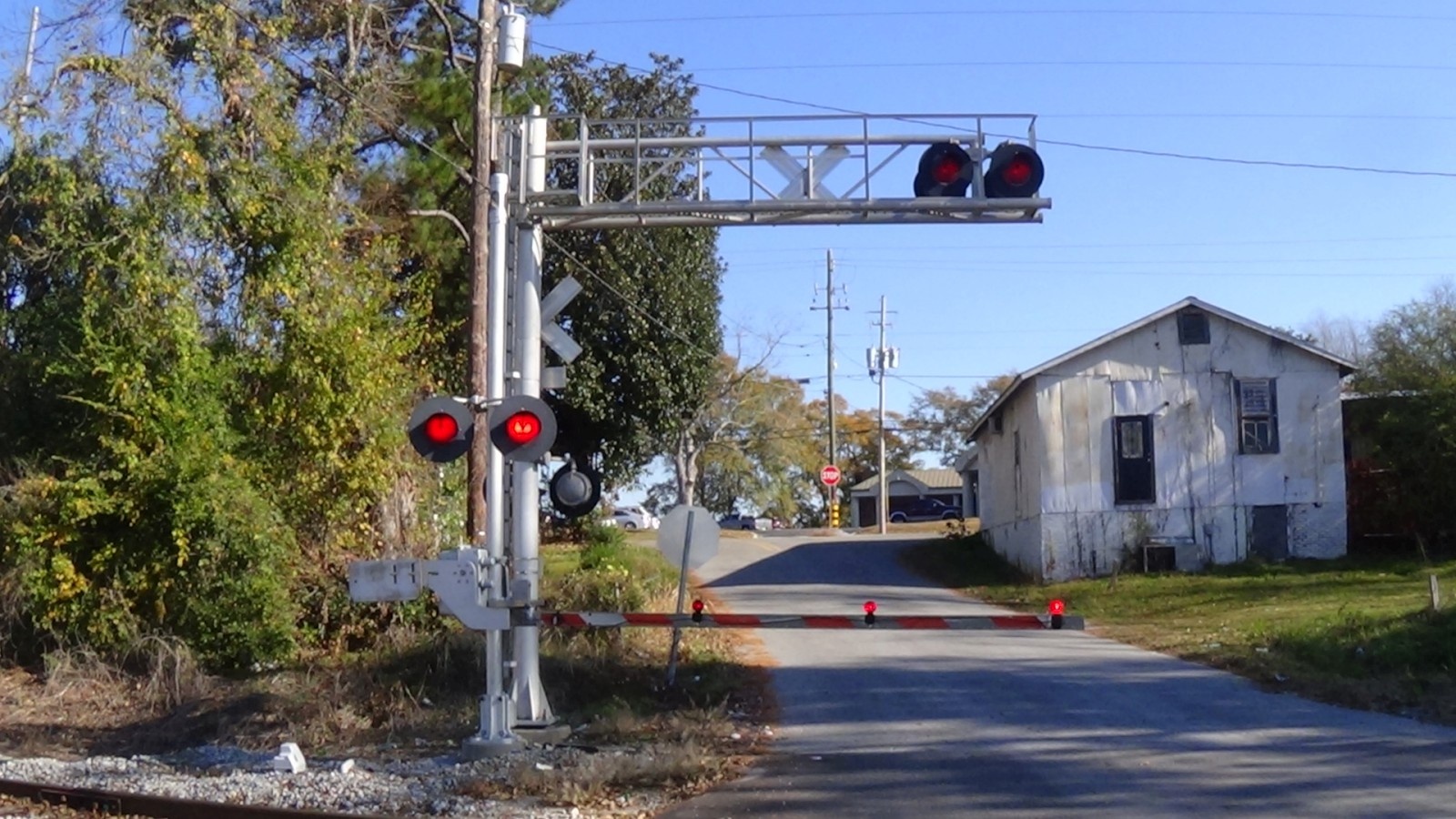

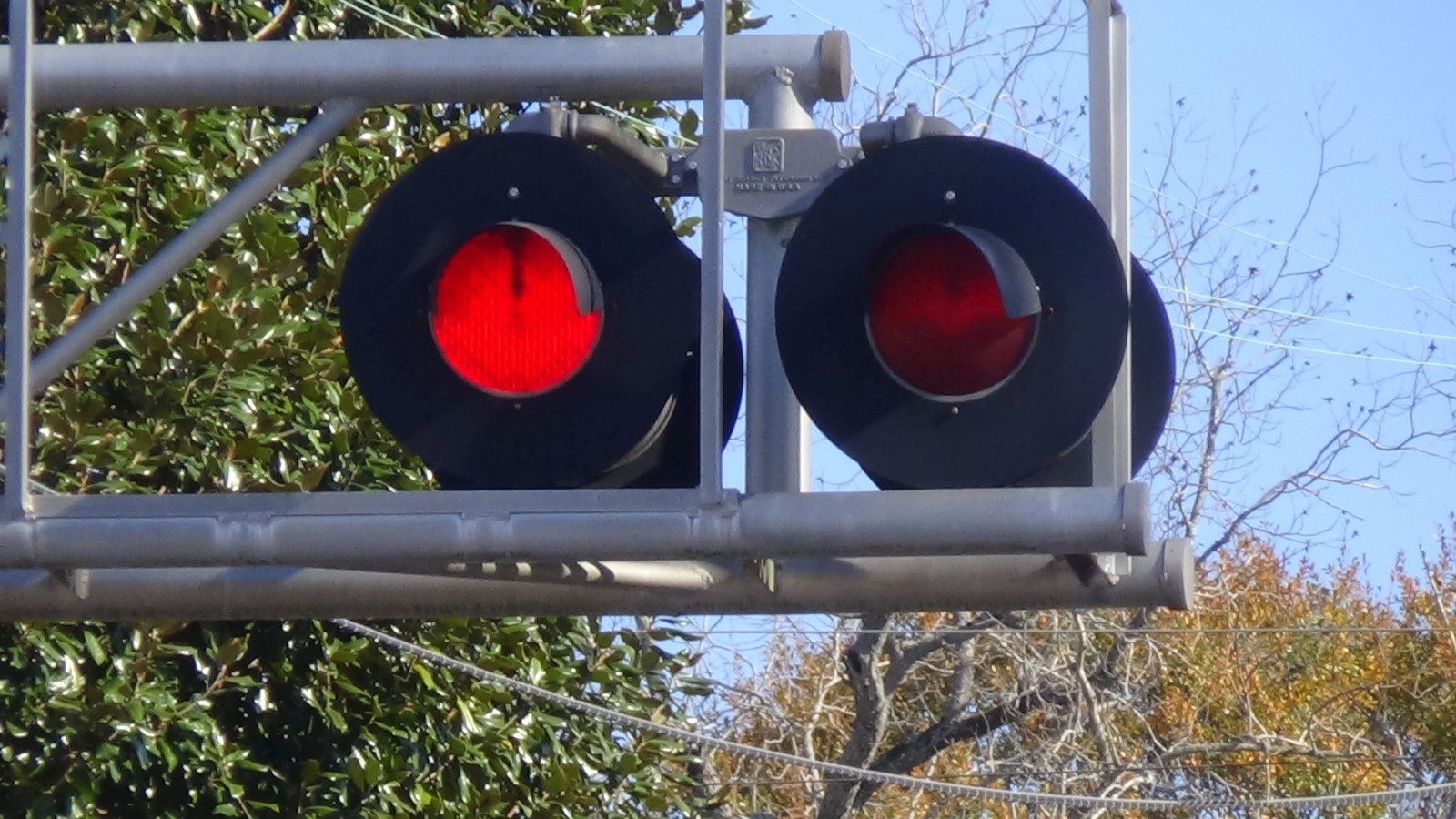

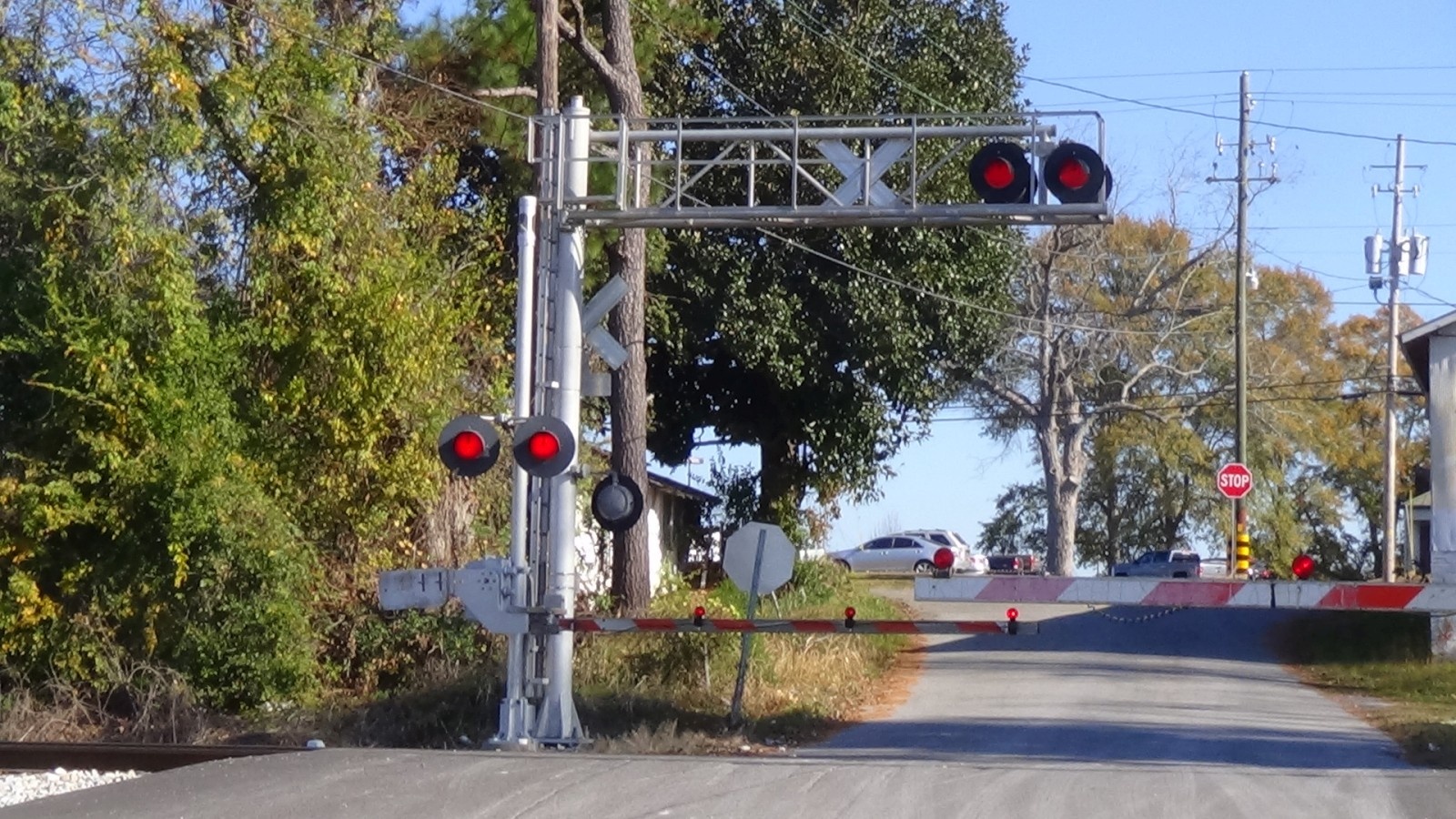

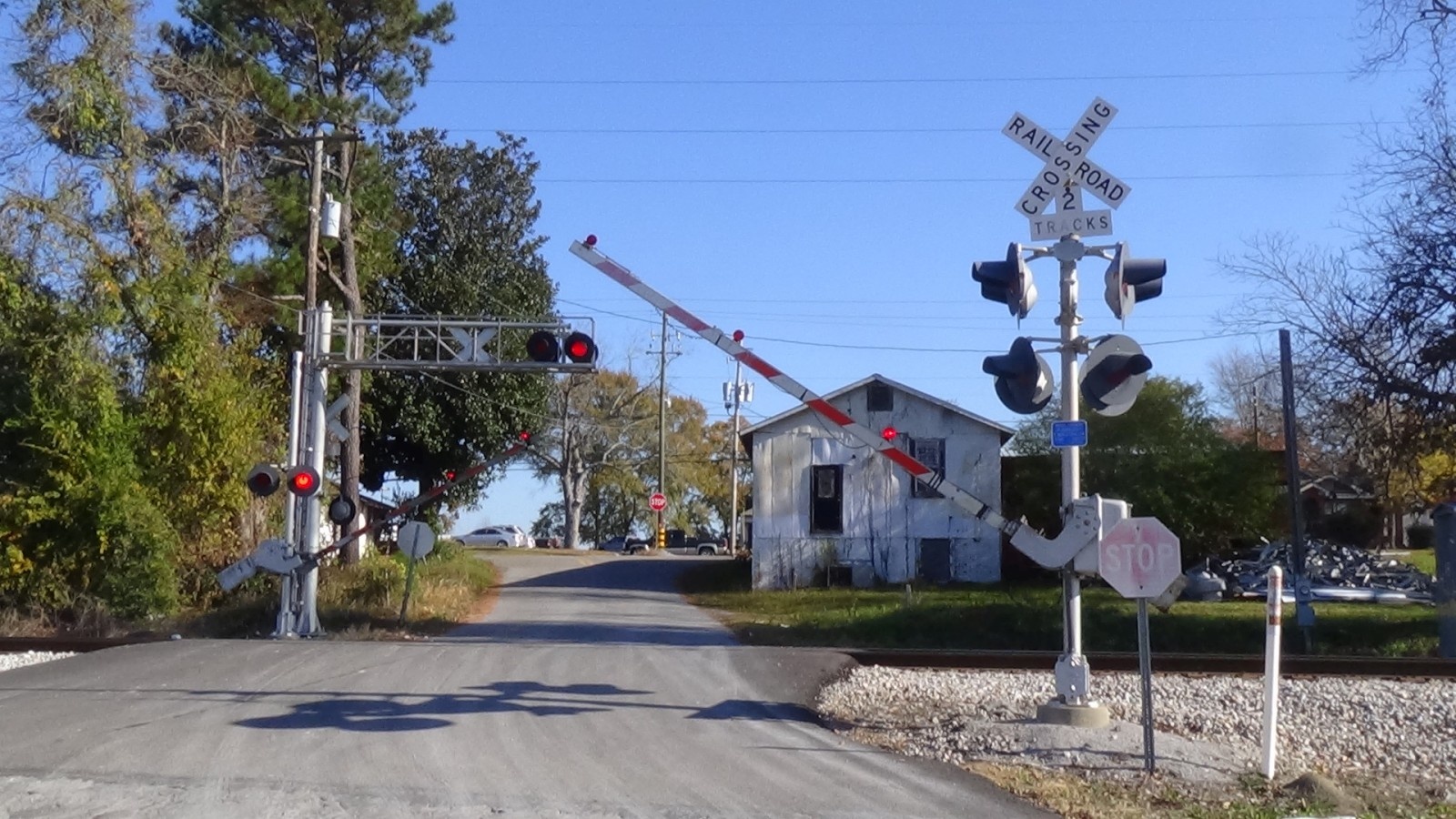

The crossing activates! |
||
33 |
34 |
35 |
36 |

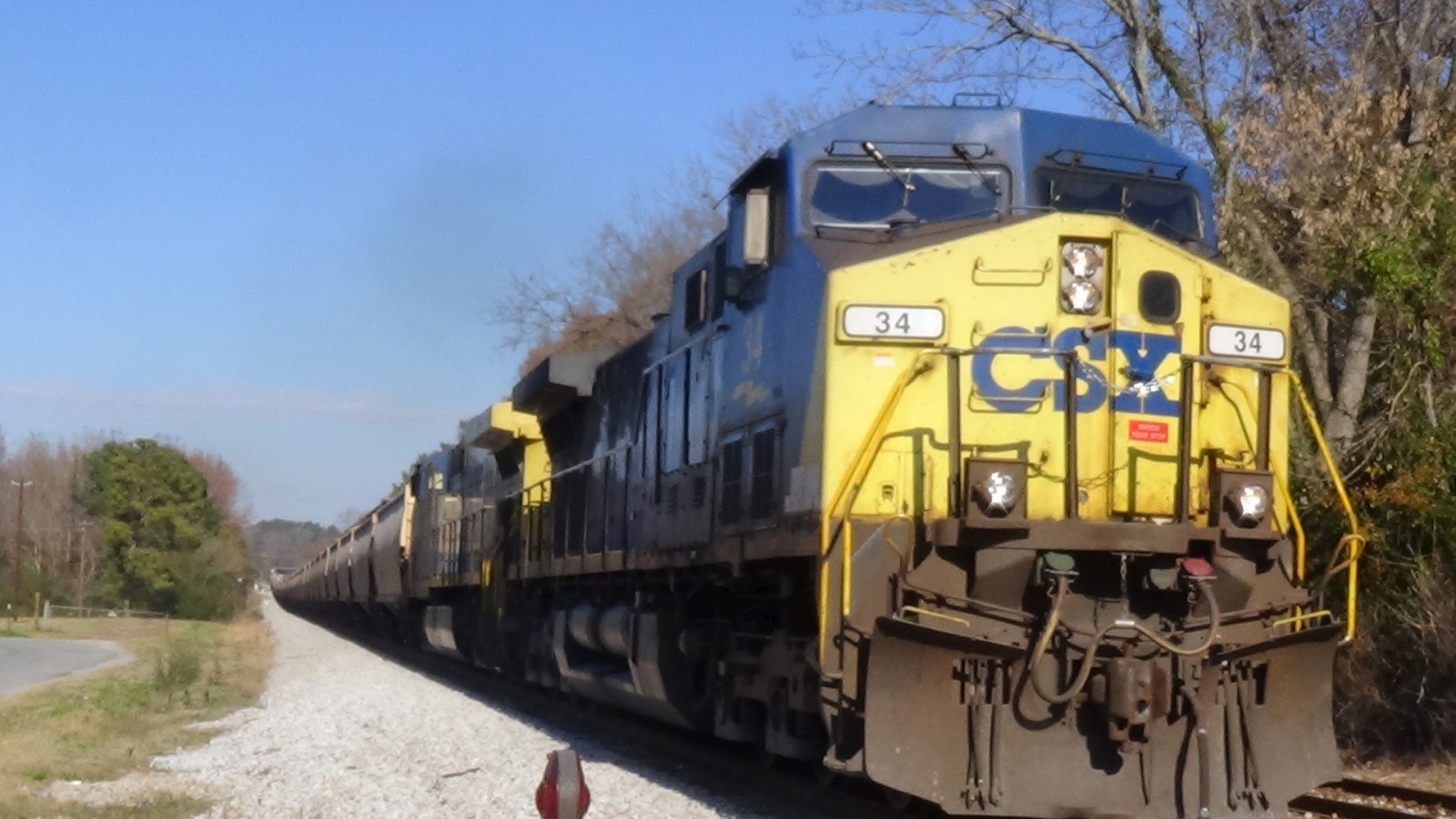

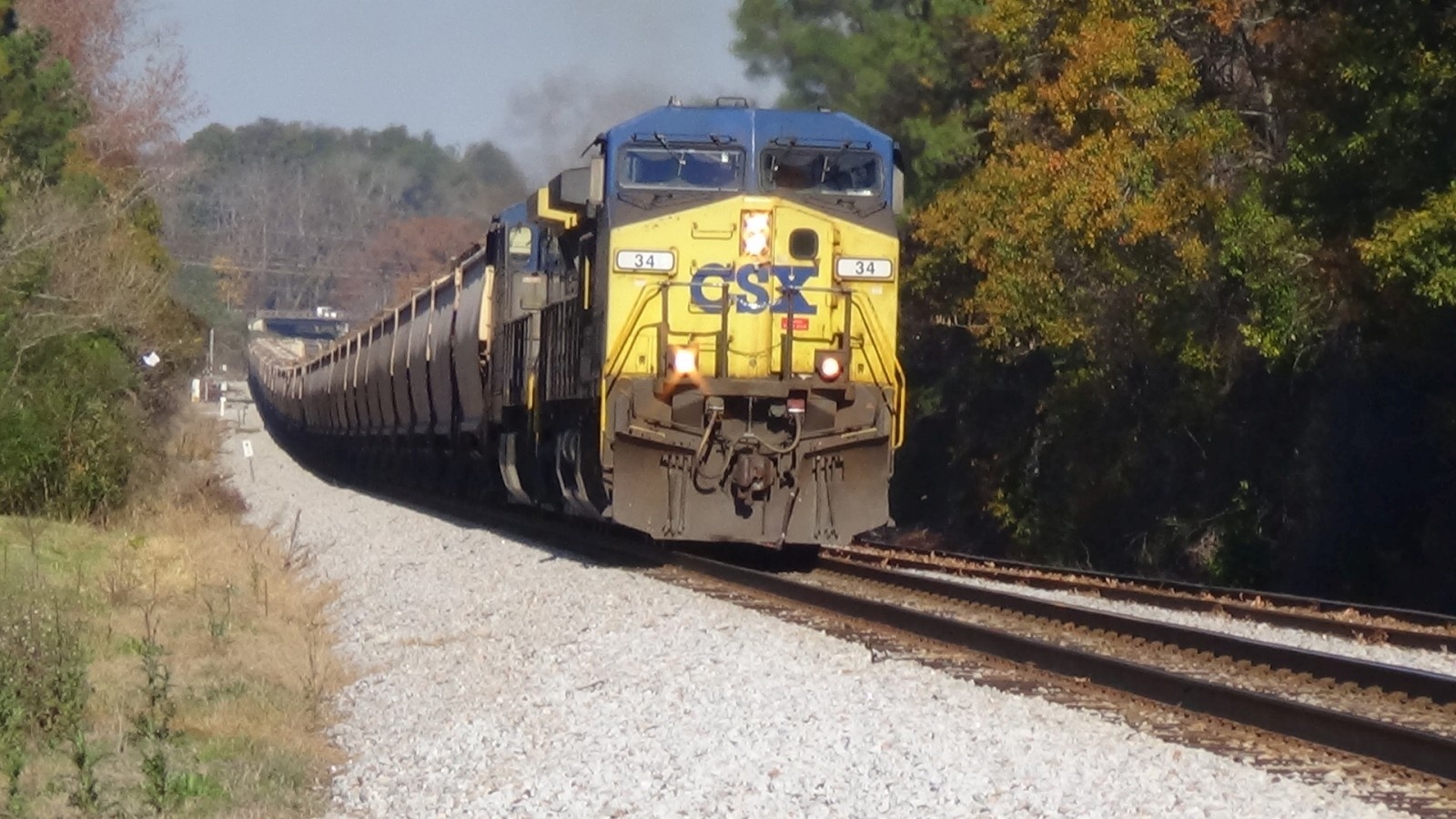

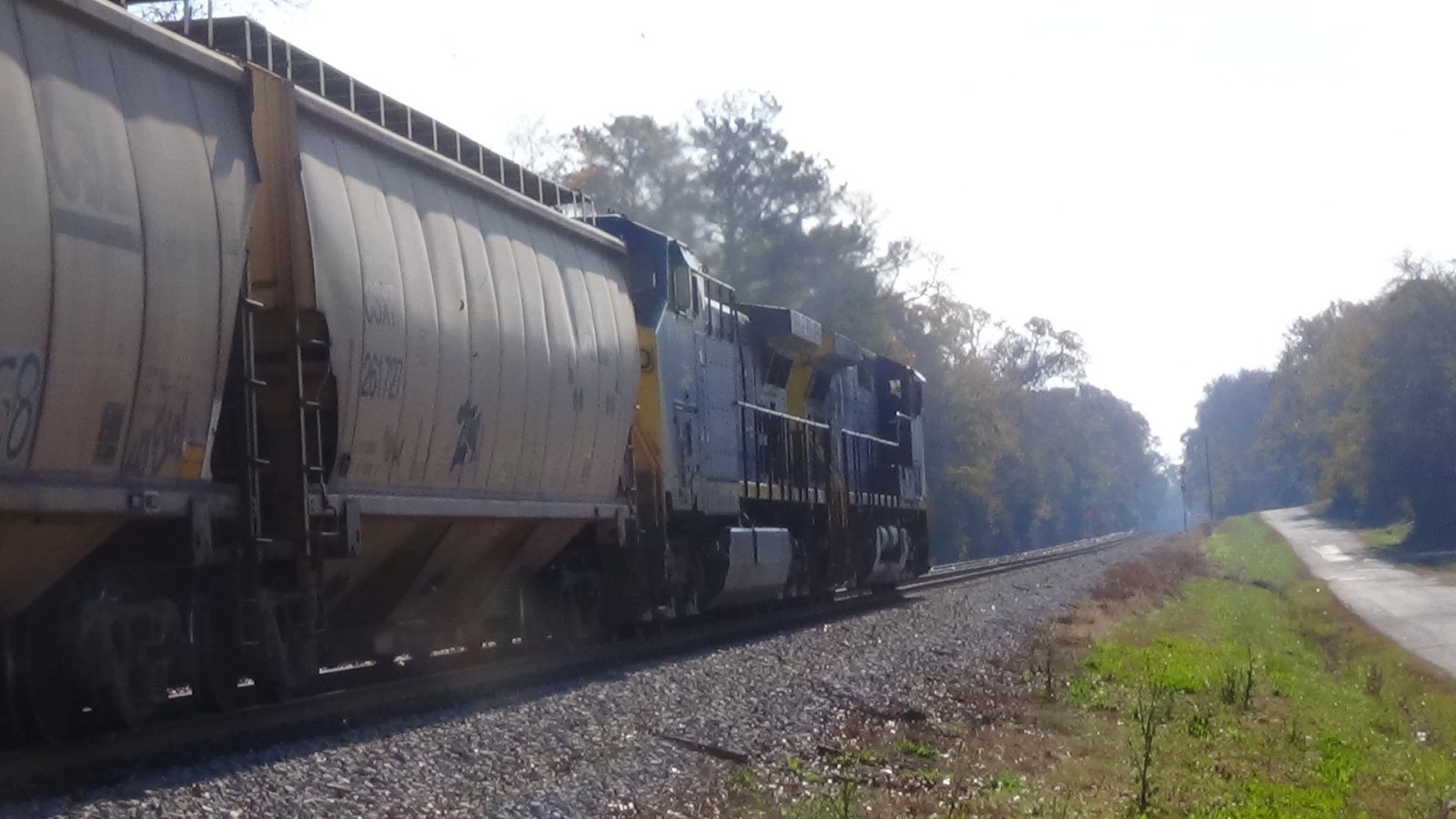

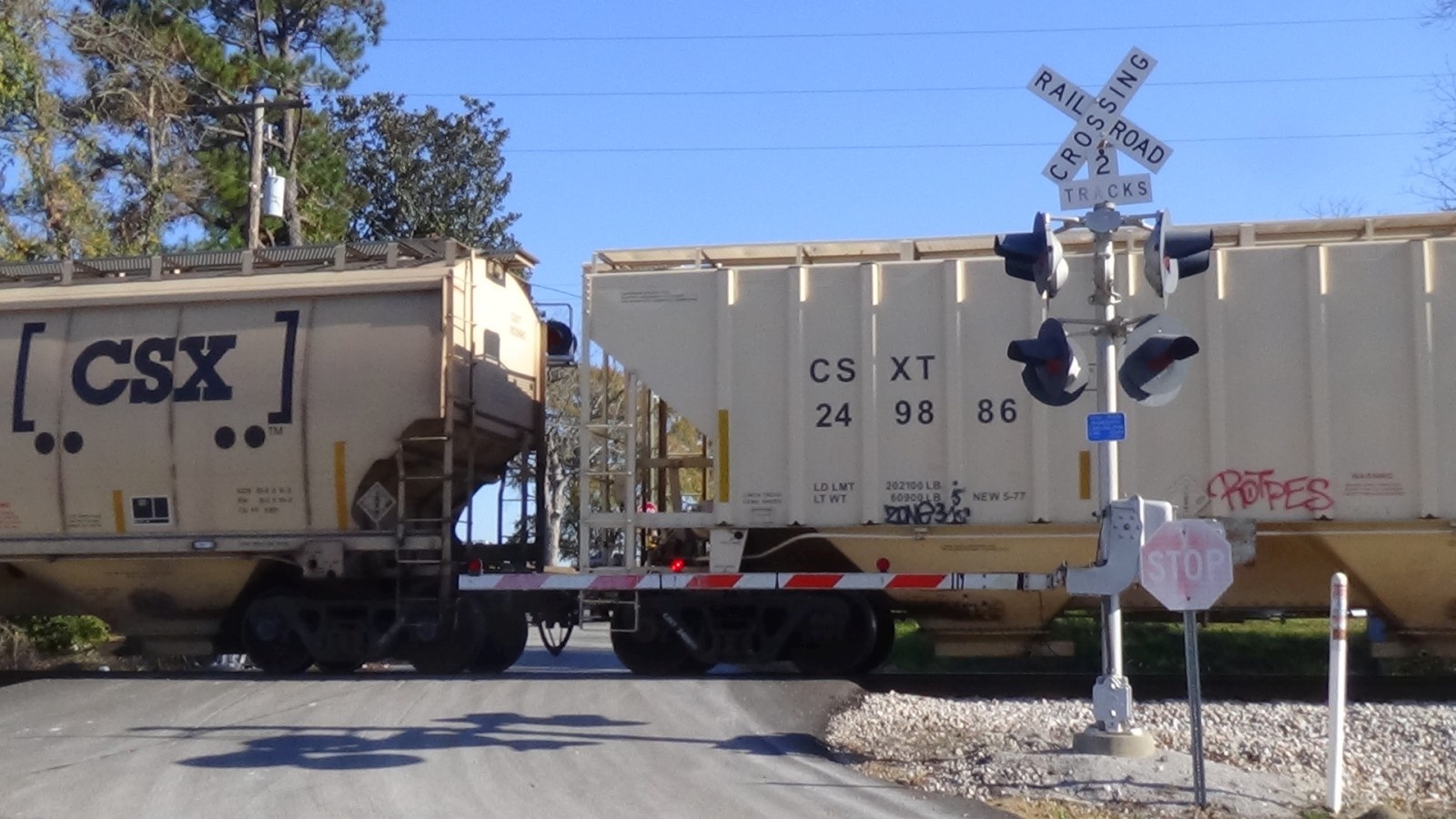

A southbound CSX grain train comes through with two YN2 AC44CWs, CSX 34 and CSX 32, for power! |
|||
37 |
38 |
39 |
40 |
41 |
42 |
43 |
44 |
45 |
46 |
47 |
48 |

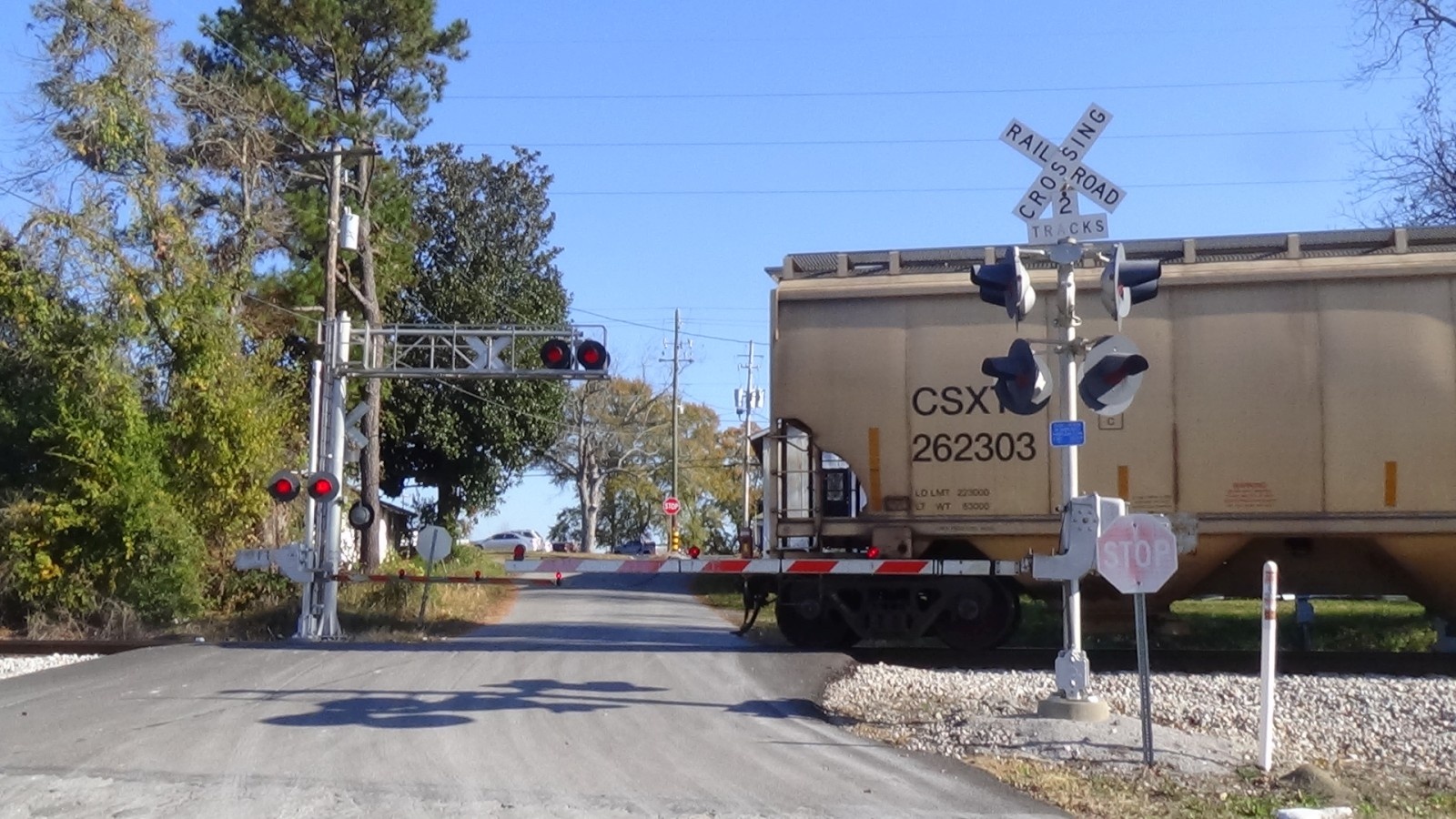

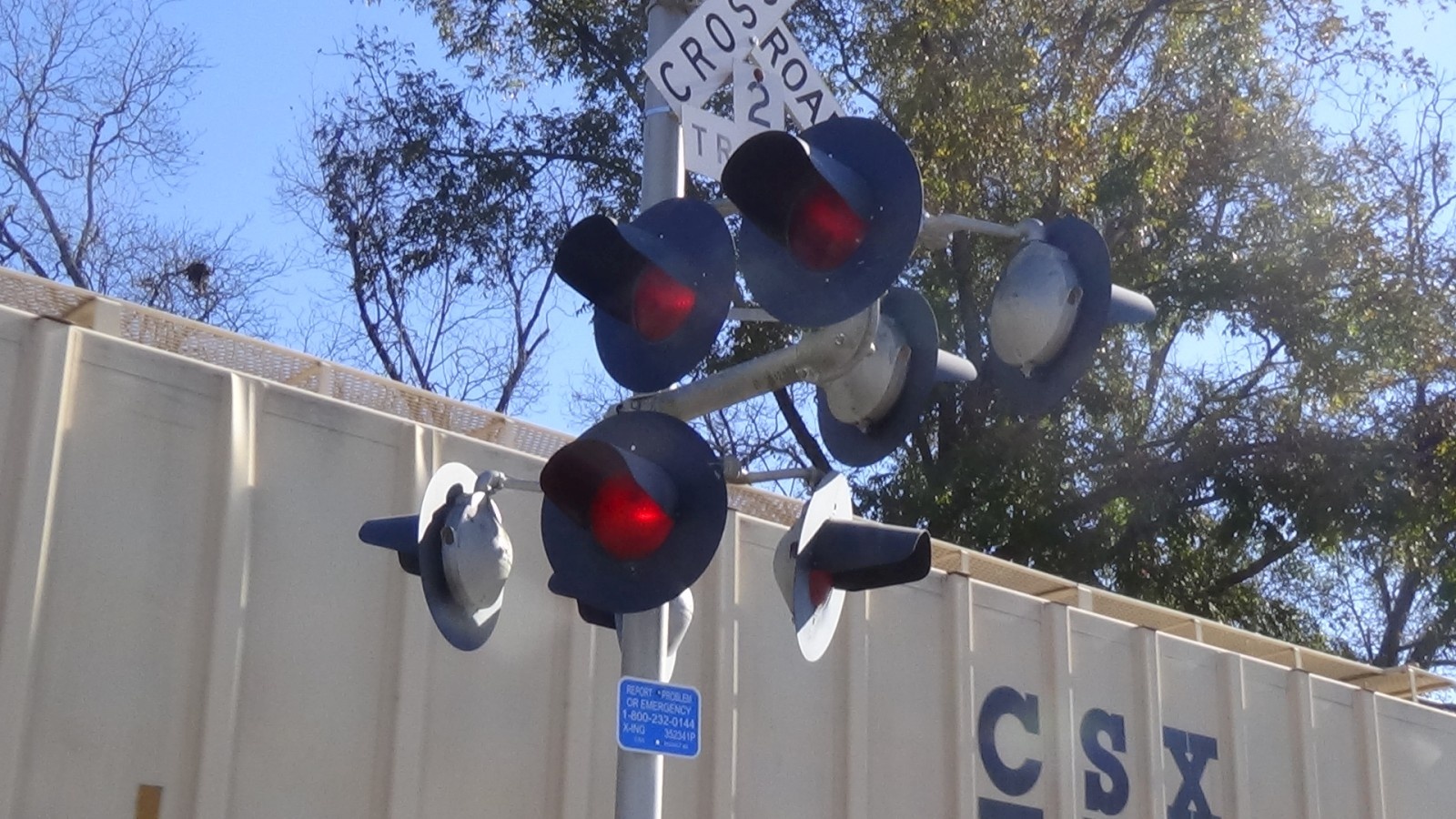

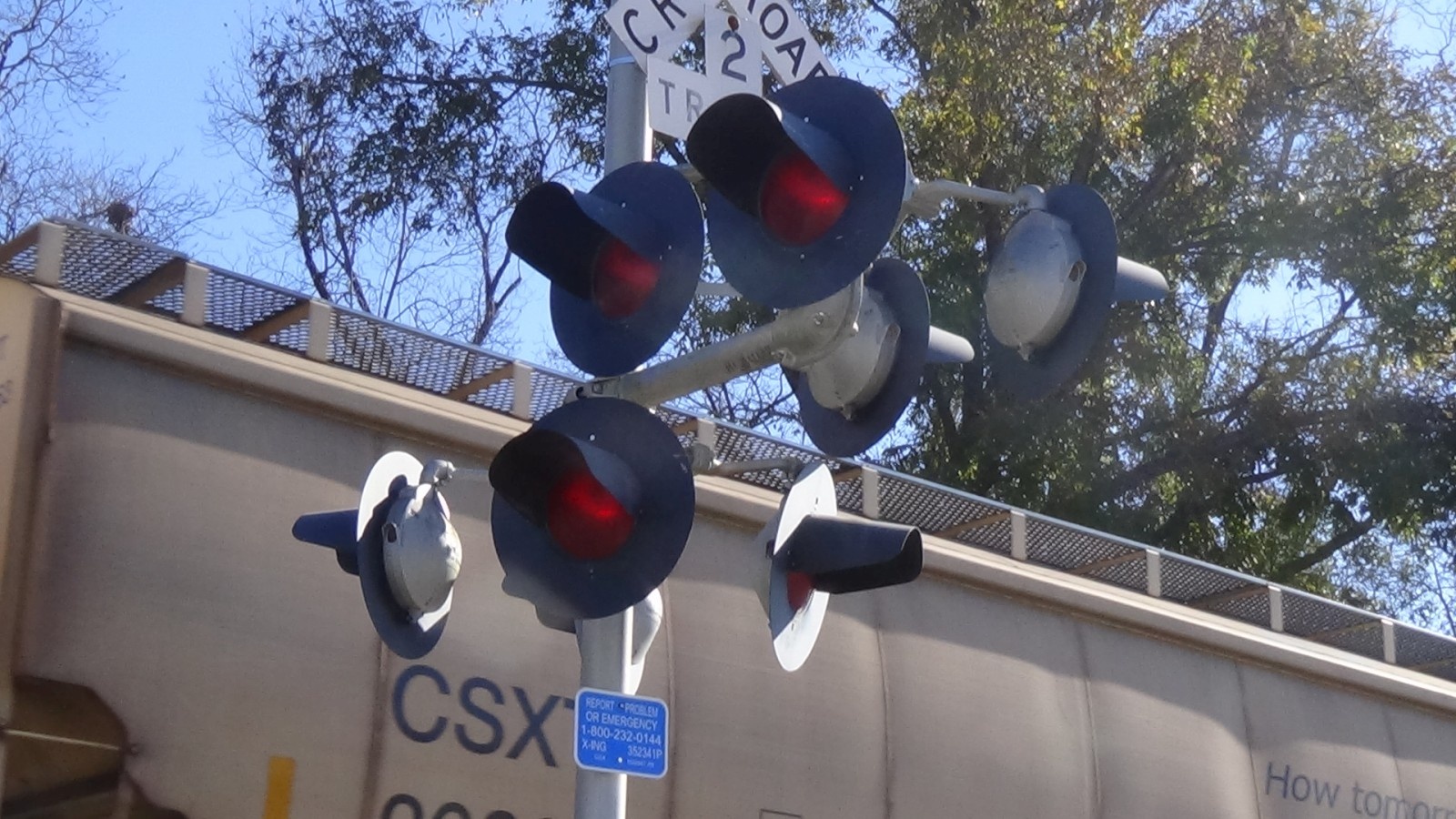

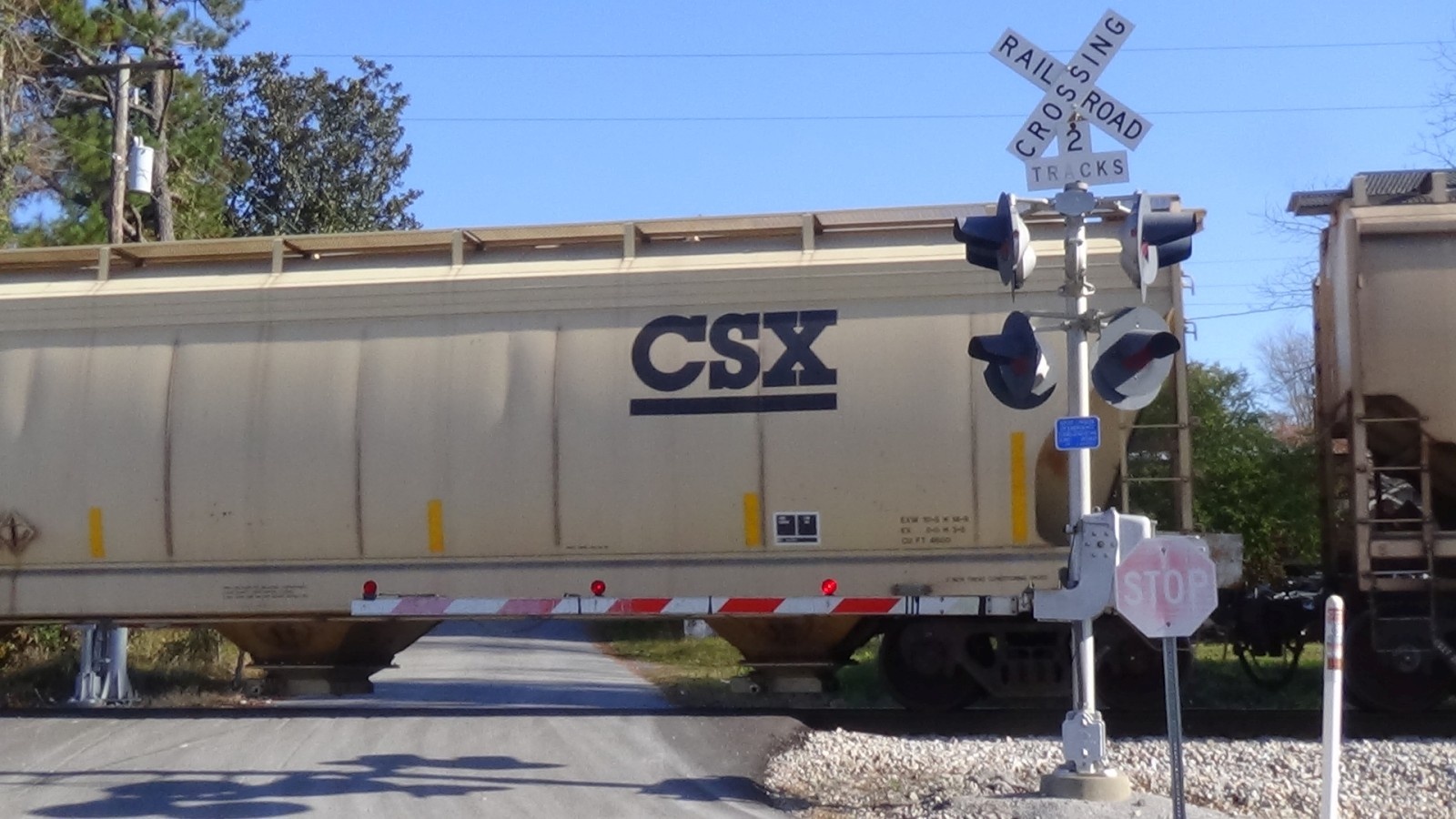

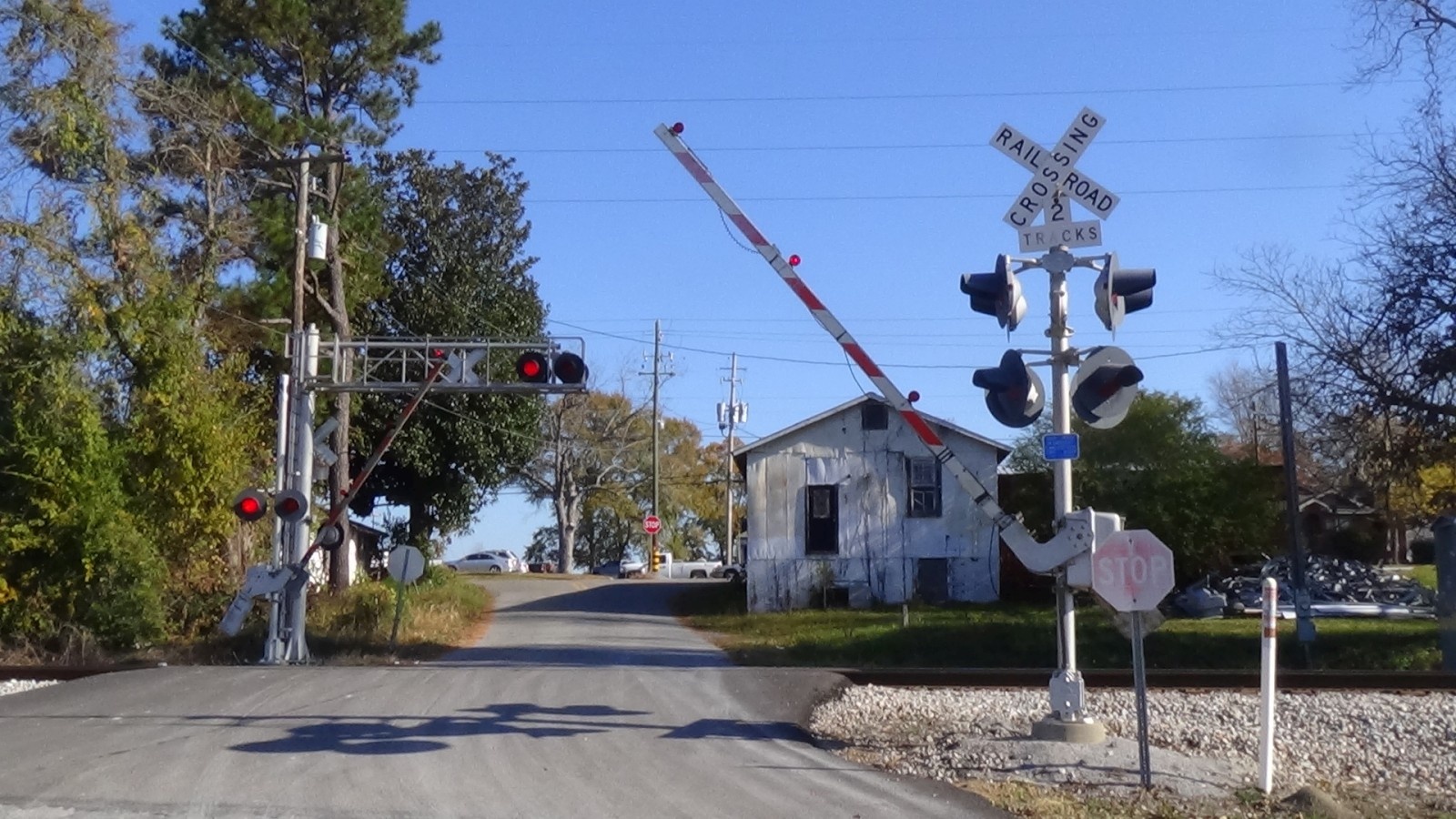

The train passes and the crossing deactivates... |
...except for a breif tail-ring malfunction afterwards! |
||
49 |
50 |

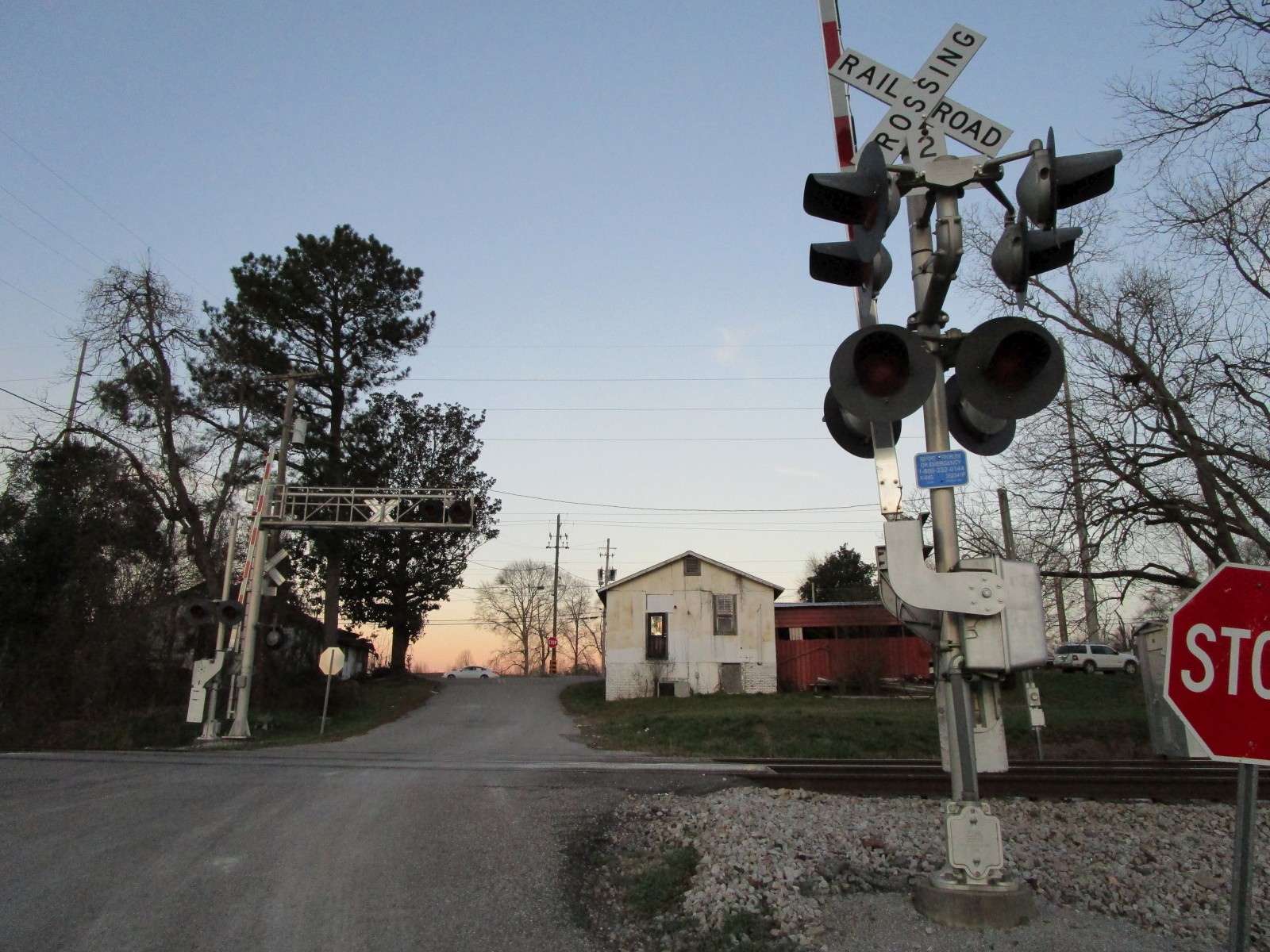

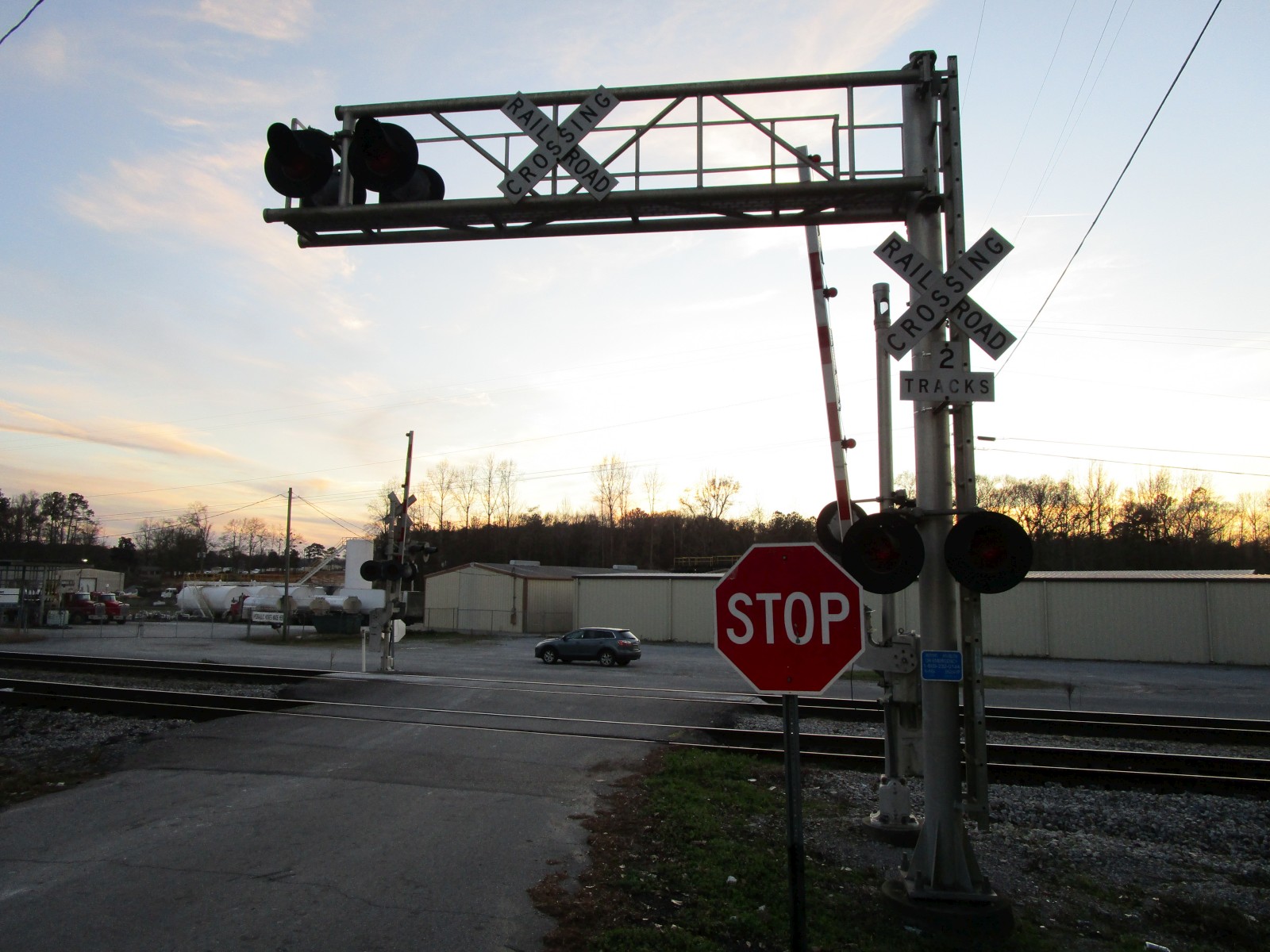

A return trip to the crossing on 1-8-22 finds that CSX has replaced all of the gate lights here. |
|
51 |
52 |
53 |

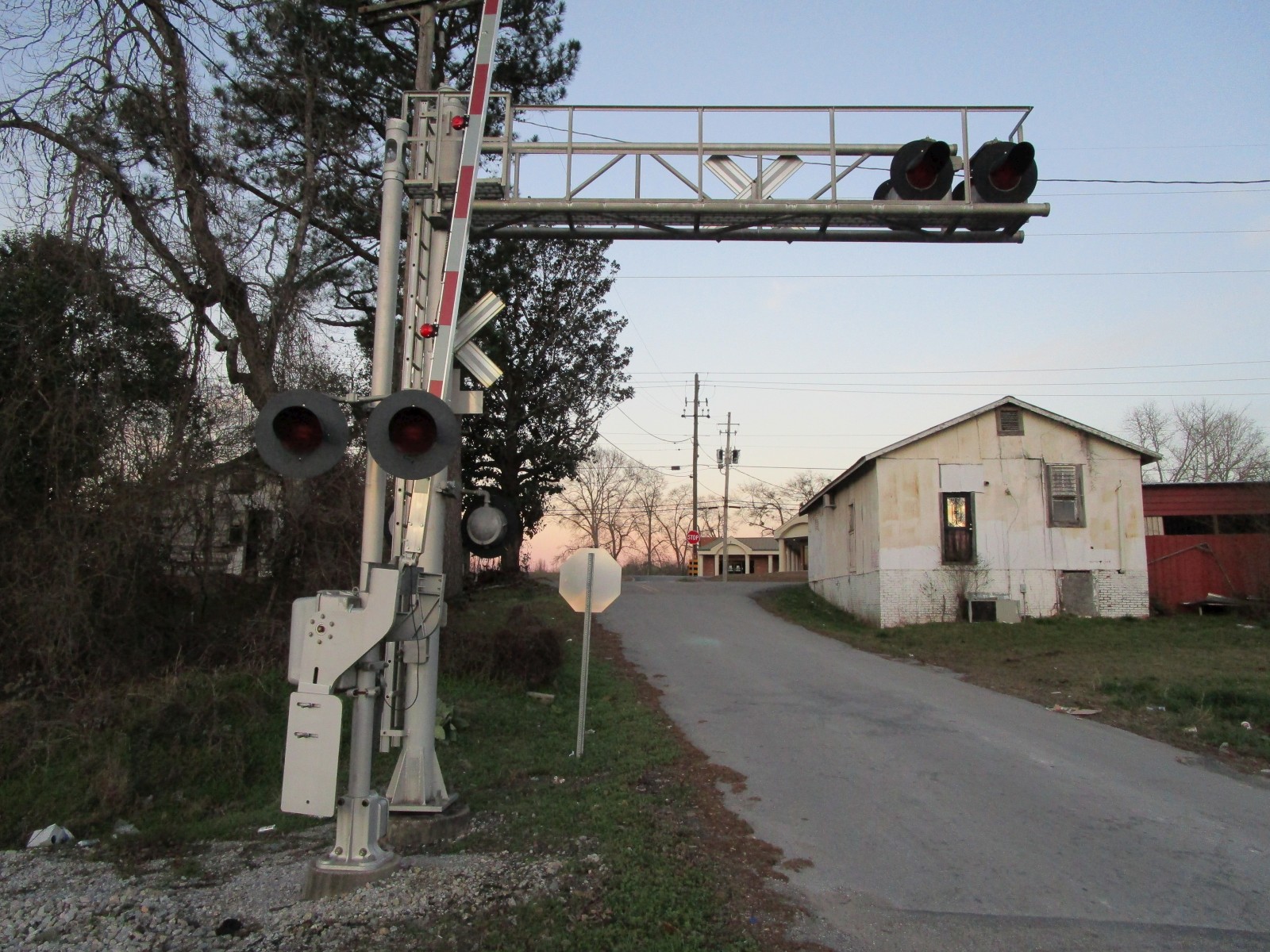

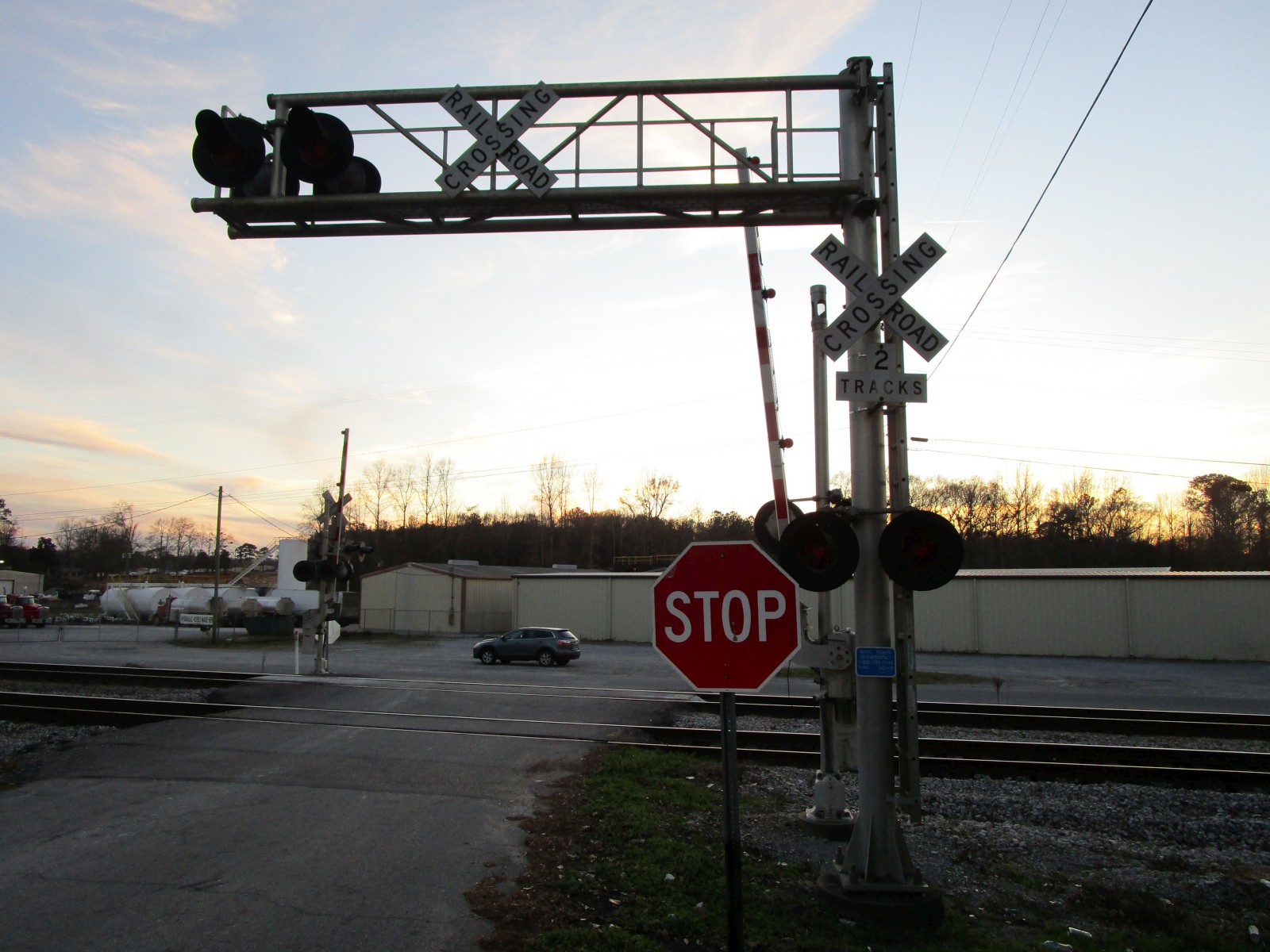

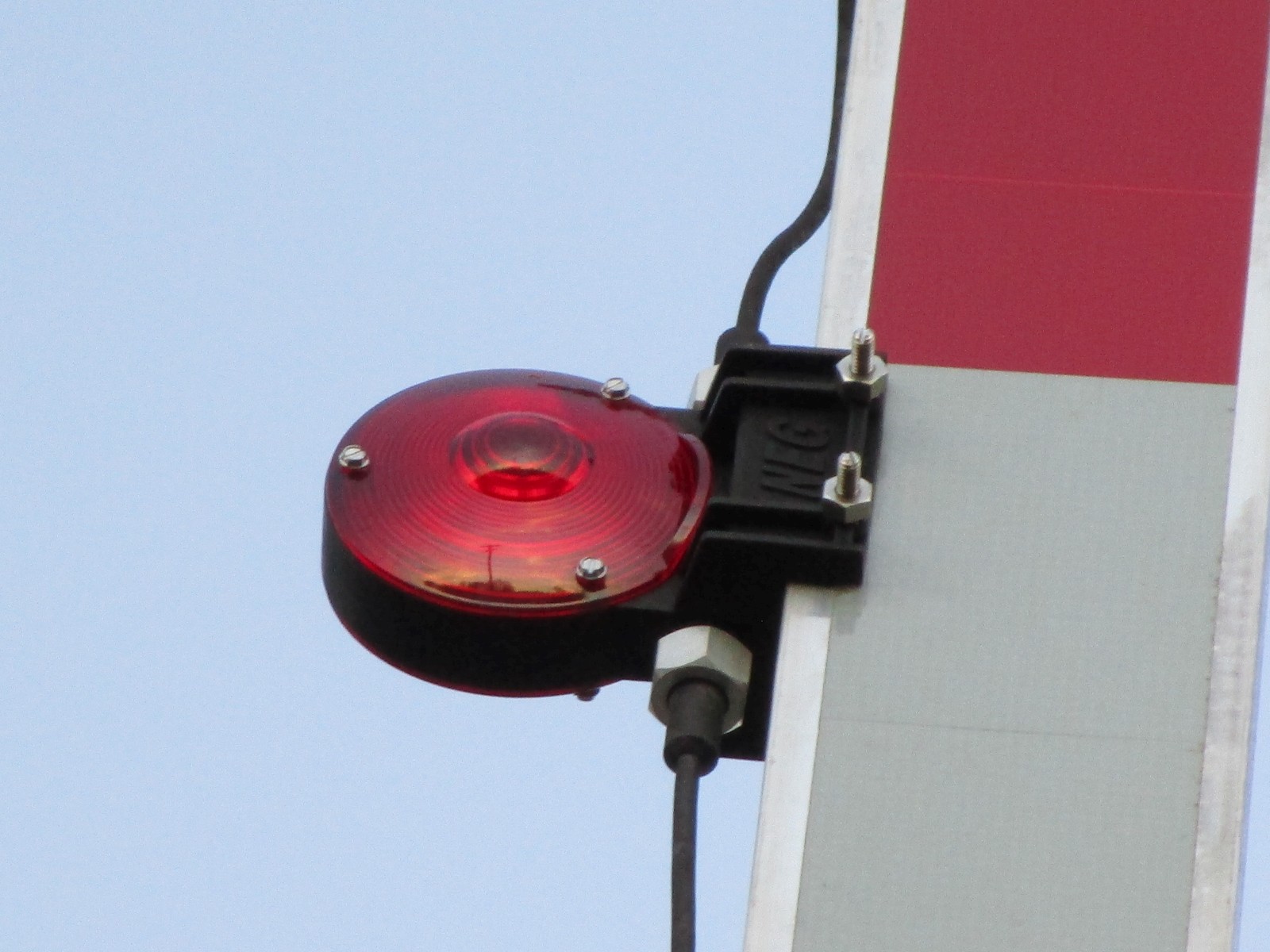

The first signal now has all NEG LED gate lights. |
||
54 |
55 |
56 |

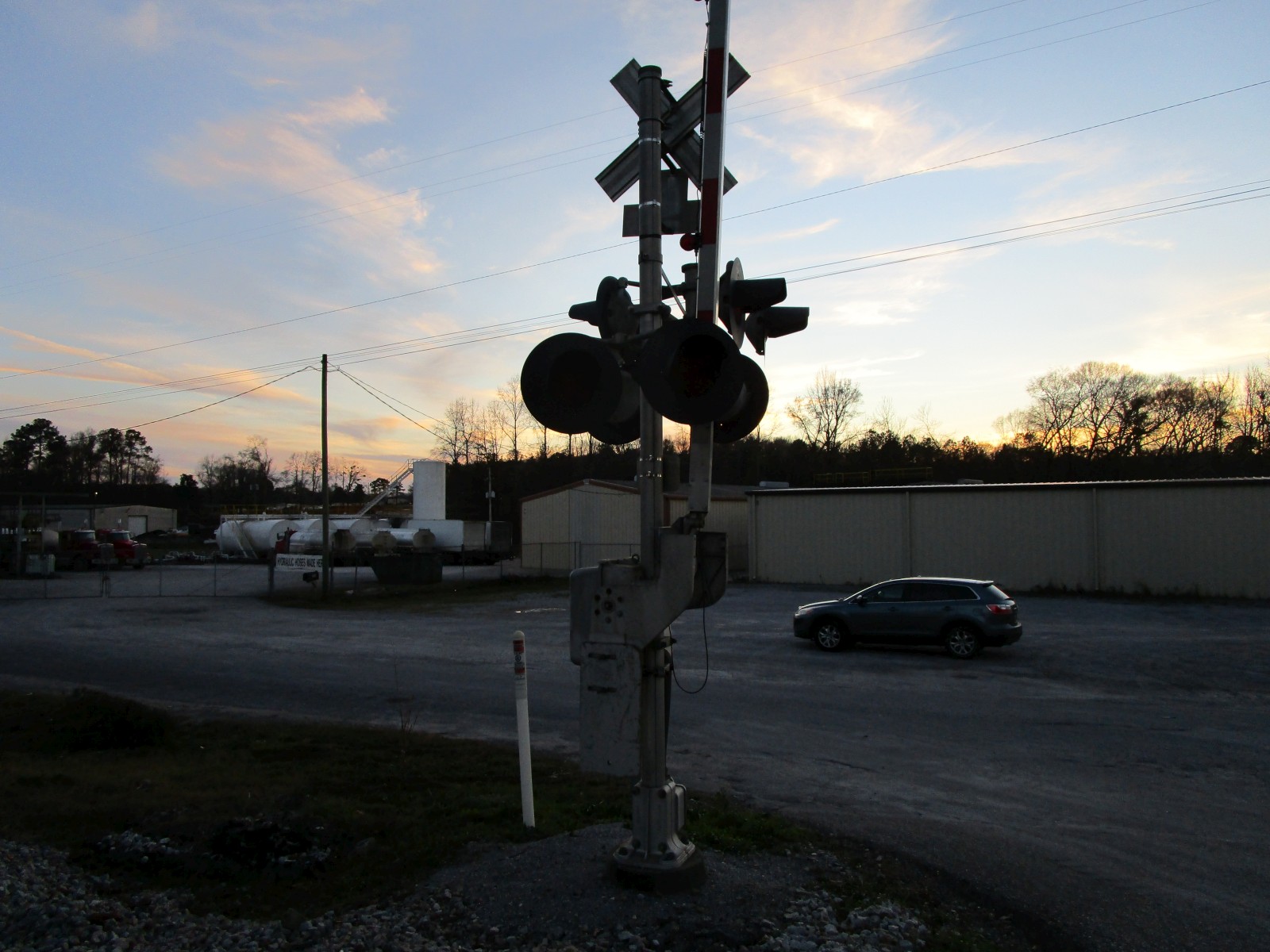

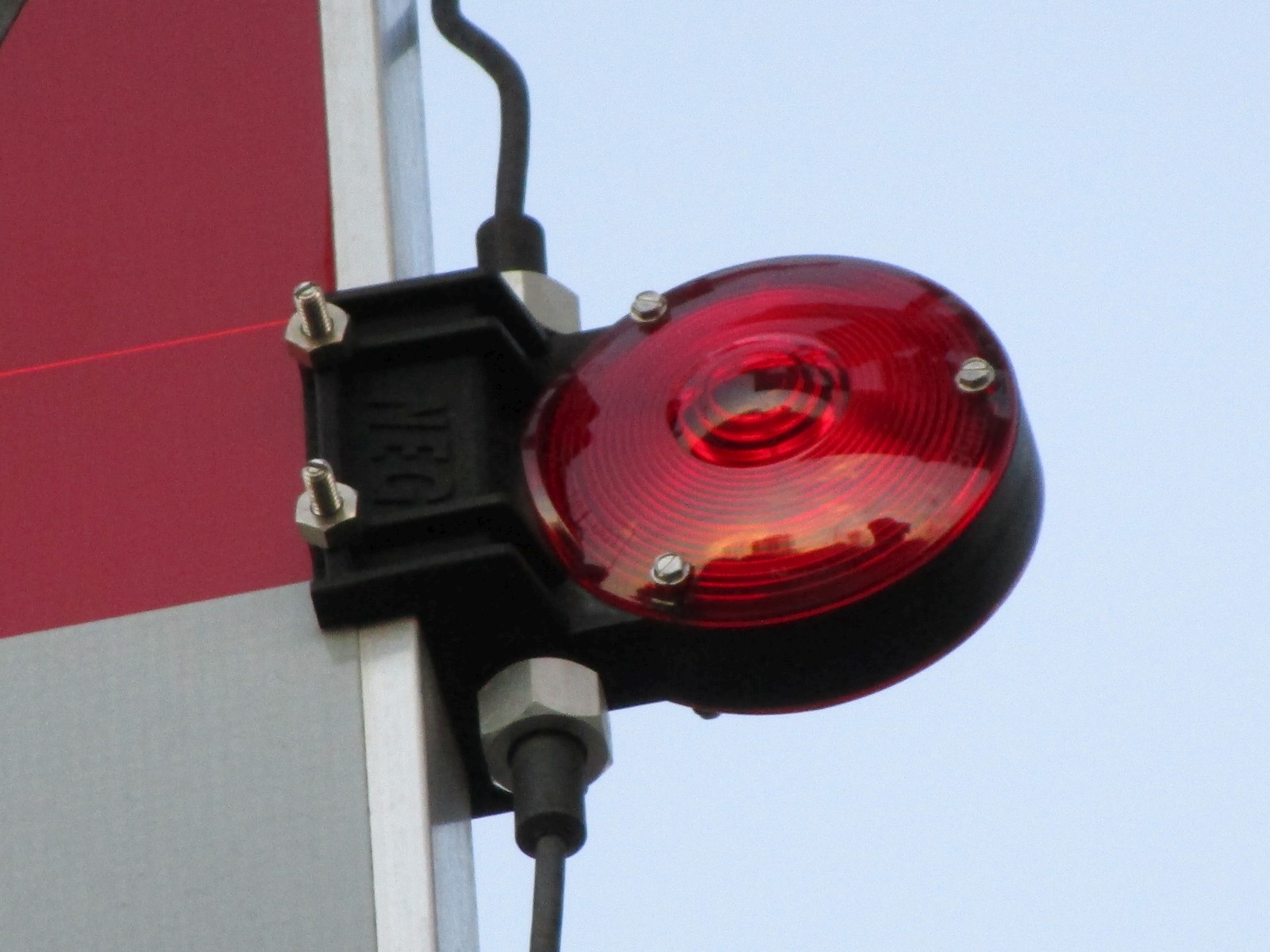

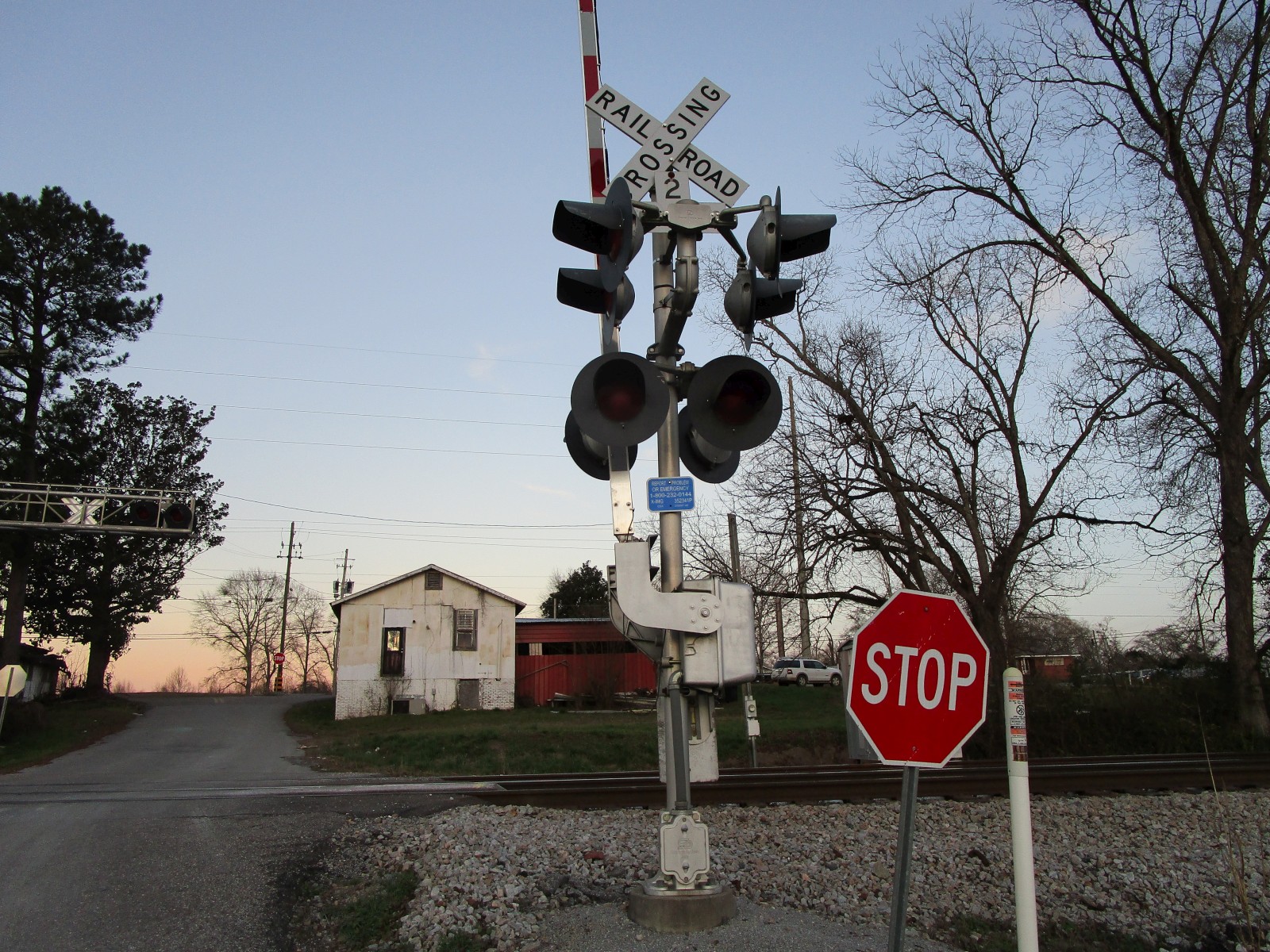

The second signal now has more NEG LED gate lights. The front lights here were also re-aimed and now face the same way. |
||
Pictures 1-48 and the first video were taken on 11-29-17.
Pictures 49-56 were taken on 1-8-22.
The second video was taken on 6-26-22.
