MP:  A382.80



Updated December 25, 2016



Total Accidents:   1
Crossing DOT #:  731893B
TOTAL DAILY TRAINS:   13   (AS OF 2014)



Page created by: freebrickproductions



This crossing is located on the NS Memphis District East End.



>>>>>>>>>>>>> Signal #1 Signal #2
Bell: Safetran Type 3 electronic Safetran Type 3 electronic
Base: Safetran Safetran
Light Frames: 4 - 12x20" Safetran w/ GE Uniform Look LEDs 4 - 12x20" Safetran w/ GE Uniform Look LEDs
Gate Lights: 3 - RECO LEDs 3 - RECO LEDs
Gate Mechanism: Invensys Rail Invensys Rail
Gate Striping: Vertical Vertical



1

2

3

4

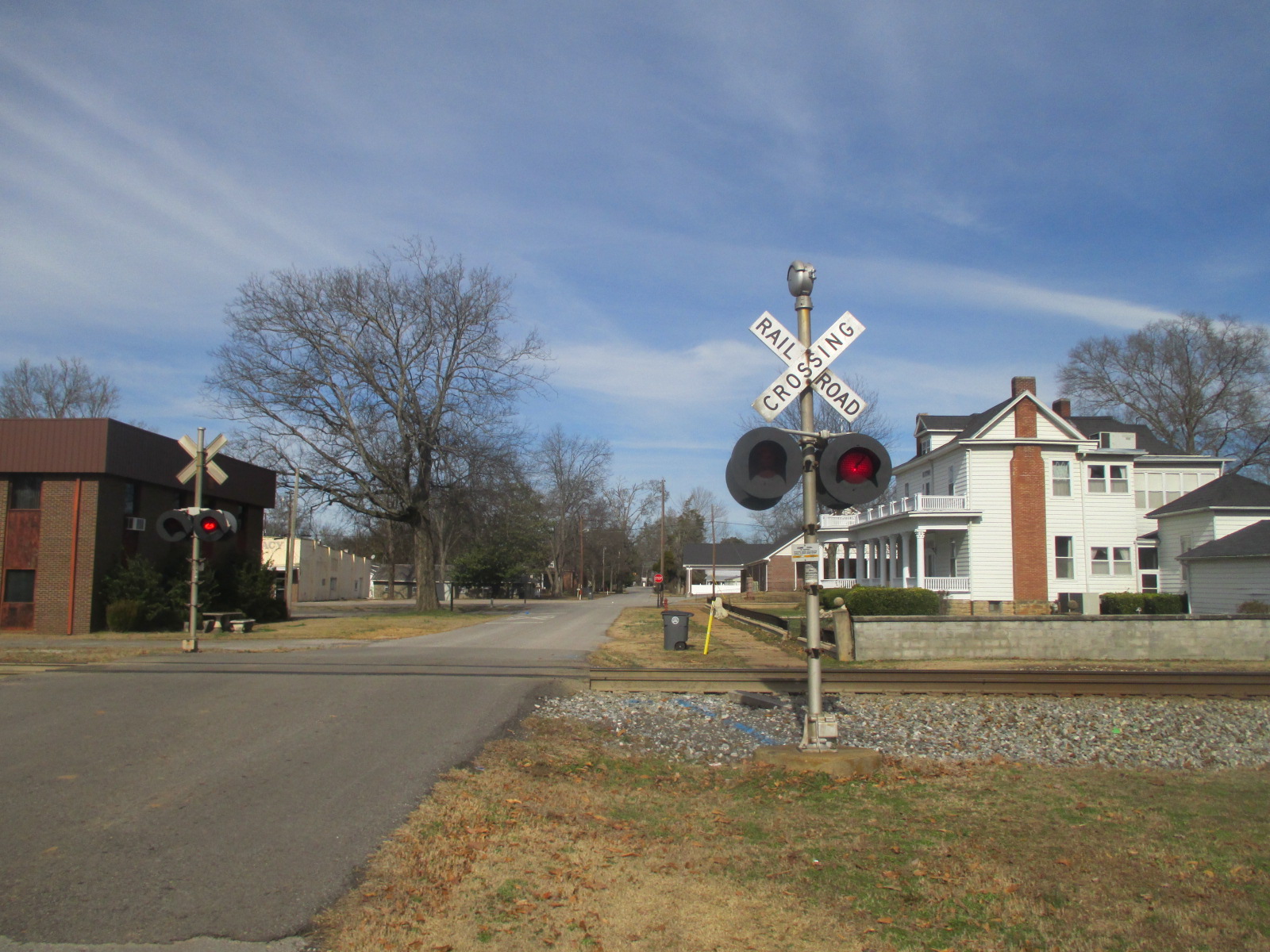

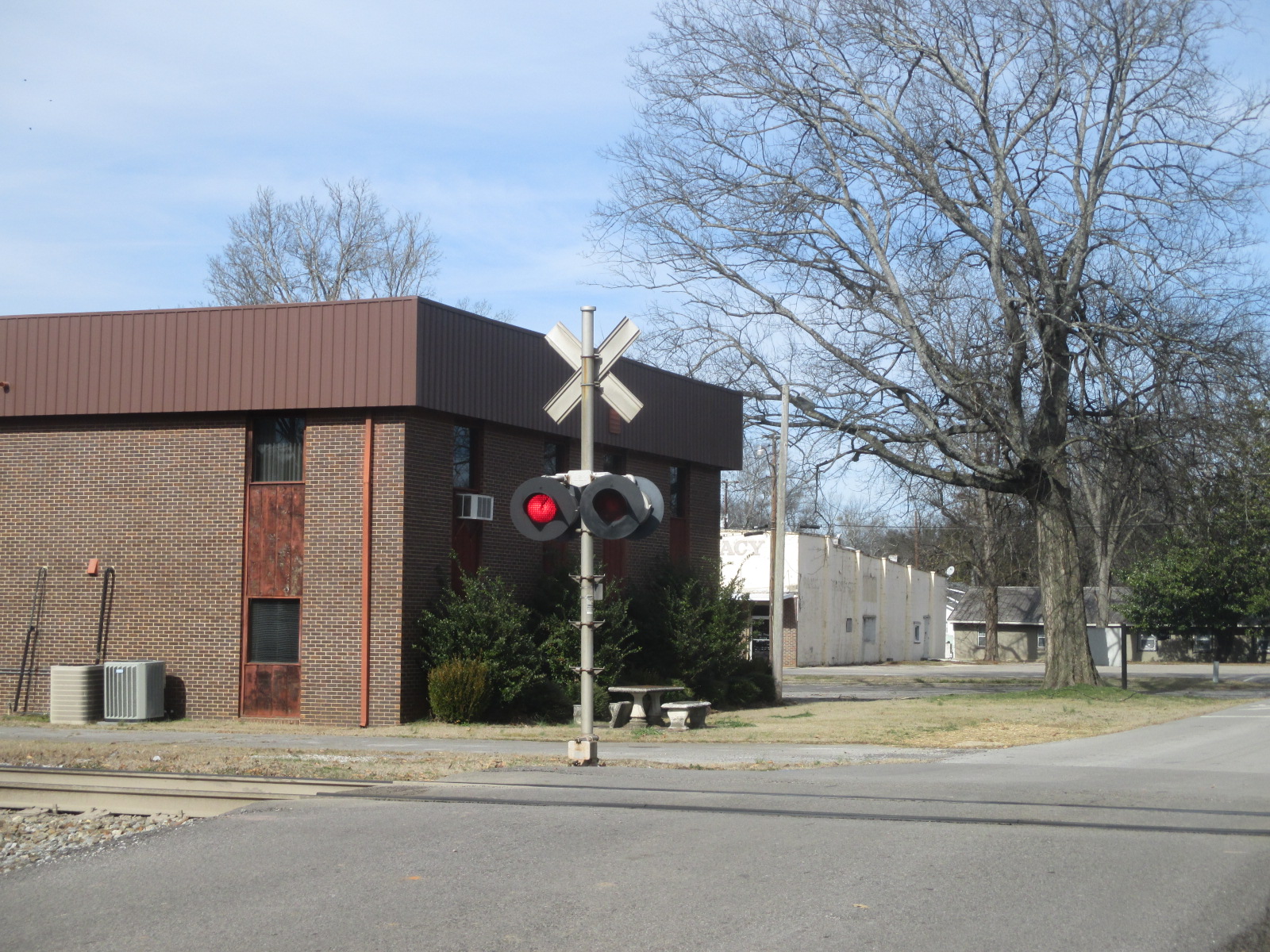

Overviews of the crossing.

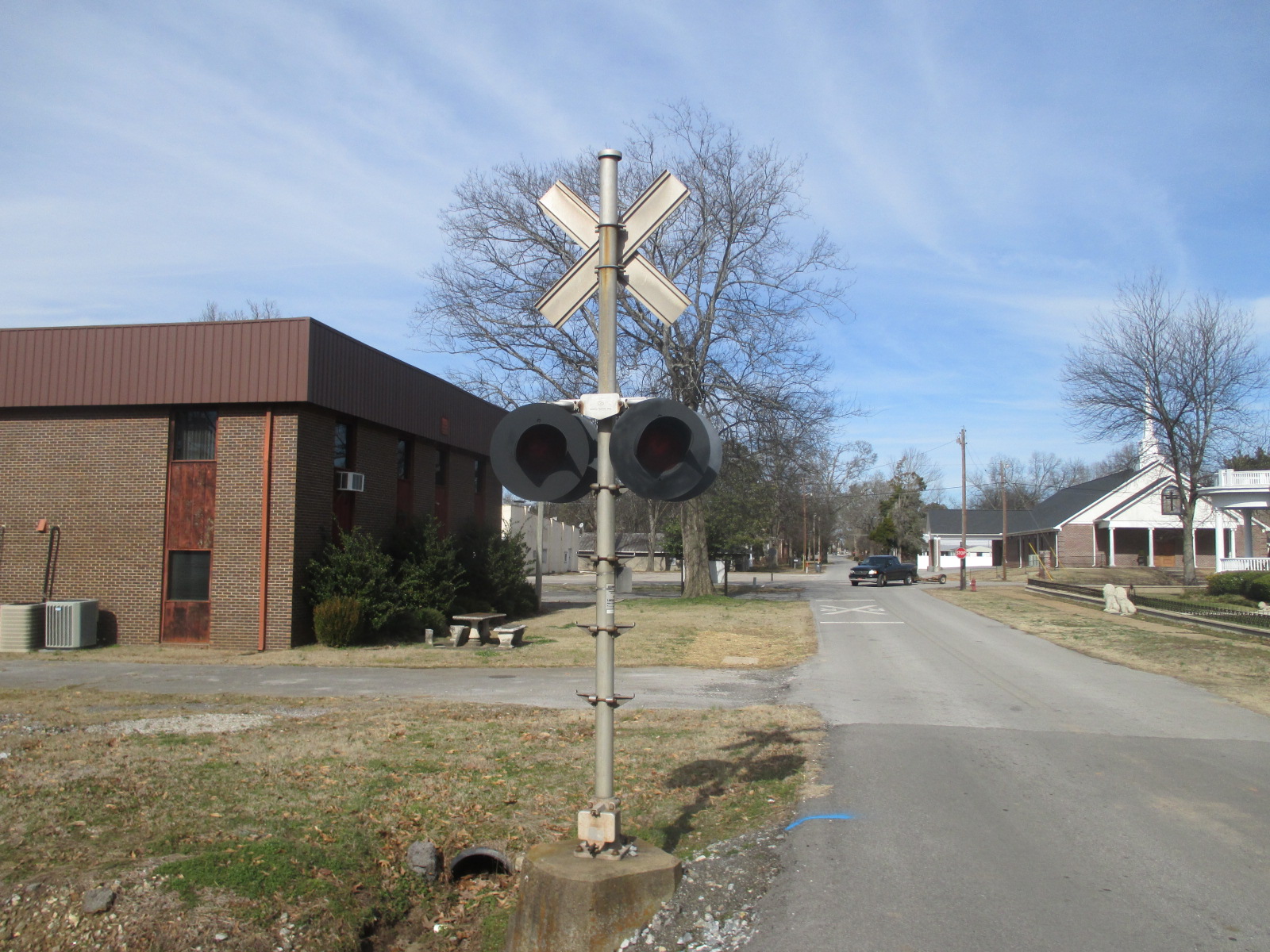

The first signal.

5

6

7

8
A Modern Industries signal base.
The emergency information and a DOT tag.

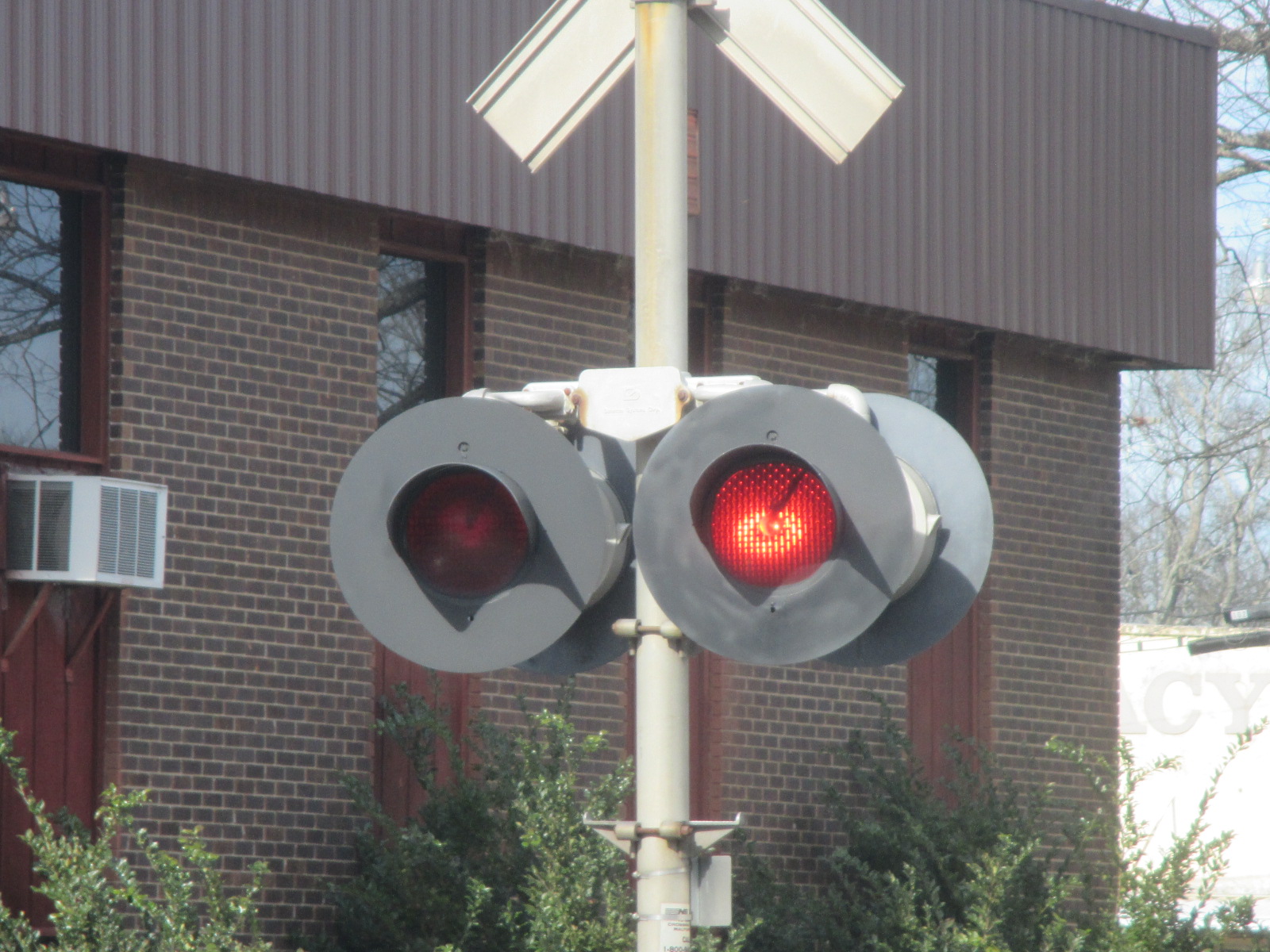

The lights on this signal are older Safetran 12x24 inch lights.

9

10

11

12

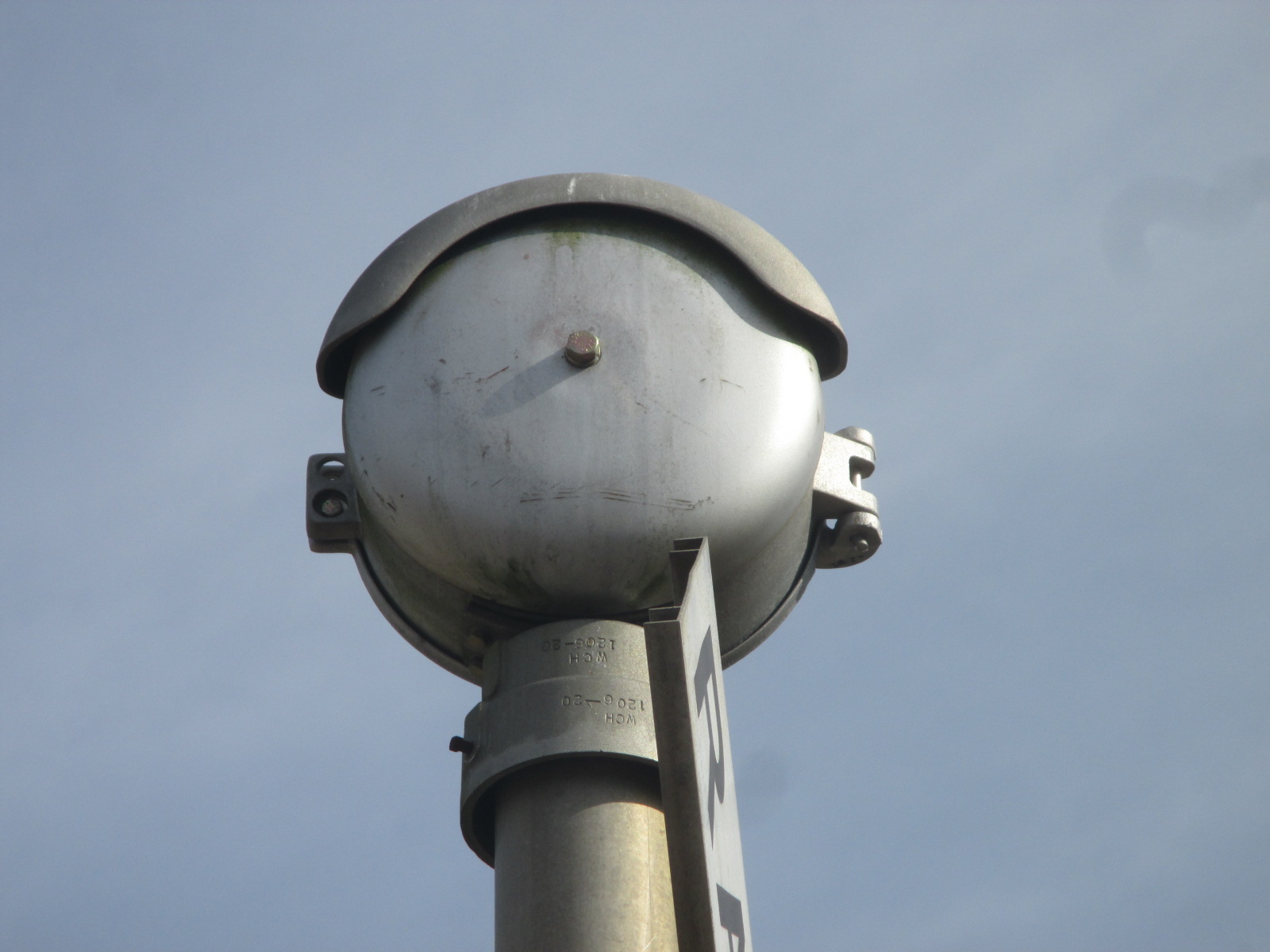

The bell here is a WCH mechanical bell.

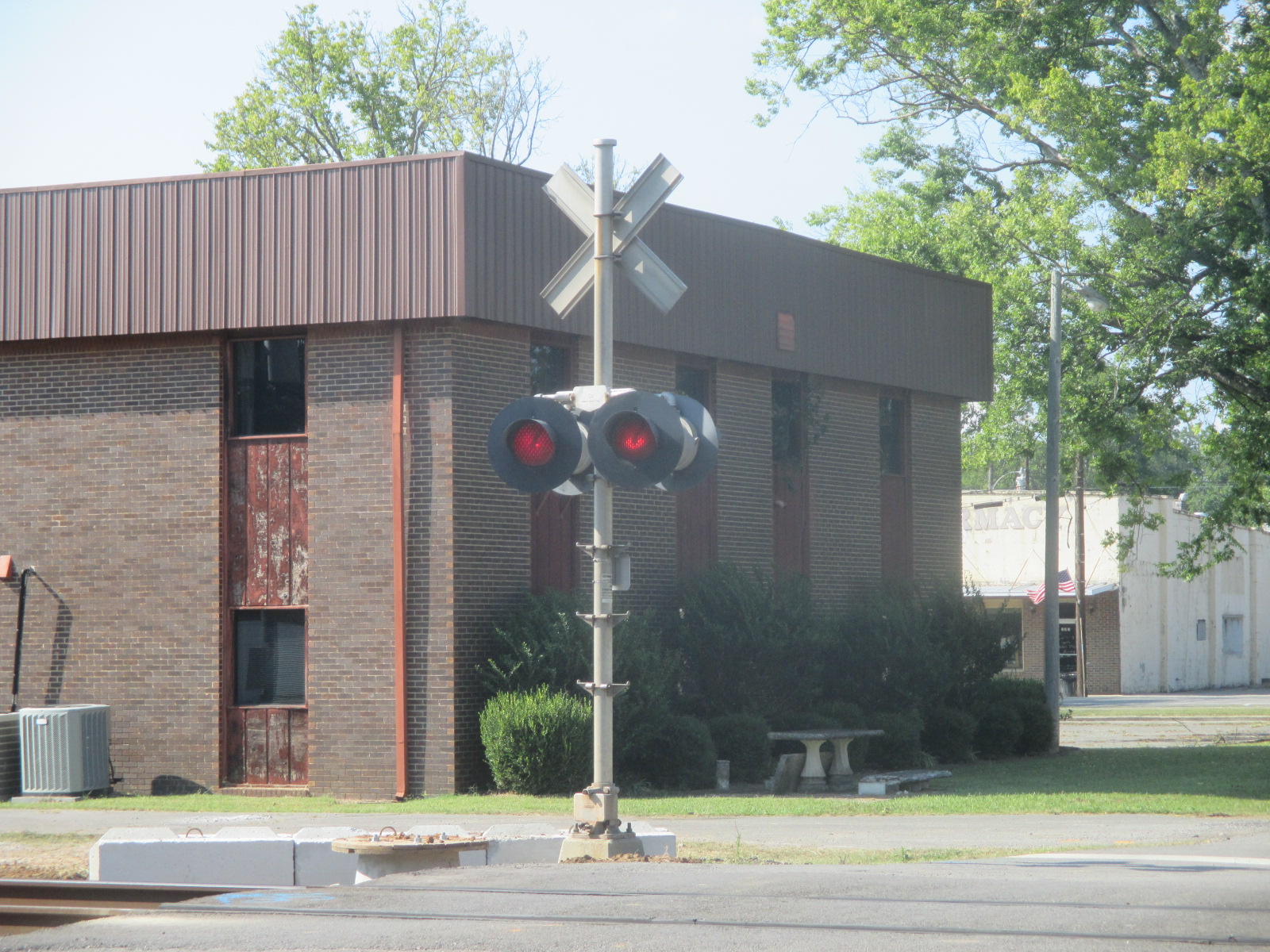

The second signal.

13

14

15

16

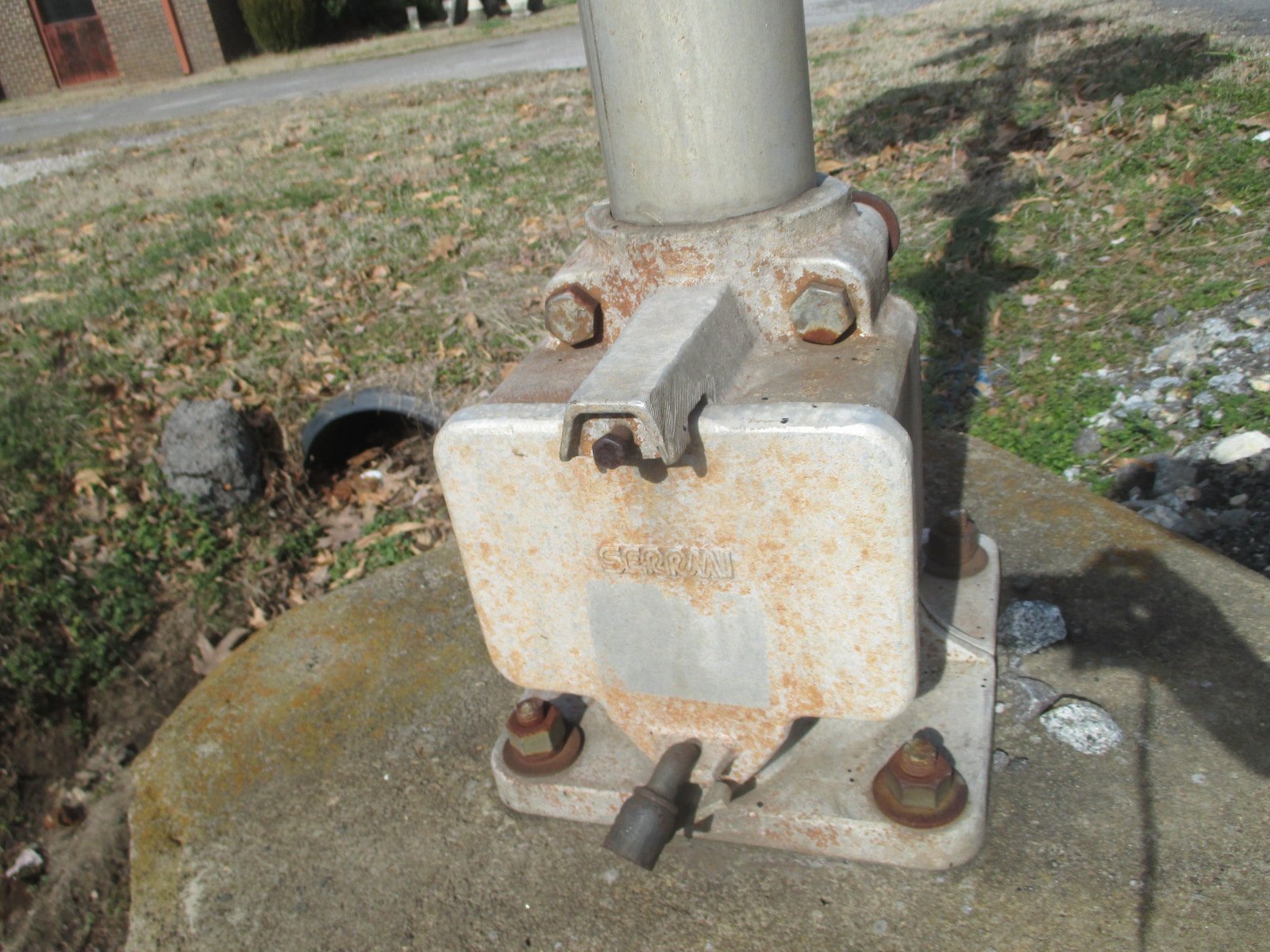

A Serrmi base.
The emergency information and another DOT tag.

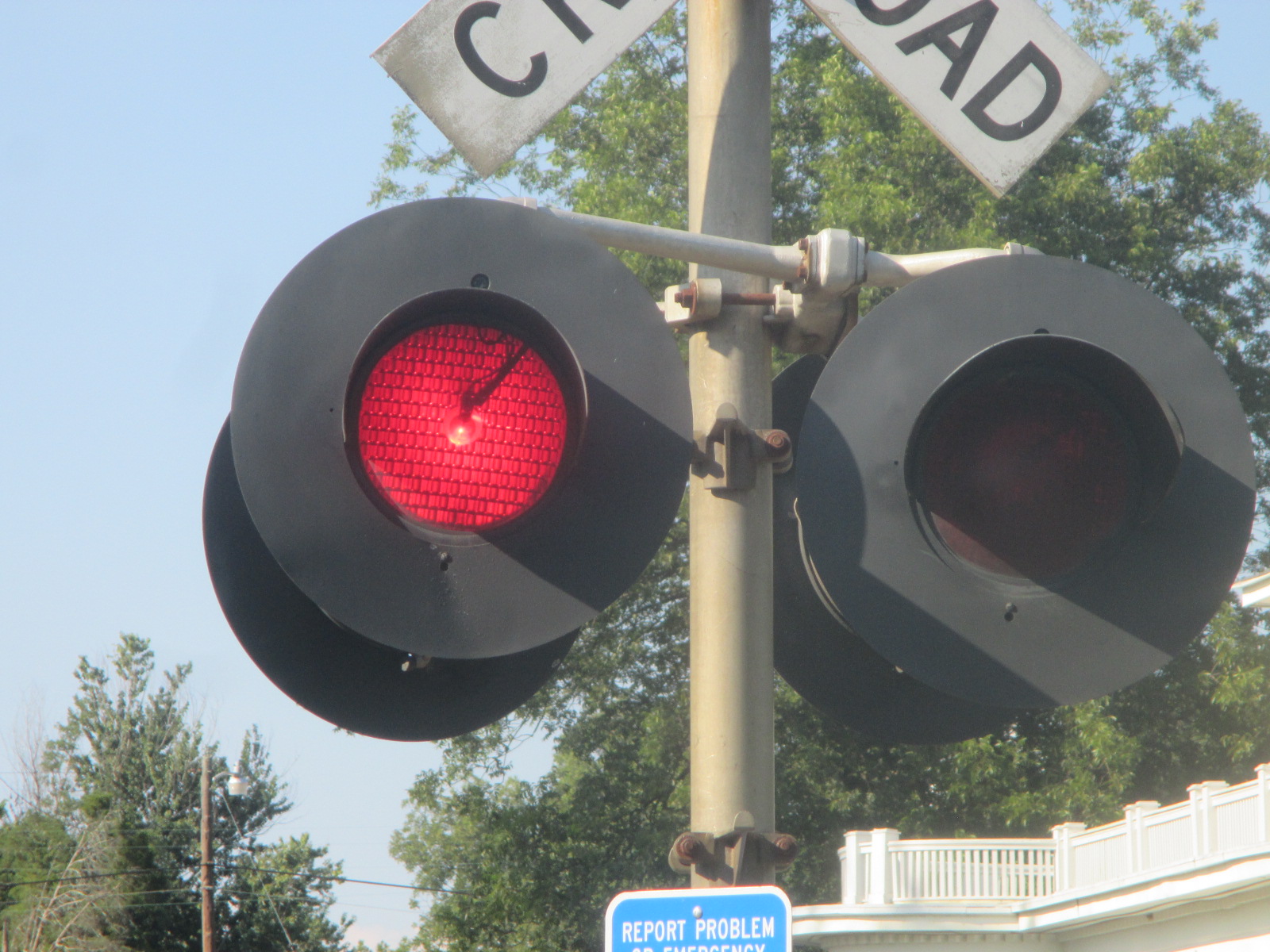

The lights on this signal are also older Safetan 12x24 inch lights.

17

18

19

20

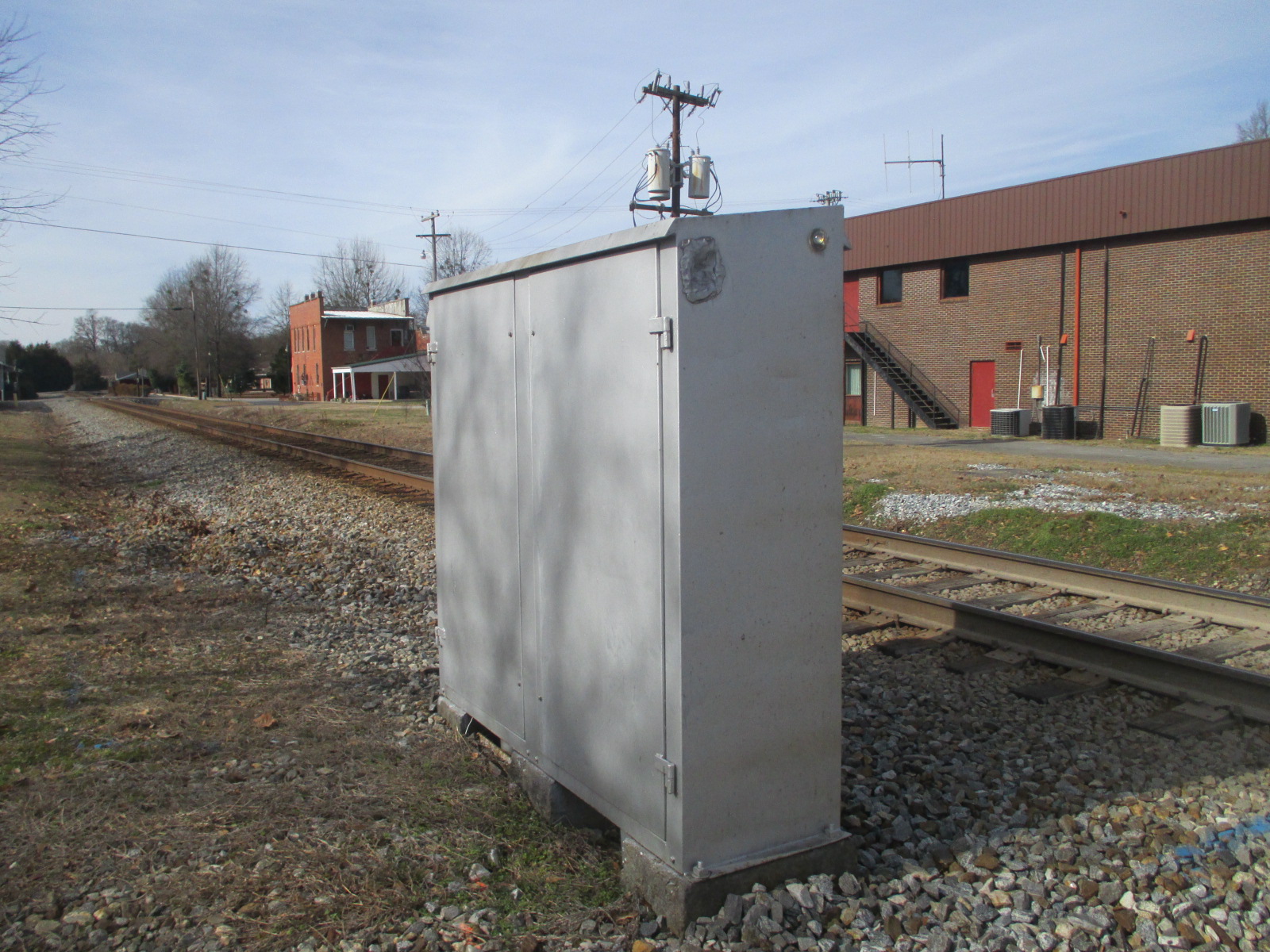

The relay case.

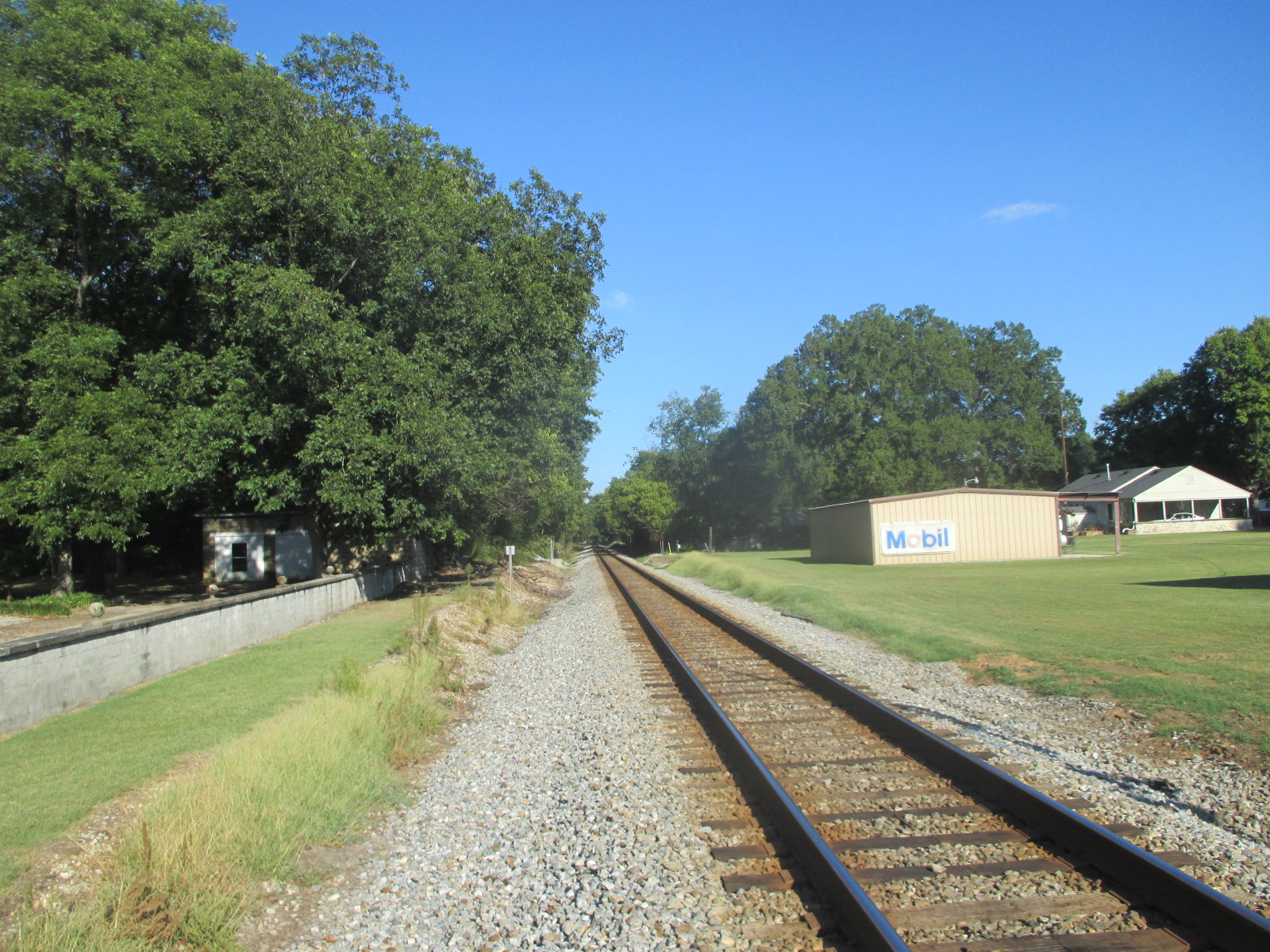

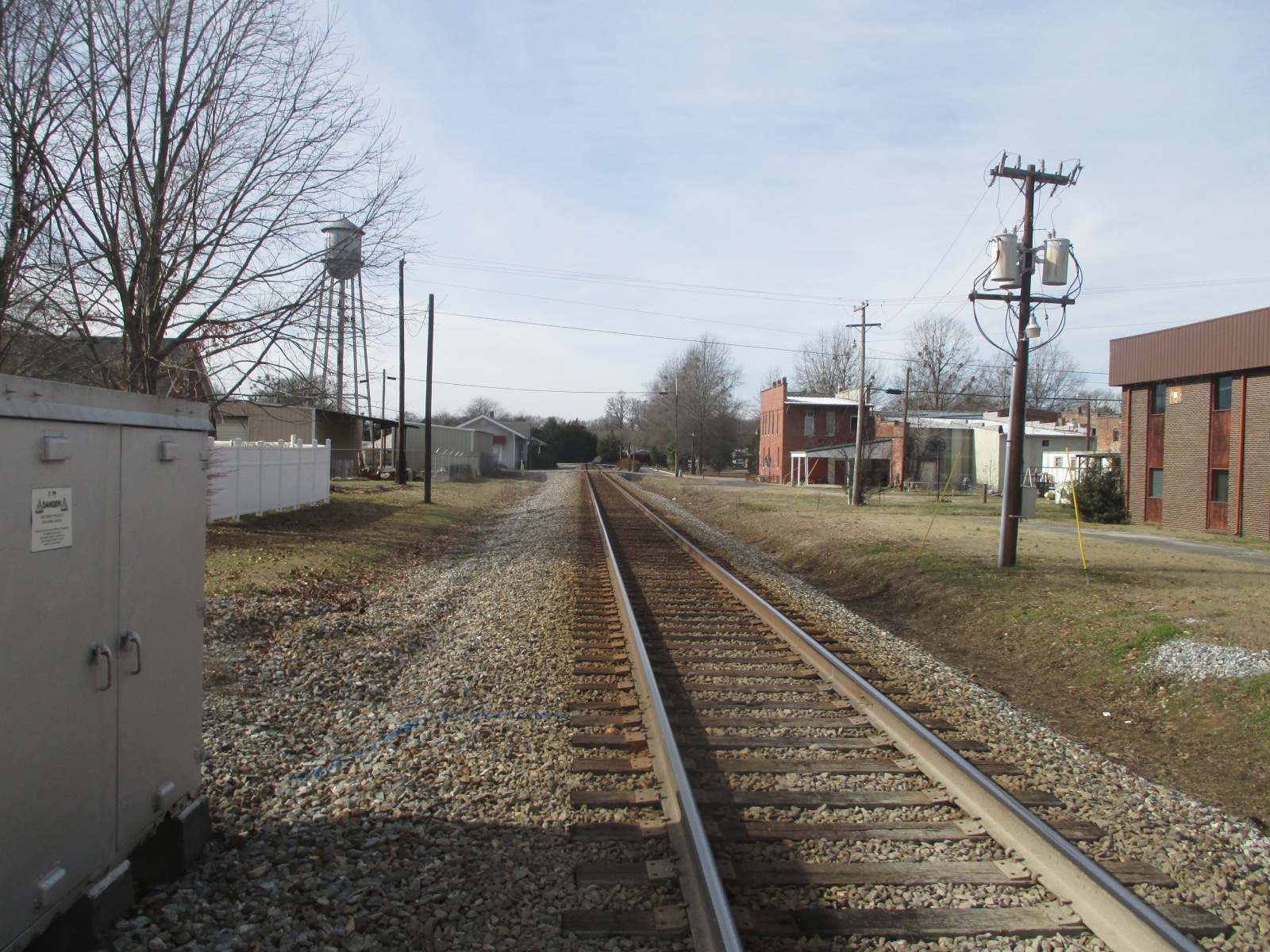

Track views.

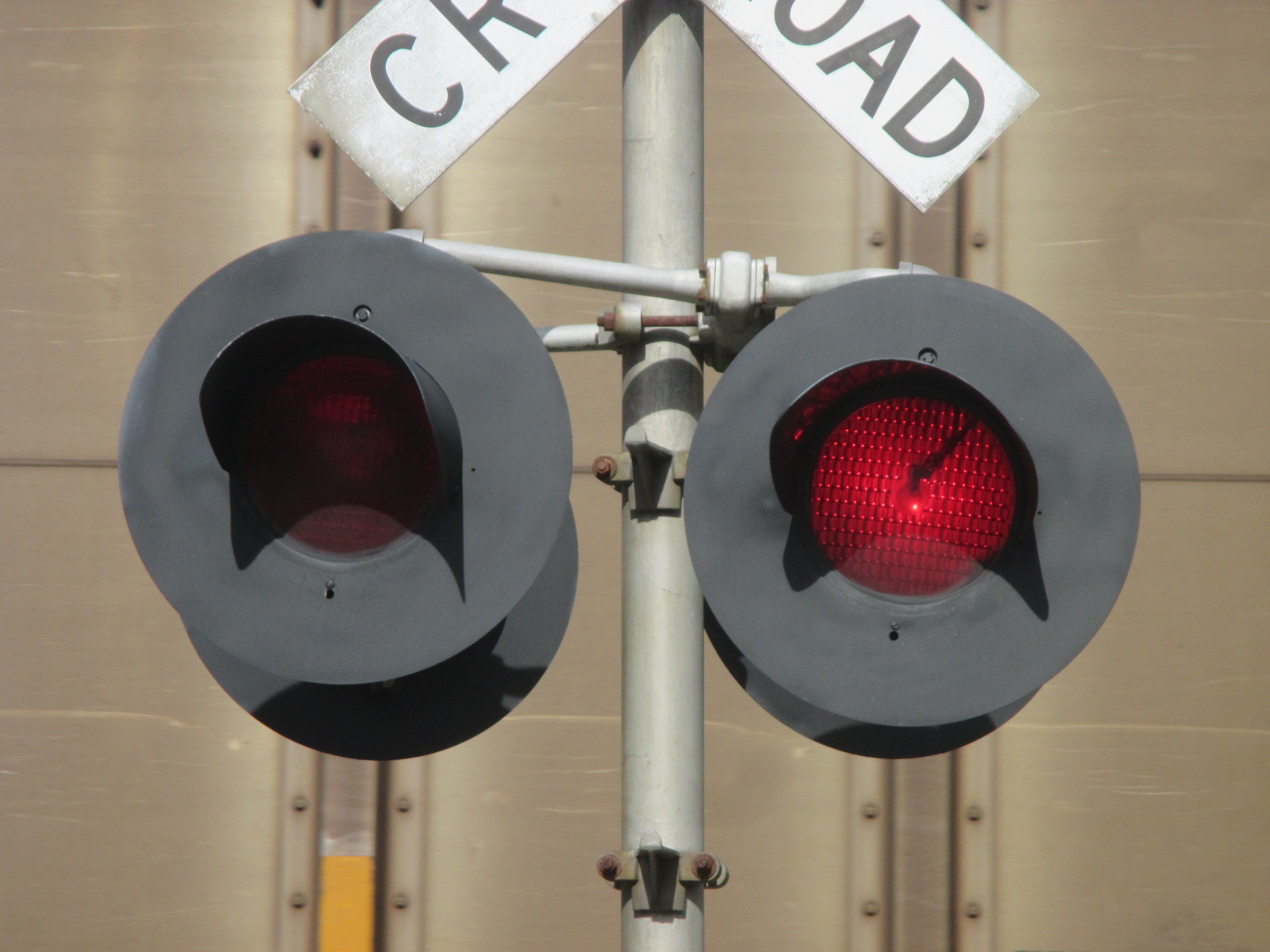

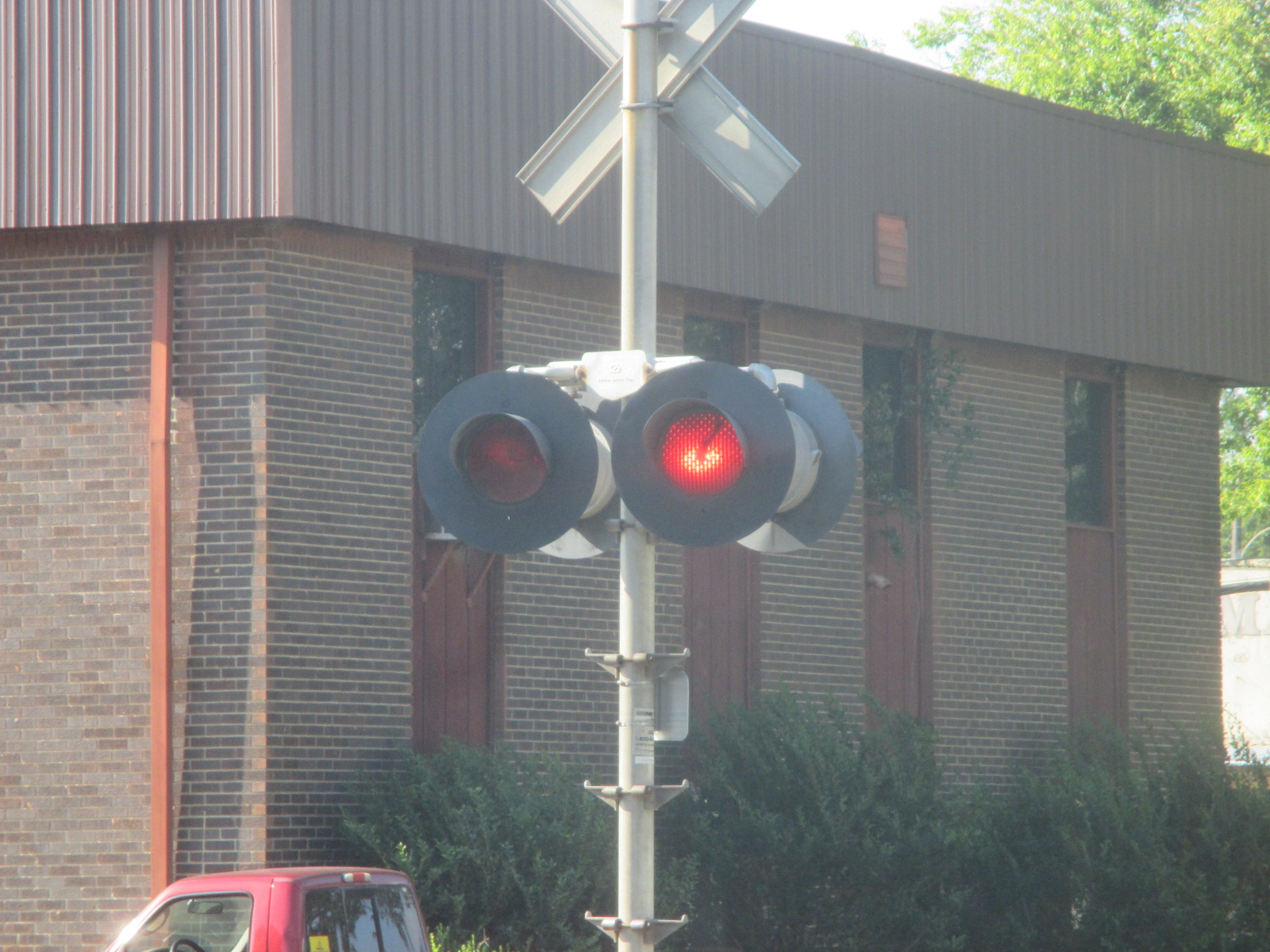

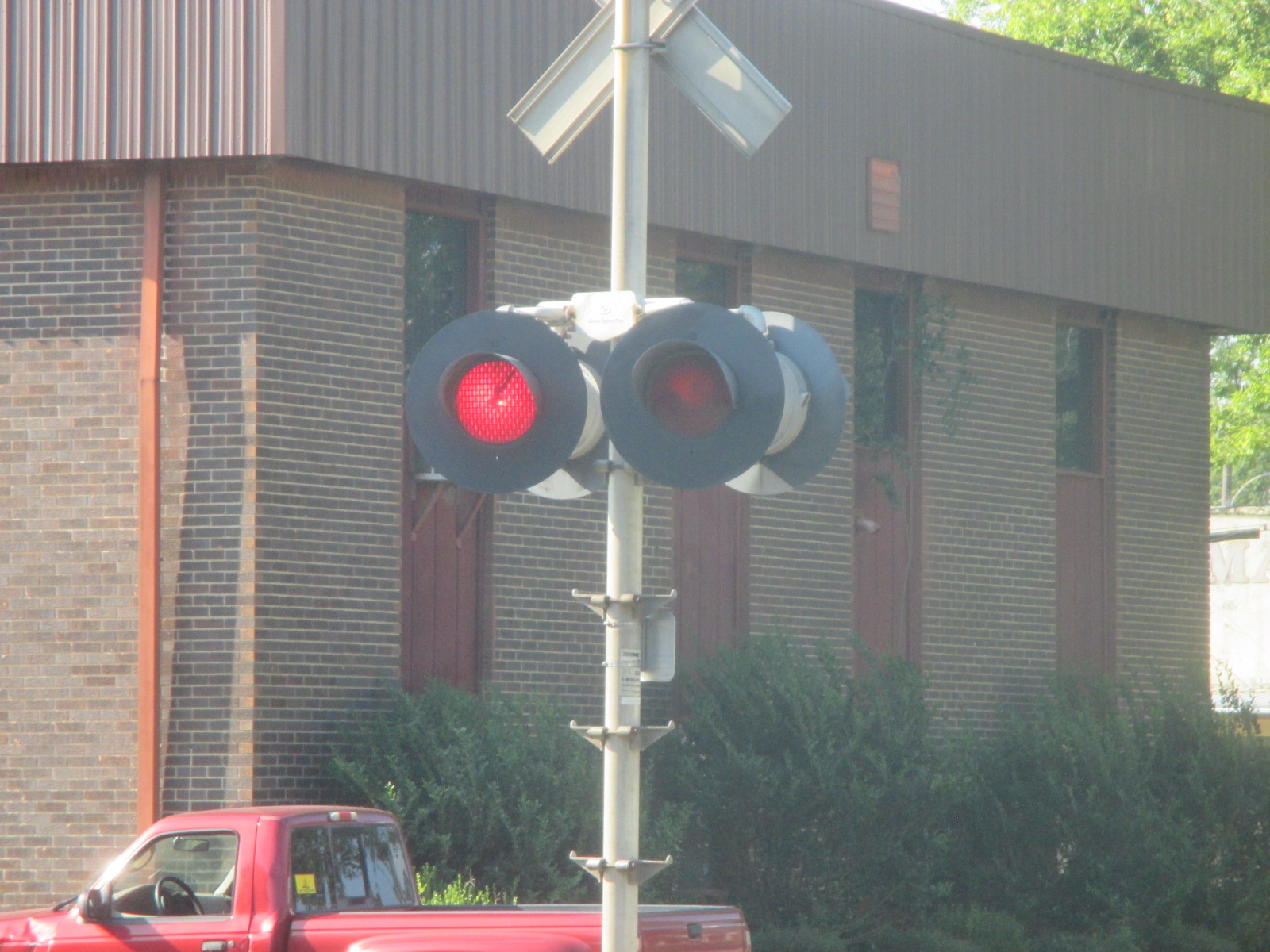

Action shots.

21

22

23

24
It took the train about a minute to reach the crossing after it activated.

25

26

27

28

29

30

31

32
A return trip on 8-27-16 shows the signals are about to get replaced!

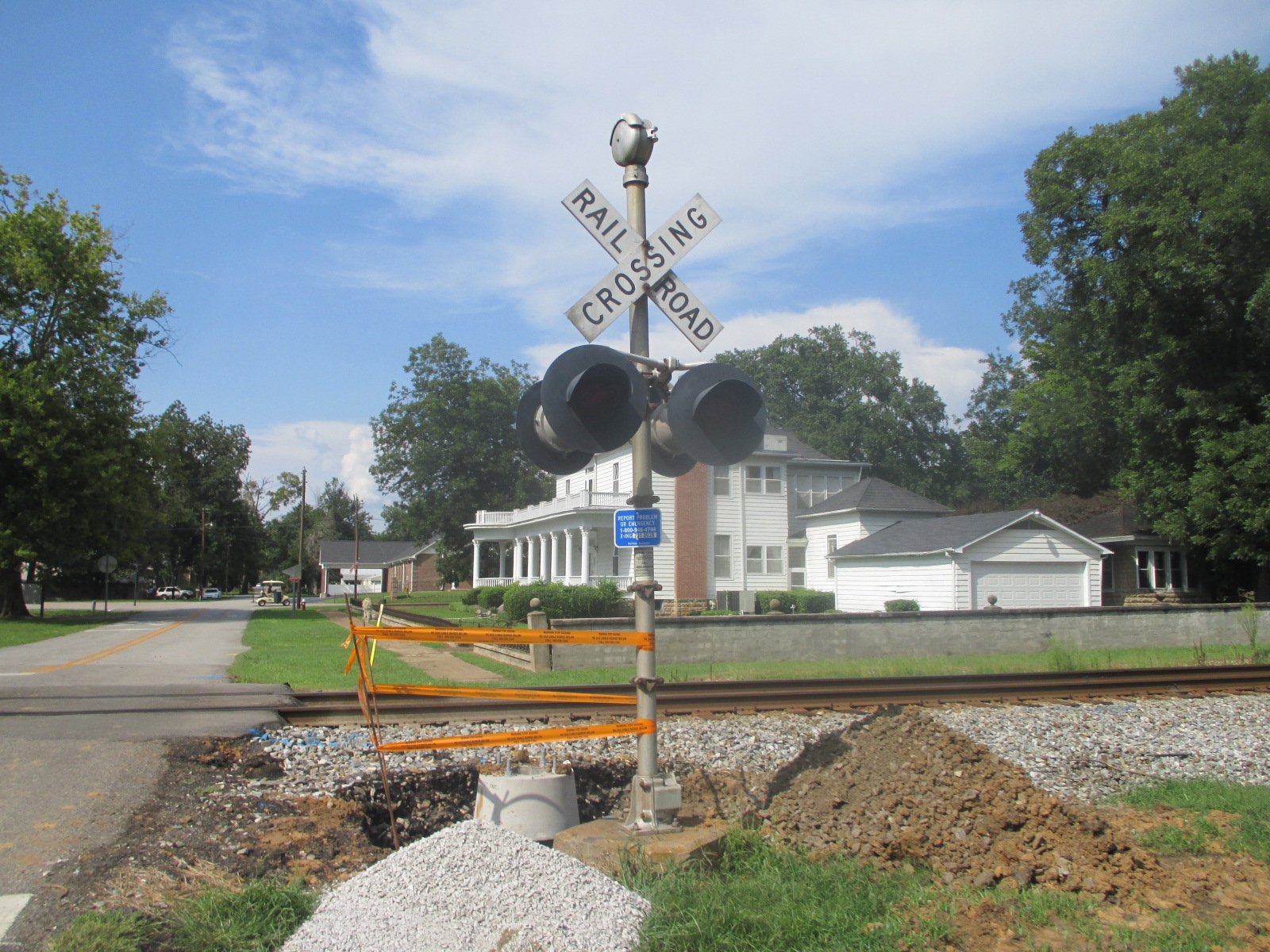

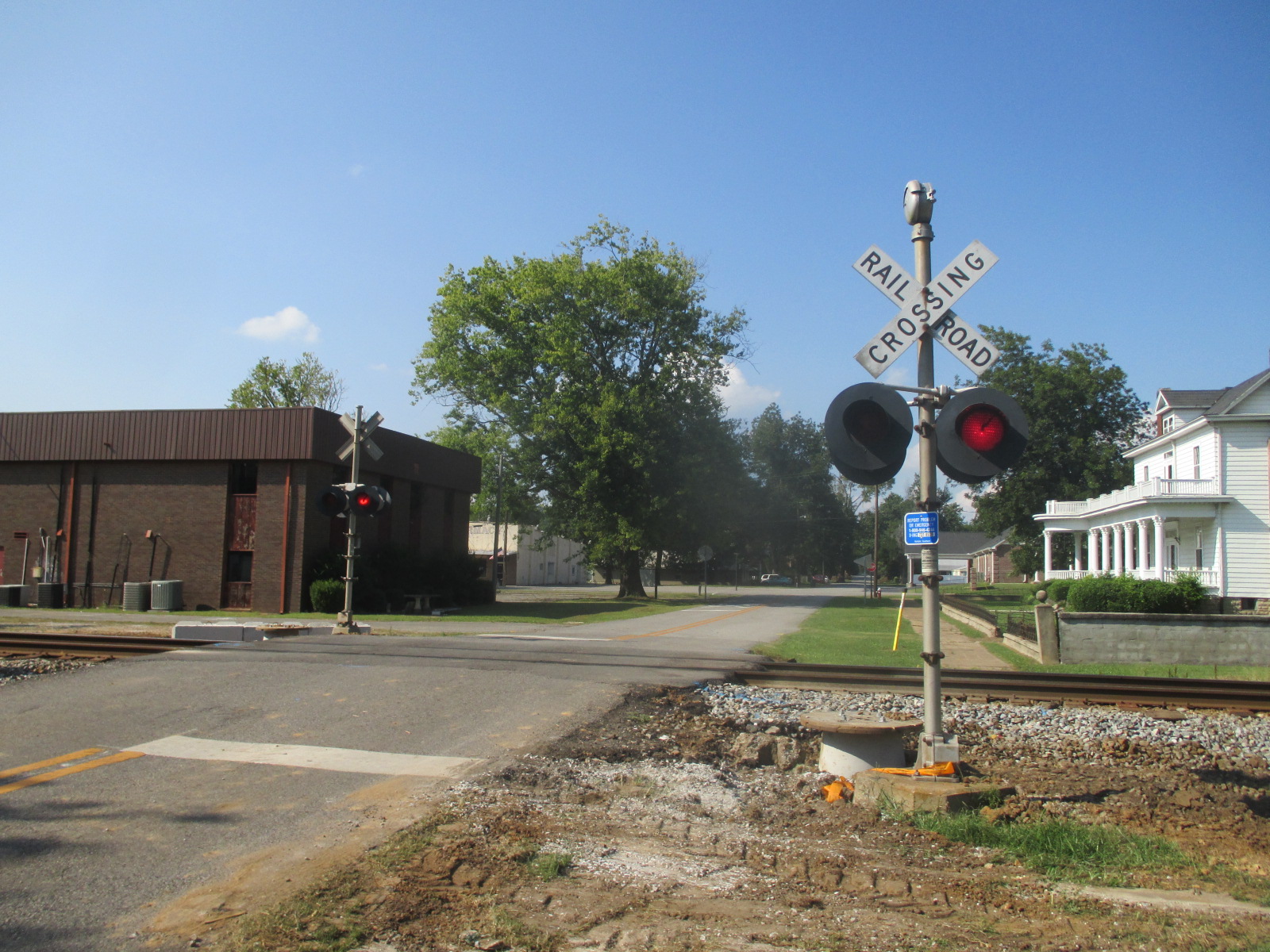

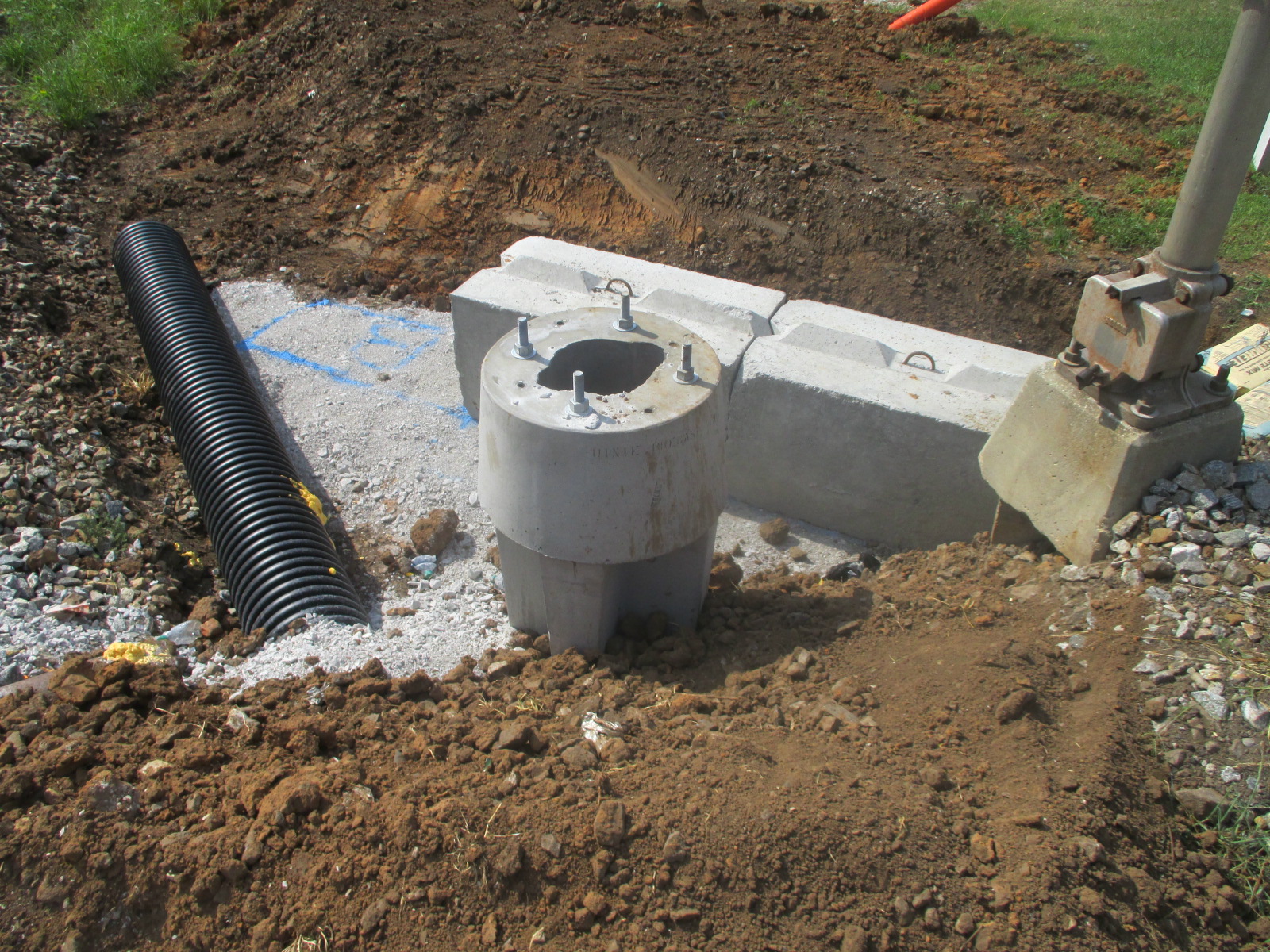

The first signal and the new foundation.

33

34

35

36

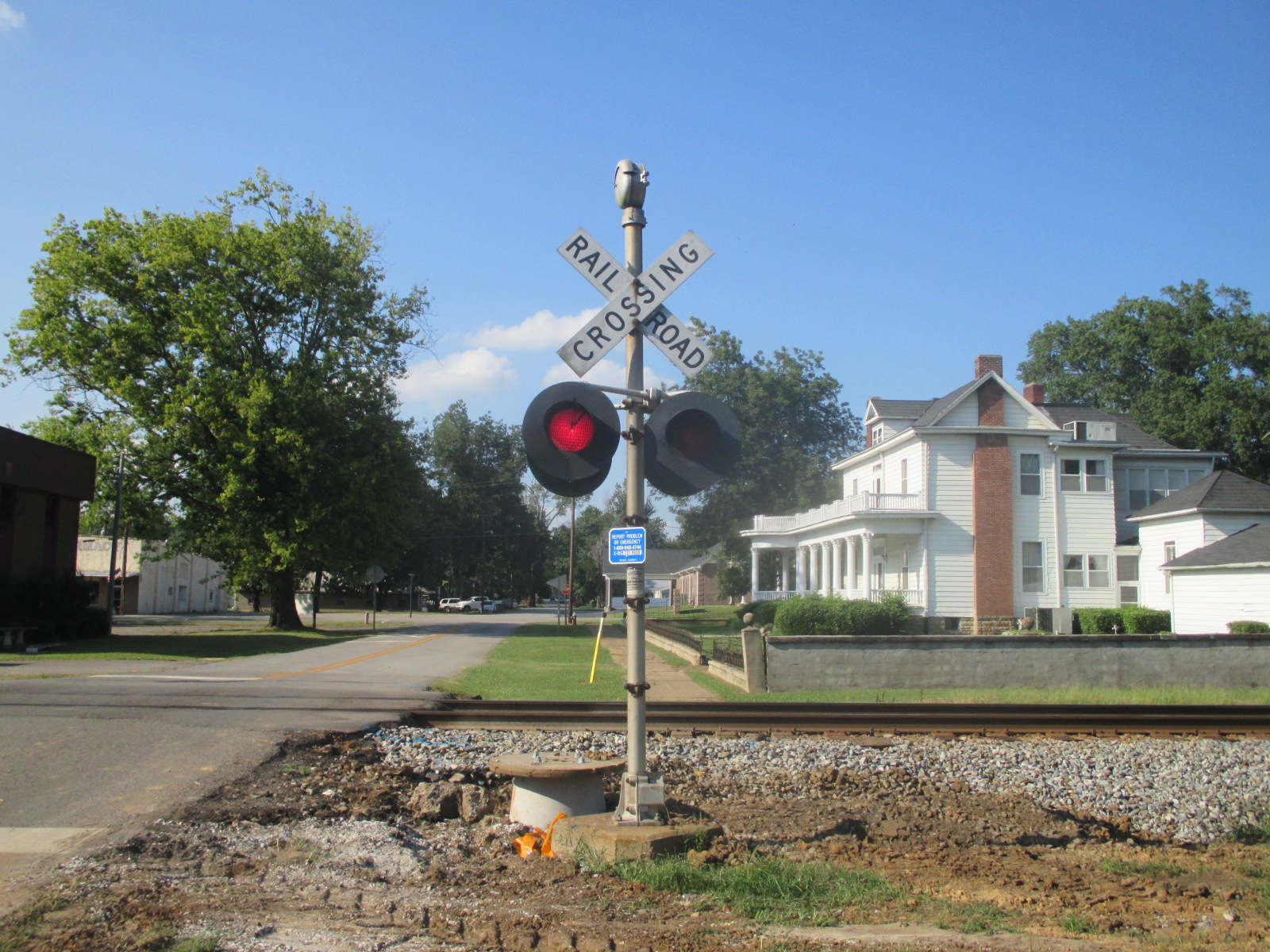

The second signal and the new foundation.
Track view looking west towards Alabama Street & College Street.
Track view looking east towards Monroe Street & Water Street.

37

38

39

40
The old & new relay cases.
The old relay case.
The new relay case, which came from Monroe Street.

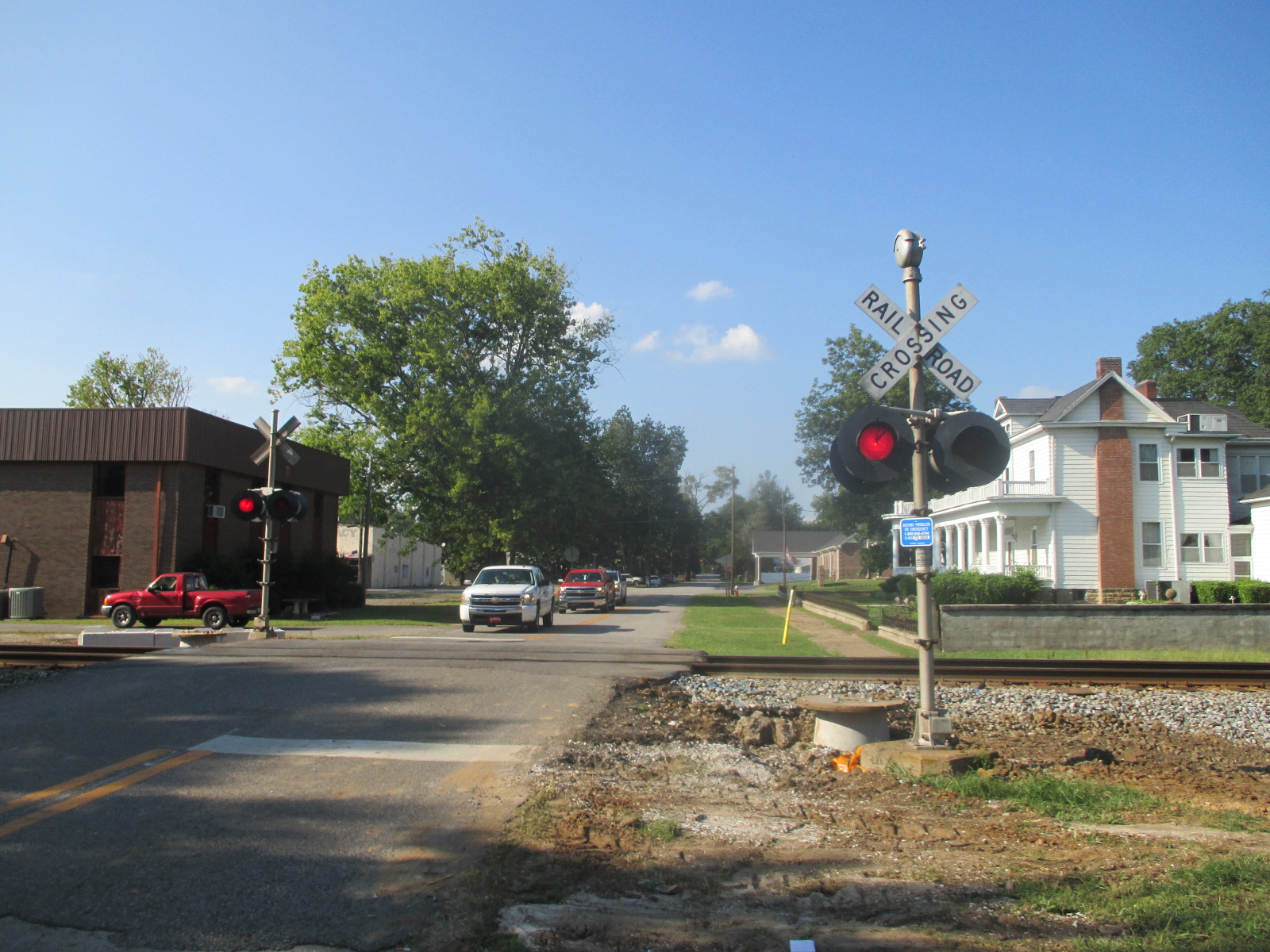

A return trip on 9-1-16 catches the crossing in action with NS A82.



In Picture 39, you can see that the relay case still had Monroe Street's DOT number posted on it at the time.



41

42

43

44
NS 23N comes through after NS A82 with a UP AC44CW leading a UP ET44AC.
The crossing shuts off while the train is in it!

45

46

47

48

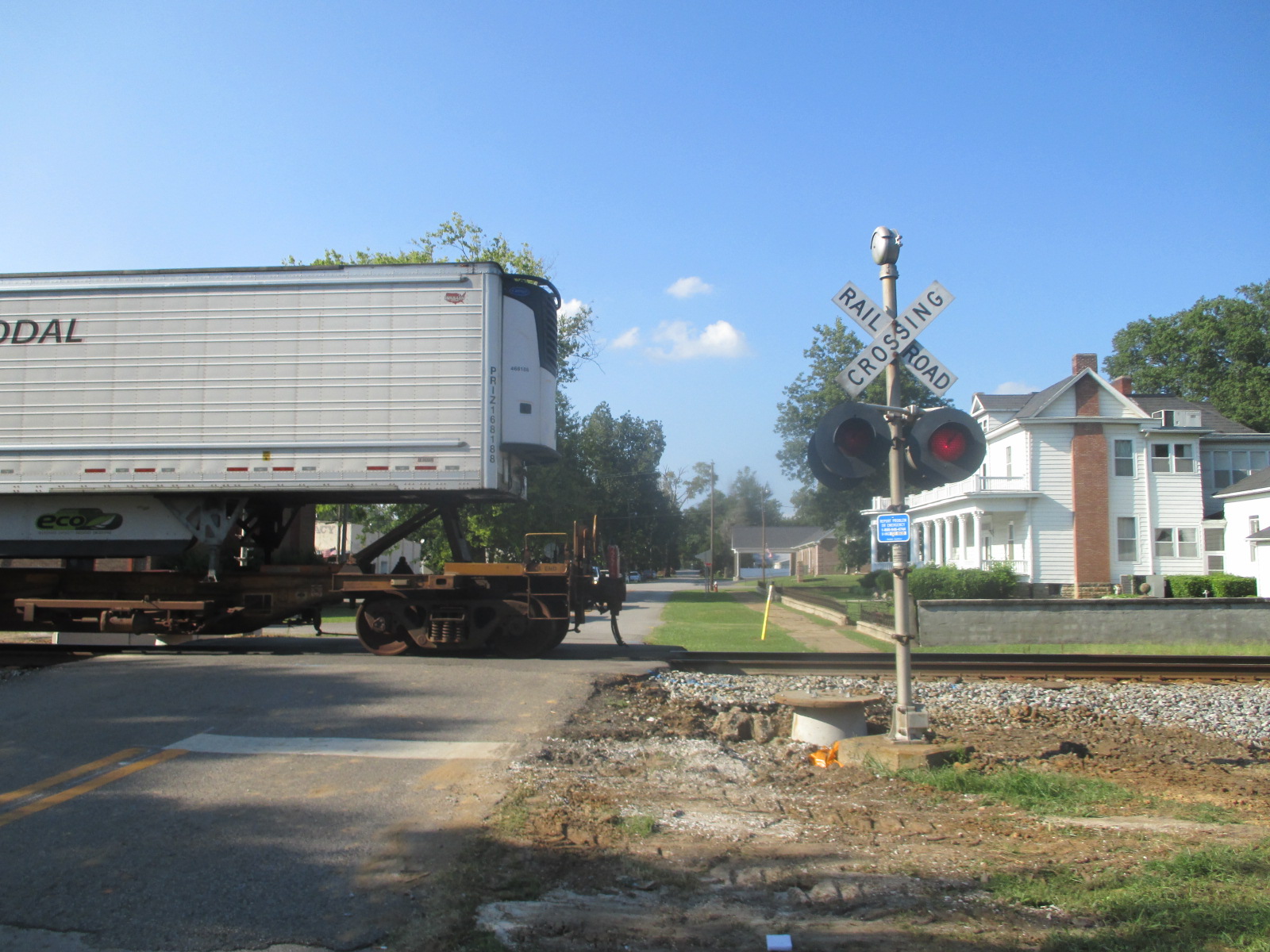

The end of the train passes the crossing while it is off, and the signals proceed to tail-ring malfunction afterwards.

49

50

51

52

53

54

55

56

57

58

59

60

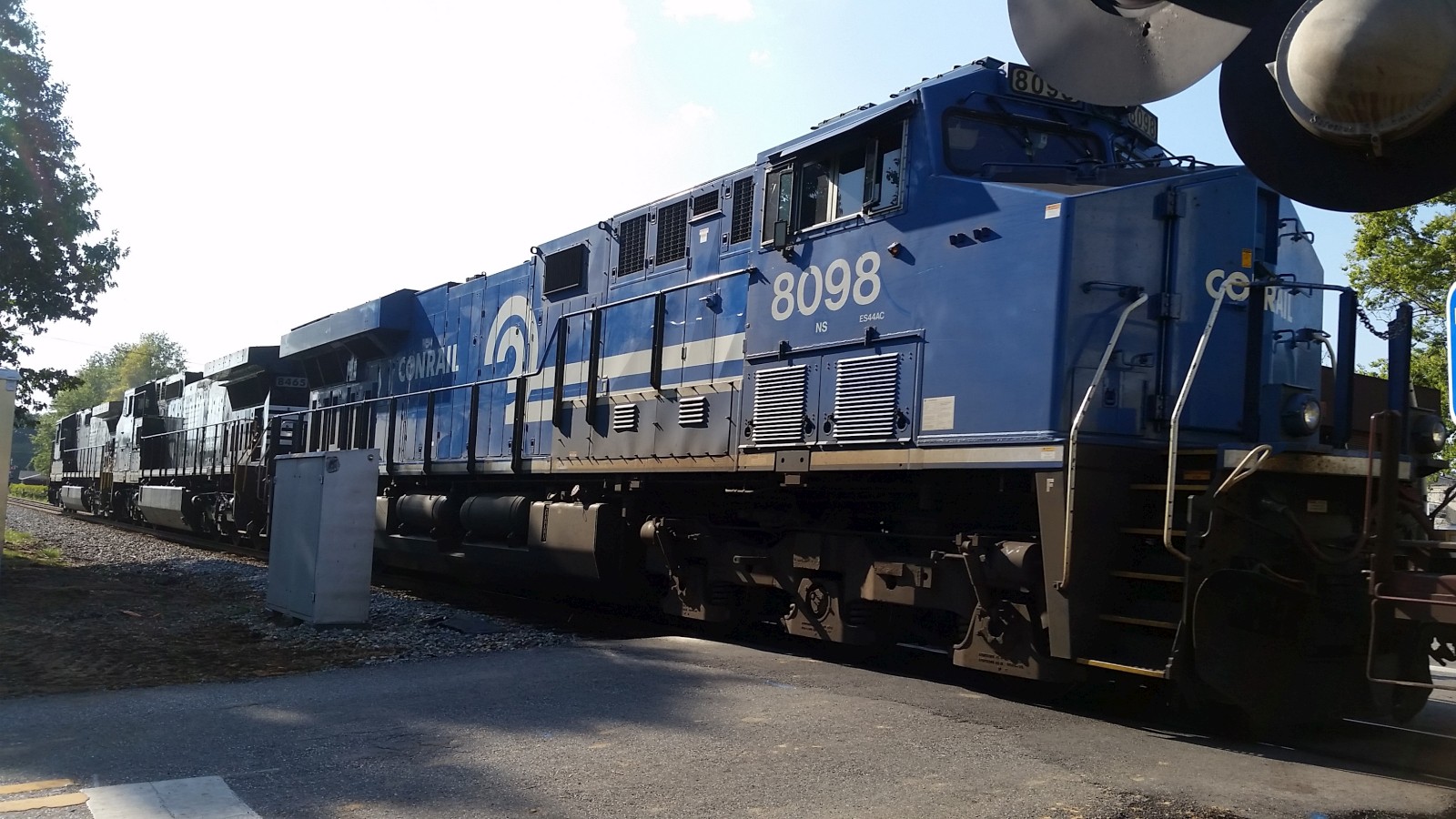

NS 201 later comes through with the Conrail heritage unit trailing!

61

62

63

64
The signals keep shutting off while this train passes as well. Seems like it's a good thing the crossing was soon to be replaced, as these signals appeared to be on their last legs.

65

66

67

68
The train passes and the crossing tail ring malfunctions again.

69

70

71

72

73

74

75

76

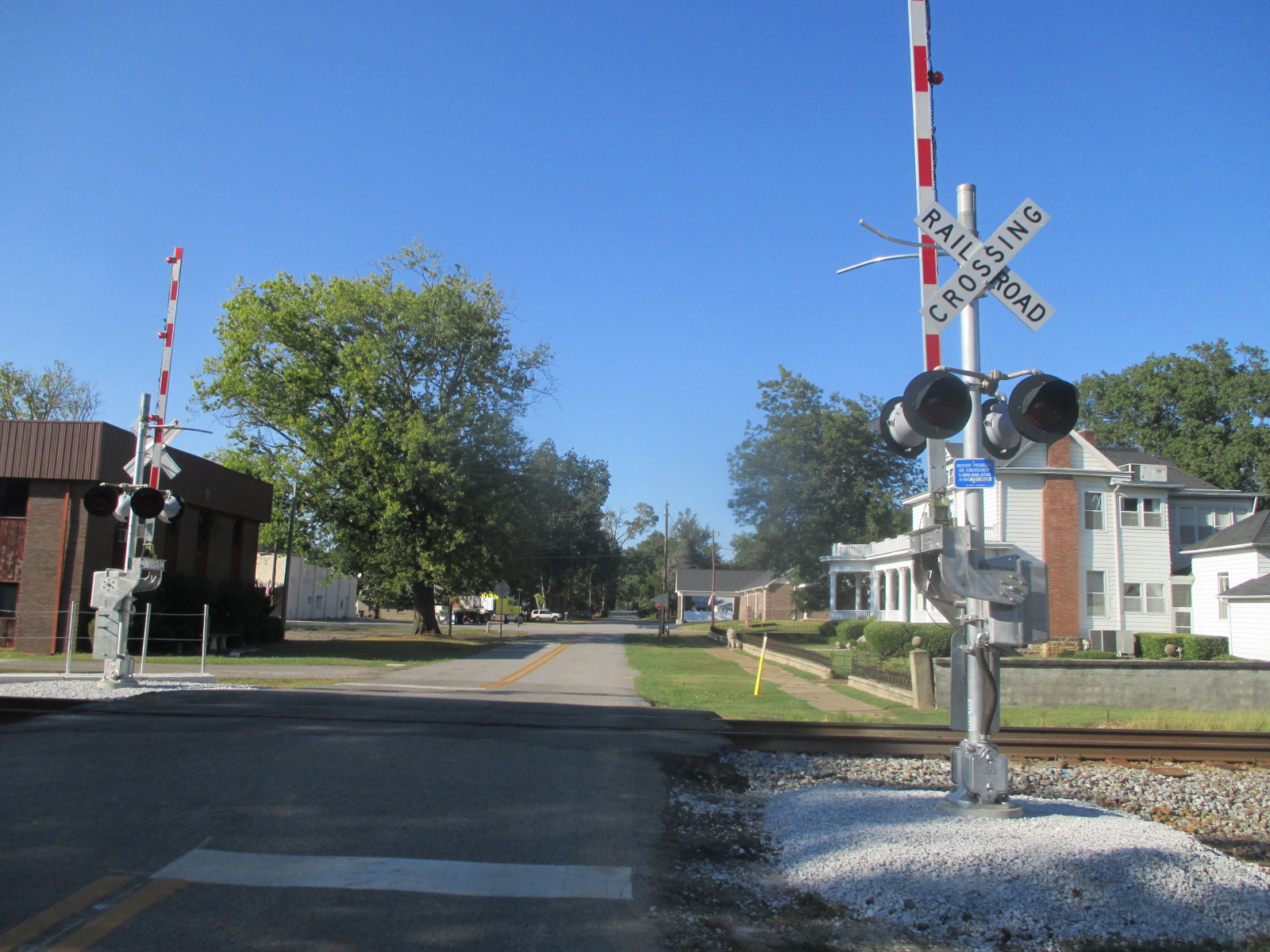

A fourth return trip on 9-20-16 shows that the new signals (which came from Monroe Street) were installed!
The first new signal.

77

78

79

80
It has a Safetran base.

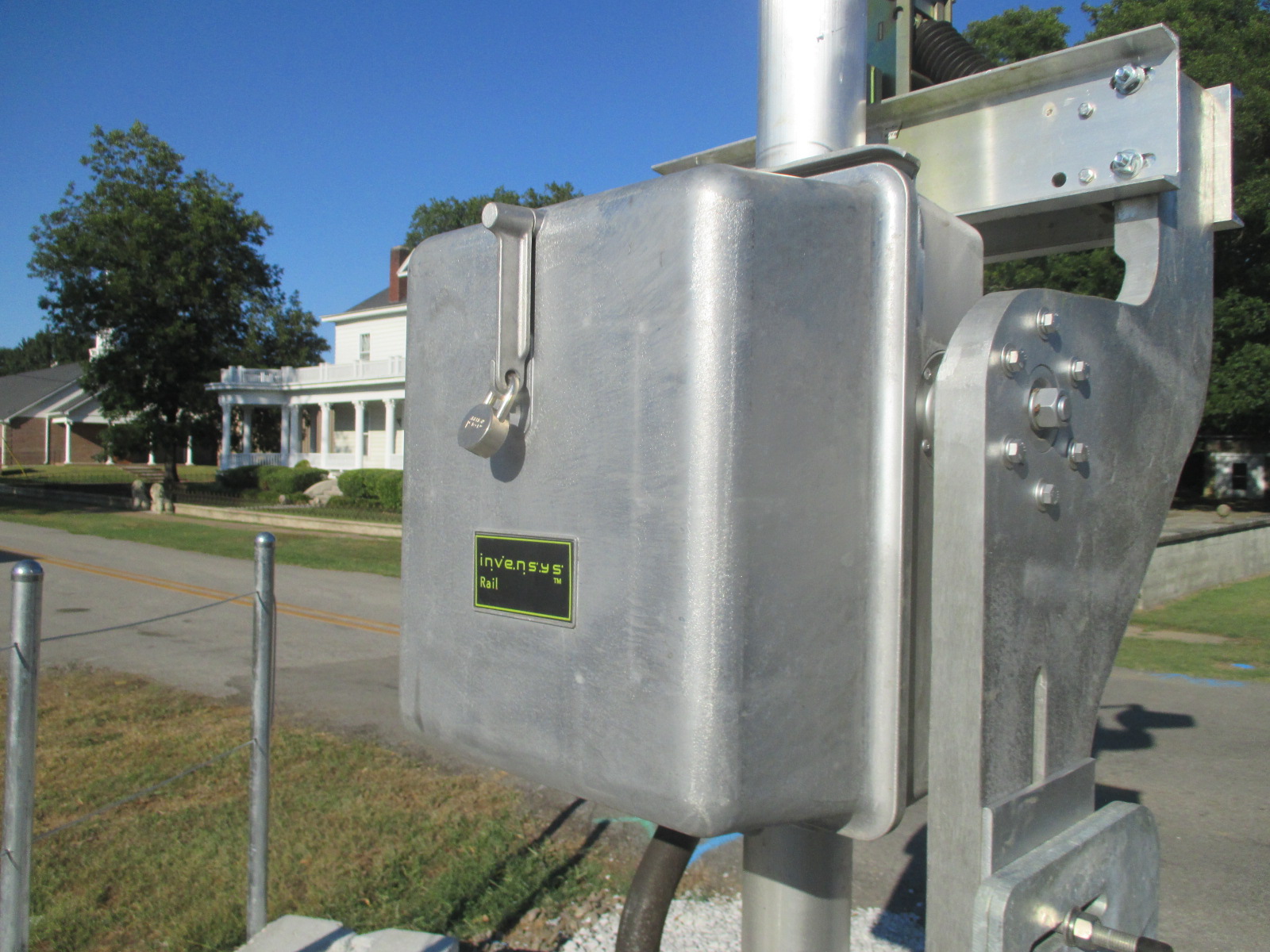

The gate mechanism is from Invensys Rail.

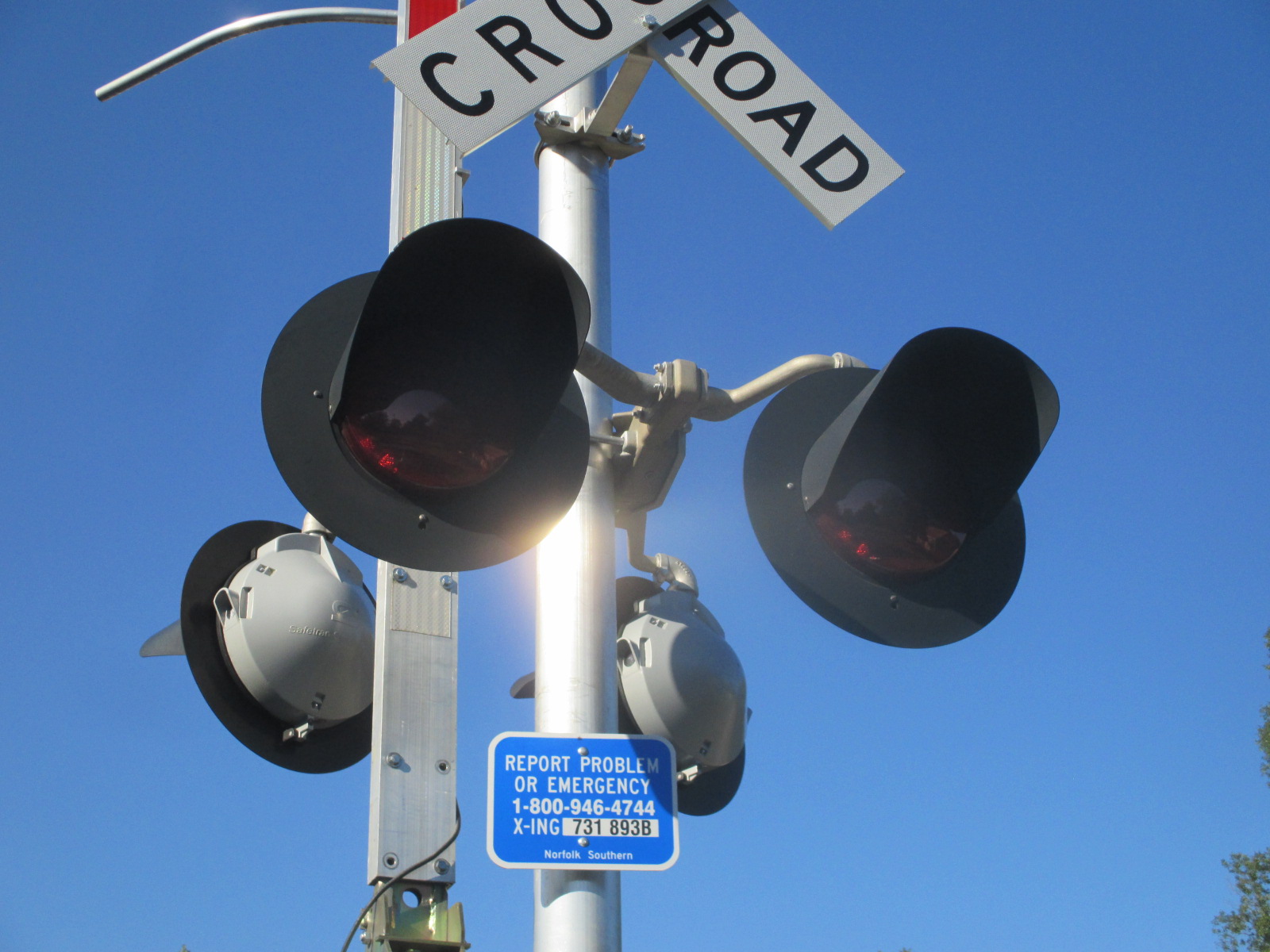

The DOT tag and emergency information.

81

82

83

84

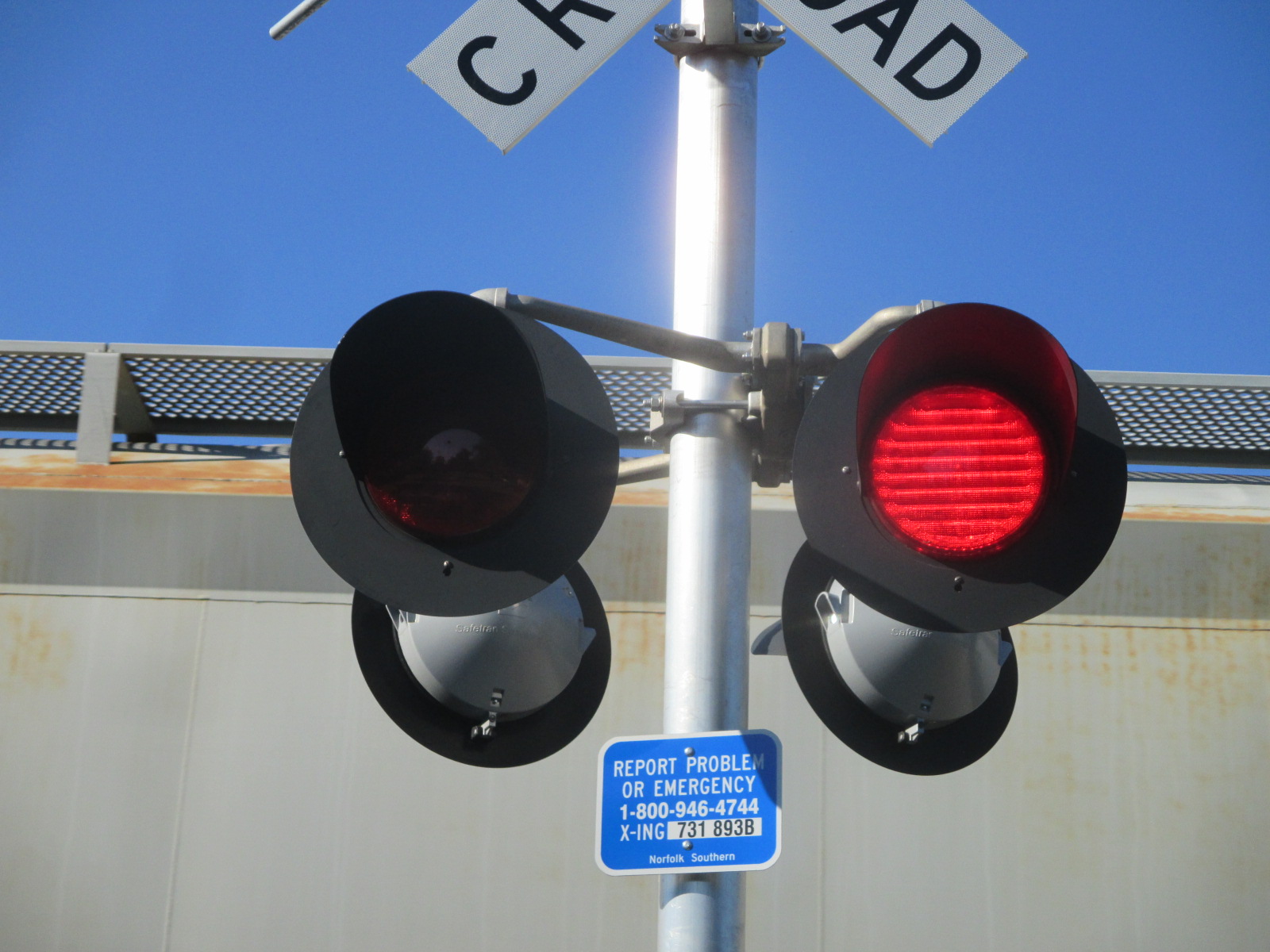

The lights are Safetran 12x20 inch lights with GE Uniform Look LEDs.
This signal has a Safetran Type 3 electronic bell.
The gate lights are RECO LEDs.

85

86

87

88

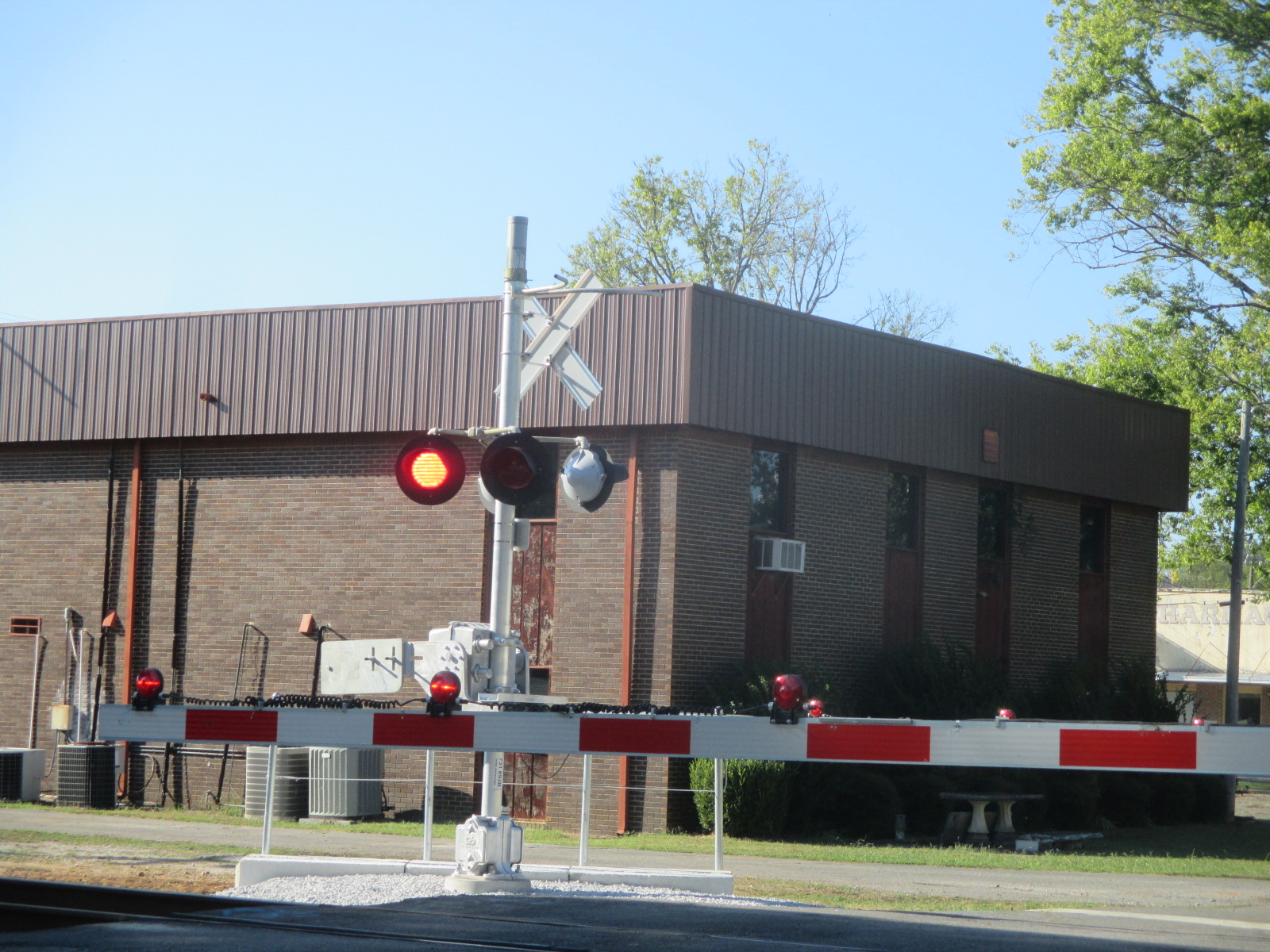

The second new signal.
Another Safetran base.
Another Invensys Rail gate mechanism.

89

90

91

92

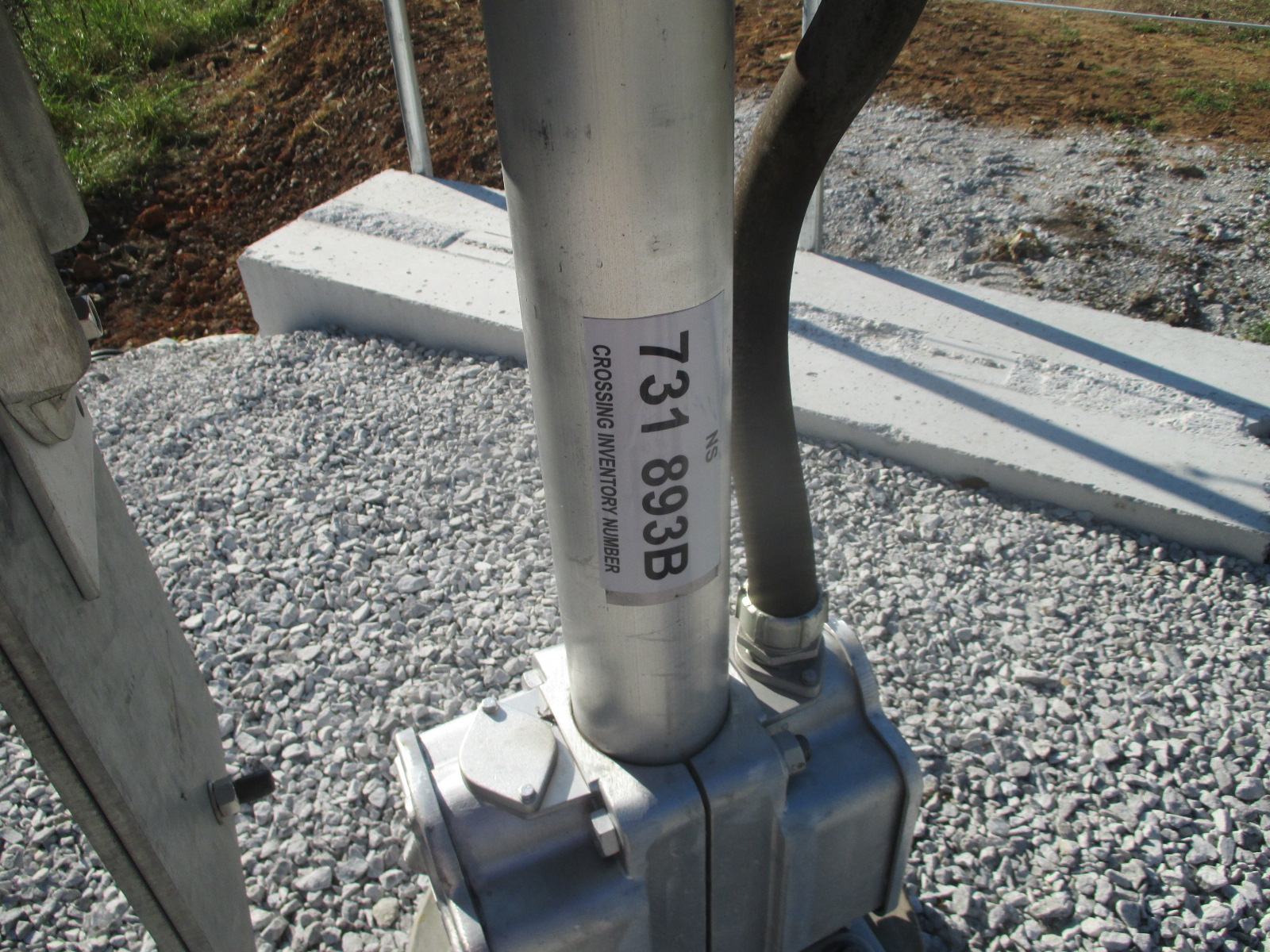

The DOT tag and emergency information.
The lights are more Safetran 12x20 inch lights with GE Uniform Look LEDs.

93

94

95

96
Another Safetran Type 3 electronic bell over here.
More RECO LED gate lights on this signal.
Track views.

97

98

99

100

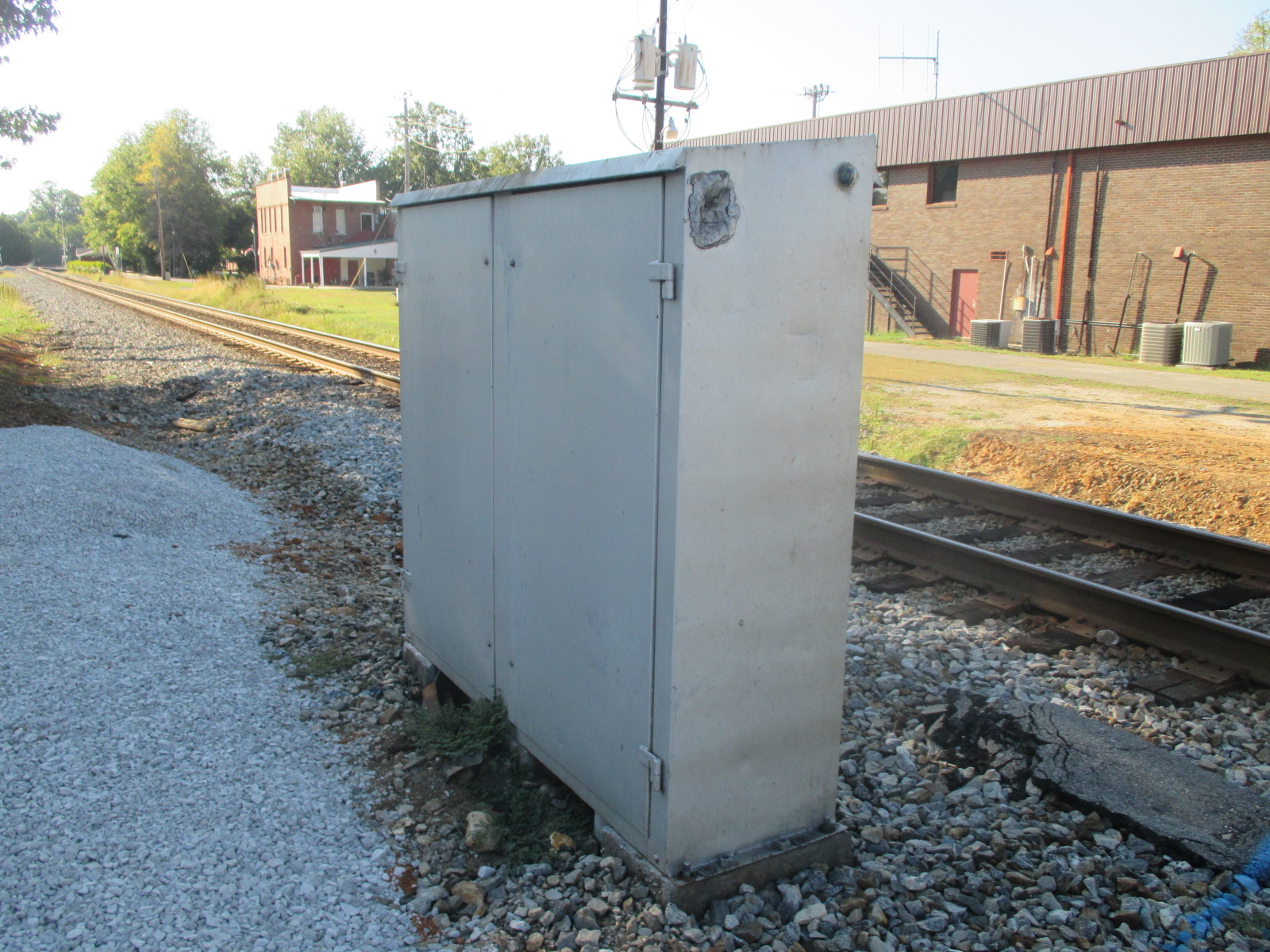

The old relay case is still here.

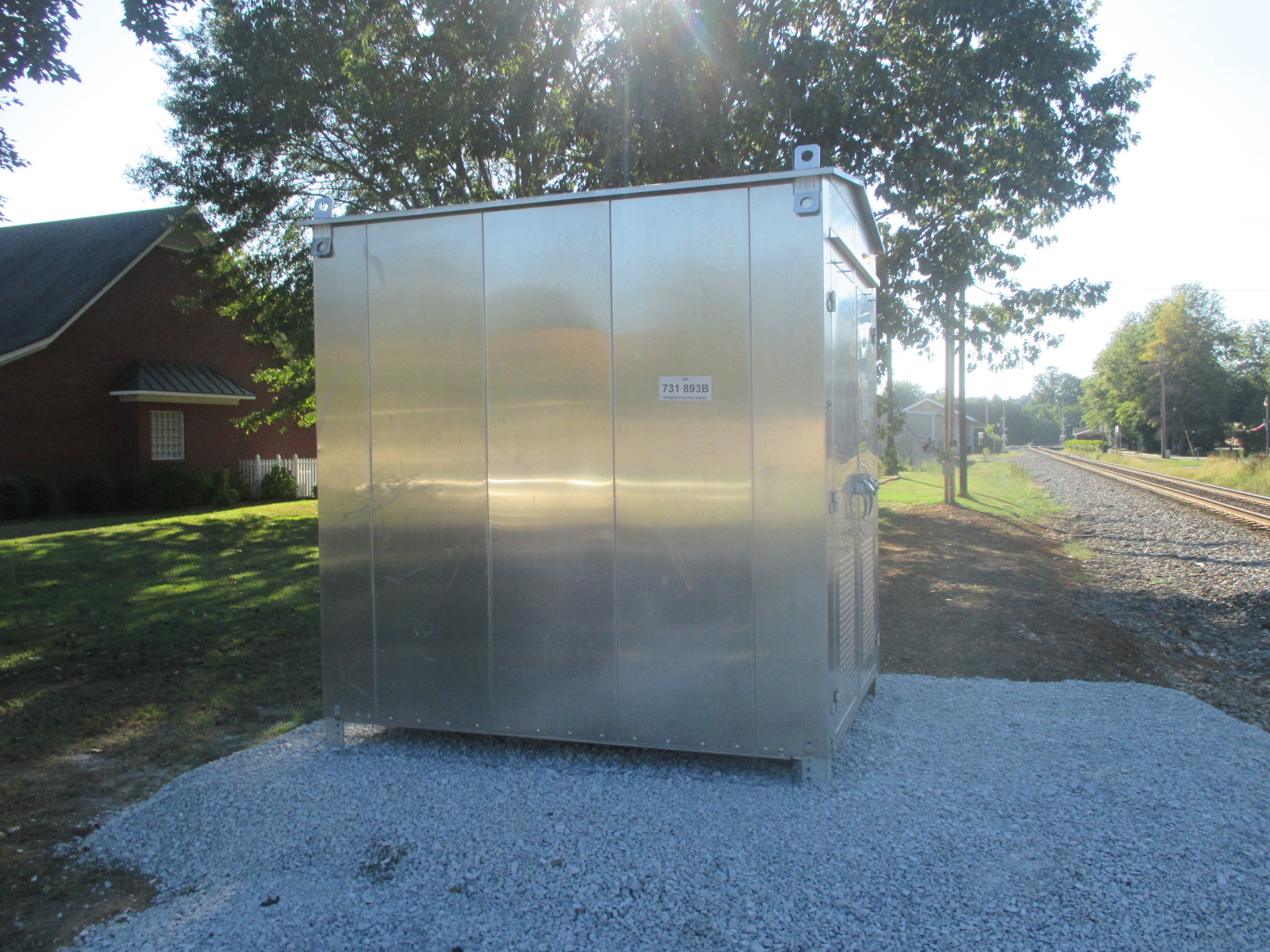

The new relay case has had the DOT number on it corrected.

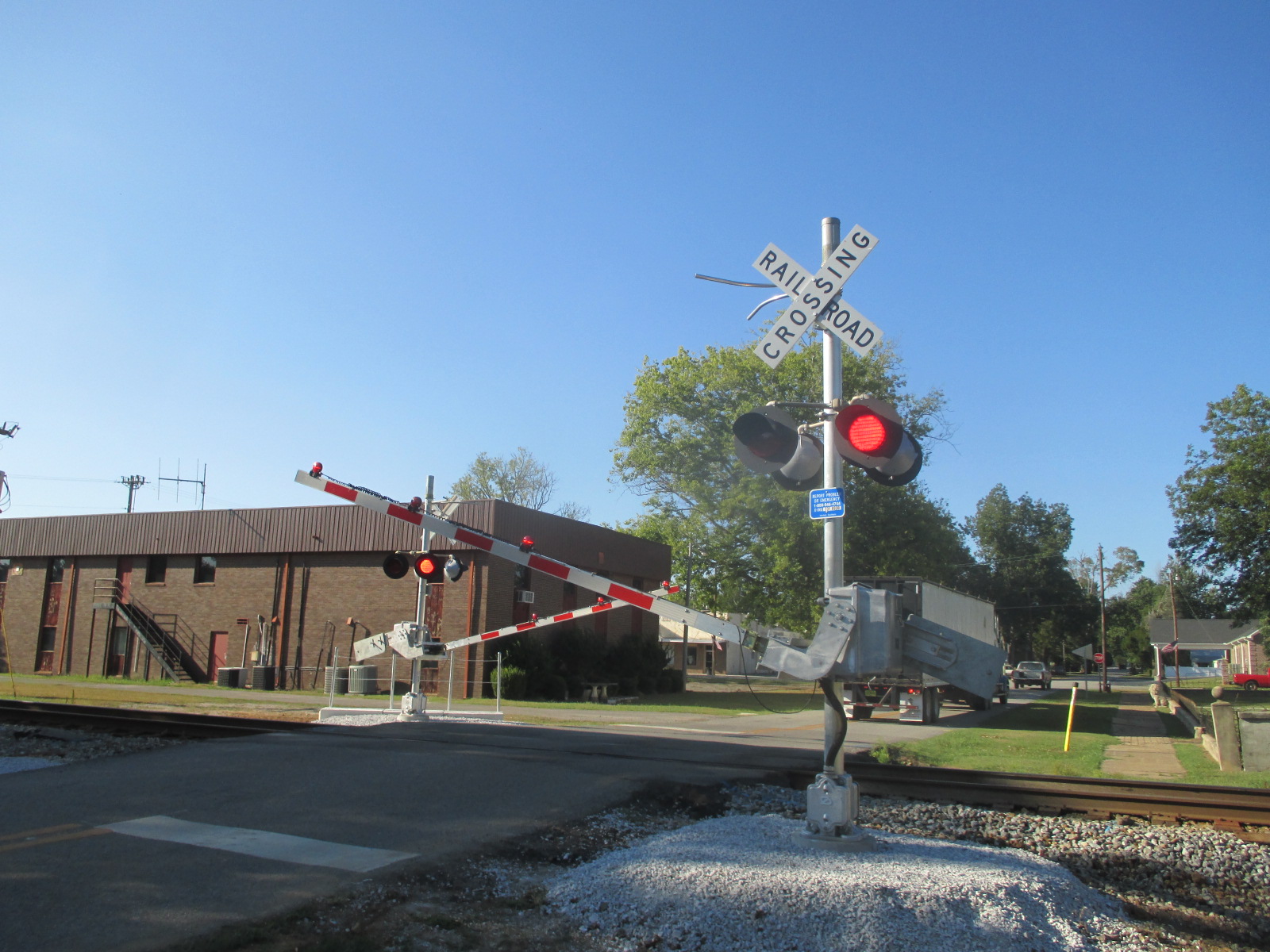

The crossing activates.

101

102

103

104

105

106

107

108
NS A82 comes through the crossing with three SD40-2s!

109

110

111

112
The train passes and the gates rise.

113

114

115

116

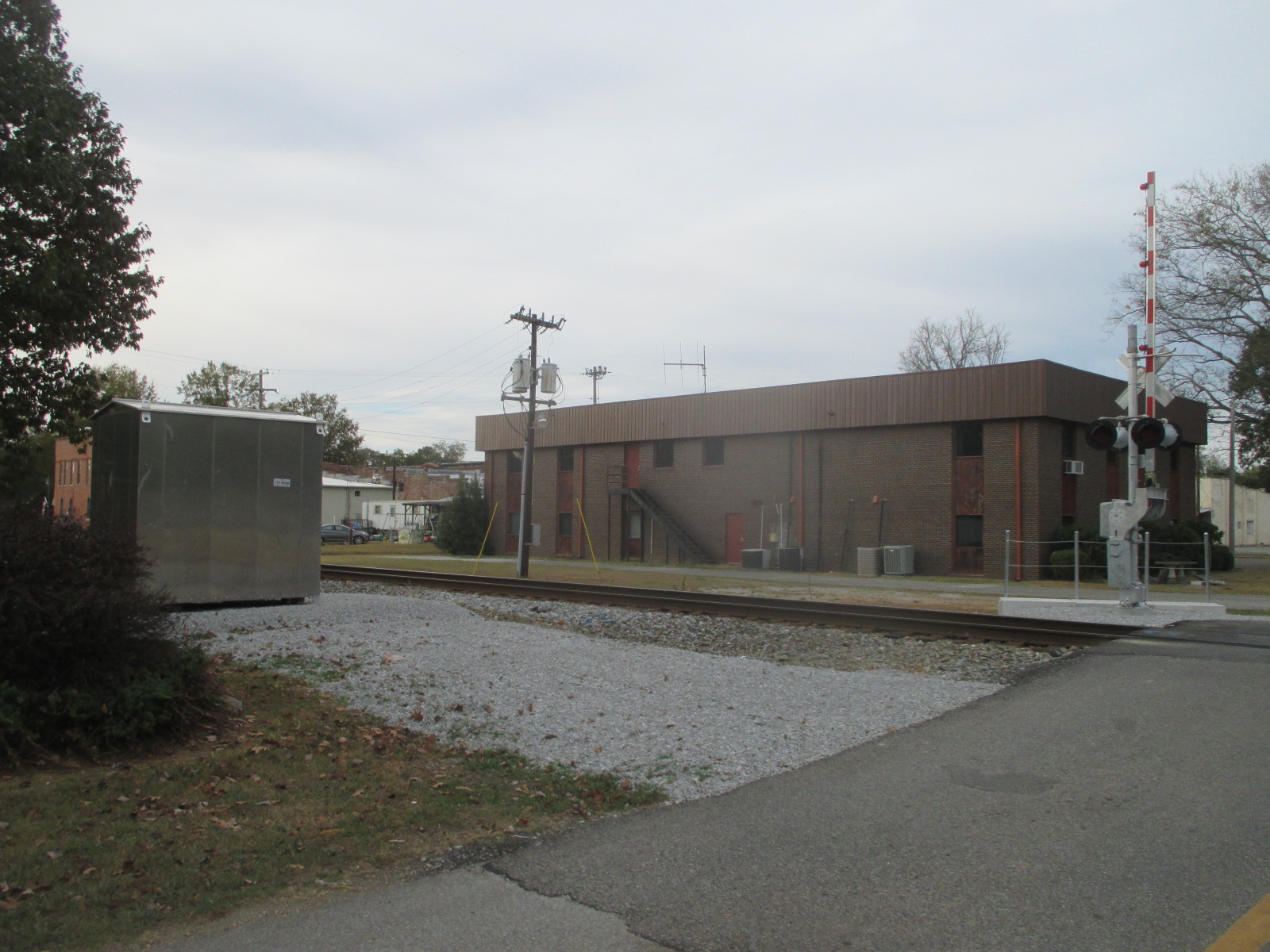

A fifth return trip on 11-6-16 shows that the old relay case has been removed.
The crossing activates for NS 26Q with an SD70ACe leading.



Pictures 1-28 and the first video were taken on 1-19-15.

Pictures 29-39 were taken on 8-27-16.

Pictures 40-72 and the second and third videos were taken on 9-1-16.

Pictures 73-112 were taken on 9-20-16.

Pictures 113-116 were taken on 11-6-16.

The fourth video was taken on 11-24-16.
