MP: 000341.01 |
Updated December 13, 2022
Total Accidents: 0
Crossing
DOT #: 877459G
TOTAL
DAILY TRAINS: 29 (AS OF 2014)
Page created by: freebrickproductions
This crossing is located on the CSX S&NA North Subdivision.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | NEG electronic | N/A |
| Cantilever: | Lincoln Industries | Modern Industries |
| Light Frames: | 6 - 12x24" Safetran w/ WCH 2nd Gen LEDs | 6 - 12x24" Modern Industries w/ WCH 2nd Gen LEDs |
| Base: | Modern Industries | Modern Industries |
| Gate Lights: | NEG LED | NEG LED |
| Gate Mechanism: | Safetran 2000s | Safetran 2000s |
| Gate Striping: | Vertical | Vertical |
1 |
2 |
3 |
4 |

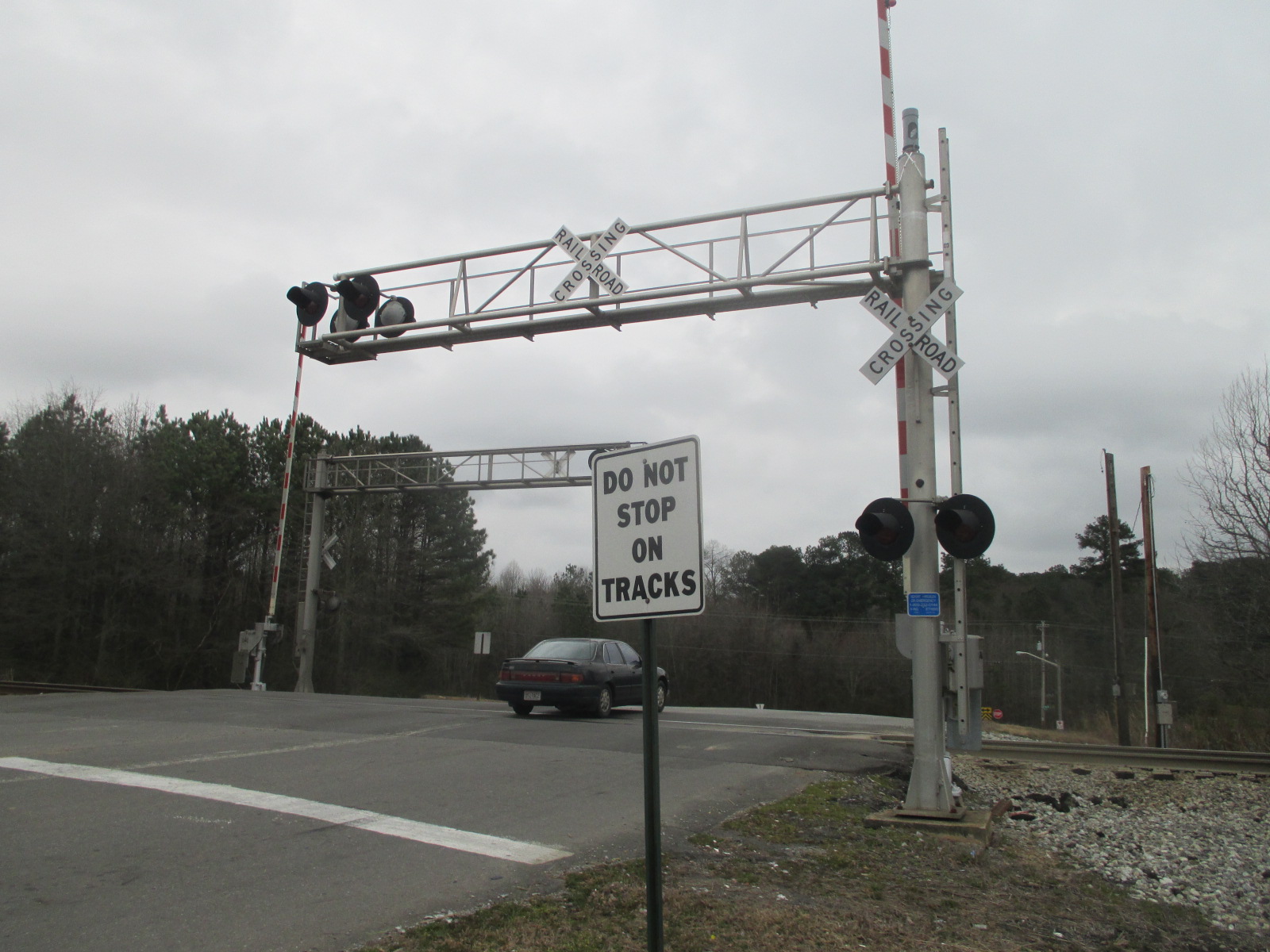

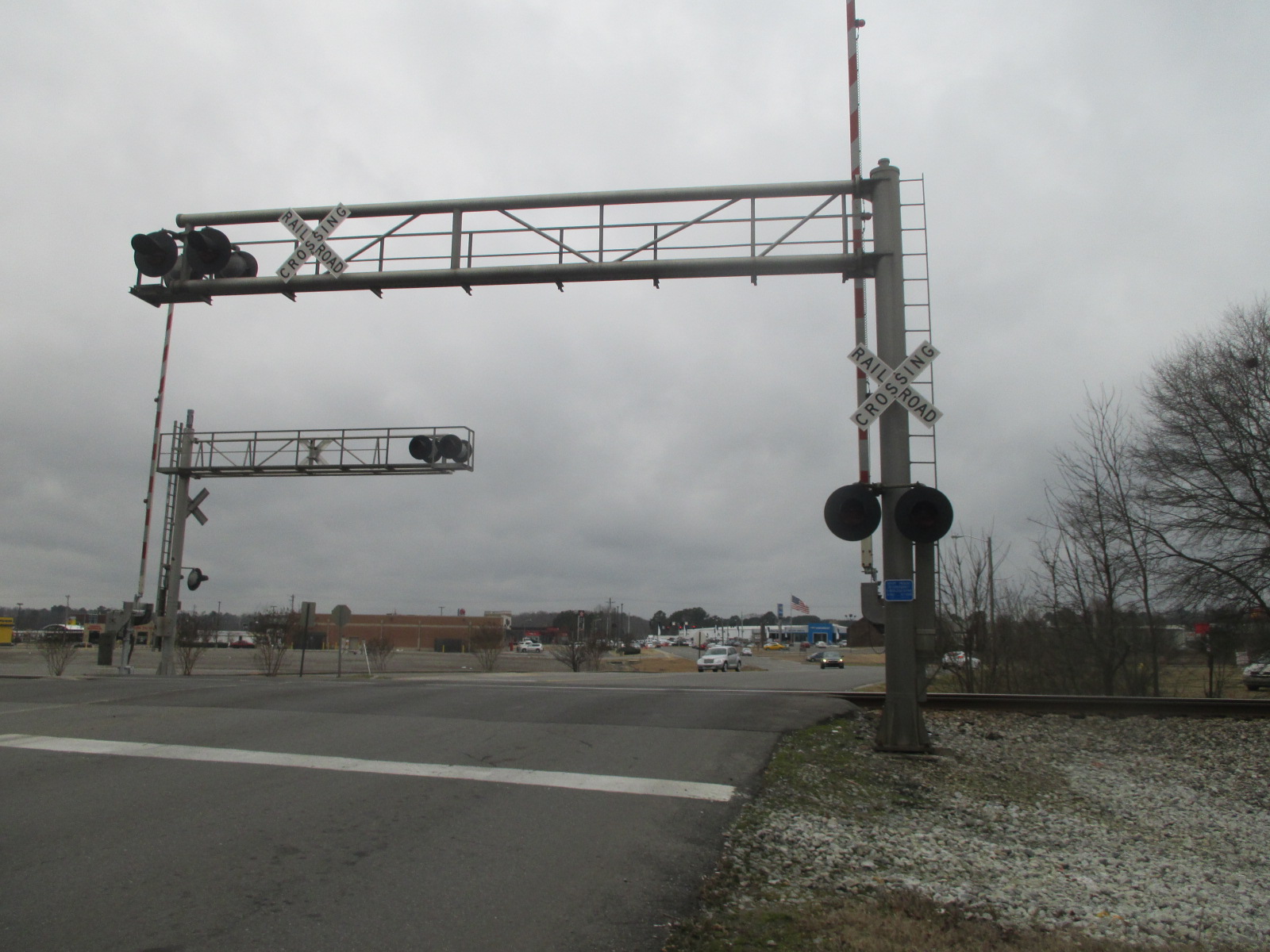

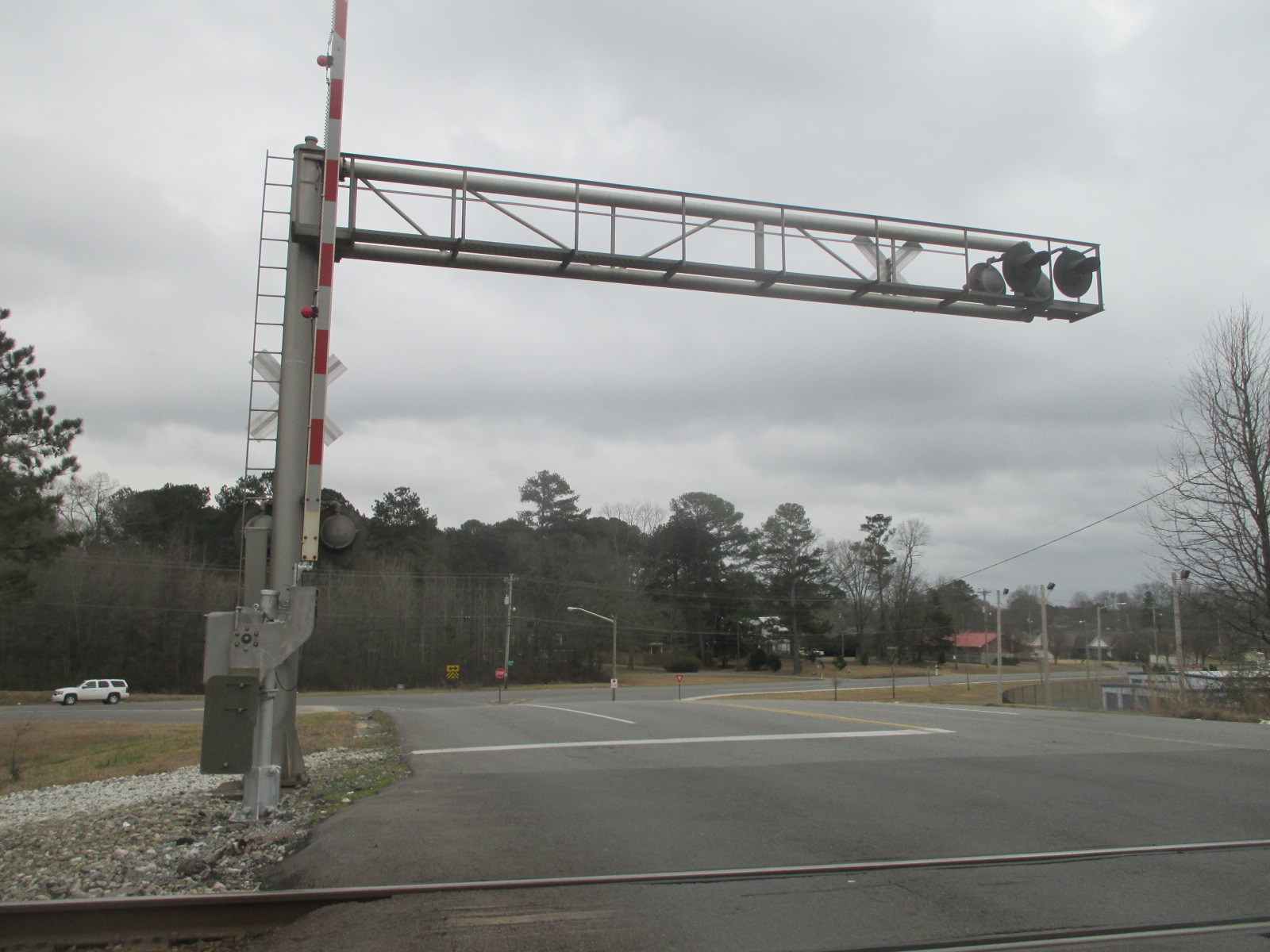

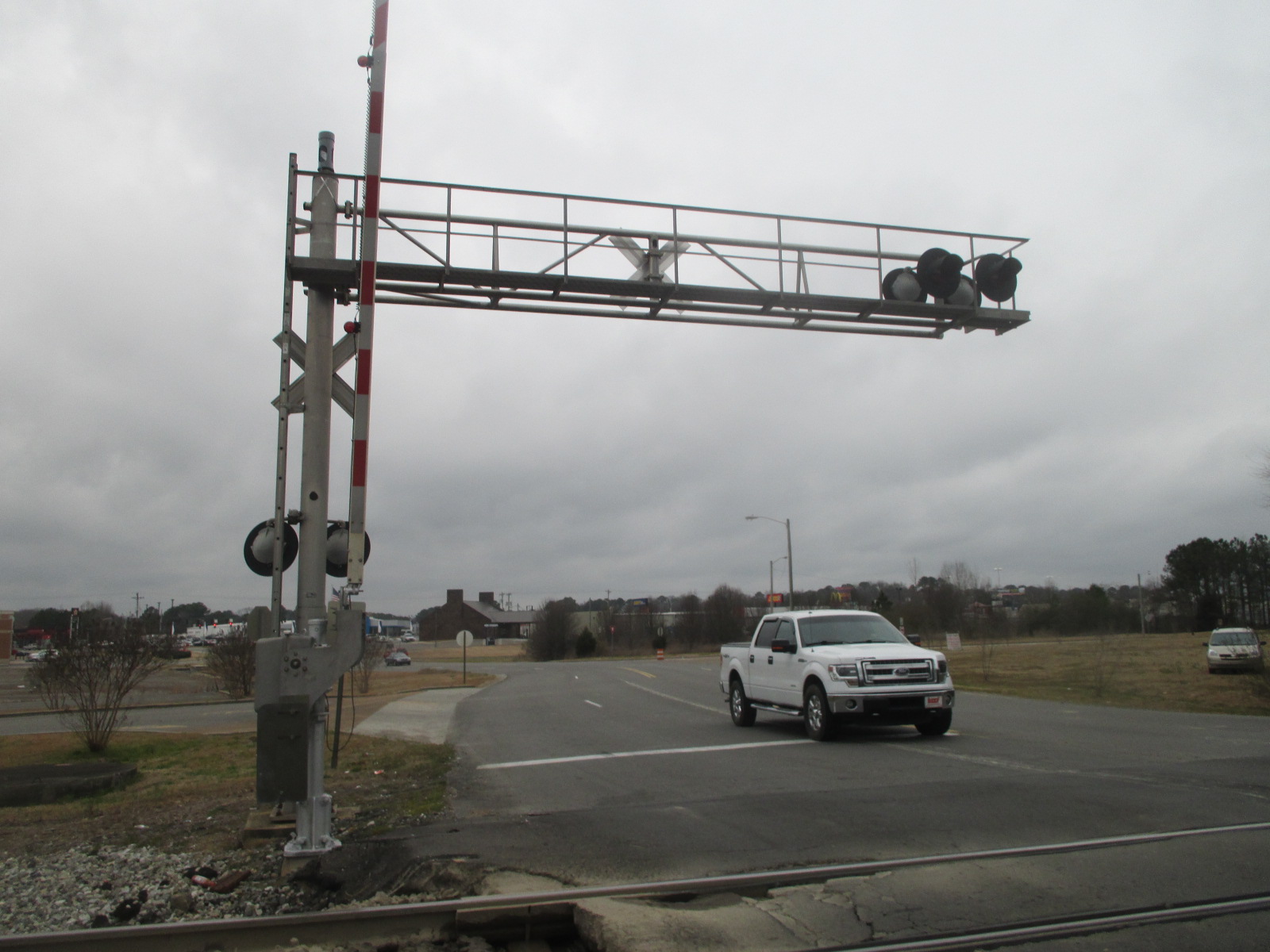

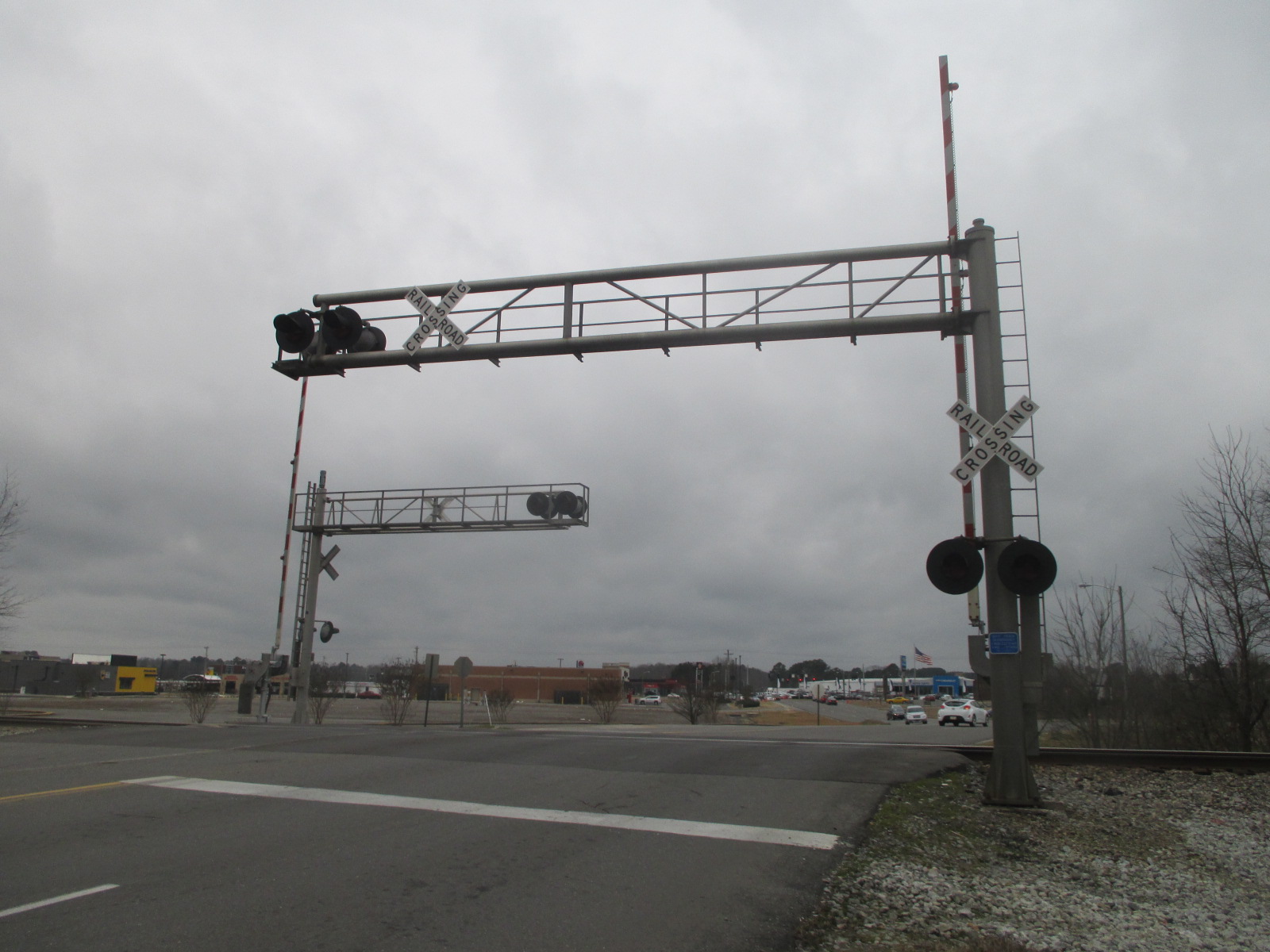

Overviews of the crossing. |
The first signal. |
||
5 |
6 |
7 |
8 |

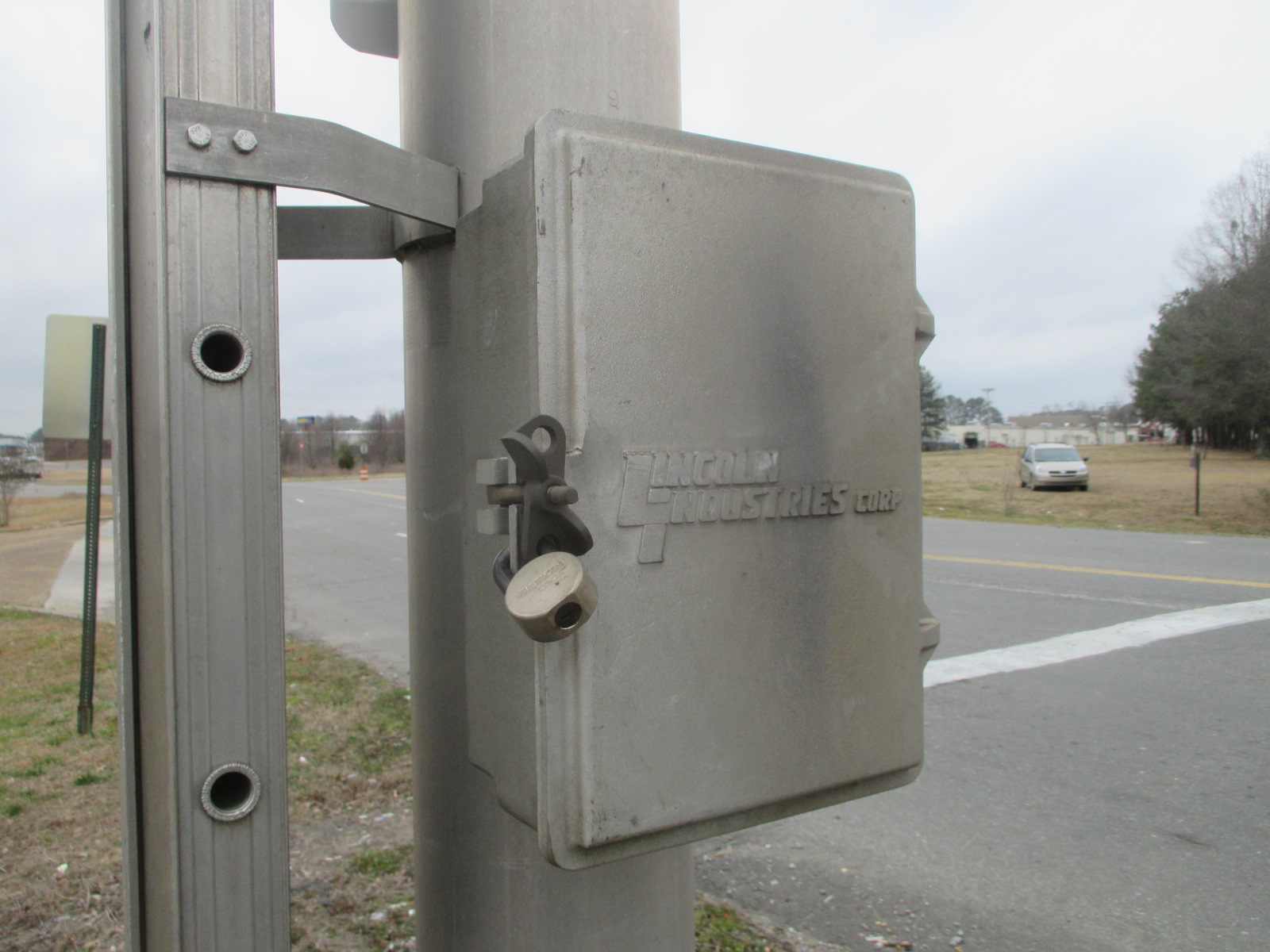

It's a Lincoln Industries cantilever. |

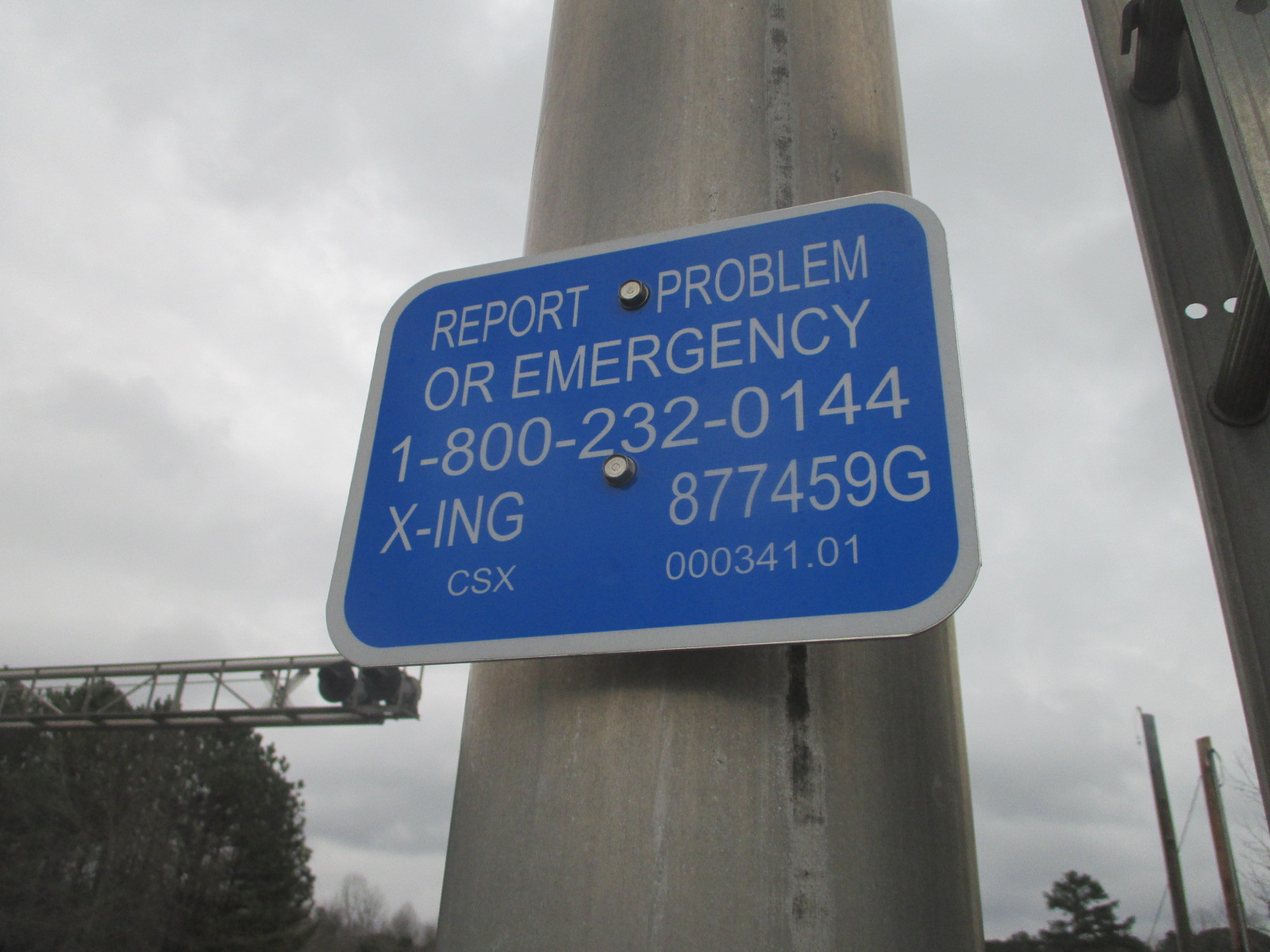

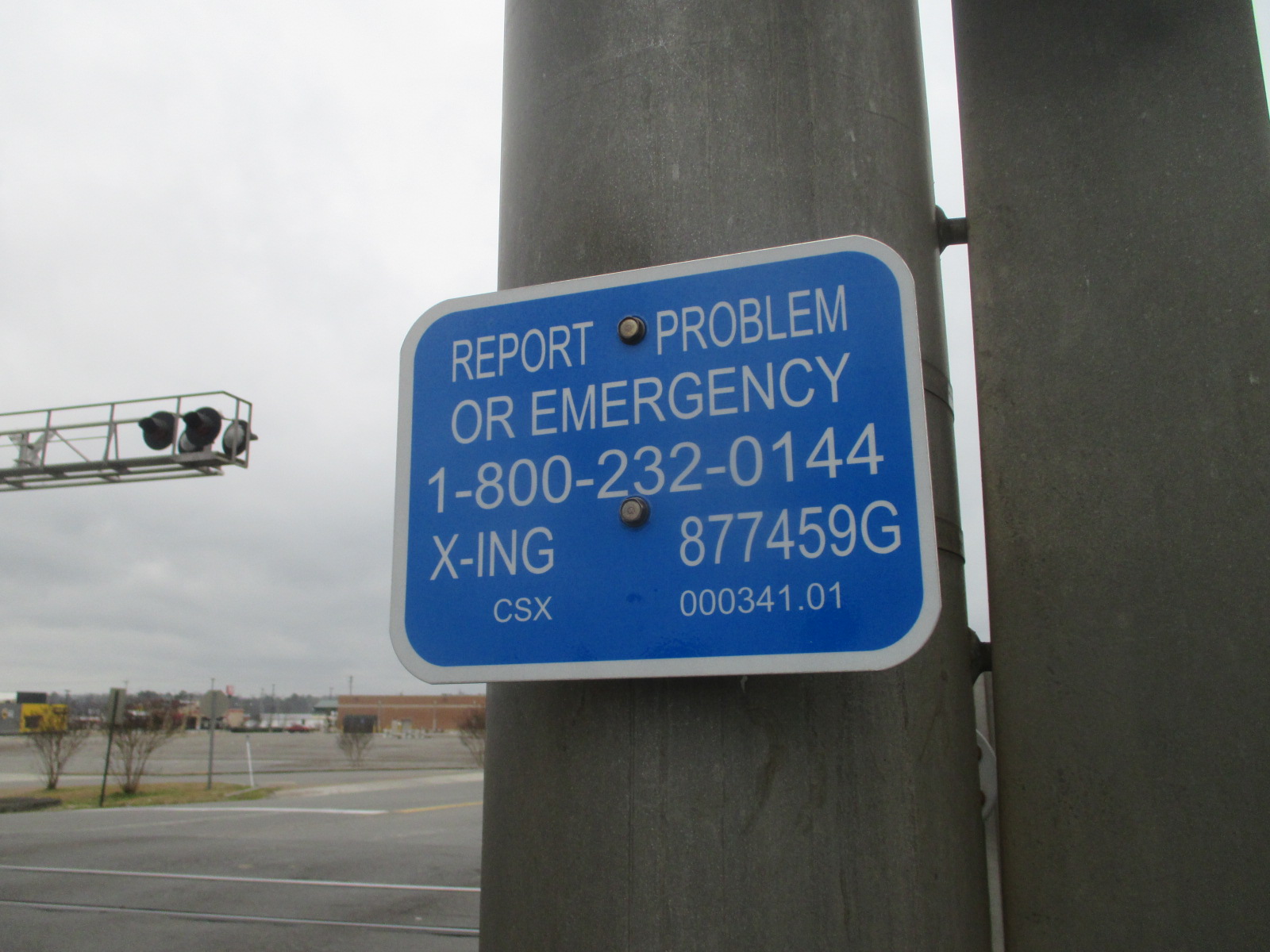

The DOT tag. |

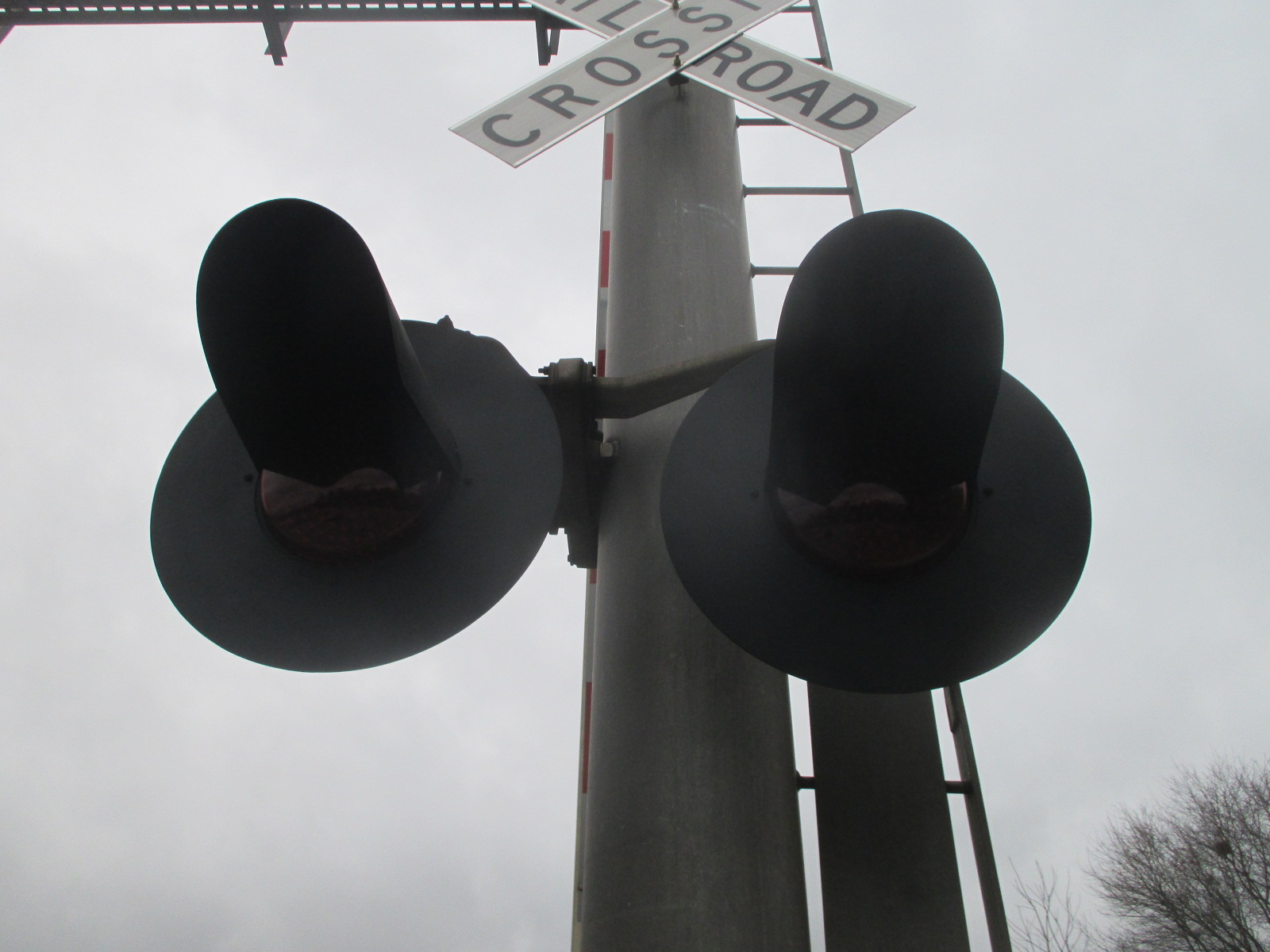

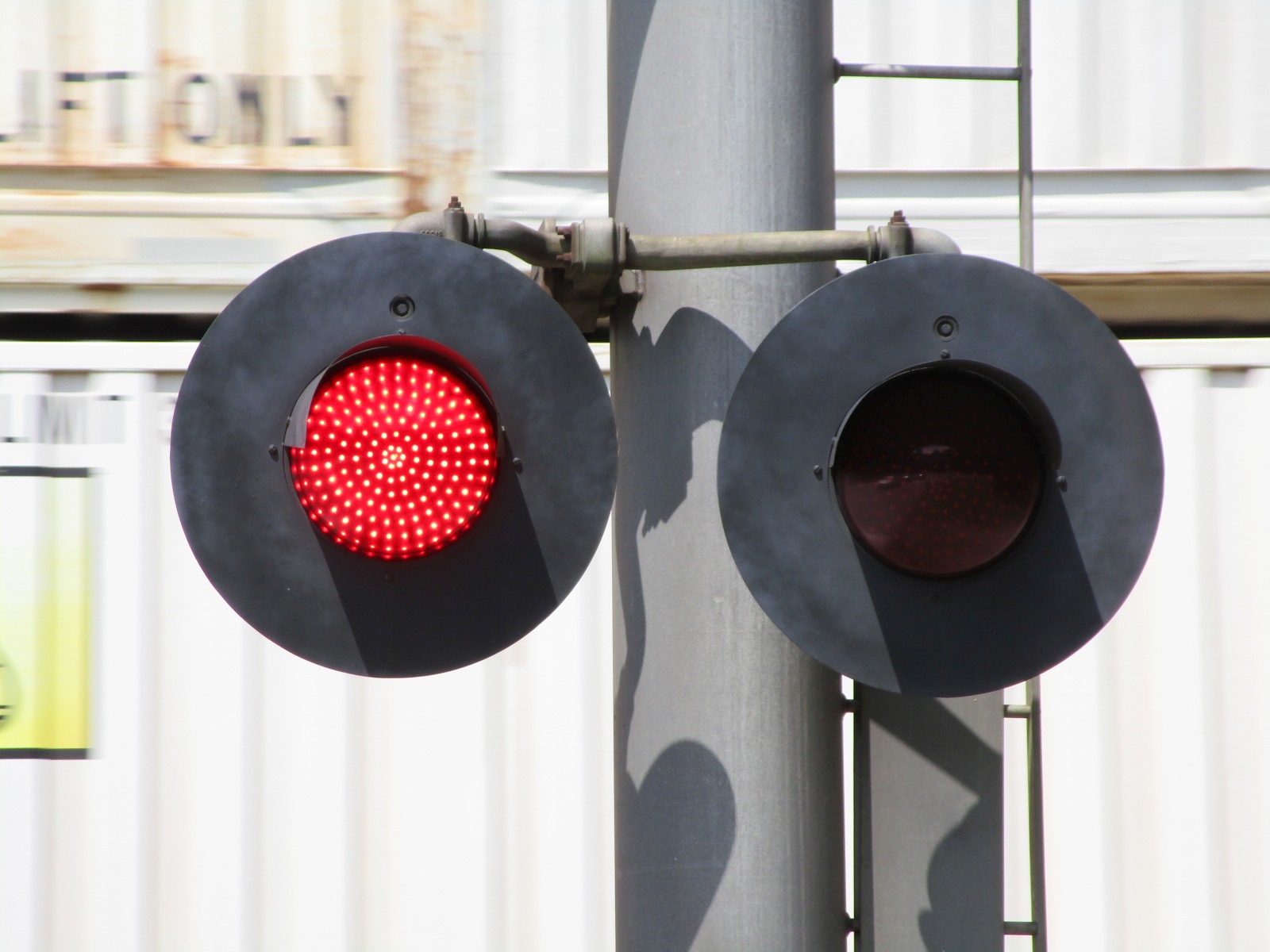

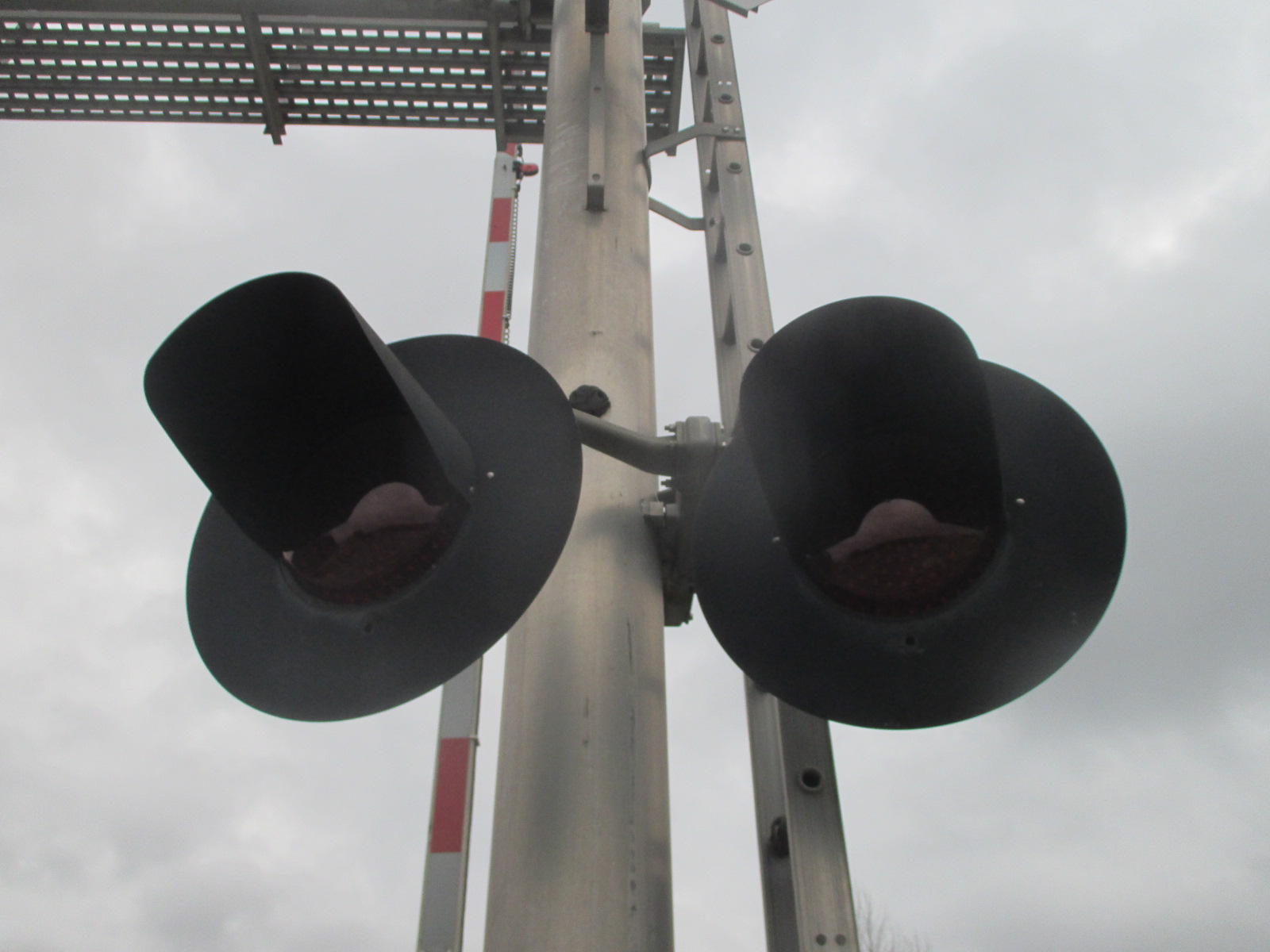

The mast lights are Safetran 12x24 inch lights with WCH 2nd Gen. LEDs. |
|
9 |
10 |
11 |
12 |

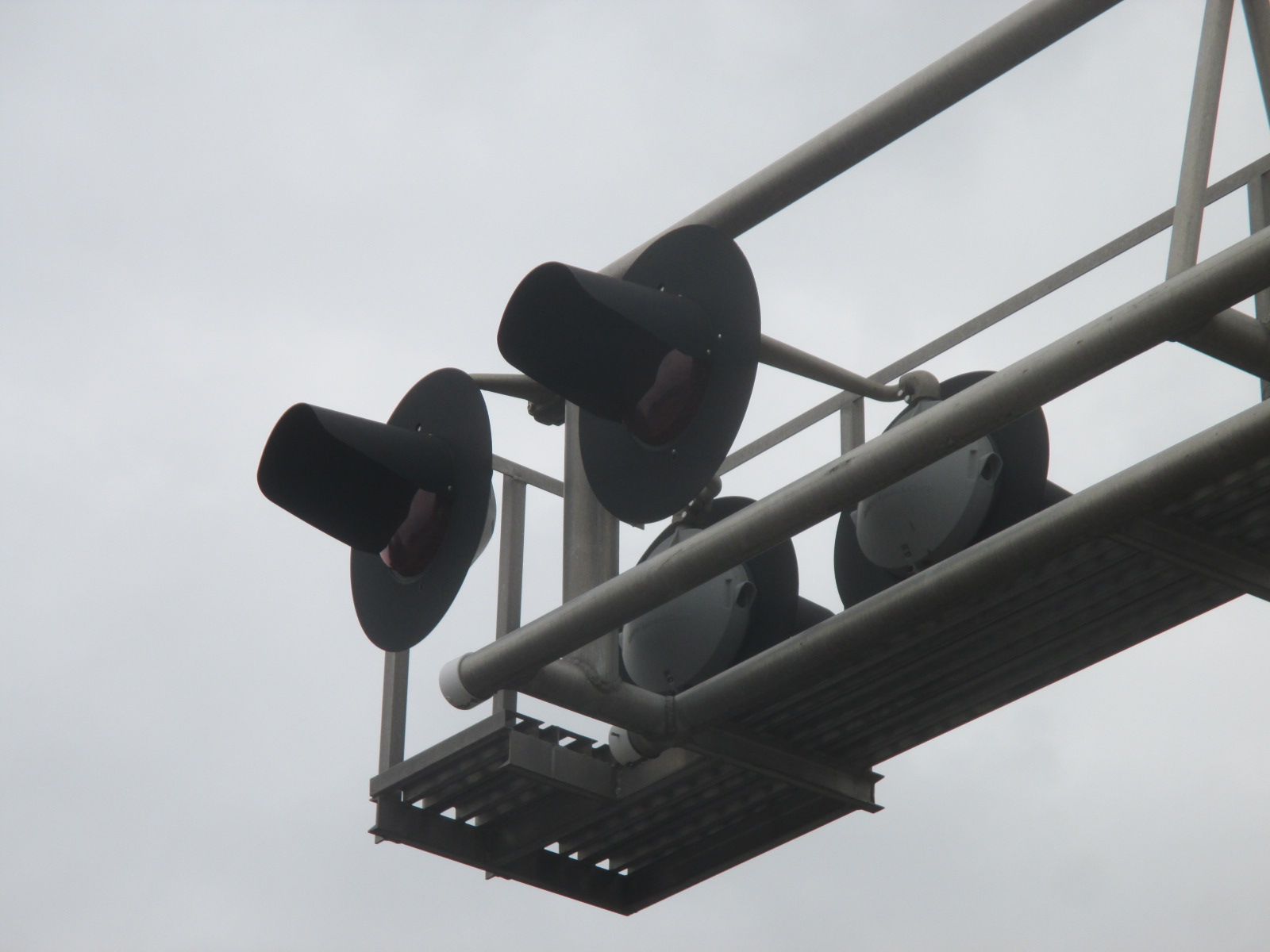

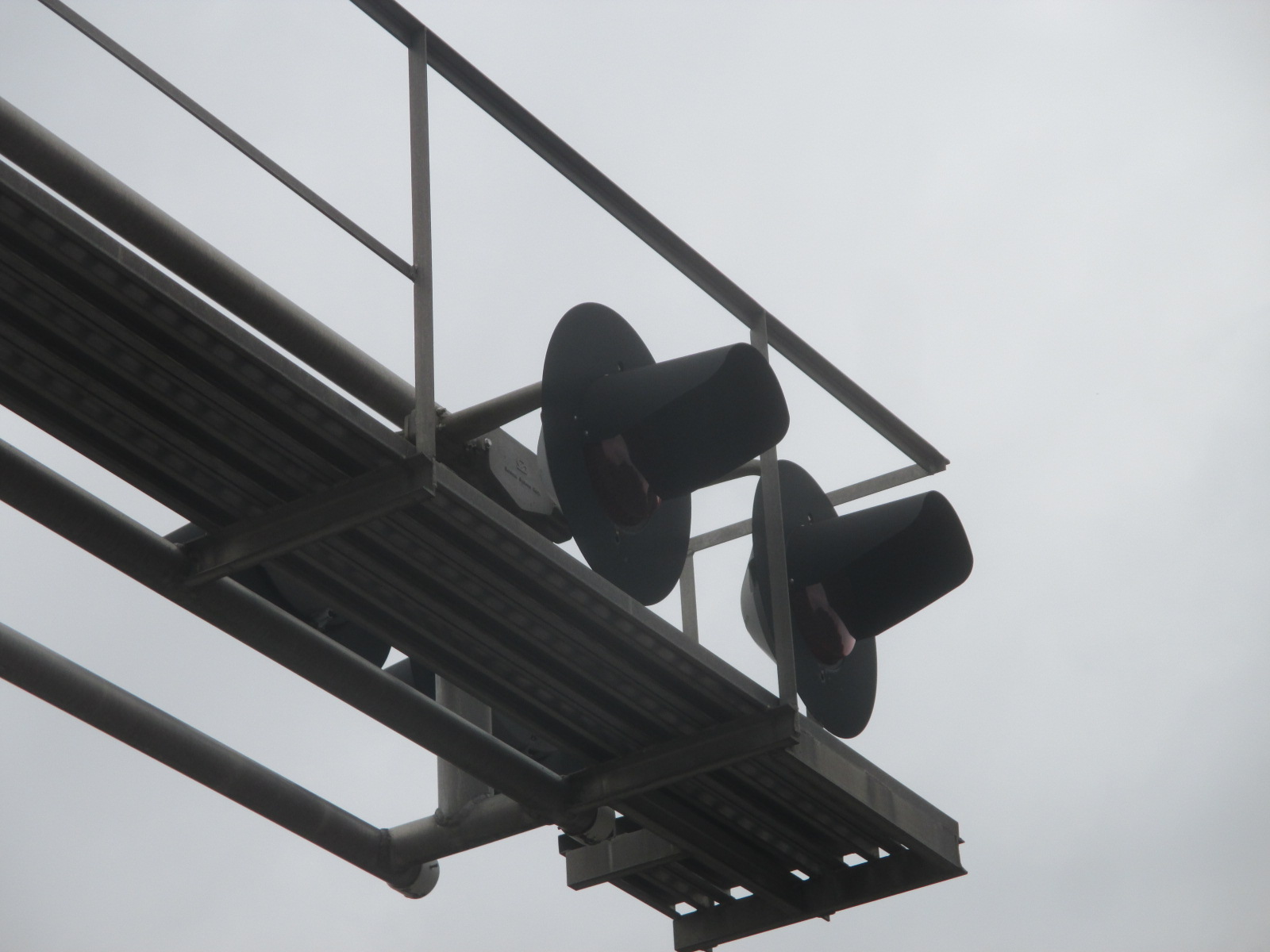

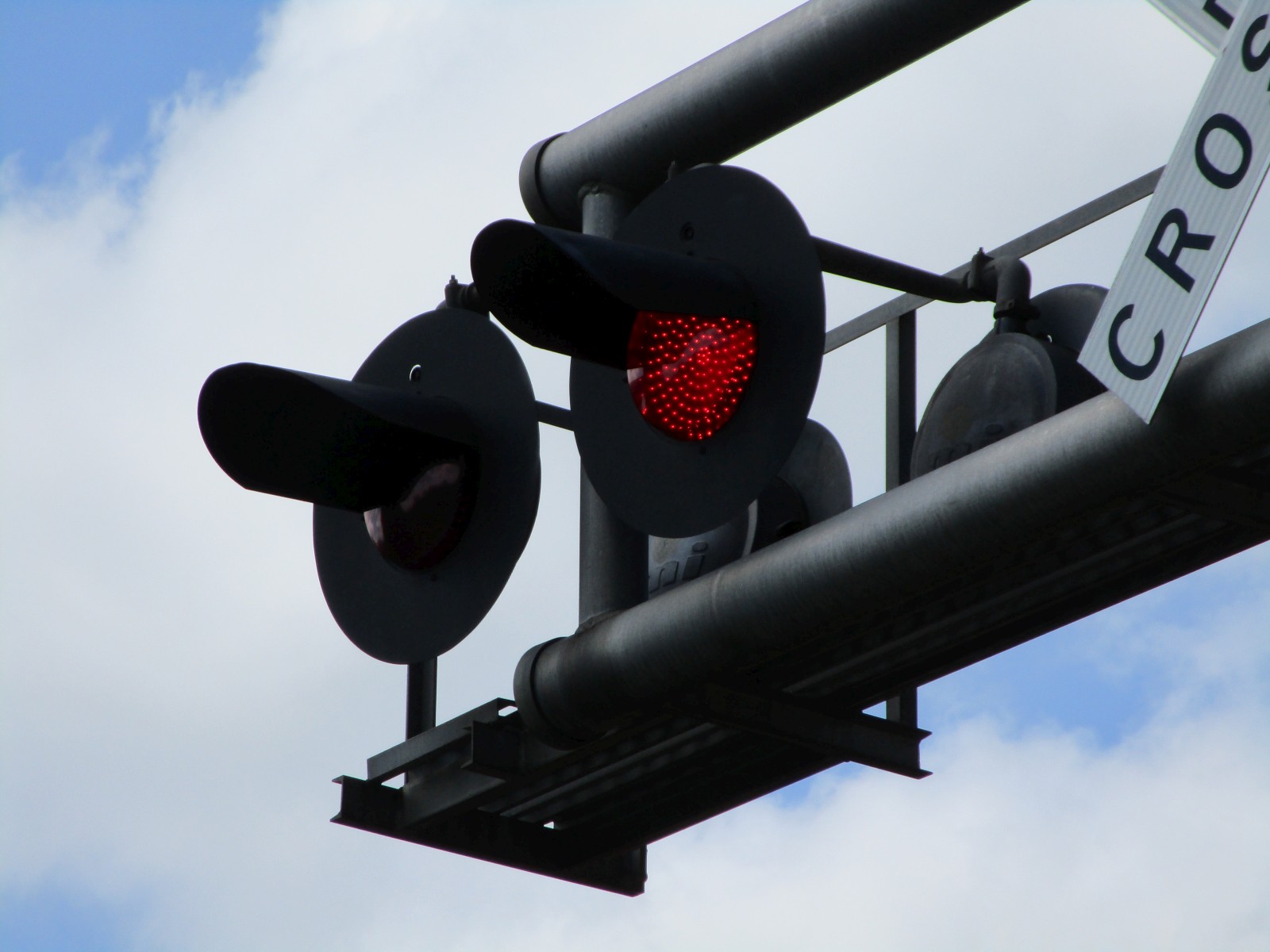

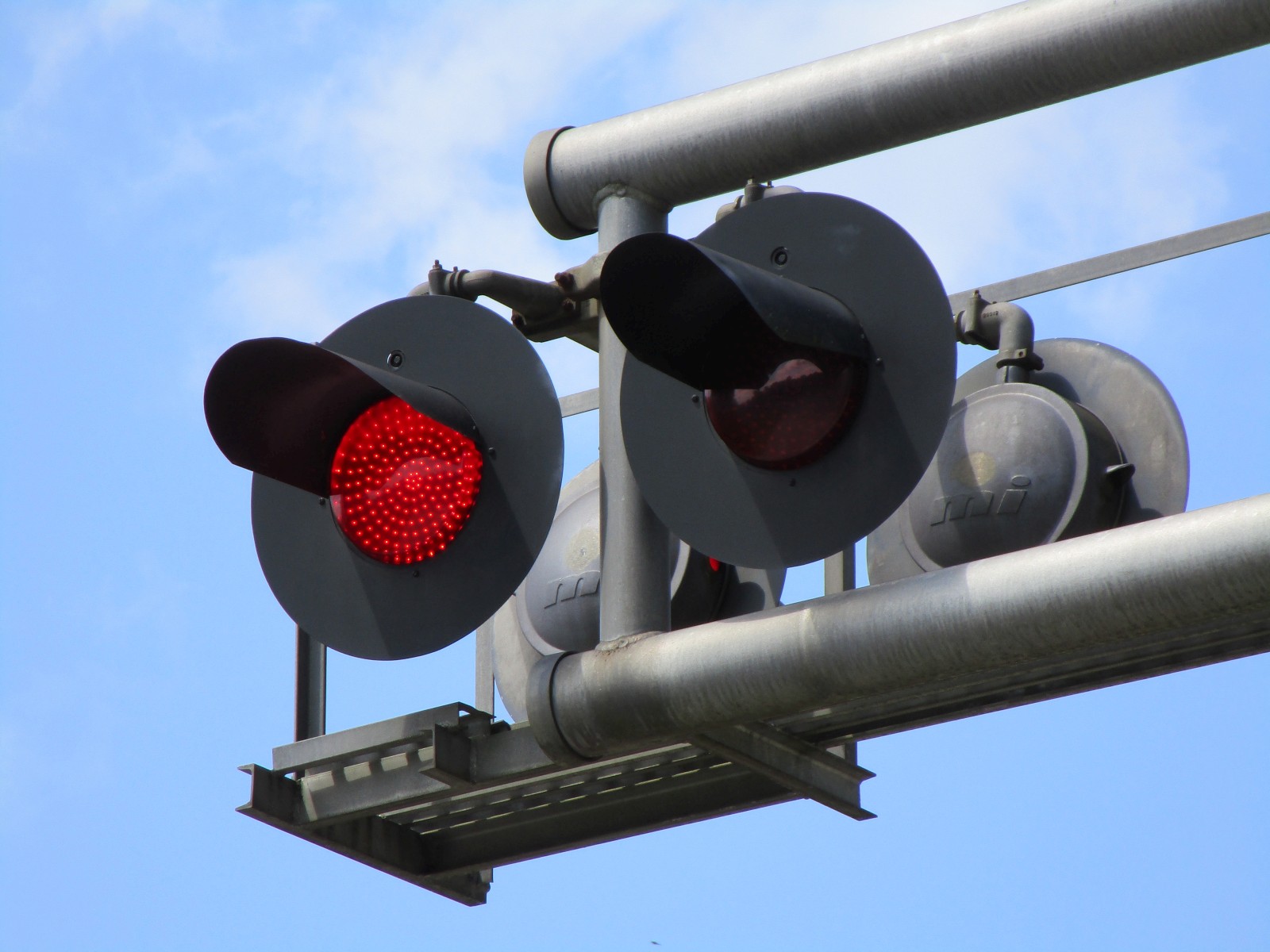

The overhead lights are more Safetran 12x24 inch lights with WCH 2nd Gen. LEDs. |

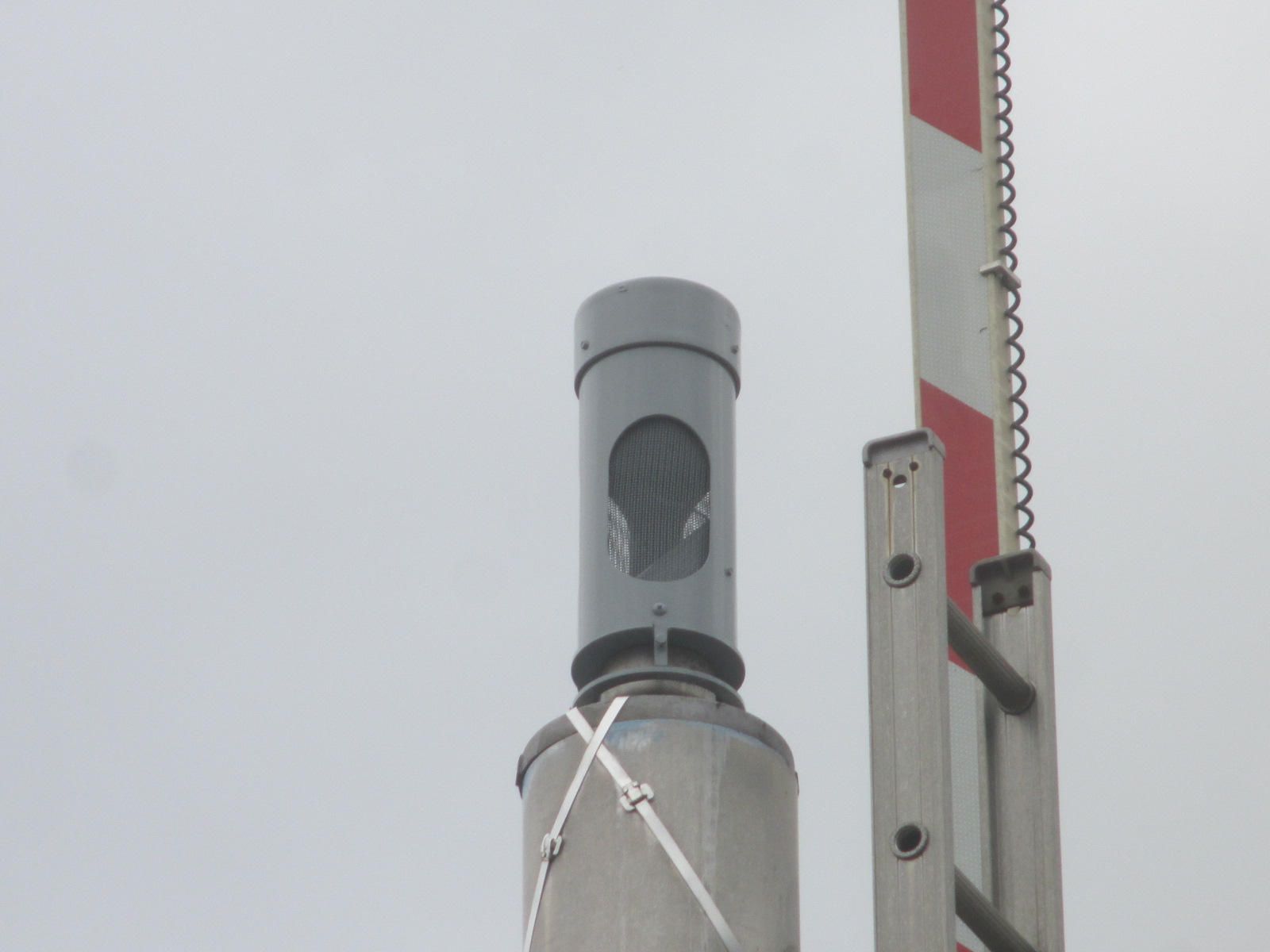

The lone bell is an NEG electronic bell. |

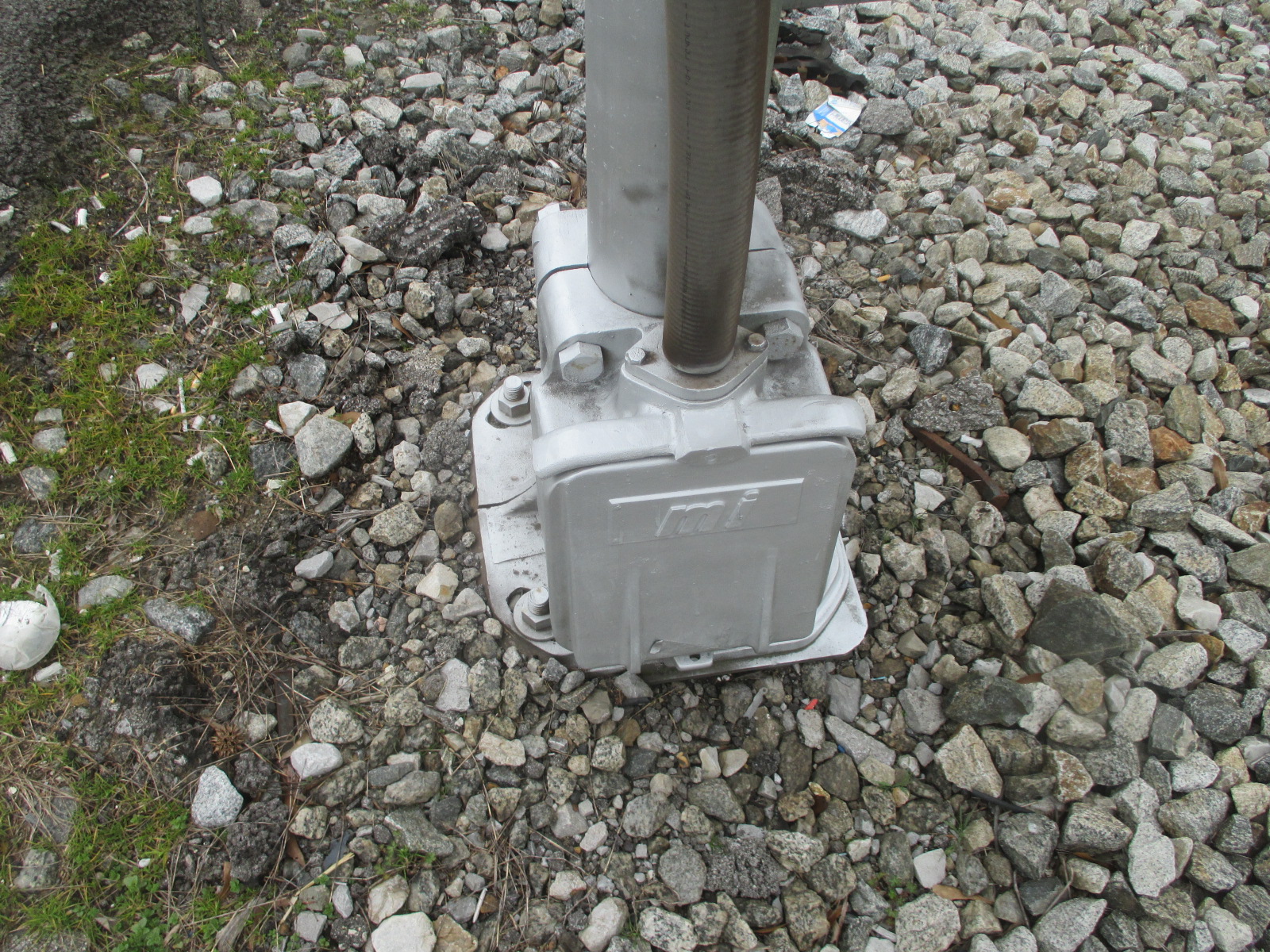

The gate mast has a Modern Industries base. |
|
13 |
14 |
15 |
16 |

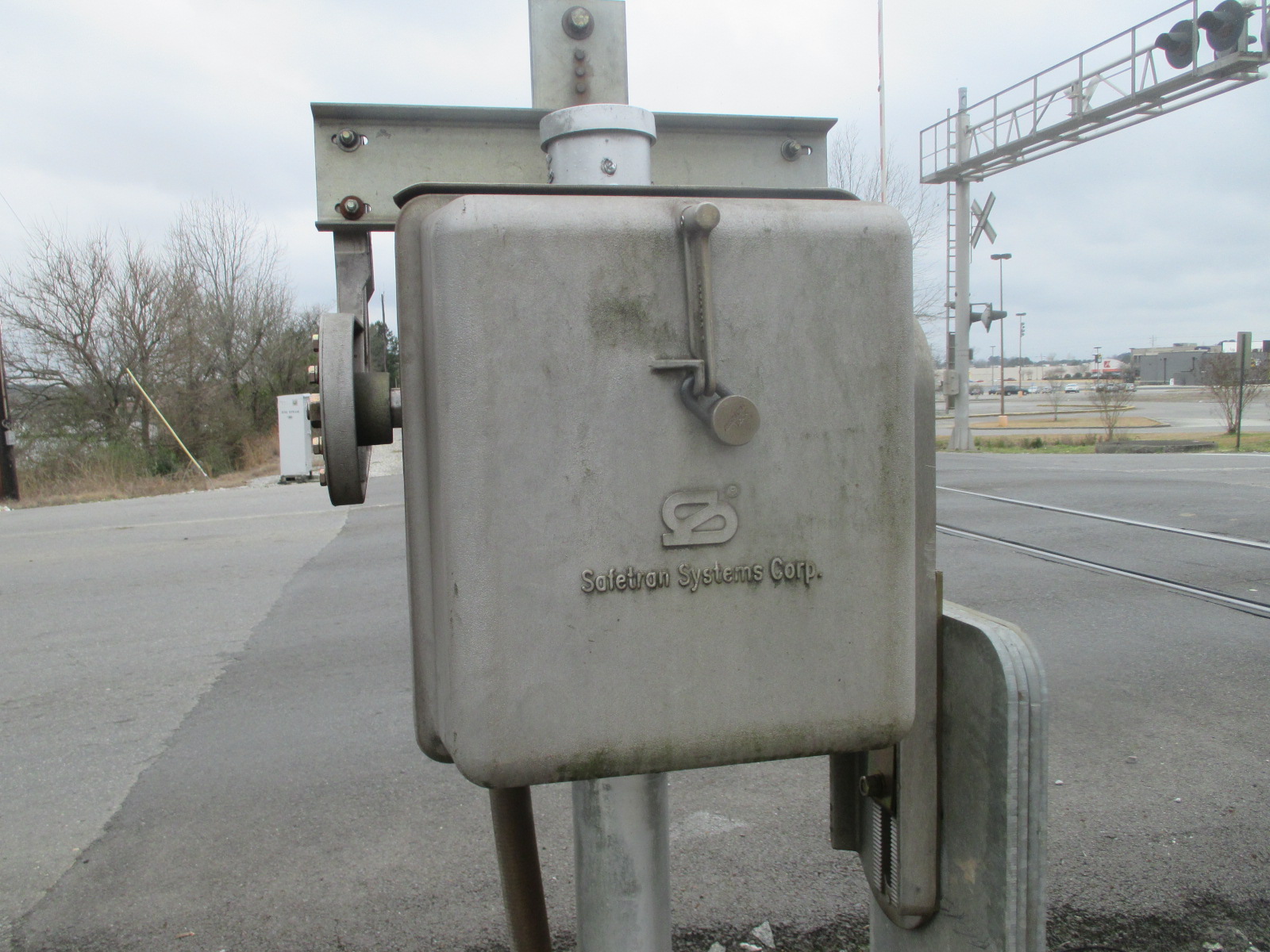

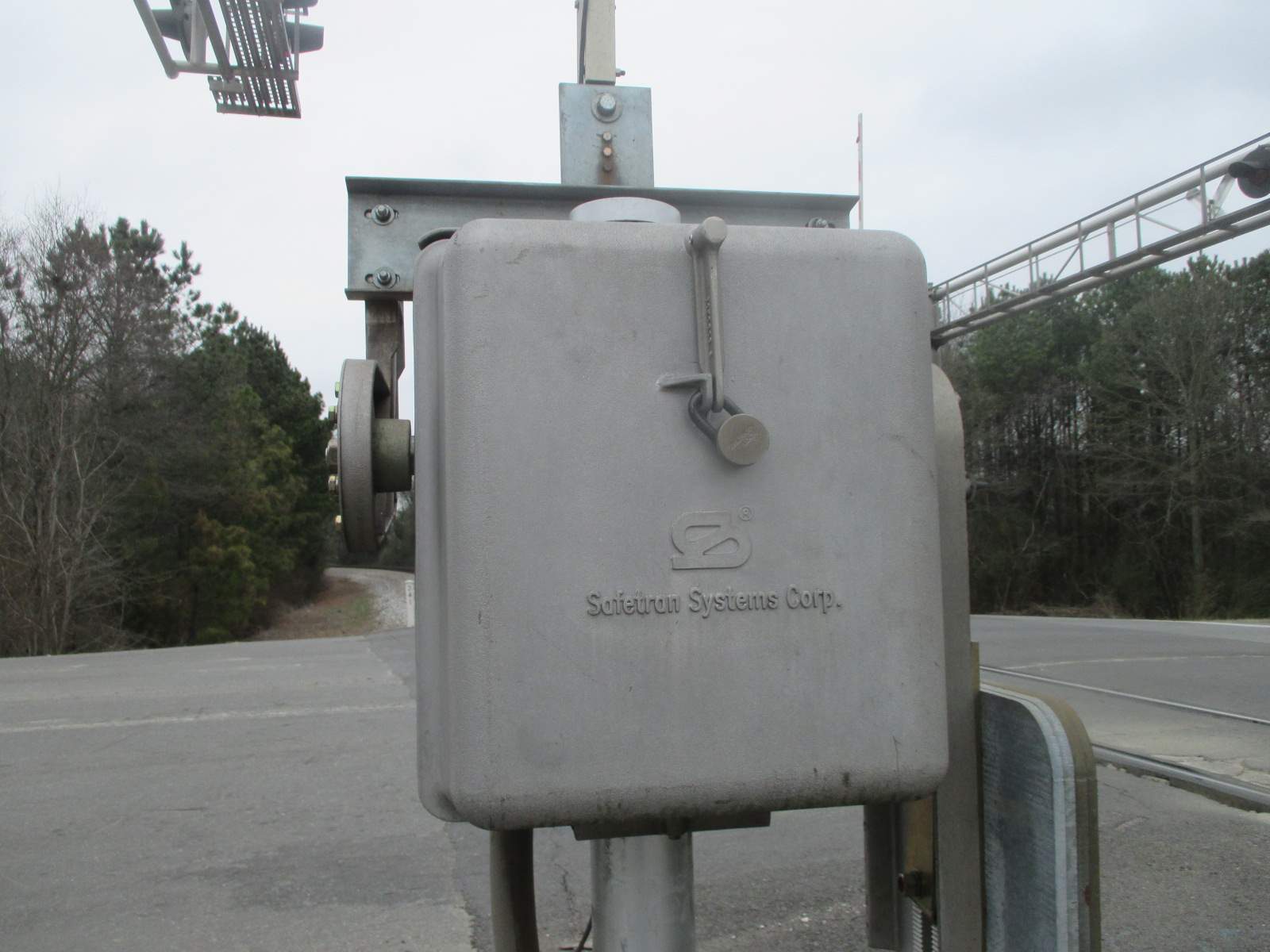

The gate mechanism comes from Safetran. |

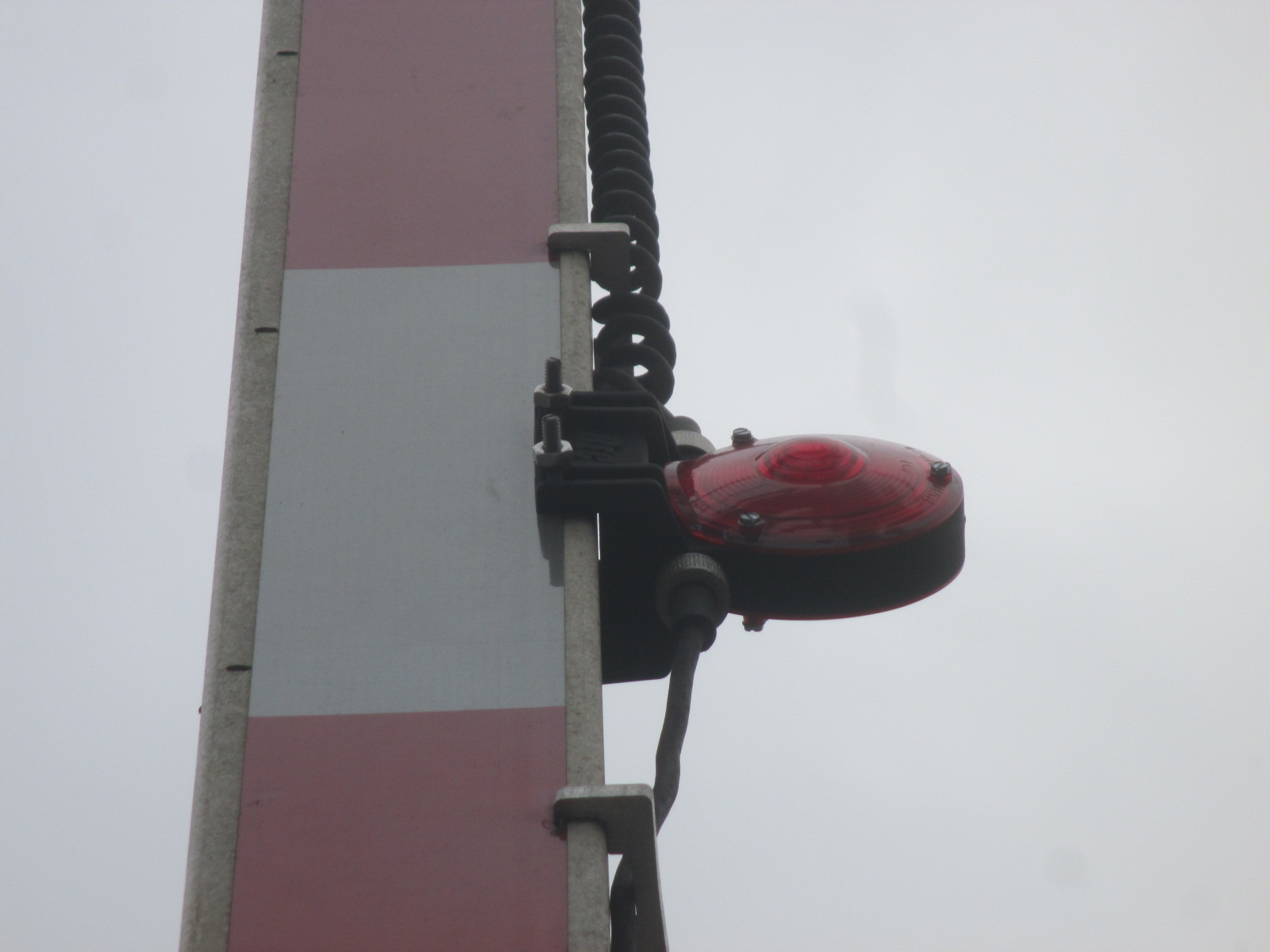

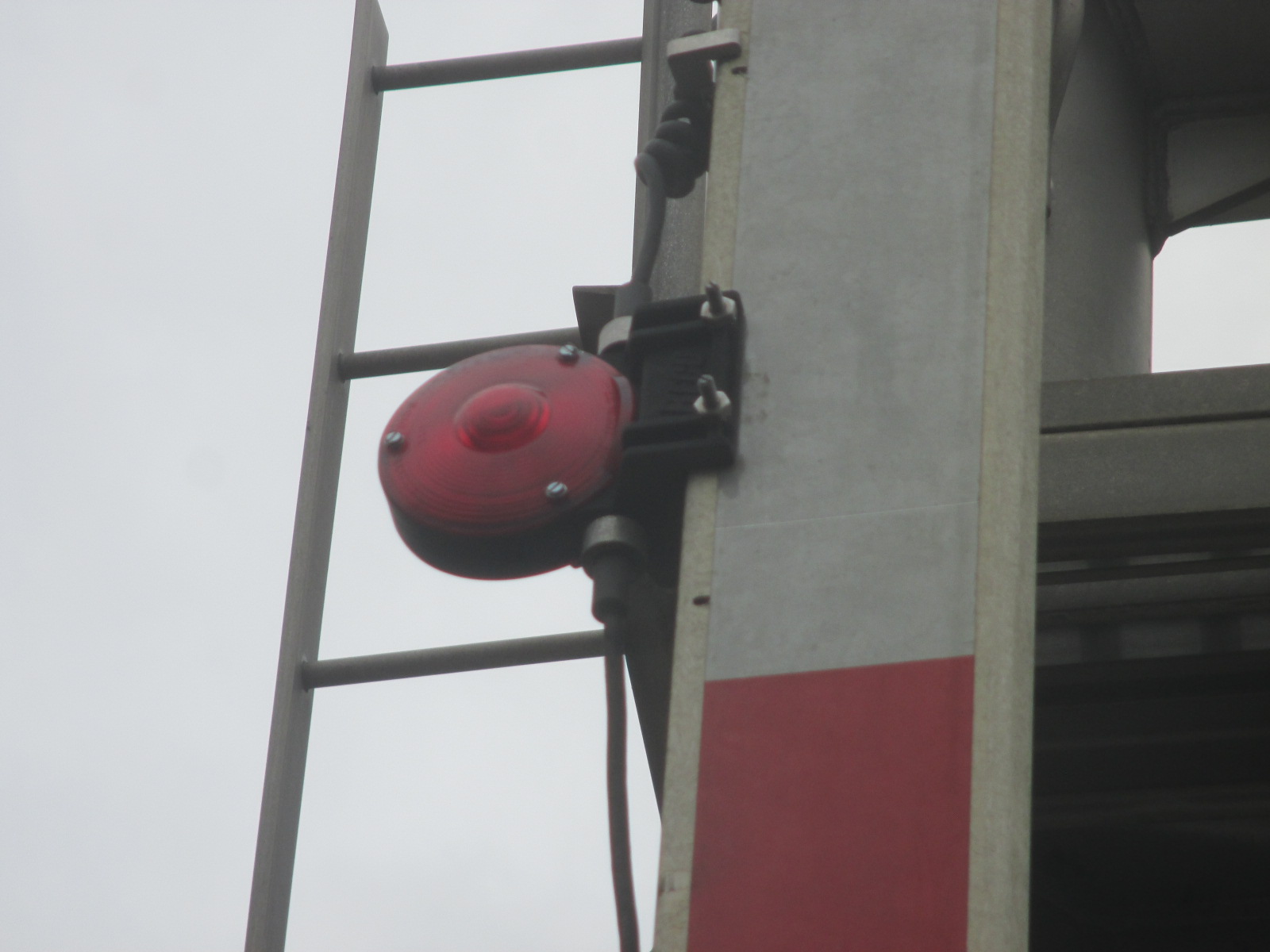

This signal has RECO LED gate lights. |
The second signal. |
|
17 |
18 |
19 |
20 |
It's a Modern Industries cantilever. |
The DOT tag. |

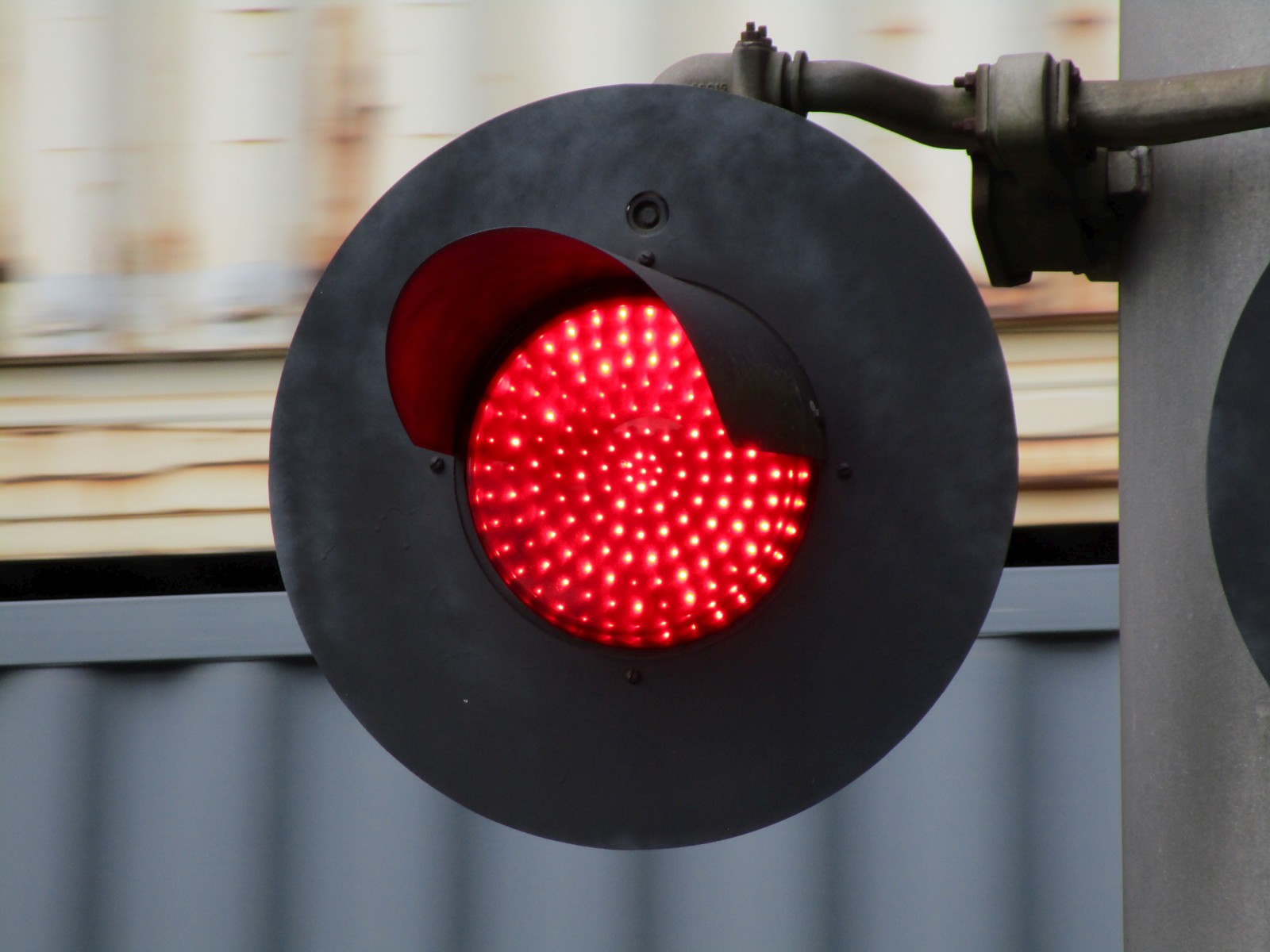

The mast lights are Modern Industries 12x24 inch lights with WCH 2nd Gen. LEDs! |
|
21 |
22 |
23 |
24 |

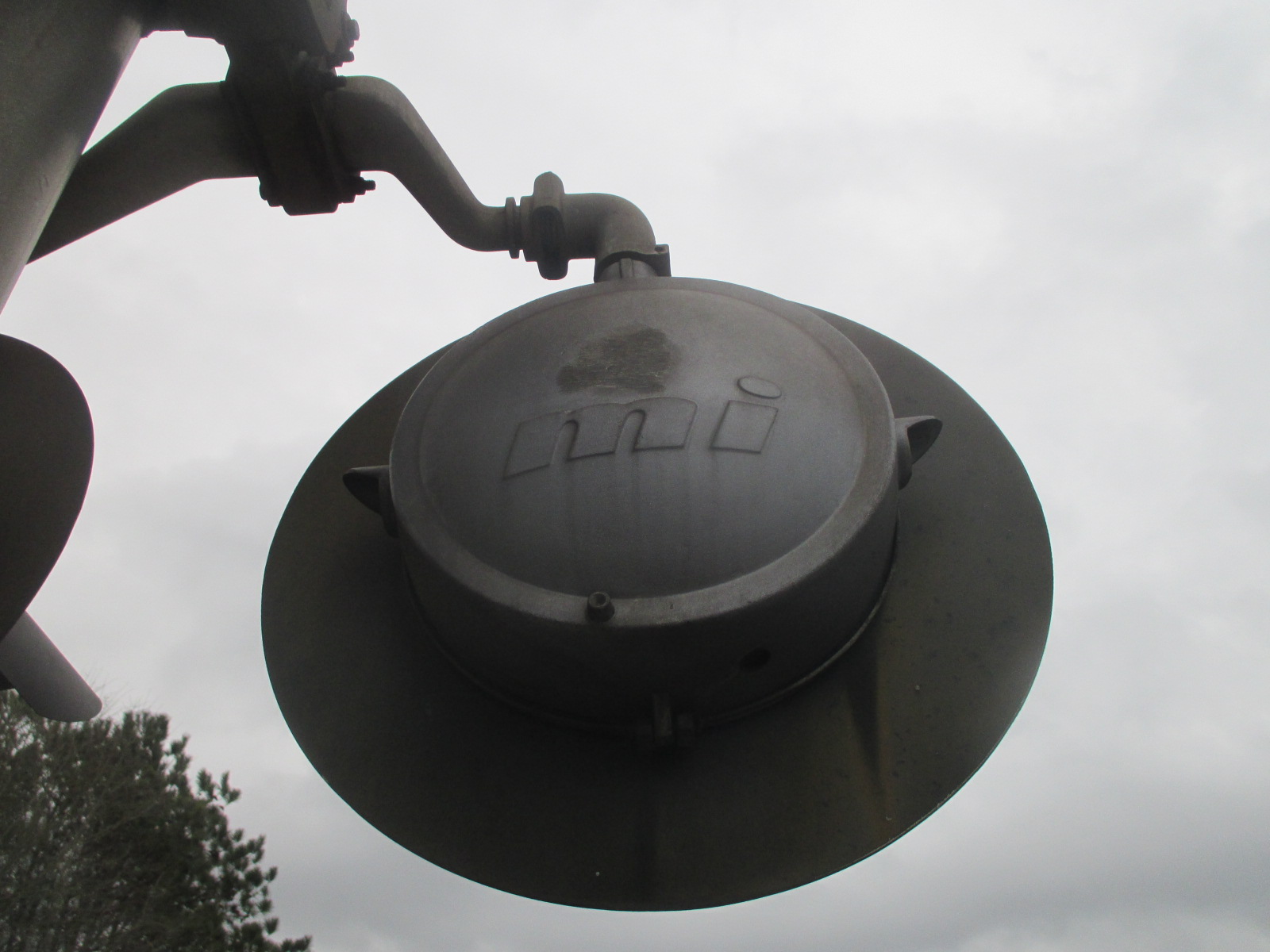

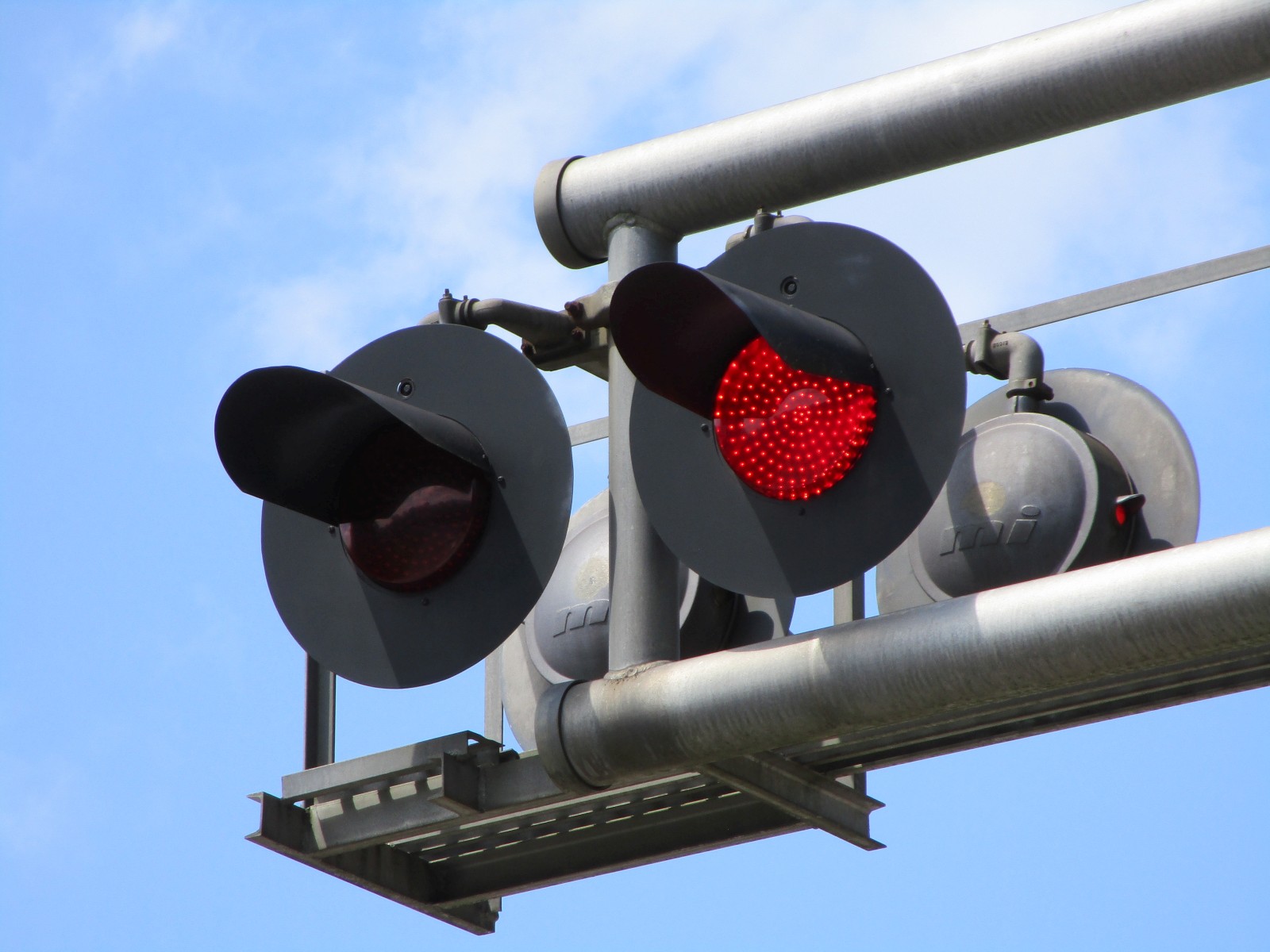

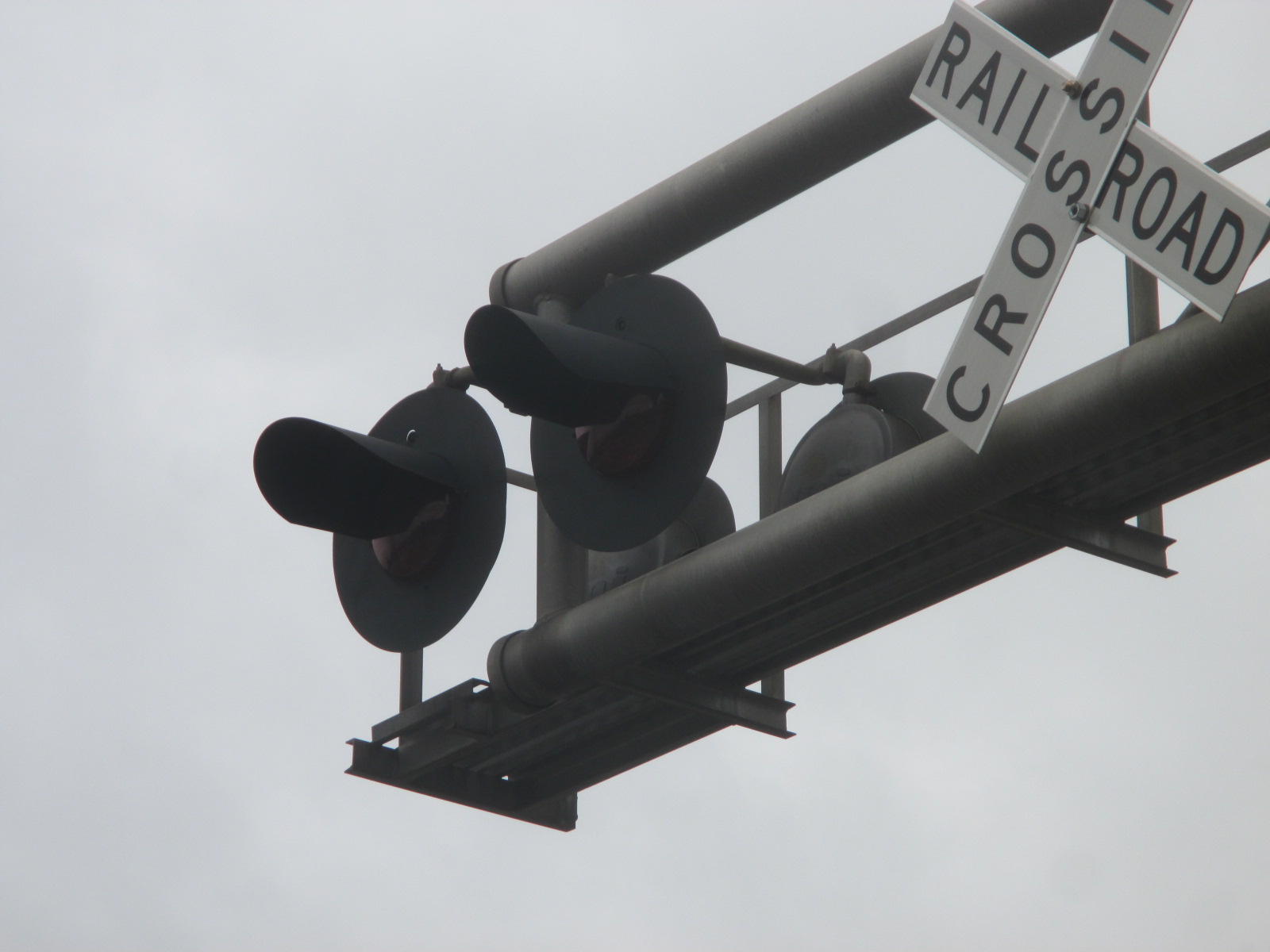

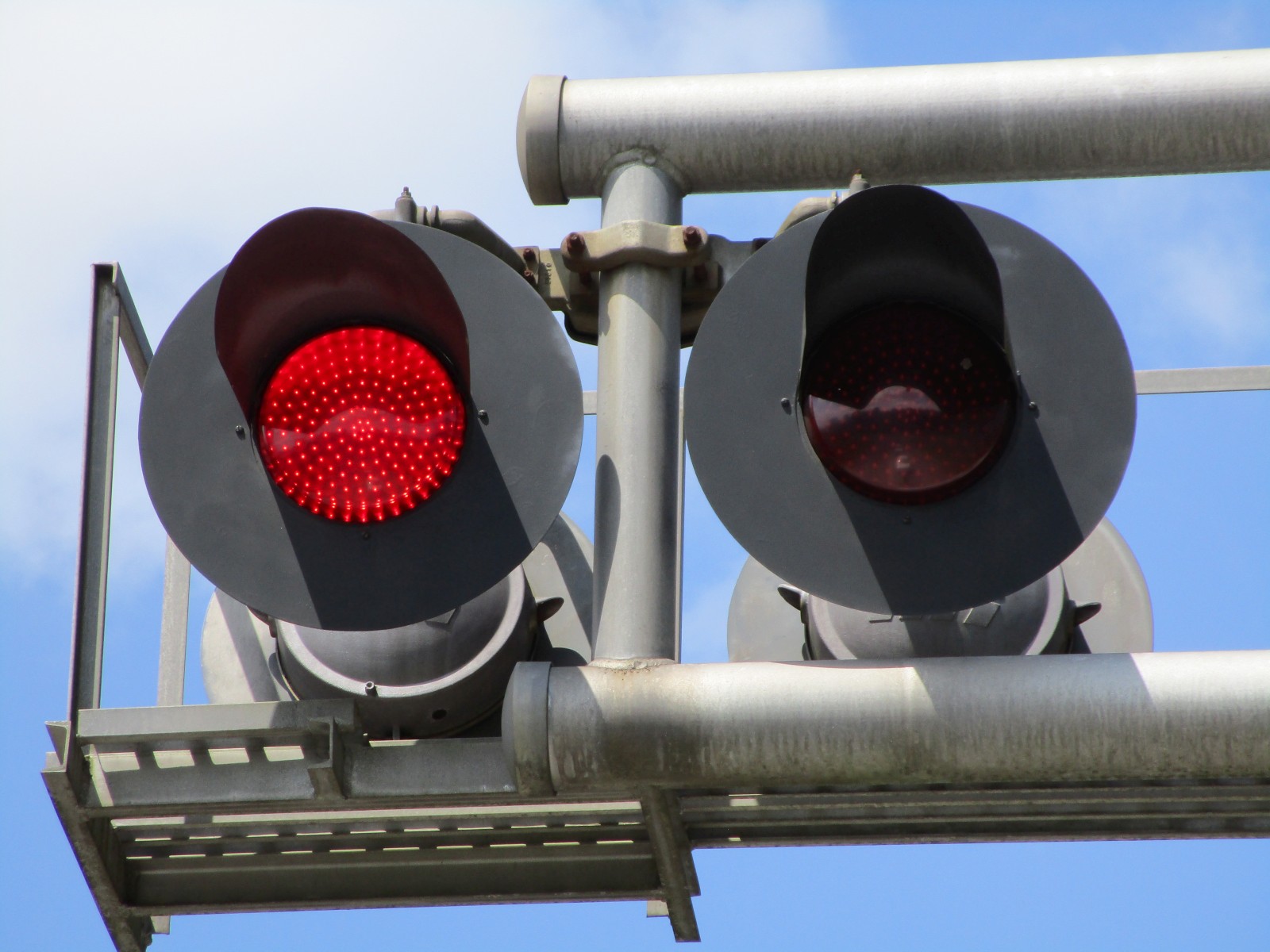

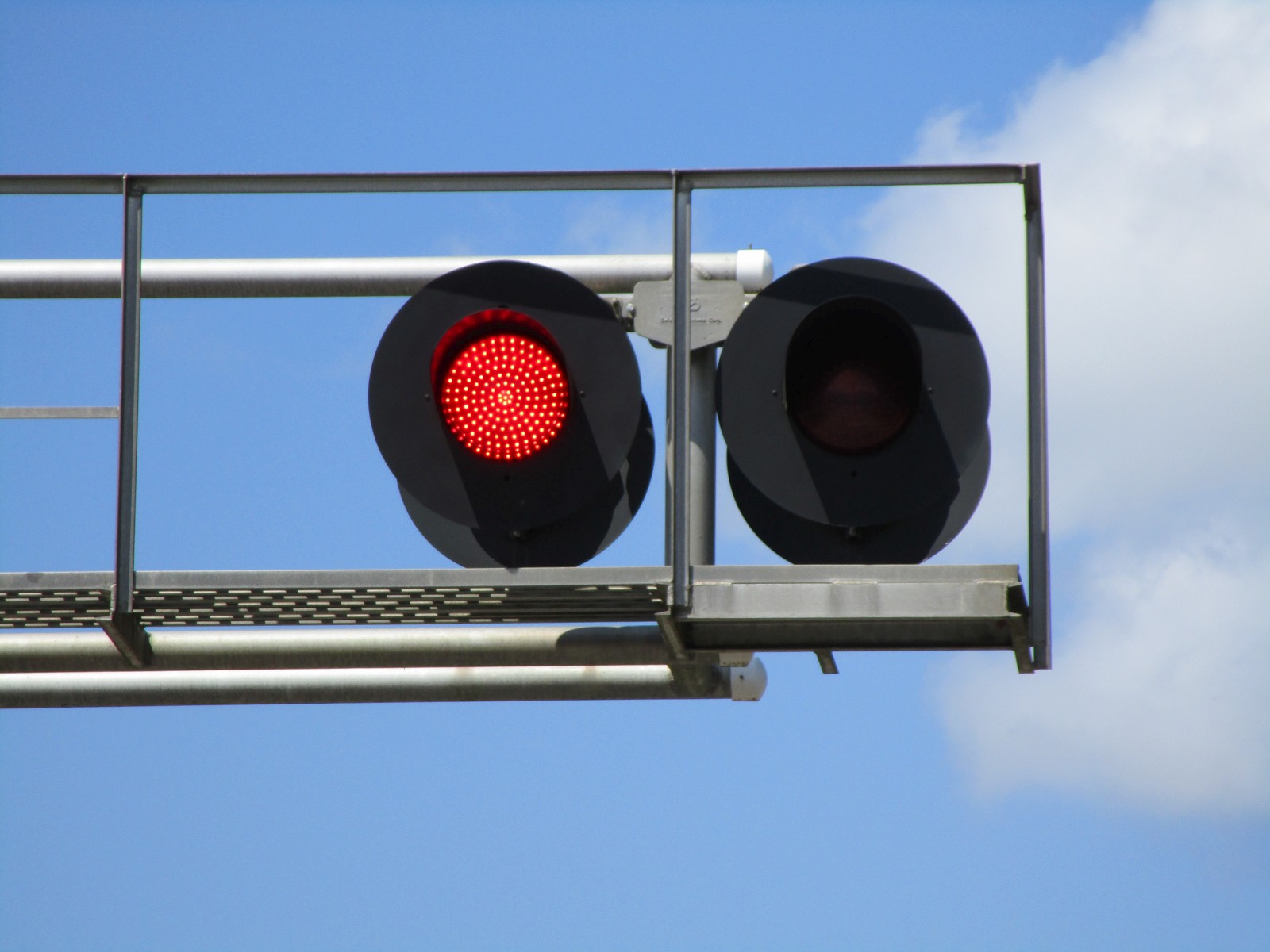

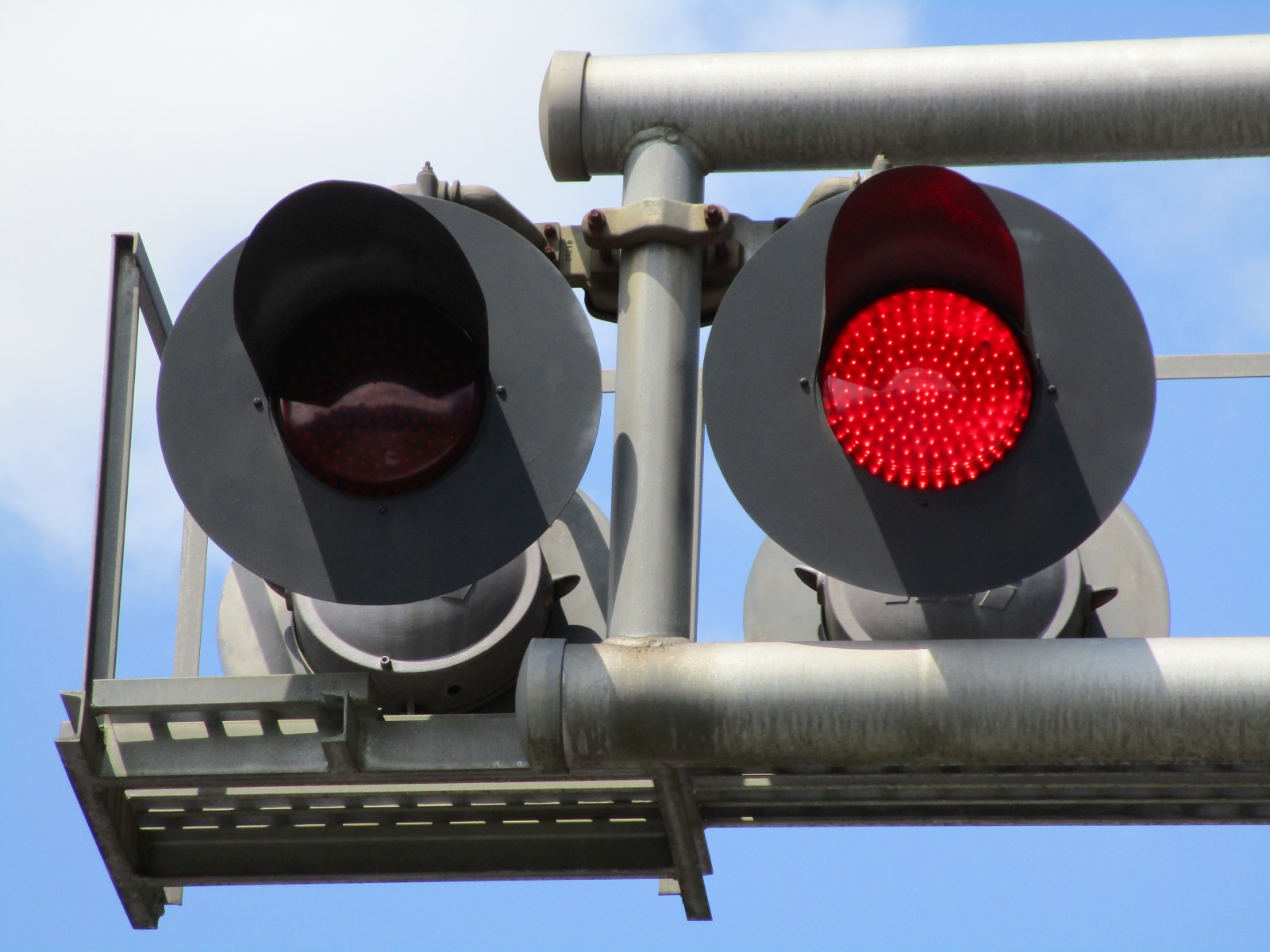

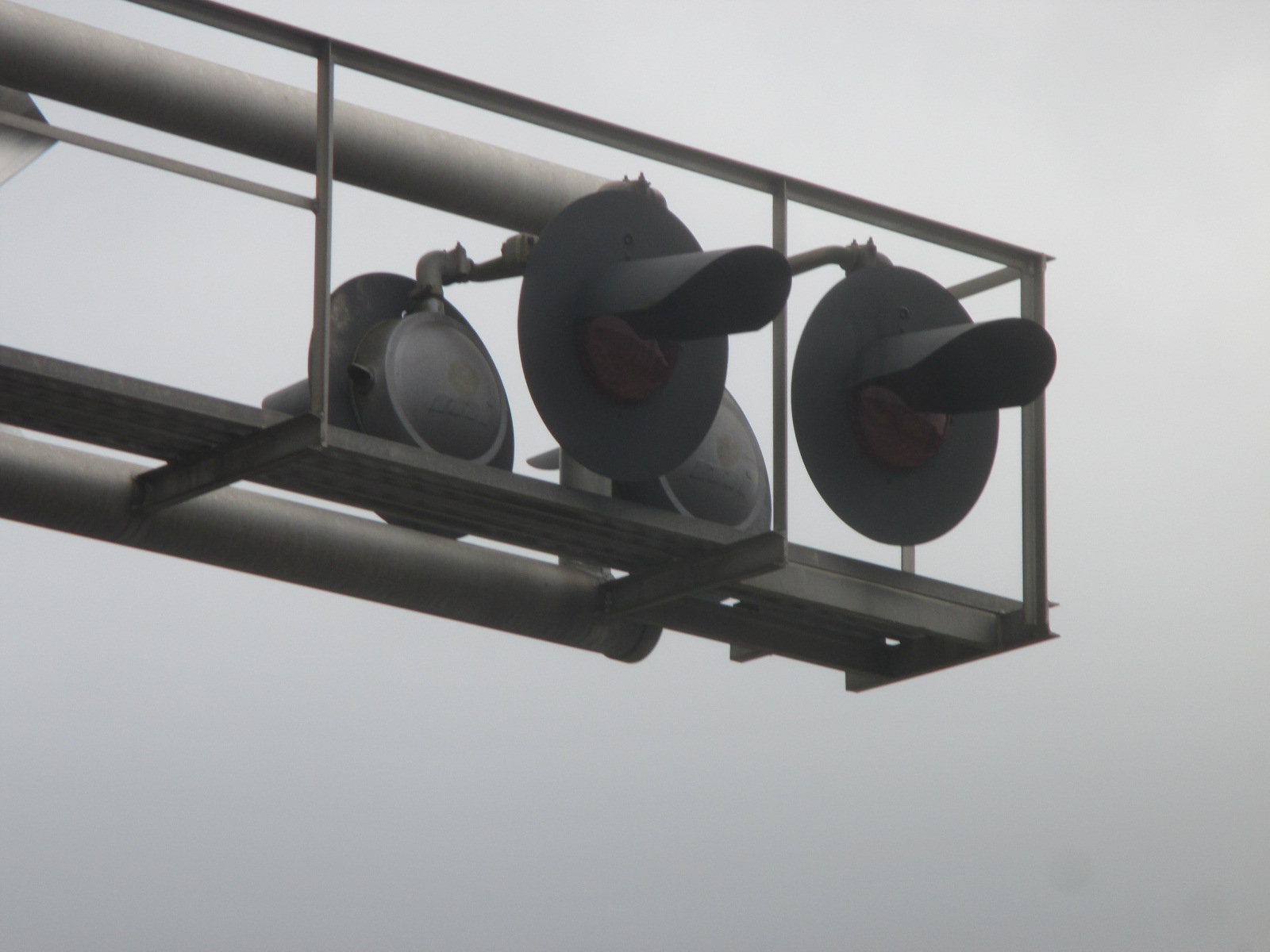

The overhead lights are more Modern Industries 12x24 inch lights with WCH 2nd Gen. LEDs! |

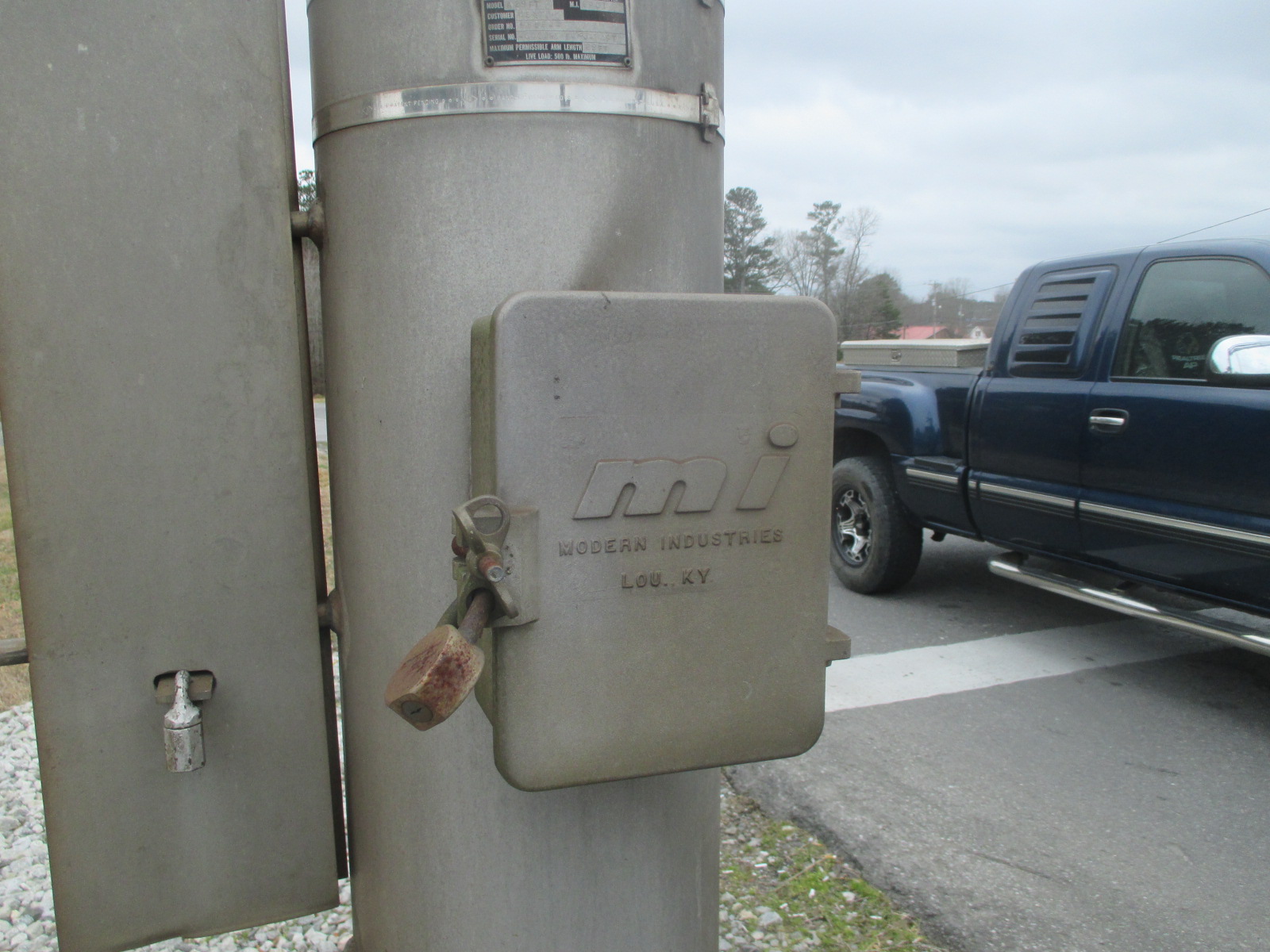

The gate mast has another Modern Industries base. |
This signal has another Safetran gate mechanism. |
|
25 |
26 |
27 |
28 |

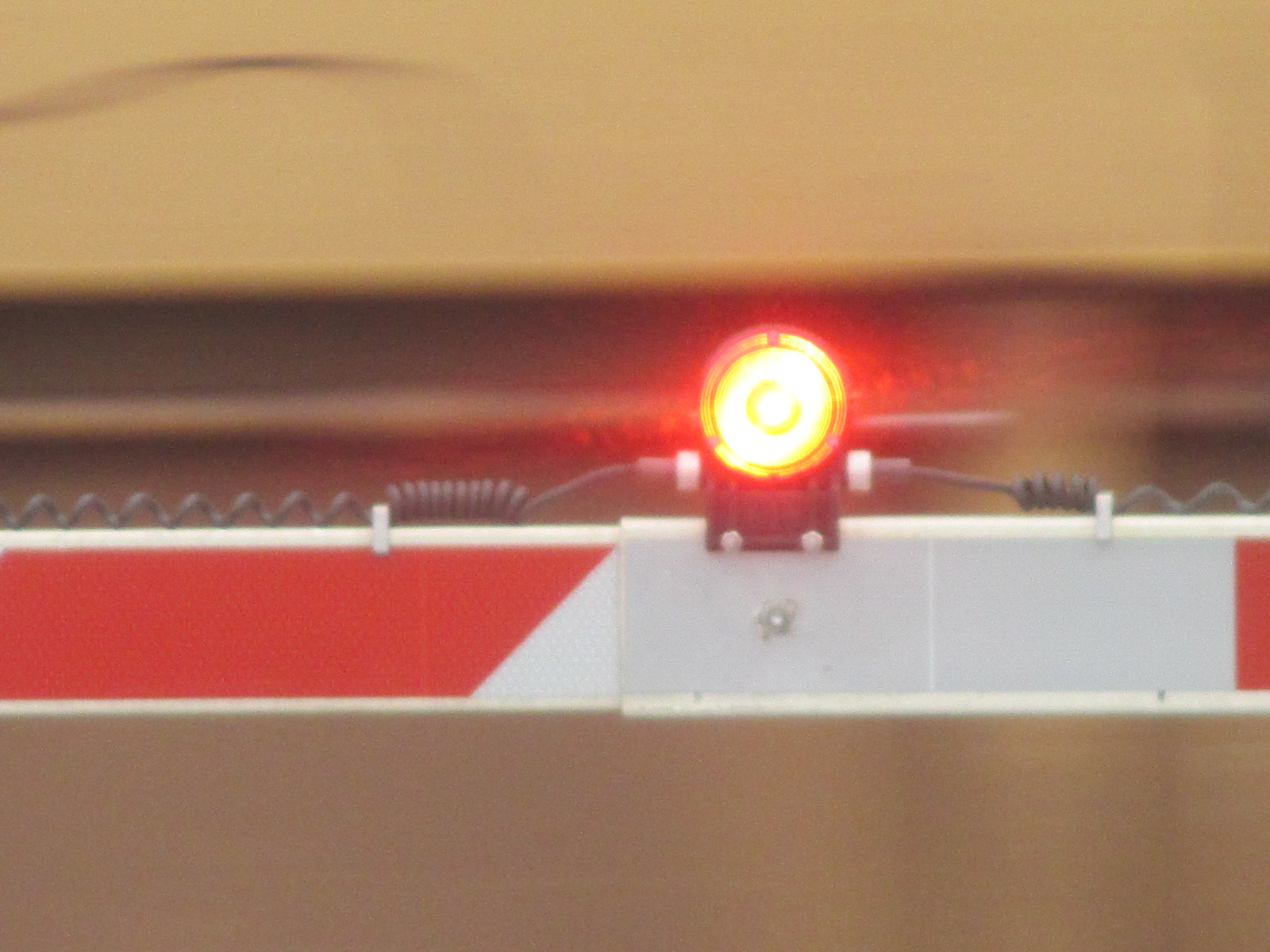

This signal has more RECO LED gate lights. |

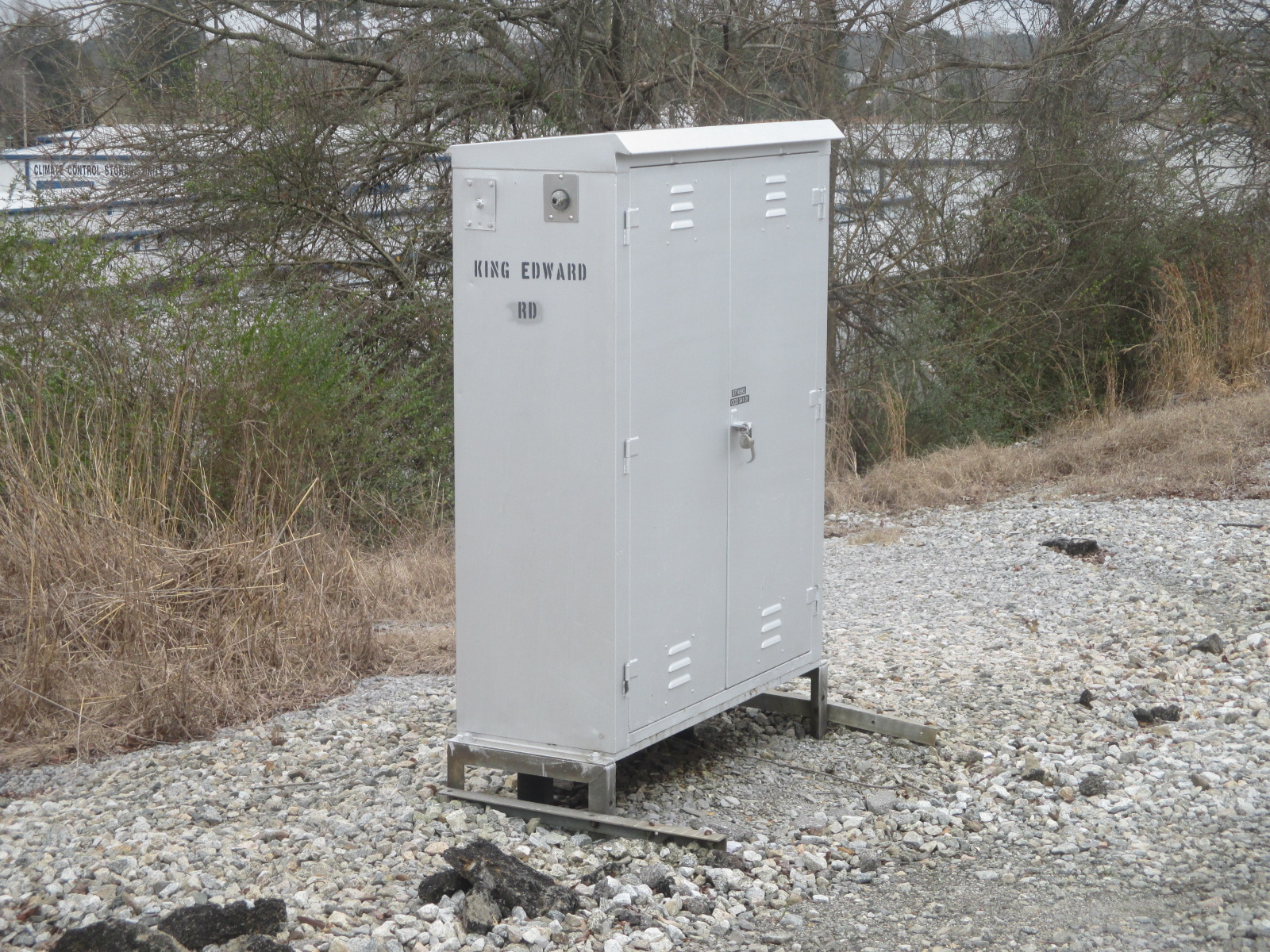

The relay case. |

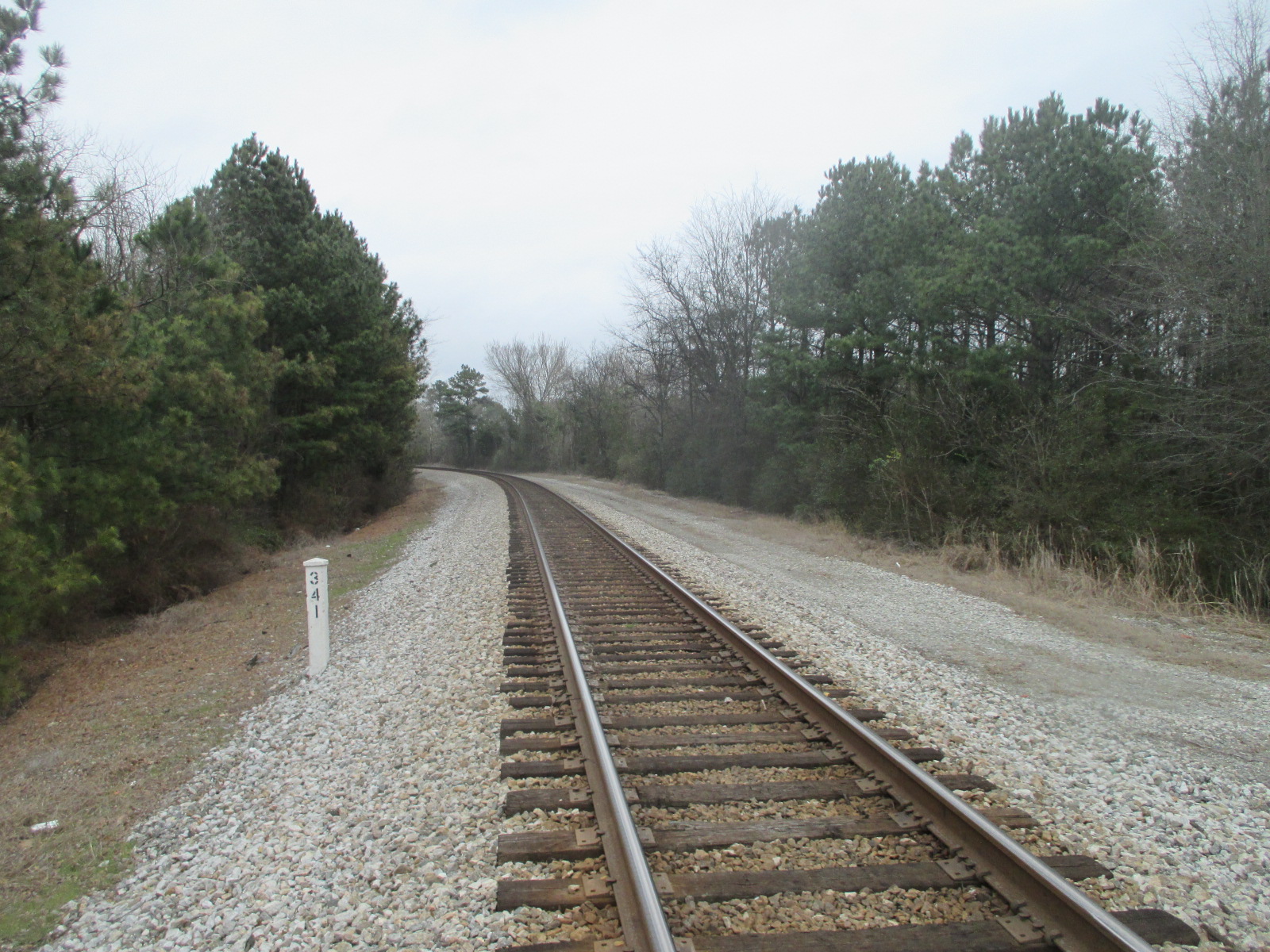

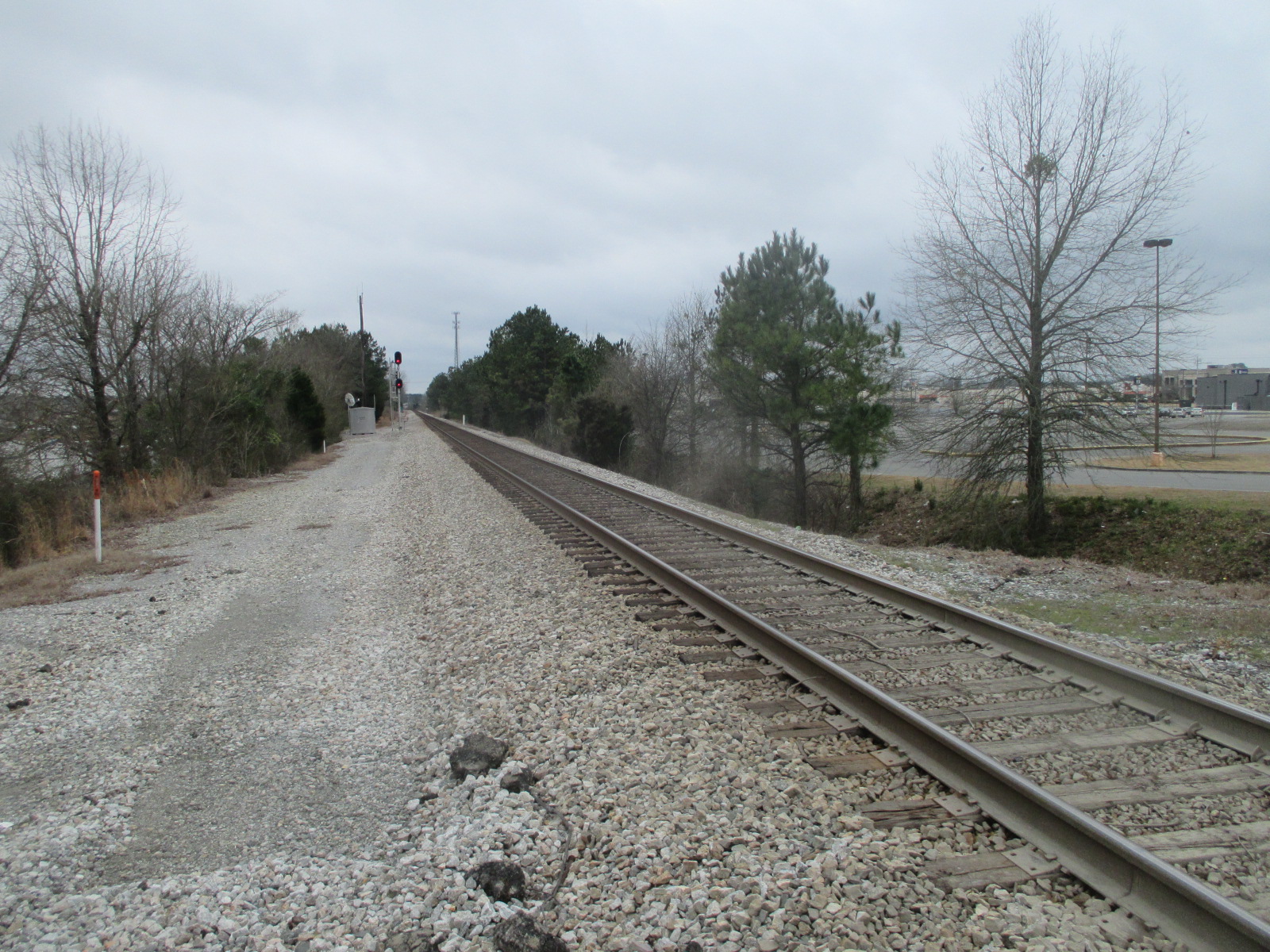

Track views. Picture 27 looks south towards Phelan Rd. Picture 28 looks north towards 9th Street. |
|
29 |
30 |
31 |
32 |

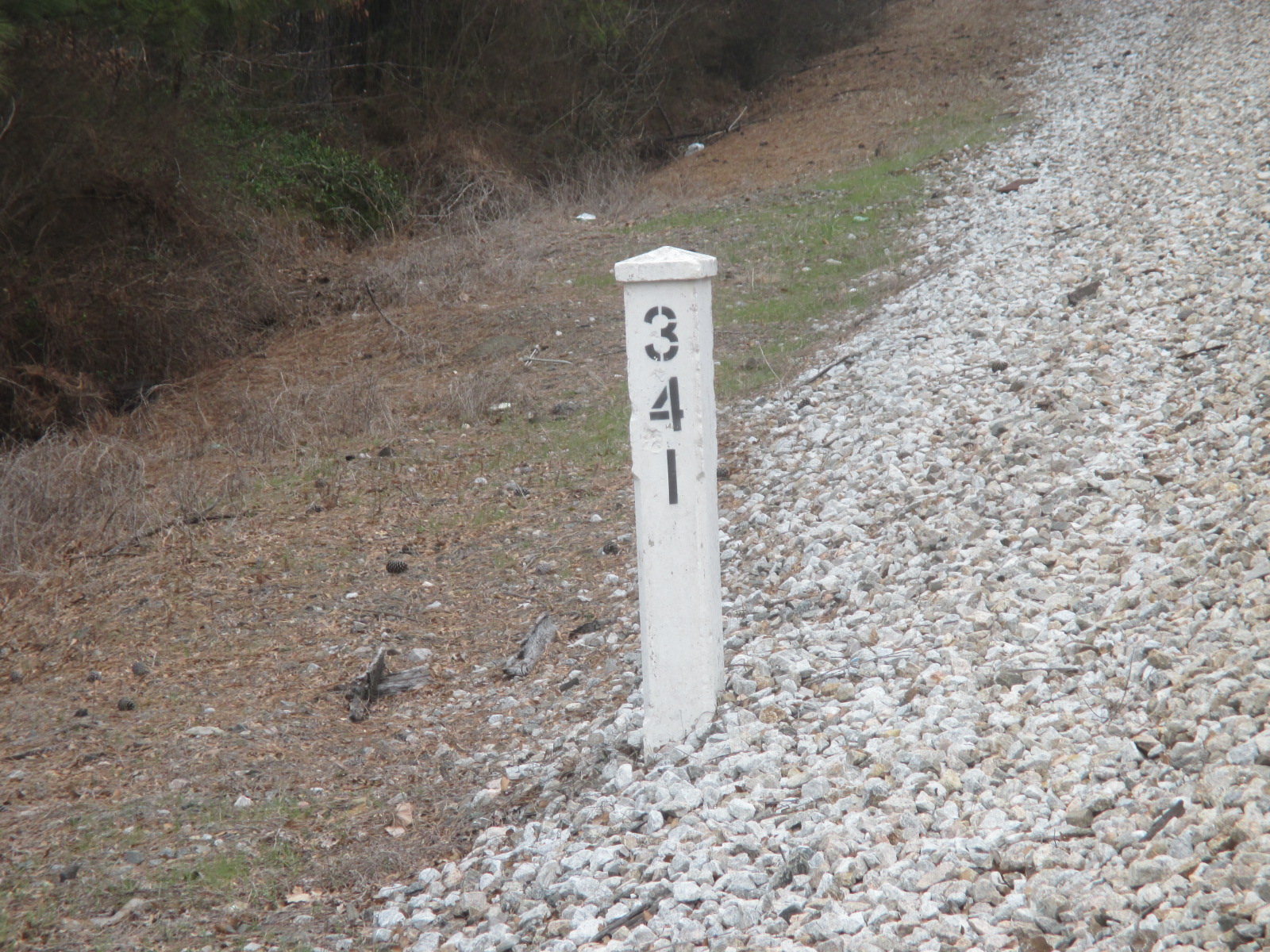

A mile post near the crossing. |

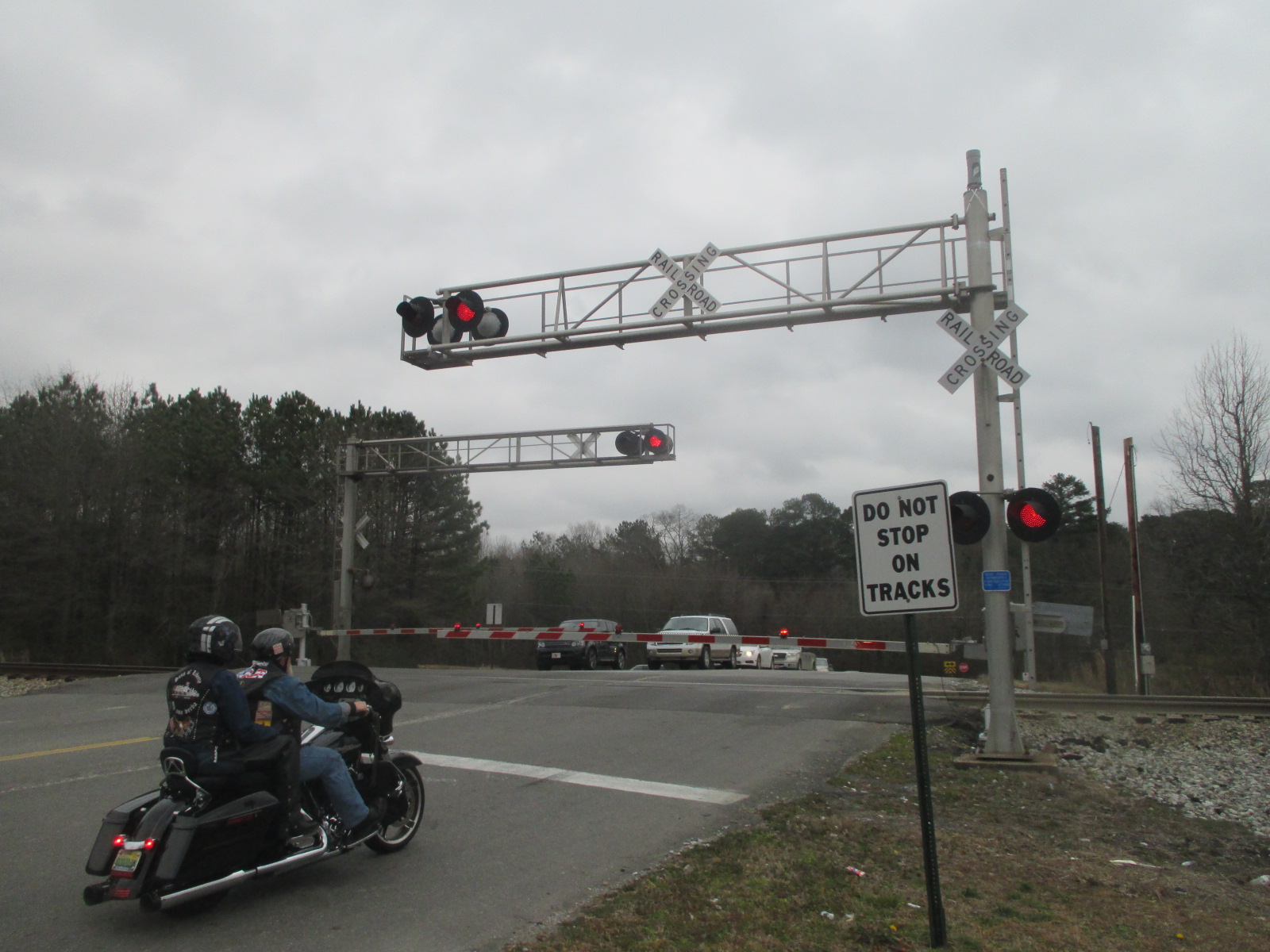

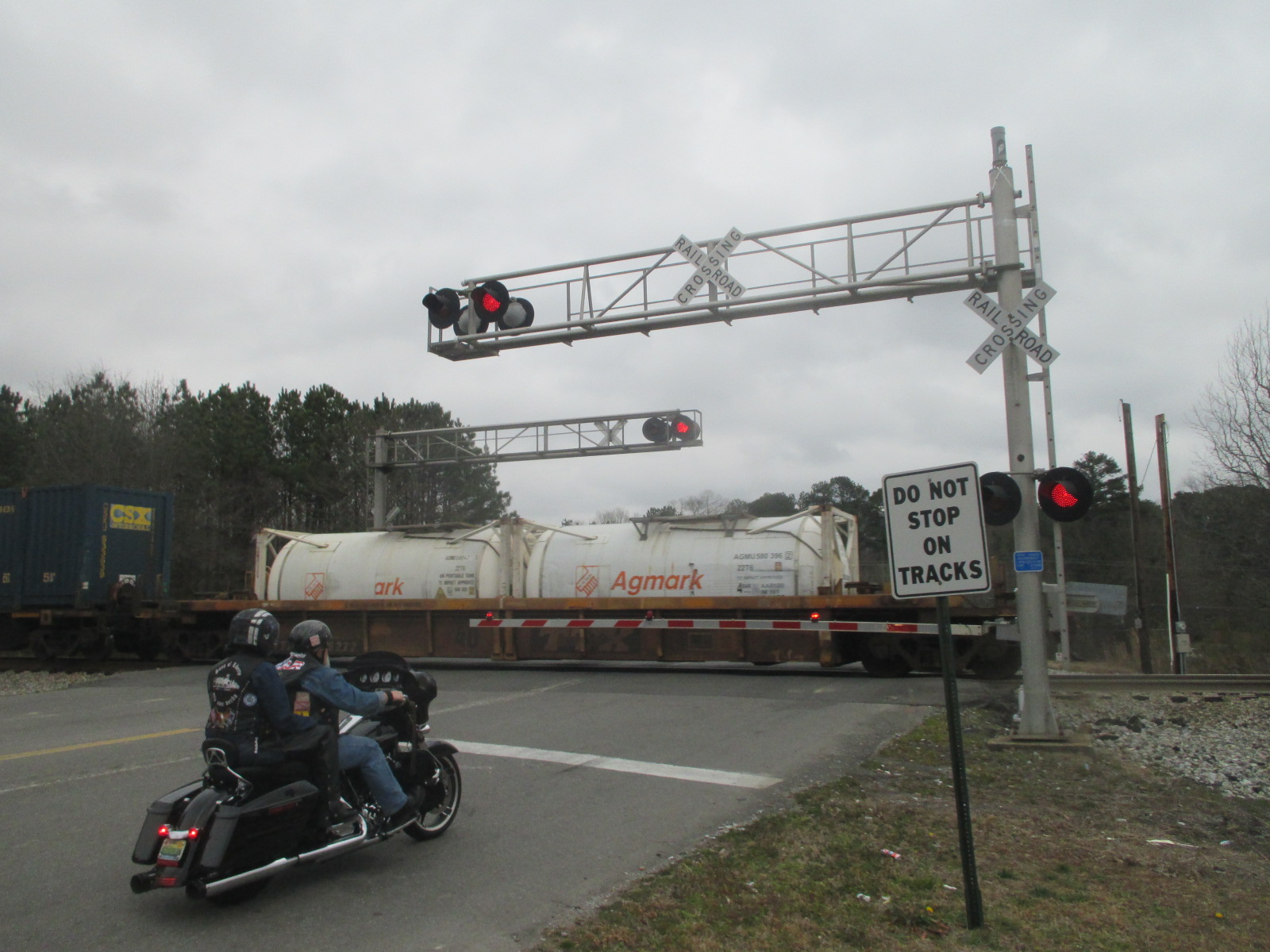

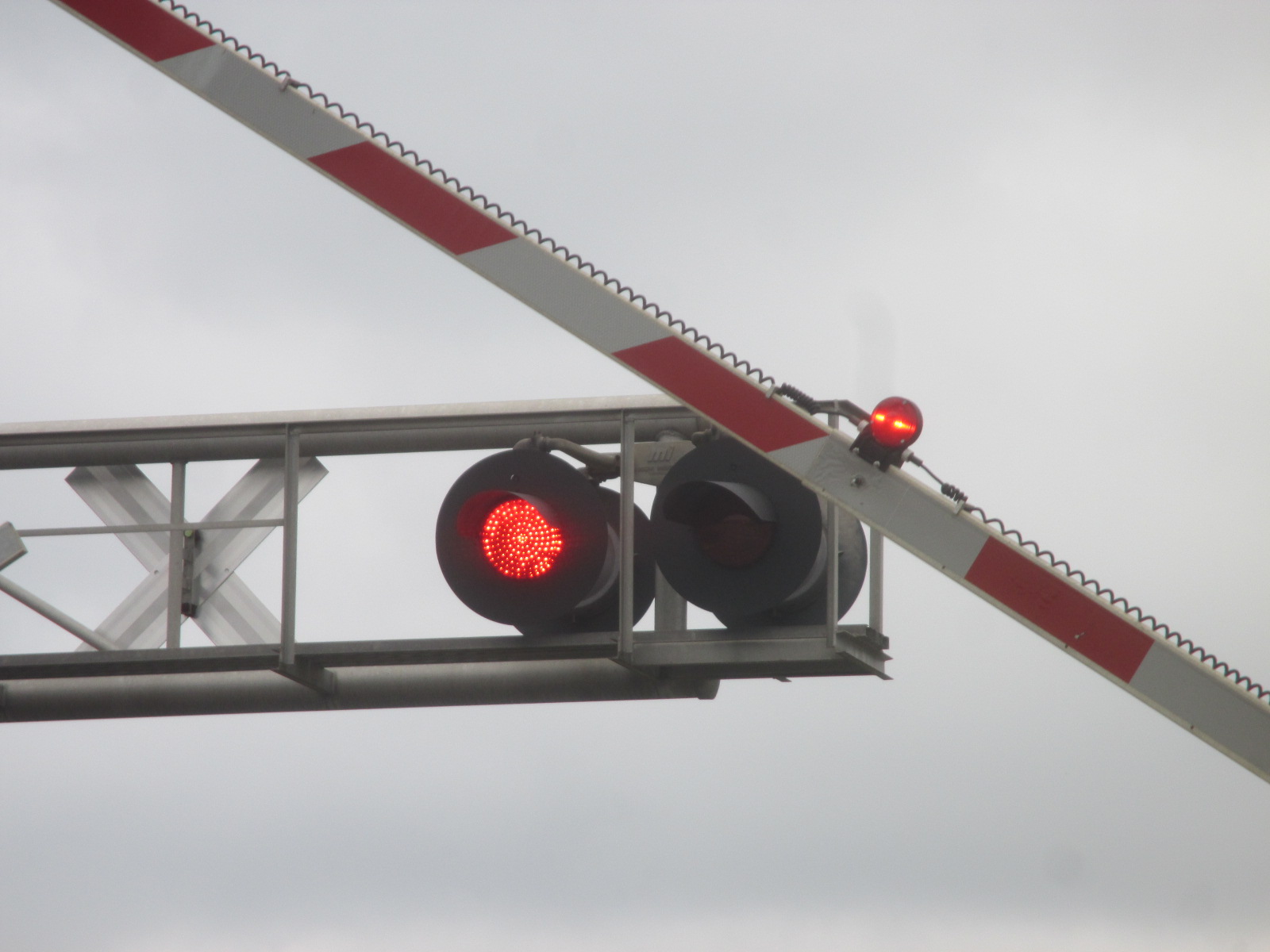

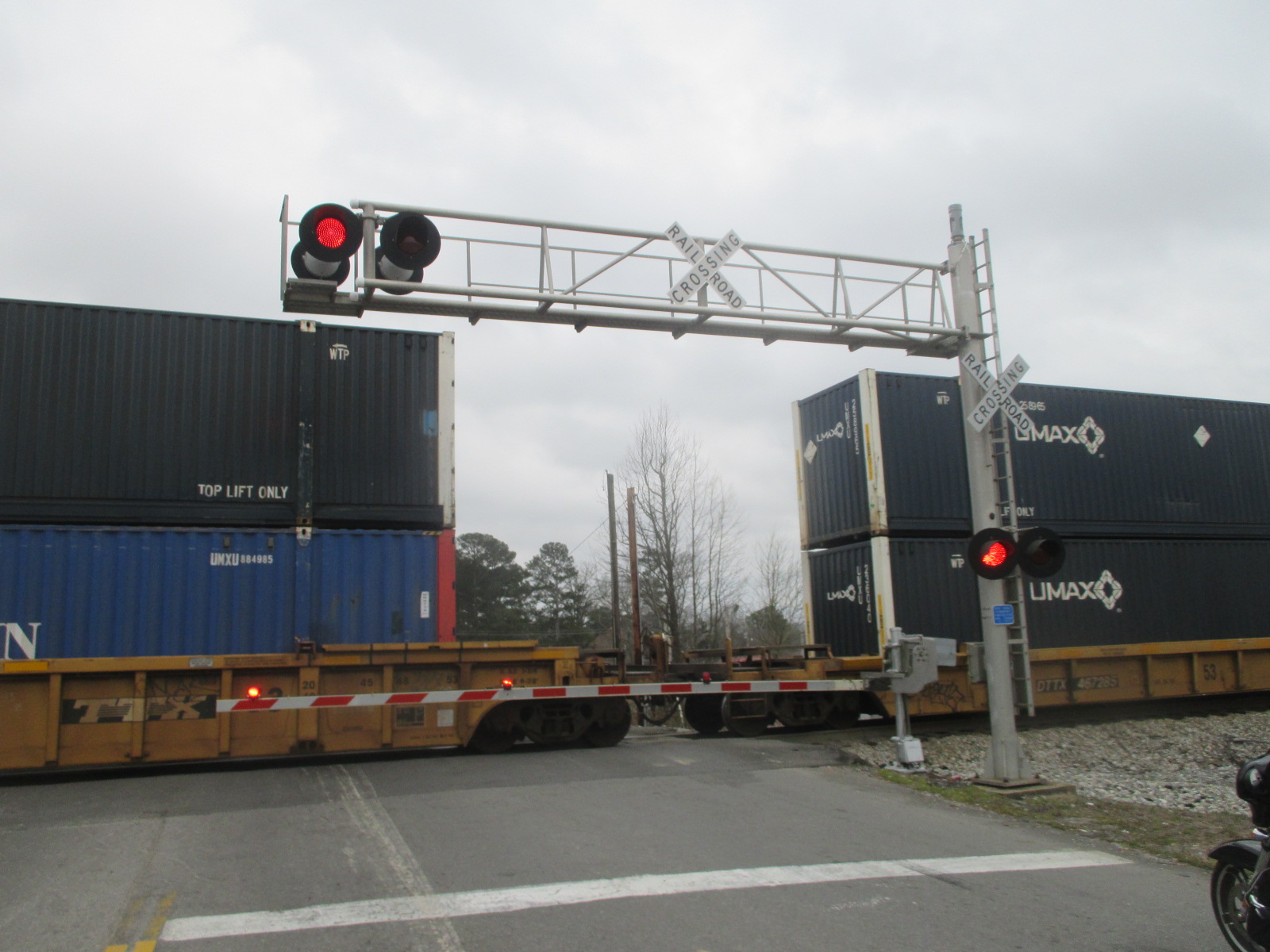

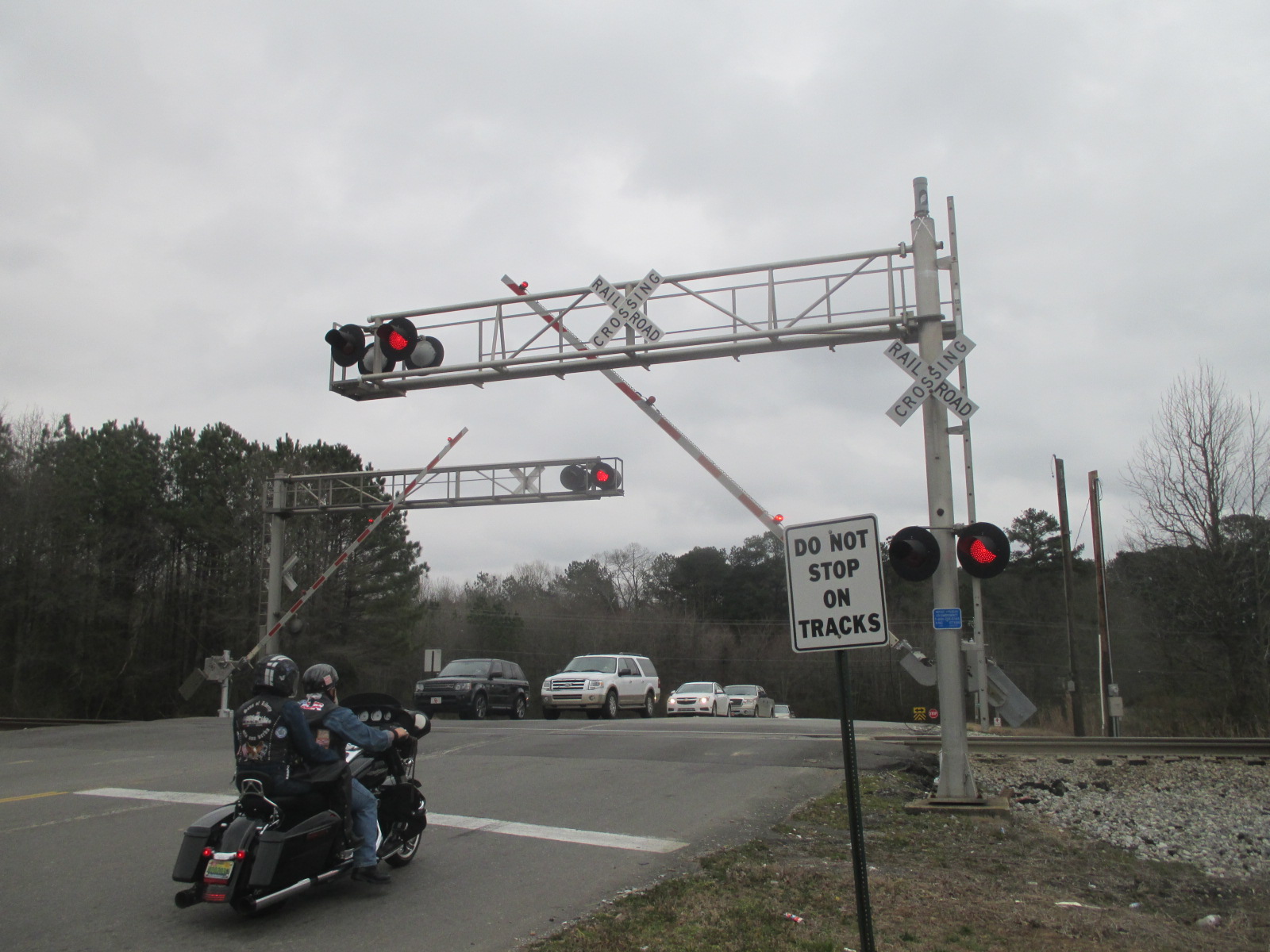

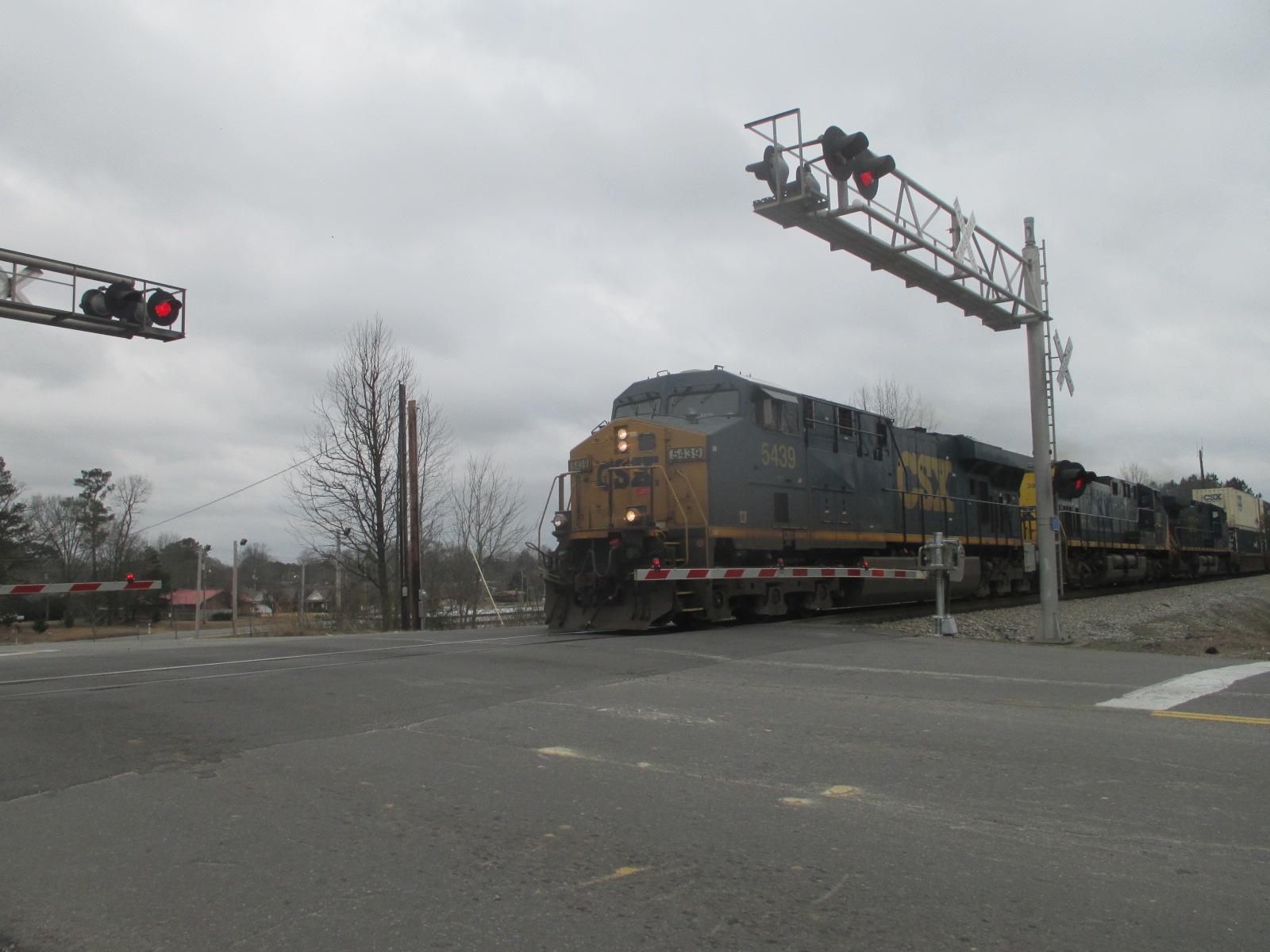

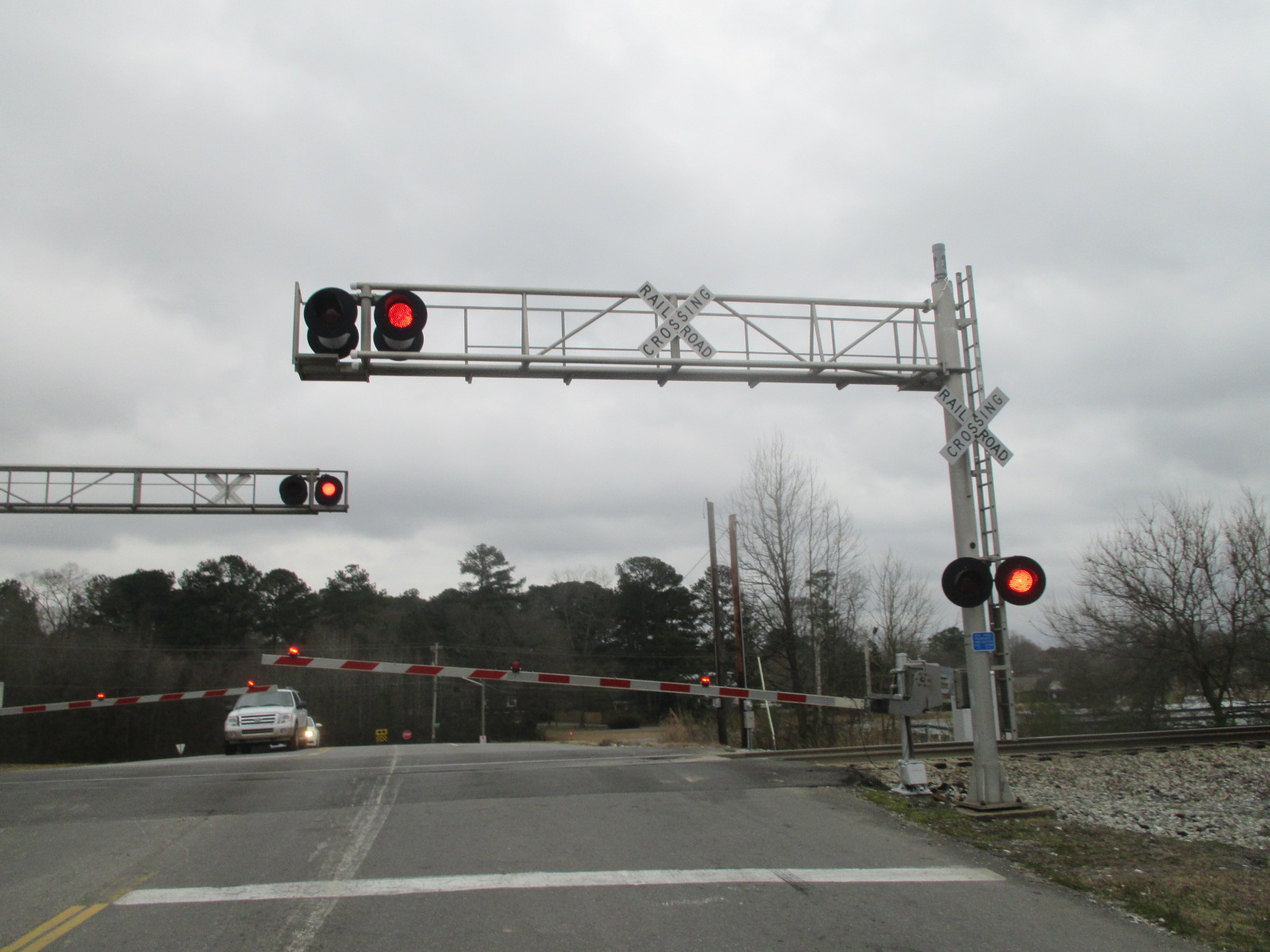

Action shots. |
||
33 |
34 |
35 |
36 |
37 |
38 |
39 |
40 |
41 |
42 |
43 |
44 |
45 |
46 |

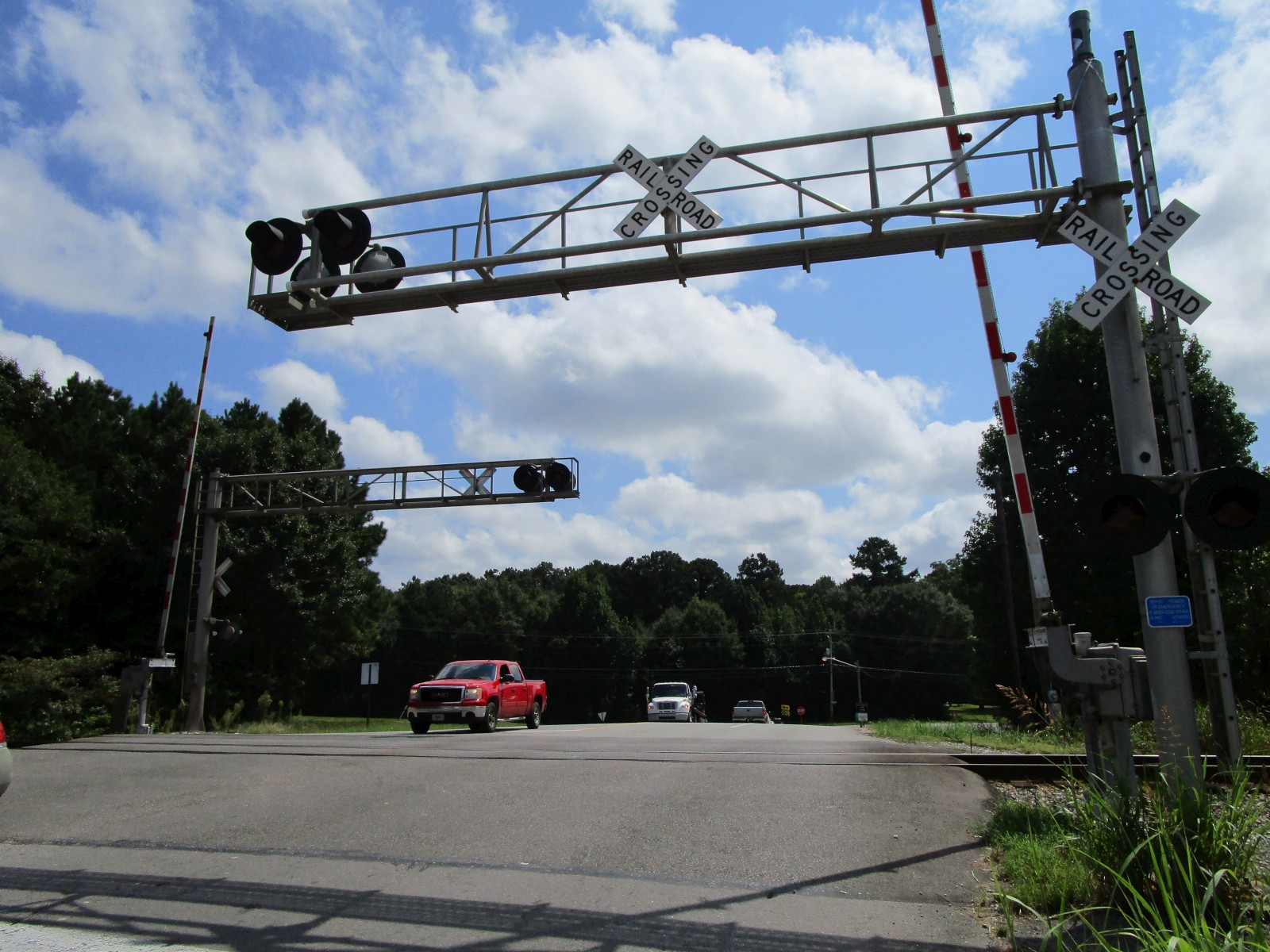

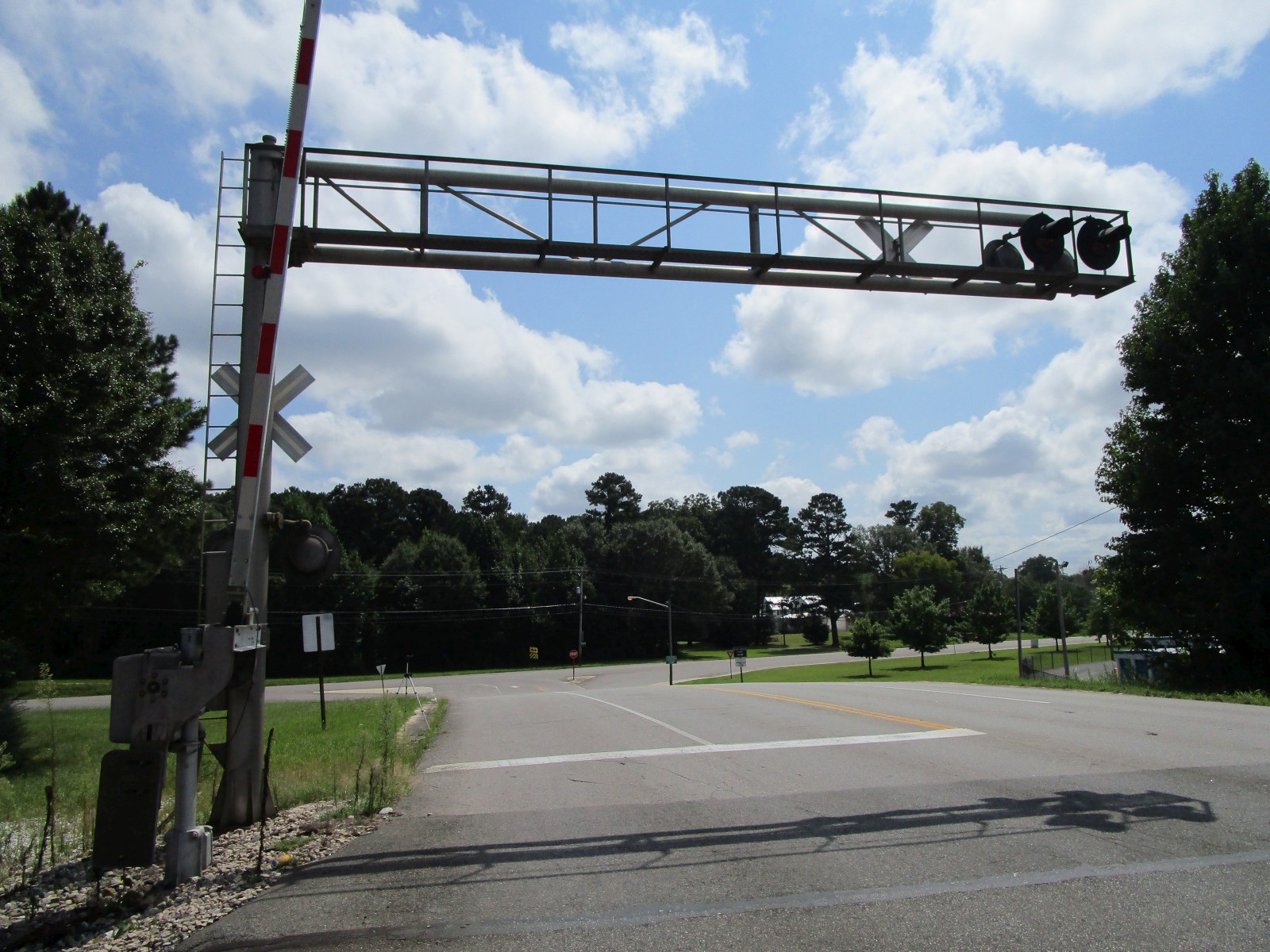

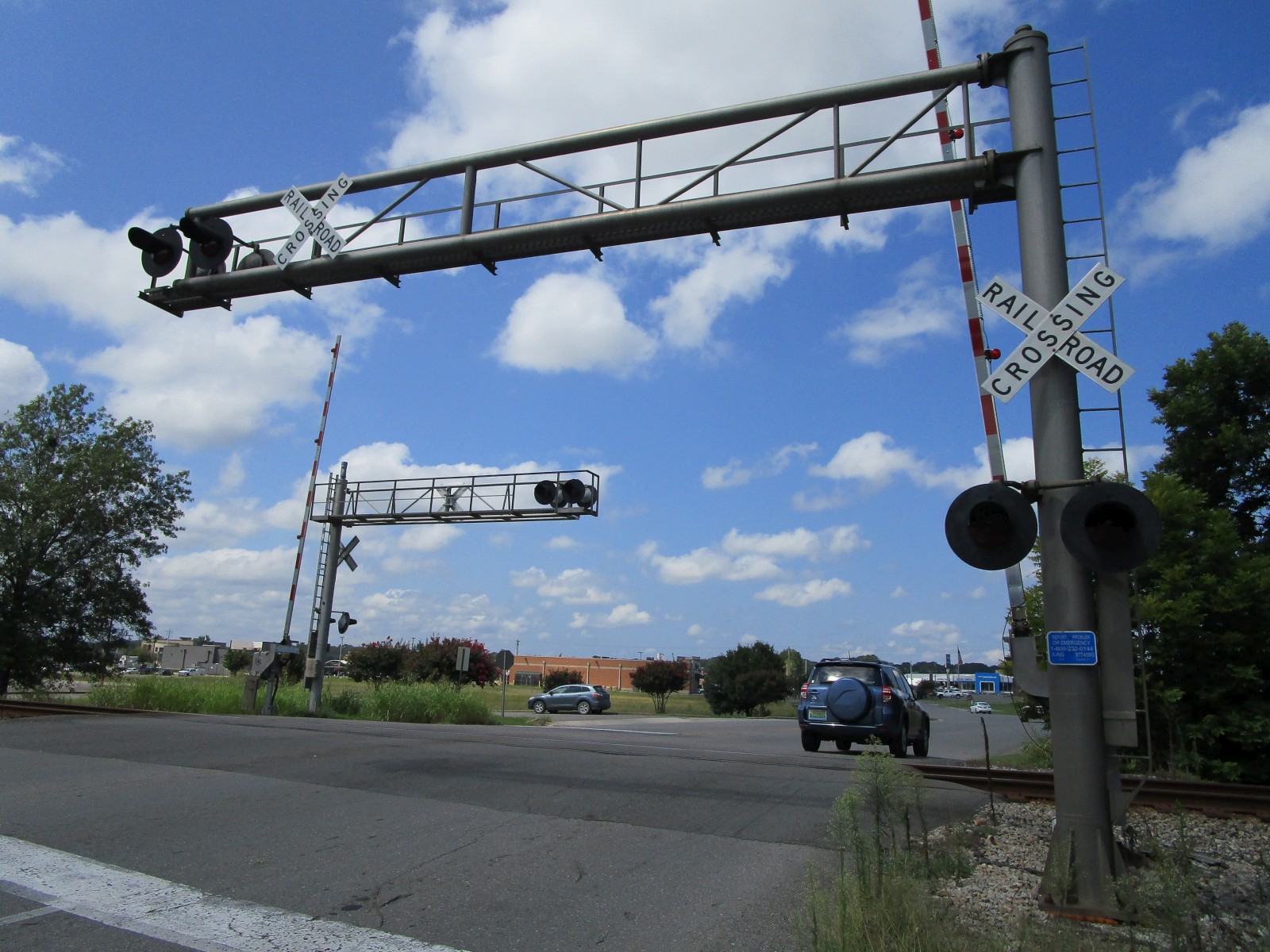

A return trip to the crossing on 8-26-21 finds that all of the gate lights here have been replaced. |
|
47 |
48 |
49 |

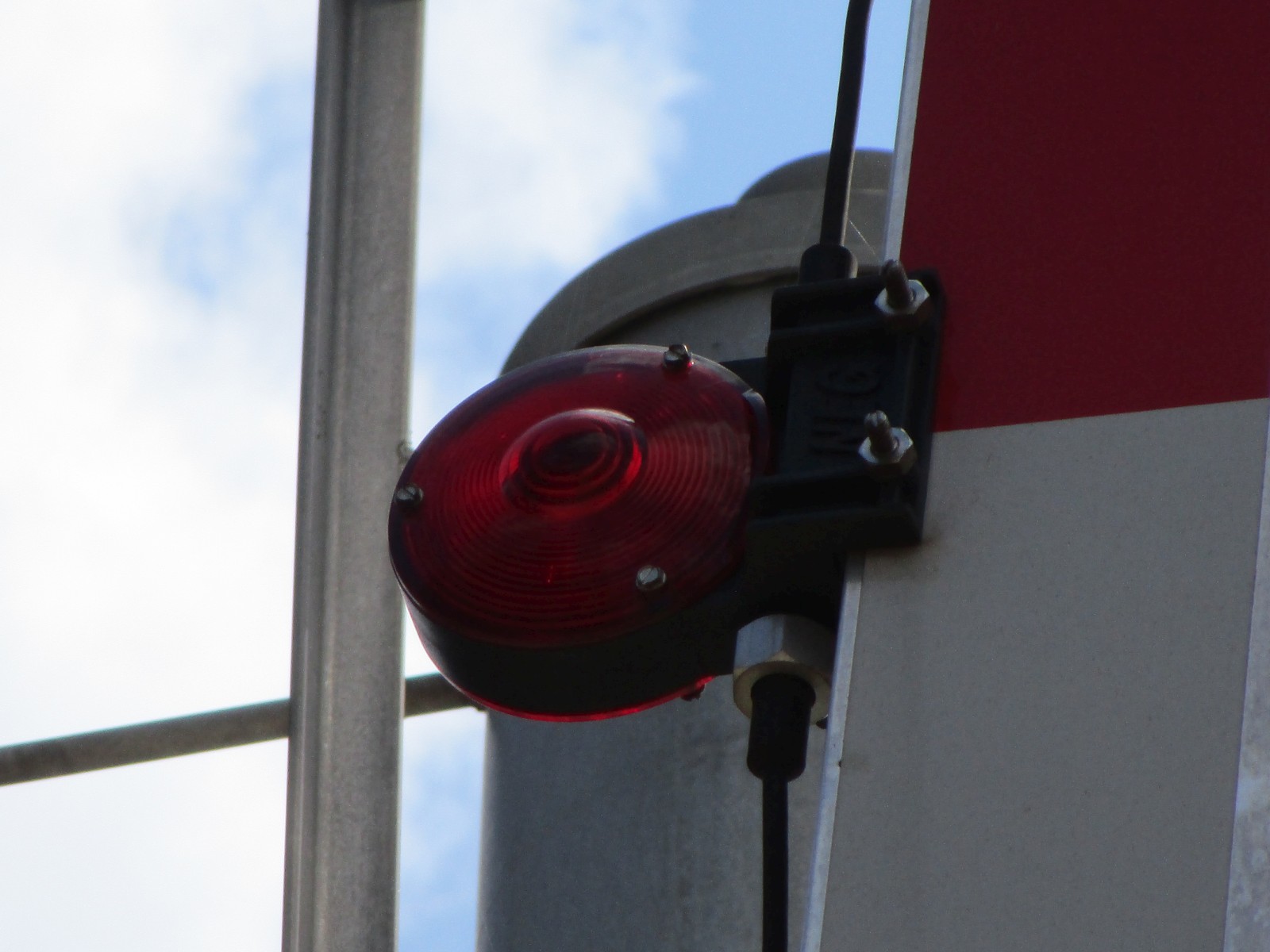

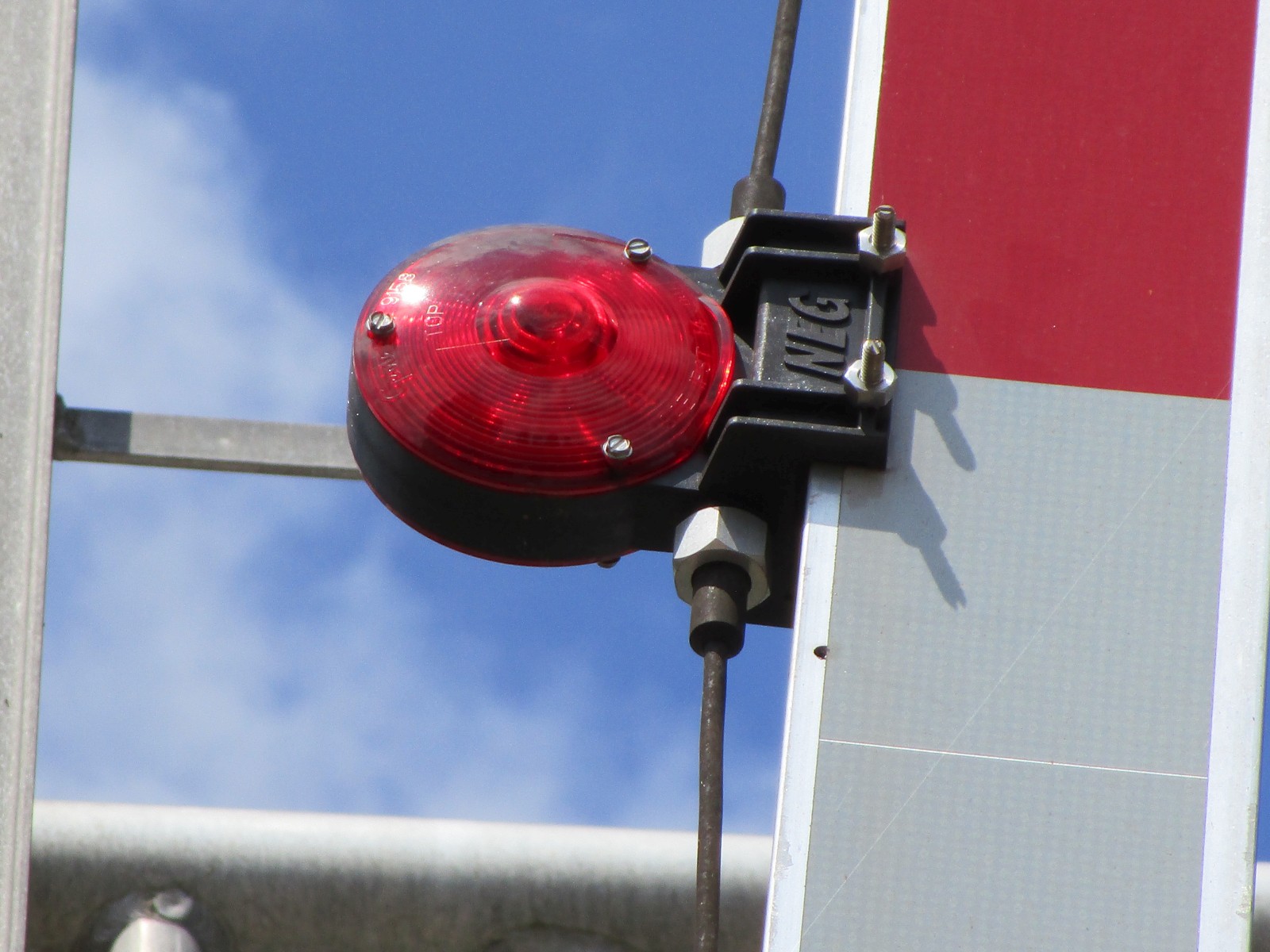

The first signal now has all NEG LED gate lights. |
||
50 |
51 |
52 |
The second signal now has more NEG LED gate lights. |
||

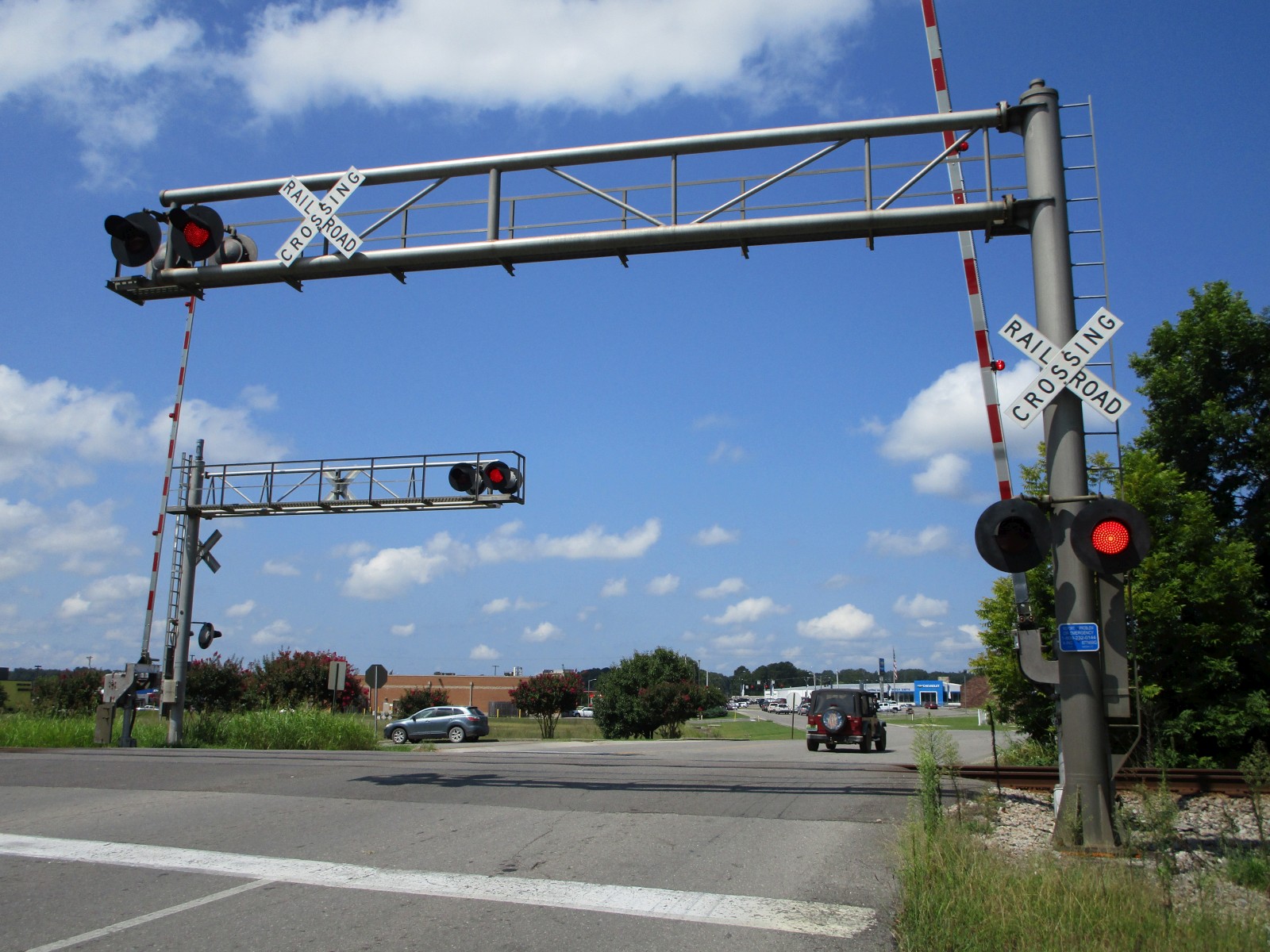

53 |
54 |
55 |
56 |

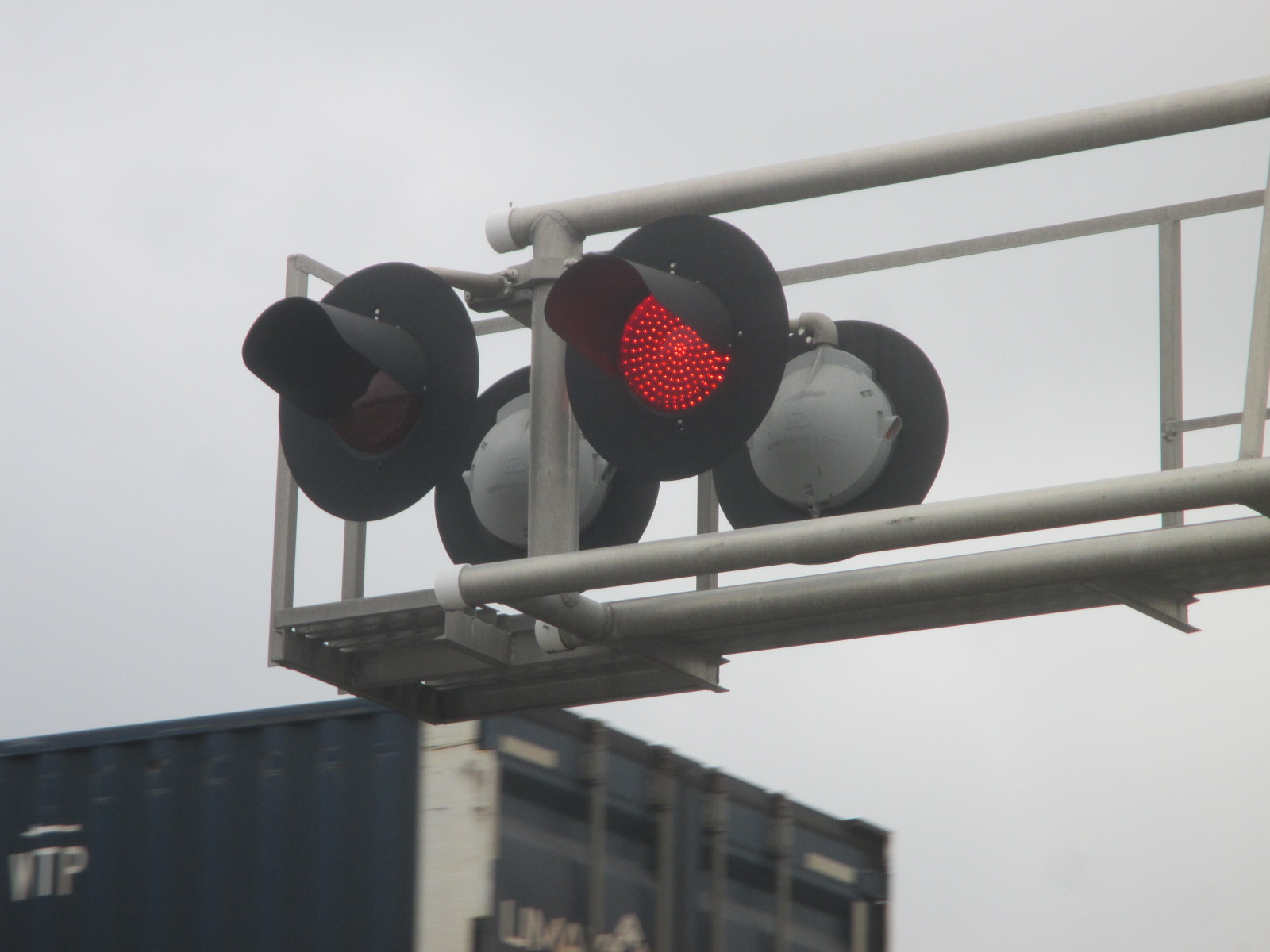

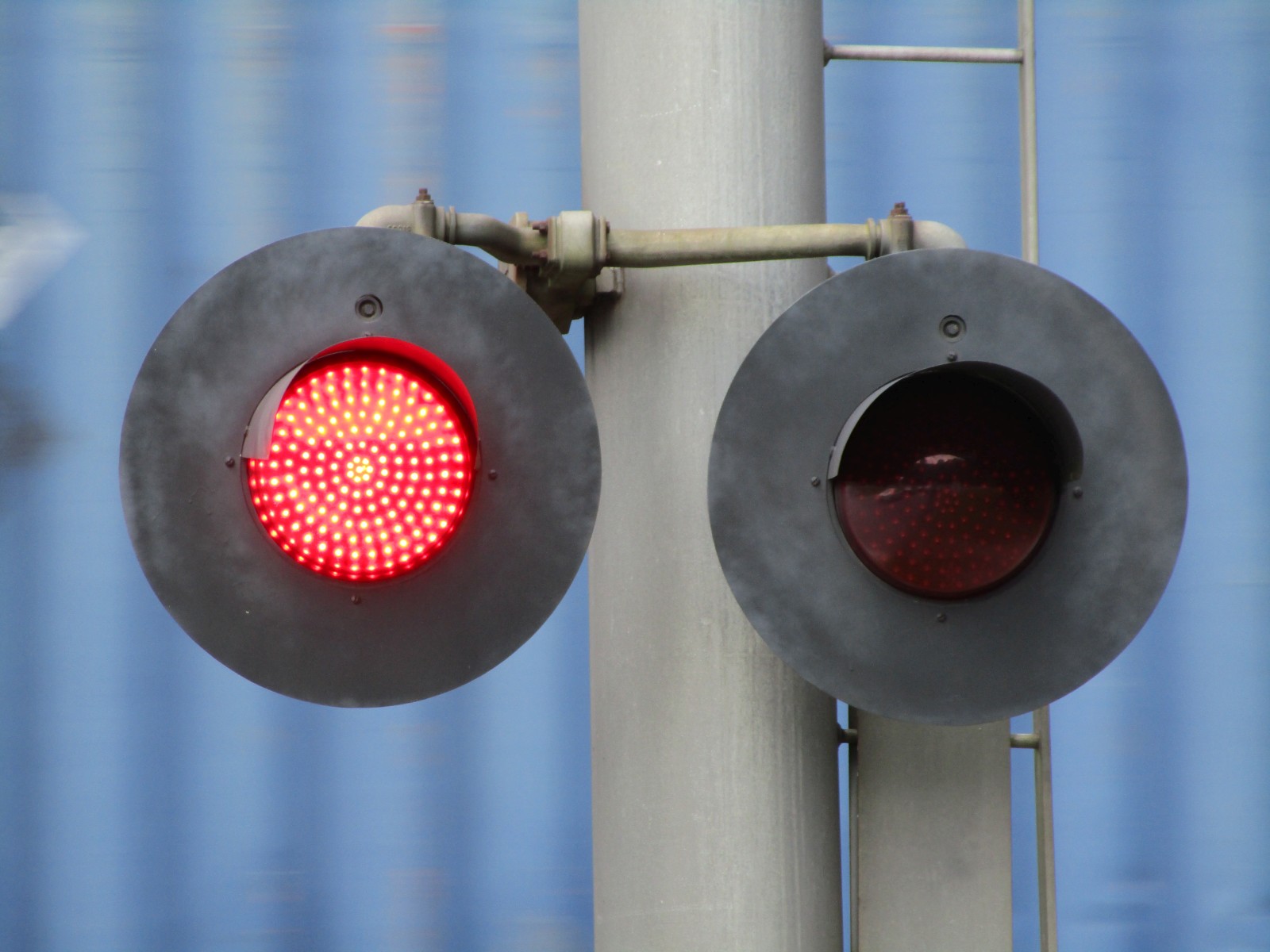

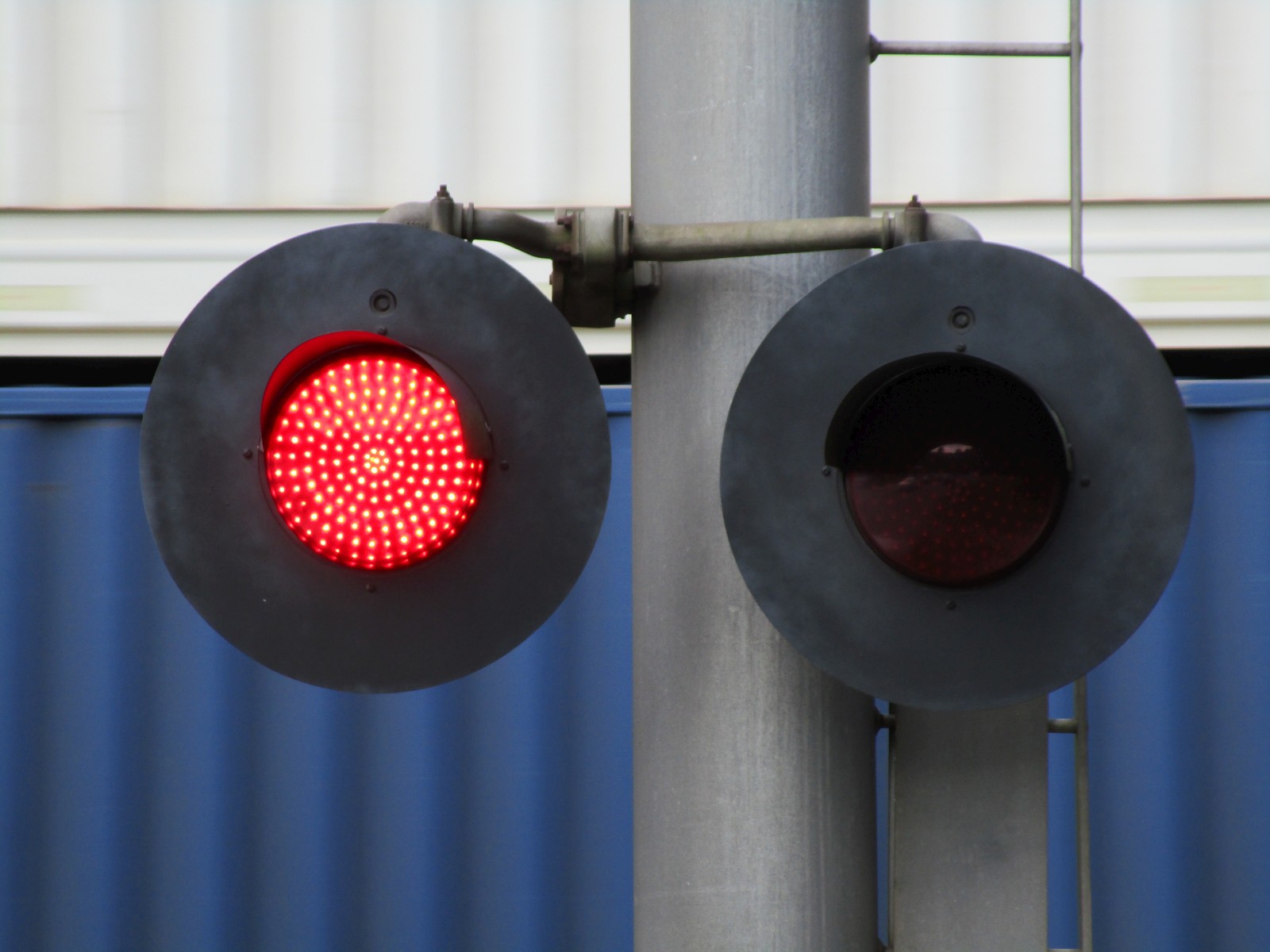

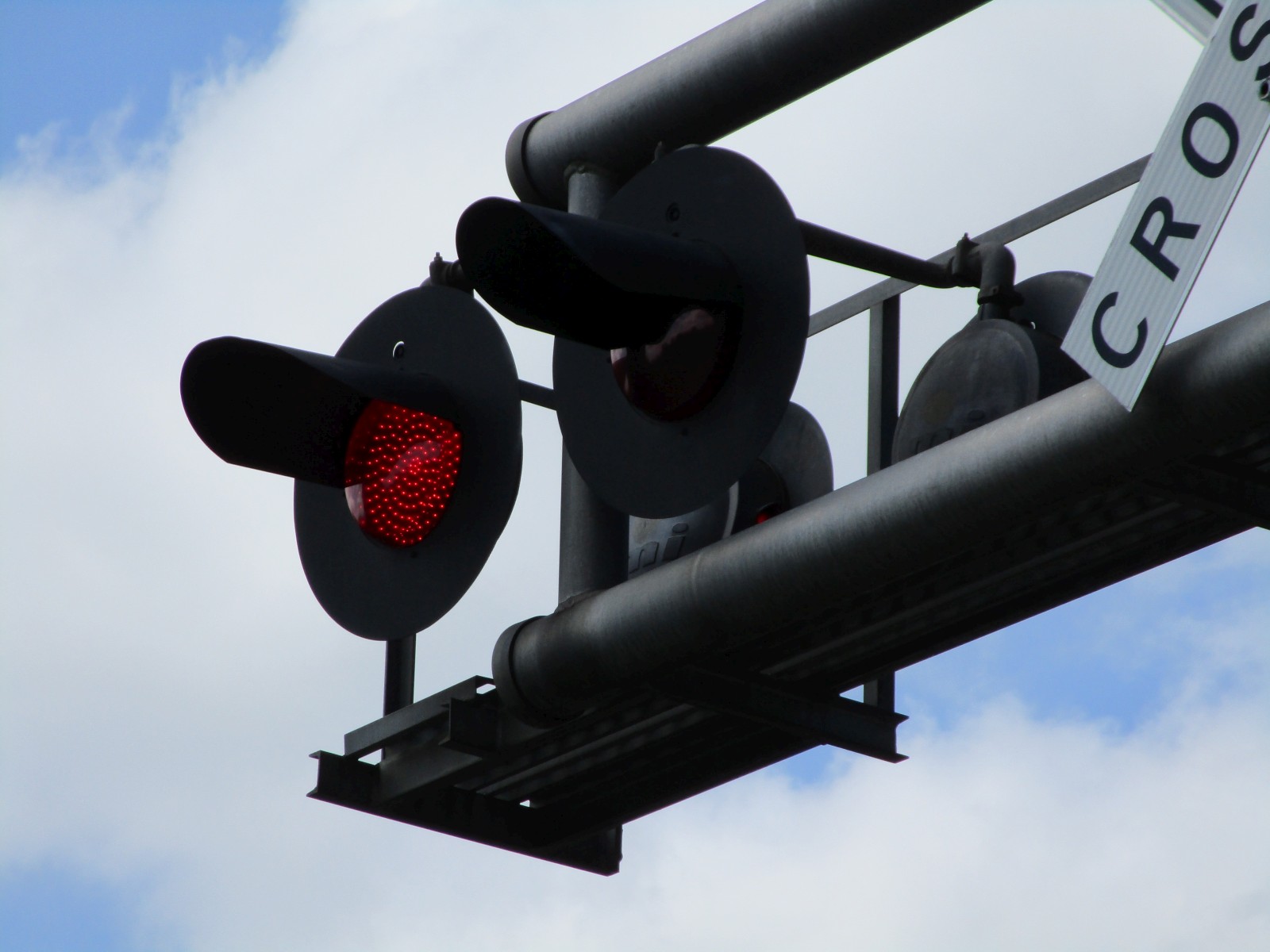

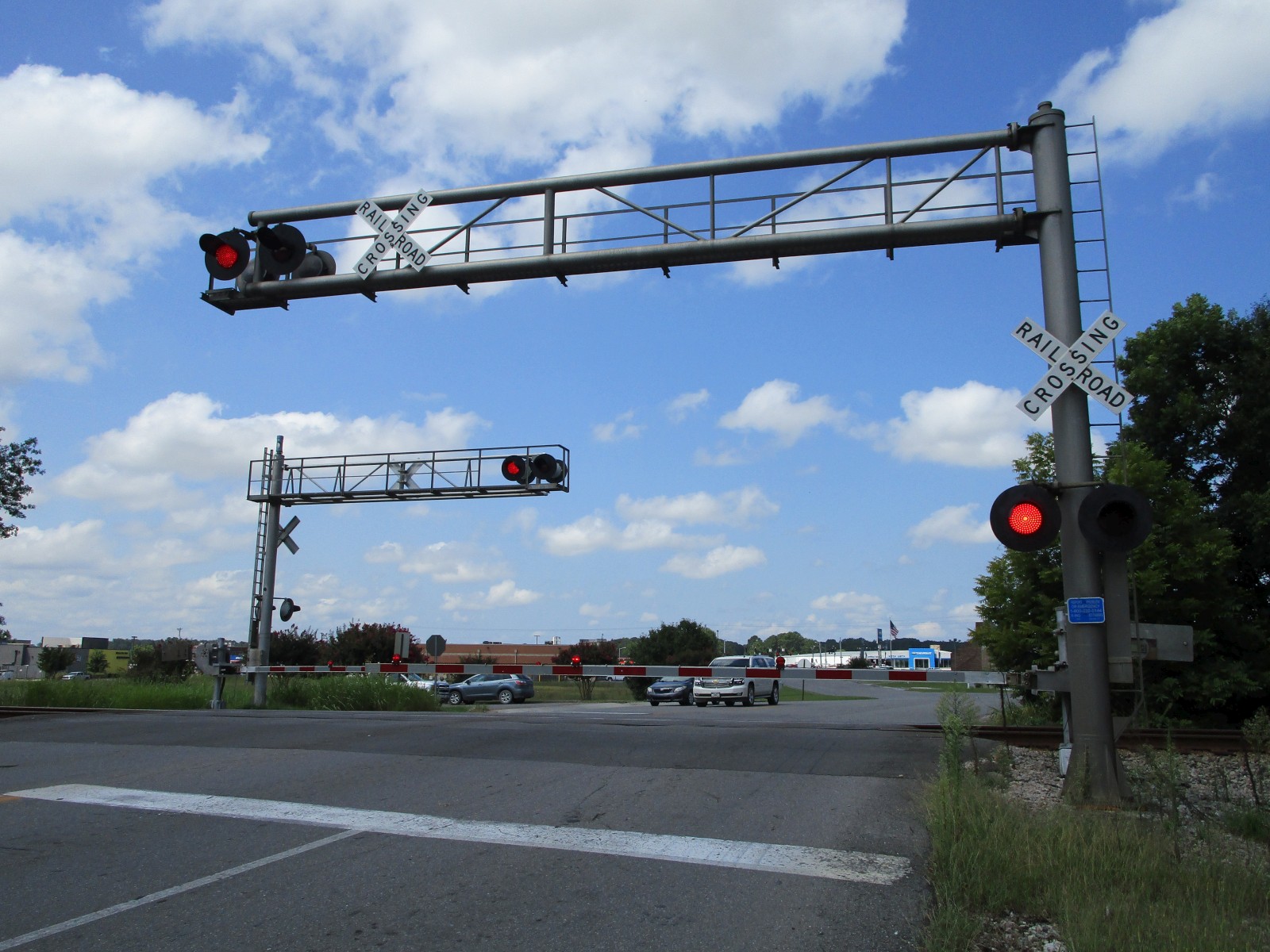

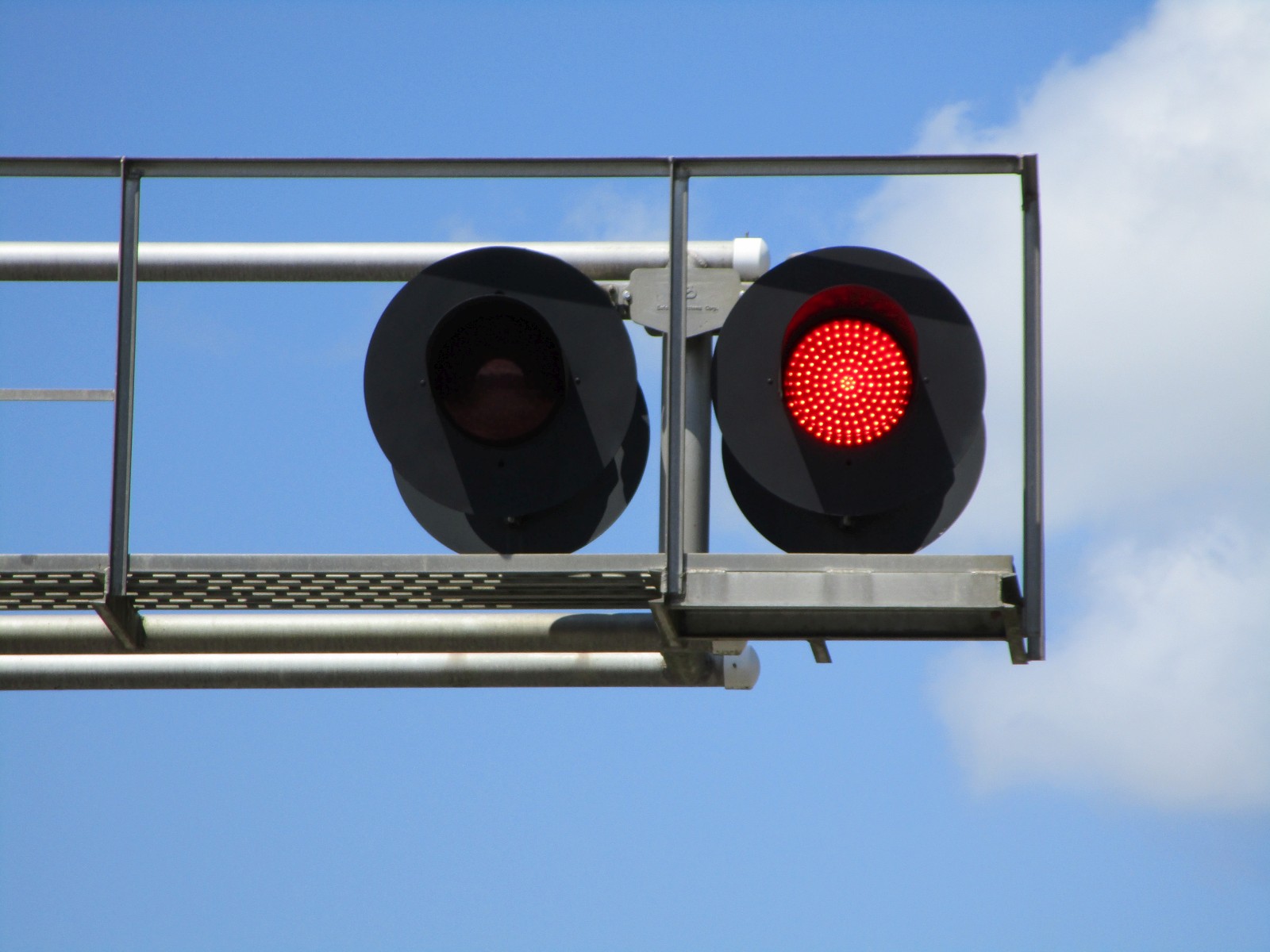

The crossing activates! |
|||
57 |
58 |
59 |
60 |

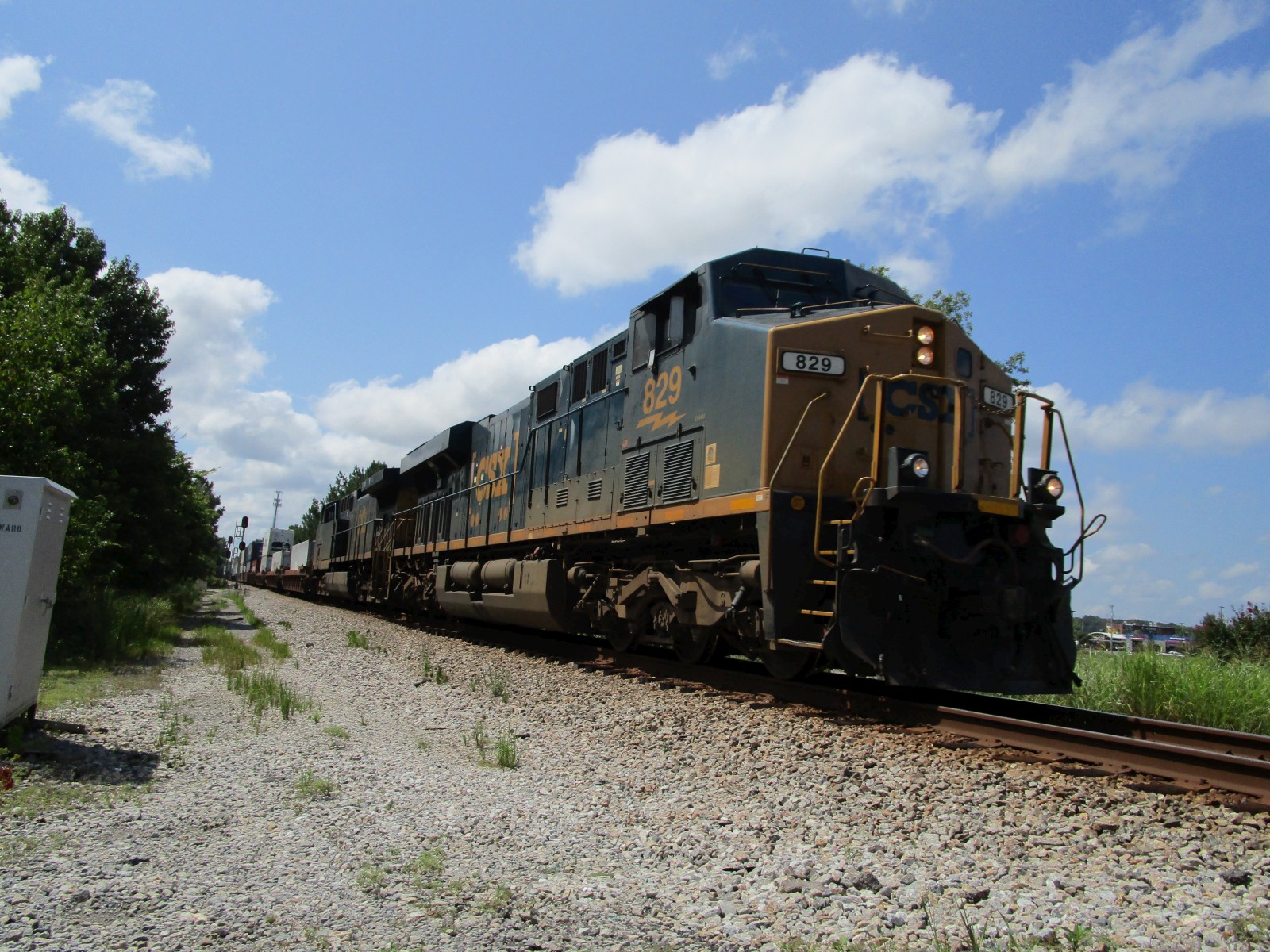

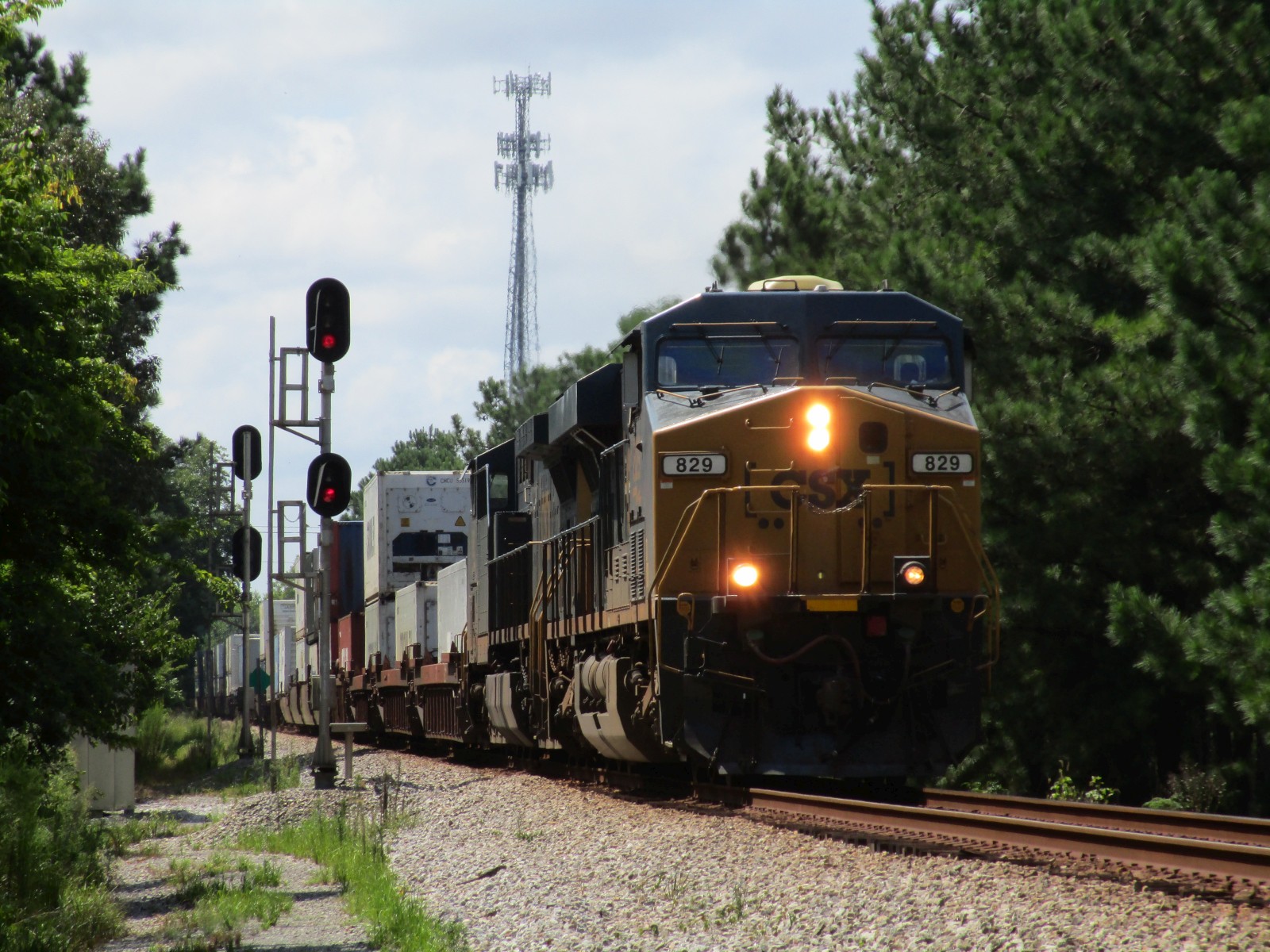

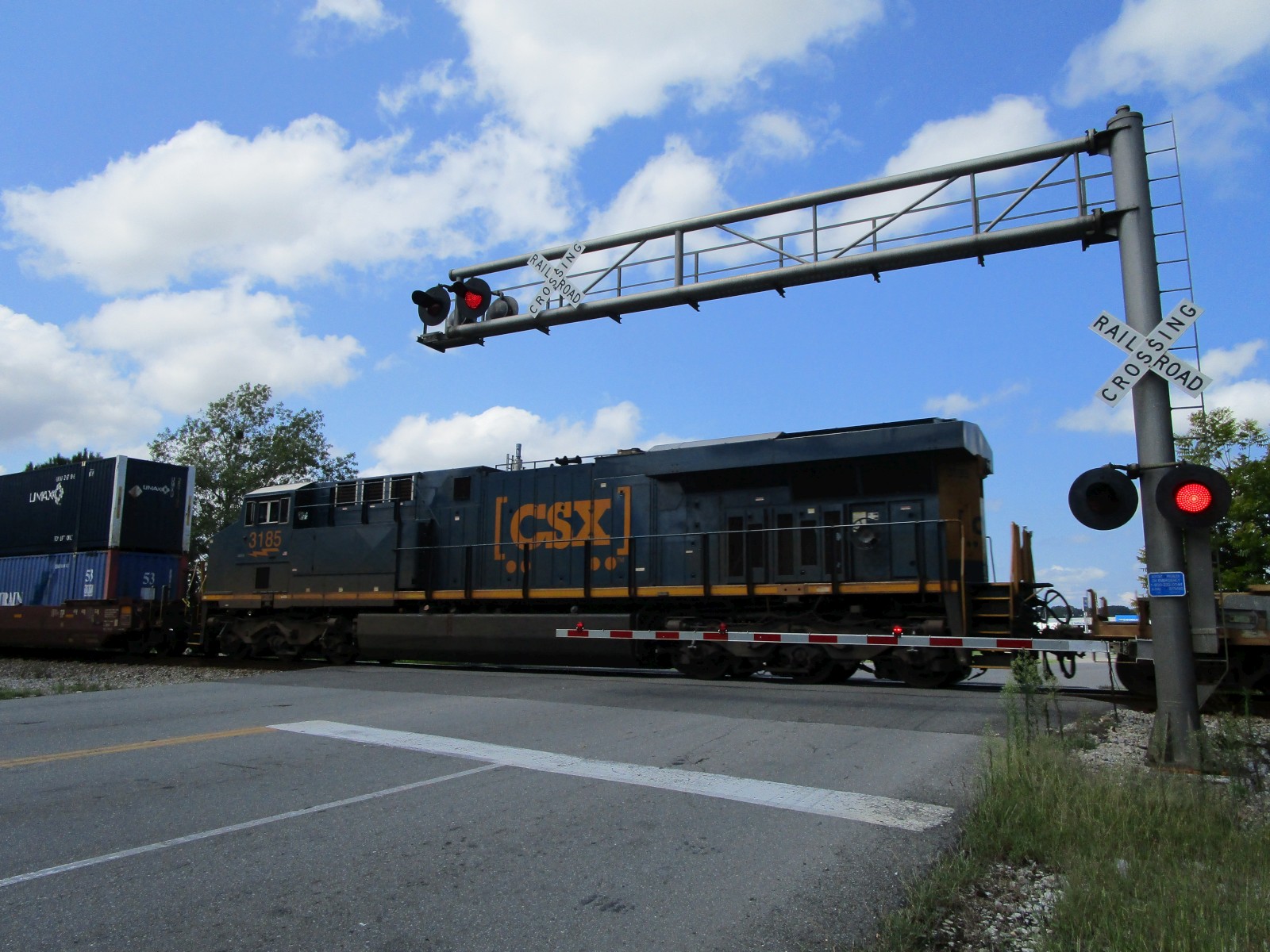

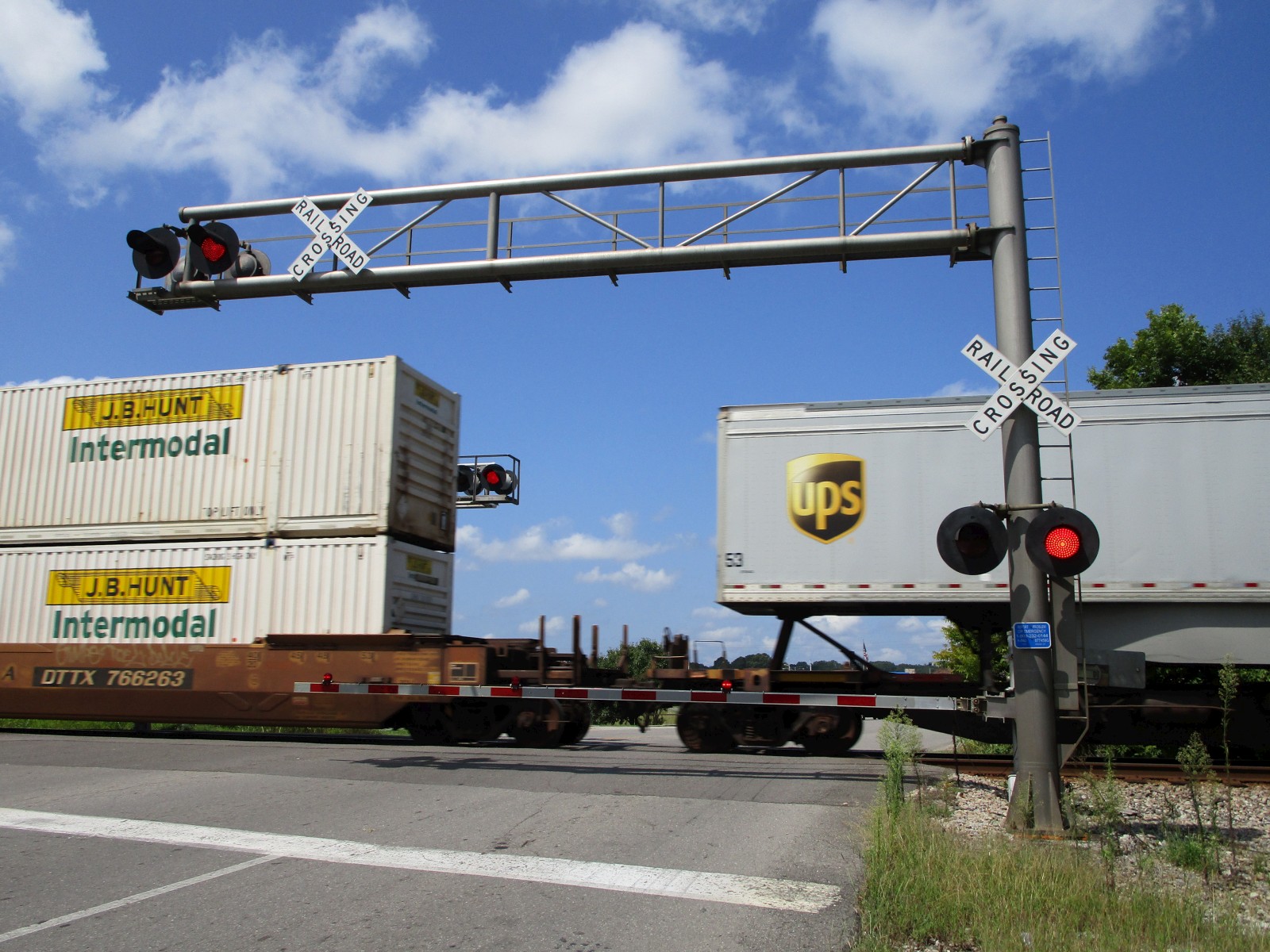

CSX Q026 comes through with an ES44AH leading an AC44CW on the head-end. |
|||
61 |
62 |
63 |
64 |
65 |
66 |
67 |
68 |
69 |
70 |
71 |
72 |
73 |
74 |
75 |
76 |

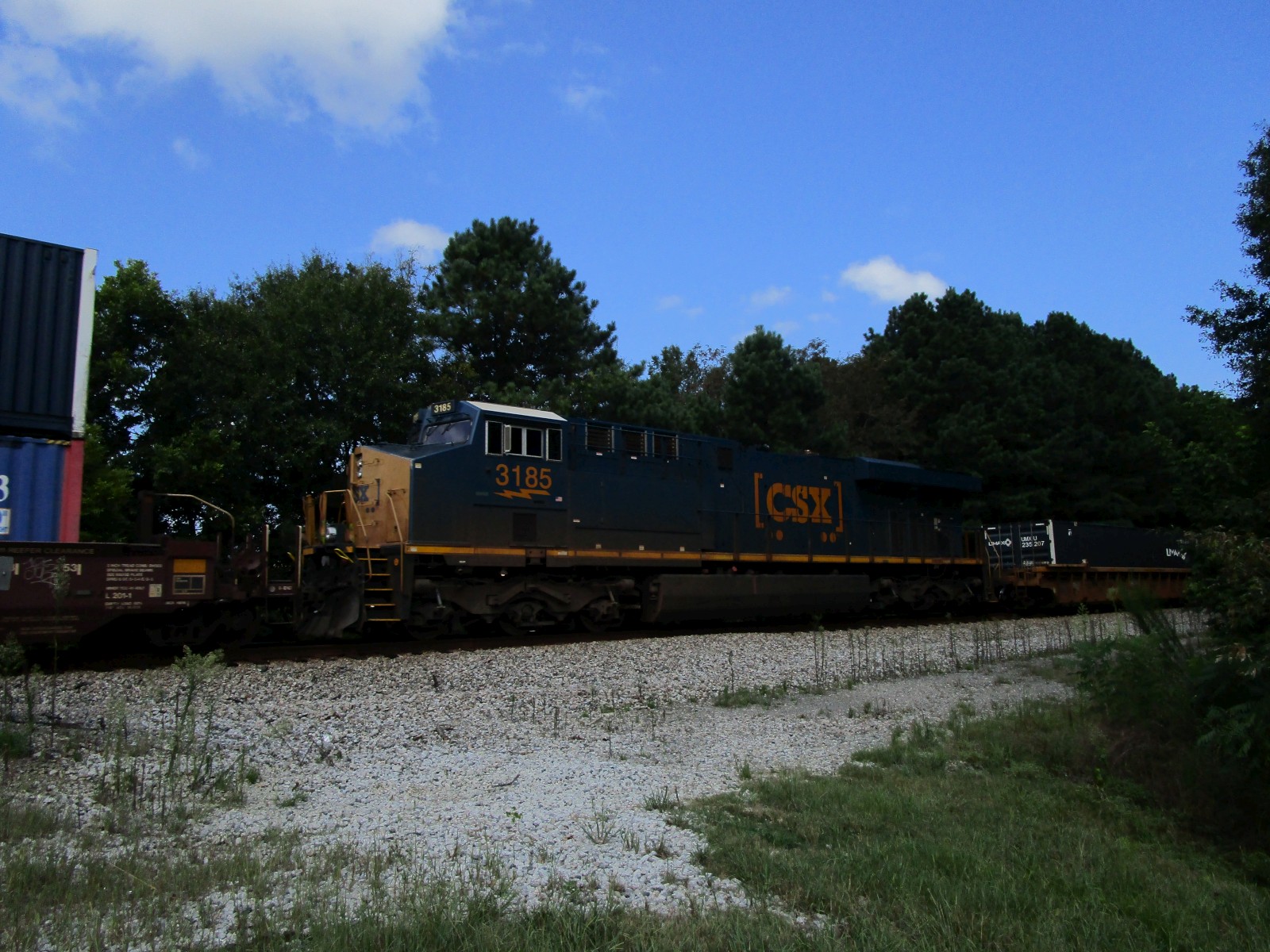

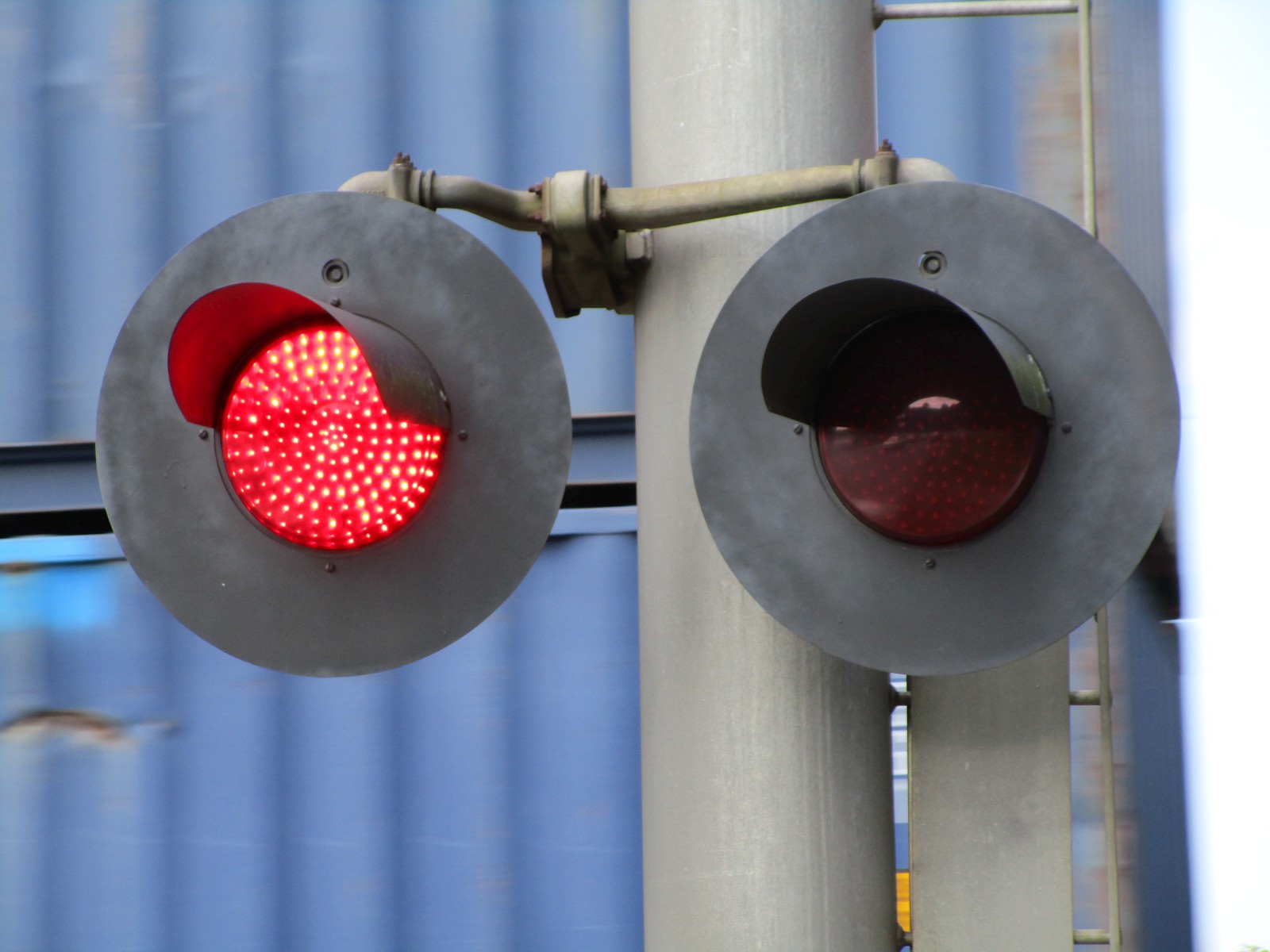

Another ES44AH works as the mid-train DPU. |
|||
77 |
78 |
79 |
80 |
81 |
82 |
83 |
84 |
85 |
86 |
87 |
88 |

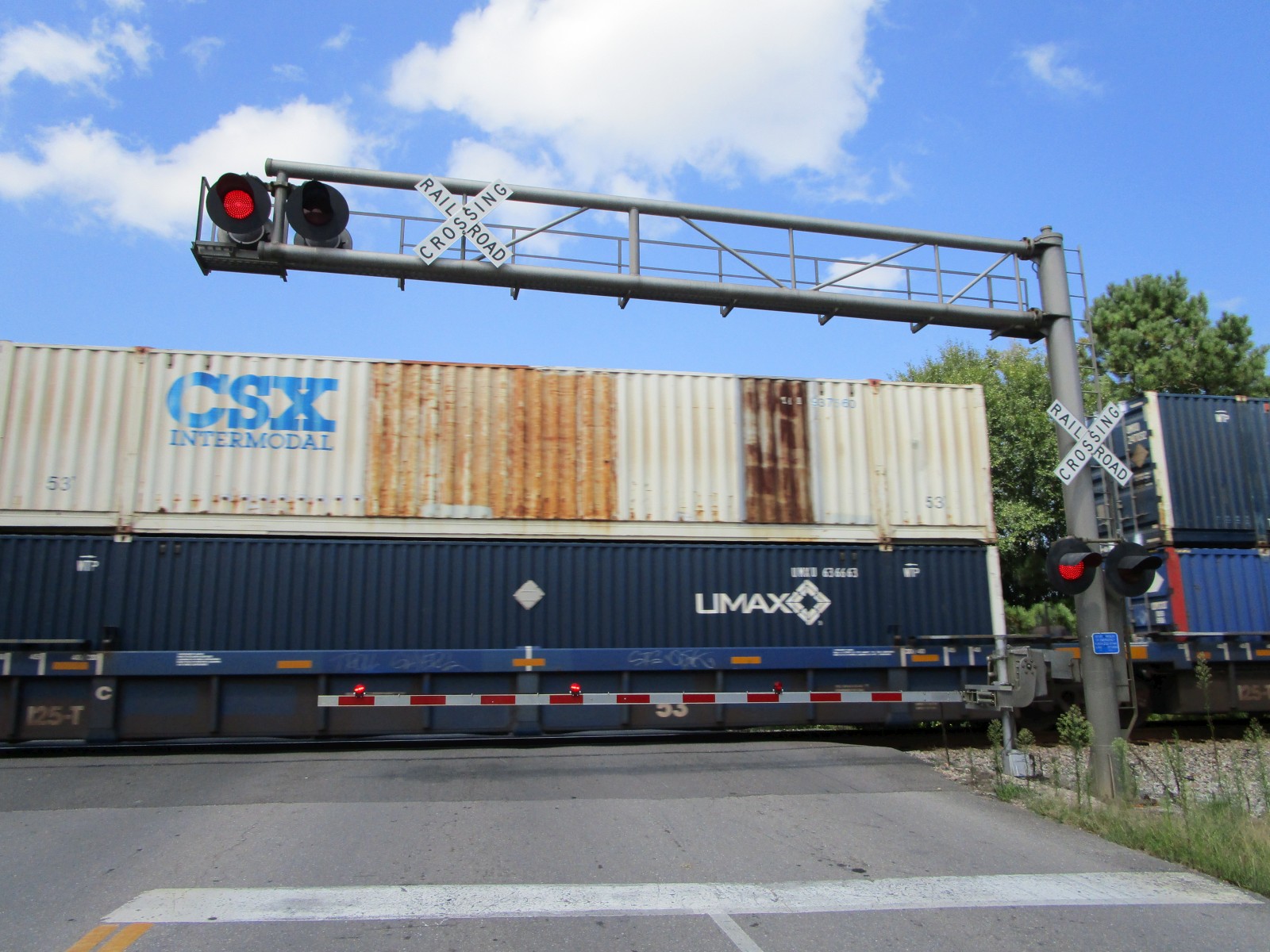

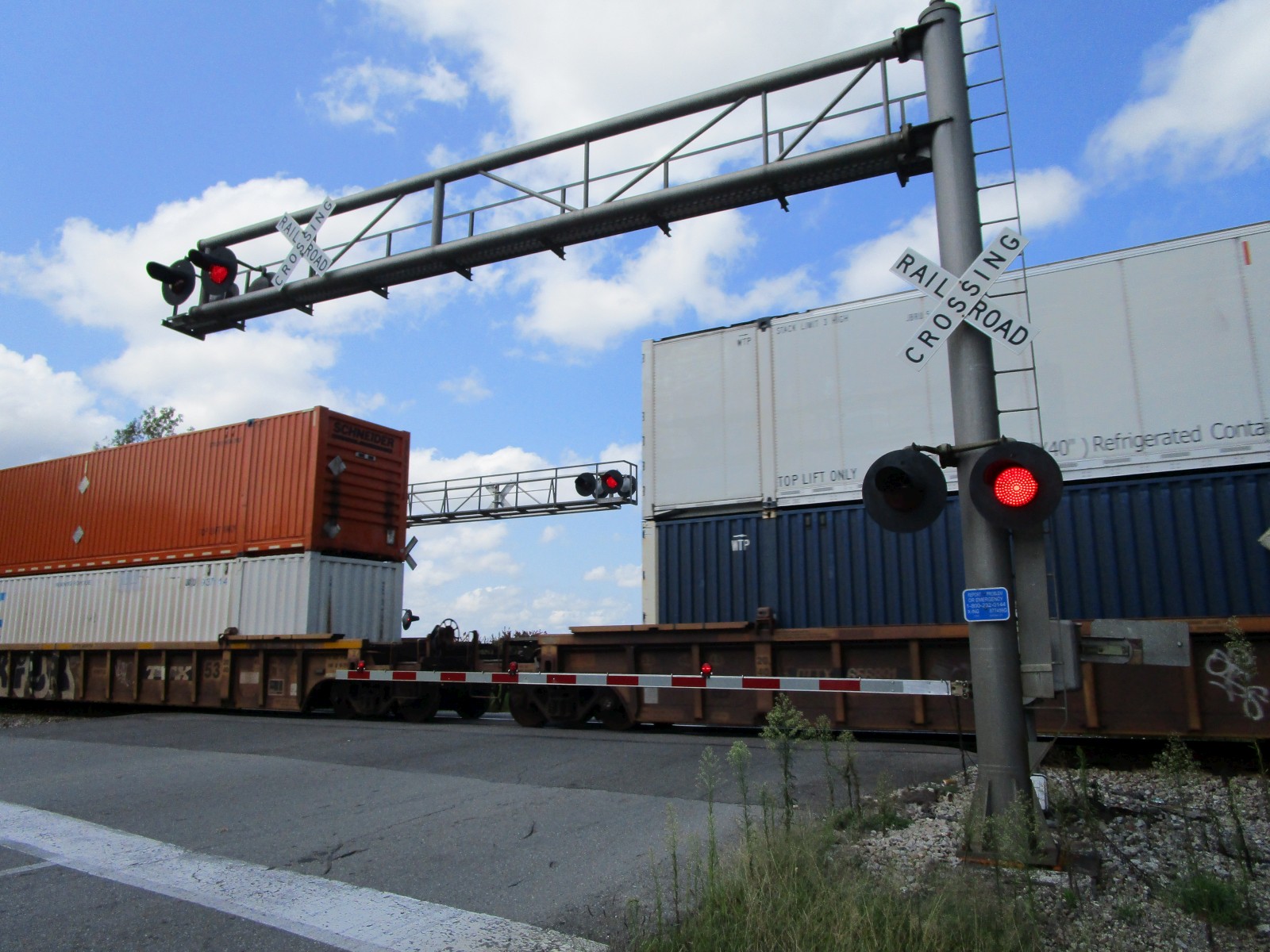

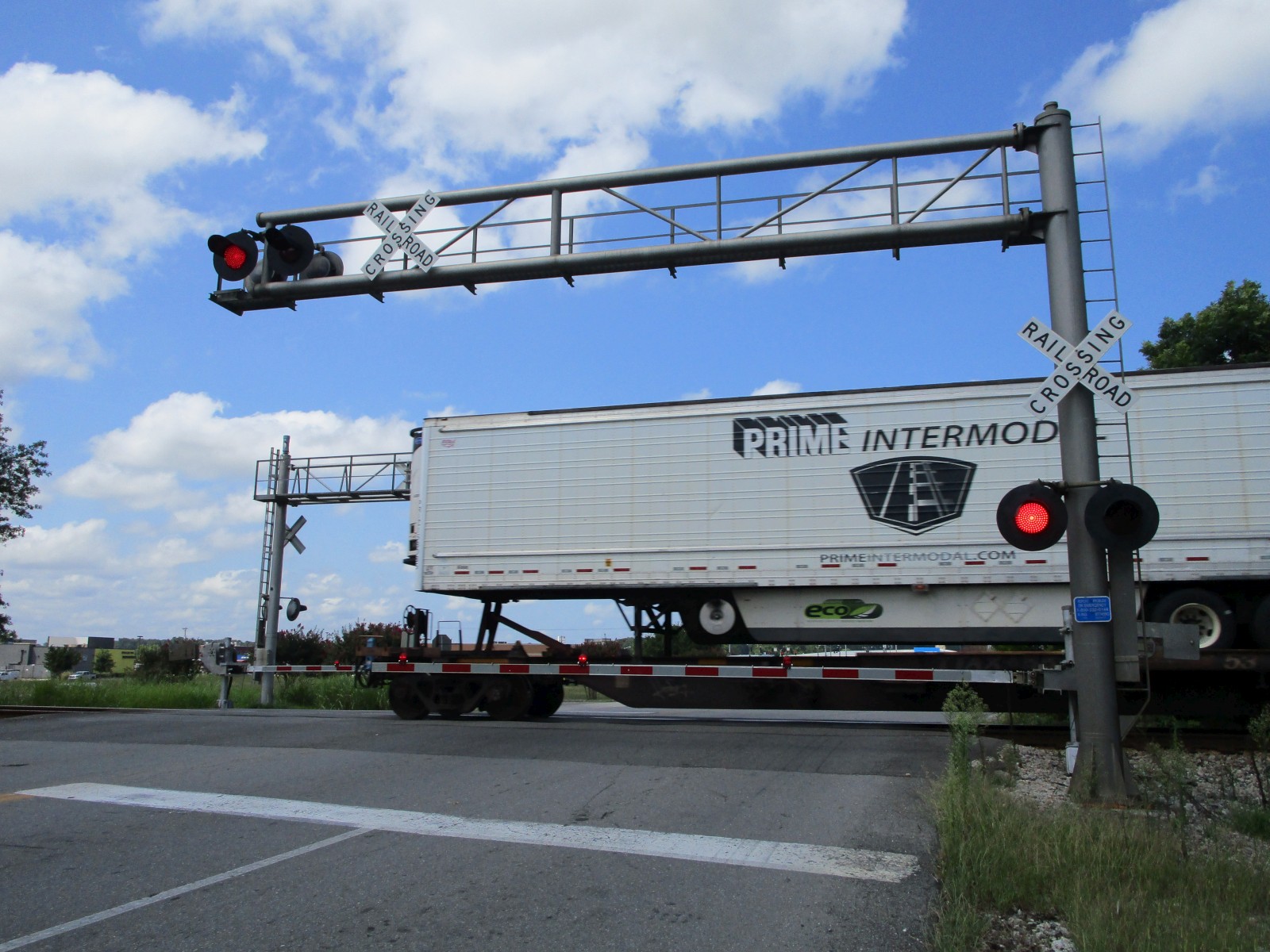

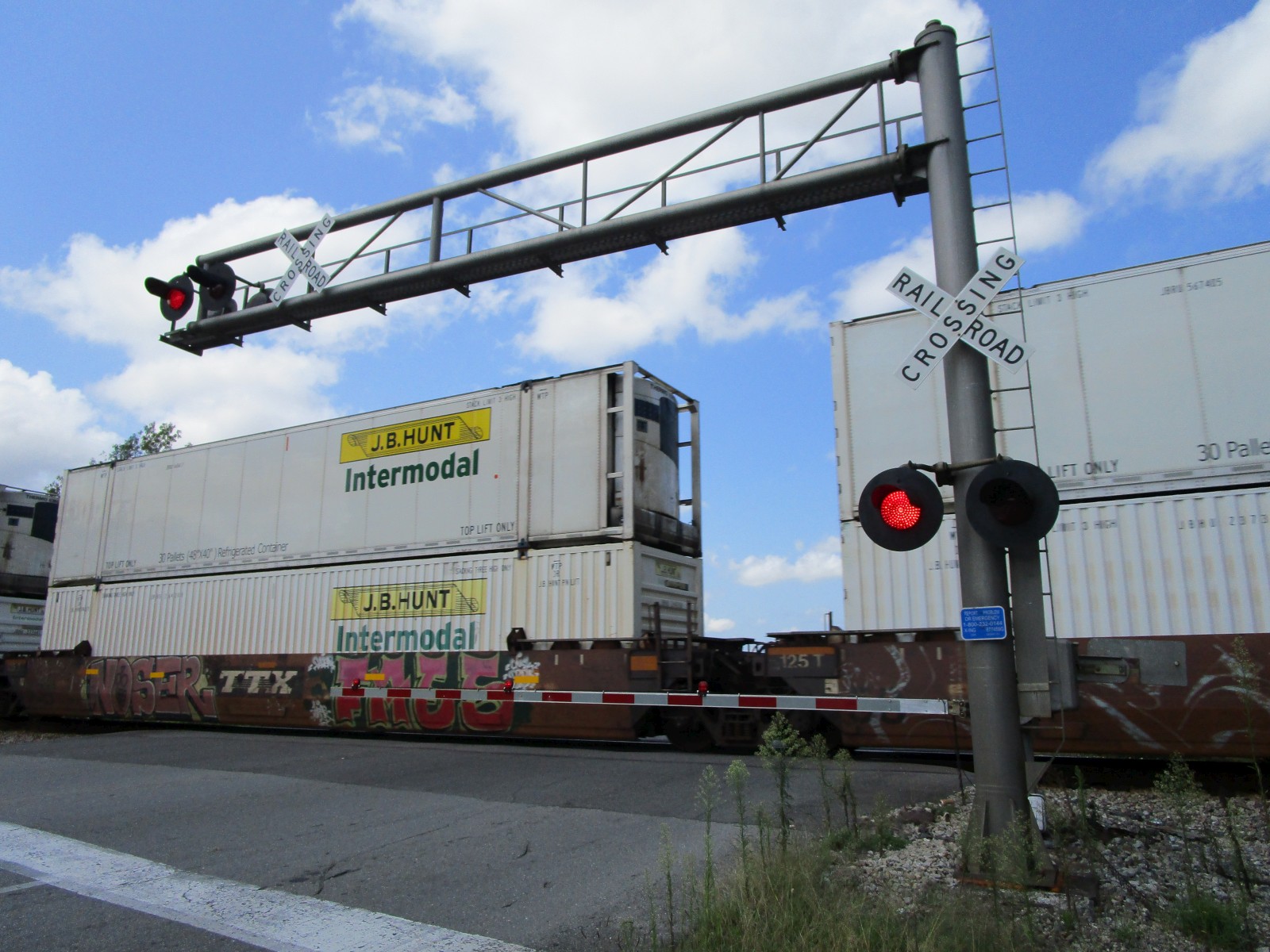

The train passes... |
|||
89 |
90 |
91 |
92 |
93 |

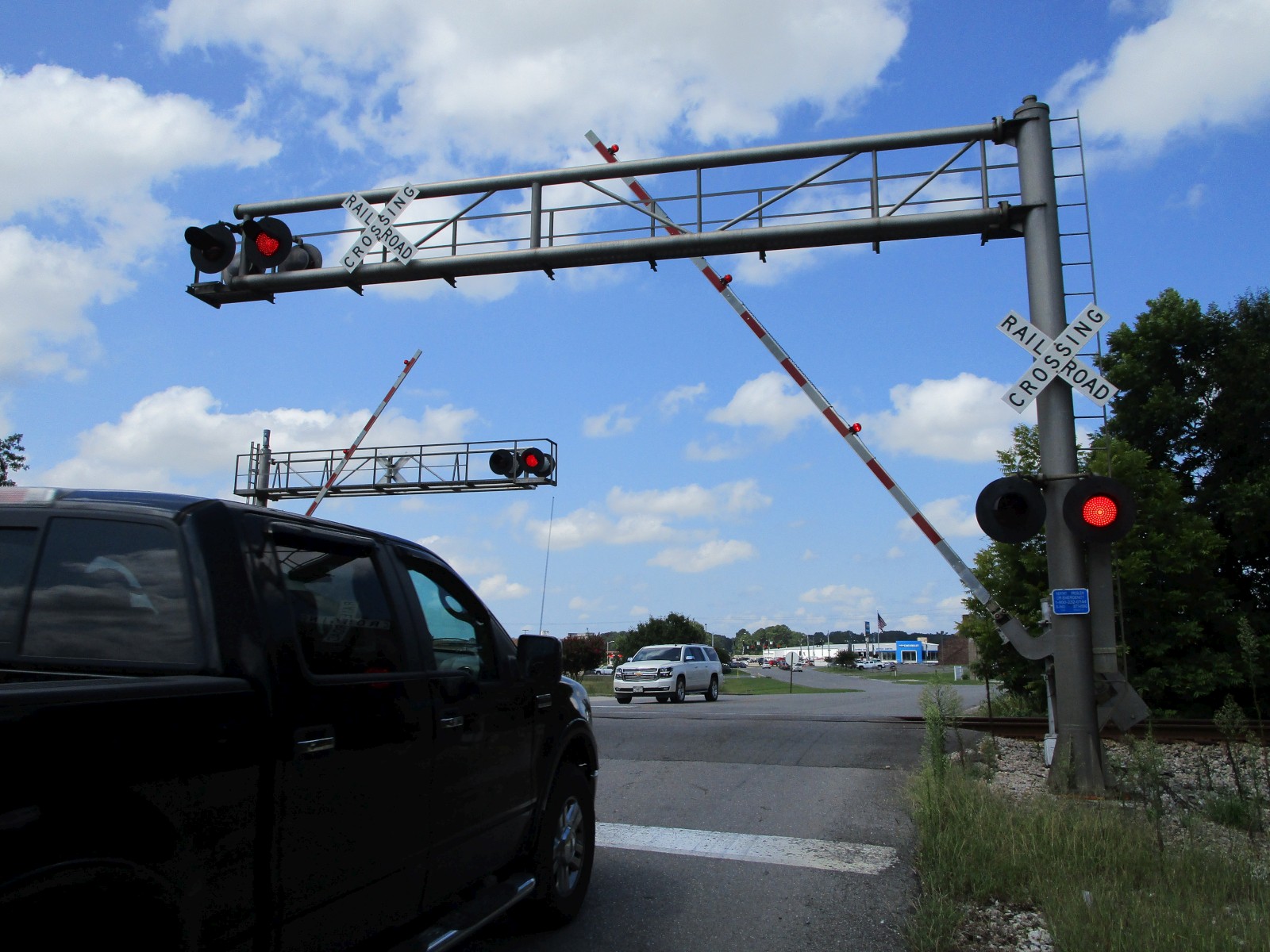

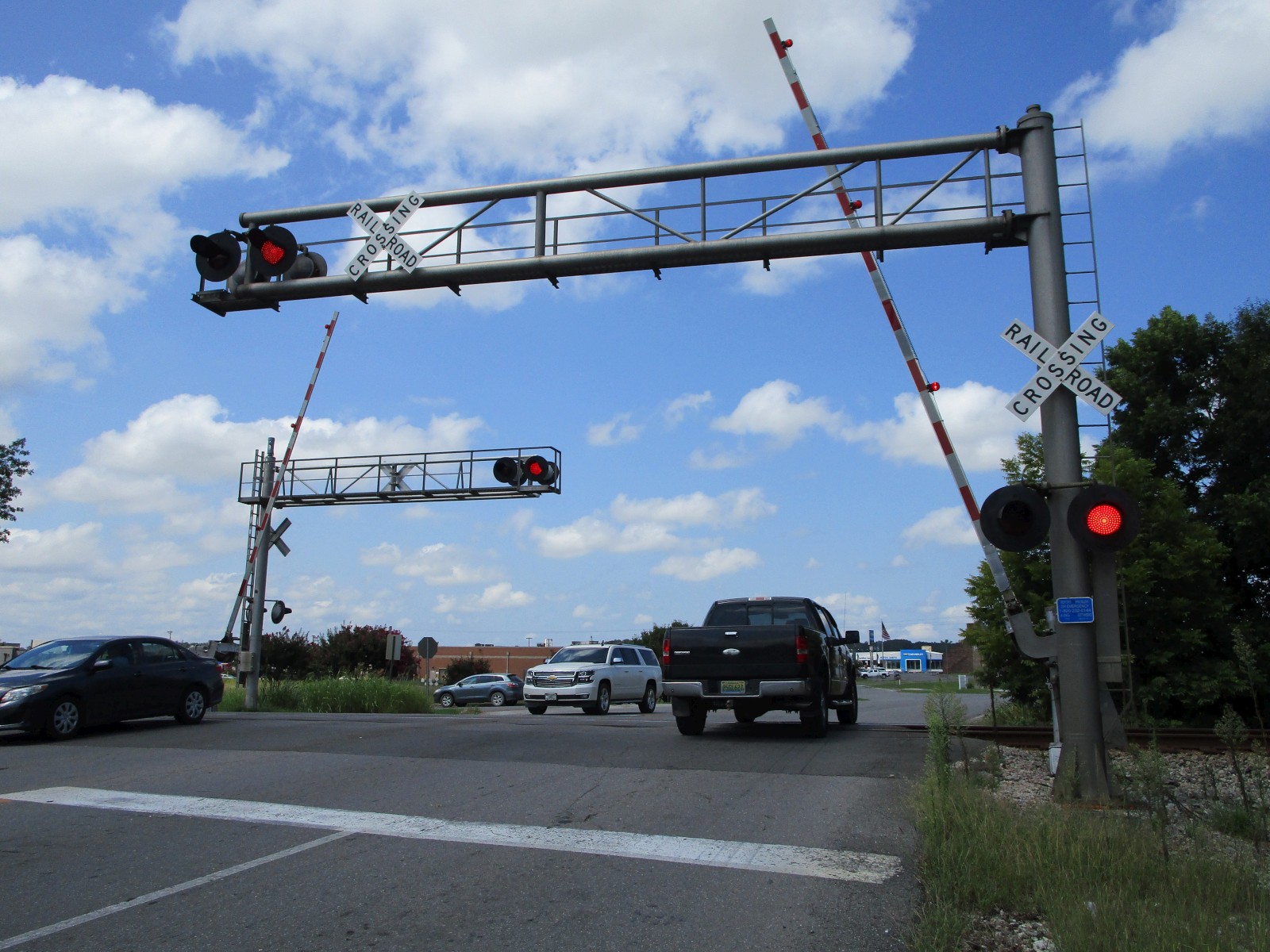

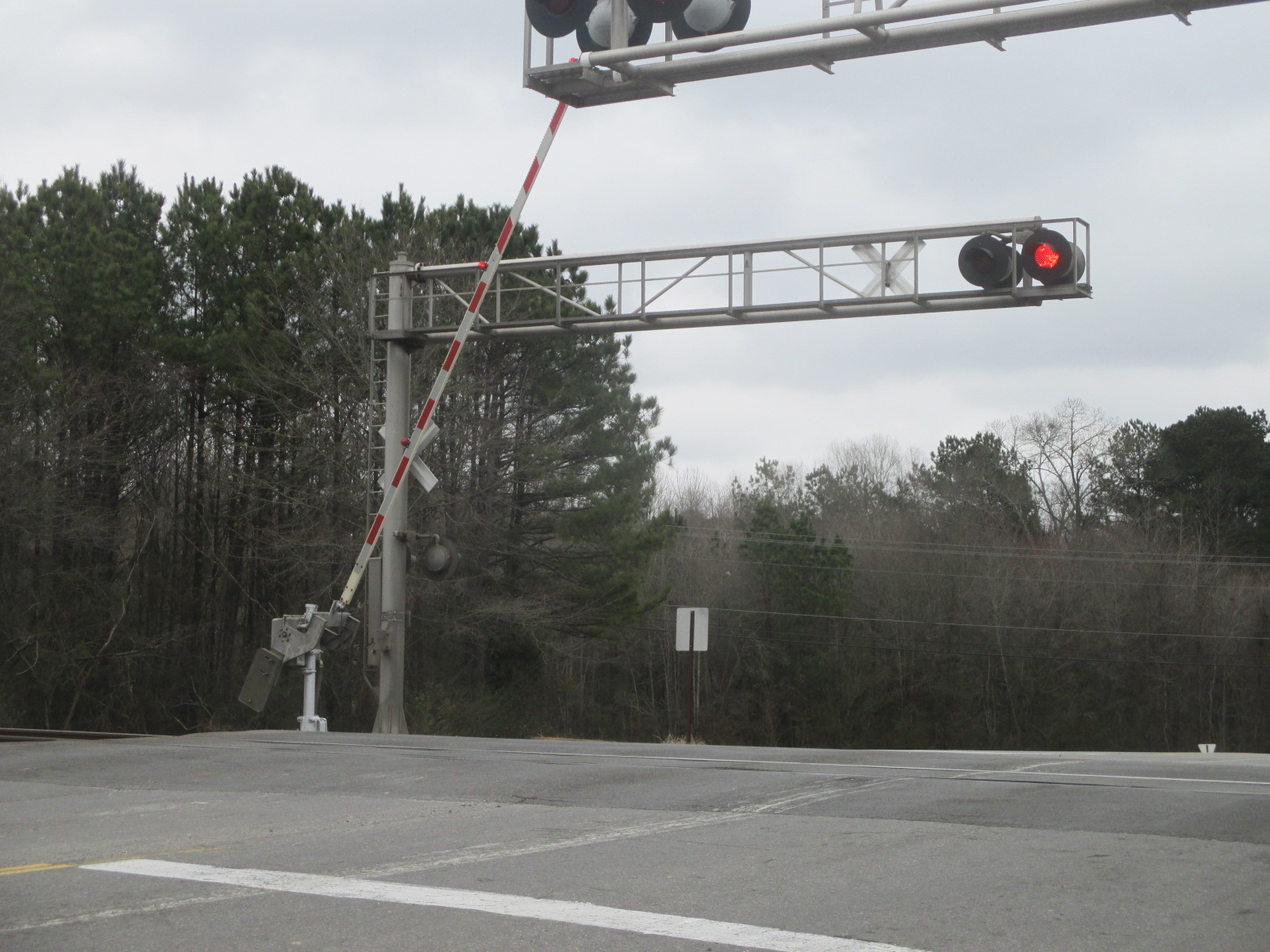

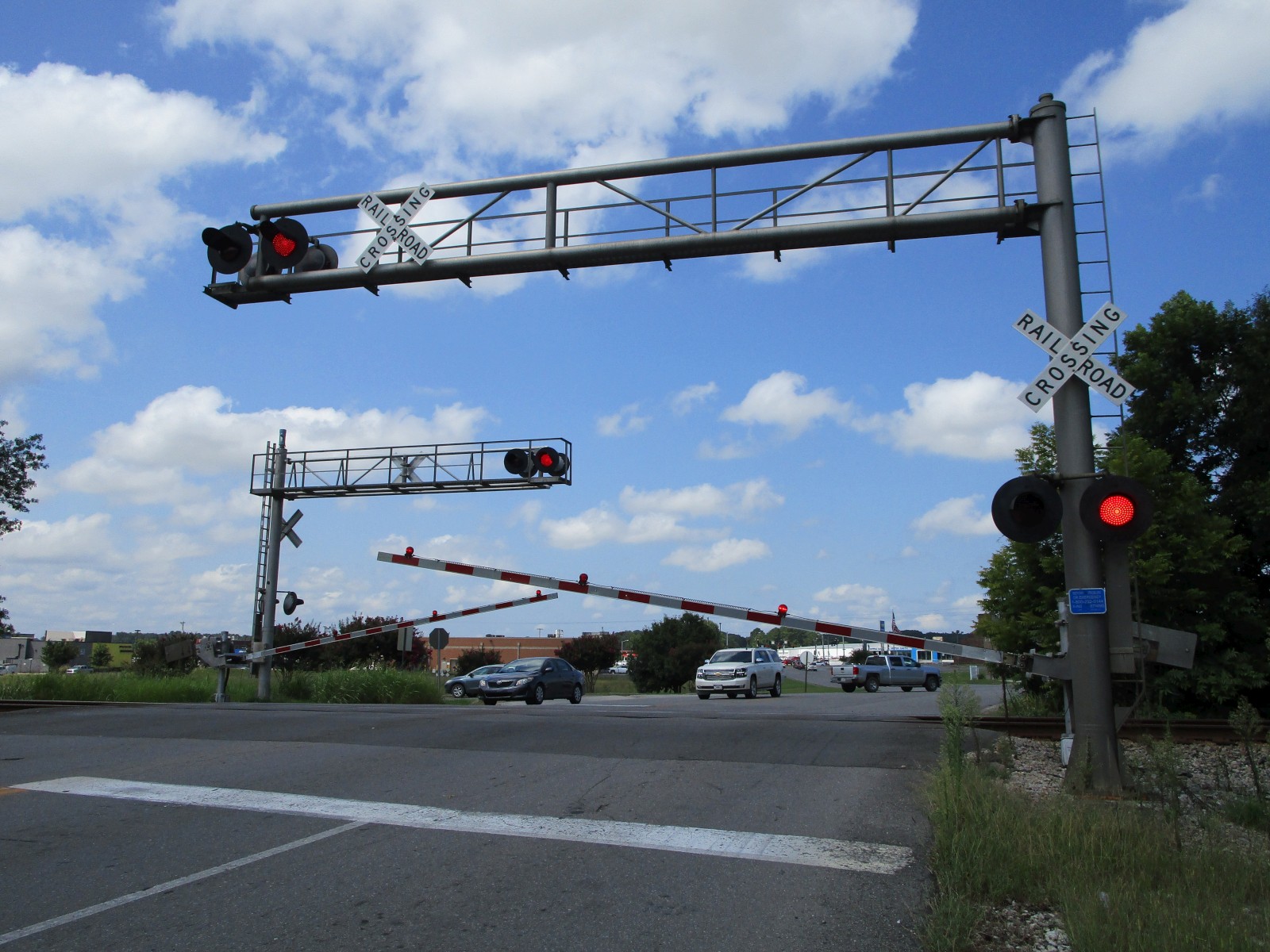

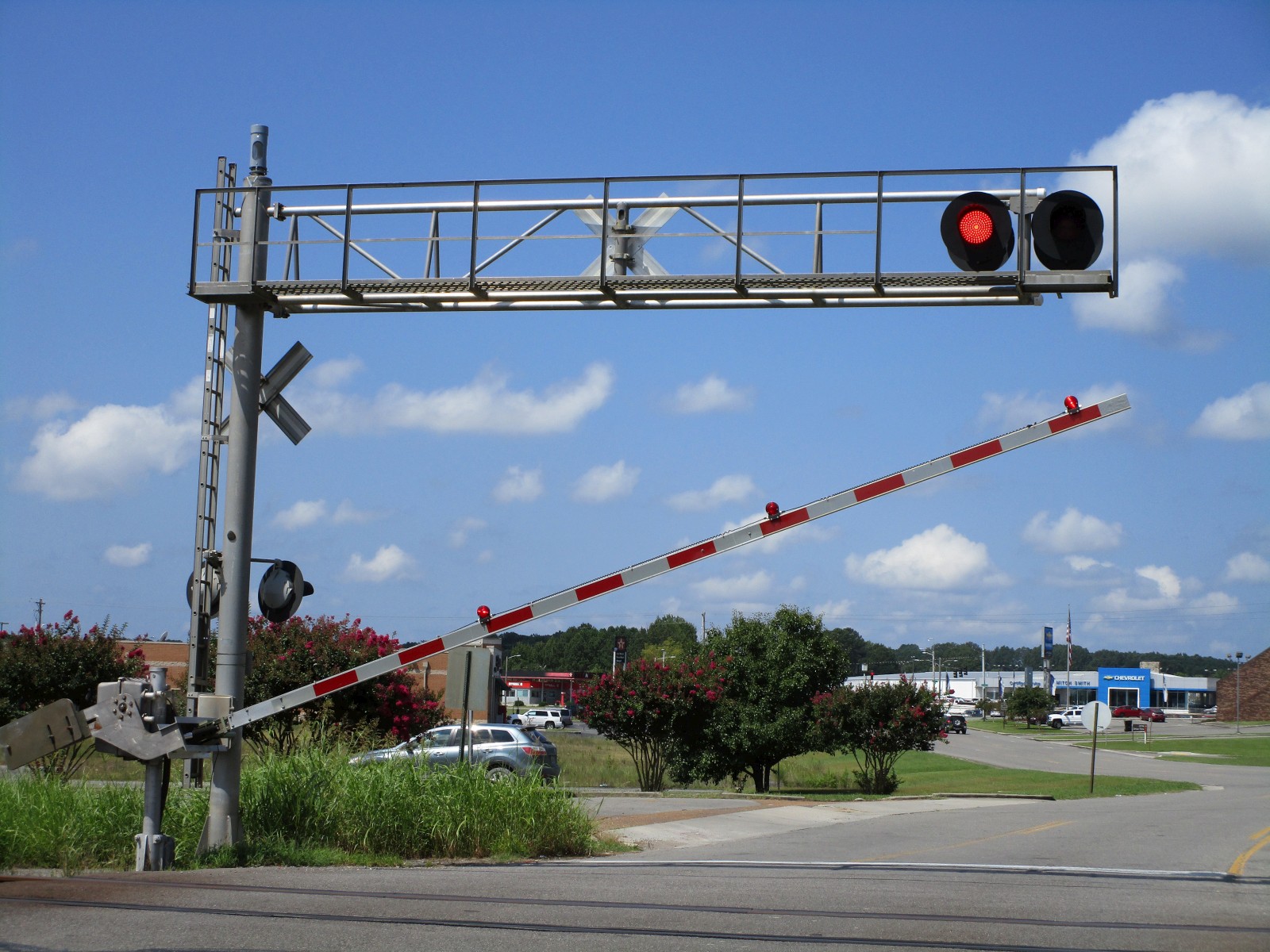

...and the gate rise. |
||
Pictures 1-44 and the first video were taken on 2-20-16.
Pictures 45-93 and the second video were taken on 8-26-21.
