MP: XXB101.210 |
Created November 25, 2019
Total Accidents: 4
Crossing
DOT #: 831176E
TOTAL
DAILY TRAINS: 9 (AS OF 2019)
Page created by: freebrickproductions
This crossing is located on the CSX AWP Subdivision.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | NEG electronic | NEG electronic |
| Base: | WCH | WCH |
| Light Frames: | 4 - 12x24" WCH w/ Leotek EV Series LEDs | 4 - 12x24" WCH w/ Leotek EV Series LEDs |
| Gate Lights: | 3 - NEG LEDs | 3 - NEG LEDs |
| Gate Mechanism: | Siemens Sticker Style 2 | Siemens Sticker Style 2 |
| Gate Striping: | Vertical | Vertical |
1 |
2 |

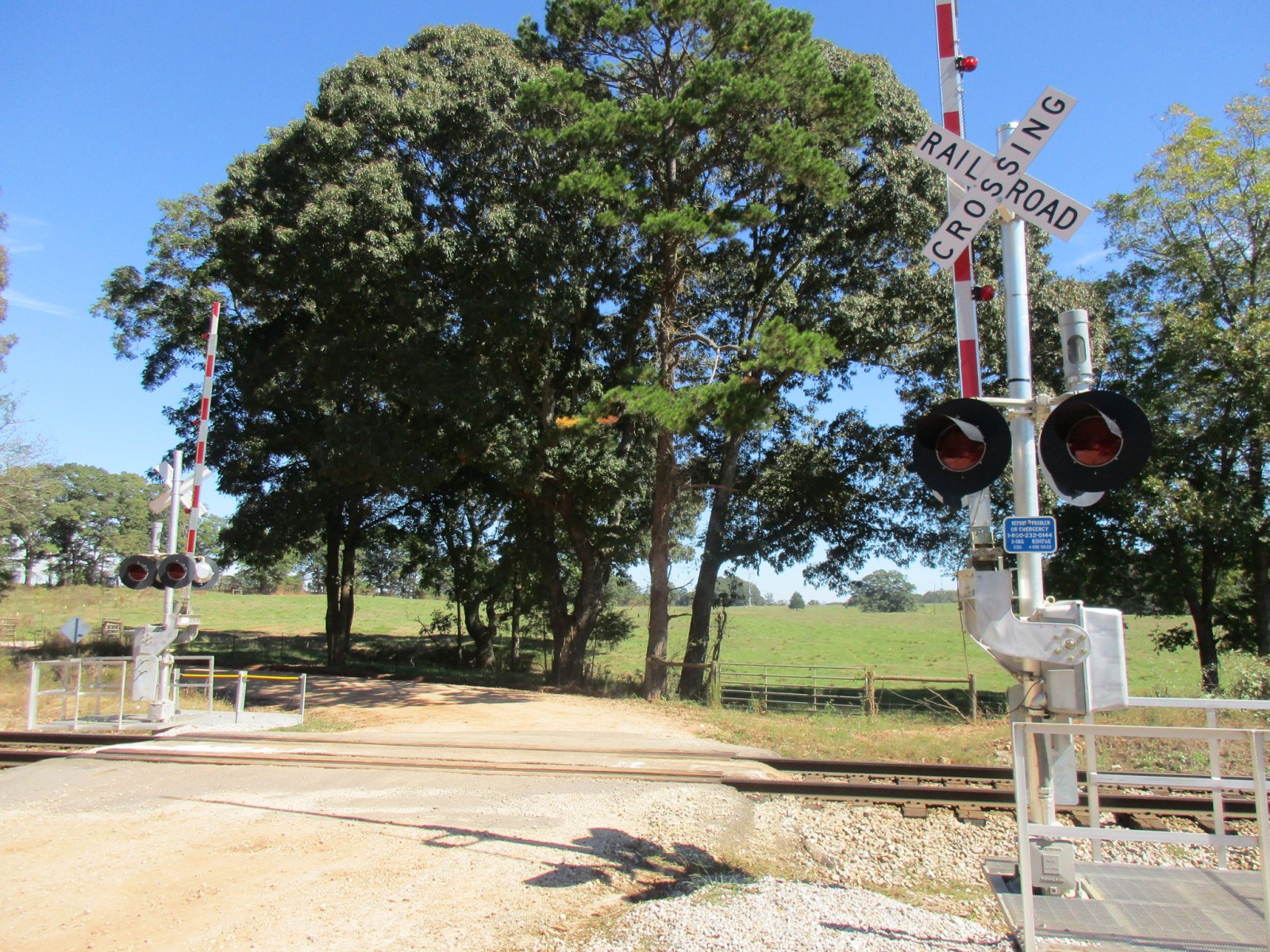

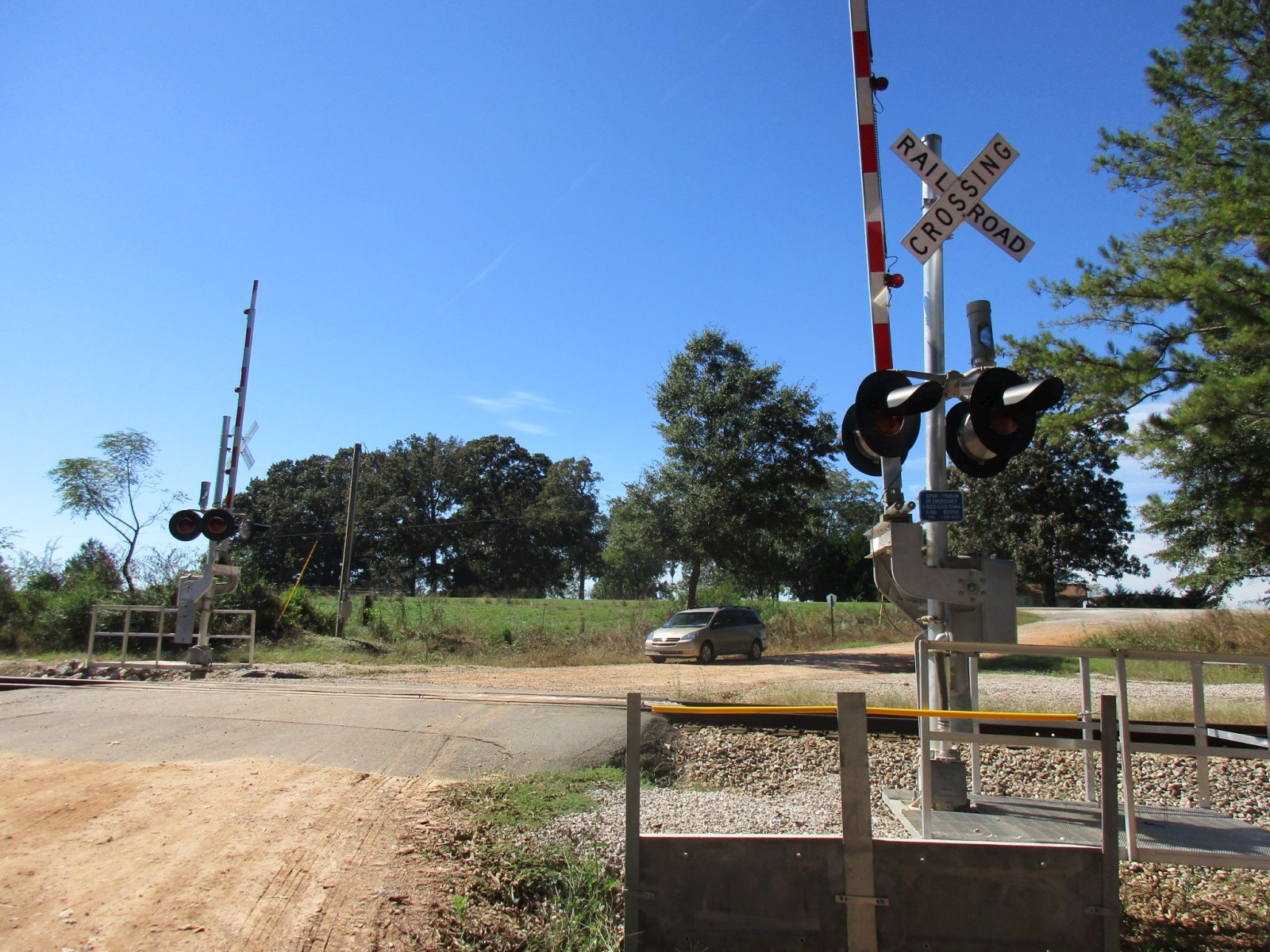

Overviews of the crossing. |
|
3 |
4 |

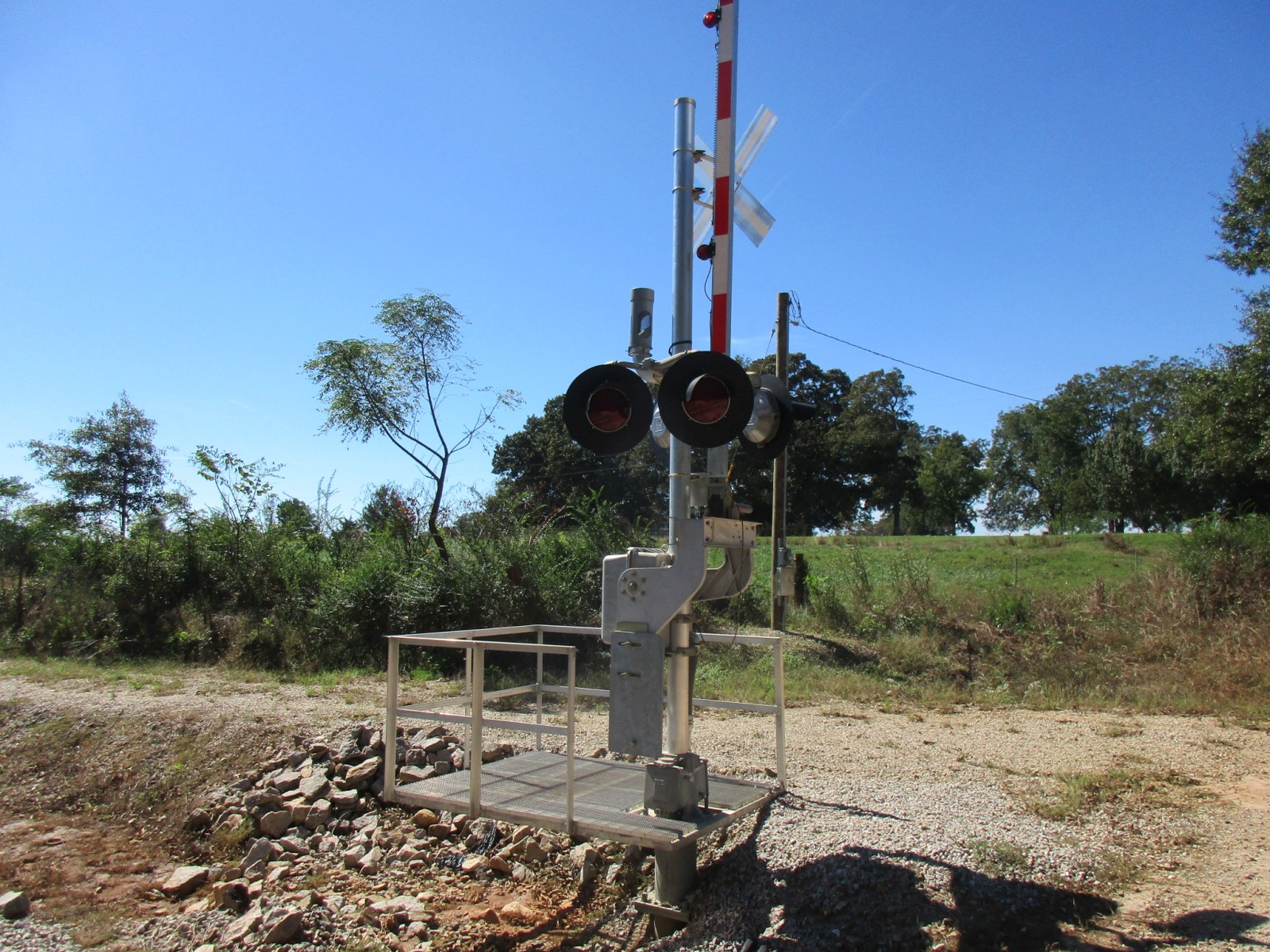

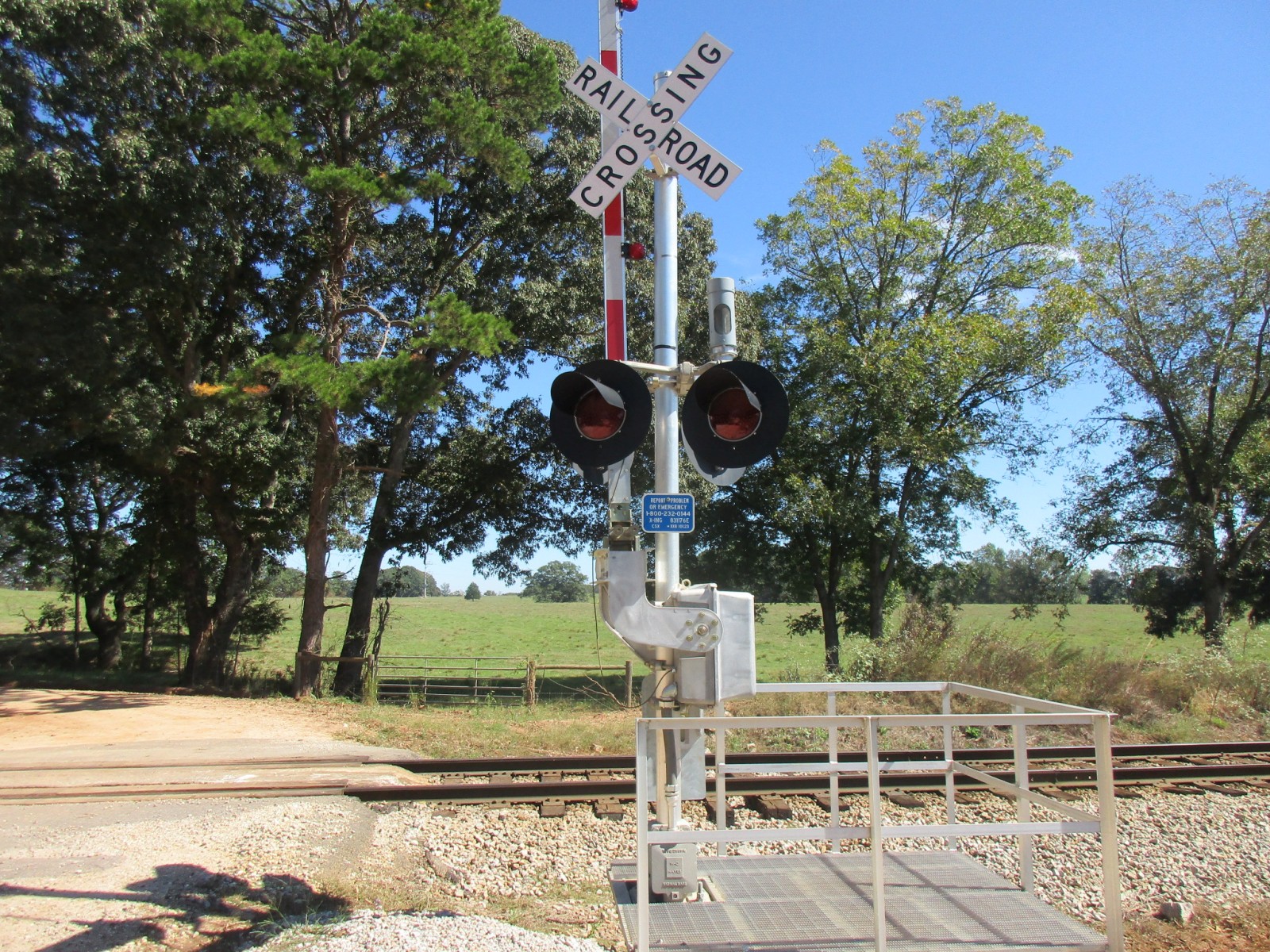

The first signal. |
|
5 |
6 |
7 |

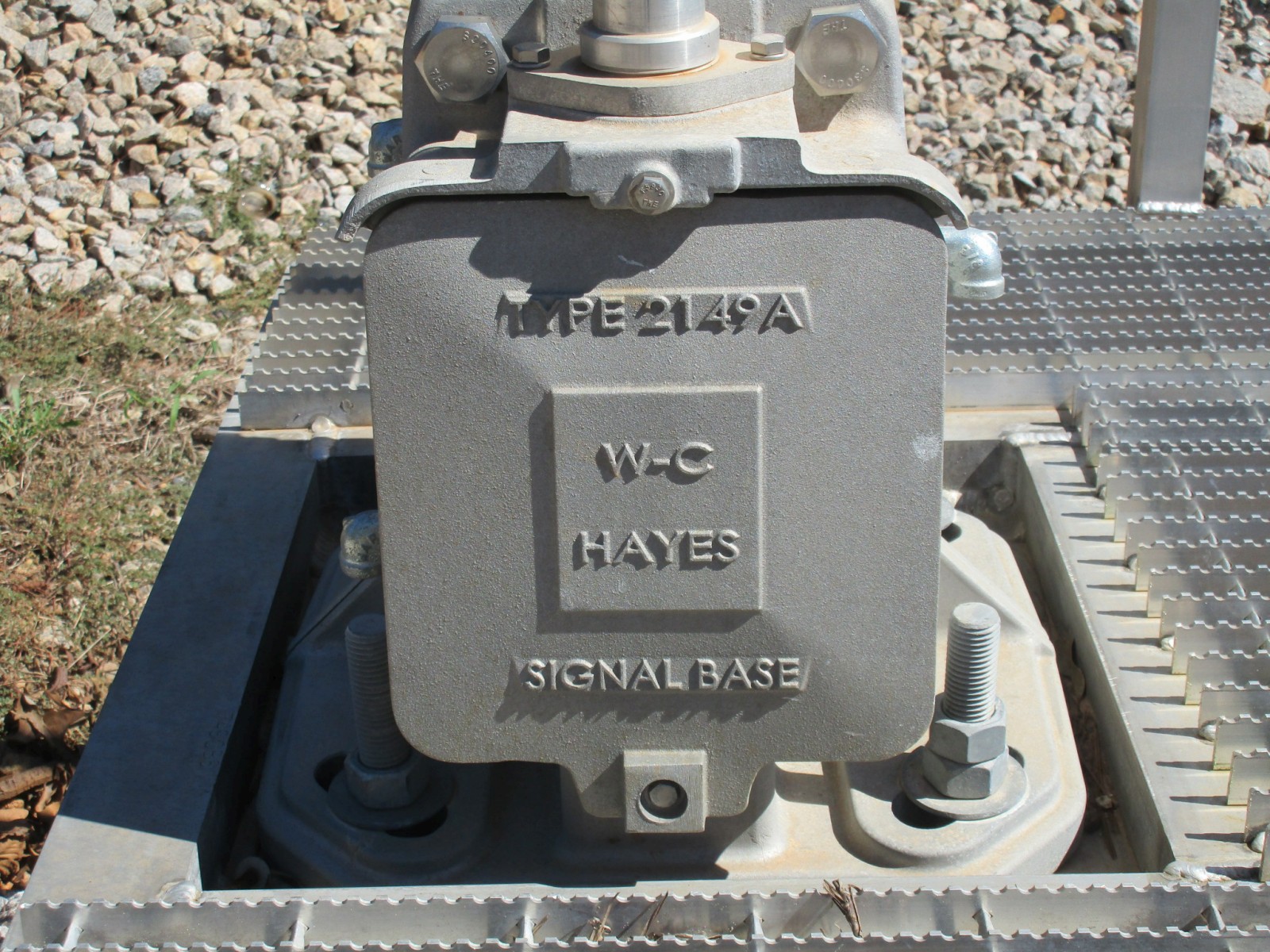

It has a WCH base. |

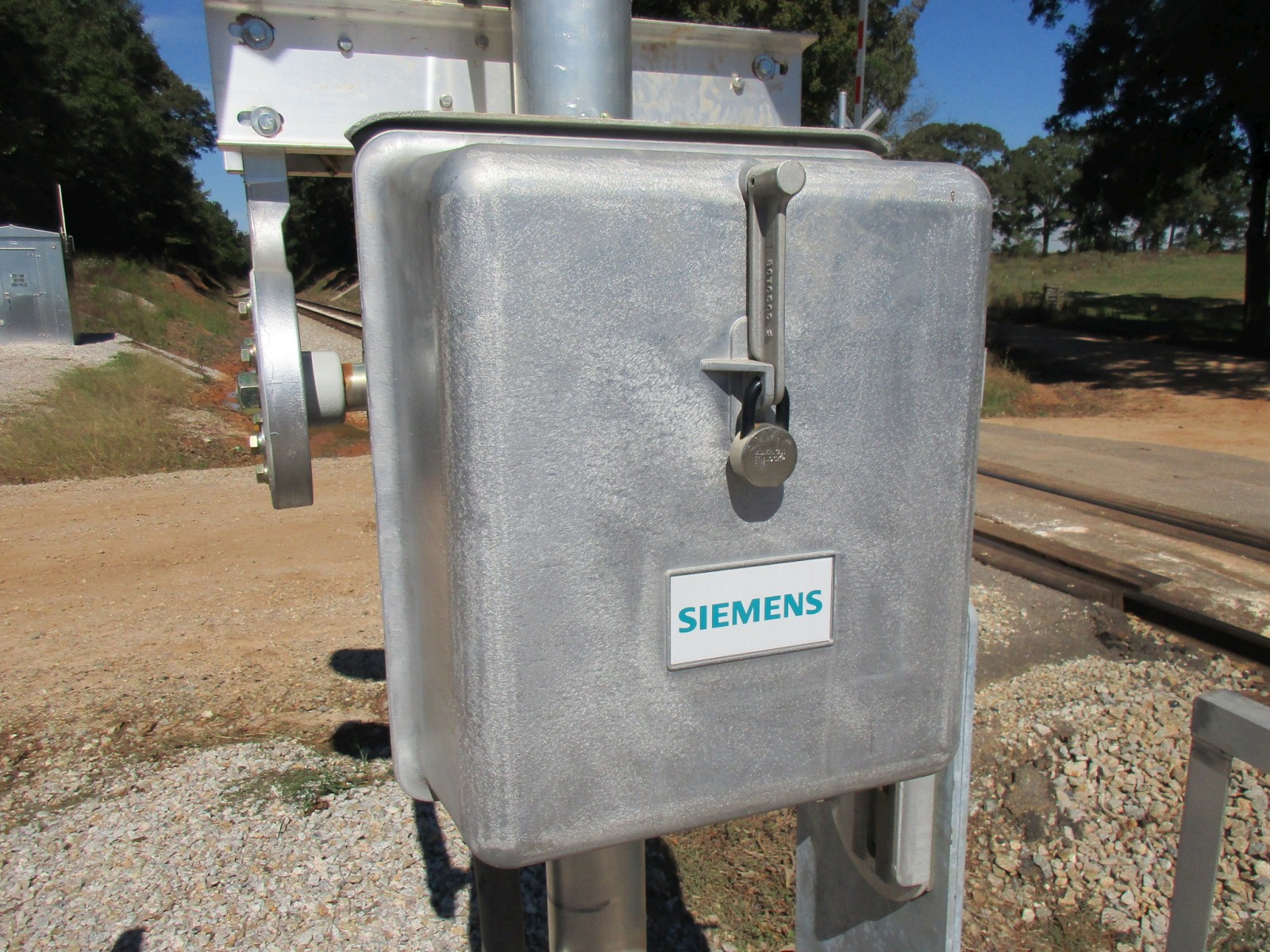

A Siemens gate mechanism. |

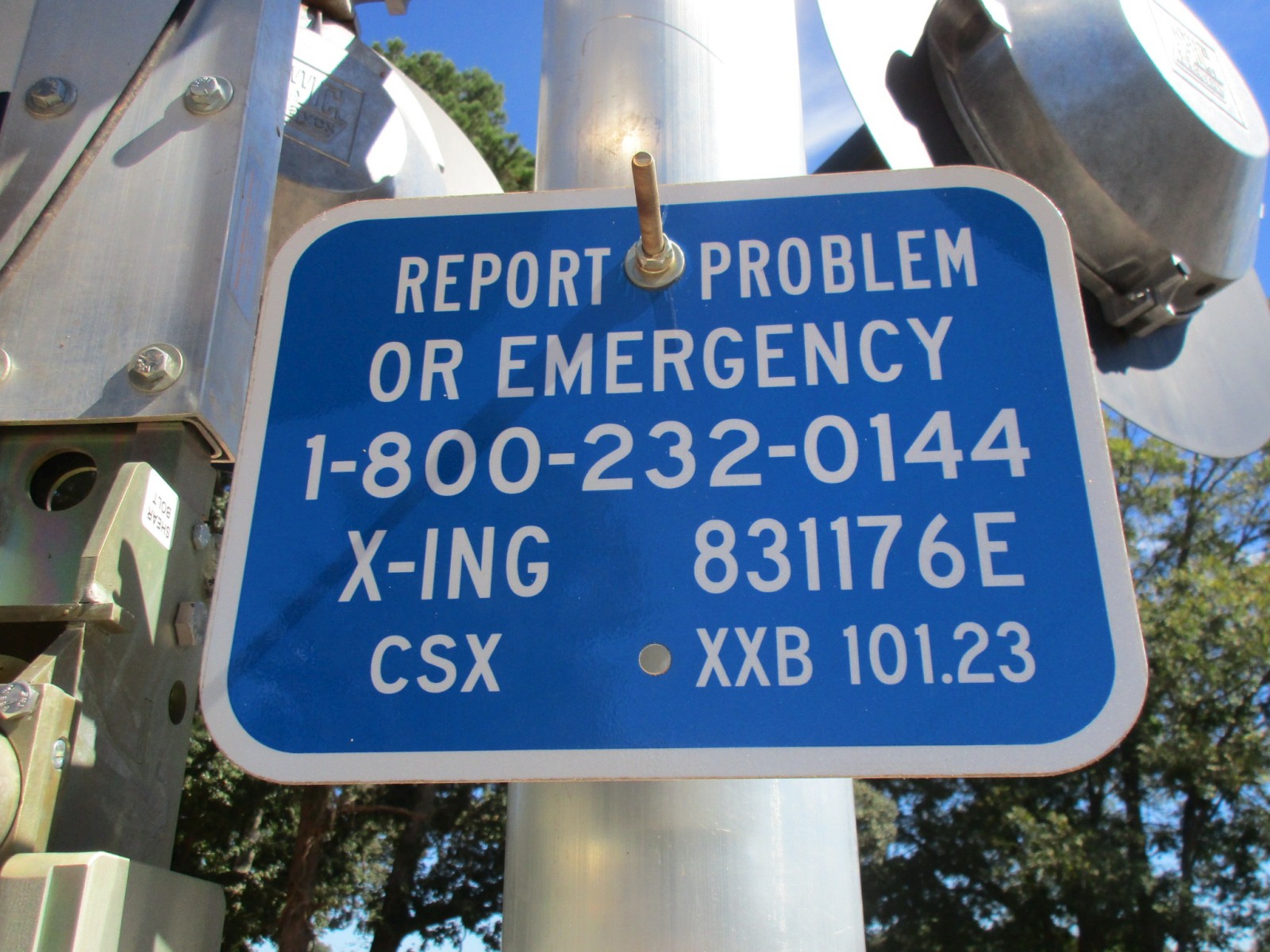

The emergency information. |
8 |
9 |
10 |

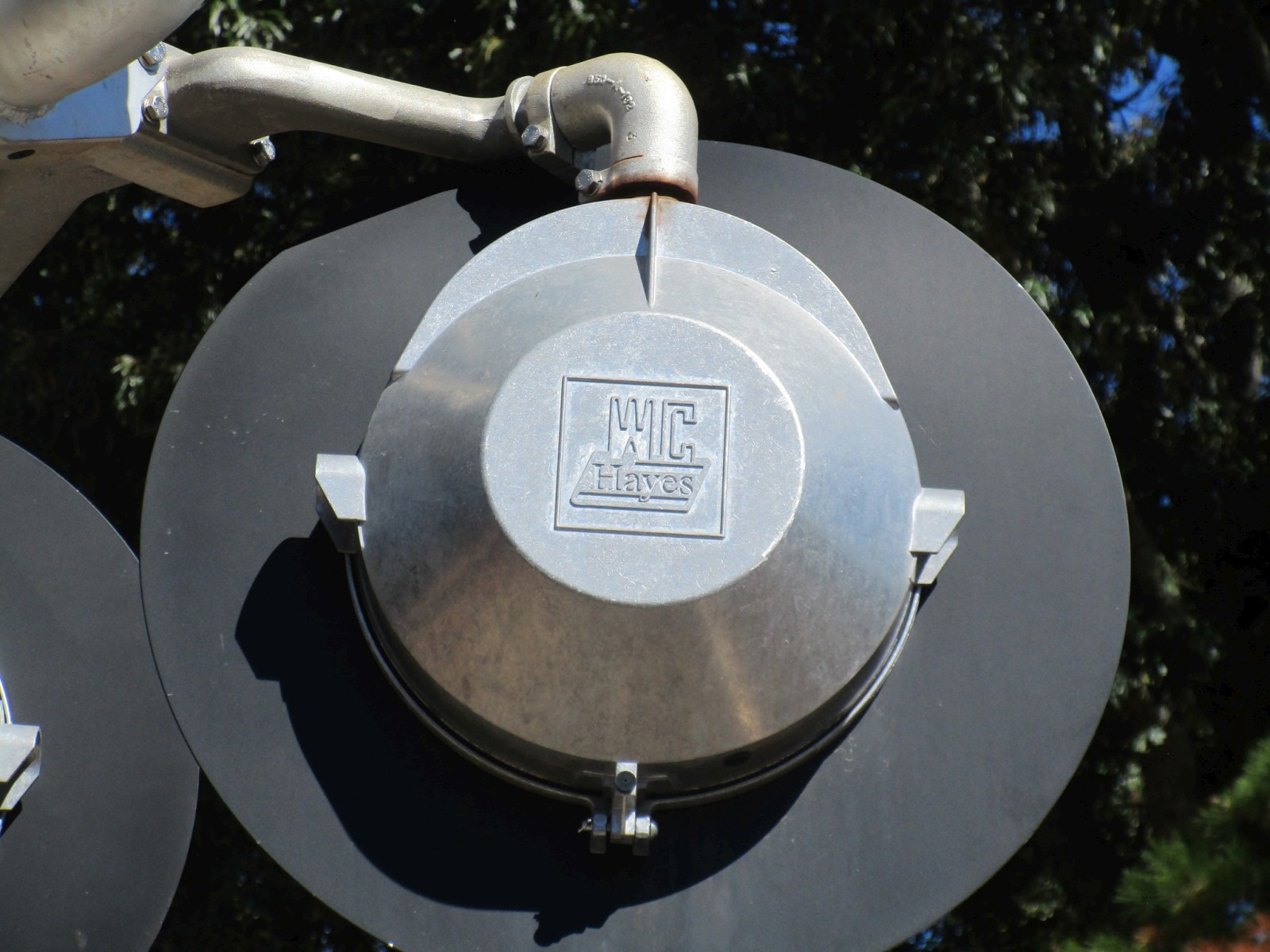

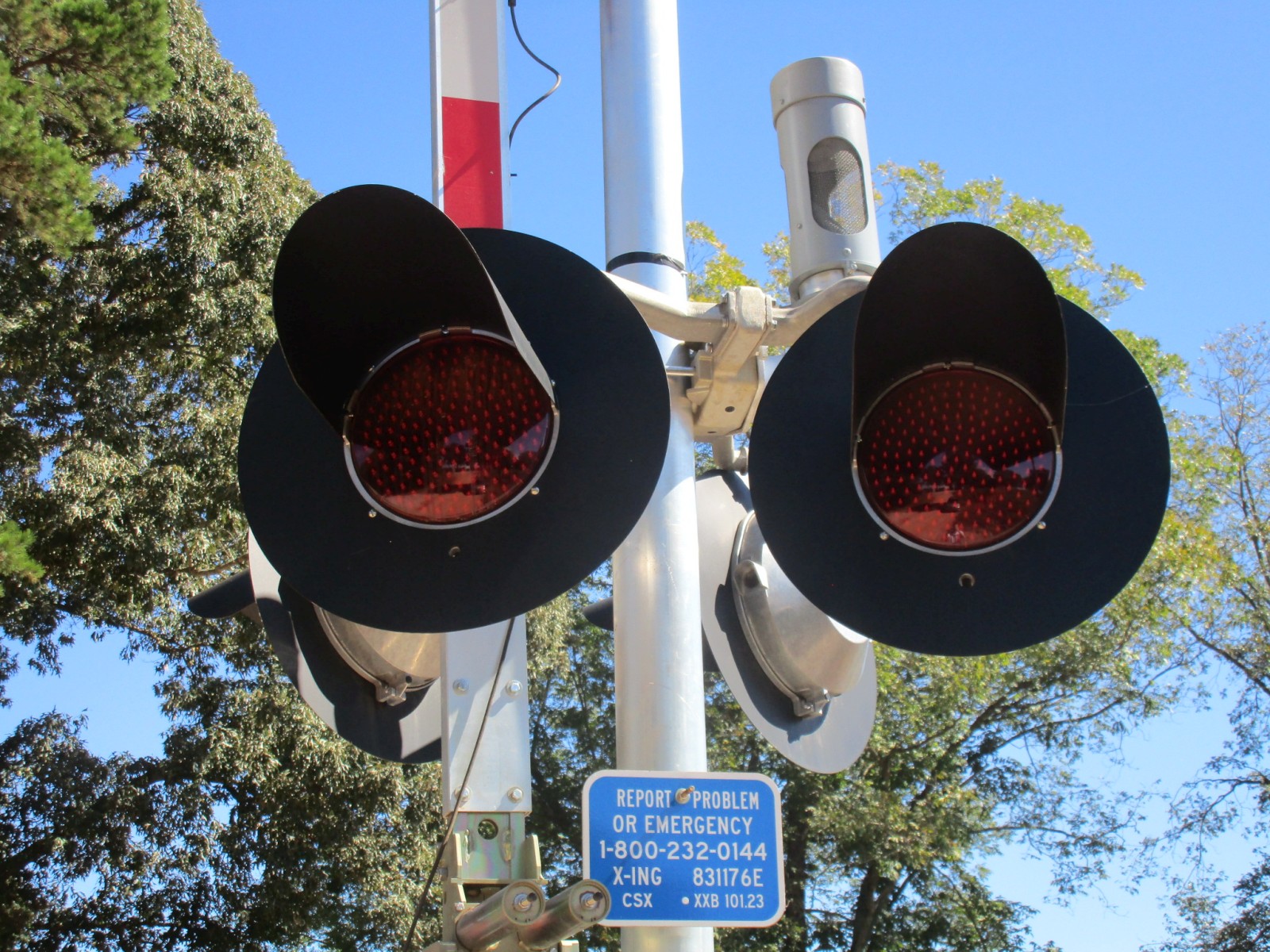

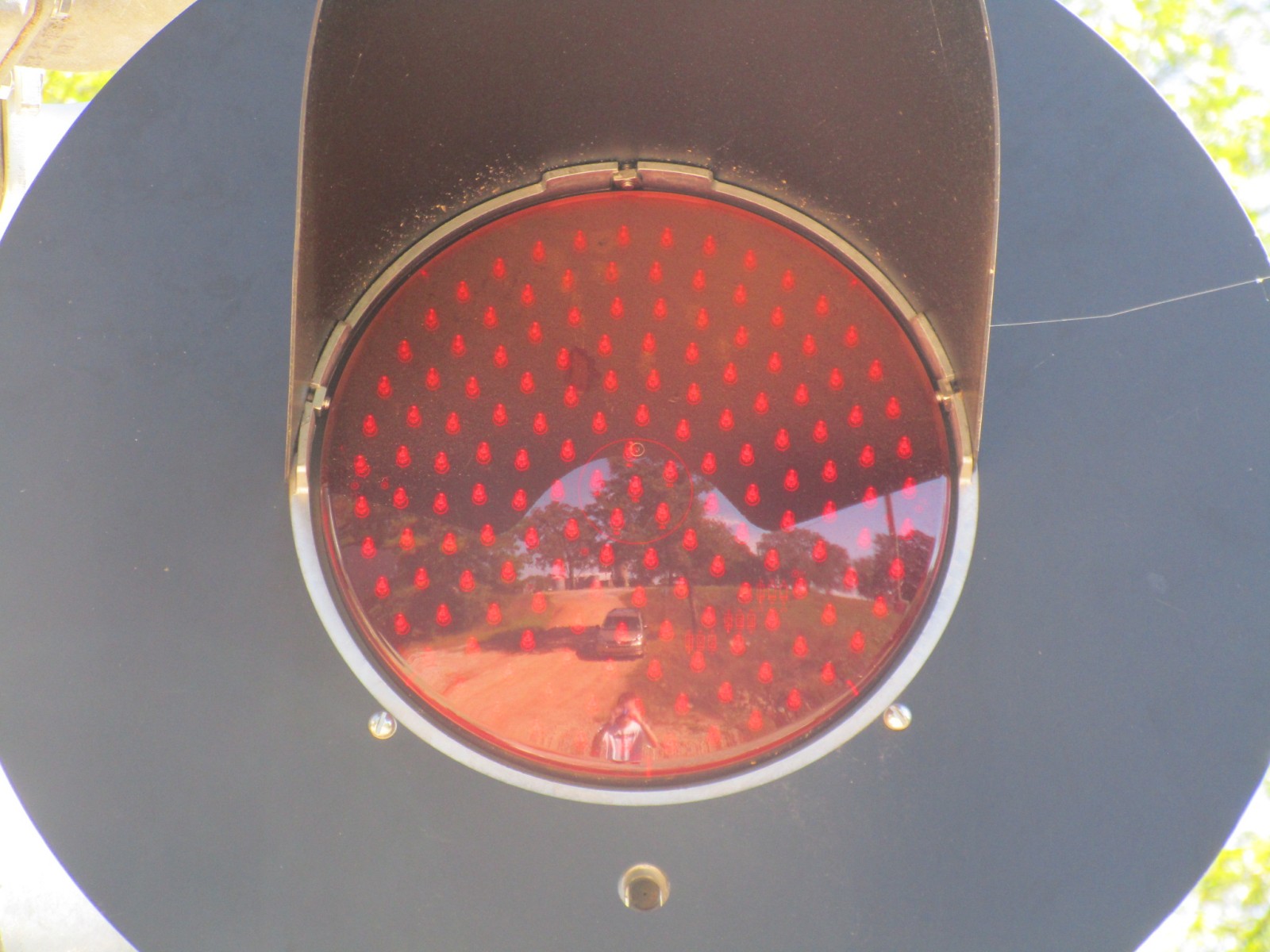

The lights on this signal are all WCH 12x24 inch lights with Leotek EV Series LEDs. |
||
11 |
12 |
13 |

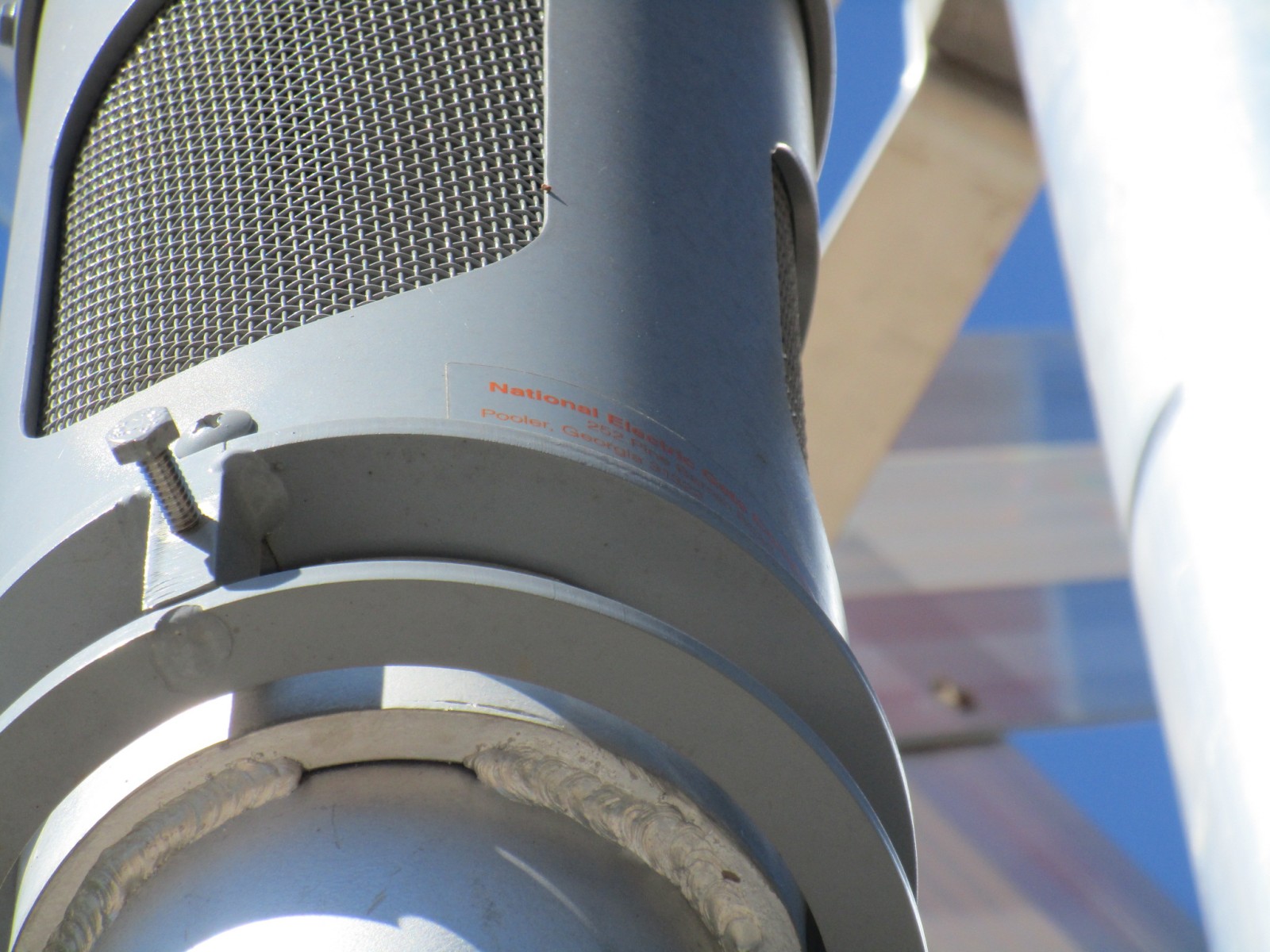

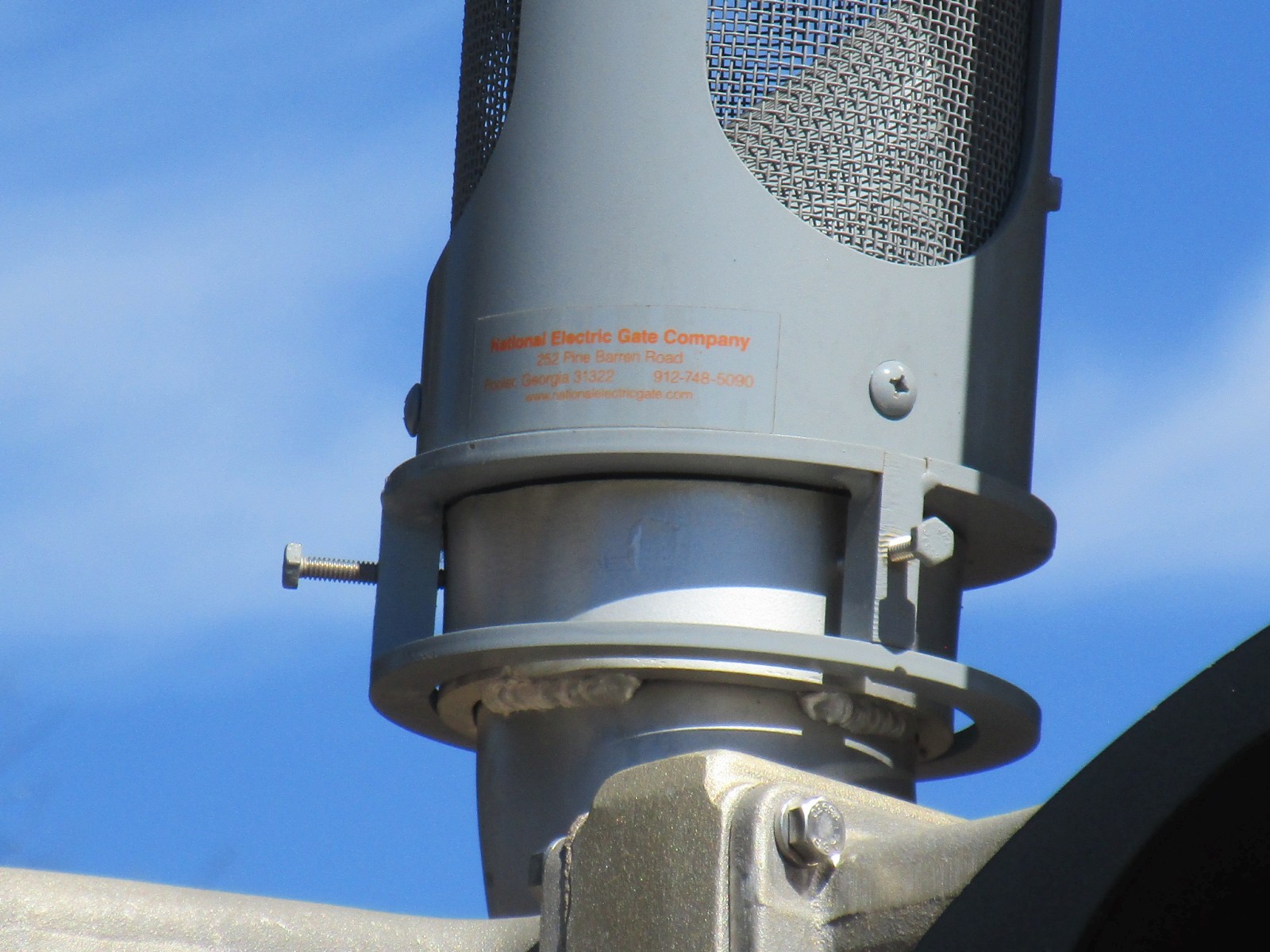

This signal uses an NEG electronic bell. |

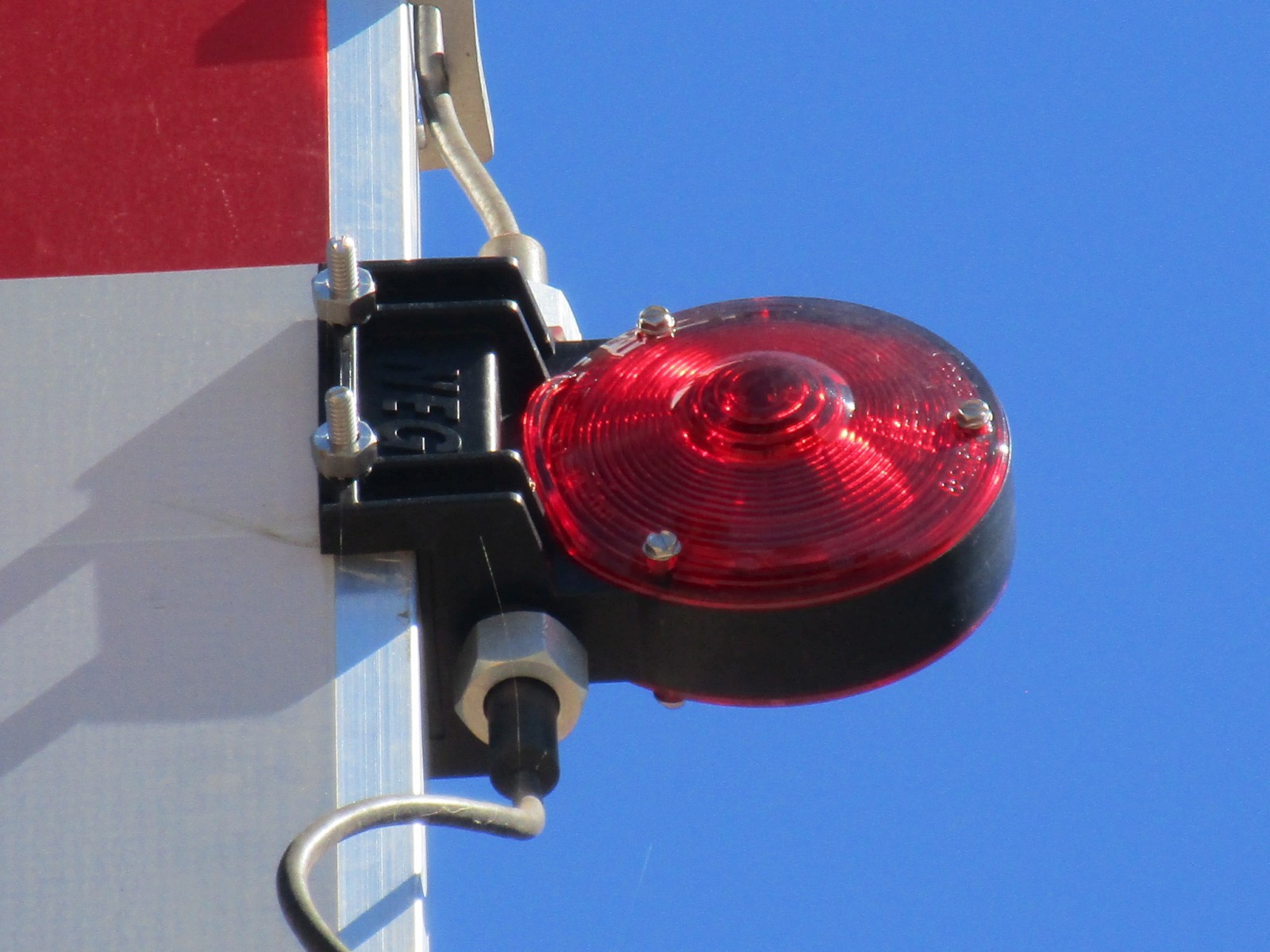

The gate lights here are NEG LEDs. |
|
14 |
15 |
The second signal. |
|
16 |
17 |
18 |

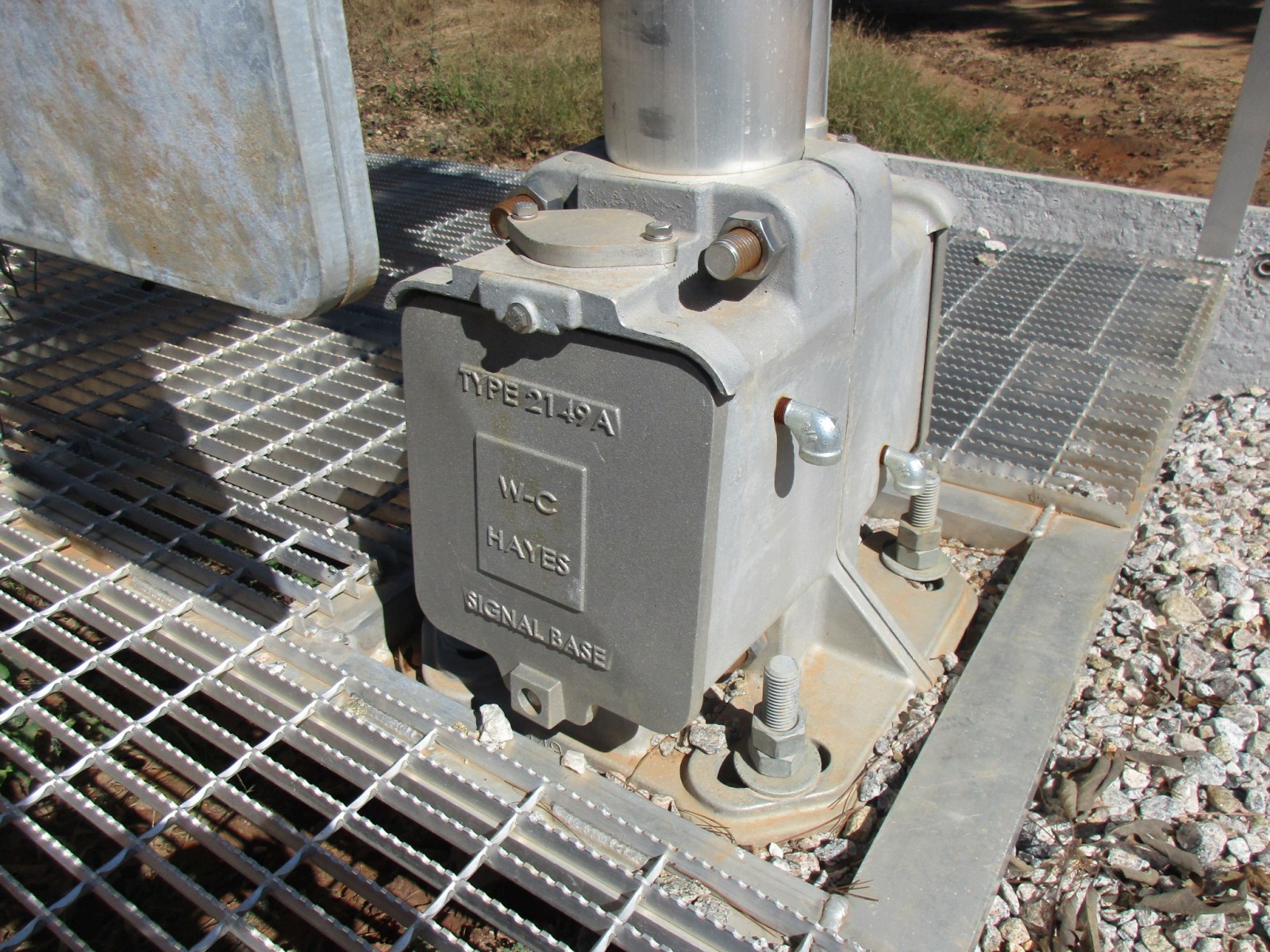

It has another WCH base. |

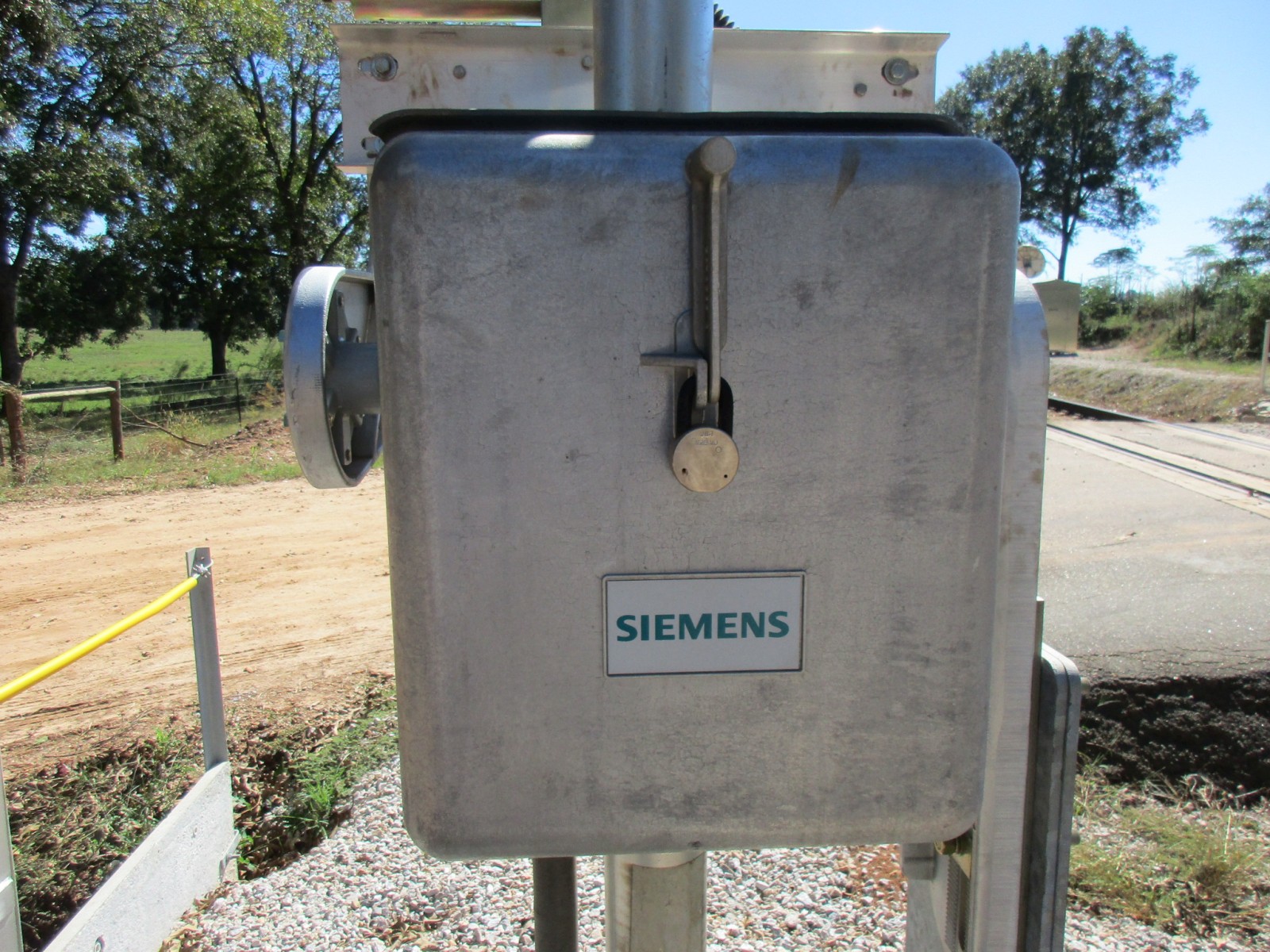

Another Siemens gate mechanism. |

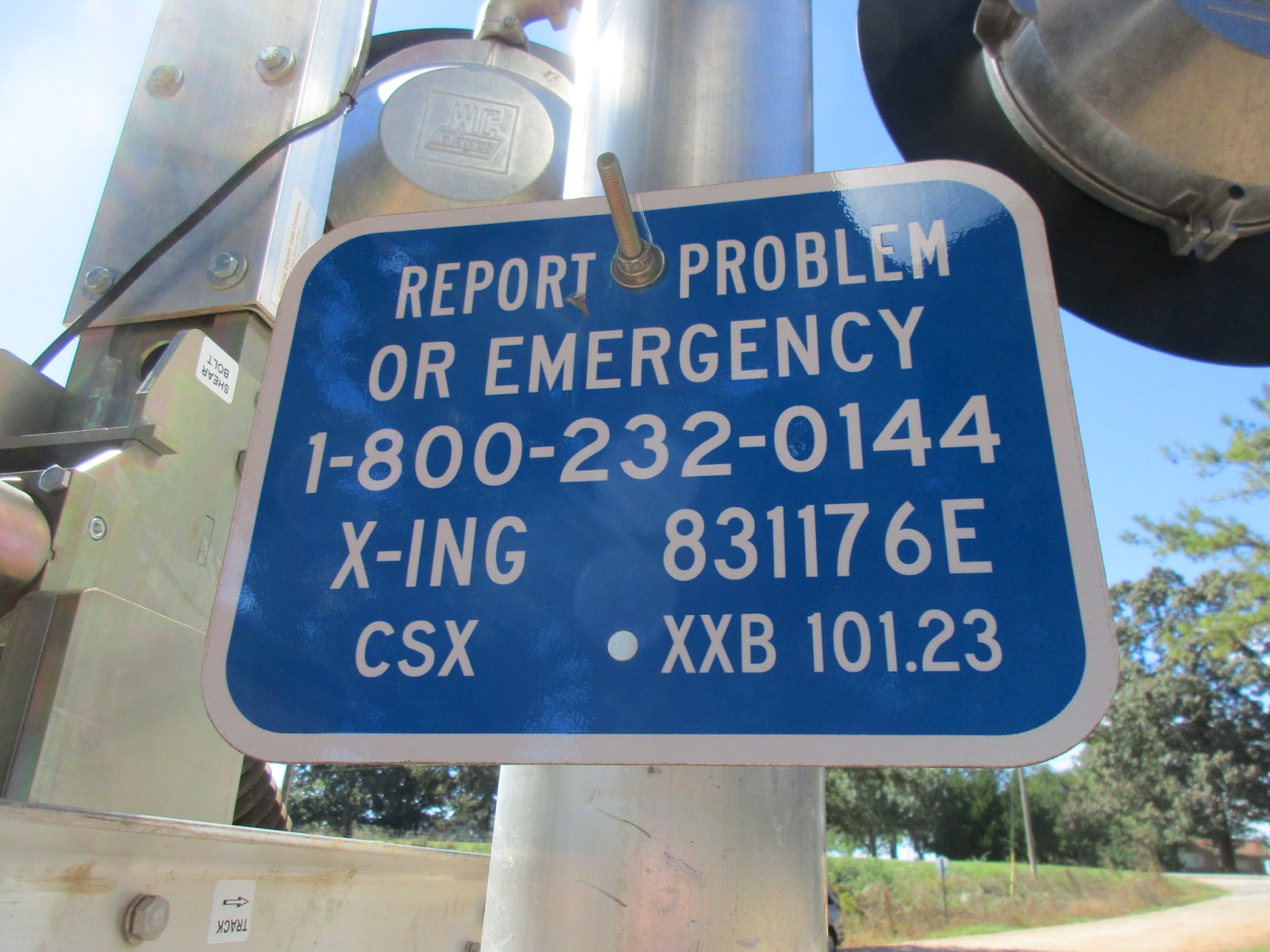

The emergency information. |
19 |
20 |
21 |

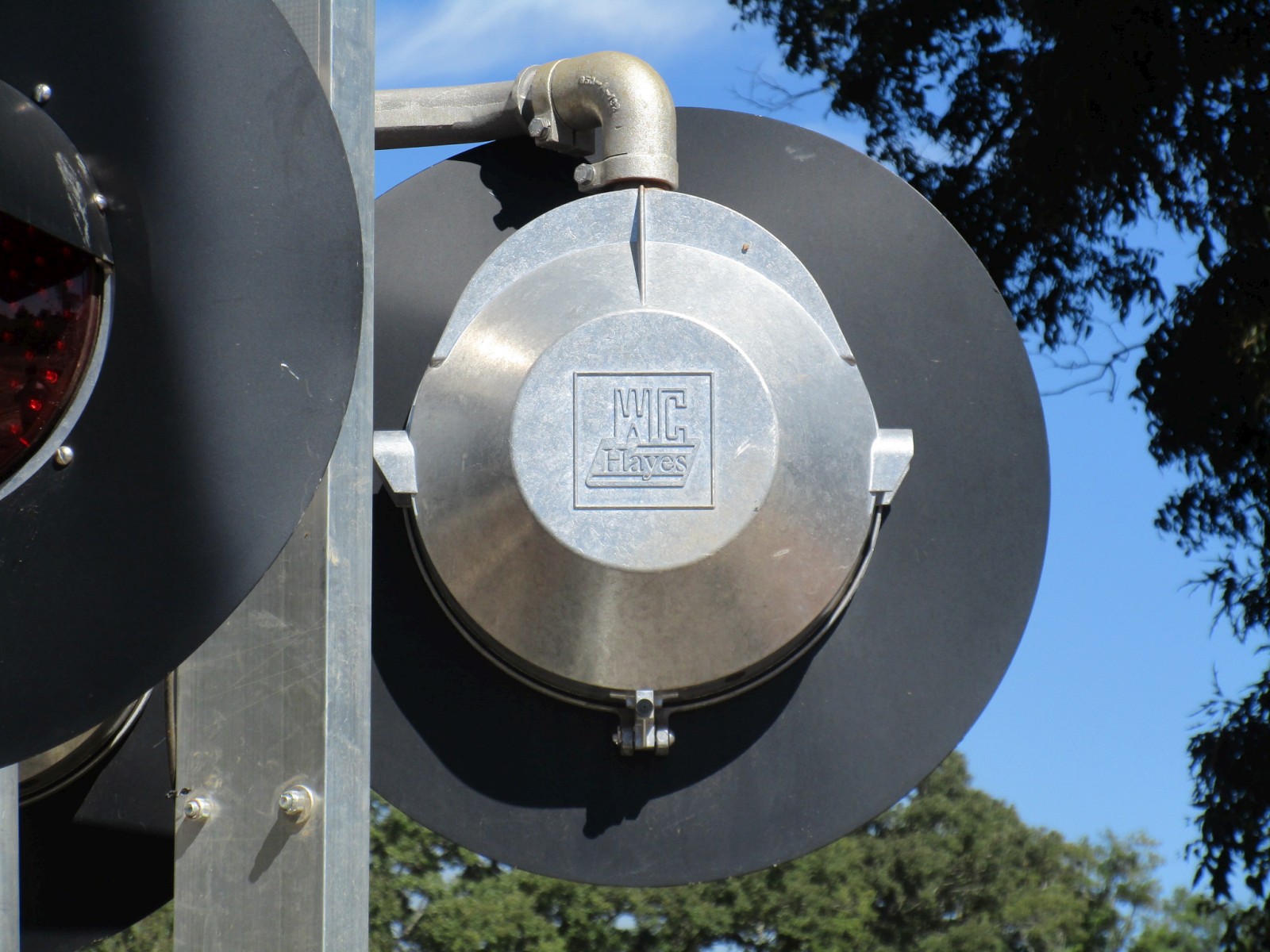

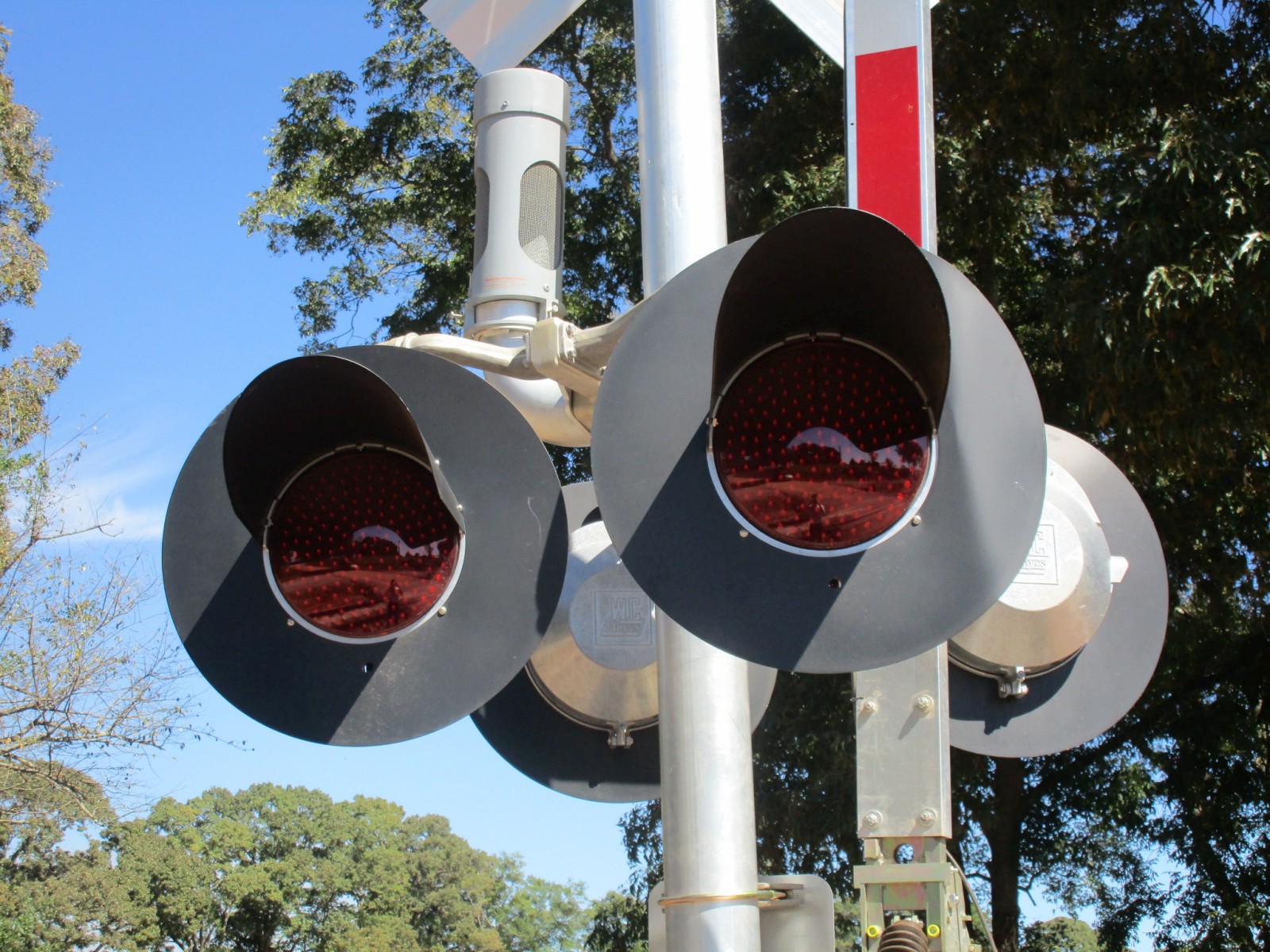

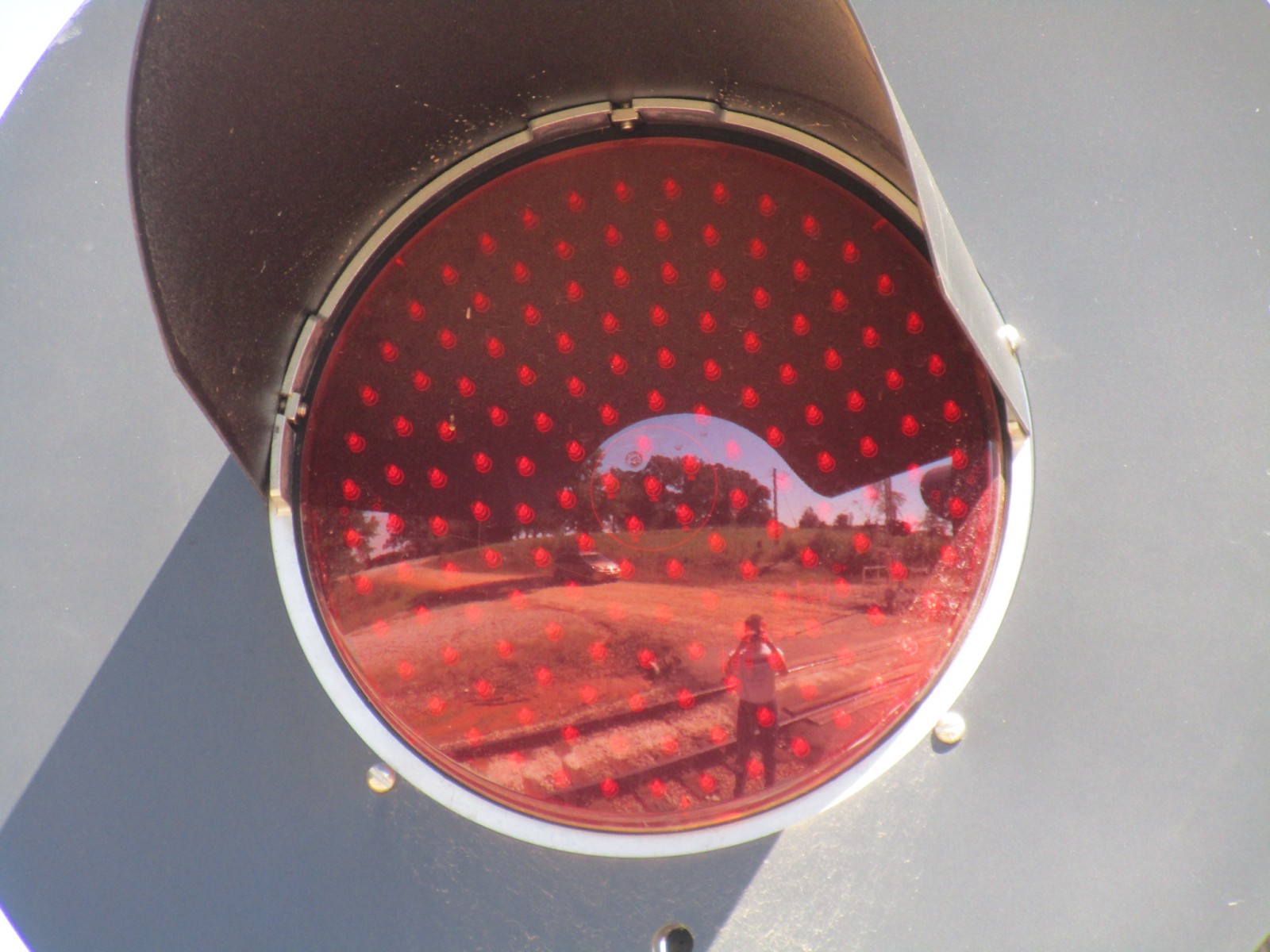

More WCH 12x24 inch lights with Leotek EV Series LEDs over here. |
||
22 |
23 |
24 |

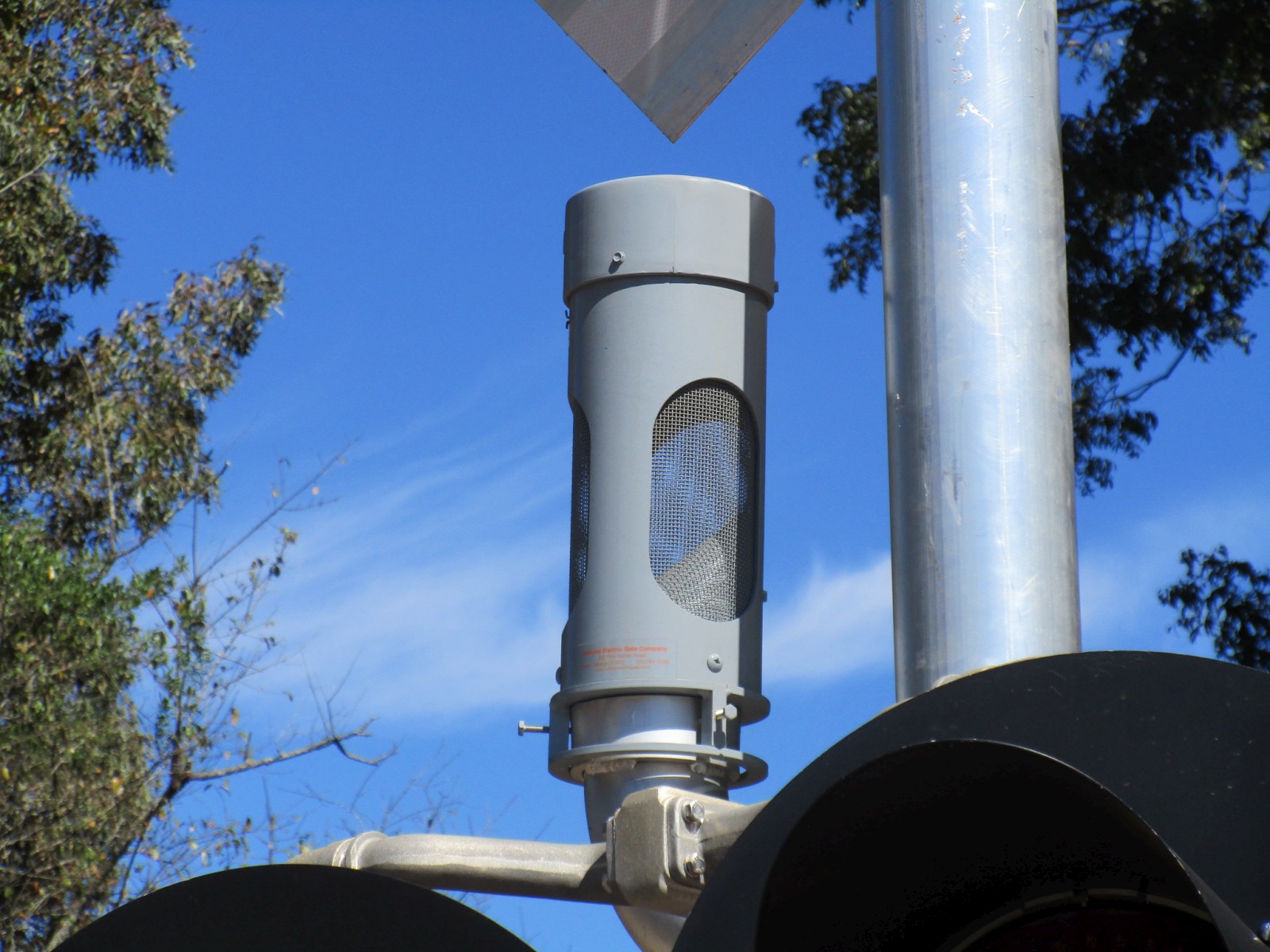

Another NEG e-bell on this signal. |

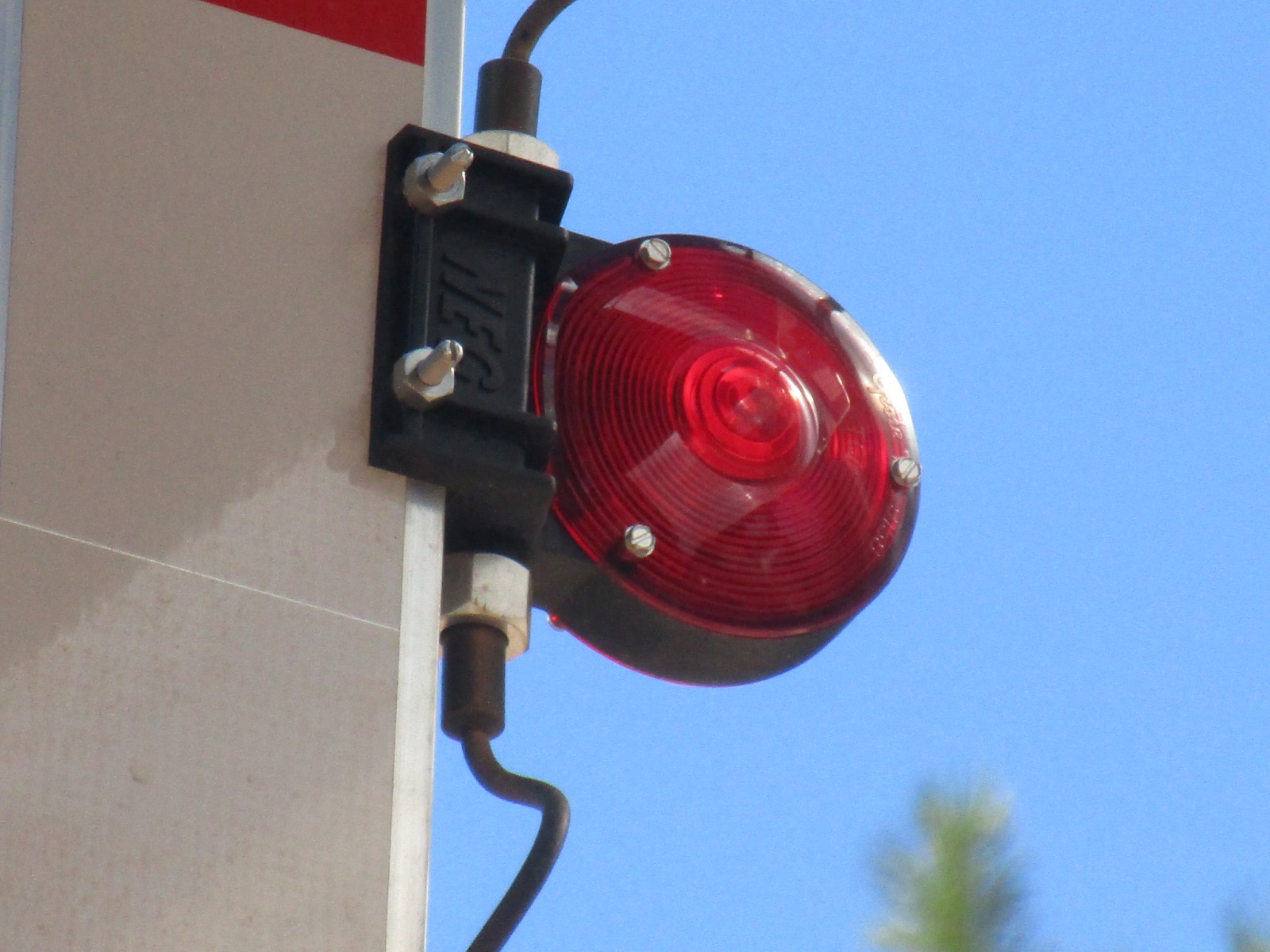

More NEG LED gate lights over here. |
|
25 |
26 |
27 |

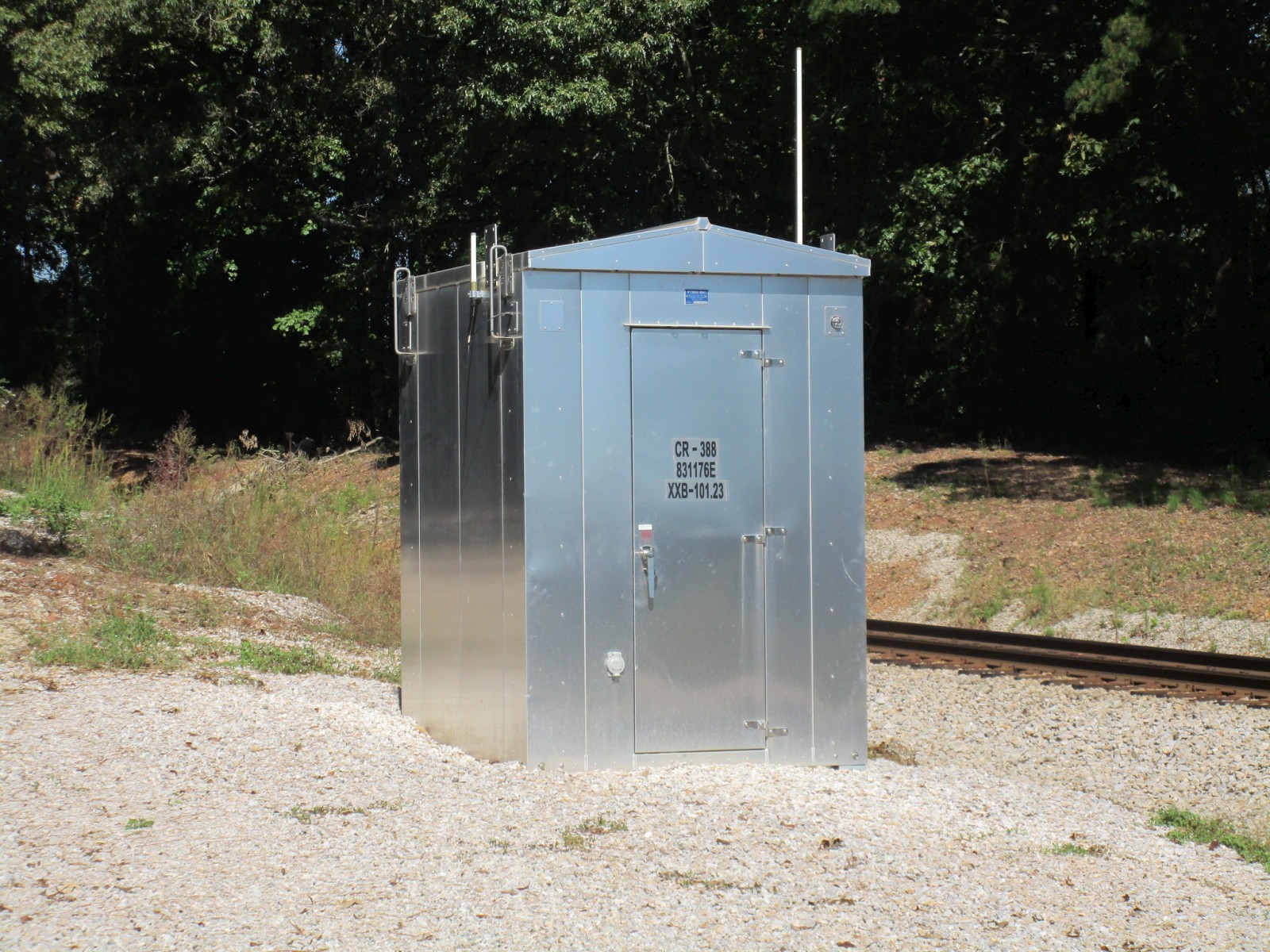

The relay case. |

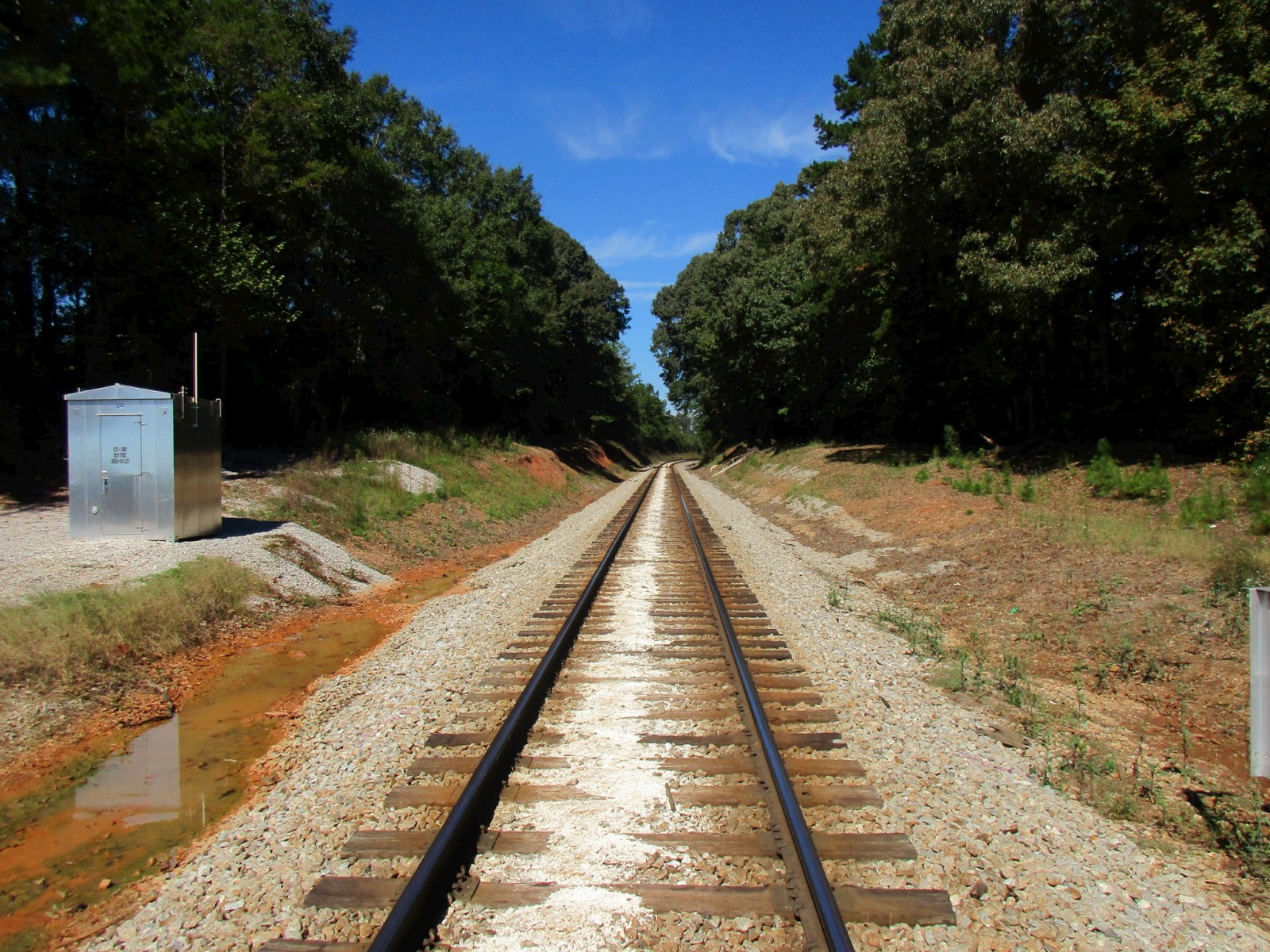

Looking south towards 7th Street in Opelika. |
Looking north towards CR 83. |
28 |
29 |
30 |

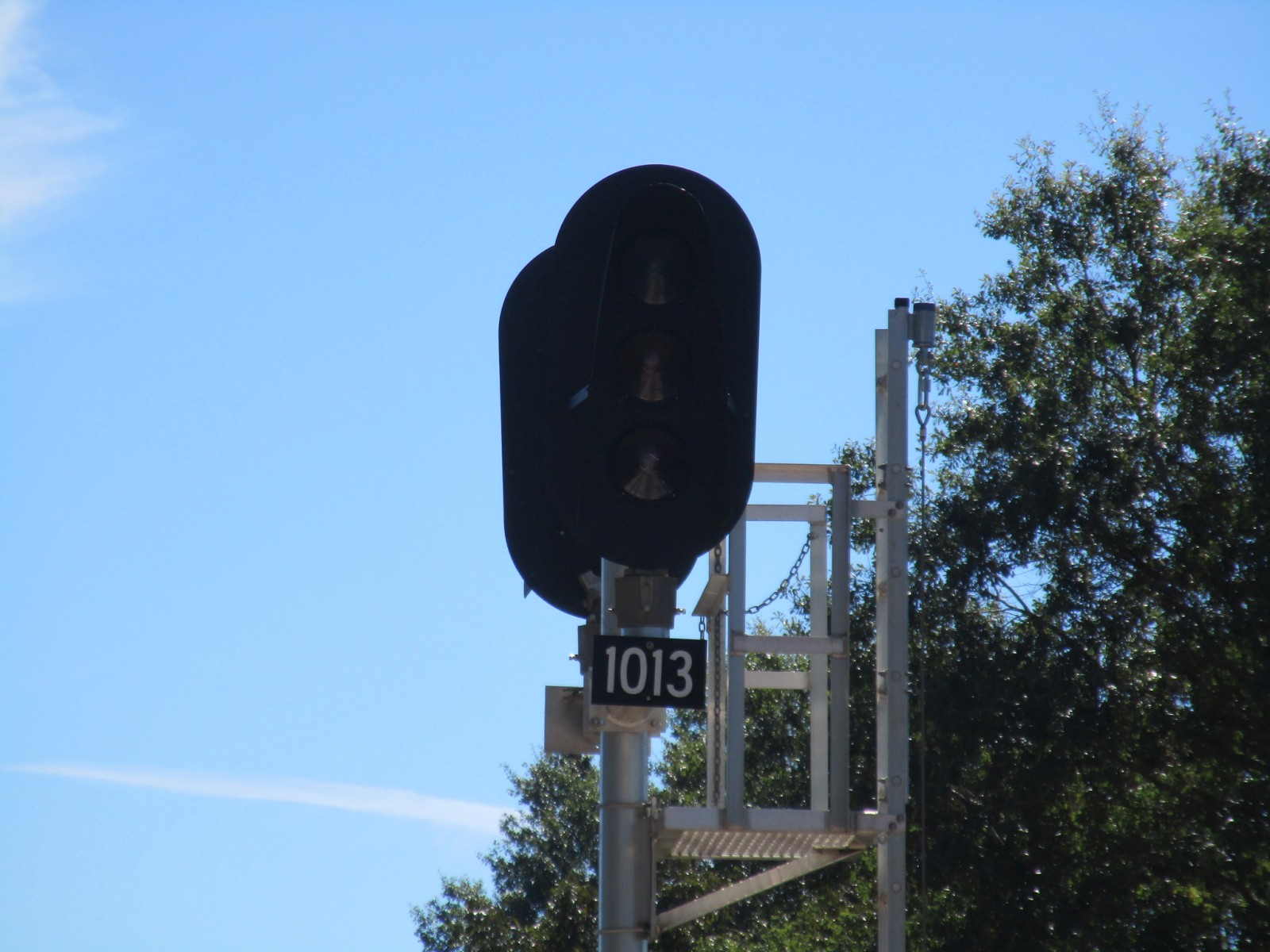

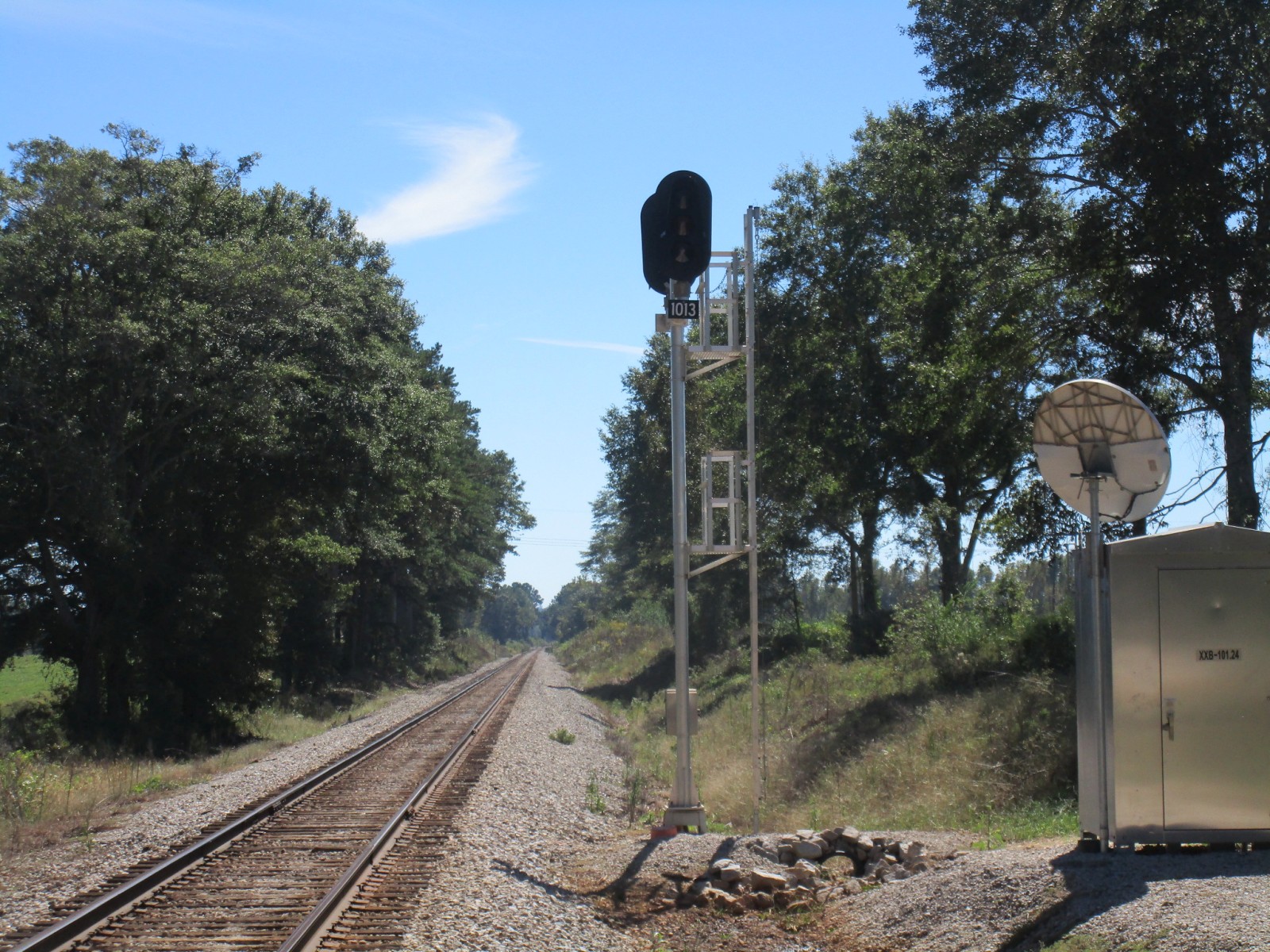

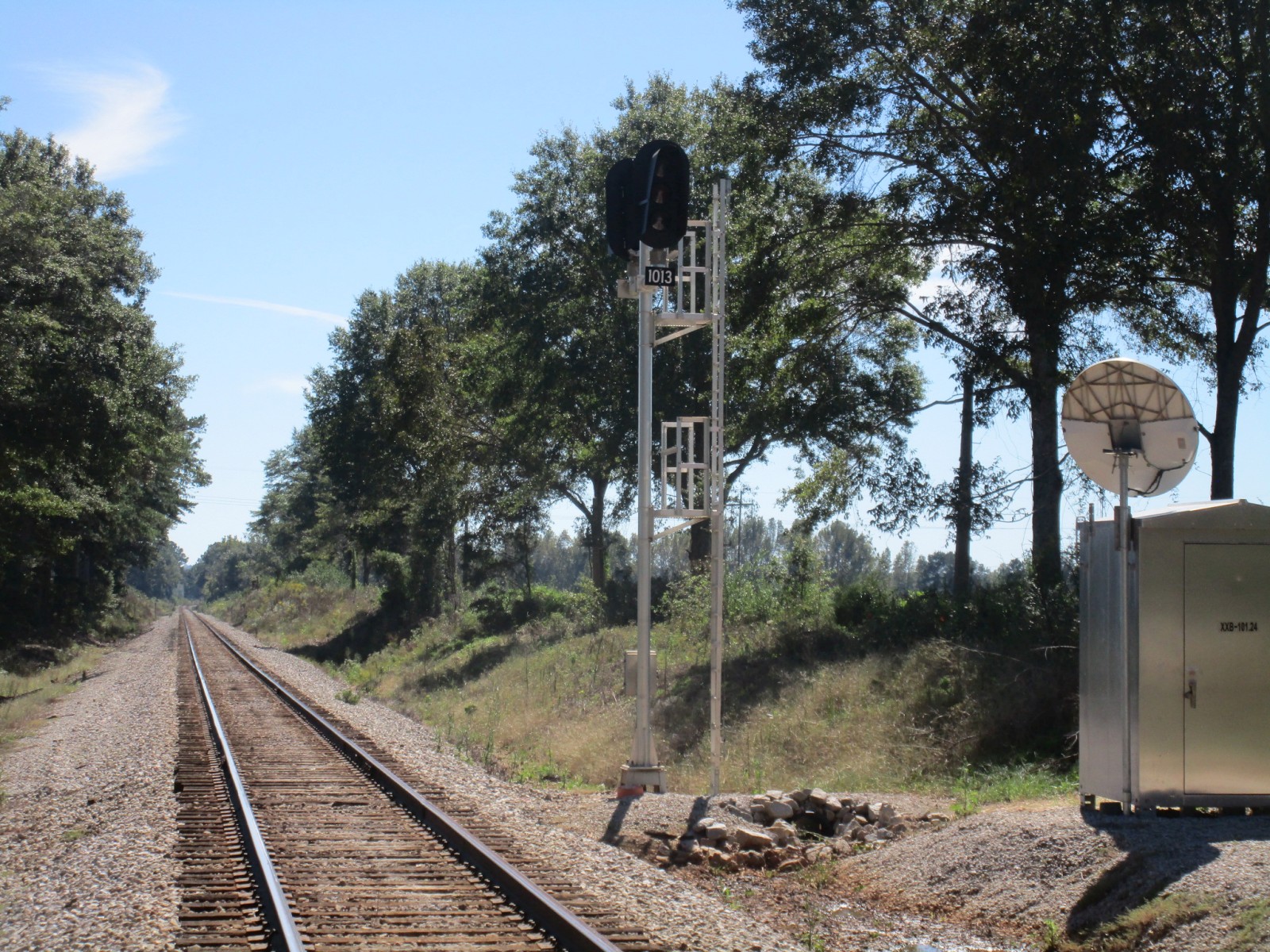

A wayside signal stands next to the crossing. |
||
31 |
32 |

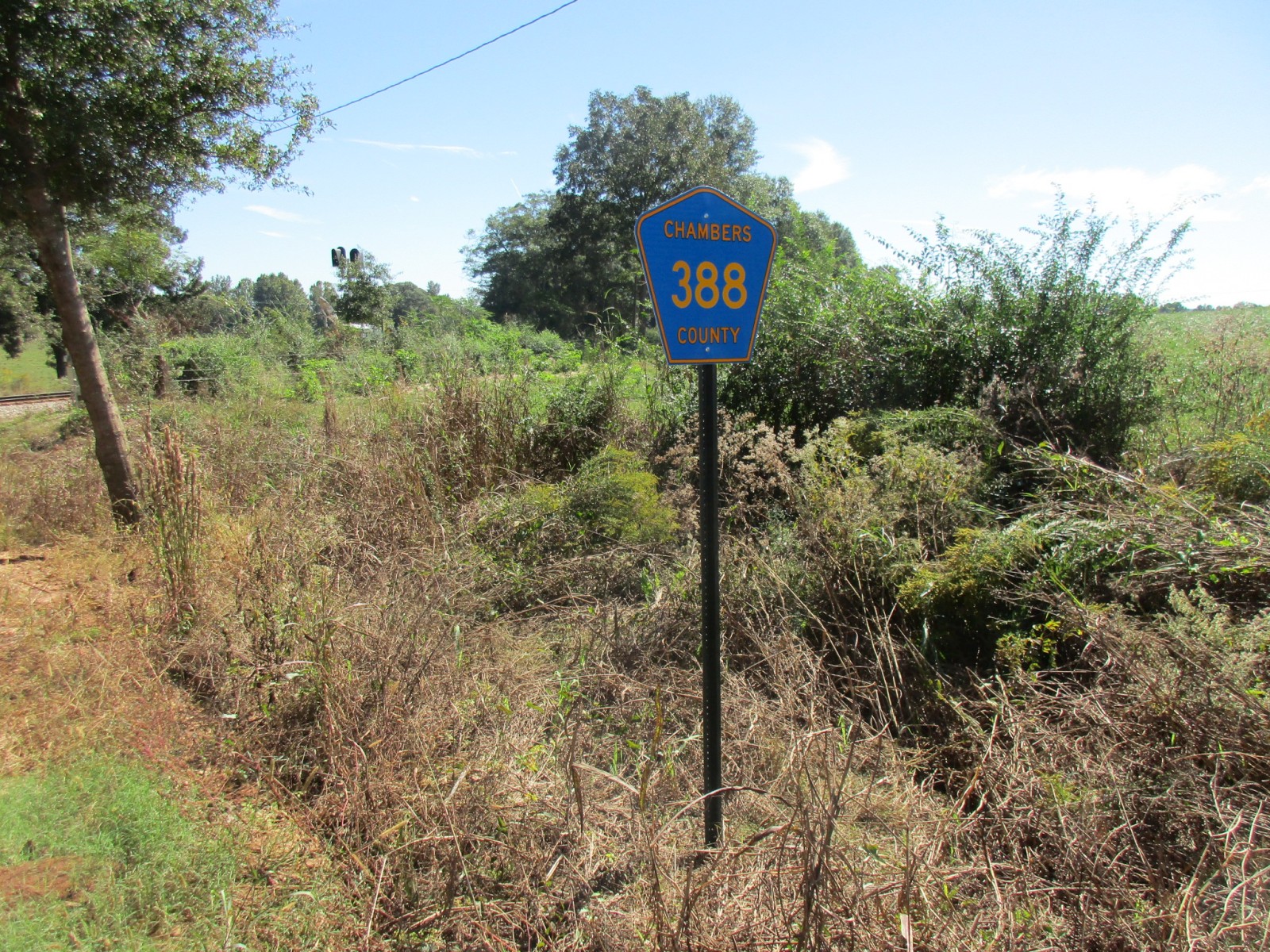

A CR 388 shield stands near the crossing. |
|
All pictures were taken on 10-18-18.
