MP: XXB98.290 |
Updated December 13, 2022
Total Accidents: 2
Crossing
DOT #: 831171V
TOTAL
DAILY TRAINS: 9 (AS OF 2018)
Page created by: freebrickproductions
This crossing is located on the CSX AWP Subdivision.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | Safetran Type 2 electronic | Safetran 2nd Gen mechanical |
| Base: | Safetran | Fabricated Metals |
| Light Frames: | 8 - 12x24" Safetran | 8 - 12x24" WCH w/ Leotek EV Series LEDs |
| Gate Lights: | 2 - RECO LEDs 1 - NEG LED |
1 - RECO LED 2 - NEG LEDs |
| Gate Mechanism: | WCH Style 3 | Siemens Imprinted |
| Gate Striping: | Vertical | Vertical |
1 |
2 |
3 |
4 |

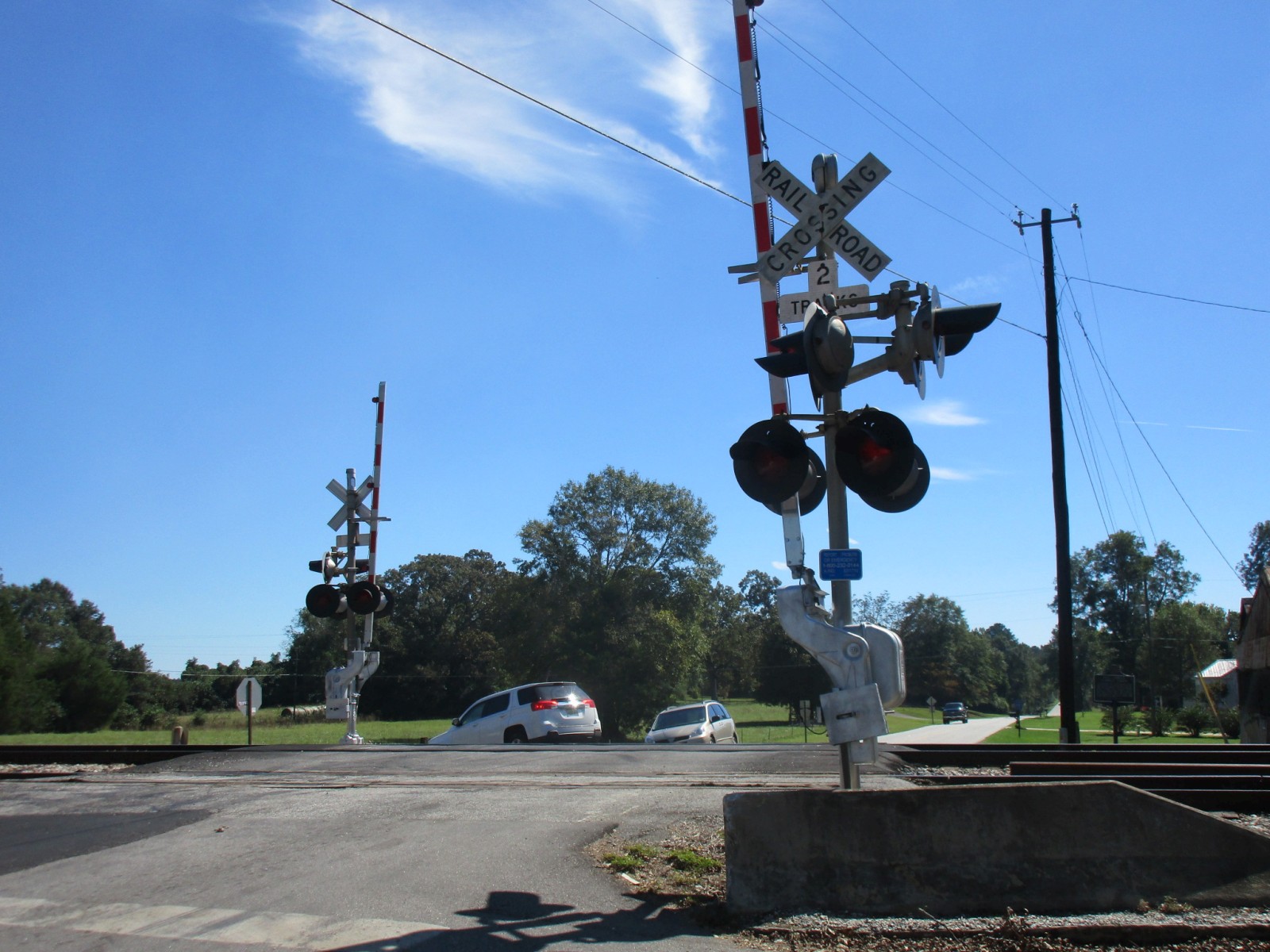

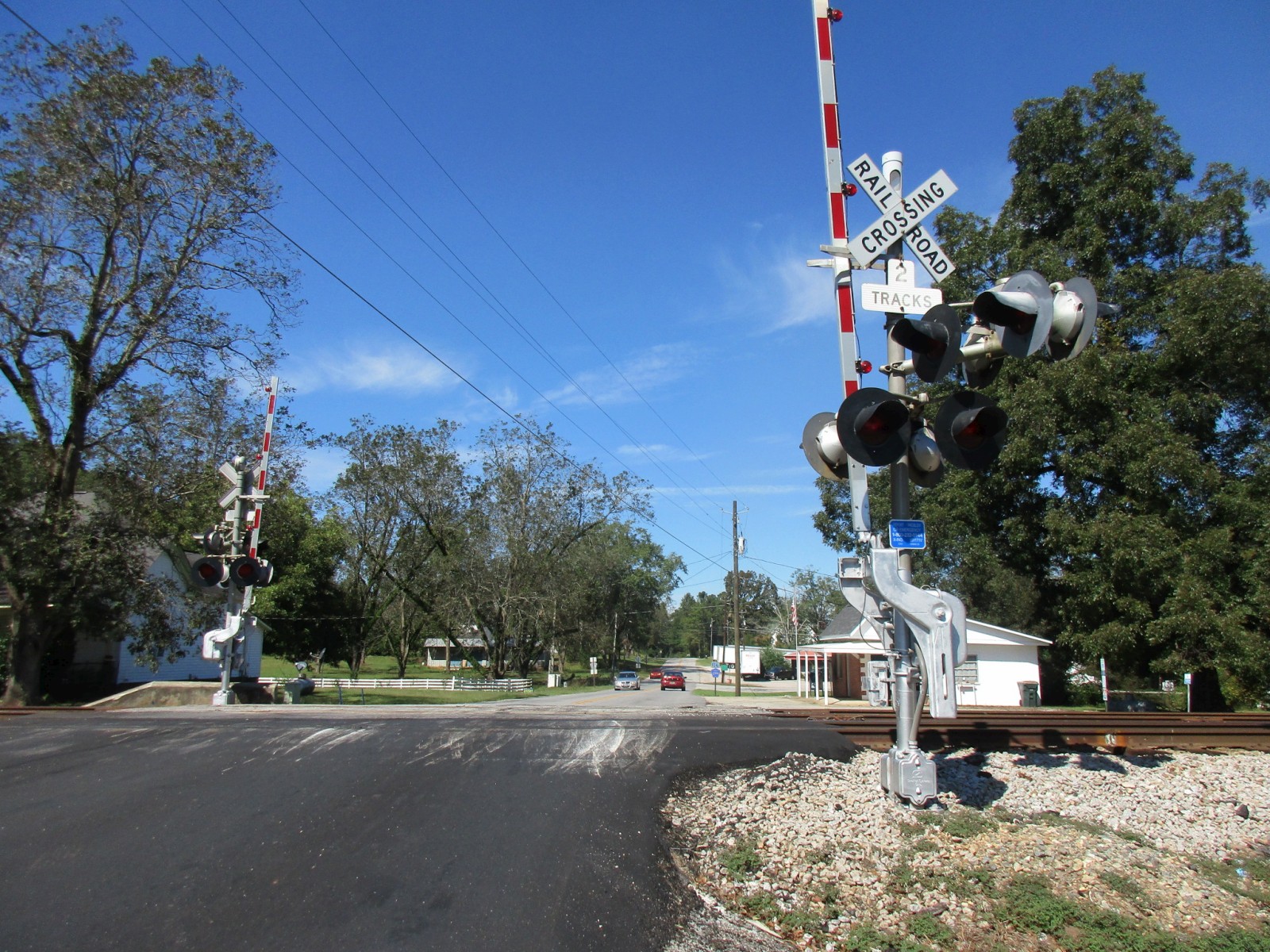

Overviews of the crossing on 10-18-18. |

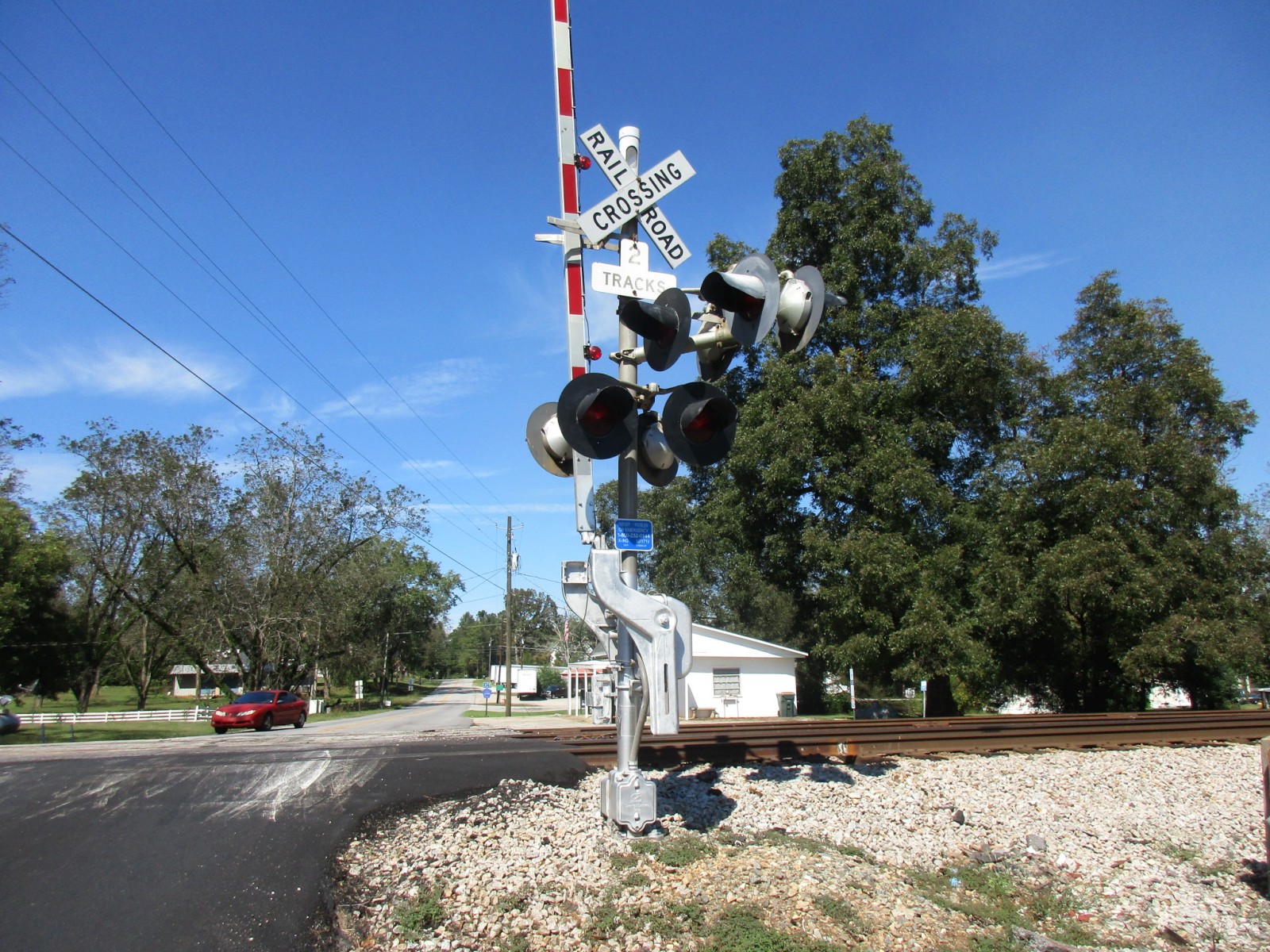

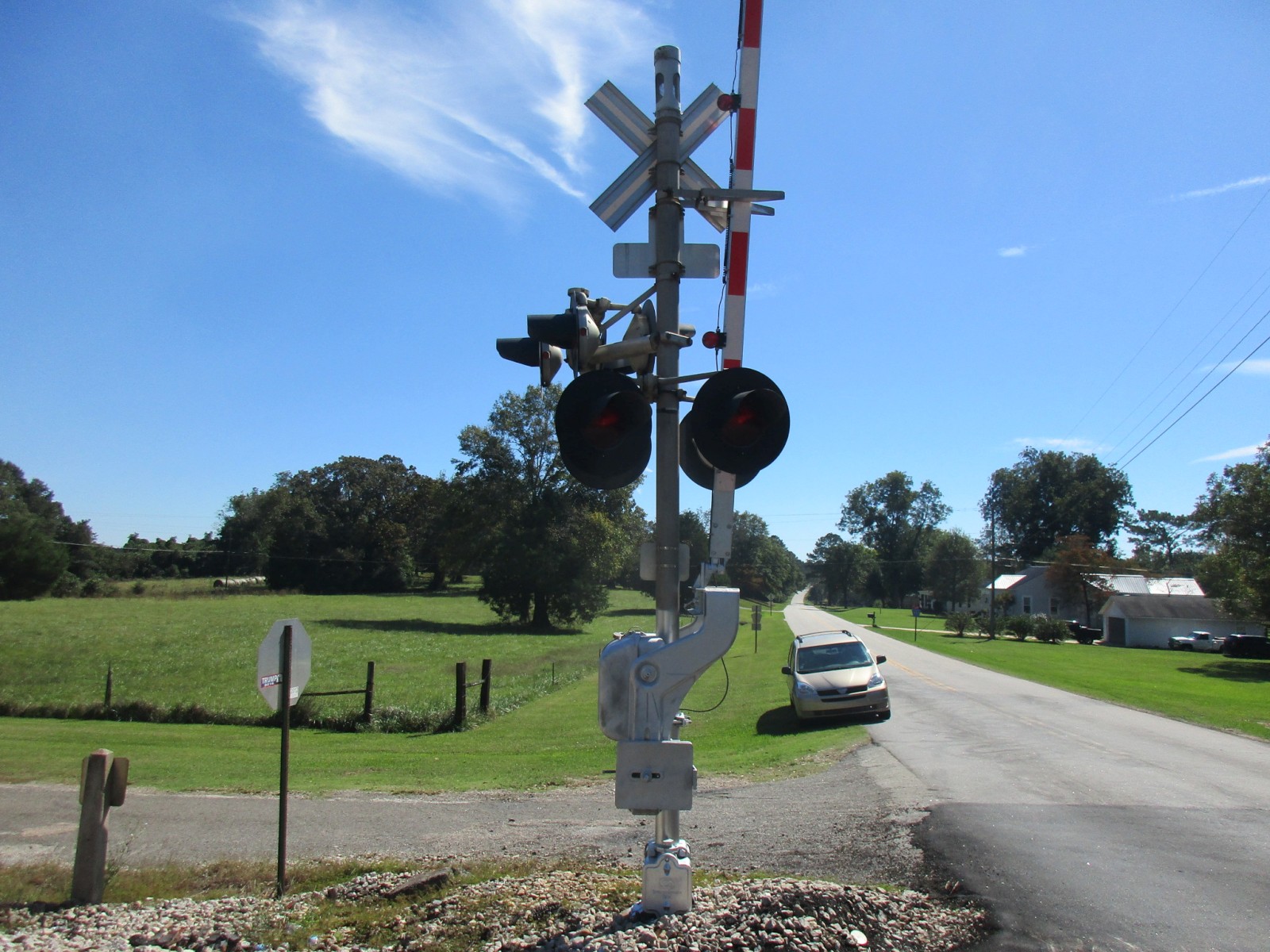

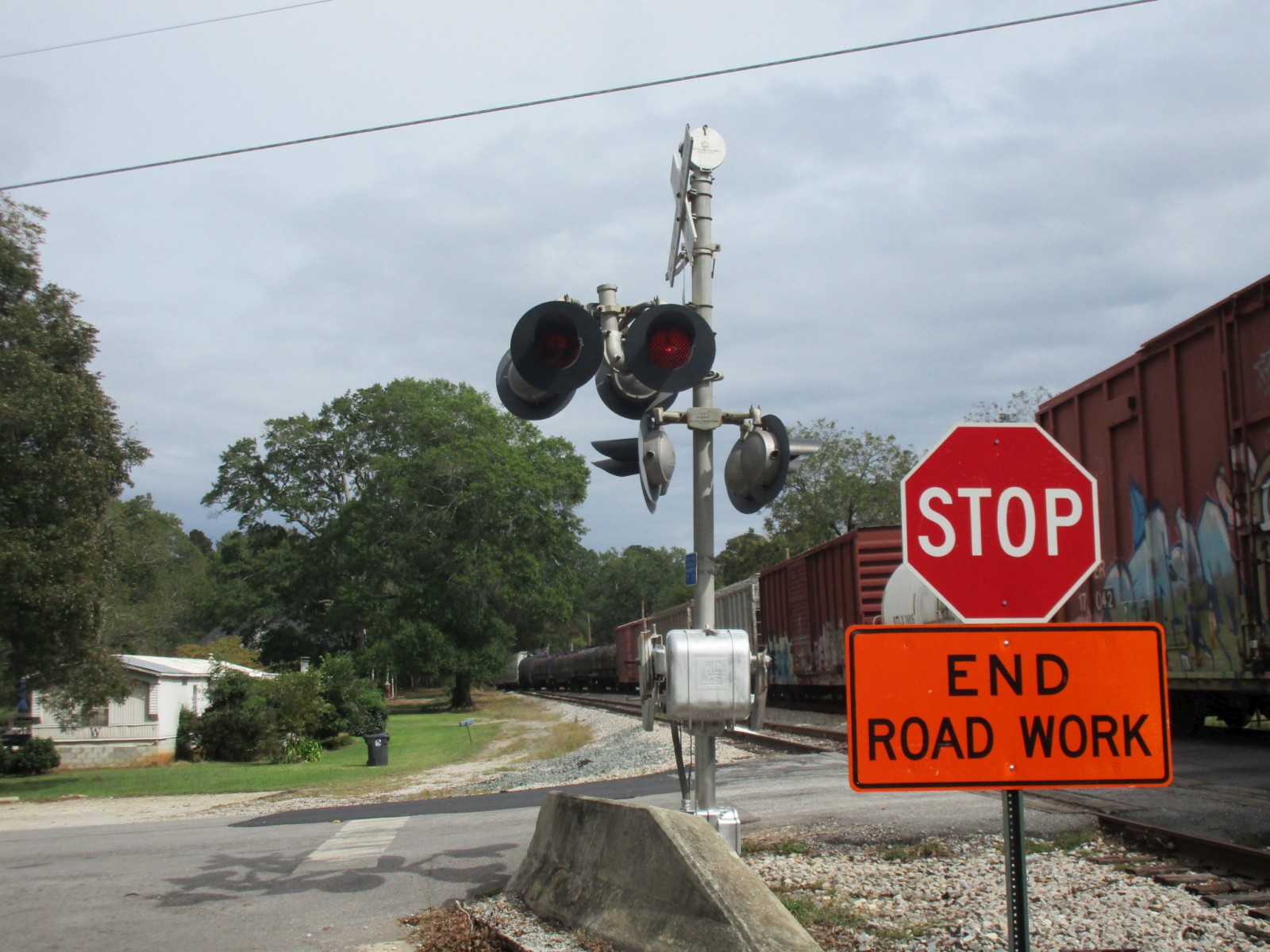

The first signal. |
||
5 |
6 |
7 |
8 |

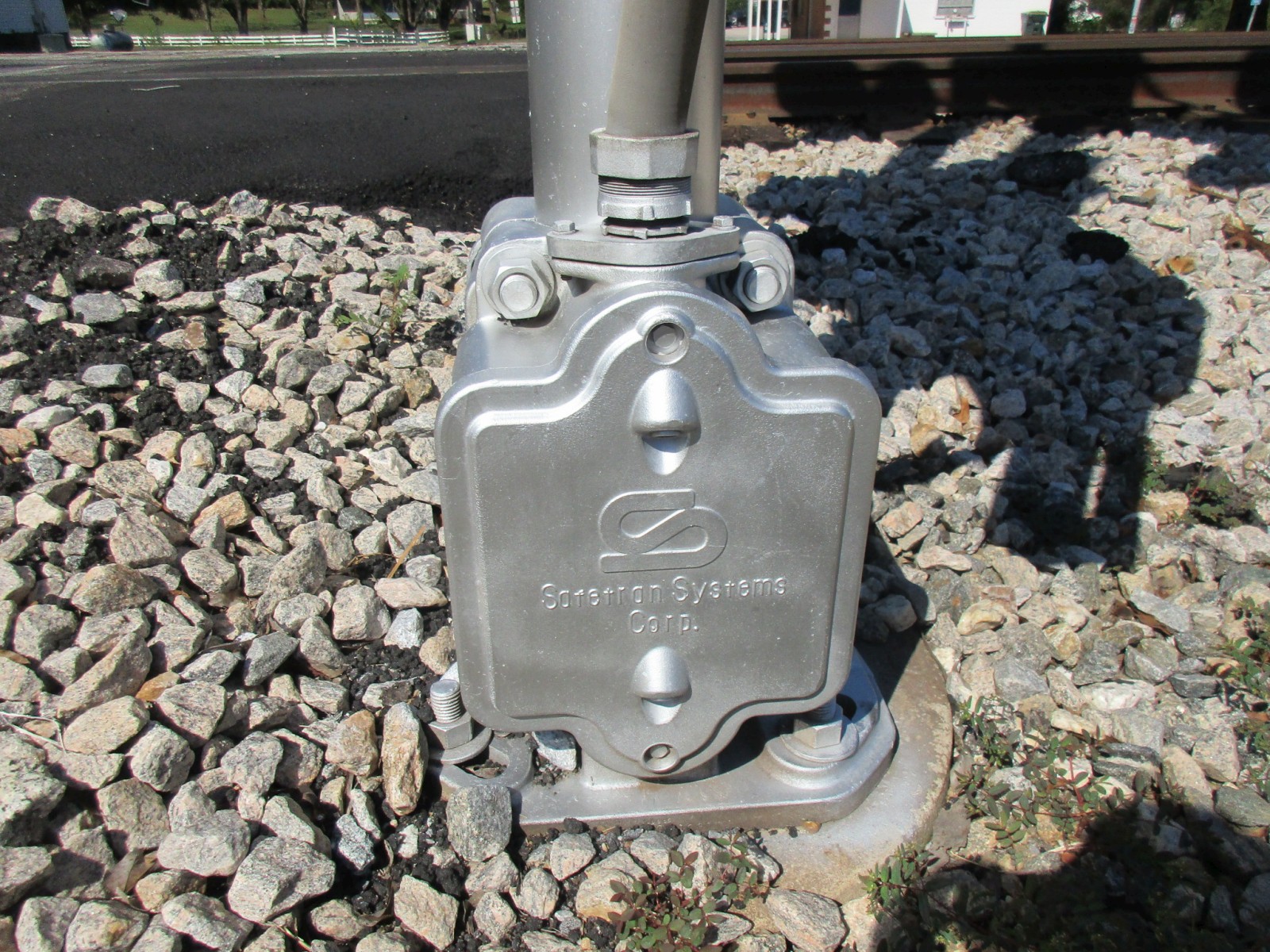

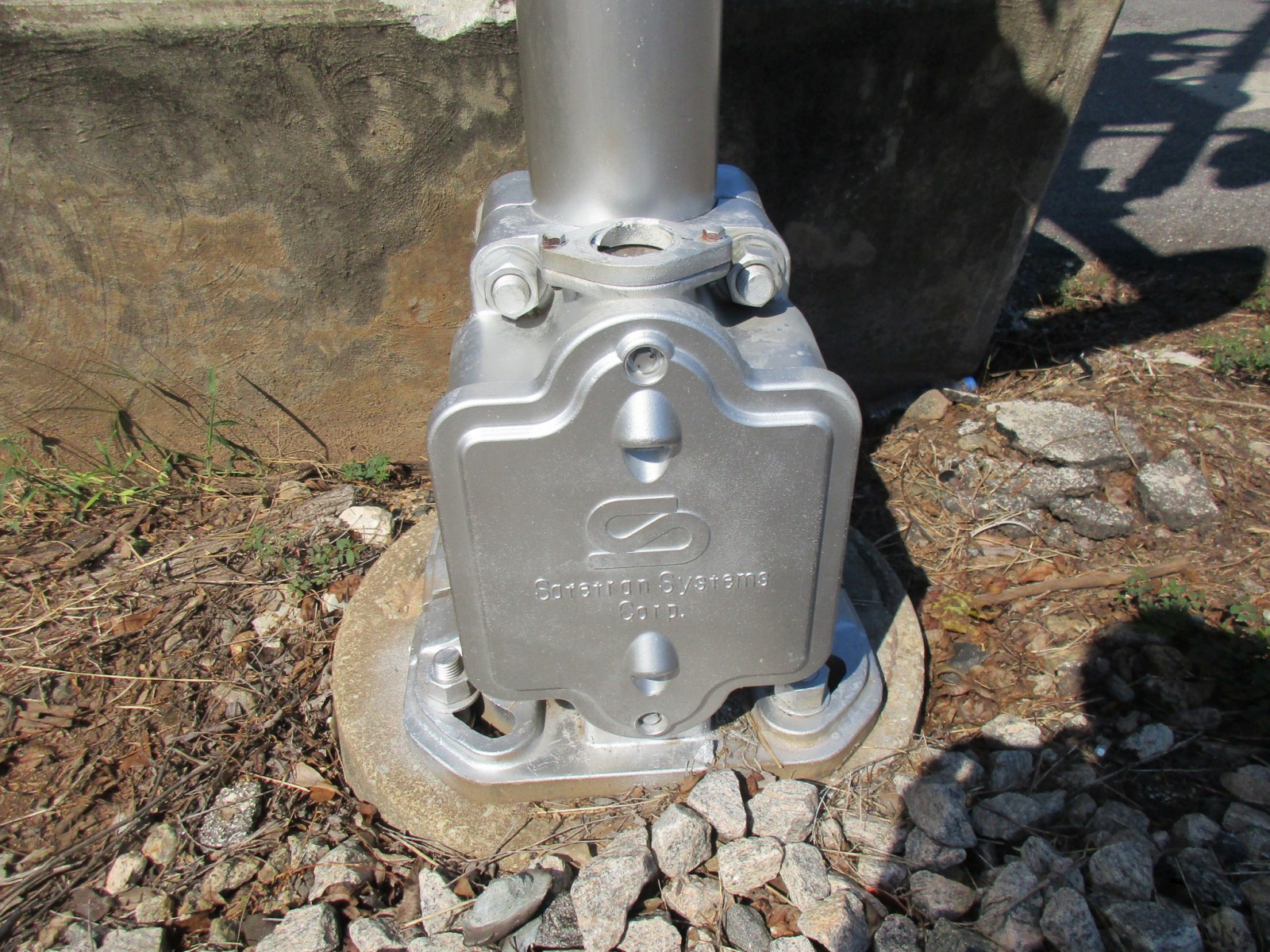

It has a Safetran base. |

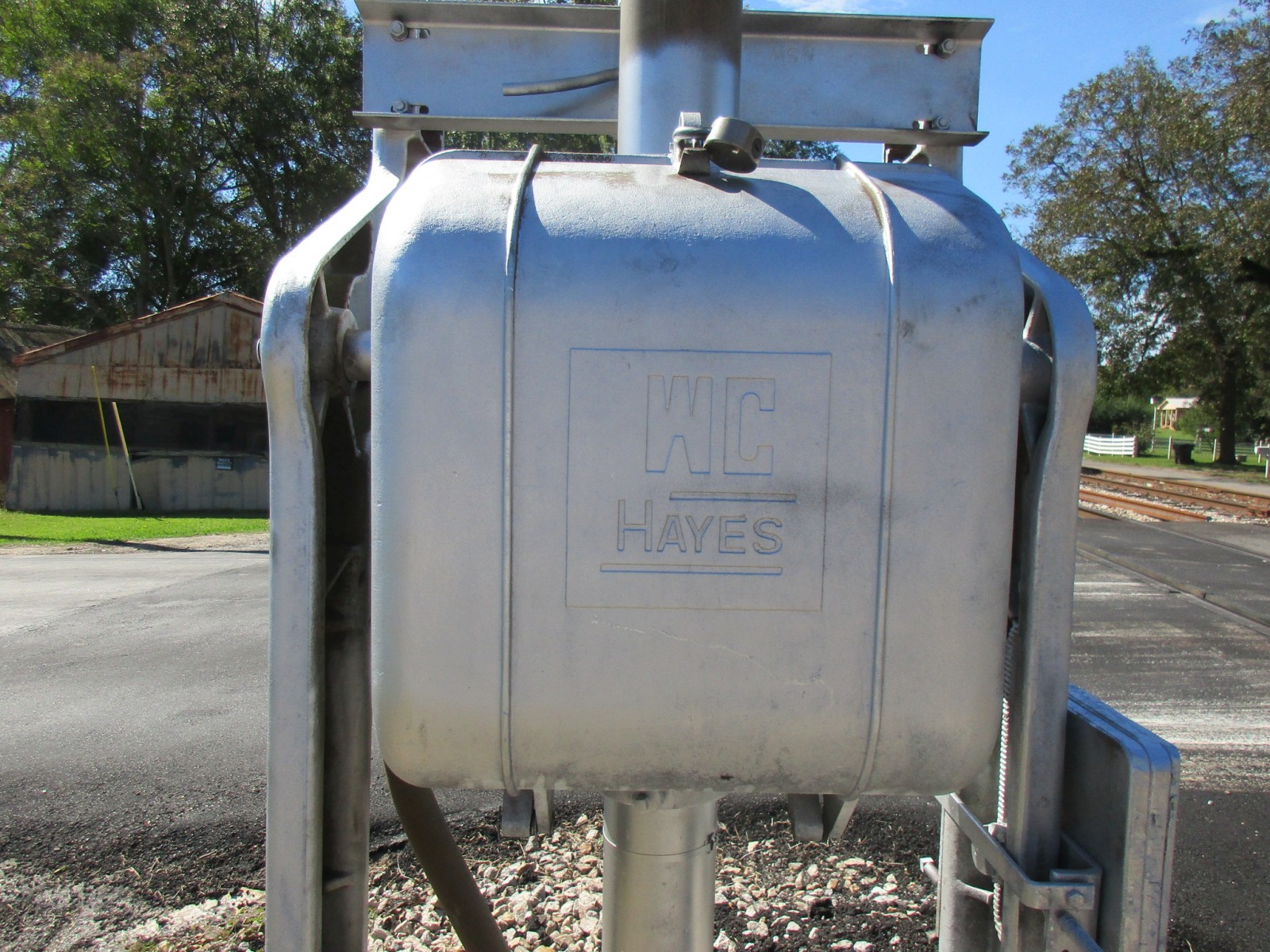

A WCH gate mechanism! |

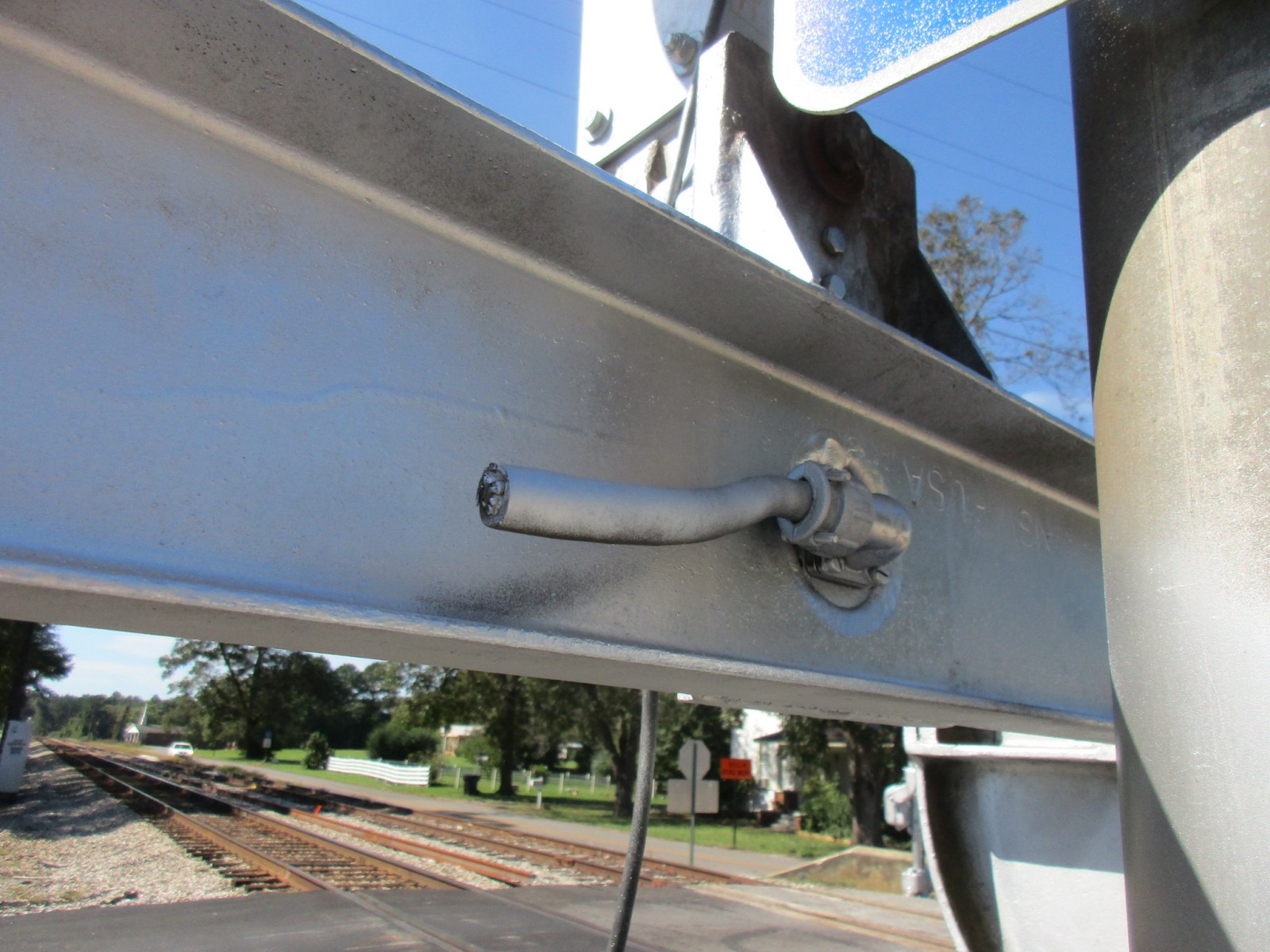

This appears to be where the gate lights were originally wired through! |

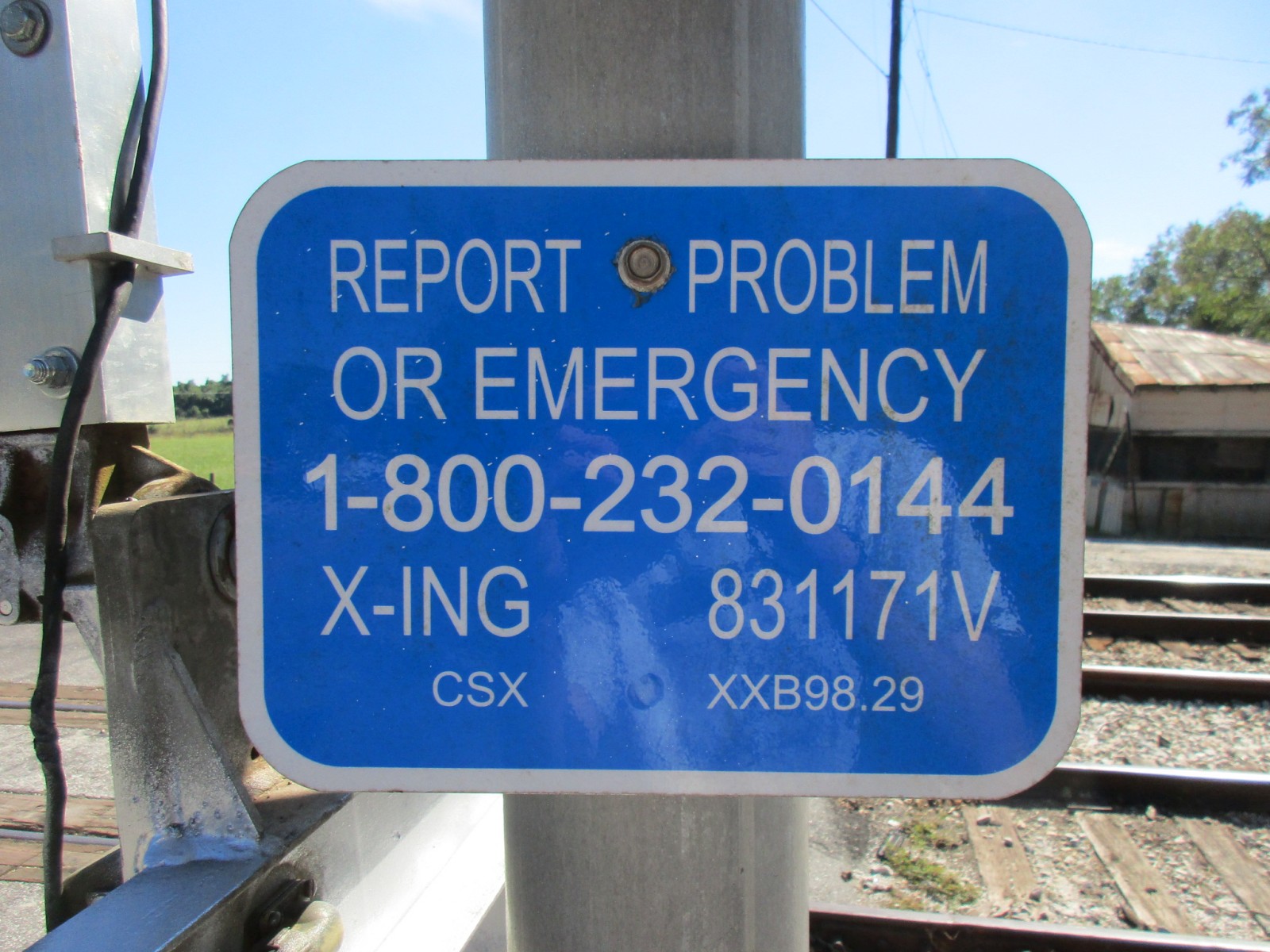

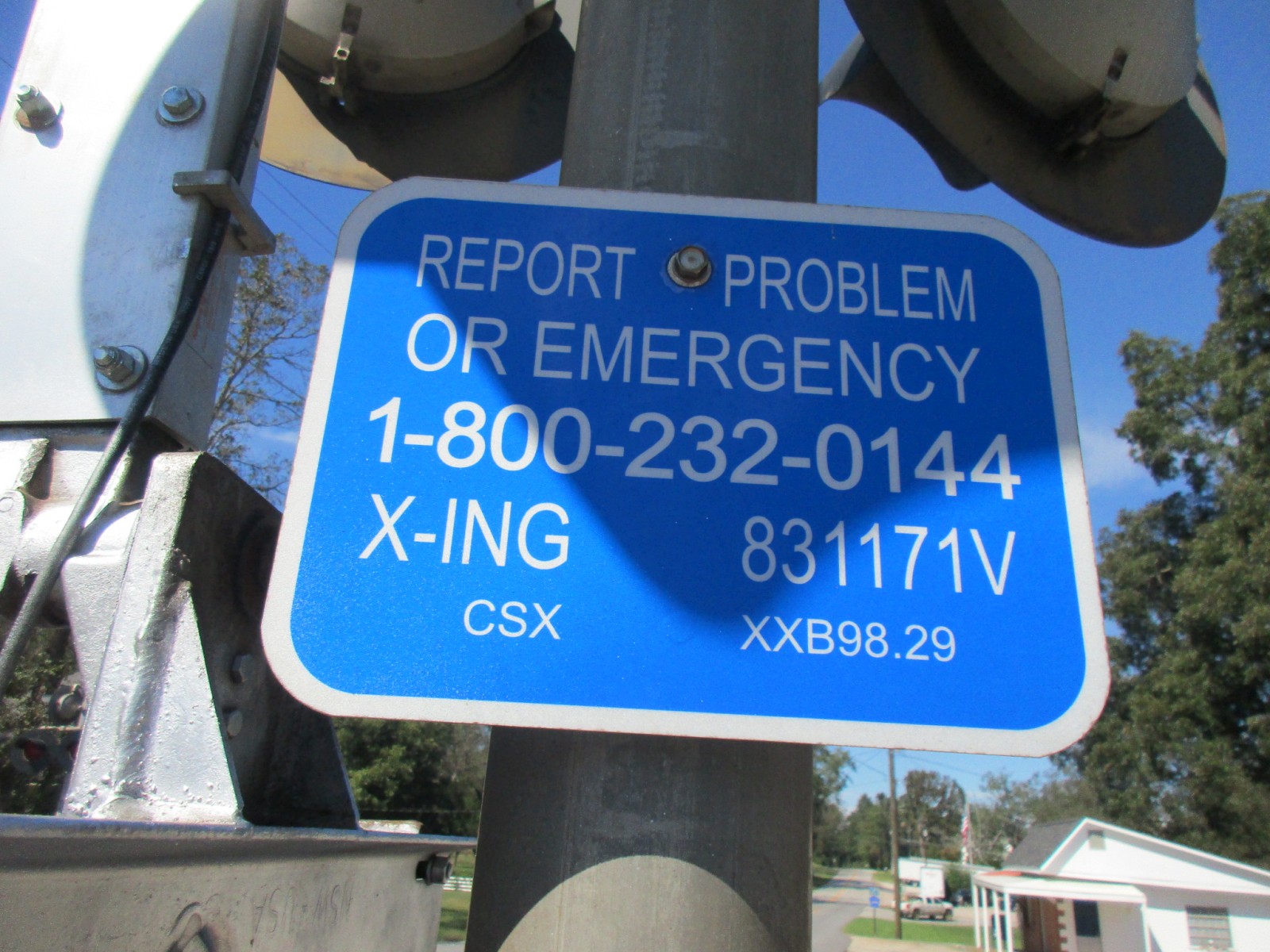

The emergency information. |
9 |
10 |
11 |
12 |

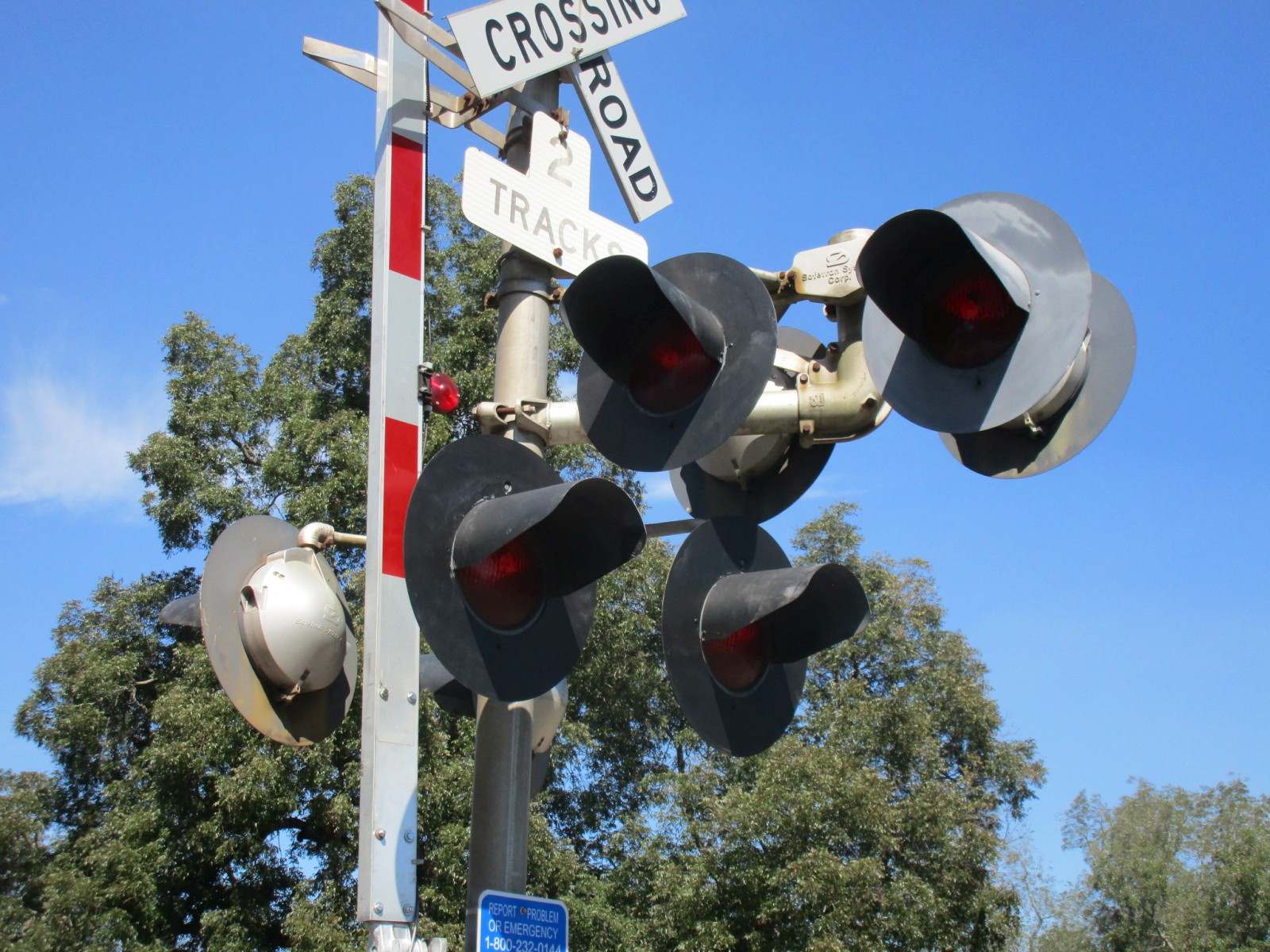

This signal has all Safetran 12x24 inch lights. |

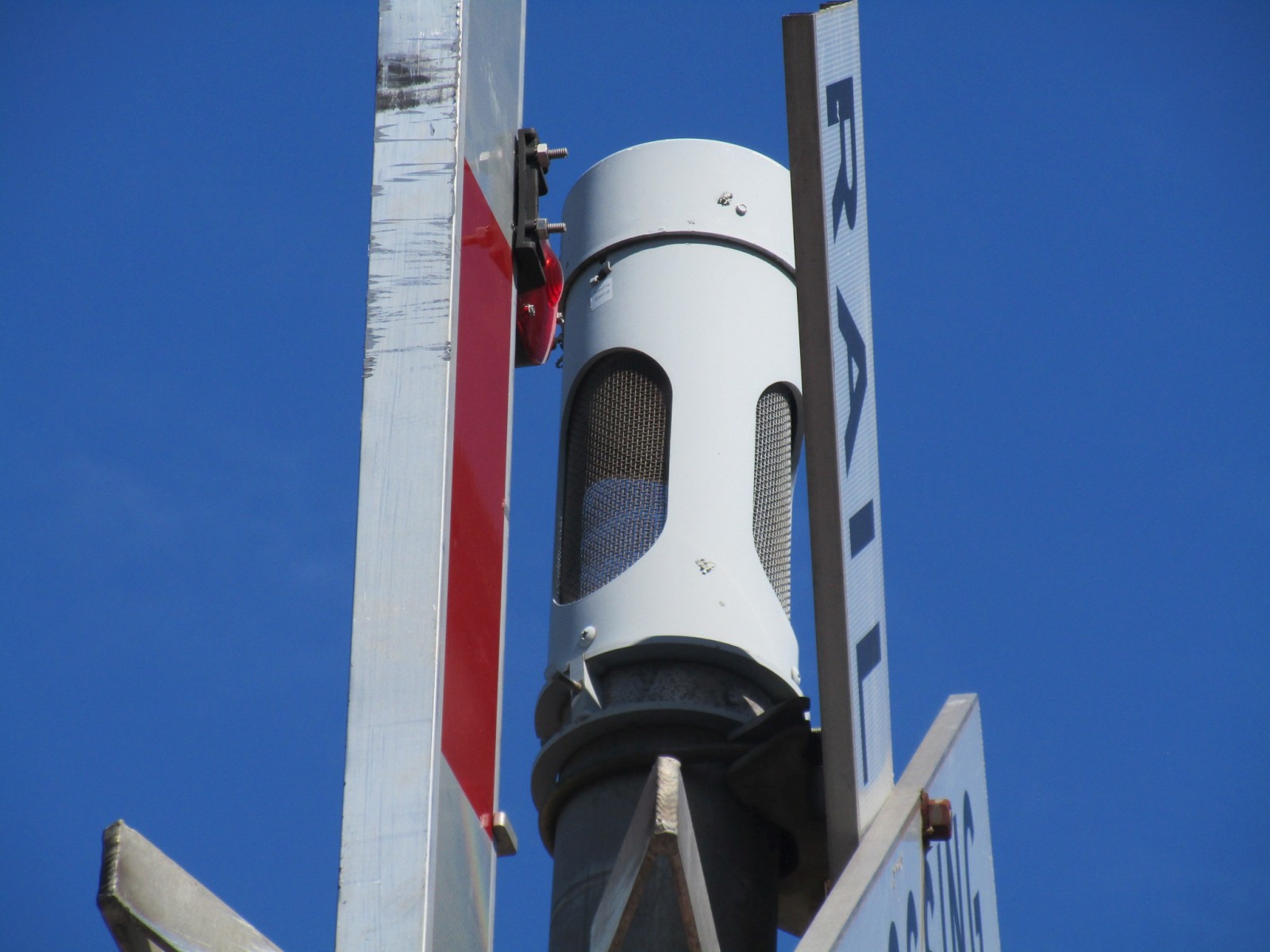

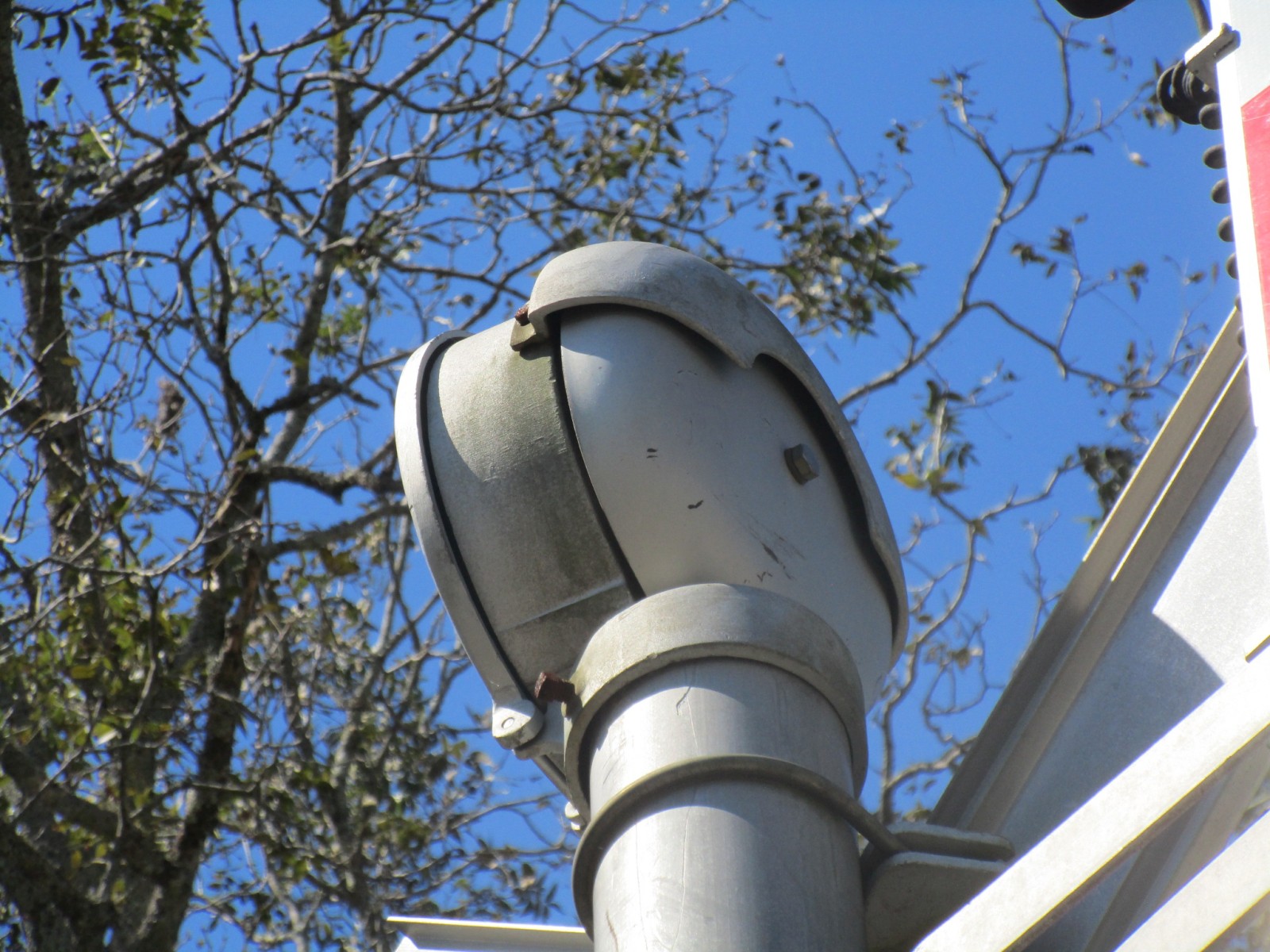

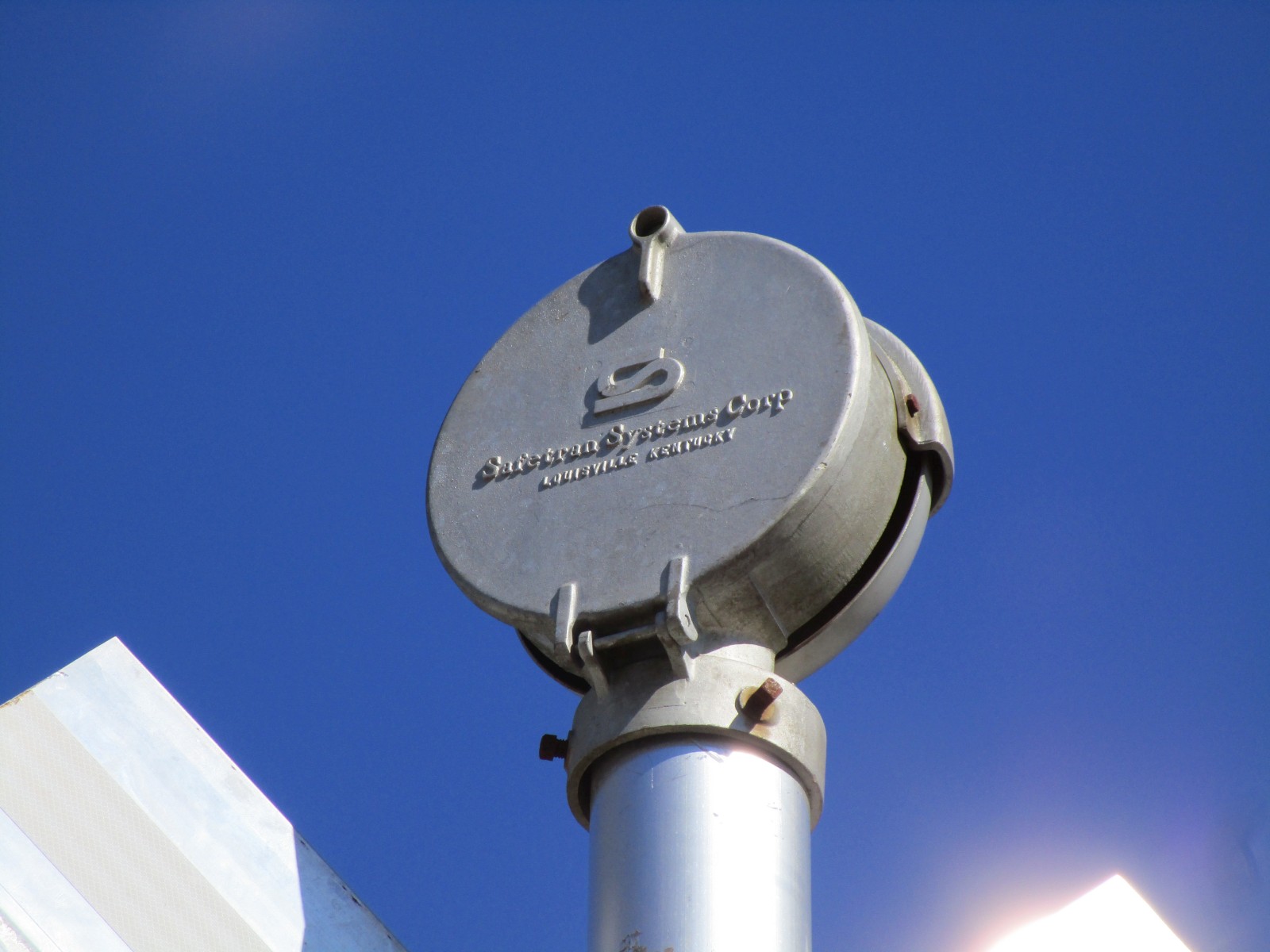

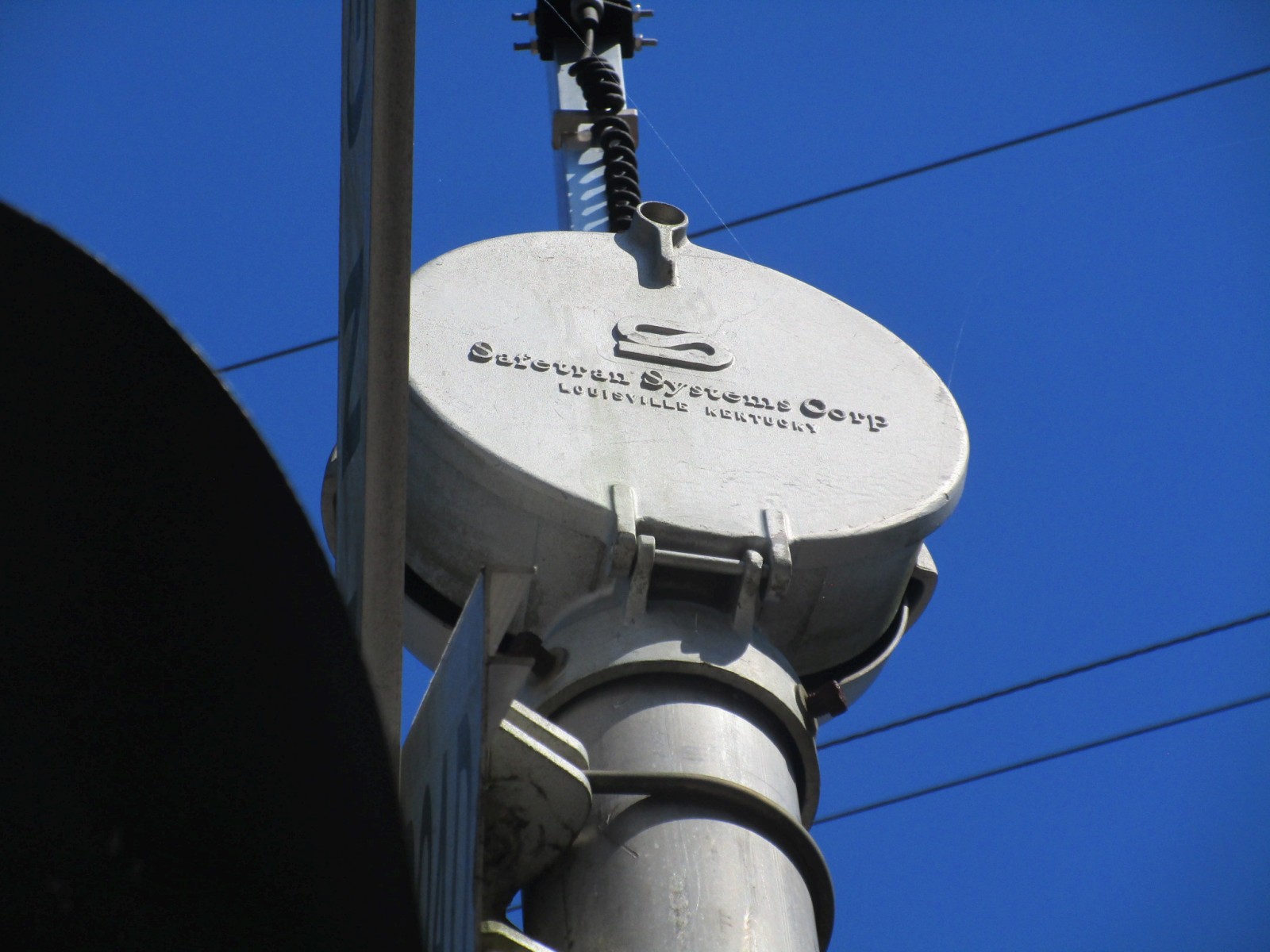

A Safetran Type 2 electronic bell is on top of this signal. |

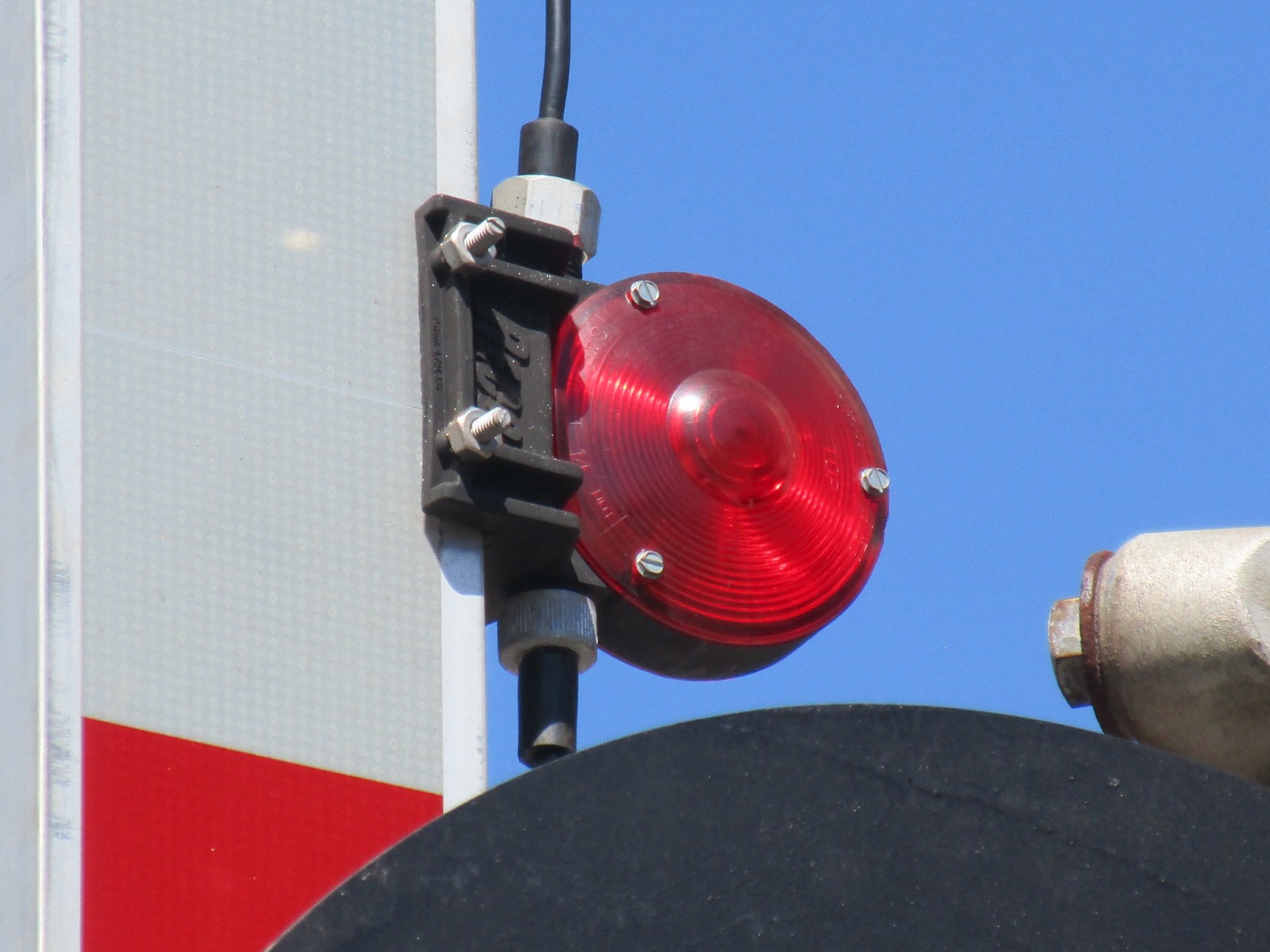

This signal uses RECO LED gate lights. |
|
13 |
14 |
15 |
16 |

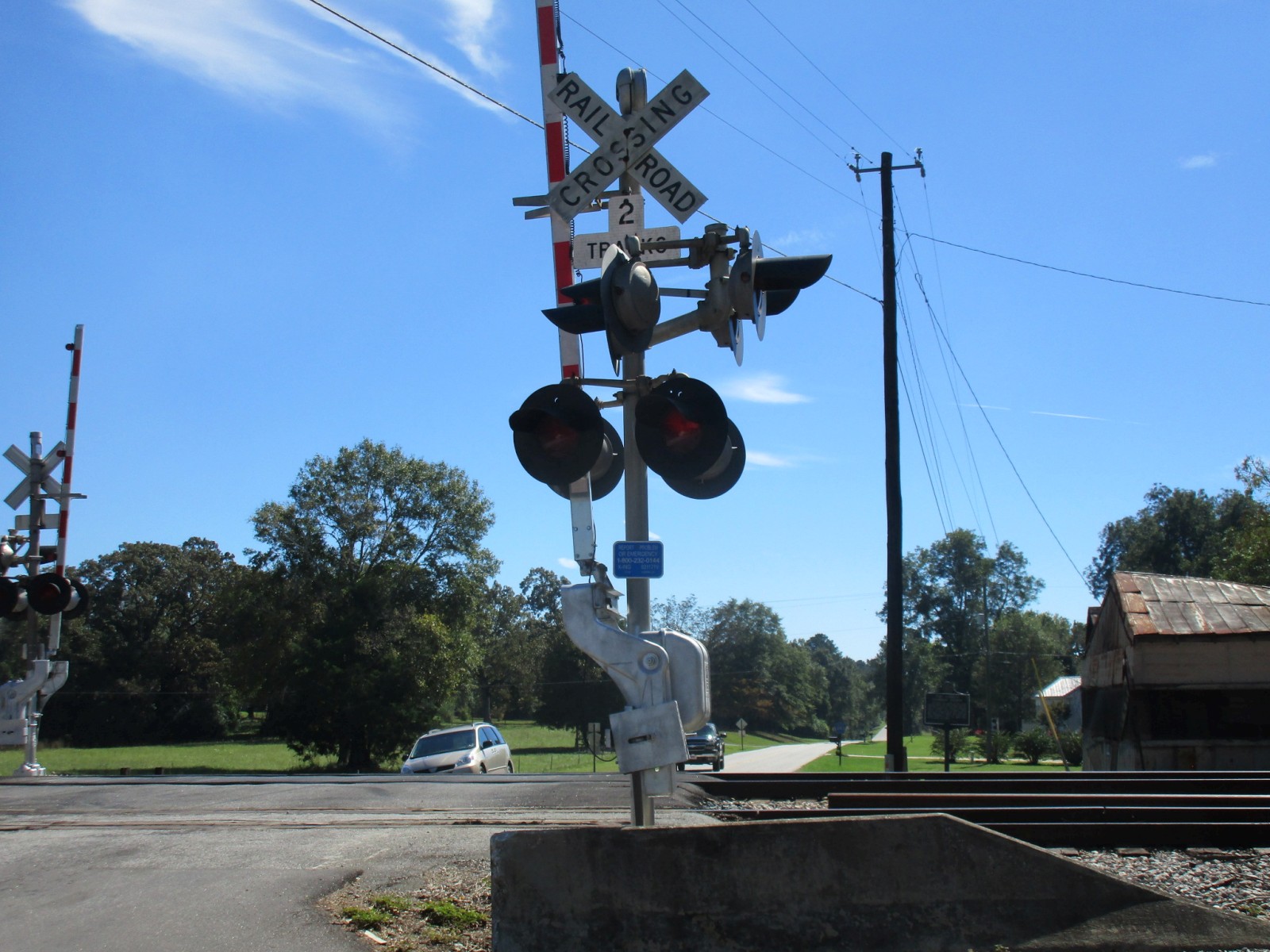

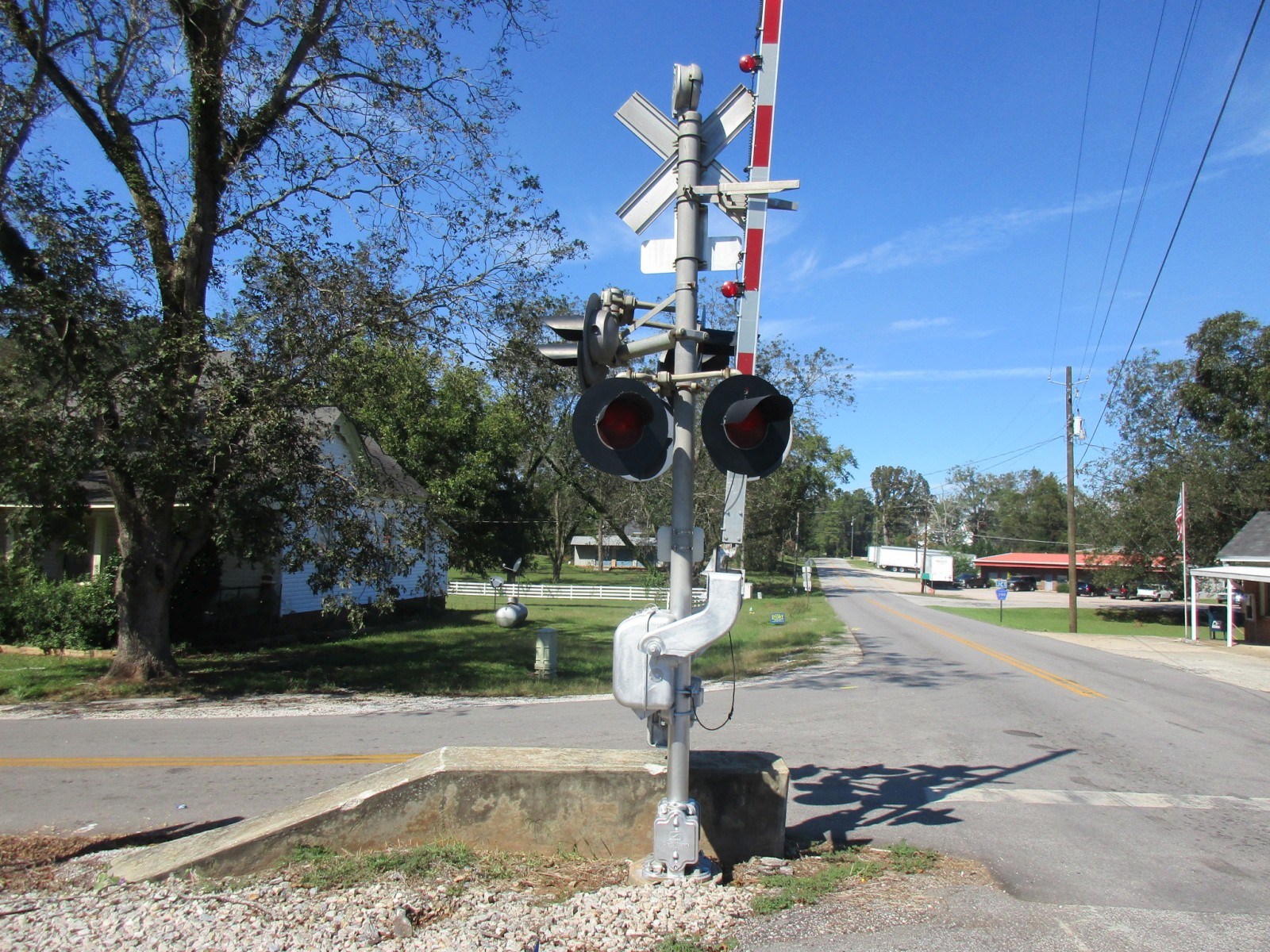

The second signal. |
It has another Safetran base. |

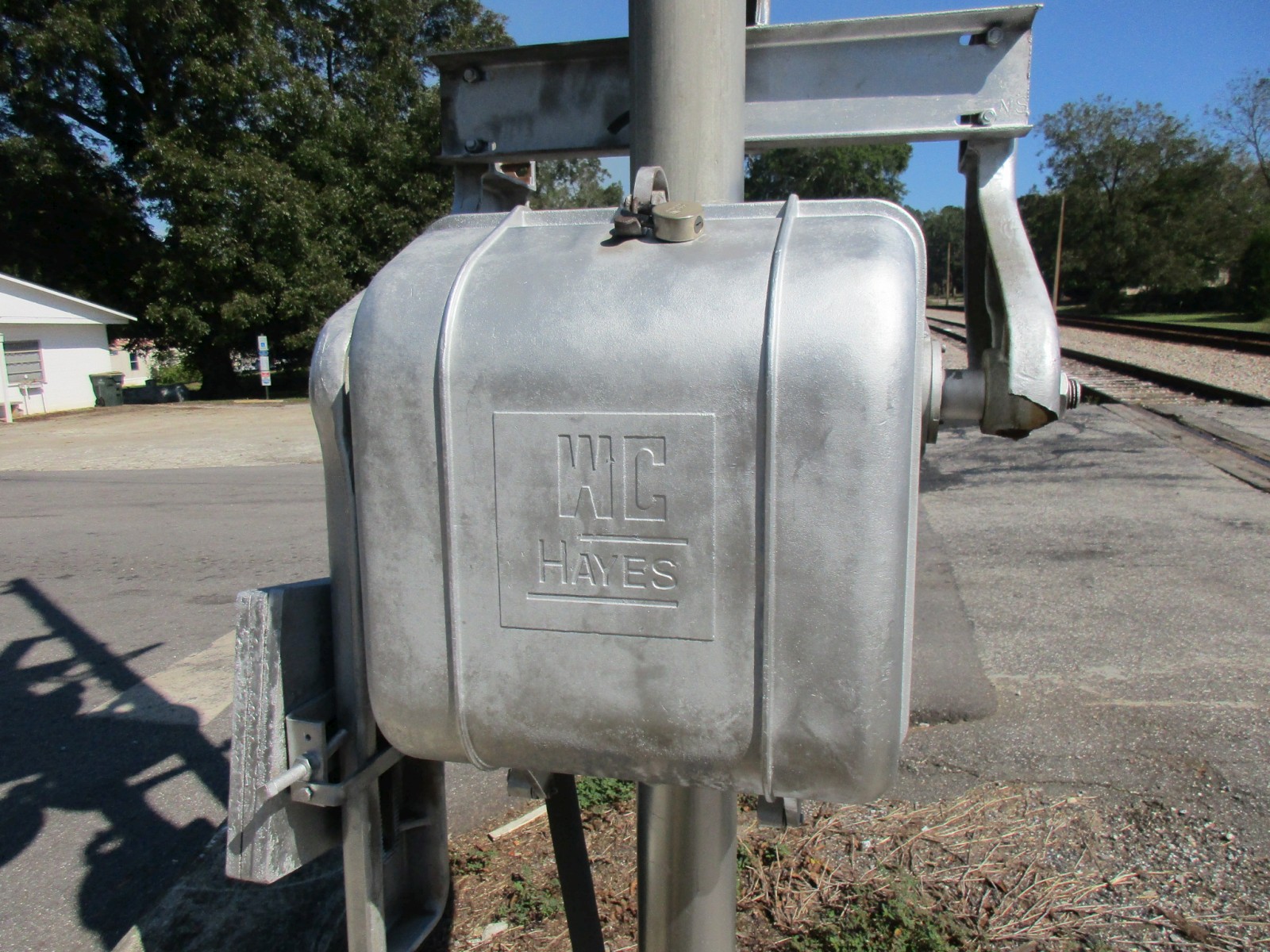

Another WCH gate mechanism! |
|
17 |
18 |
19 |
20 |

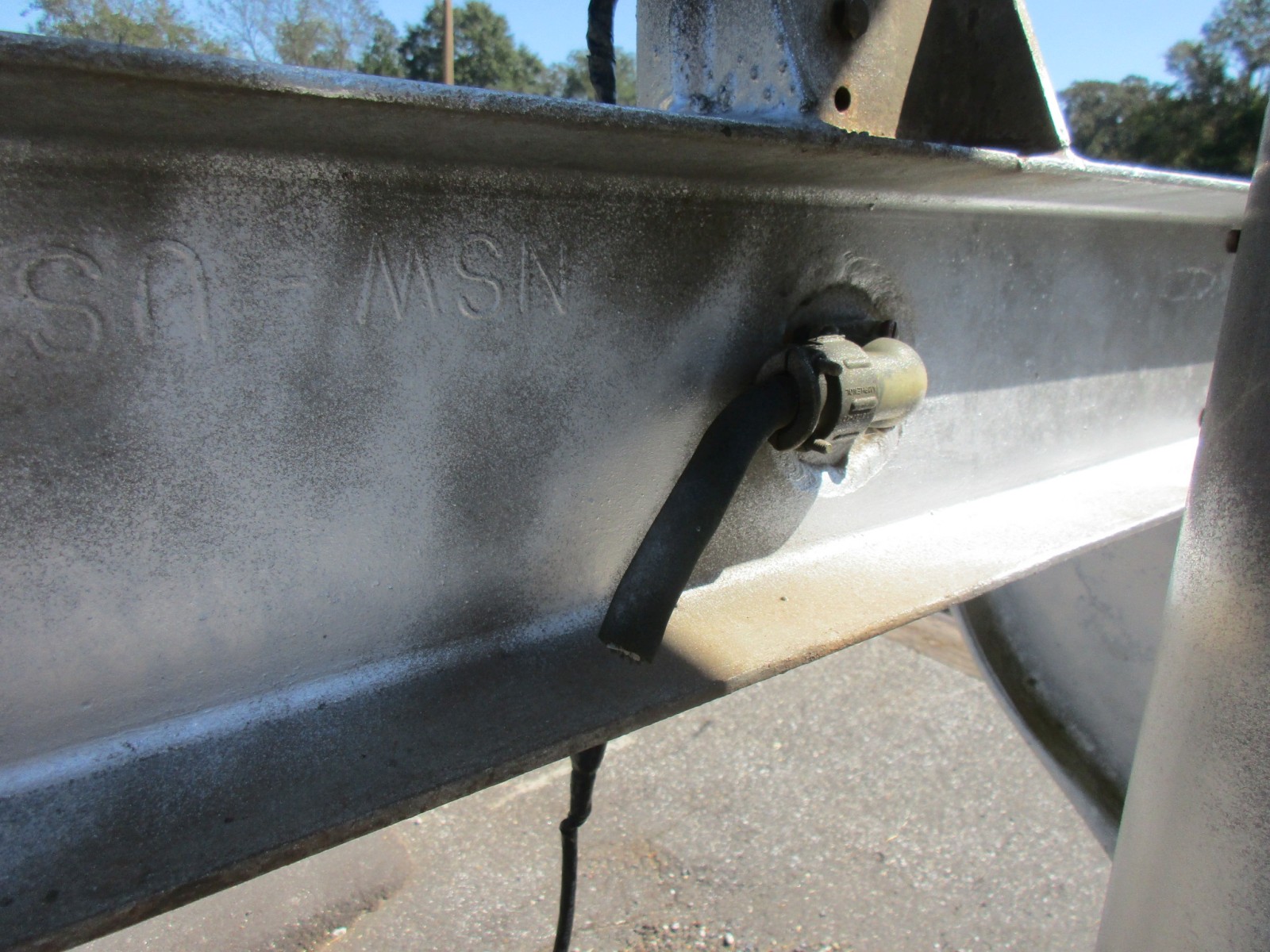

This also appears to have been the original gate light wire. |
The emergency information. |

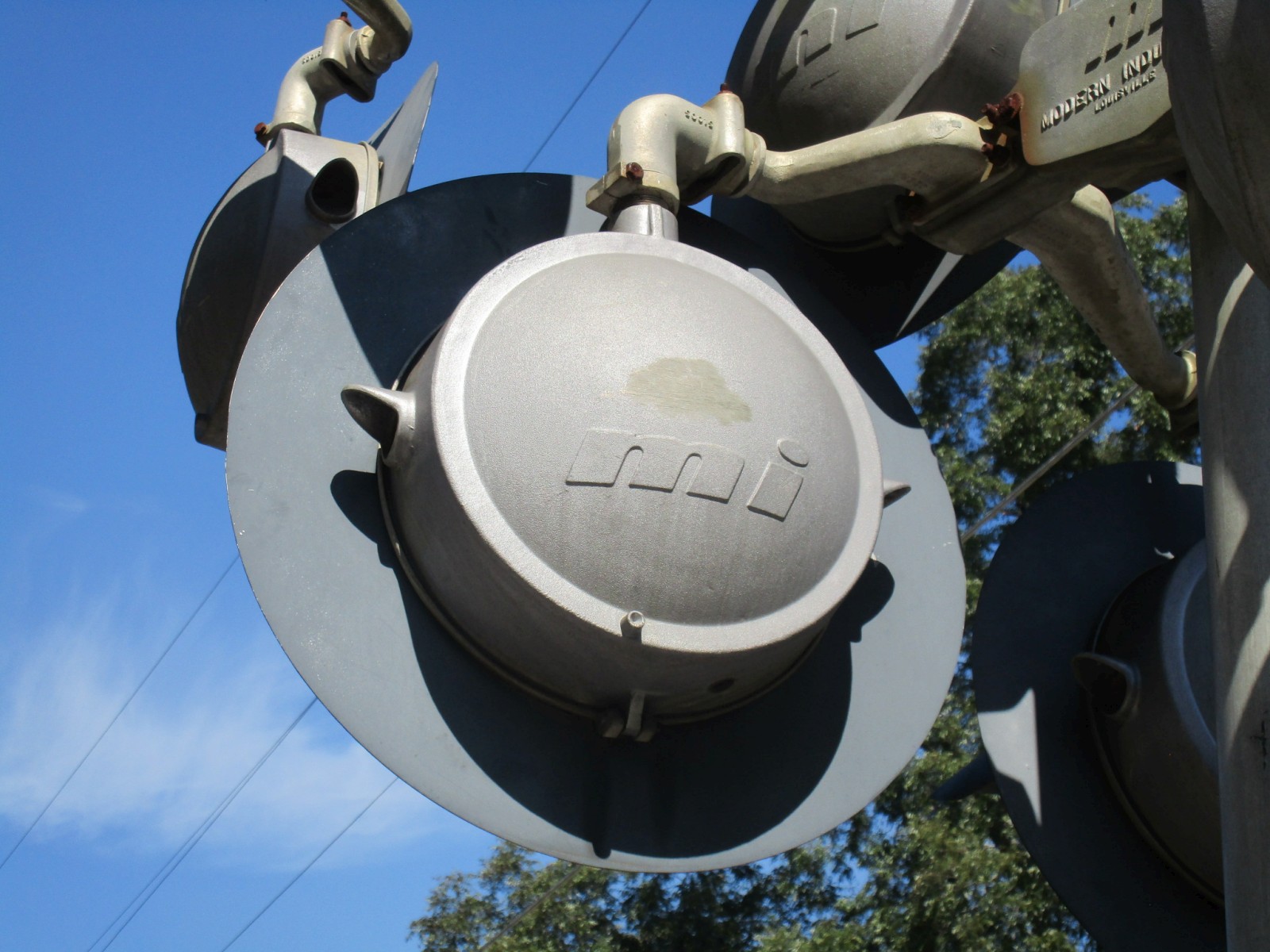

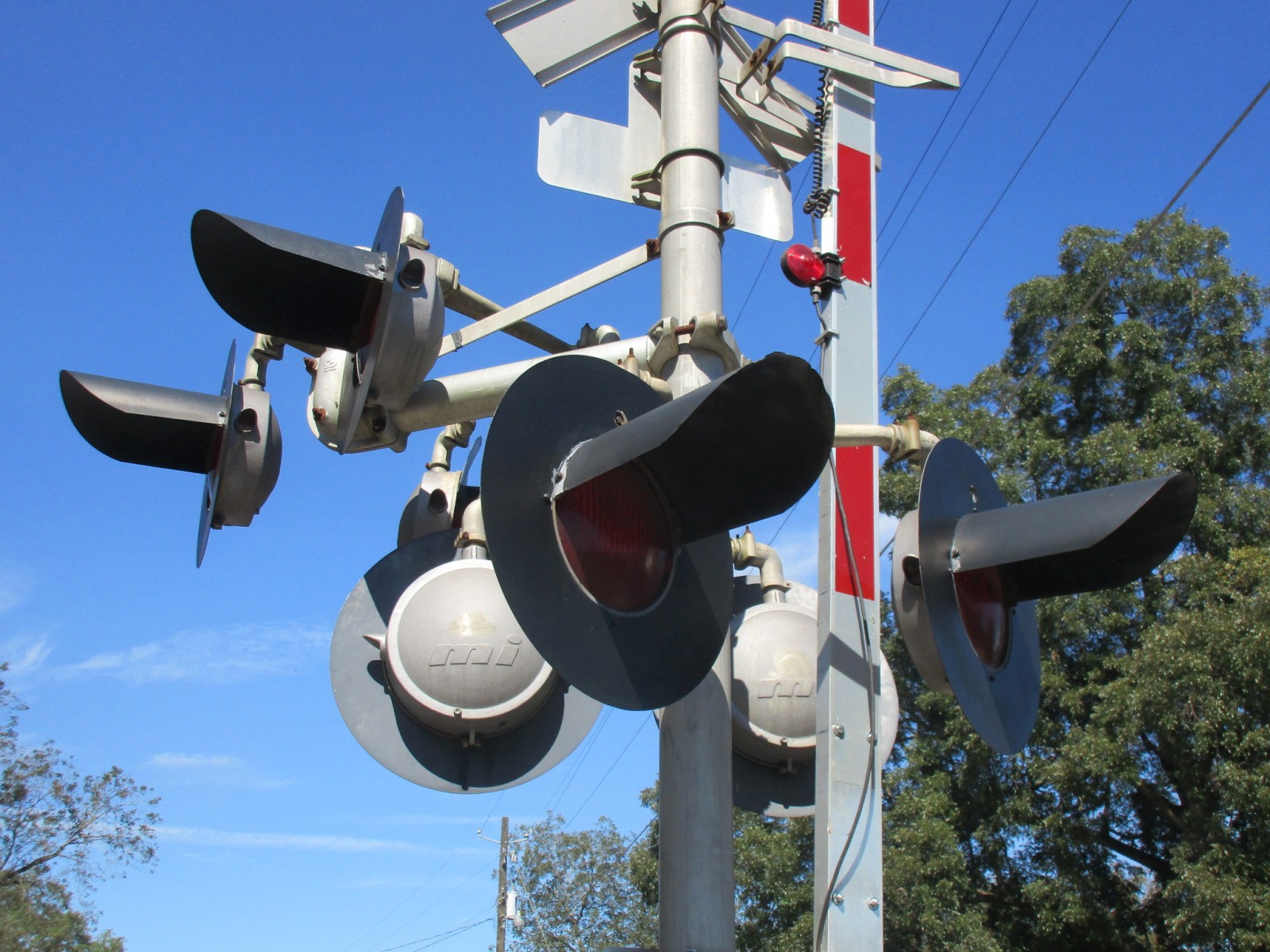

This signal had all Modern Industries 12x24 inch lights! |
|
21 |
22 |
23 |
24 |

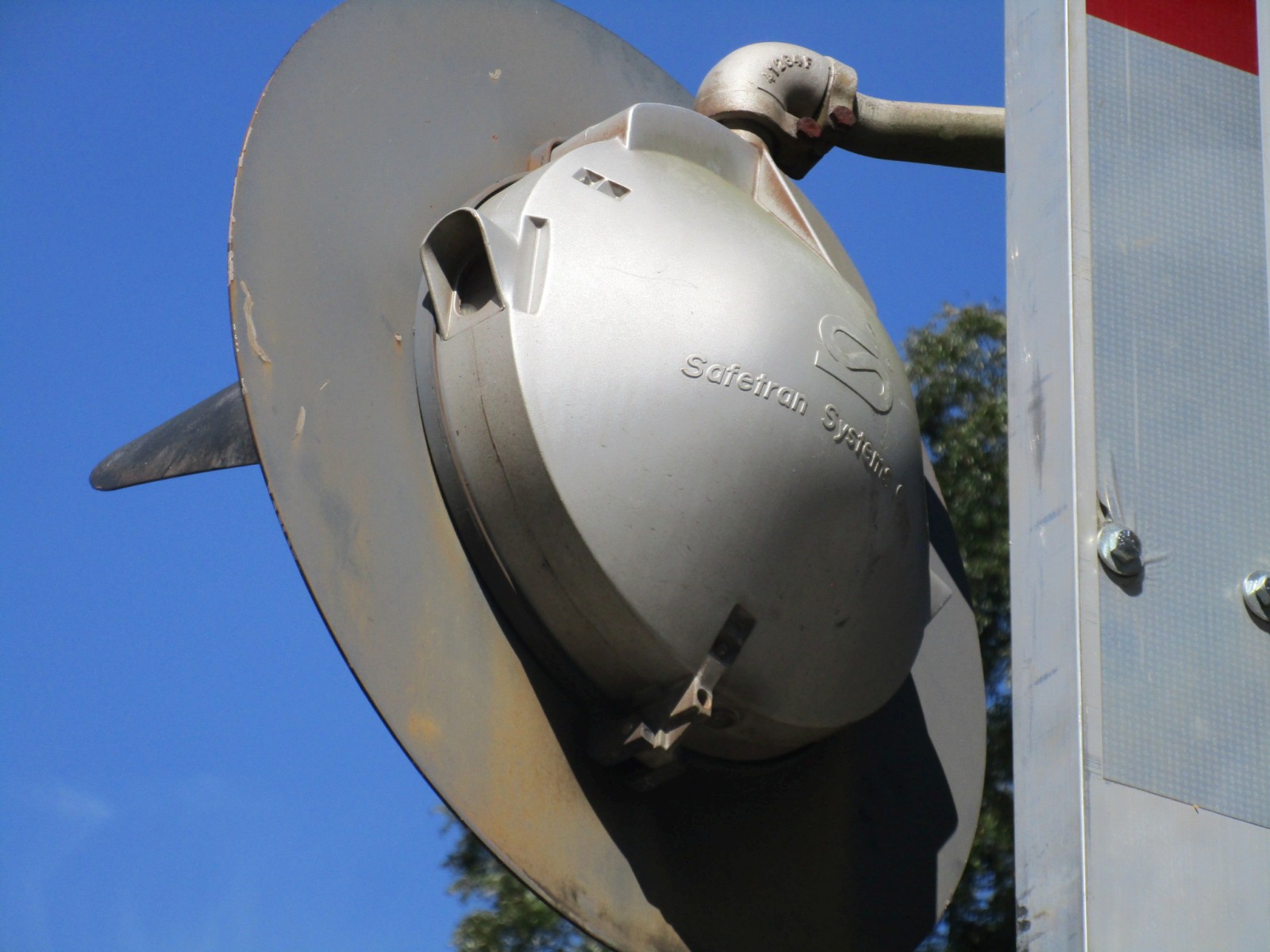

This signal has a Safetran mechanical bell! |

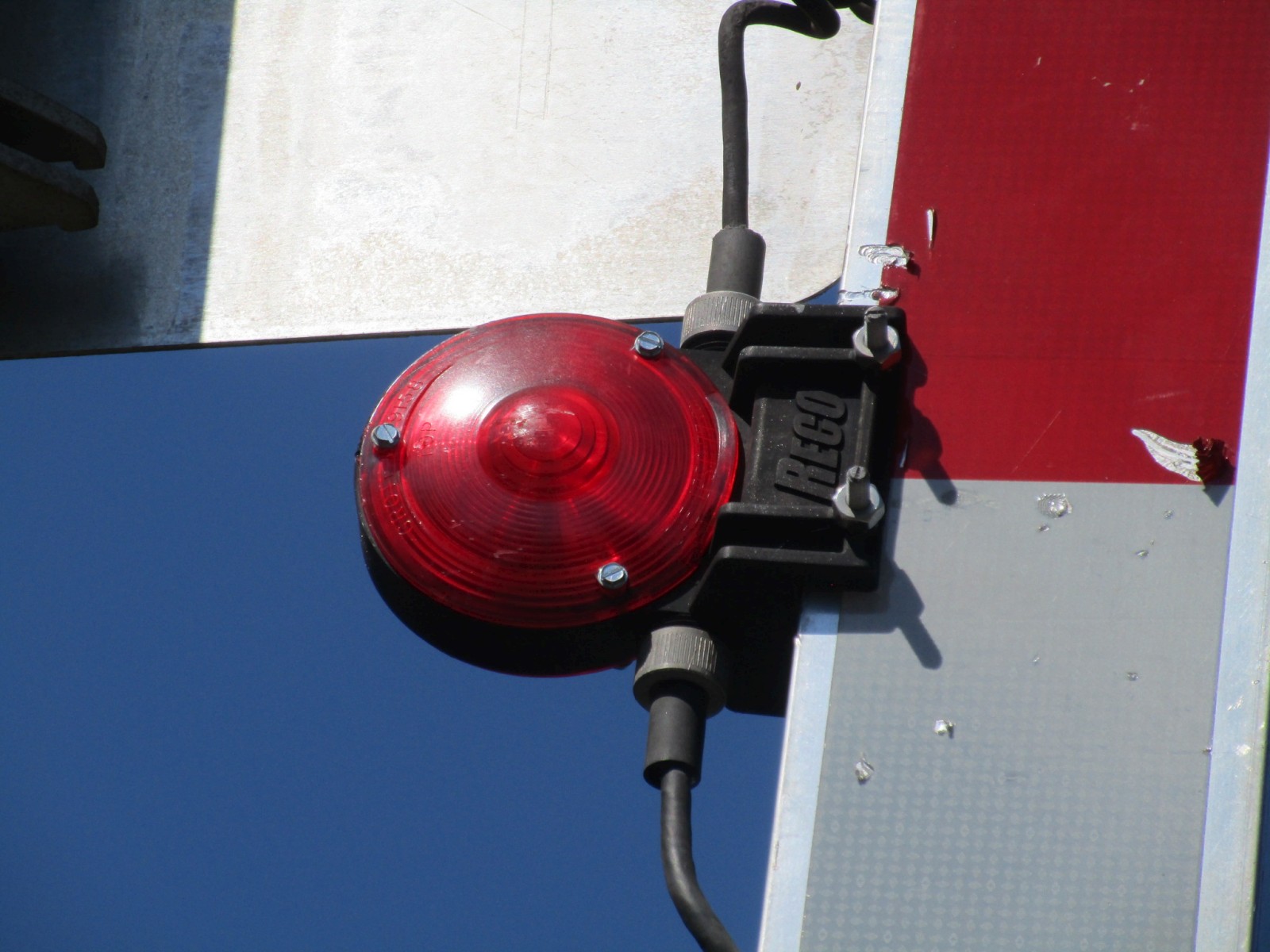

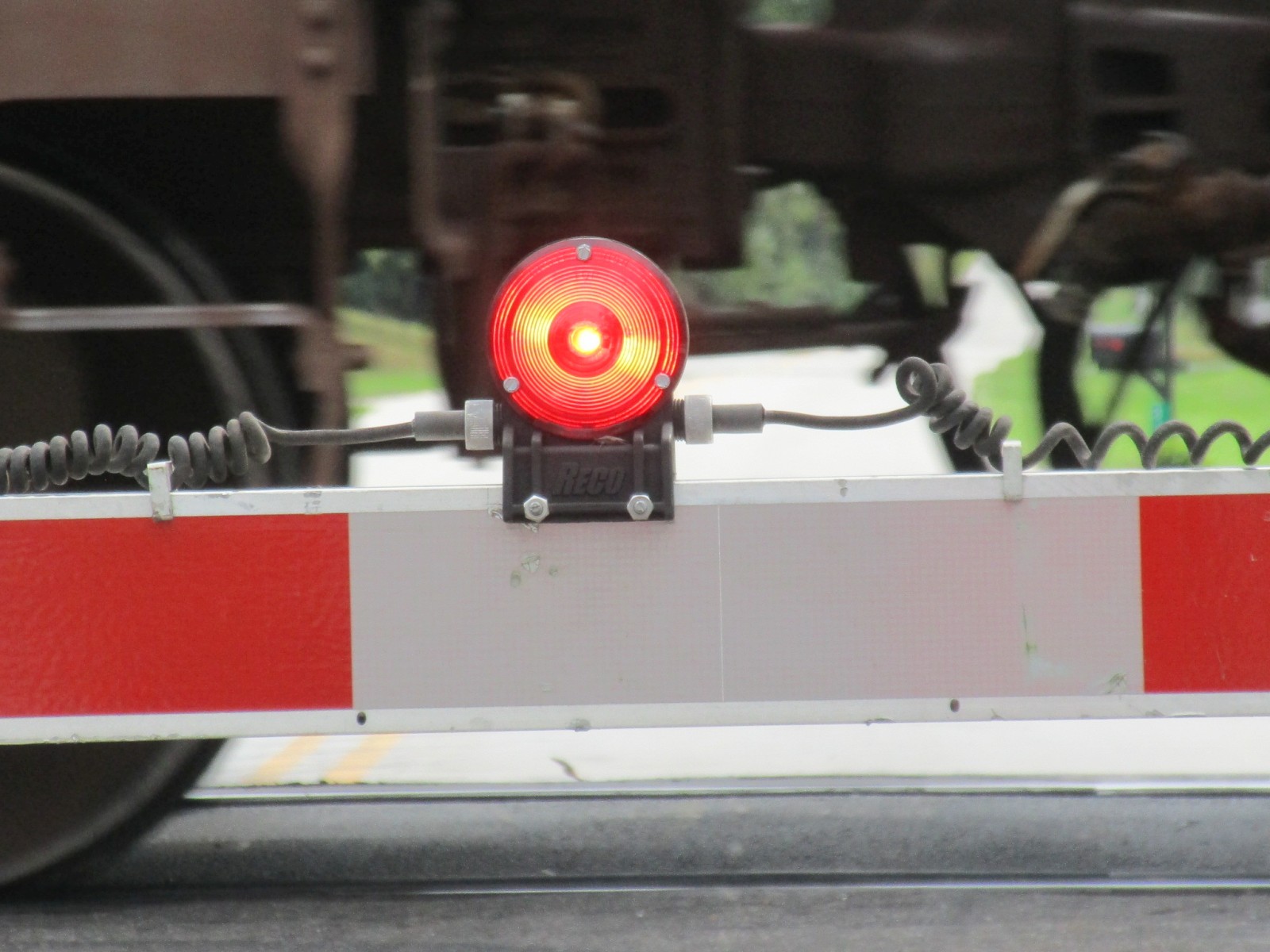

More RECO LED gate lights over here. |

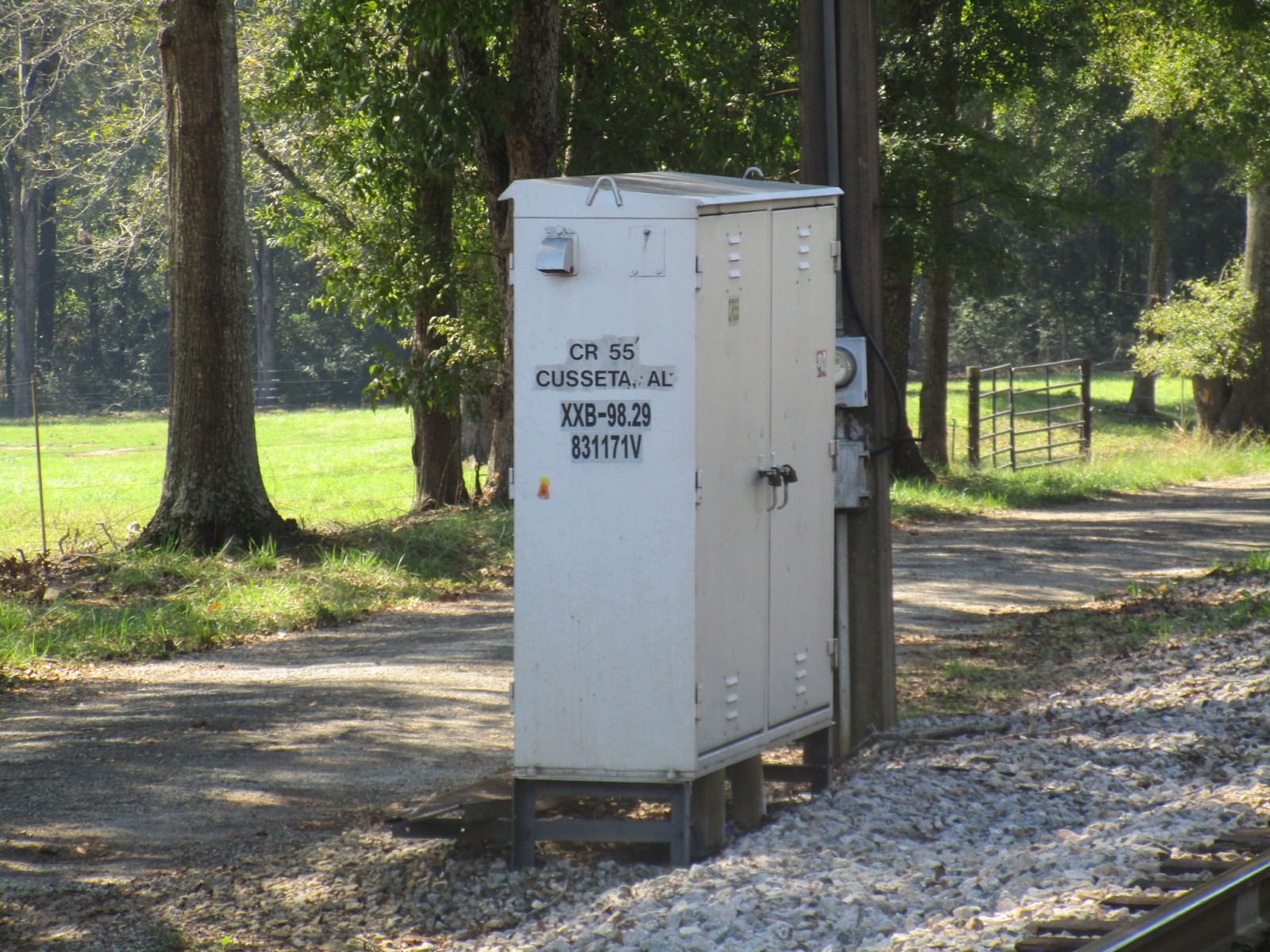

The relay case. |
|
25 |
26 |
27 |
28 |
Looking northeast towards CR 299. |
Looking southwest towards CR 388. |

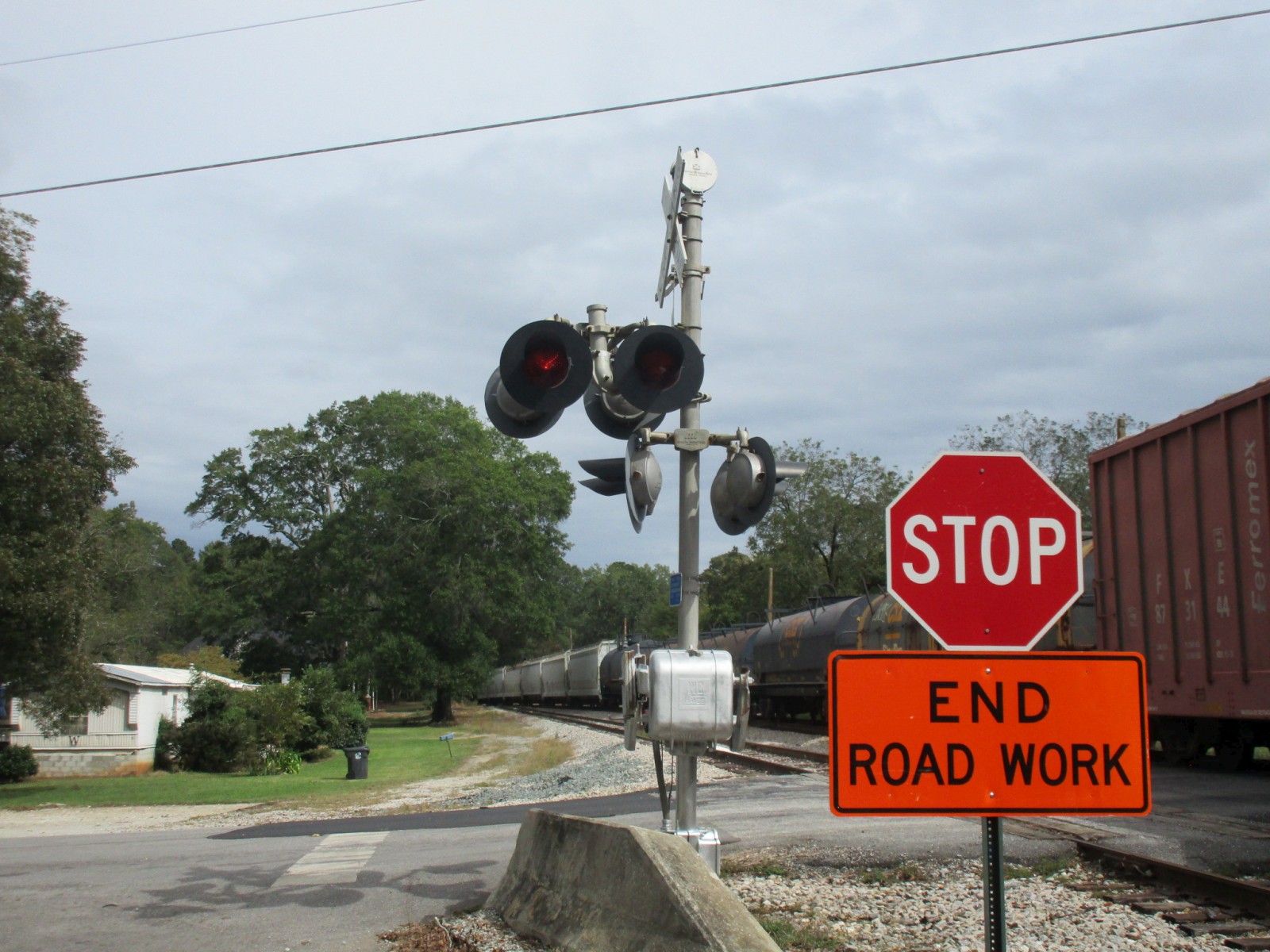

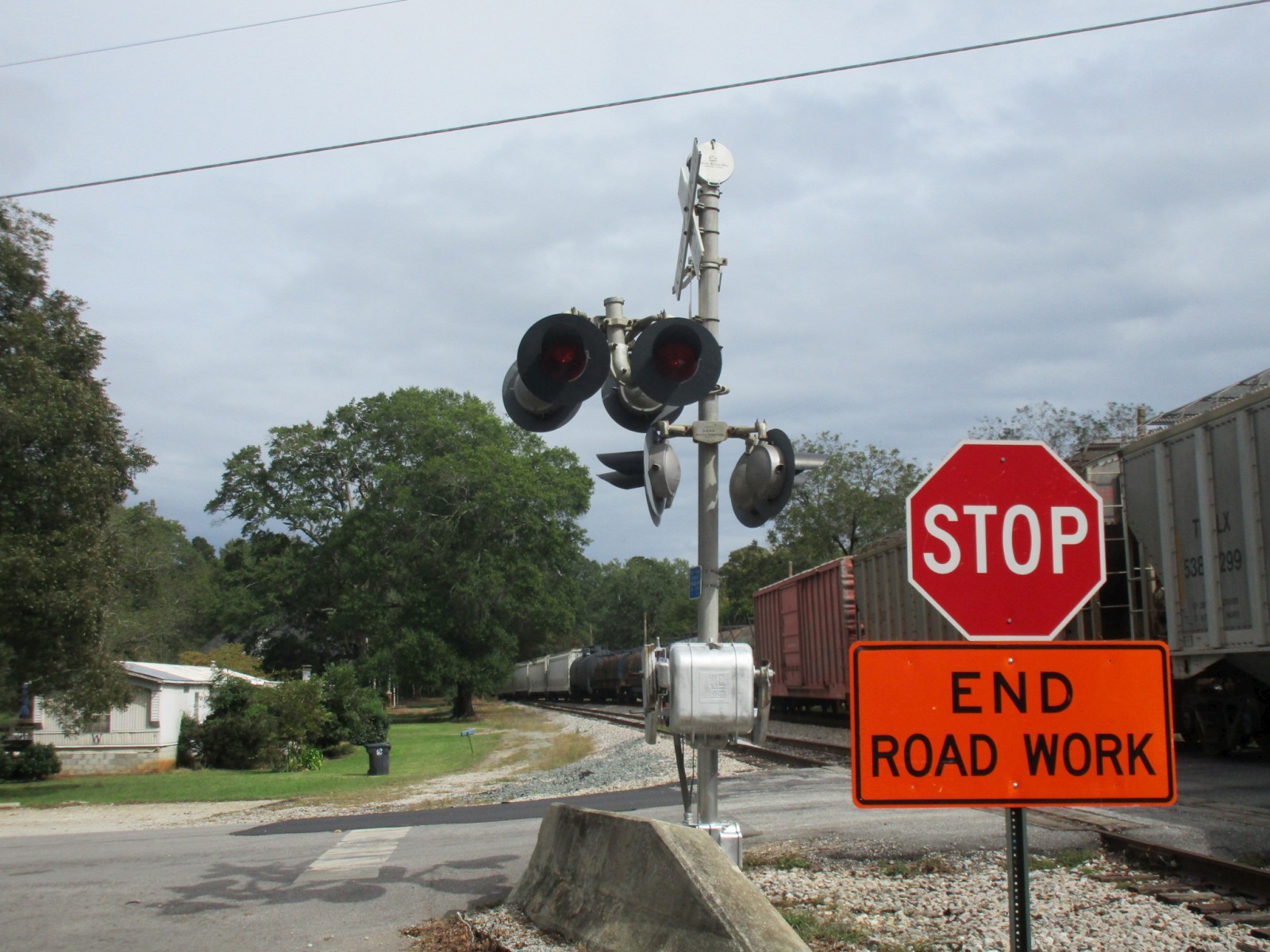

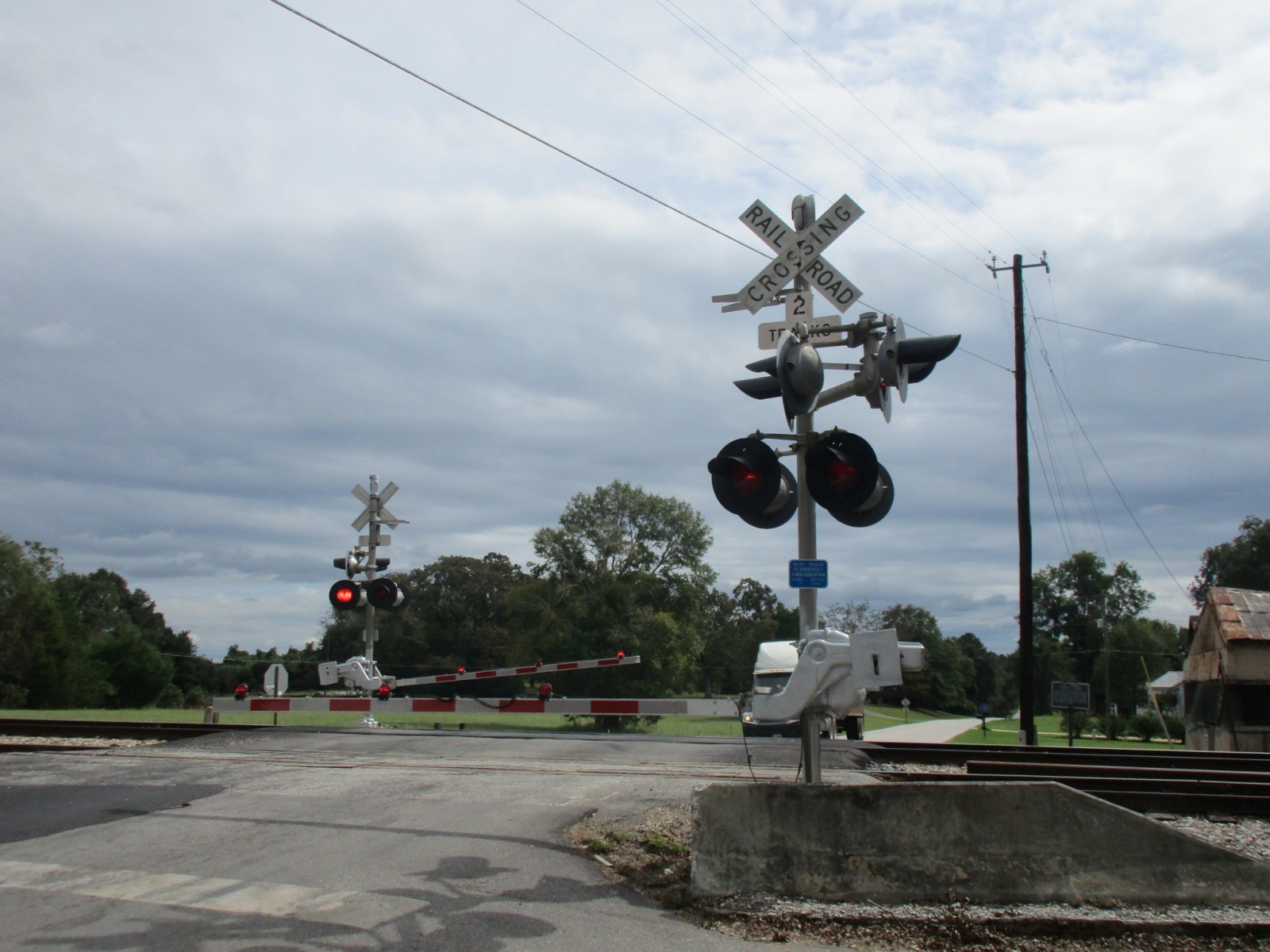

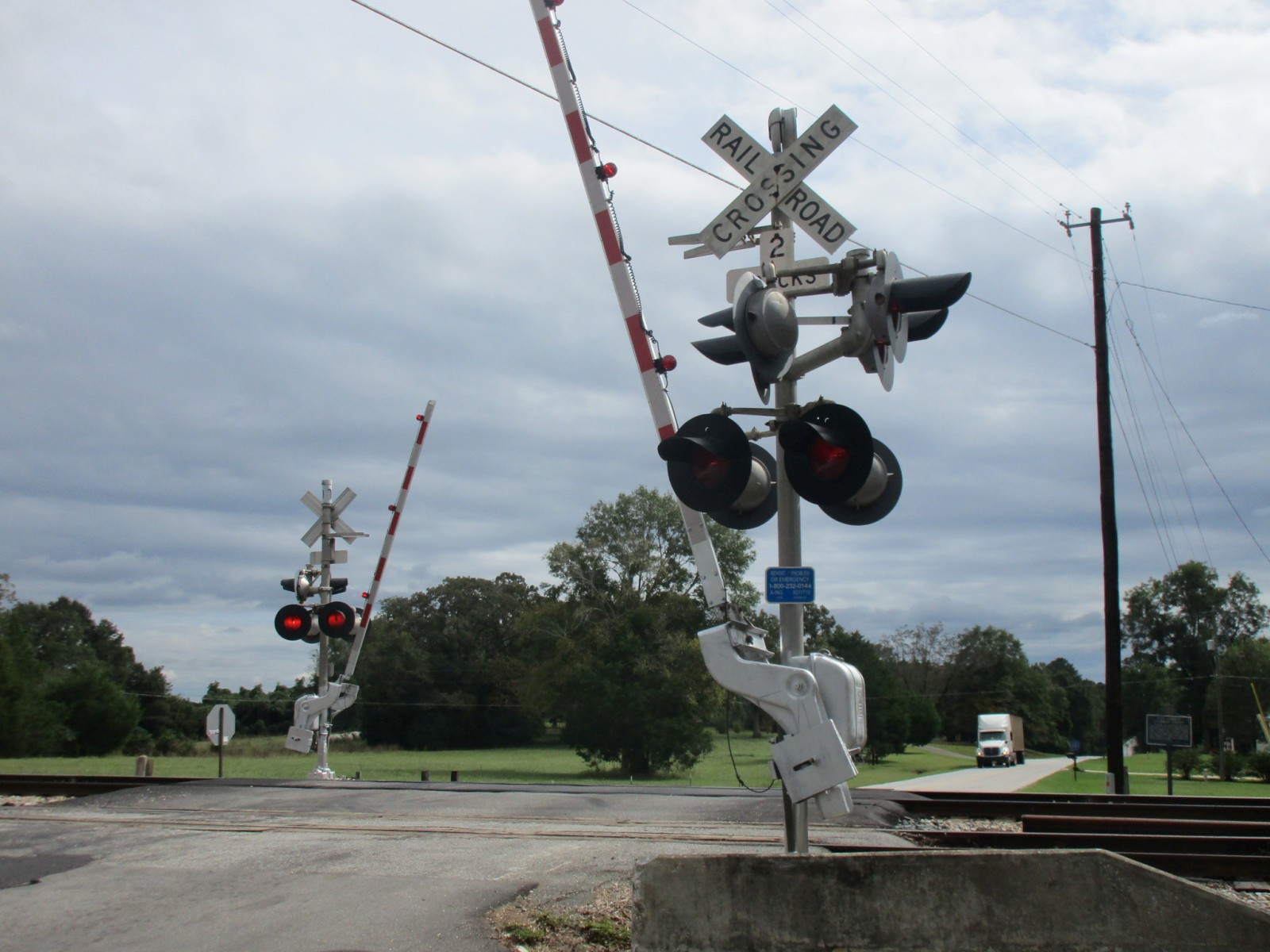

The crossing was caught in action on 10-17-18, just the day before! |
|
29 |
30 |
31 |
32 |
33 |
34 |
35 |
36 |

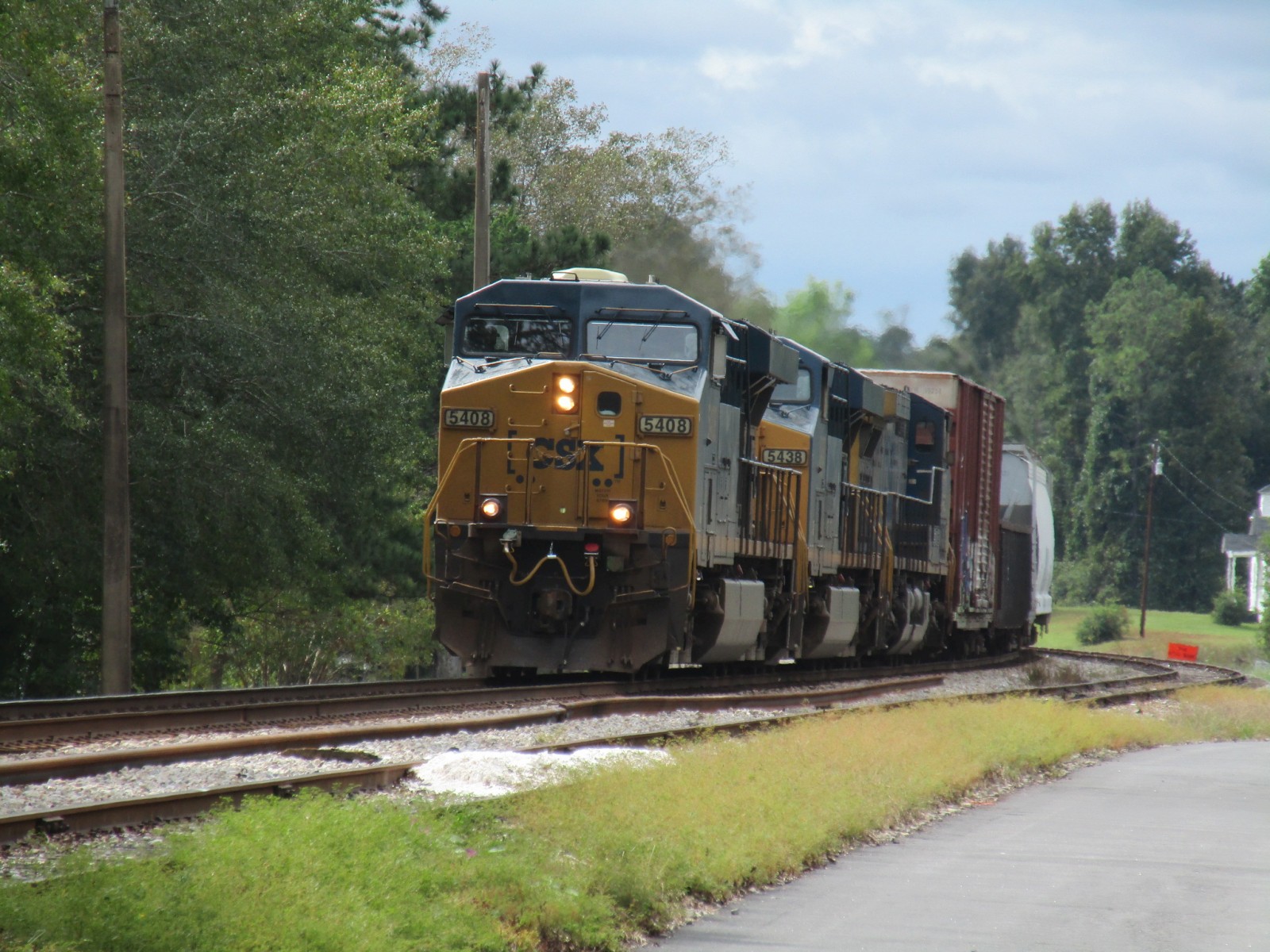

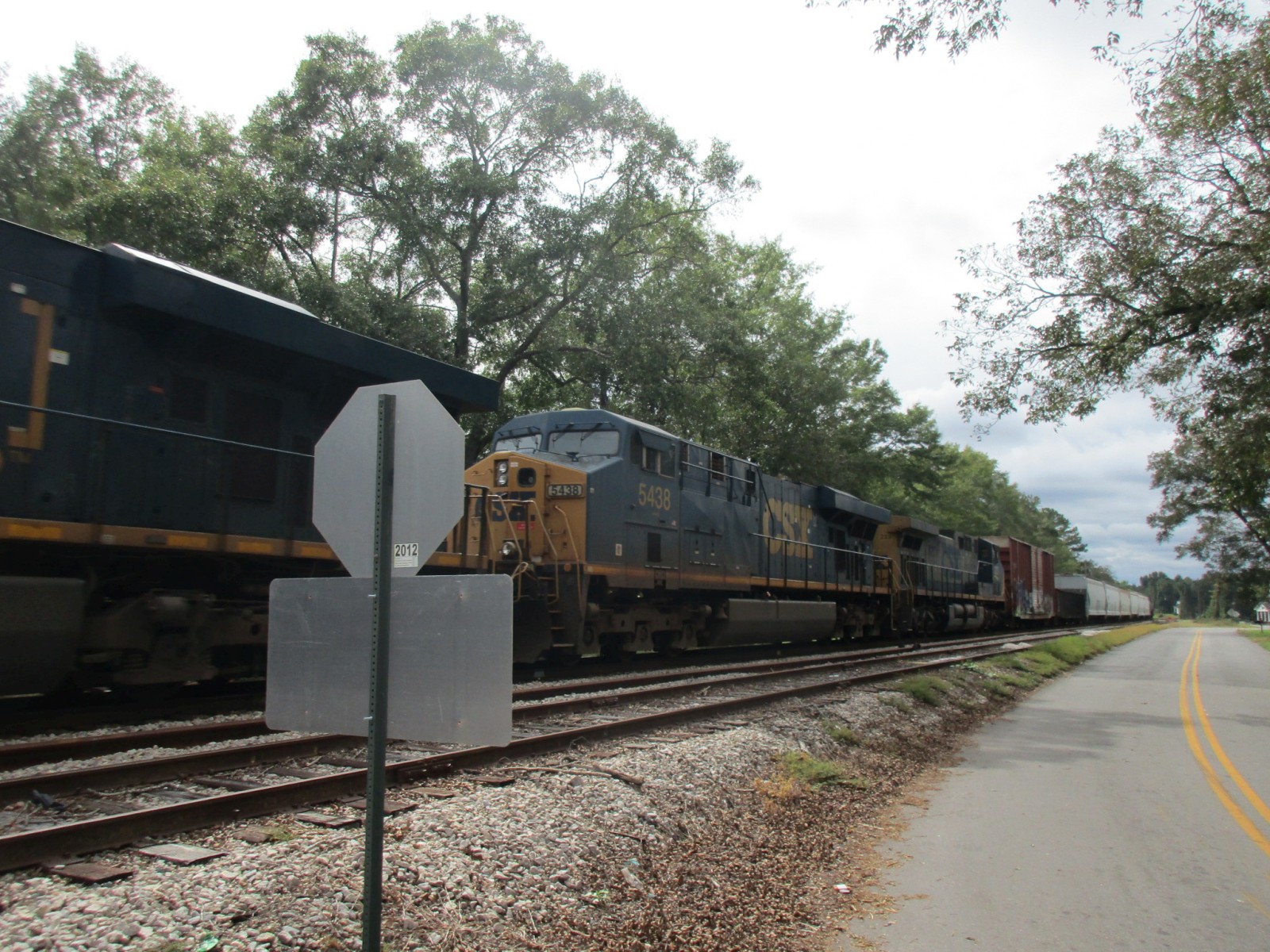

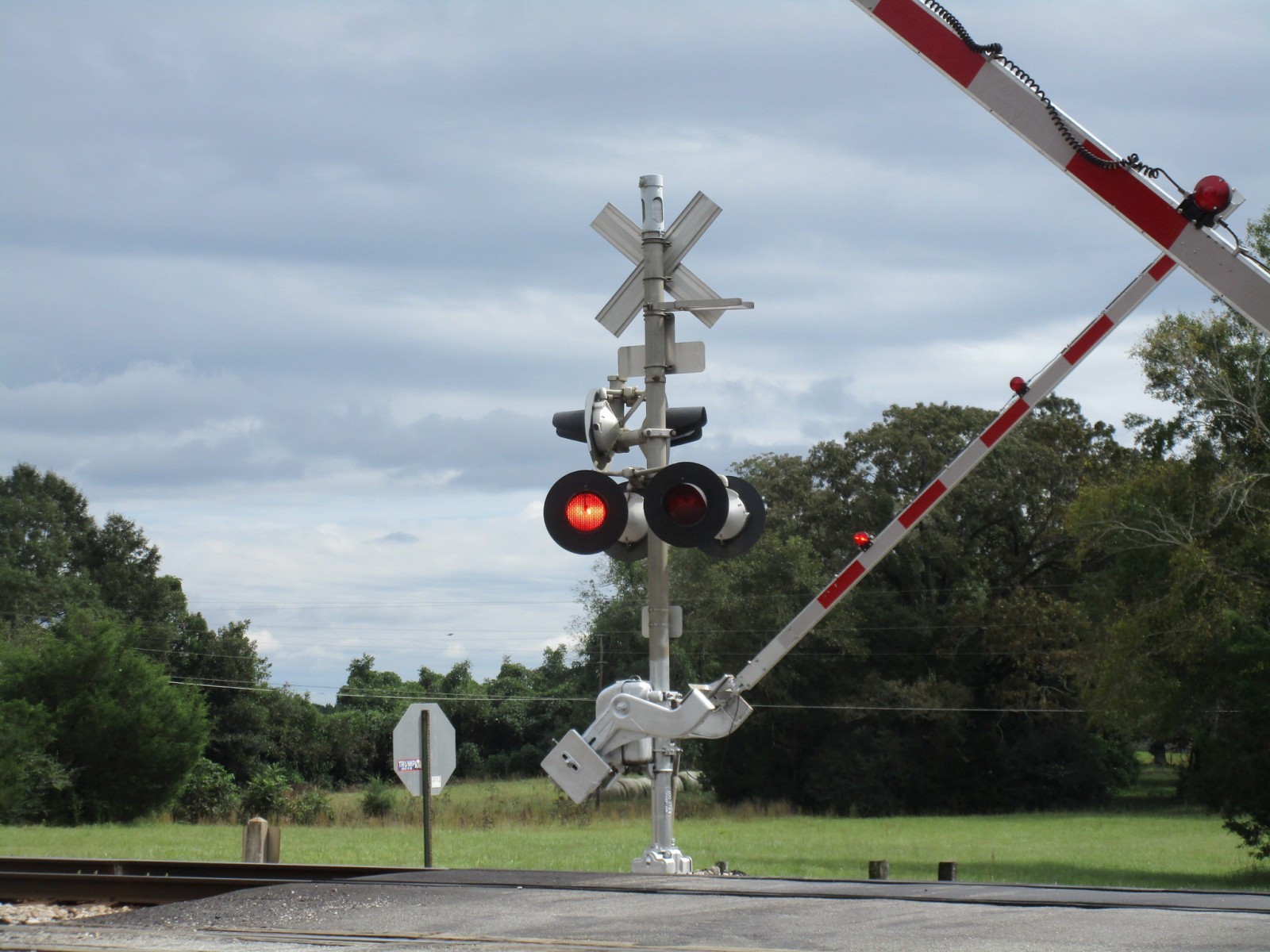

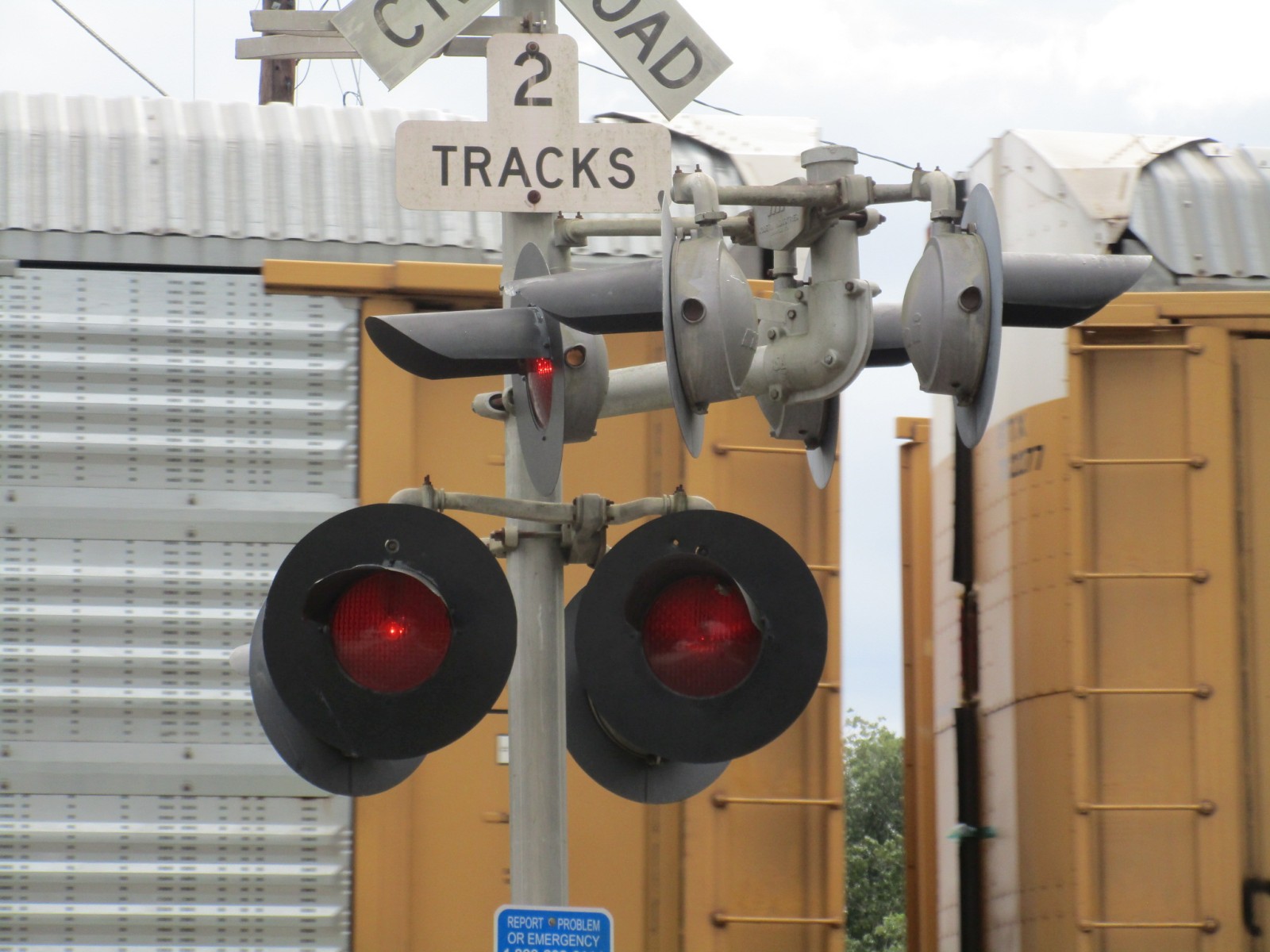

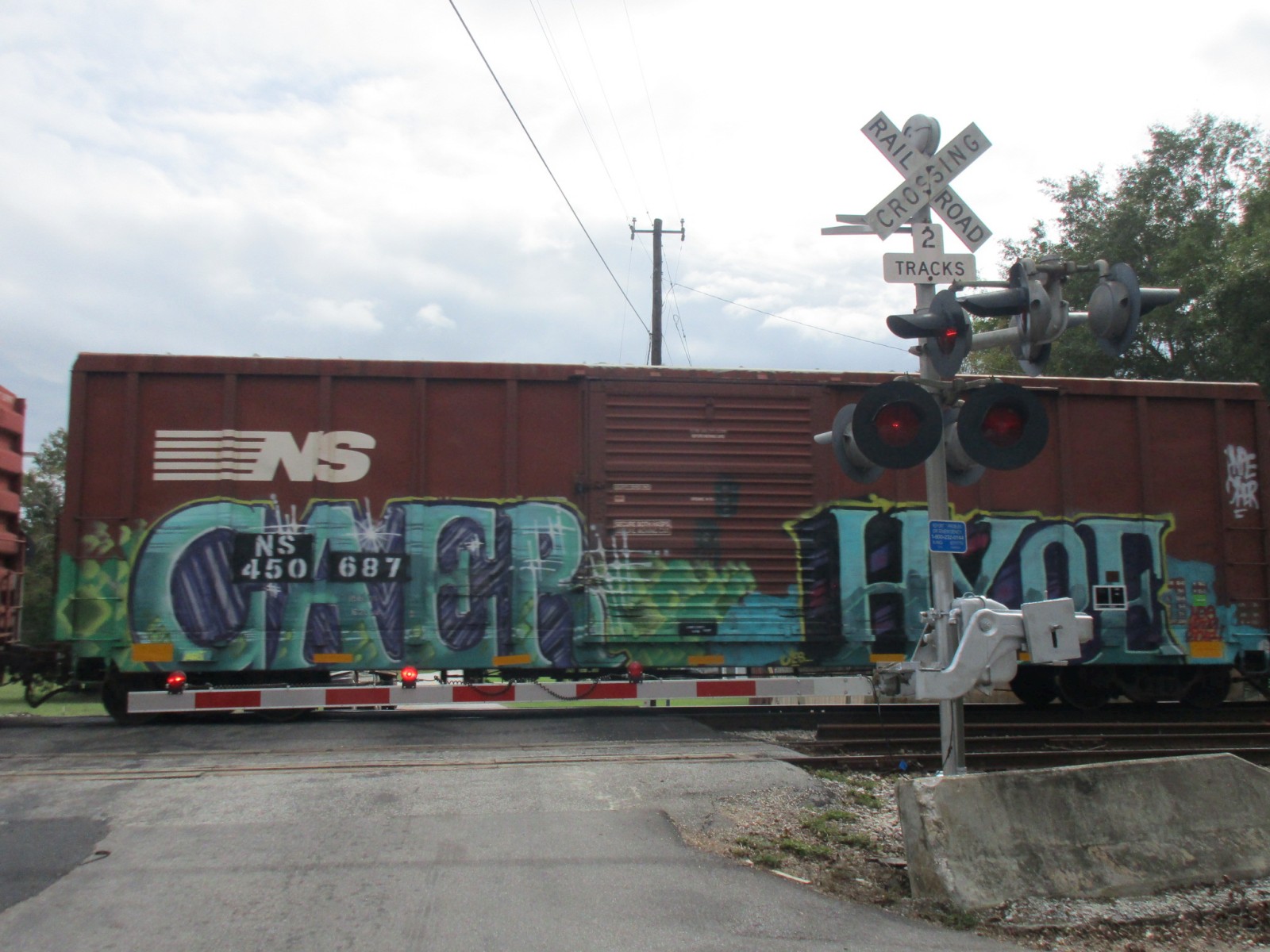

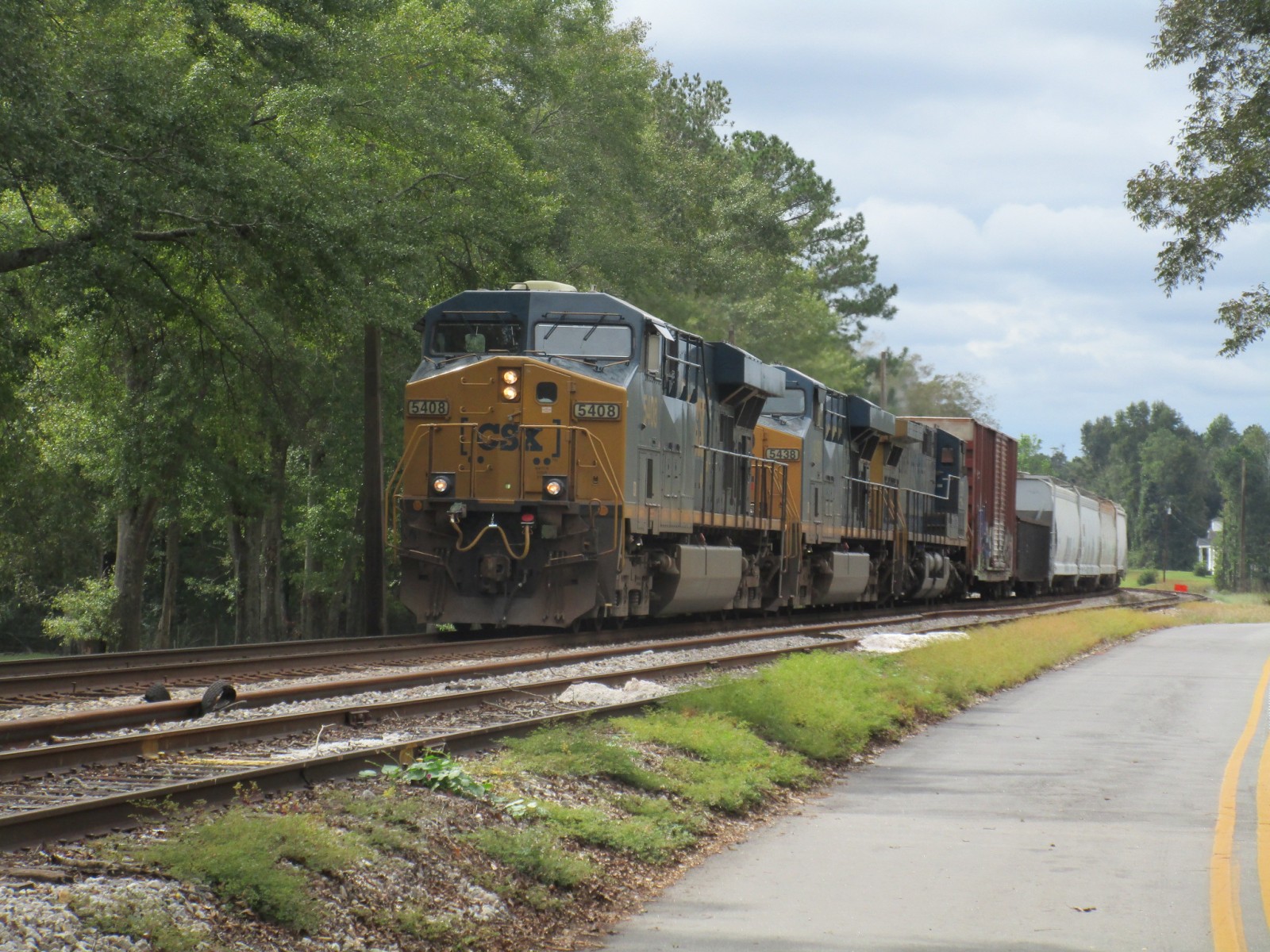

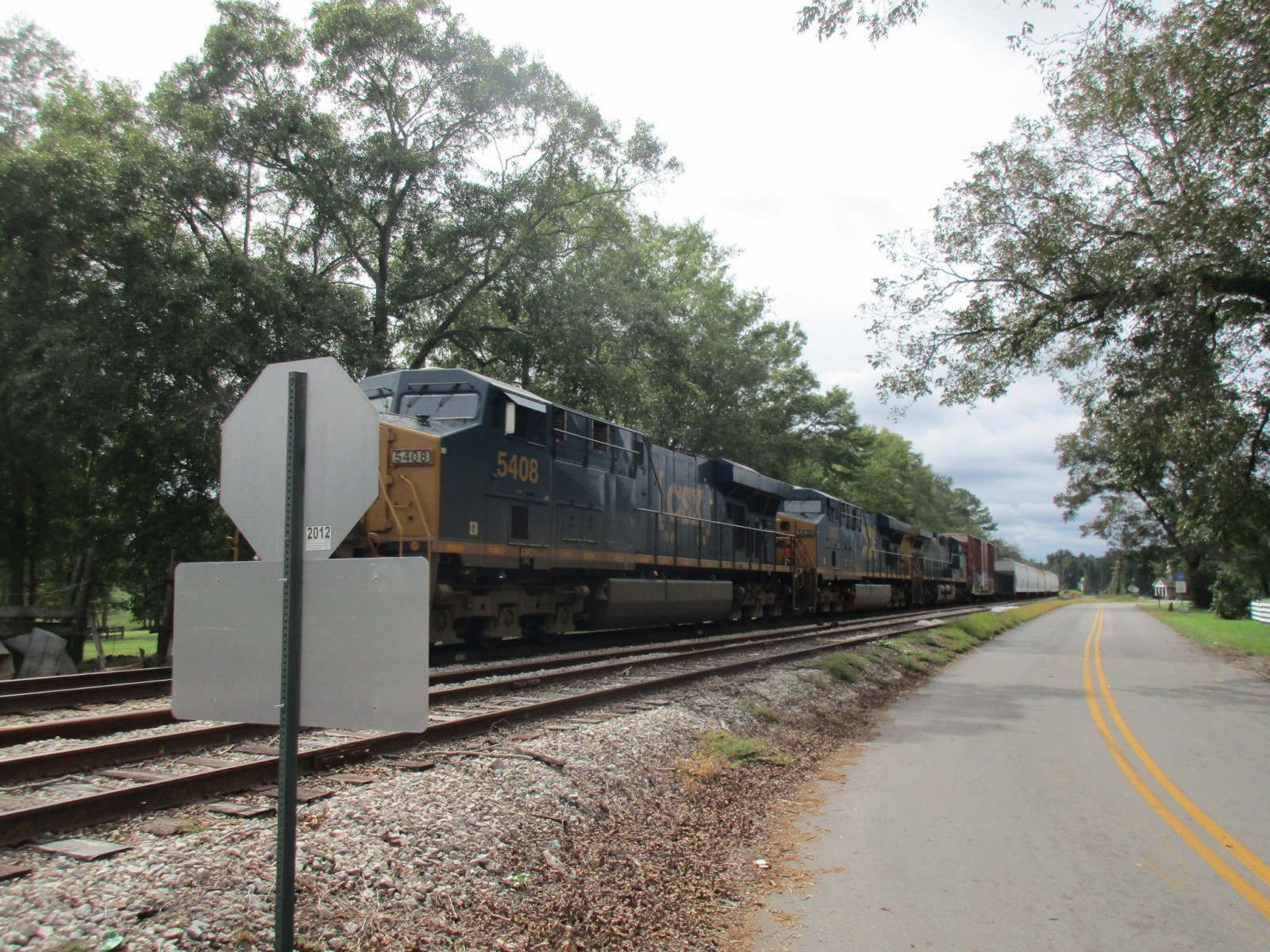

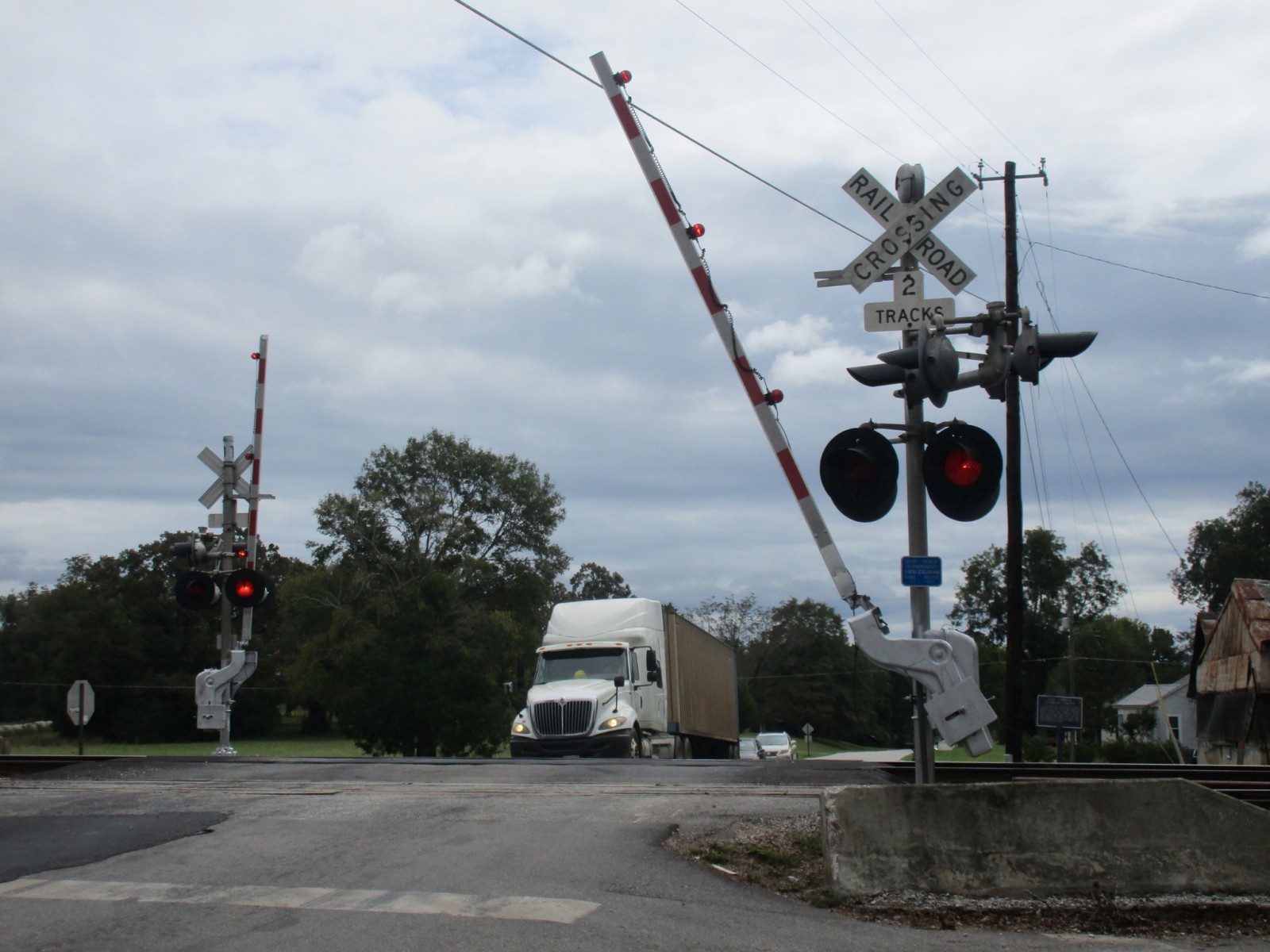

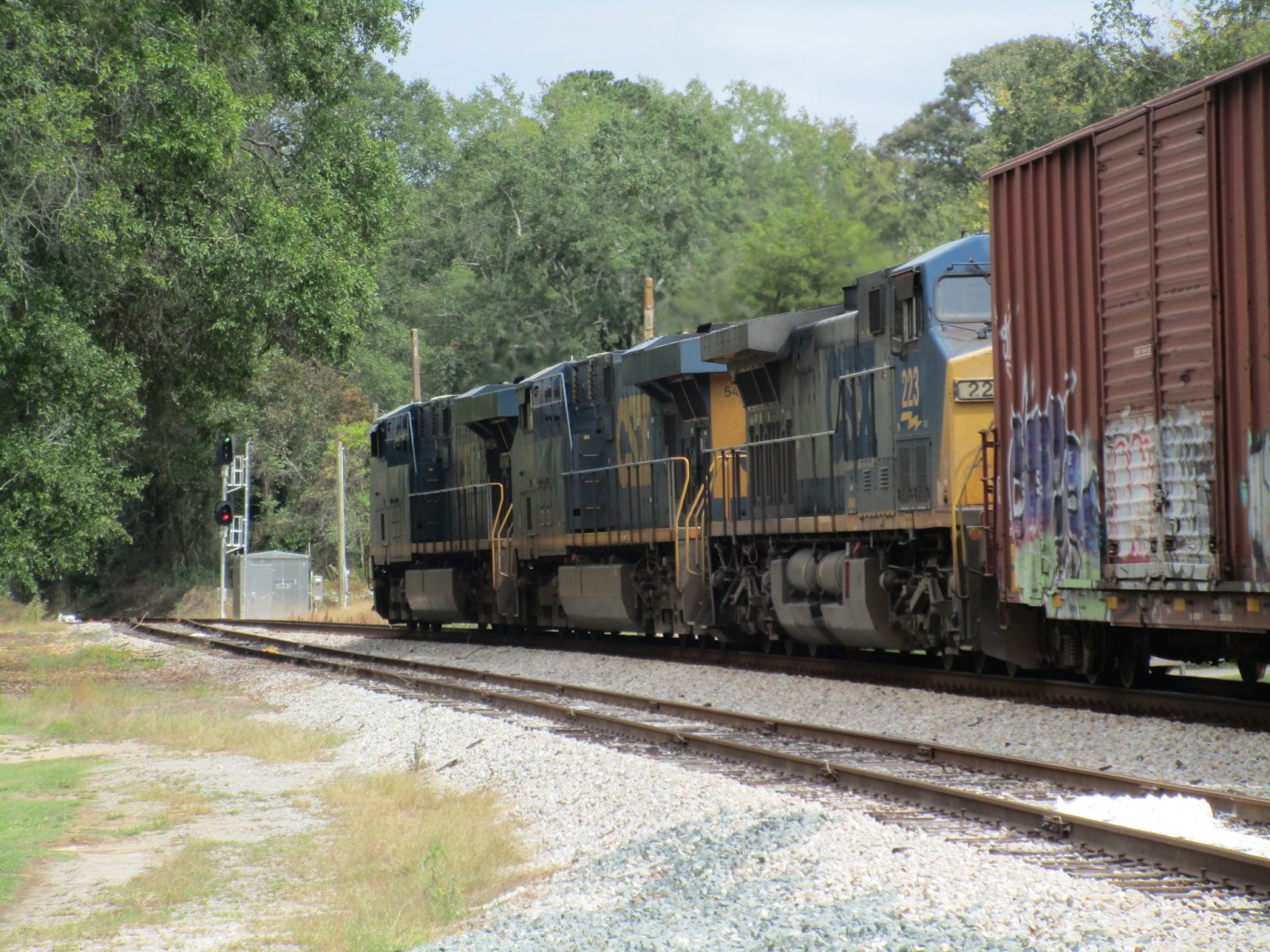

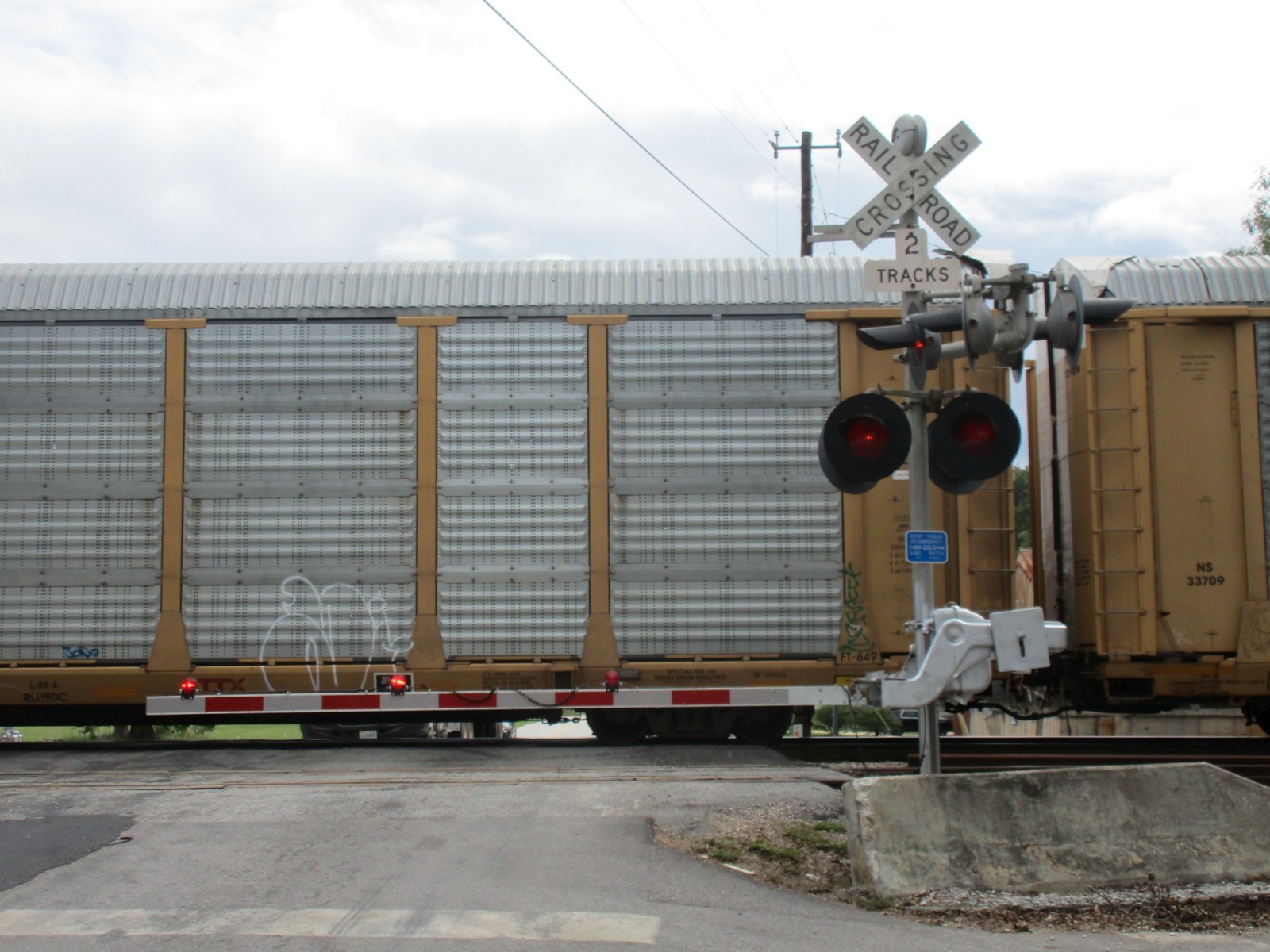

An eastbound CSX mixed freight rolls through with a trio of GEs leading! |
|||
37 |
38 |
39 |
40 |
41 |
42 |
43 |
44 |

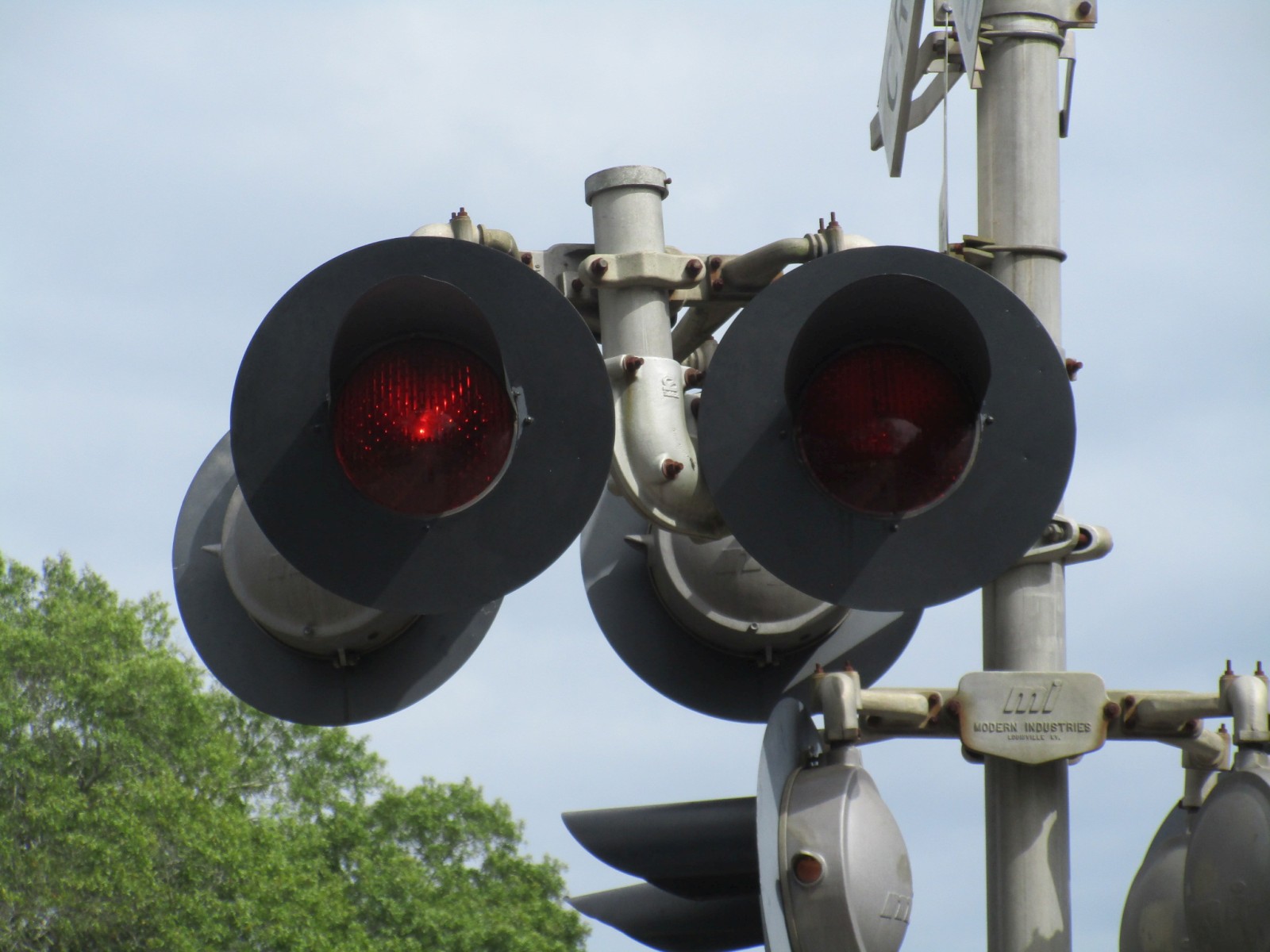

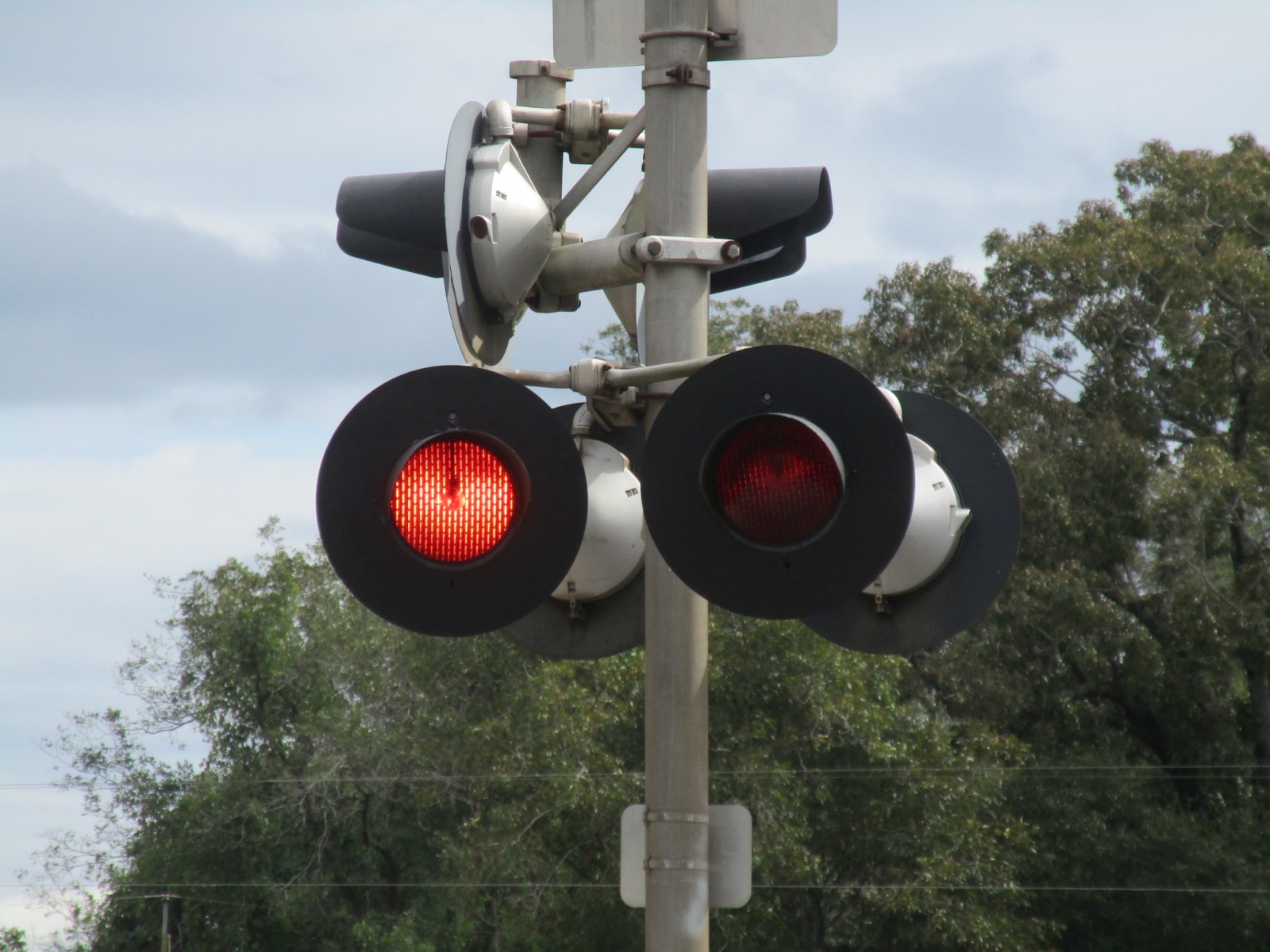

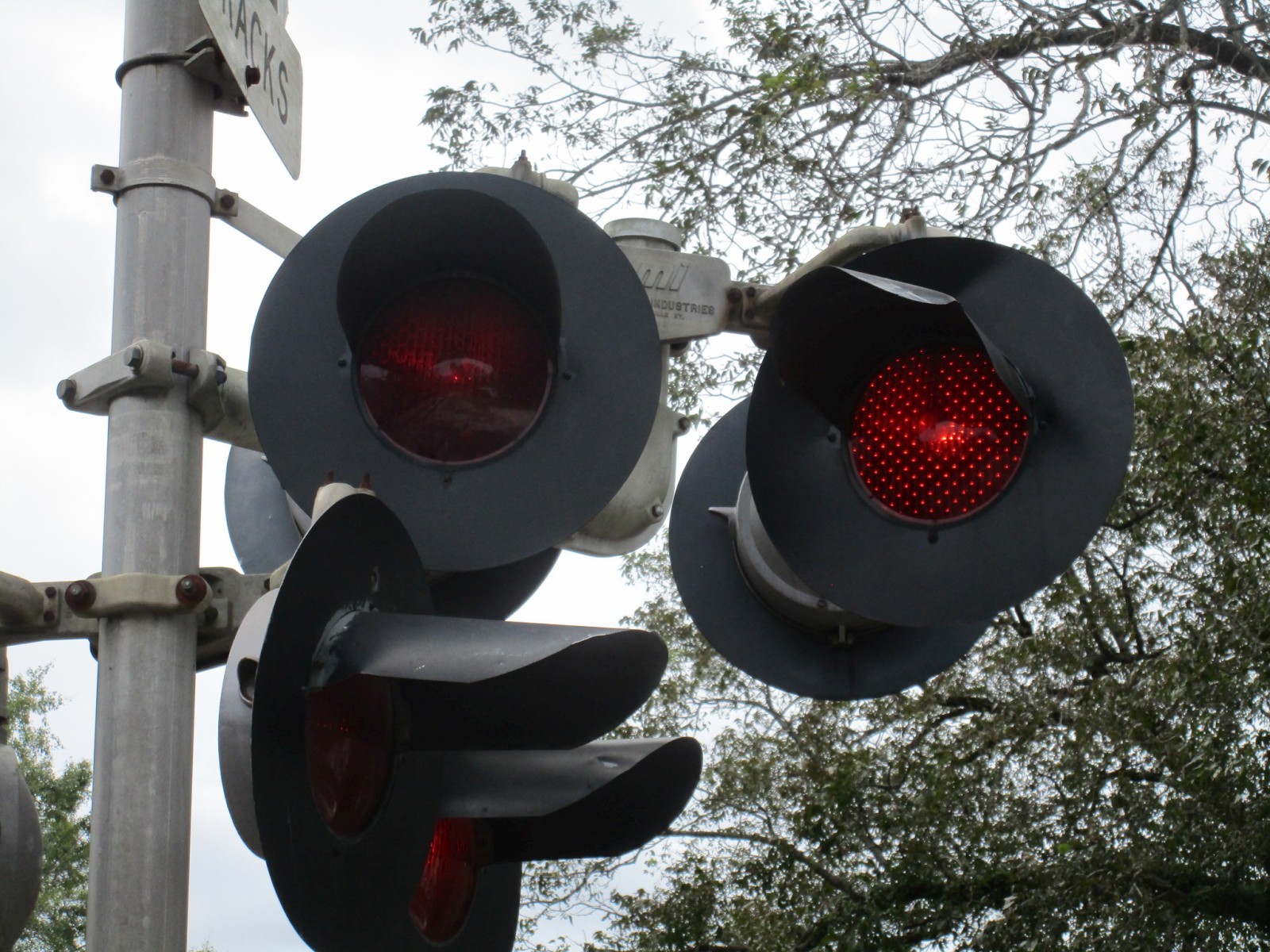

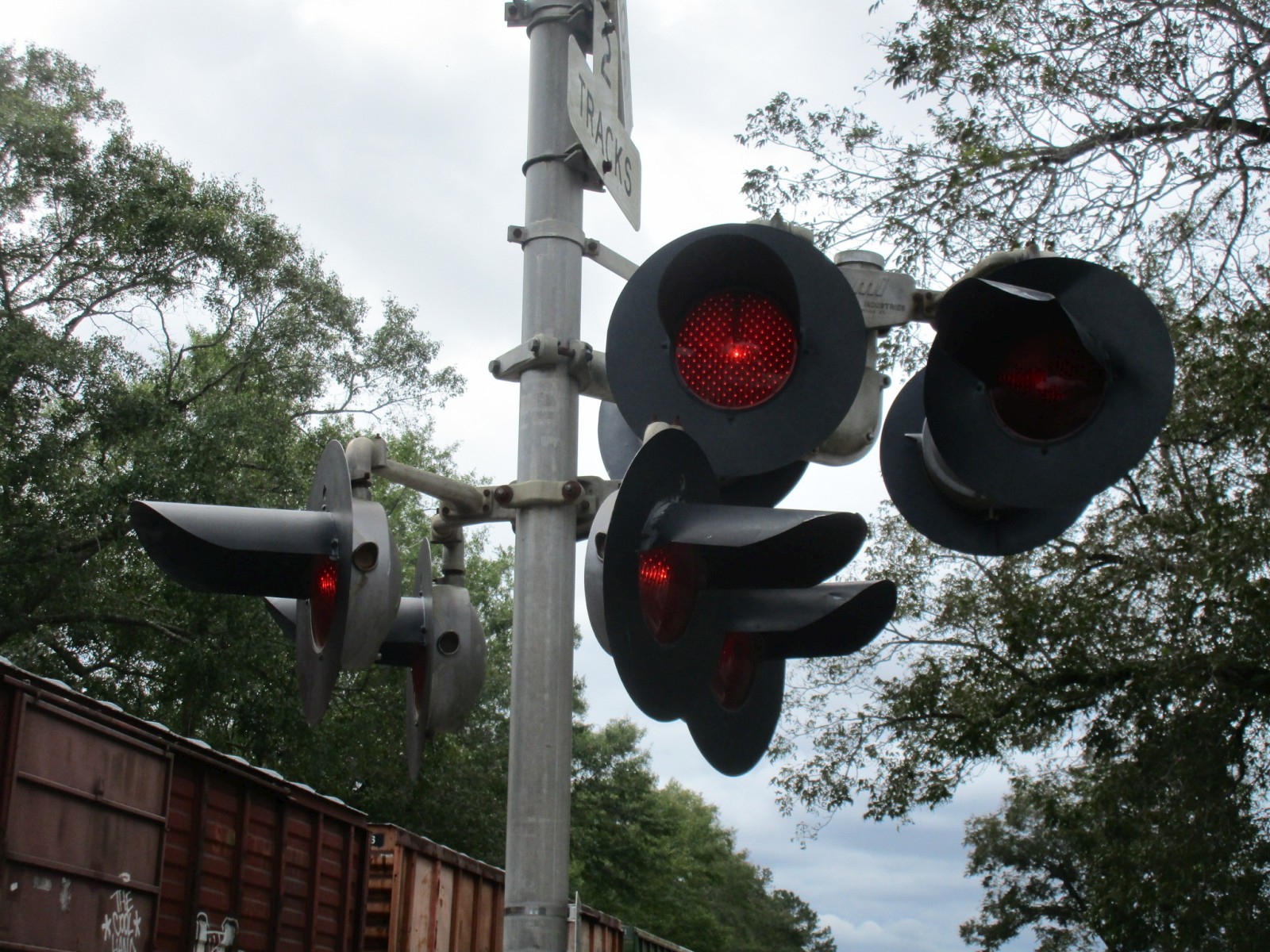

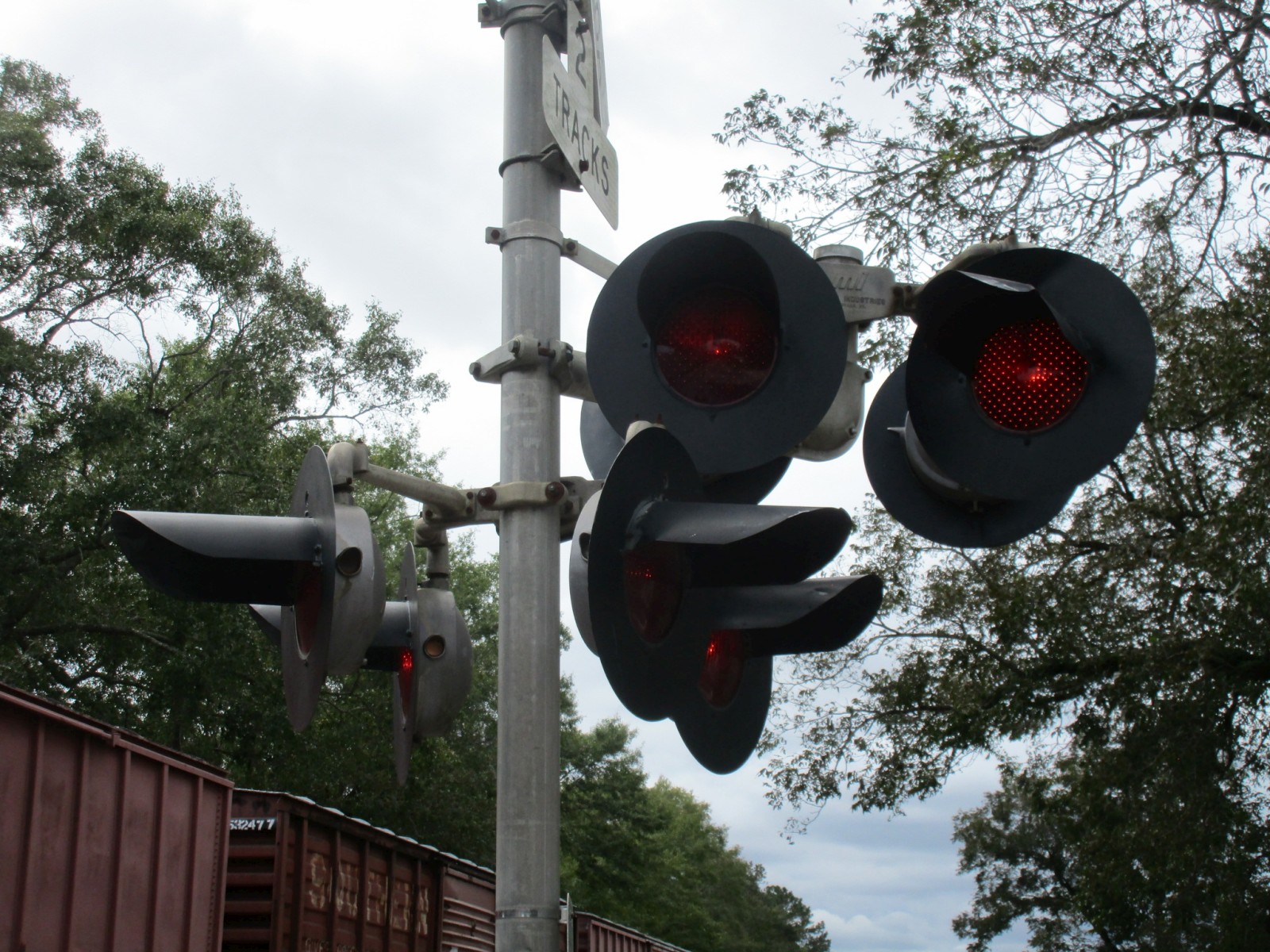

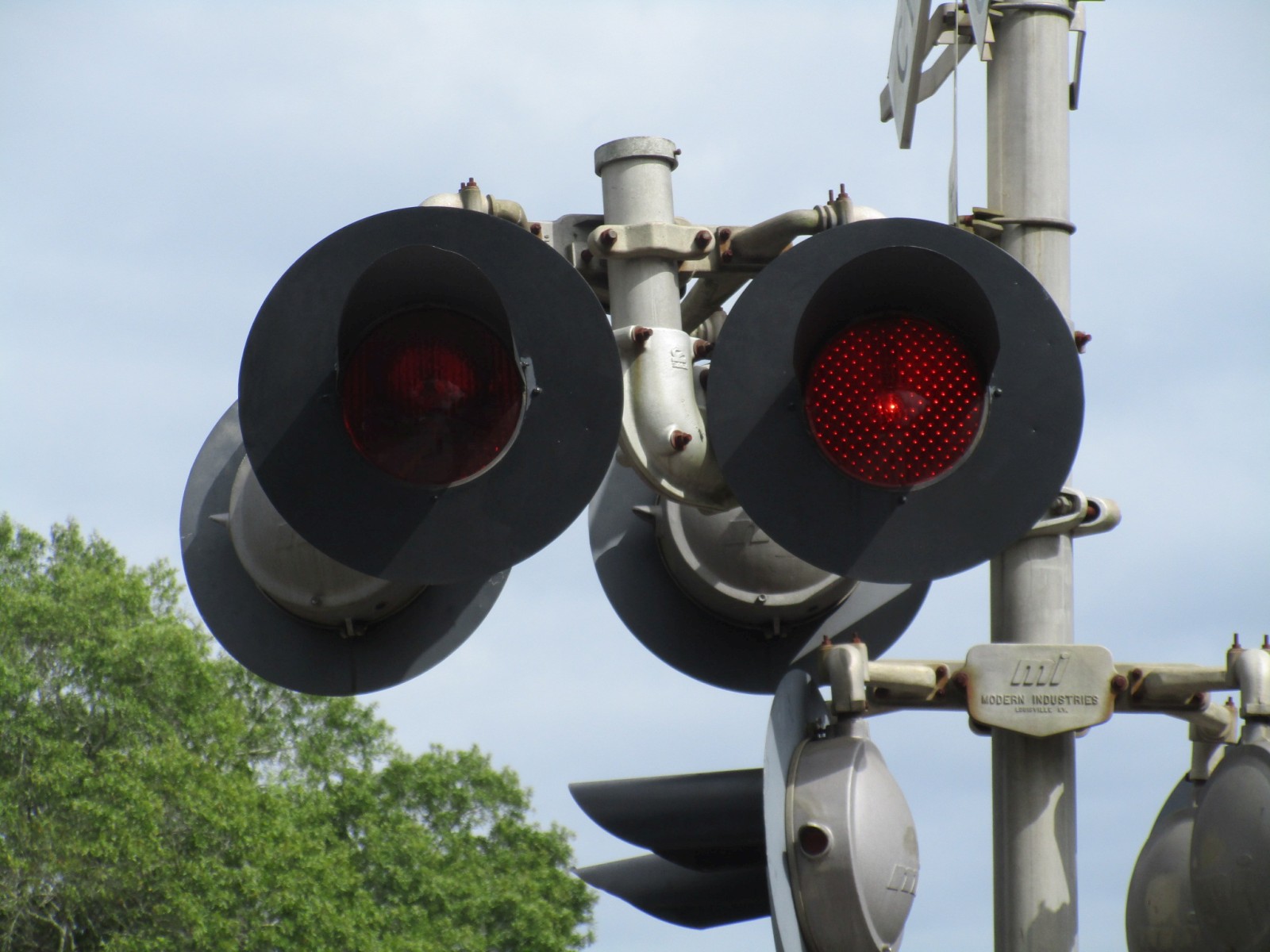

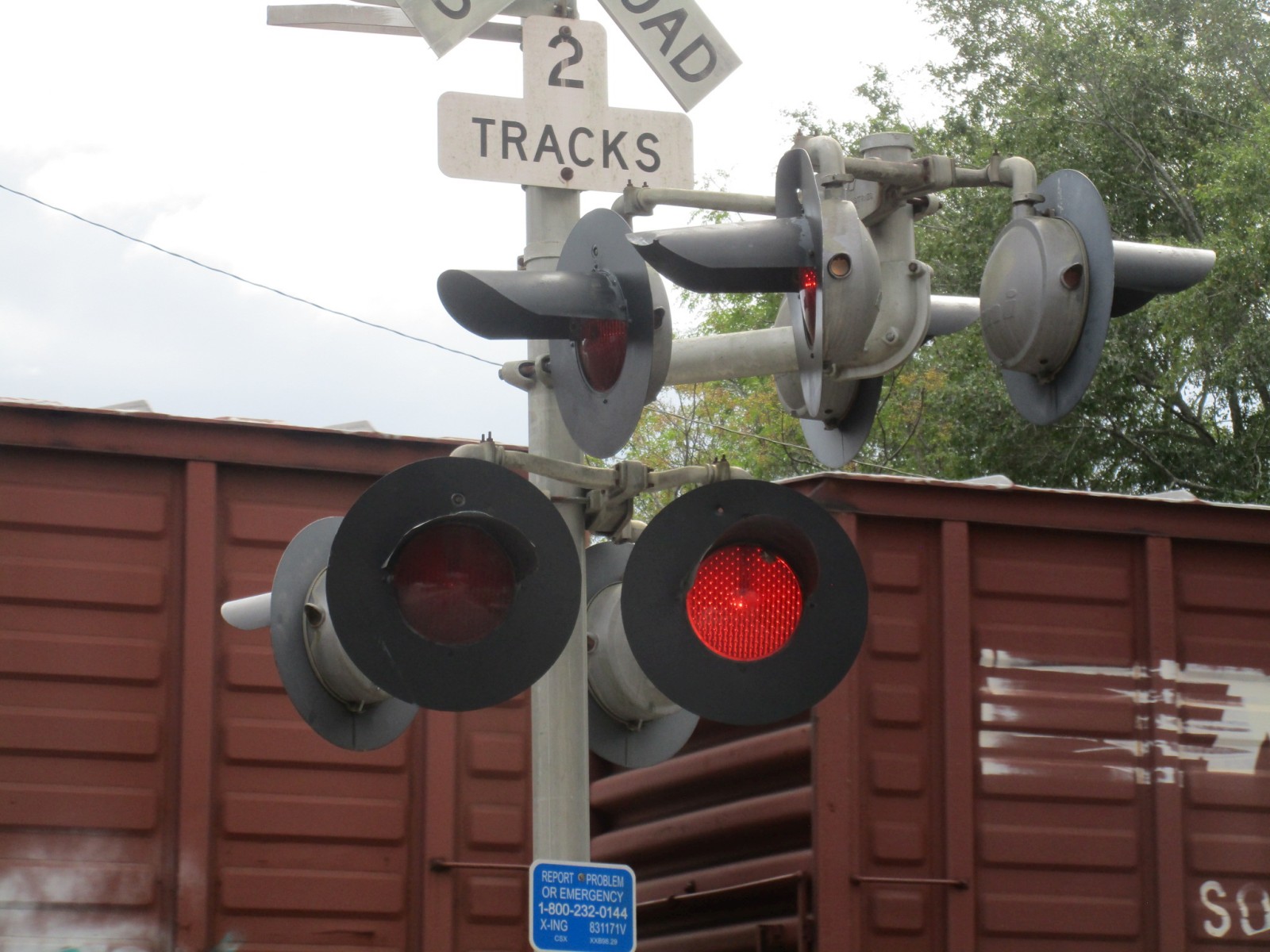

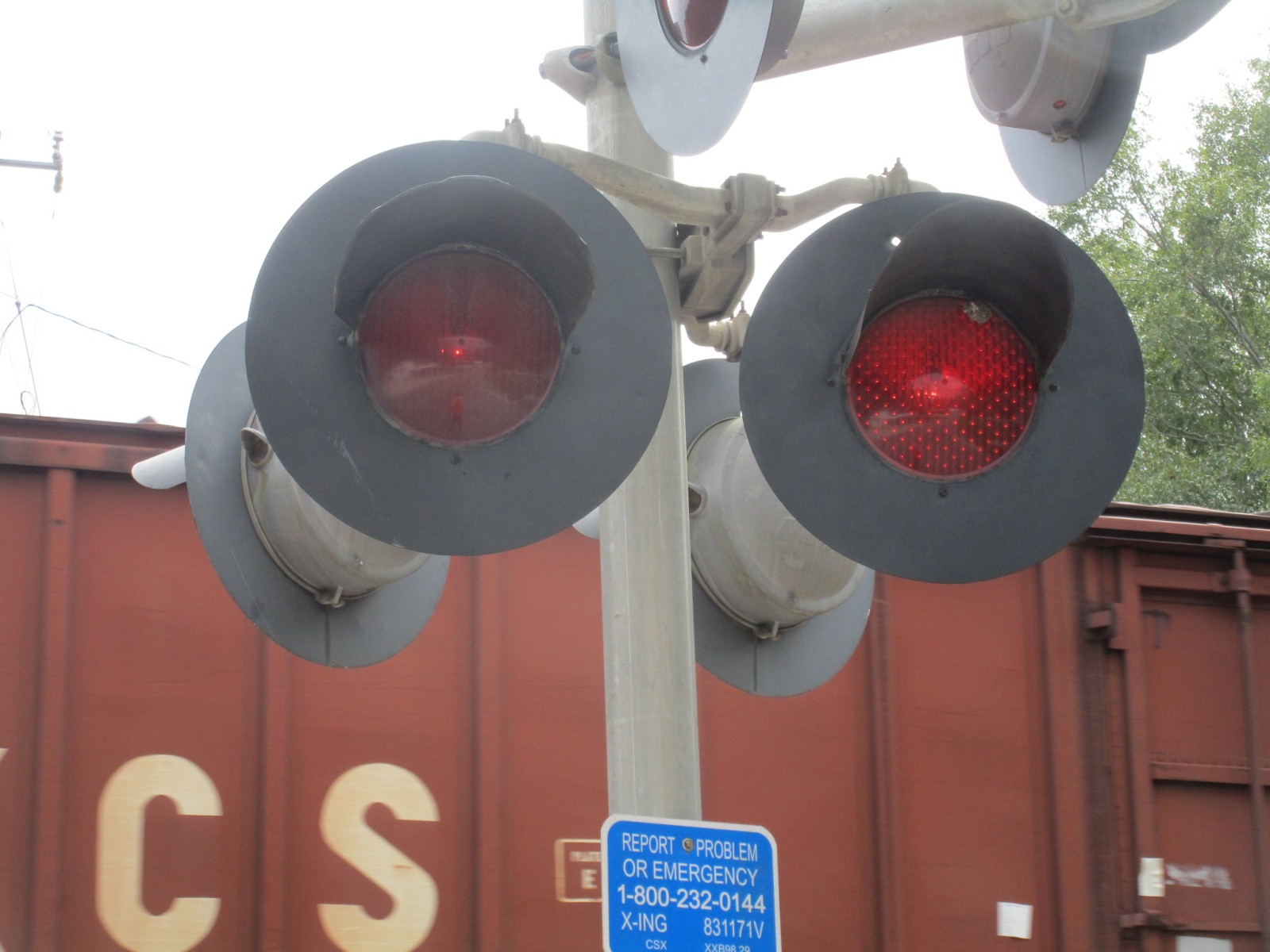

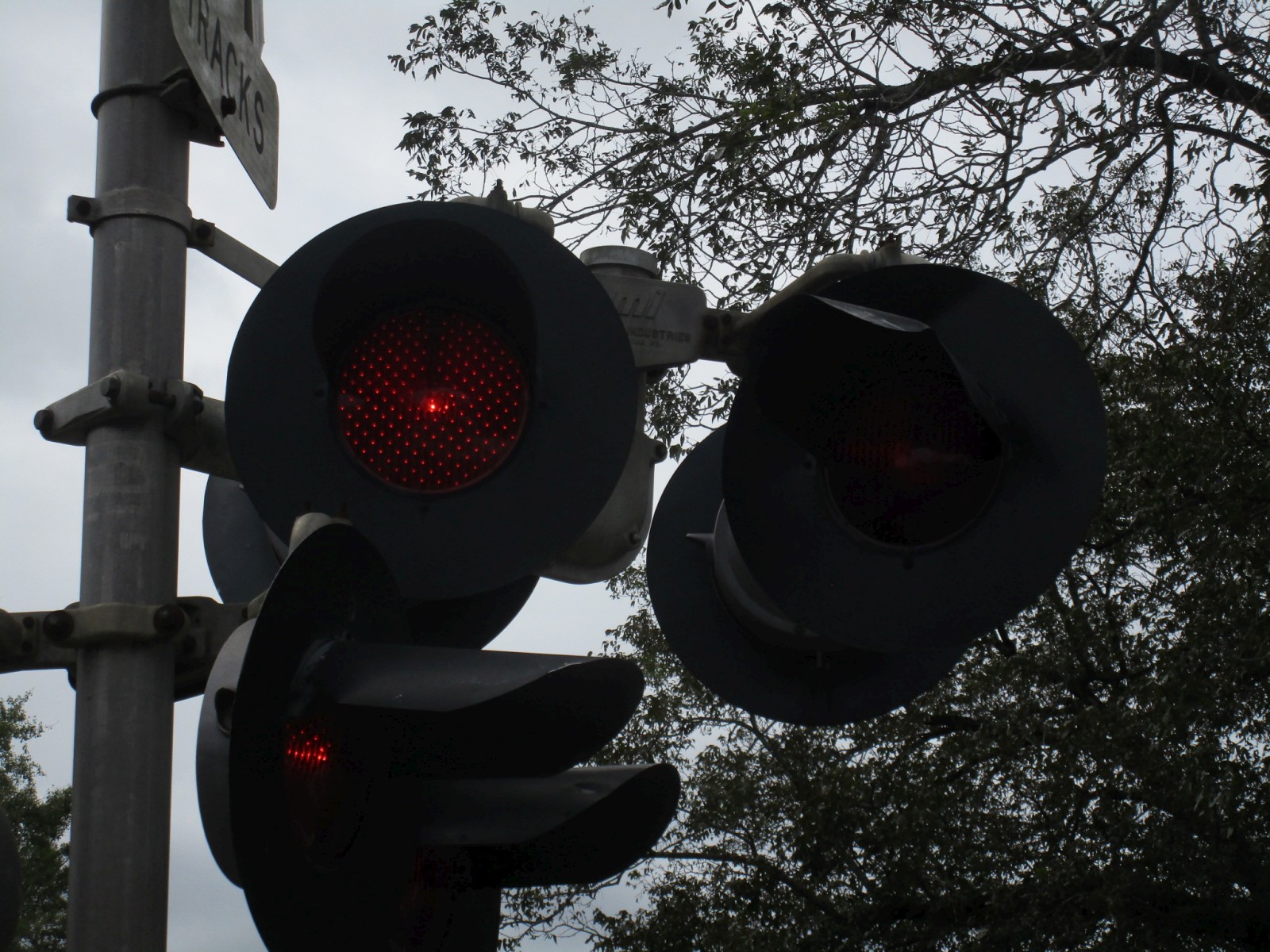

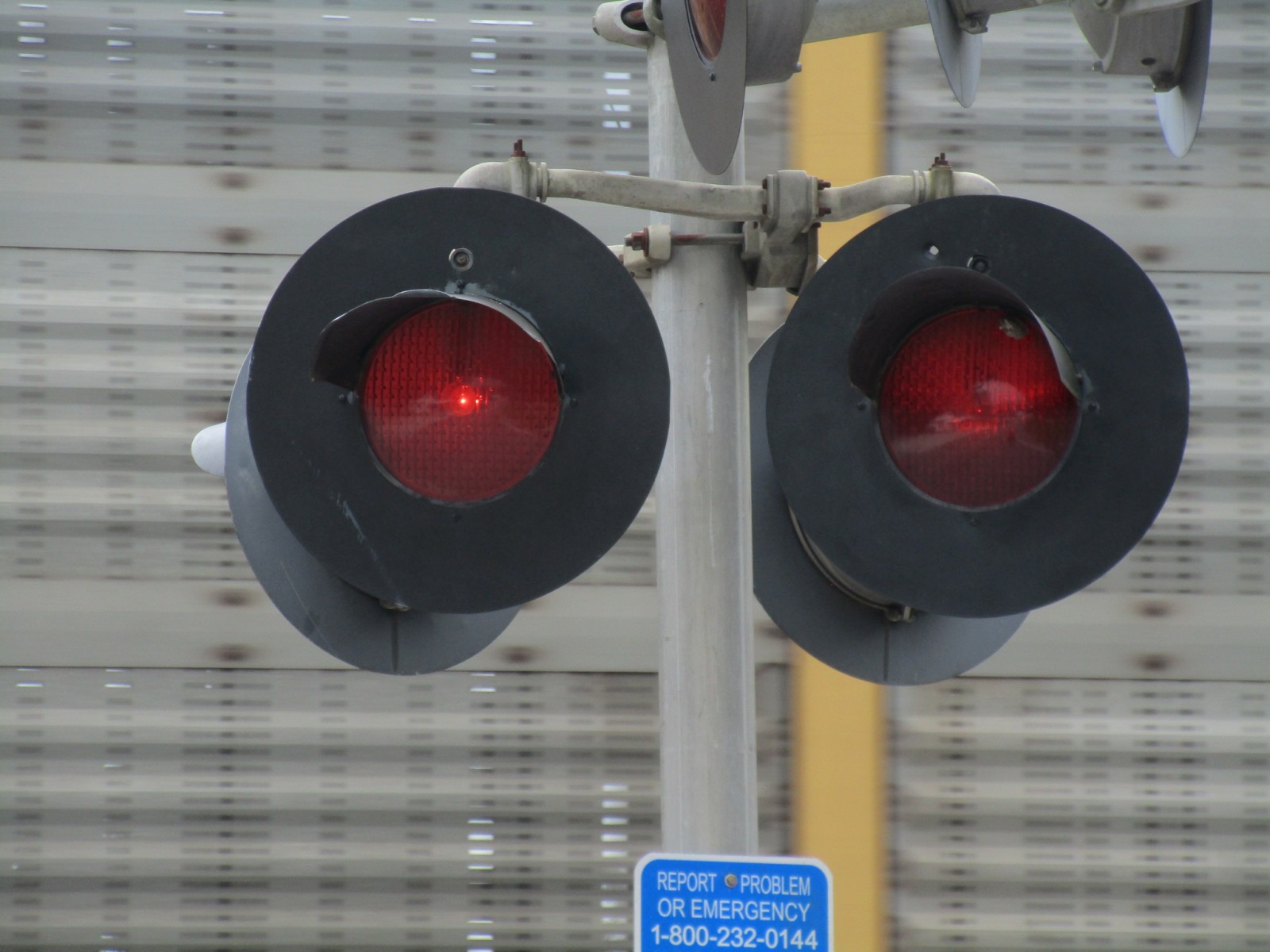

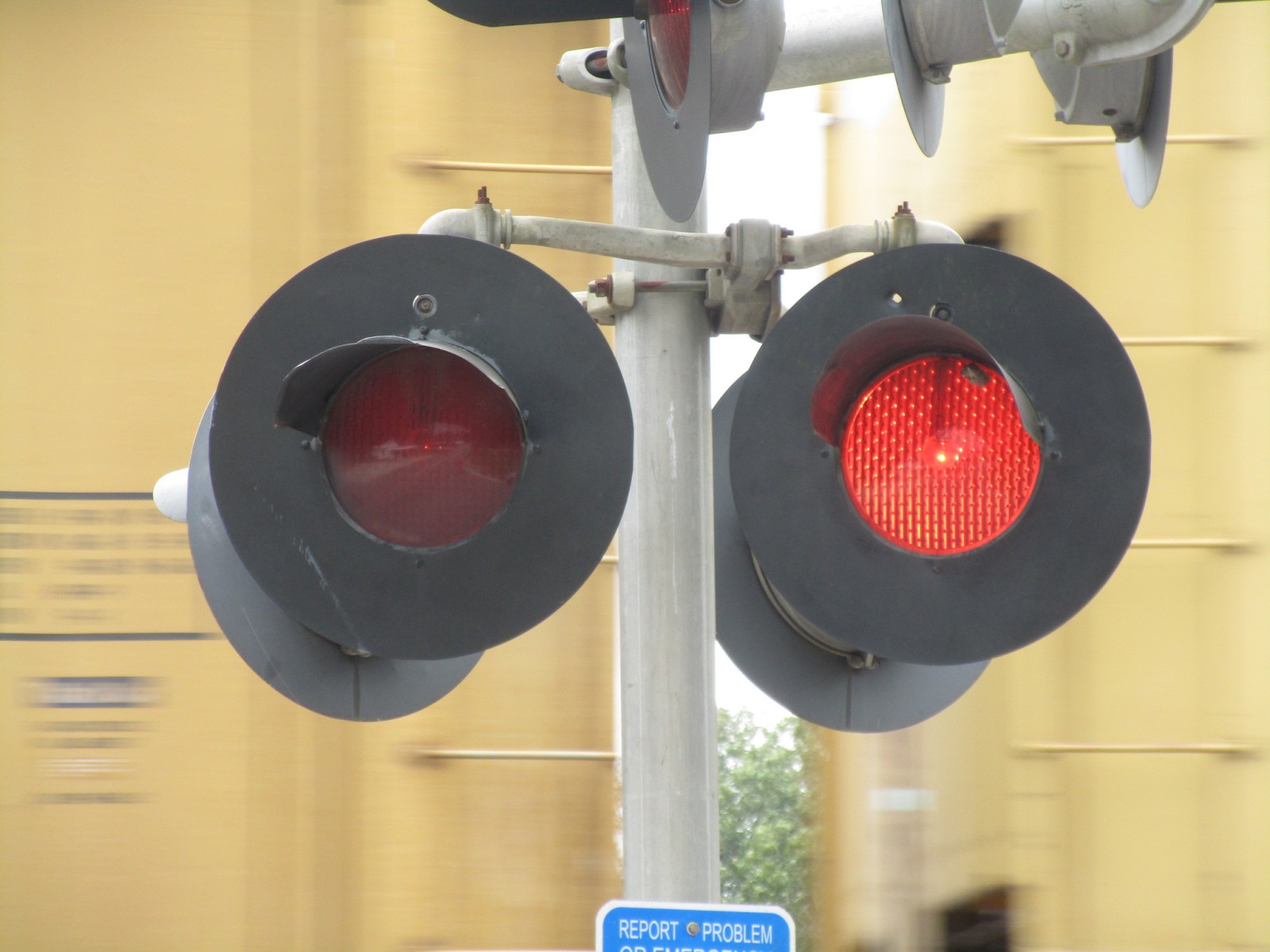

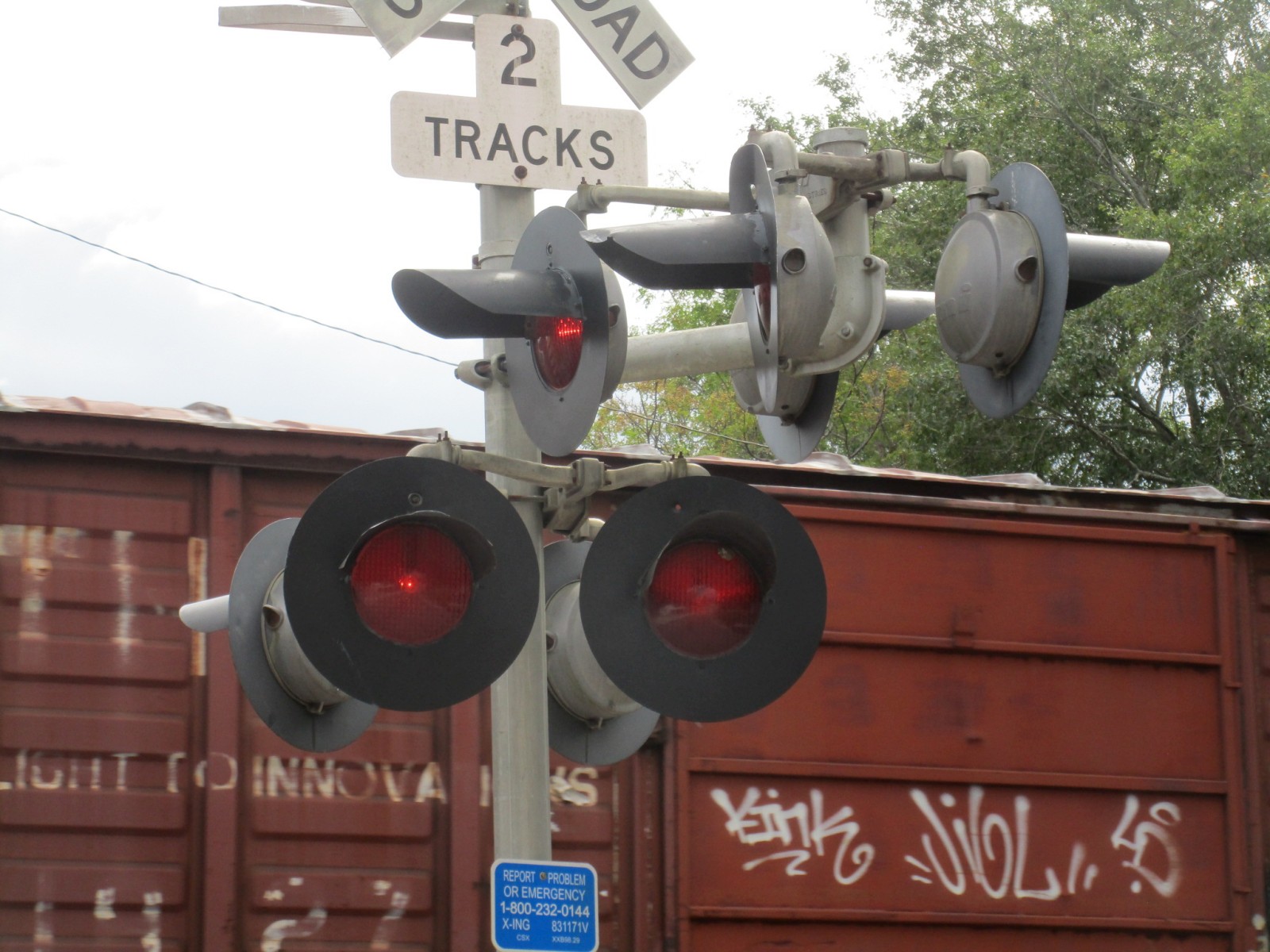

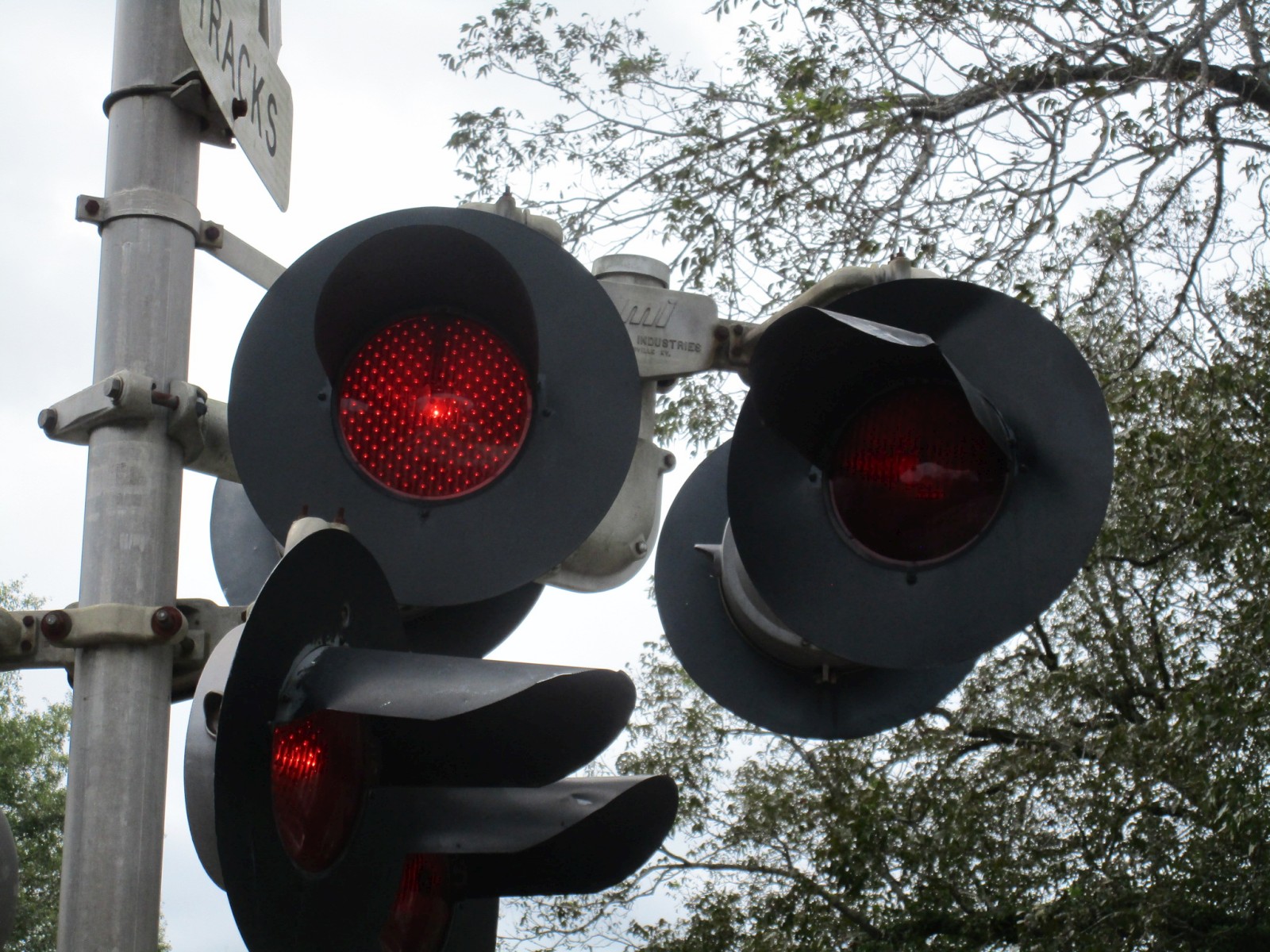

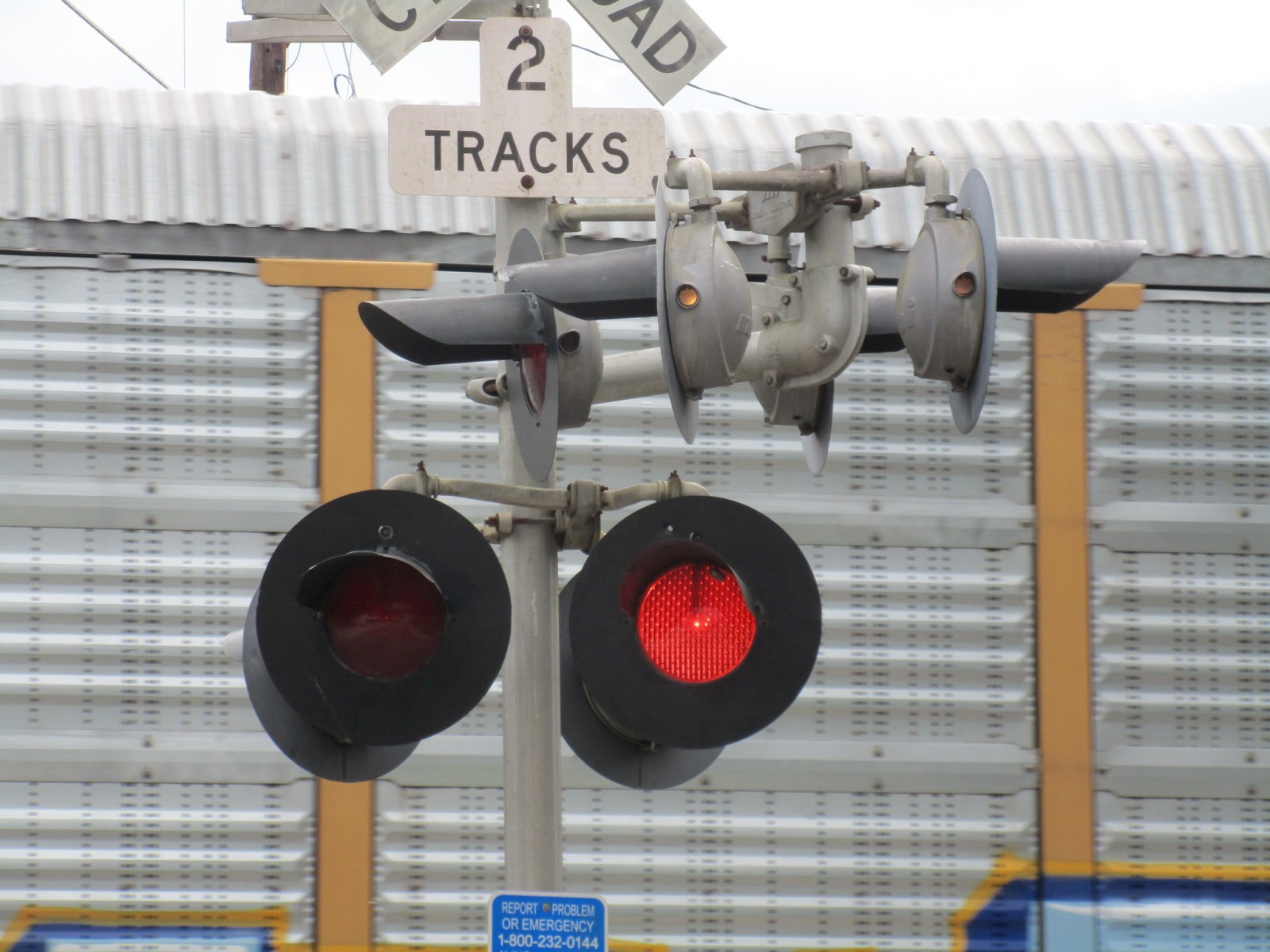

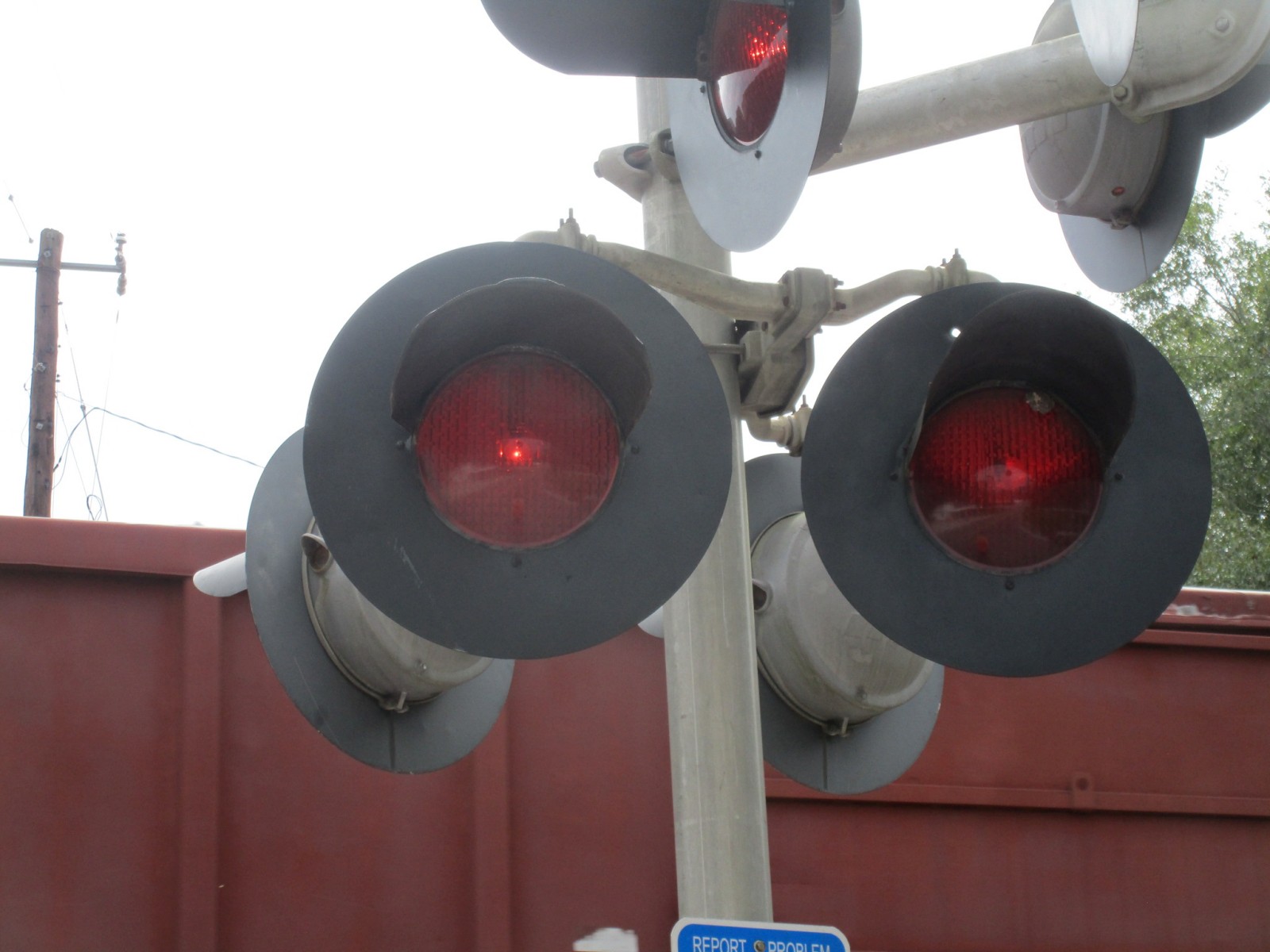

Most of the Modern Industries lights here were quite dim at the time, which is quite possibly the reason why CSX replaced them. |
|||
45 |
46 |
47 |
48 |
49 |
50 |
51 |
52 |
53 |
54 |
55 |
56 |
57 |
58 |
59 |
60 |
61 |
62 |
63 |
64 |

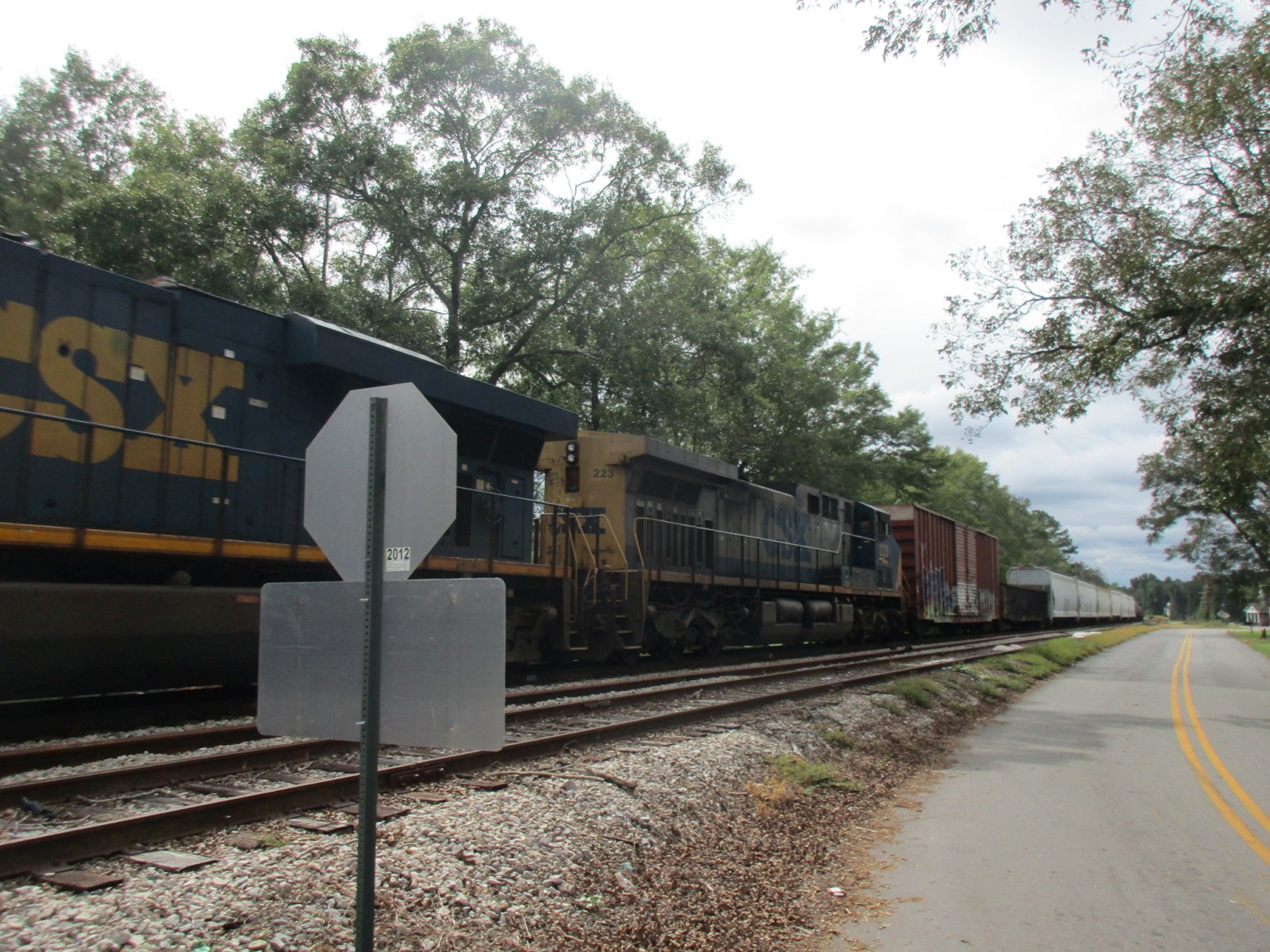

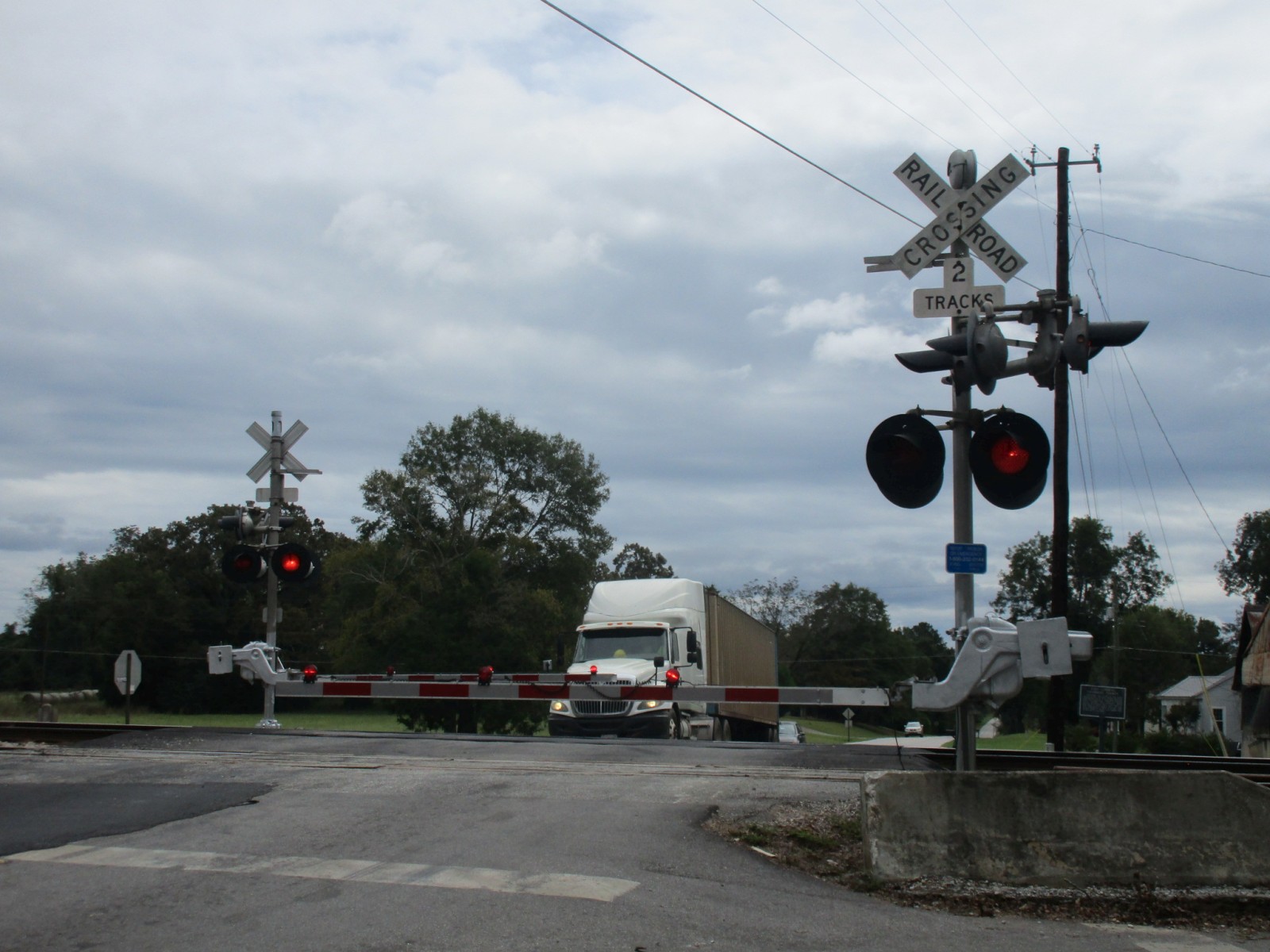

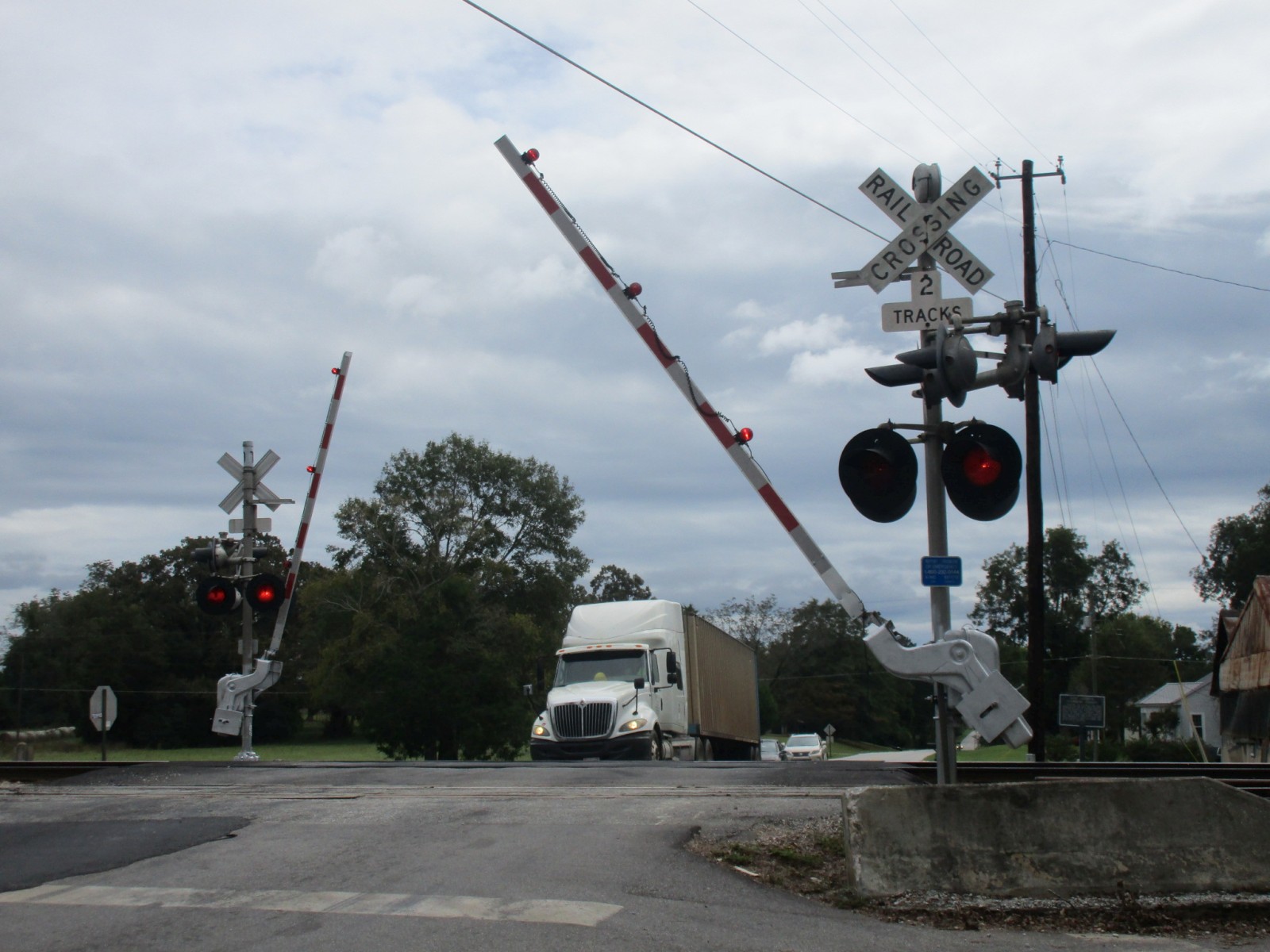

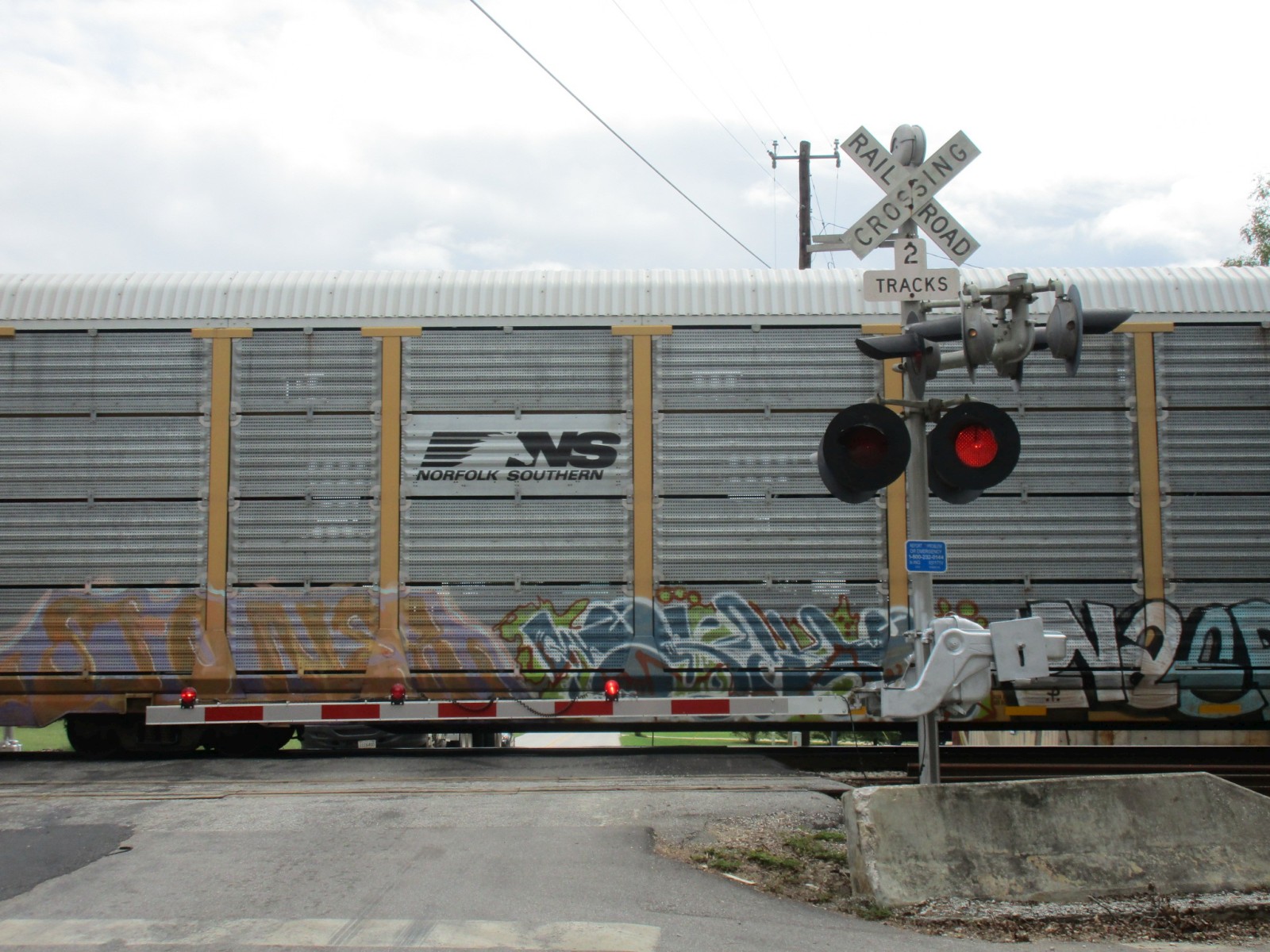

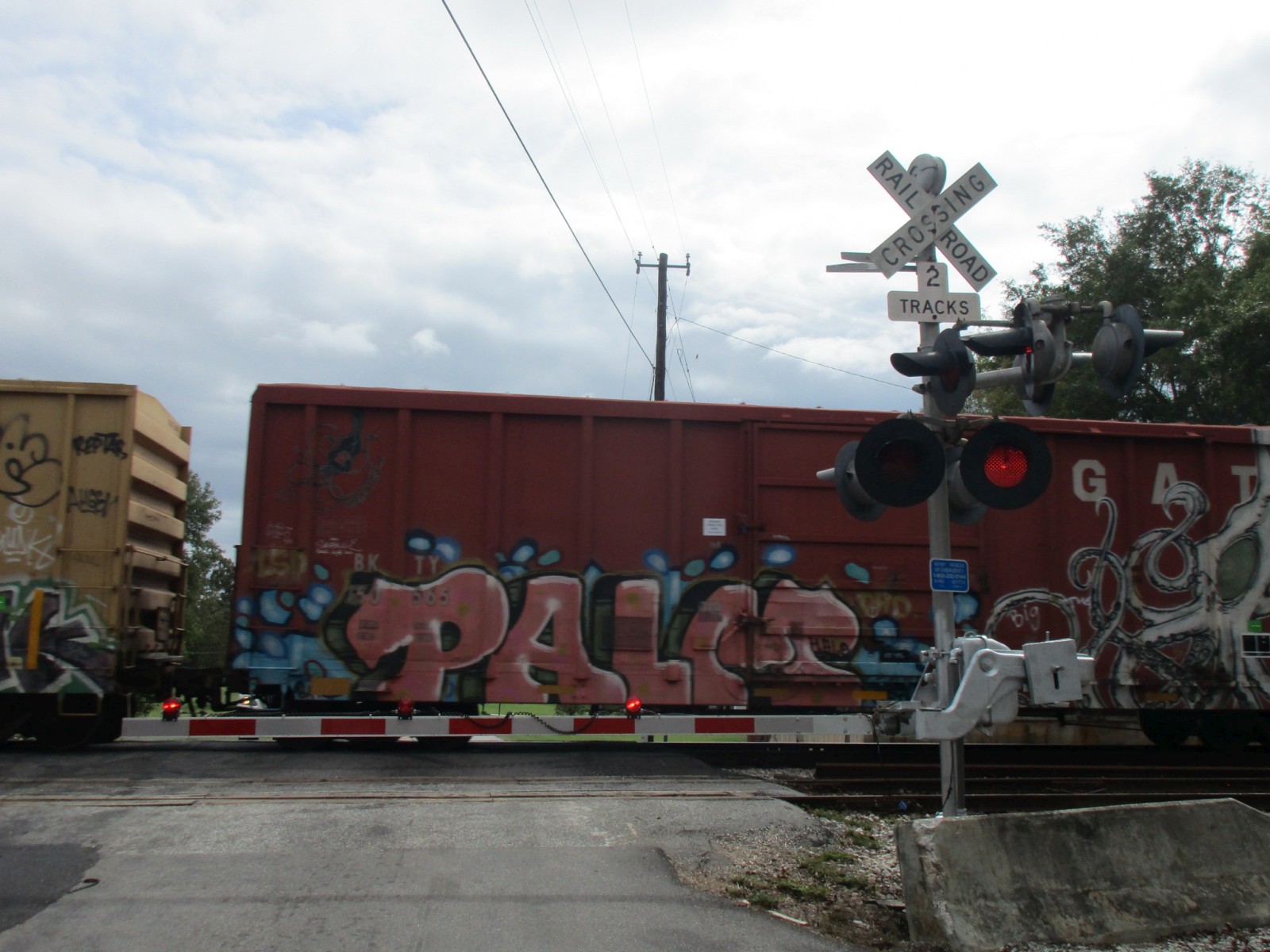

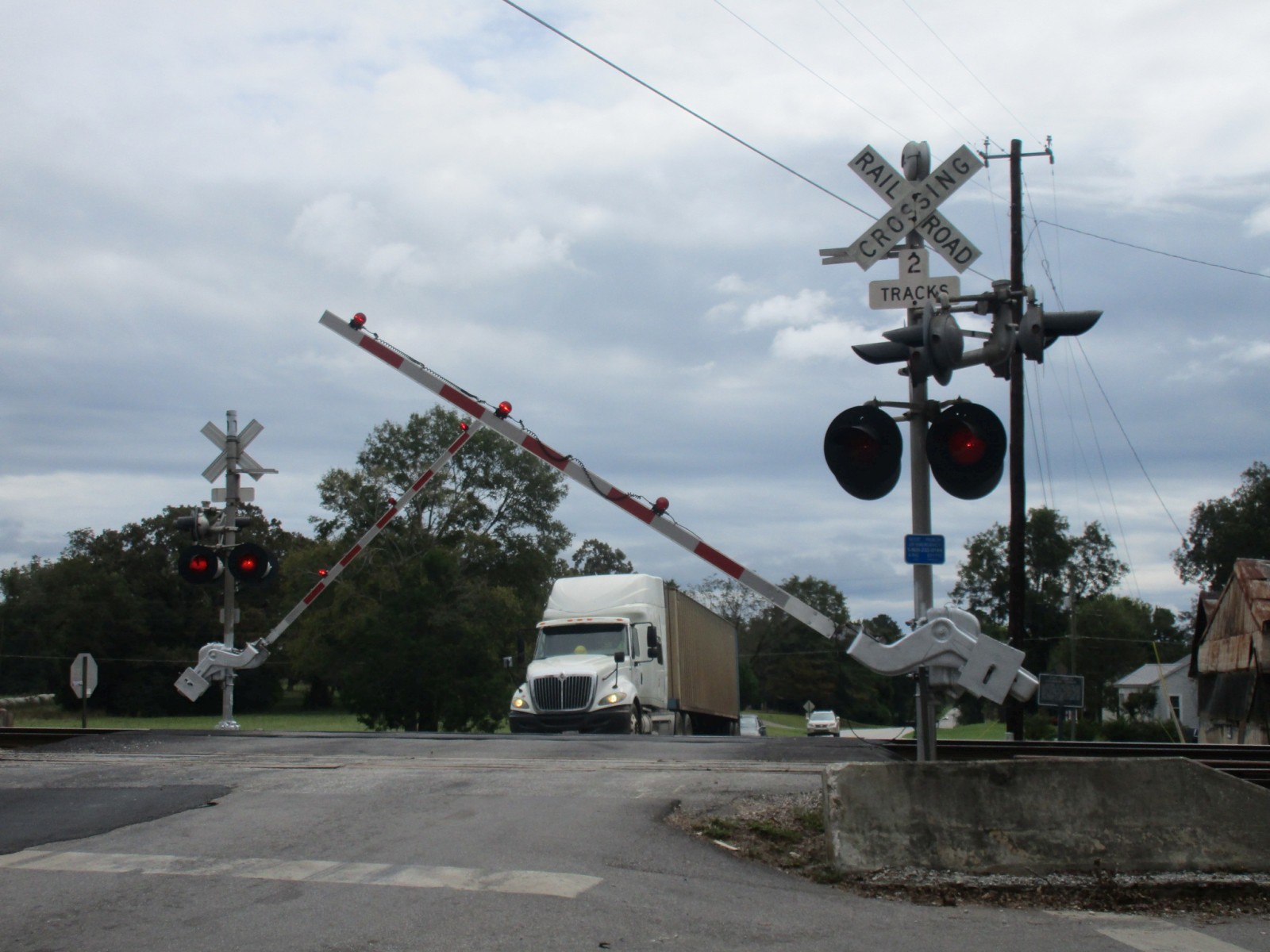

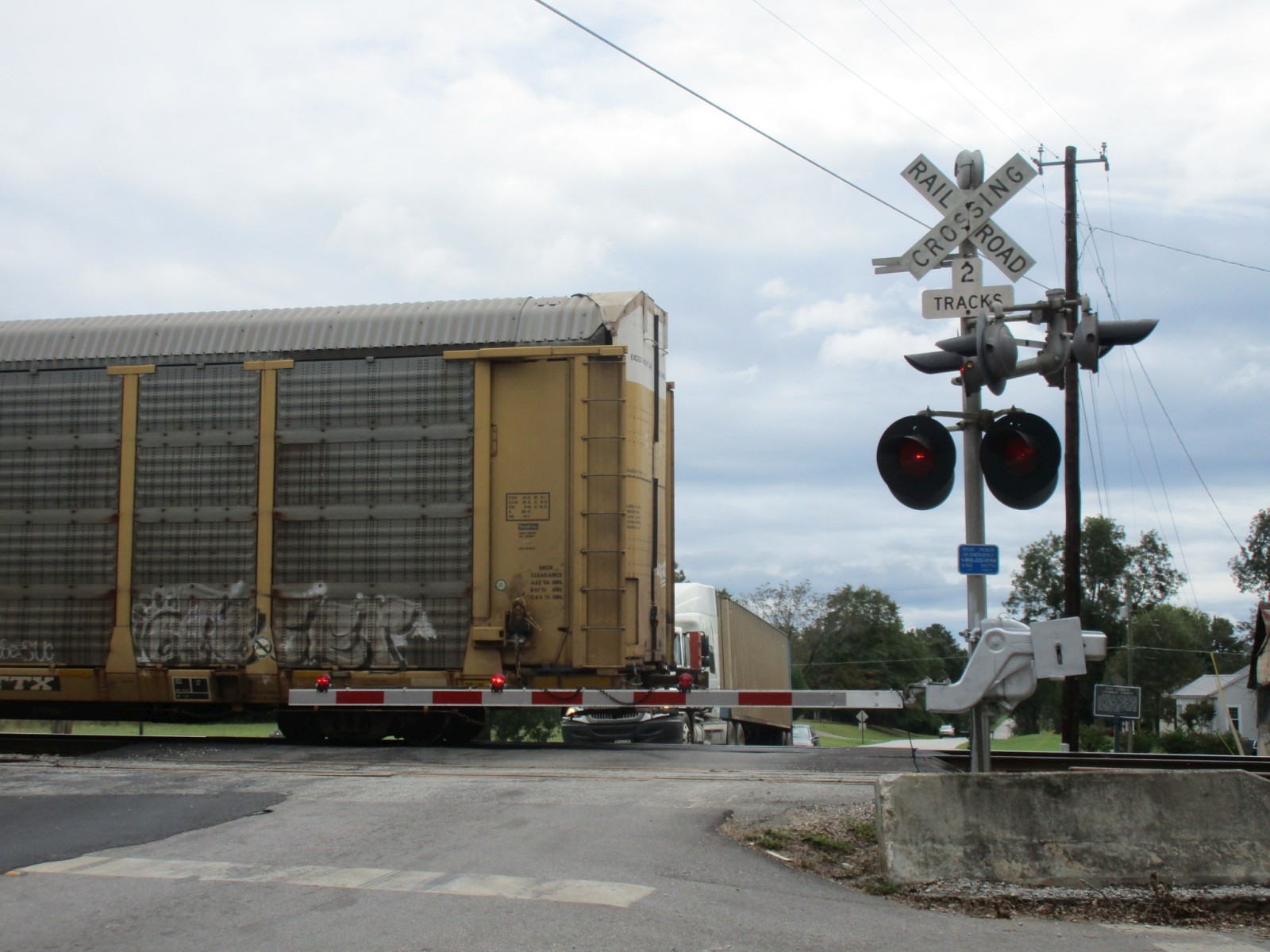

The train passes... |
|||
65 |
66 |
67 |
68 |

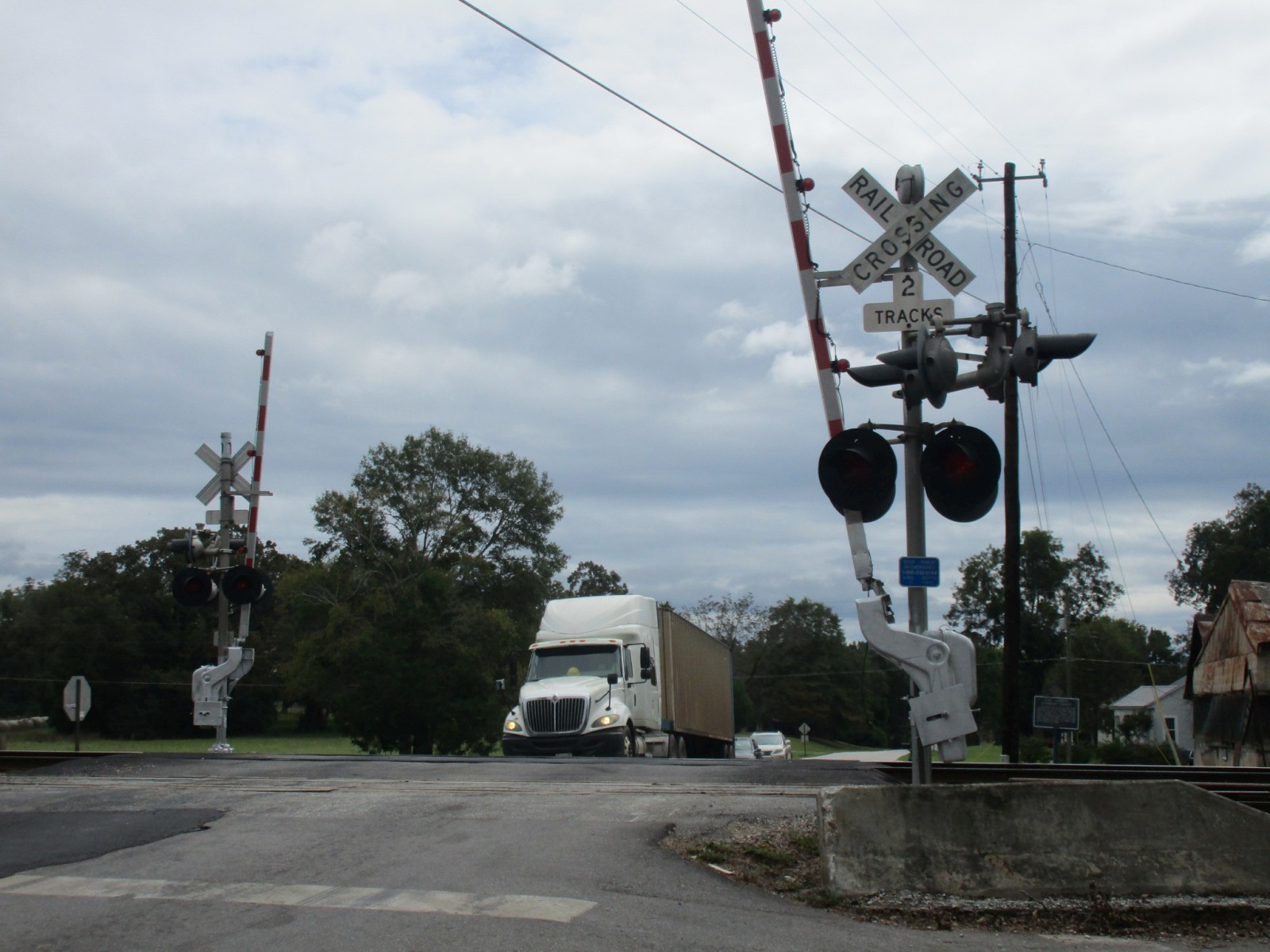

...and the signals deactivate. |

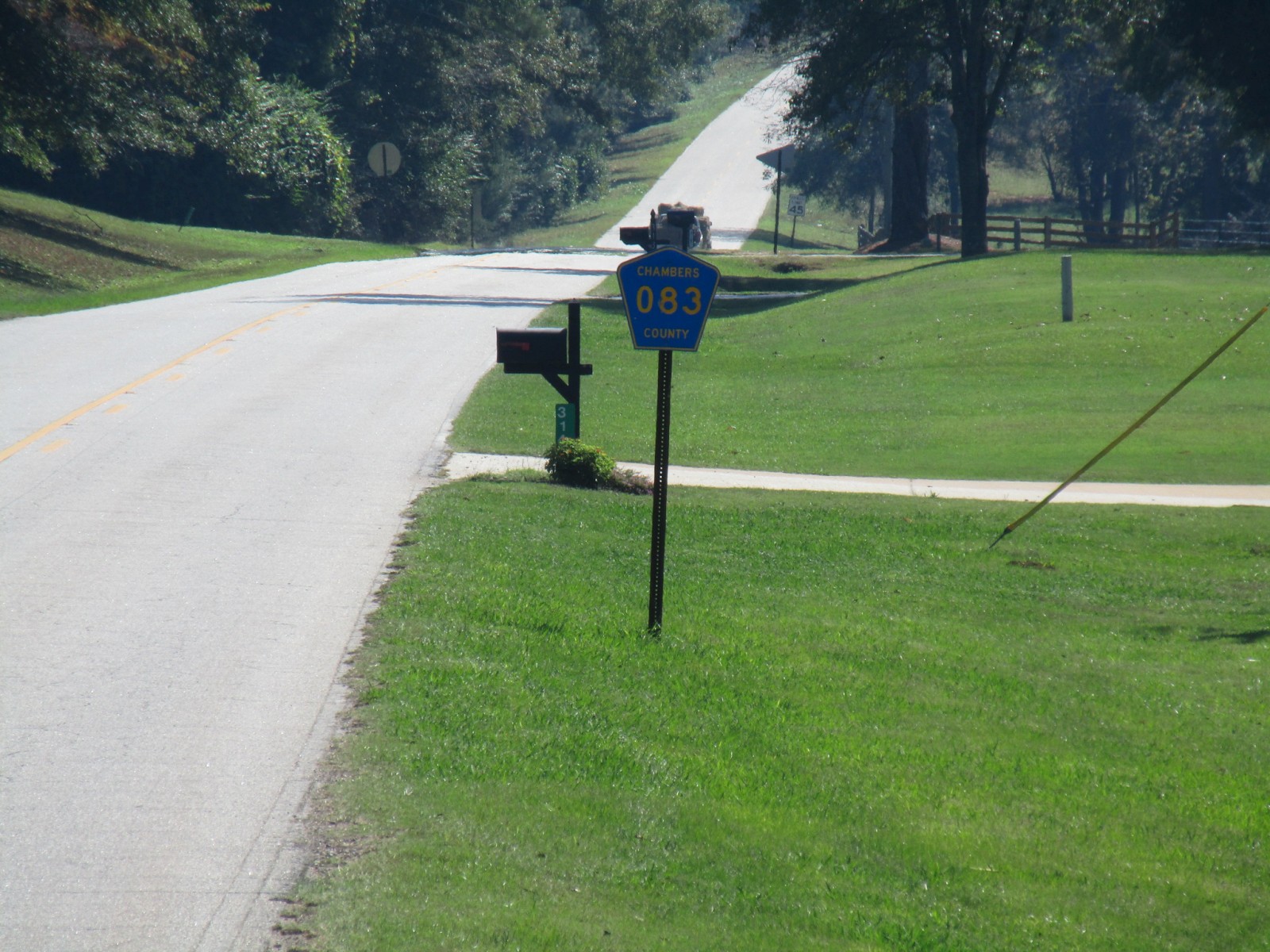

A CR "083" shield stands near the crossing. |
||
69 |
70 |

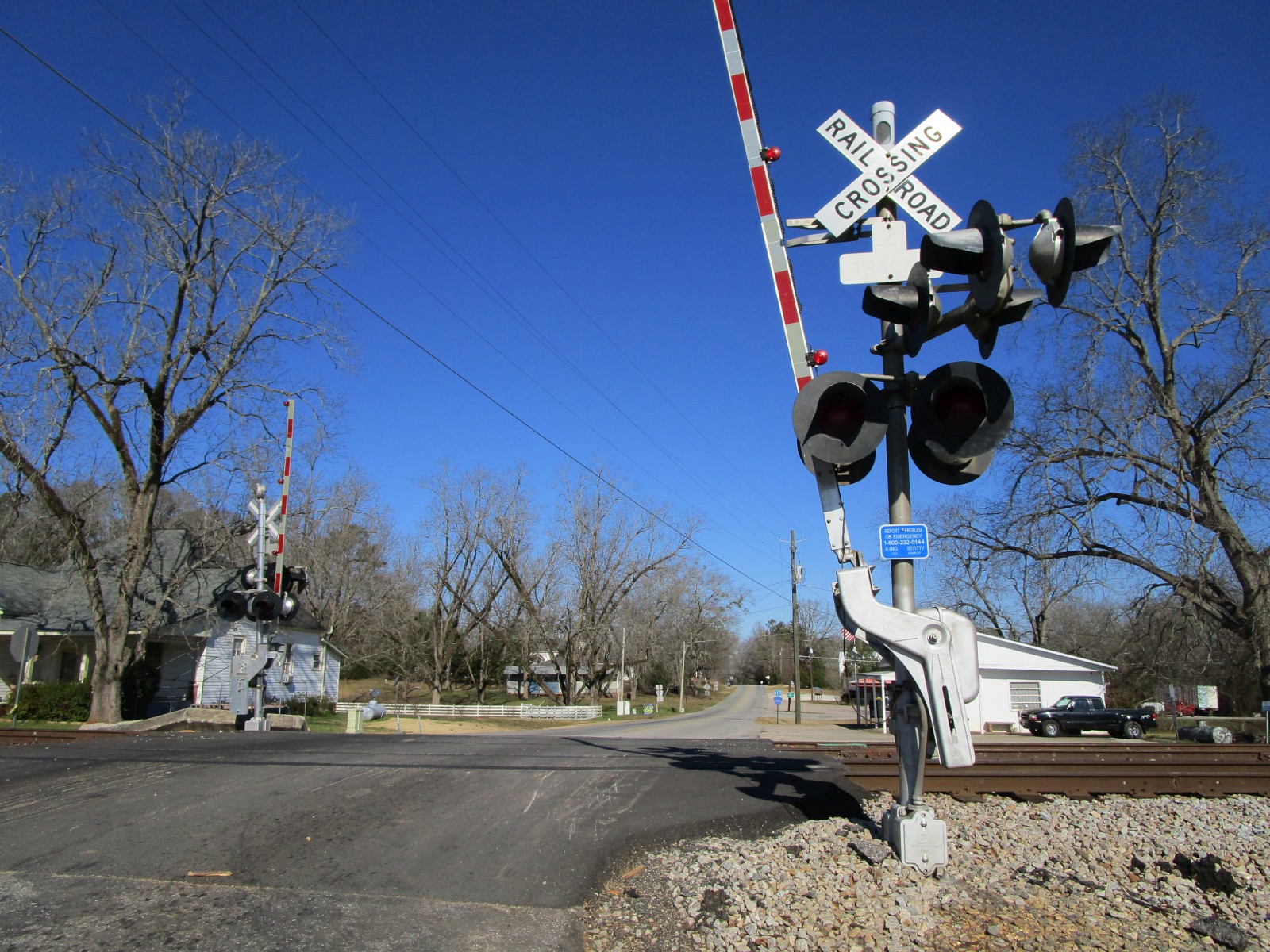

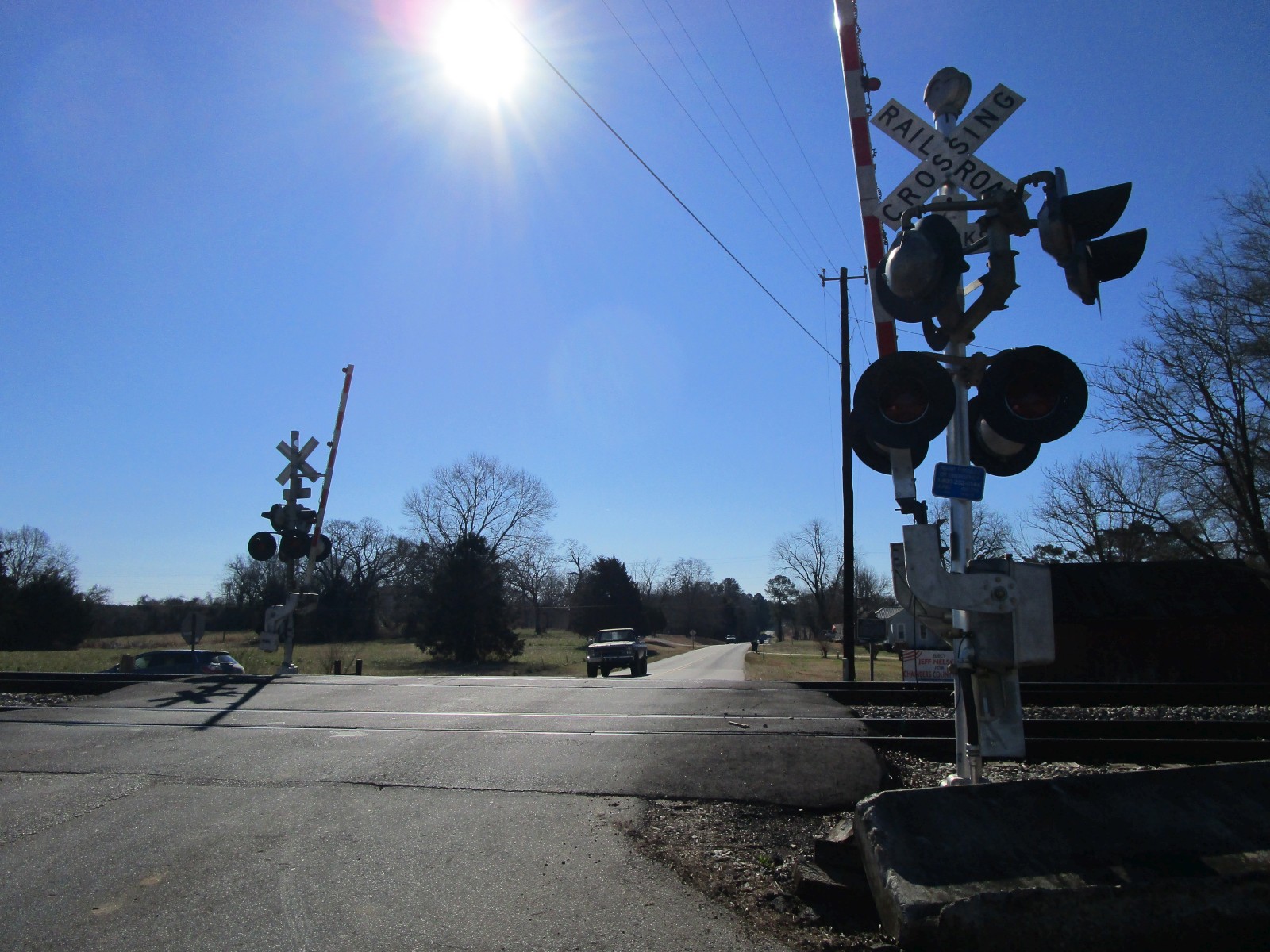

A return trip to the crossing on 2-14-22 finds some changes here... |
|
71 |
72 |
73 |

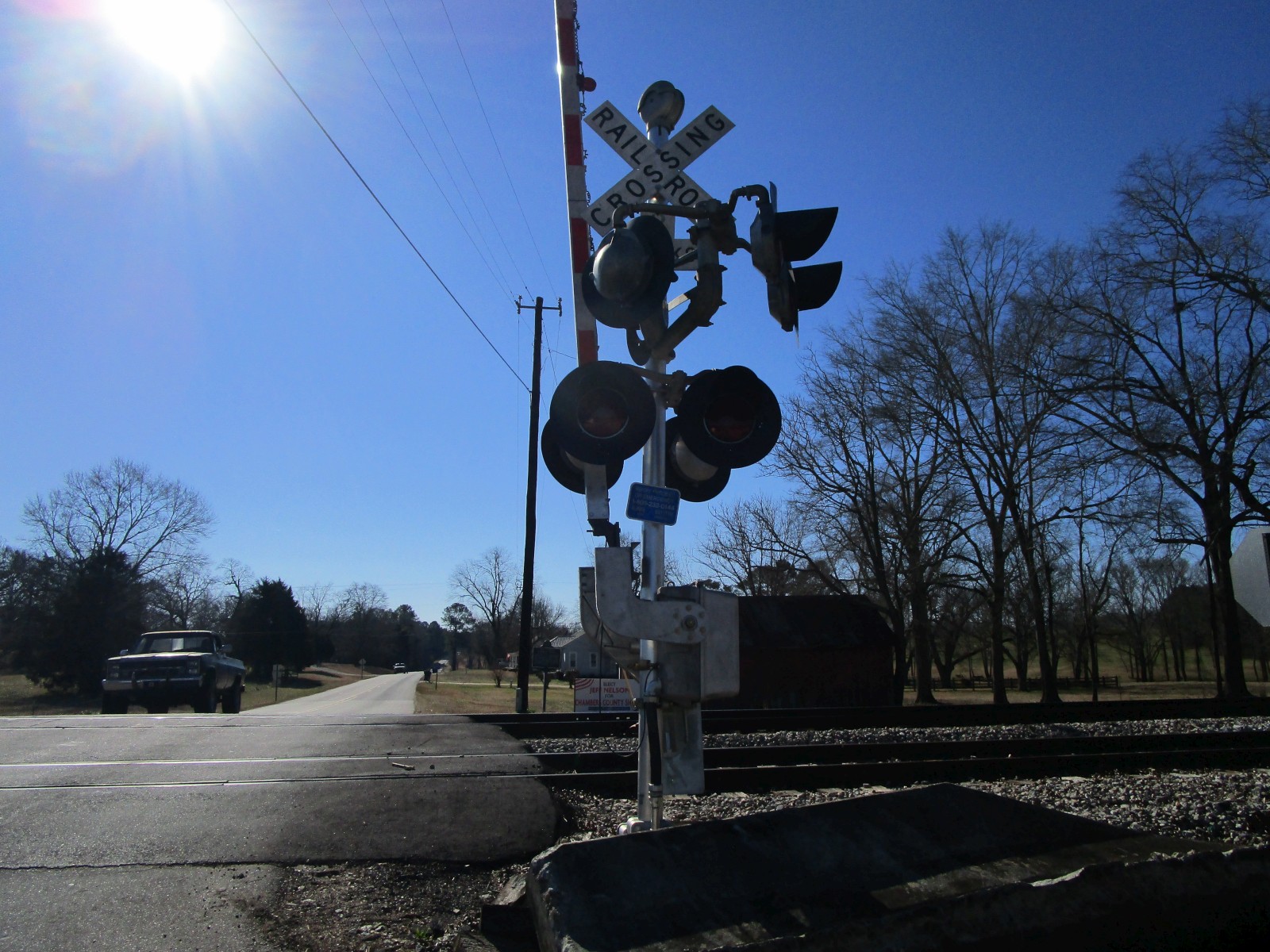

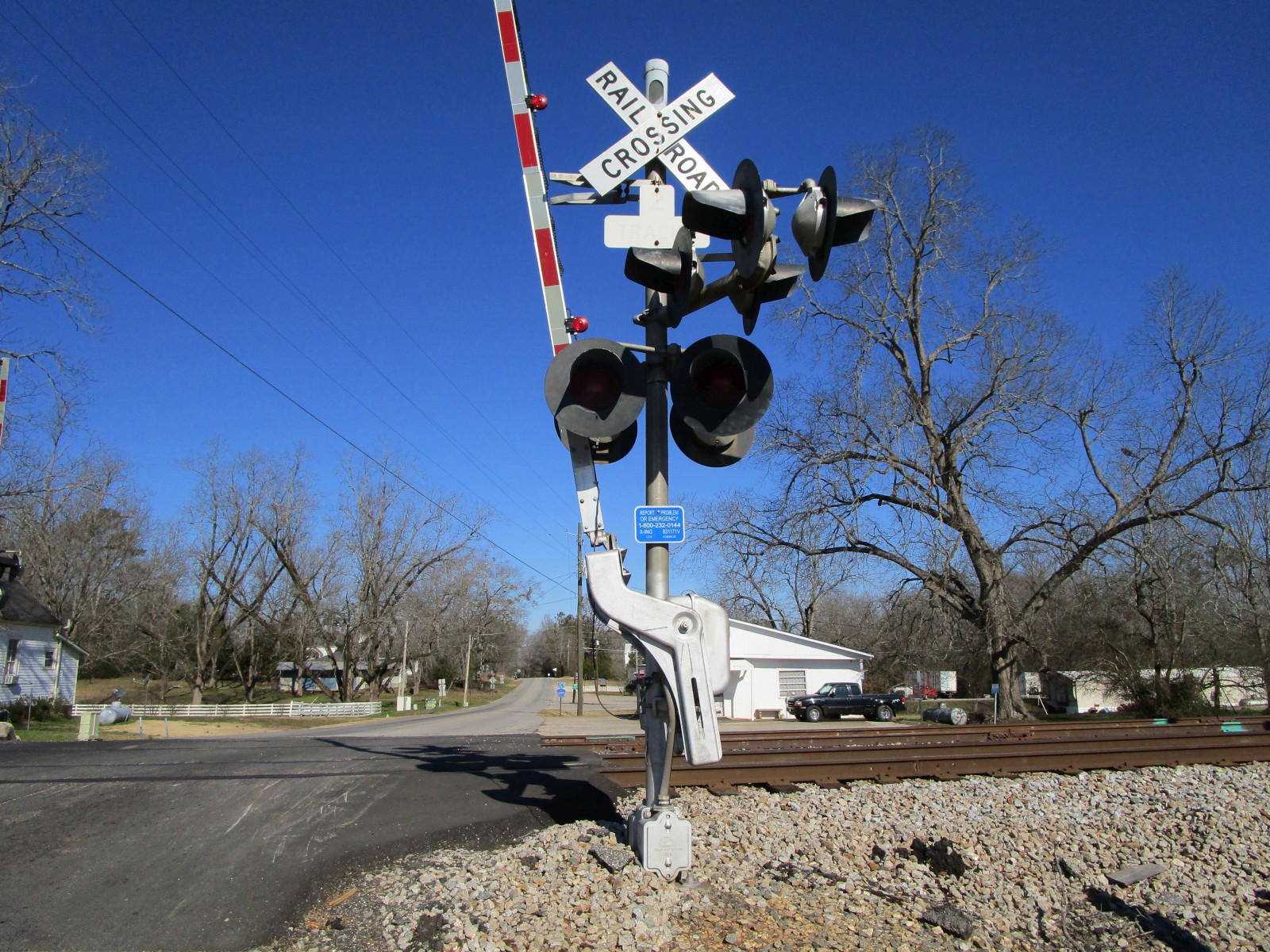

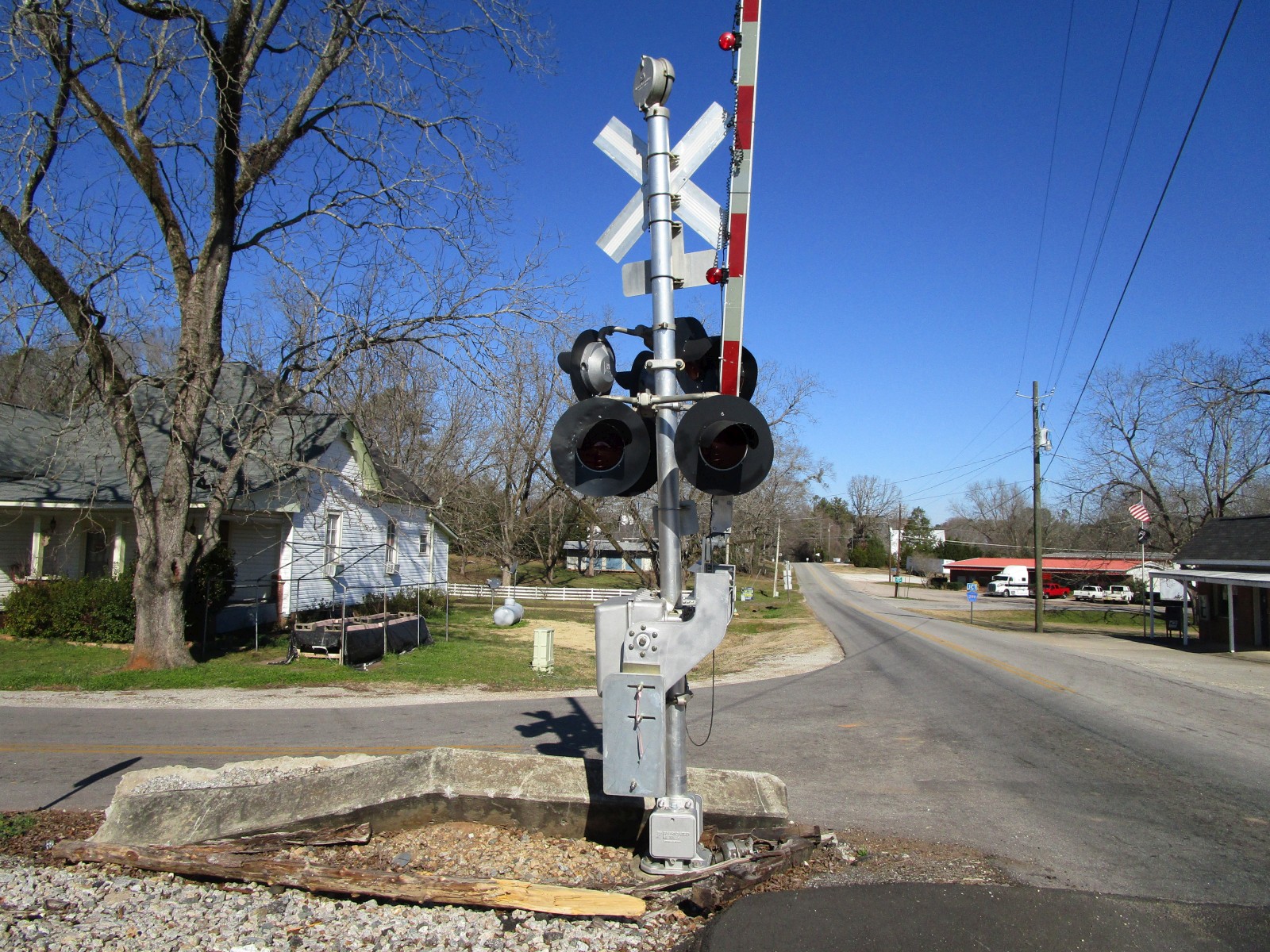

The second signal was replaced entirely! |

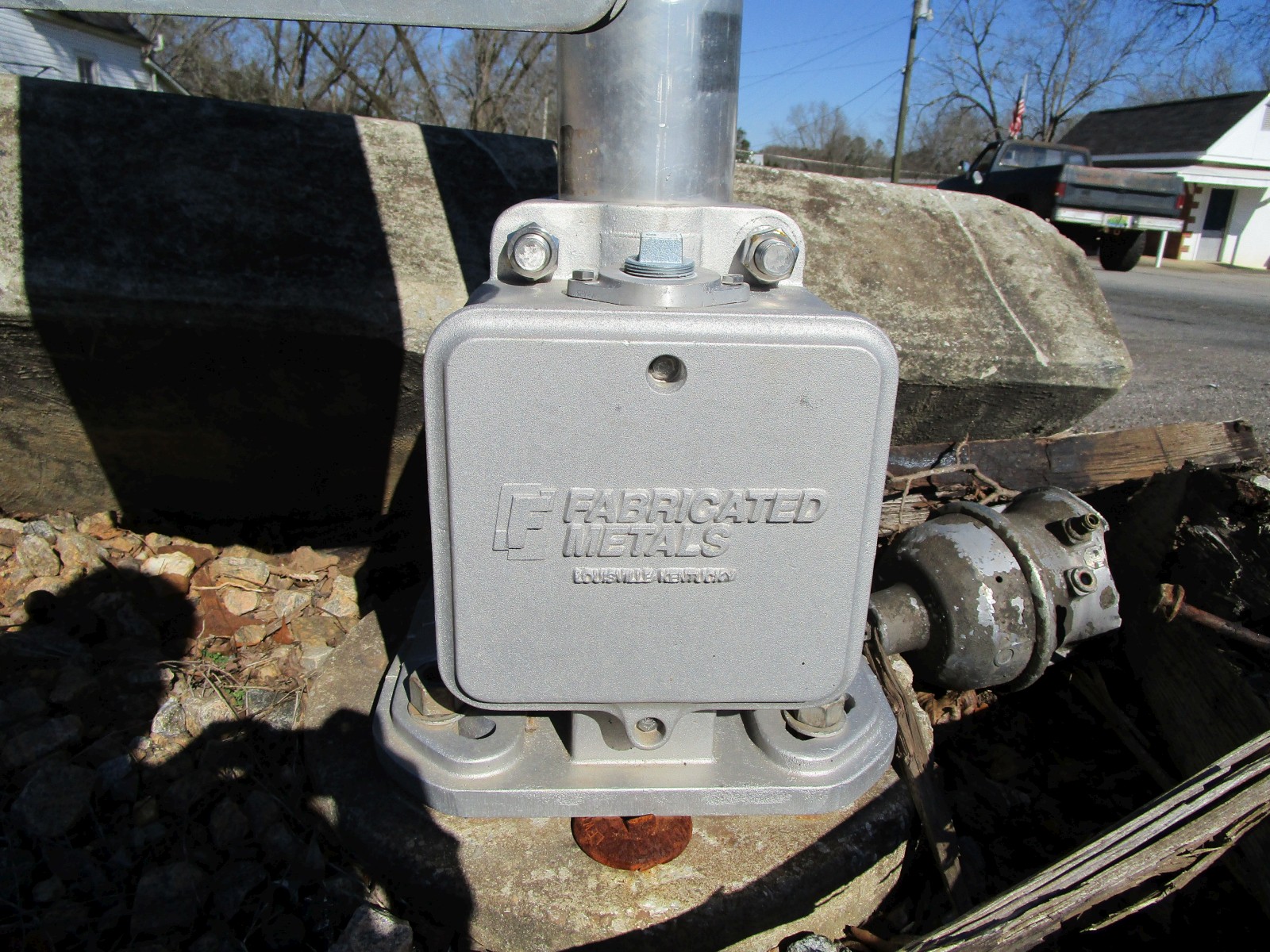

The replacement signal has a Fabricated Metals base. |
|
74 |
75 |
76 |
77 |

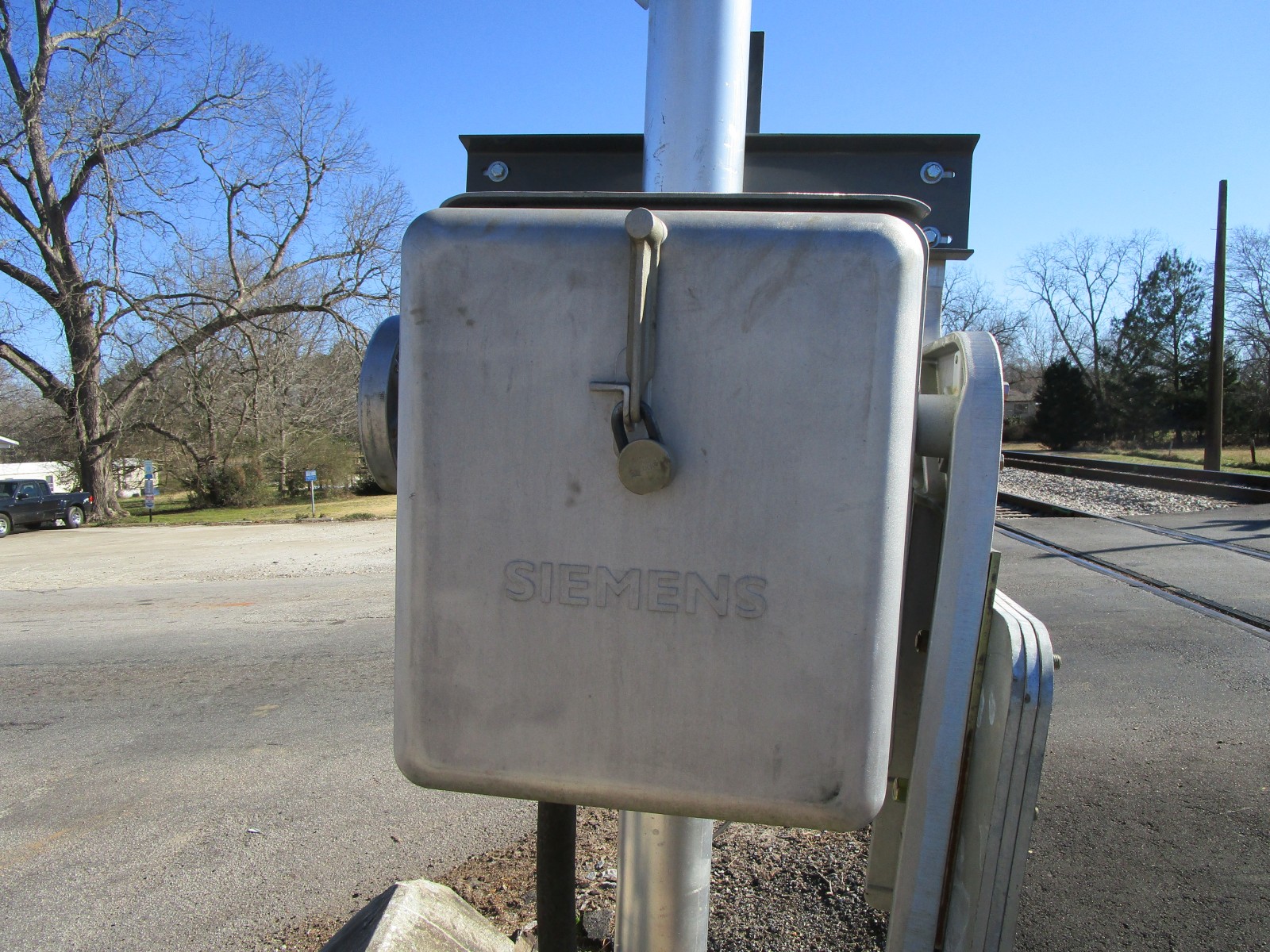

A Siemens gate mechanism. |

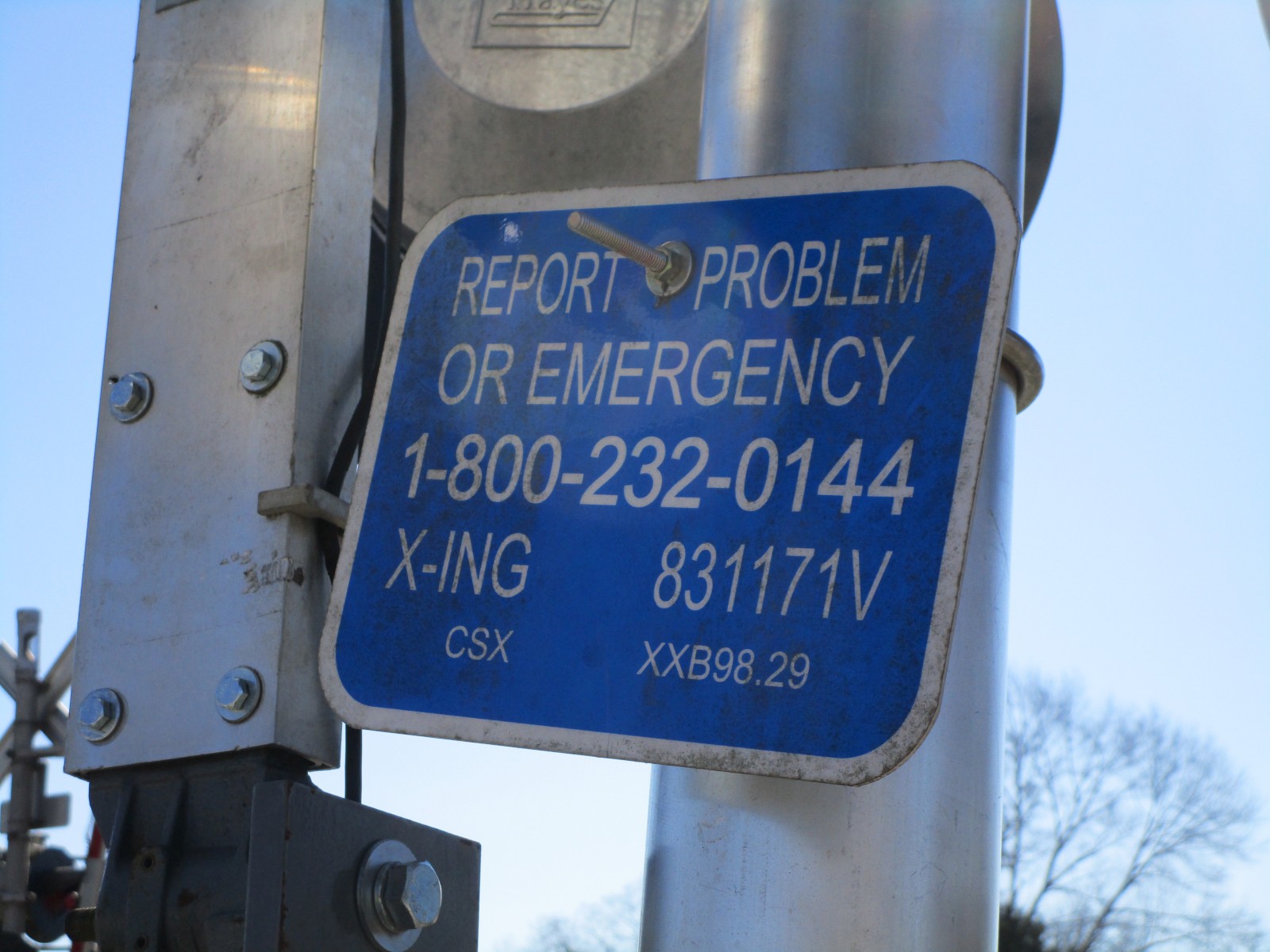

The emergency information. |

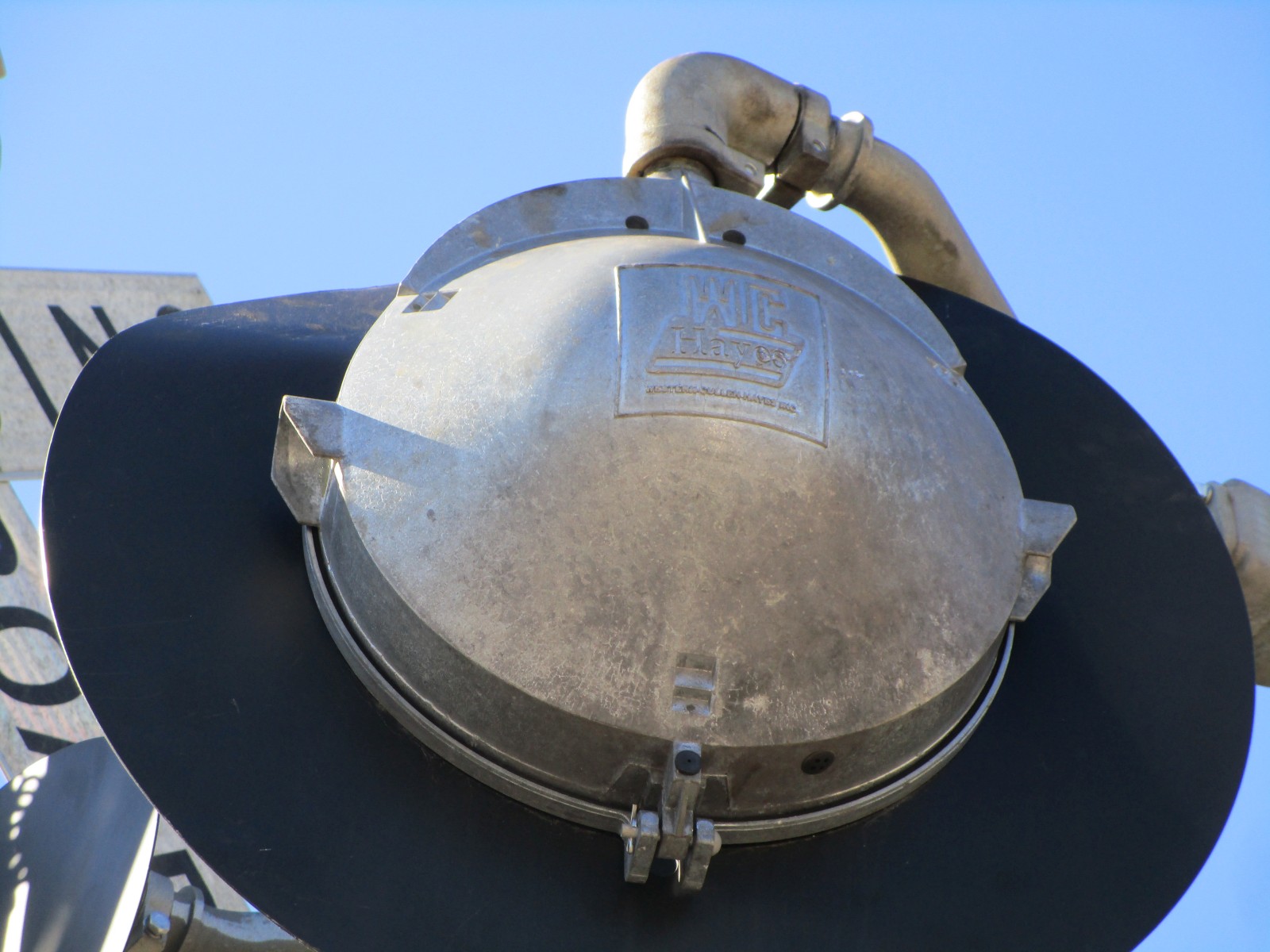

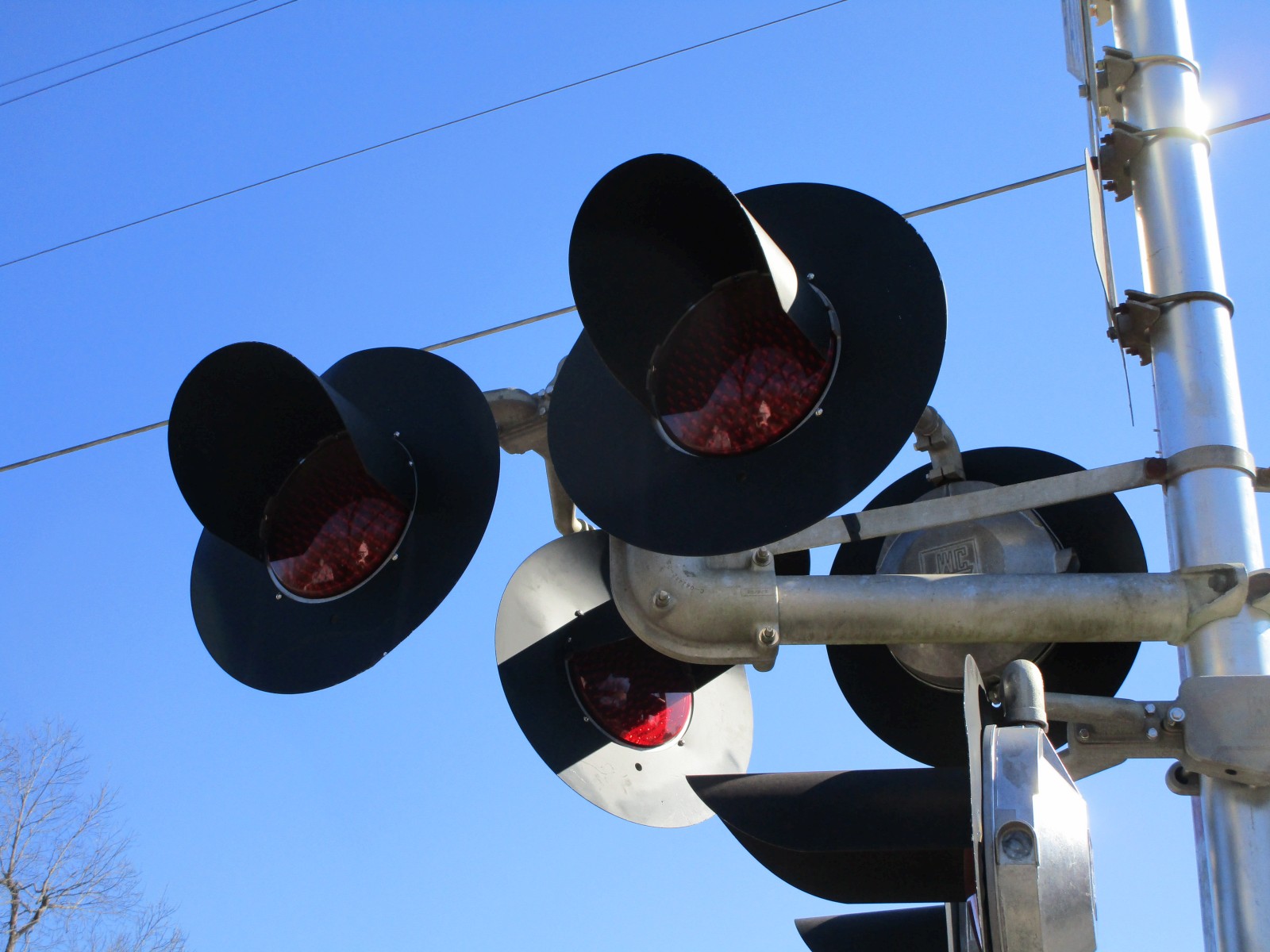

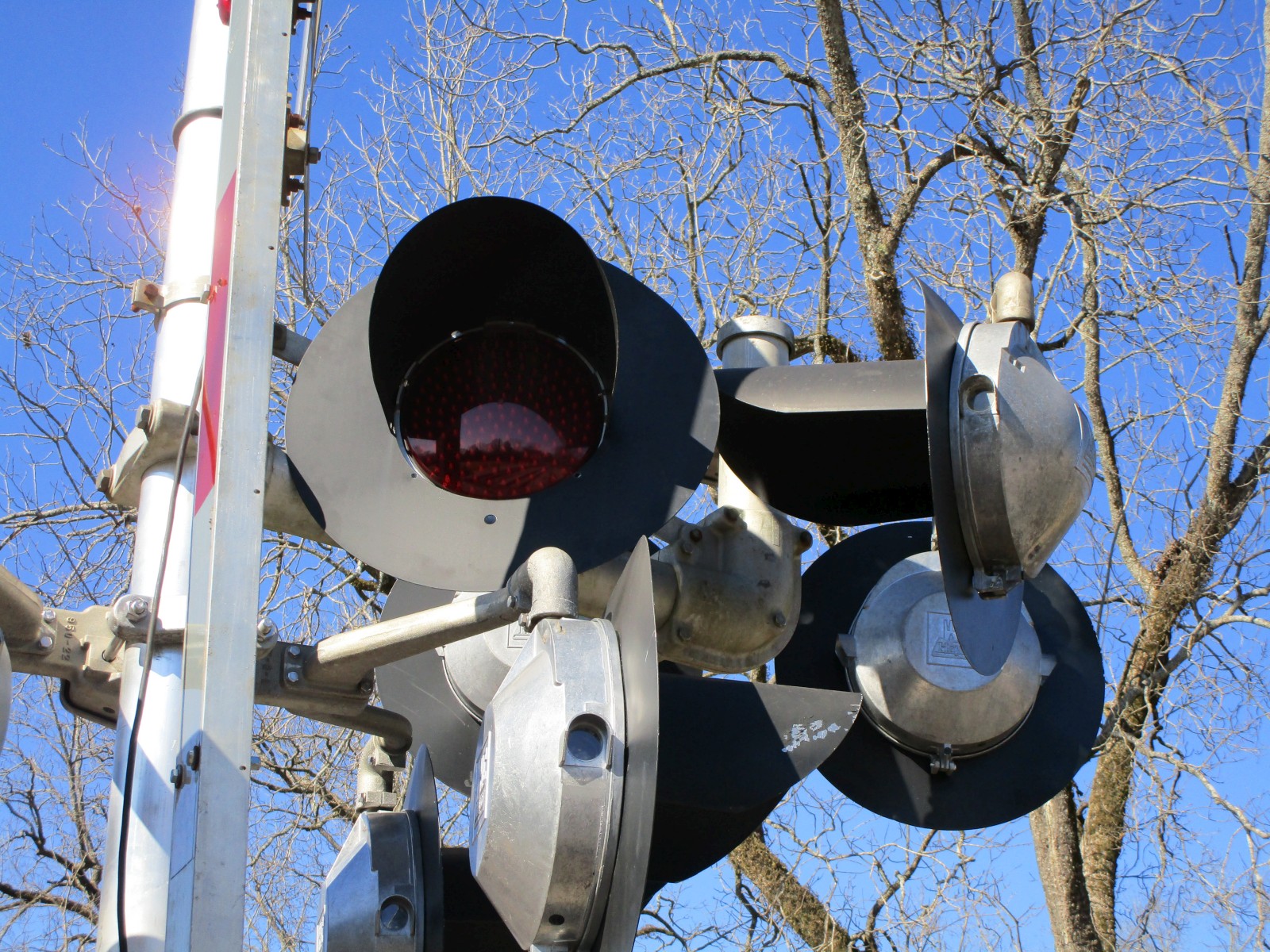

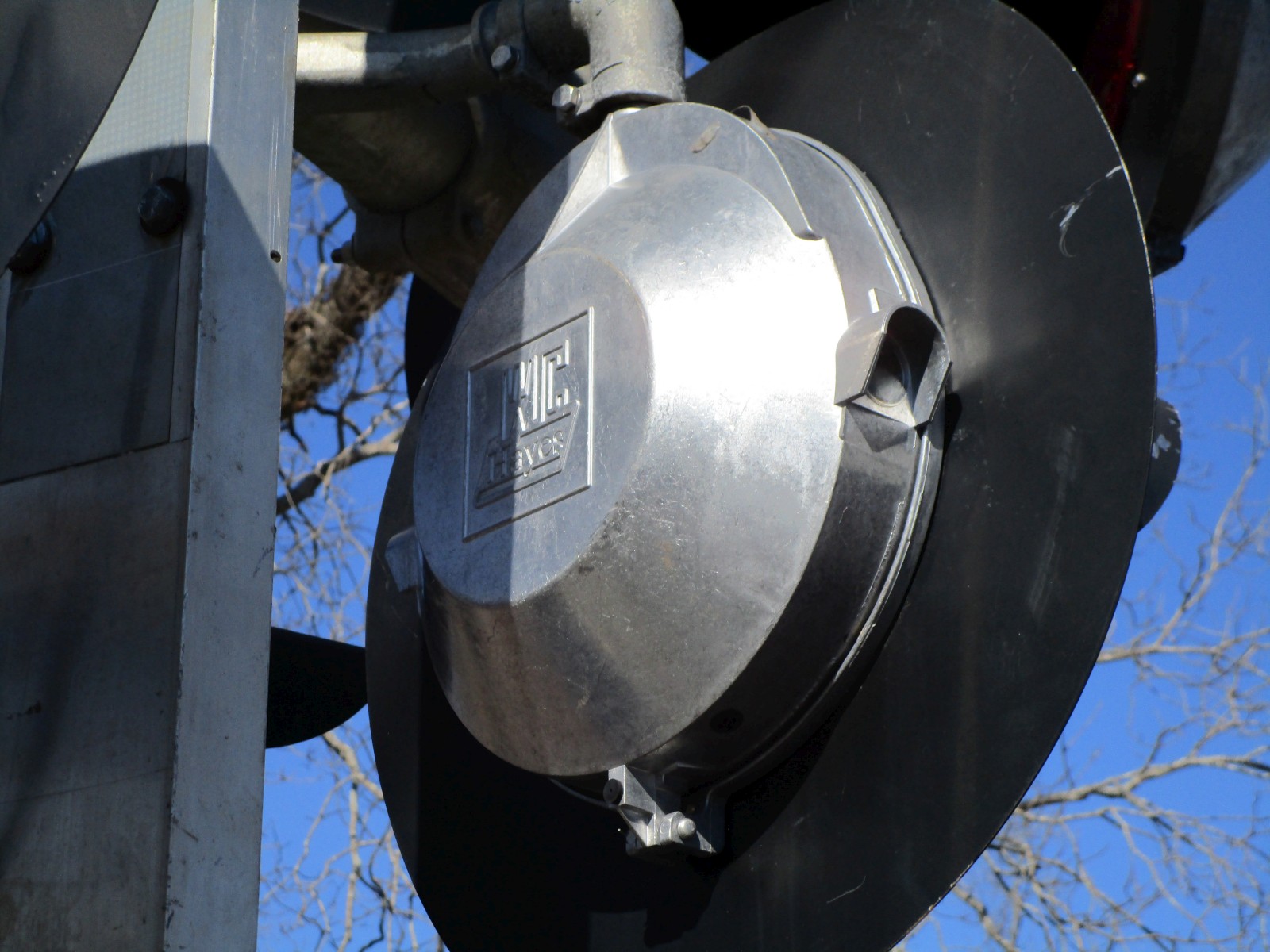

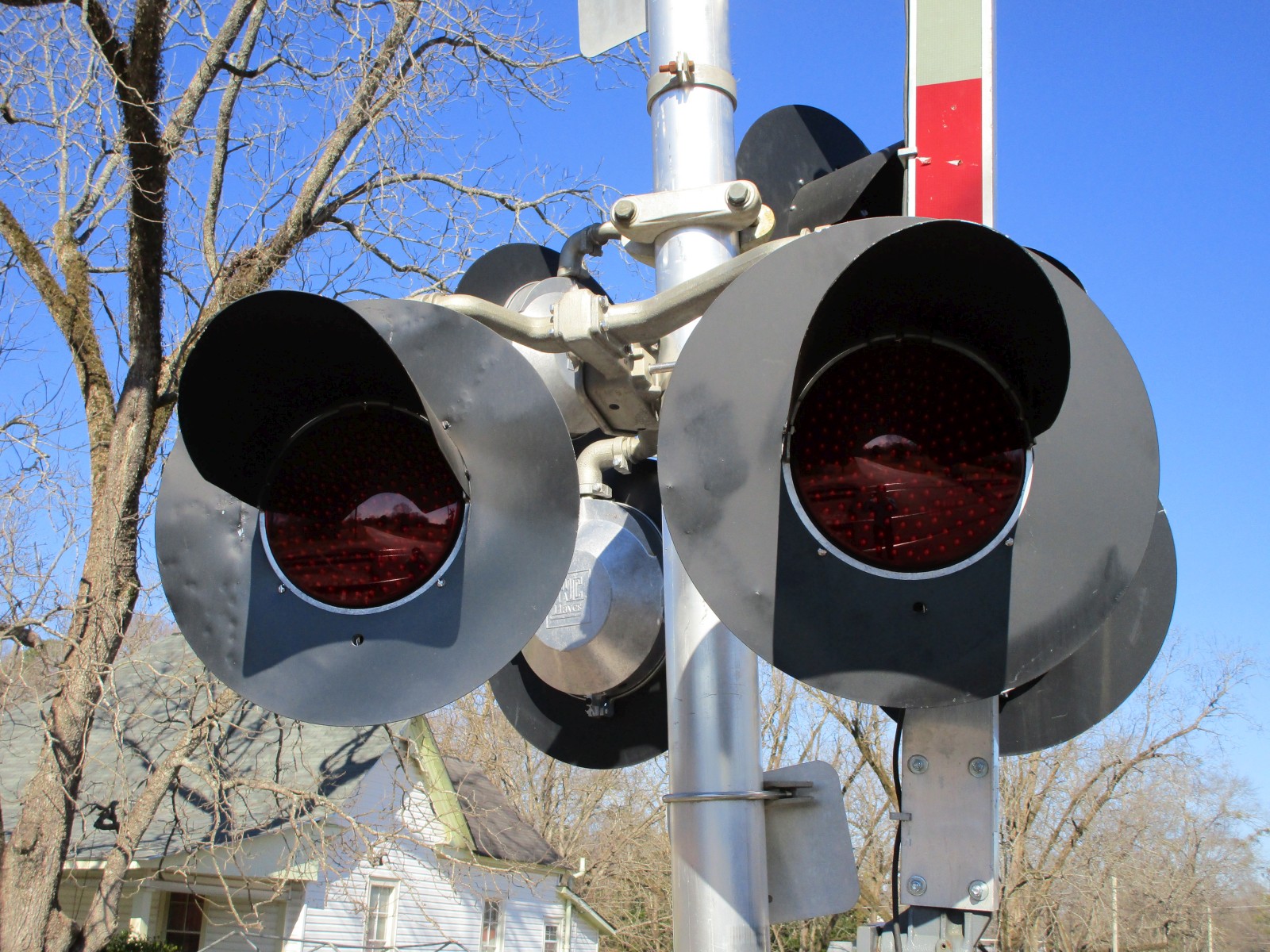

The main lights are all newer WCH 12x24 inch lights with Leotek EV Series LEDs. |
|
78 |
79 |
80 |
81 |

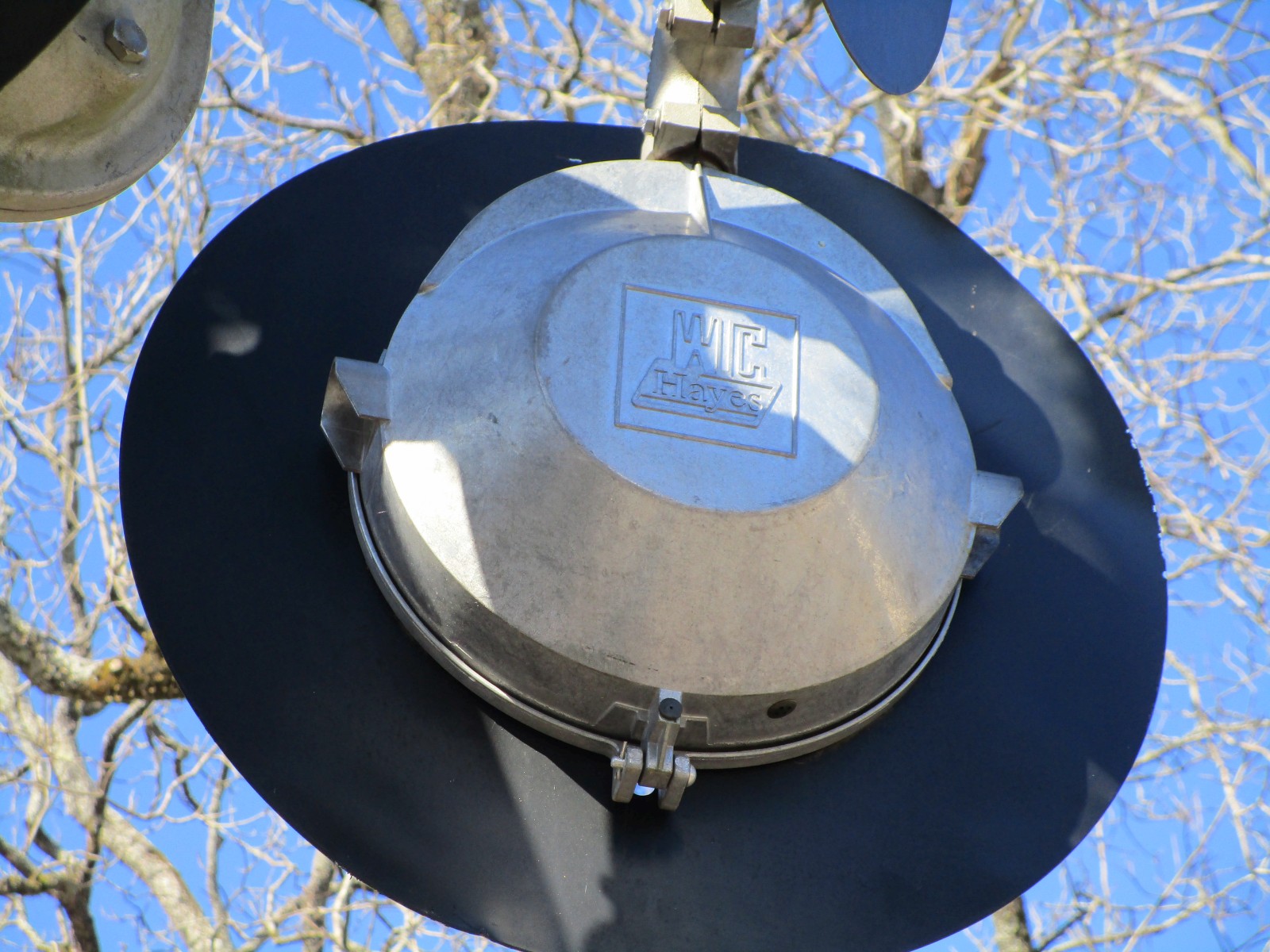

The side lights are a mix of newer WCH 12x24 inch lights and an older WCH 12x24 inch light, all with Leotek EV Series LEDs. |
|||
82 |
83 |
84 |
85 |

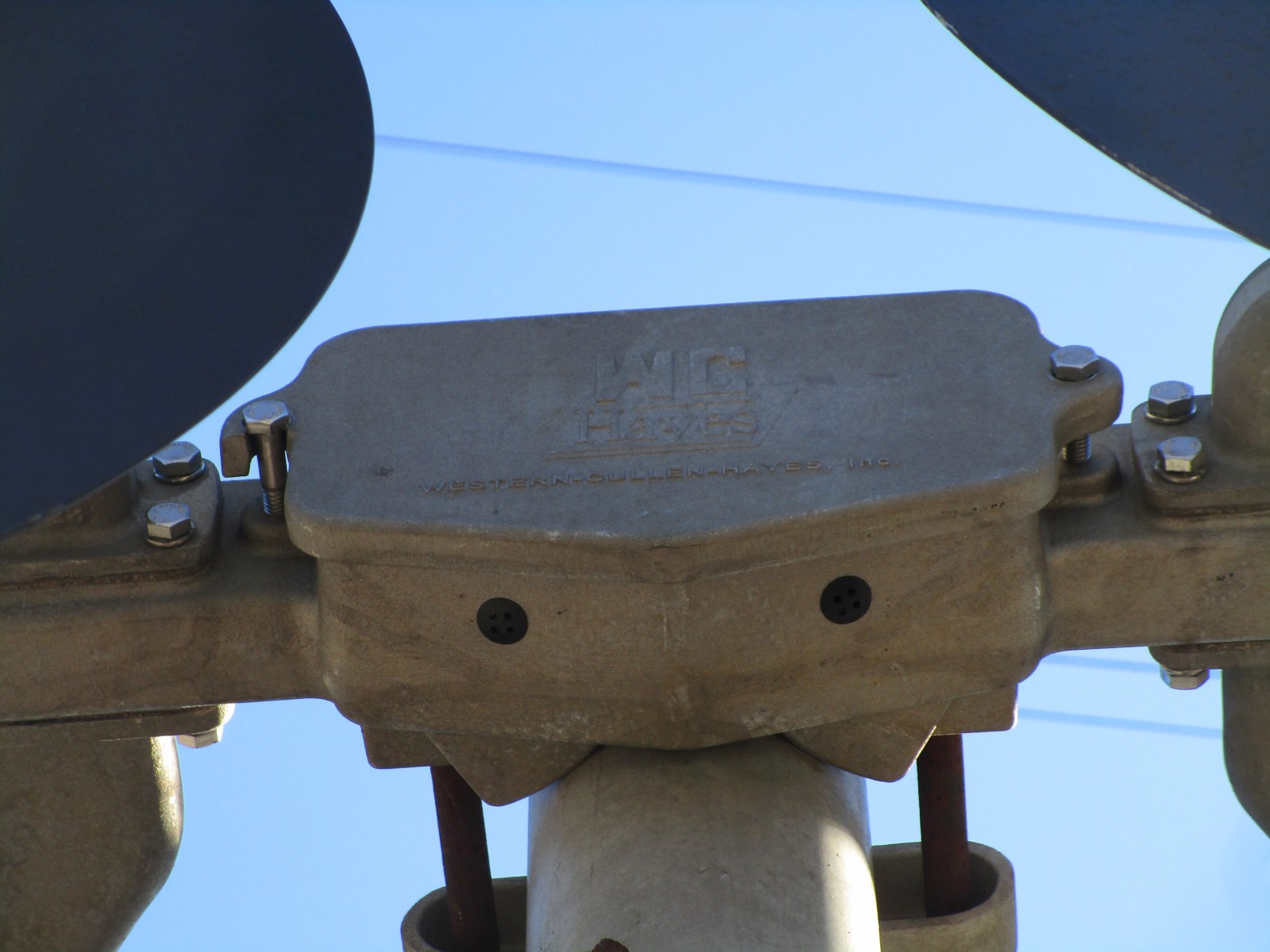

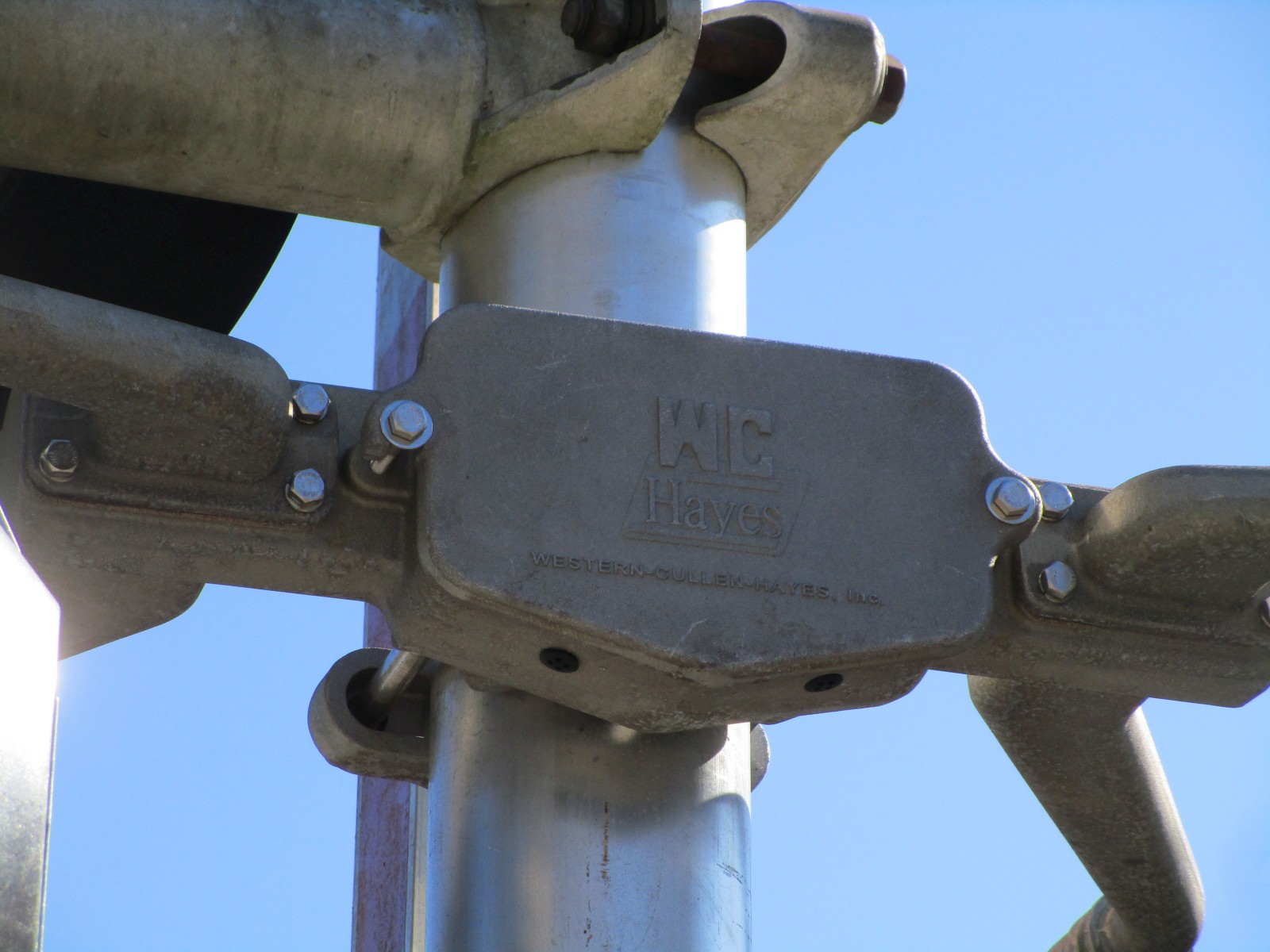

A pair of WCH brackets. |

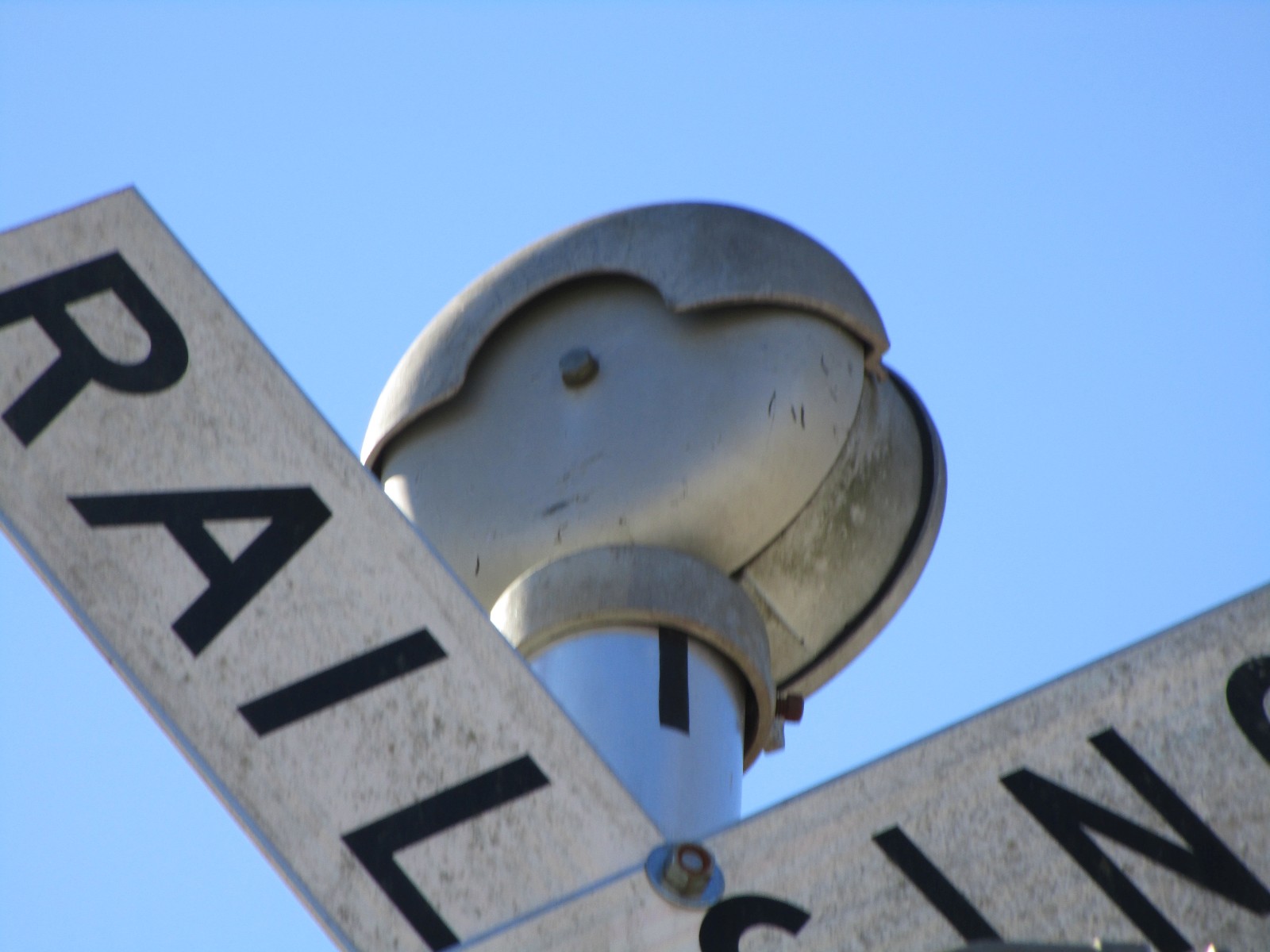

The Safetran mechanical bell was re-used onto the new signal! |
||
86 |
87 |
88 |
89 |

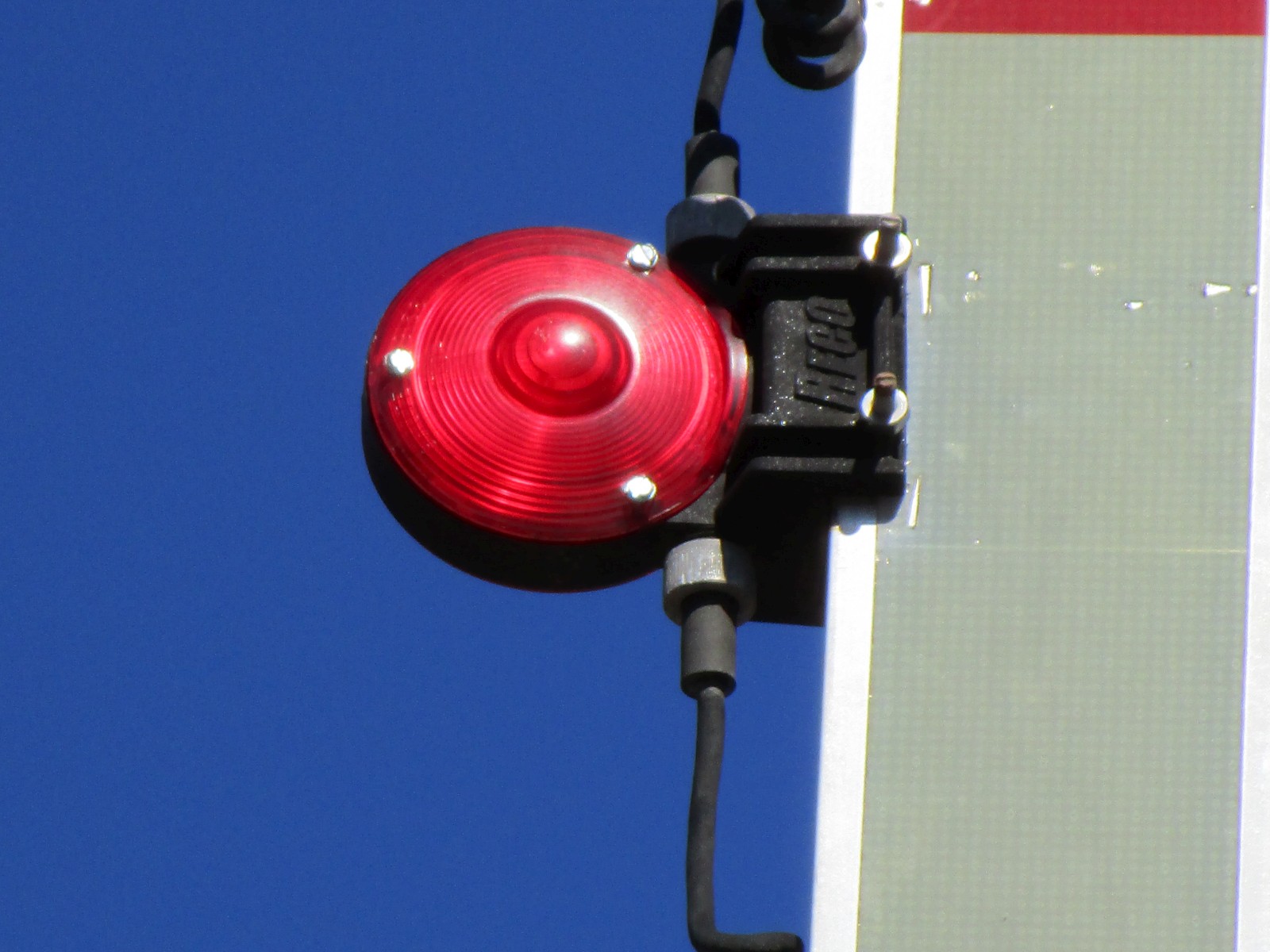

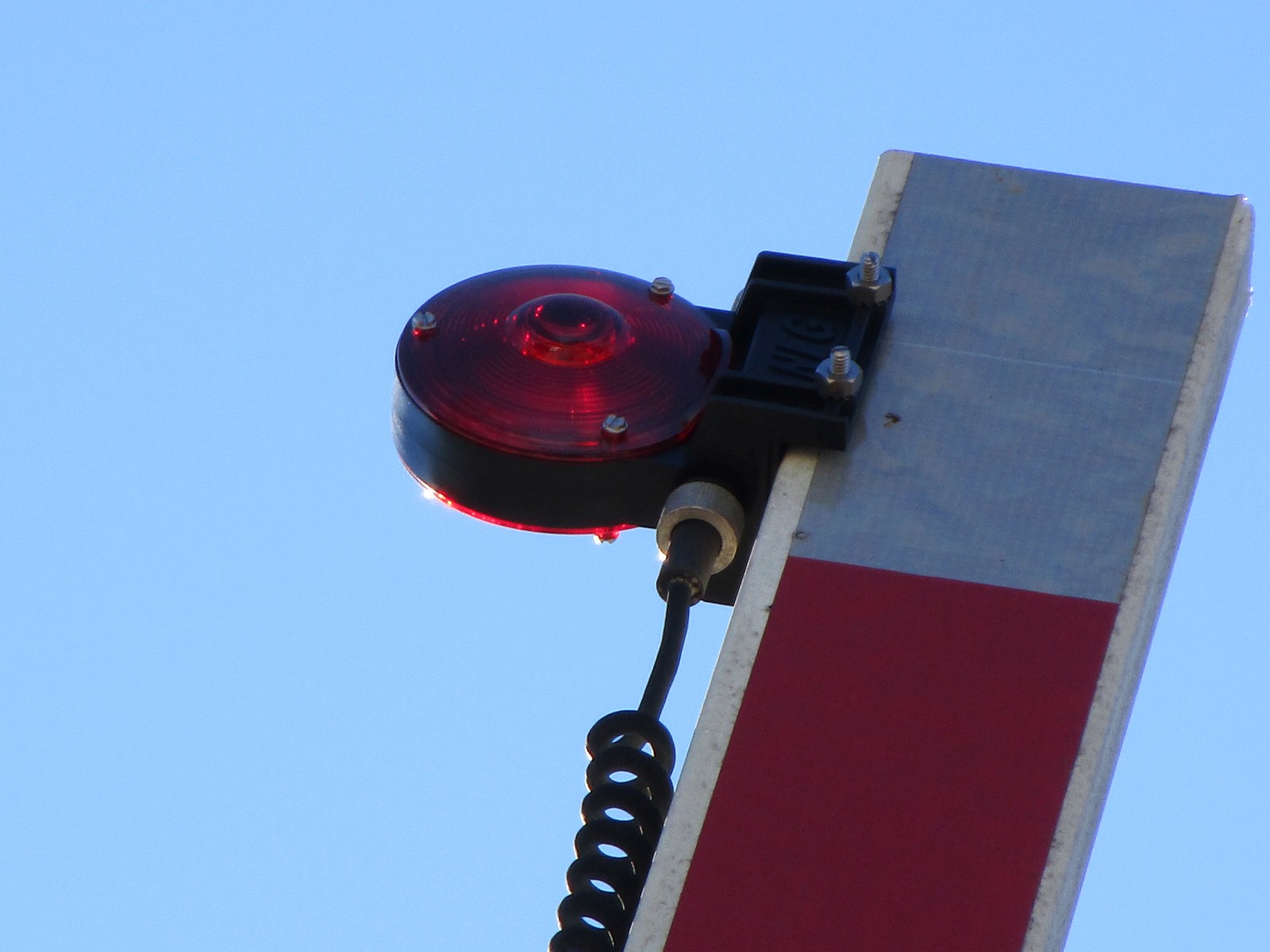

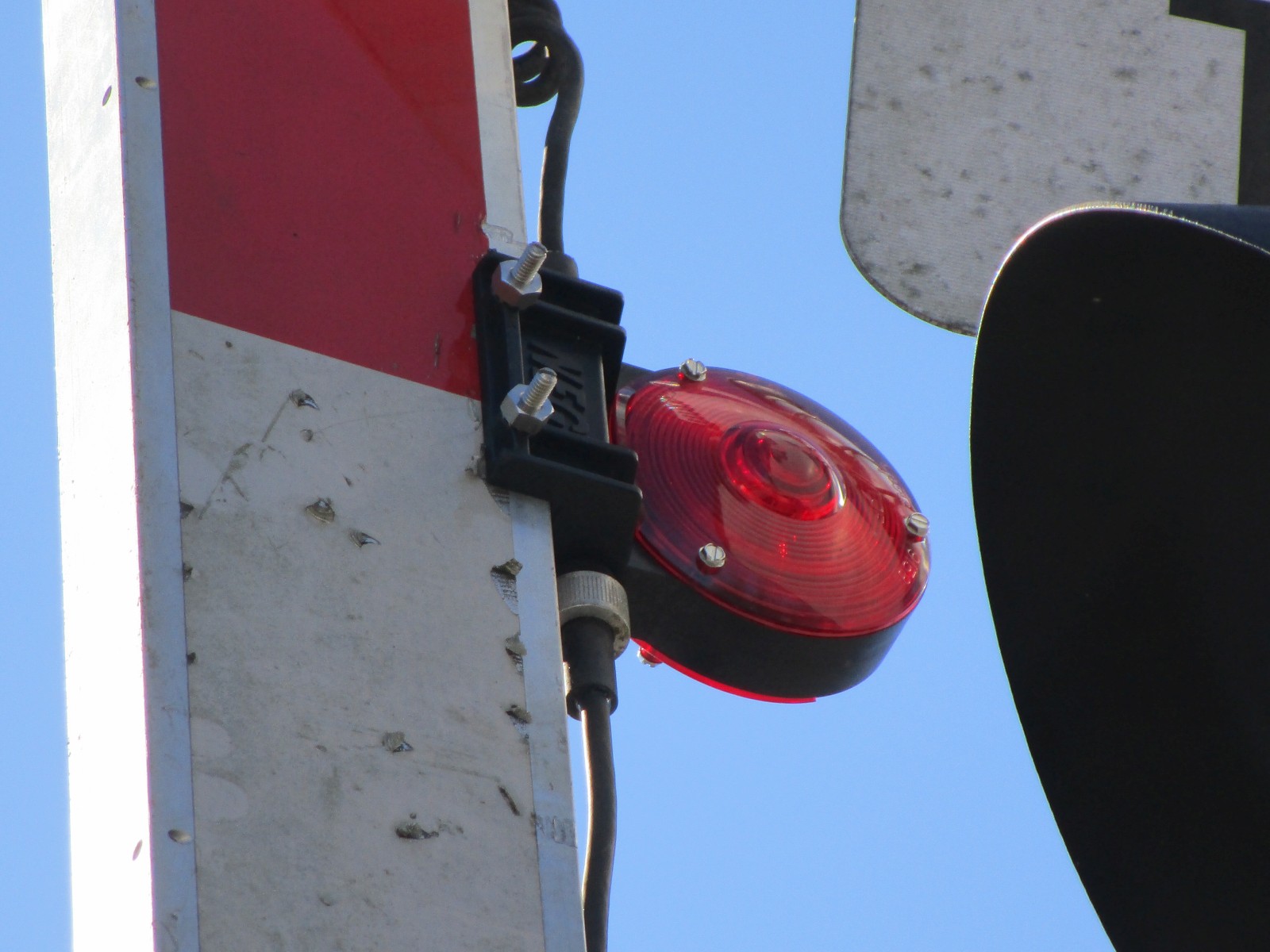

This signal has a mix of NEG LED gate lights and a RECO gate light. |

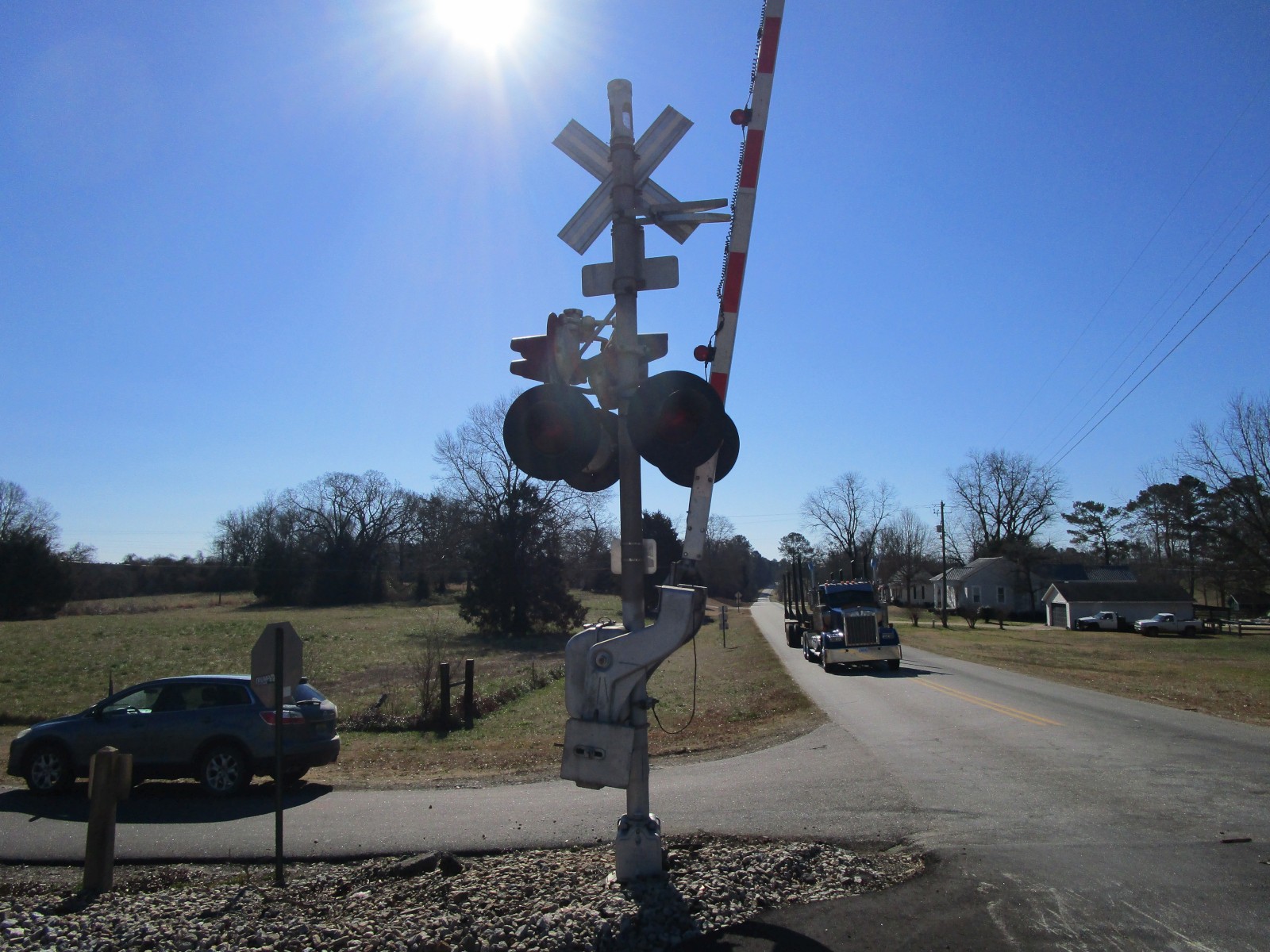

Only a minor change to the first signal... |
||
90 |
91 |
92 |
The tip gate light was replaced with another NEG LED gate light. |

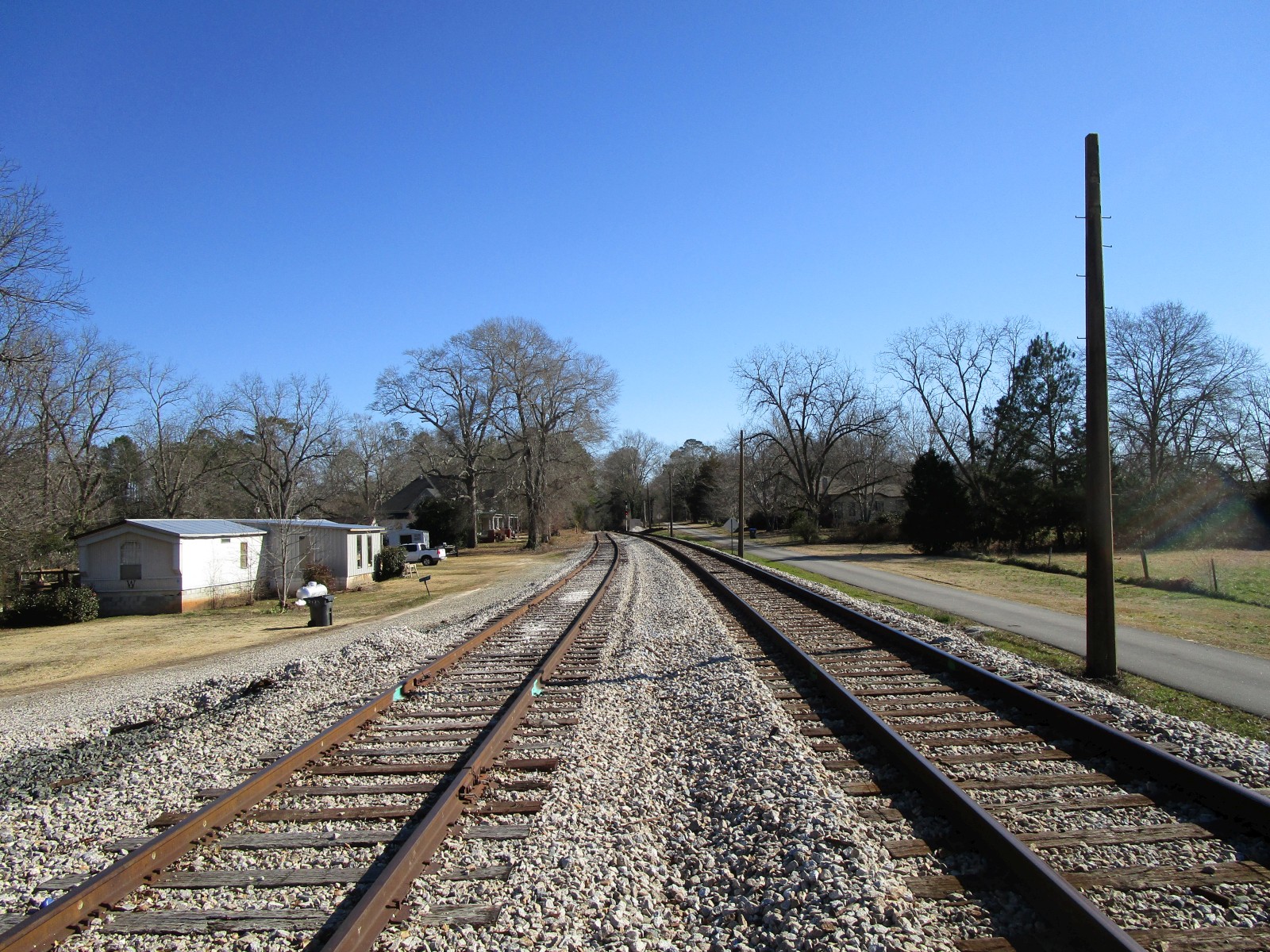

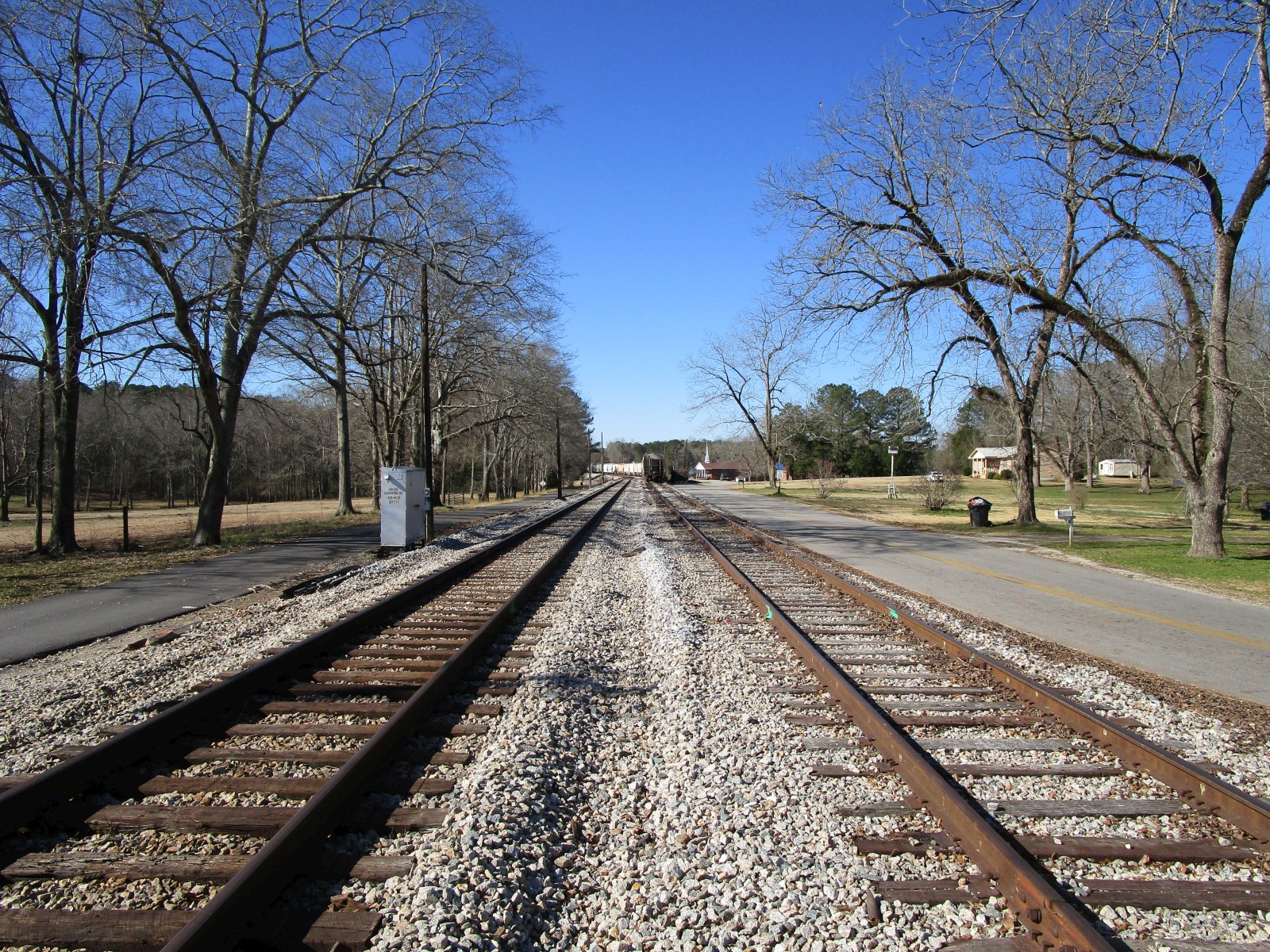

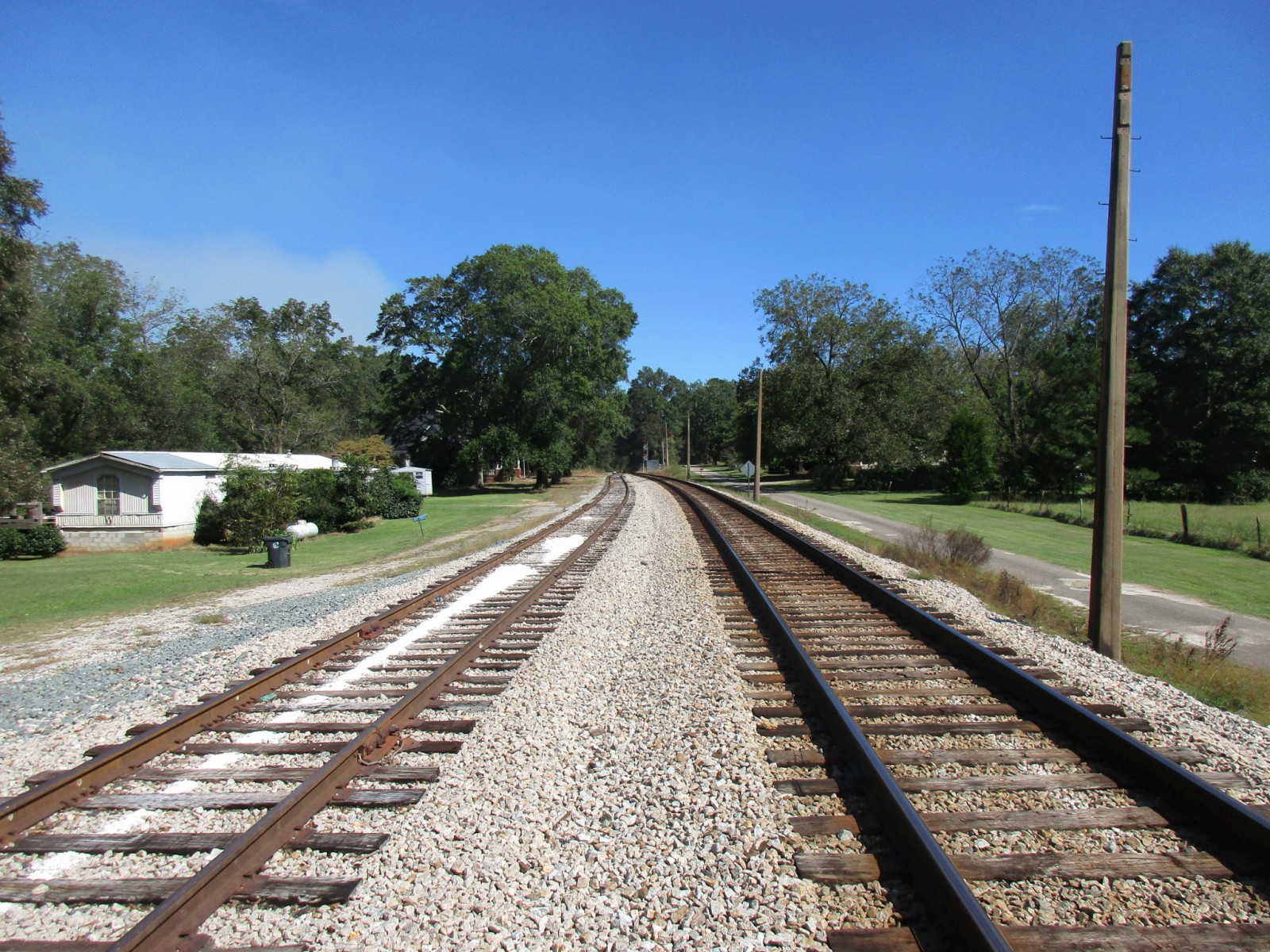

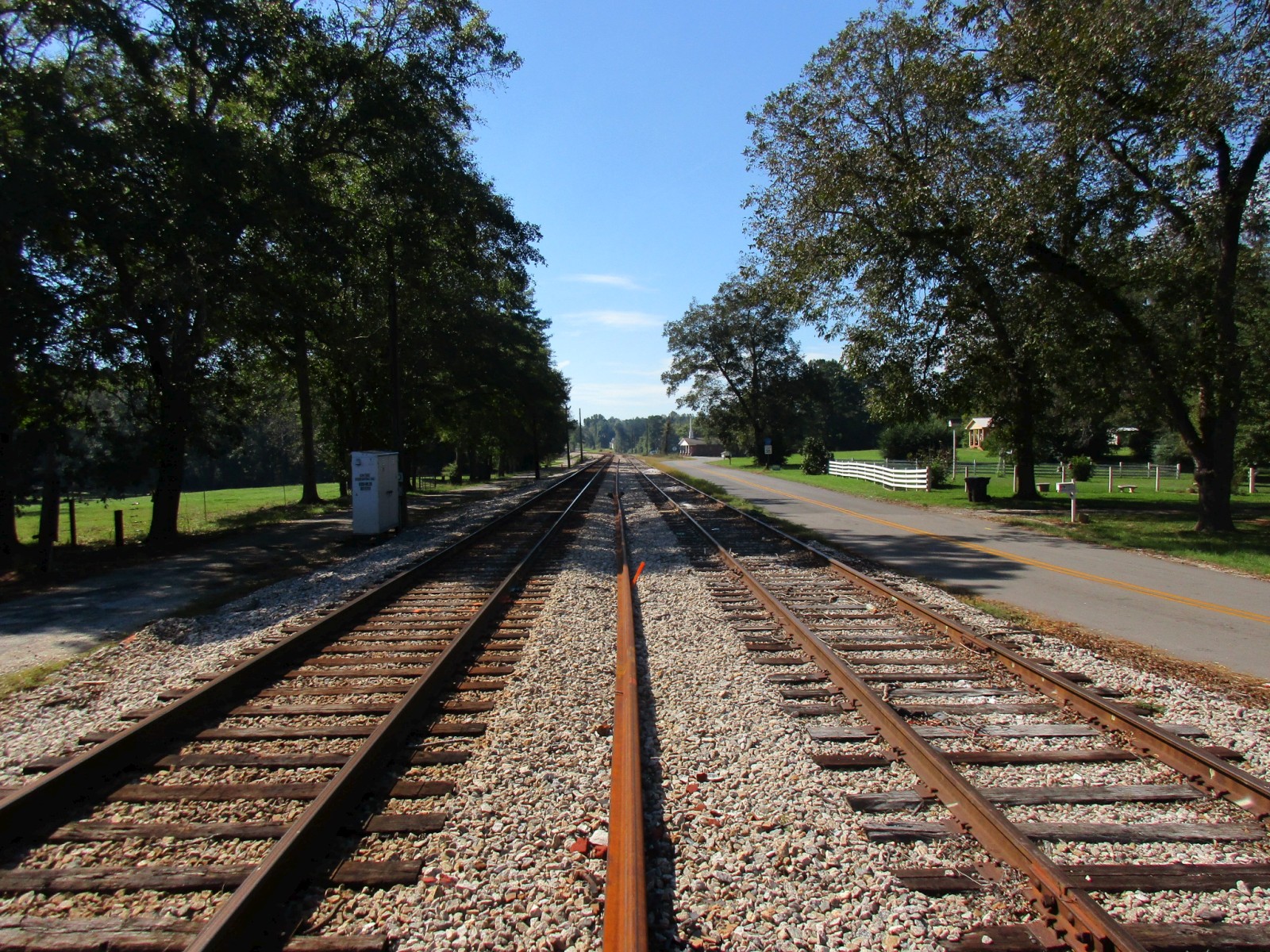

Track views. |
|
Pictures 27-67 and the video were taken on 10-17-18.
Pictures 1-26 and 68 were taken on 10-18-18.
Pictures 69-92 were taken on 2-14-22.
