MP:  A365.60



Updated September 25, 2020



Total Accidents:   7
Crossing DOT #:  726062F
TOTAL DAILY TRAINS:   4   (AS OF 2014)



Page created by: freebrickproductions



This crossing is located on the NS 3M-Amoco Lead.



>>>>>>>>>>>>> Signal #1 Signal #2 Signal #3 Signal #4
Bell: General Signals Type 2 electronic N/A N/A General Signals electronic
Cantilever: Safetran N/A N/A Safetran
Light Frames:

4 - 12x20" Safetran

2 - 12x24" Safetran

 4 - 12x20" Safetran 4 - 12x20" Safetran

4 - 12x20" Safetran

2 - 12x20" Safetran
Base: Siemens Safetran Safetran Siemens
Gate Lights: RECO RECO RECO RECO
Gate Mechanism: Siemens Sticker Style 2 Siemens Sticker Style 1 Siemens Sticker Style 1 Siemens Sticker Style 2
Gate Striping: Vertical Vertical Vertical Vertical



1

2

3

4

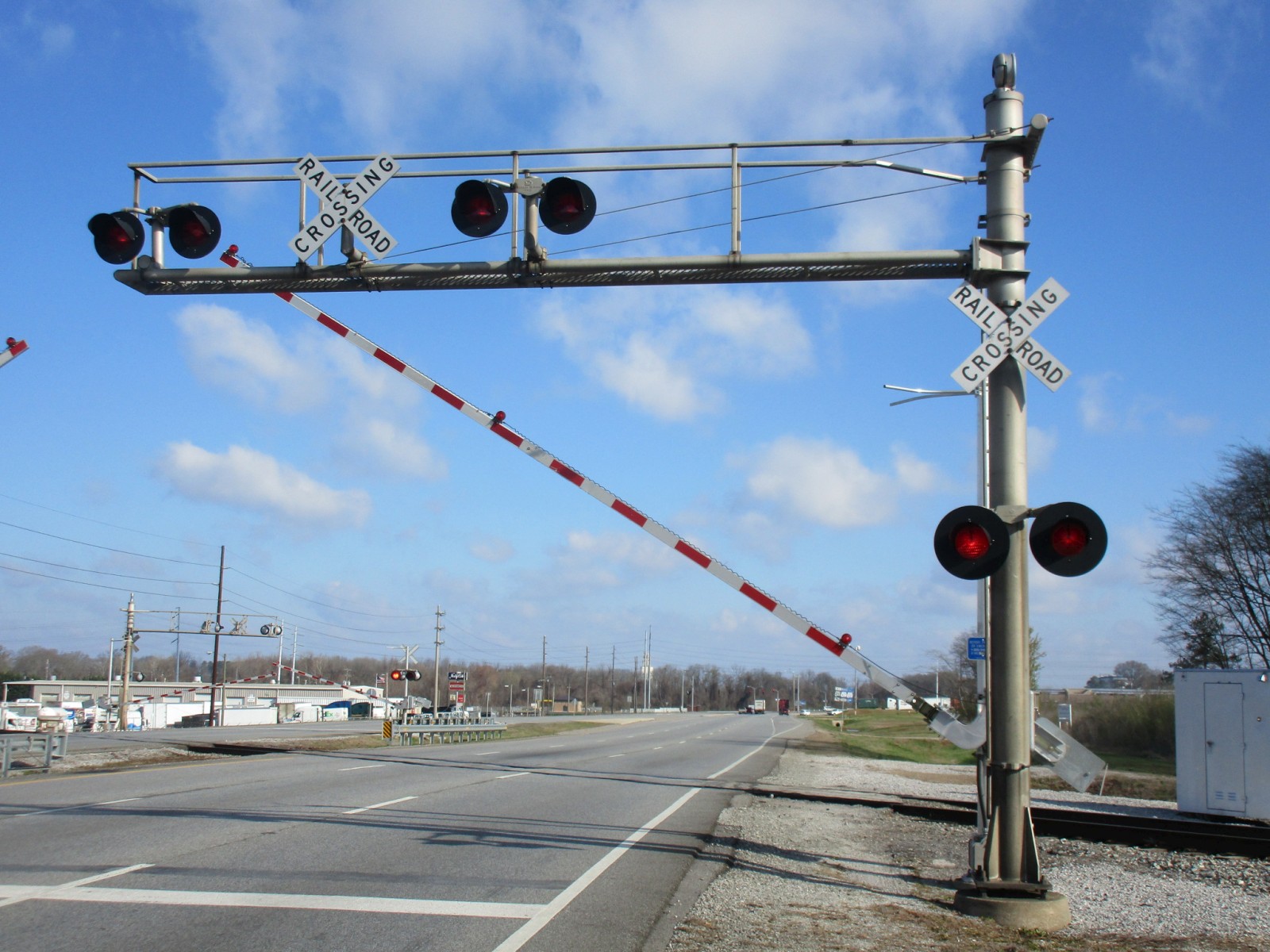

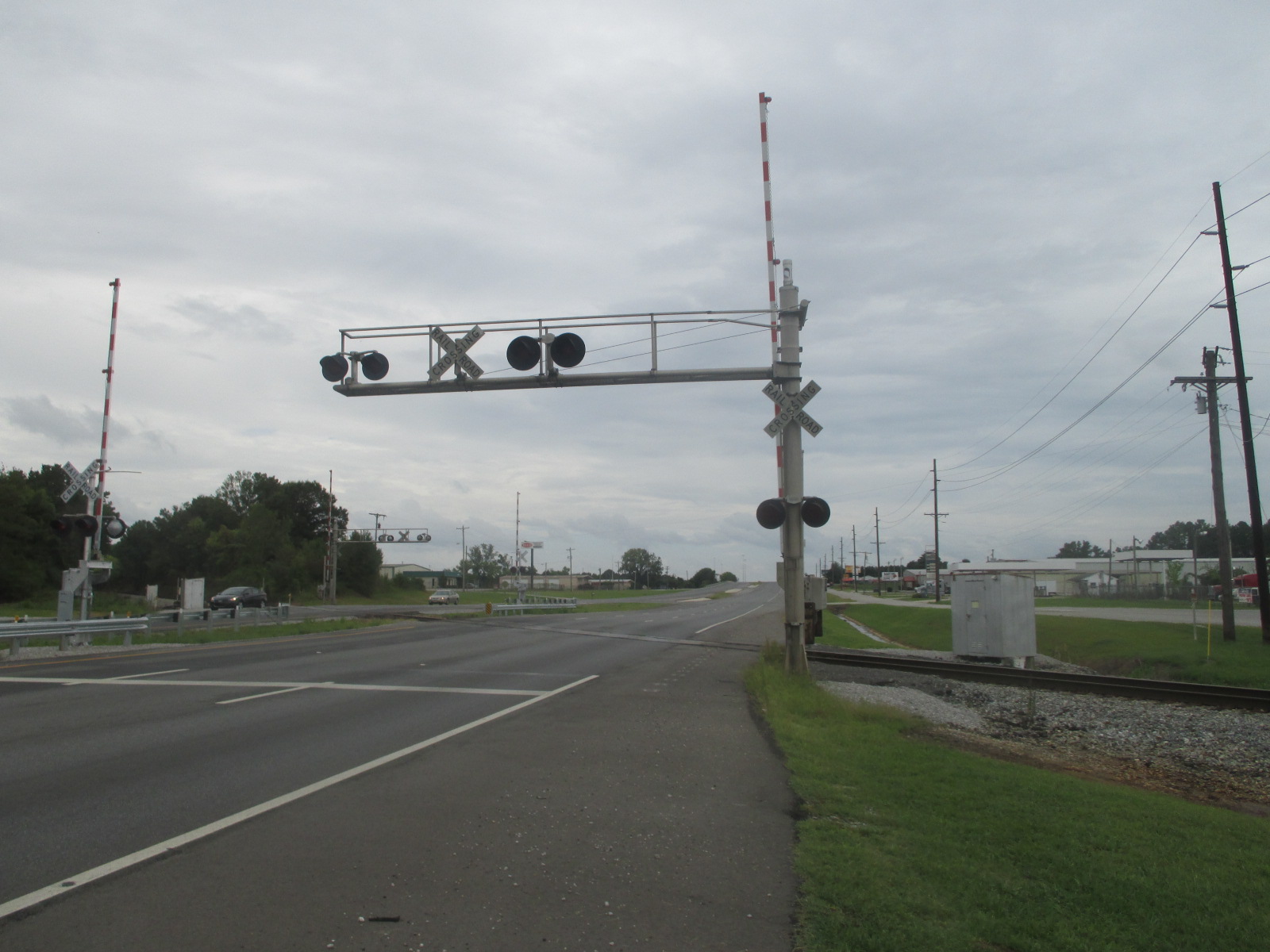

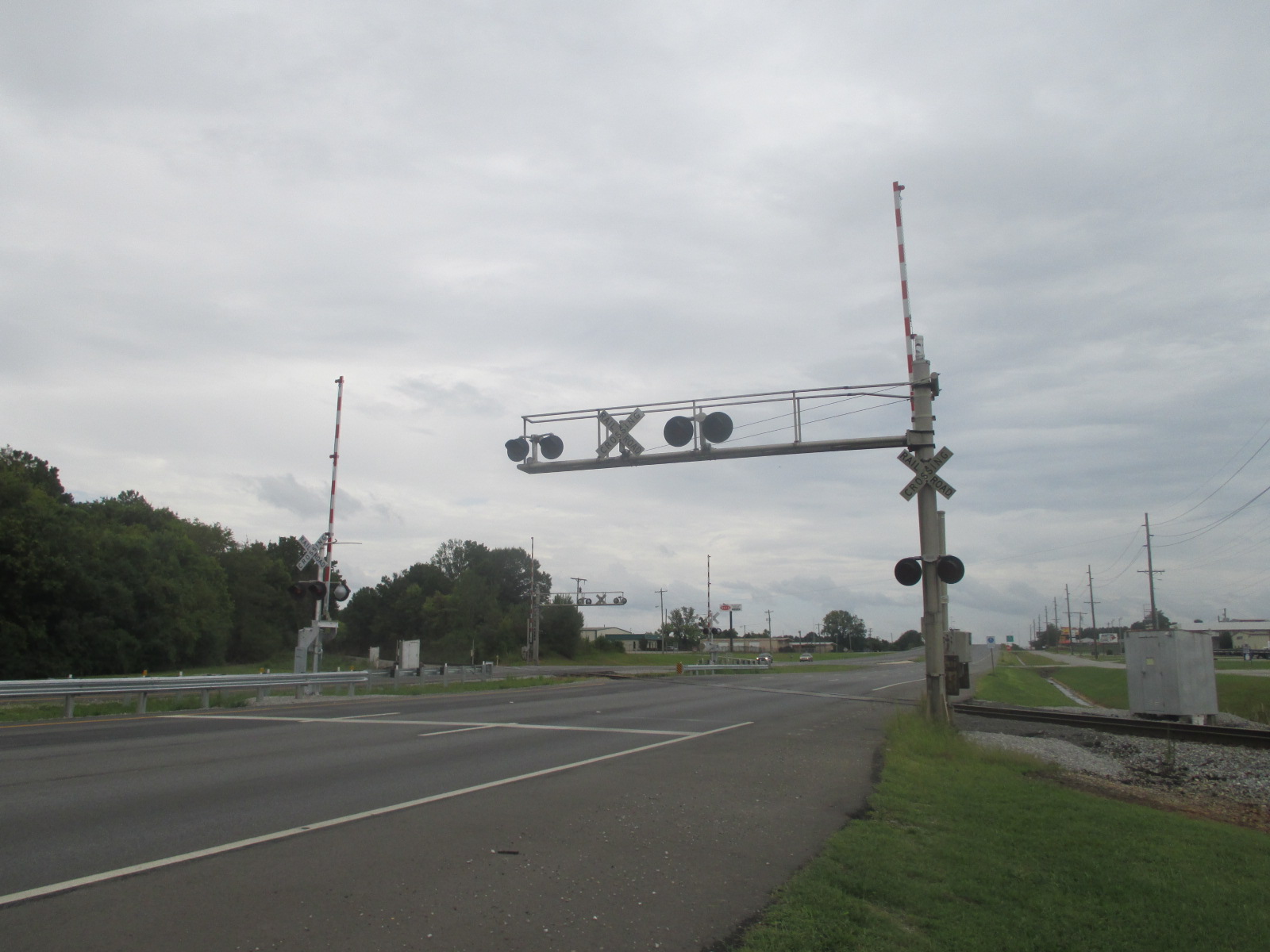

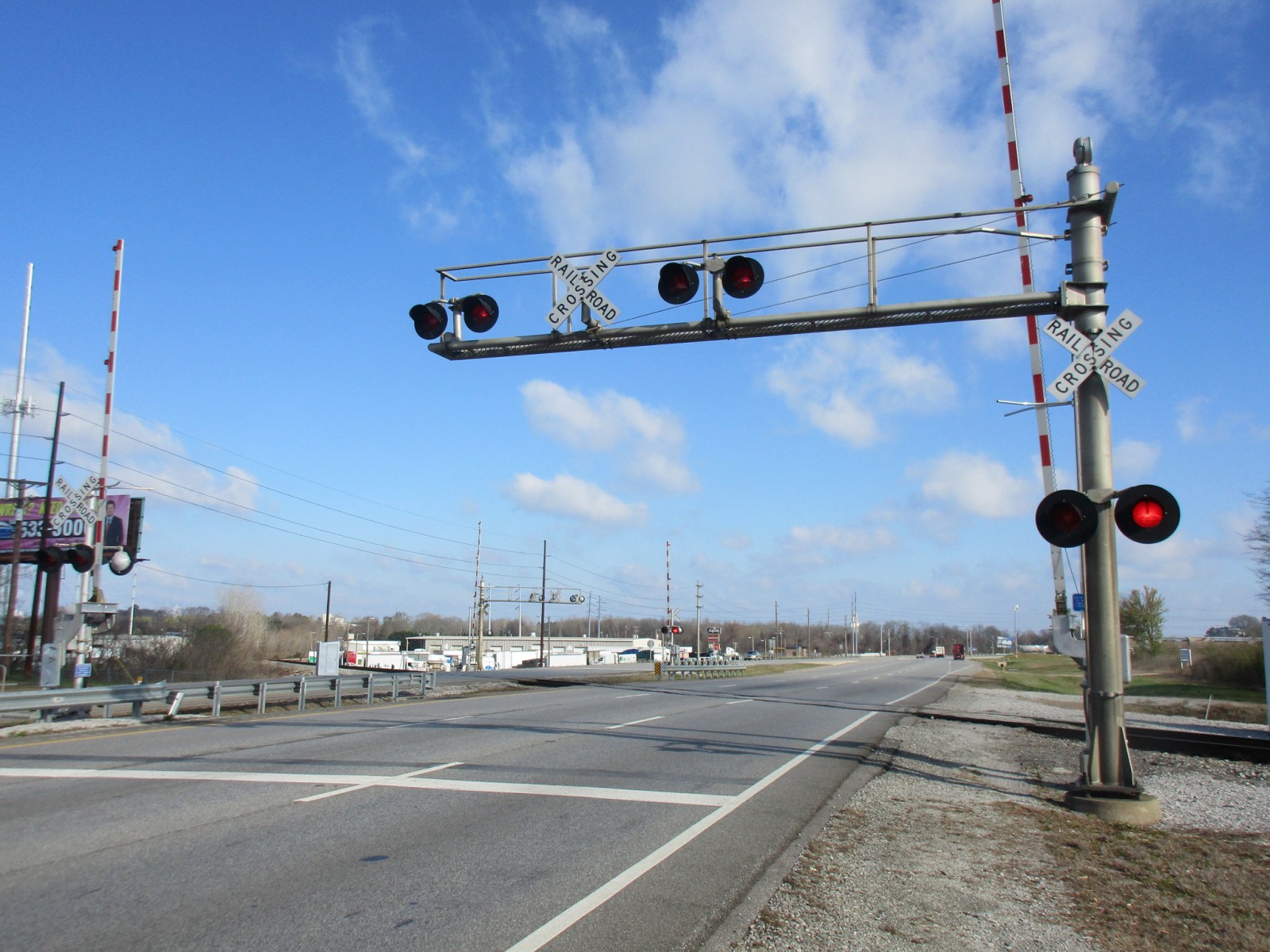

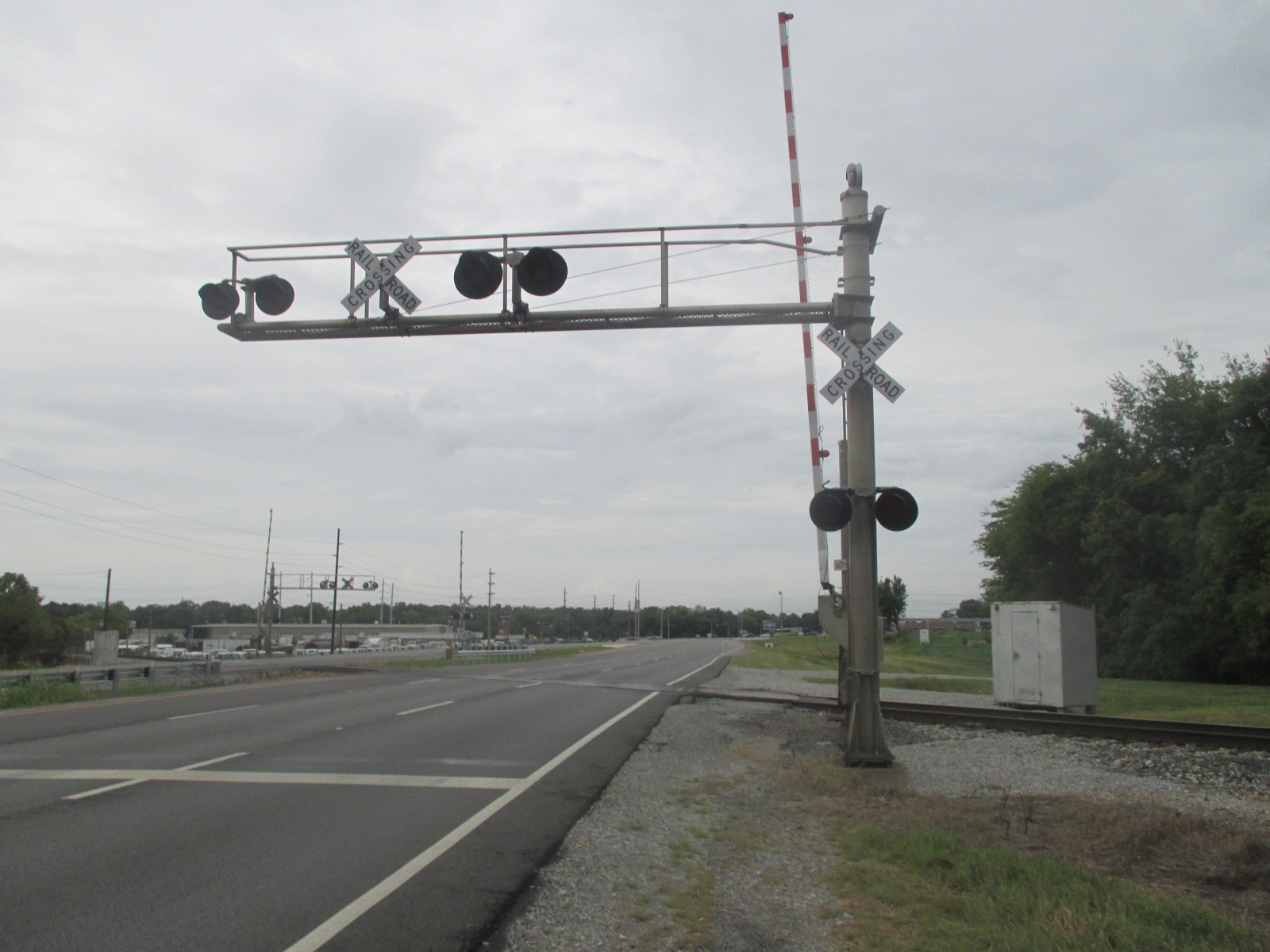

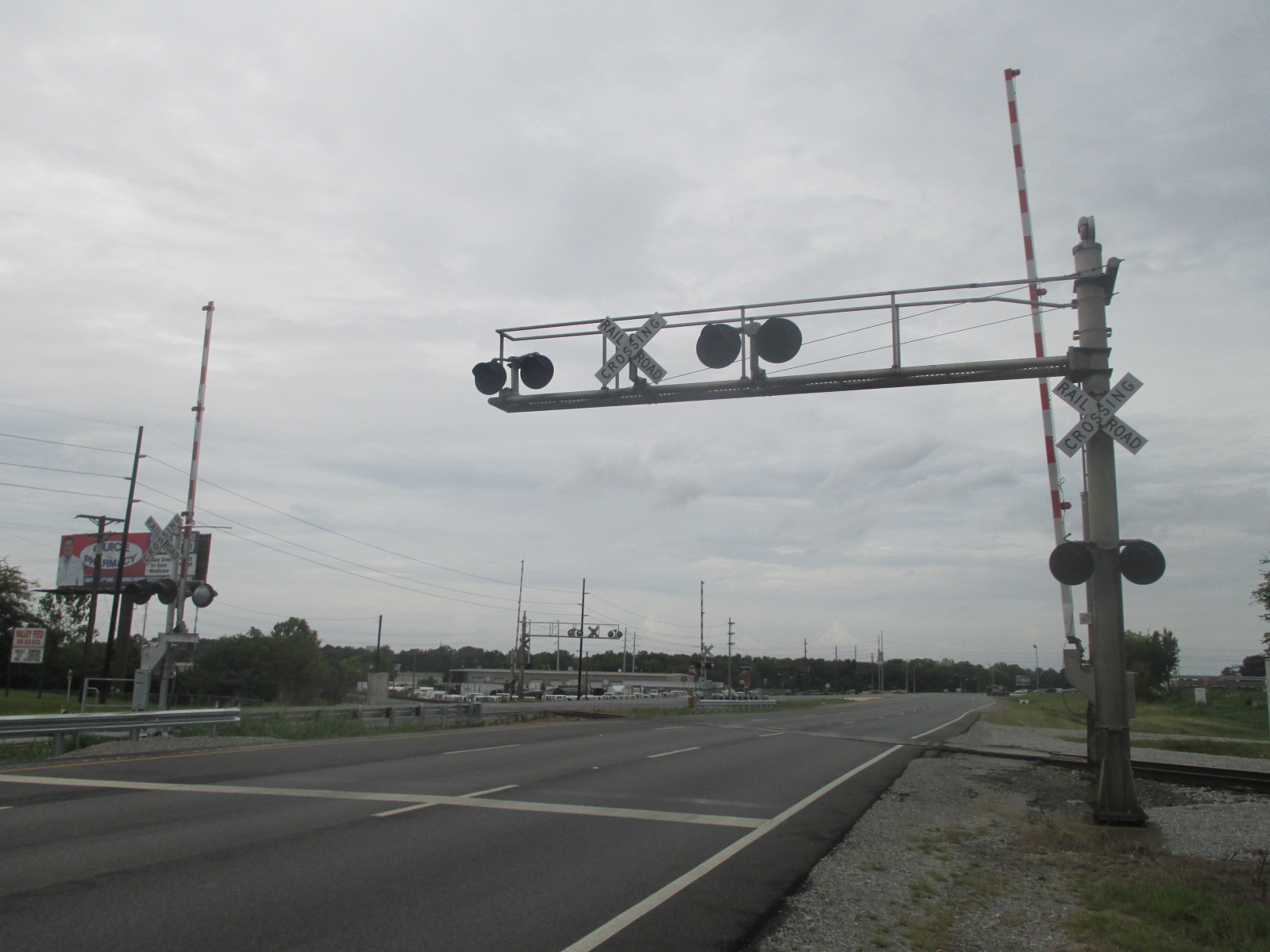

Overviews of the crossing.

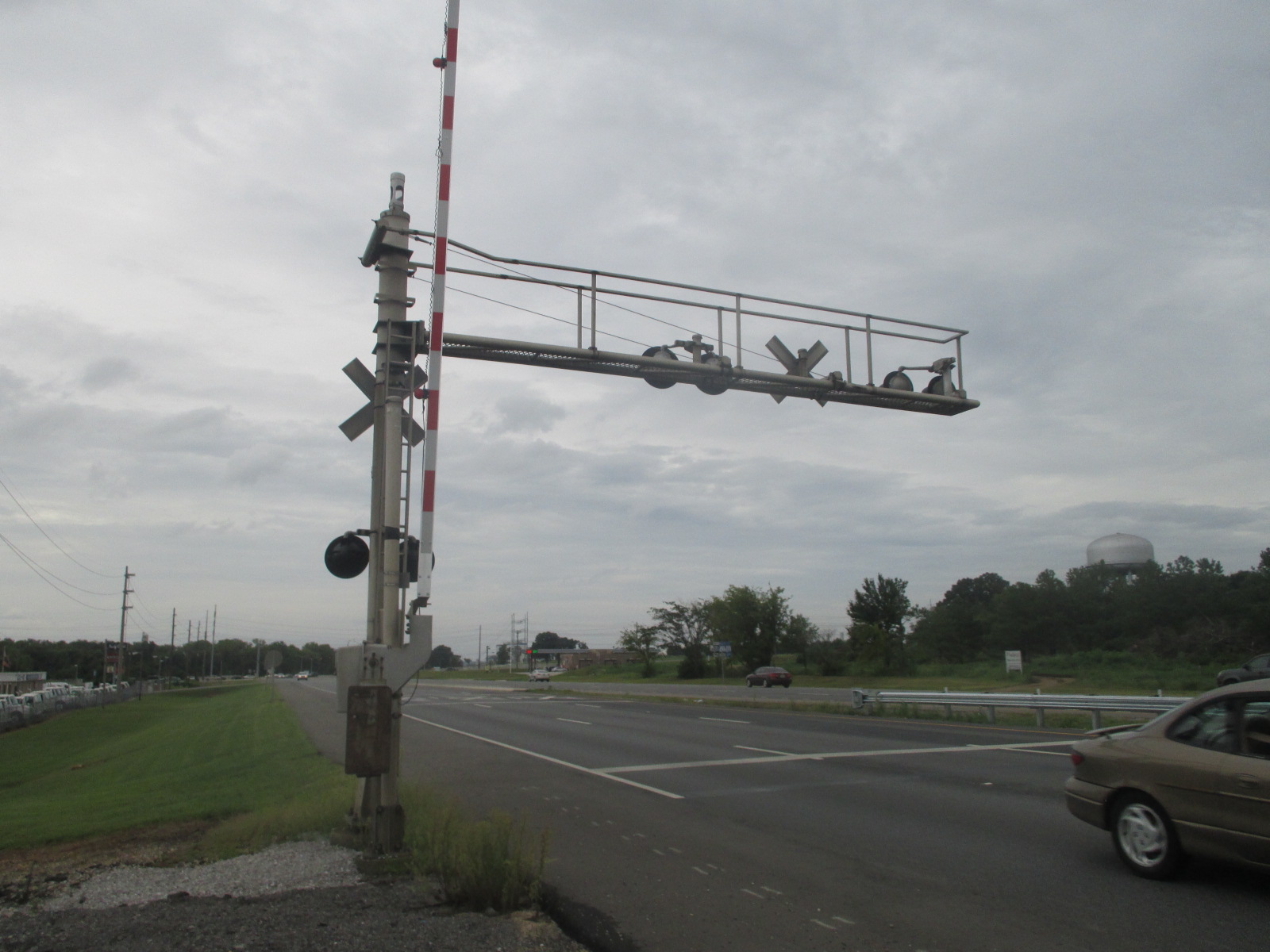

The first signal.

5

6

7

8
It's a Safetran cantilever.

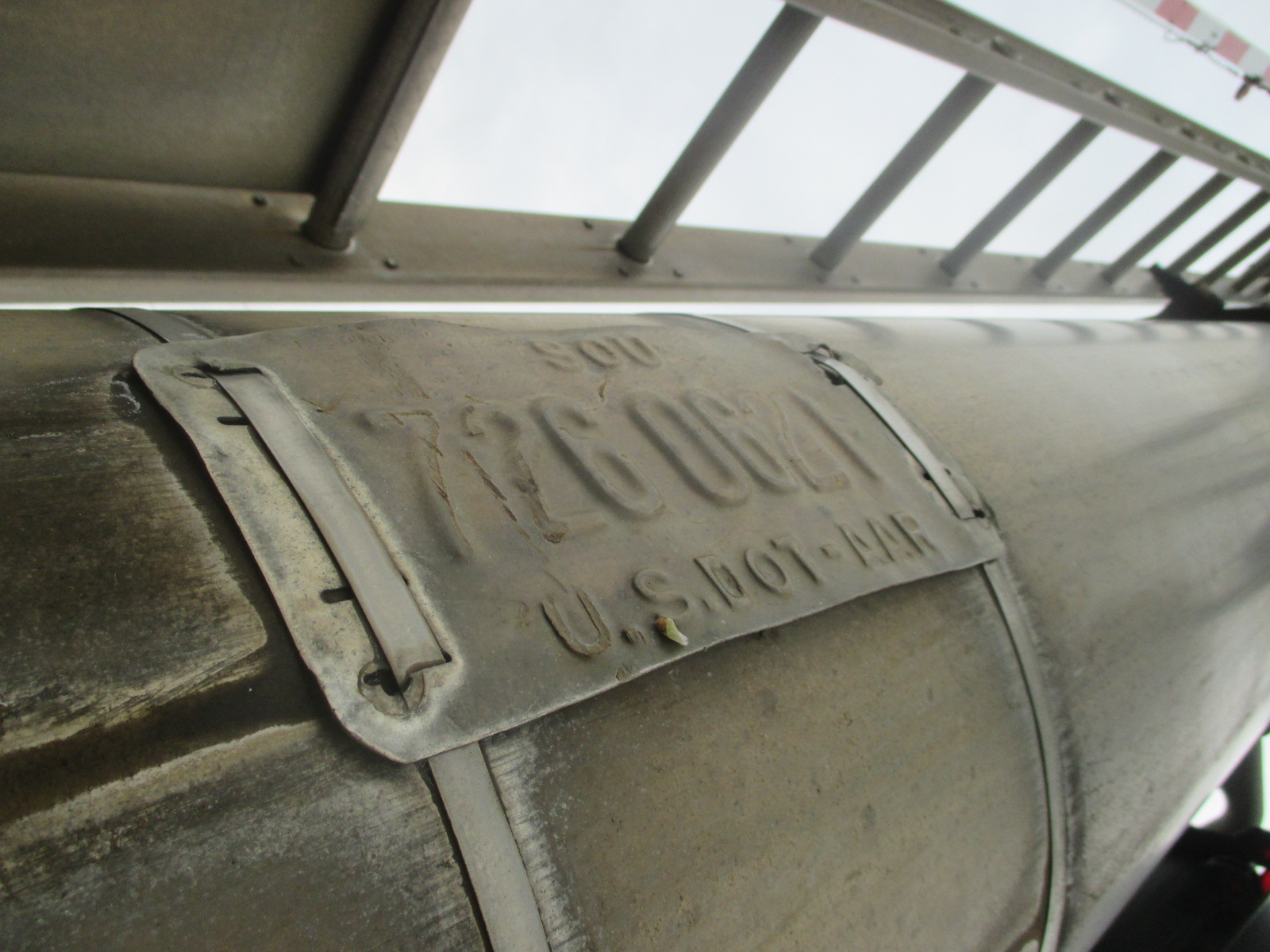

An old Southern Railroad DOT tag.

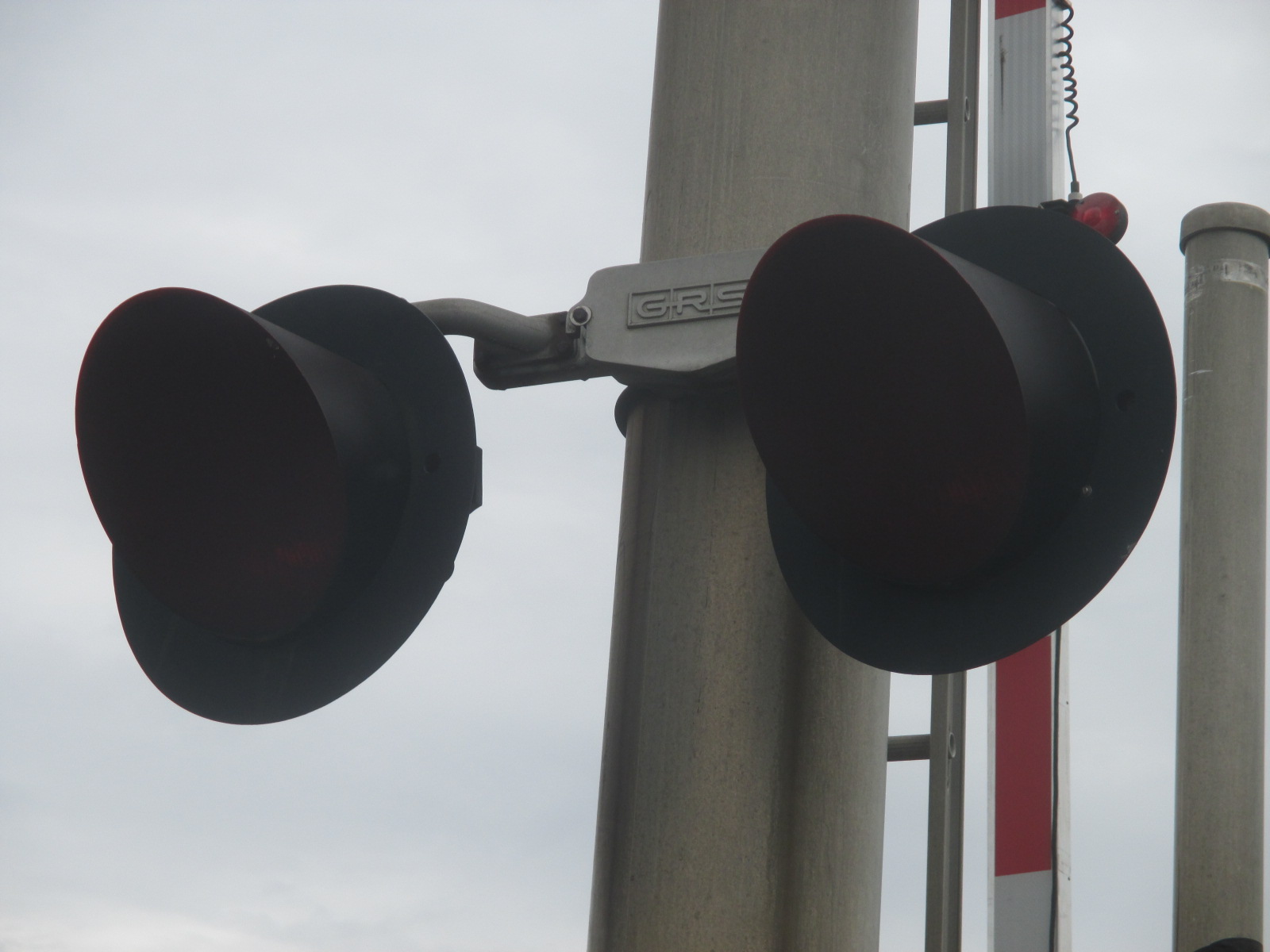

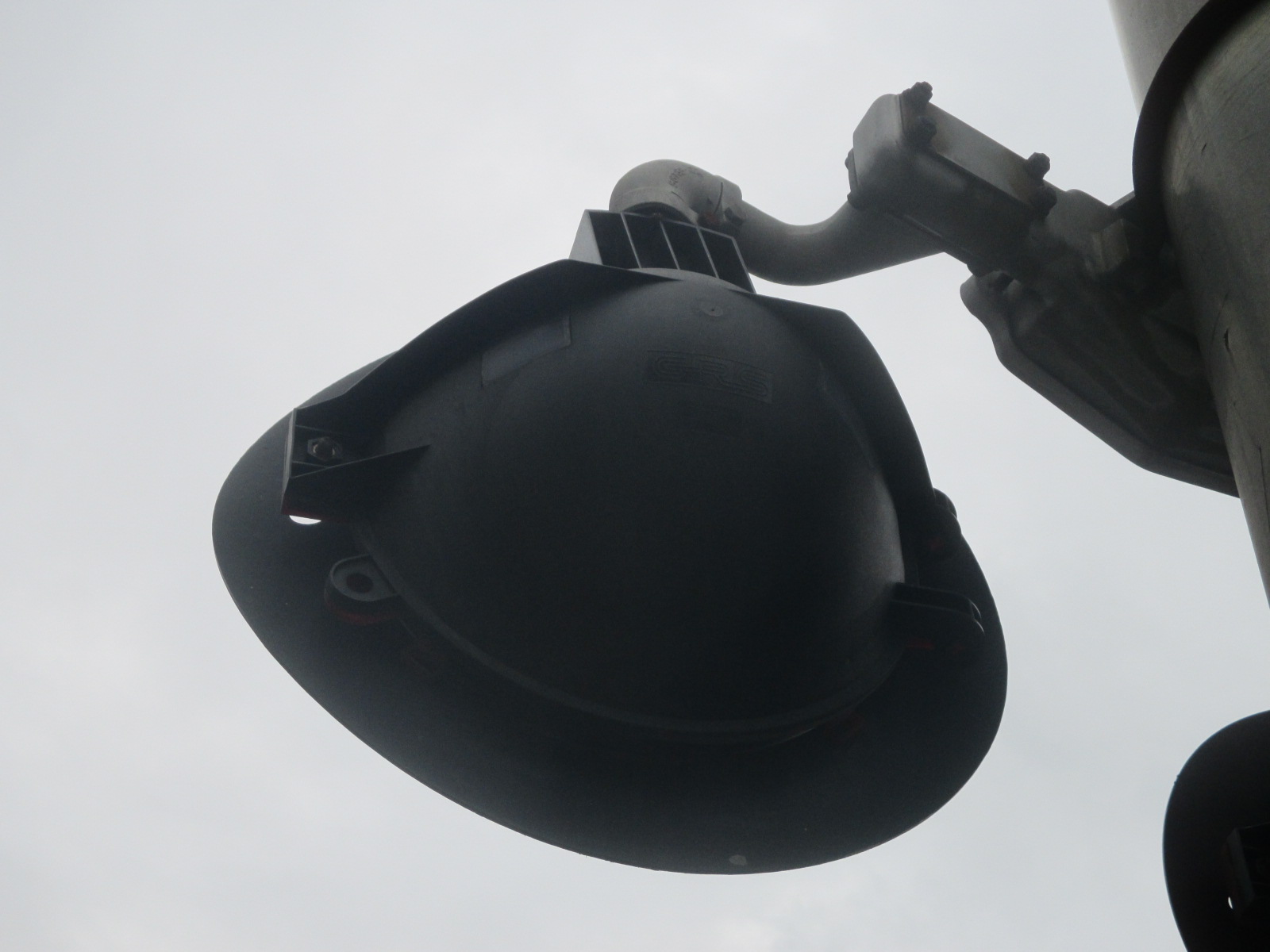

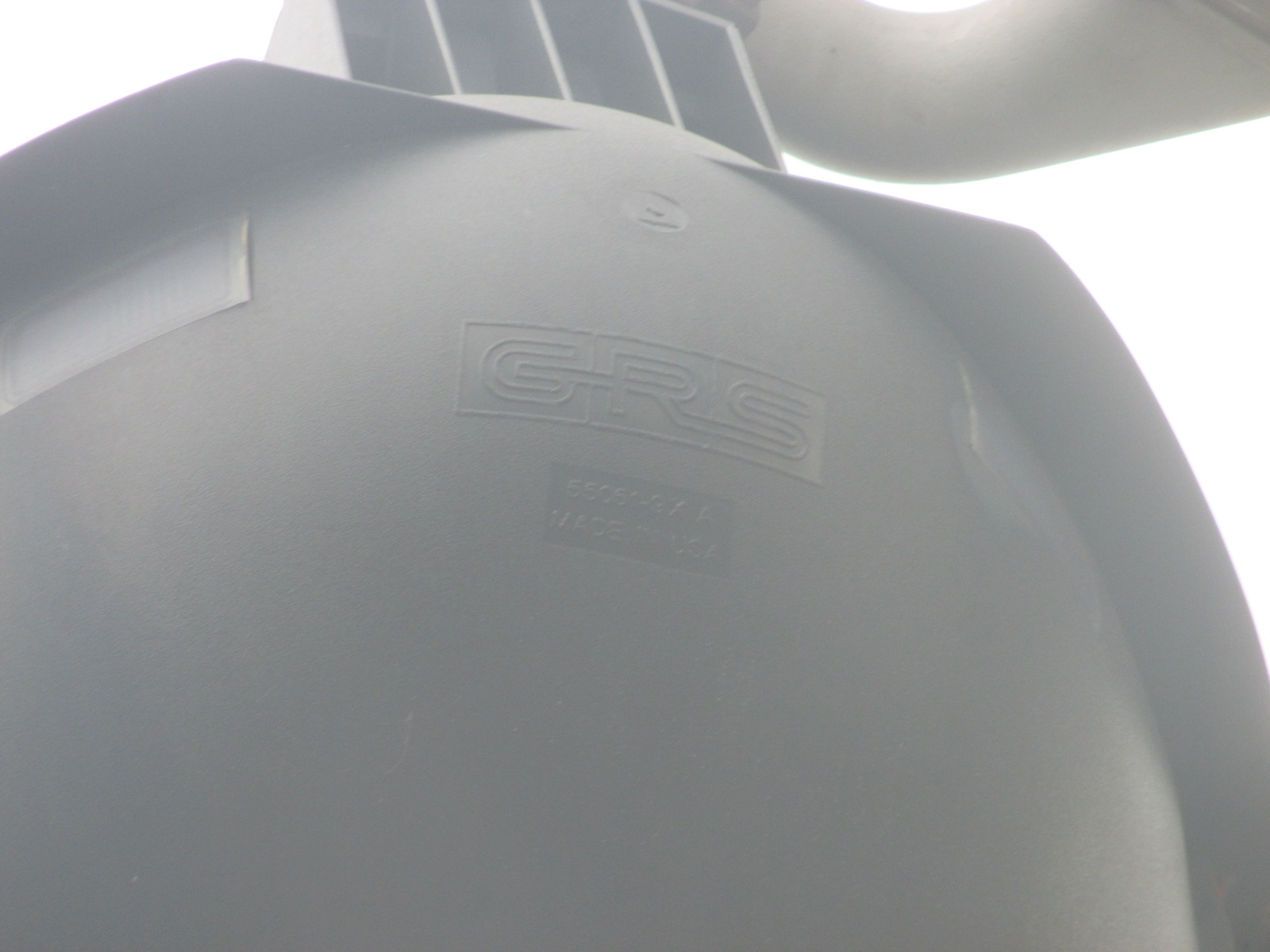

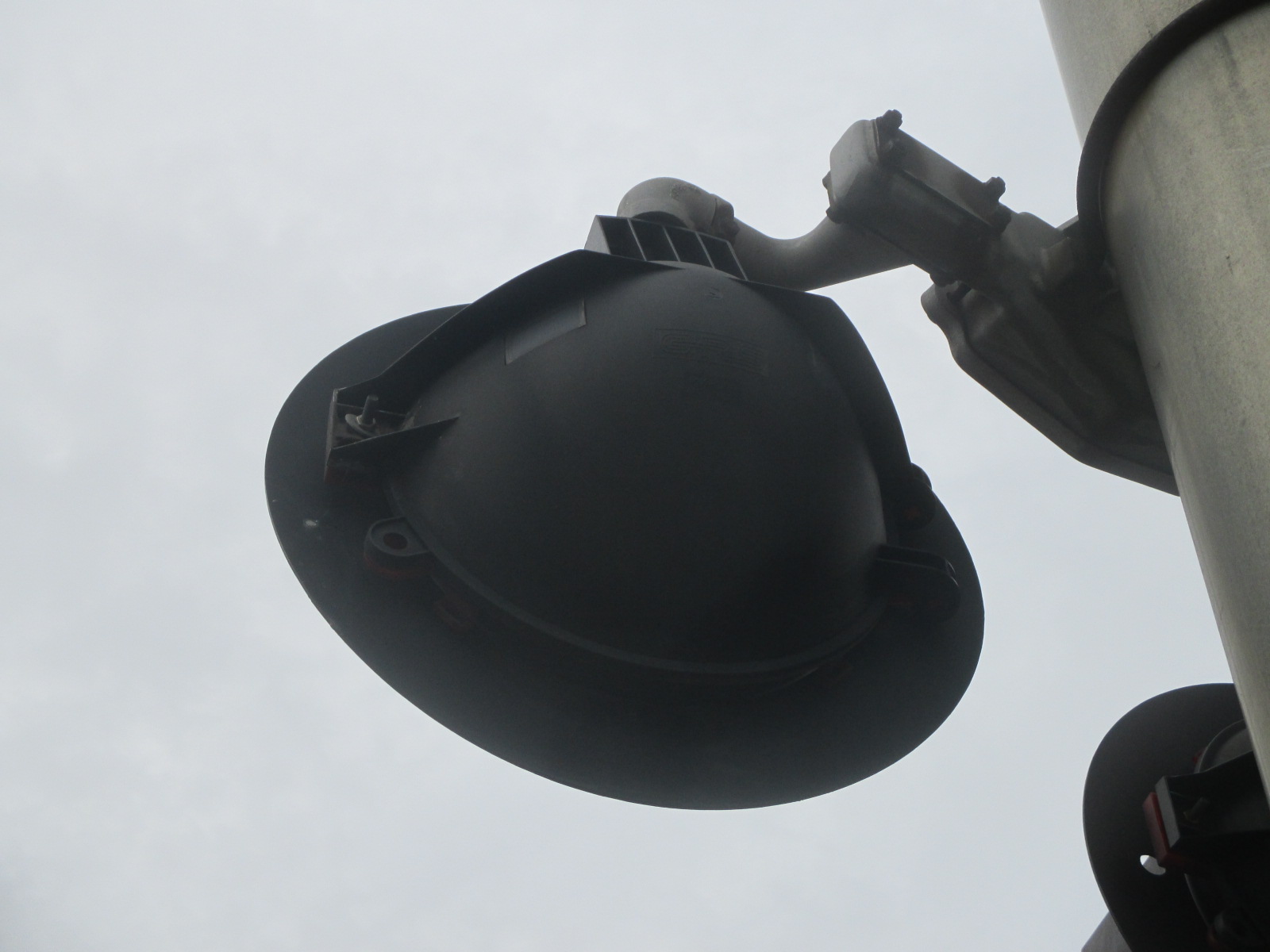

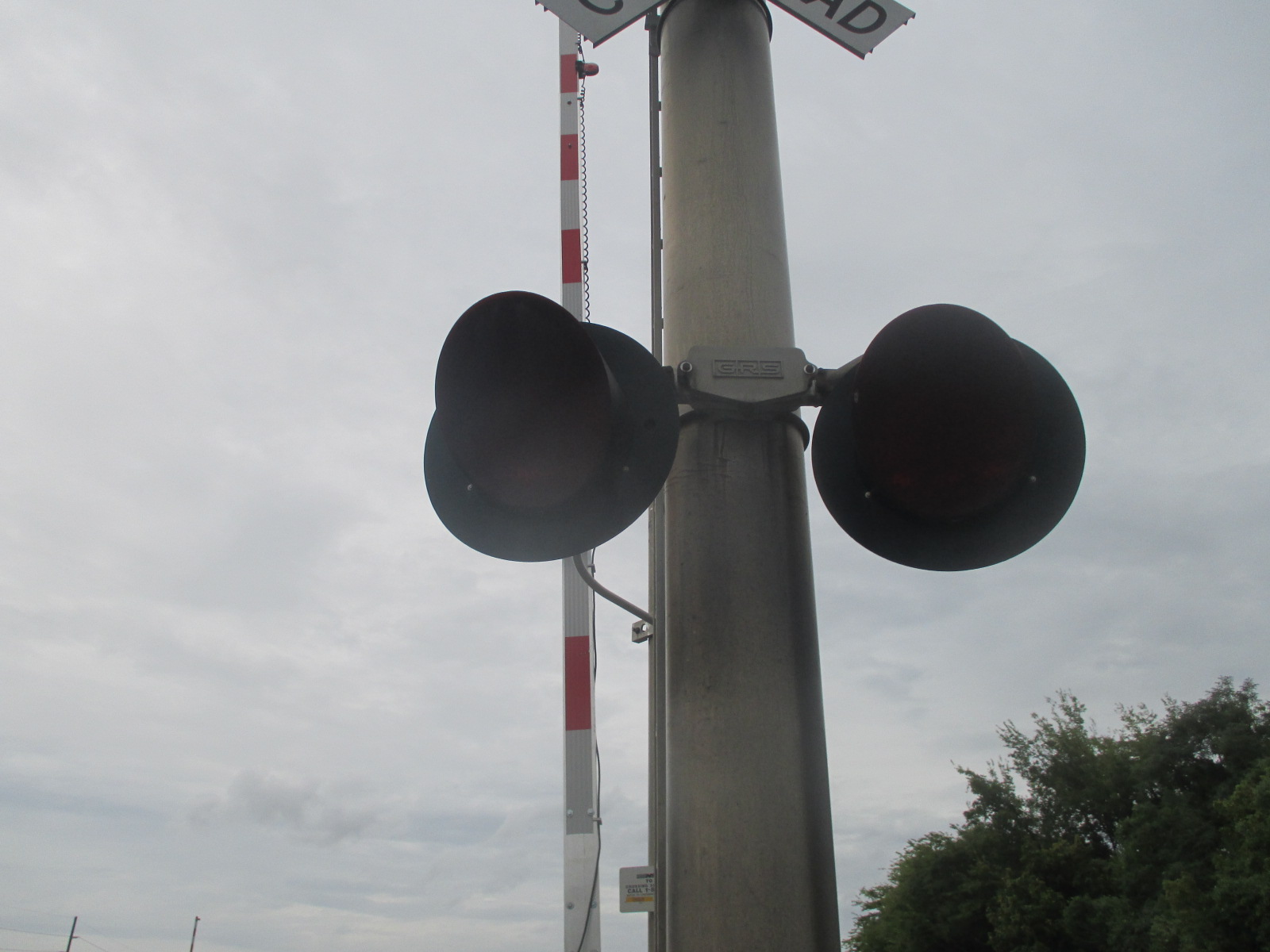

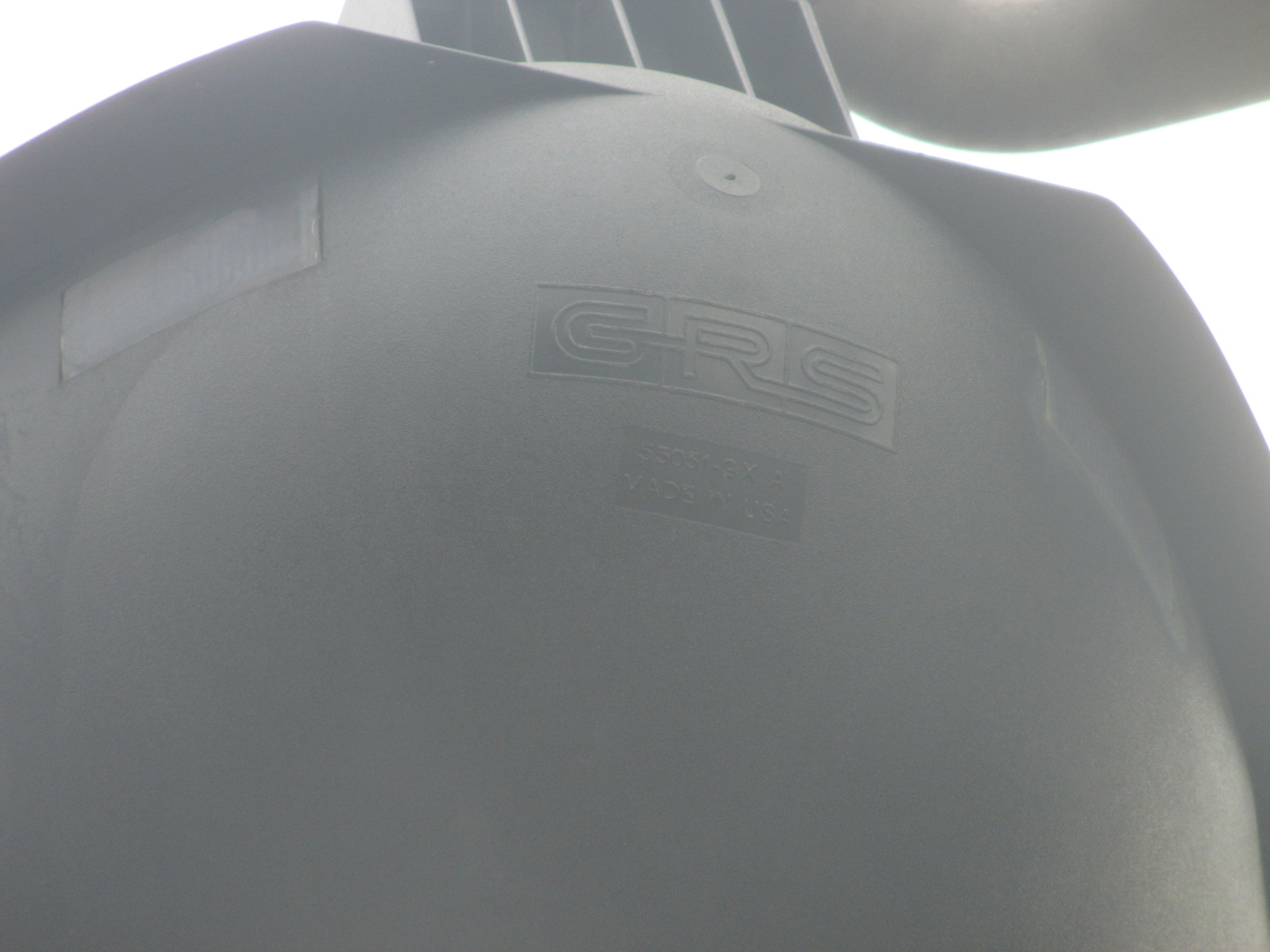

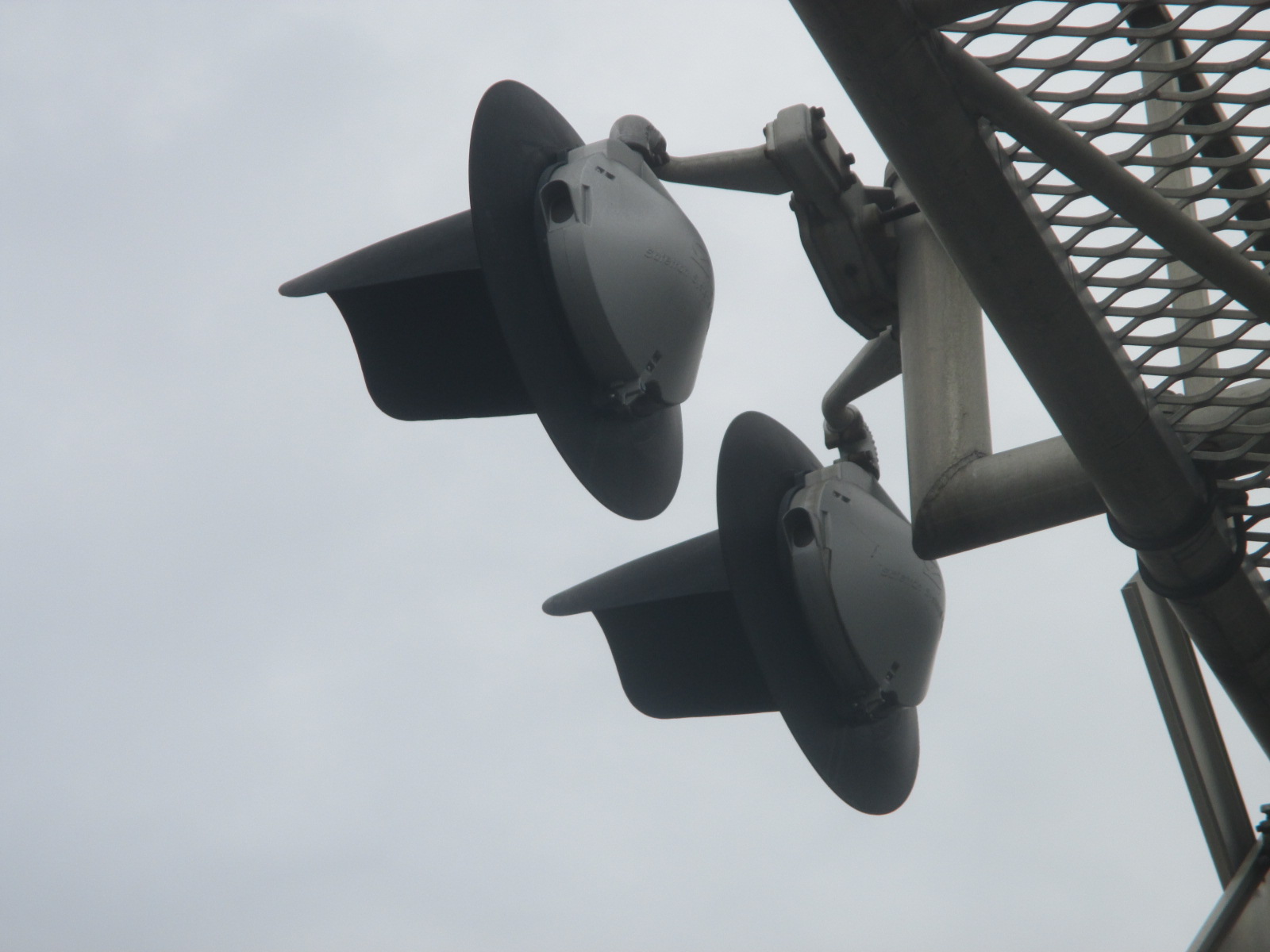

The mast lights are 12x20 inch GRS Lex-C lights.

9

10

11

12

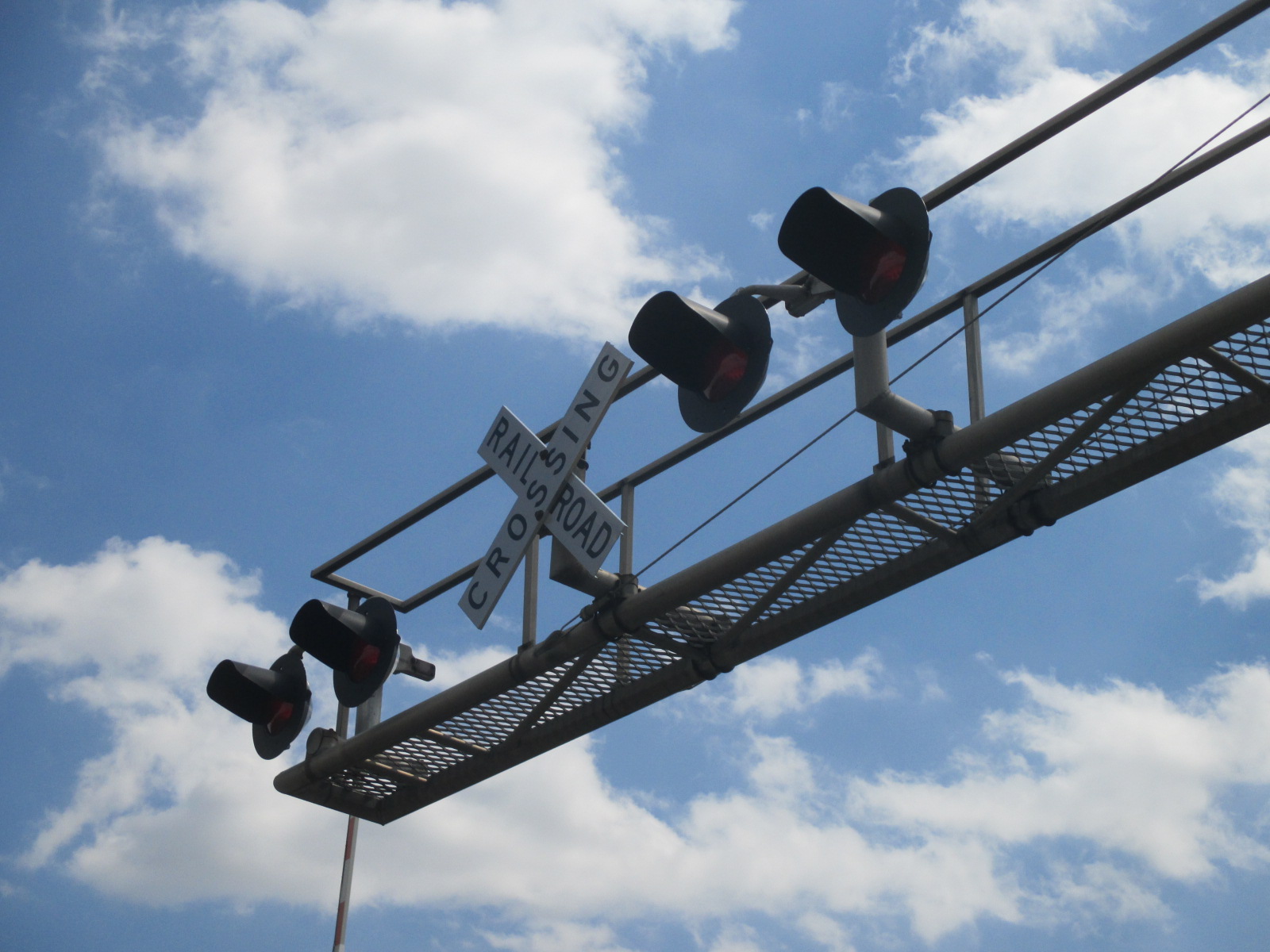

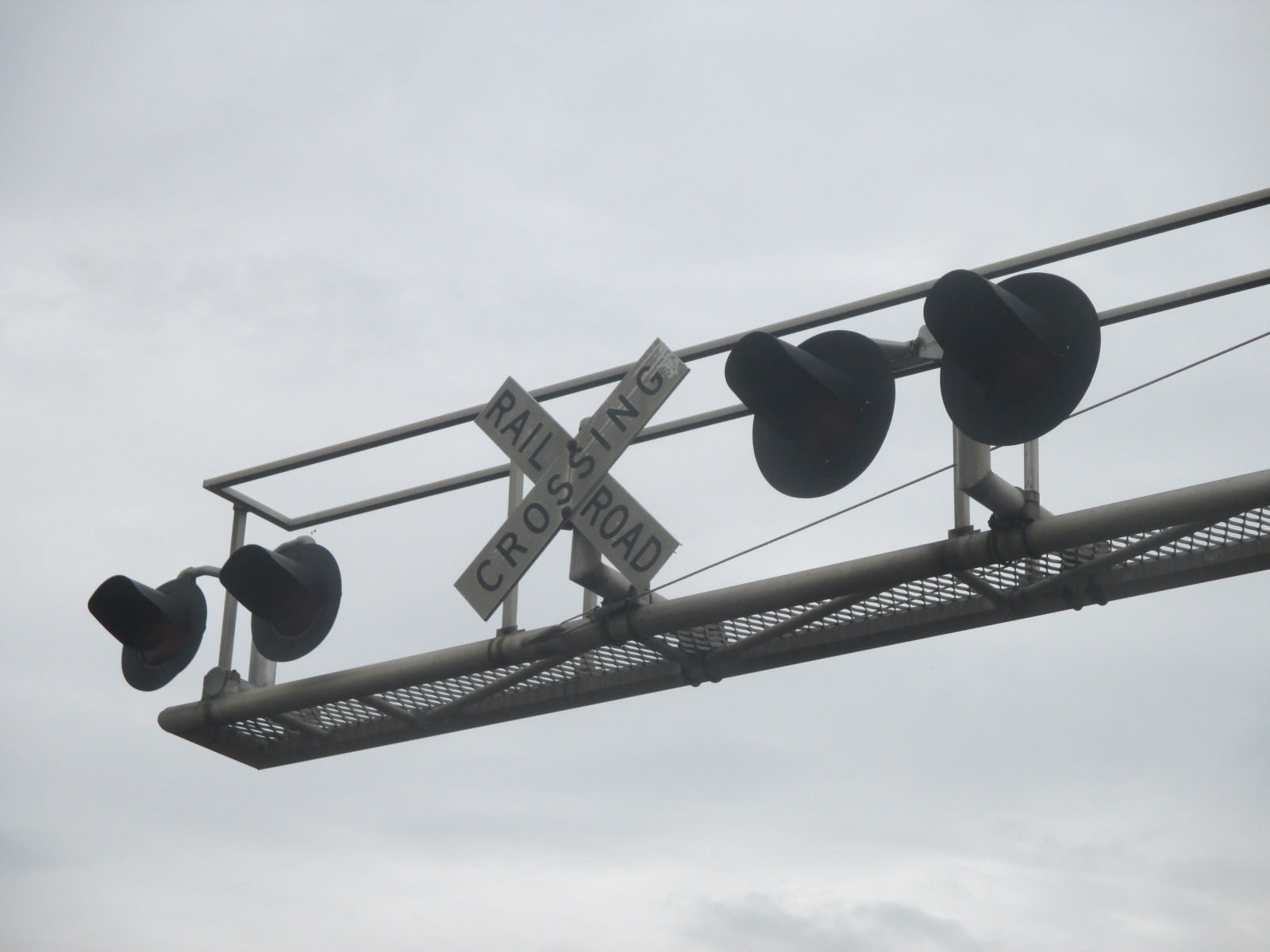

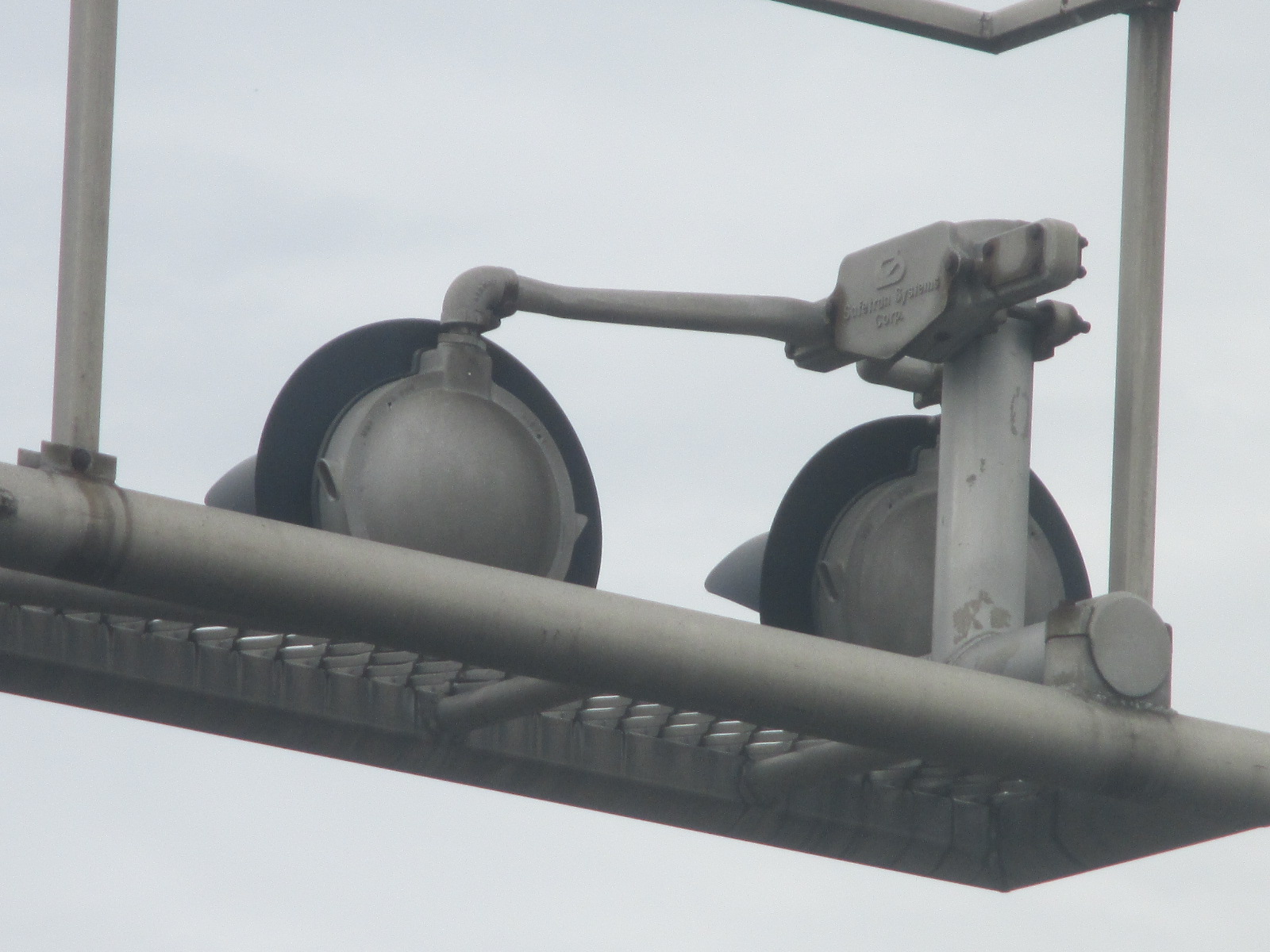

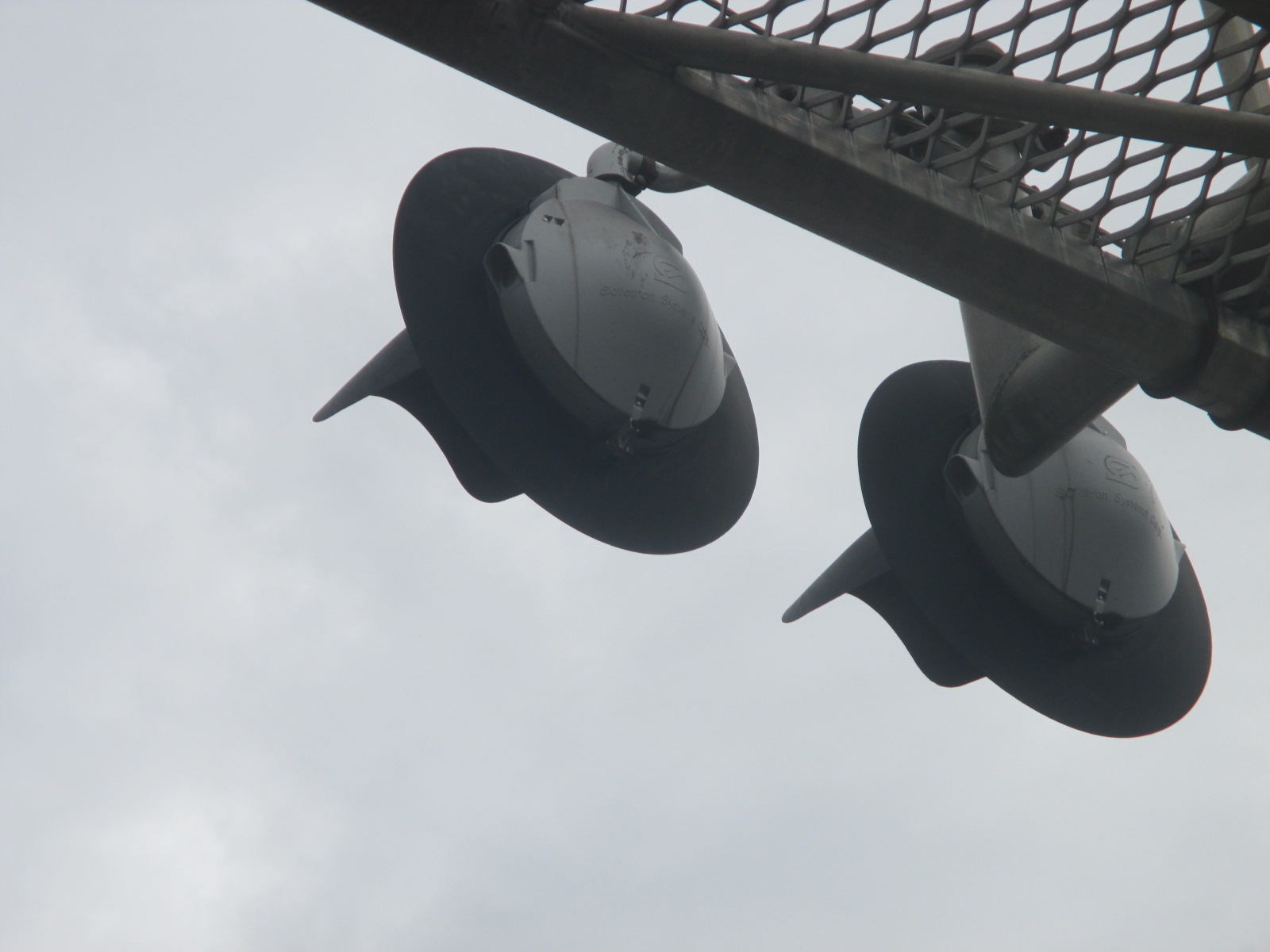

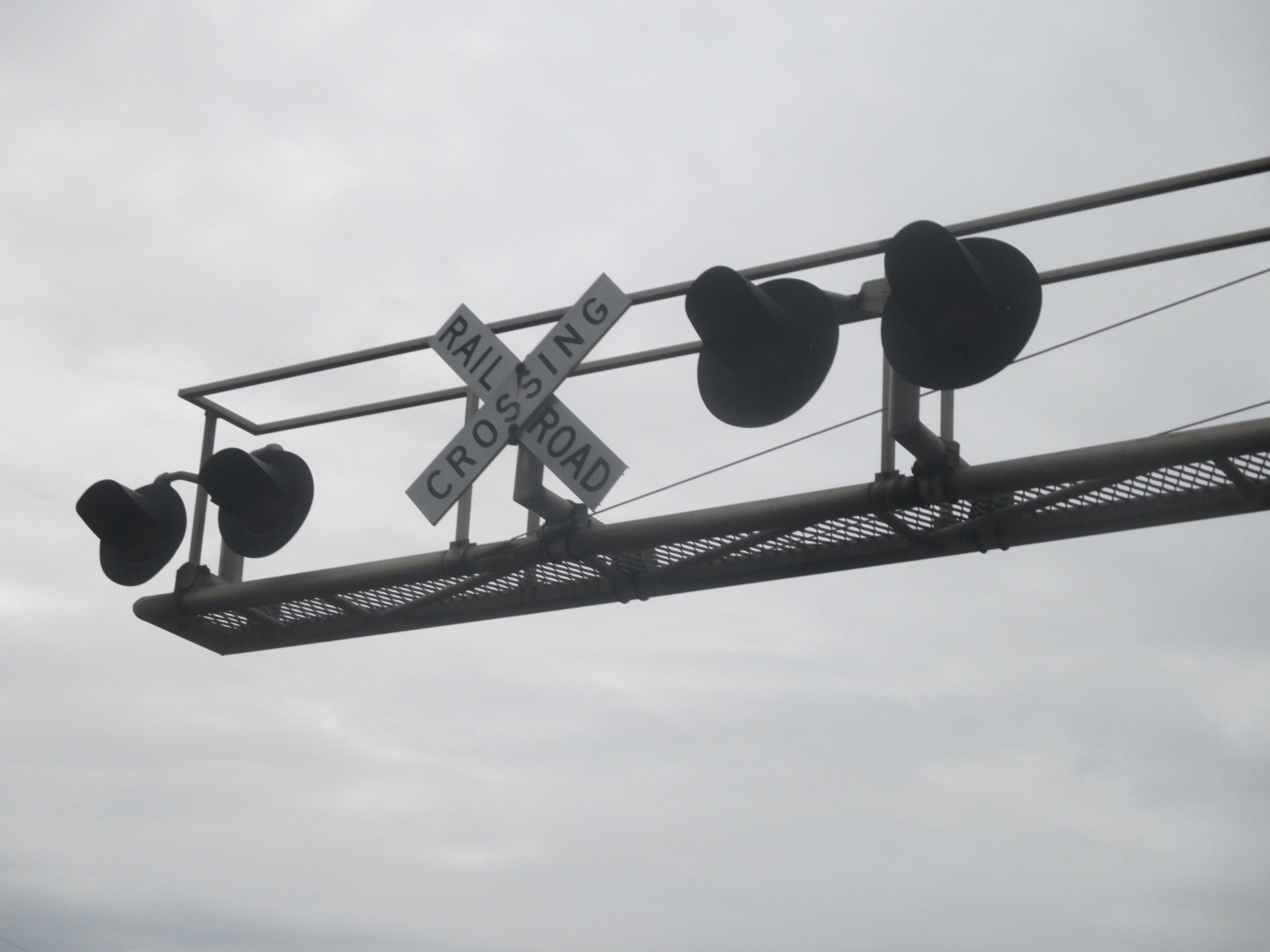

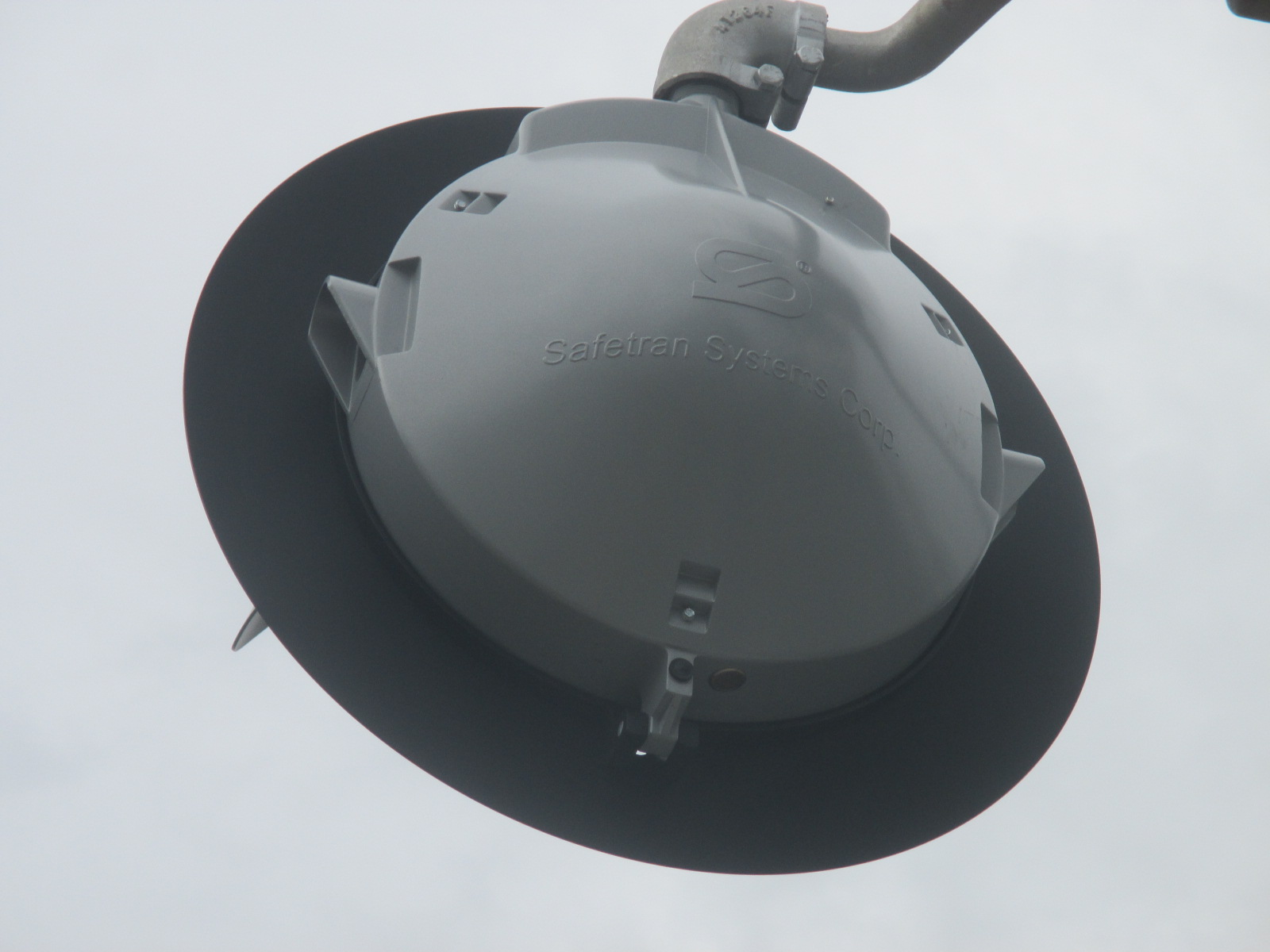

The overhead lights are a mixture of newer Safetran 12x24 inch lights and older Saftran 12x20 inch lights.

13

14

15

16

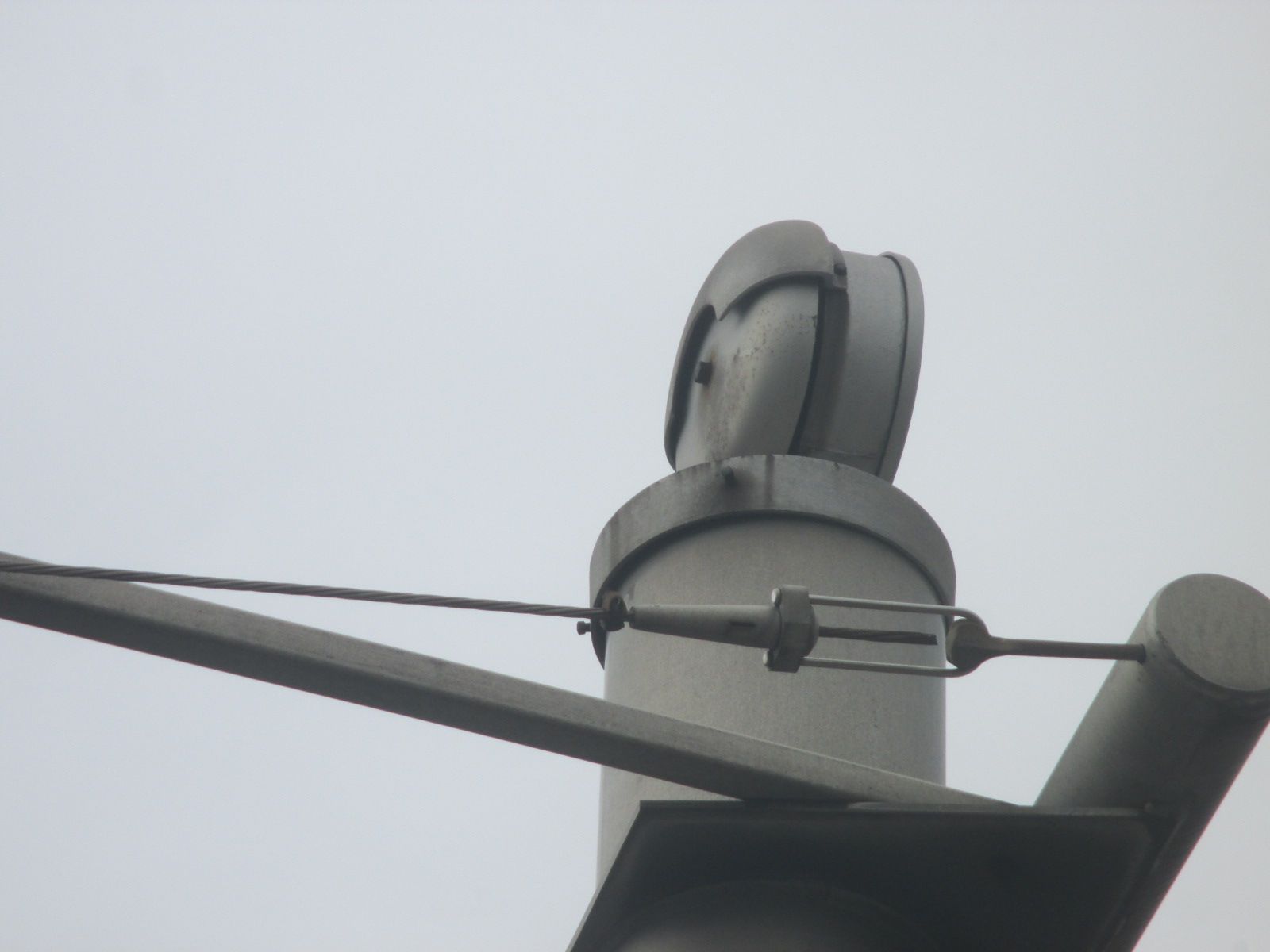

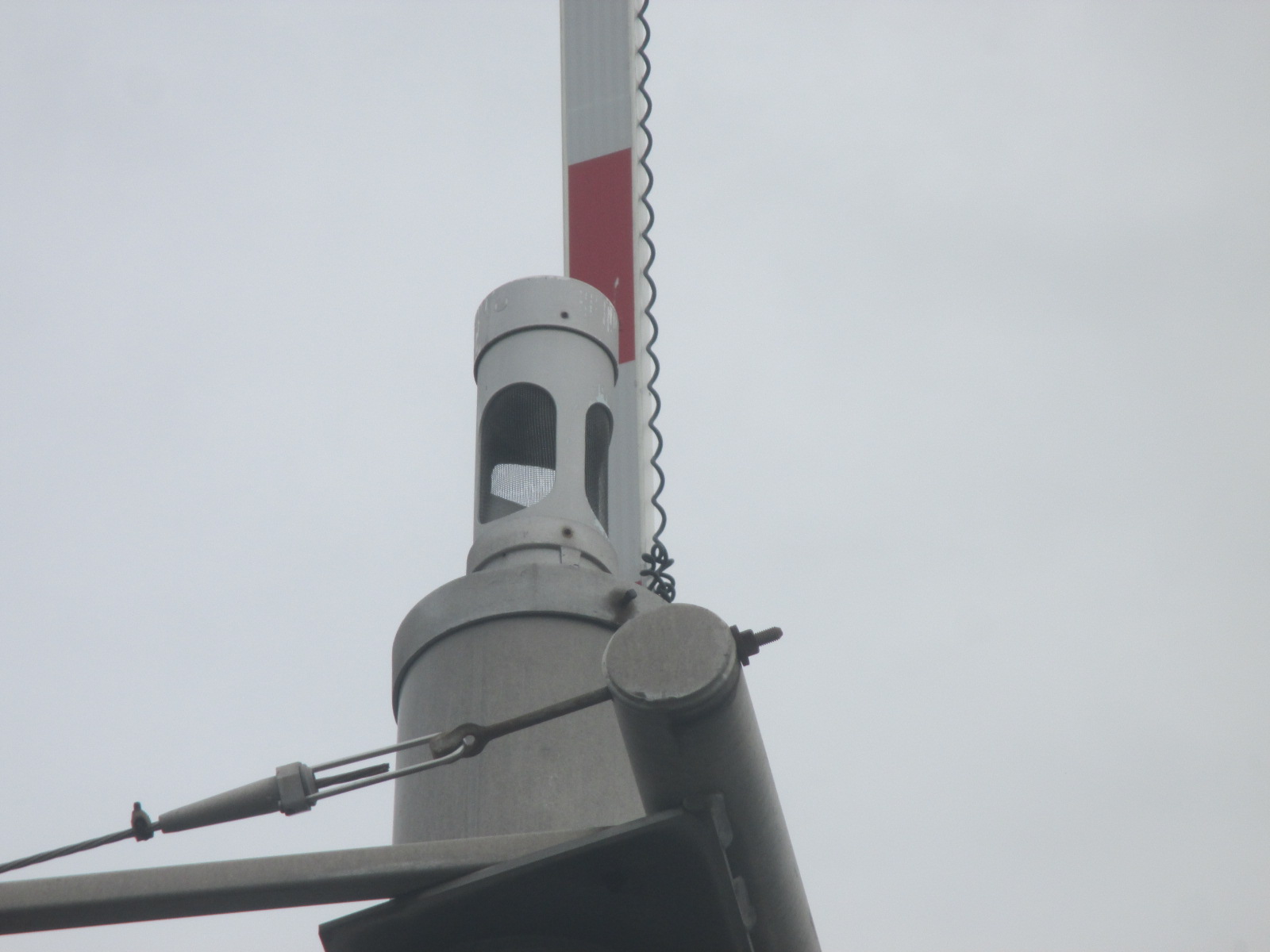

This signal has a General Signals Type 2 electronic bell.

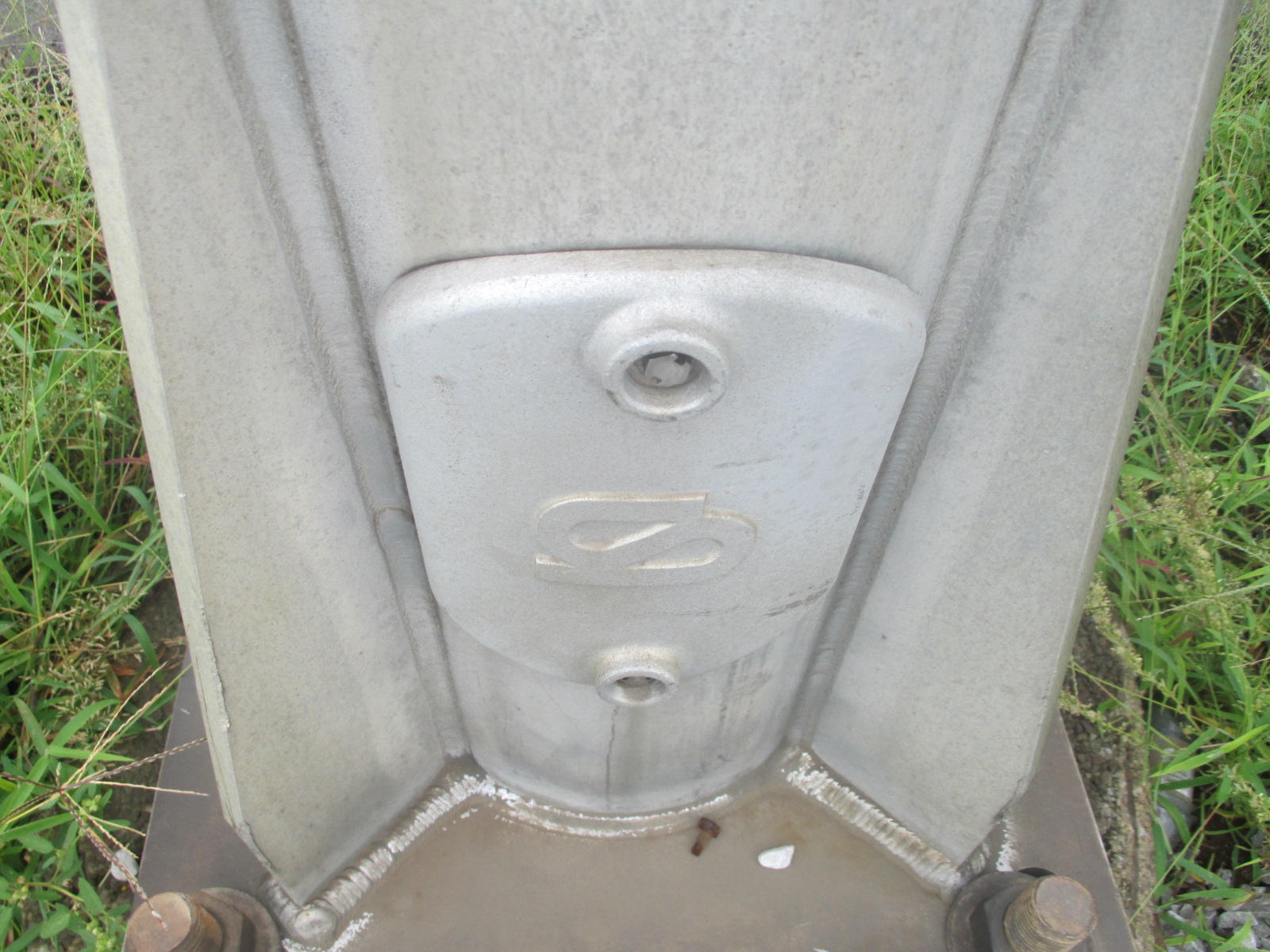

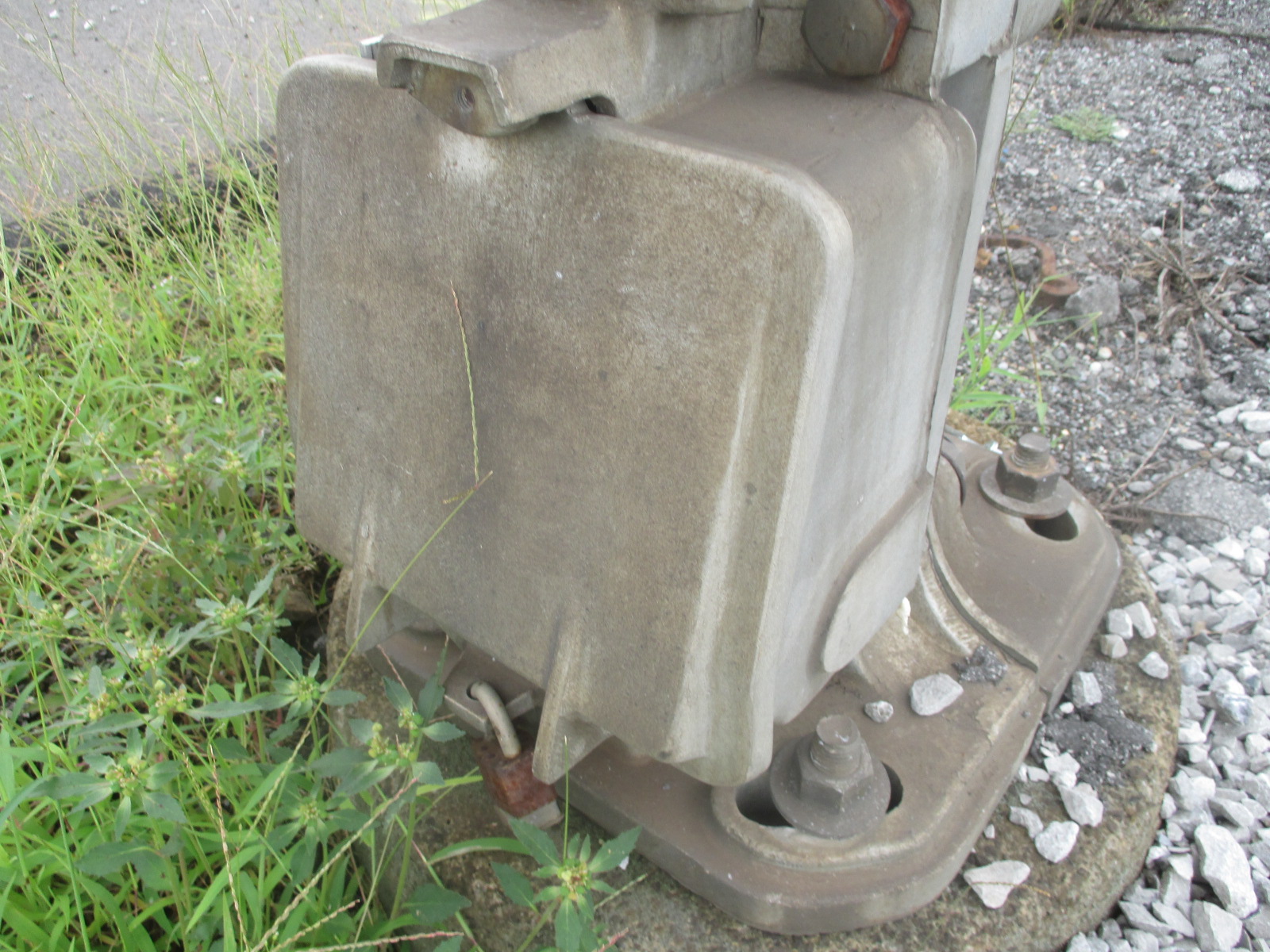

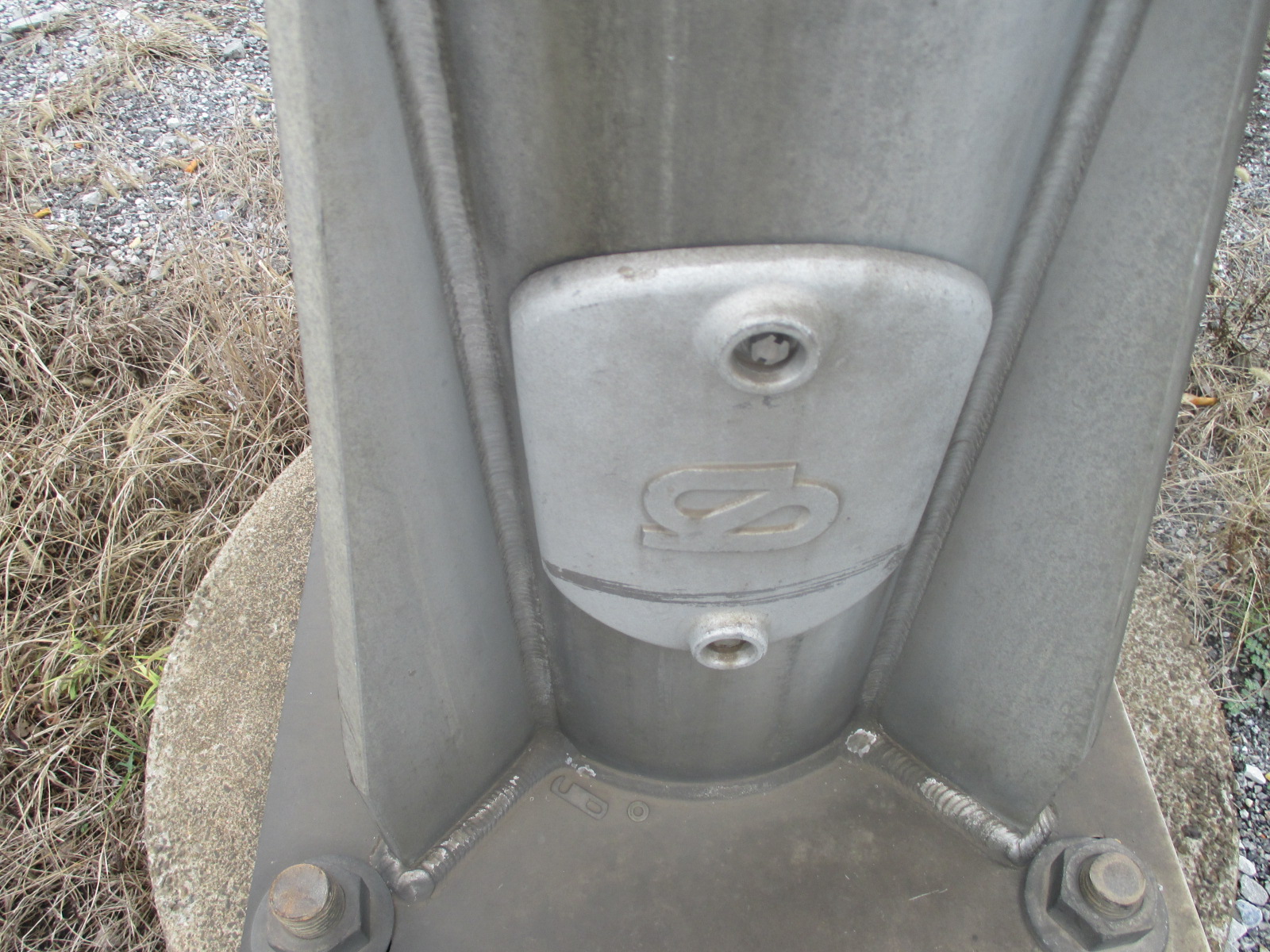

A blank base.

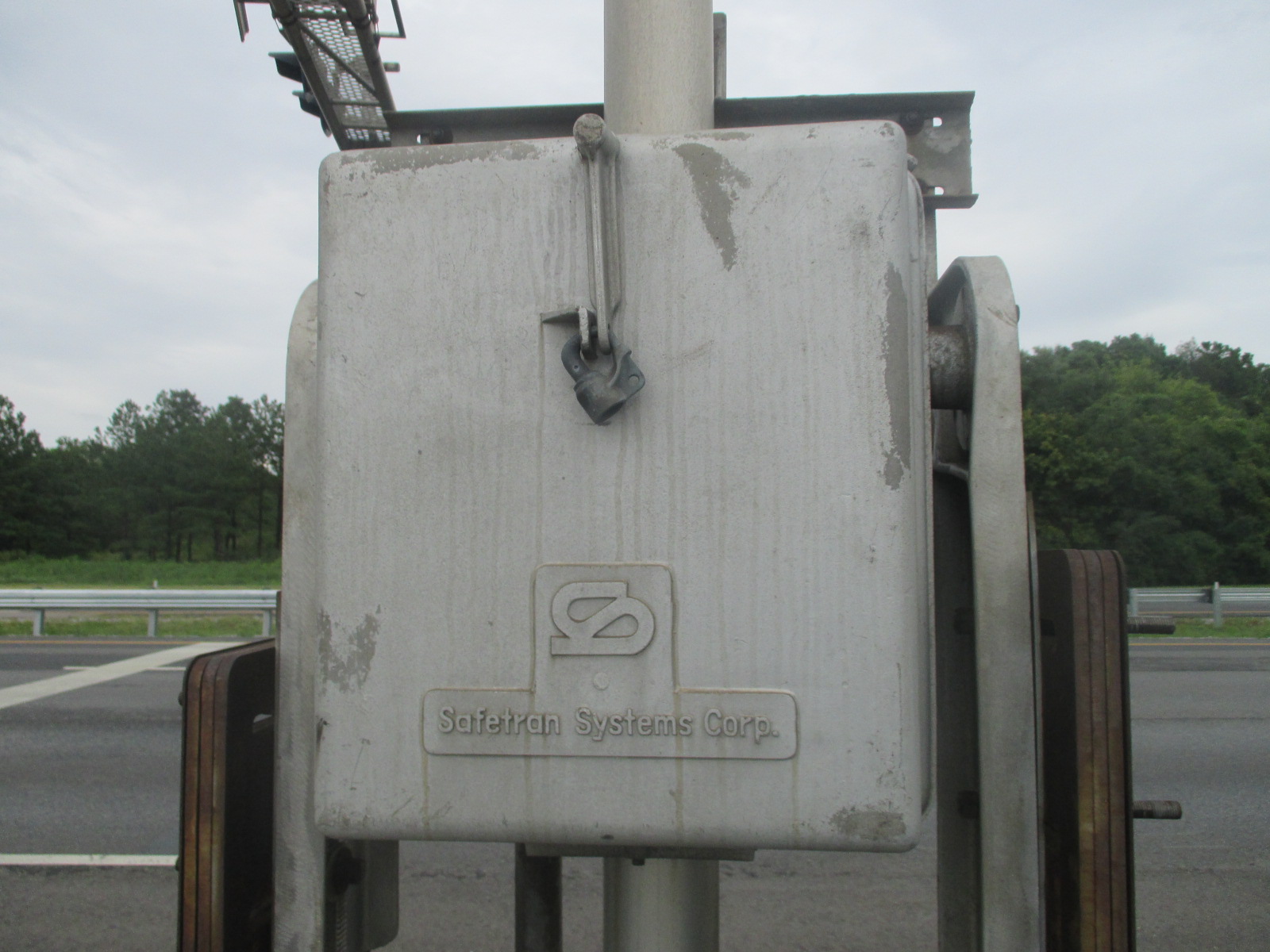

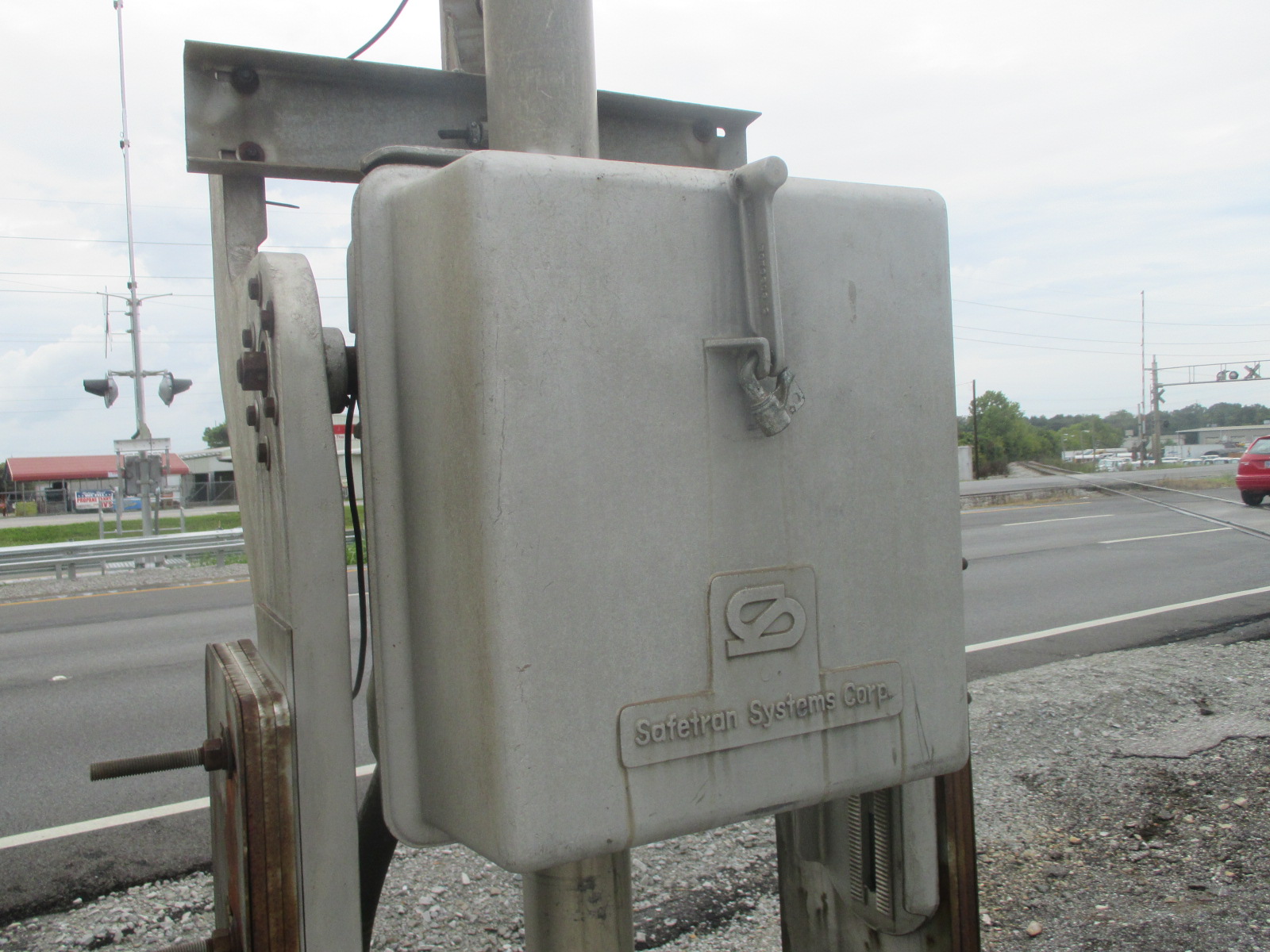

This signal has a Safetran gate mechanism.

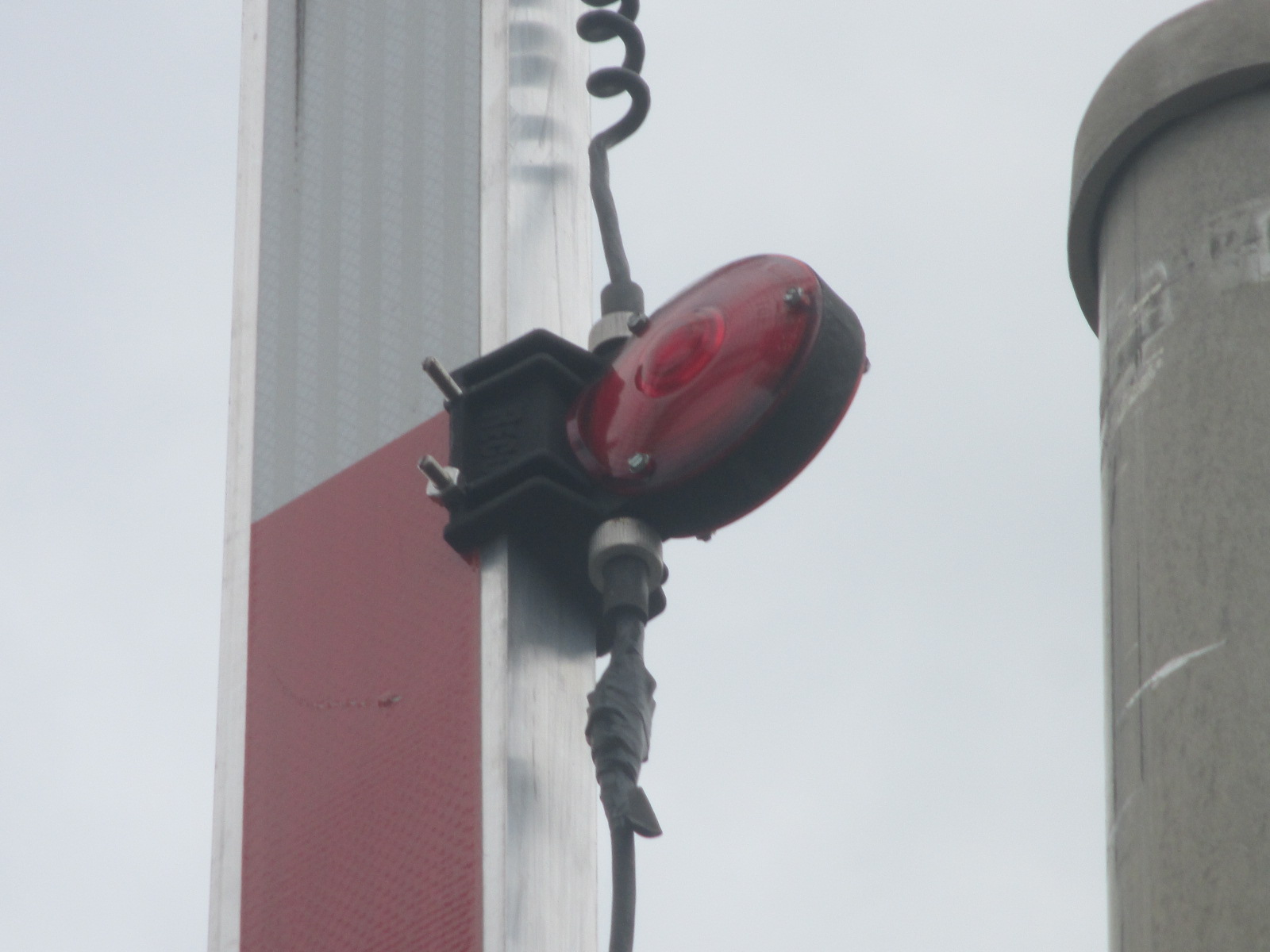

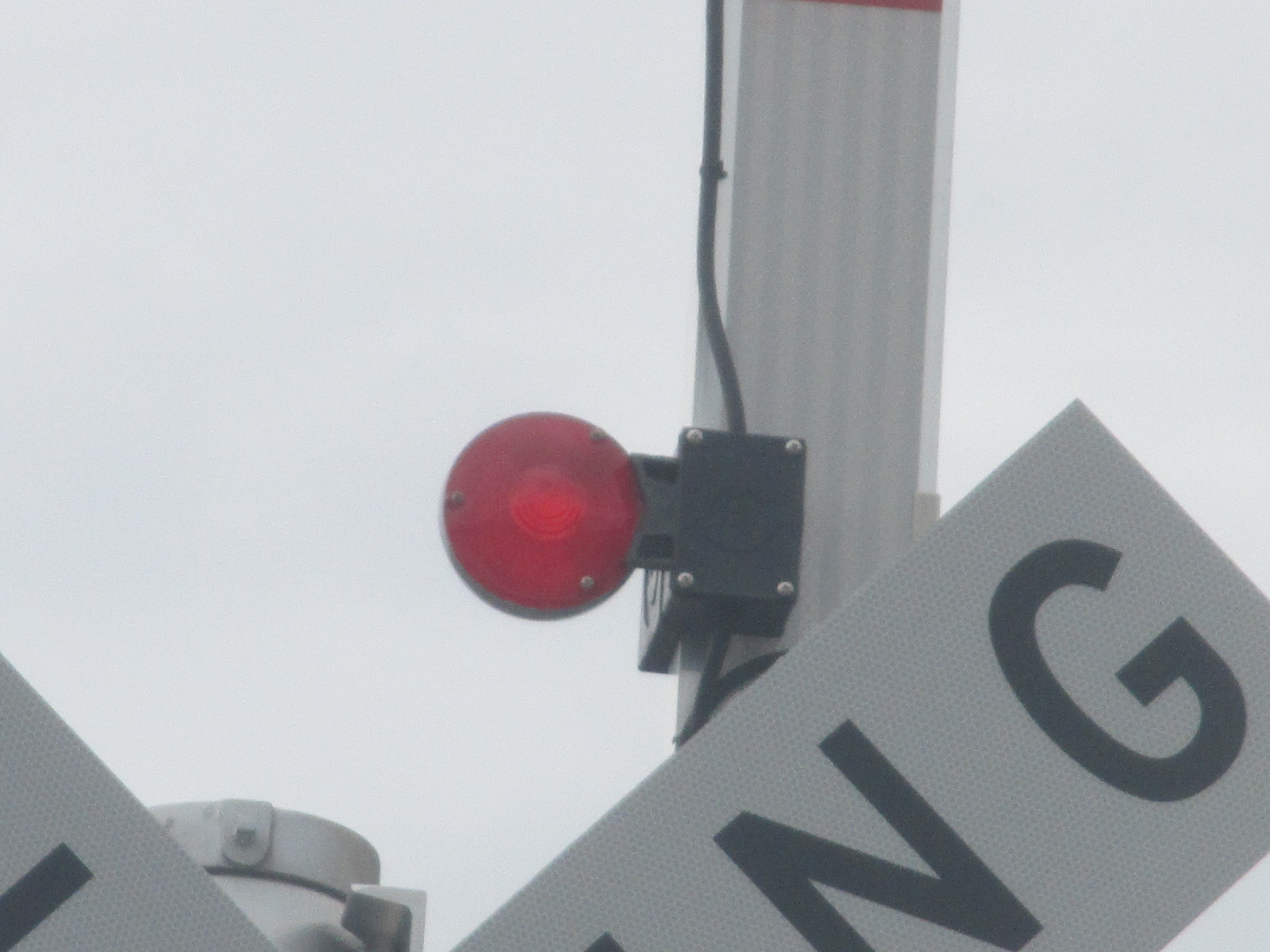

The gate lights on this signal were made by RECO.

17

18

19

20

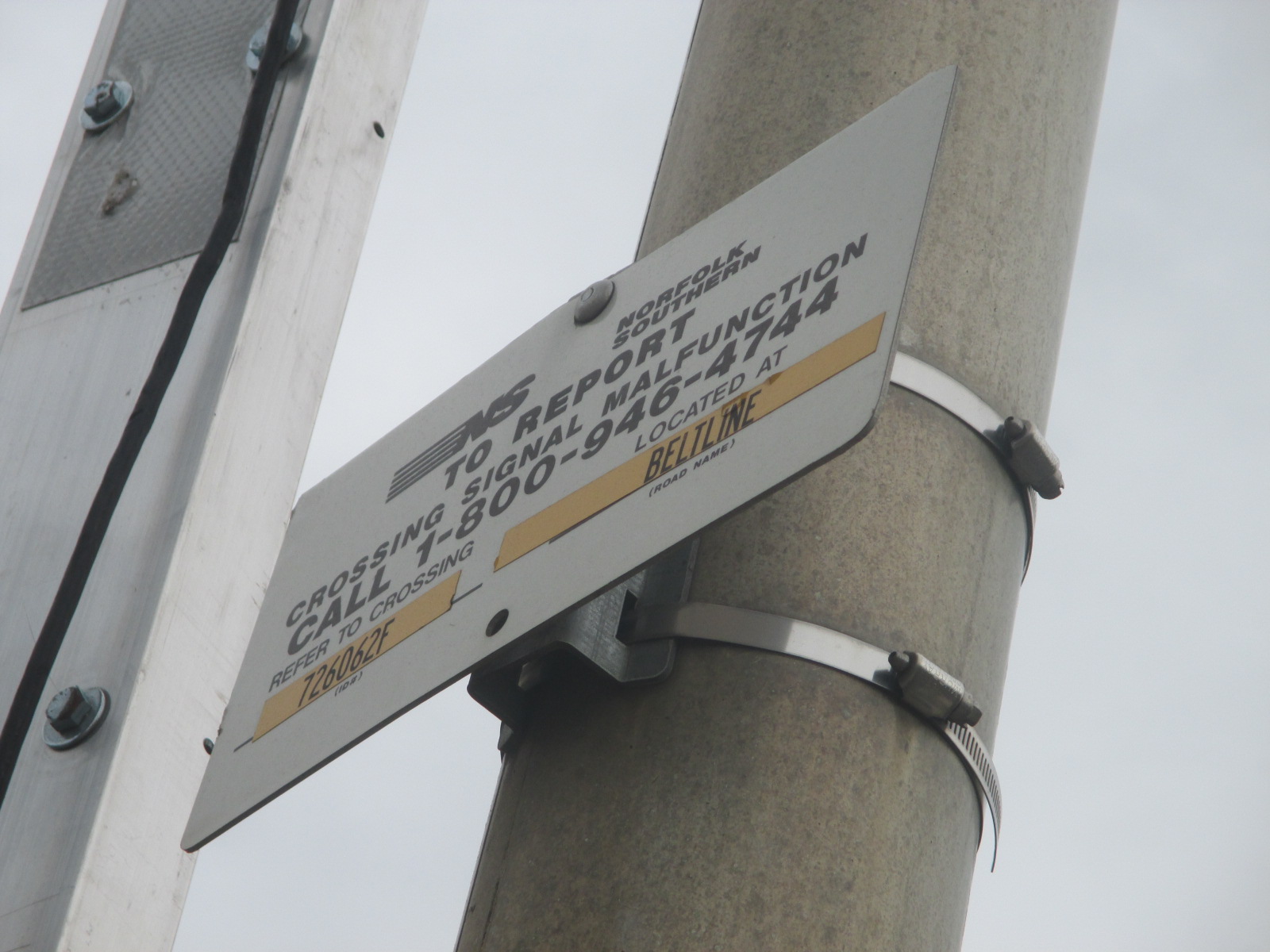

The emergency information.

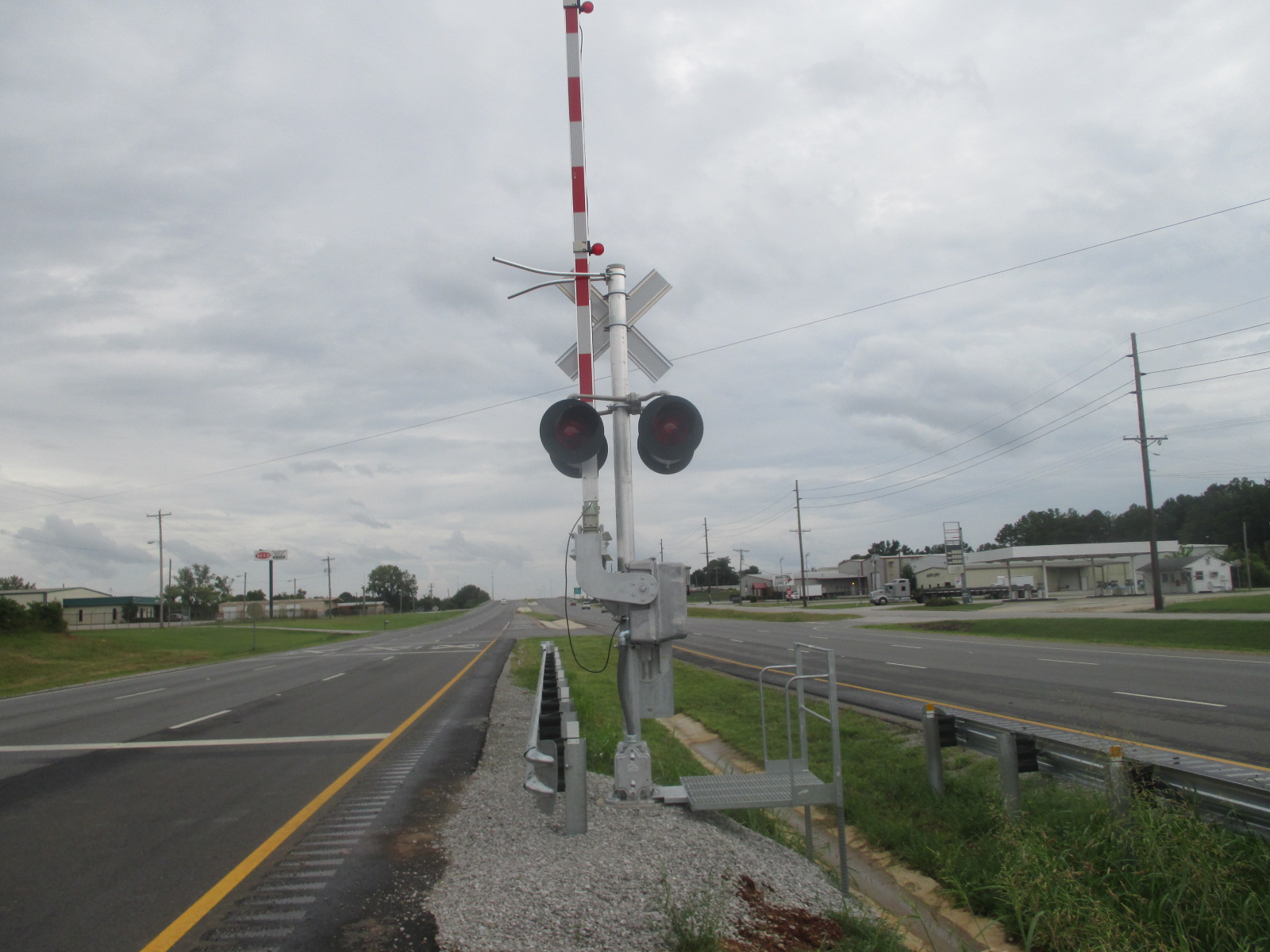

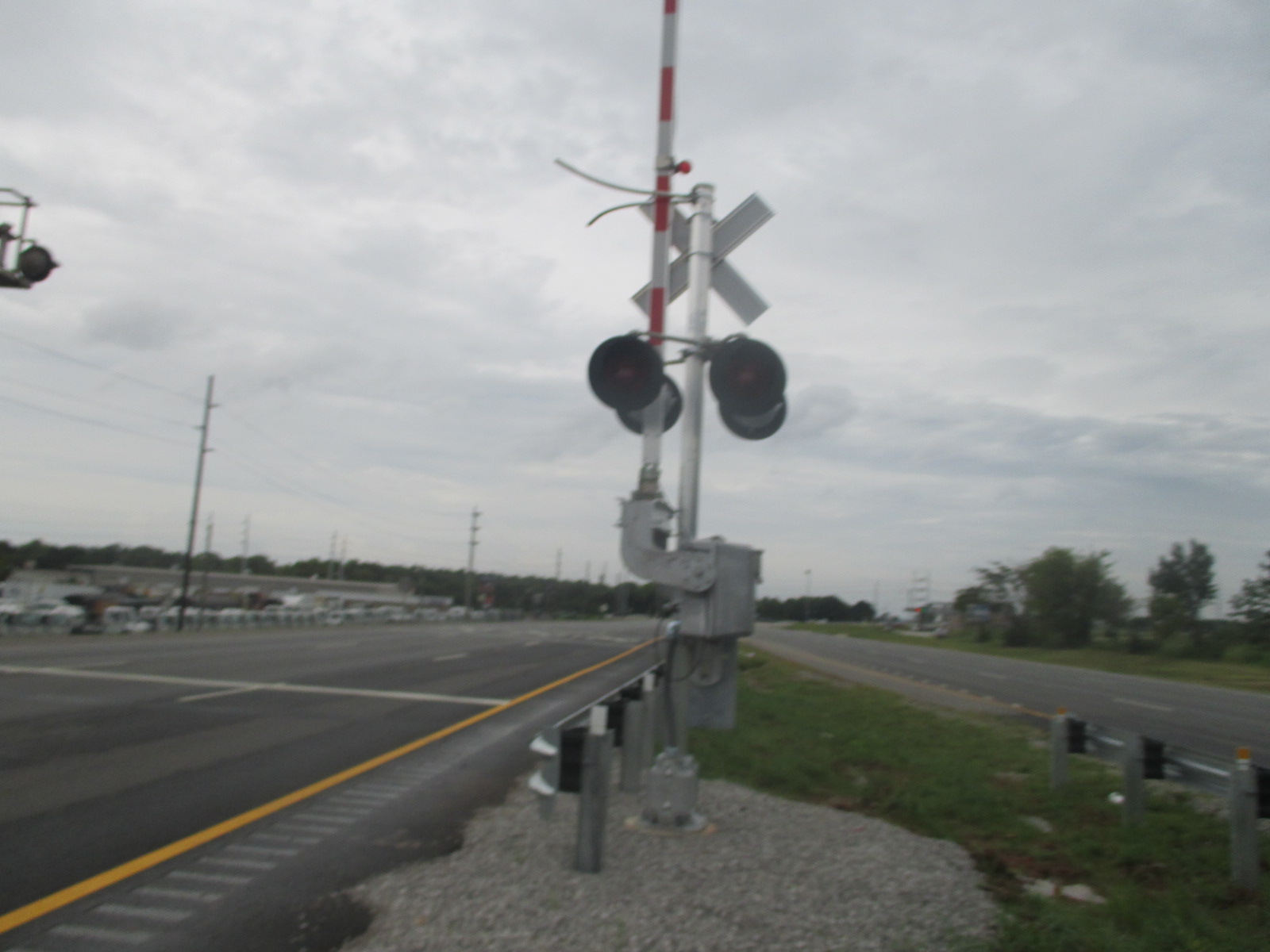

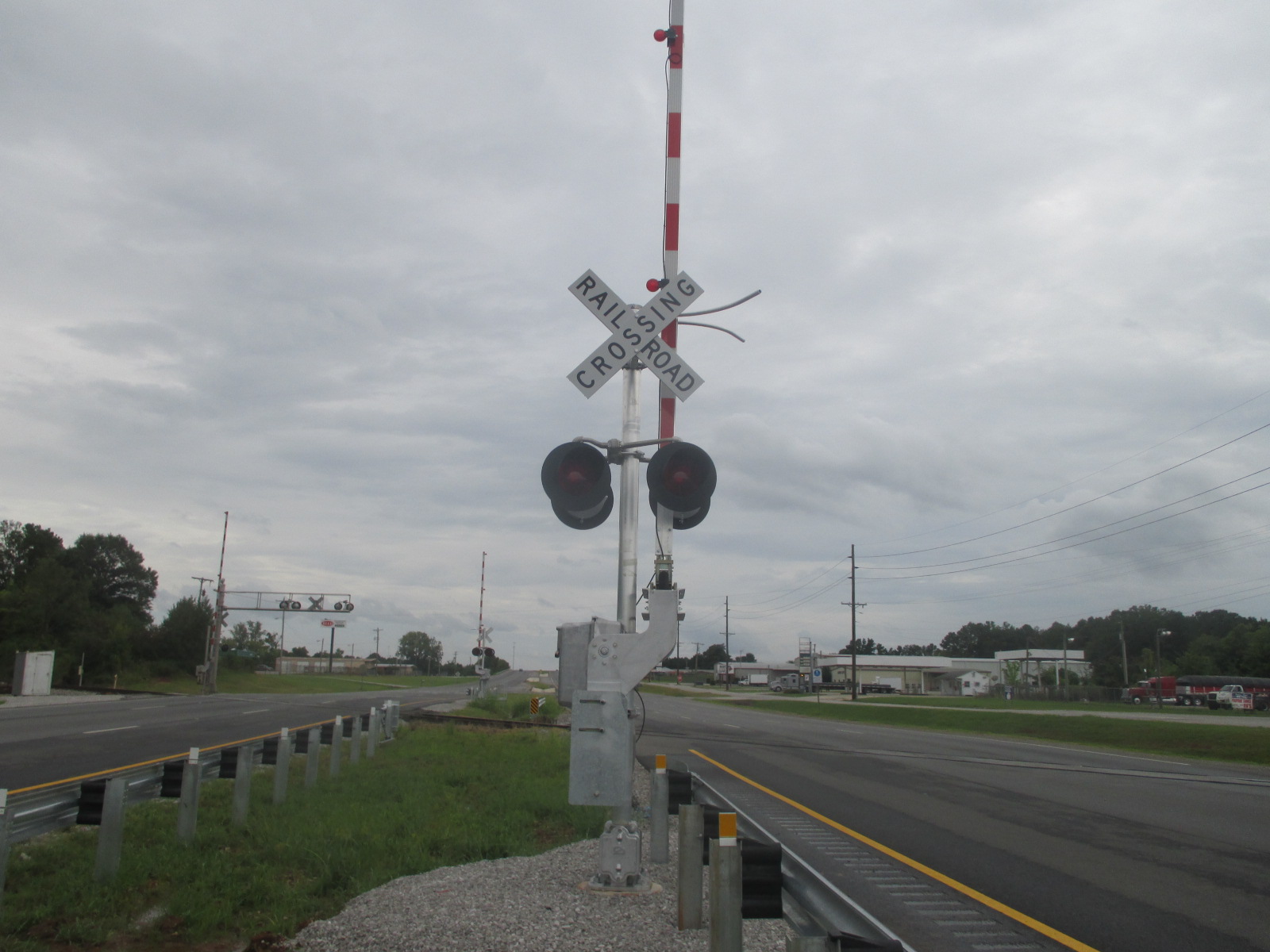

The second signal.

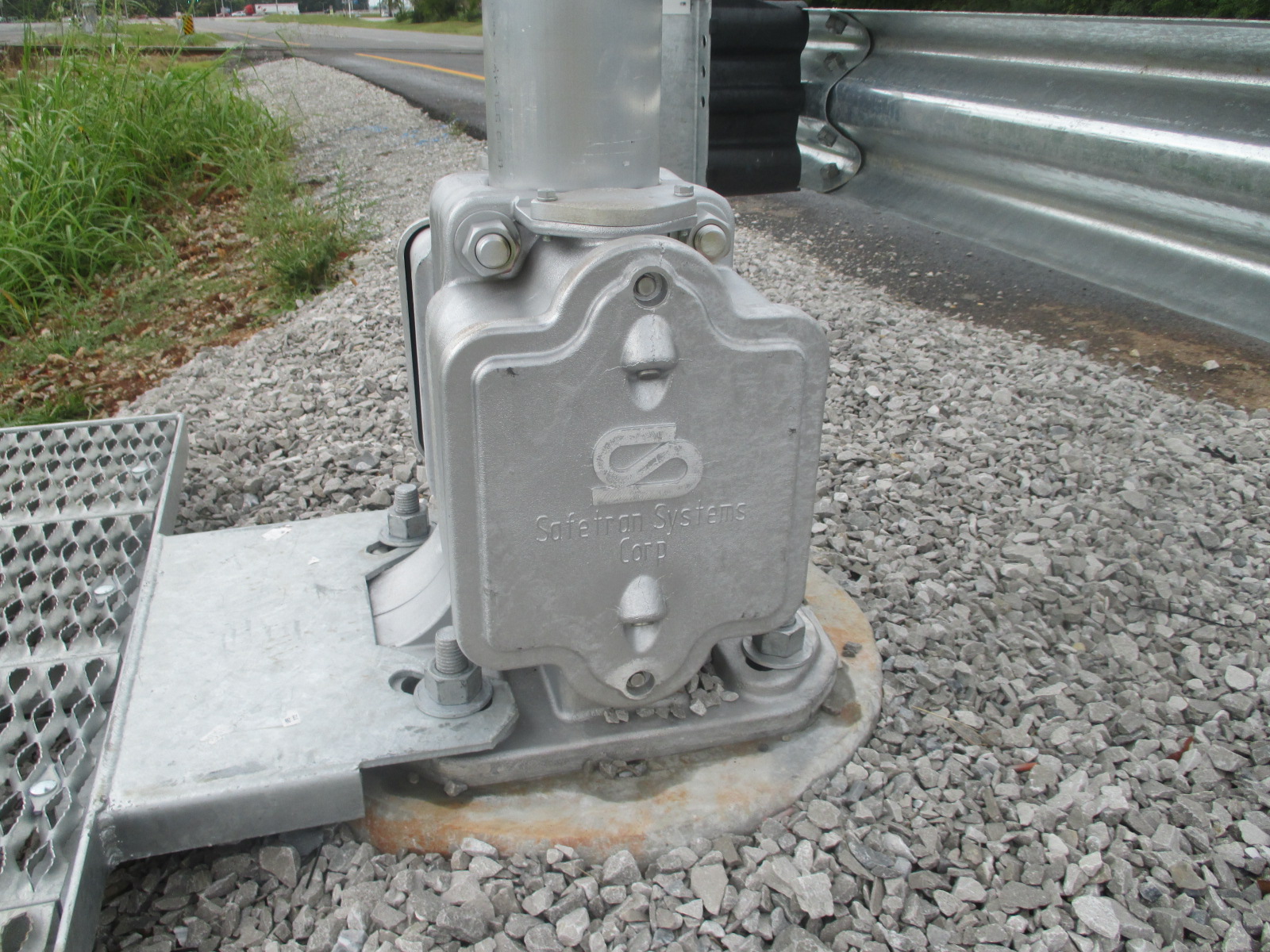

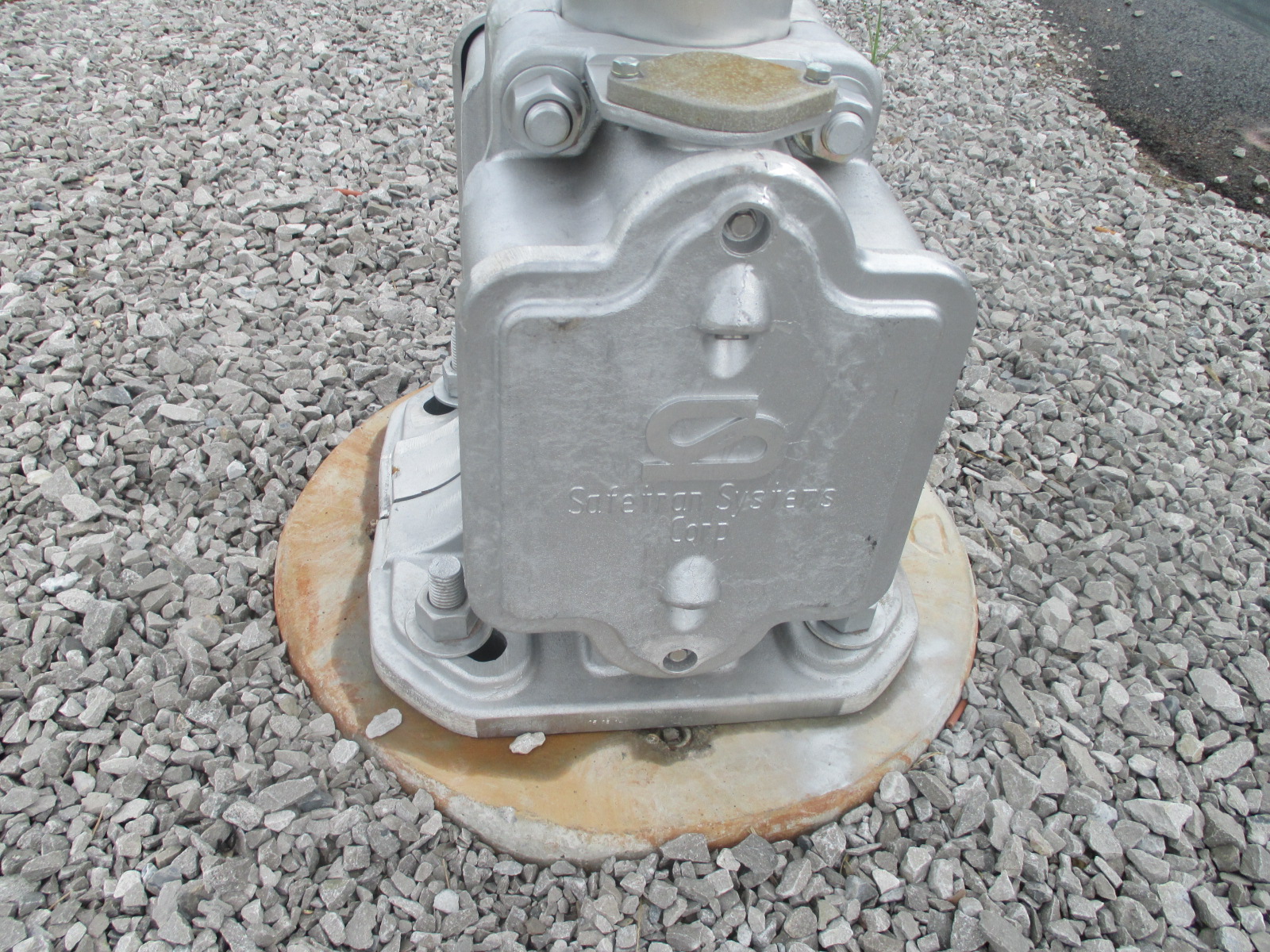

It has a Safetran base.

21

22

23

24

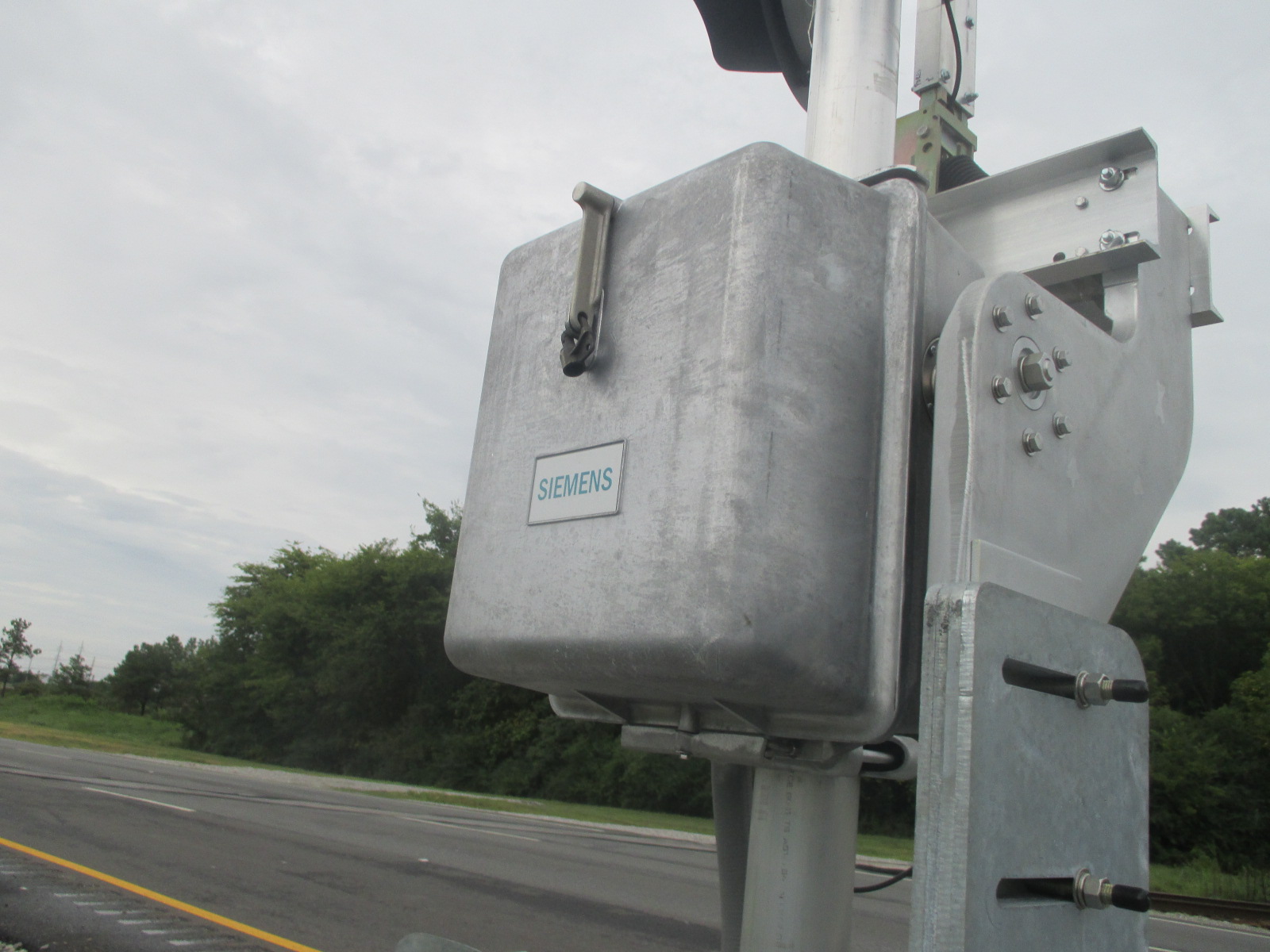

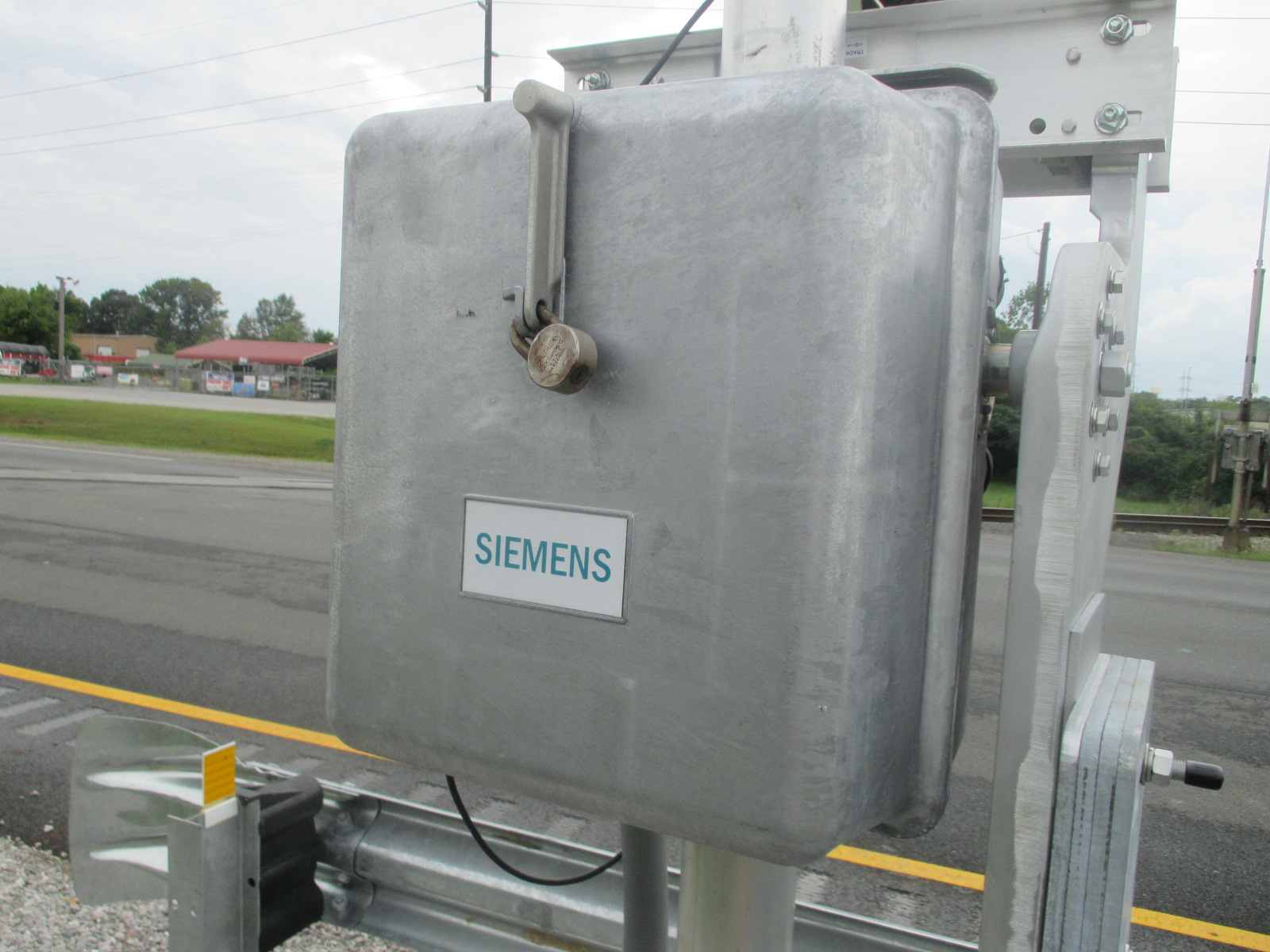

This signal has a Siemens gate mechanism as well.

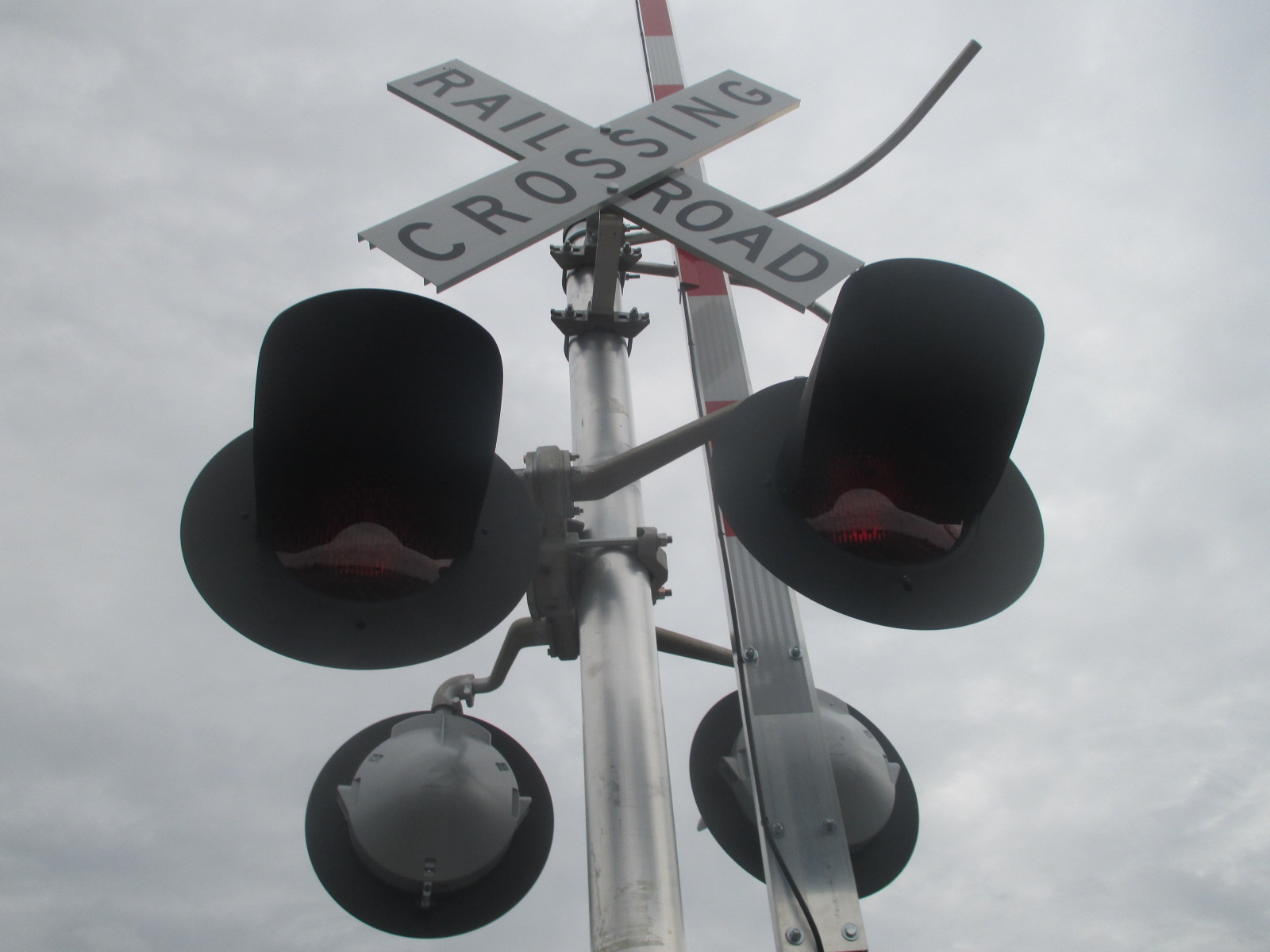

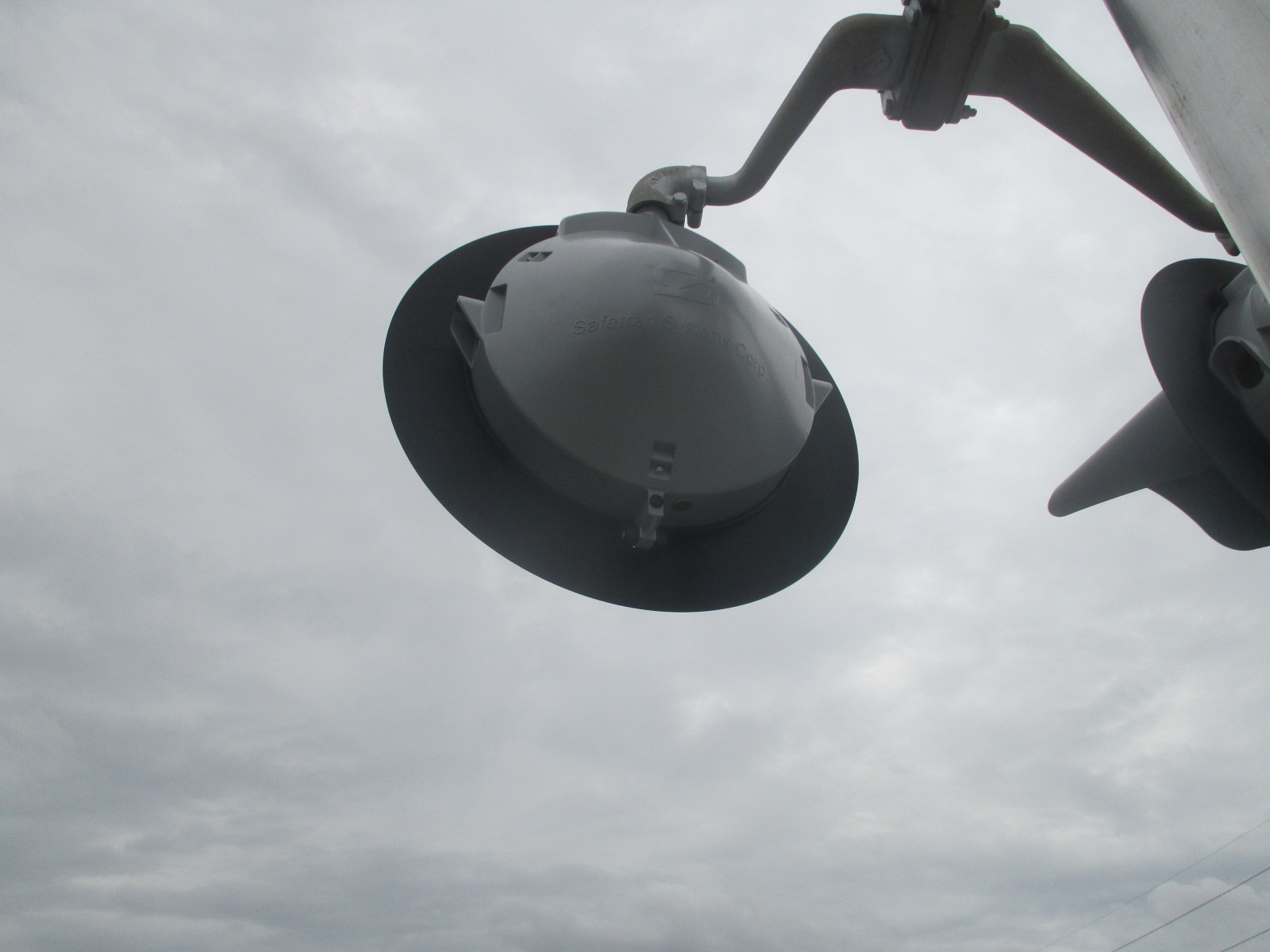

The lights here are Safetran 12x20 inch lights.

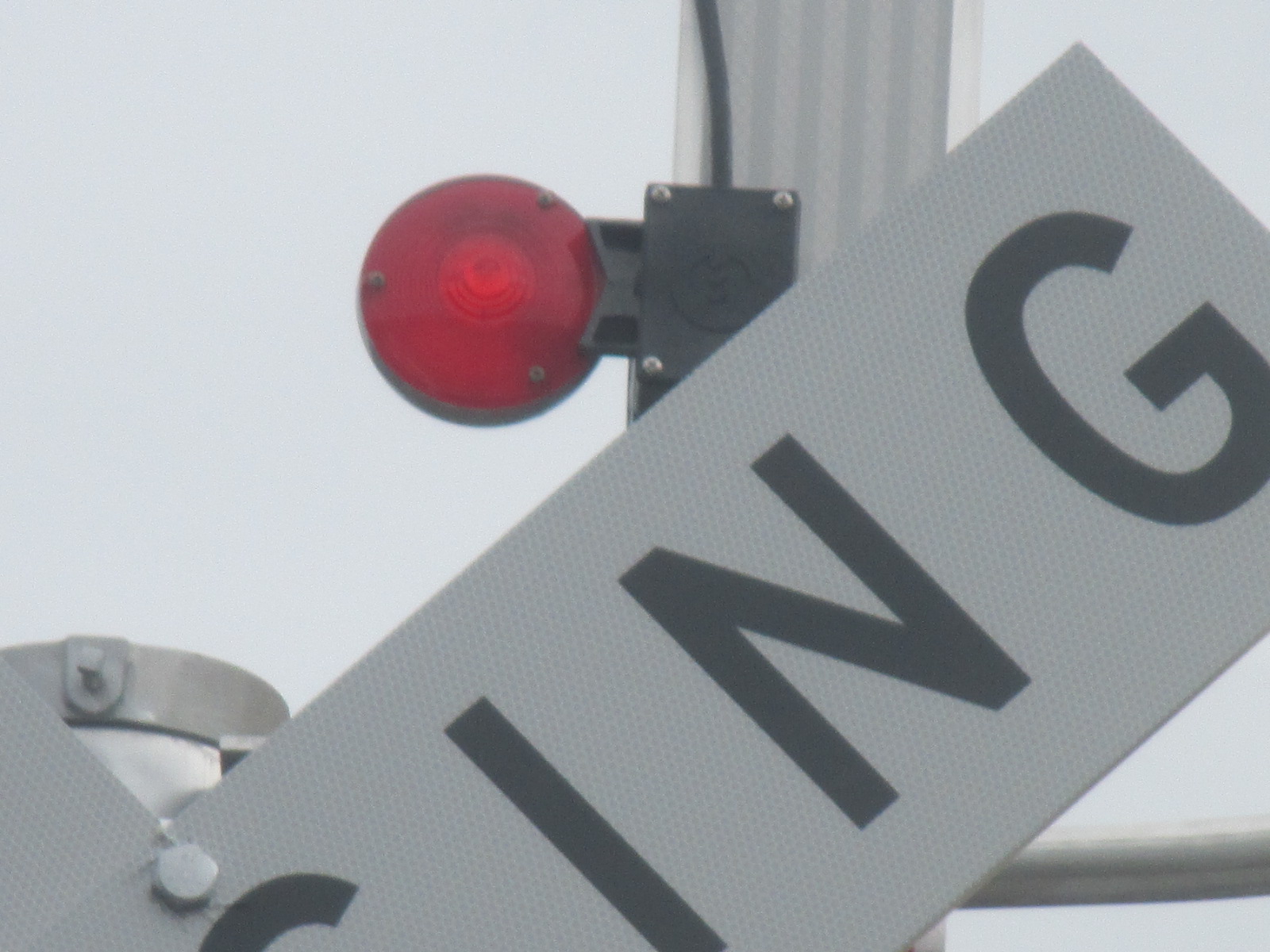

The gate lights are NEG gate lights.

25

26

27

28

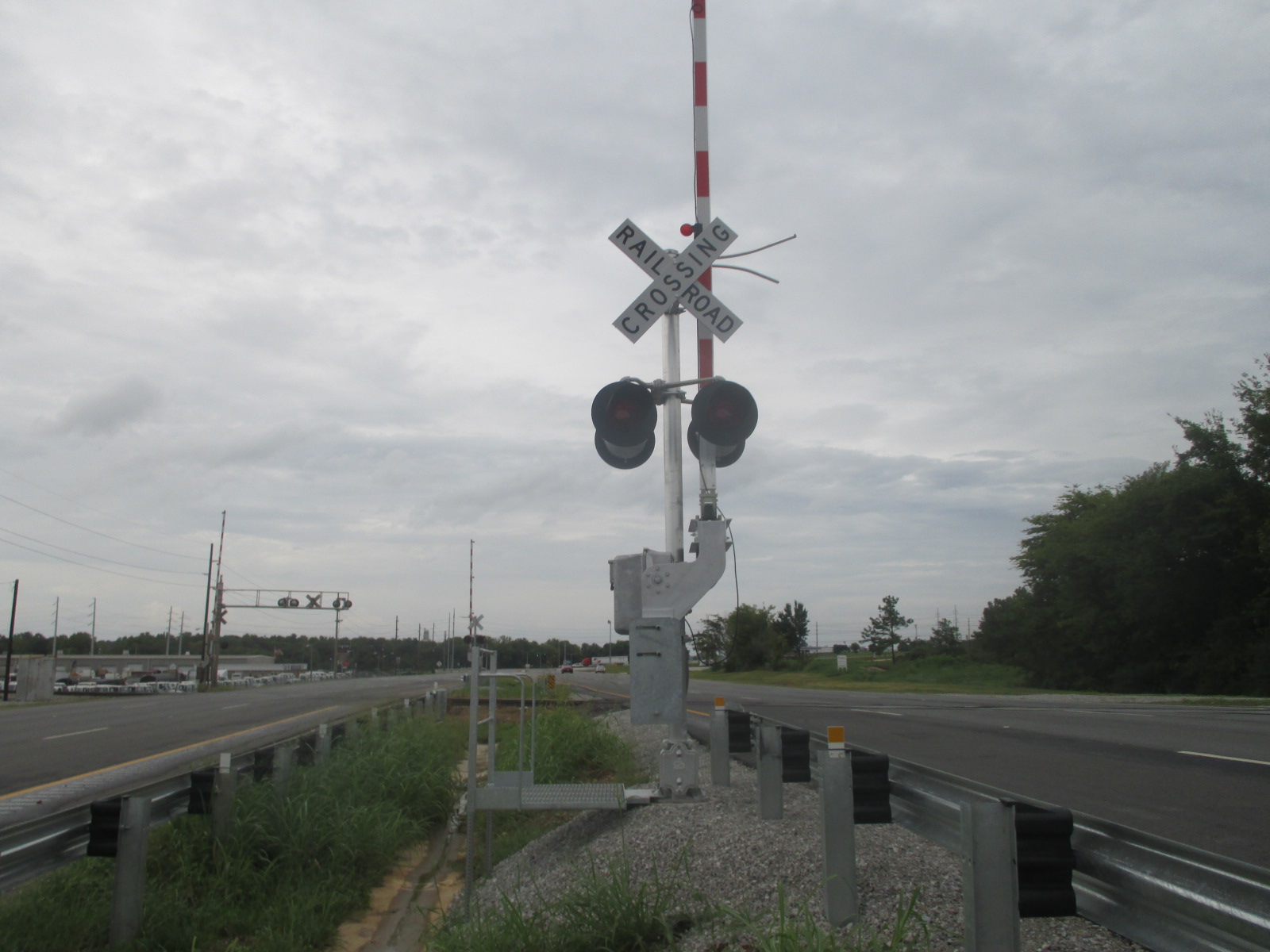

The third signal.
This signal has another Safetran base.
The gate mechanism is also a Siemens gate mechanism.

29

30

31

32

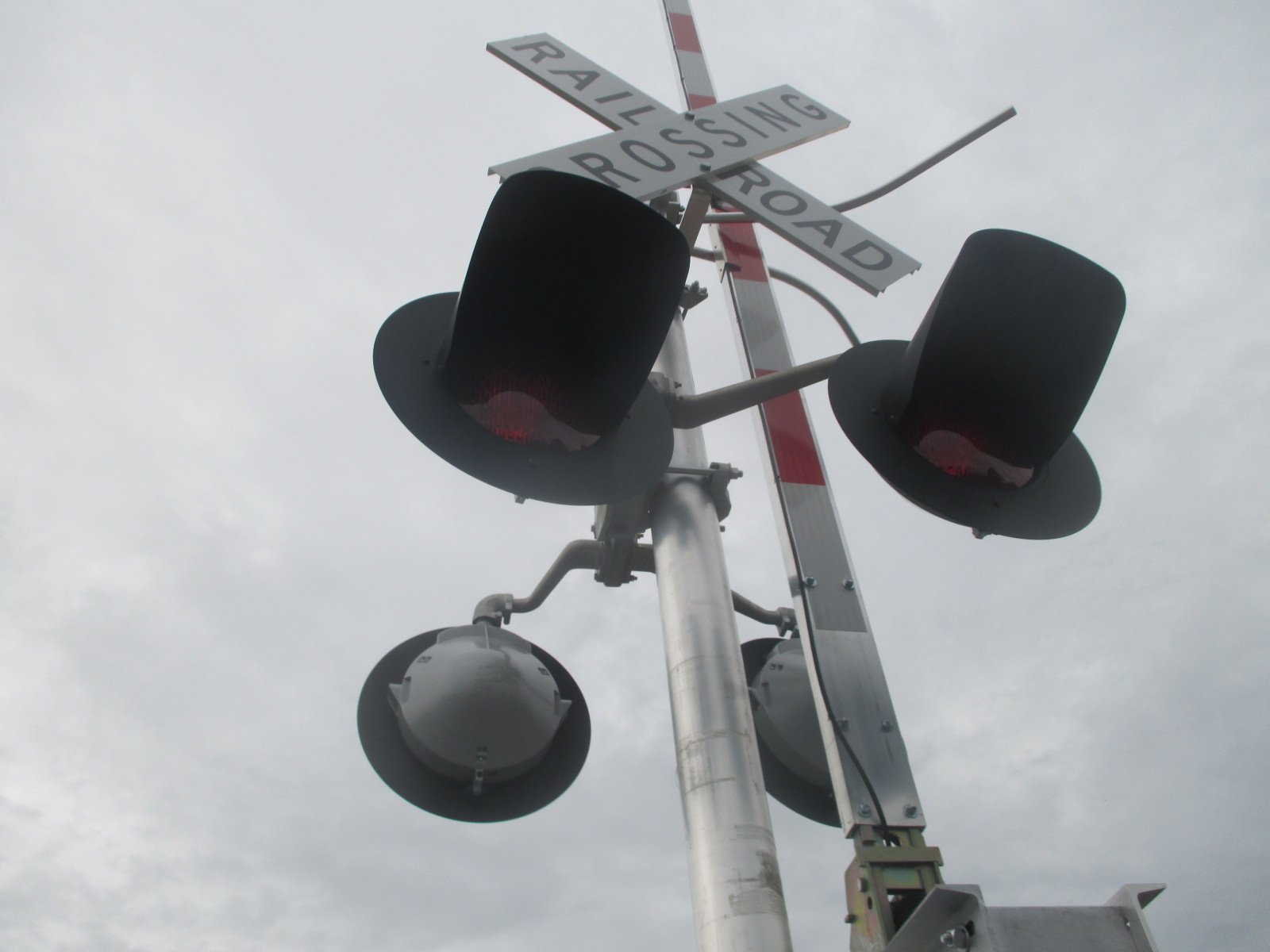

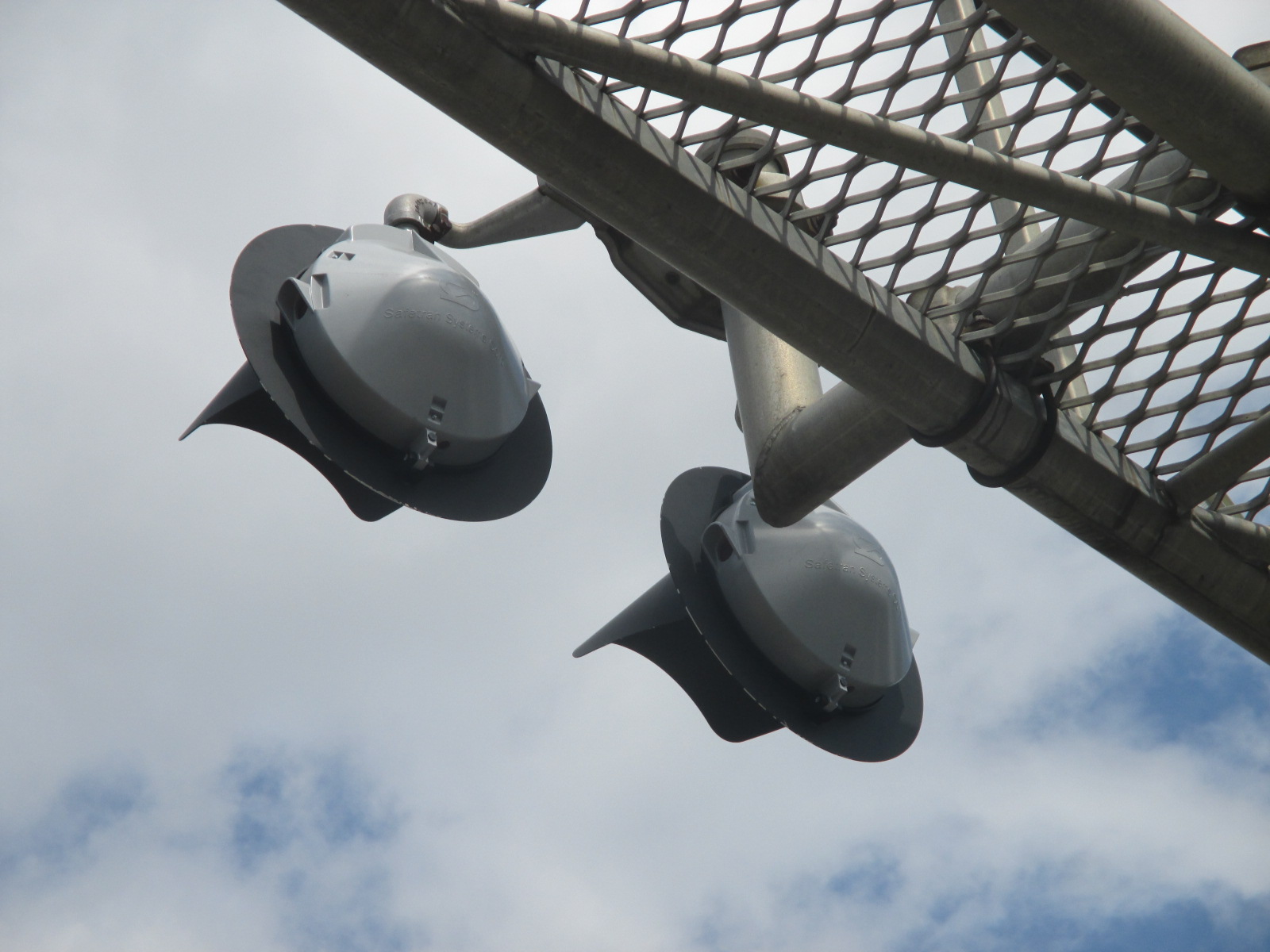

The lights on this signal are Safetran 12x20 inch lights as well.
This signal has more NEG gate lights on it.
The fourth signal.

33

34

35

36
This cantilever is another Safetran cantilever.
The mast lights are more 12x20 inch GRS Lex-C lights.

37

38

39

40

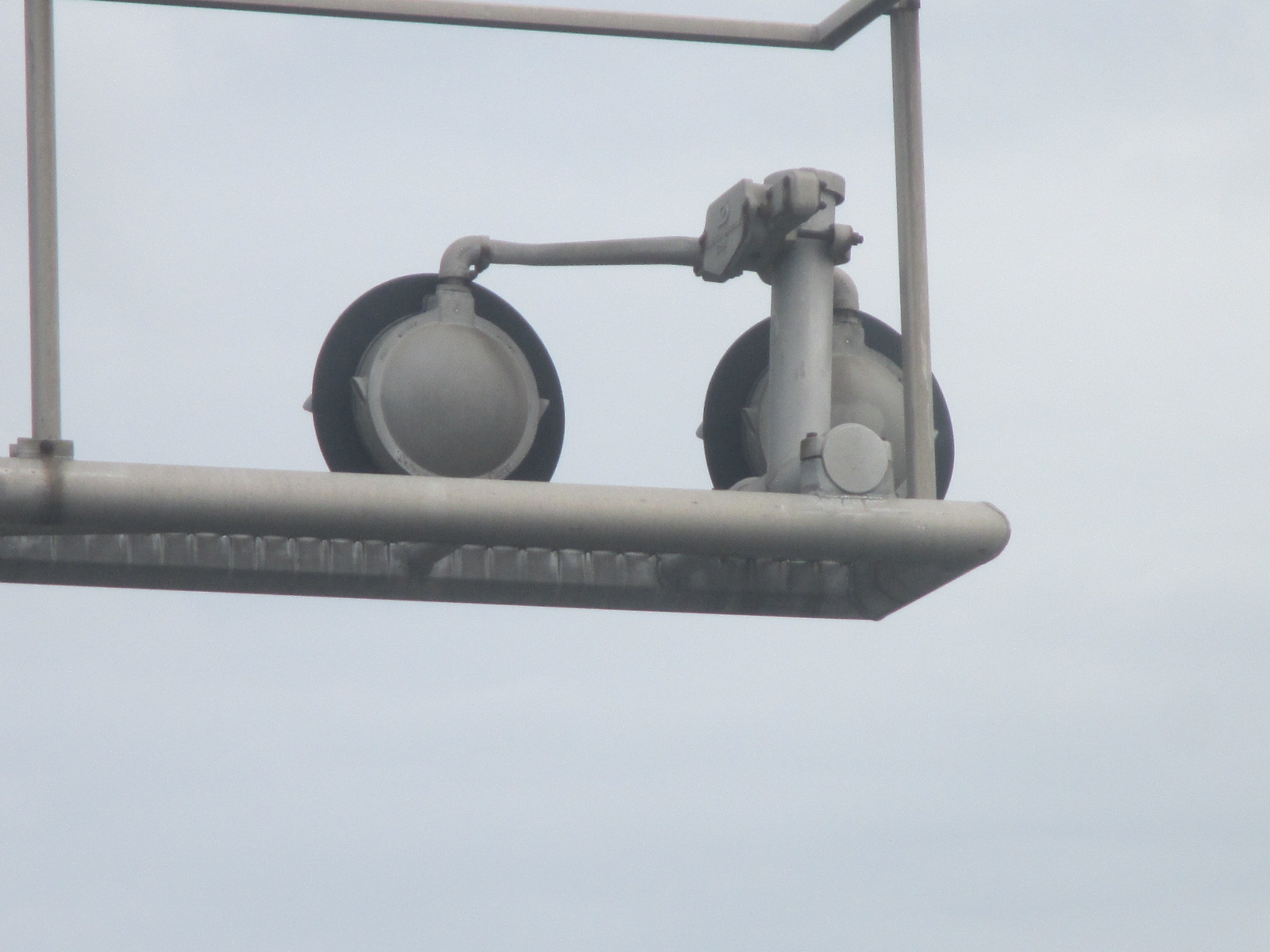

The overhead lights on this signal are a mixture of newer Safetran 12x24 inch lights and older Saftran 12x20 inch lights as well.

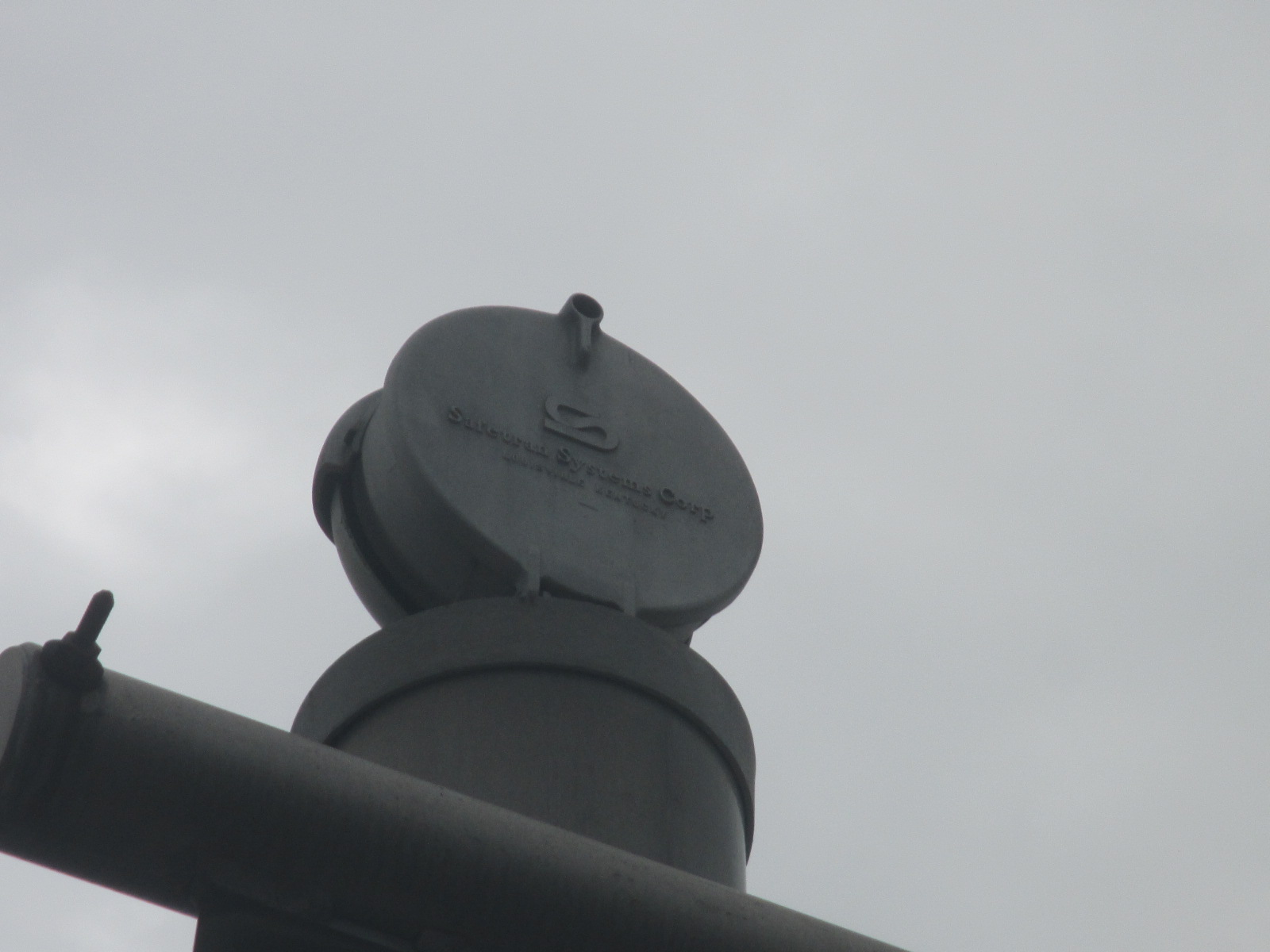

The bell on this signal is a Safetran mechanical bell.

41

42

43

44

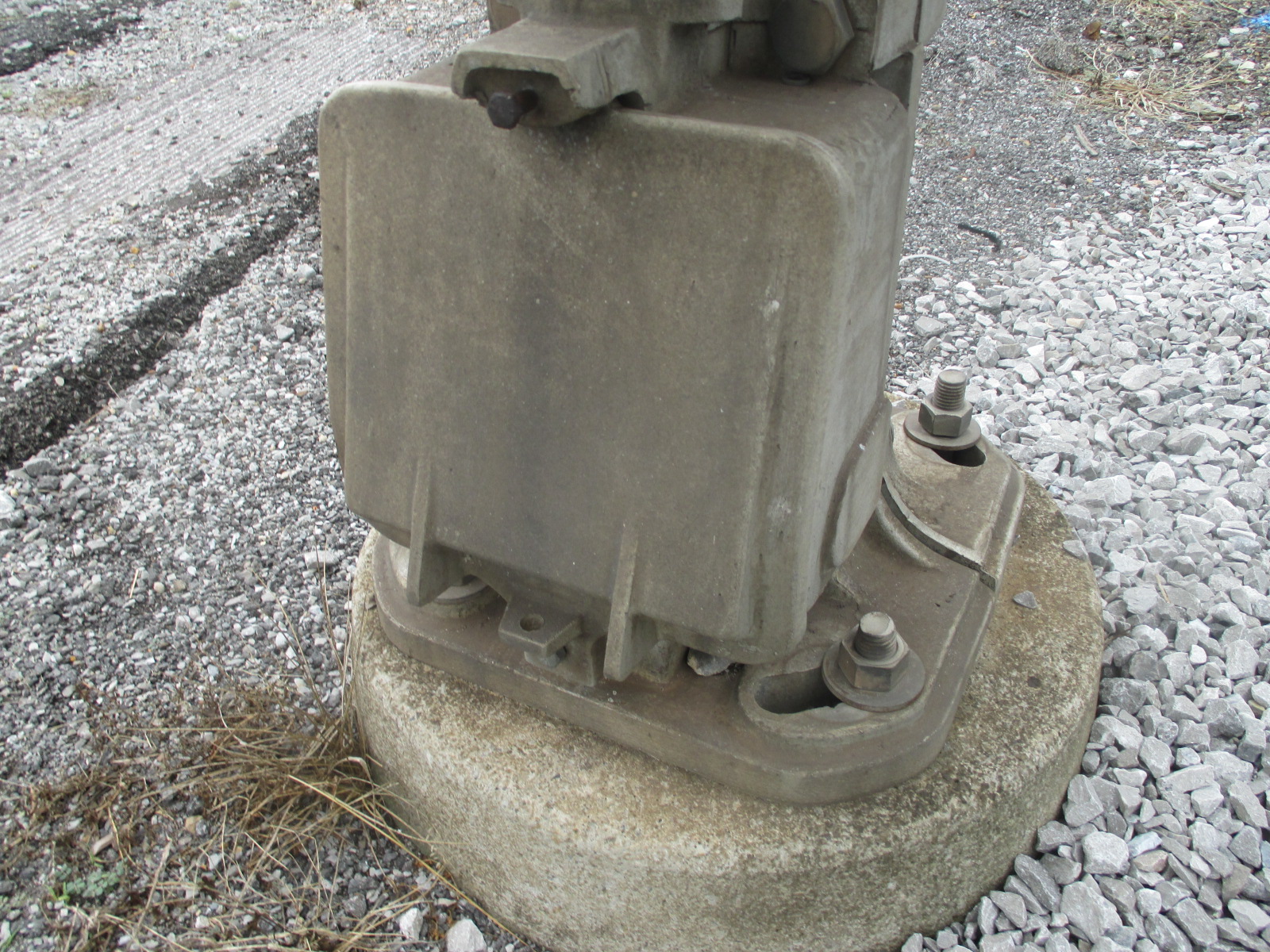

Another blank base.
Another Safetran gate mechanism.

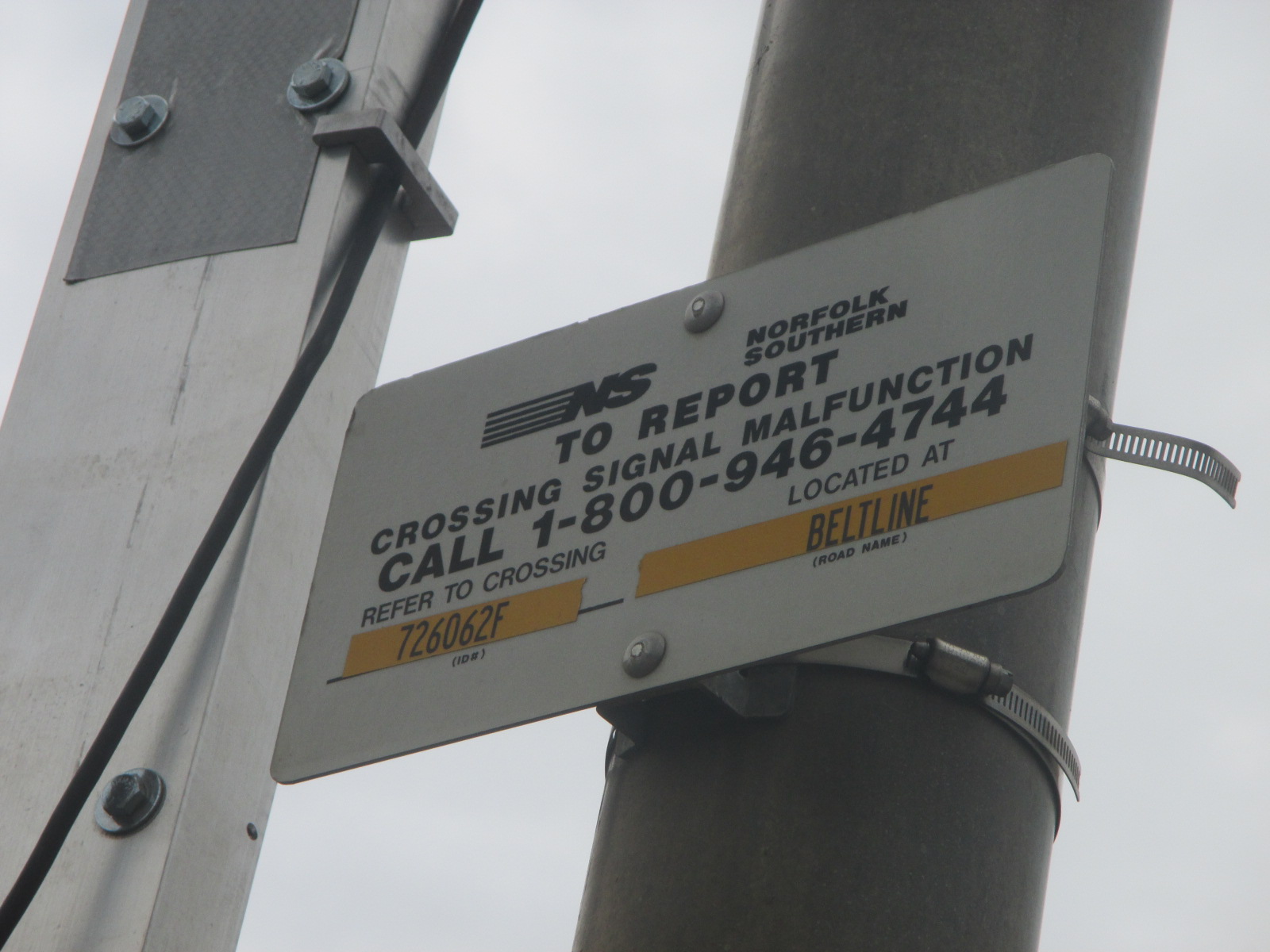

The emergency information again.

45

46

47

48

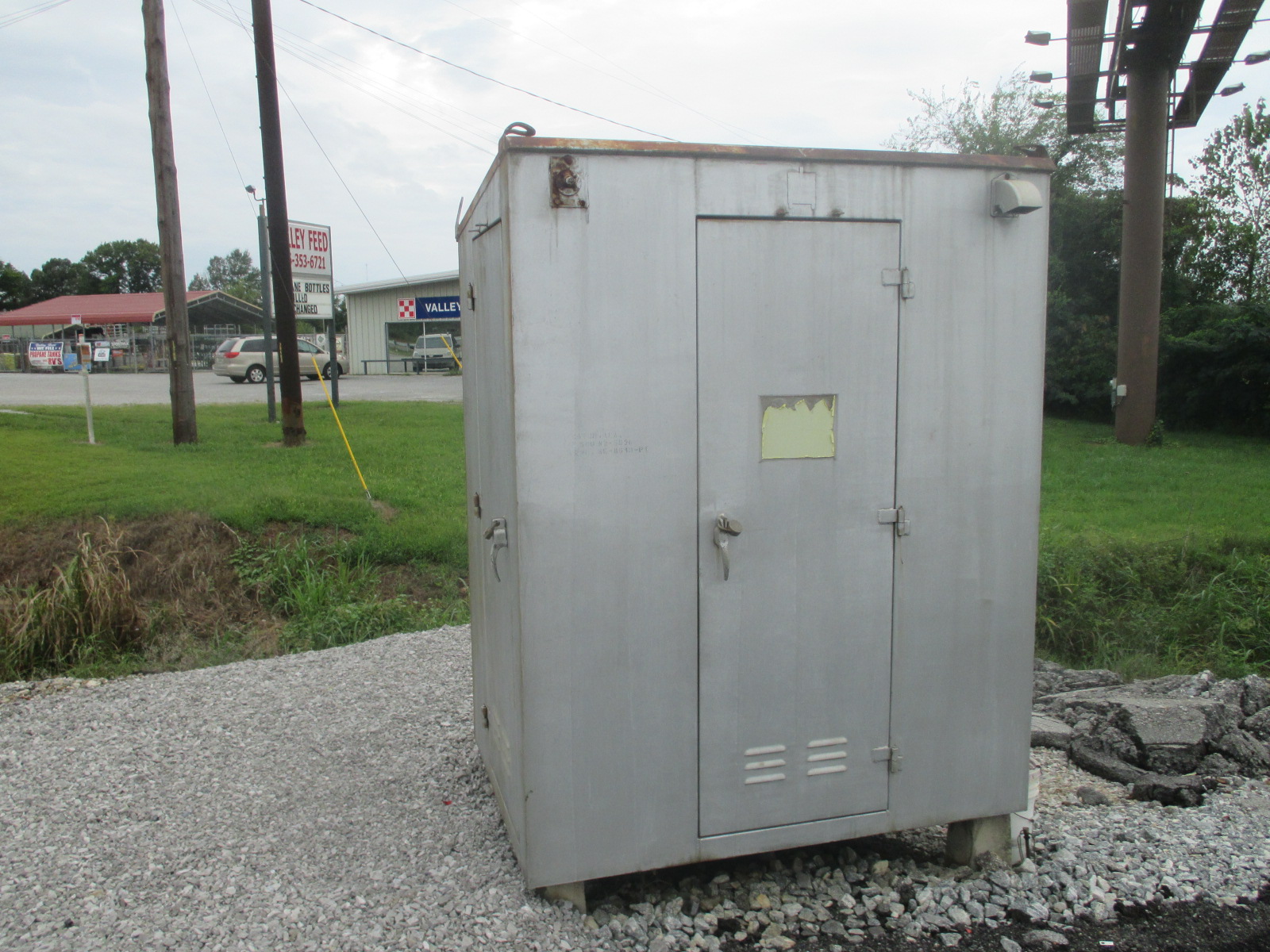

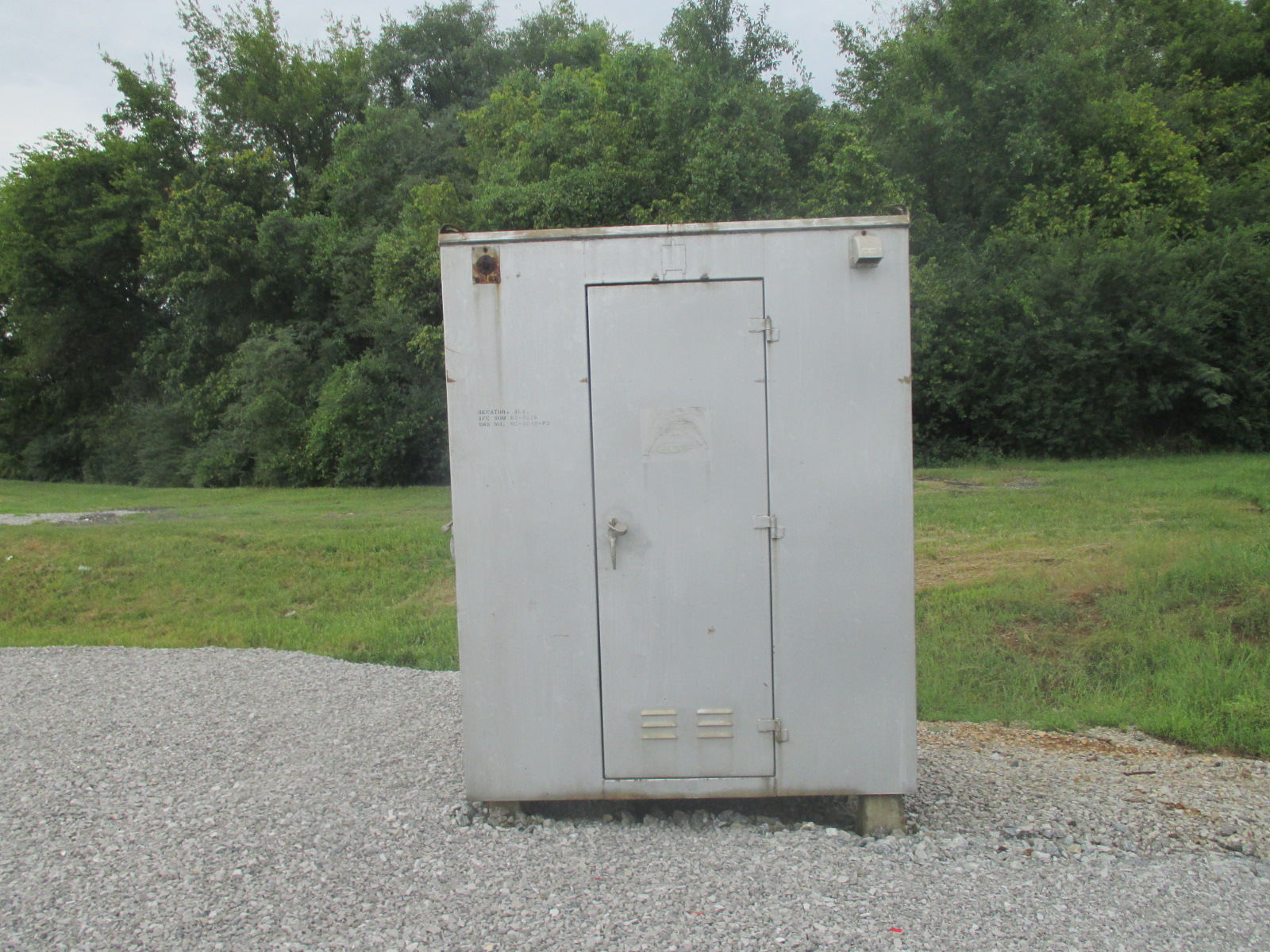

The two relay cases. Yes, there really are two relay cases at this crossing.

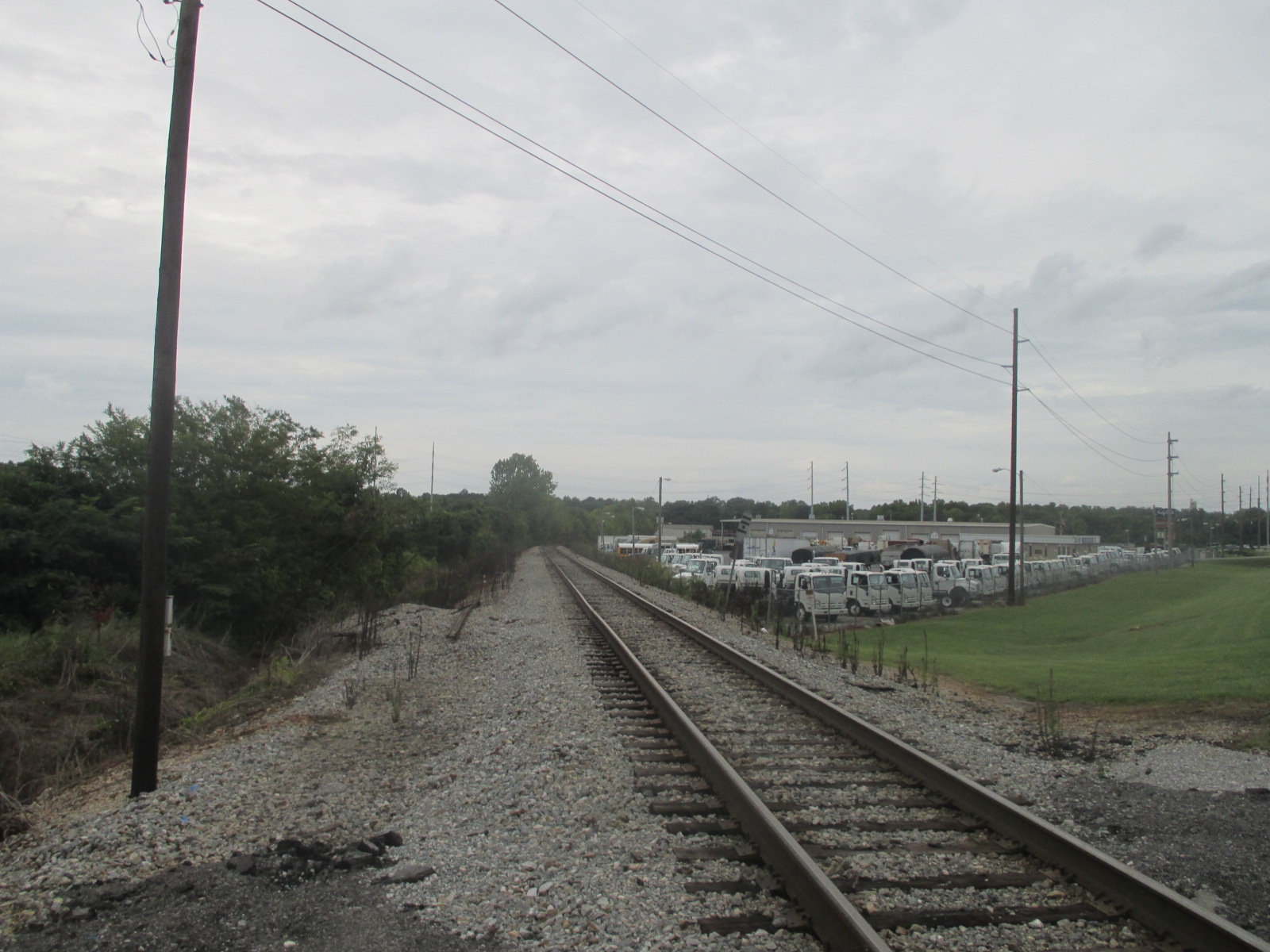

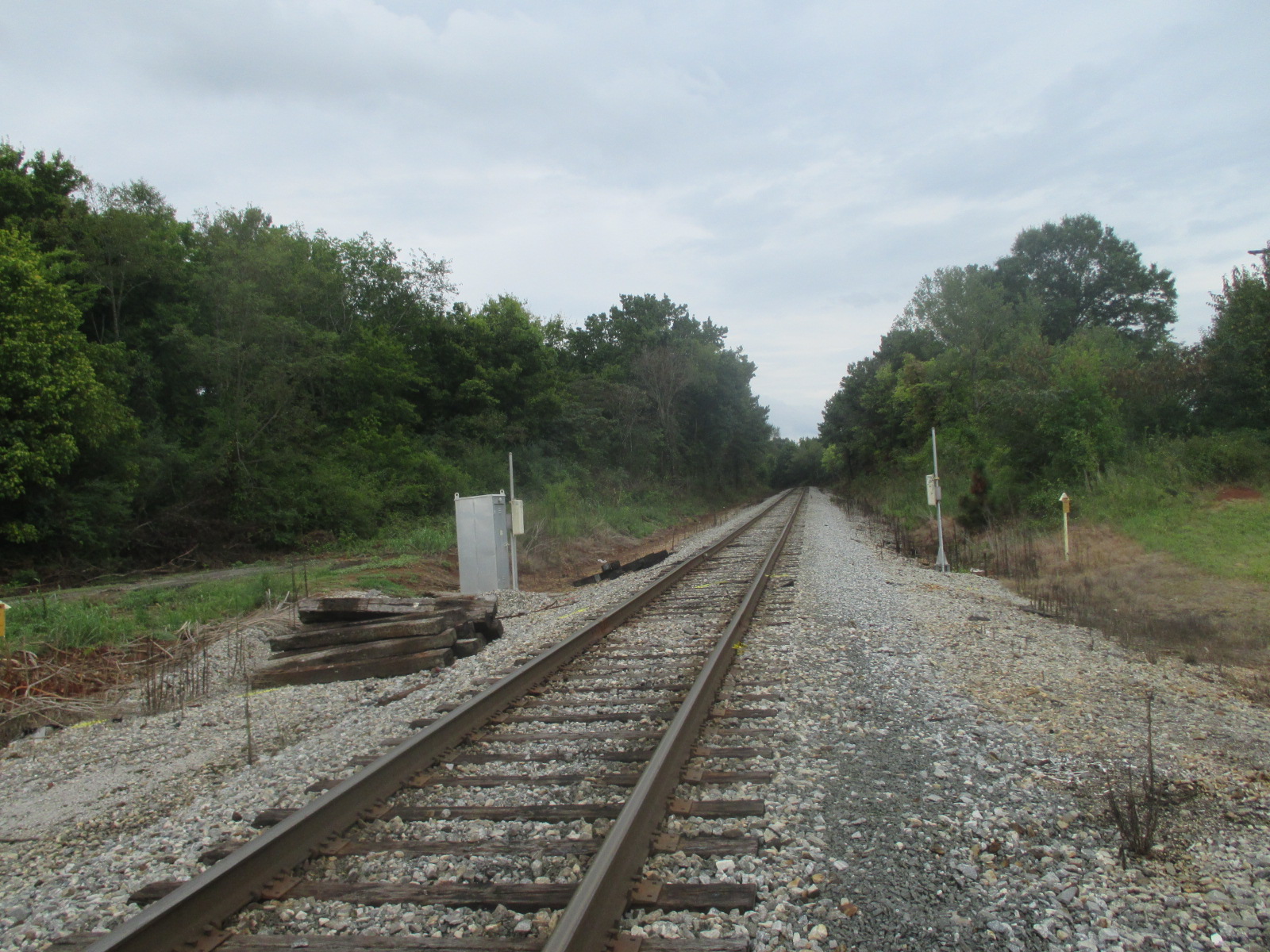

Track views.

49

50

51

52

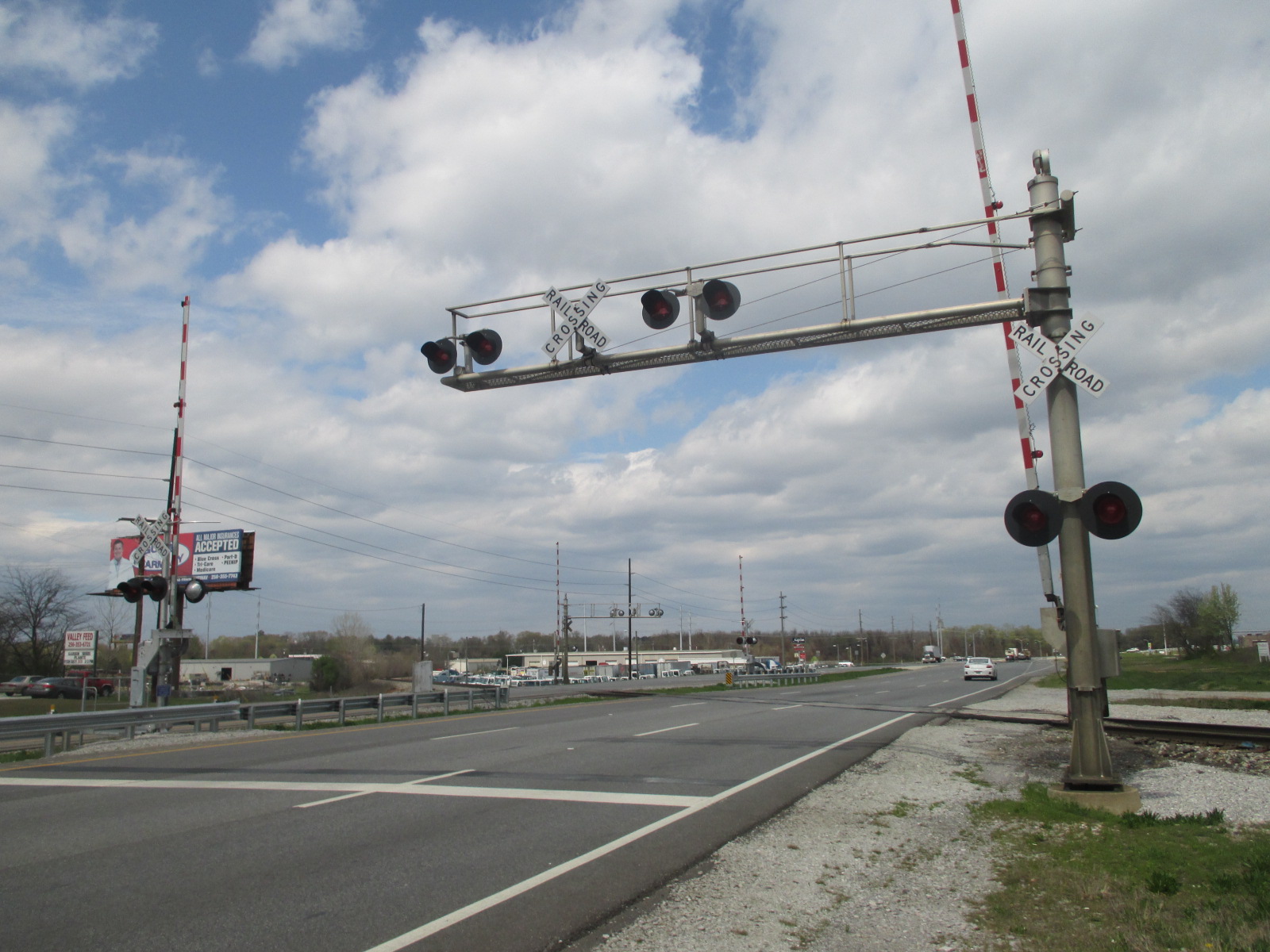

A return trip was made to the crossing on 3-27-15.

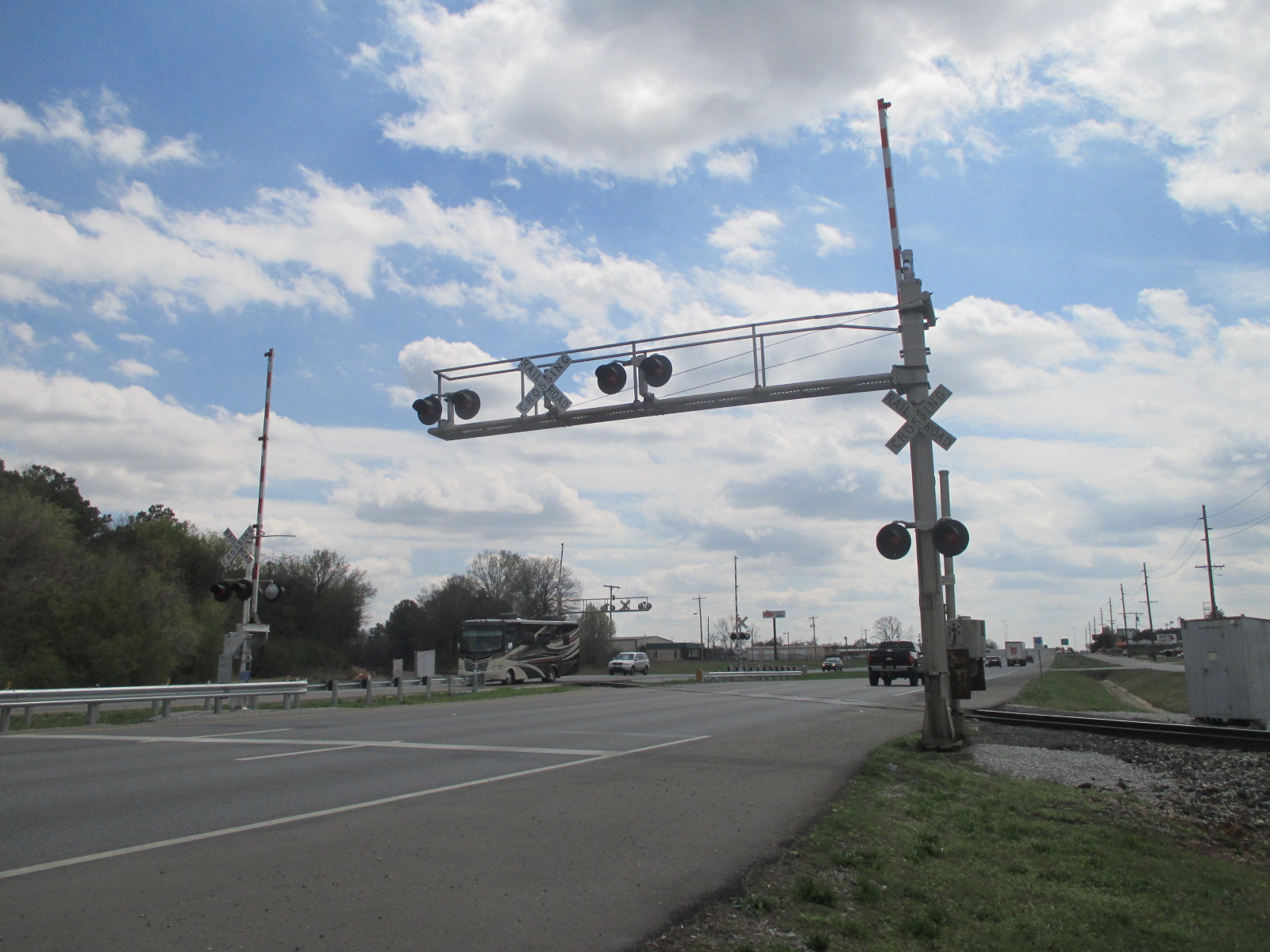

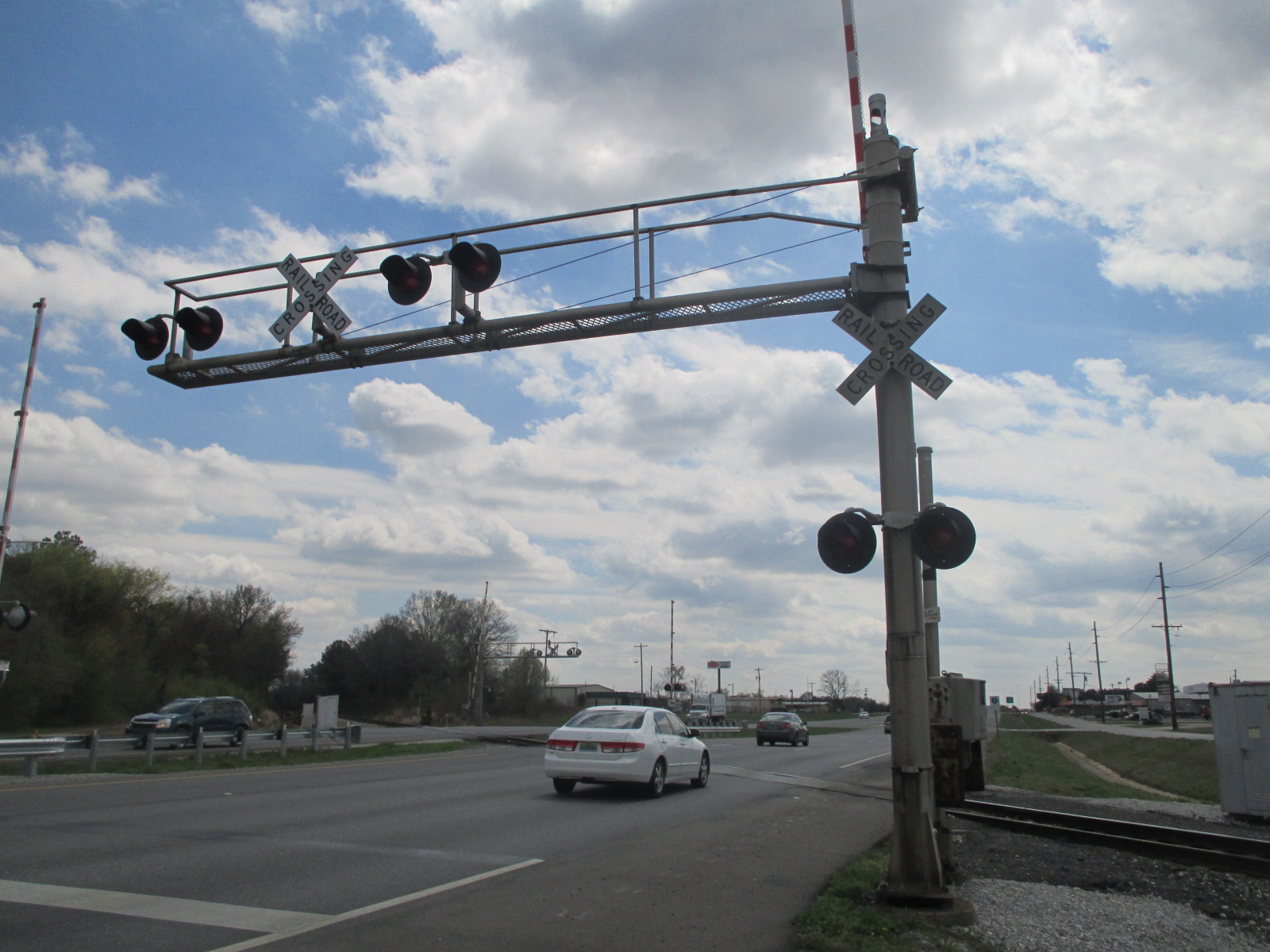

The southbound cantilever has had some changes.

53

54

55

56

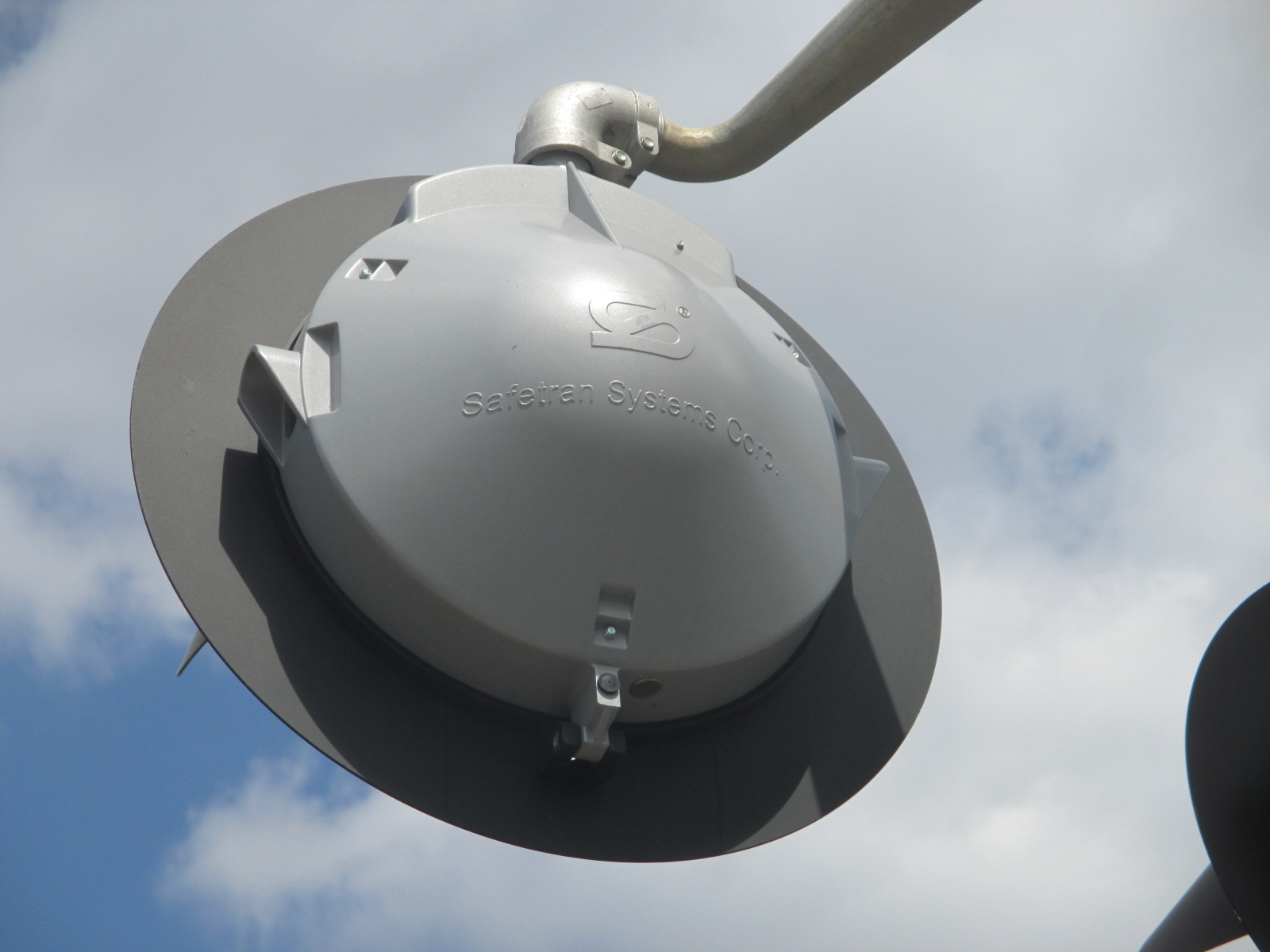

All of the lights on this signal are now Safetran 12x20 inch lights.

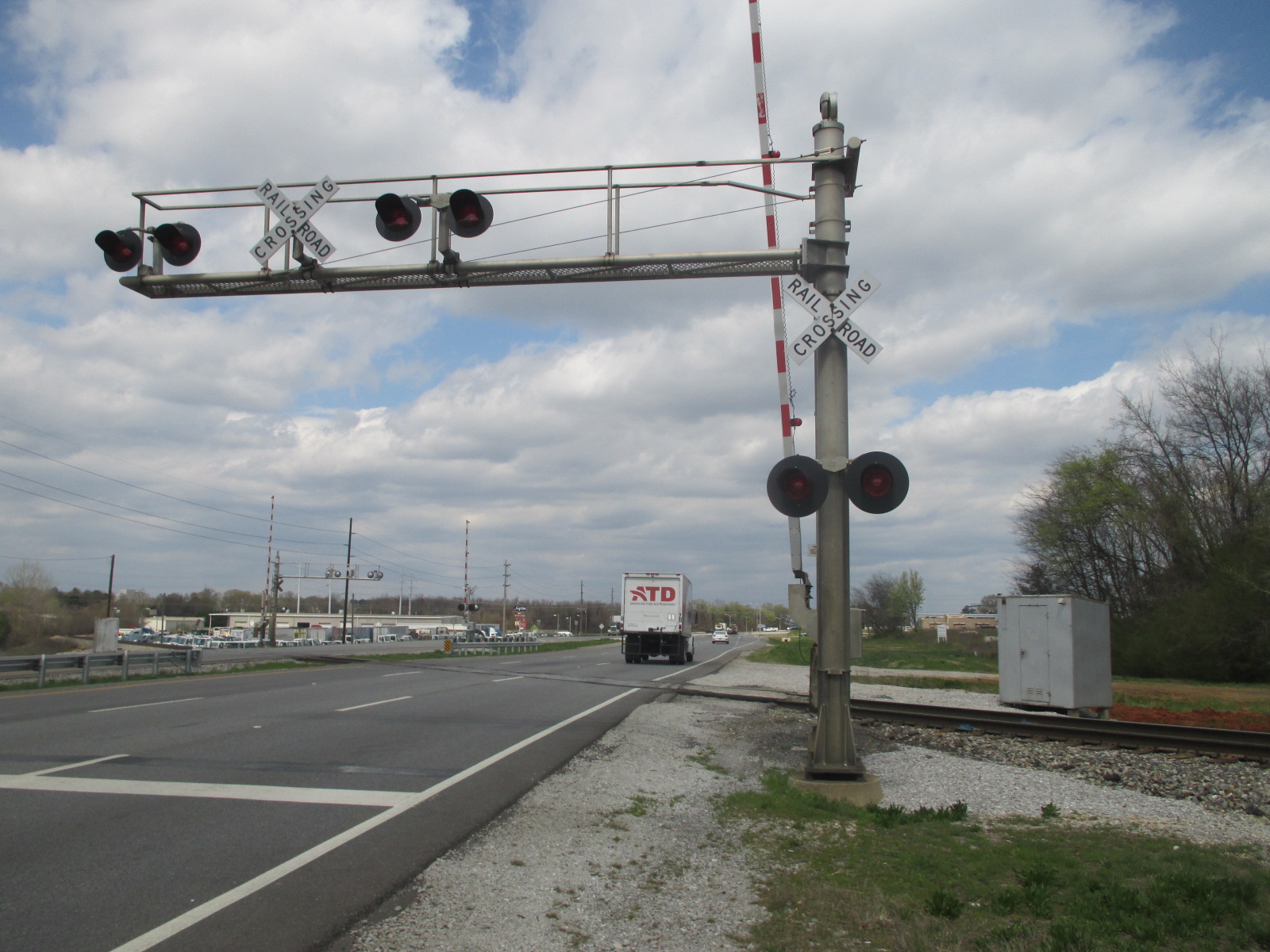

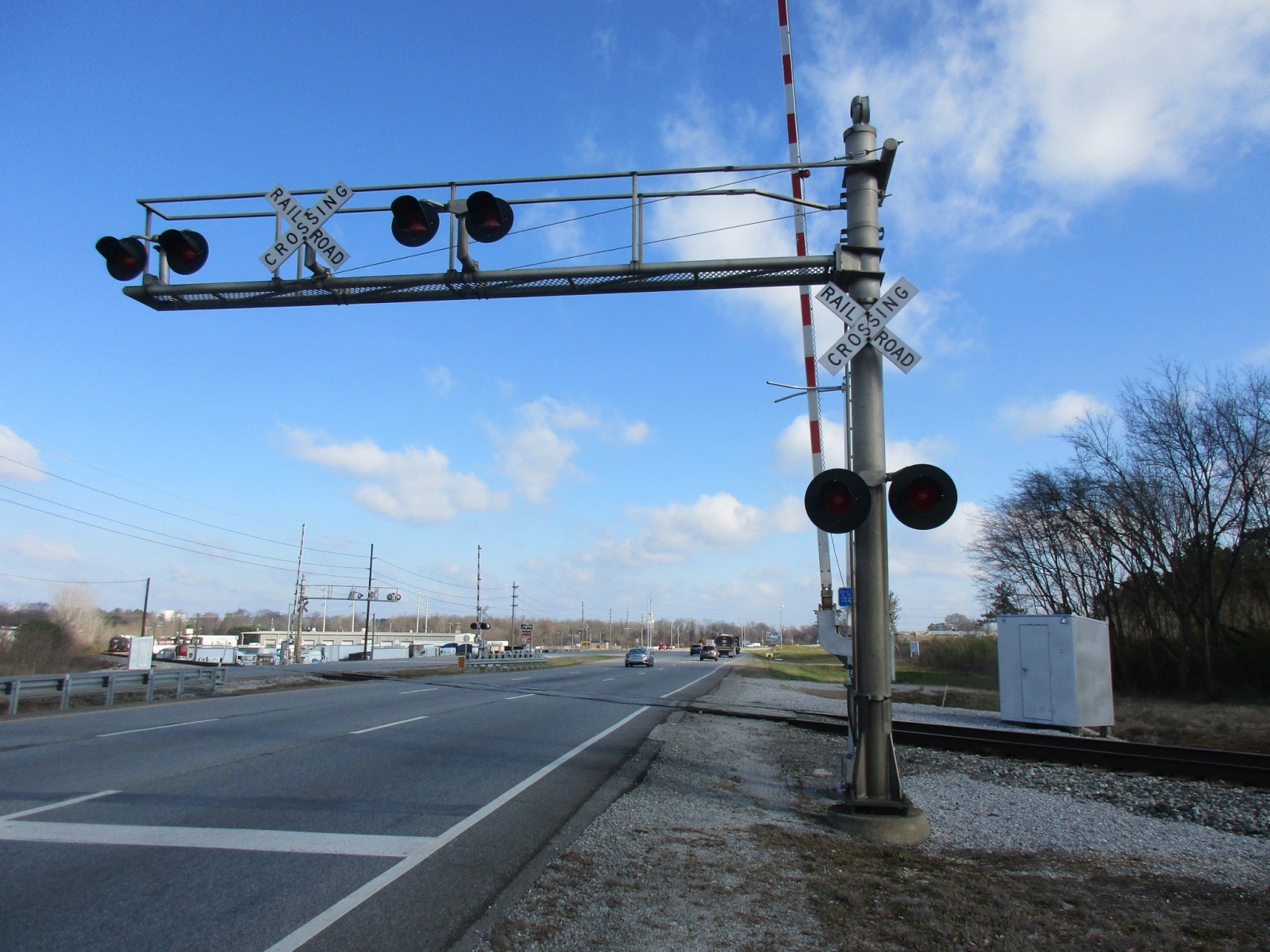

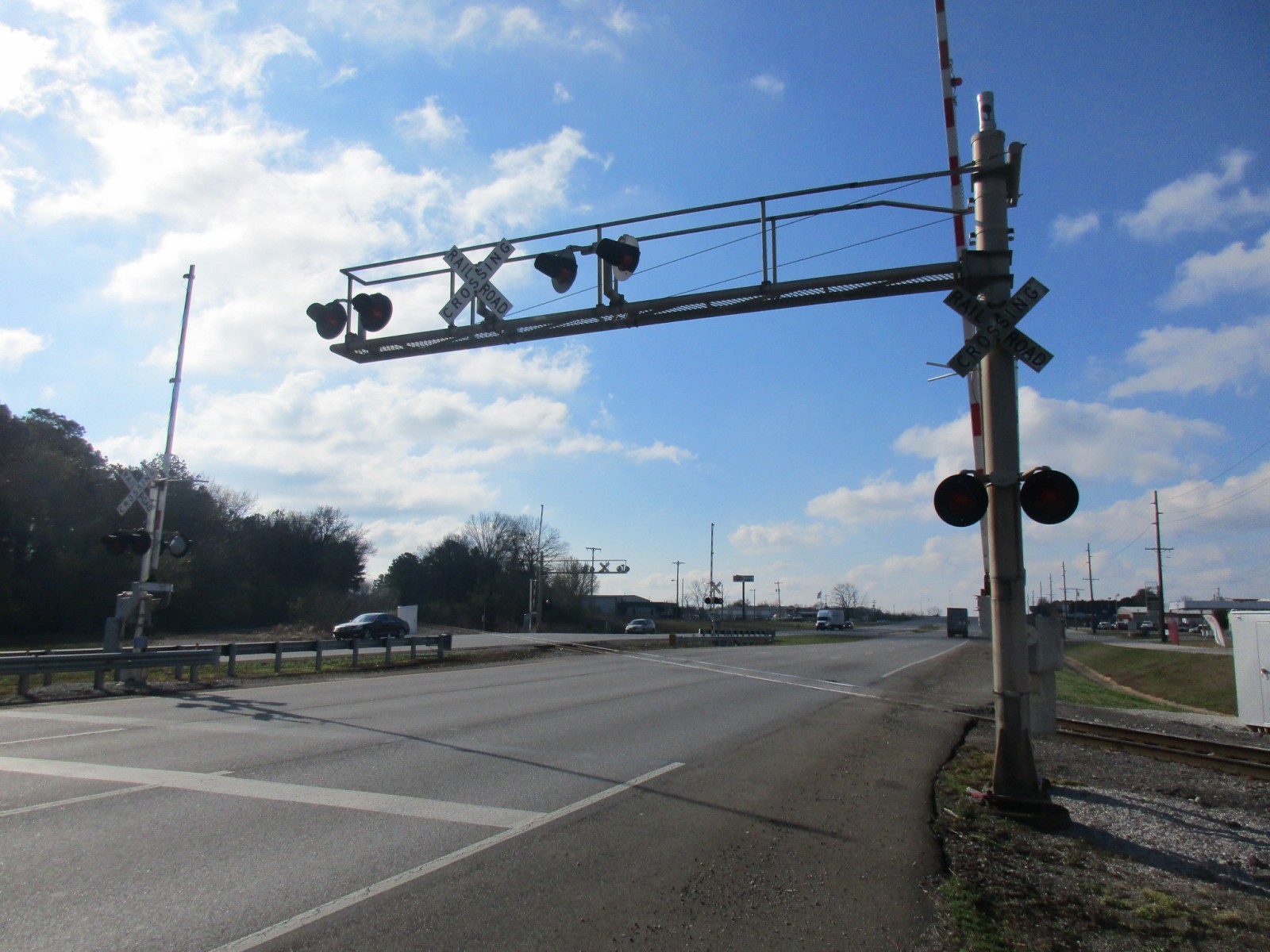

The northbound cantilever has had some changes too.

57

58

59

60

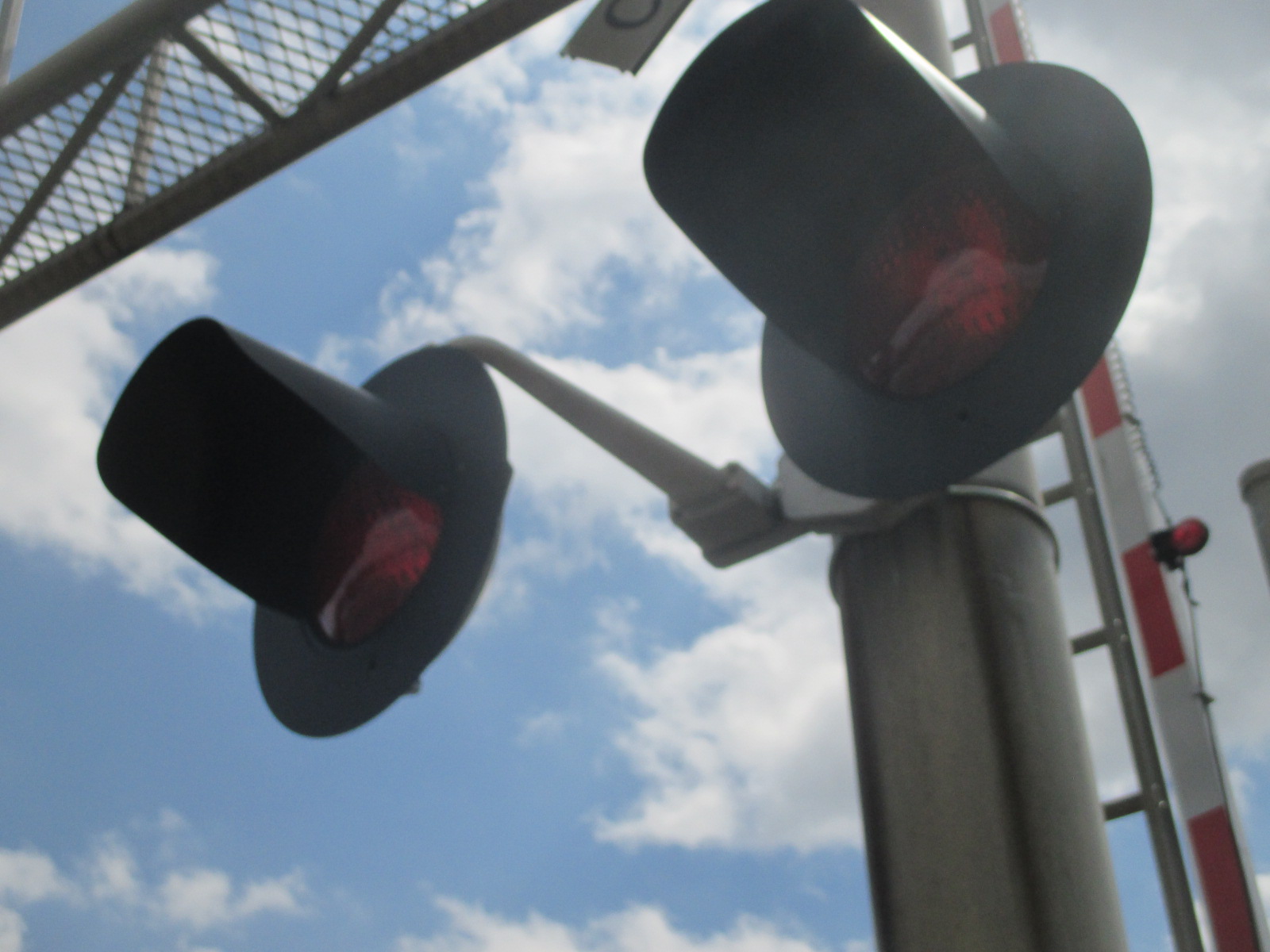

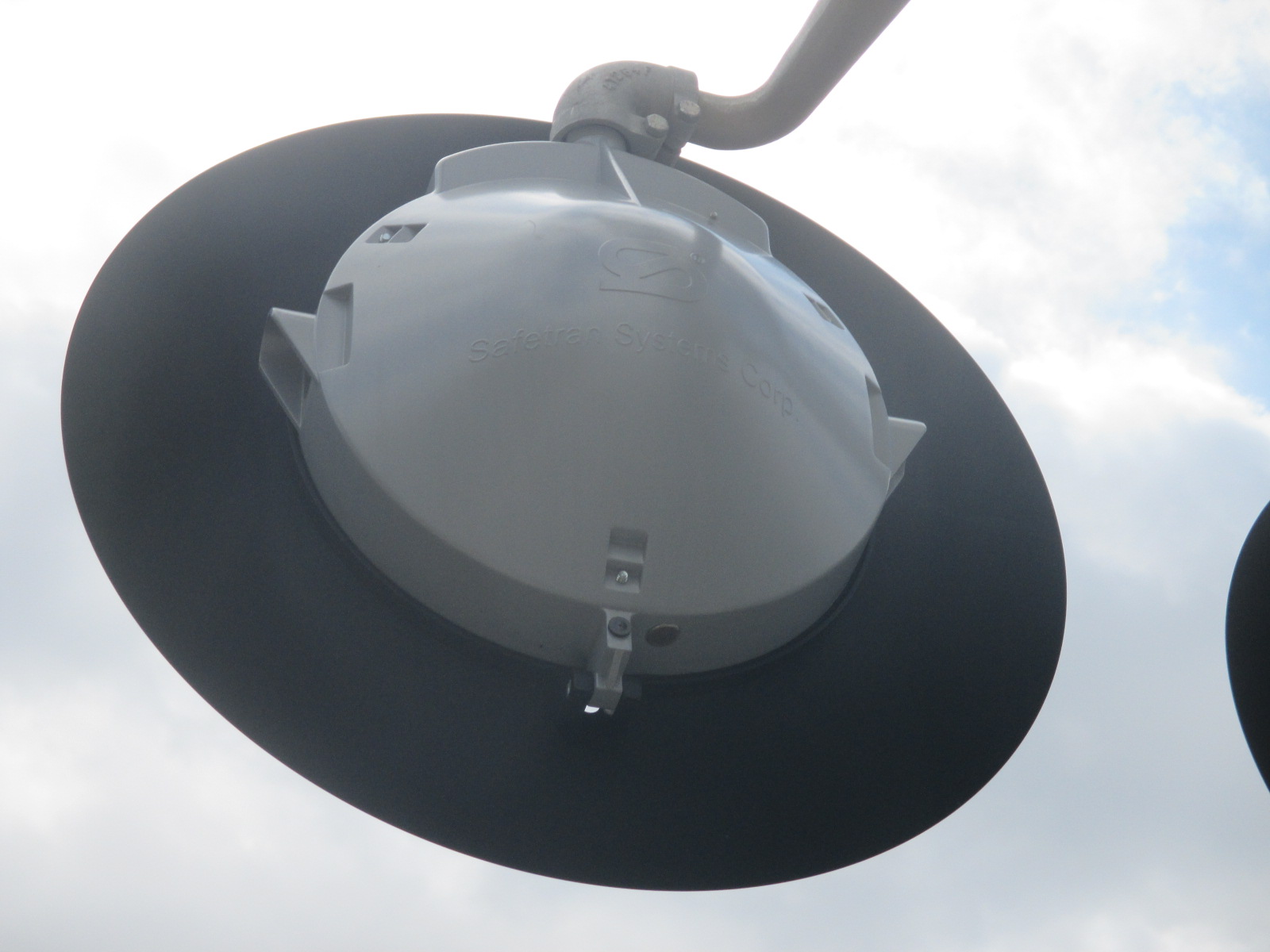

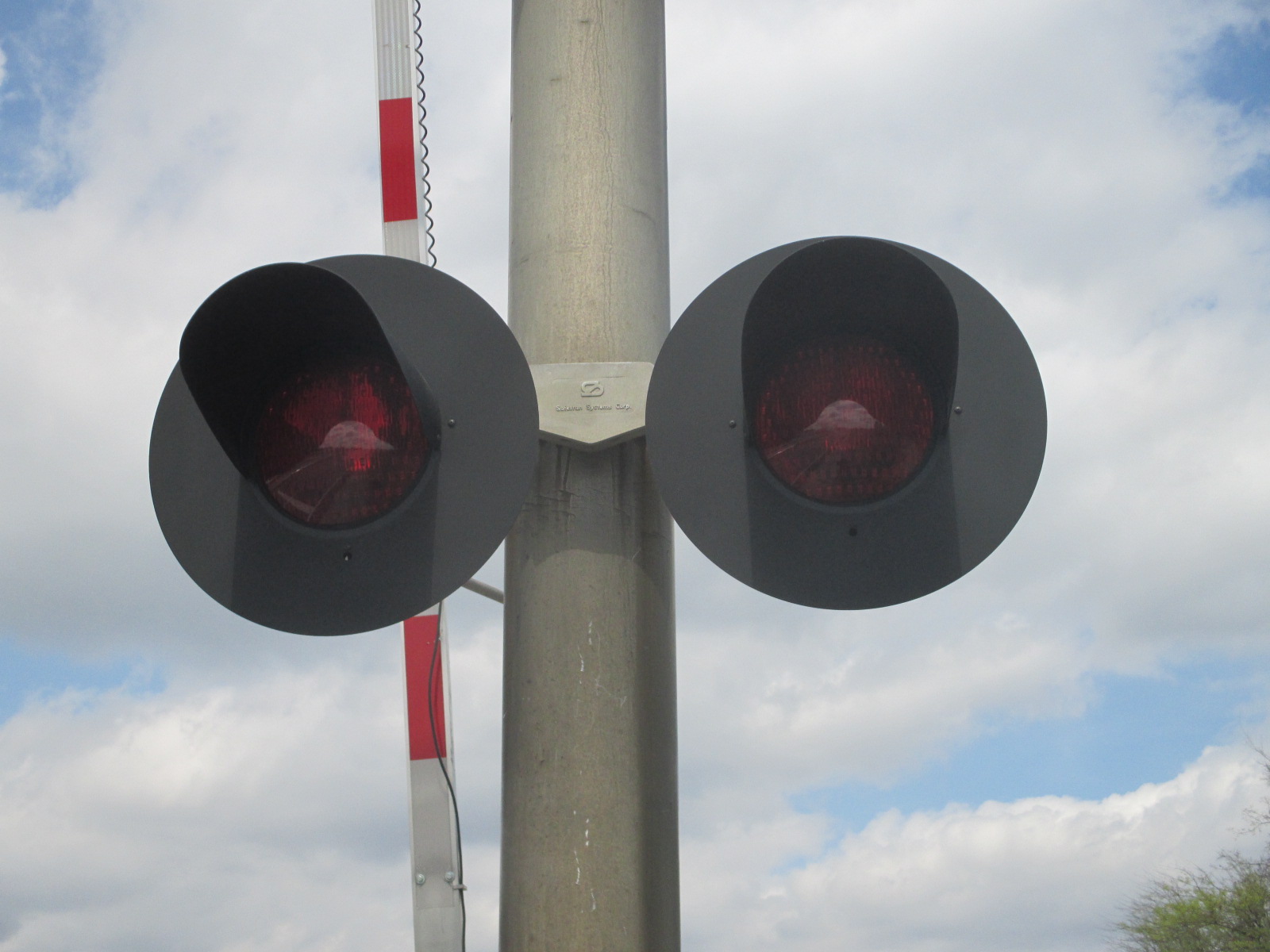

The mast lights are now Safetran 12x24 inch lights

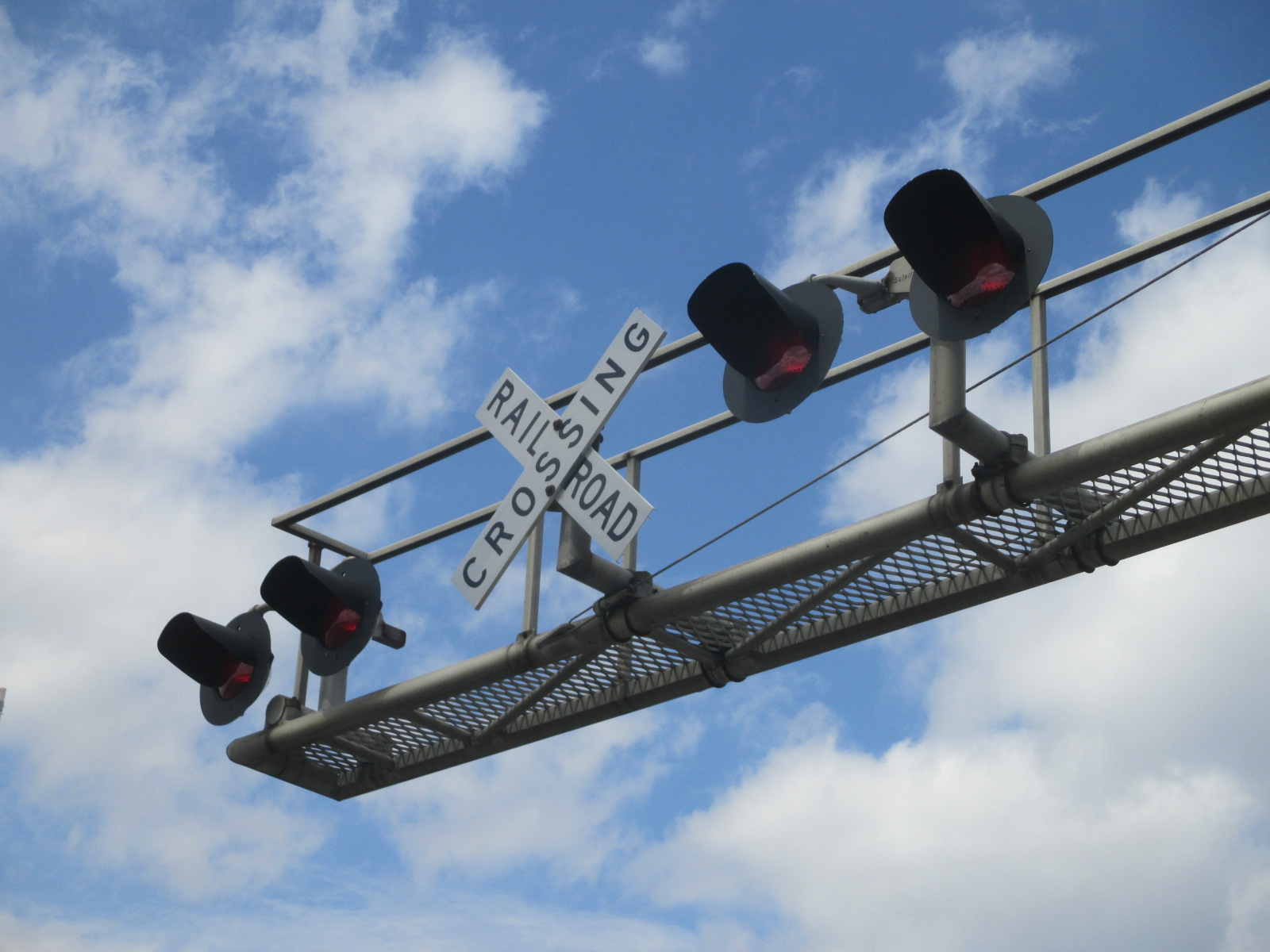

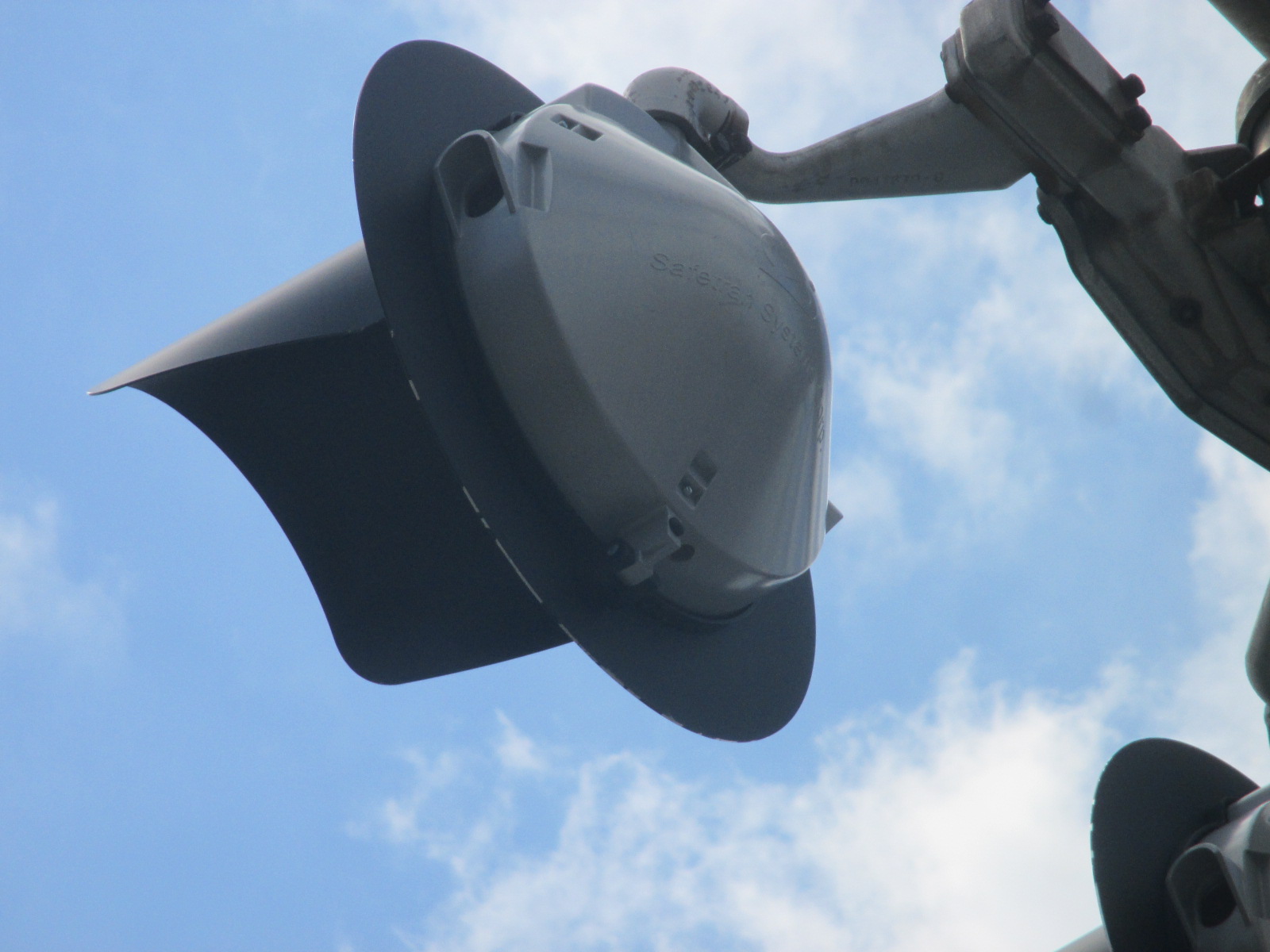

And the overhead lights are now more Safetran 12x20 inch lights.

61

62

63

64

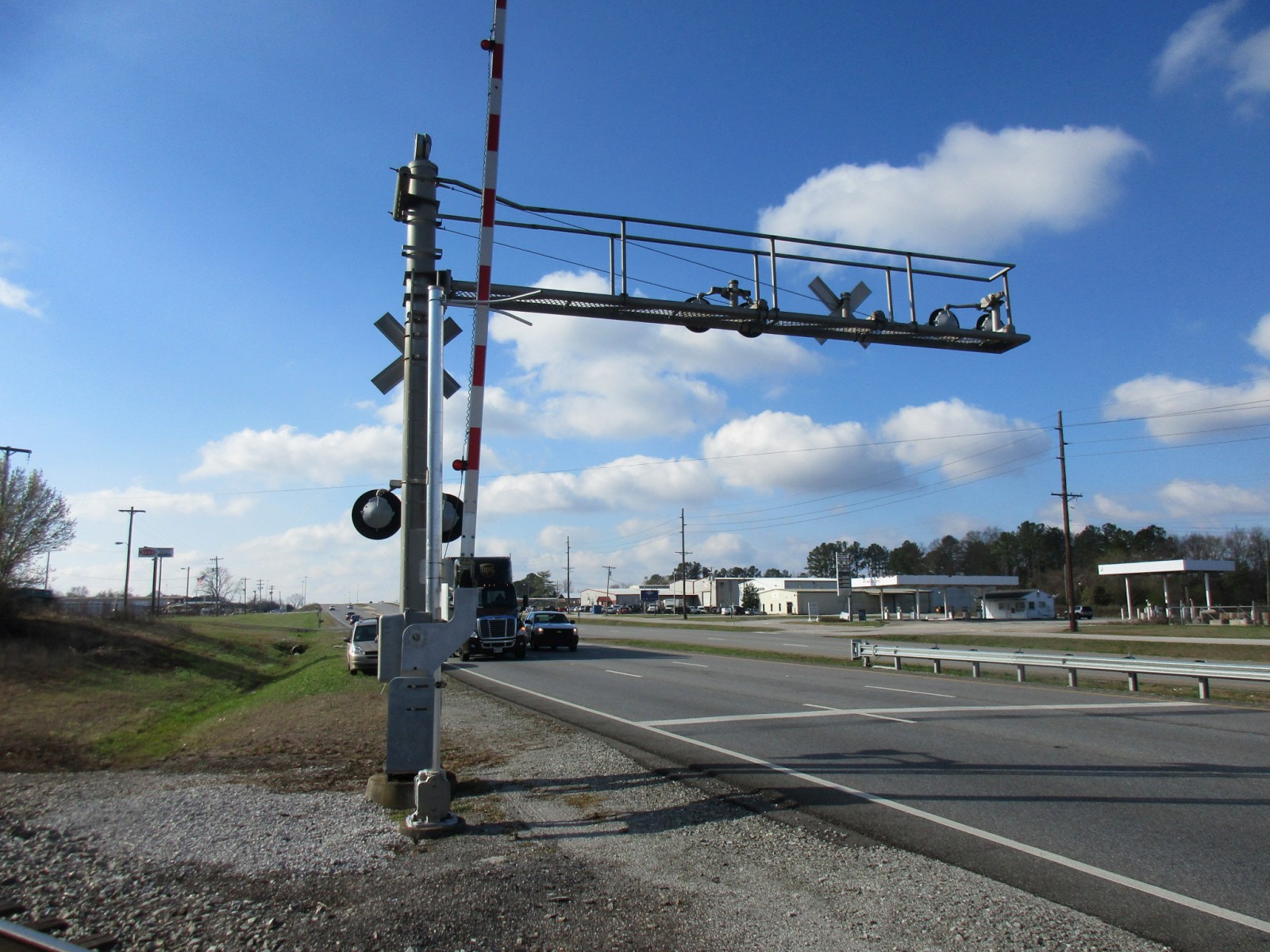

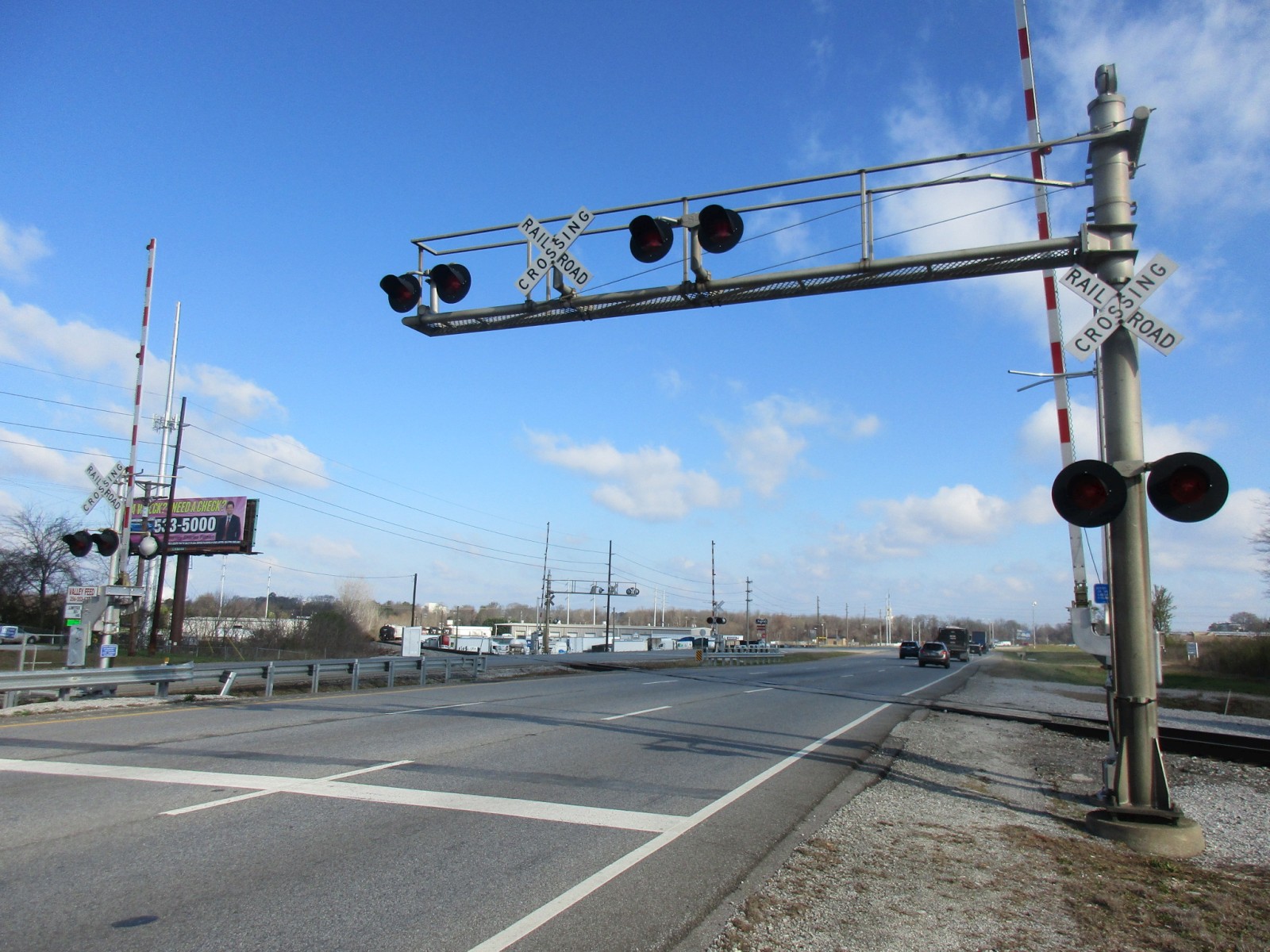

A third return trip on 3-12-18 shows even more changes to the signals!

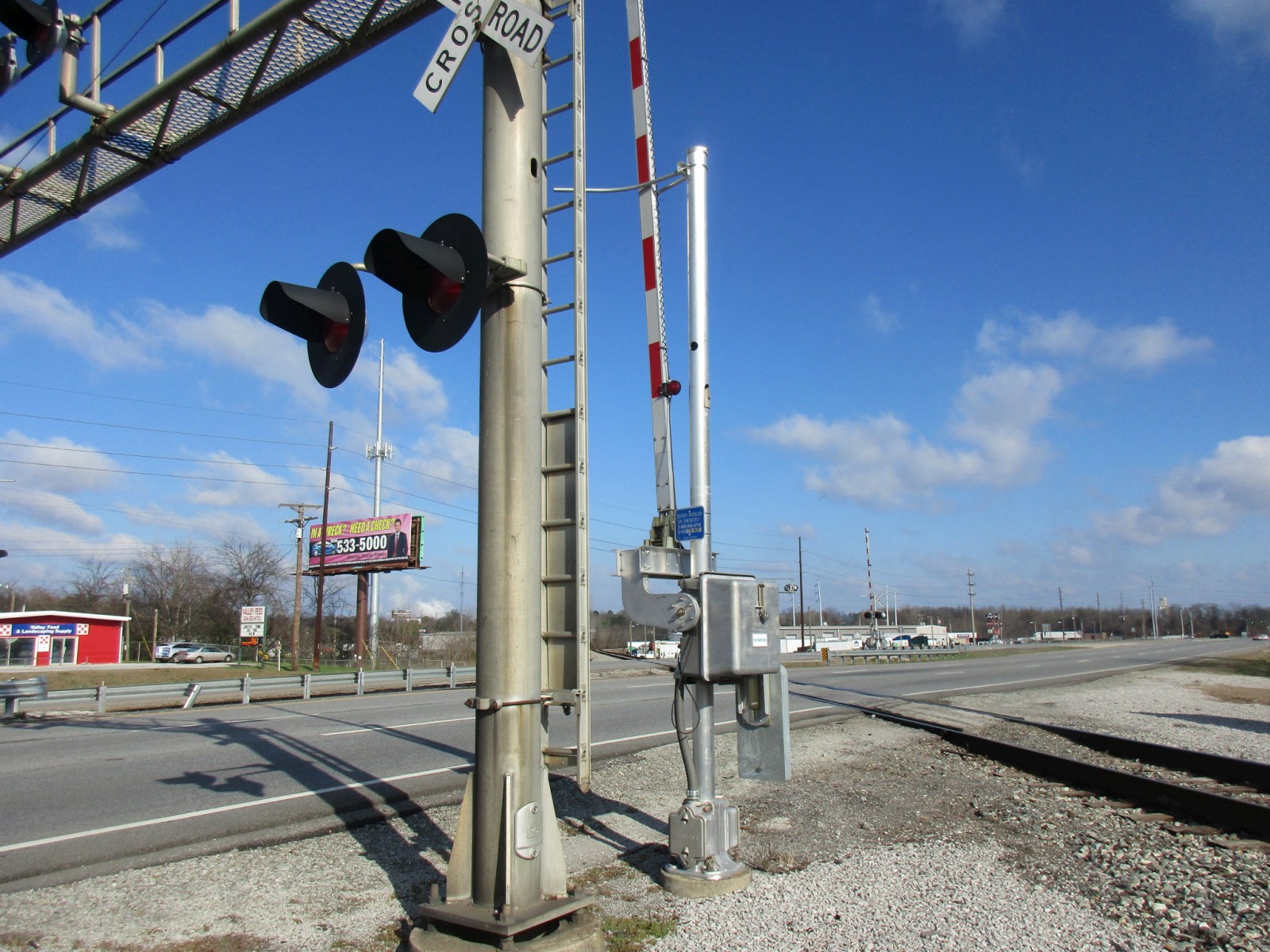

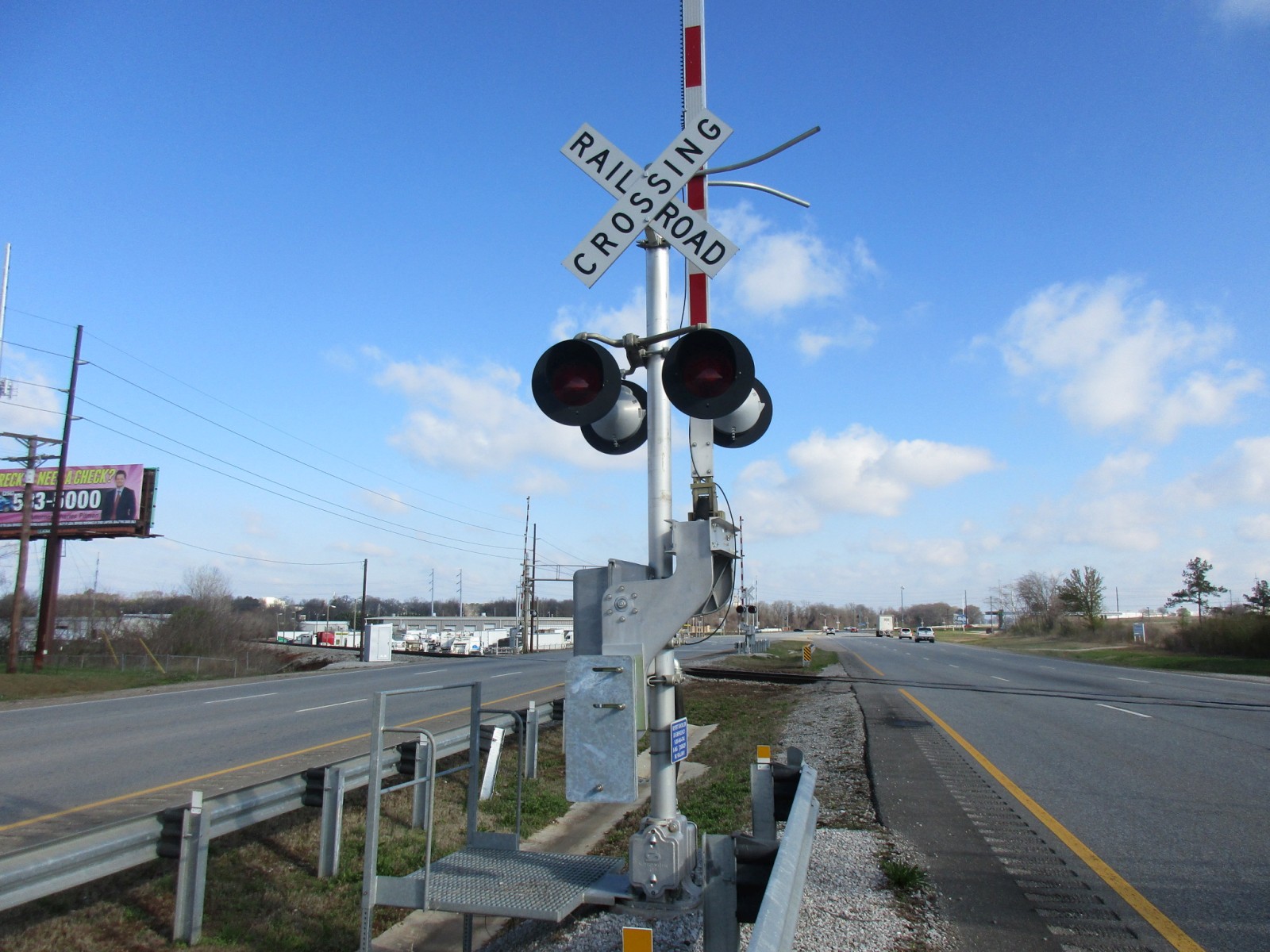

The northbound shoulder signal.

65

66

67

68
The gate mast was replaced!

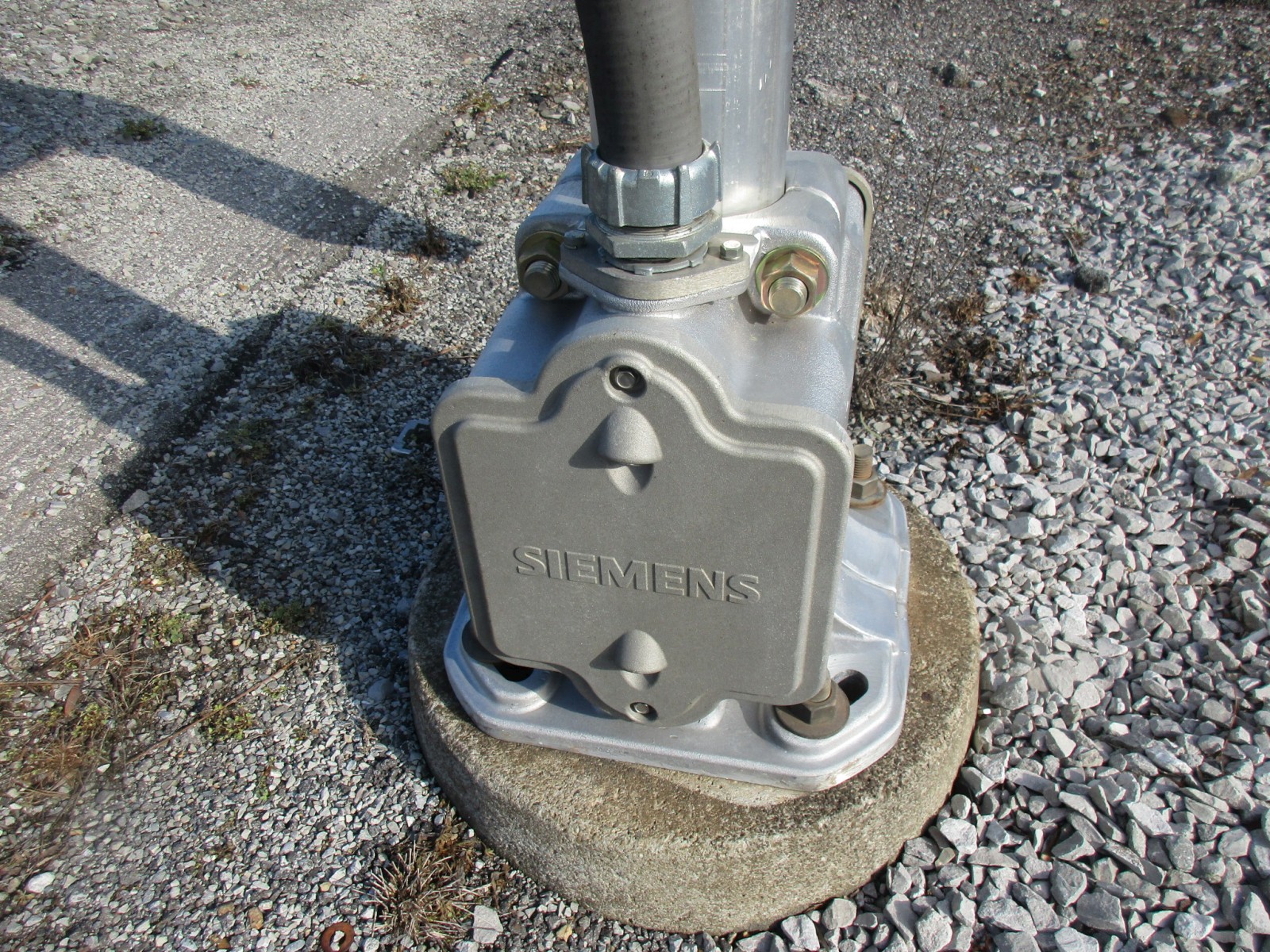

It has a Siemens base.

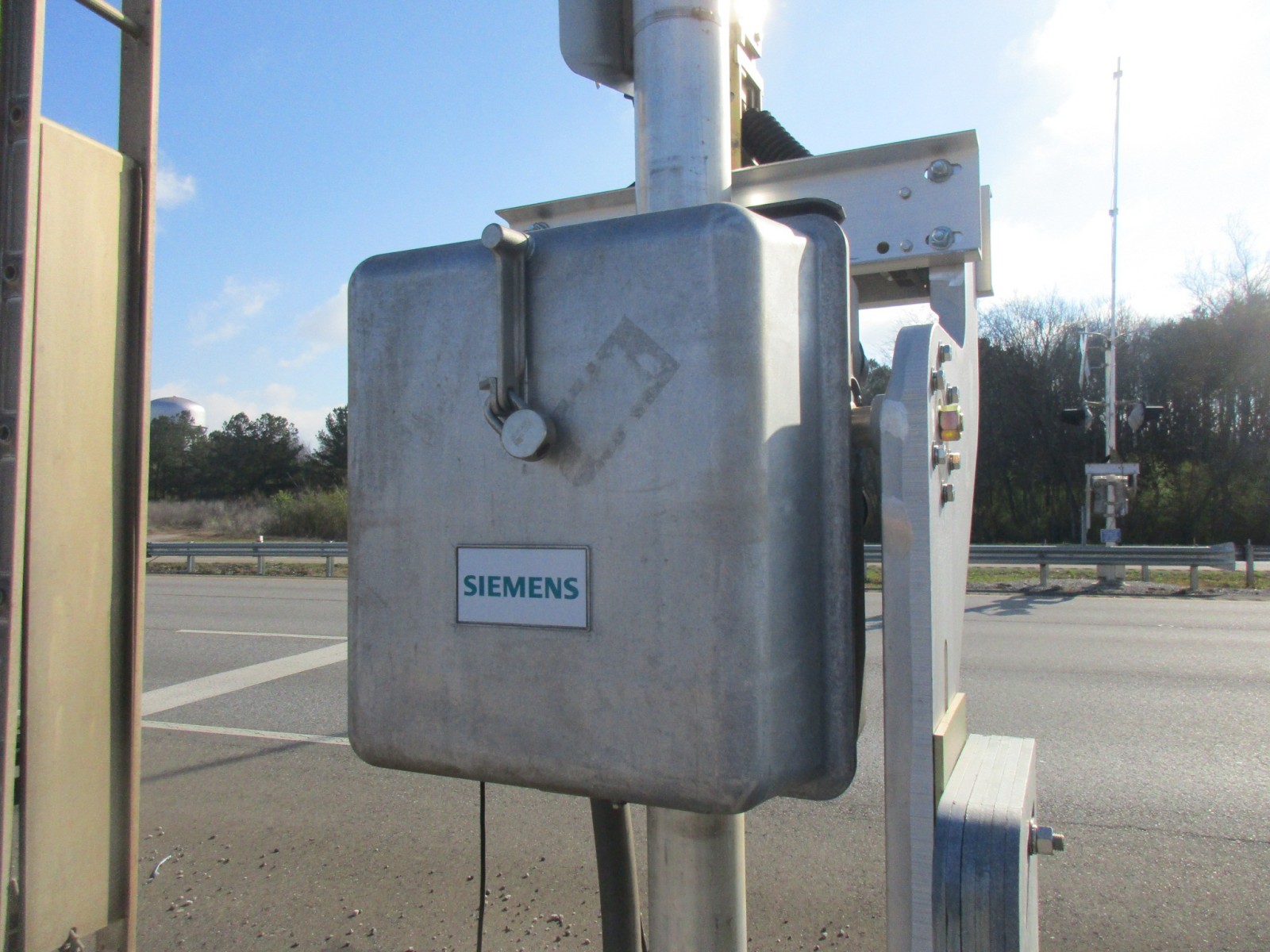

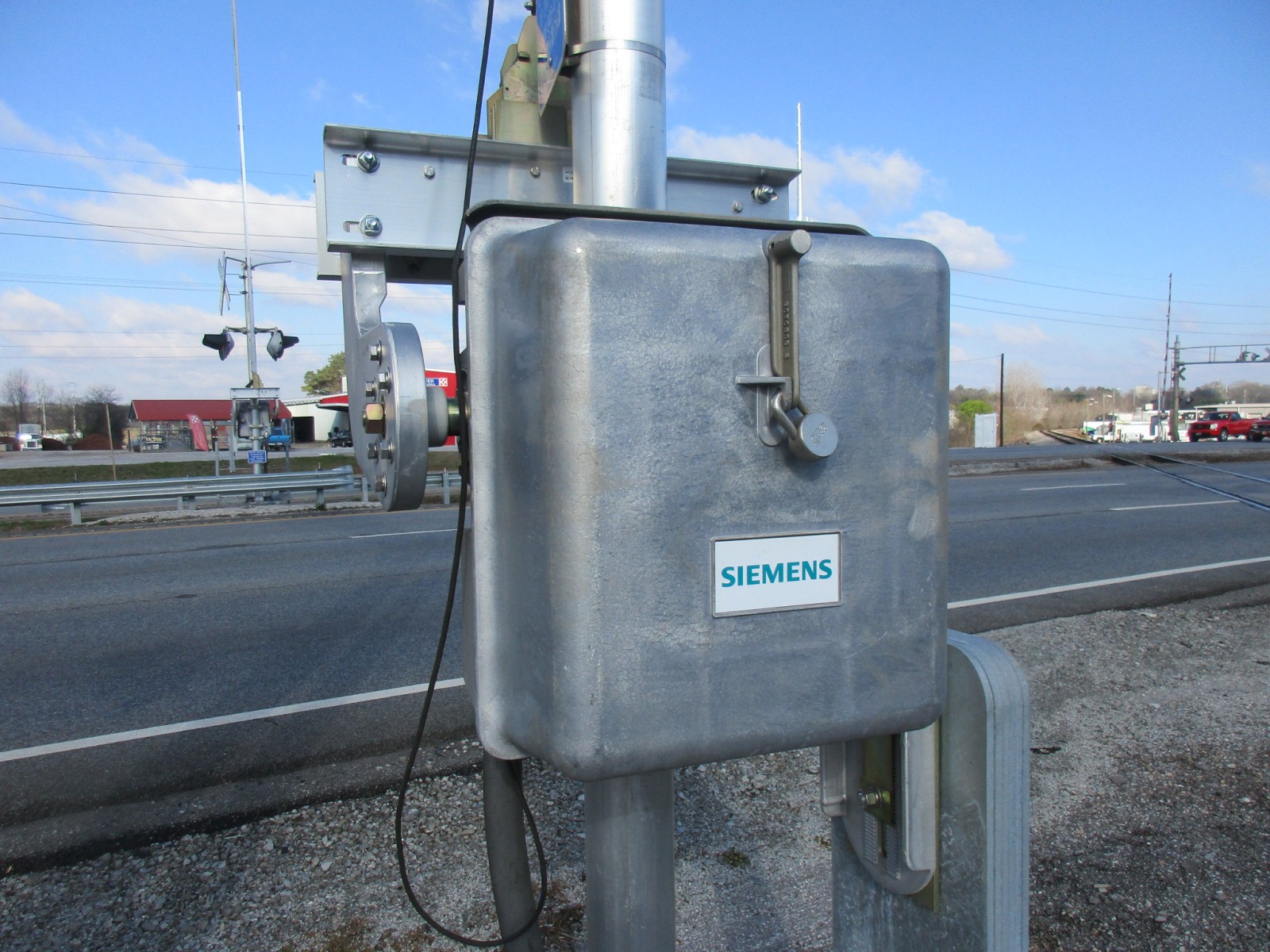

The gate mechanism is also from Siemens.

69

70

71

72

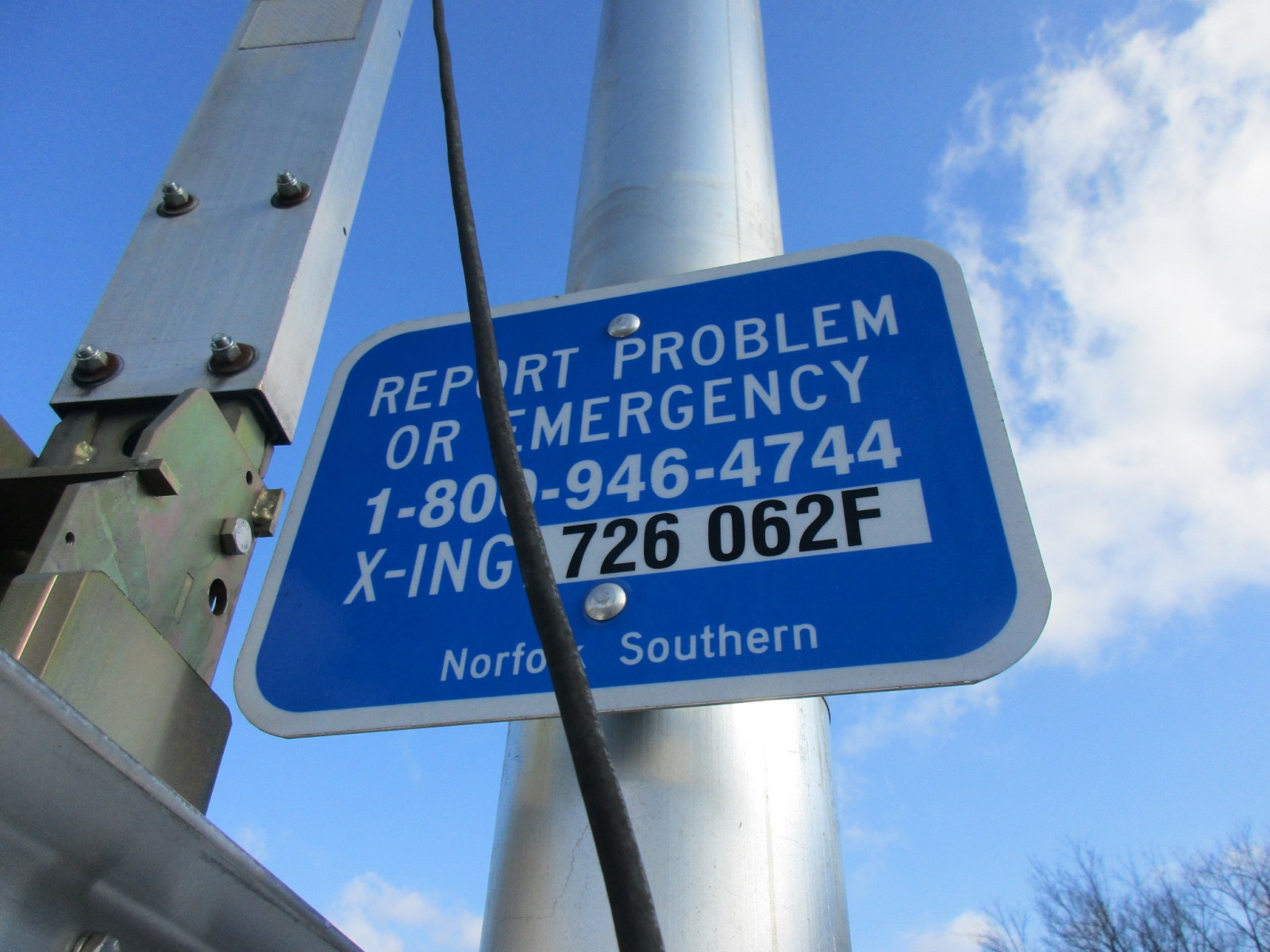

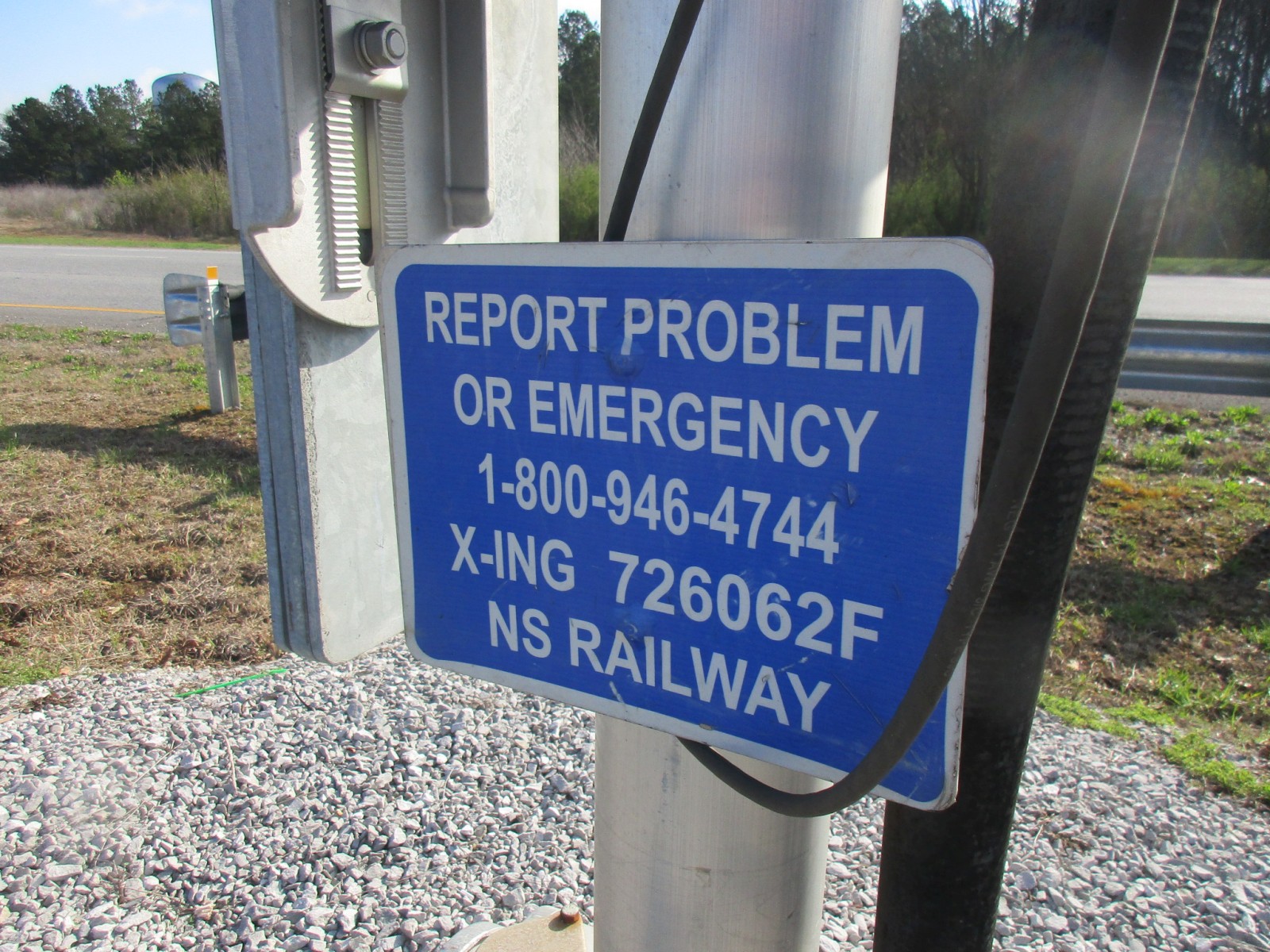

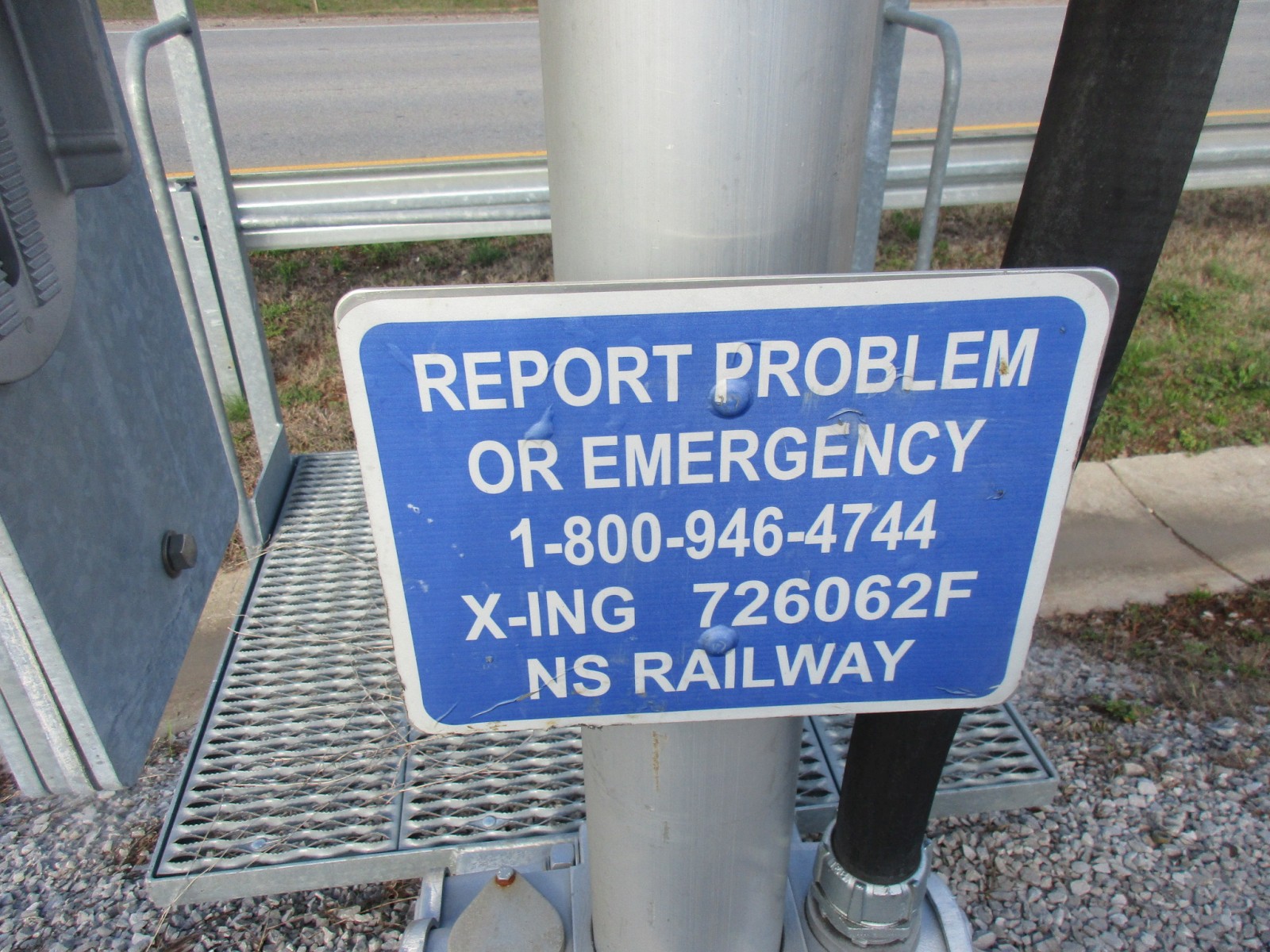

The new emergency information.

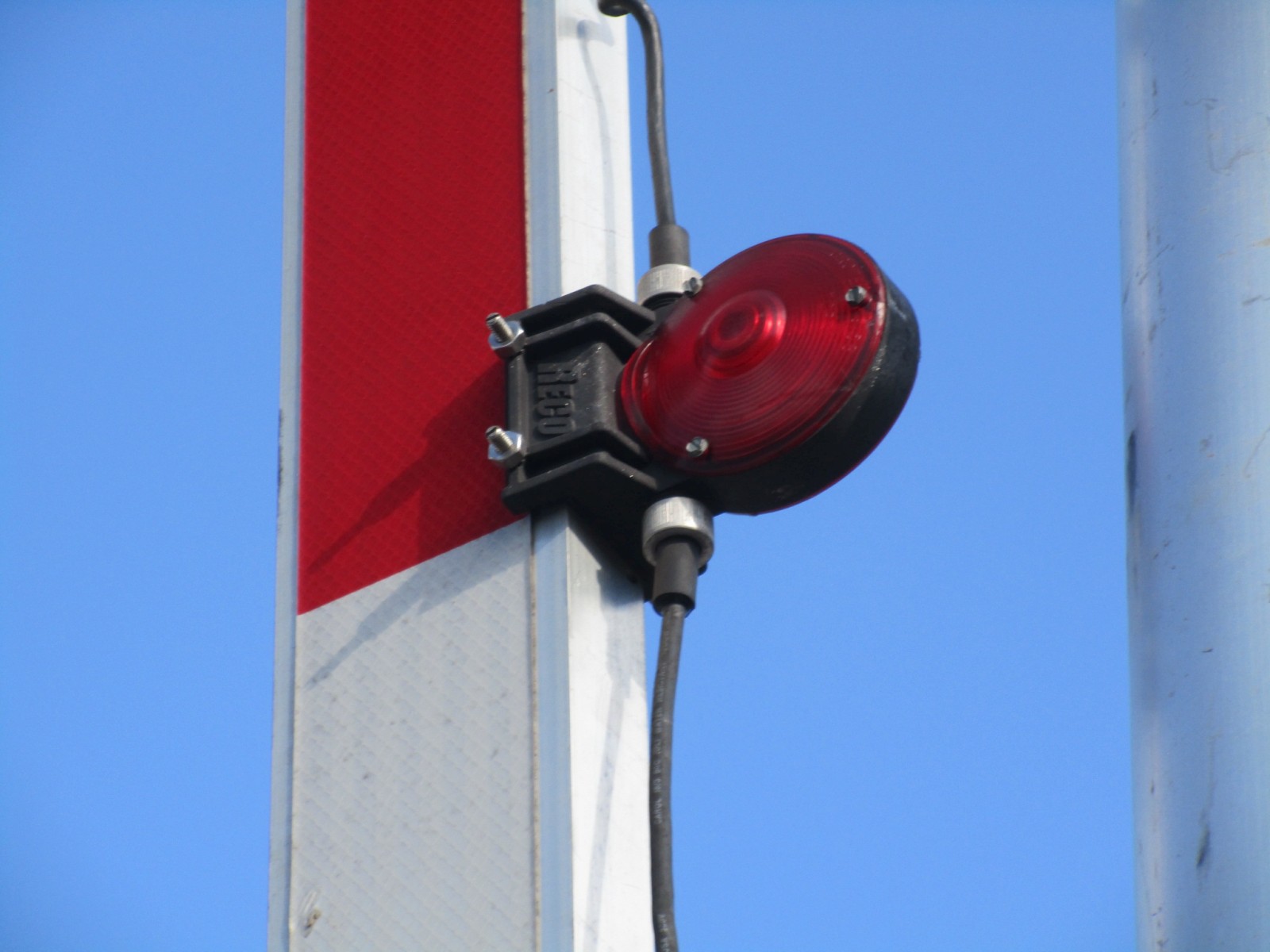

The gate lights are from RECO.
The northbound median signal, with the emergency information sign from 2014/2015.

73

74

75

76
The southbound median signal, with the emergency information sign from 2014/2015.

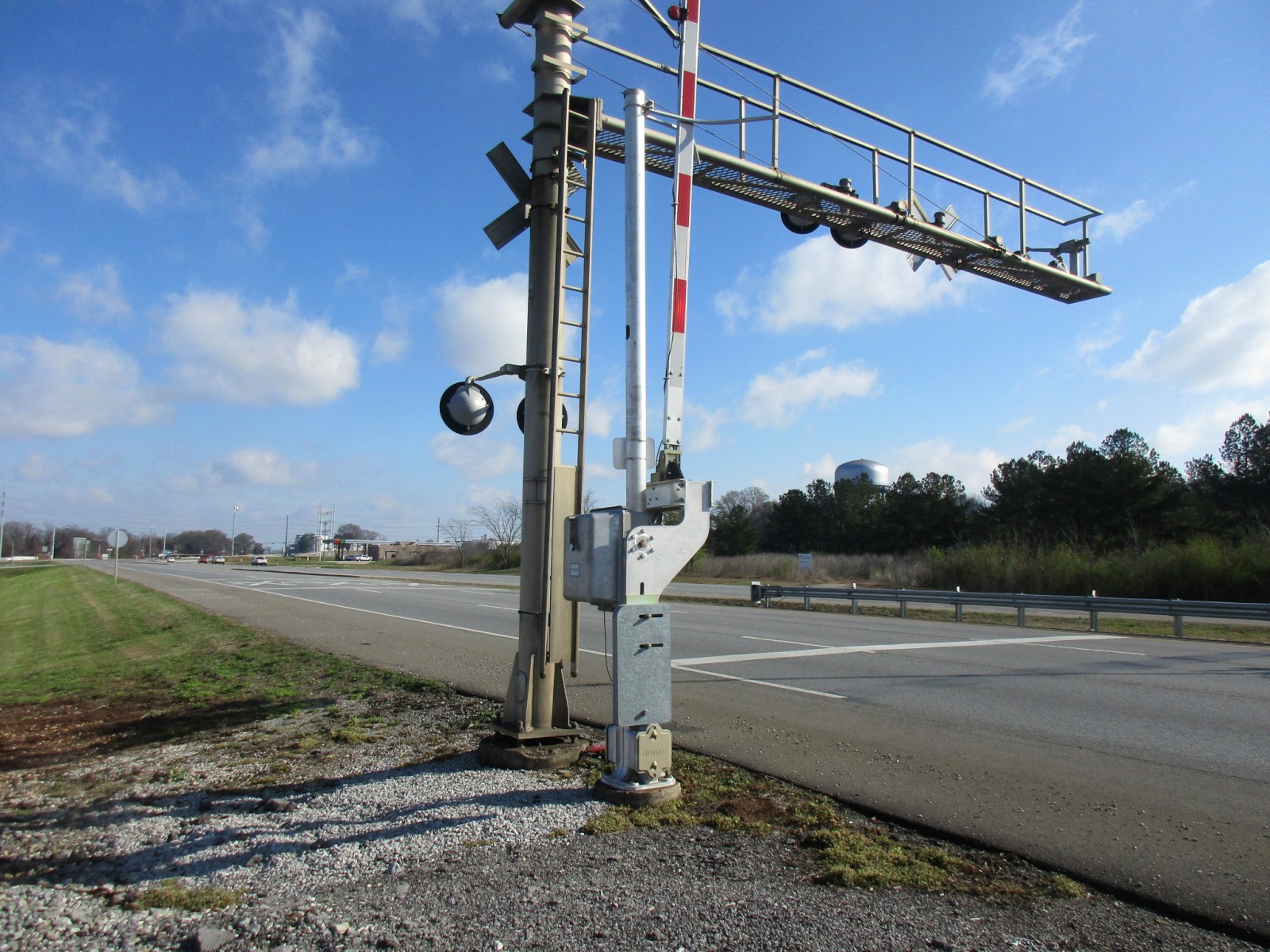

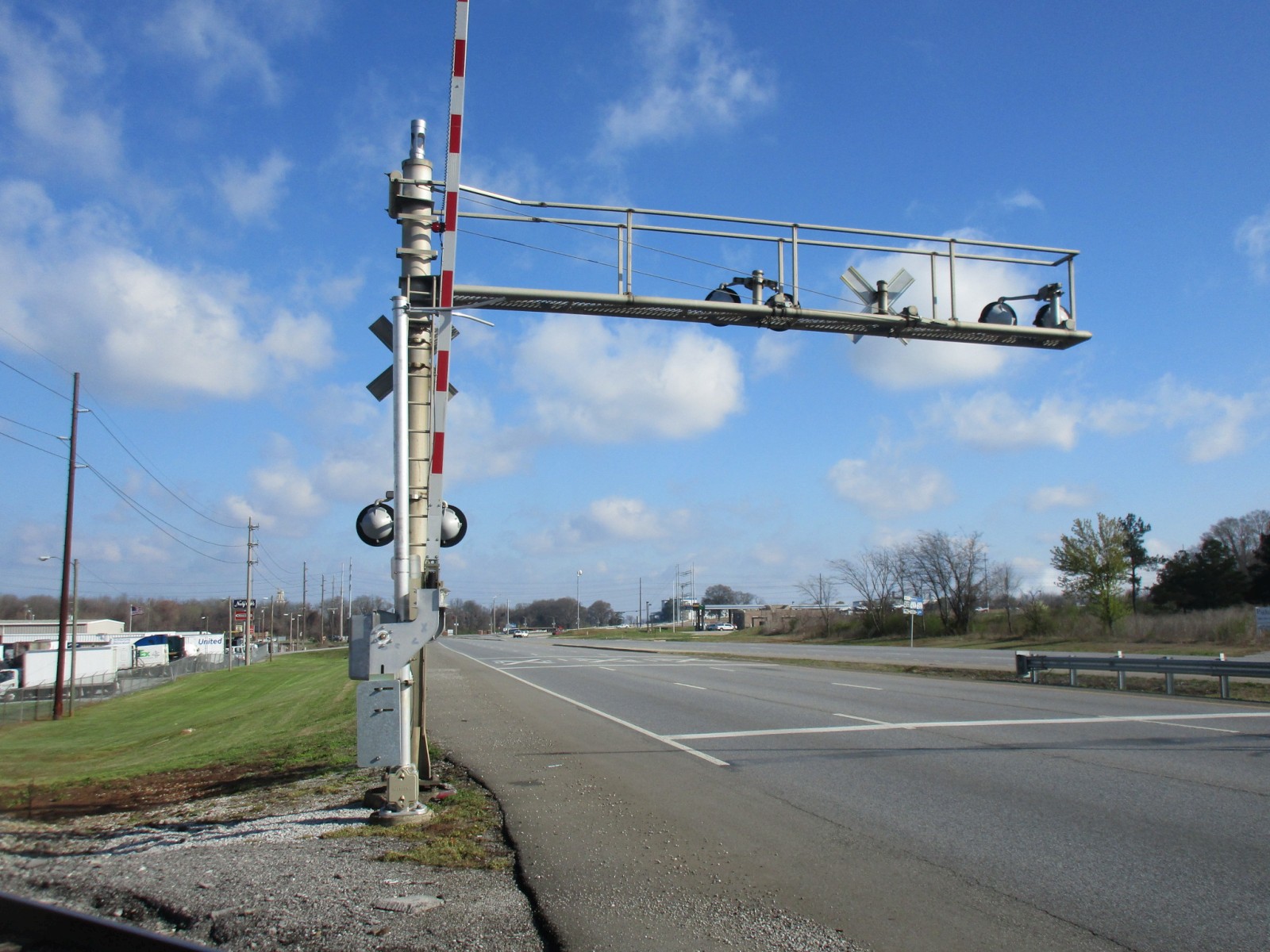

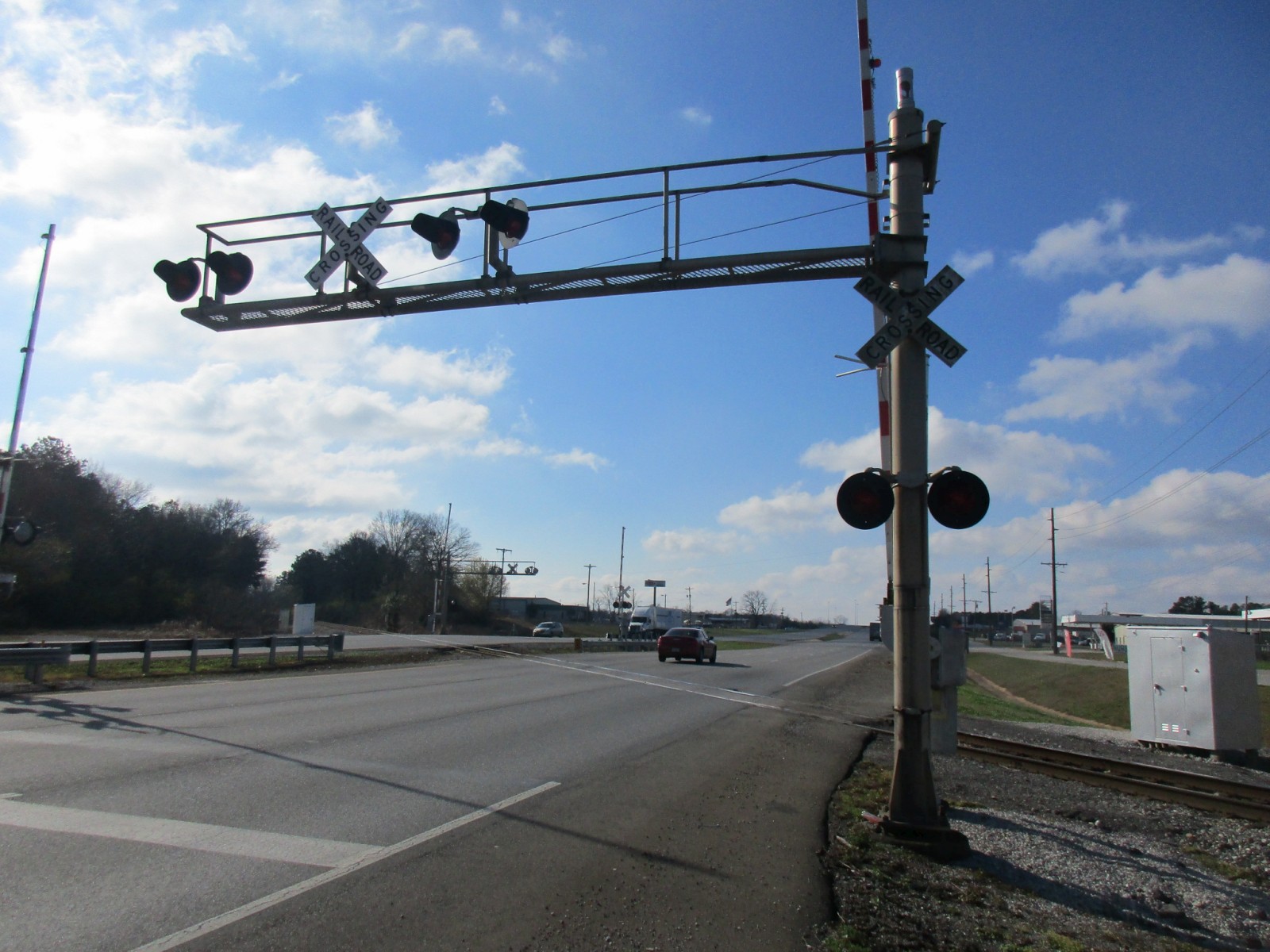

The southbound shoulder signal.

77

78

79

80
It too had the gate mast replaced!

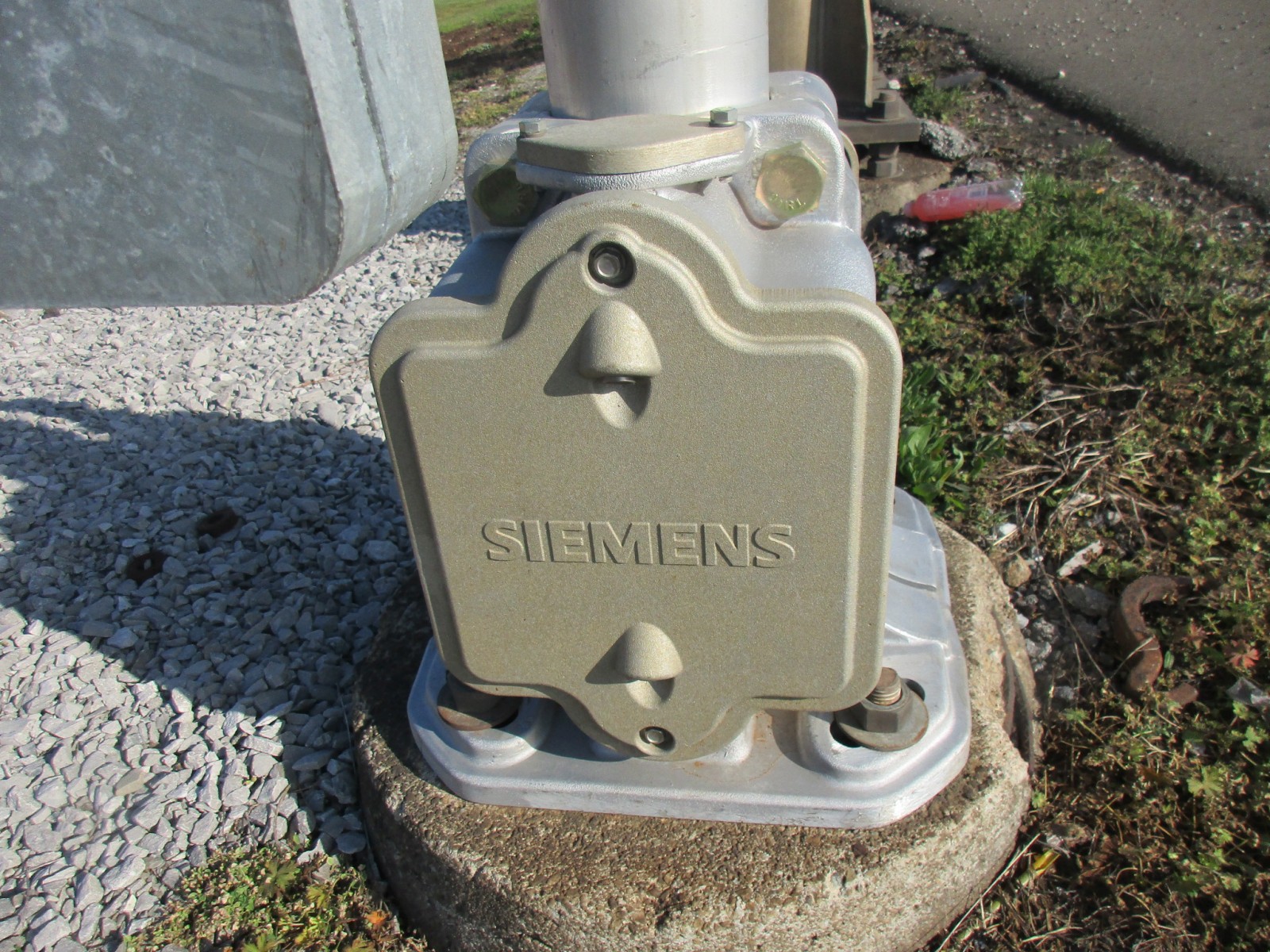

Another Siemens base.
Another Siemens gate mechanism.

81

82

83

84

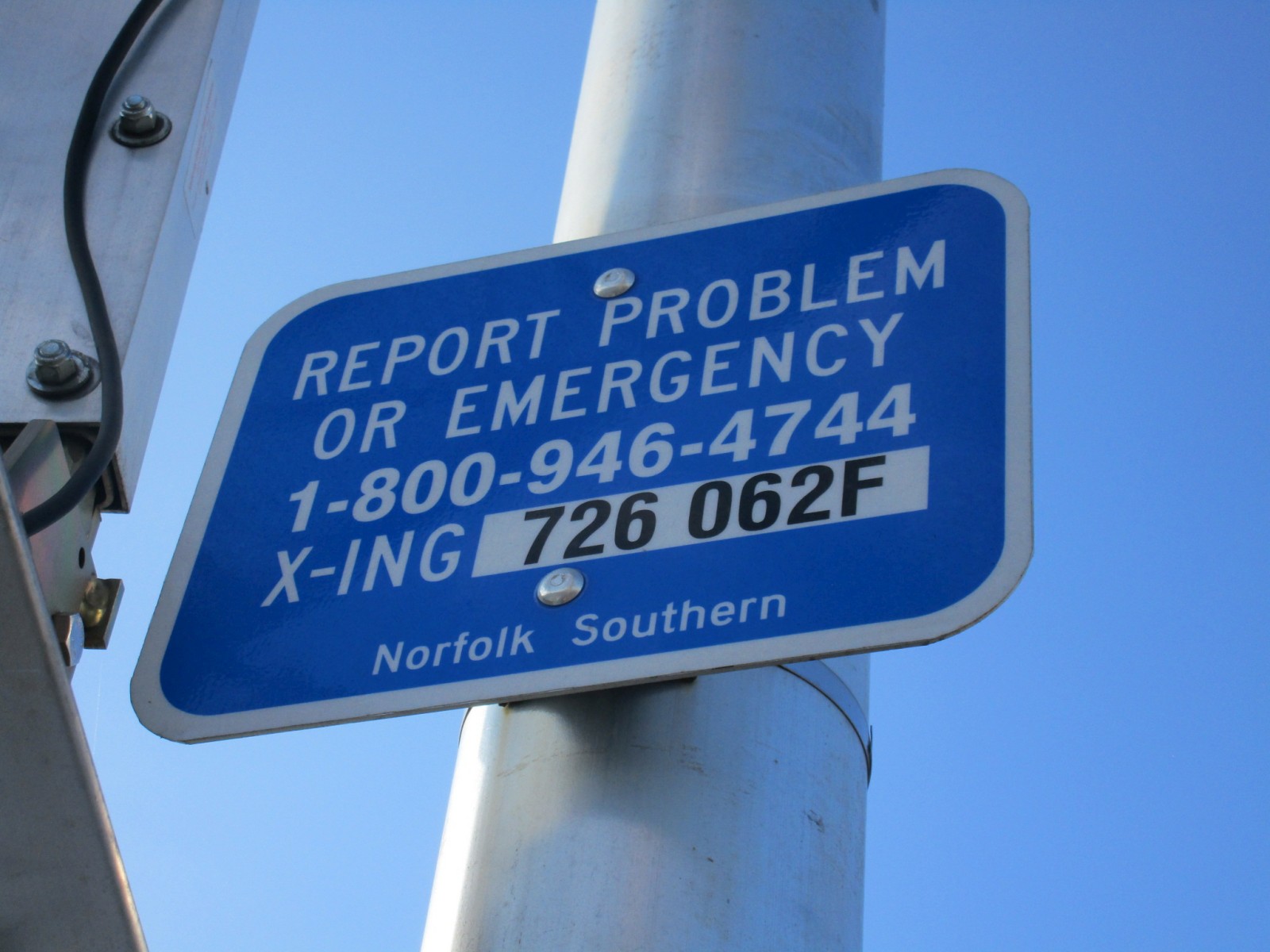

The new emergency information sign.

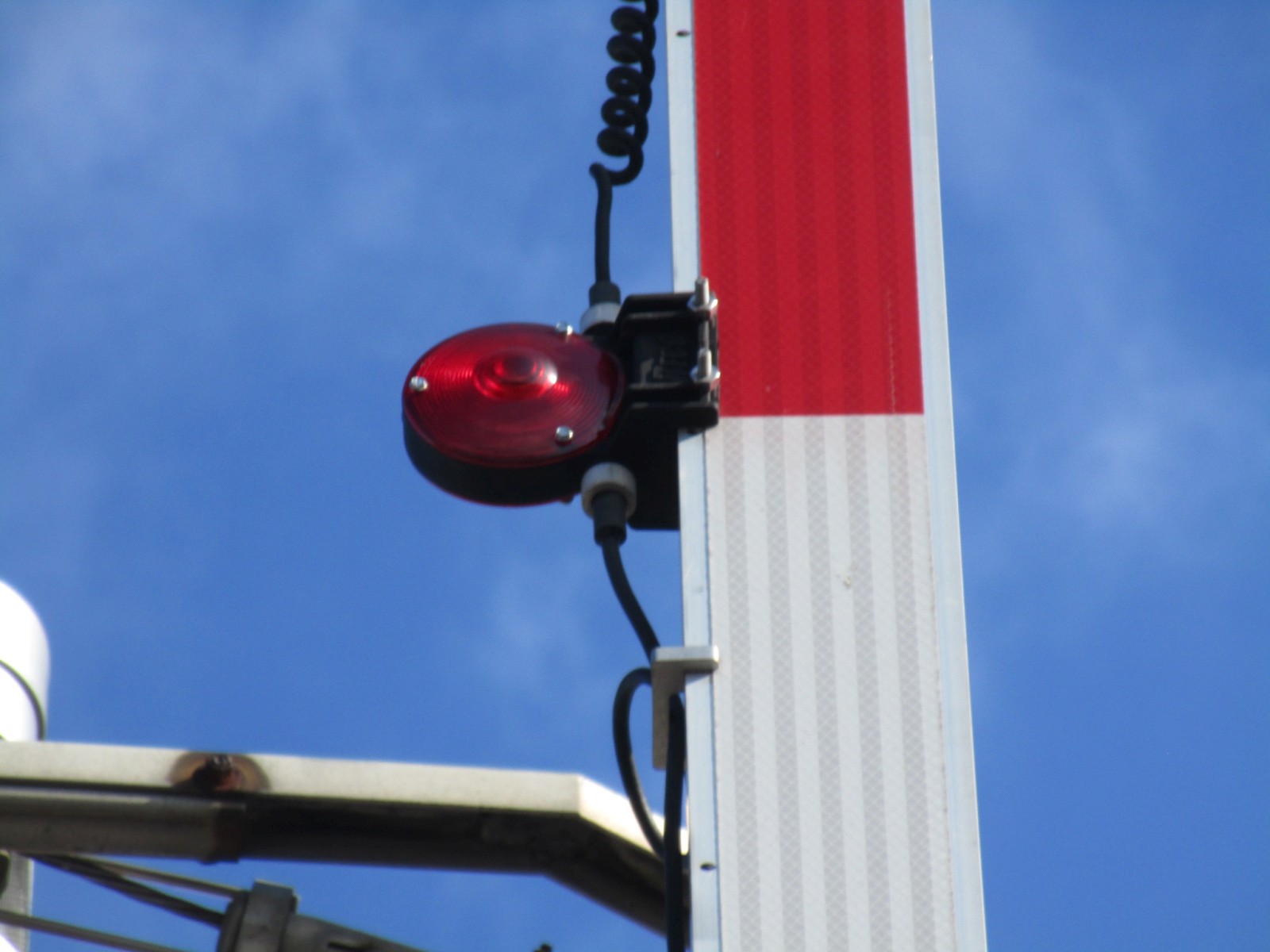

Like the rest of the crossing, these gate lights are from RECO too.

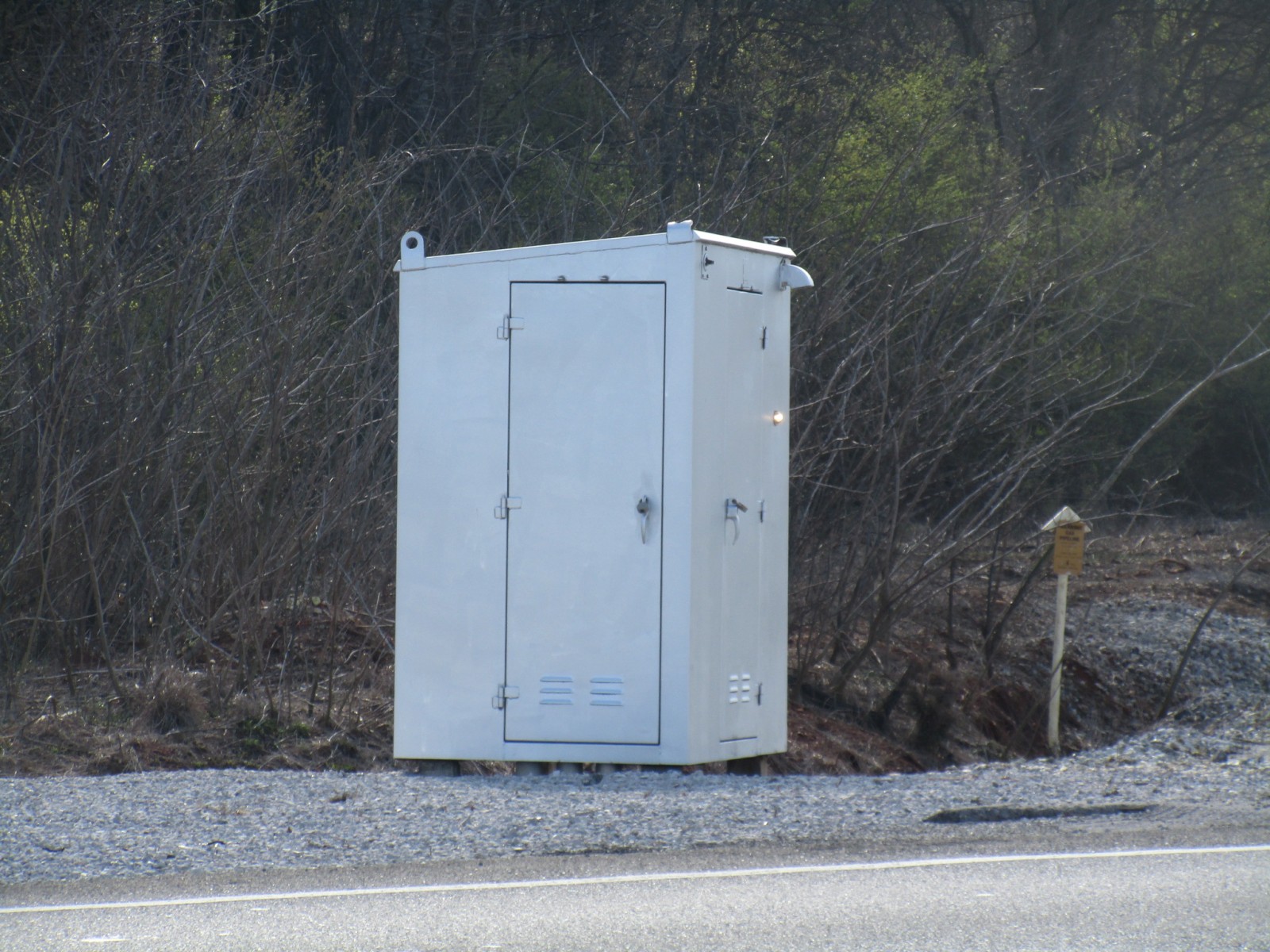

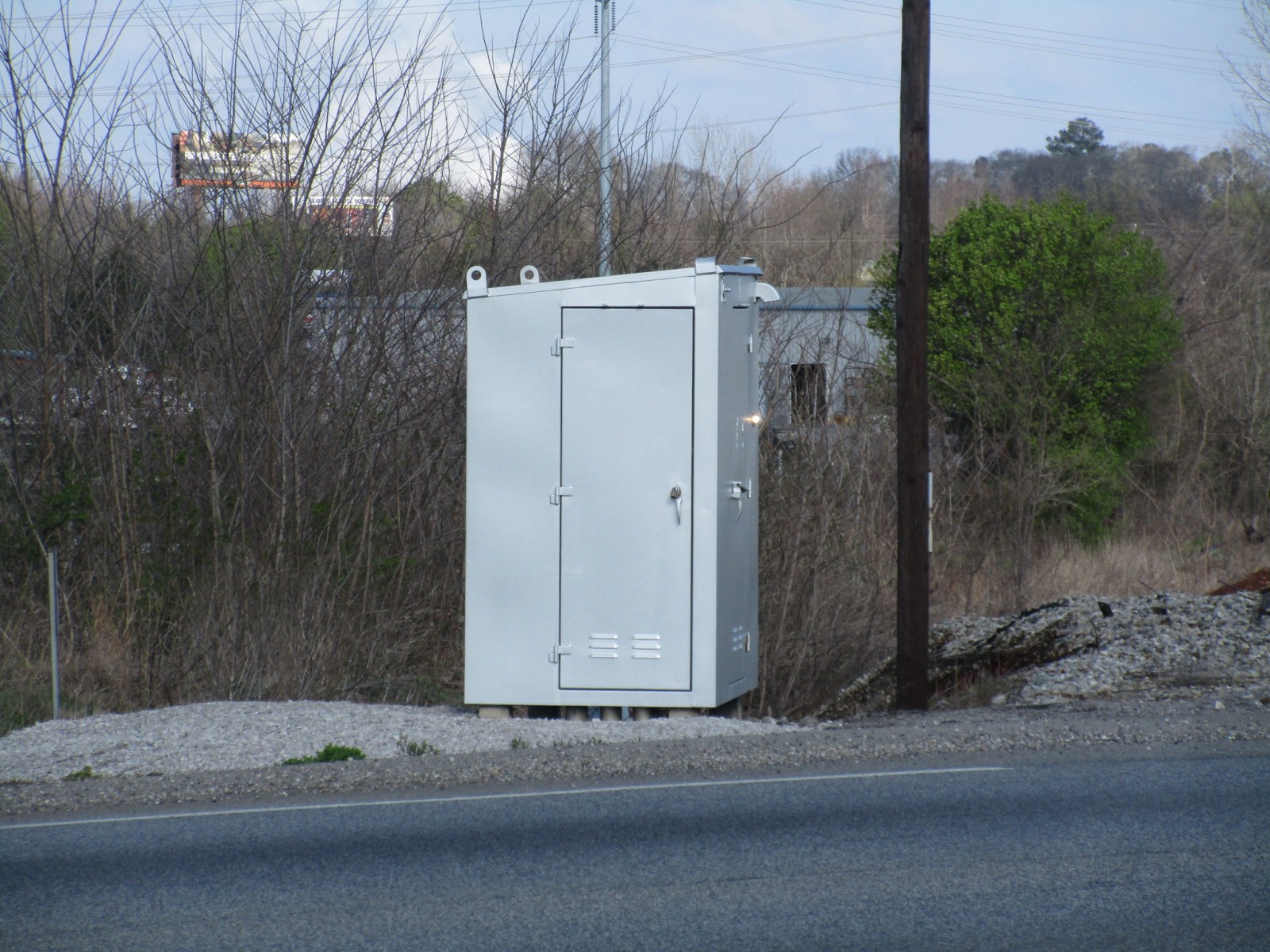

A couple more photos of the relay cases here. It appears that each one controls half of the crossing.

85

86

87

88

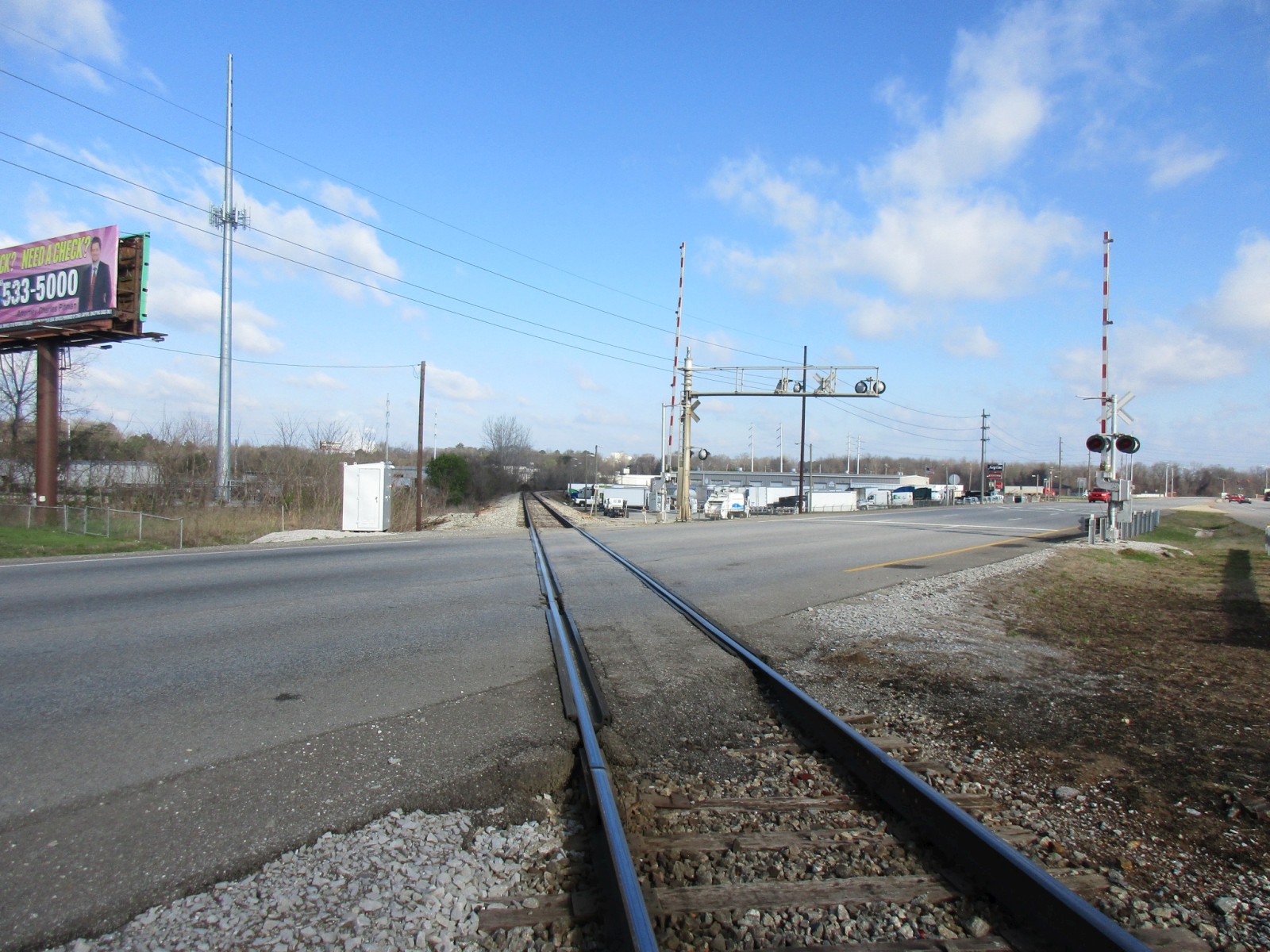

Track view looking southeast towards 12th Avenue.
Track view looking northwest towards Joe Wheeler Highway #3 (Alt US 72/AL 20).

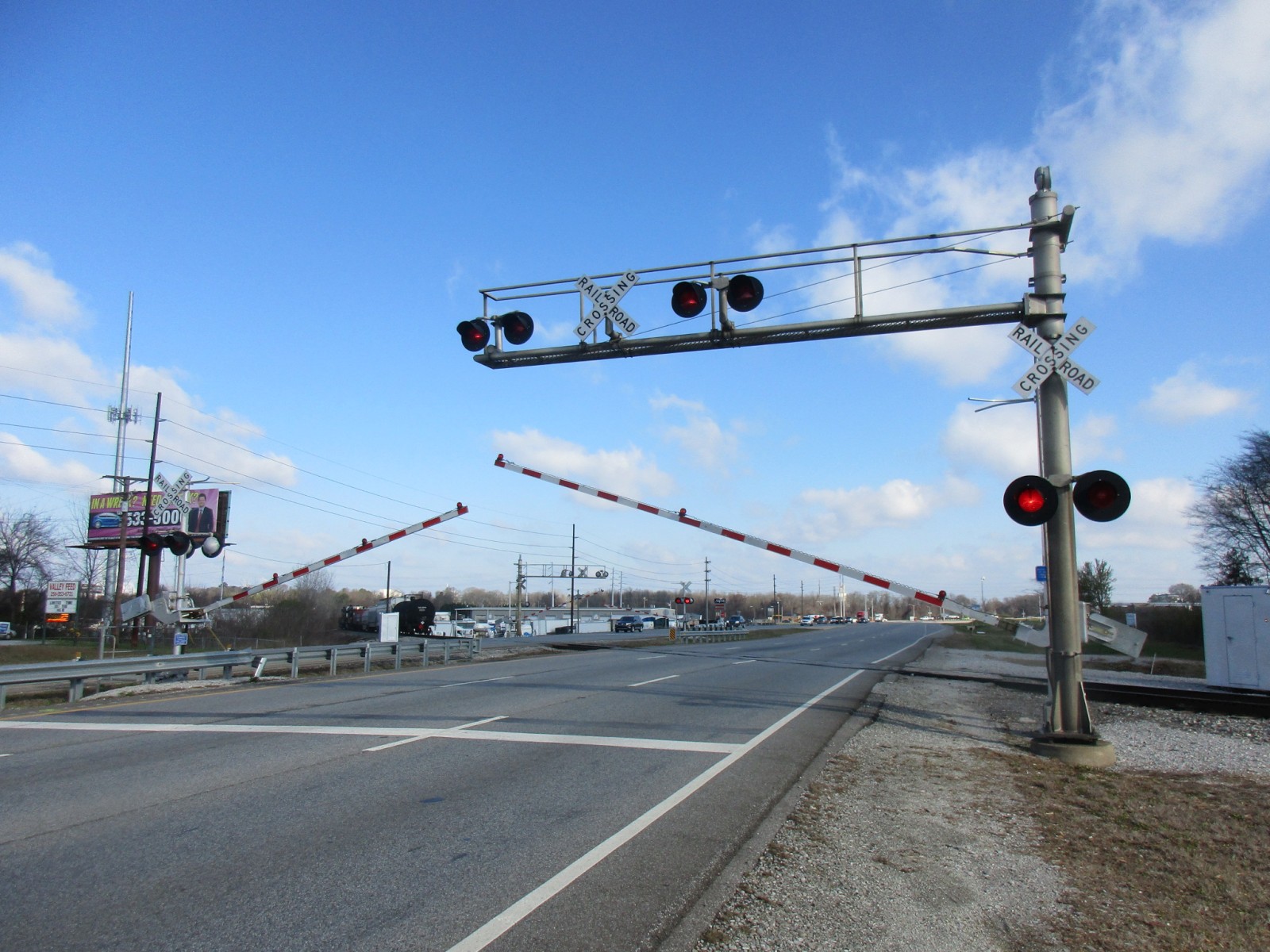

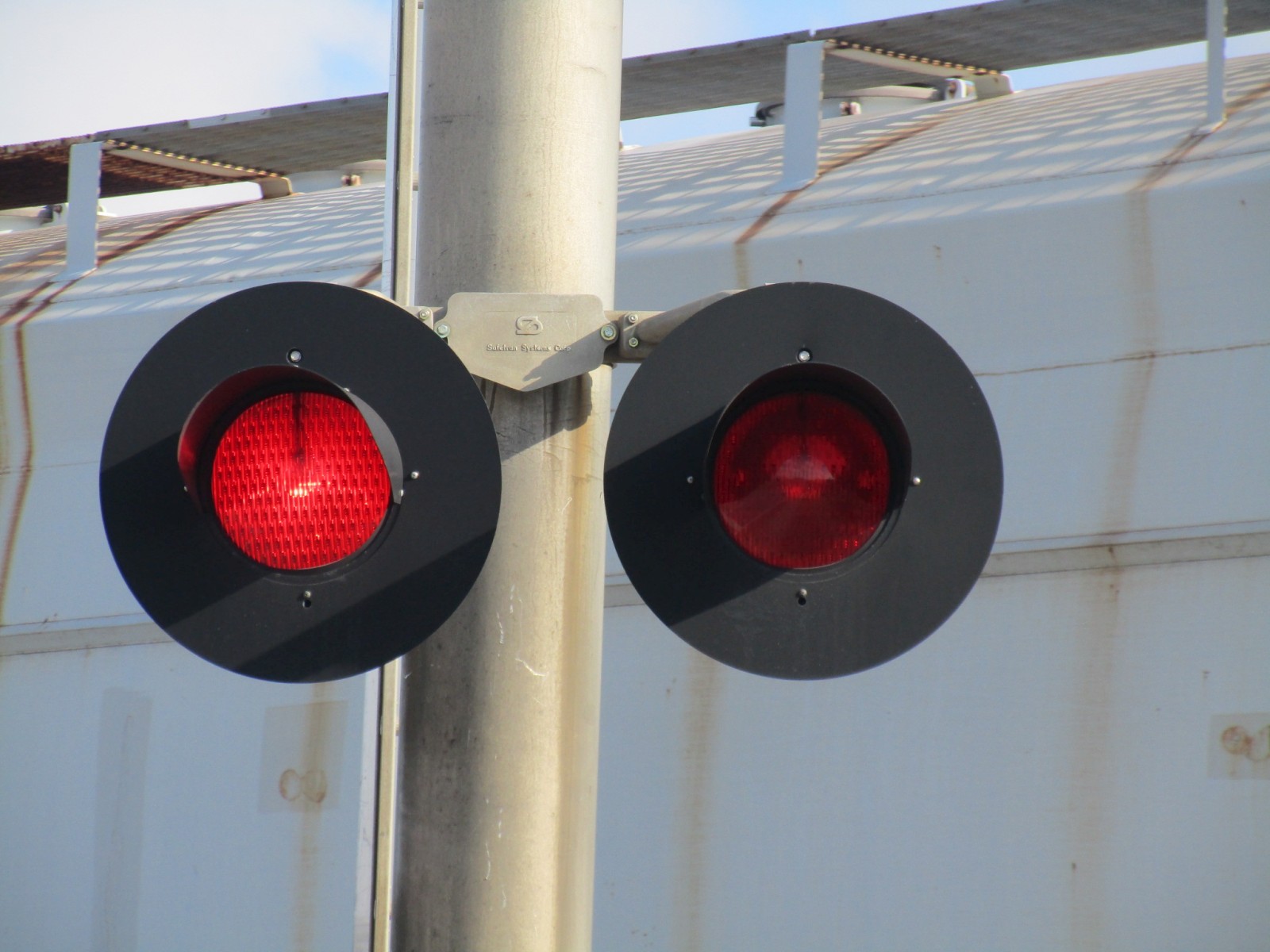

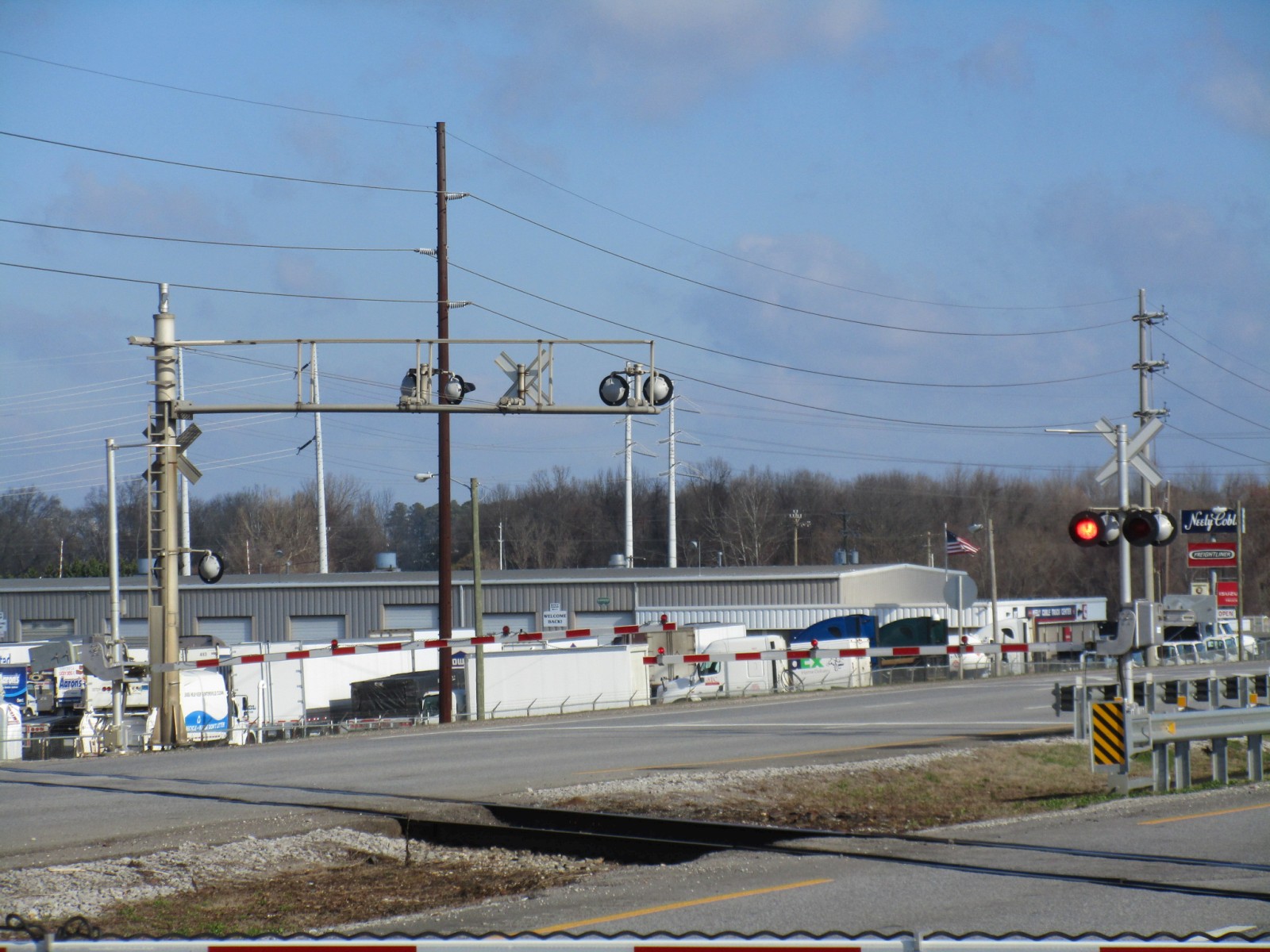

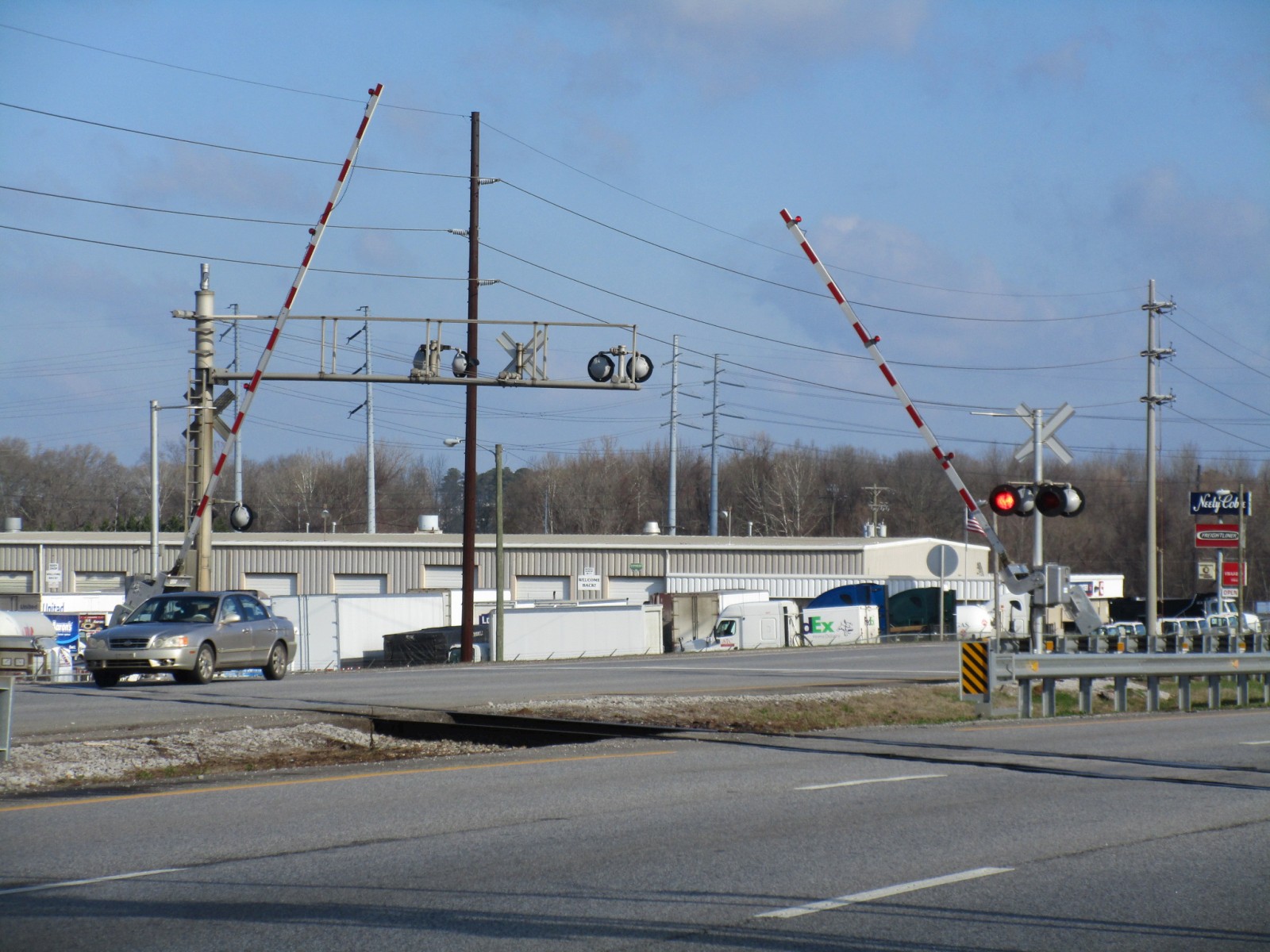

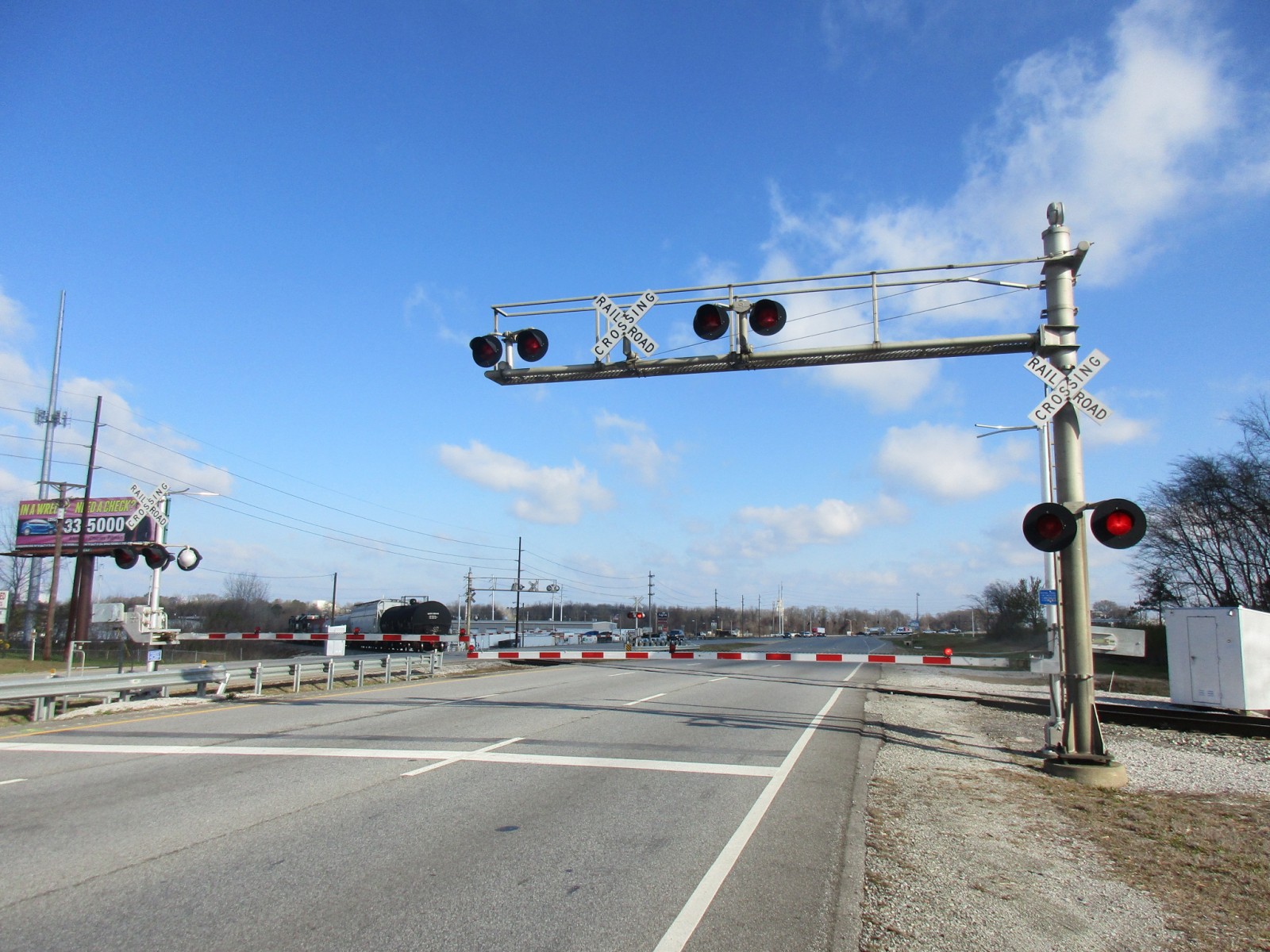

The crossing activates!

89

90

91

92

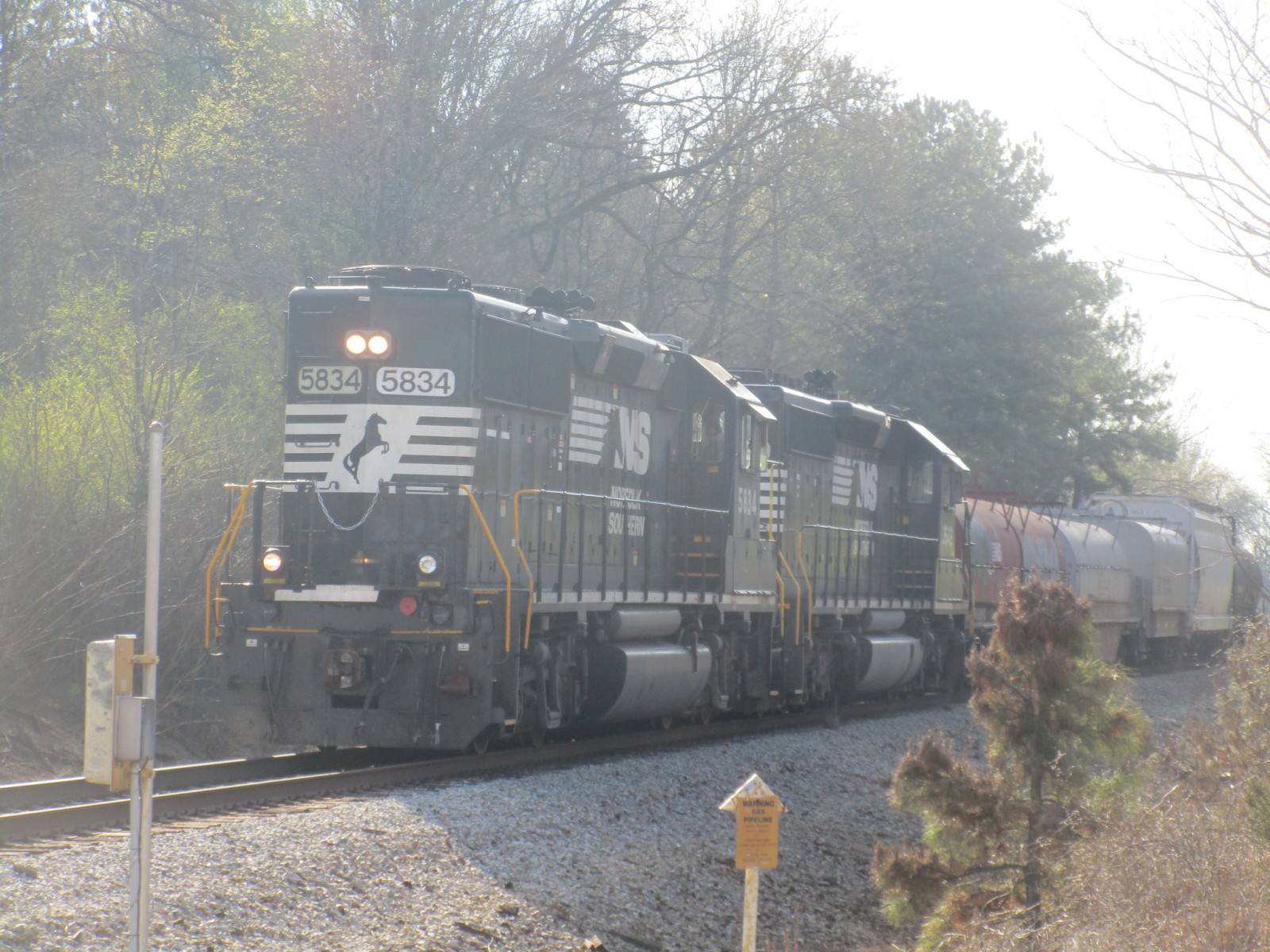

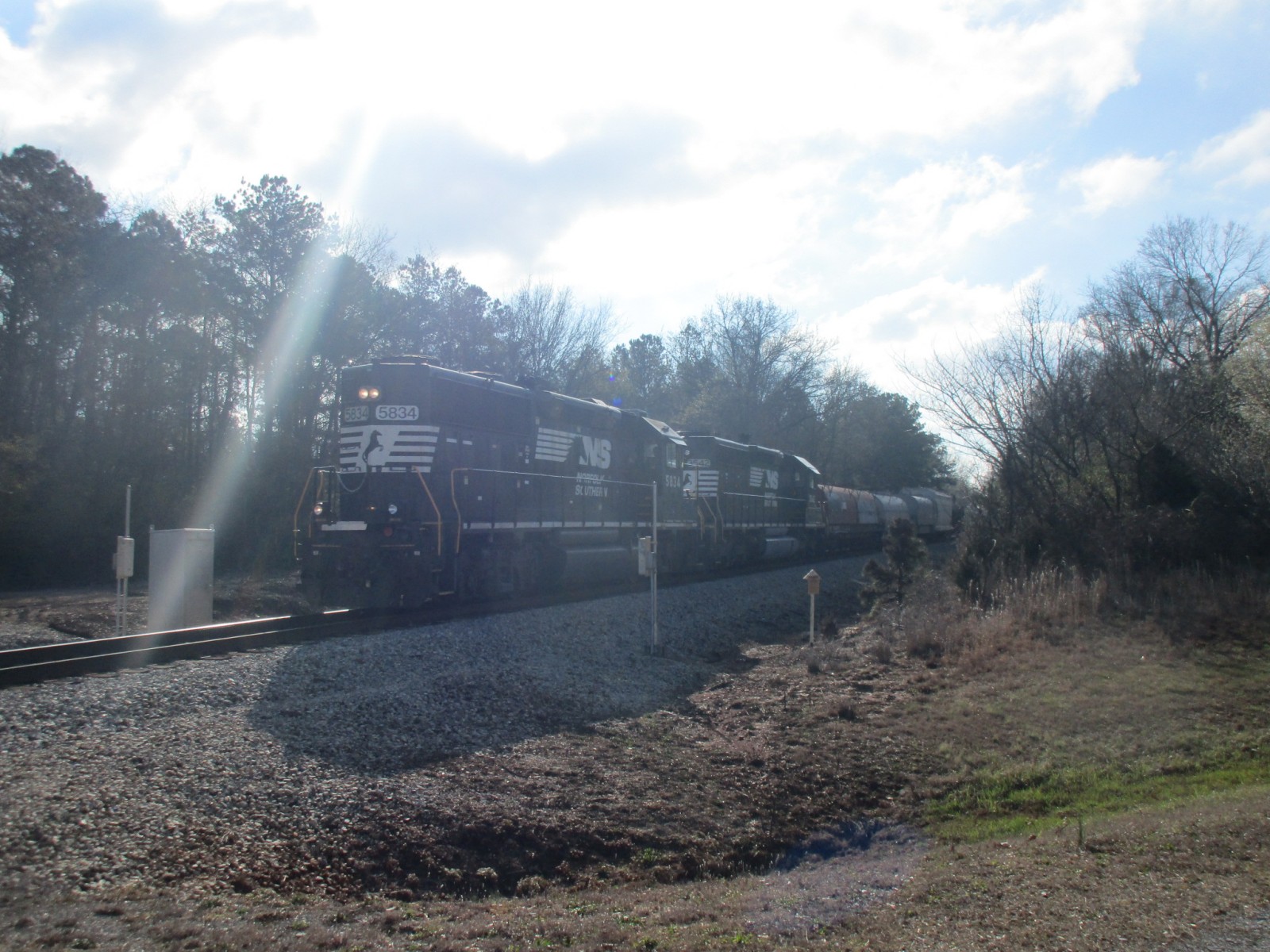

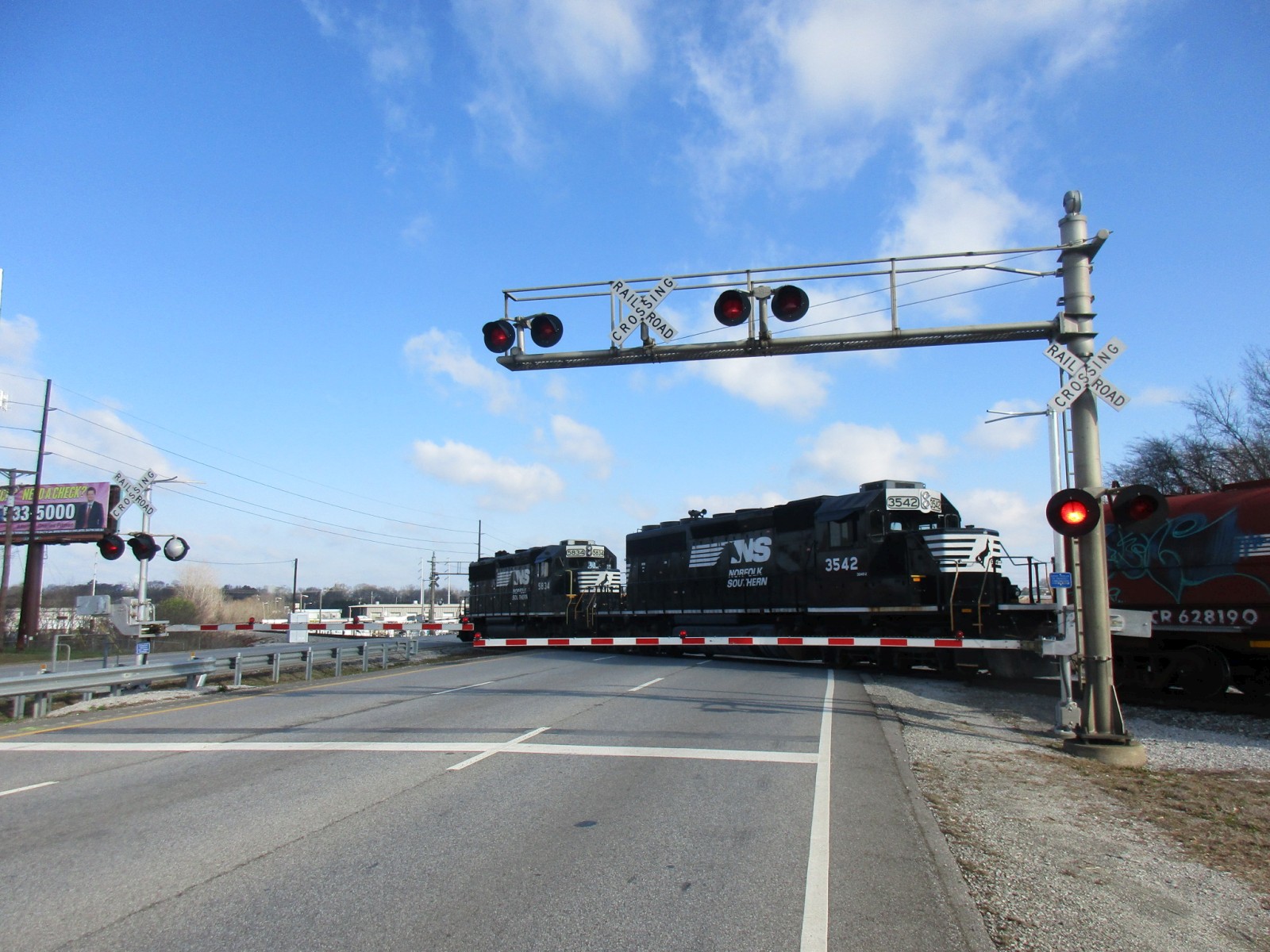

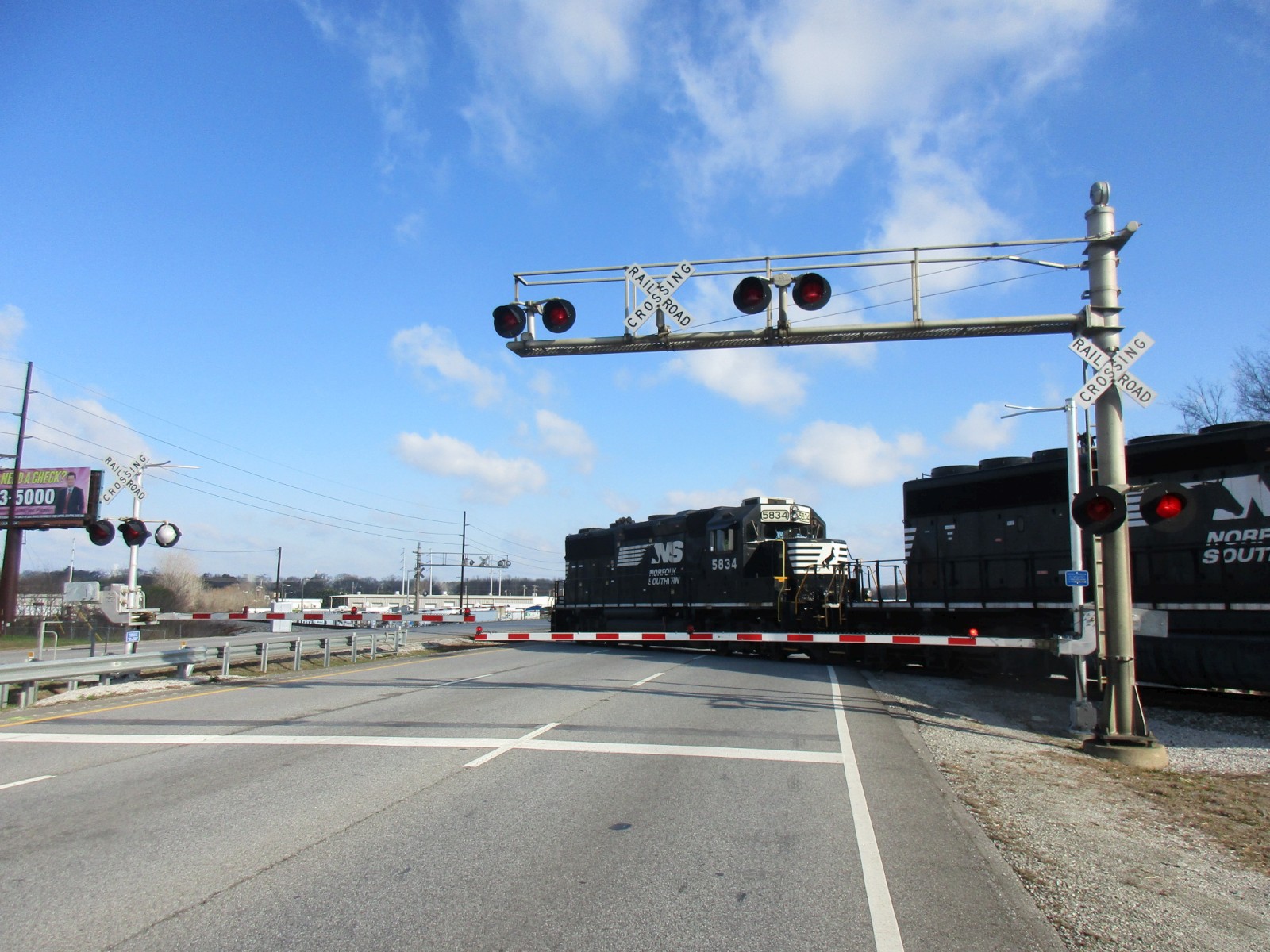

NS AD02 comes through with a GP38-3 leading an SD40-2, both running long-hood forwards.

93

94

95

96

97

98

99

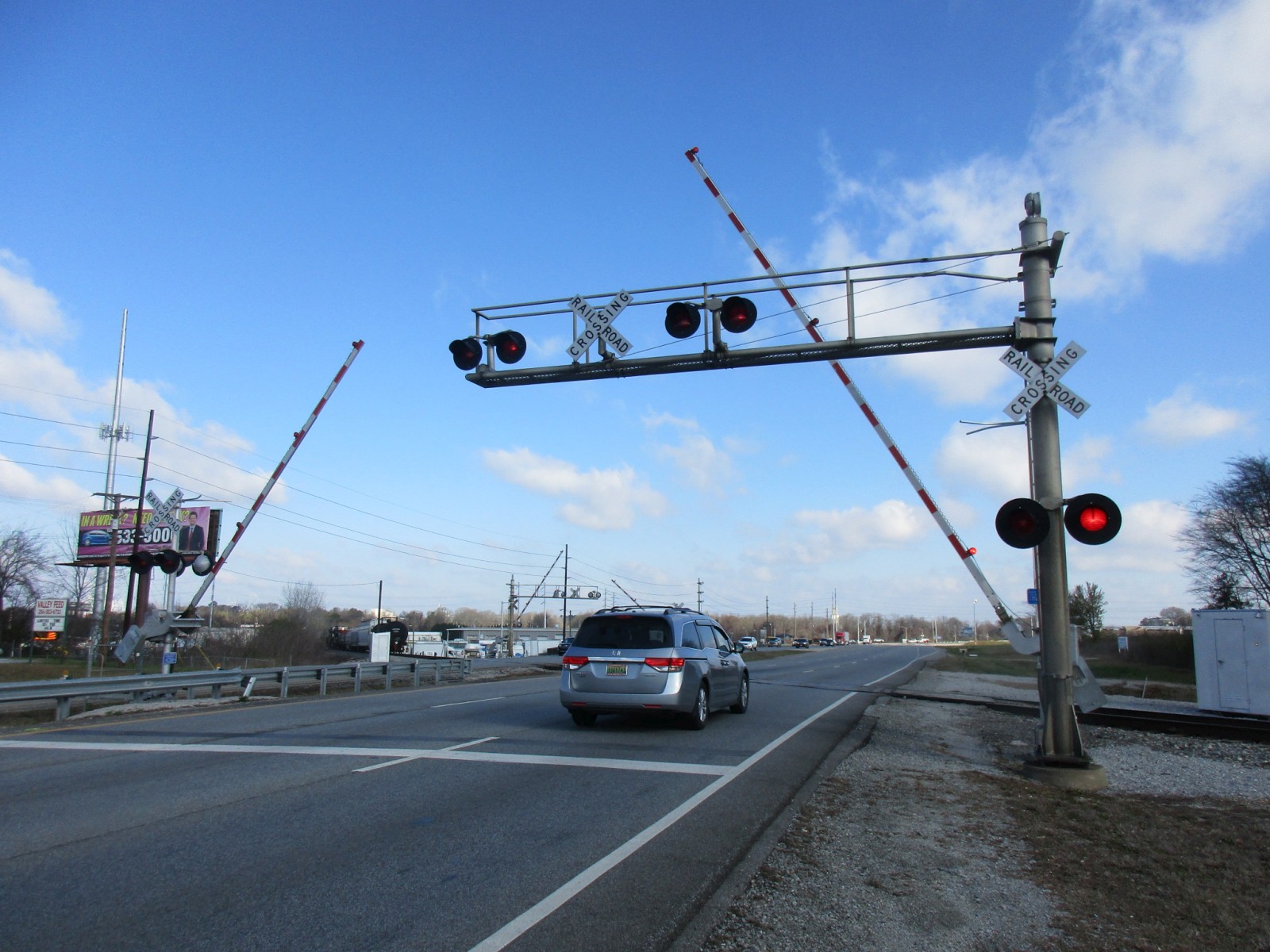

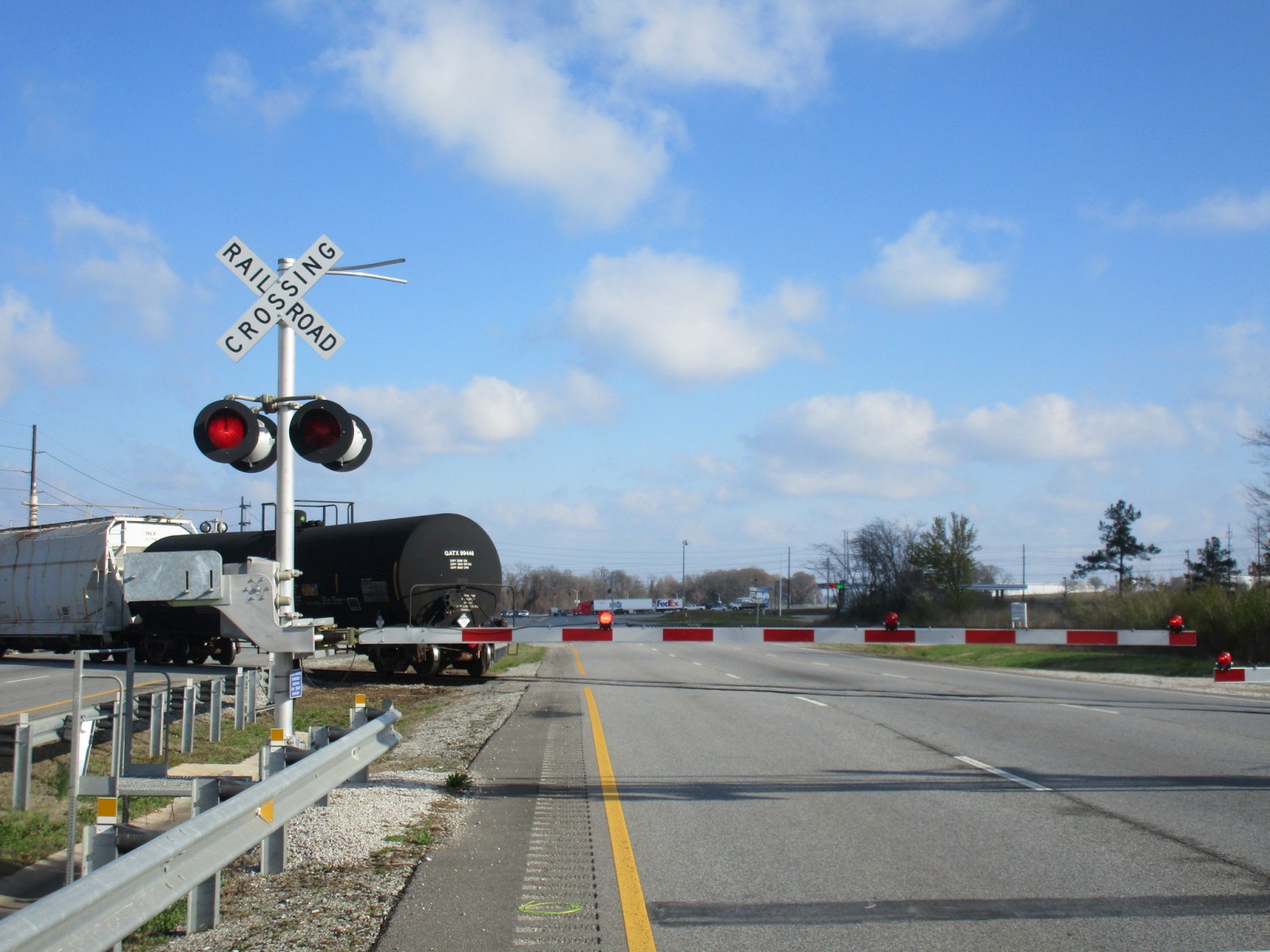

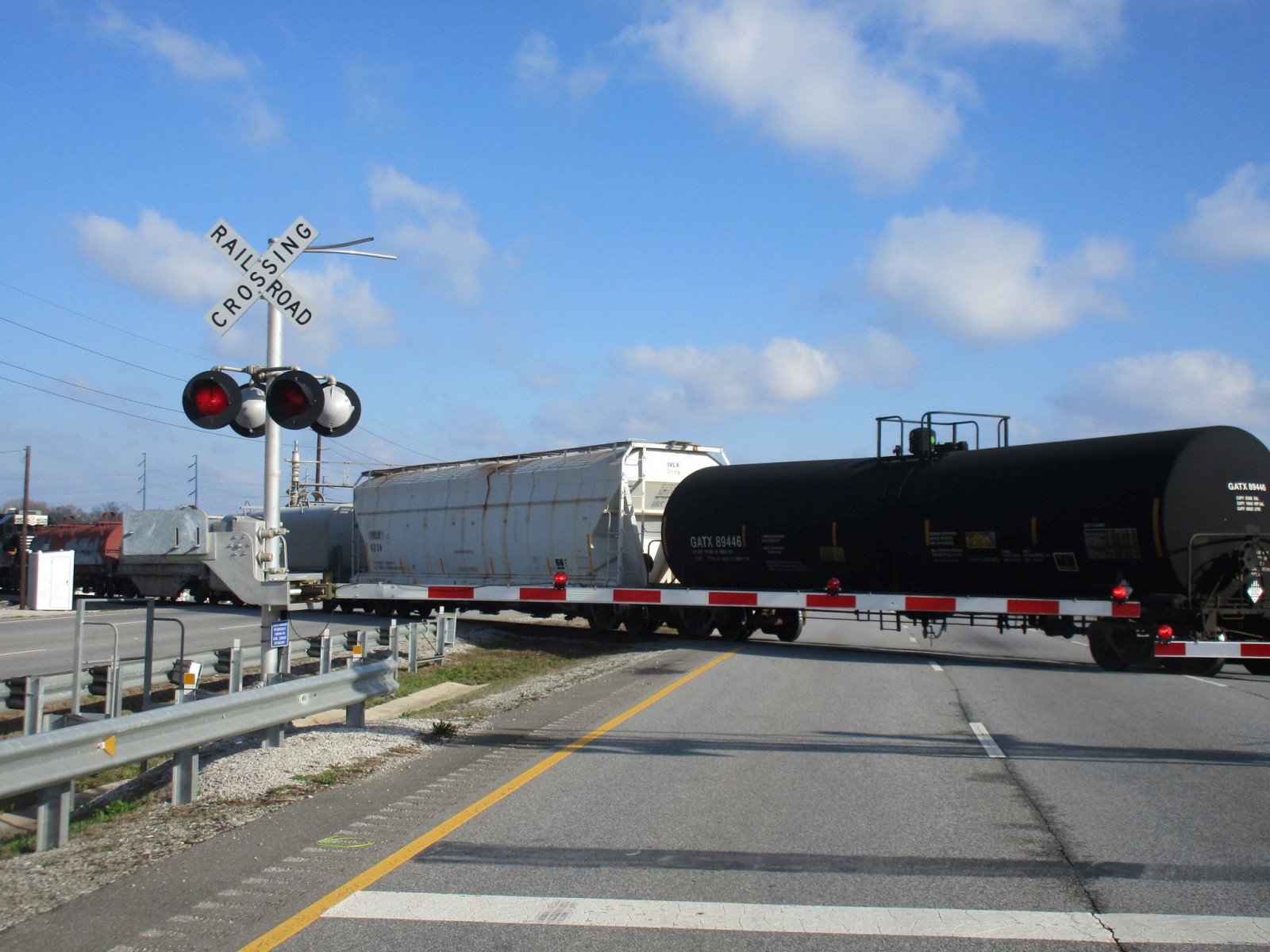

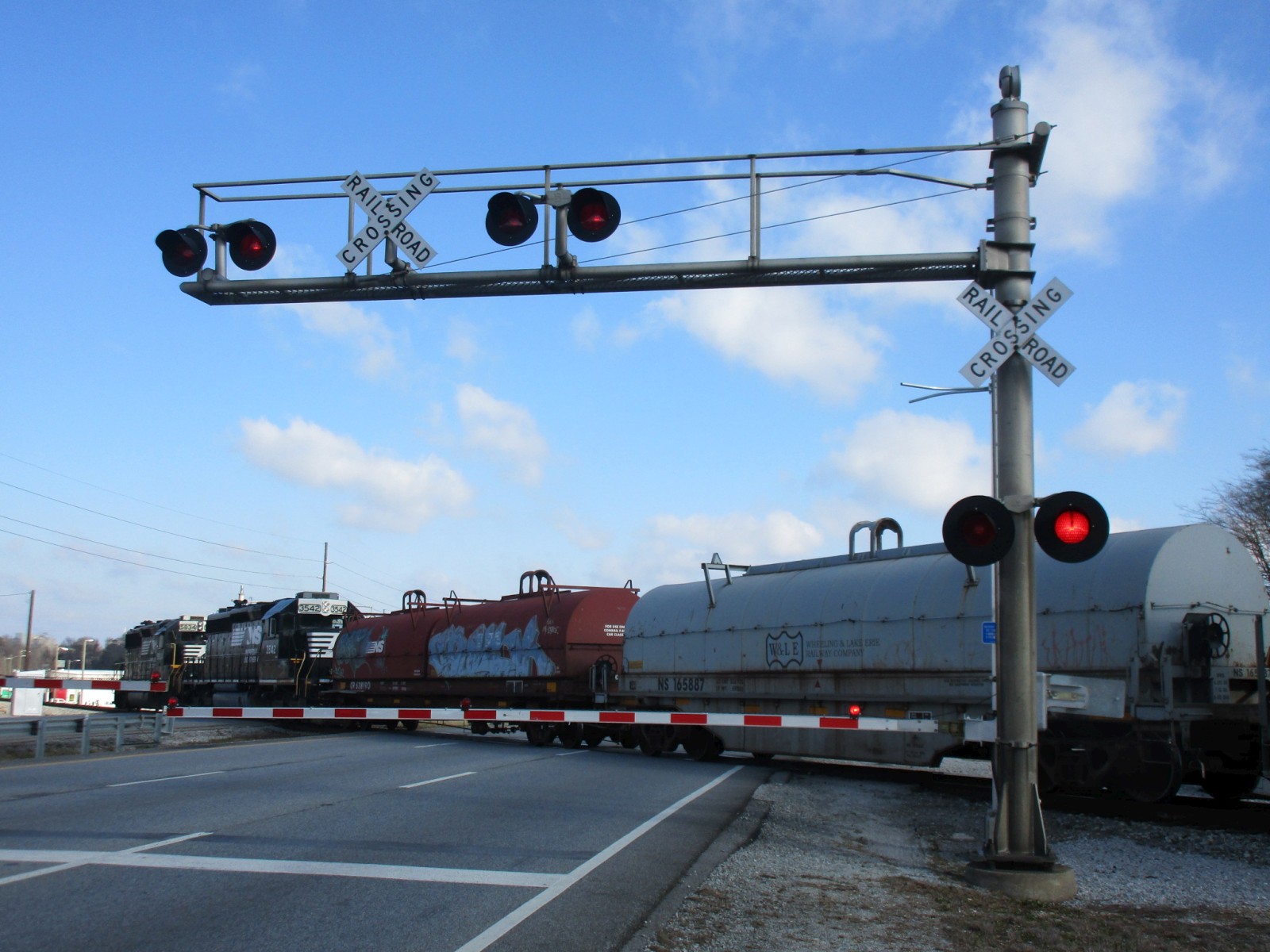

The train passes...

100

101

102
...and the signals shut-off.

103

104

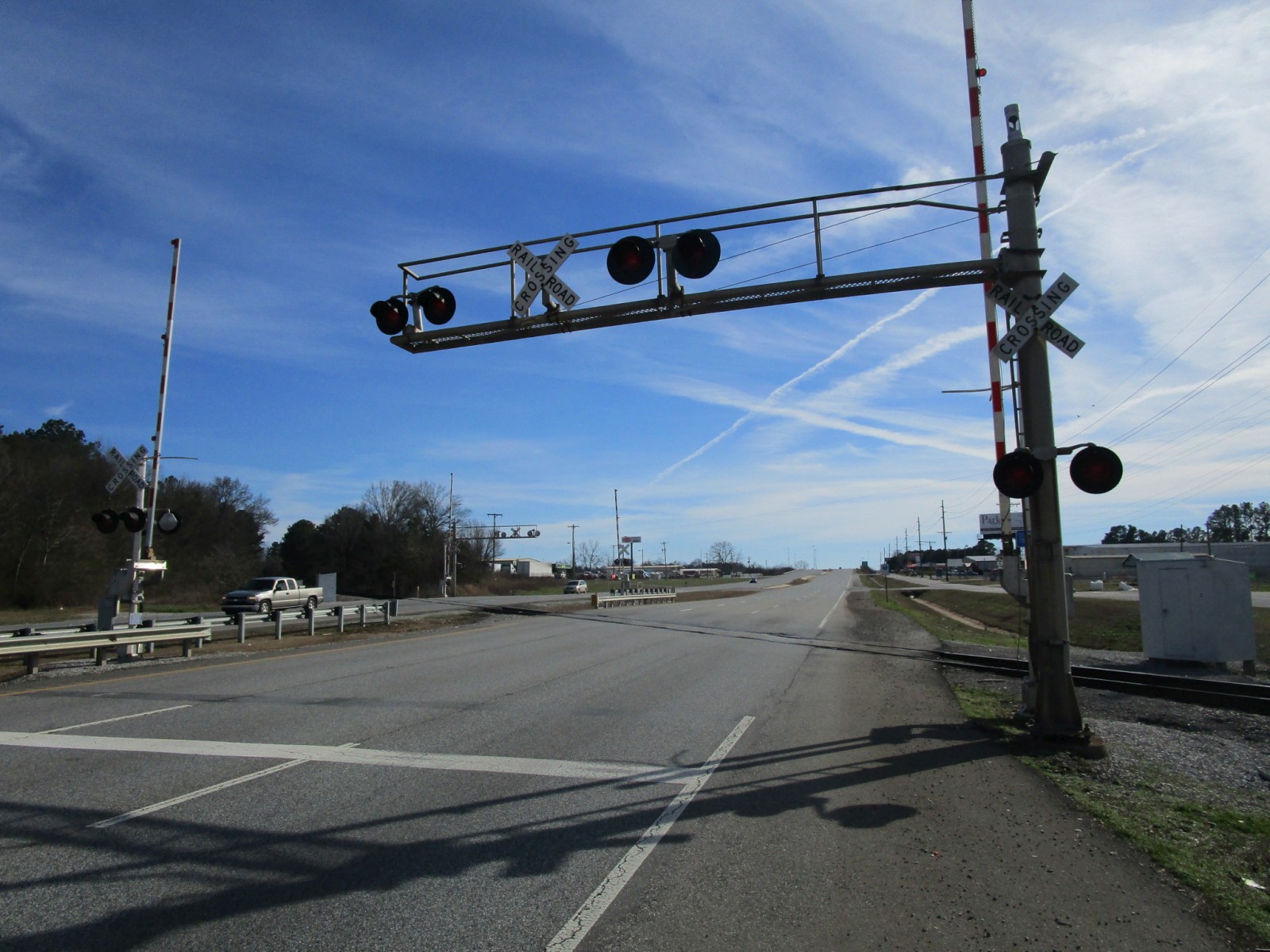

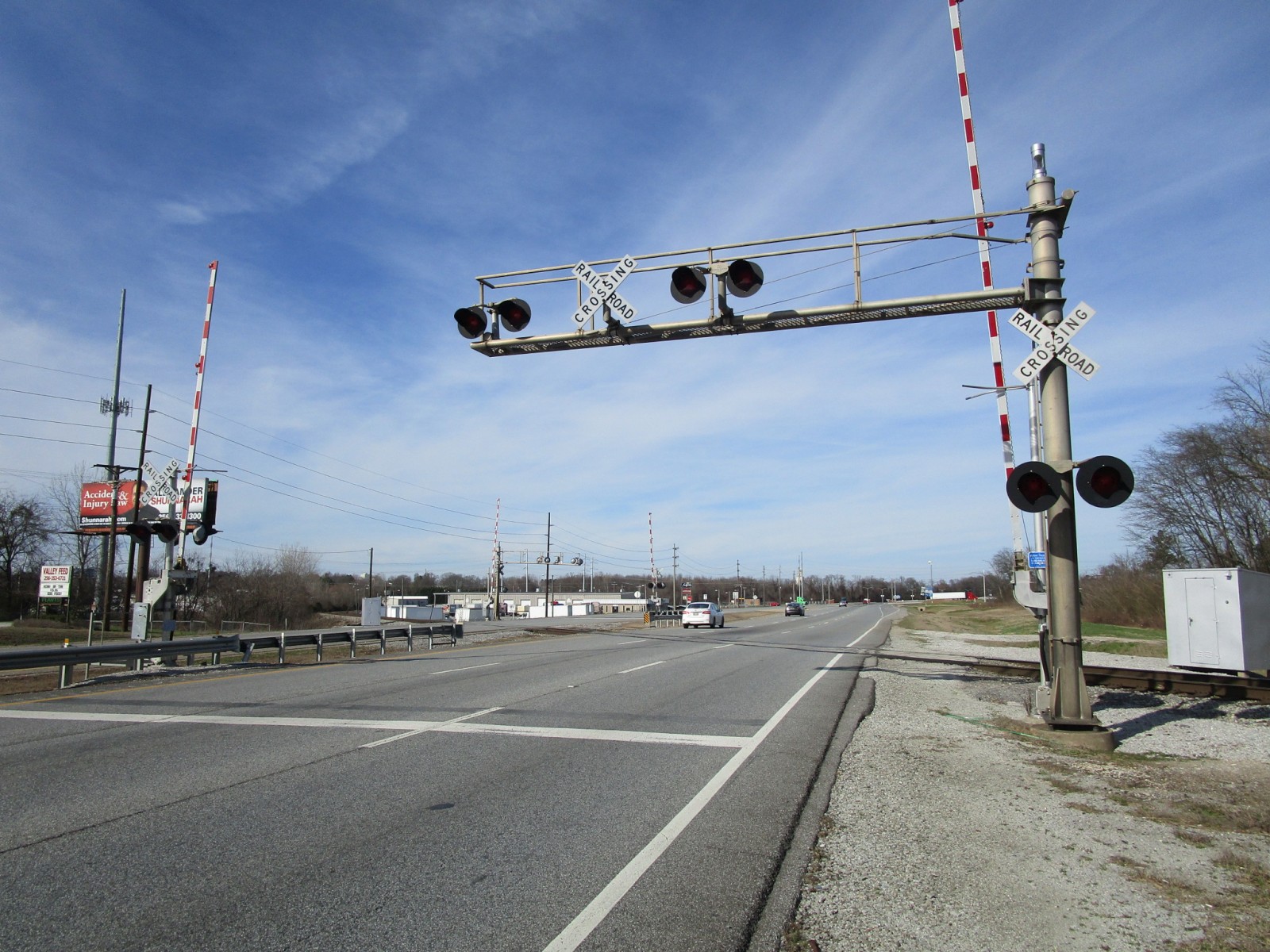

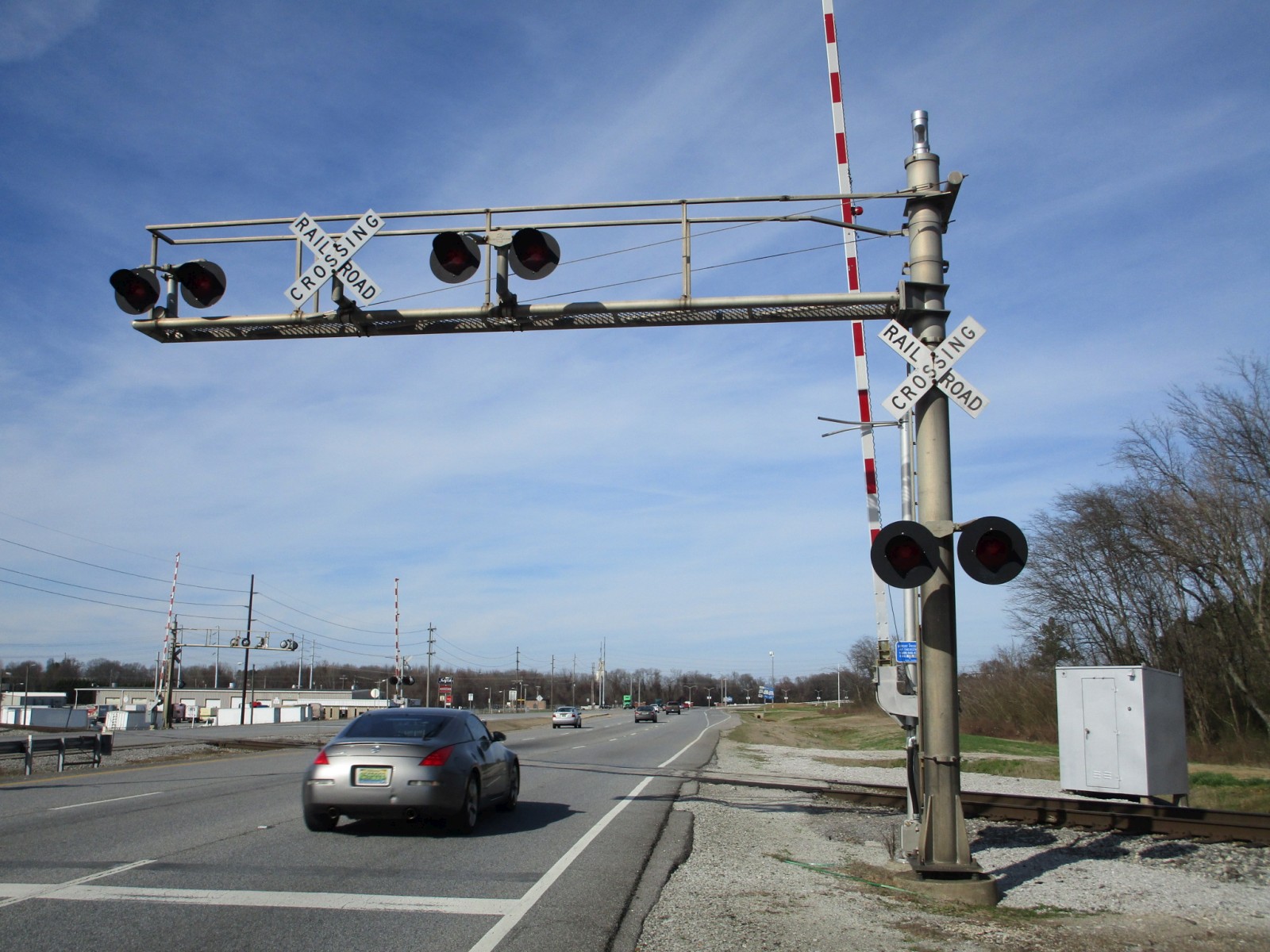

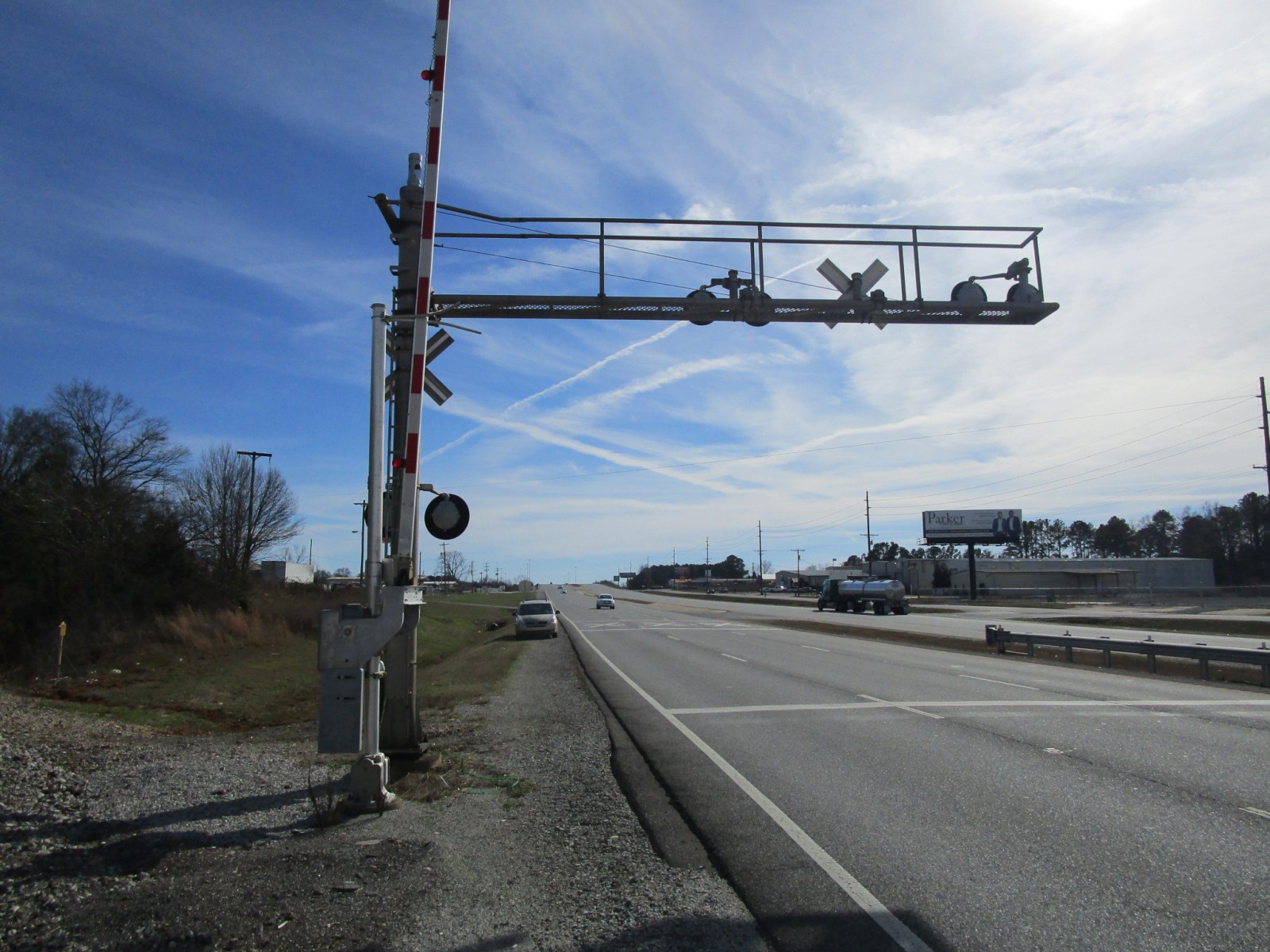

A return trip on 2-15-20 shows a few upgrades to this crossing.

105

106

107

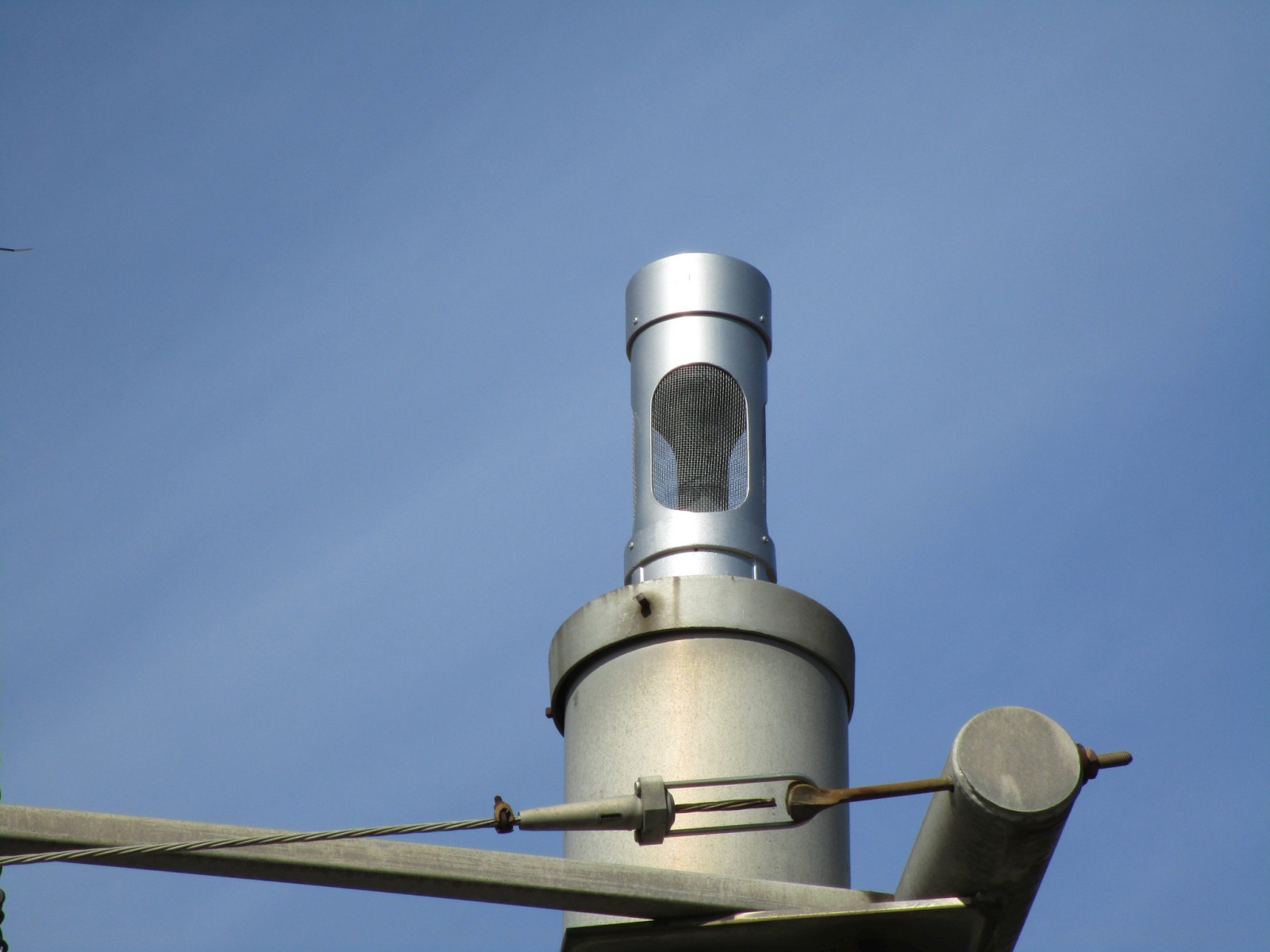

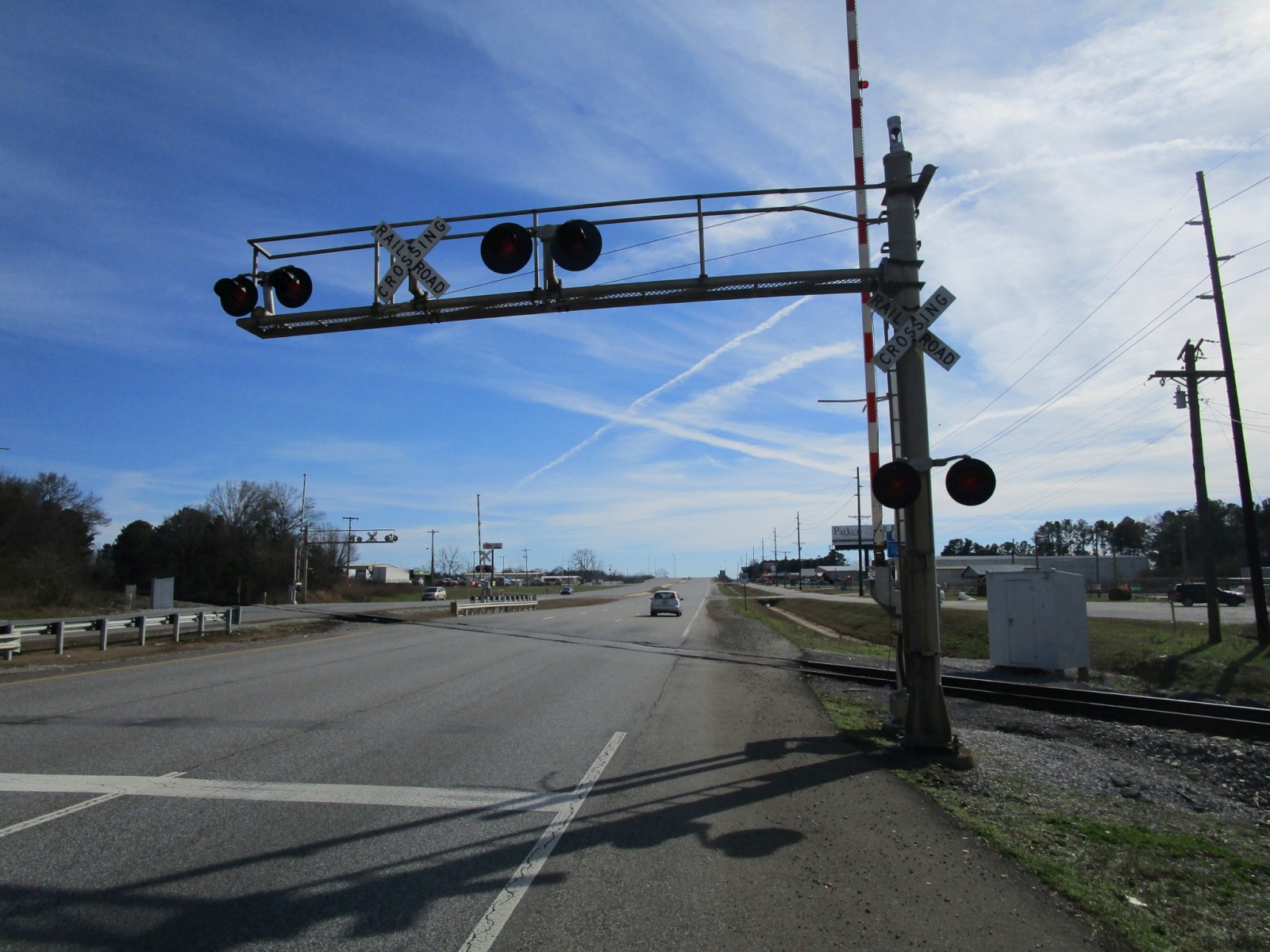

The northbound cantilever had the Safetran mechanical bell replaced with a General Signals e-bell.

108

109

110

111

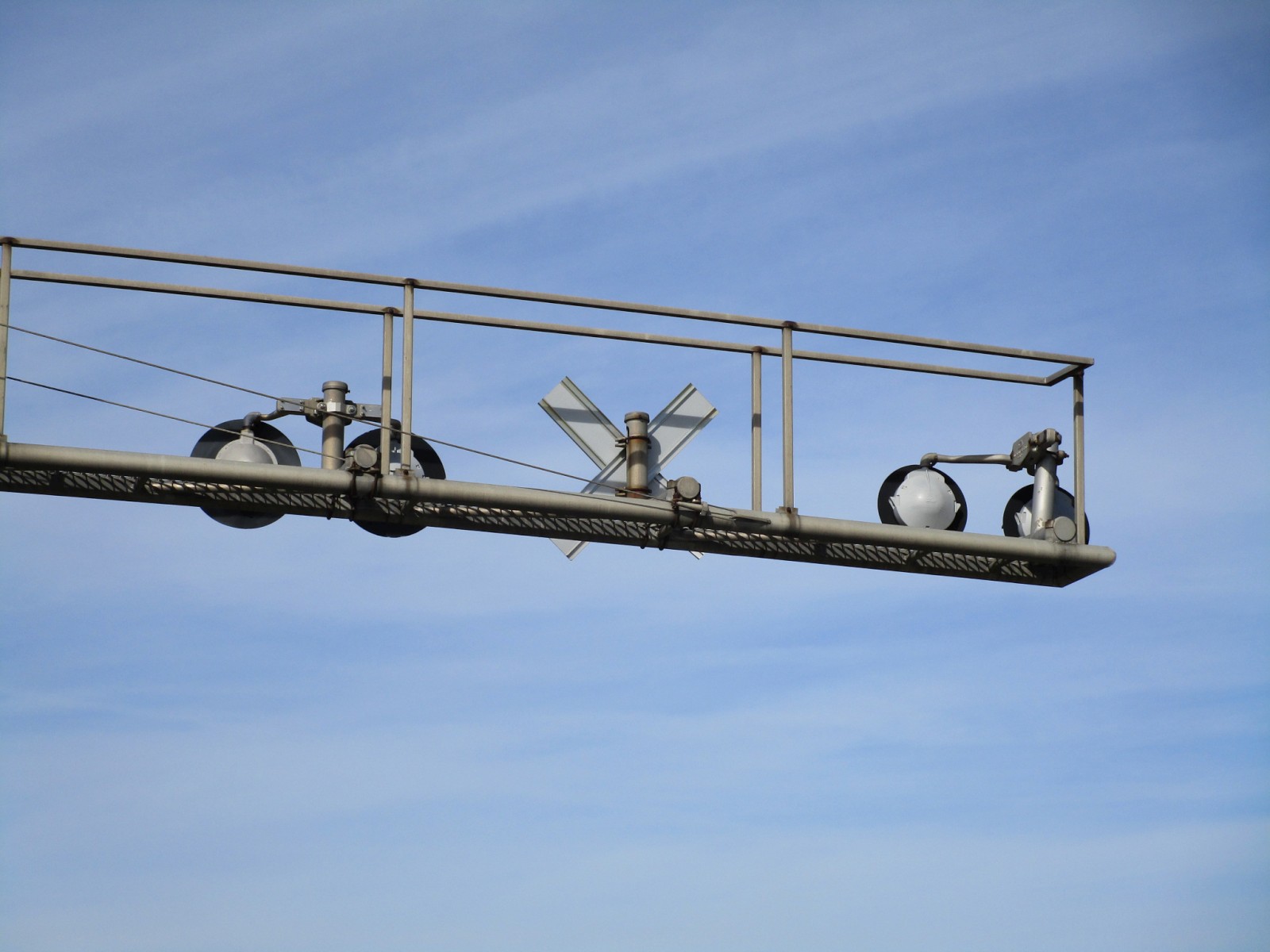

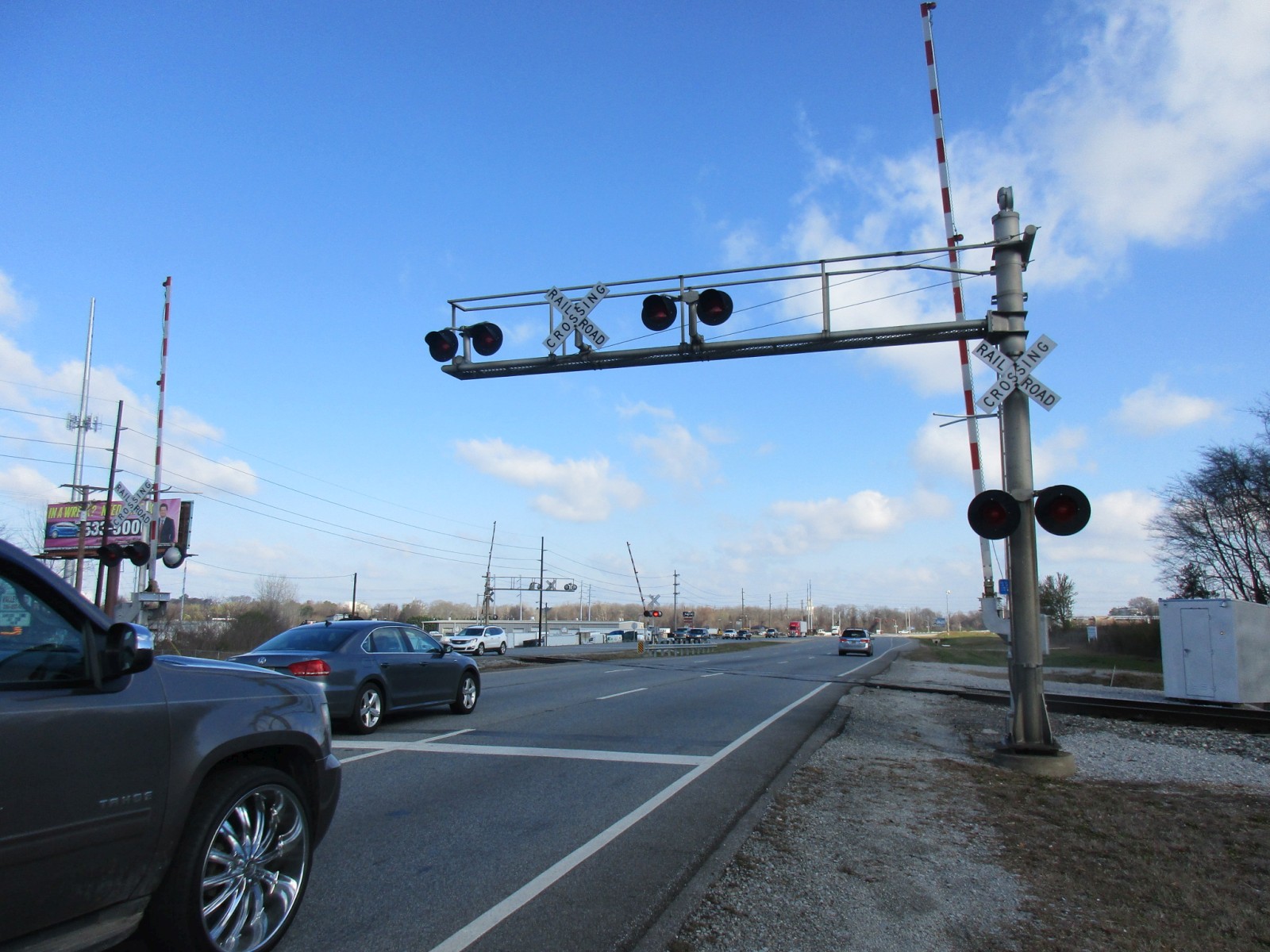

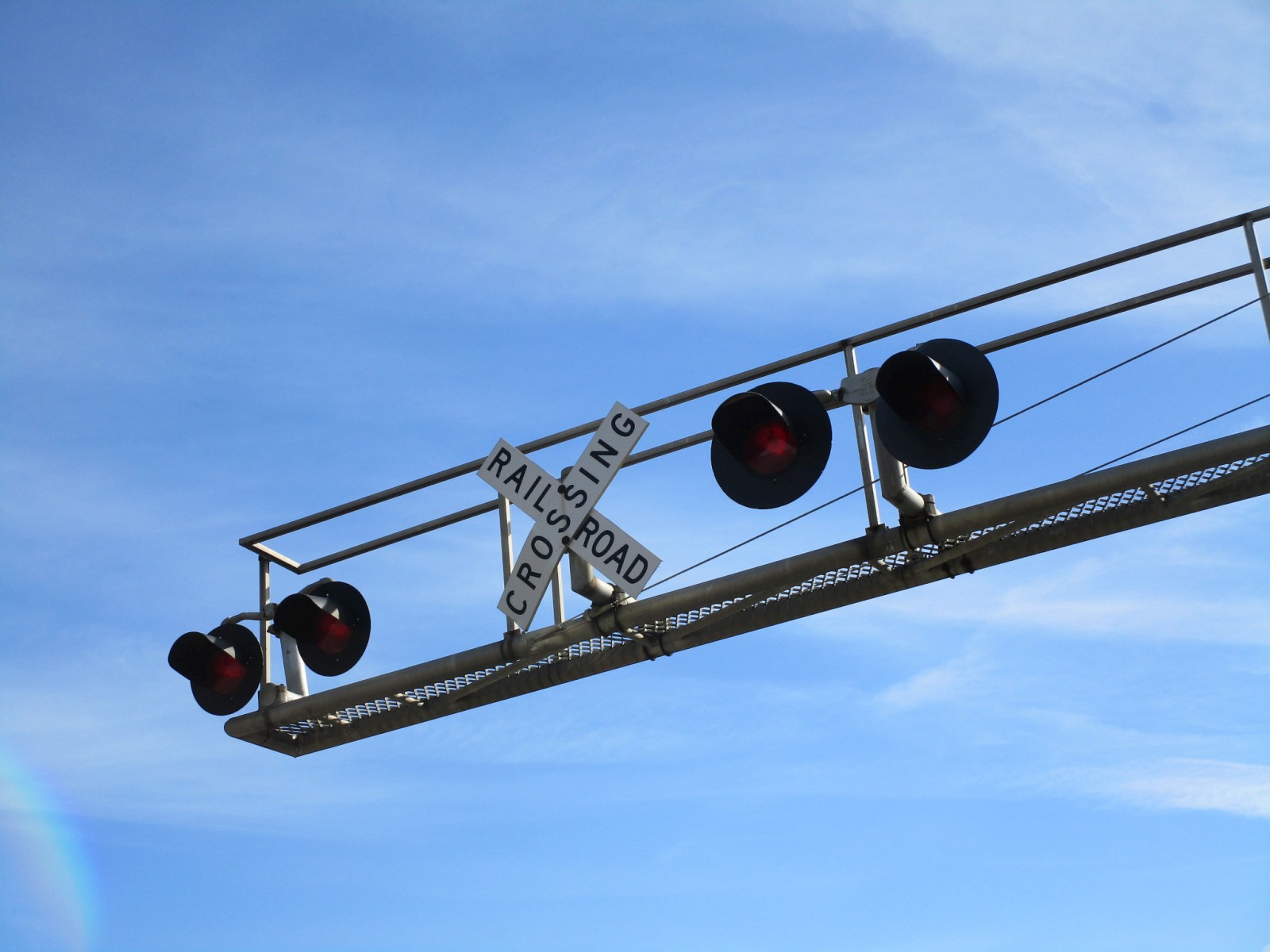

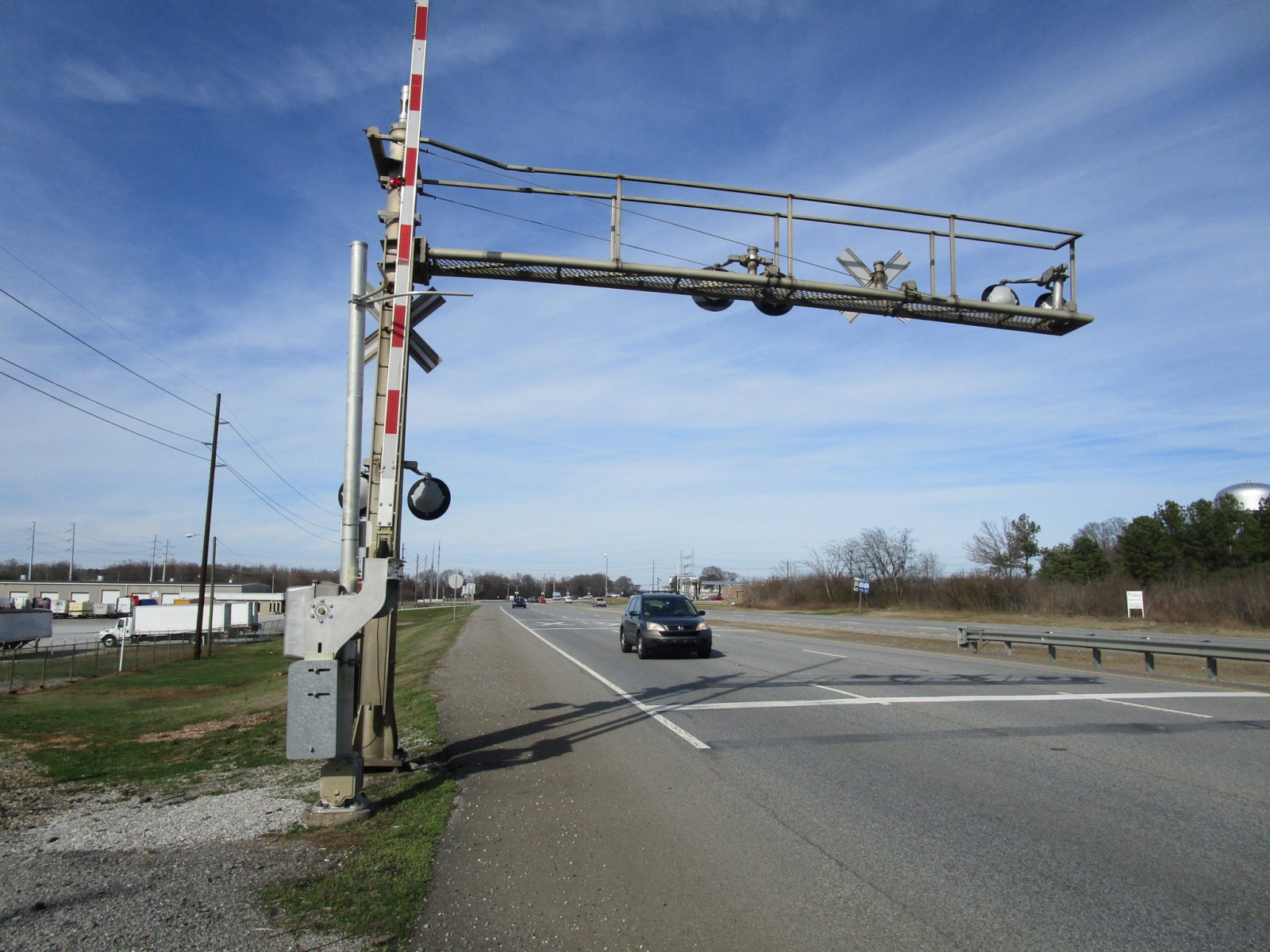

The soundbound cantilever had one of the pairs of overhead lights replaced.

112

113

114

115

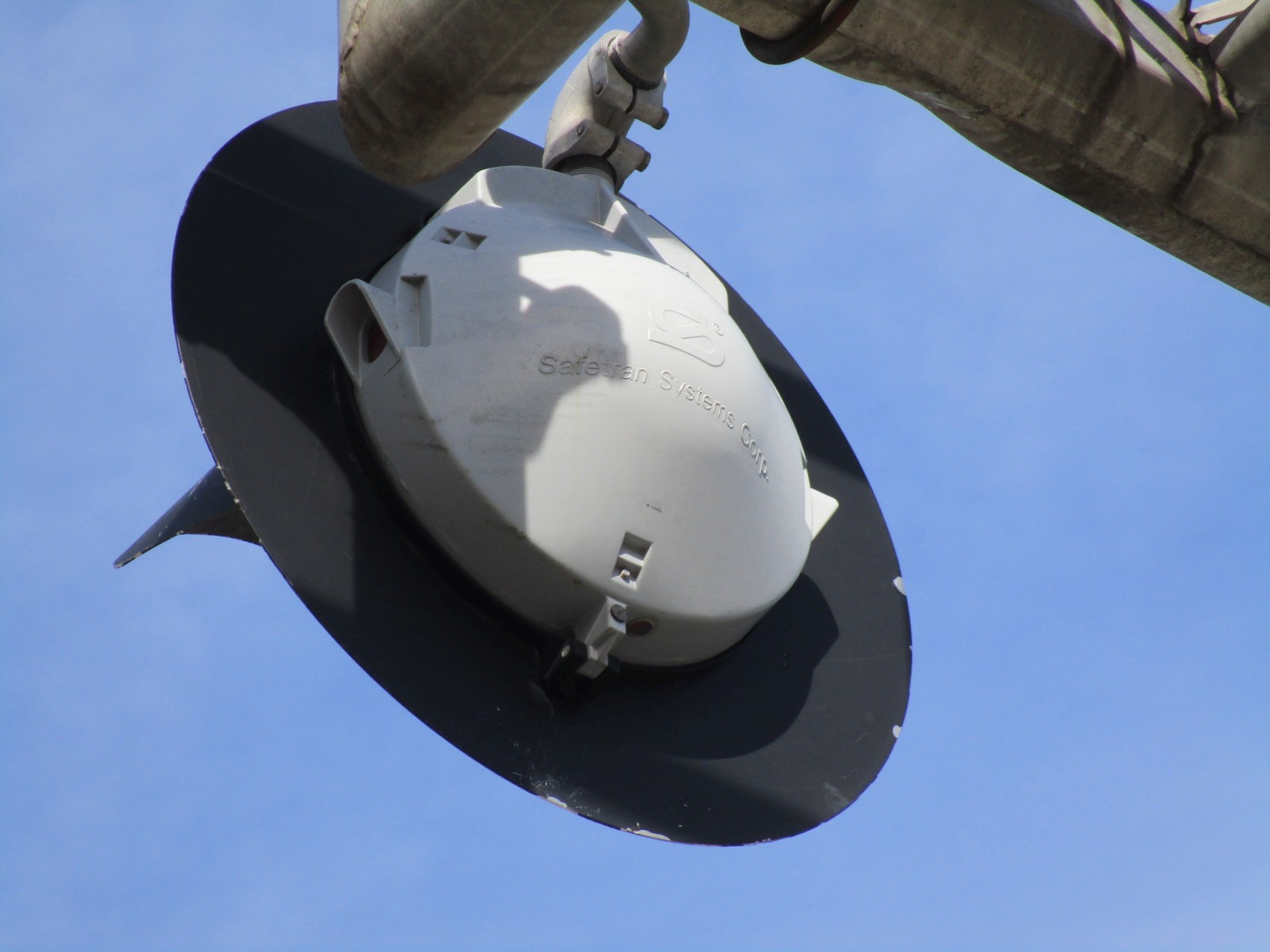

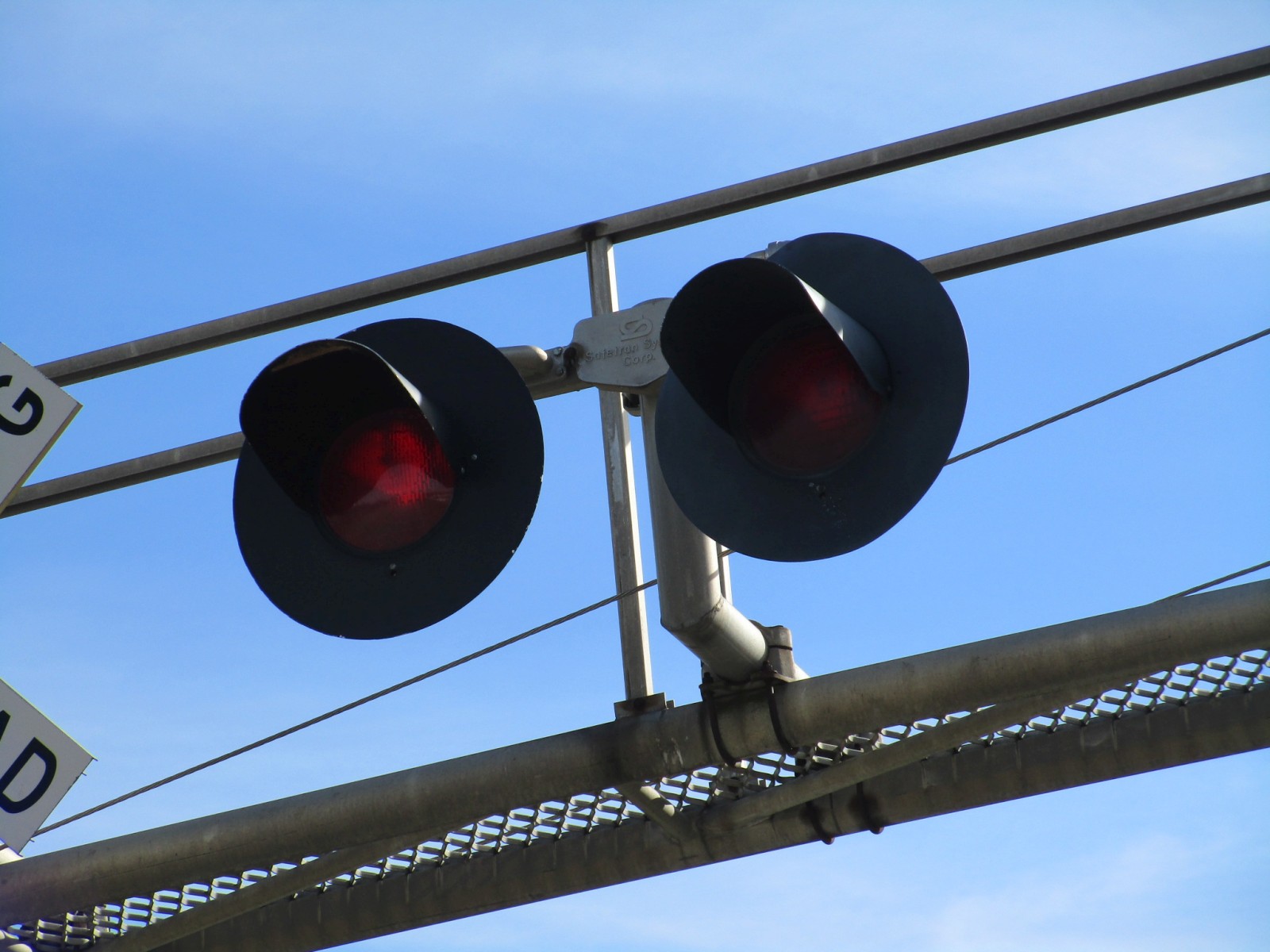

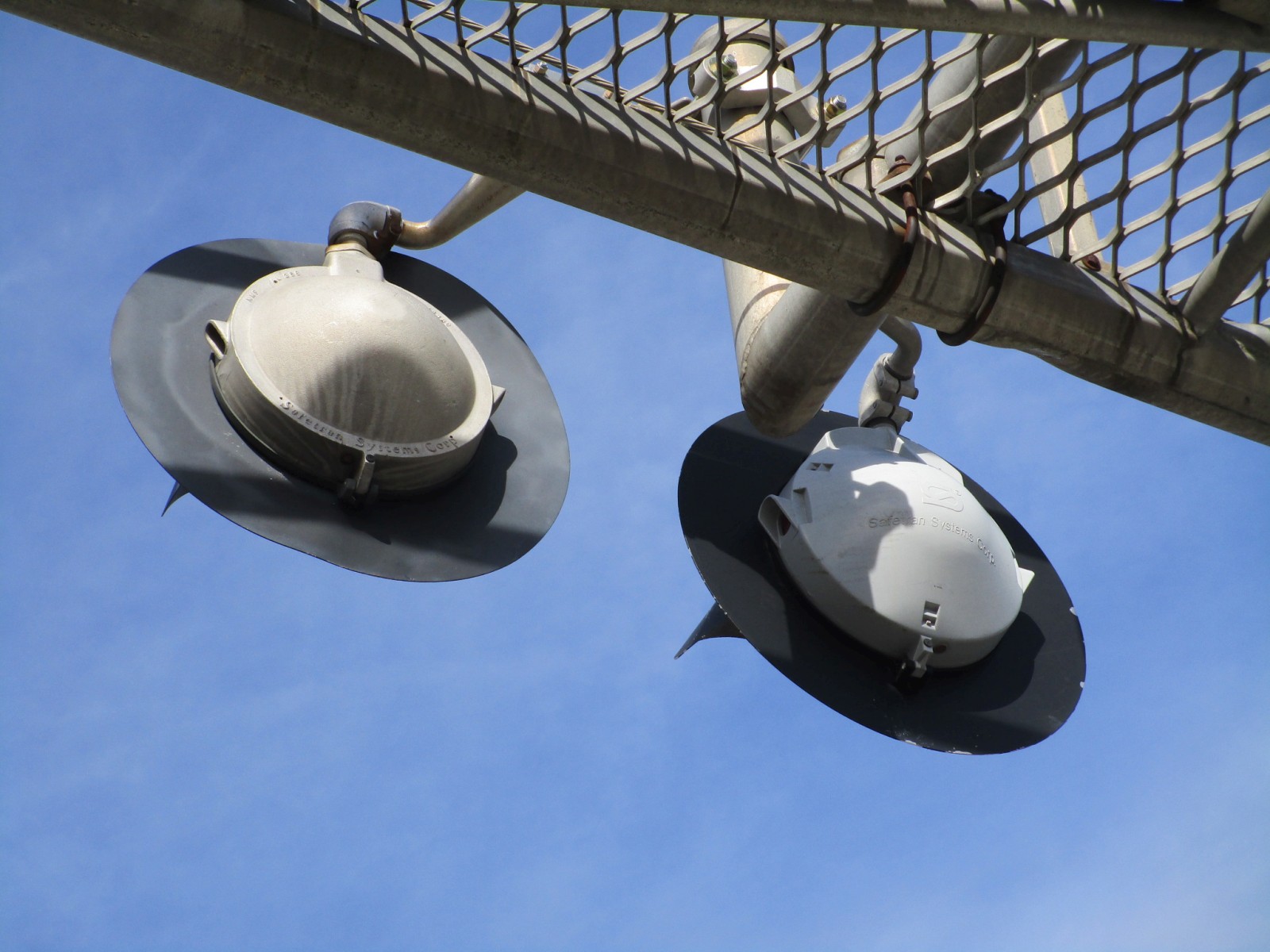

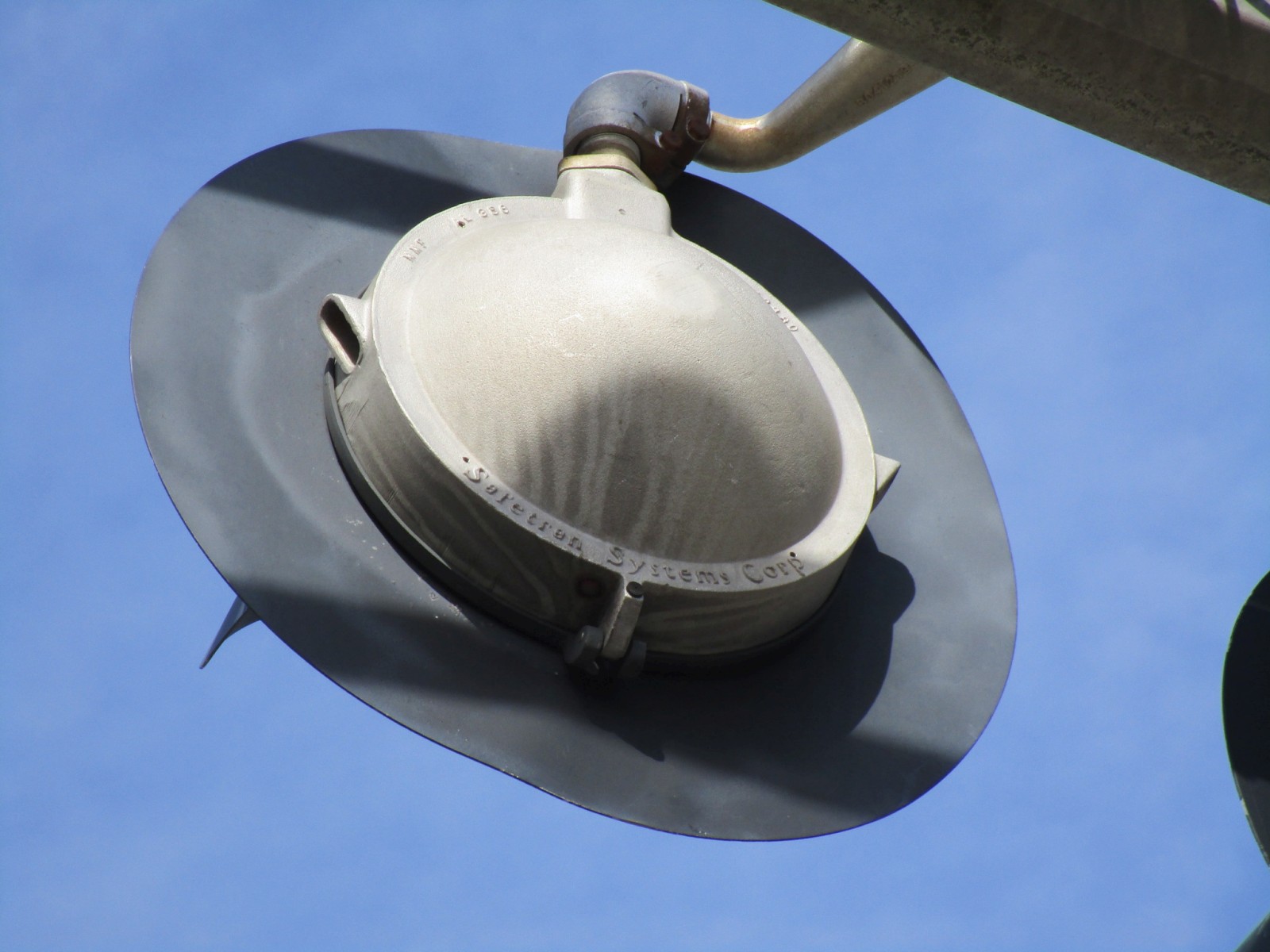

The right-hand pair of overhead lights are now an older Safetran 12x24 inch light paired-up with a newer Safetran 12x24 inch light!





Pictures 1-48 were taken on 8-31-14.

Pictures 49-60 were taken on 3-27-15.

Pictures 61-102 and the video were taken on 3-12-18.

Pictures 104-115 were taken on 2-15-20.
