MP: ANJ849.590 |
Created December 13, 2022
Total Accidents: 1
Crossing
DOT #: 639253C
TOTAL
DAILY TRAINS: 18 (AS OF 2021)
Page created by: freebrickproductions
This crossing is located on the CSX Lineville Subdivision.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | NEG electronic | NEG electronic |
| Base: | WCH | WCH |
| Light Frames: | 6 - 12x24" WCH w/ Leotek EV Series LEDs | 4 - 12x24" WCH w/ Leotek EV Series LEDs |
| Gate Lights: | 3 - NEG LEDs | 3 - NEG LEDs |
| Gate Mechanism: | Siemens Sticker Style 2 | Siemens Sticker Style 2 |
| Gate Striping: | Vertical | Vertical |
1 |
2 |
3 |
4 |

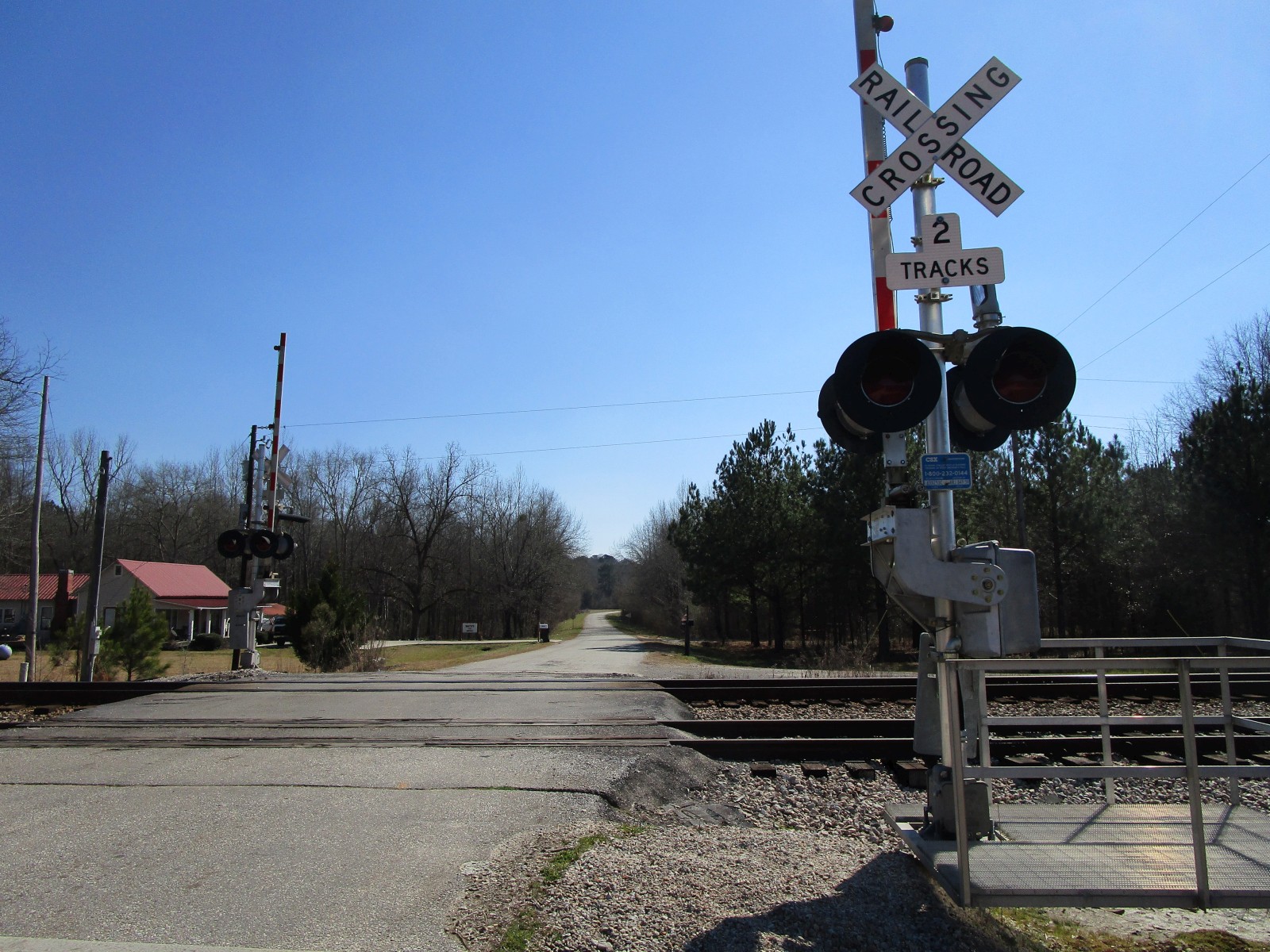

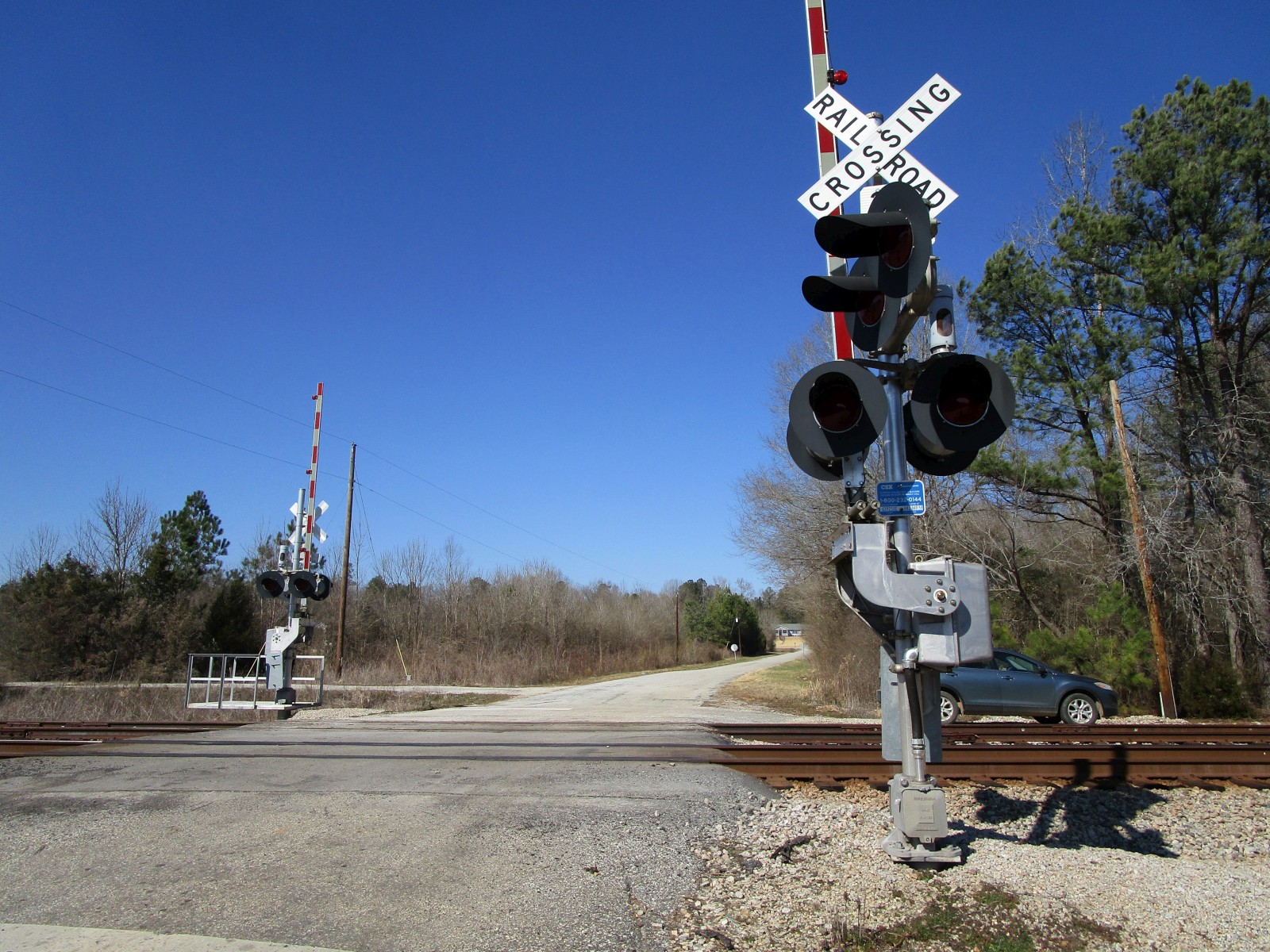

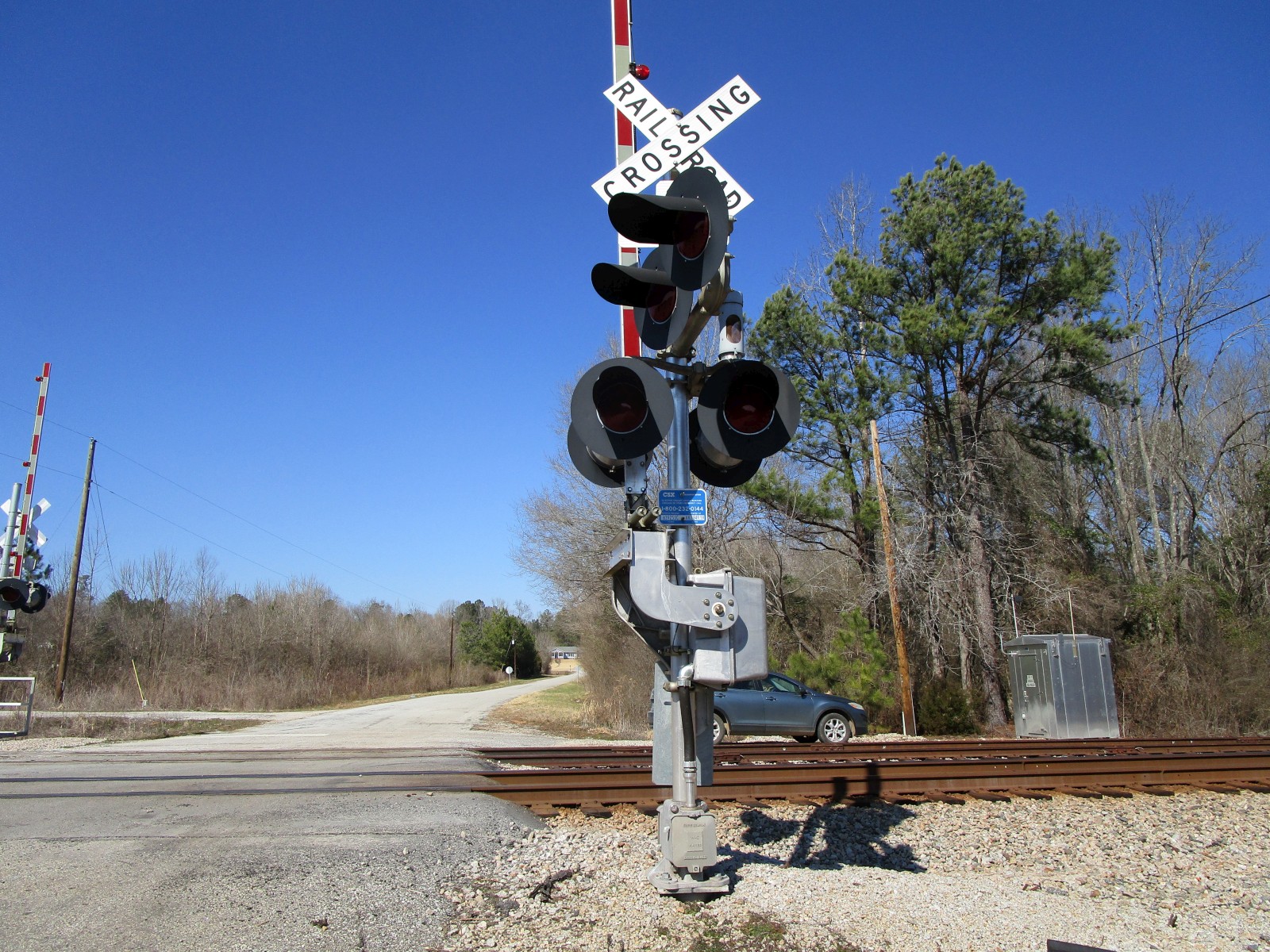

Overviews of the crossing. |

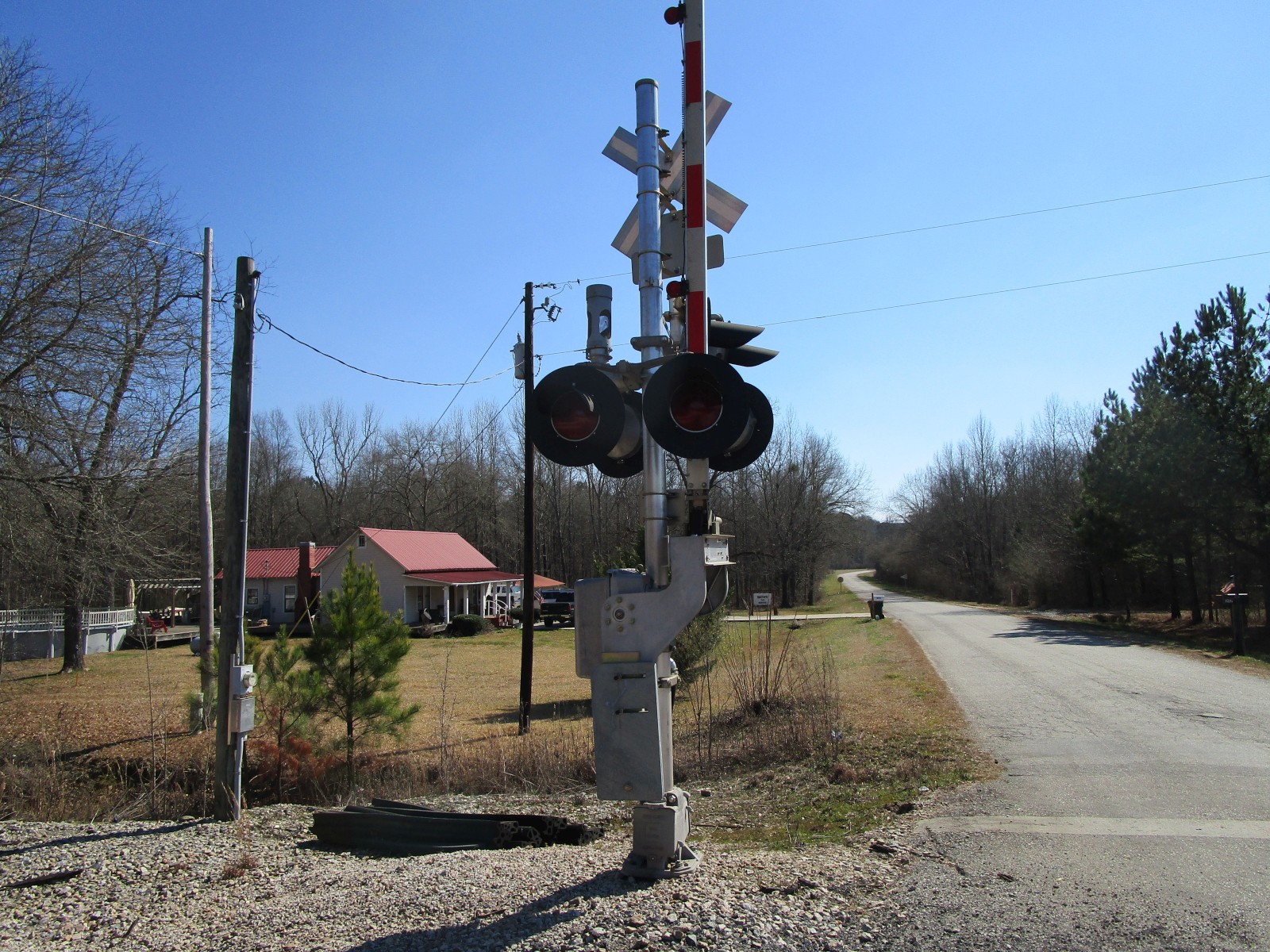

The first signal. |
||
5 |
6 |
7 |
8 |

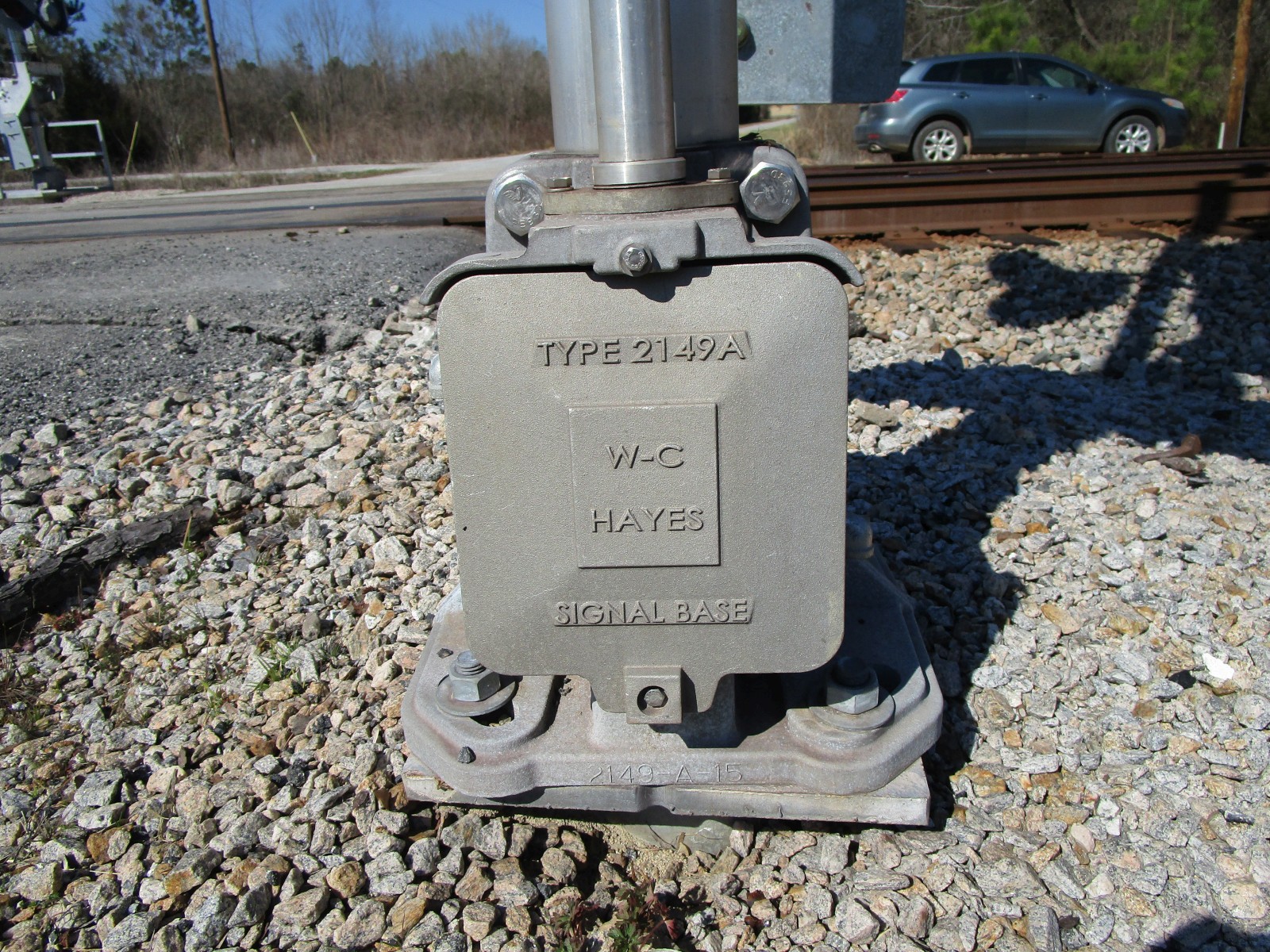

It has a WCH base. |

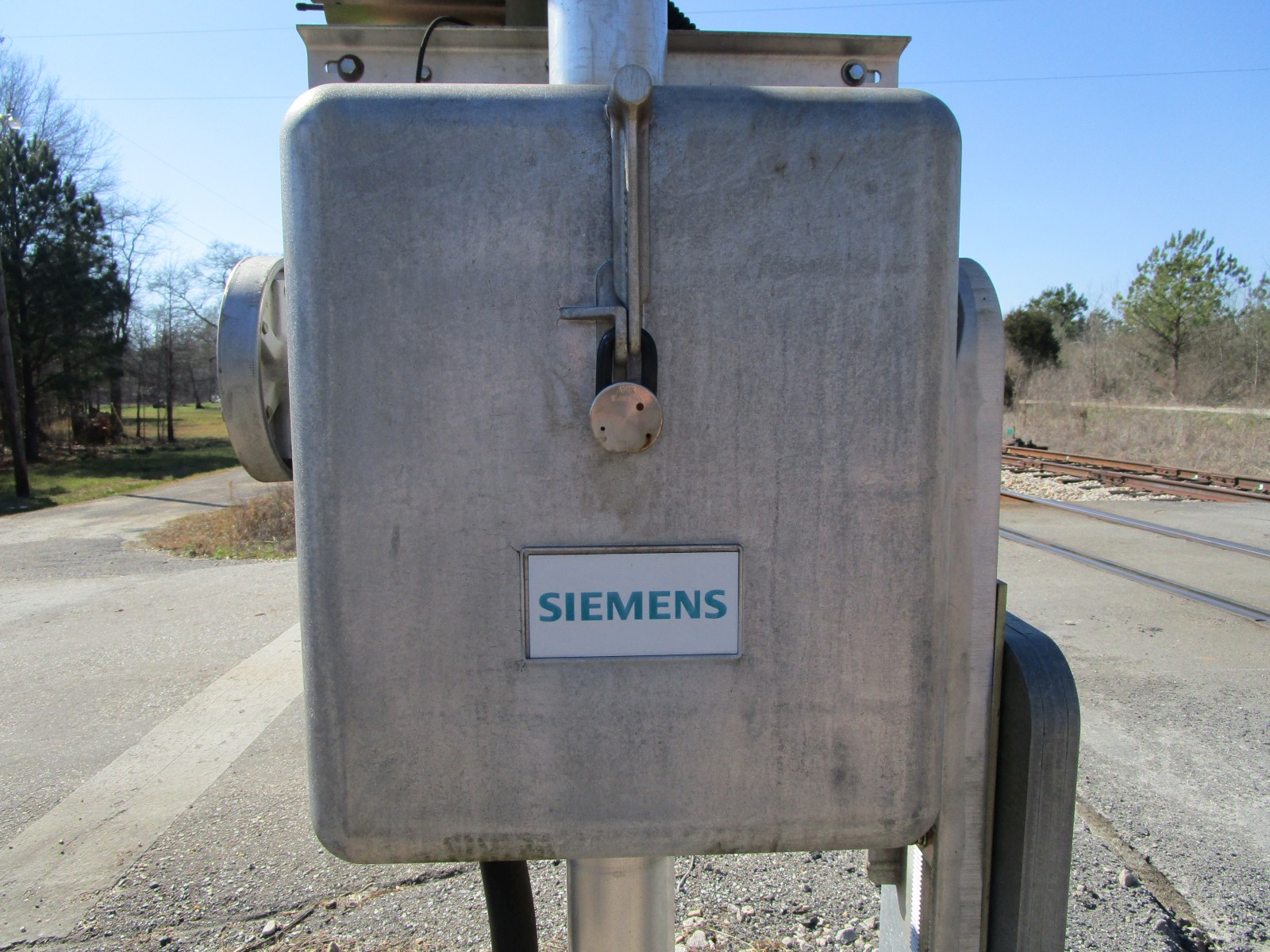

A Siemens gate mechanism. |

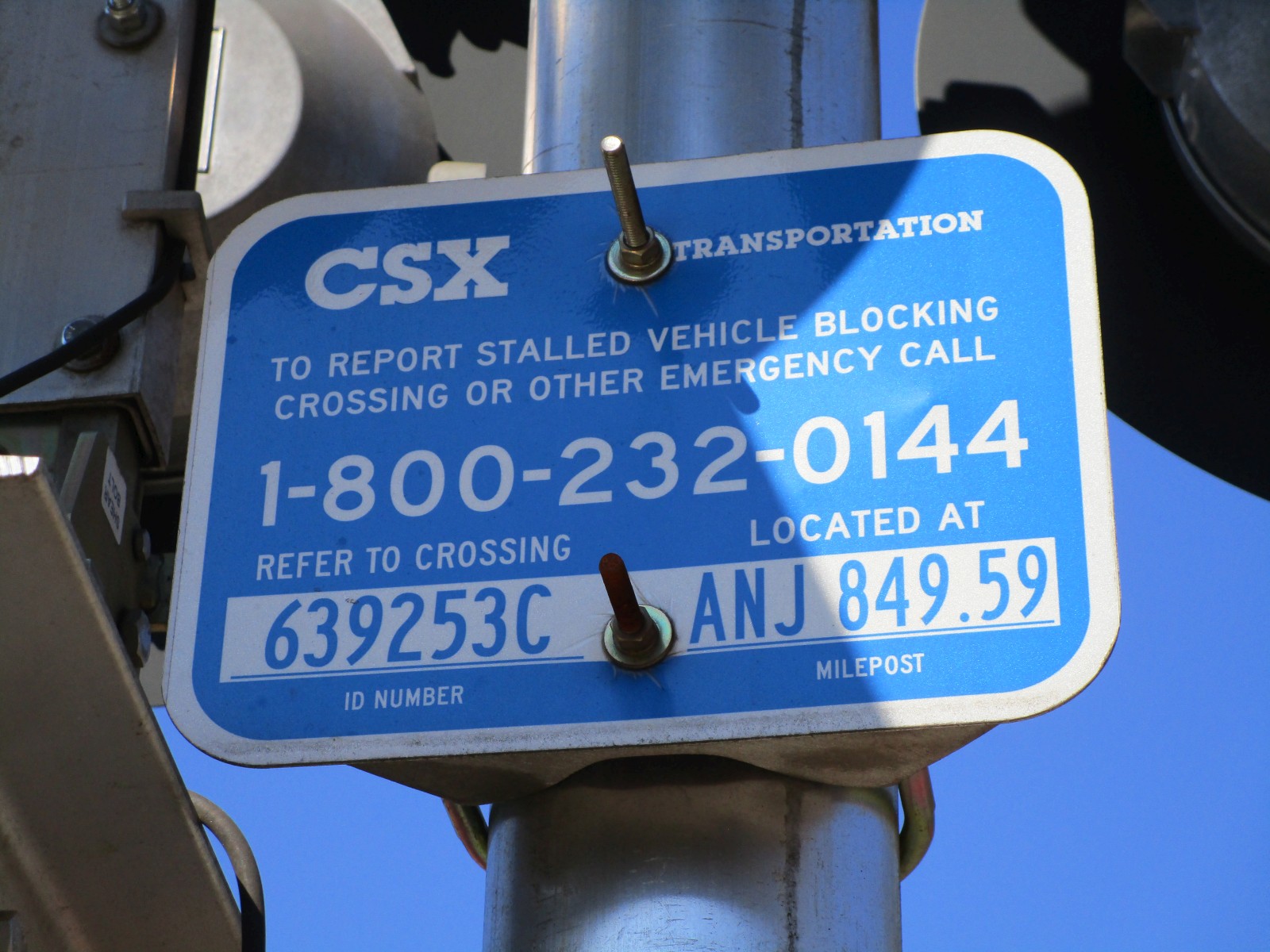

The emergency information. |

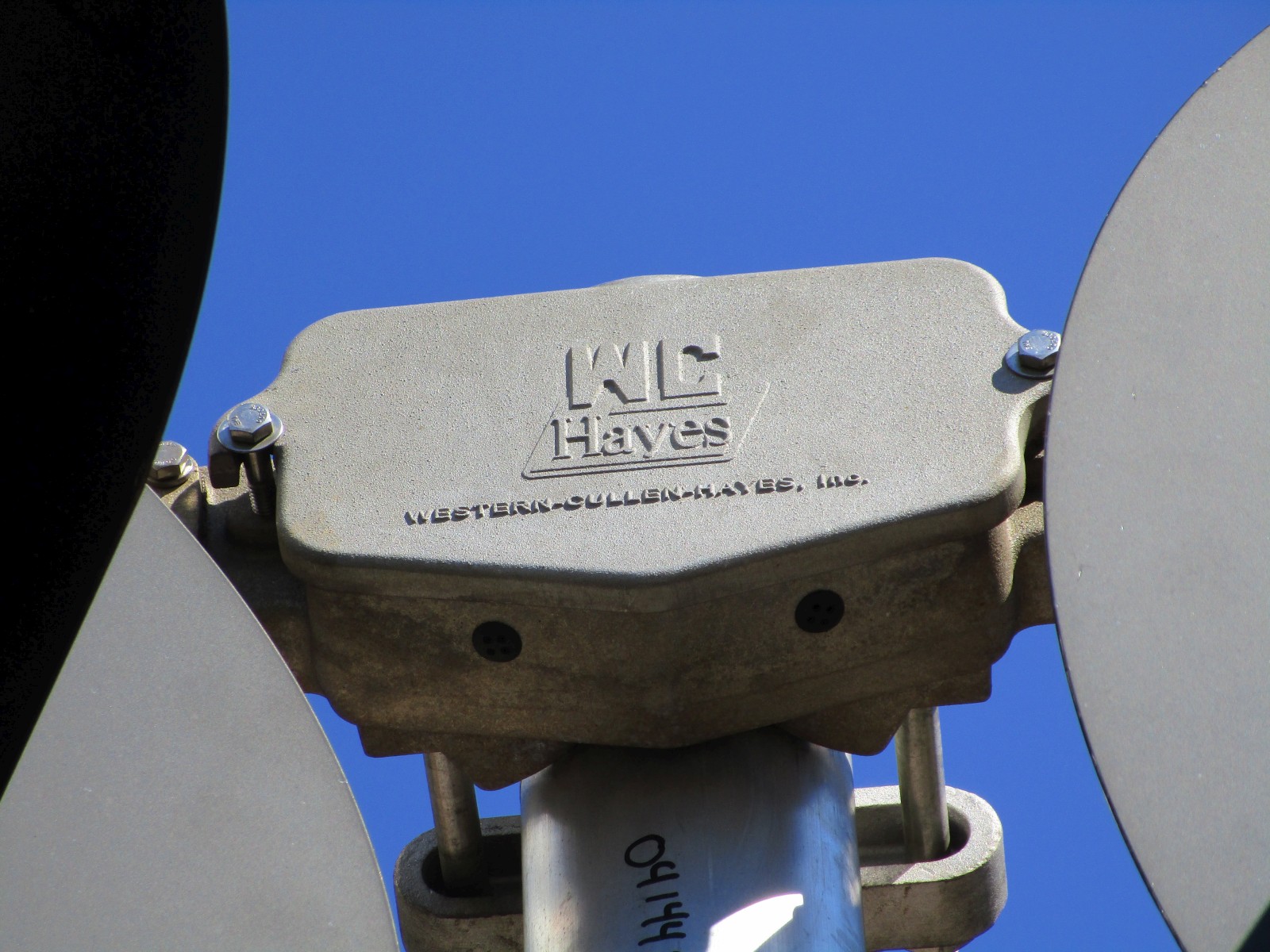

A WCH bracket. |
9 |
10 |
11 |
12 |

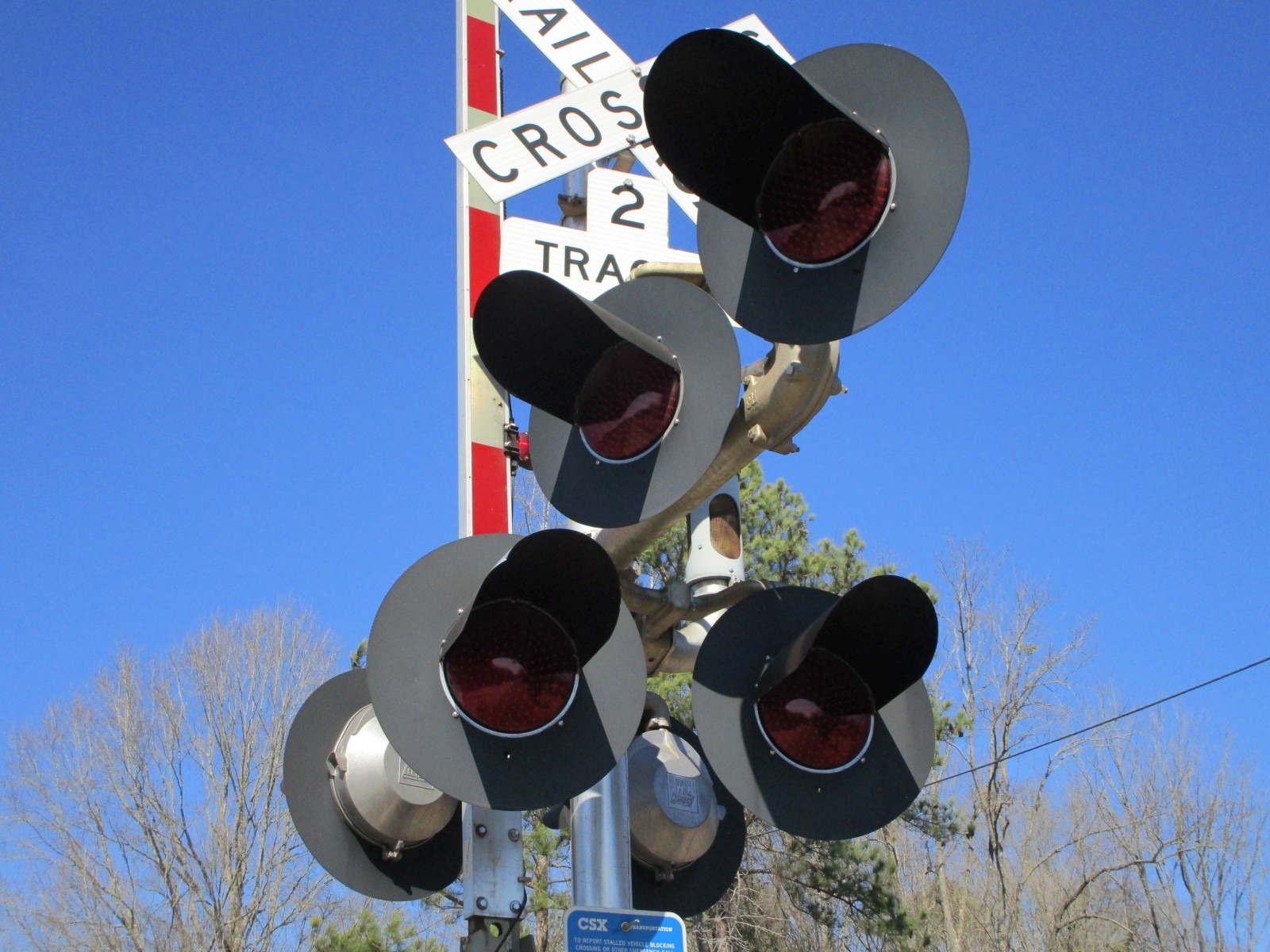

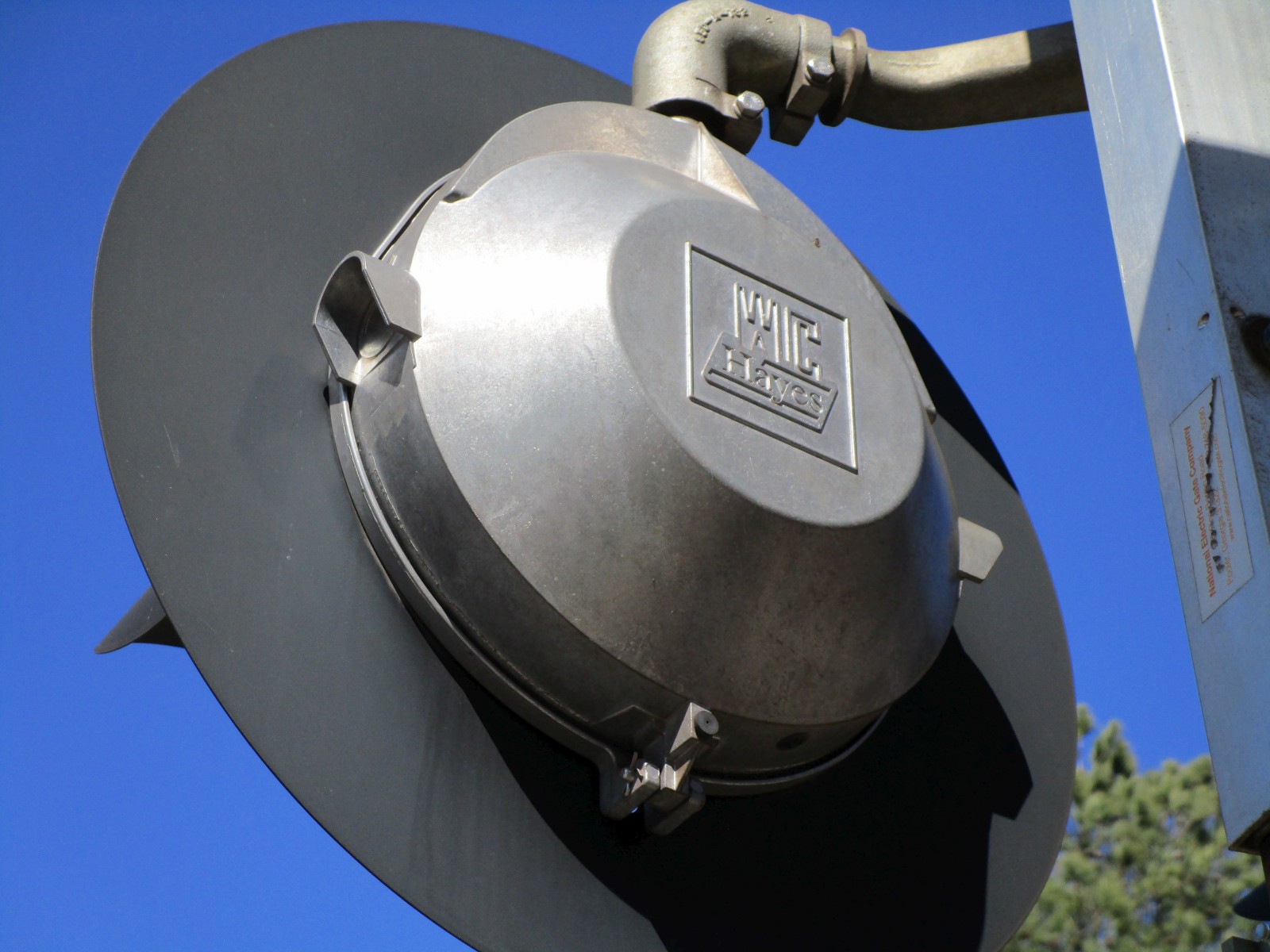

The lights on this signal are all WCH 12x24 inch lights with Leotek EV Series LEDs. |

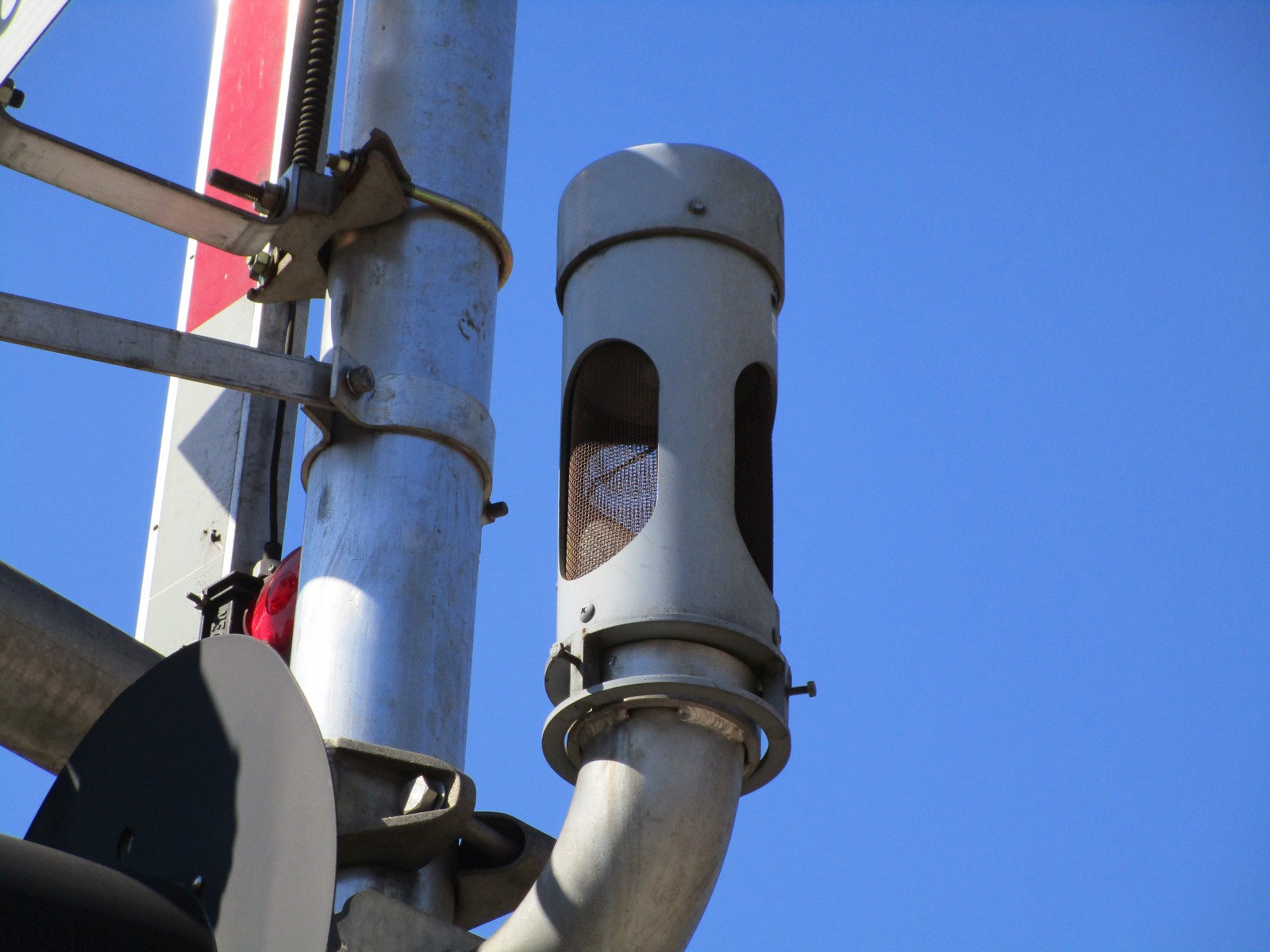

This signal has an NEG electronic bell. |

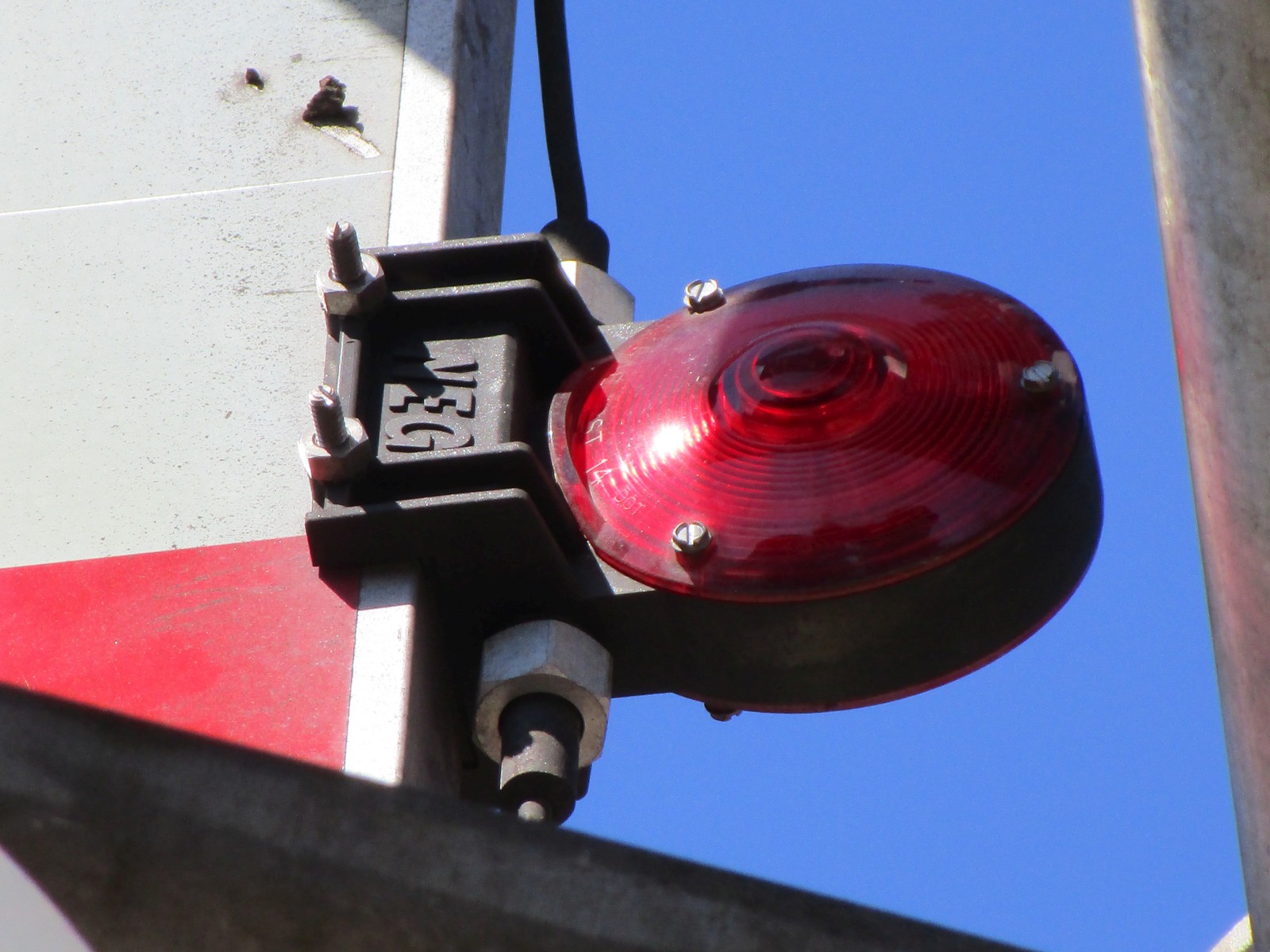

This signal uses NEG LED gate lights. |
|
13 |
14 |
15 |
16 |

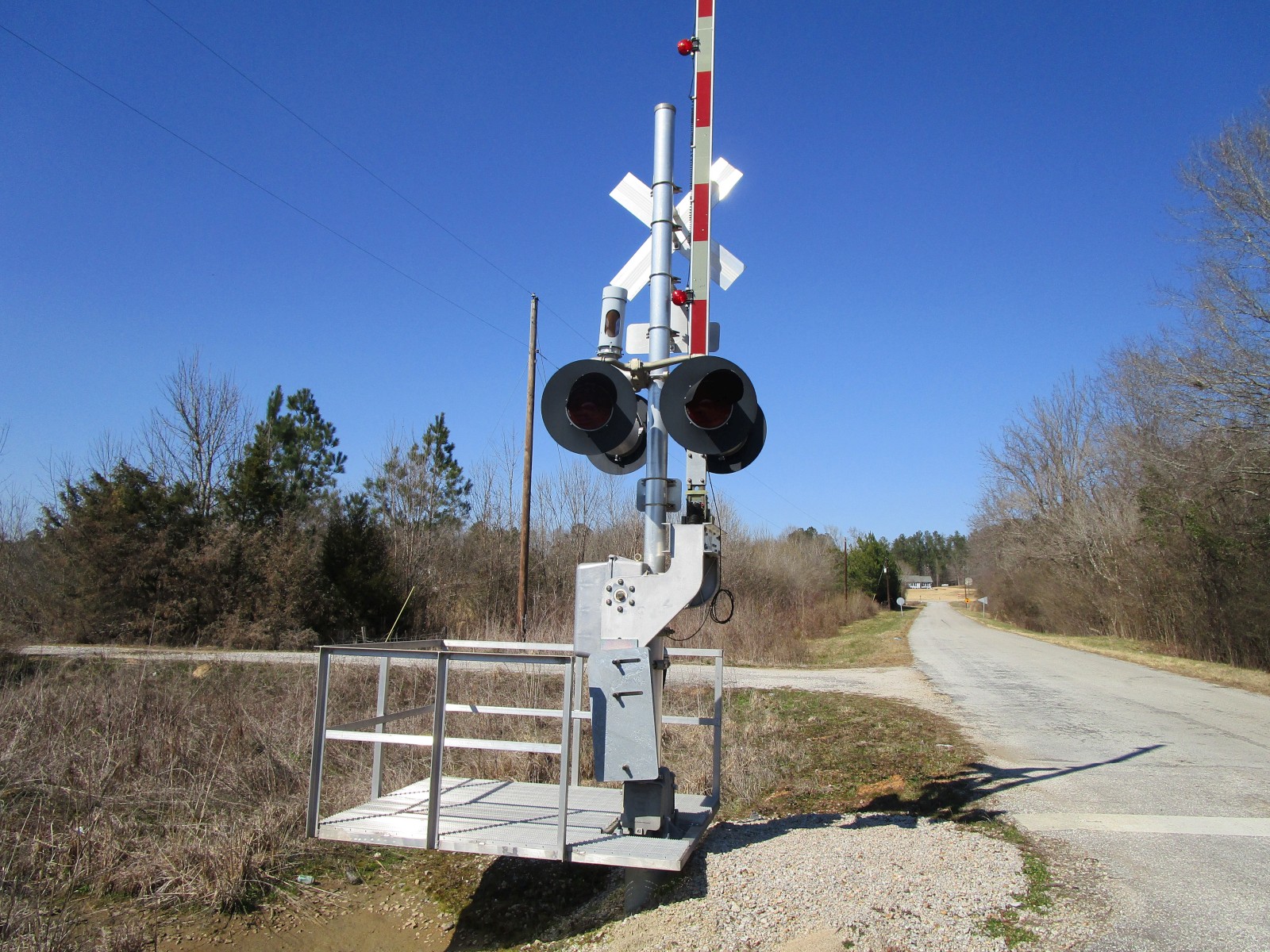

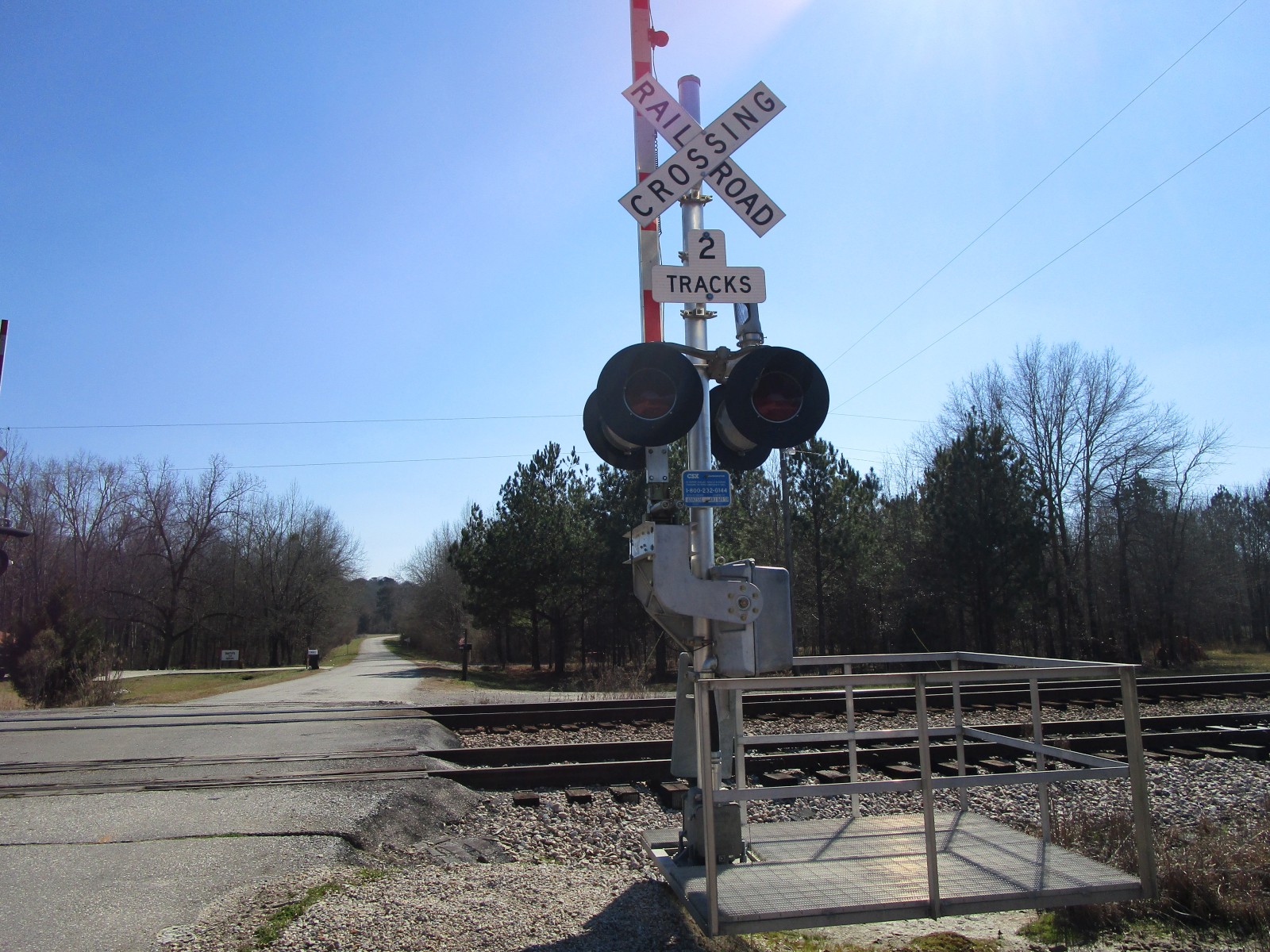

The second signal. |

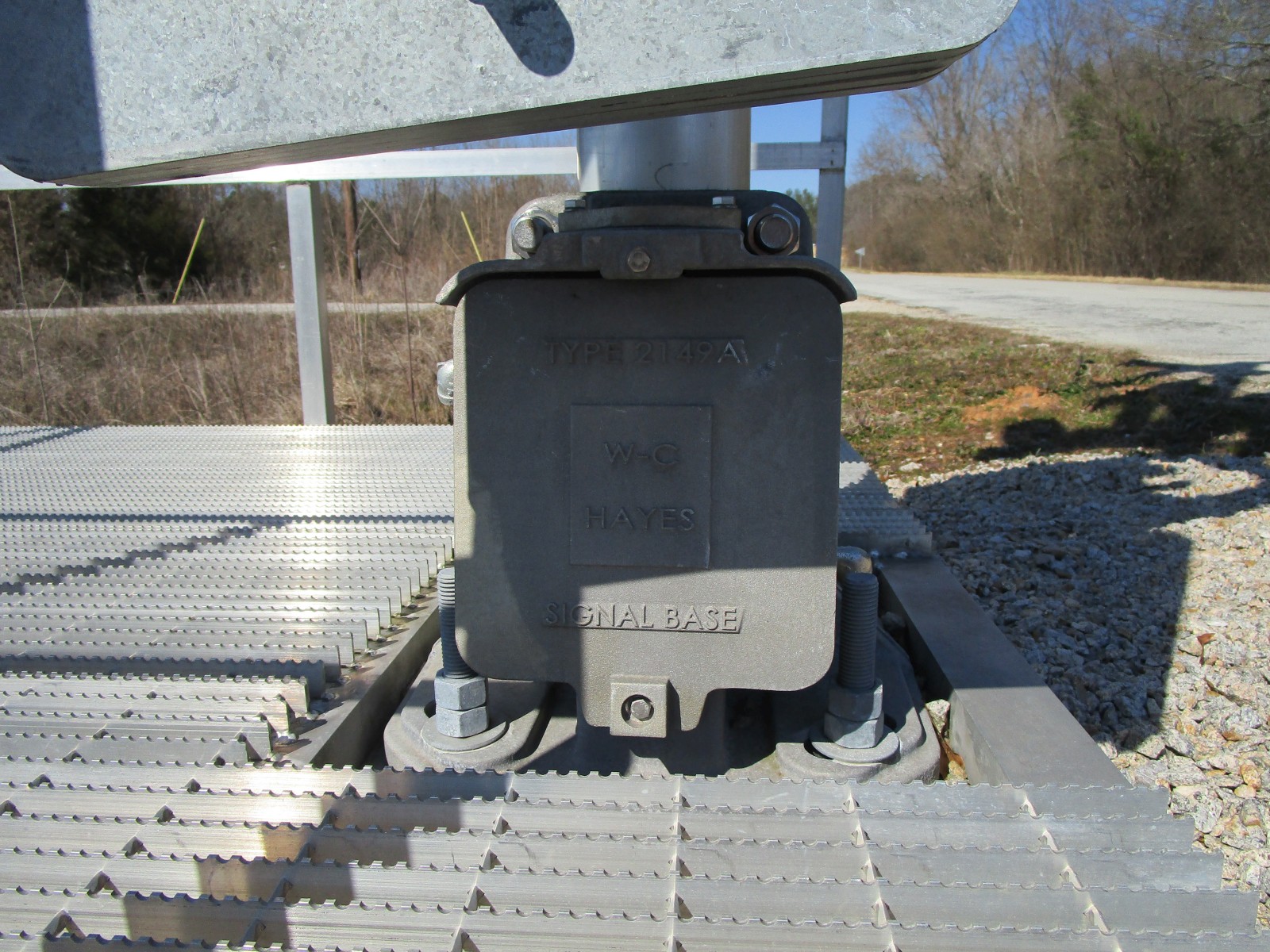

It has another WCH base. |

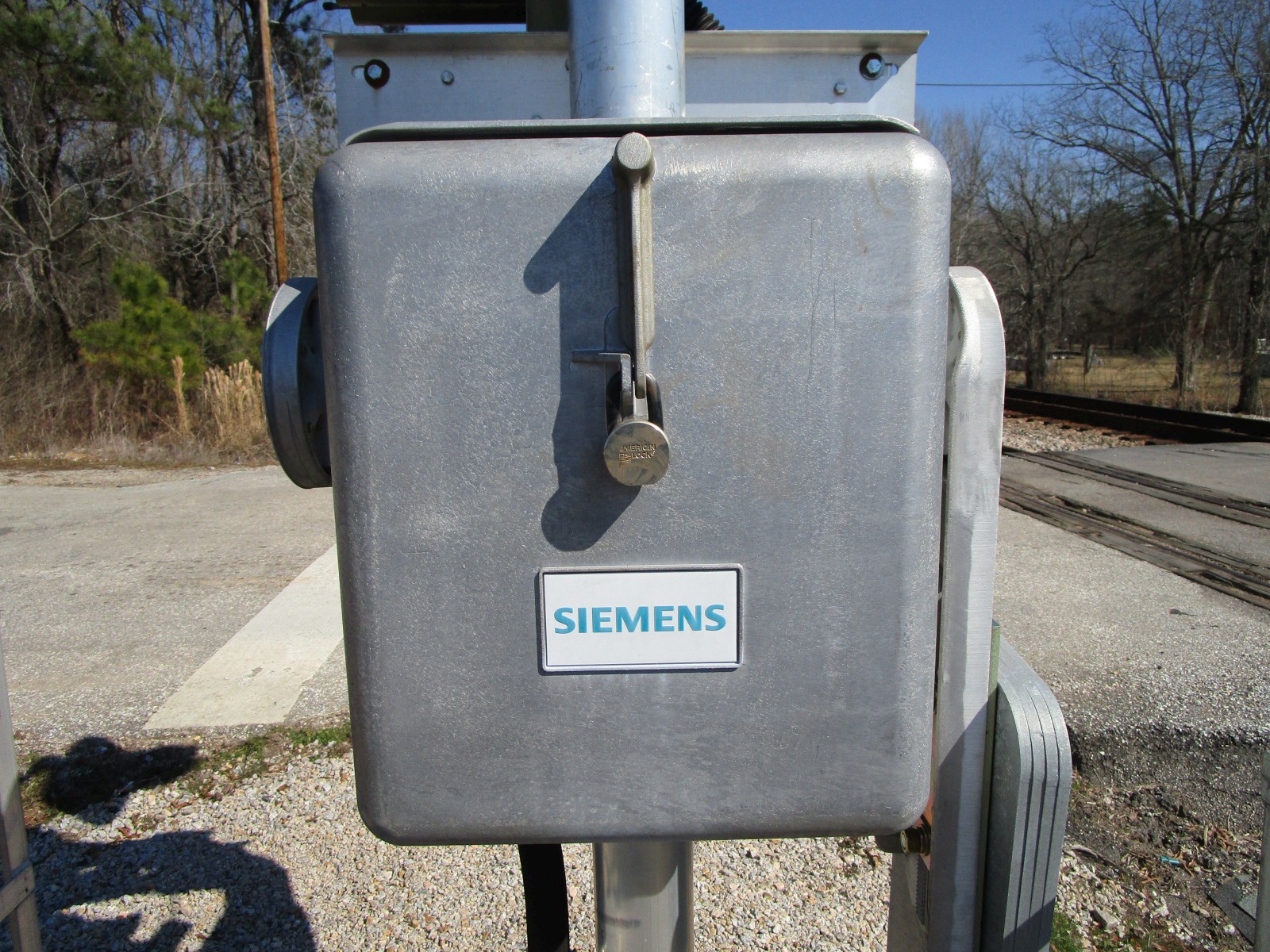

Another Siemens gate mechanism. |
|
17 |
18 |
19 |
20 |

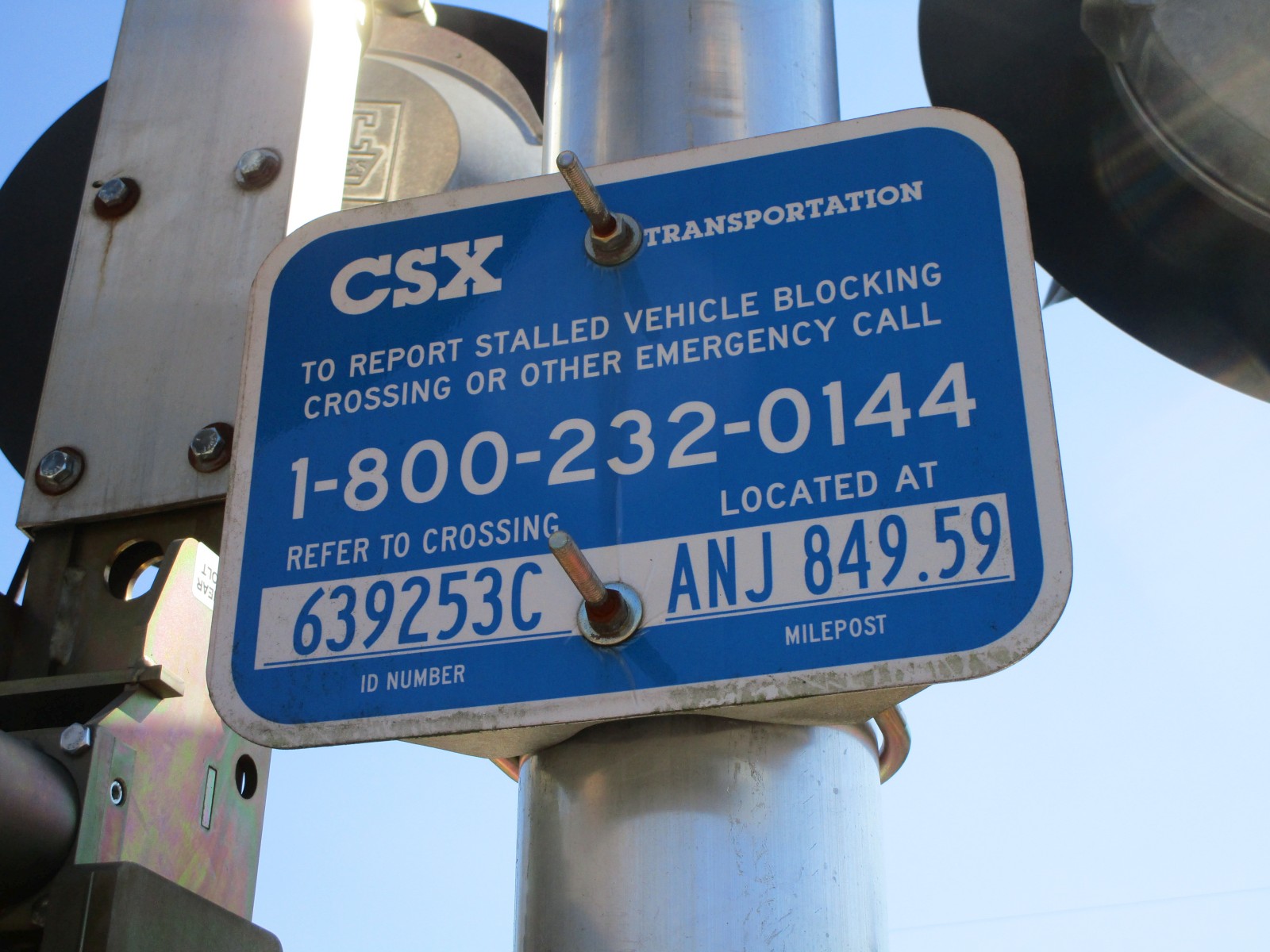

The emergency information. |

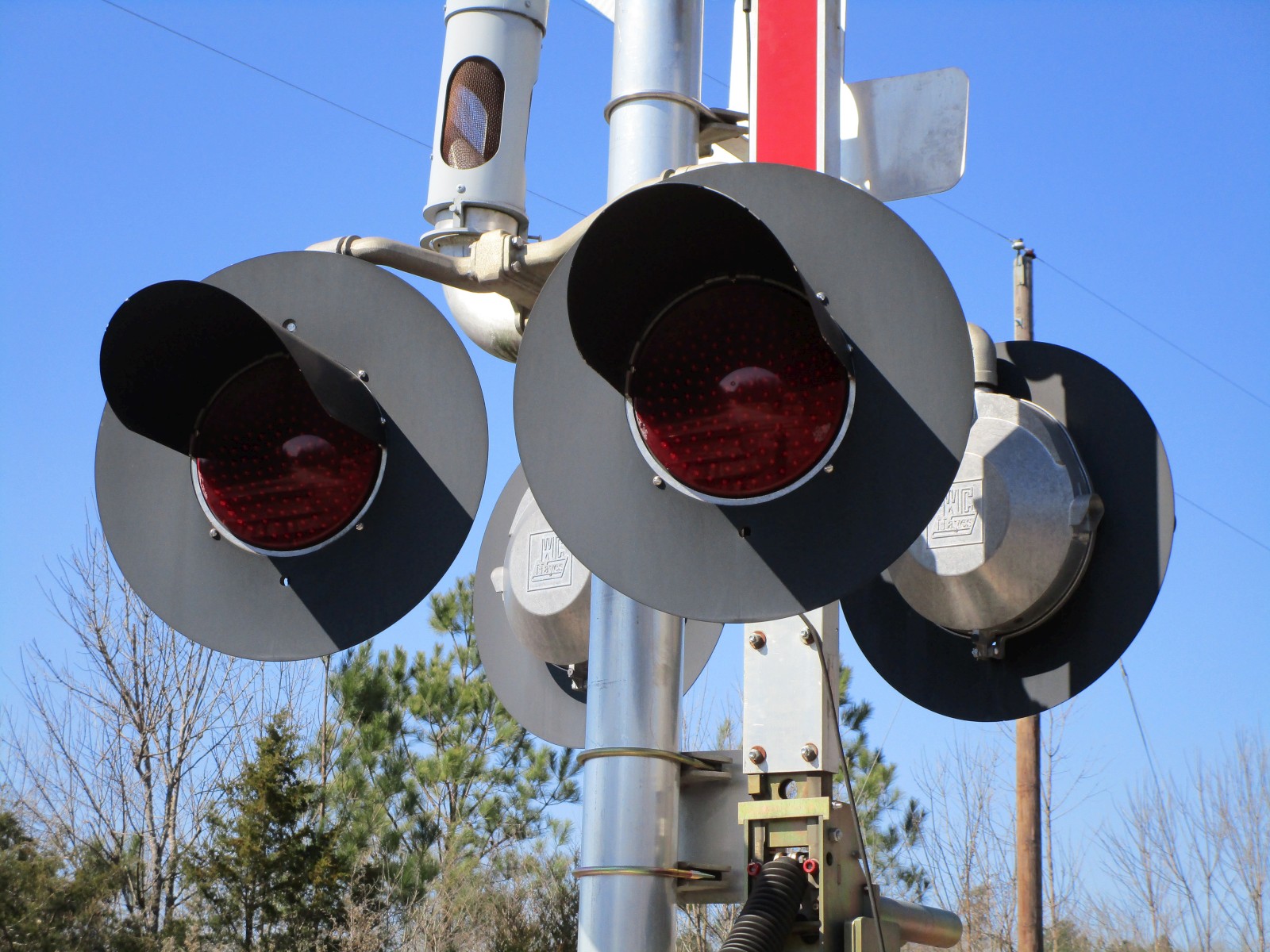

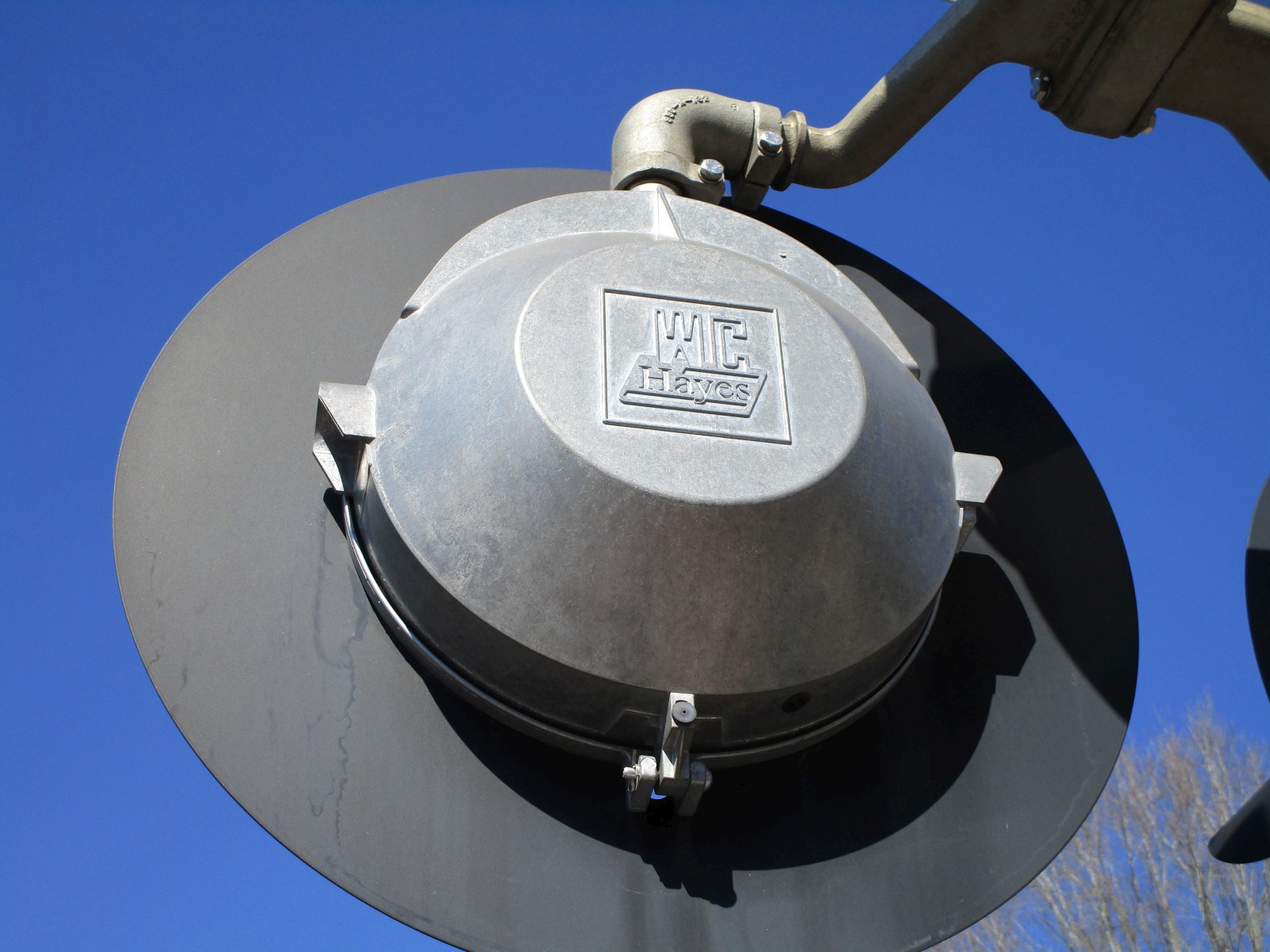

The lights on this signal are more WCH 12x24 inch lights with Leotek EV Series LEDs. |
Another NEG electronic bell on this signal. |
|
21 |
22 |
23 |
24 |

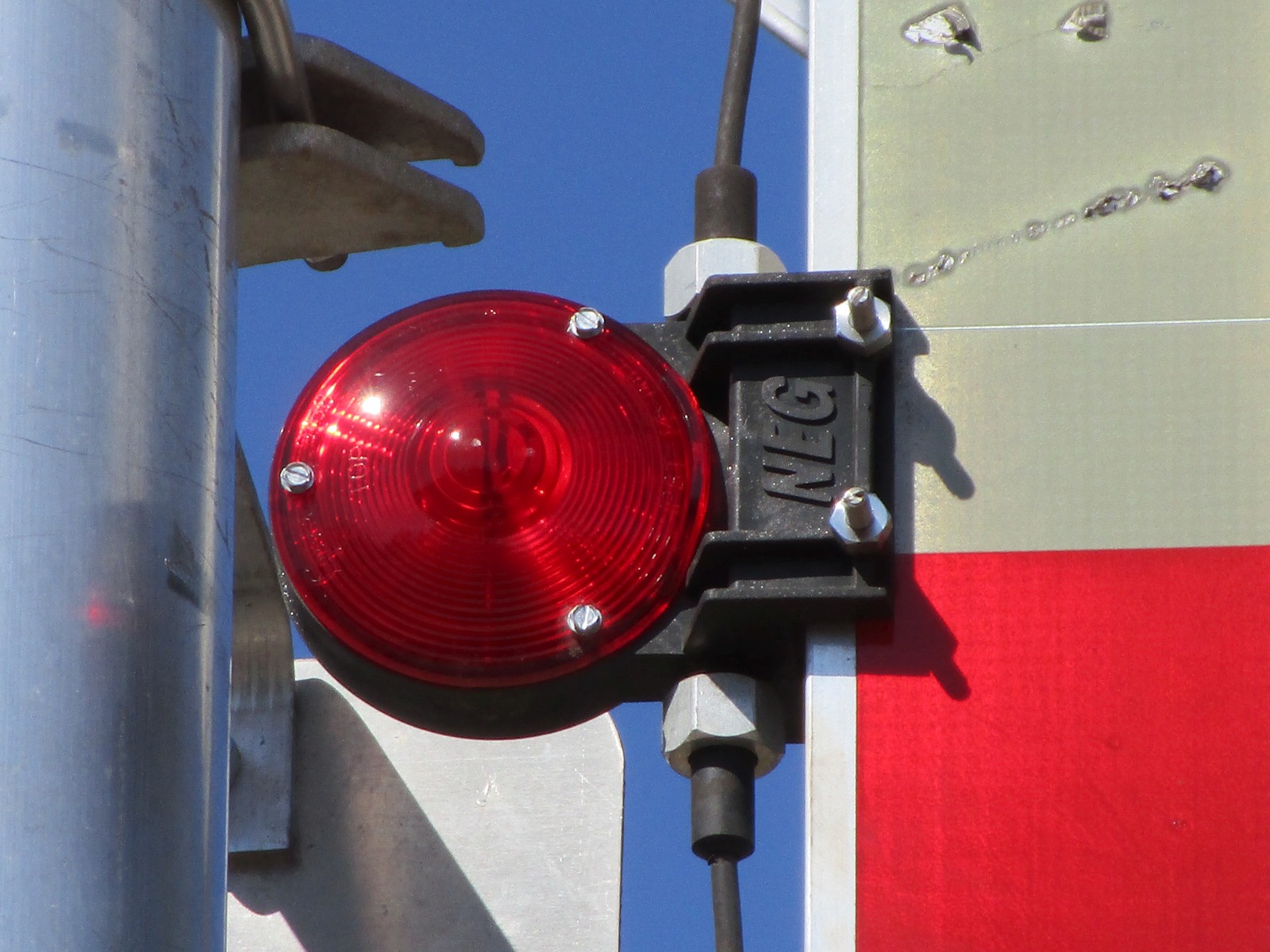

More NEG LED gate lights over here. |

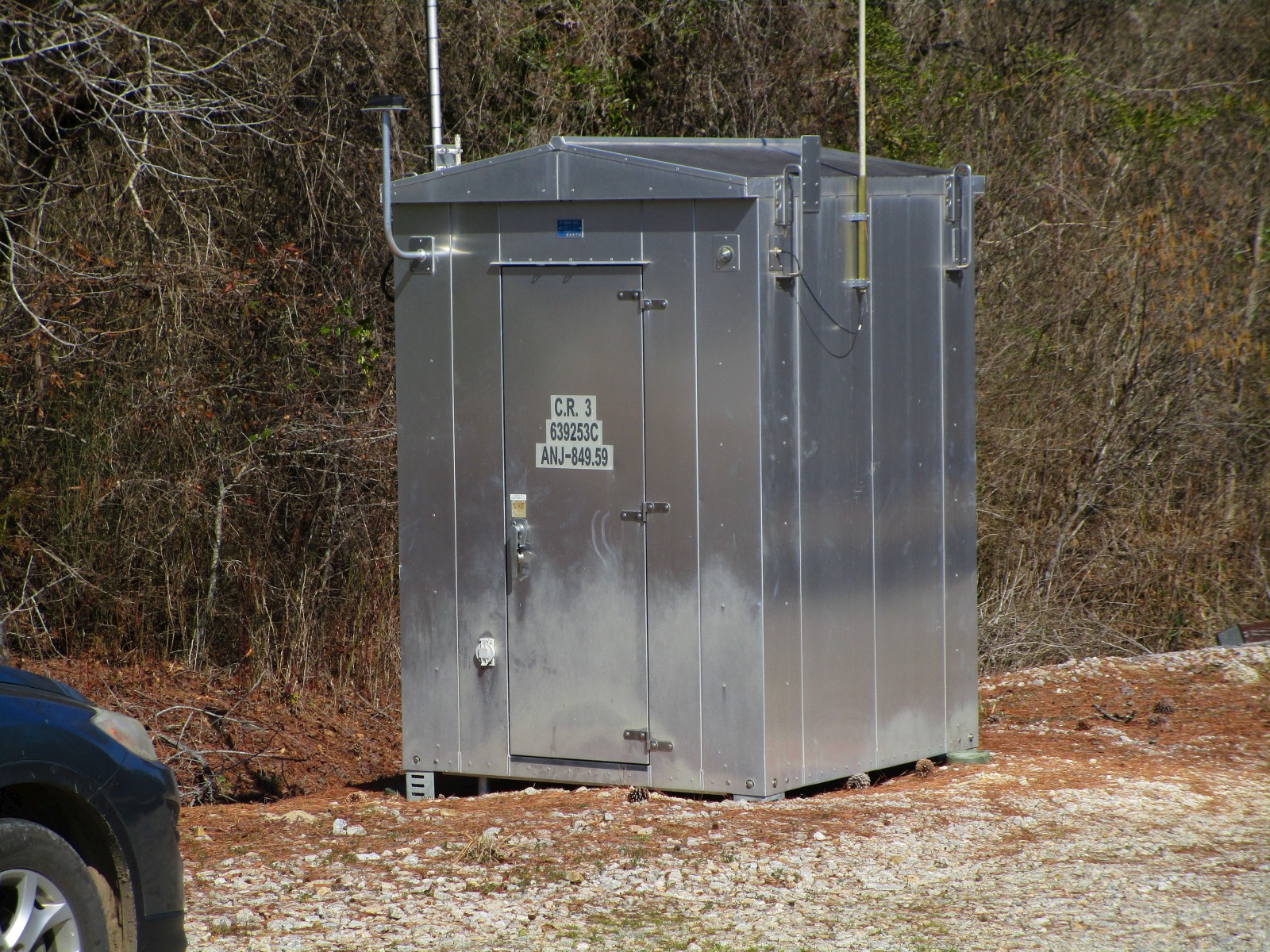

The relay case. |

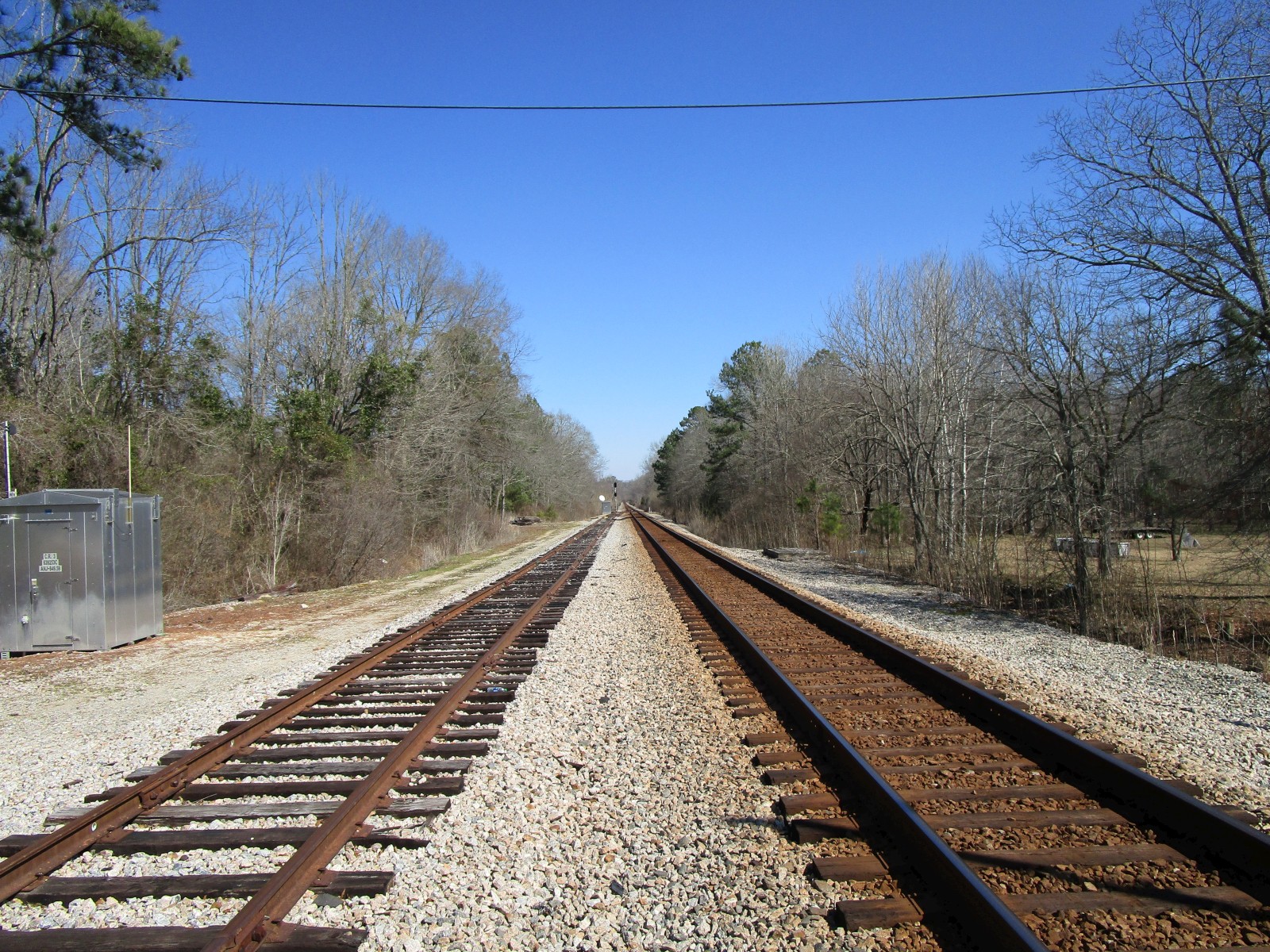

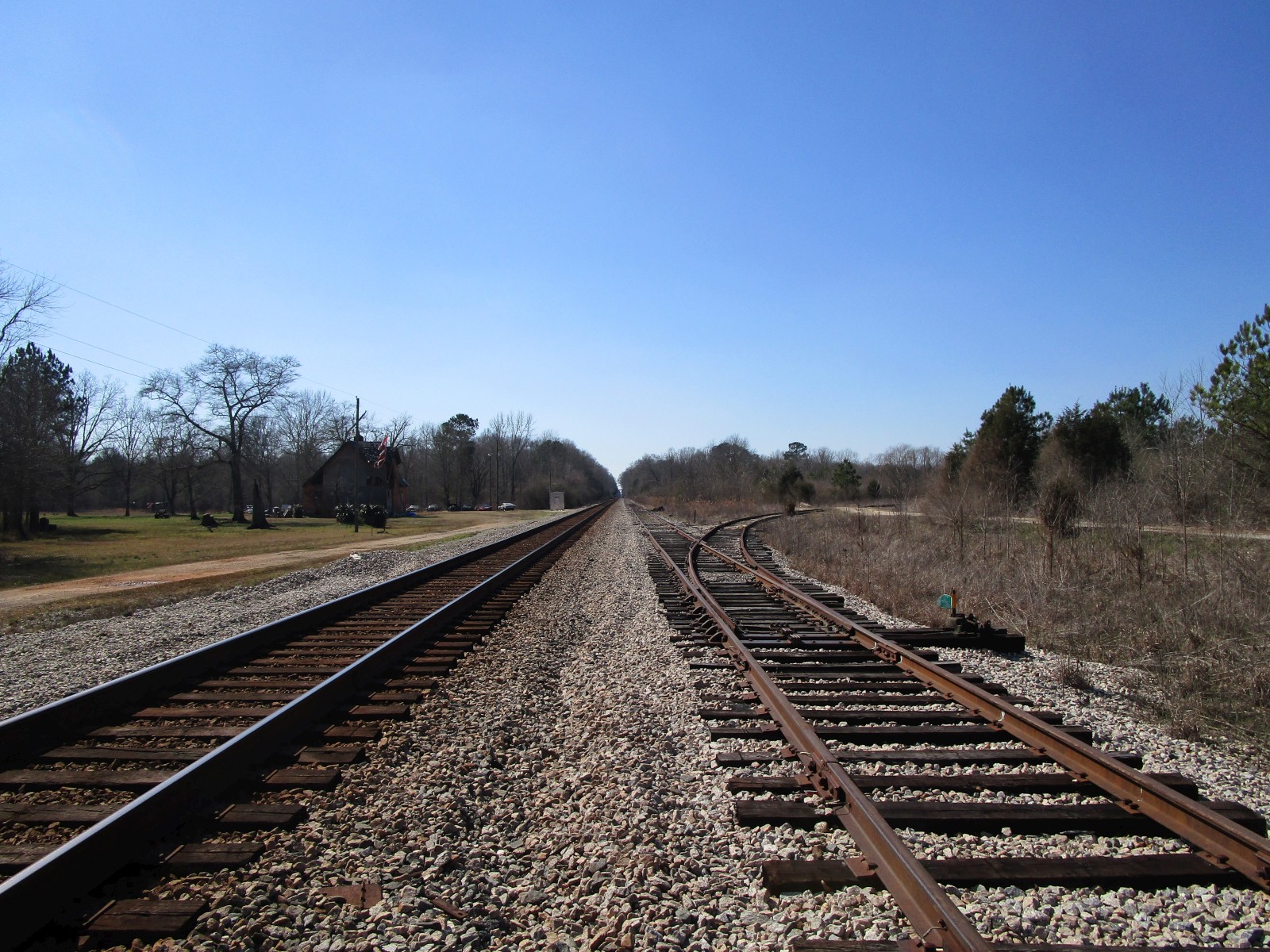

Looking northeast towards CR 887 near Roanoke. |
Looking southwest towards AL 77 in Abanda. |
25 |
26 |

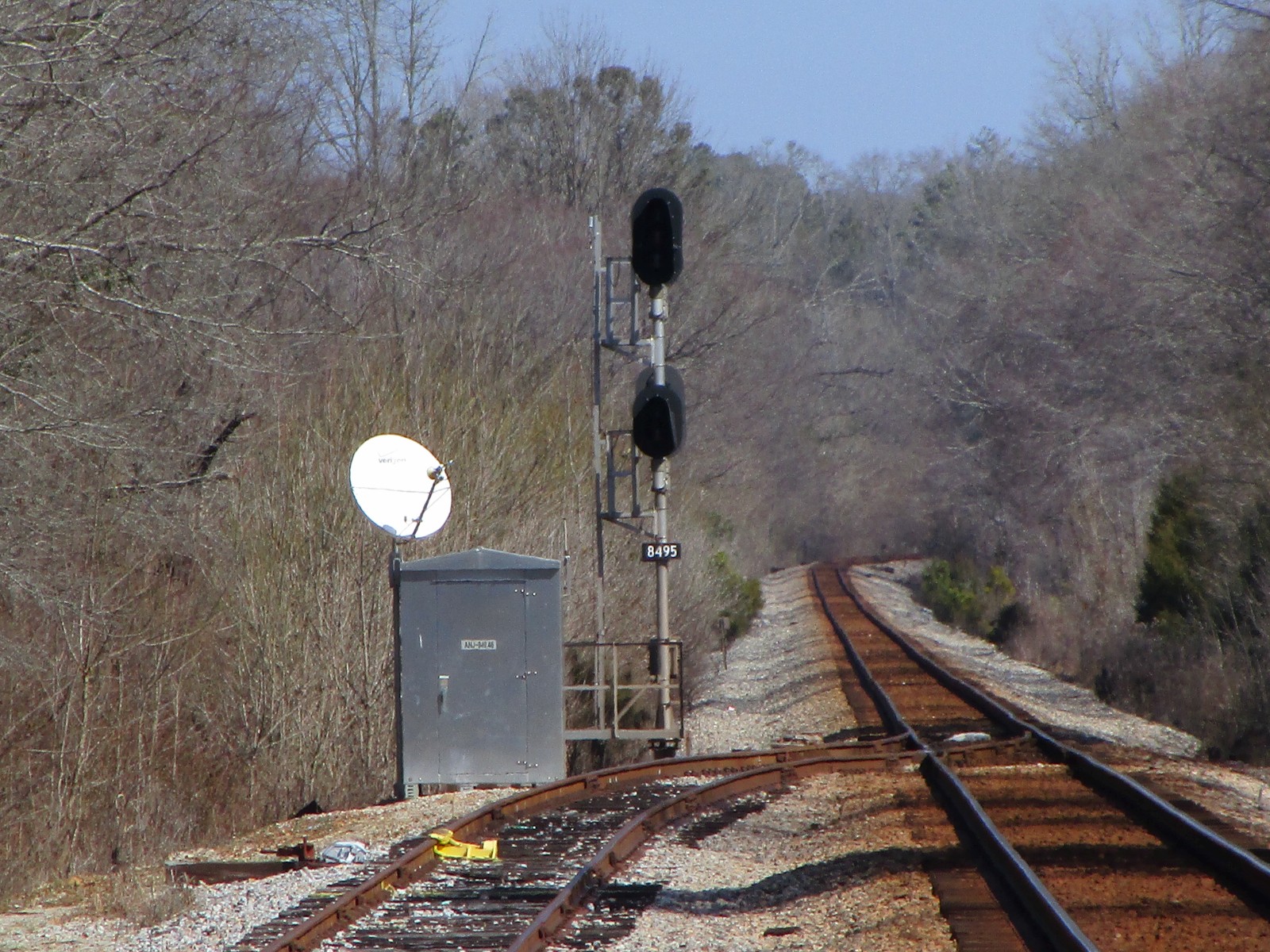

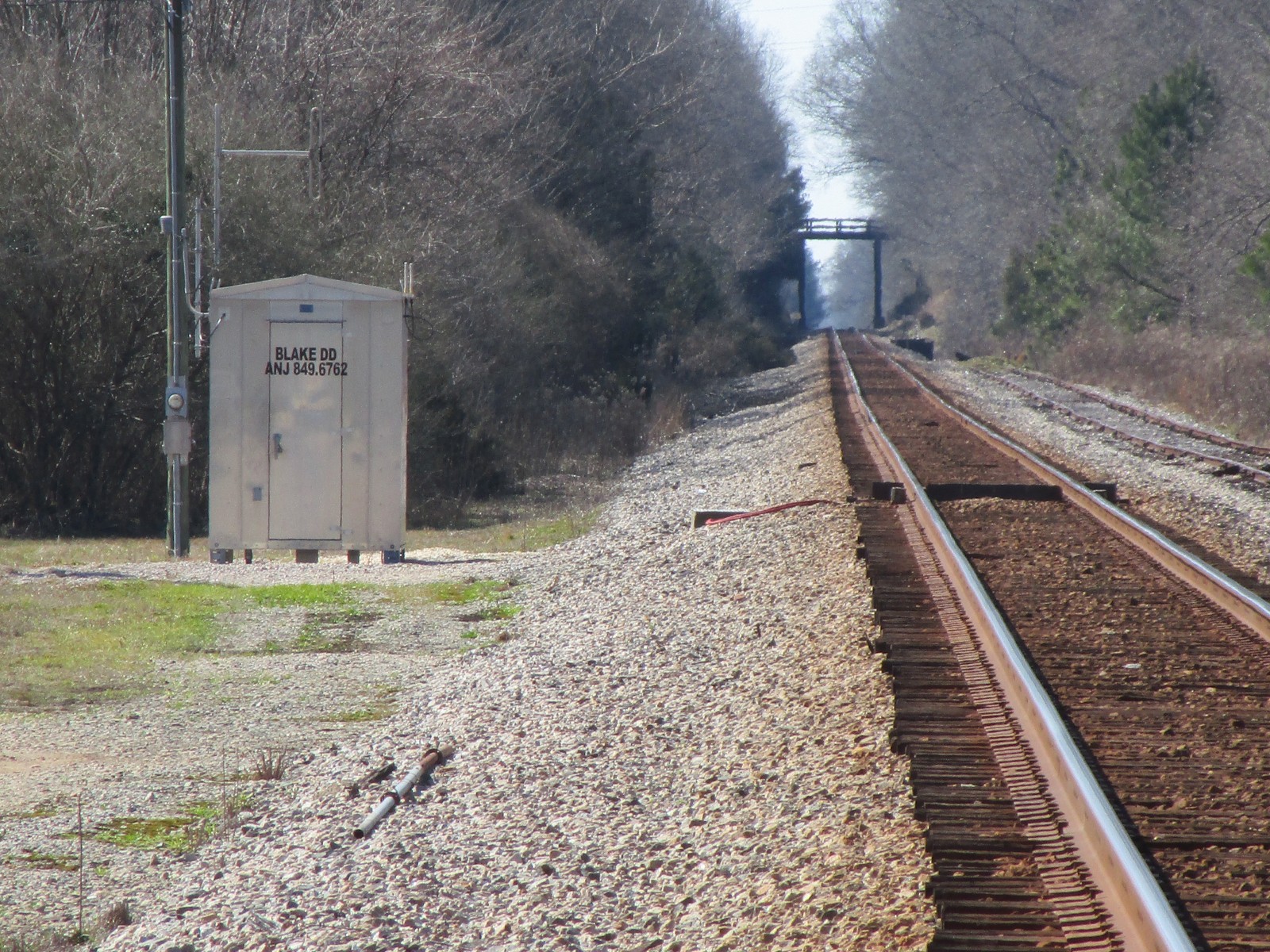

An approach-lit intermediate signal and a defect detector are located near this crossing. |
|
All pictures were taken on 2-11-22.
