MP: 0782.30 |
Created November 25, 2019
Total Accidents: 7
Crossing
DOT #: 637956X
TOTAL
DAILY TRAINS: 6 (AS OF 2017)
Page created by: freebrickproductions
This crossing is located on a connecting line/yard between the CSX Dothan Subdivision and the Bay Line Railroad.
I'm not entirely sure if CSX or BAYL owns this line, but I believe CSX does. However, the FRA claims that the BAYL owns it, so I can't say this for certain.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | NEG electronic | NEG electronic |
| Base: | WCH | WCH |
| Light Frames: | 4 - 12x24" WCH w/ Leotek EV Series LEDs | 6 - 12x24" WCH w/ Leotek EV Series LEDs |
| Gate Lights: | 3 - NEG LEDs | 3 - NEG LEDs |
| Gate Mechanism: | Siemens Sticker Style 2 | Safetran-branded Siemens |
| Gate Striping: | Vertical | Vertical |
1 |
2 |
3 |
4 |

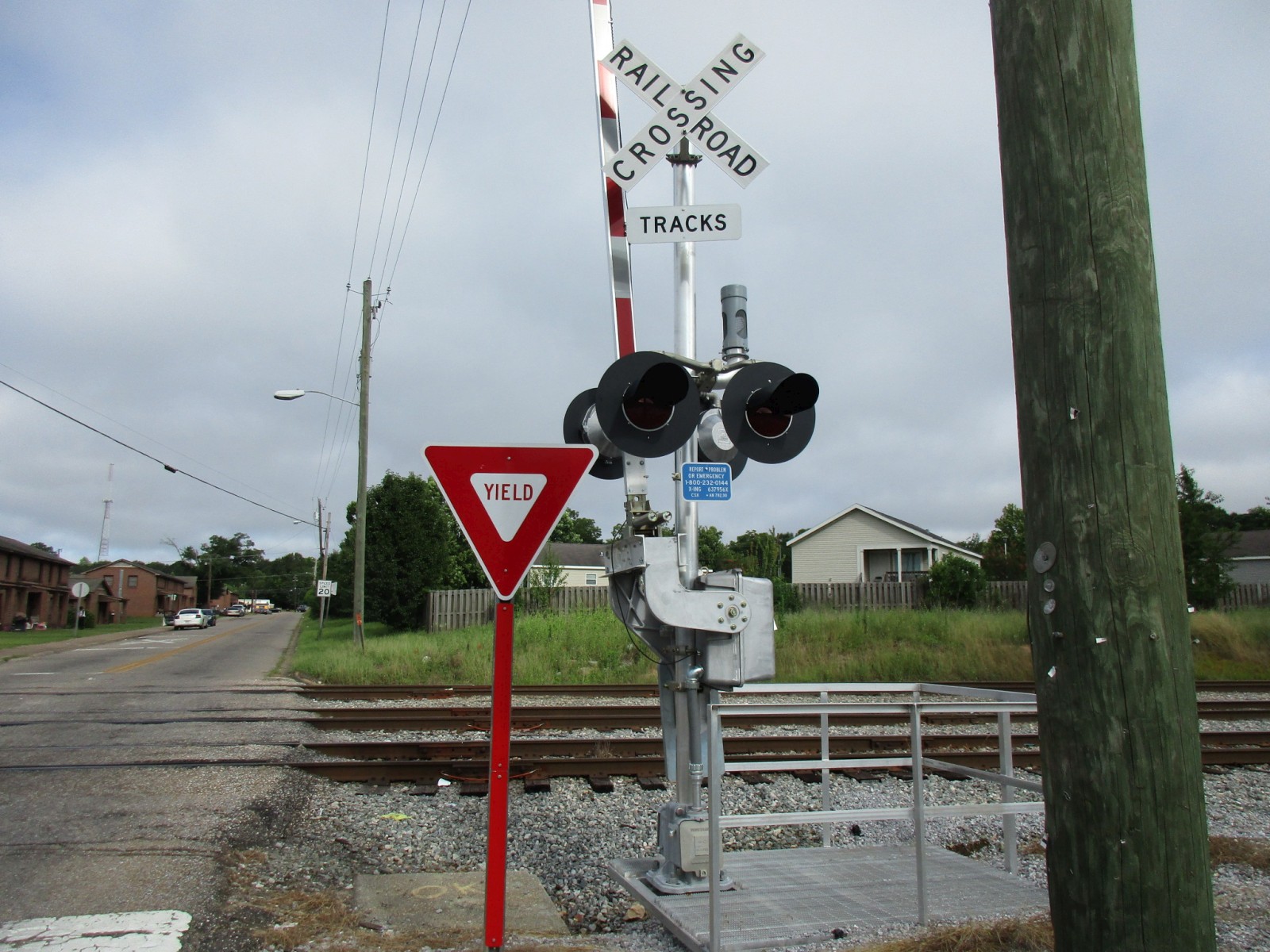

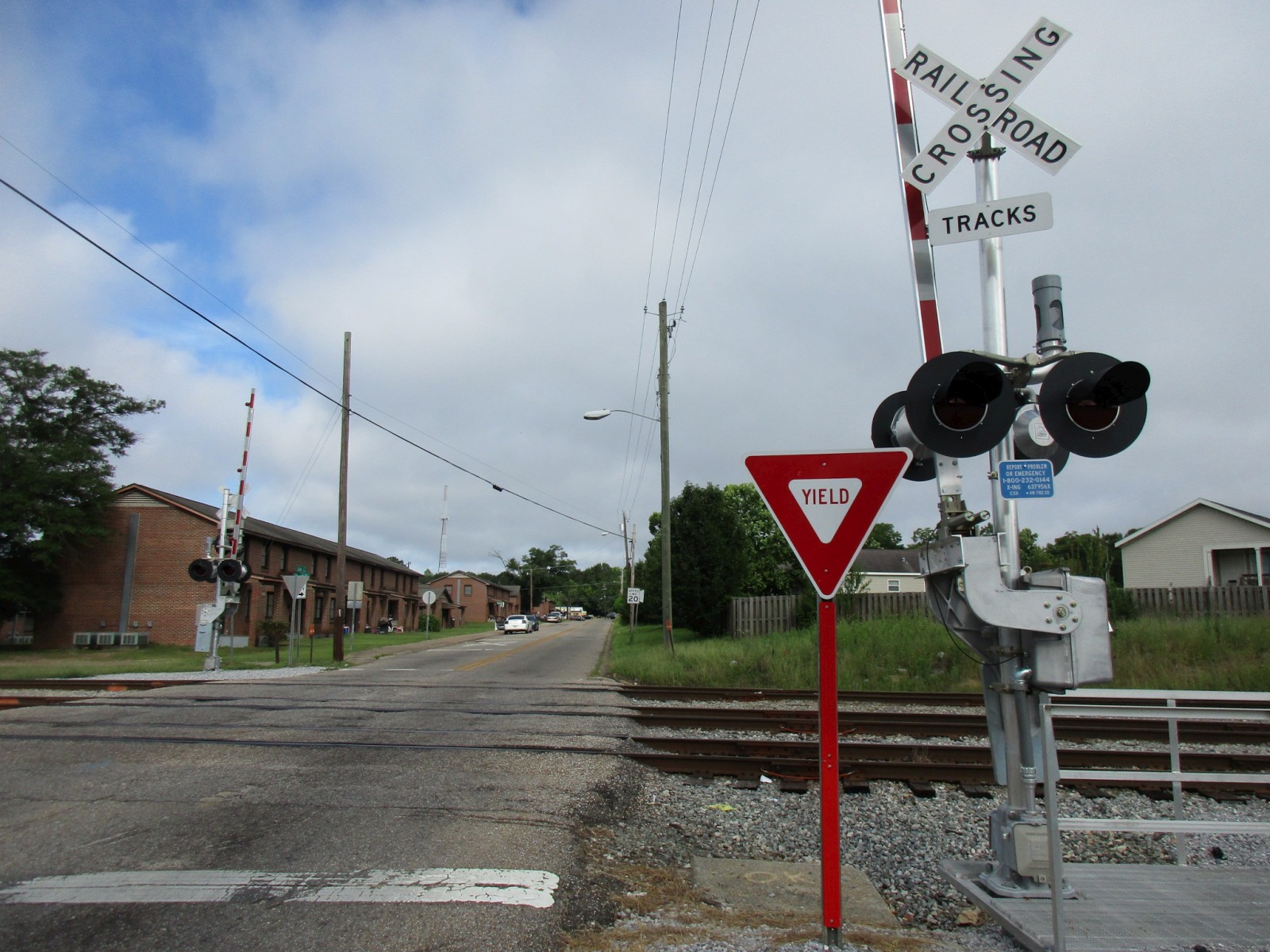

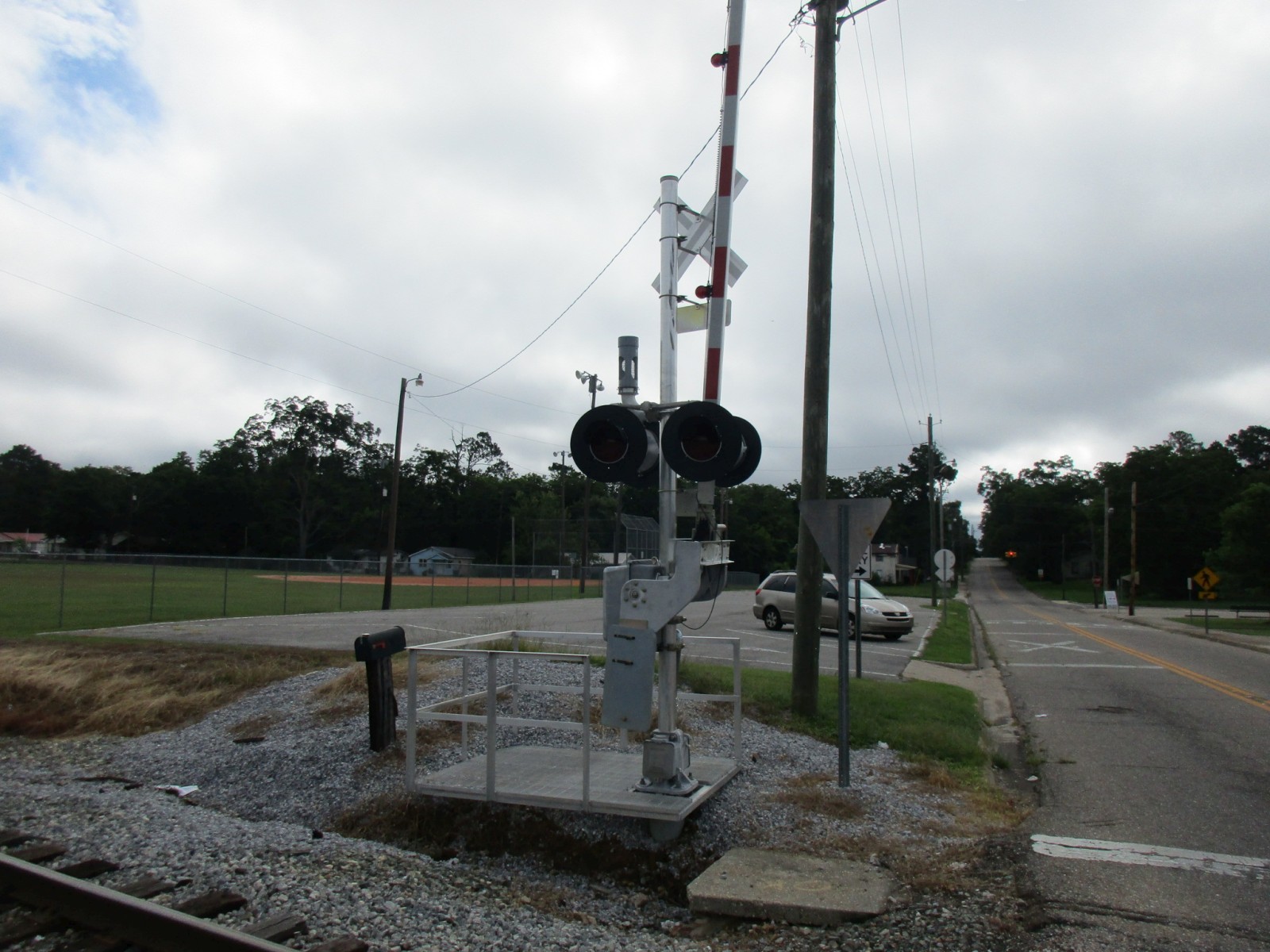

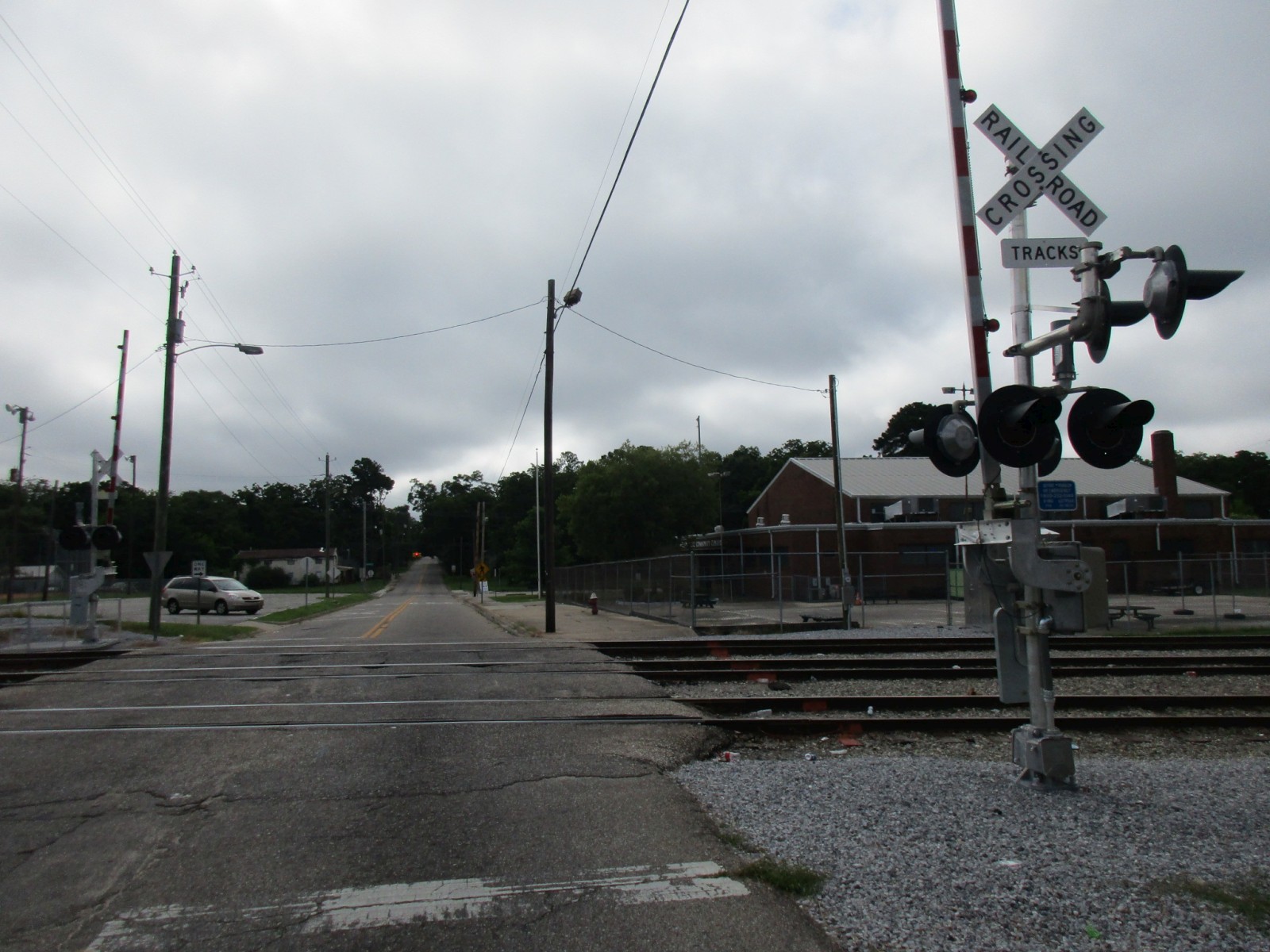

Overviews of the crossing. |
The first signal. |
||
5 |
6 |
7 |
8 |

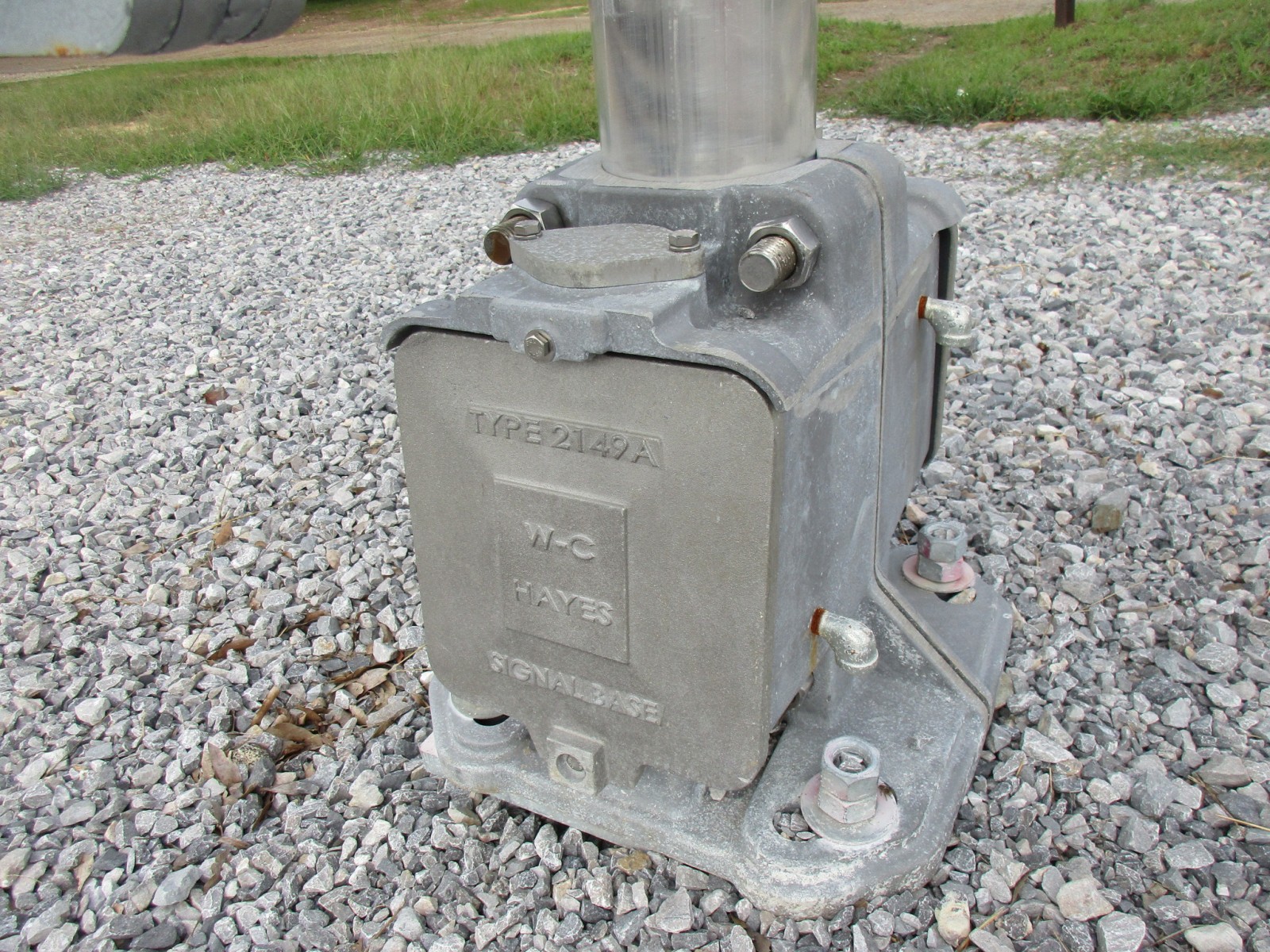

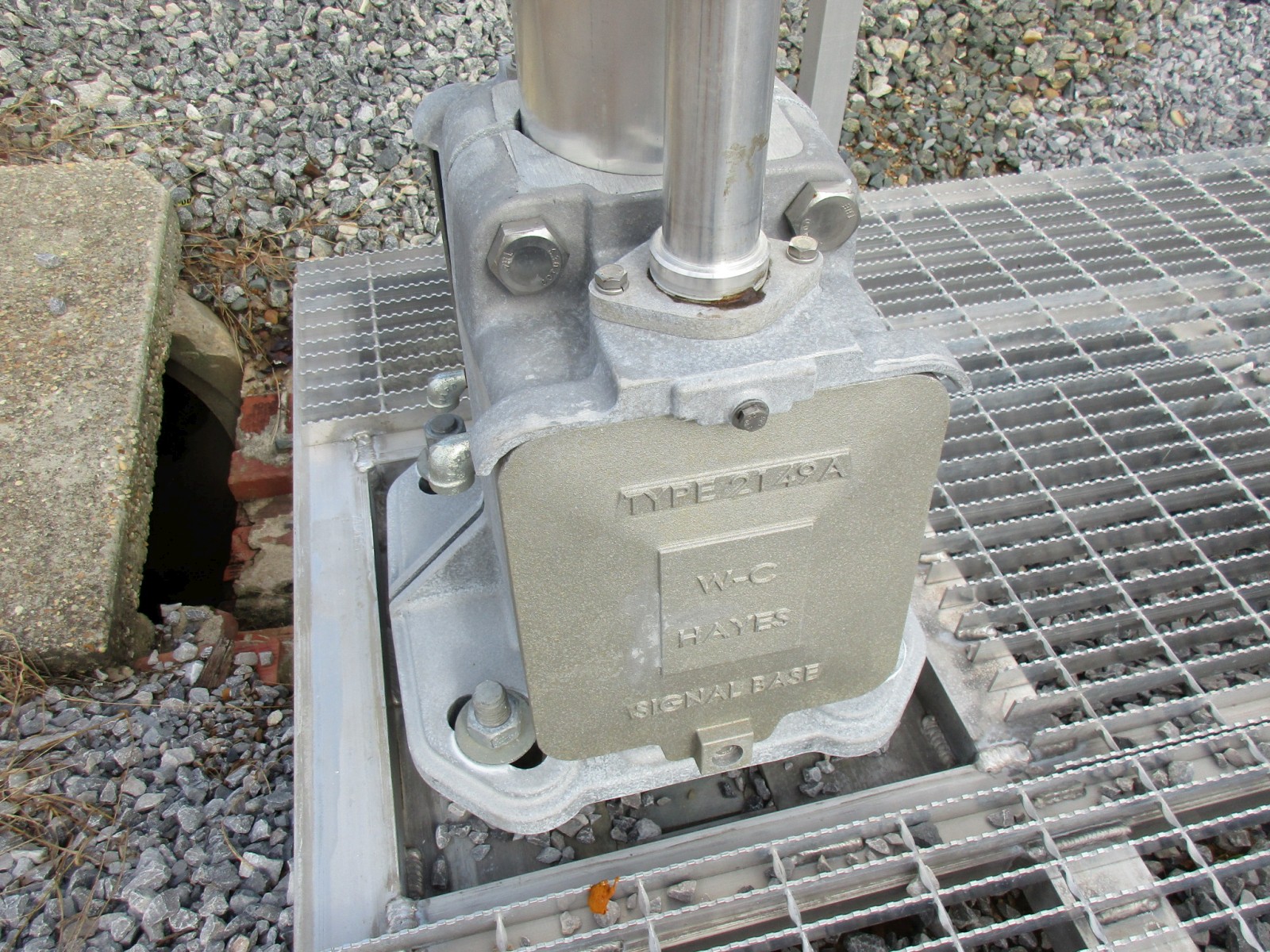

It has a WCH base. |

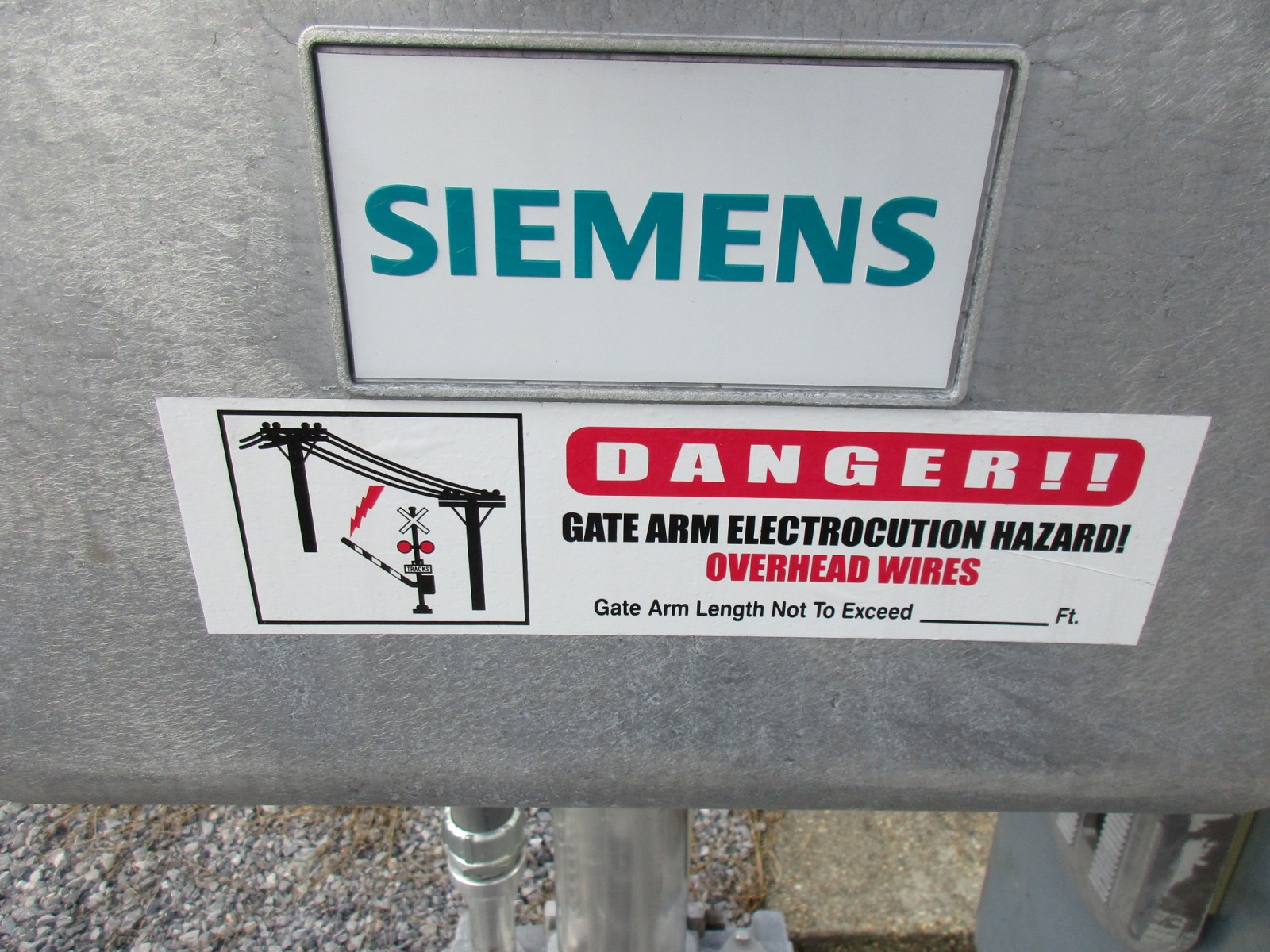

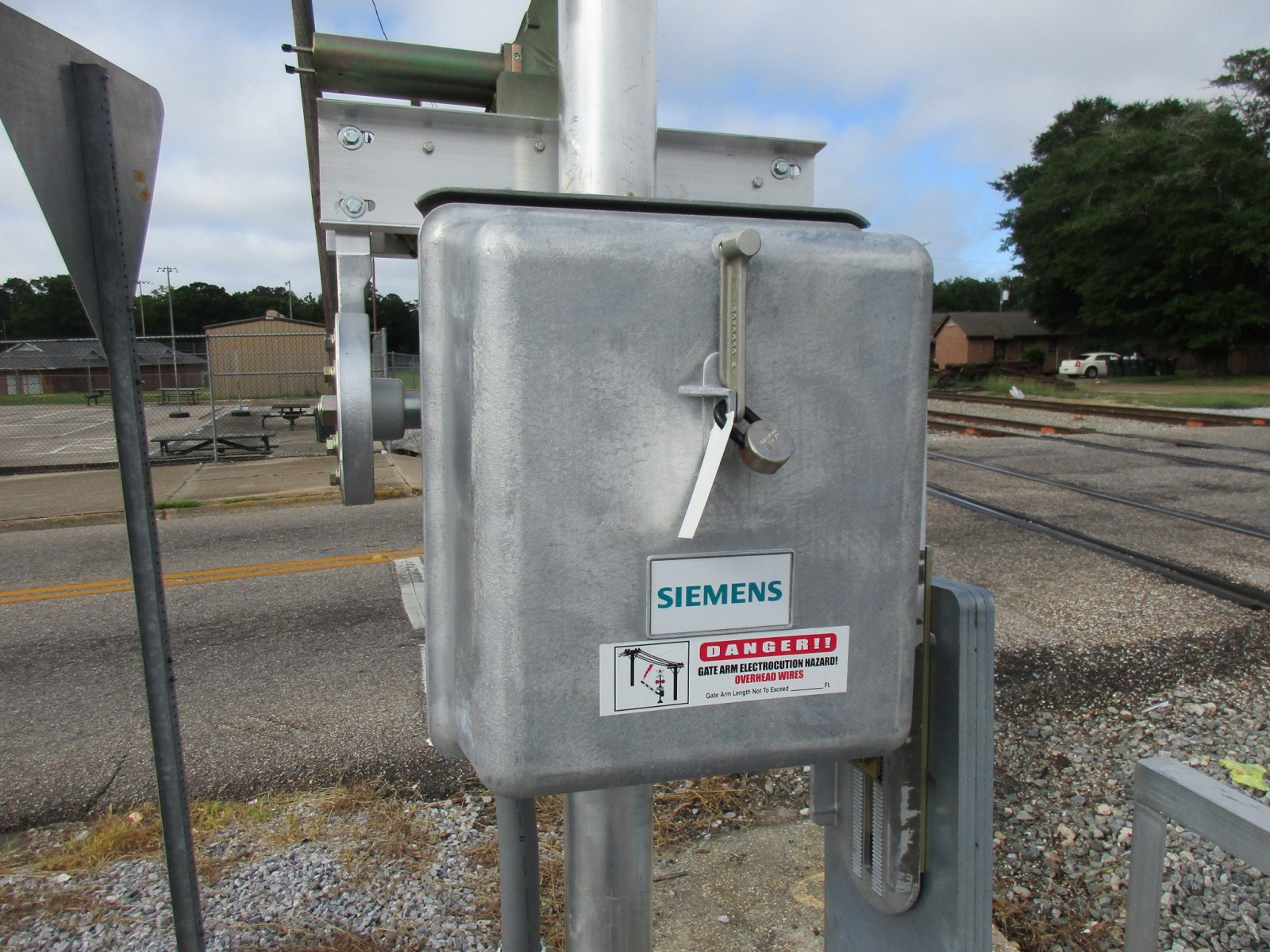

The gate mechanism is from Siemens and has a warning sticker stuck to it. |

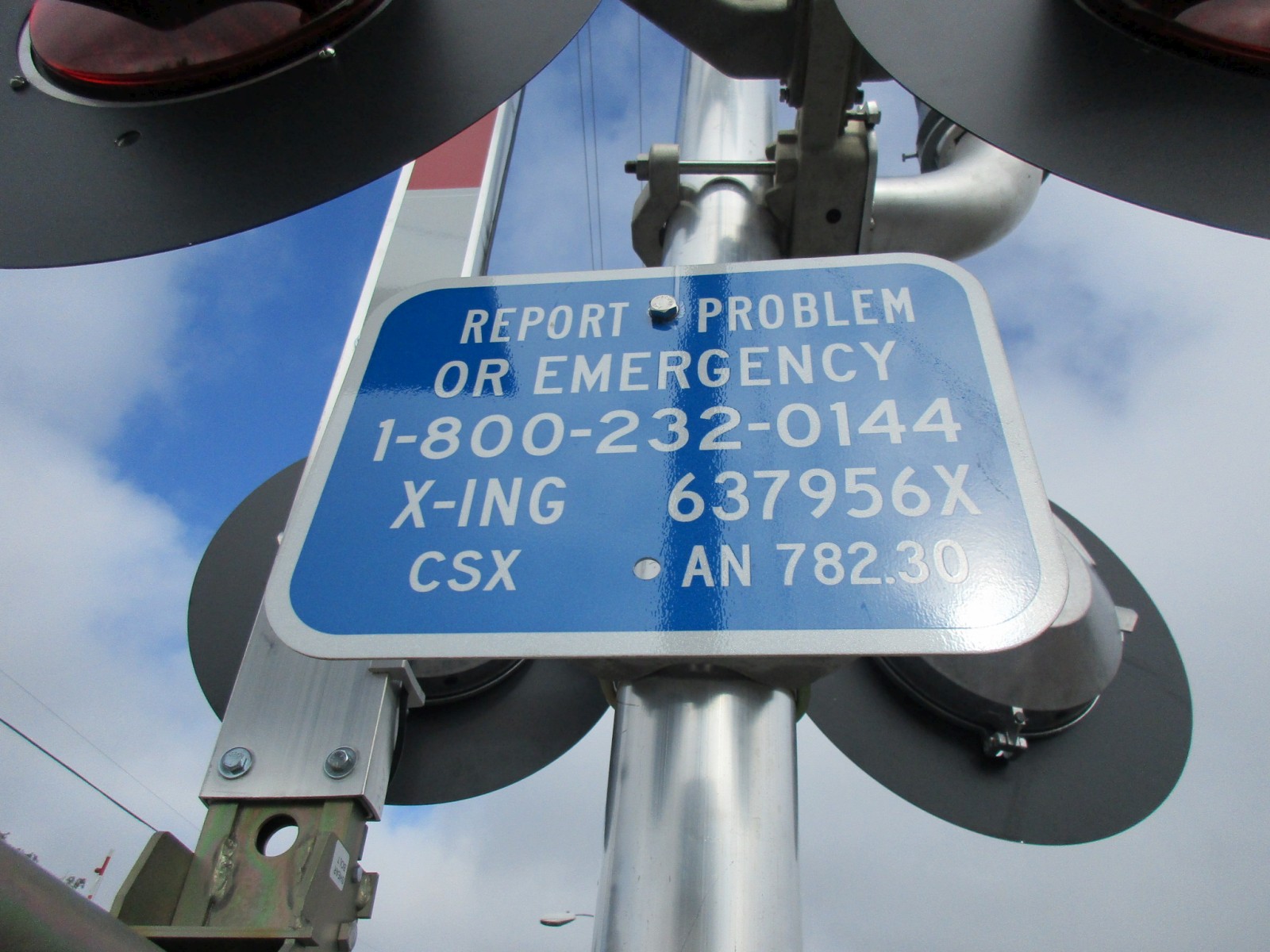

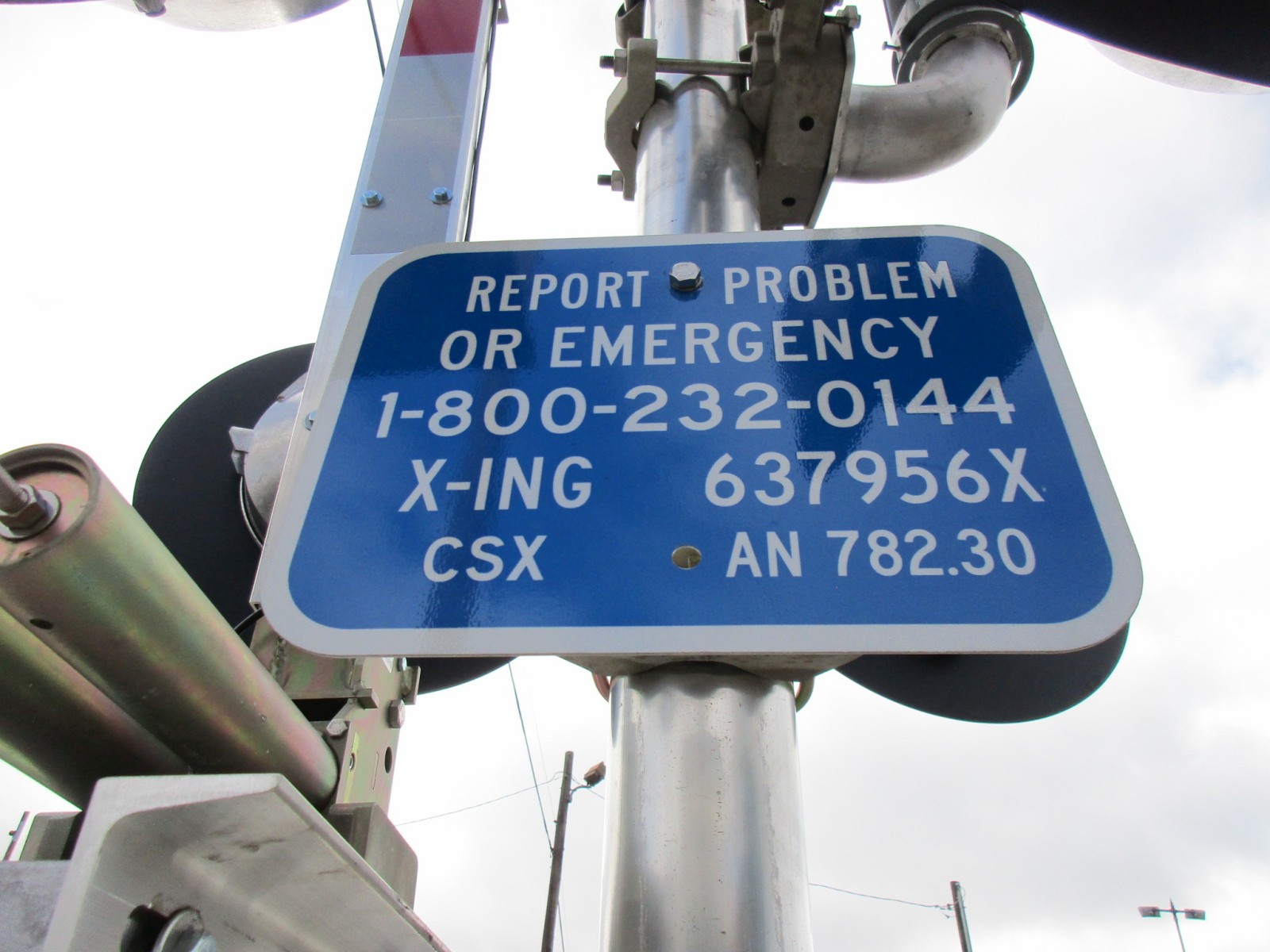

The emergency information. |
|
9 |
10 |
11 |
12 |

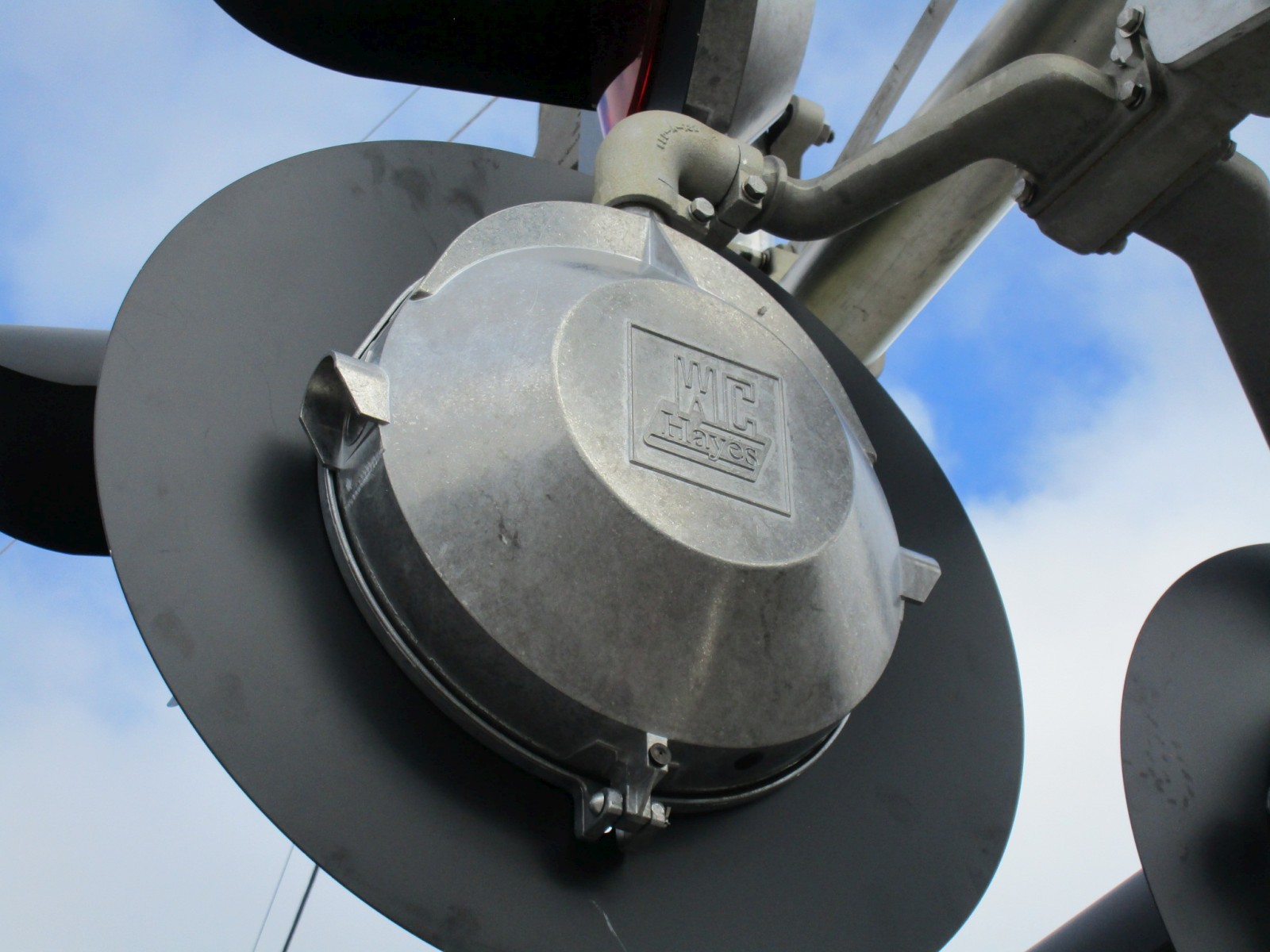

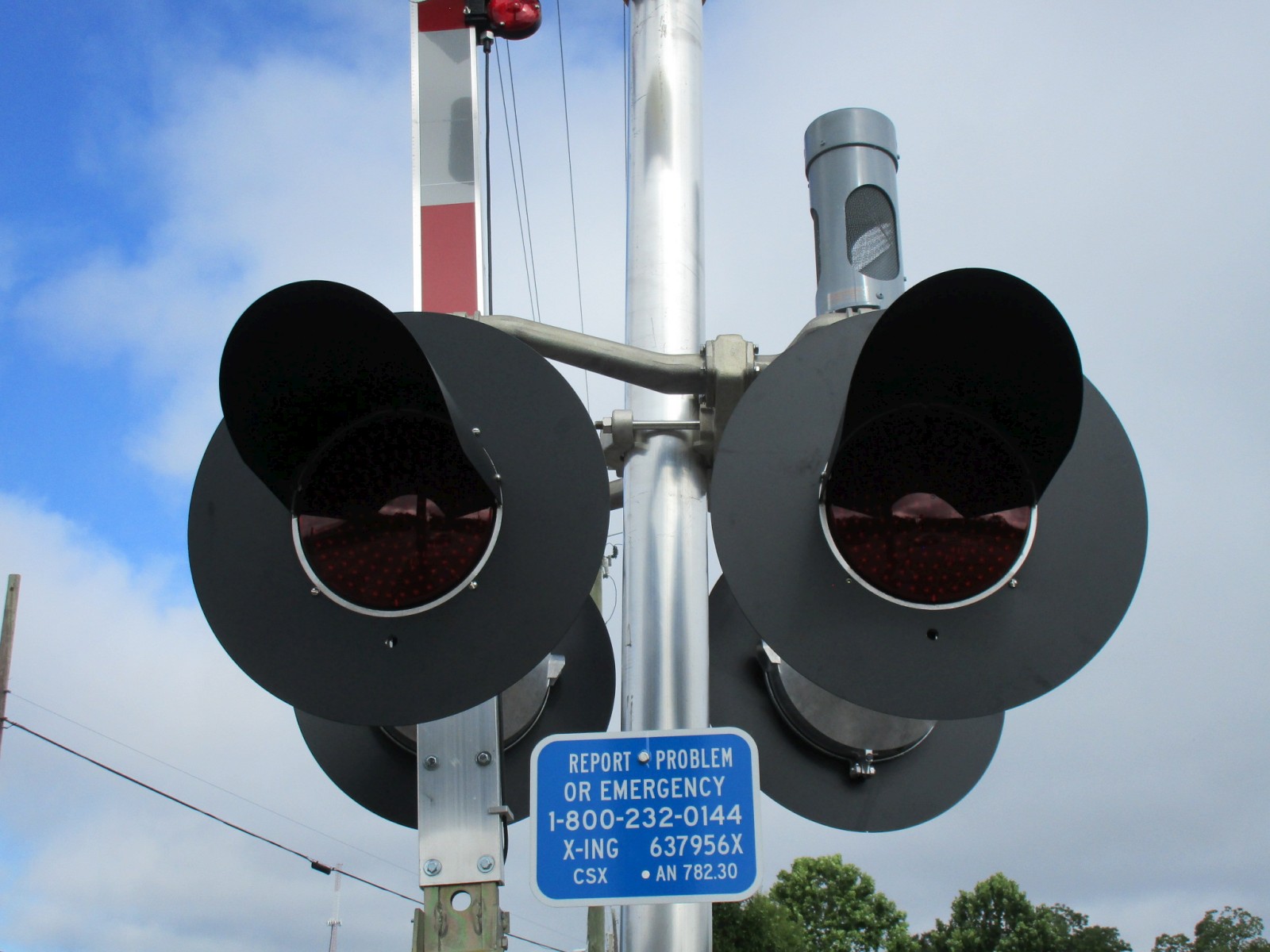

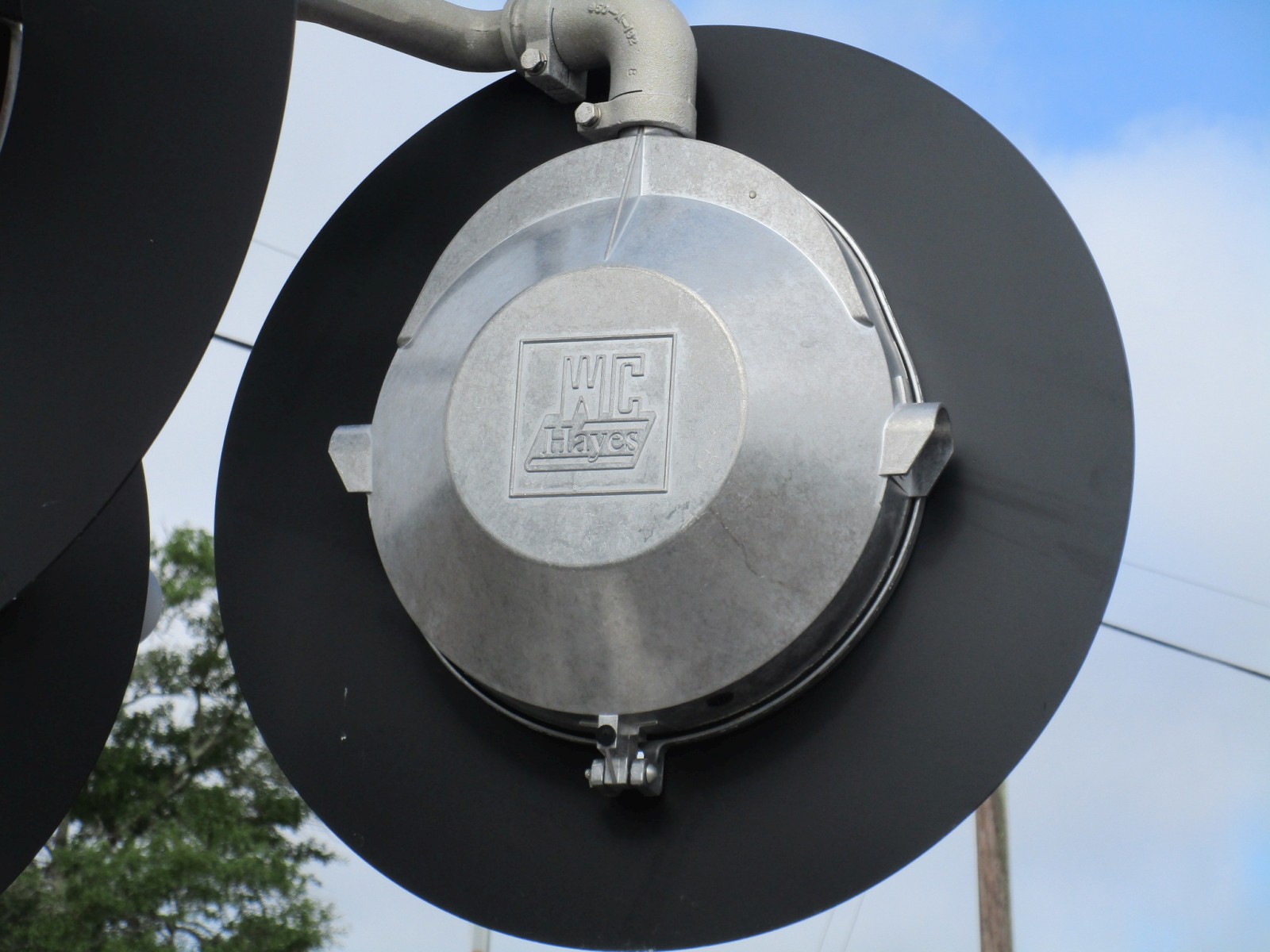

The lights here are WCH 12x24 inch lights with Leotek EV Series LEDs. |

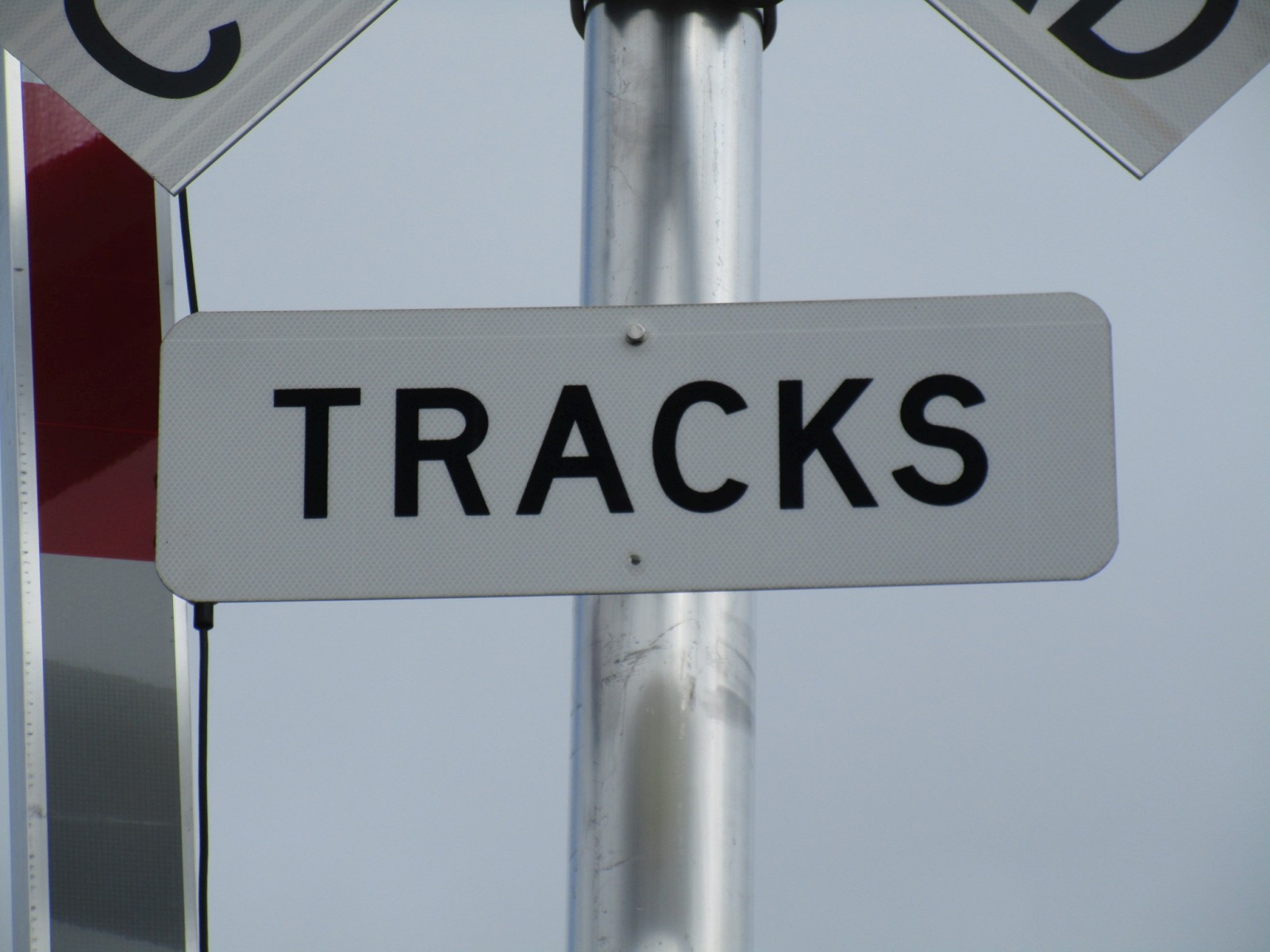

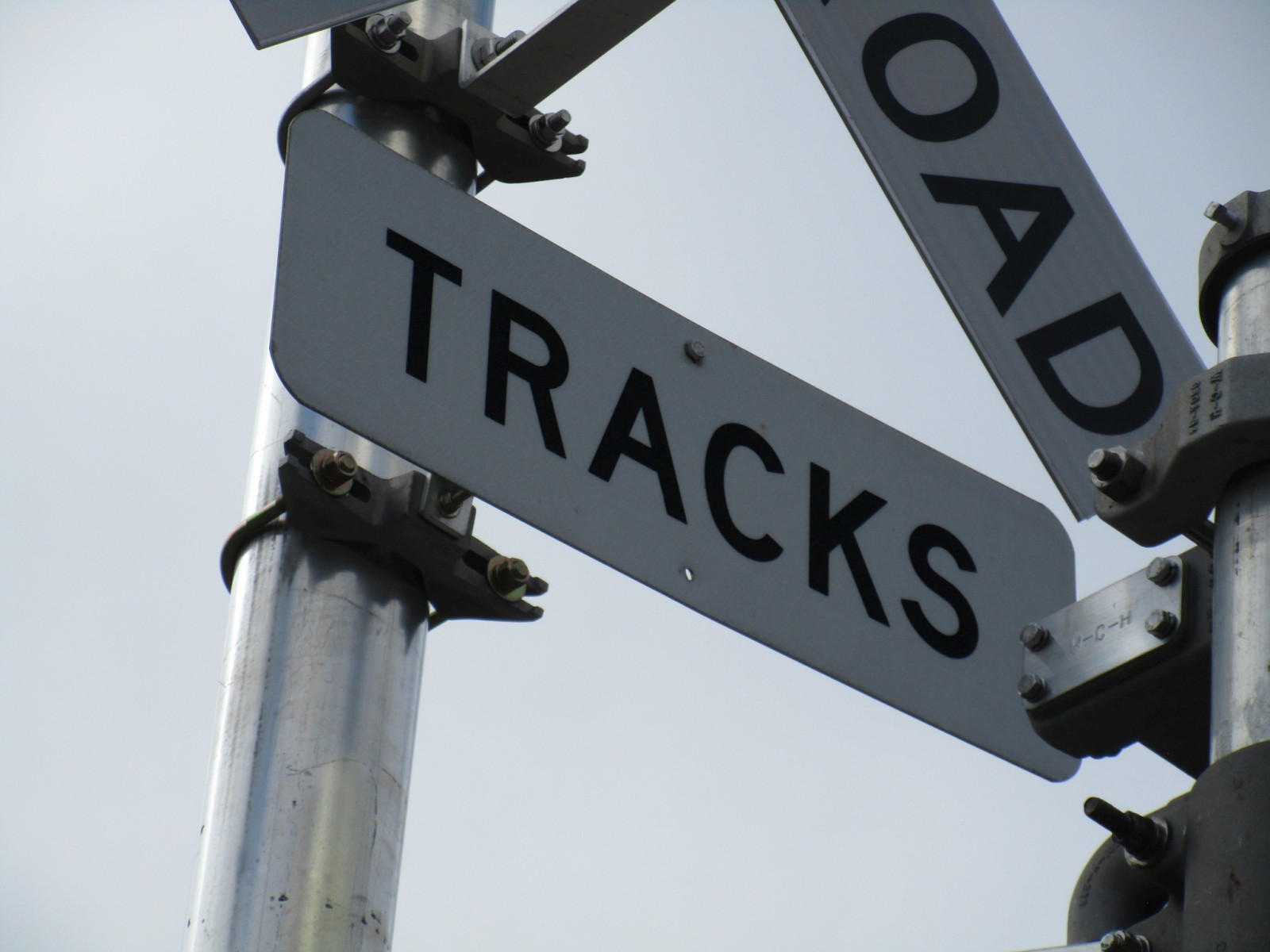

A "Tracks" sign. Not how many tracks are here, just tracks. |
||
13 |
14 |
15 |
16 |

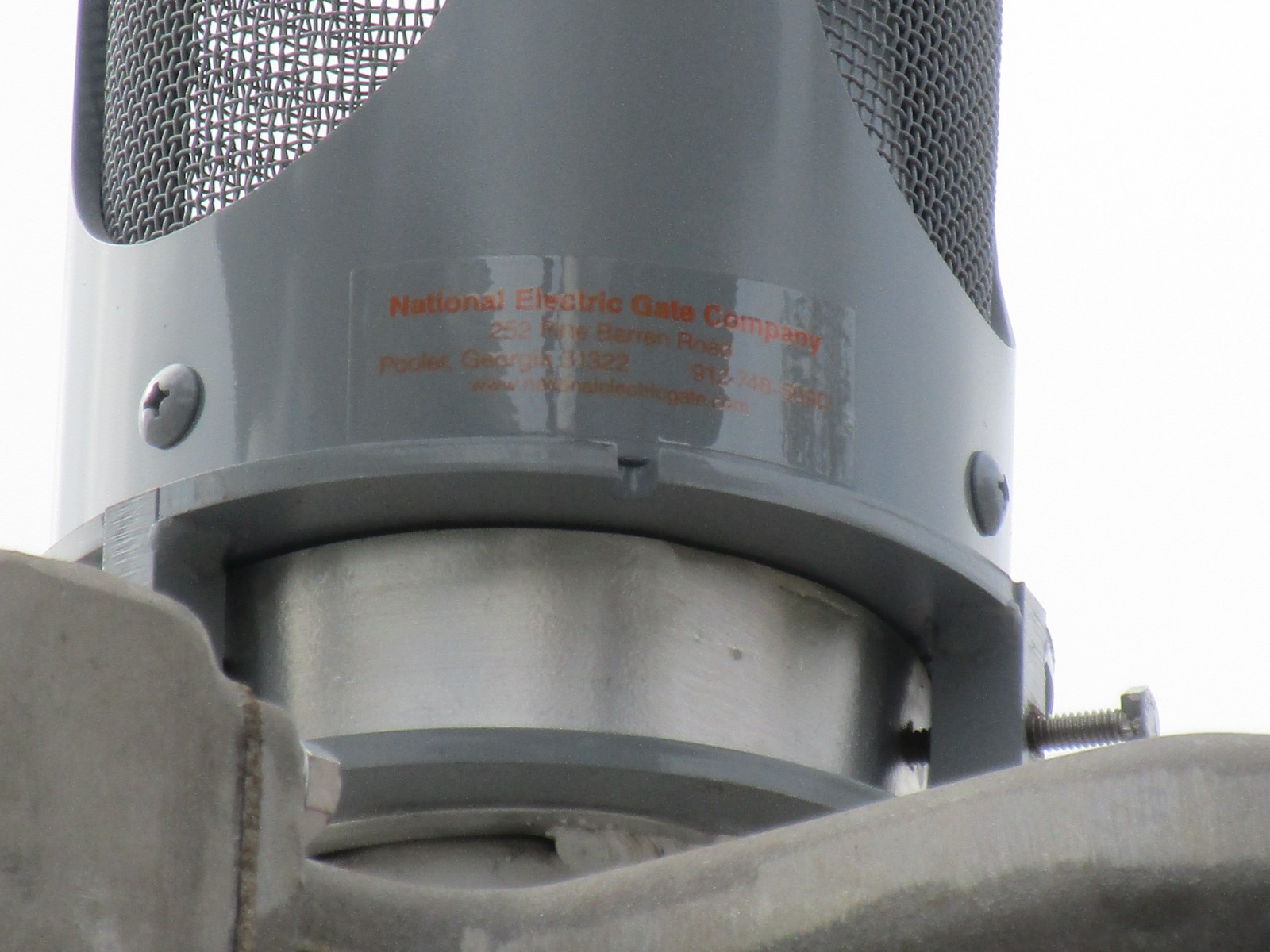

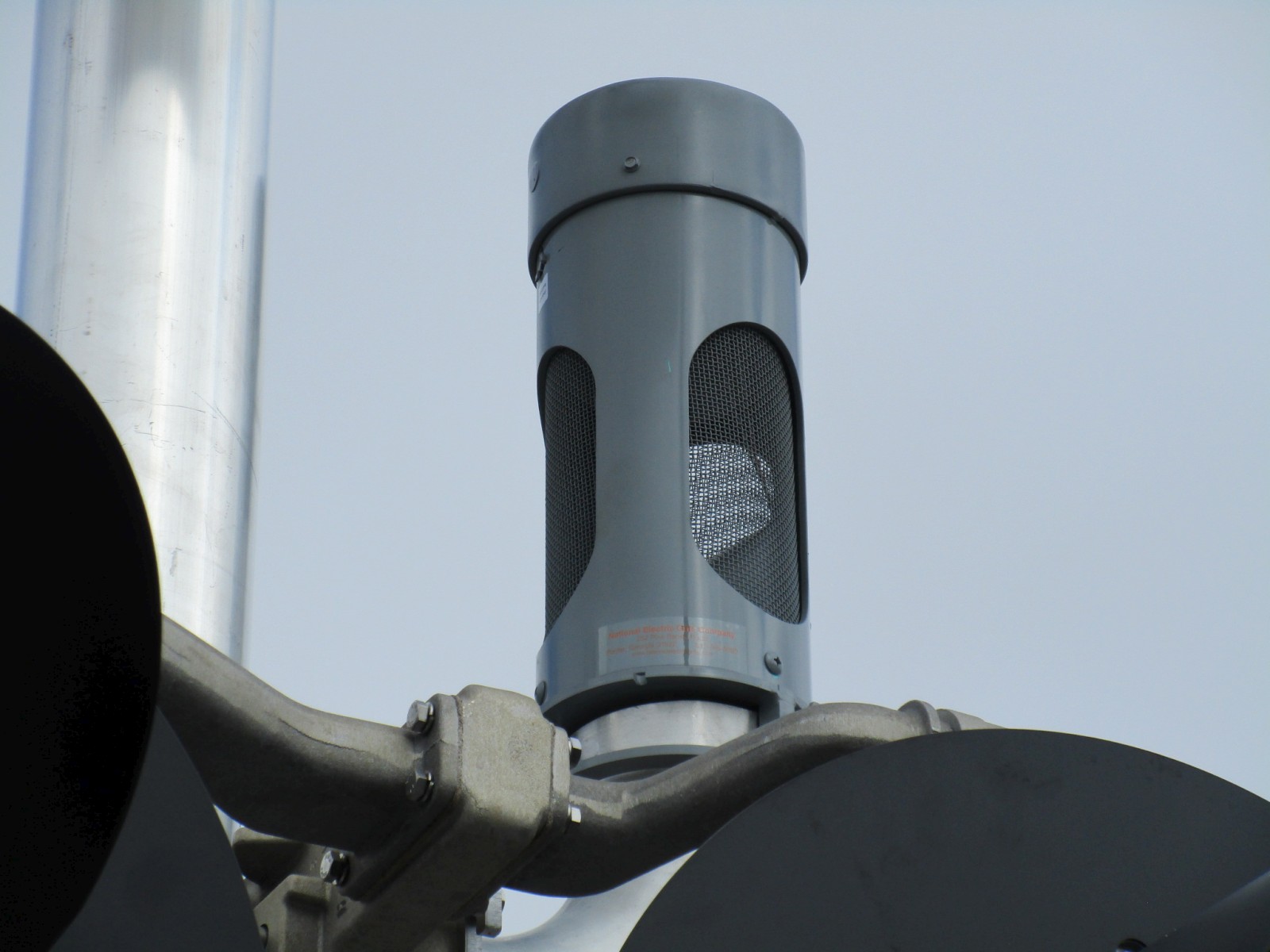

This signal uses an NEG electronic bell. |

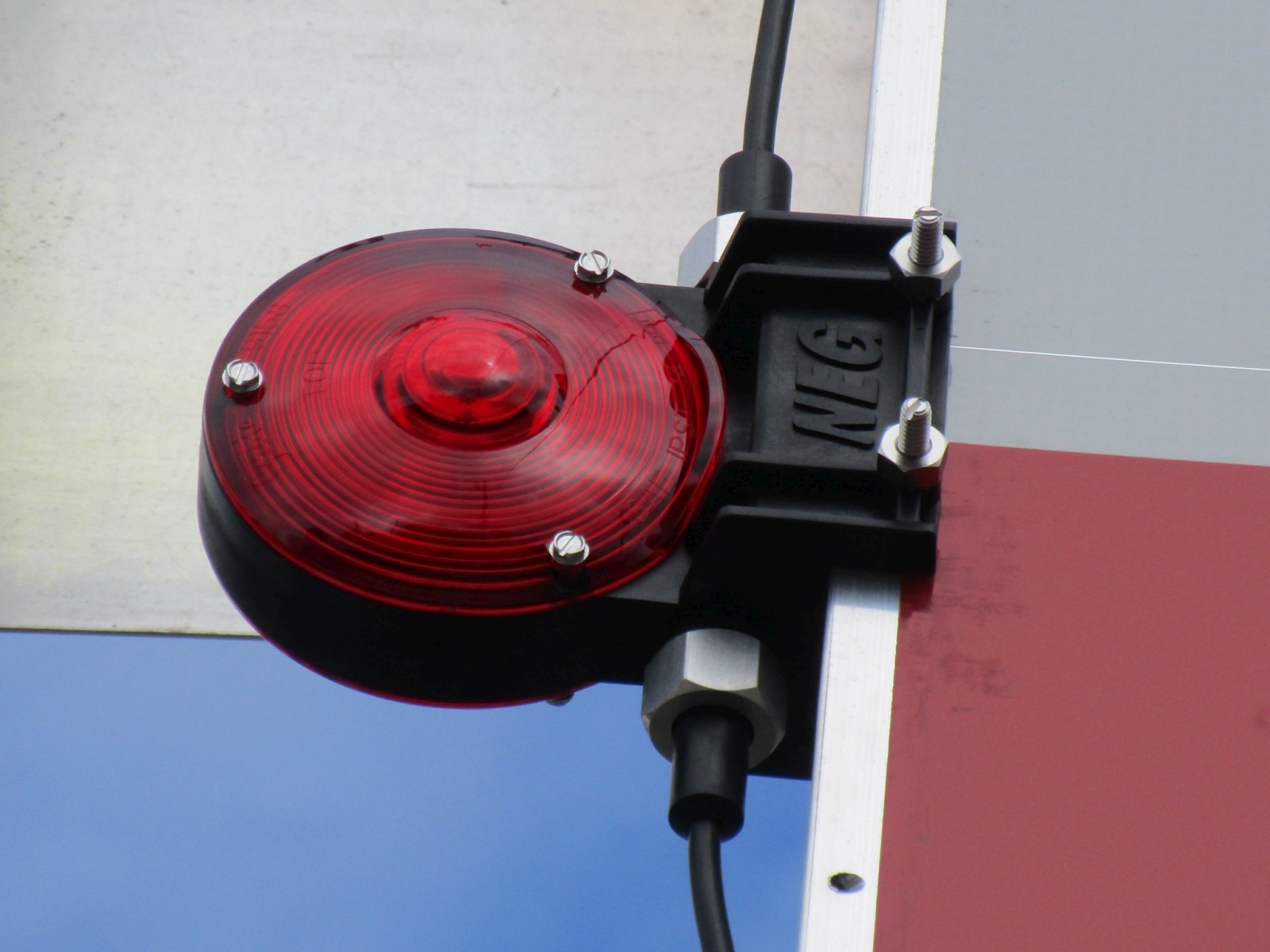

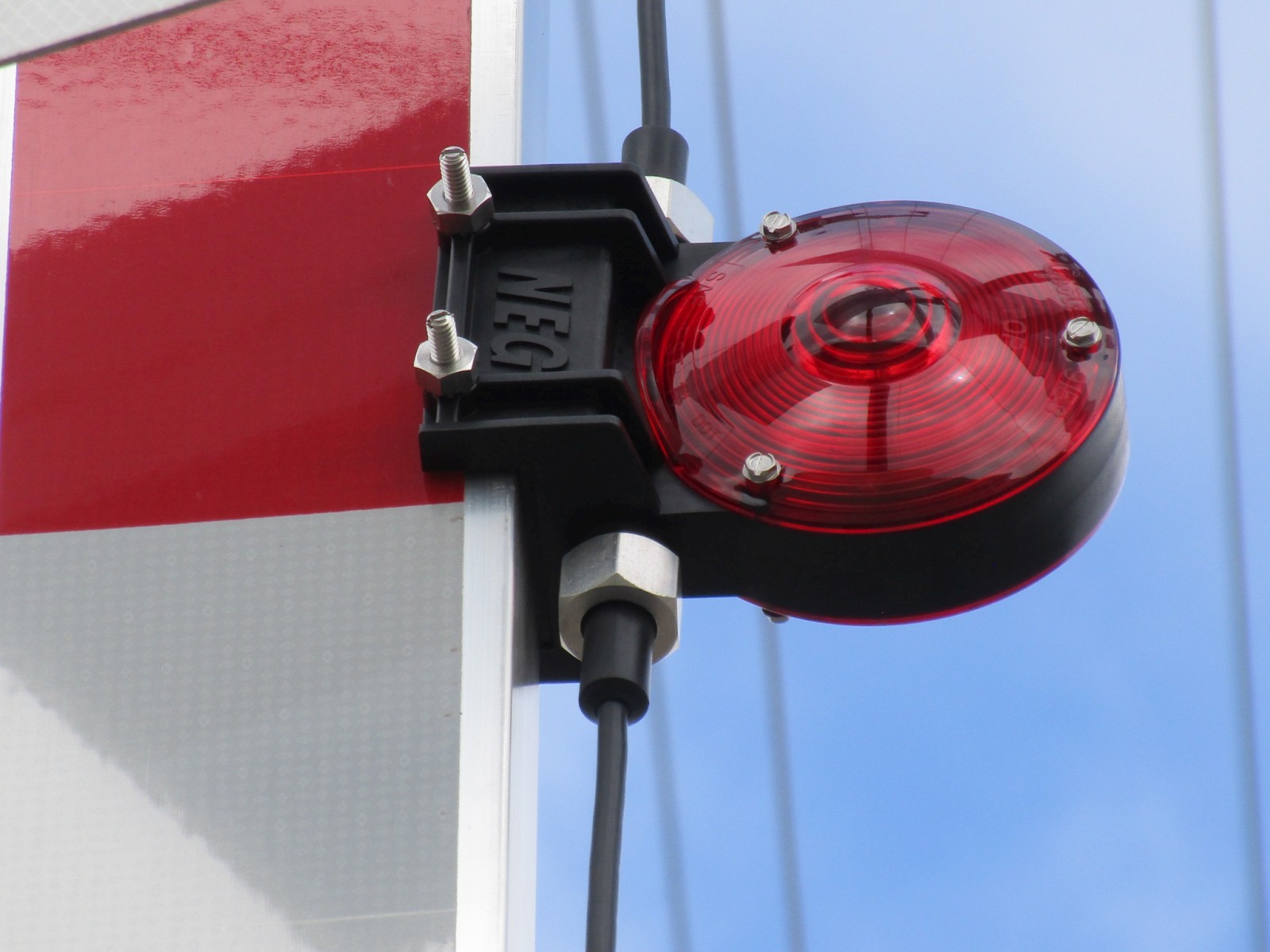

The gate lights on this signal are NEG LEDs. |
||
17 |
18 |
19 |
20 |

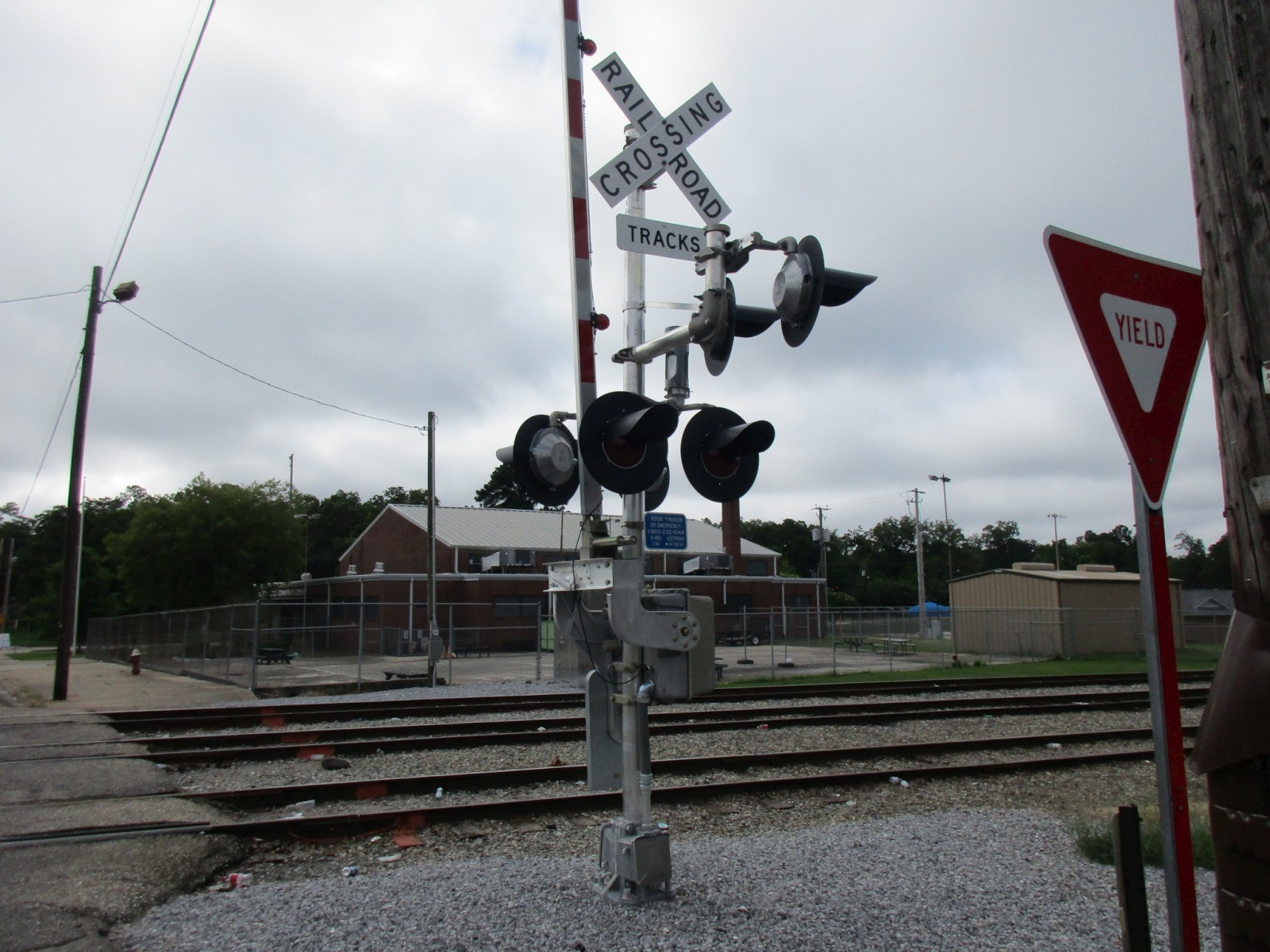

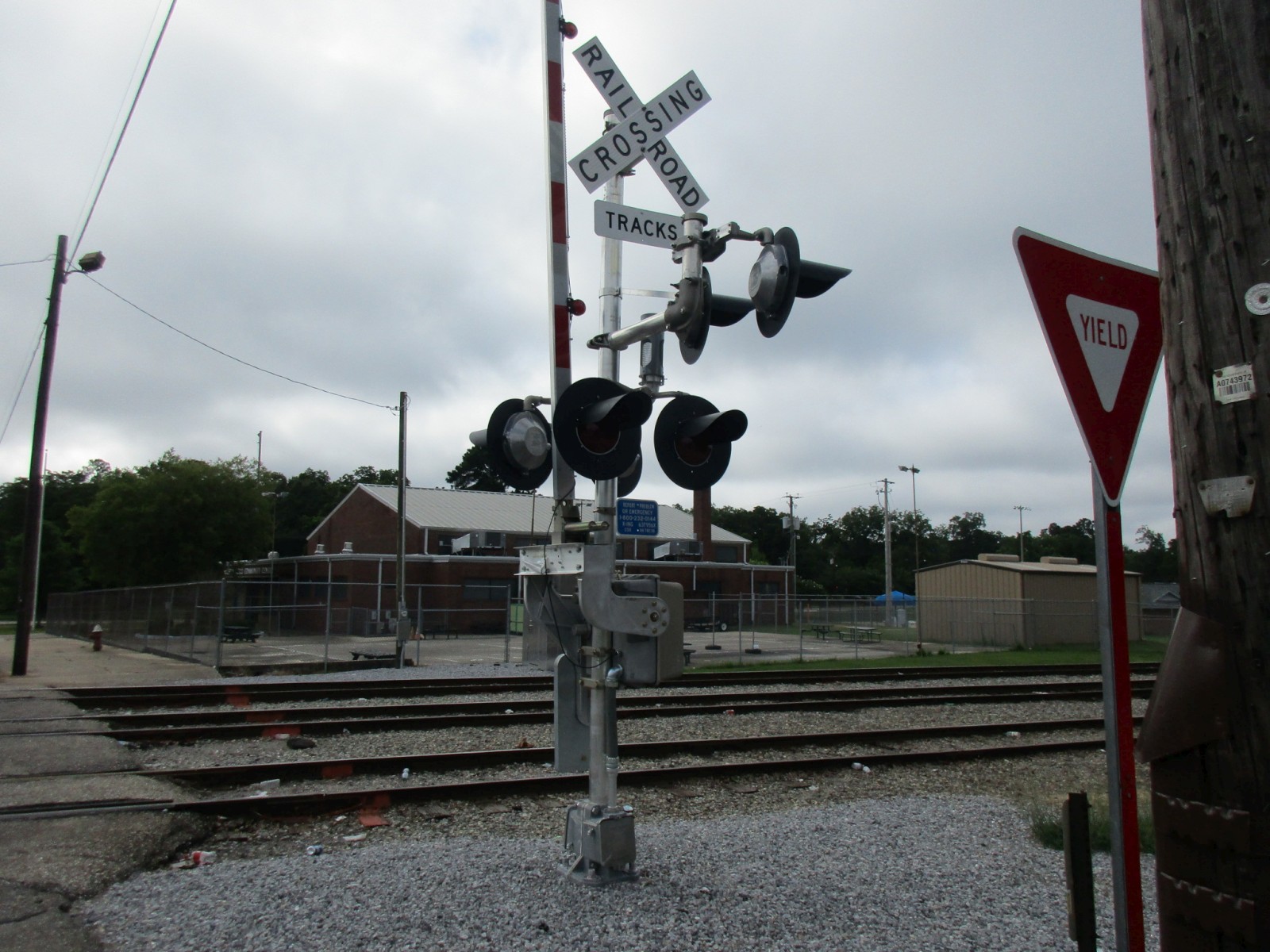

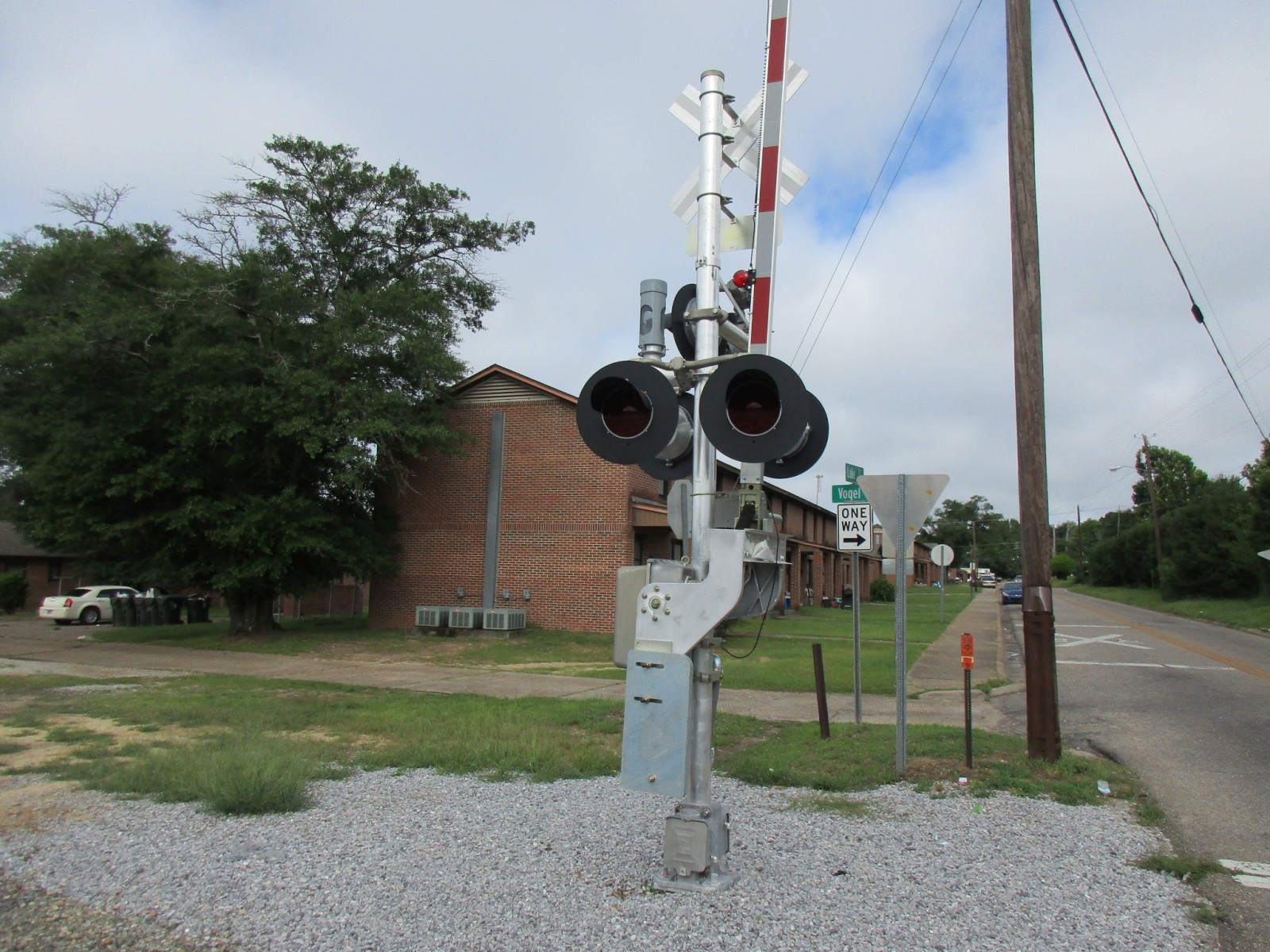

The second signal. |
It's got another WCH base. |

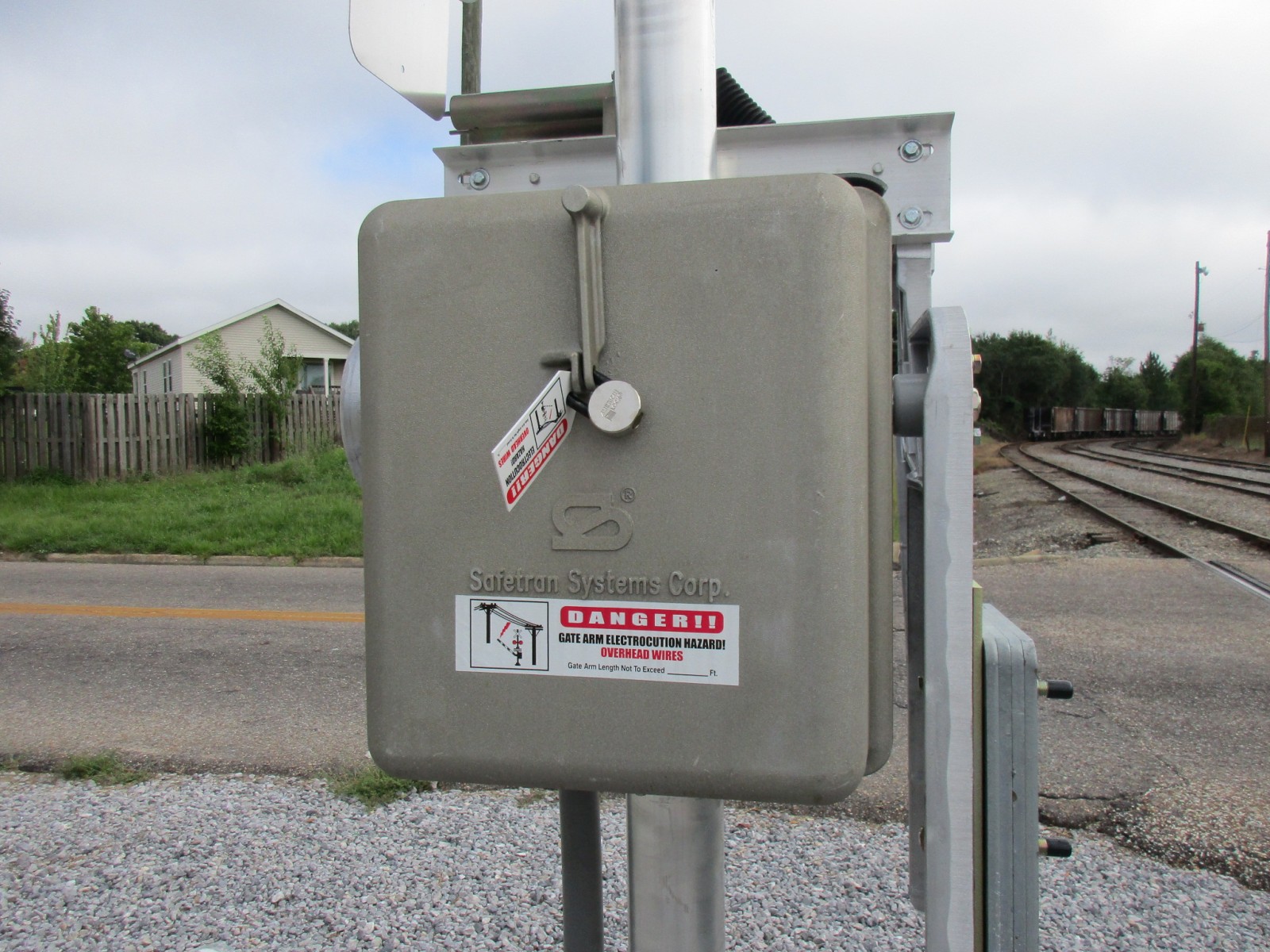

This signal uses a Safetran-branded Siemens gate mechanism. |
|
21 |
22 |
23 |
24 |

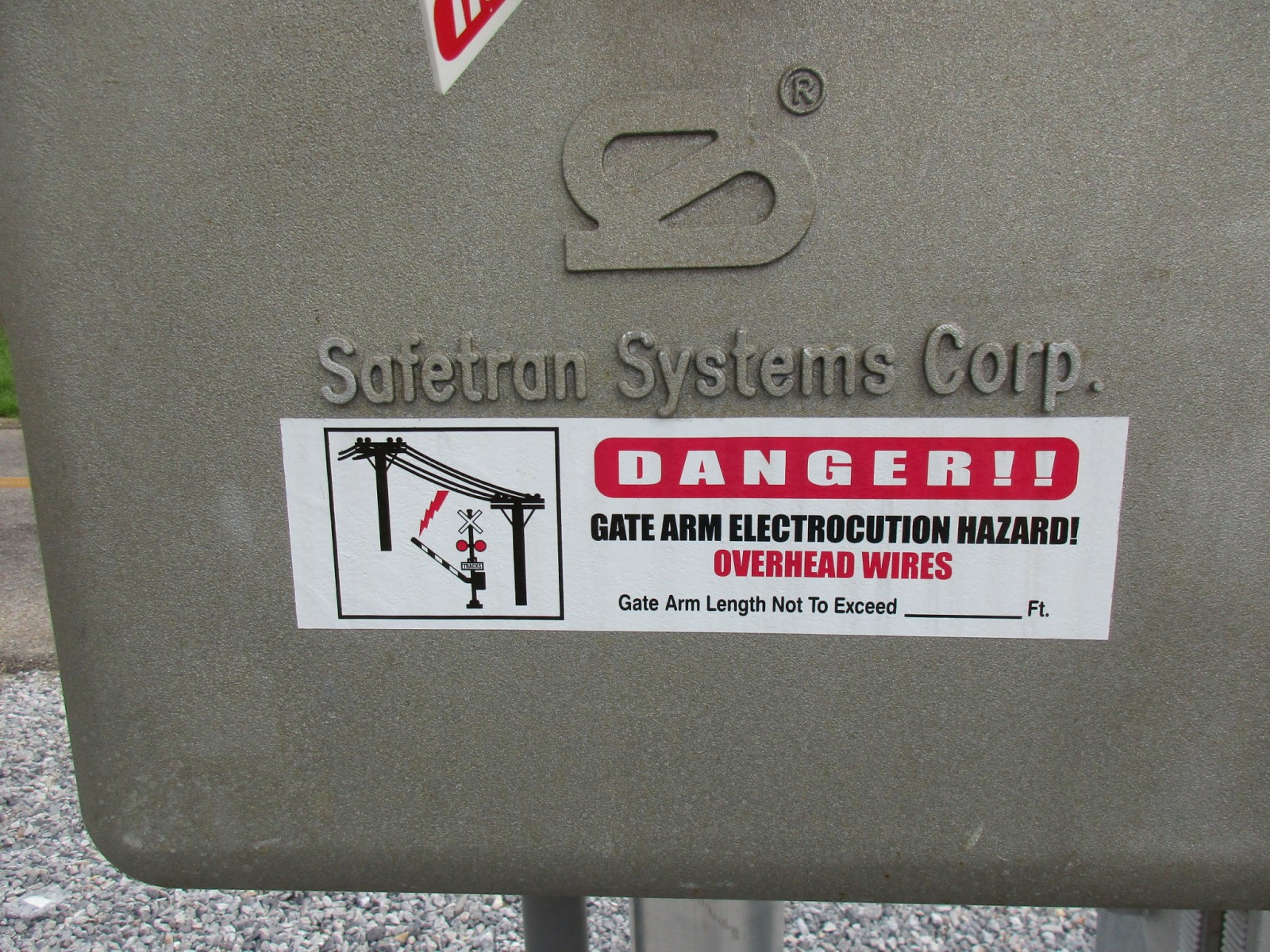

Another warning sticker. |
The emergency information. |

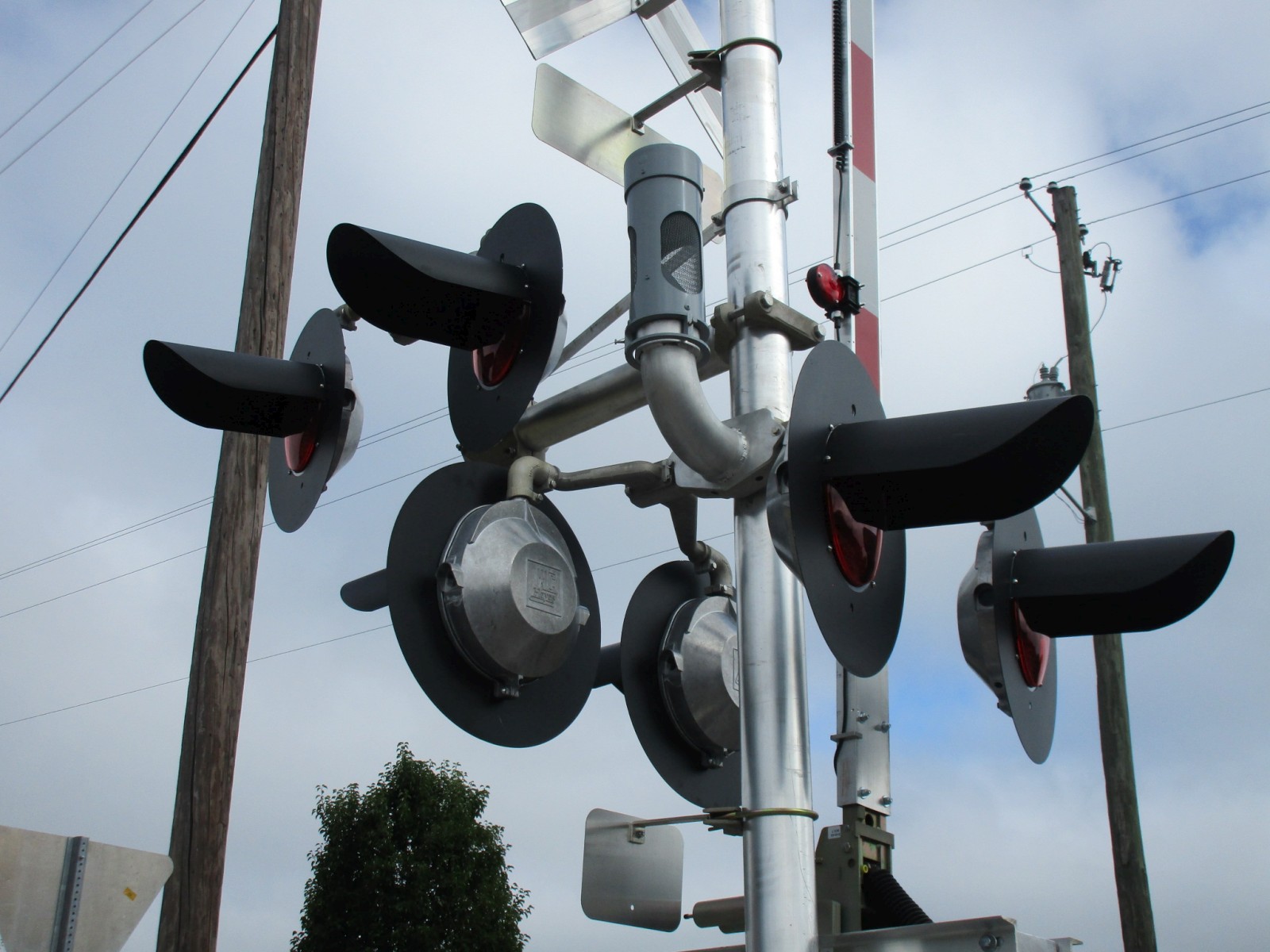

This signal has more WCH 12x24 inch lights with Leotek EV Series LEDs. |
|
25 |
26 |
27 |
28 |

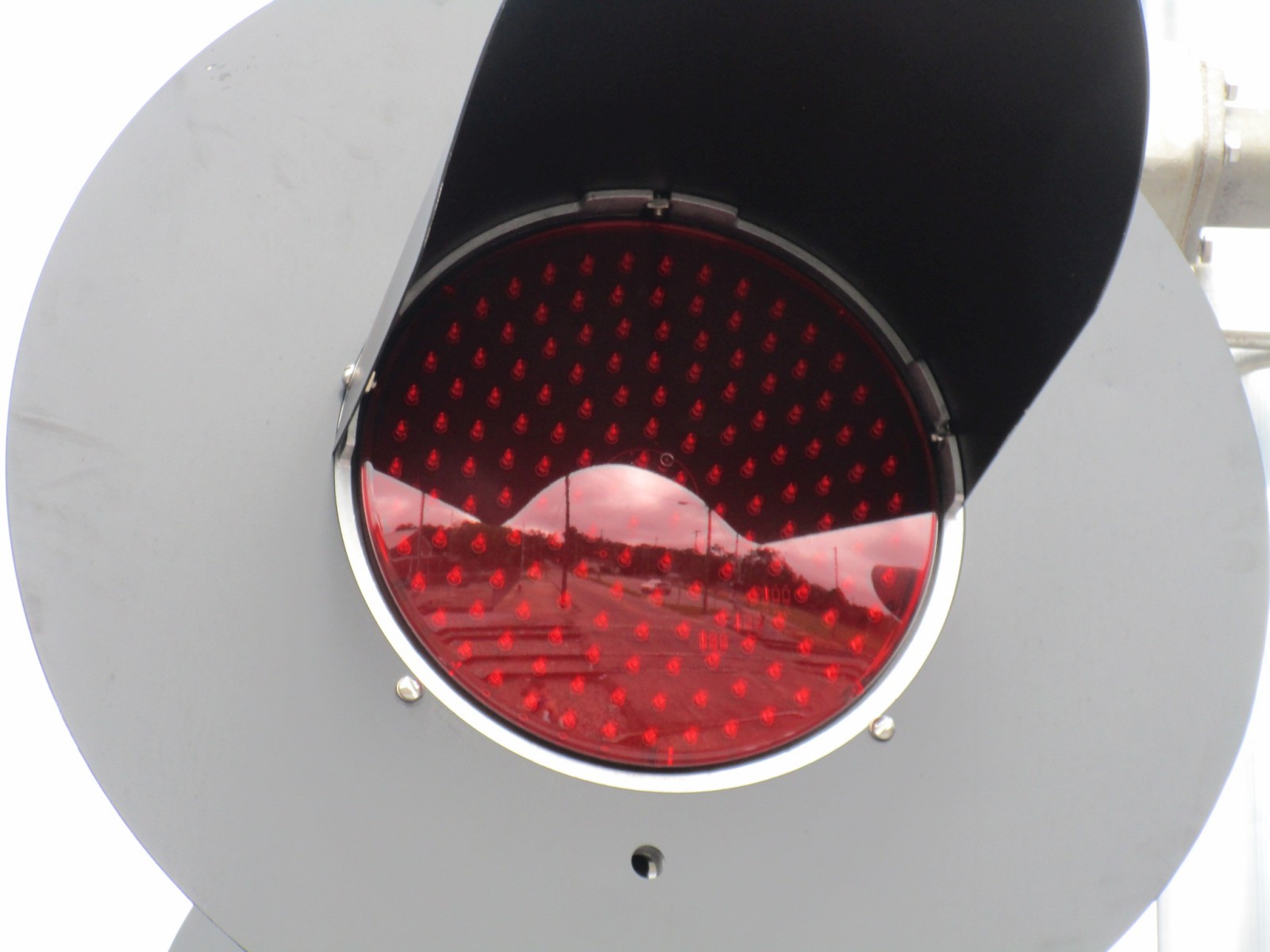

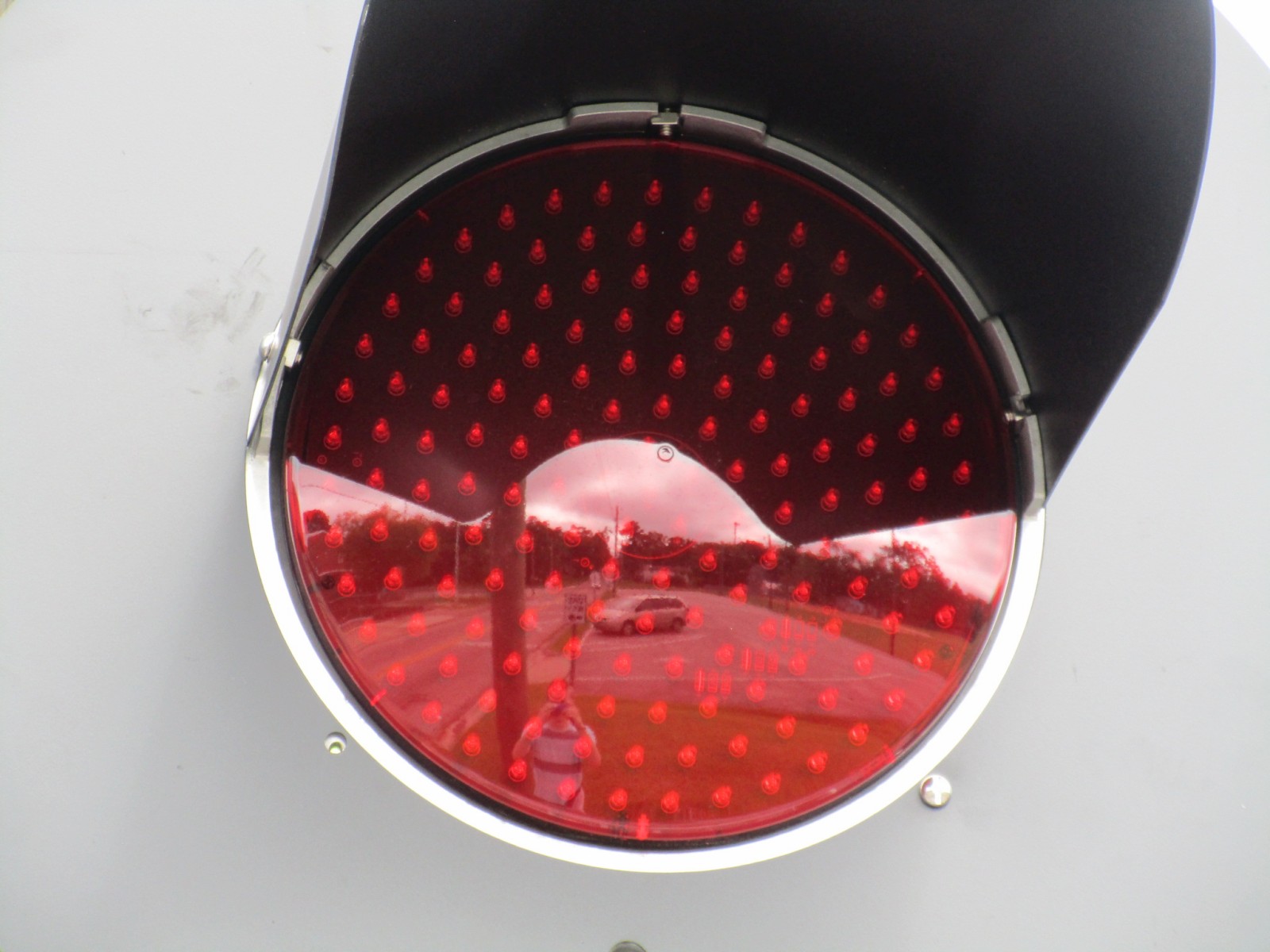

A close-up of one of the LEDs. |
Another "Tracks" sign. |

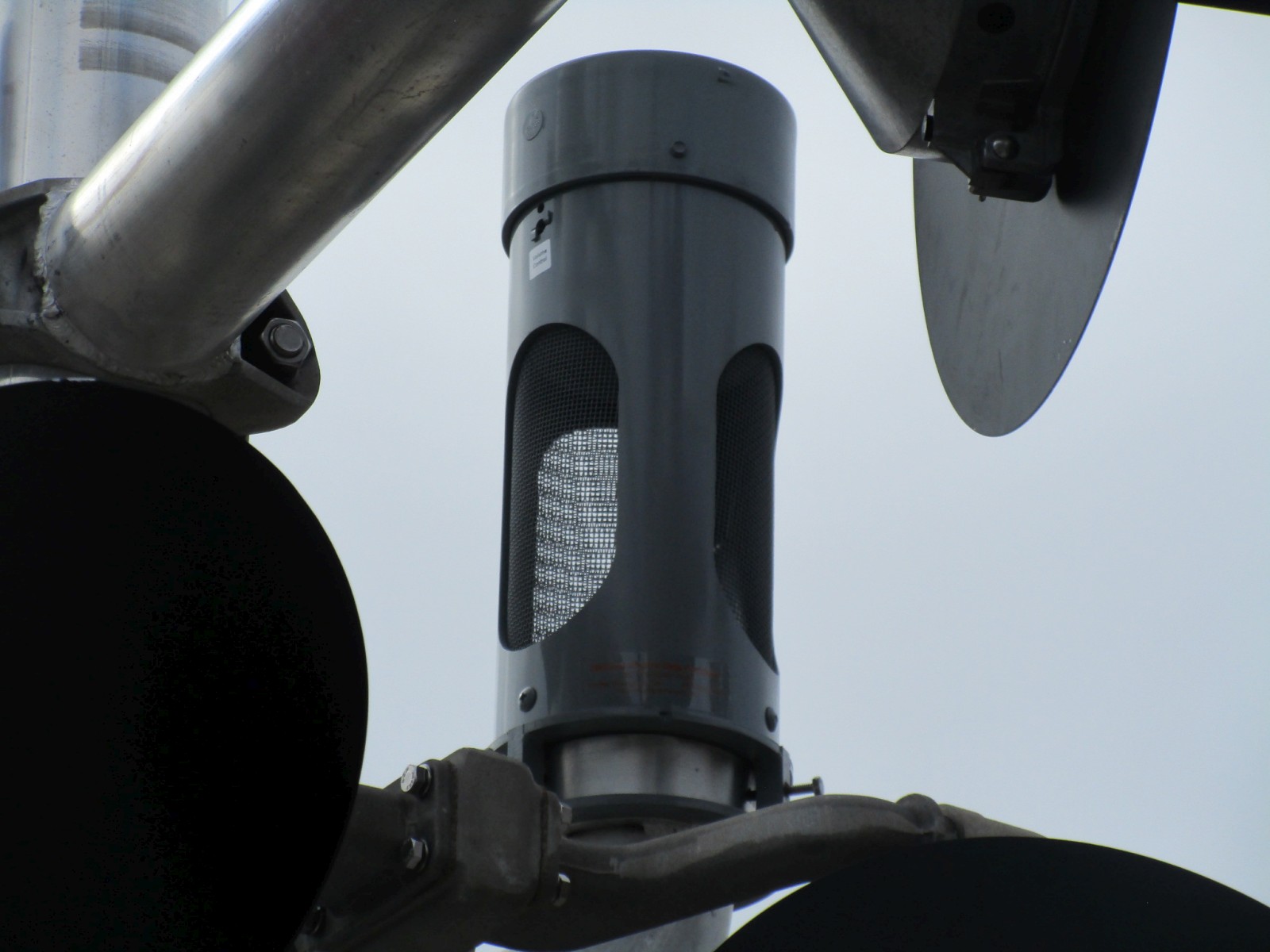

This signal has another NEG e-bell. |
|
29 |
30 |
31 |
32 |
More NEG LED gate lights over here. |

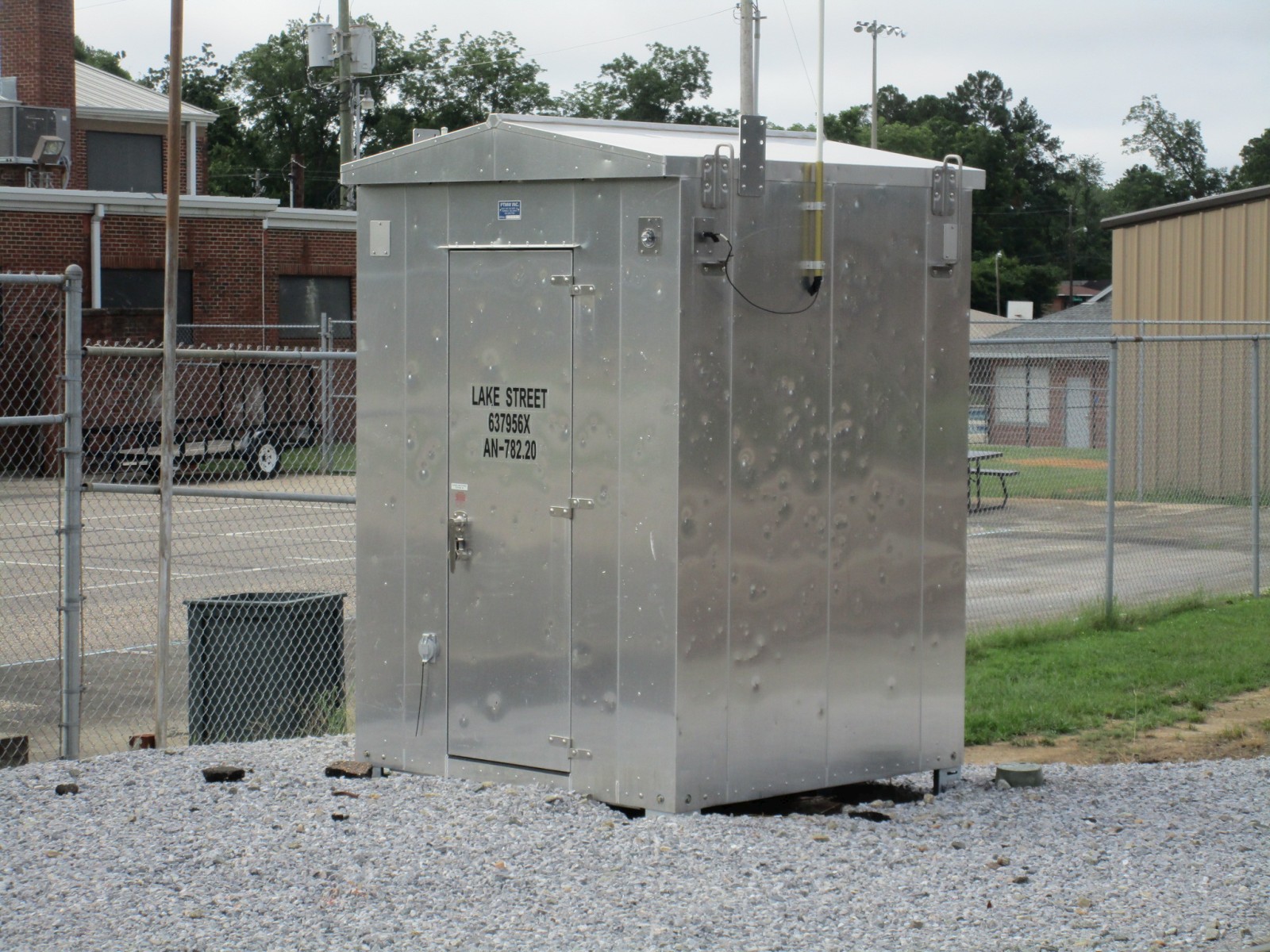

The relay case. |

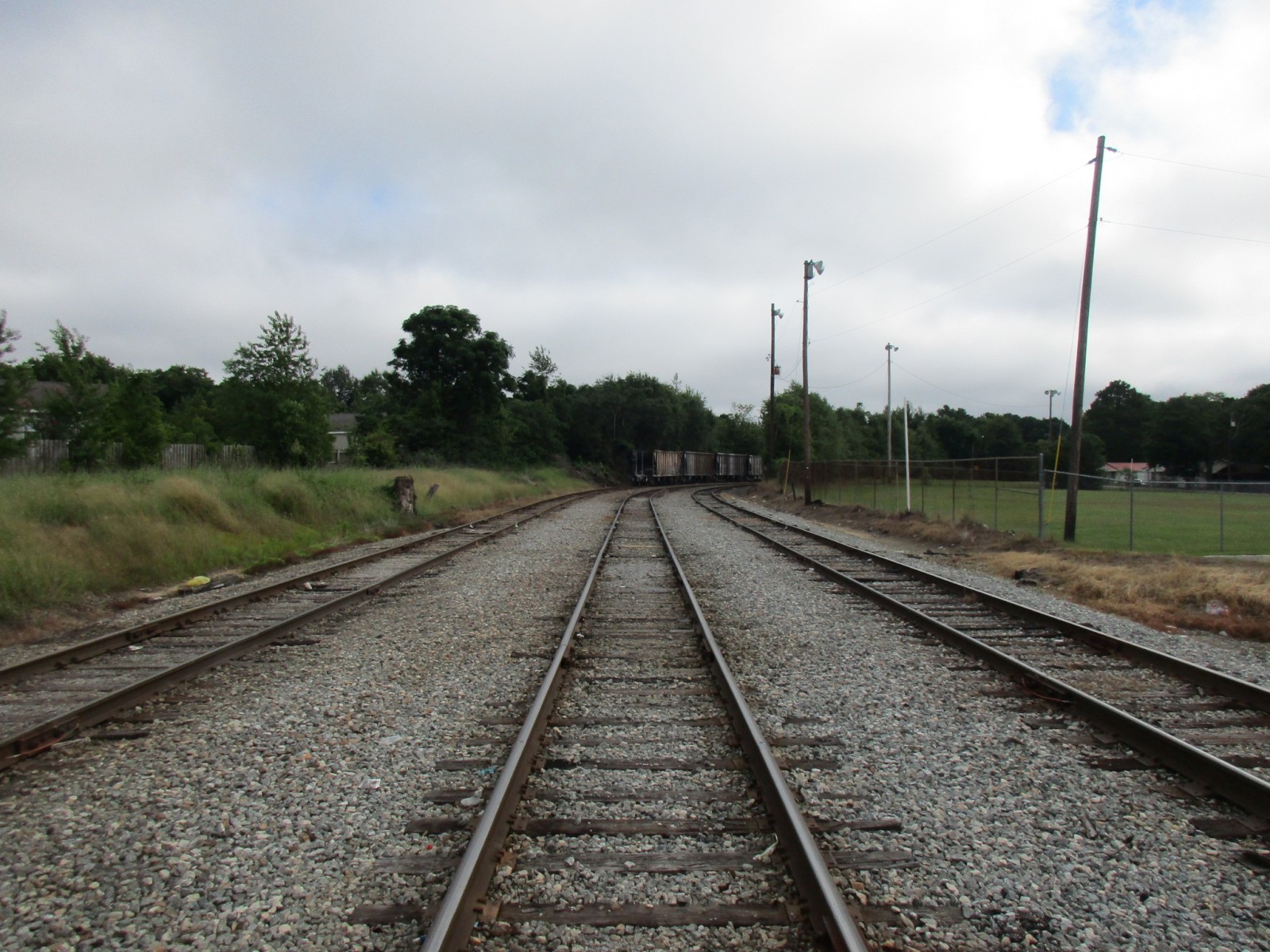

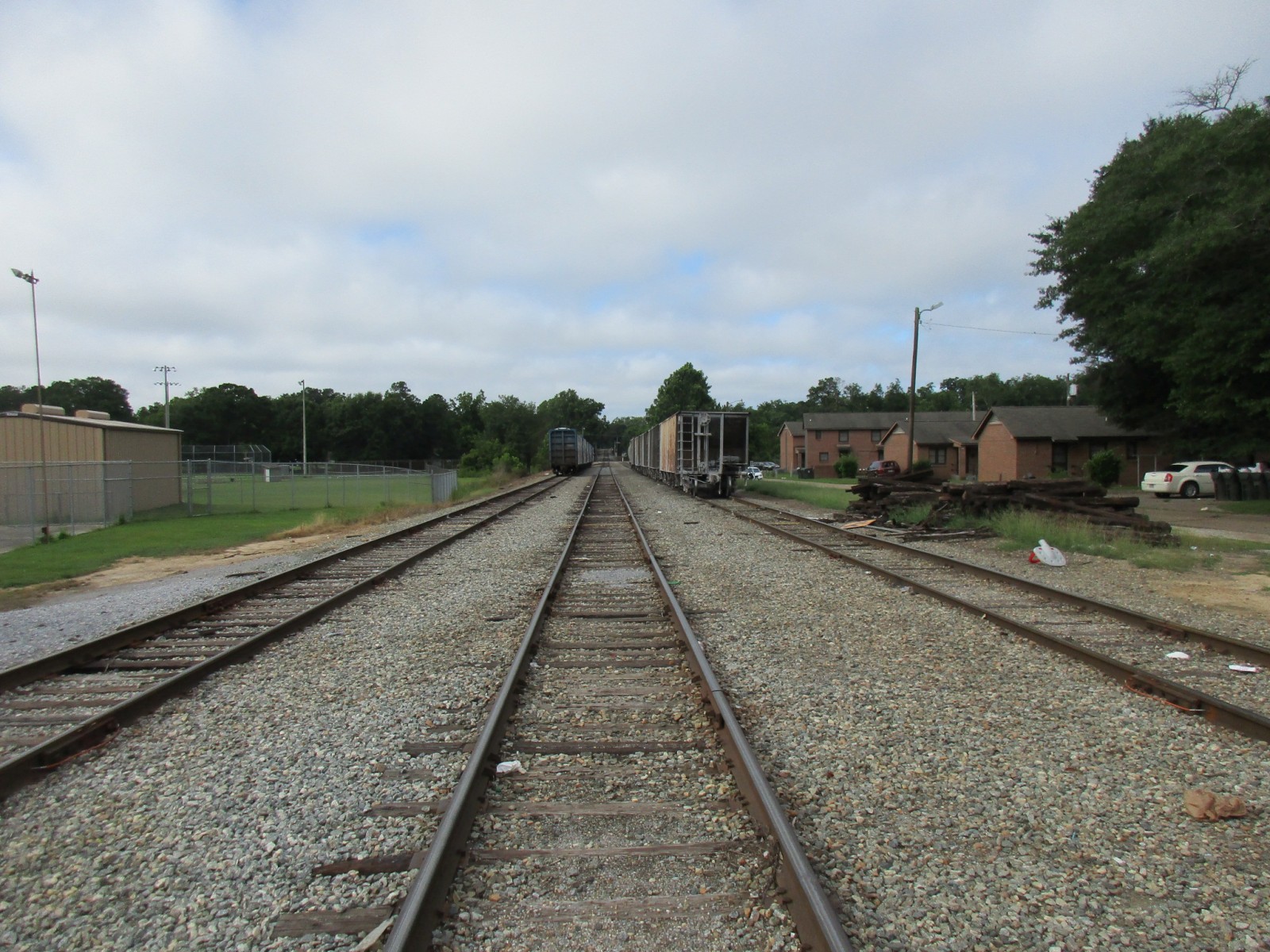

Looking northeast towards Lake Street #2. |
Looking southwest towards Newton Street. |
All pictures were taken on 7-8-18.
