MP:  AN786.320



Created November 25, 2019



Total Accidents:   5
Crossing DOT #:  637904F
TOTAL DAILY TRAINS:   1   (AS OF 2017)



Page created by: freebrickproductions



This crossing is located on the CSX Dothan Subdivision with the BAYL having trackage rights over it.



>>>>>>>>>>>>> Signal #1 Signal #2
Bell: Safetran Type 3 electronic Safetran Type 3 electronic
Cantilever: Lincoln Industries Lincoln Industries
Light Frames: 10 - 12x24" Safetran w/ Dialight Ball LEDs 10 - 12x24" Safetran w/ Dialight Ball LEDs
Base: Safetran Safetran
Gate Lights: 3 - RECOs 3 - RECOs
Gate Mechanism: Safetran 2000s Safetran 2000s
Gate Striping: Diagonal Vertical



1

2

3

4

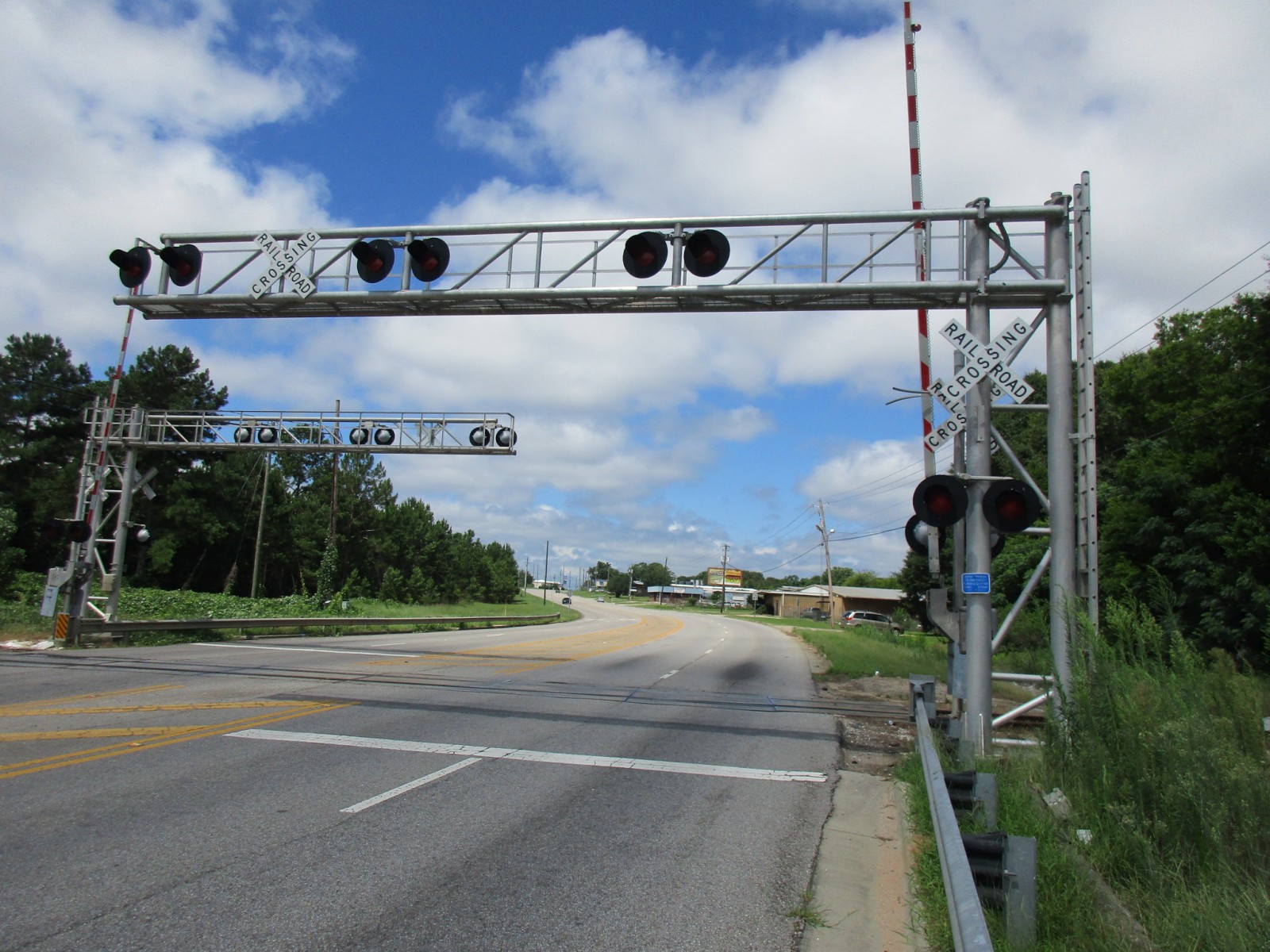

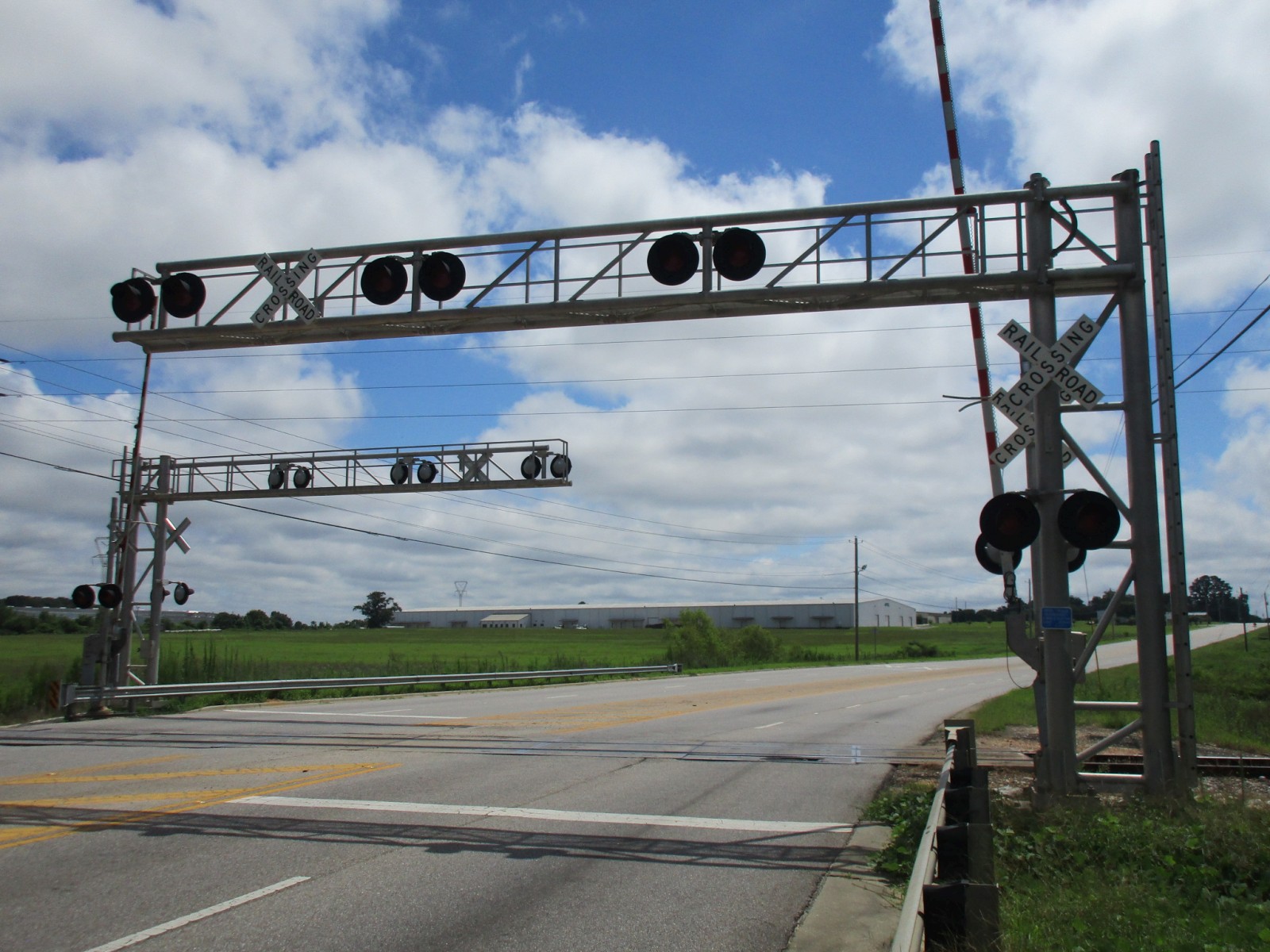

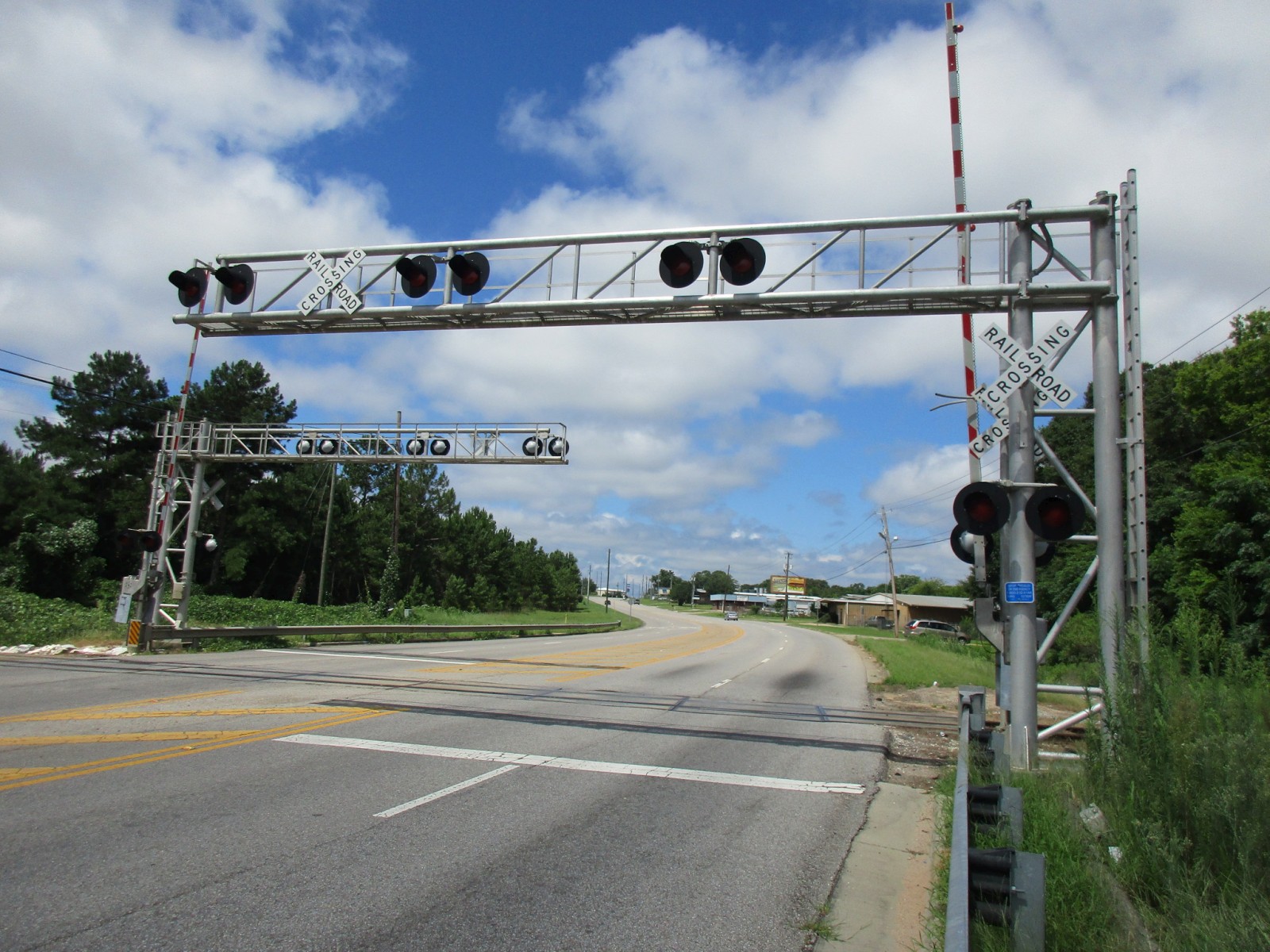

Overviews of the crossing

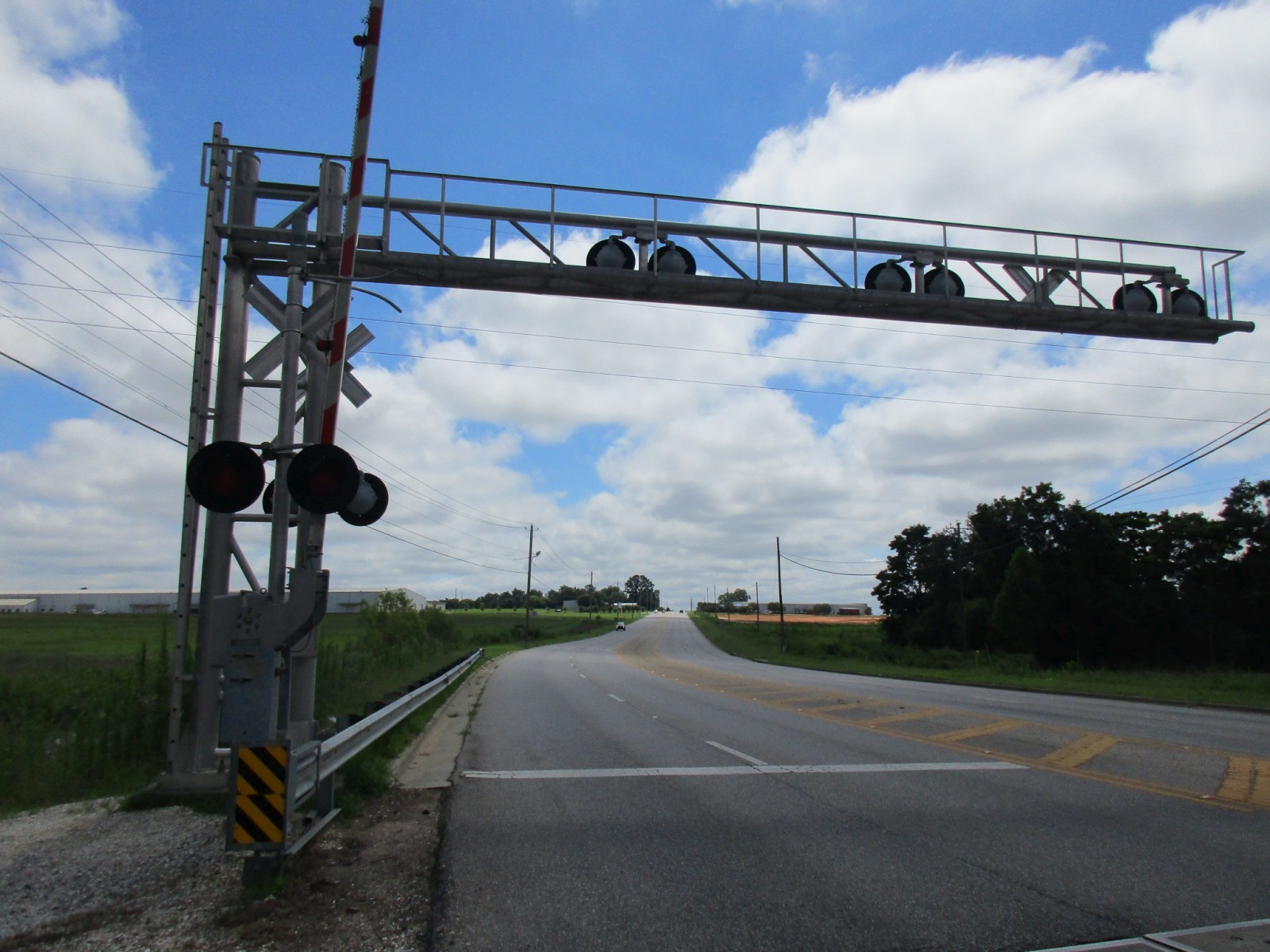

The first signal.

5

6

7

8

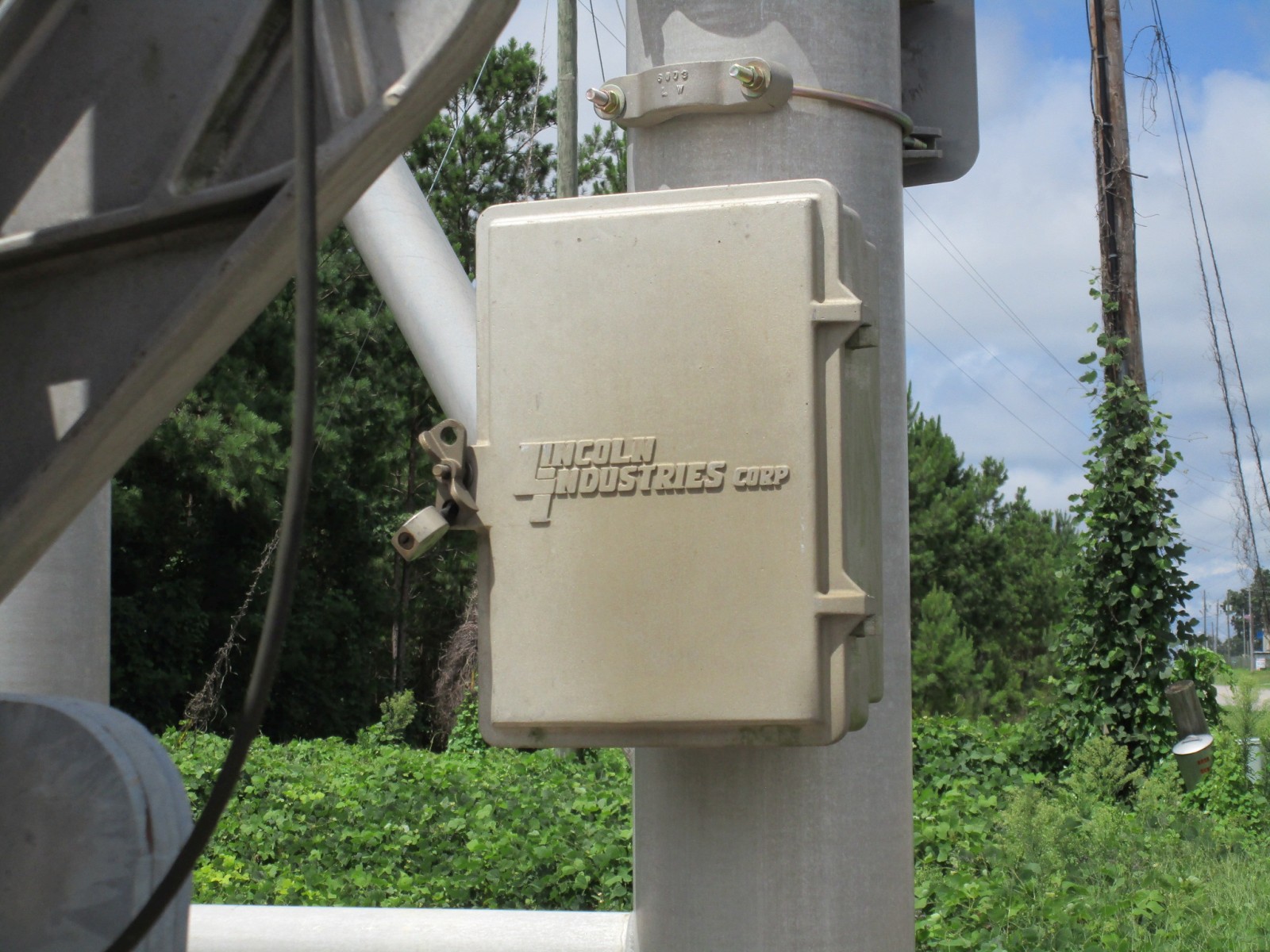

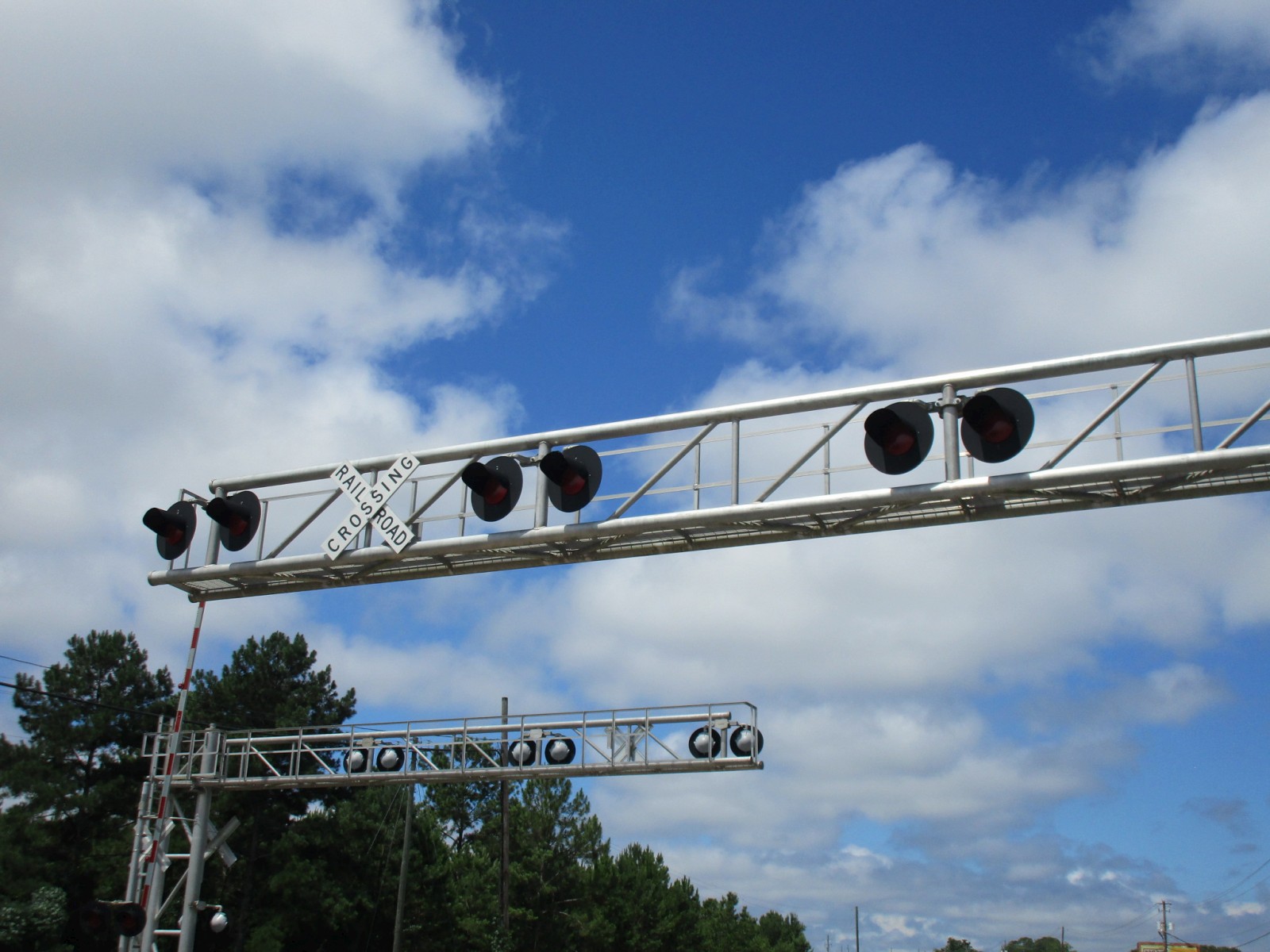

It's a Lincoln Industries cantilever.

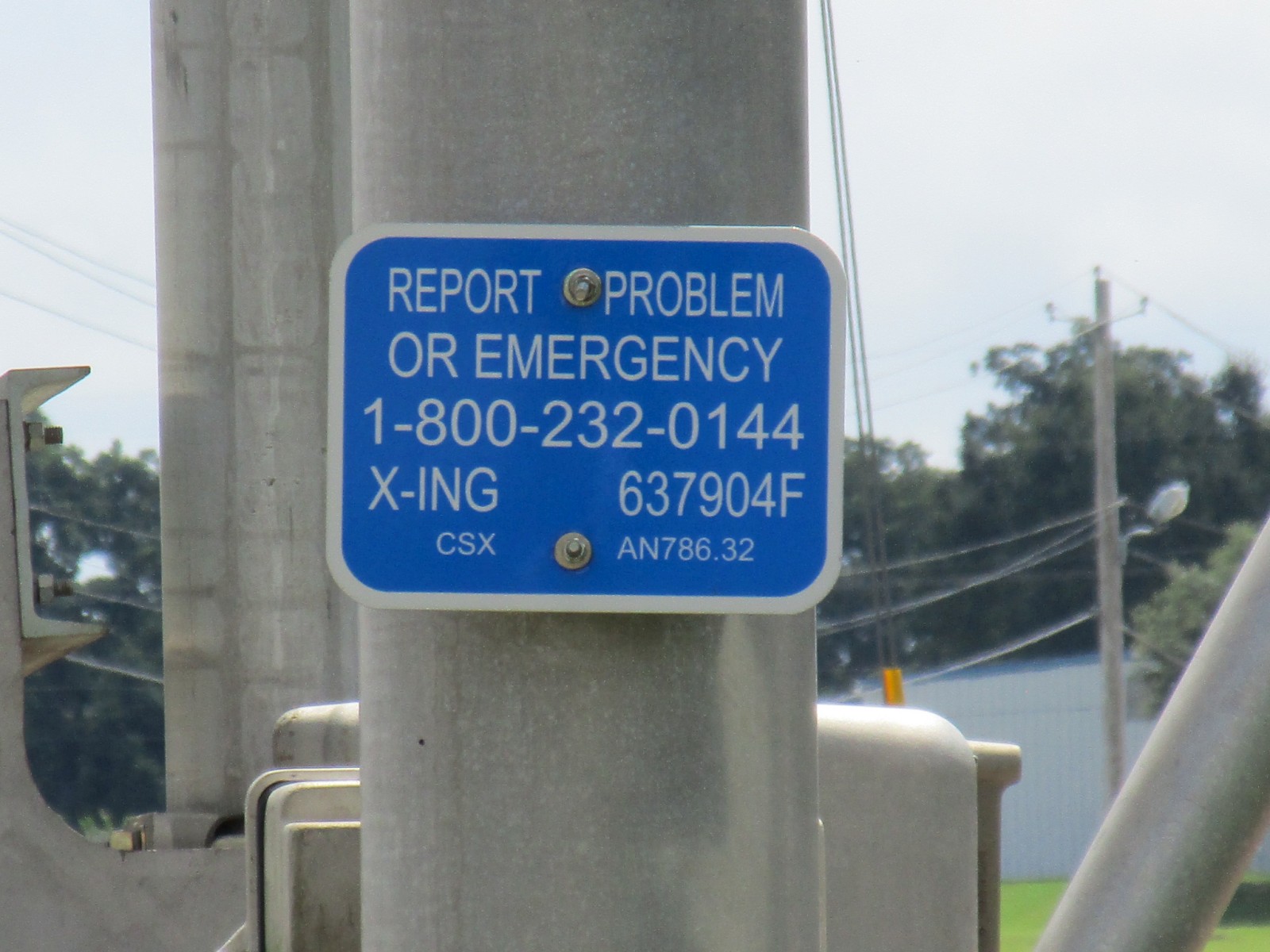

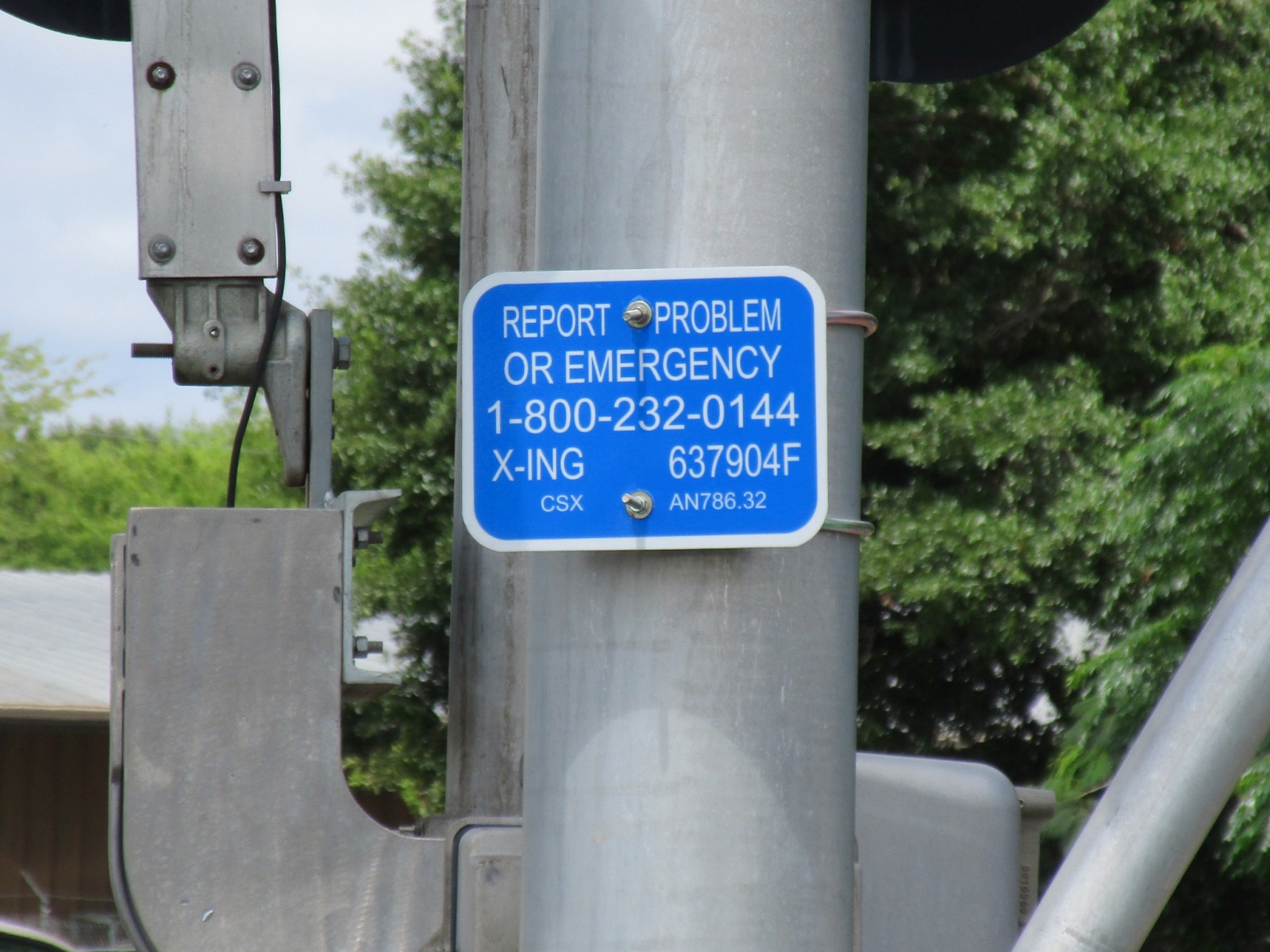

The emergency information.

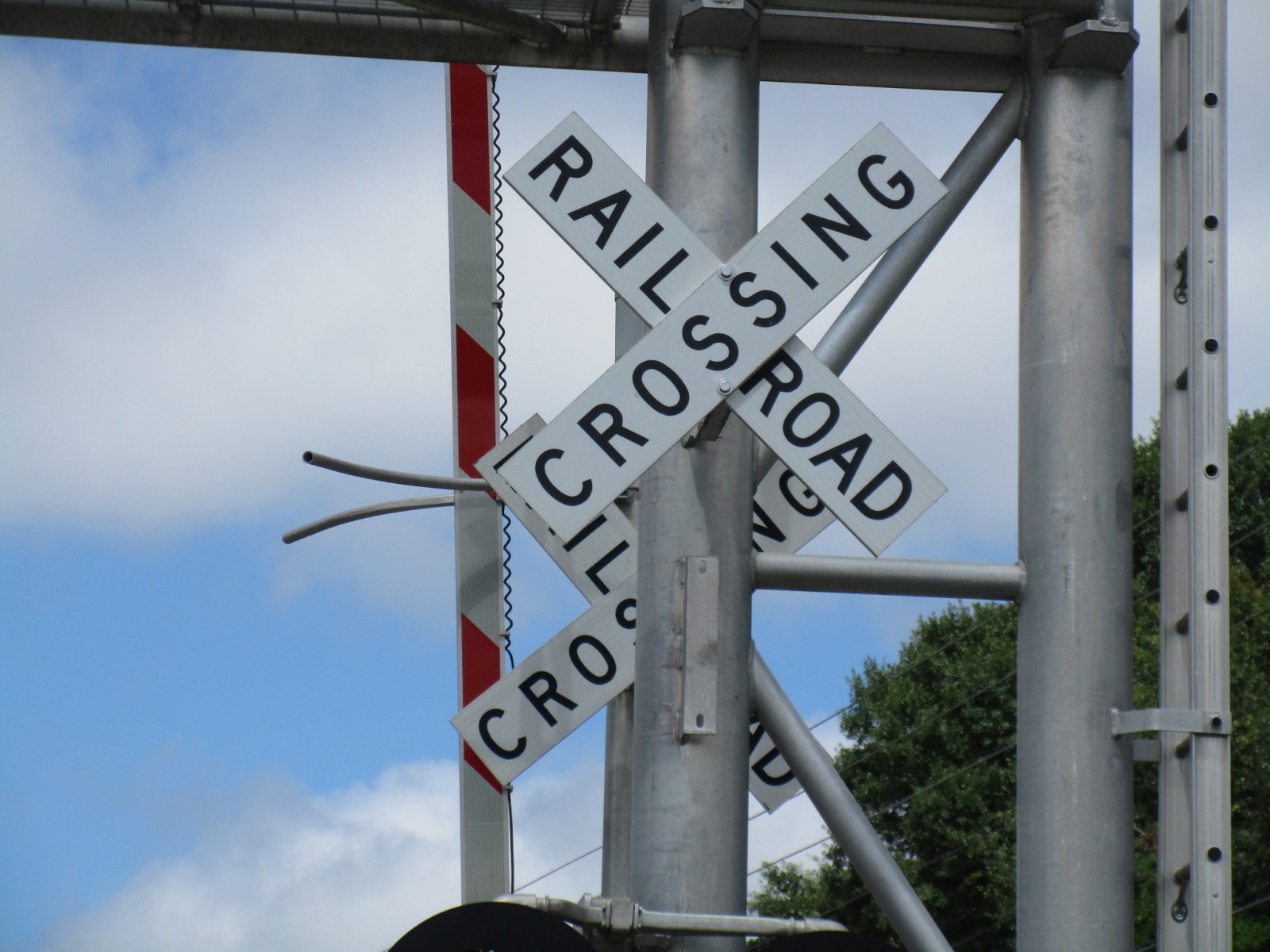

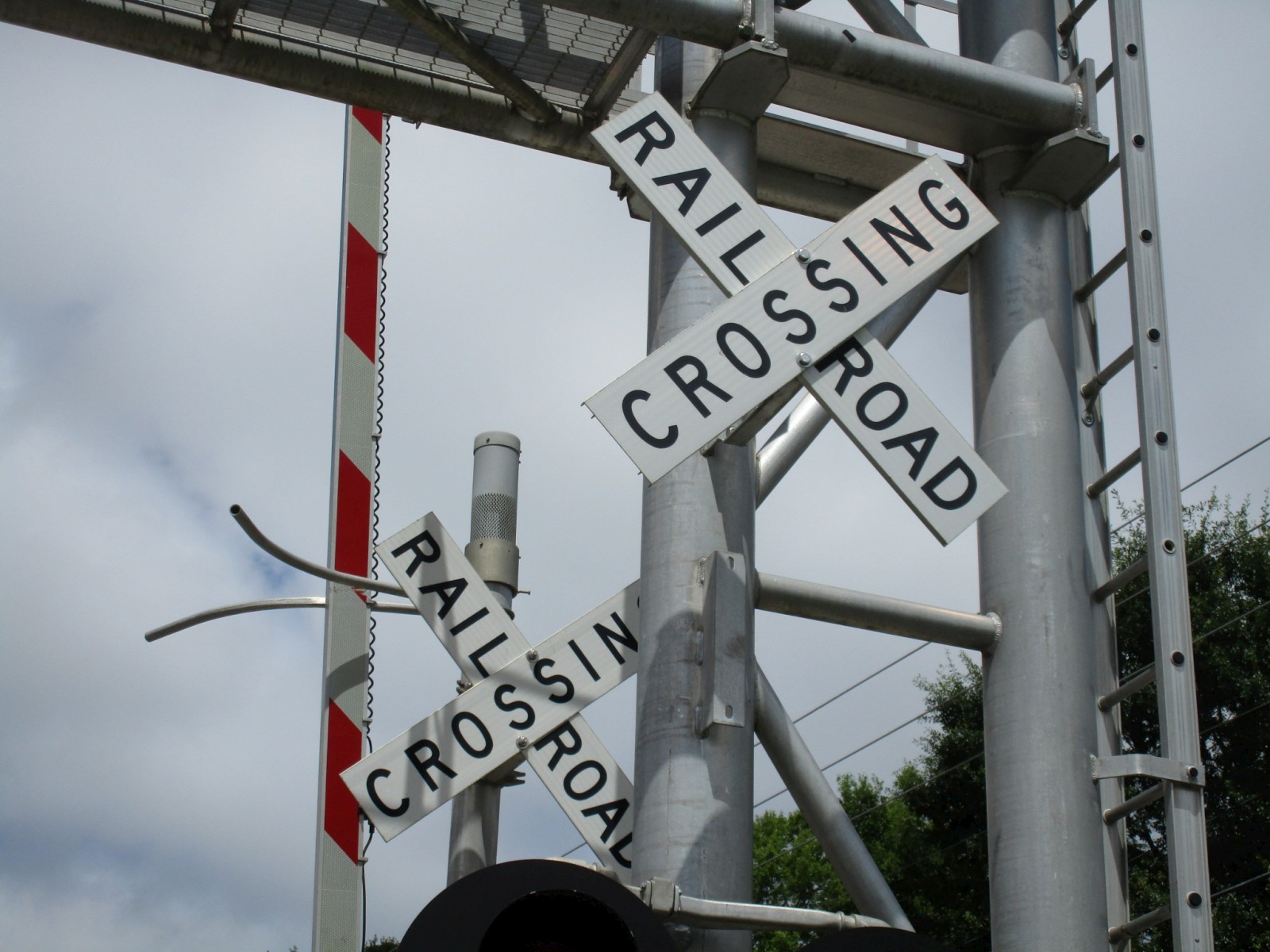

There's two crossbucks on the mast here!

For whatever reason, CSX installed a crossbuck on the gate mast facing the same direction as the cantilever's crossbuck!

9

10

11

12

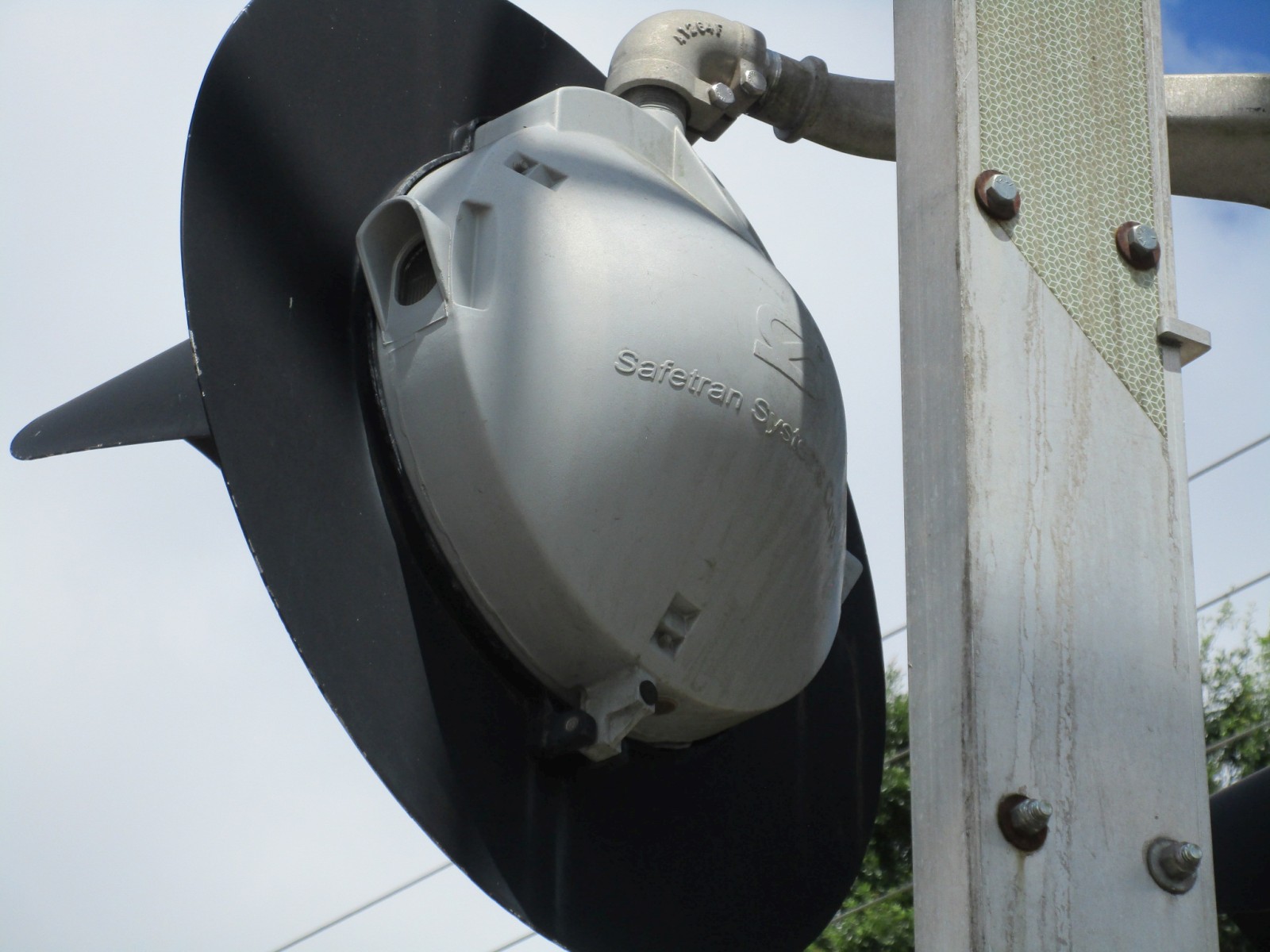

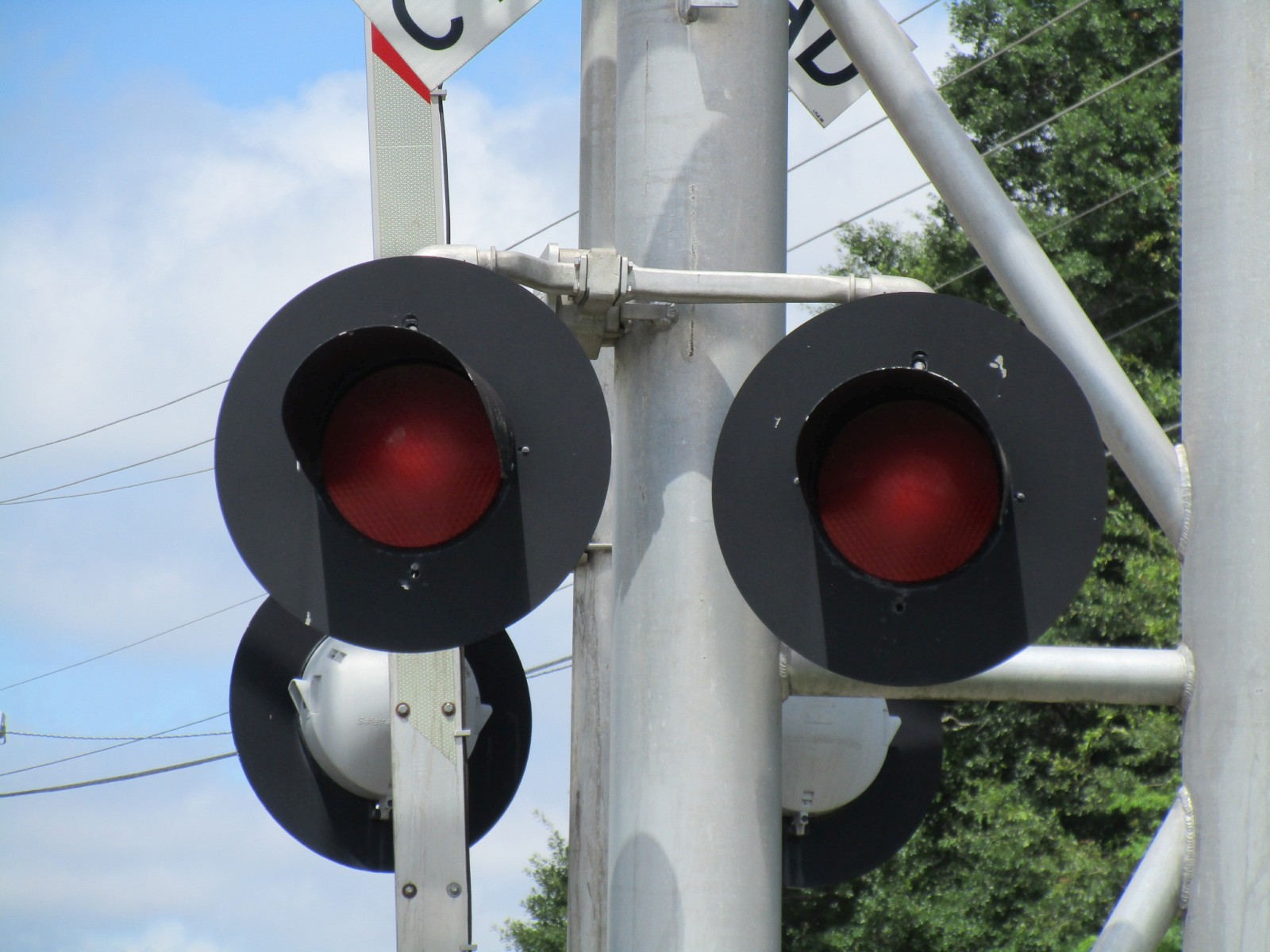

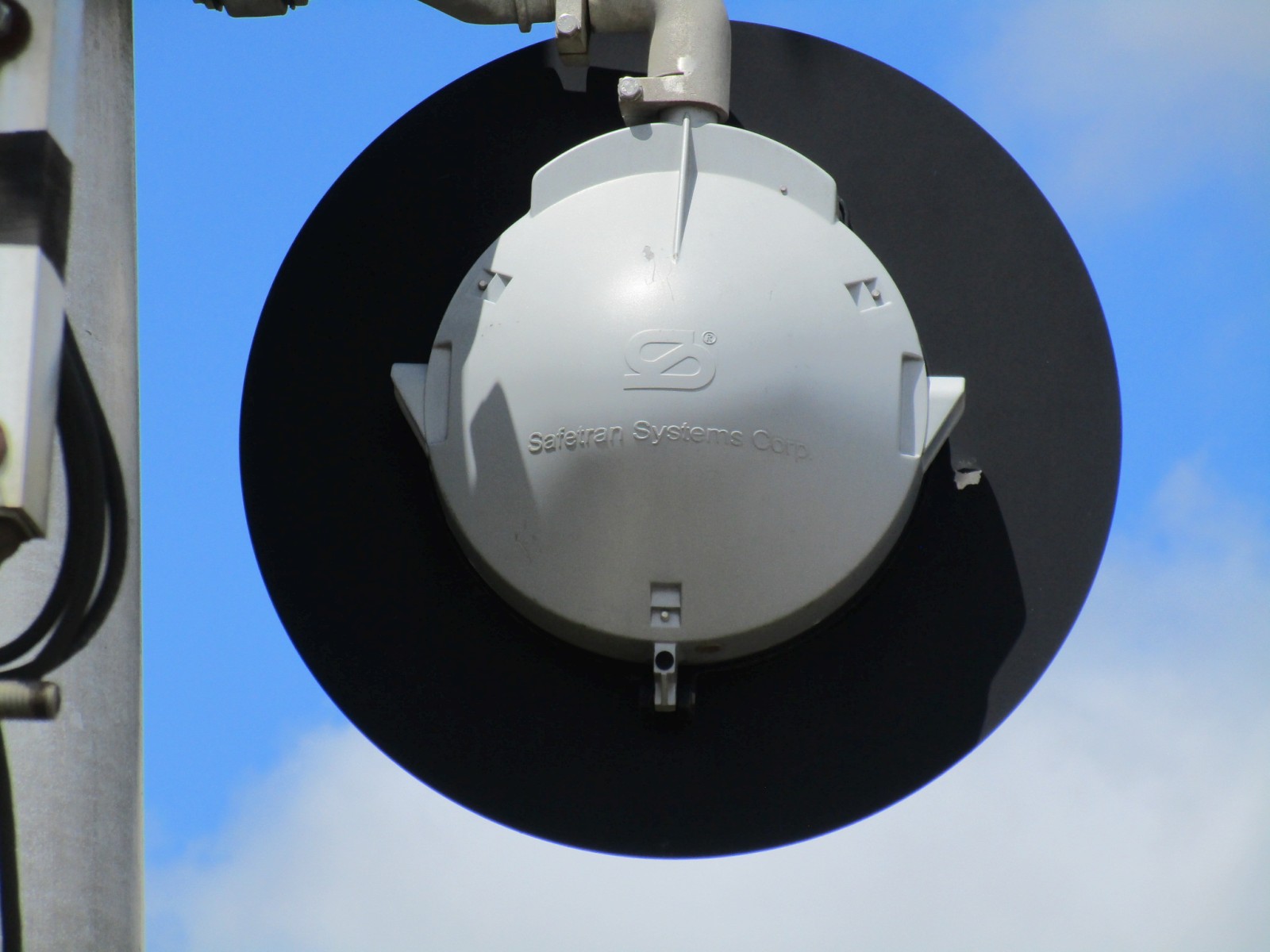

All of the lights on this signal are Safetran 12x24 inch lights with Dialight Ball LEDs.

13

14

15

16

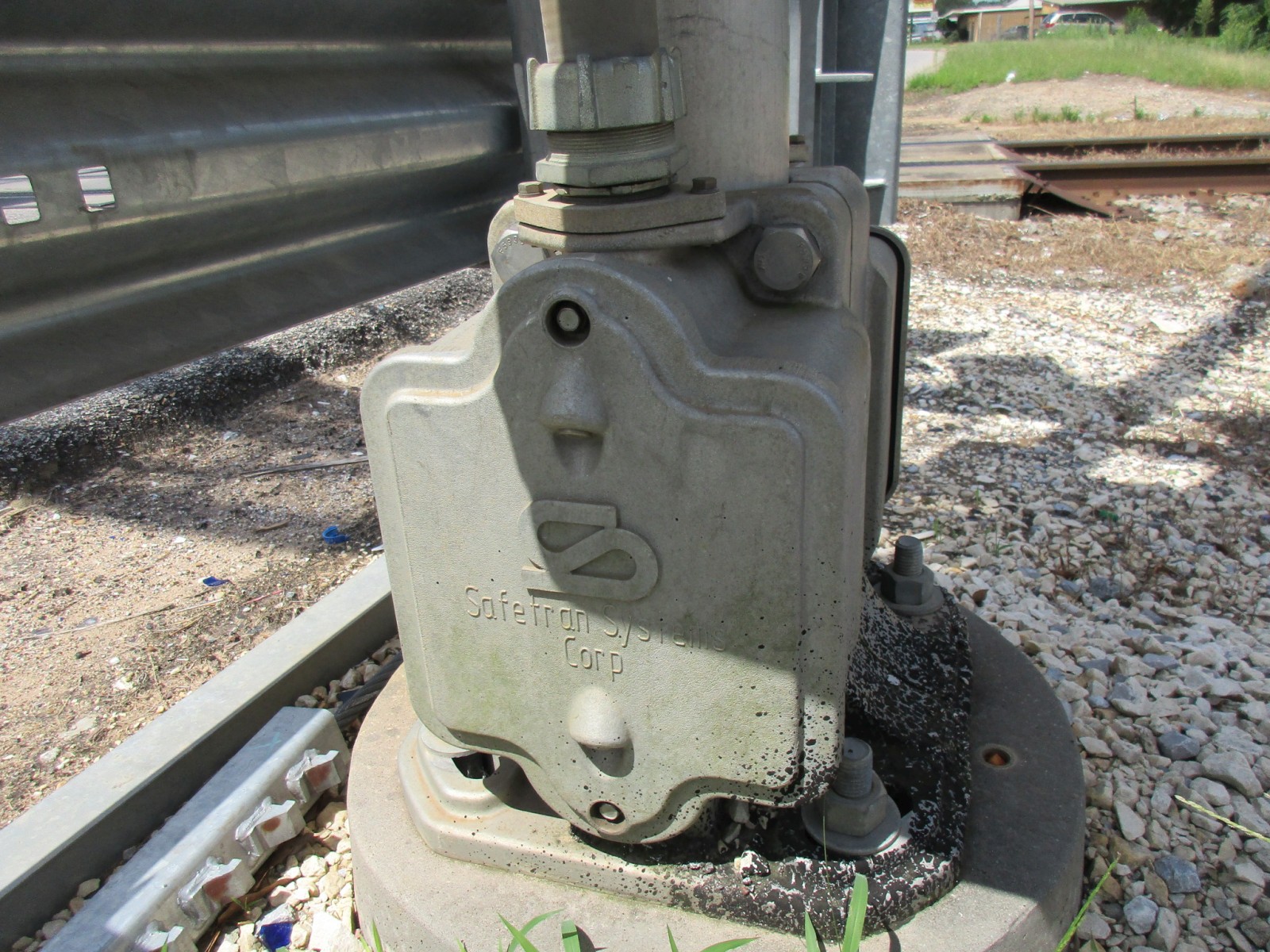

A Safetran base.
A Safetran gate mechanism.

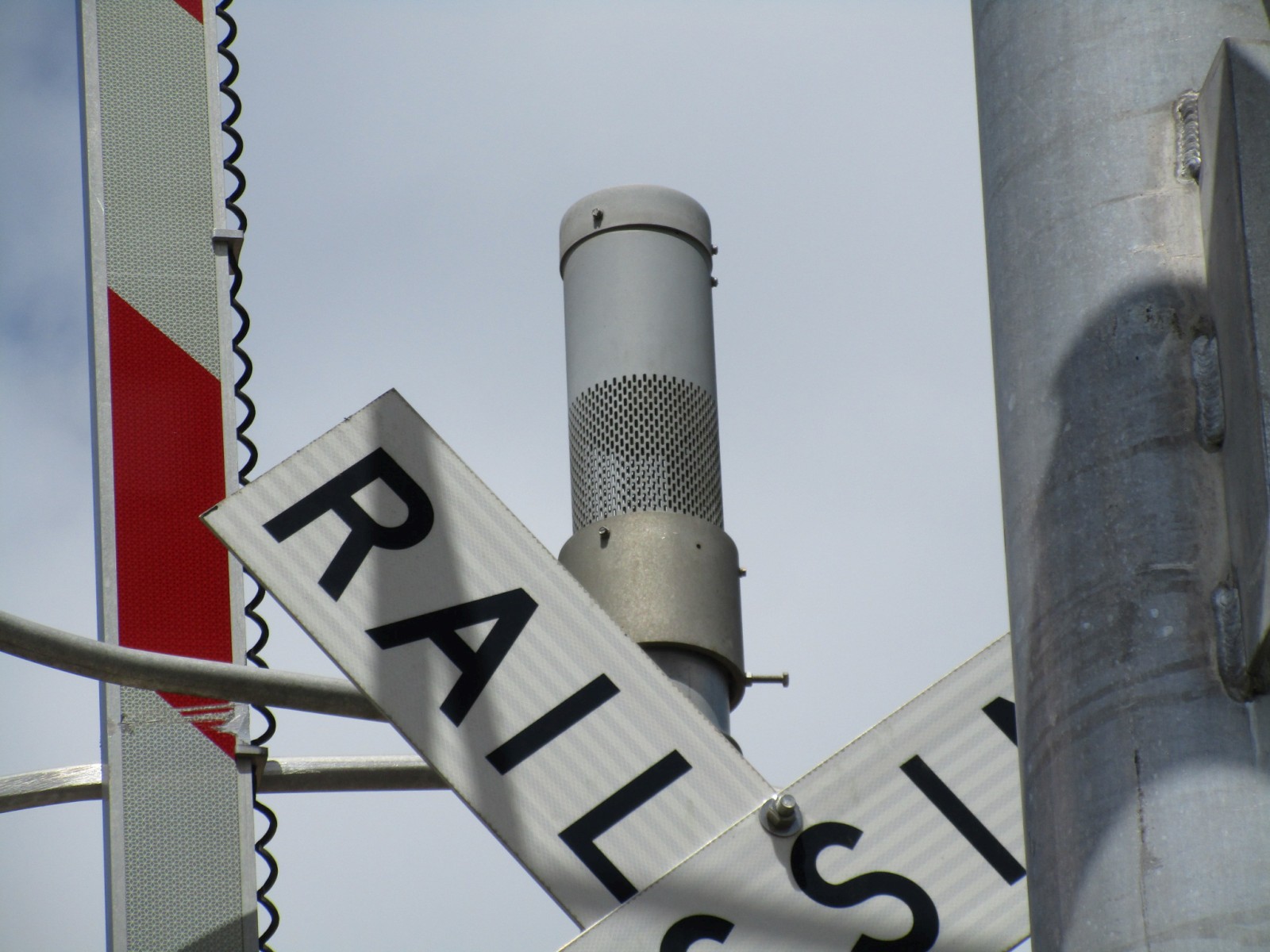

This signal has a Safetran Type 3 electronic bell!

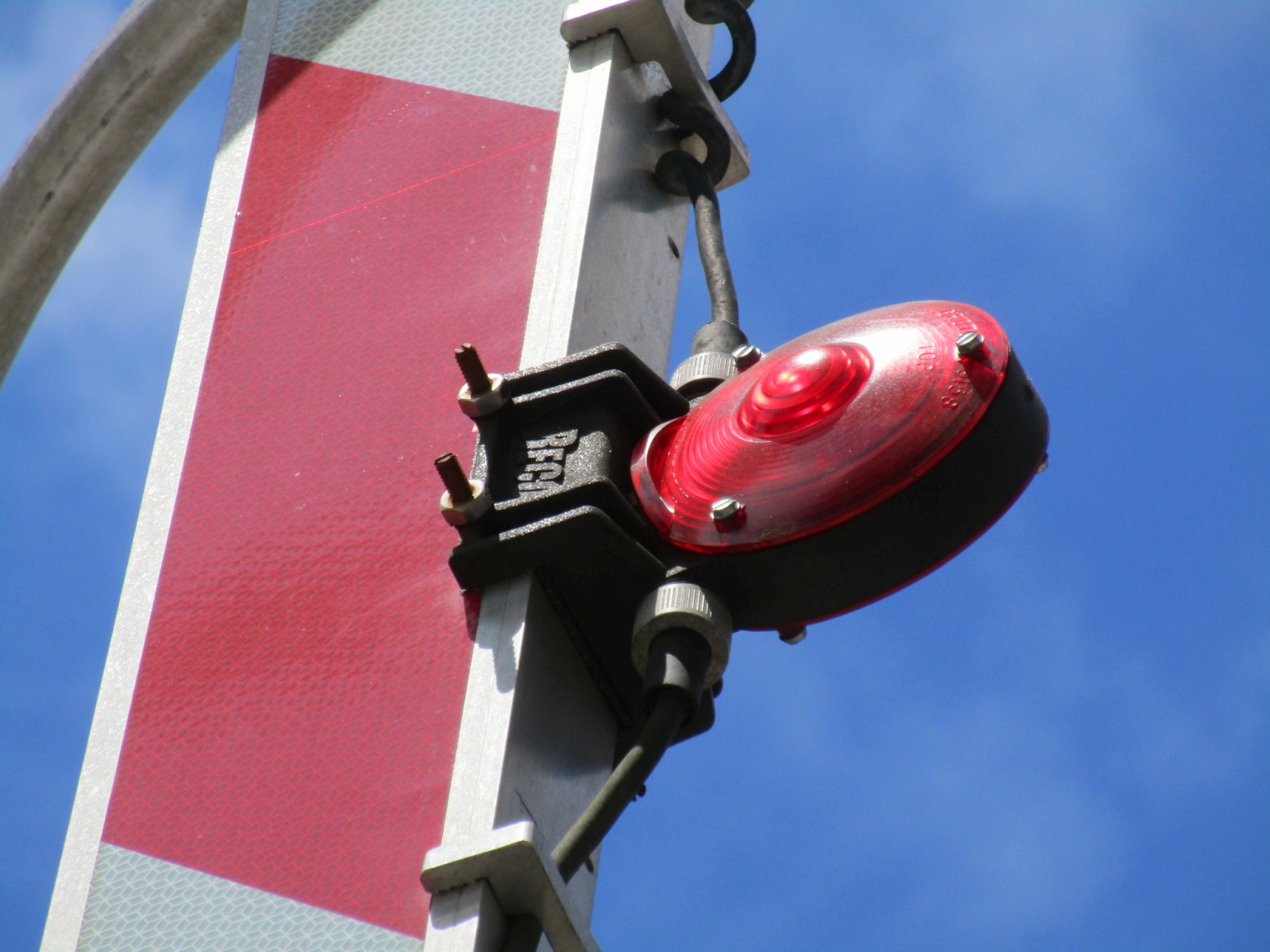

This signal uses RECO gate lights.

17

18

19

20

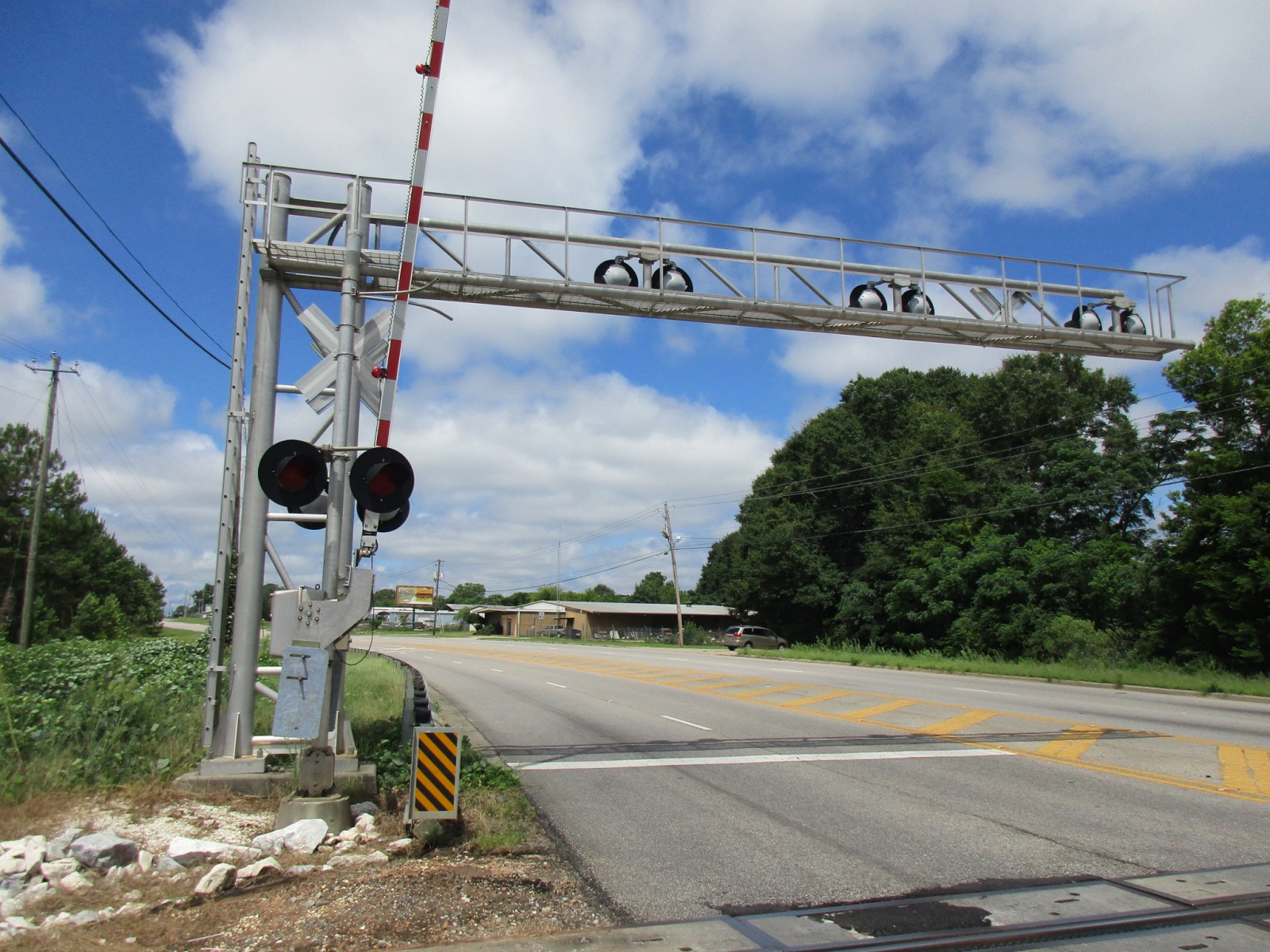

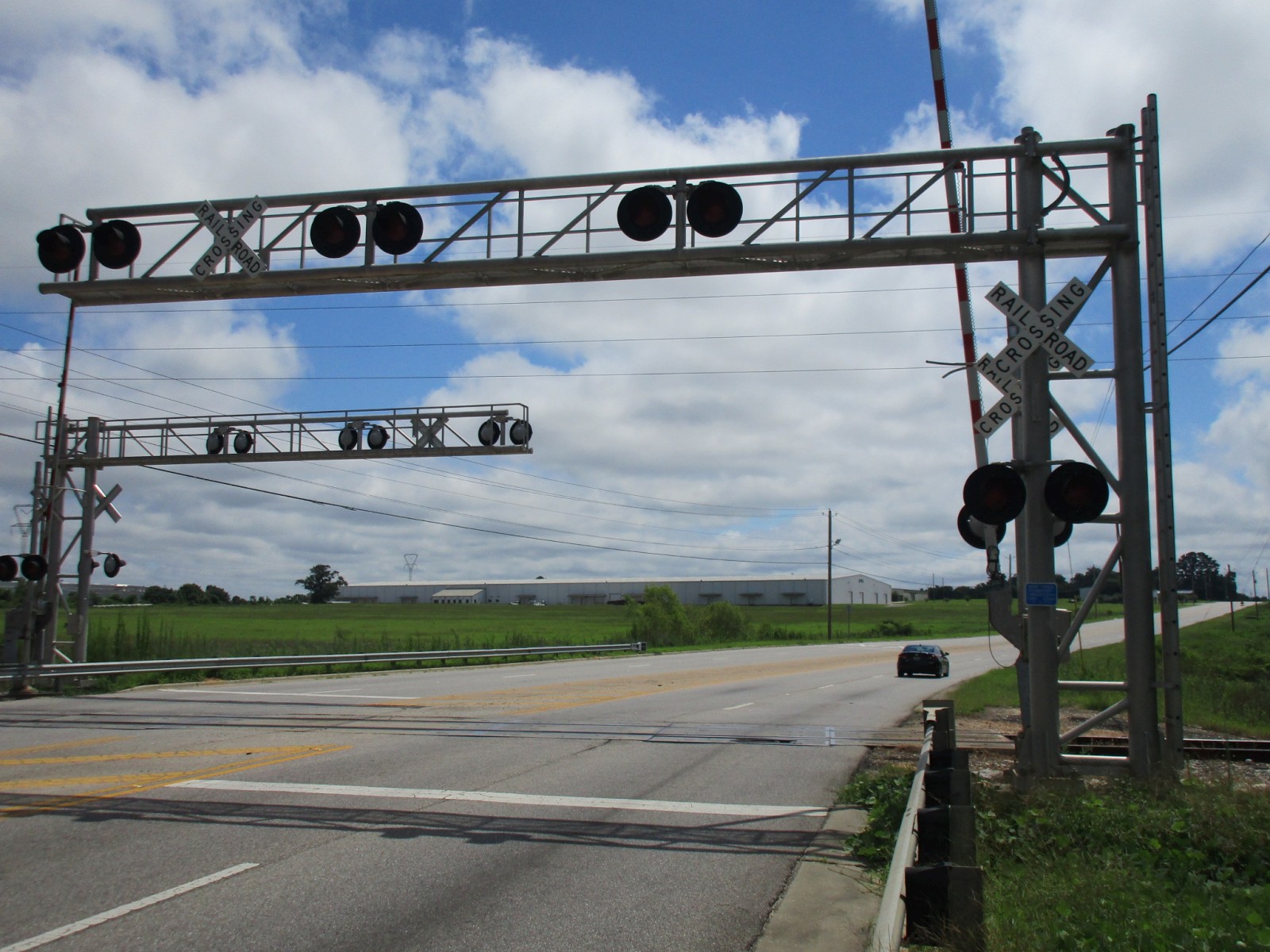

The second signal.

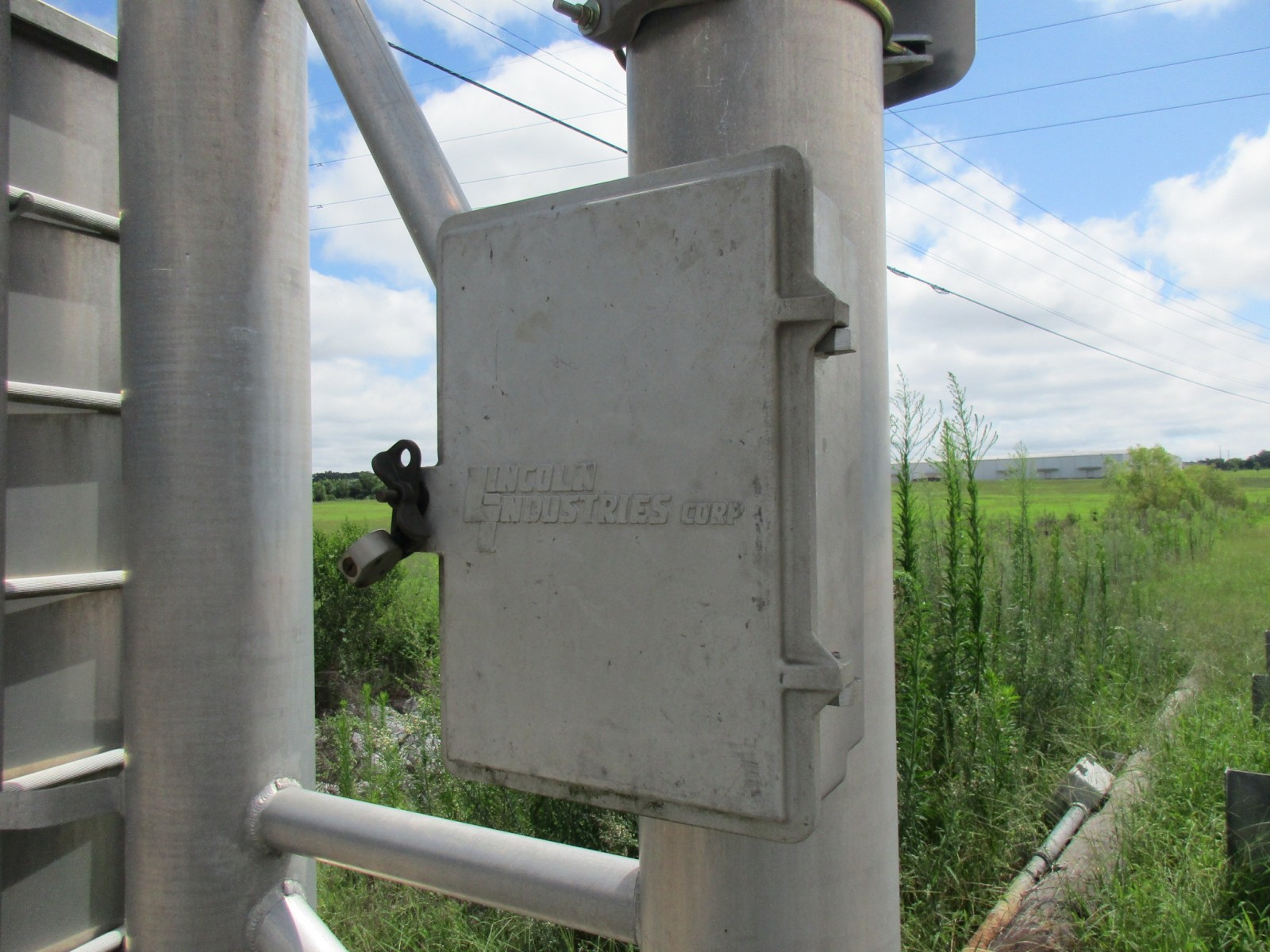

It's another Lincoln Industries cantilever.
The emergency information.

21

22

23

24

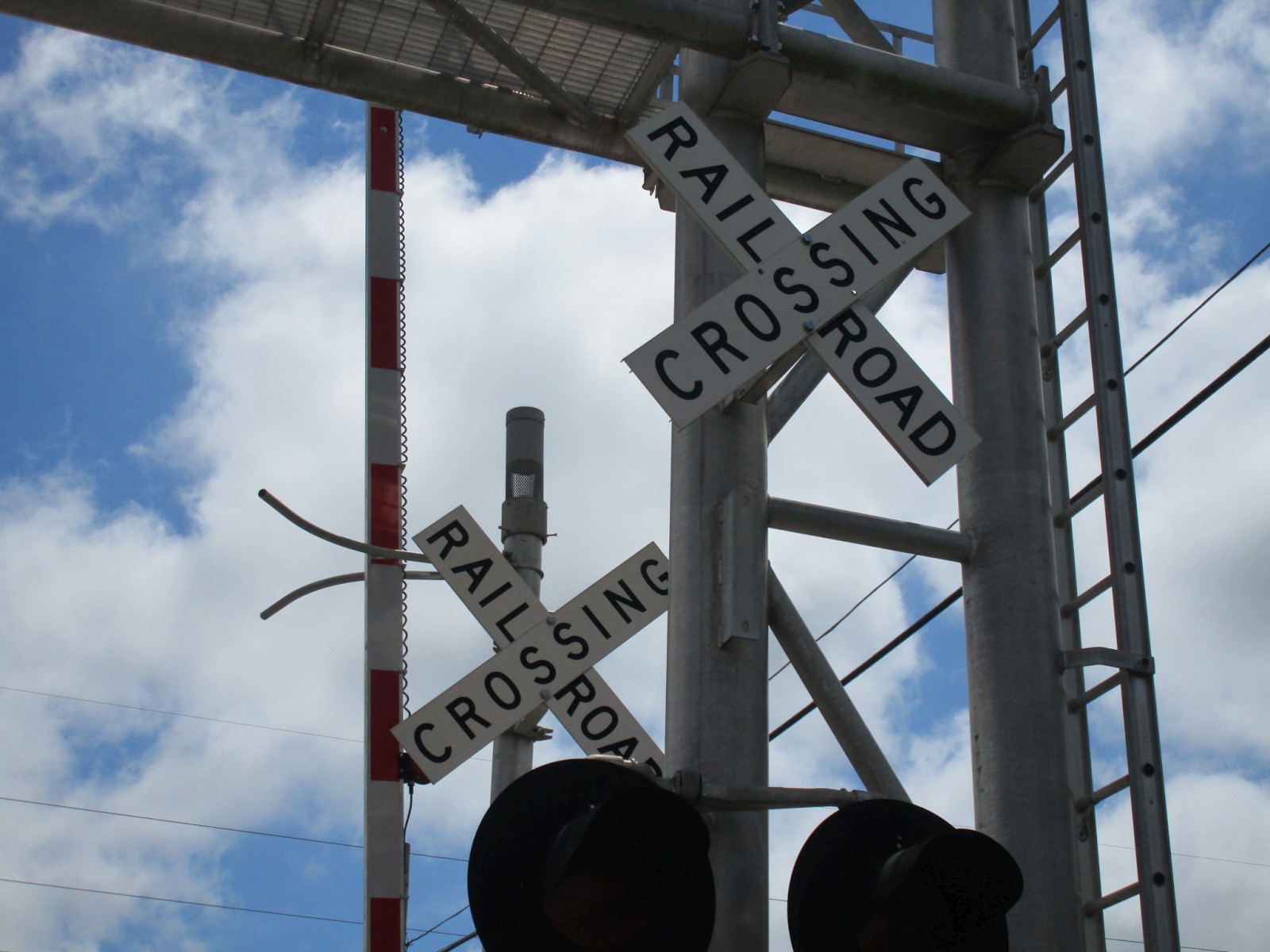

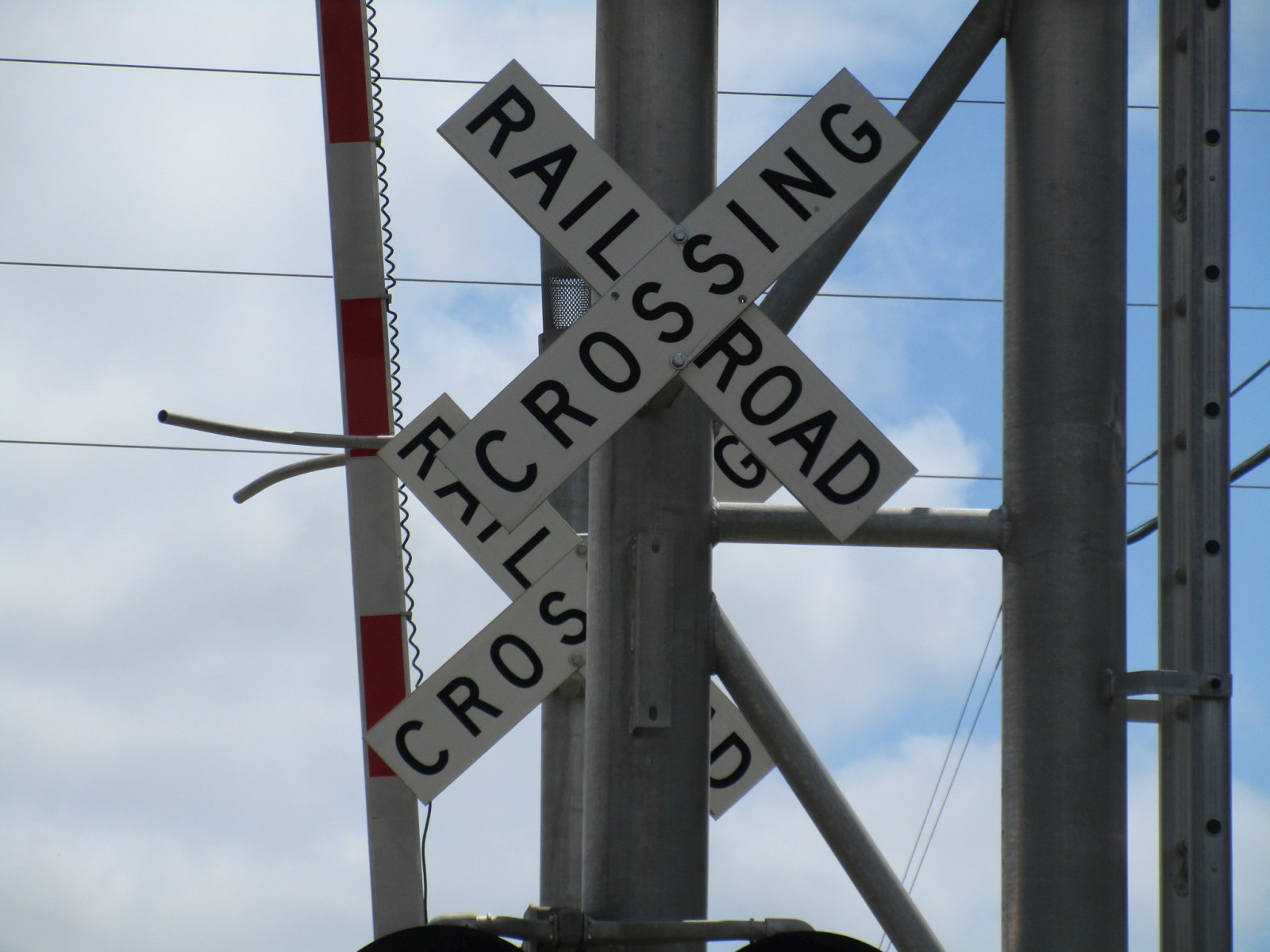

Another pair of mast-mounted crossbucks facing the same way! CSX should really turn the one on the gate mast around.

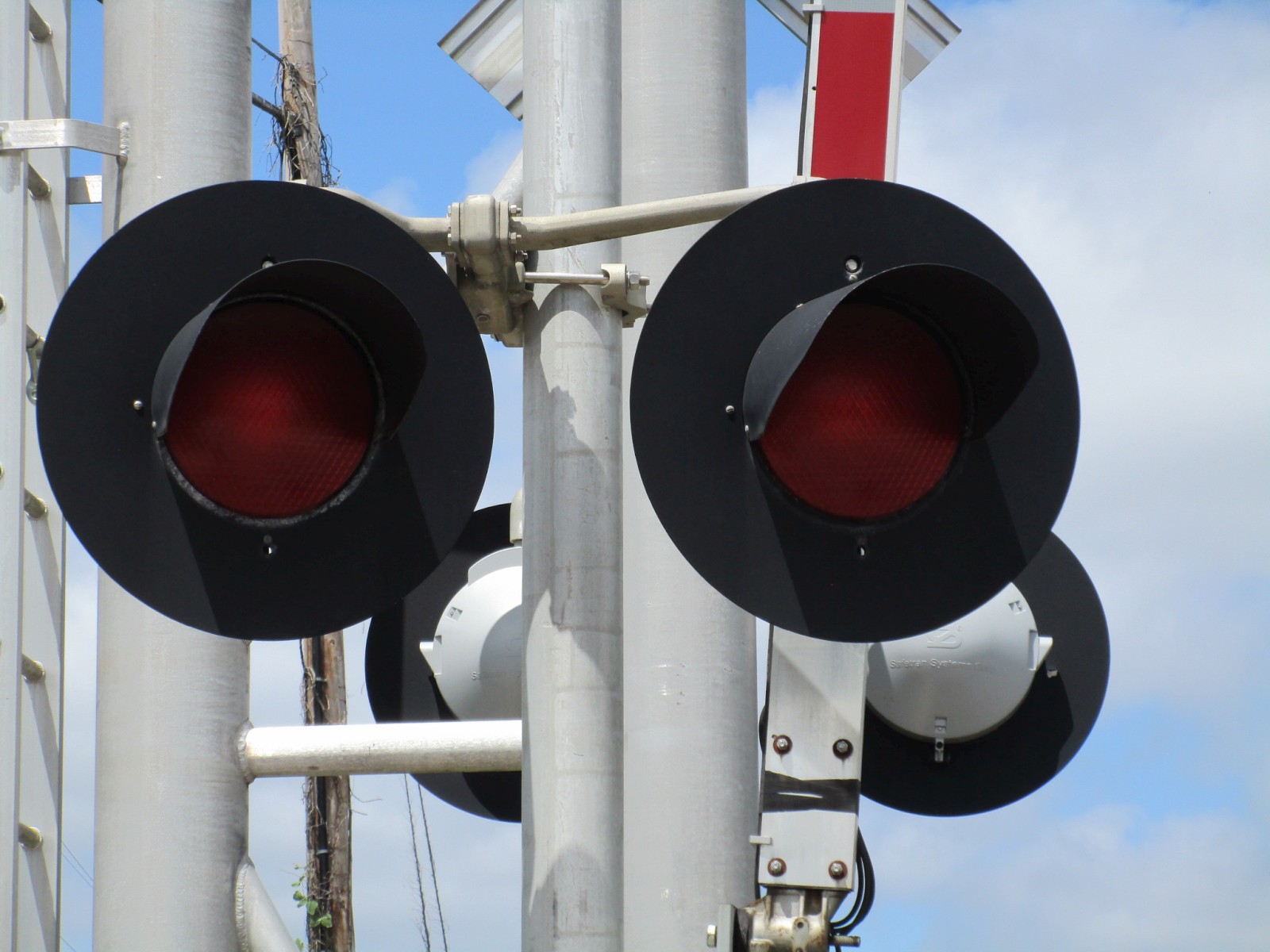

The mast lights are more Safetran 12x24 inch lights with Dialight Ball LEDs.

25

26

27

28

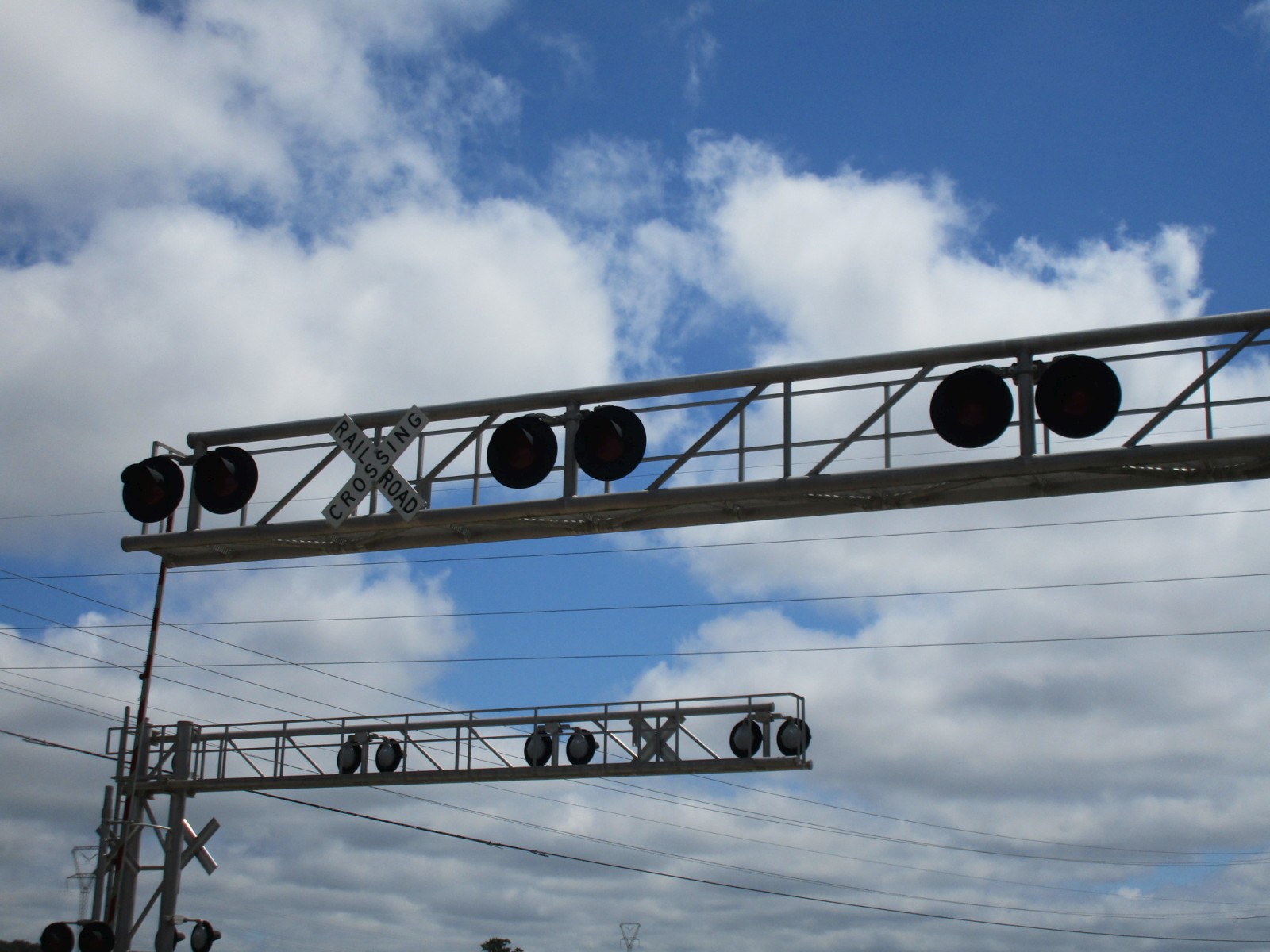

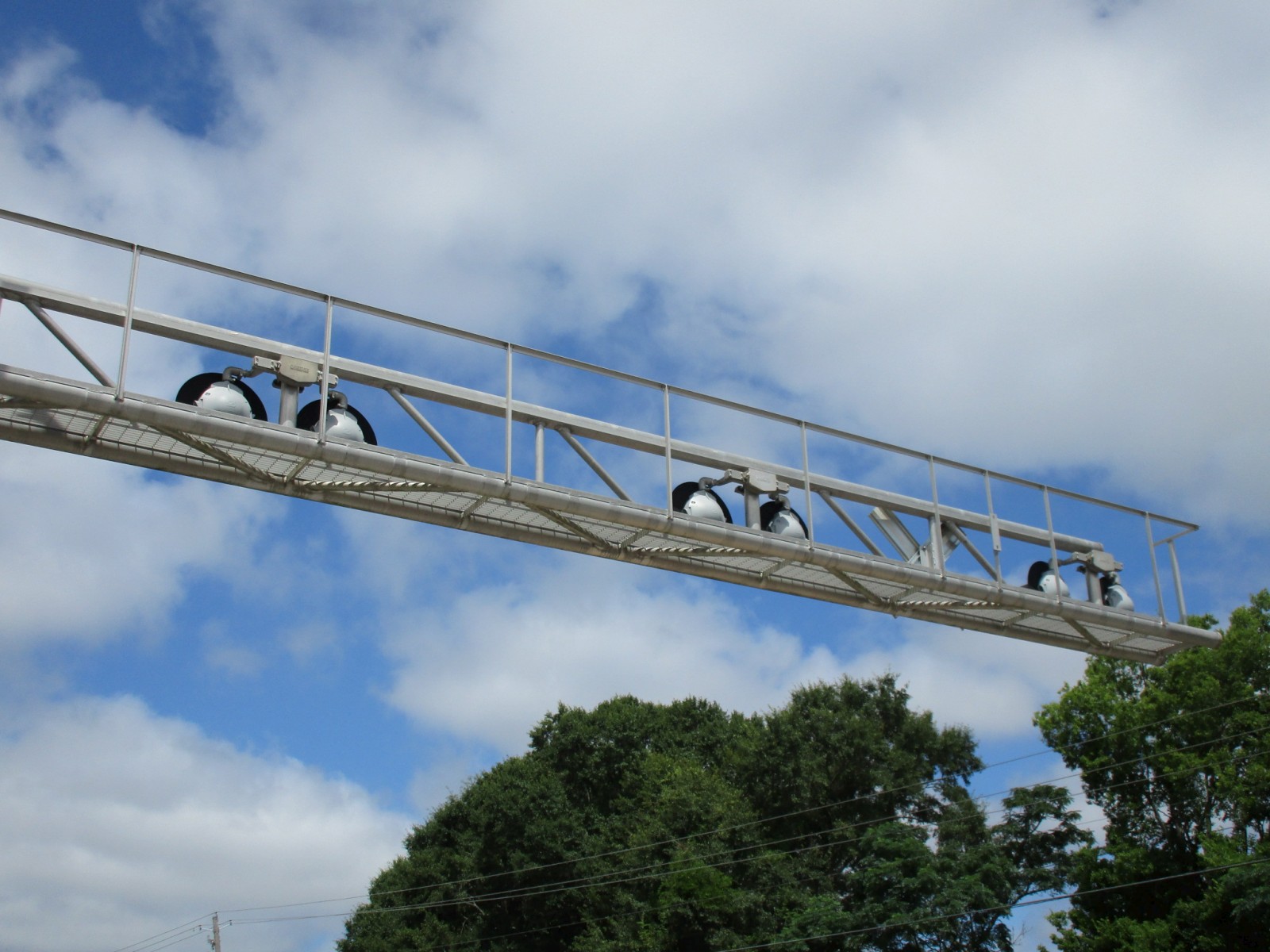

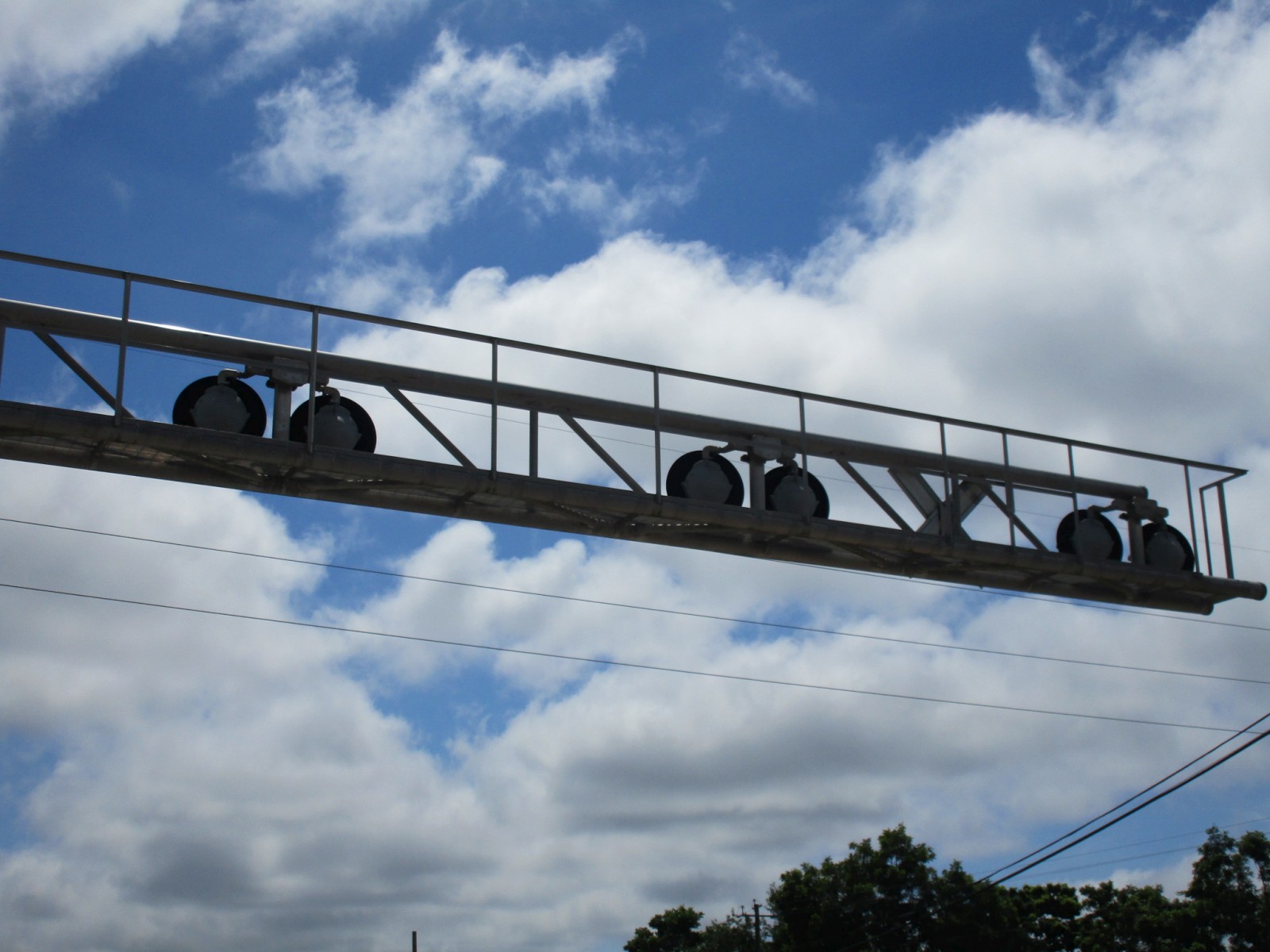

The overhead lights are even more Safetran 12x24 inch lights with Dialight Ball LEDs.

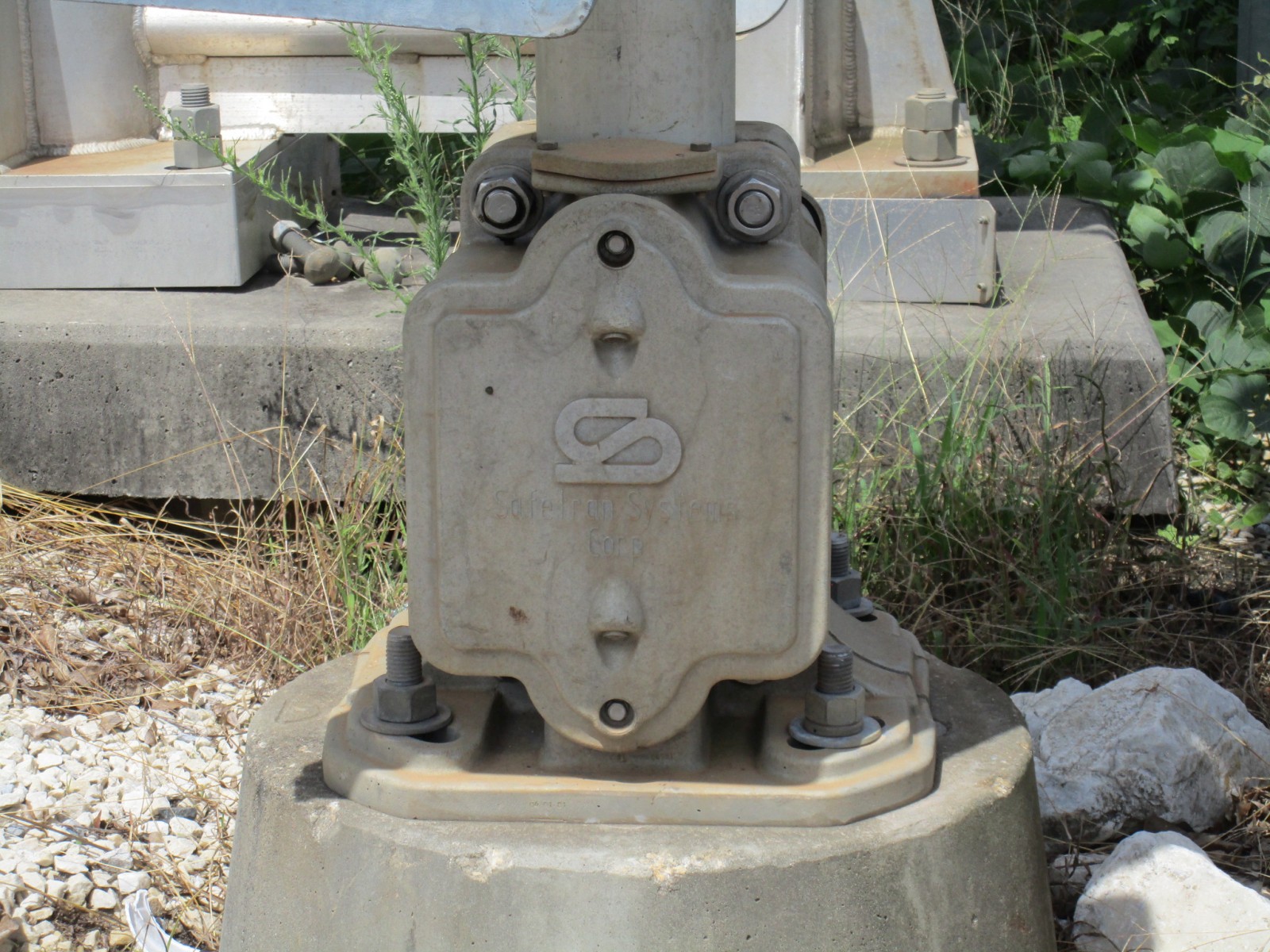

Another Safetran base.

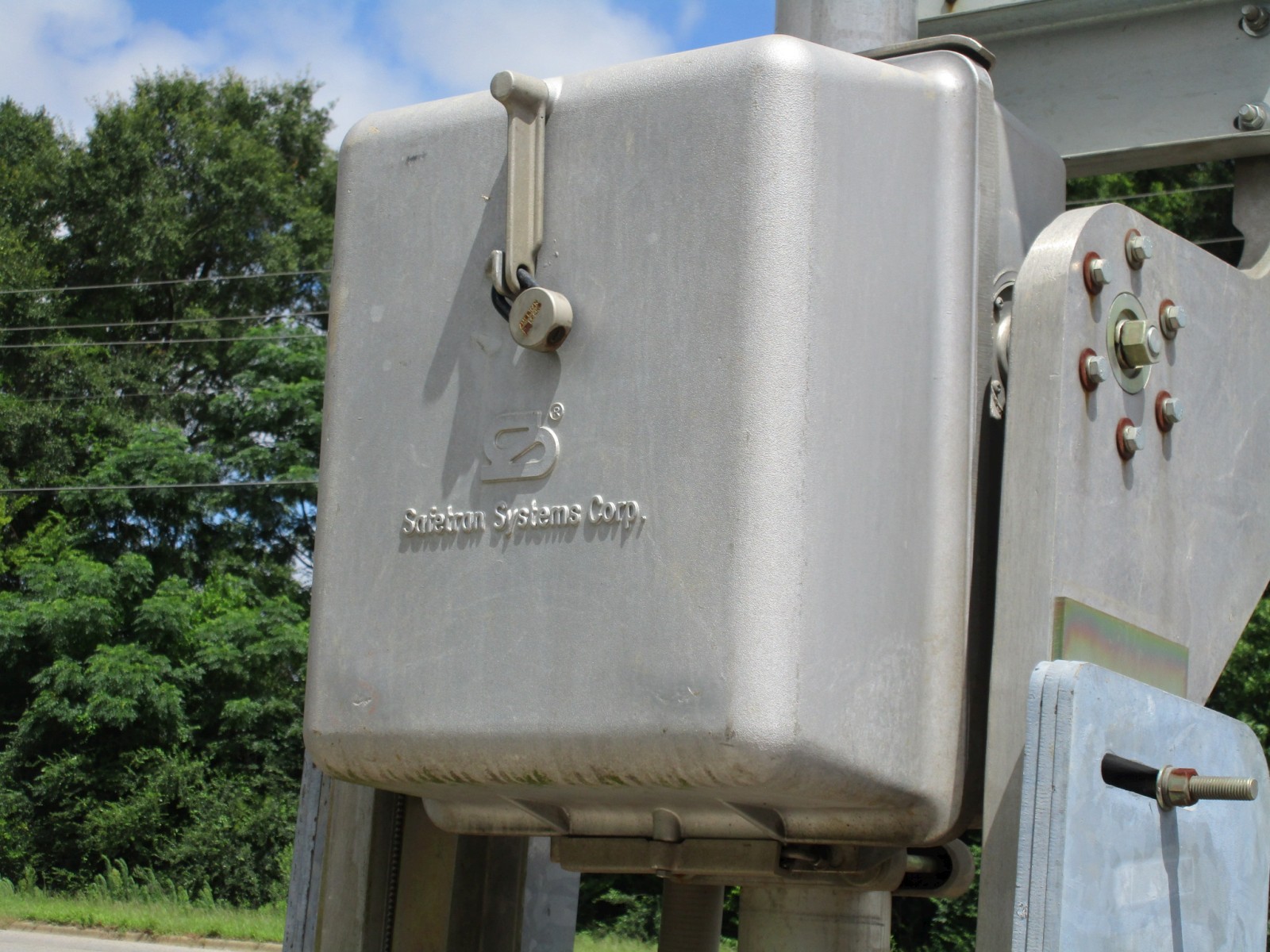

Another Safetran gate mechanism.

29

30

31

32

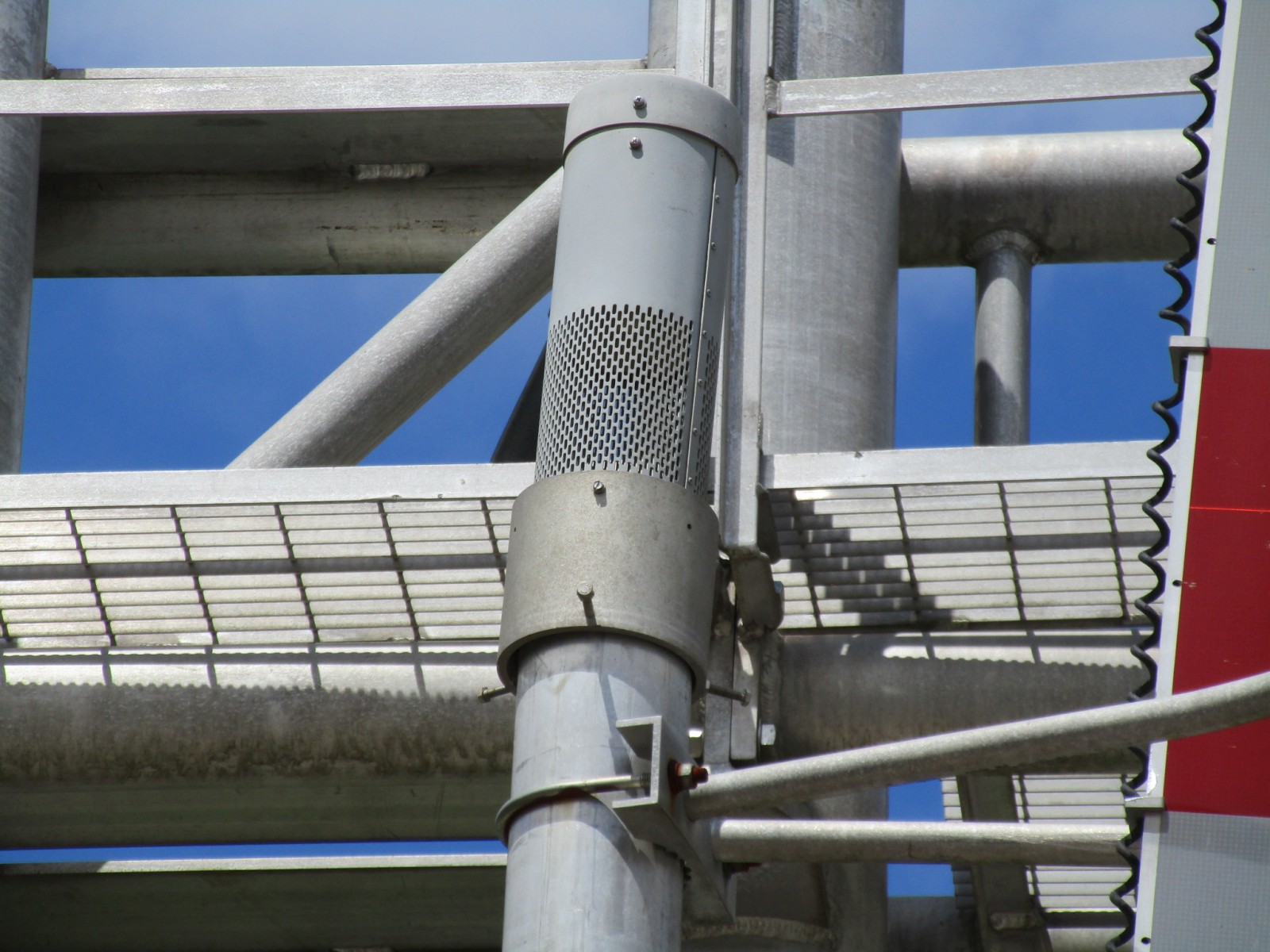

This signal has another Safetran Type 3 e-bell!

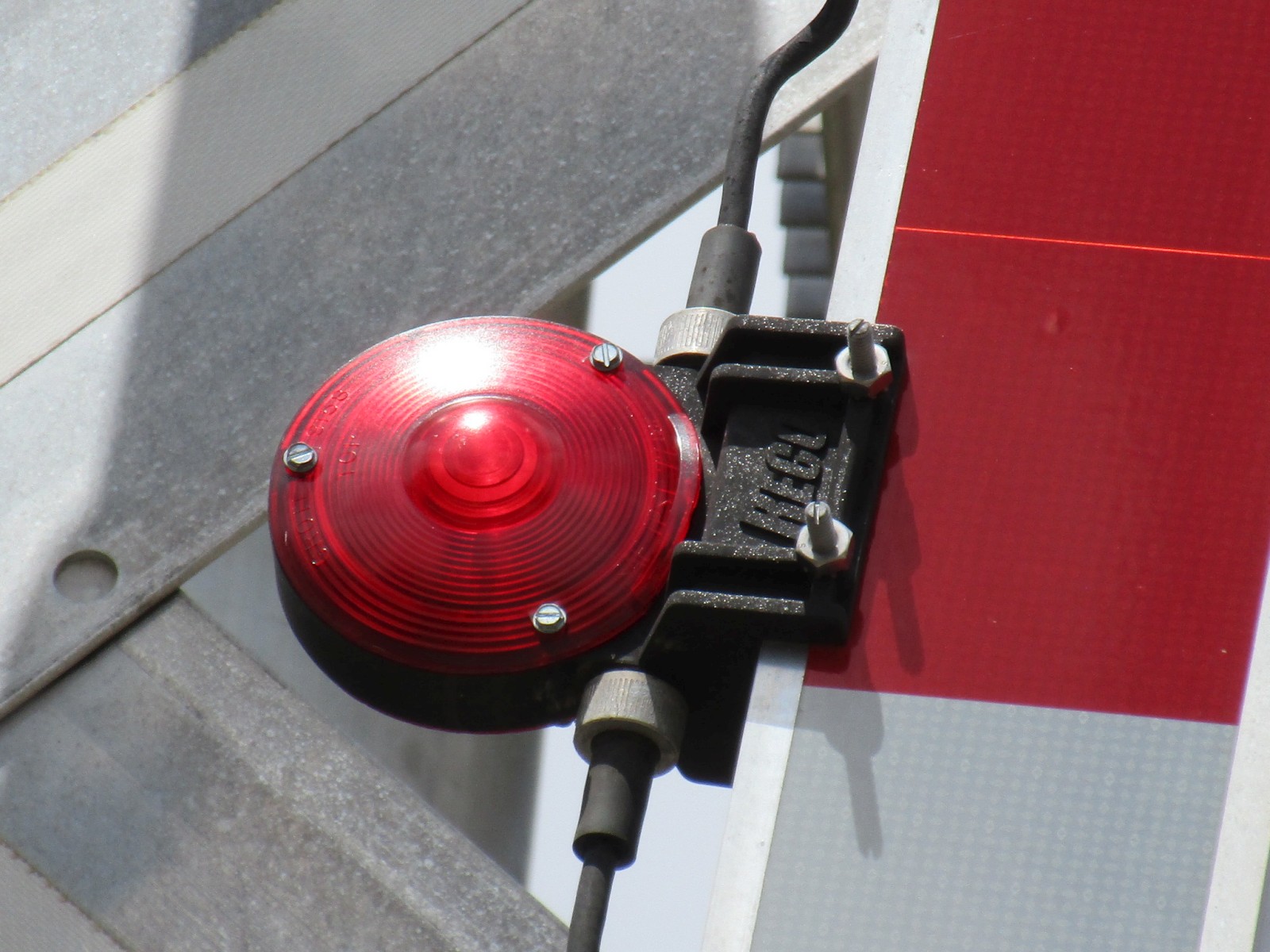

These gate lights are from RECO as well.

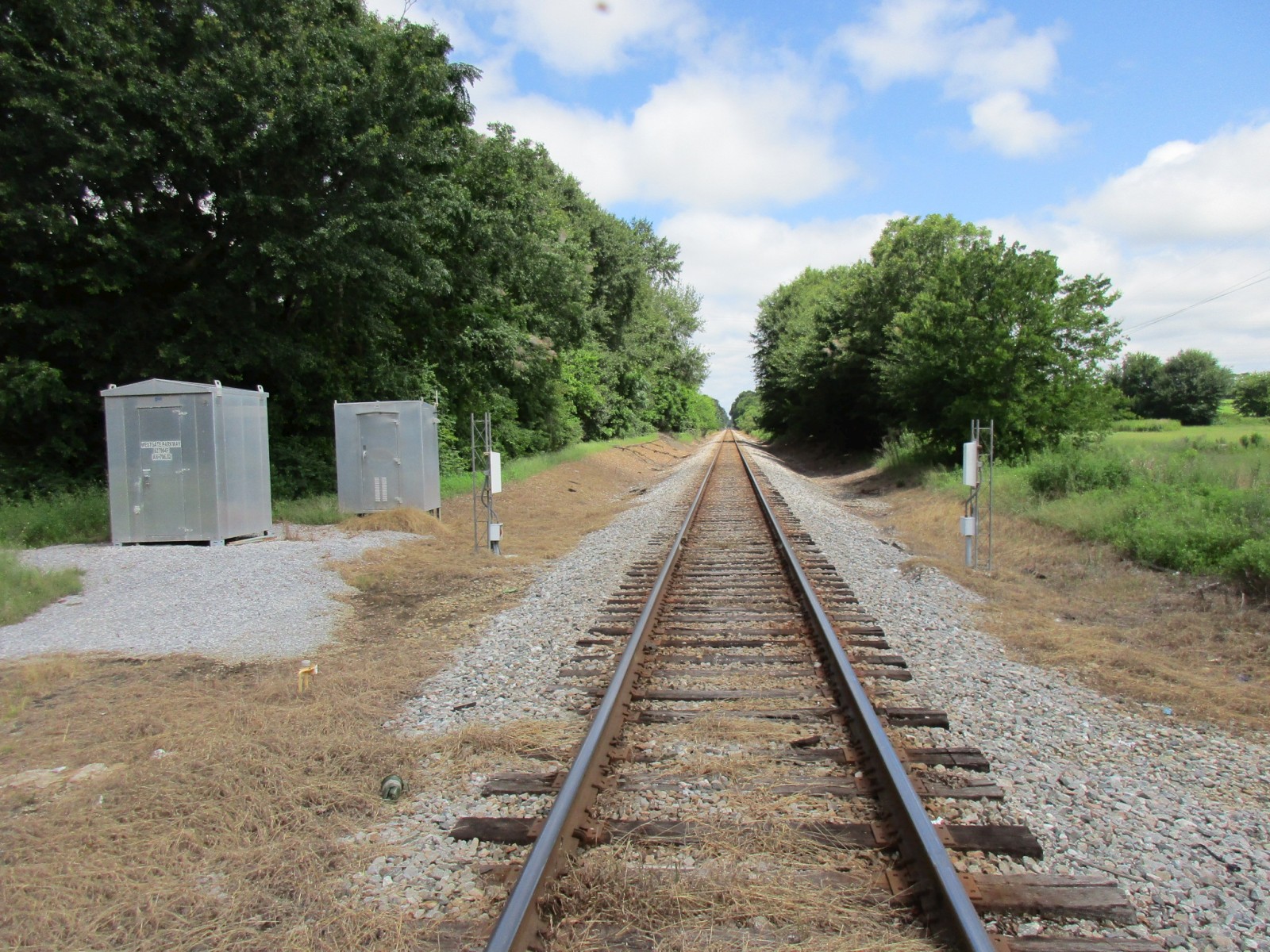

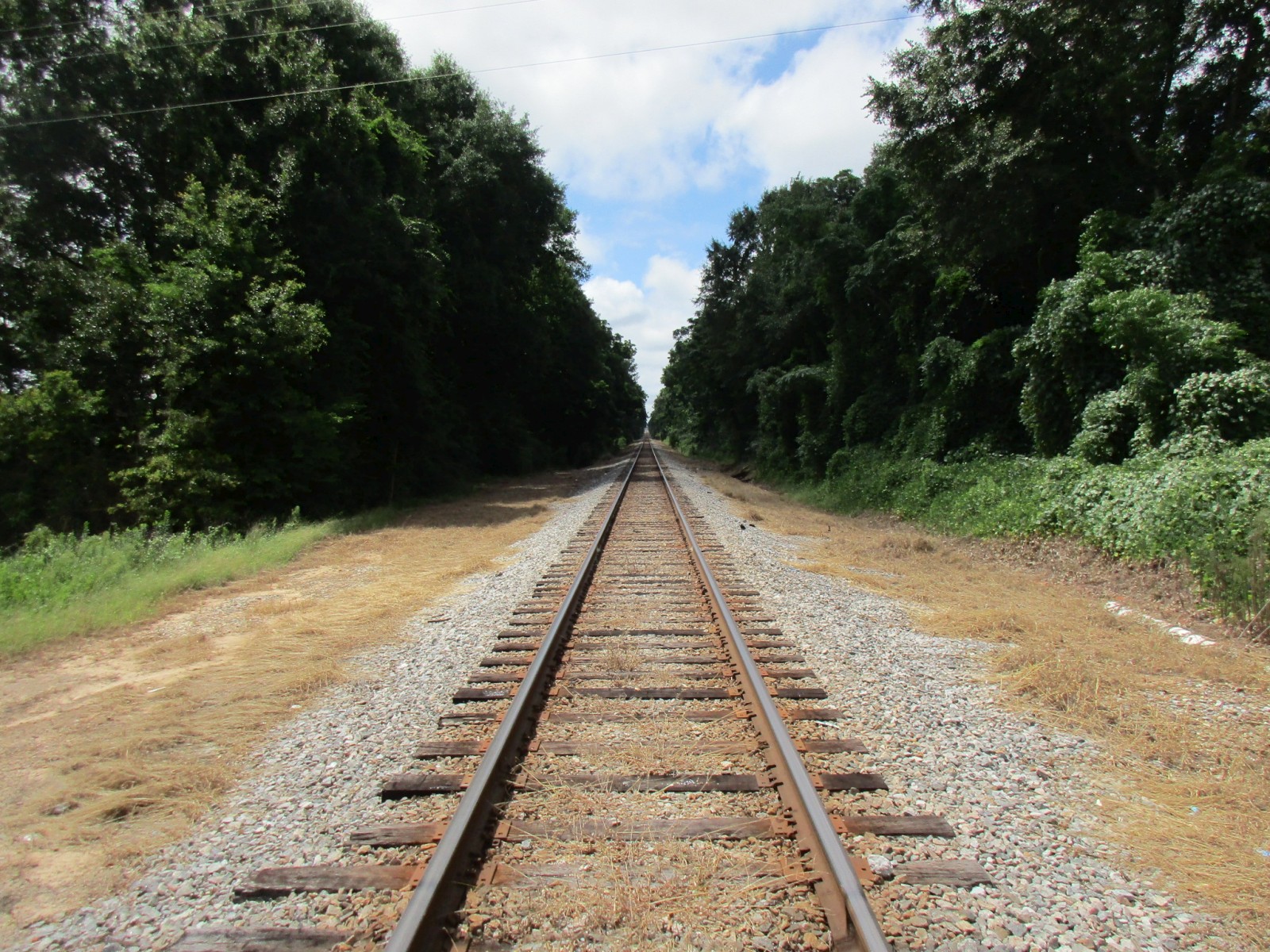

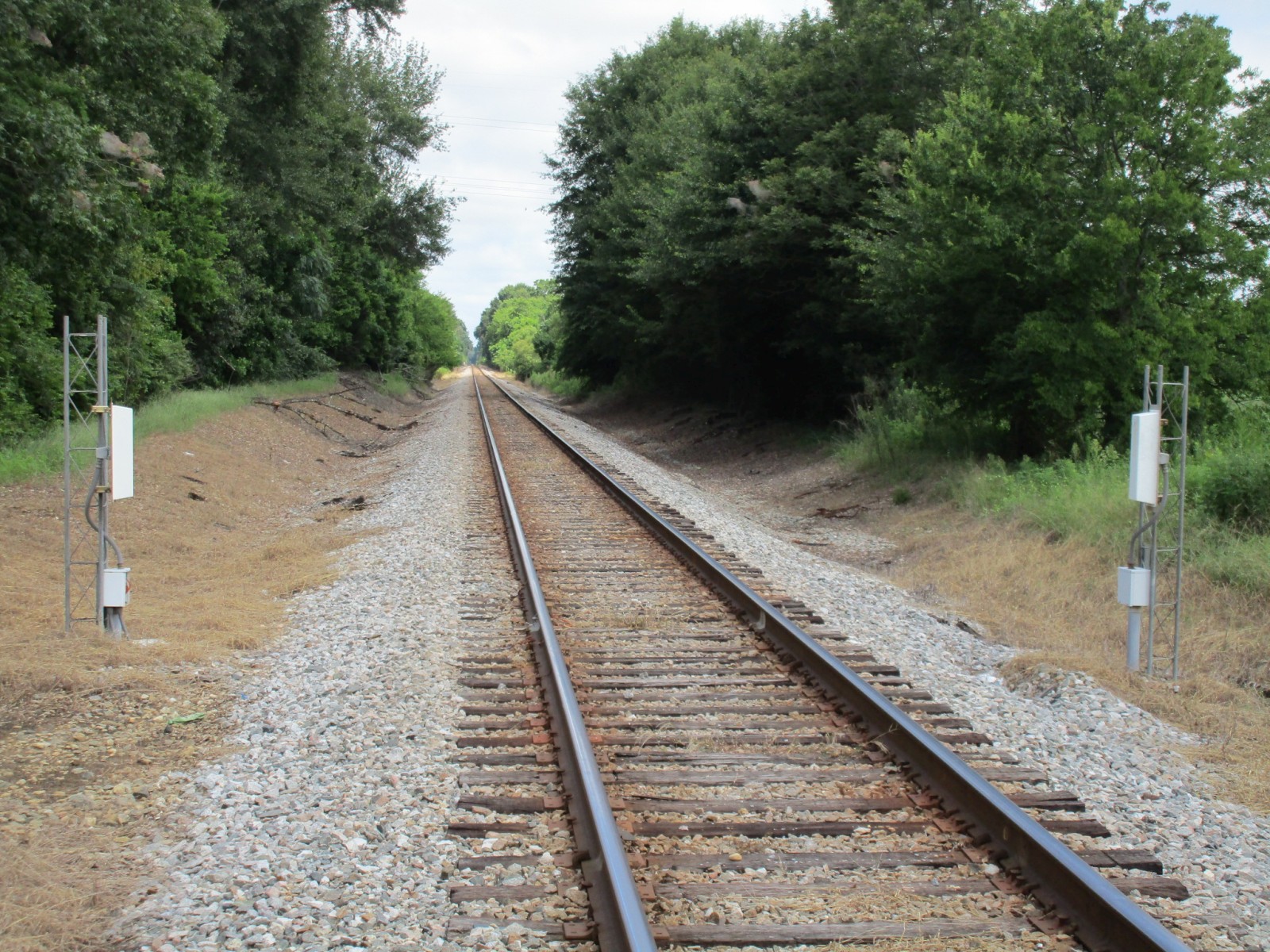

Looking northwest towards Mance Newton Road.
Looking southeast towards Murray Road.

33

34

35

36

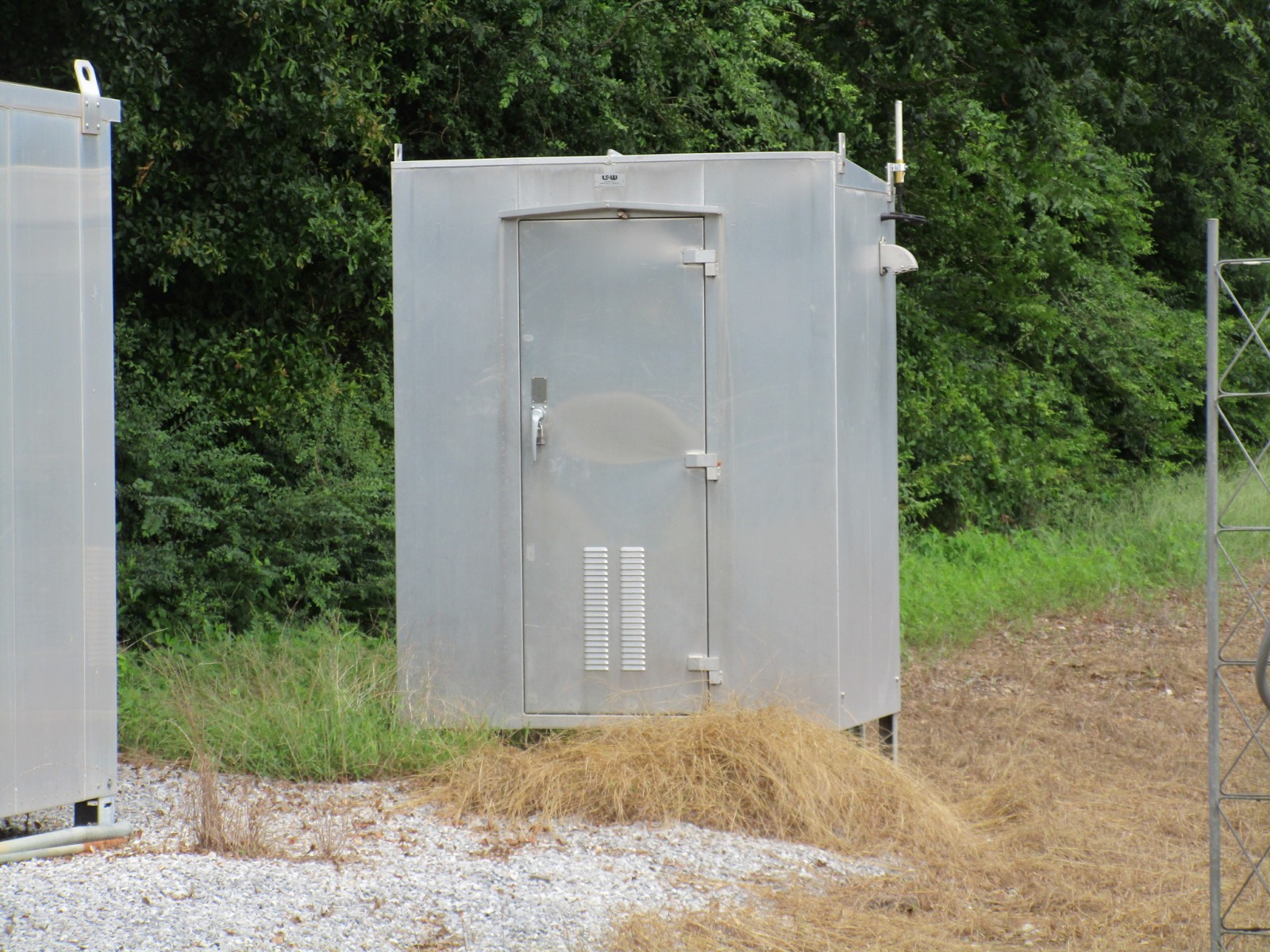

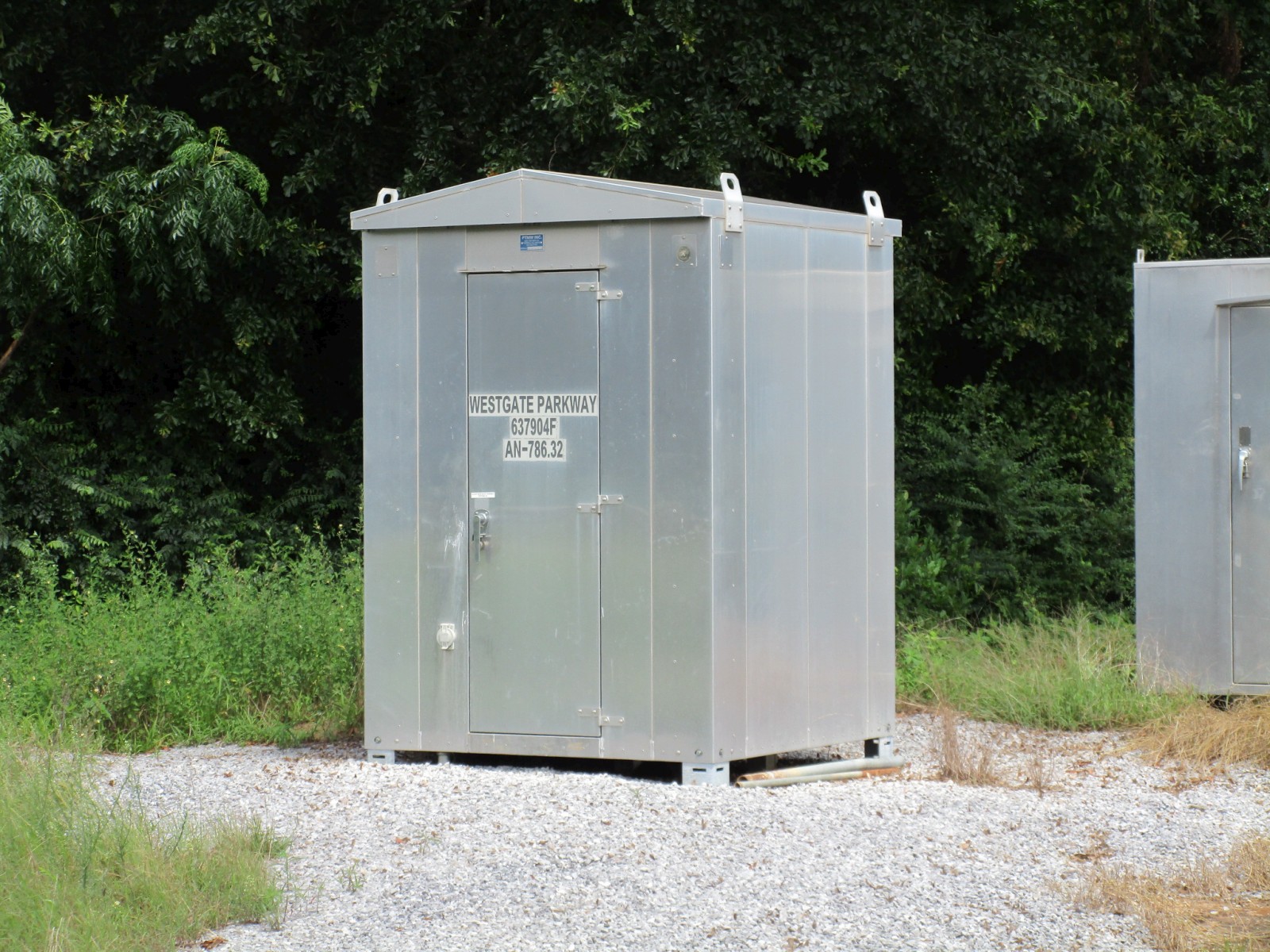

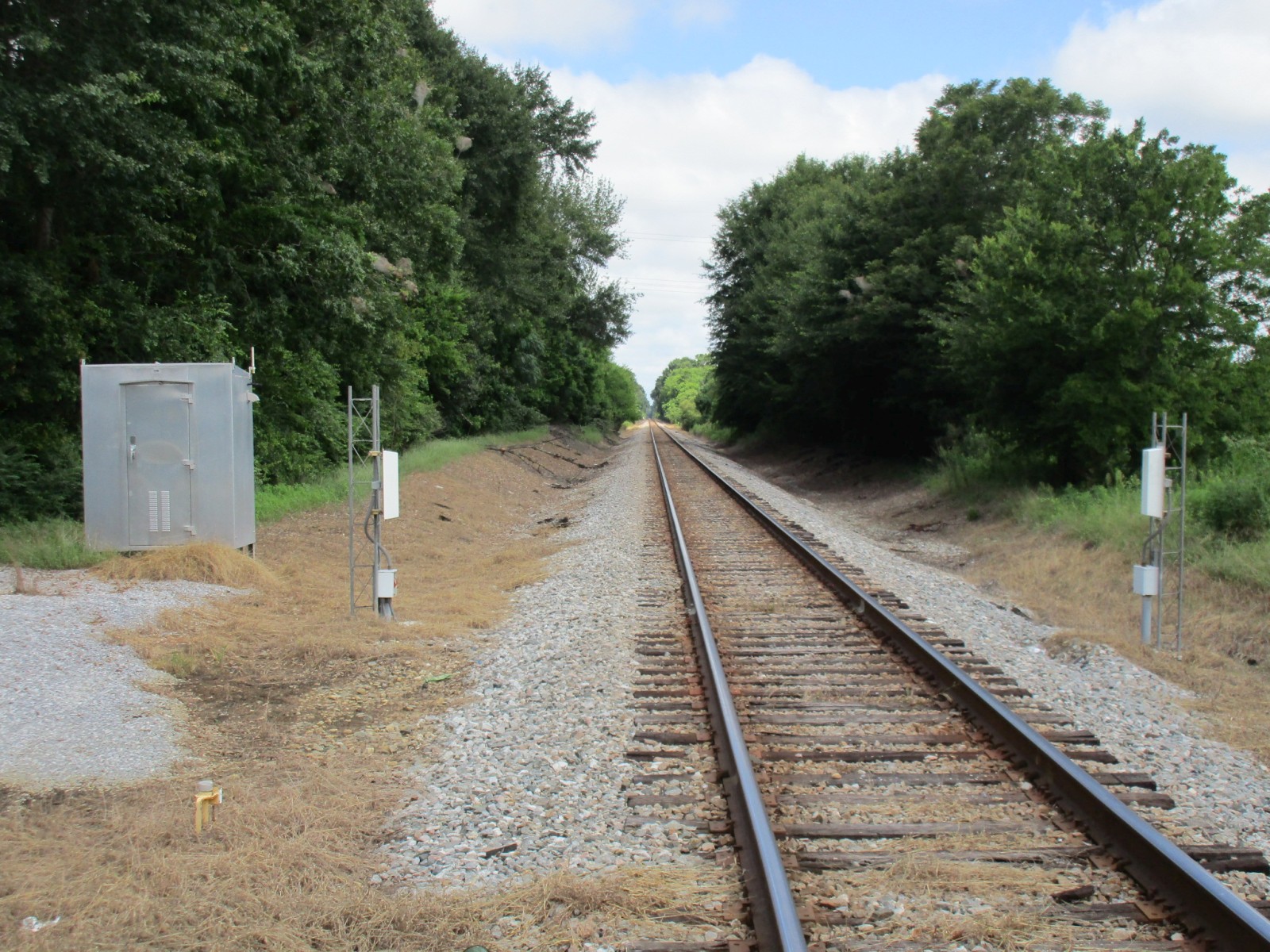

The relay case.
An RFID reader is located near the crossing.



All pictures were taken on 7-8-18.
