MP: 0001.77 |
Updated November 25, 2019
Total Accidents: 16
Crossing
DOT #: 725330K
TOTAL
DAILY TRAINS: 2 (AS OF 2016)
Page created by: freebrickproductions
This crossing is located on the NS Rep Steel Lead, a connecting track between the NS AG Branch and the ATN's yard and the NS Siskin Yard.
1 |
2 |
3 |
4 |

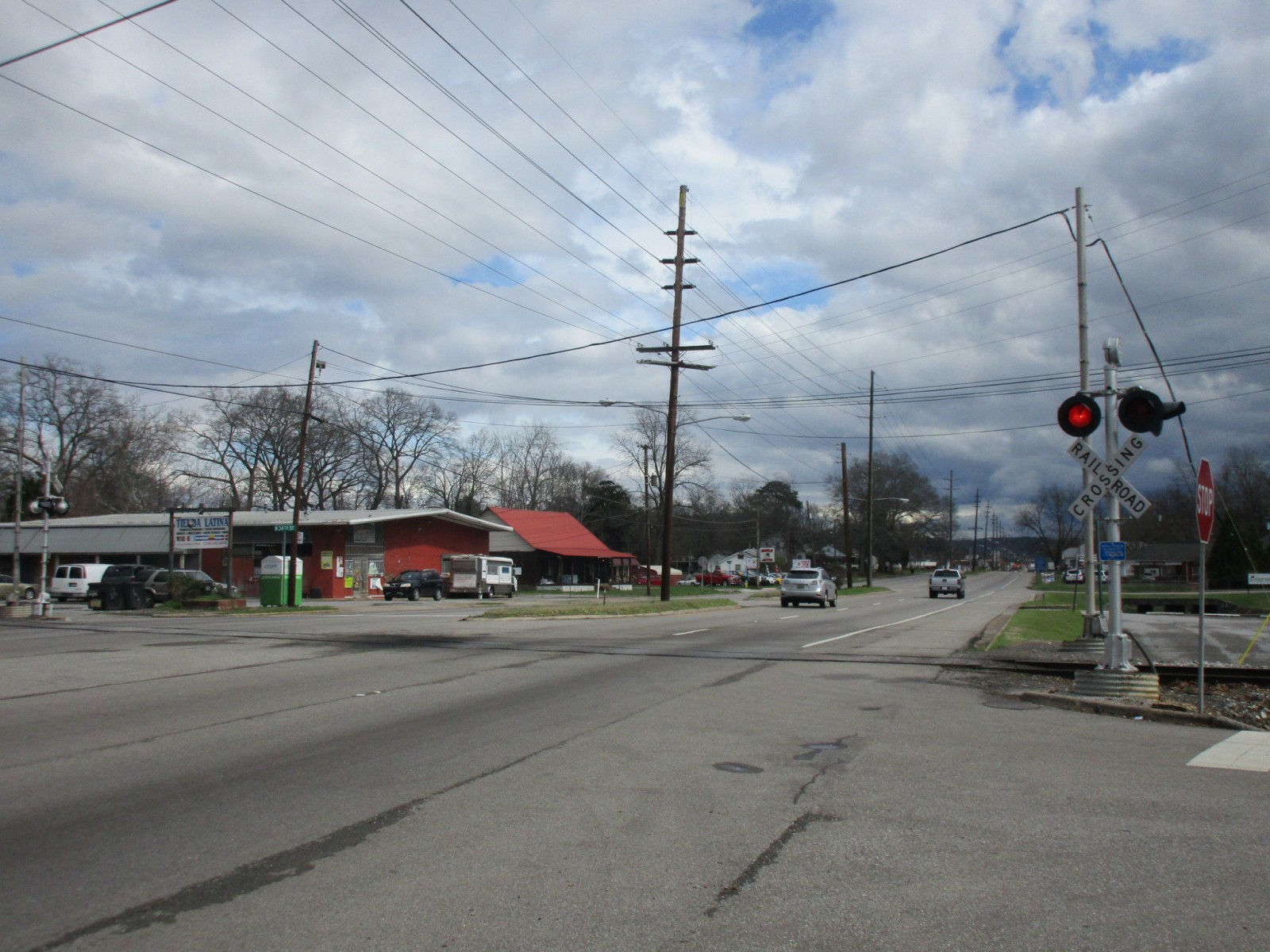

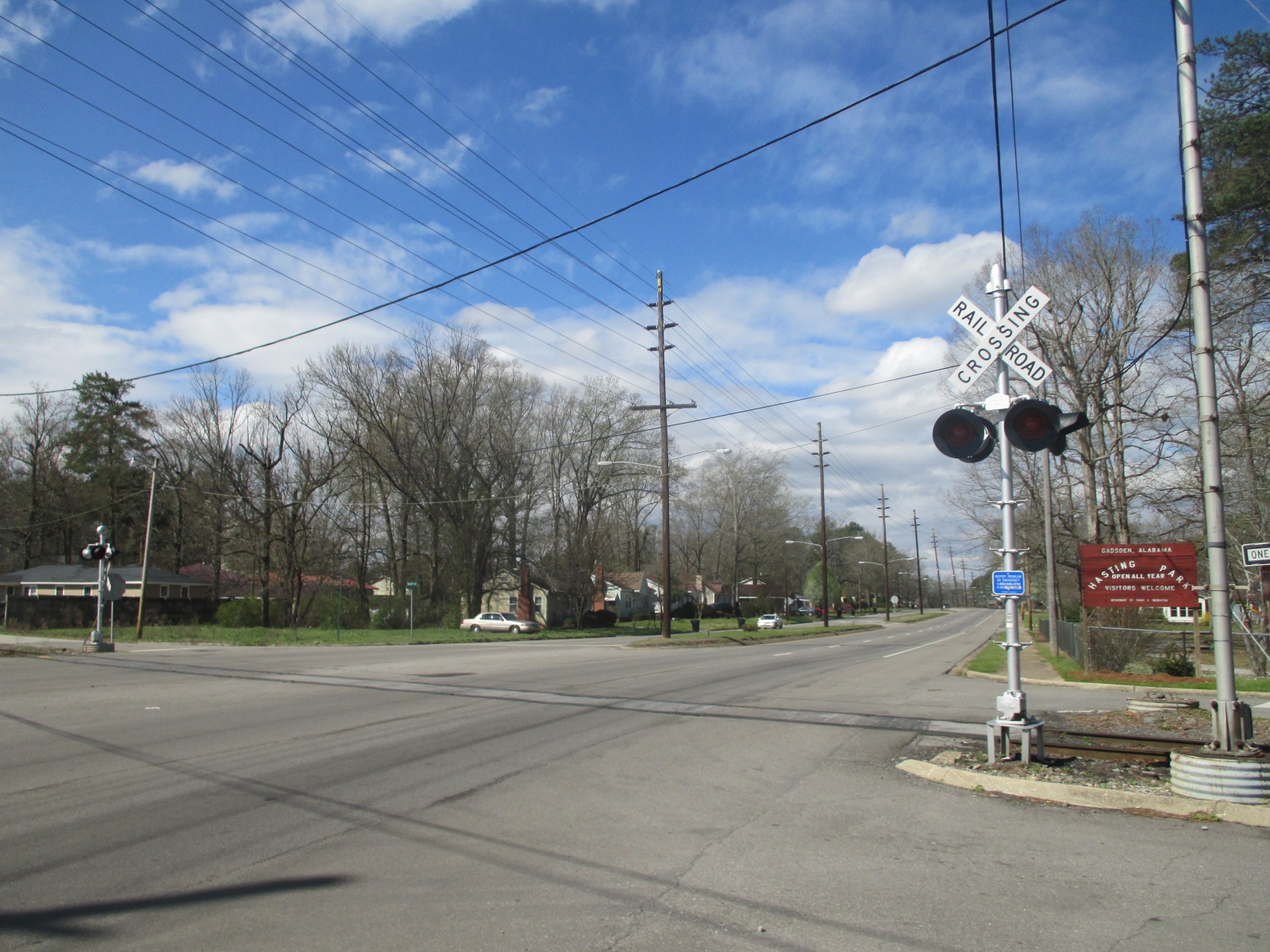

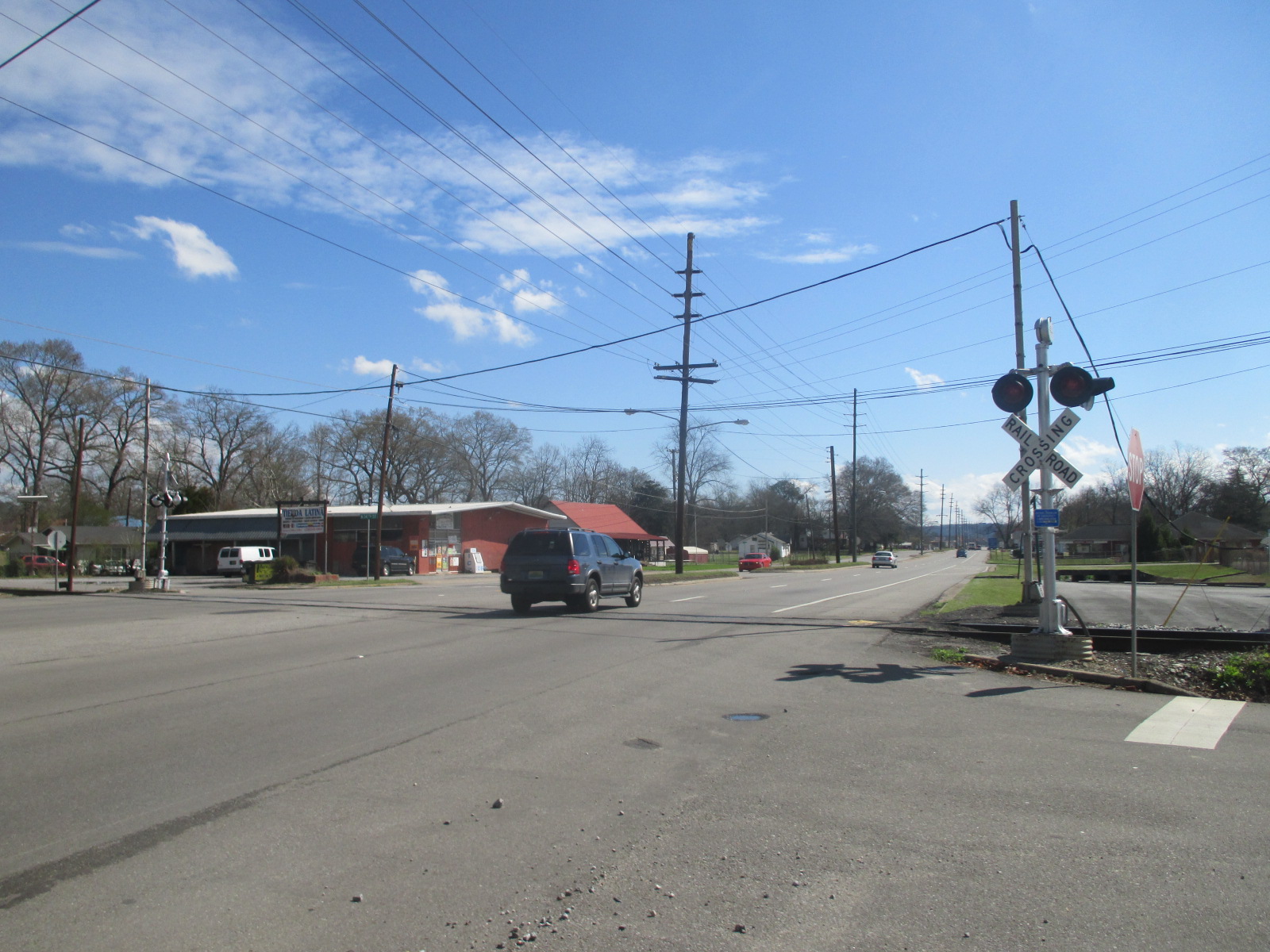

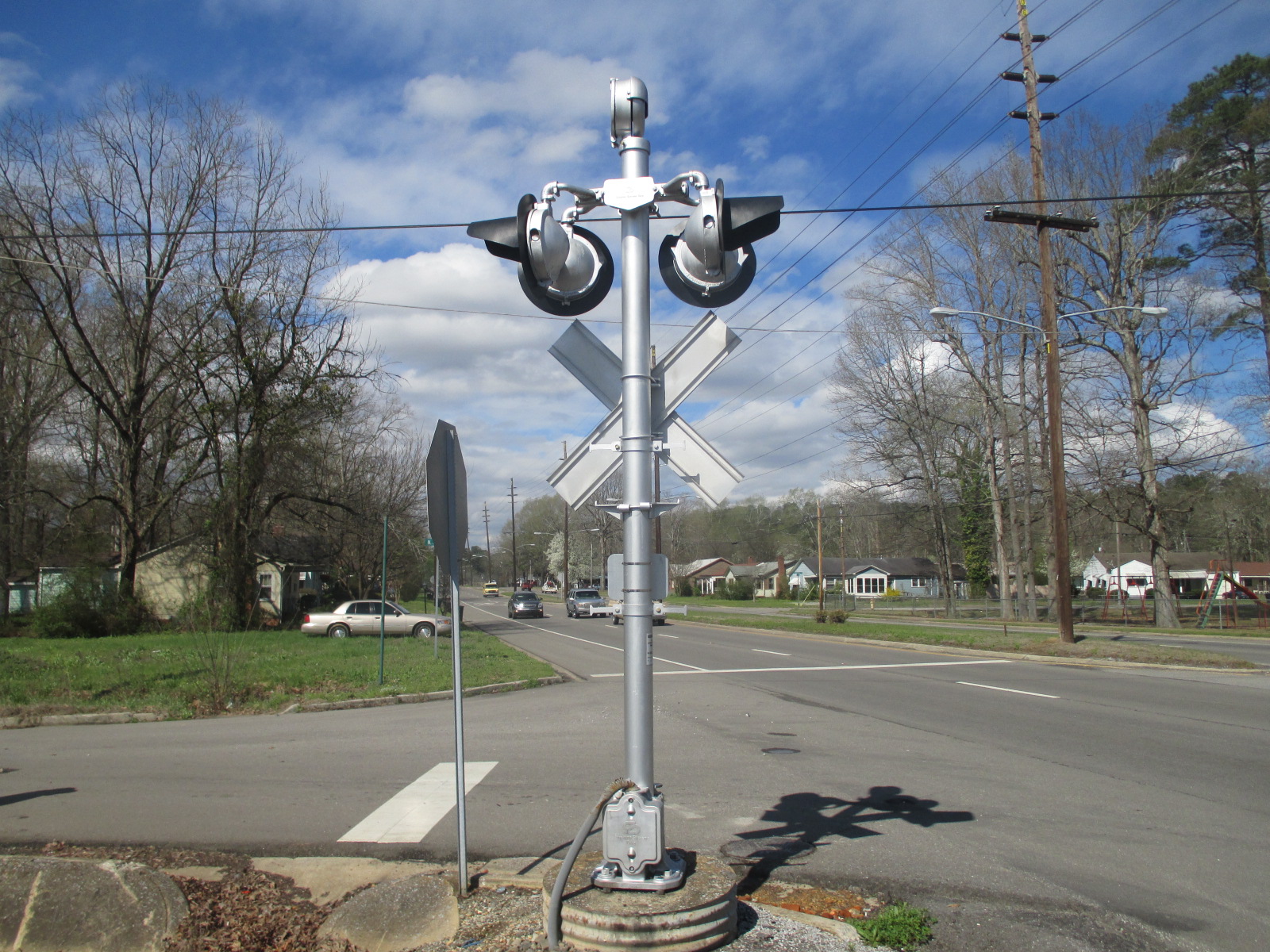

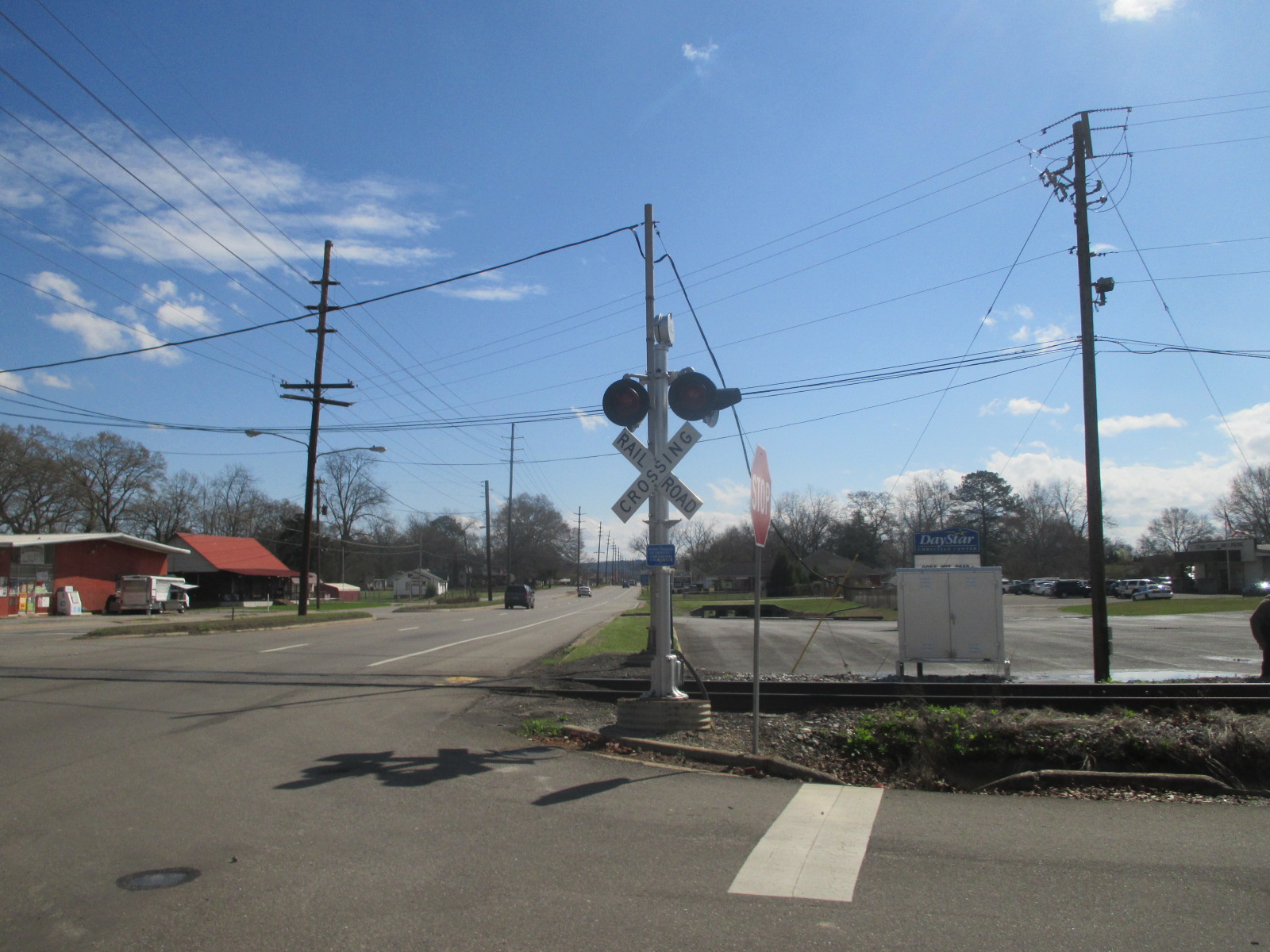

Overviews of this odd crossing. |
Here's a rather strange signal. |
||
5 |
6 |
7 |
8 |

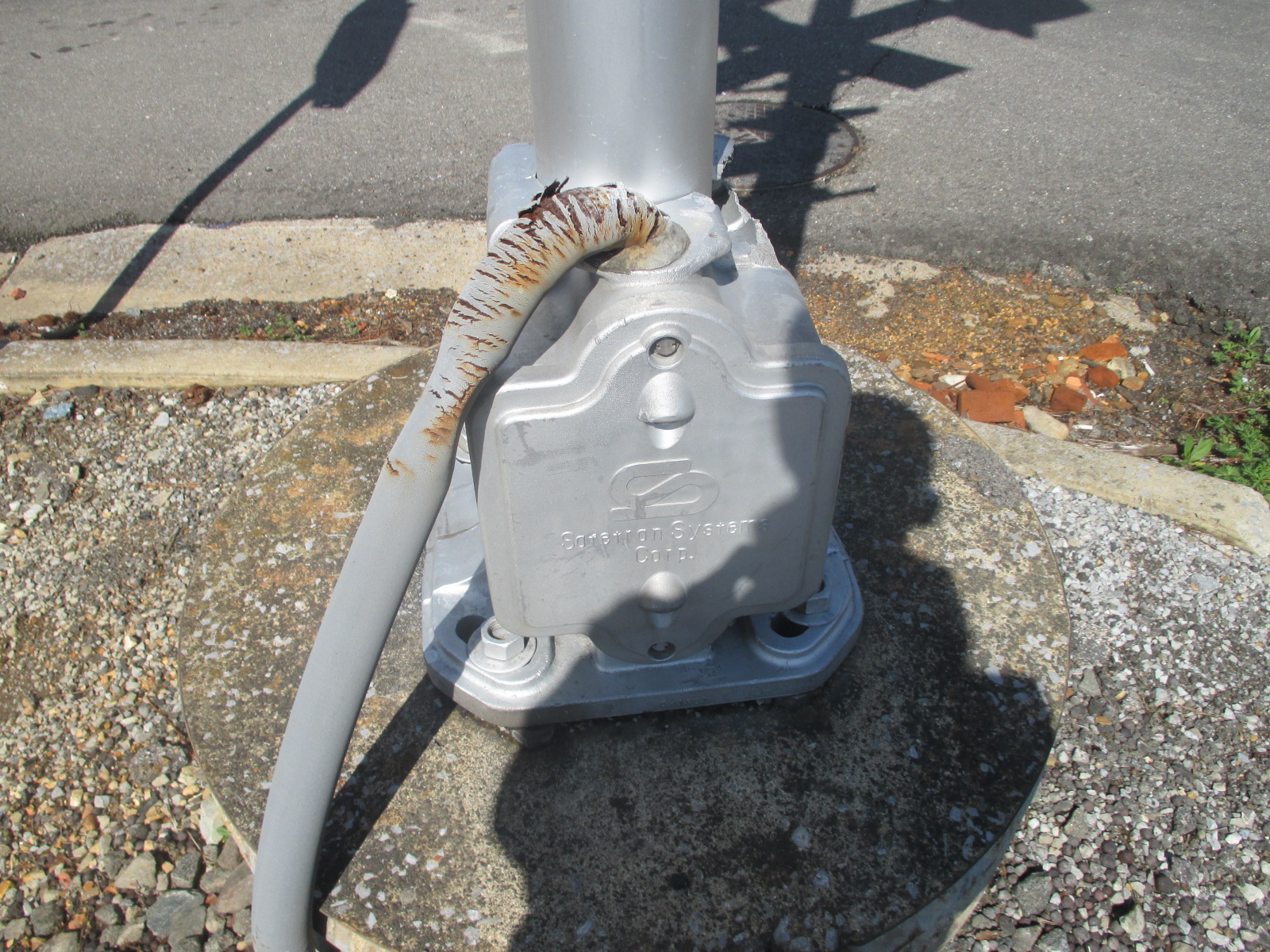

This signal has a 5 inch mast and a Safetran base. |

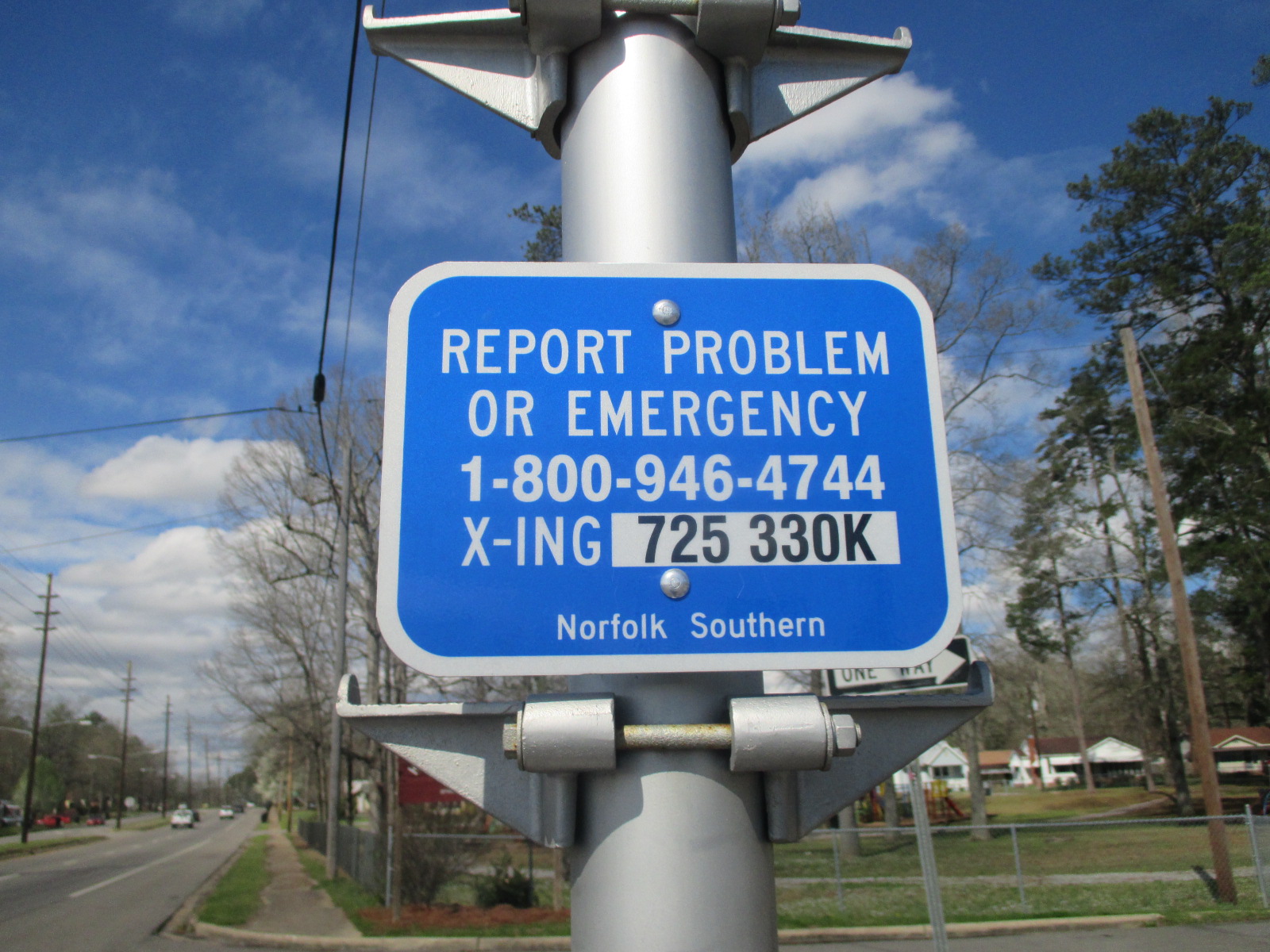

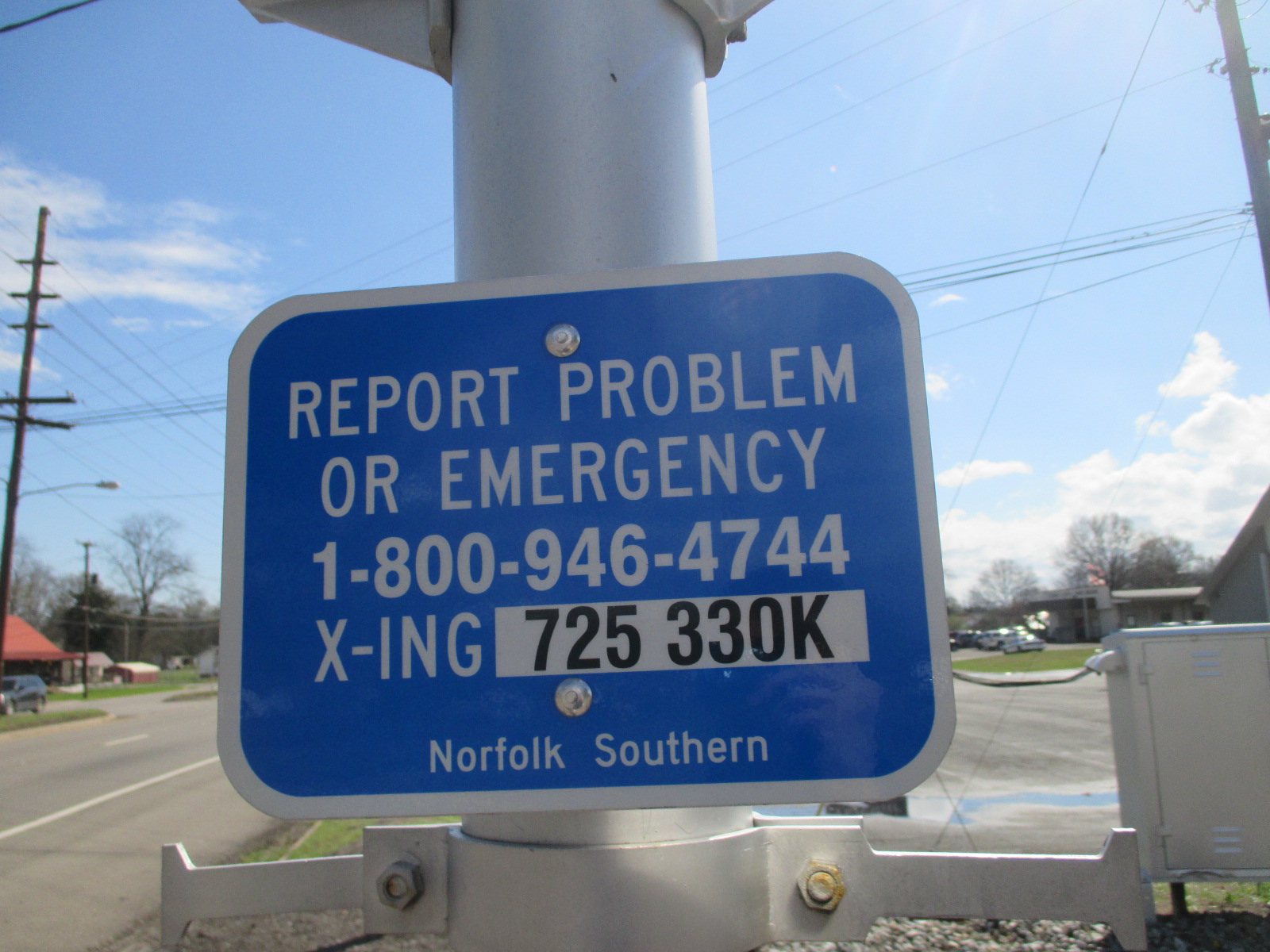

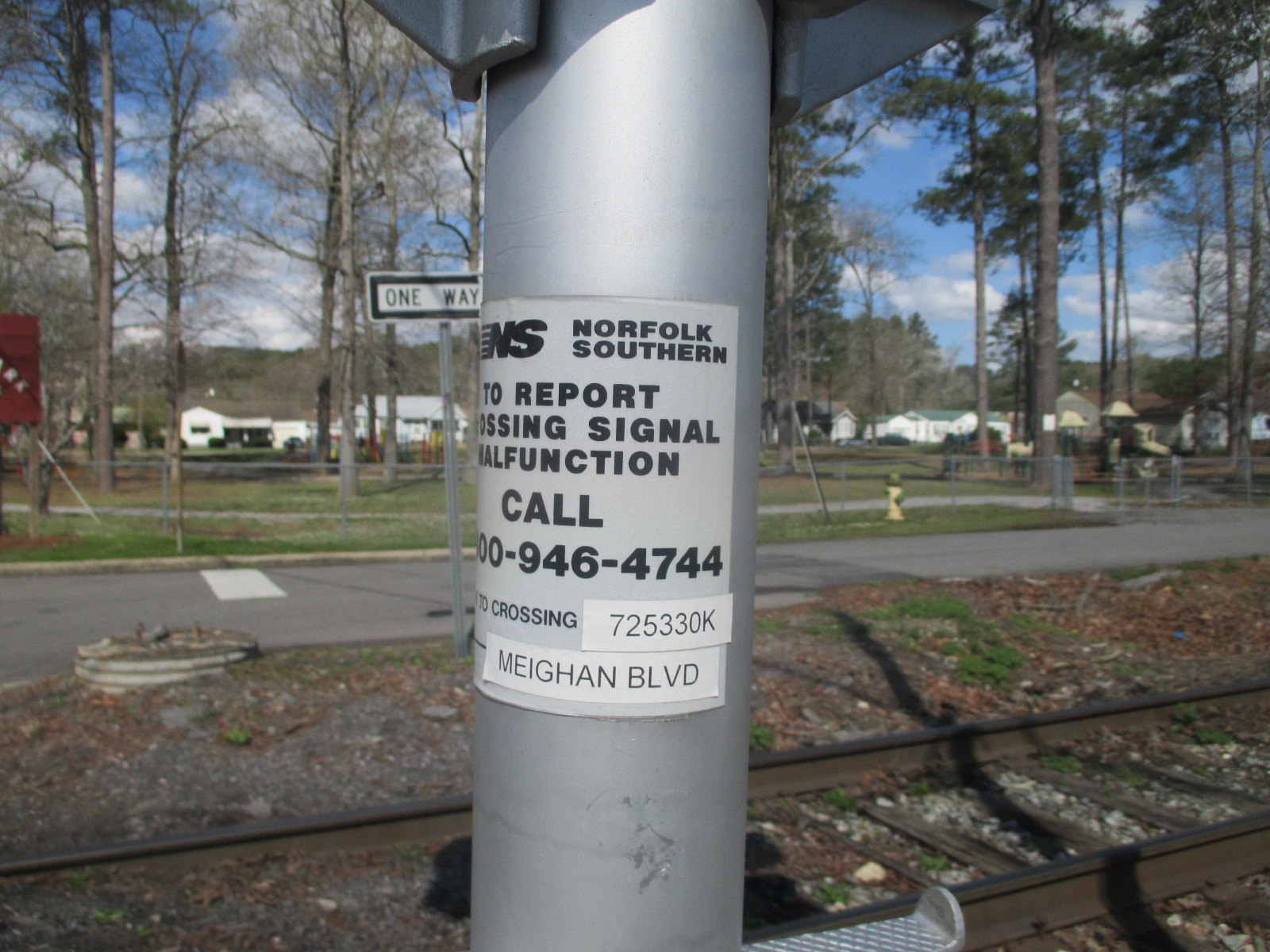

The DOT tags. |

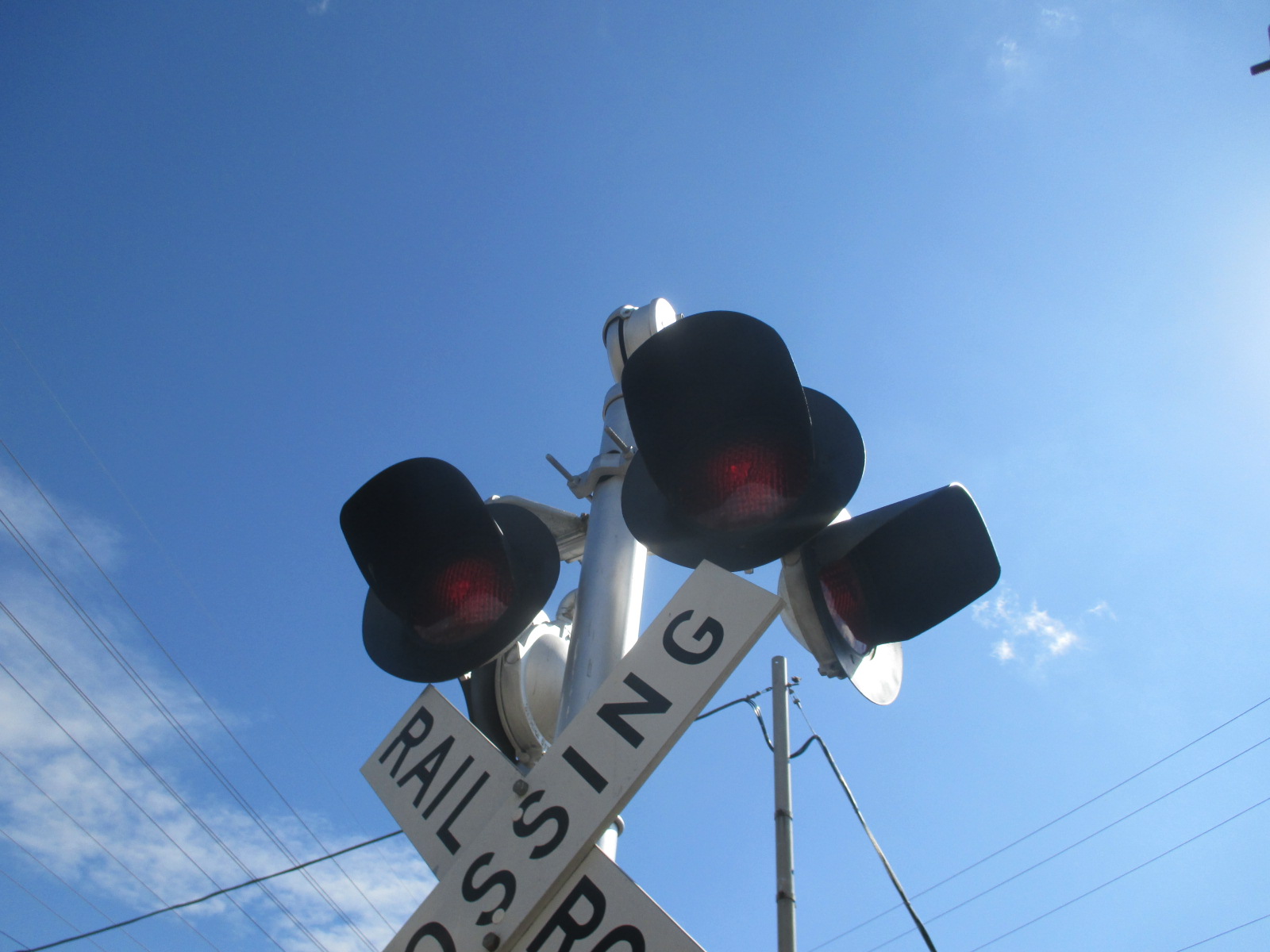

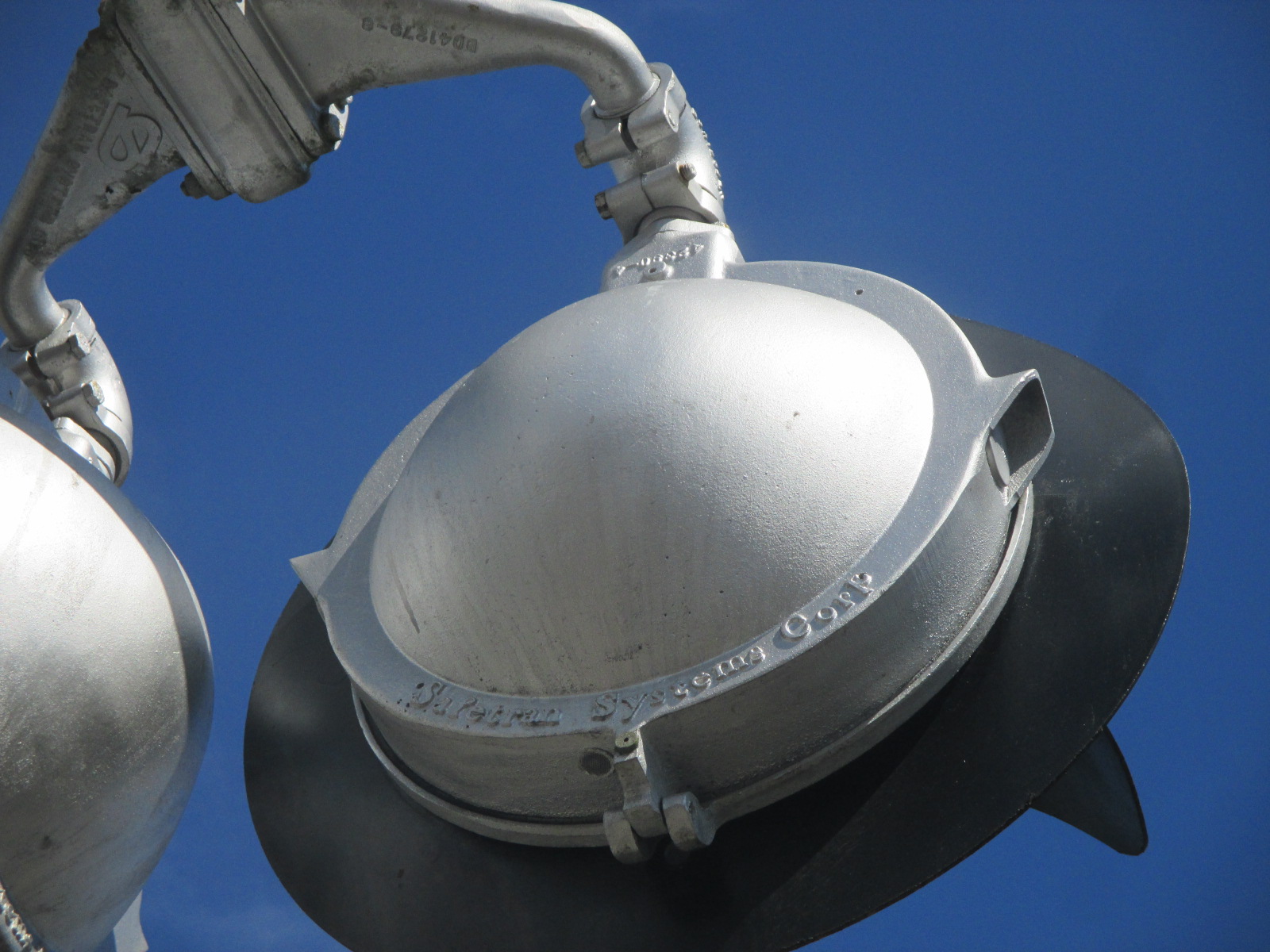

The lights on this signal are older Safetran 12x20 inch lights. |
|
It appears that the mast is too short for the signal, so the crossbuck is underneath the lights as there's no room for it above them!
9 |
10 |
11 |
12 |

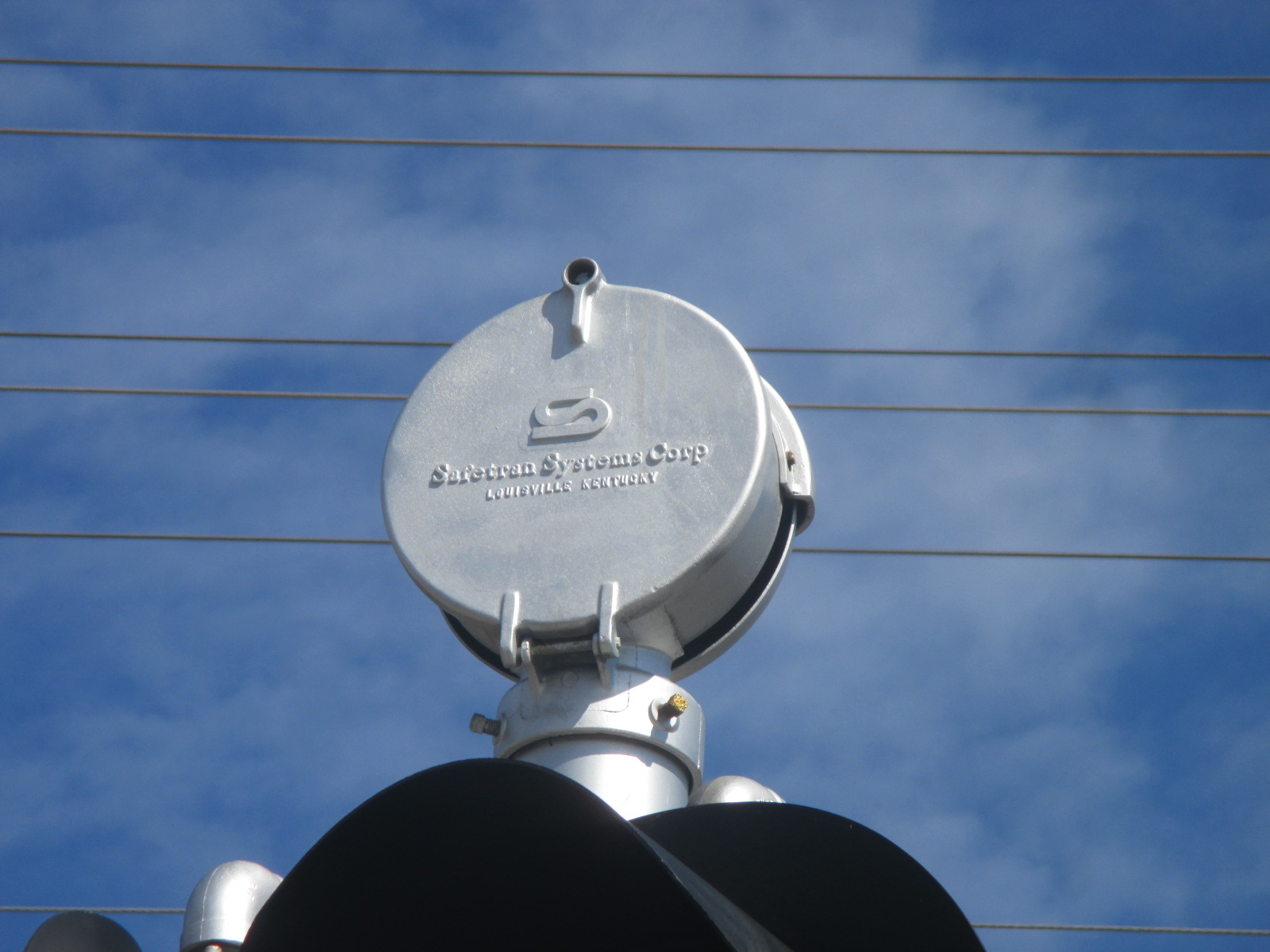

The bell at this crossing is a Safetran mechanical bell. |

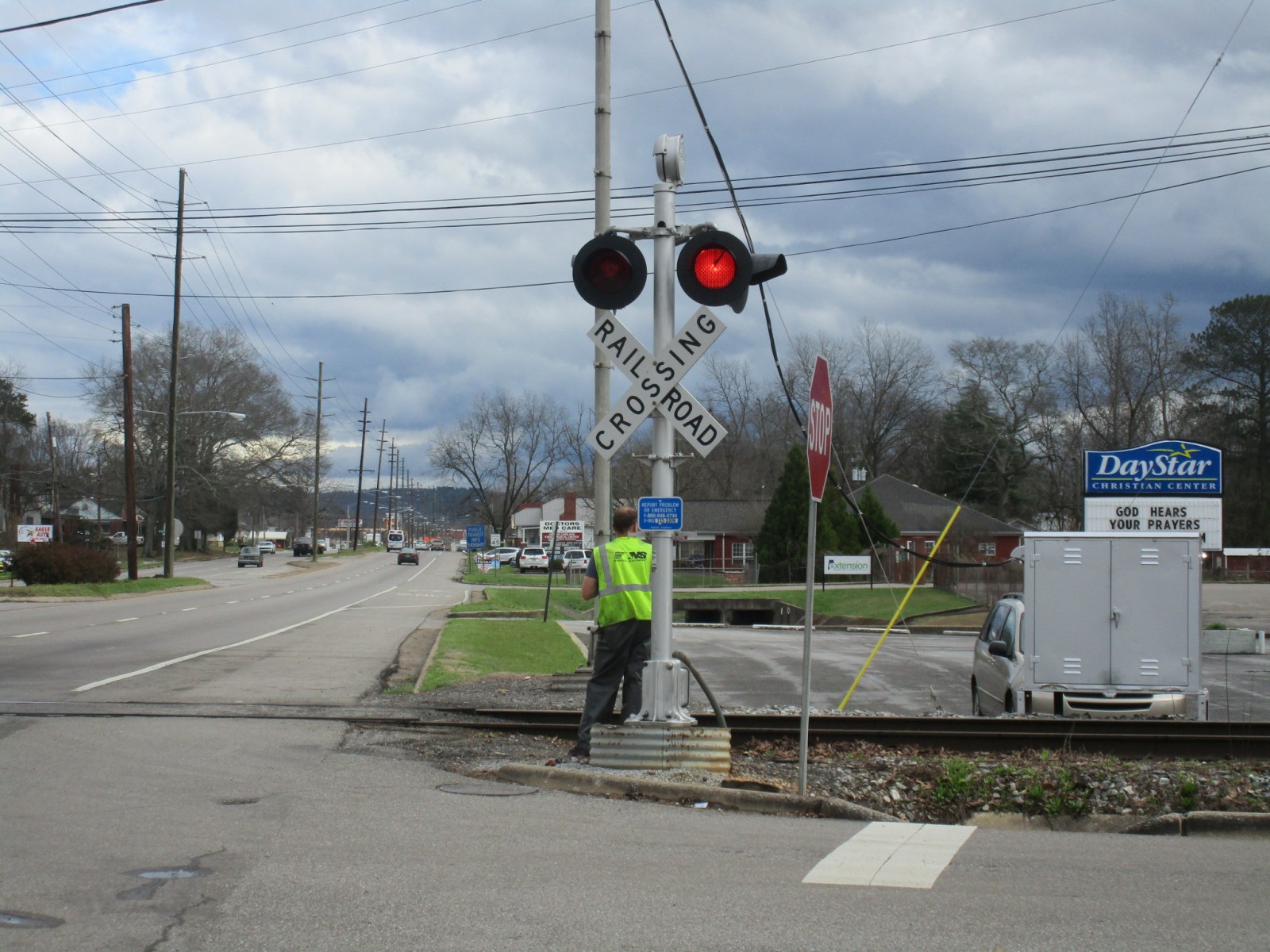

The second signal, which is a bit more normal. |
||
13 |
14 |
15 |
16 |

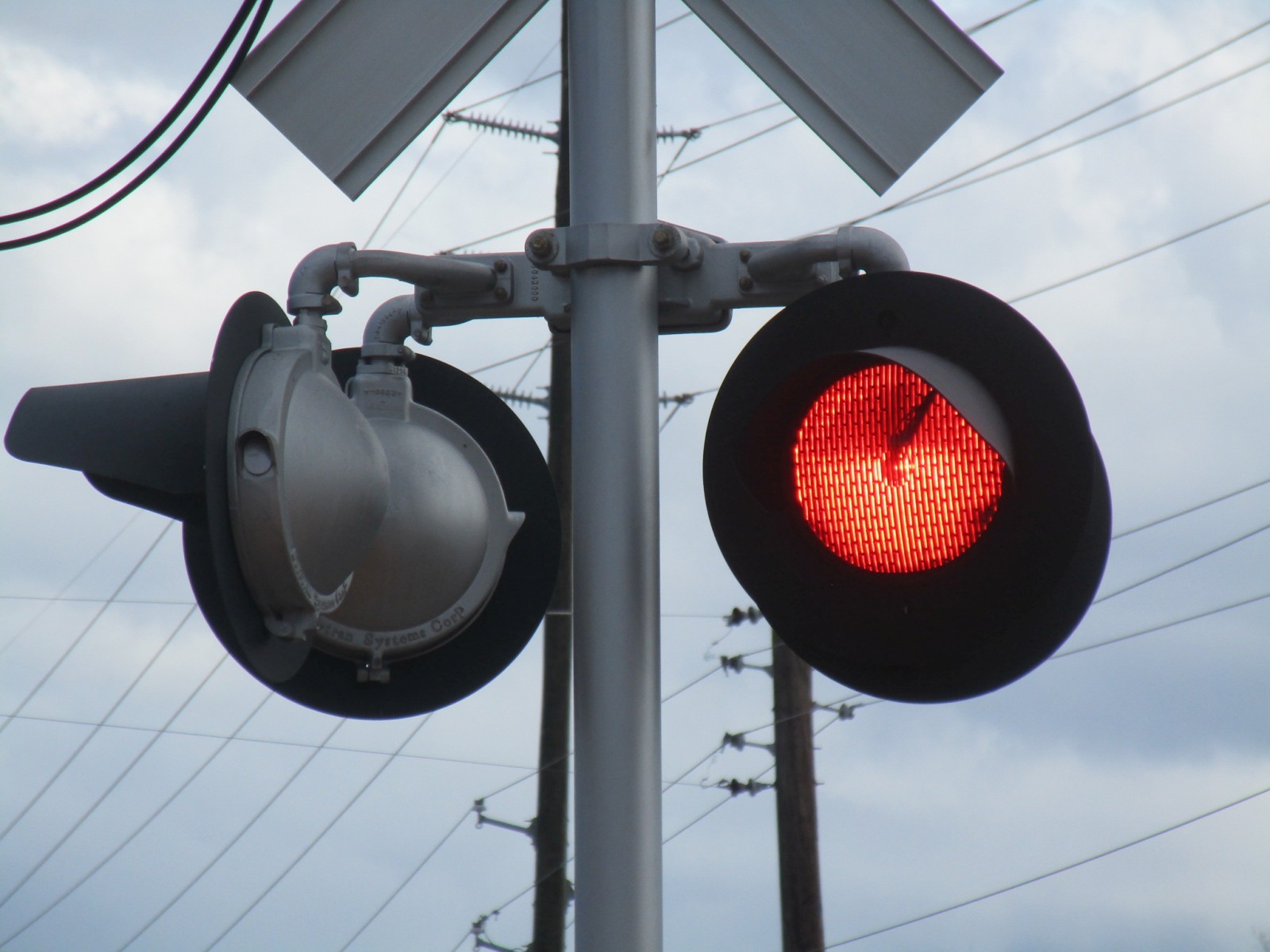

One of the rear lights is used as a side light here as well. |
This one has a 4 inch mast and another Safetran base. |
The DOT tags. |
|
17 |
18 |
19 |
20 |

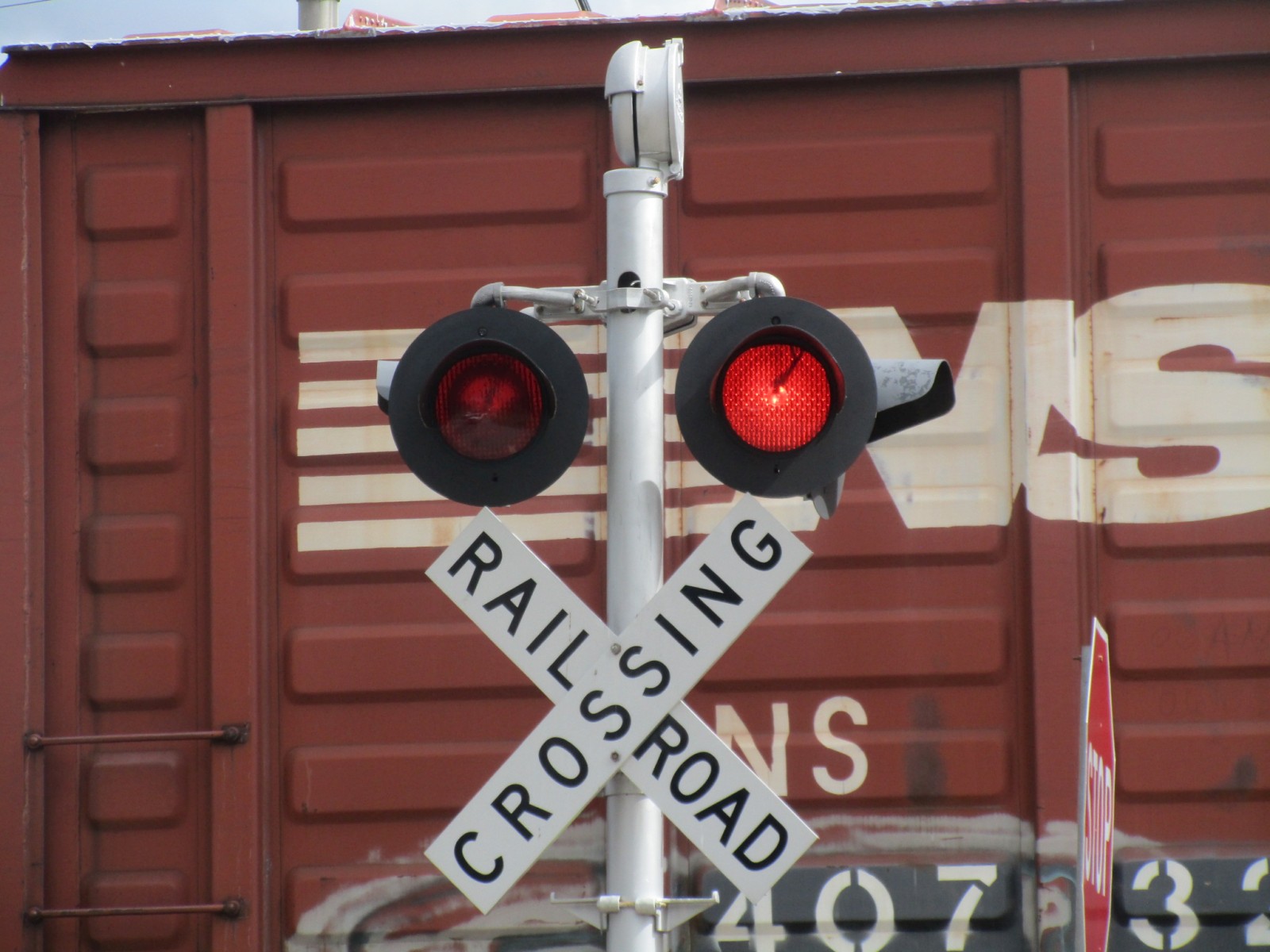

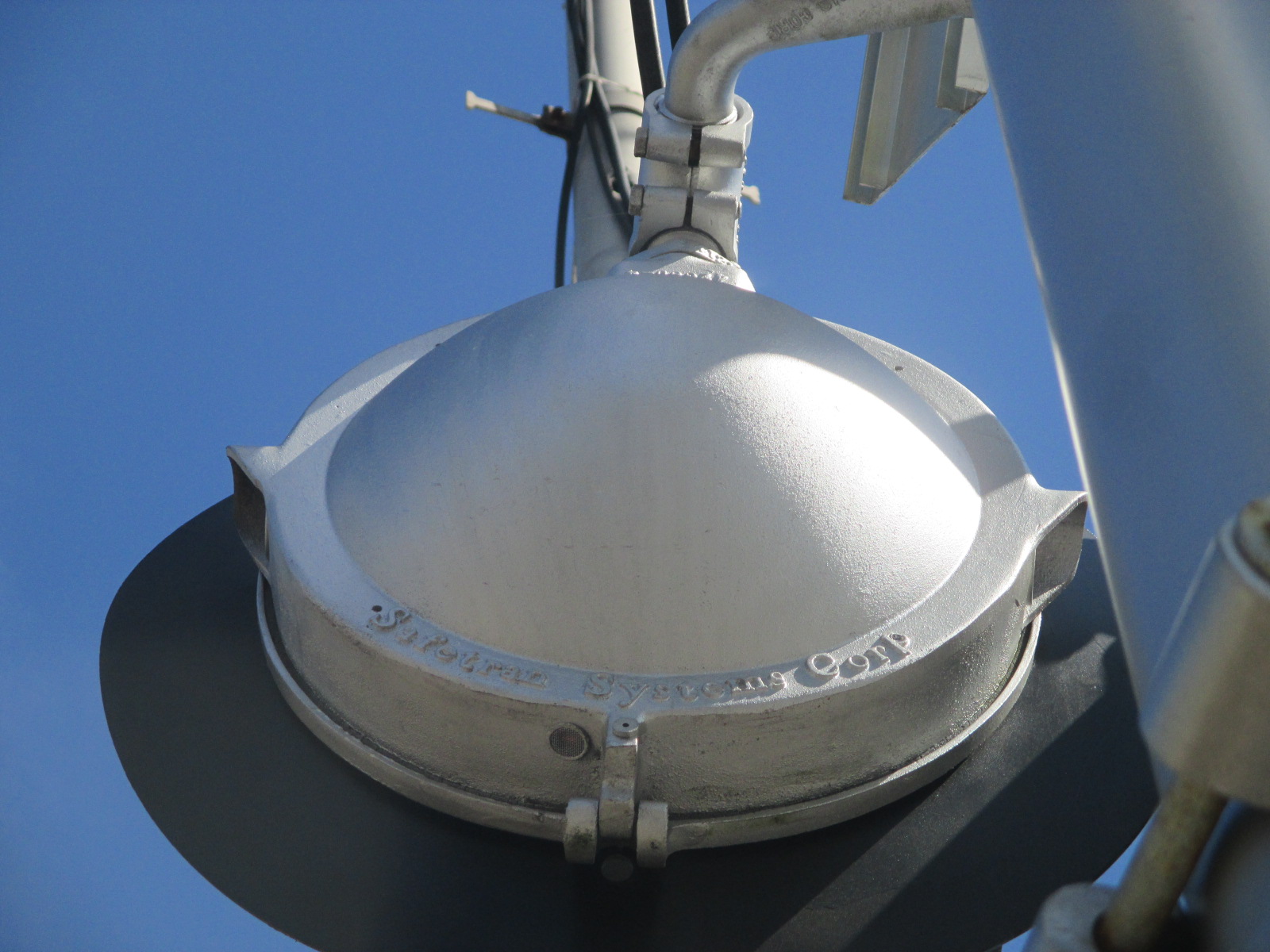

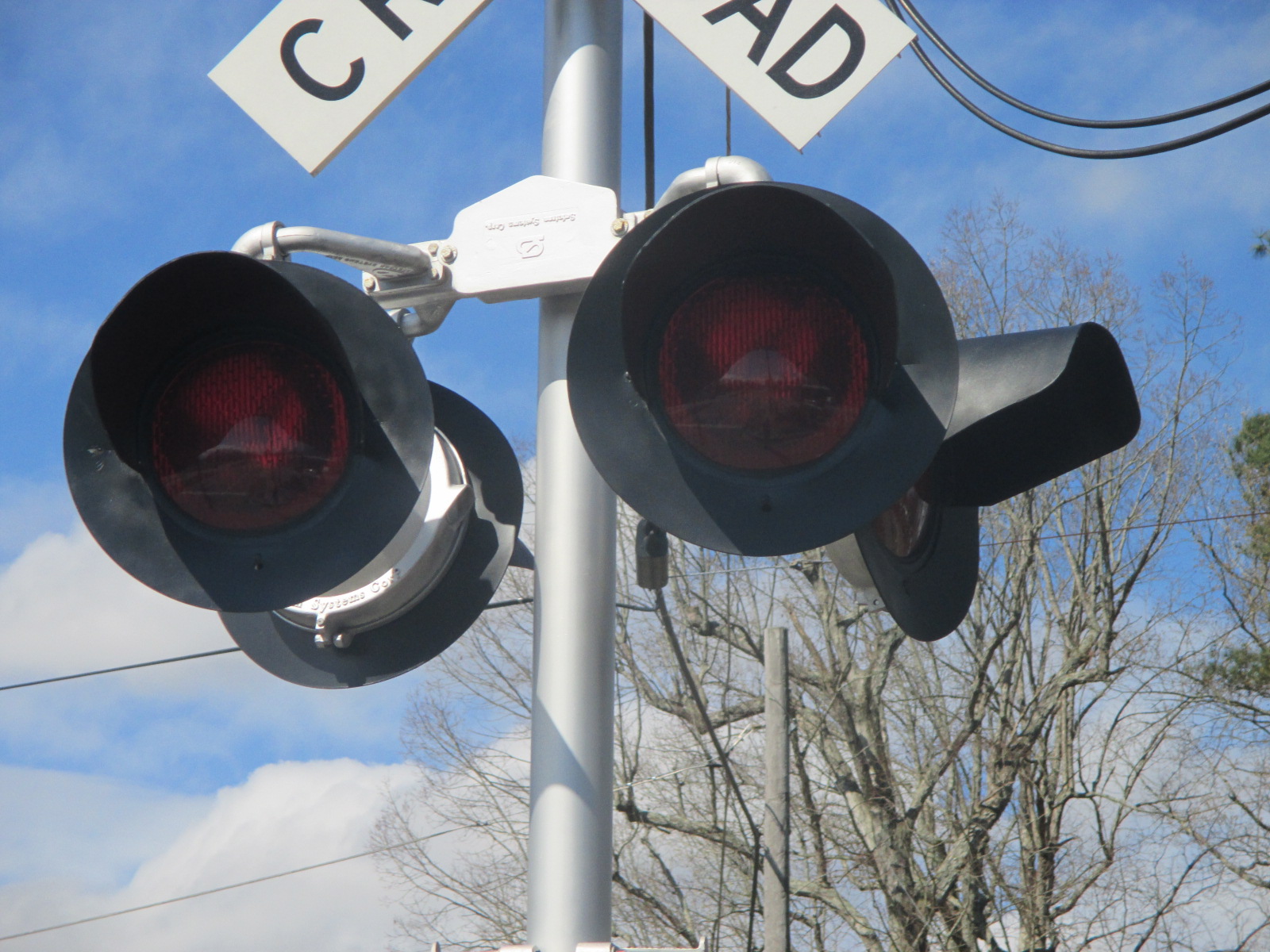

This signal has more older Safetran 12x20 inch lights. |

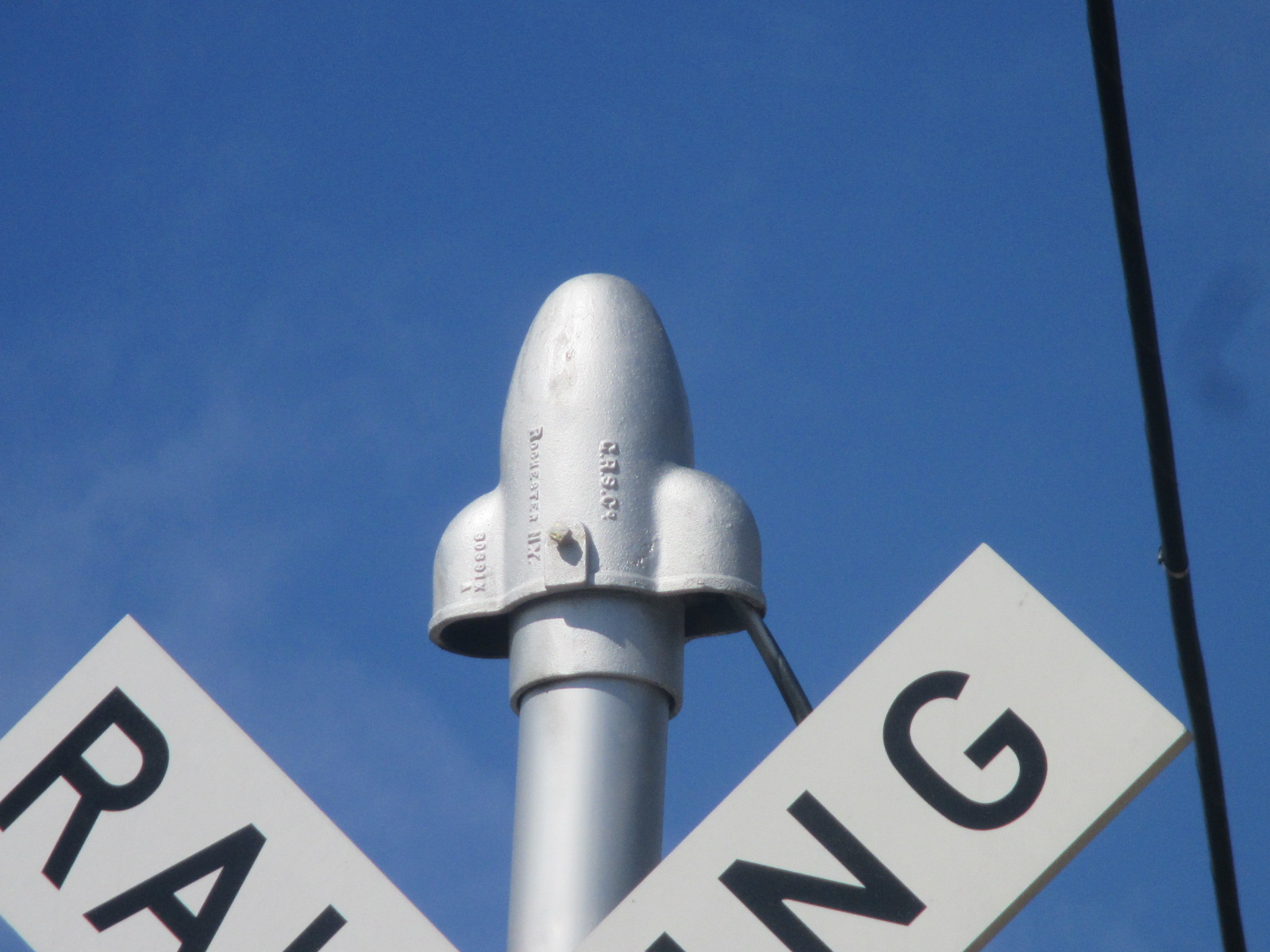

Some kind of wire entrance at the top of this signal. |

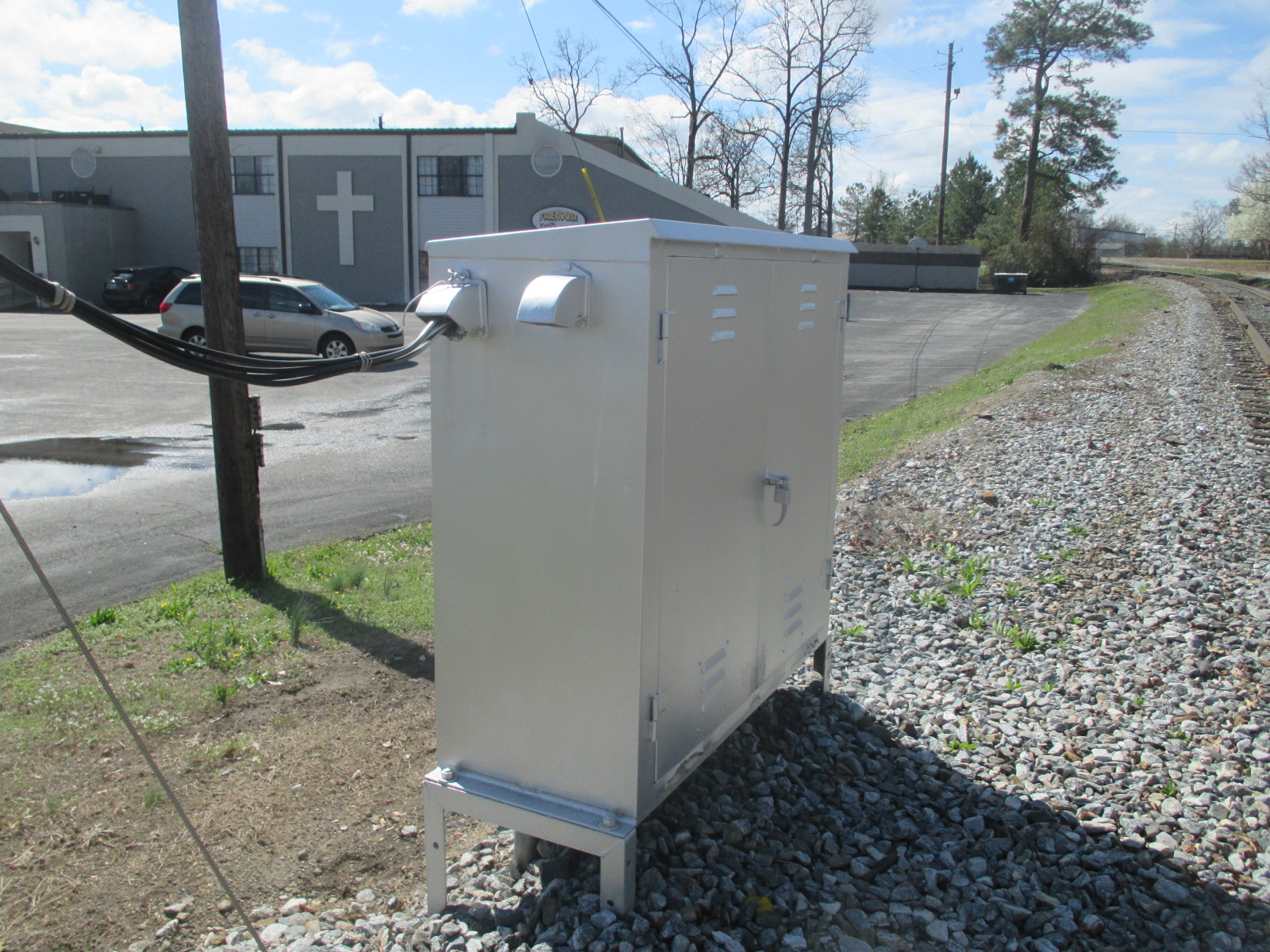

The relay case. |
|
21 |
22 |

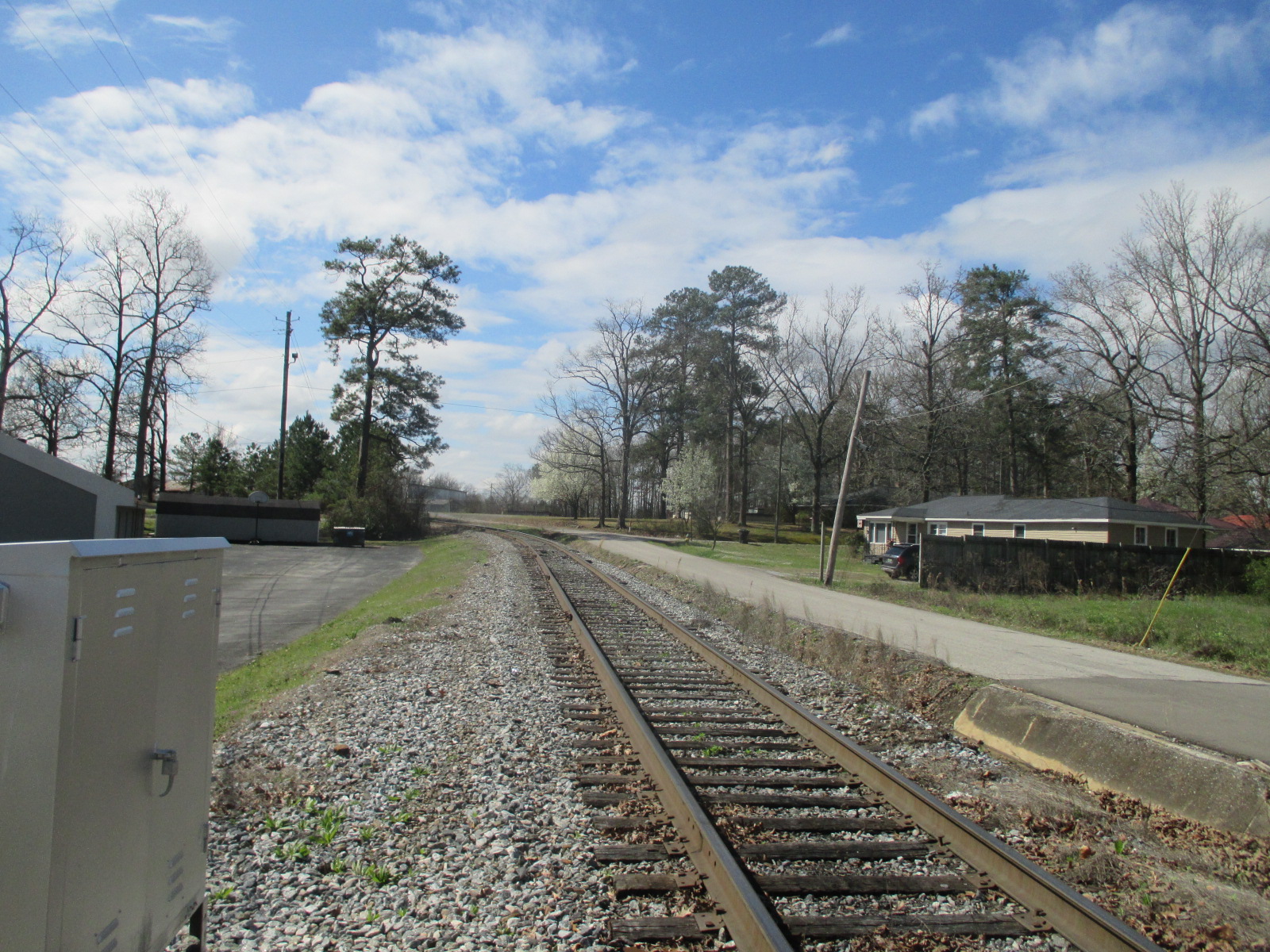

Track views. Picture 21 looks south towards the ATN's yard and the NS Siskin Yard and 29th Street. Picture 22 looks north towards North 12th Street #2 (AL 211) and 1st Street and Line Street #2 in Attalla. |
|
23 |
24 |

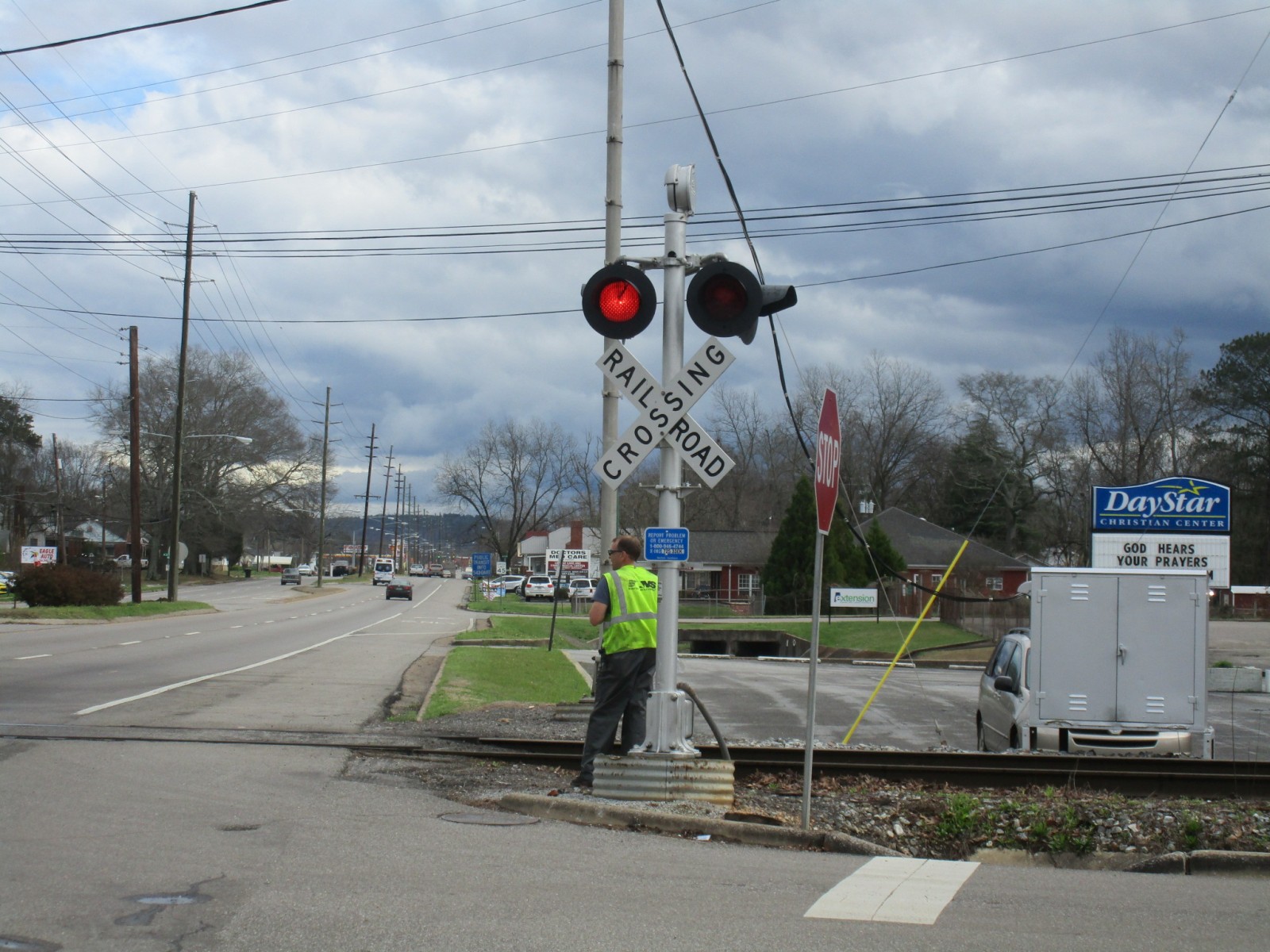

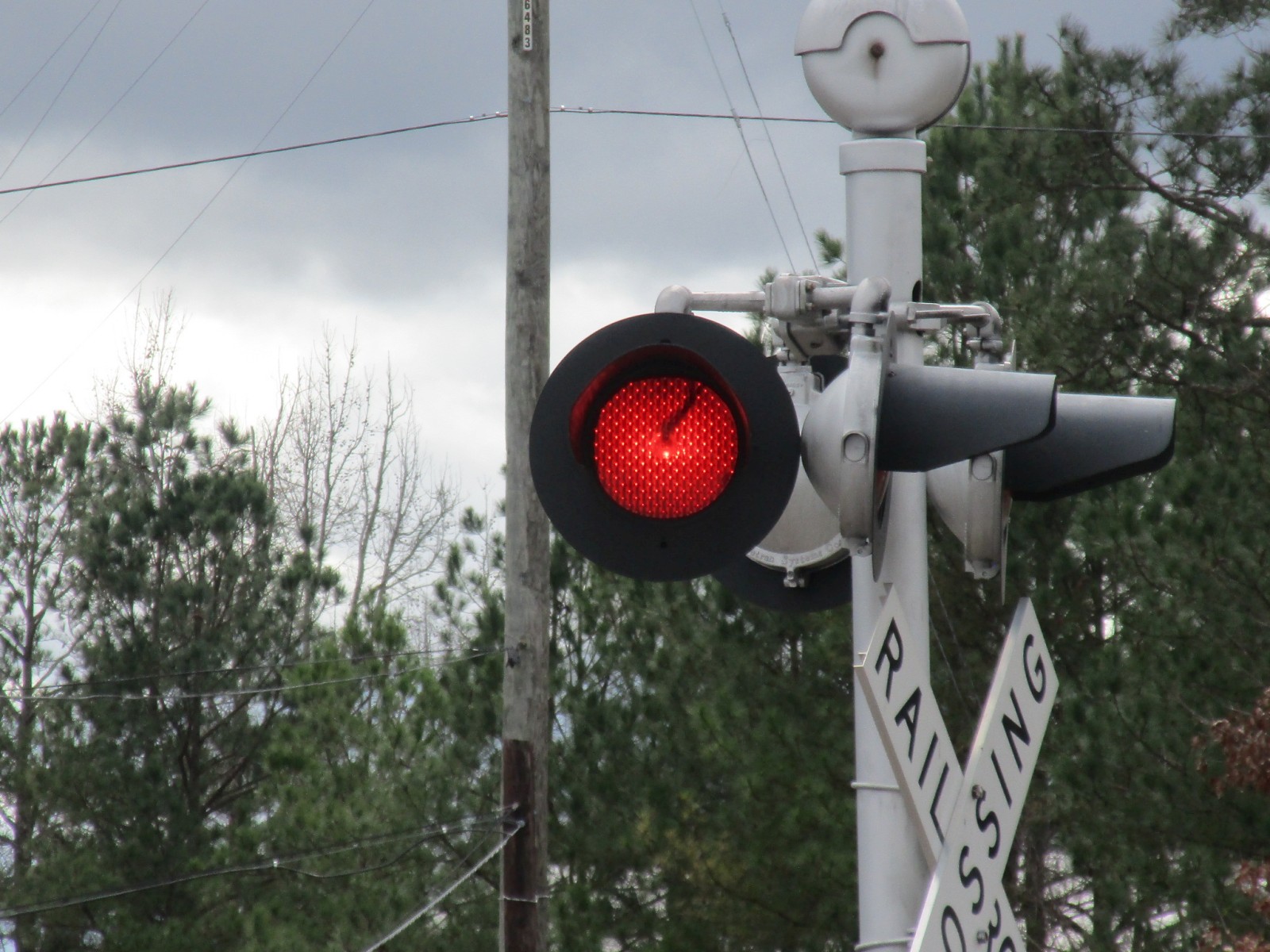

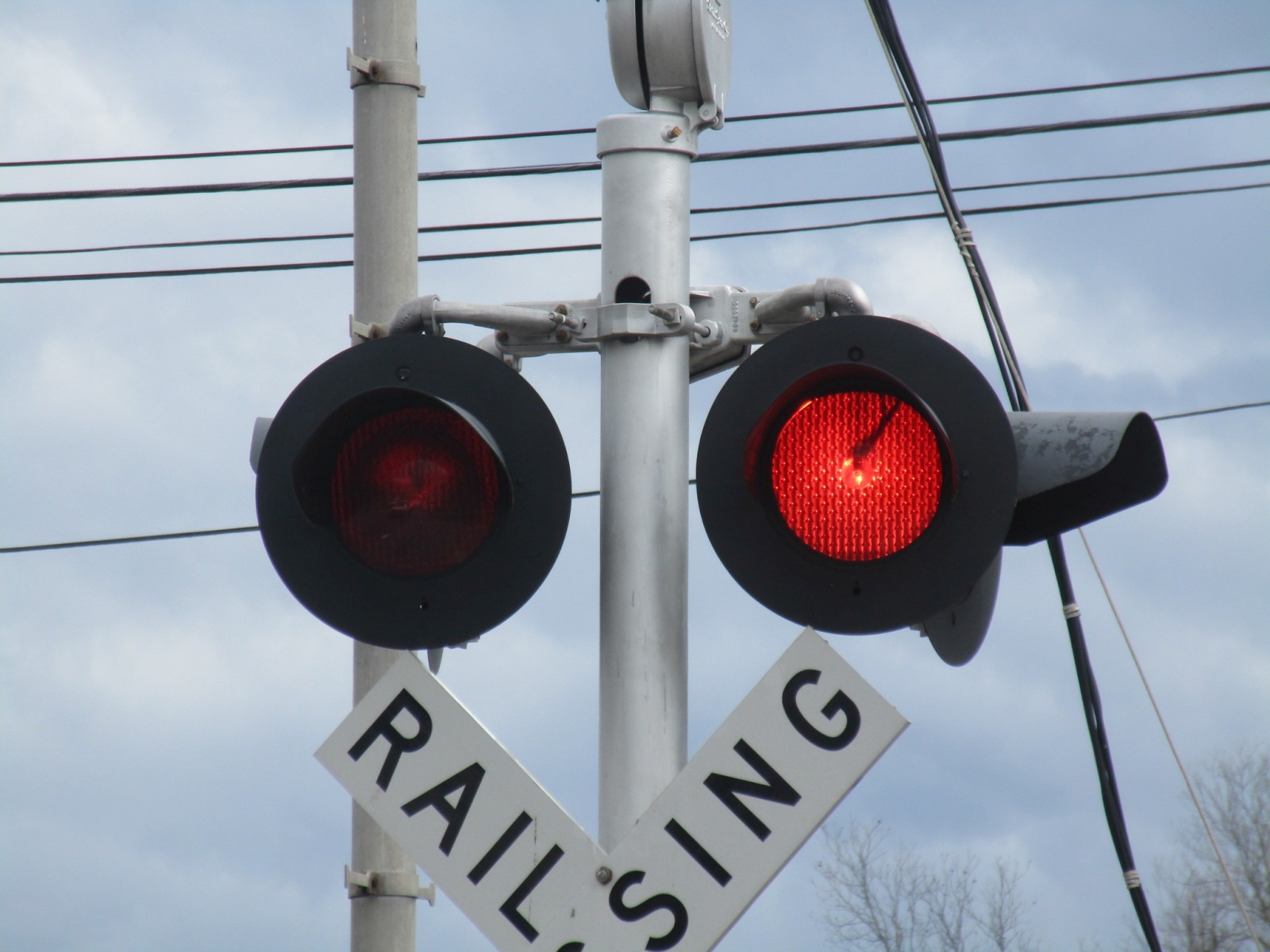

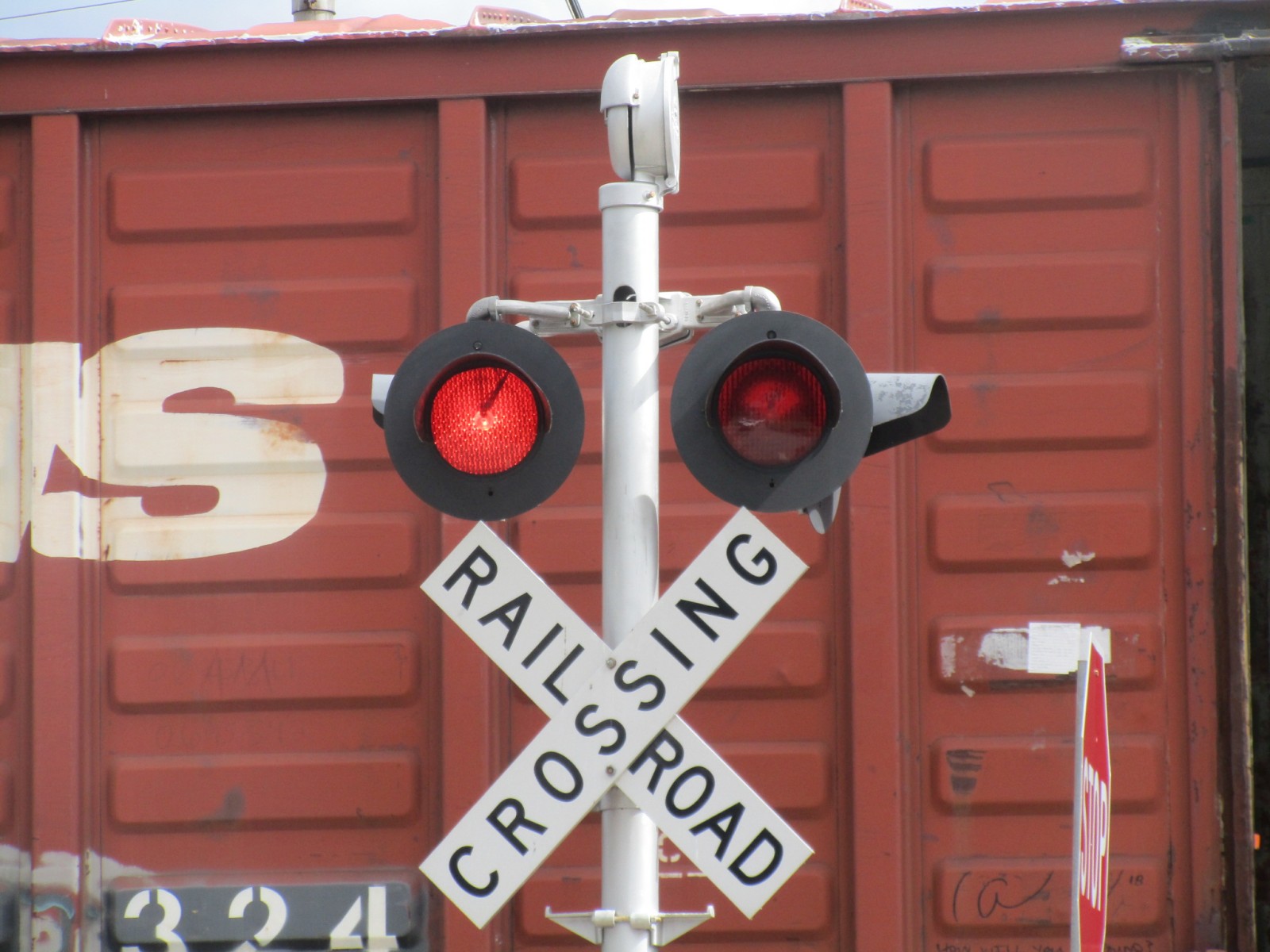

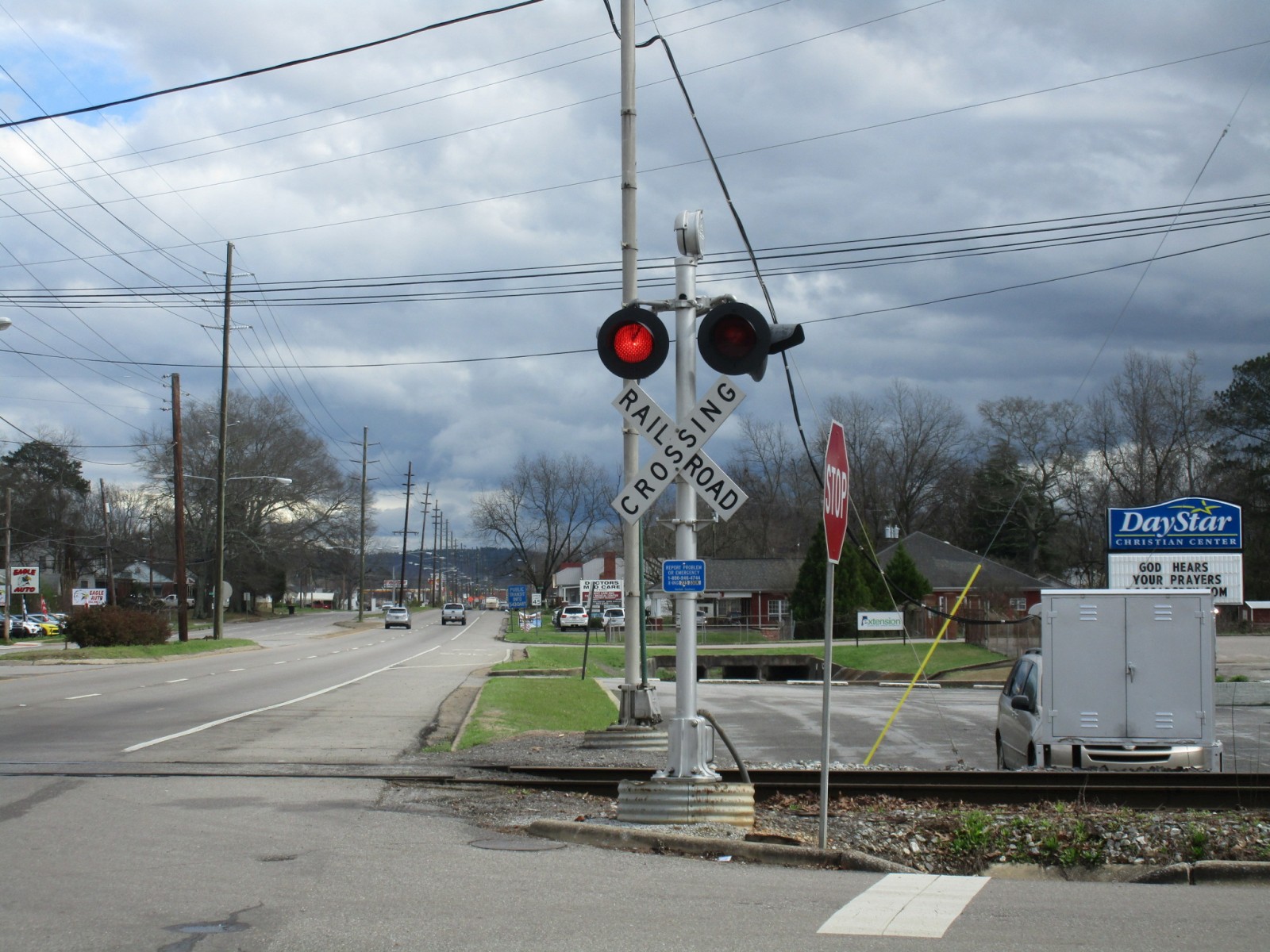

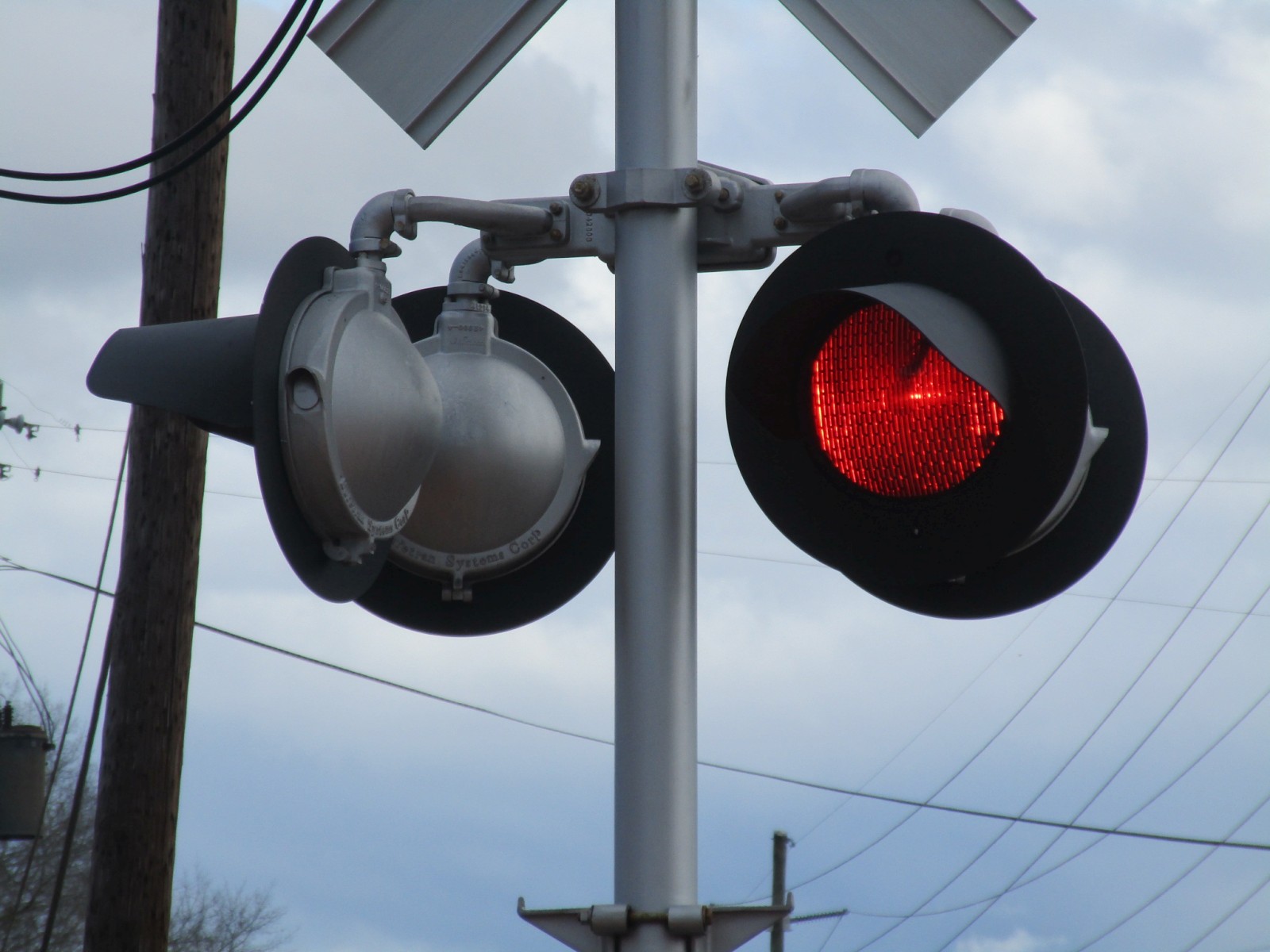

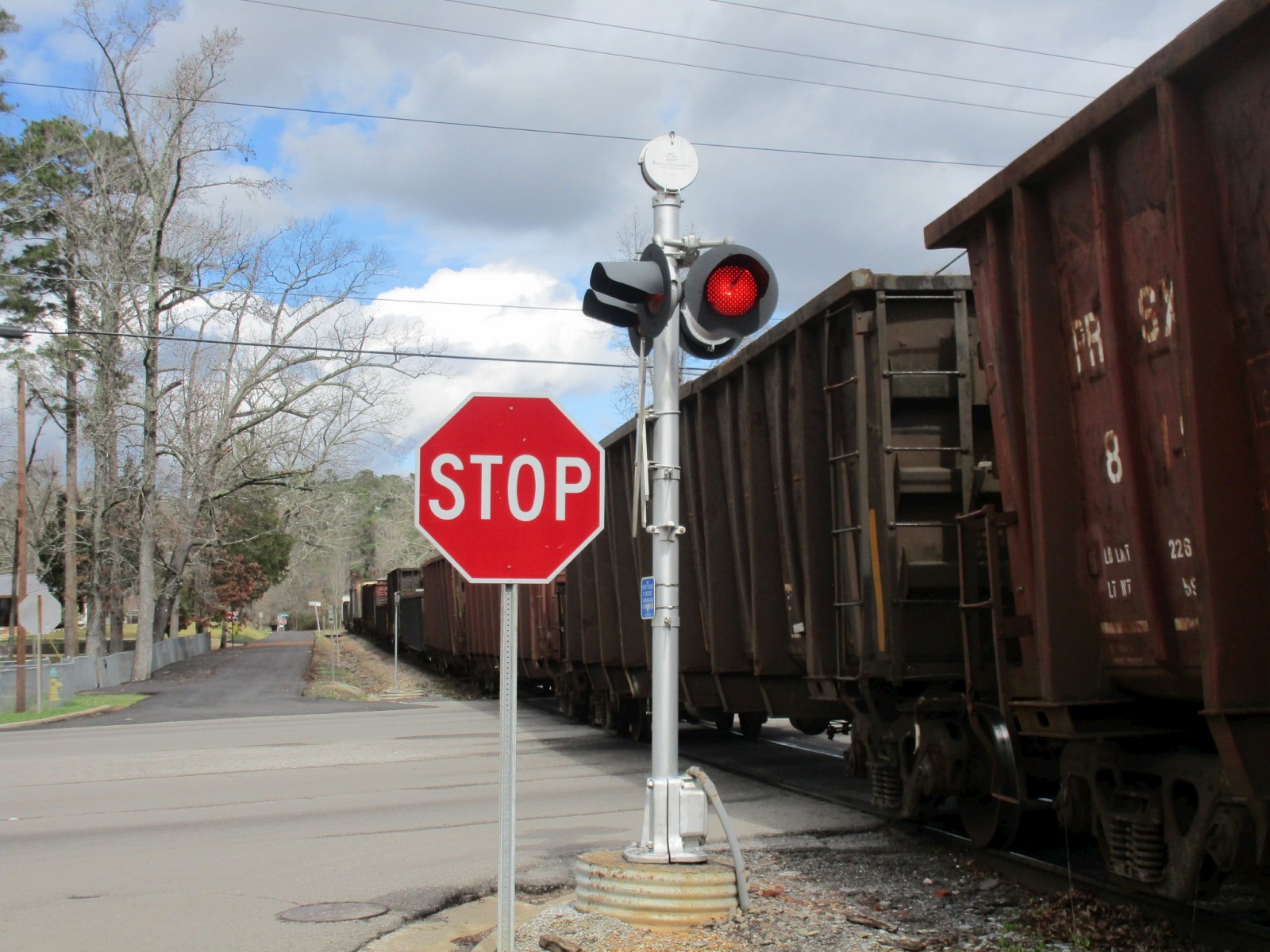

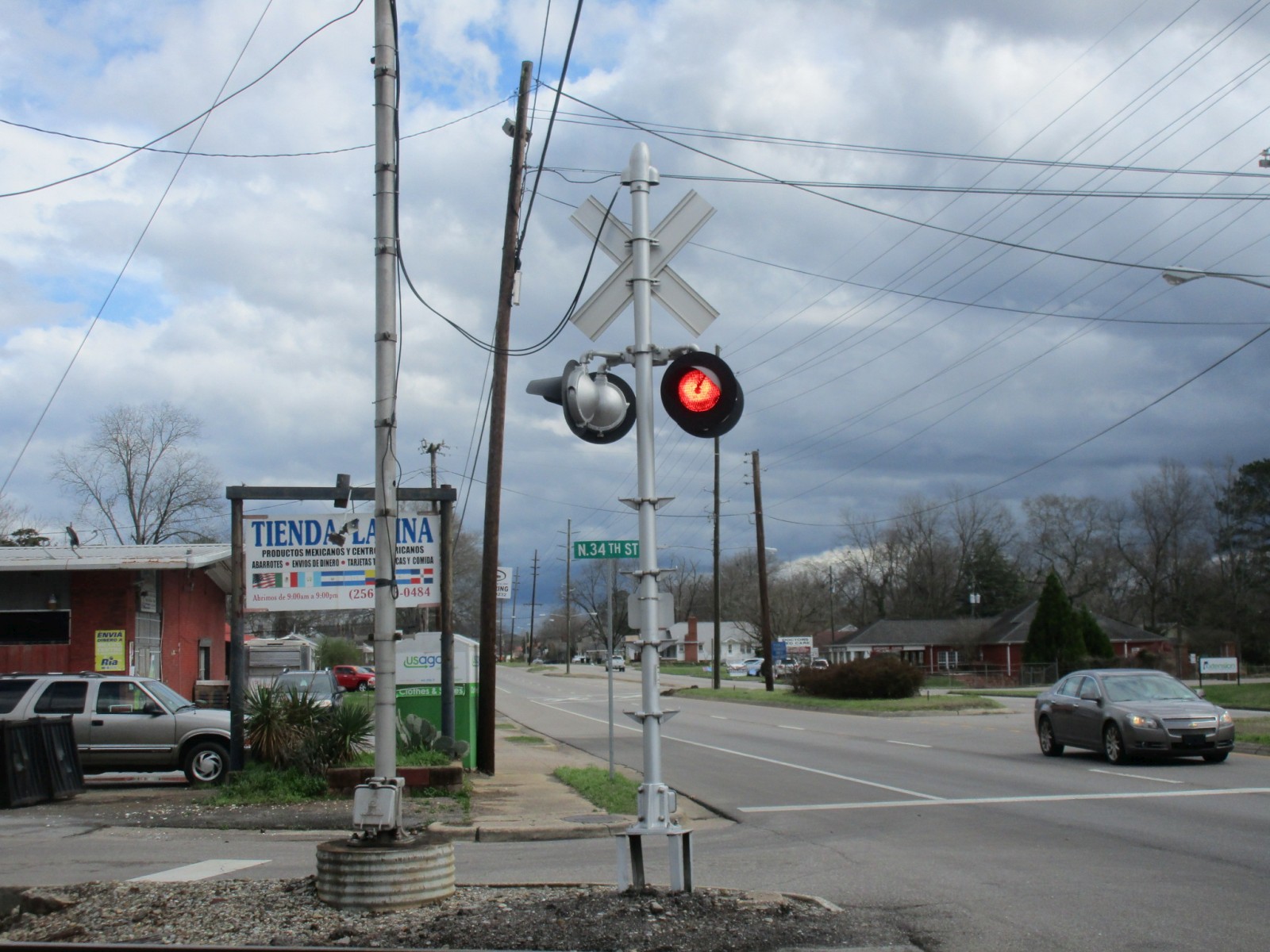

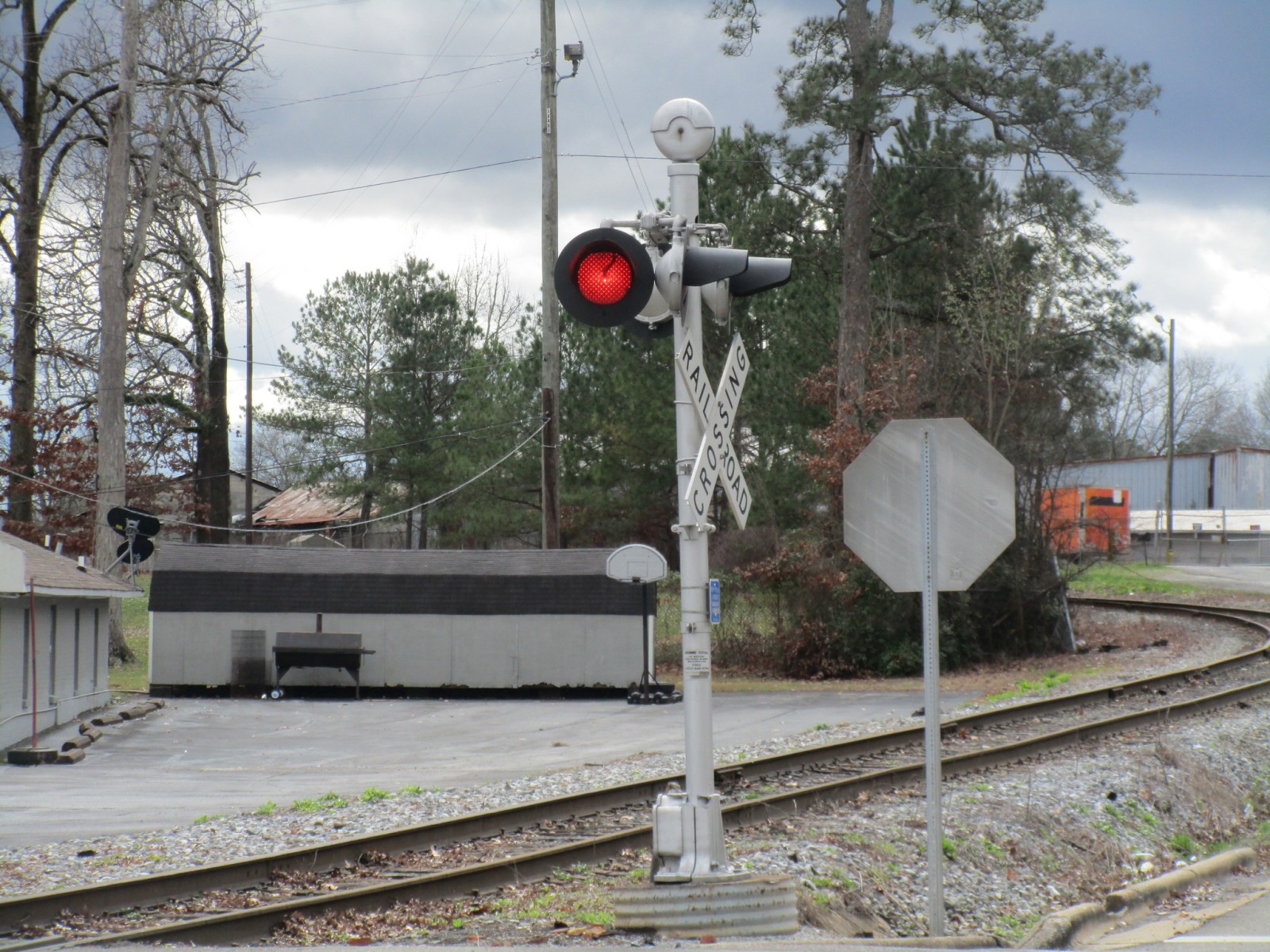

A return trip on 2-26-18 catches the crossing in action! |
|
25 |
26 |
27 |
28 |
29 |
30 |
31 |
32 |
33 |
34 |
35 |
36 |

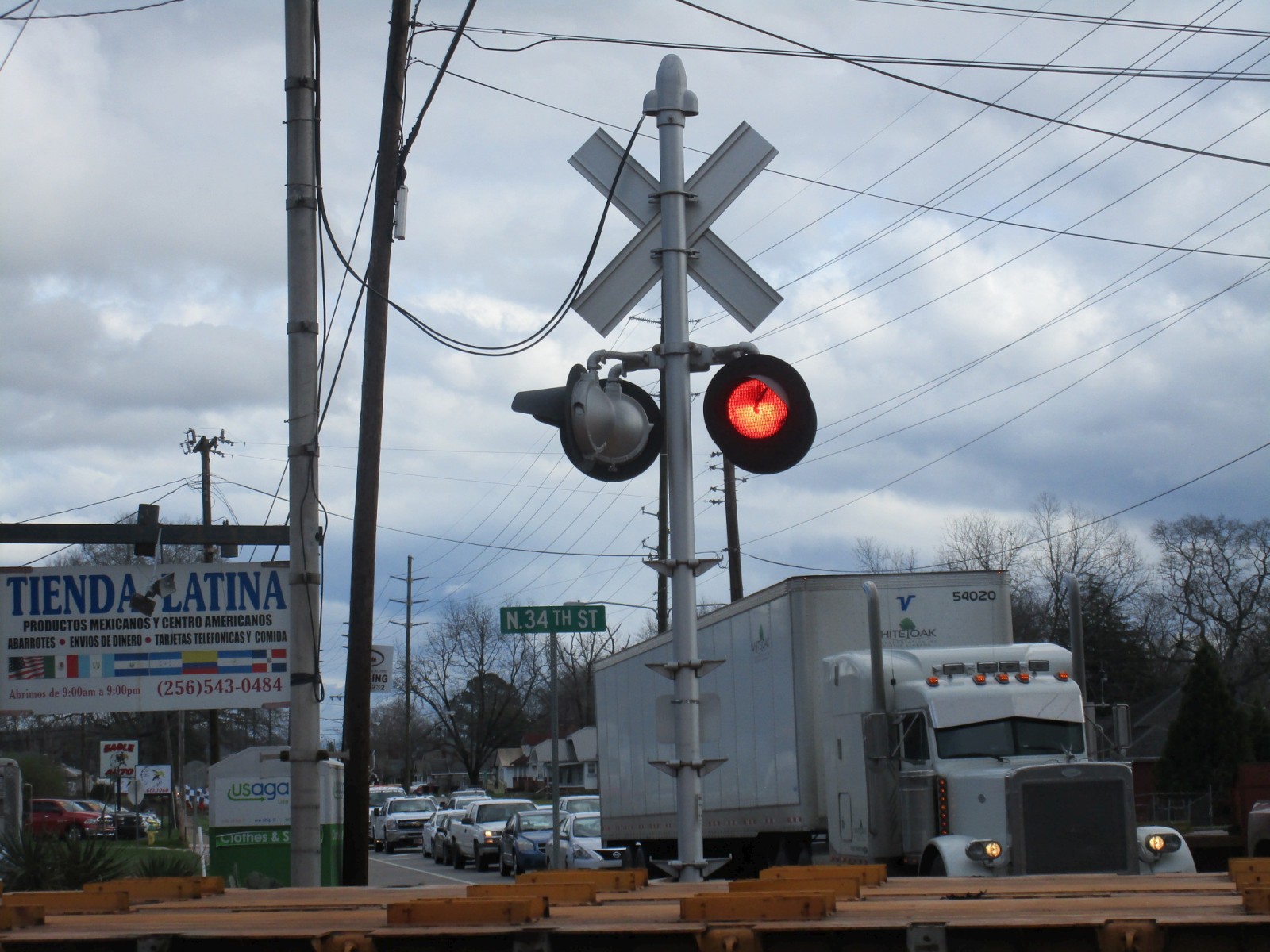

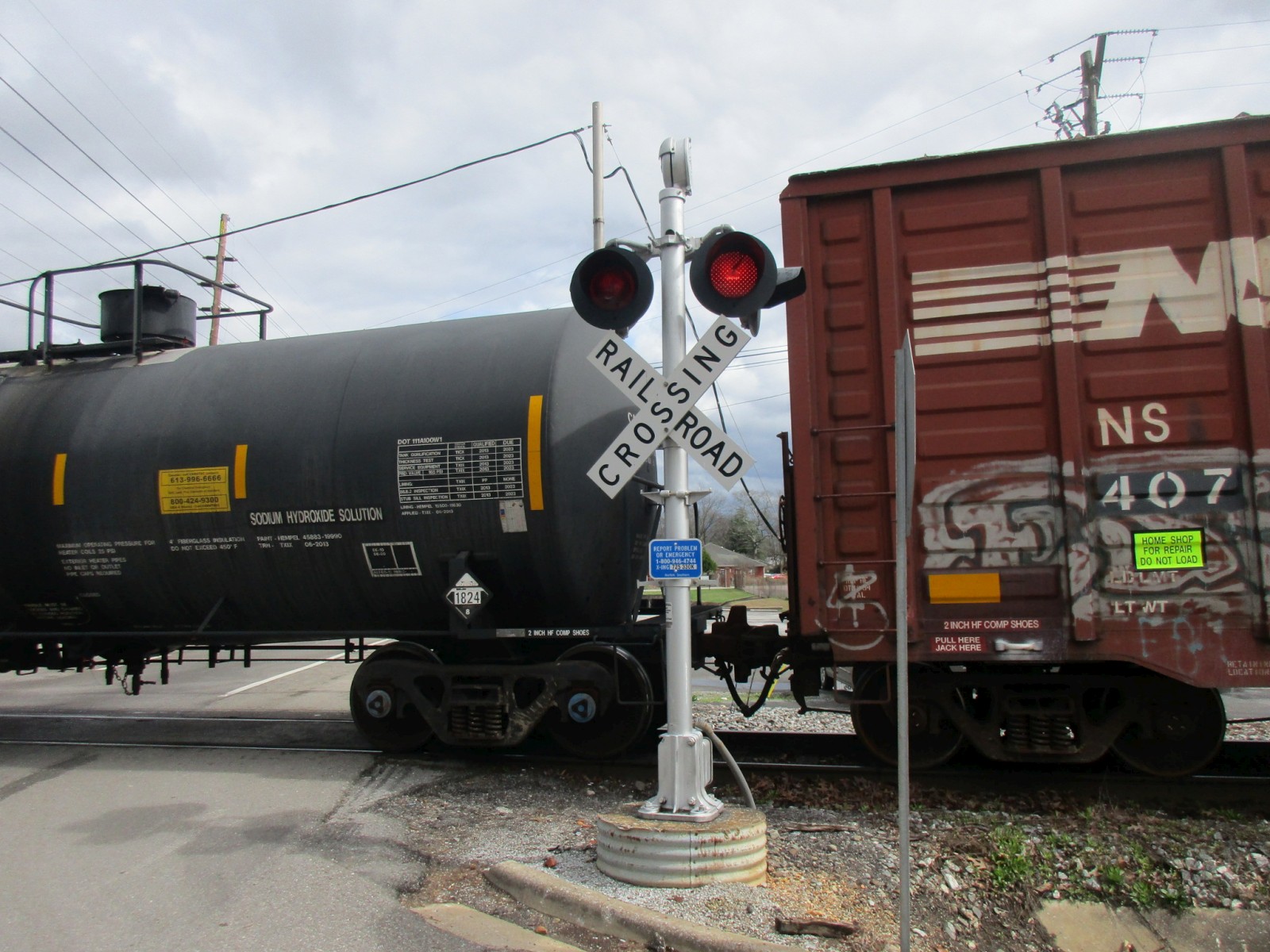

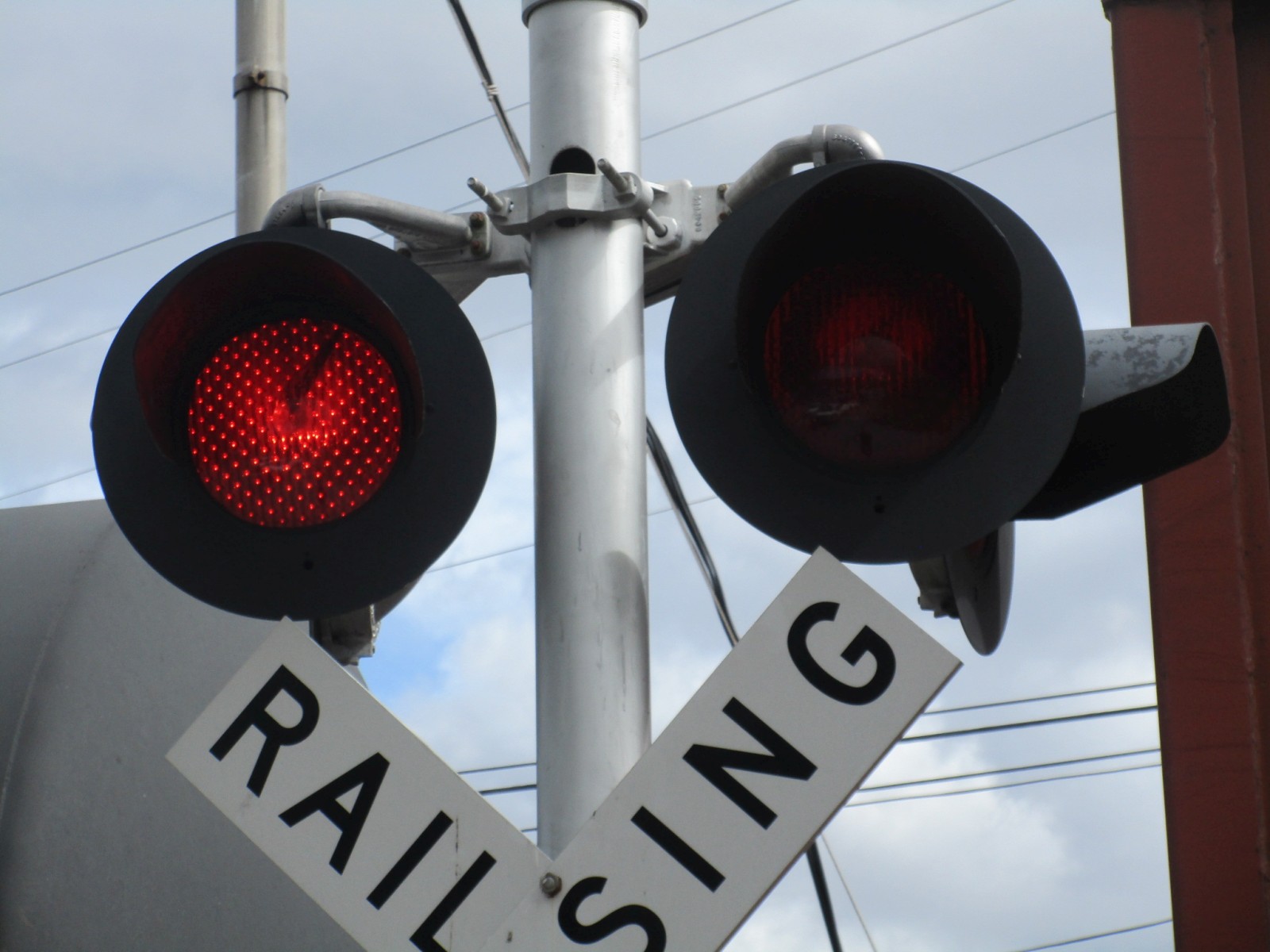

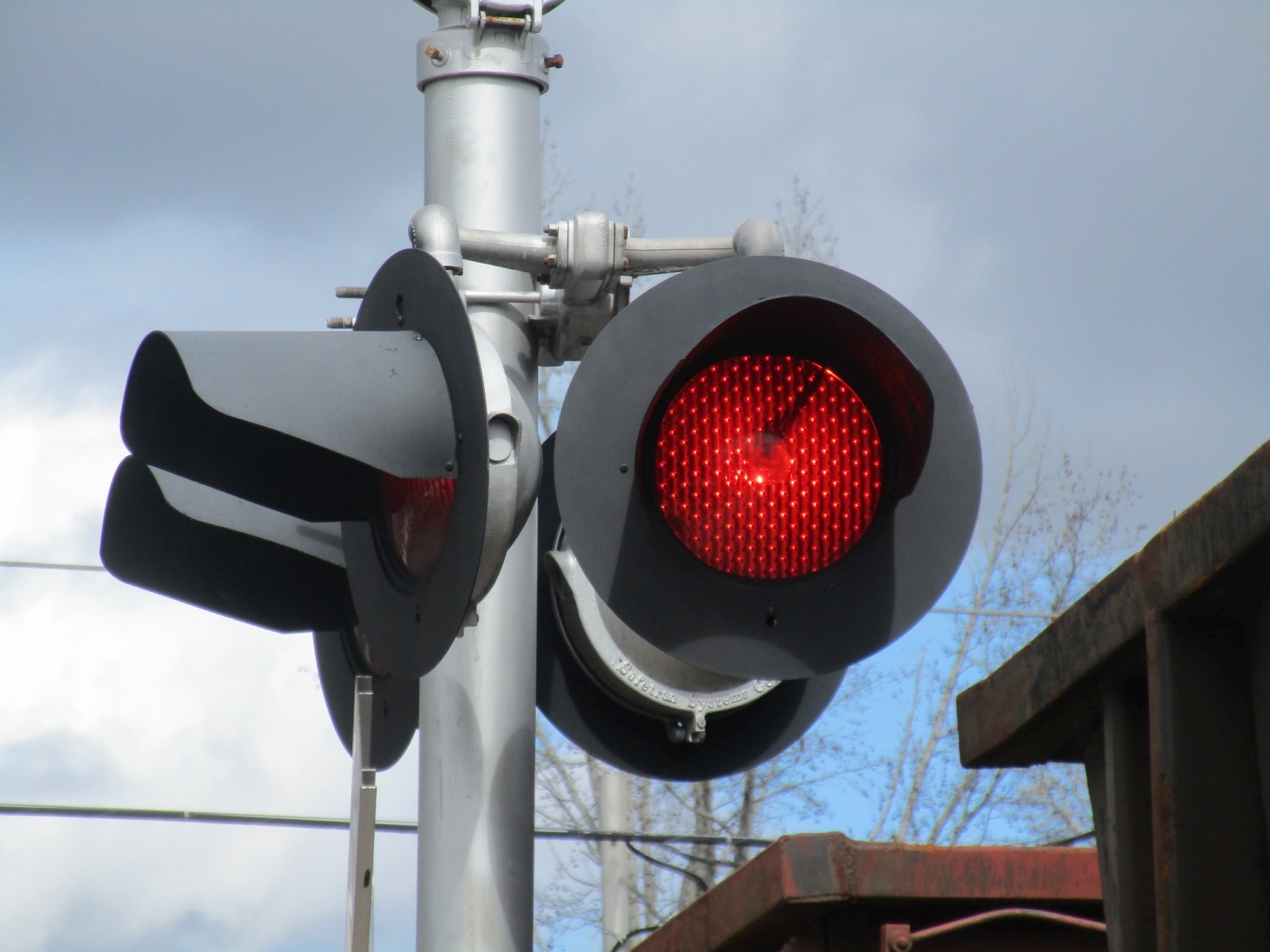

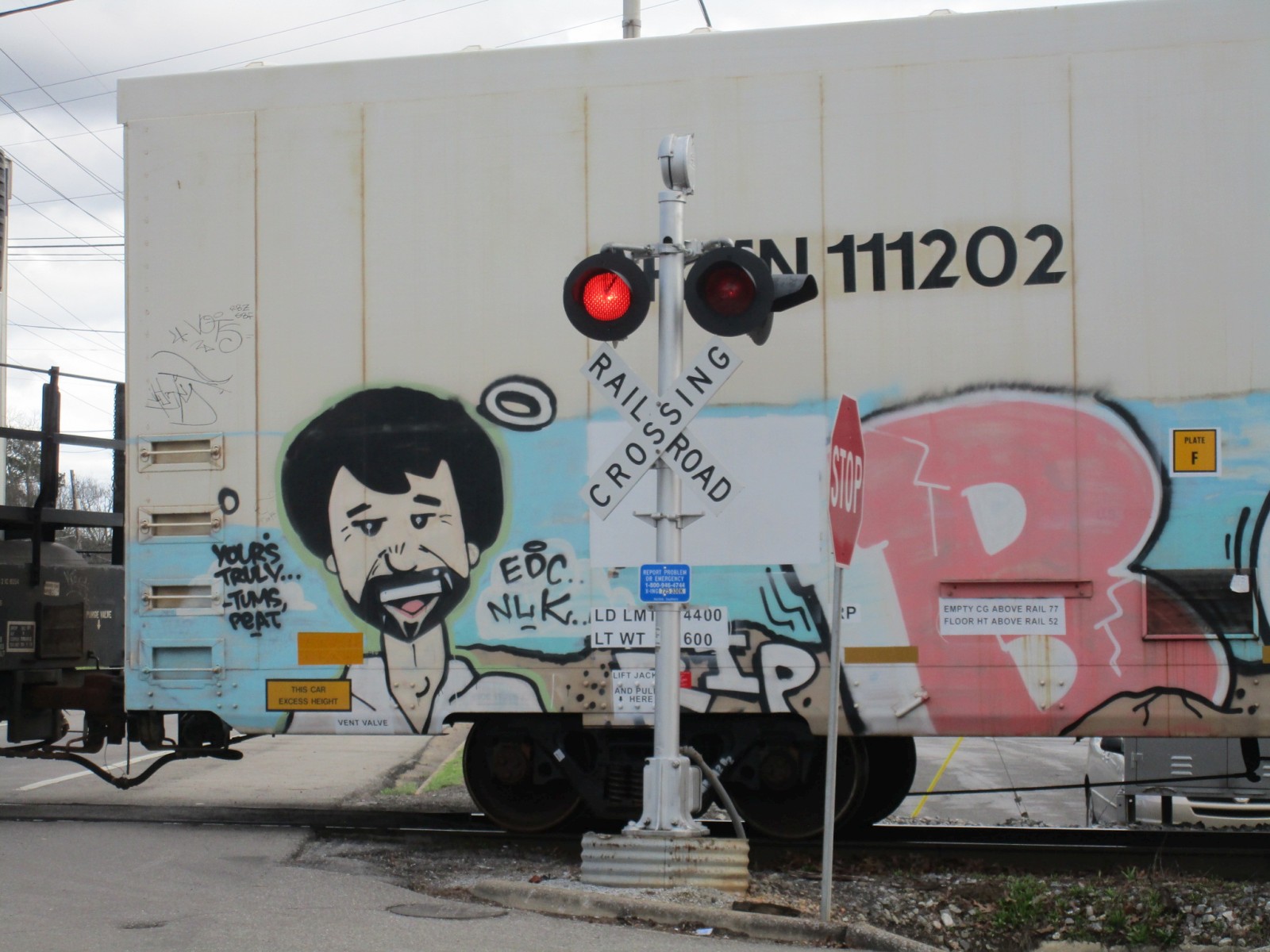

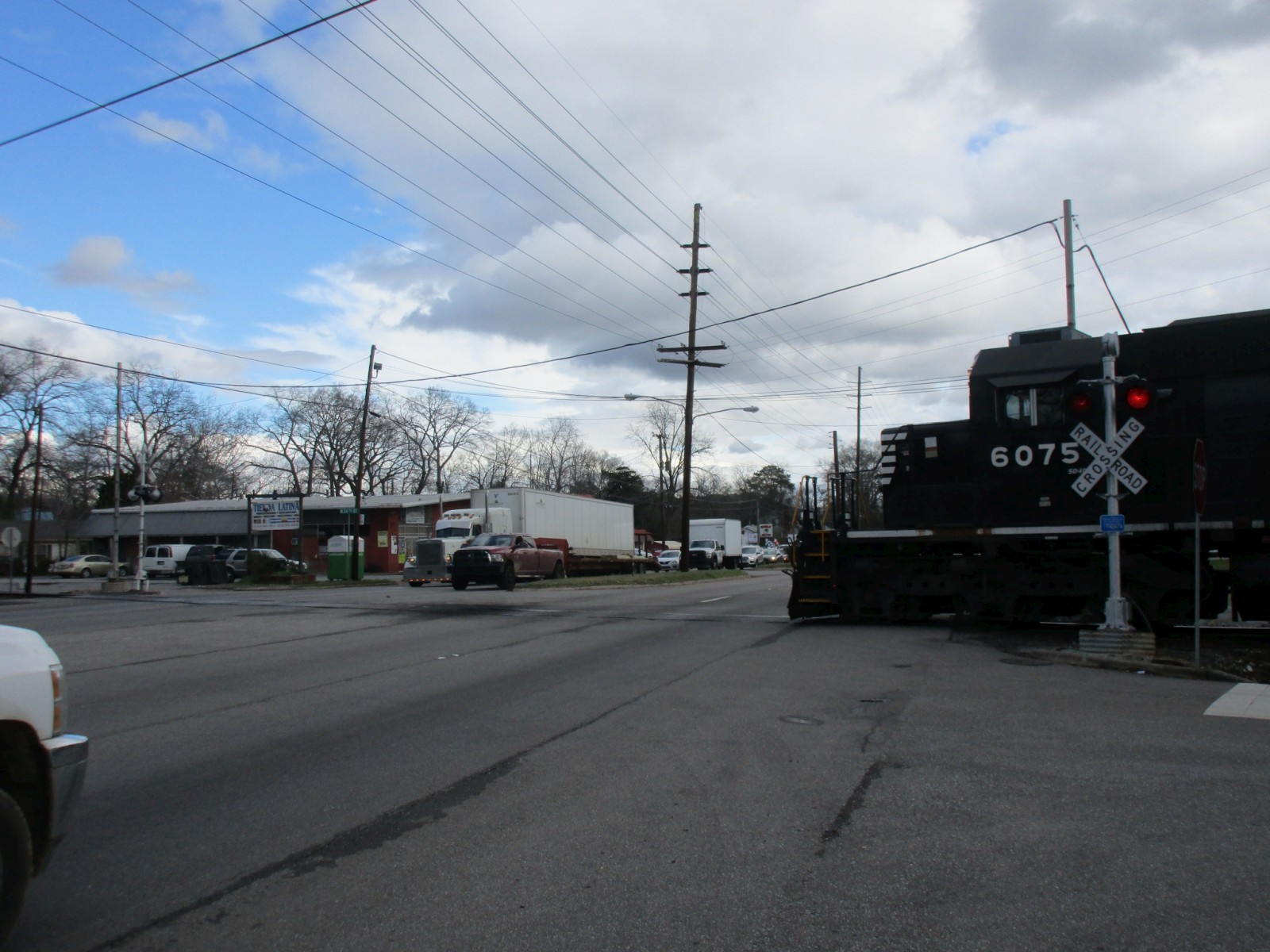

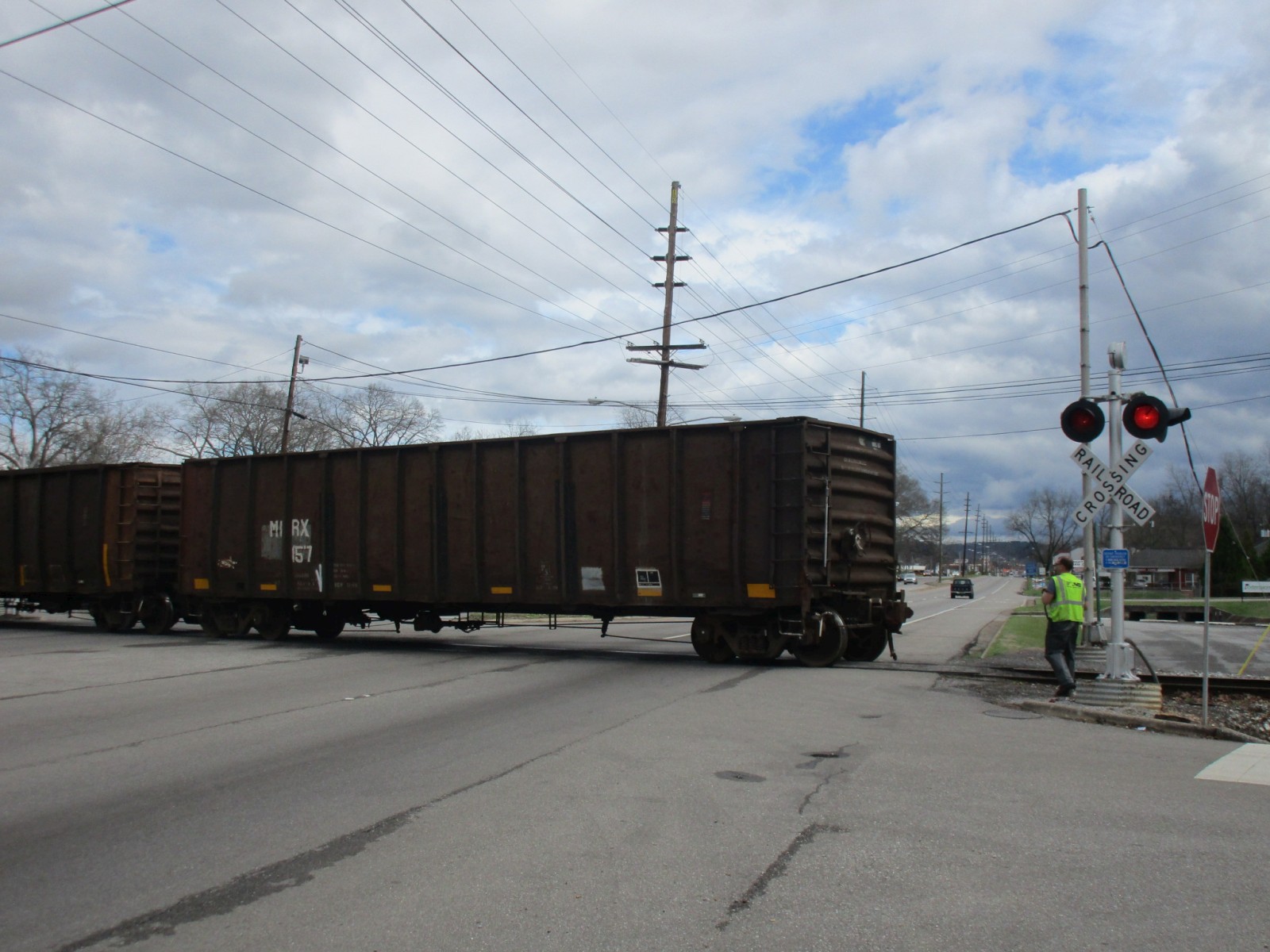

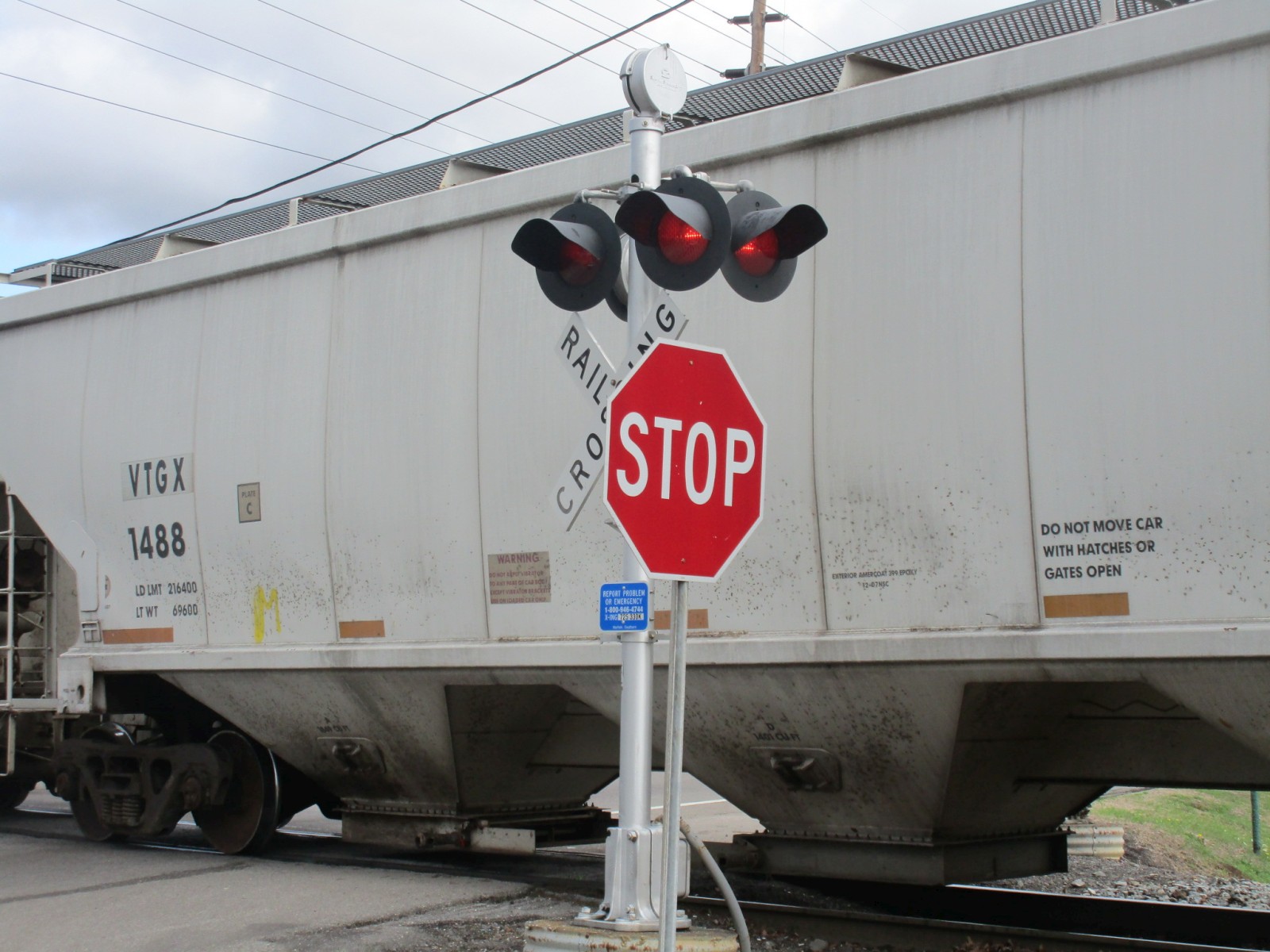

NS A54 shoves through the crossing. |
|||
37 |
38 |
39 |
40 |
41 |
42 |
43 |
44 |
45 |
46 |
47 |
48 |
49 |
50 |
51 |
52 |
53 |
54 |
55 |
56 |

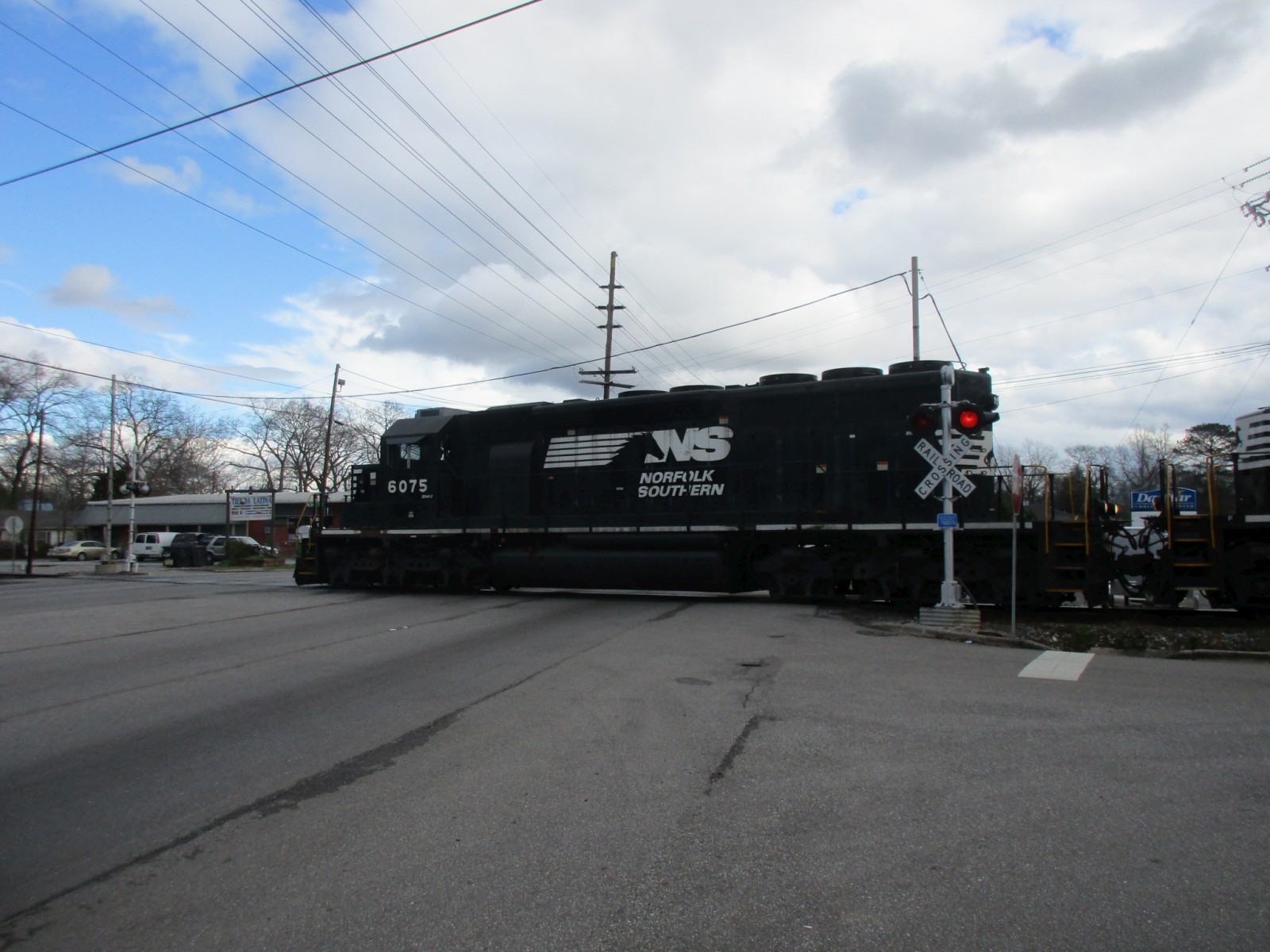

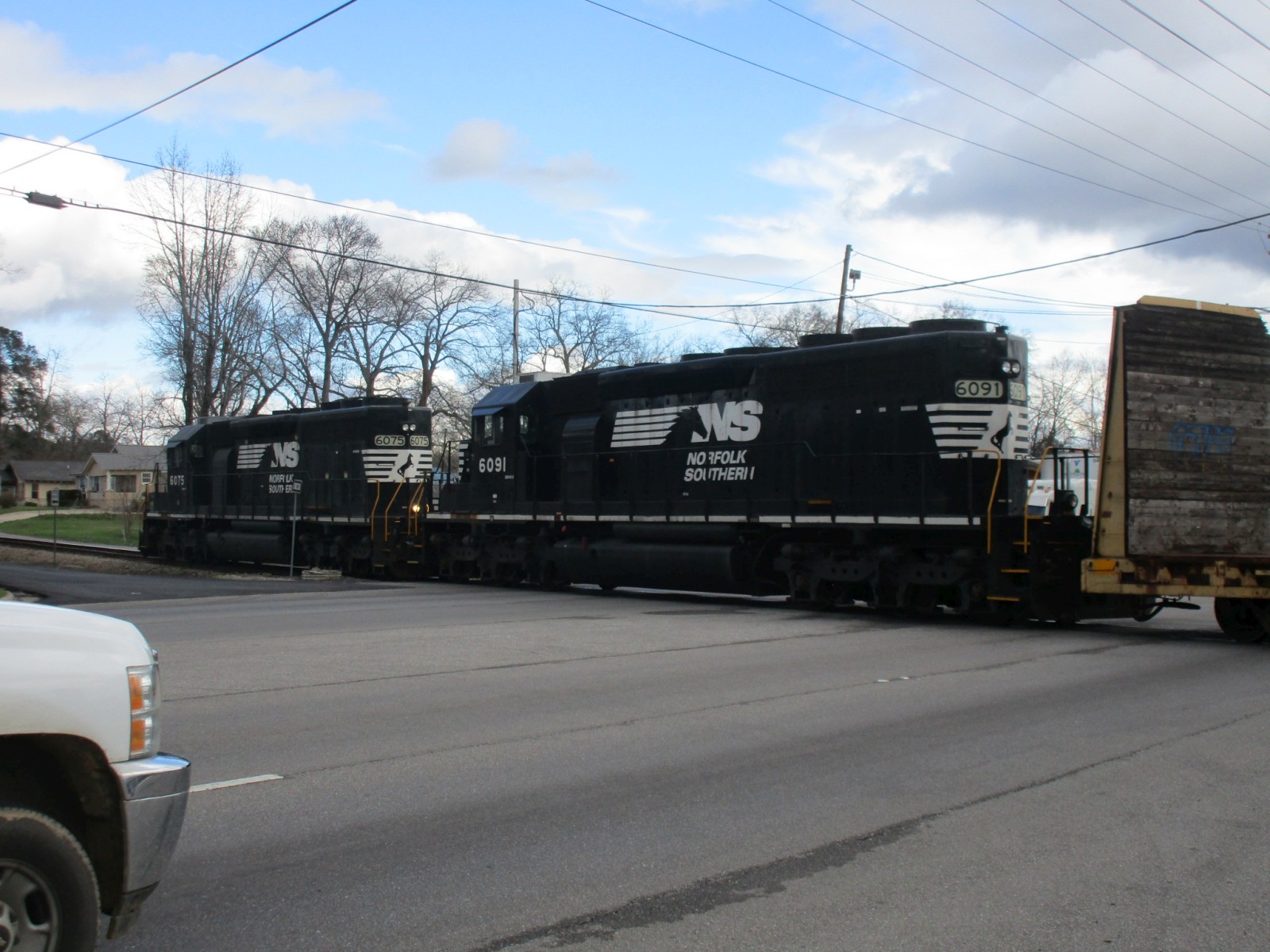

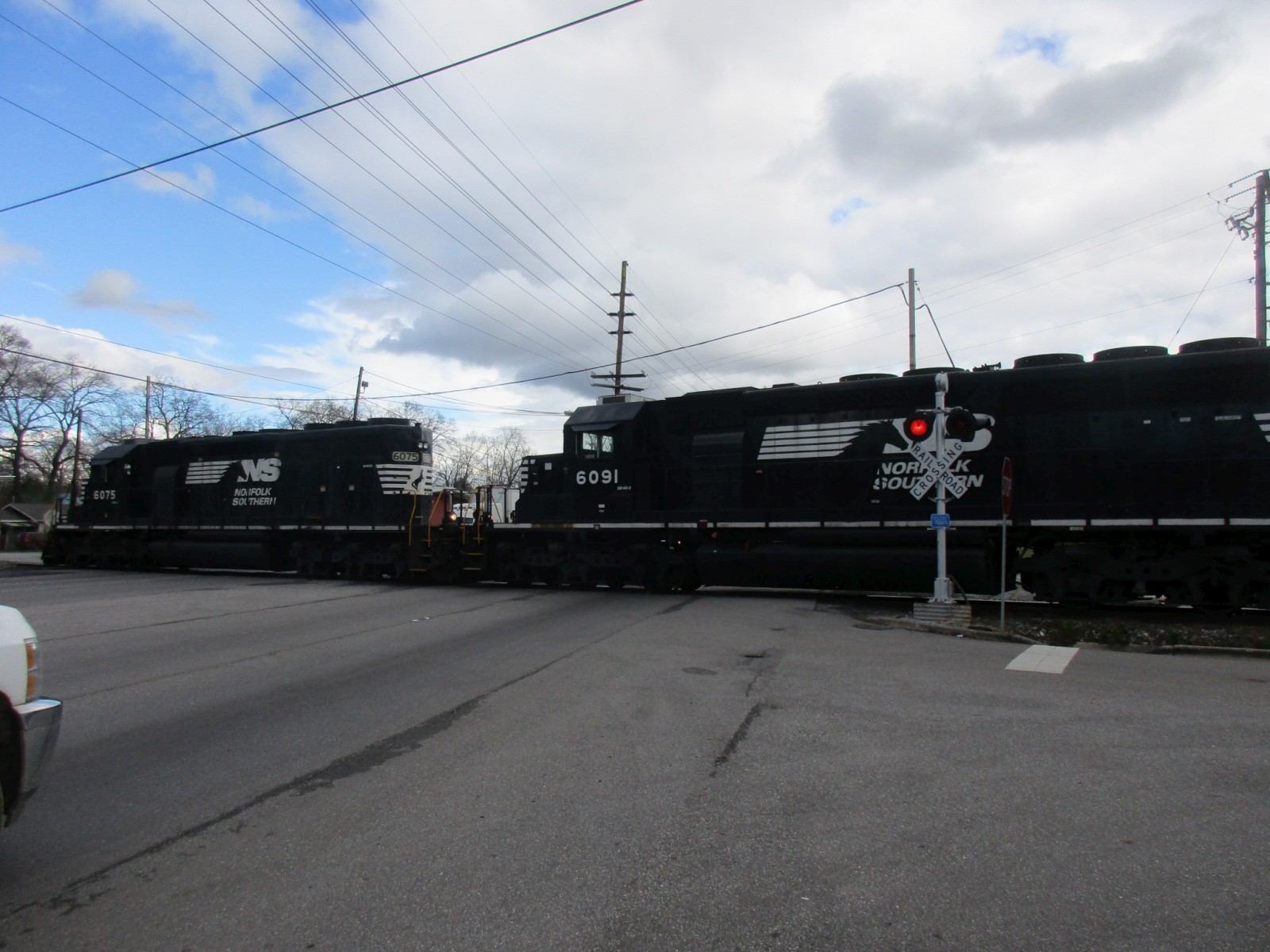

Two SD40-2s are the power on this train. |
|||
57 |
58 |
59 |
60 |

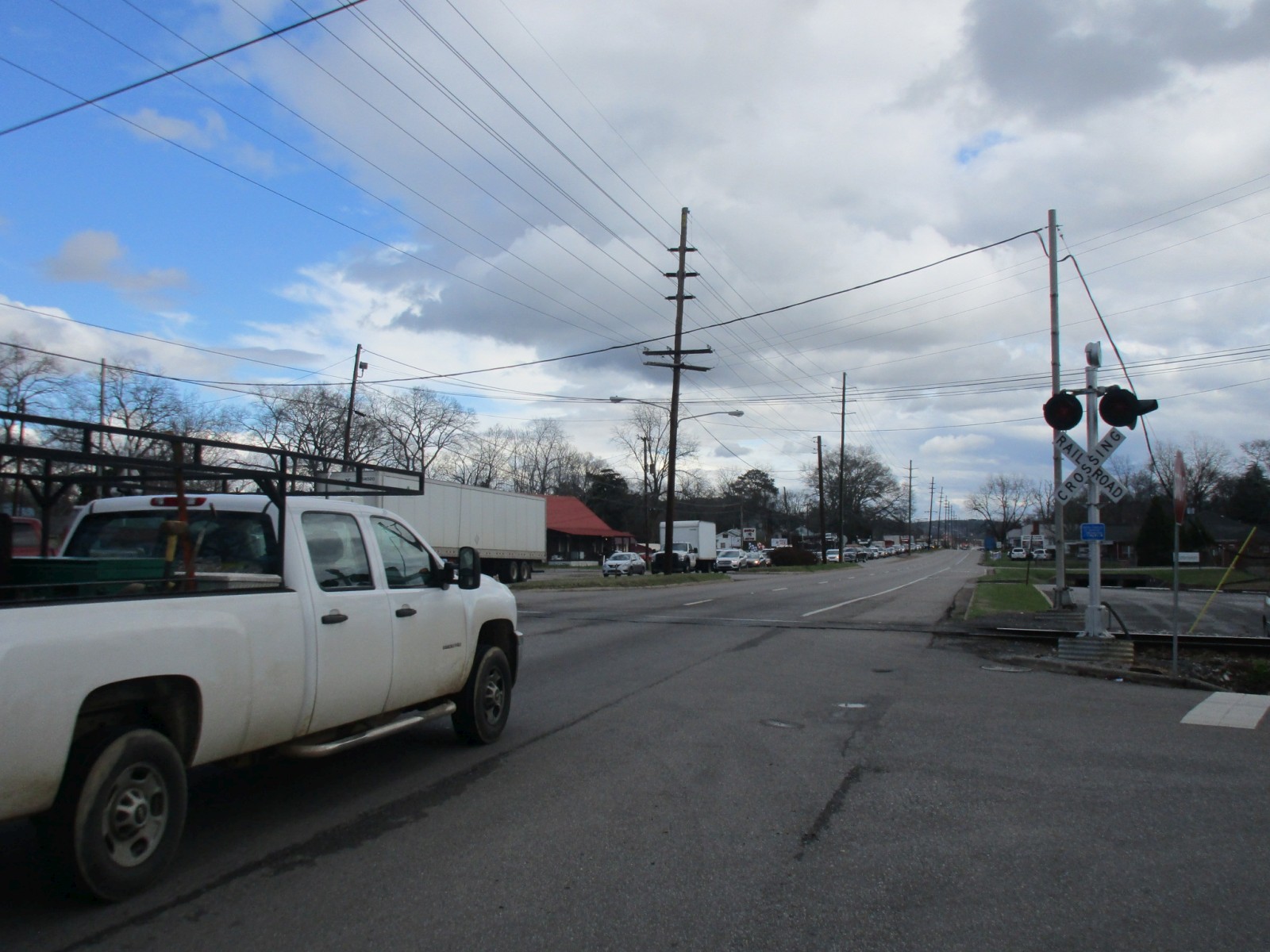

The train clears the crossing and the signals shut off. |
|||
61 |
62 |
63 |
64 |

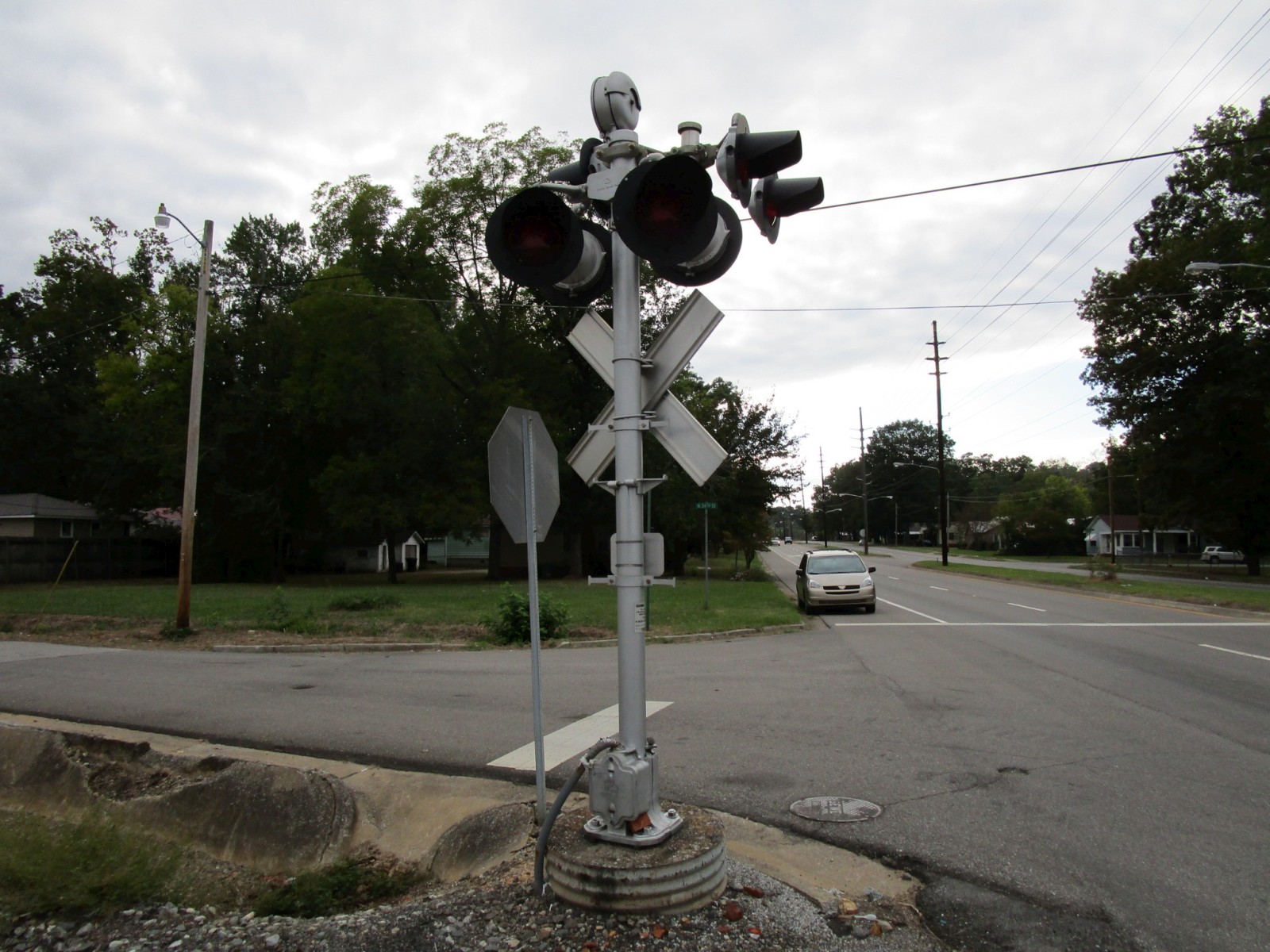

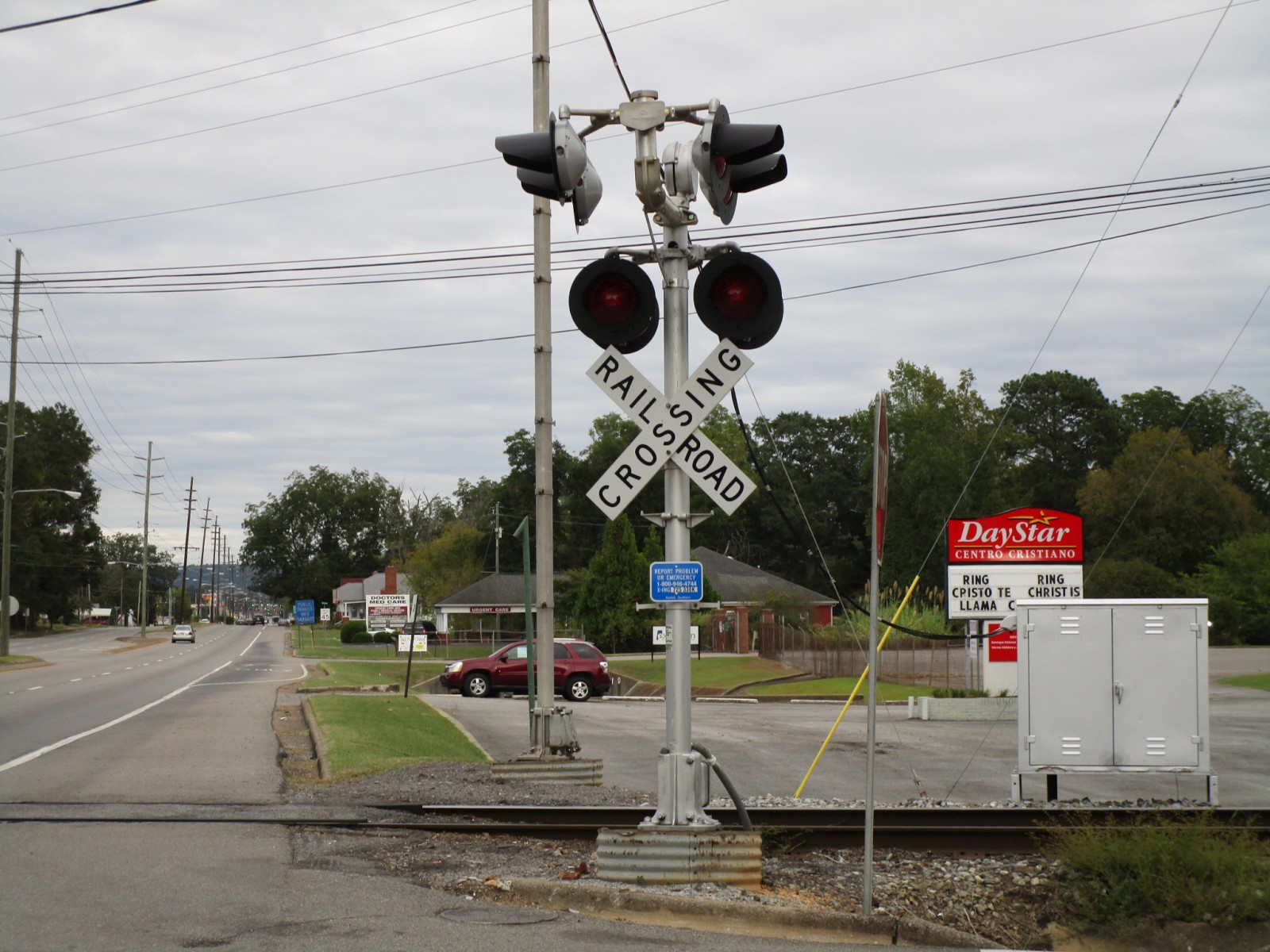

A return trip on 10-12-19 shows some changes to the crossing. |

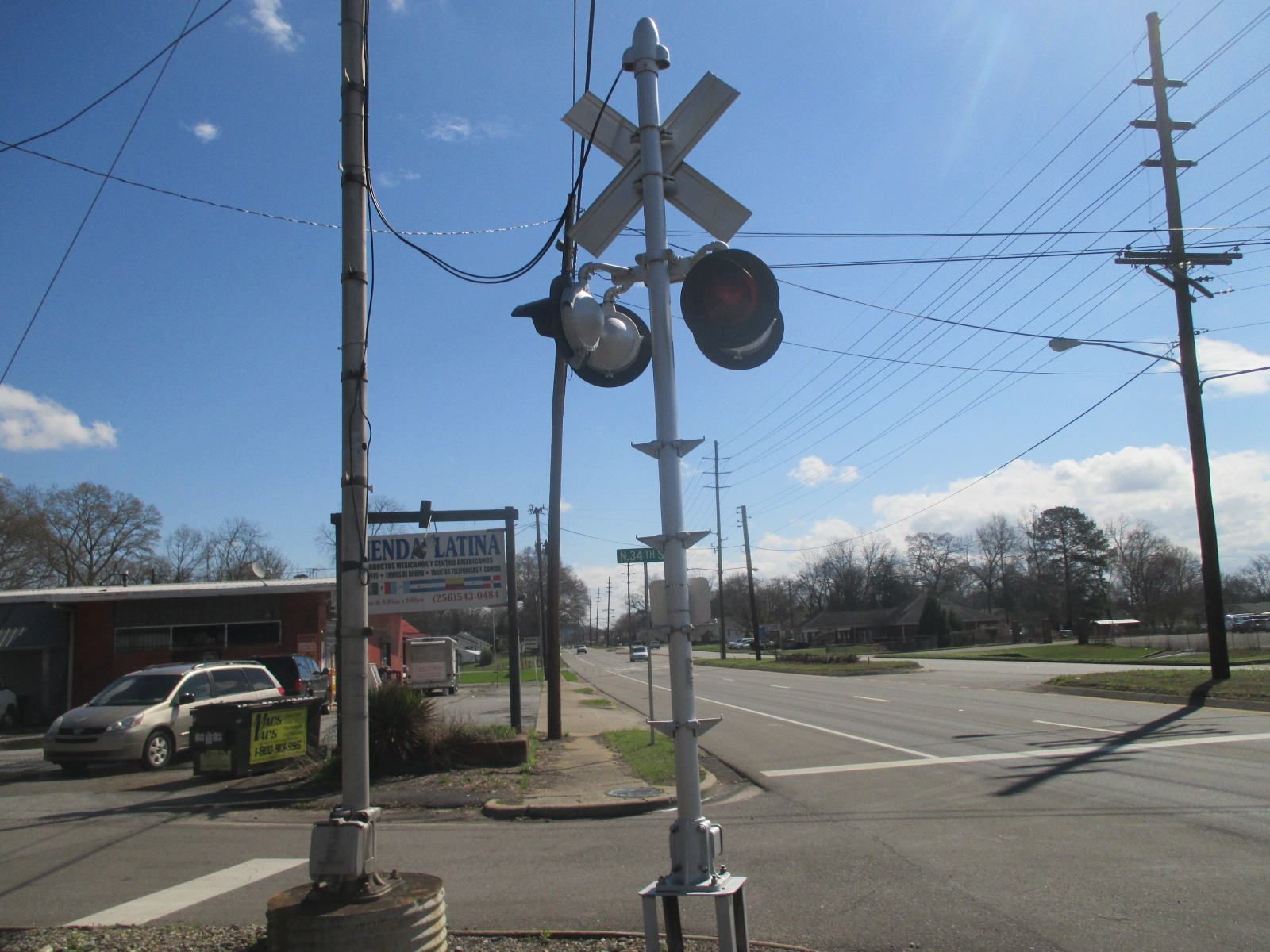

The first signal, which still looks pretty strange. |
It has had some actual side lights installed! |
|
65 |
66 |
67 |
68 |

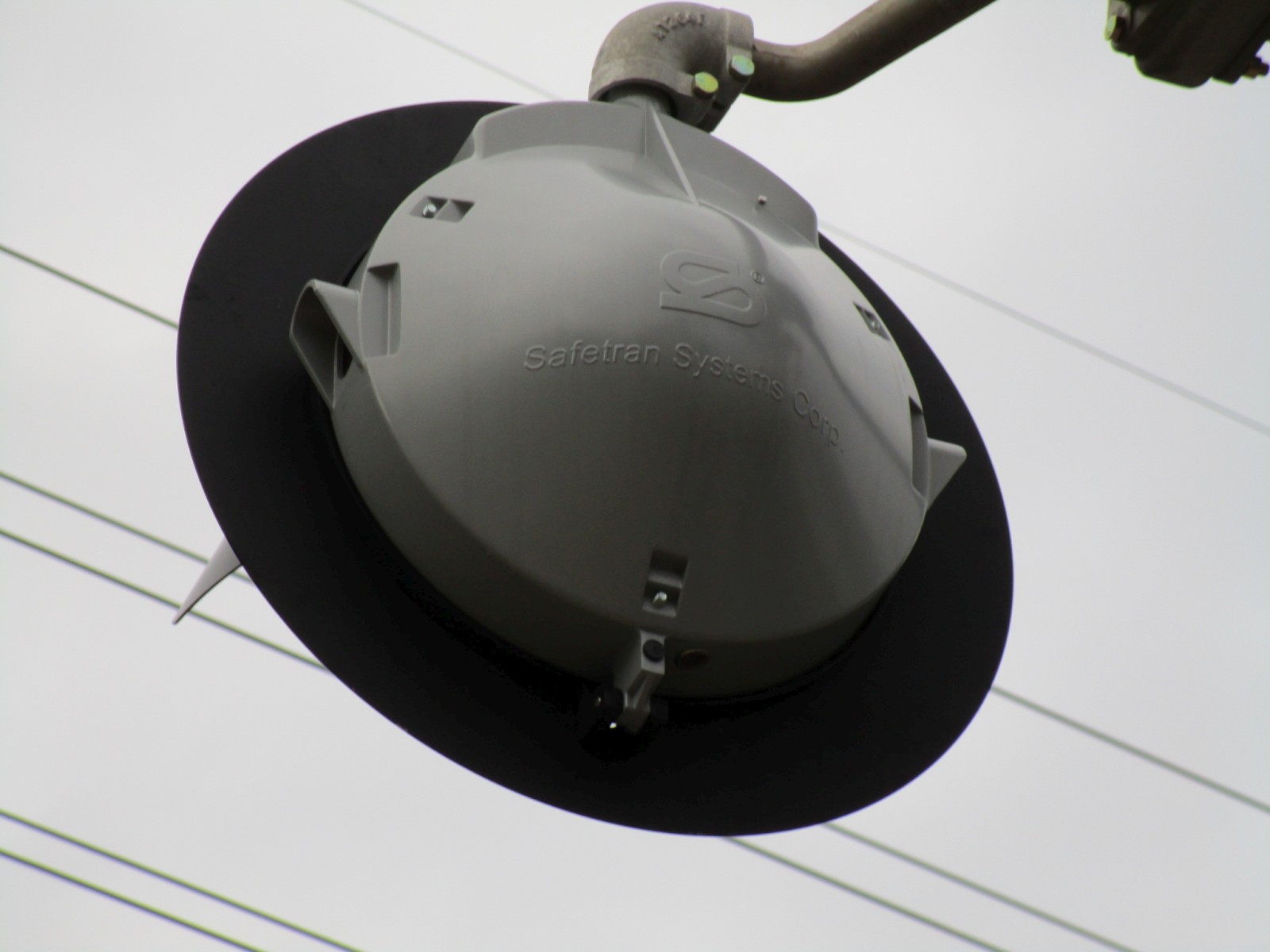

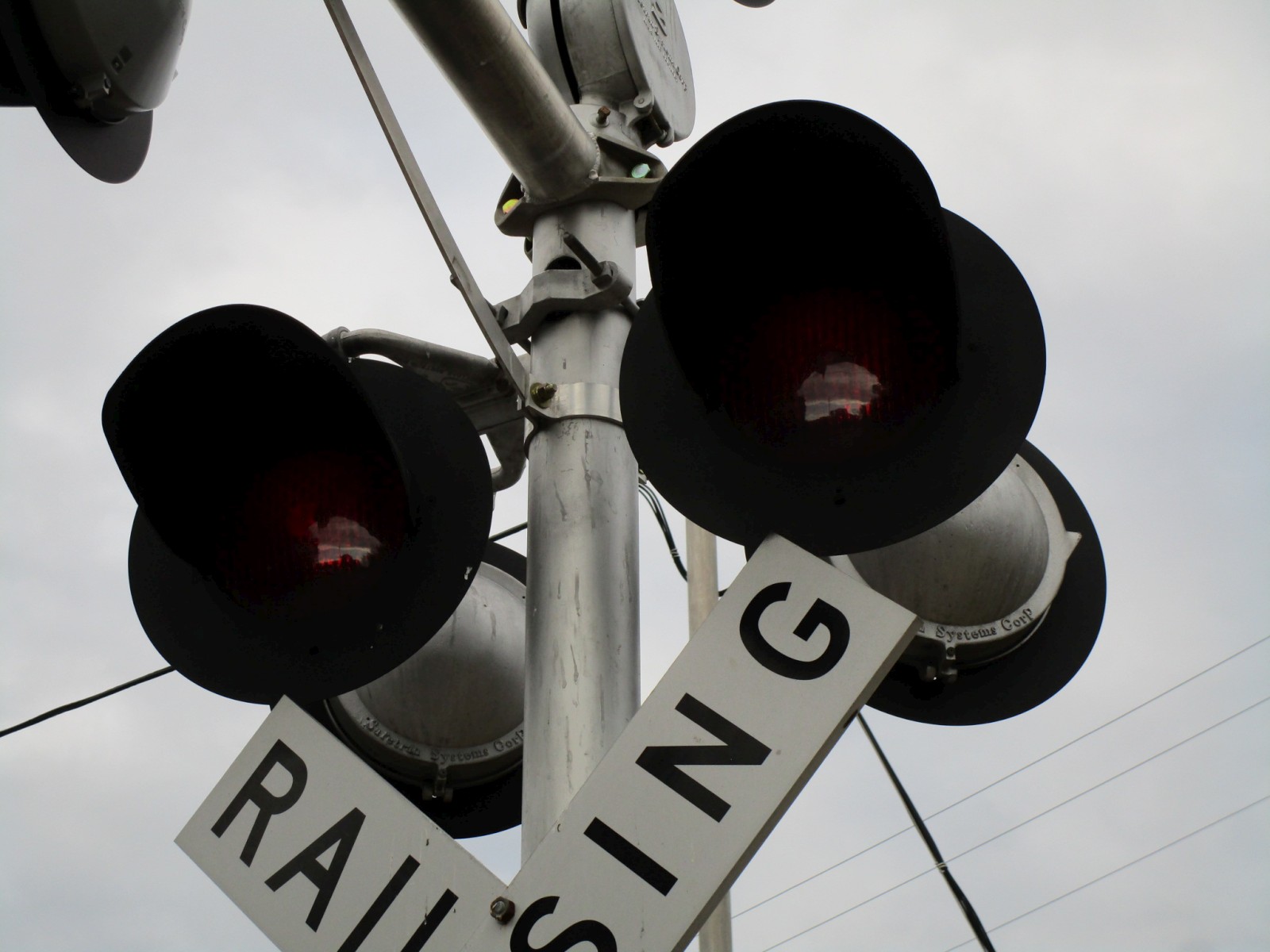

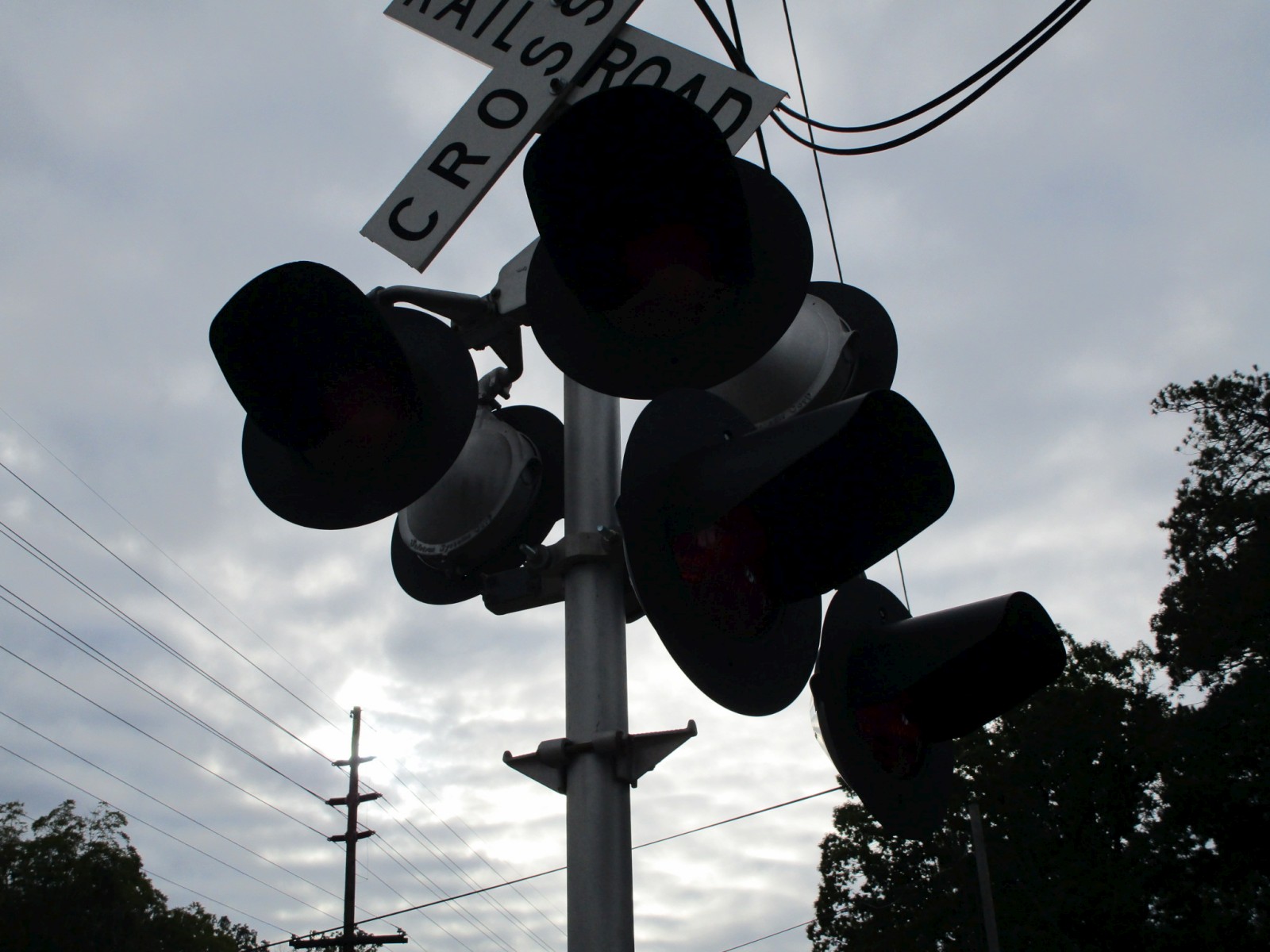

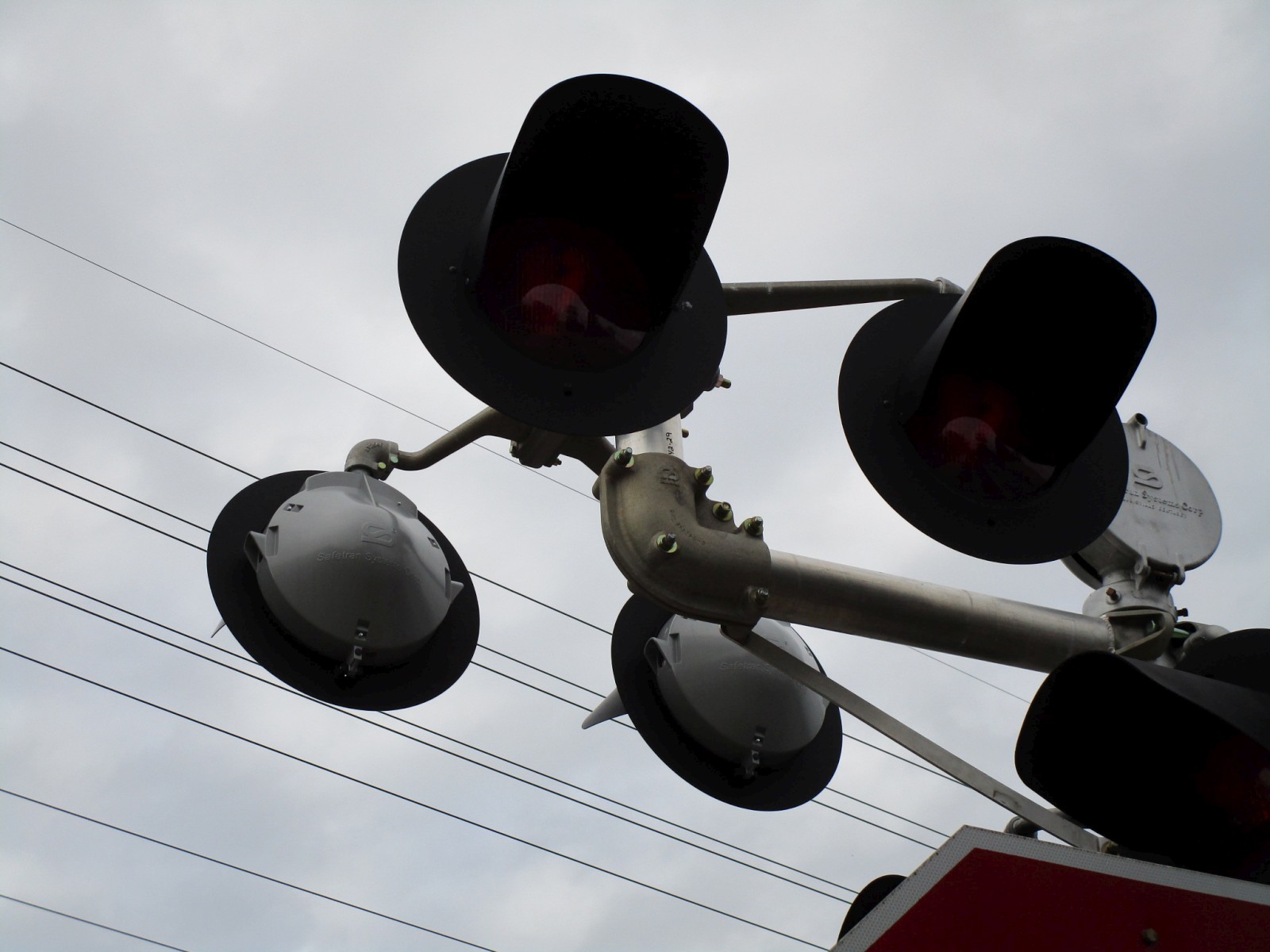

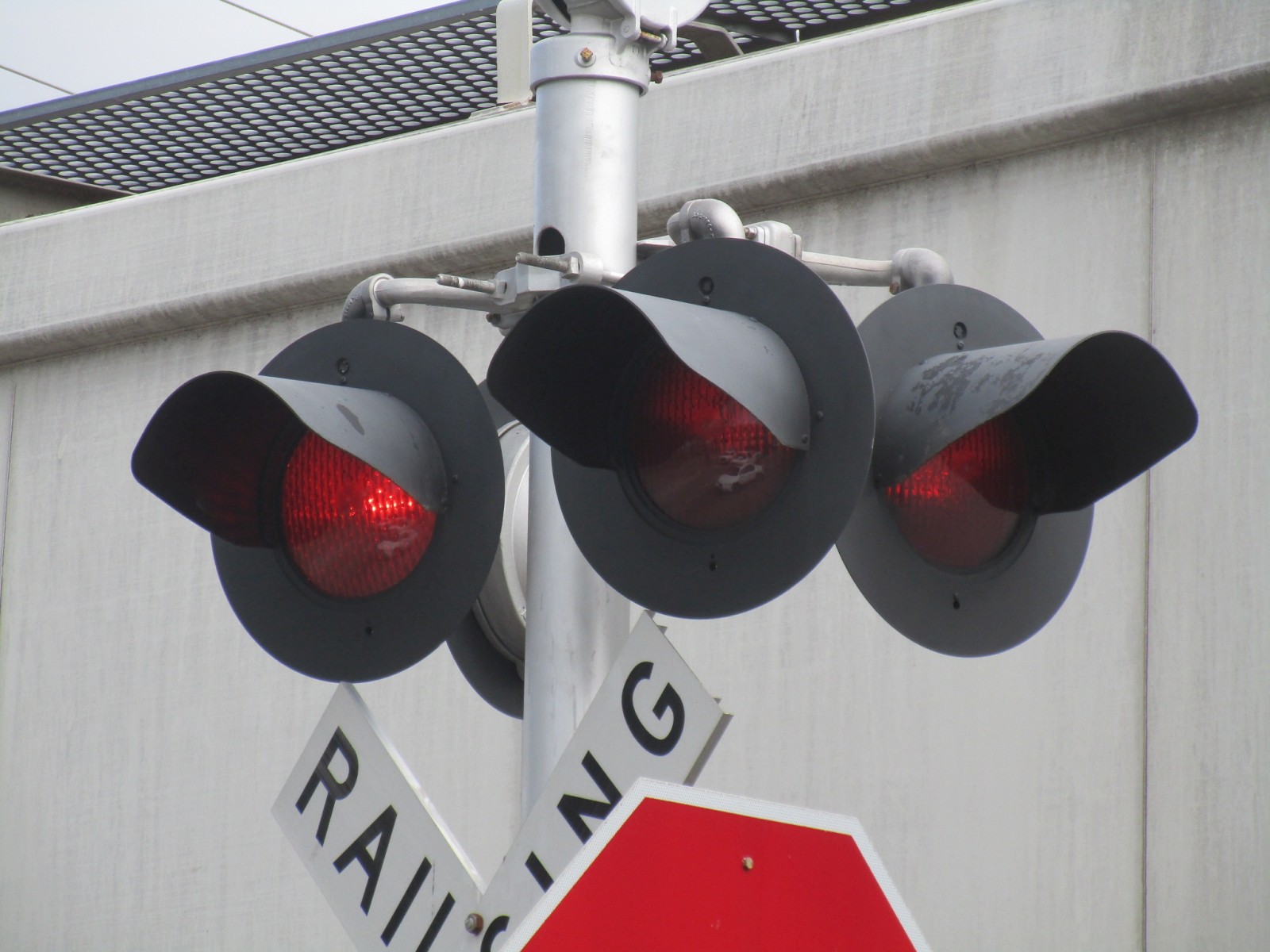

The older Safetran 12x20 inch lights are still here and they all now face Meighan Boulevard! |
The new side lights are newer Safetran 12x20 inch incandescent lights! |
||
69 |
70 |
71 |
72 |

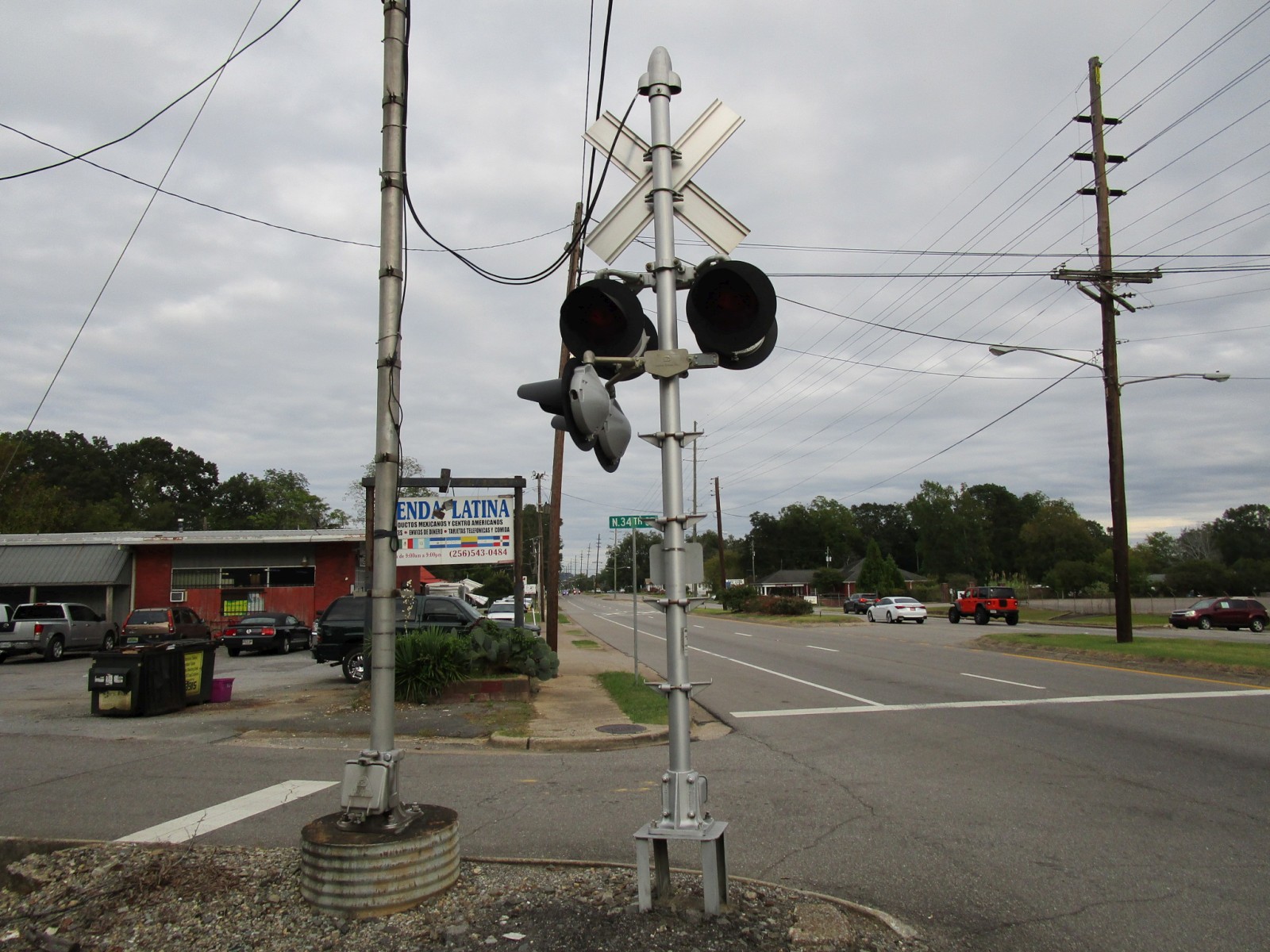

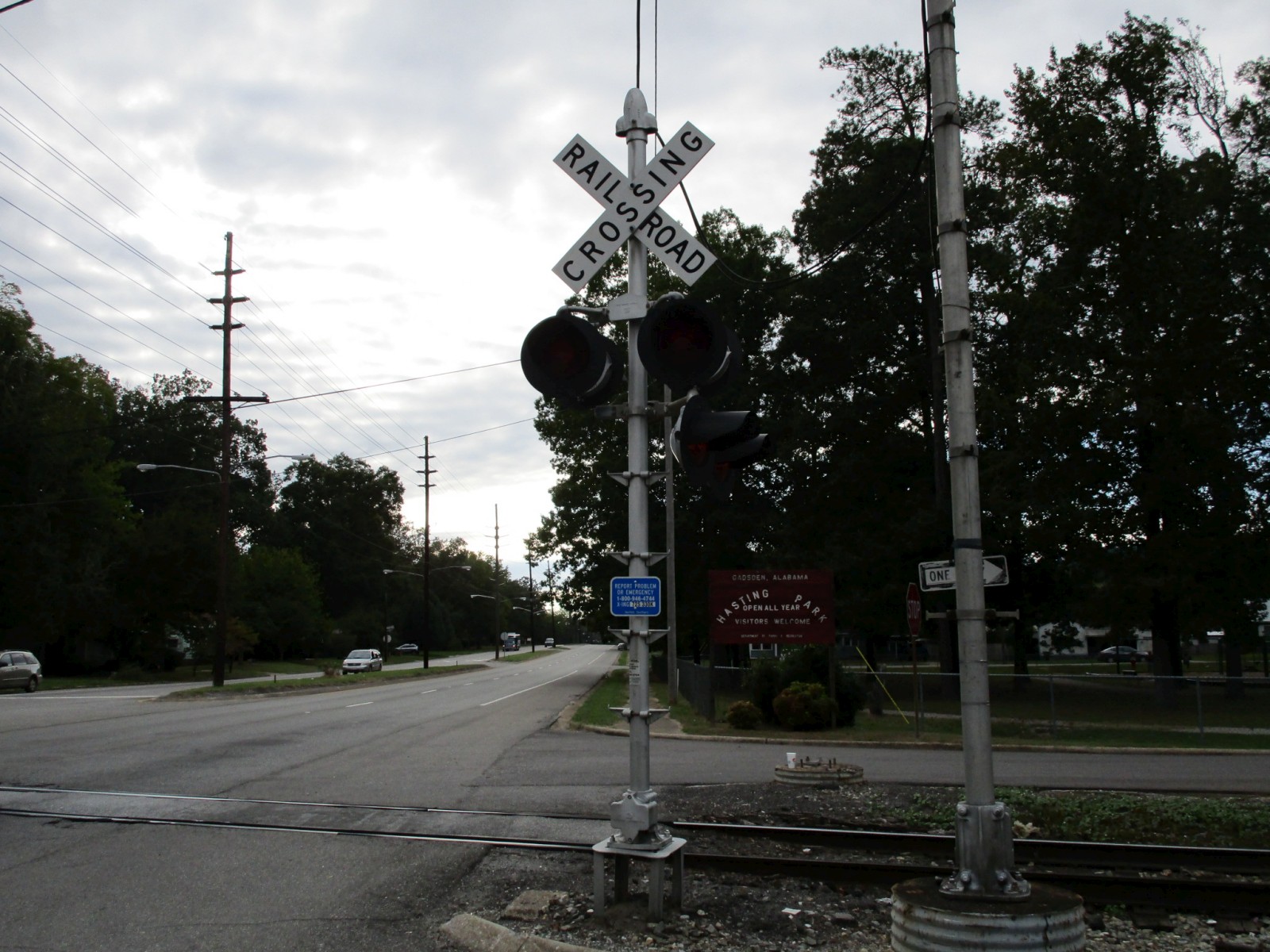

The second signal. |
It also has a new pair of side lights! |
||
73 |
74 |
75 |
76 |

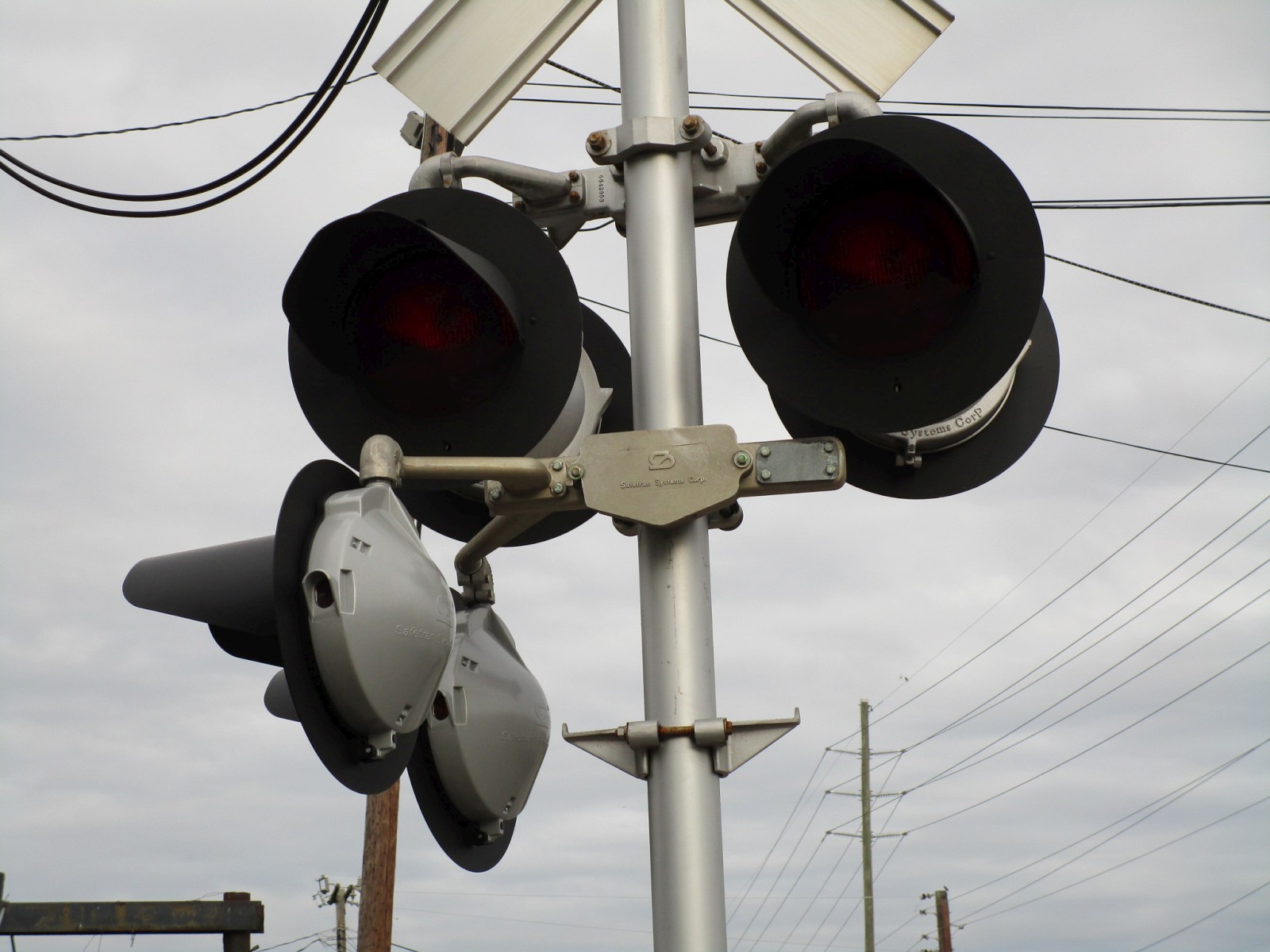

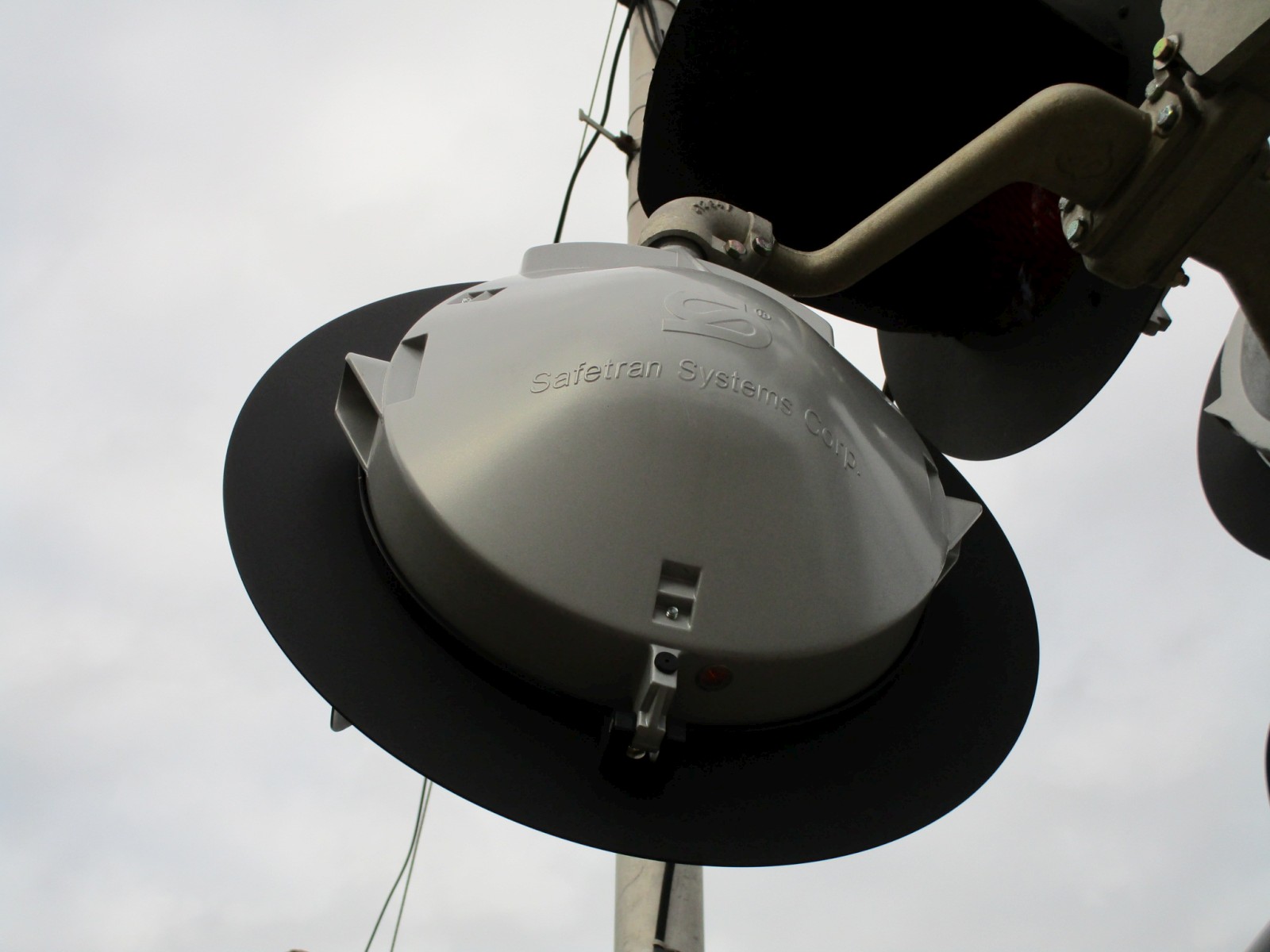

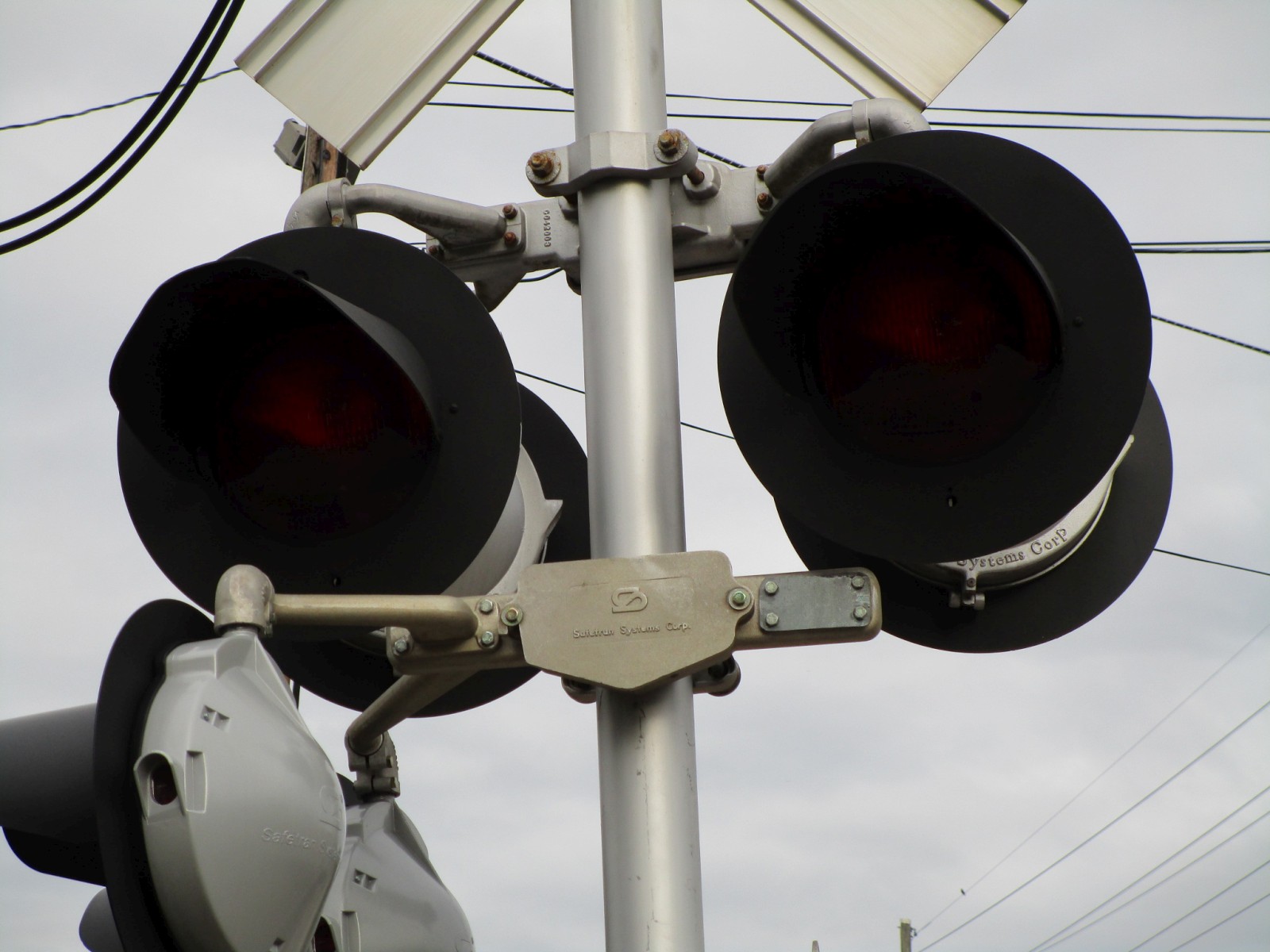

The side lights are another pair of newer Safetran 12x20 inch incandescent lights. |
Like on the first signal, the older Safetran 12x20s are still here and now all face Meighan Boulevard! |
||
77 |
78 |
79 |
80 |

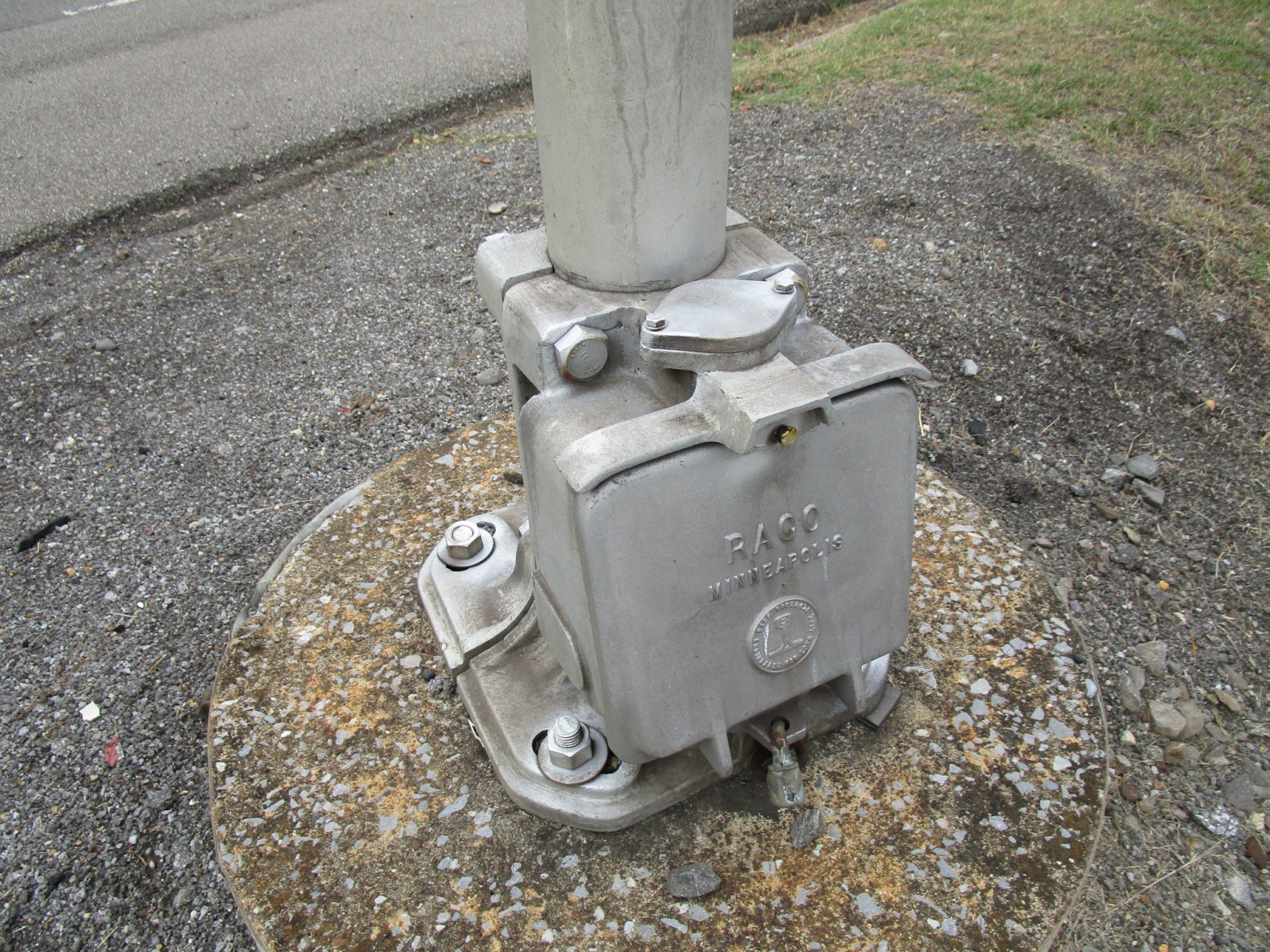

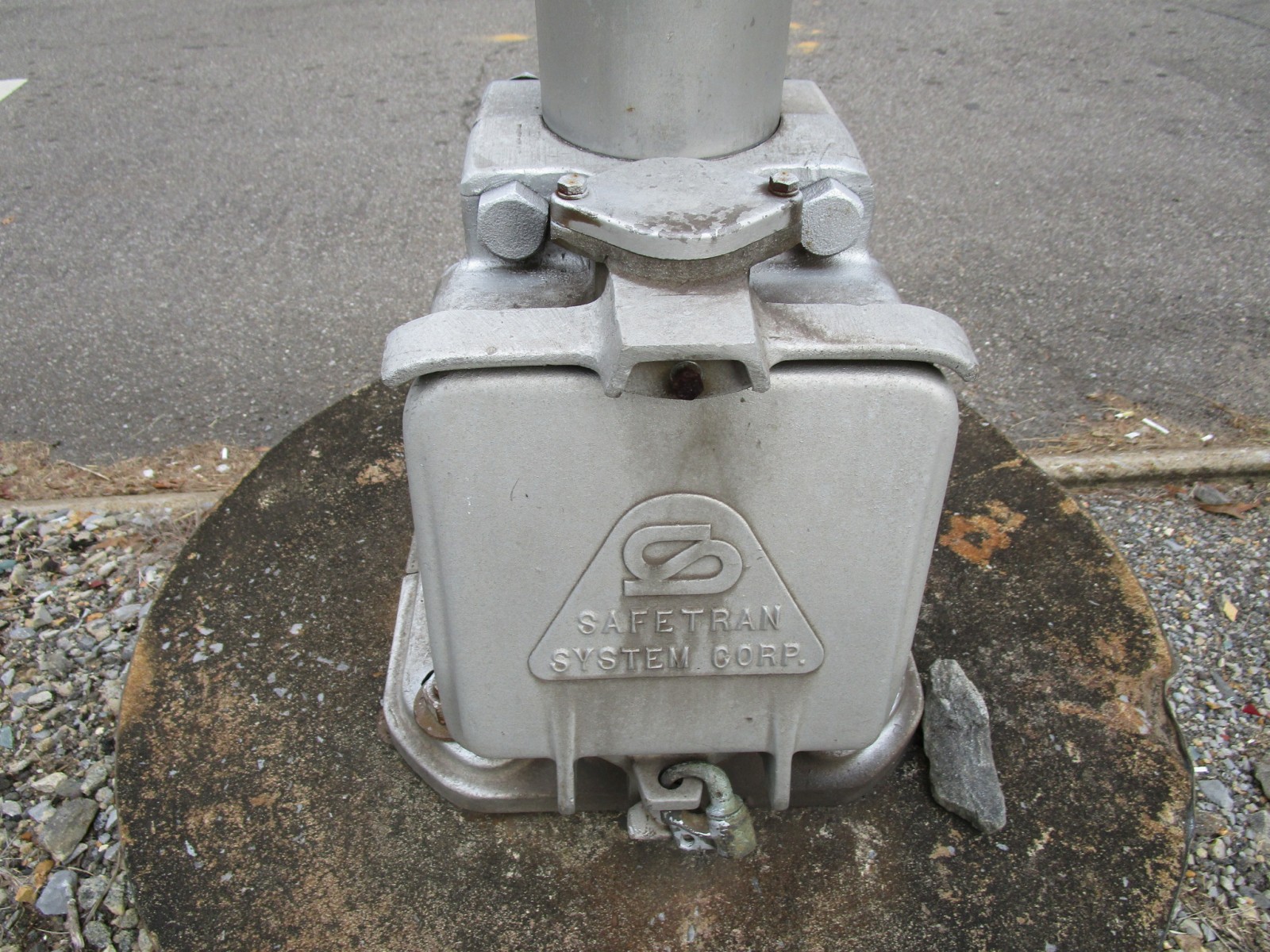

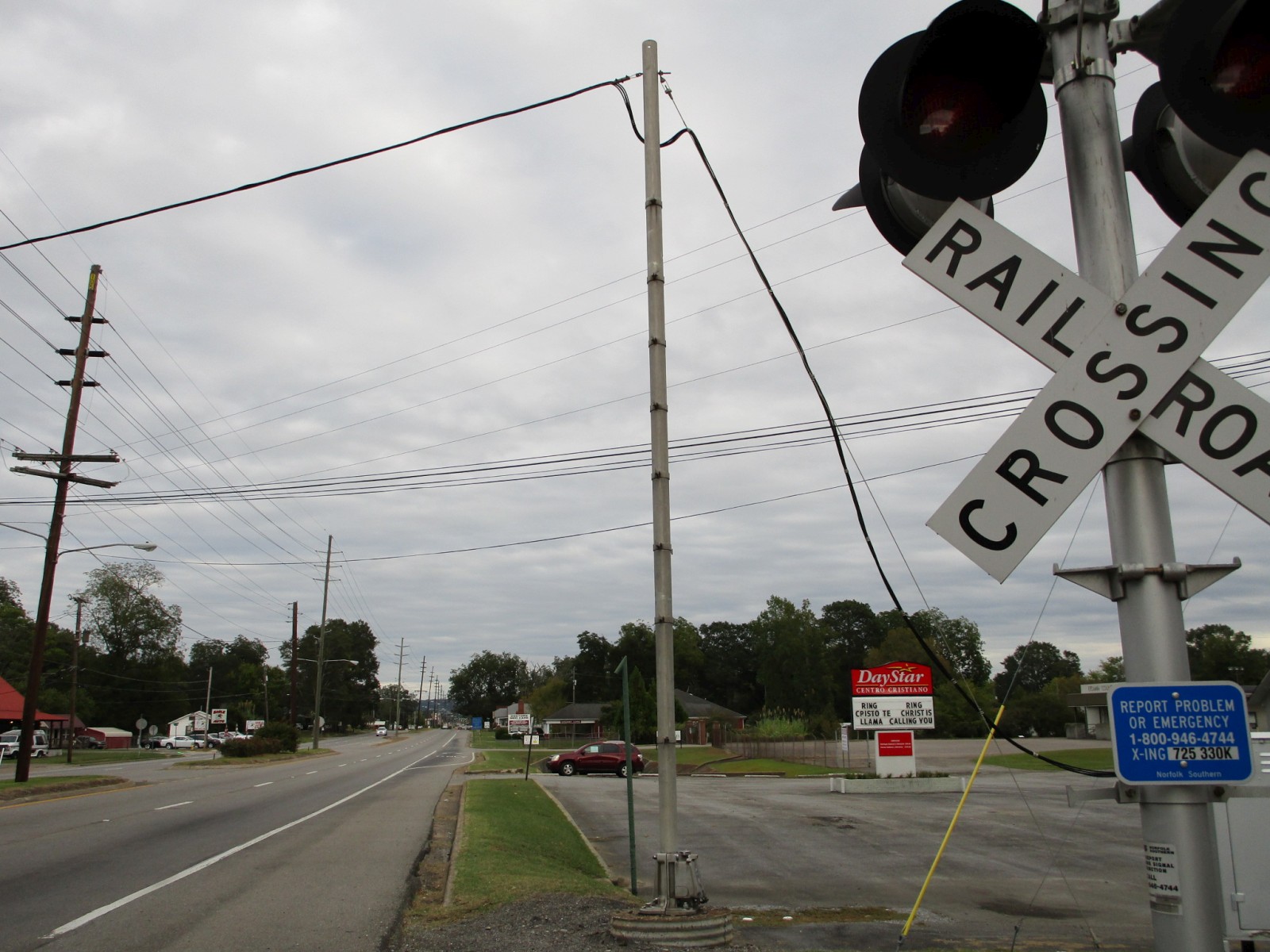

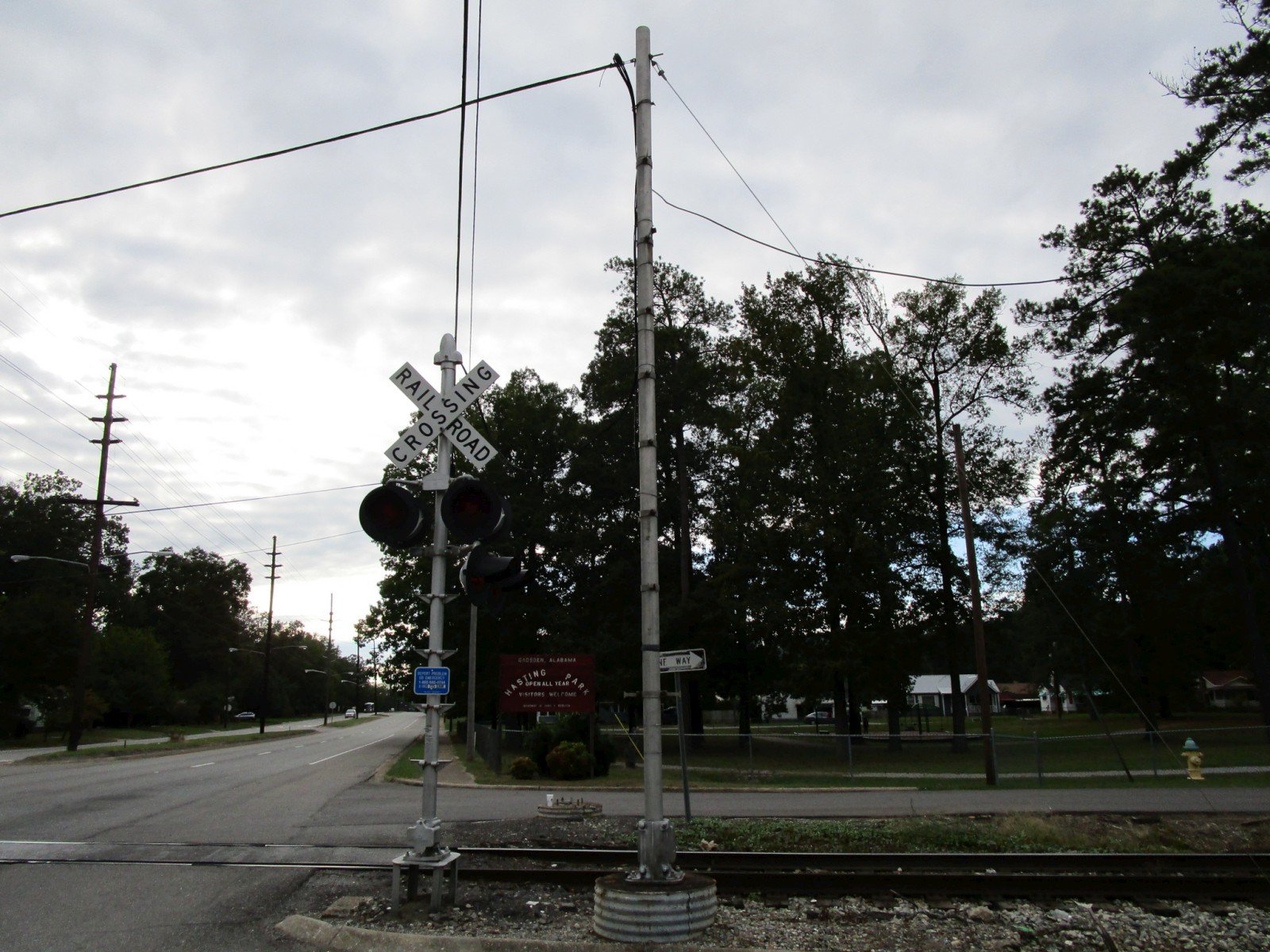

These two tall masts are used to hold-up a power line over the road which run to the second signal! One has a RACO base while the other has an older Safetran base. |
|||
81 |
82 |
83 |
84 |
Another foundation at the crossing. Maybe there was a "No Left Turn" signal here originally? |
The relay case. |

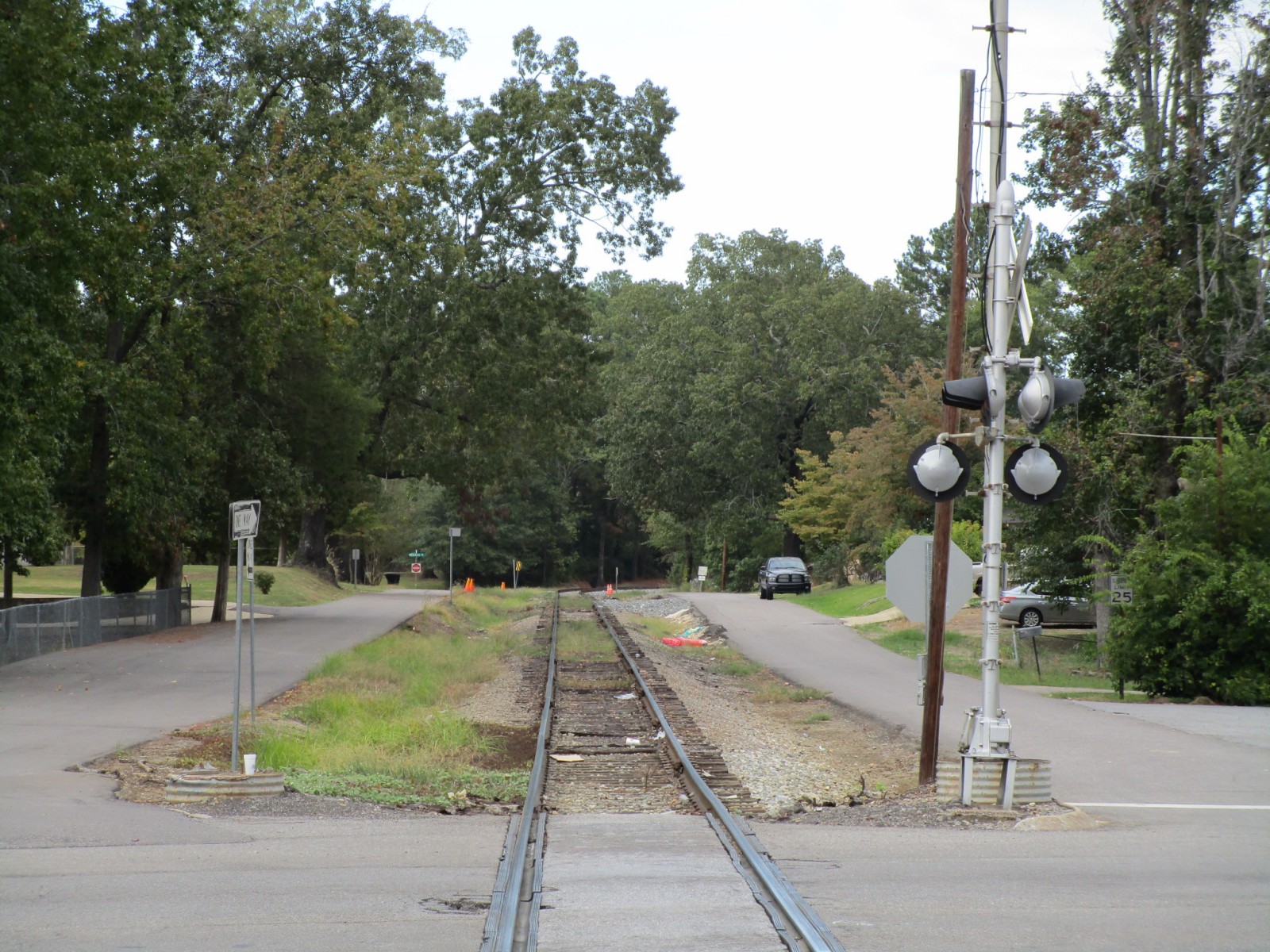

Track views. |
|
Despite only getting two trains a day, this crossing has had a lot of accidents, probably due to the fact that there's just a pair of gateless mast signals here on the outside of the crossing for this busy 4-lane crossing.
If a semi-truck were to stop in the right-hand lane, there'd be no way for any of the other drivers to see if the signals were on or not!
The crossing also tends to build up long lines of waiting traffic when a train comes through due to the fact that this road is also one of the two major east/west roads in Gadsden!
Pictures 1-22 were taken on 3-23-15.
Pictures 23-60 and the video were taken on 2-26-18.
Pictures 61-84 were taken on 10-12-19.
