MP:  A355.050*





Updated March 6, 2021



Total Accidents:   0
Crossing DOT #:  960236R
TOTAL DAILY TRAINS:   22   (AS OF 2018)



Page created by: freebrickproductions



This crossing is located on the NS Memphis District East End.



*When I wrote this page, I had guessed that this would be the milepost as here, as there wasn't an inventory report for the crossing yet. Turns out I was right!



1

2

3

4

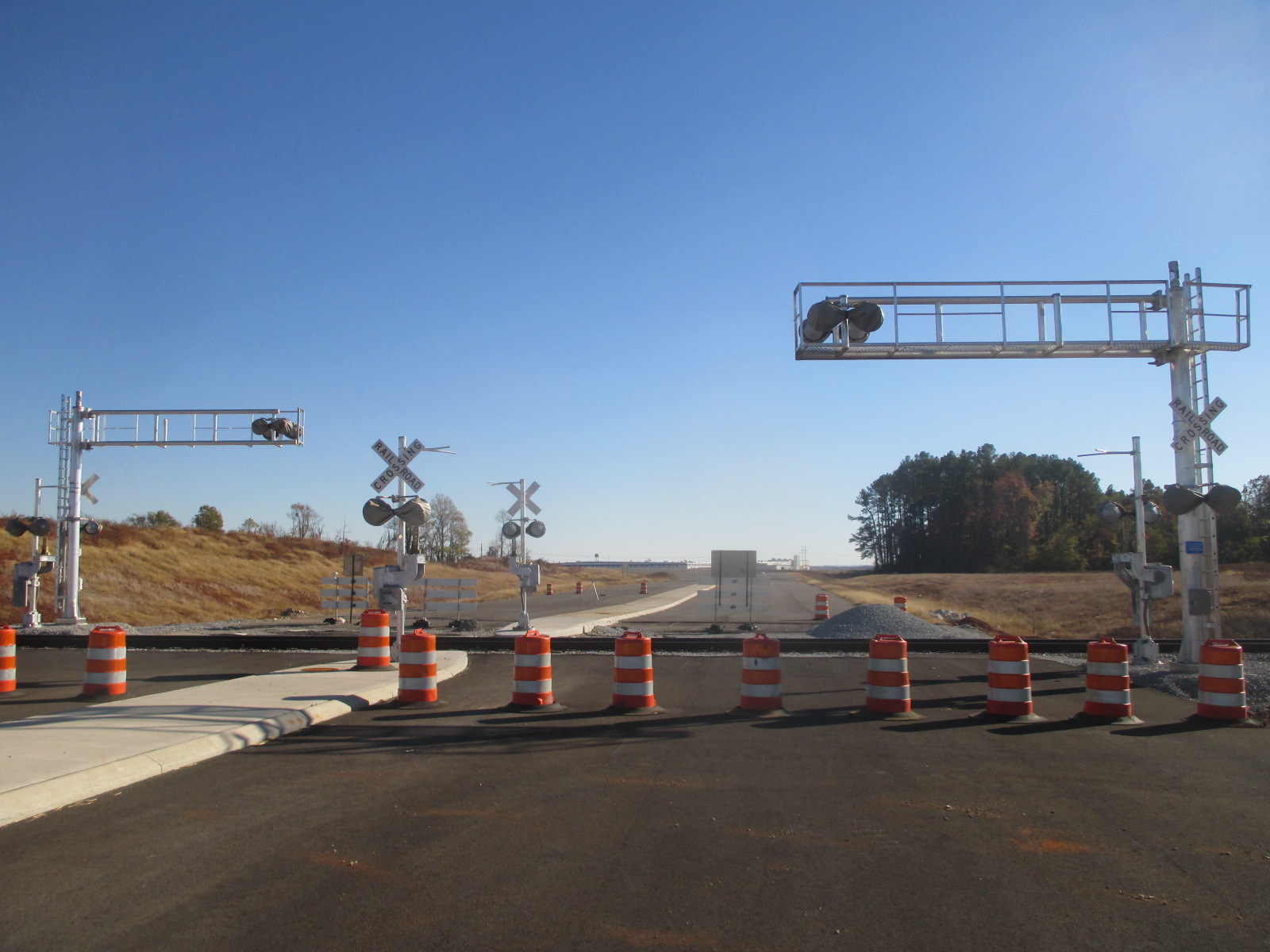

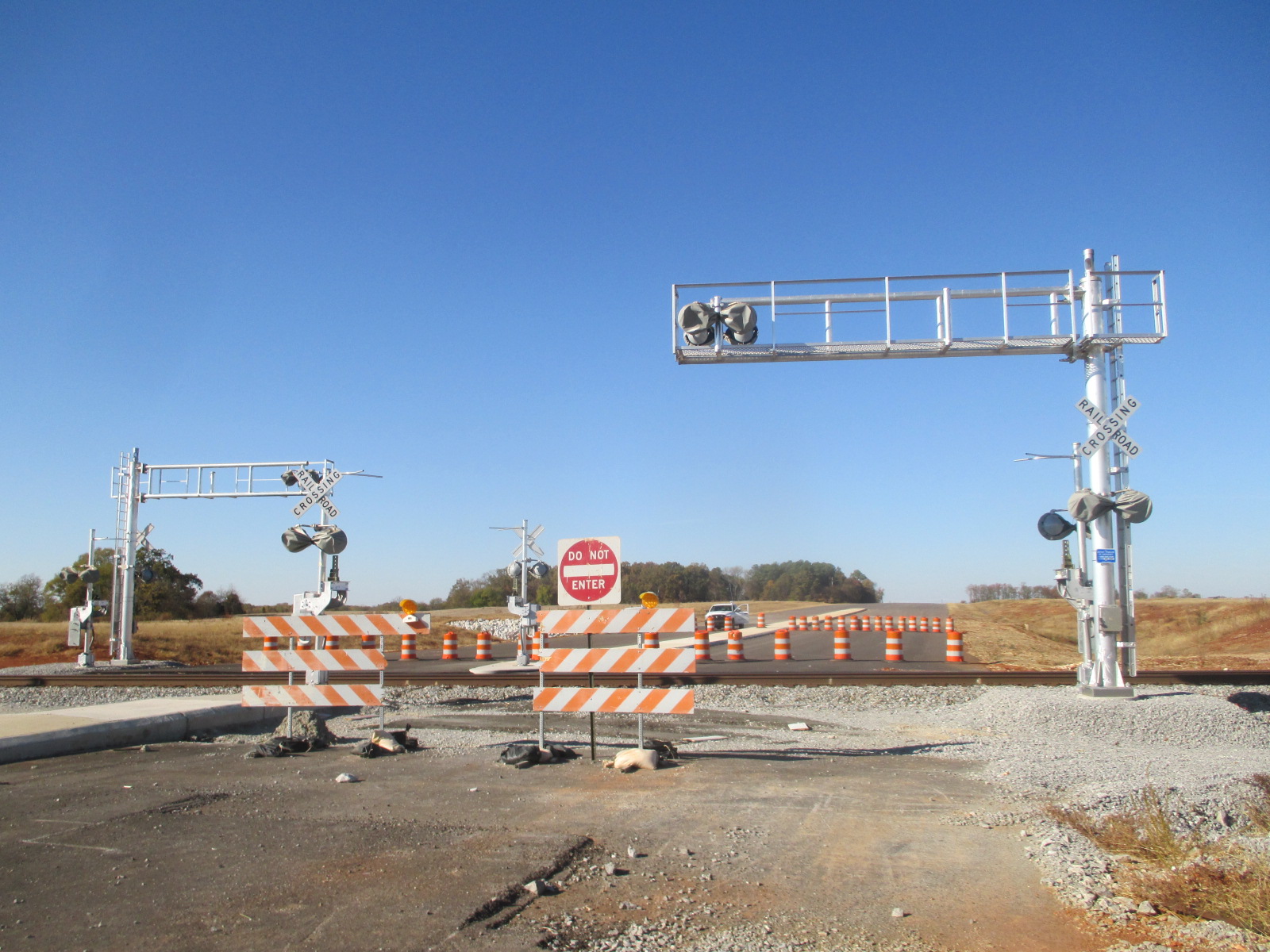

Overviews of the crossing.

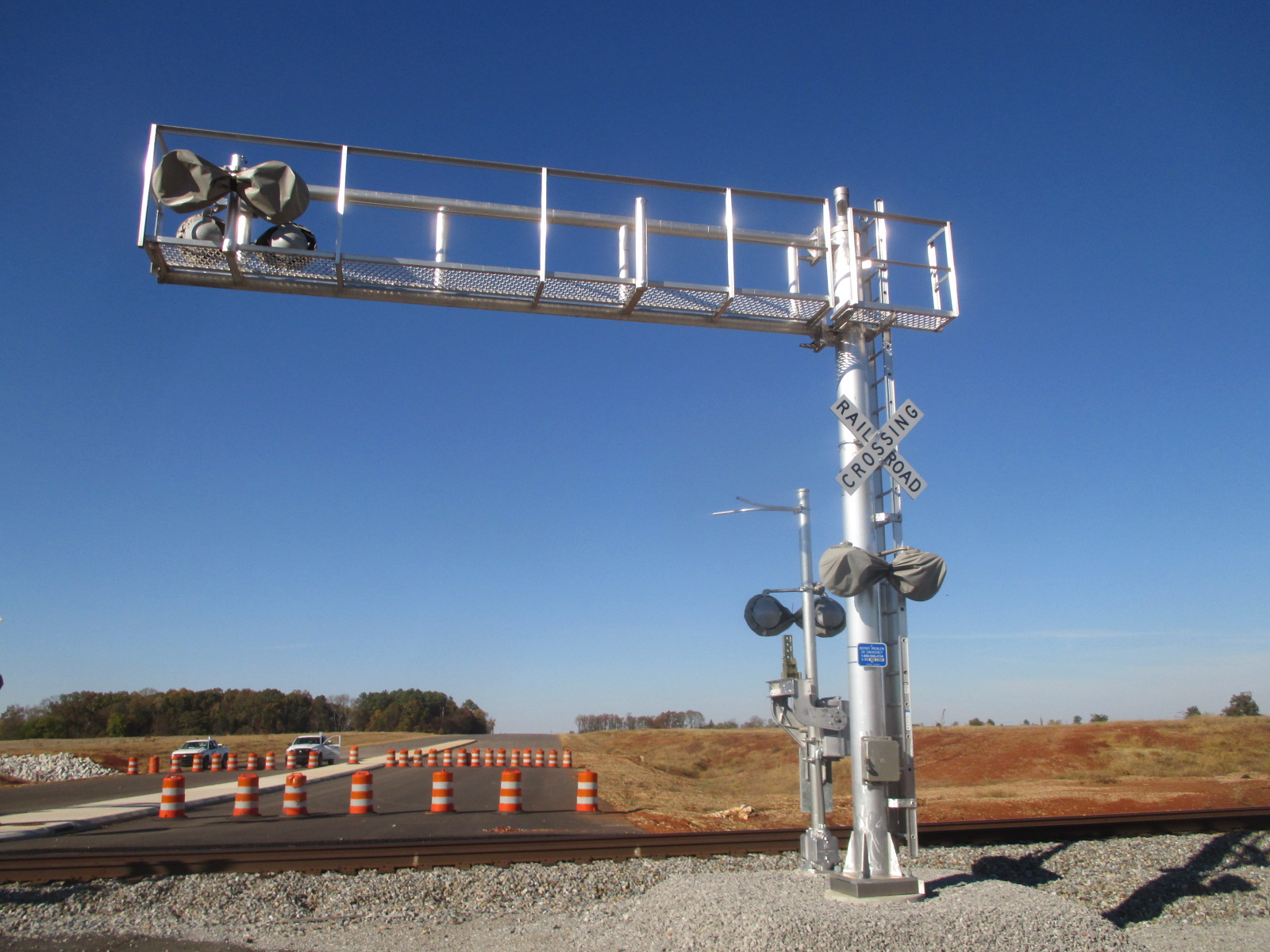

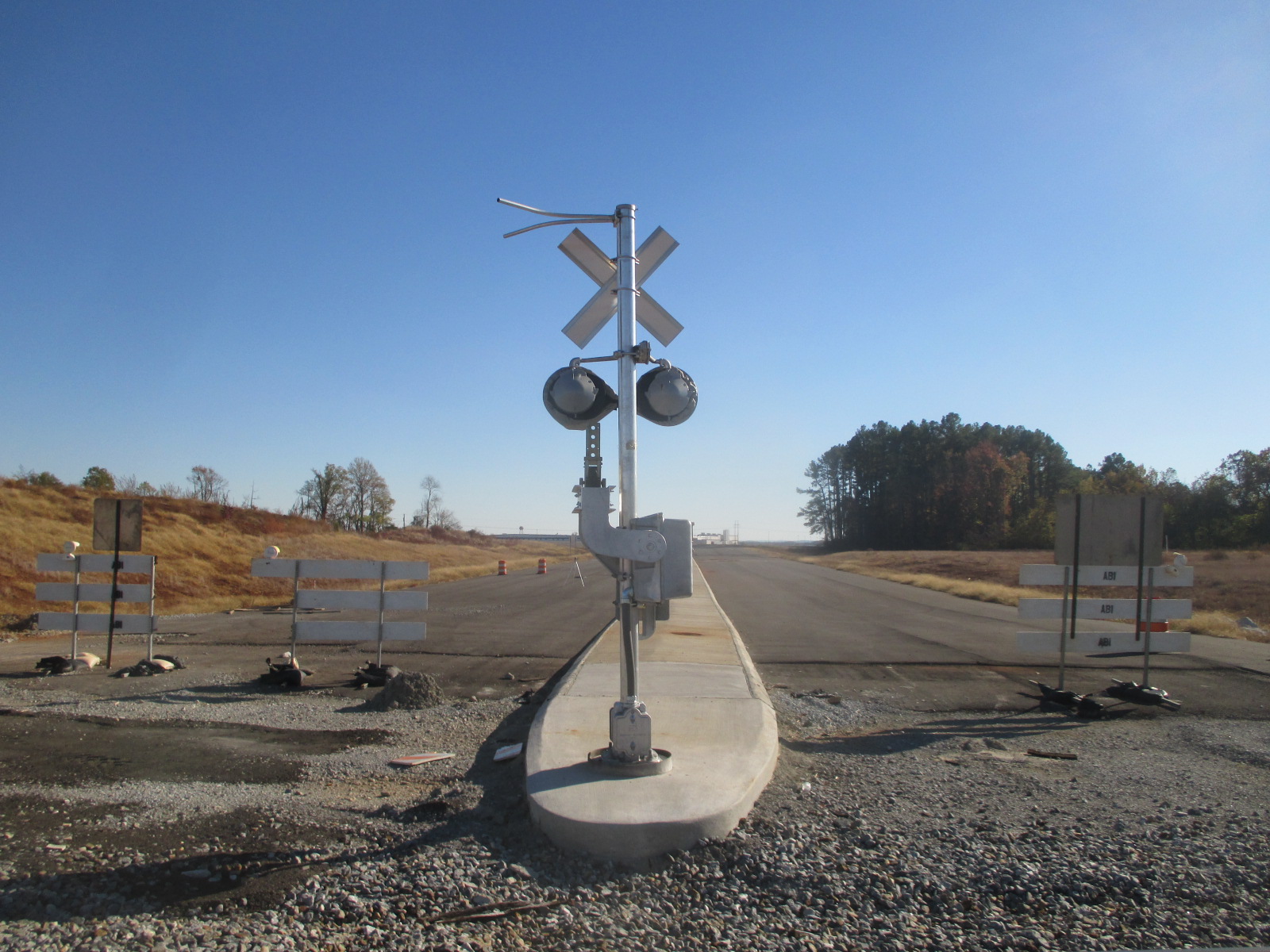

The first signal.

5

6

7

8

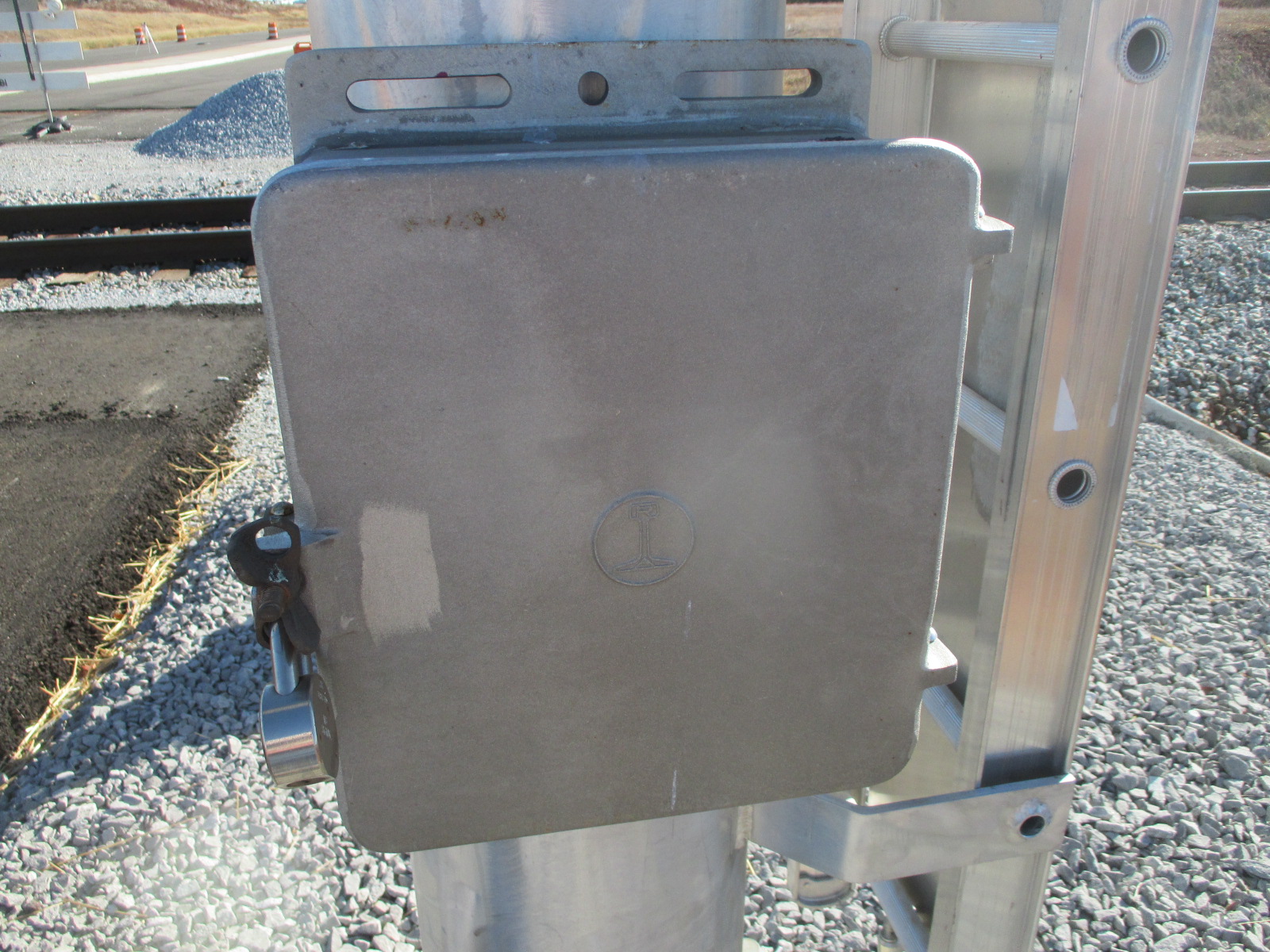

It's a Safetran cantilever with a RACO splice box.

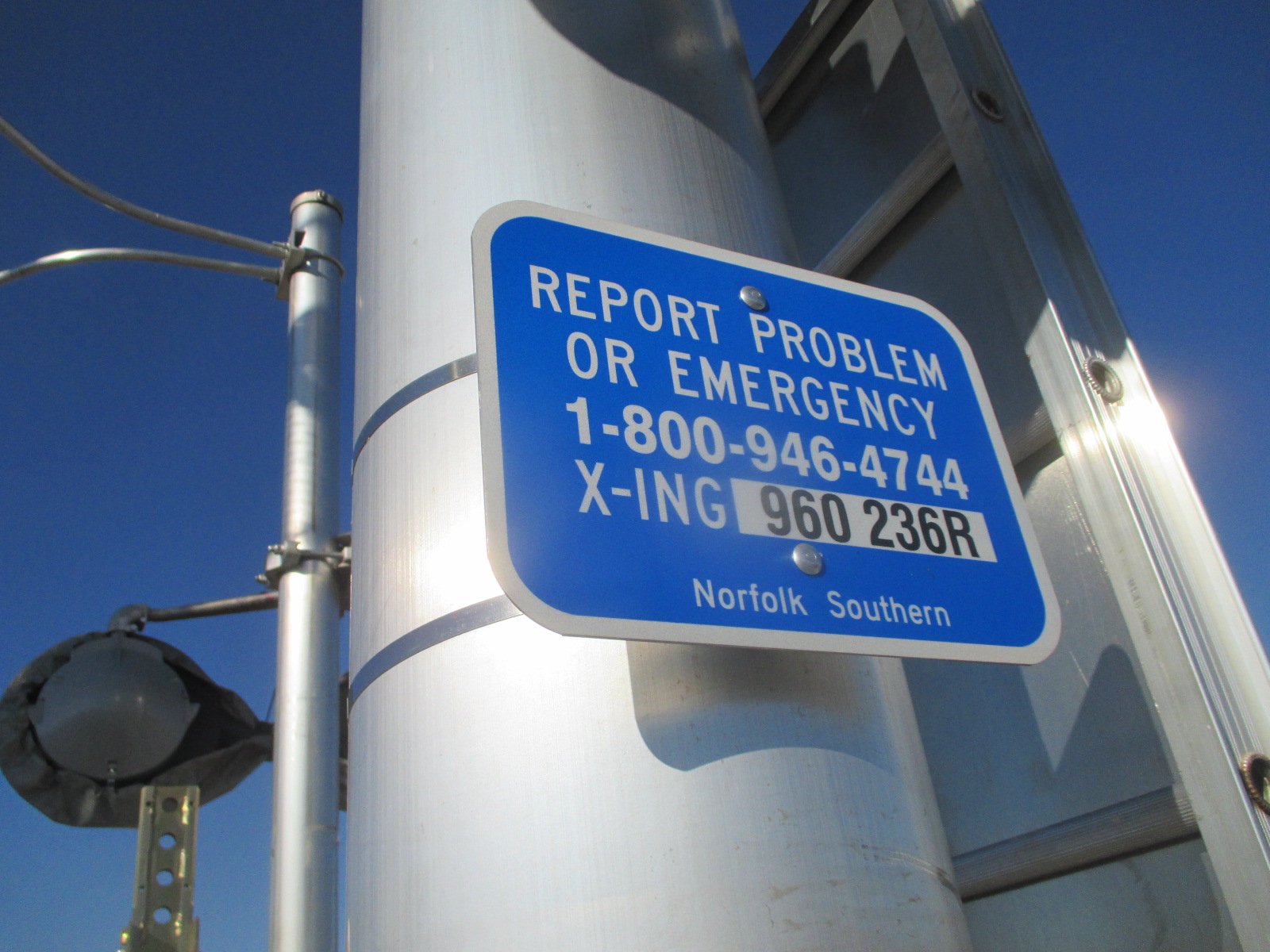

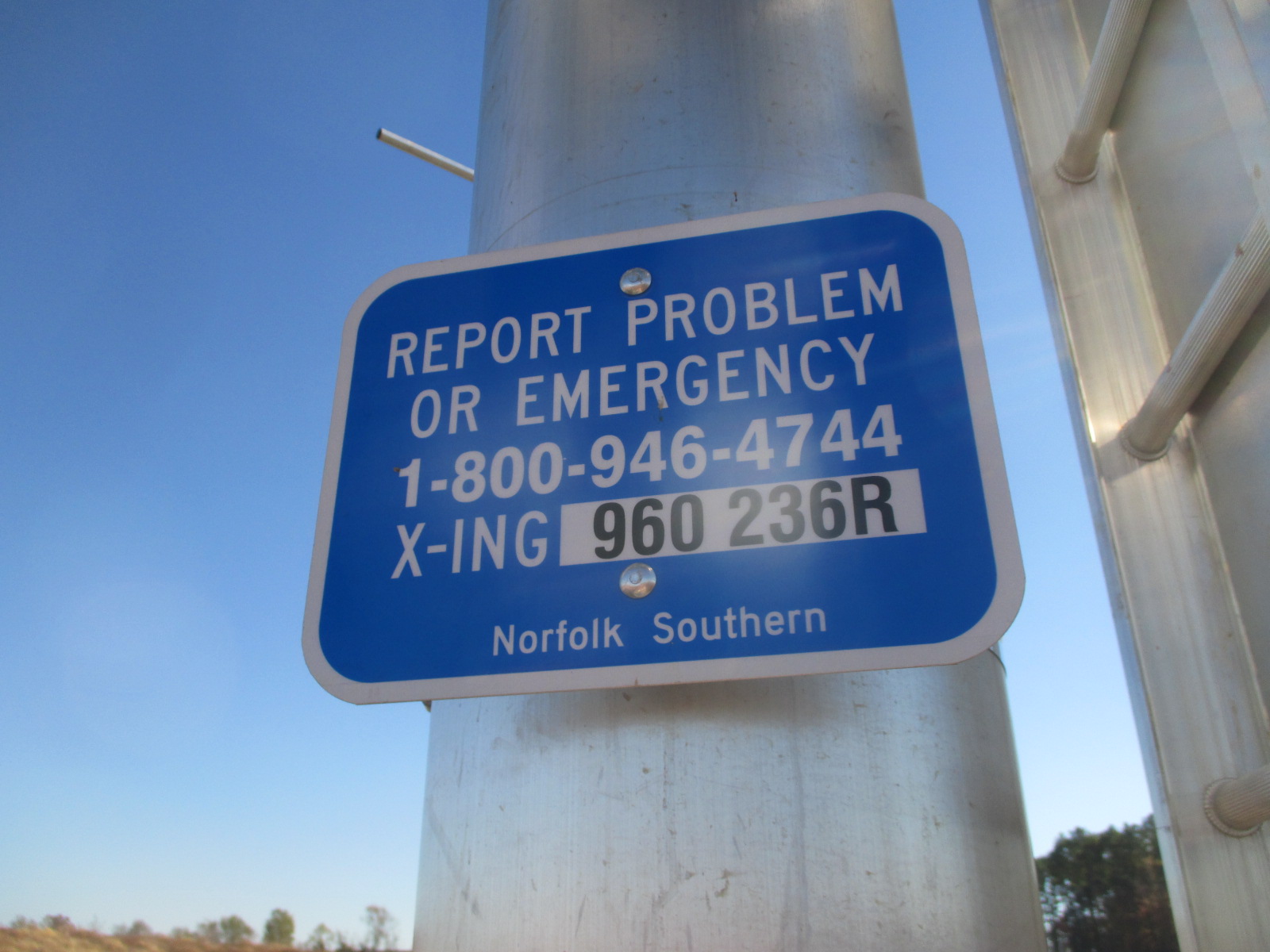

The emergency information.

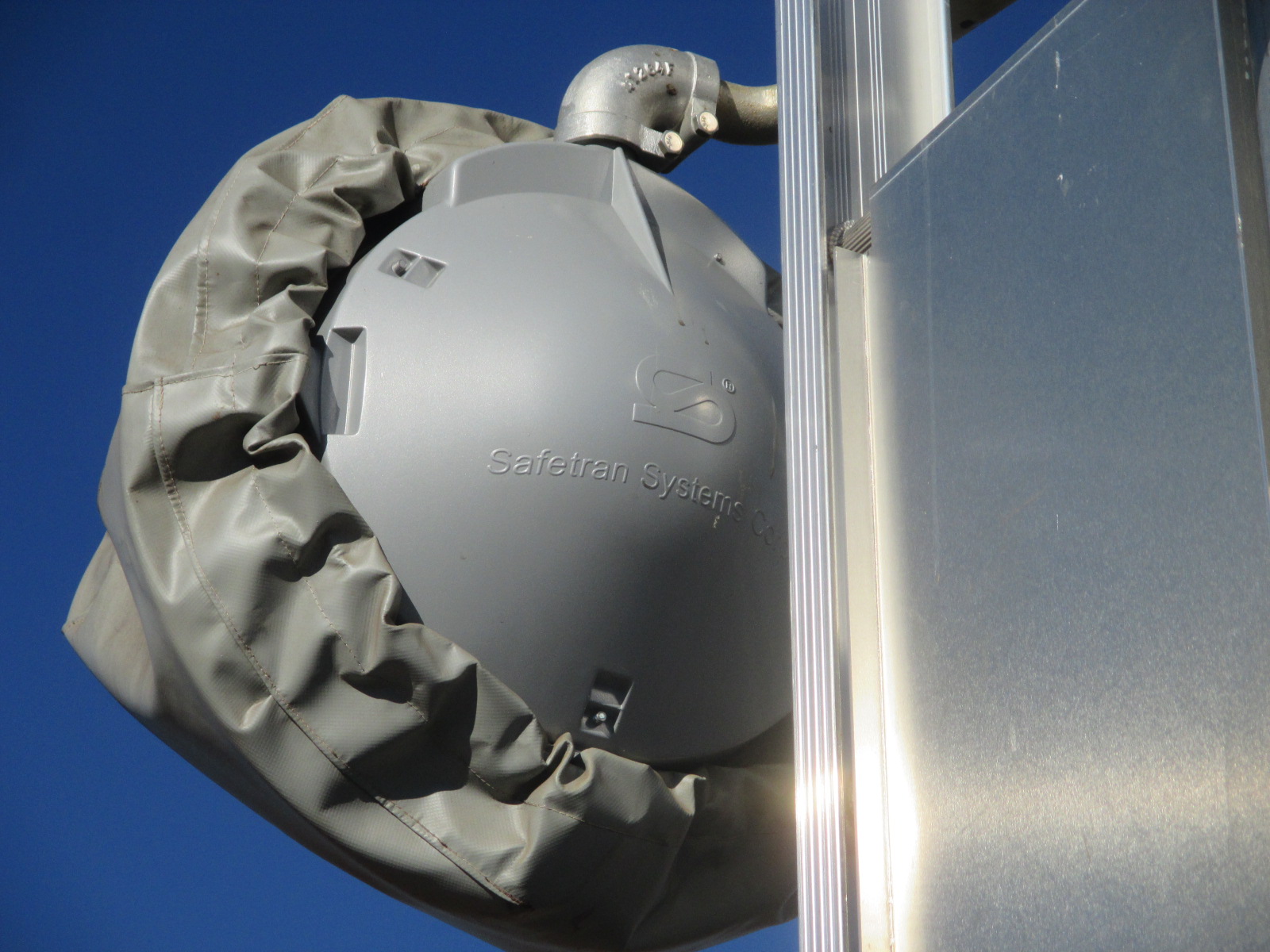

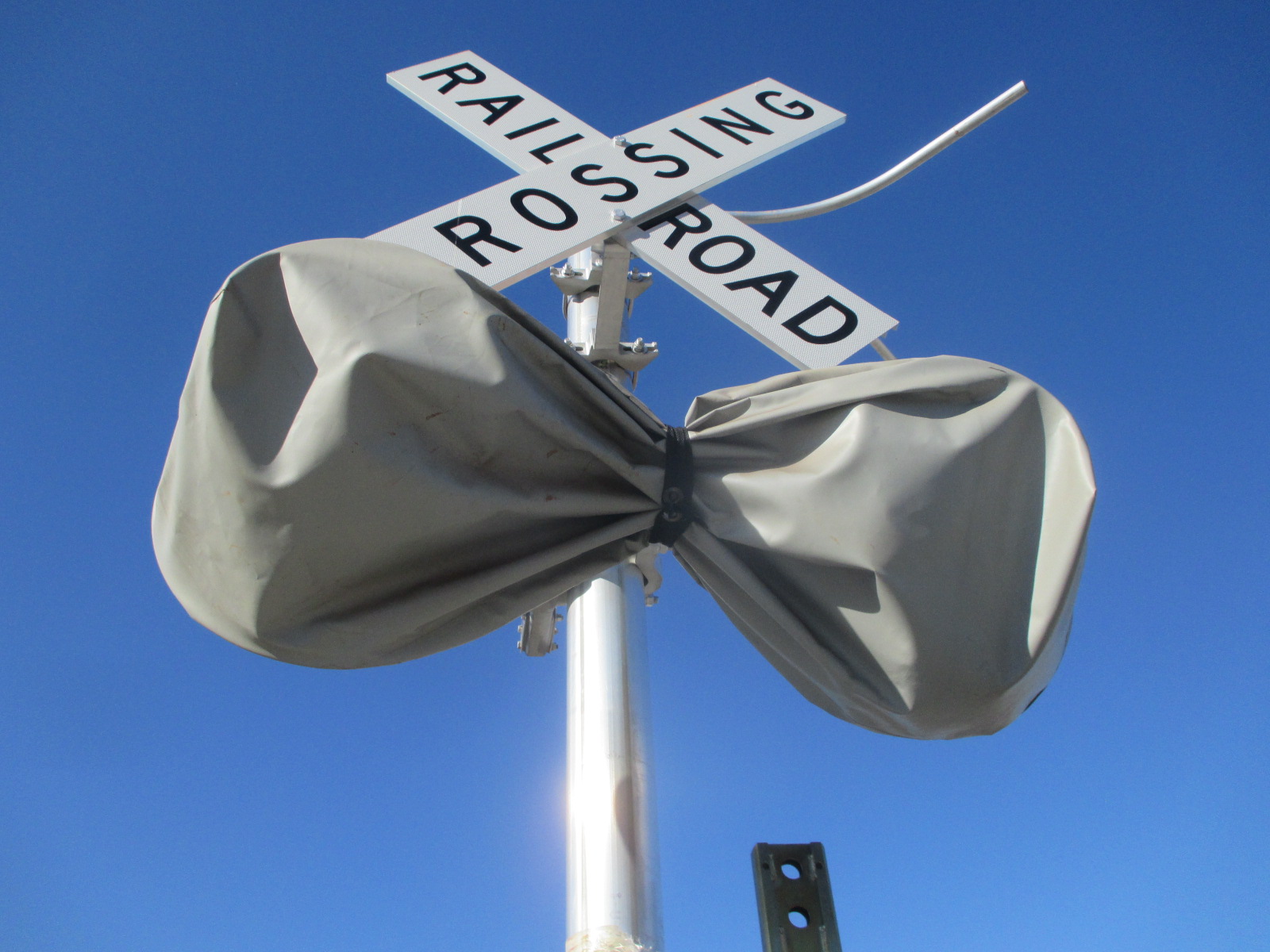

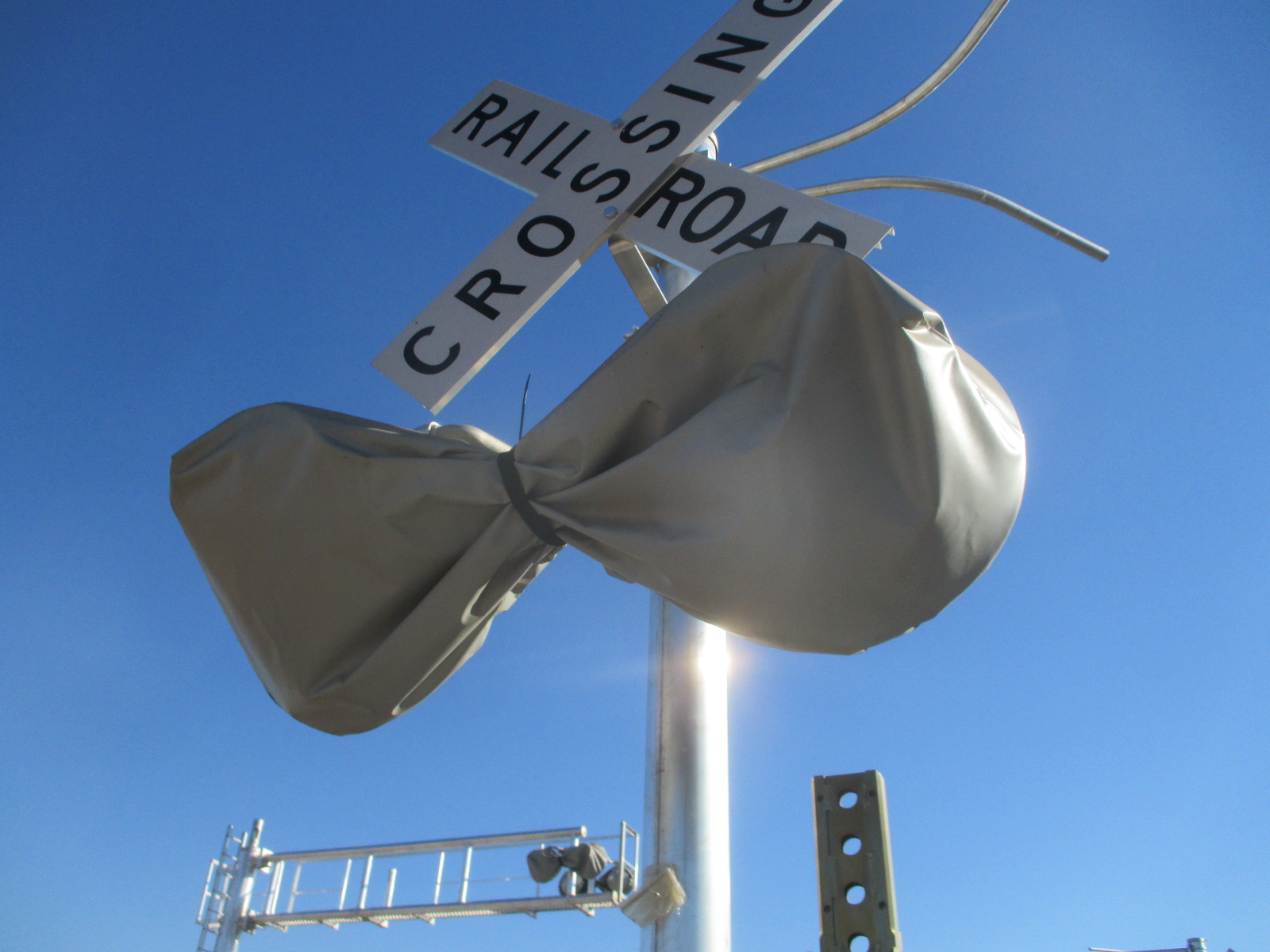

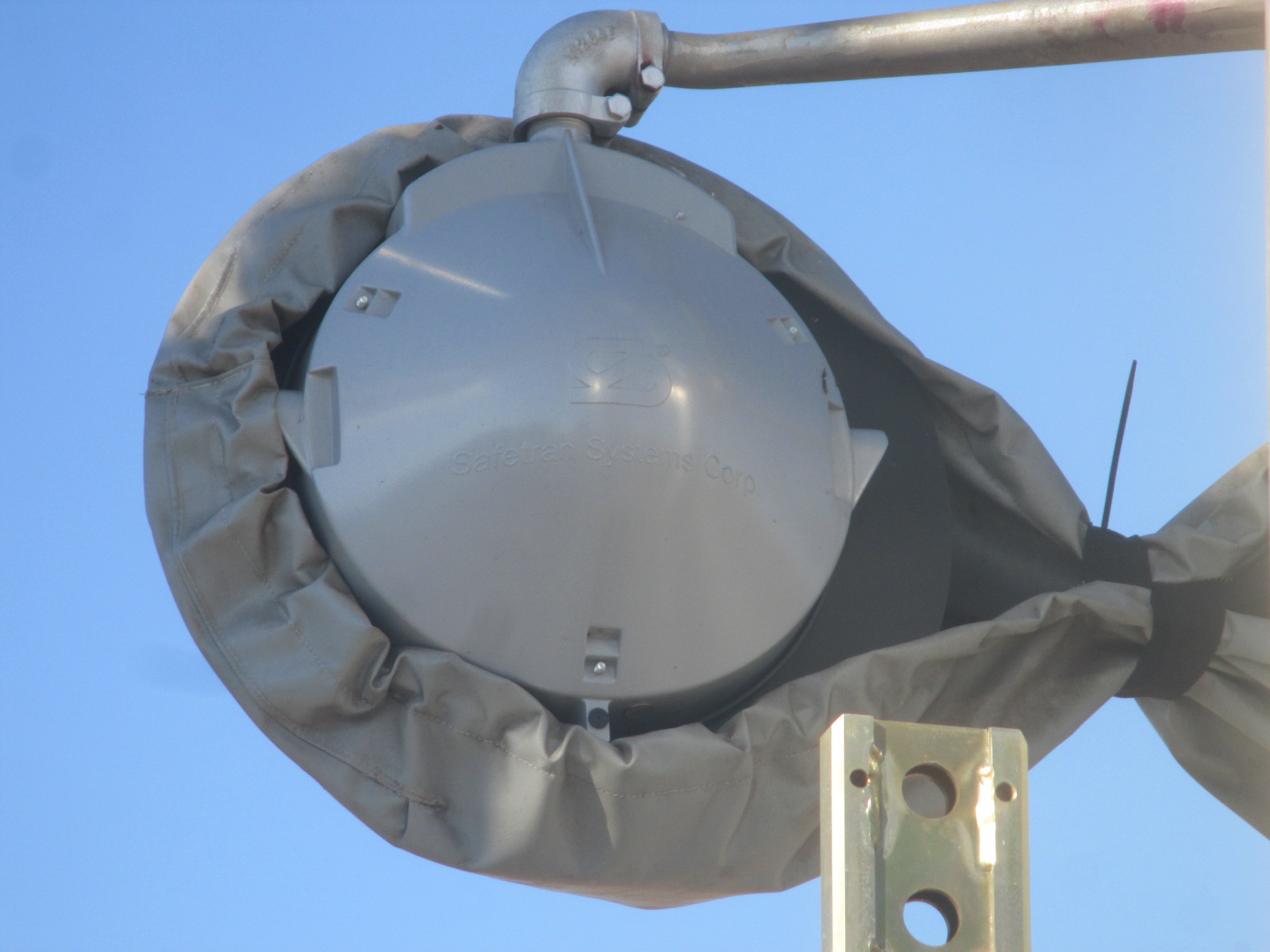

The mast lights are bagged Safetran 12x20 inch lights with GE Uniform Look LEDs.

9

10

11

12

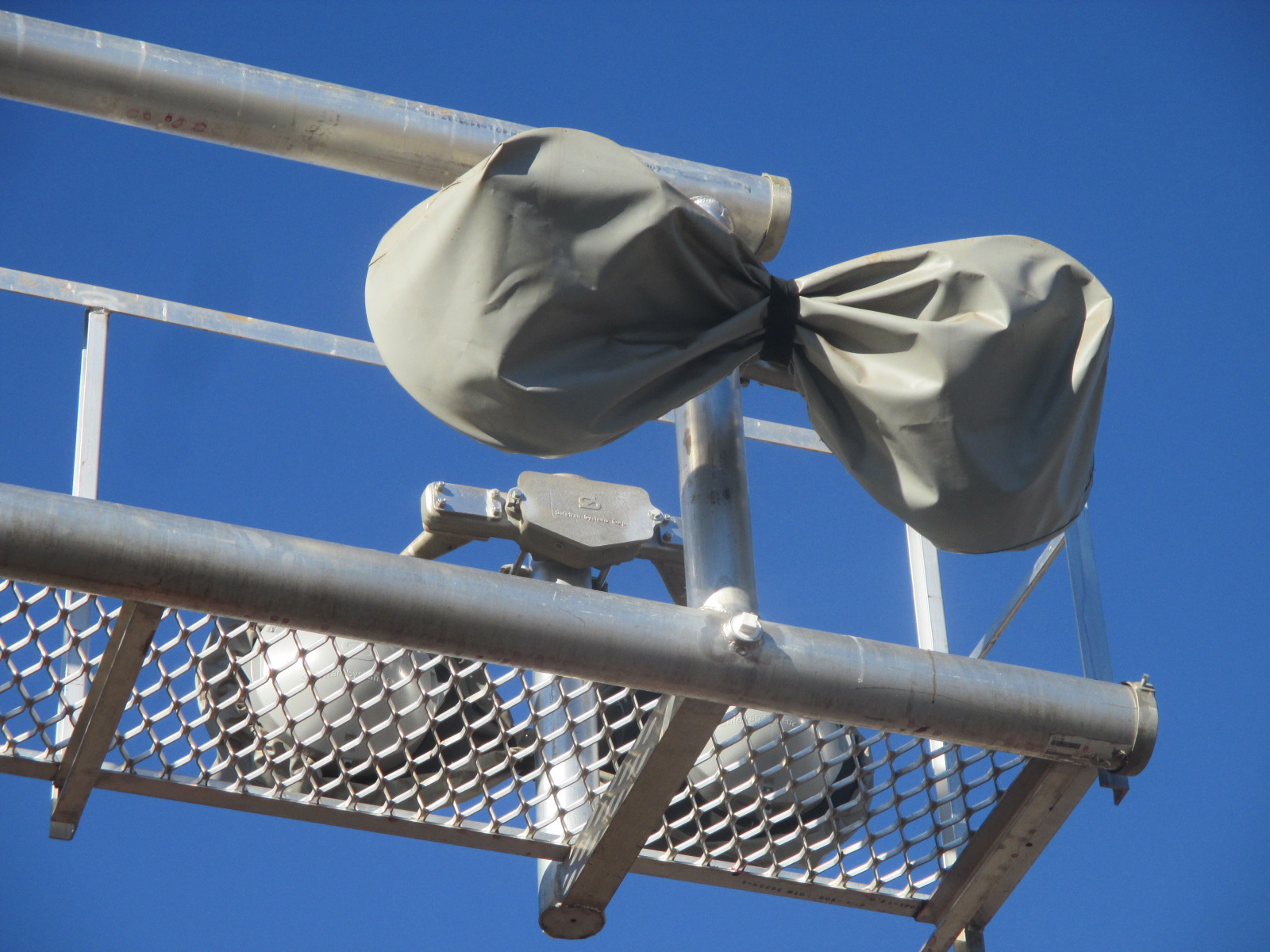

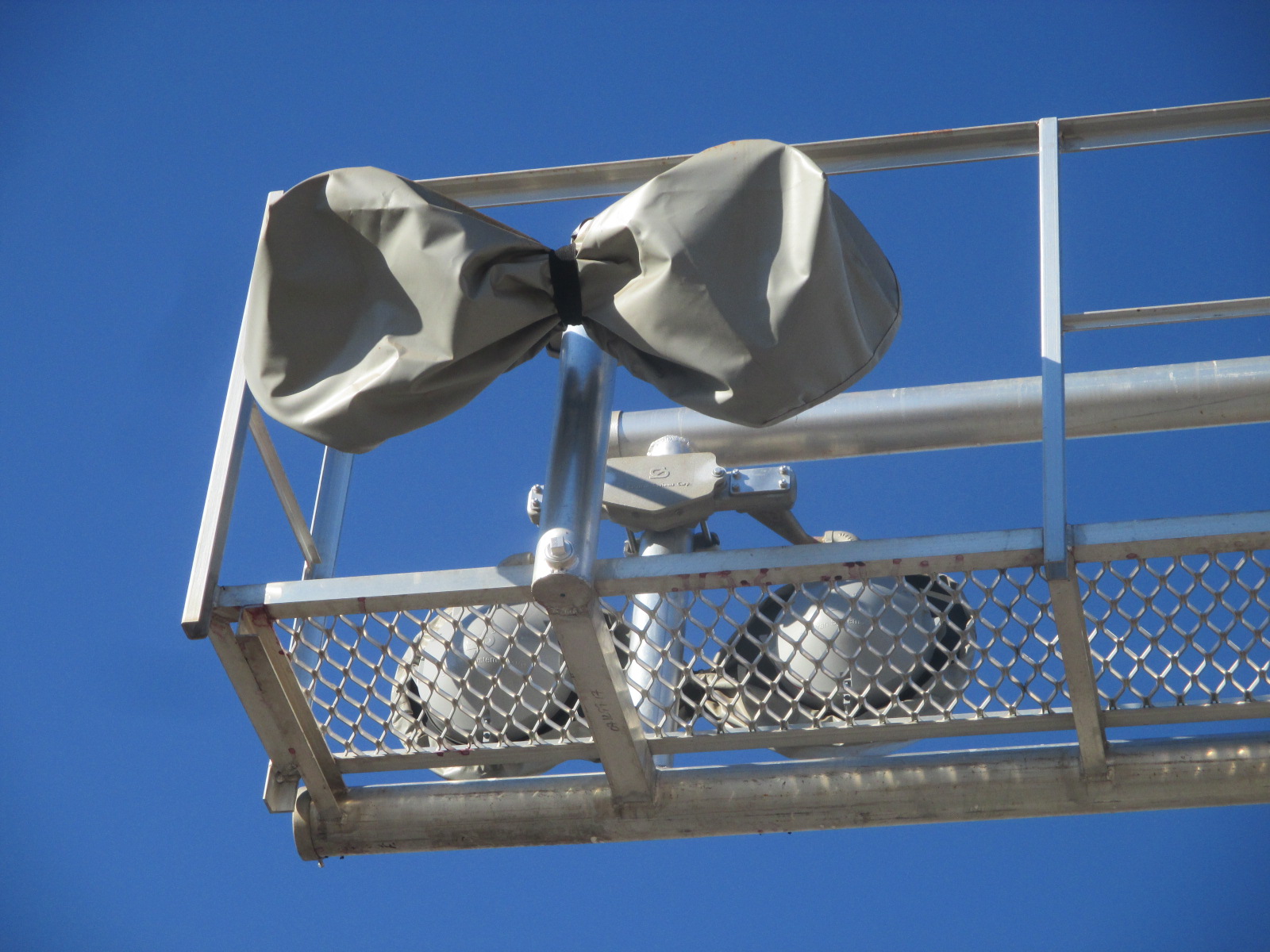

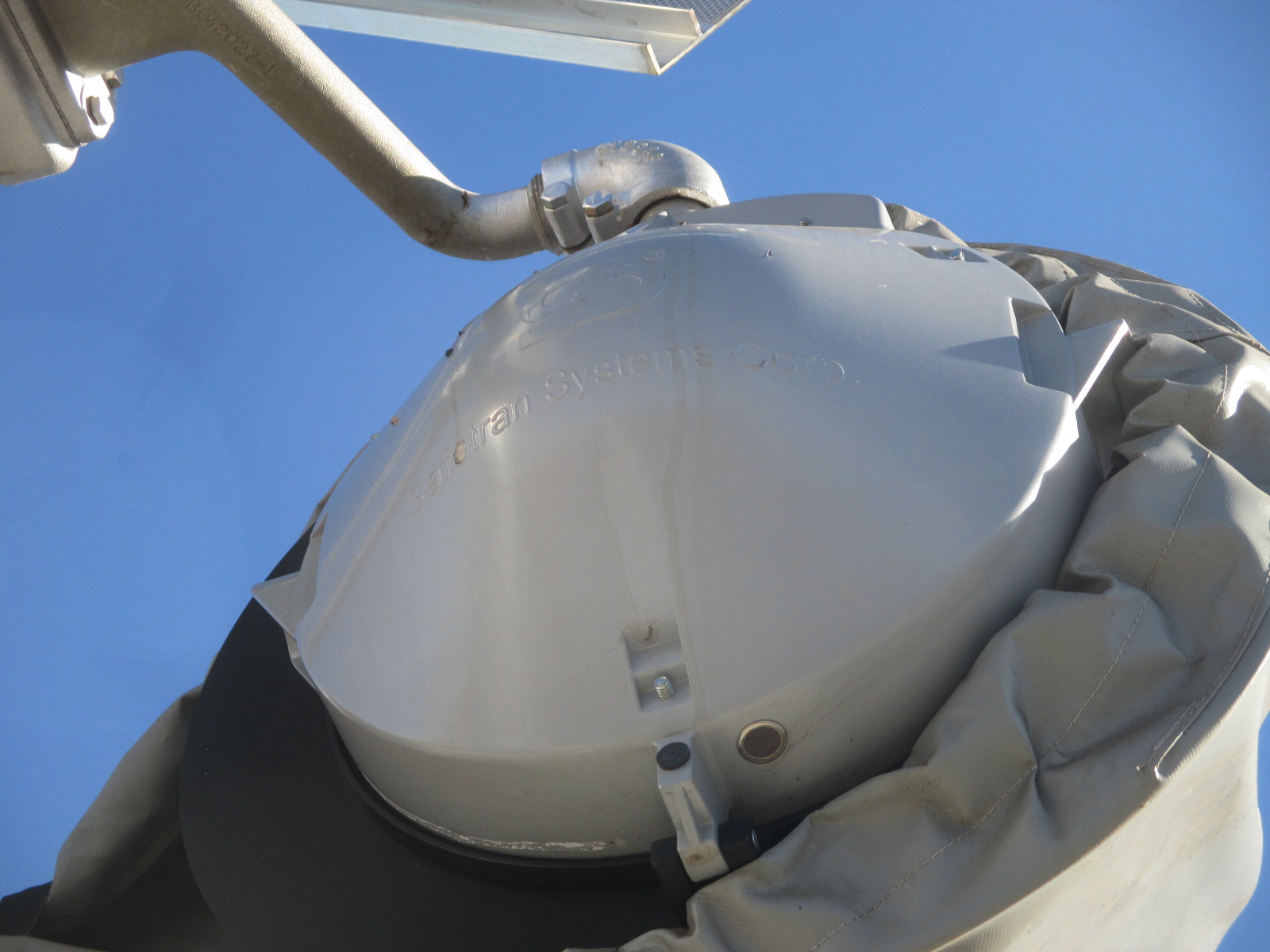

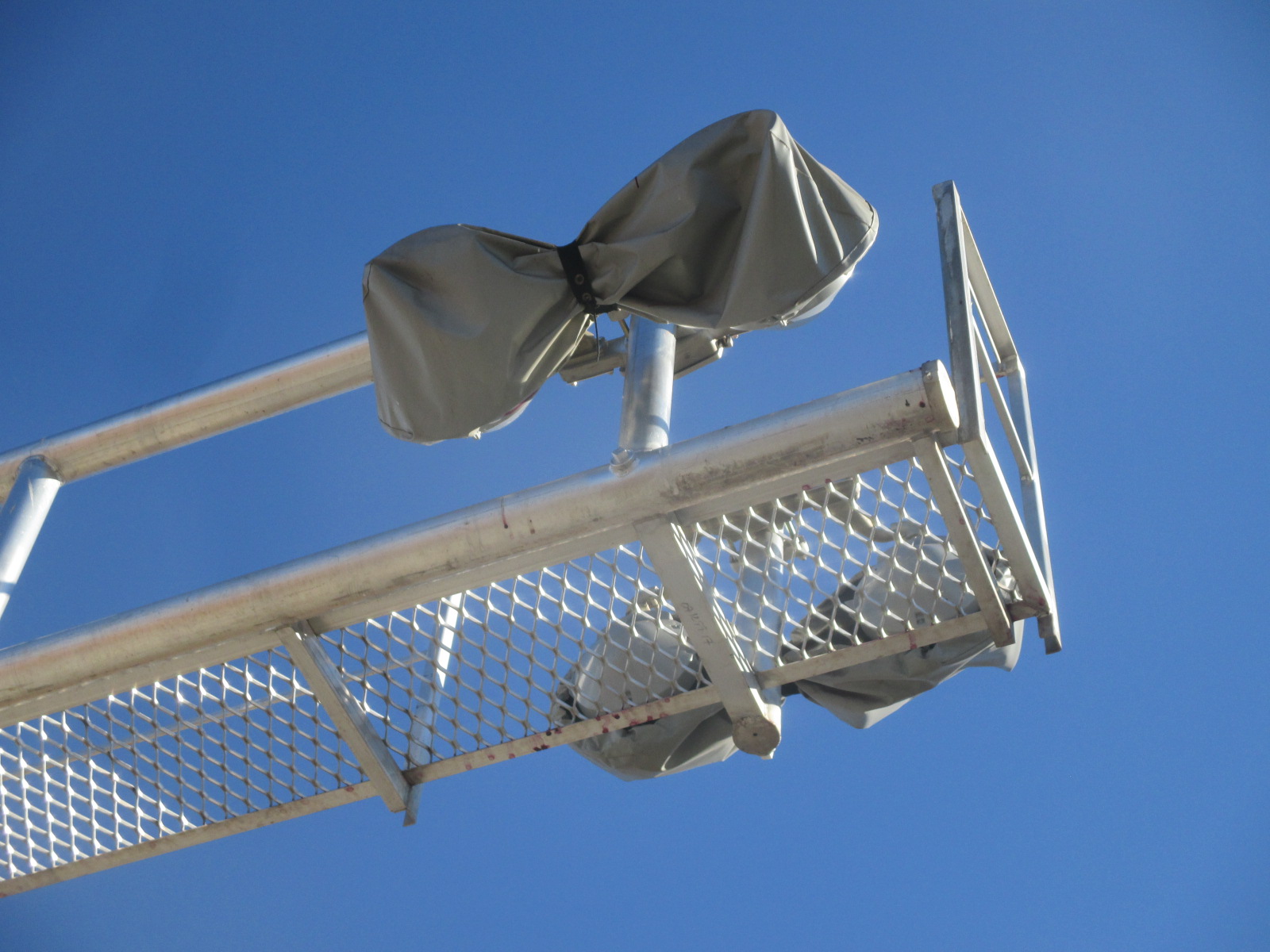

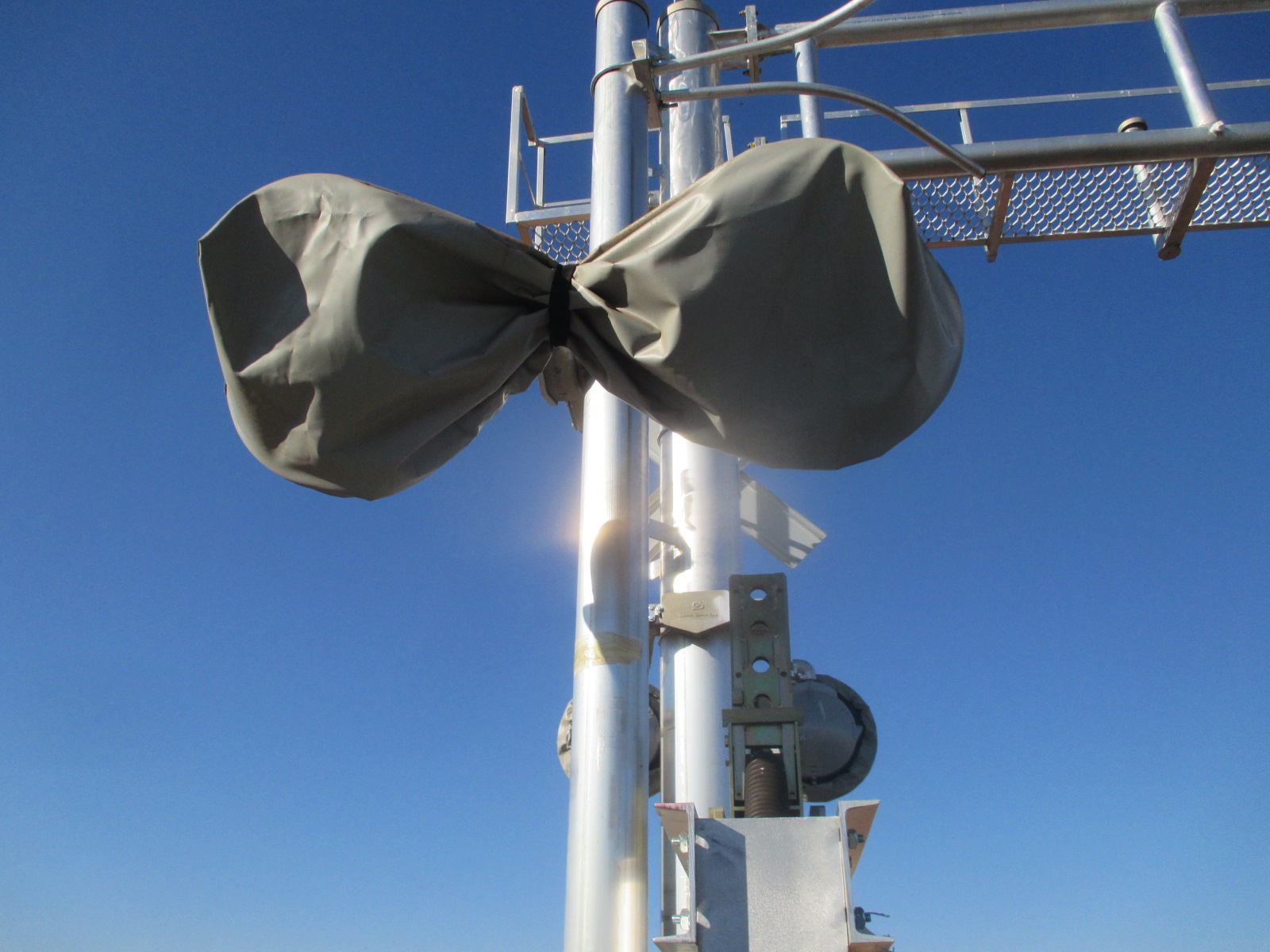

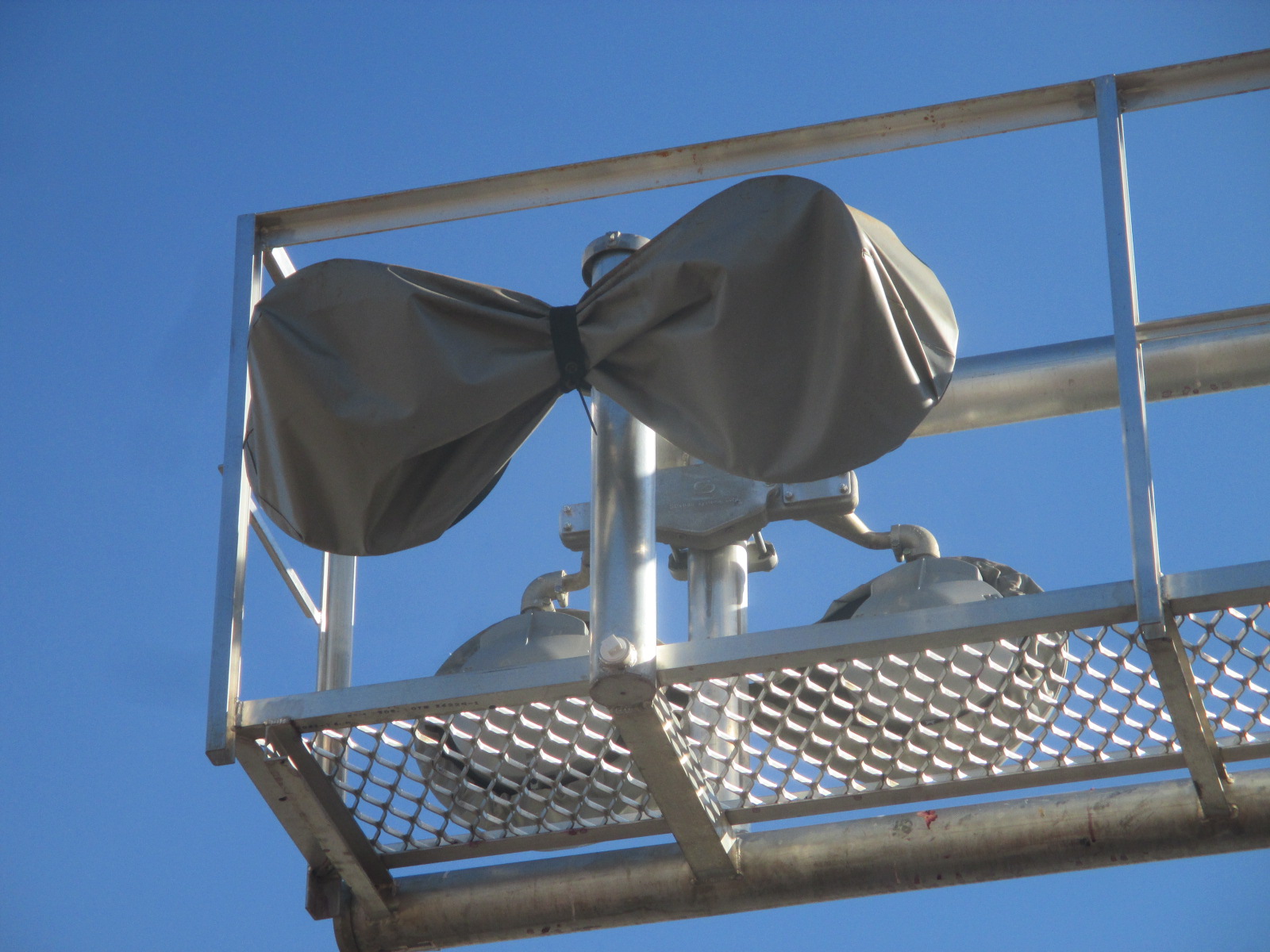

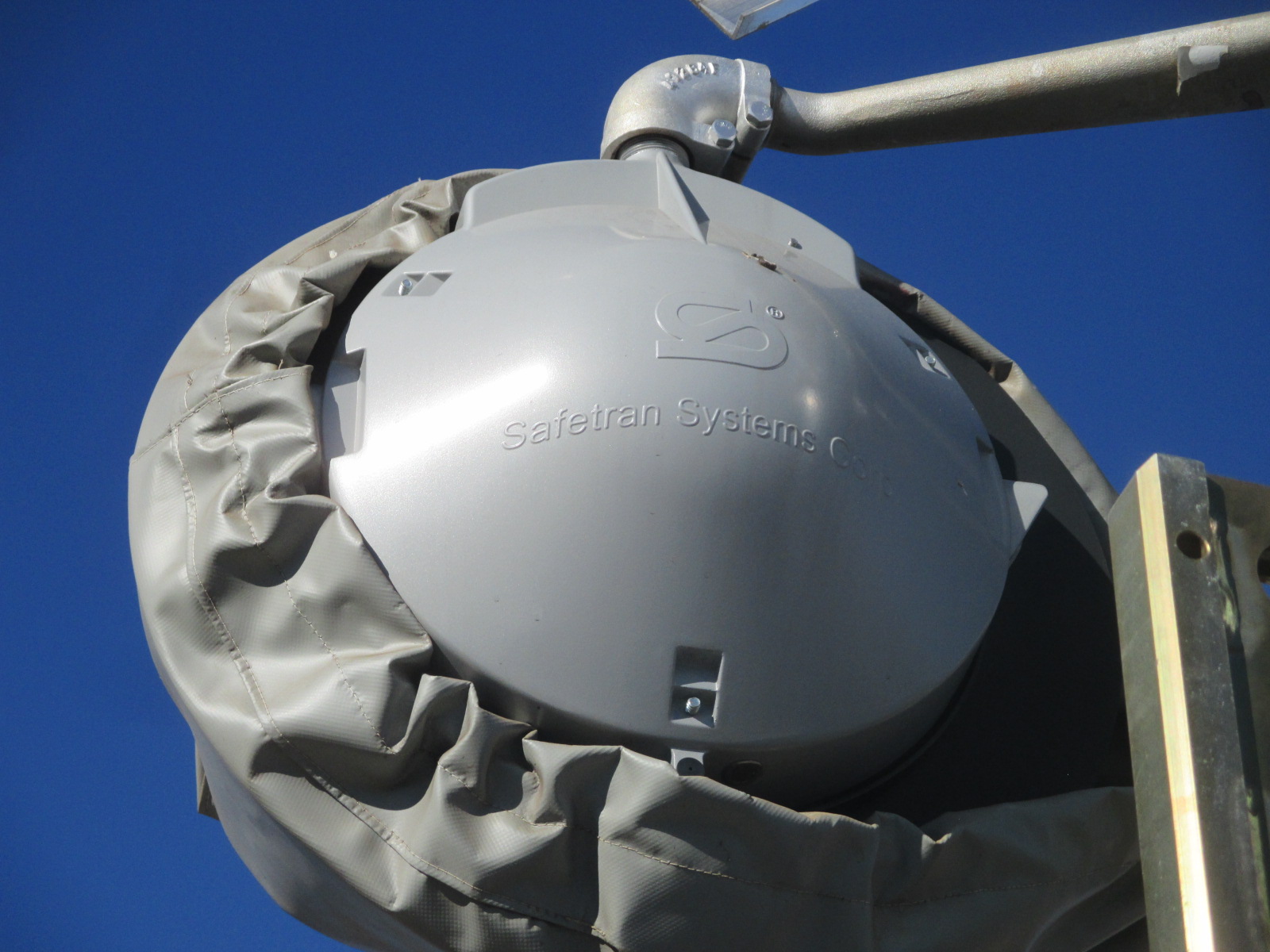

The overhead lights are more bagged Safetran 12x20 inch lights with GE Uniform Look LEDs.

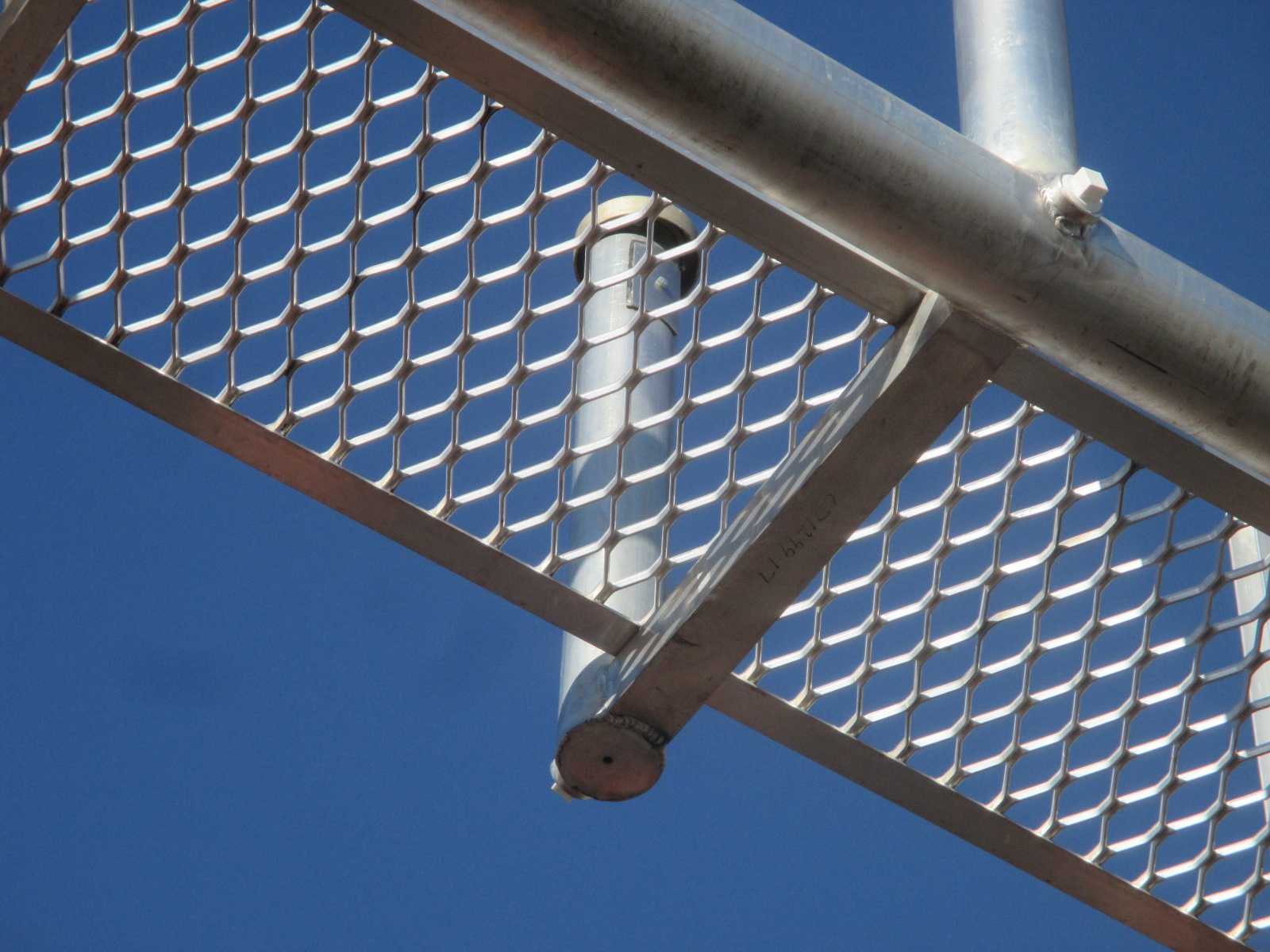

Looks like some lights or a crossbuck will go here.

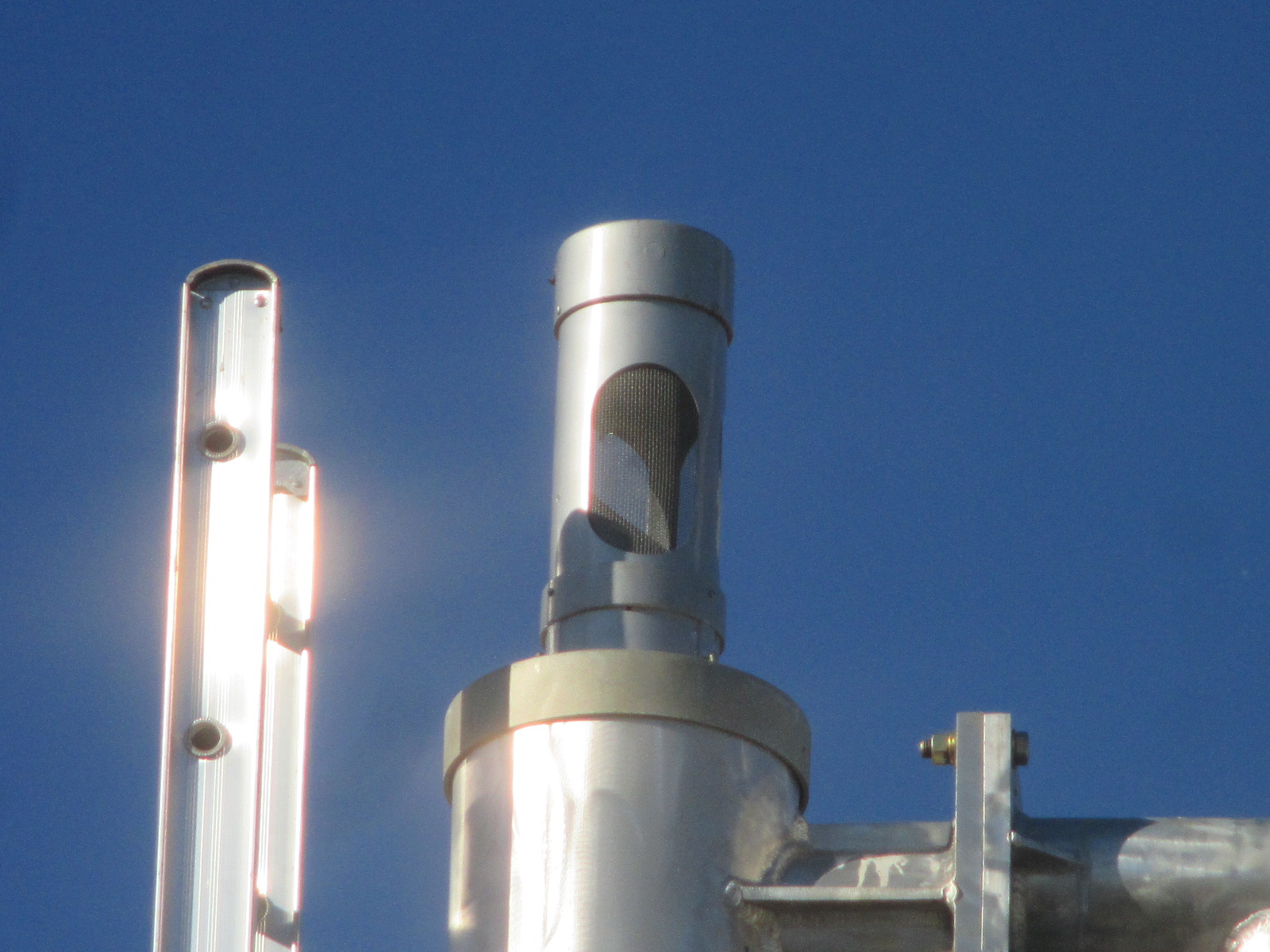

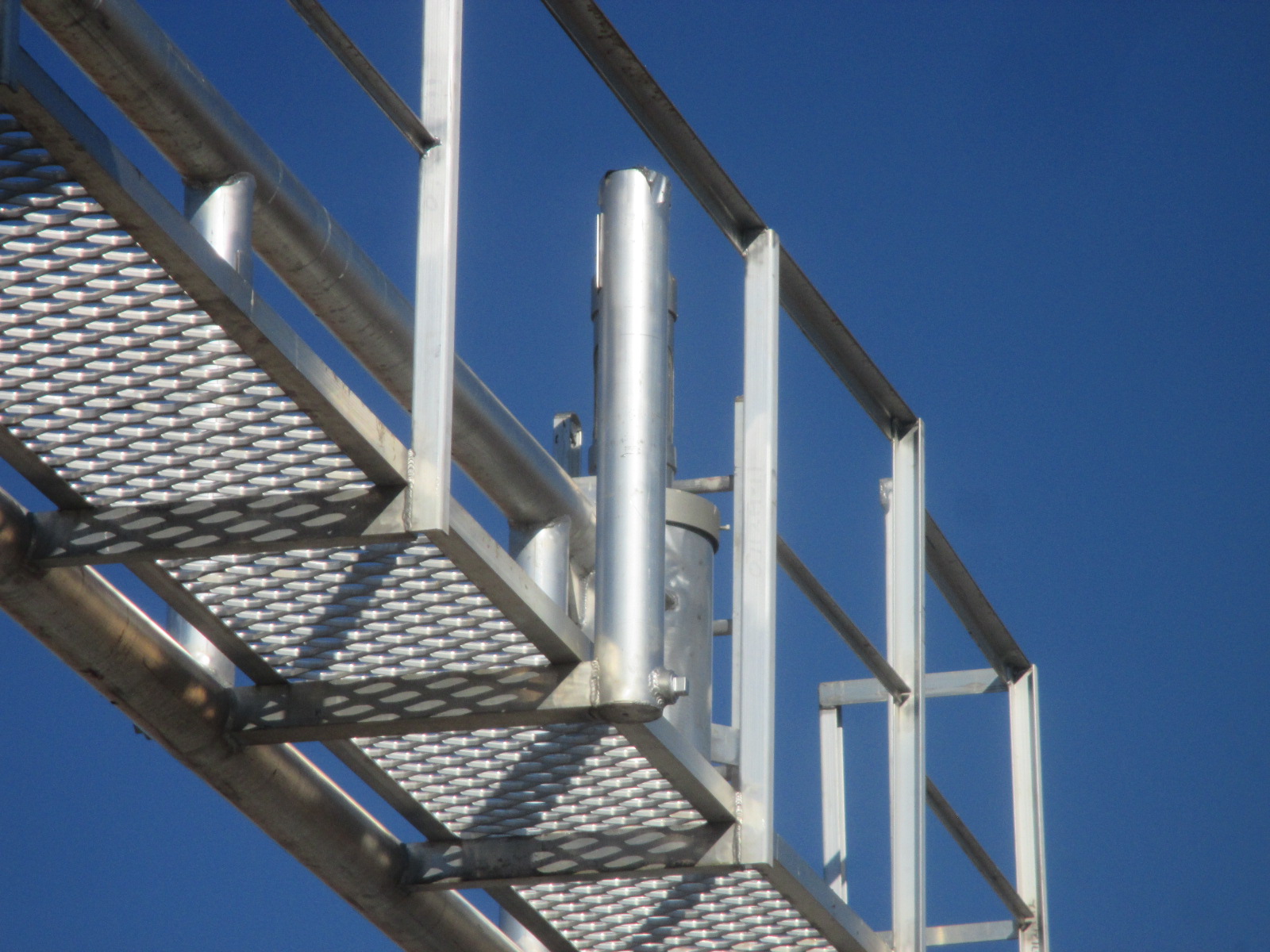

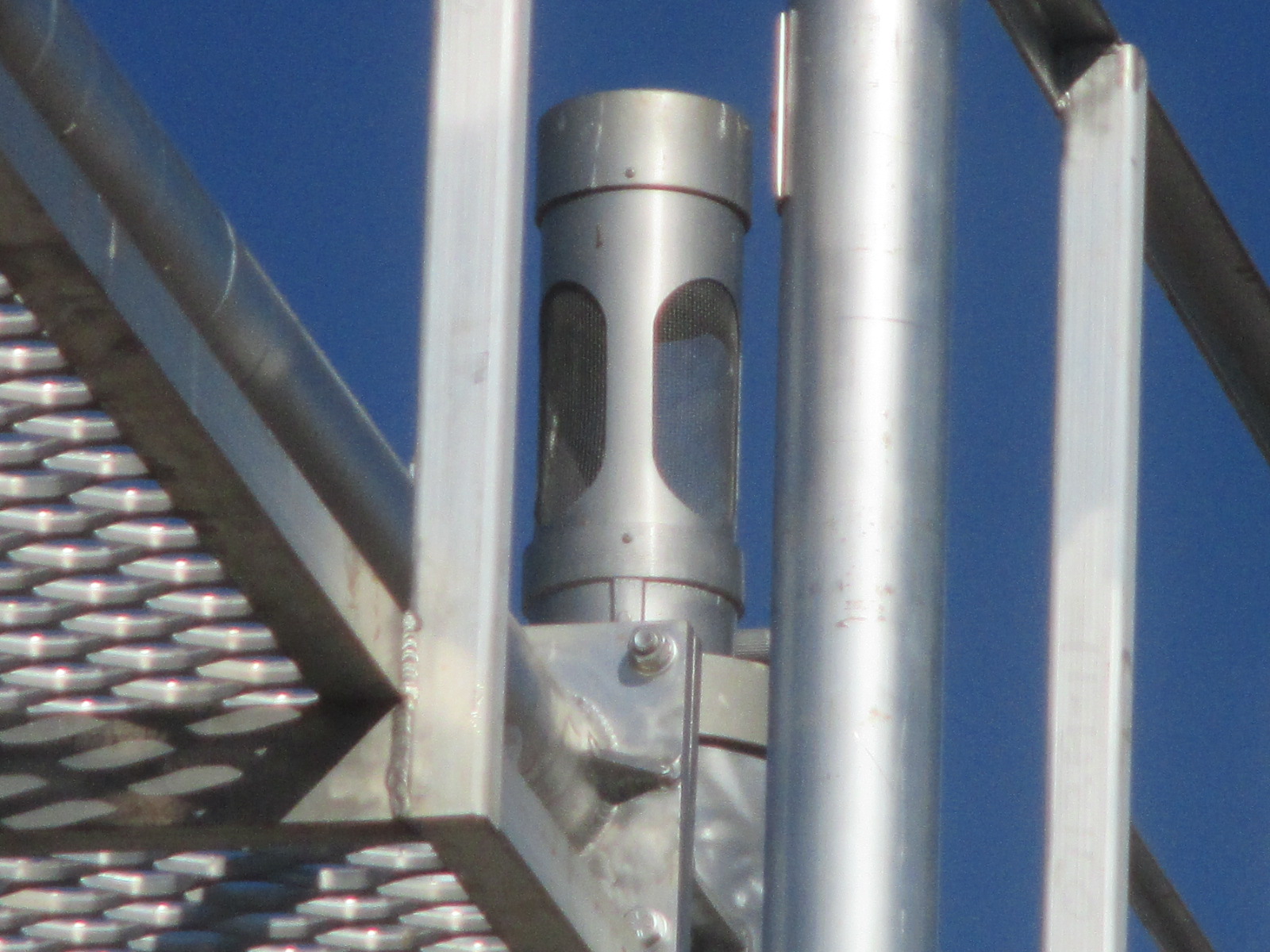

This signal has a General Signals Type 3 electronic bell!

13

14

15

16

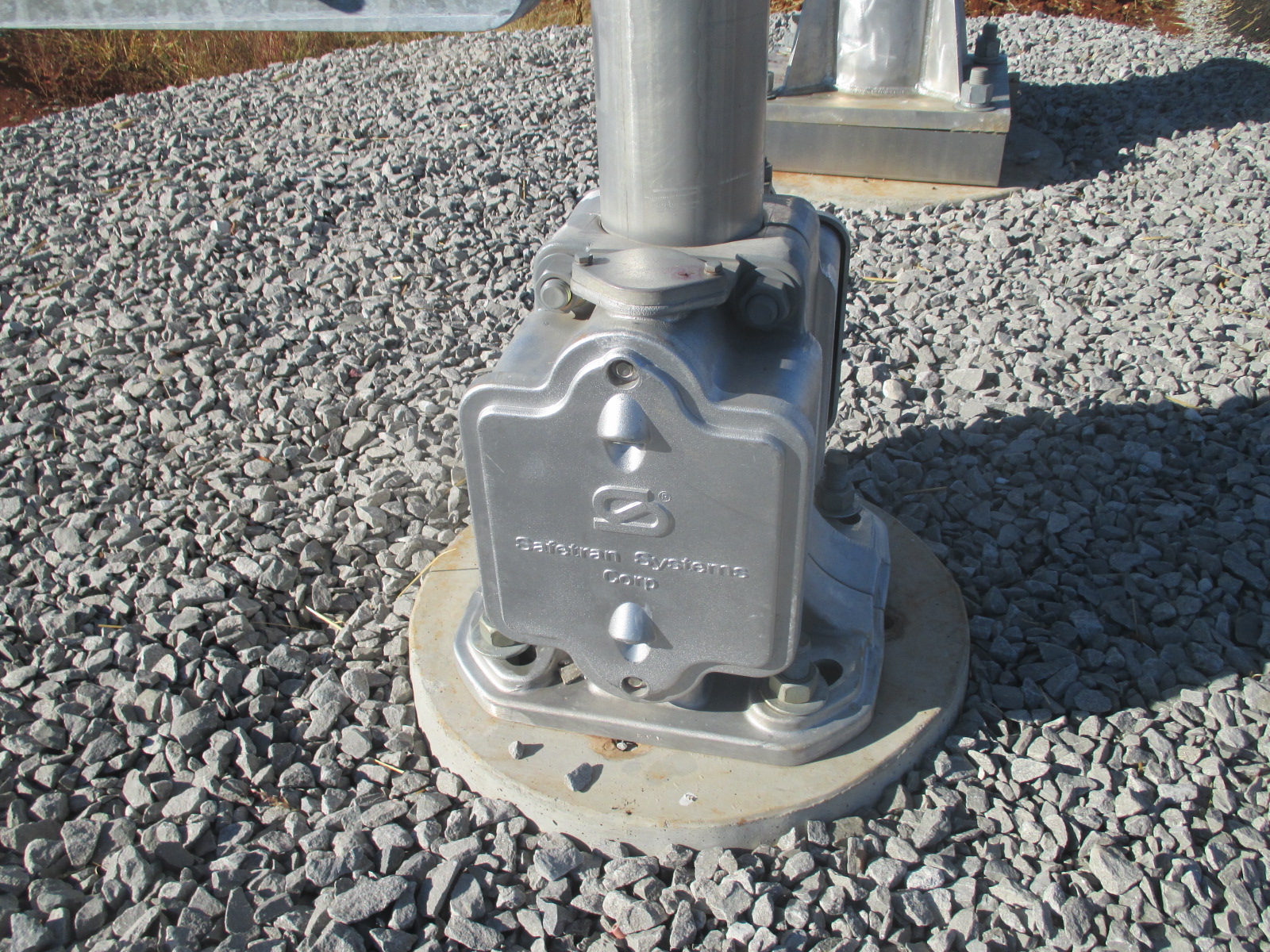

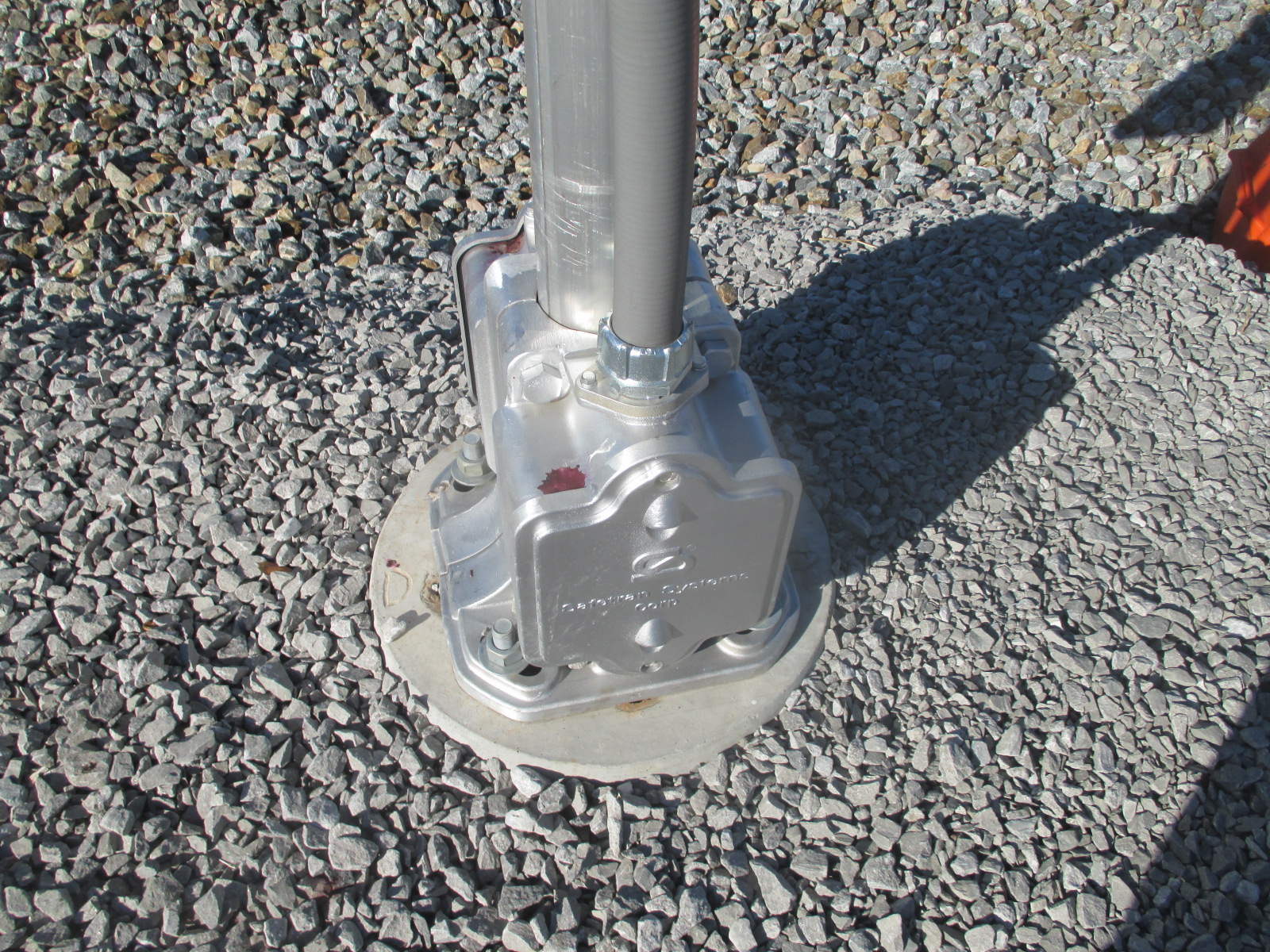

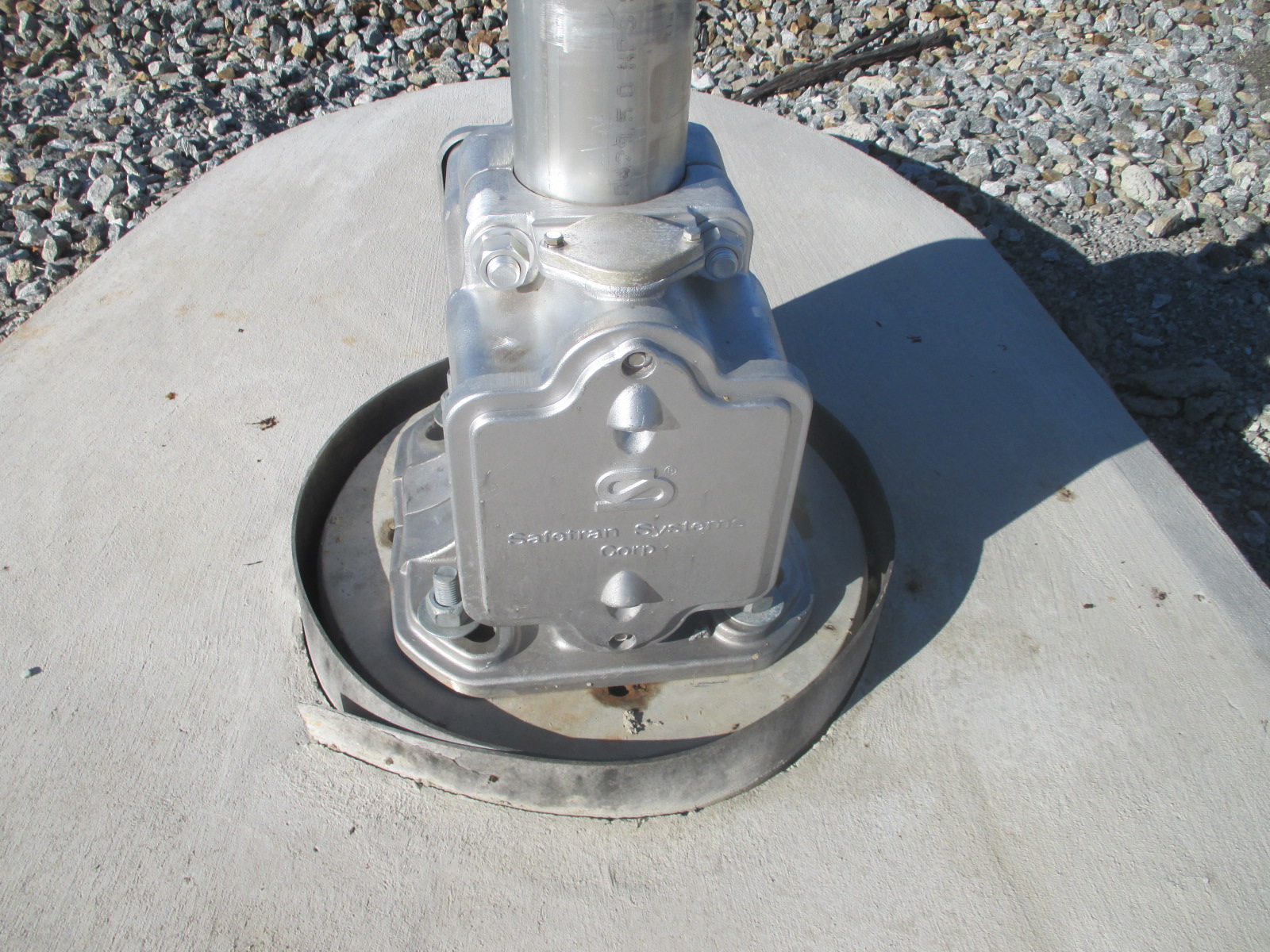

A Safetran base.

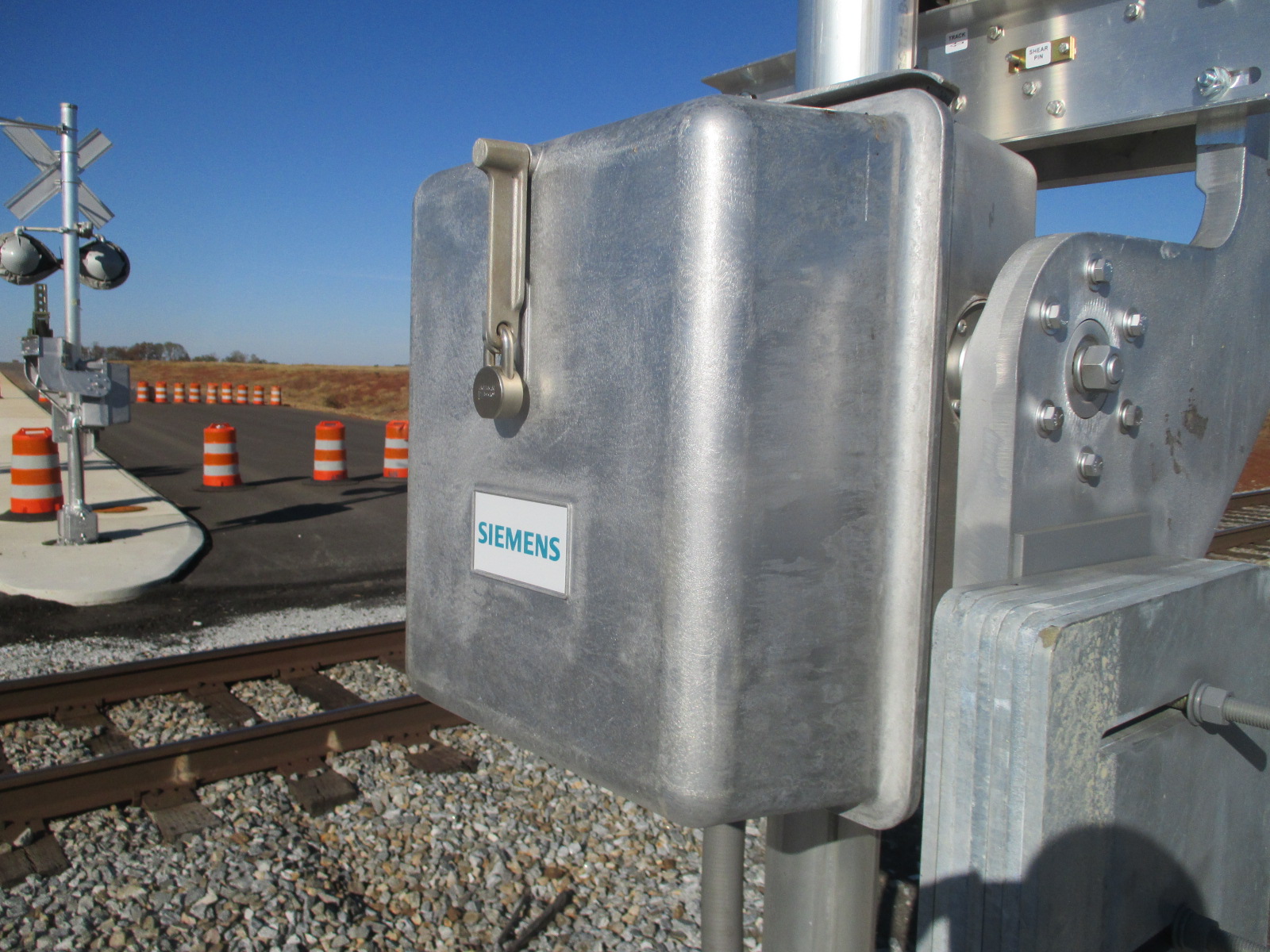

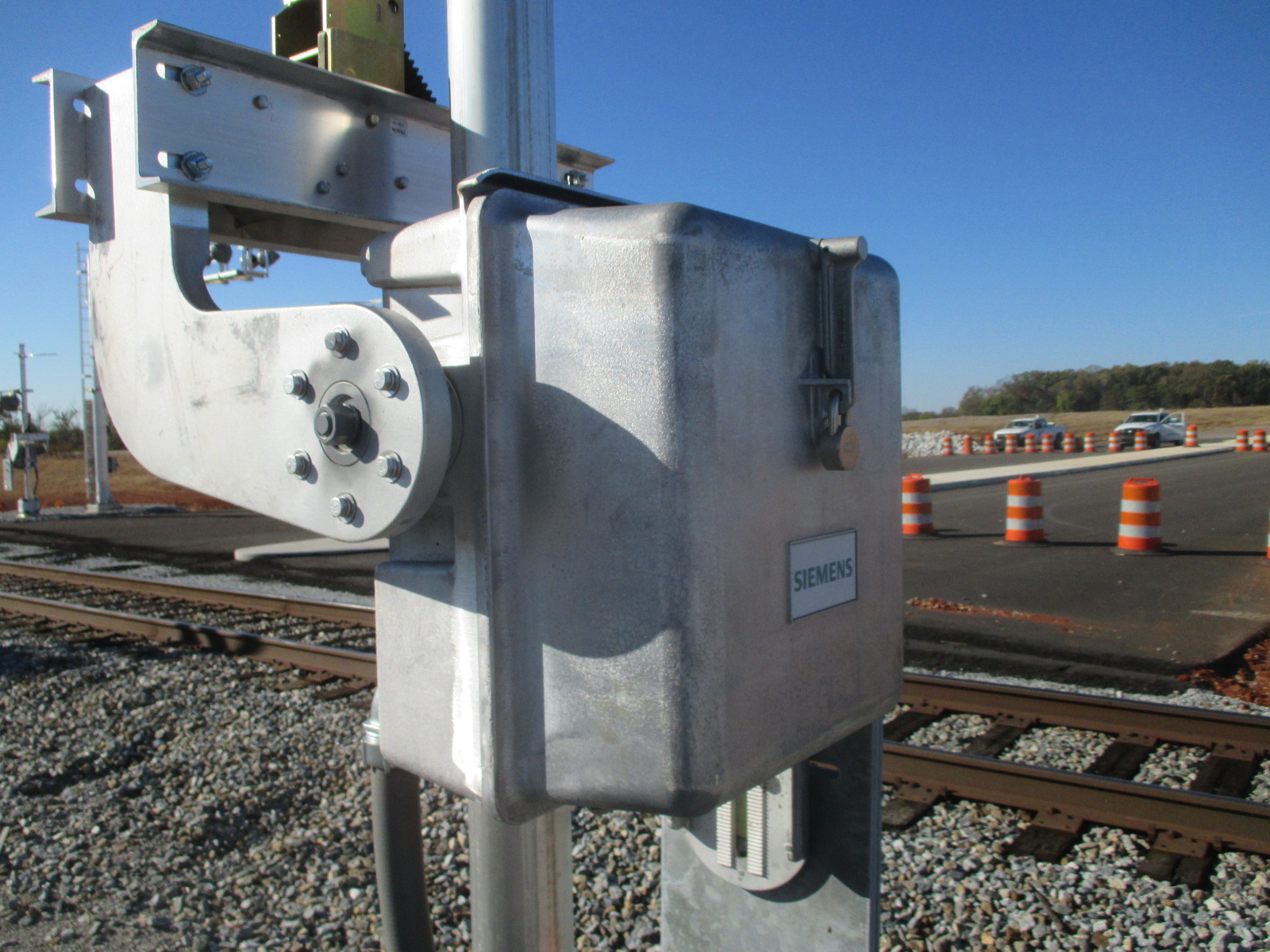

A Siemens gate mechanism.

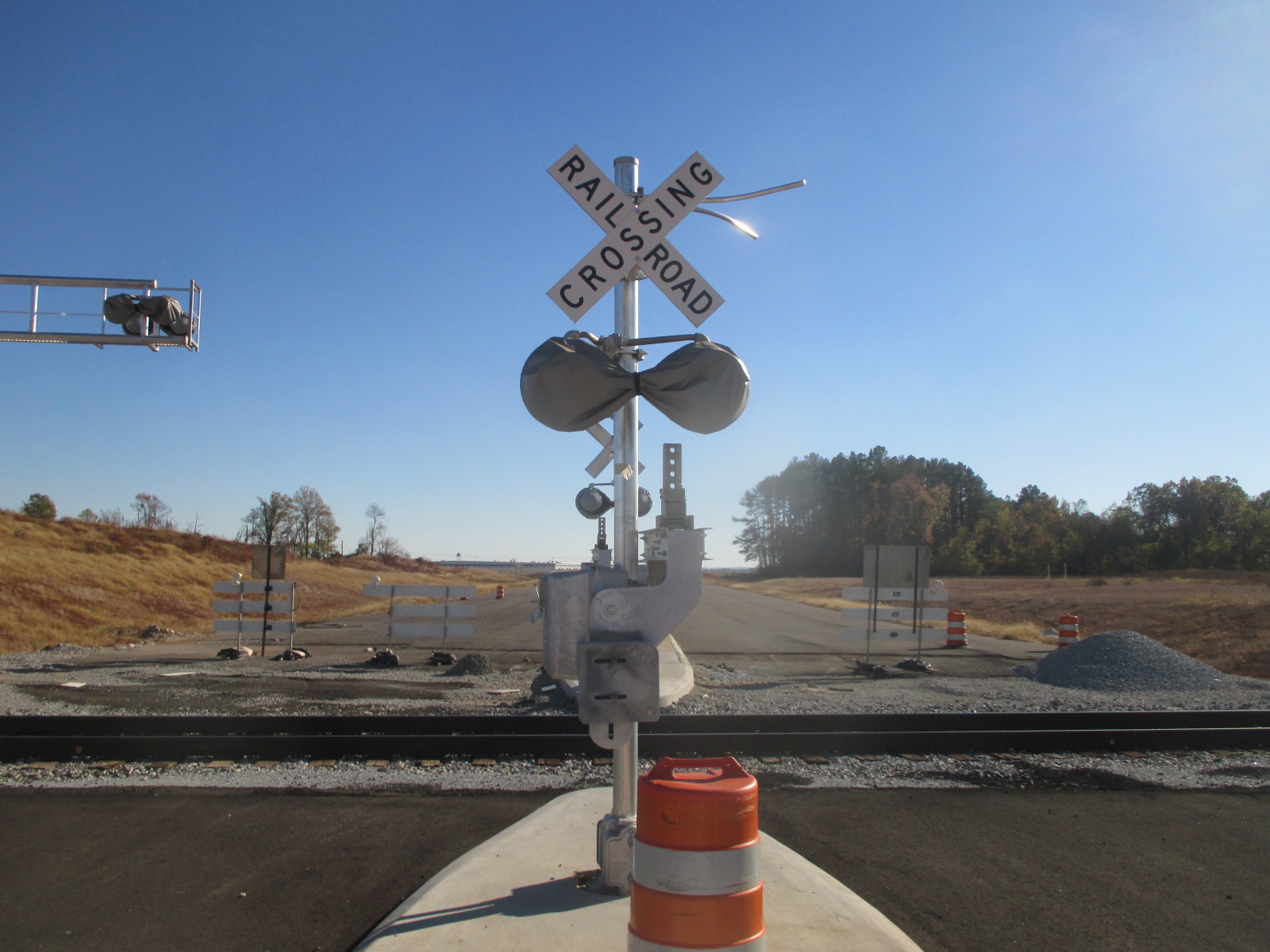

The second signal.

17

18

19

20

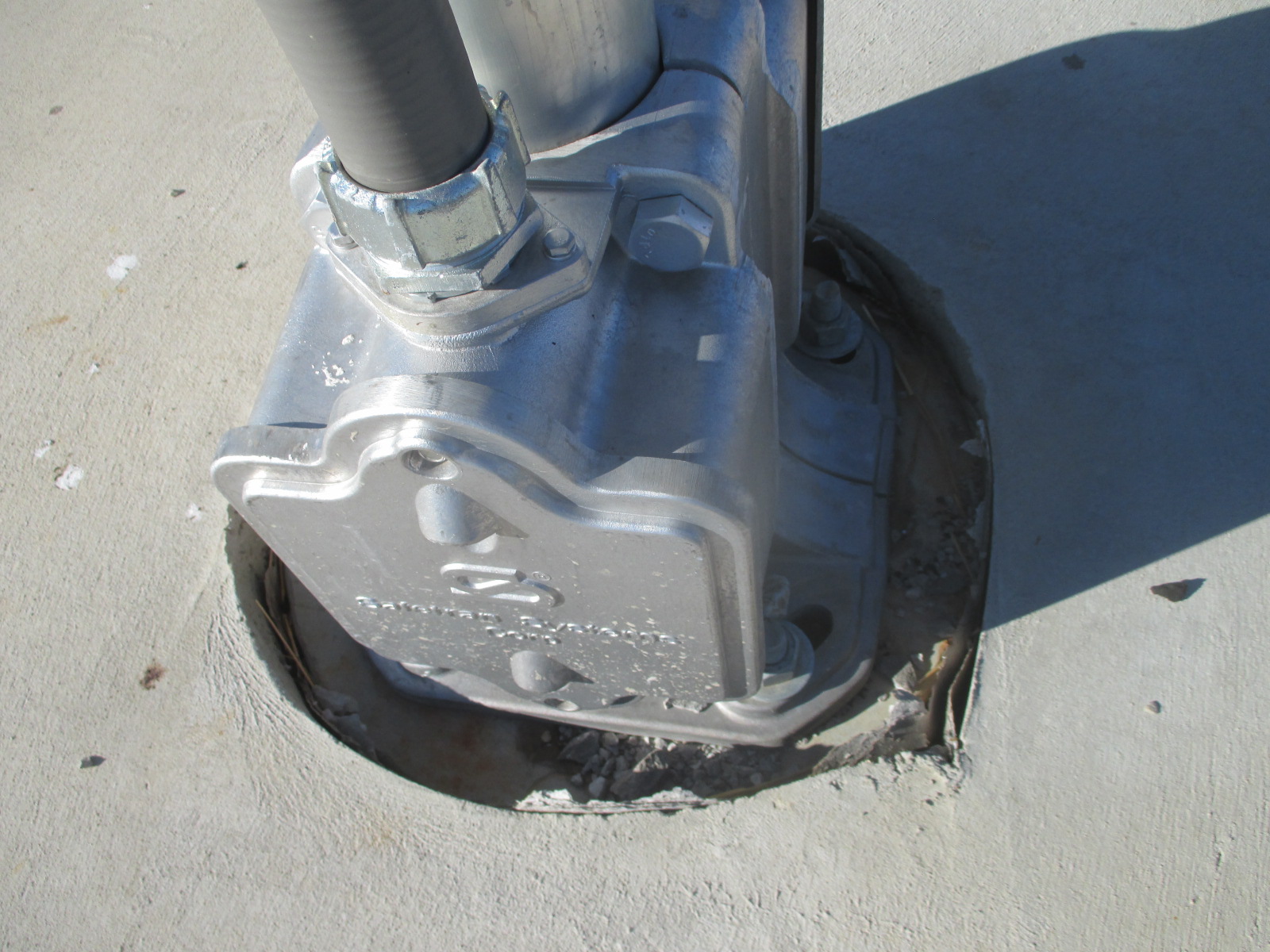

It has another Safetran base.
Another Siemens gate mechanism.
The lights are another pair of bagged Safetran 12x20 inch lights with GE Uniform Look LEDs.

21

22

23

24

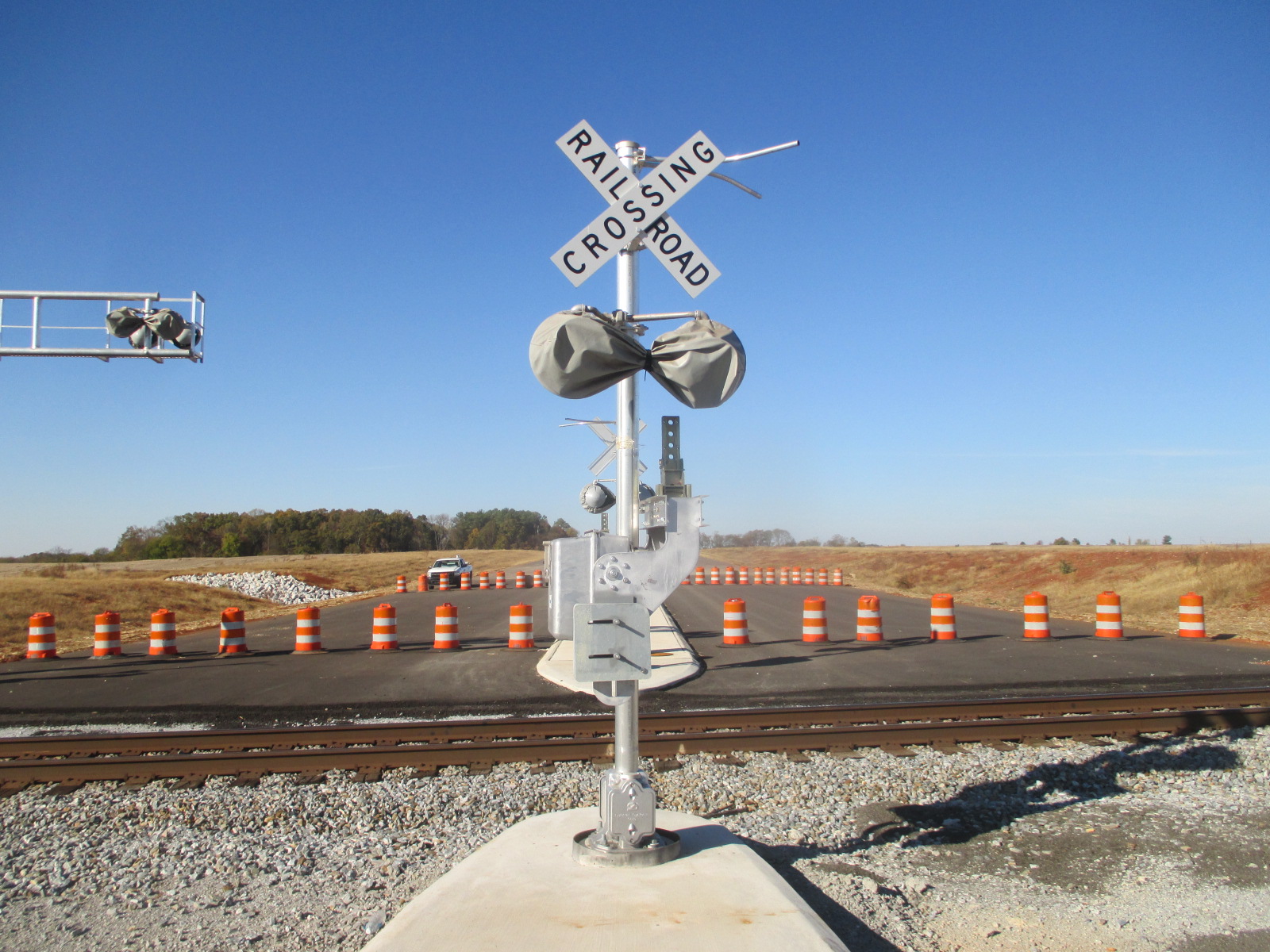

The third signal.
Yet another Safetran base.
Yet another Siemens gate mechanism.

25

26

27

28
Are still another pair of bagged Safetran 12x20 inch lights with GE Uniform Look LEDs.

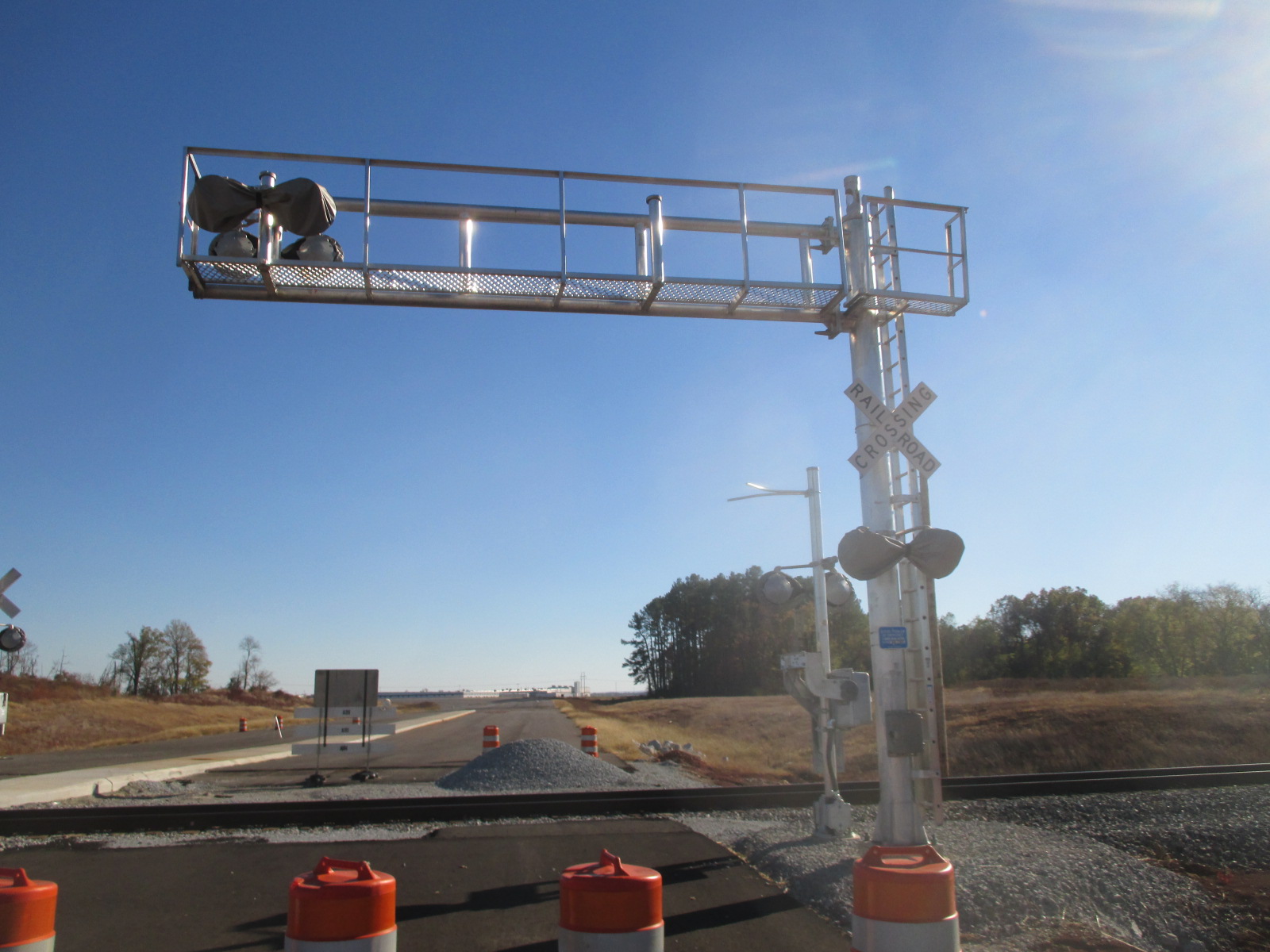

The fourth signal.
It's another Safetran cantilever with a RACO splice box.

29

30

31

32
The emergency information.
This signal has more bagged Safetran 12x20 inch lights for the mast lights with GE Uniform Look LEDs.
Looks like some lights or a crossbuck will also go here.

33

34

35

36

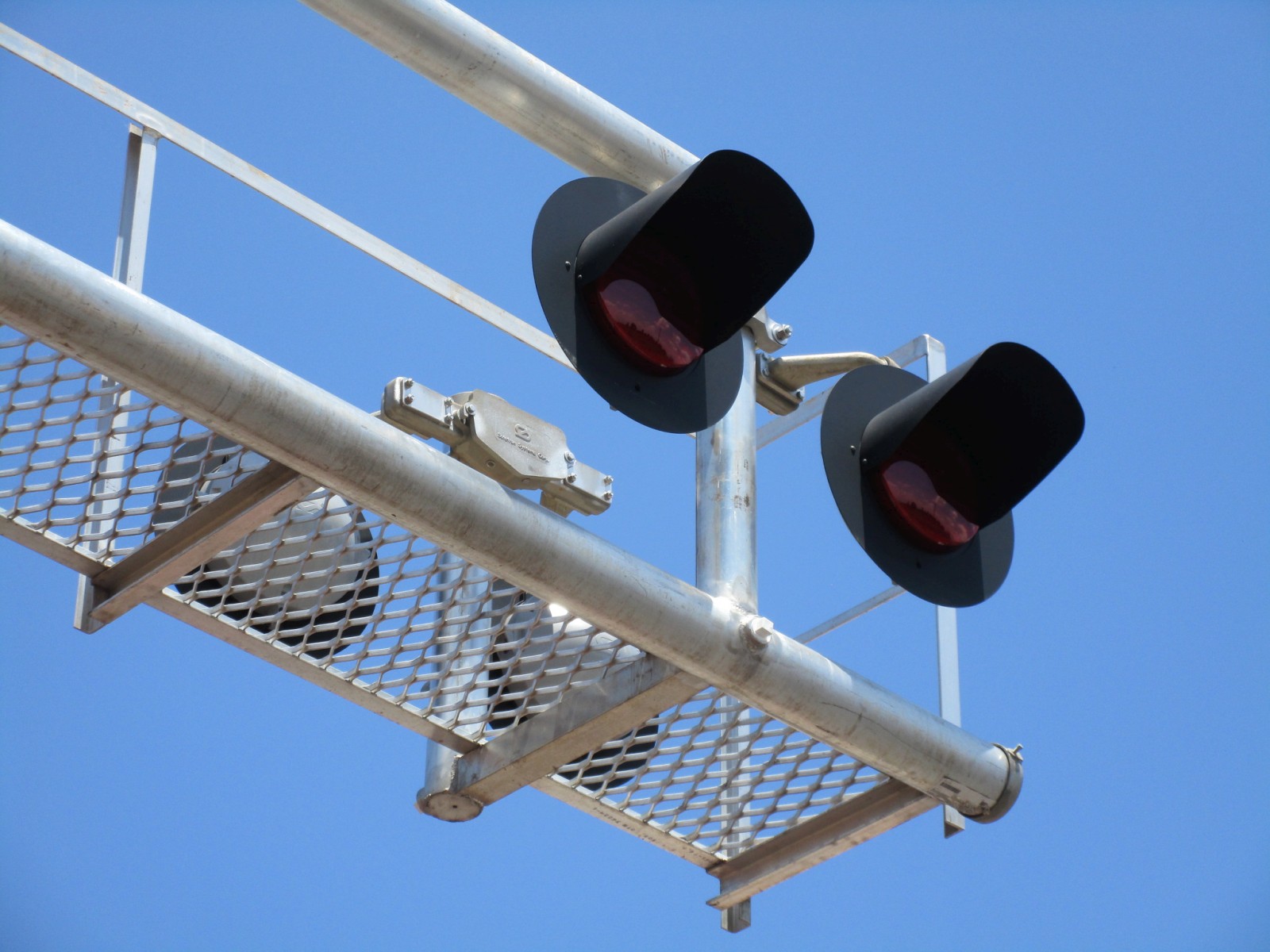

The overhead lights are also still more bagged Safetran 12x20 inch lights with GE Uniform Look LEDs.
Another General Signals Type 3 electronic bell on this signal!
A fourth Safetran base.

37

38

39

40

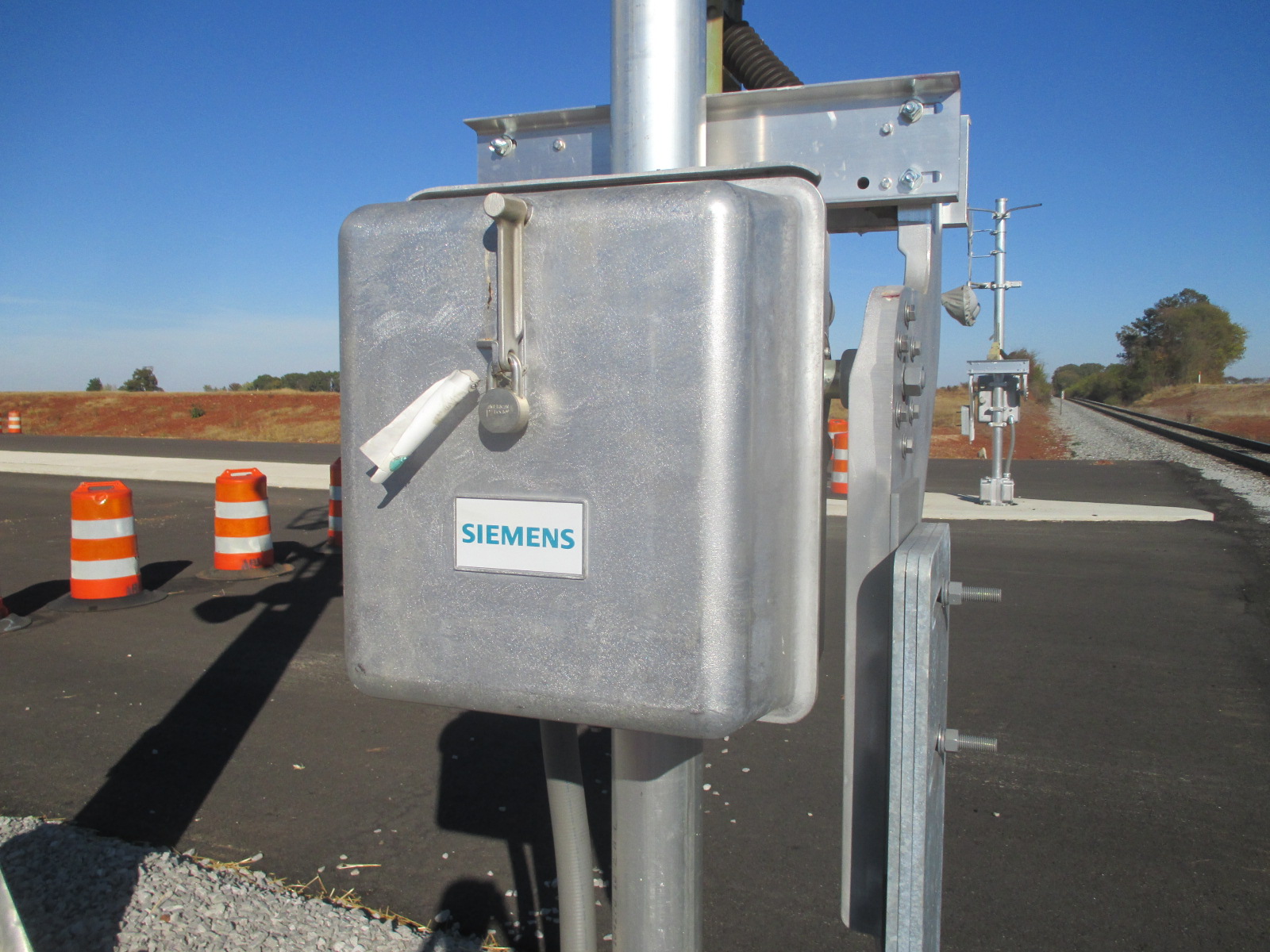

A fourth Safetran gate mechanism.
The relay case.

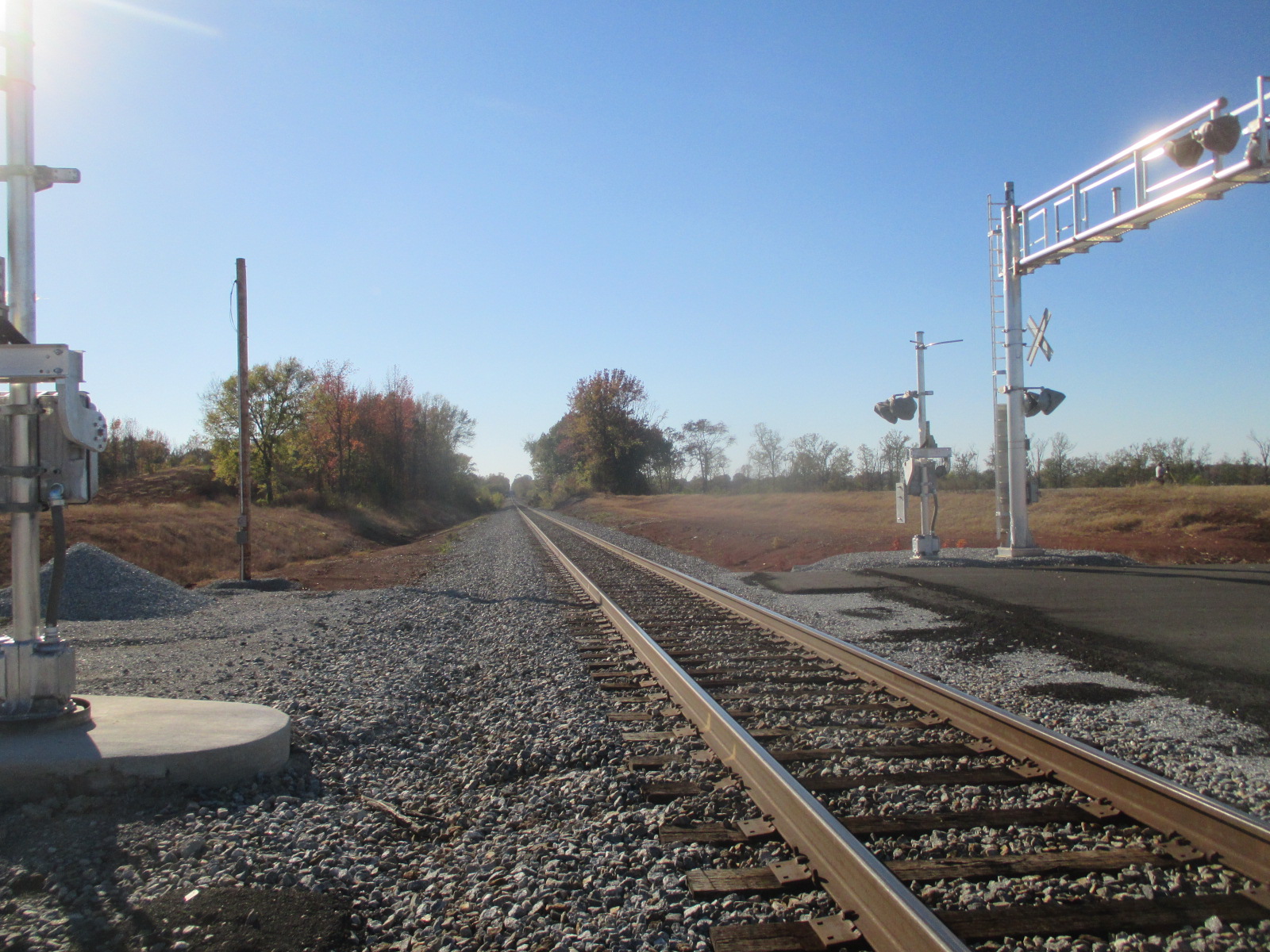

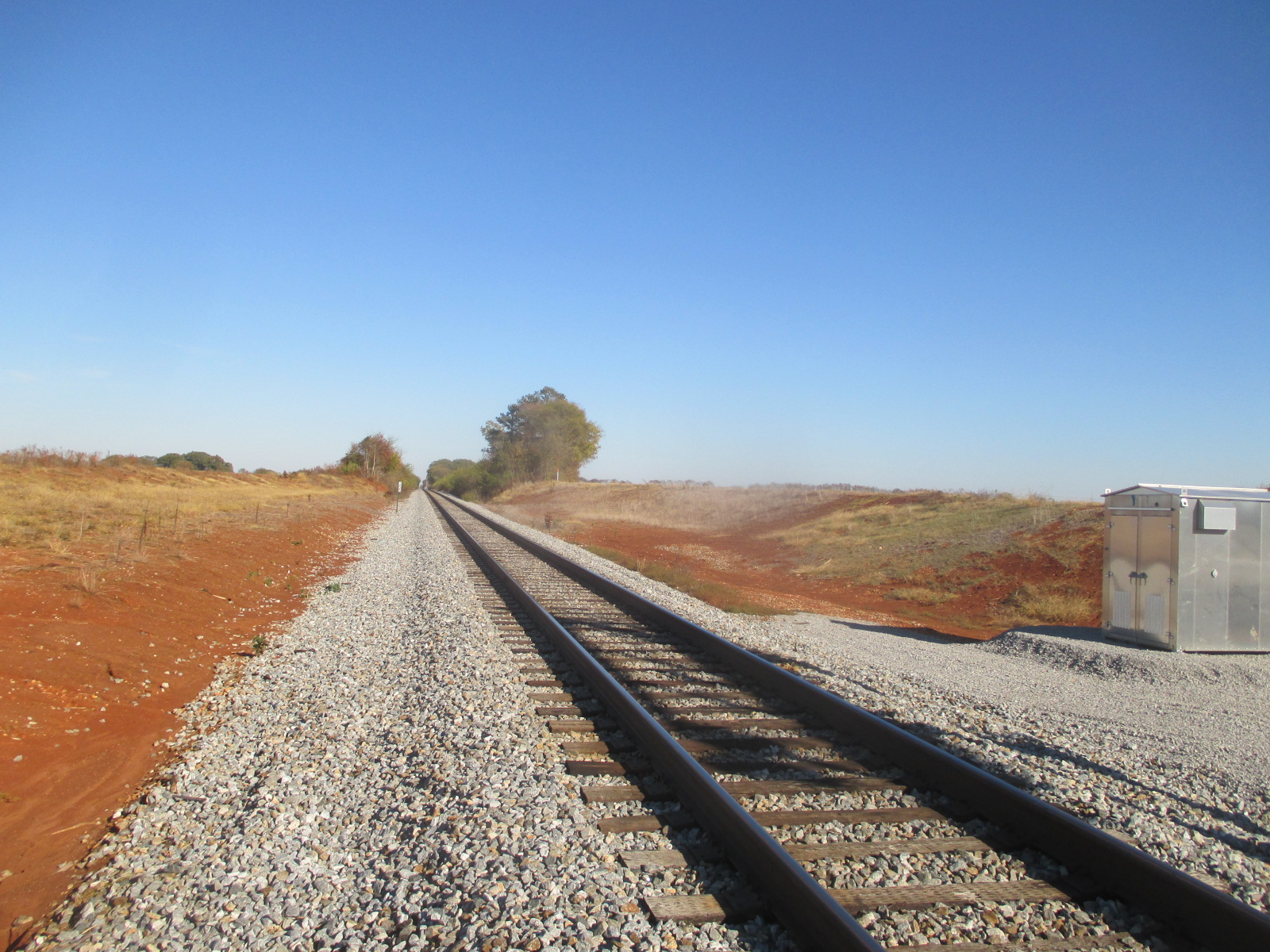

Track views.

41

42

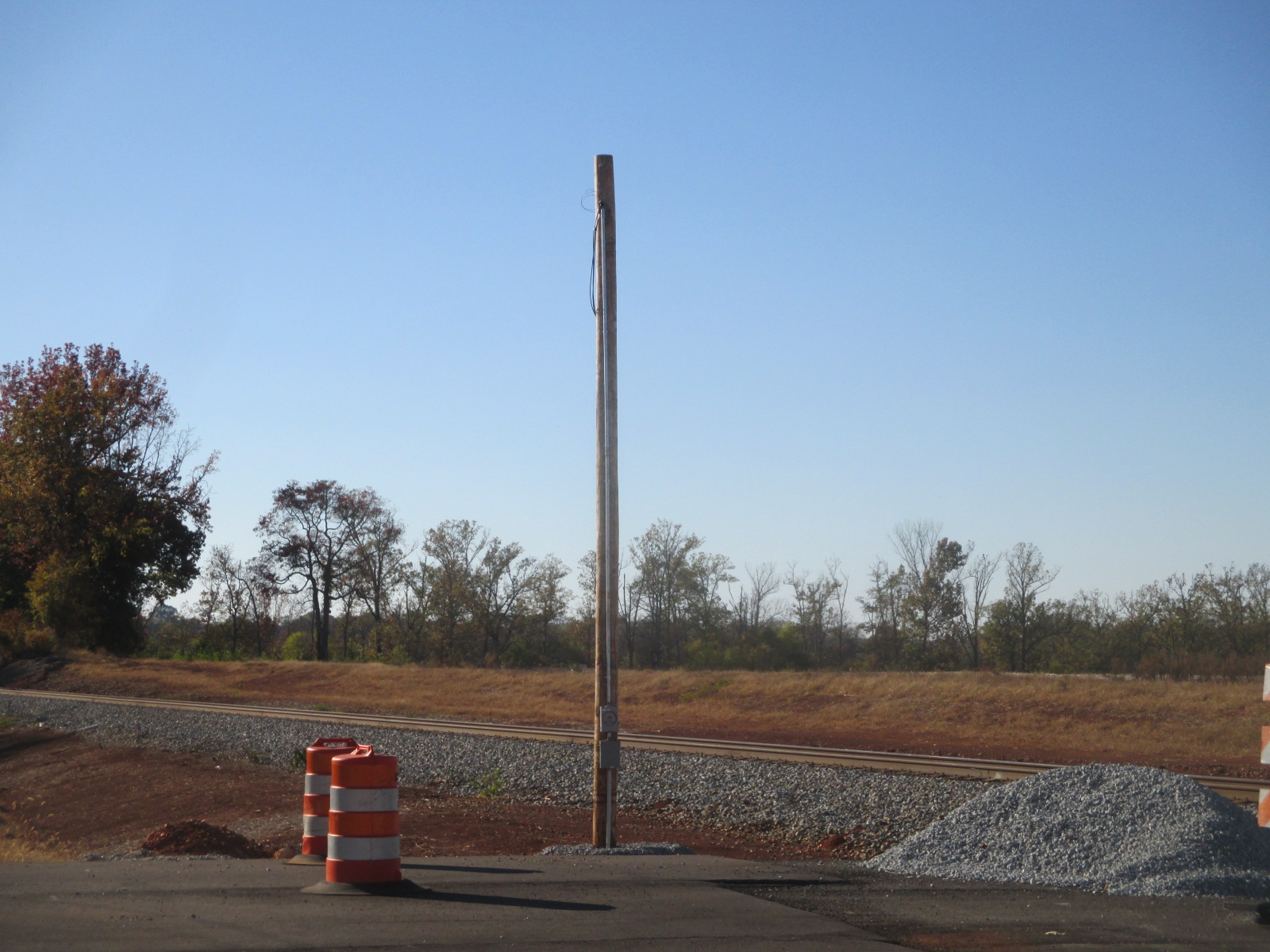

The future power connection.

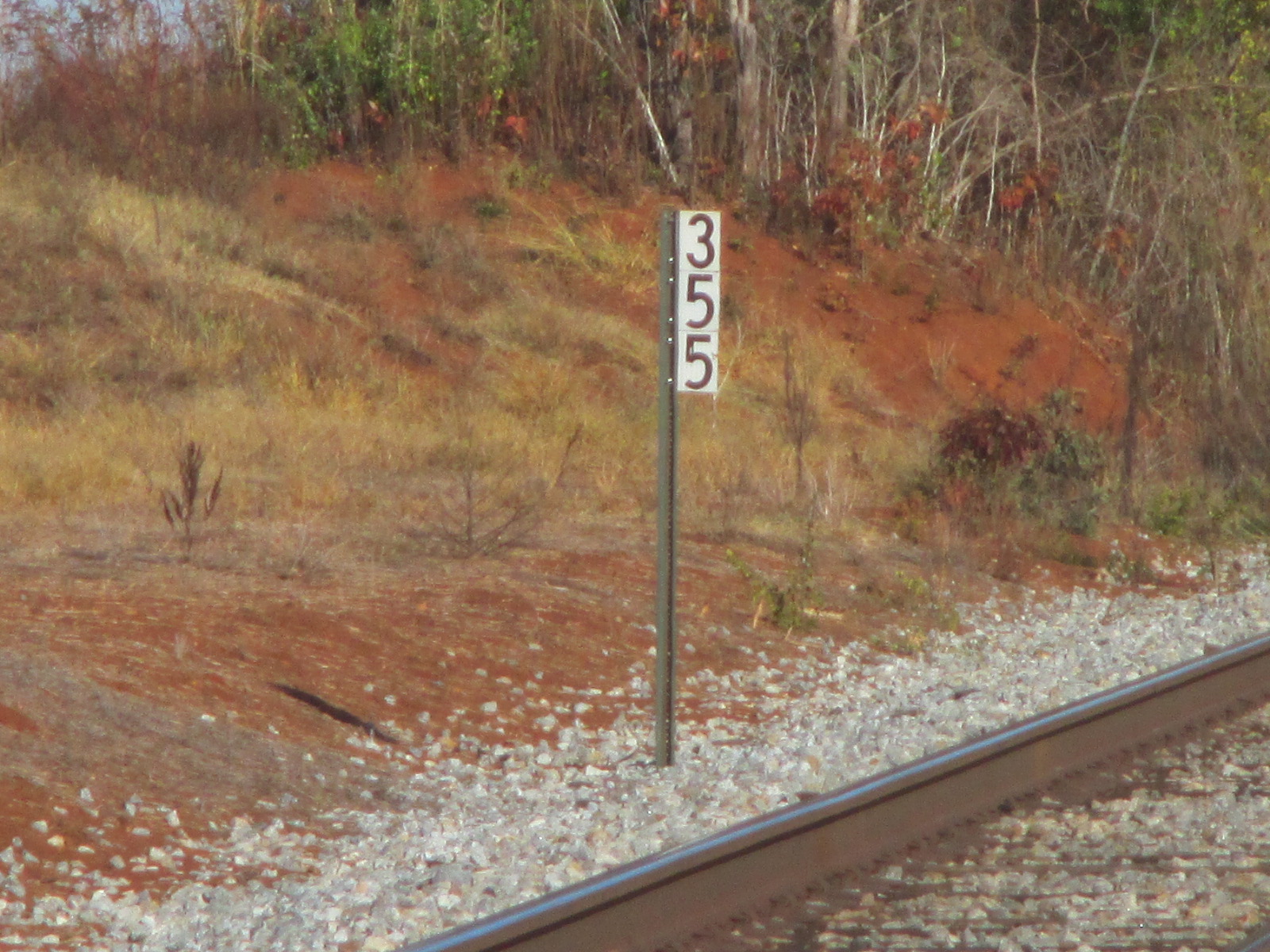

A mile post near the crossing.

43

44

45

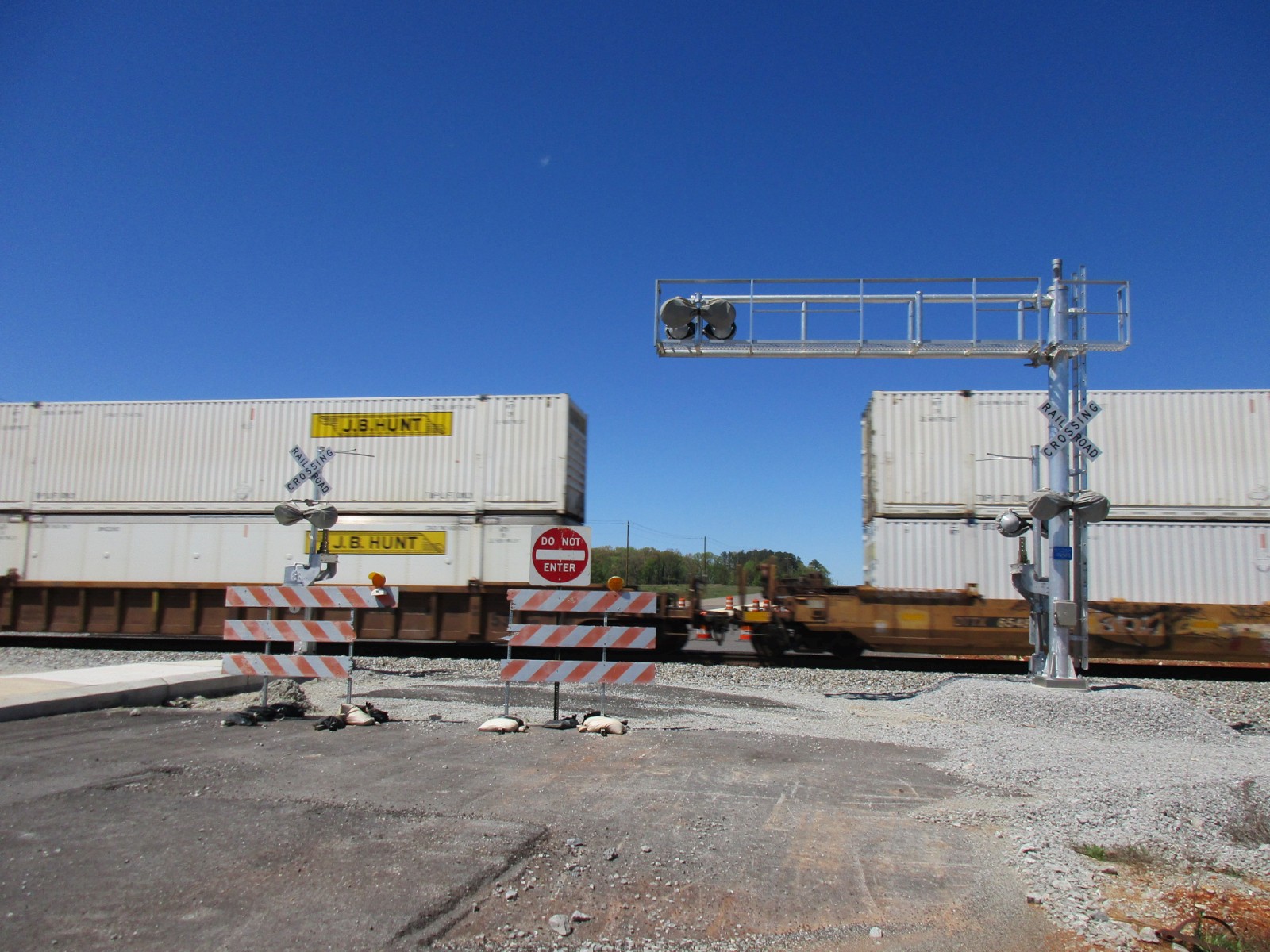

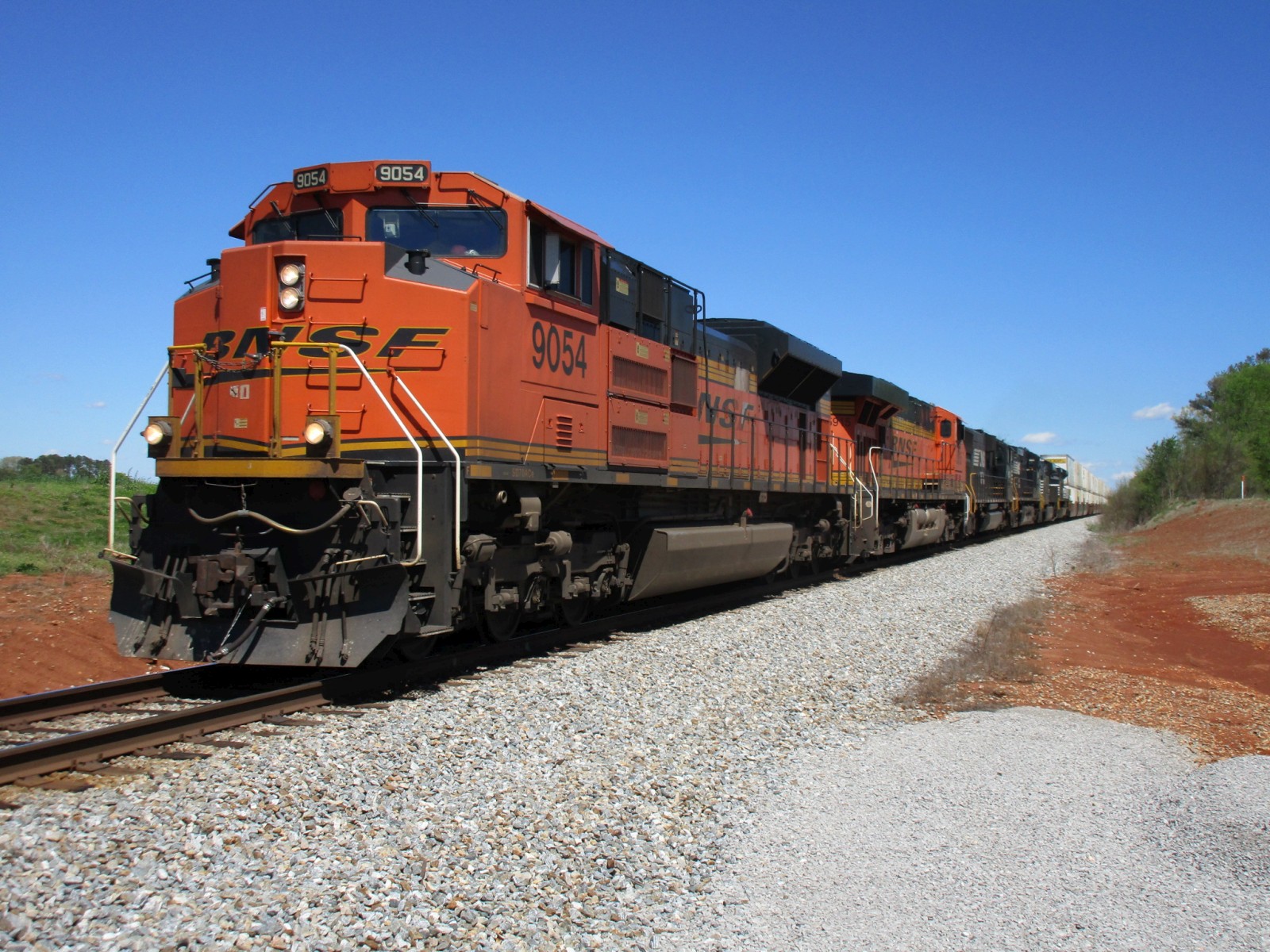

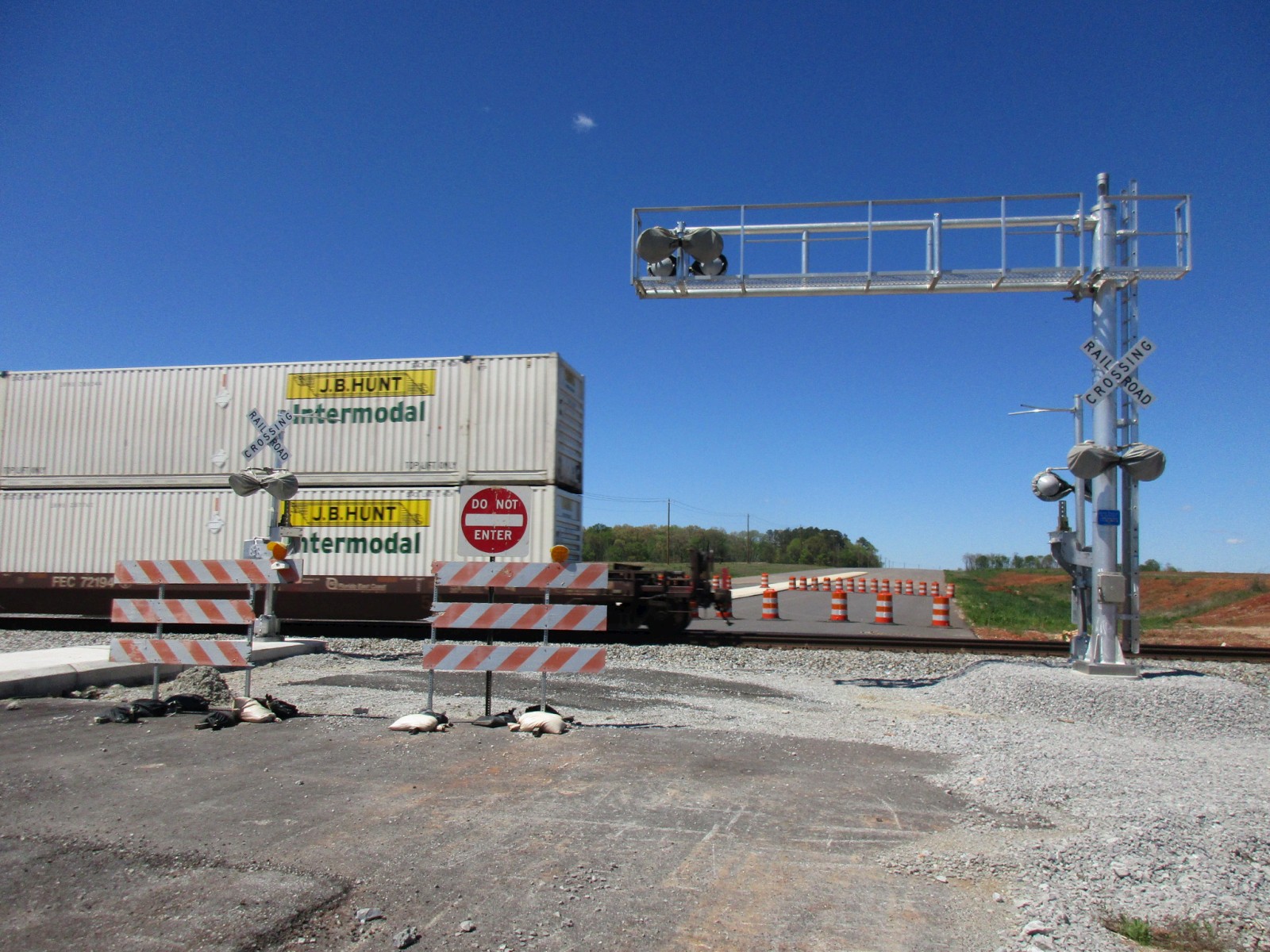

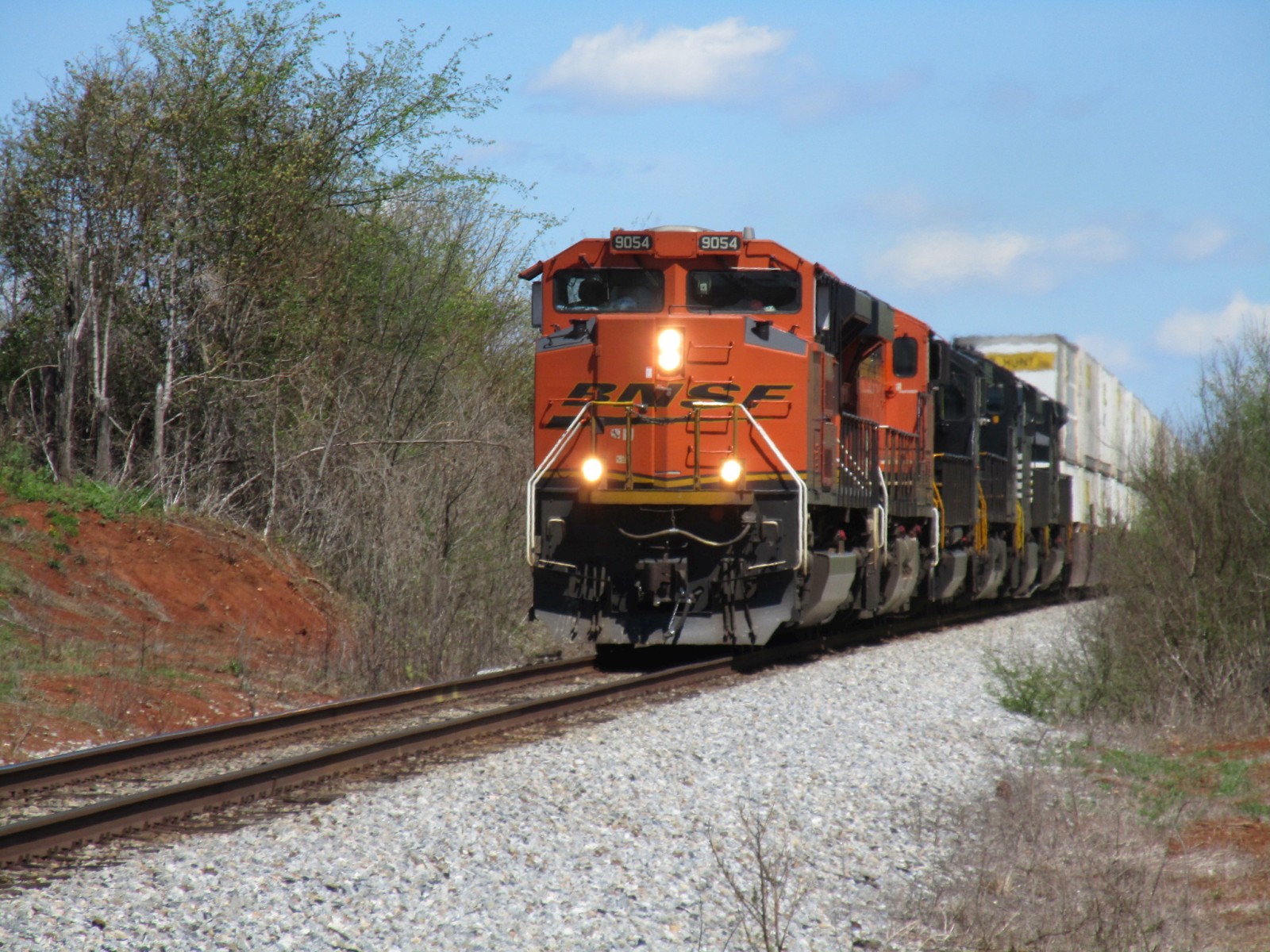

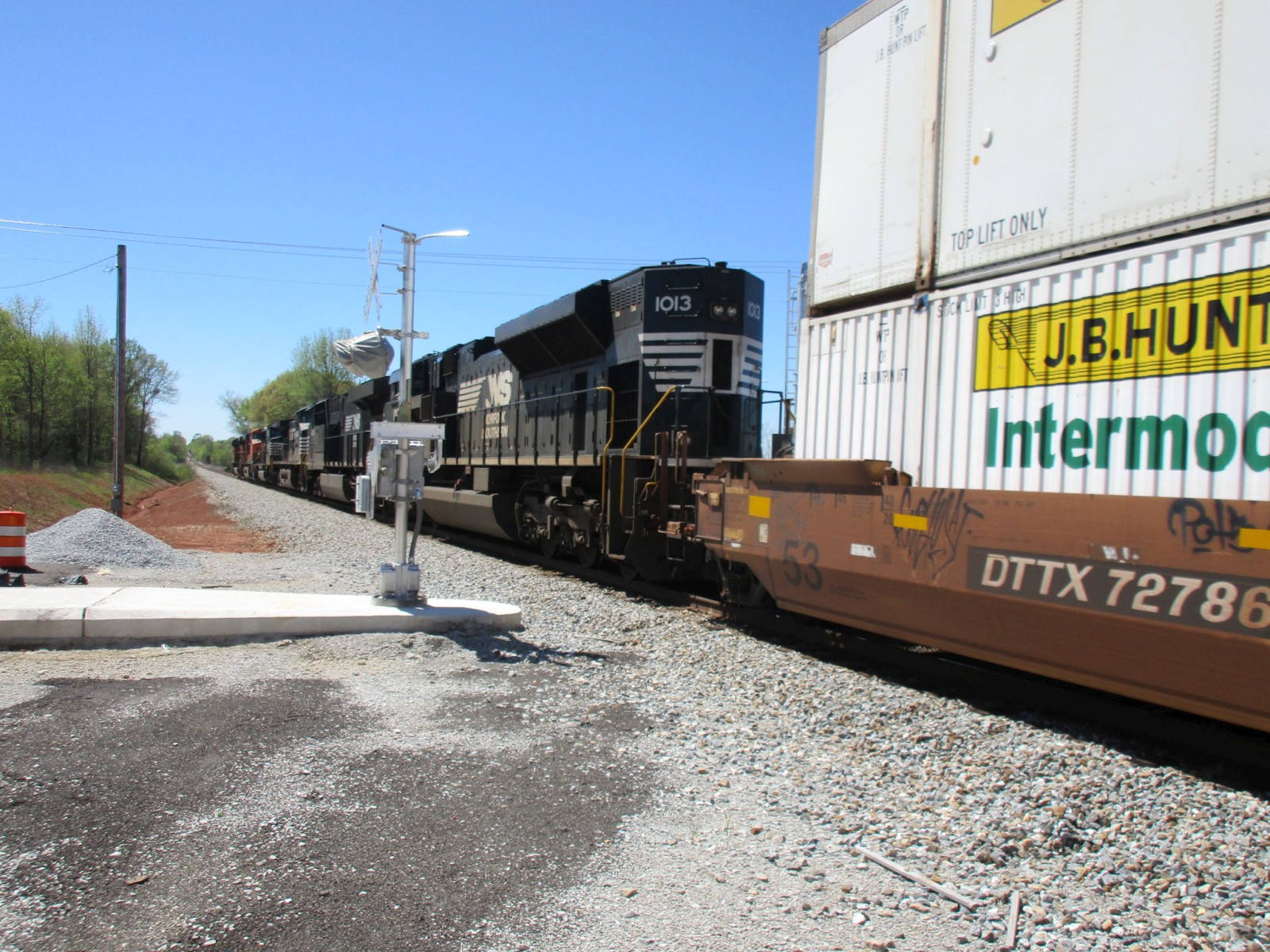

A return trip to the crossing on 4-7-17 catches NS 265 flying through the crossing with a BNSF SD70ACe leading!

46

47

48

49

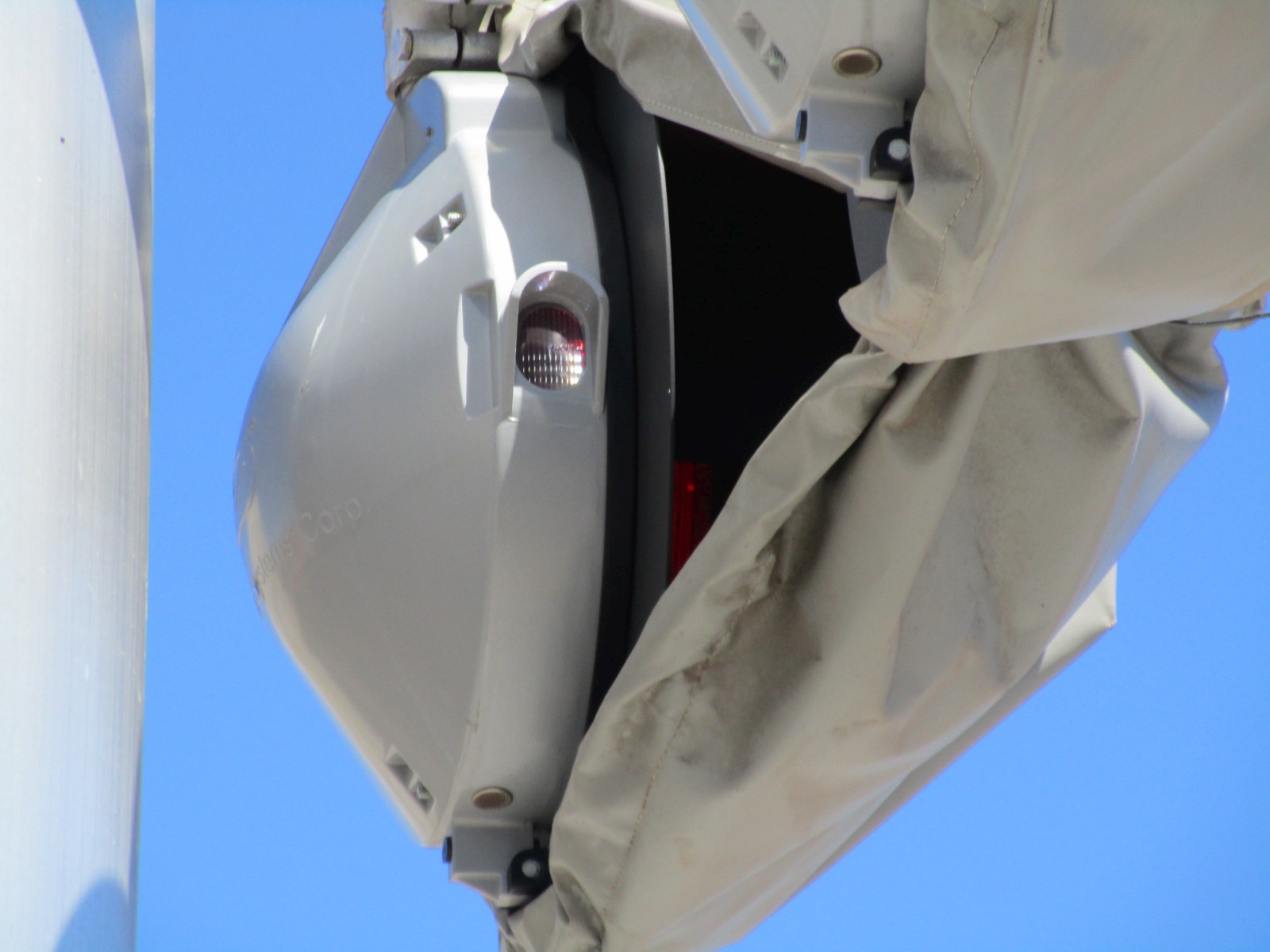

The lights on the signals here now work, even though they can't be seen through the bags! The bells also ring, confirming that they're GS Type 3s. However, the gate mechanisms aren't hooked-up yet.

50

51

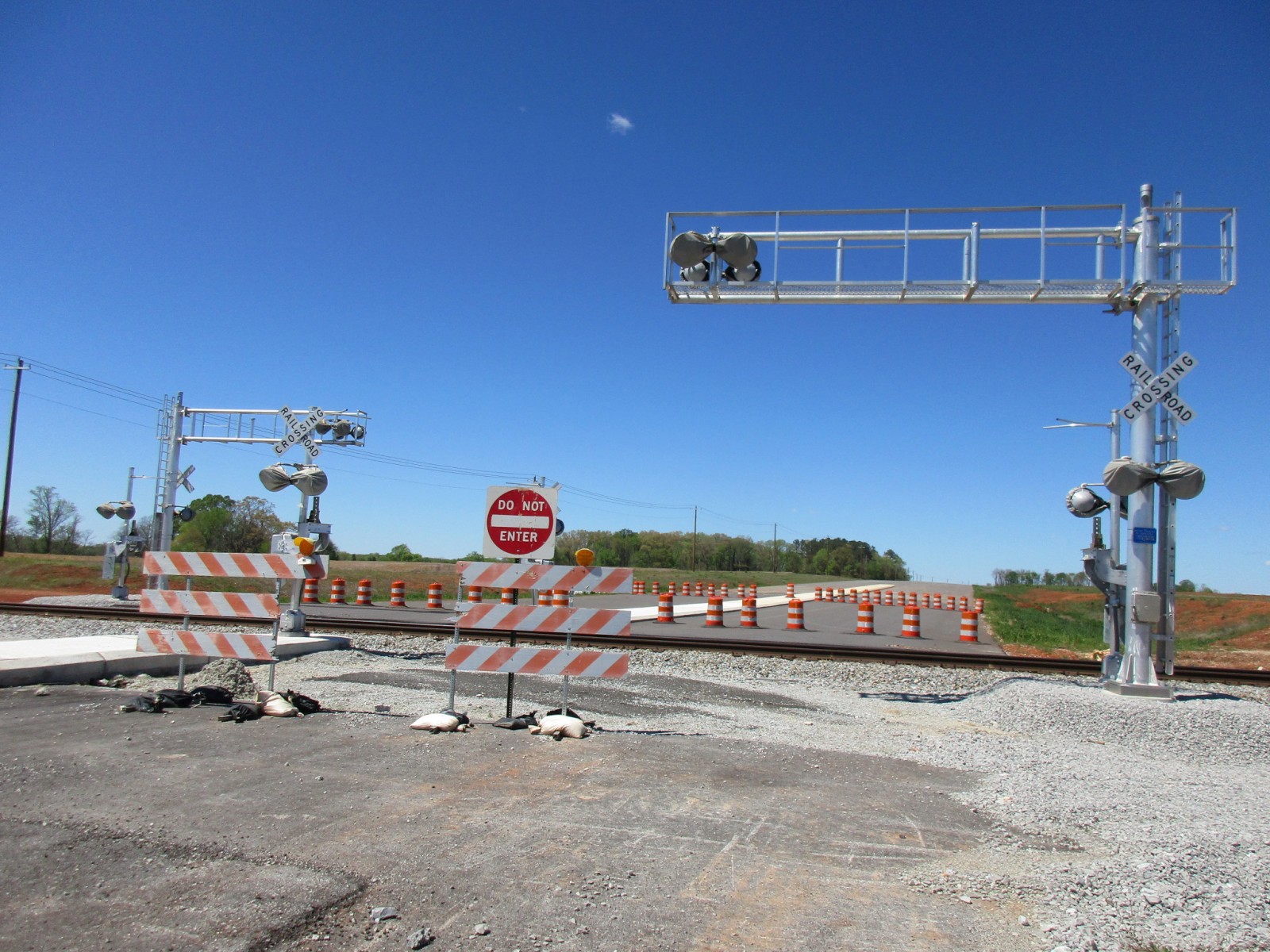

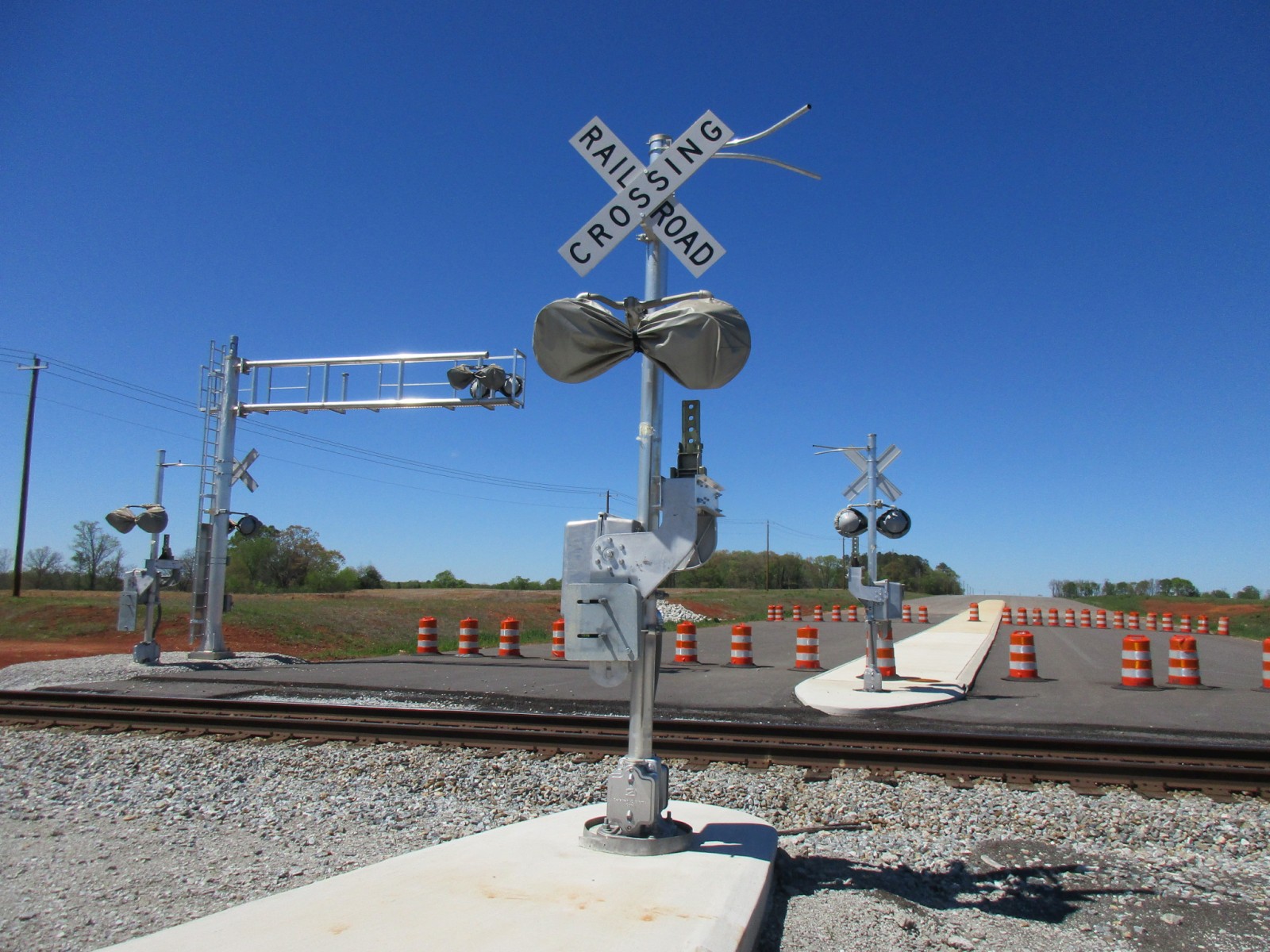

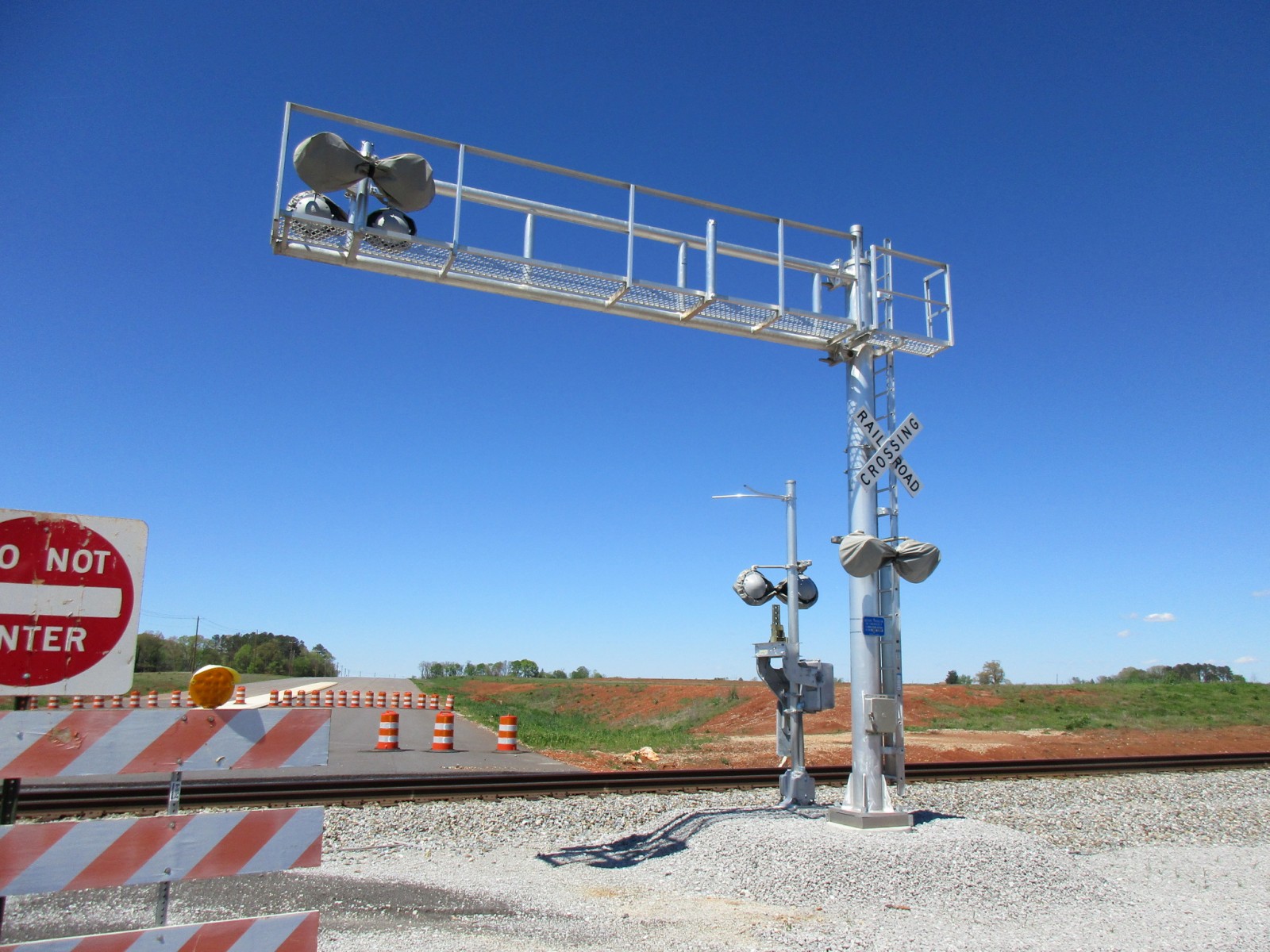

Overviews of the signals.

52

53

54

55

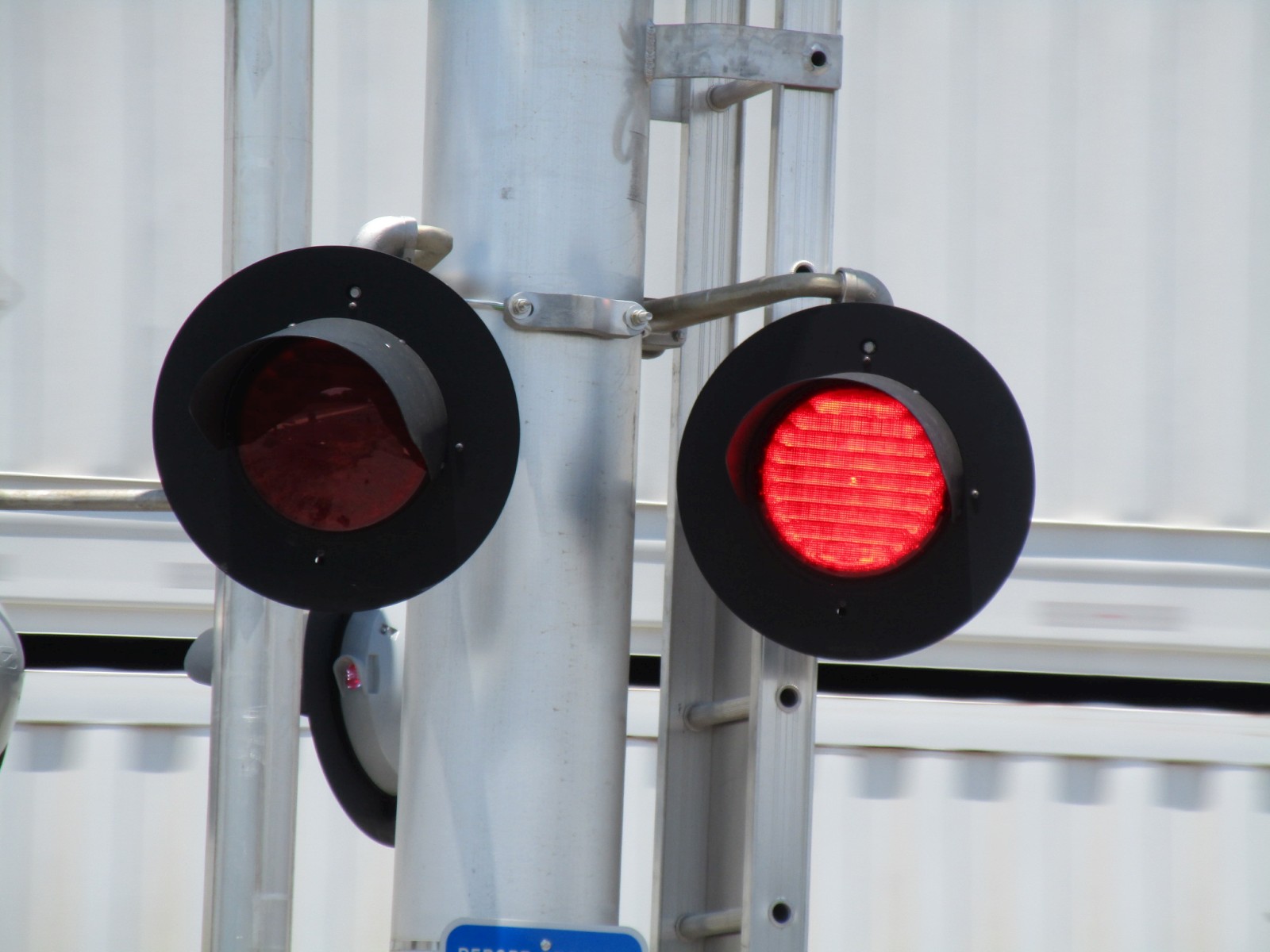

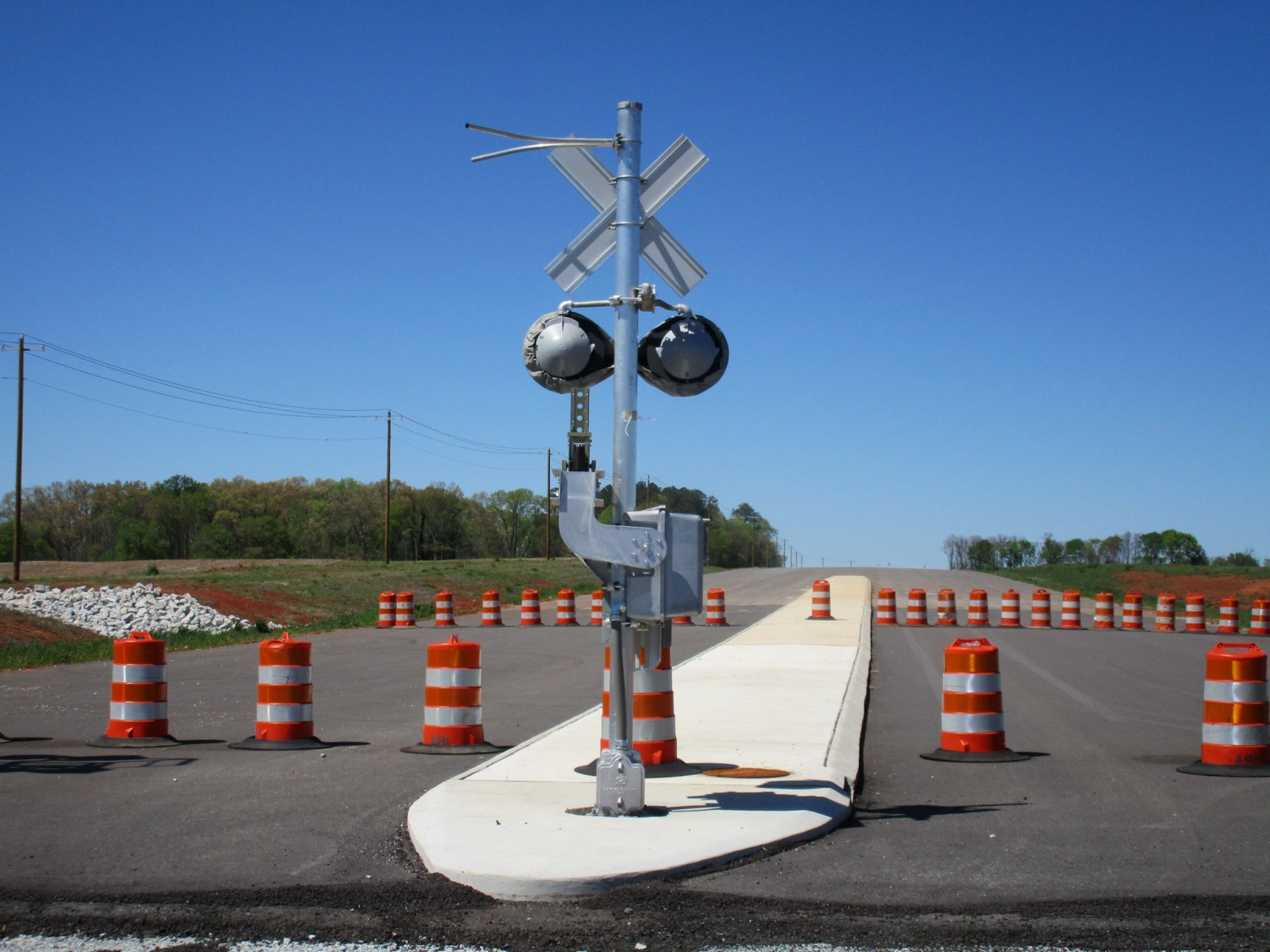

Close-ups of all four signals at the crossing.

56

57

58

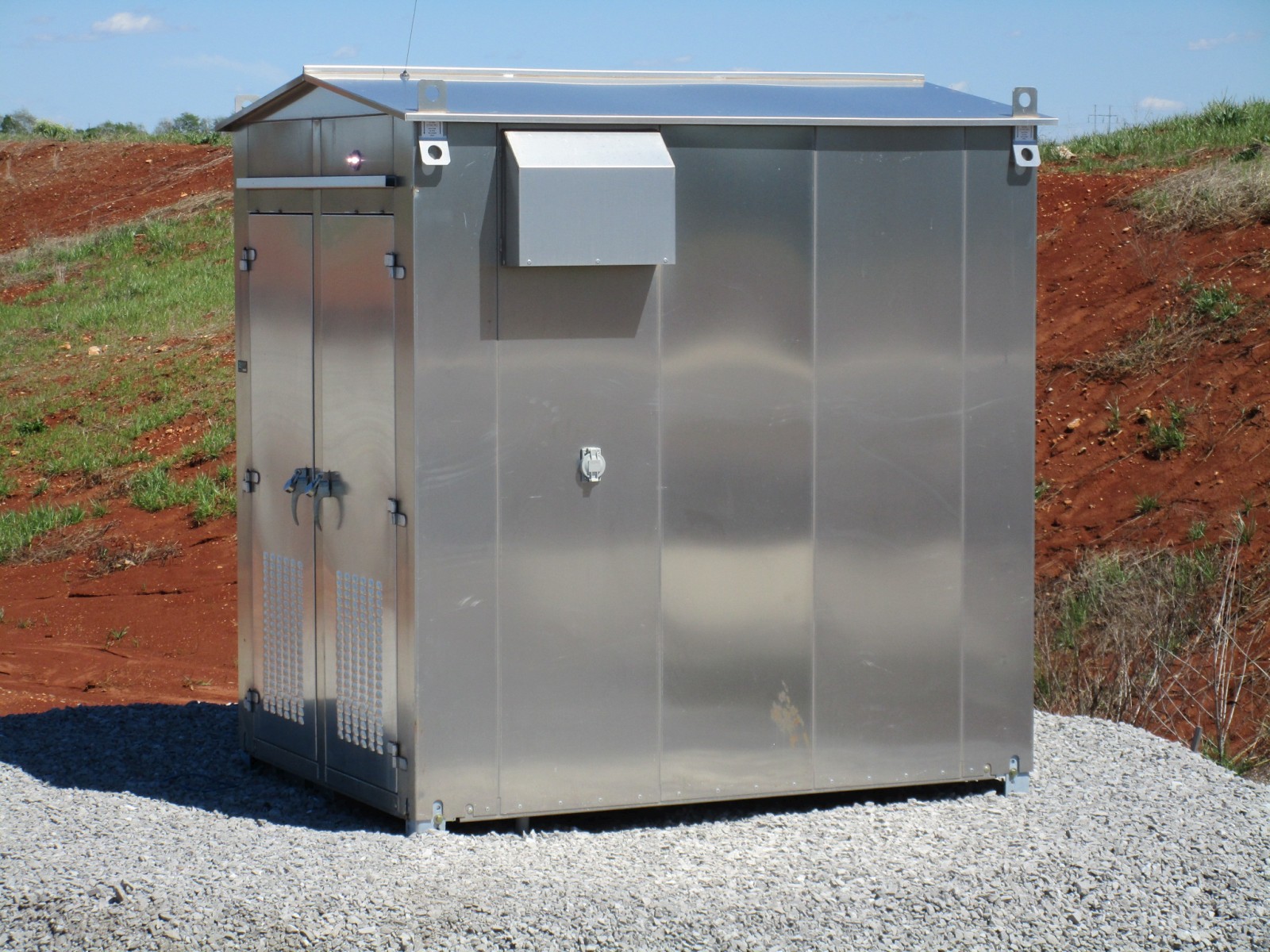

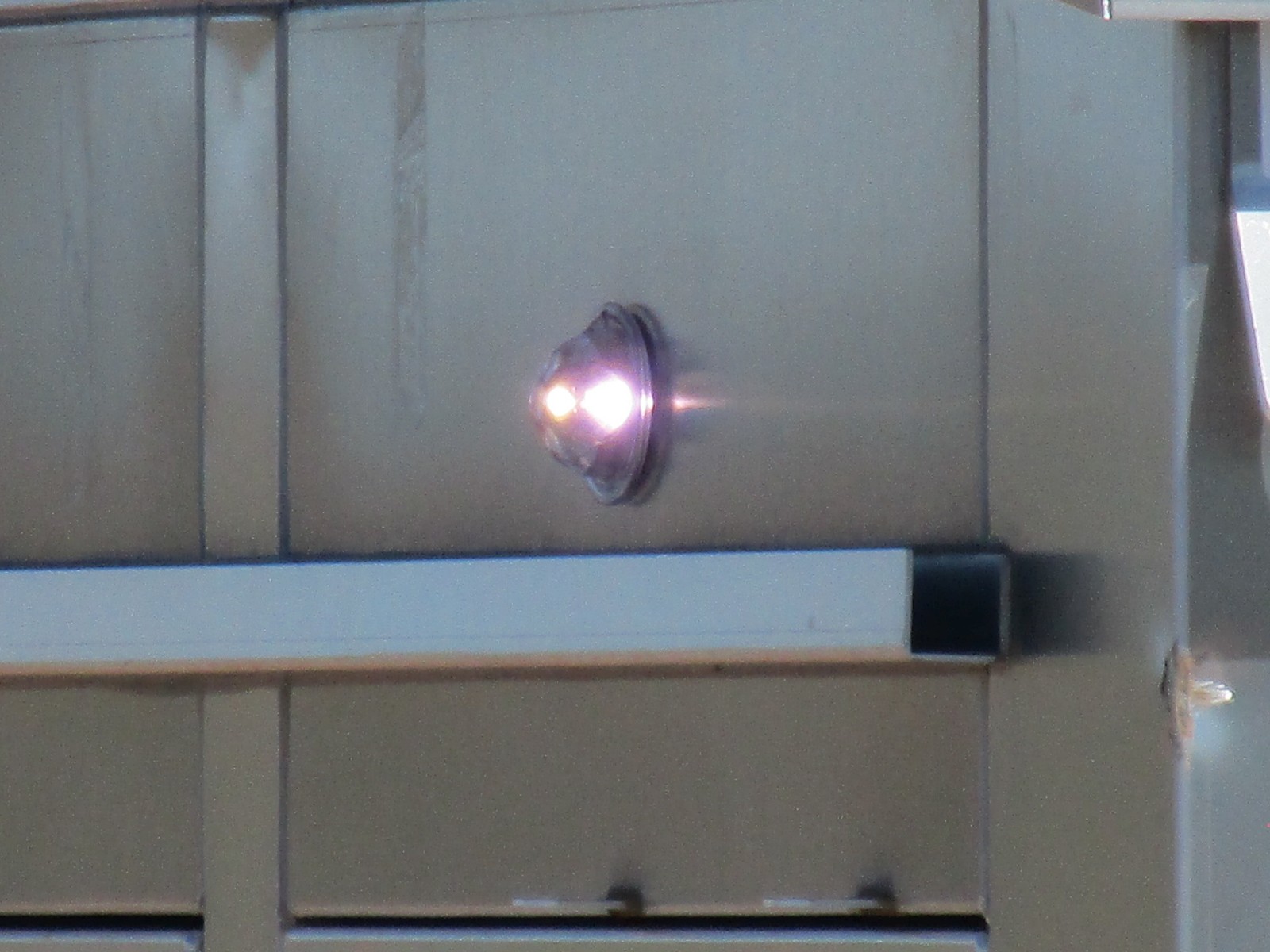

The relay case now gets power, as indicated by the light on the side of it.

59

60

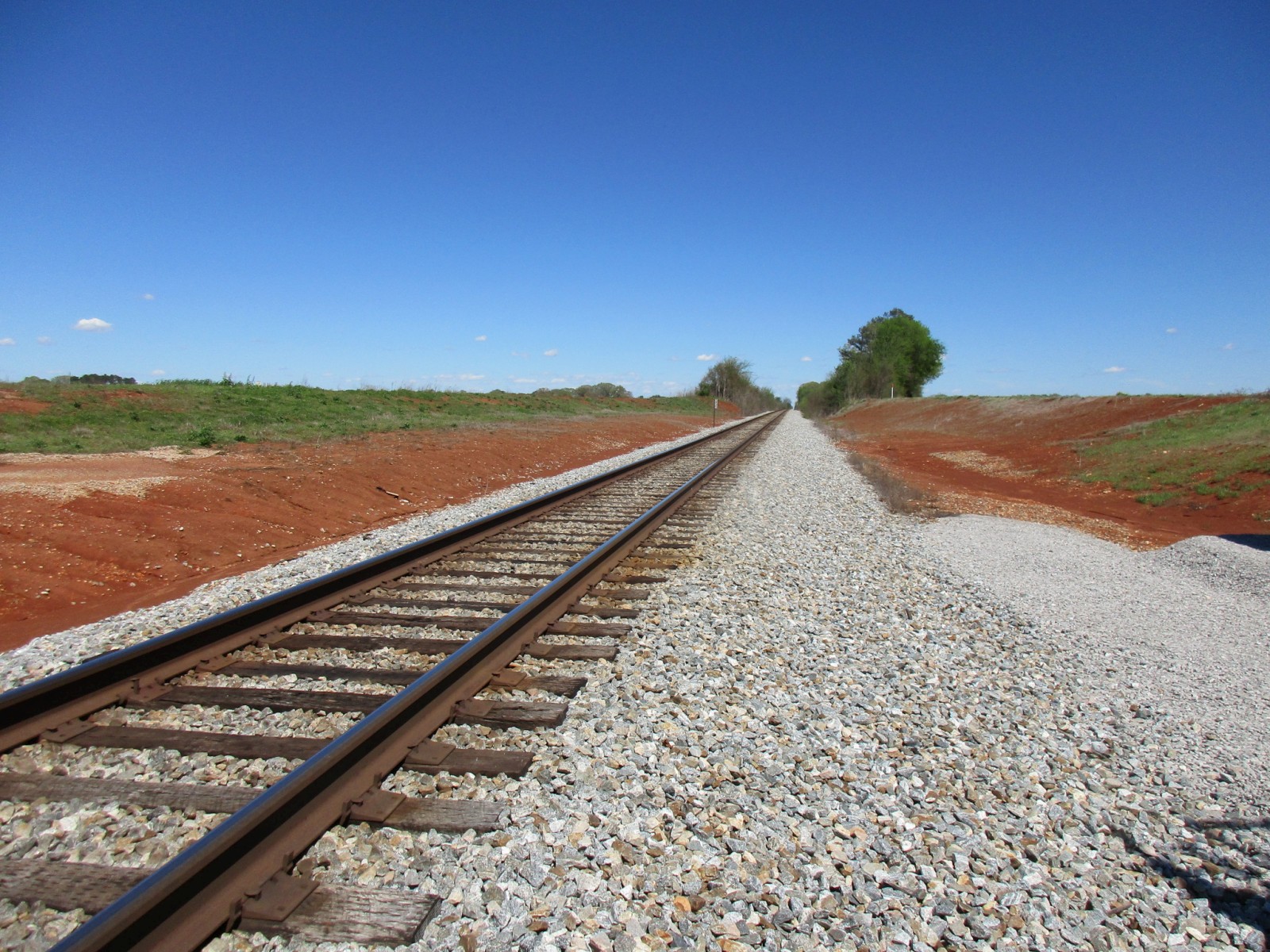

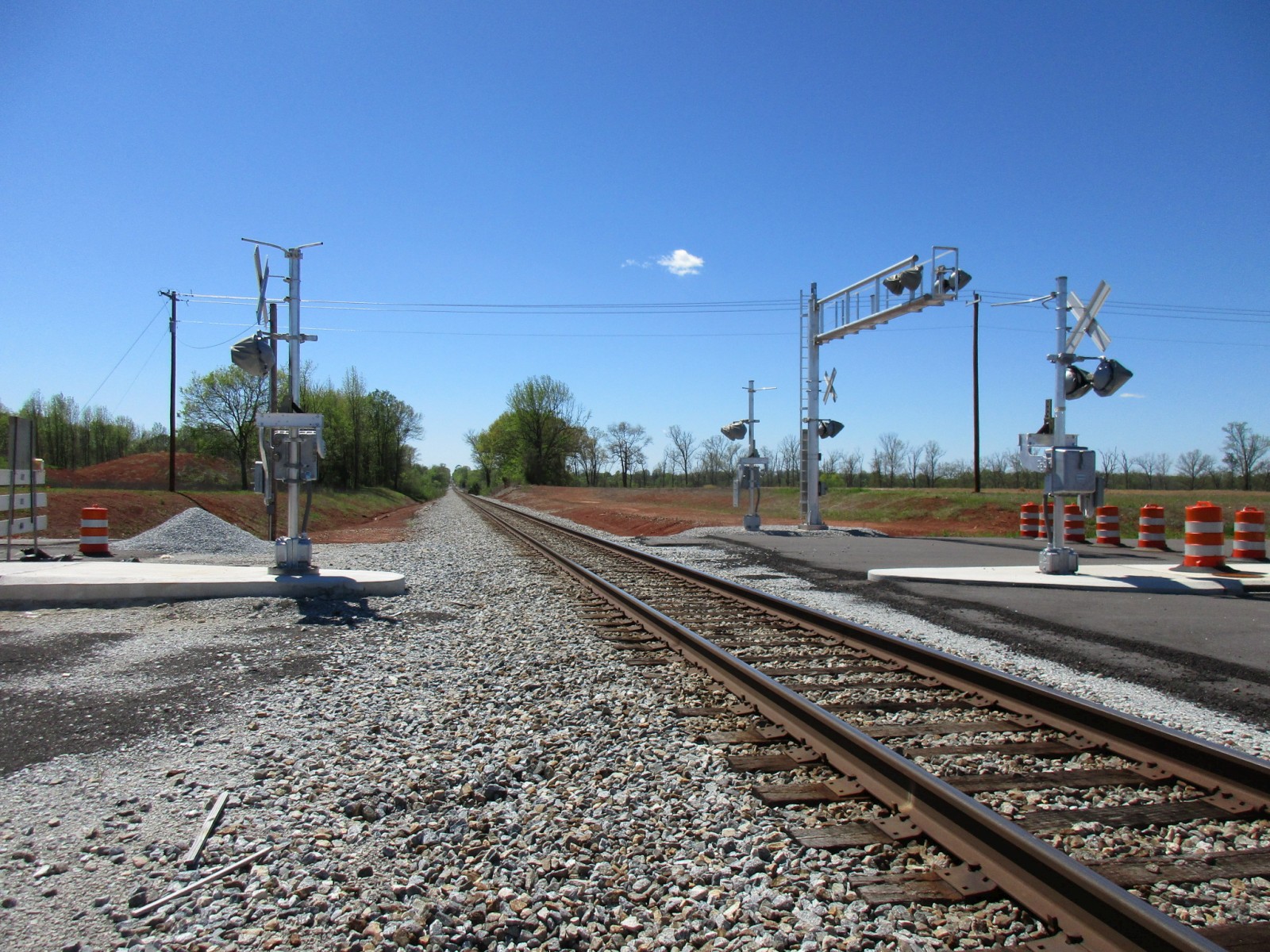

Track view looking east towards Greenbrier Road in Greenbrier, AL.
Track view looking west towards Mooresville Road in Belle Mina, AL.

61

62

63

64

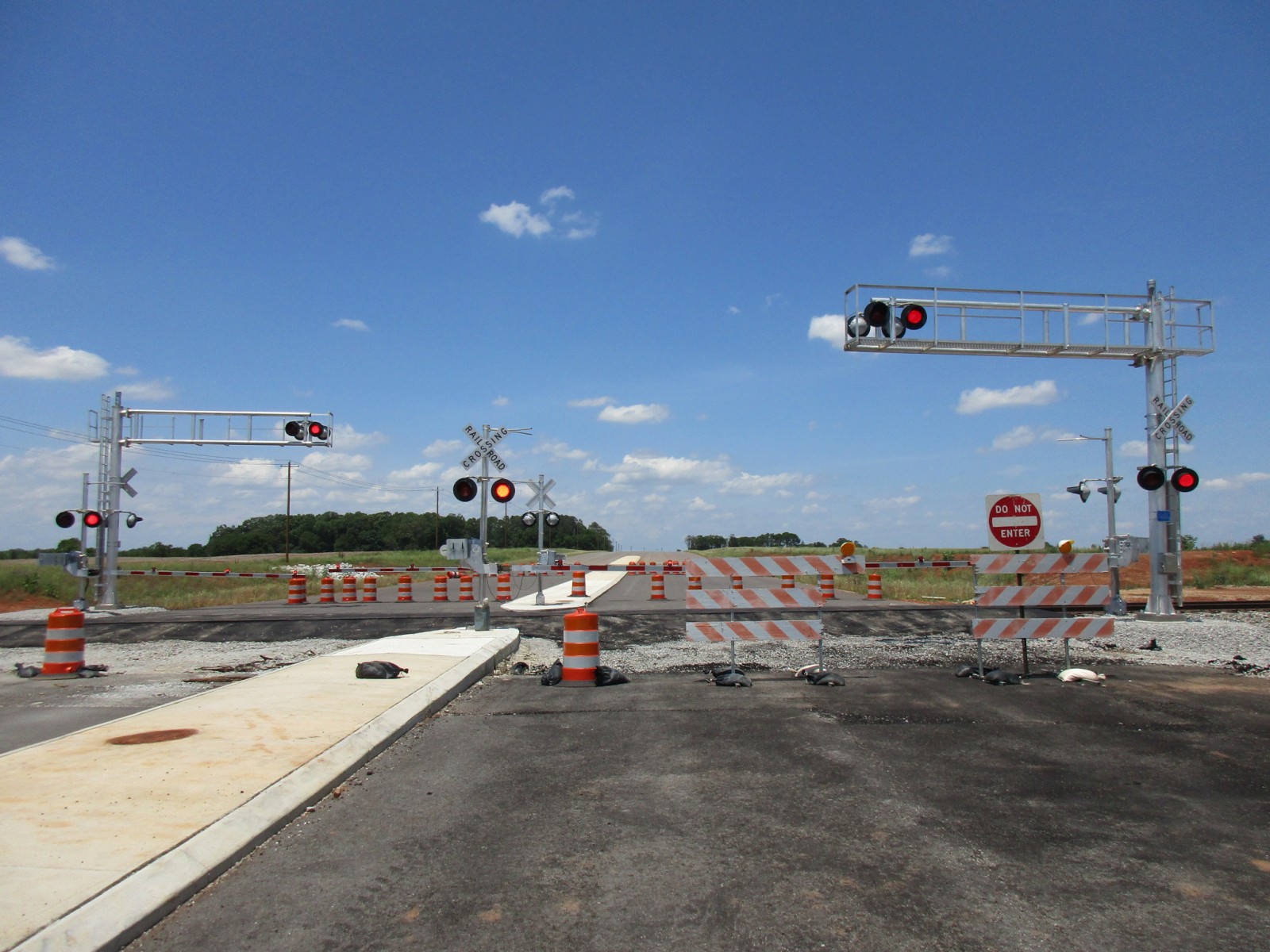

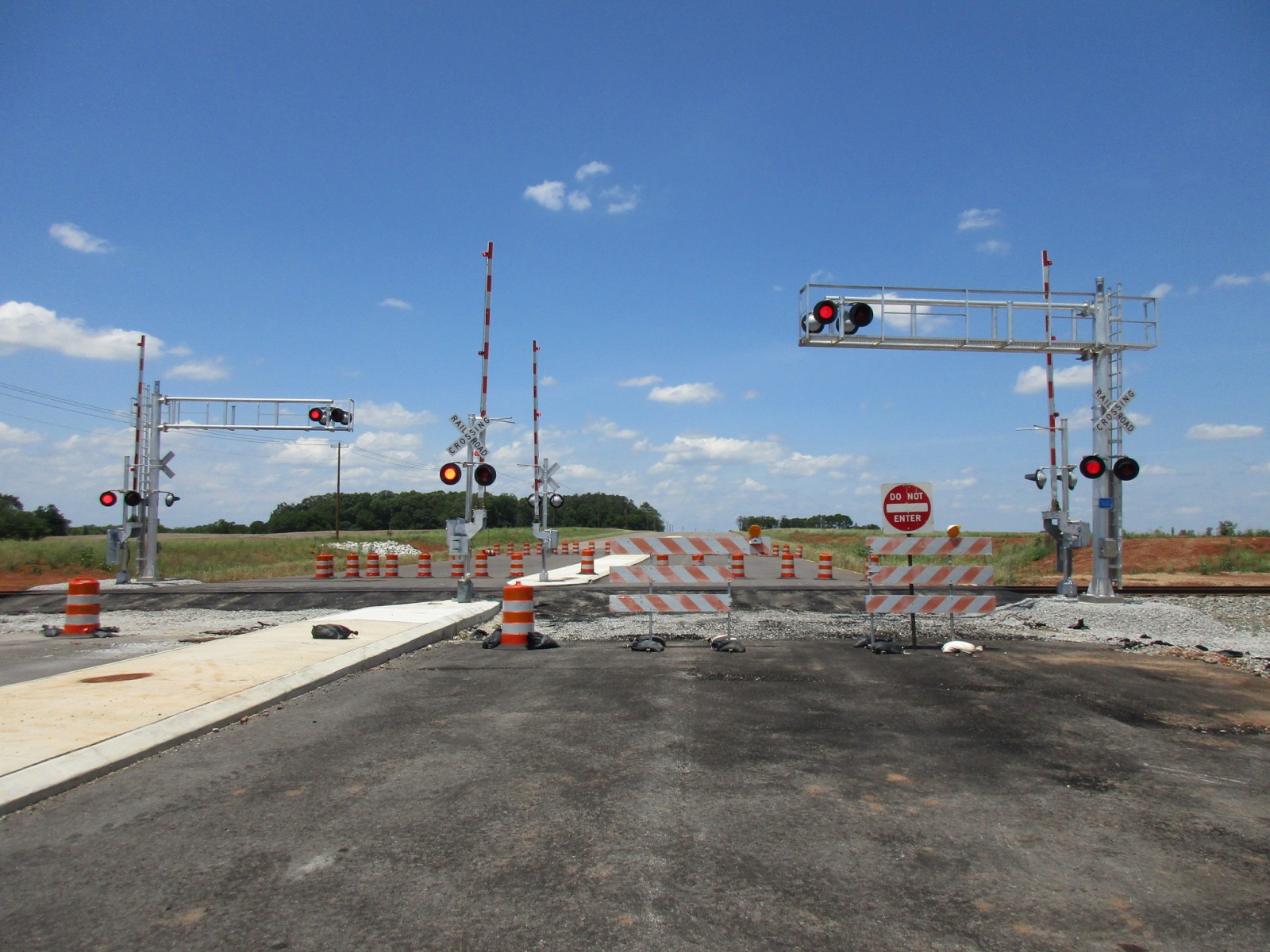

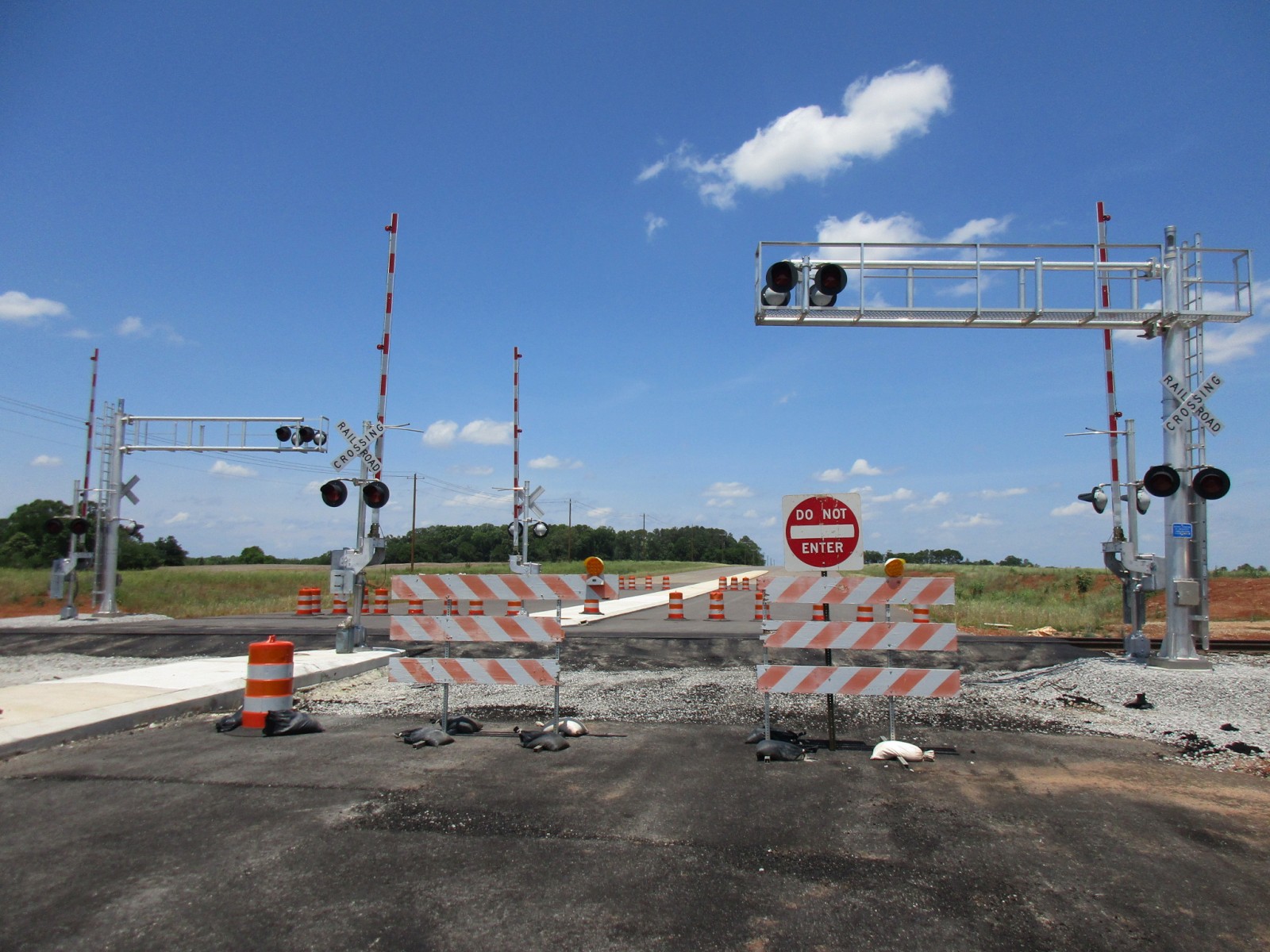

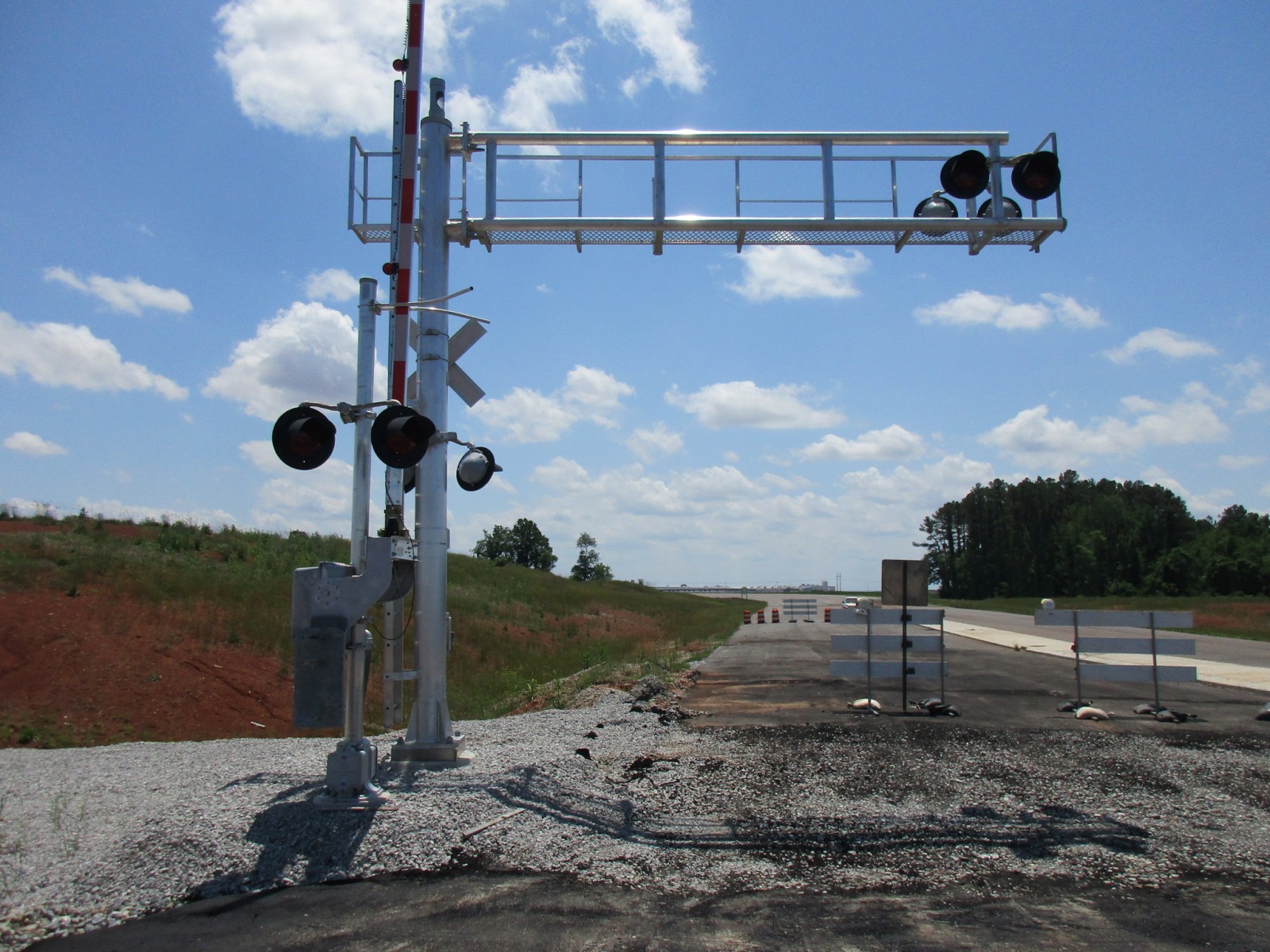

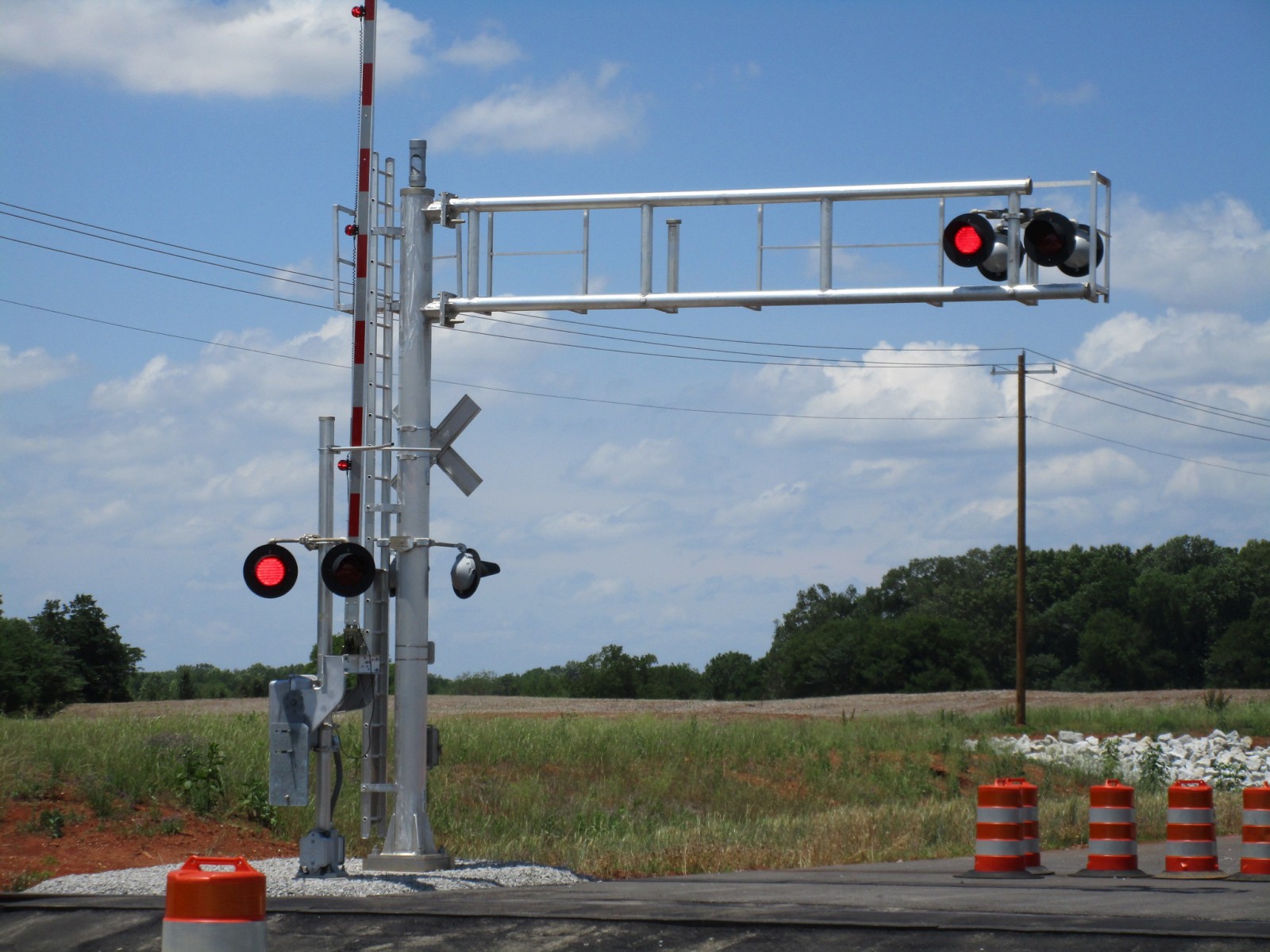

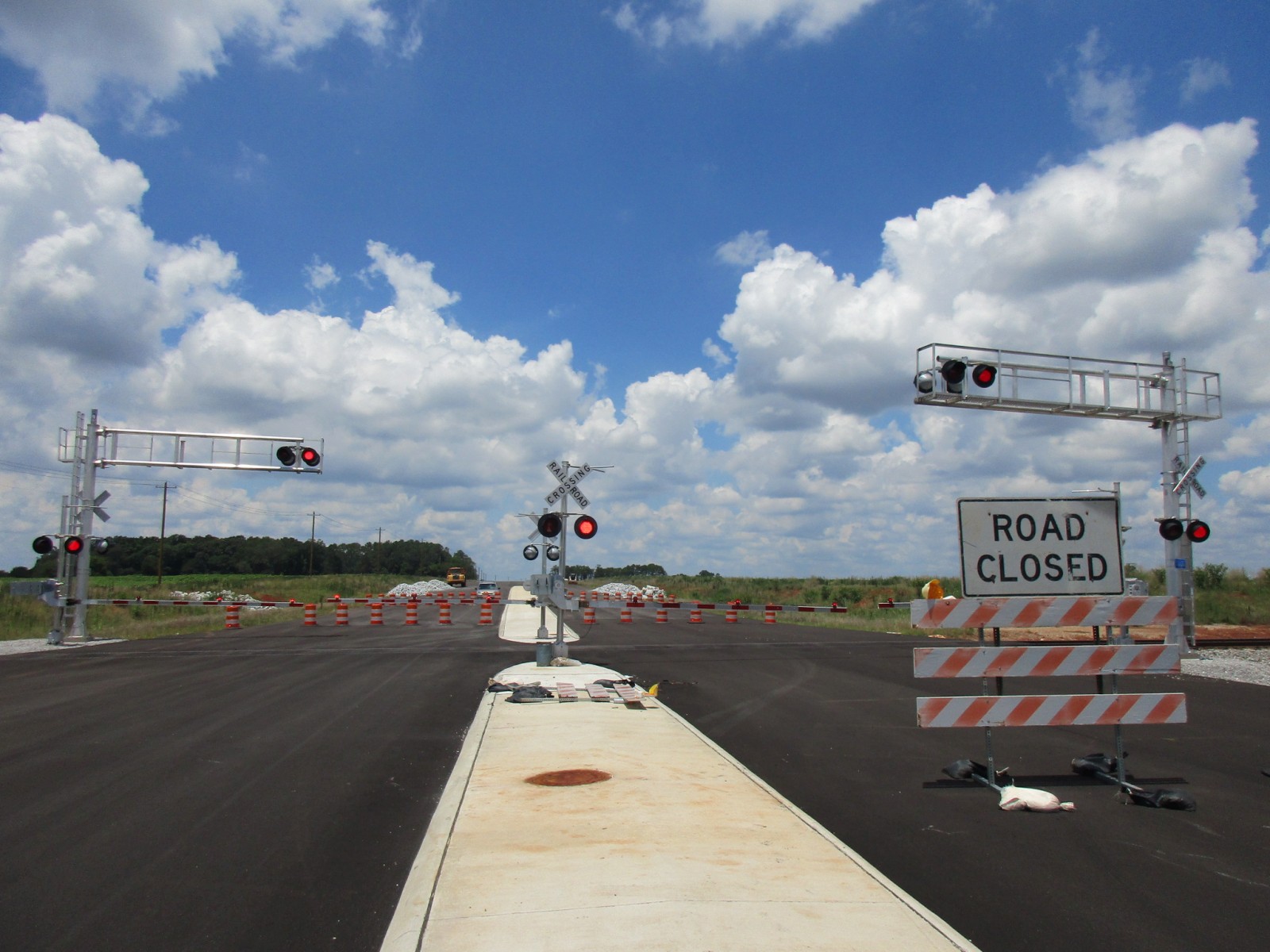

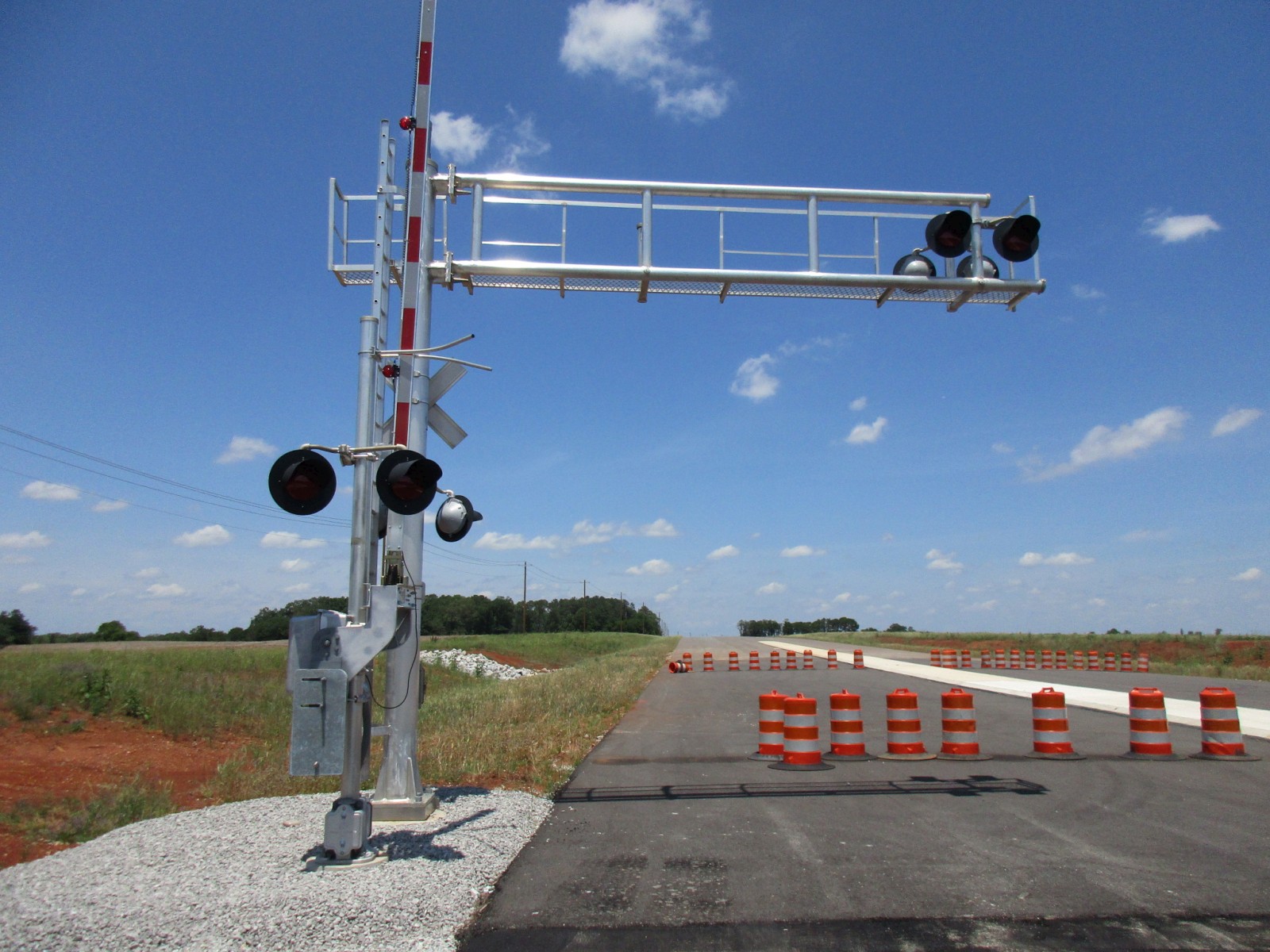

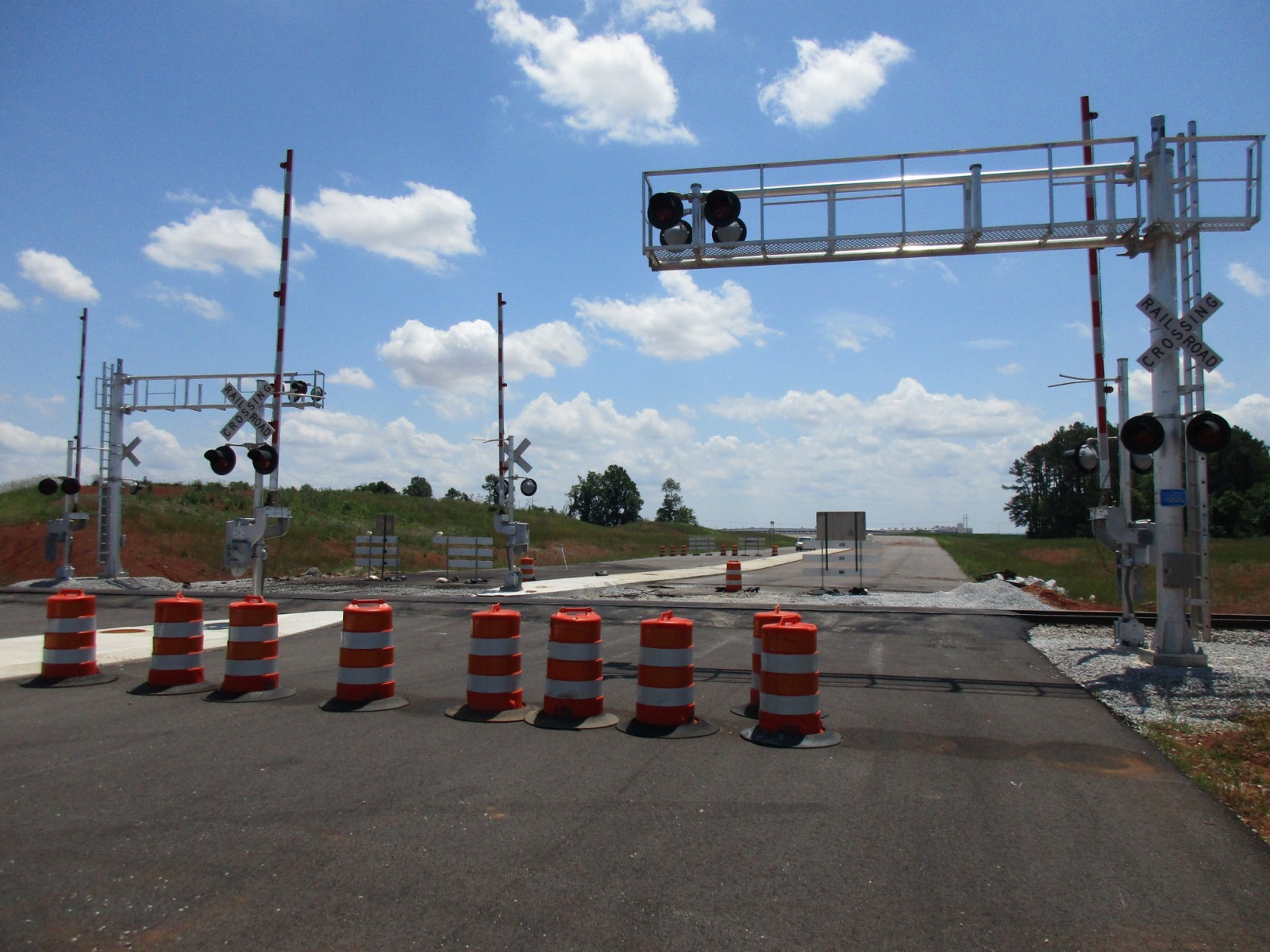

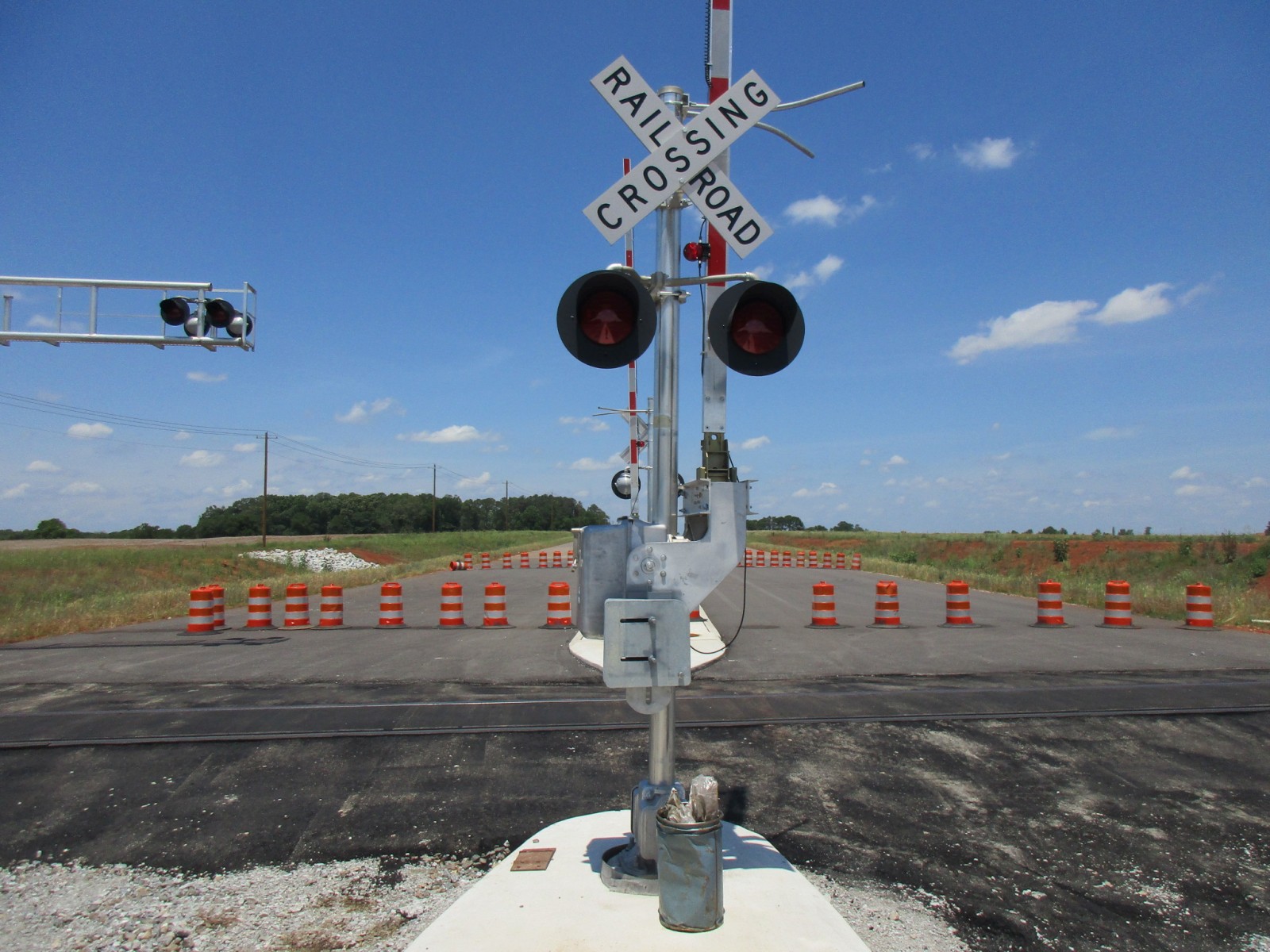

A second return trip on 5-19-17 shows some more progress has been made on the signals, as the lights are now unbagged and gates have been installed.

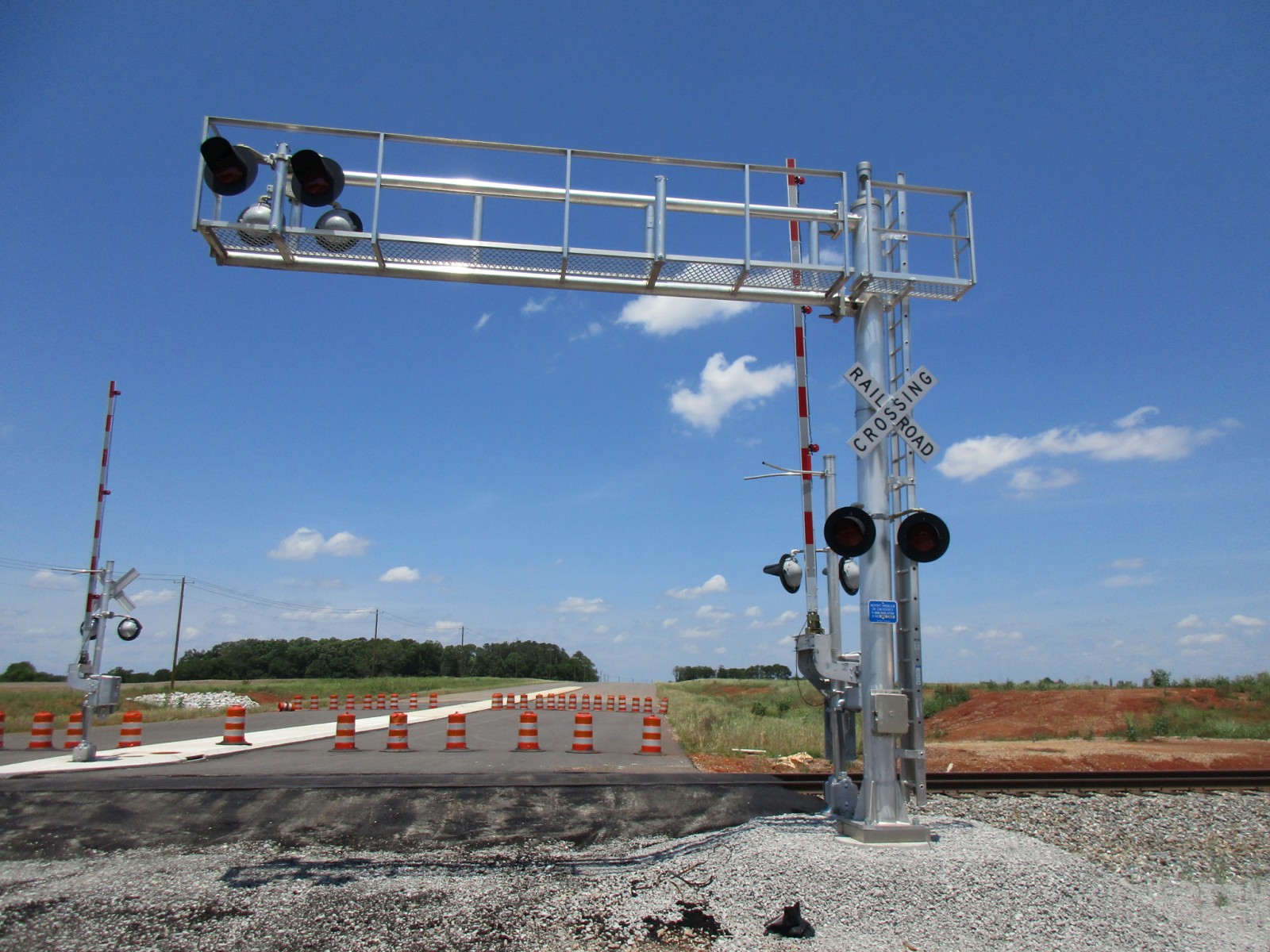

The first signal.

65

66

67

68

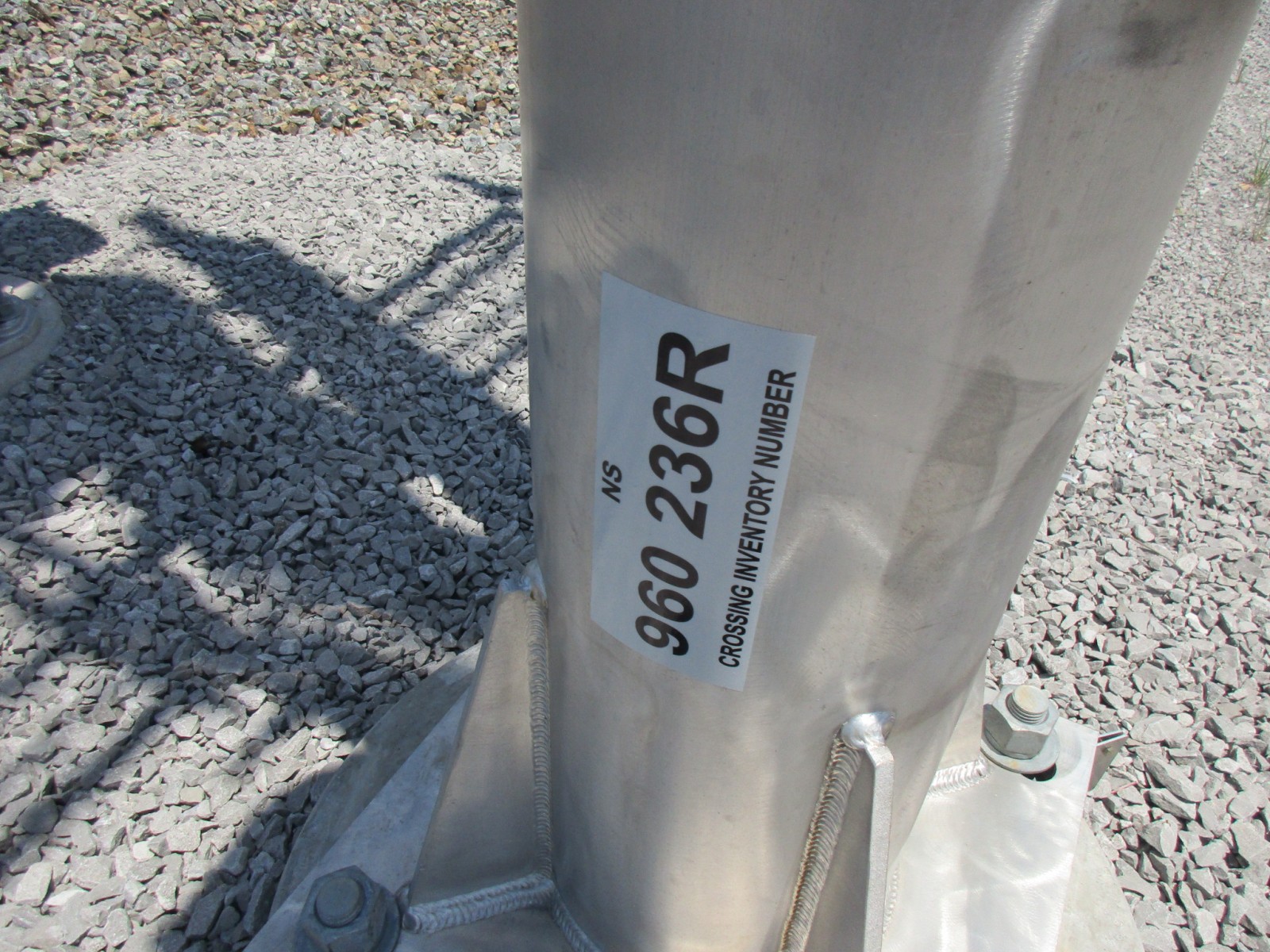

A DOT tag.

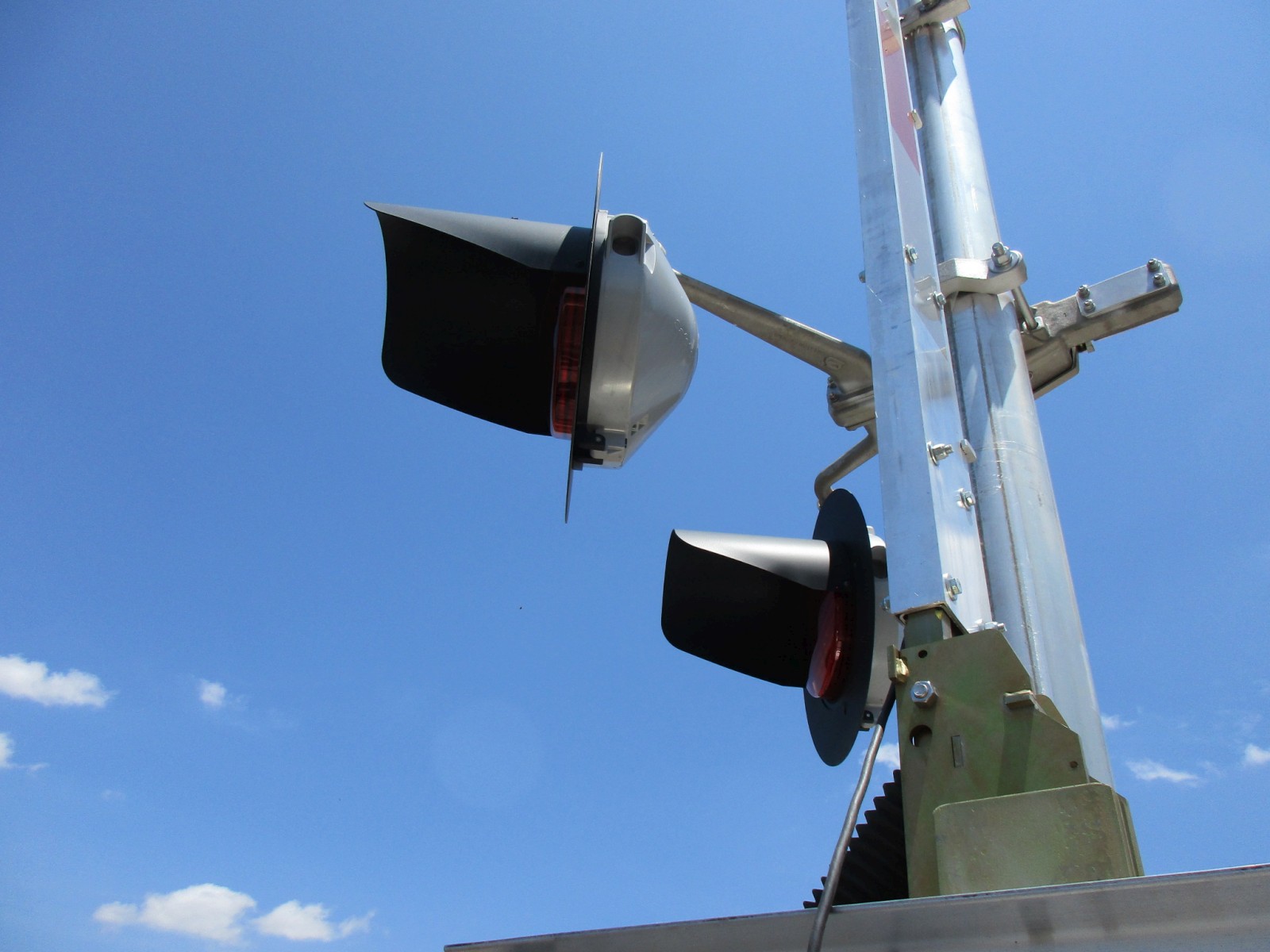

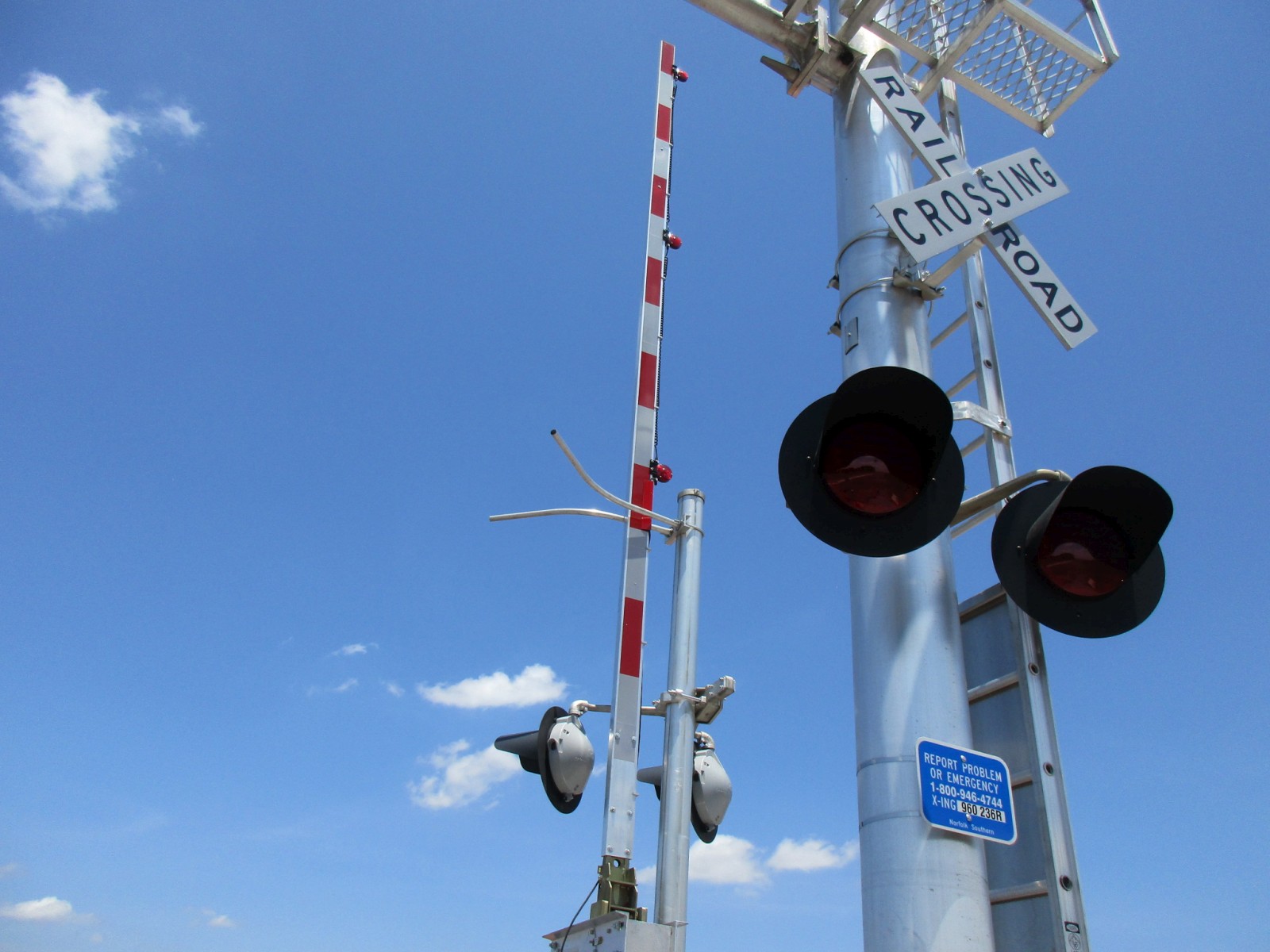

The lights, which all have GE Uniform Look LEDs.

69

70

71

72

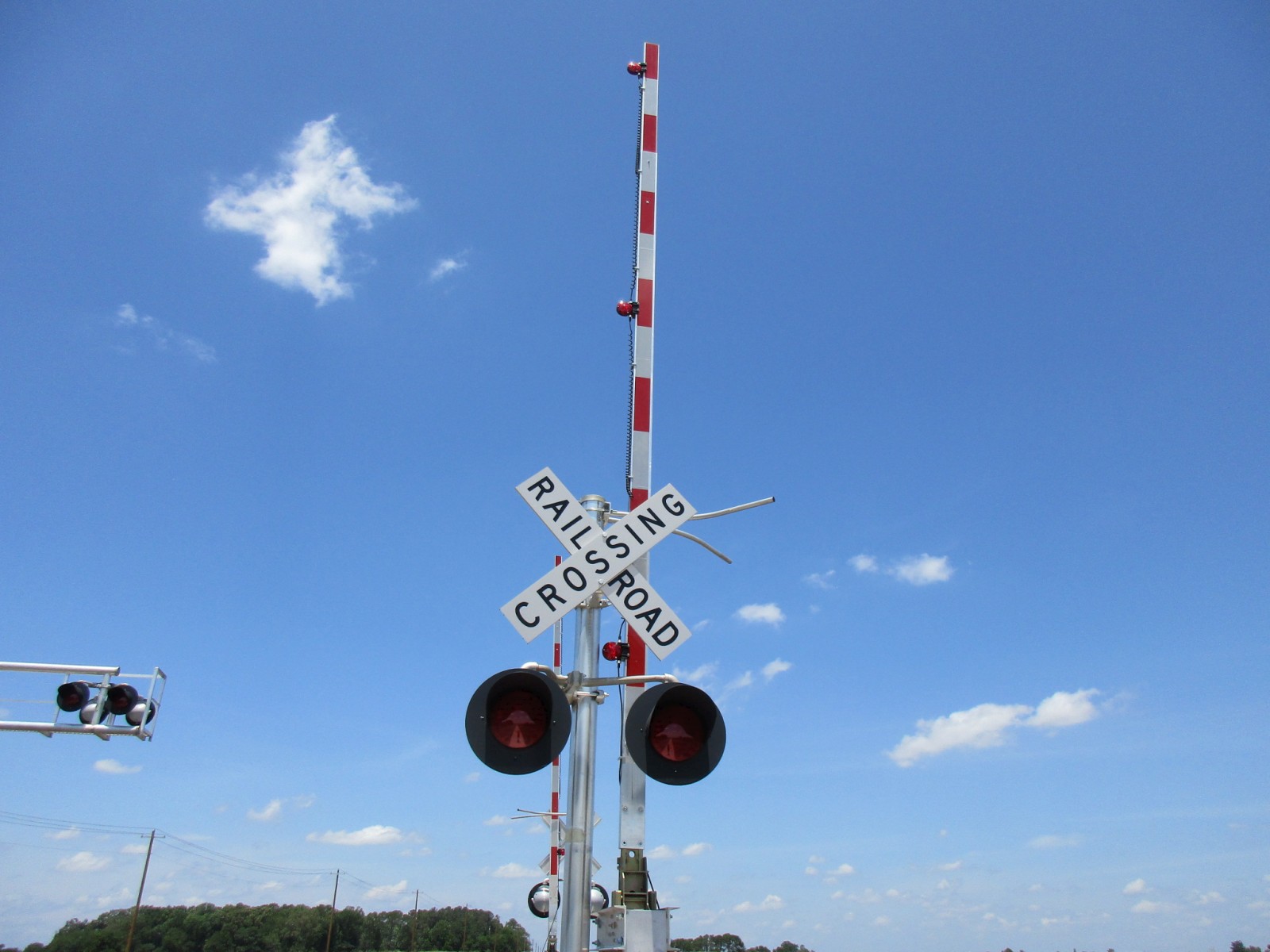

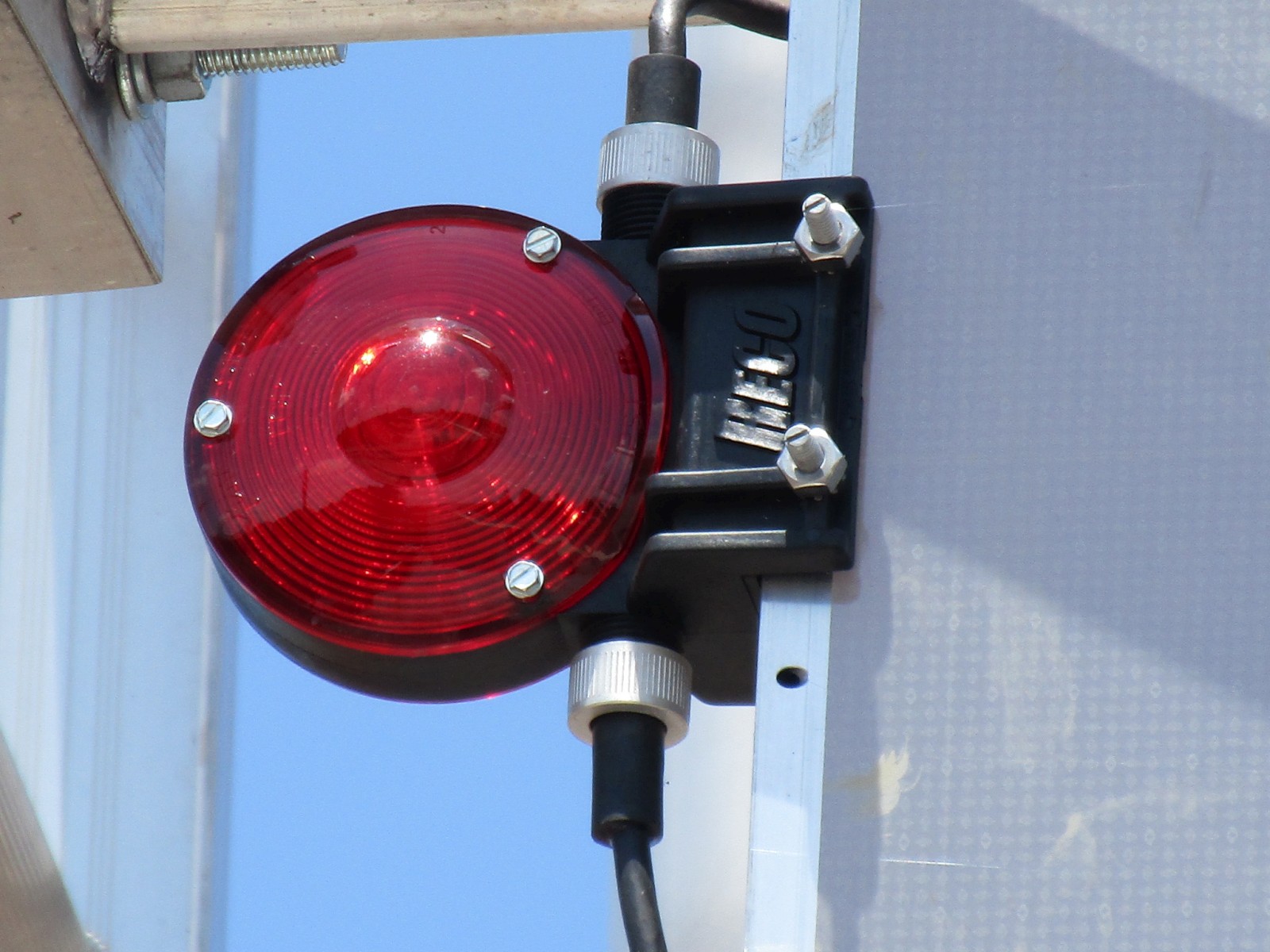

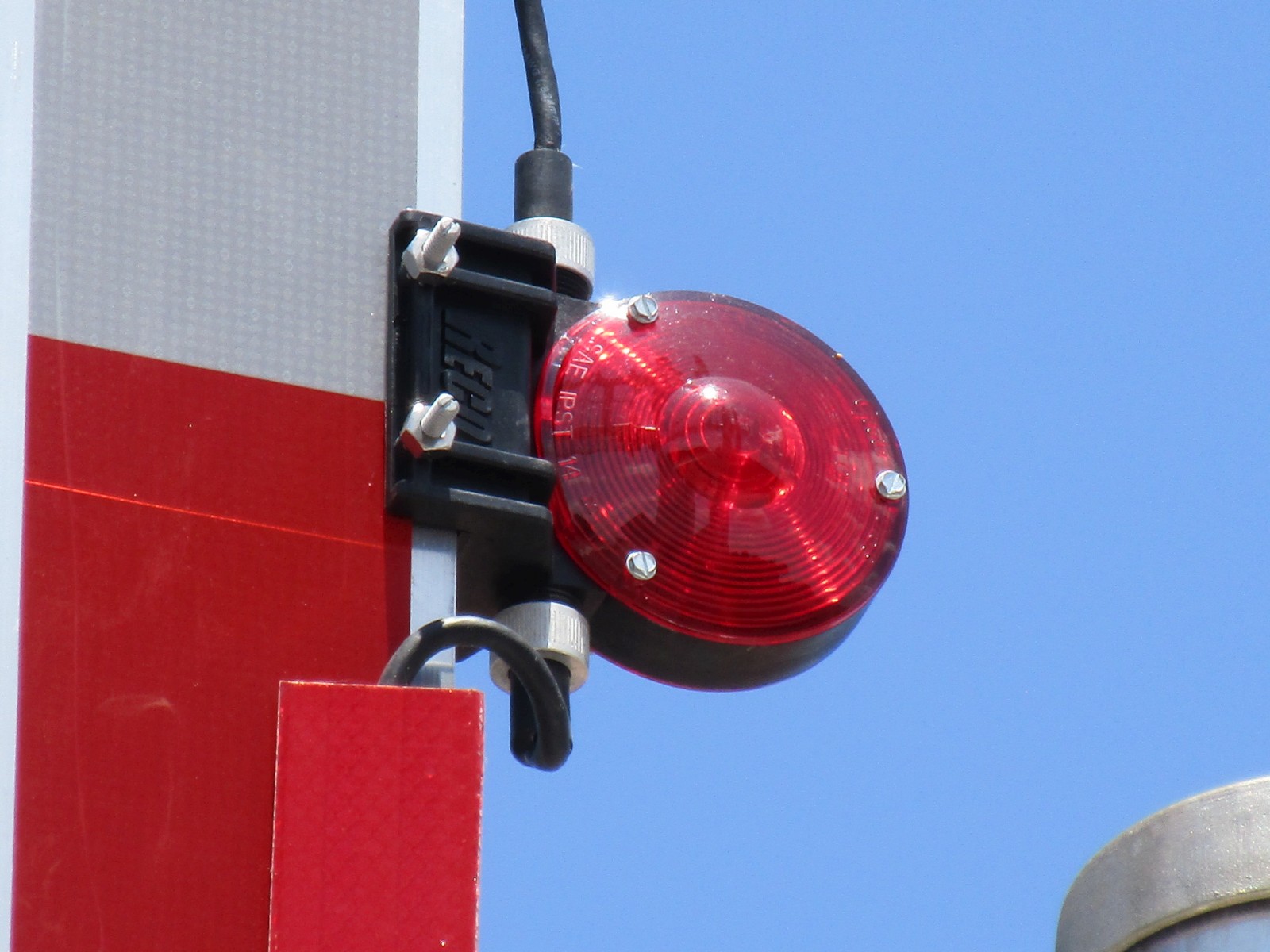

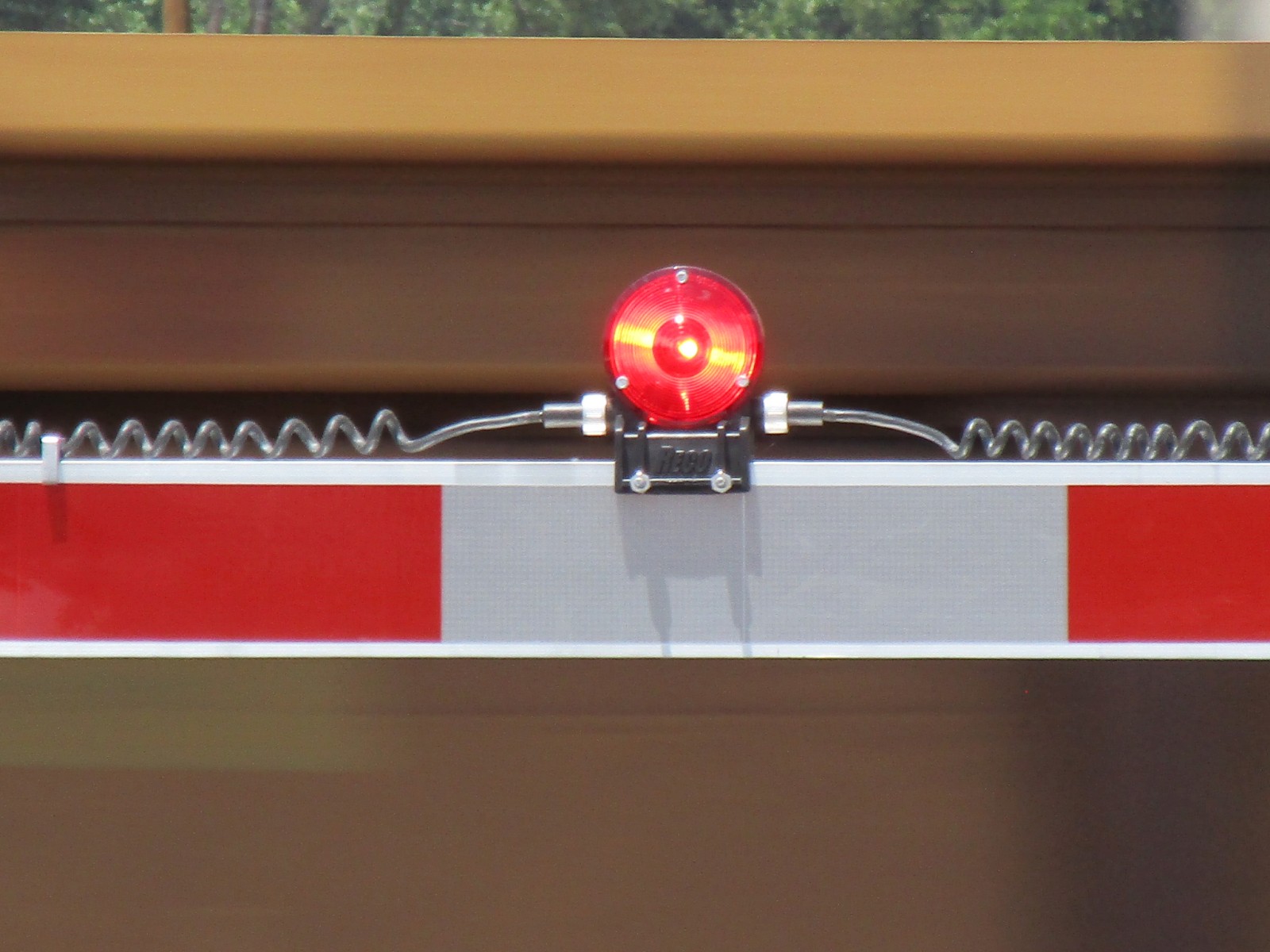

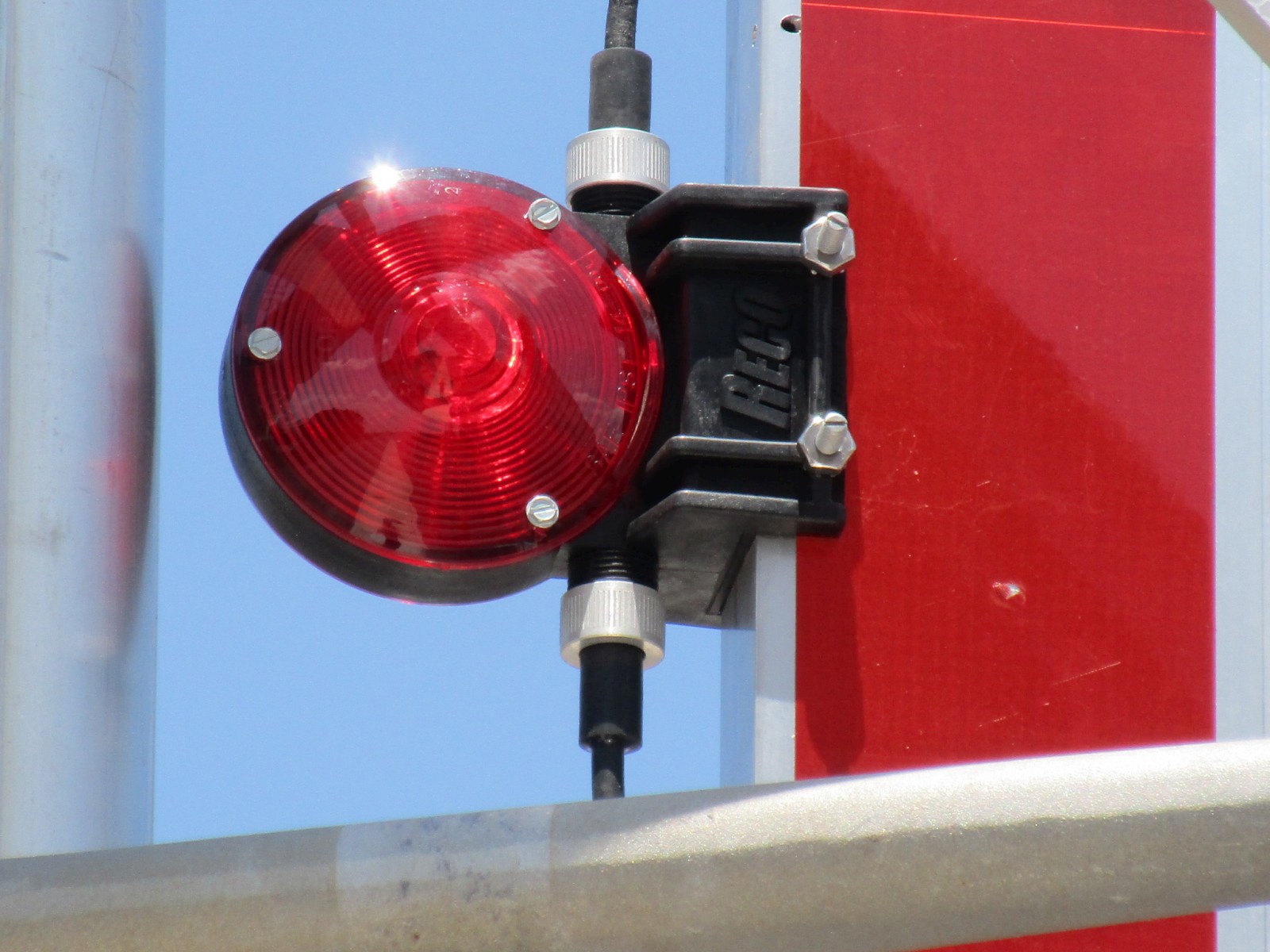

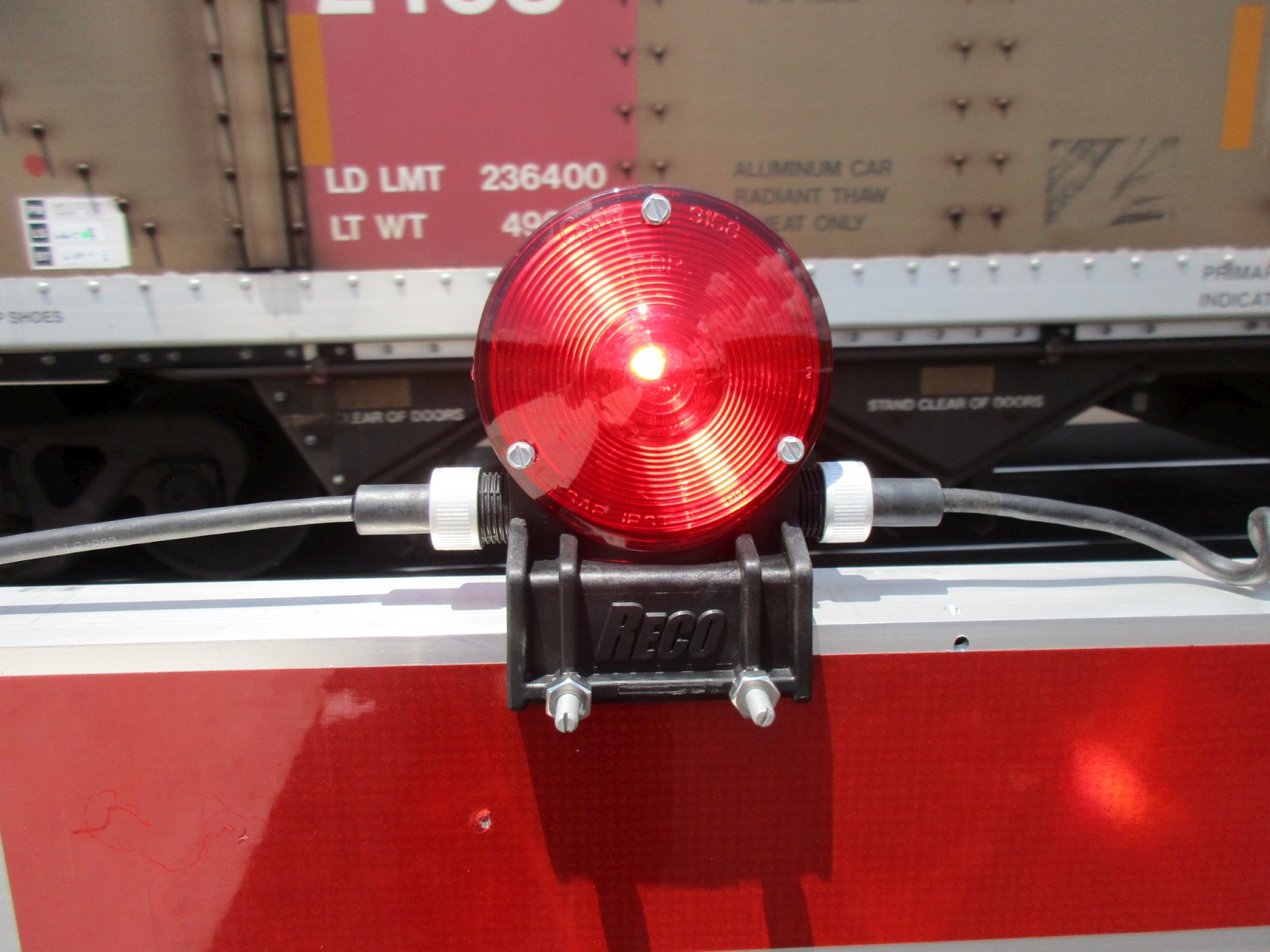

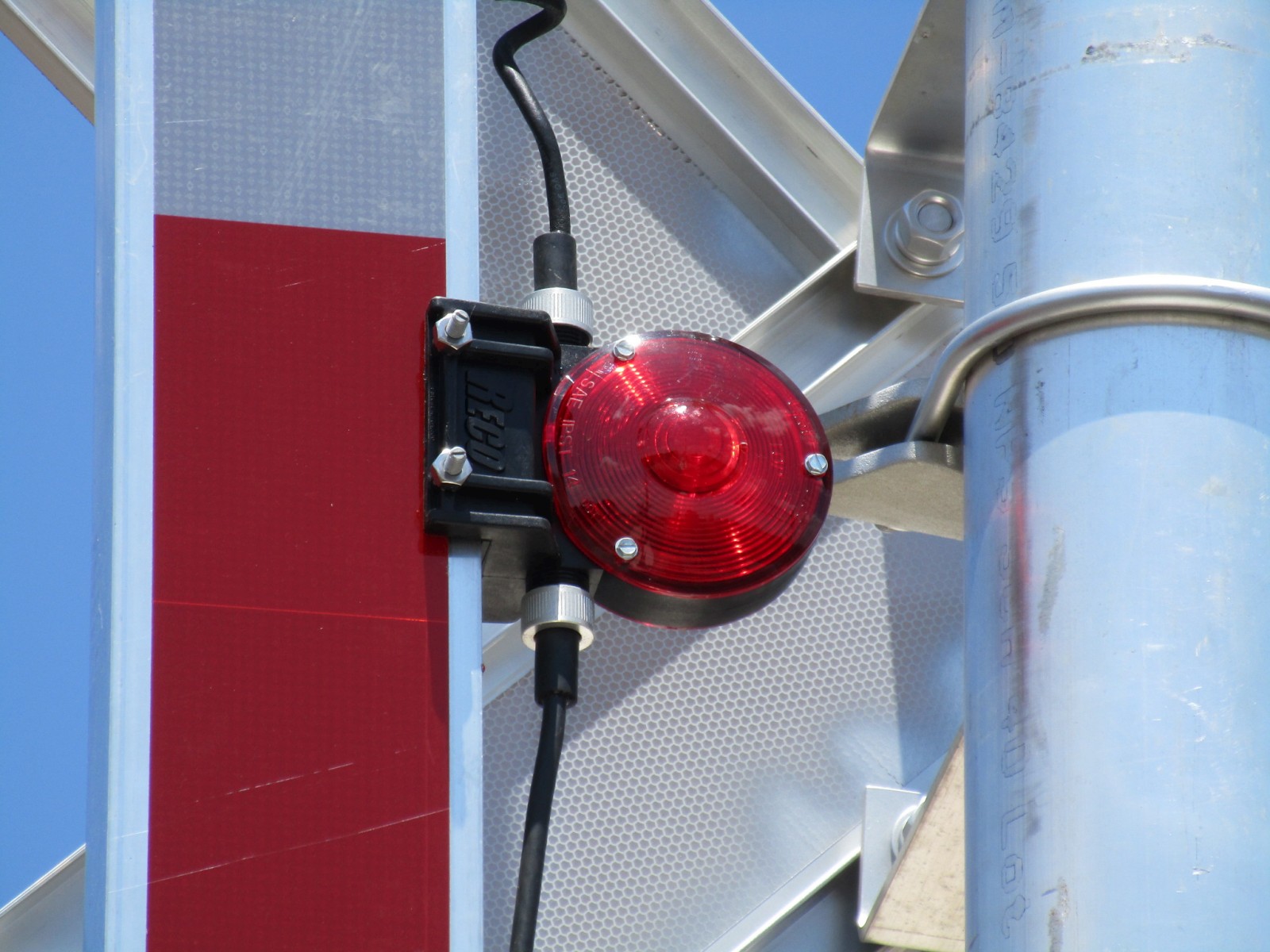

The new gate arm and RECO LEDs.

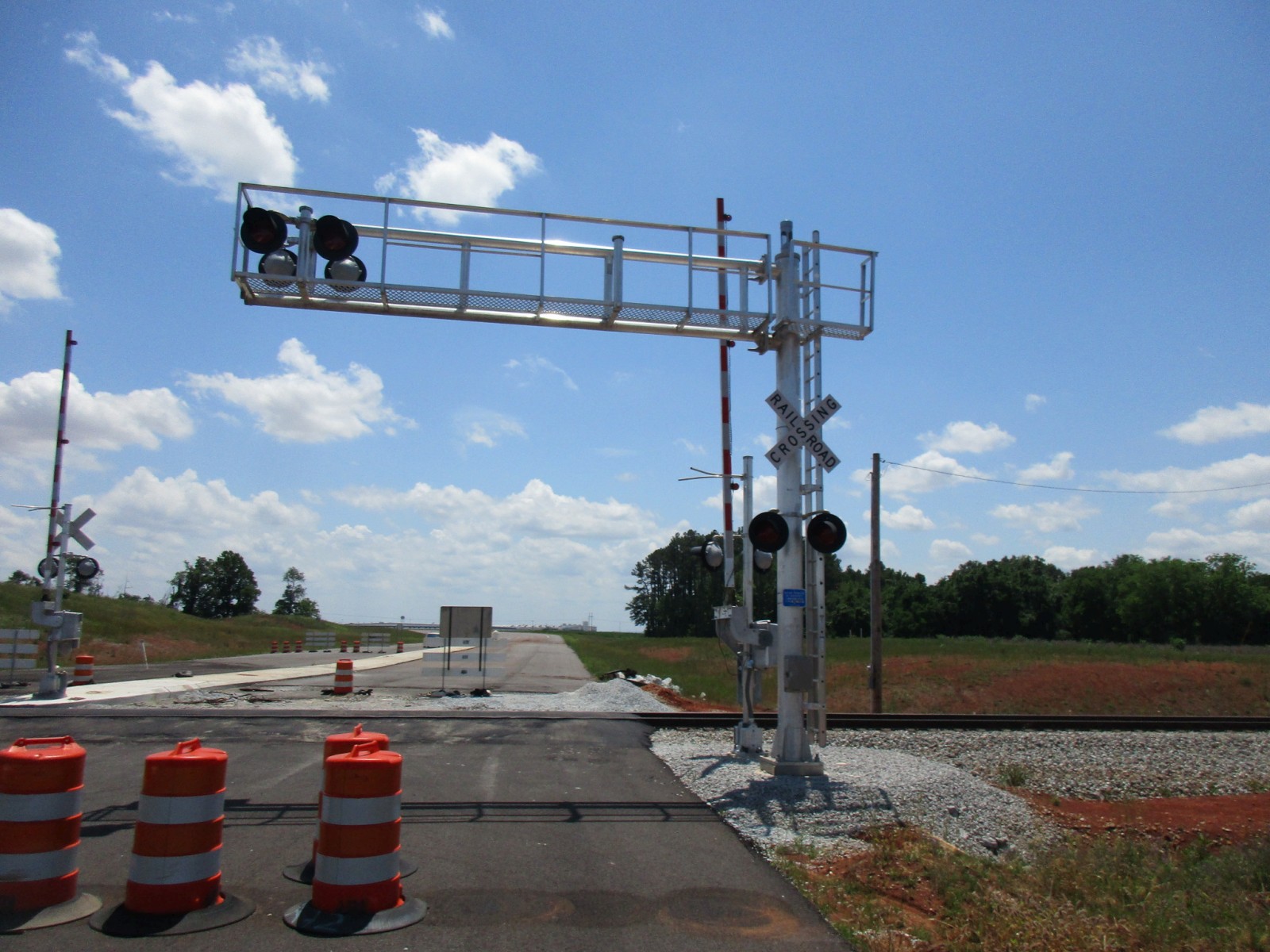

The second signal.

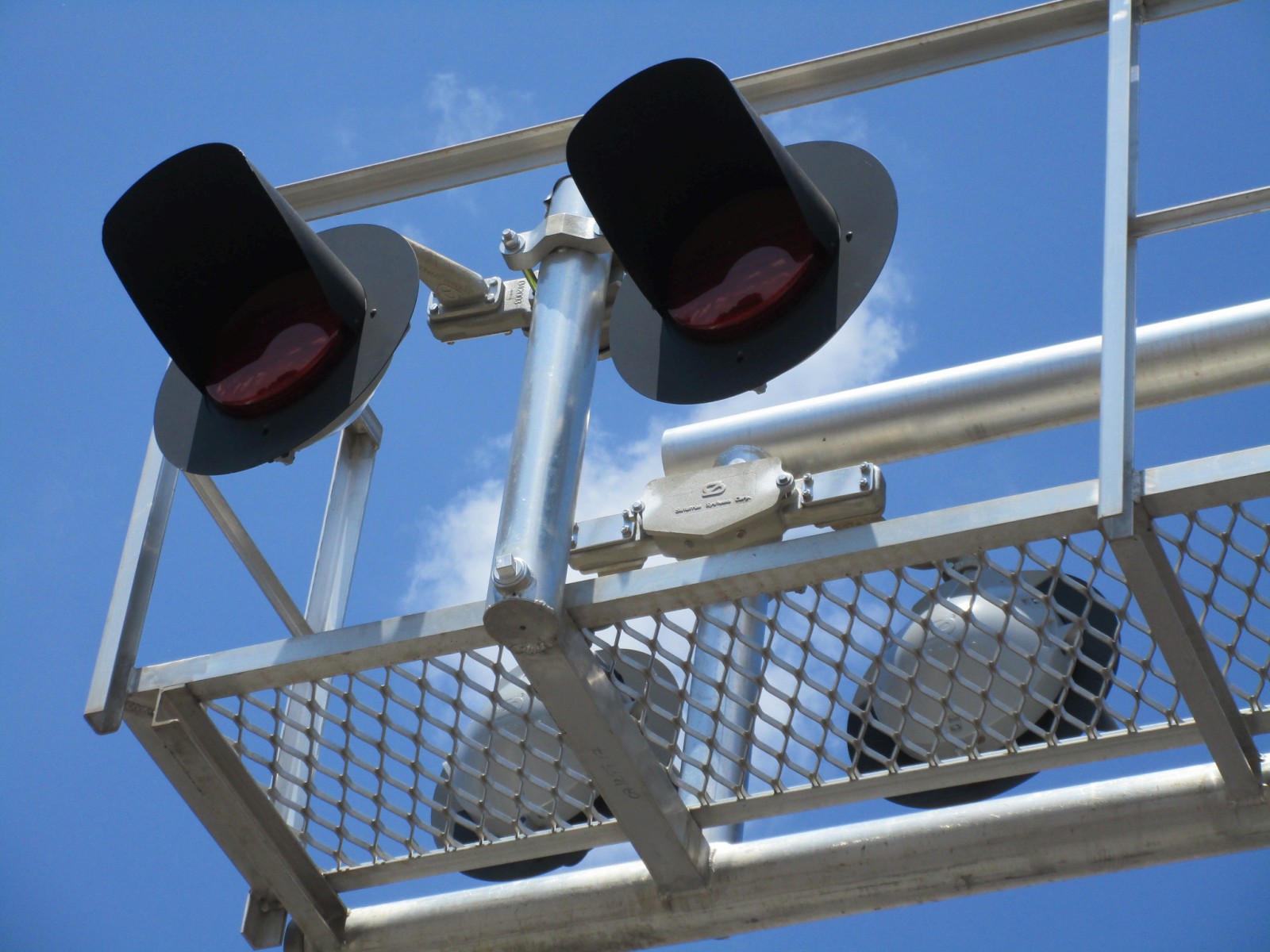

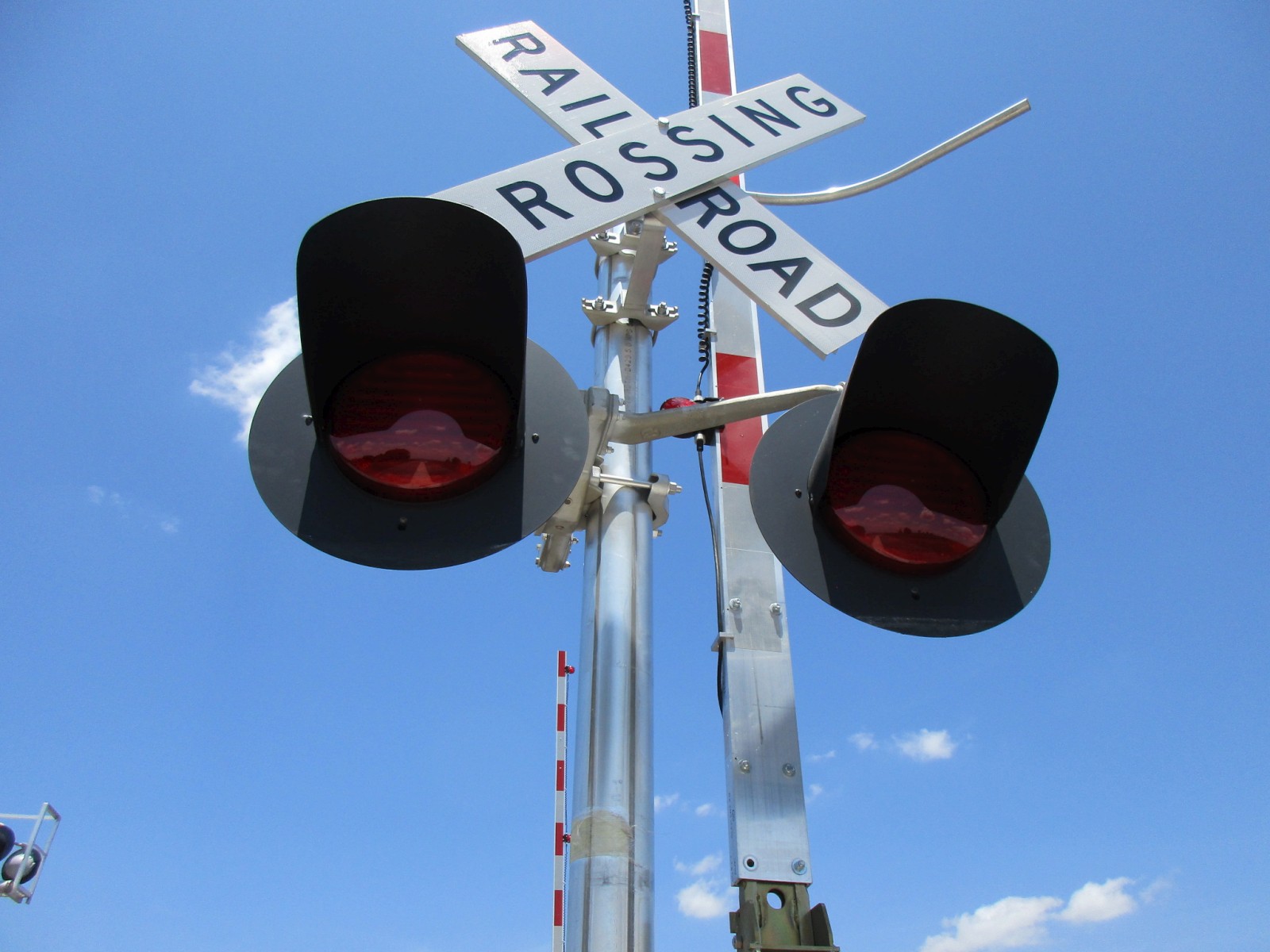

More GE Uniform Look LEDs.

73

74

75

76
The new gate arm and RECO LEDs.

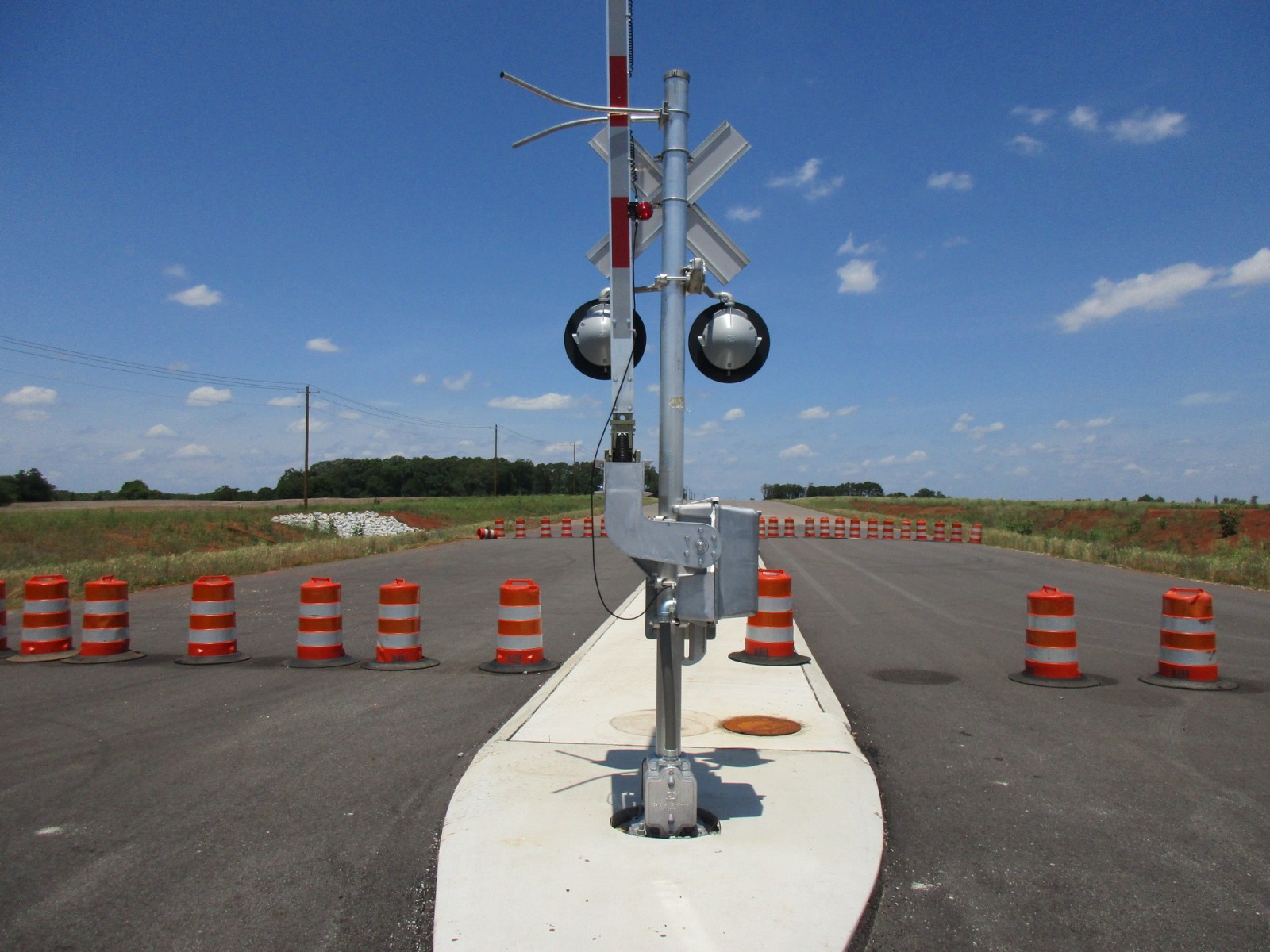

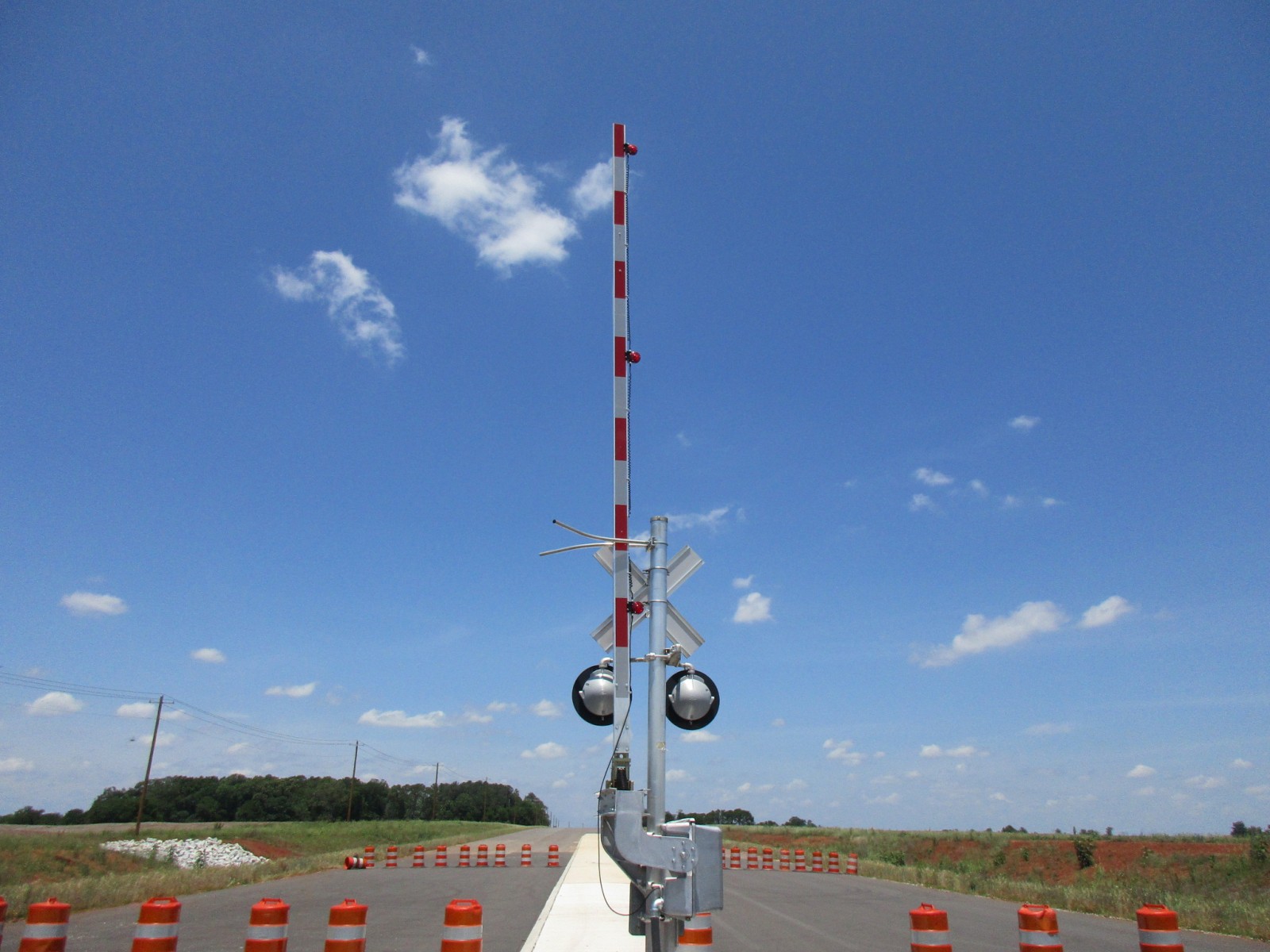

The third signal.

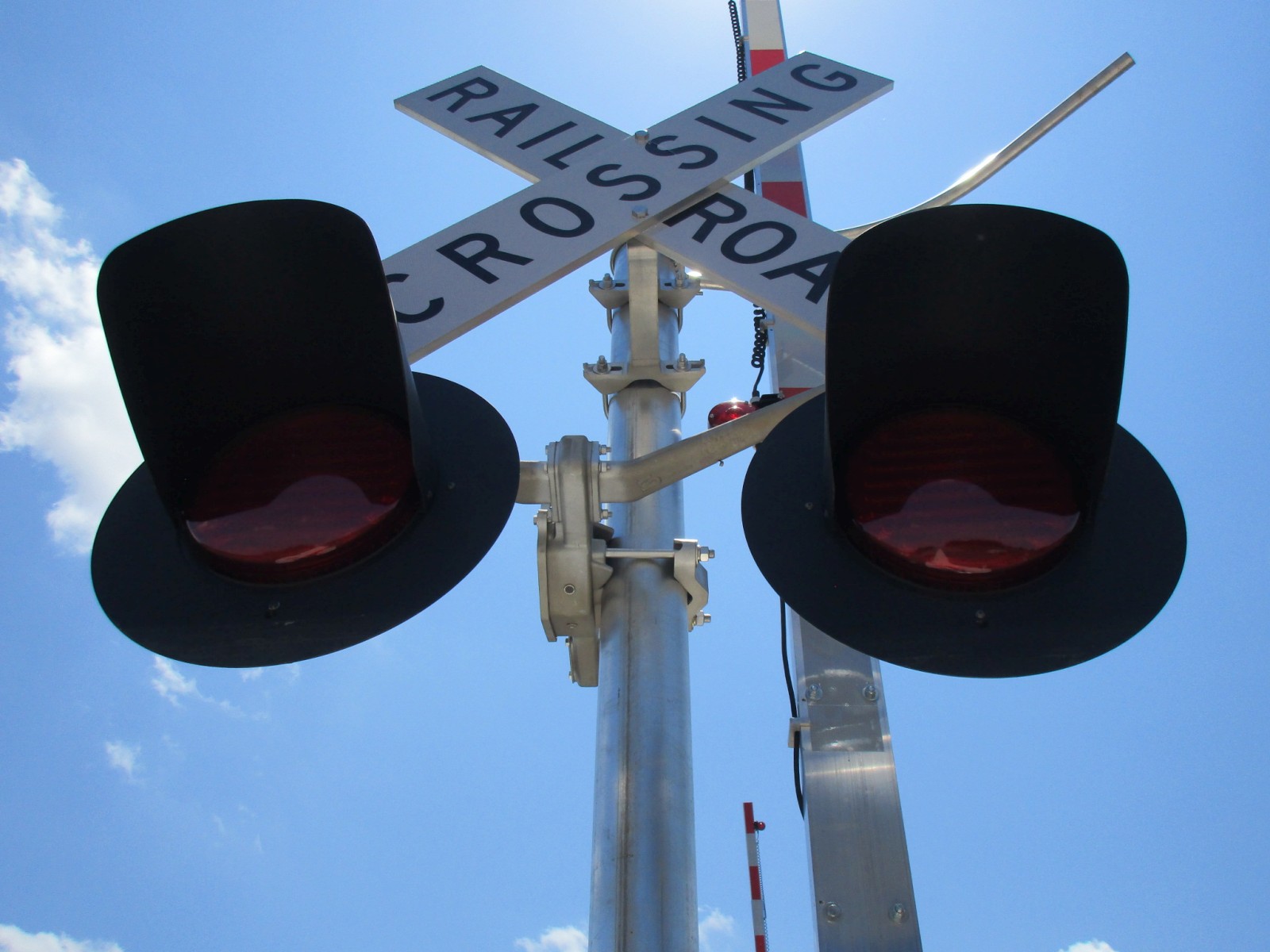

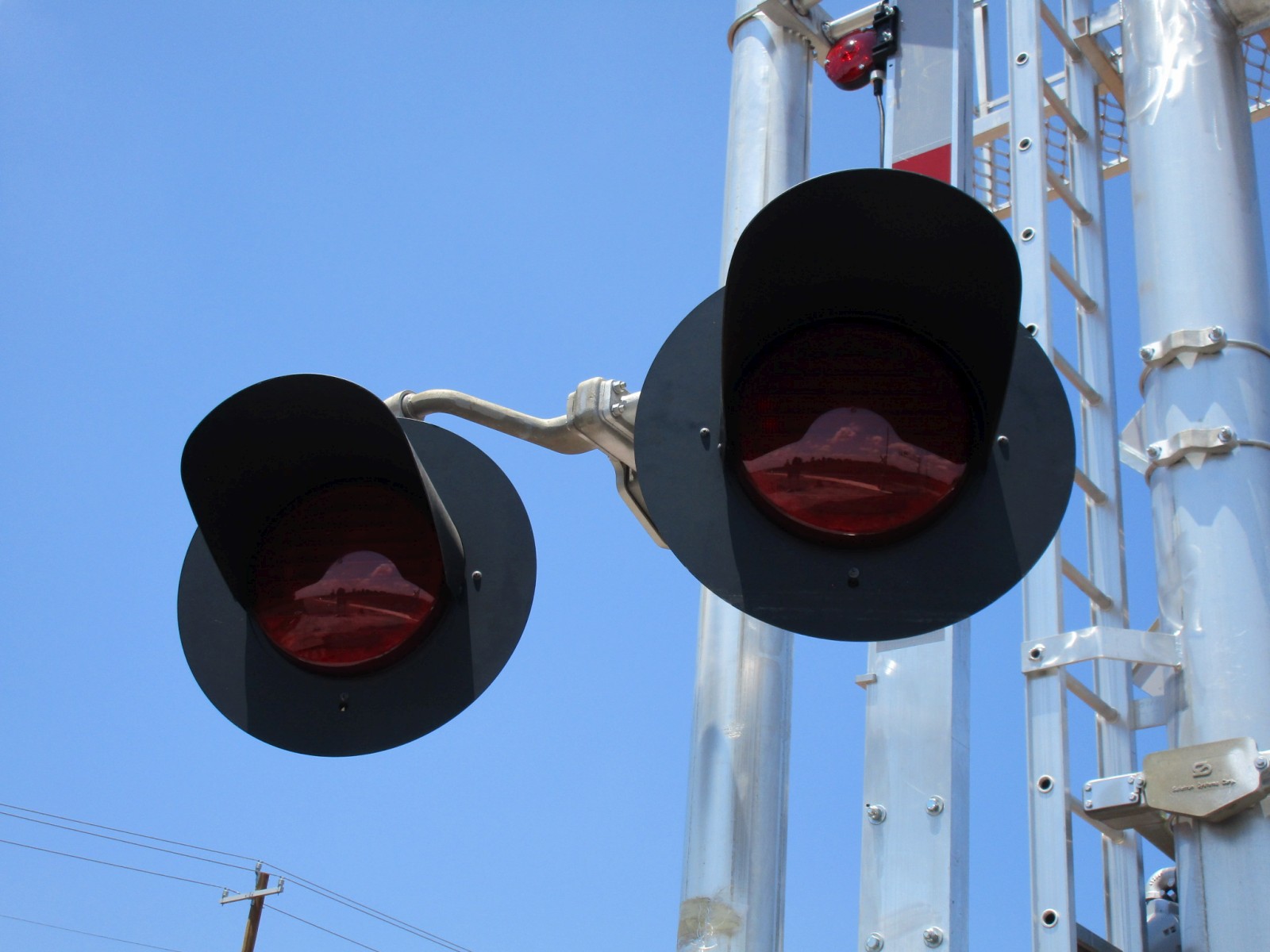

Even more GE Uniform Look LEDs.

77

78

79

80
The new gate arm and RECO LEDs.

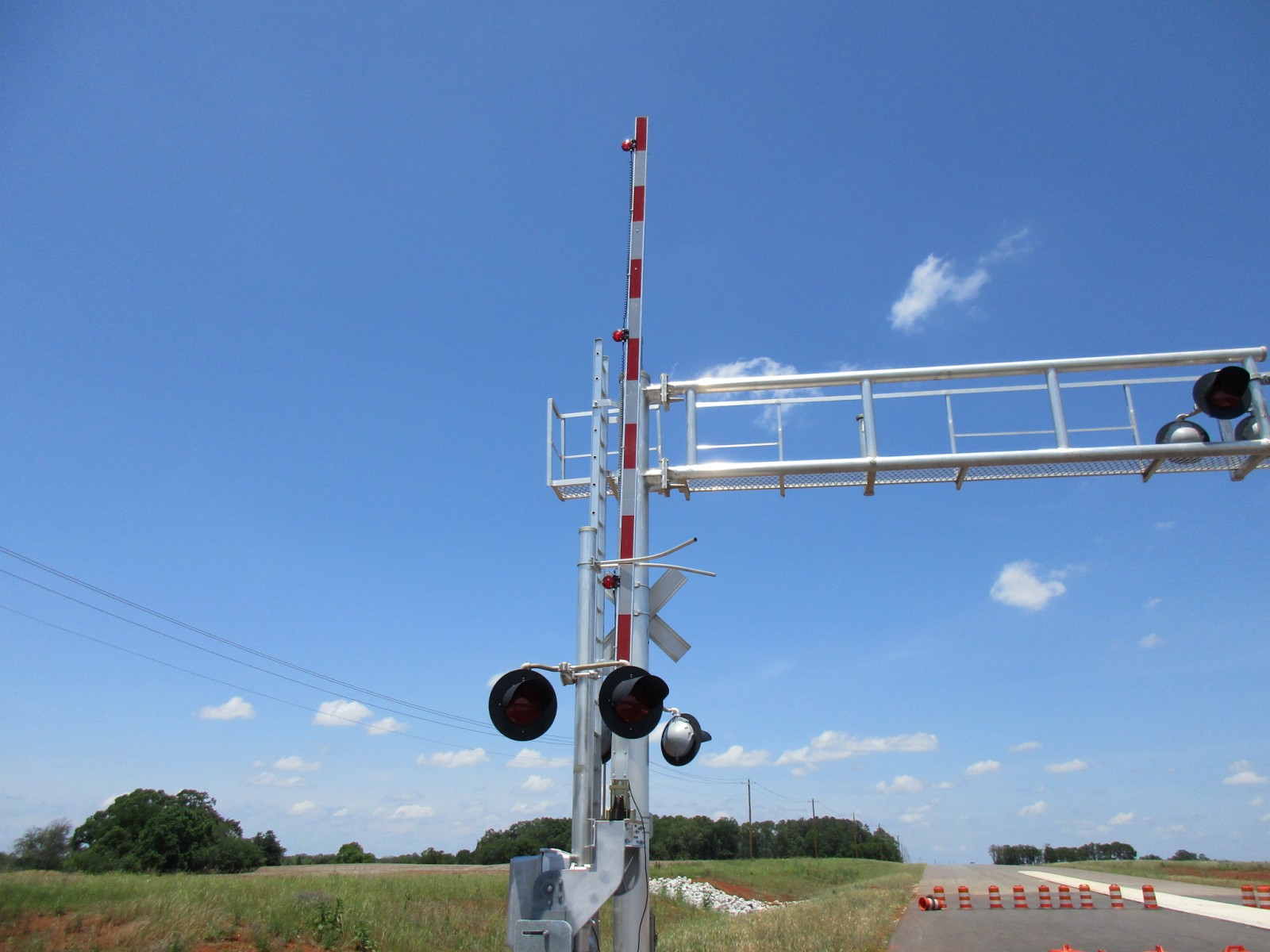

The fourth signal.

81

82

83

84
A DOT tag.

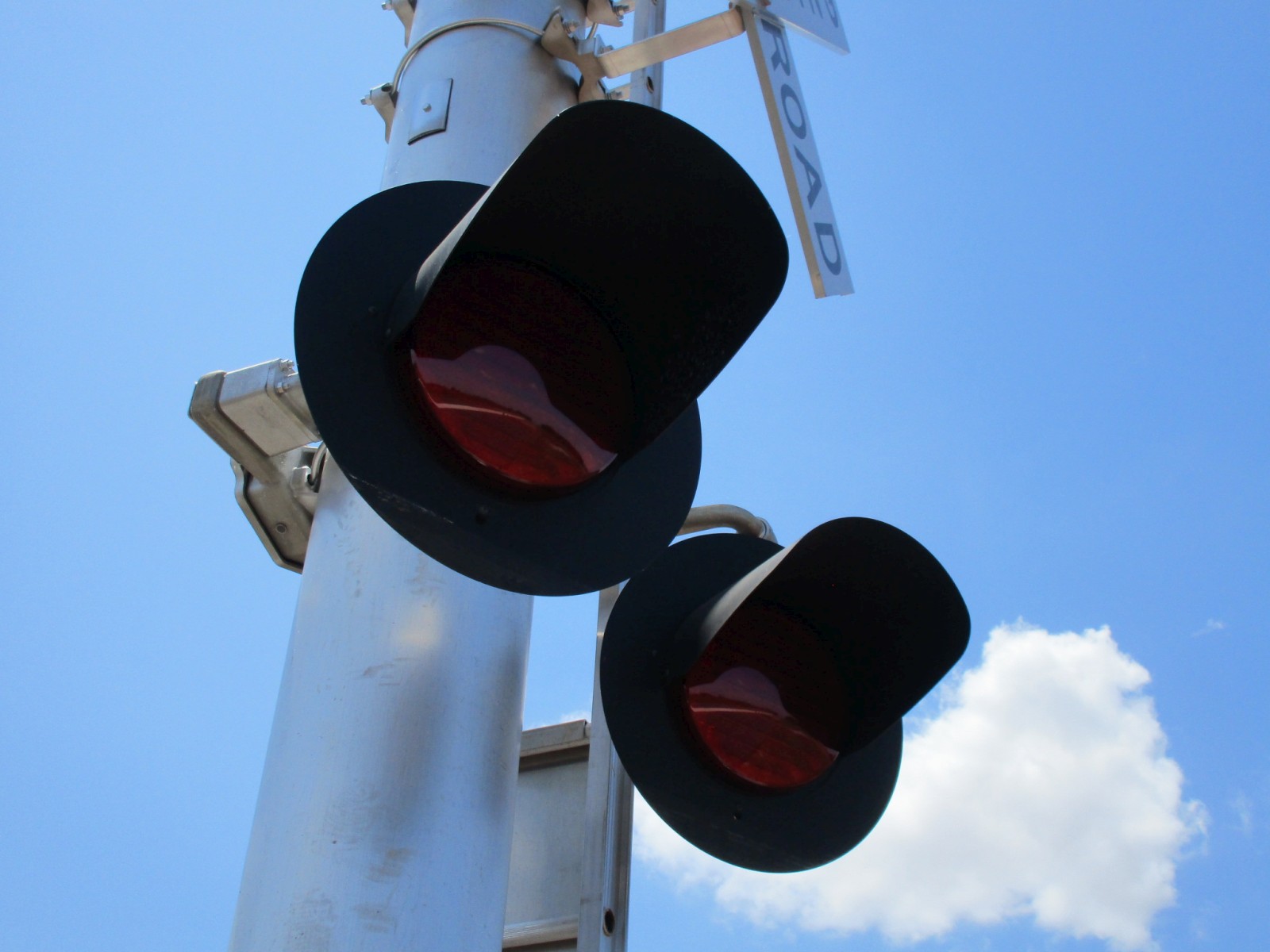

Still more GE Uniform Look LEDs.

85

86

87

88
The new gate arm and RECO LEDs.

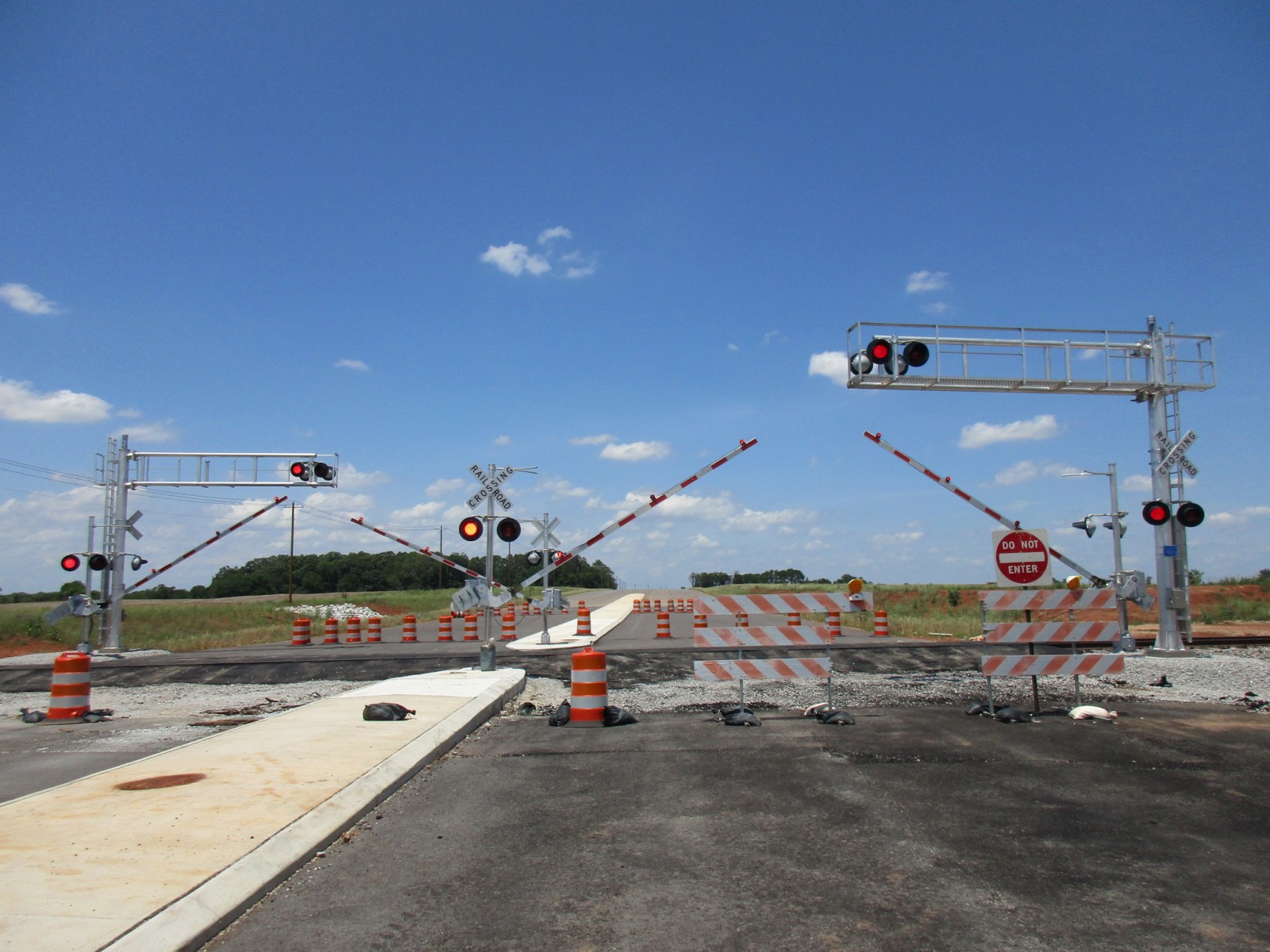

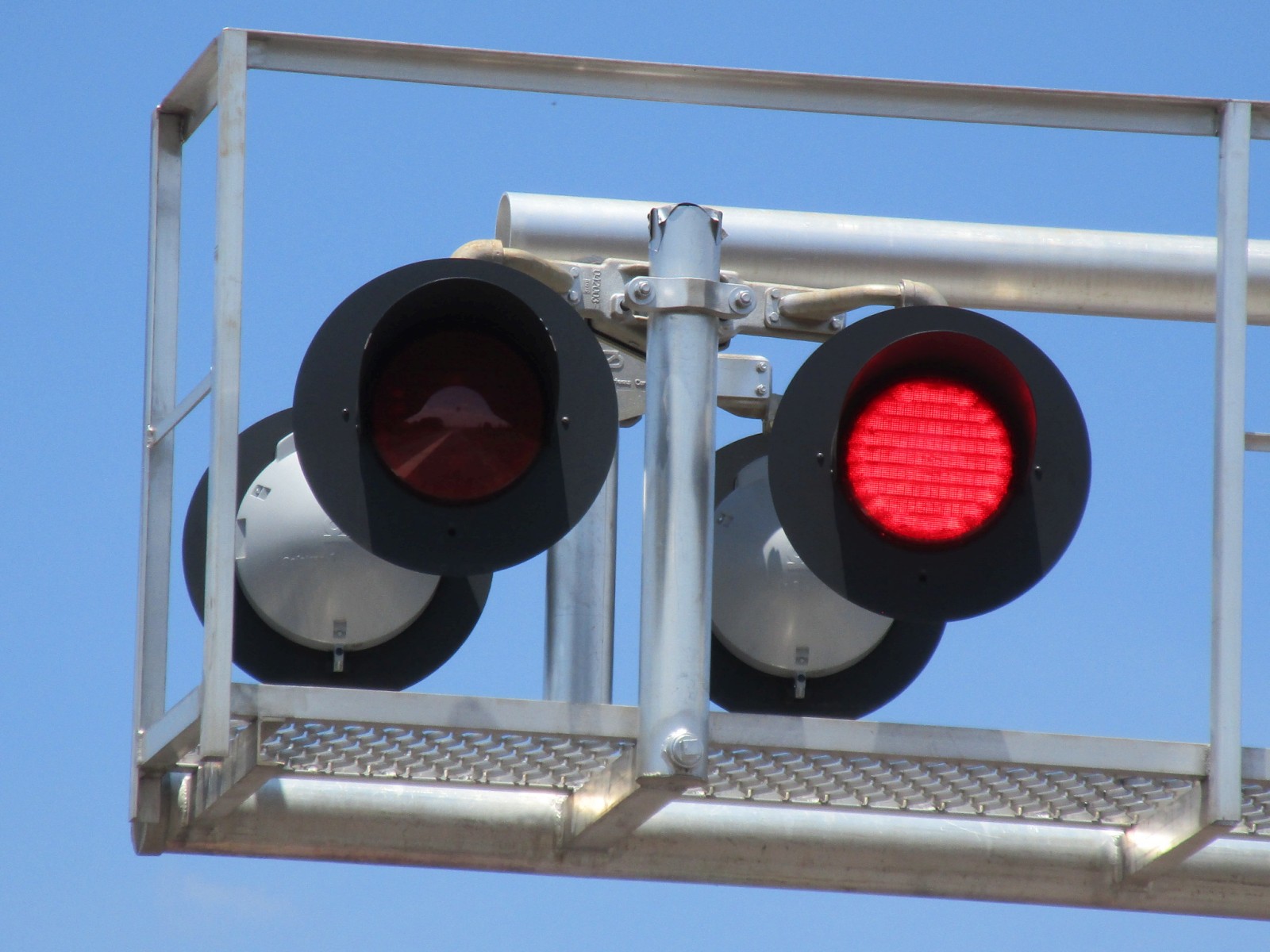

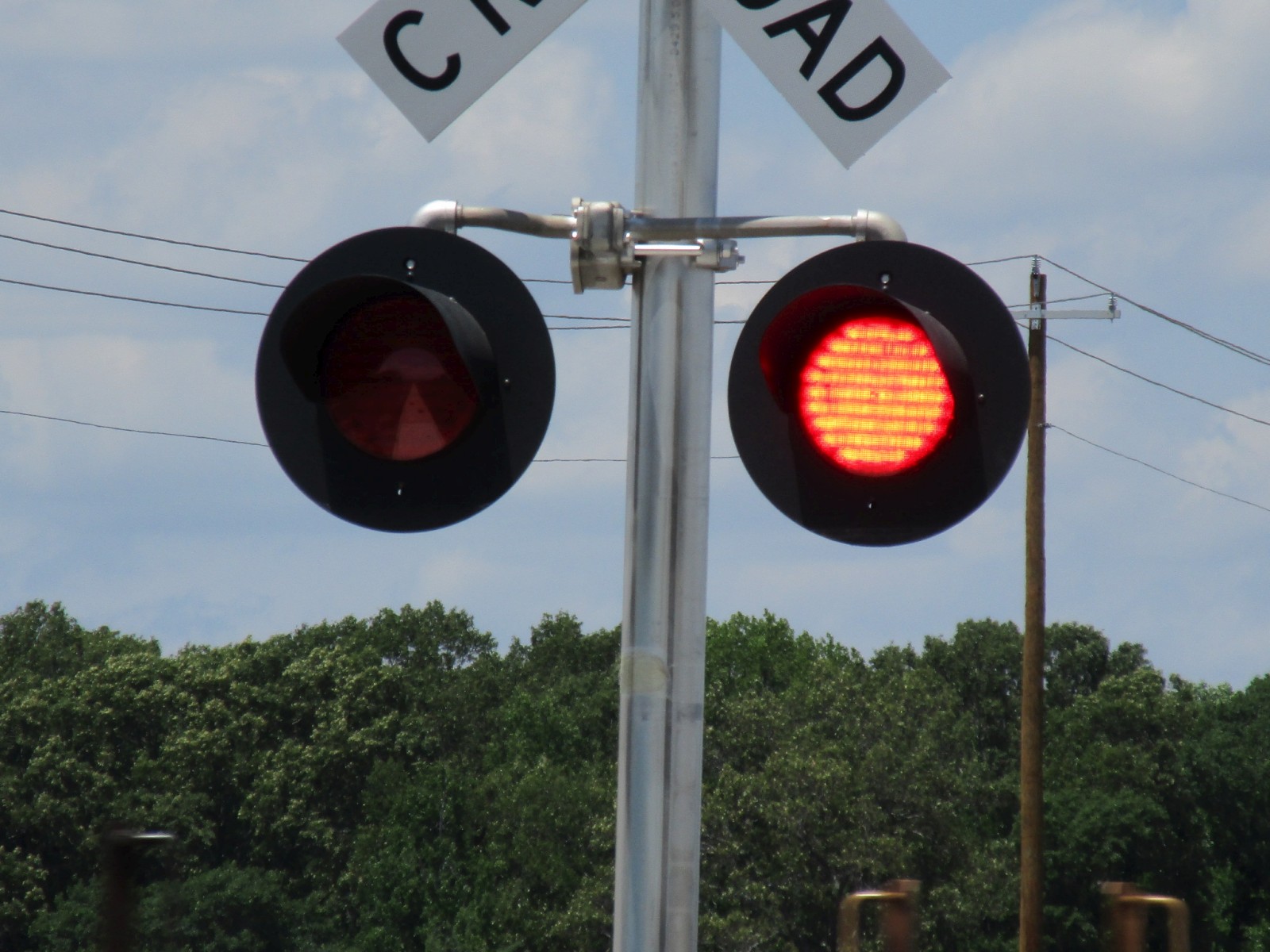

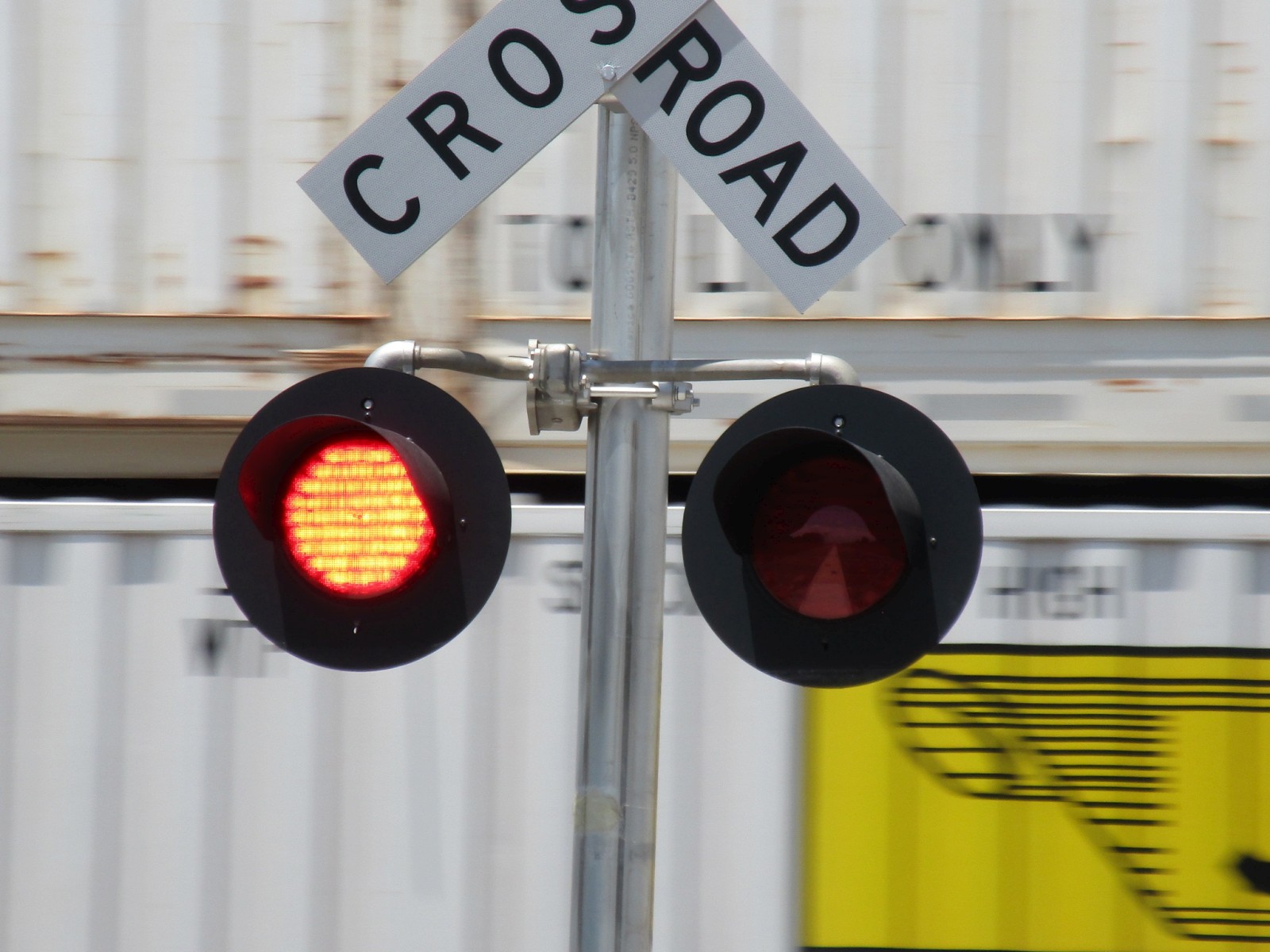

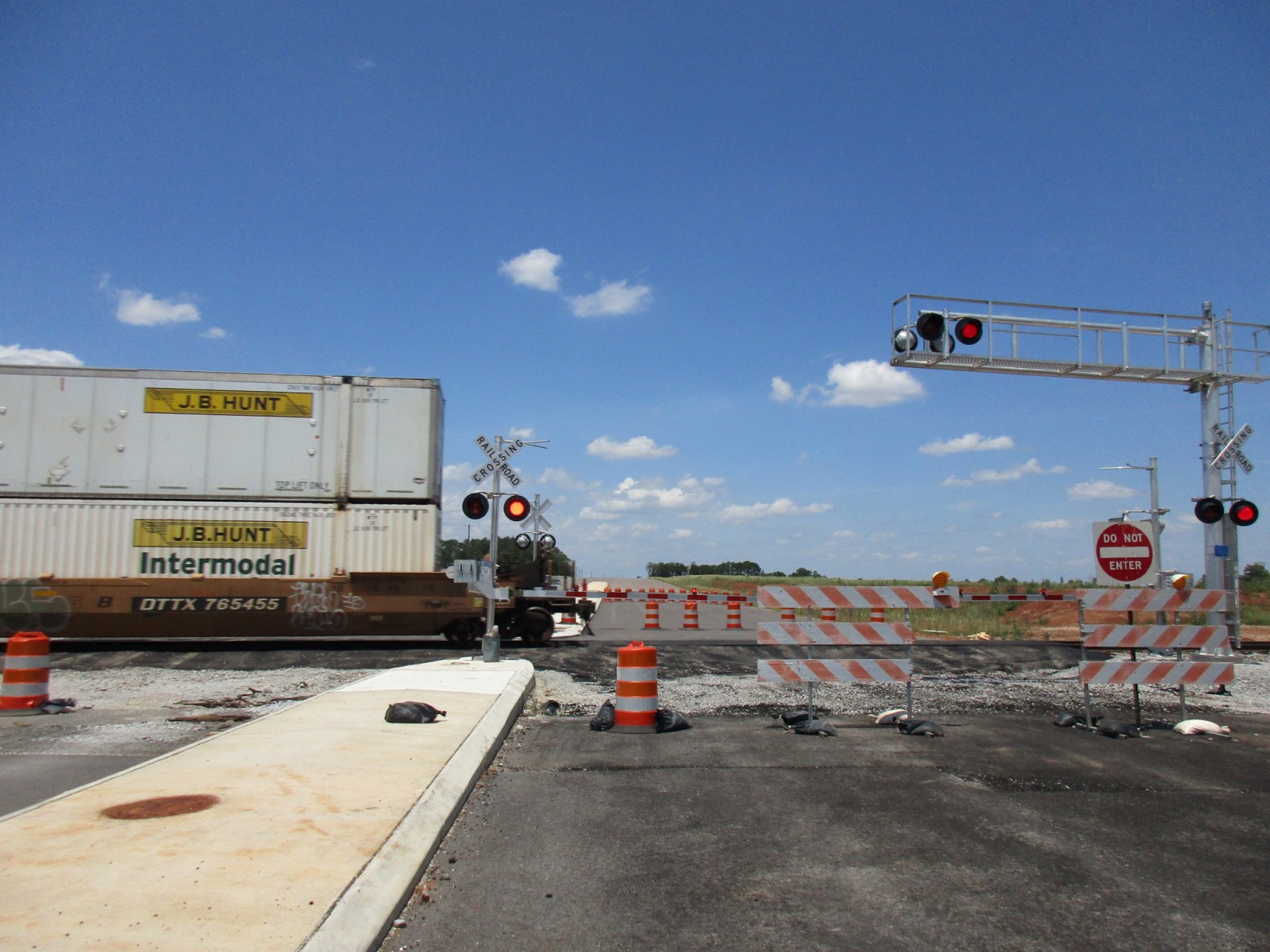

The crossing activates!

89

90

91

92

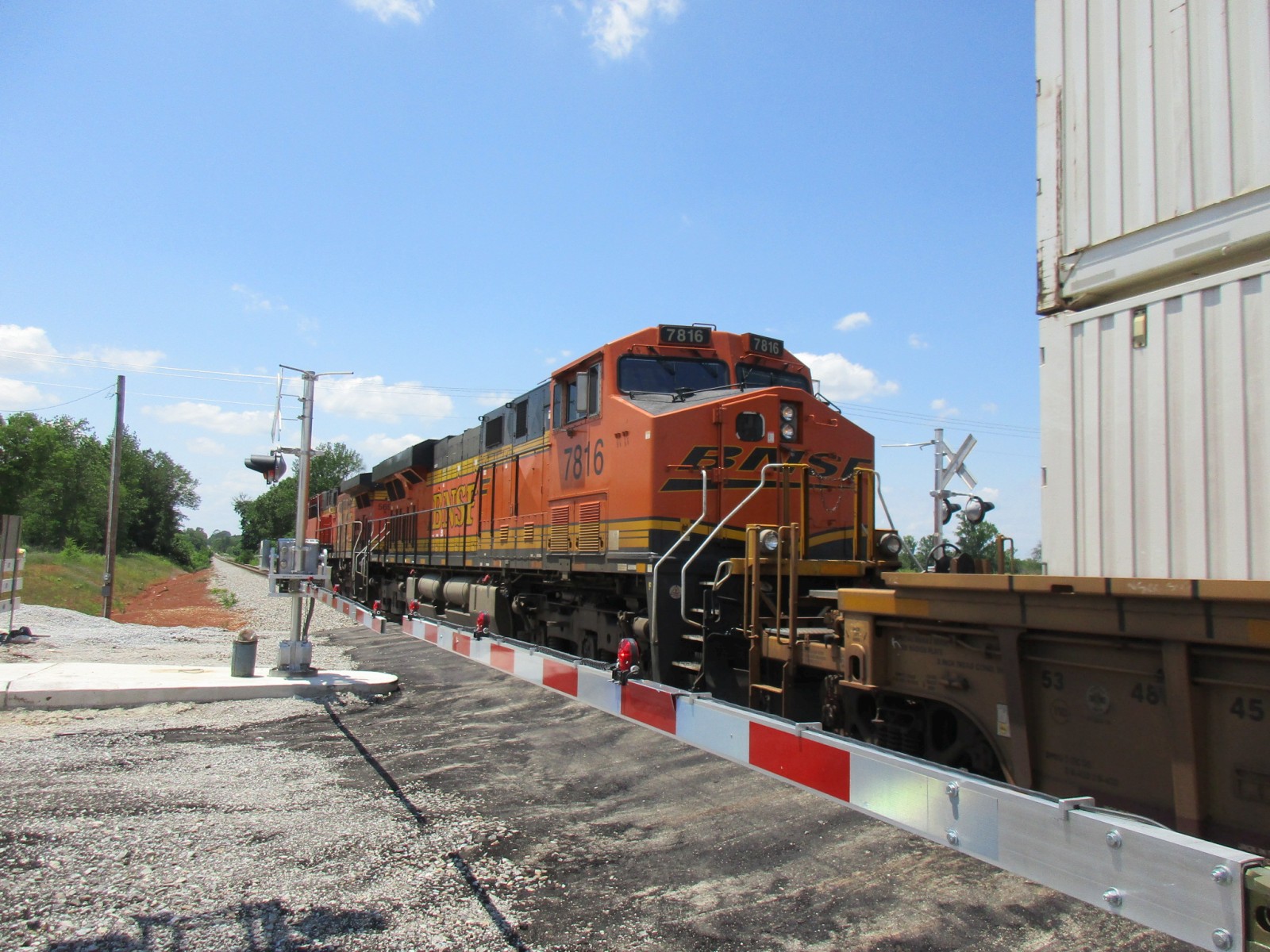

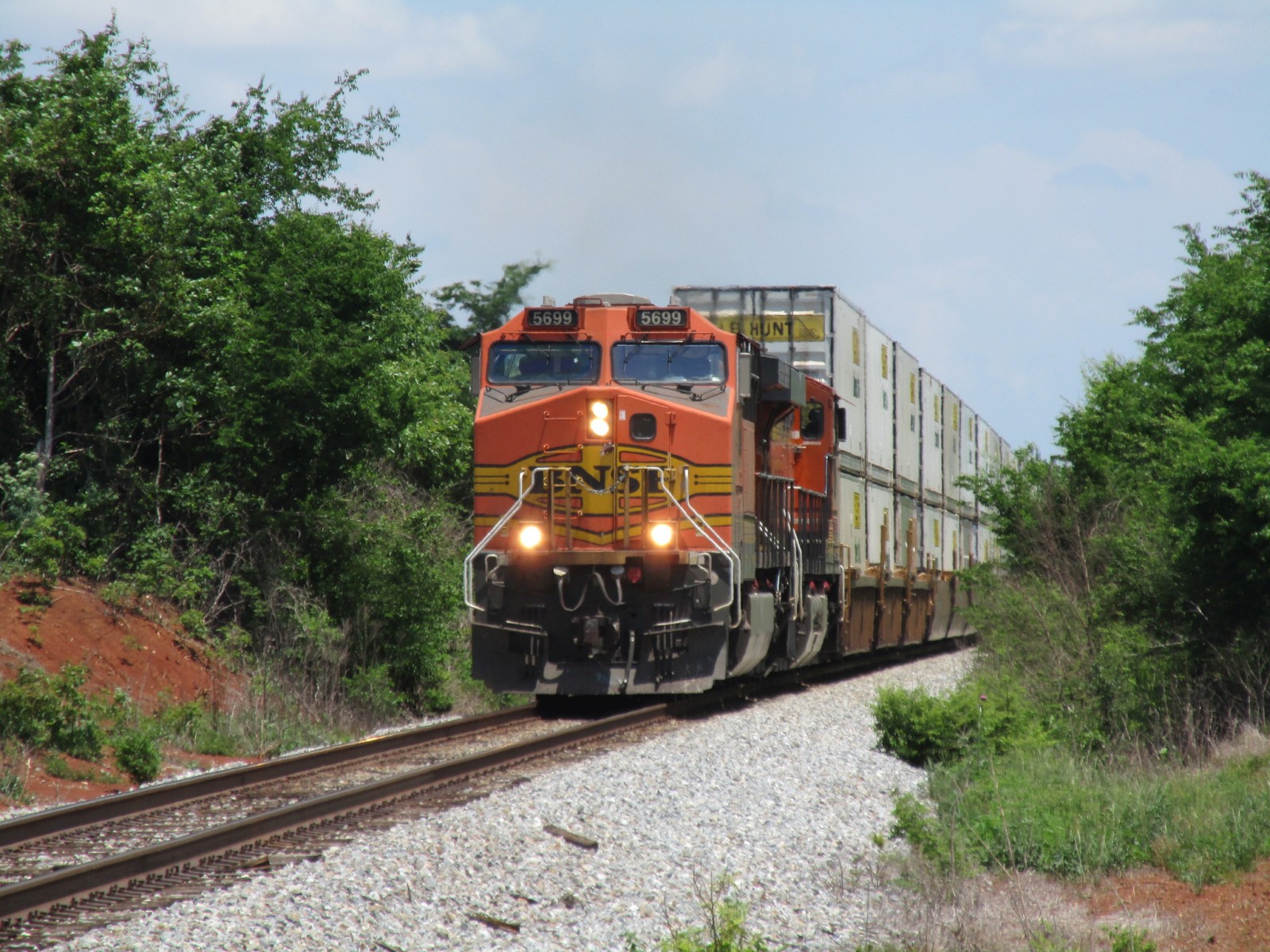

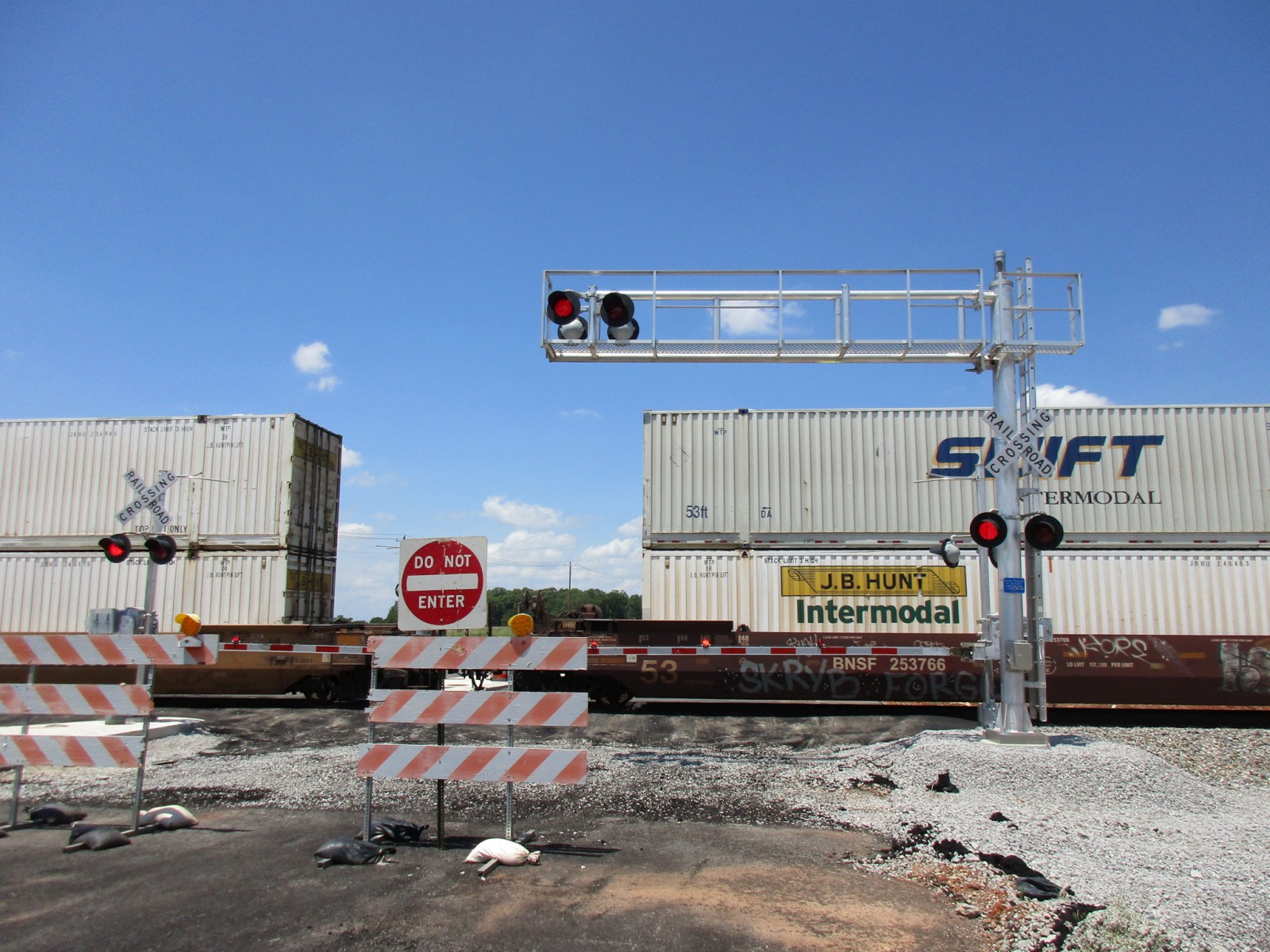

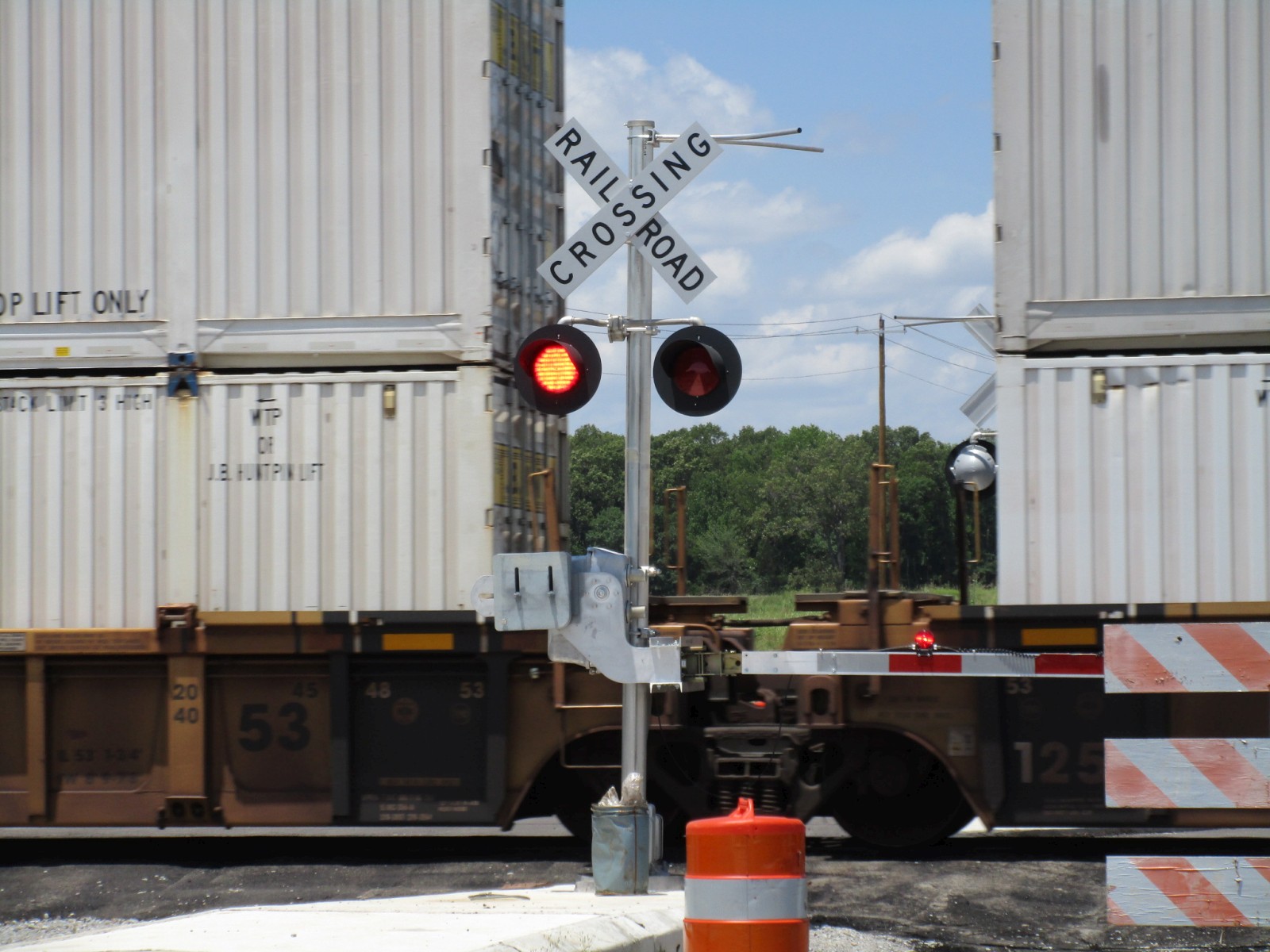

NS 265 comes flying through with a BNSF AC44CW leading!

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

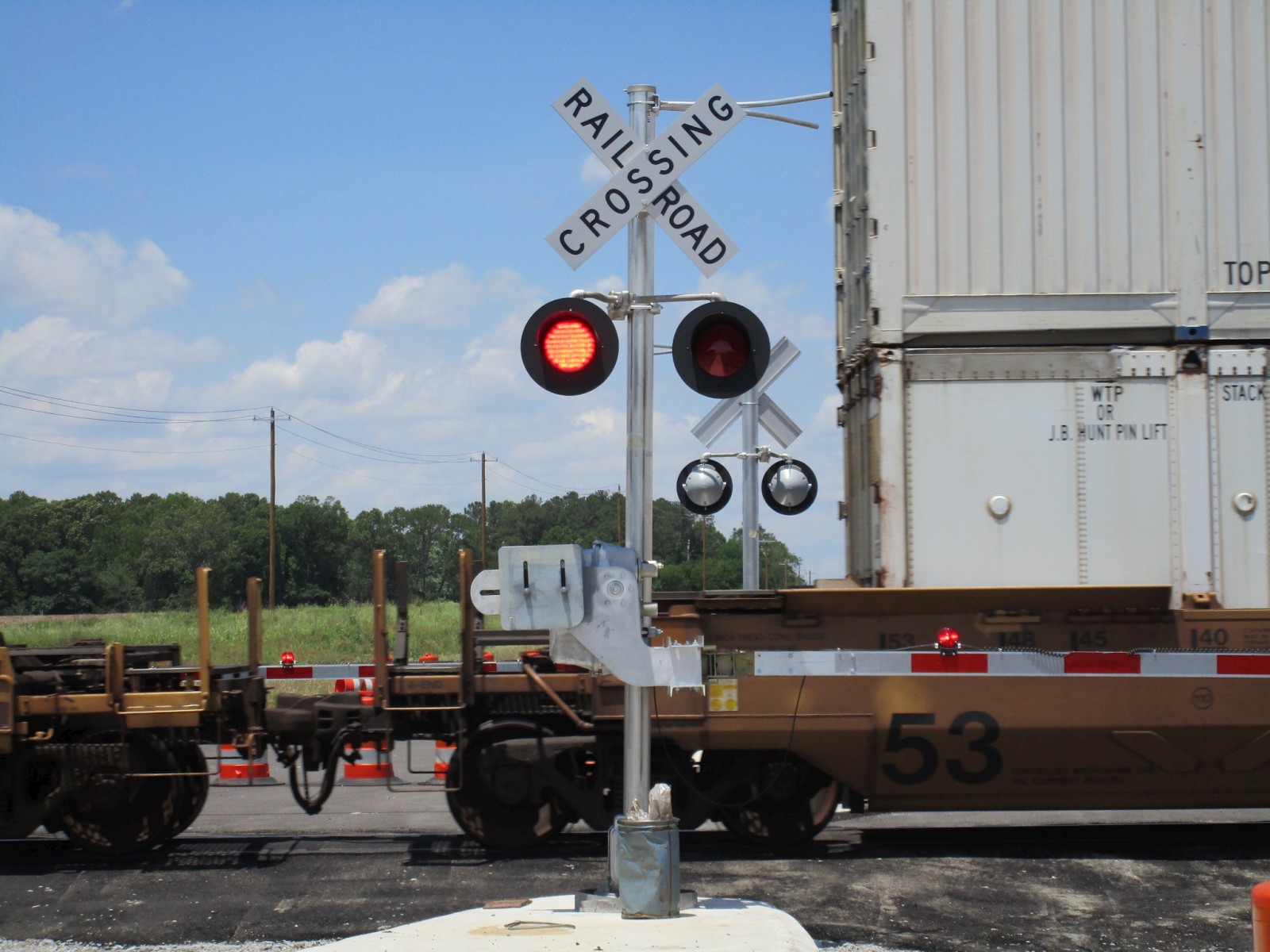

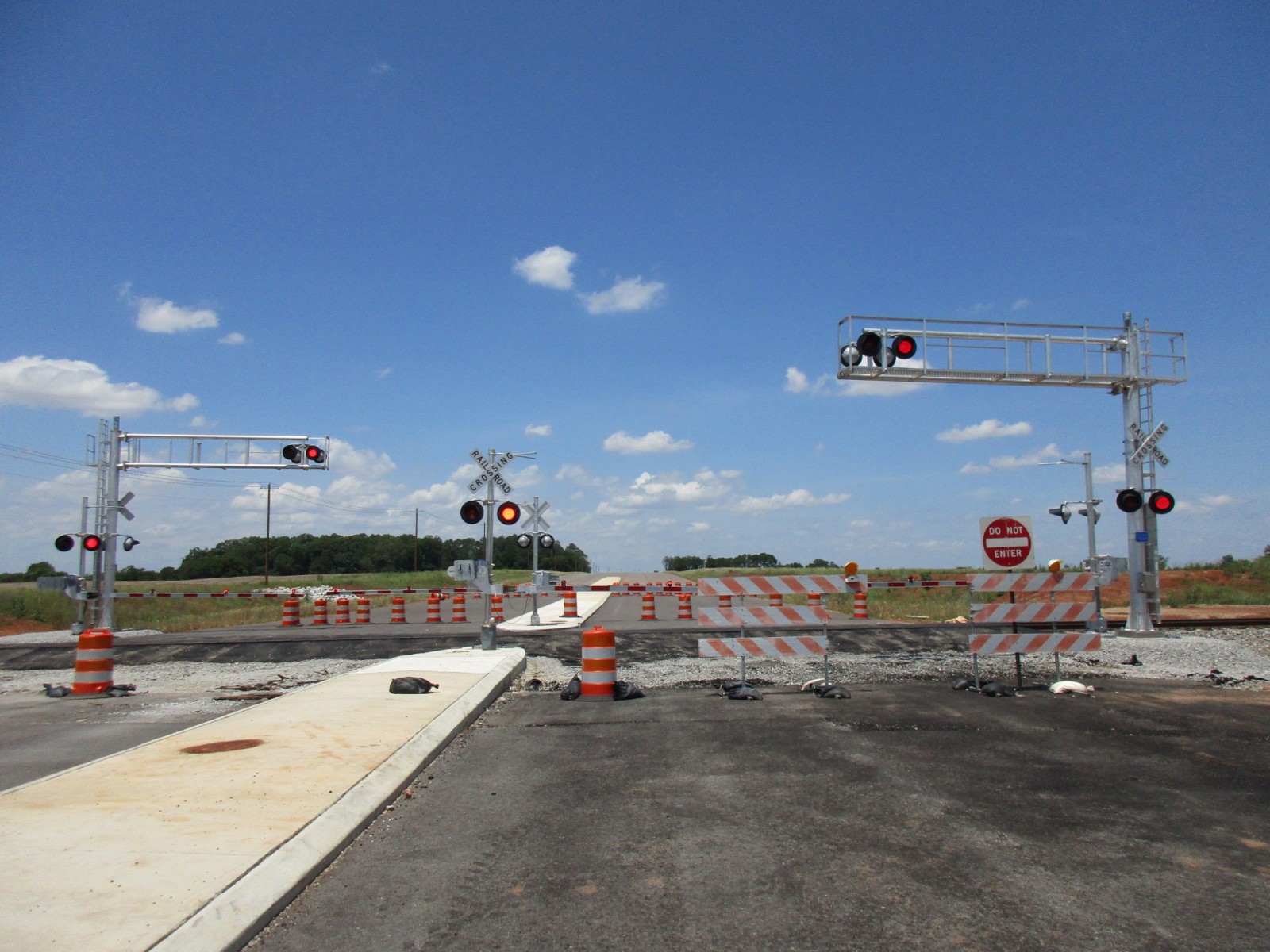

The train passes...

109

110

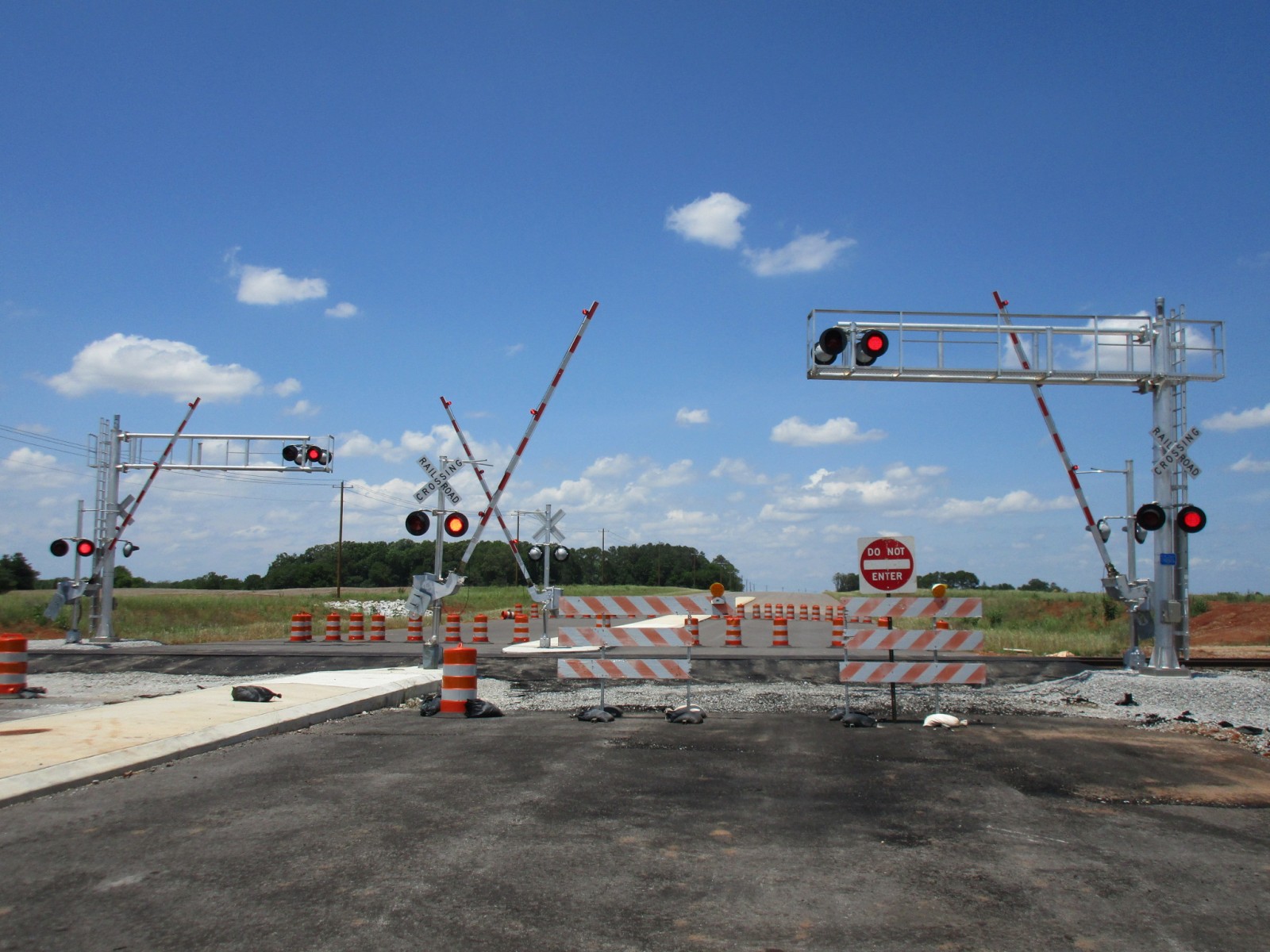

...and the gates rise.

111

112

113

114

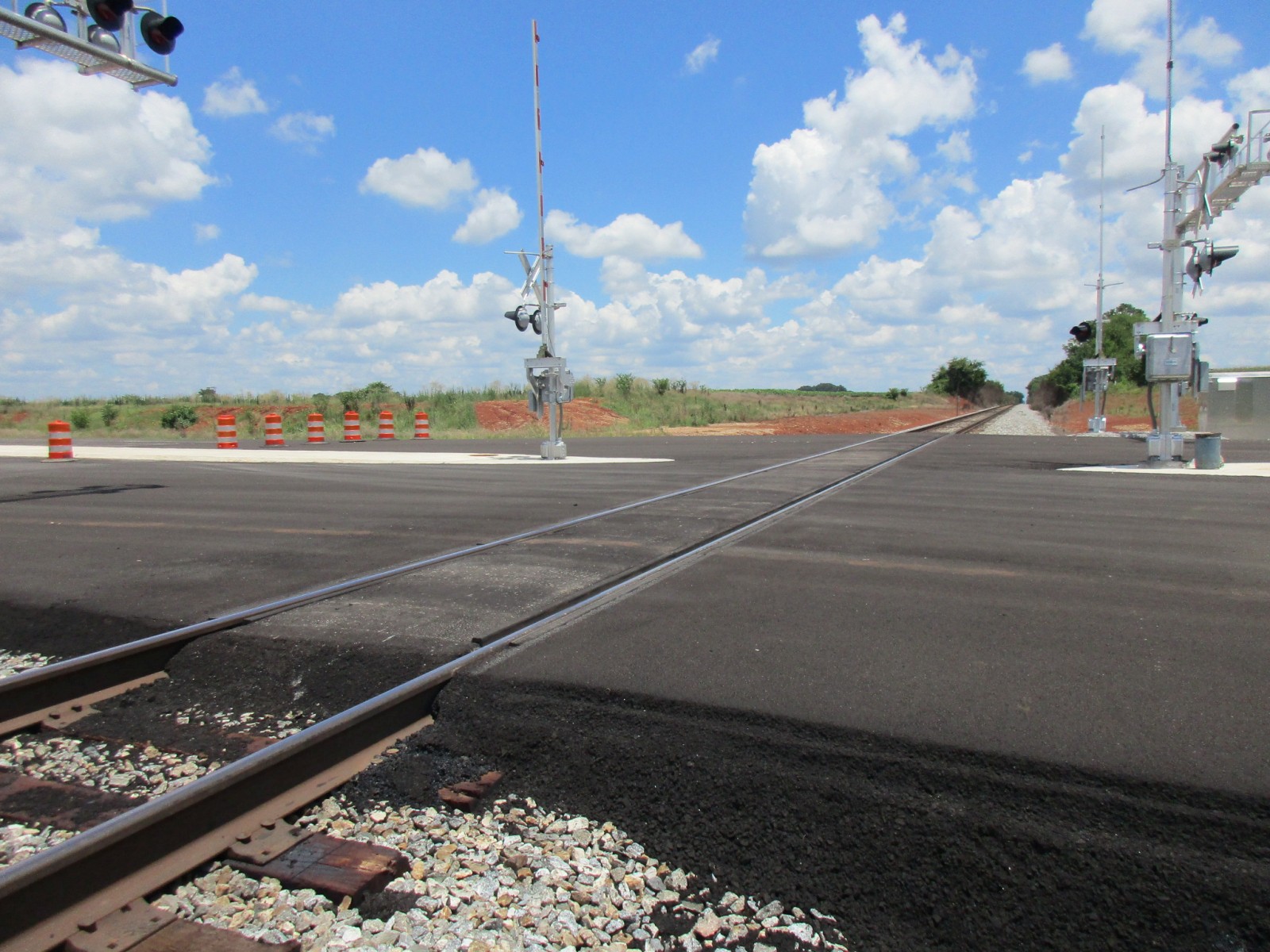

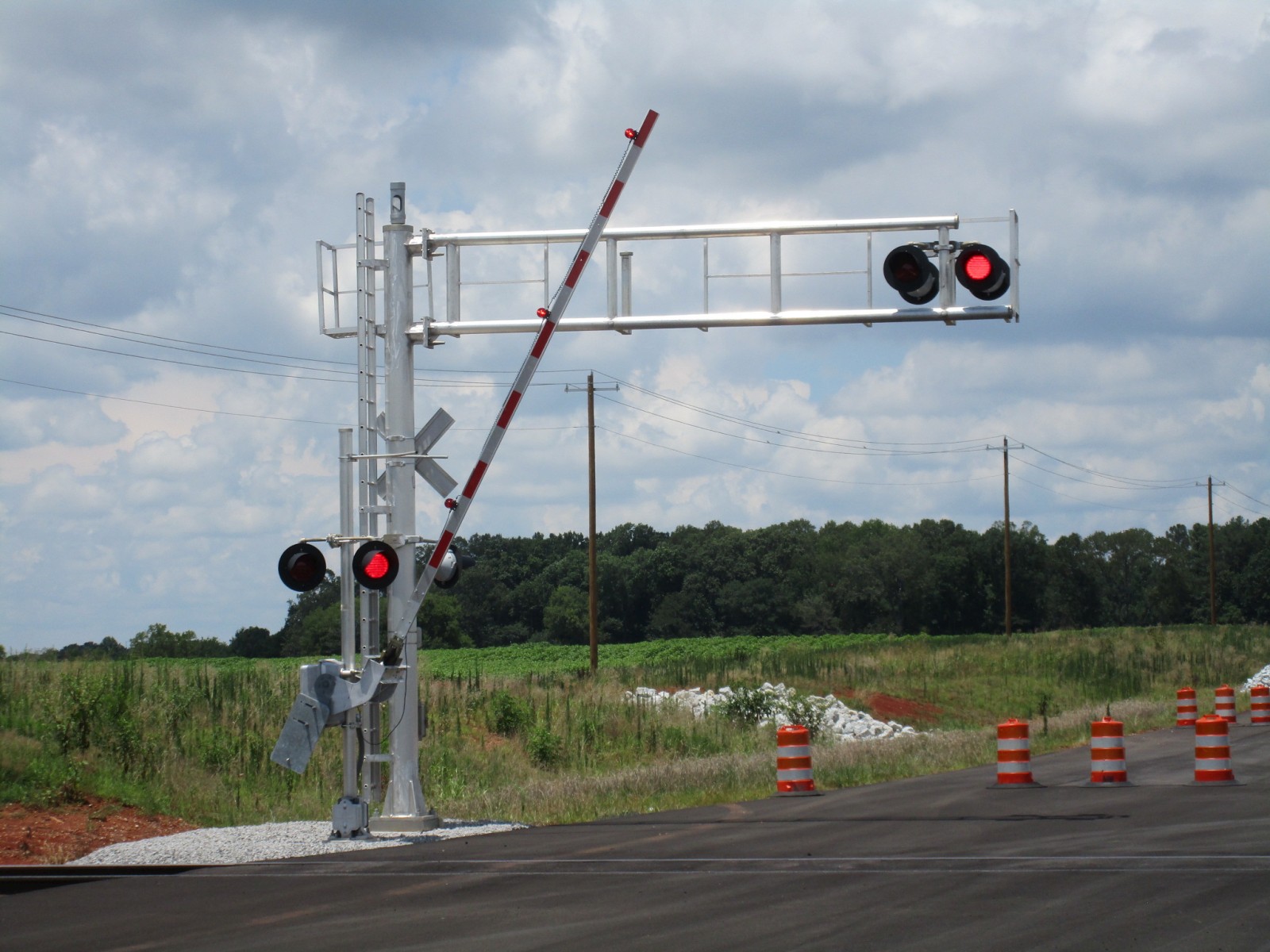

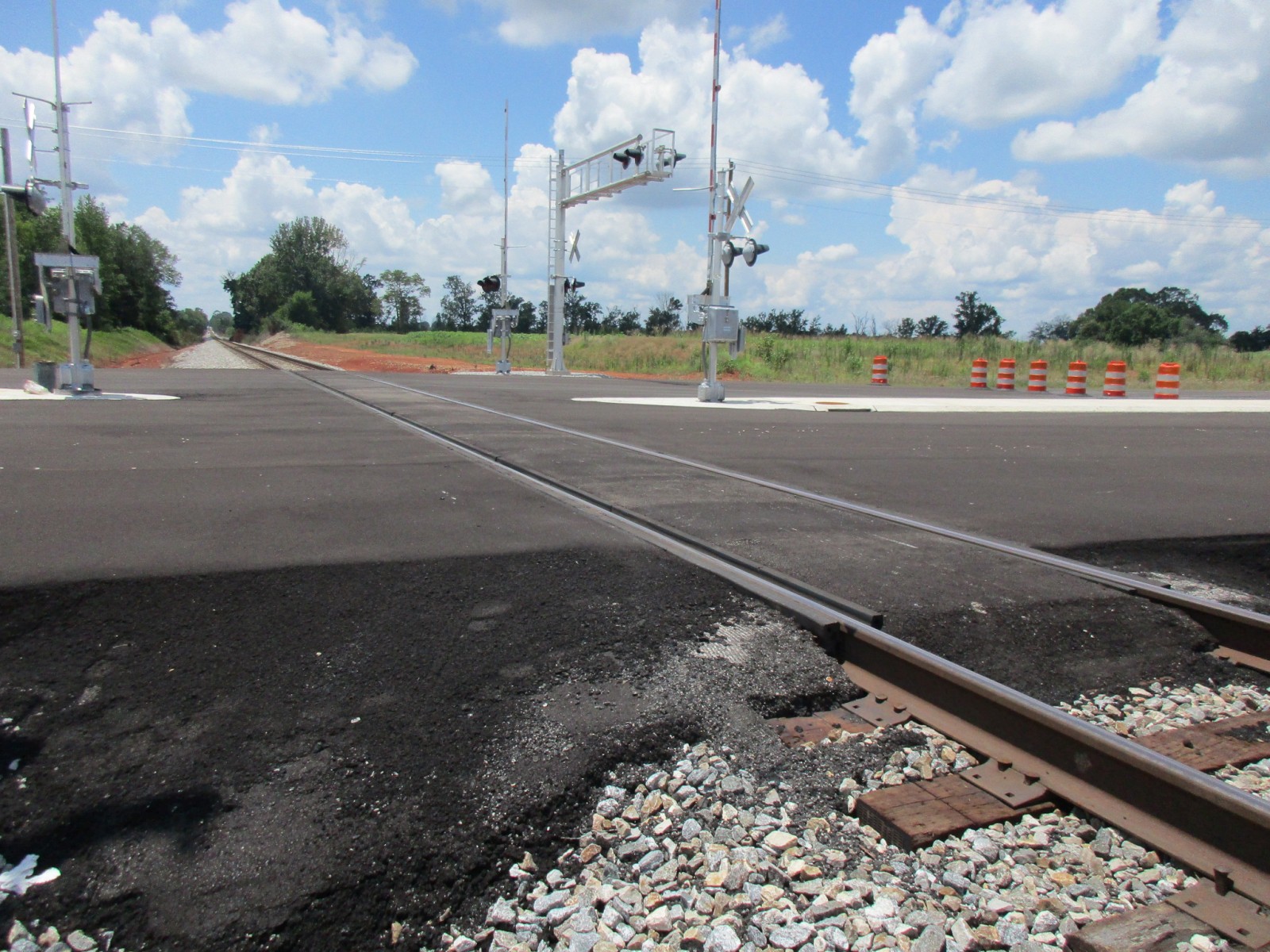

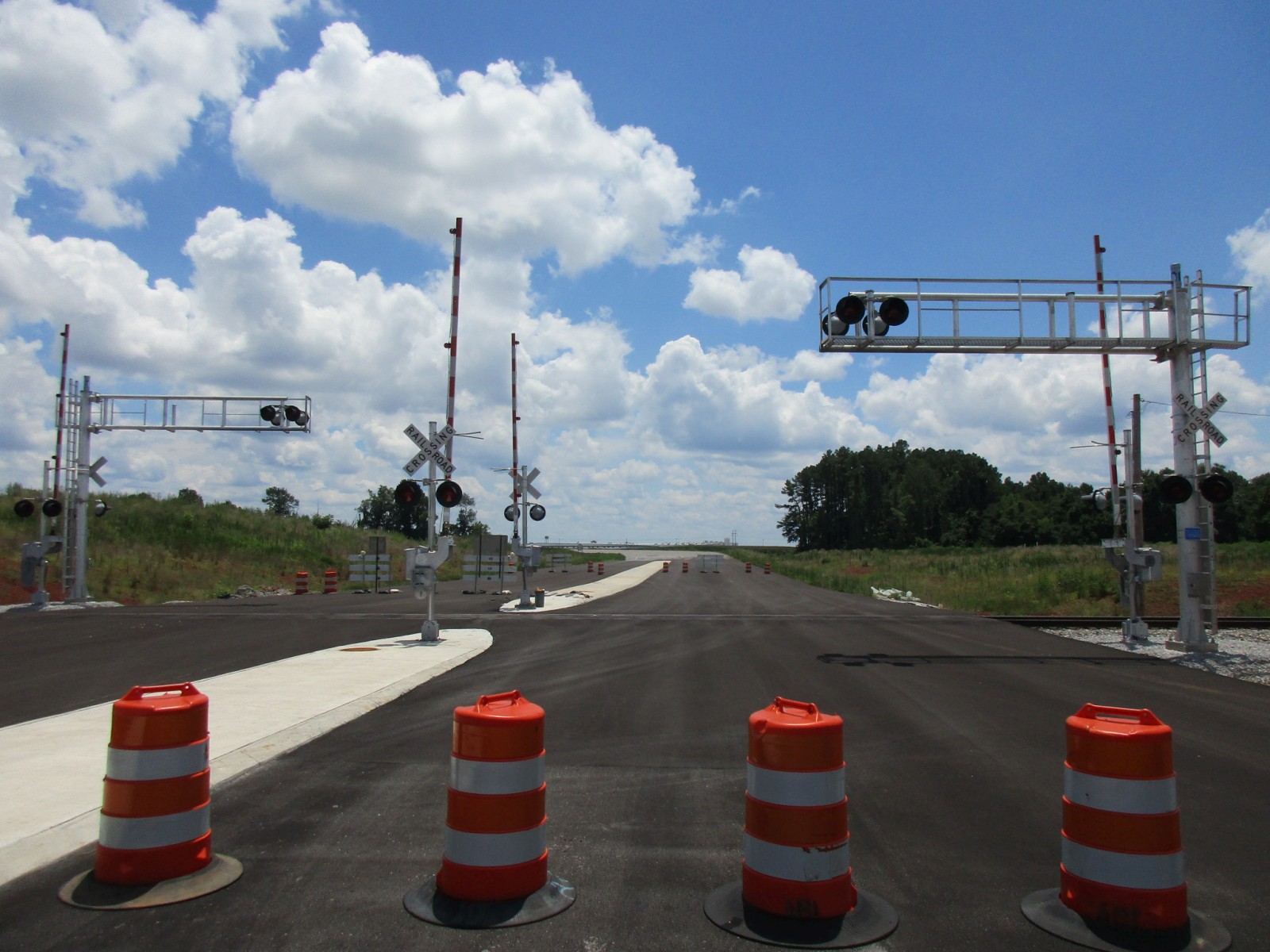

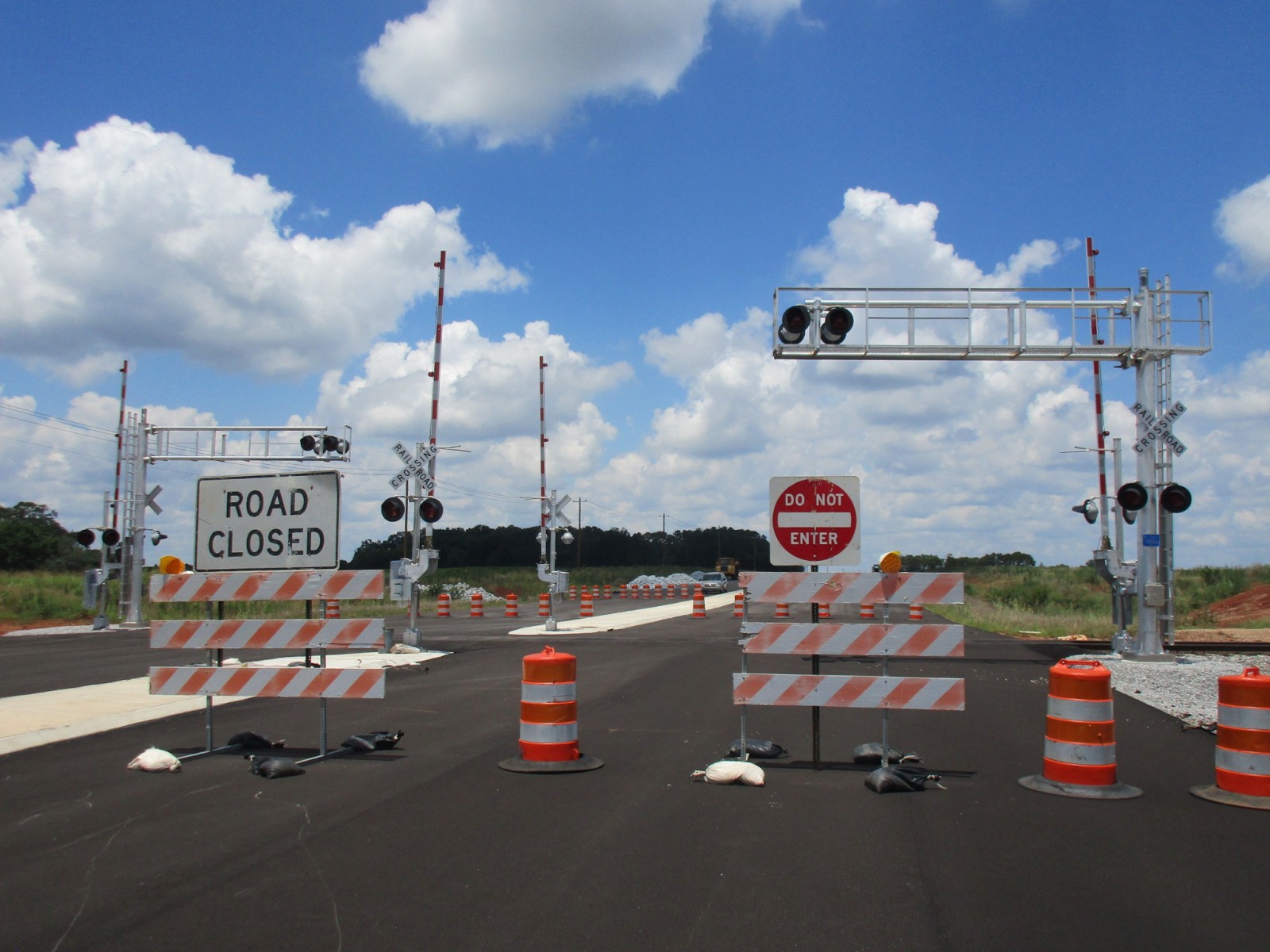

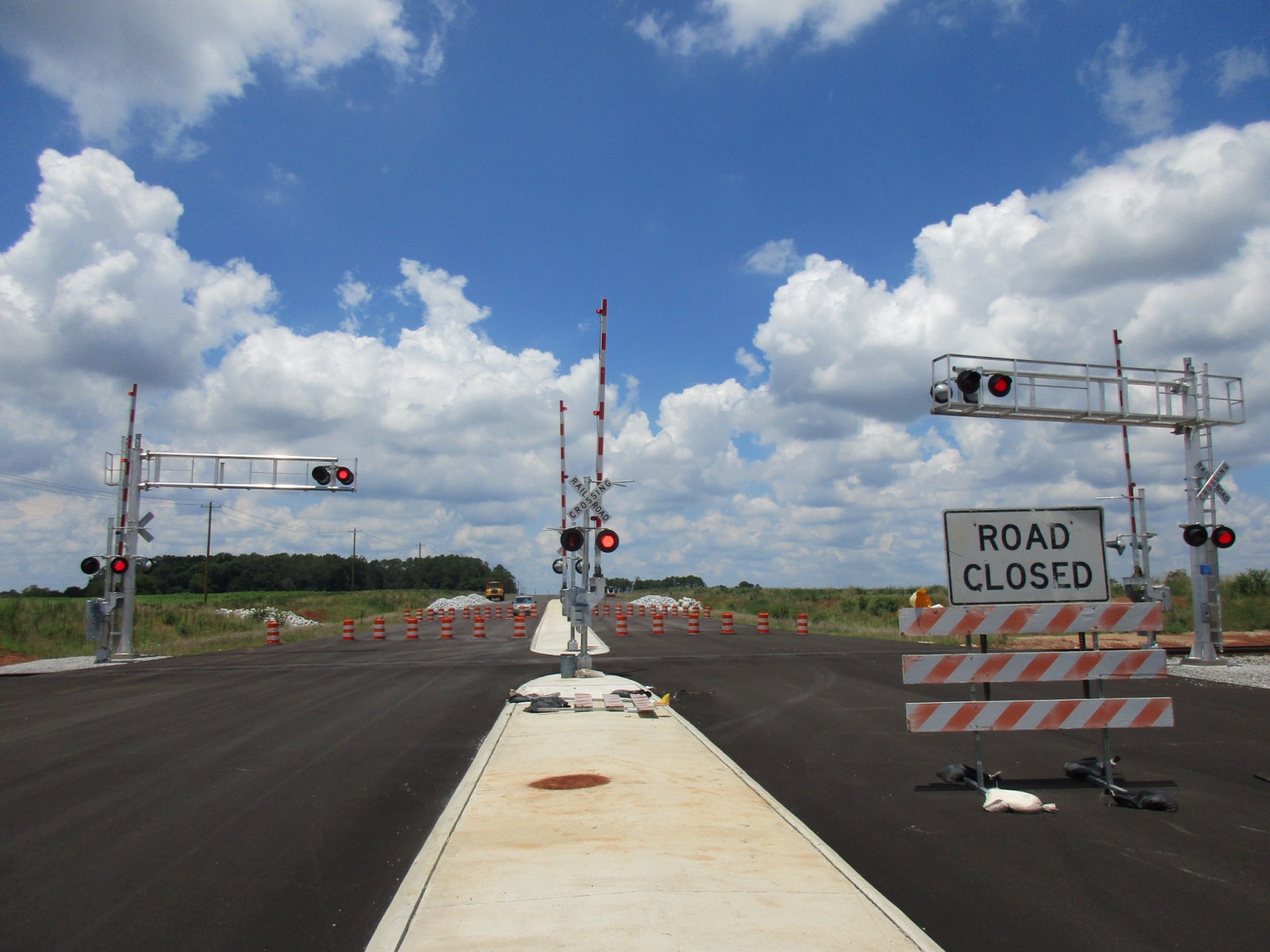

A third return trip on 7-13-17 shows that the grade has been paved.

115

116

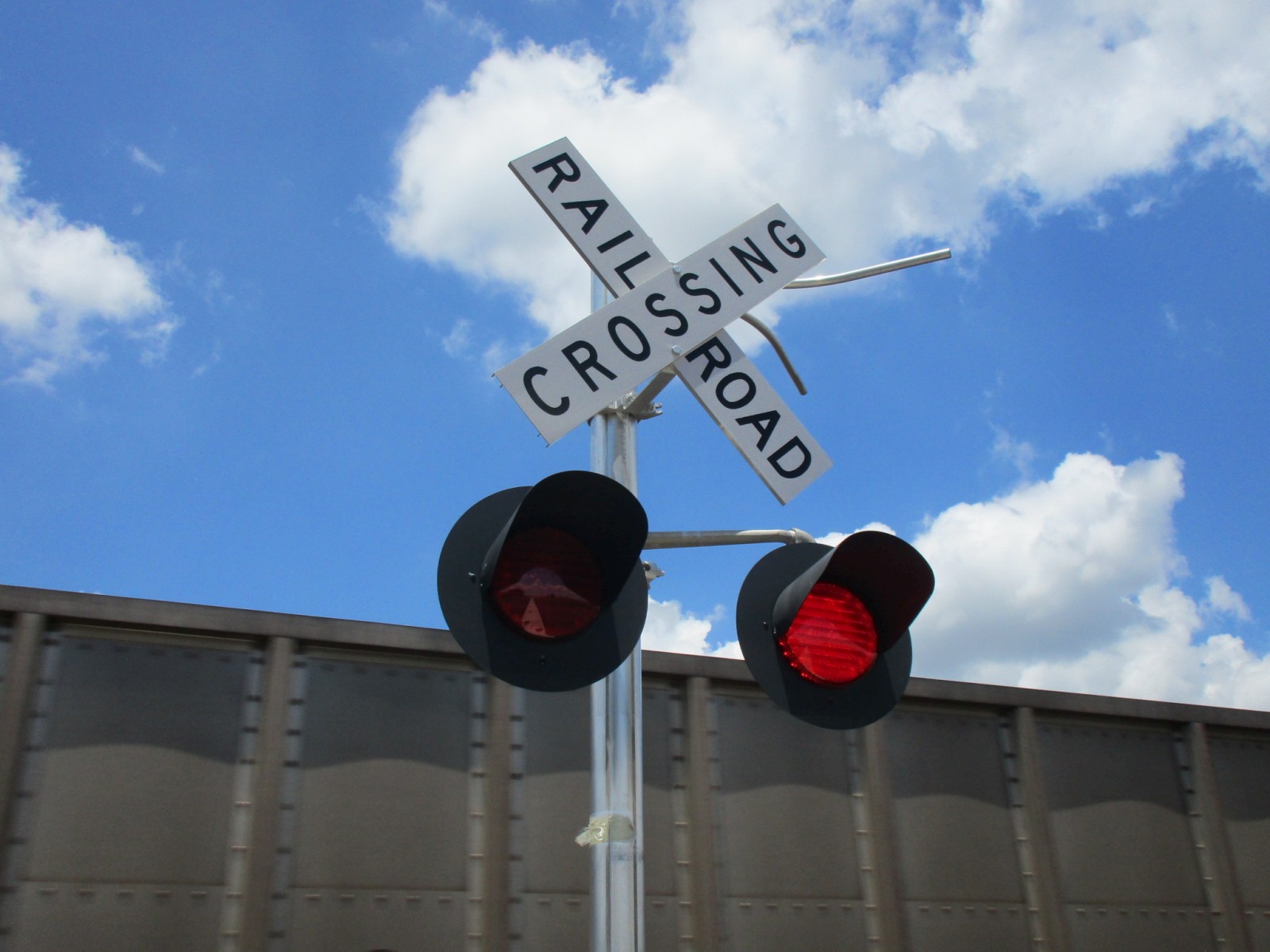

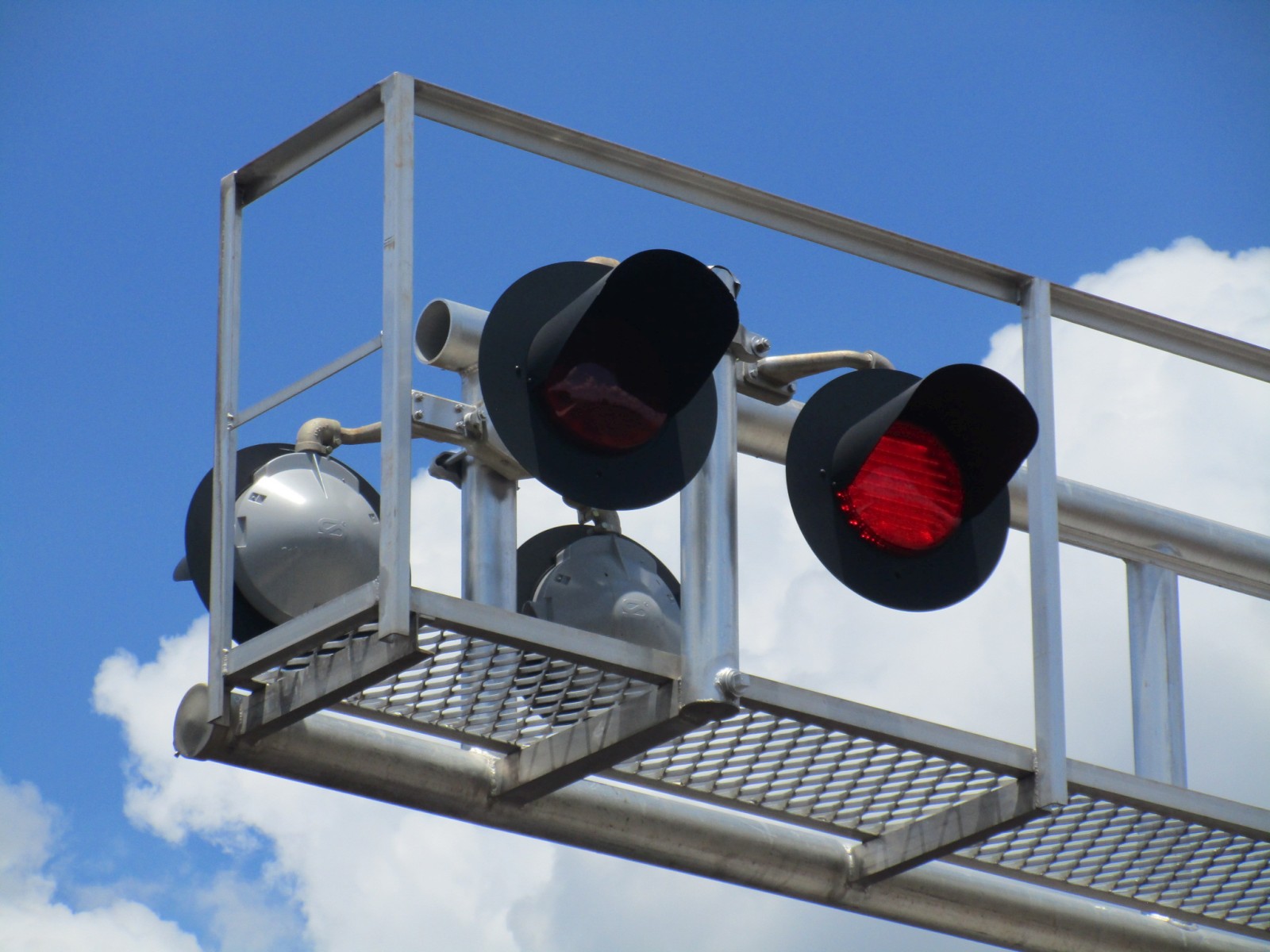

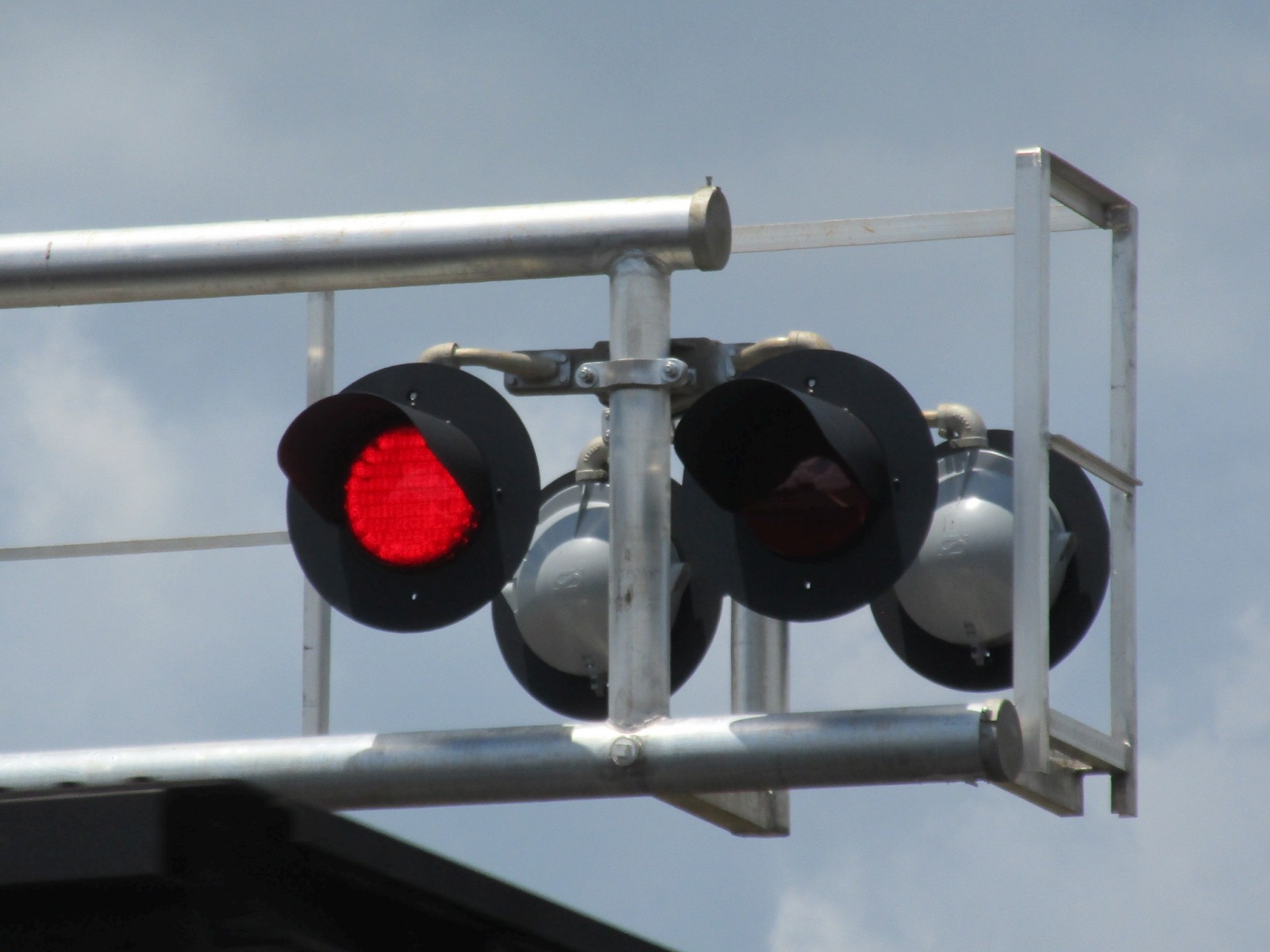

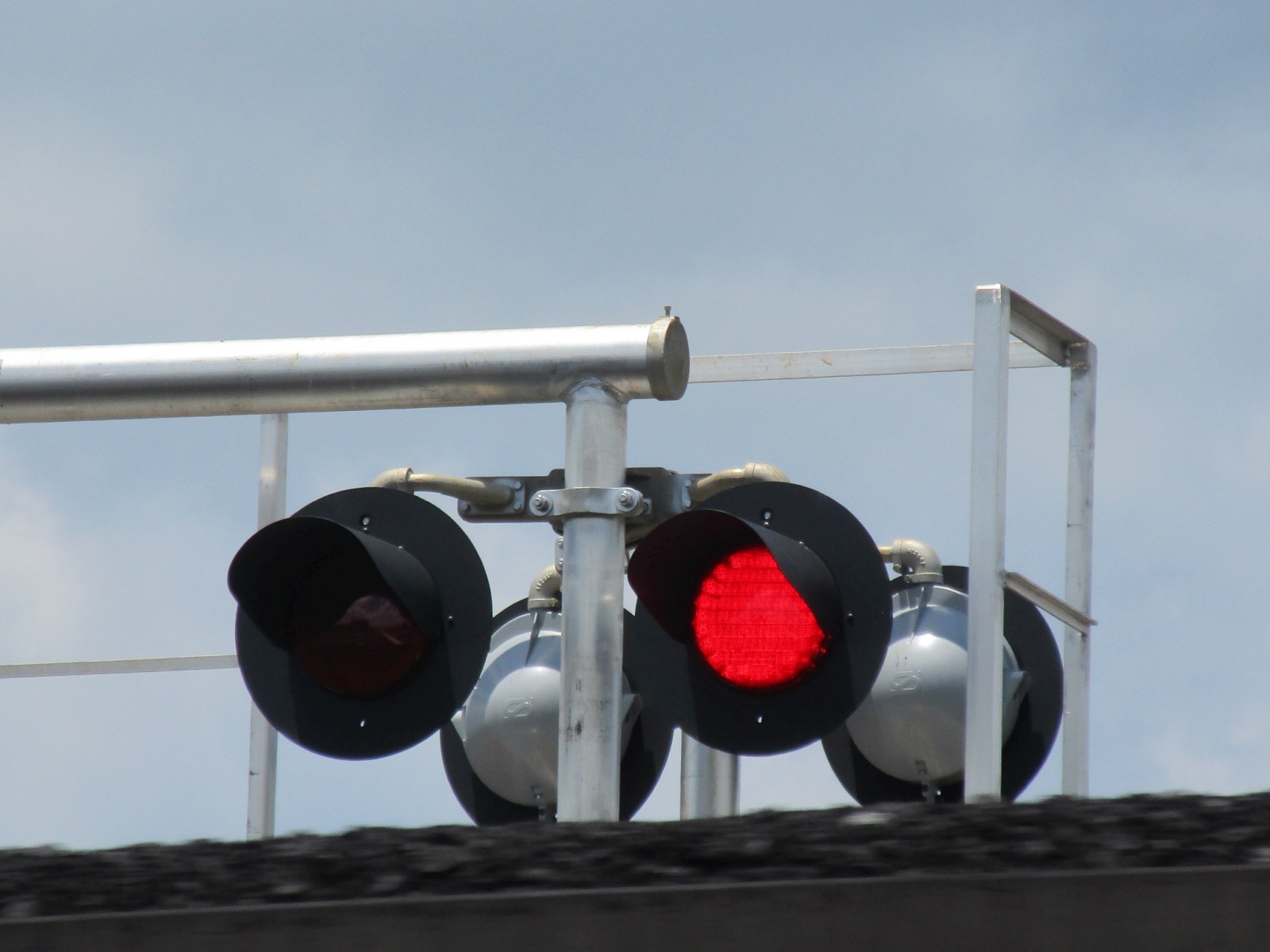

The crossing activates once again!

117

118

119

120

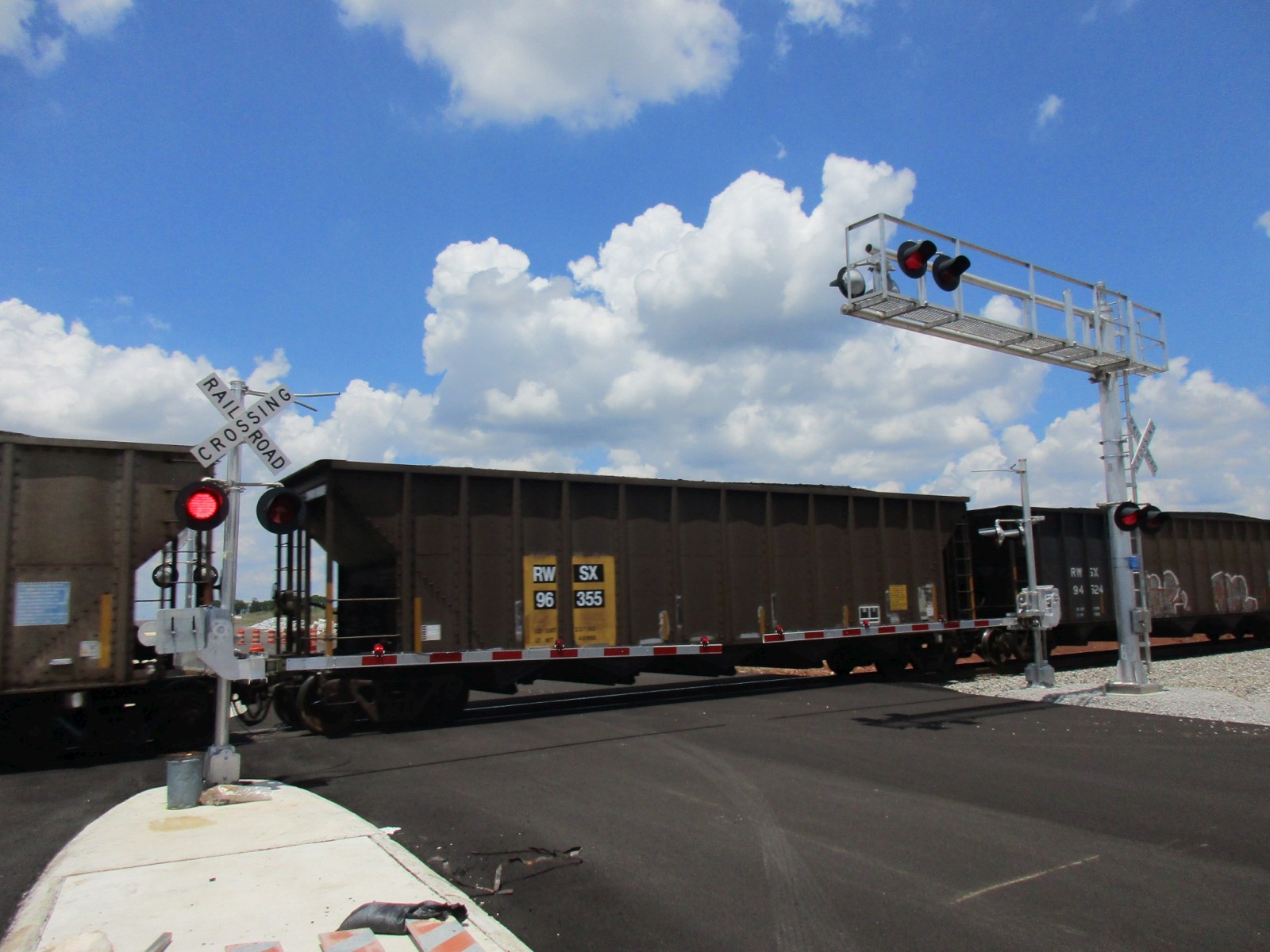

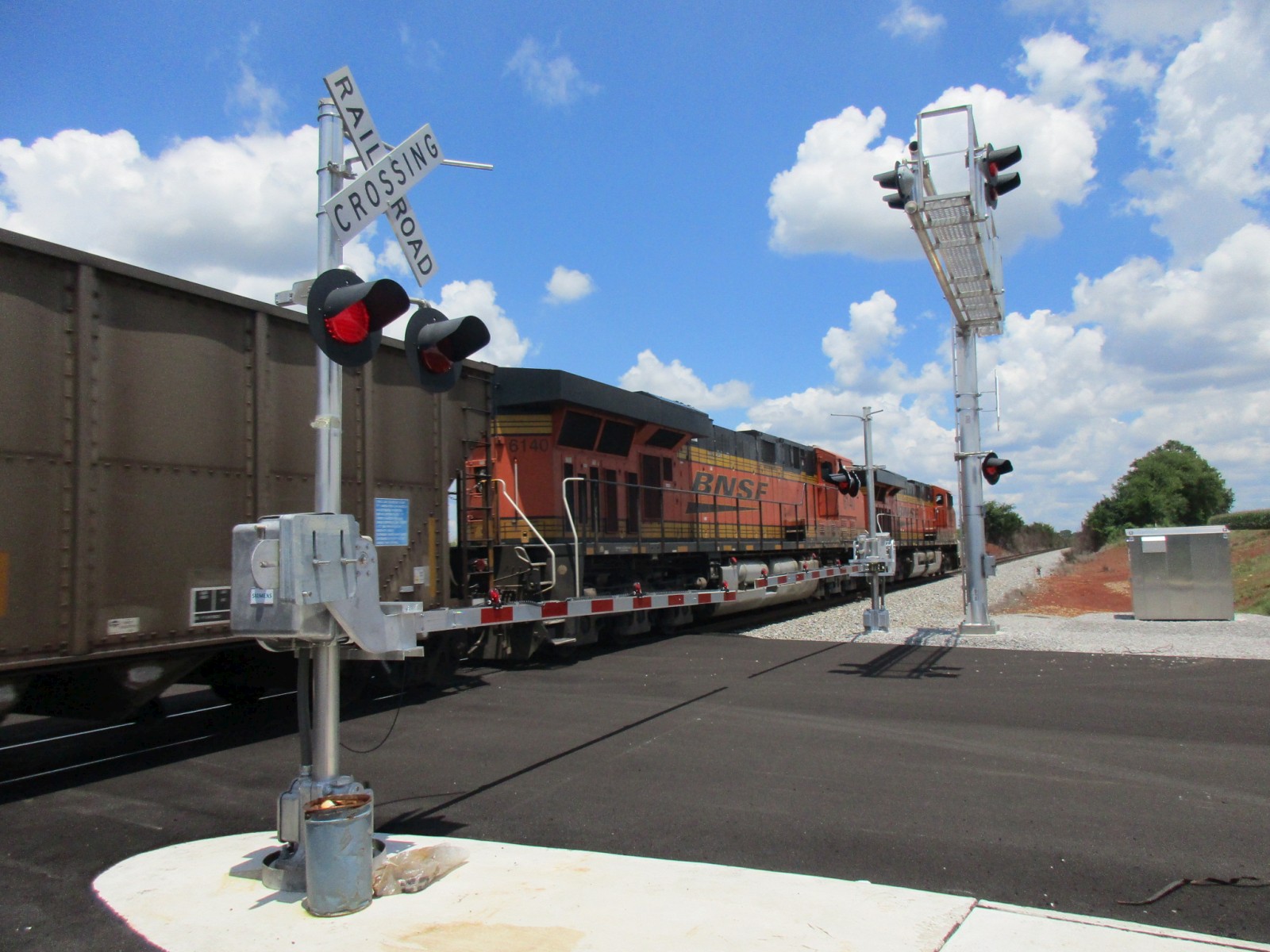

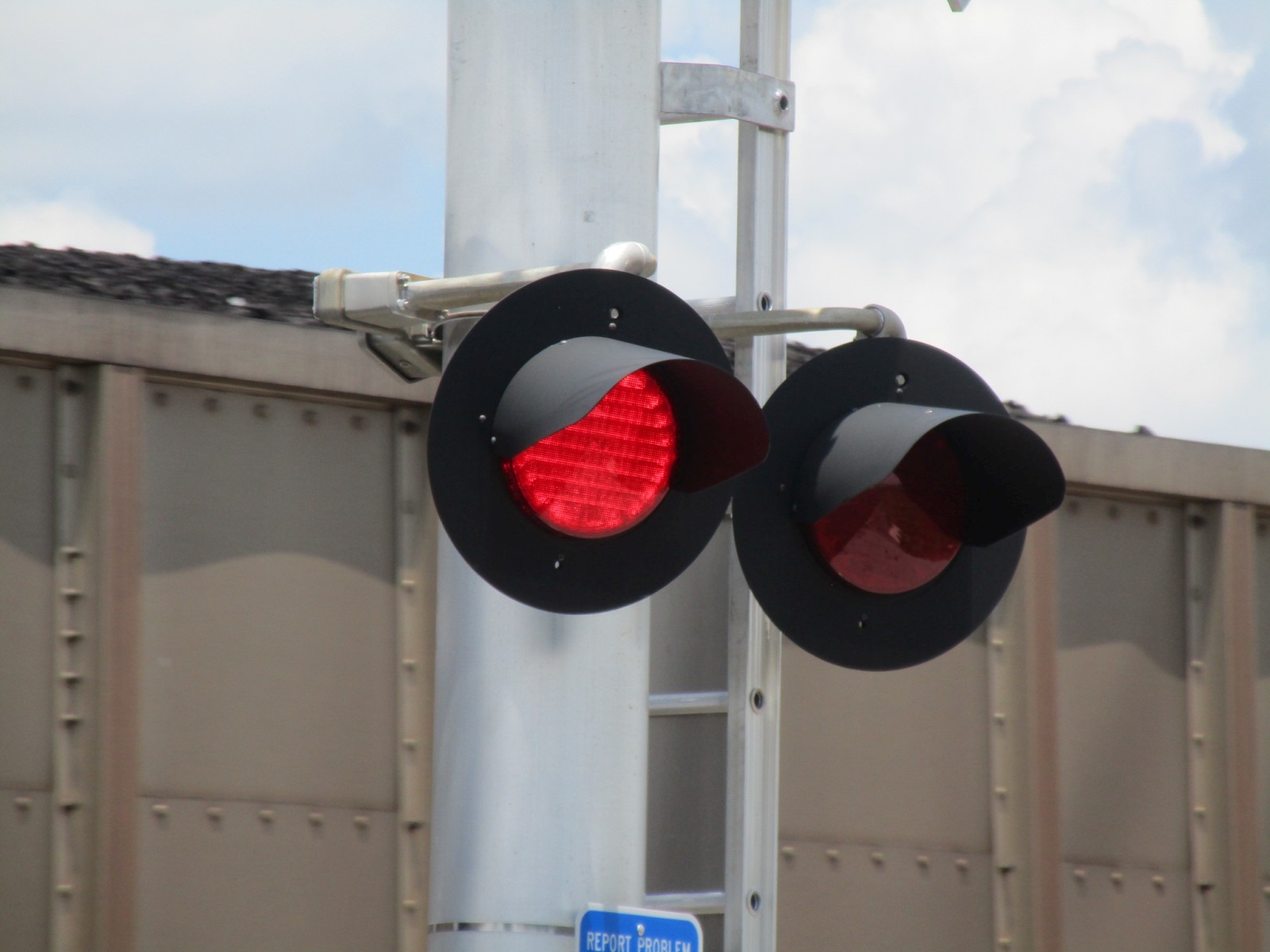

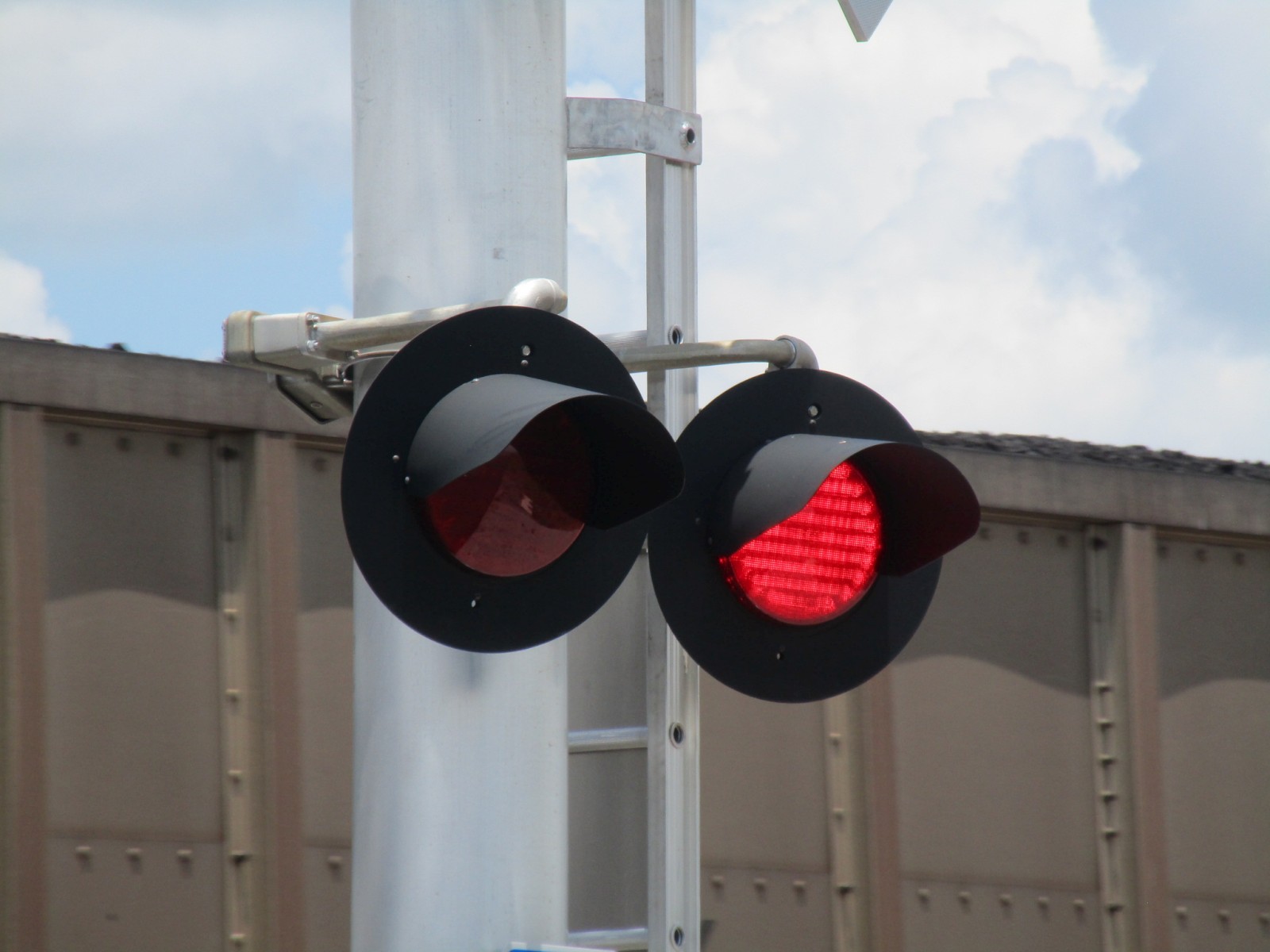

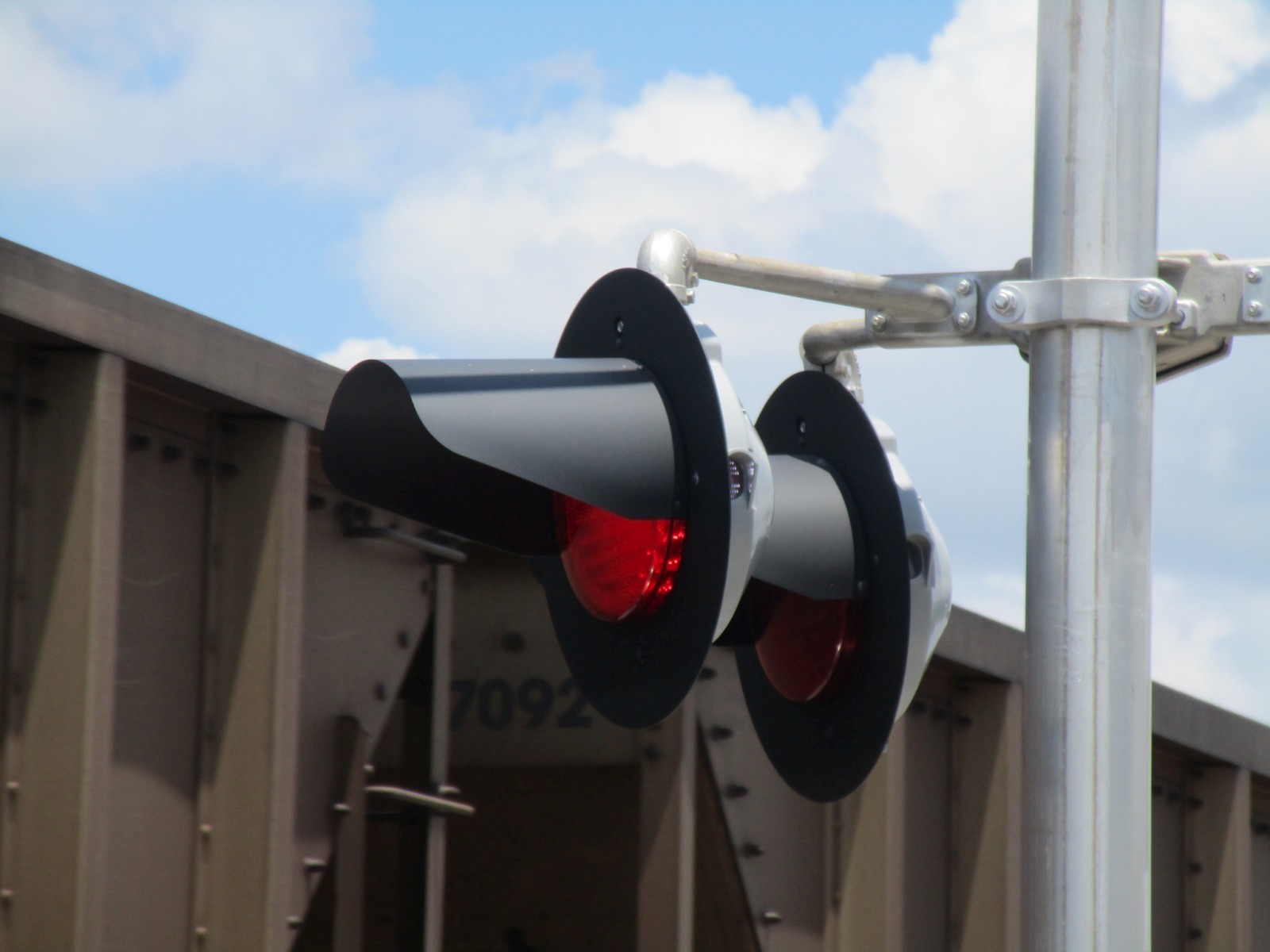

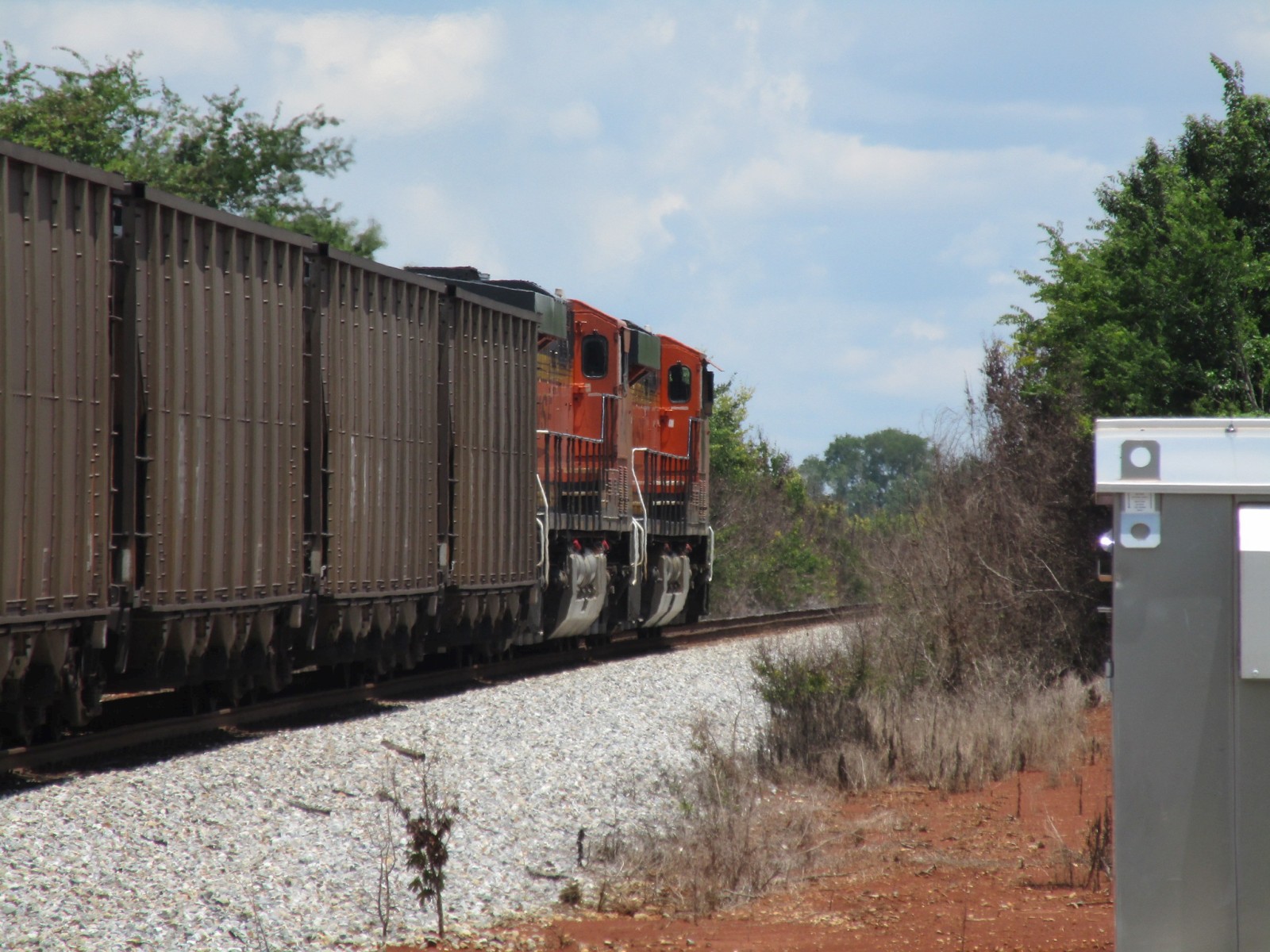

A loaded coal train comes through with two BNSF ES44ACs leading.

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

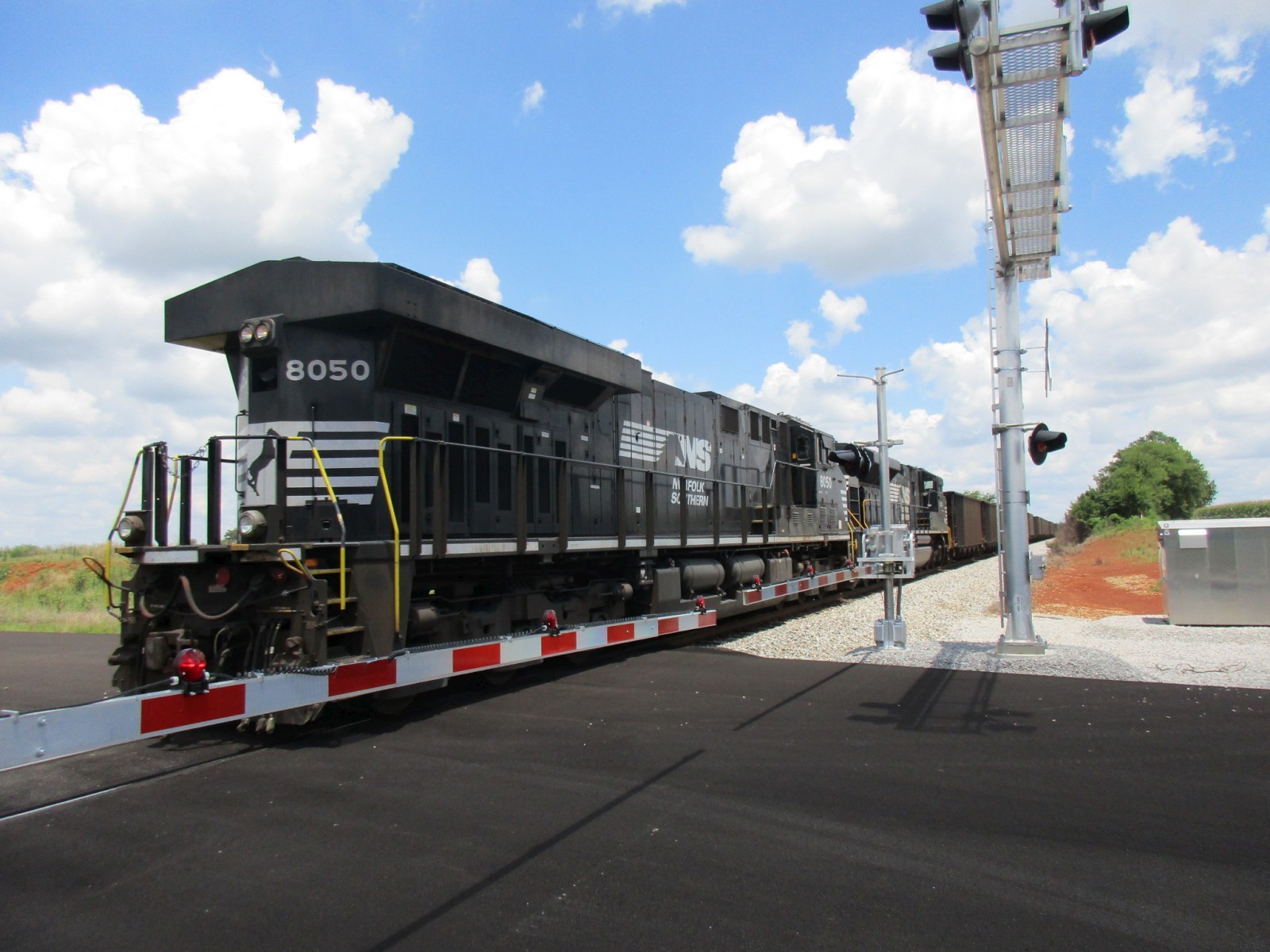

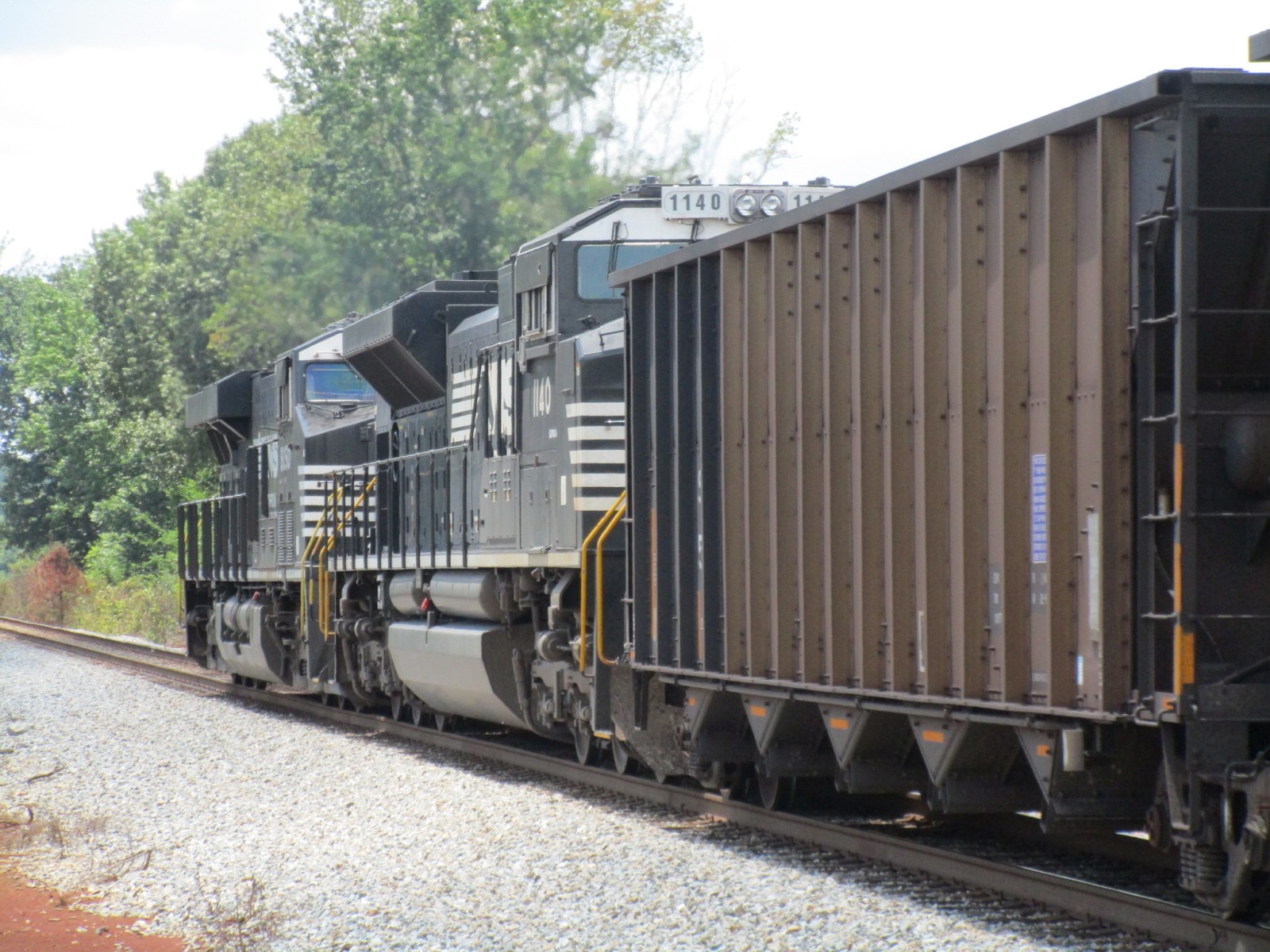

An NS SD70ACe and an NS ES44AC work on the DPU.

141

142

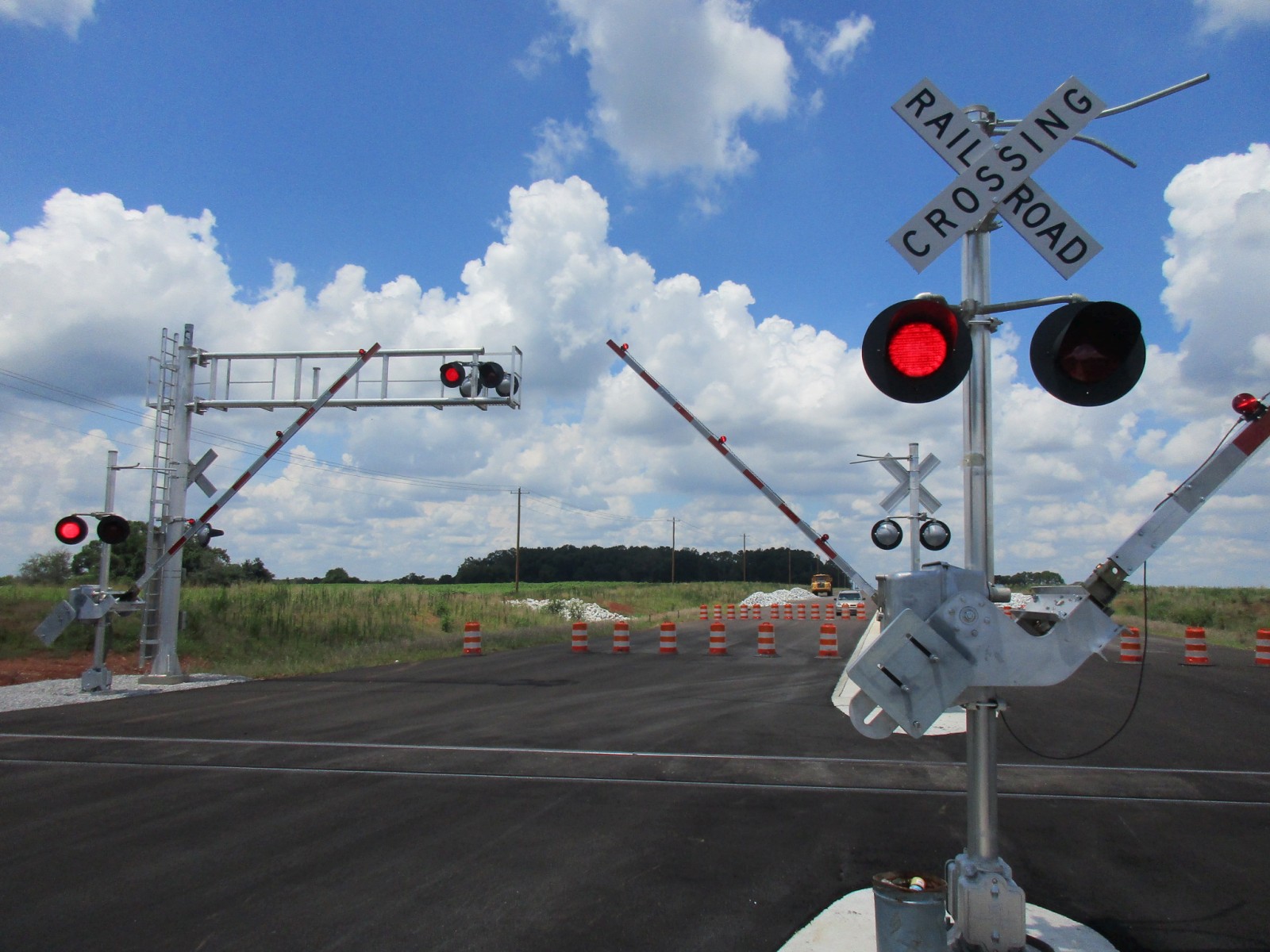

The gates rise once the train has cleared the crossing.

143

144

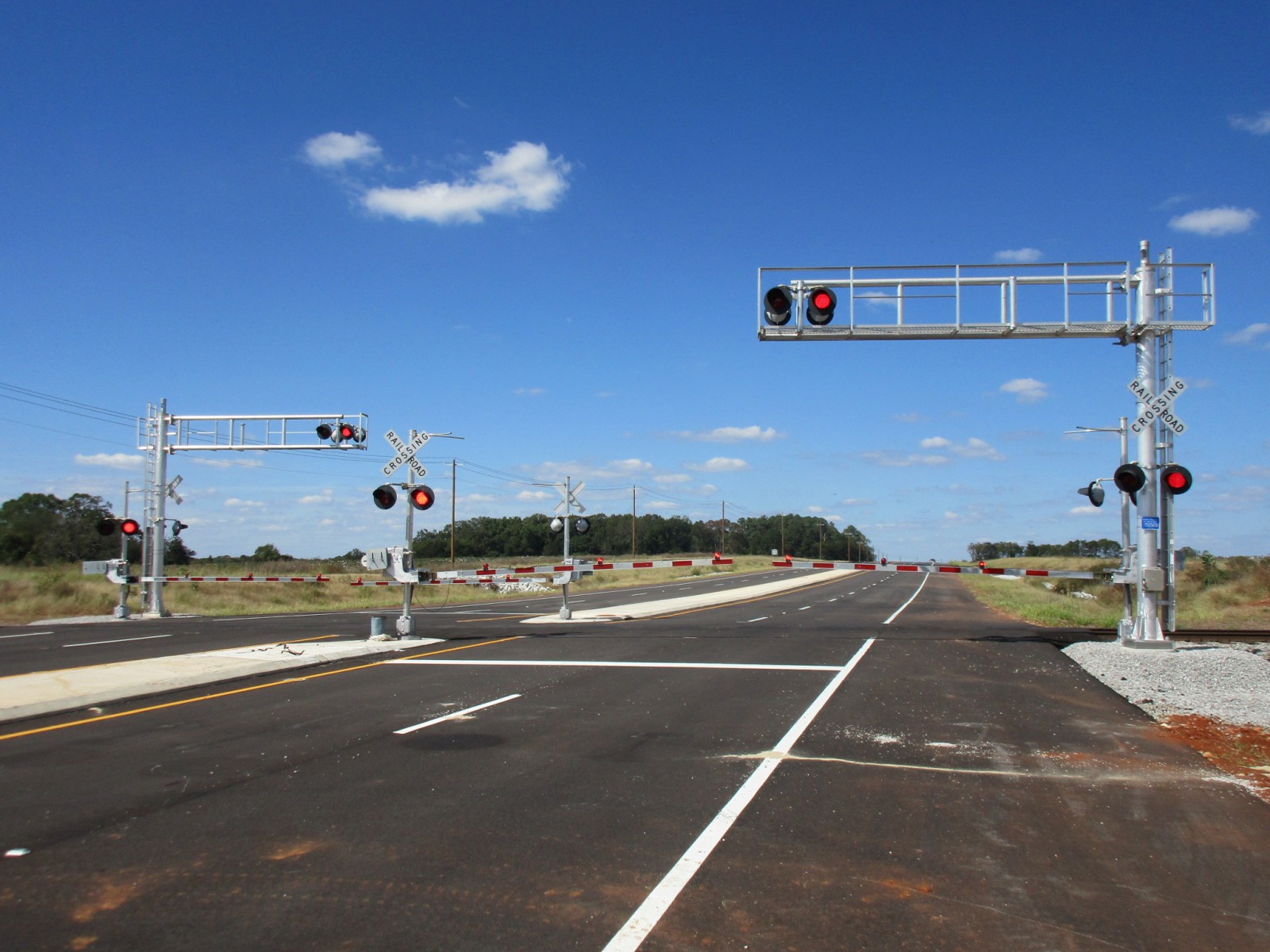

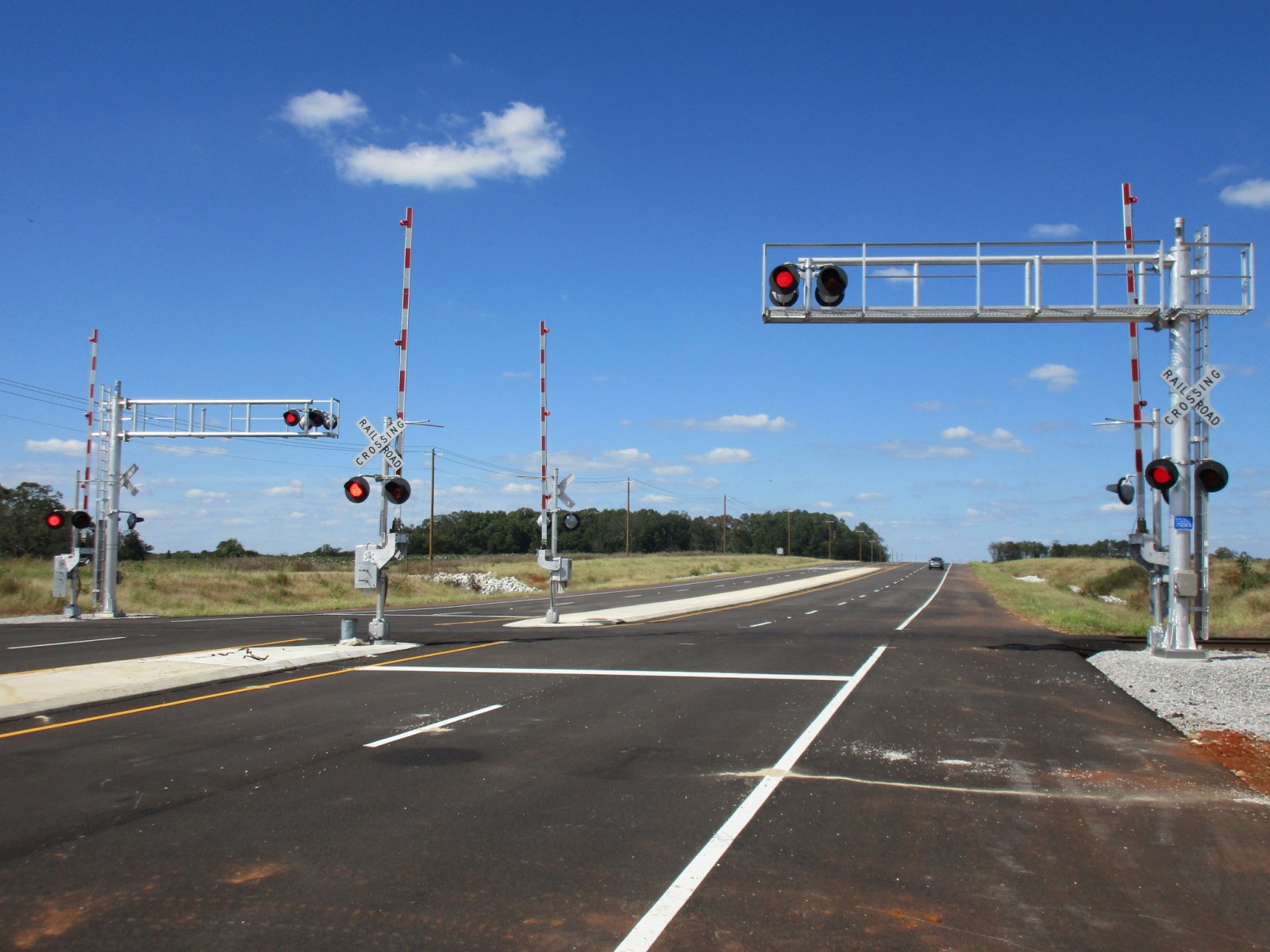

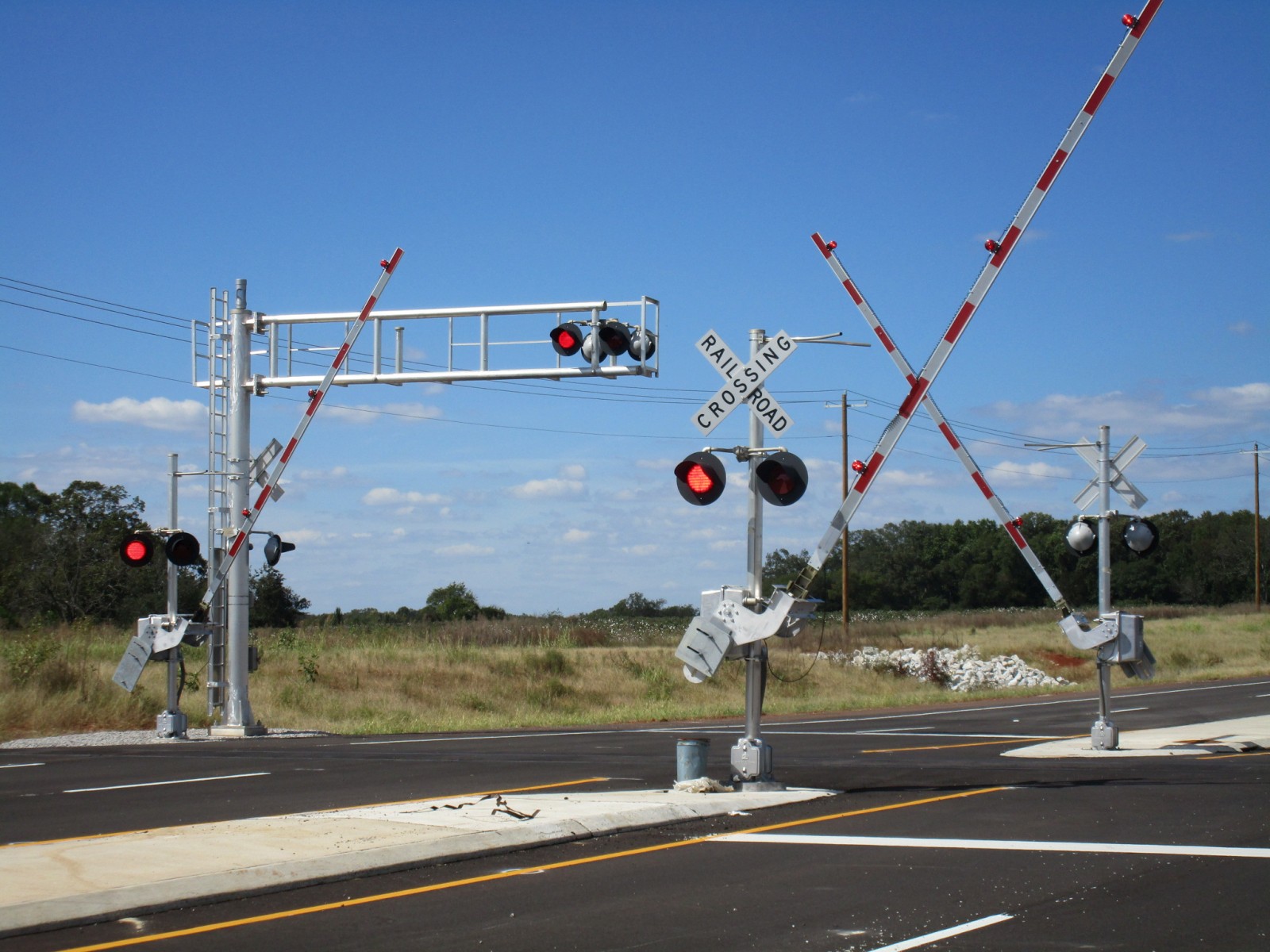

A fourth return trip on 10-4-17 shows that the crossing is now open!

145

146

147

148

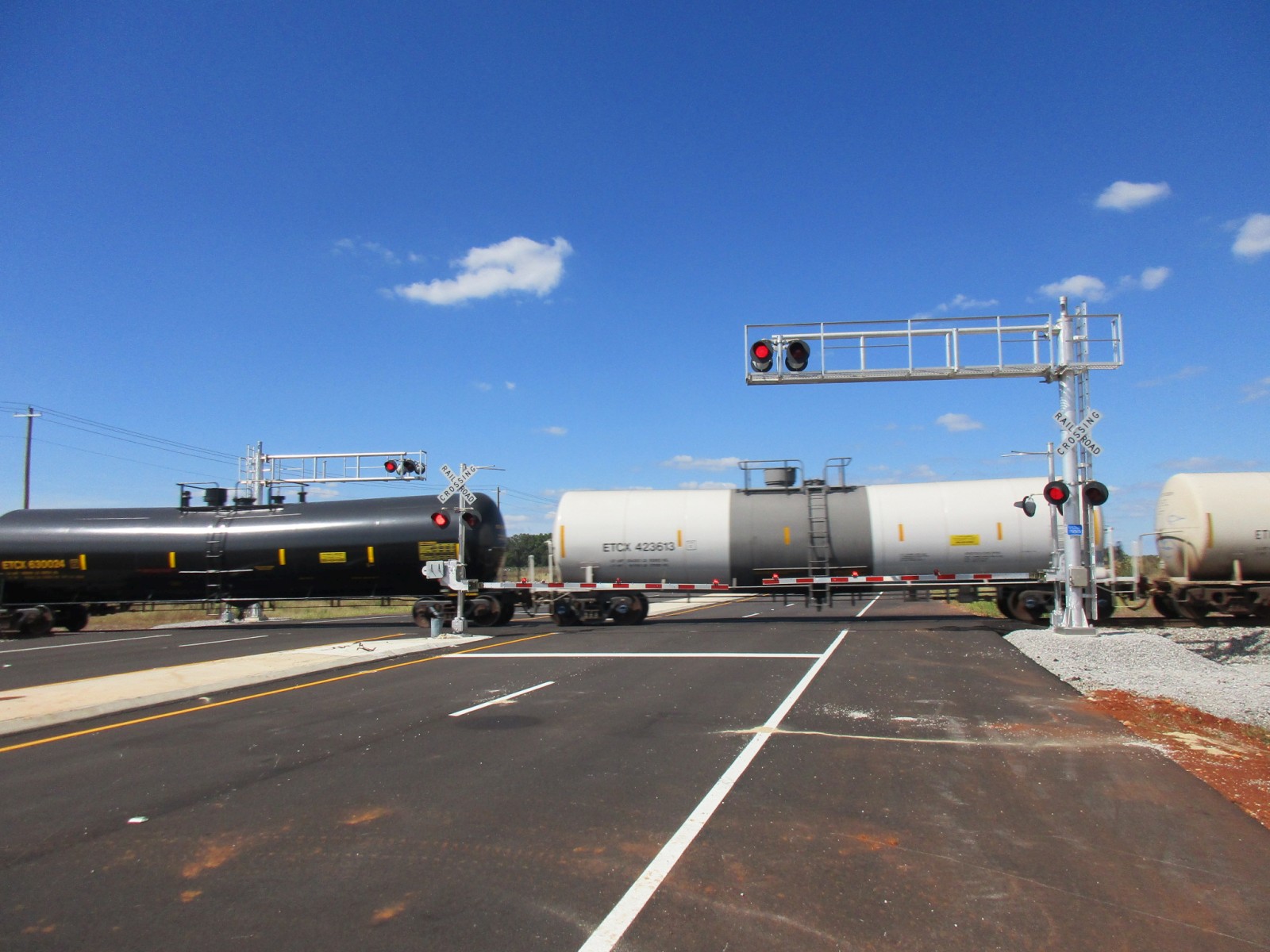

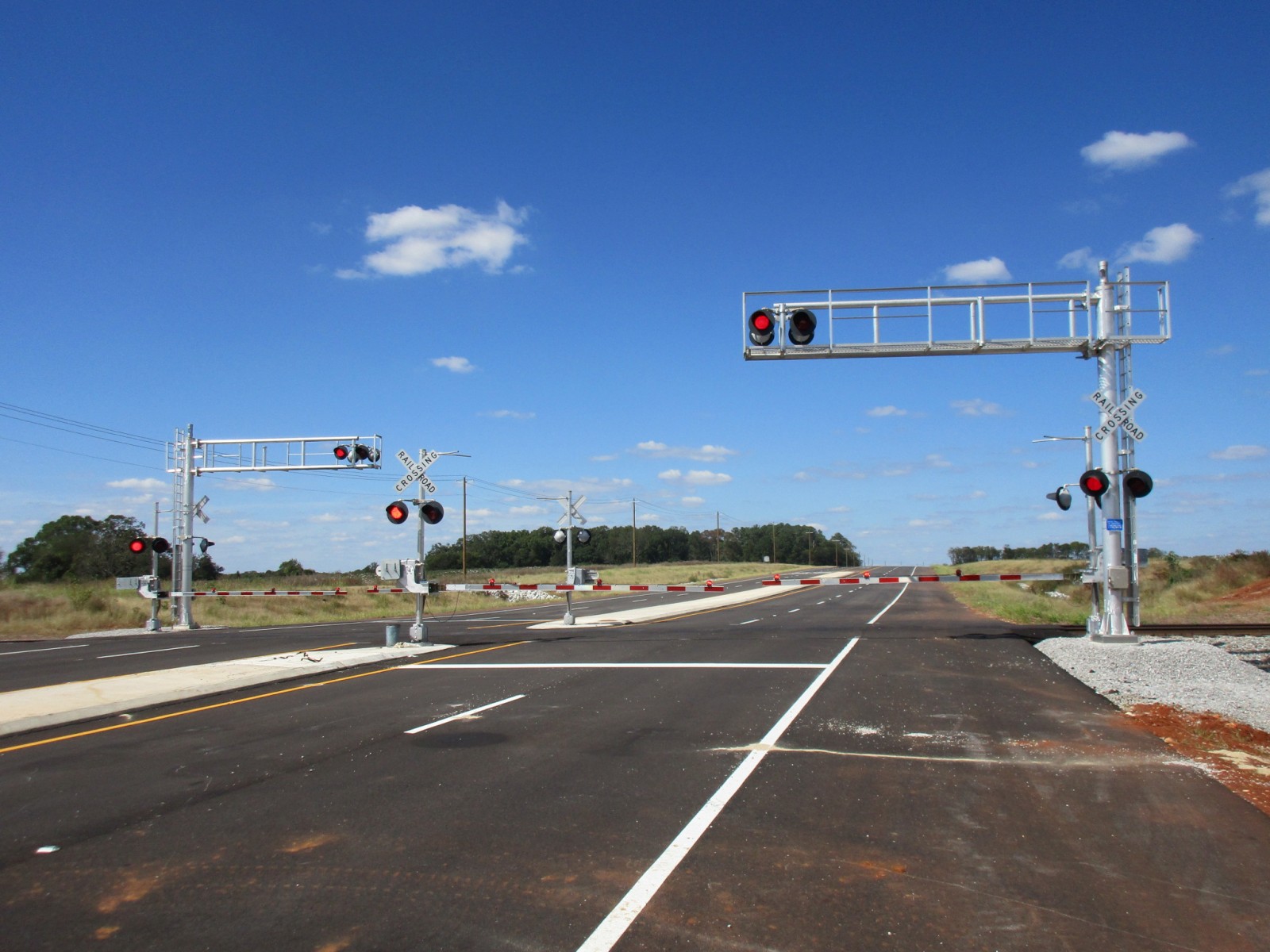

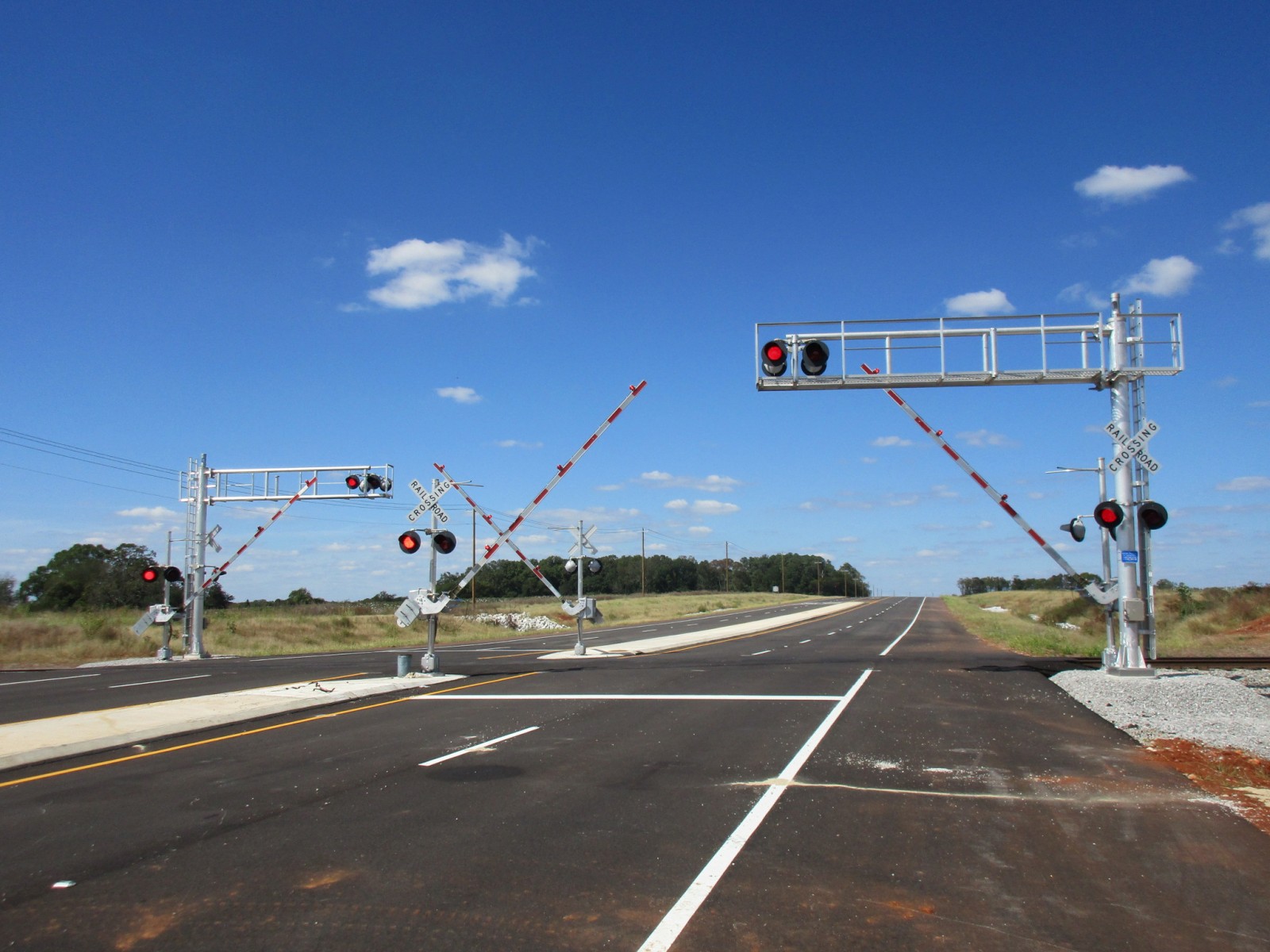

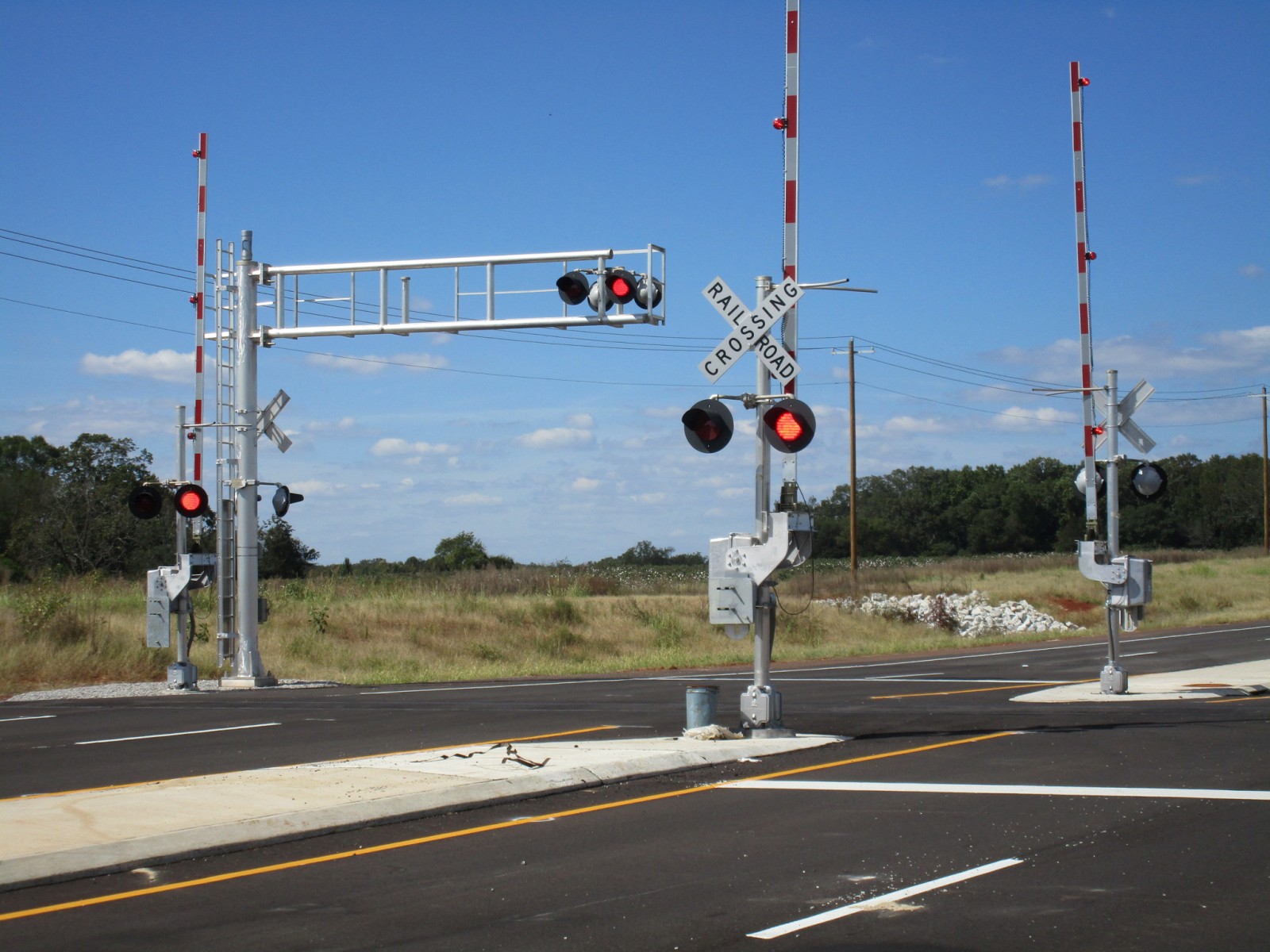

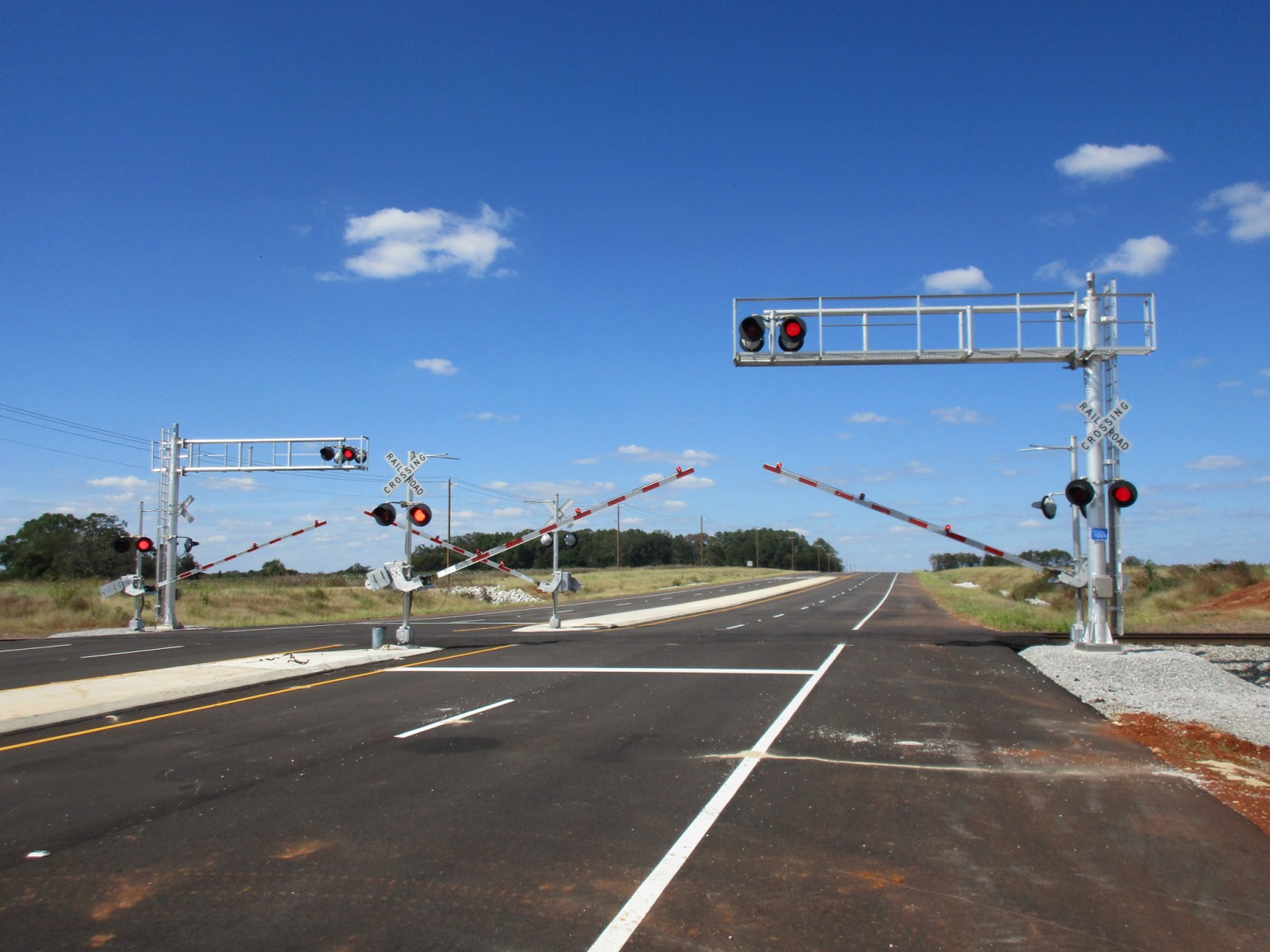

The crossing activates yet again!

149

150

151

152

153

154

155

156

157

158

159

160

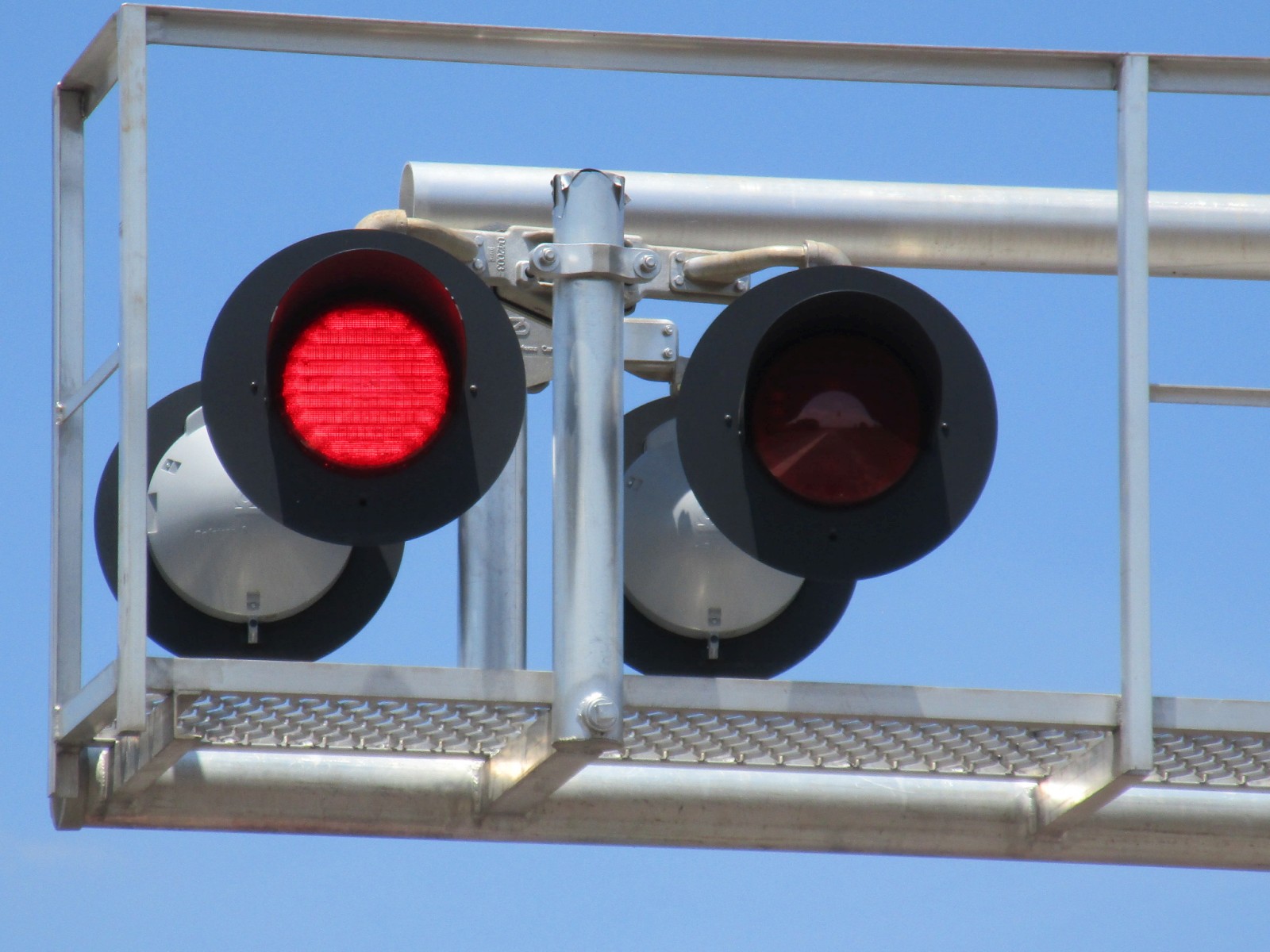

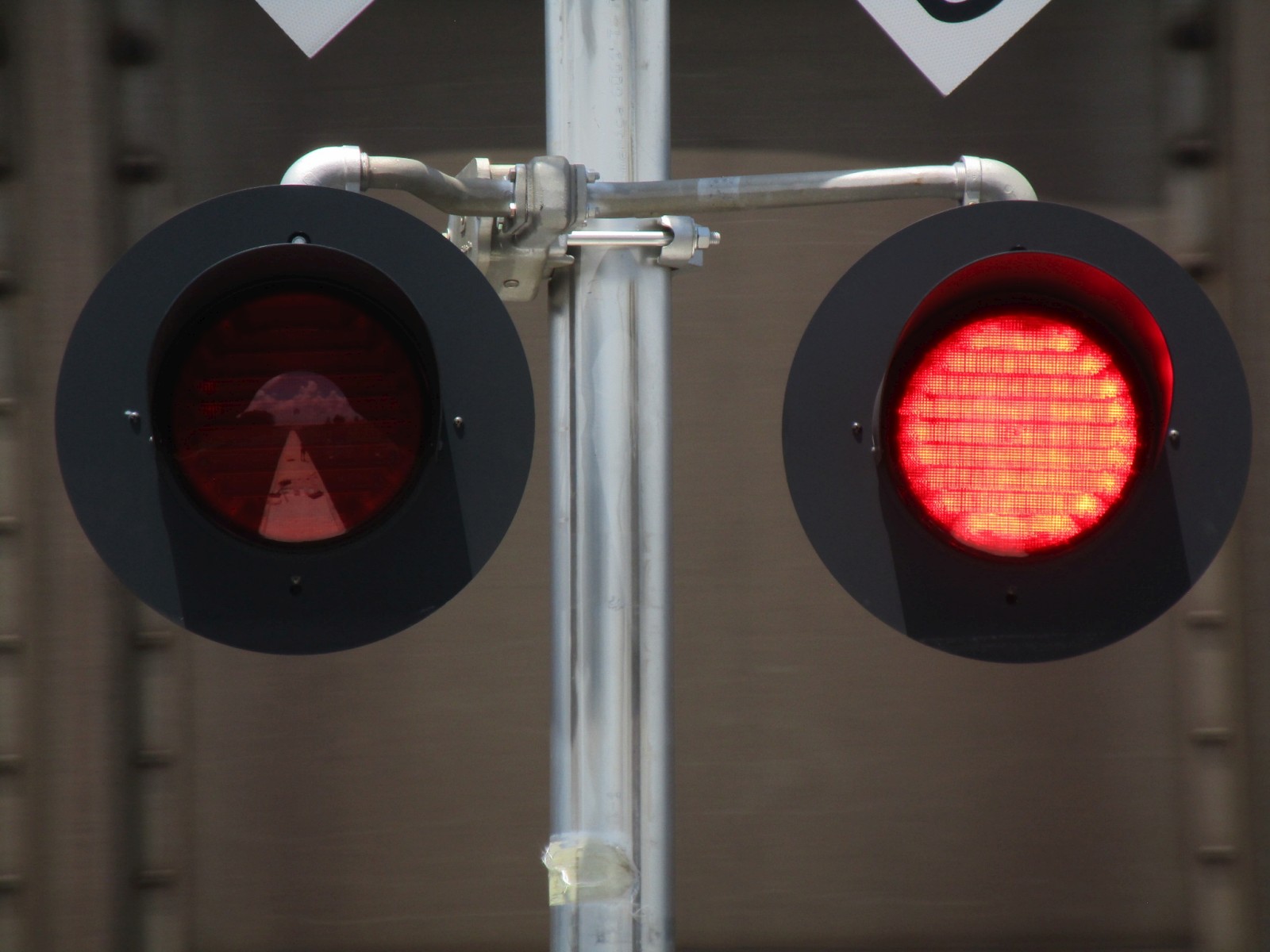

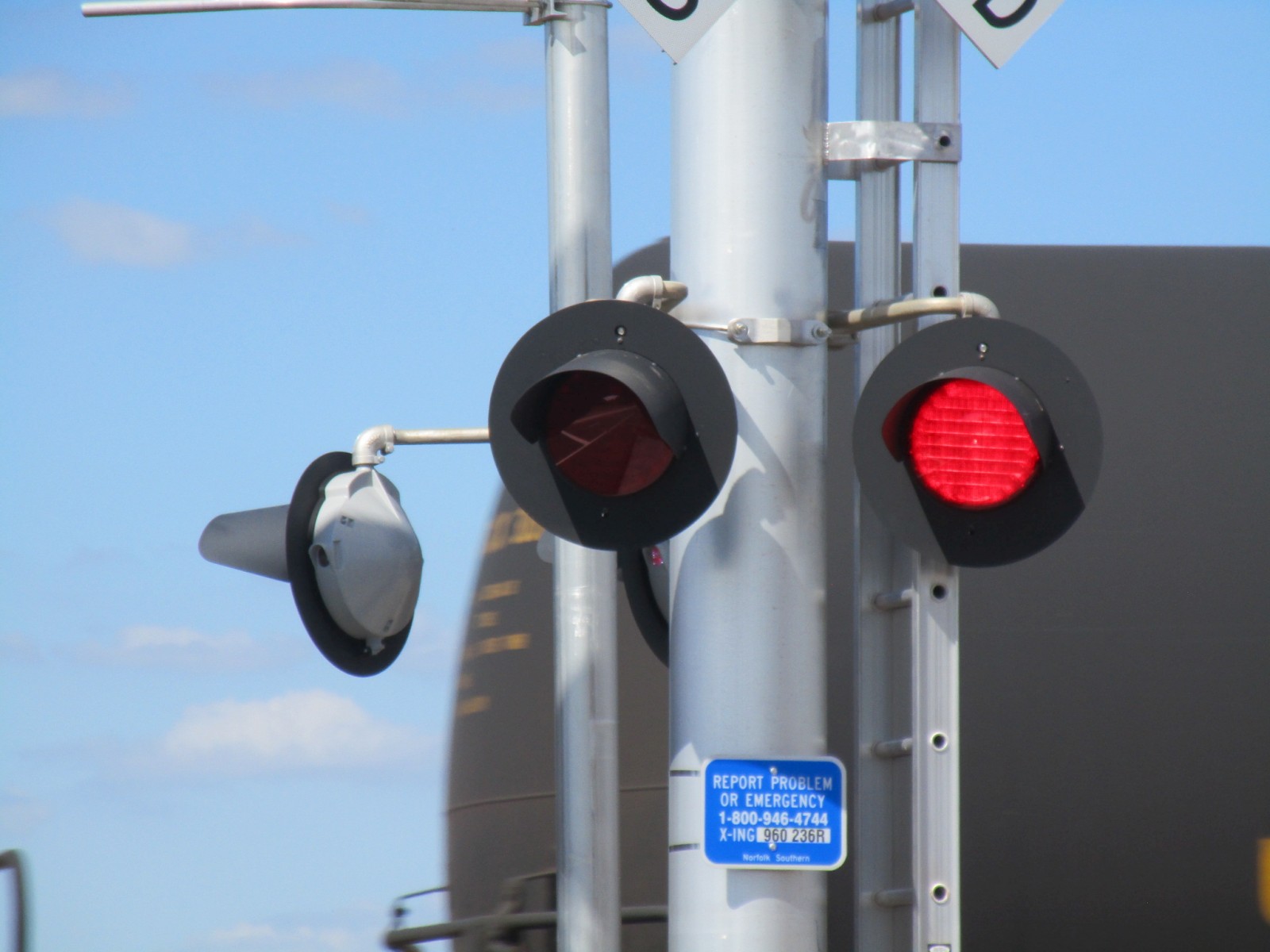

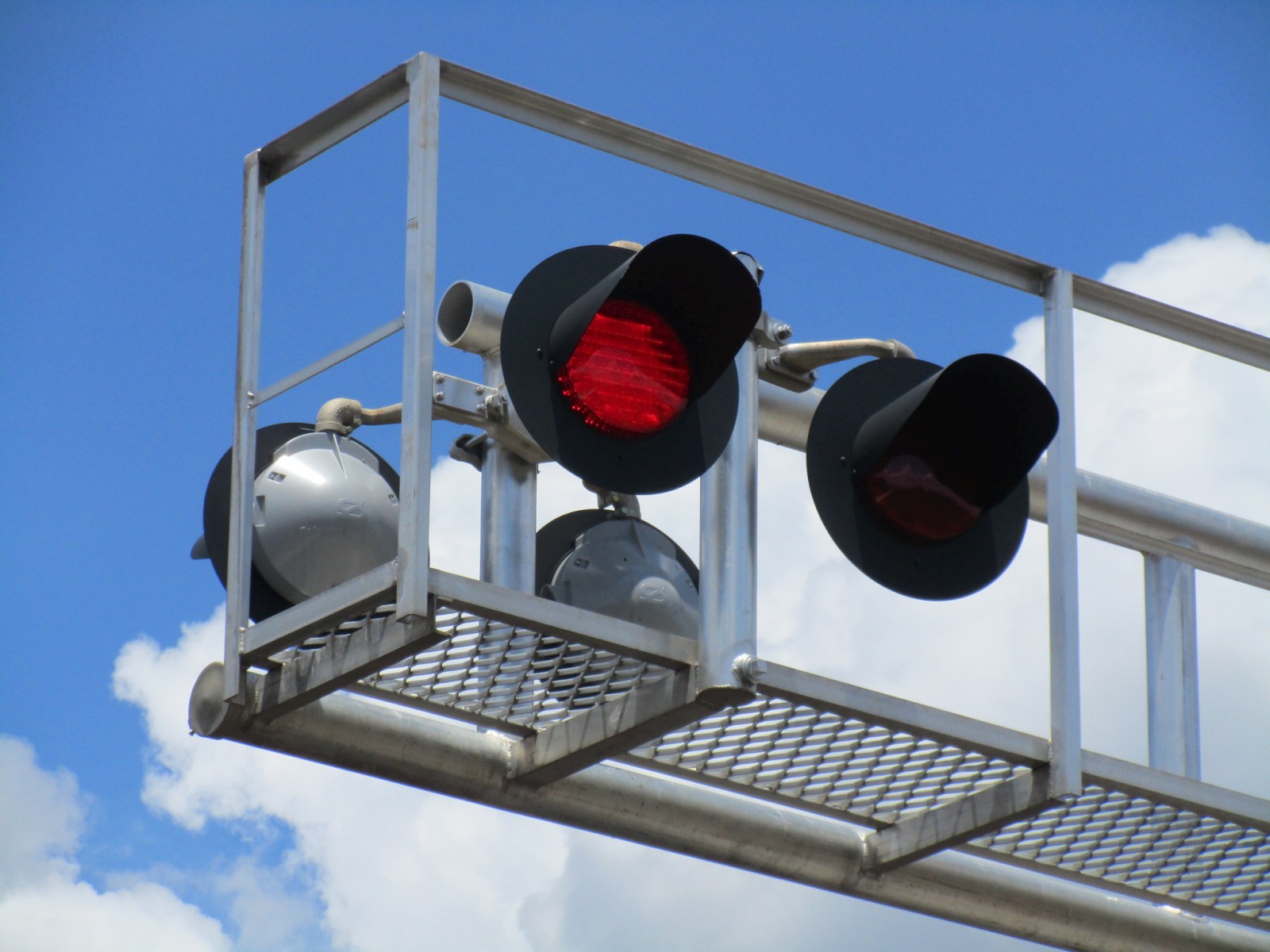

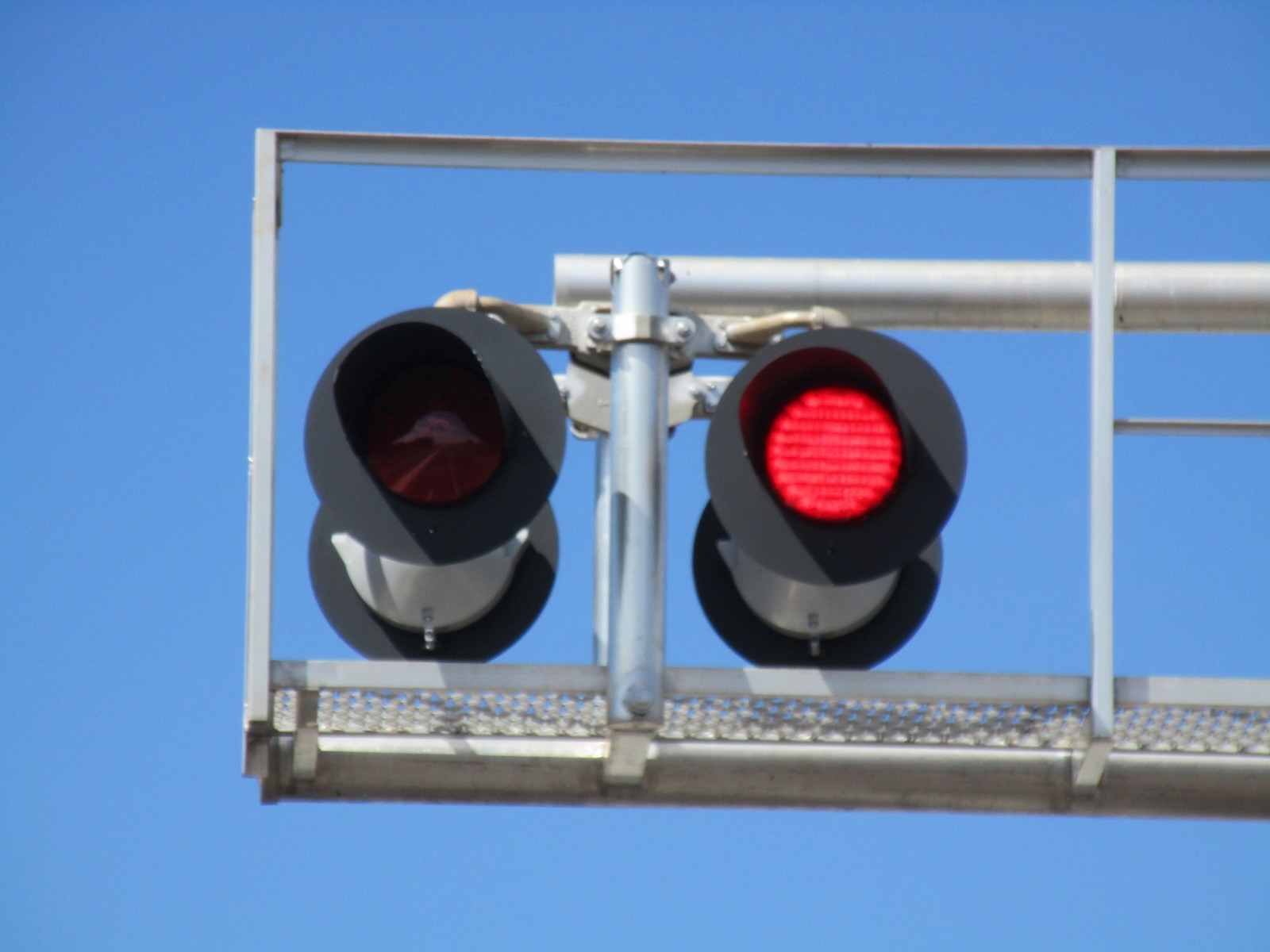

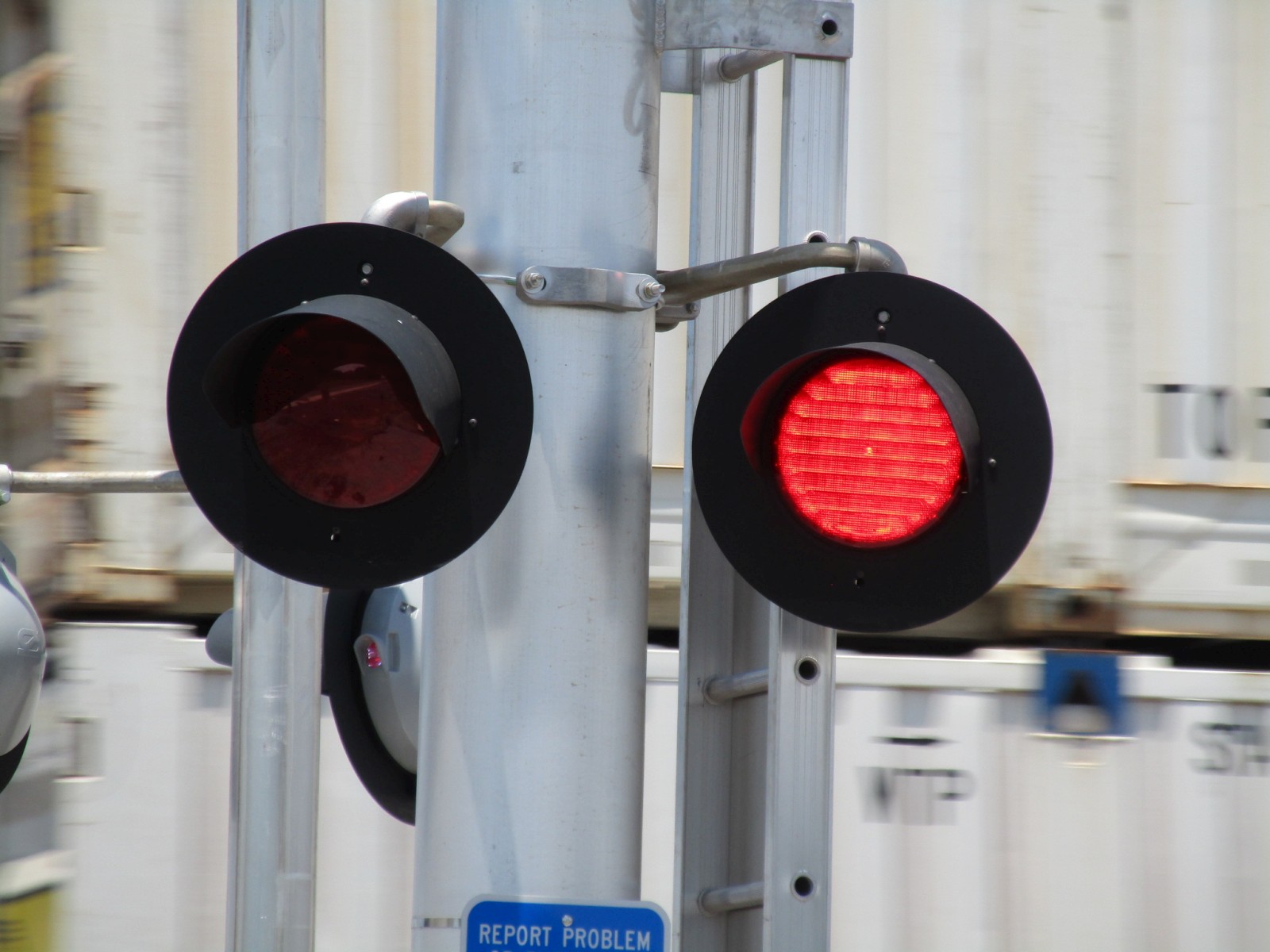

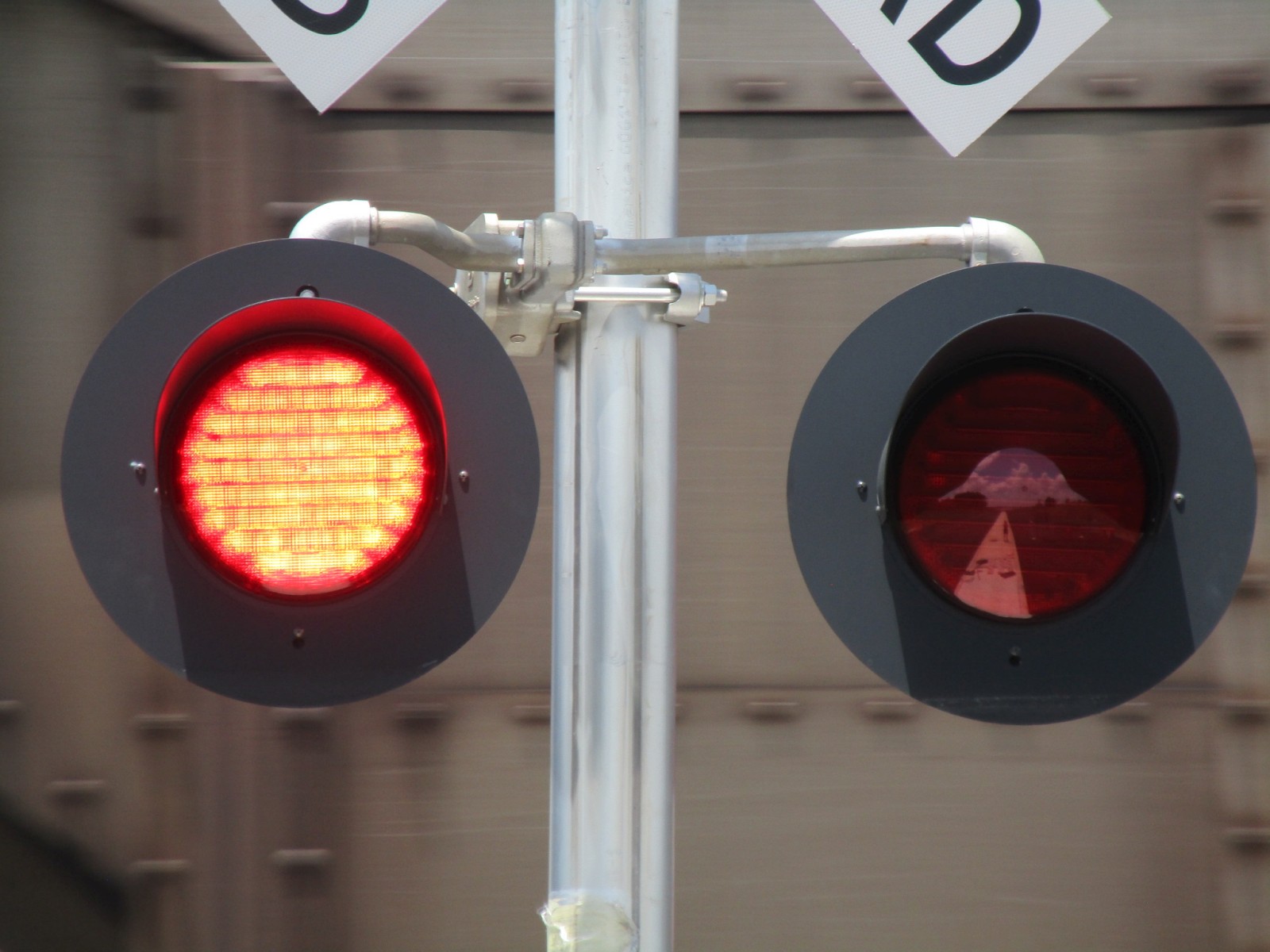

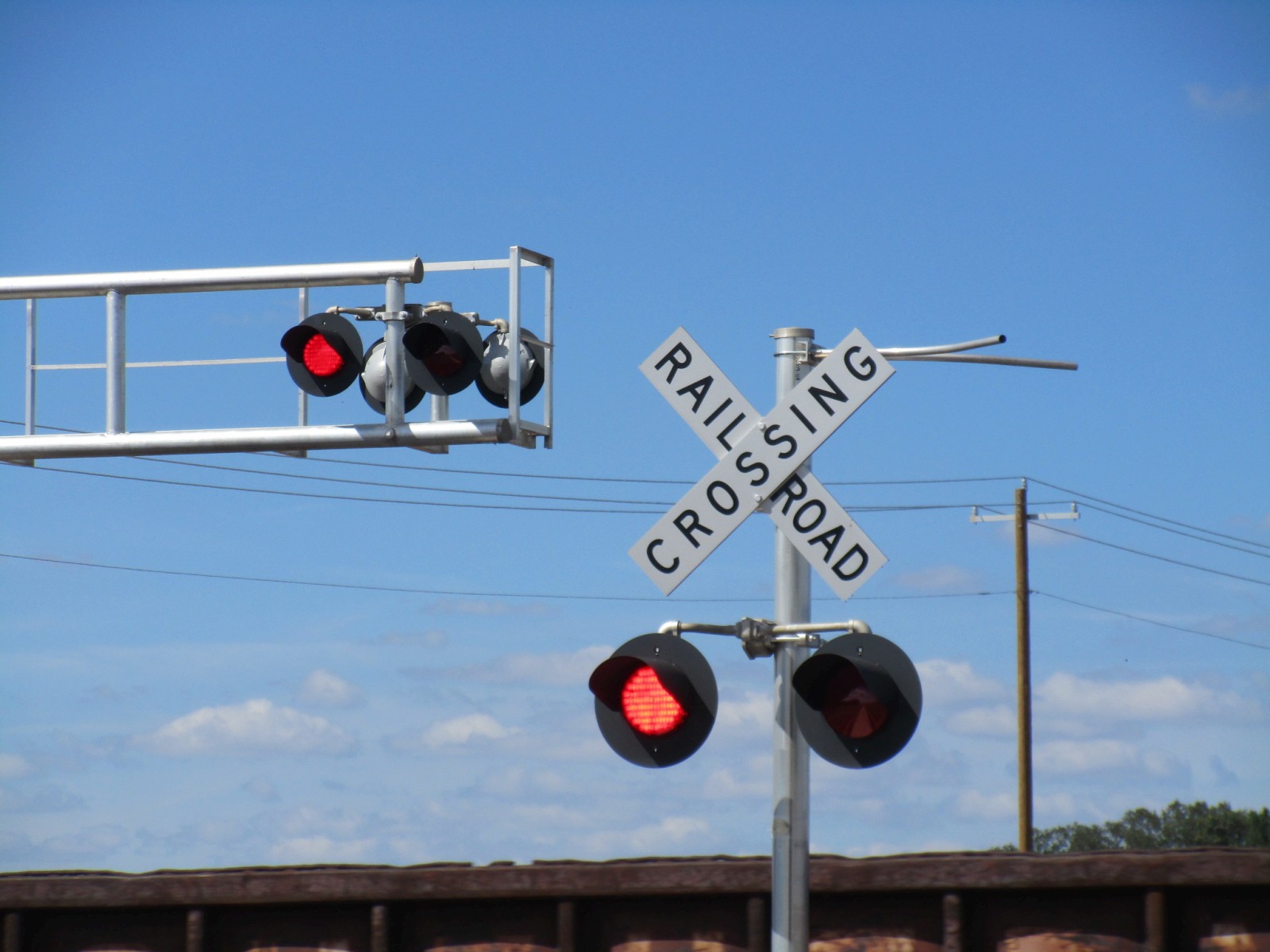

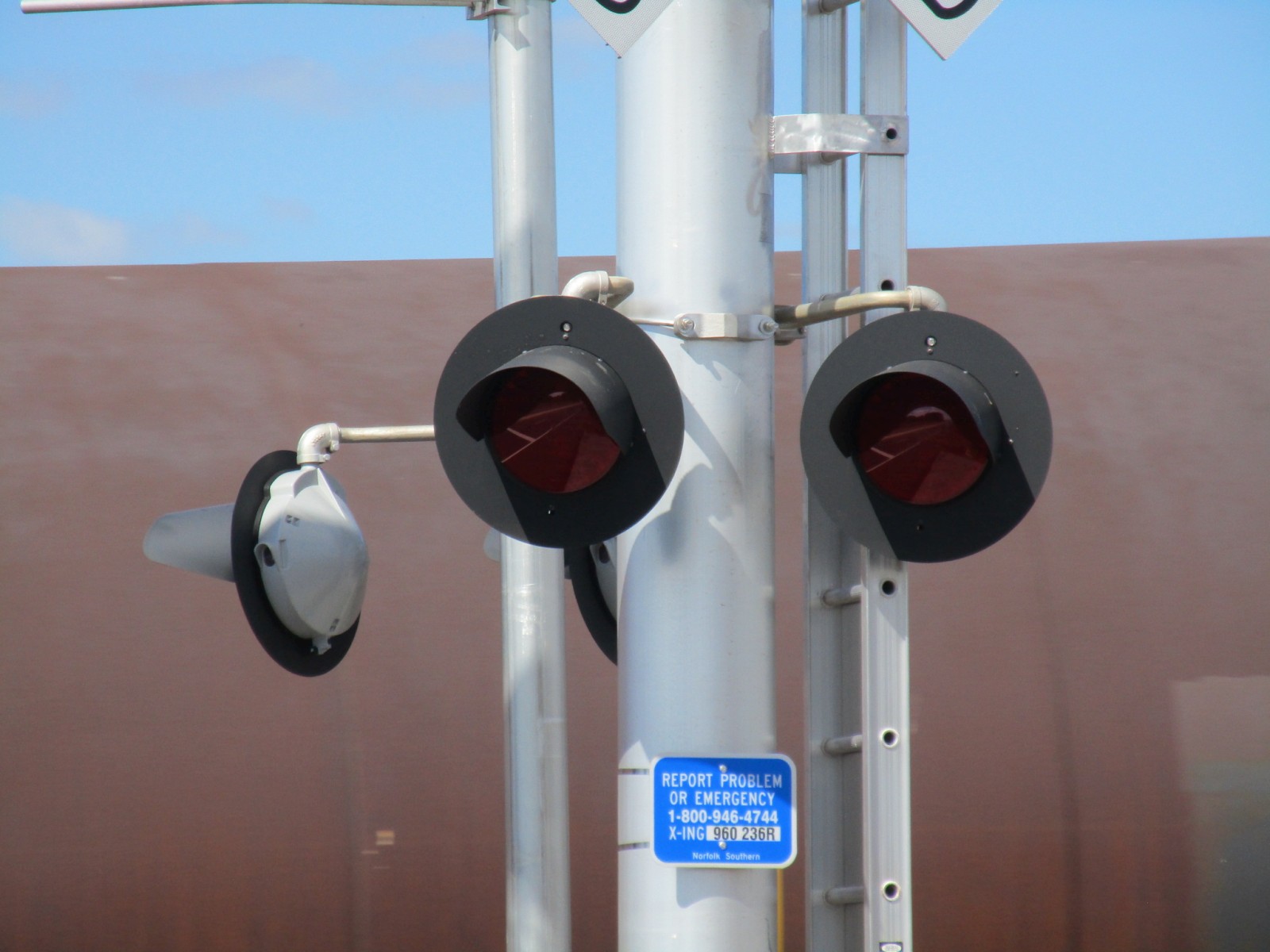

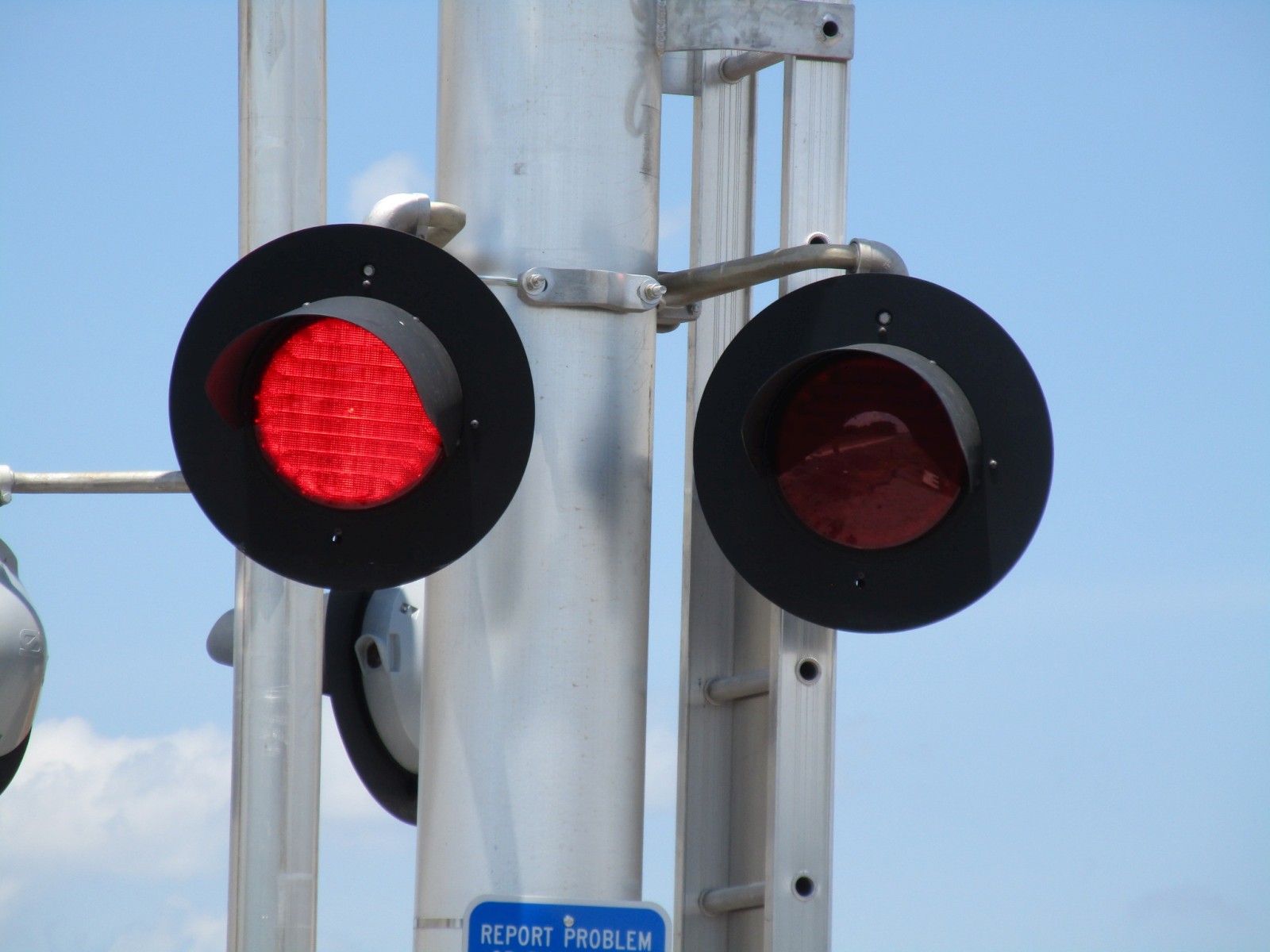

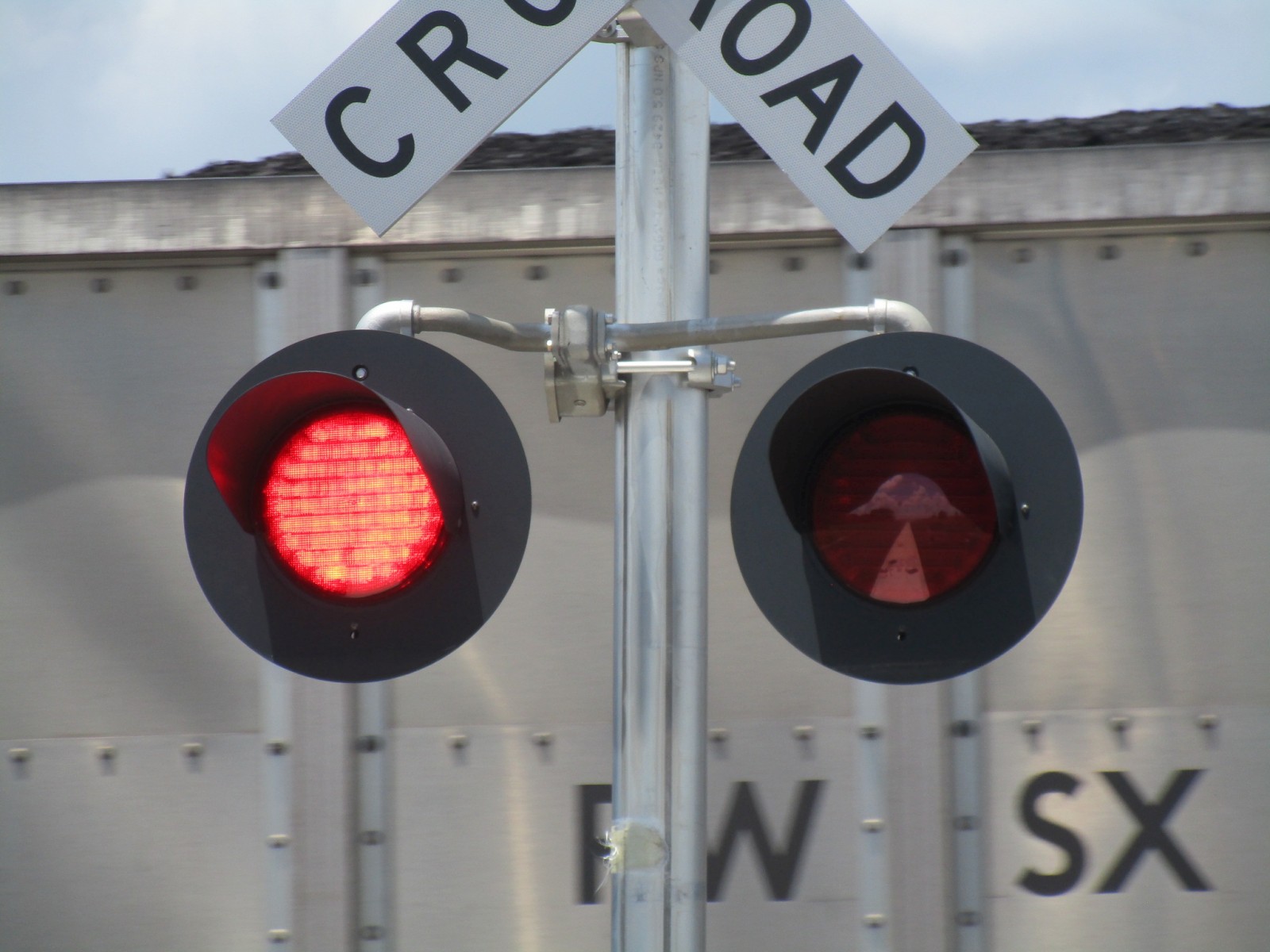

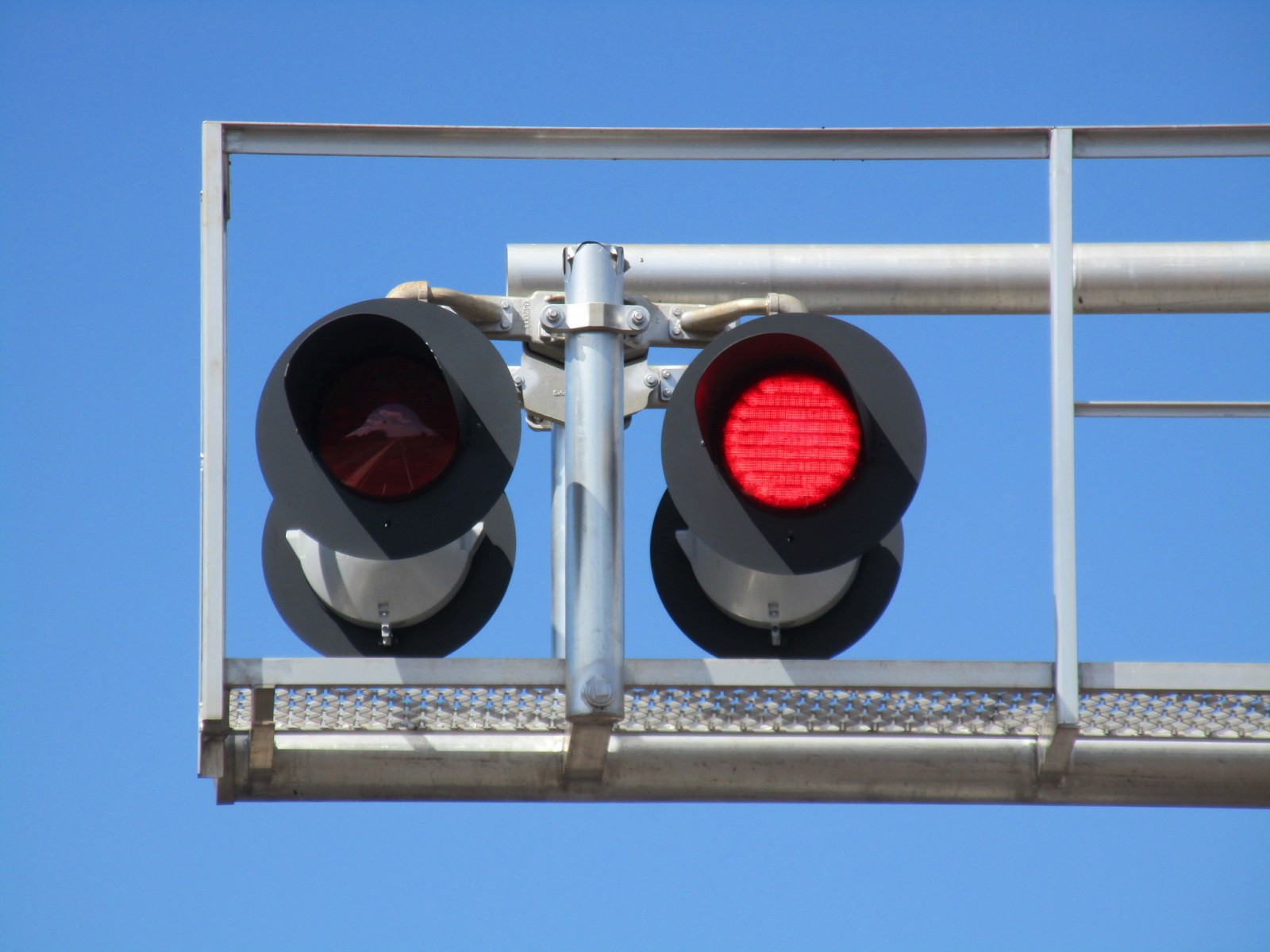

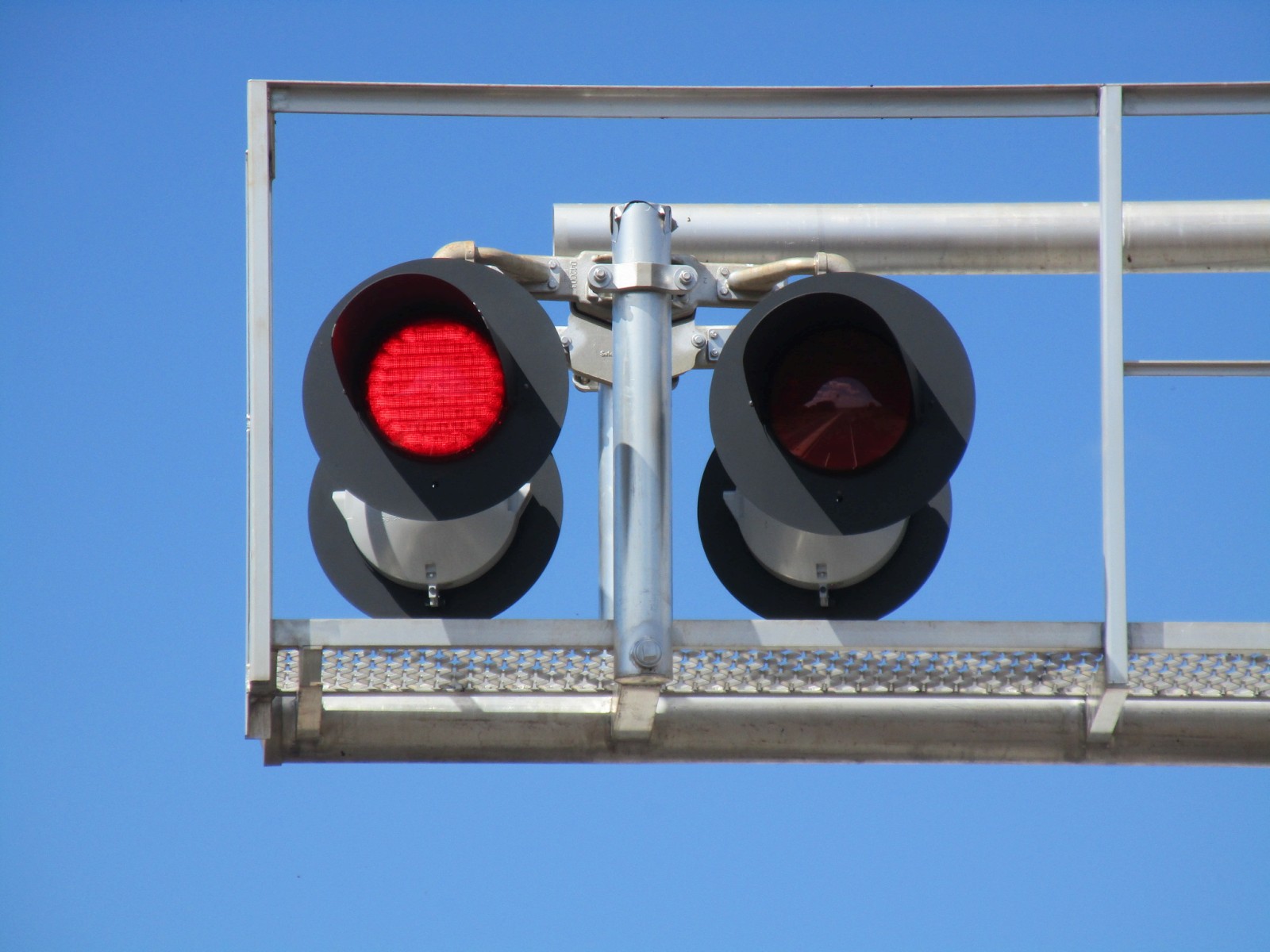

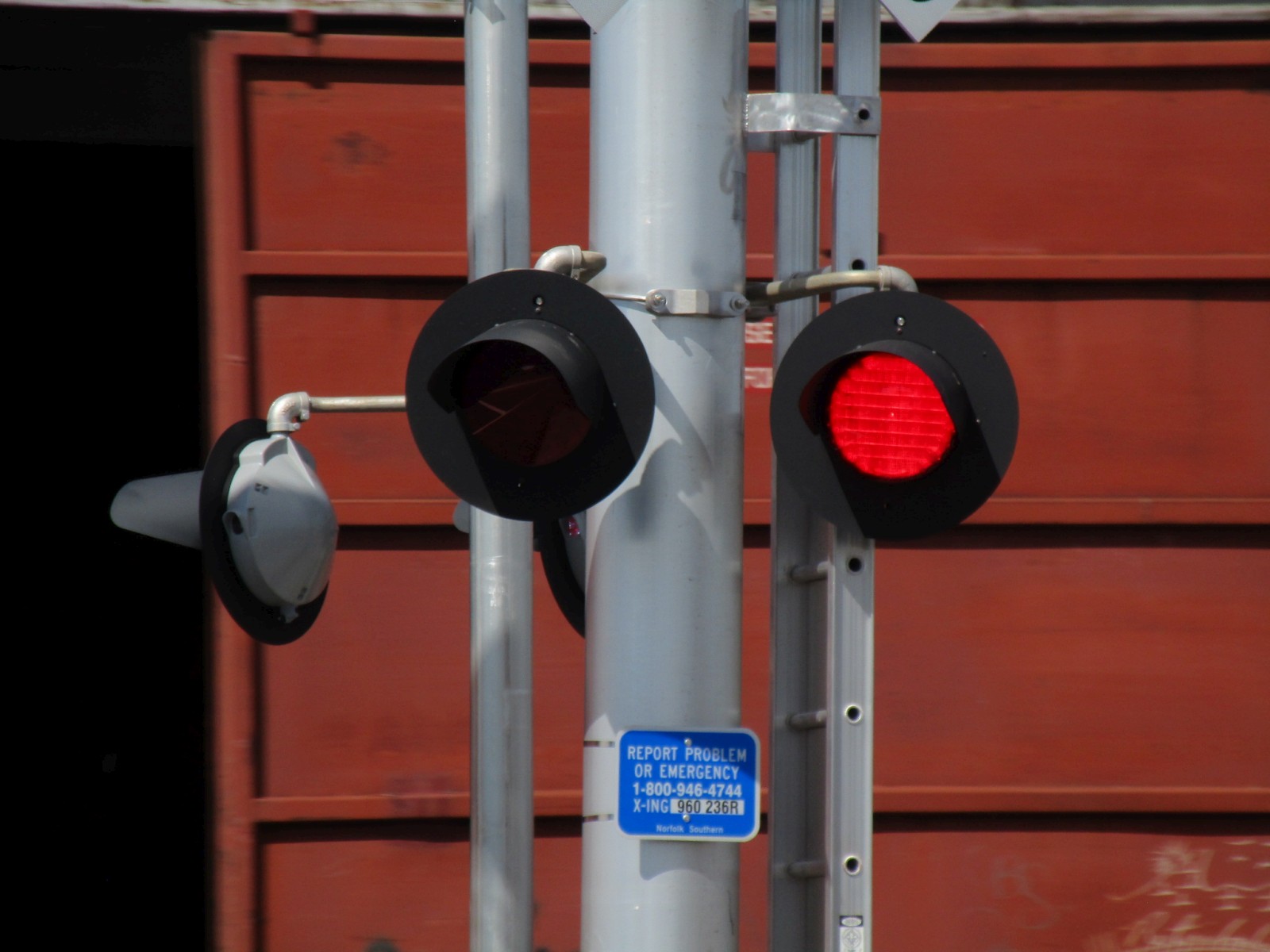

Managed to catch these lights mid-flash.

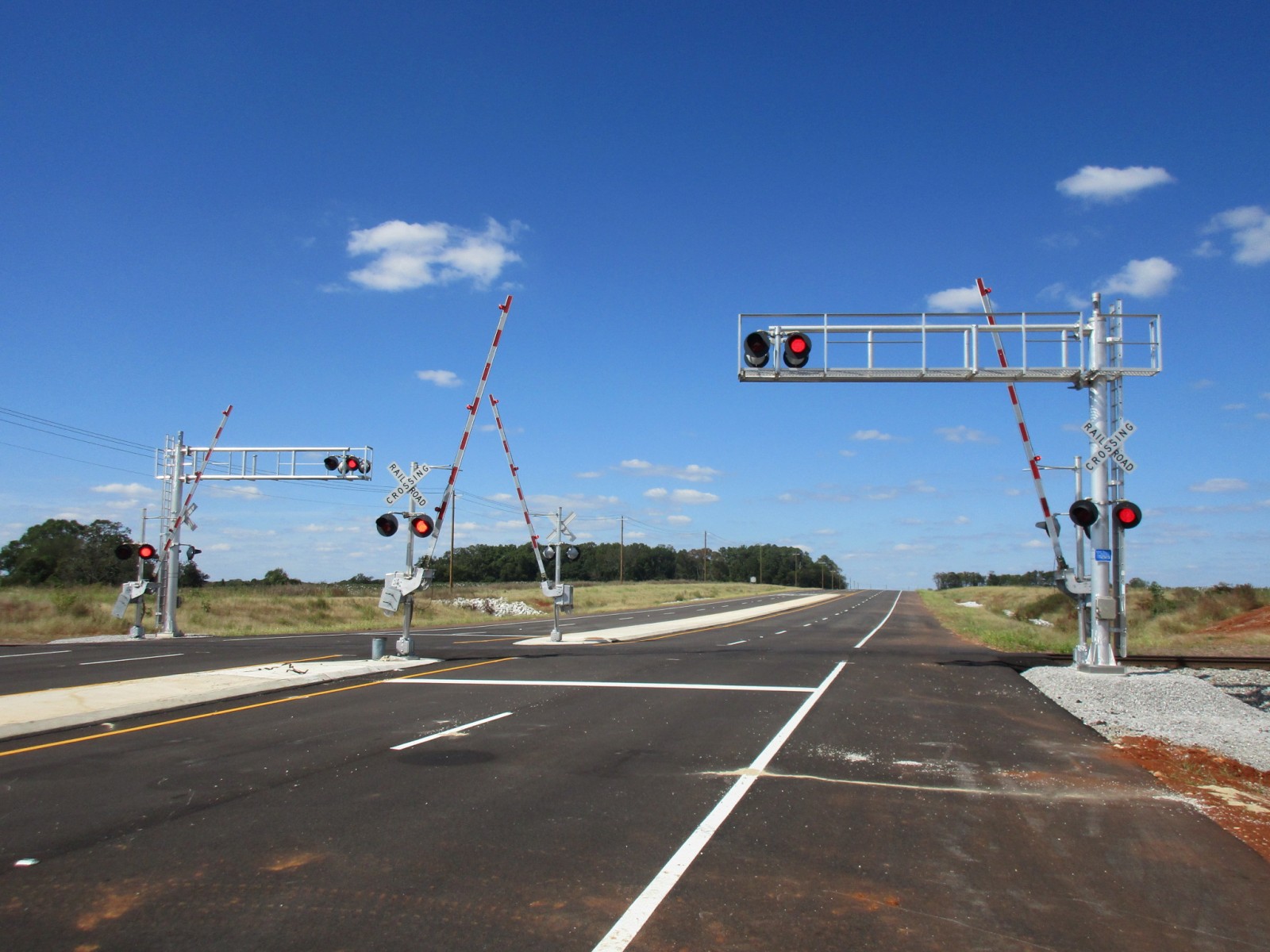

The train passes and the signals shut-off.

161

162

163

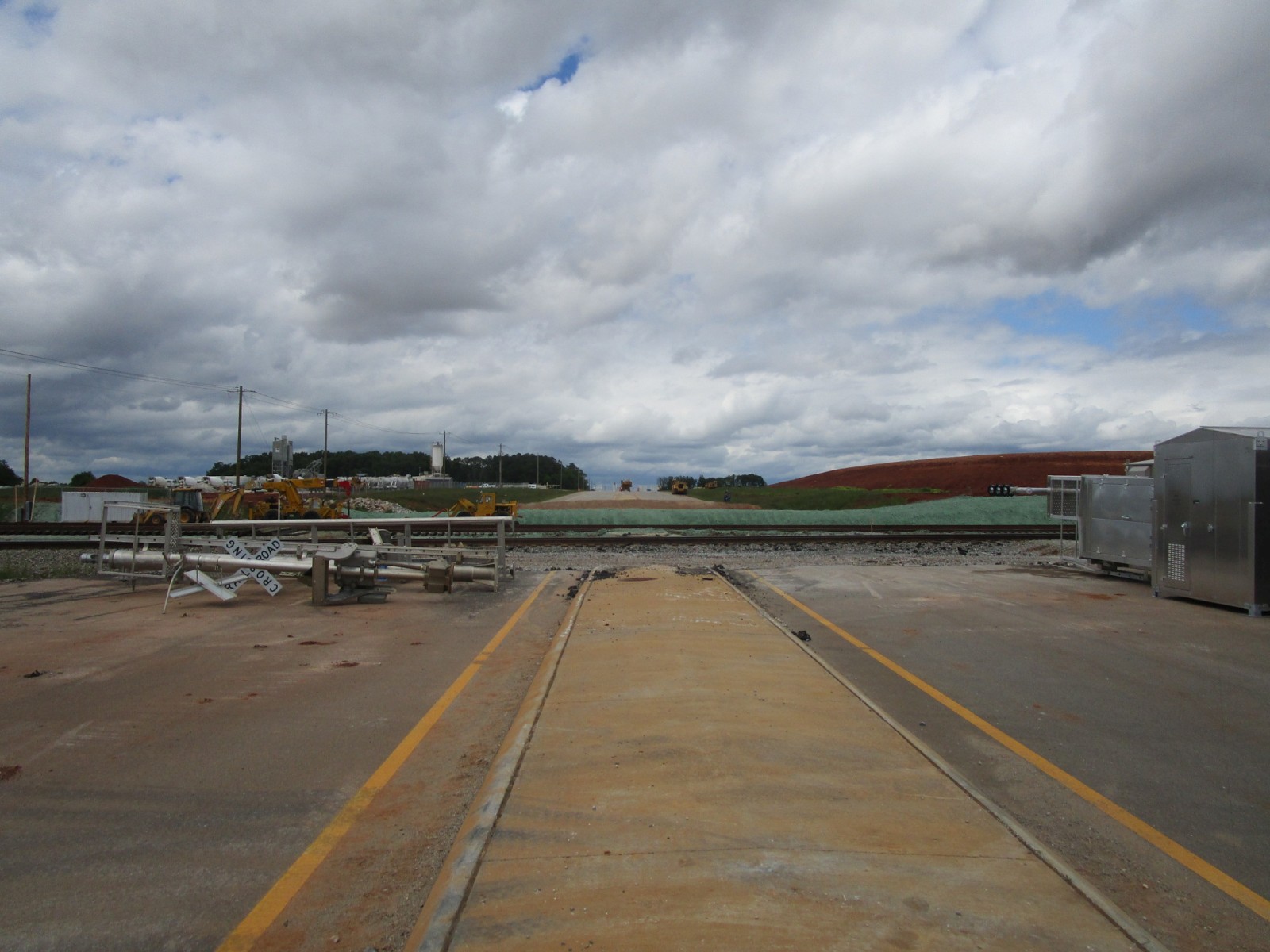

A fifth and final return trip on 5-6-20 finds that the crossing was closed, less than 3 years after it was opened!

164

165

166

167

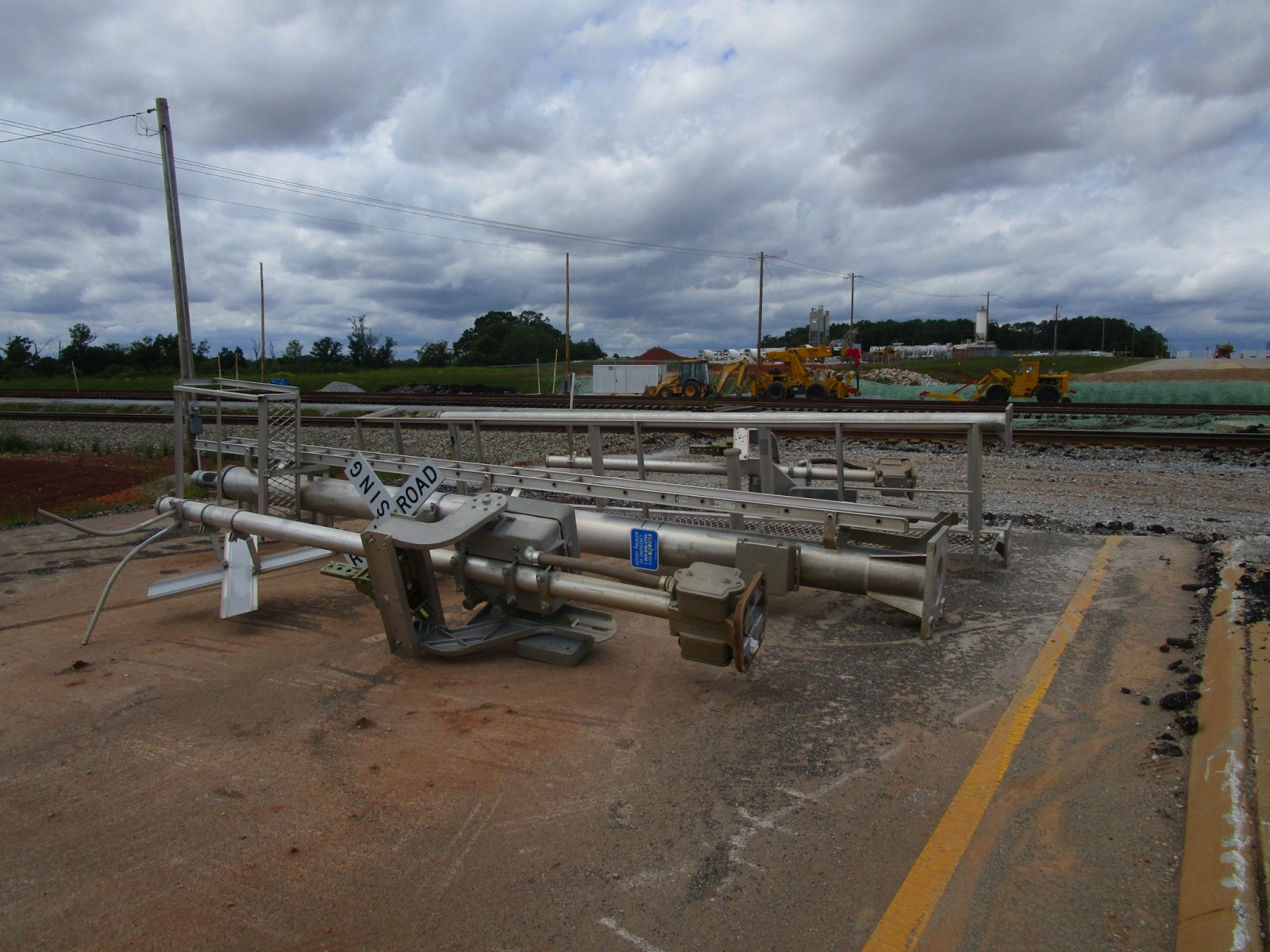

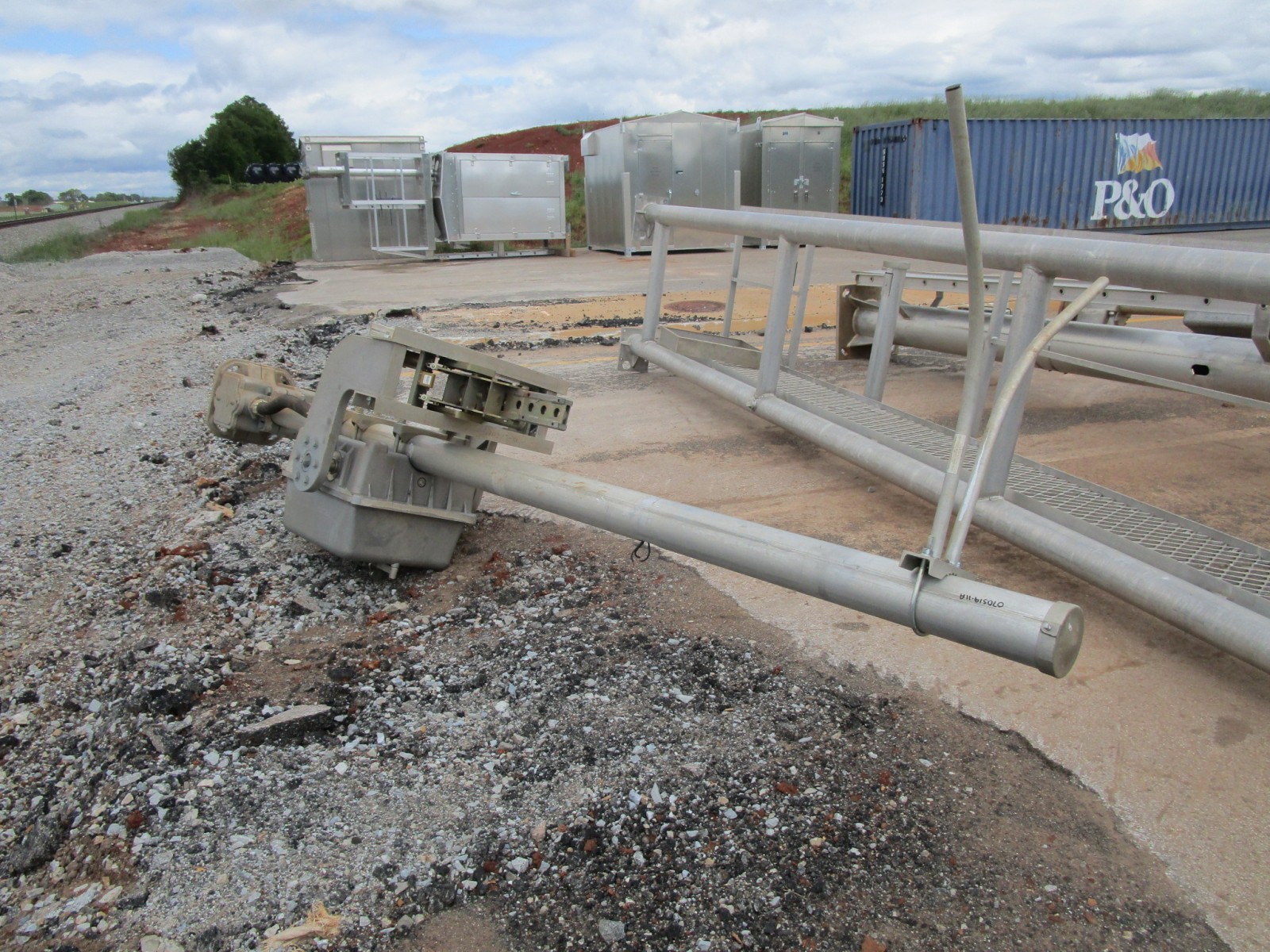

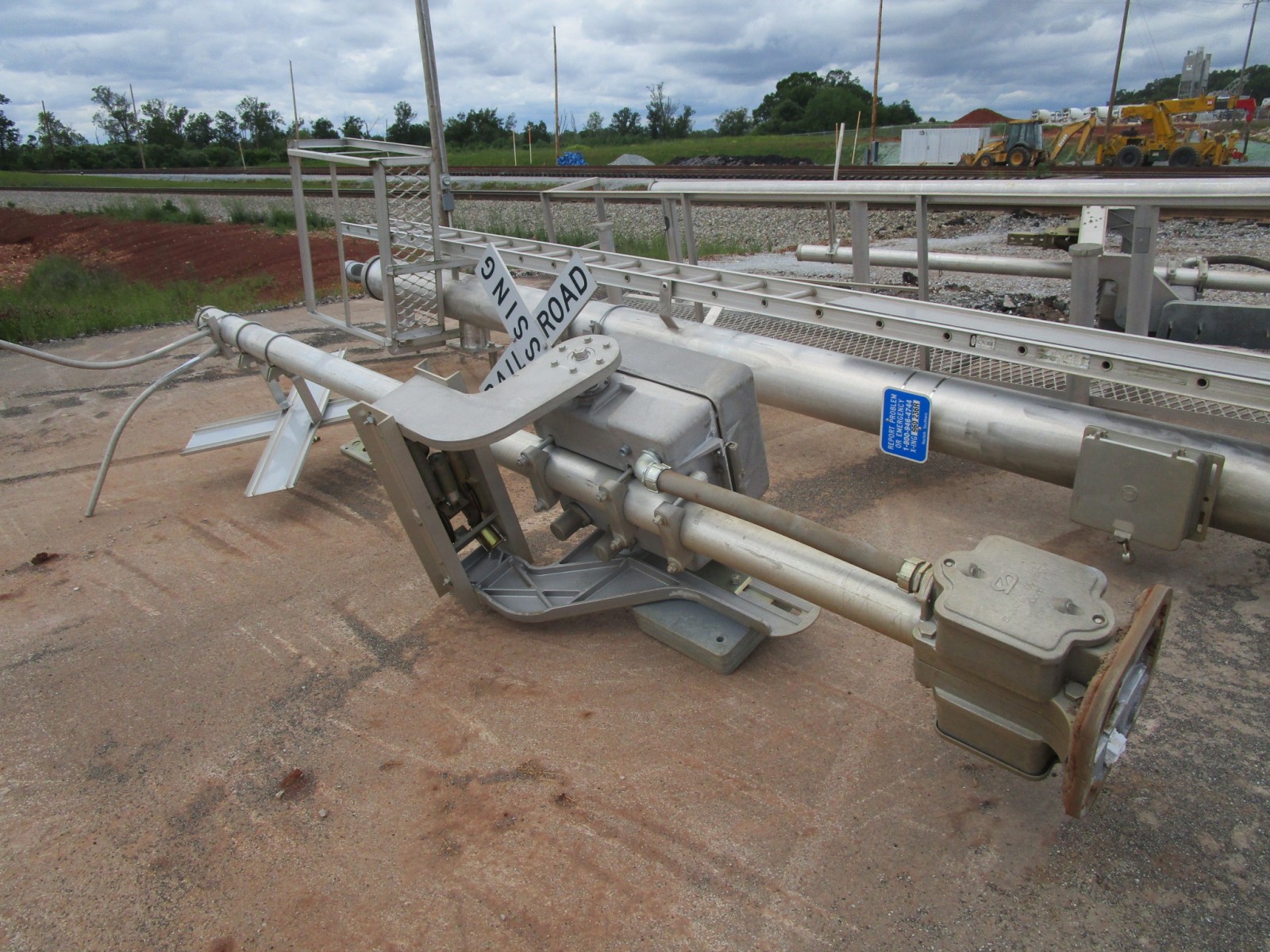

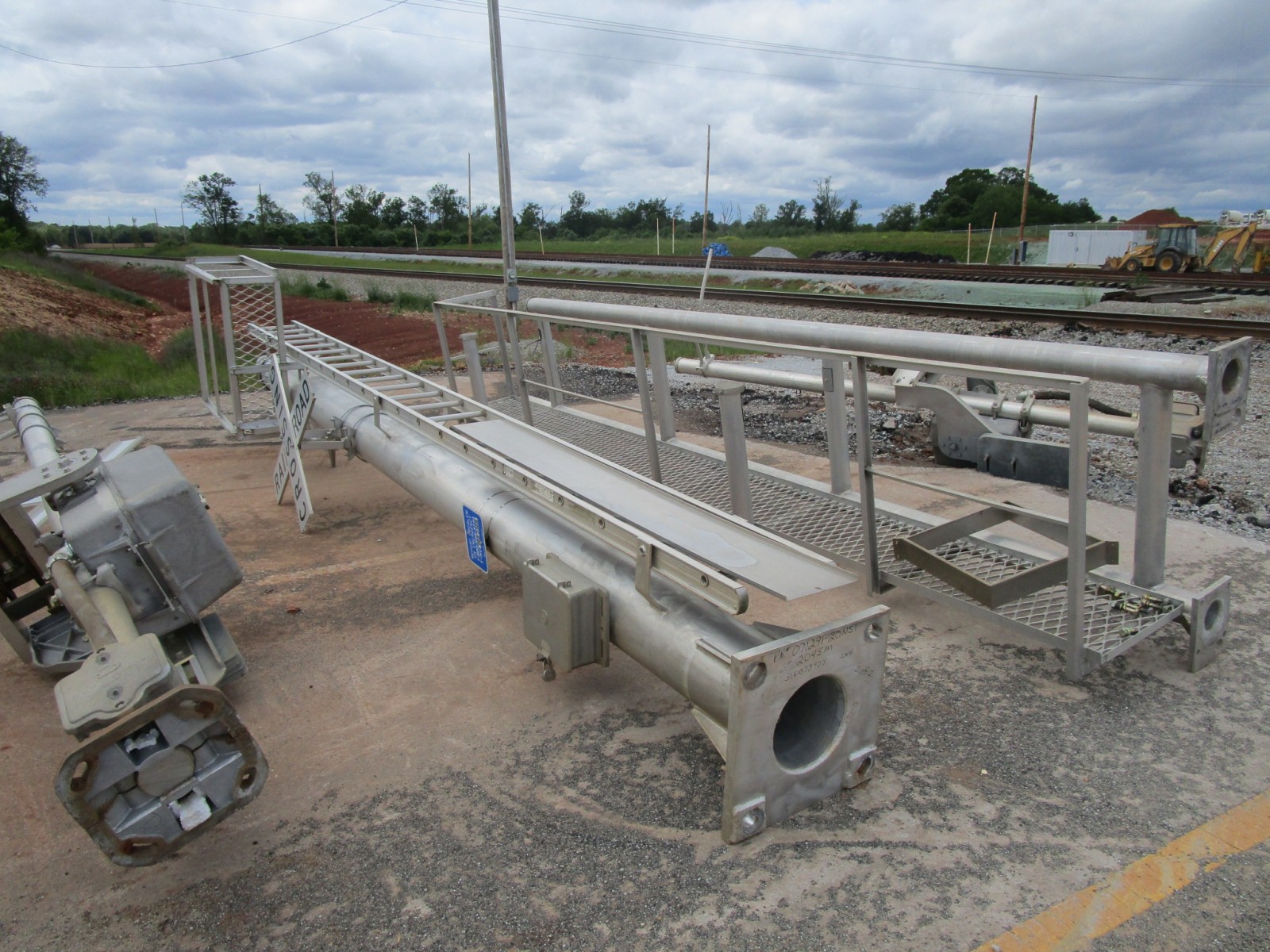

The remains of the signals, which were later moved to the City of Huntsville Traffic Engineering Department's lot, where they still were, last I saw.

168

169

170

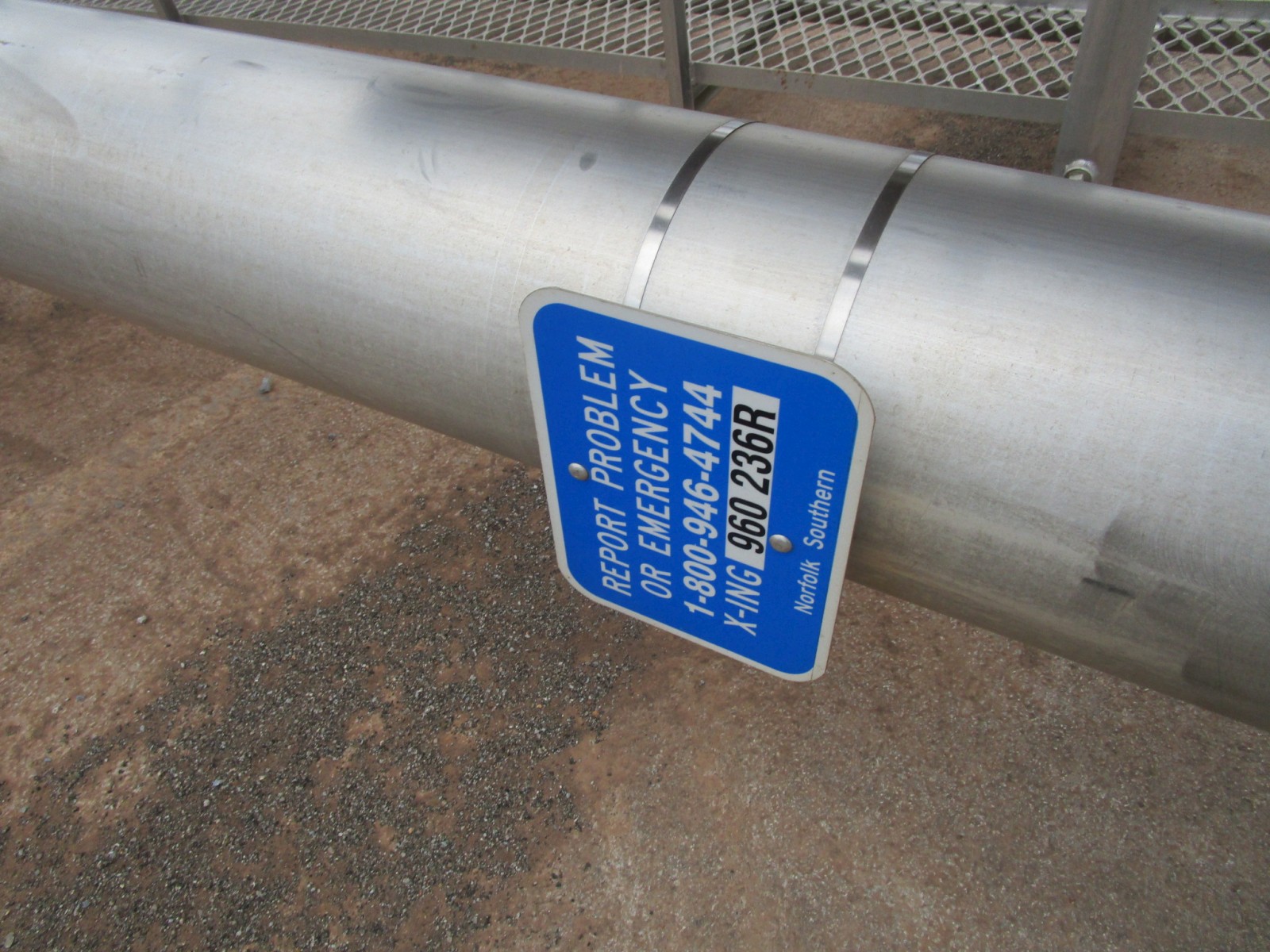

The emergency information.

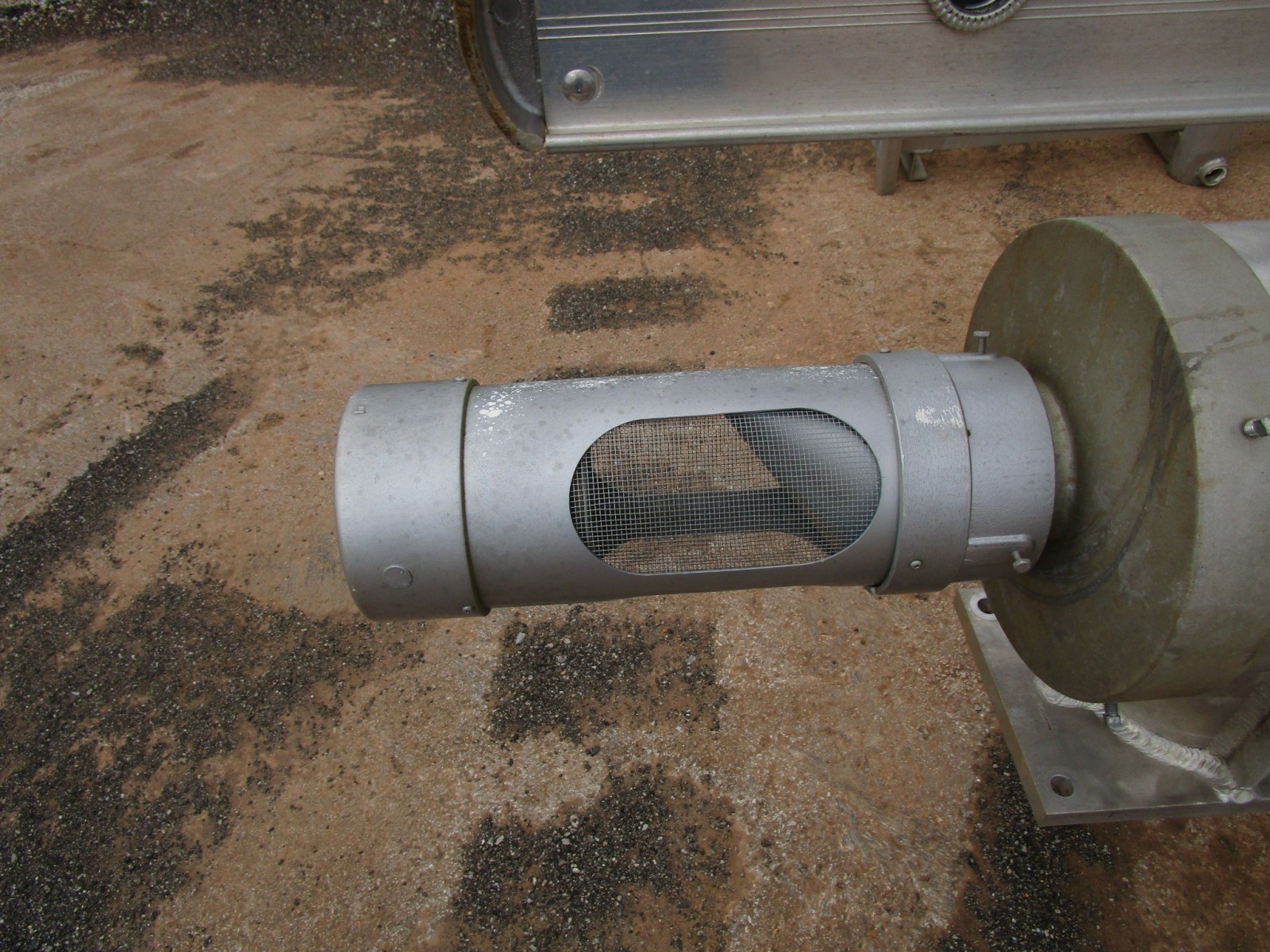

One of the General Signals Type 3 e-bells.
The relay case.

171

172

173

174

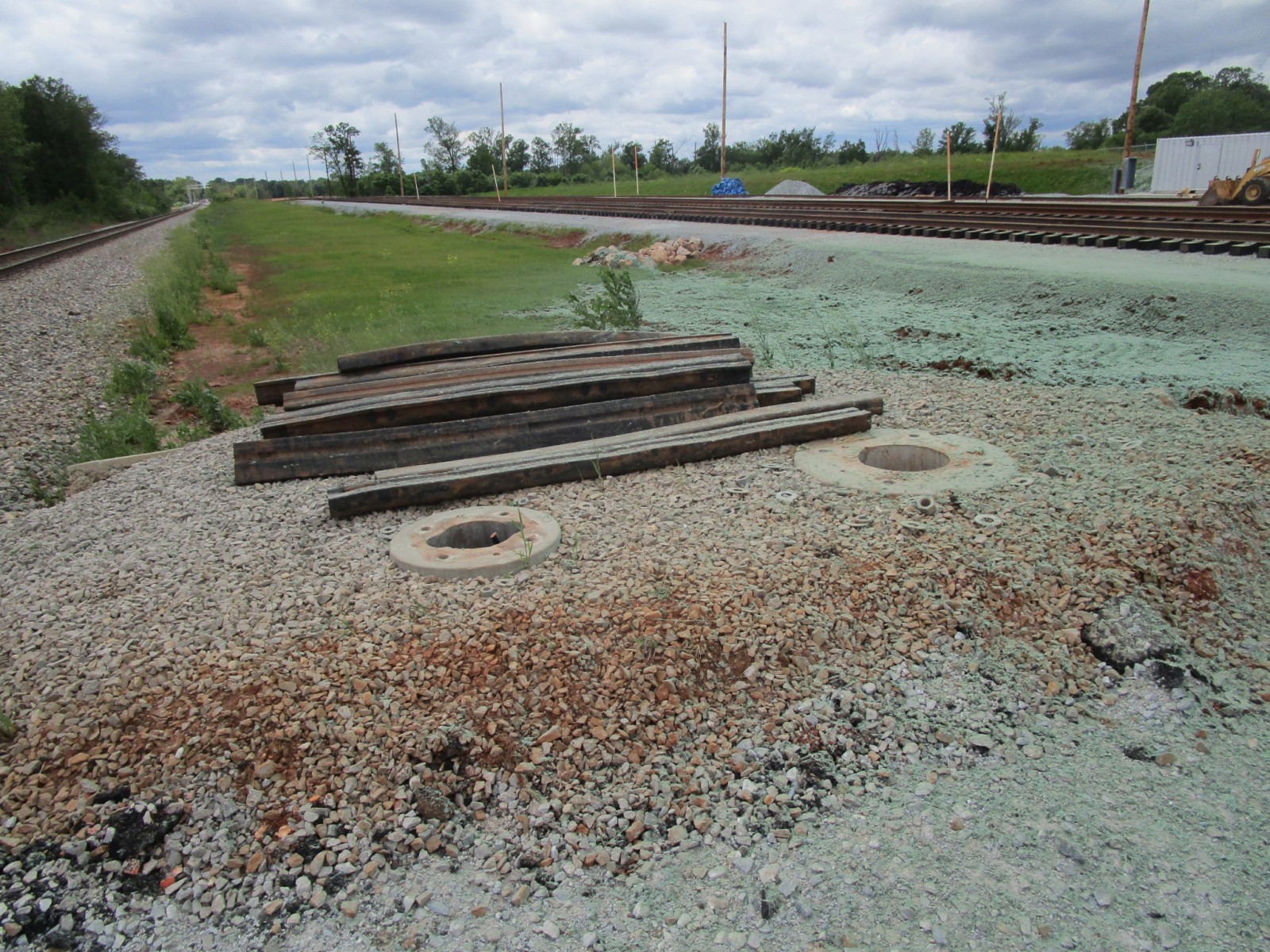

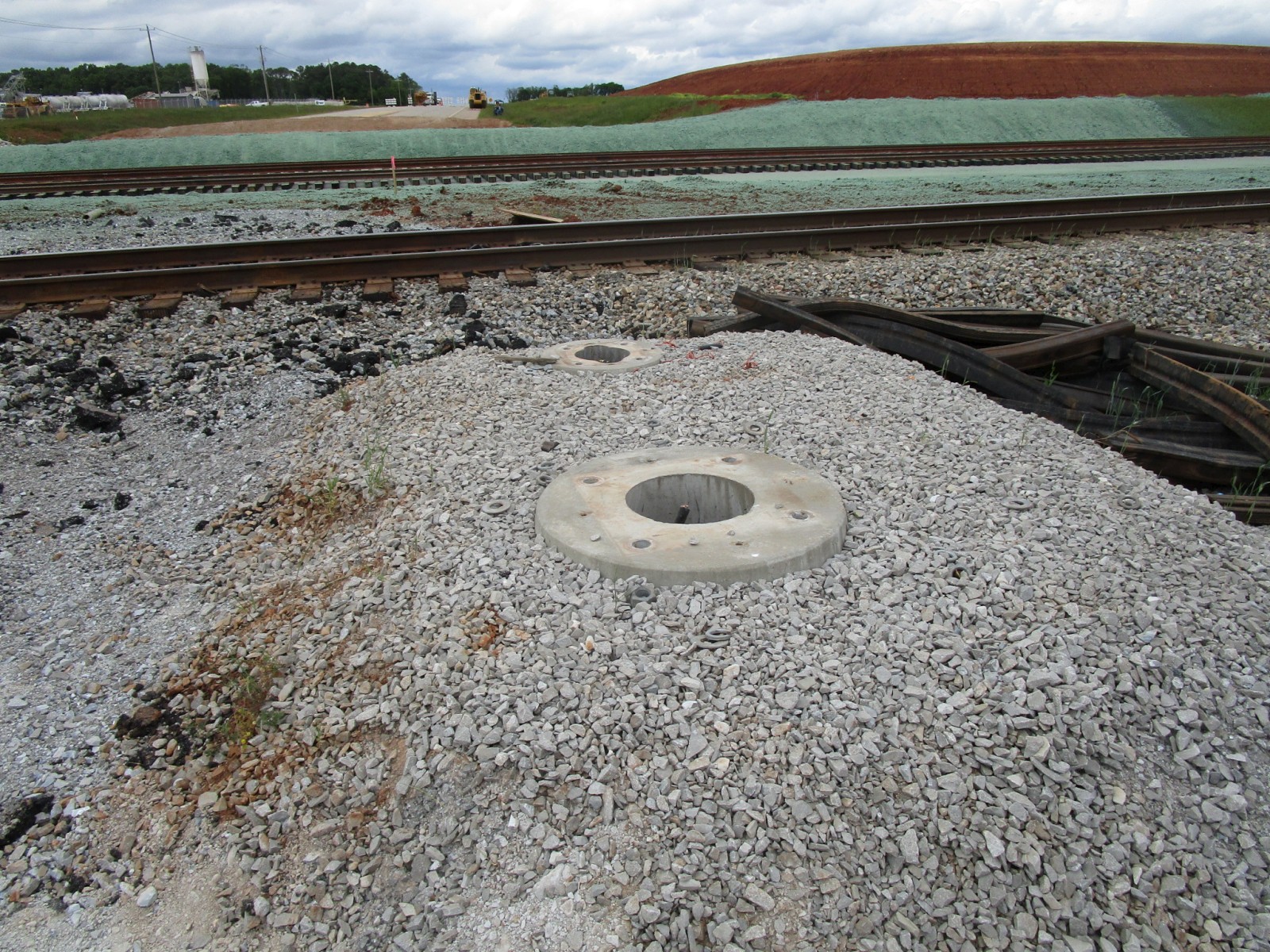

The former foundations of the signals.
A block signal and some relay cases at the former crossing as well.

175

176

177

178

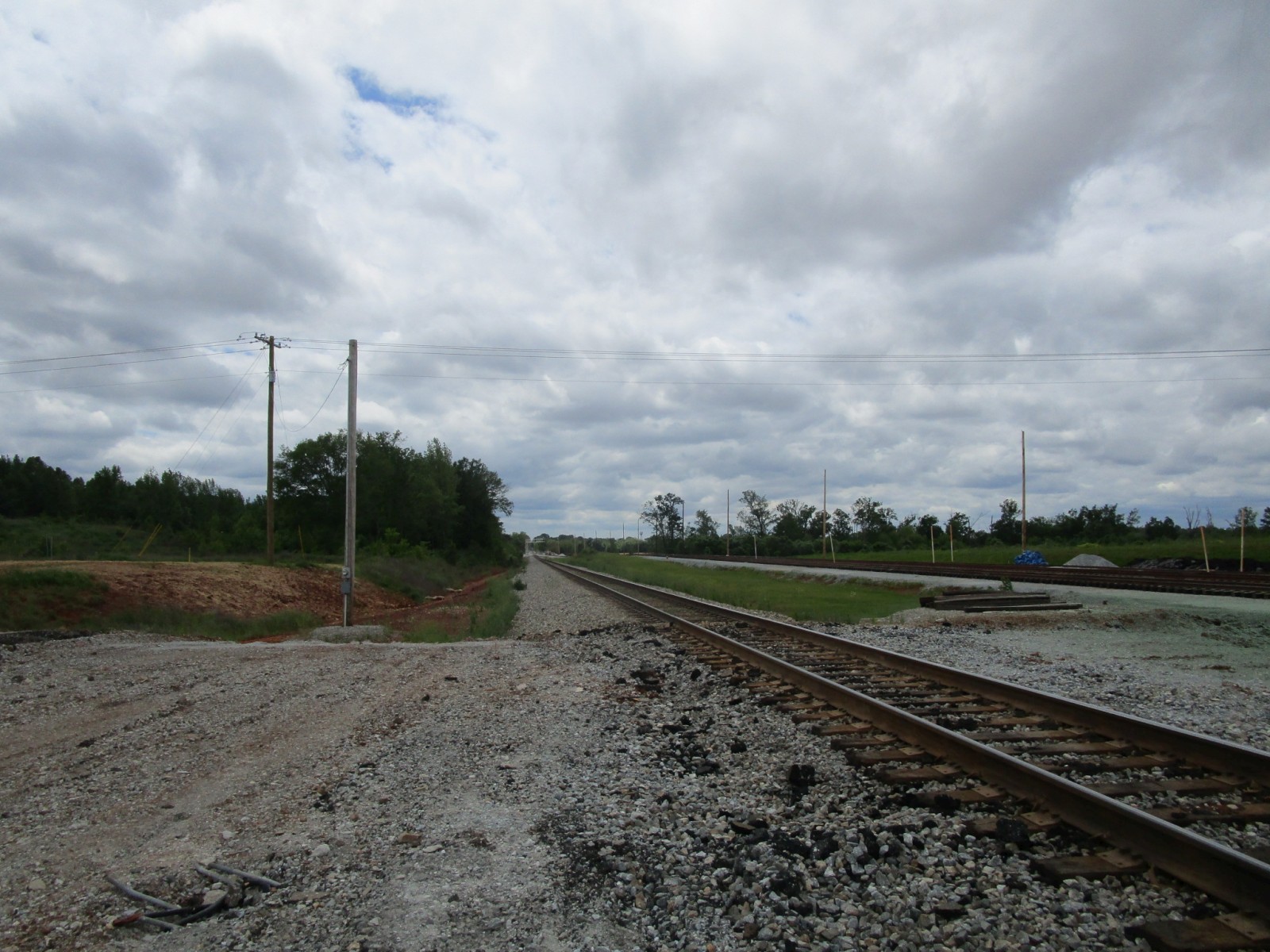

Track views.

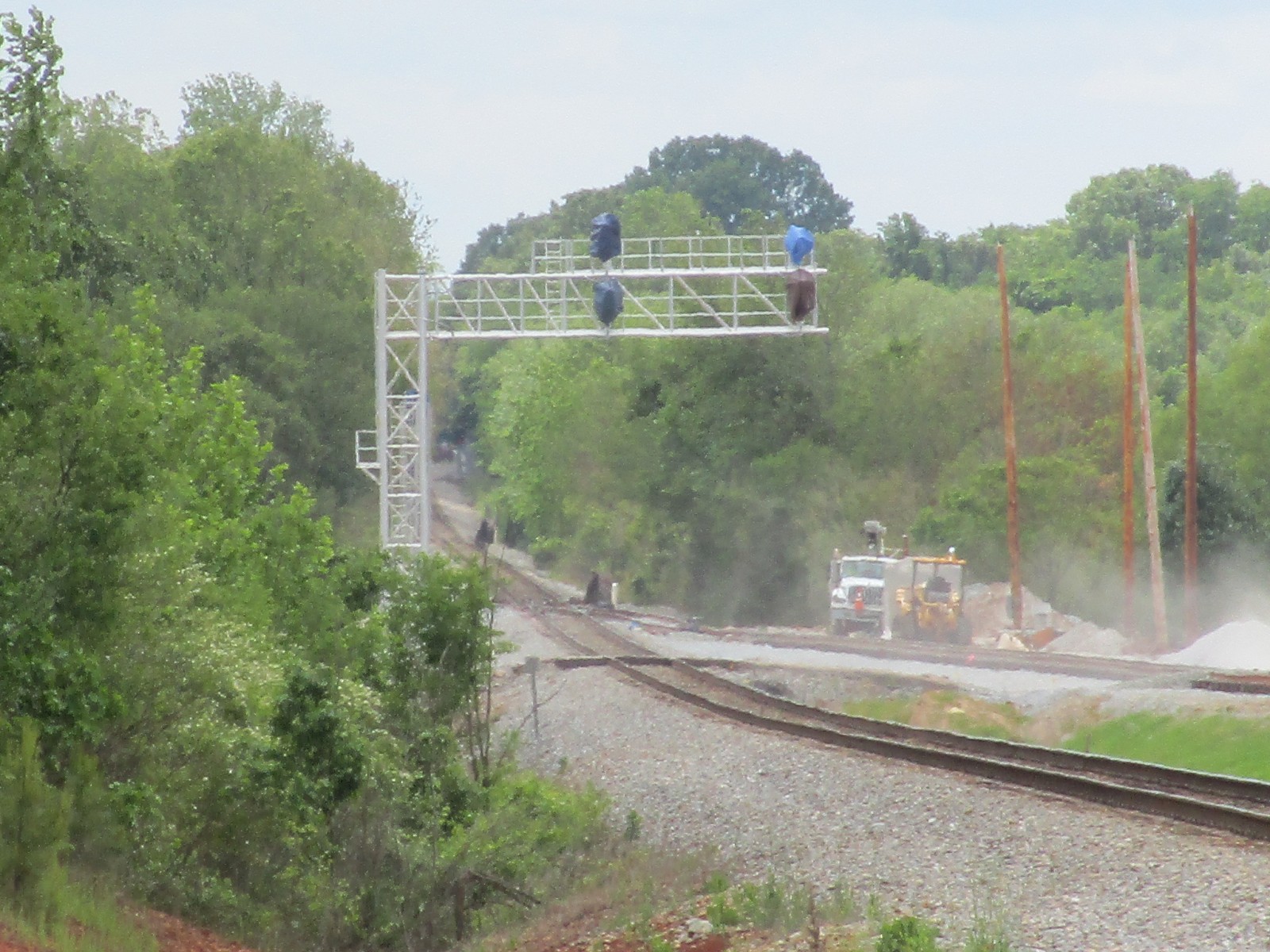

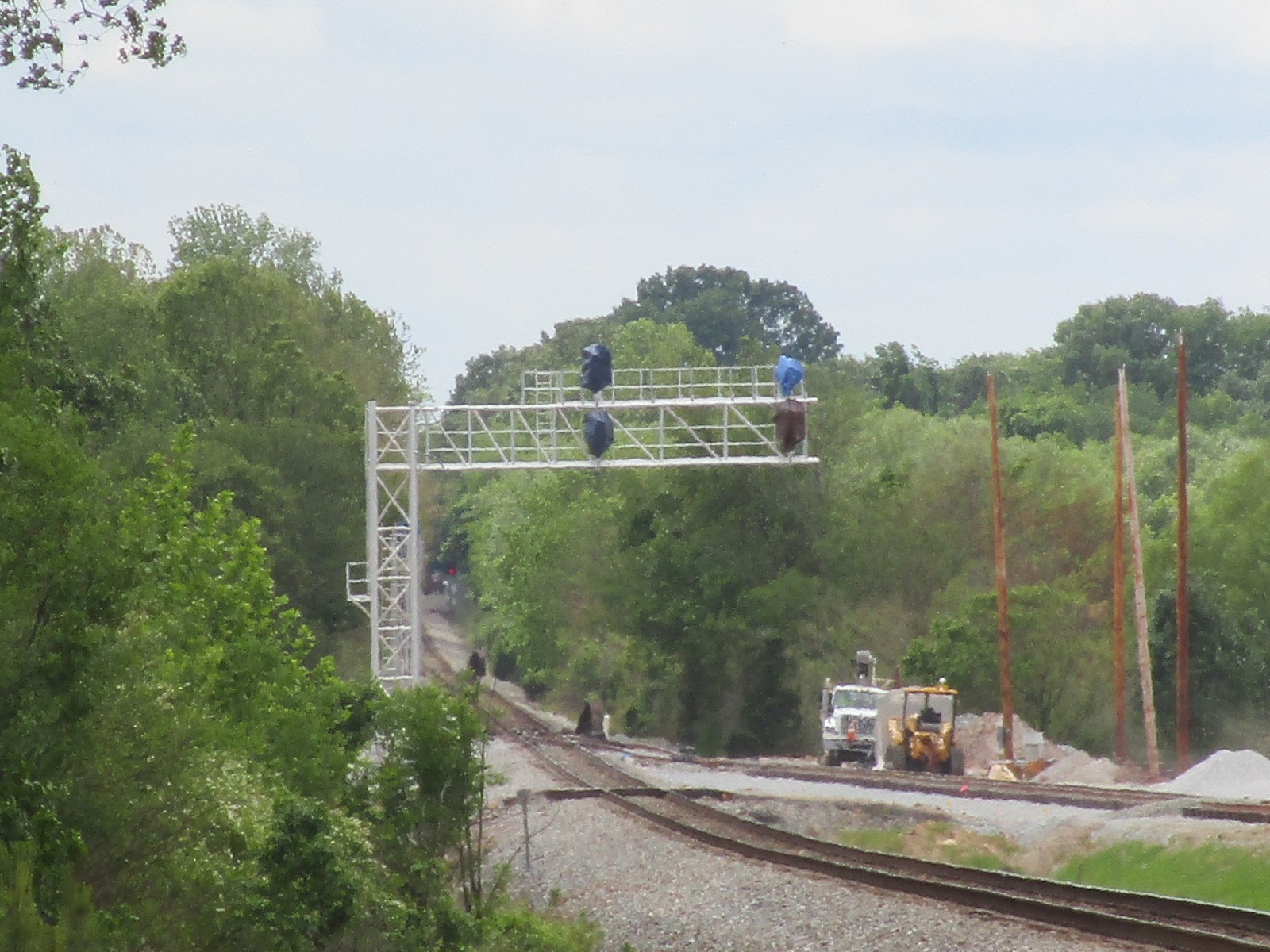

A new signal gantry stands near the crossing.











This crossing is current (as of the time of writing this in June of 2018) the newest one in Huntsville, having only been opened in the fall of 2017!

It was certainly fun getting to watch this crossing getting built from (near) start to finish.

Of course, less than three years later, the crossing was closed and then replacd with a new overpass, due to the construction of a new rail-yard at the crossing.



Pictures 1-42 were taken on 11-17-16.

Pictures 43-60 and the first video were taken on 4-7-17.

Pictures 61-110 and the second video were taken on 5-19-17.

Pictures 111-142 and the third video were taken on 7-13-17.

Pictures 143-162 and the fourth video were taken on 10-4-17.

Pictures 163-178 were taken on 5-6-20.
