MP:  A347.90



Updated March 6, 2021



Total Accidents:   1
Crossing DOT #:  731823L
TOTAL DAILY TRAINS:   4   (AS OF 2013)



Page created by: freebrickproductions



This crossing is located on an unnamed branch line off of the NS Memphis District East End.



1

2

3

4

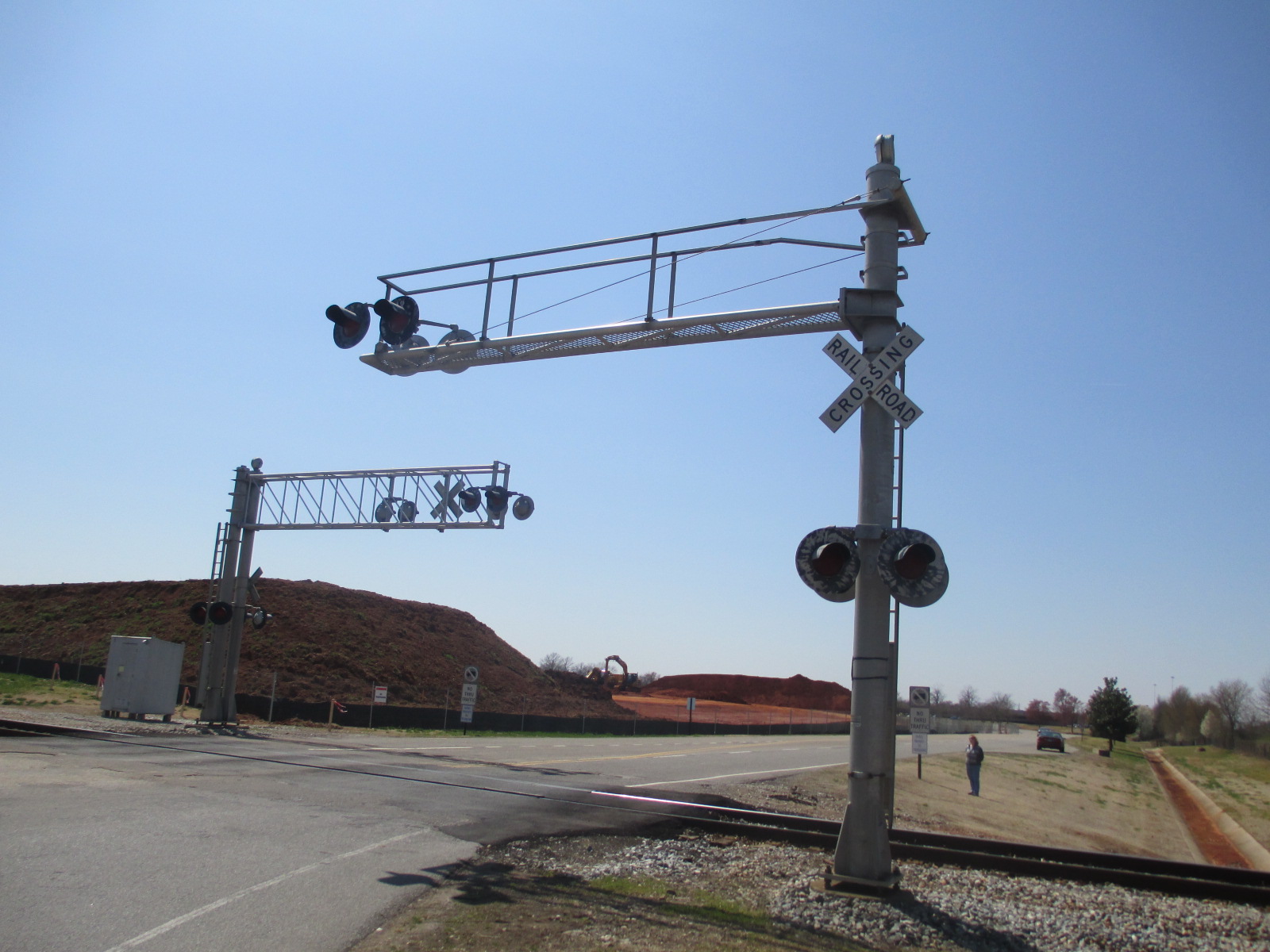

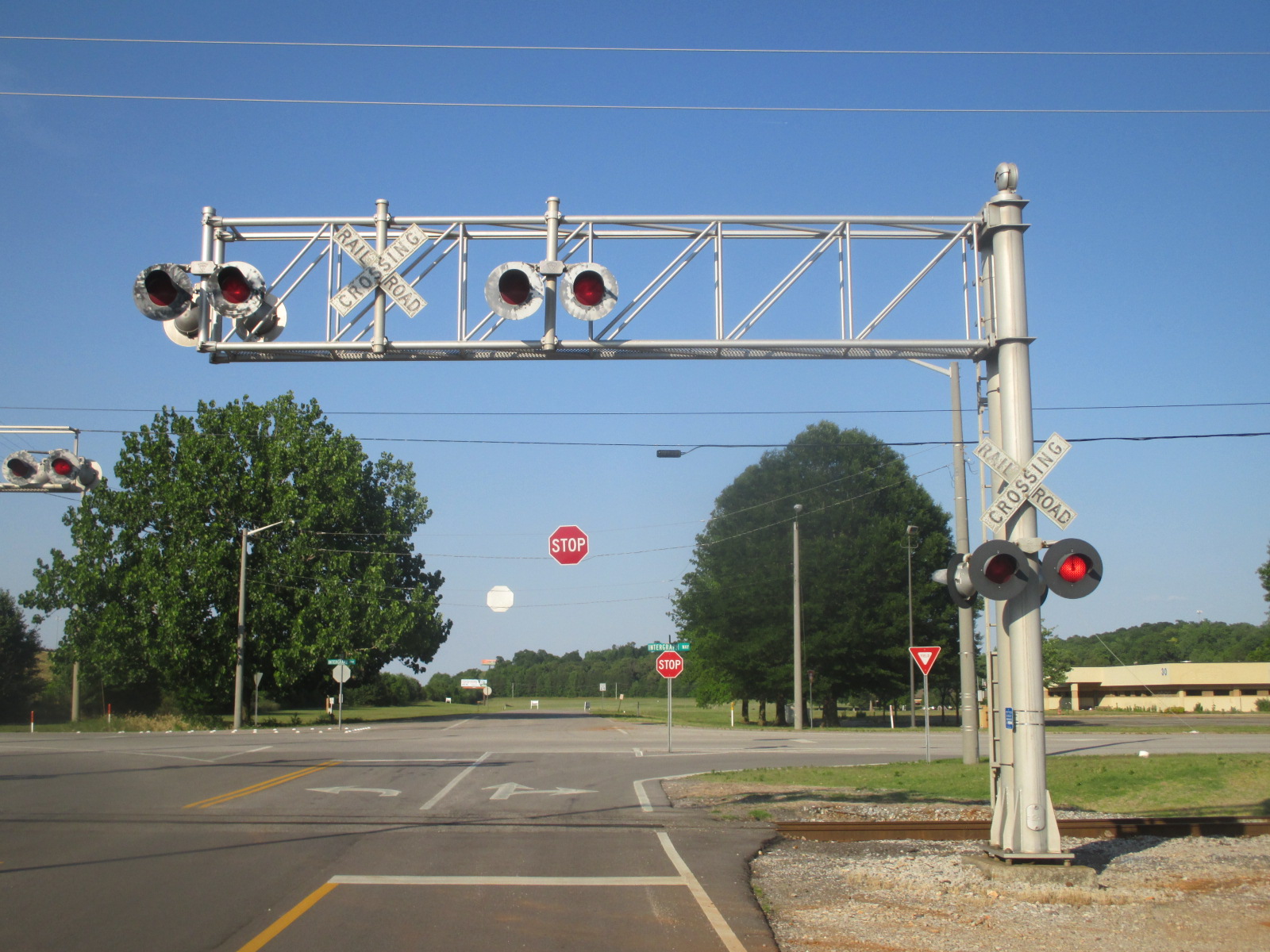

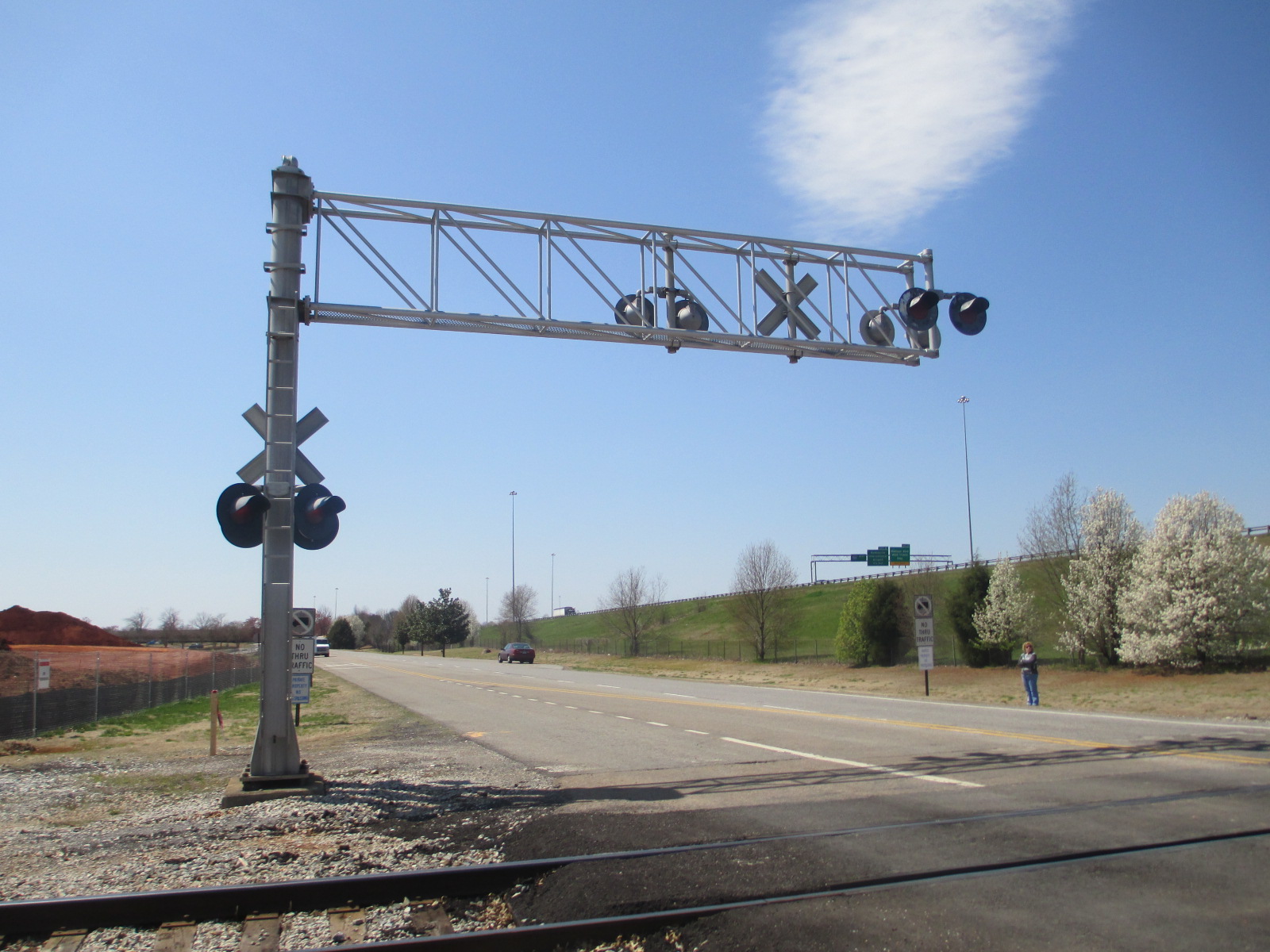

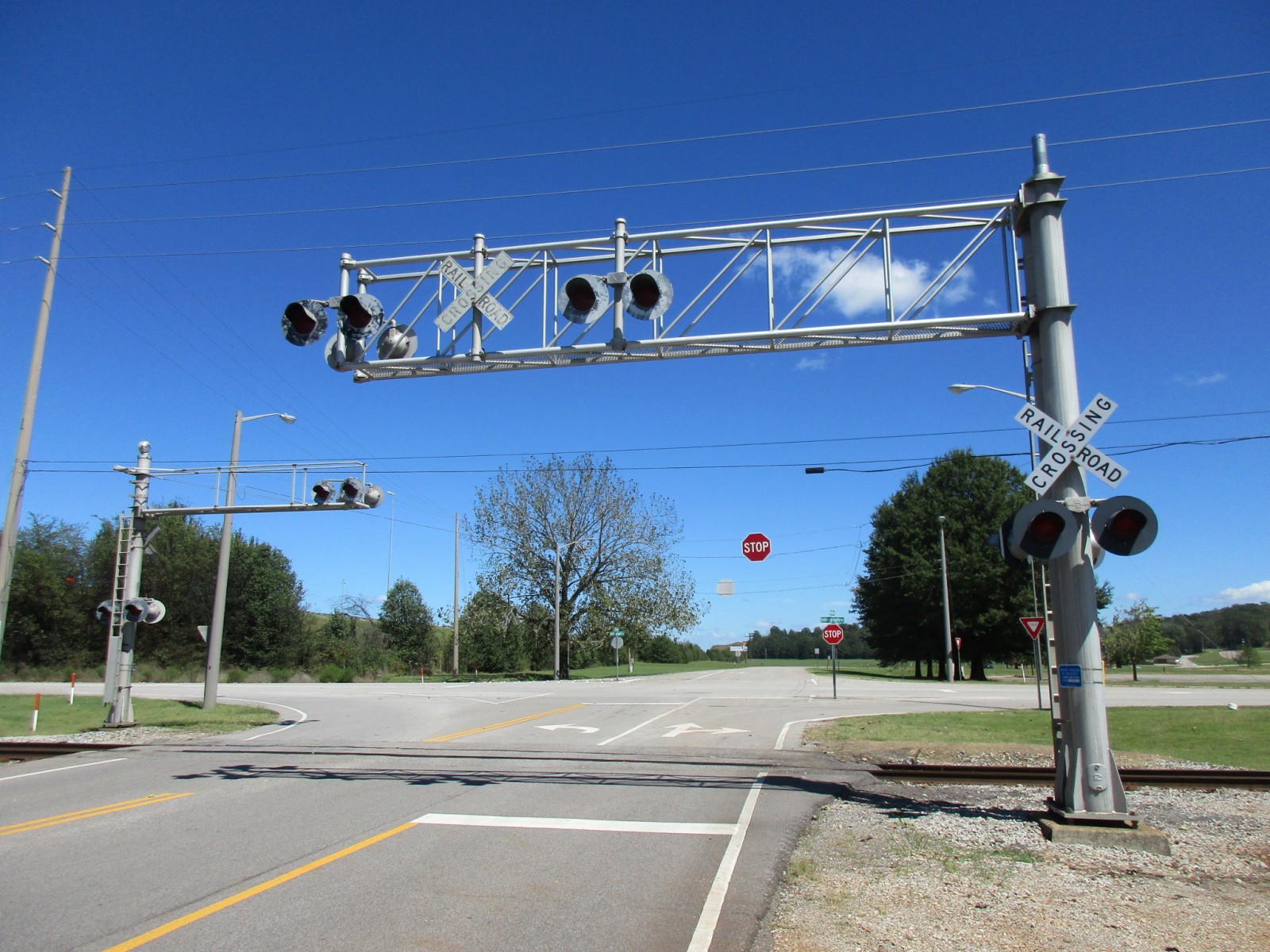

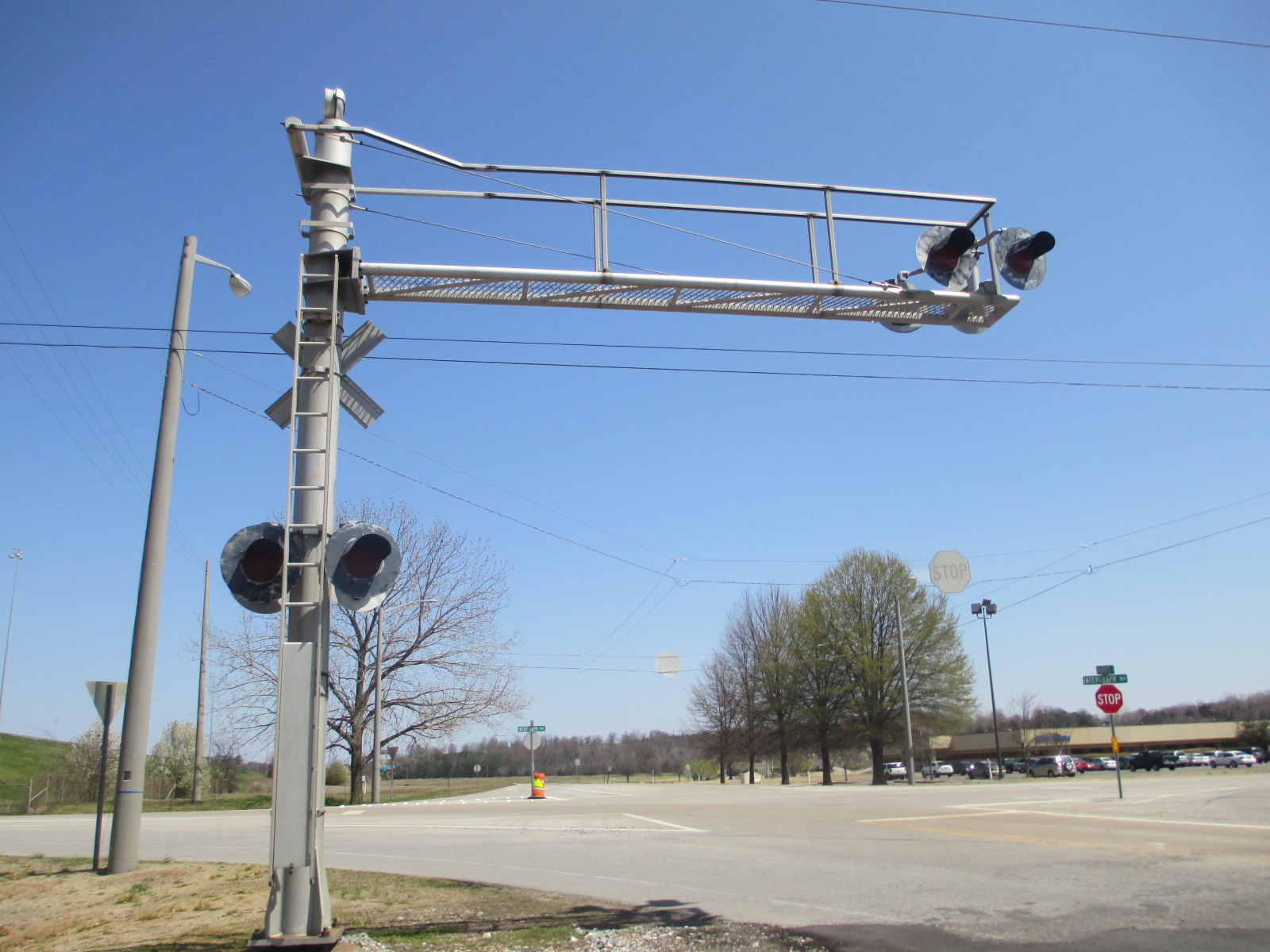

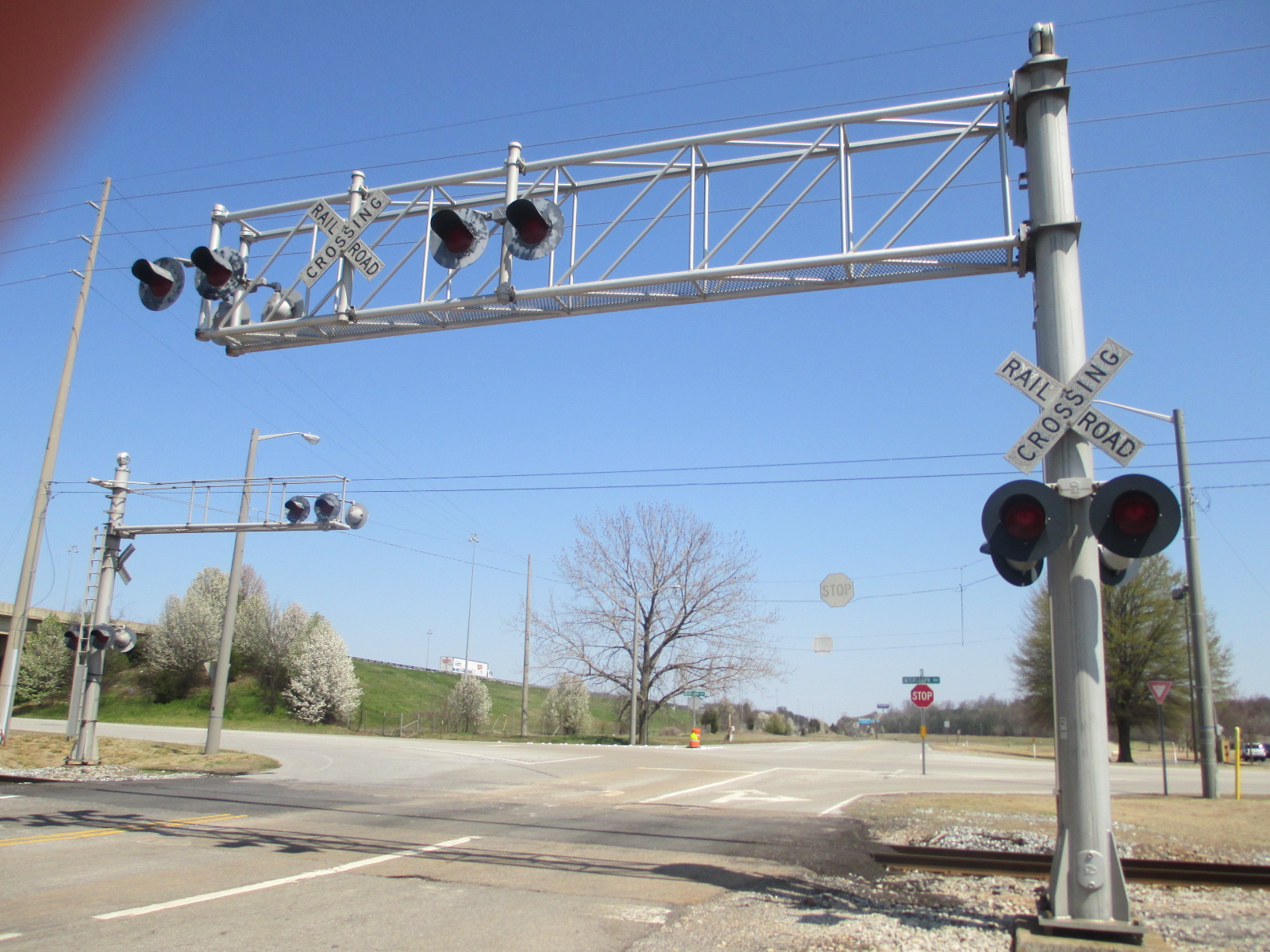

Overviews of the crossing.

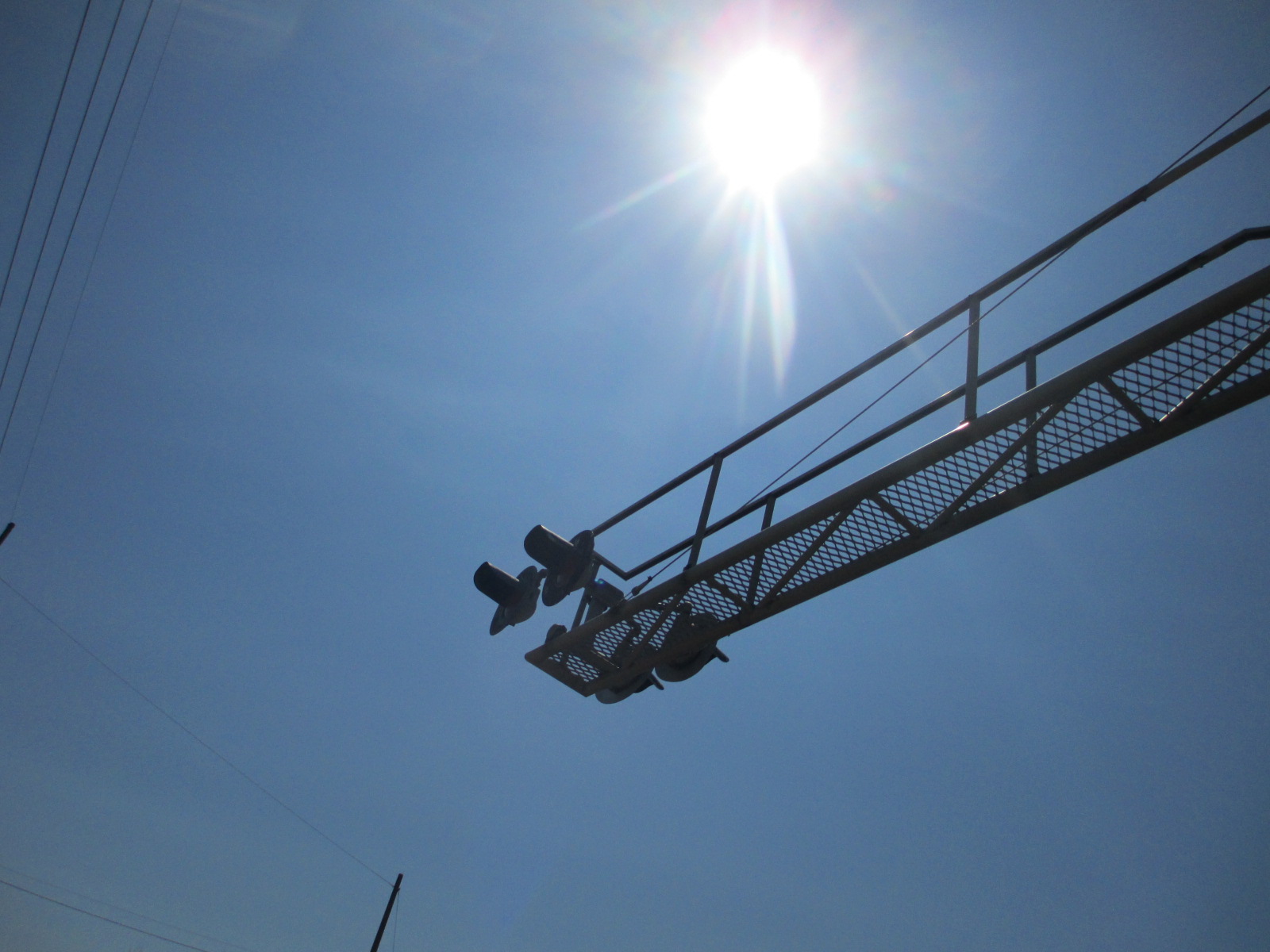

The first signal.

5

6

7

8

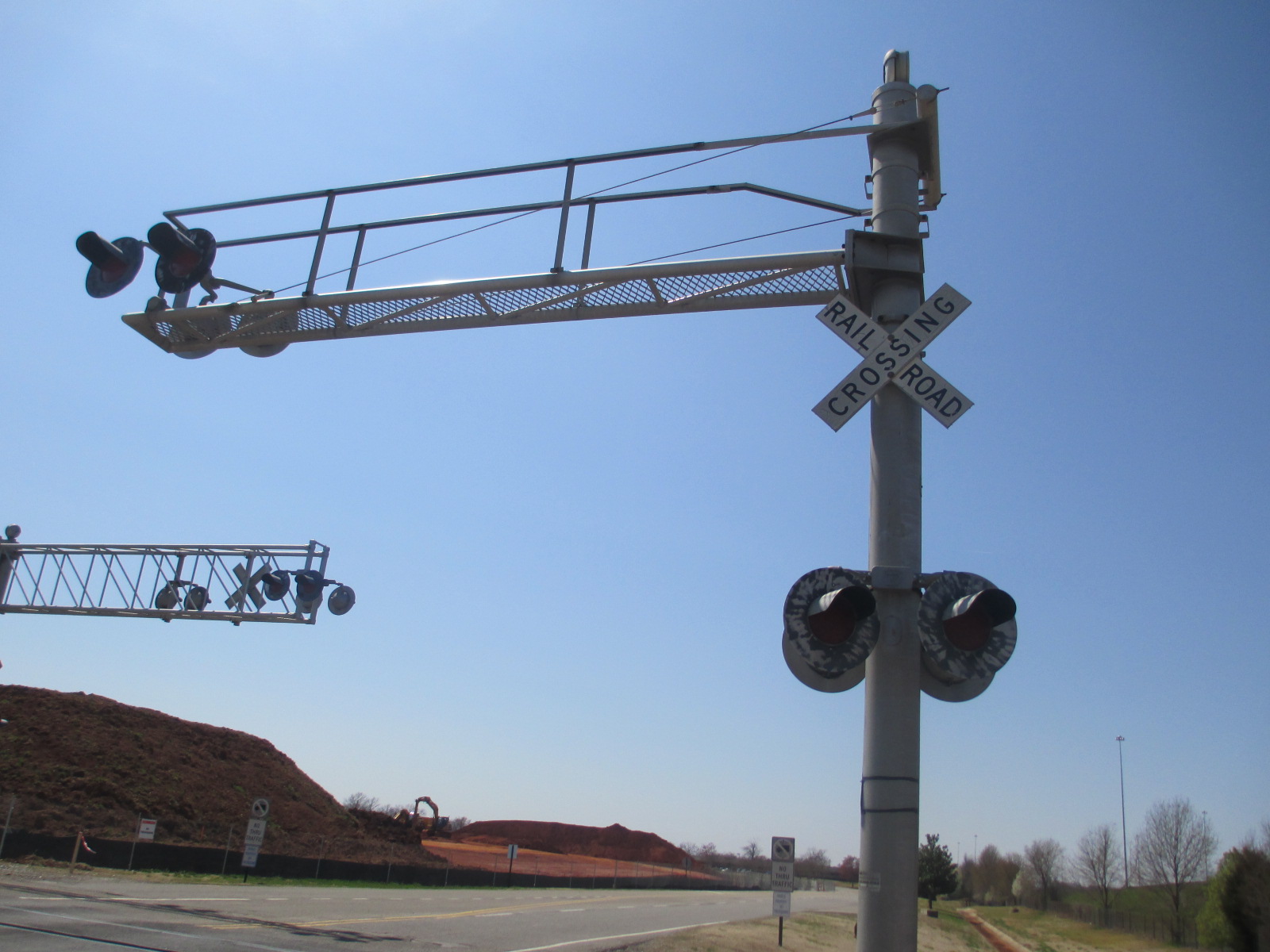

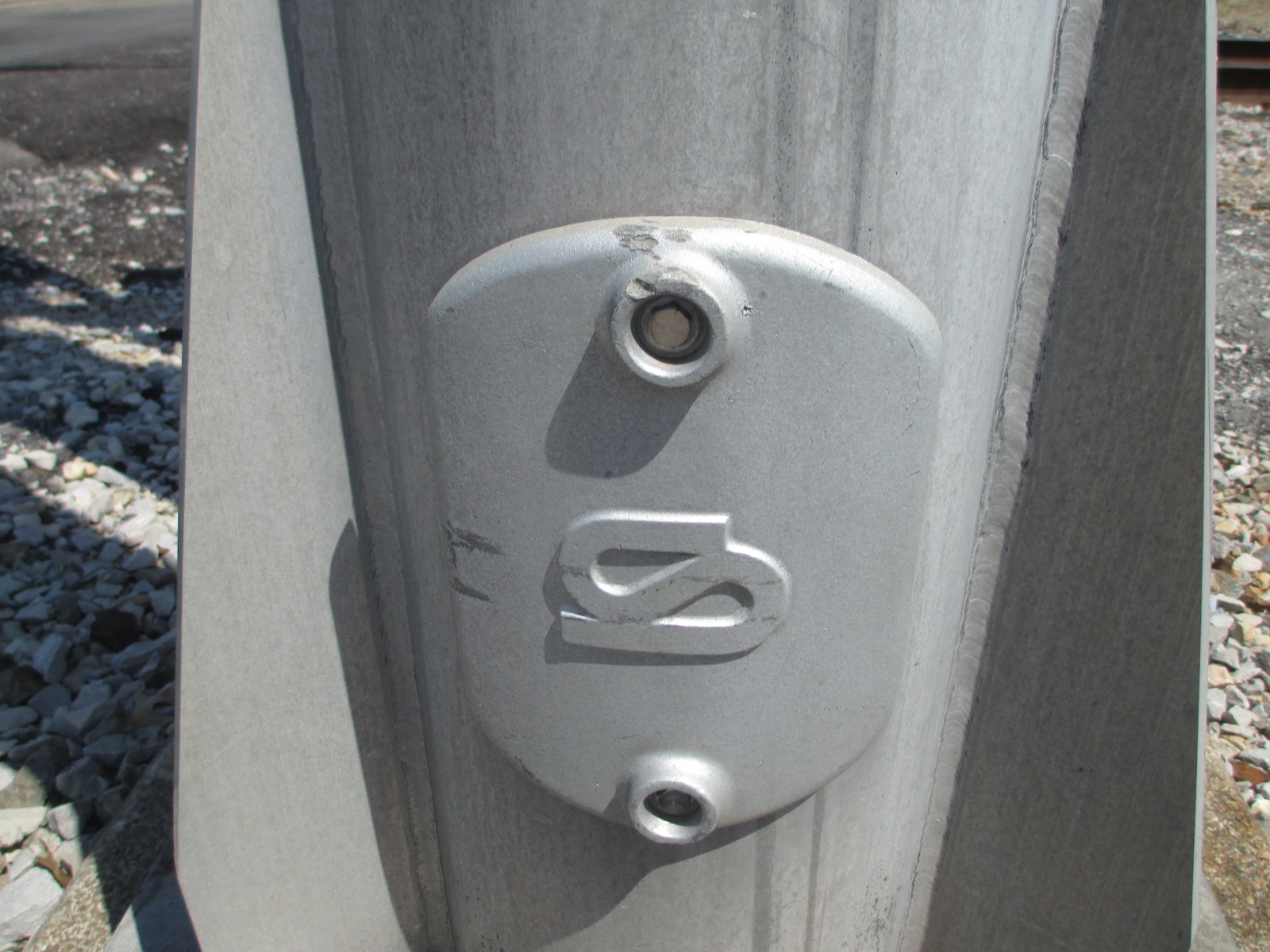

It's a Safetran cantilever.

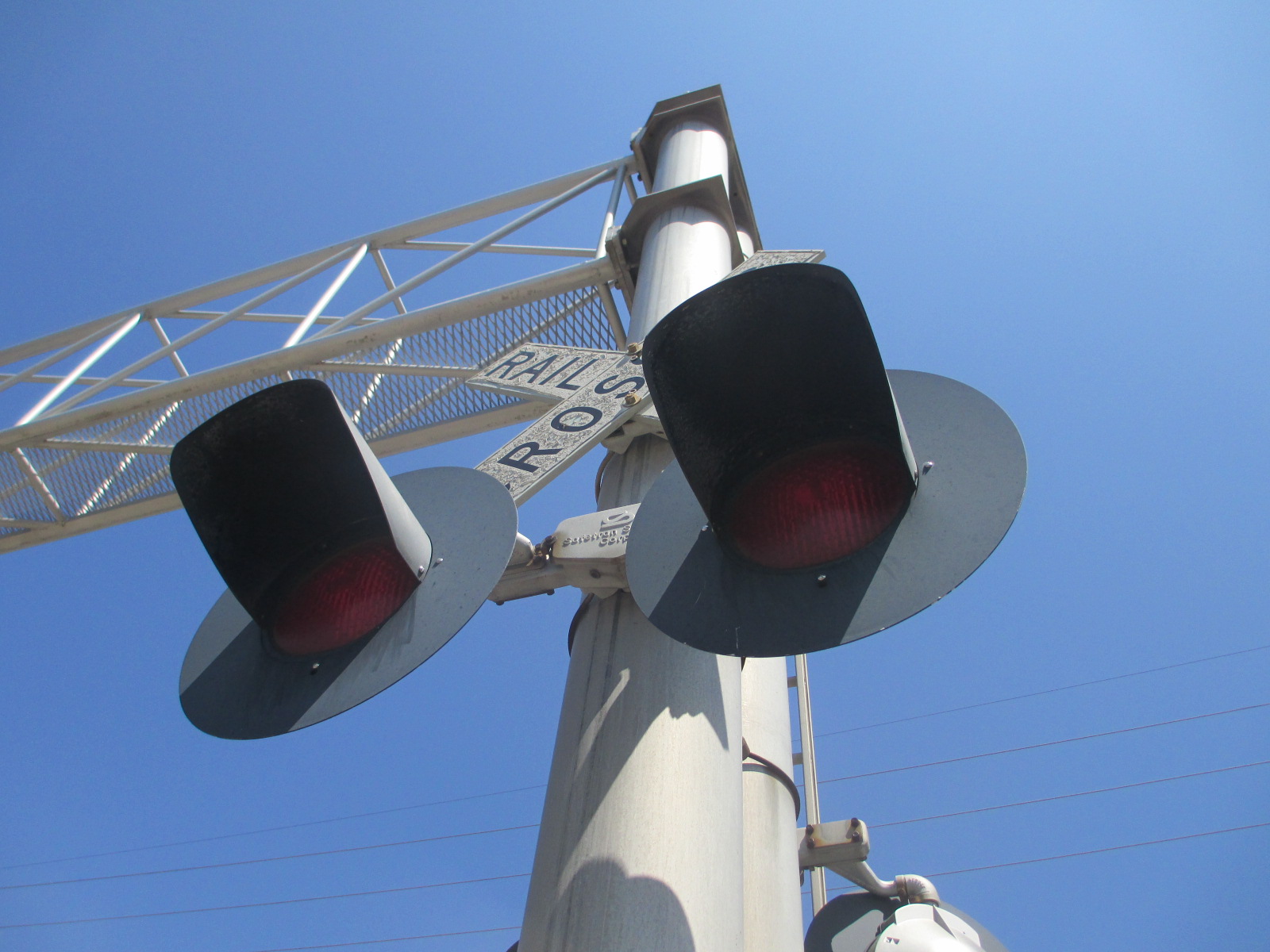

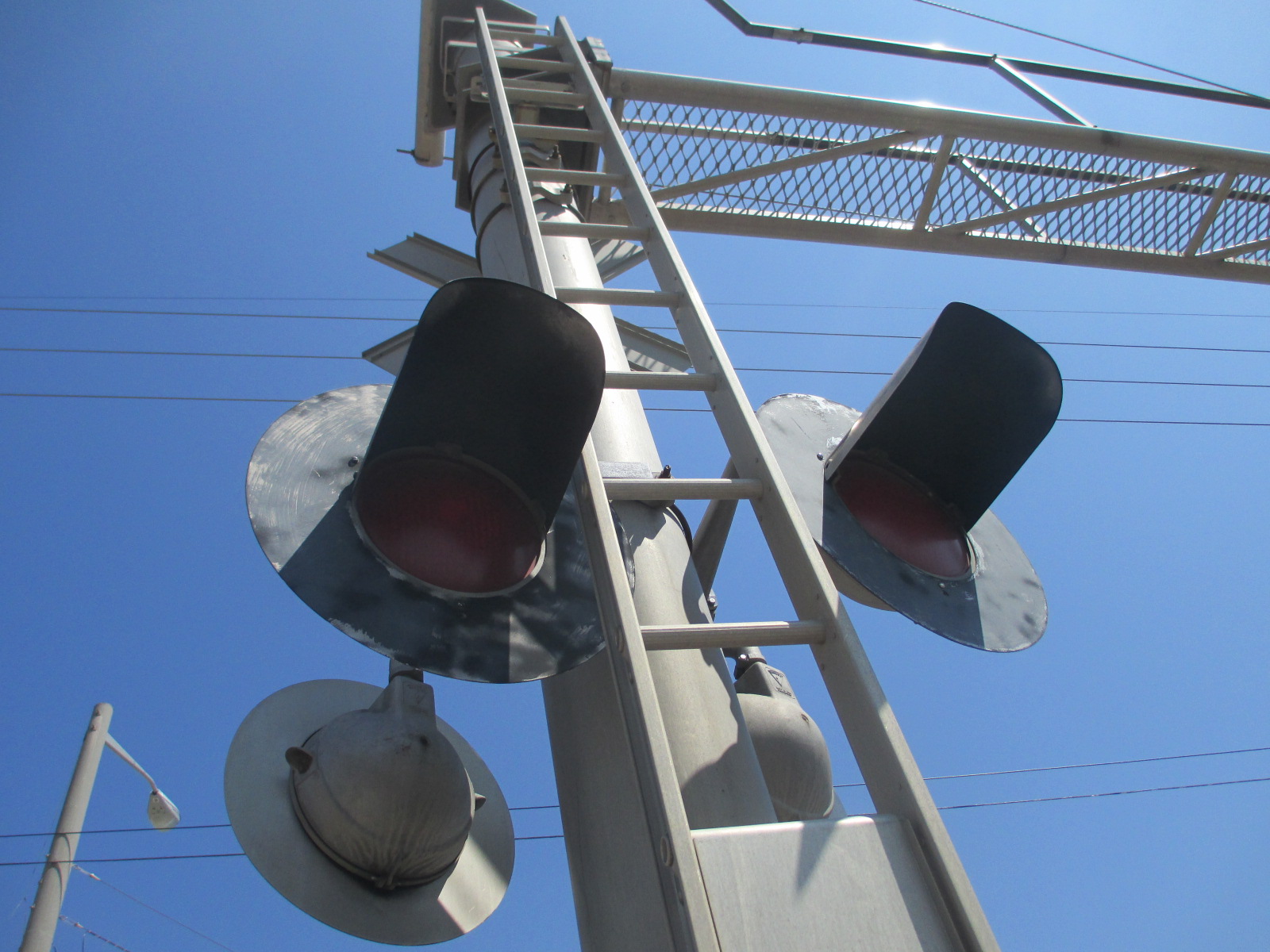

12x24 inch Harmon lights on the mast.

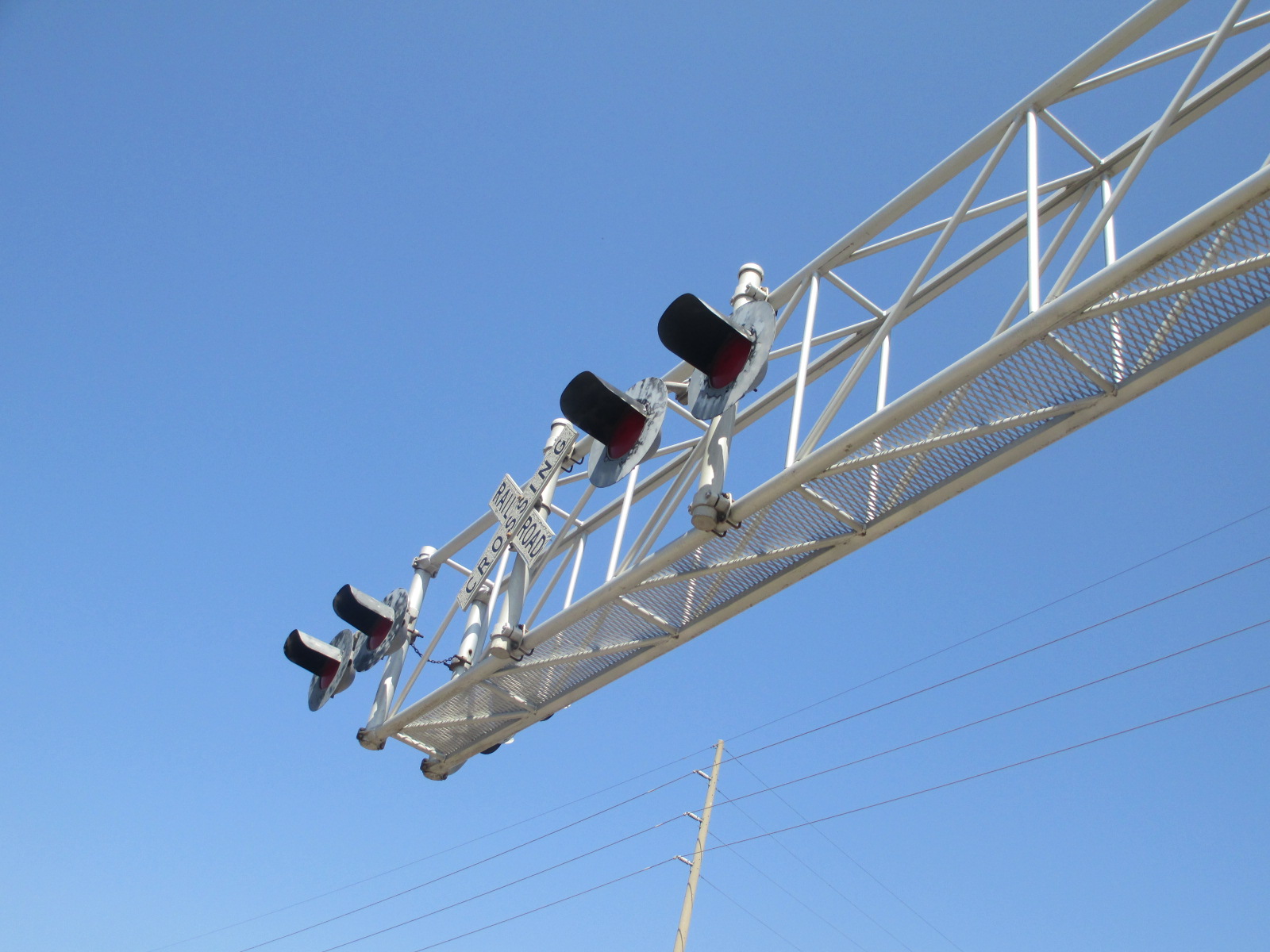

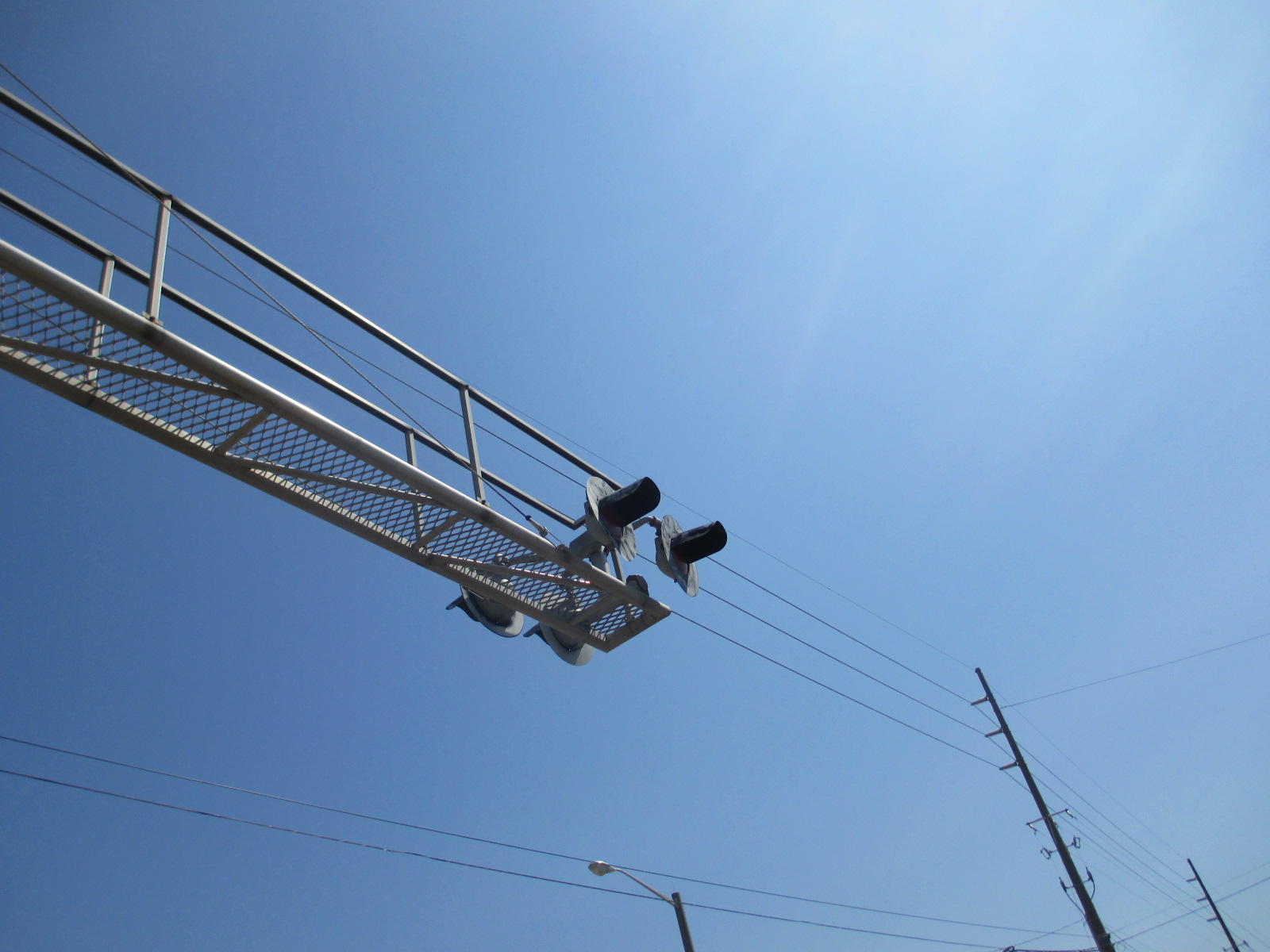

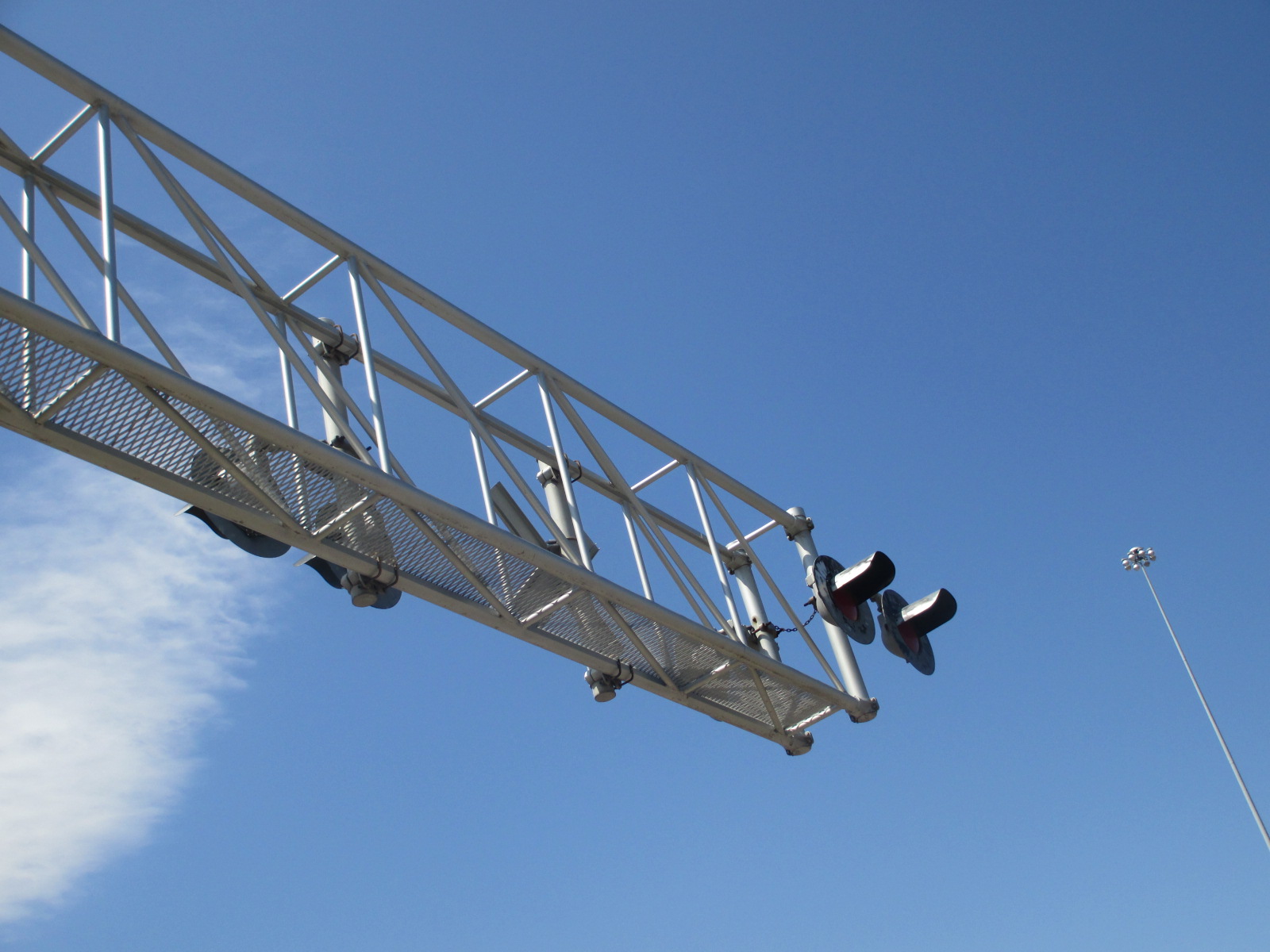

The overhead lights are 12x24 inch Harmon lights as well.

9

10

11

12

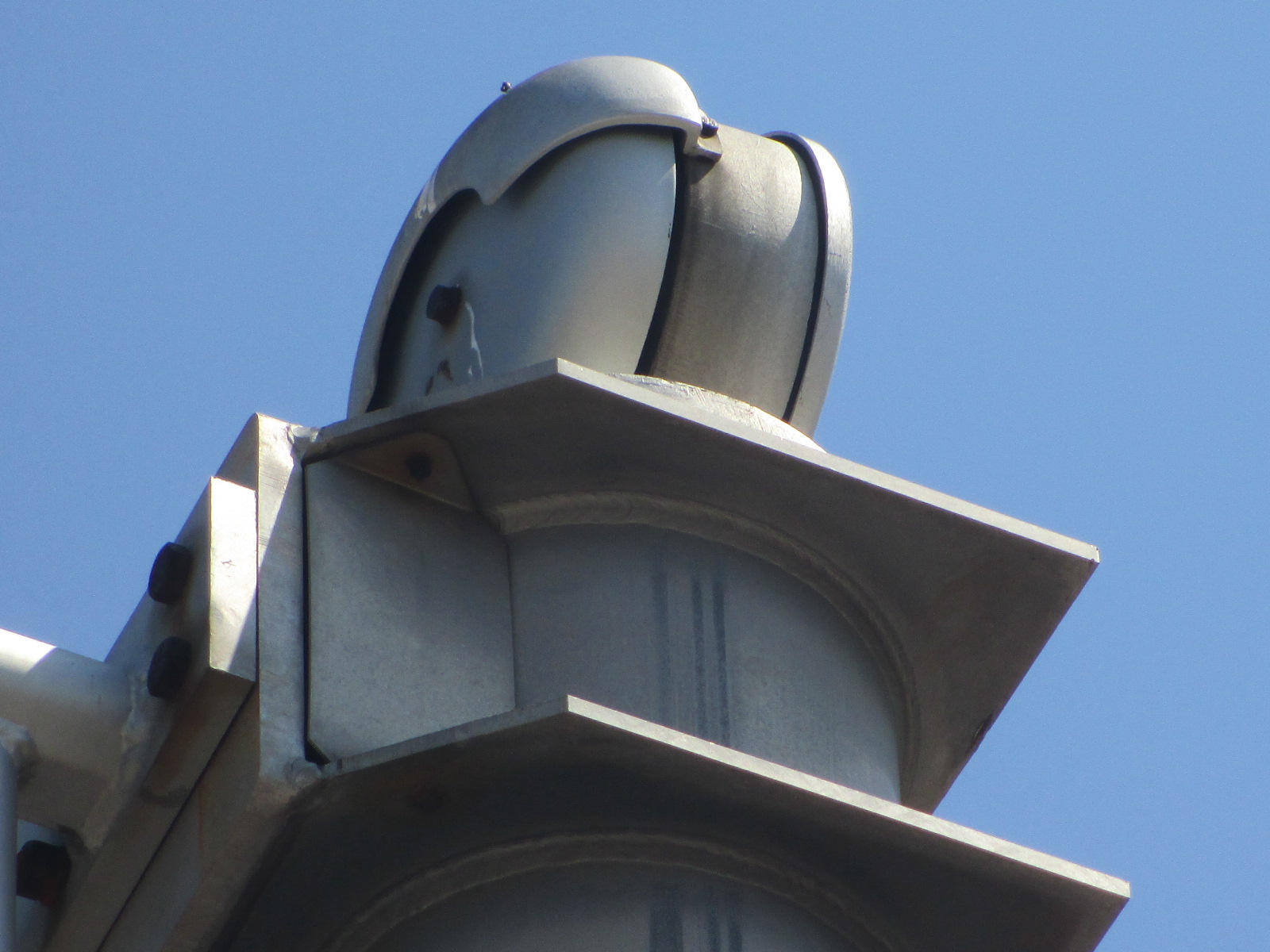

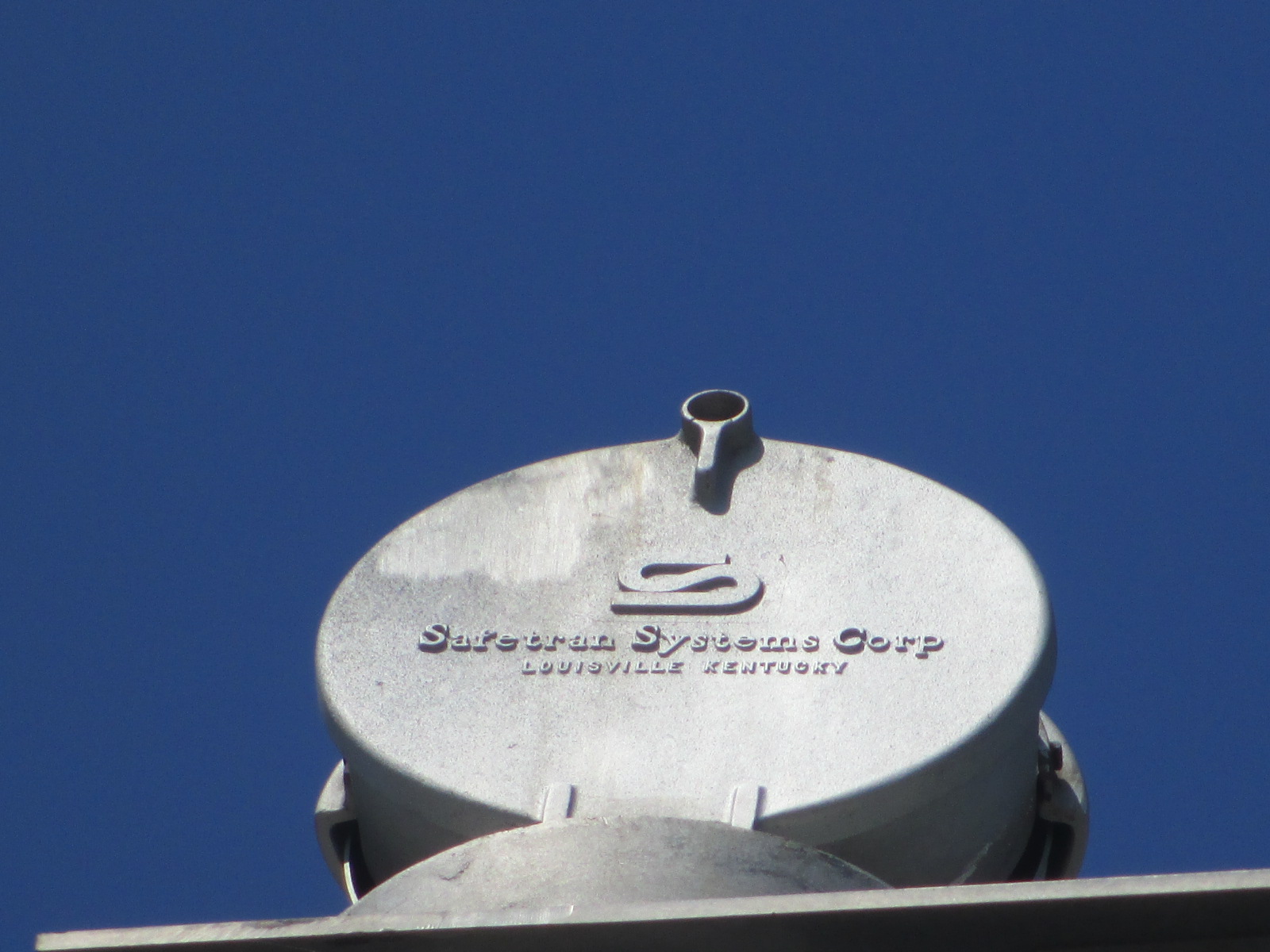

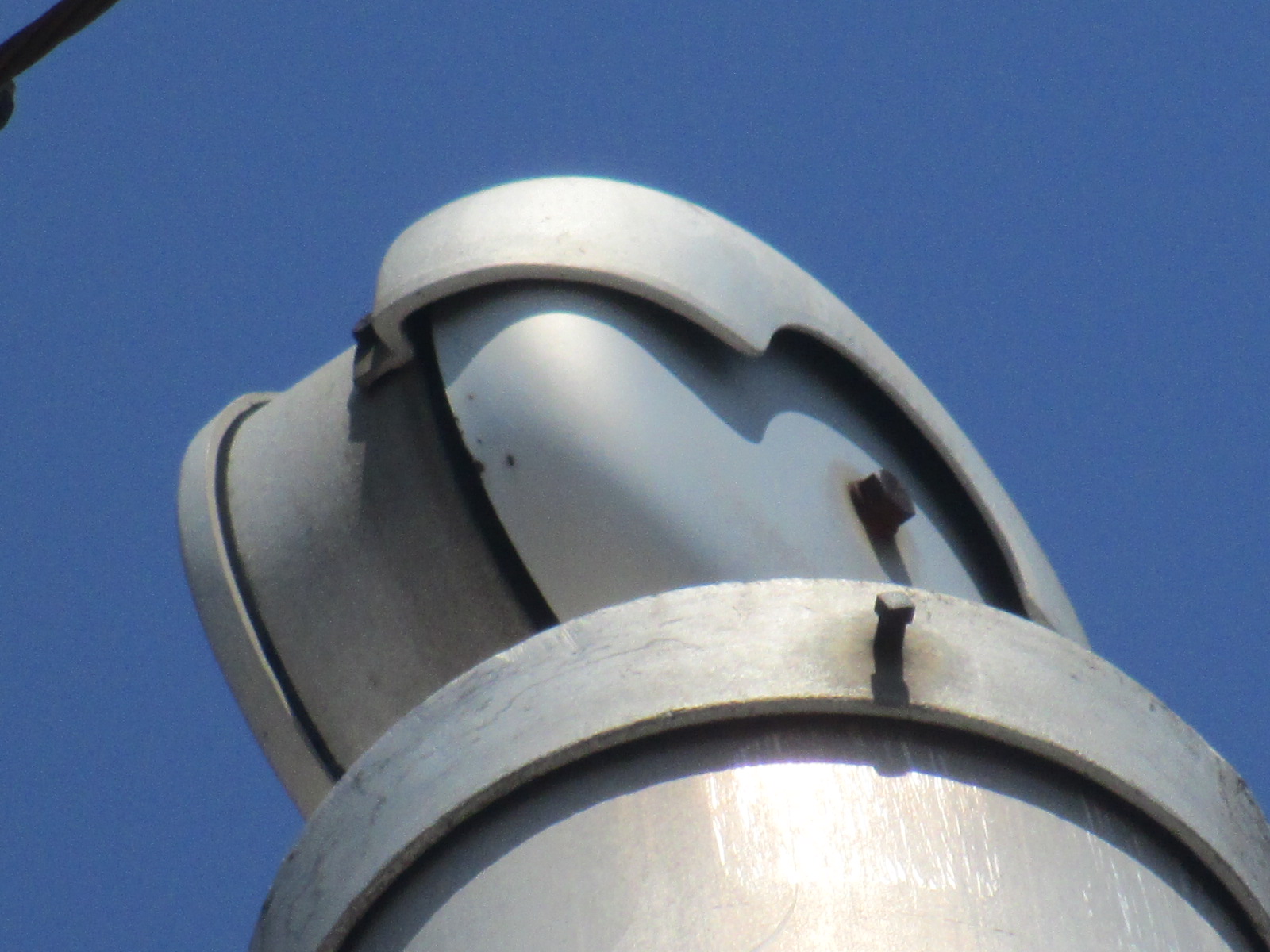

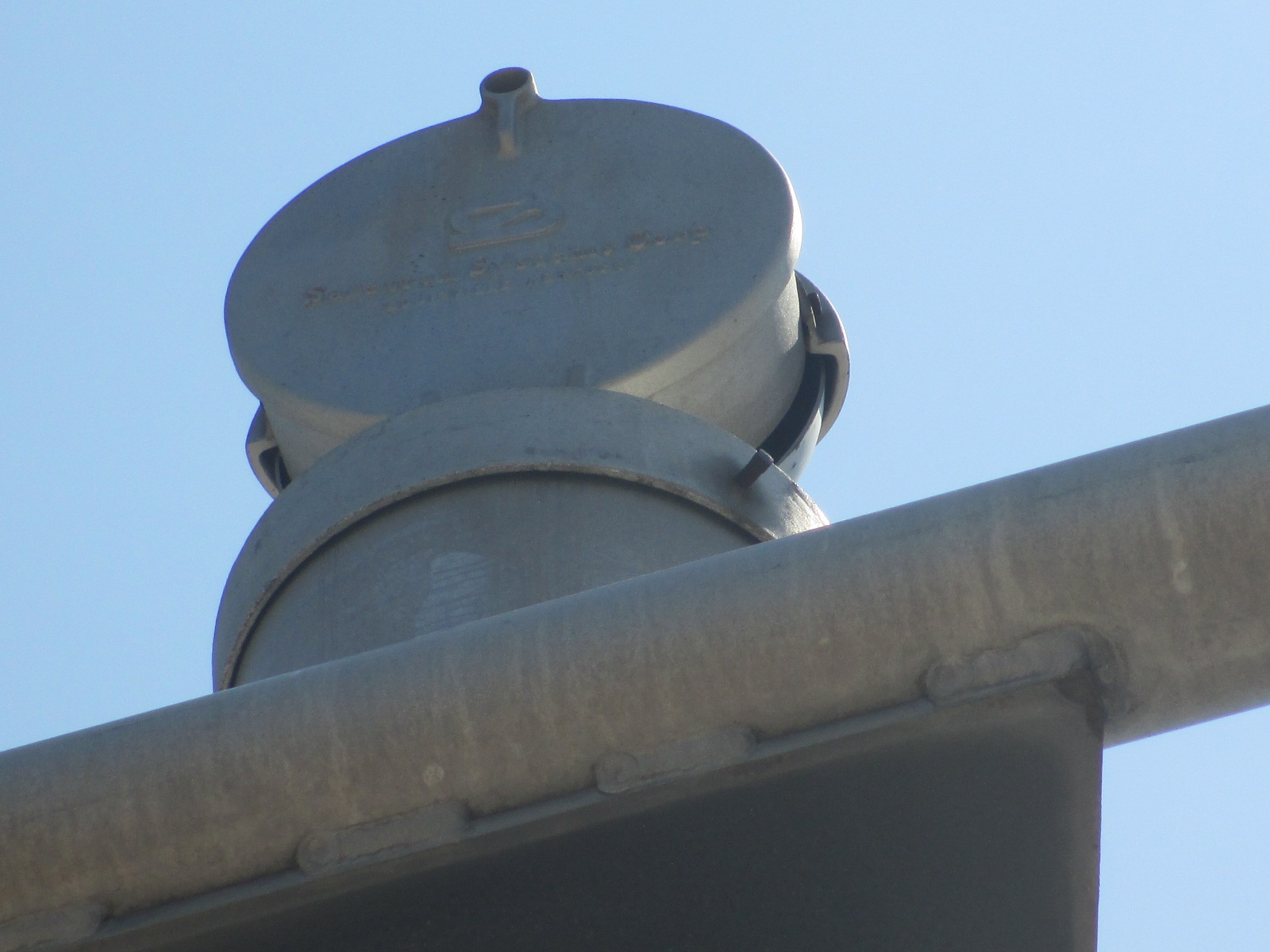

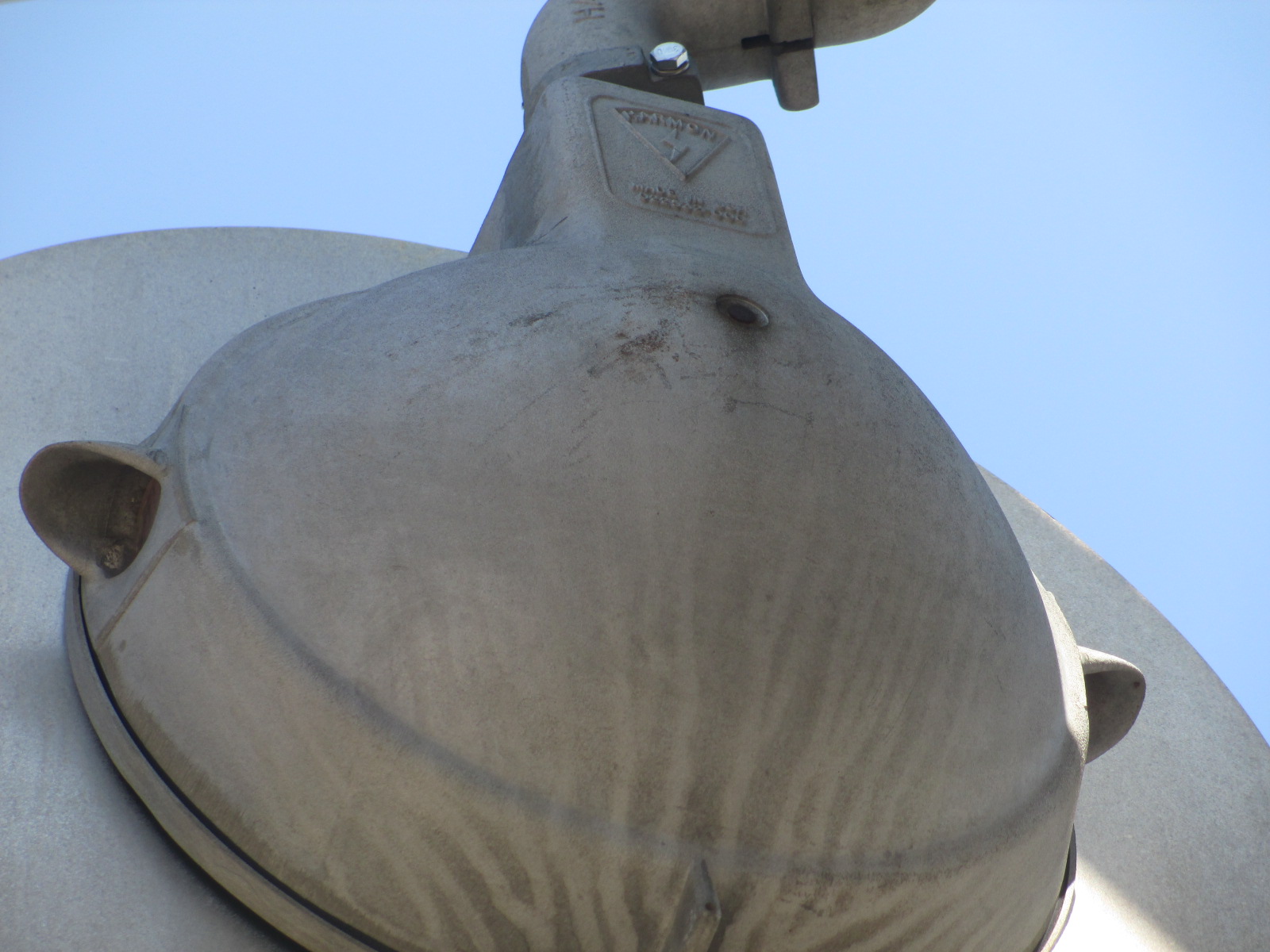

There is a Safetran mechanical bell on this cantilever.

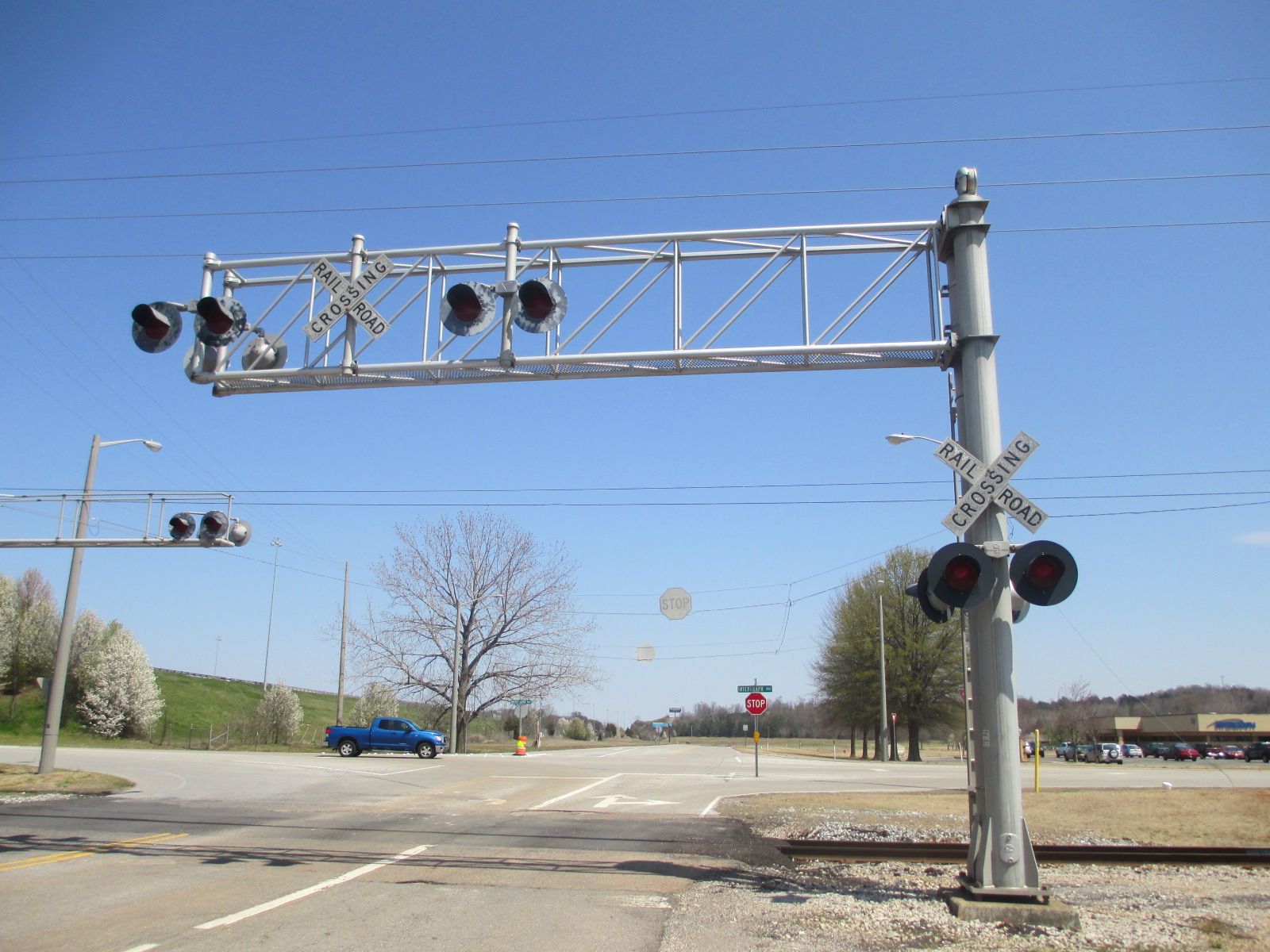

The second signal.

13

14

15

16
It's also a Safetran cantilever.
The mast lights are 12x24 inch Safetran lights.

17

18

19

20

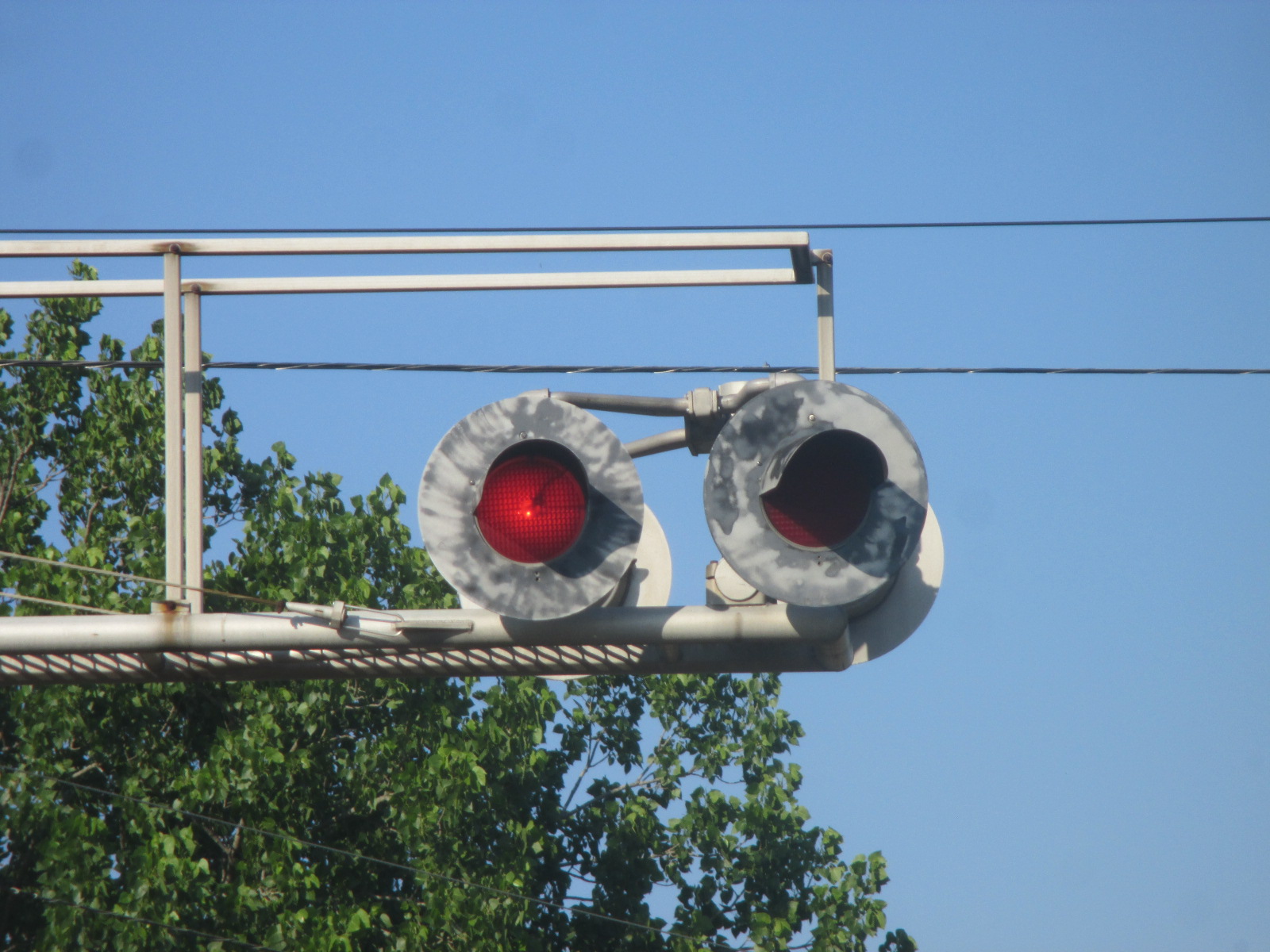

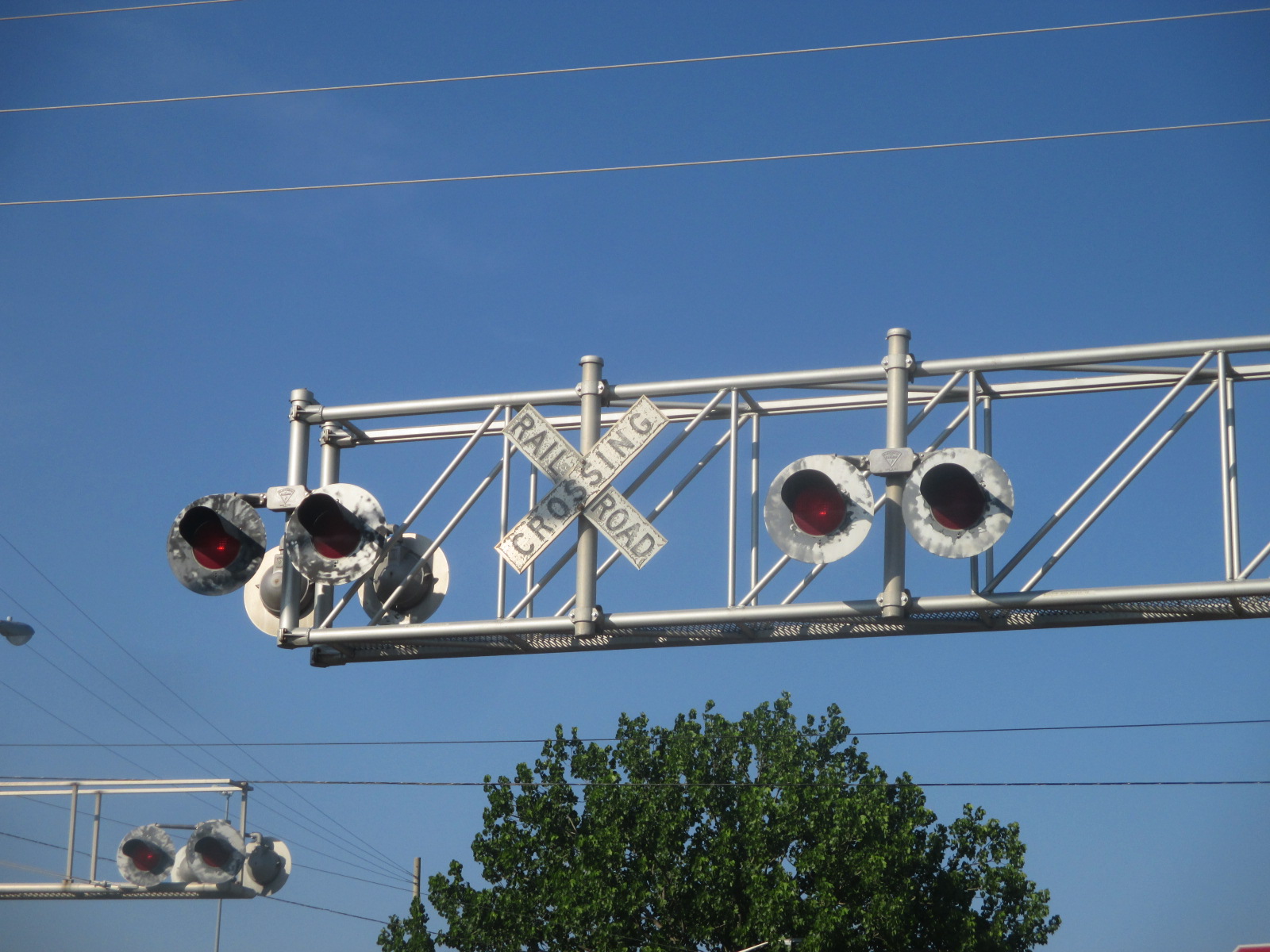

The overhead lights are 12x24 inch Harmon lights.
This signal also has a Safetran mechanical bell.

21

22

23

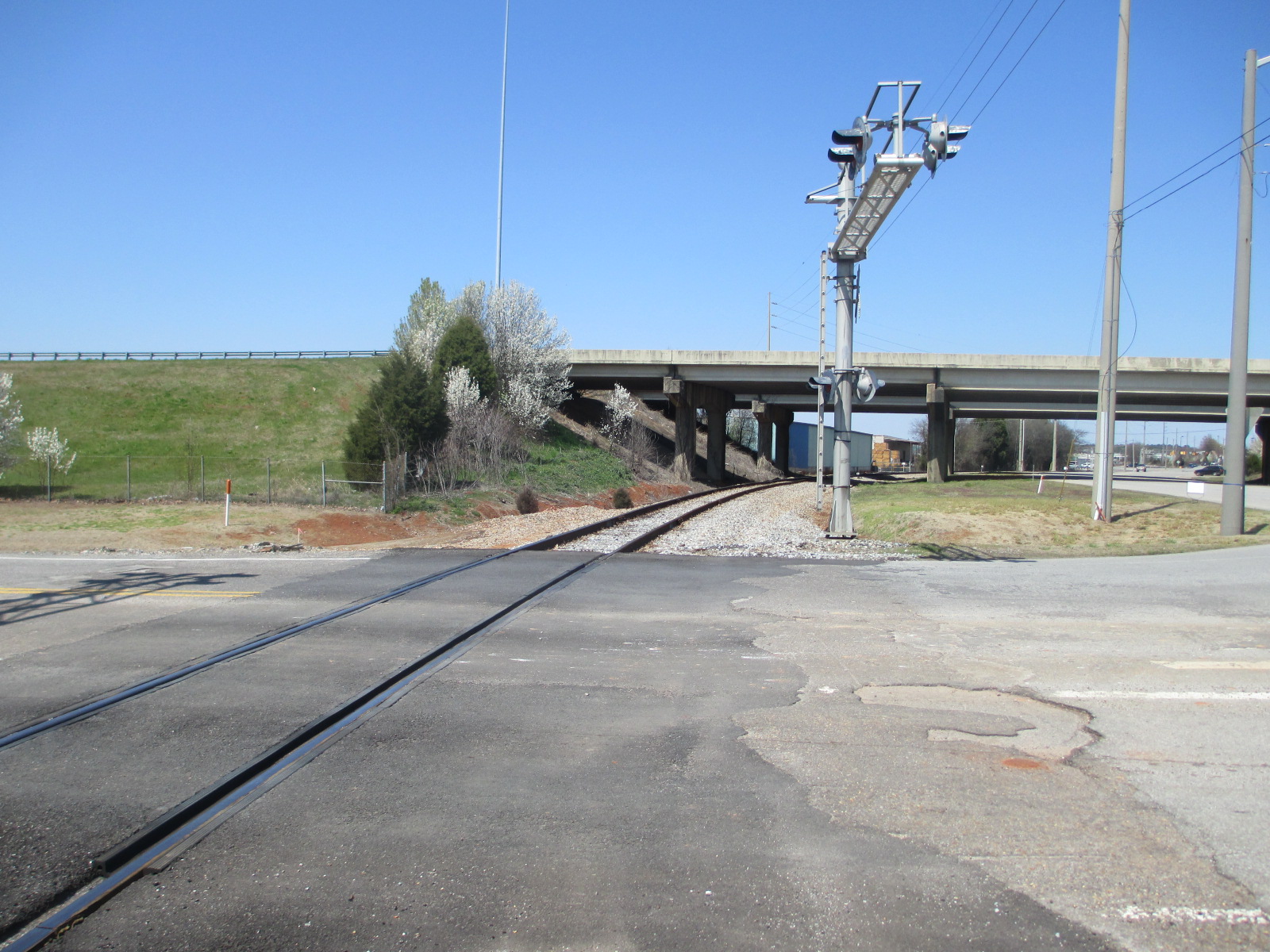

Facing north twoards Madison Boulevard.

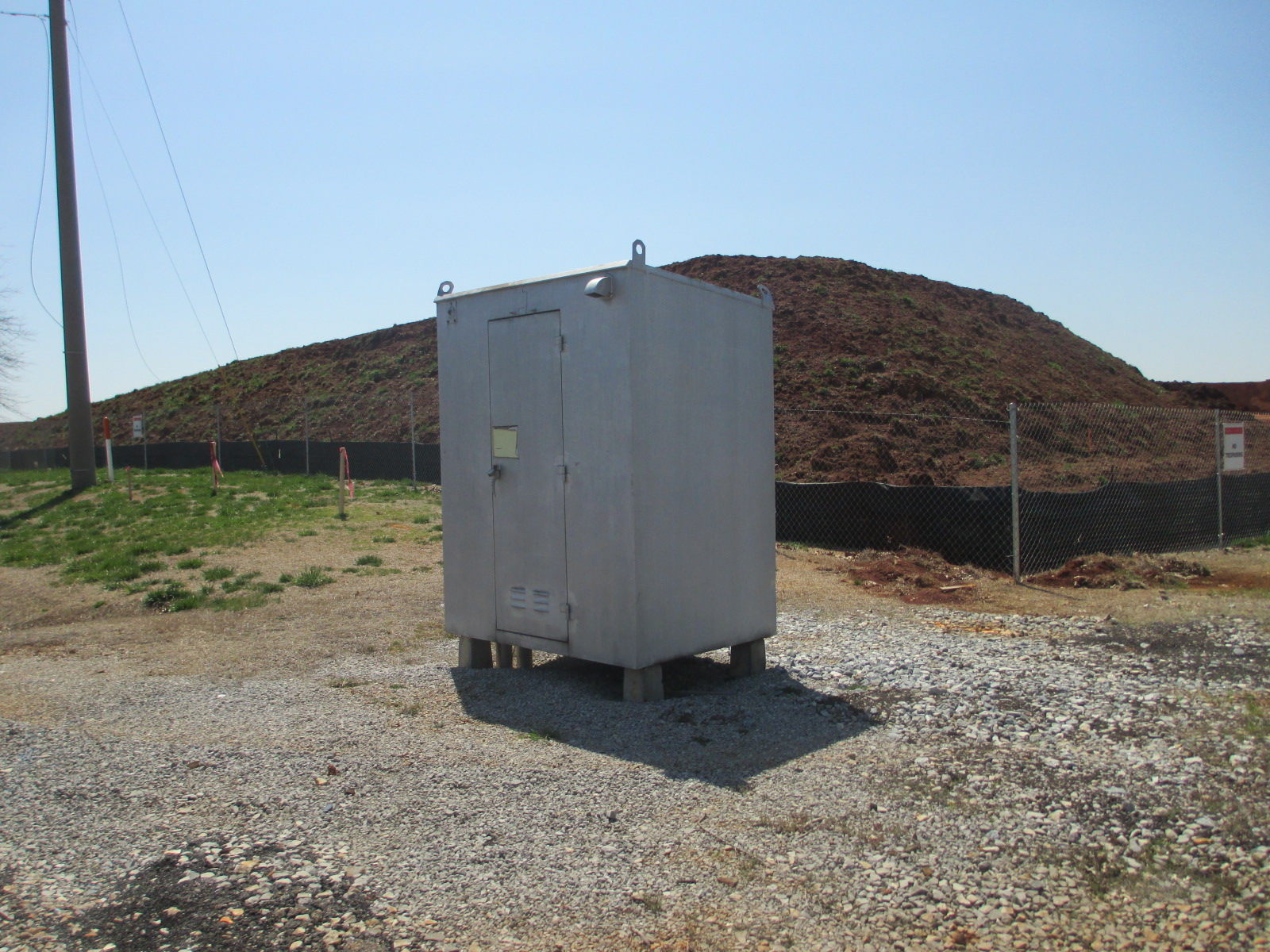

The relay case.

24

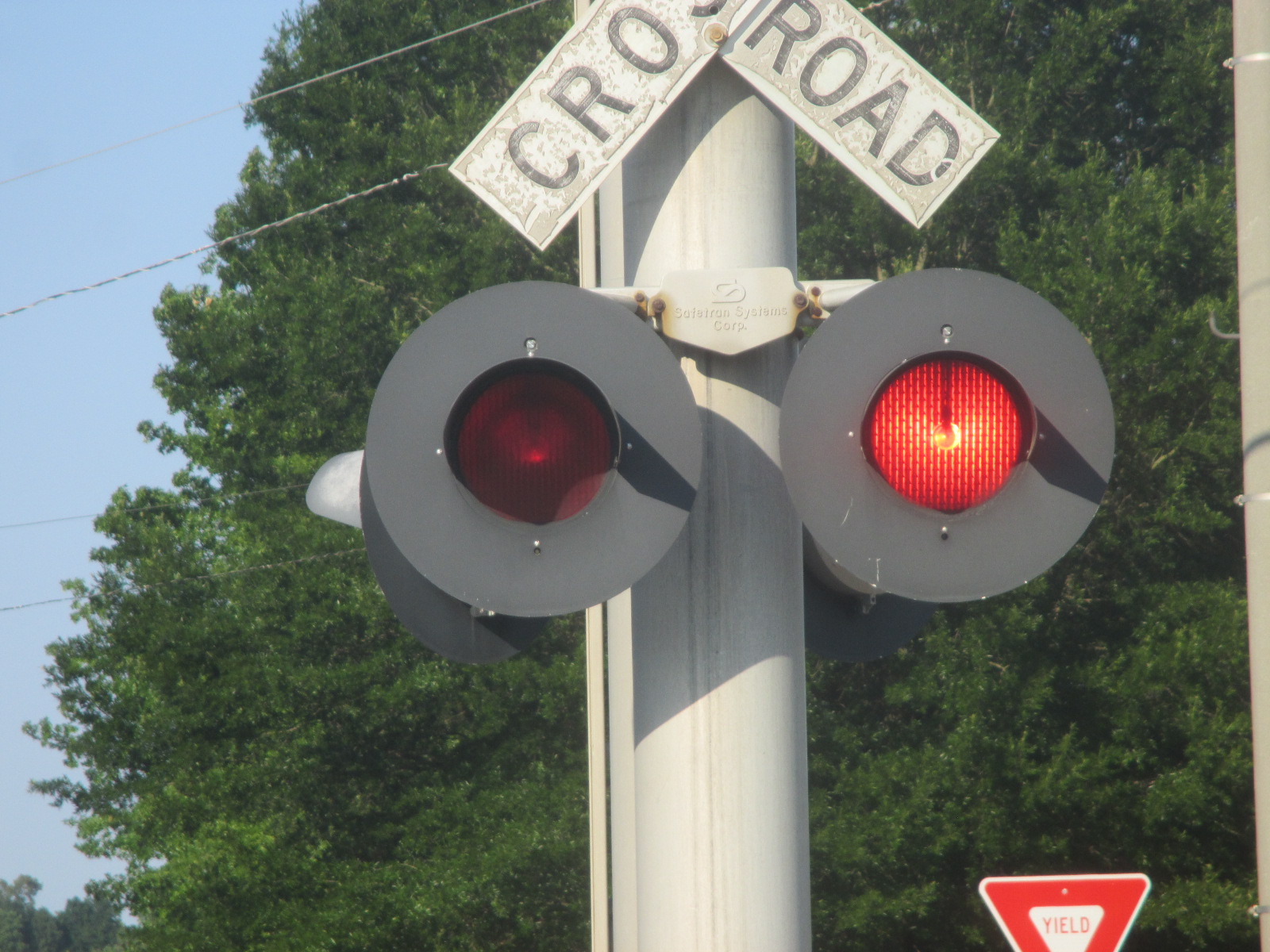

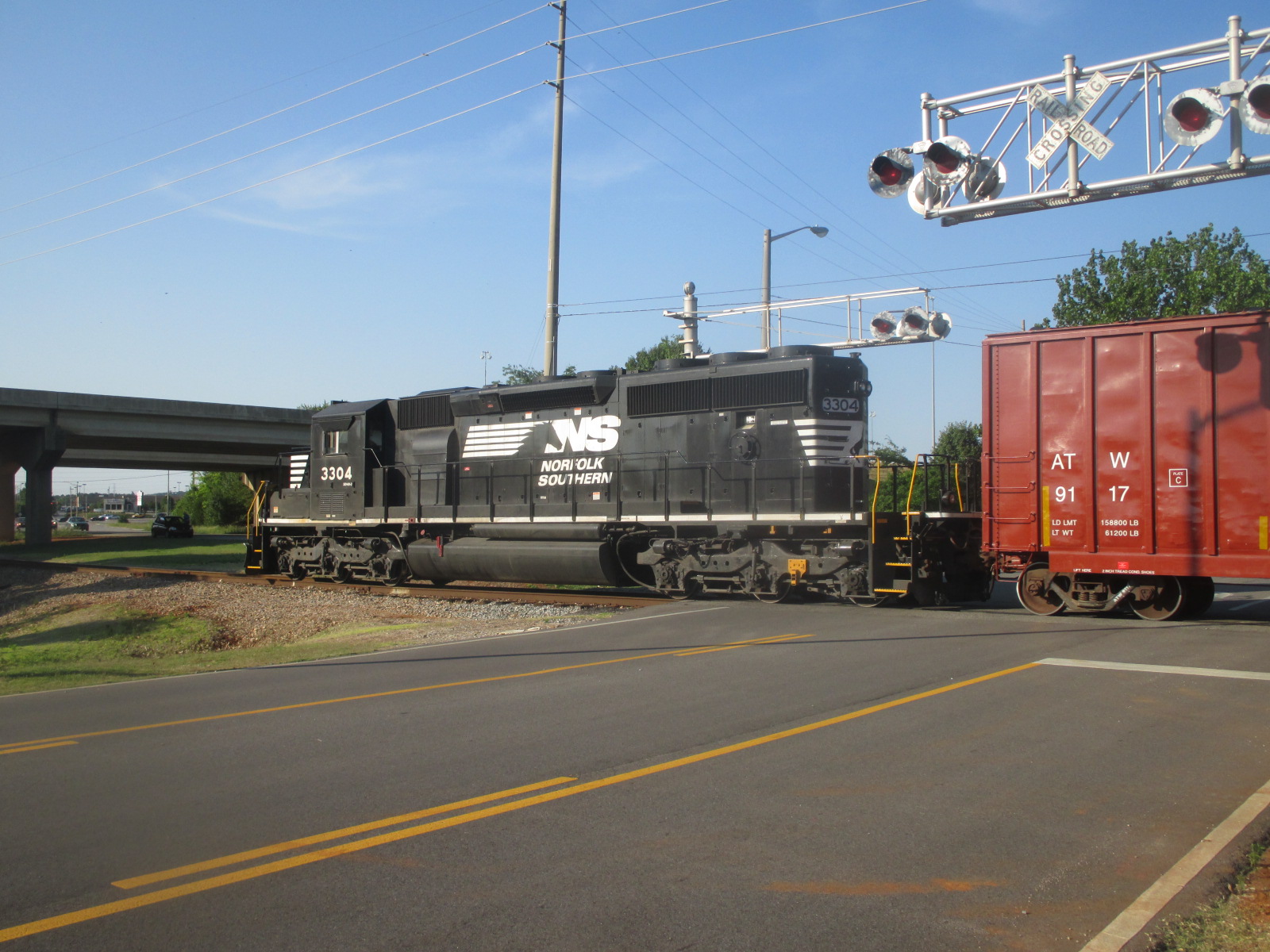

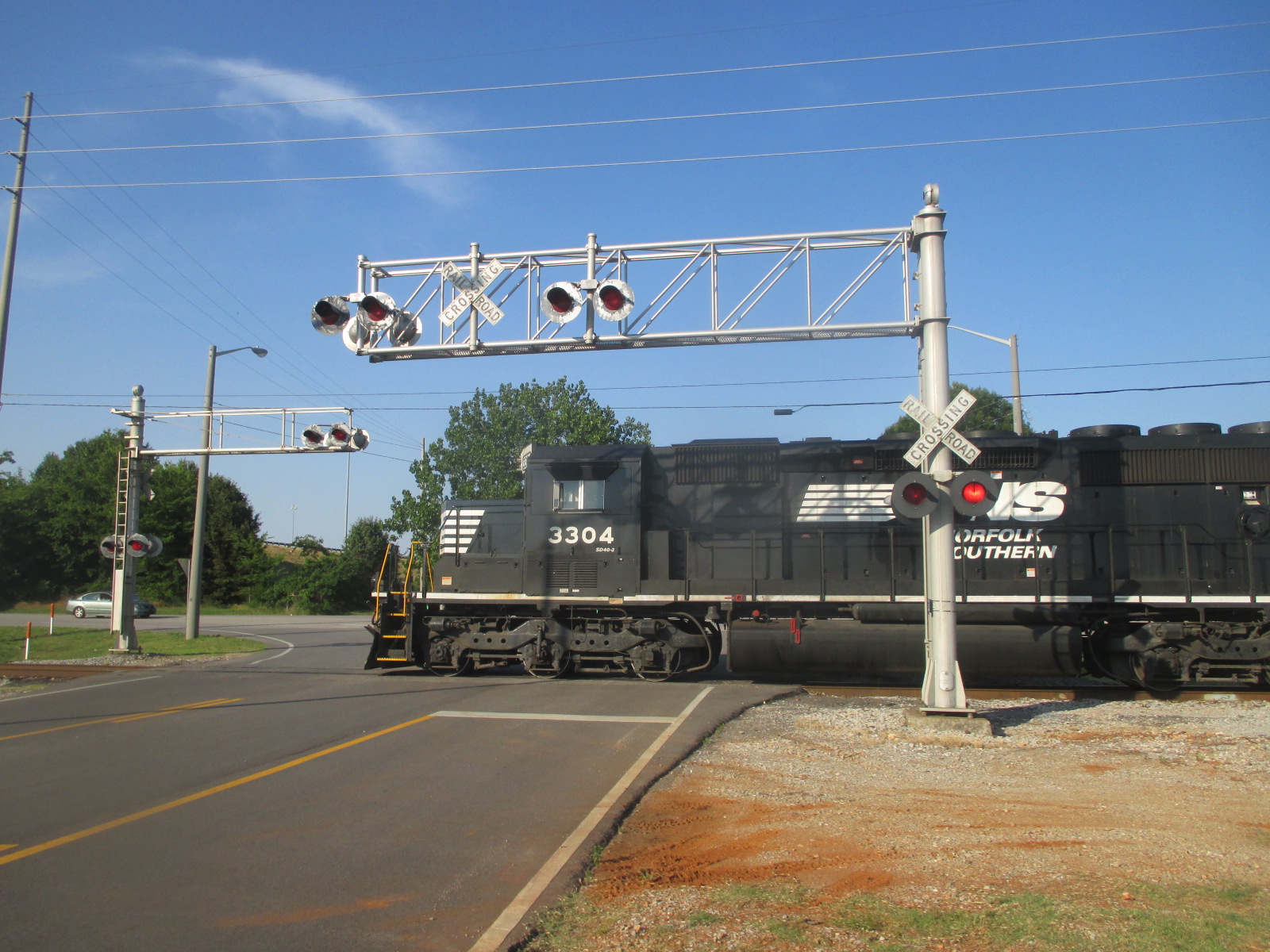

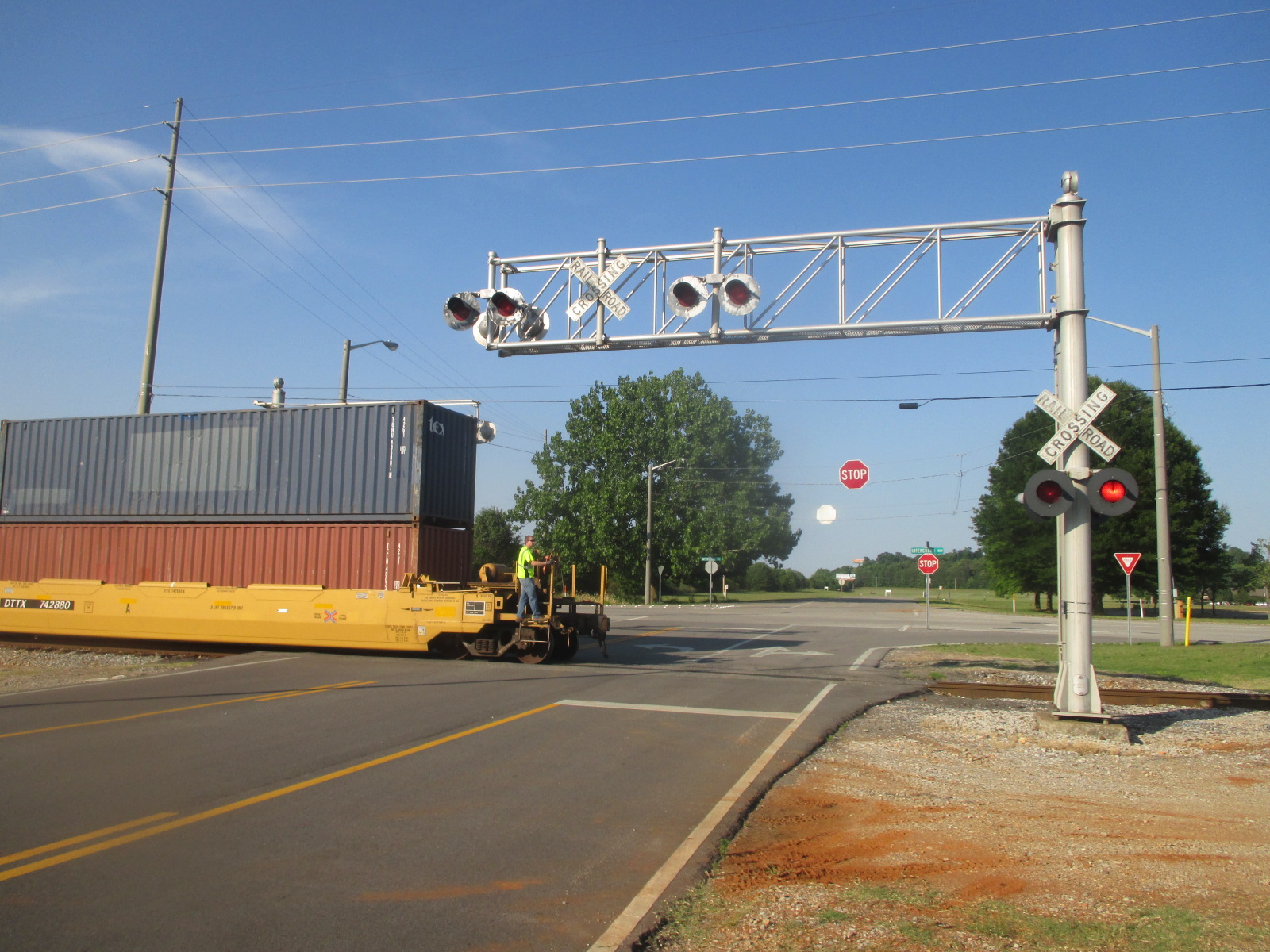

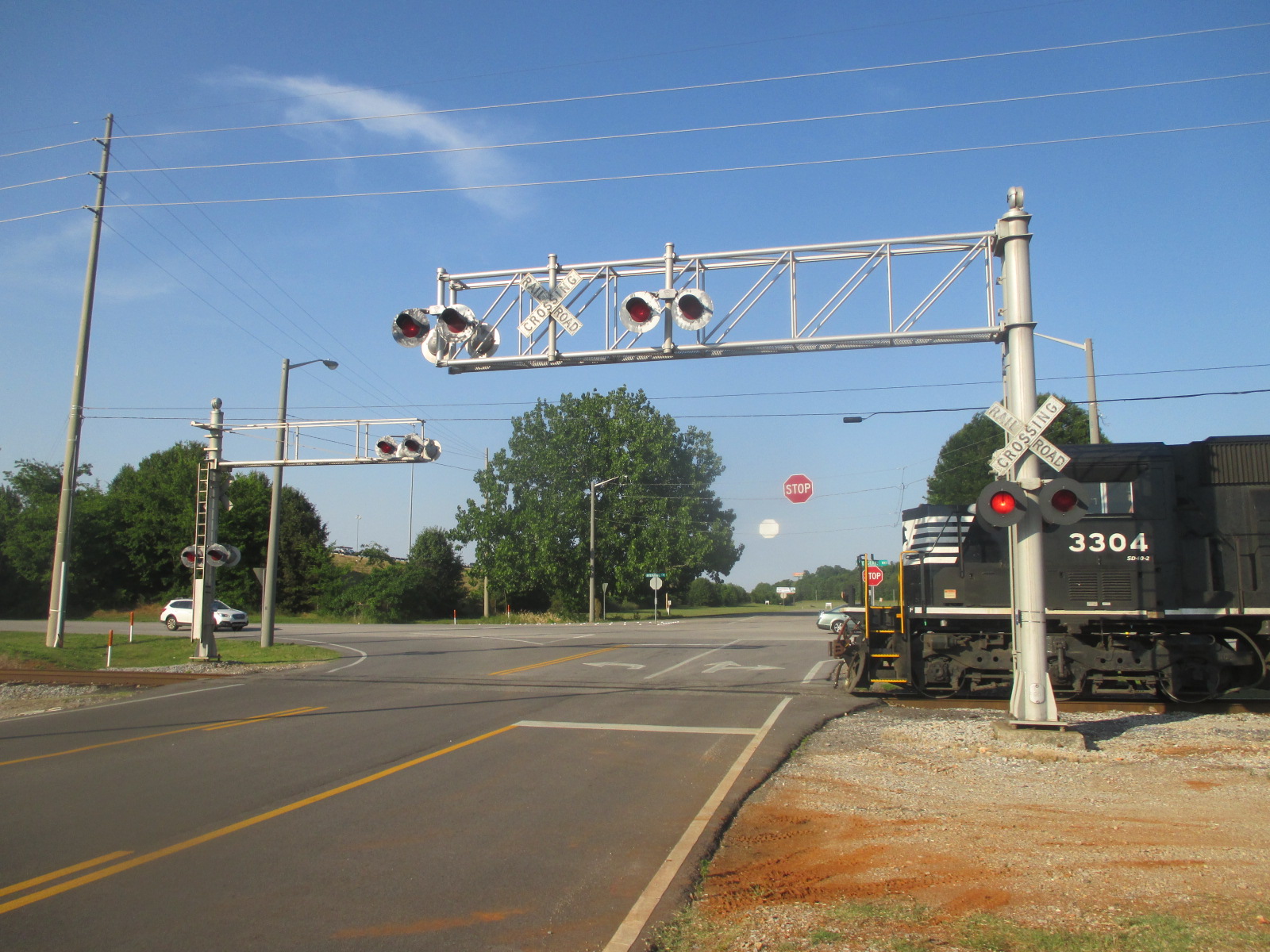

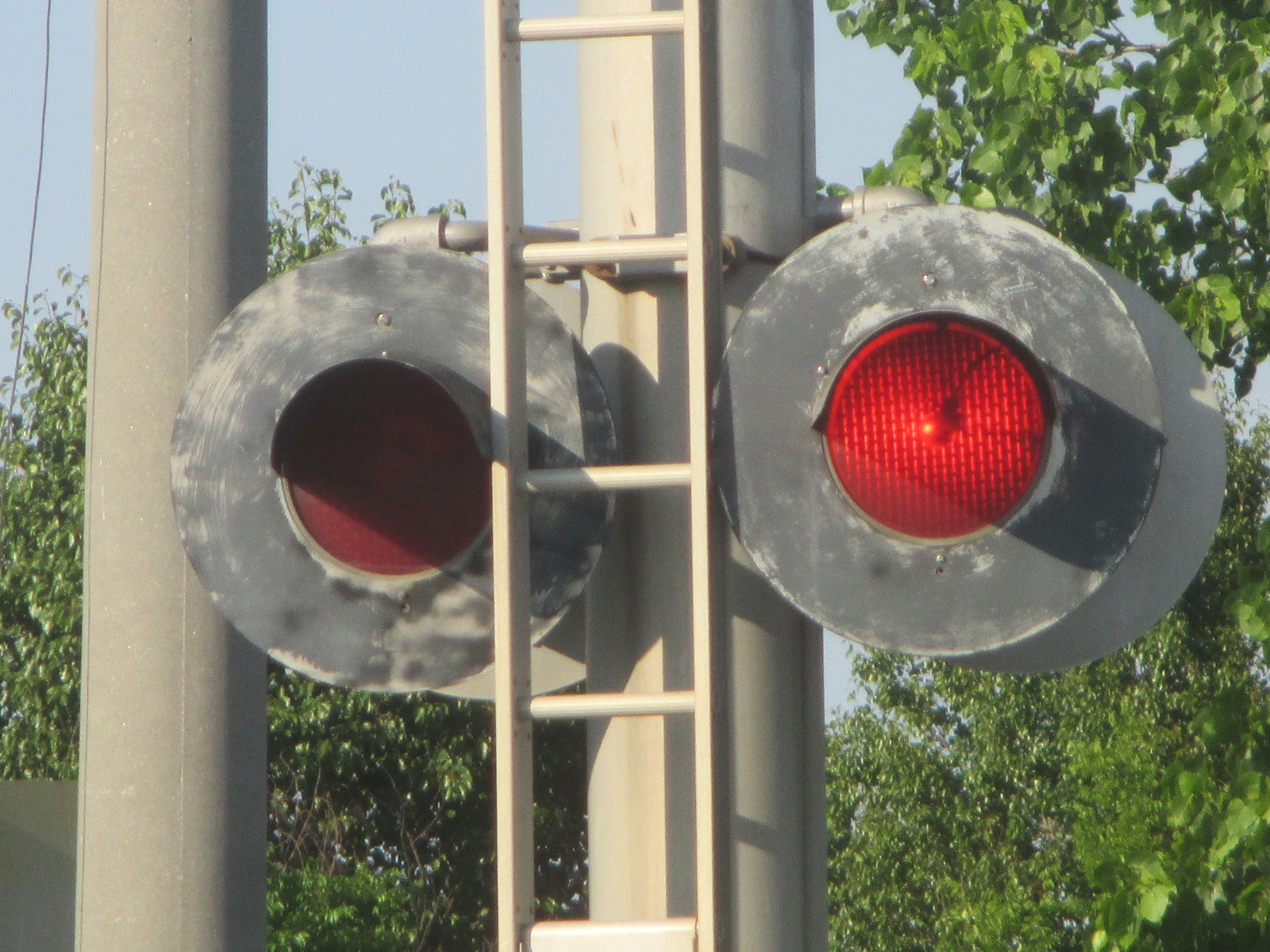

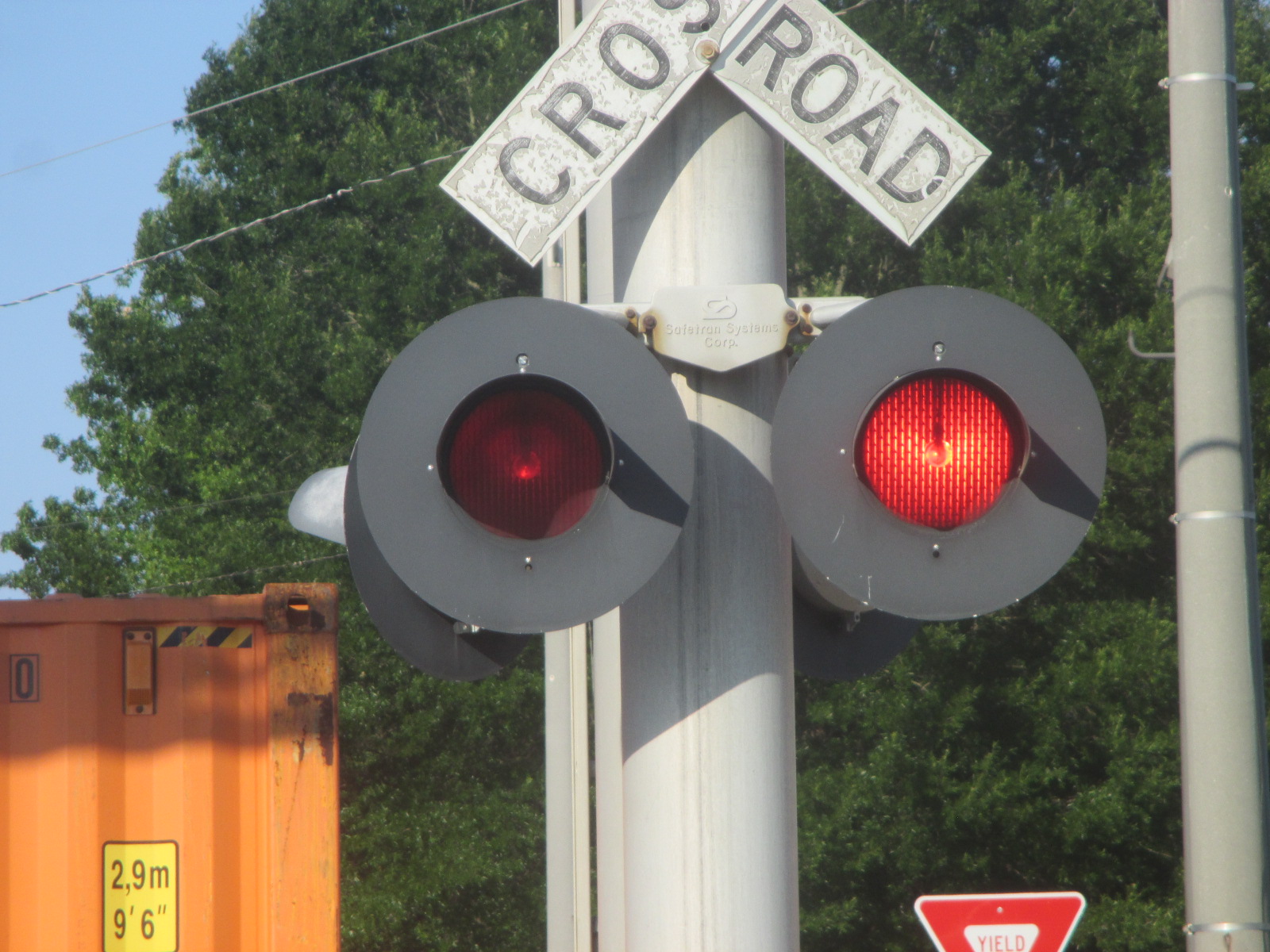

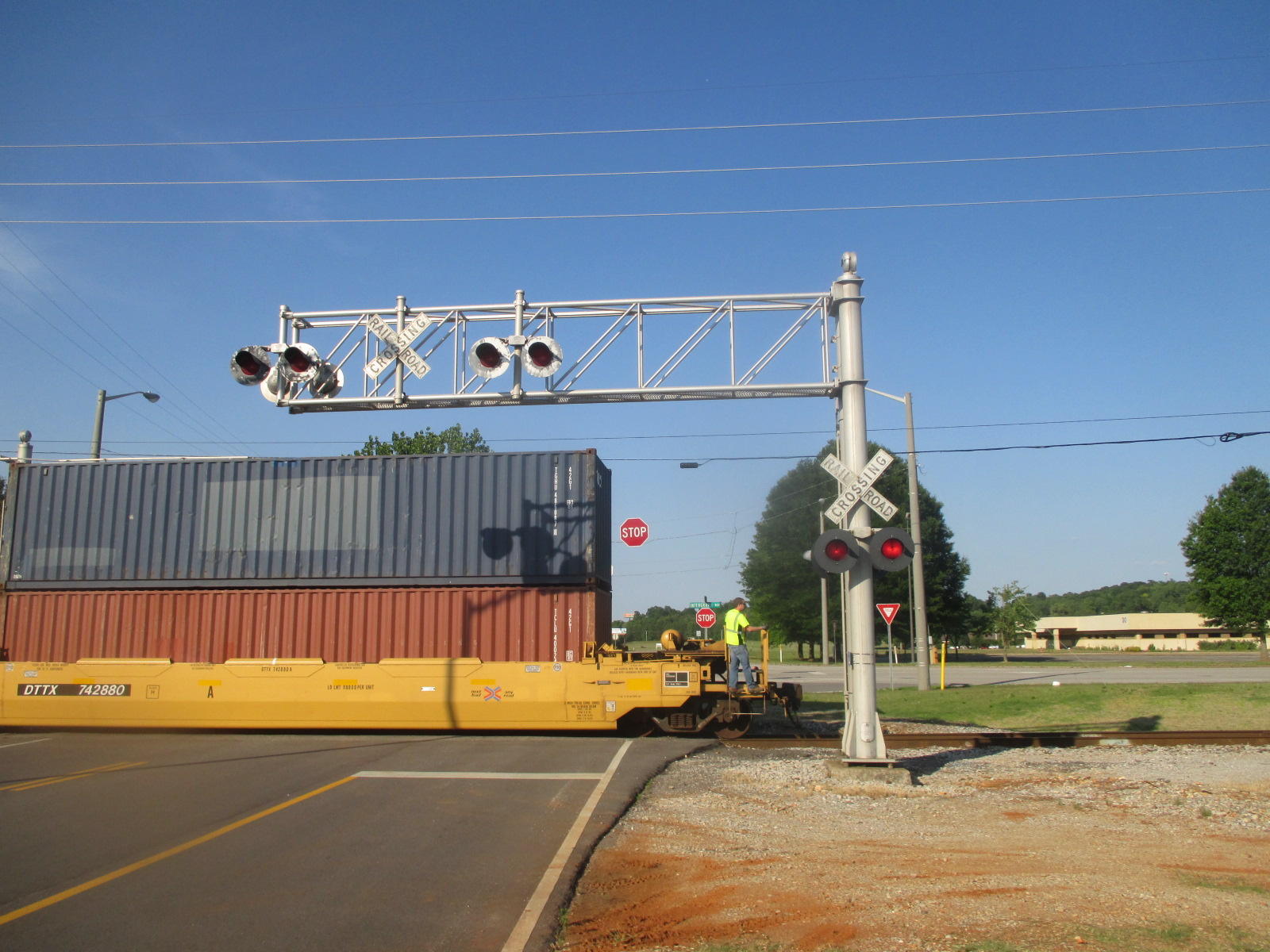

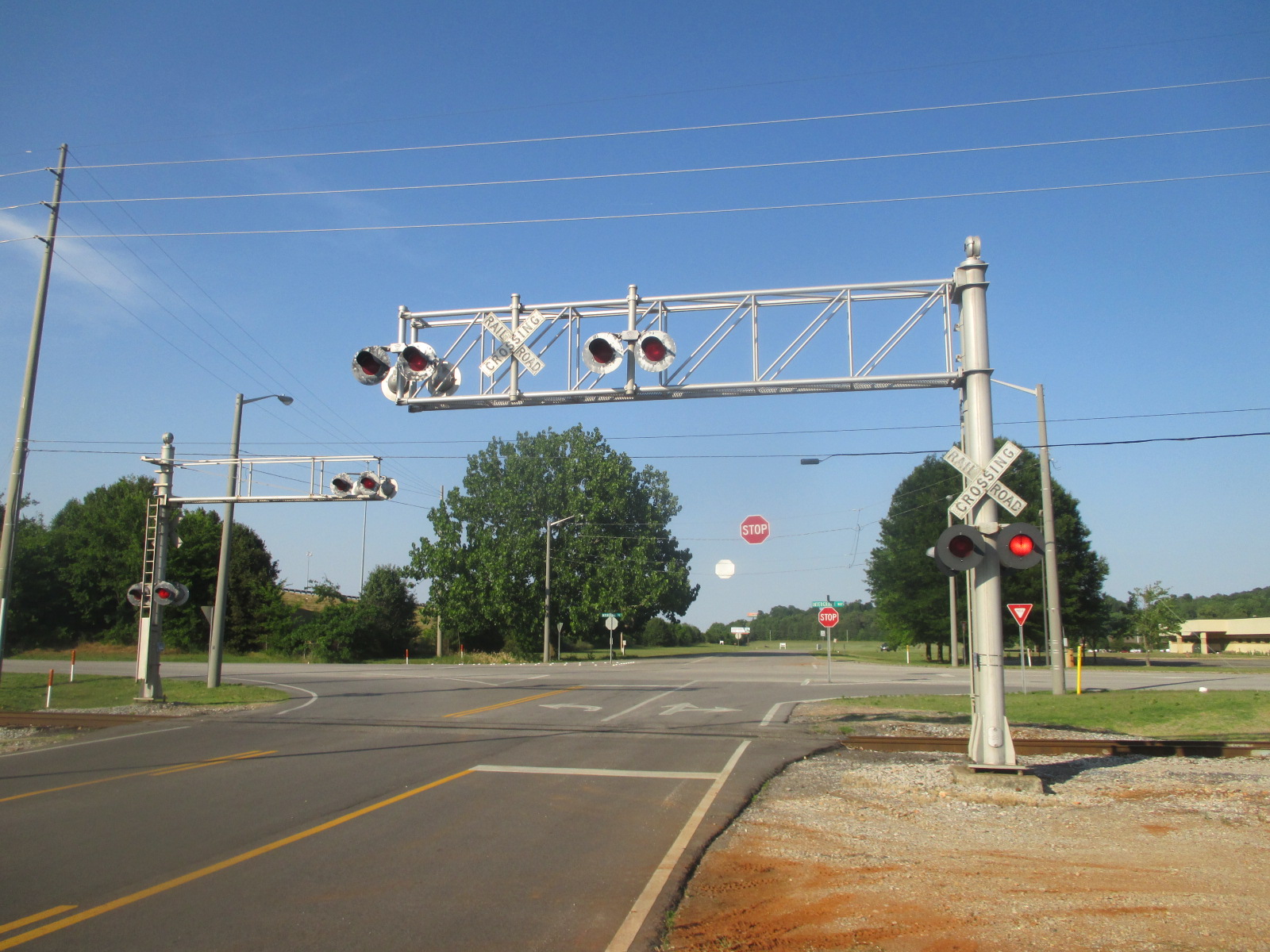

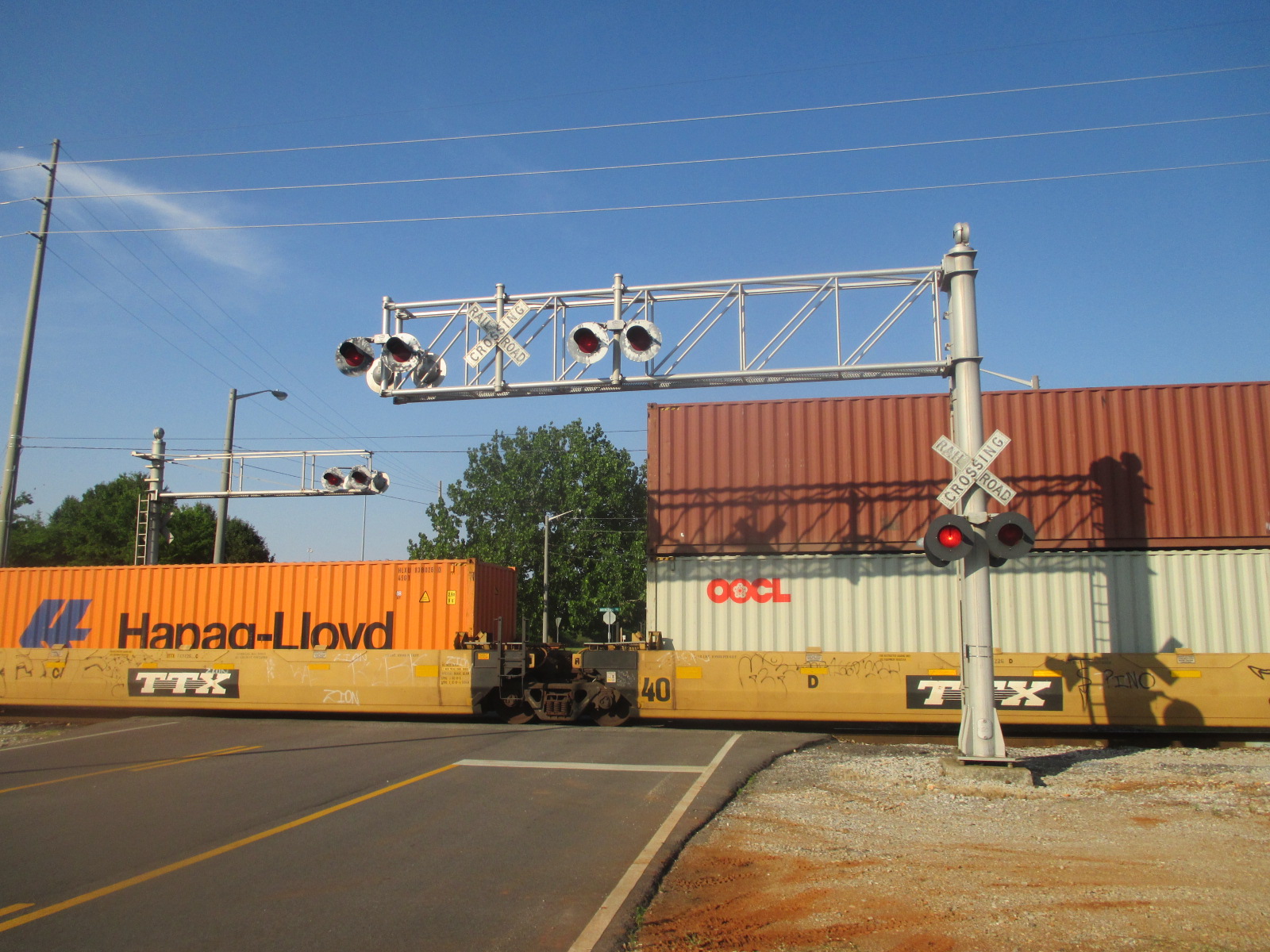

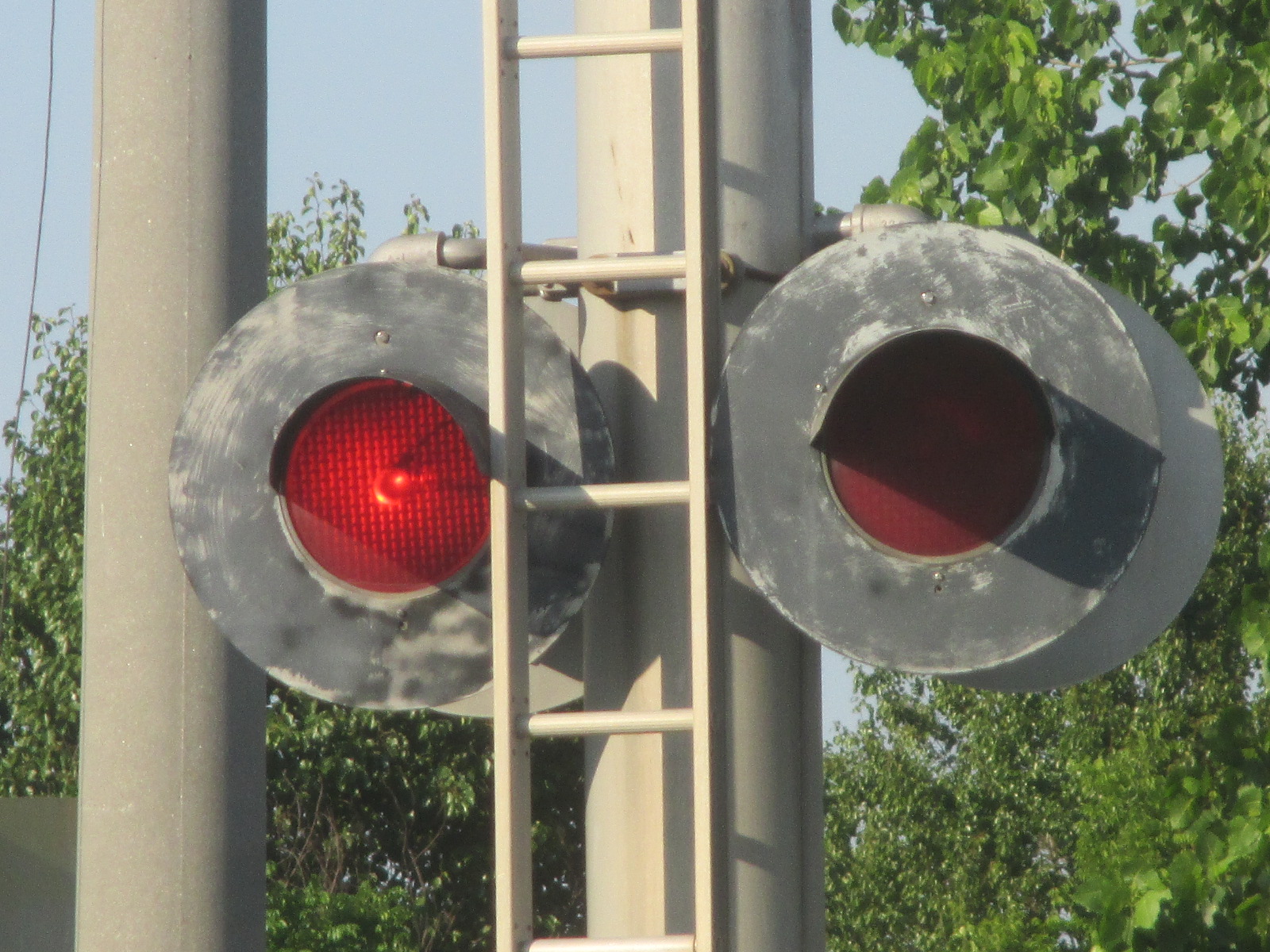

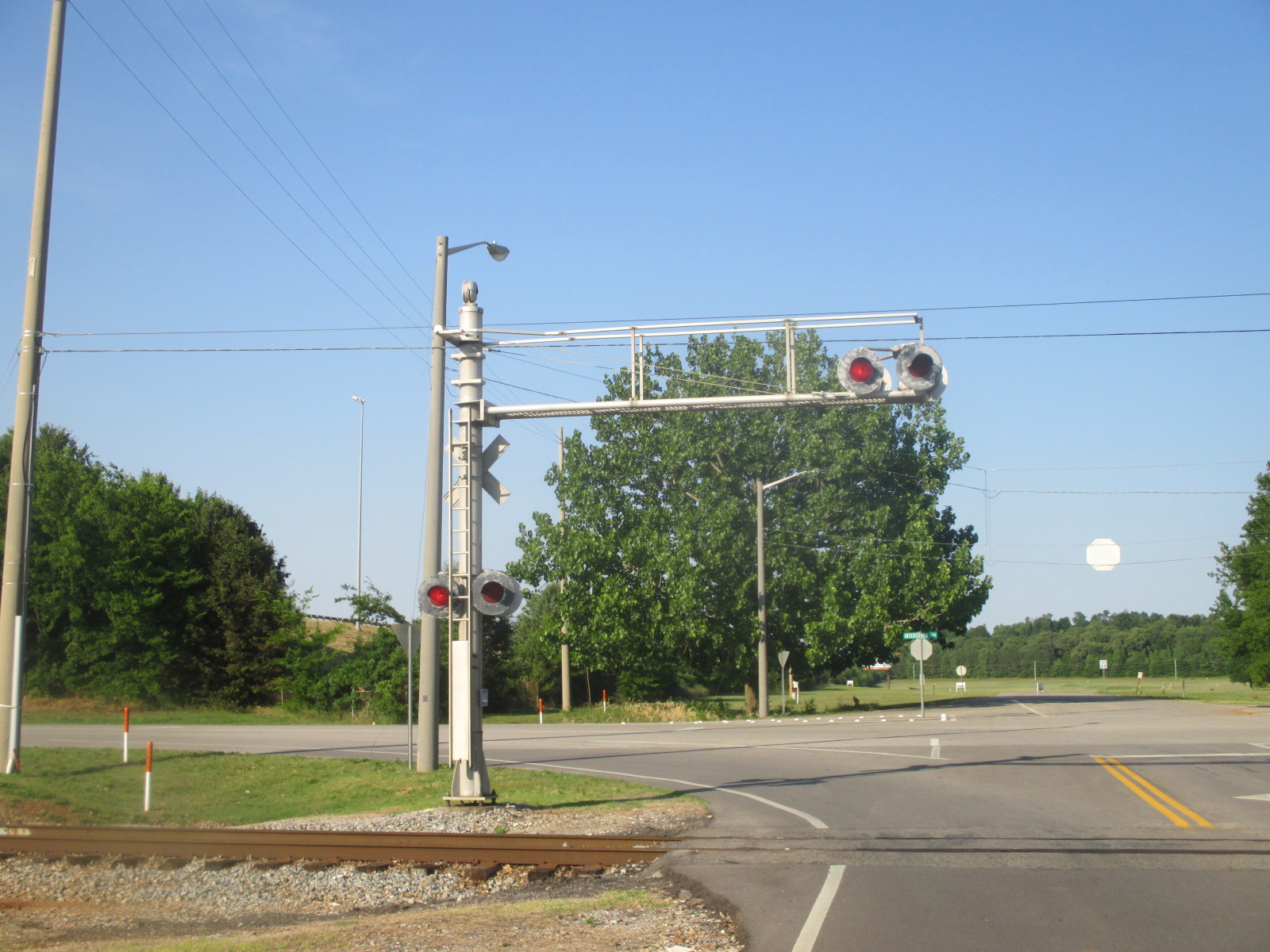

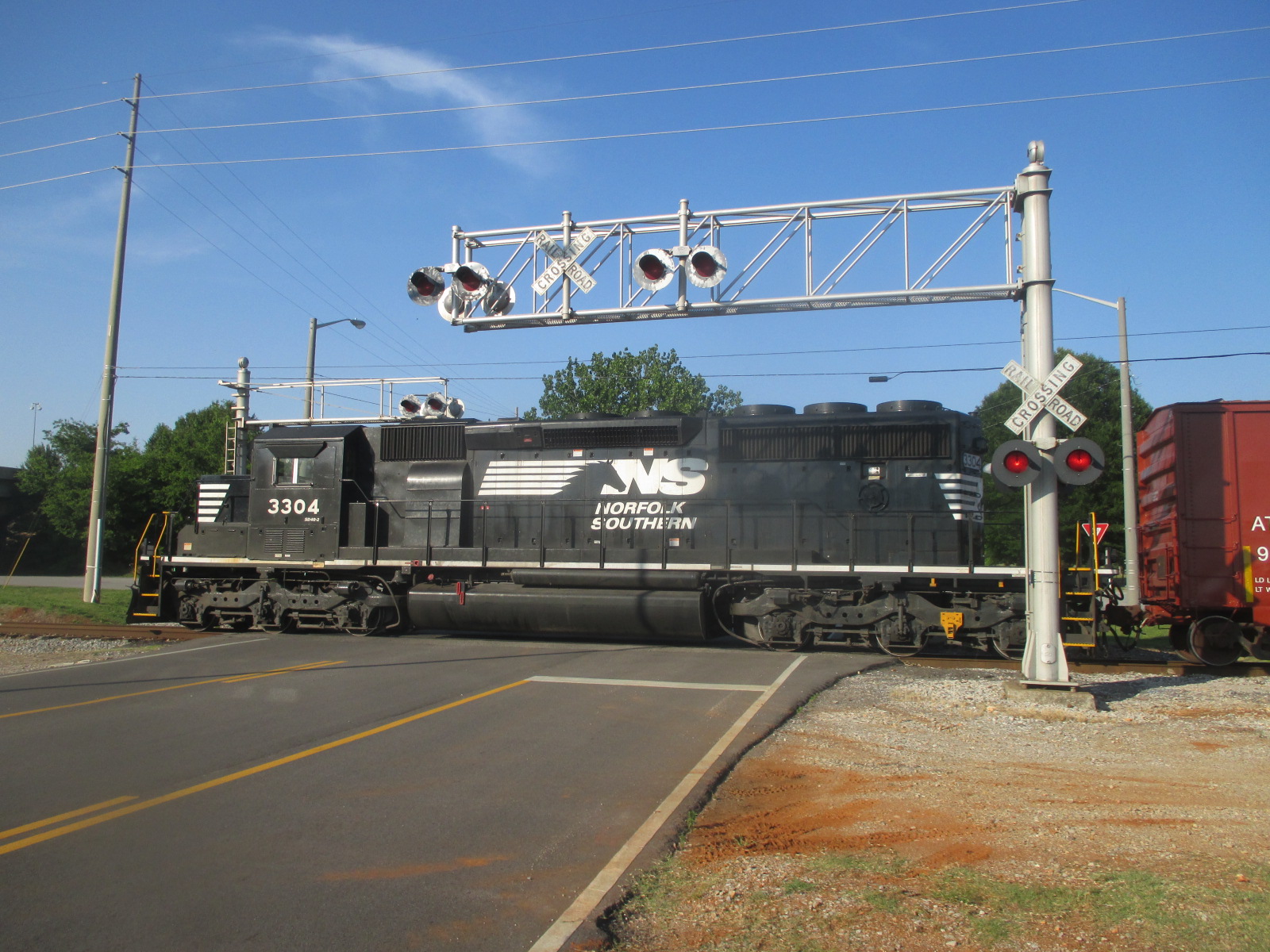

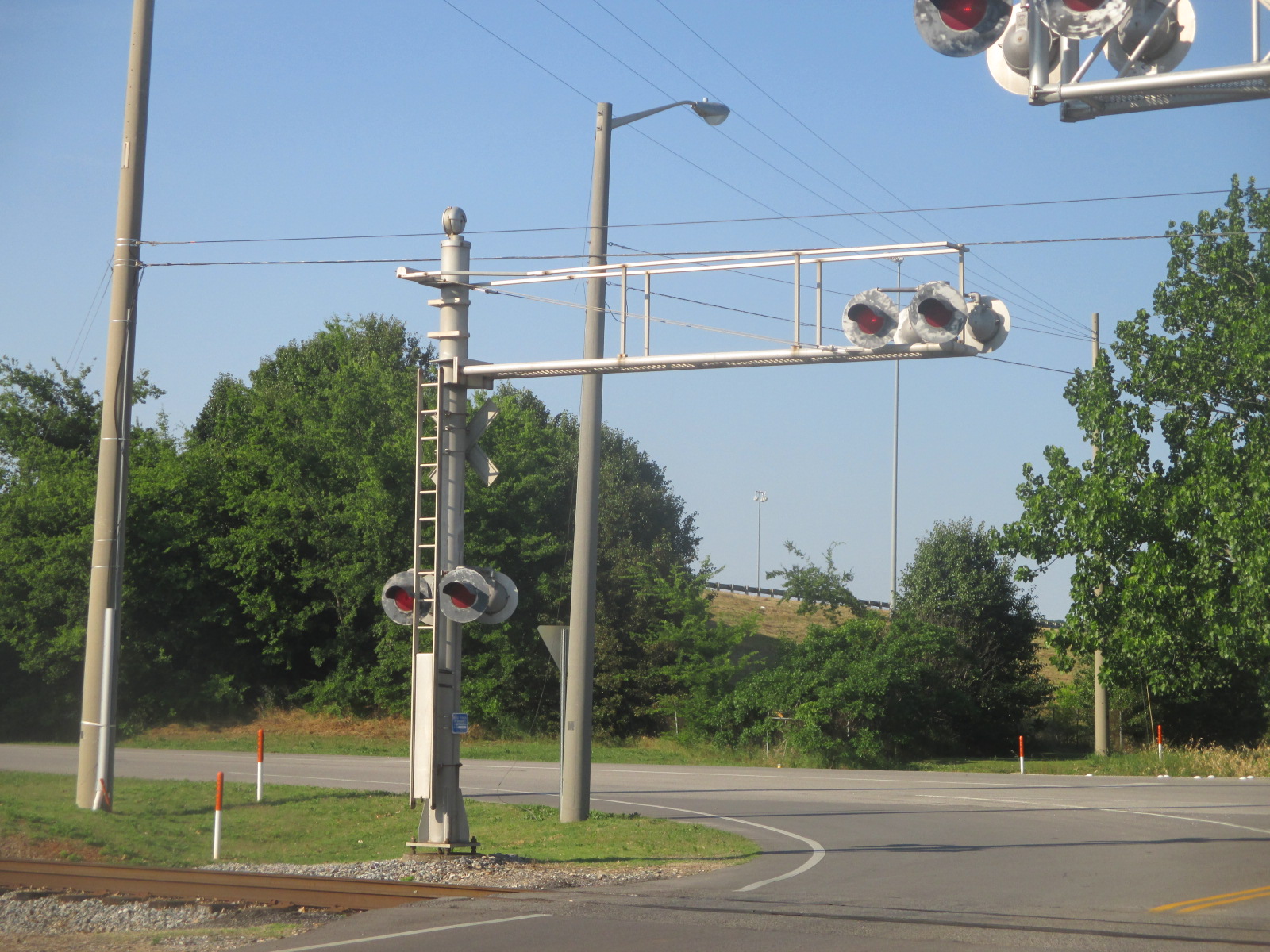

A return trip on 5-22-16 catches the crossing in action!

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

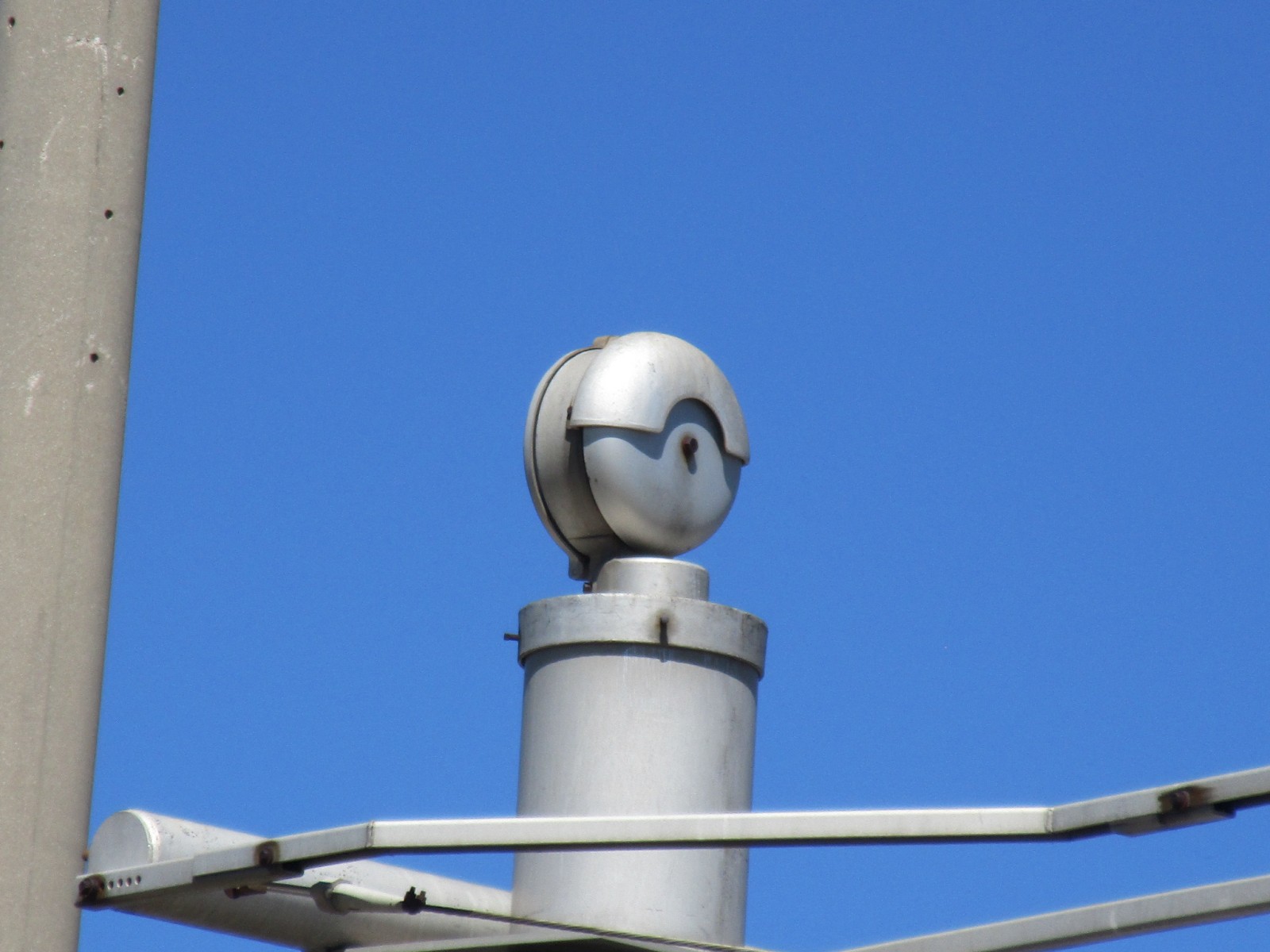

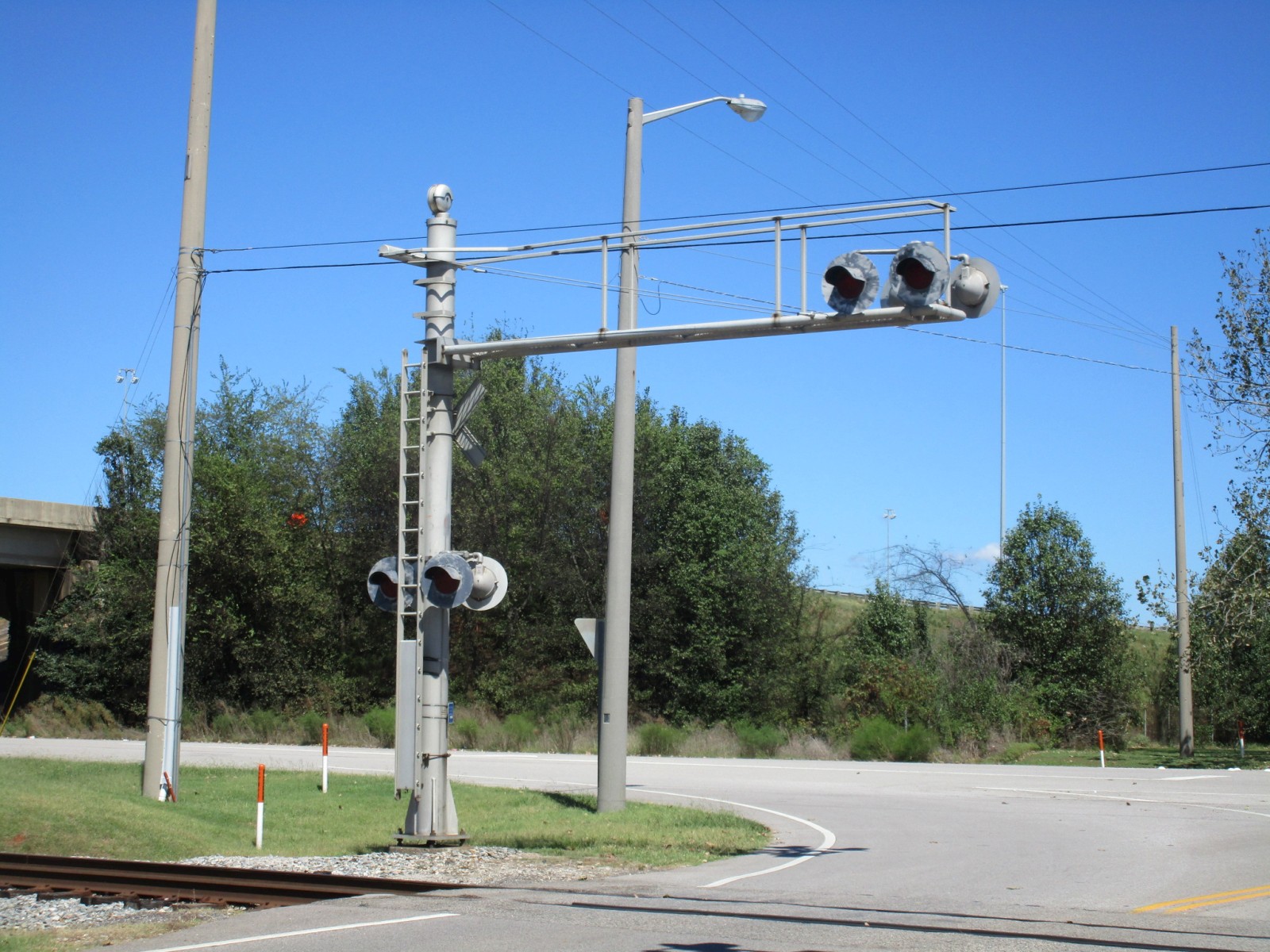

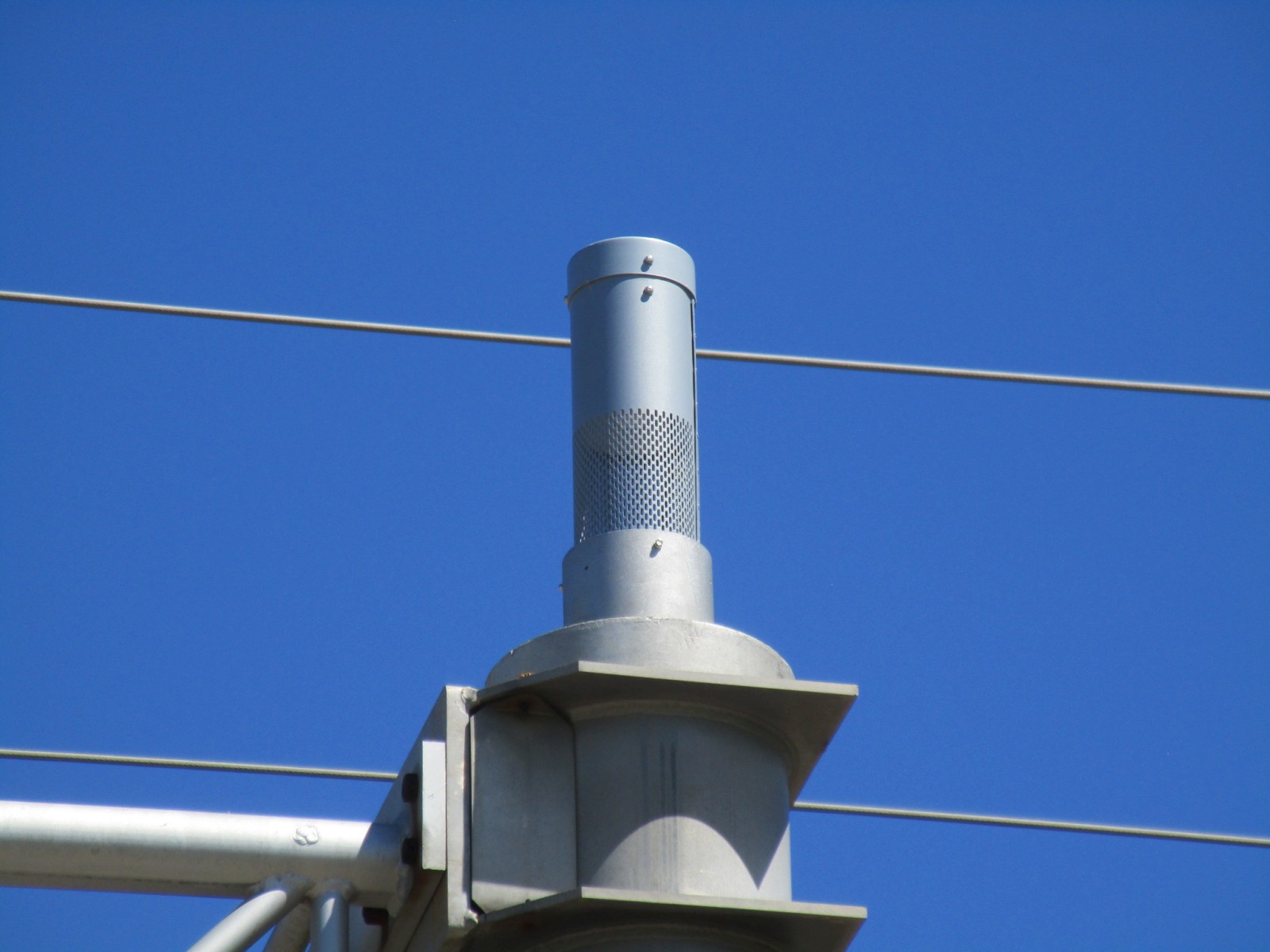

Another return trip on 9-15-18 finds that the eastbound cantilever has had is Safetran mechanical bell replaced with a re-used Safetran Type 3 e-bell!

44

45
No changes to the westbound cantilever, yet.

46

47

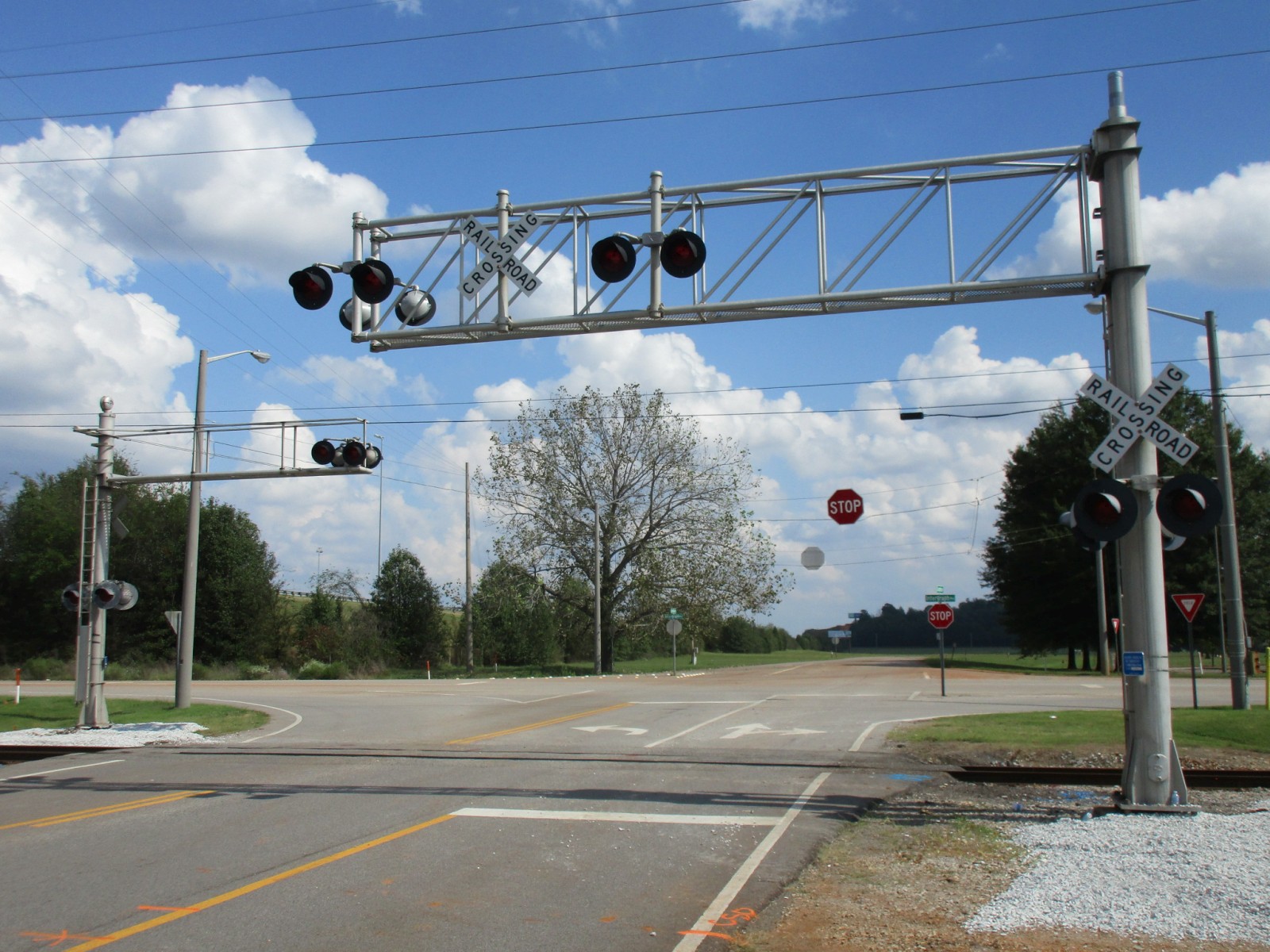

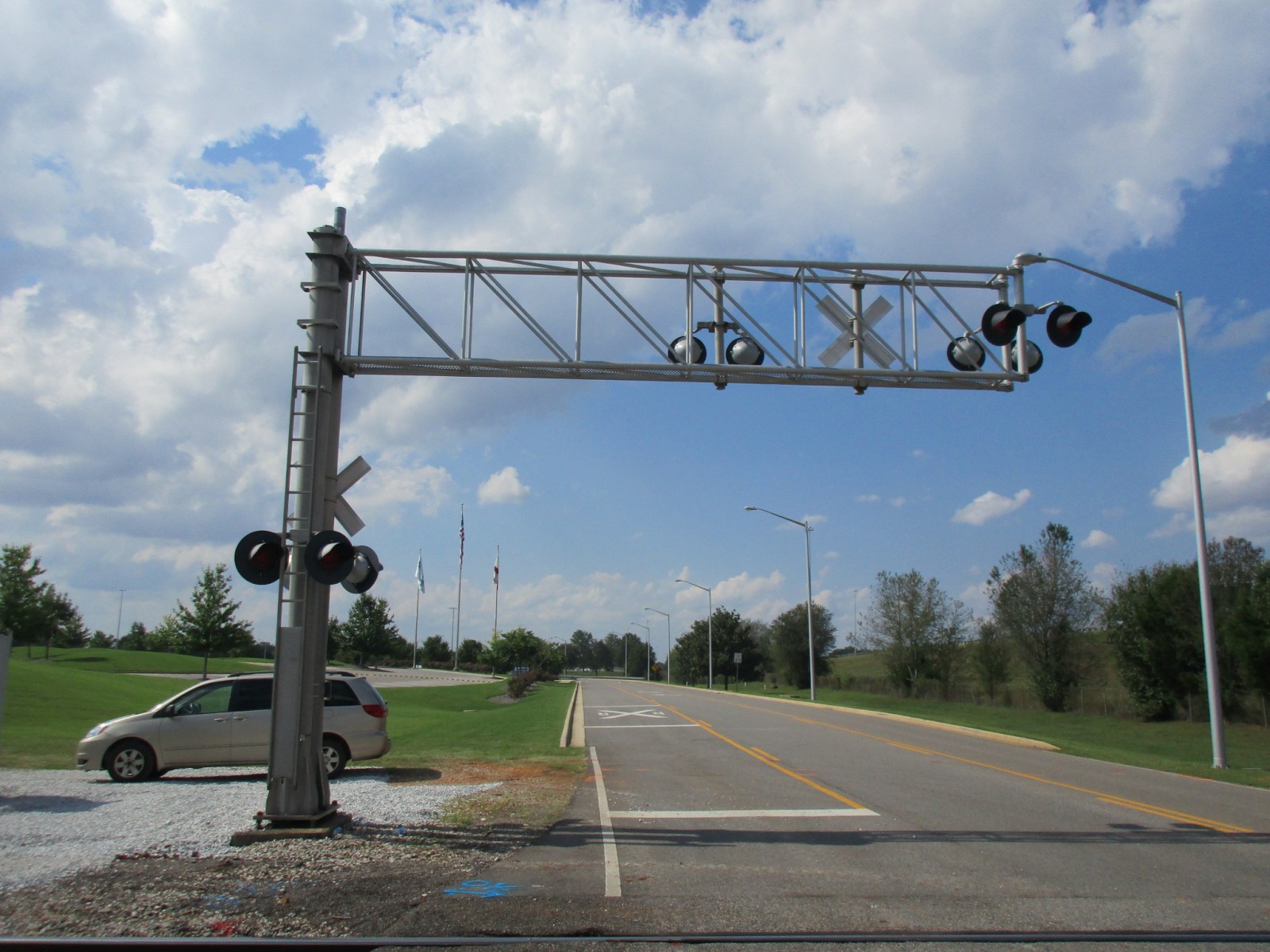

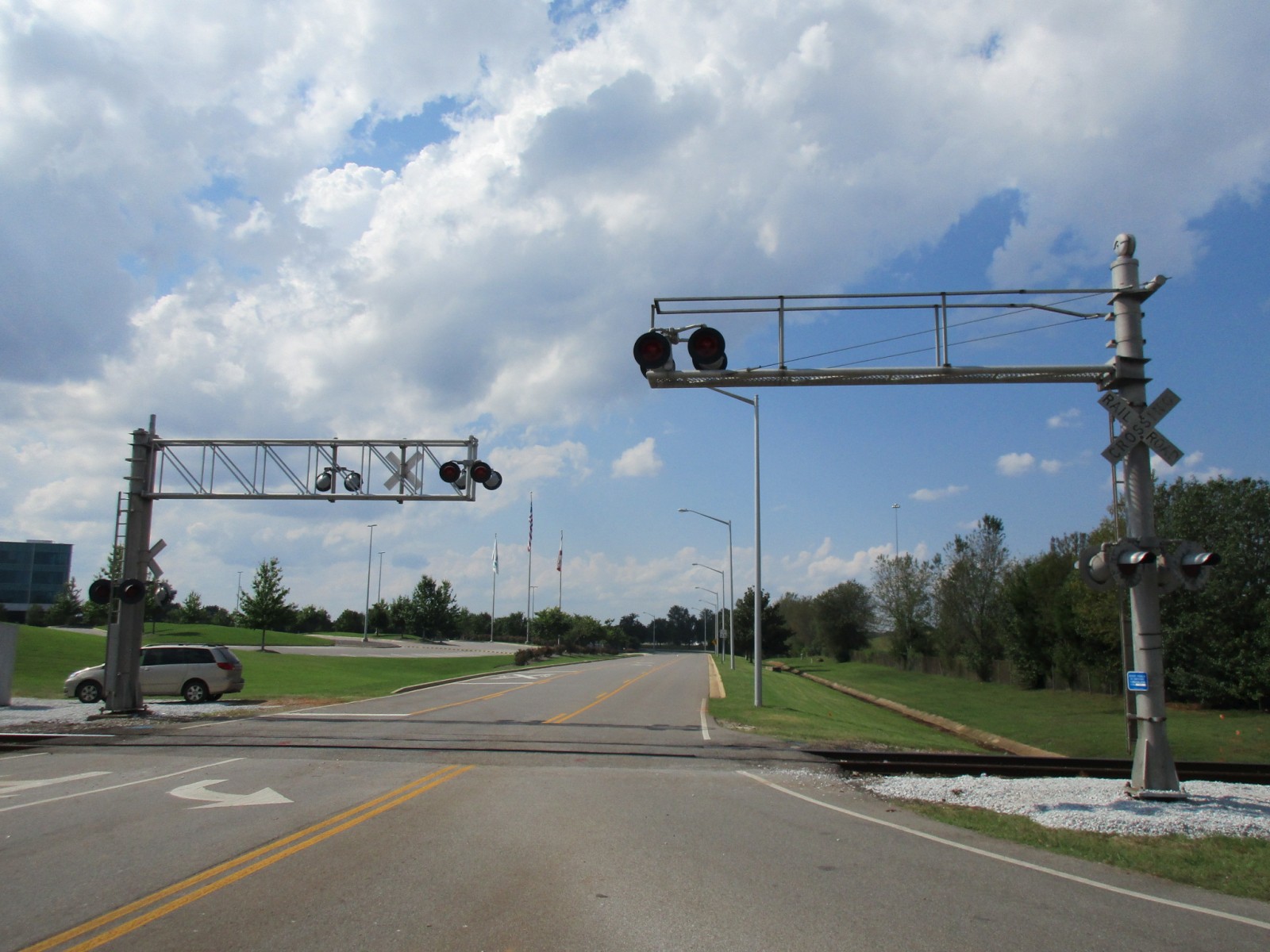

A third return trip on 10-6-18 finds changes to both cantilevers this time around.

48

49

50

51

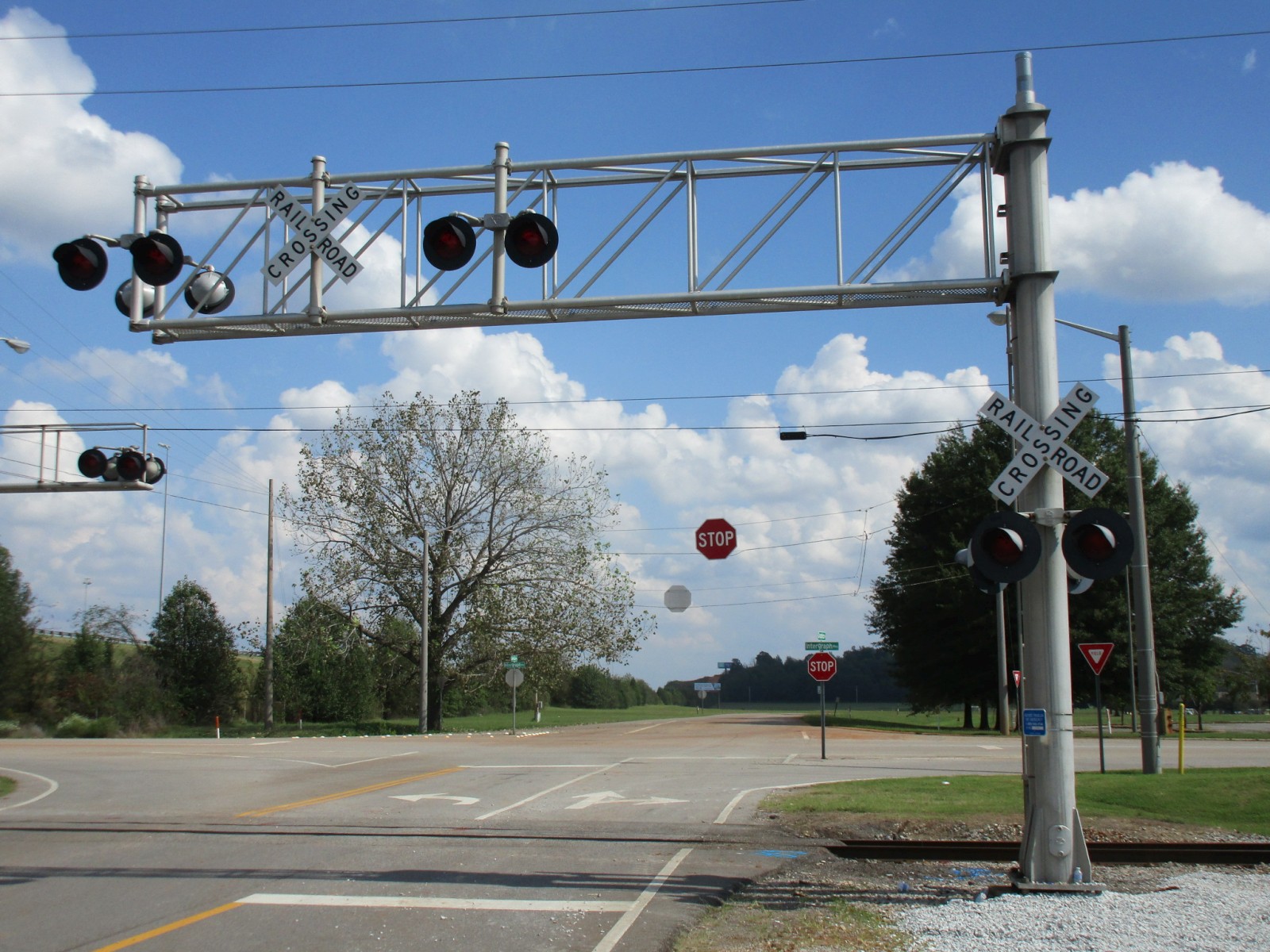

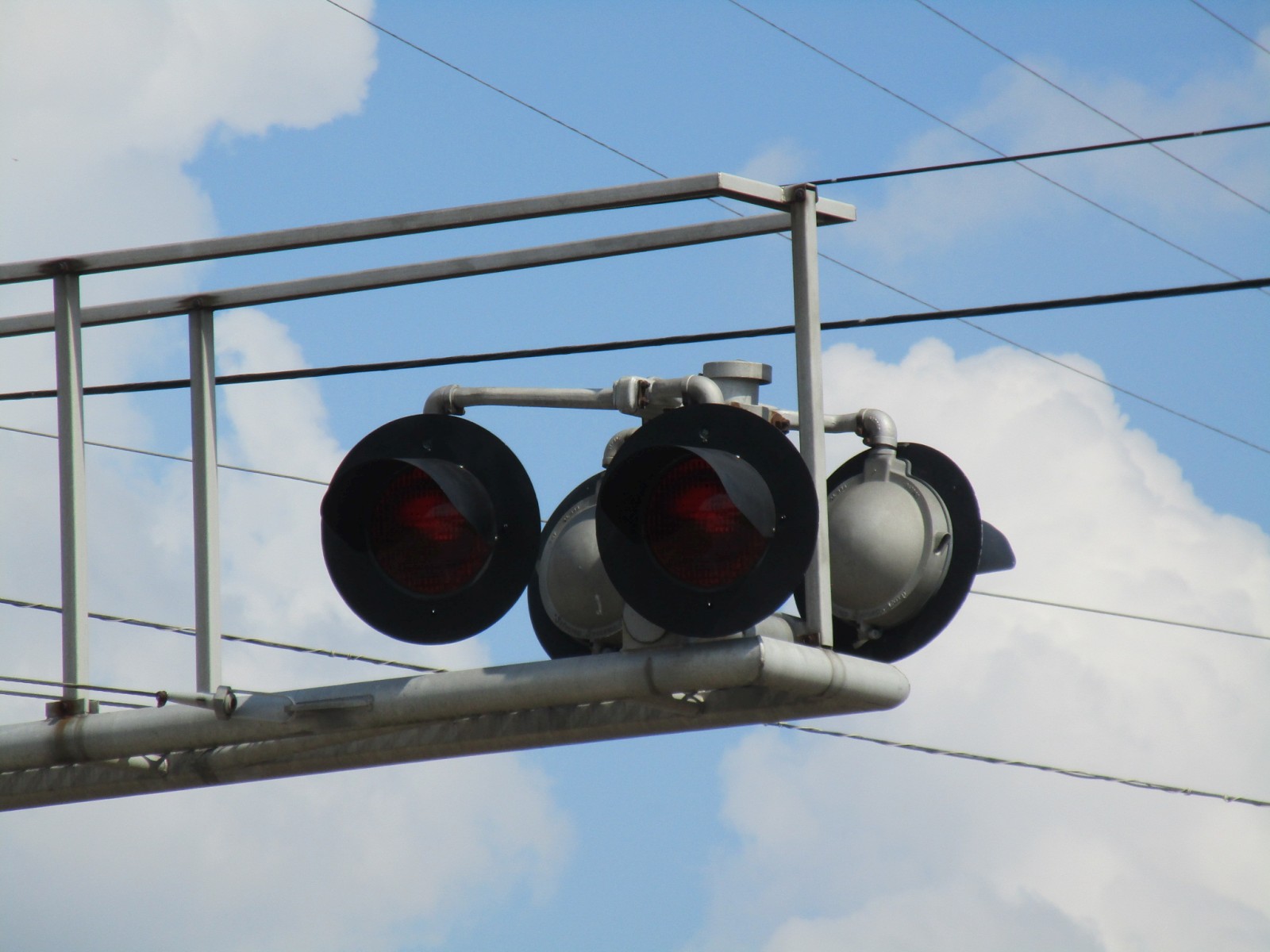

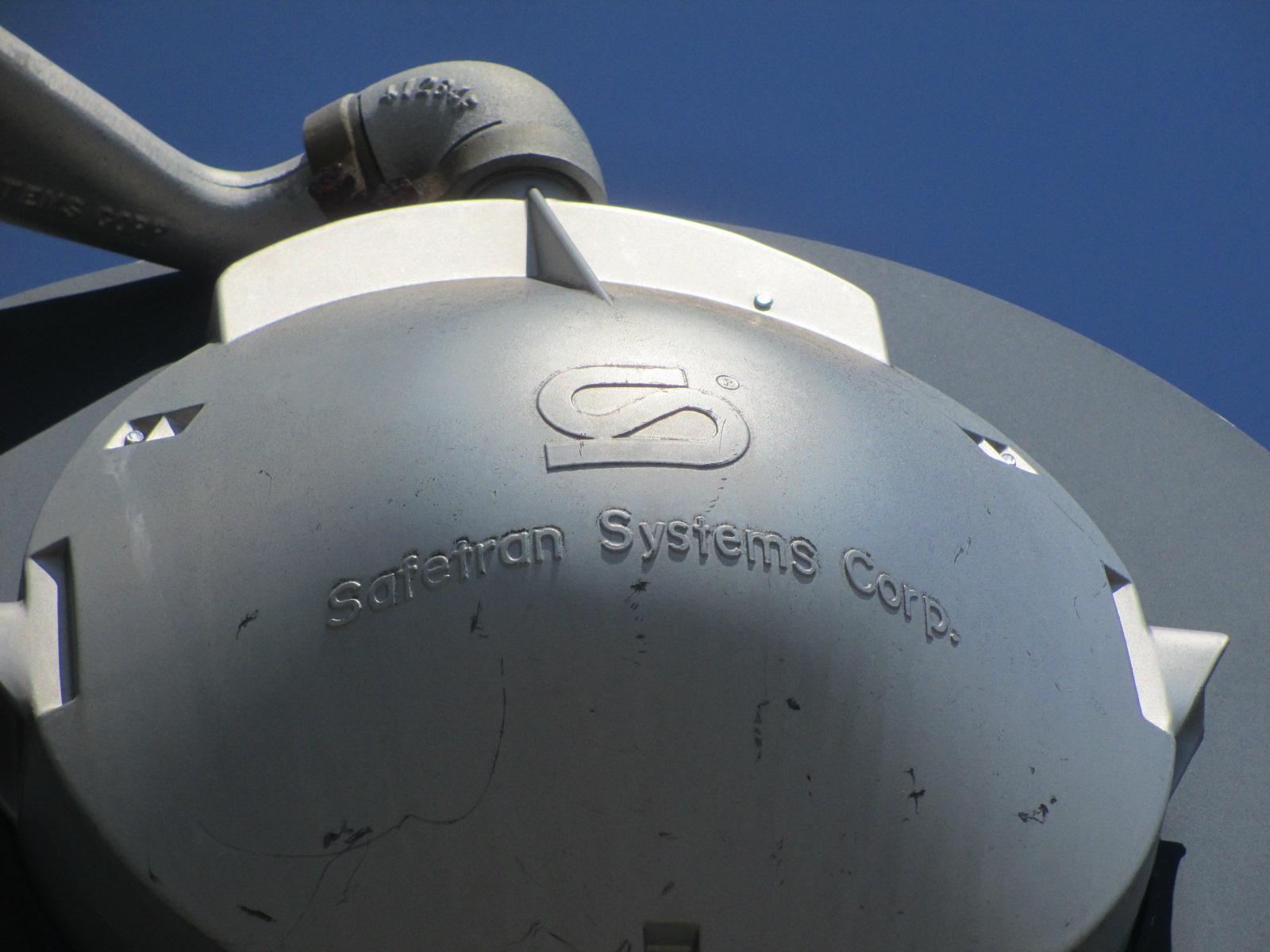

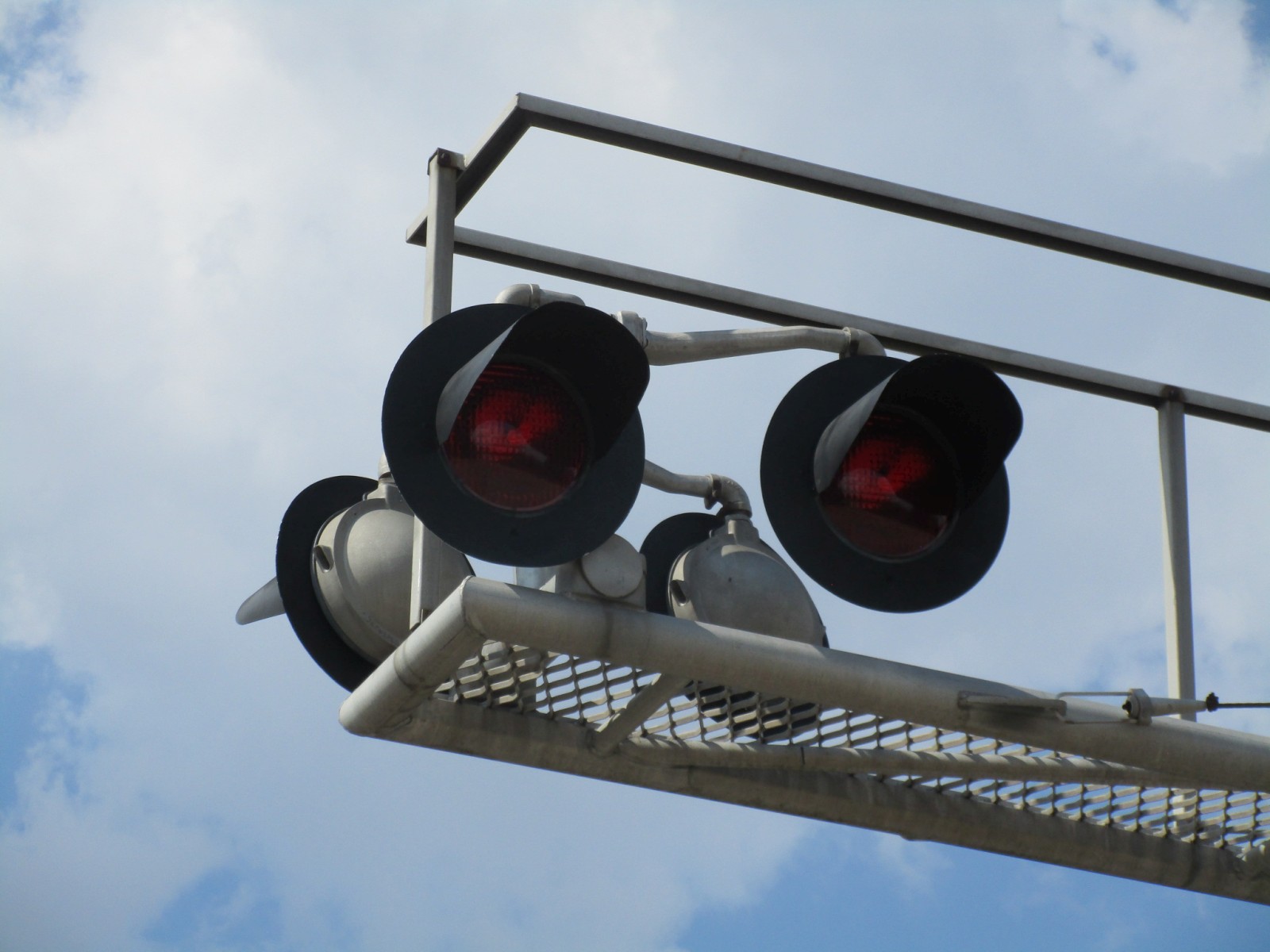

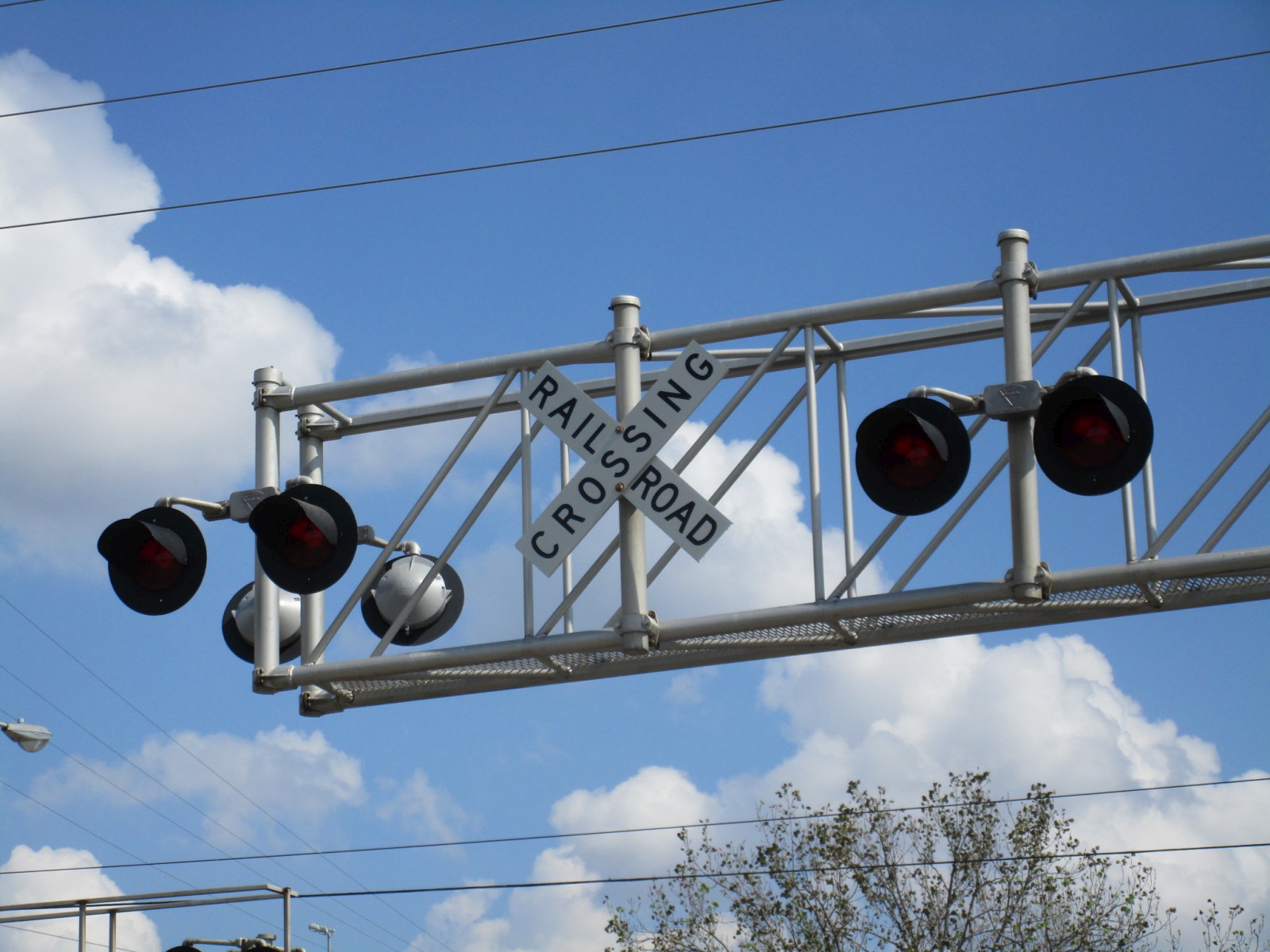

The overhead lights on the eastbound cantilever are now all newer Safetran 12x20 inch lights!

52

53

54

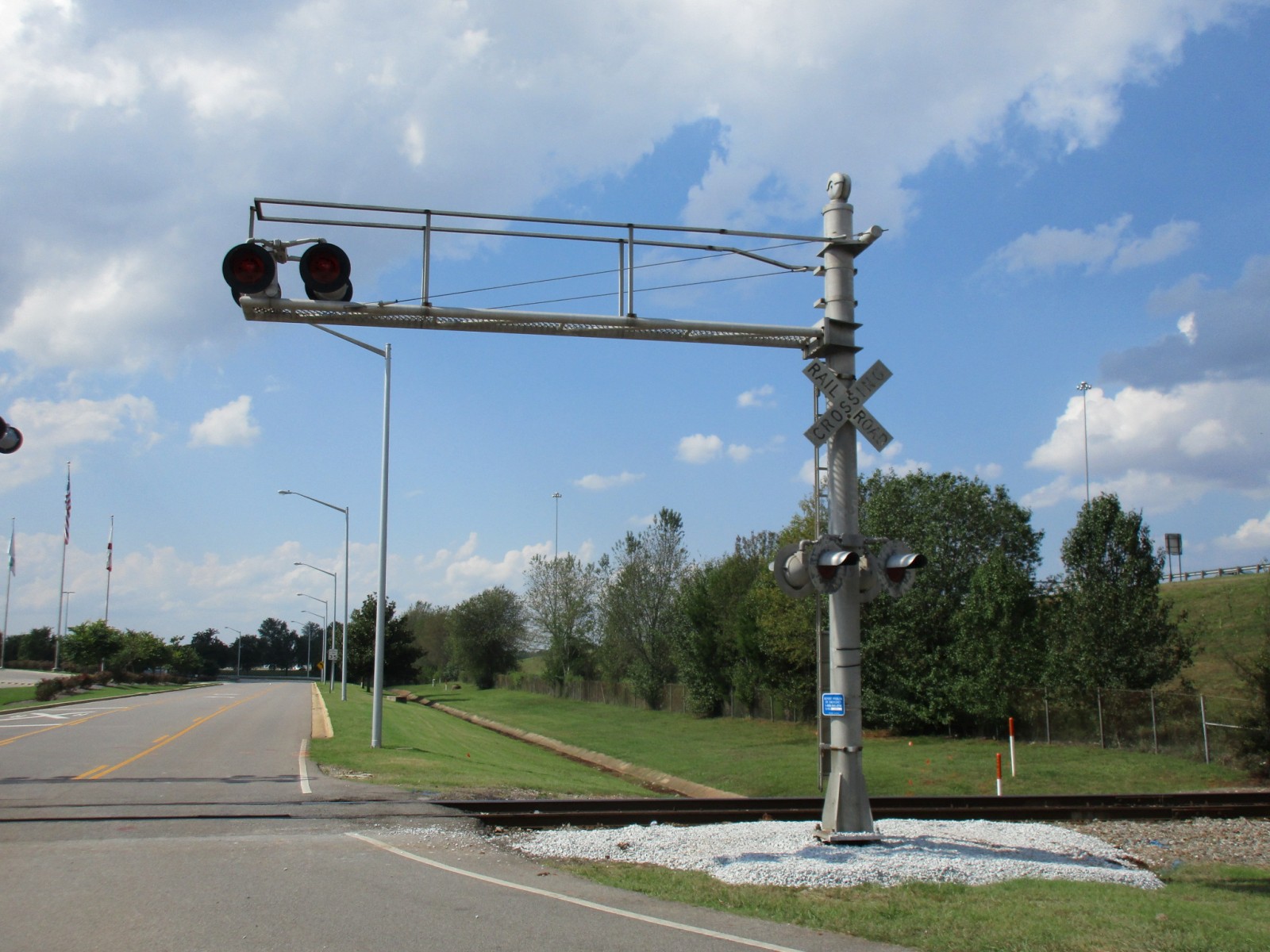

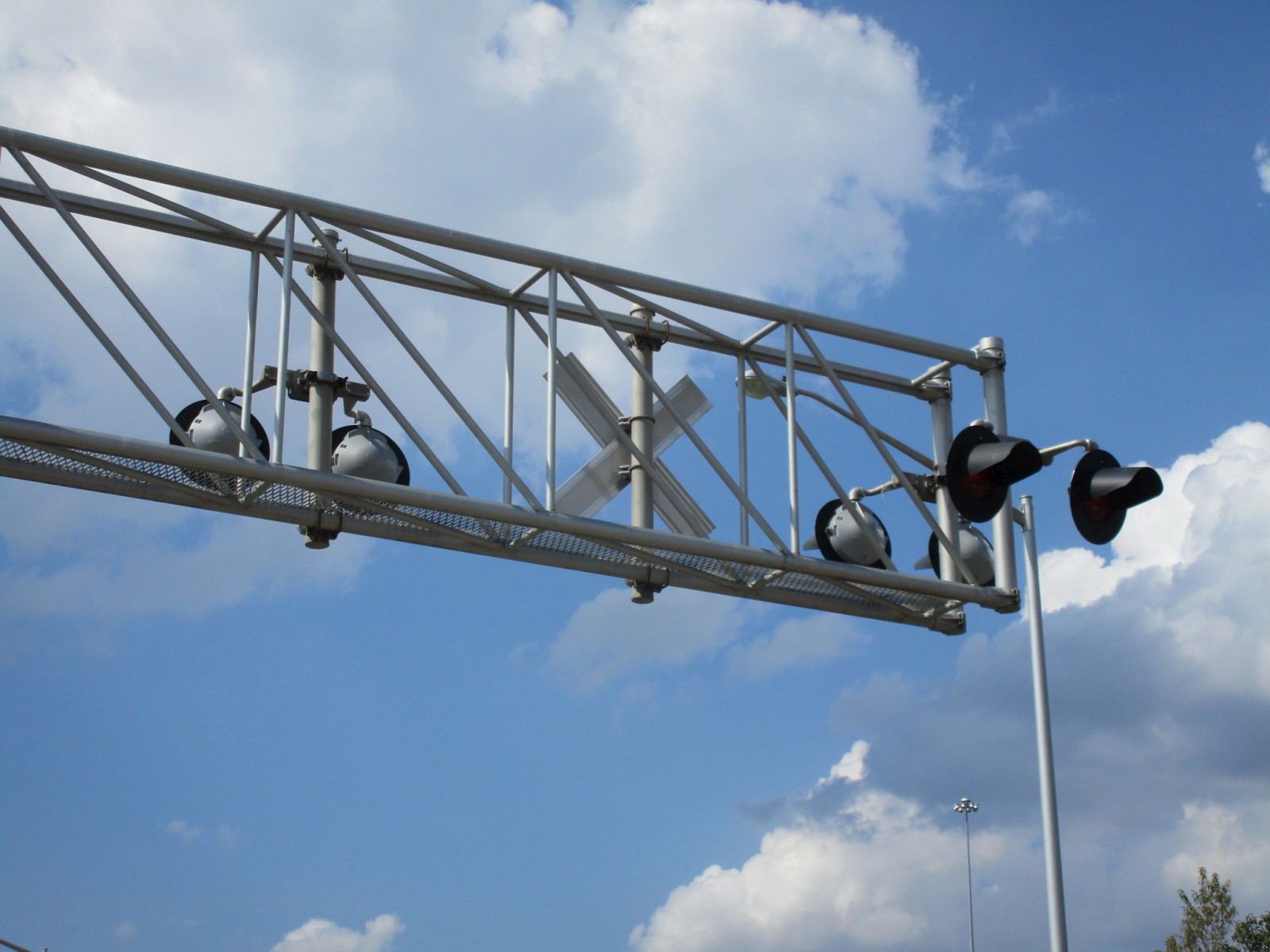

The westbound cantilever now also has more Safetran 12x20 inch lights on the overhead, but these are older ones from the 1970s which I believe were re-used from Church Street #1 in Huntsville.

55

56

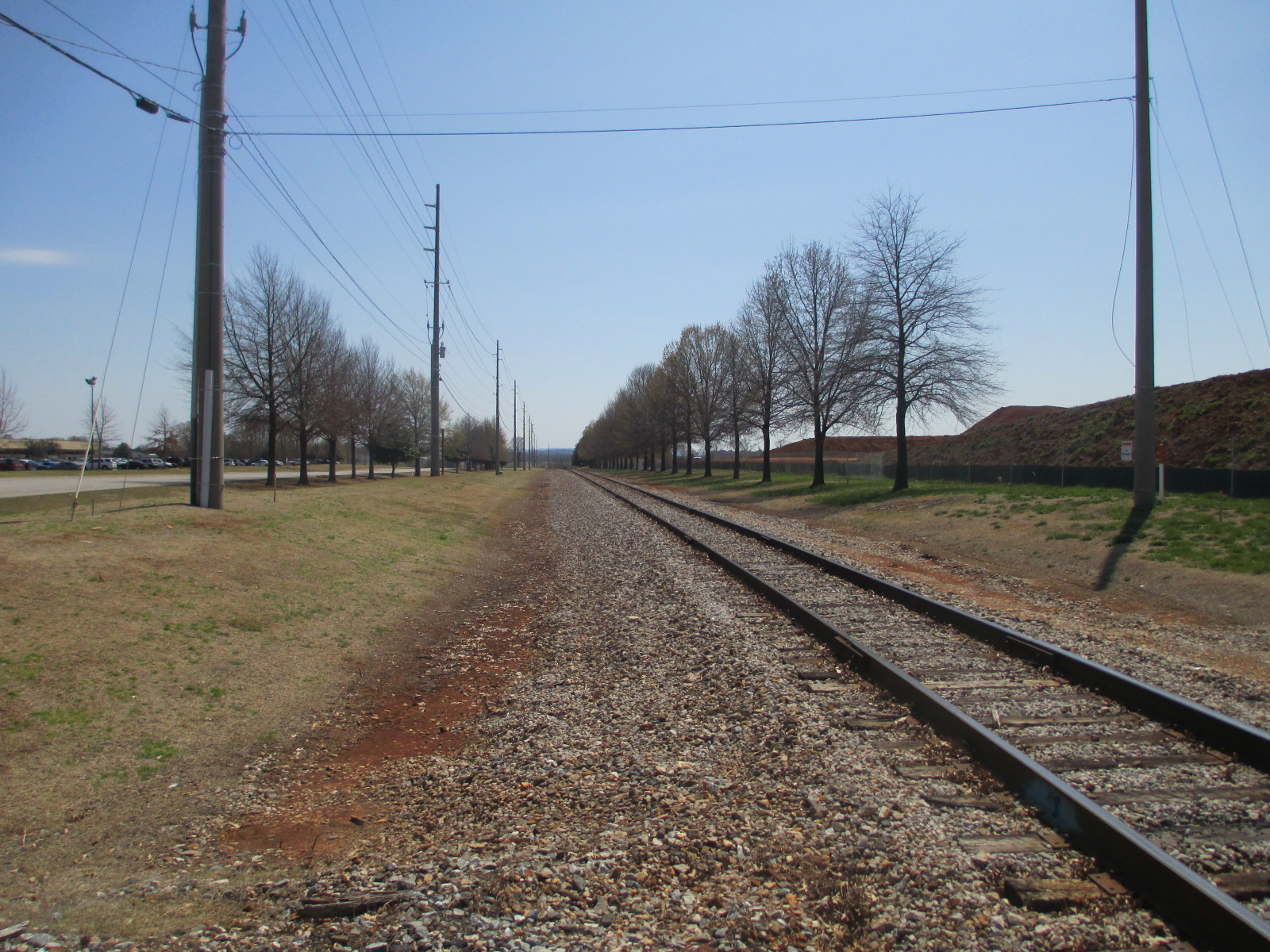

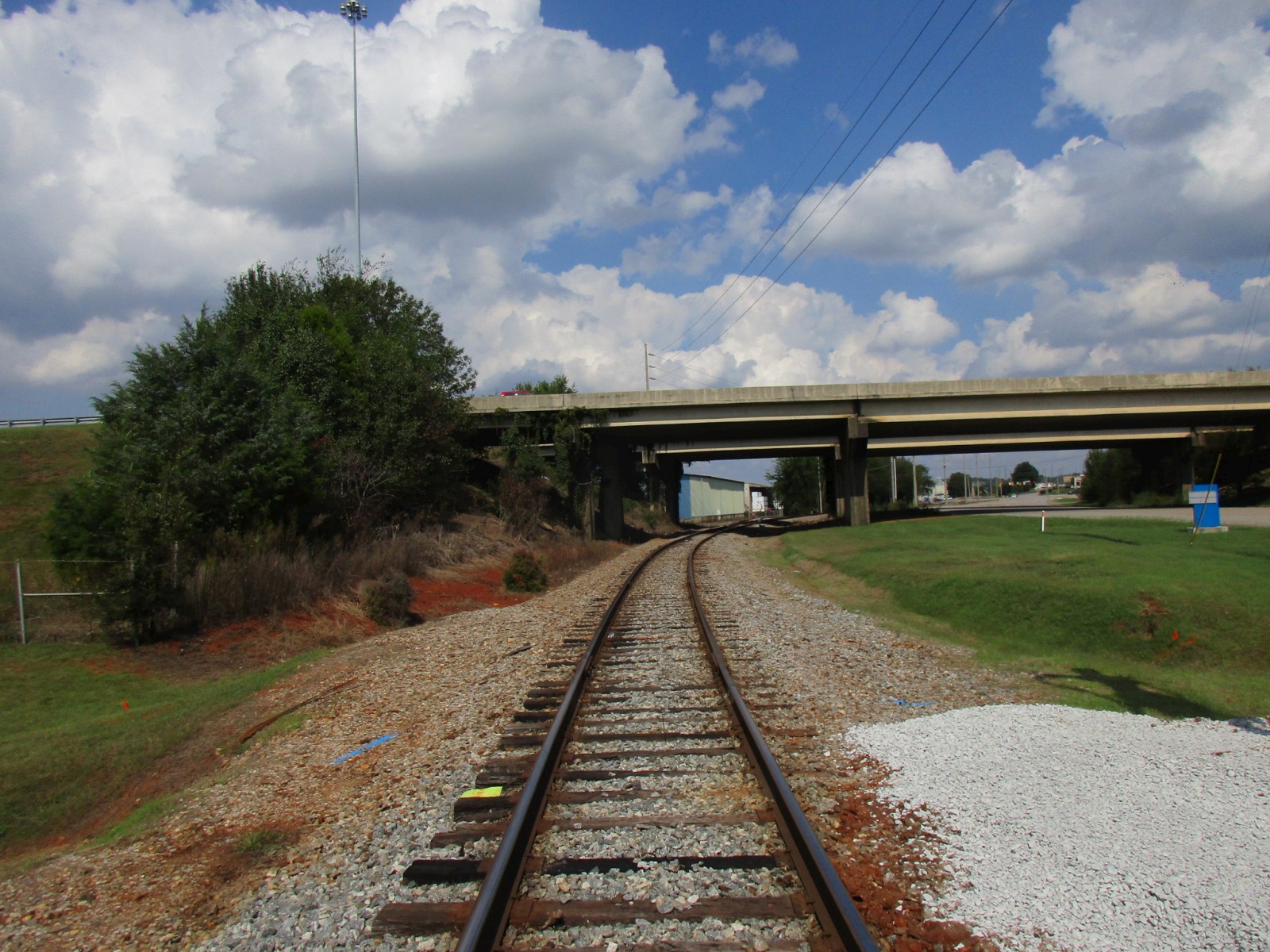

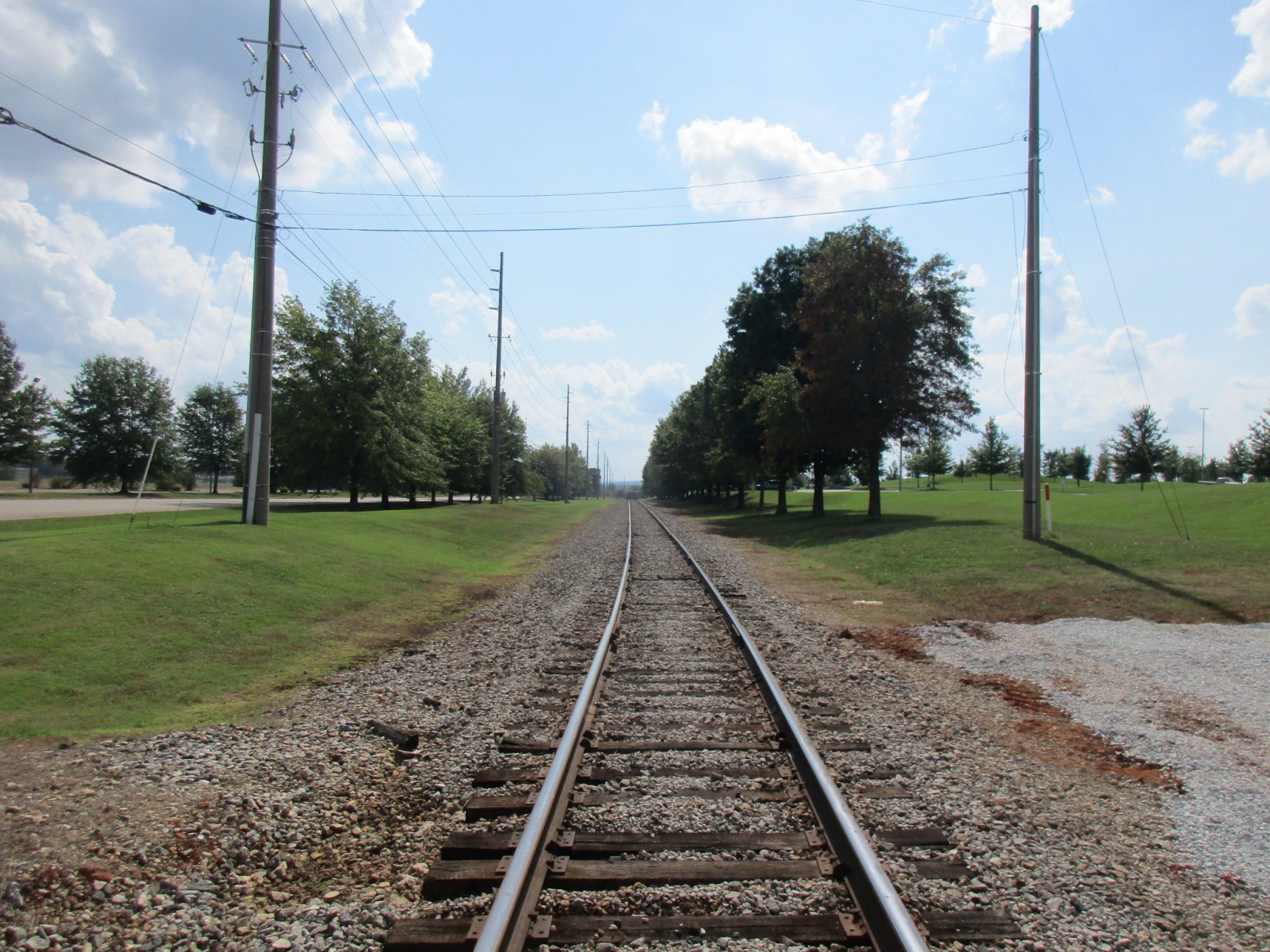

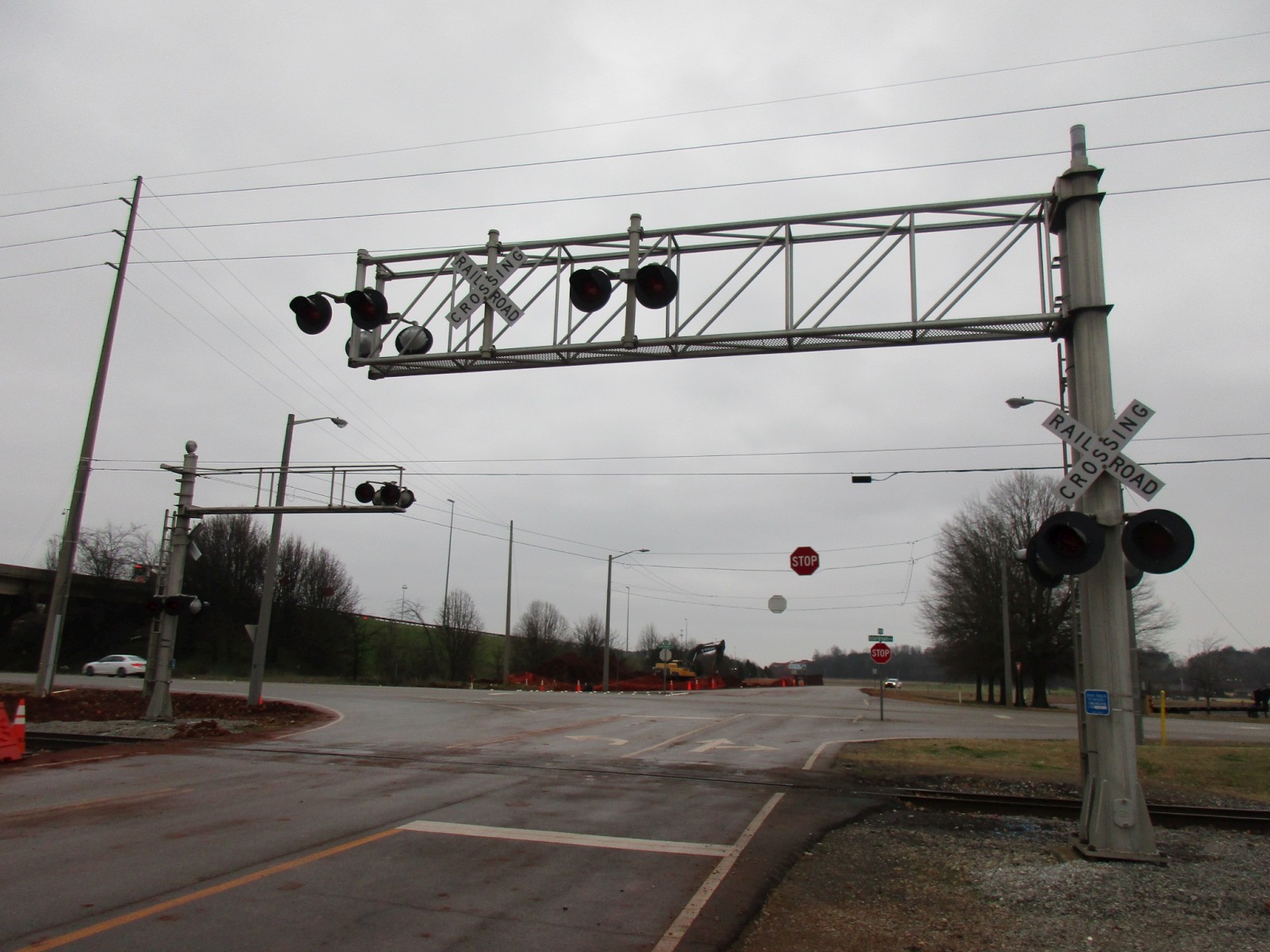

Track views.

57

58

59

60

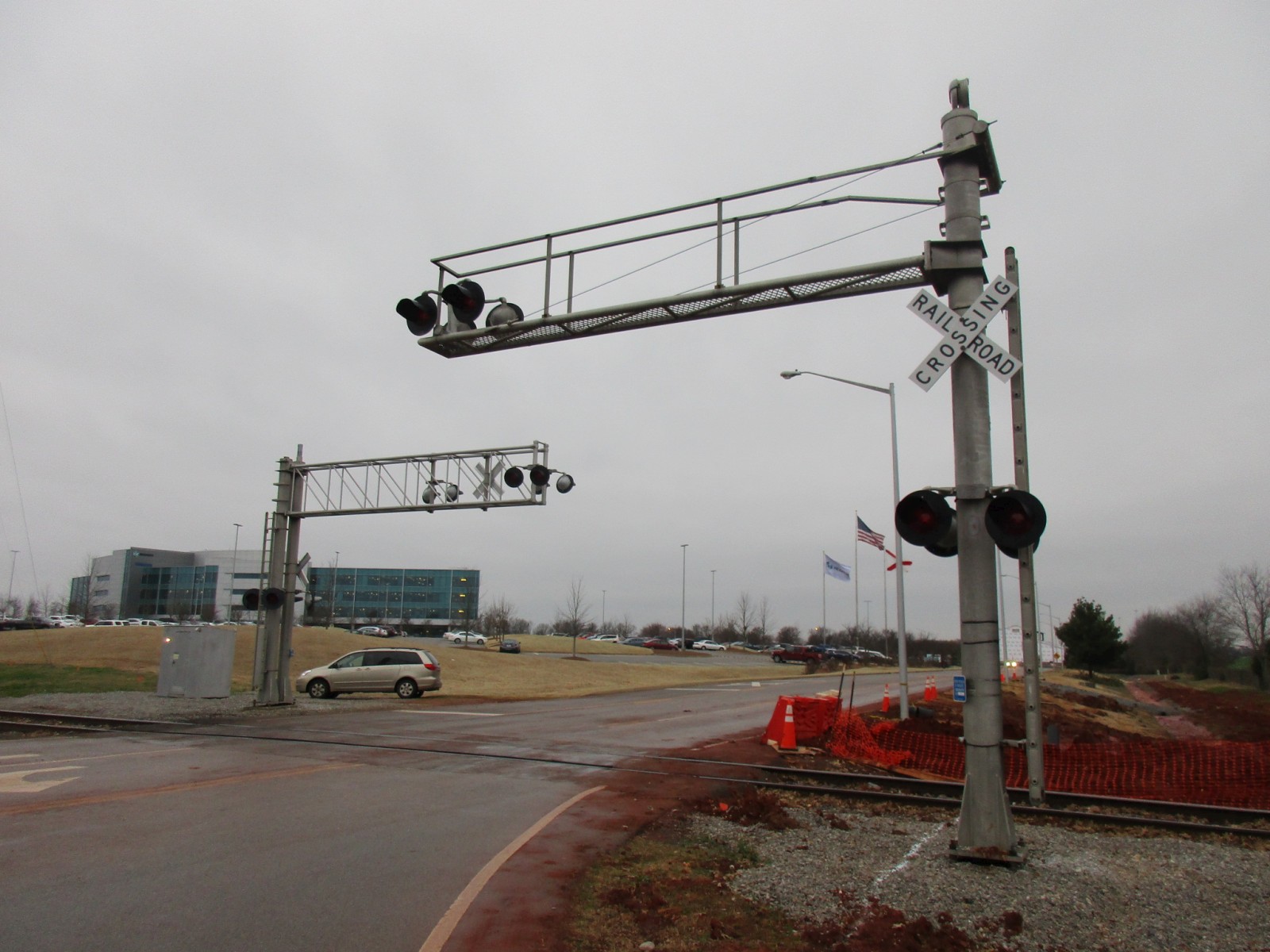

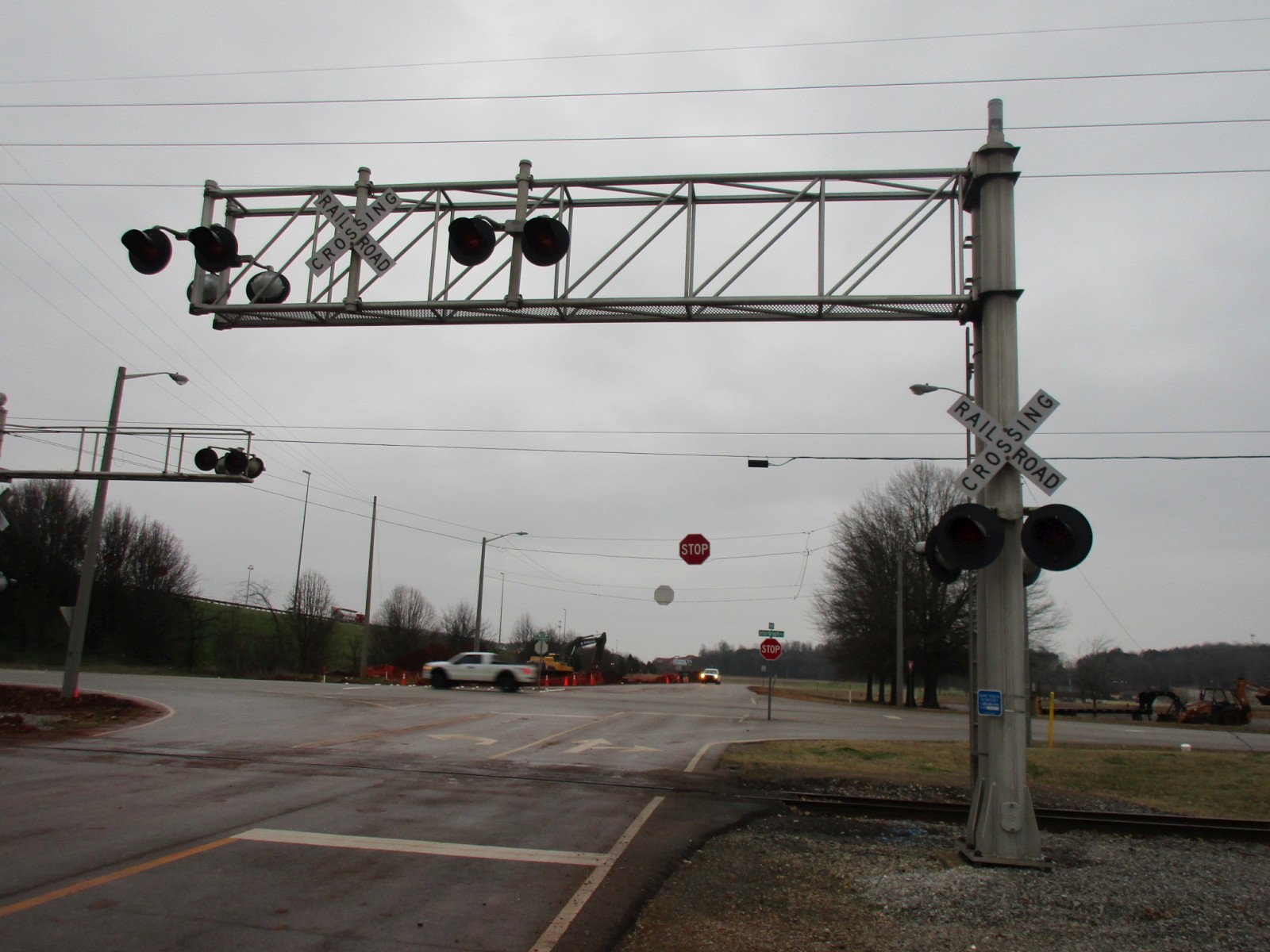

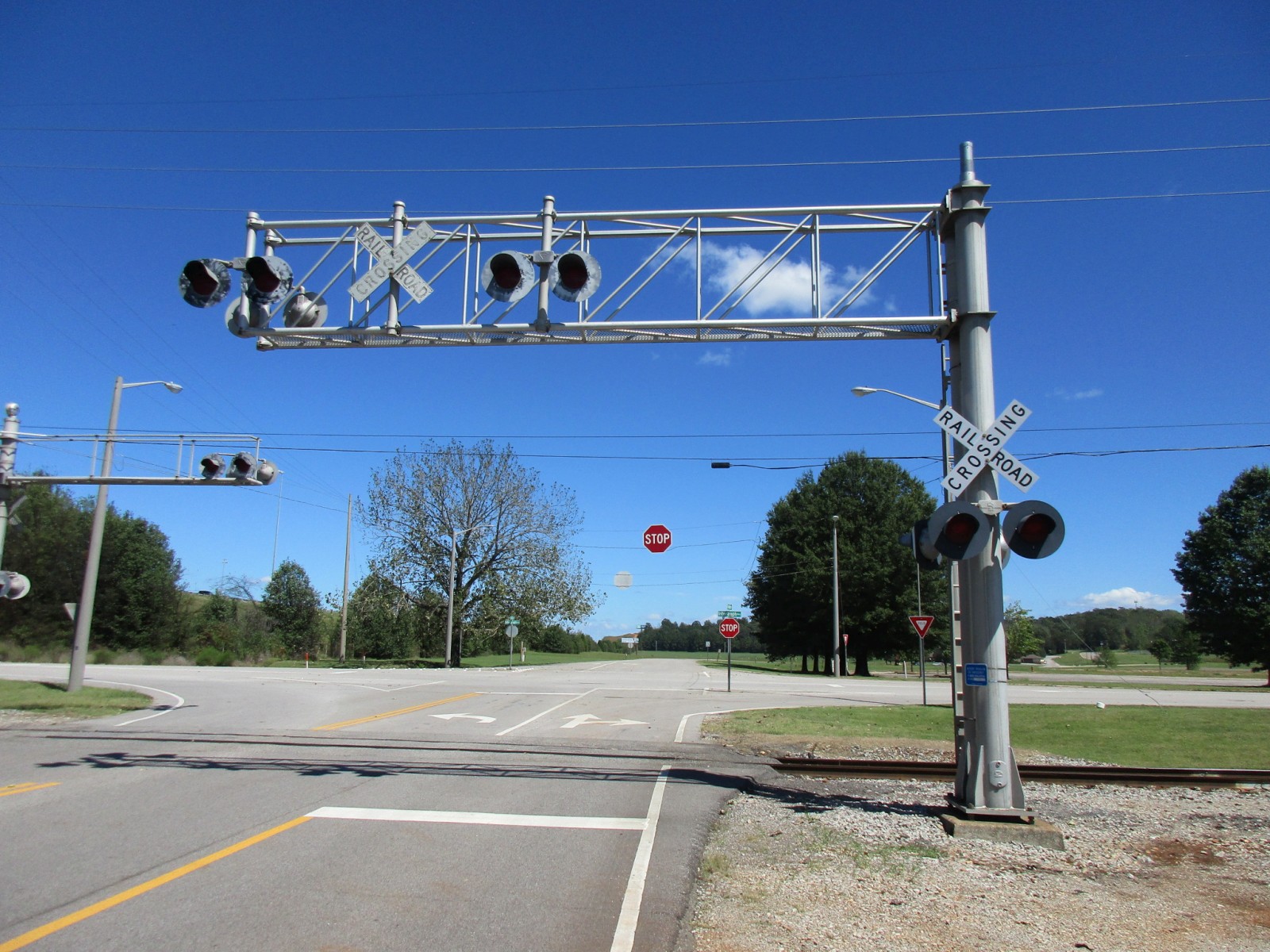

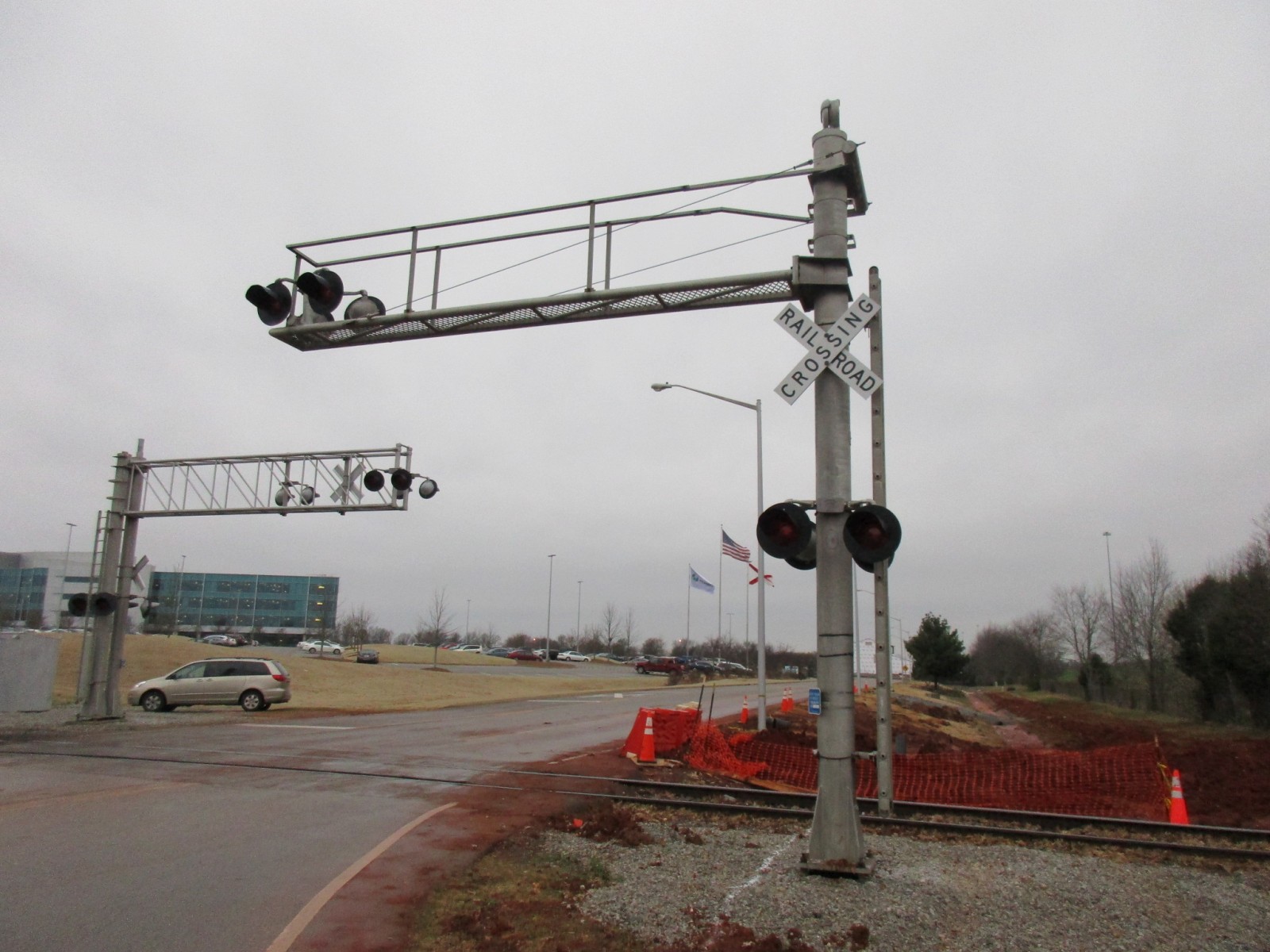

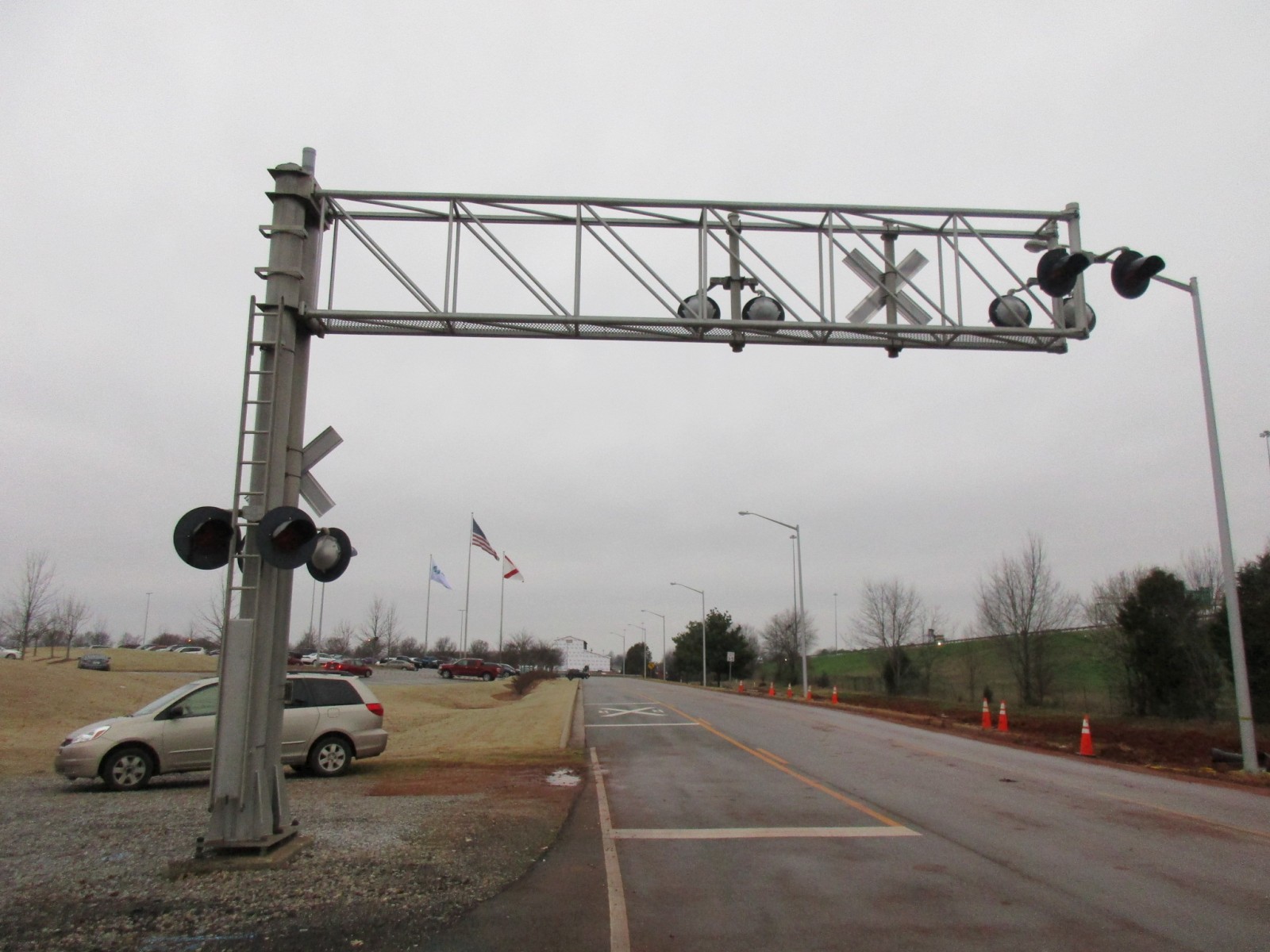

A fourth return trip on 2-11-19 finds yet another upgrade to this crossing.
No changes to the eastbound cantilever this time around.

61

62

63

64

65

66

67

68

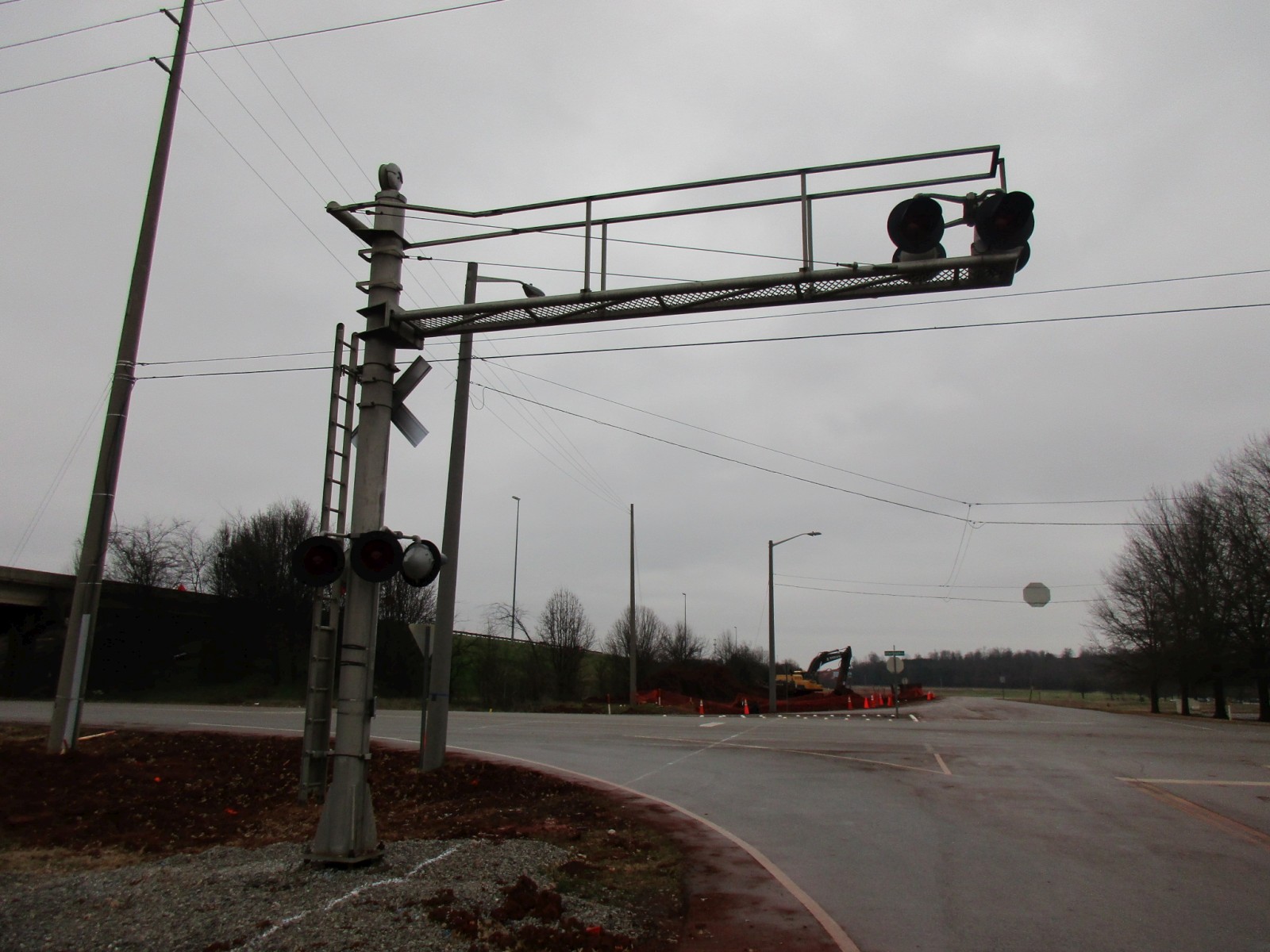

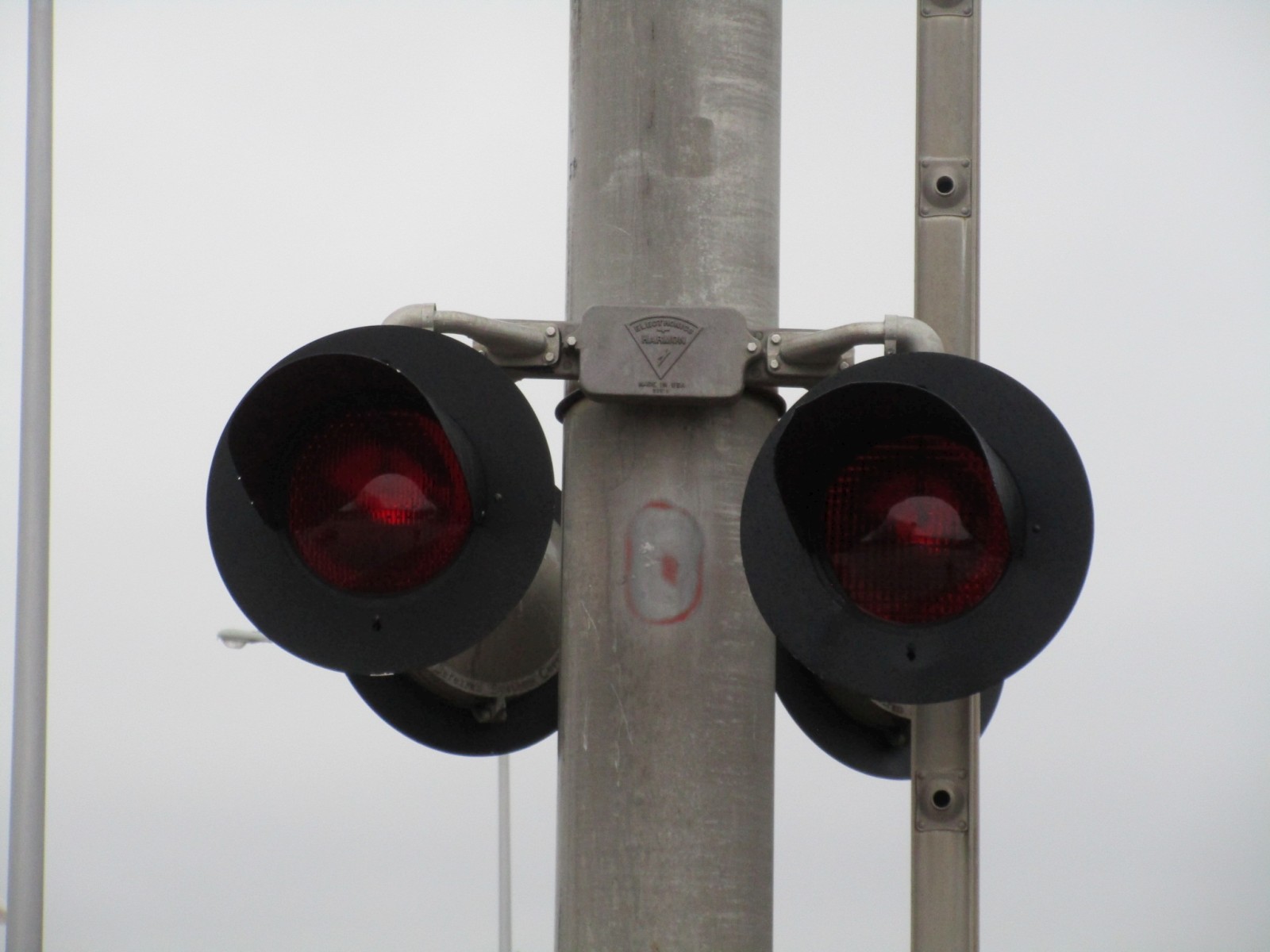

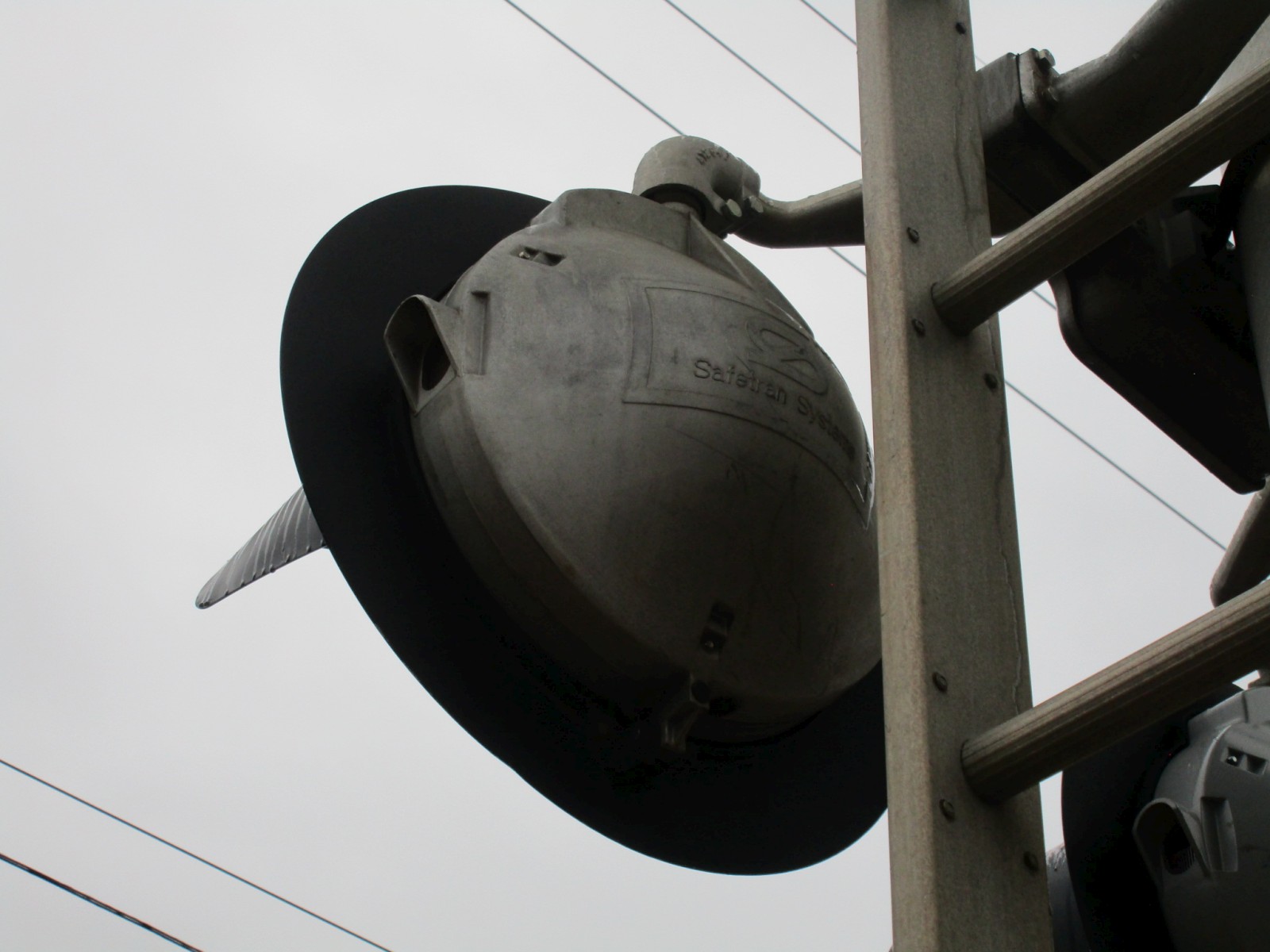

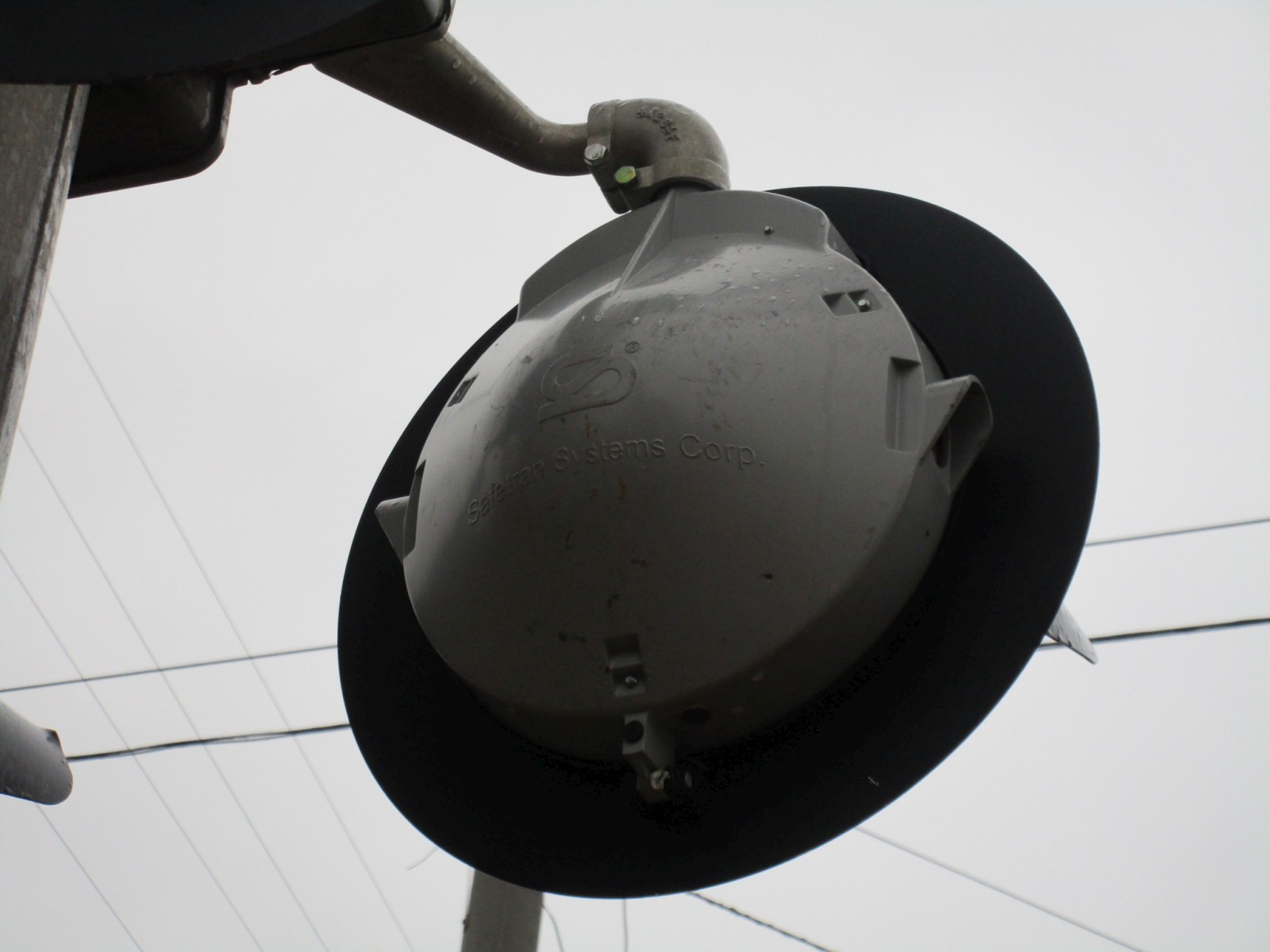

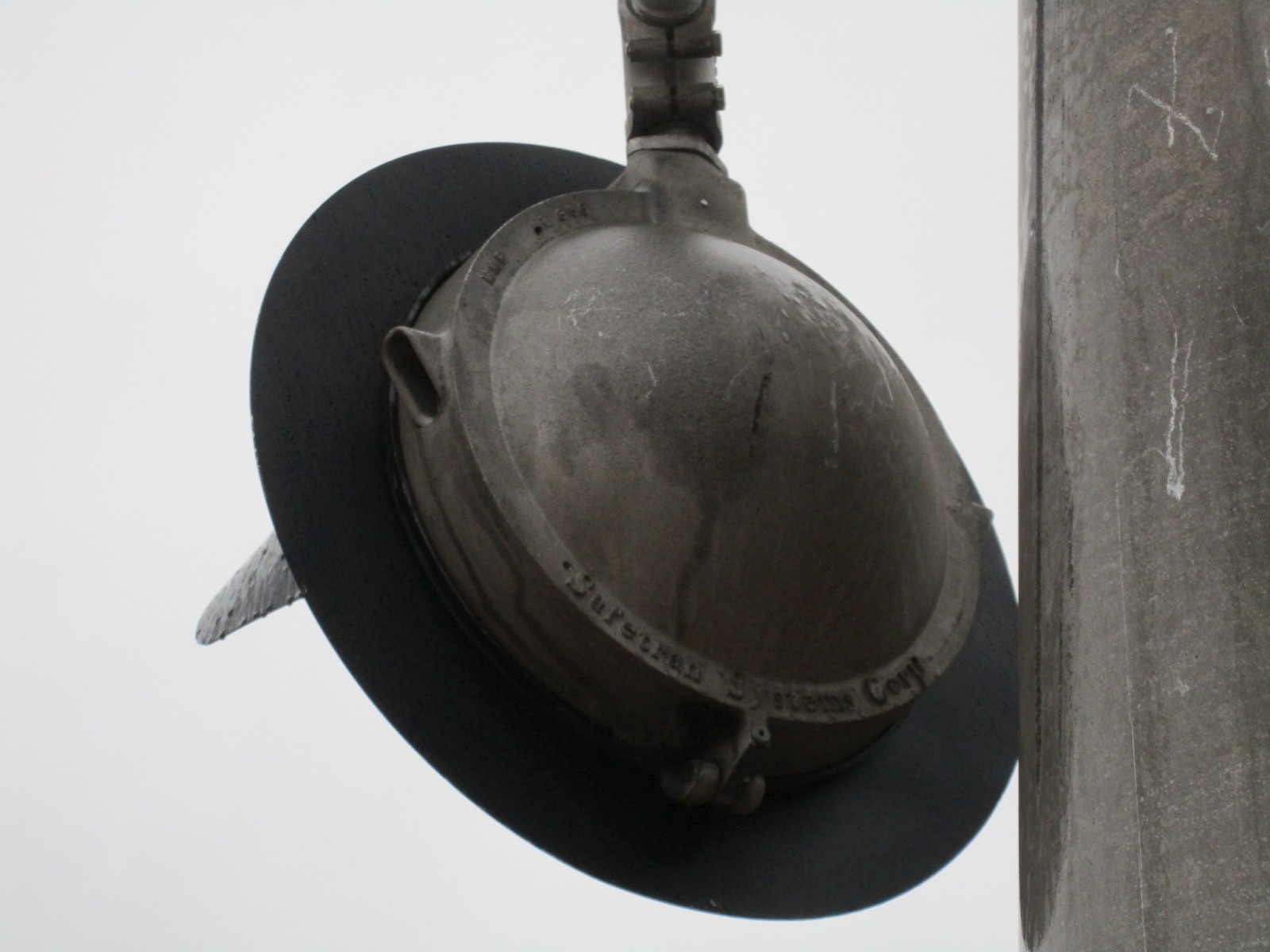

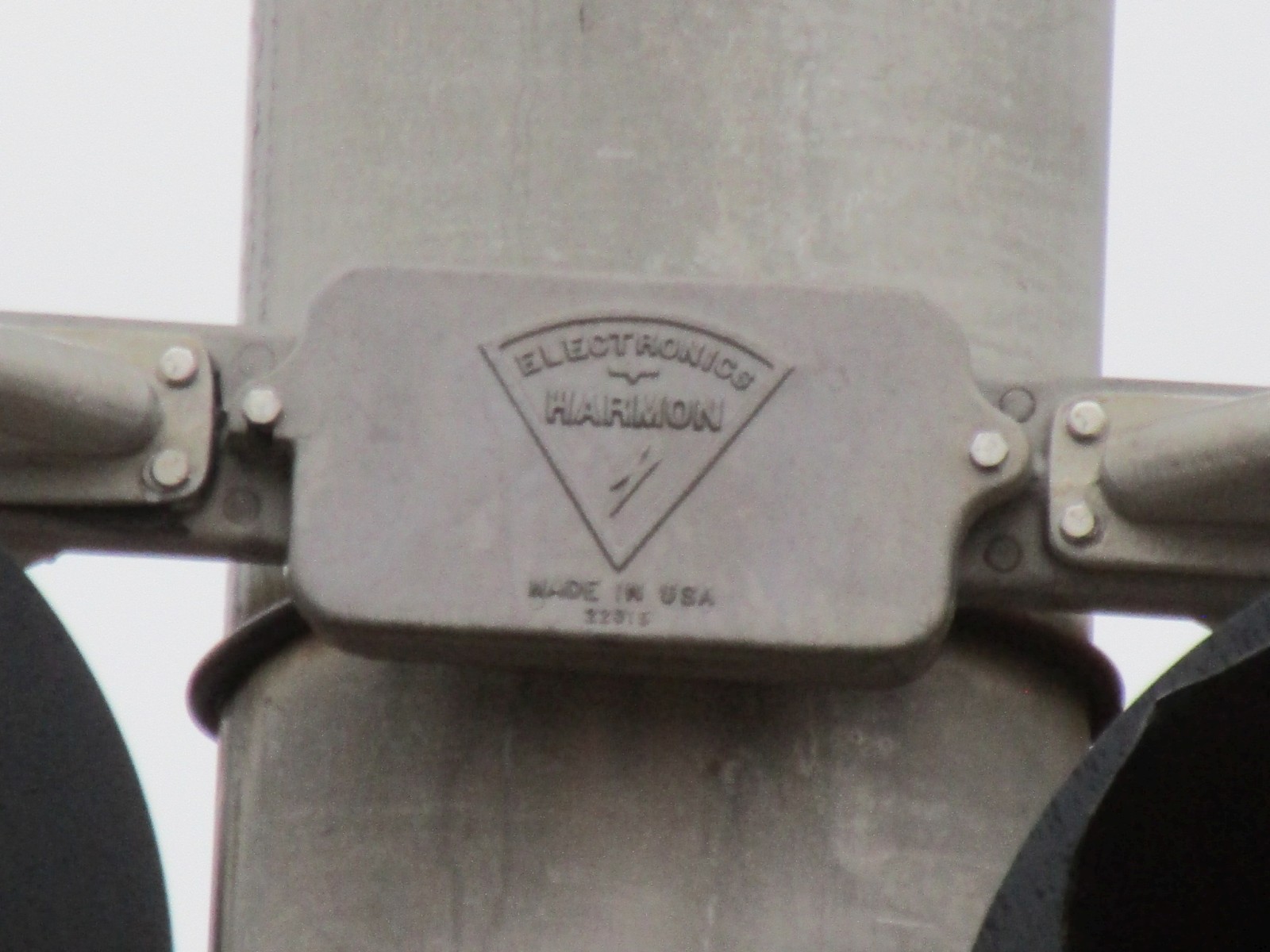

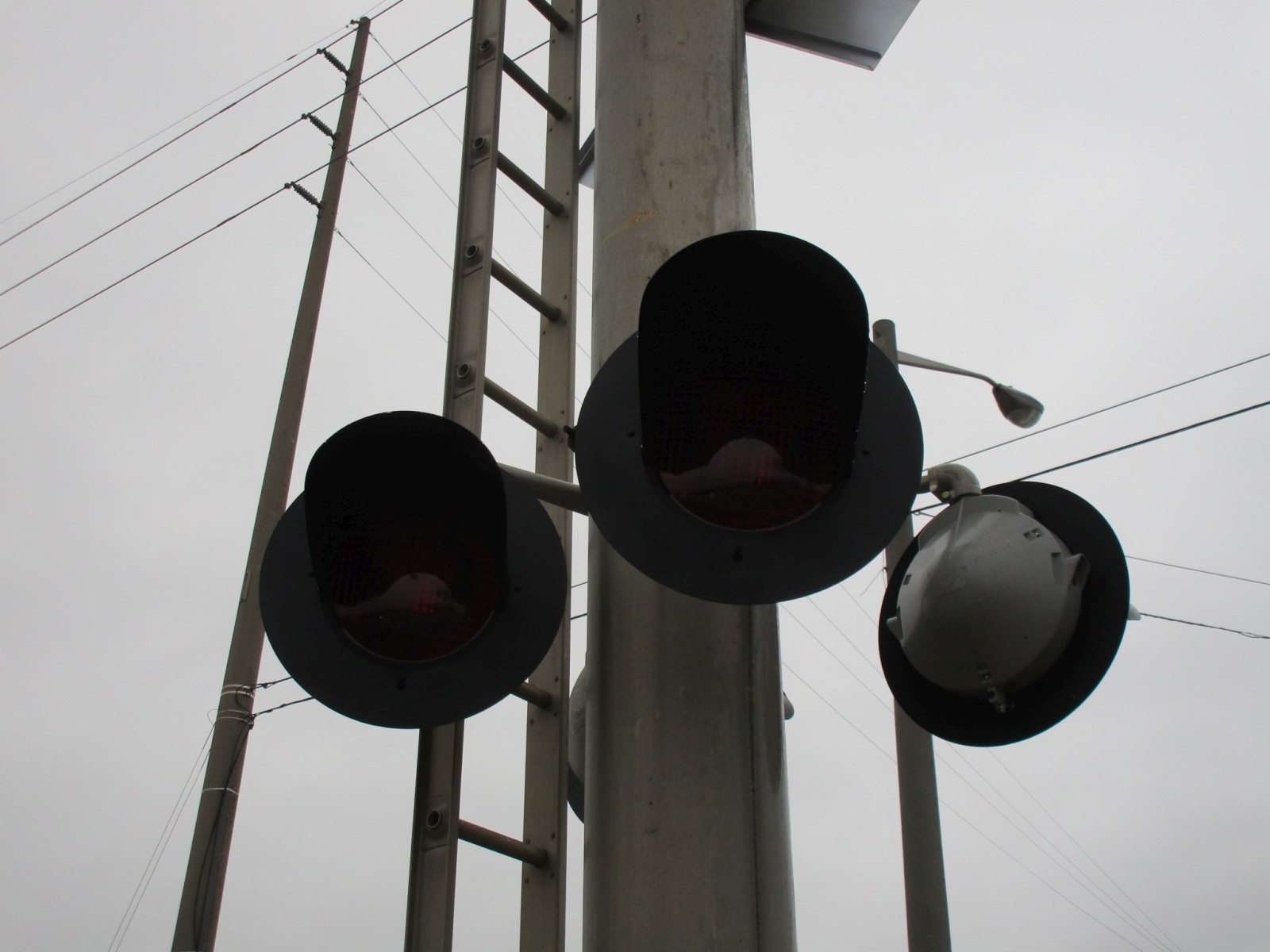

The westbound cantilever has had all of its mast lights replaced! The lights are all Safetran 12x20 inch lights, with one modern Safetran head and one mid-90s Safetran head on the front, and two 1970s Safetran heads on the rear, all of which mounted on the original Harmon bracket.



Like with the overhead lights, I believe the 1970s lights on the mast also would've originally come from Church Street #1 in Huntsville.

69

70

71

72

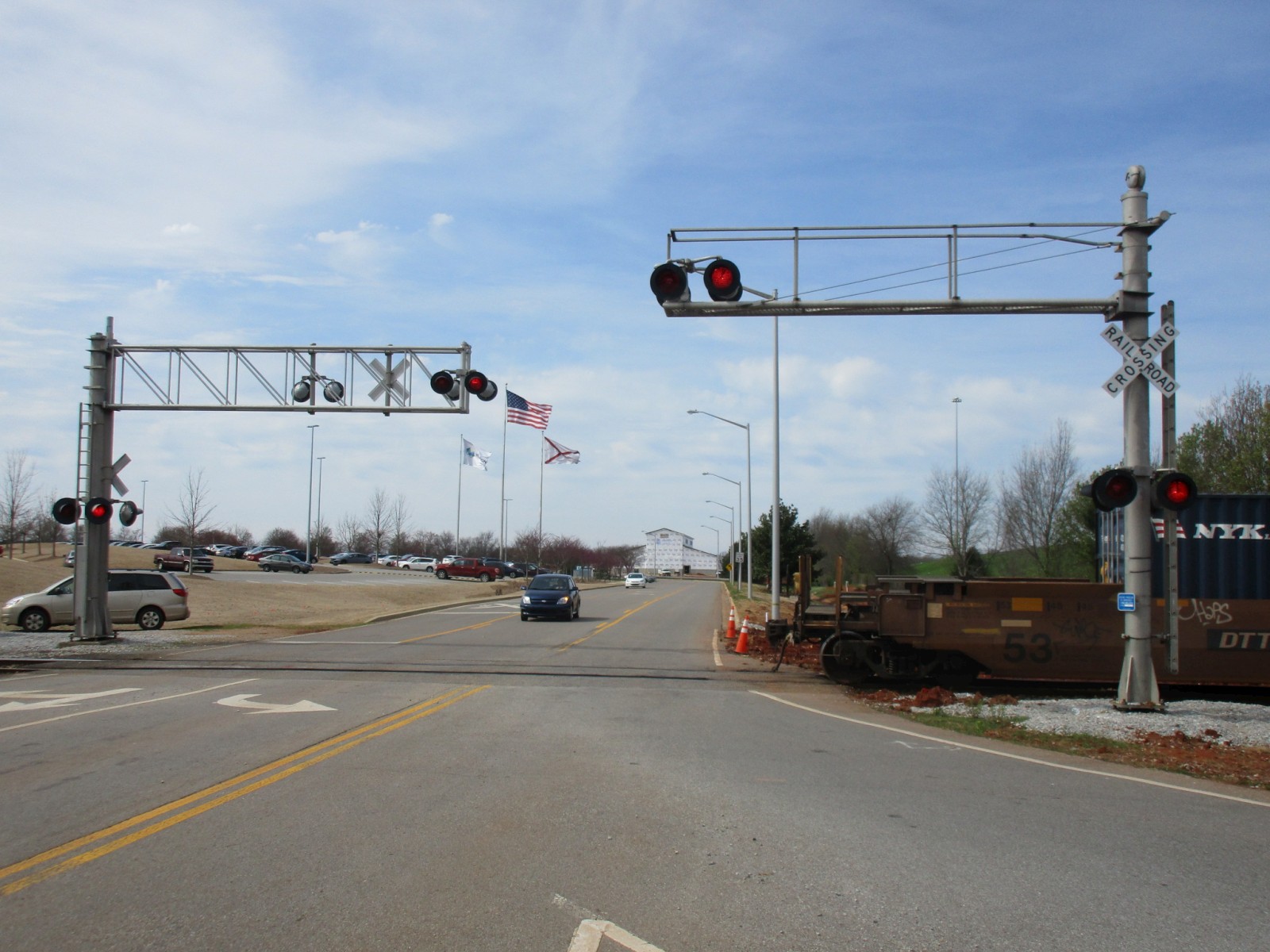

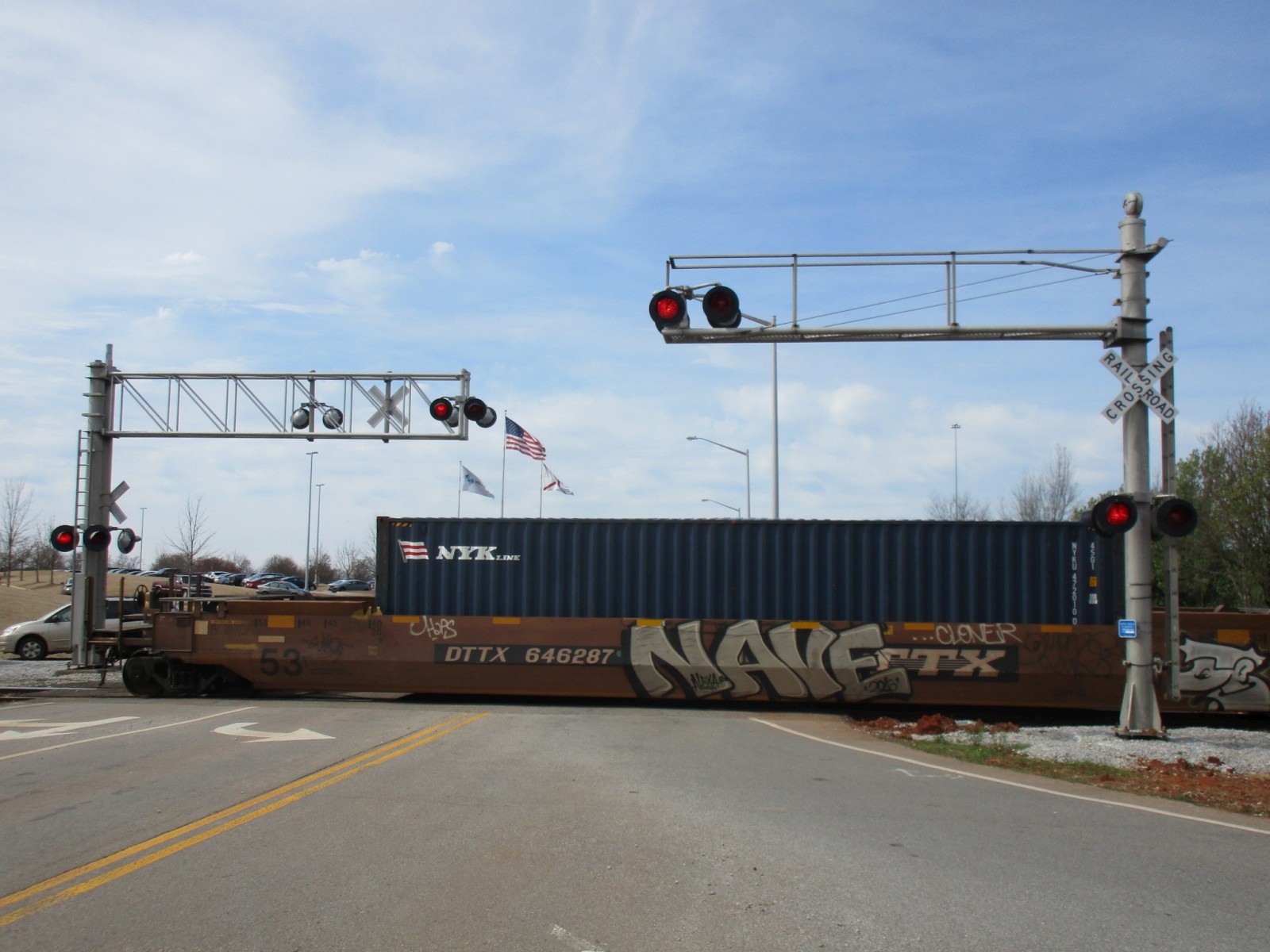

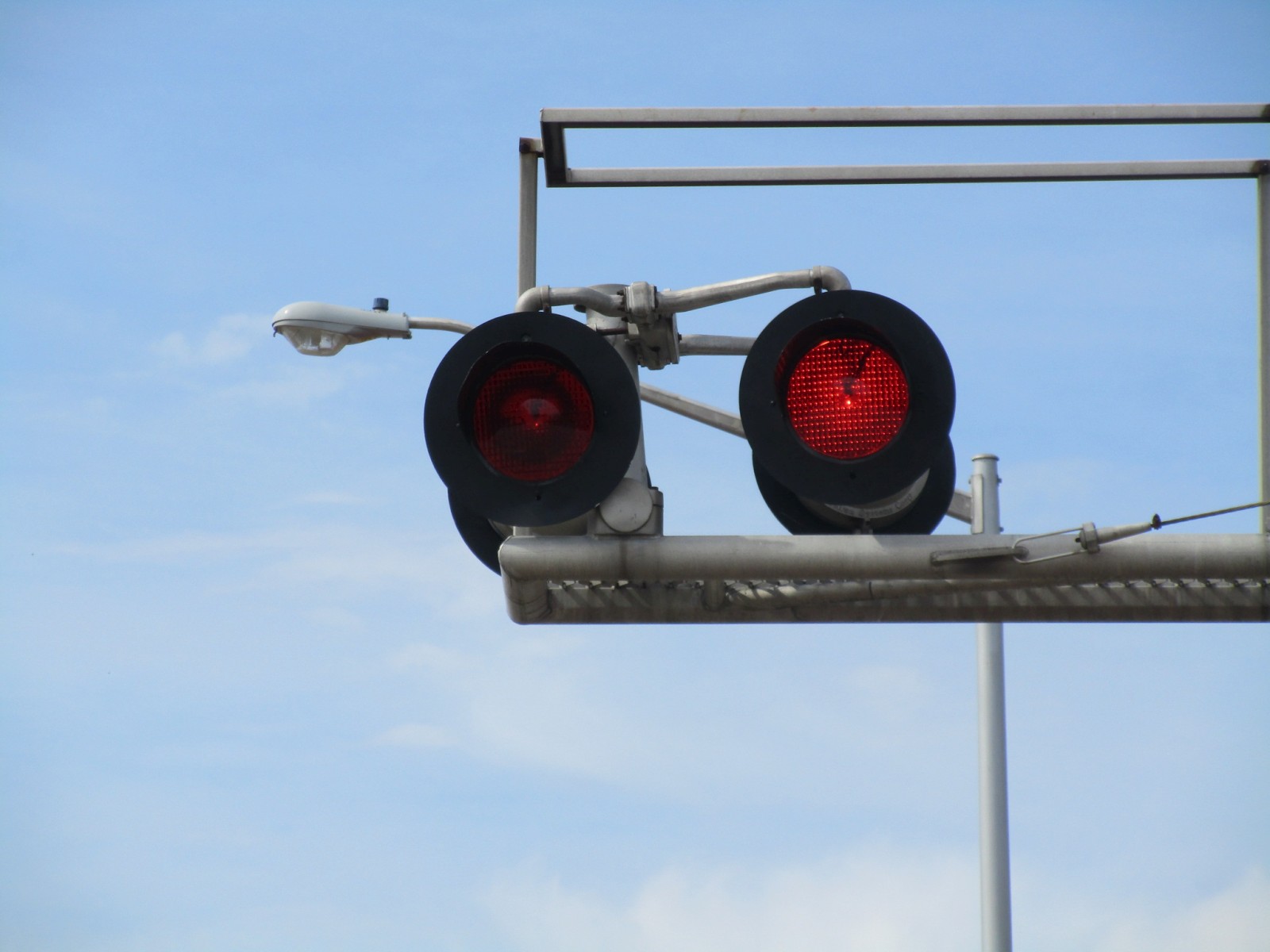

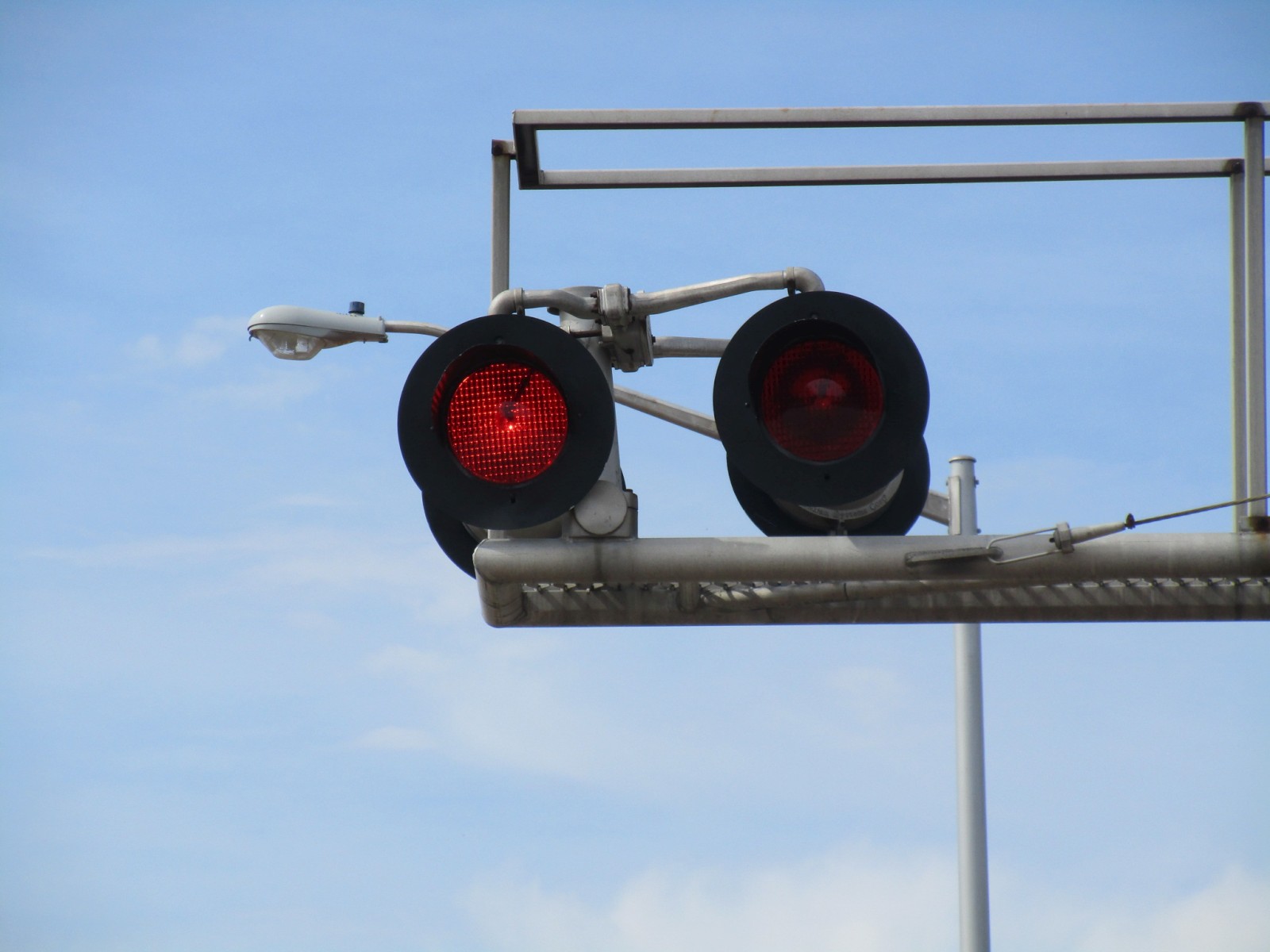

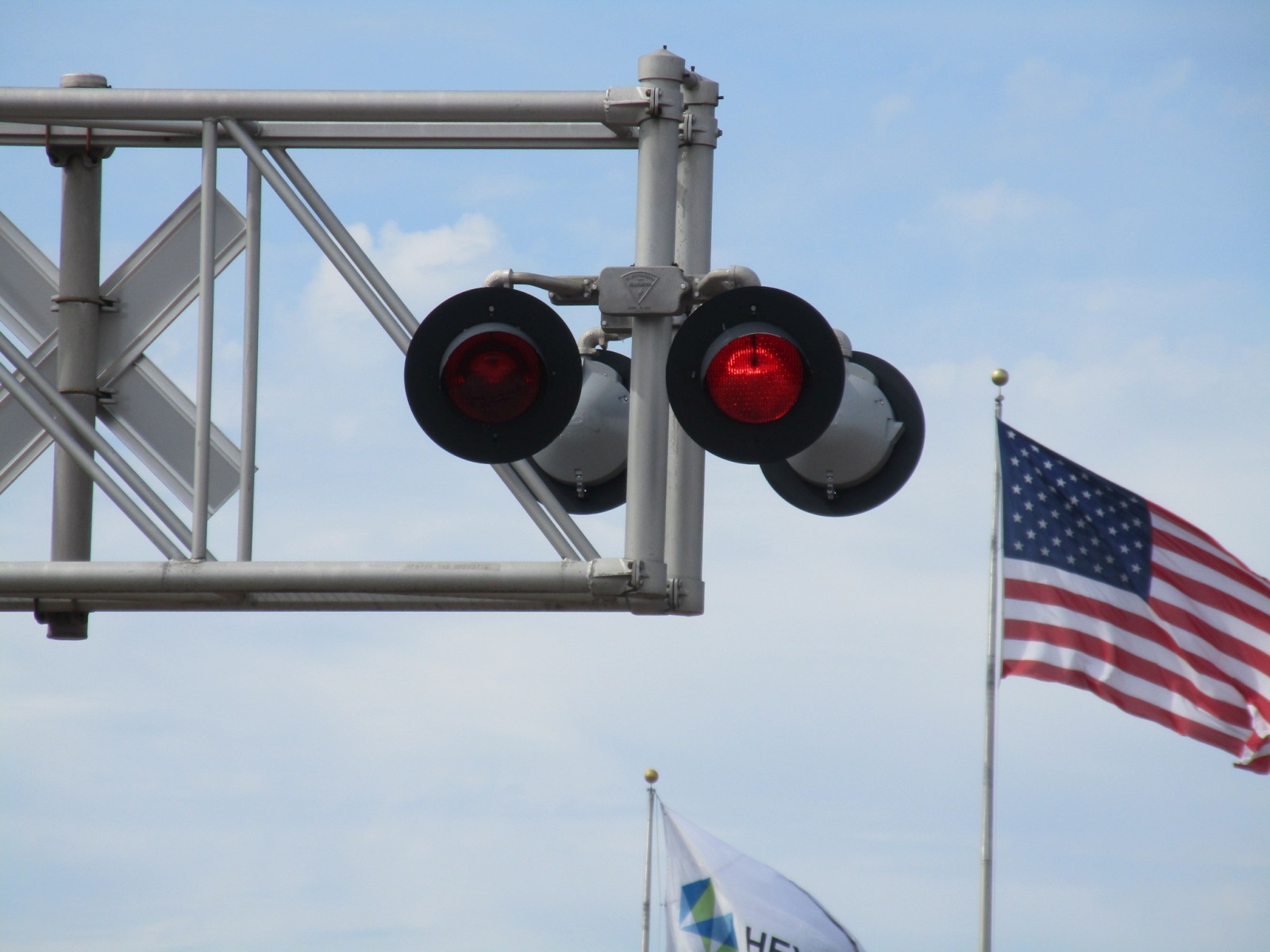

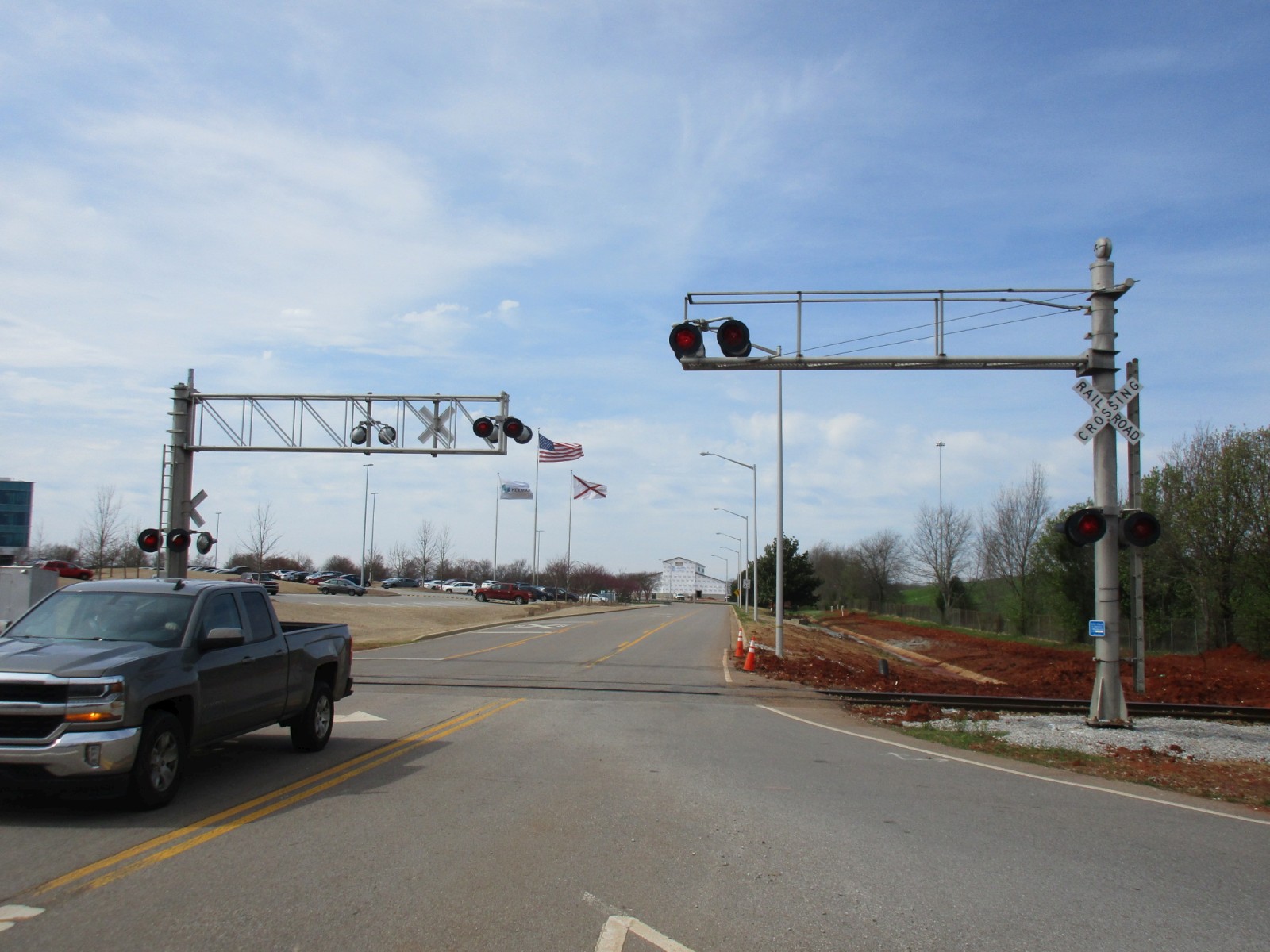

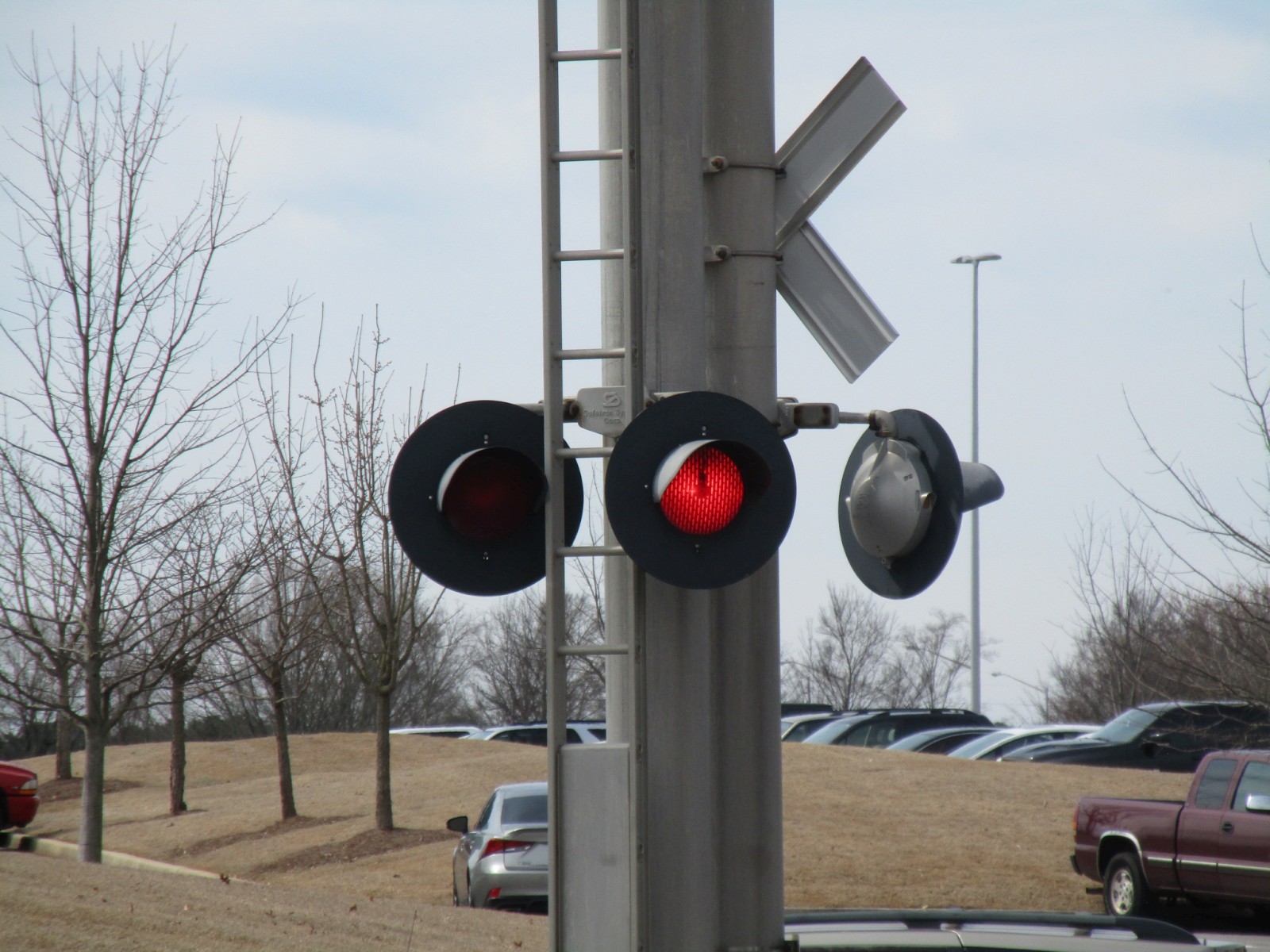

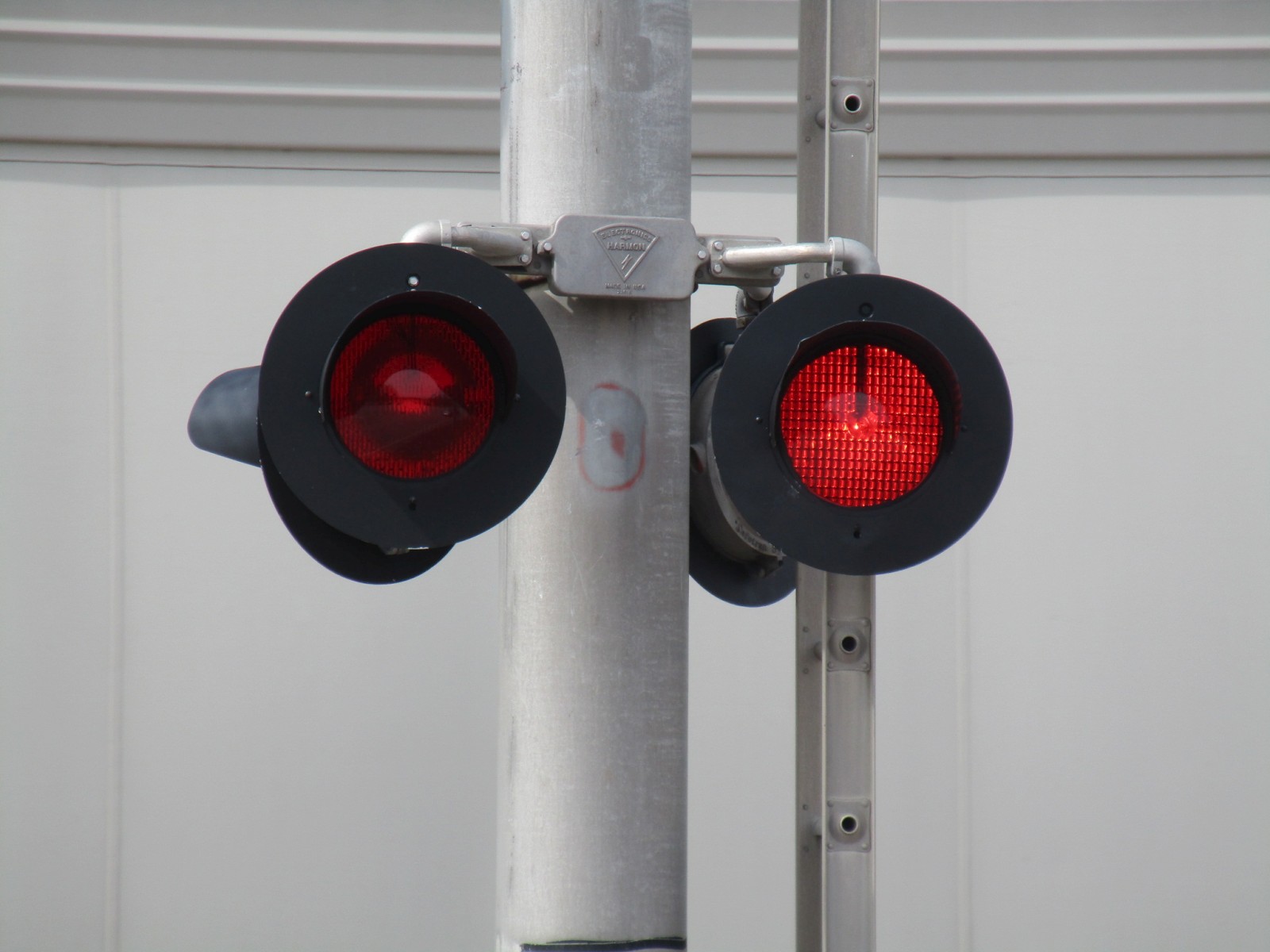

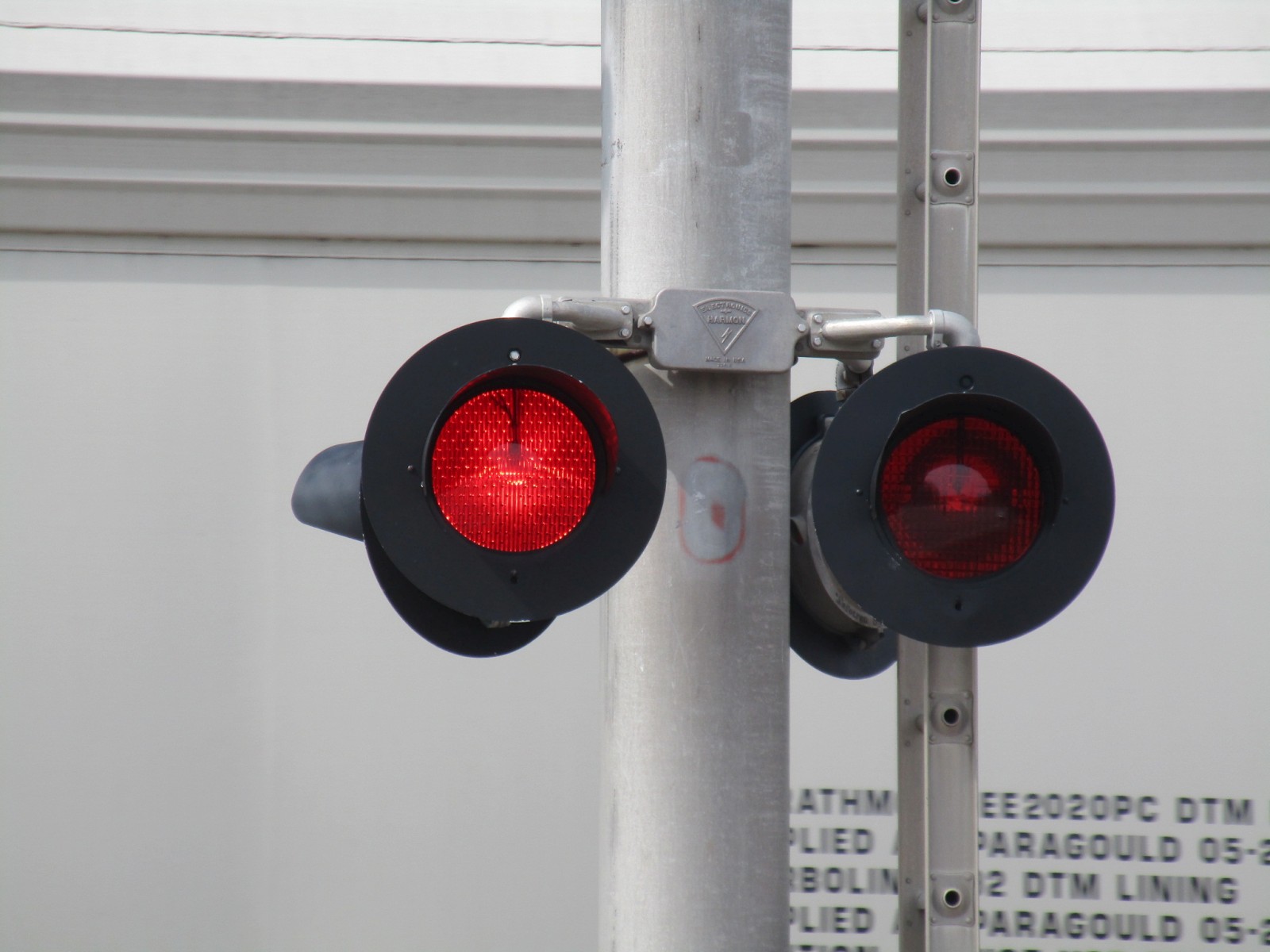

Yet another return trip on 3-13-19 catches the crossing in action once again!

73

74

75

76

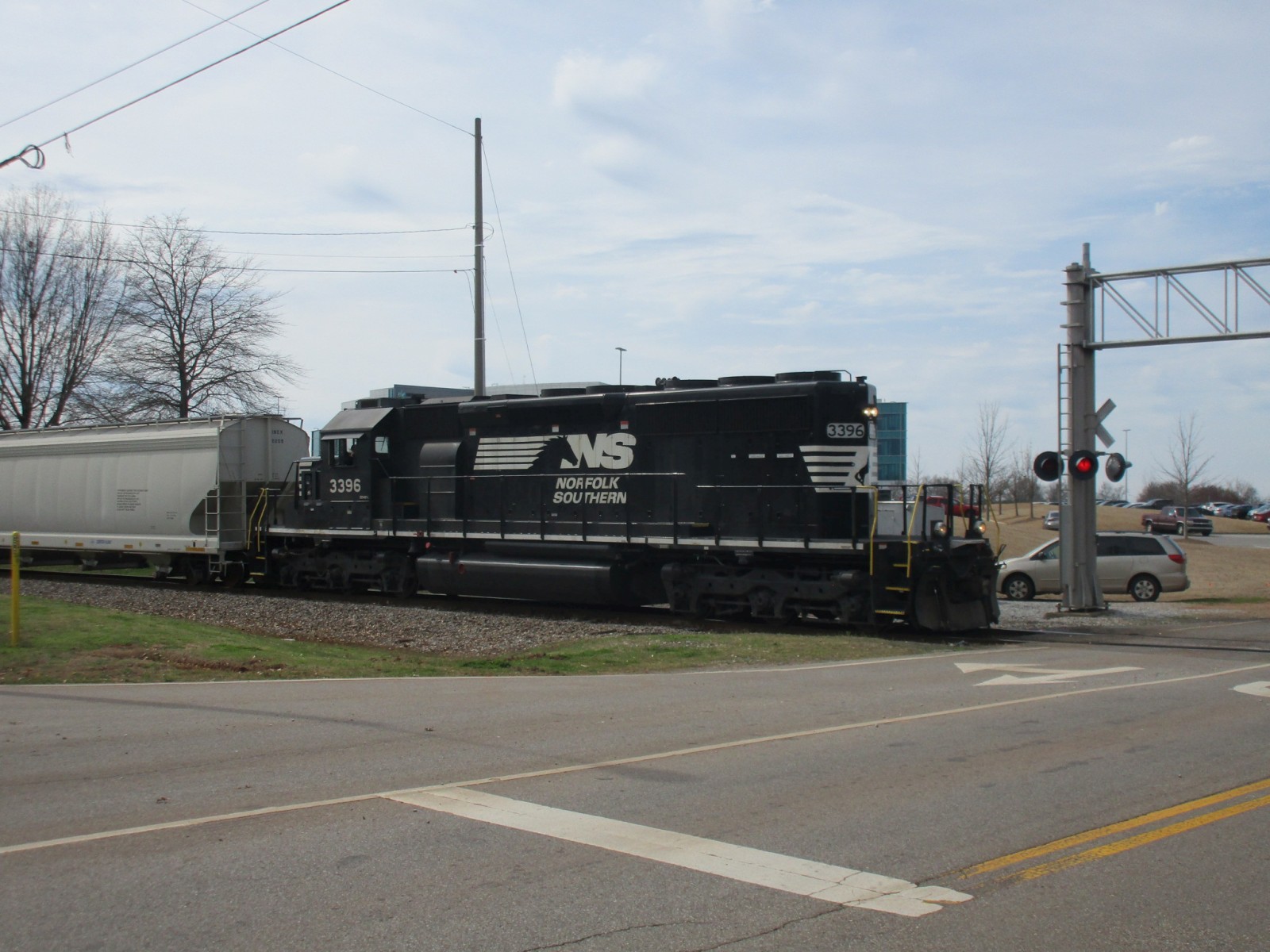

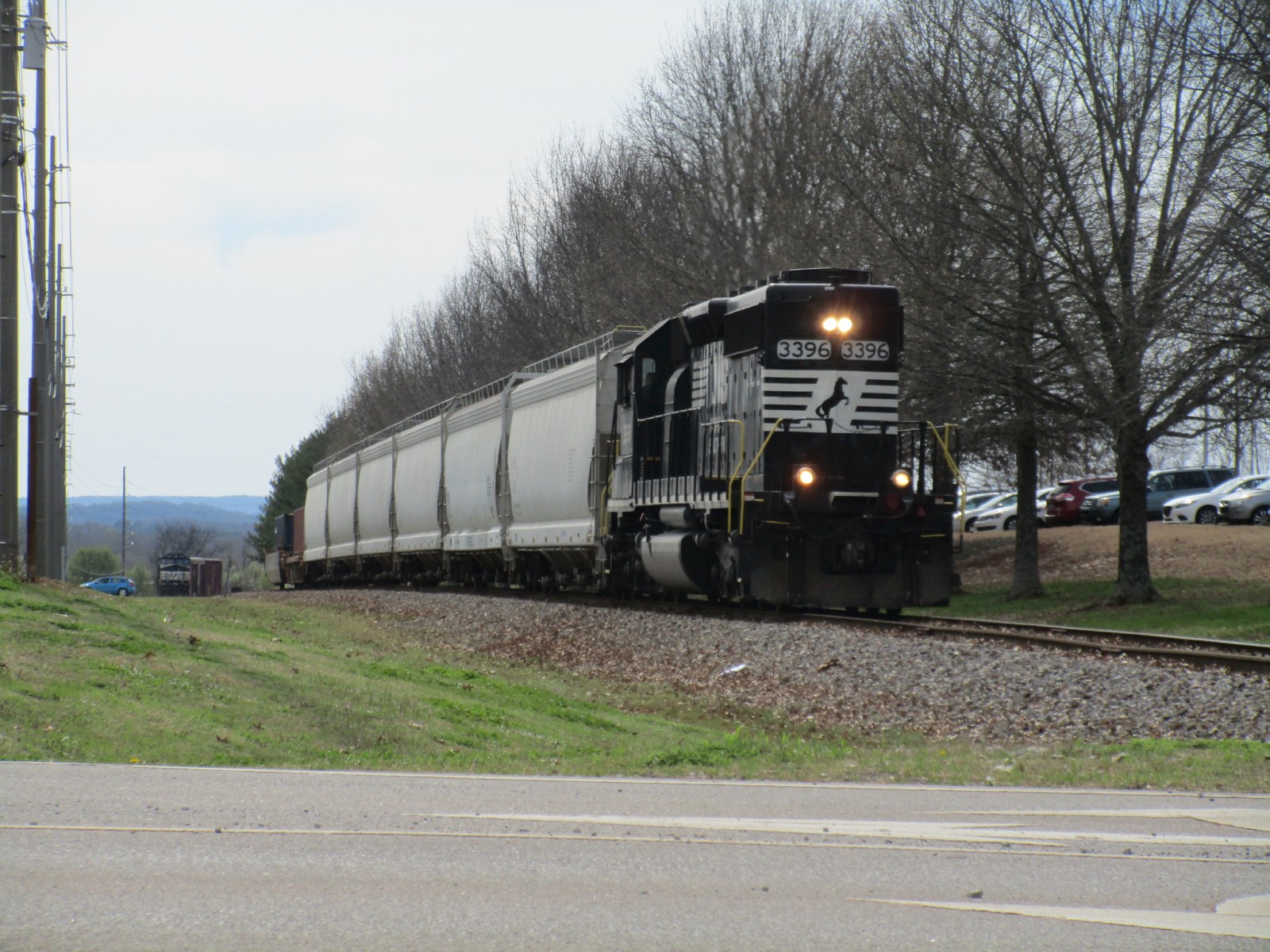

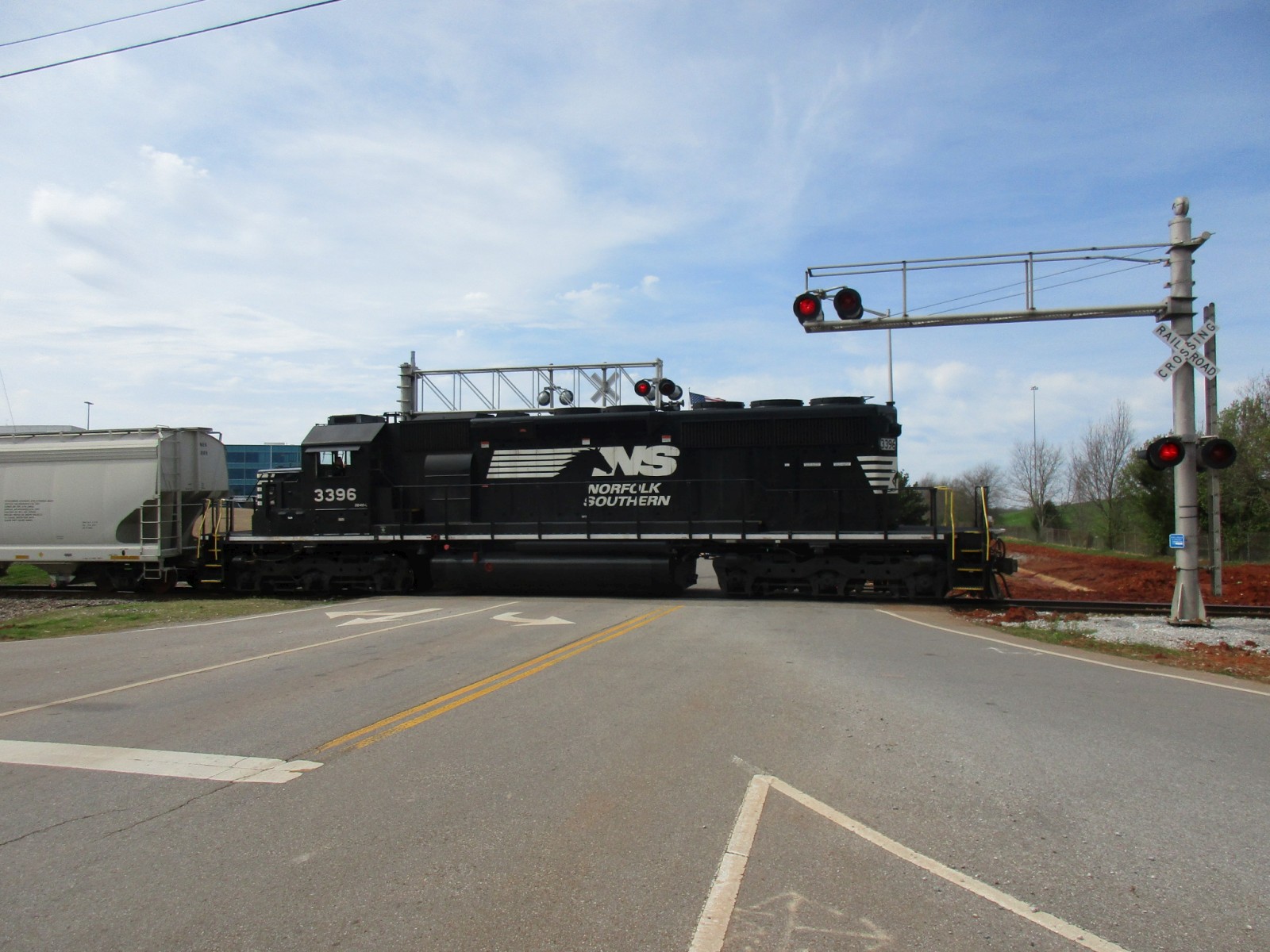

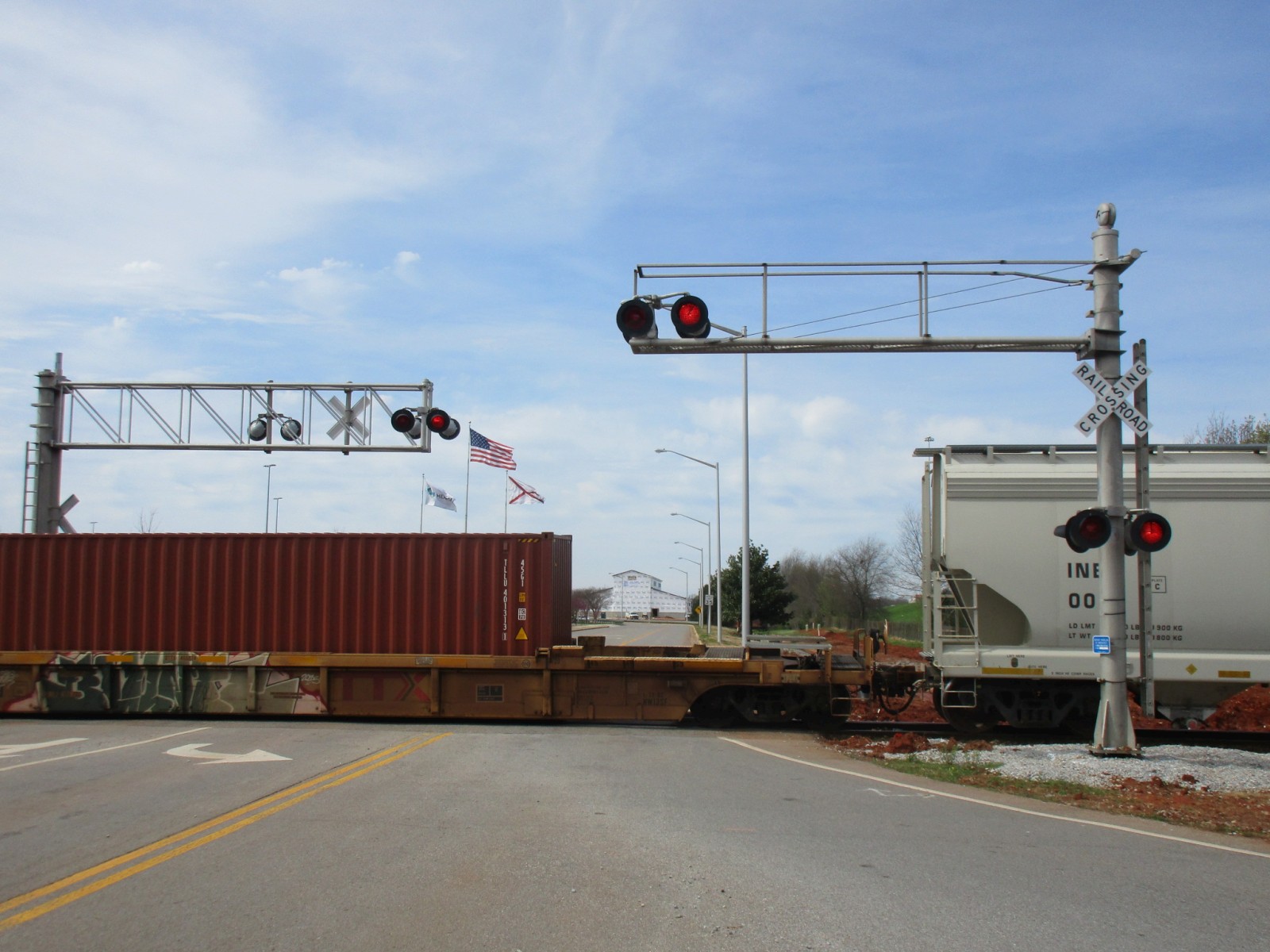

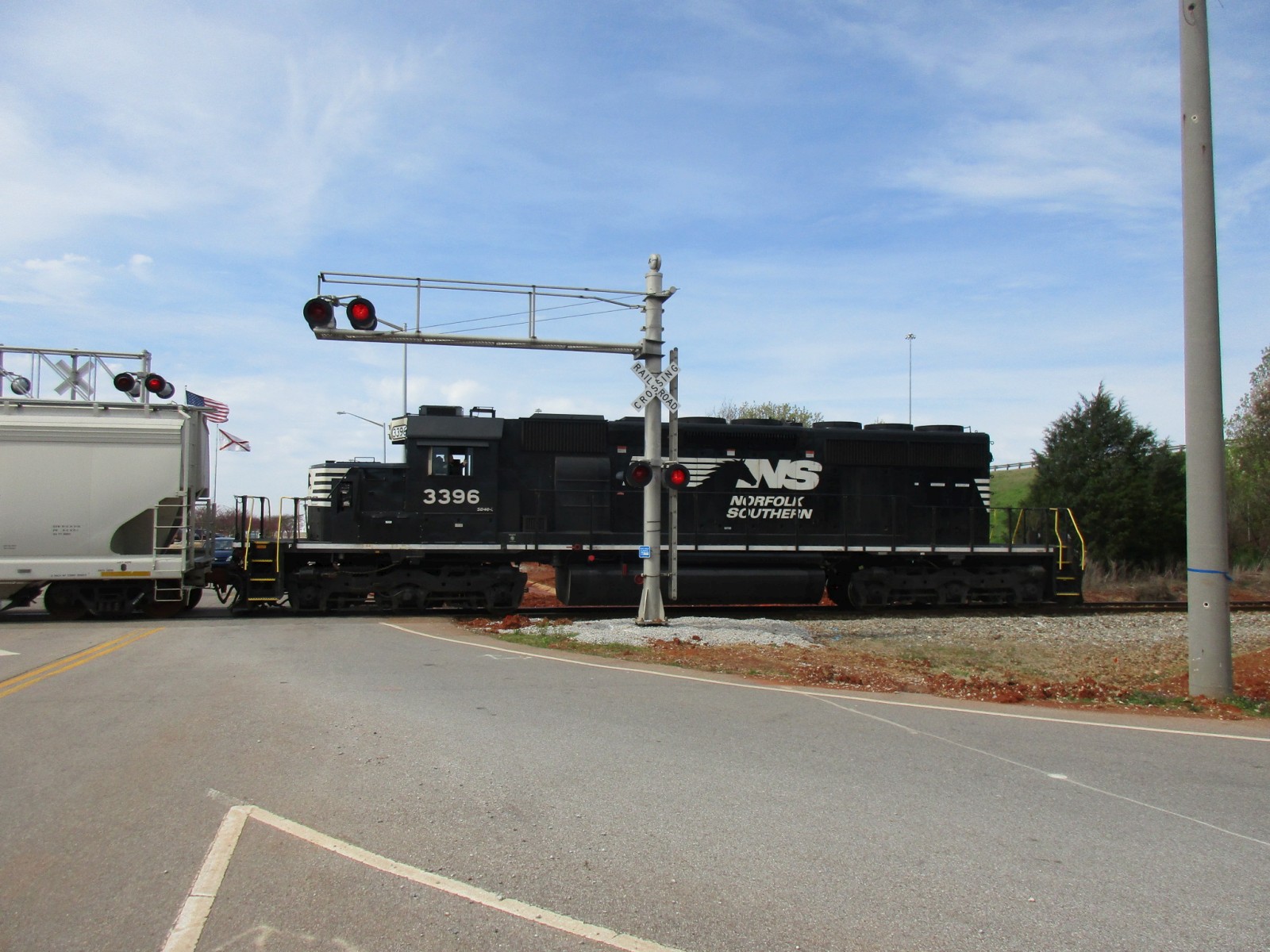

NS A81 comes through with a single SD40-2 for power. The train also made a bit of an usual noise as it entered the crossing, I believe due to the plow scraping the road.

77

78

79

80

81

82

83

84

85

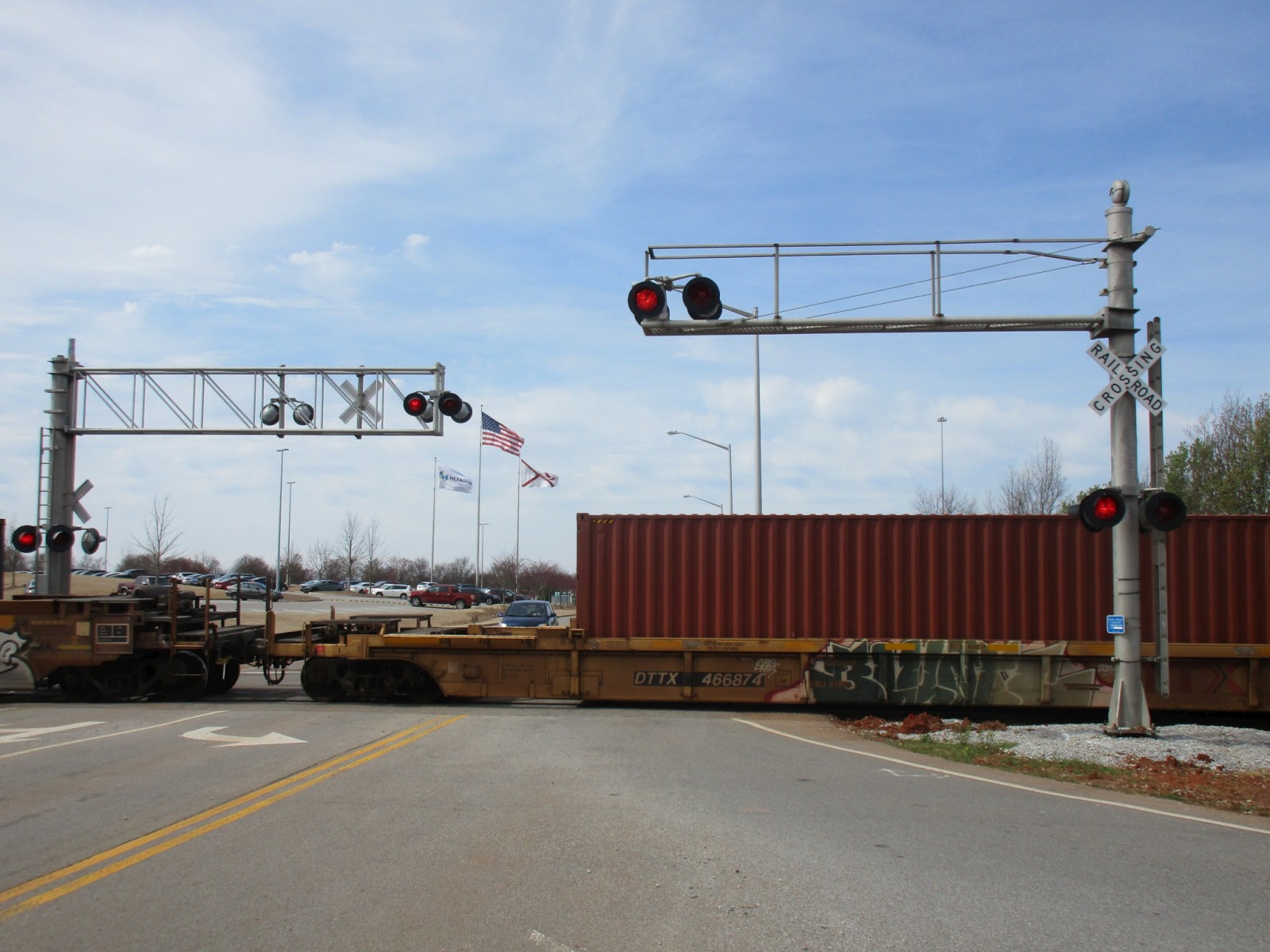

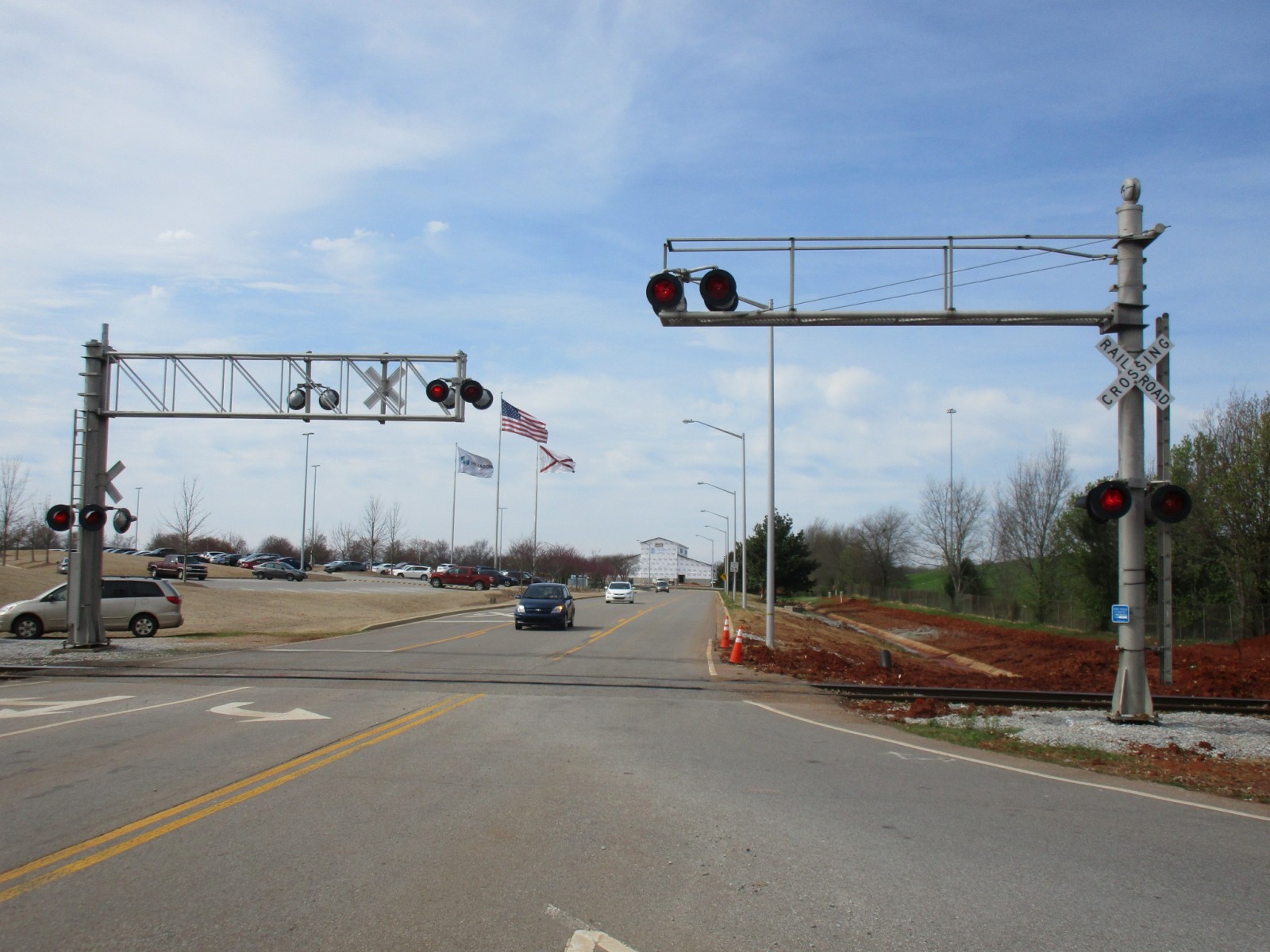

The train passes.







Pictures 1-23 were taken on 3-28-13.

Pictures 24-40 and the first video were taken on 5-22-16.

Pictures 41-45 were taken on 9-15-18.

Pictures 46-56 were taken on 10-6-18.

Pictures 57-68 were taken on 2-11-19.

Pictures 69-85 and the second video were taken on 3-13-19.
