MP:  XXB169.910



Created December 13, 2022



Total Accidents:   0
Crossing DOT #:  640182E
TOTAL DAILY TRAINS:   7   (AS OF 2021)



Page created by: freebrickproductions



This crossing is located on the CSX AWP Subdivision.



1

2

3

4

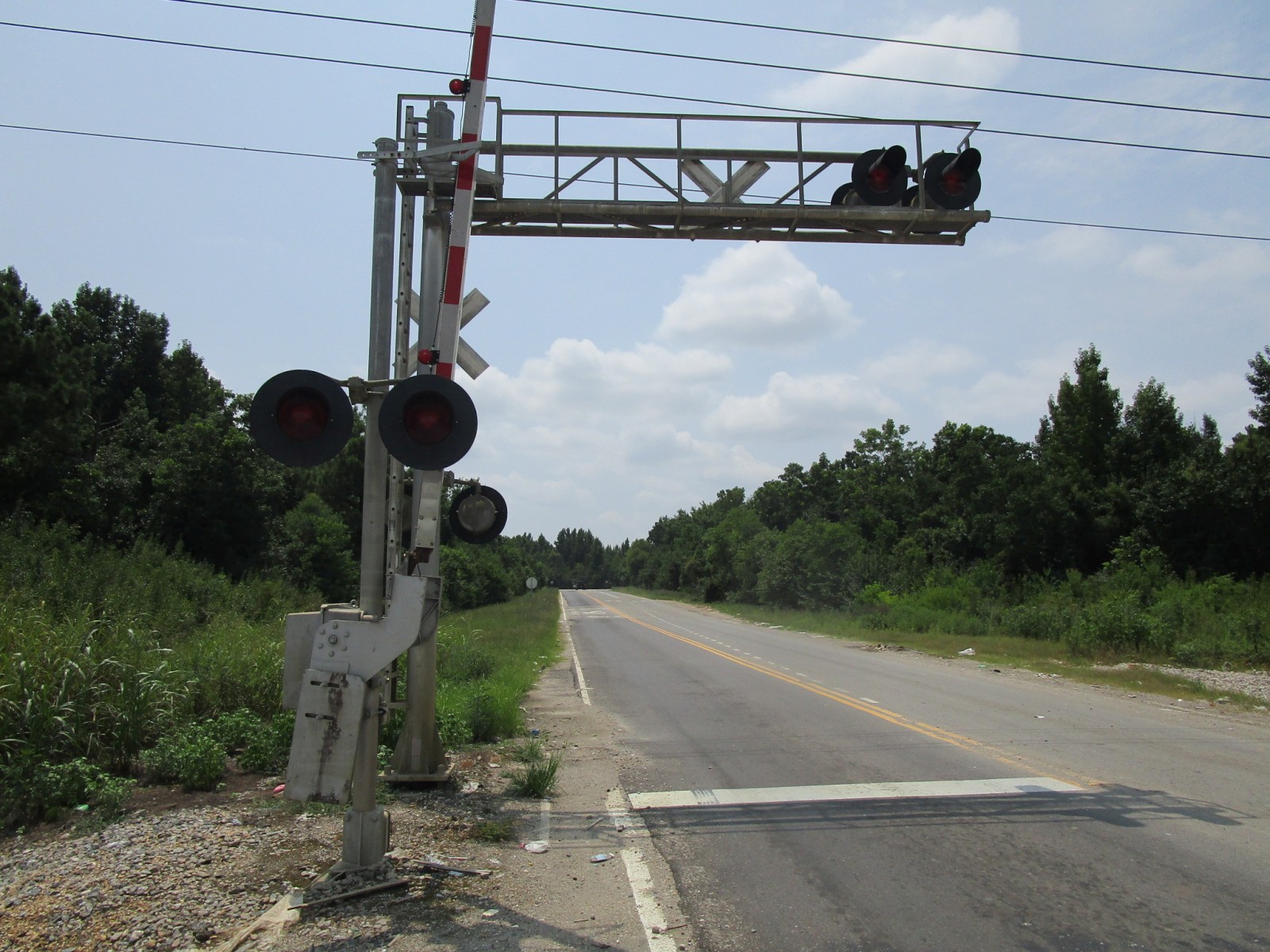

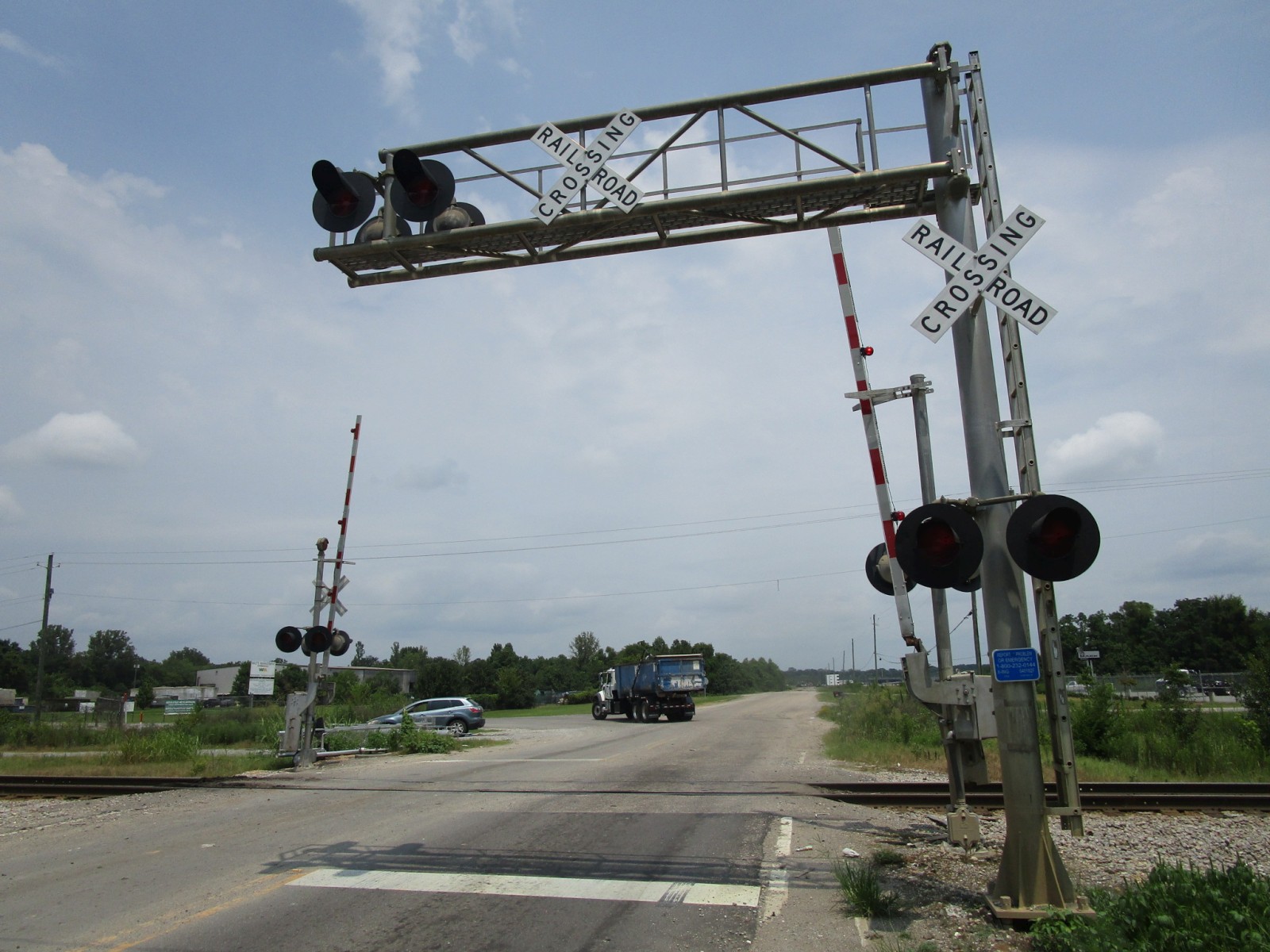

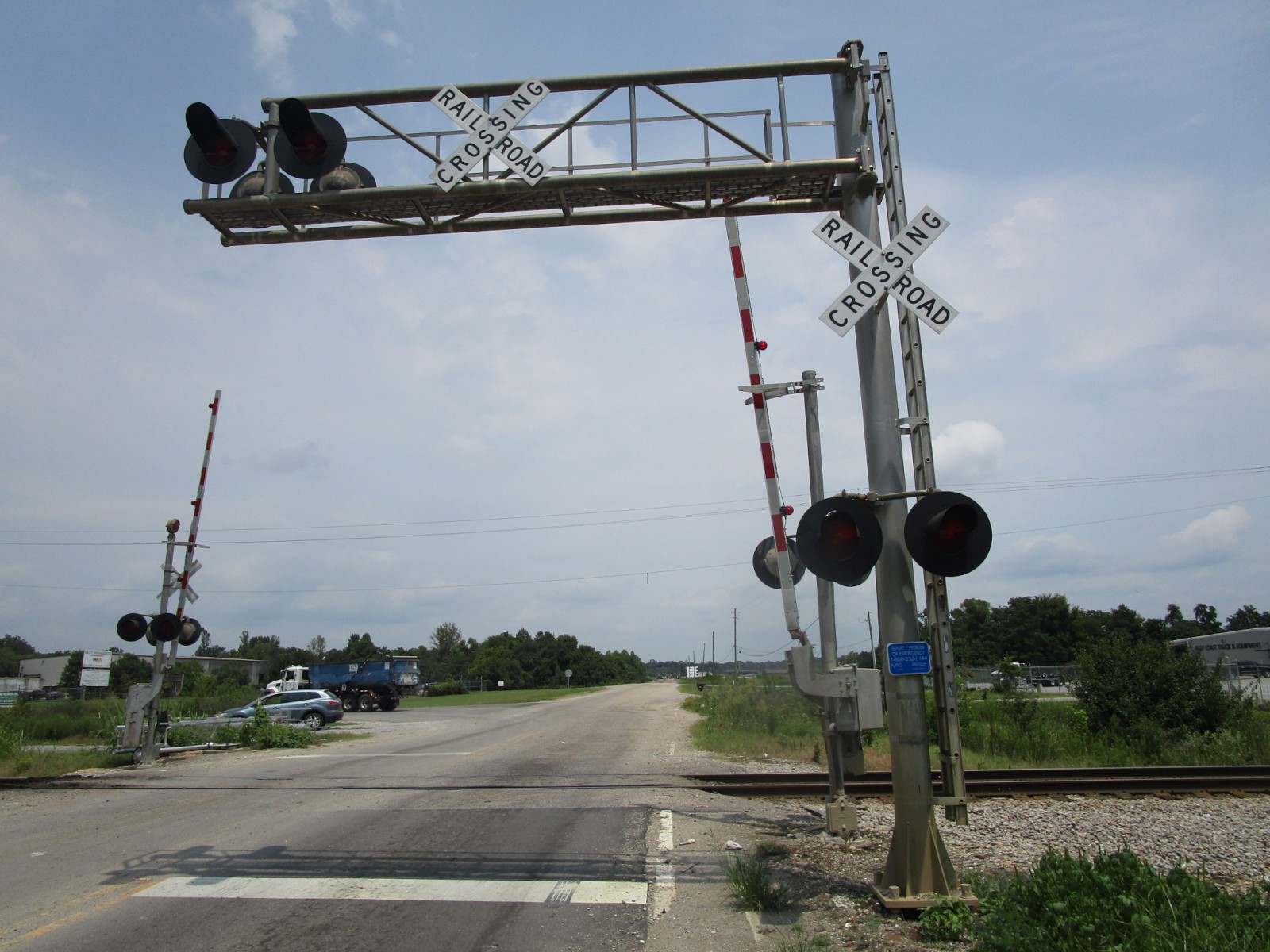

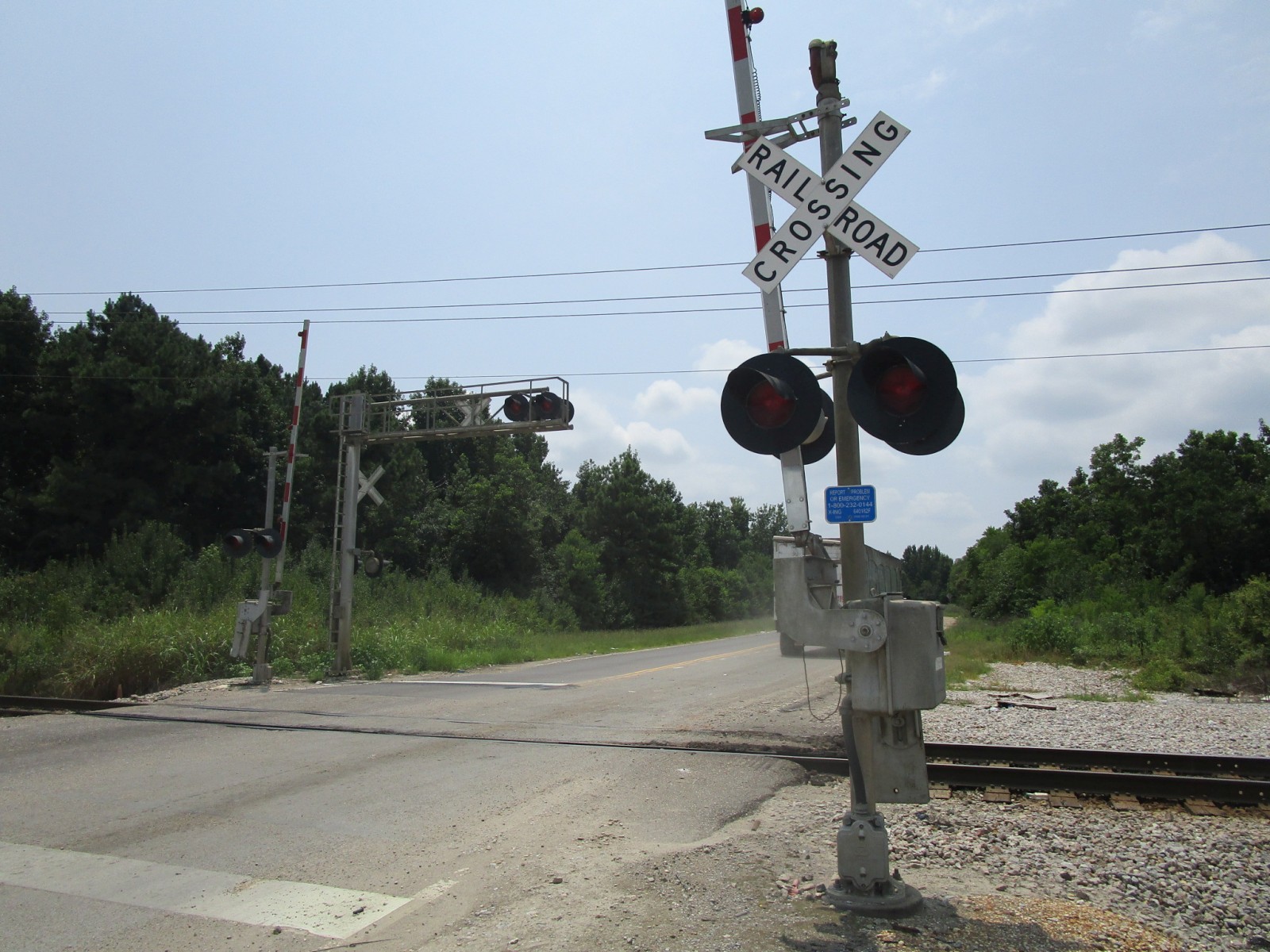

Overviews of the crossing.
The first signal.

5

6

7

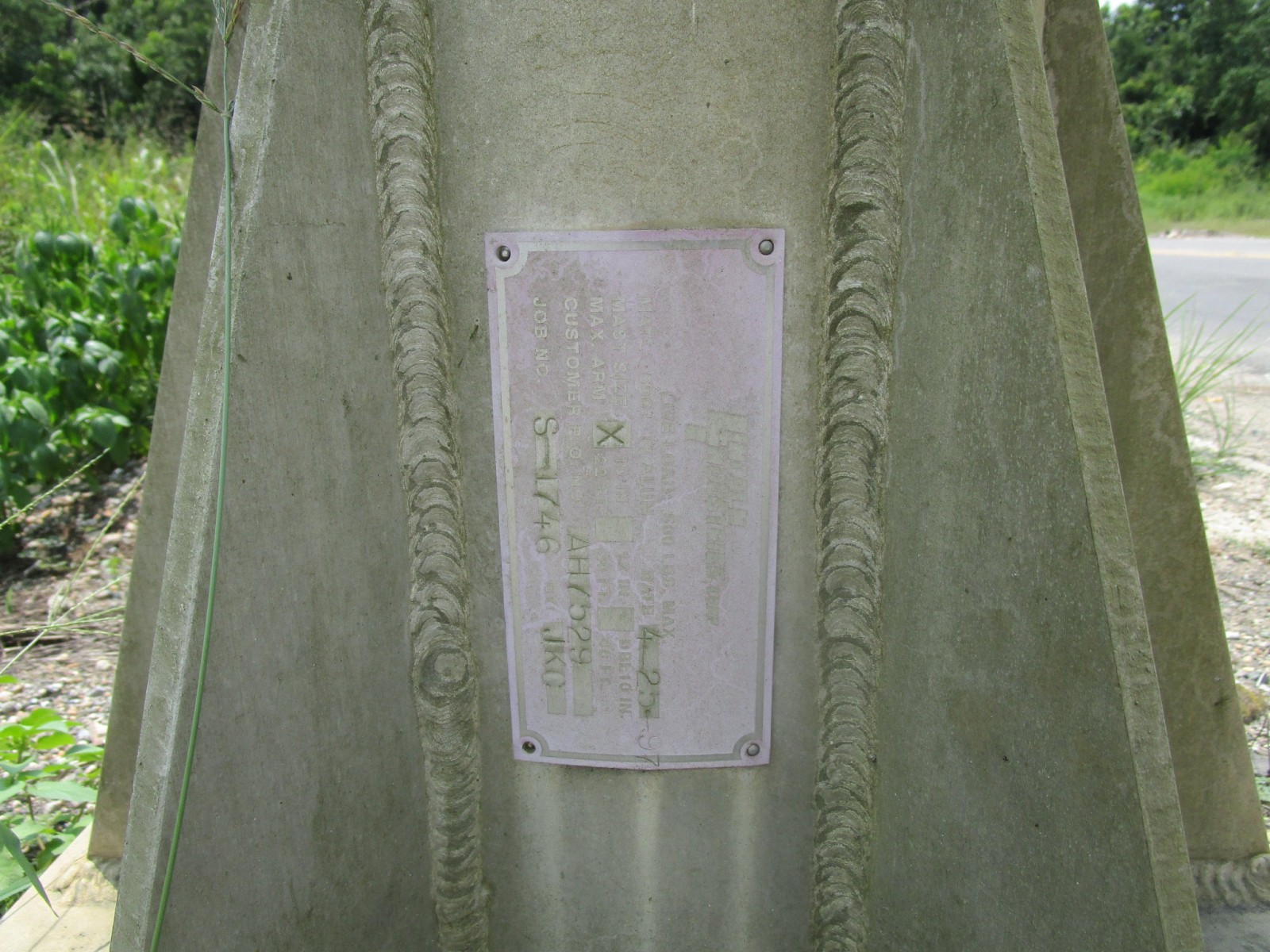

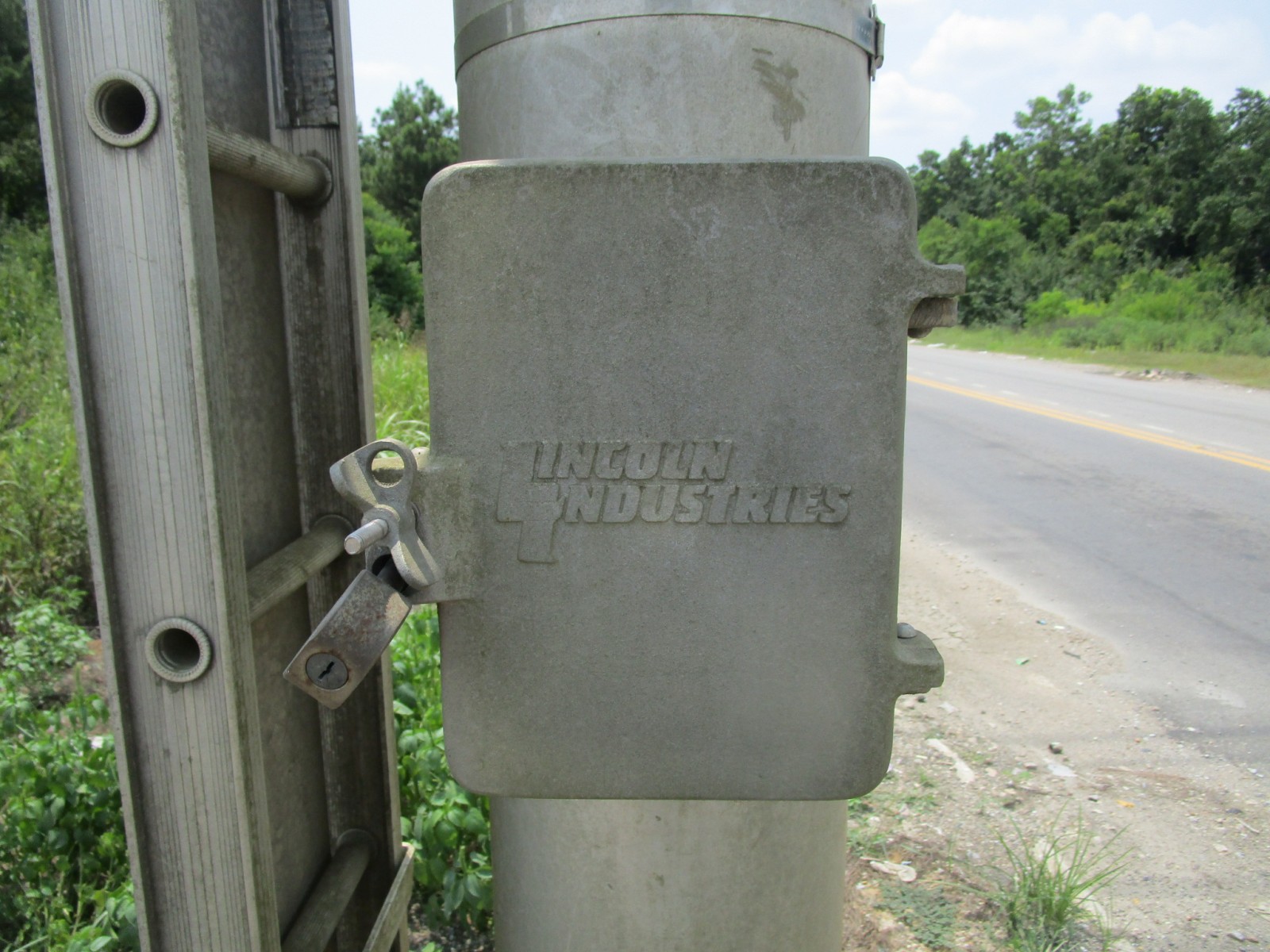

It's a Lincoln Industries cantilever. Never seen a dataplate like the one in Picture 6 on one of these before though.

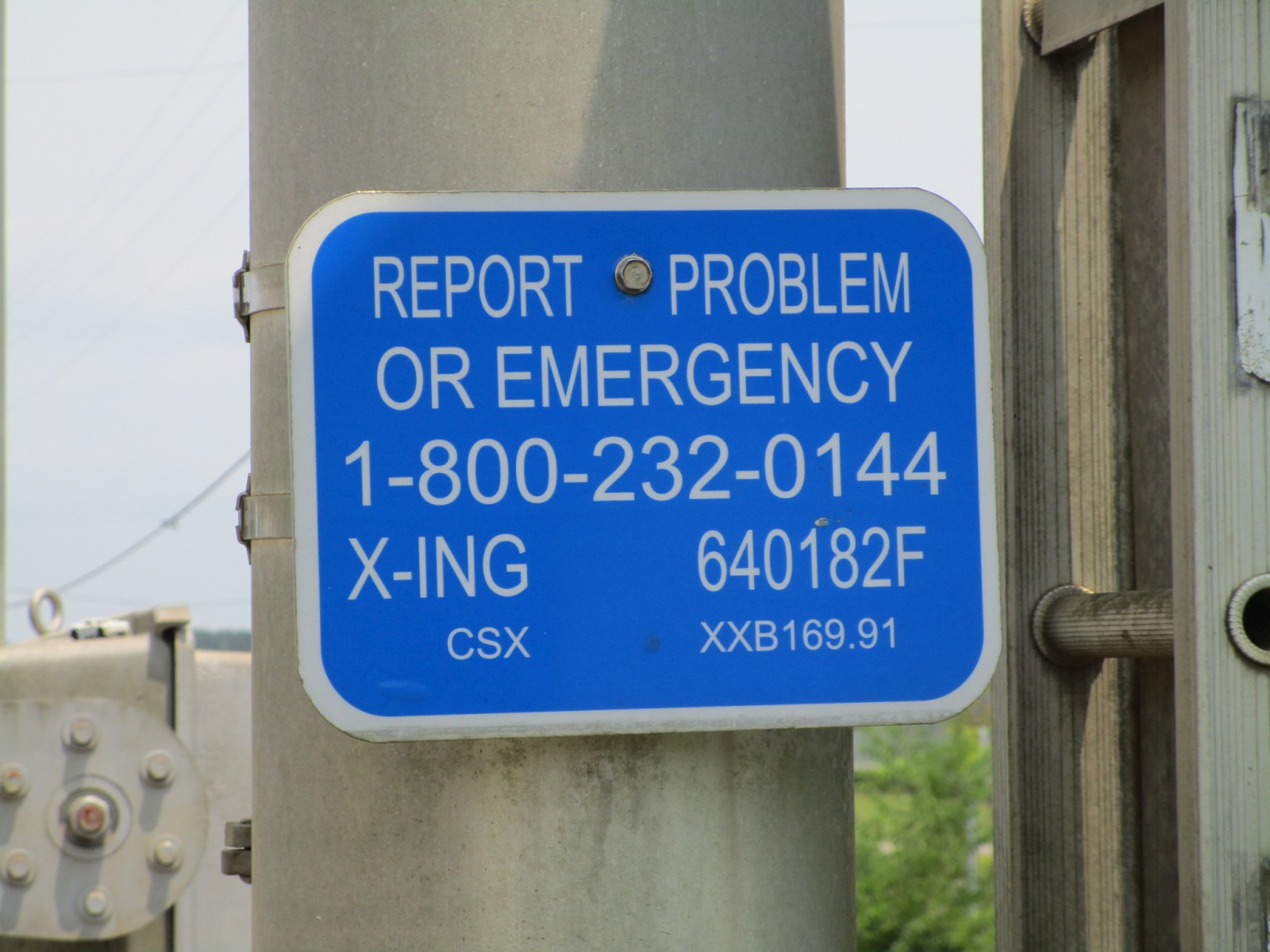

The emergency information, which has an incorrect DOT number.

8

9

10

11

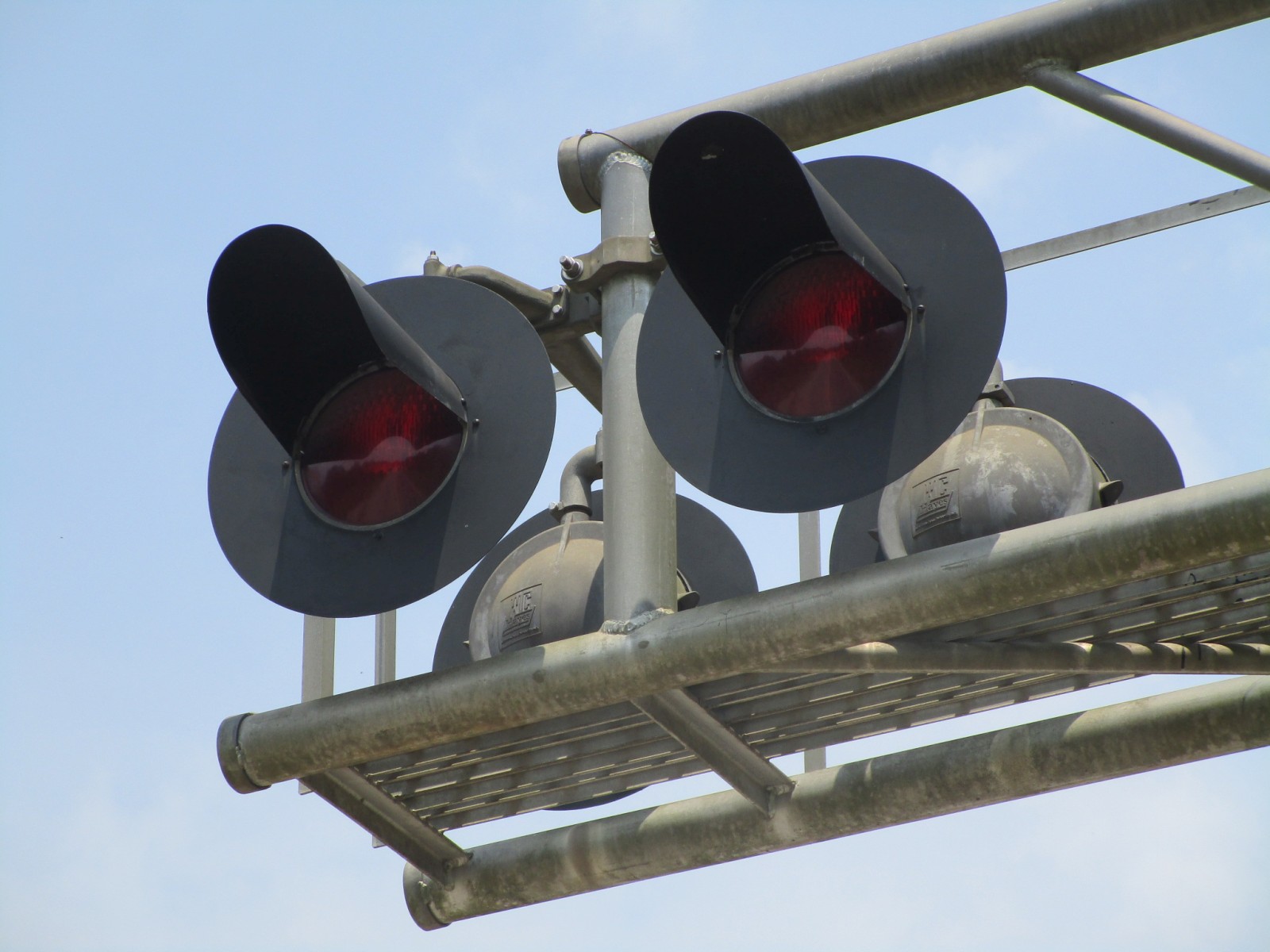

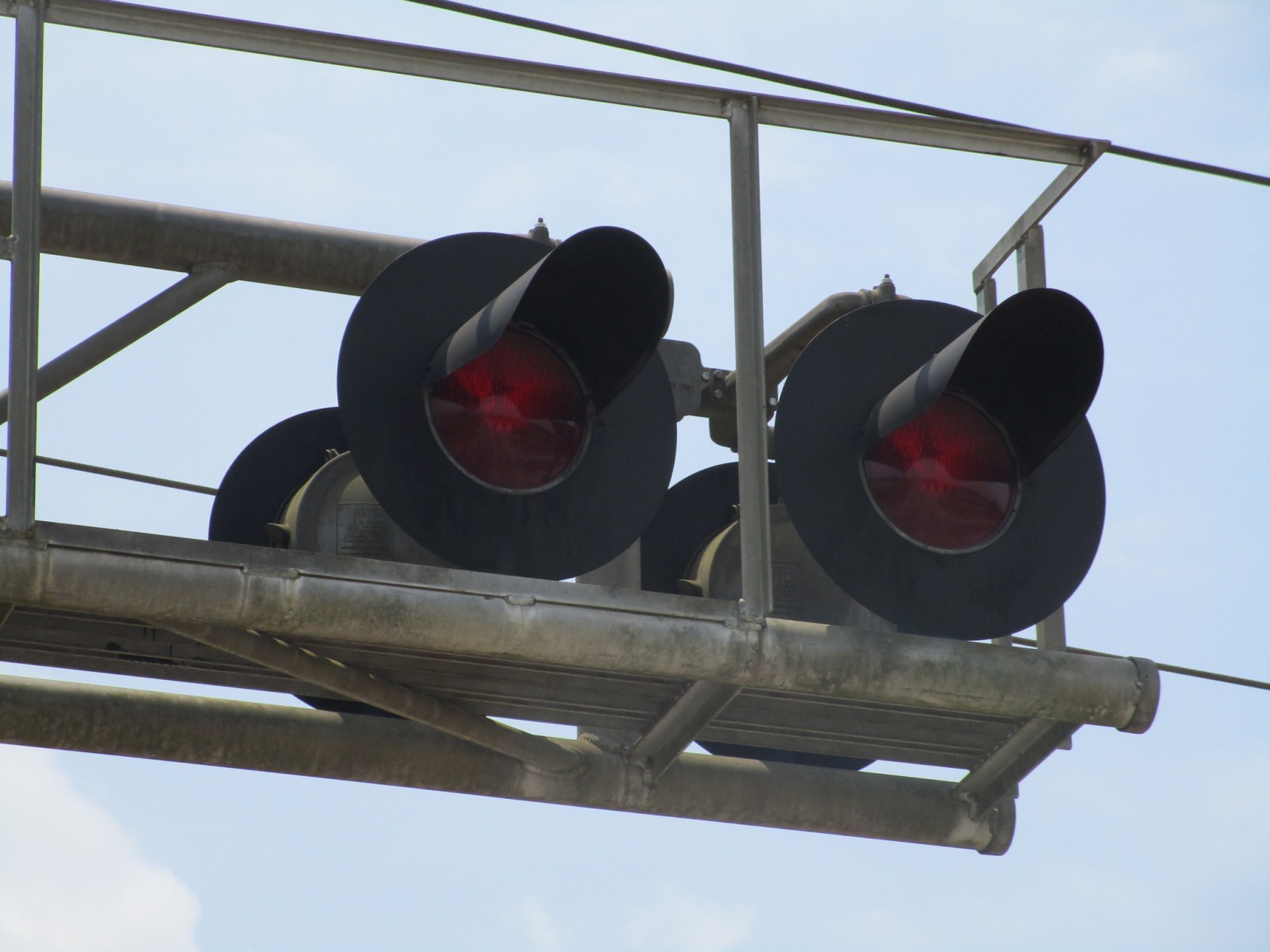

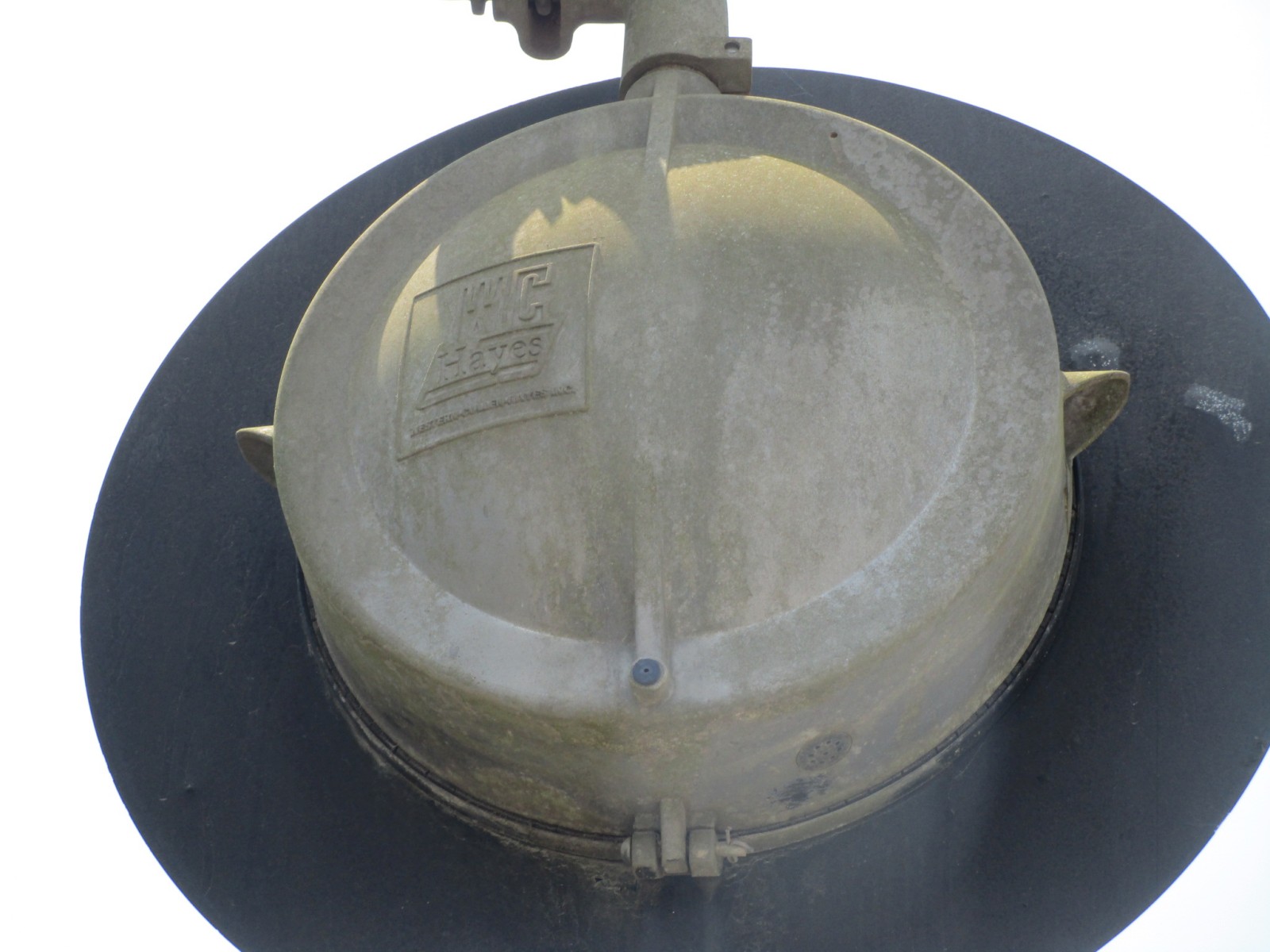

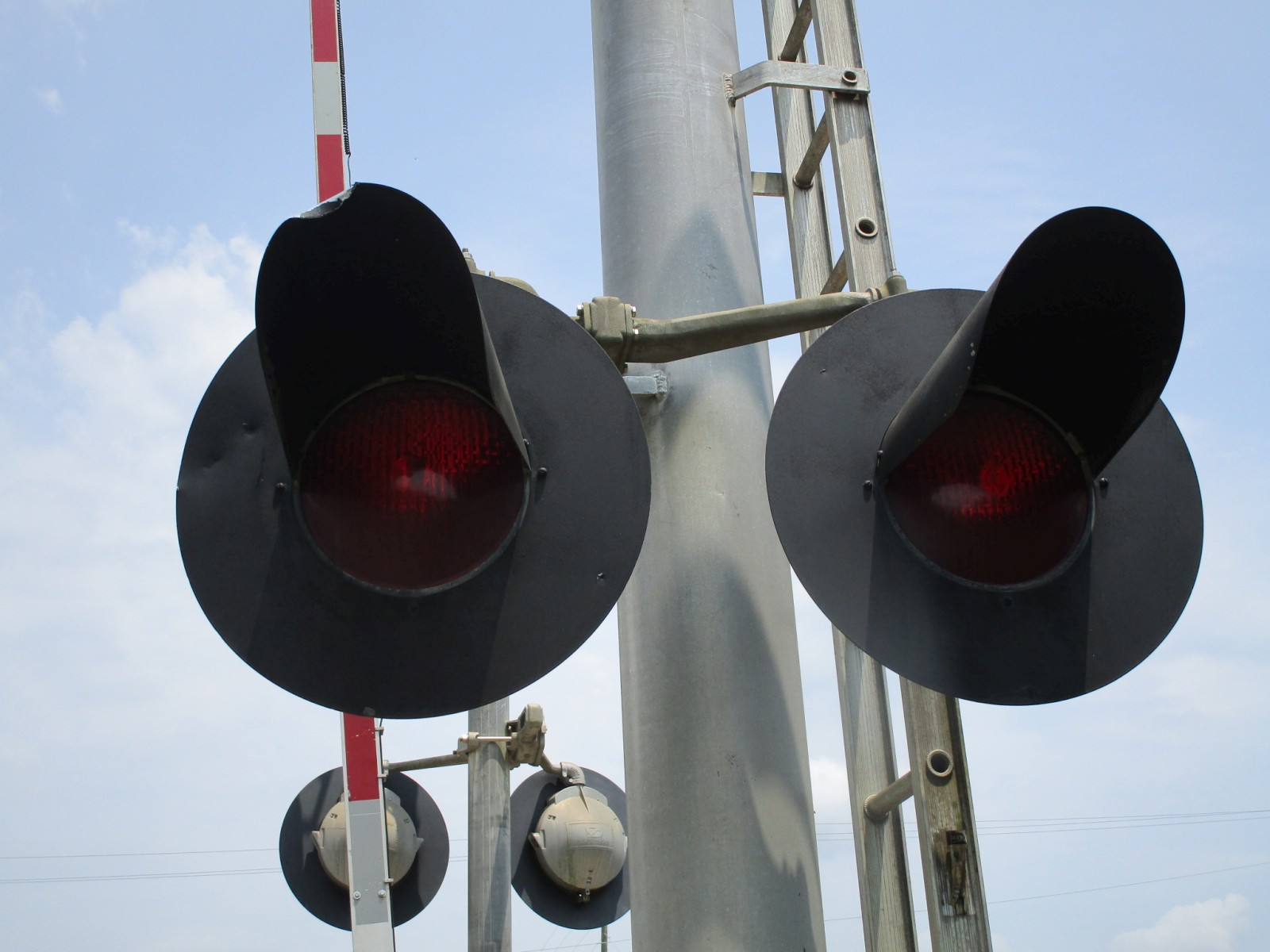

The lights on this cantilever are all WCH 12x24 inch lights!

12

13

14

15

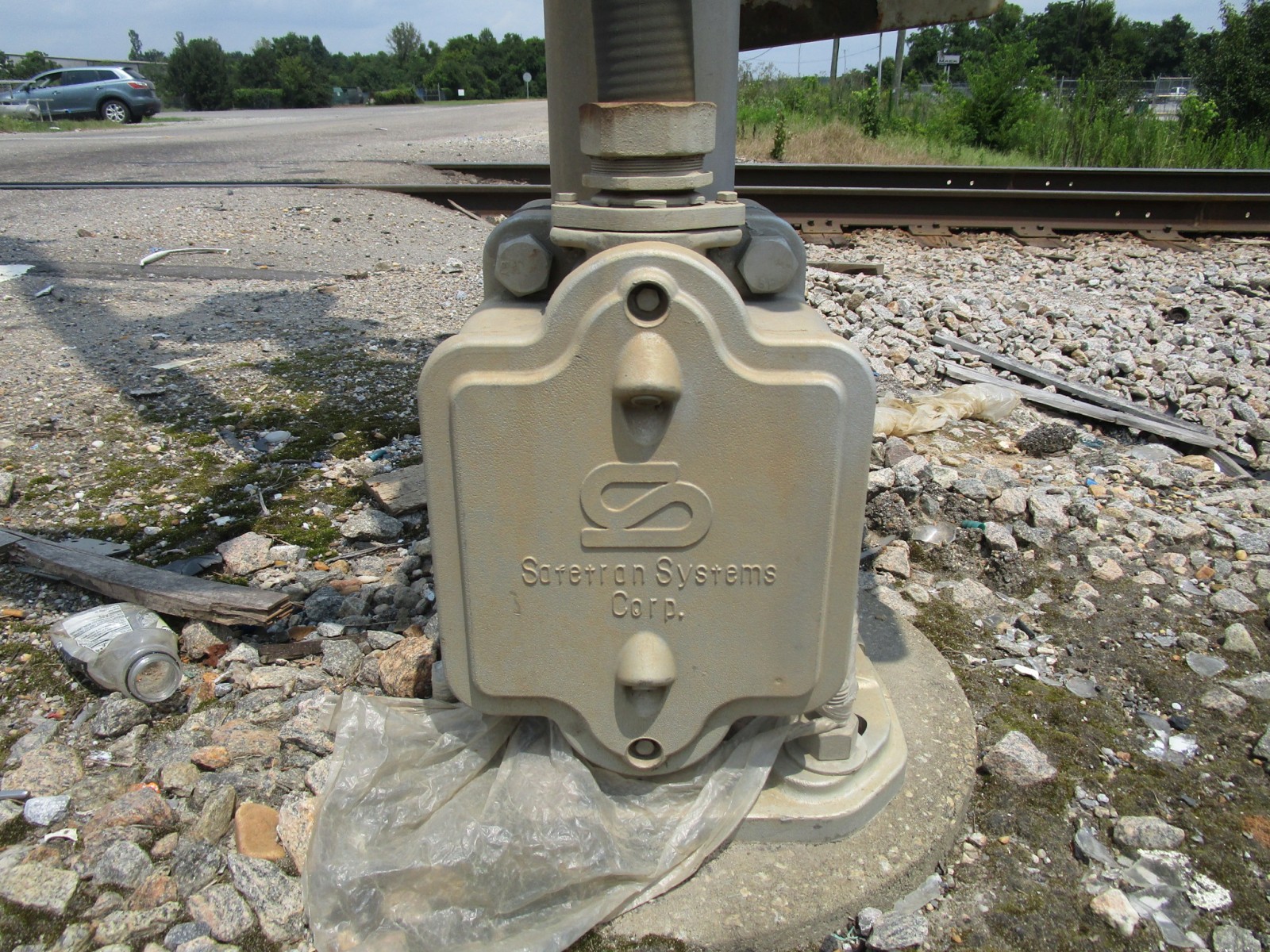

A Safetran base.

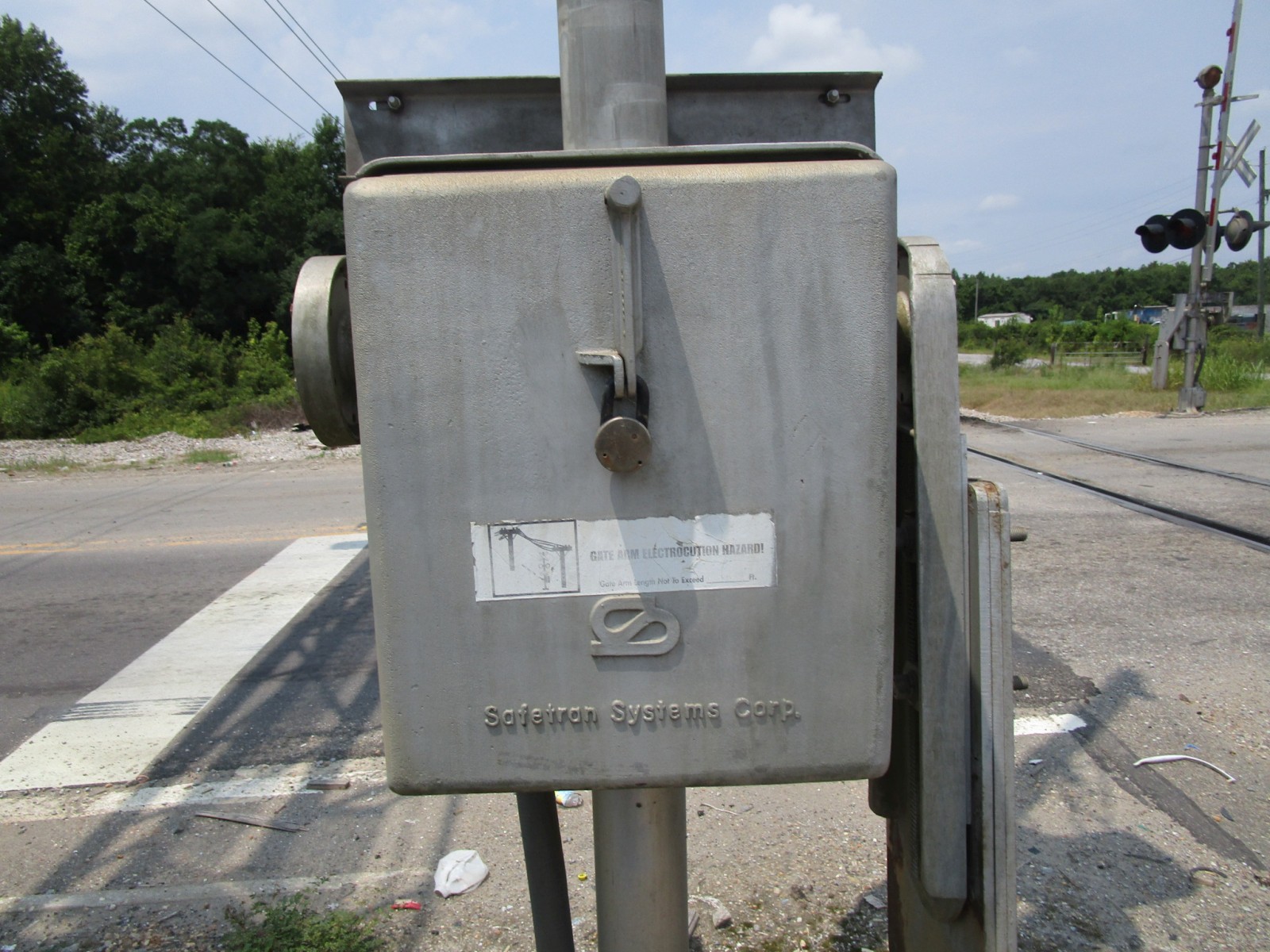

A Safetran gate mechanism.

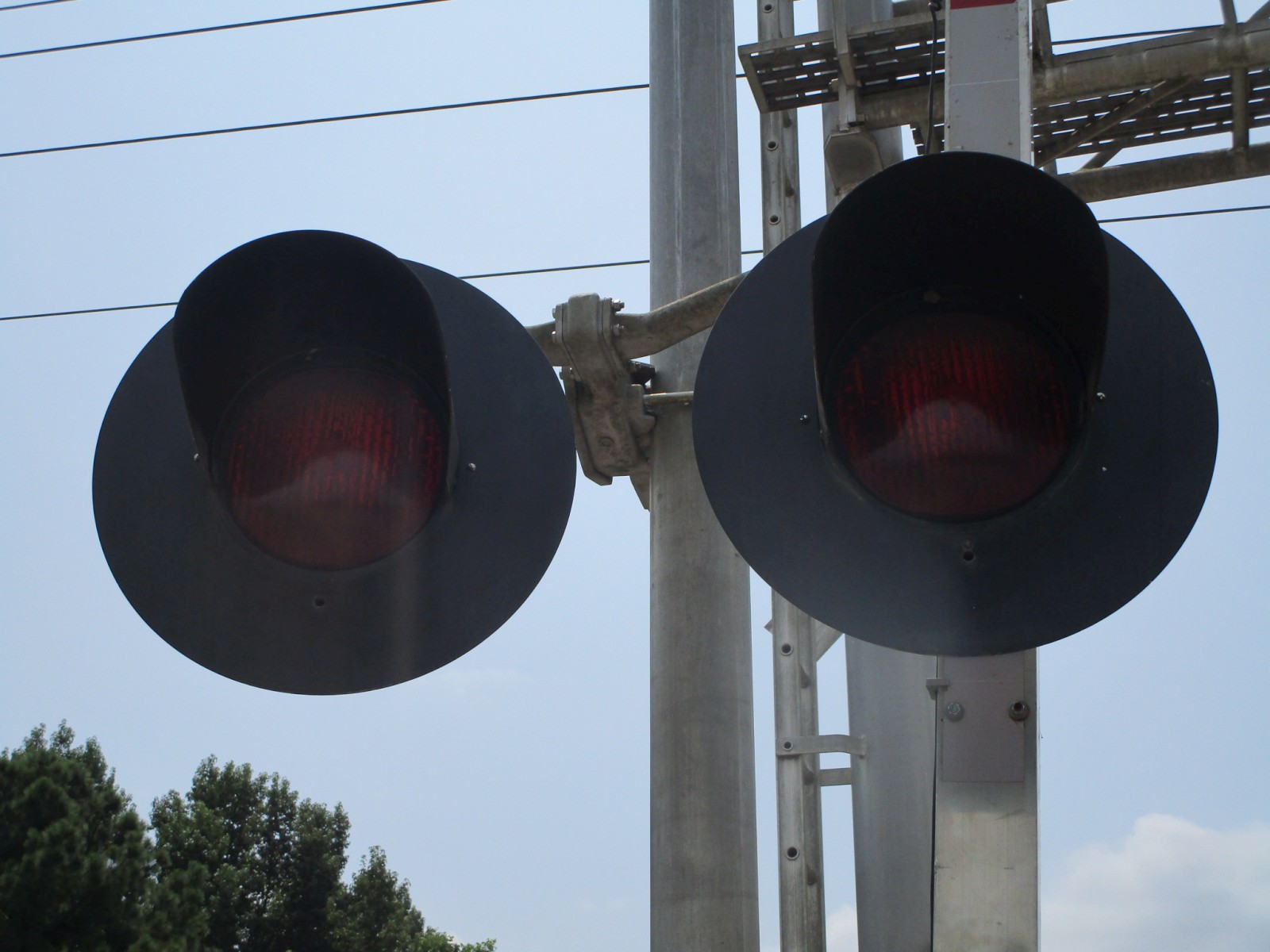

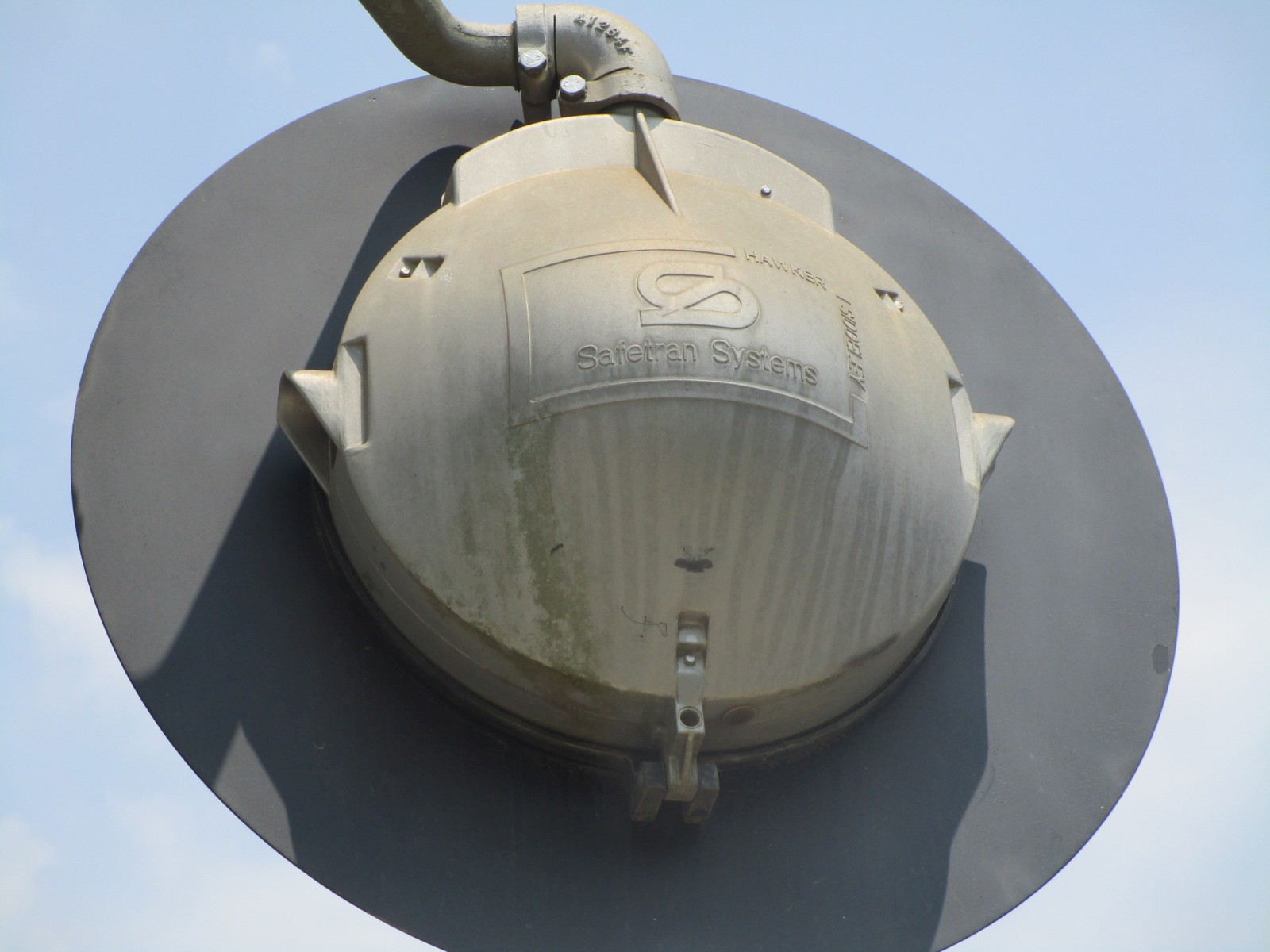

The rear mast lights are a pair of Safetran 12x24 inch lights.

16

17

18

19

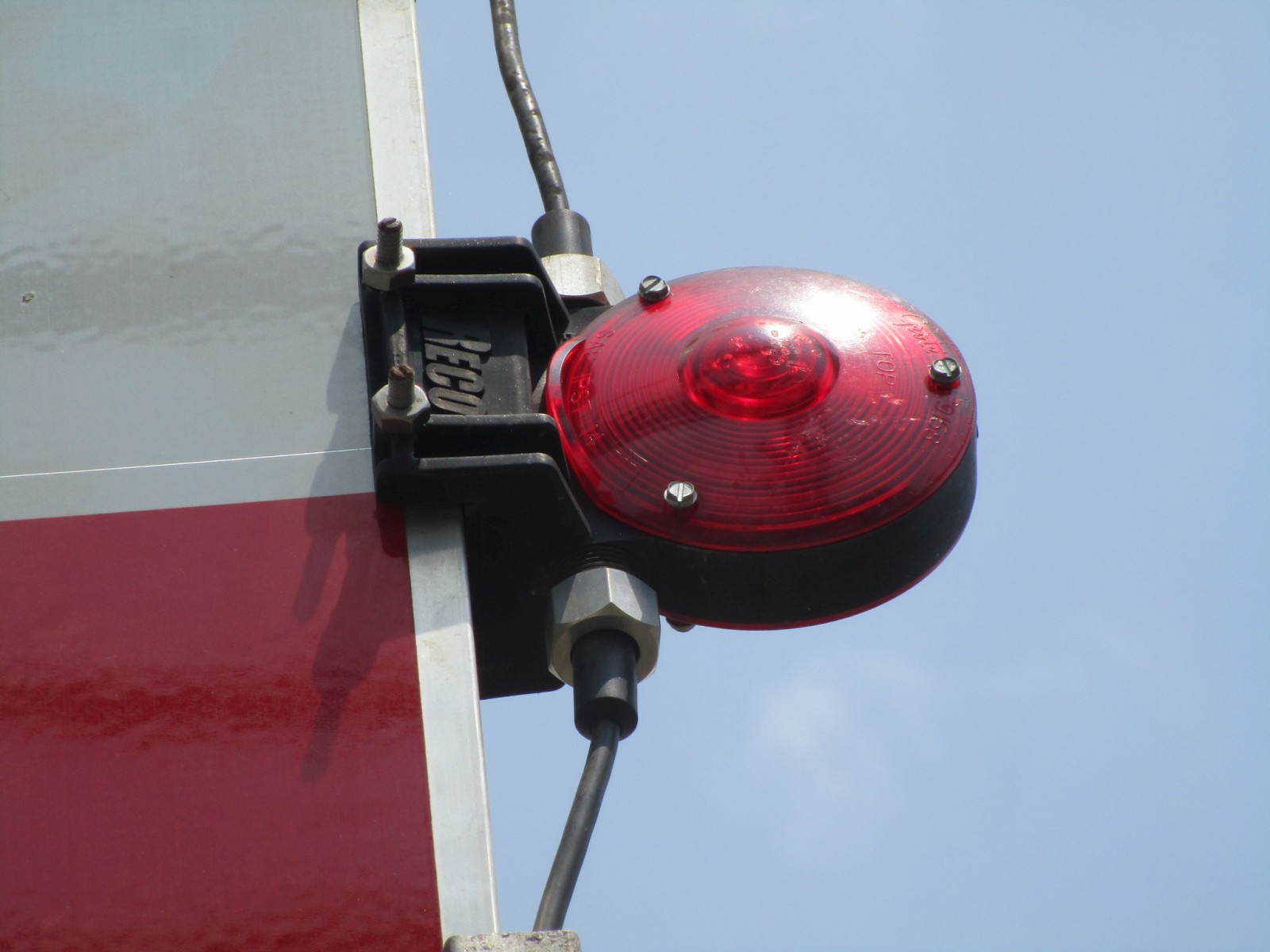

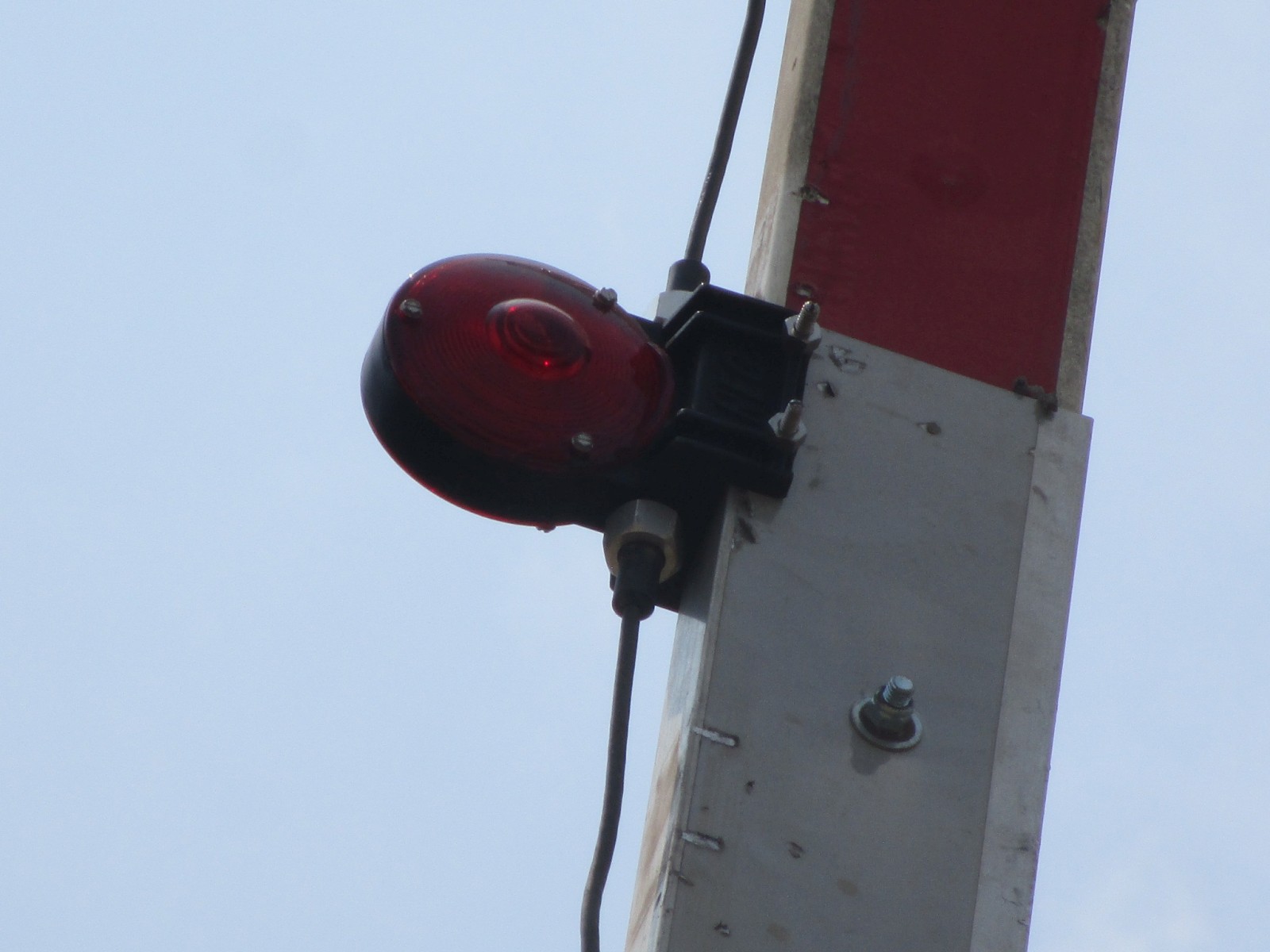

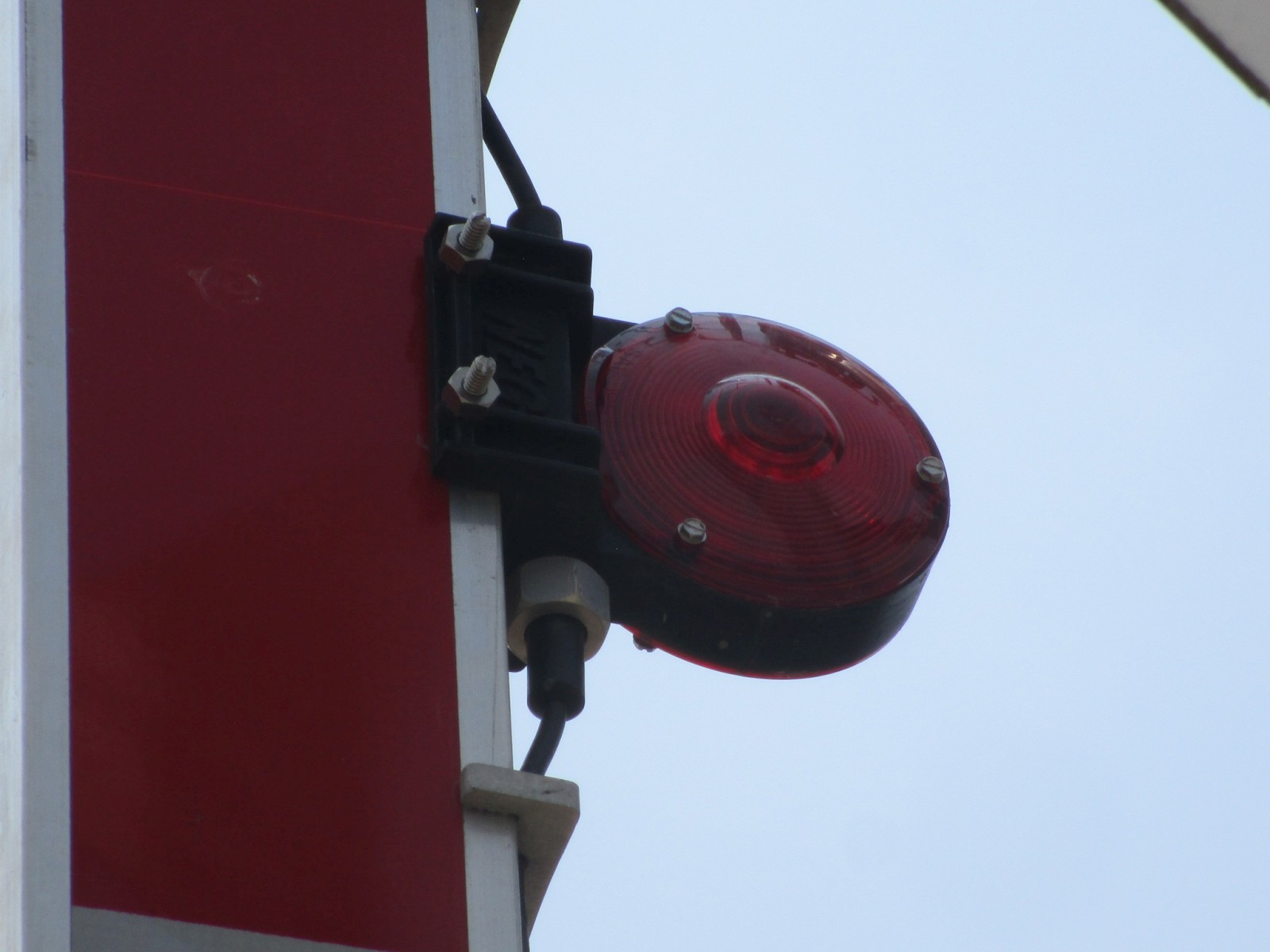

This signal has a mix of RECO gate lights and NEG LED gate lights.

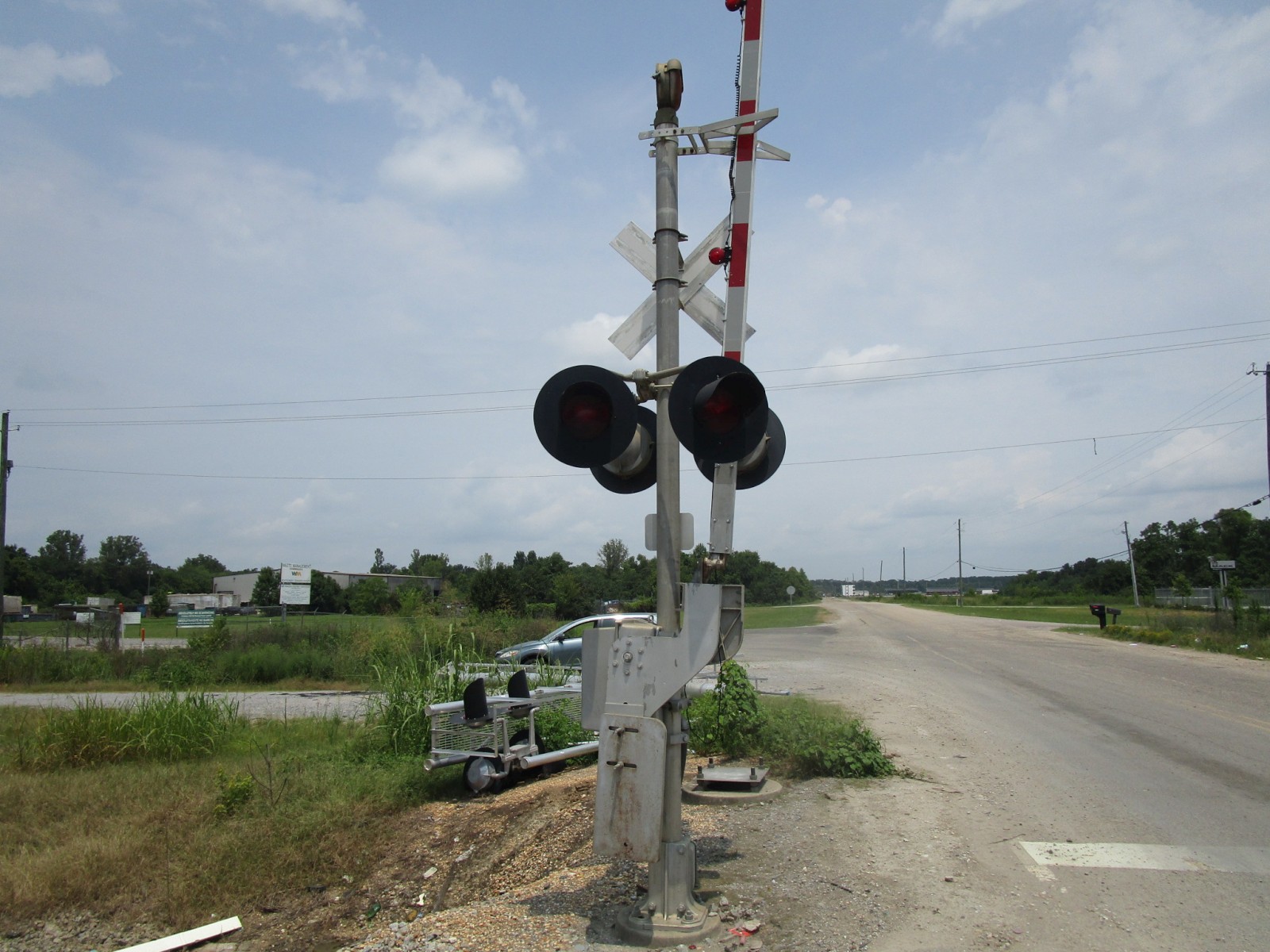

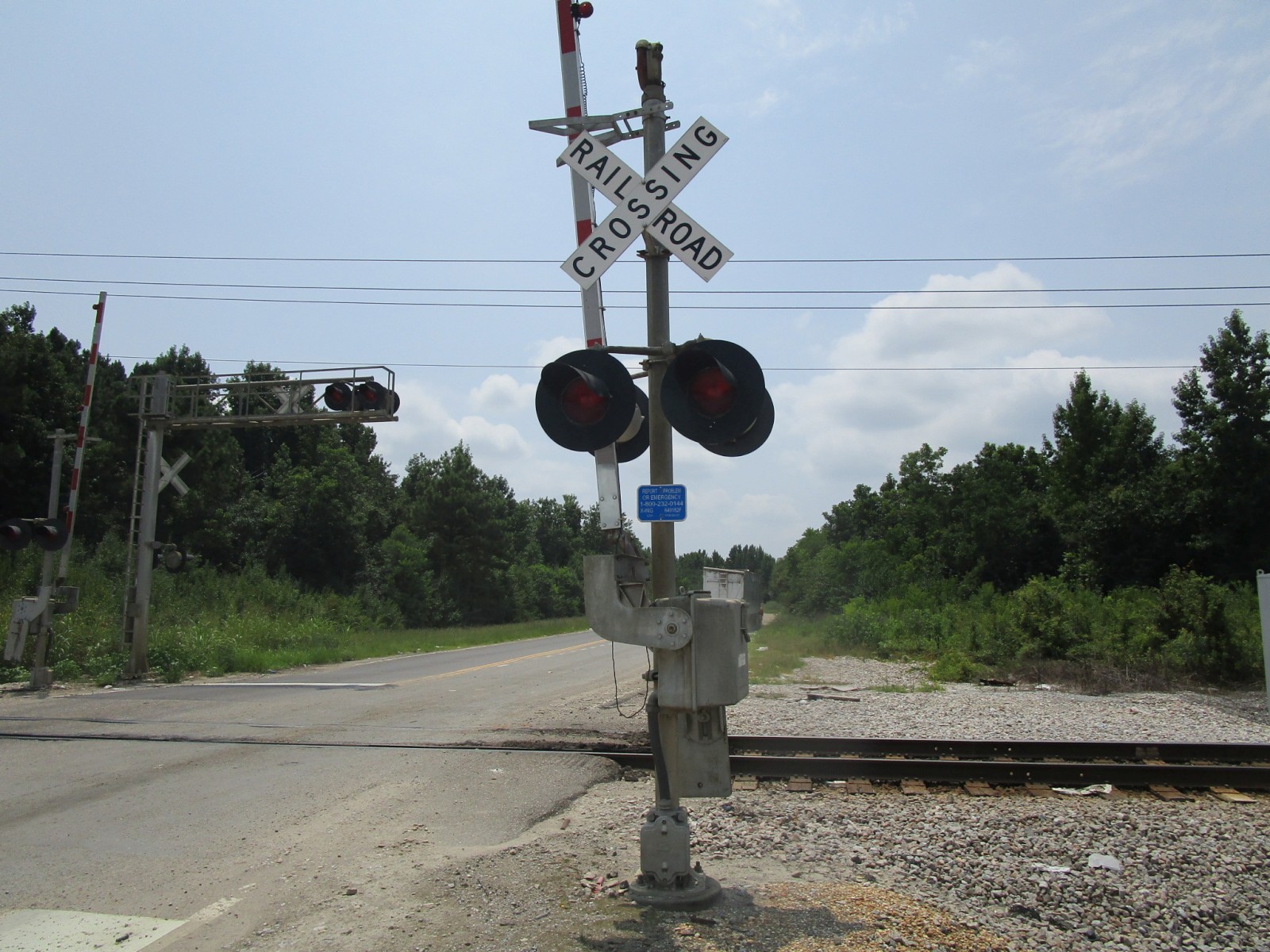

The second signal.

20

21

22

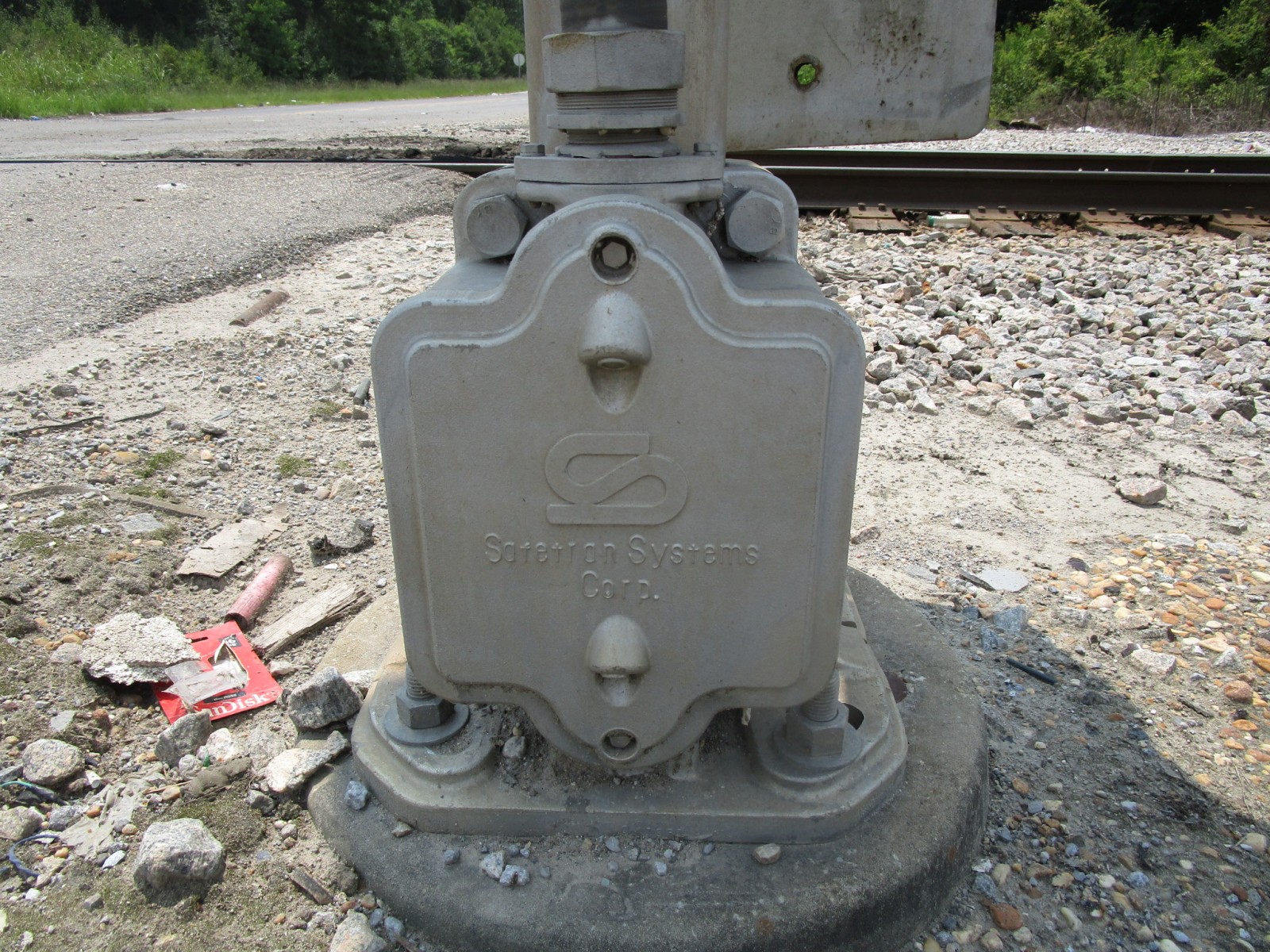

It has another Safetran base.

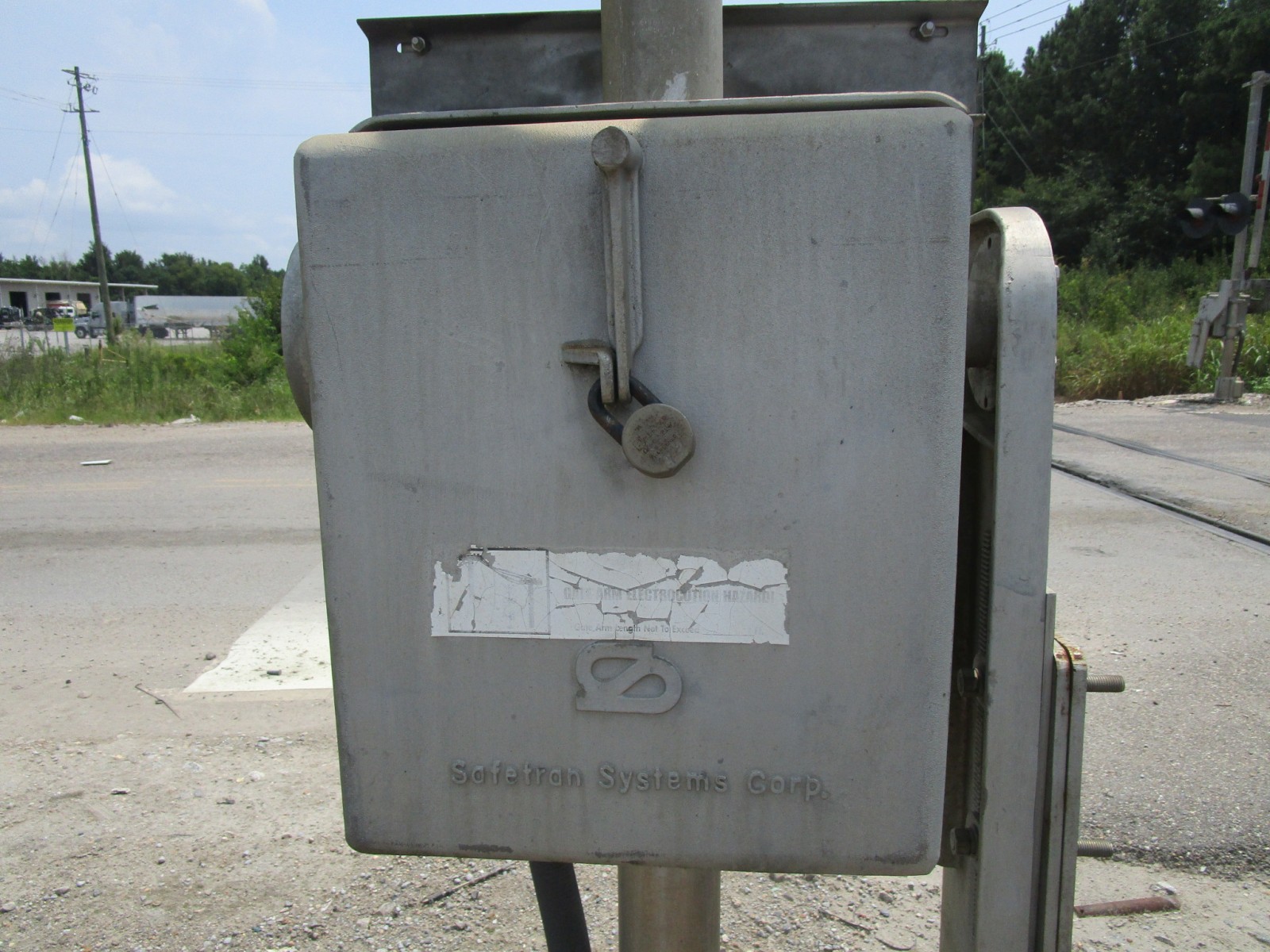

Another Safetran gate mechanism.

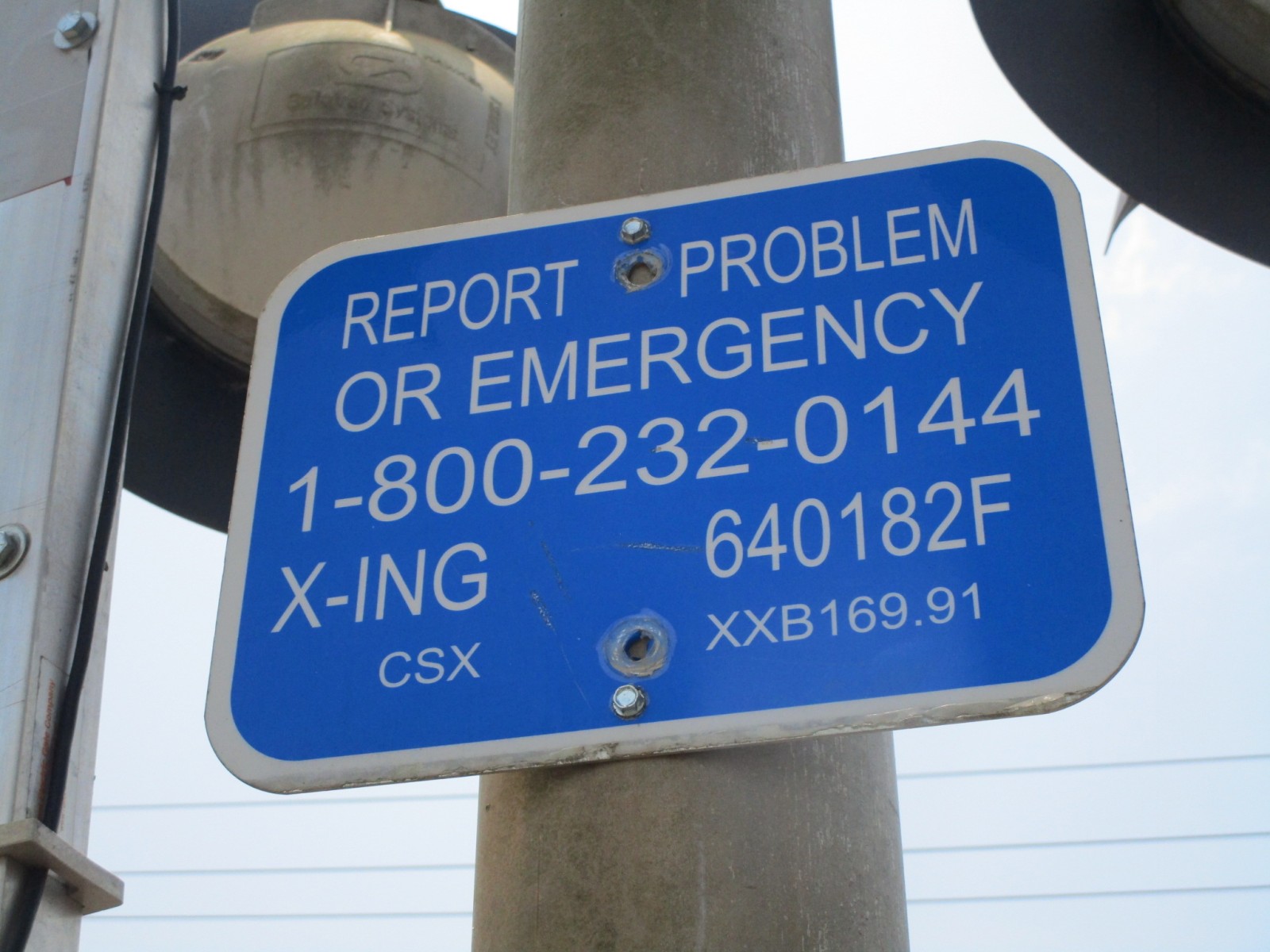

The emergency information, which has an incorrect DOT number.

23

24

25

26

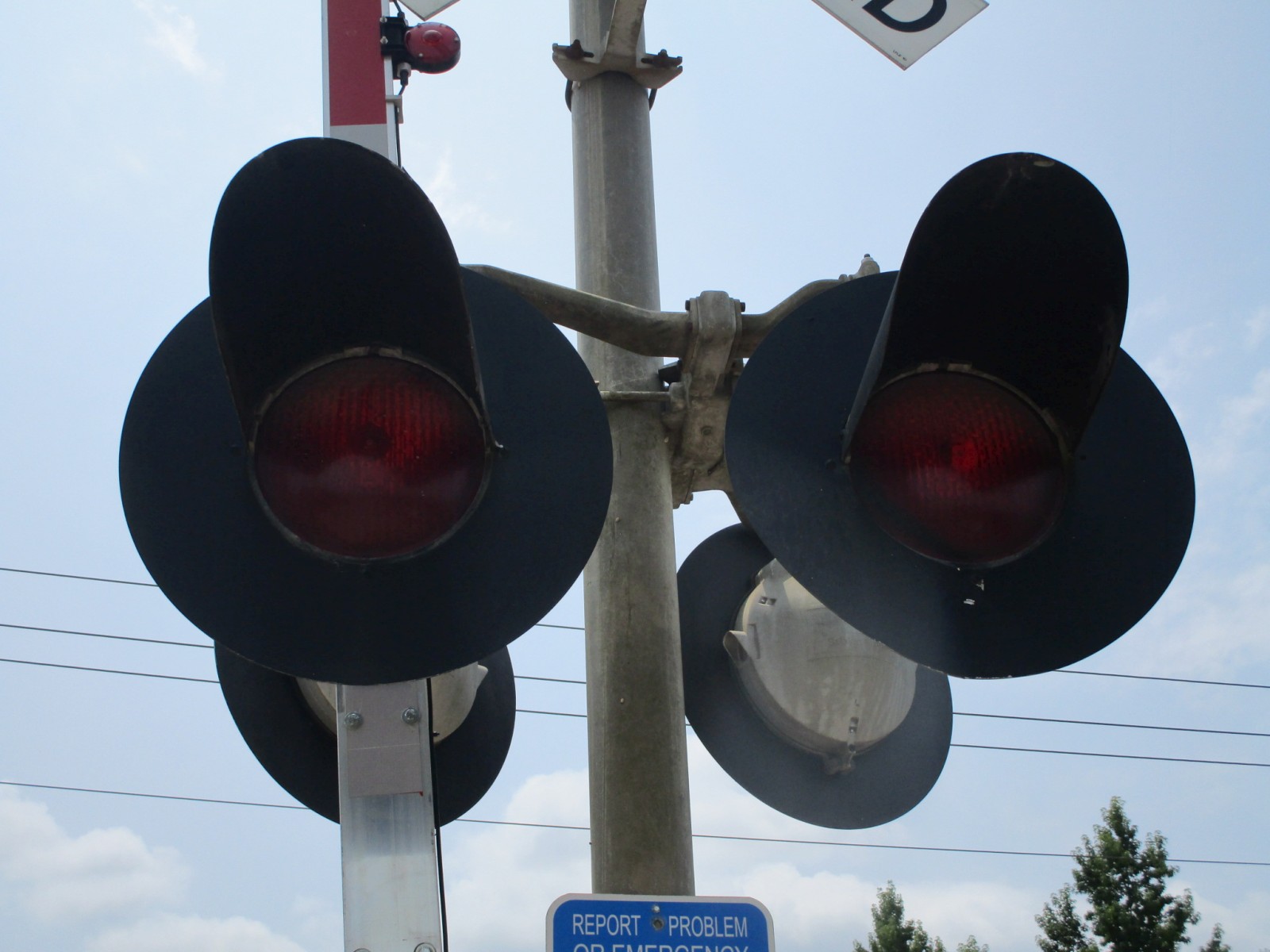

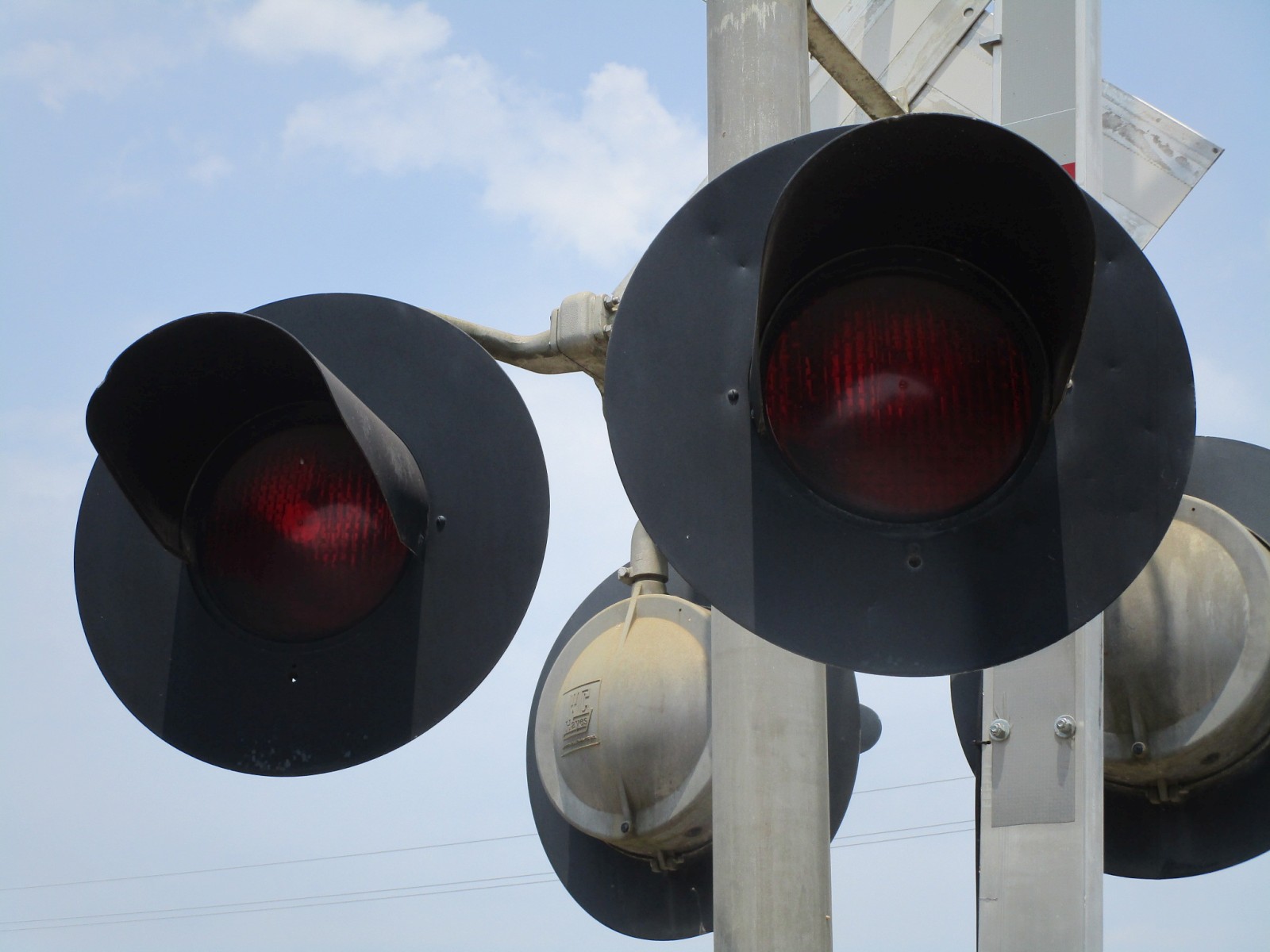

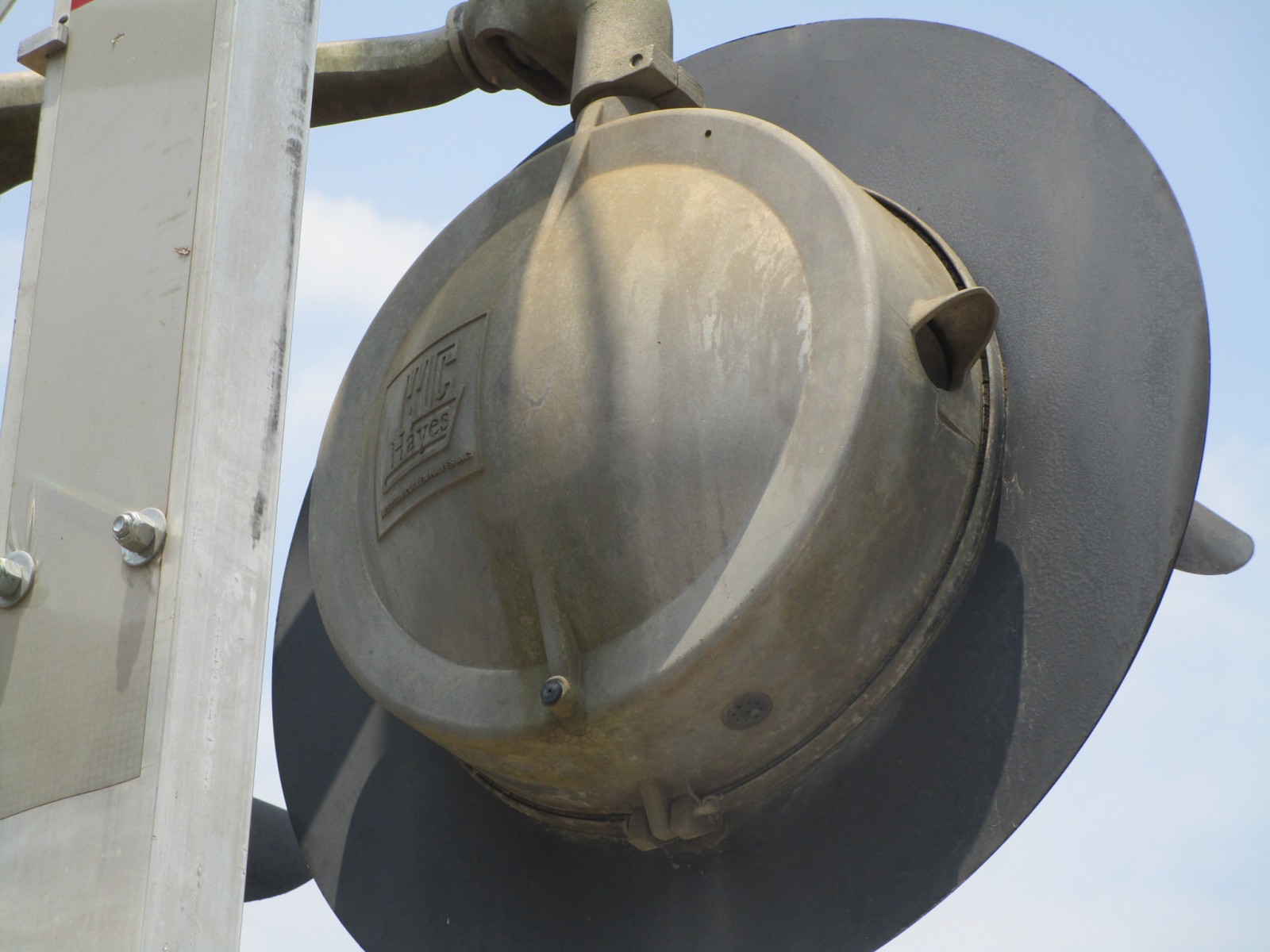

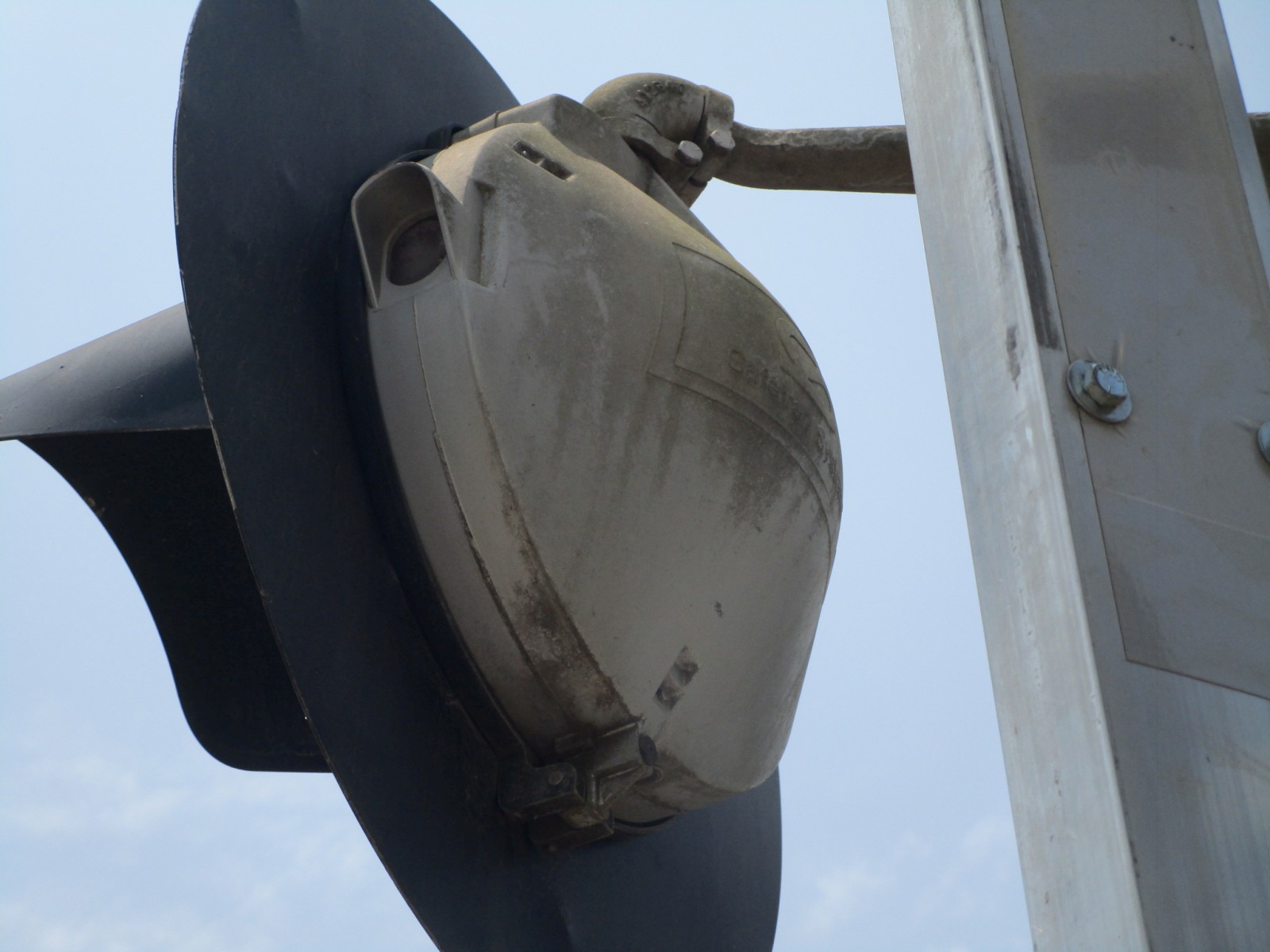

The front lights on this signal are another pair of WCH 12x24 inch lights!
The rear lights on this signal are another pair of Safetran 12x24 inch lights.

27

28

29

30

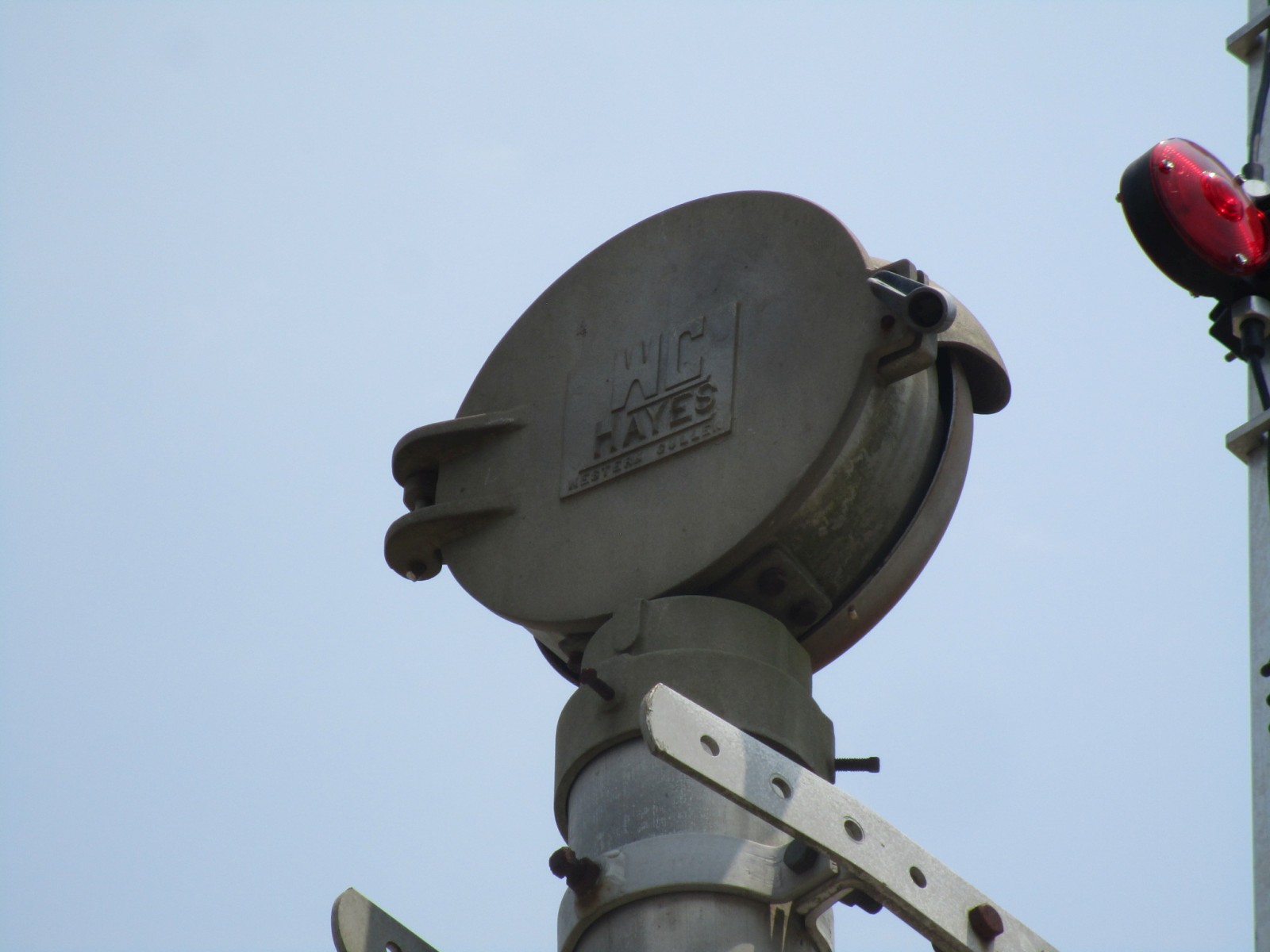

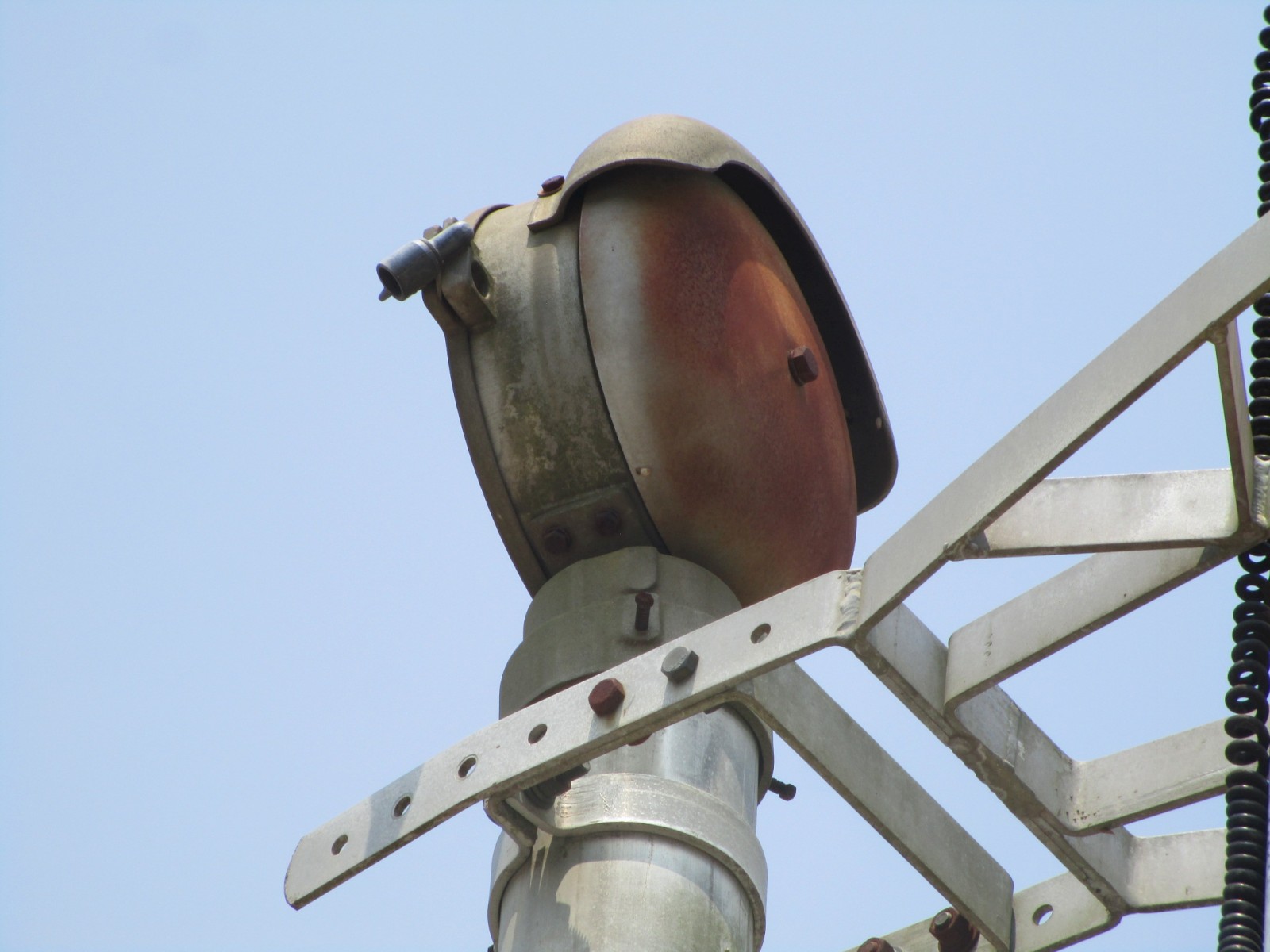

The lone bell here is a WCH mechanical bell!
This signal has NEG LED gate lights.

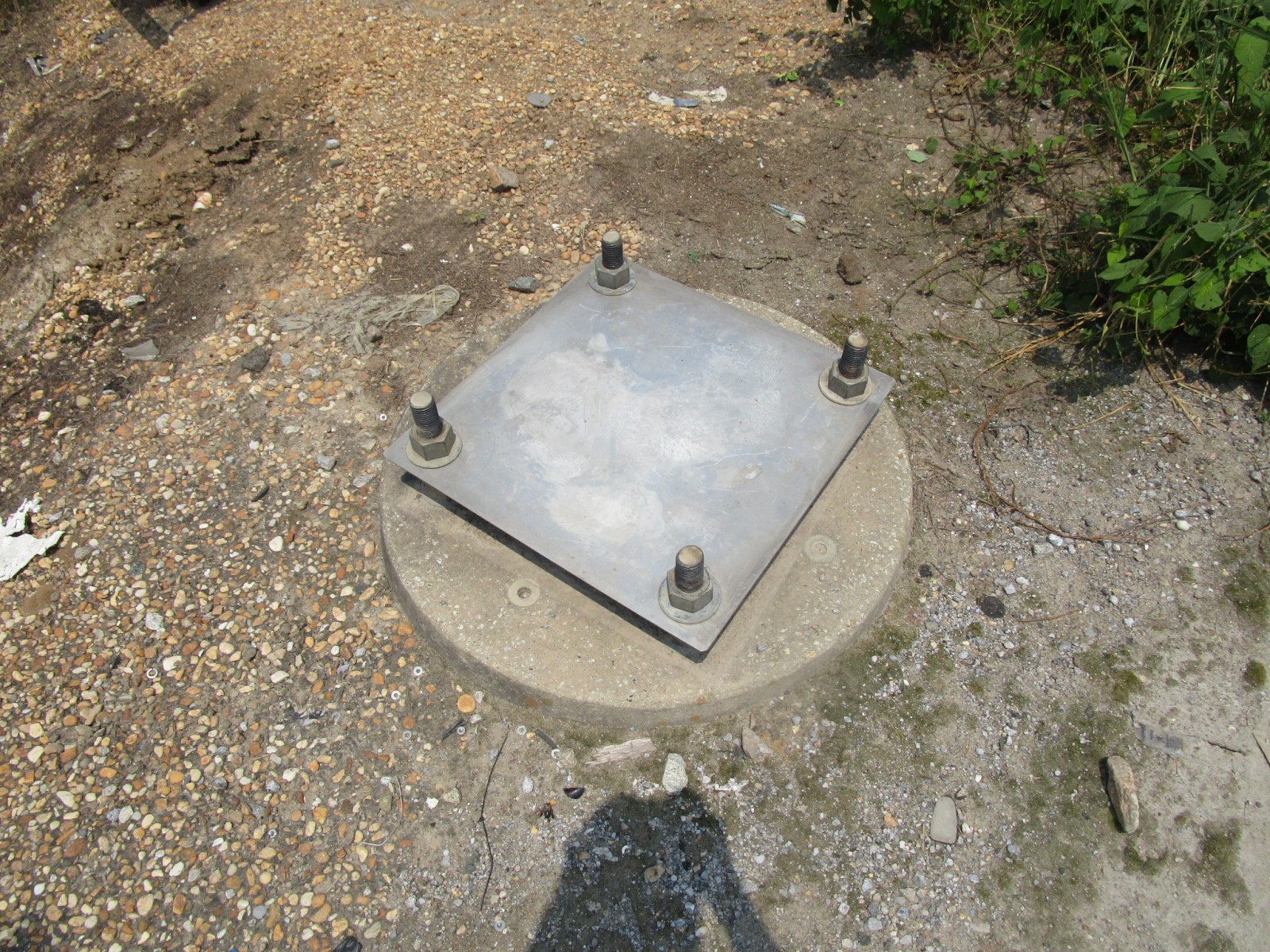

The foundation for another cantilever signal.

31

32

33

34

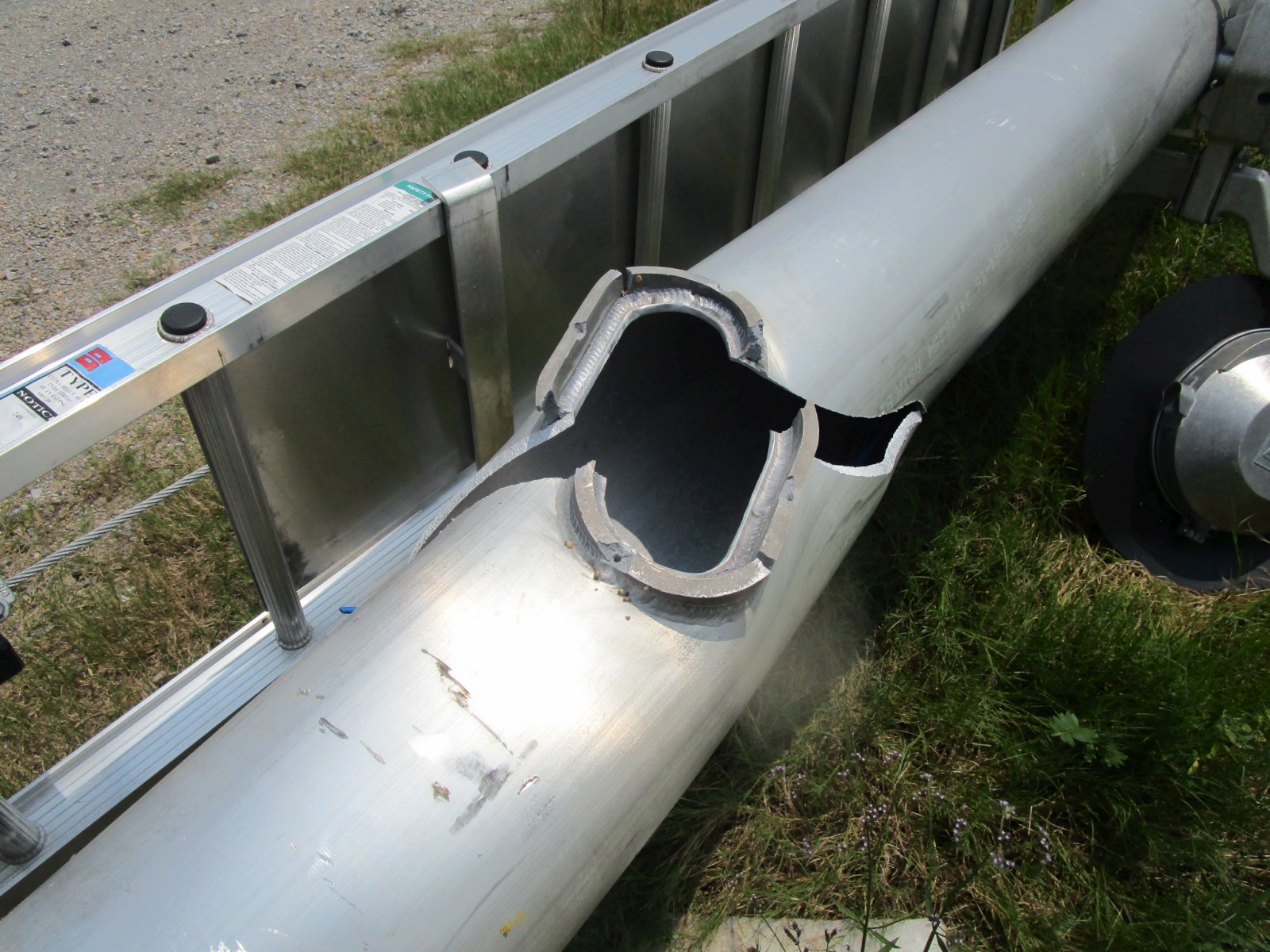

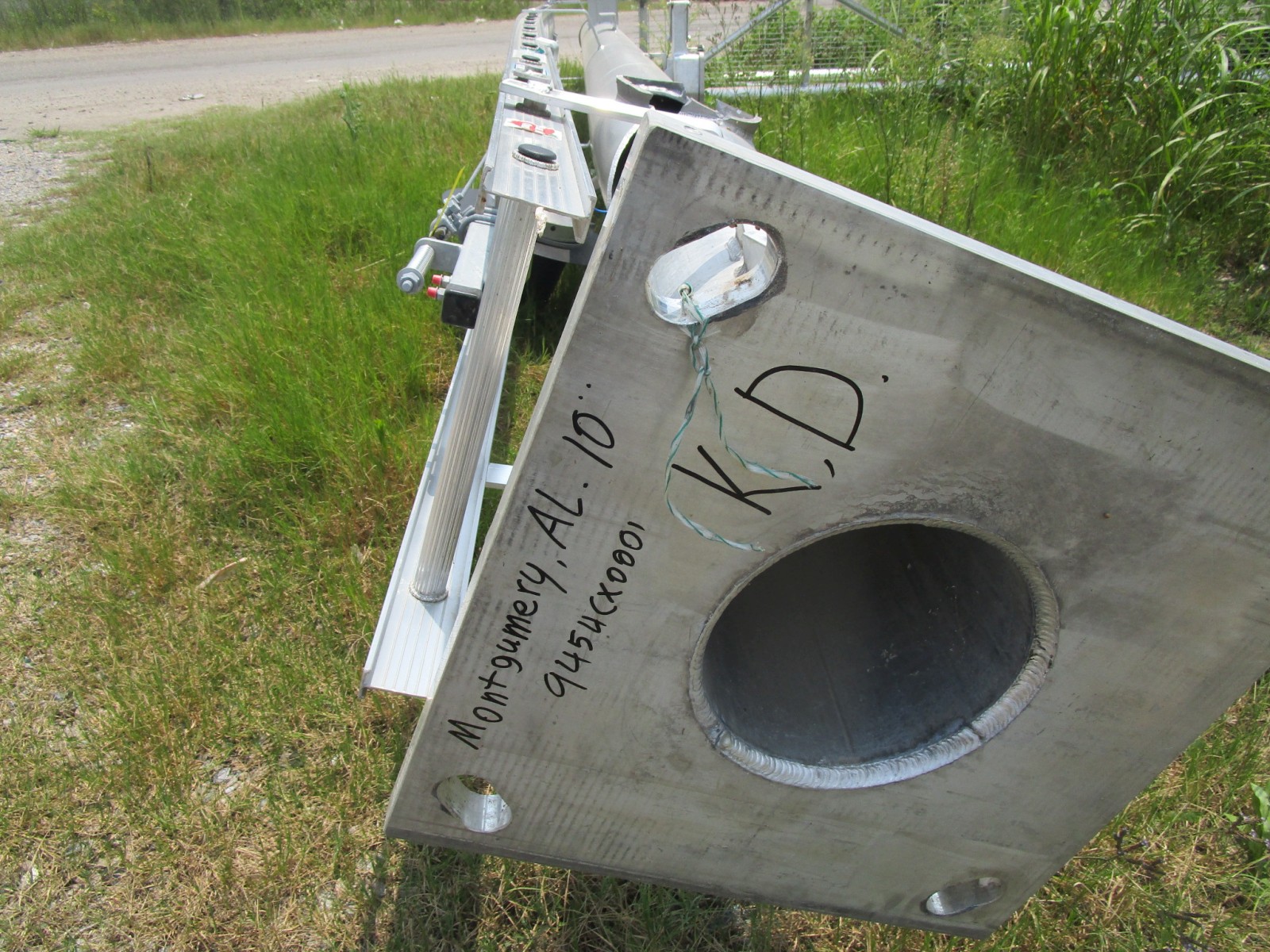

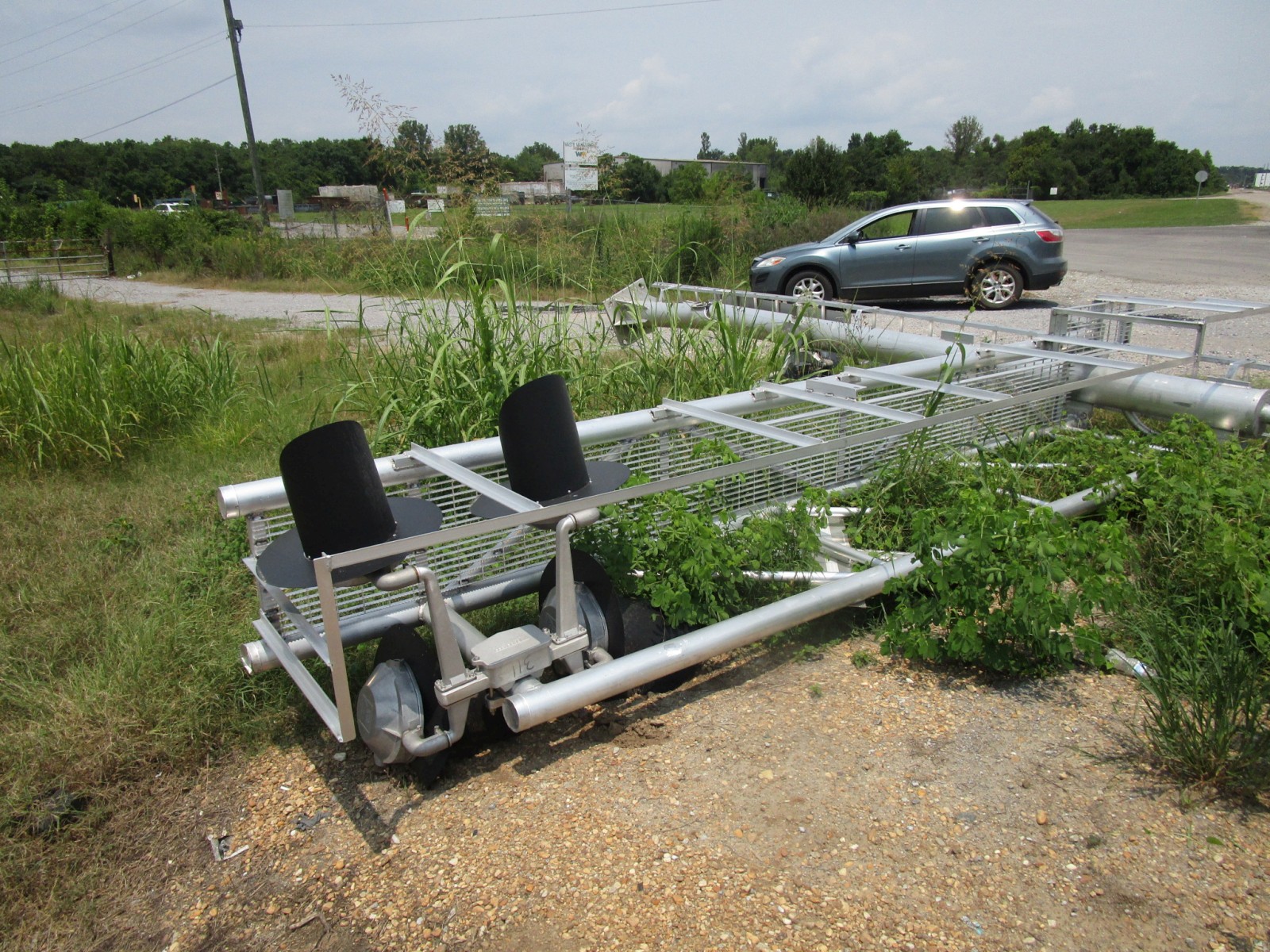

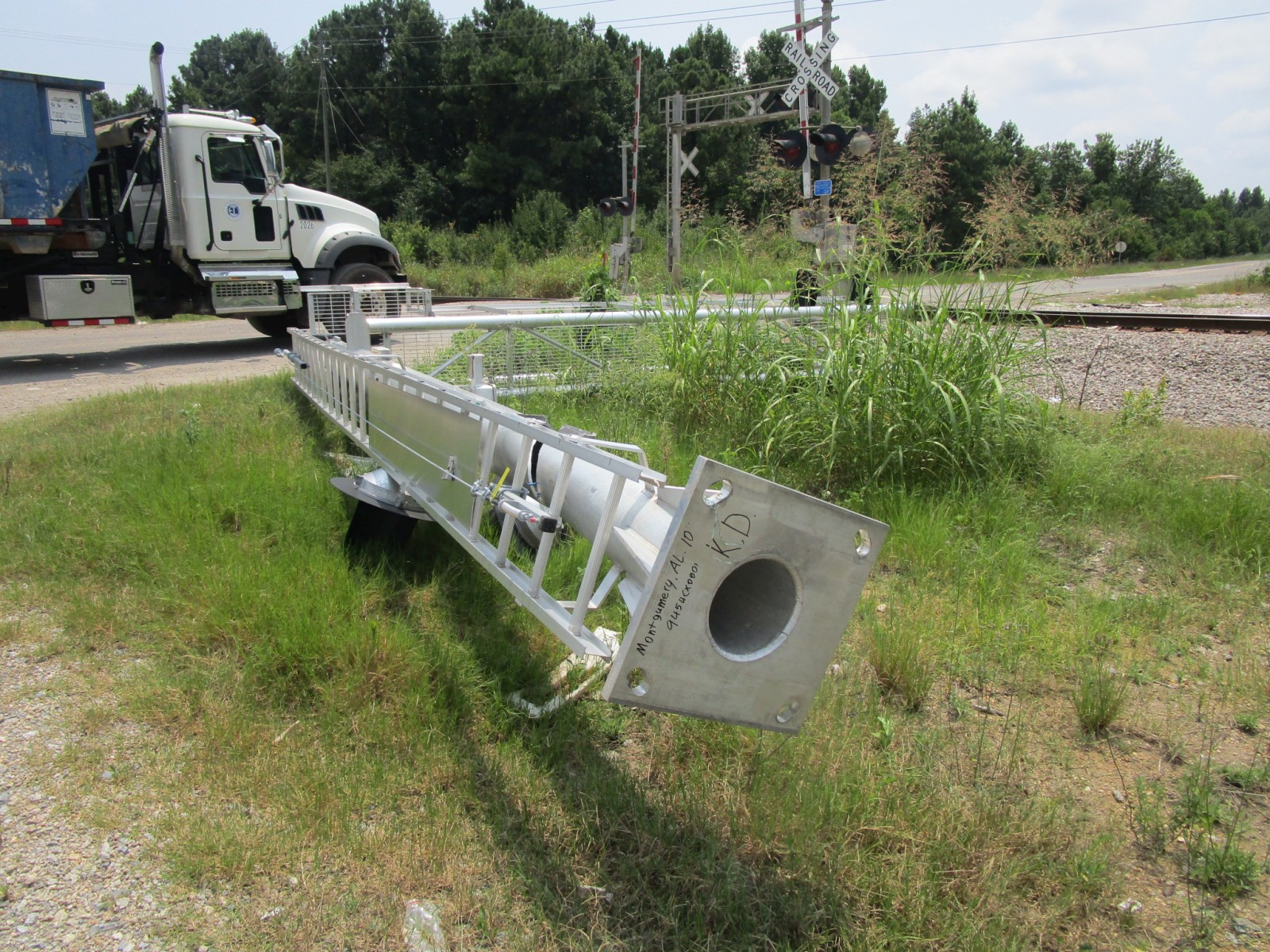

A damaged cantilever lays next to the crossing! I believe this would've originally been mounted on the foundation in Picture 30, but the mast got cracked at some point. Not entirely sure who made it, but I suspect Progress Rail did.

35

36

37

38

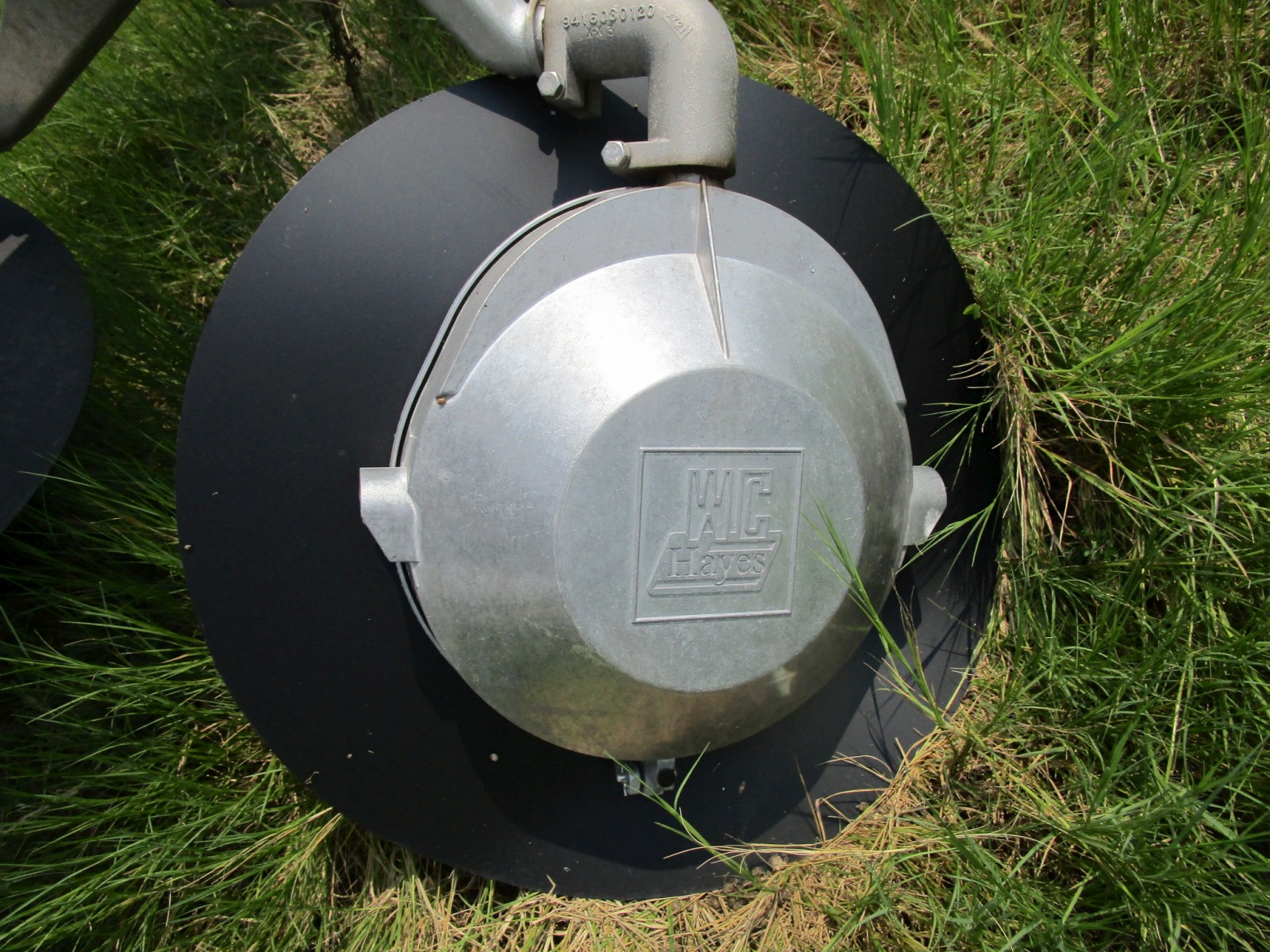

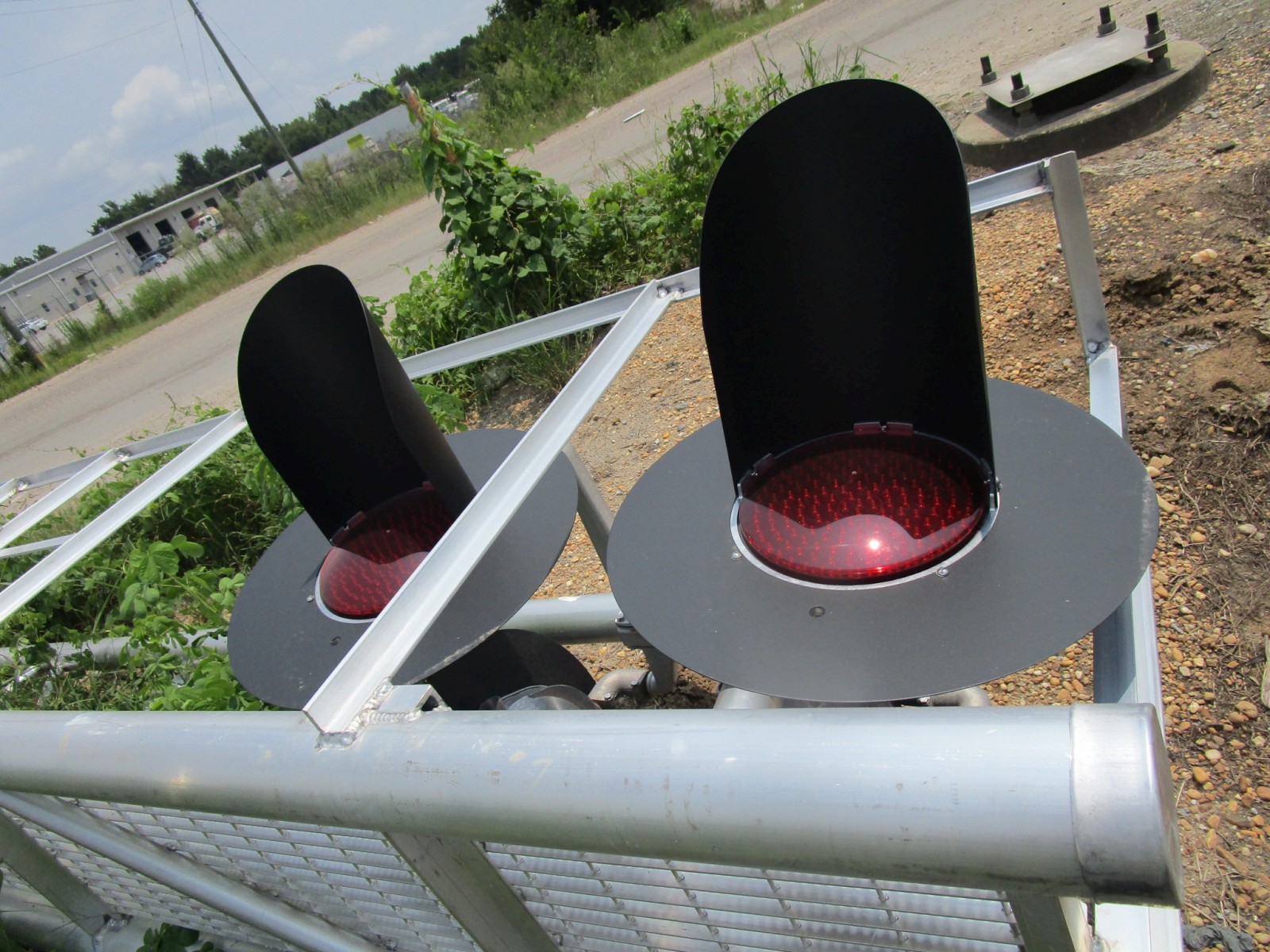

The lights on this signal are all WCH 12x24 inch lights with Leotek EV Series LEDs.

39

40

41

42

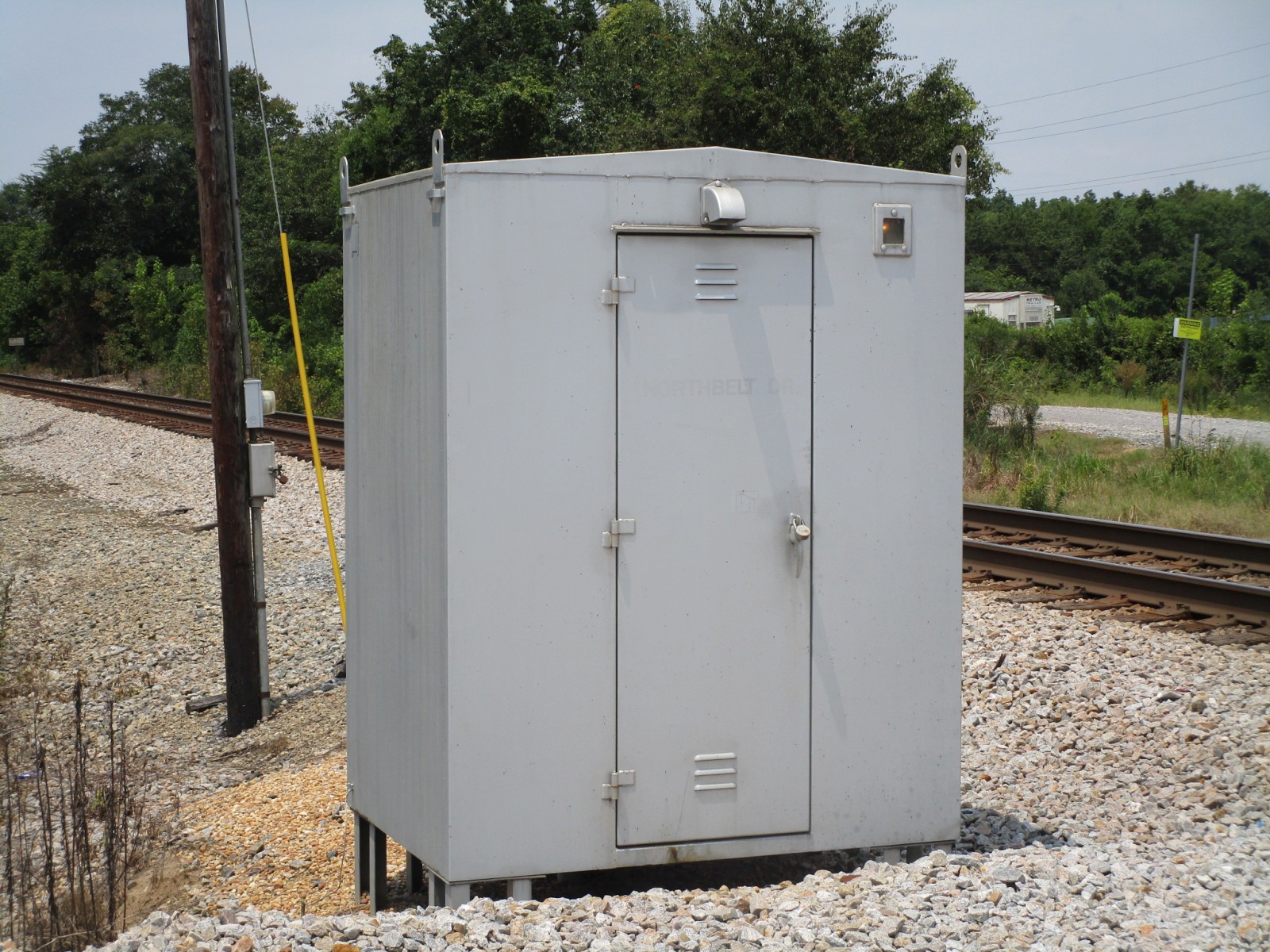

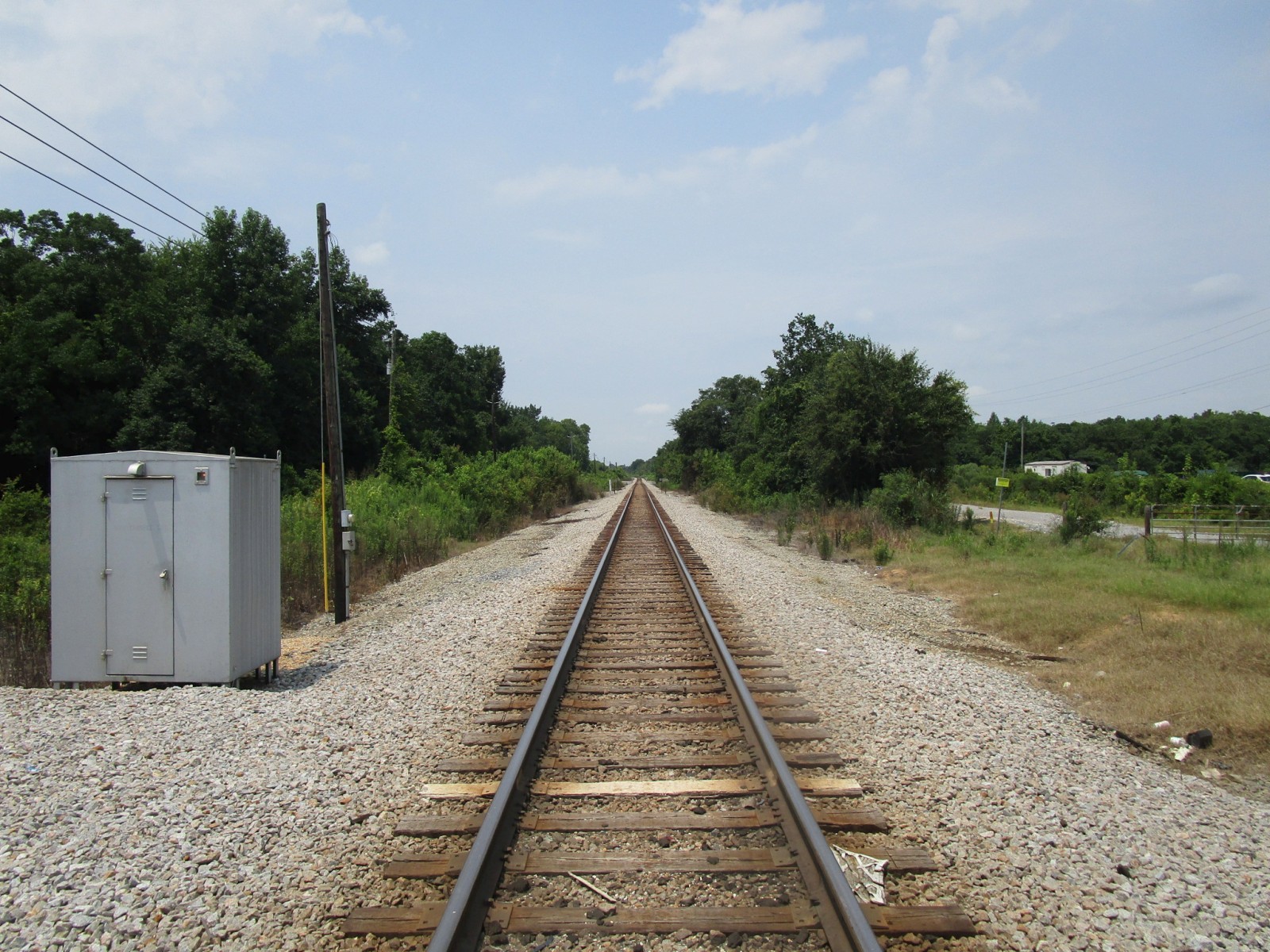

The relay case.

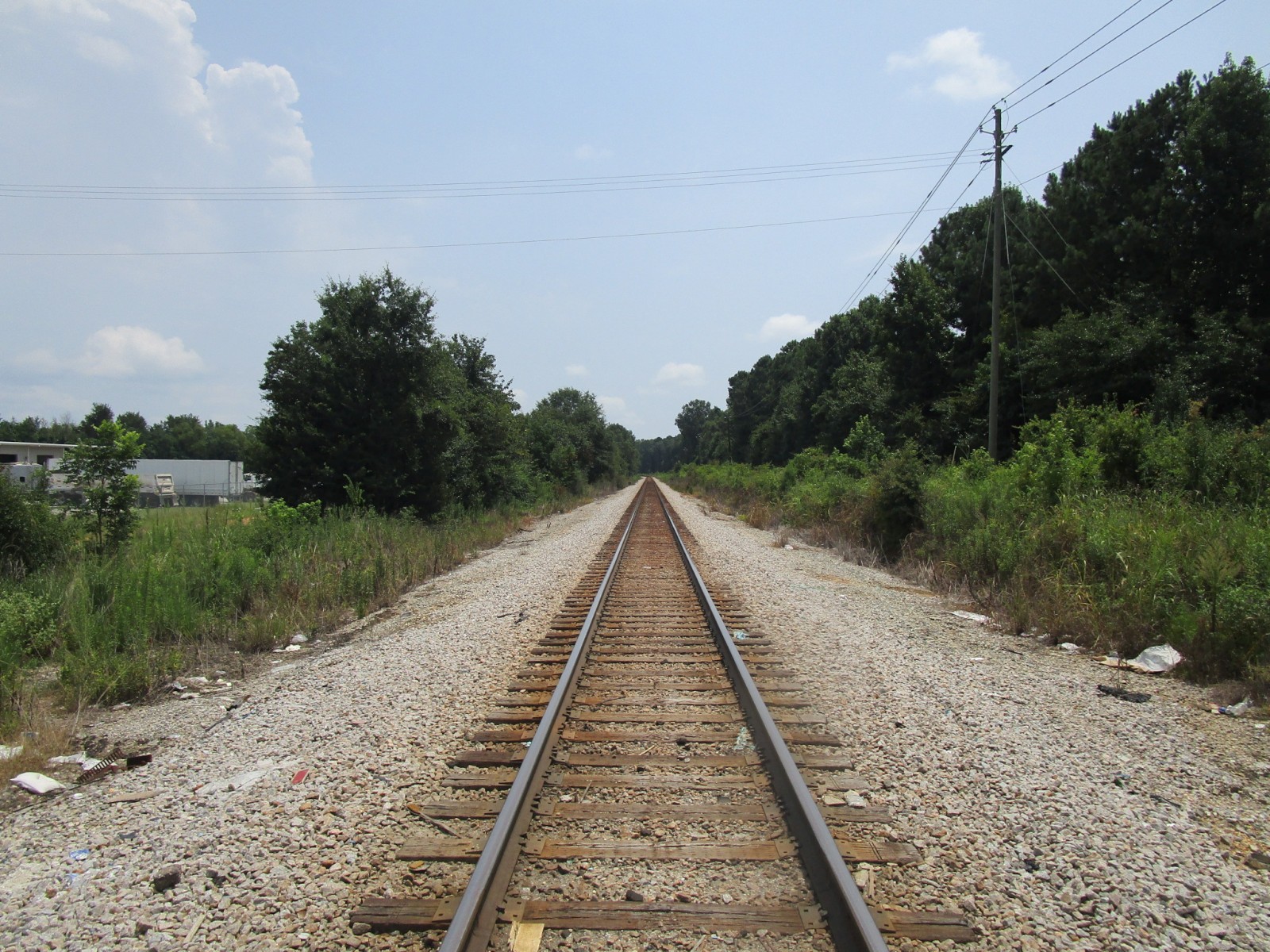

Looking east towards Wares Ferry Road.
Looking west towards Coliseum Boulevard #2.

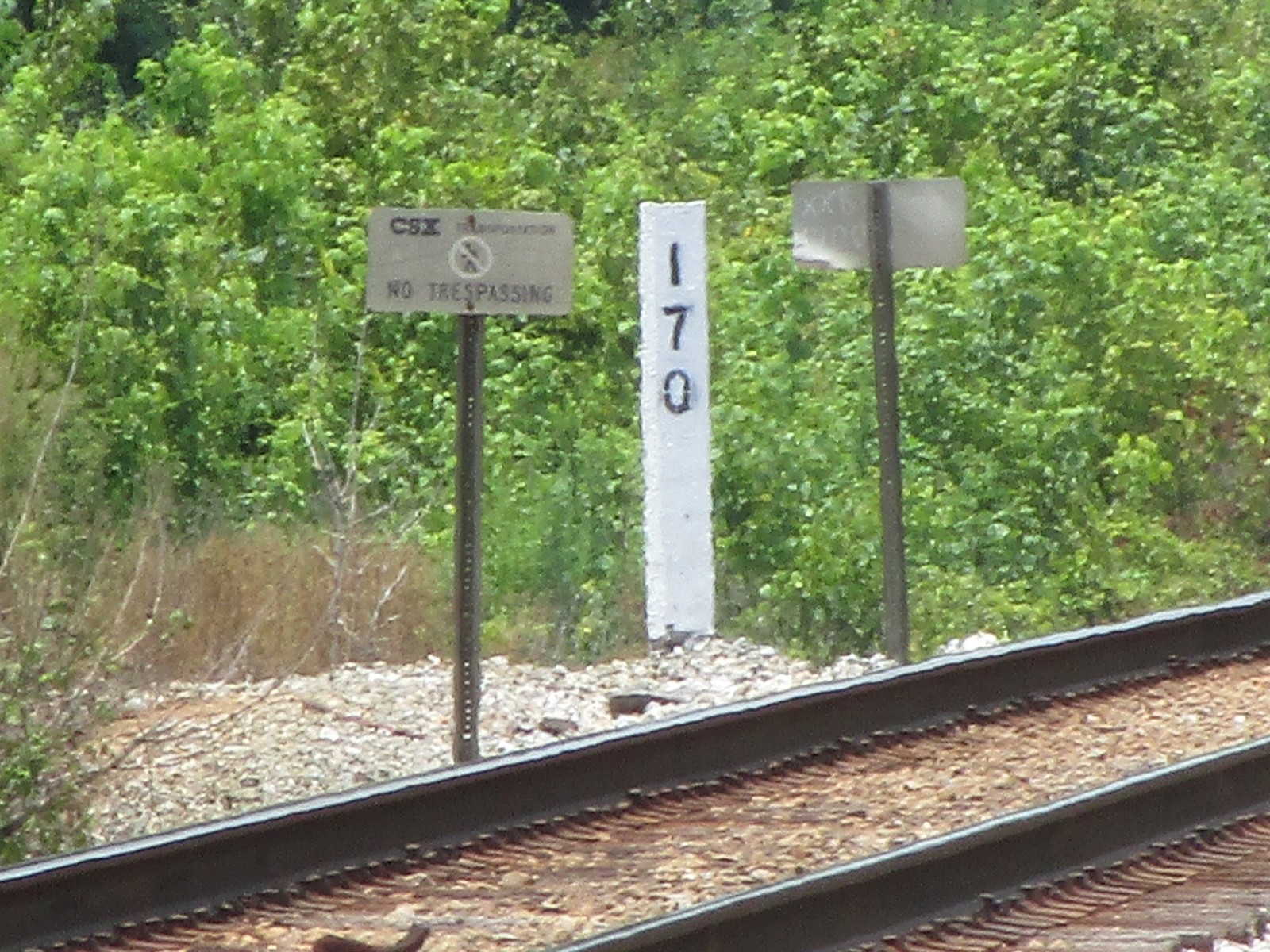

Milepost 170 stands near the crossing.



All pictures were taken on 8-2-21.
