MP:  000380.970



Updated November 12, 2023



Total Accidents:   1
Crossing DOT #:  352245M
TOTAL DAILY TRAINS:   18   (AS OF 2020)



Page created by: freebrickproductions



This crossing is located on the CSX S&NA North Subdivision.



>>>>>>>>>>>>> Signal #1 Signal #2
Bell: NEG electronic N/A
Base: WCH WCH
Light Frames: 4 - 12x24" WCH w/ Leotek EV Series LEDs 4 - 12x24" WCH w/ Leotek EV Series LEDs
Gate Lights:

2 - RECO LEDs

1 - NEG LED

 3 - RECO LEDs
Gate Mechanism: Siemens Sticker Style 2 Siemens Sticker Style 2
Gate Striping: Vertical + Diagonal tip Vertical + Diagonal tip



1

2

3

4

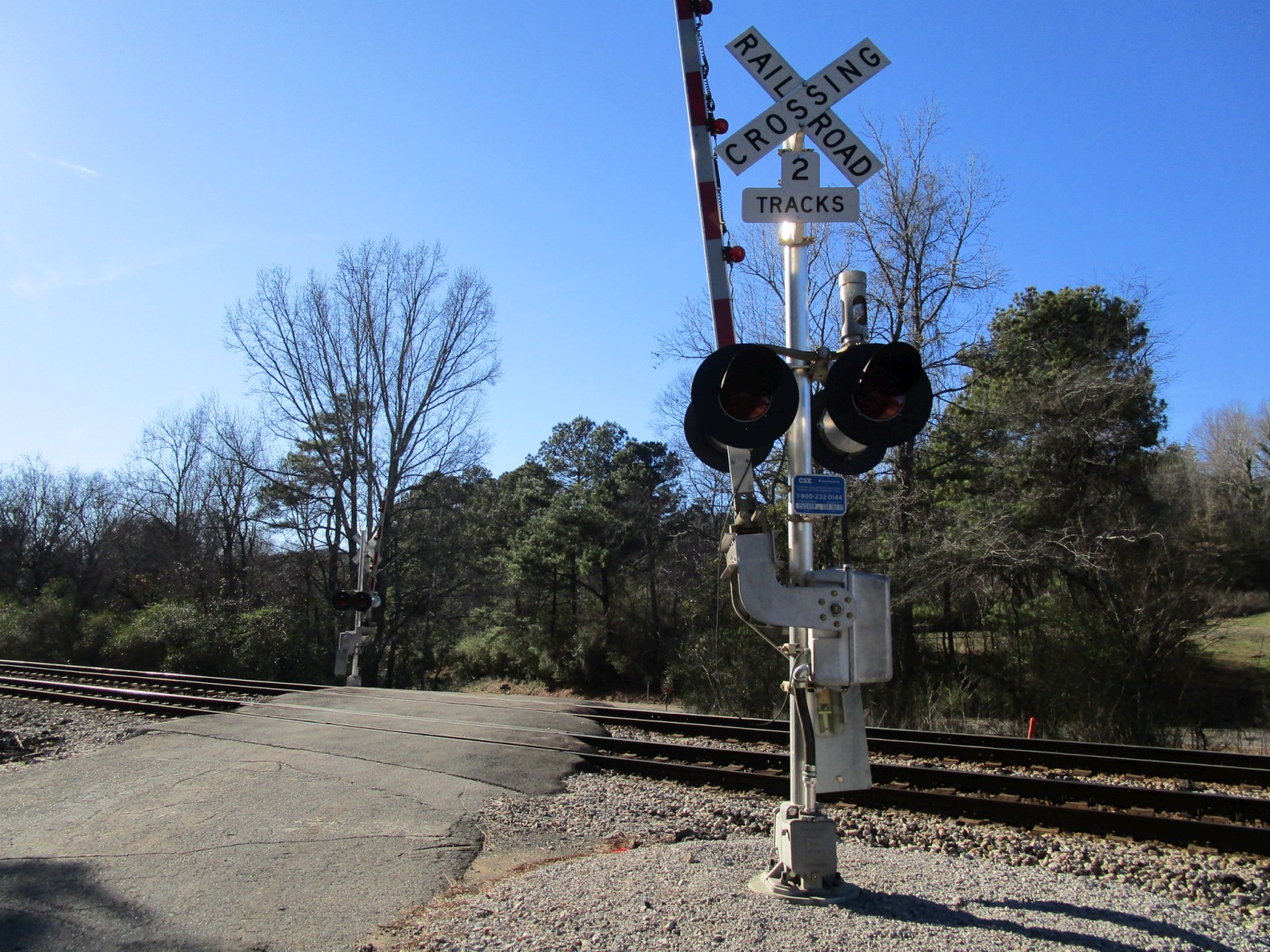

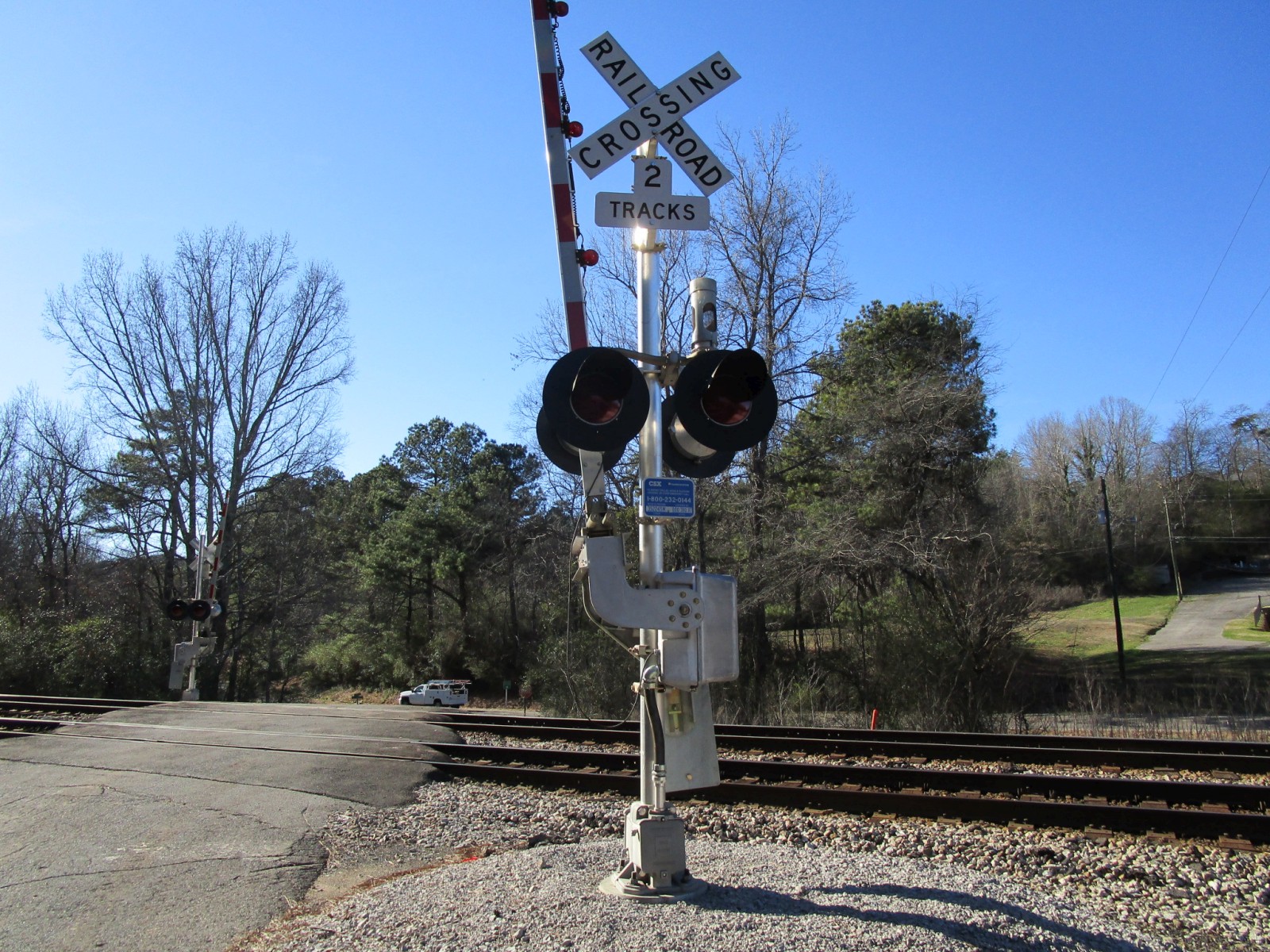

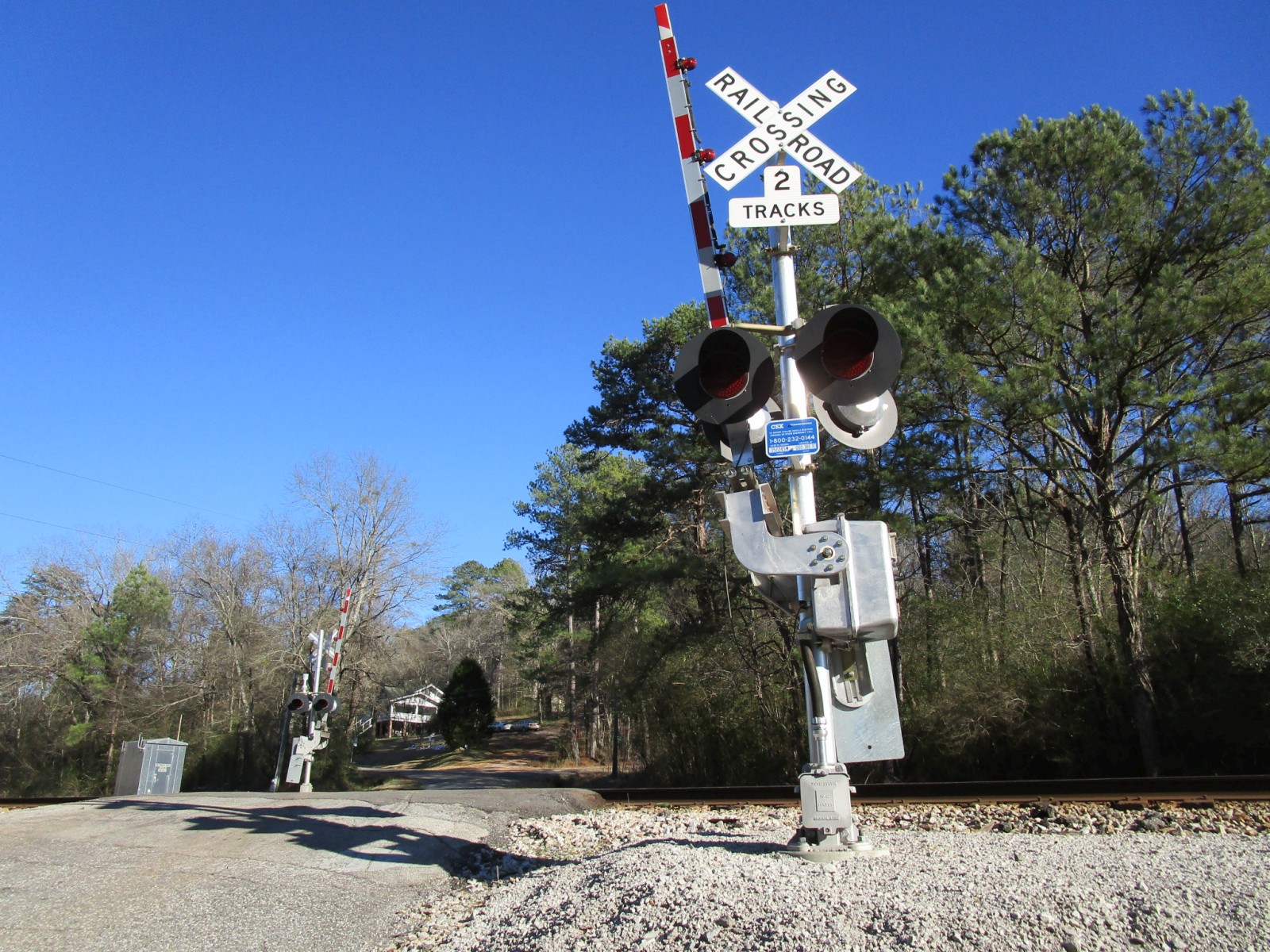

Overviews of the crossing.

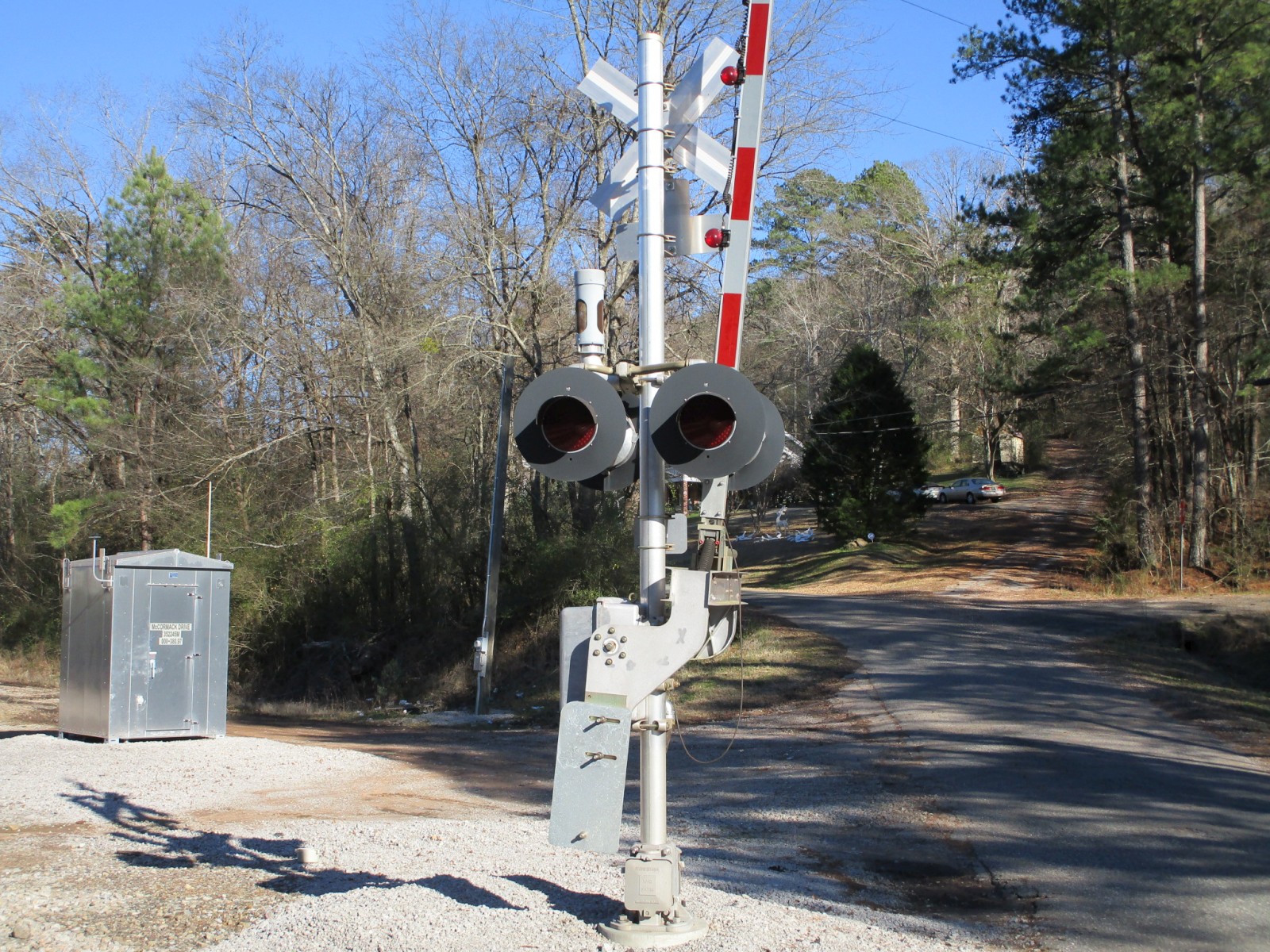

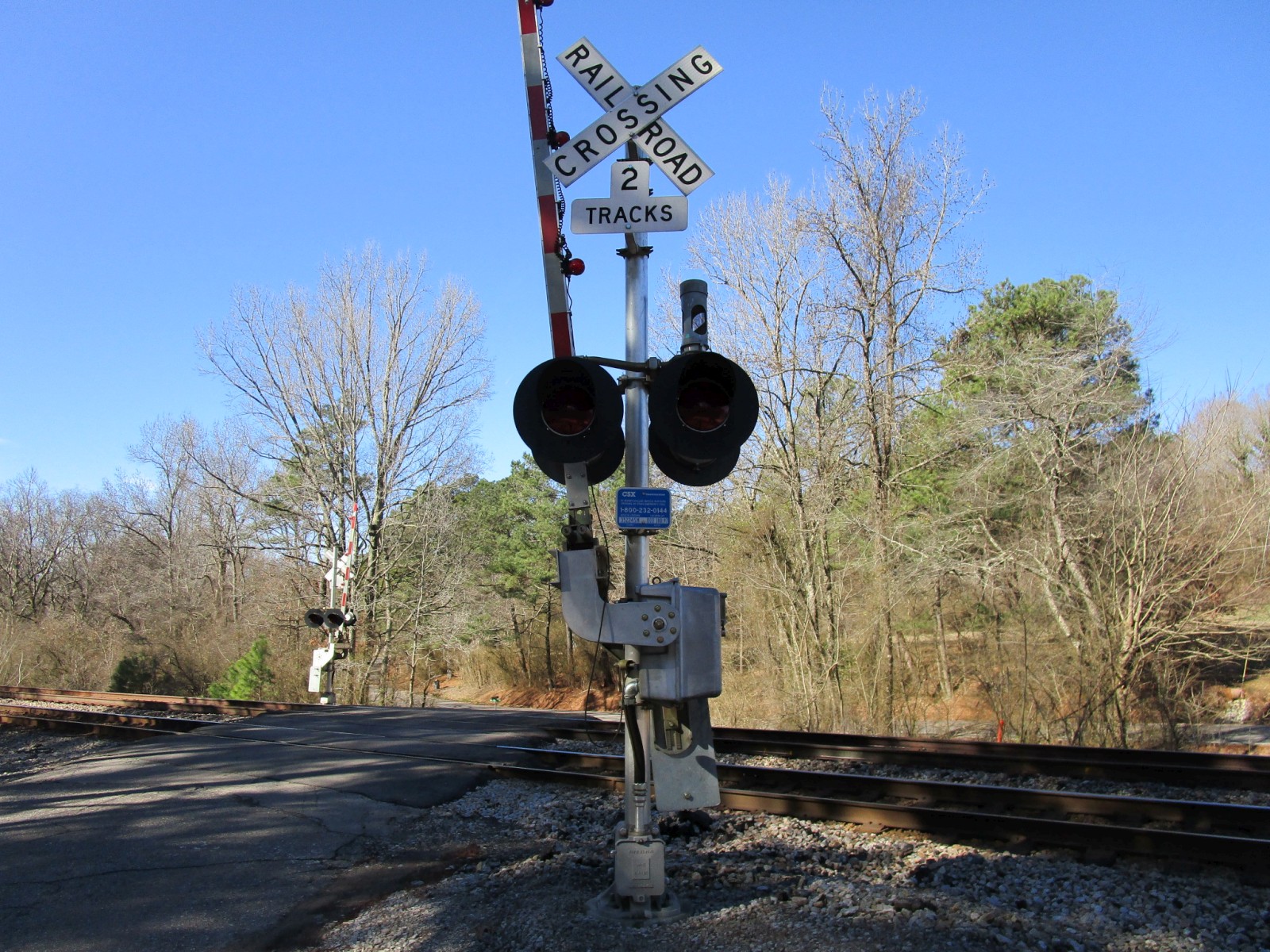

The first signal.

5

6

7

8

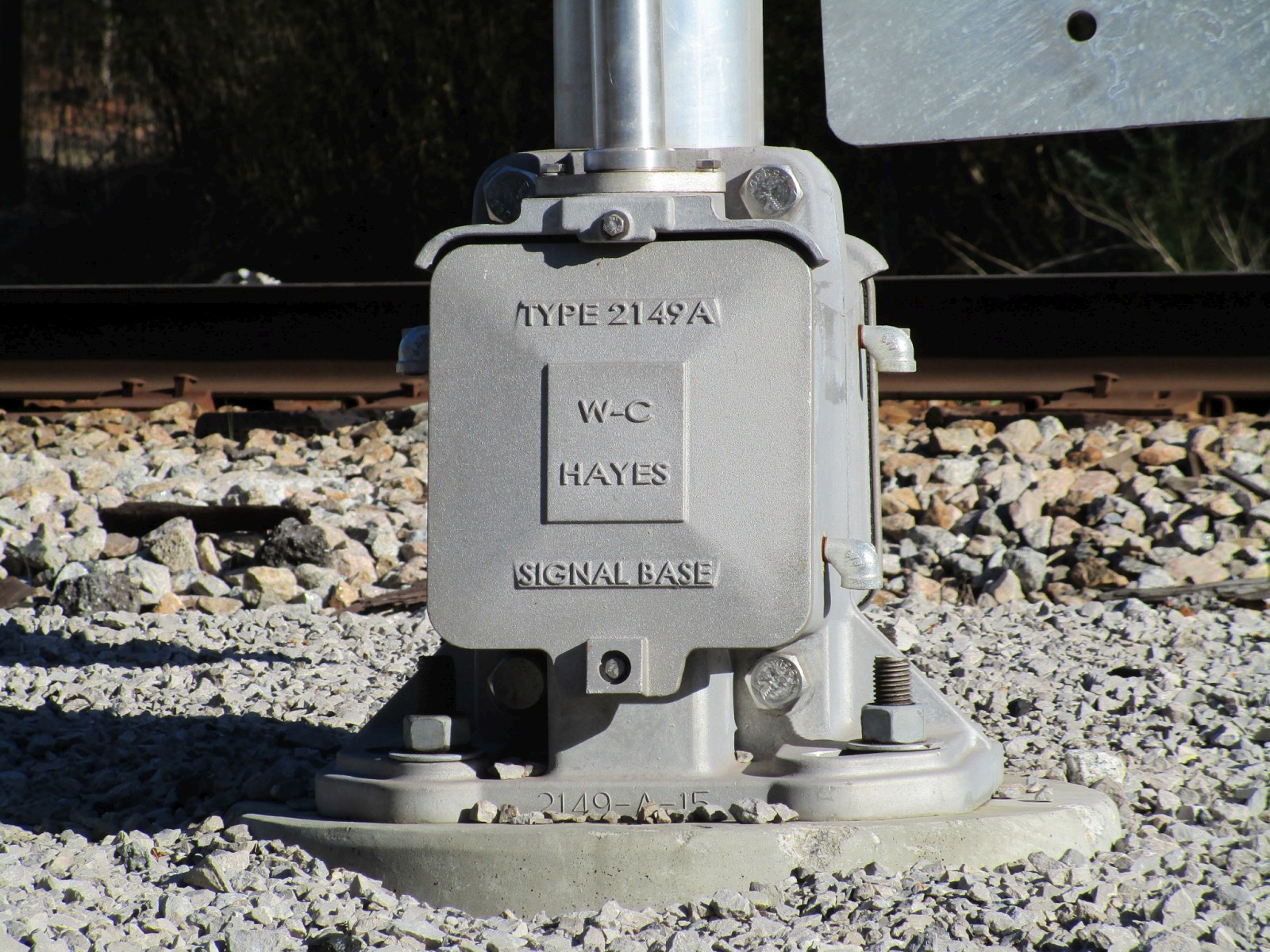

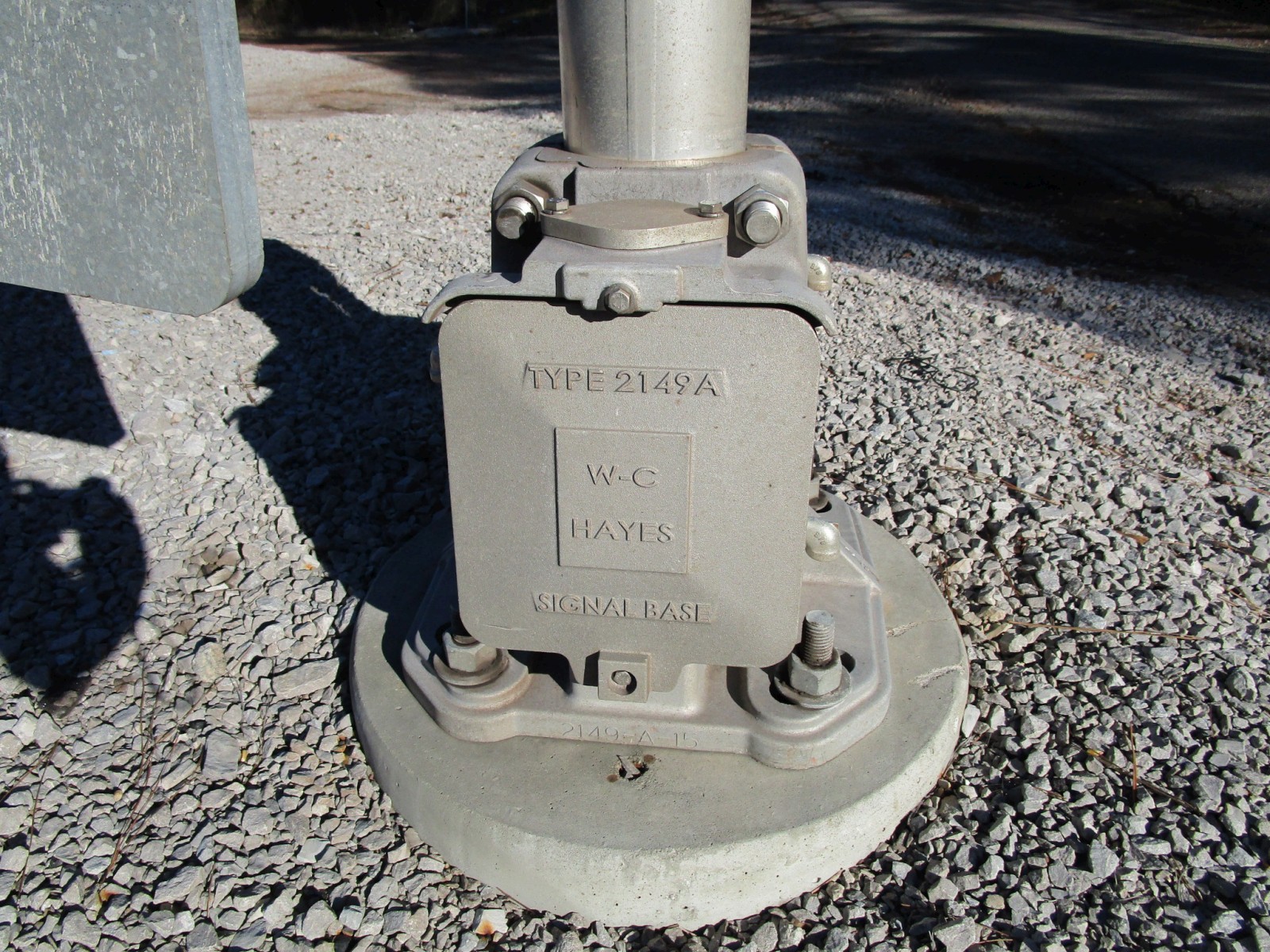

It has a WCH base.

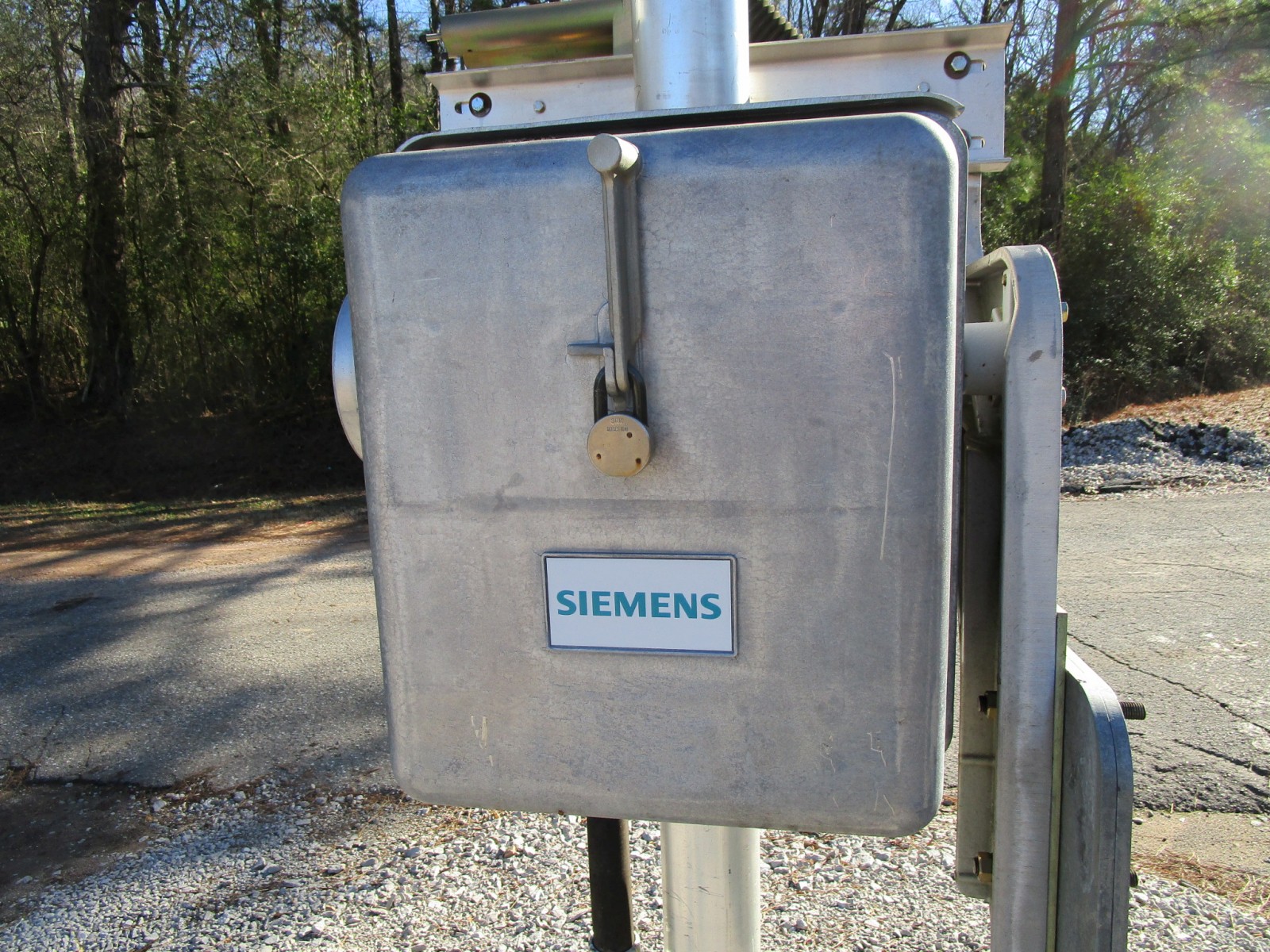

A Siemens gate mechanism.

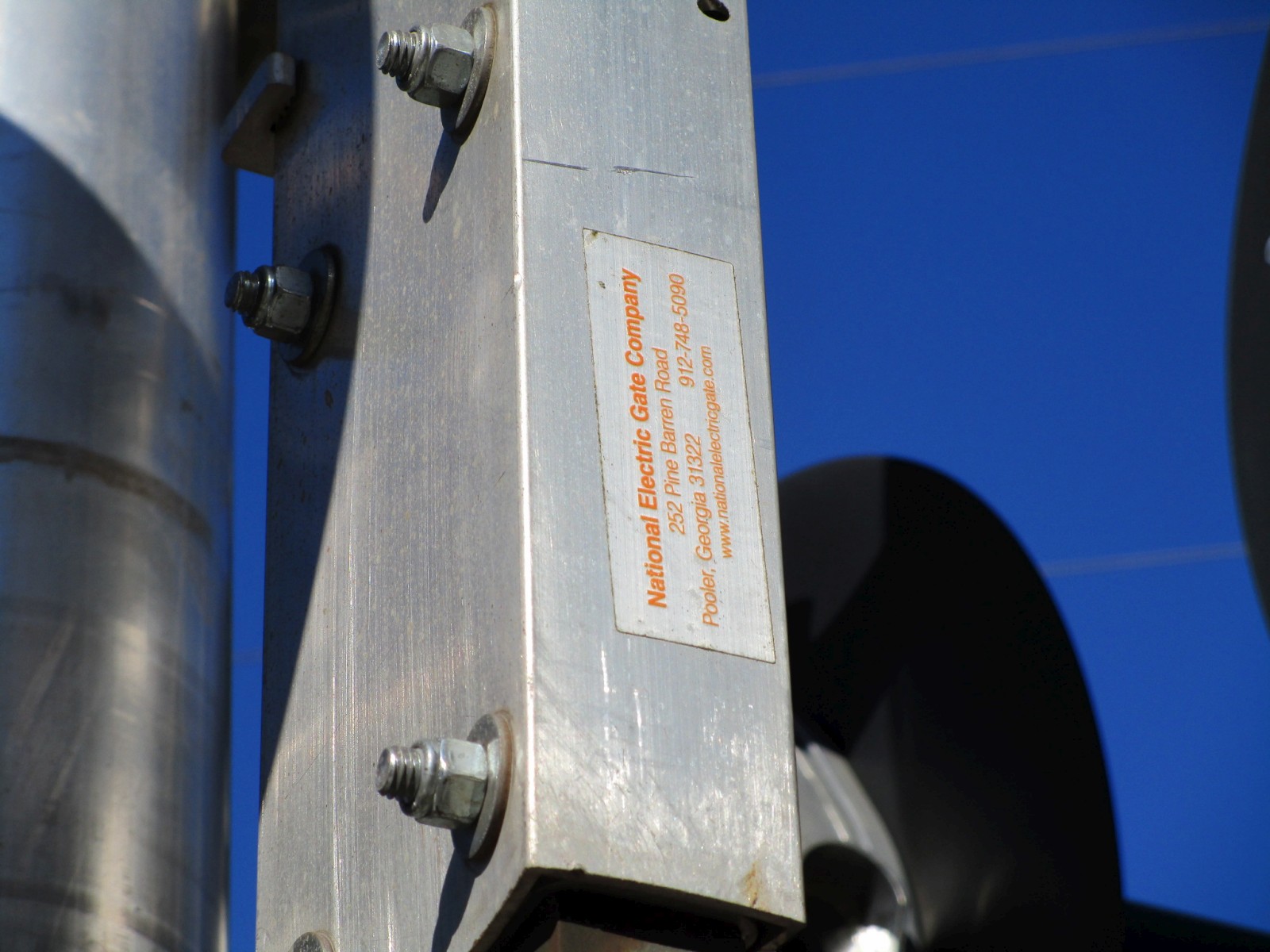

An NEG gate arm.

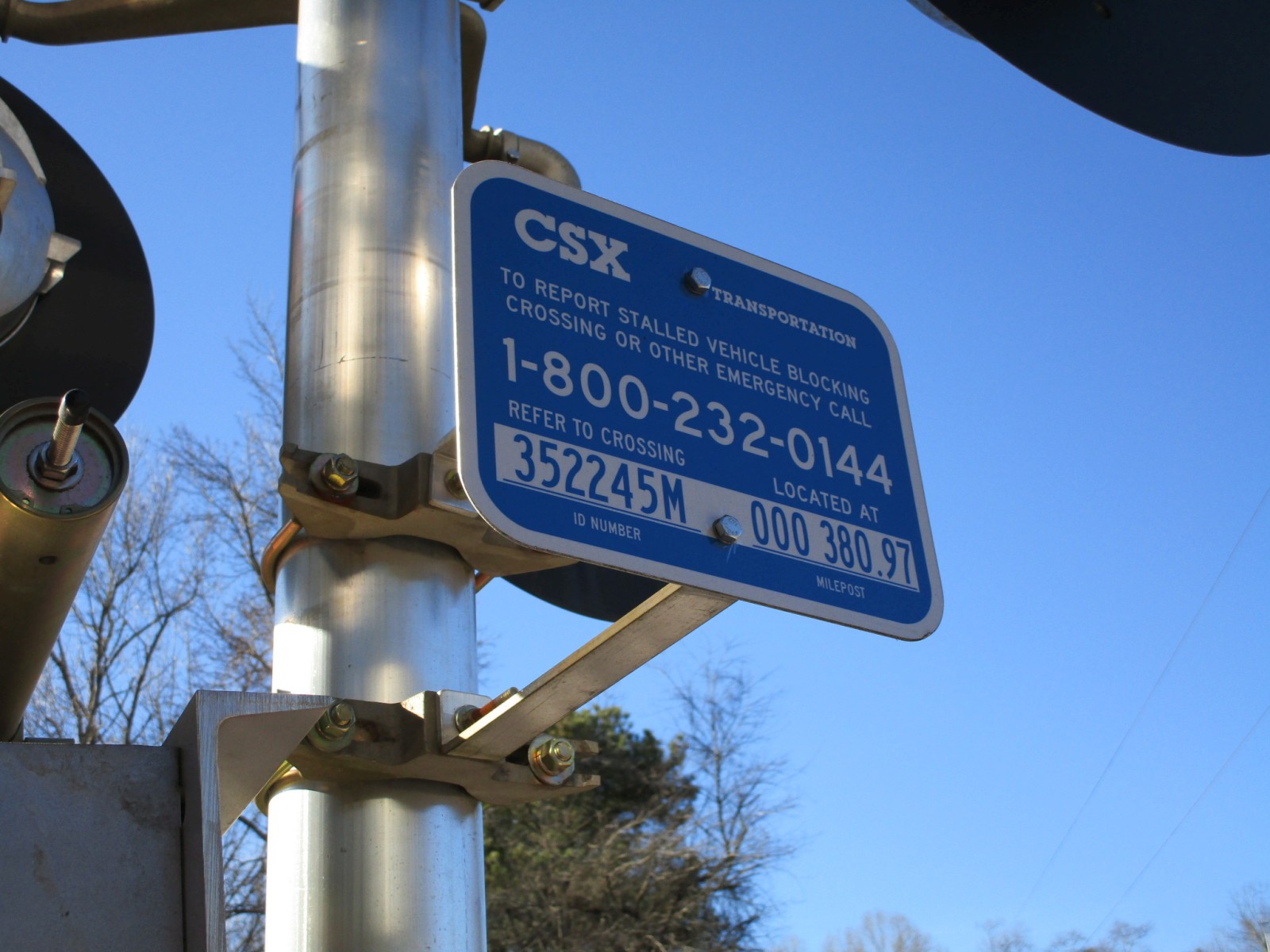

The emergency information.

9

10

11

12

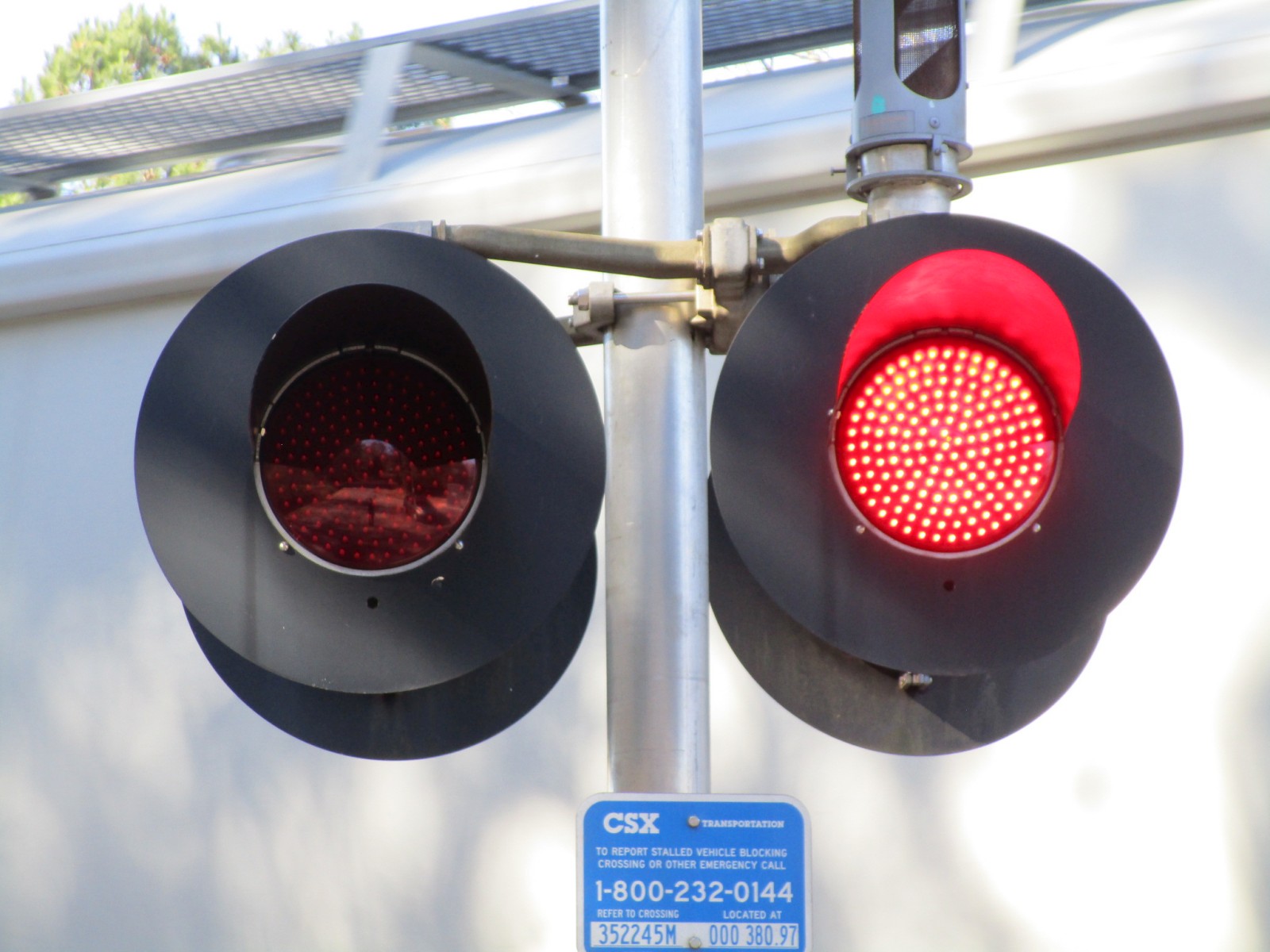

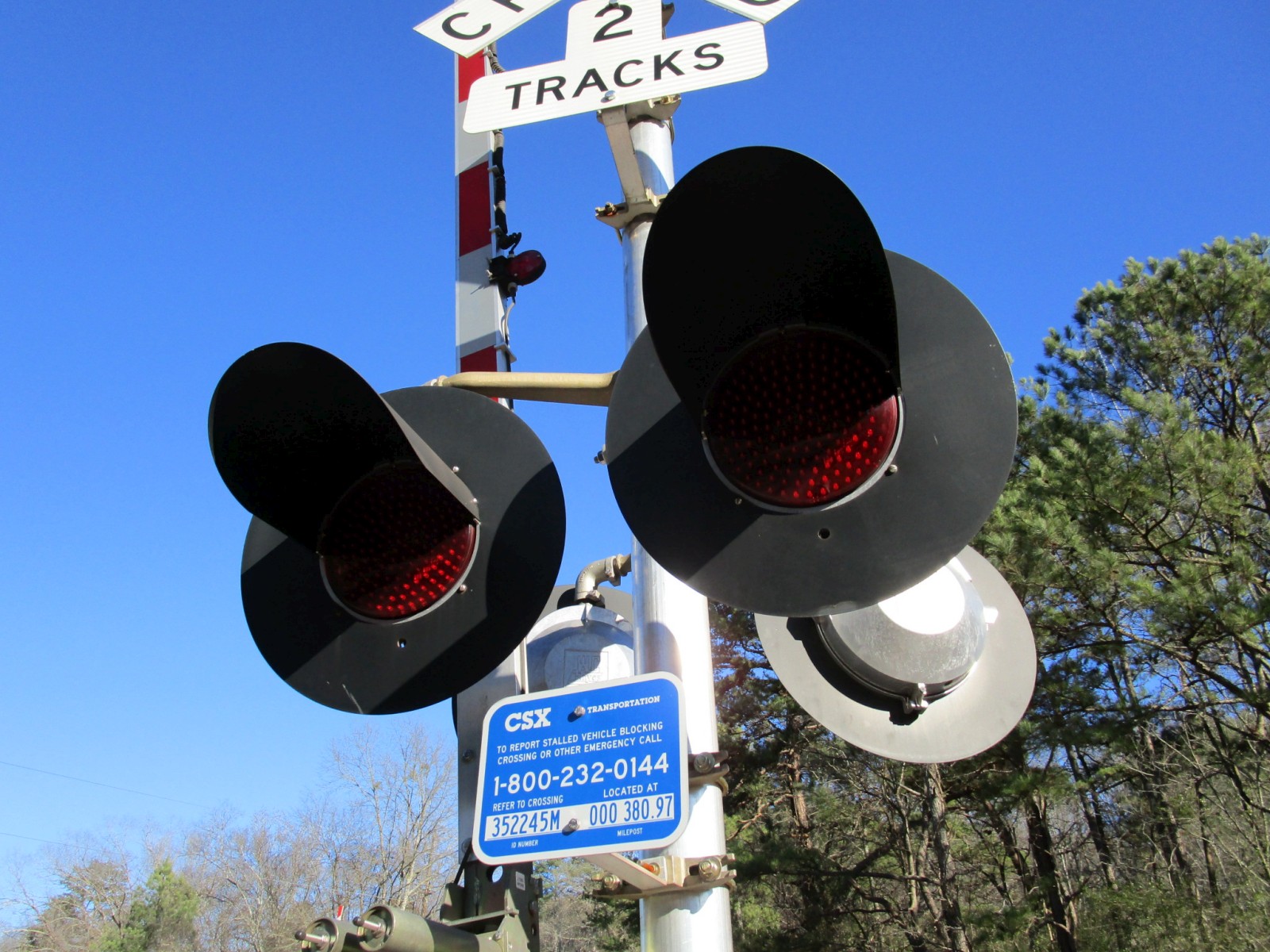

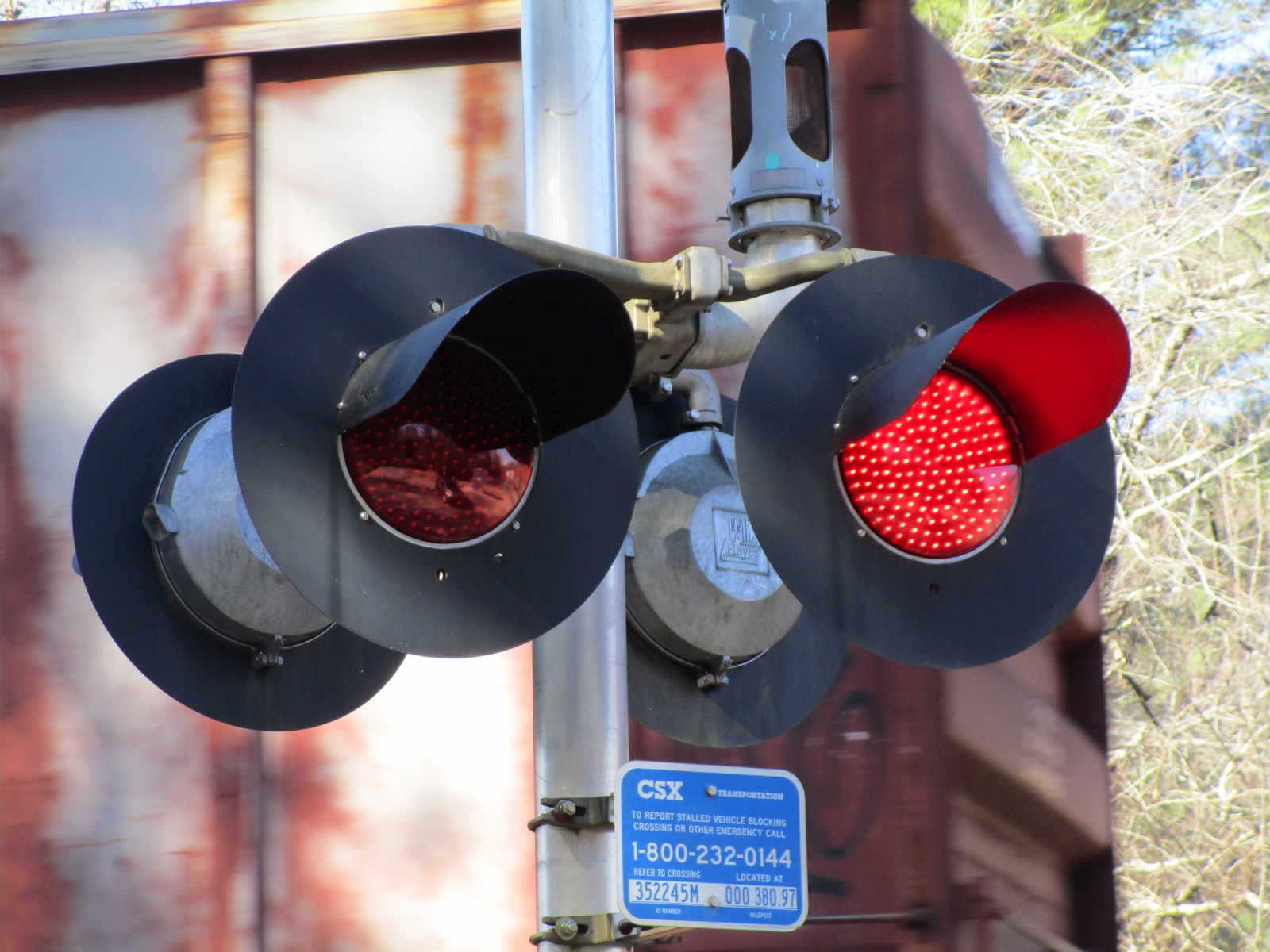

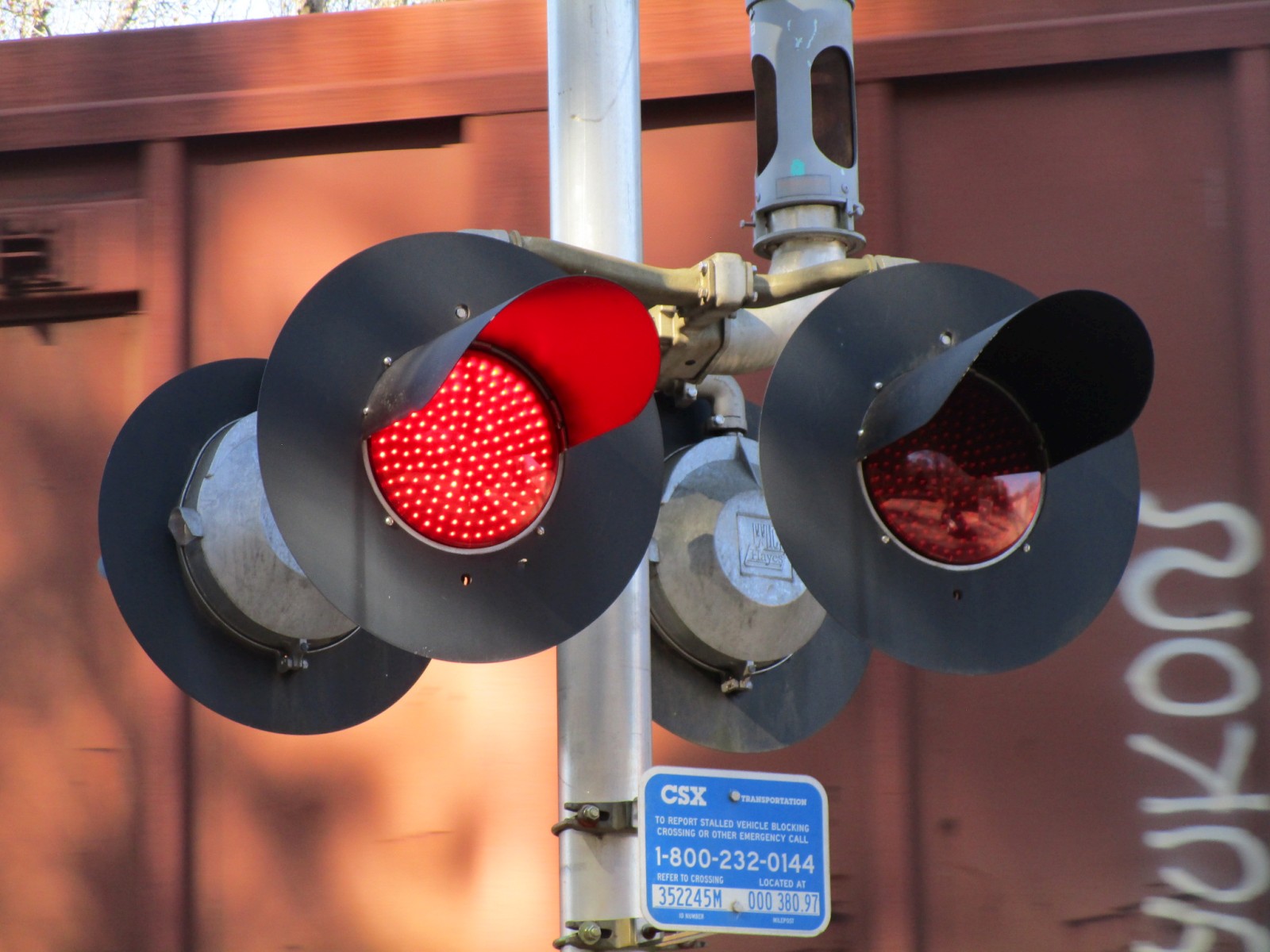

This signal has all WCH 12x24 inch lights with Leotek EV Series LEDs.
The lone bell here is an NEG electronic bell.

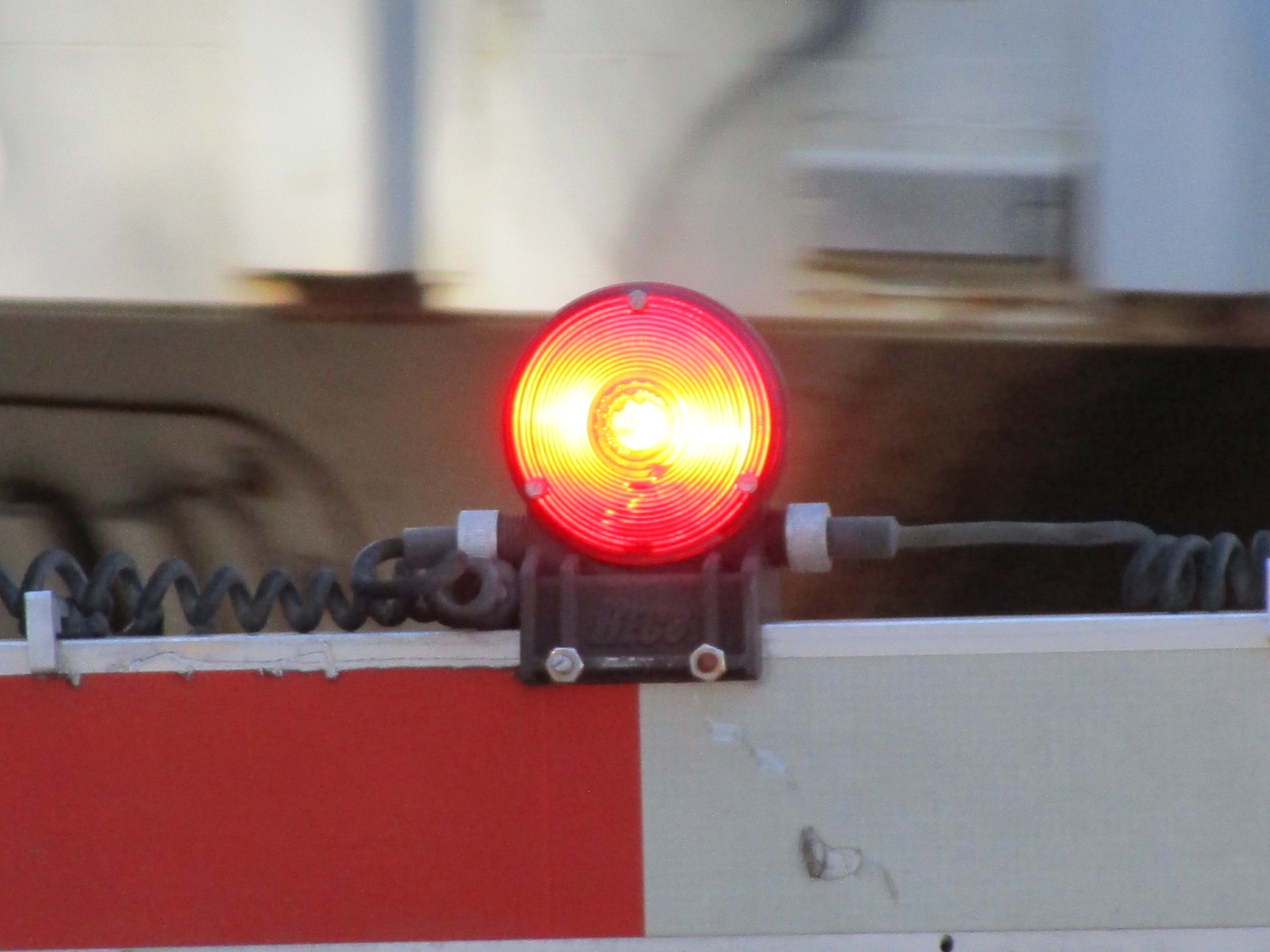

This signal uses RECO gate lights.

13

14

15

16
The second signal.
It has another WCH base.
Another Siemens gate mechanism.

17

18

19

20
The emergency information.
More WCH 12x24 inch lights with Leotek EV Series LEDs on this signal.
More RECO gate lights over here.

21

22

23

24
The relay case.
Looking northeast towards Jackson Road near Pinson.
Looking southwest towards Elm Street.
Milepost 381 stands near the crossing.

25

26

27

28

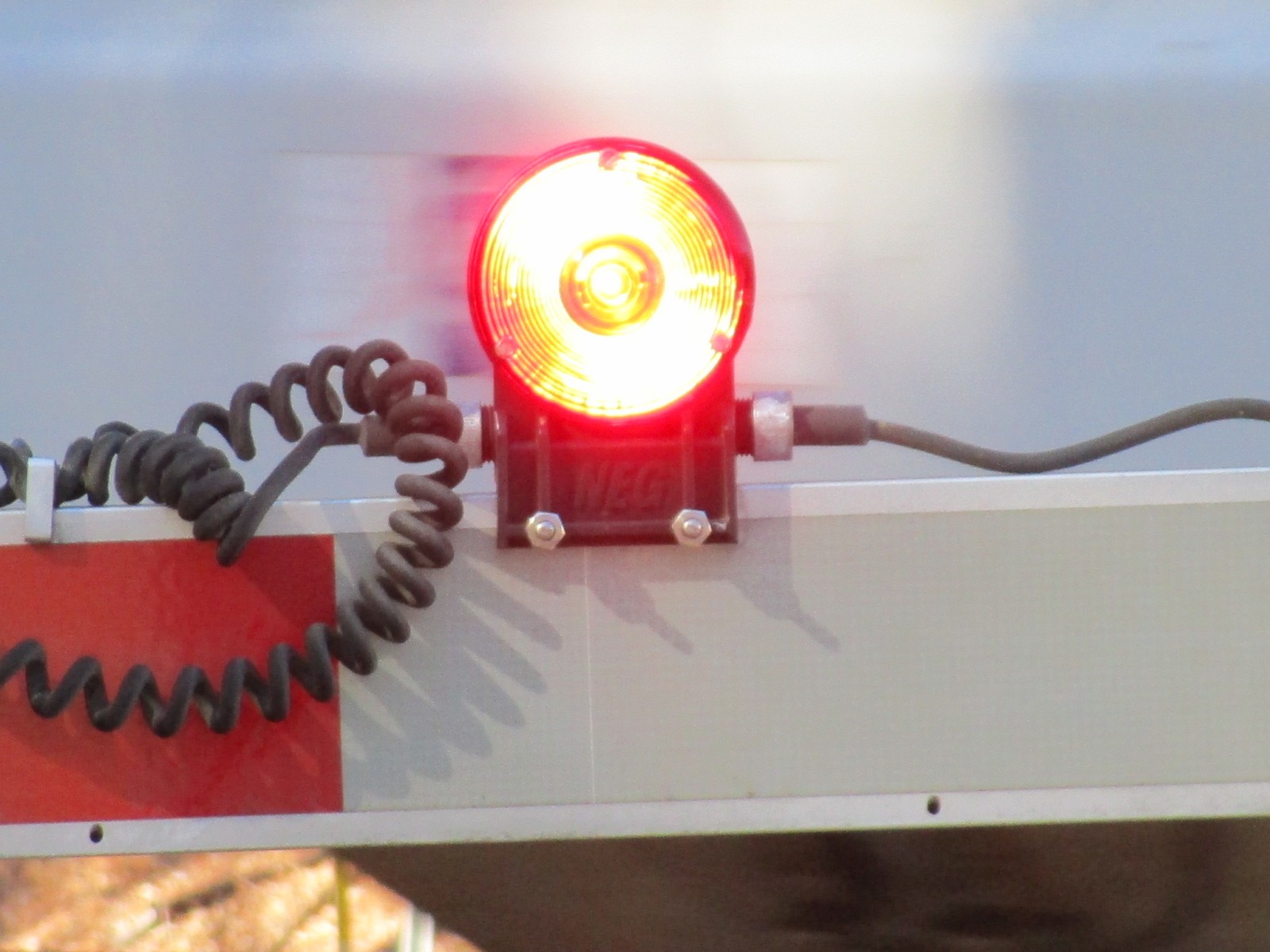

A return trip to the crossing on 2-13-23 finds that the first signal has had its base gate light replace with an NEG LED.

29

30

31

32

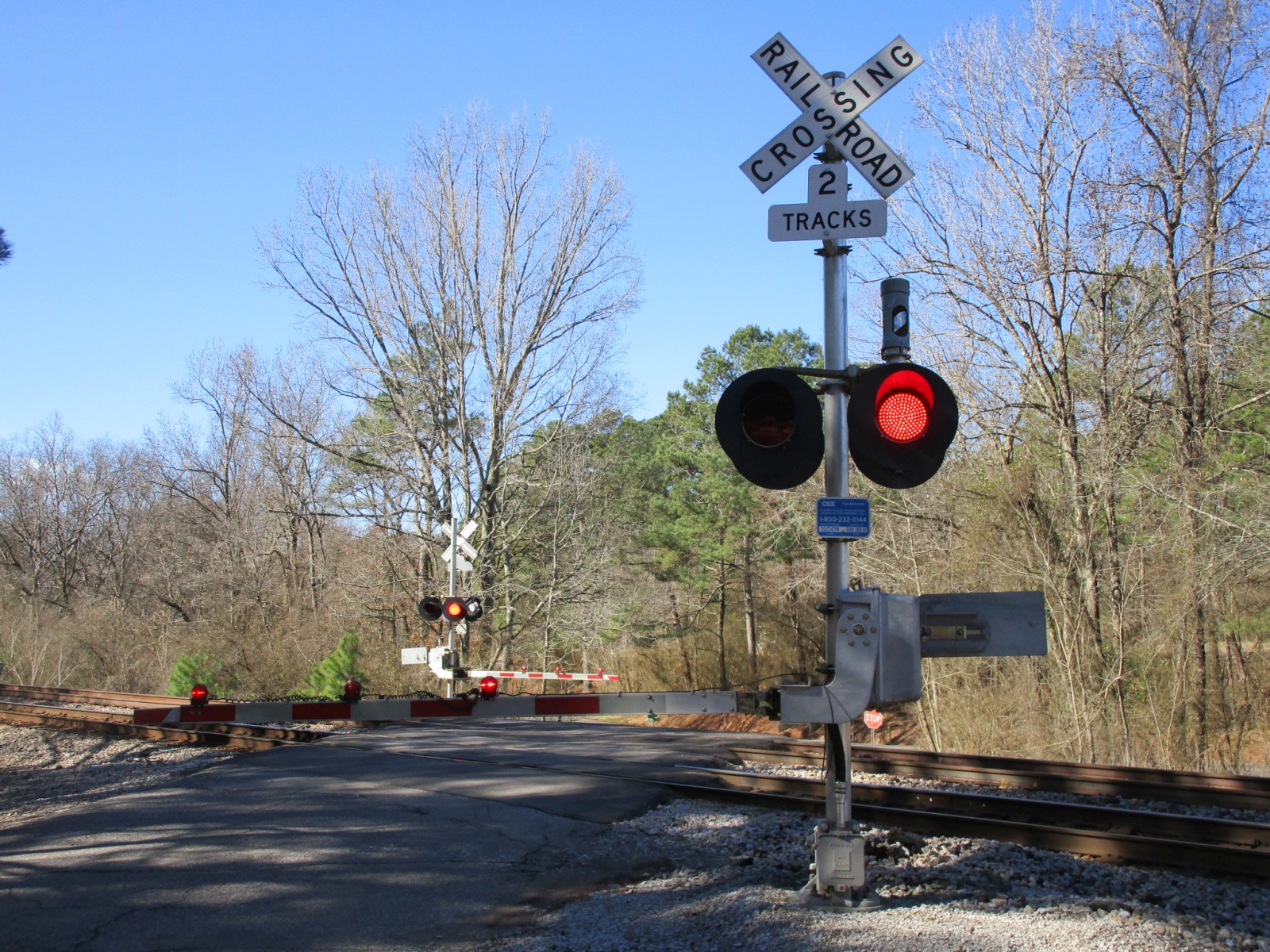

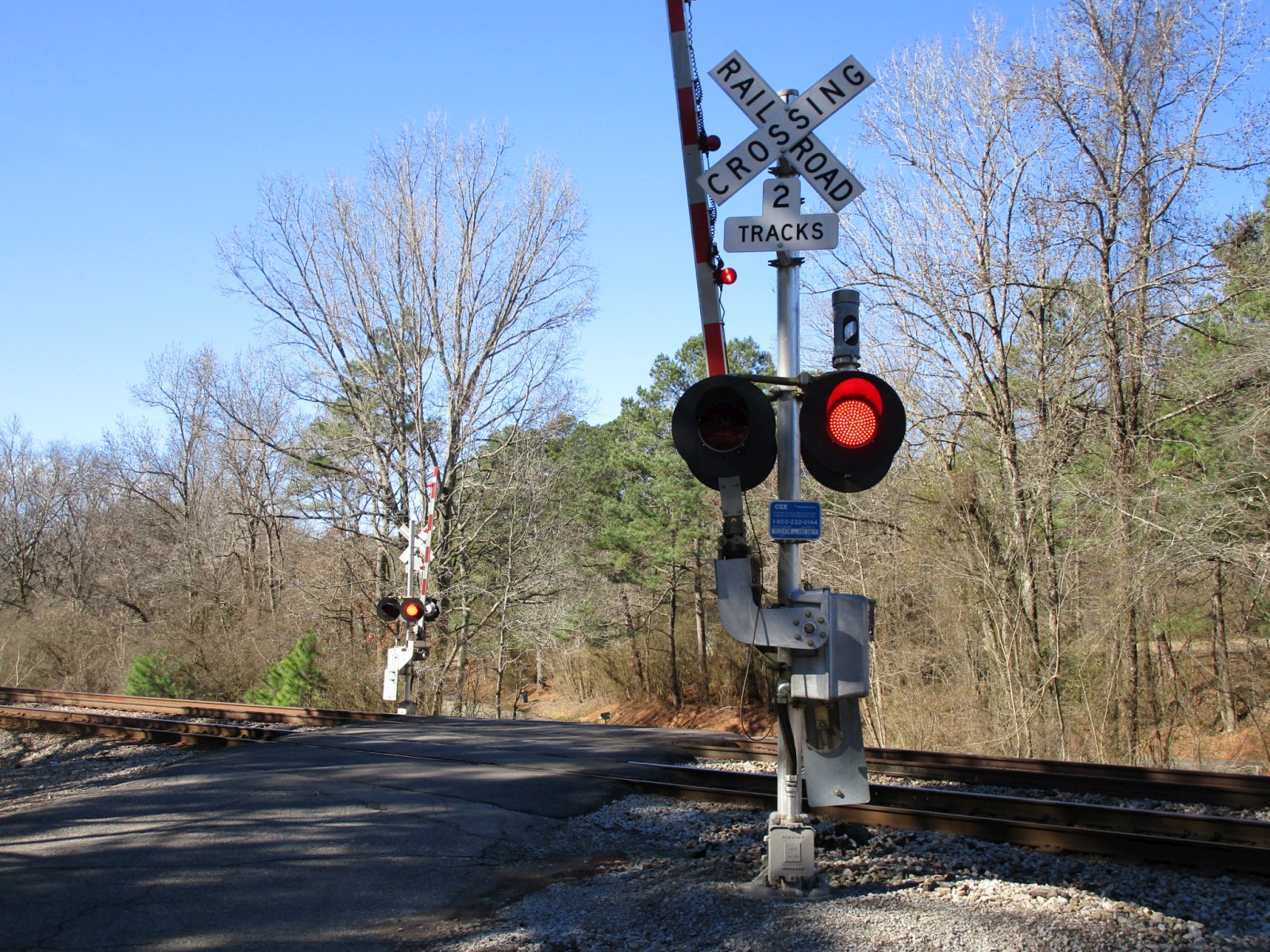

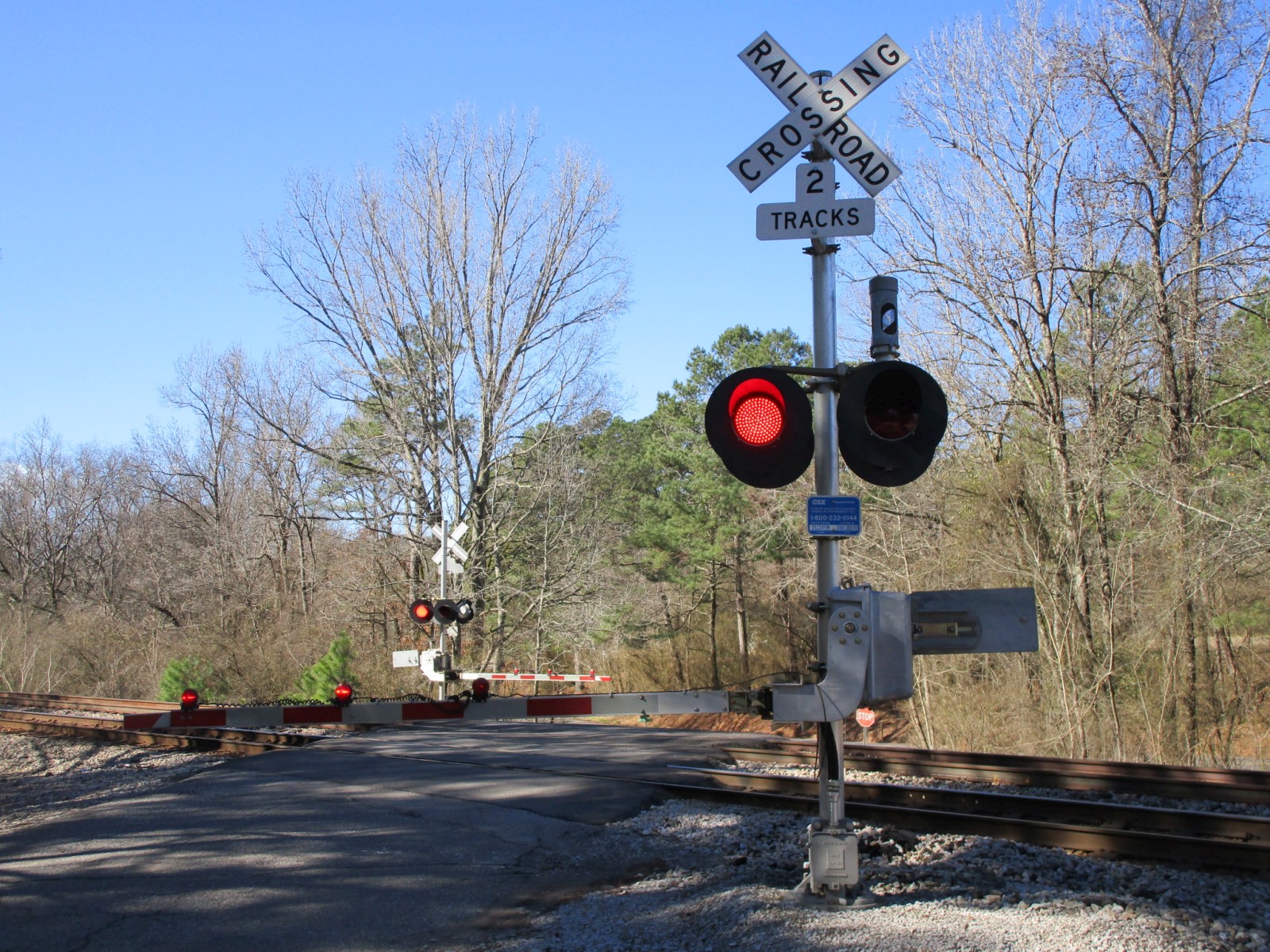

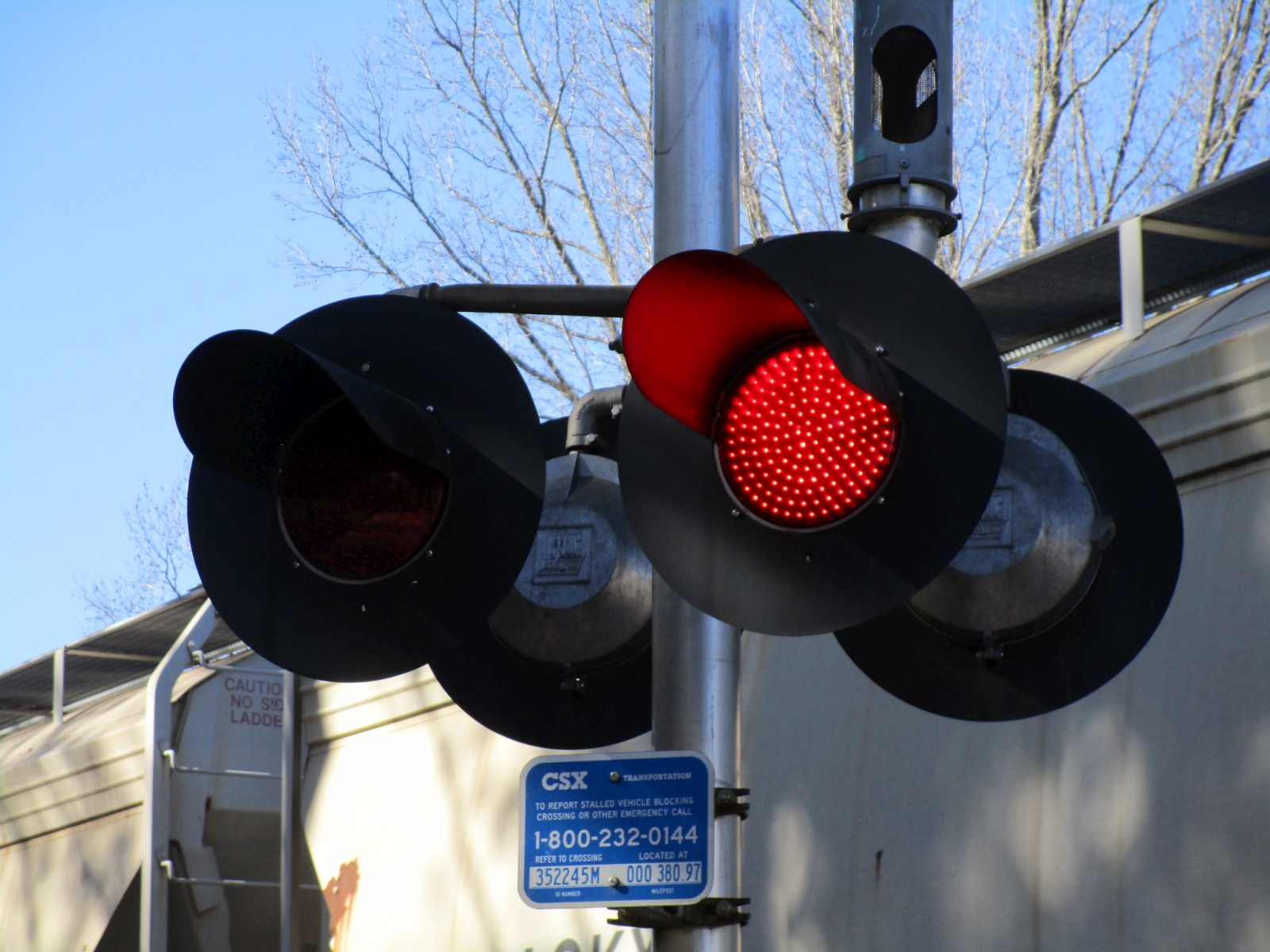

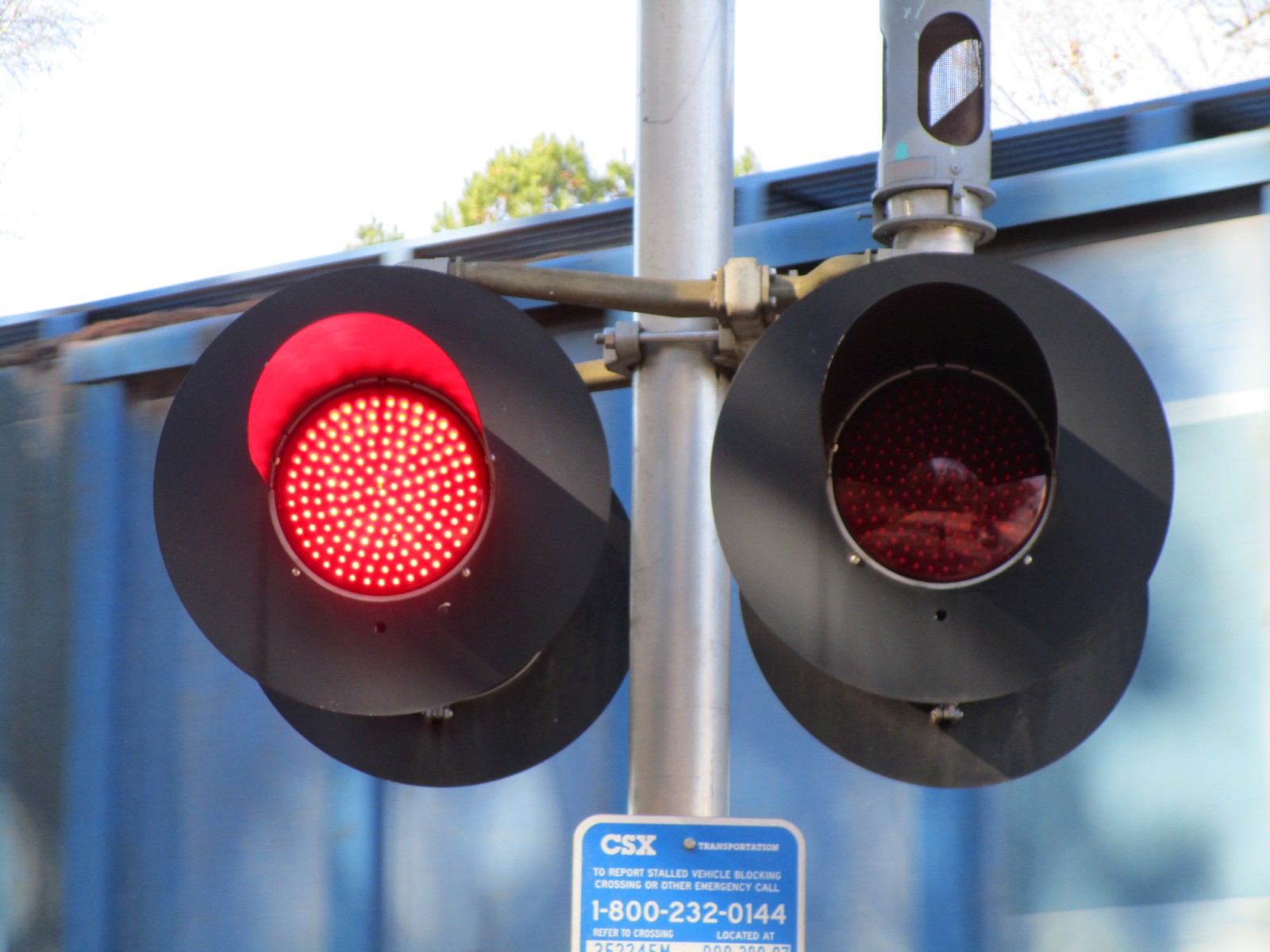

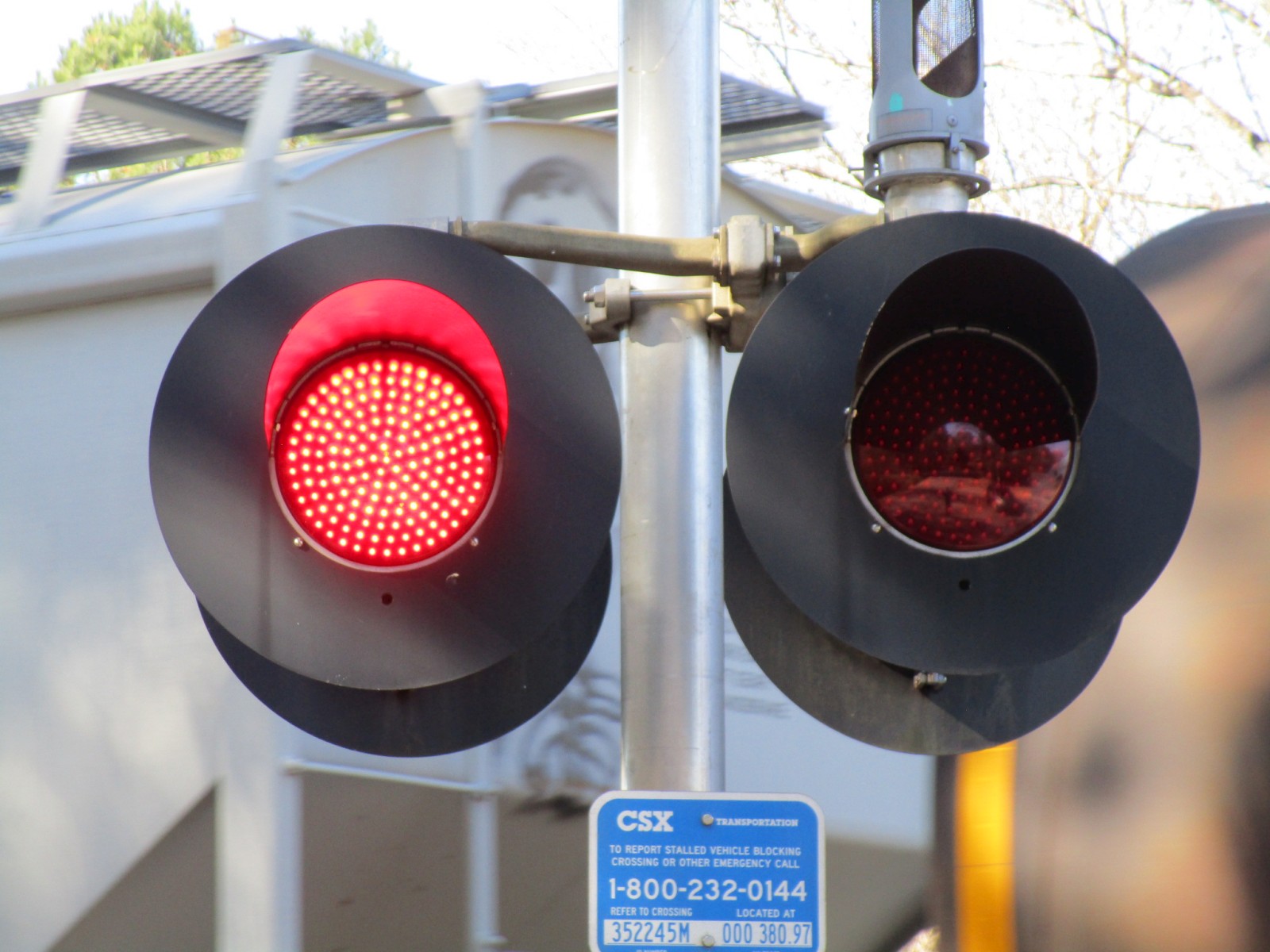

The crossing activates!

33

34

35

36

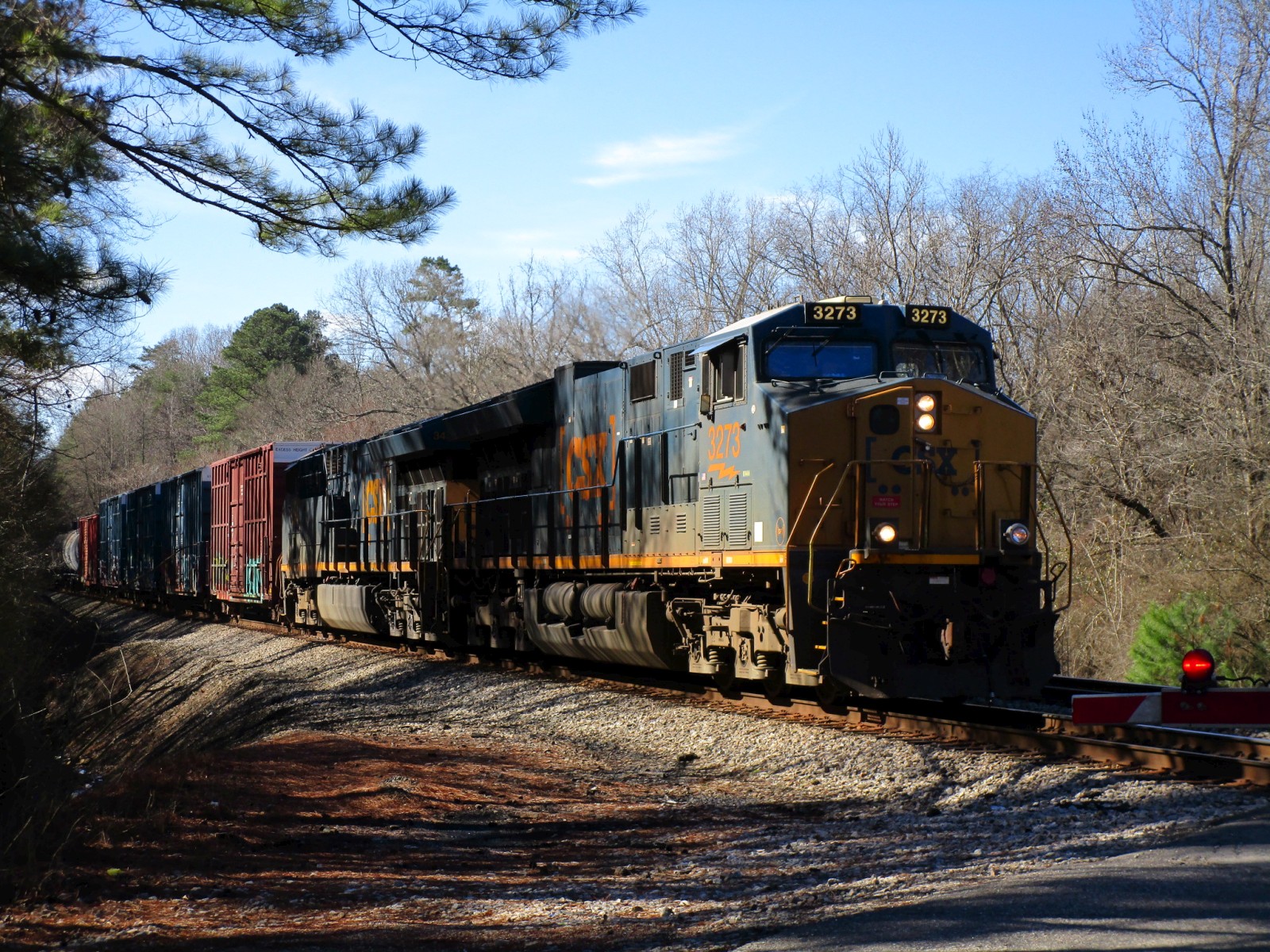

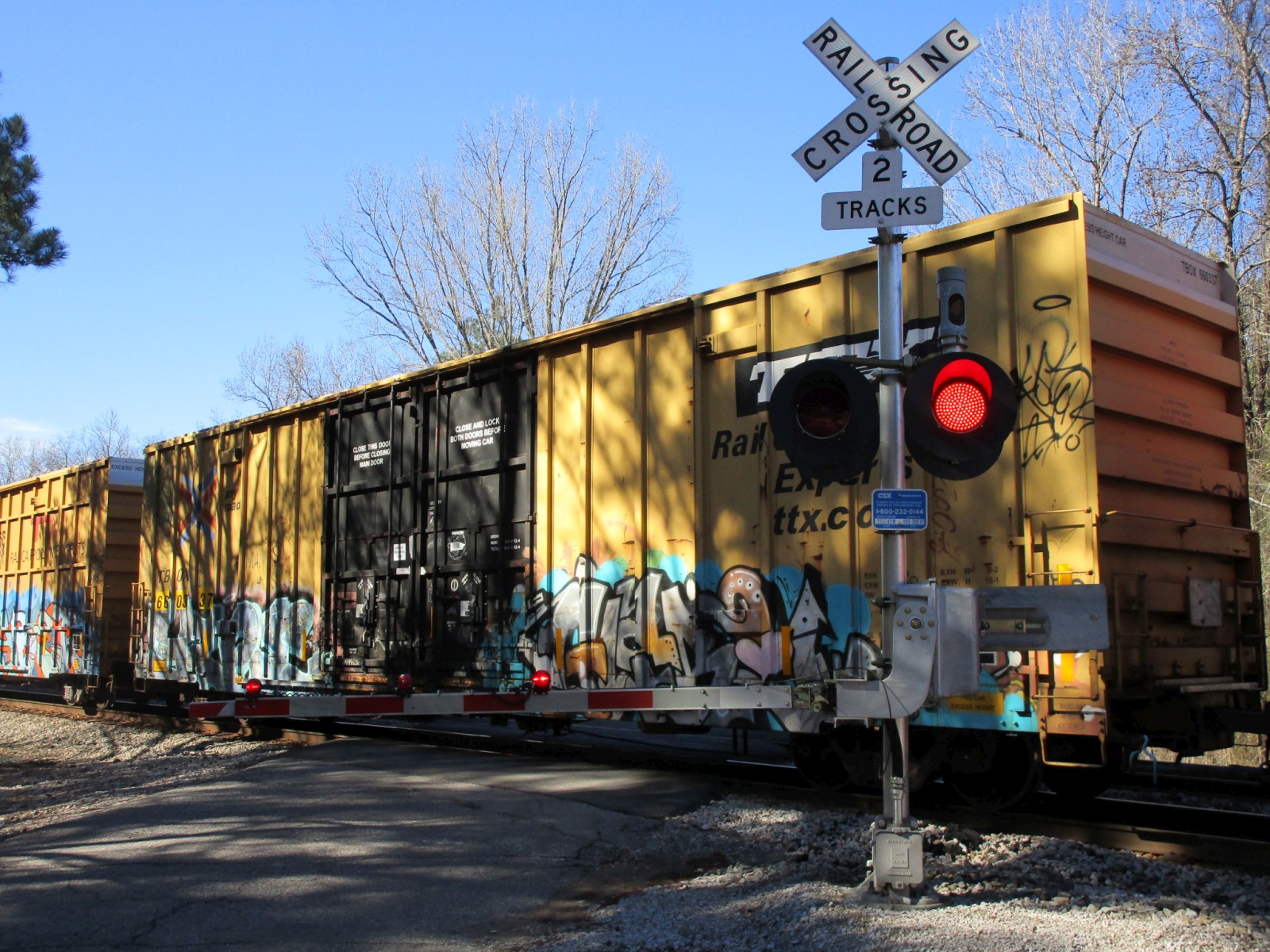

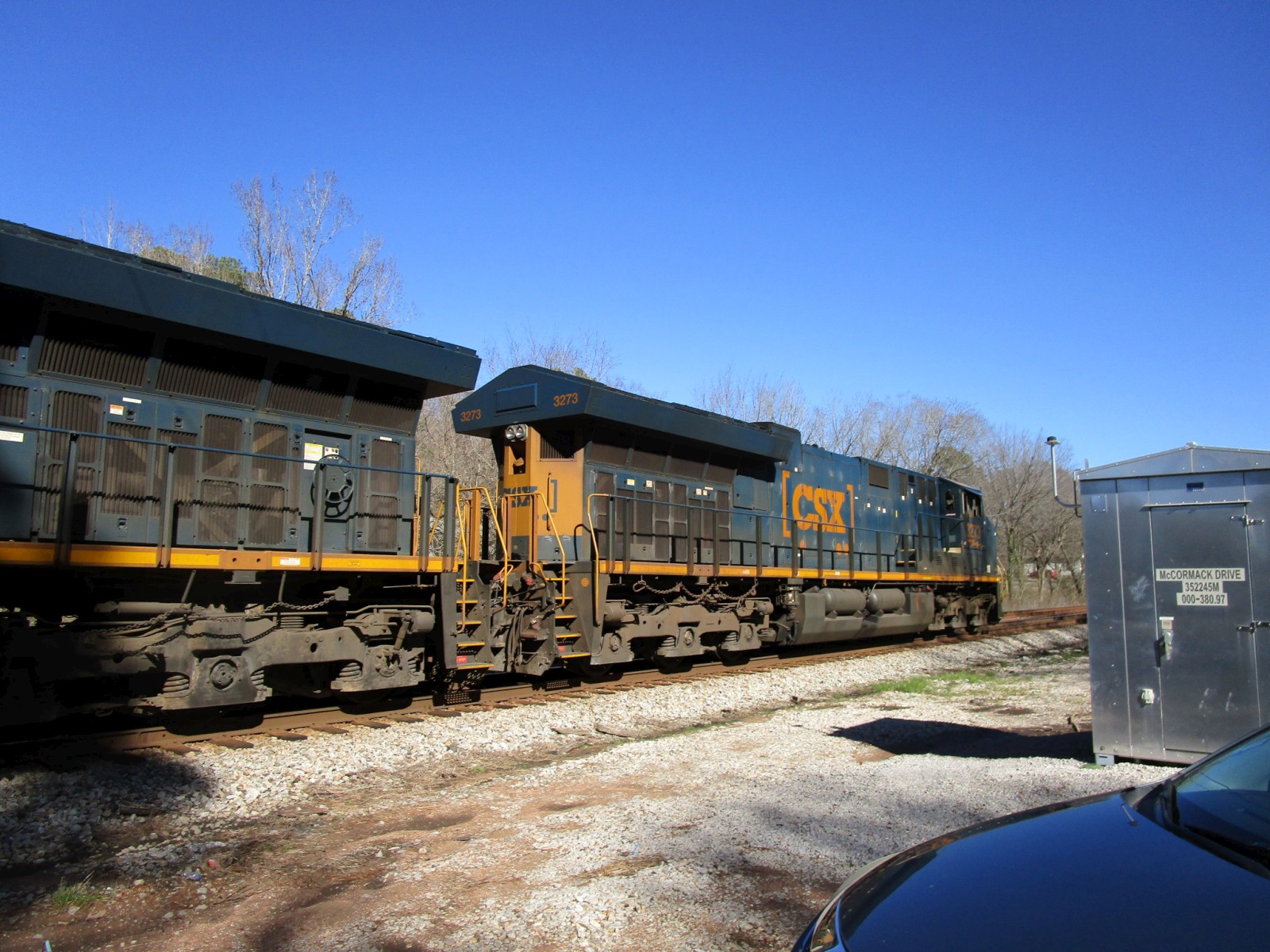

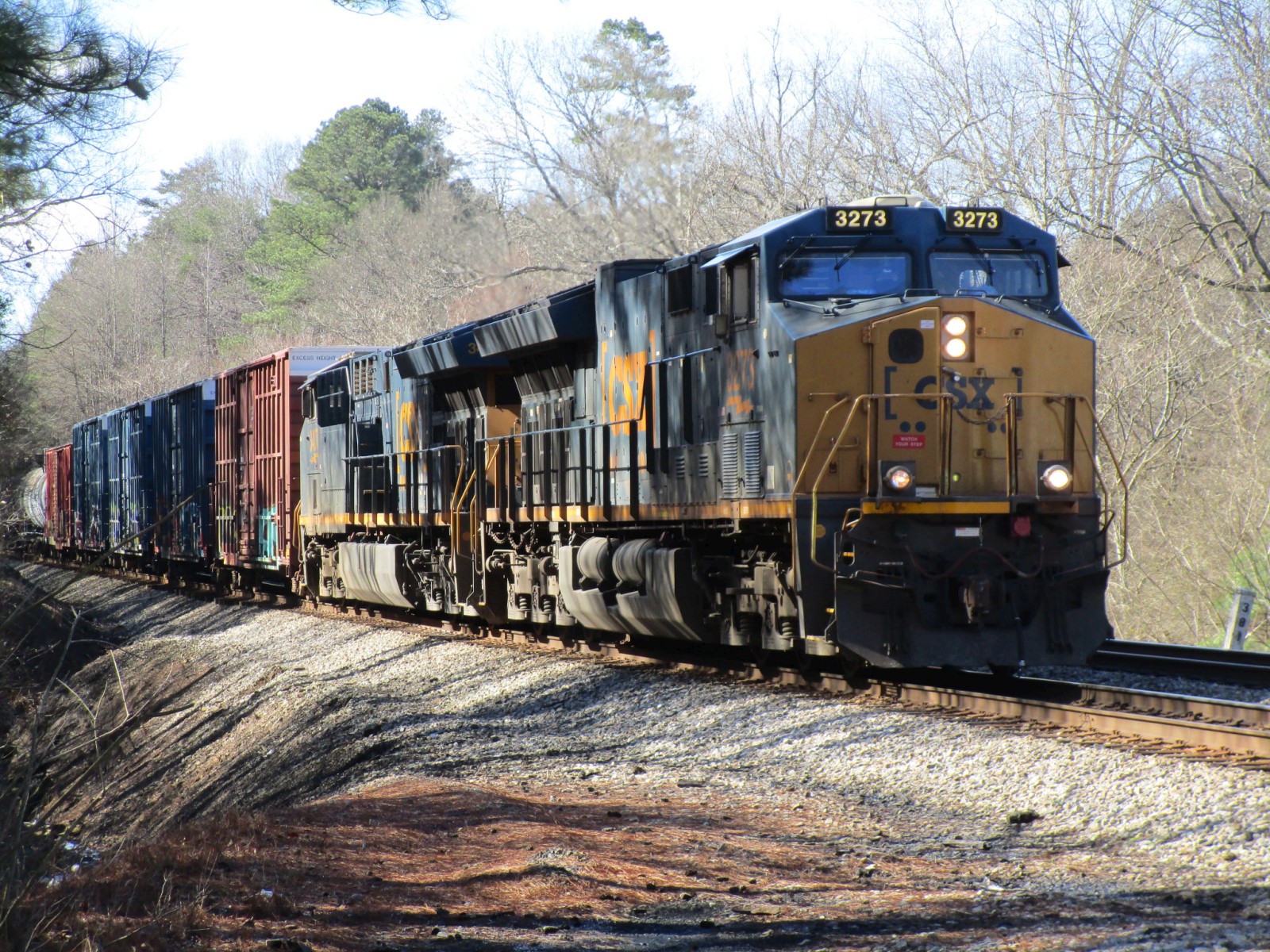

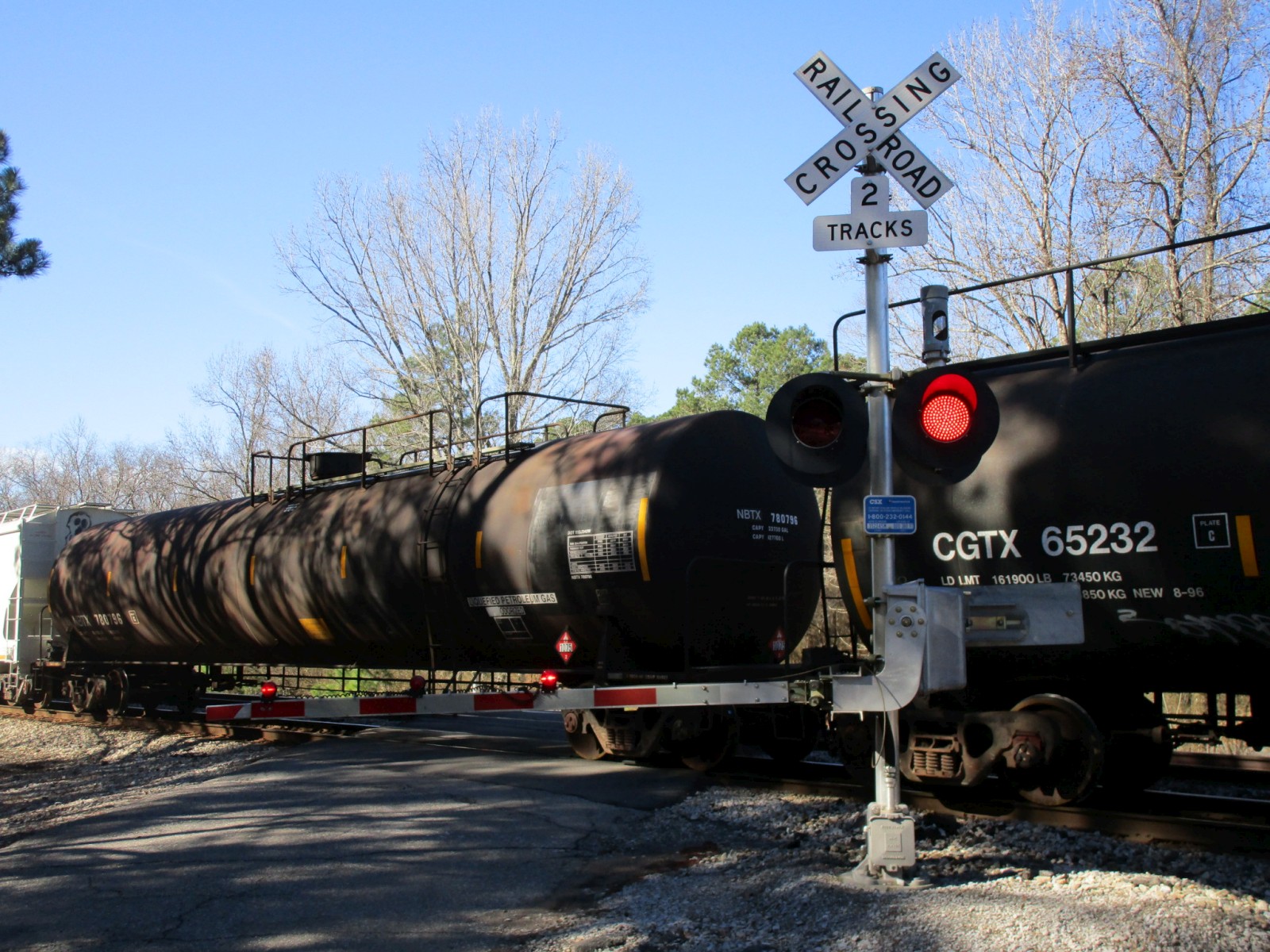

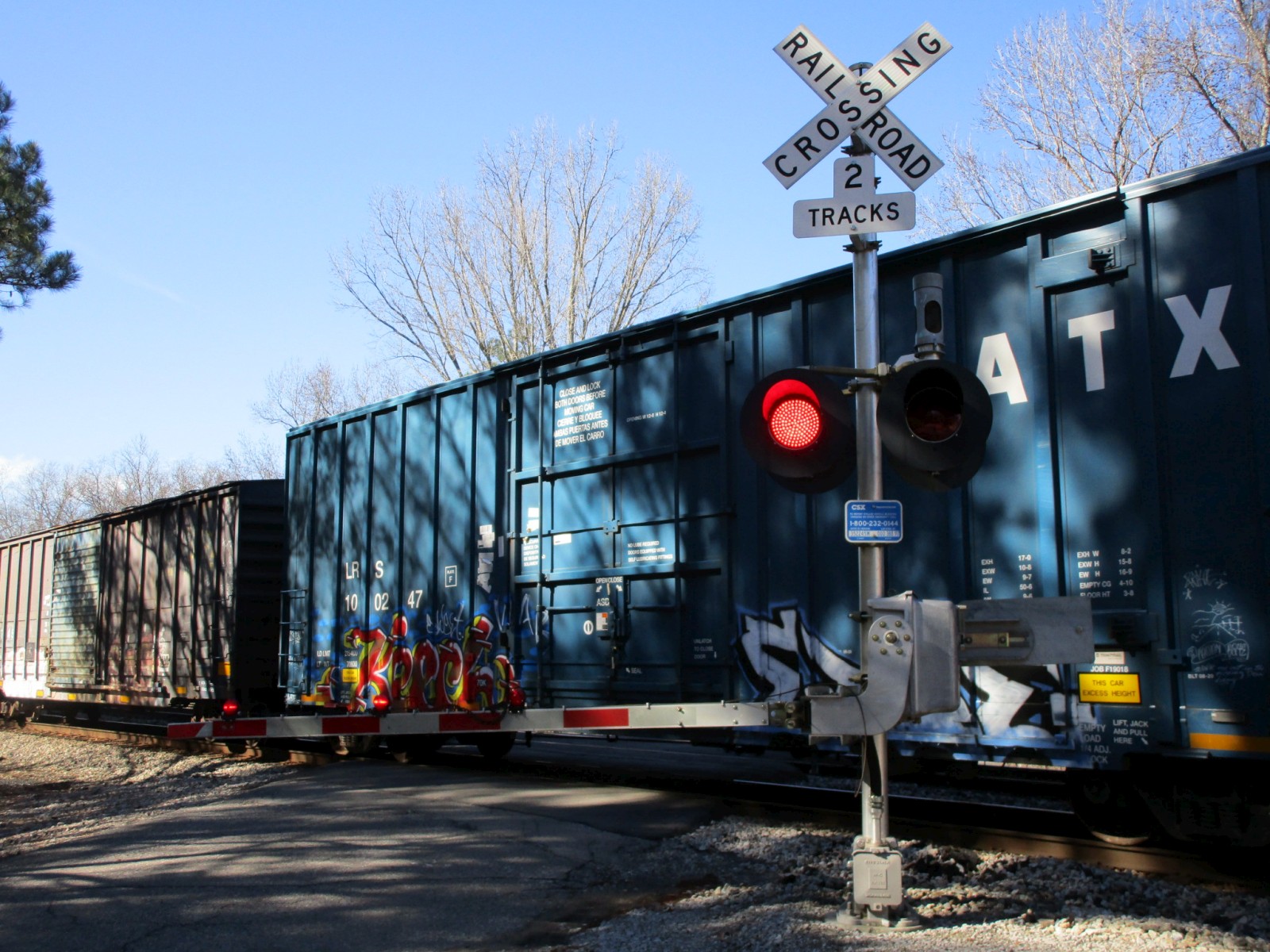

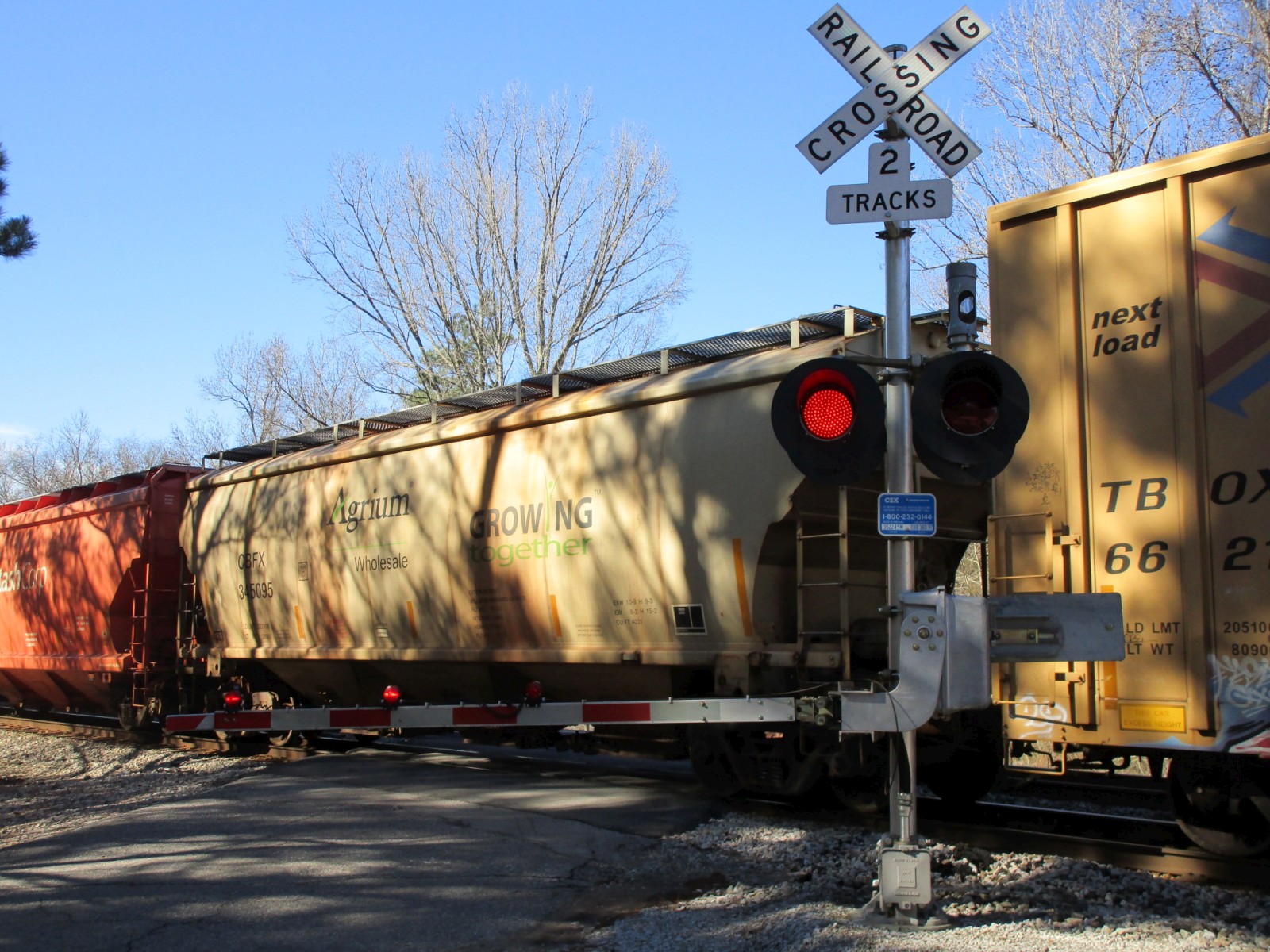

A northbound mixed freight comes through the crossing with a pair of ET44AHs for power. There was also a friendly crew aboard, who threw me a frisbee as they passed (as seen in the video below).

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

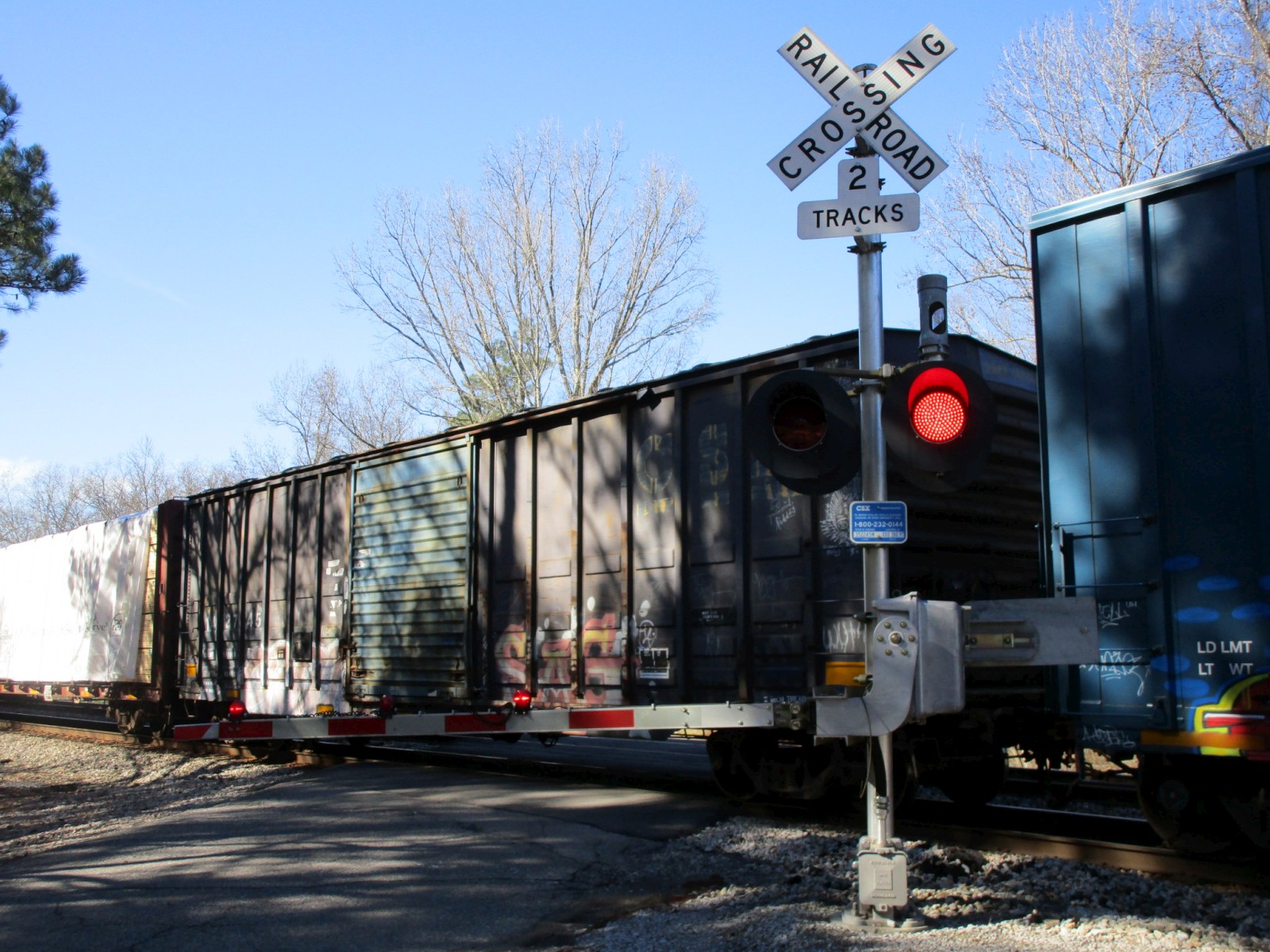

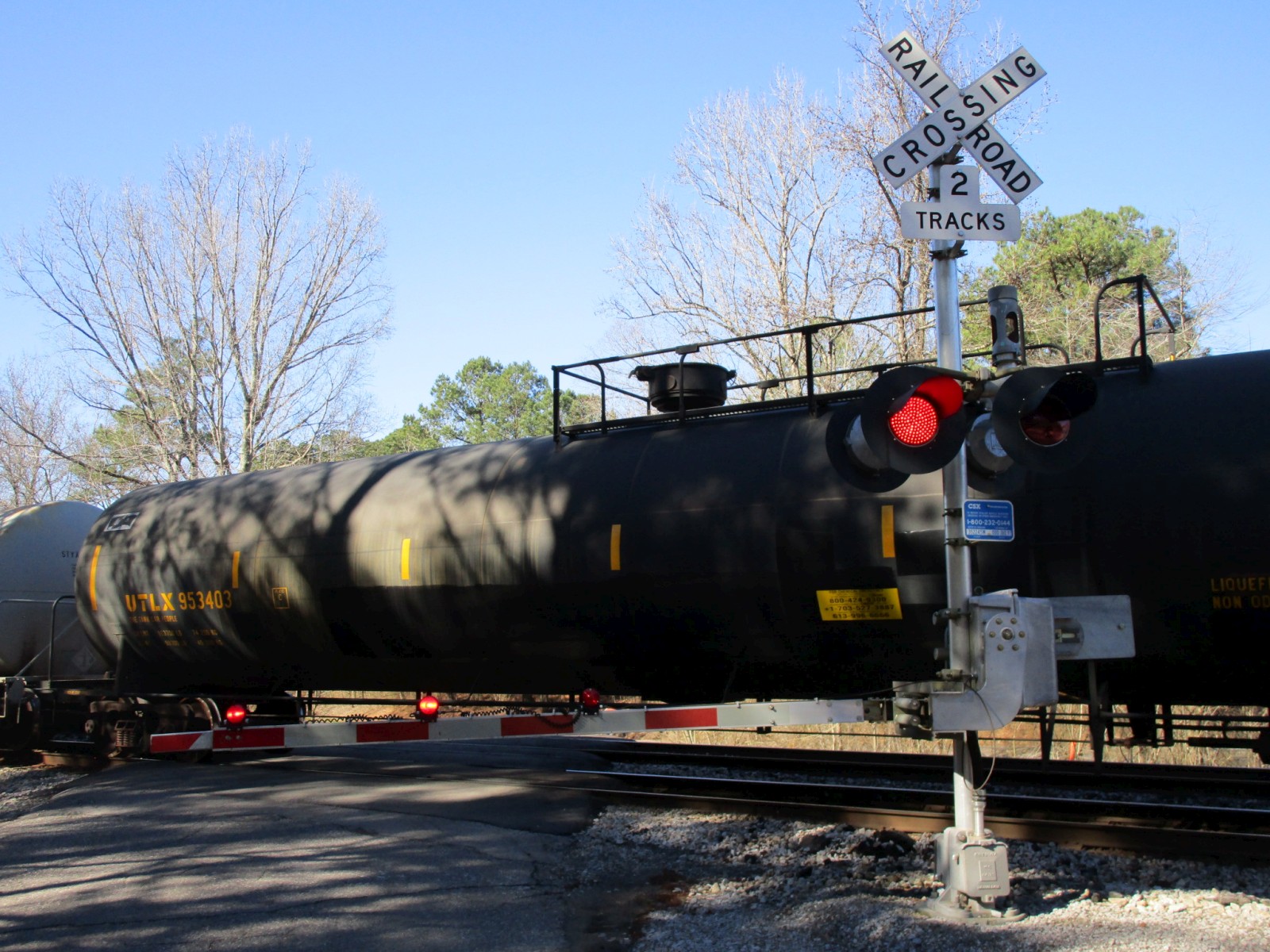

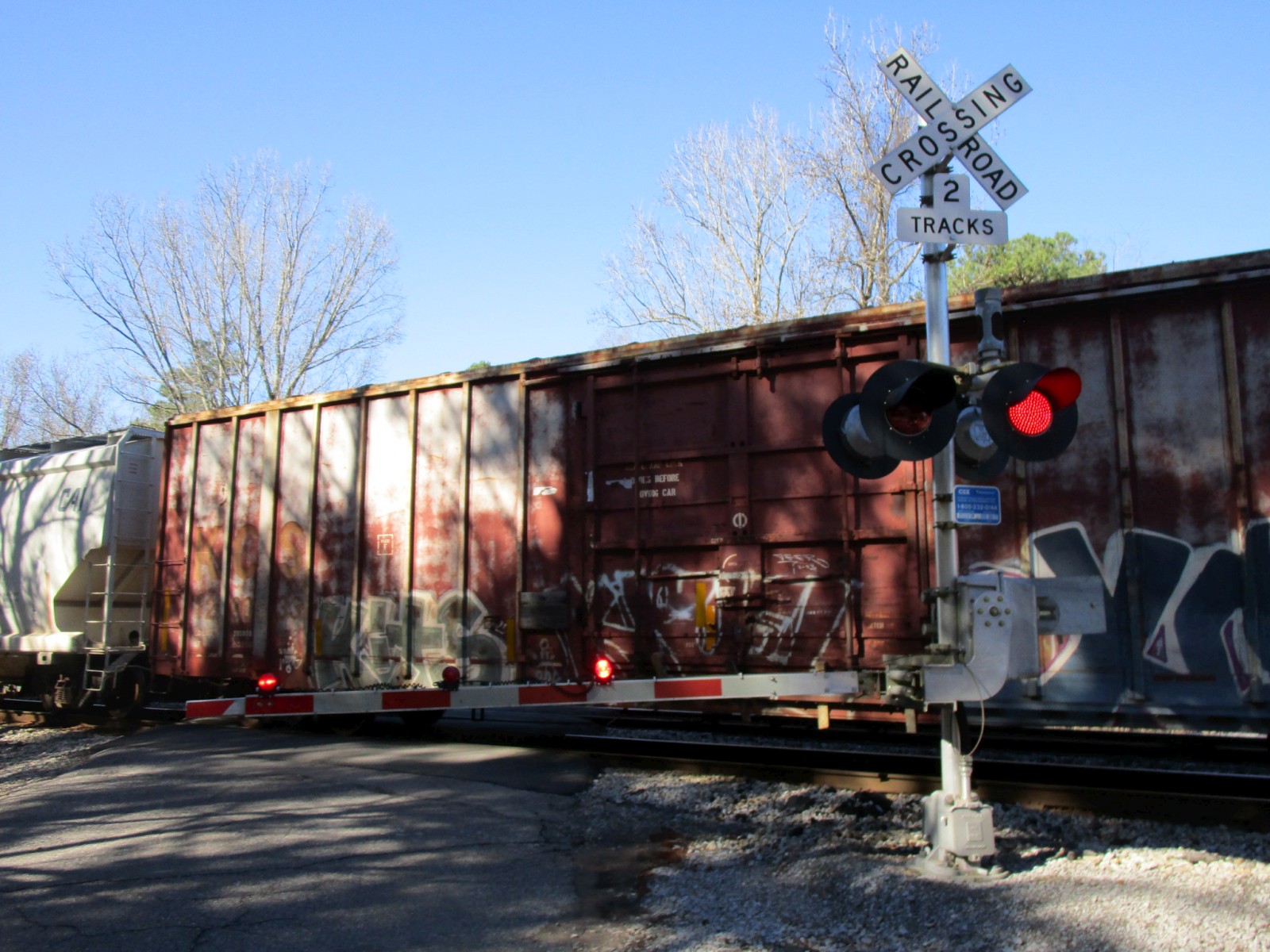

The train passes...

69

70

71

72

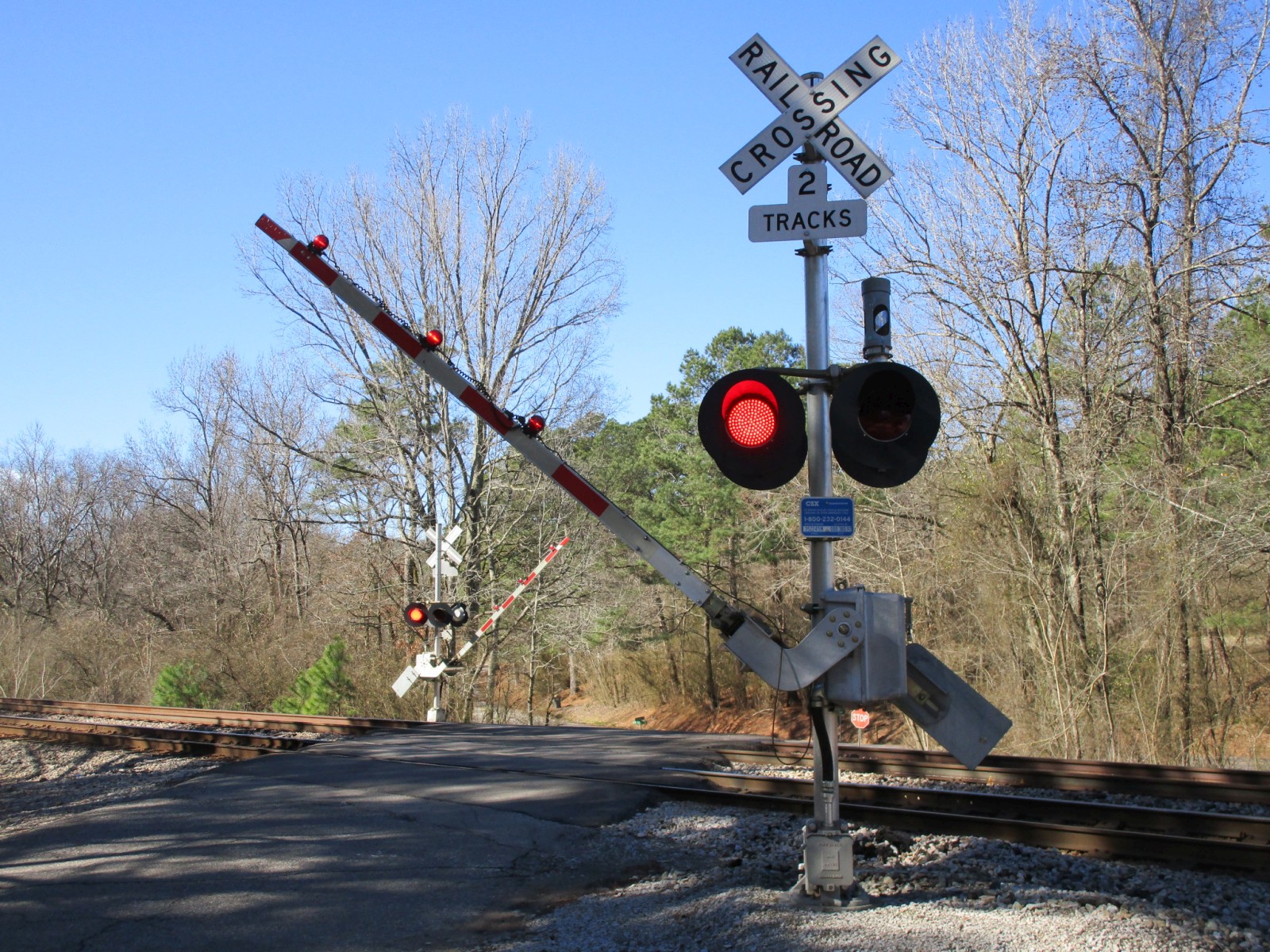

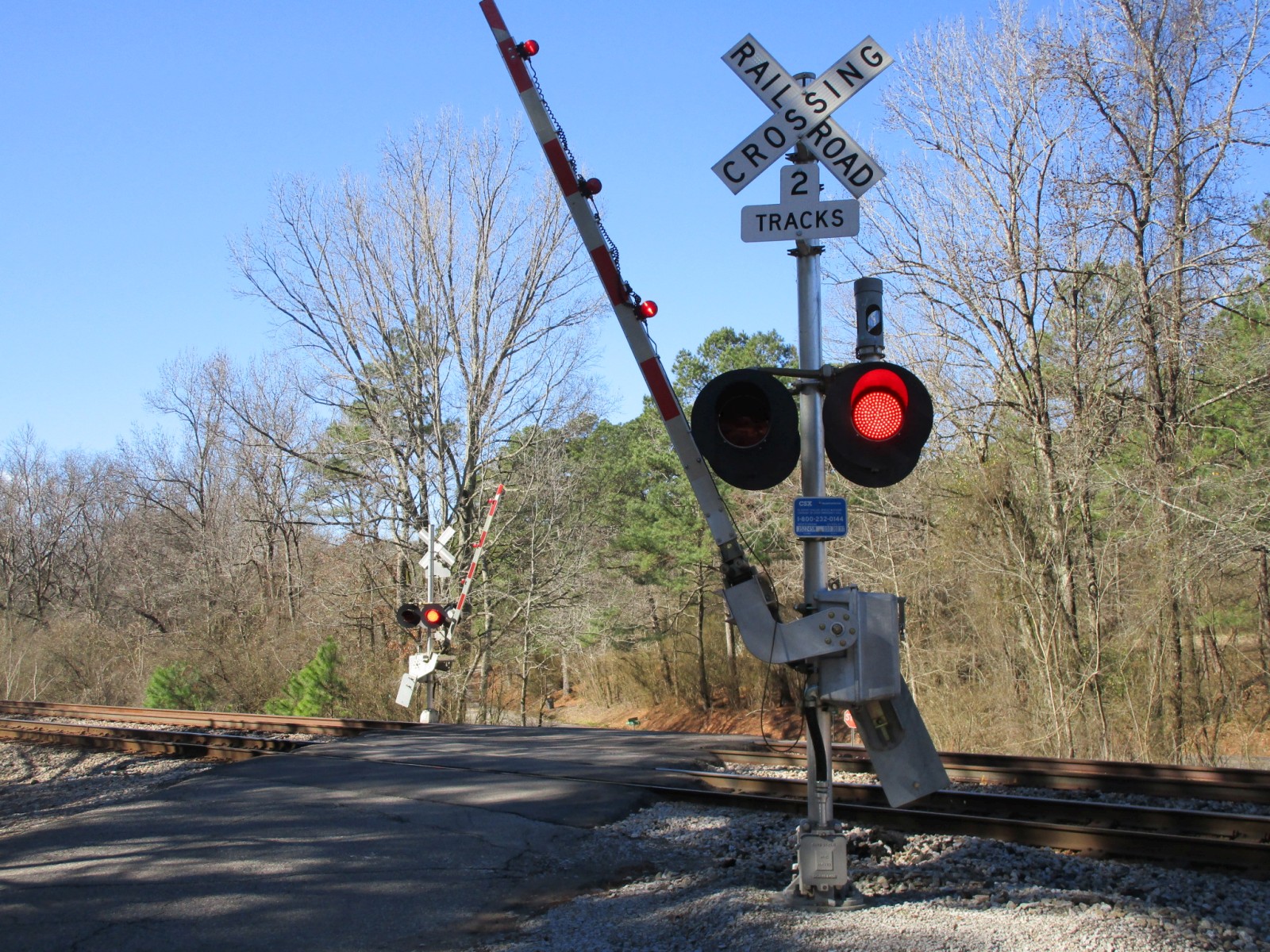

...and the gates rise.





Pictures 1-24 were taken on 1-8-20.

Pictures 25-72 and the video were taken on 2-13-23.
