Montgomery Avenue (Sheffield, AL)

MP: MF02.21

Updated December 13, 2022

Total Accidents: 5
Crossing DOT #: 731947E
TOTAL DAILY TRAINS: 18 (AS OF 2014)

Page created by: freebrickproductions

This crossing is located on the NS Memphis District West End.

1	2	3	4

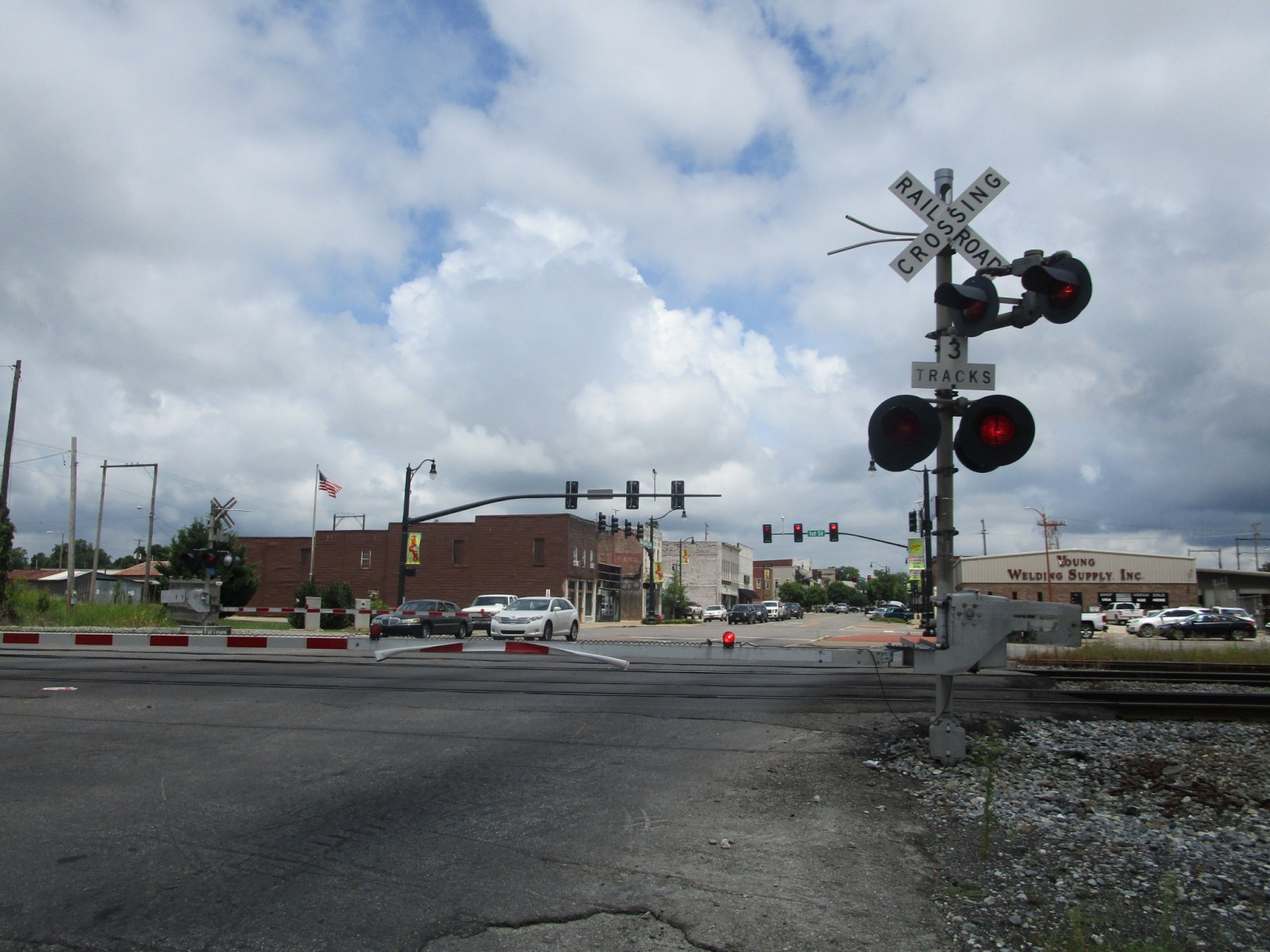

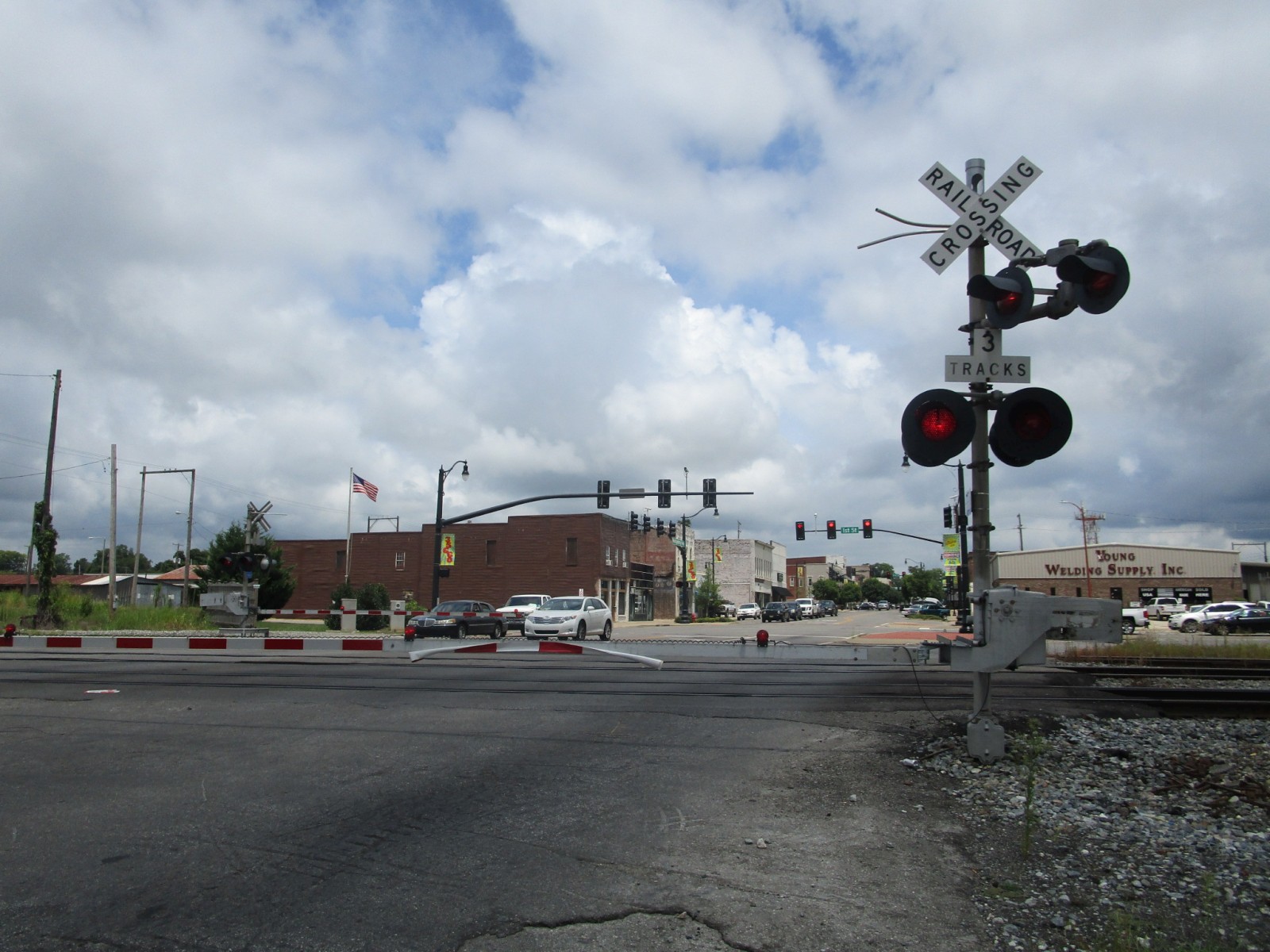

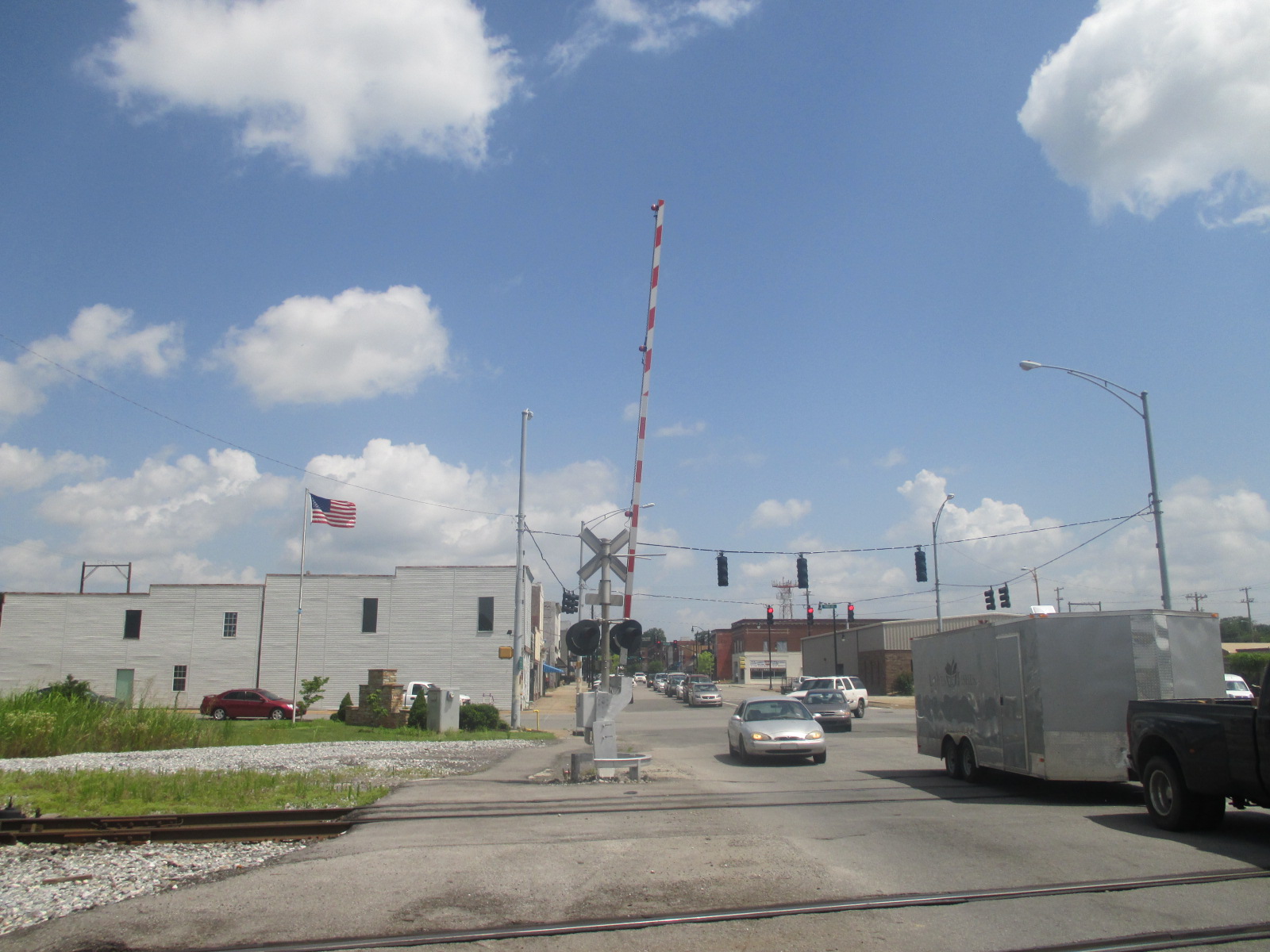

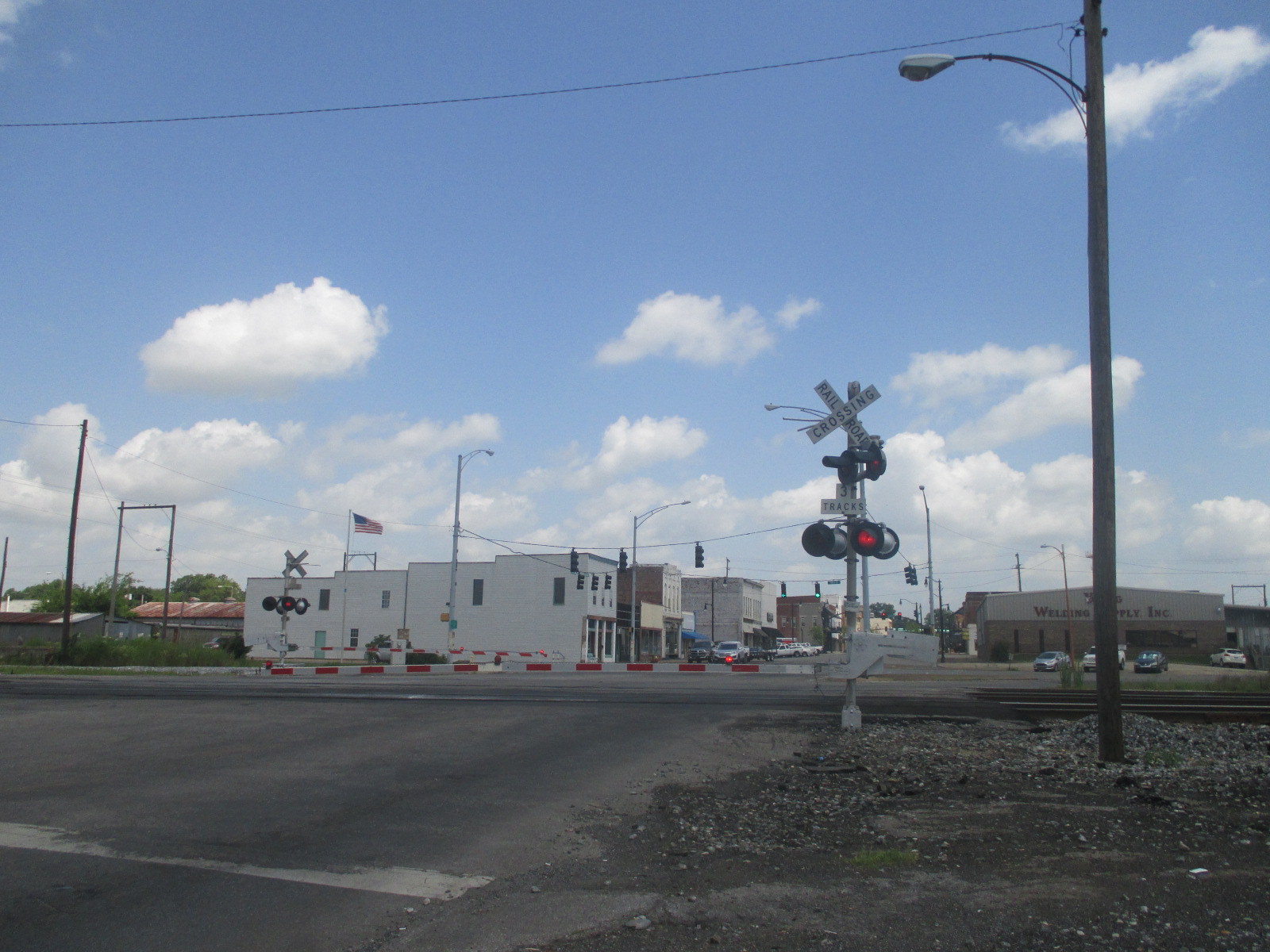

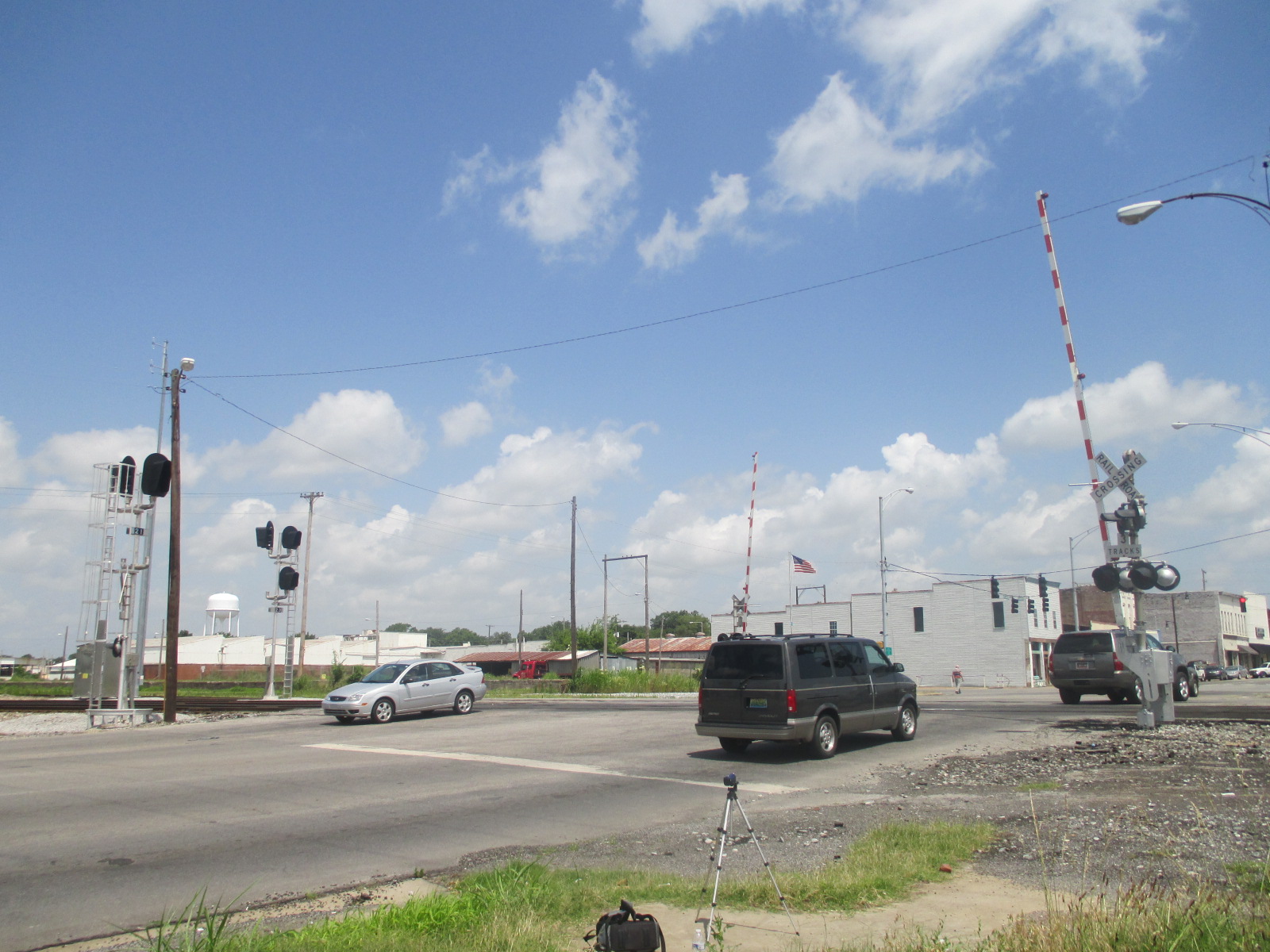

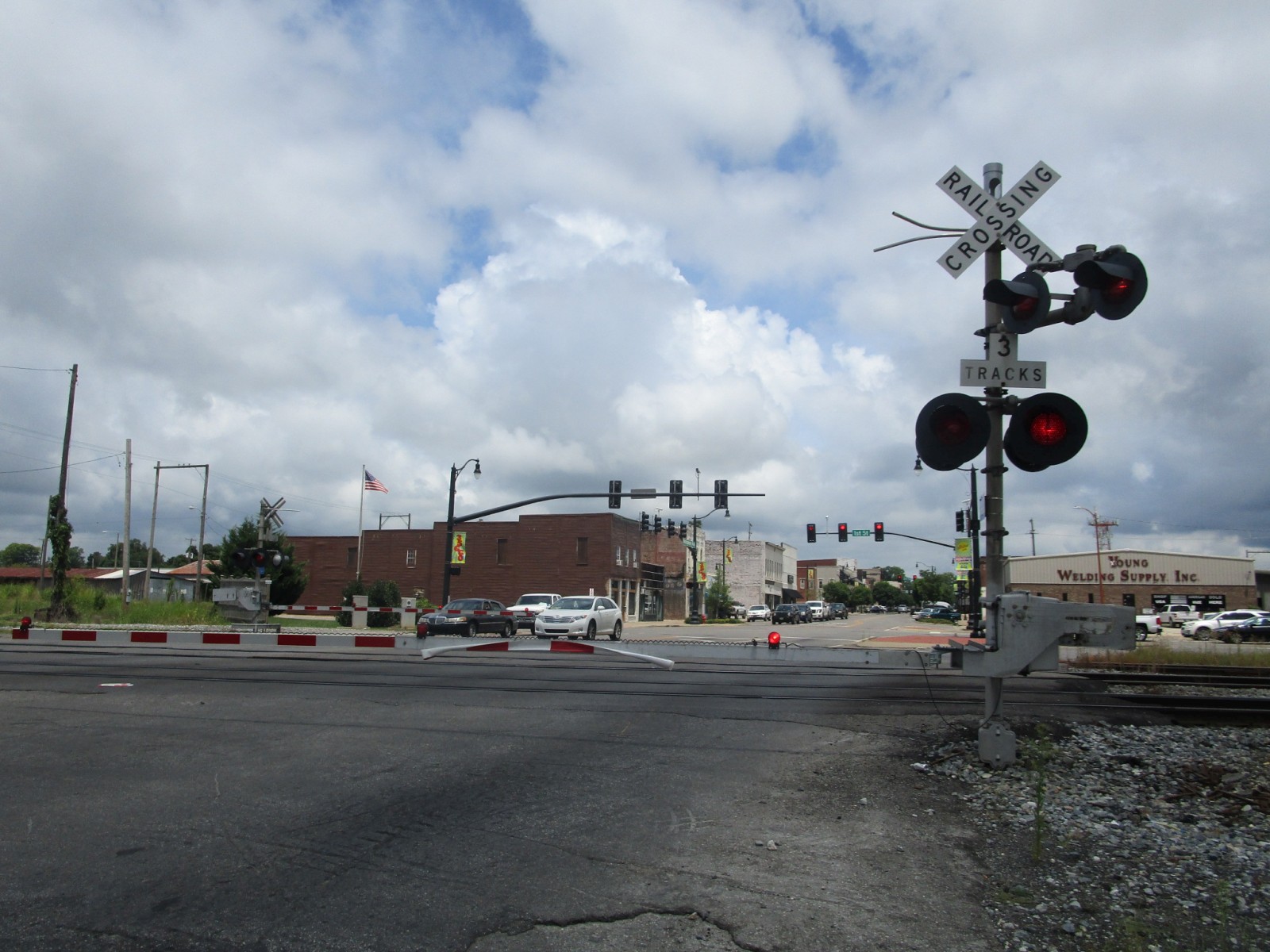

Overviews of the crossing.			The first signal.

5	6	7	8

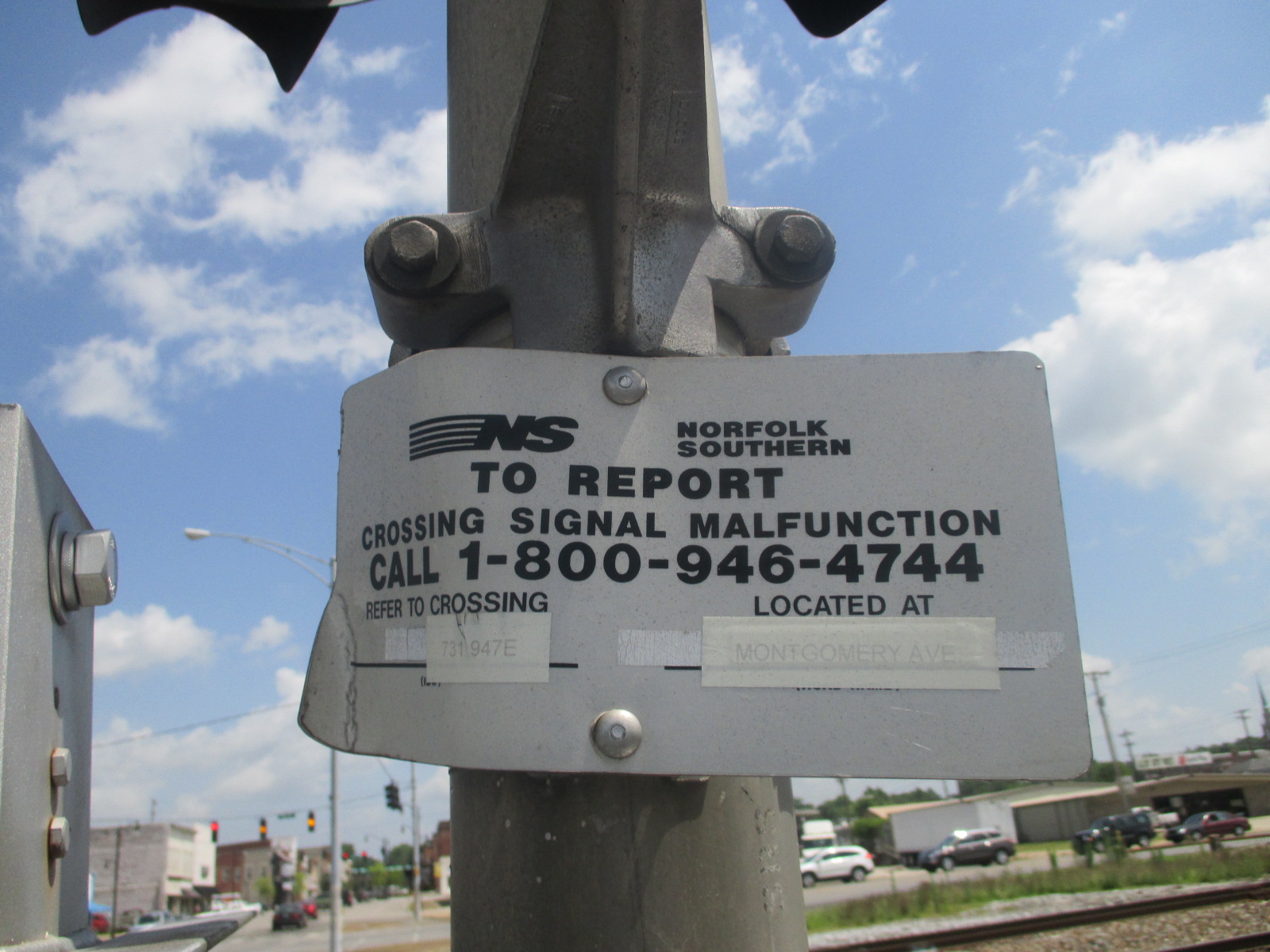

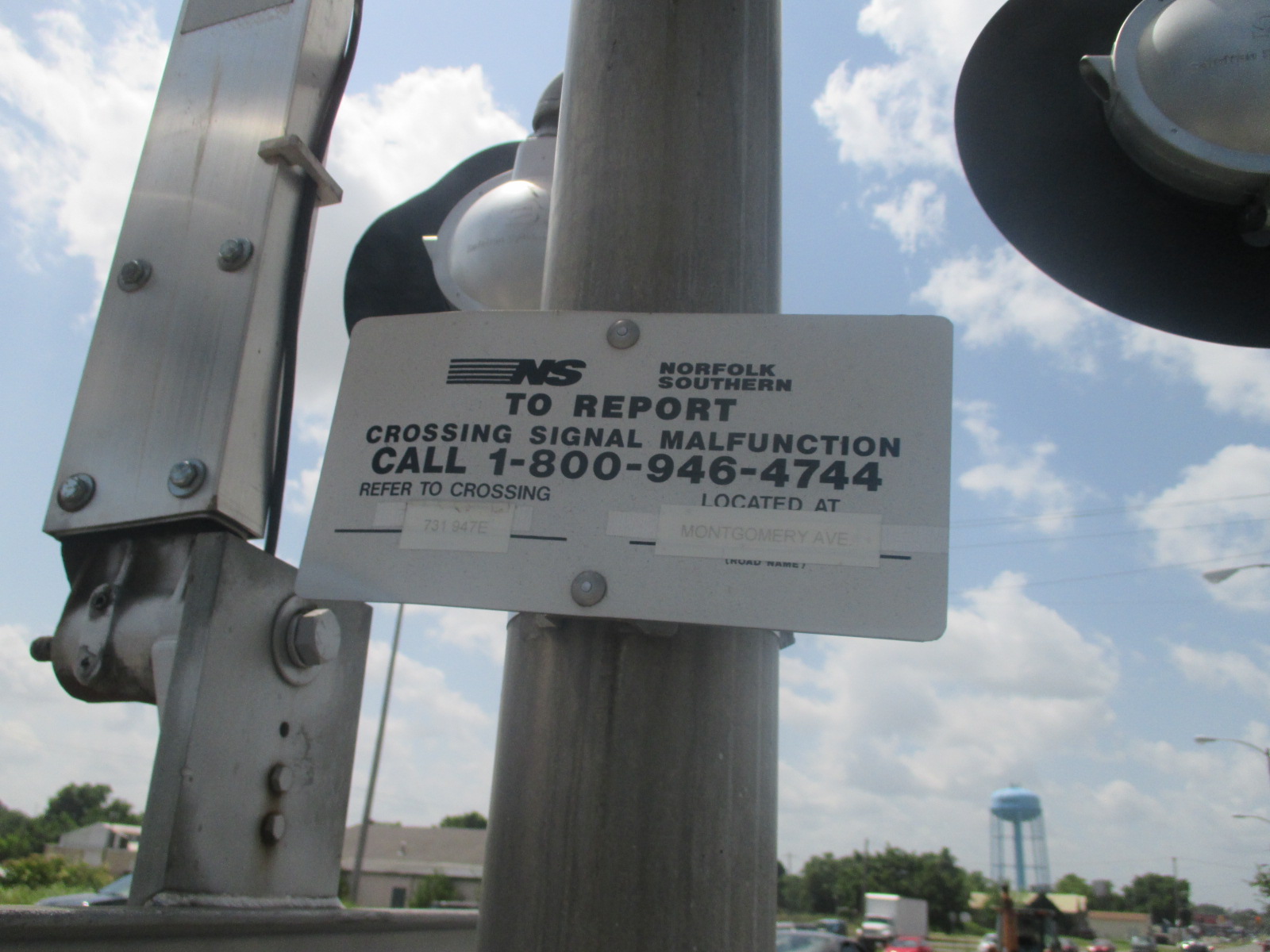

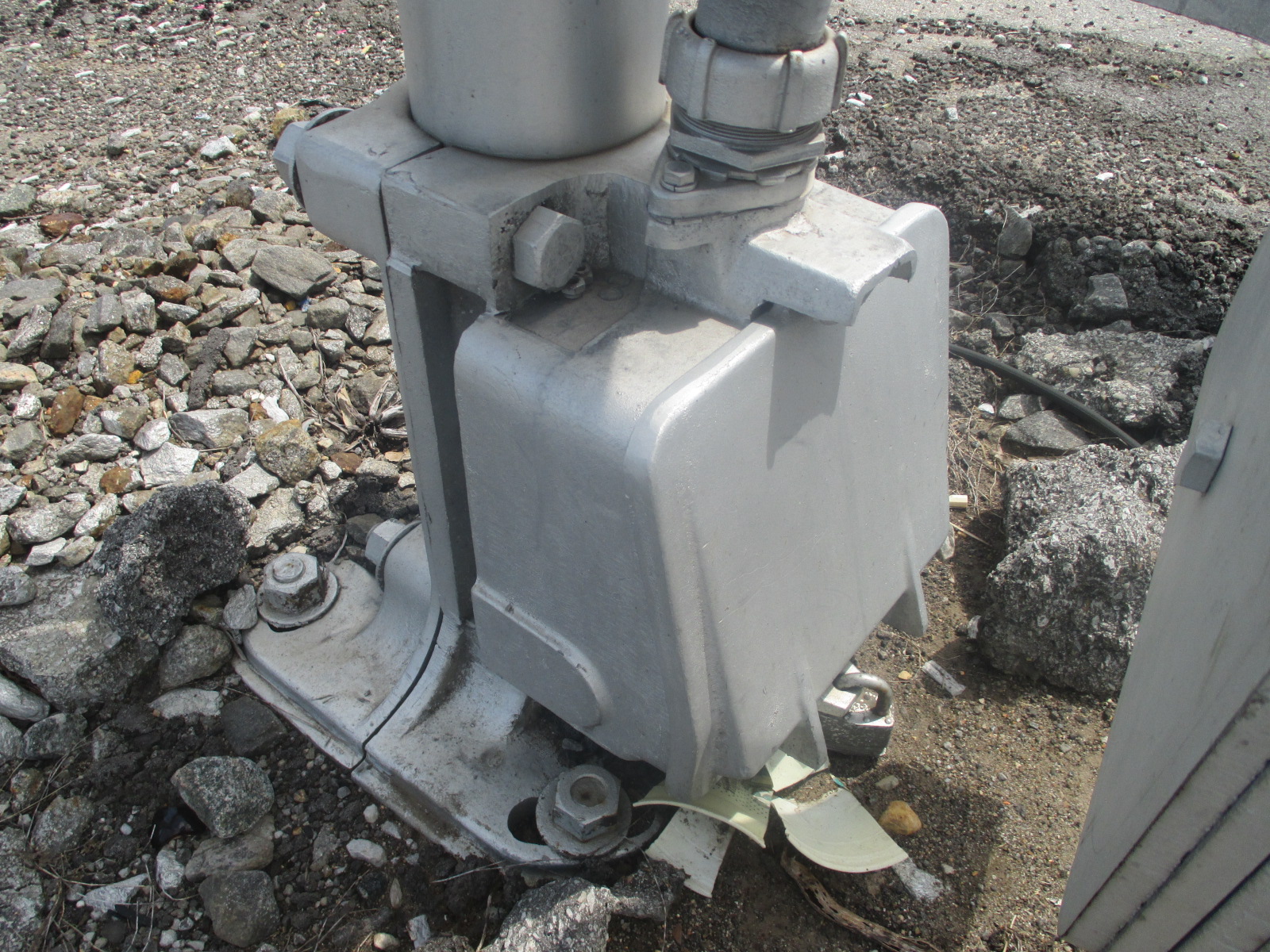

	A blank base.	This signal has a Safetran gate mechanism.	The emergency information.

9	10	11	12

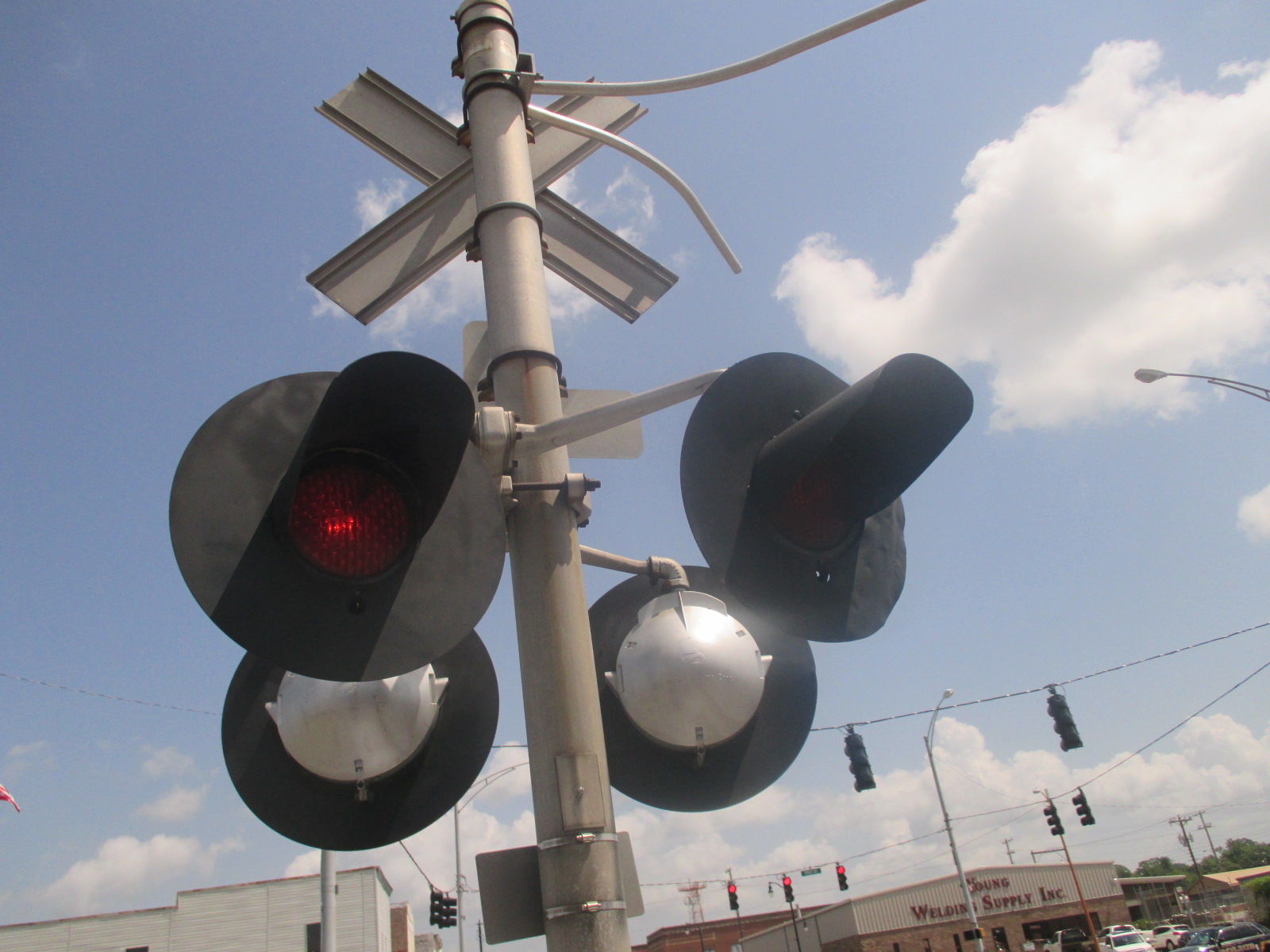

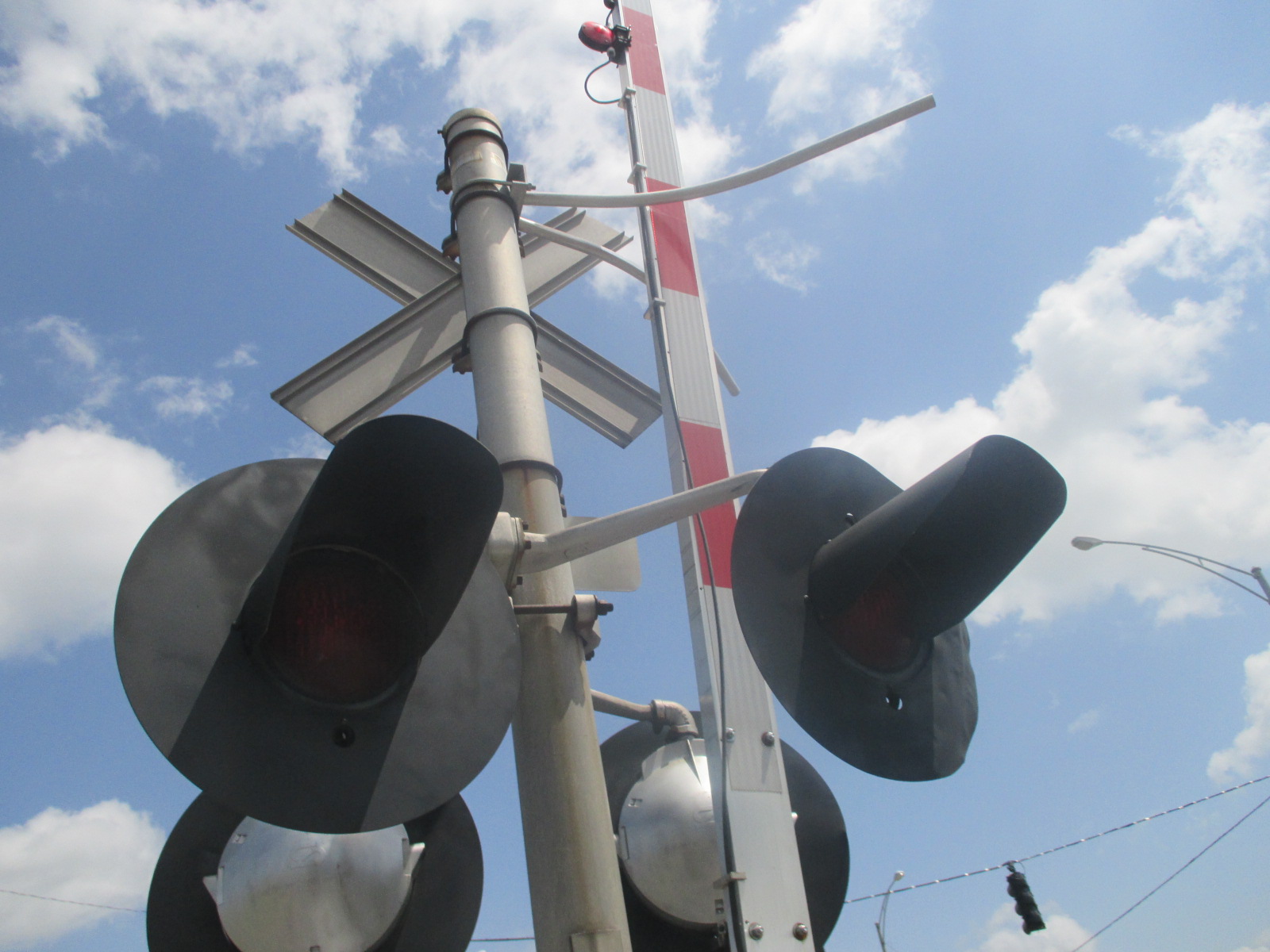

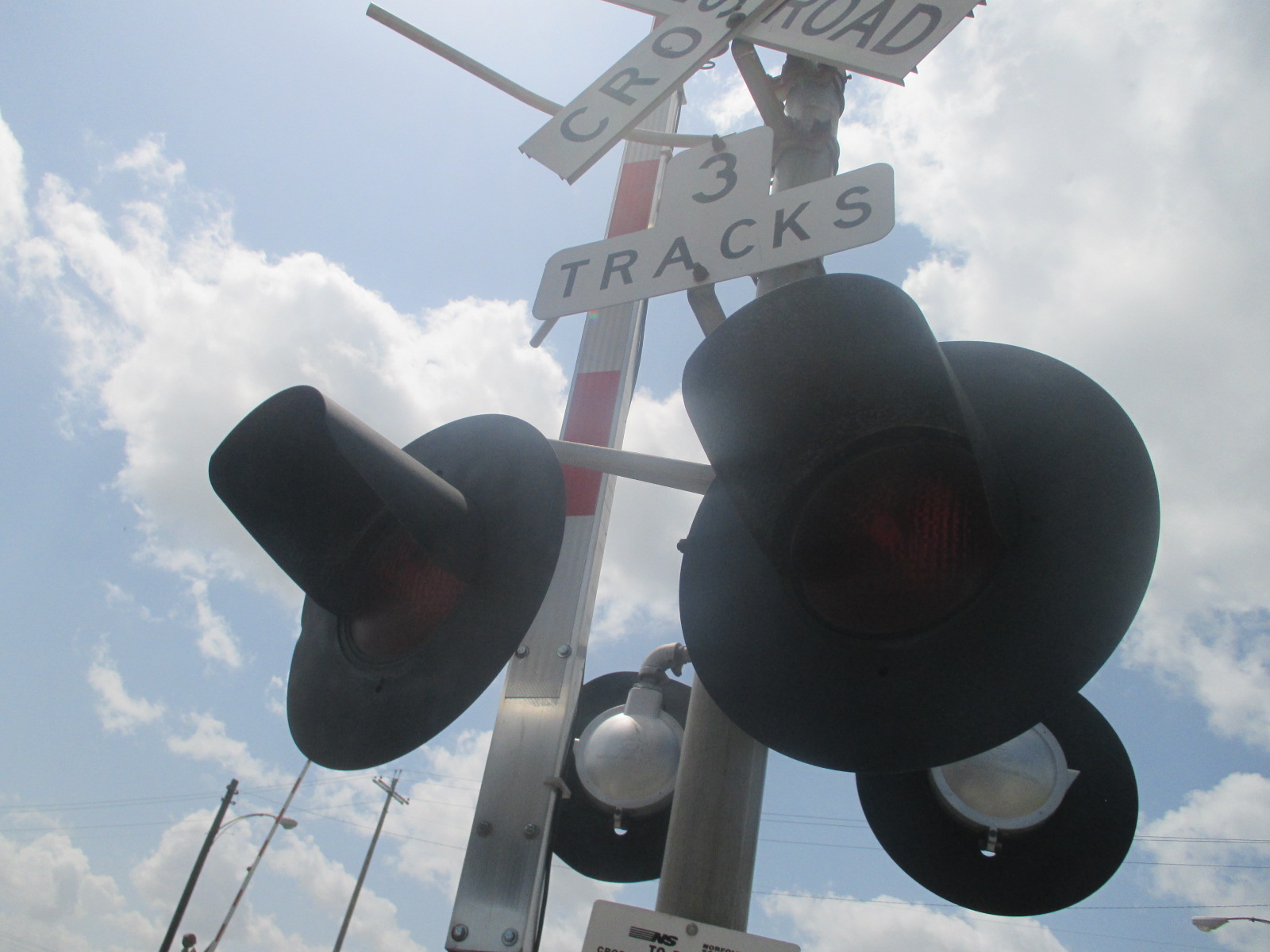

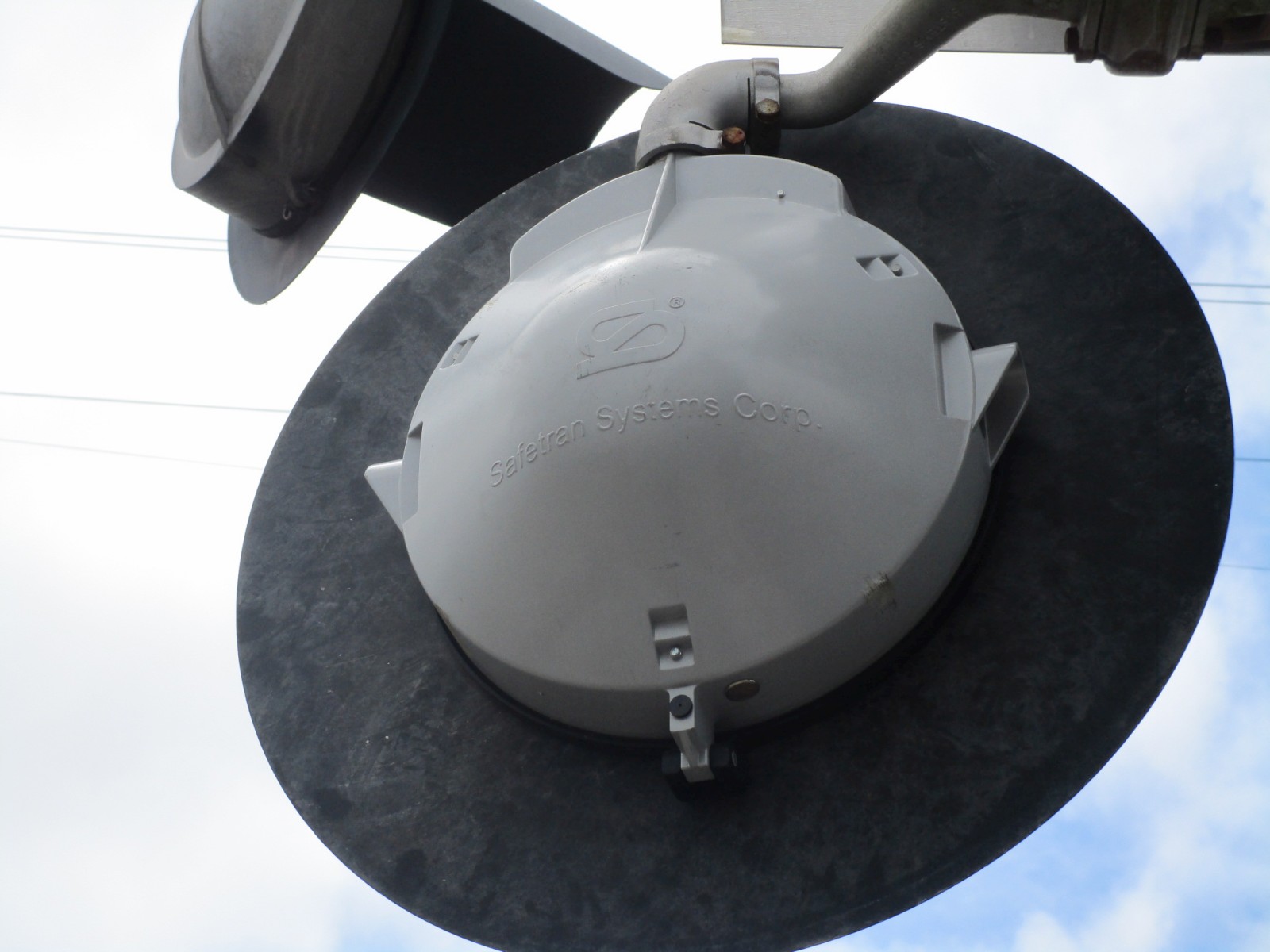

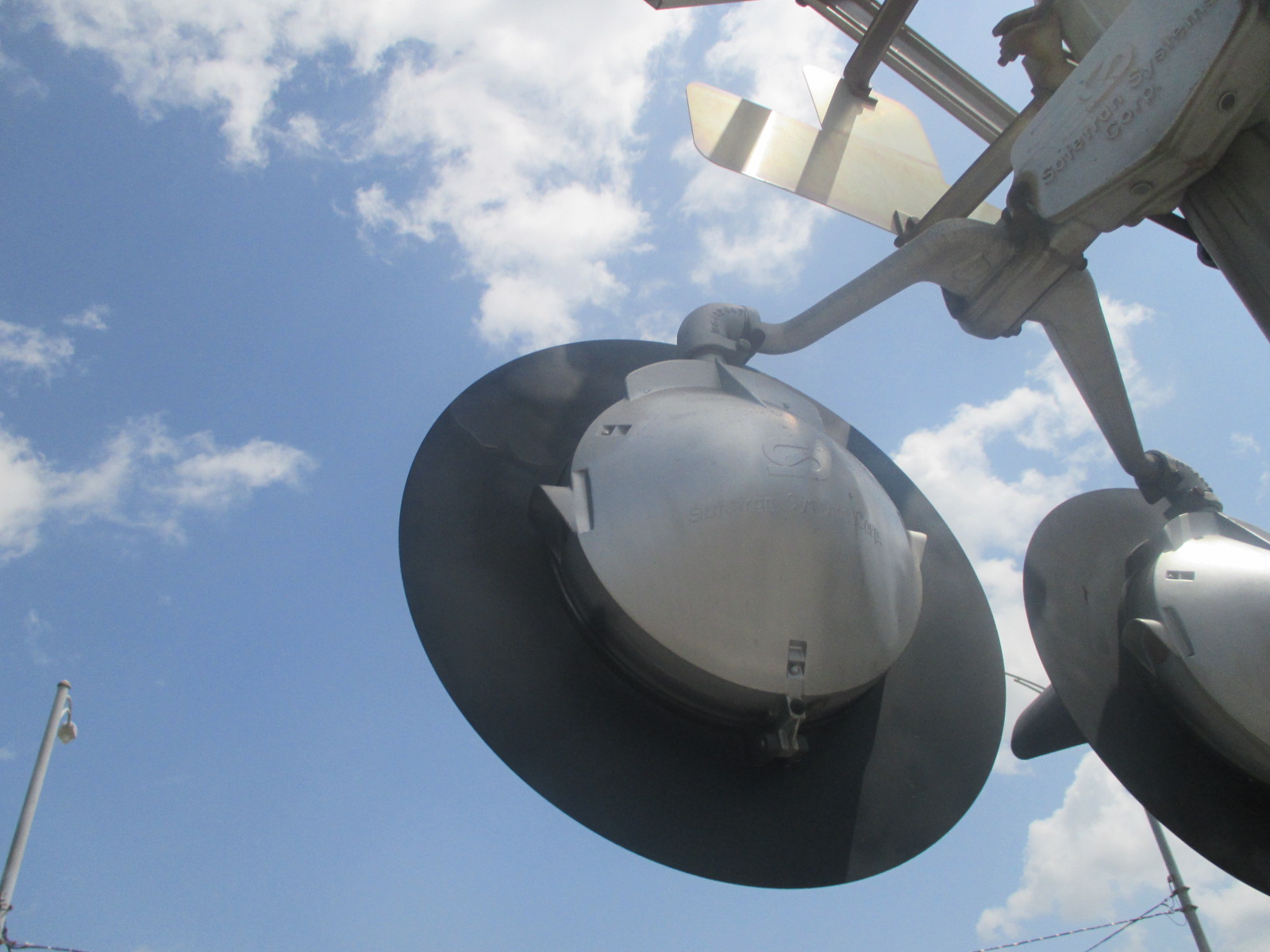

The front lights on this signal are Safetran 12x24 inch lights.		And the rear lights are Safetran 8 inch lights.

13	14	15	16

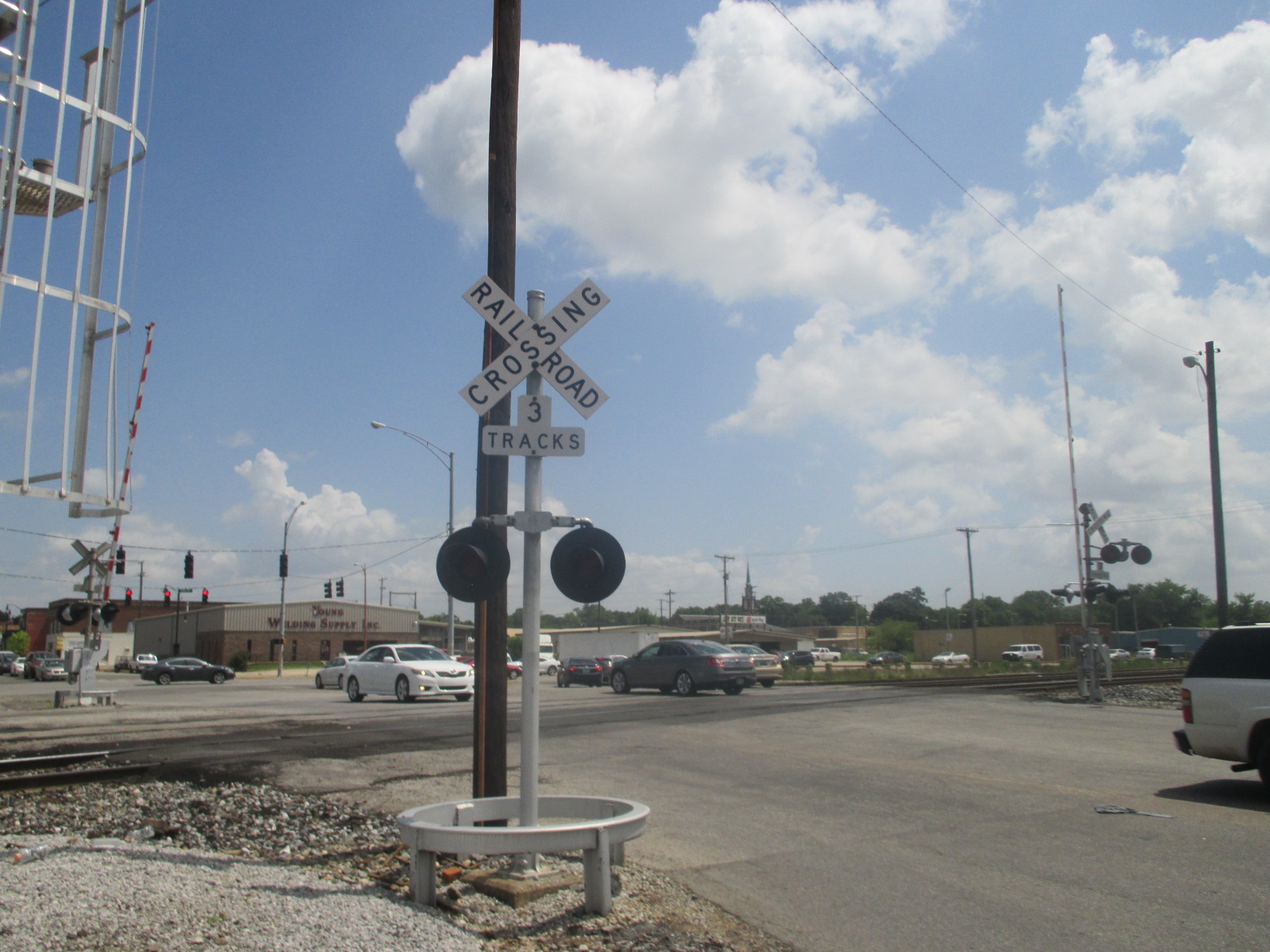

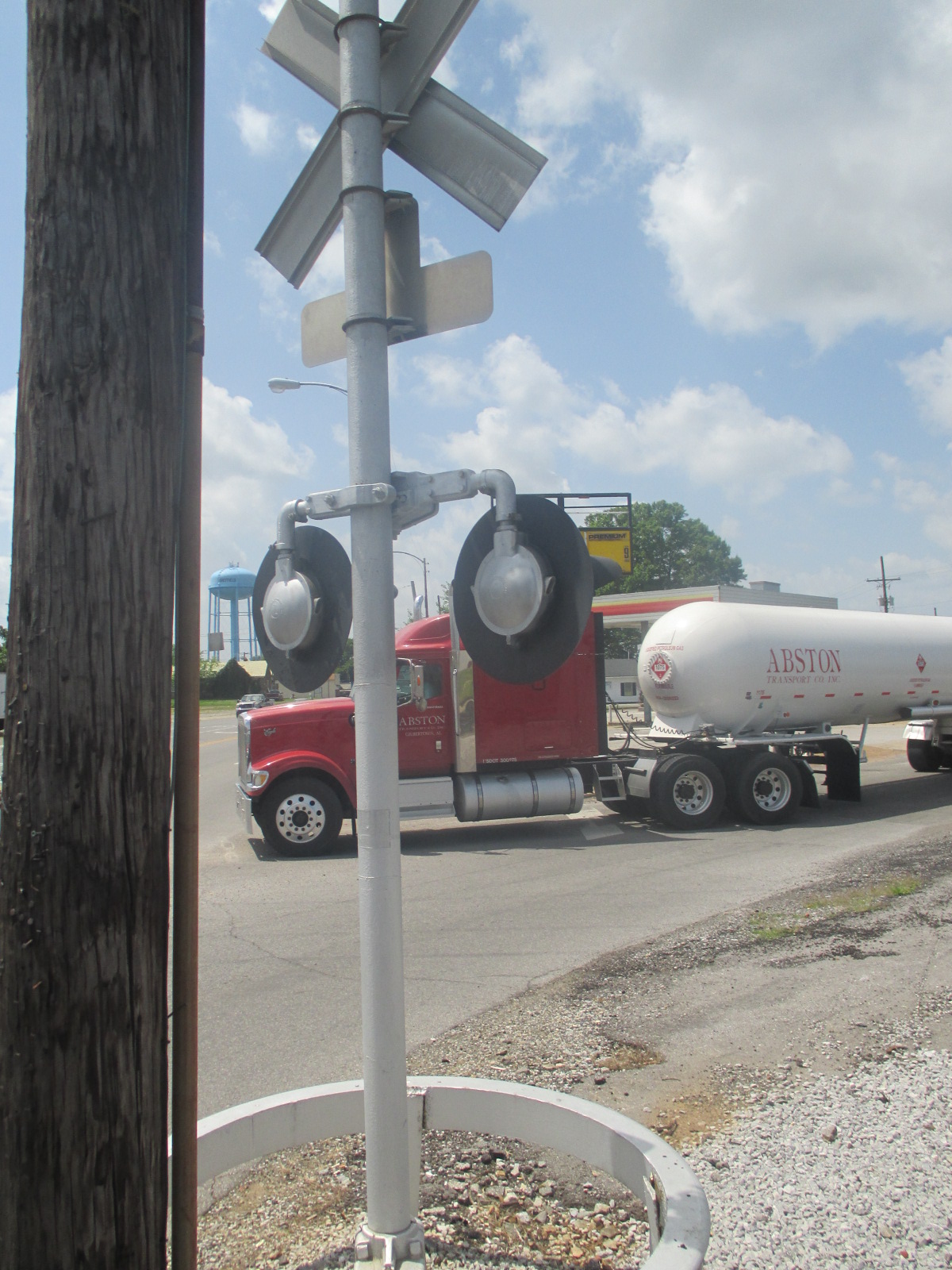

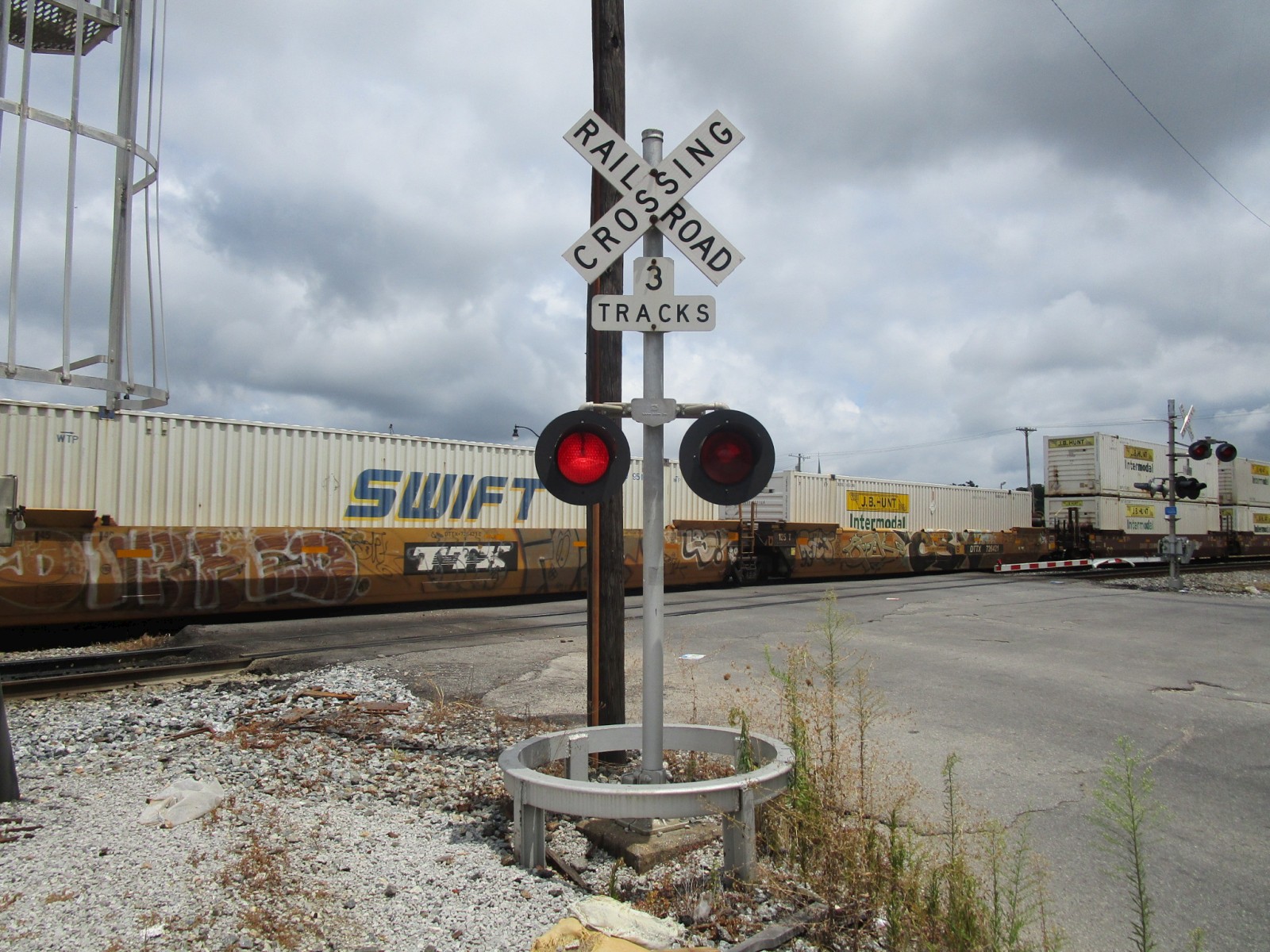

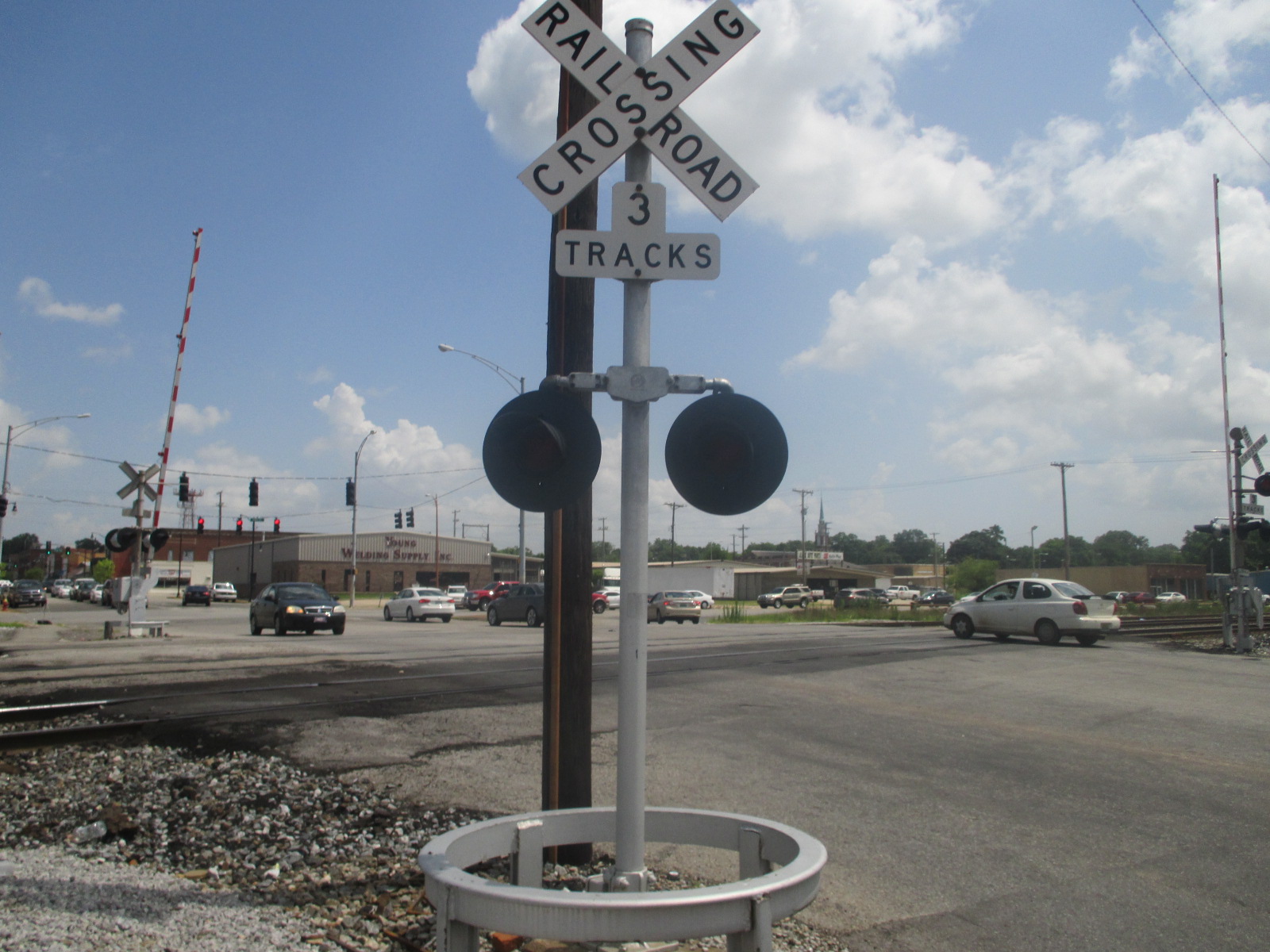

This gateless signal is for a side street.		It has a GRS base.	And a pair of 8 inch lights.

17	18	19	20

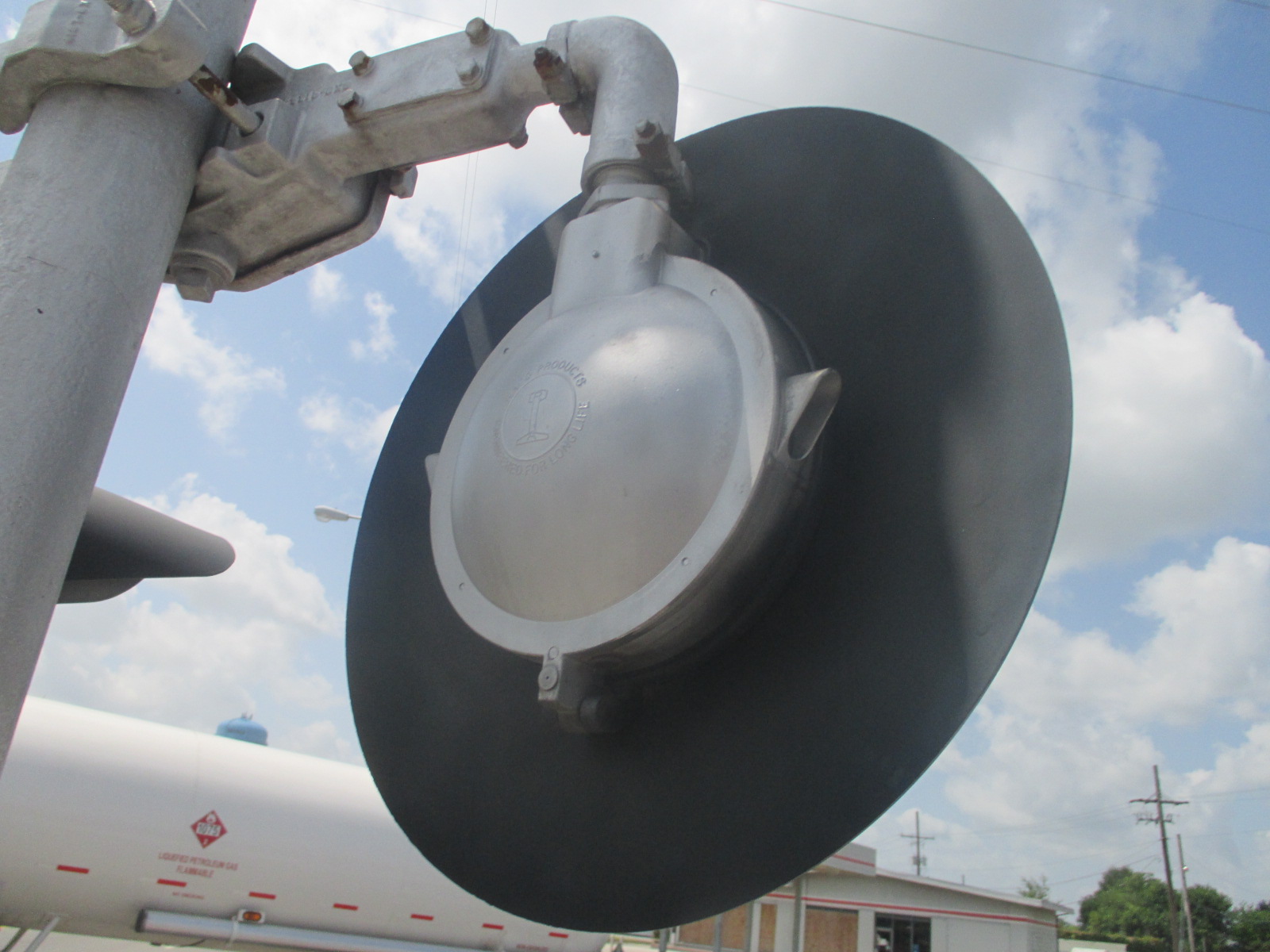

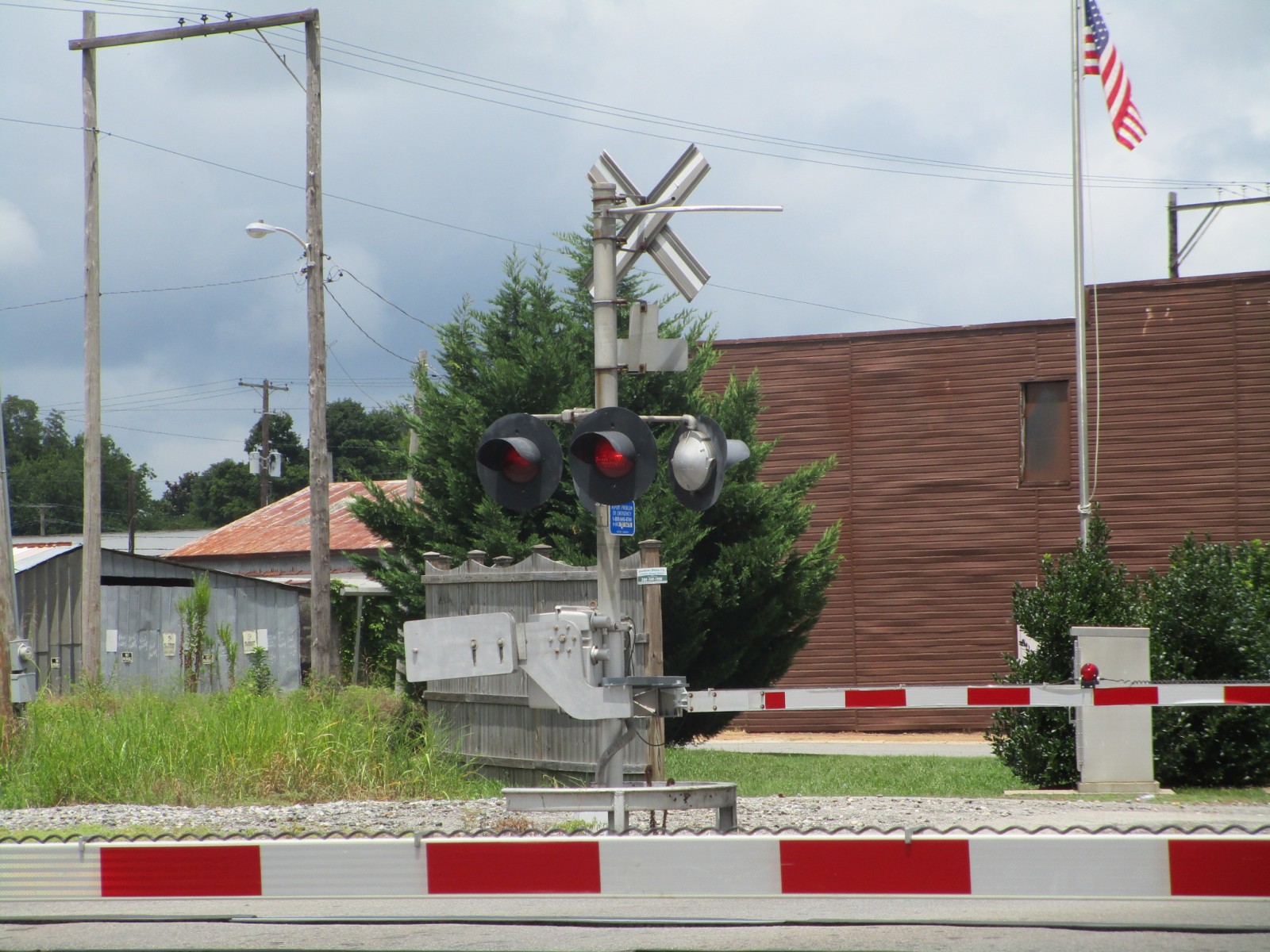

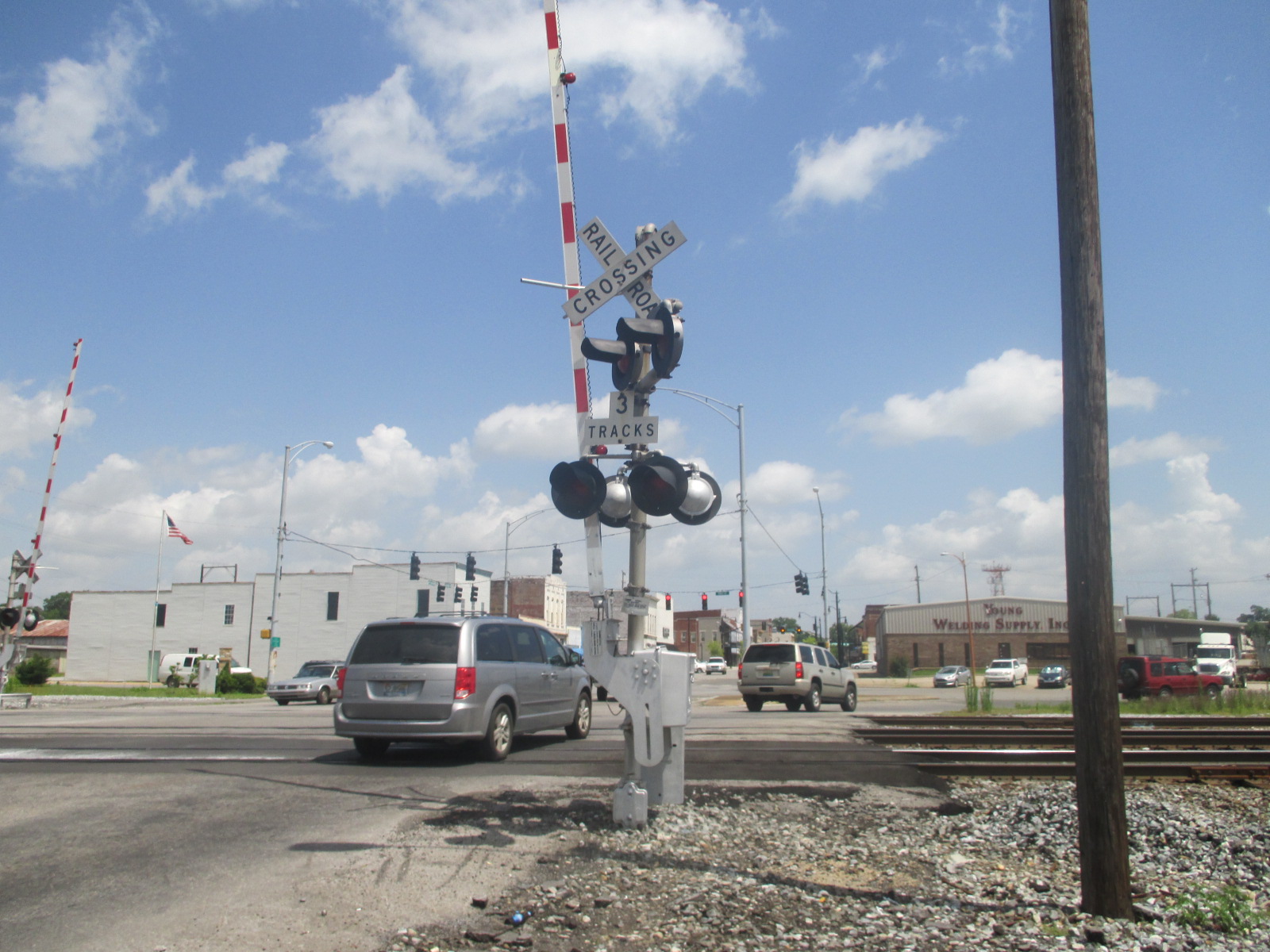

They were made by RACO.	The second signal.		A Safetran base.

21	22	23	24

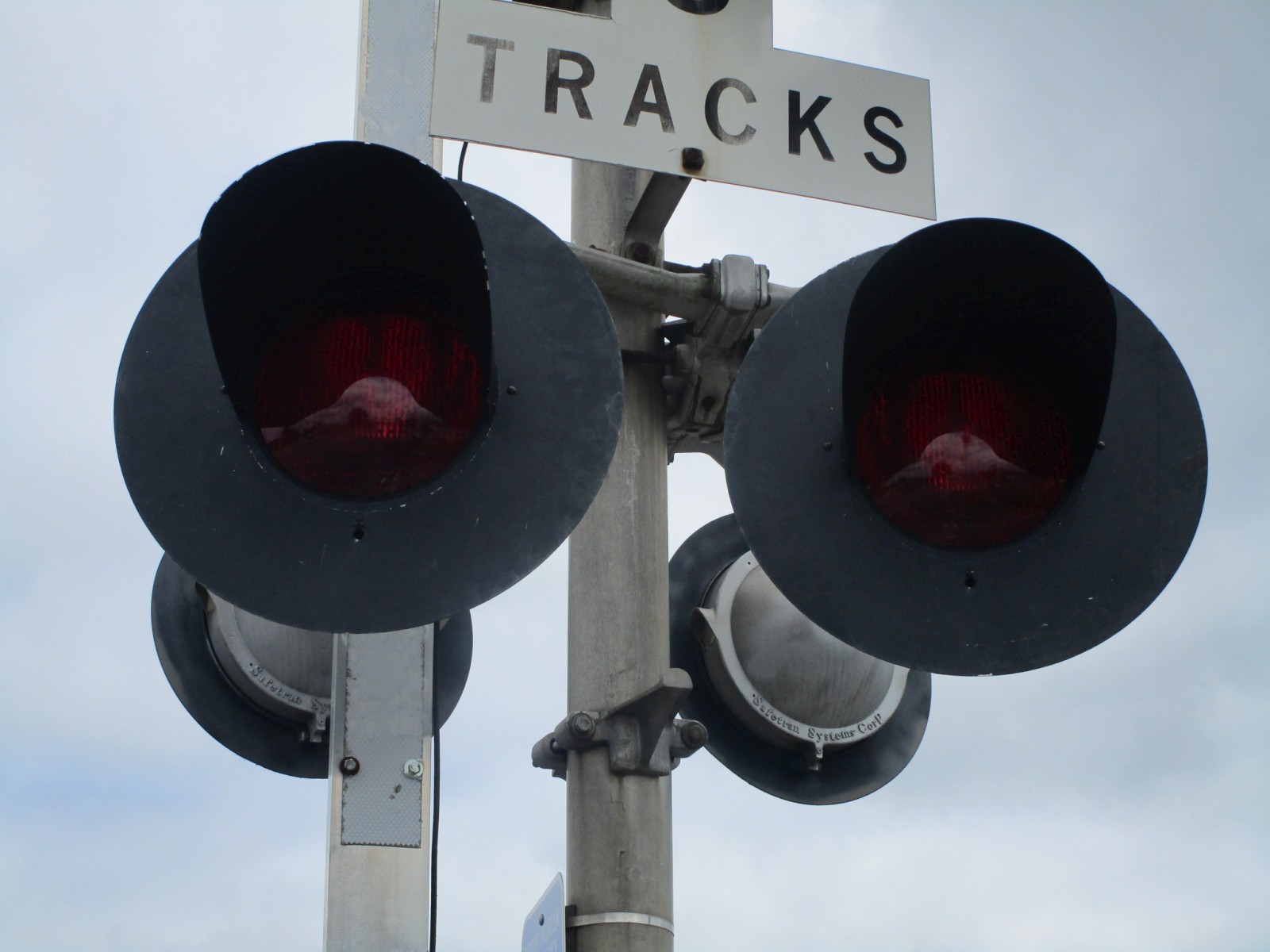

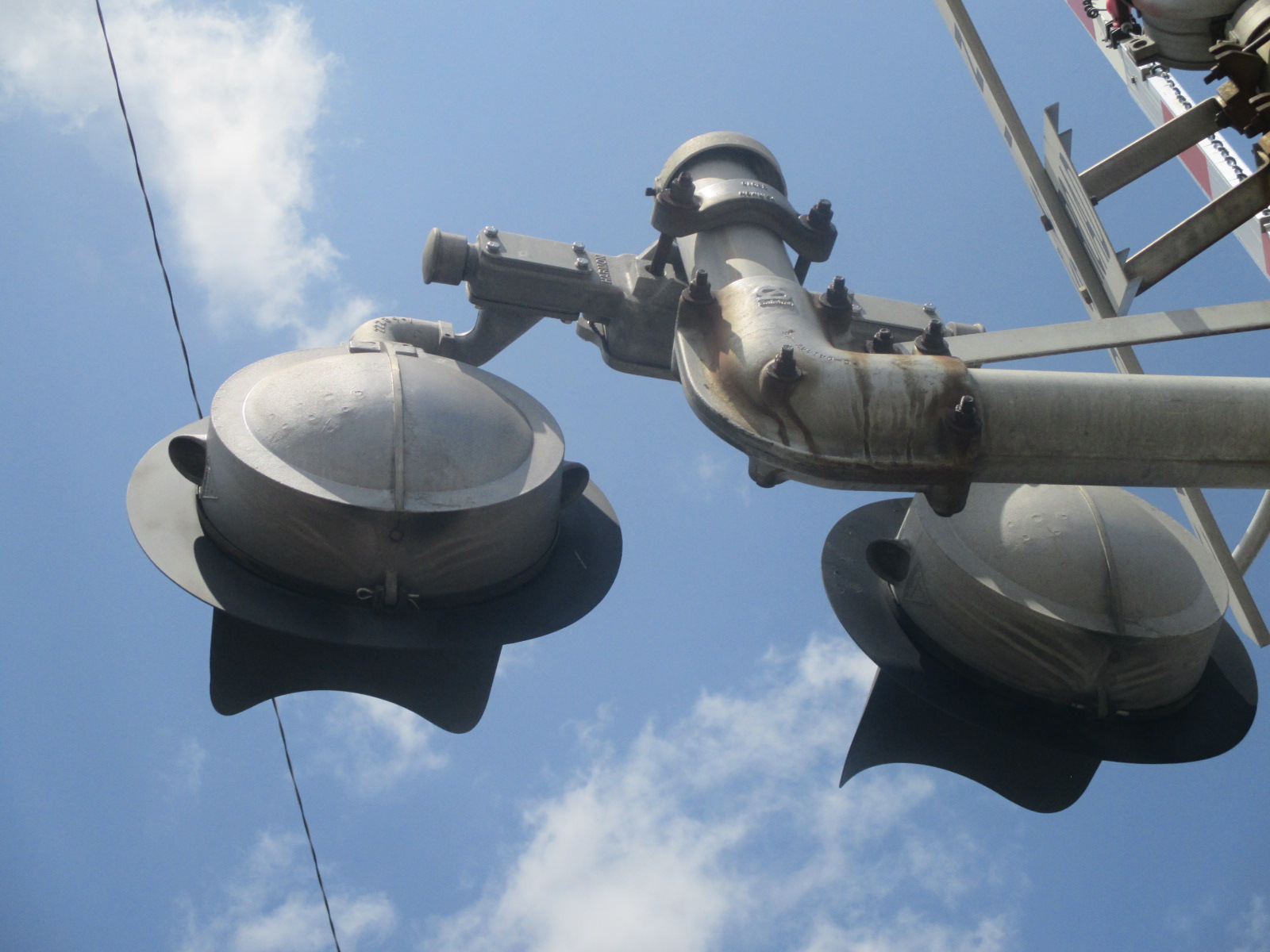

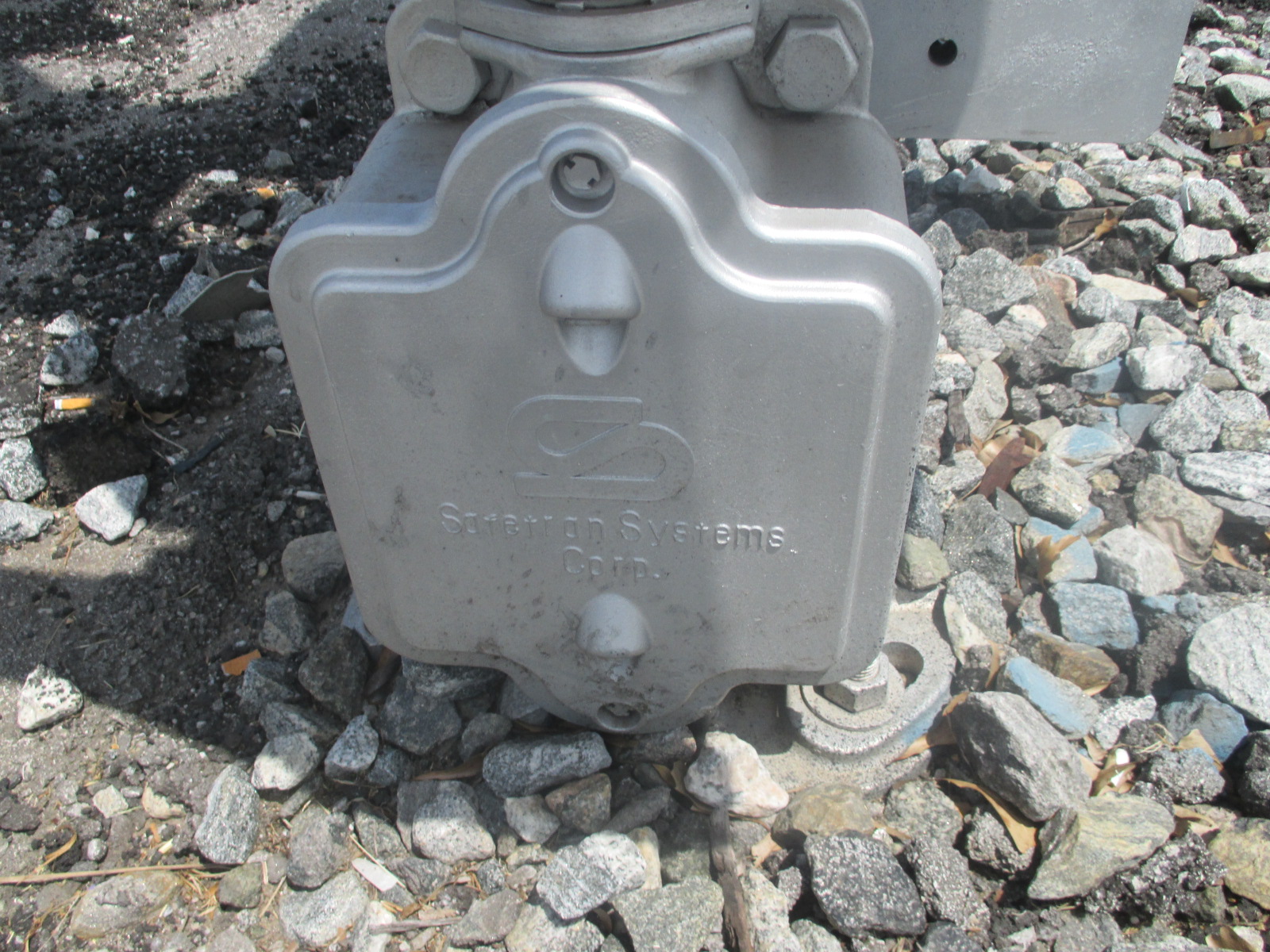

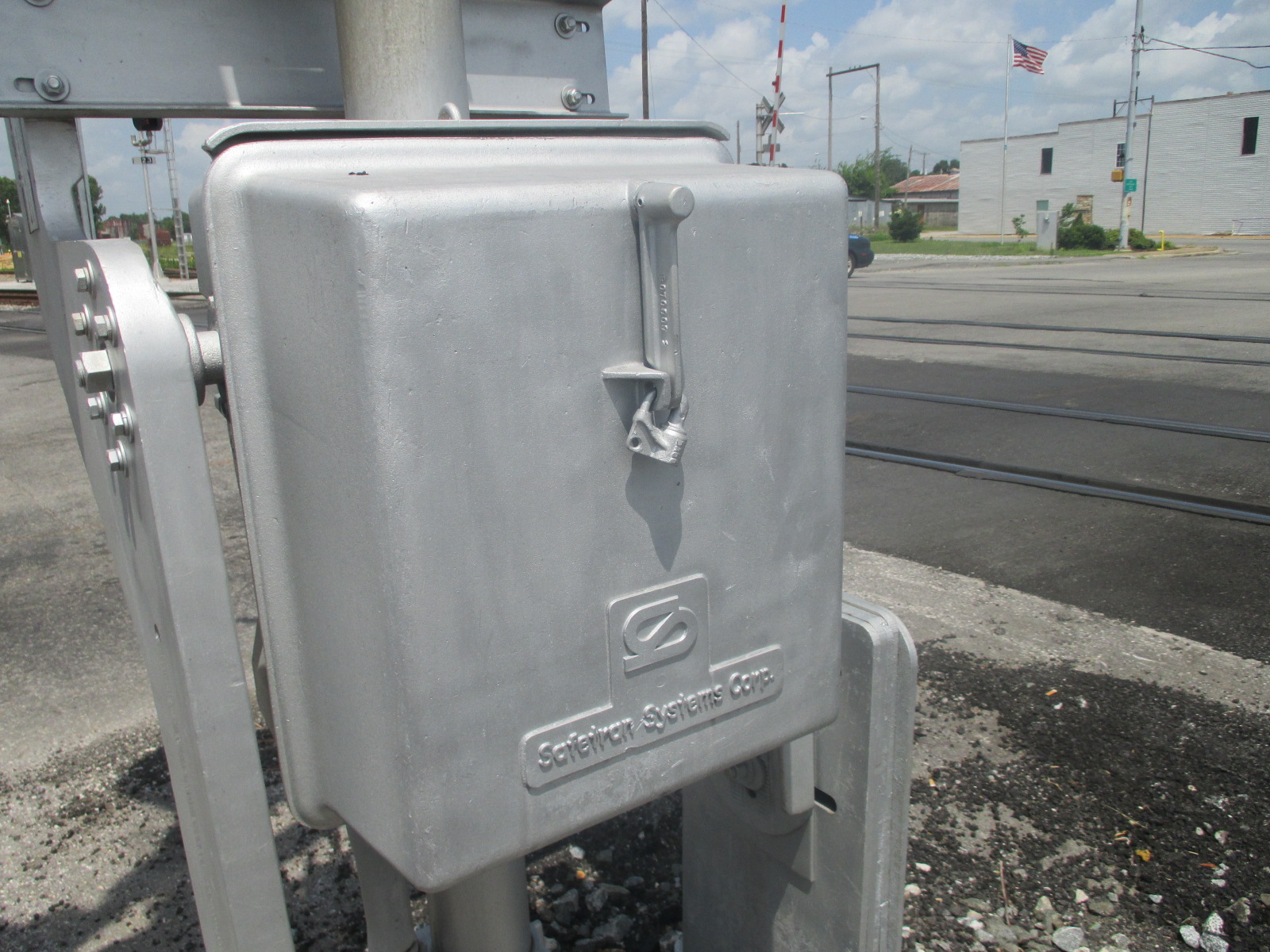

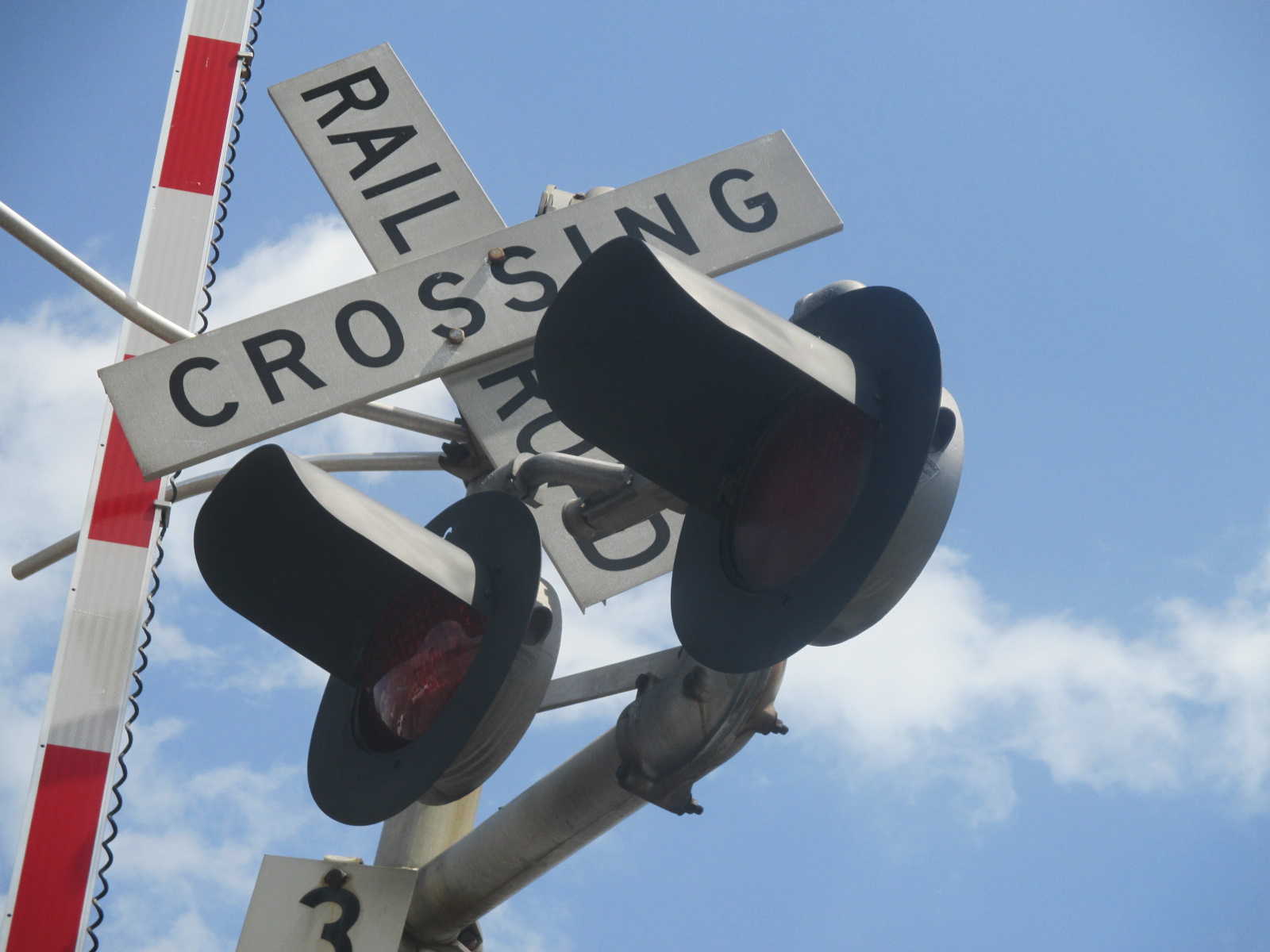

Another Safetran gate mechanism.	The slightly damaged emergency information.	The lights on this signal are older Safetran 12x20 inch lights.

25	26	27	28

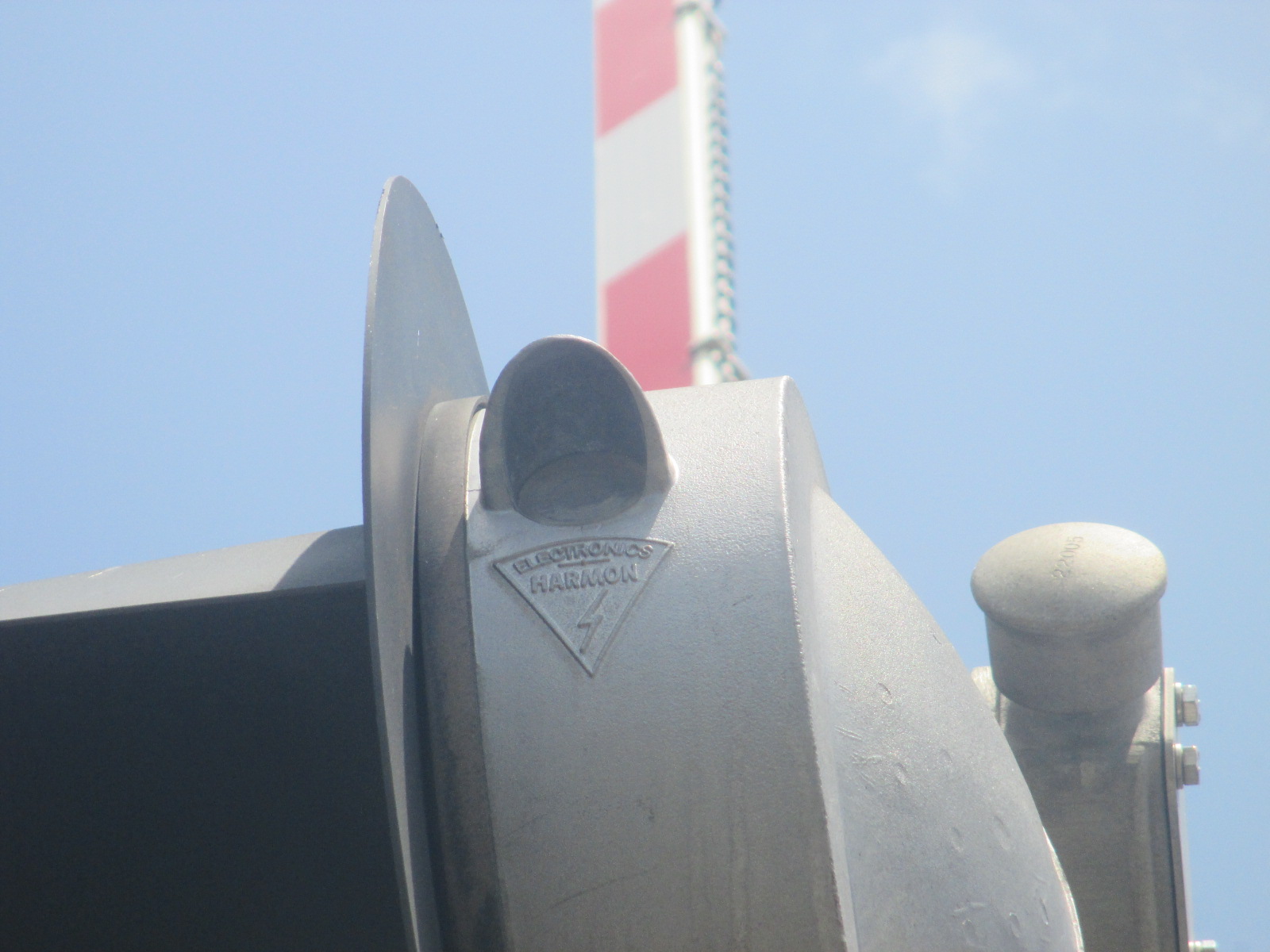

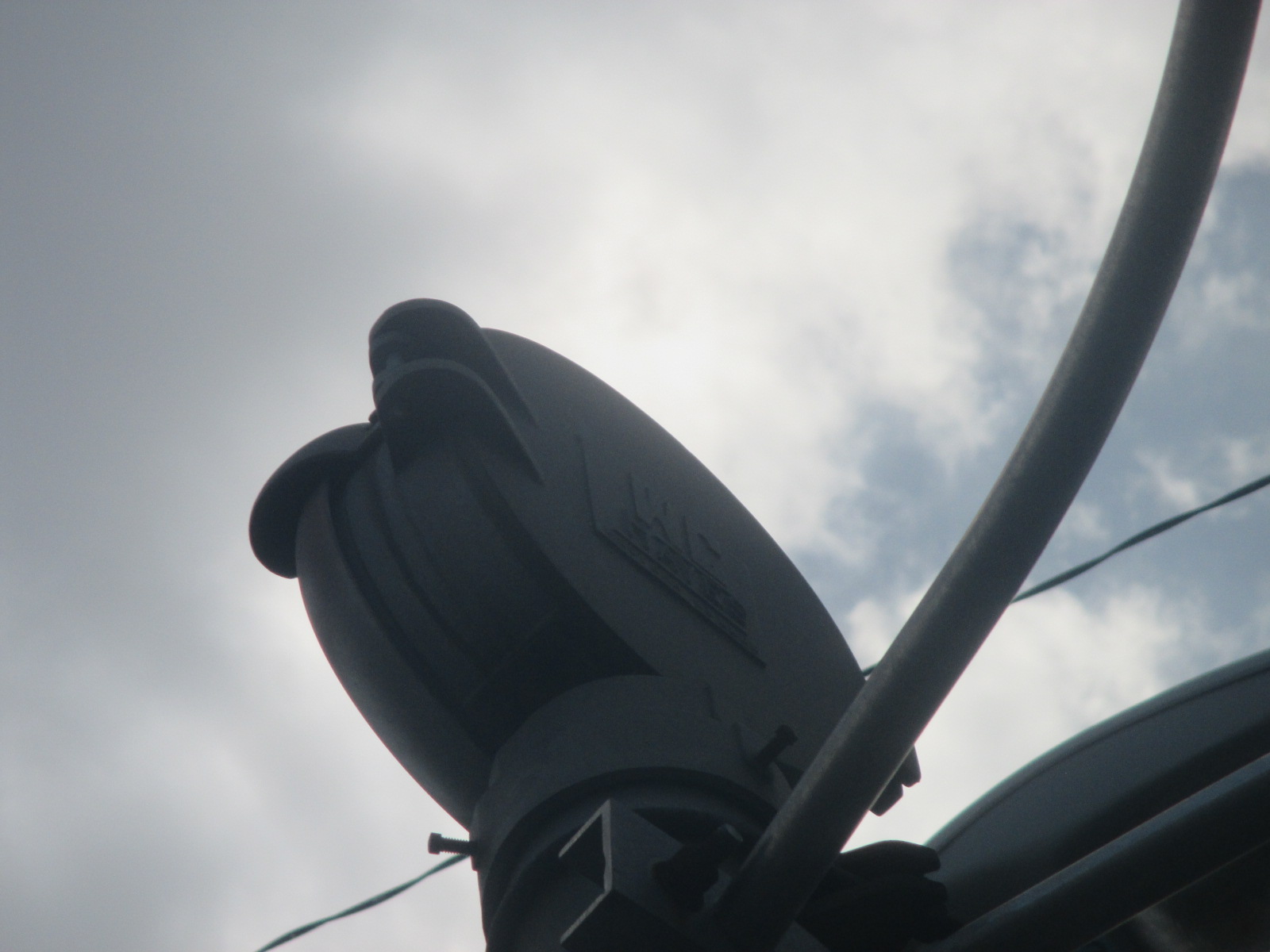

With a pair of Harmon 12x20 lights for a side street.			The bell is a WCH mechanical bell.

29	30	31	32

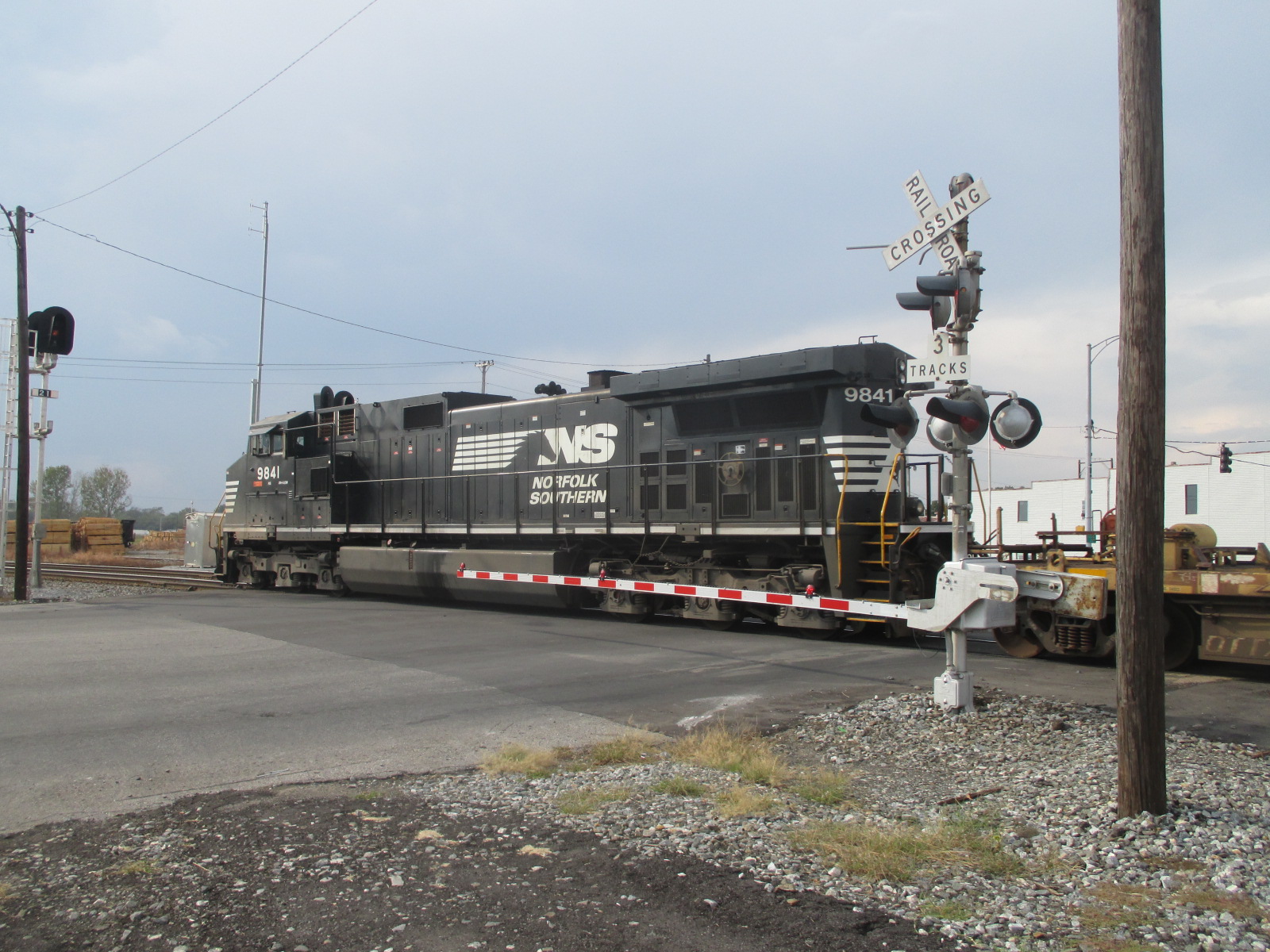

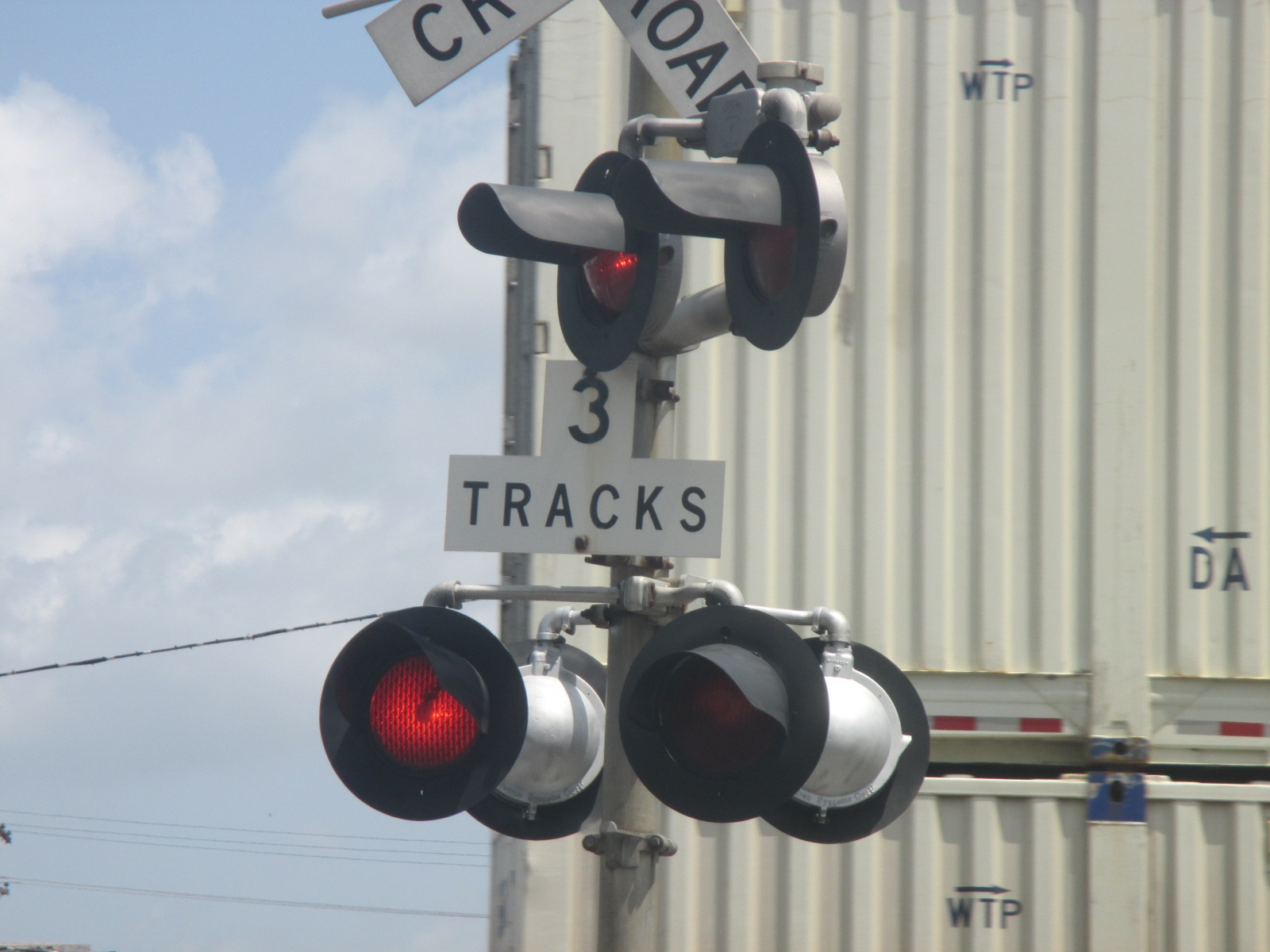

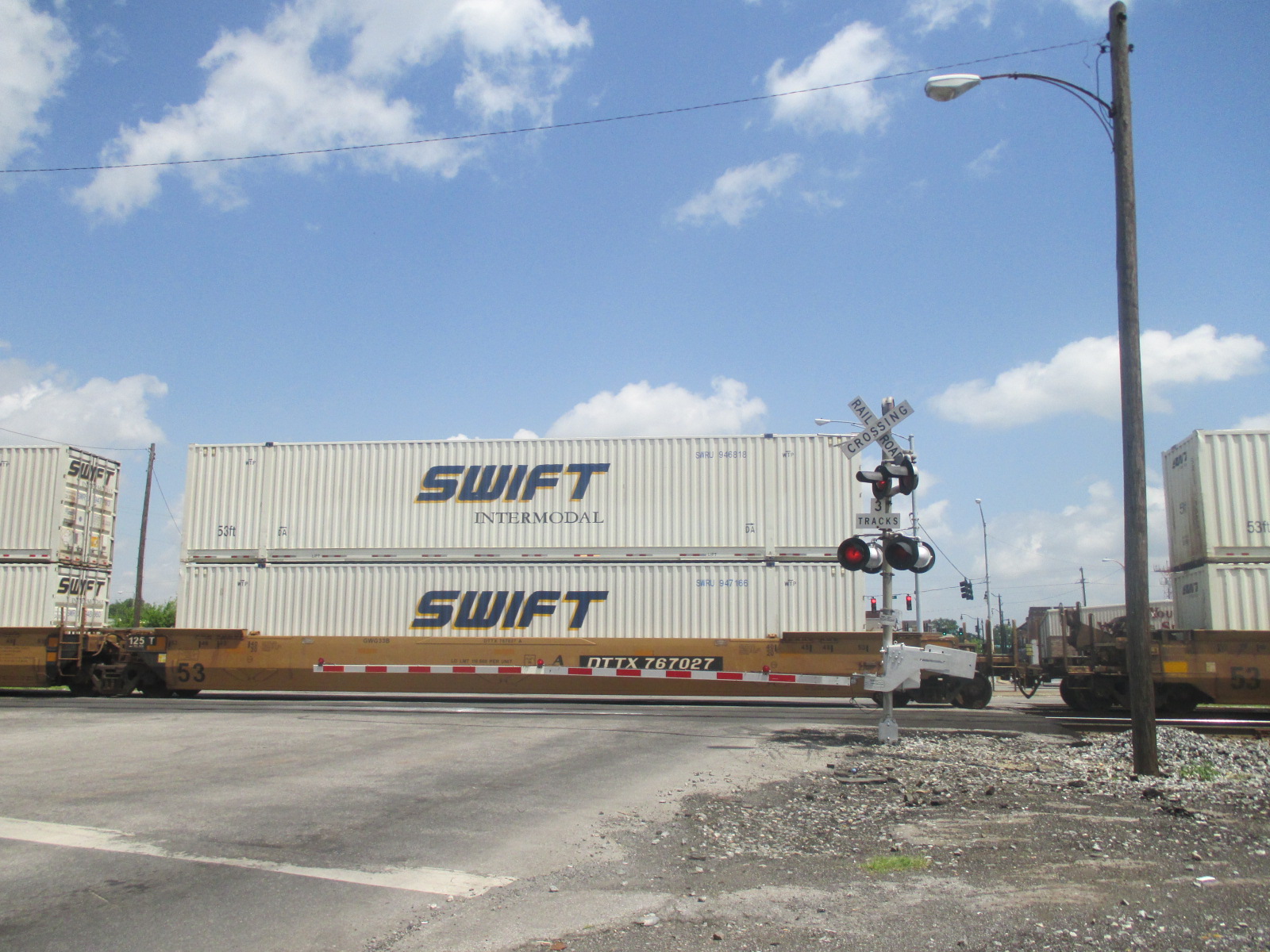

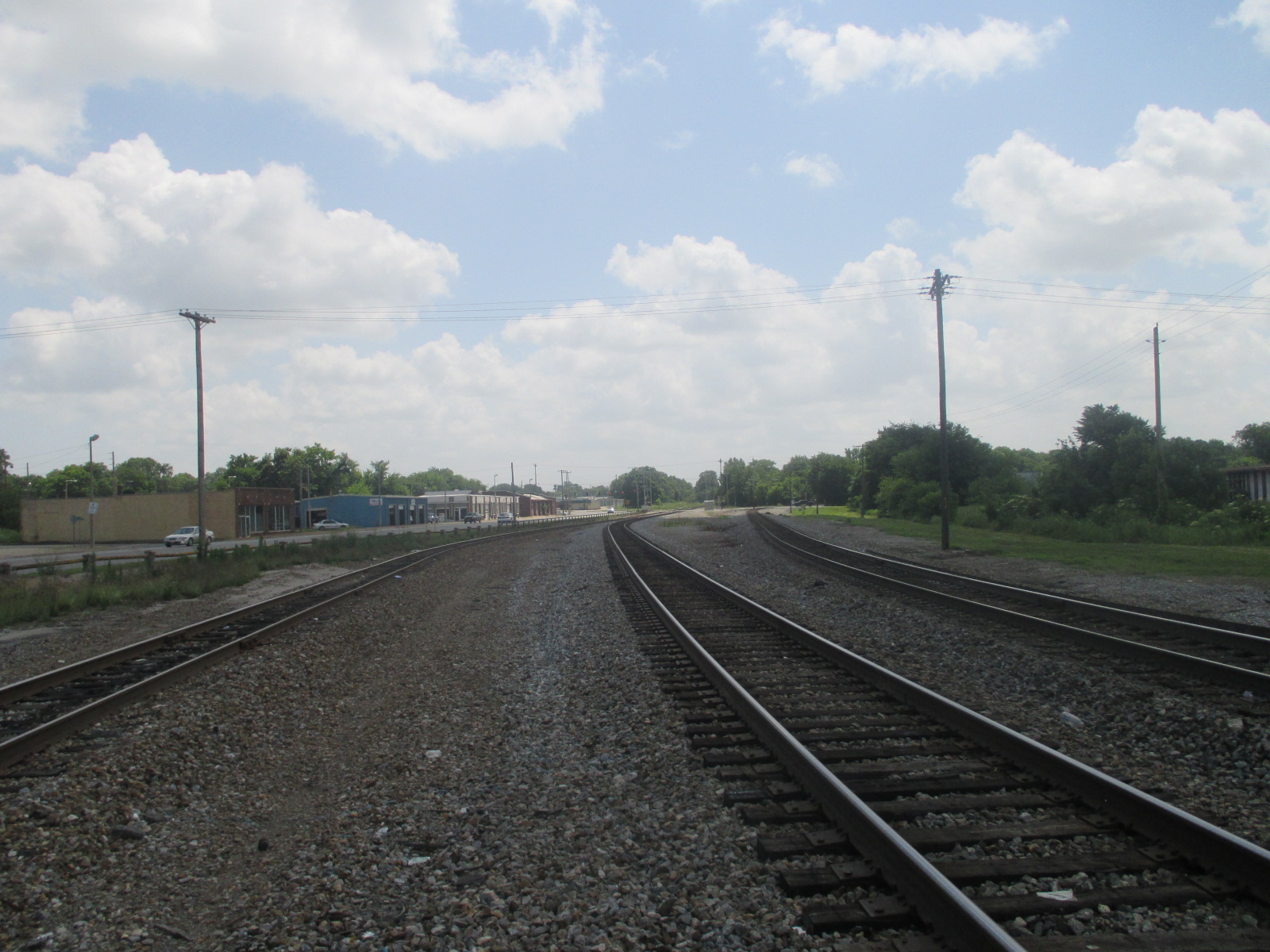

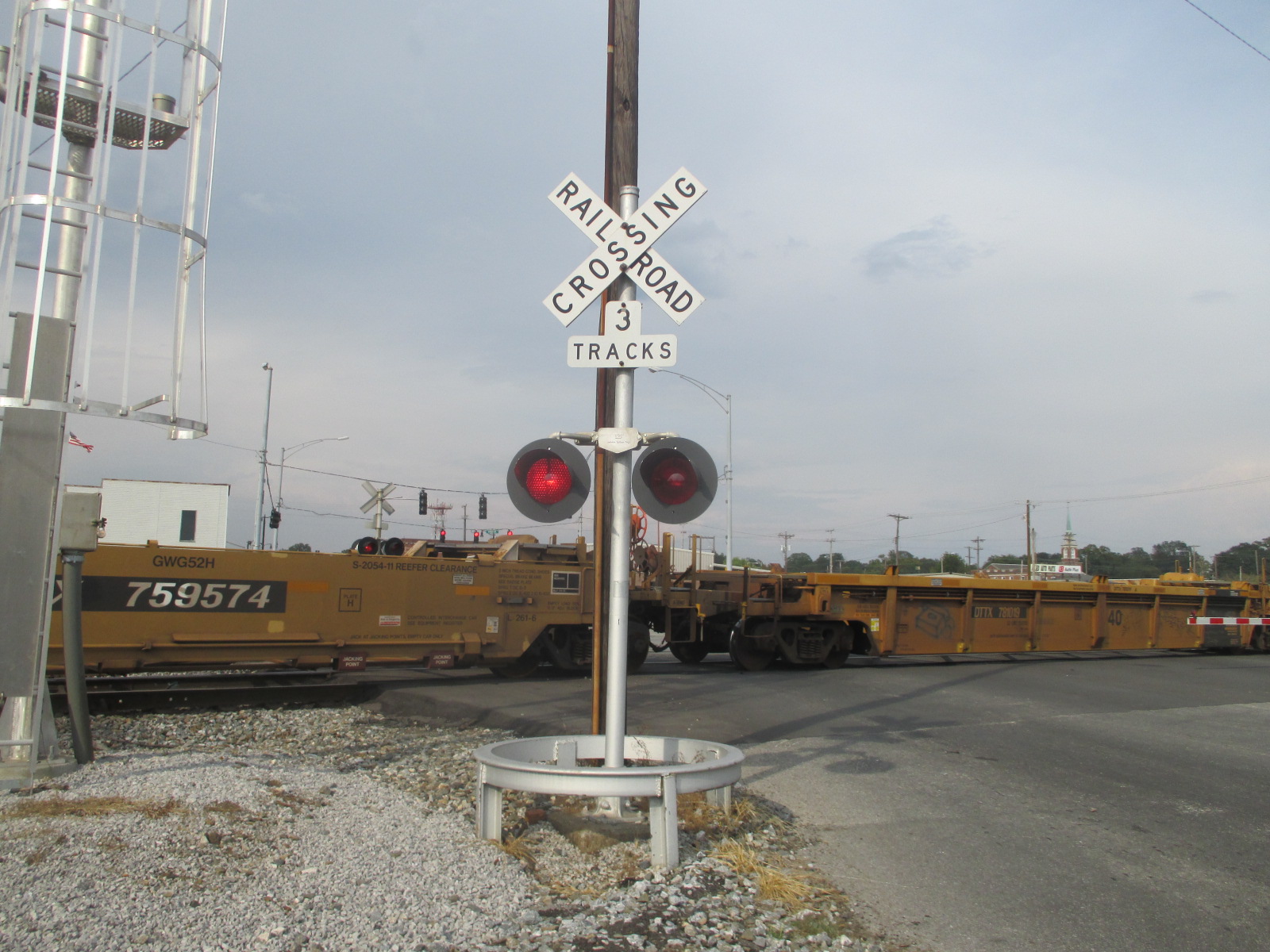

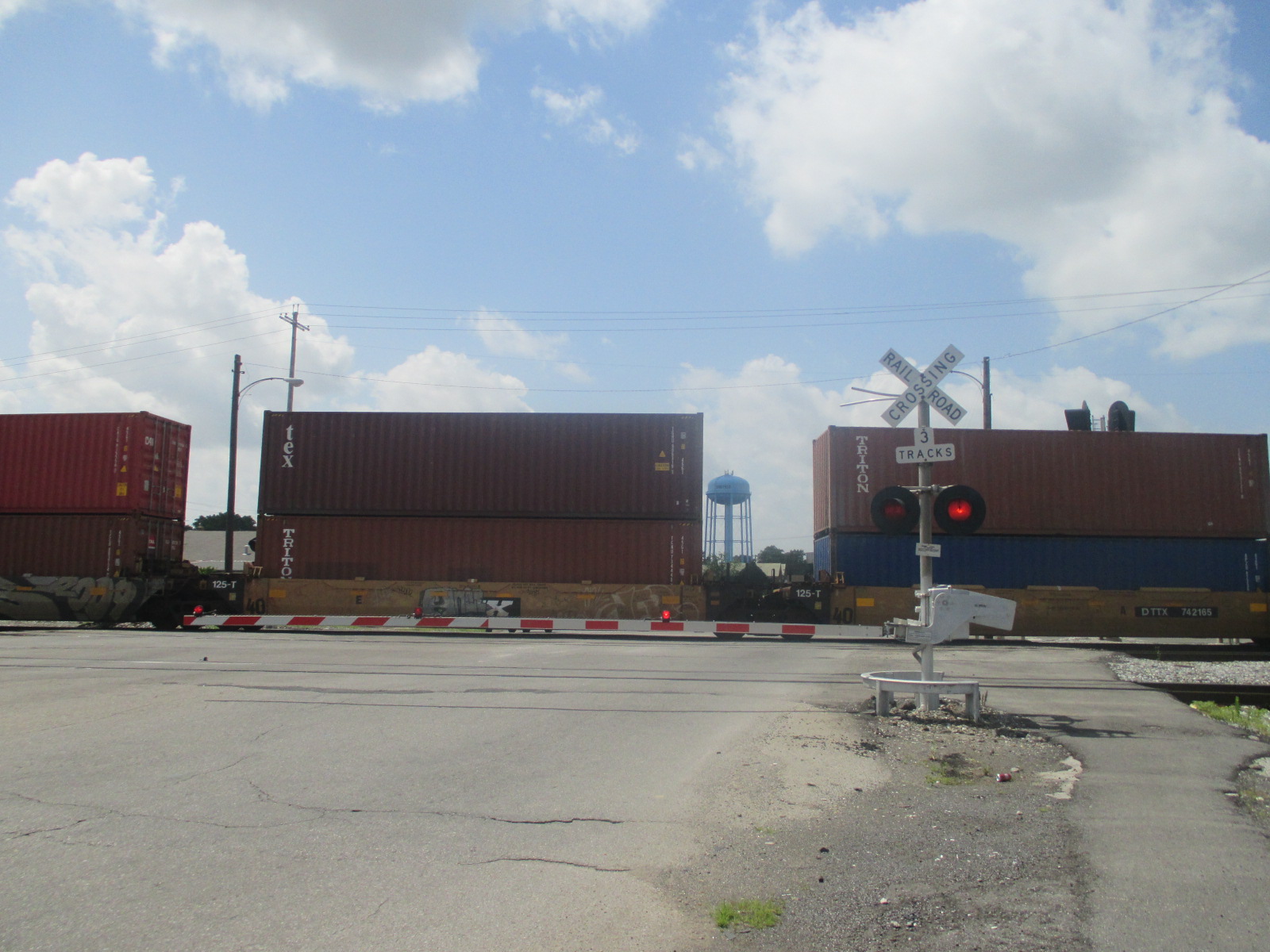

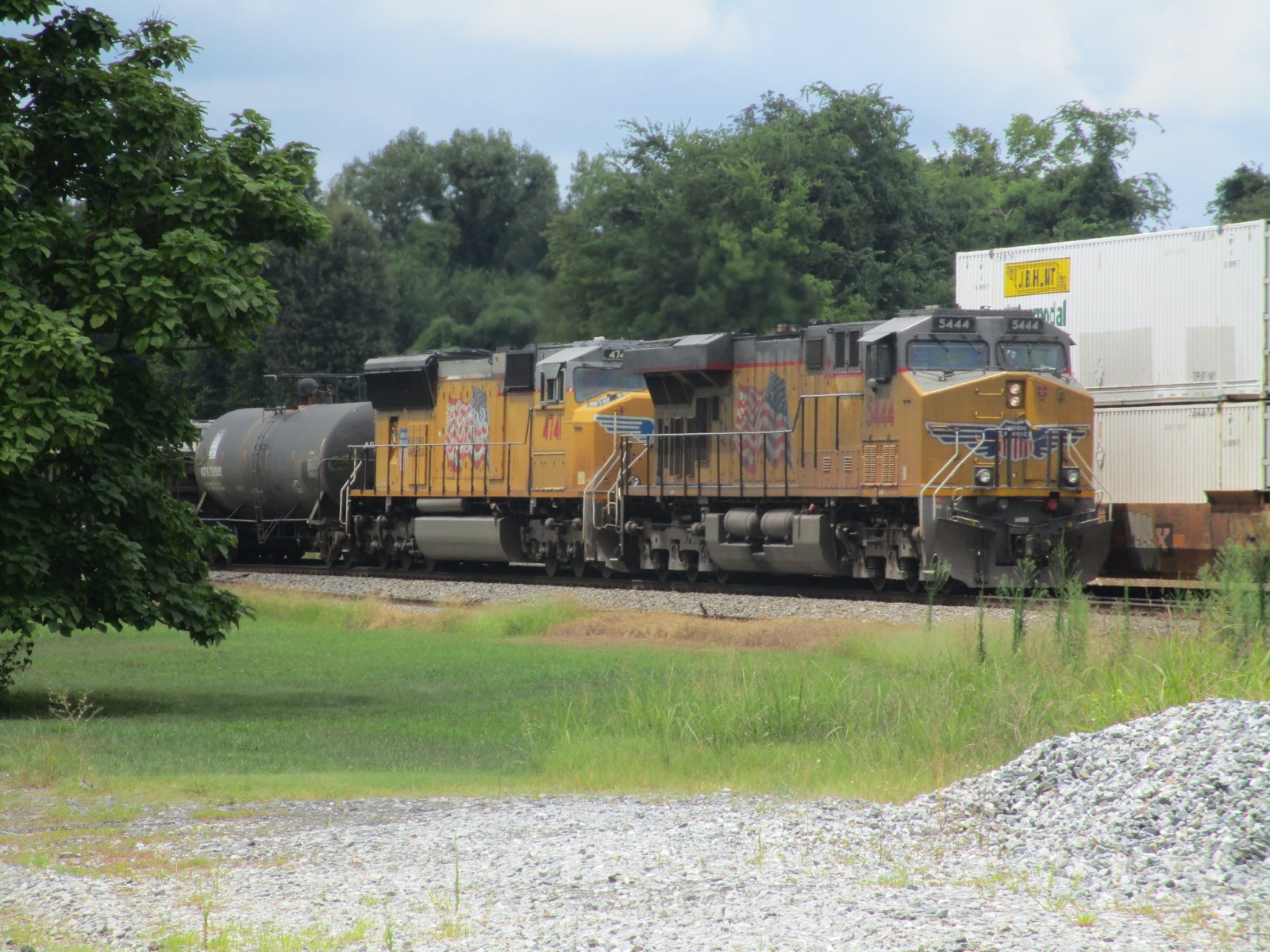

	Track views facing east towards Atlanta Avenue. To the southwest is 12th Street.		Action shots.

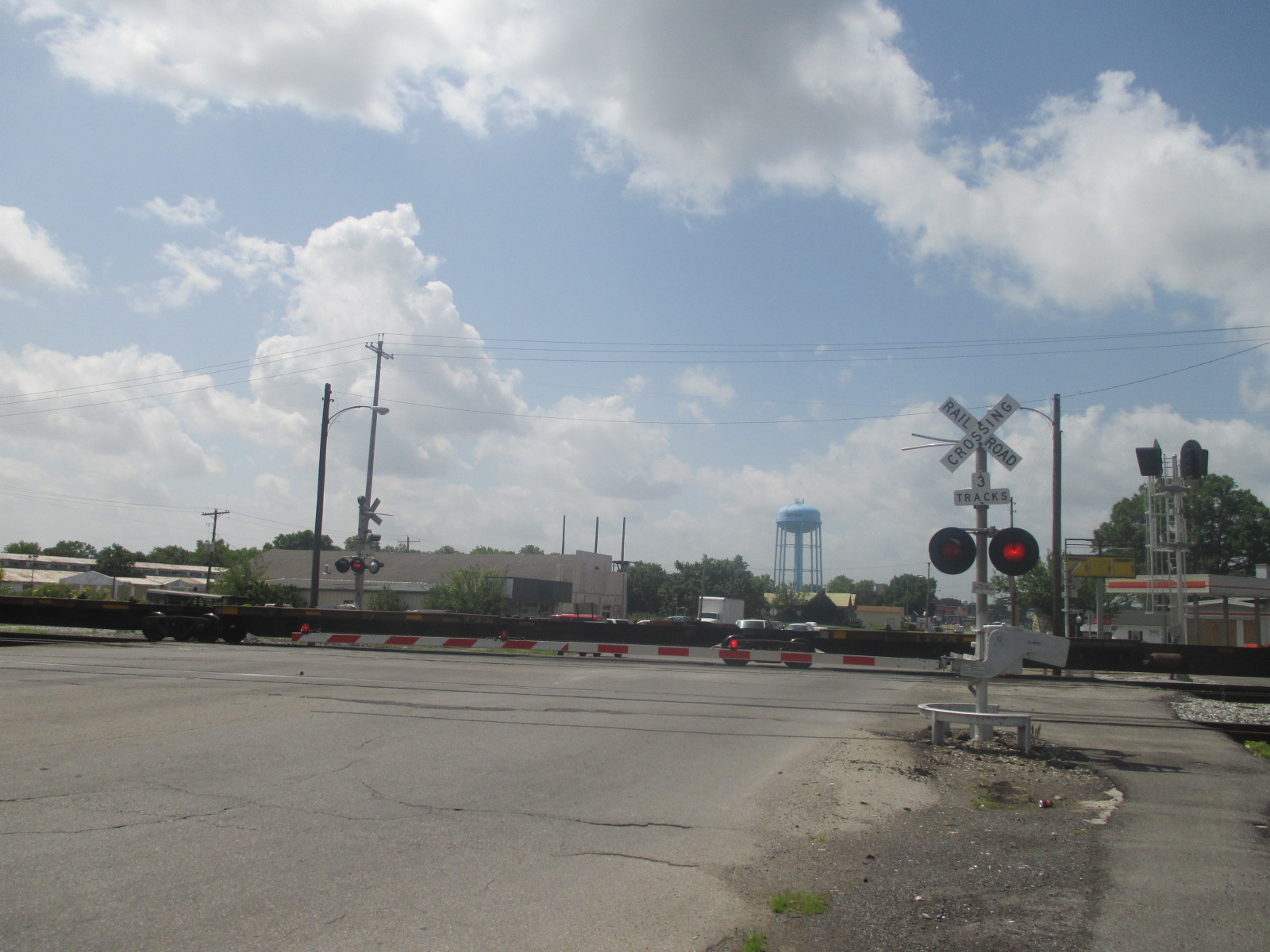

33	34	35	36

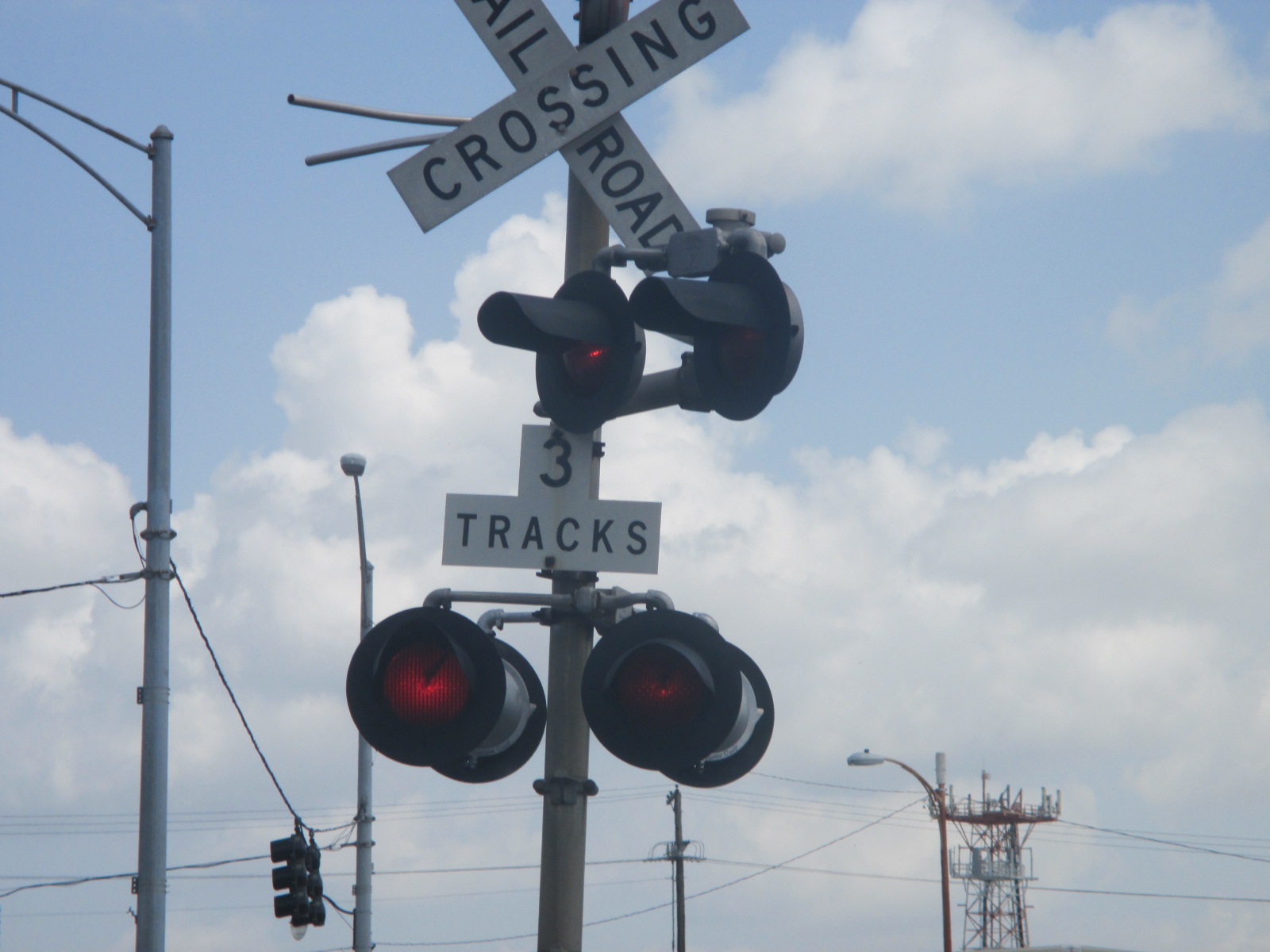

			A RECO gate light on one of the signals.

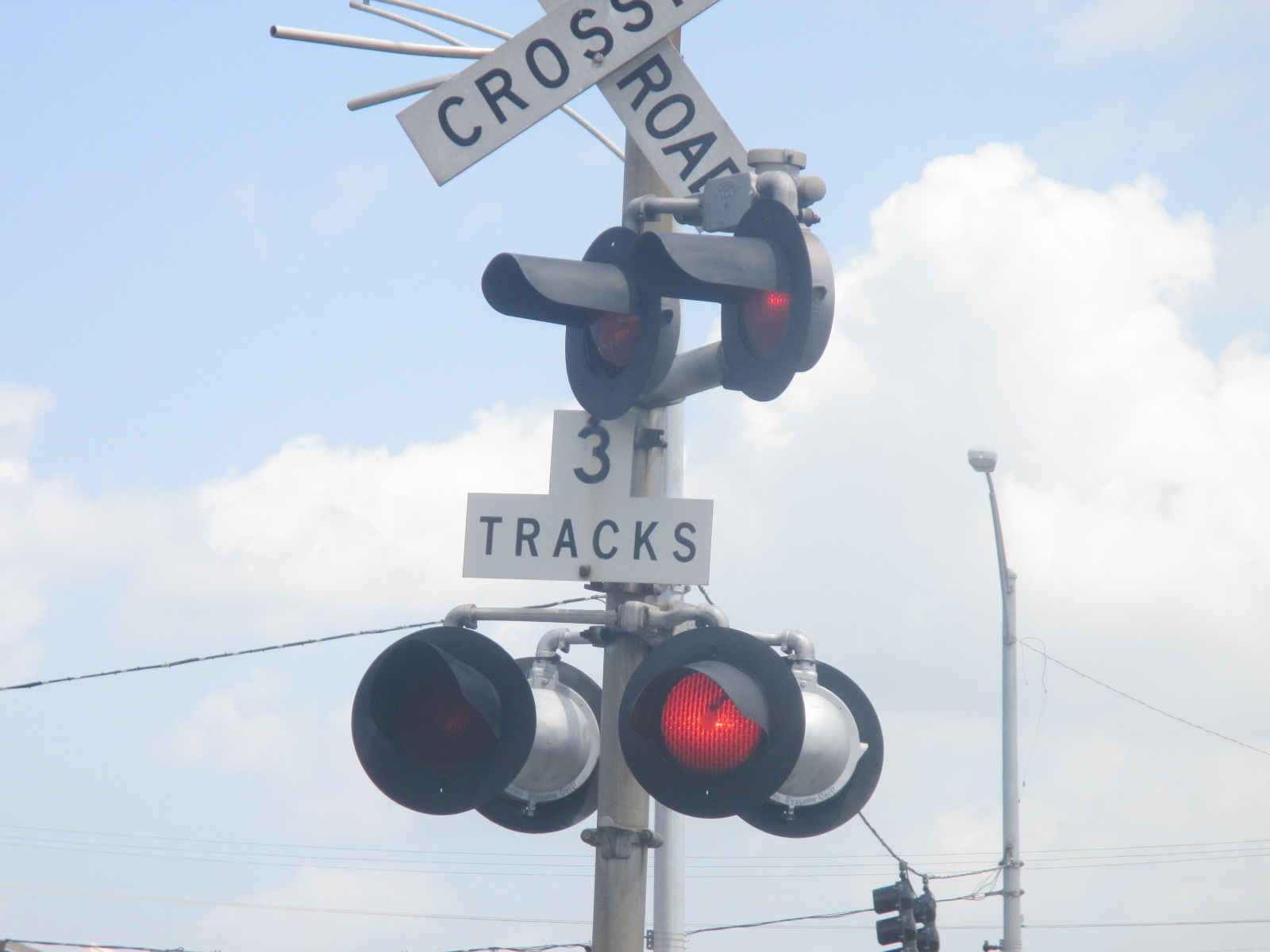

57	58	59	60

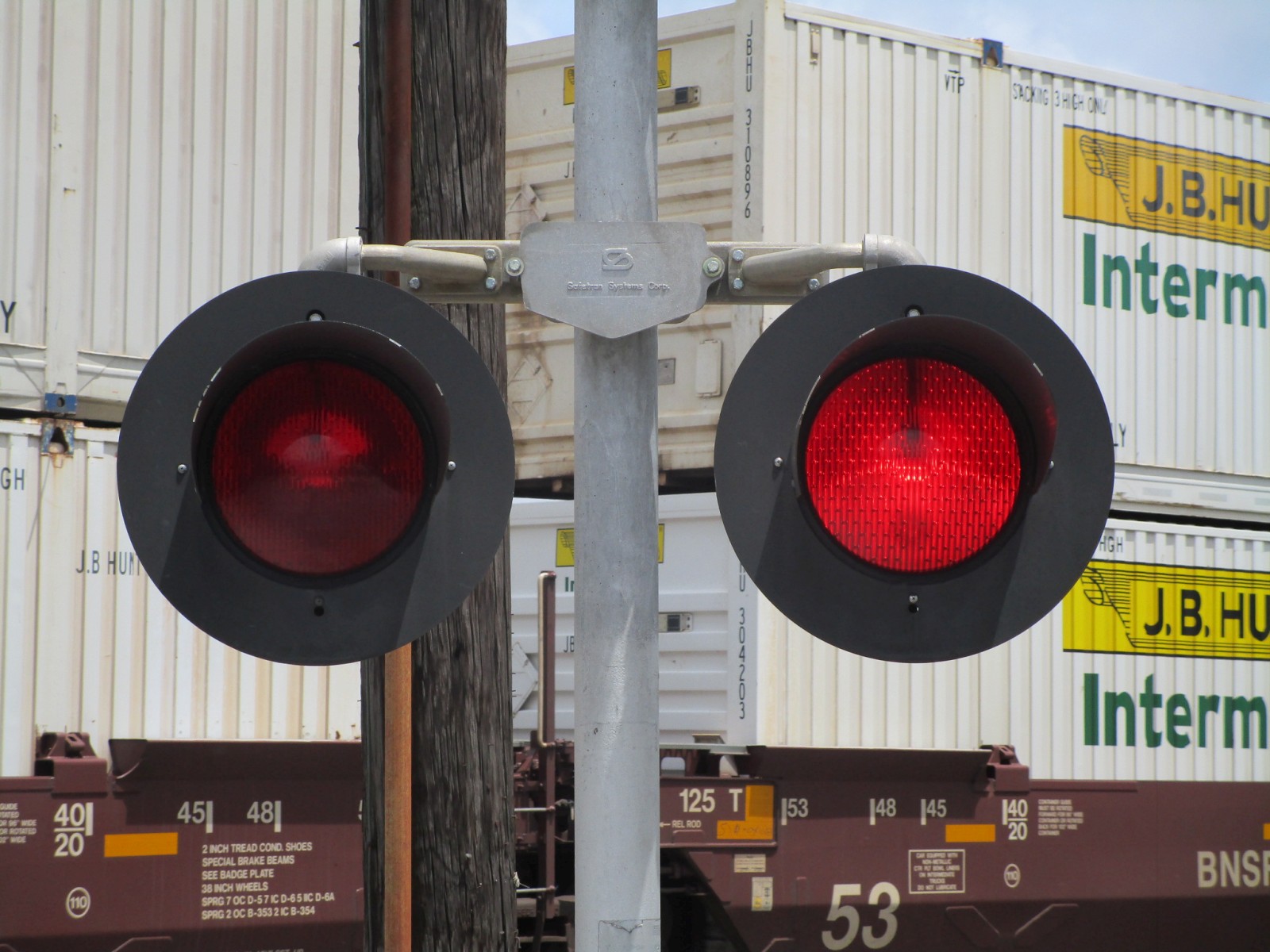

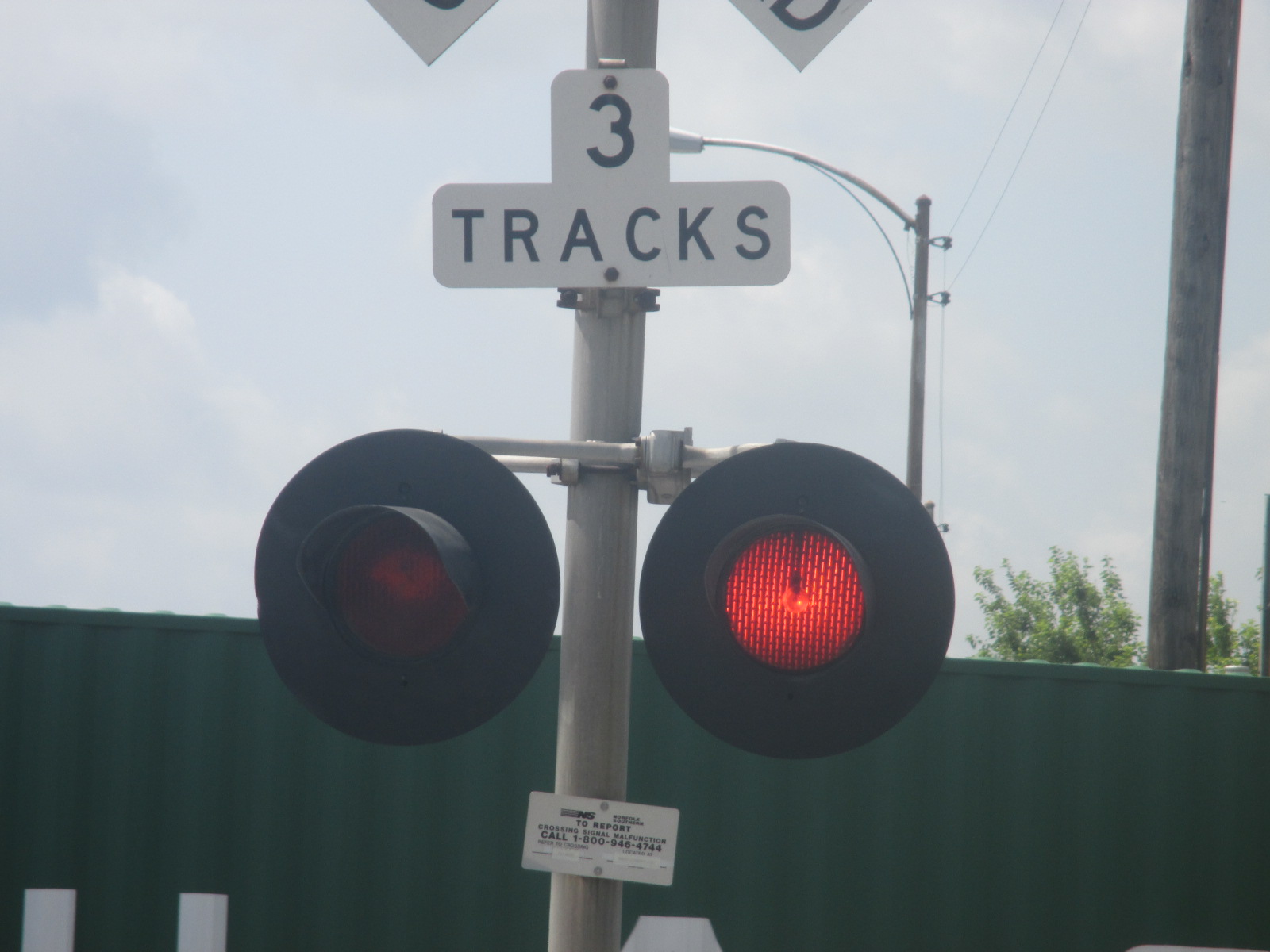

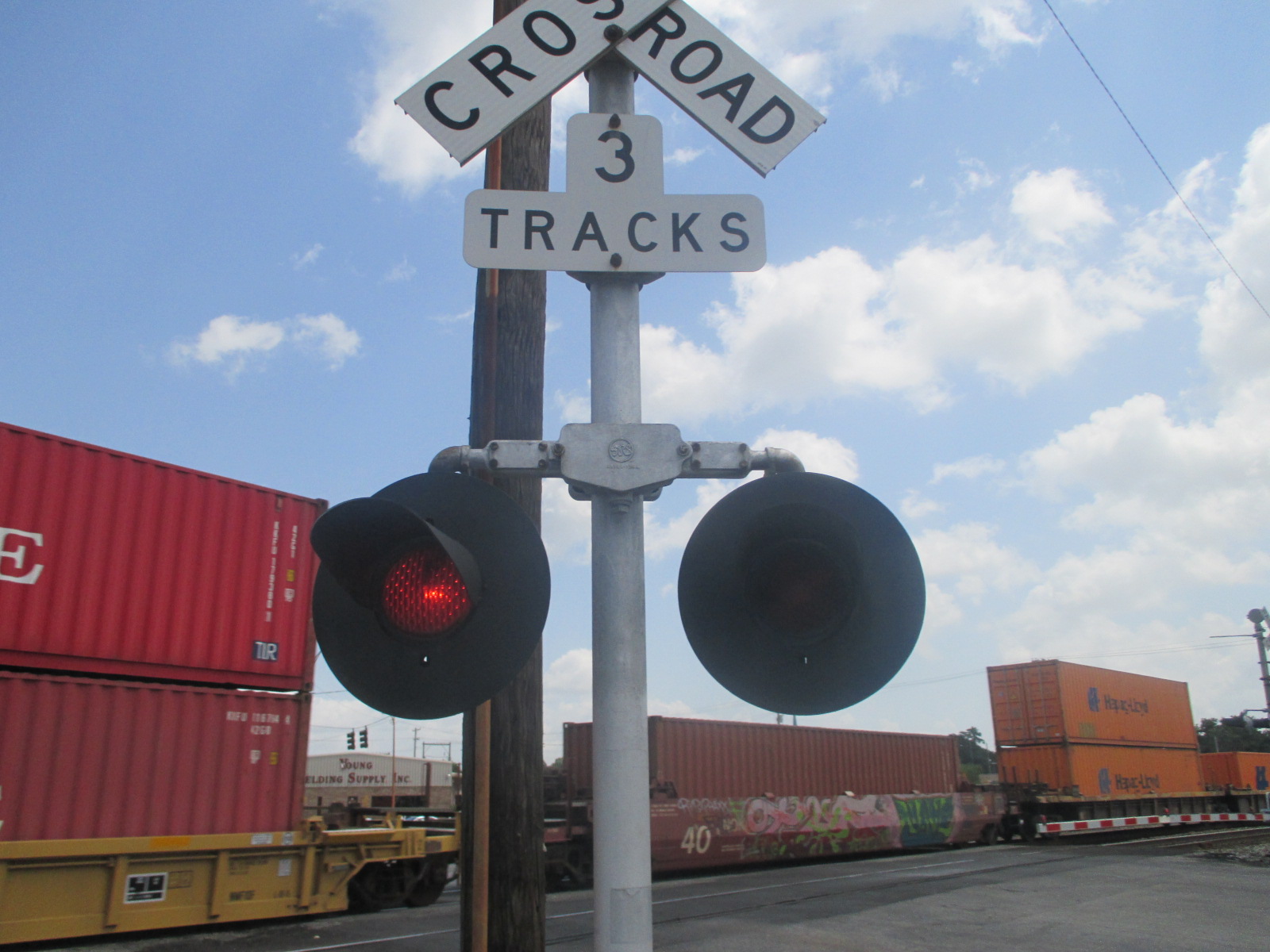

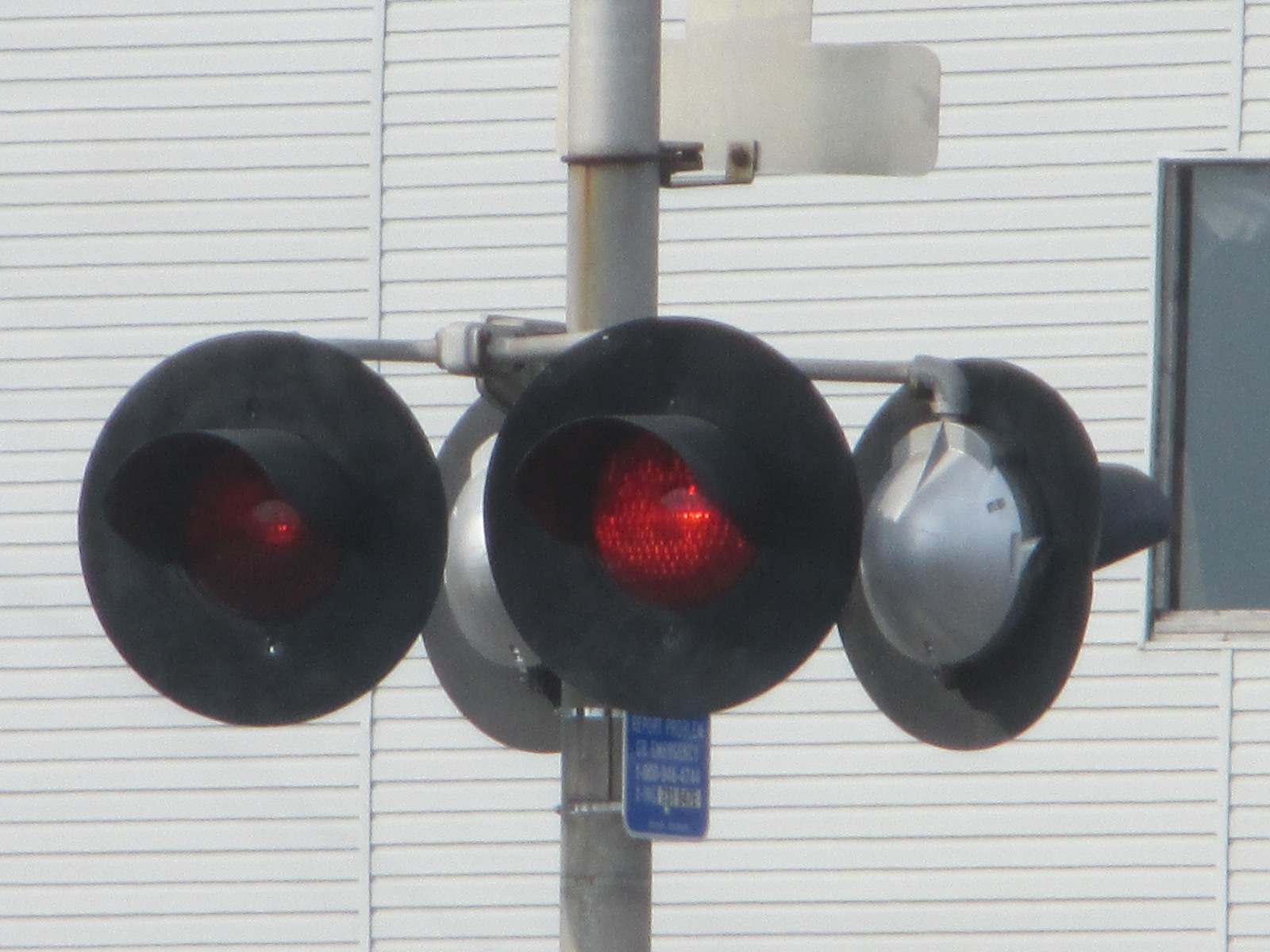

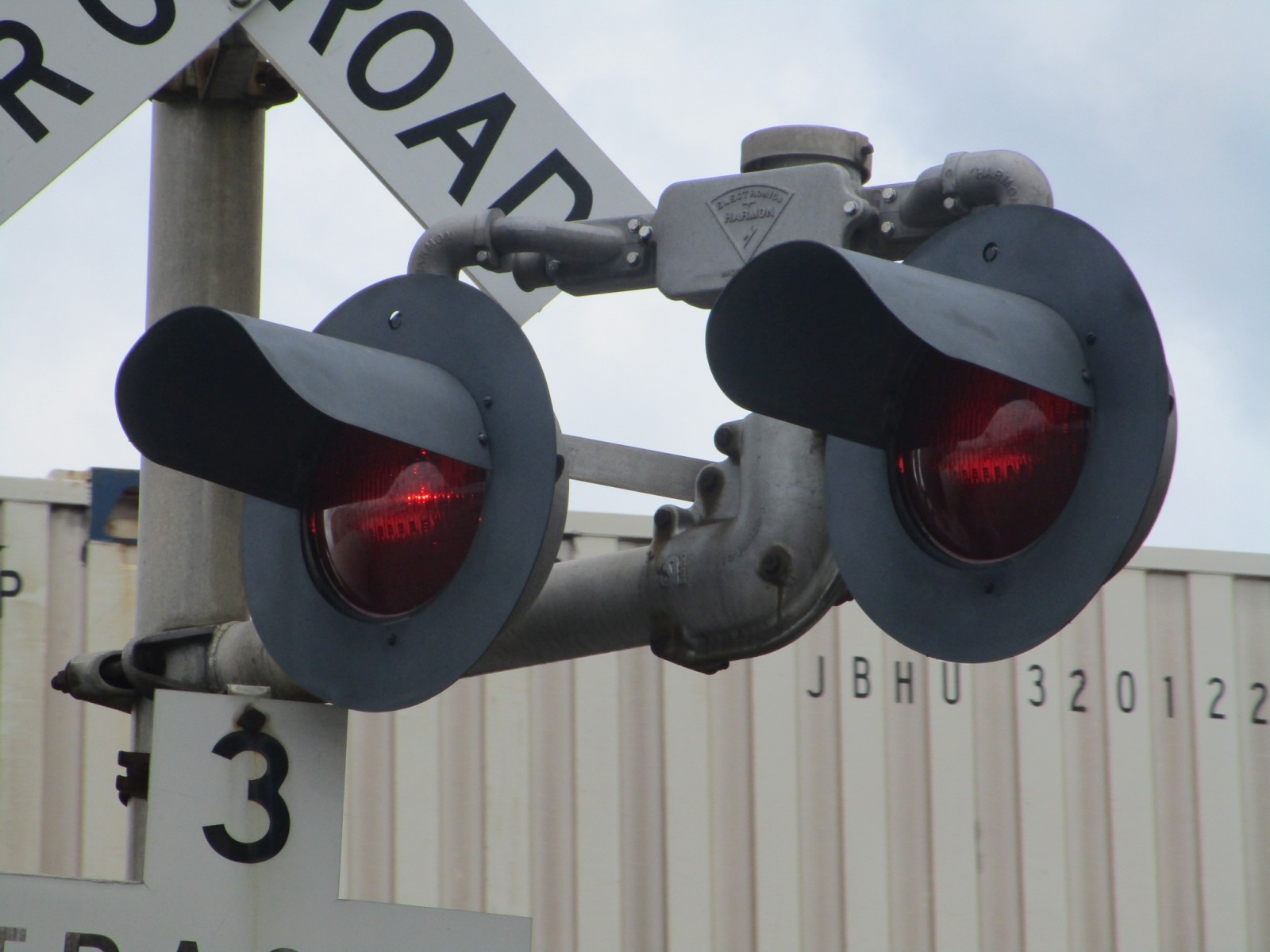

	As you can see here, one of the bulbs in one of the RACO lights is blown.

69	70	71	72

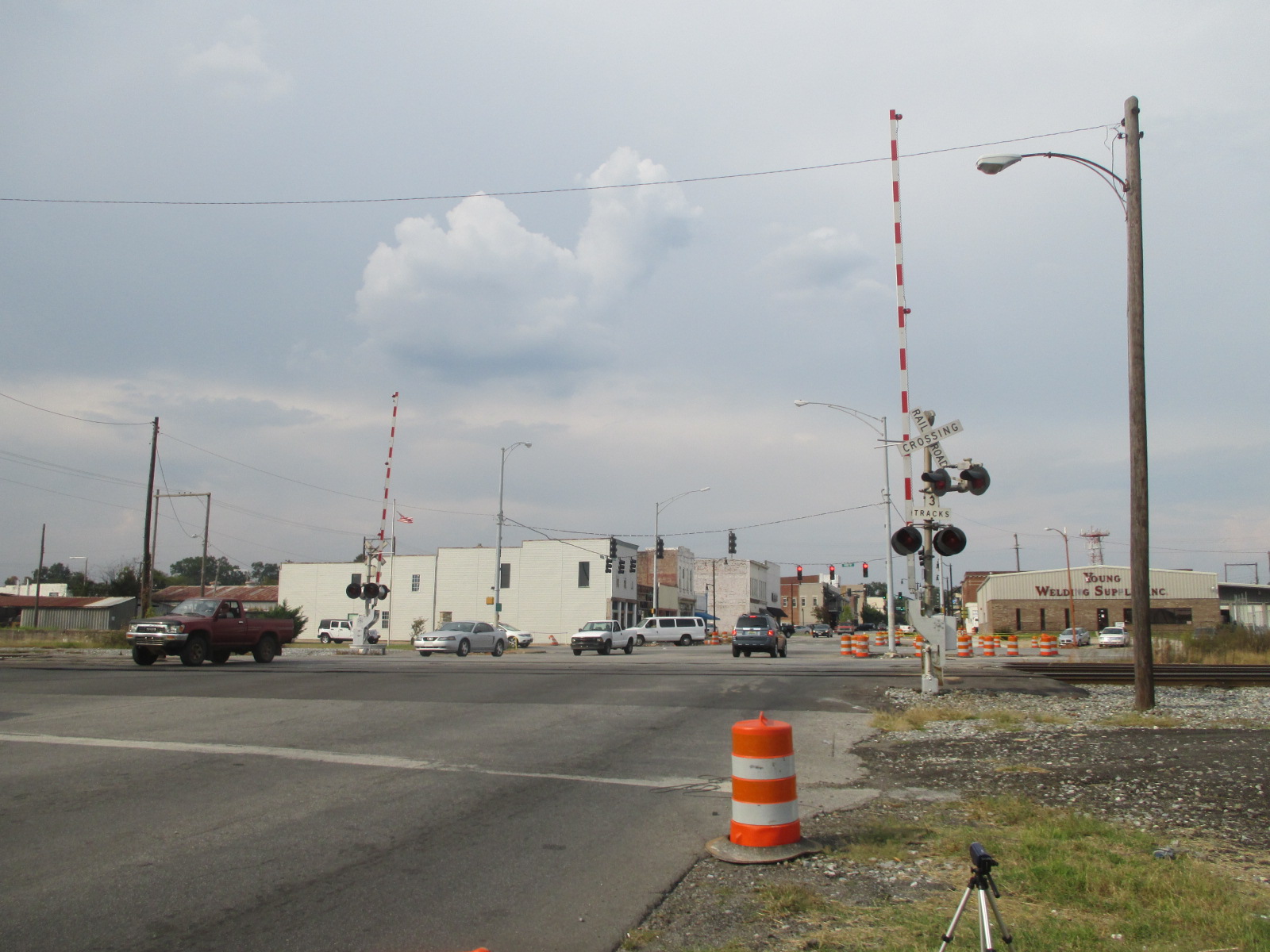

A return trip on 10-9-15 shows some changes to the crossing.		The gateless signal now has Safetran 12x20 inch lights.

73	74	75	76

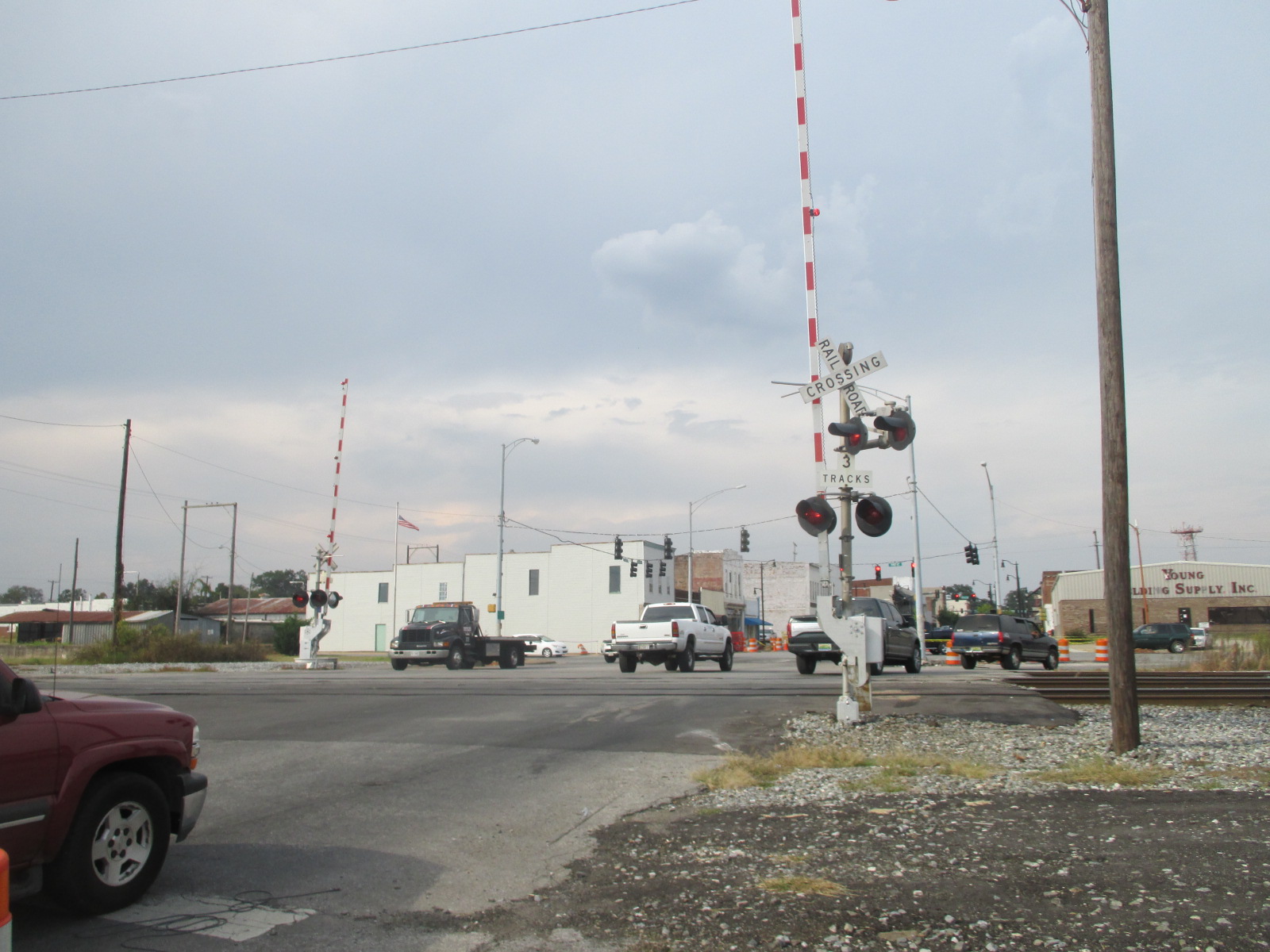

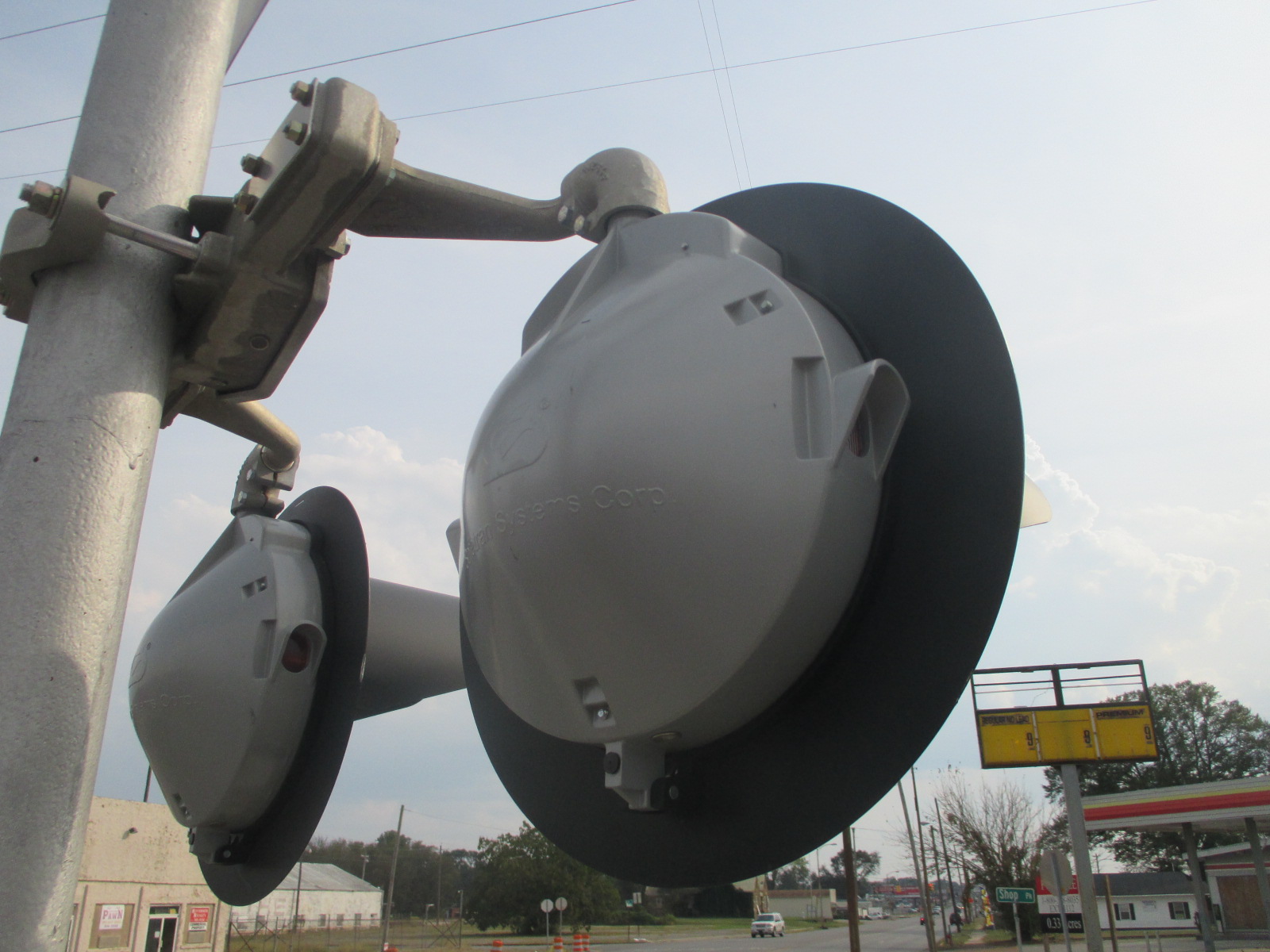

	The Safetran 8 inch lights on this gated signal were replaced with Safetran 12x24 inch lights.

Everything else at the crossing remains the same.

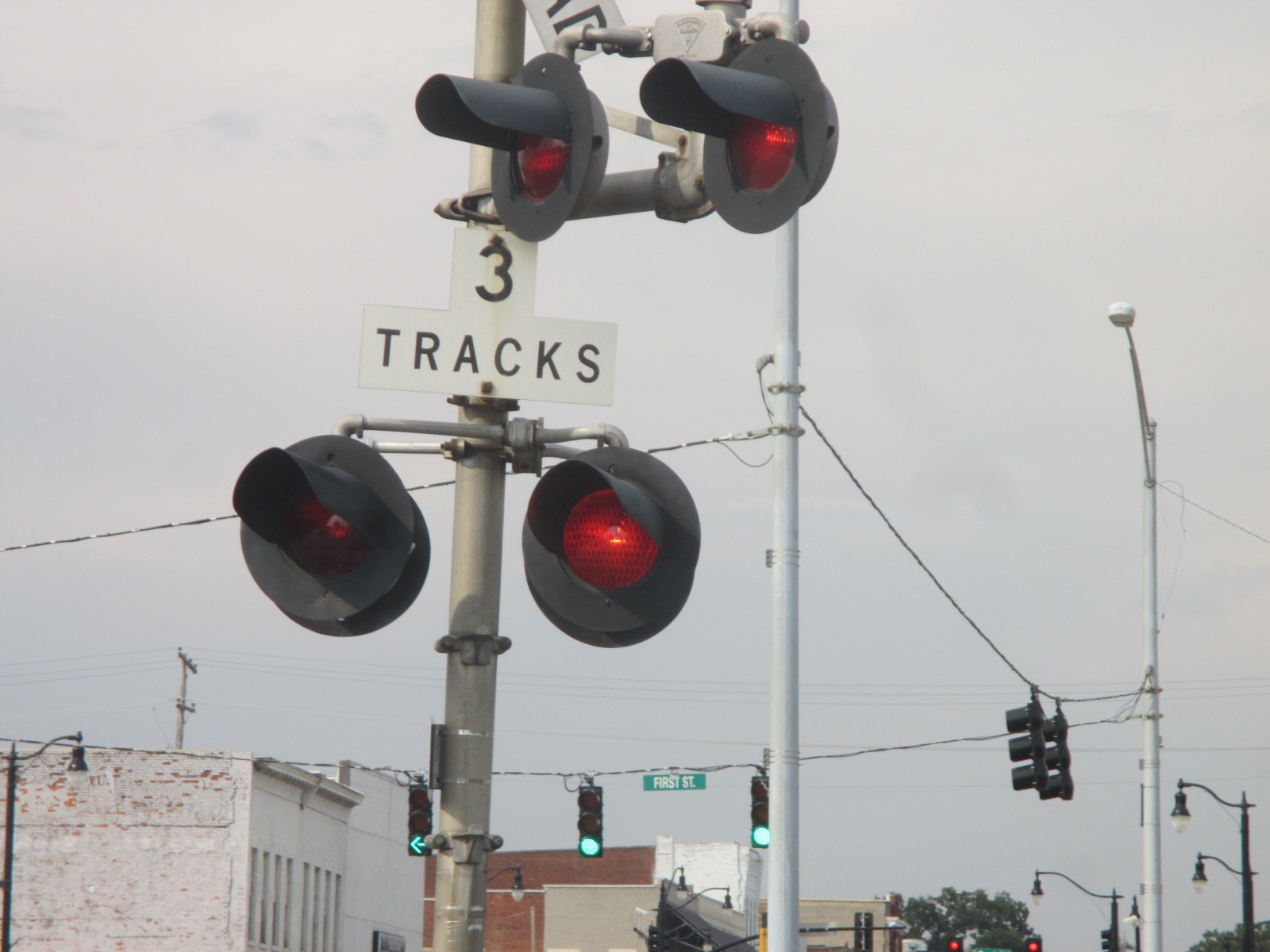

77	78	79	80

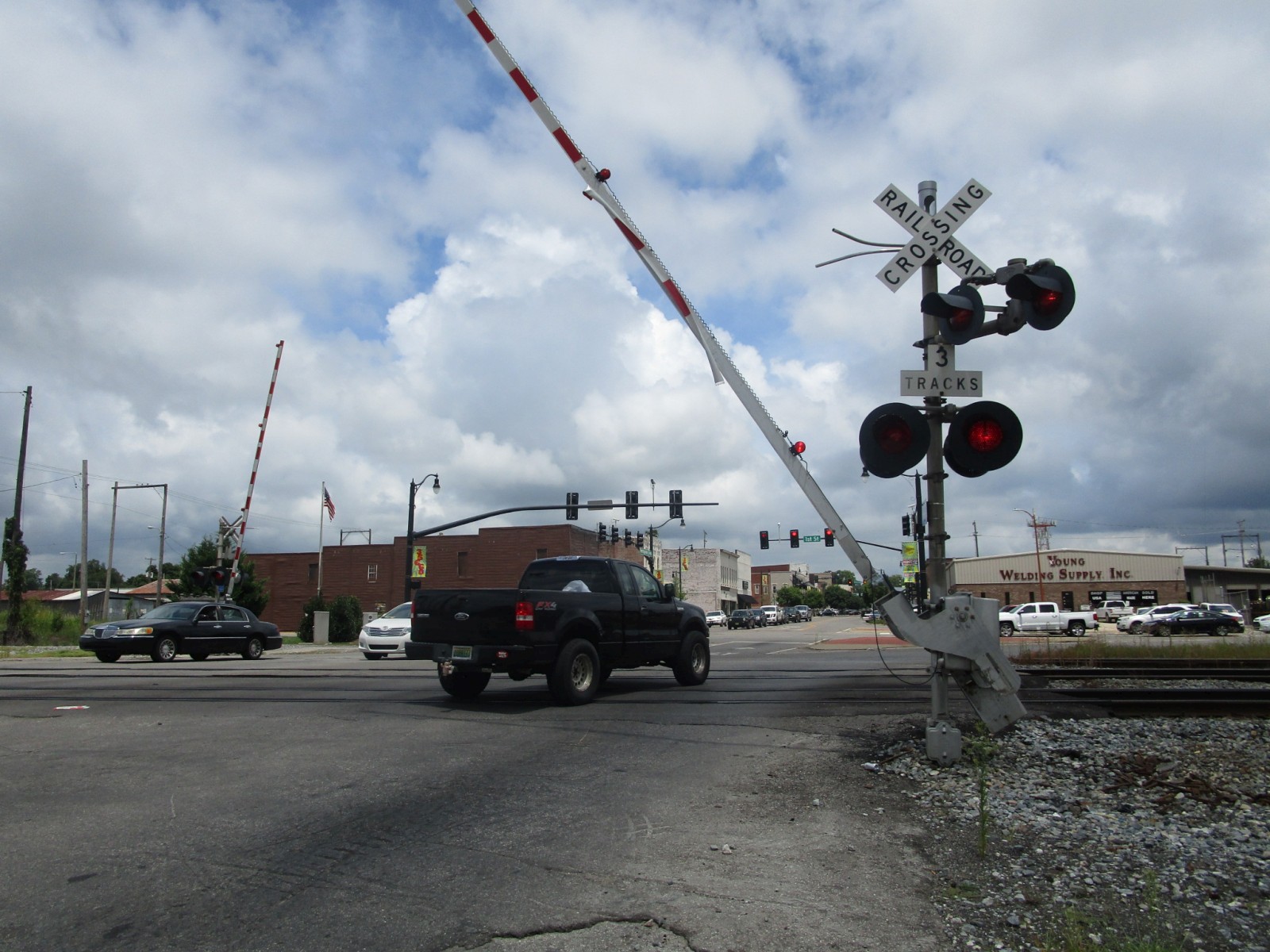

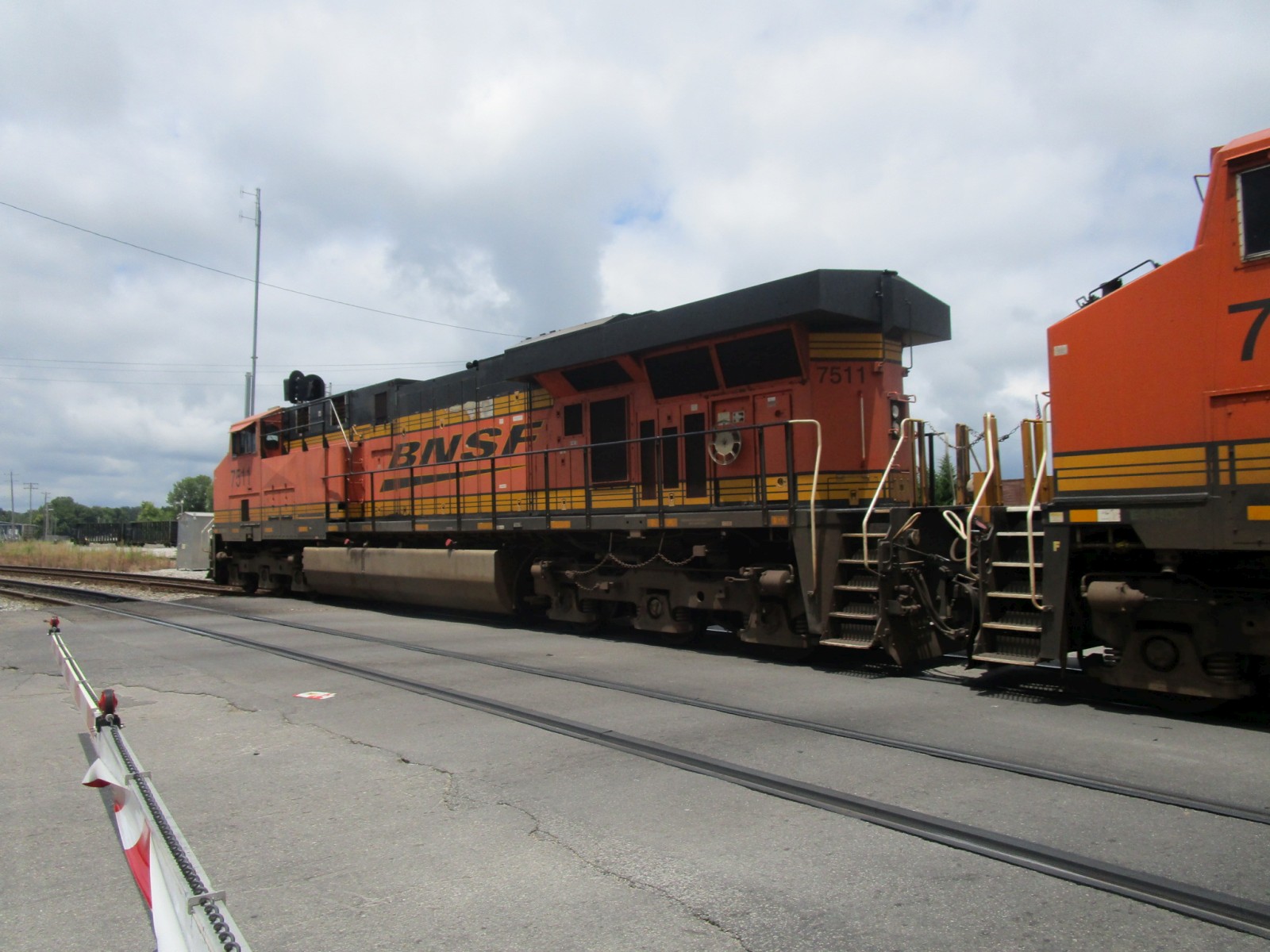

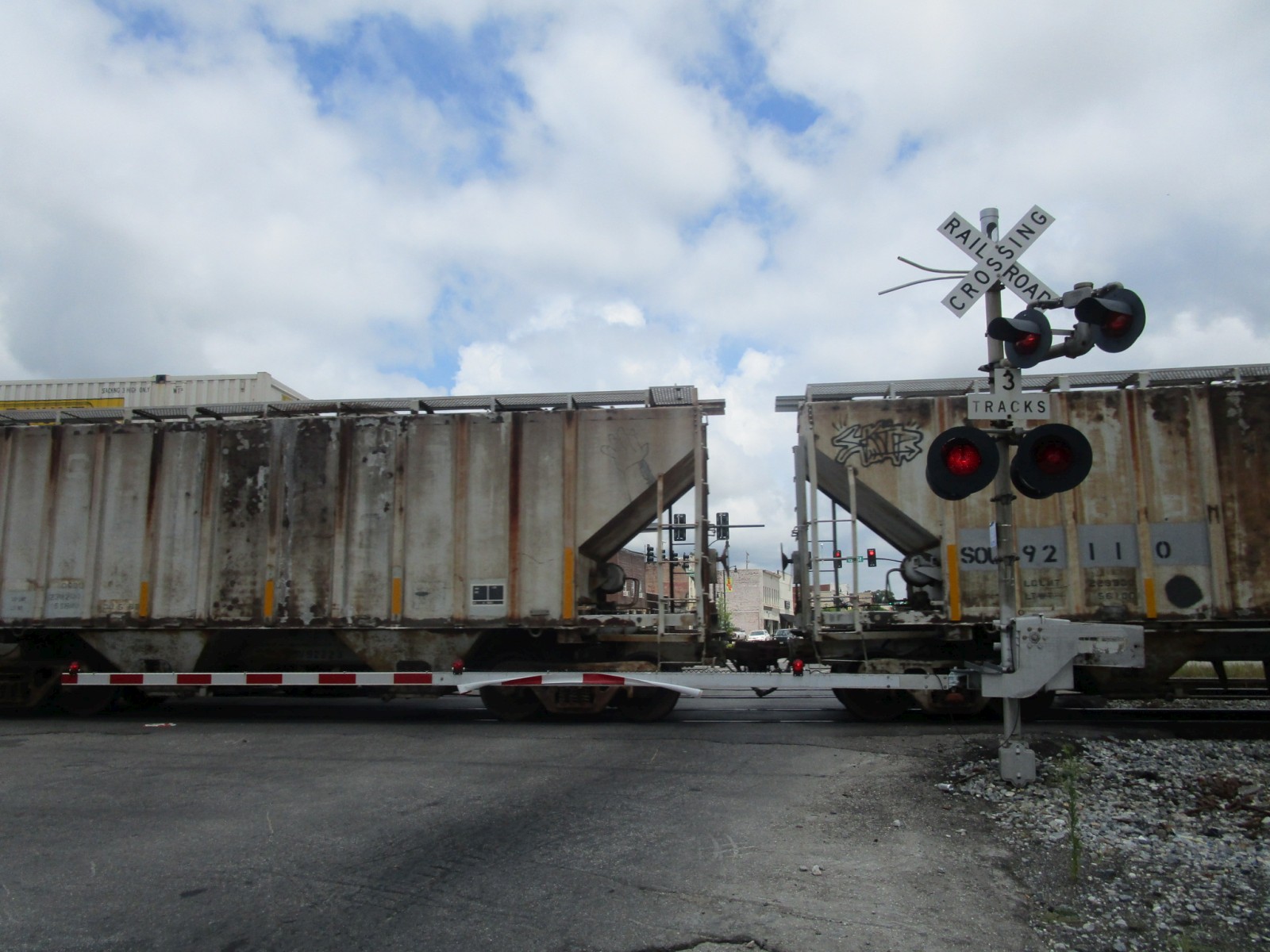

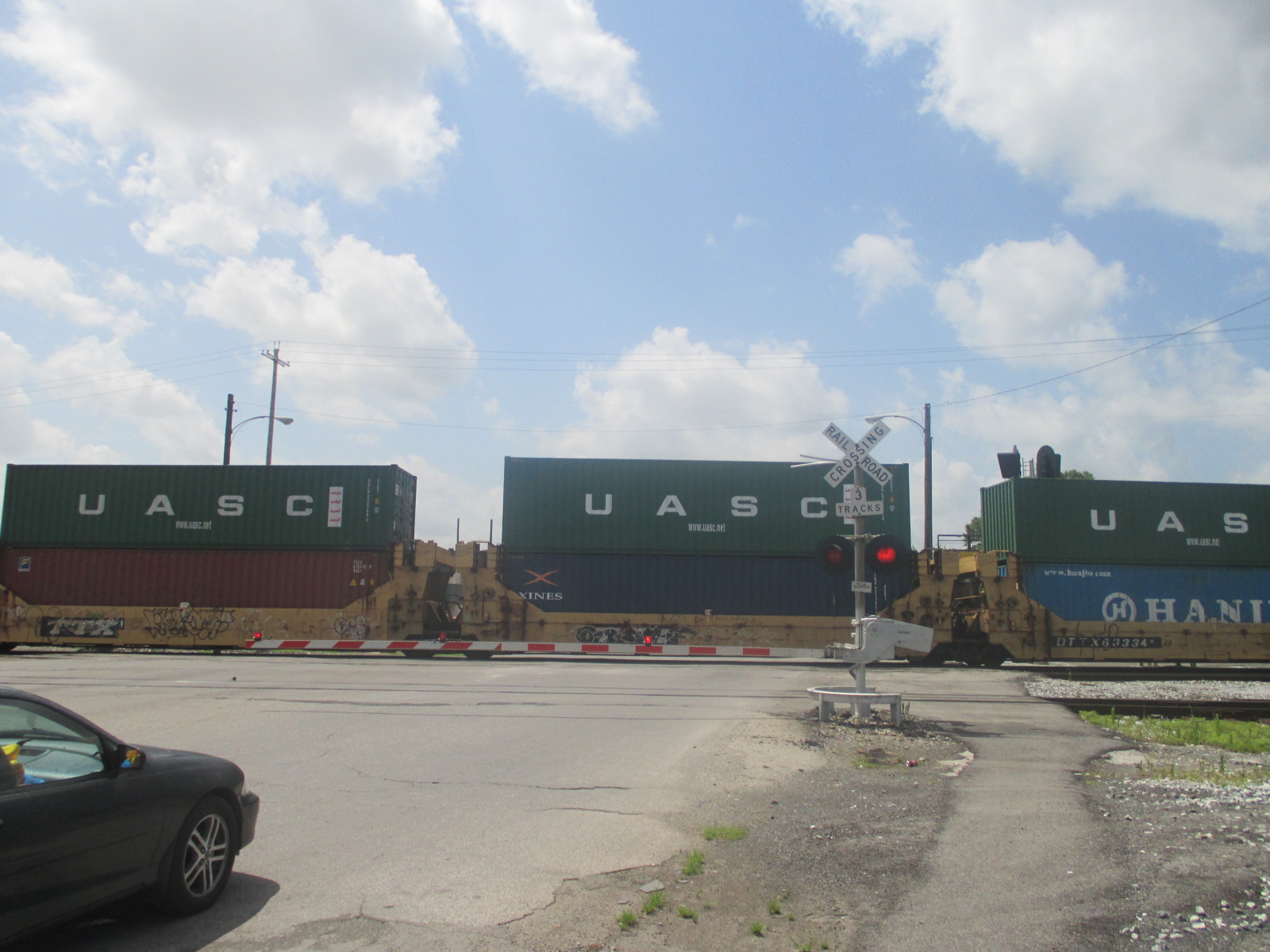

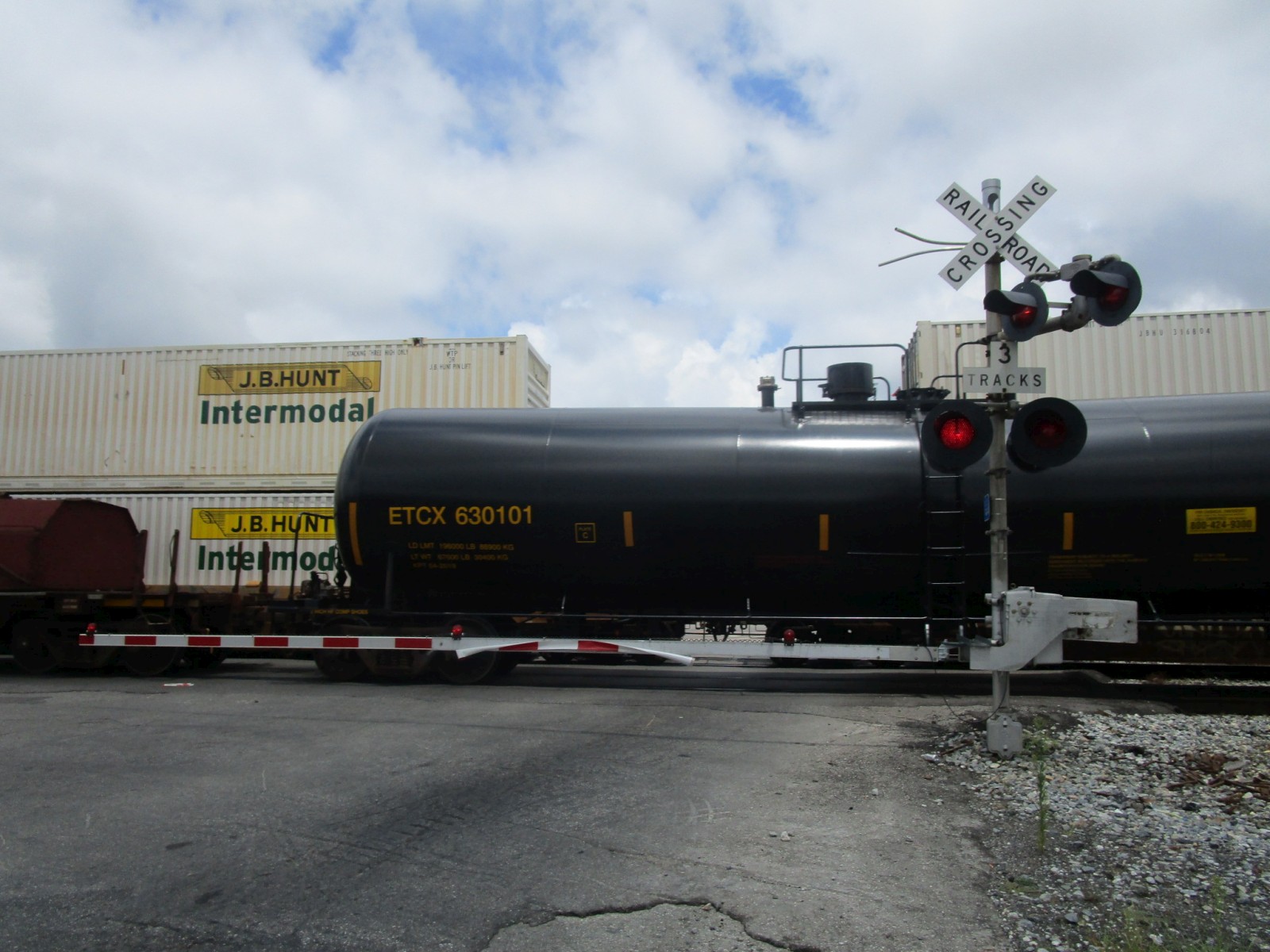

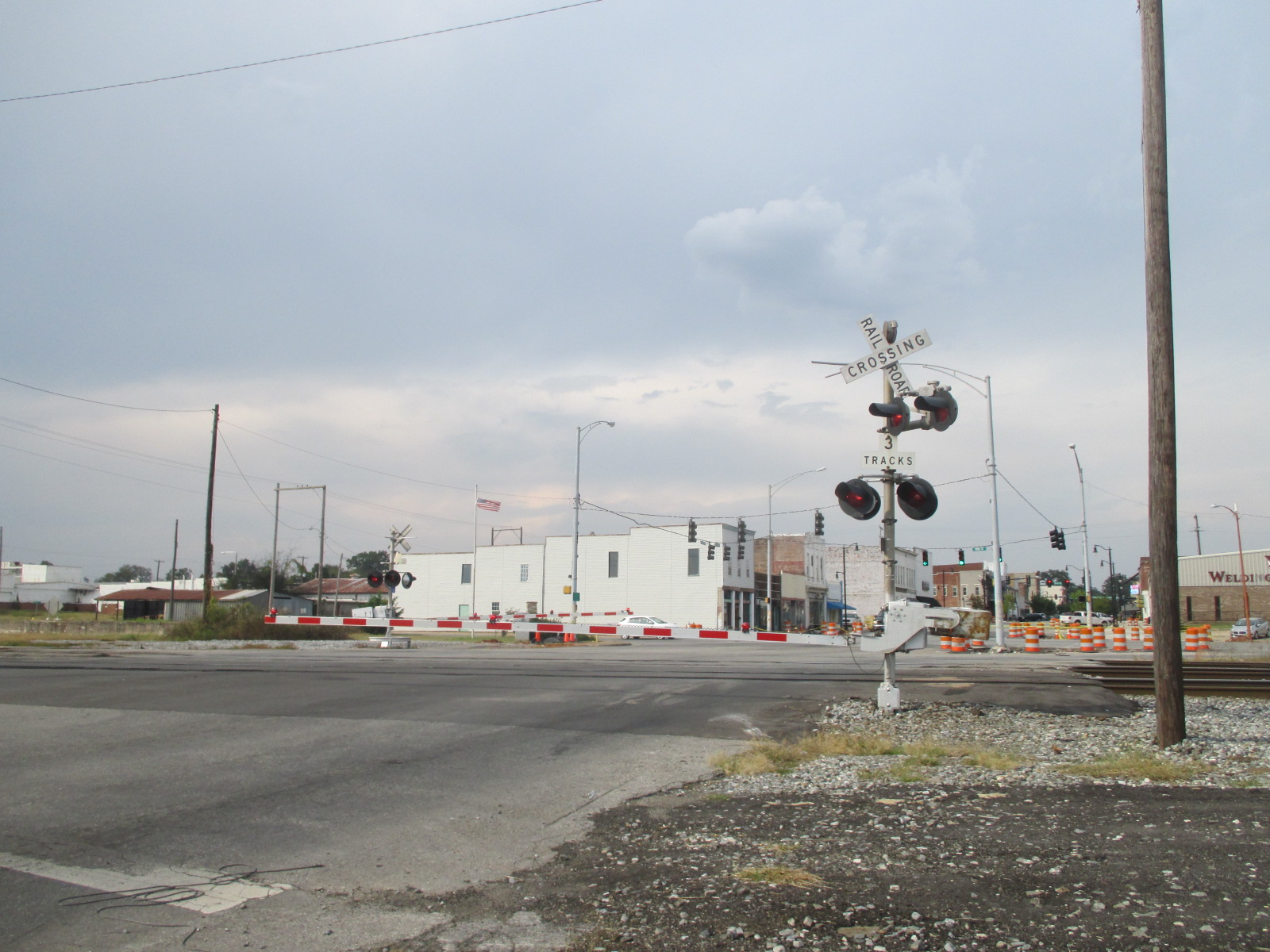

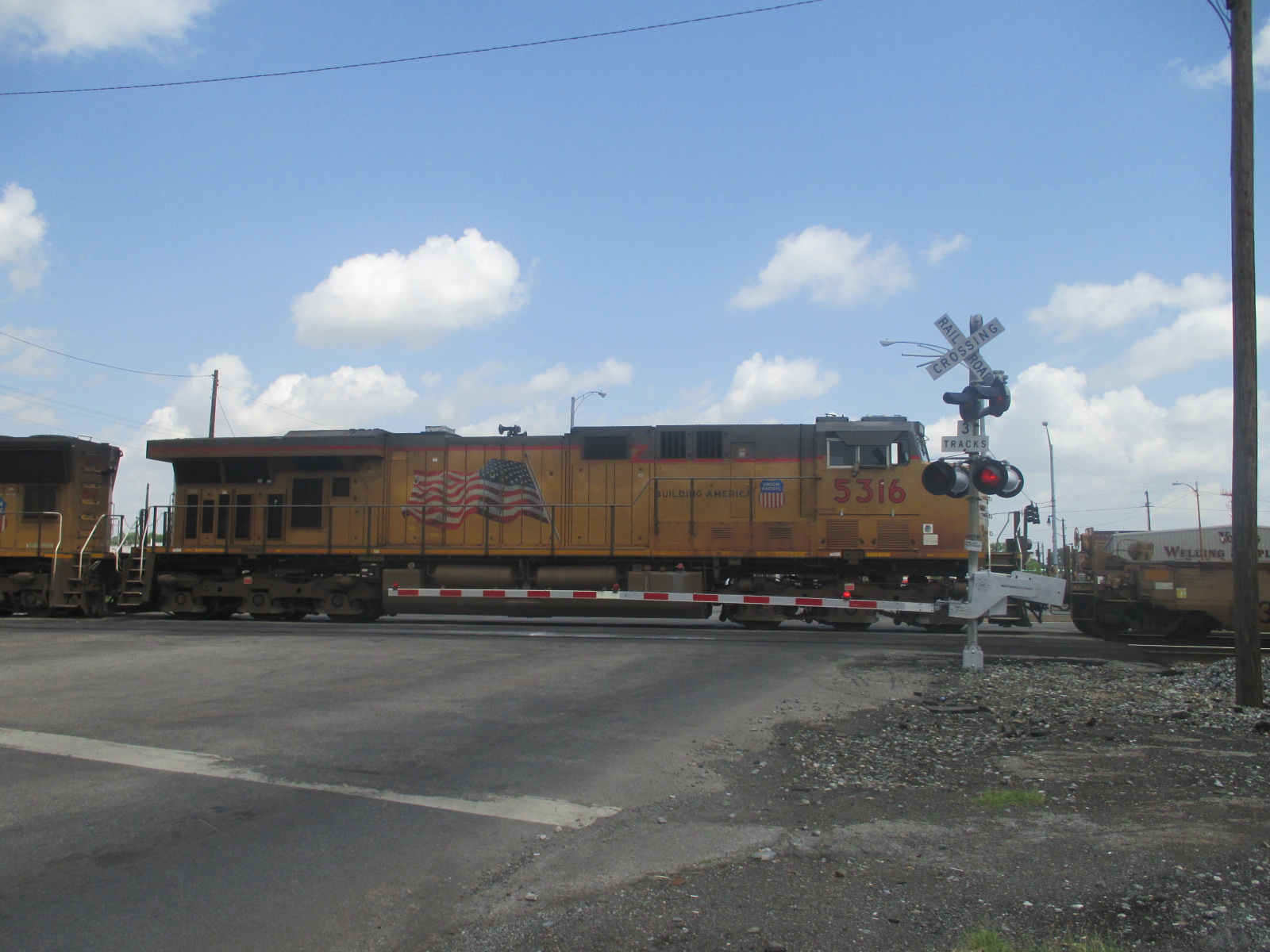

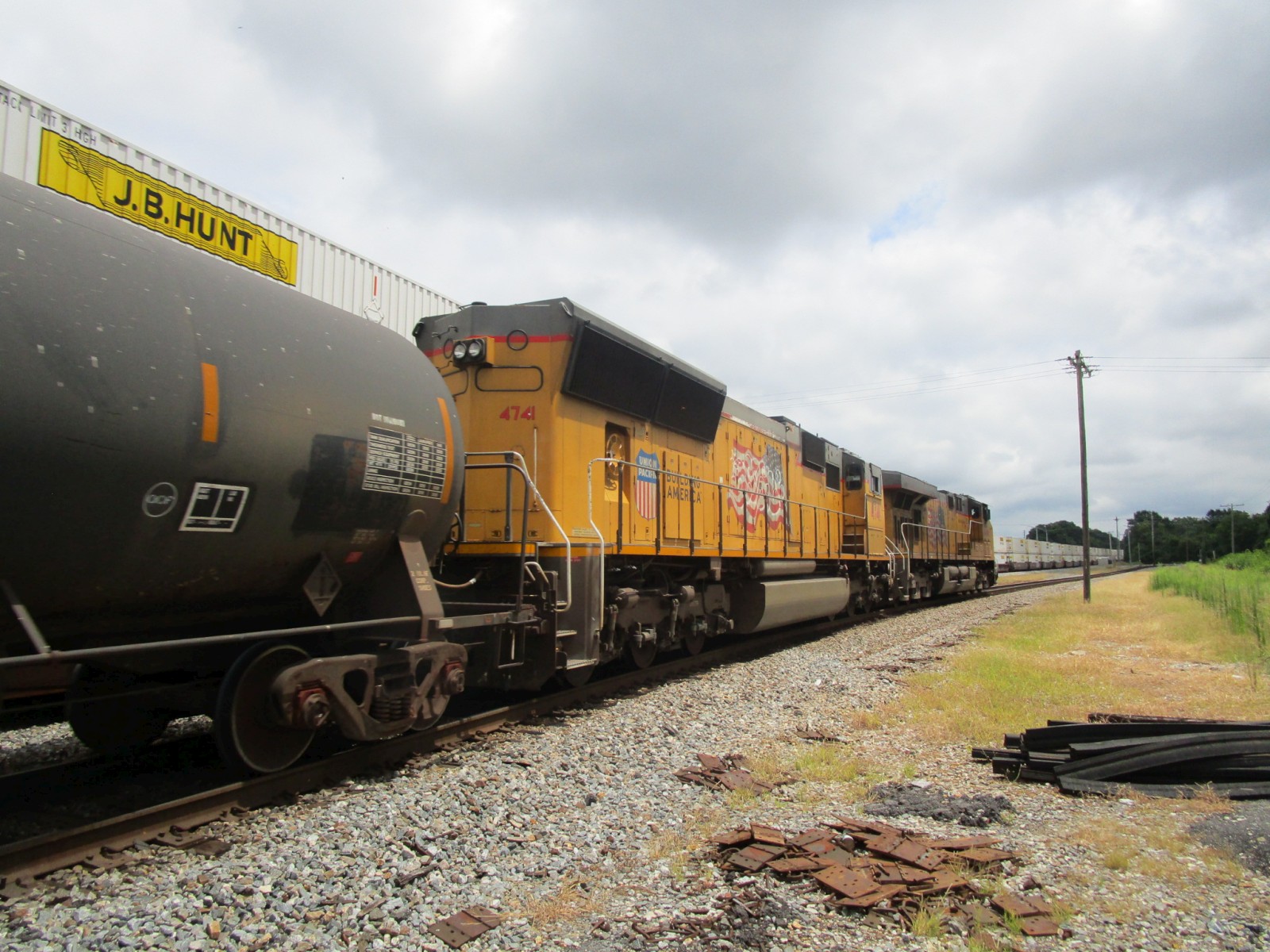

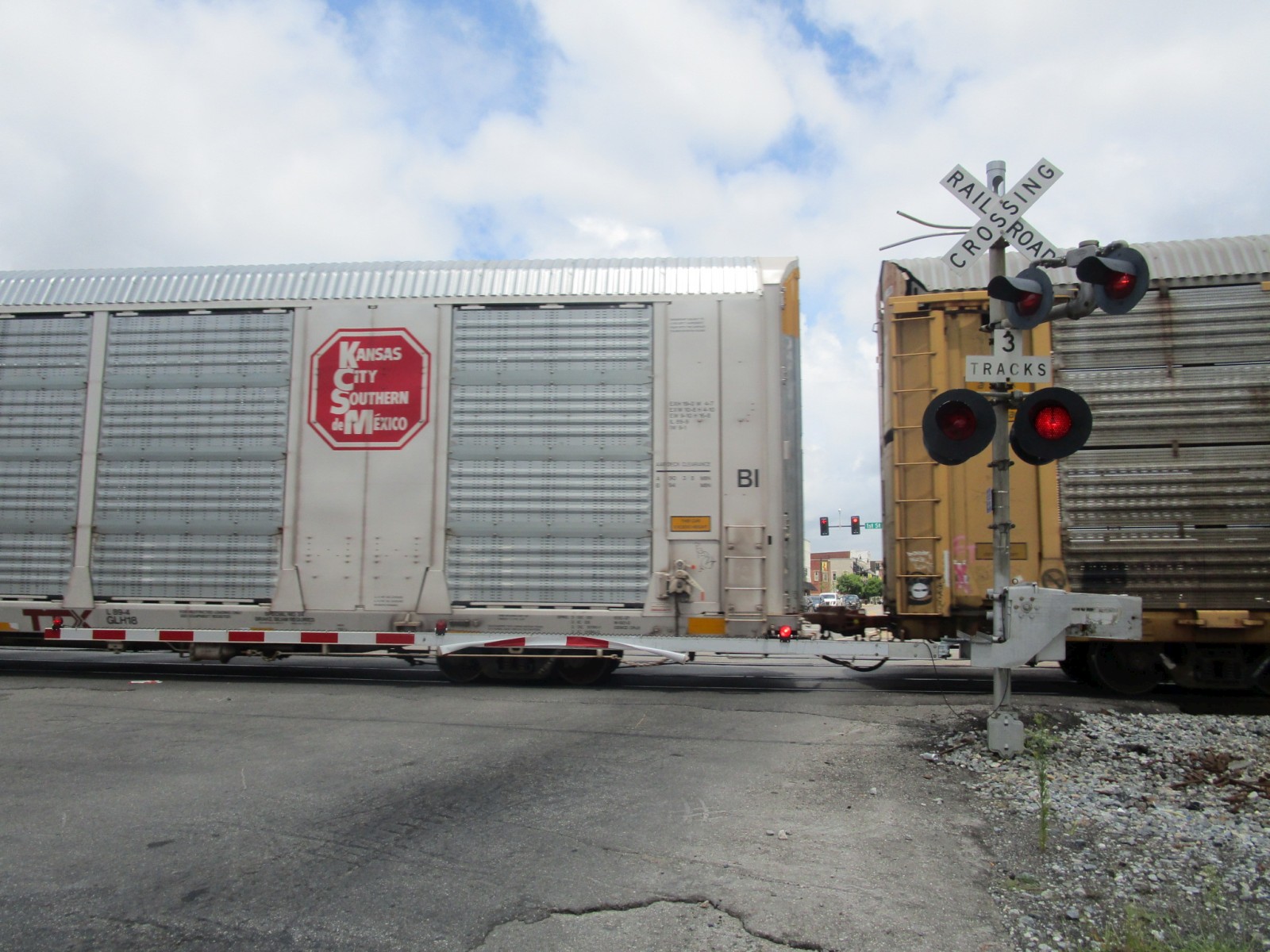

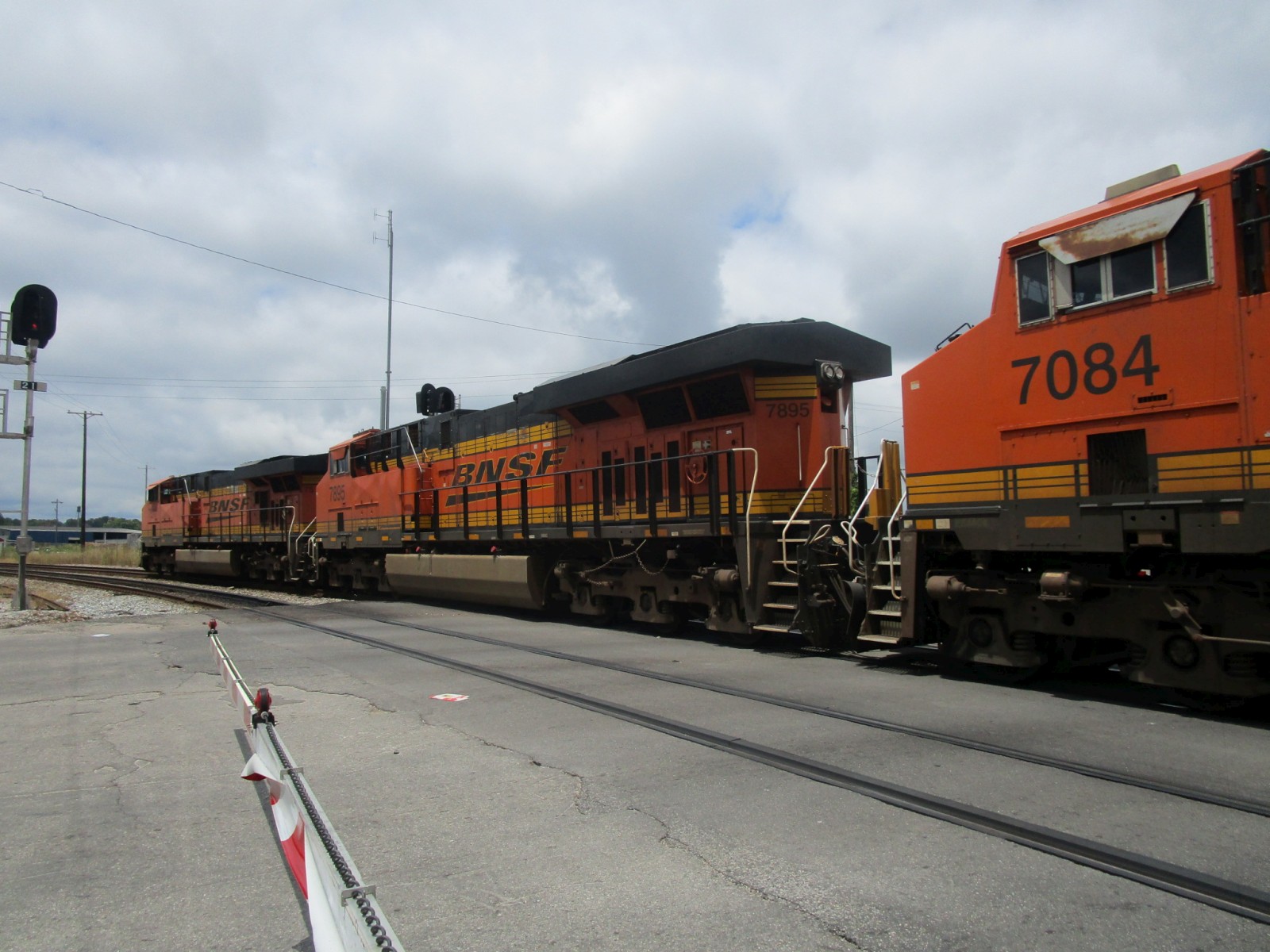

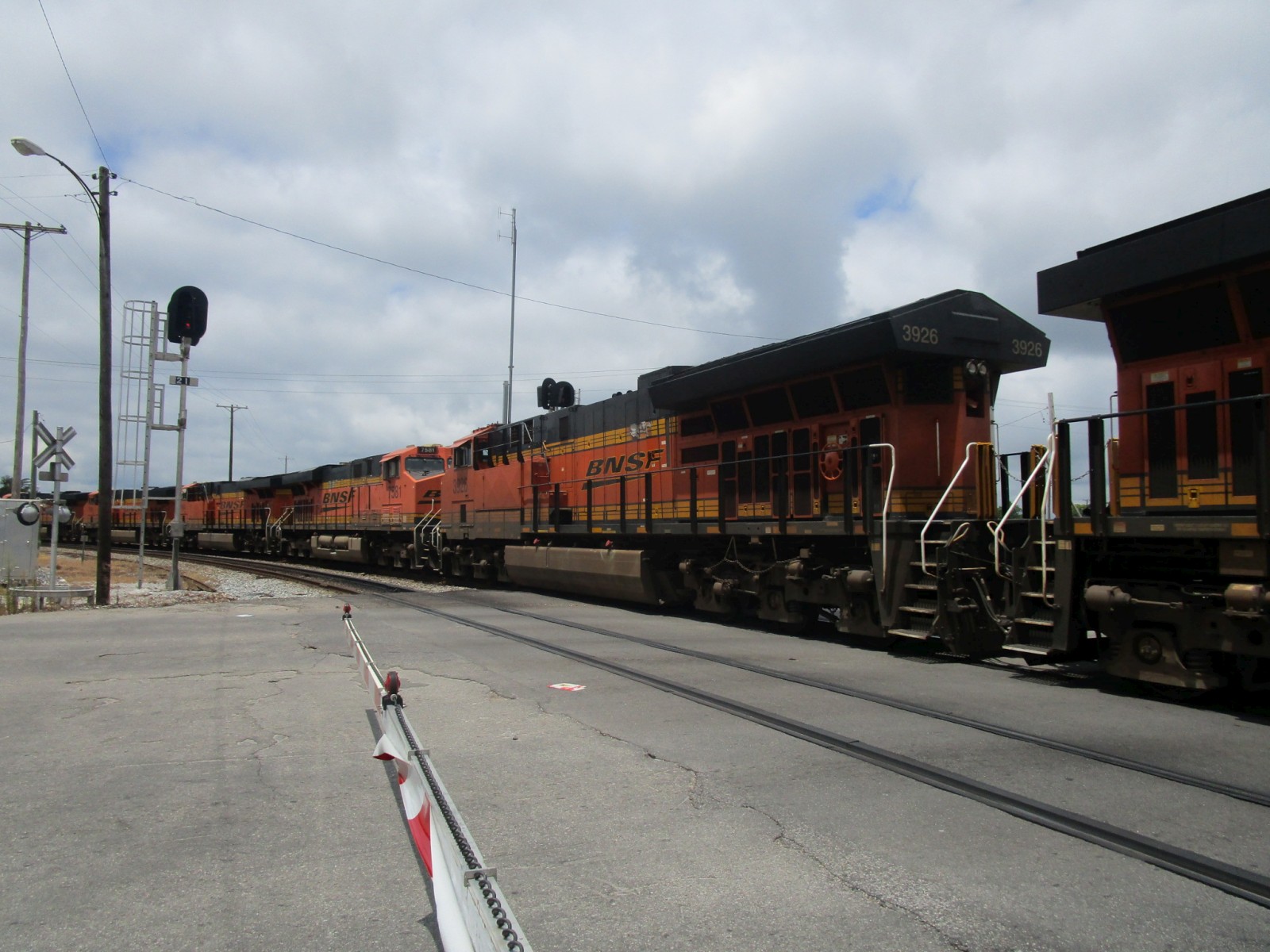

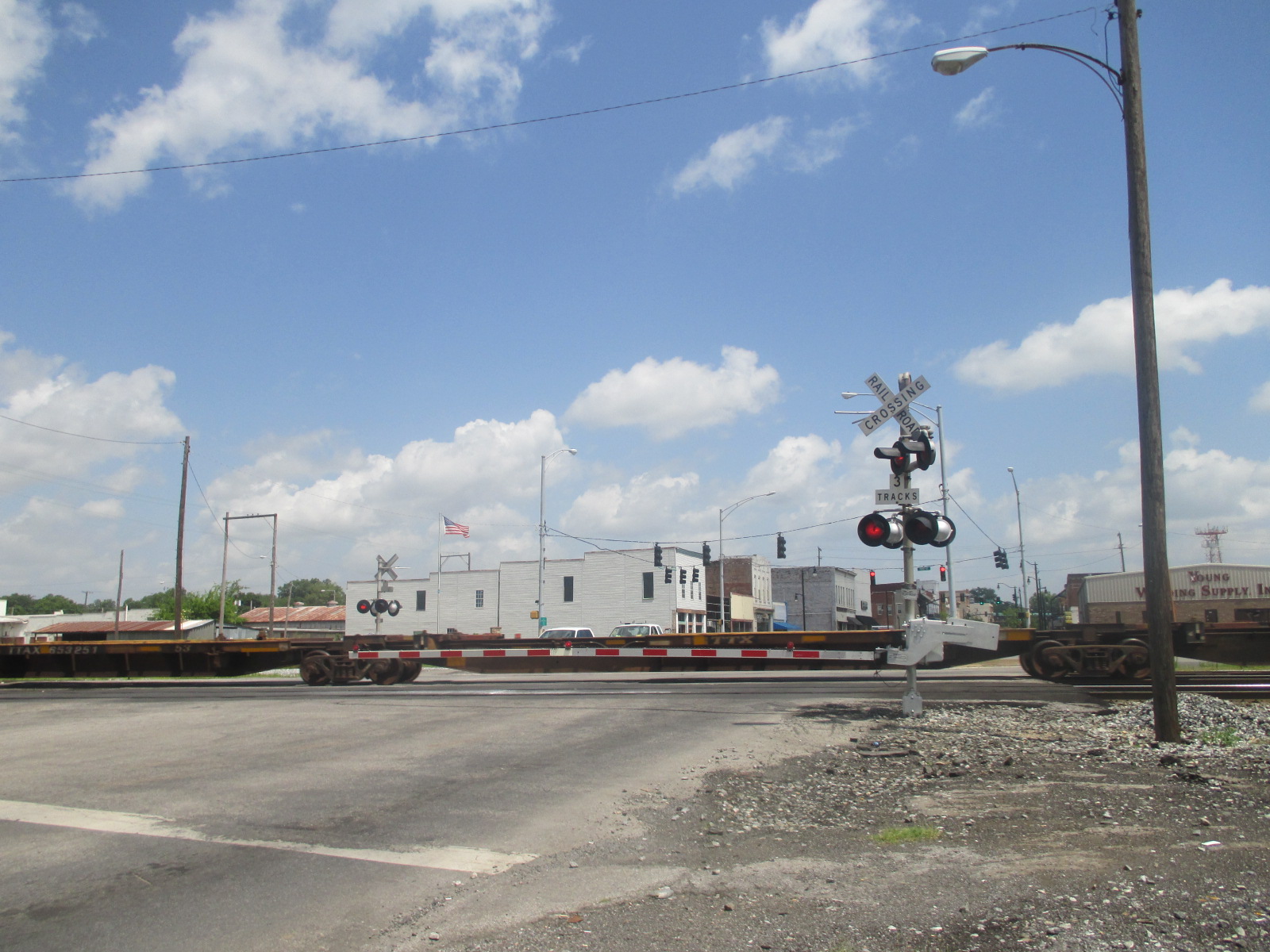

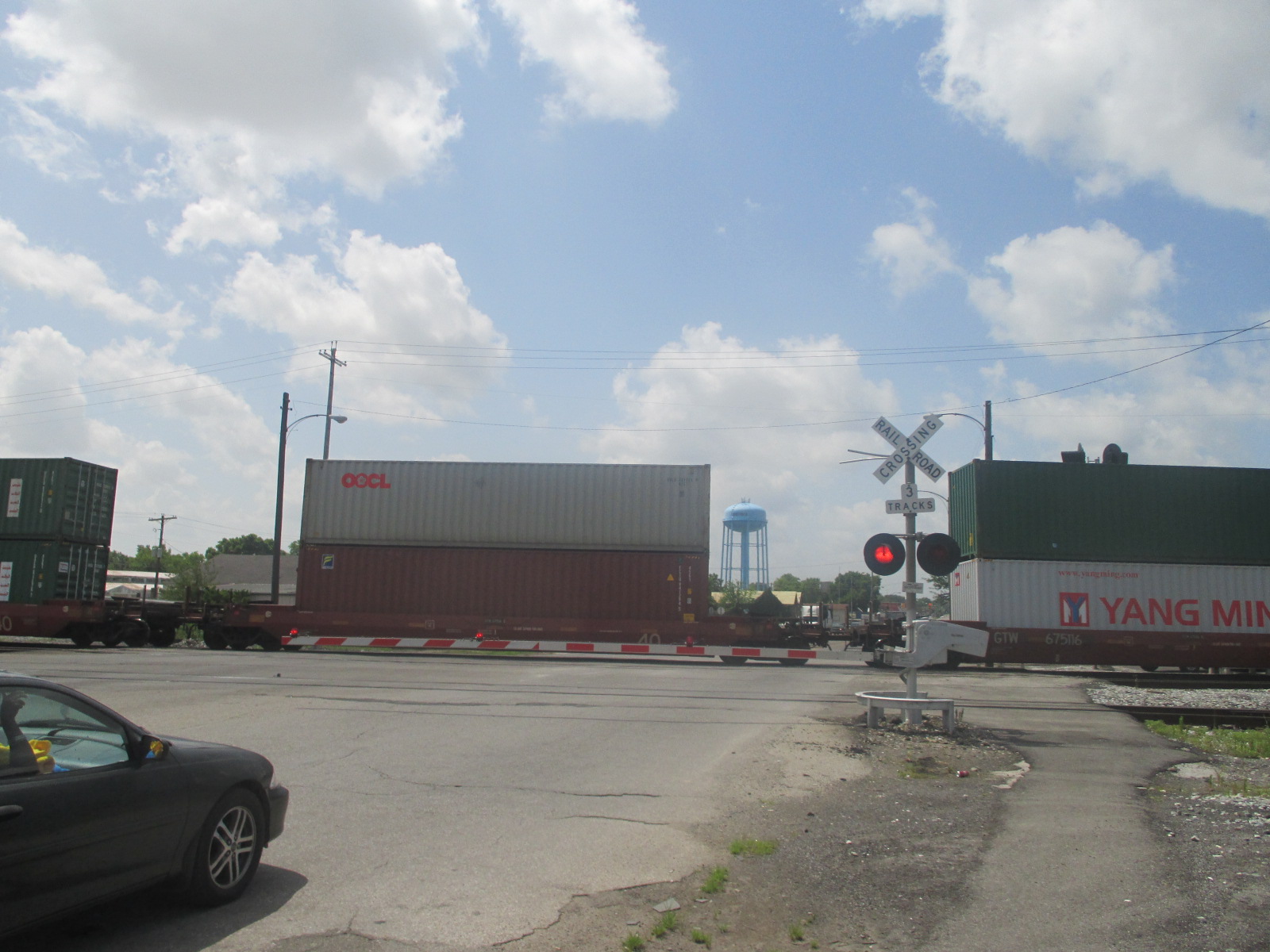

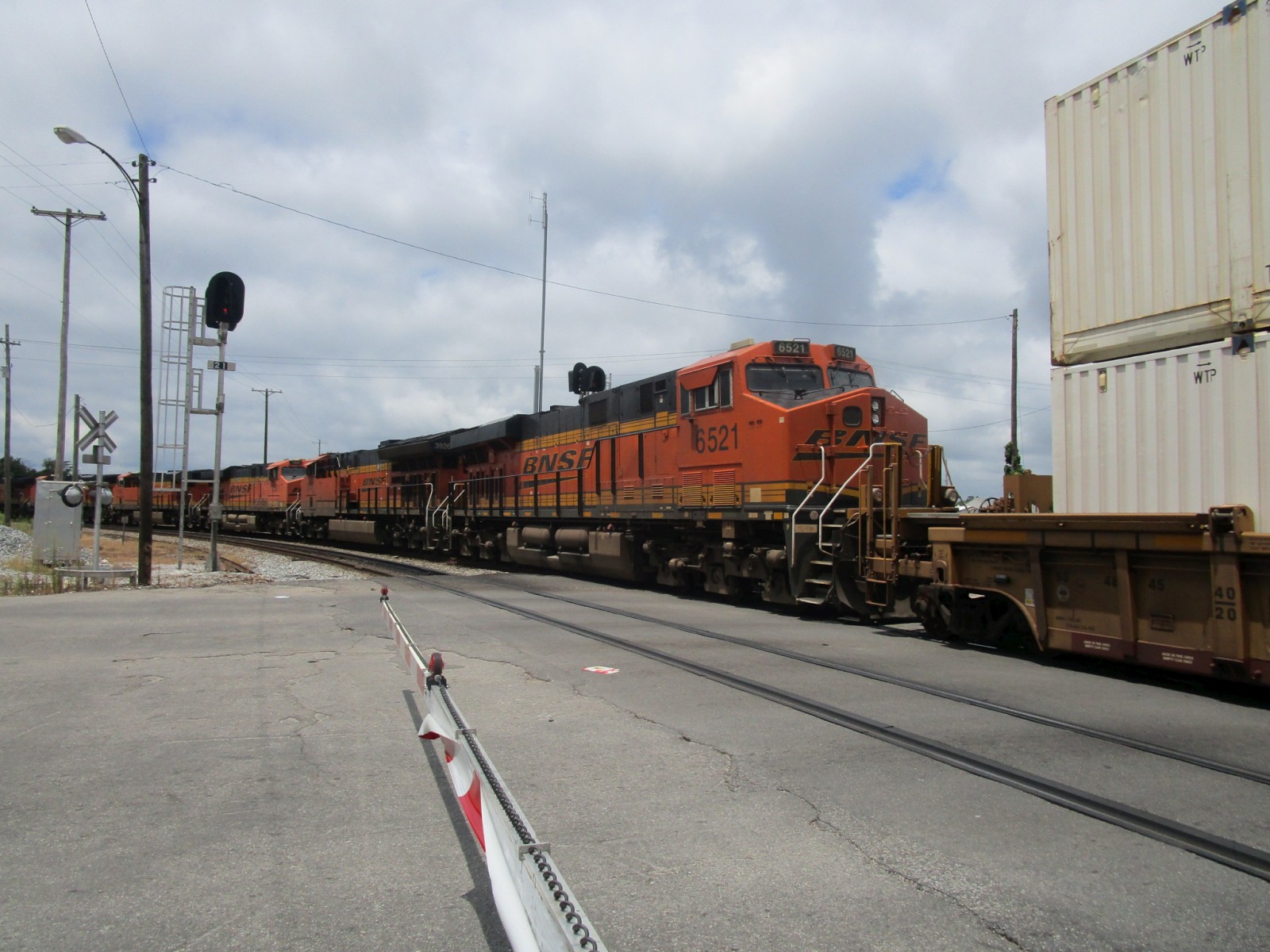

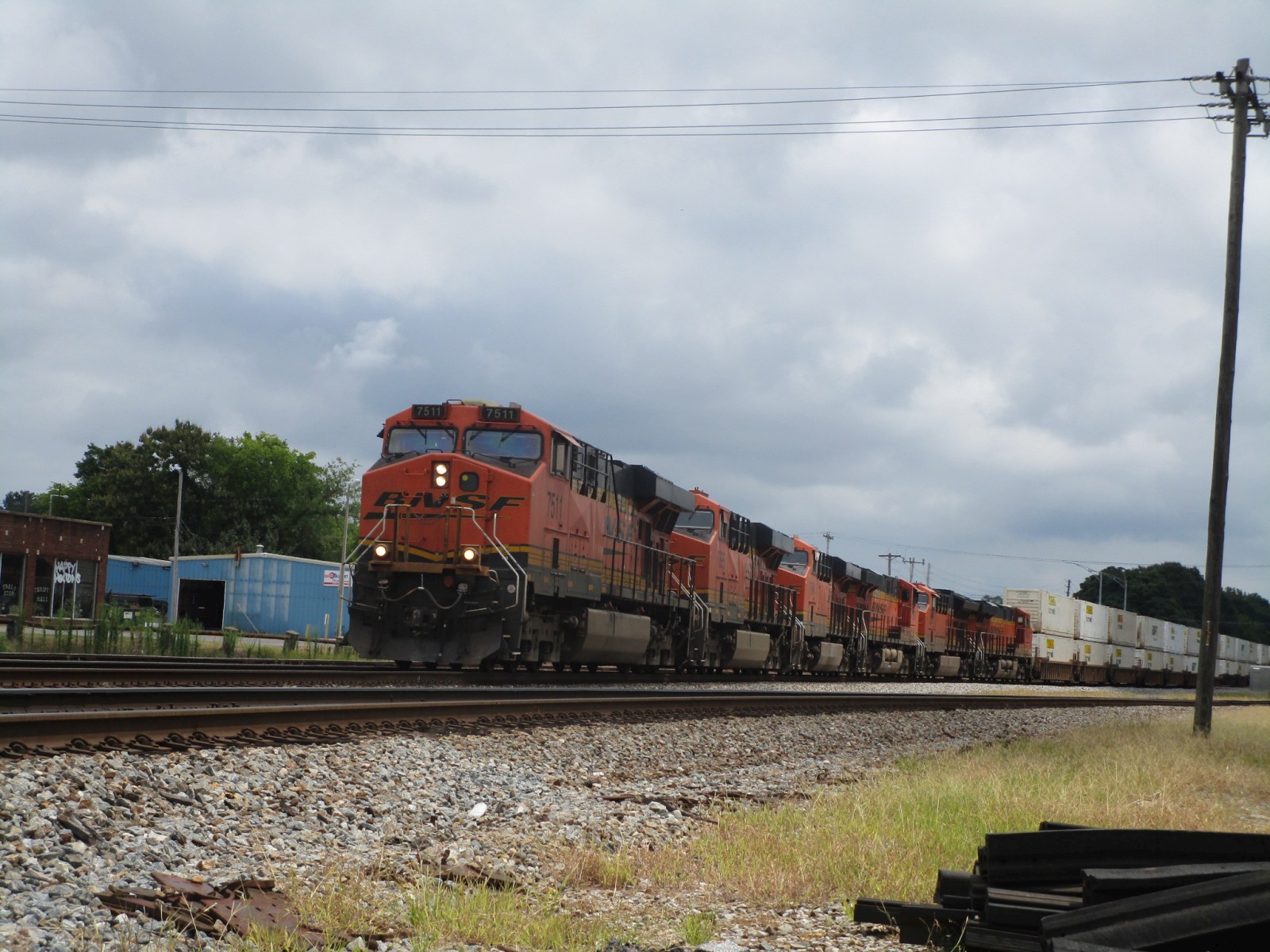

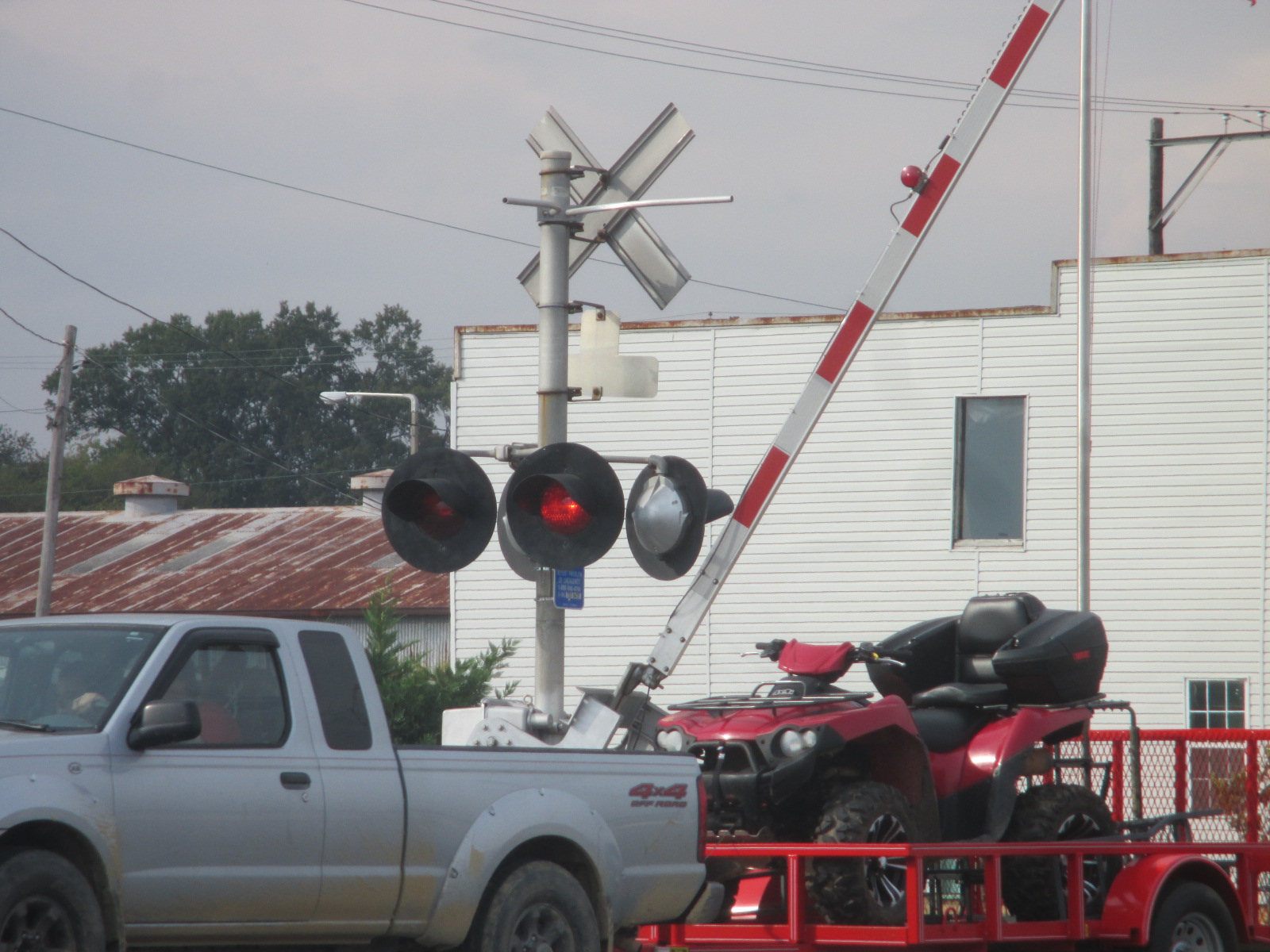

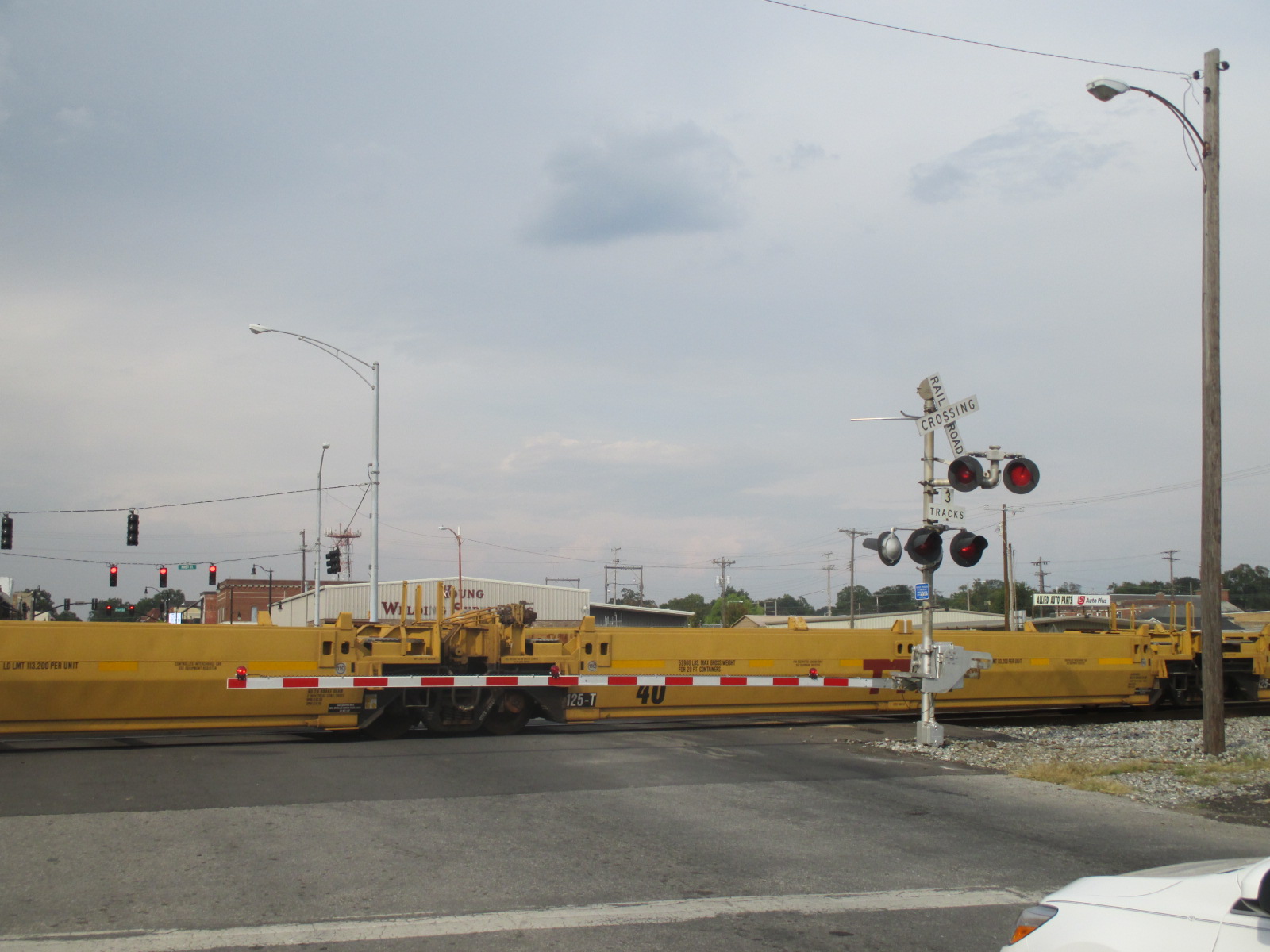

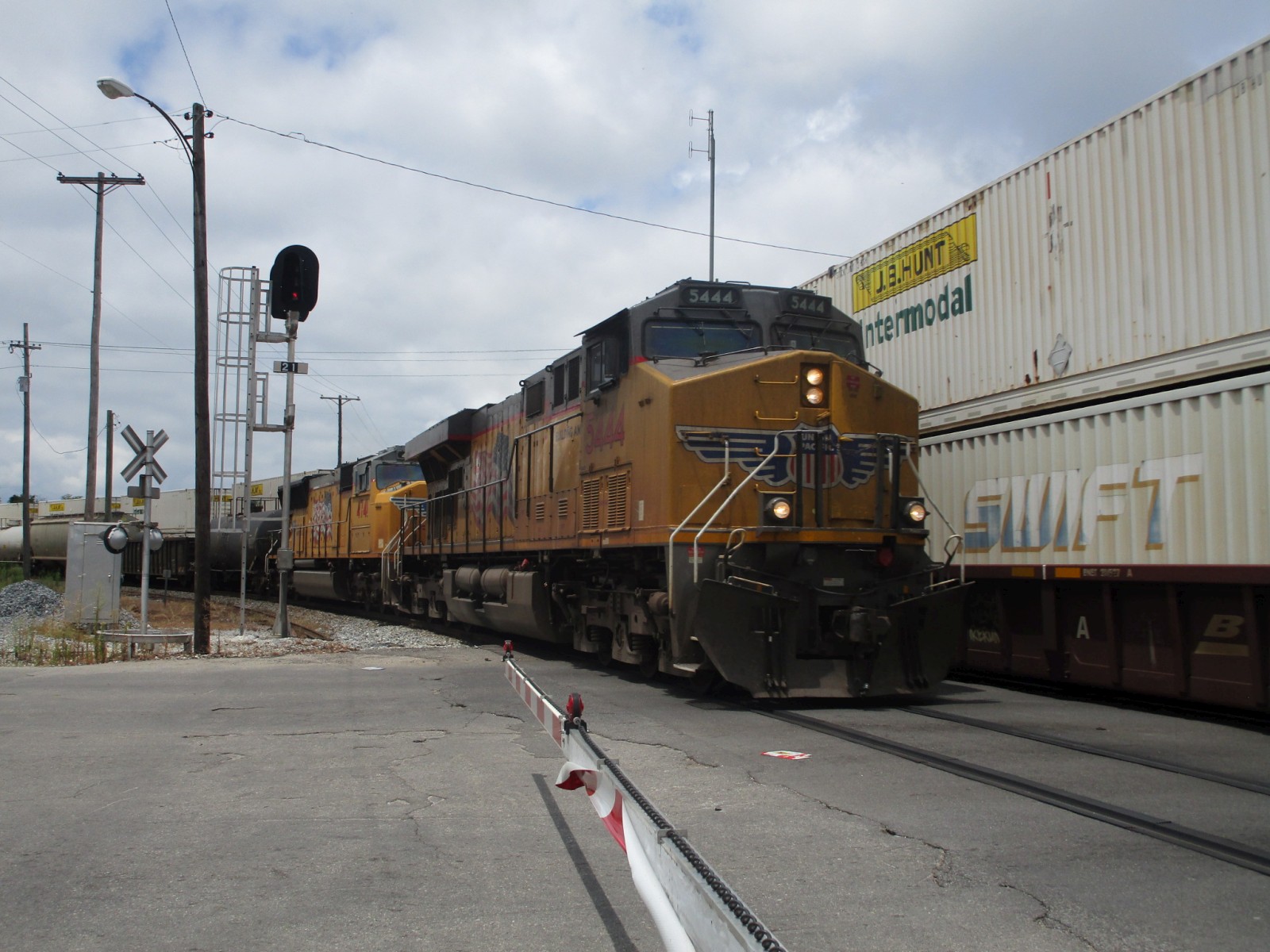

Action shots.

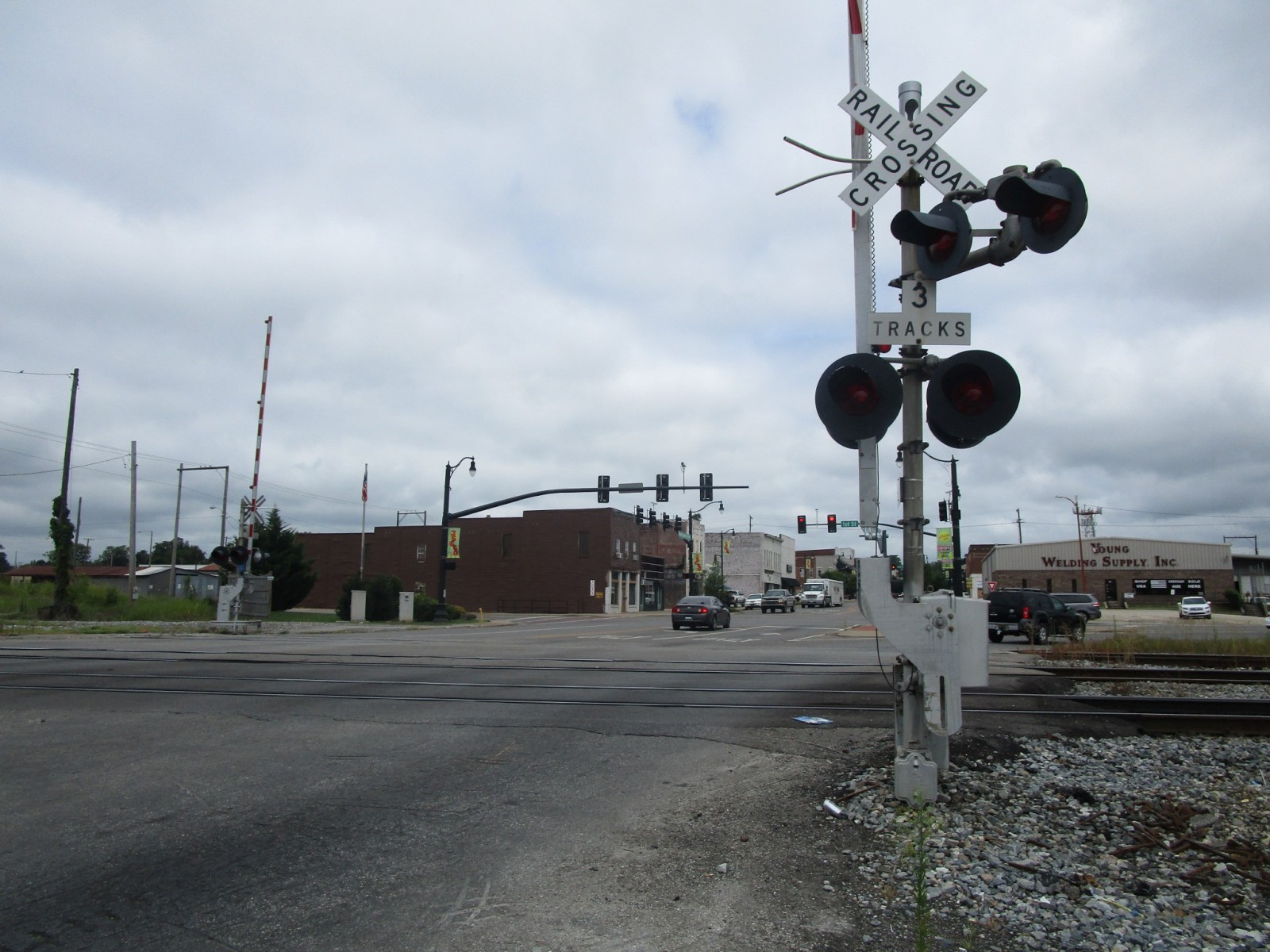

93	94	95	96	97

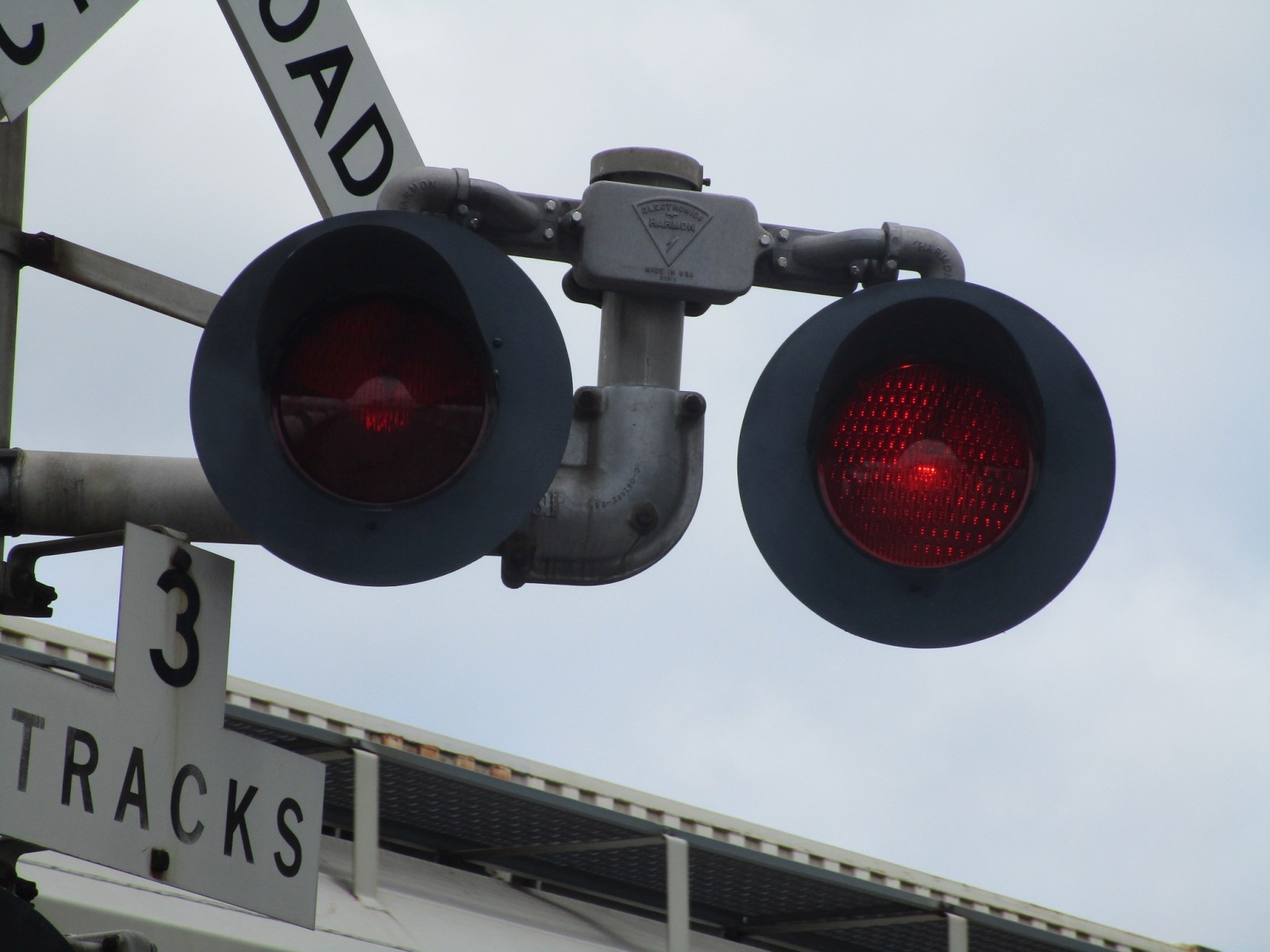

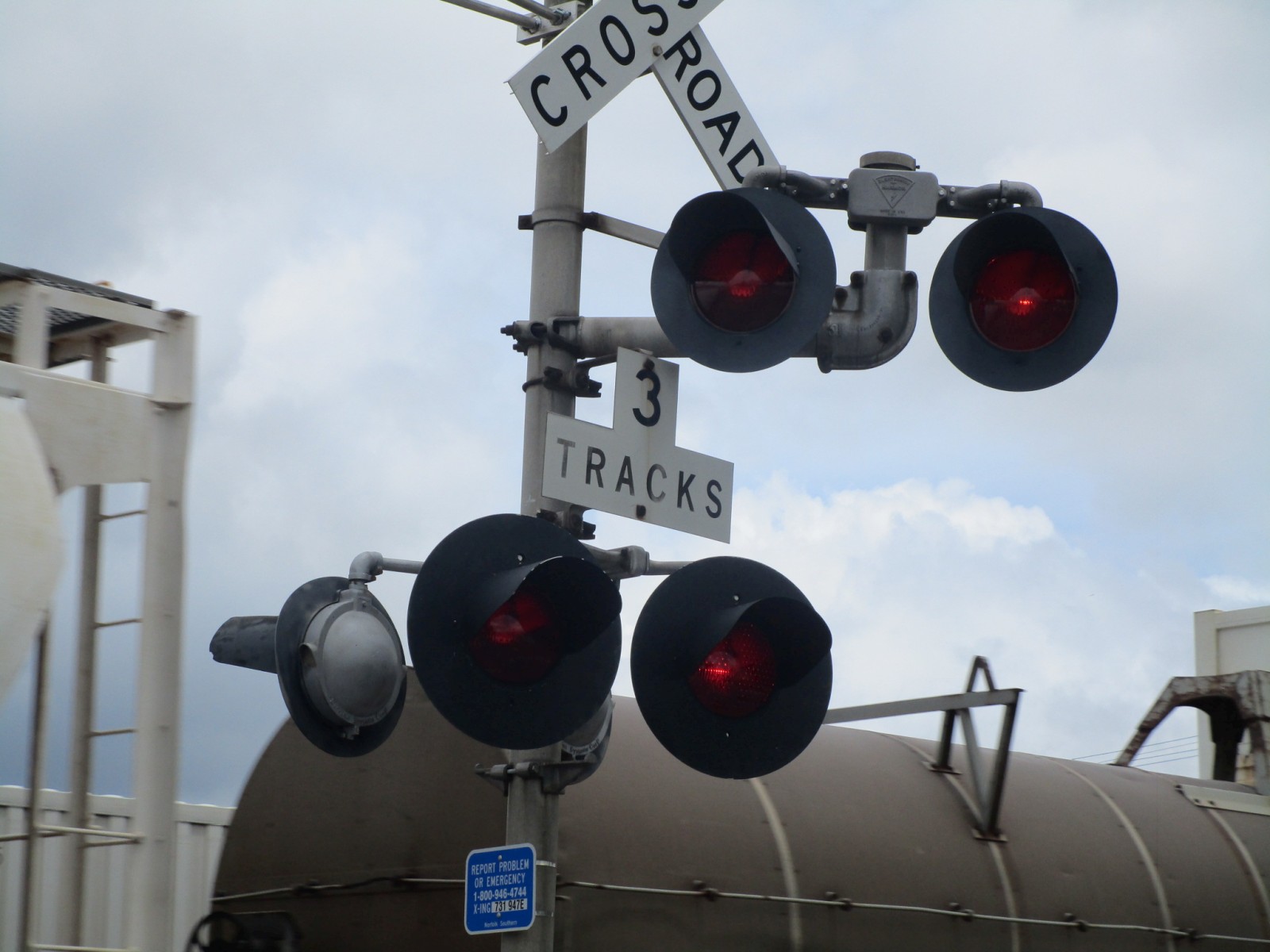

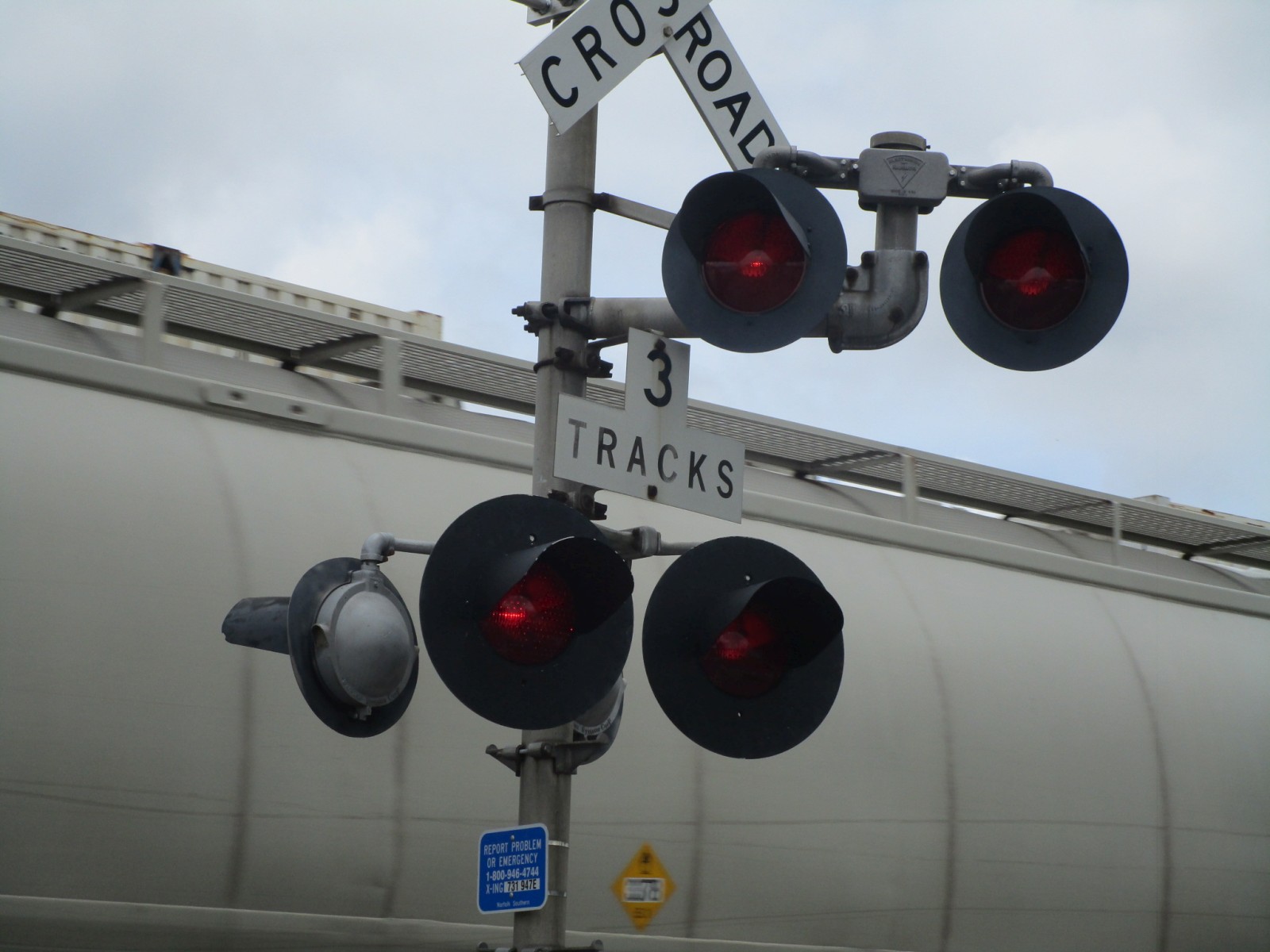

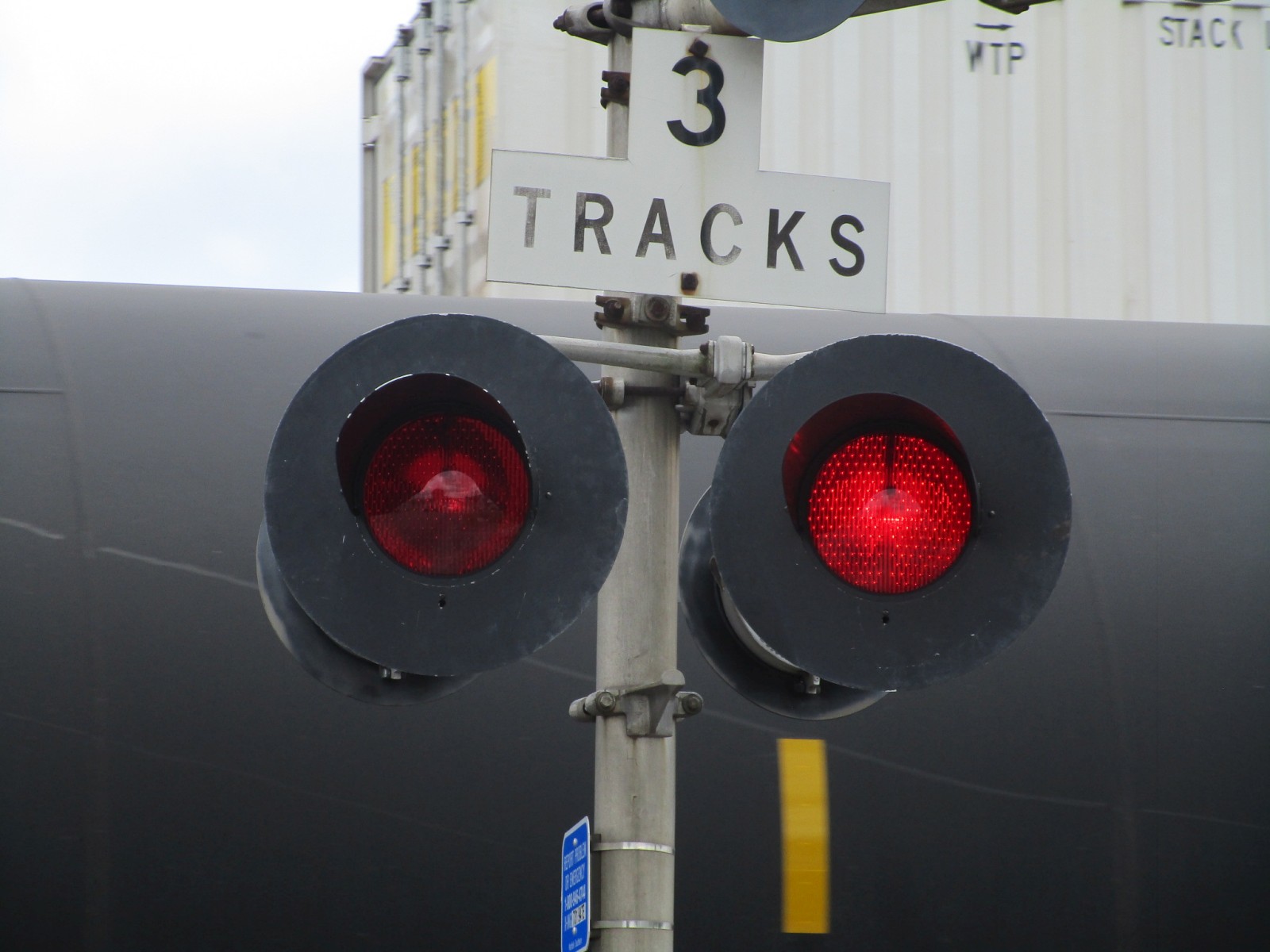

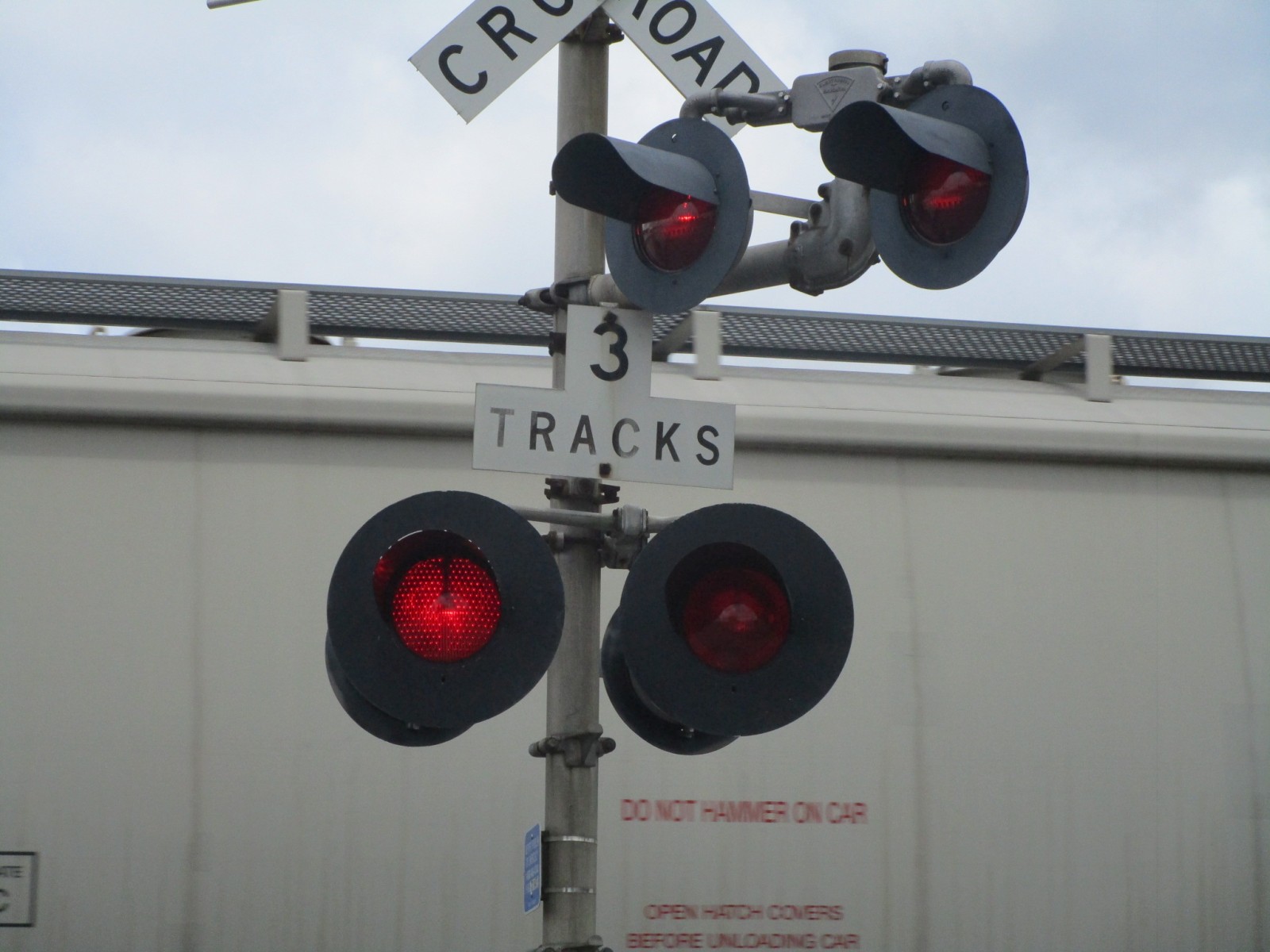

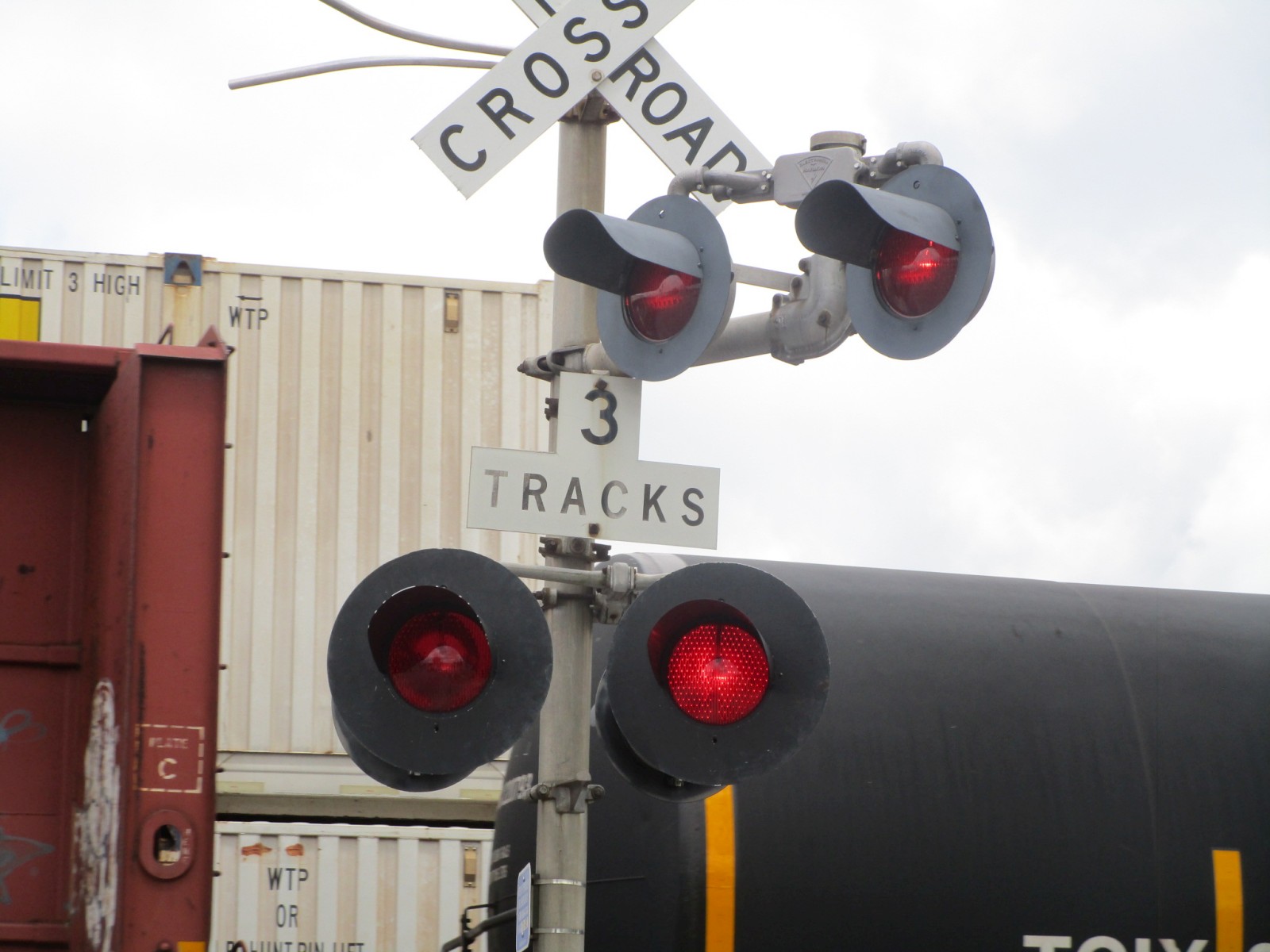

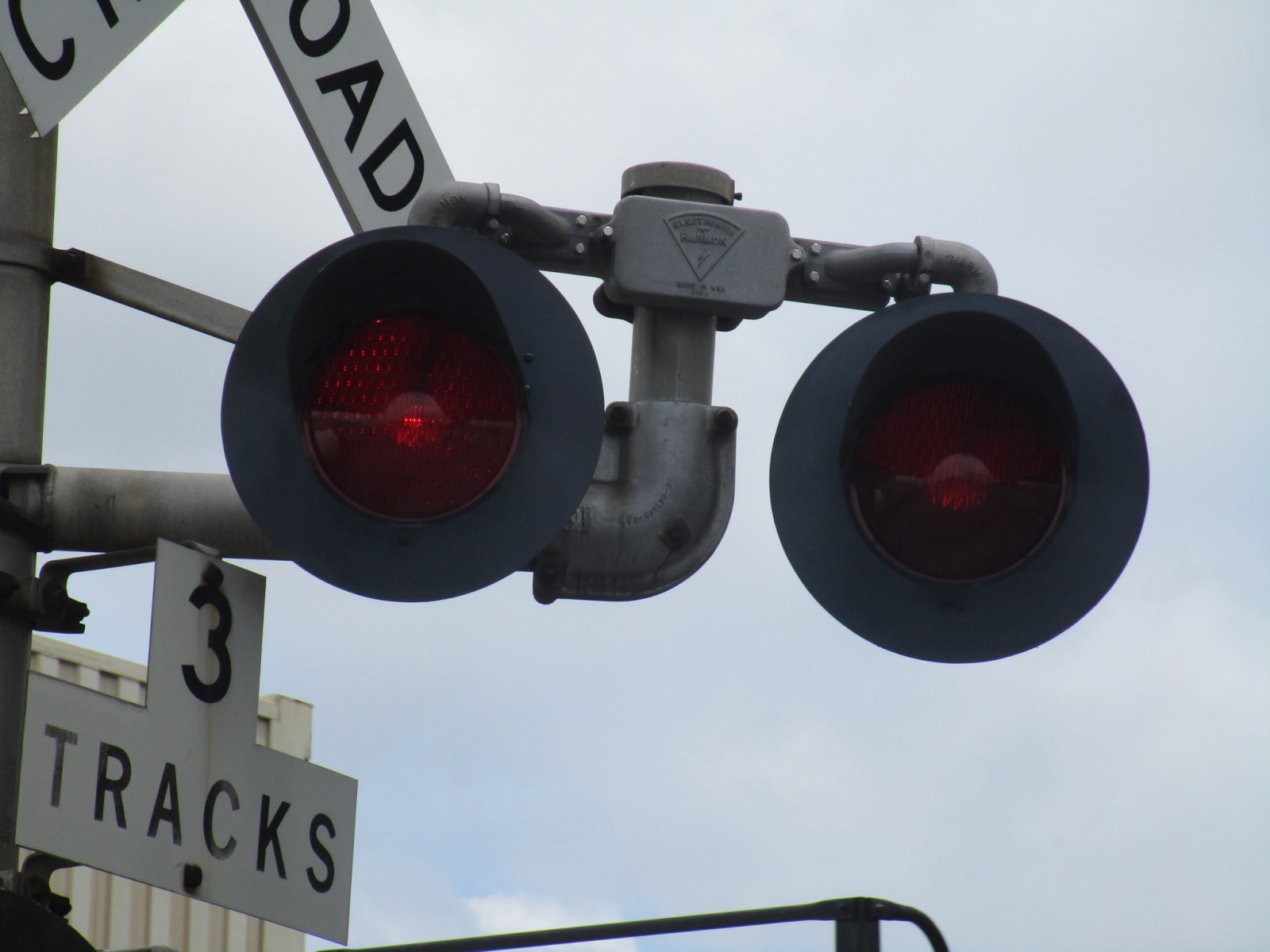

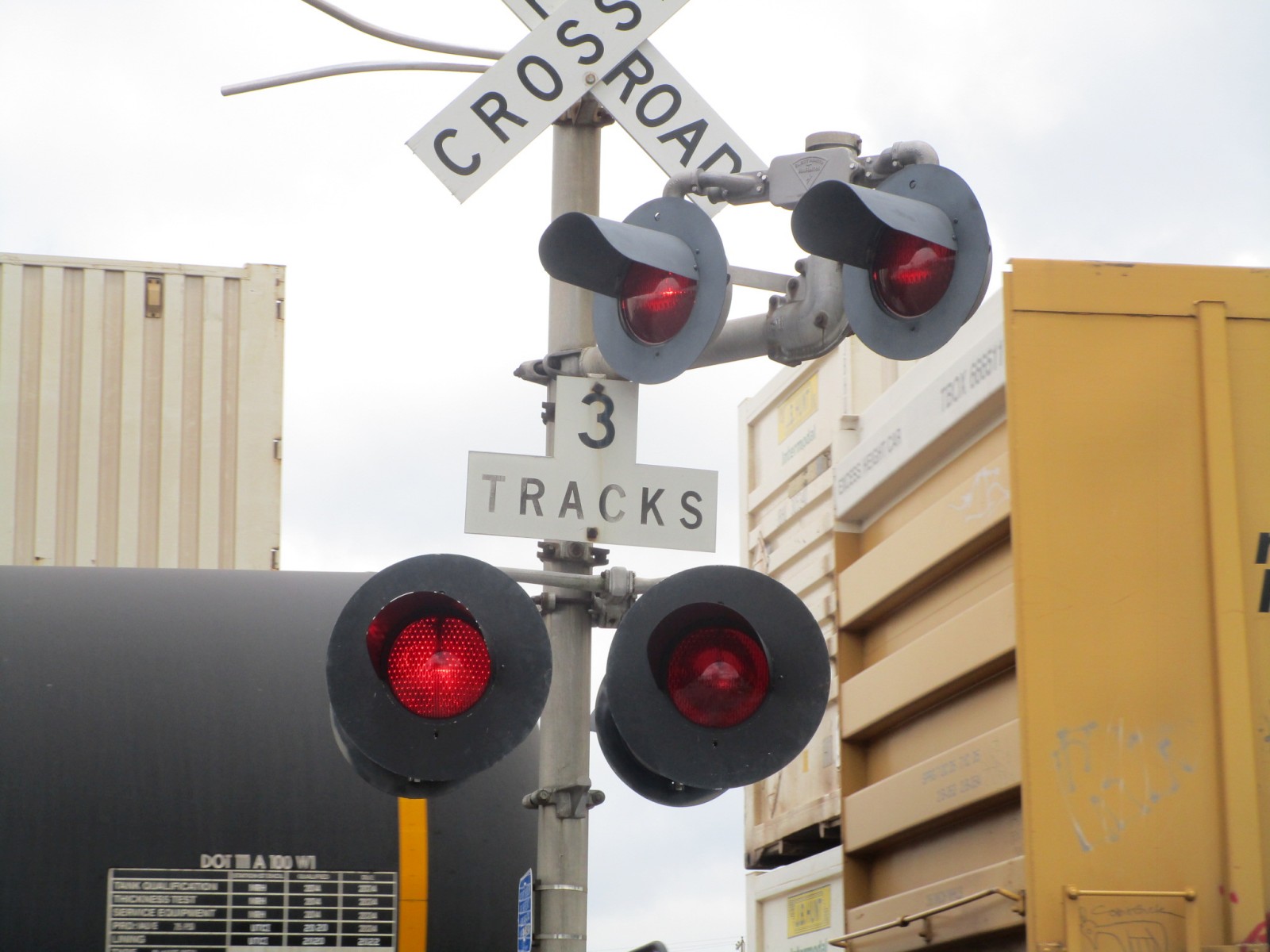

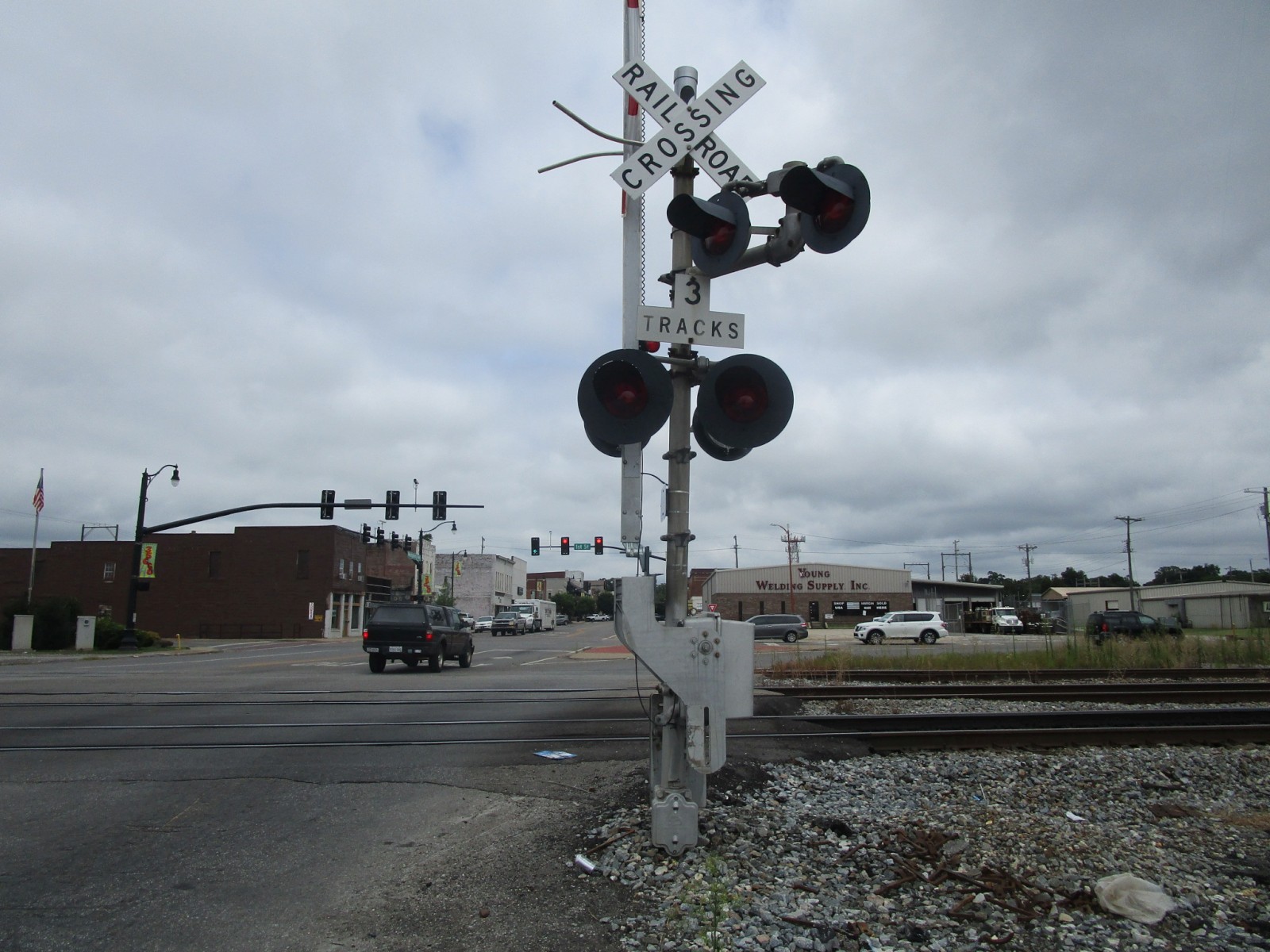

Another return trip finds the northbound gated signal here has had the front lights replaced with newer Safetran 12x24 inch lights, and the WCH mechanical bell was replaced with a General Signals Type 2 e-bell! The other gated signal also now has RECO LED gate lights.
