These pictures were taken in May 2005.
750993G (MP: 316.64) is for the Union Ave. crossing.
750994N (MP: 316.60) is for the Ming Ave. crossing.
|
1     |
2   |
3    |
|

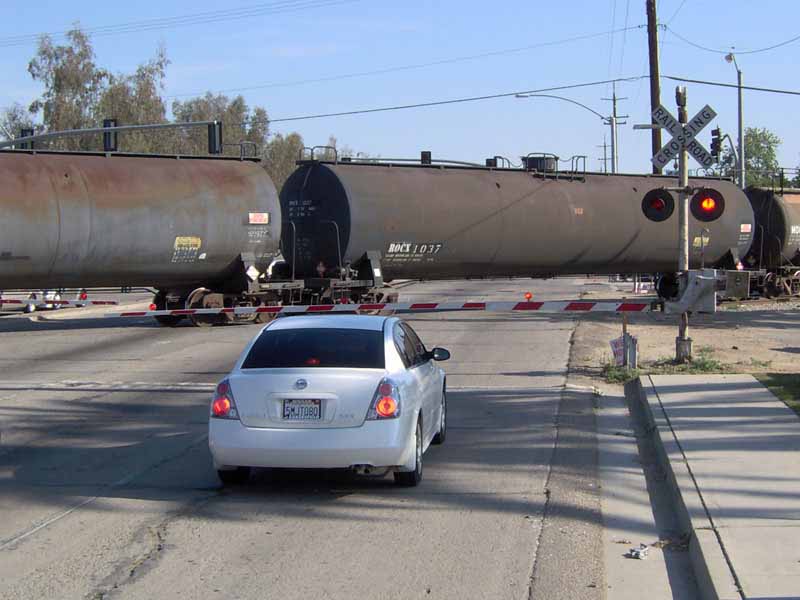

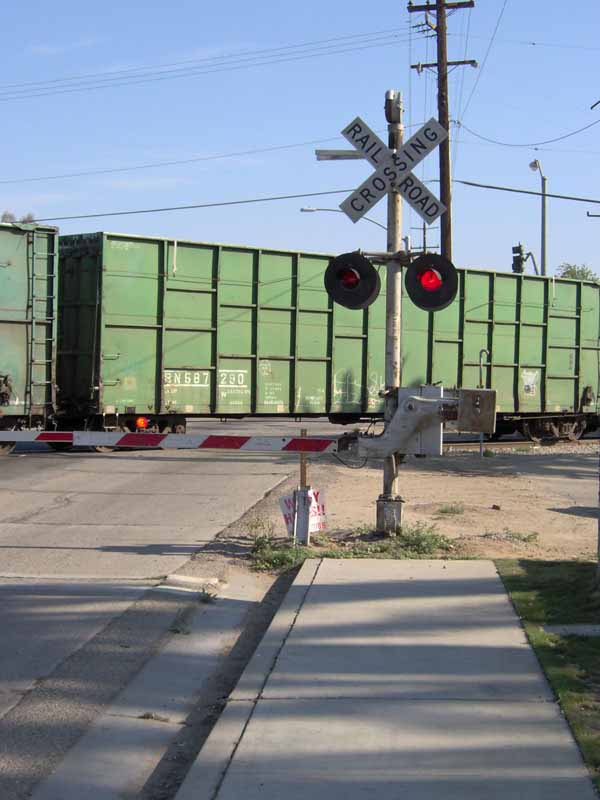

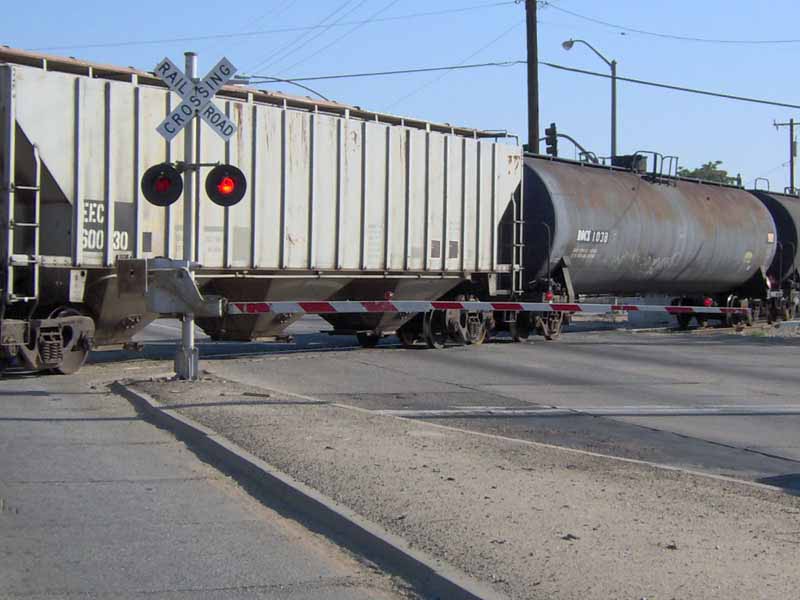

These three pictures are facing North on Union Ave. |
||
|
4   |
5   |
6   |
|

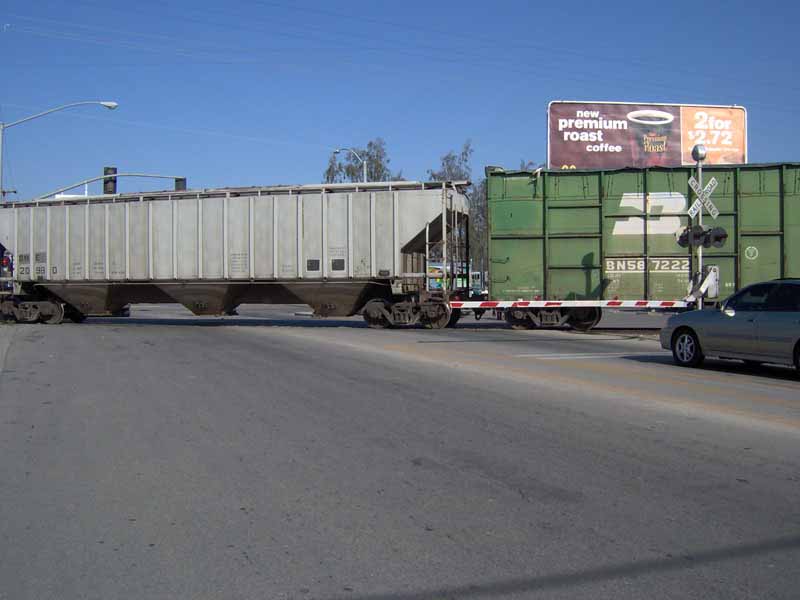

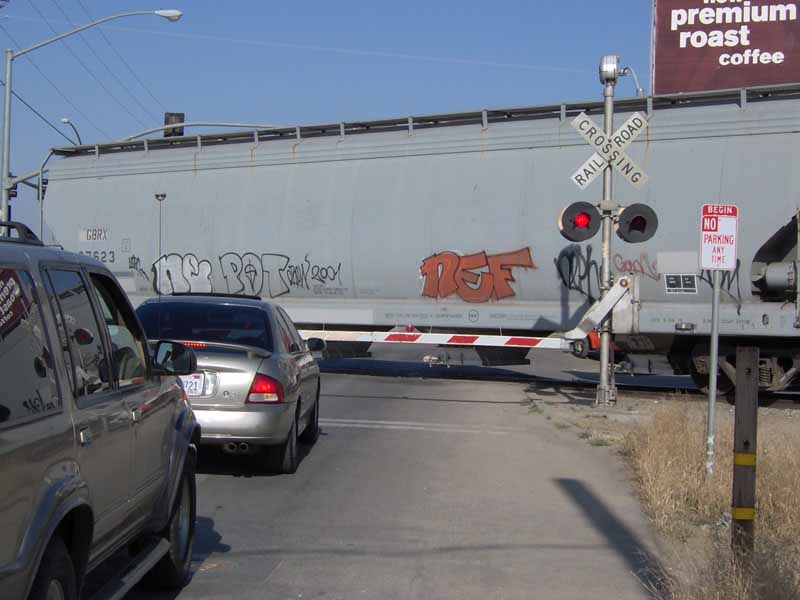

Pictures 4 and 5 face West on Ming Ave. Note the incorrect placing of the crossbuck in picture 5. Picture 6 faces East on Ming Ave. I've been told that both bells at the Ming Ave. crossing are both teardrop! |
||
|
7   |
8  |
9   |
|

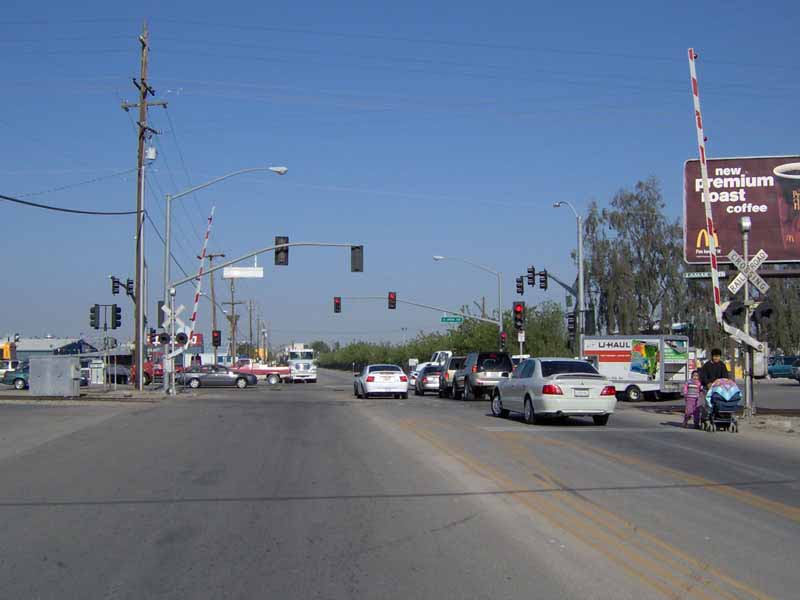

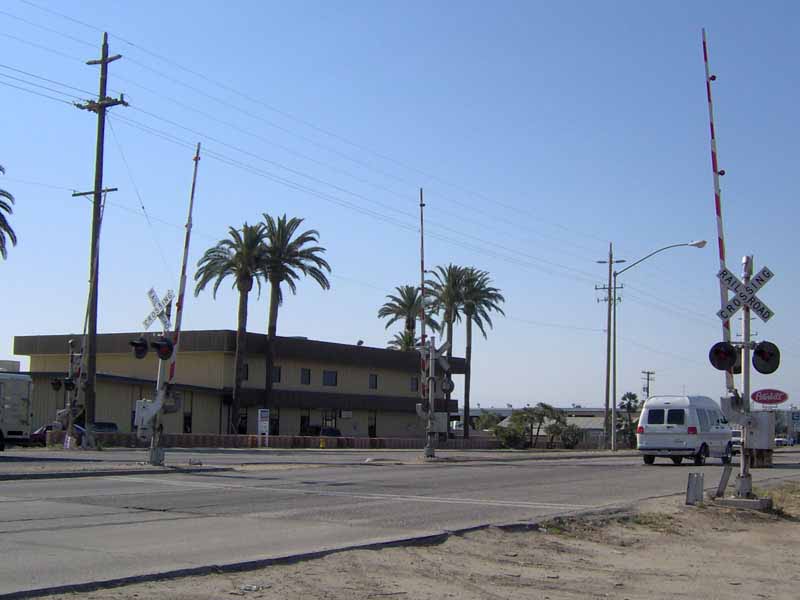

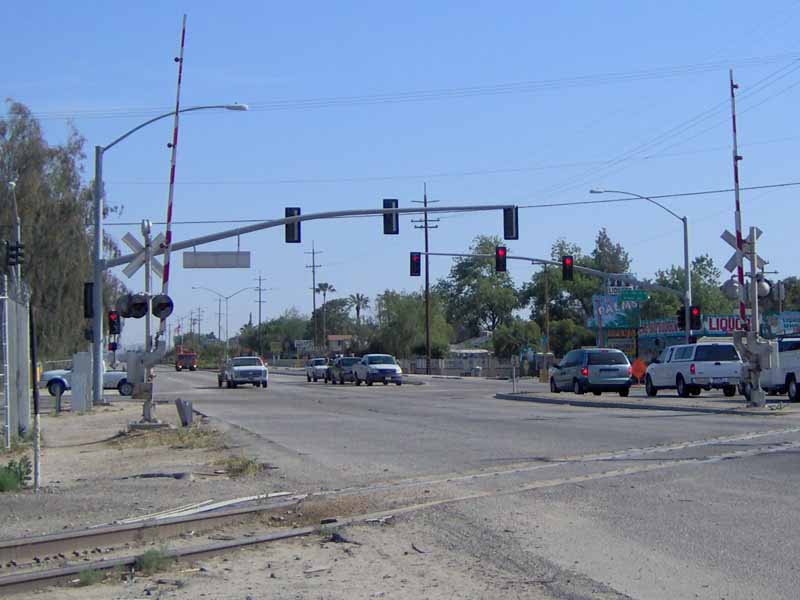

Facing East on Ming Ave. You can see a good look at a traffic light in this picture. |

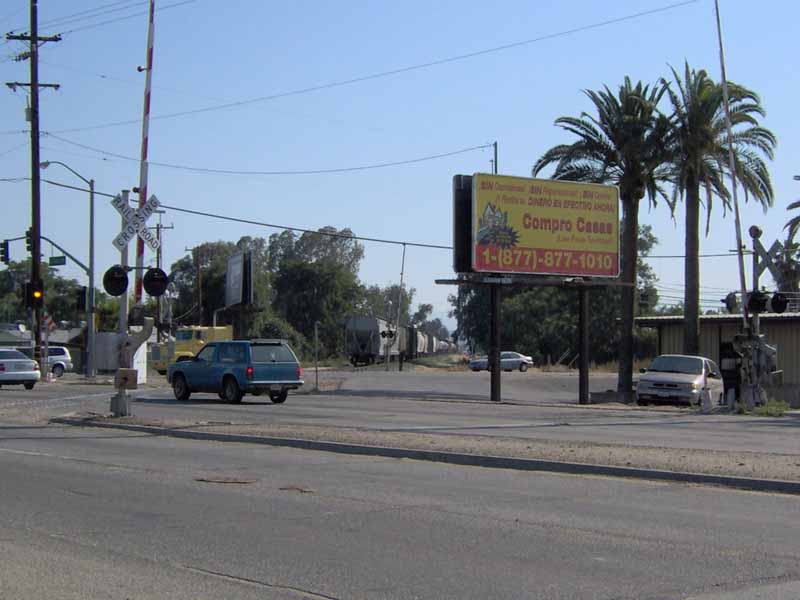

Facing West on Ming Ave. |

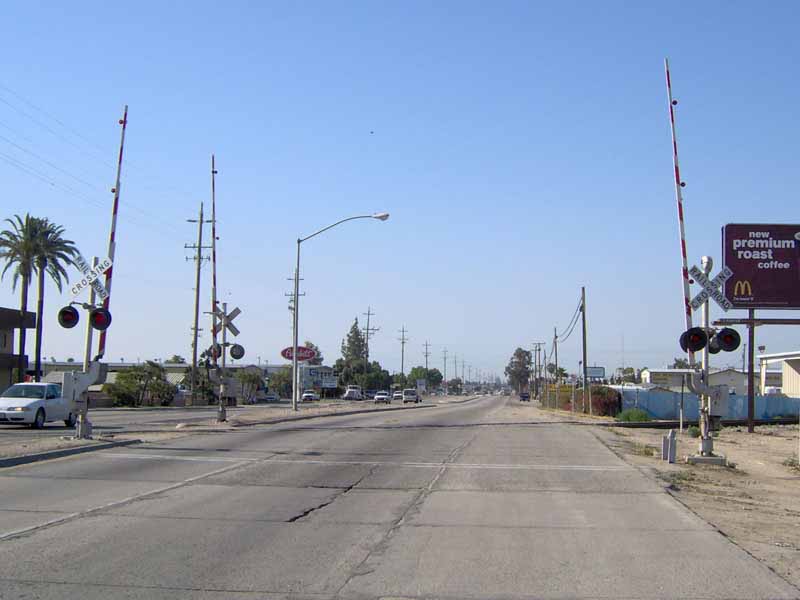

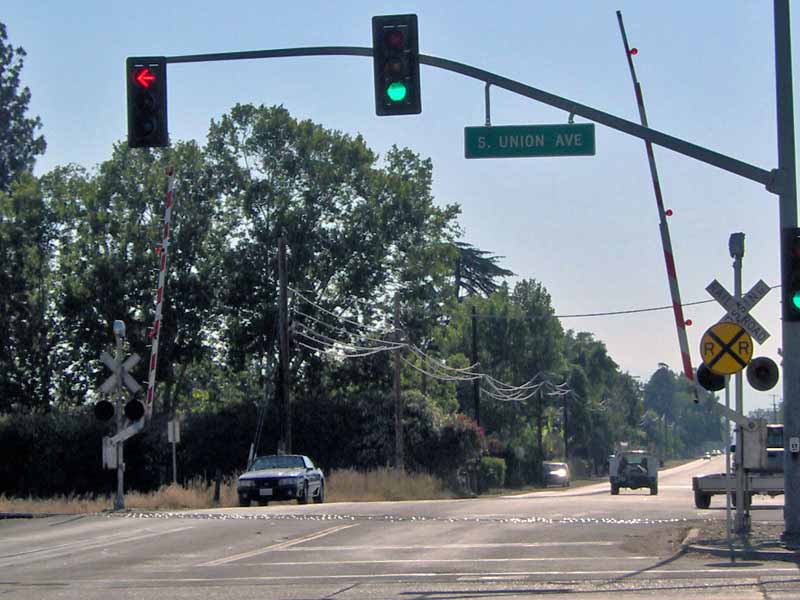

Facing South on Union Ave. The median signal to the left has 12"x20" lights. The other 5 signals combined have 8". |
|
10 |
11  |
12  |
|

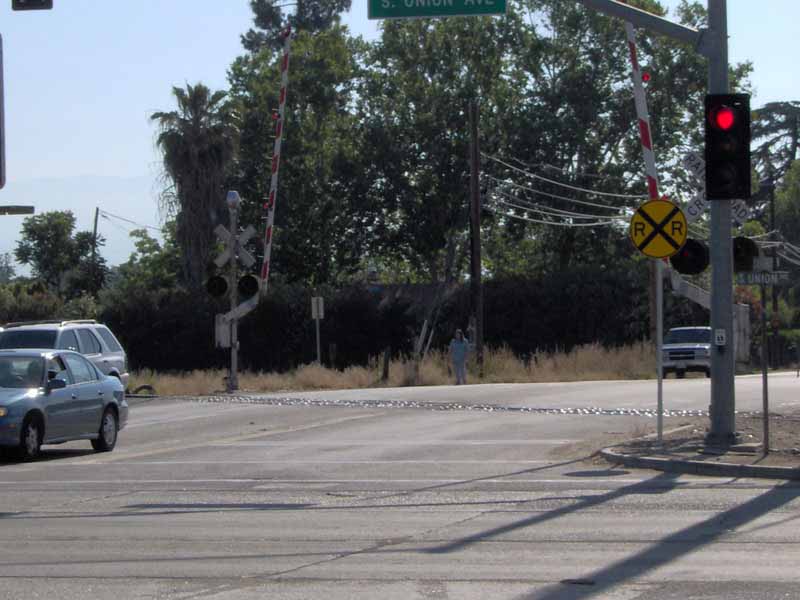

Facing South on Union Ave. |
Facing North on Union Ave. |
Facing North on Union Ave. You can see Ming Ave. in the background. |
There are two mechanical bells at the Union crossing. All of the 6 gates at these two crossings have 4" gate lights.
|
13   |
14 |
|

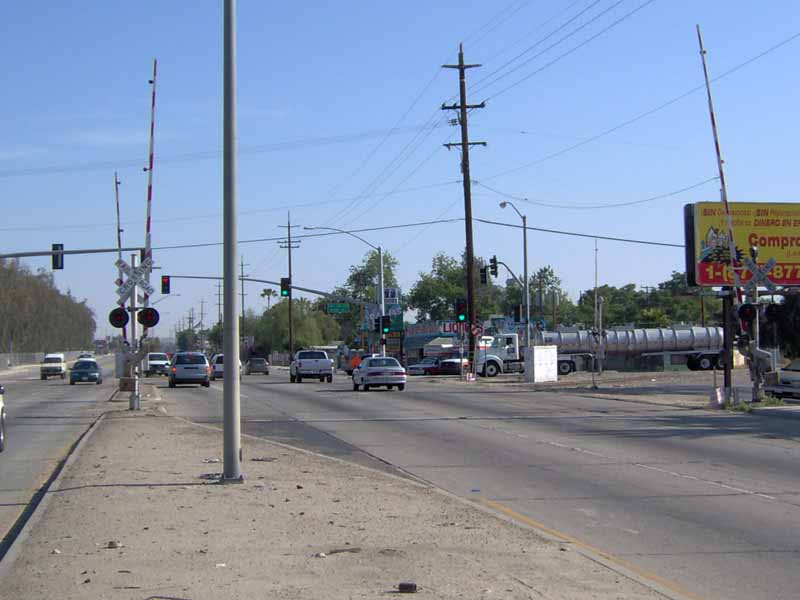

Facing North on Union Ave. You can see Ming Ave. in the background. |

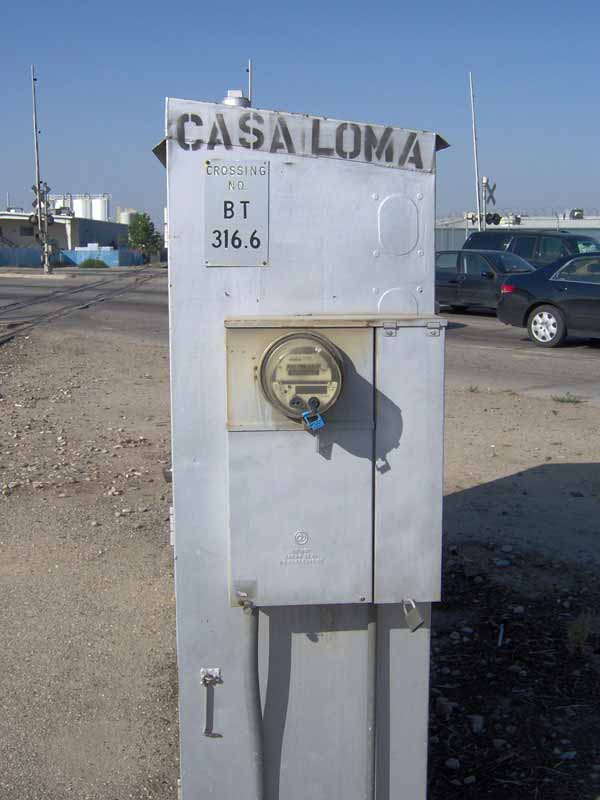

Here's the relay case for Ming. I don't know why the FRA calls this Casa Loma Drive, but that's what this road is identified as. Also, all six signals run off this one relay case. |
