The relay case with no DOT information on it. |
This is a very weird crossing. There's two sets of 12"x24" gated signals but there's also 2 sets of very old ATSF crossbucks in the center of each track. |
||
This kind of looks like a double crossing here. I wish that the crossbucks would be replaced with 12"x24" mast flashers without gates. Another set of 12"x24" gated signals would work as a true double crossing.
The bell in picture 3 is a WCH mechanical bell, and the signal that has the bell has incandescent lights.
5 600x800 120 KB |
6 600x800 95.0 KB |
7 800x600 115 KB |
A rear look at the incandescent signal. |
A look at the two center crossbucks. |

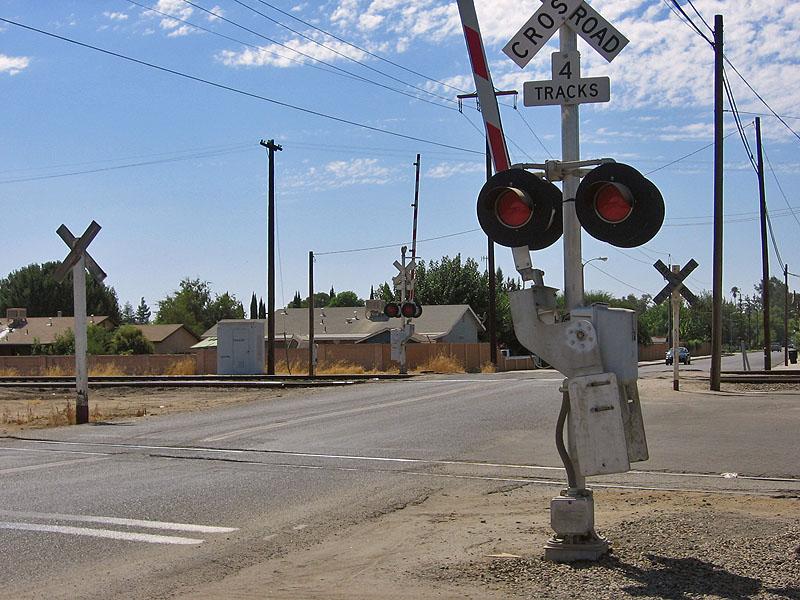

This 12"x24" signal has L.E.D. lights. |

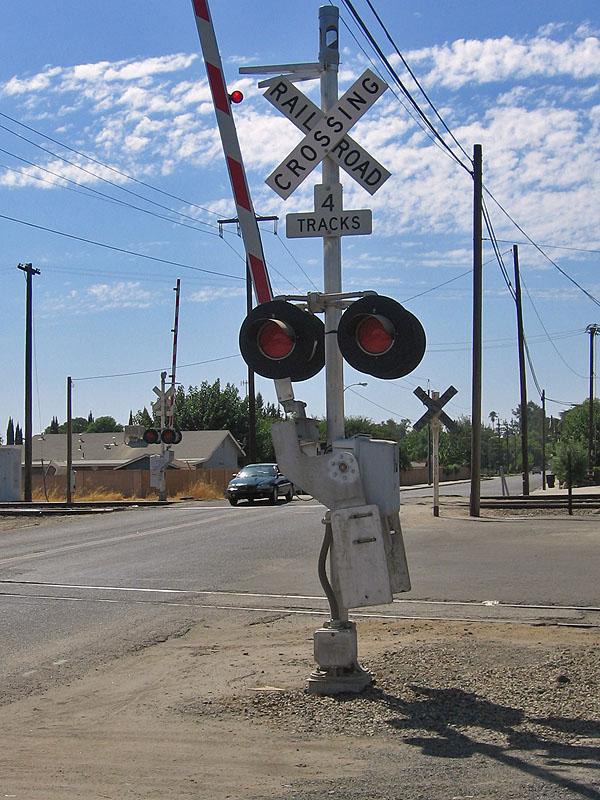

8 |
This signal also has a General Signals electronic bell on it. |
Notes: There are indeed 4 tracks combined between the 2 crossings. There is one main track behind the signal in picture 8. The other crossing with the incandescent signal protects 3 siding tracks. I don't know how often each track gets used, but I can imagine that the 3-track crossing doesn't get very much.
