MP: 116.408? |
Created November 25, 2021
Total Accidents:
0
Crossing
DOT #: 805321H
TOTAL DAILY TRAINS: 12
(ESTIMATED)
Page created by: PlyingKibbles89
This crossing is located on the BNSF Angora Subdivision
| >>>>>>>>>>>>> | Southern
Signal |
Northern Signal |
| Bell: | General Signals Type 3 Electronic | General Signals Type 3 Electronic |
| Base: | WCH | WCH |
| Light Frames: | 4 - Federal Signal 12x20 inch with Electrotech LEDs | 2 - Federal Signal 12x20 inch with
Electrotech LEDs 2 - WCH 12x20 inch with Electrotech LEDs |
| Gate Lights: | 3 - Alstom | 3 - Alstom |
| Gate Mechanism: | WCH Style 3 | WCH Style 3 |
| Gate Striping: | Vertical | Vertical |
|
1 |
2 |
3 |
4 |

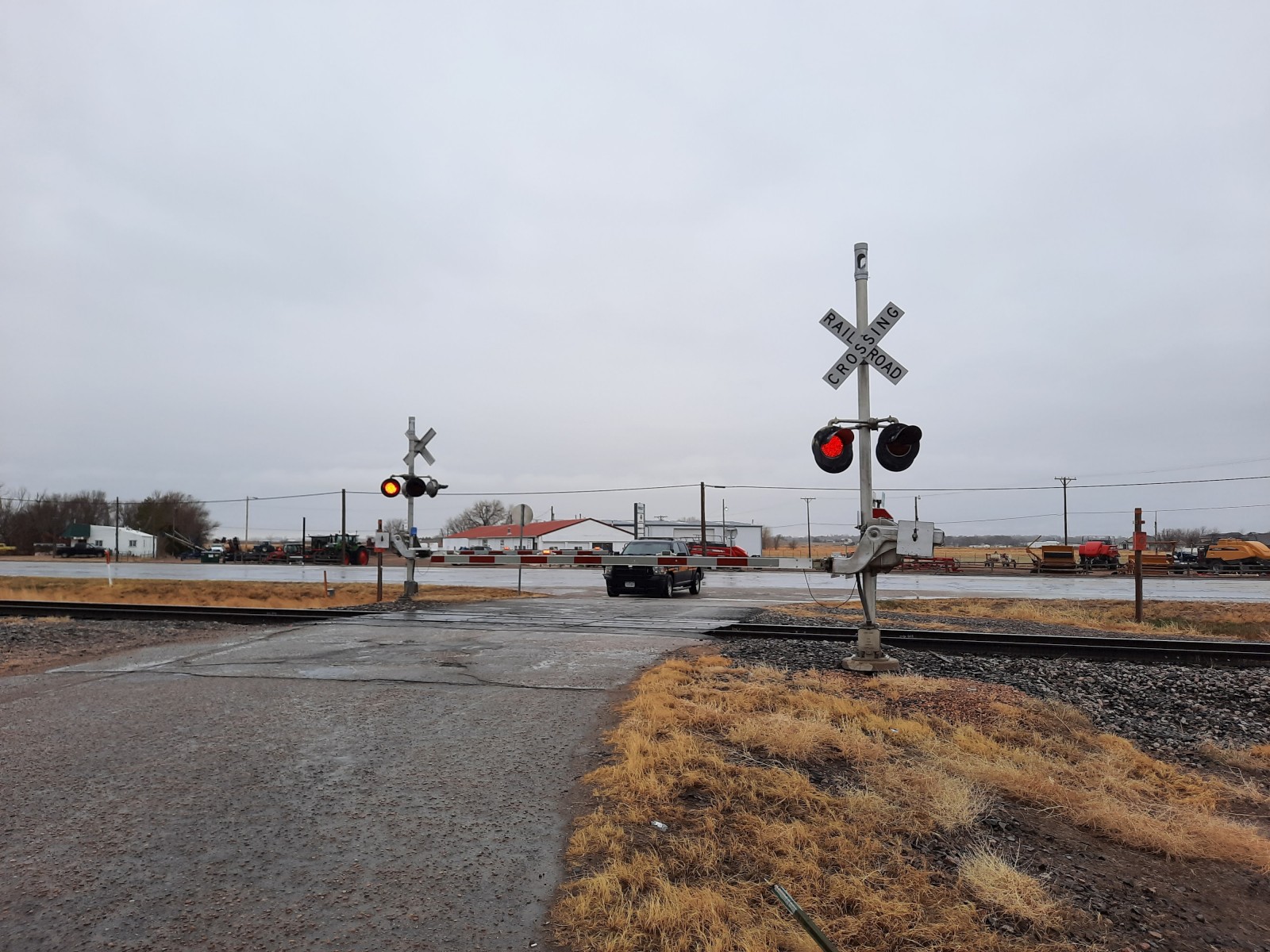

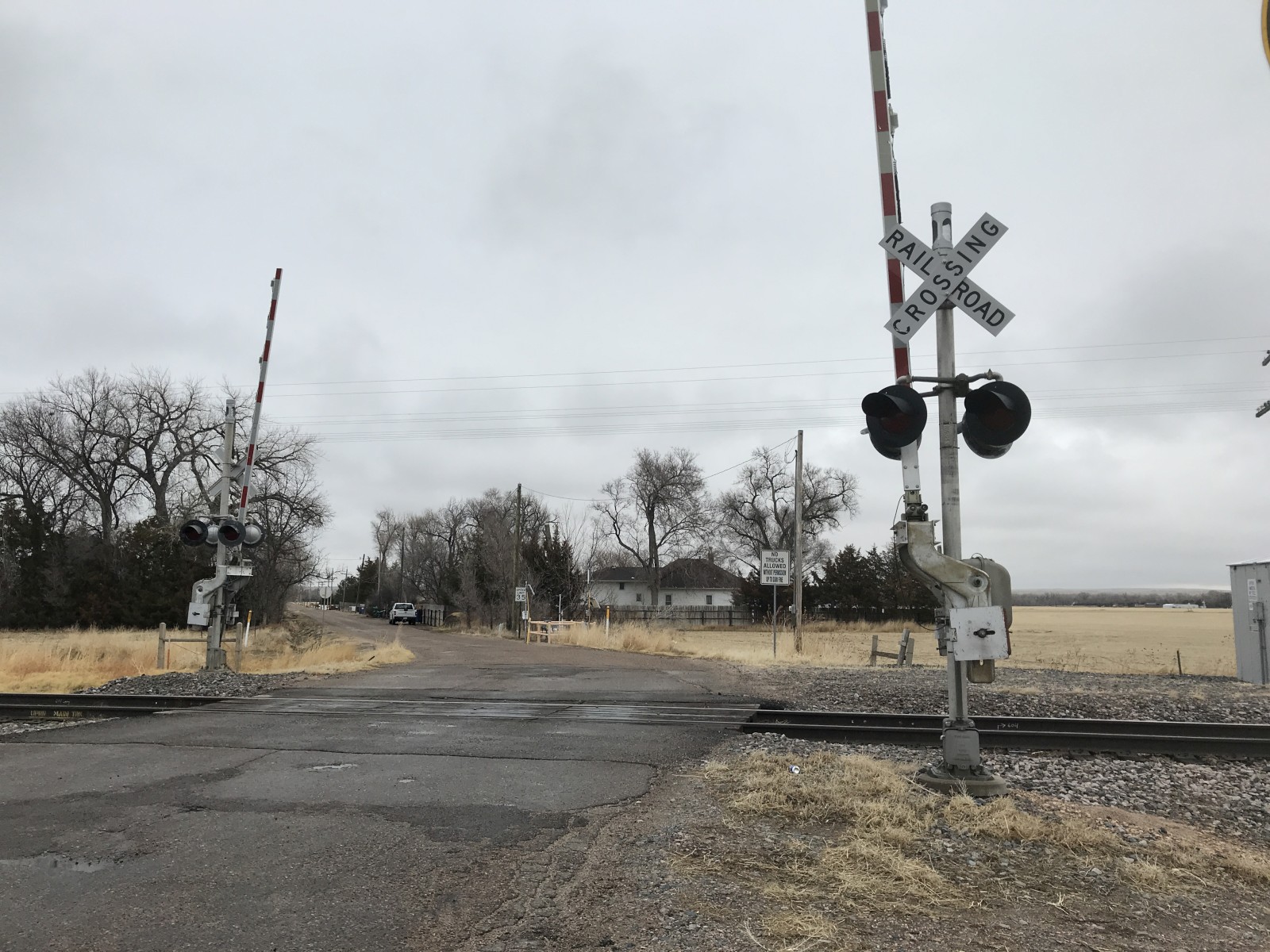

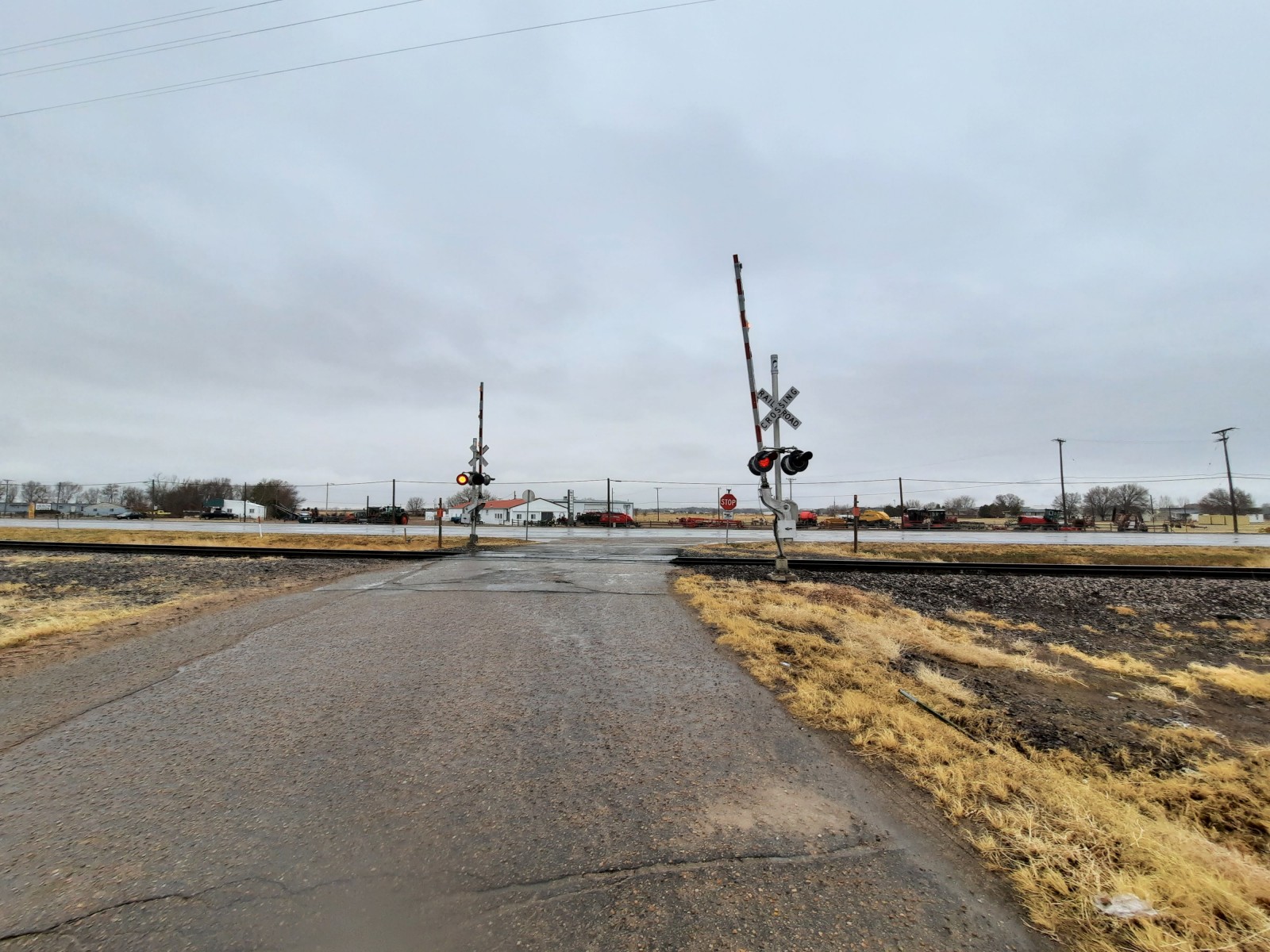

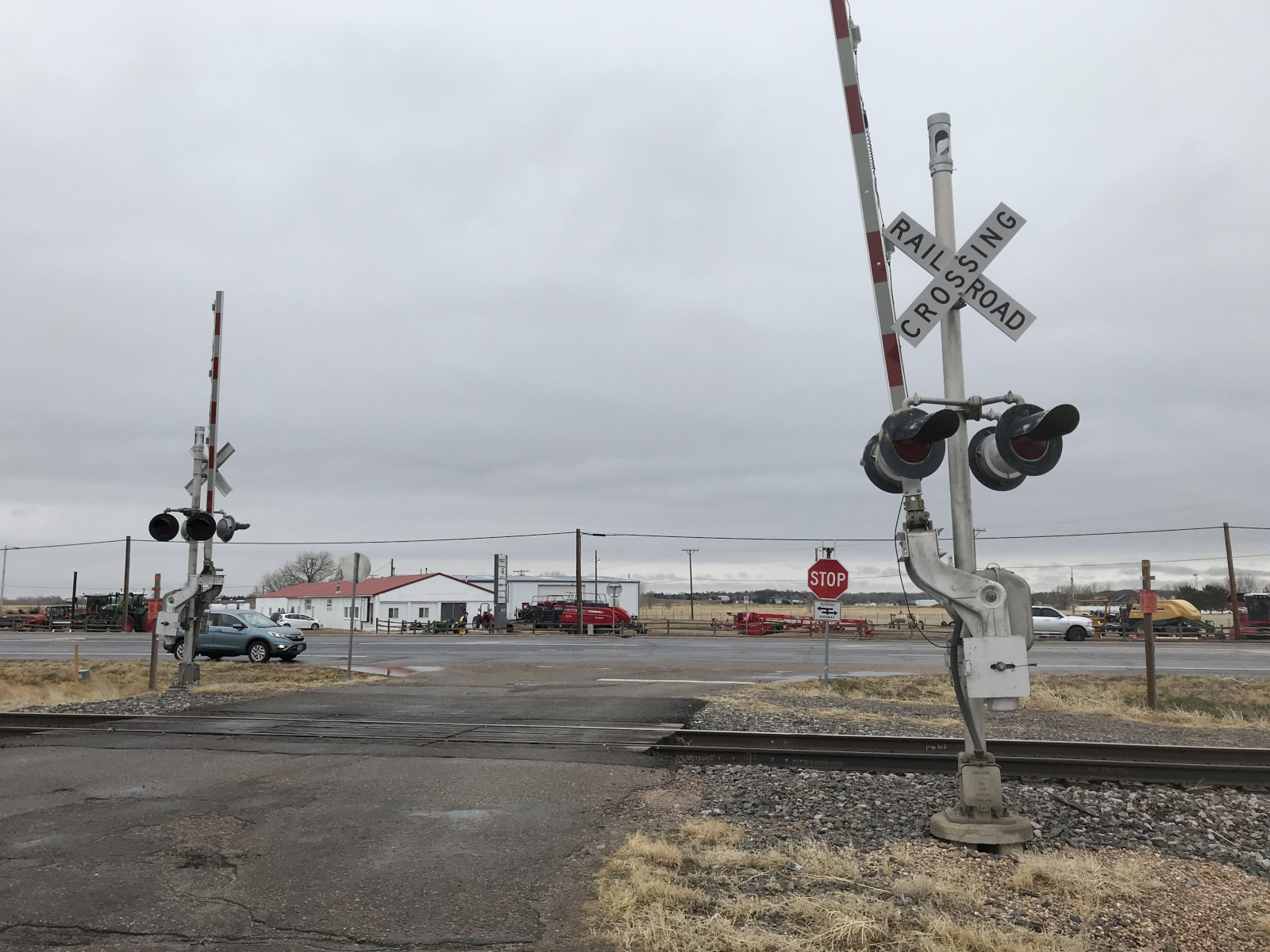

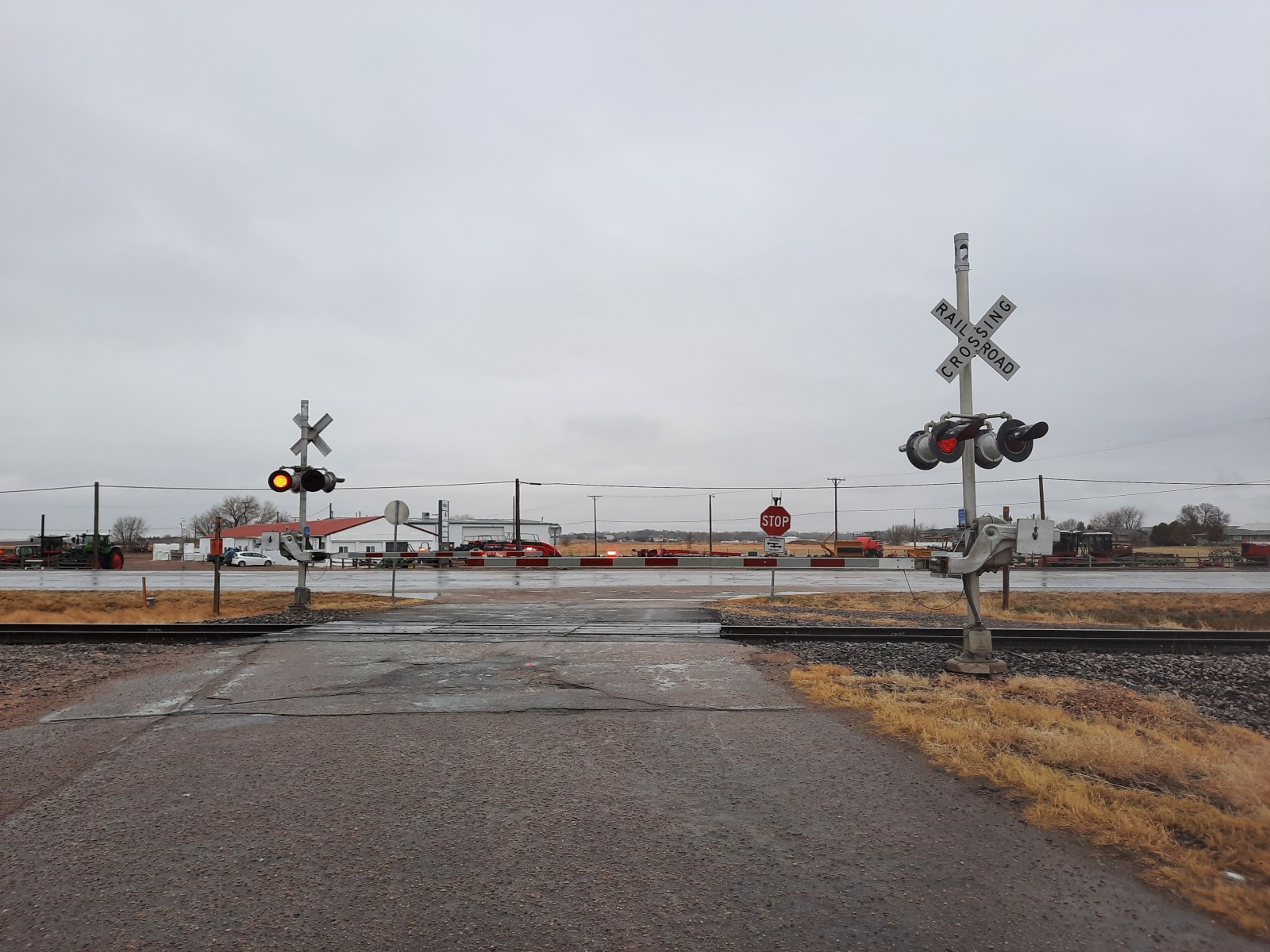

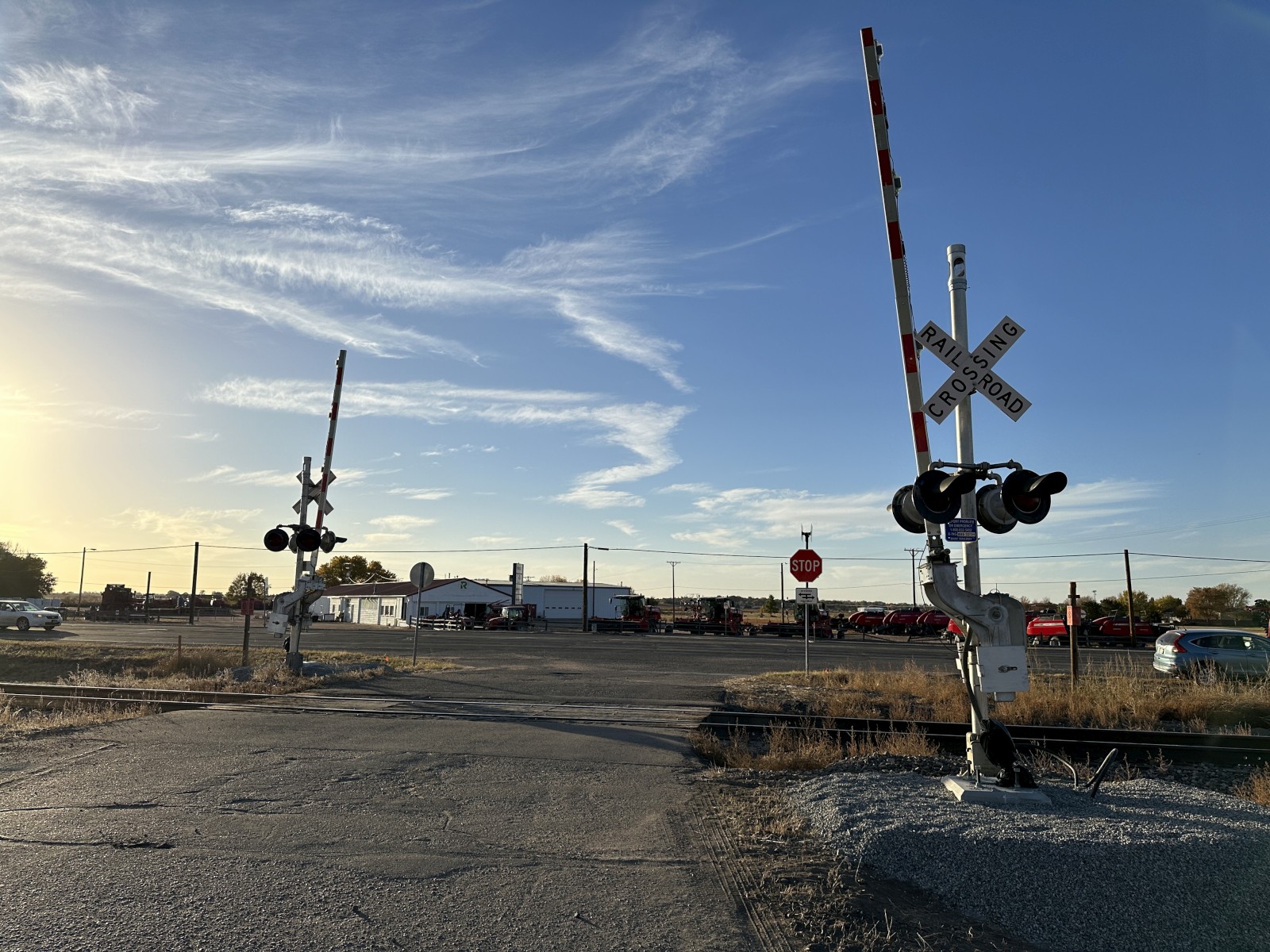

| Overview of the
crossing. |

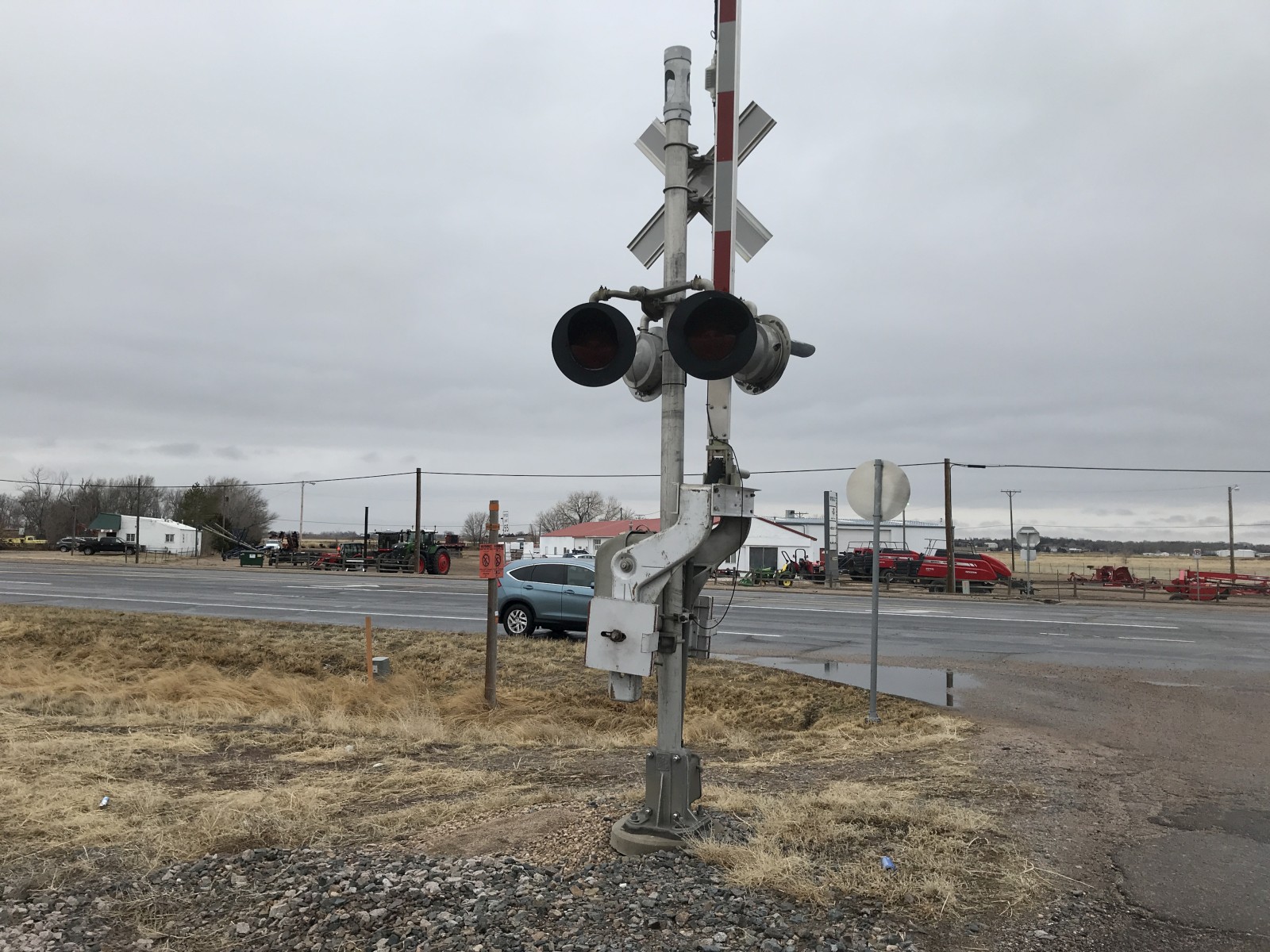

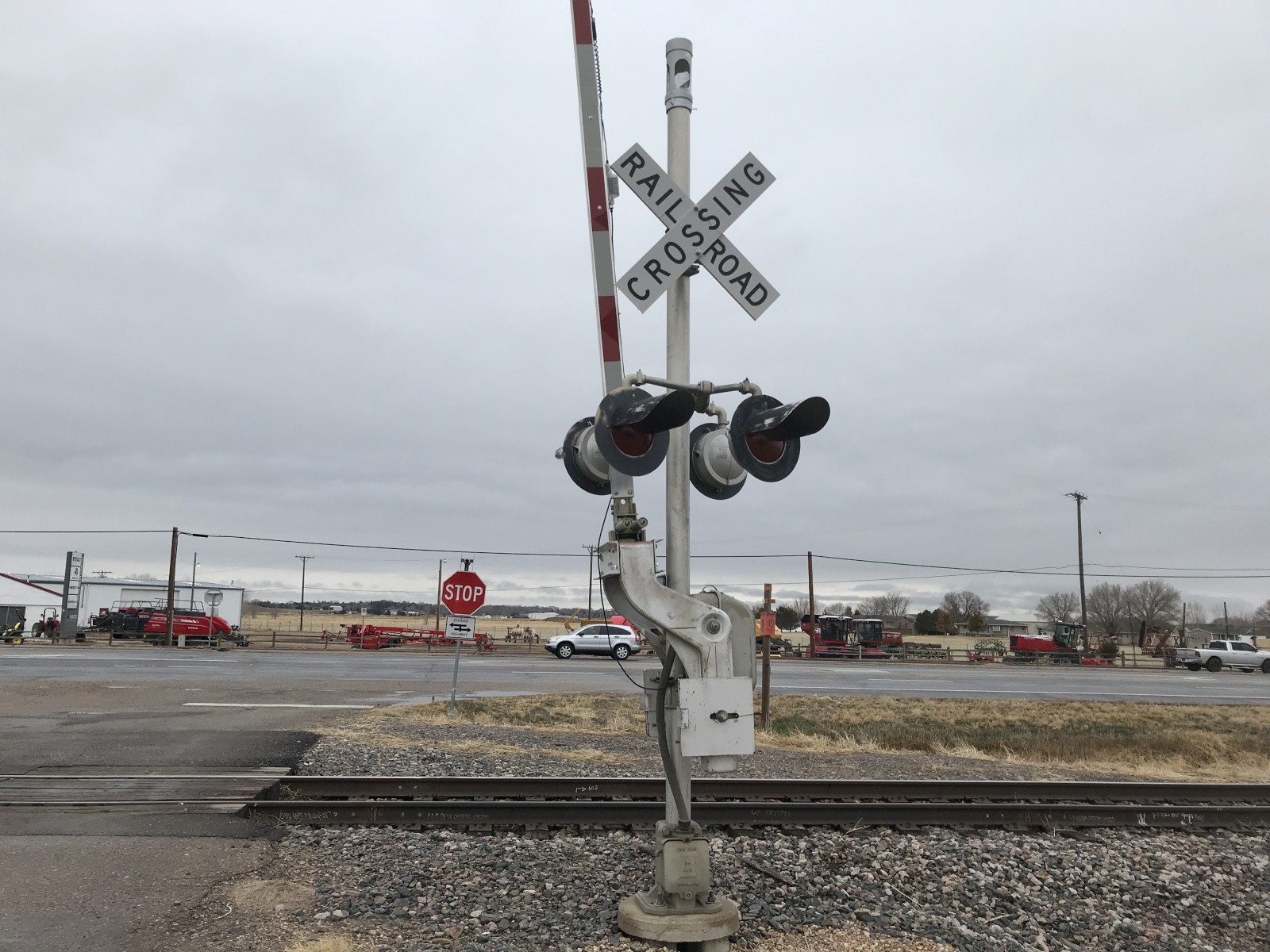

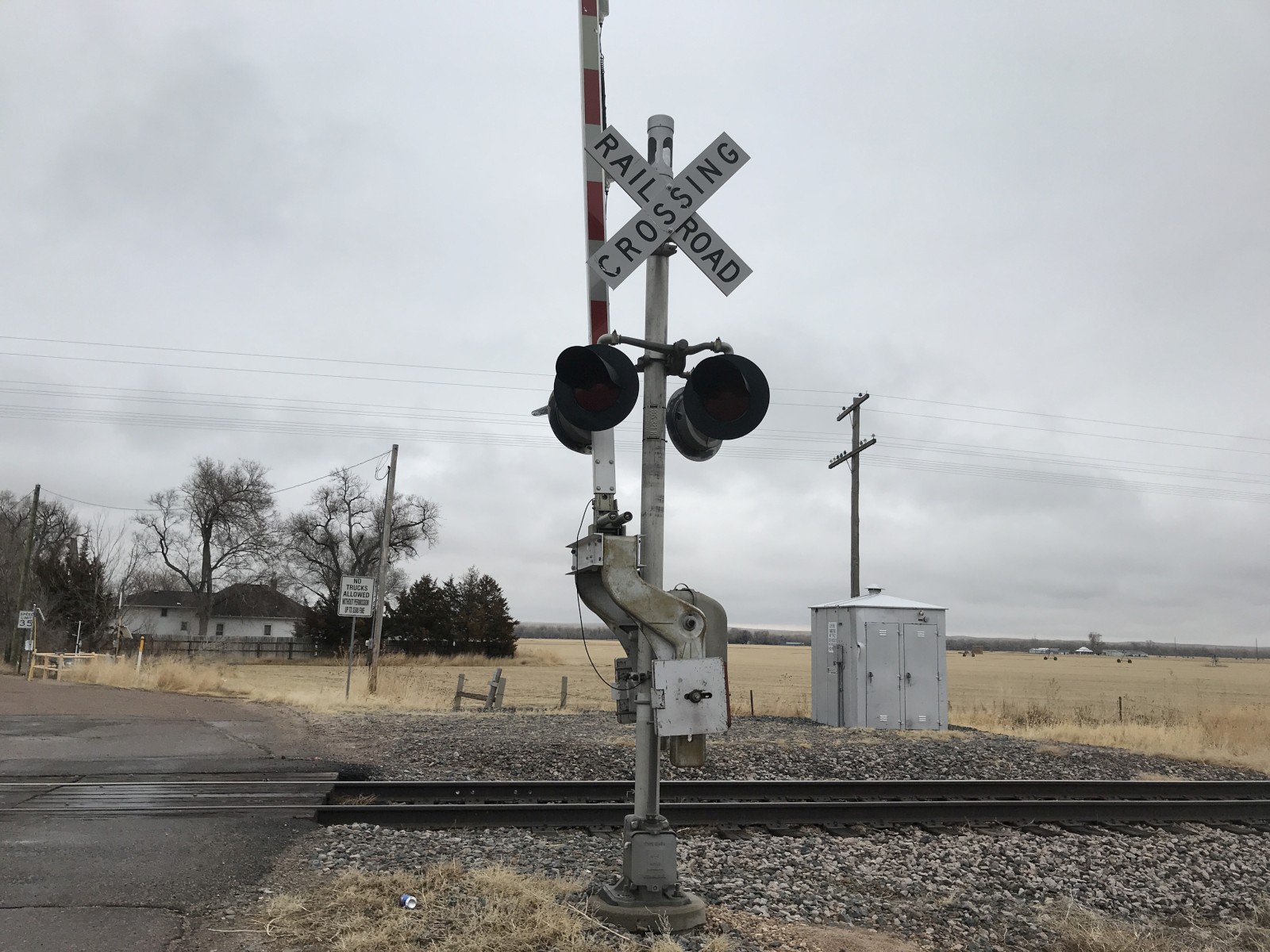

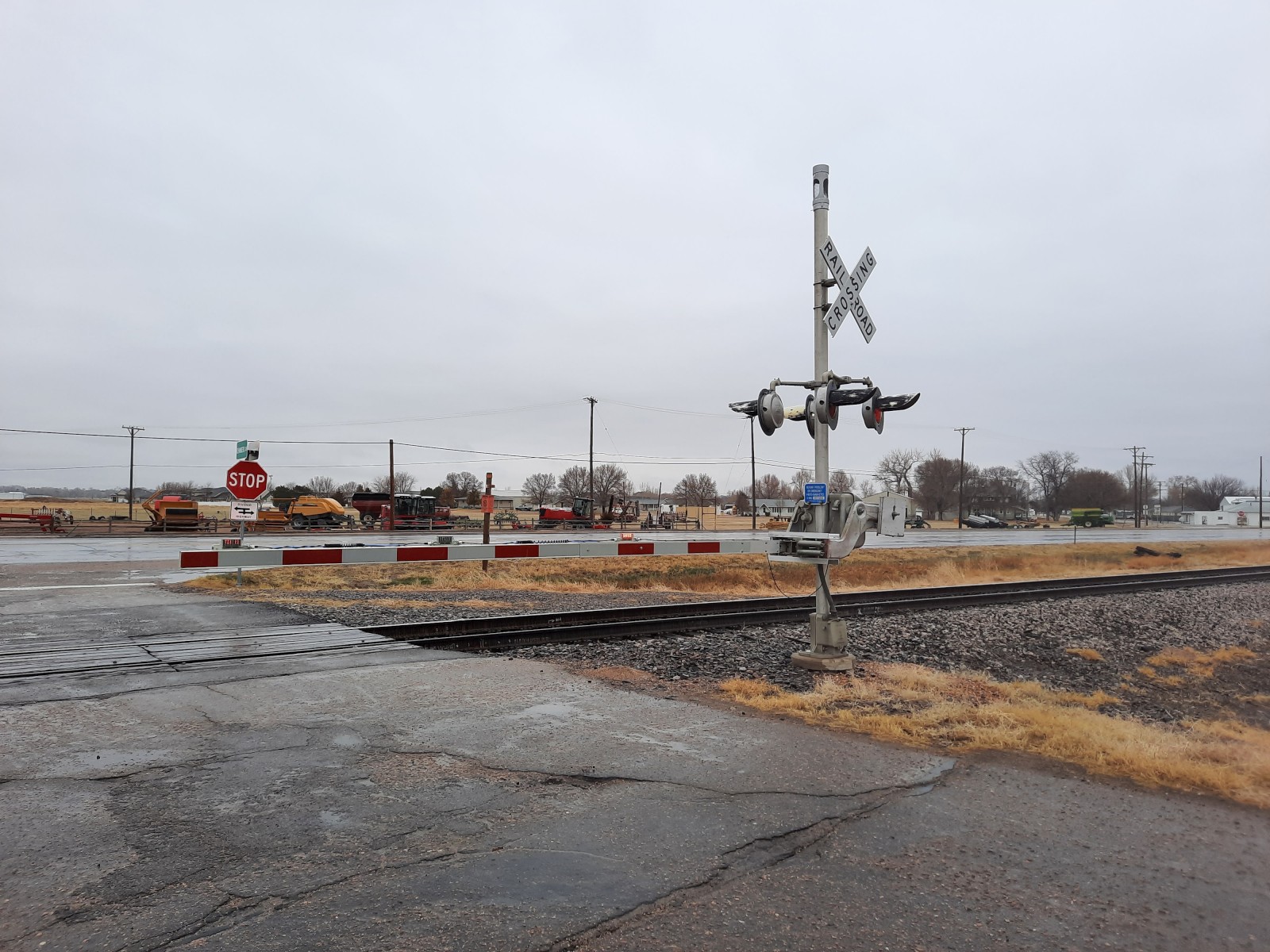

The southern signal. |
||
|
5 |
6 |
7 |
8 |

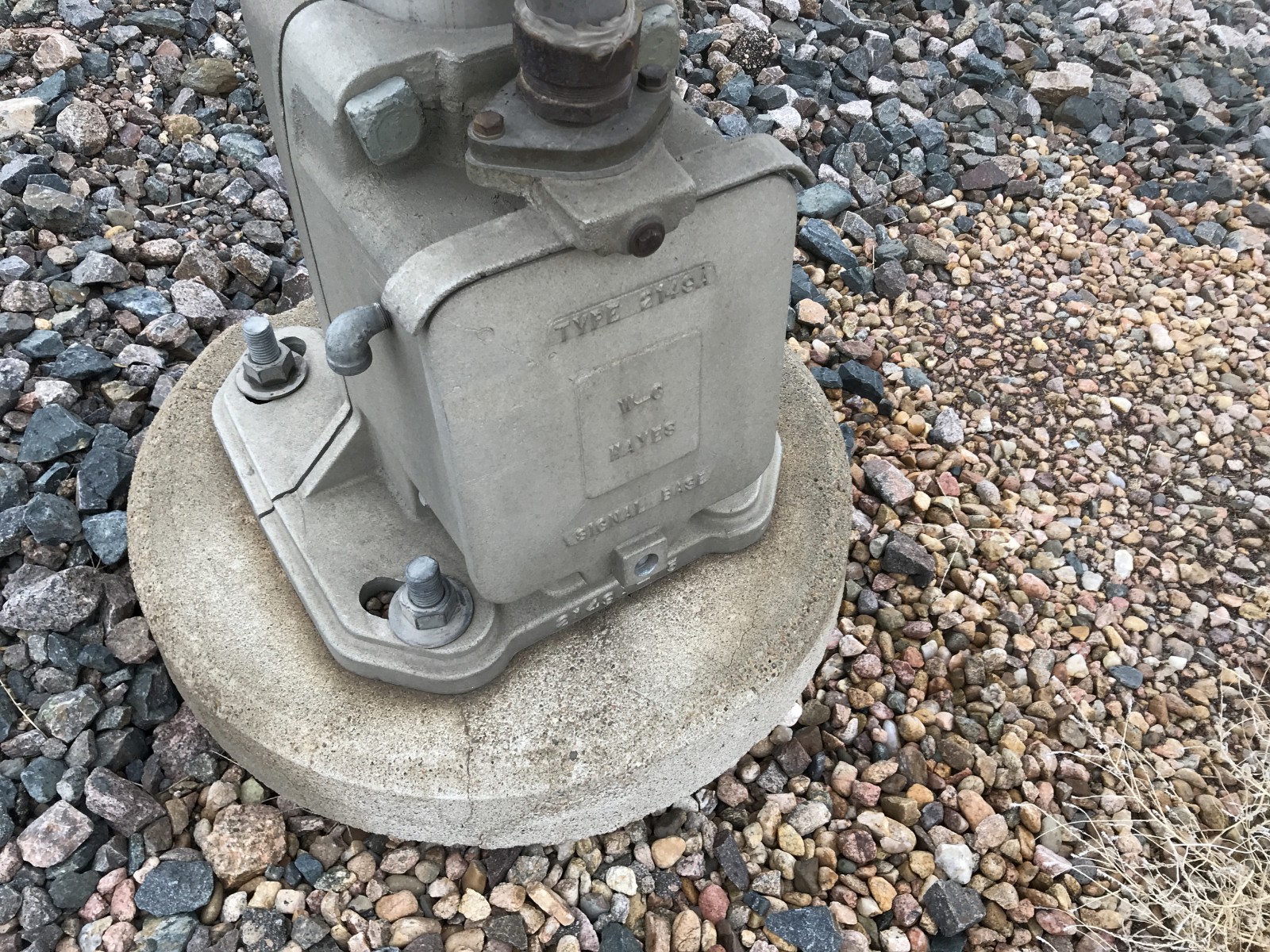

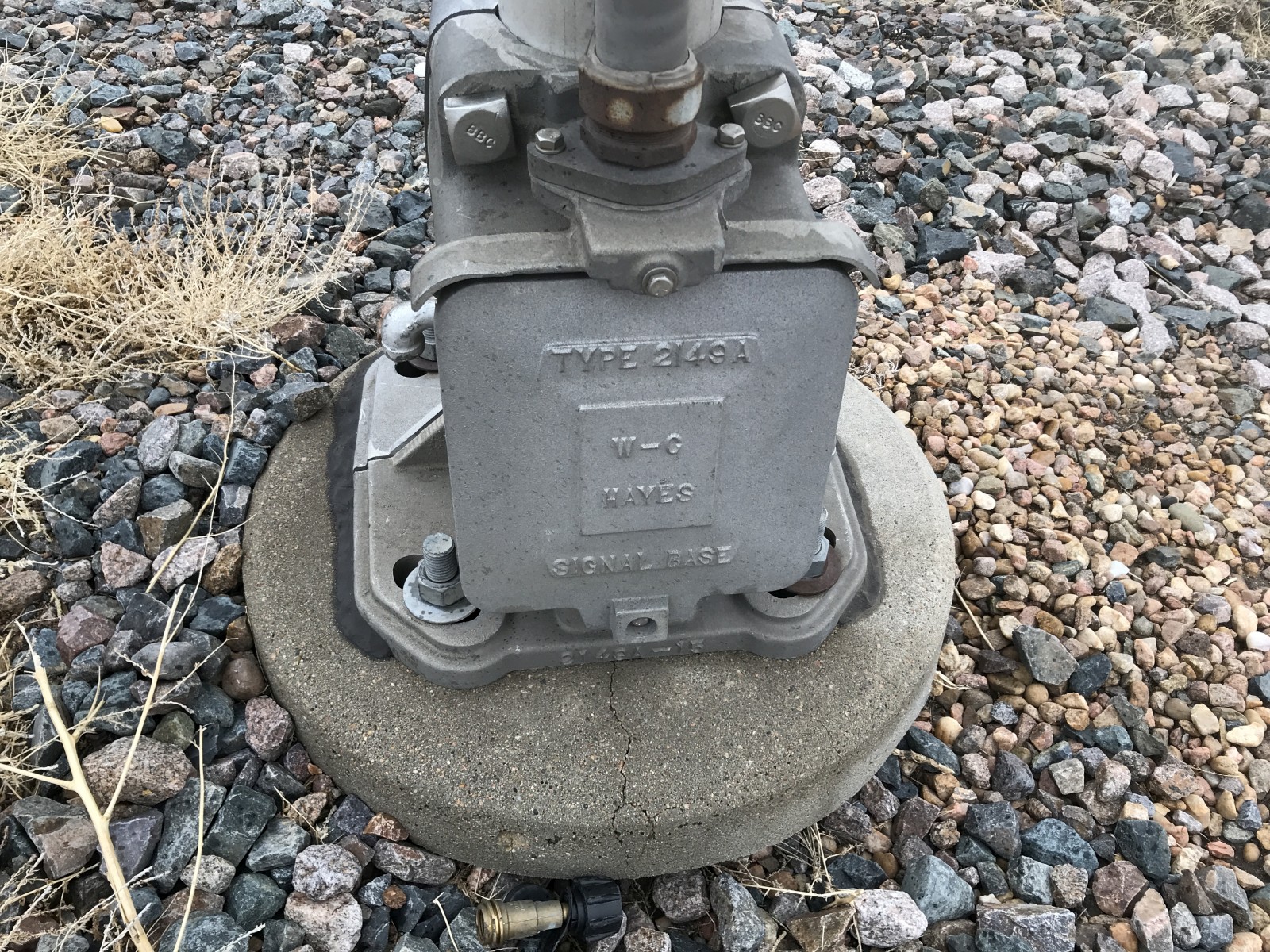

| It has a WCH base. |

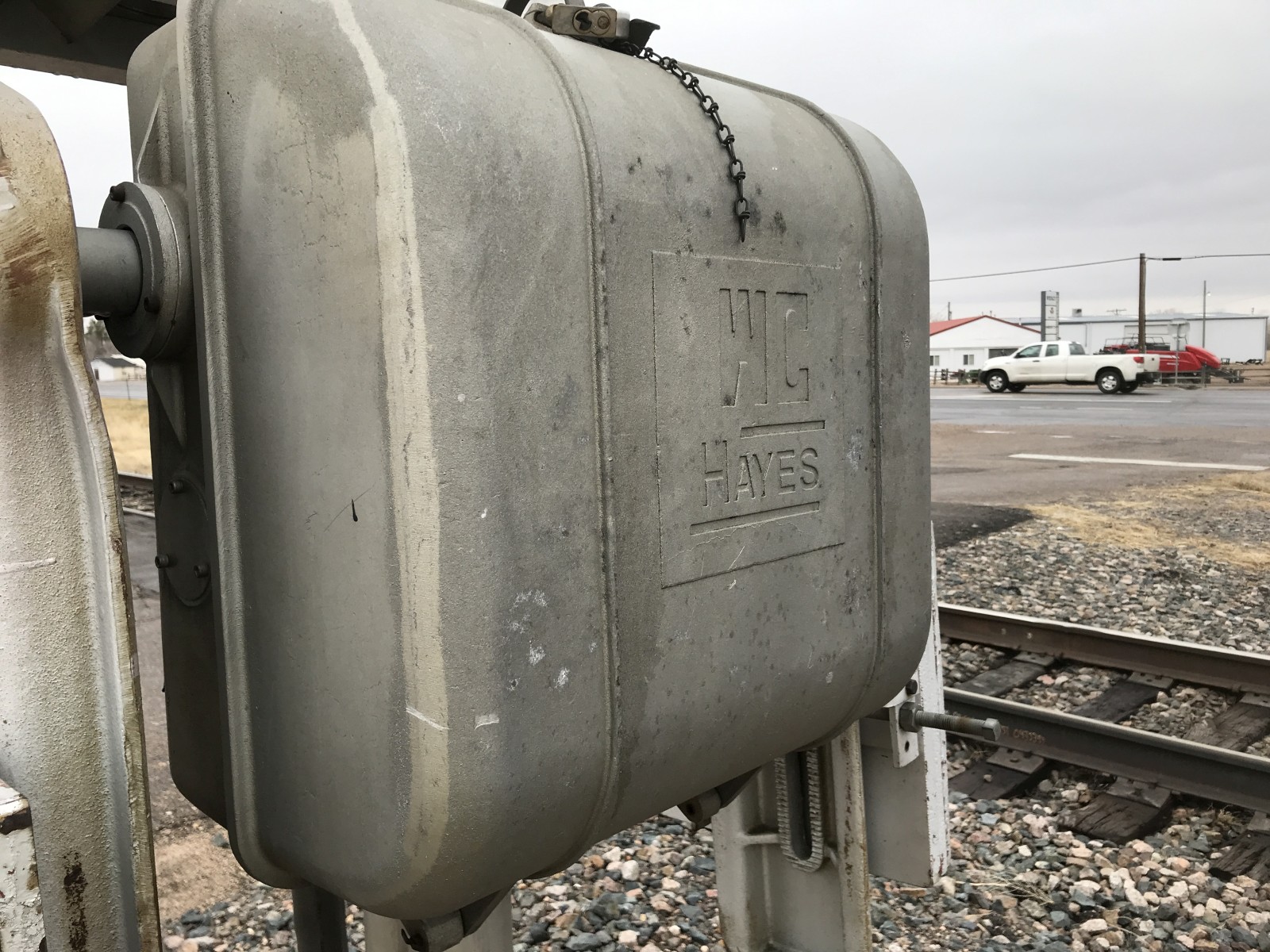

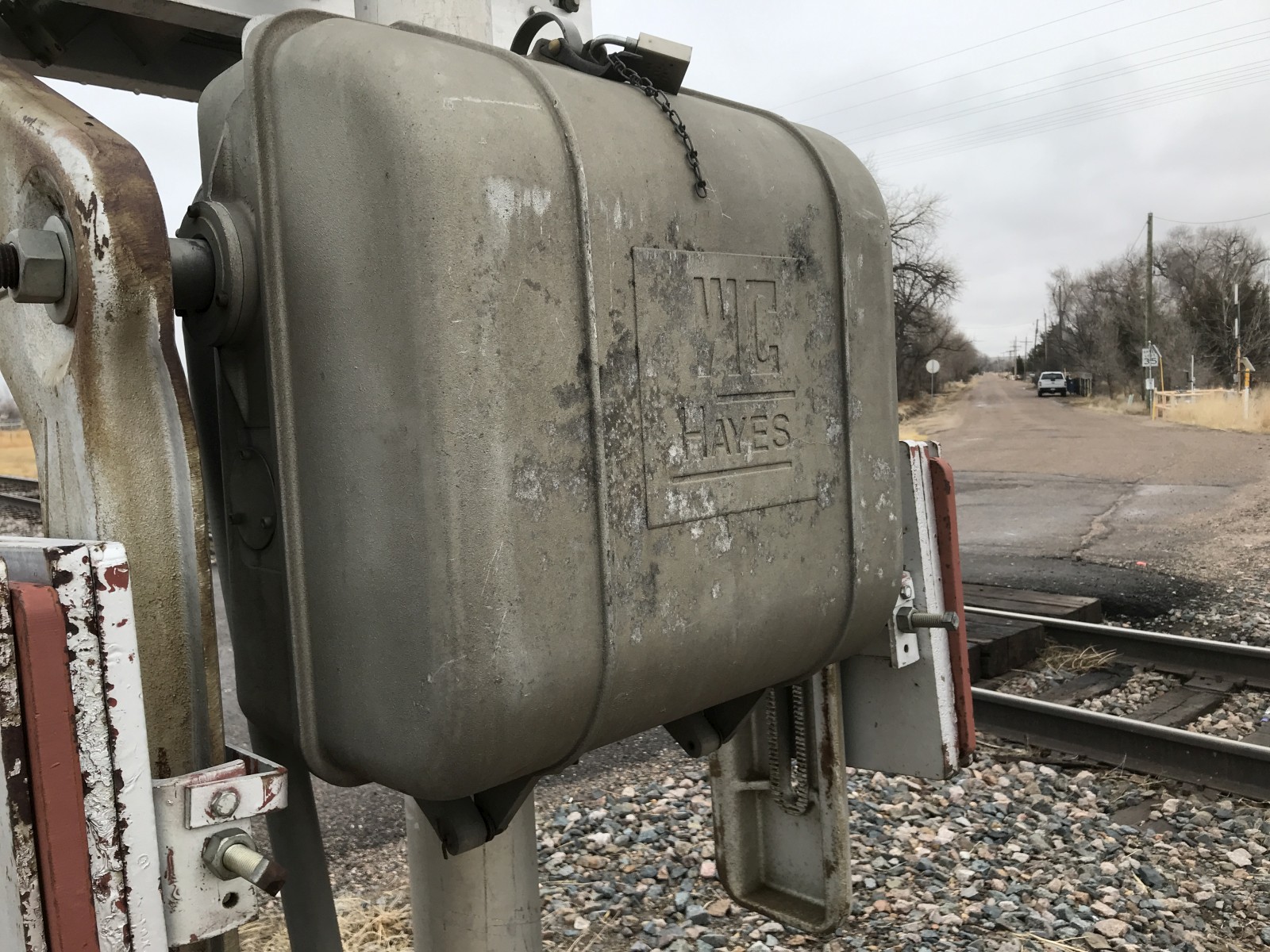

A WCH gate mechanism. |

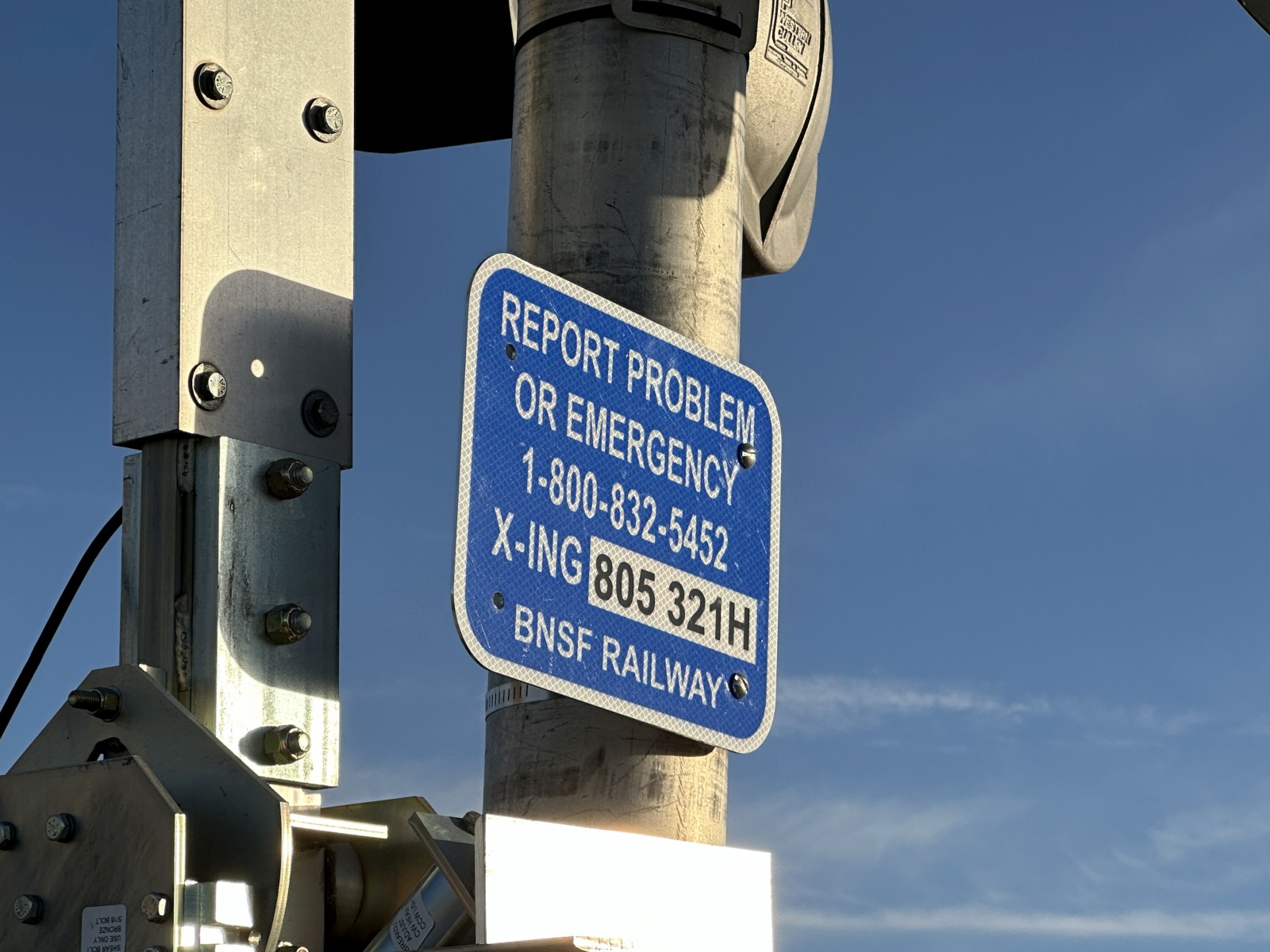

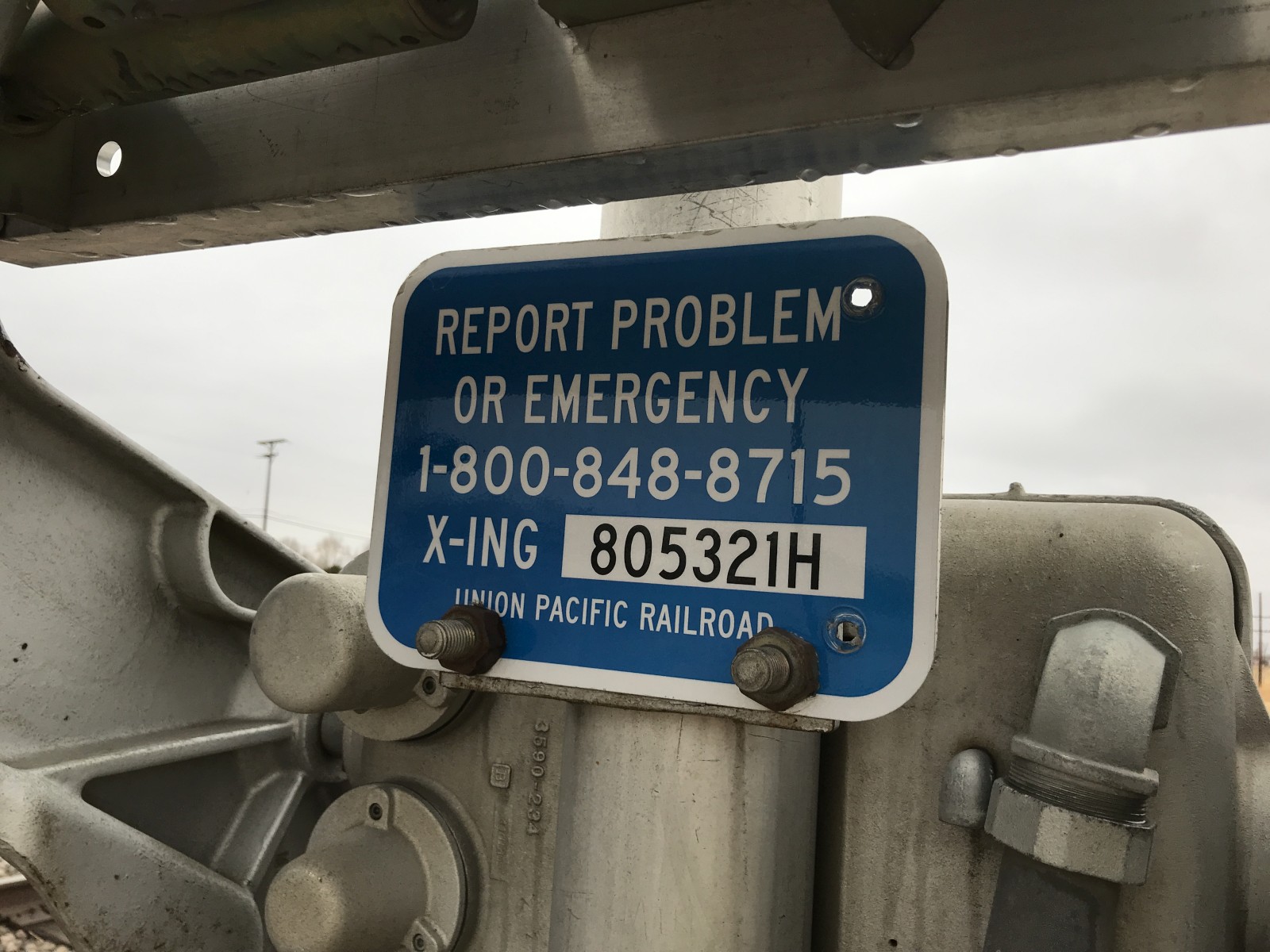

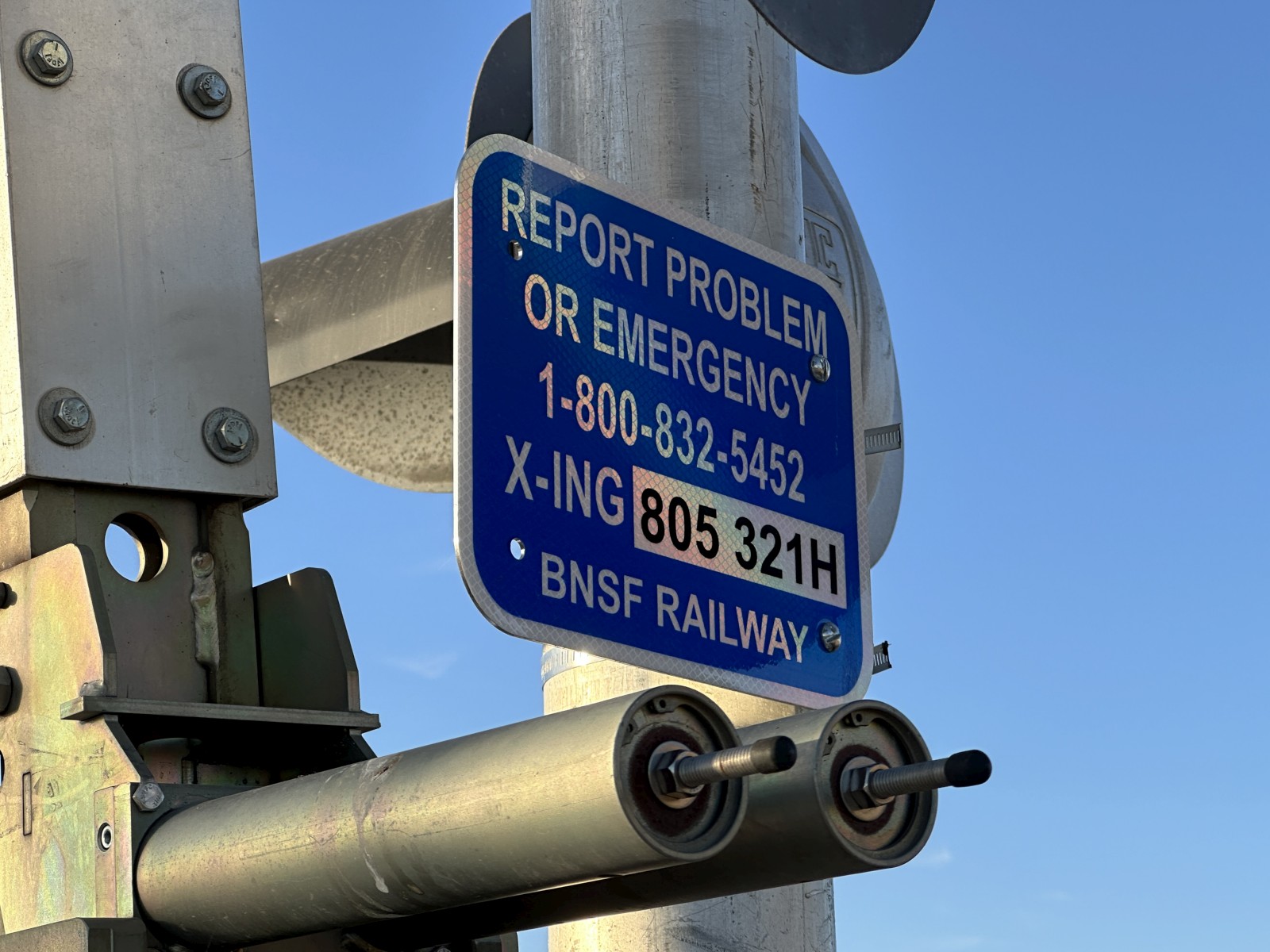

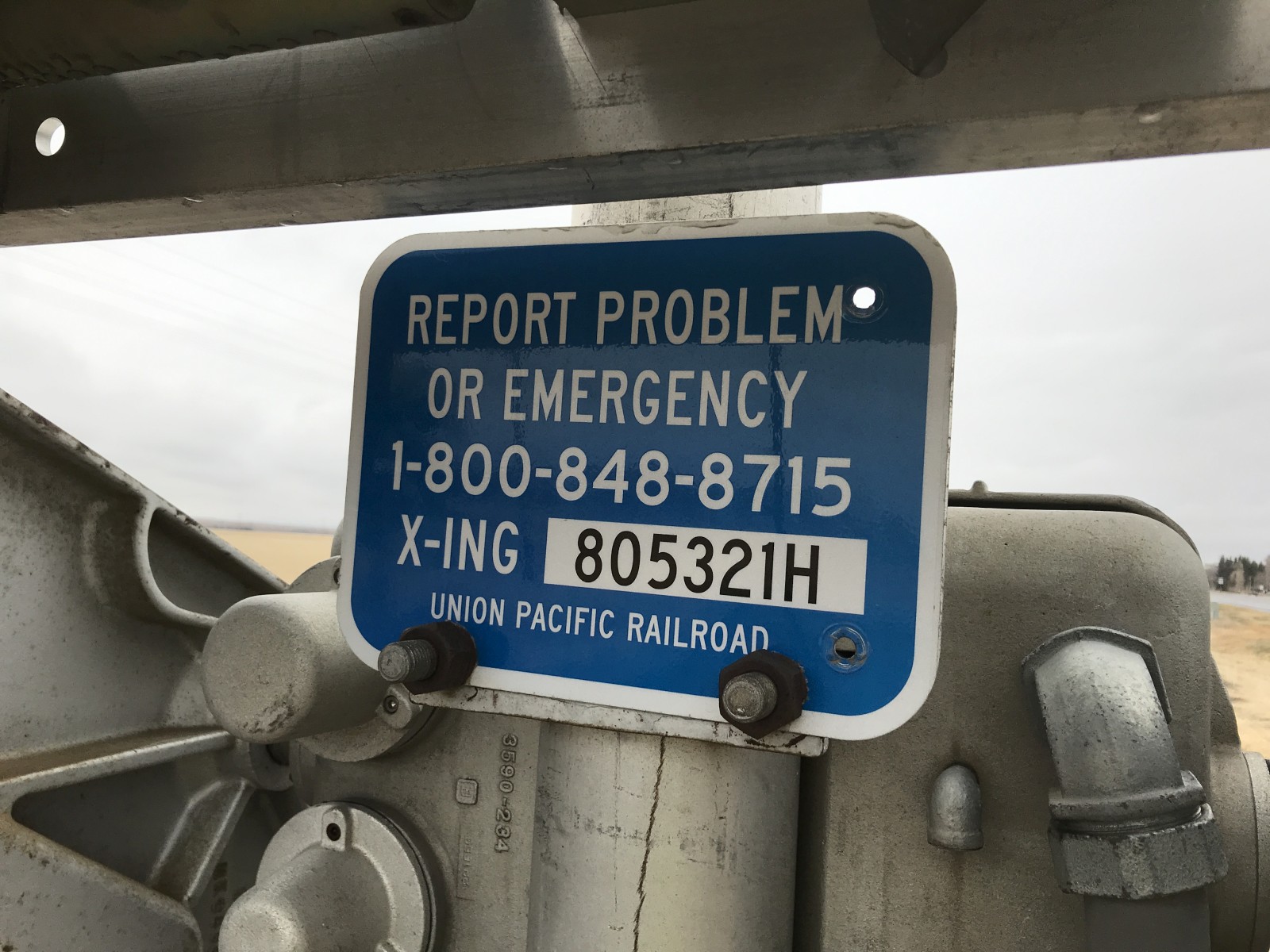

The emergency info. |

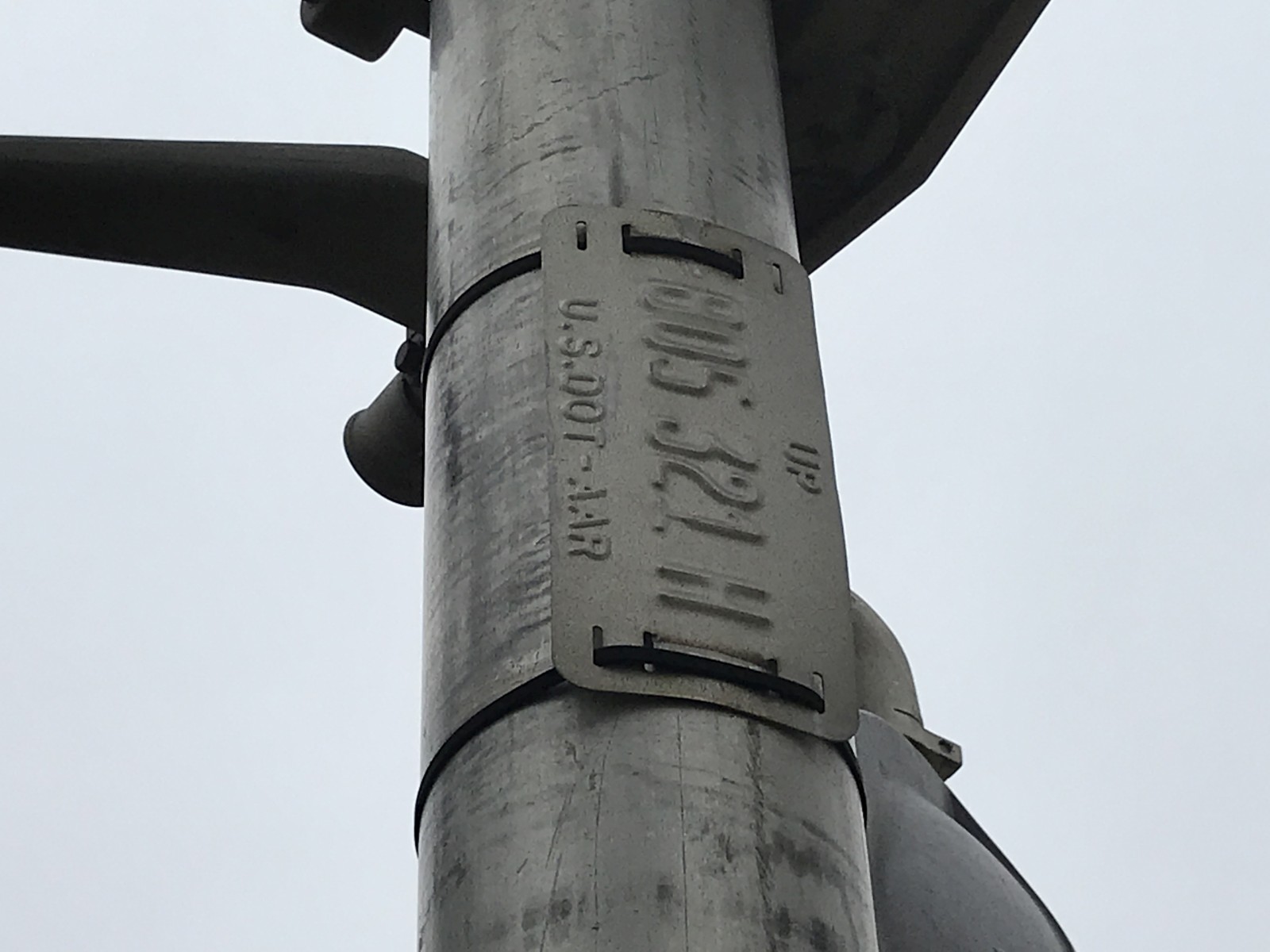

A UP DOT tag! |
|
9 |
10 |
11 |
12 |

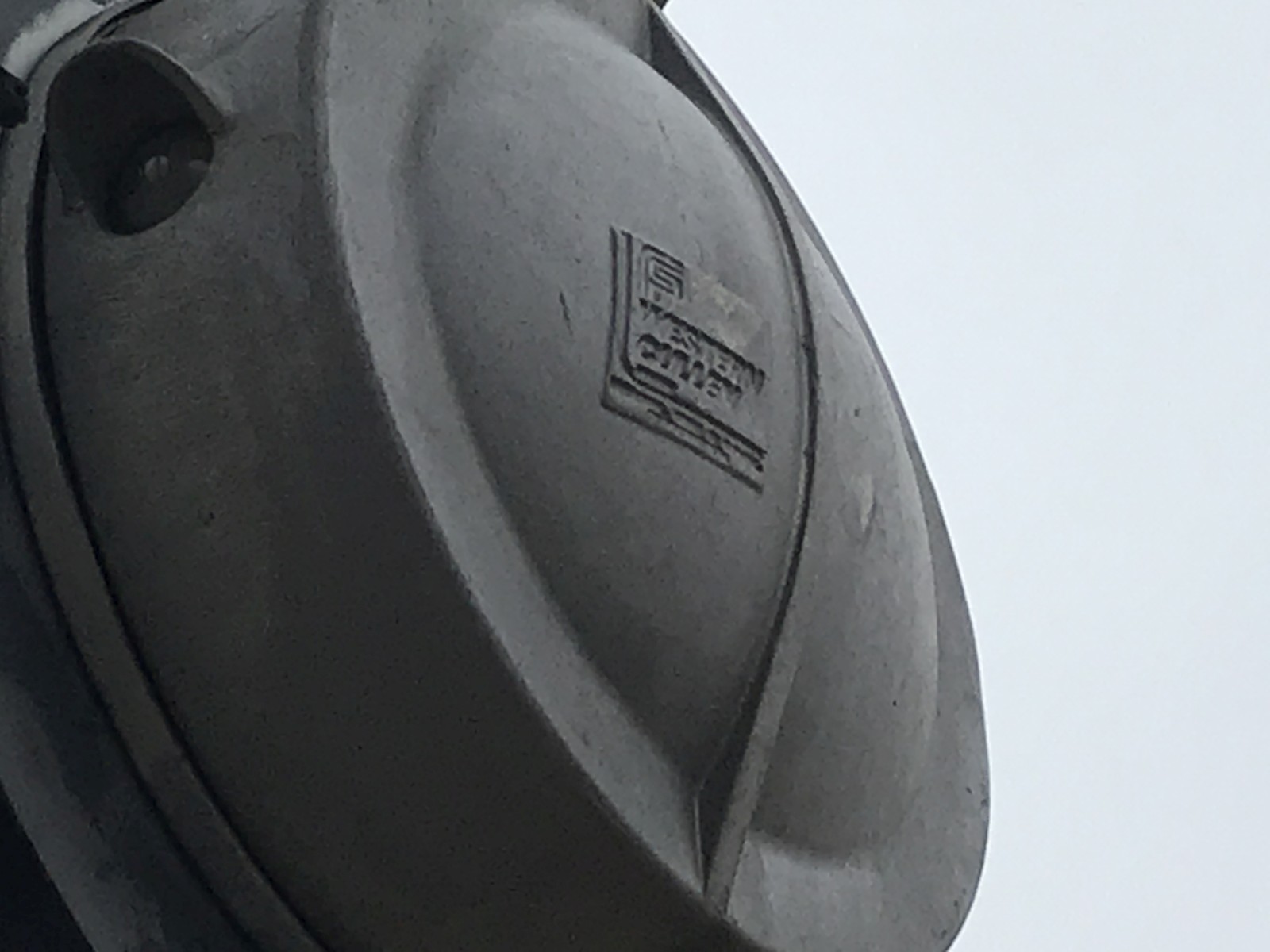

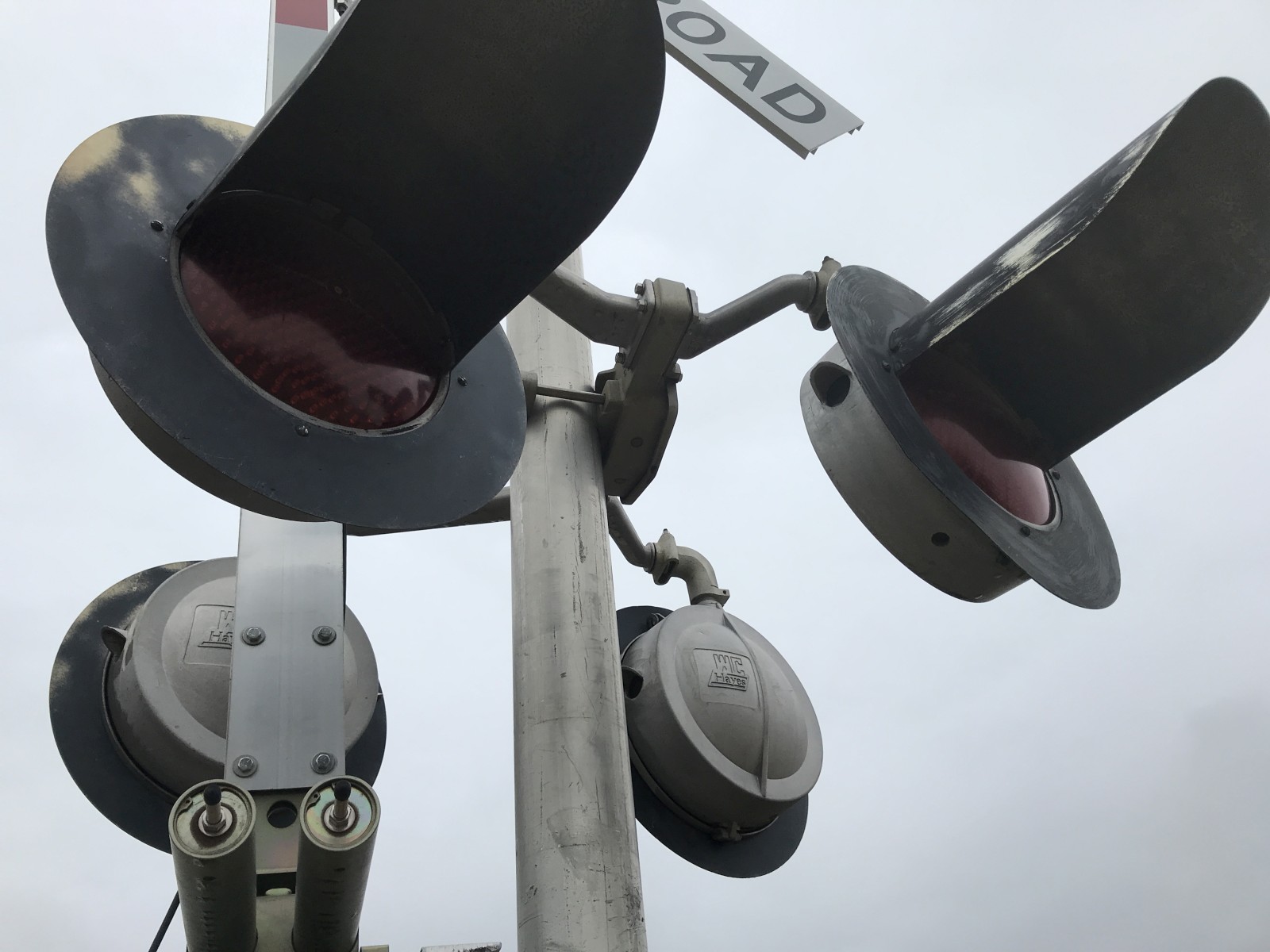

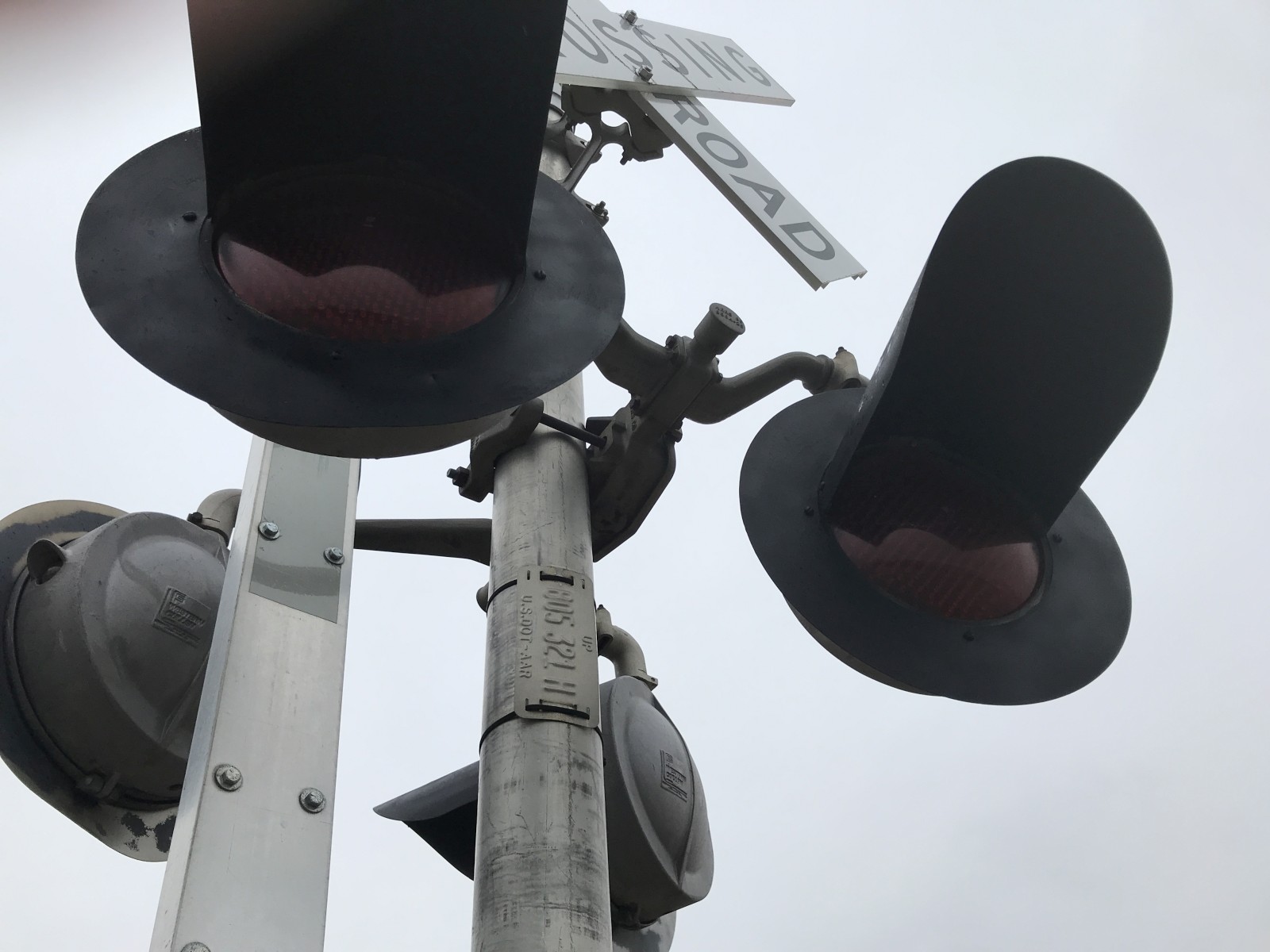

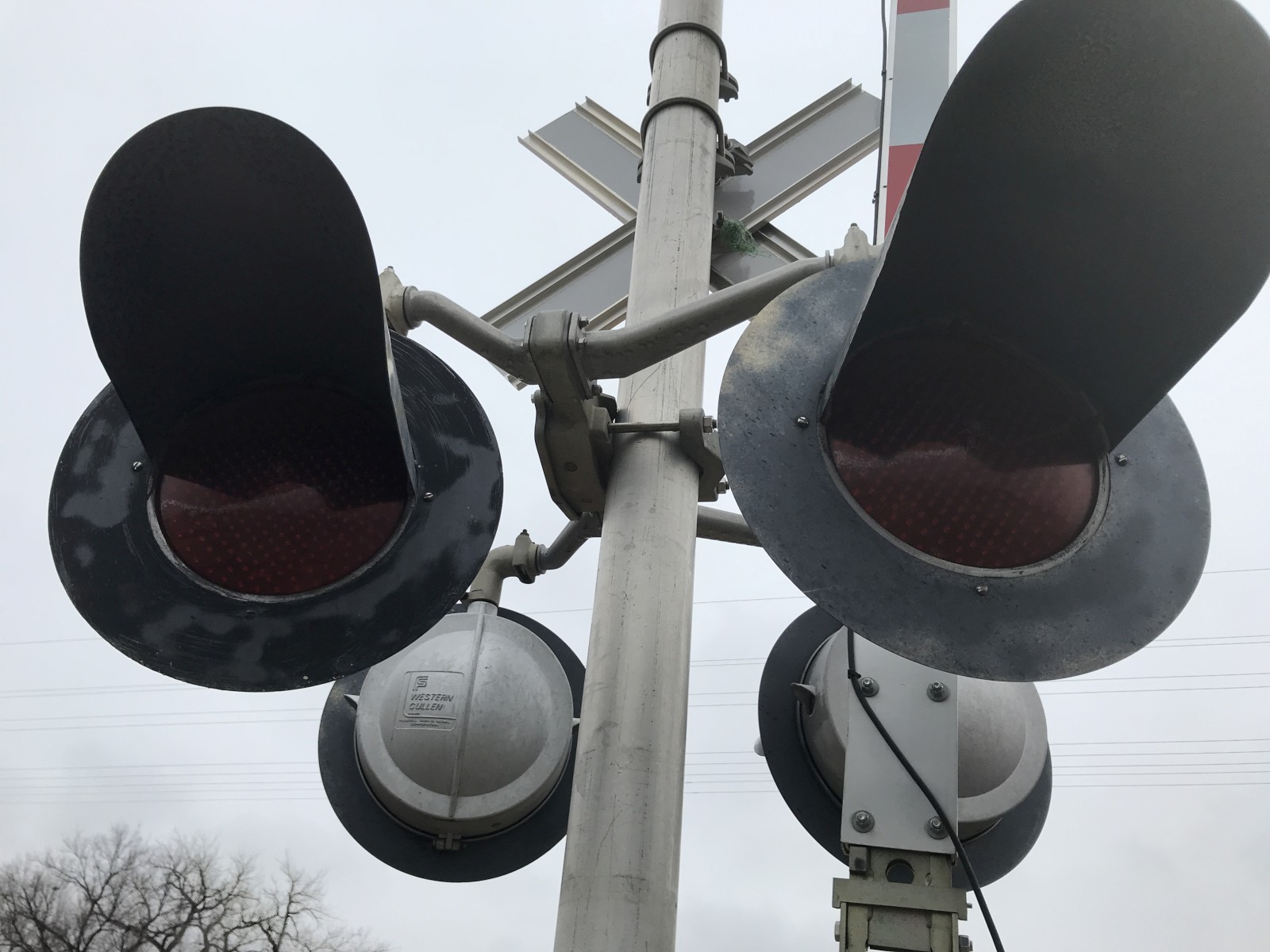

| The lights here are
Federal Signal 12x20 inch lights with Electrotech LEDs! |

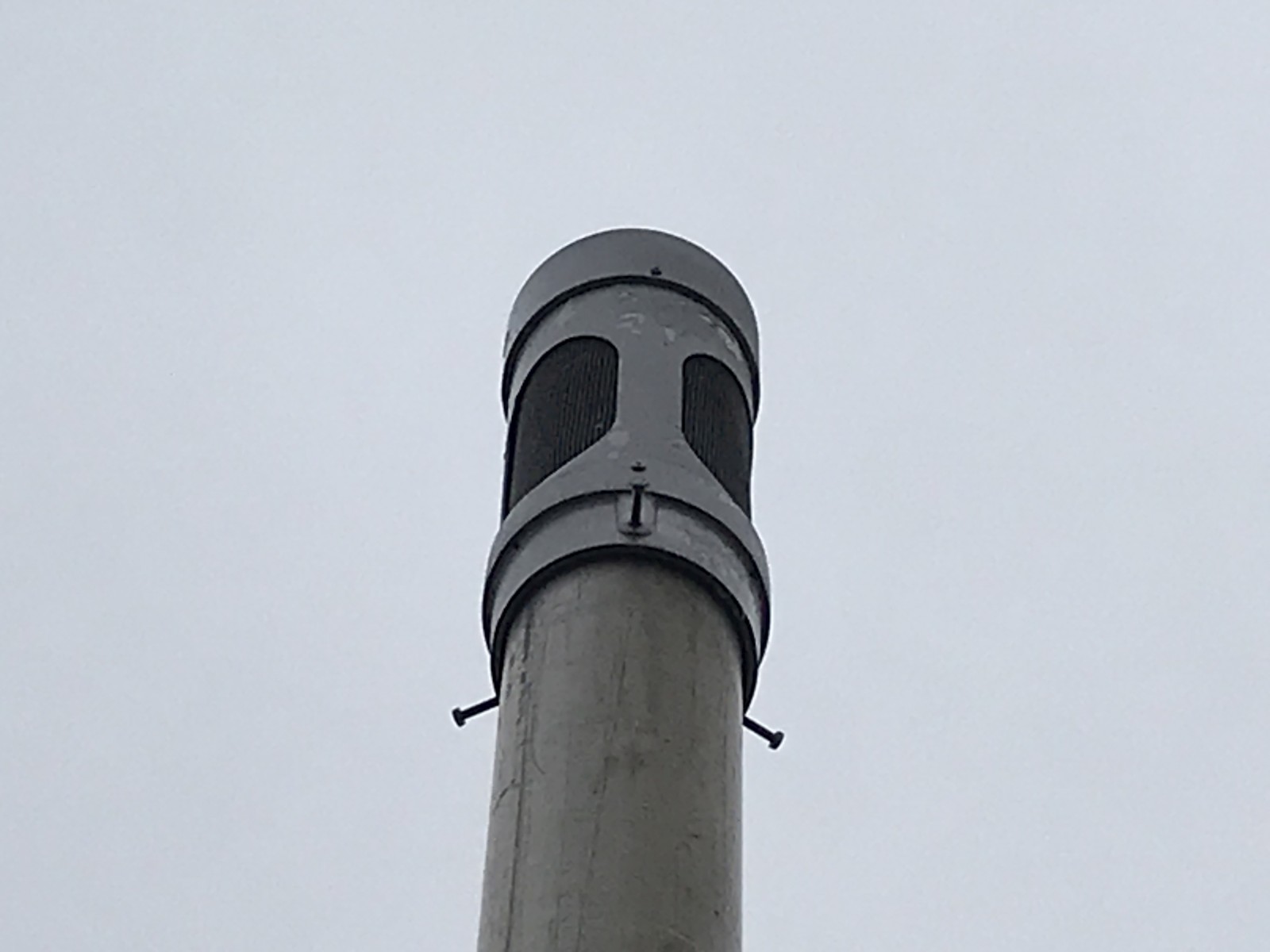

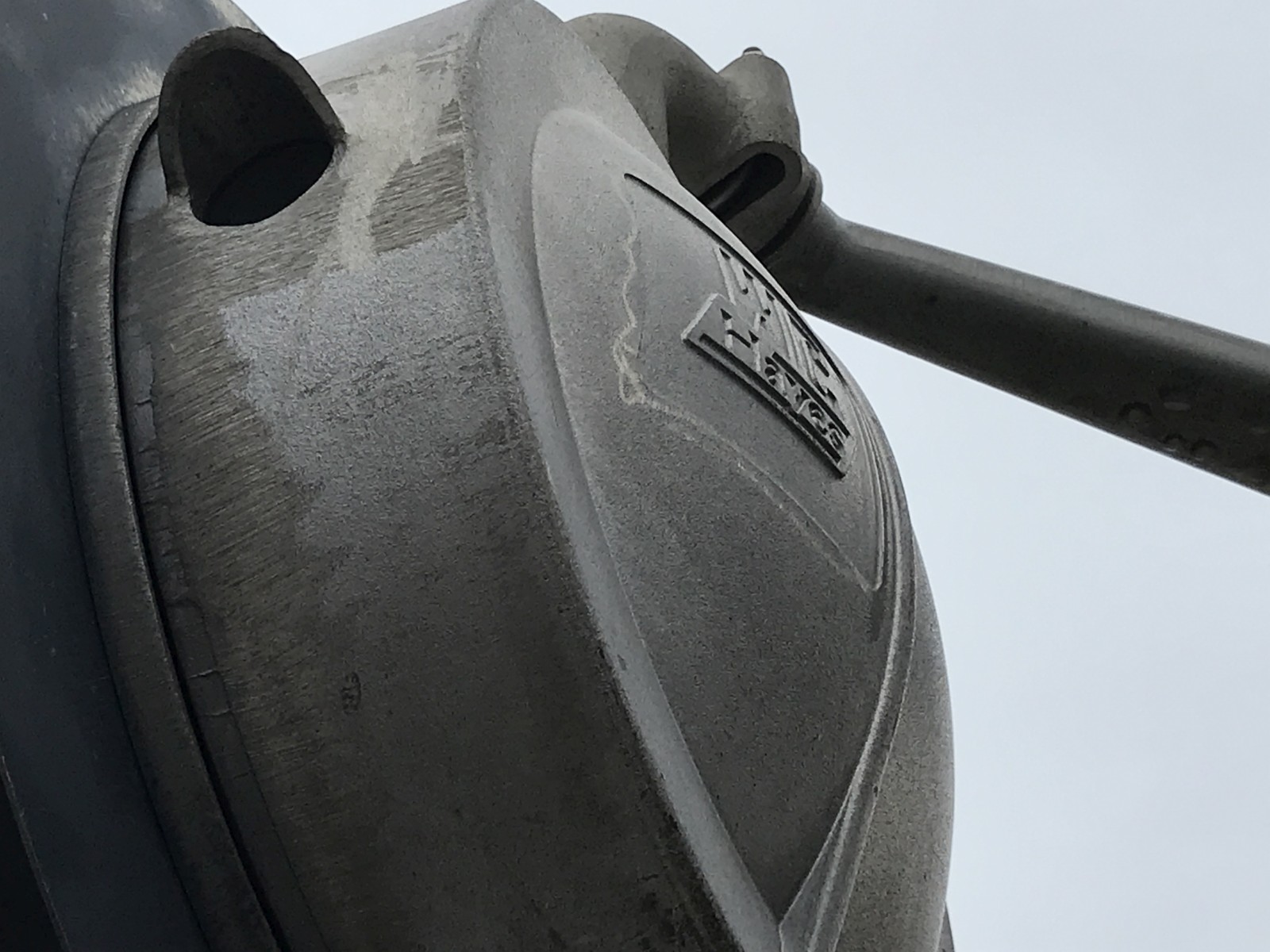

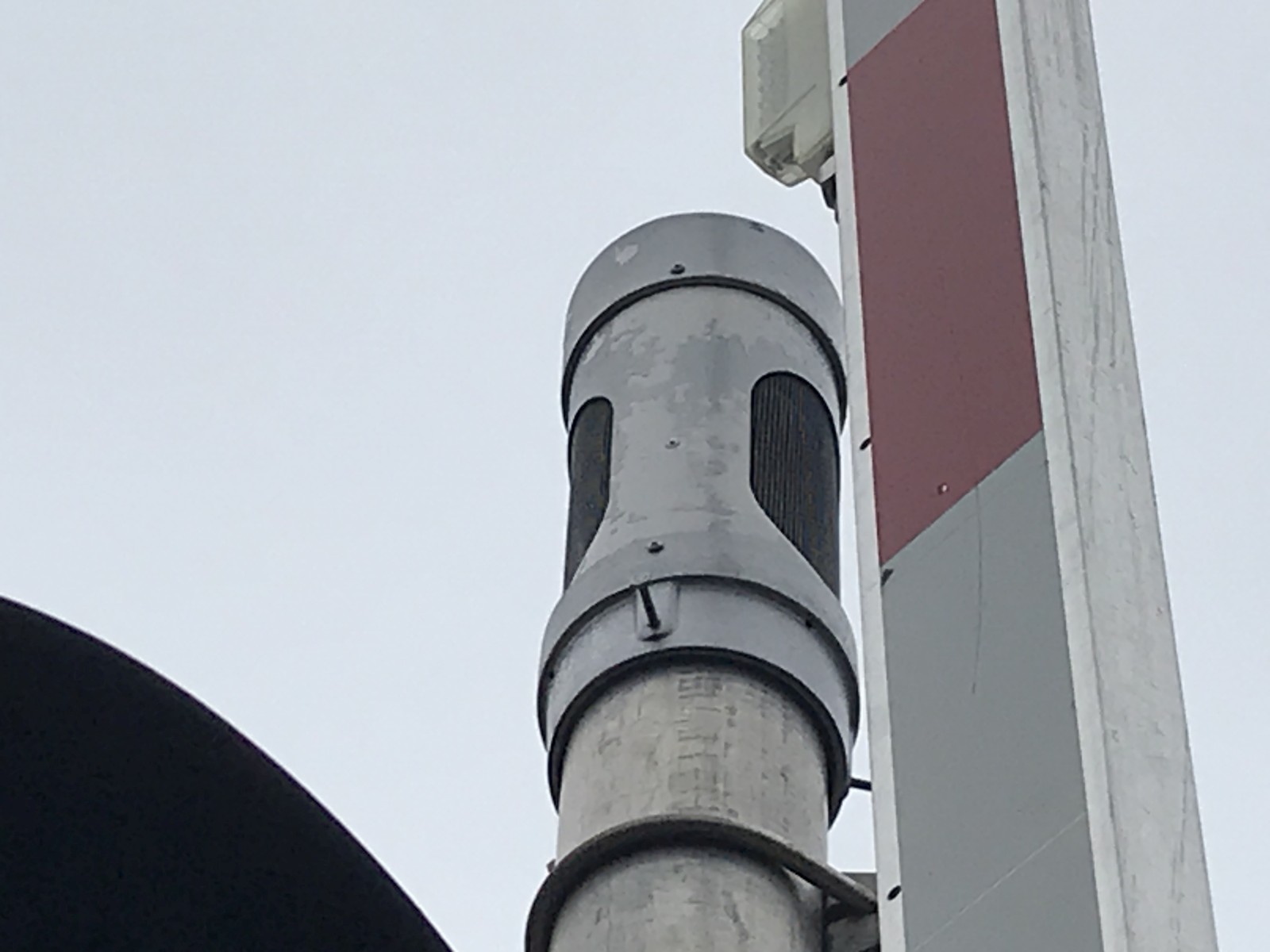

The bell here is a General Signal
type 3 electronic bell. |
||
|
13 |
14 |
15 |
16 |

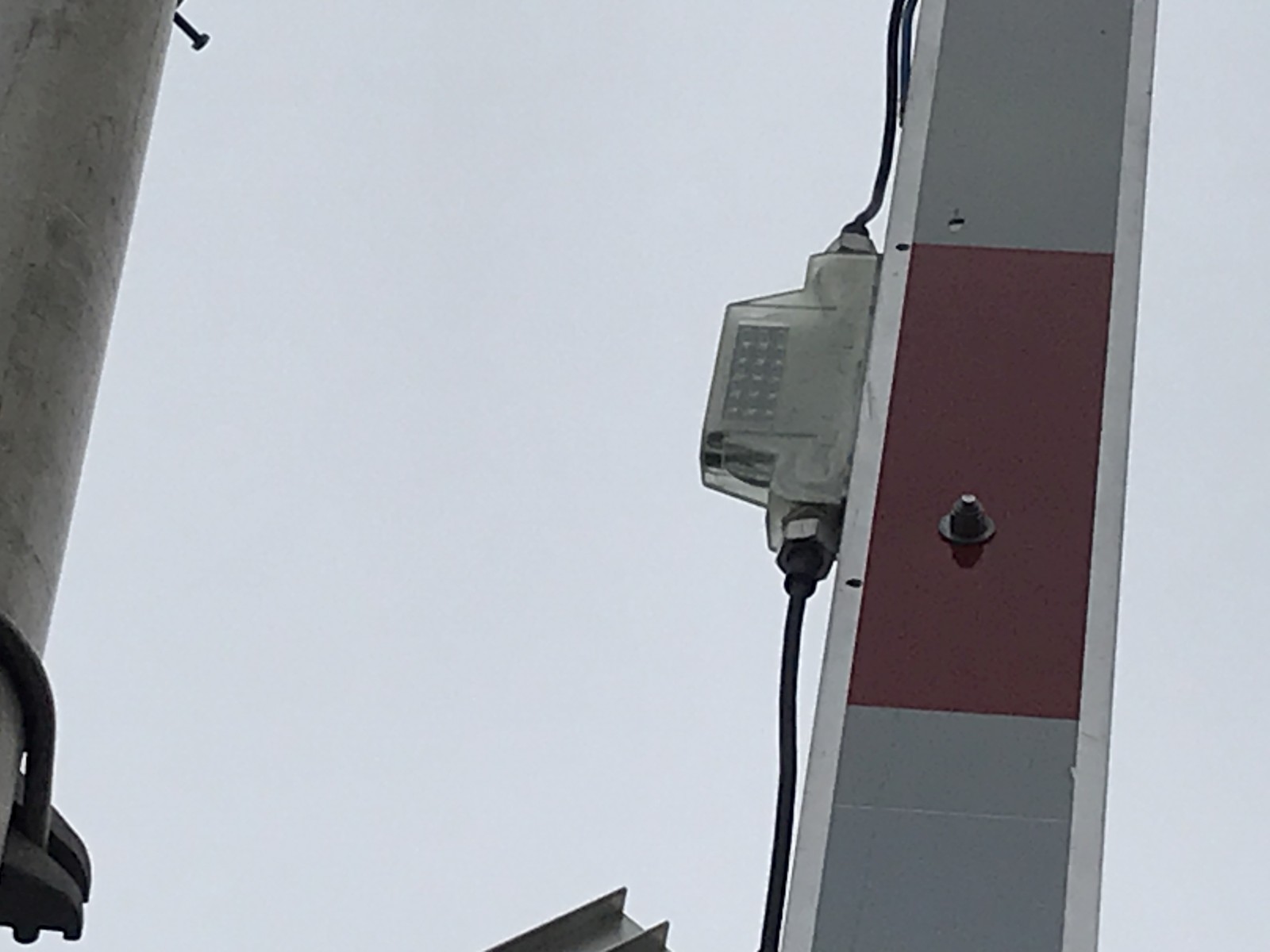

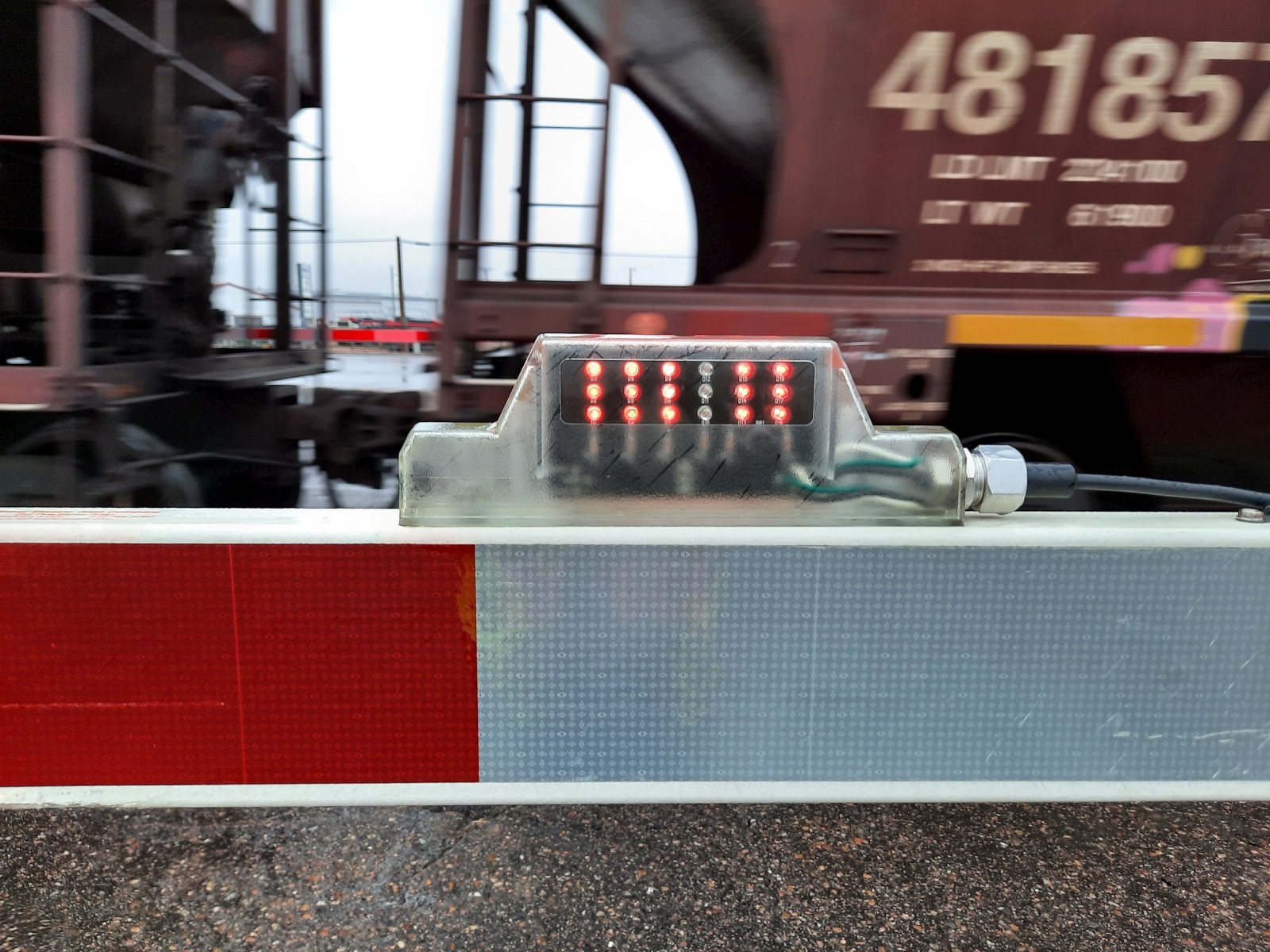

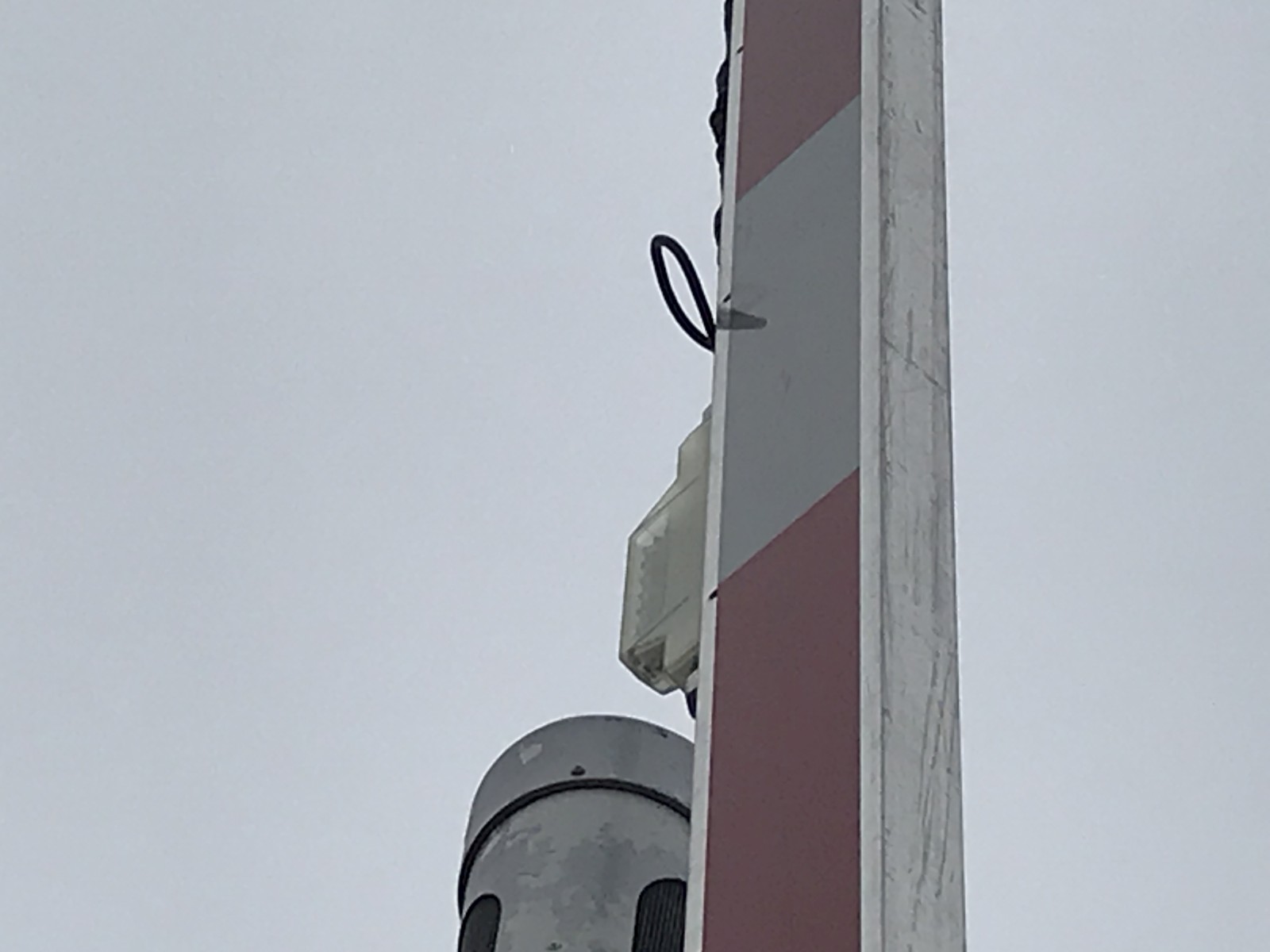

| This signal uses Alstom LED gate
lights. |

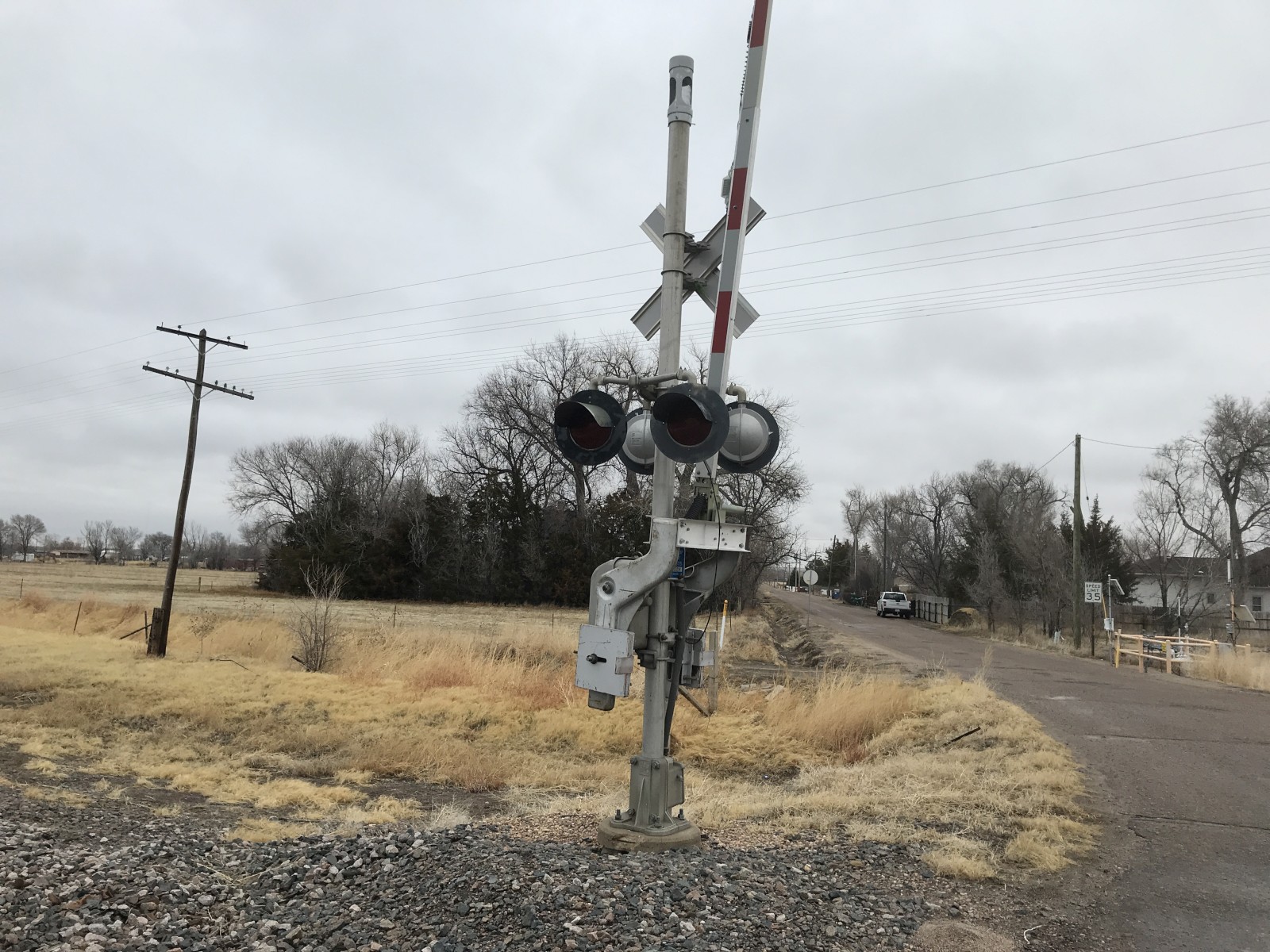

The northern signal. |
It also has a WCH base. |
|
|
17 |
18 |
19 |
20 |
| The emergency info. |
Another WCH gate mechanism. |

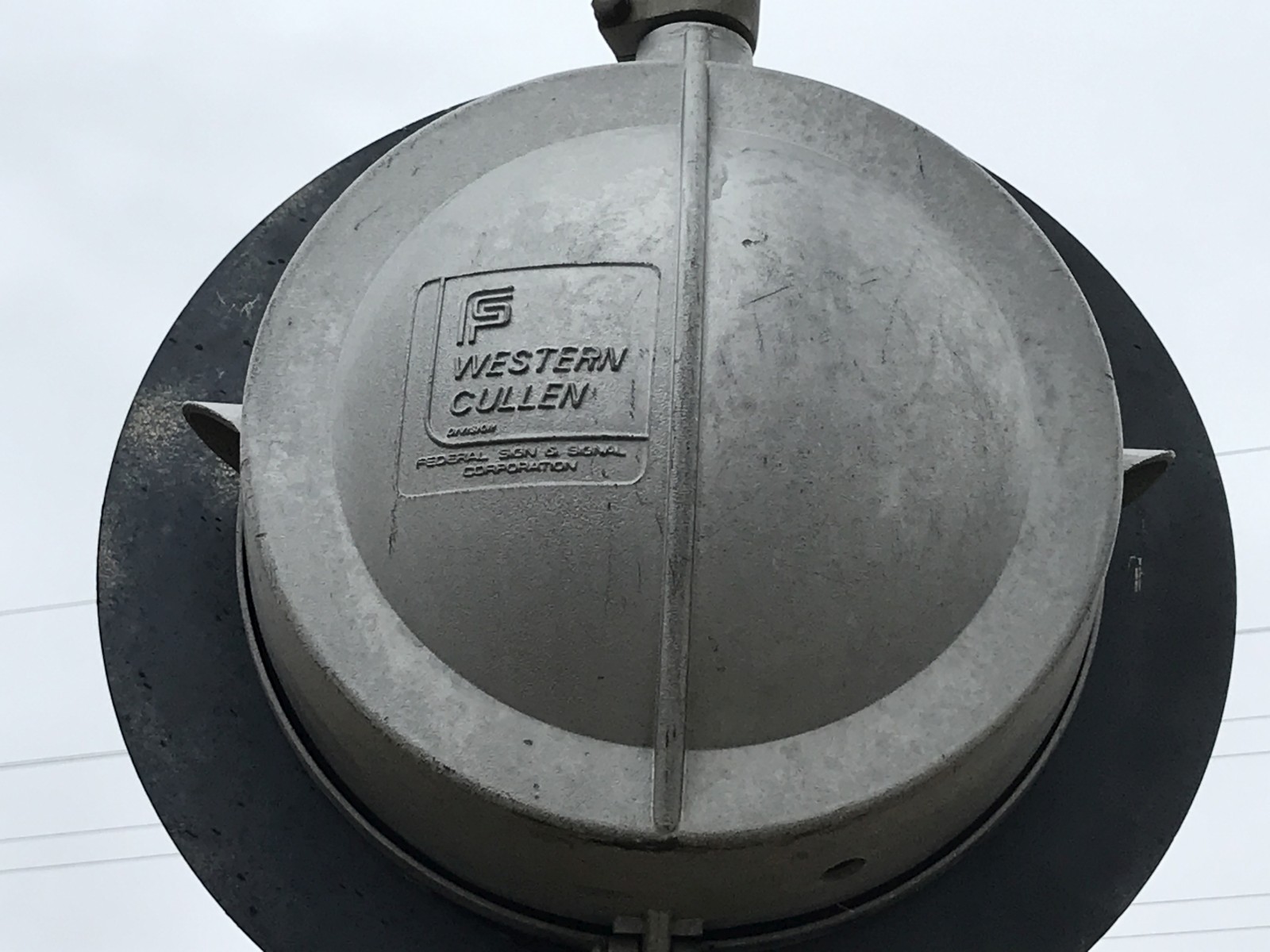

The lights here are a
mixture of WCH and.. |
|
|
21 |
22 |
23 |
24 |
| ...Federal Signal 12x20
inch lights with Electrotech LEDs. |
The bell here is another General
Signals type 3 electronic bell. |
This signal also uses Alstom LED
gate lights. |
|
|
25 |
26 |
27 |
28 |

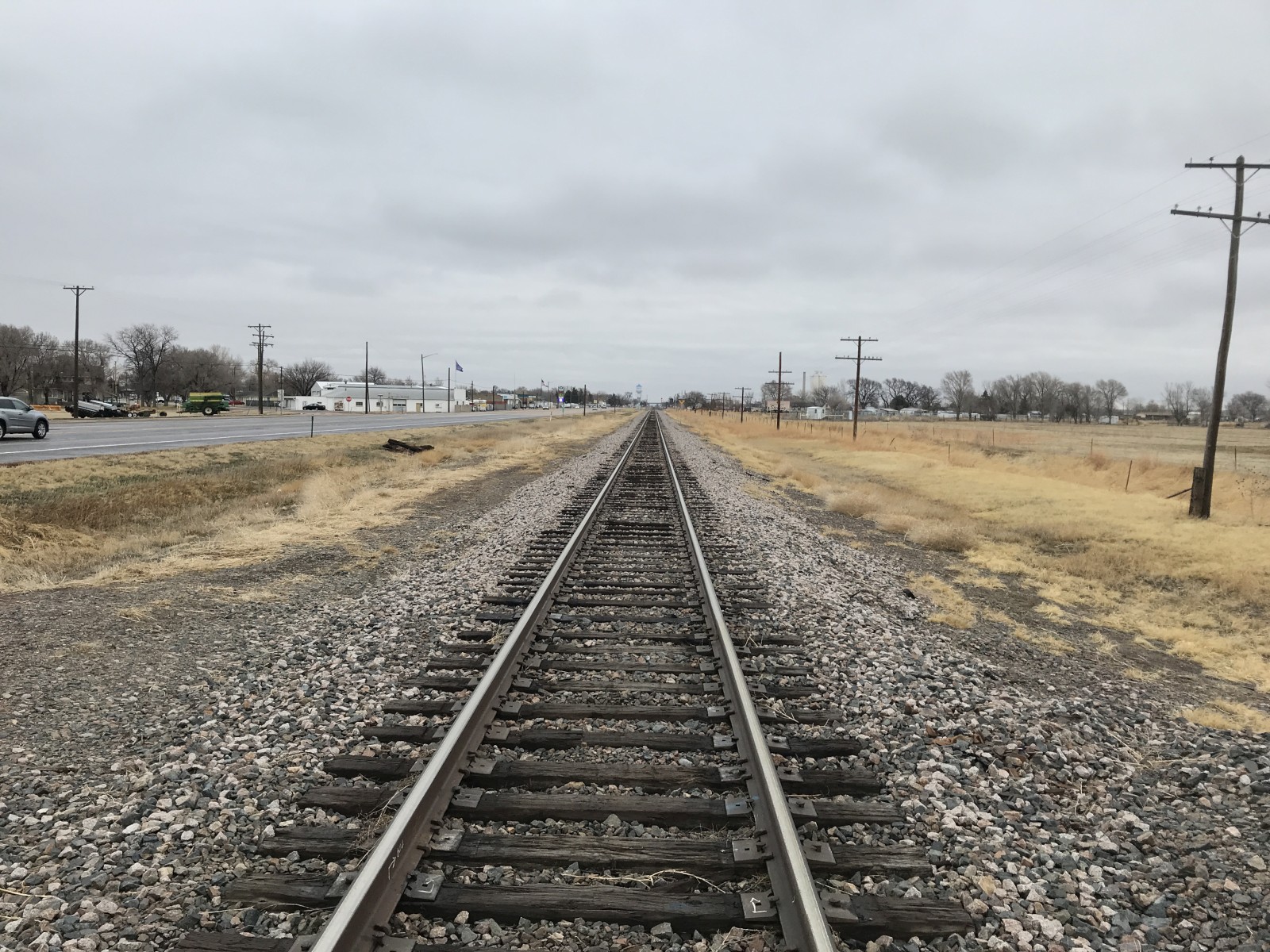

| Track view looking west towards CR 24. |
Track view looking east towards Iris Dr. |

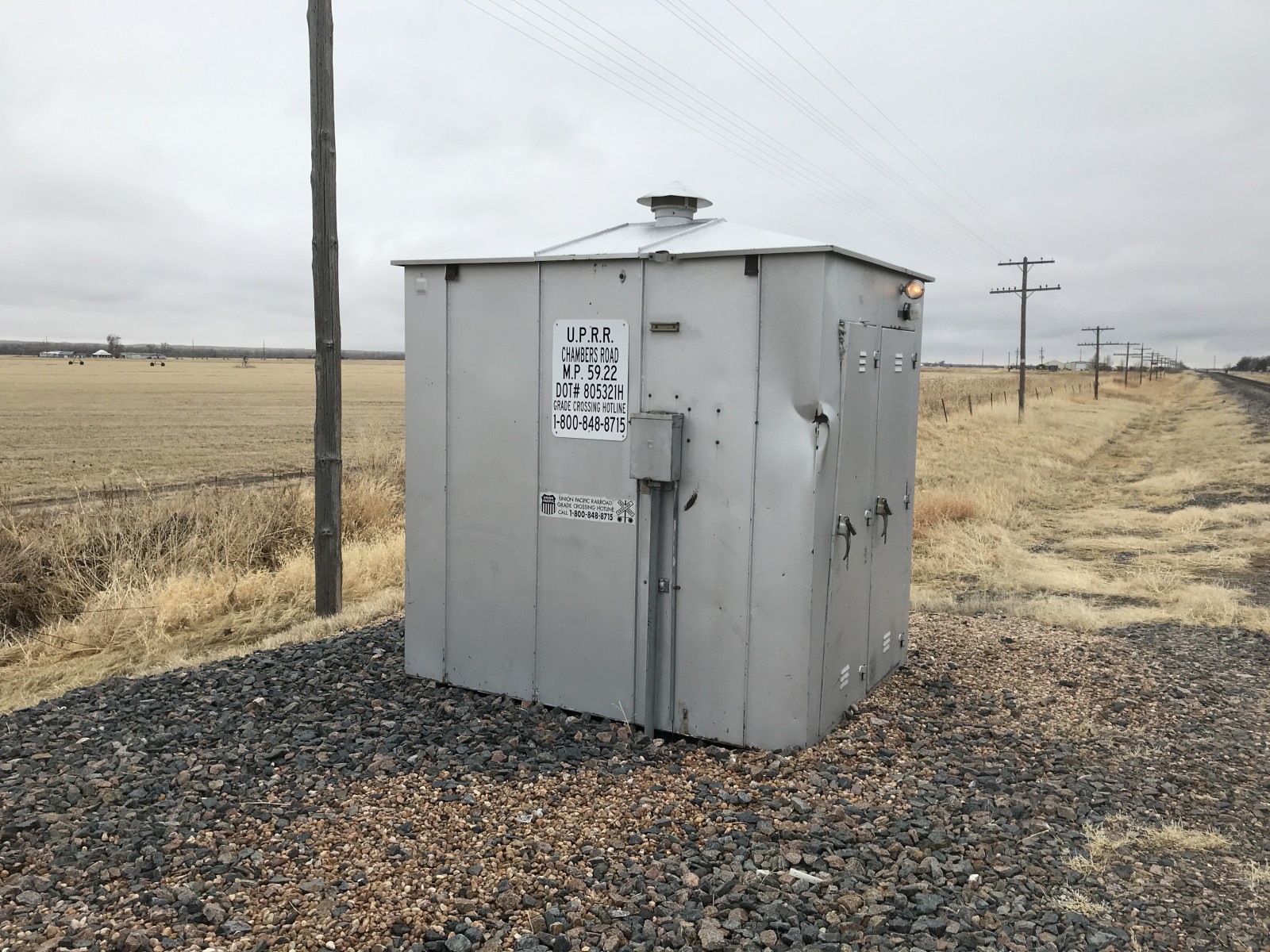

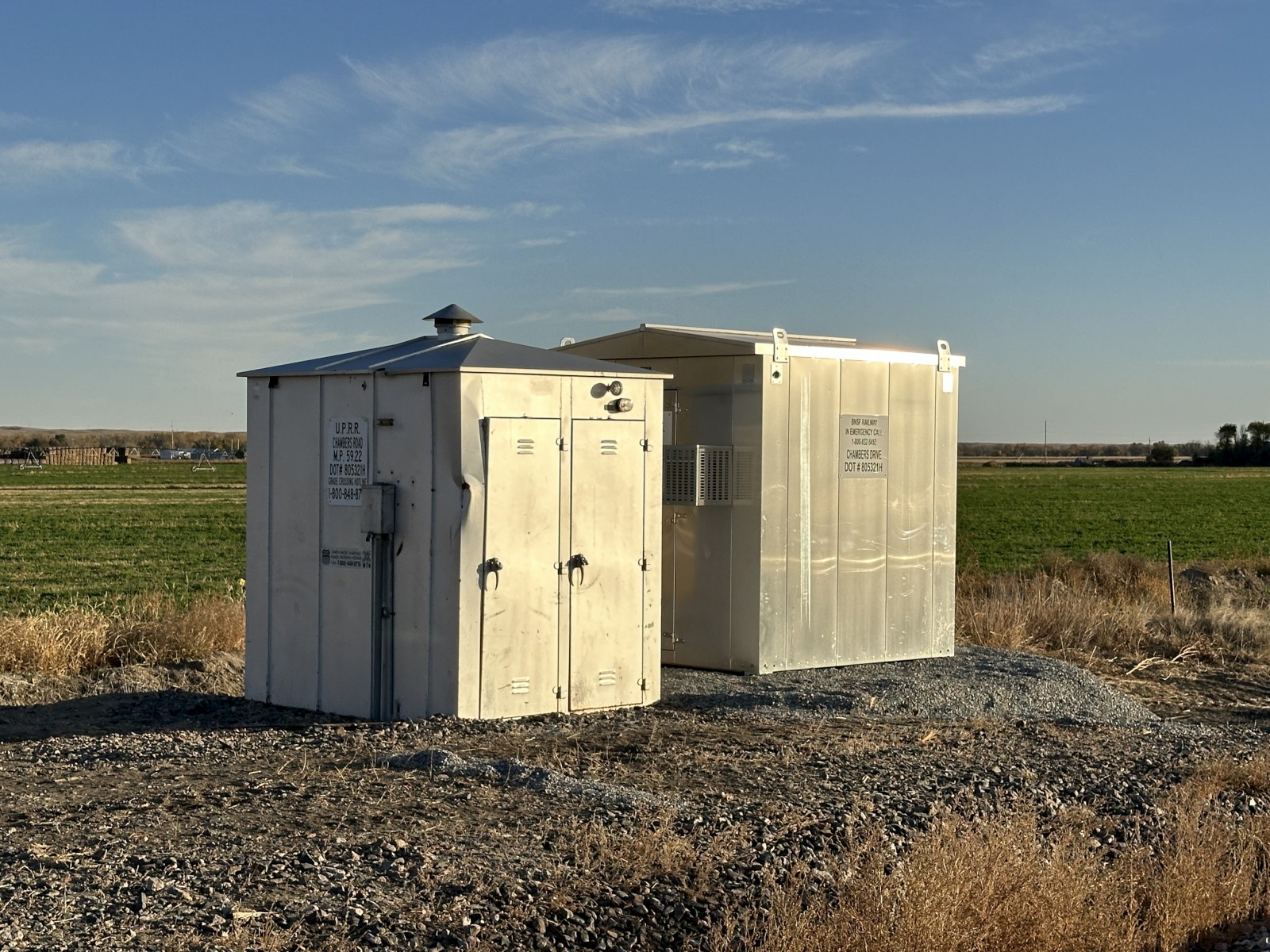

The relay case. |

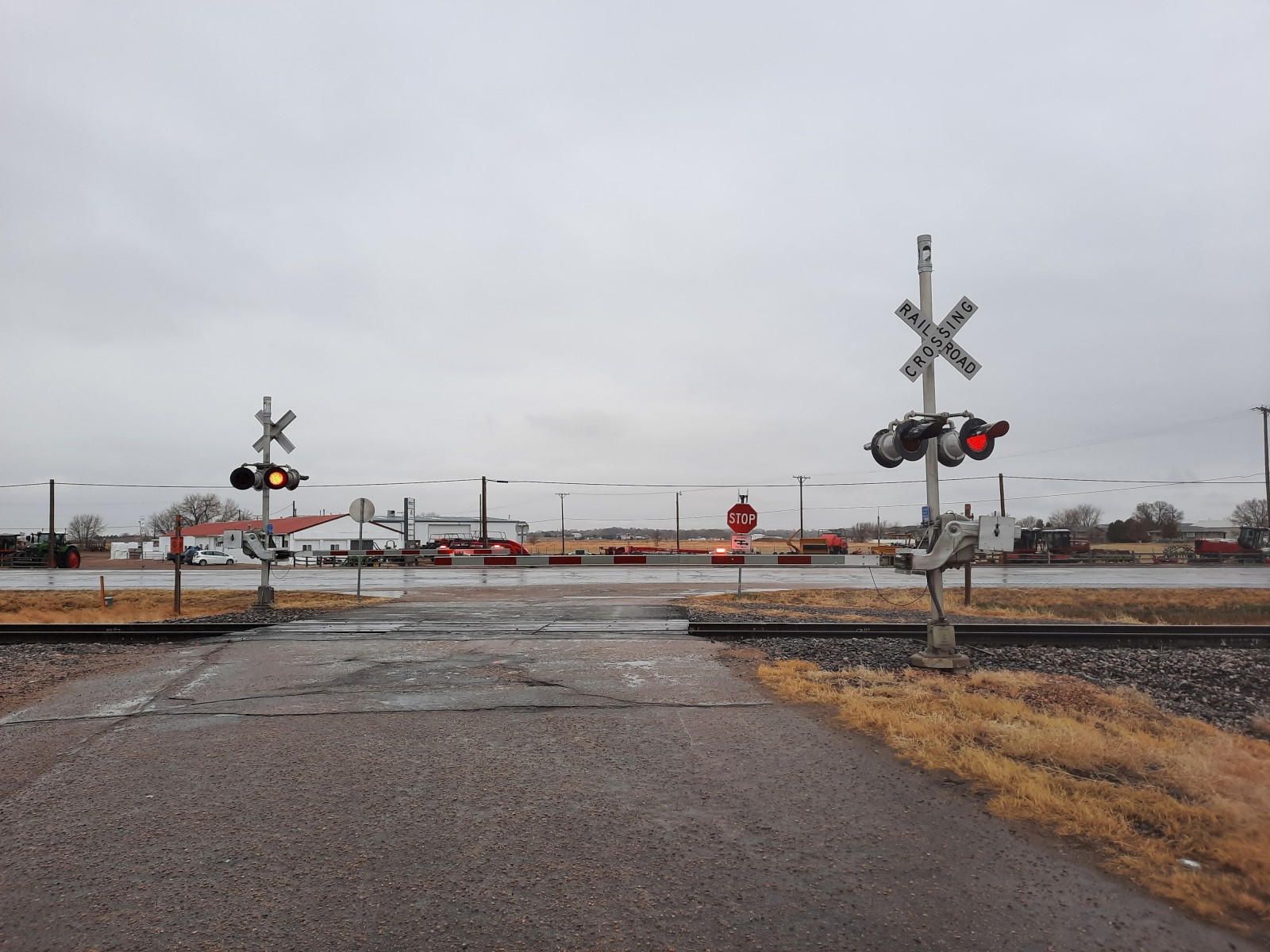

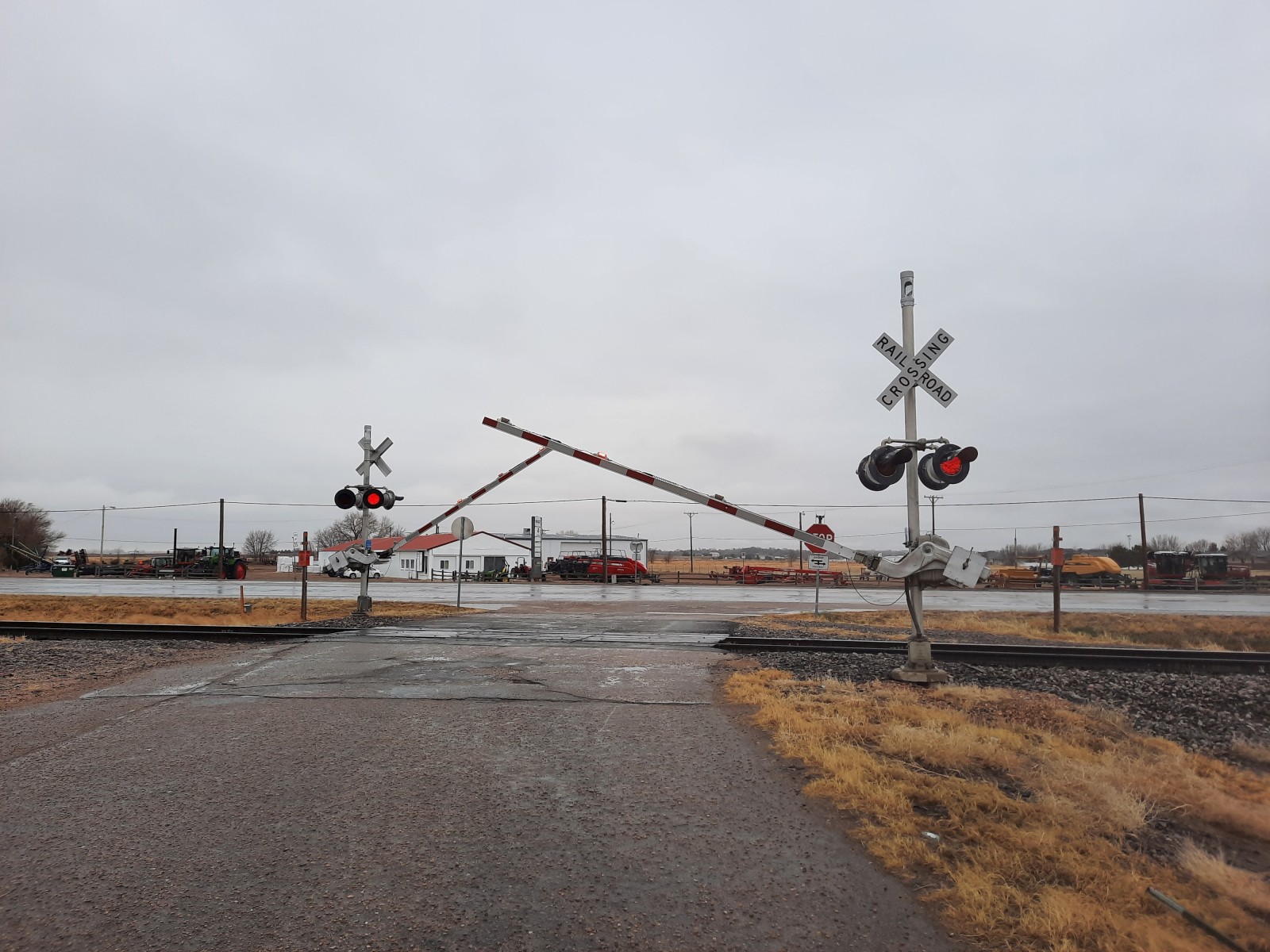

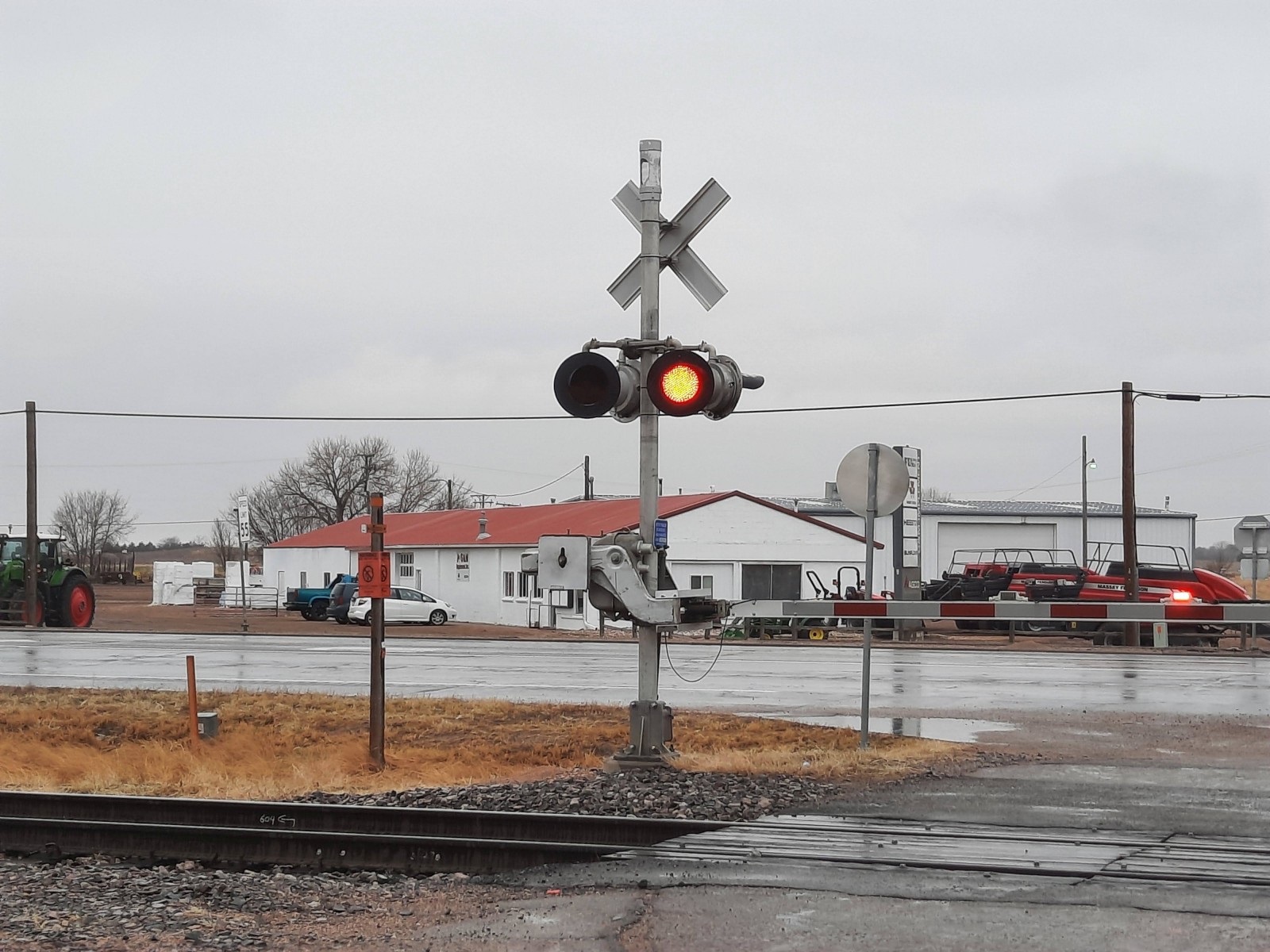

The crossing activates! |
|
29 |
30 |
31 |
32 |
|
33 |
34 |
35 |
36 |
|
37 |
38 |
39 |
40 |

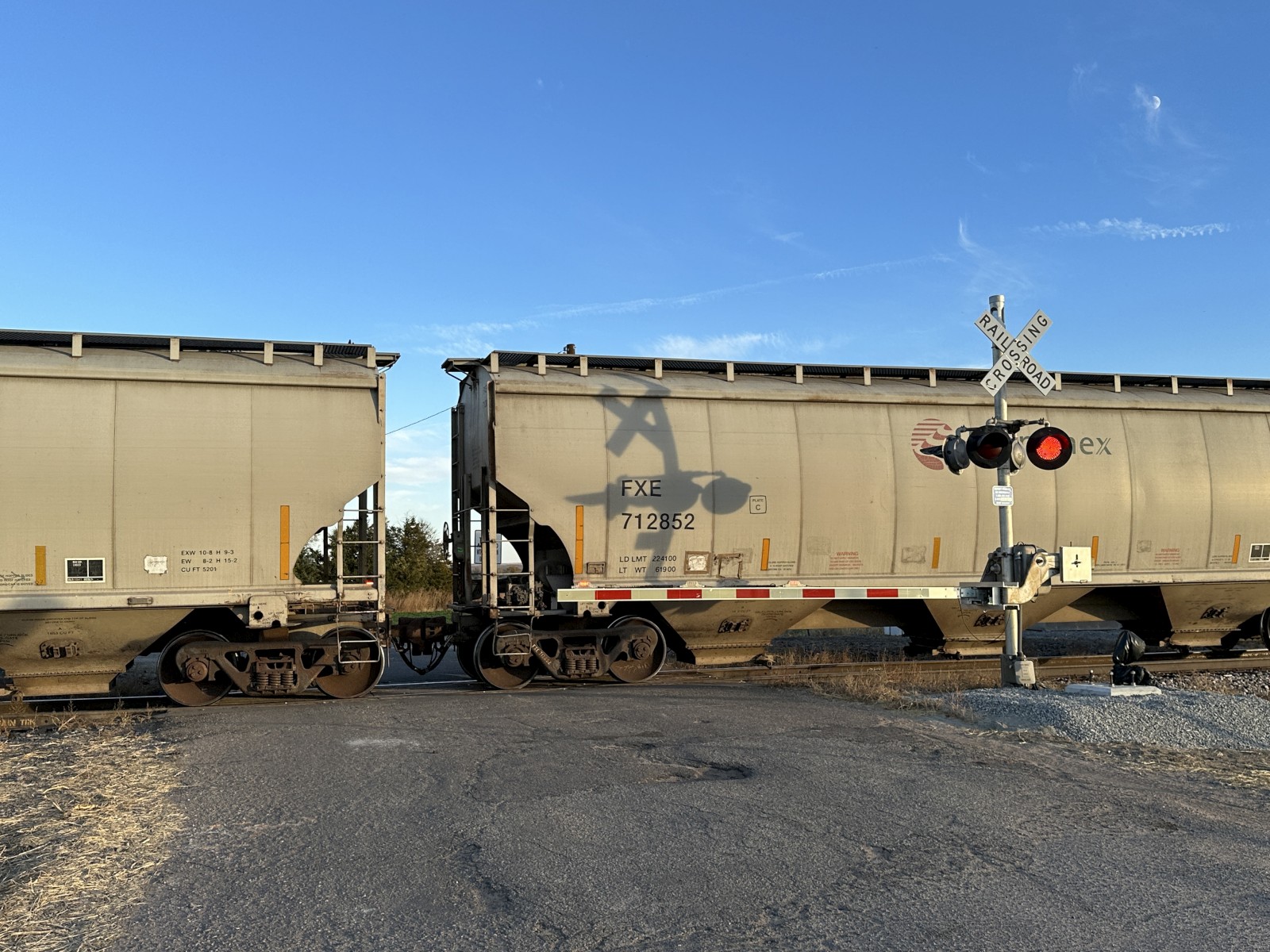

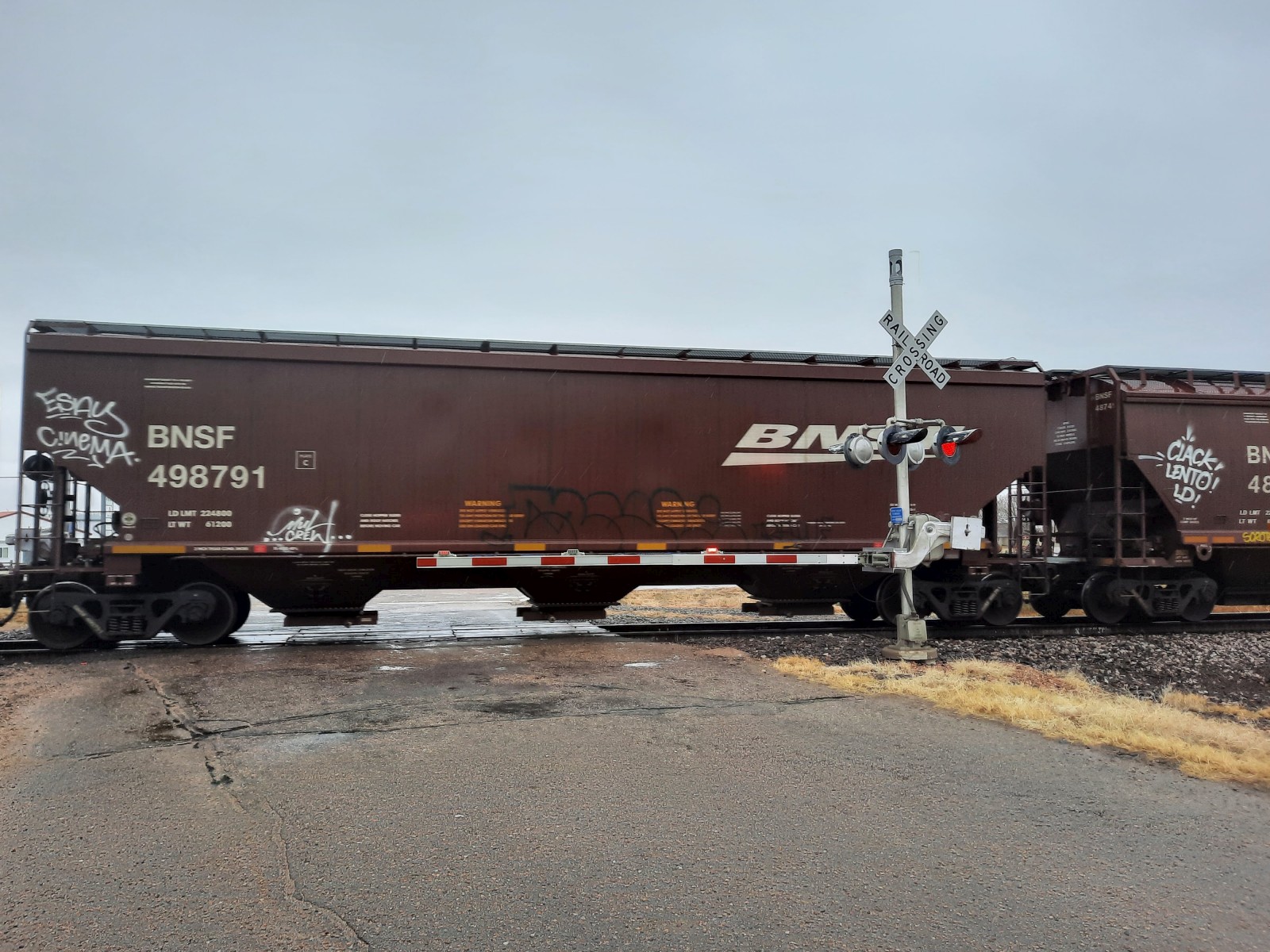

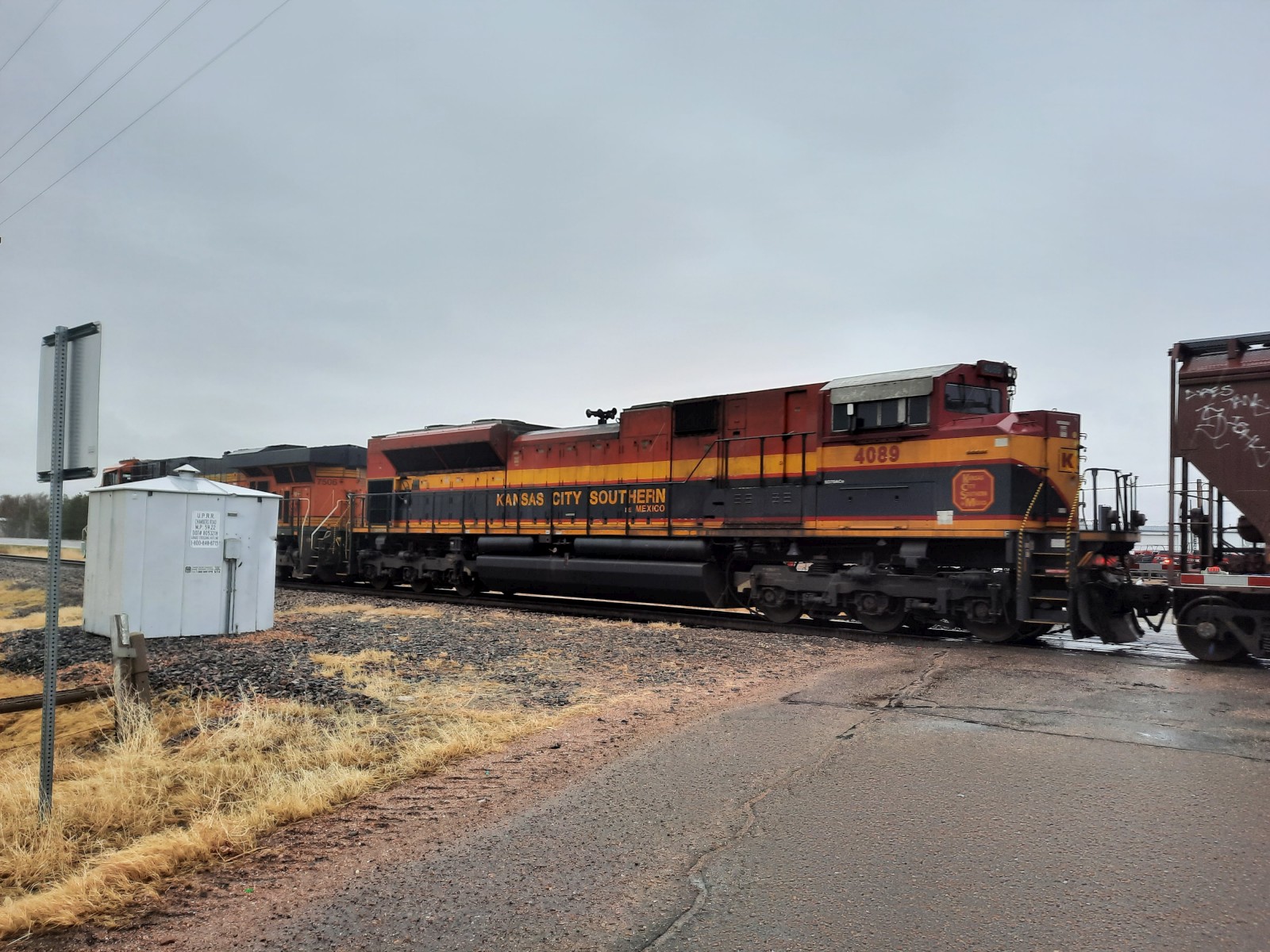

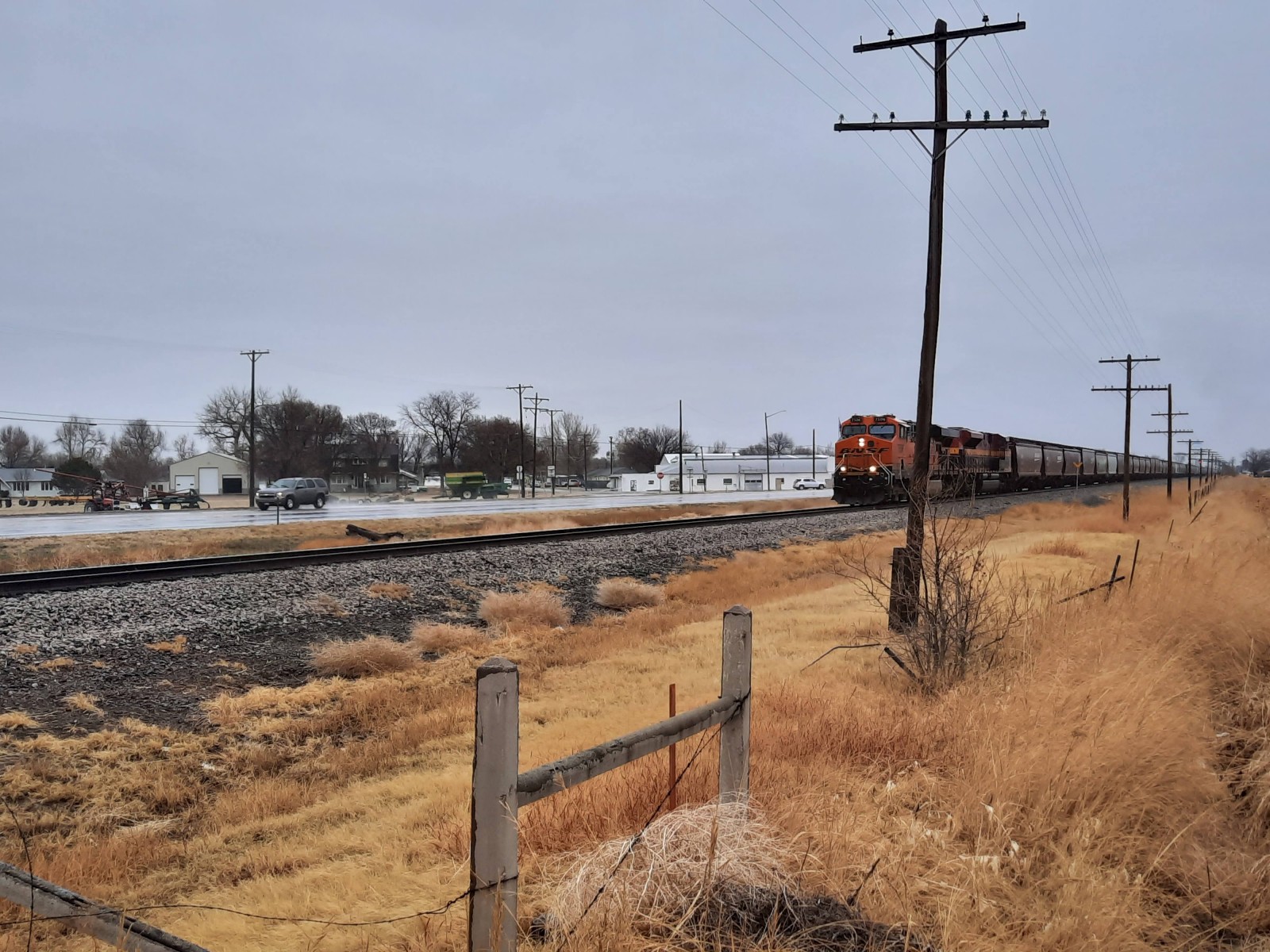

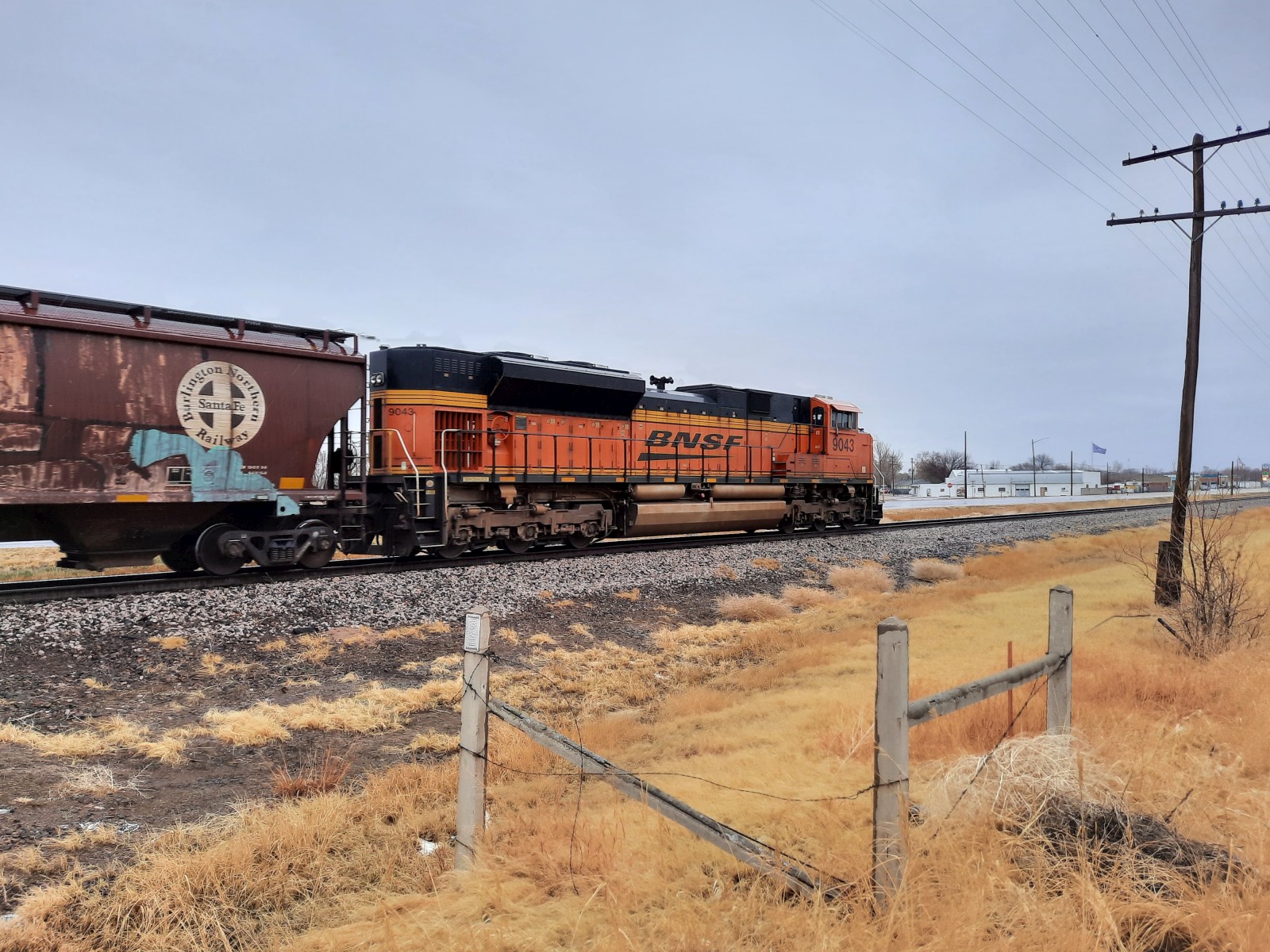

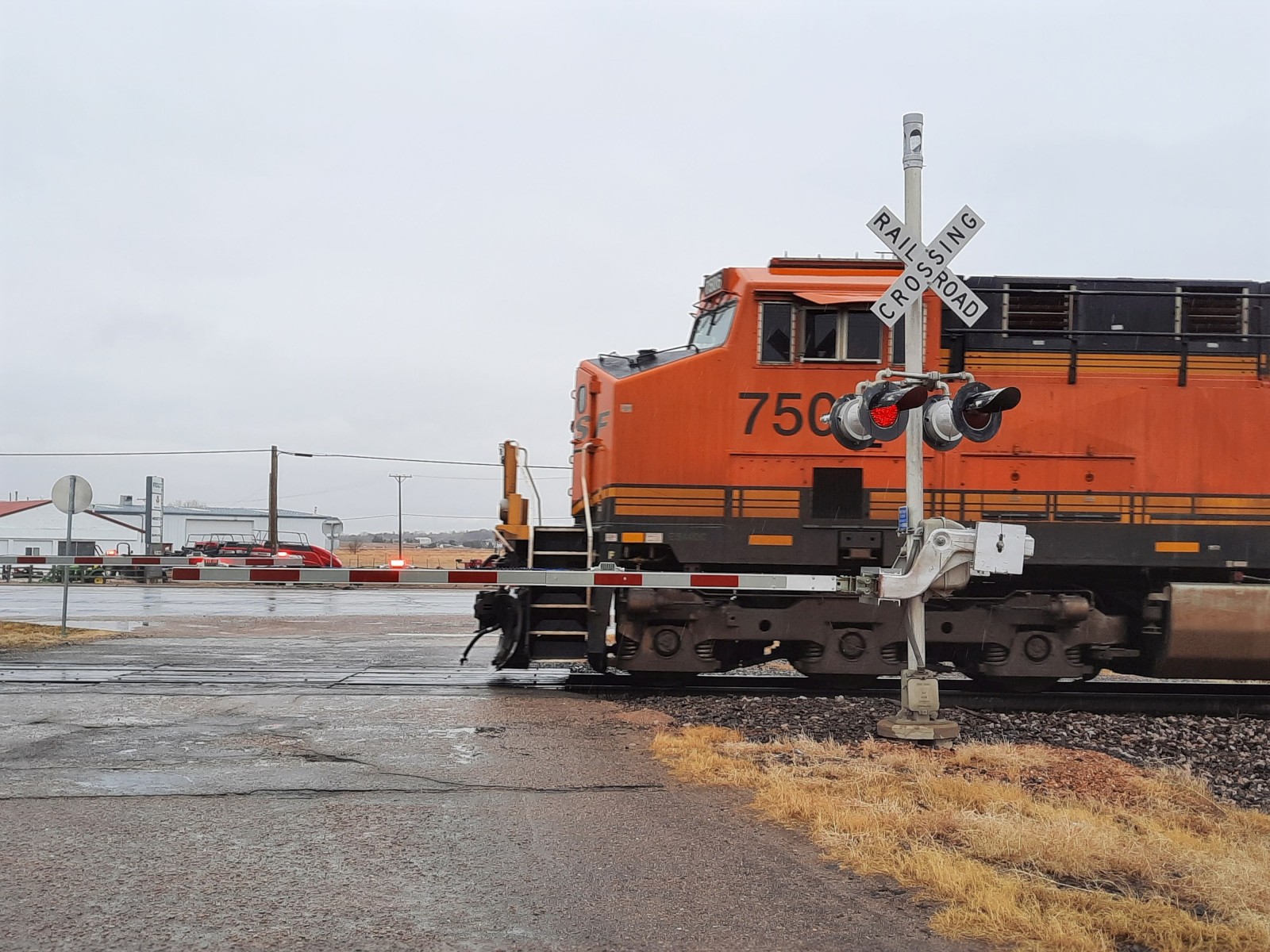

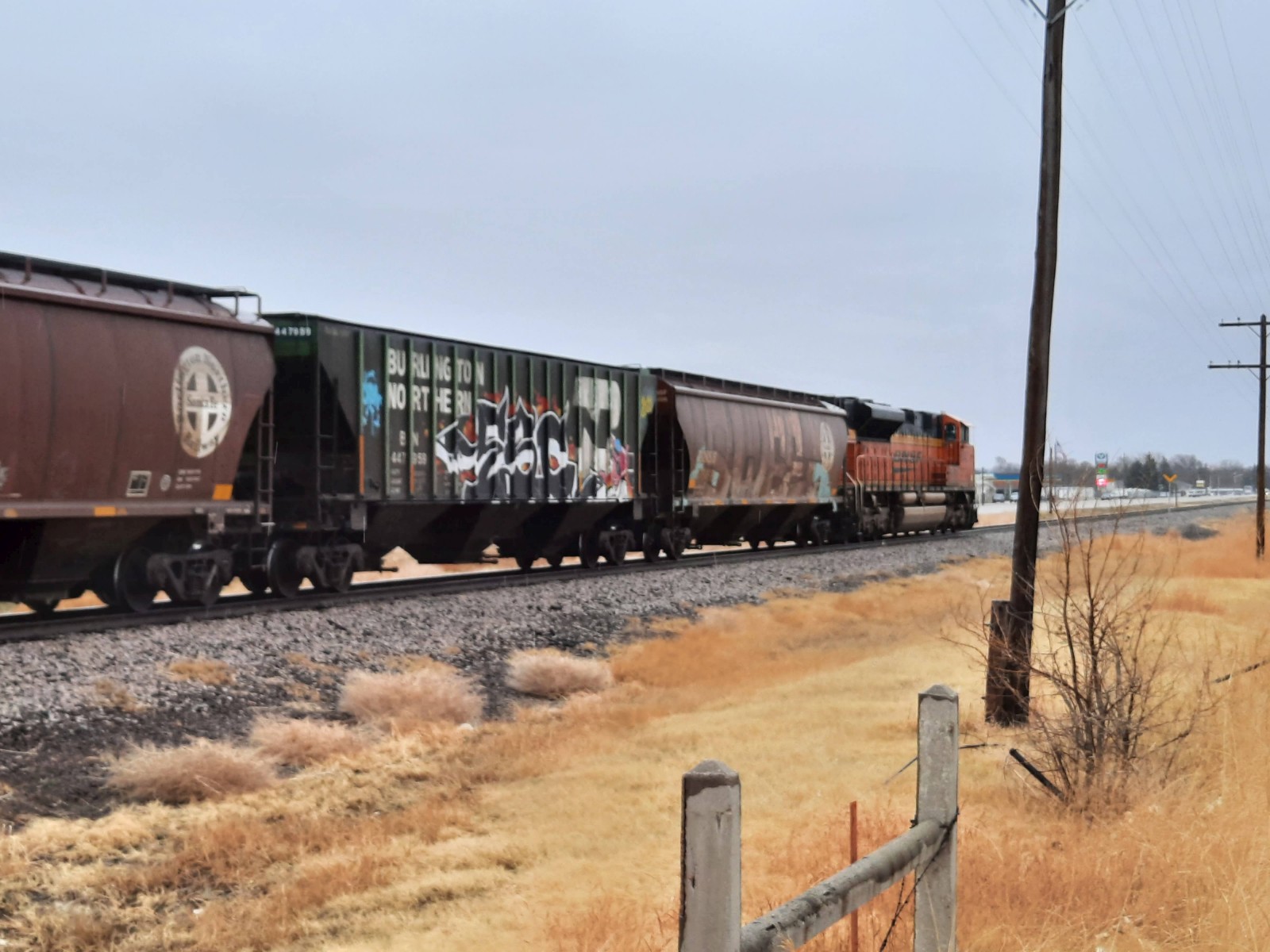

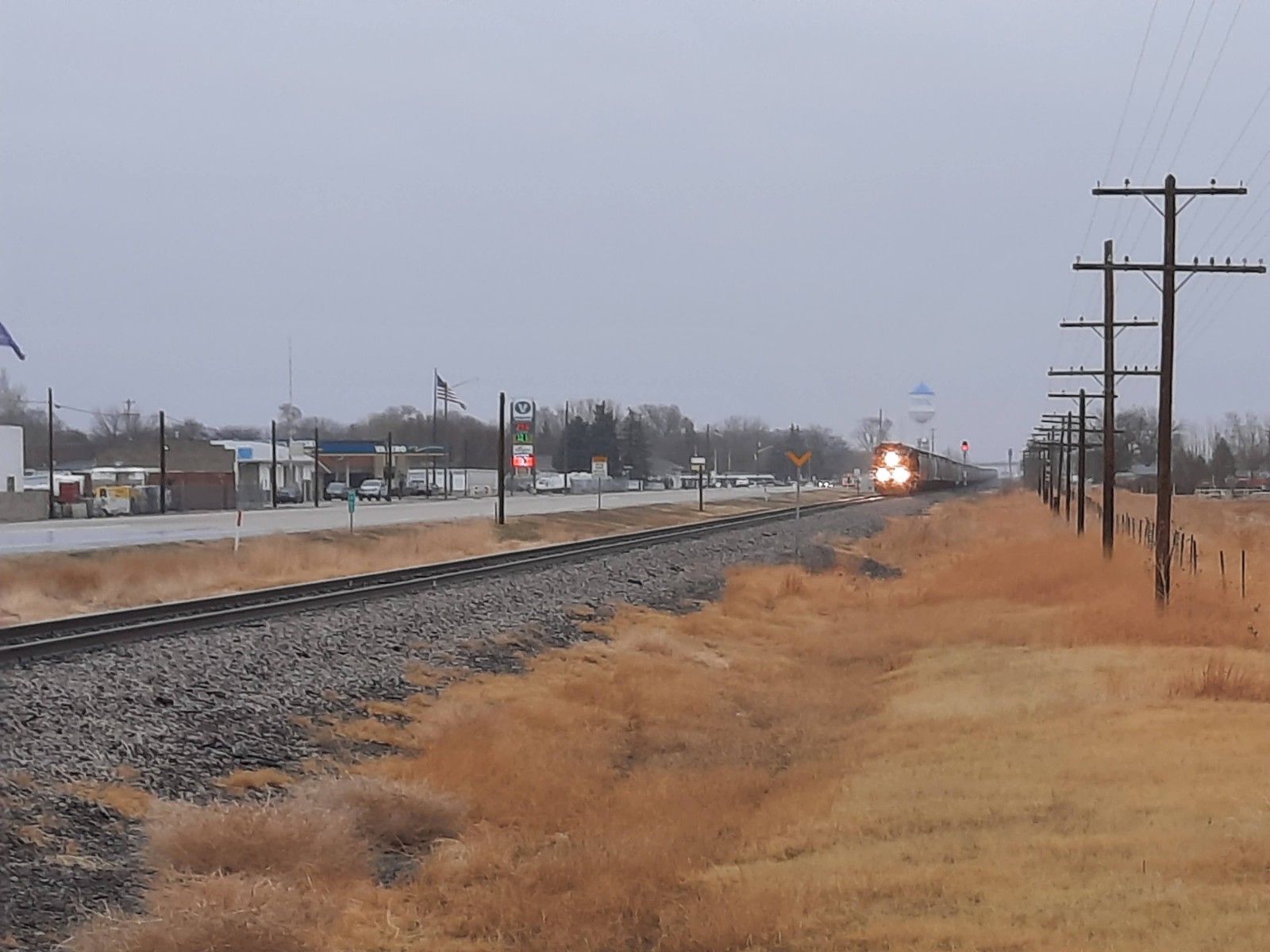

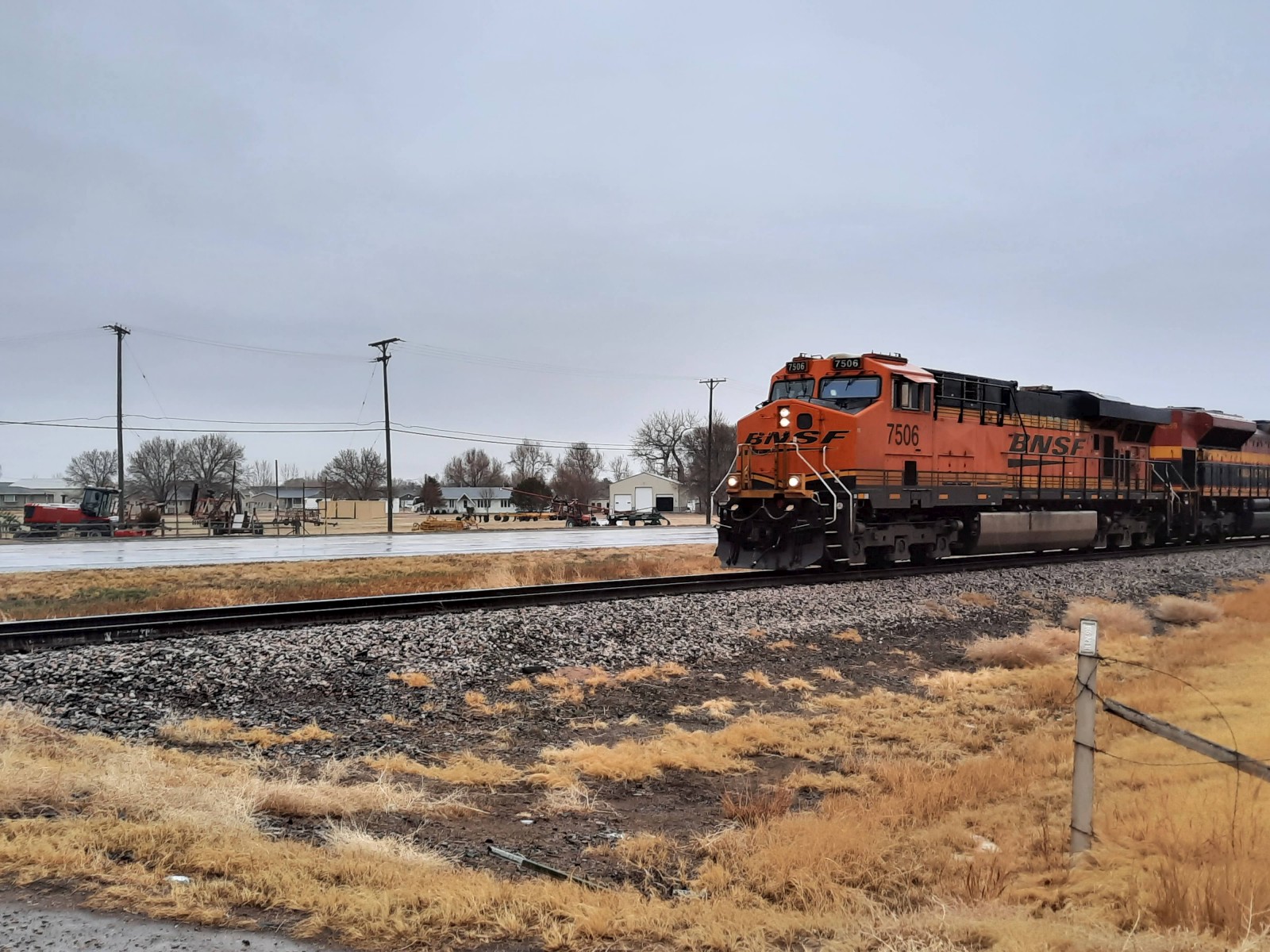

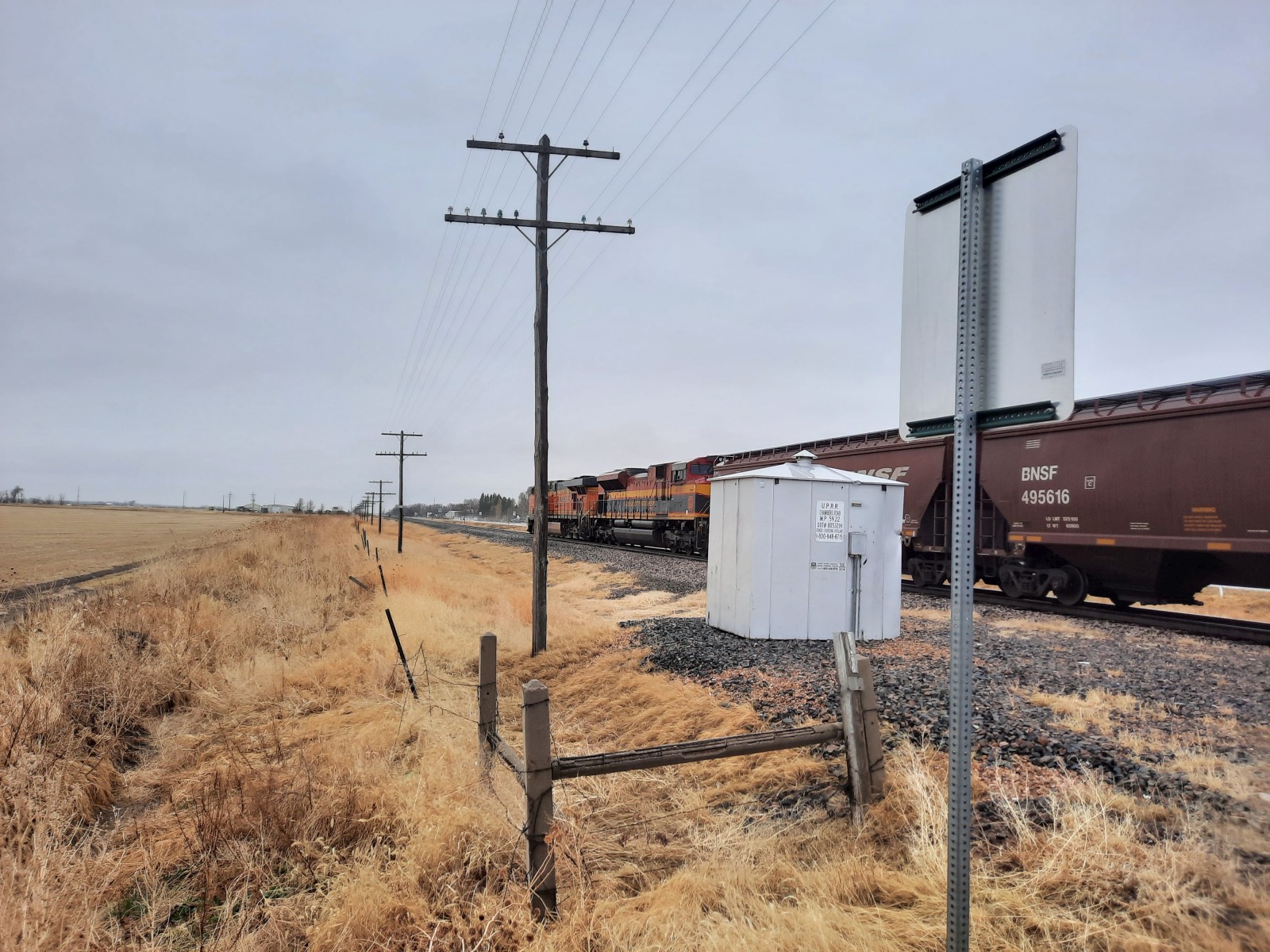

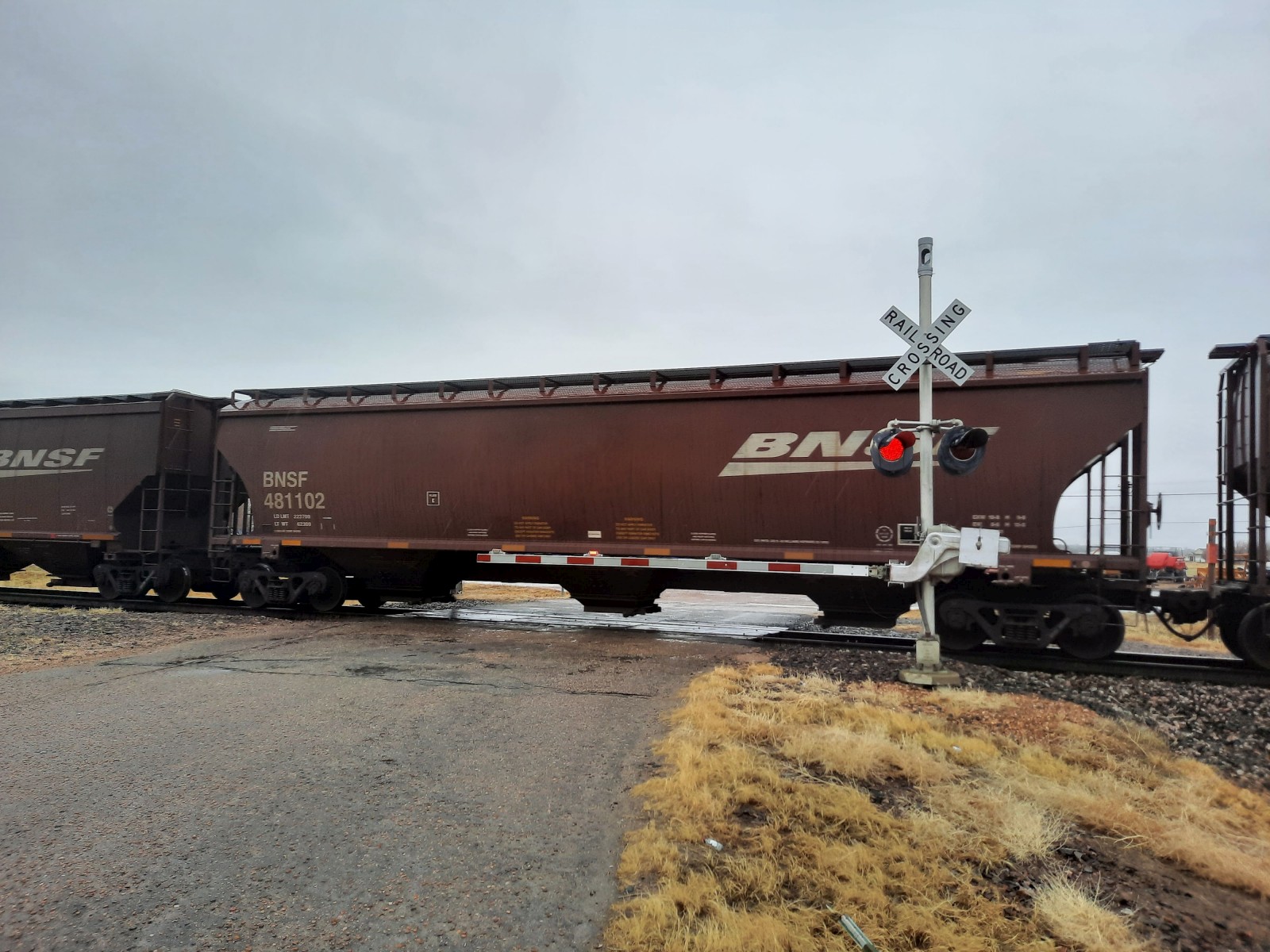

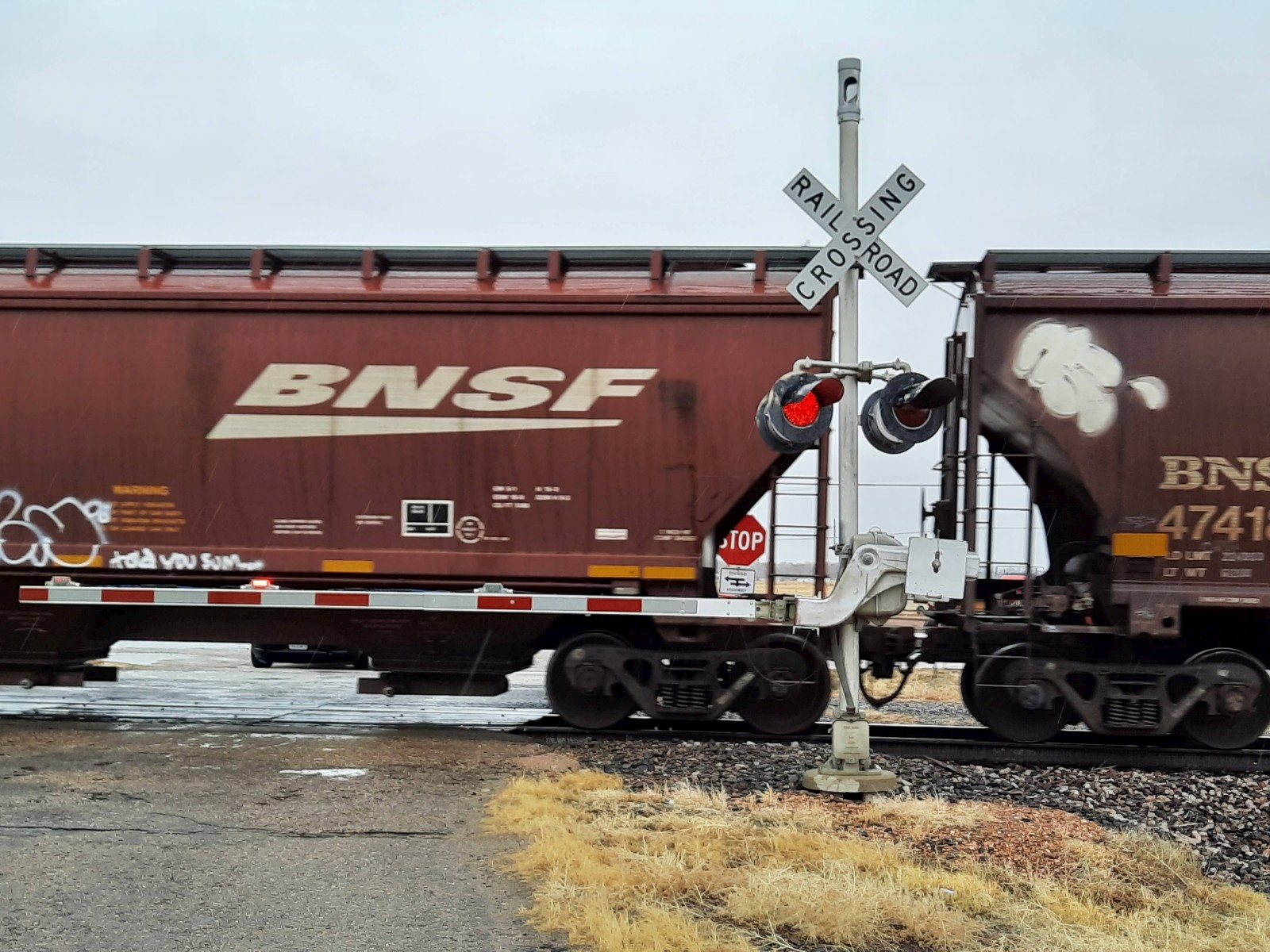

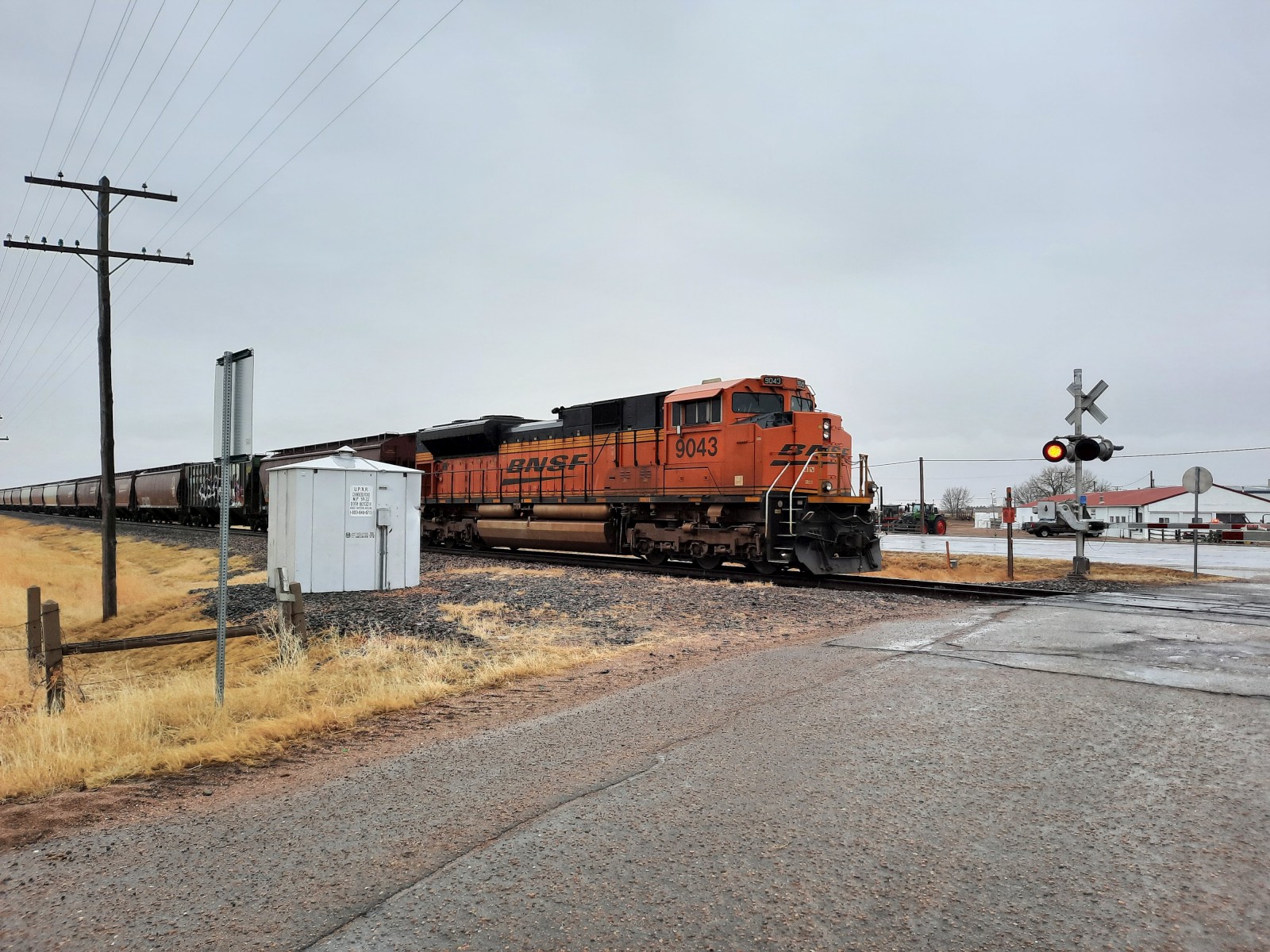

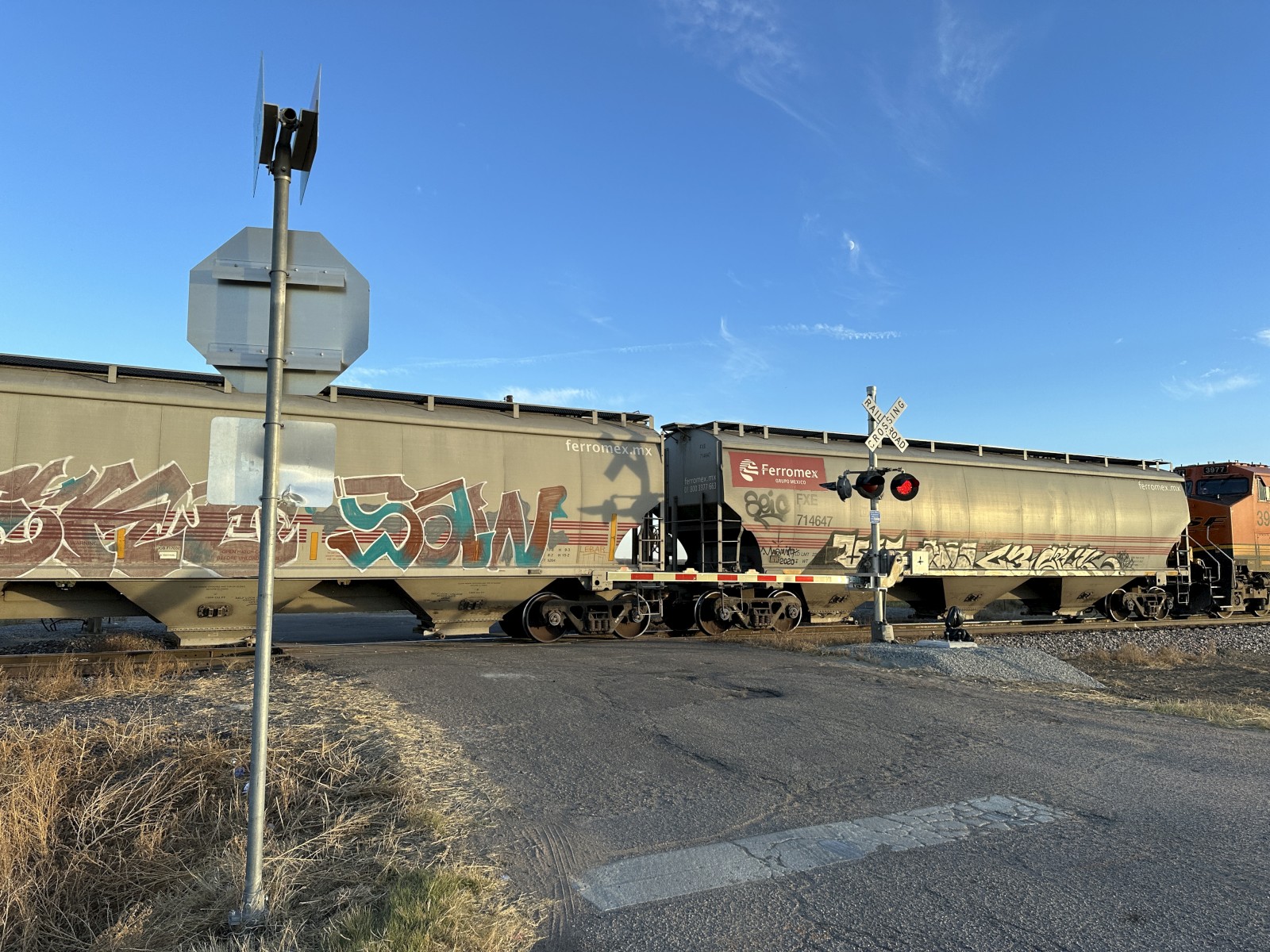

| Here comes a BNSF grain
train with an ES44DC and a KCSM SD70ACe for power! |
|||
|
41 |
42 |
43 |
44 |
|
45 |
46 |
47 |
48 |
|
49 |
50 |
51 |
52 |

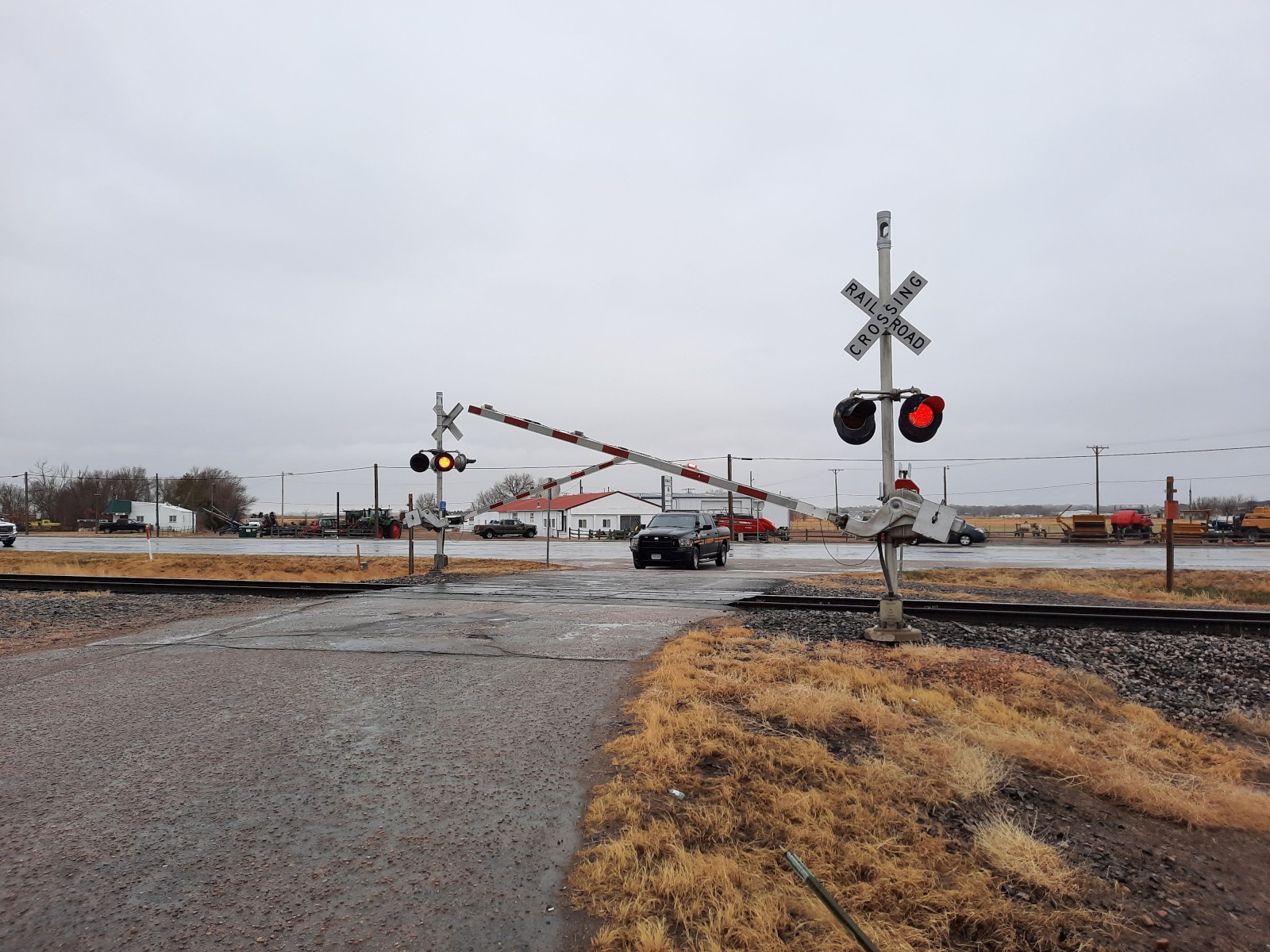

| After the train
passes... |
|||
|
53 |
54 |
55 |

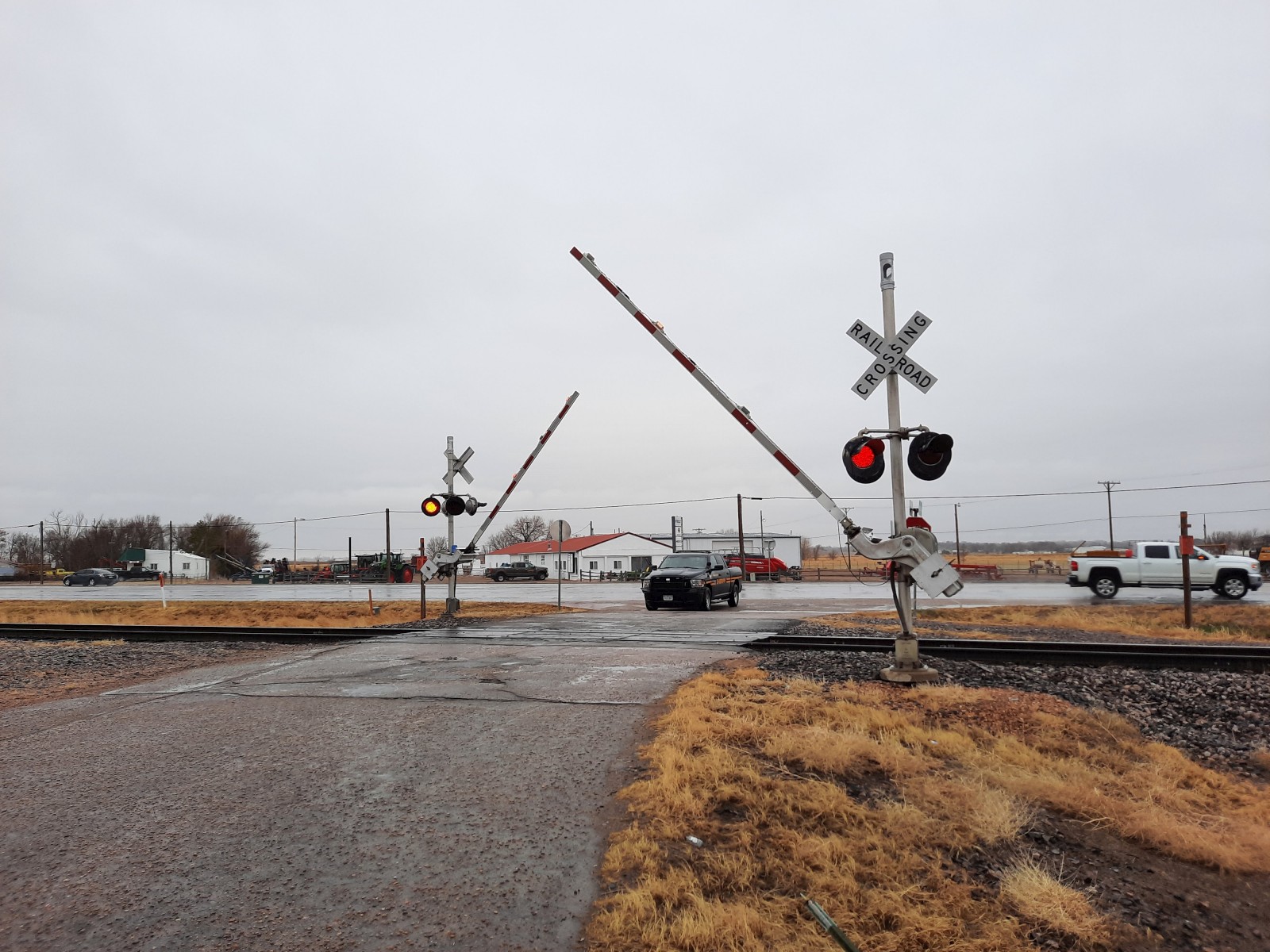

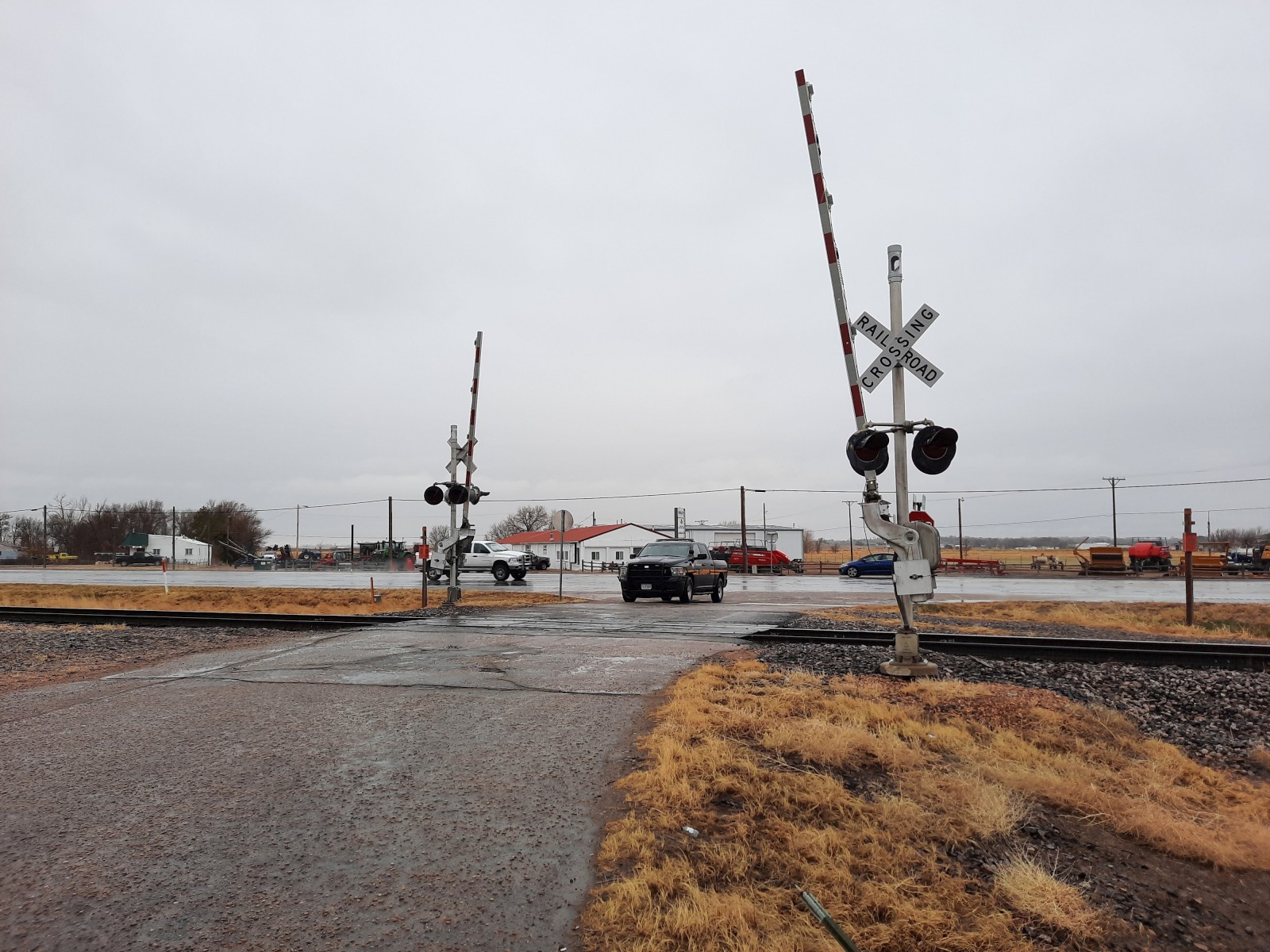

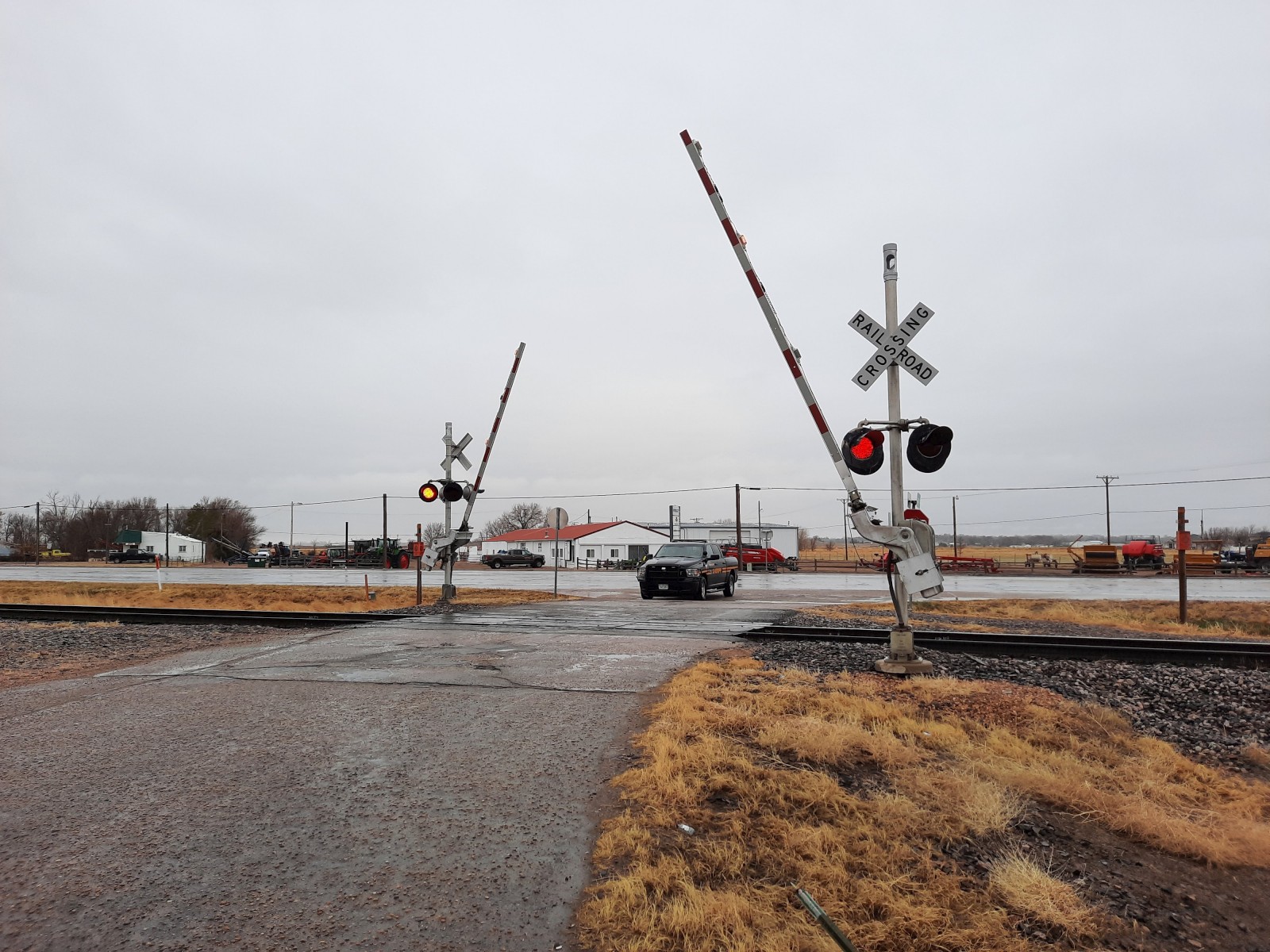

| ...the gates rise. |
||
