MP: 56.51 |
Created July 25, 2021
Total
Accidents: 3
Crossing
DOT #: 805328F
TOTAL DAILY TRAINS: 12
(ESTIMATED)
Page created by: PlyingKibbles89
This crossing is located on the UP Julesburg Subdivision and the BNSF Angora Subdivision.
| >>>>>>>>>>>>> | Southern
Signal |
Northern Signal |
| Bell: | WCH Type 3 Electronic | WCH Type 3 Electronic |
| Base: | WCH | WCH |
| Light Frames: | 4 - Federal Signal 12x20 inch with Electrotech LEDs | 3 - WCH 12x20 inch with Electrotech
LEDs 3 - Federal Signal 12x20 inch with Electrotech LEDs |
| Gate Lights: | 3 - Alstom LED | 3 - Alstom LED |
| Gate Mechanism: | Federal Signal Style 1 | WCH Style 3 |
| Gate Striping: | Vertical | Vertical |
|
1 |
2 |
3 |
4 |

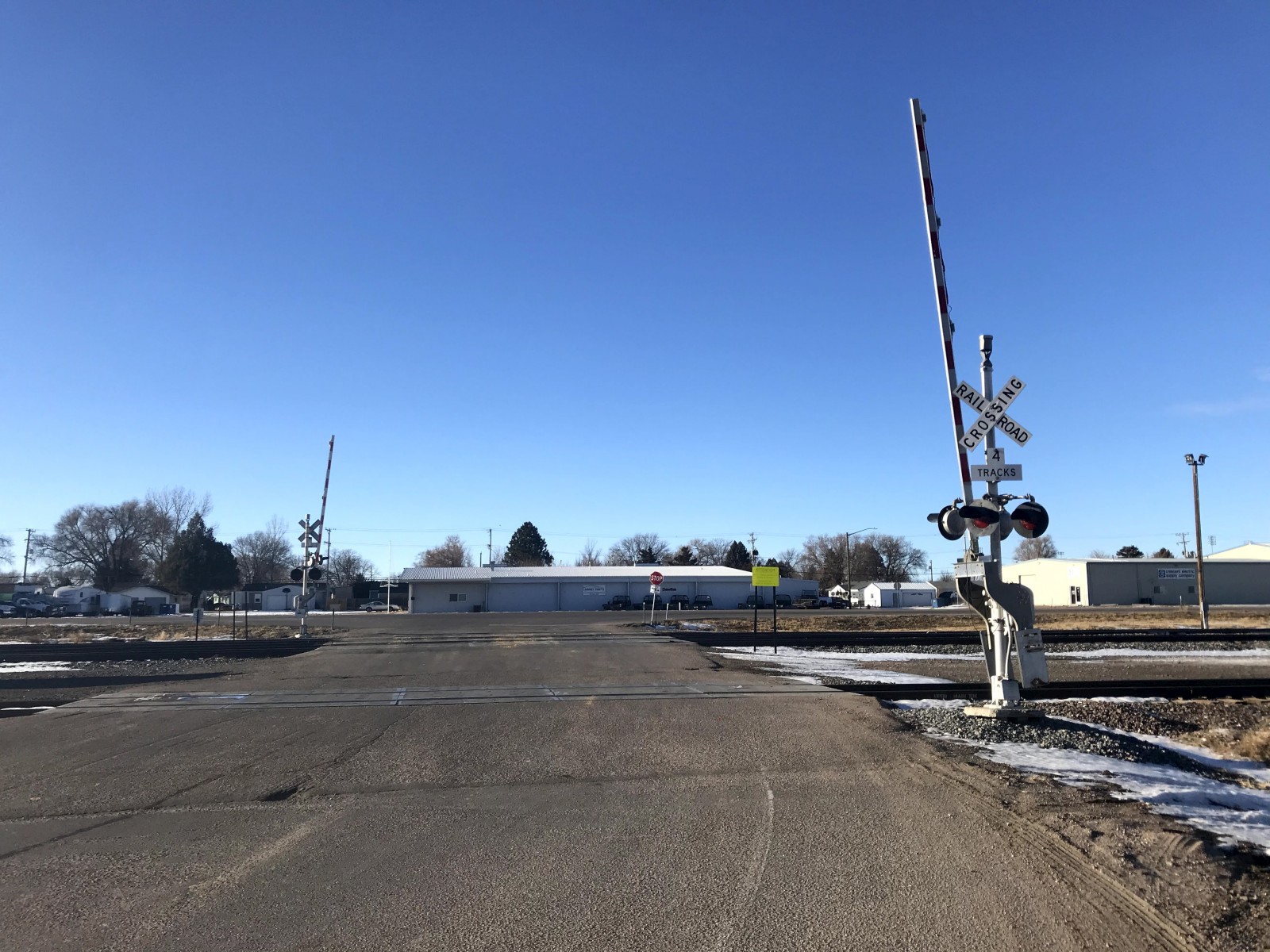

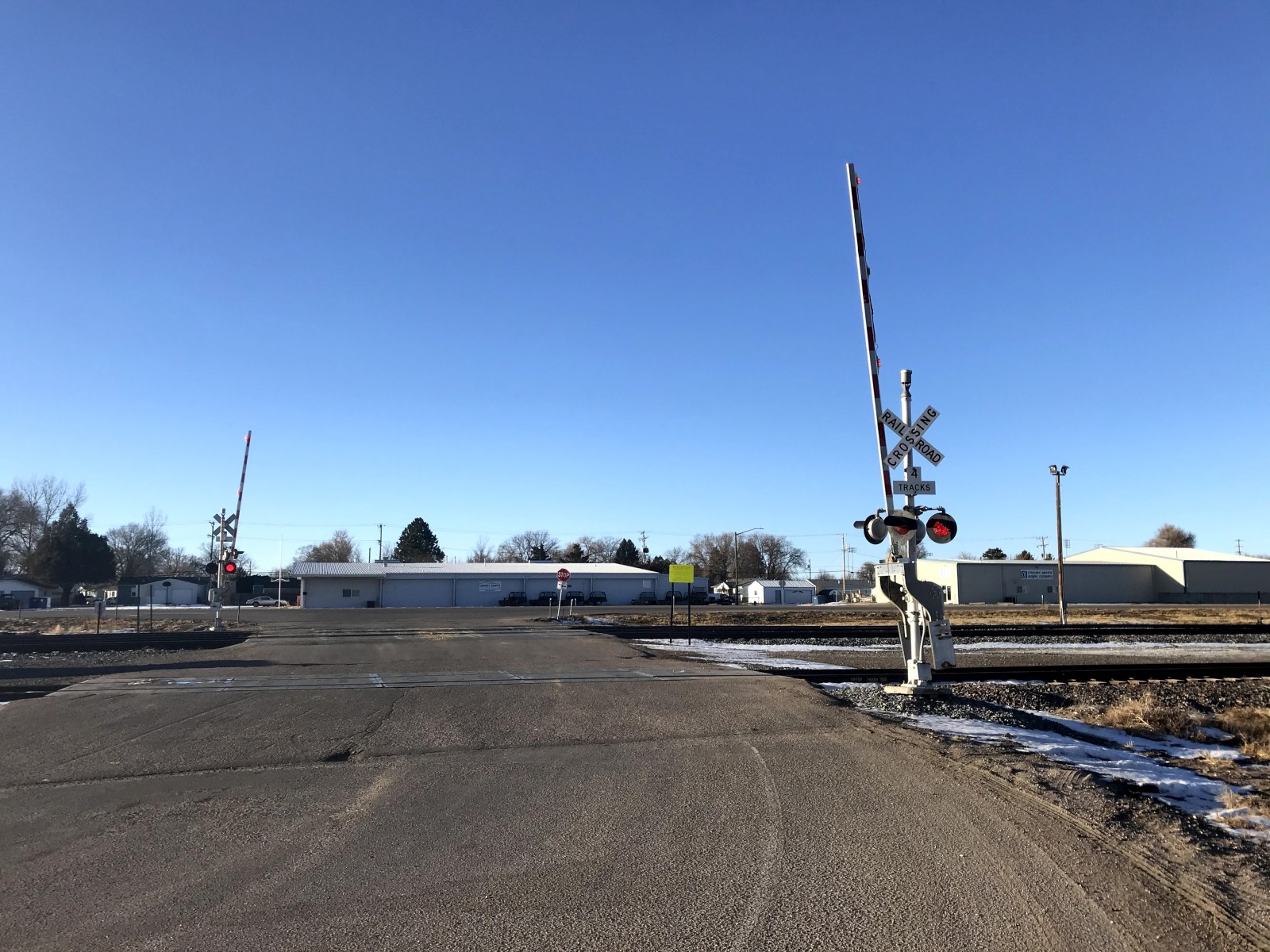

| Overview of the
crossing. |

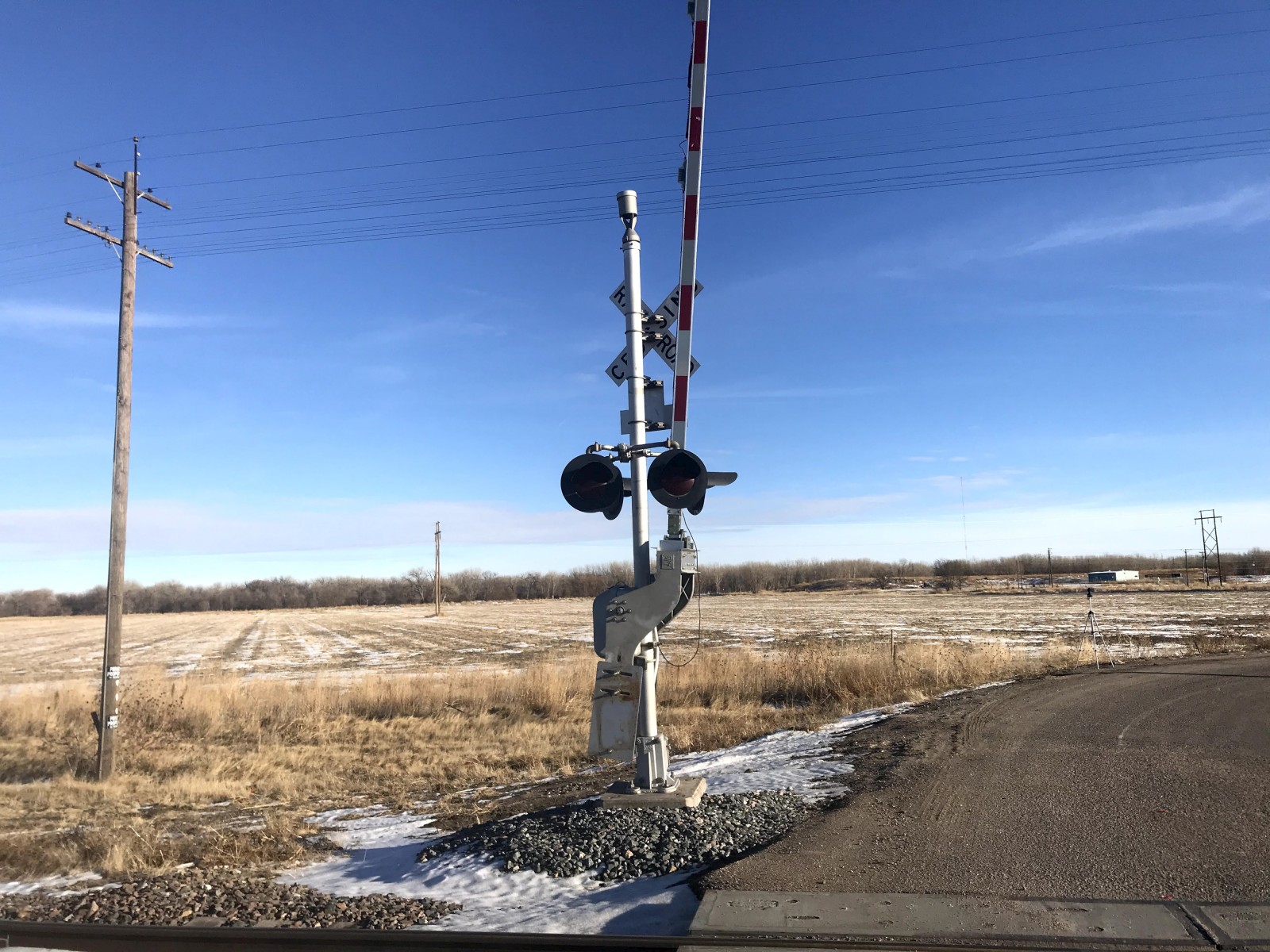

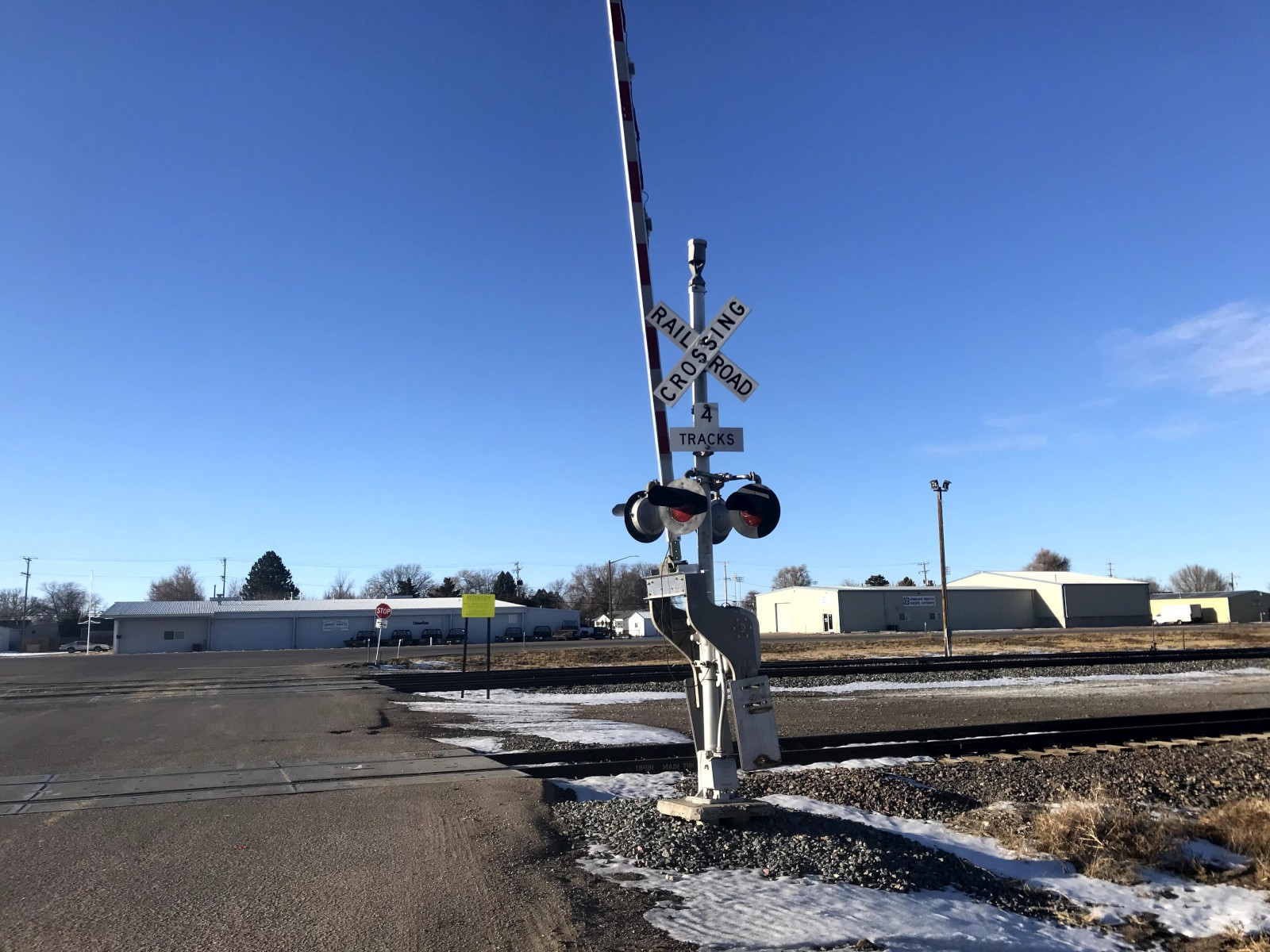

The southern signal. |
||
|
5 |
6 |
7 |
8 |

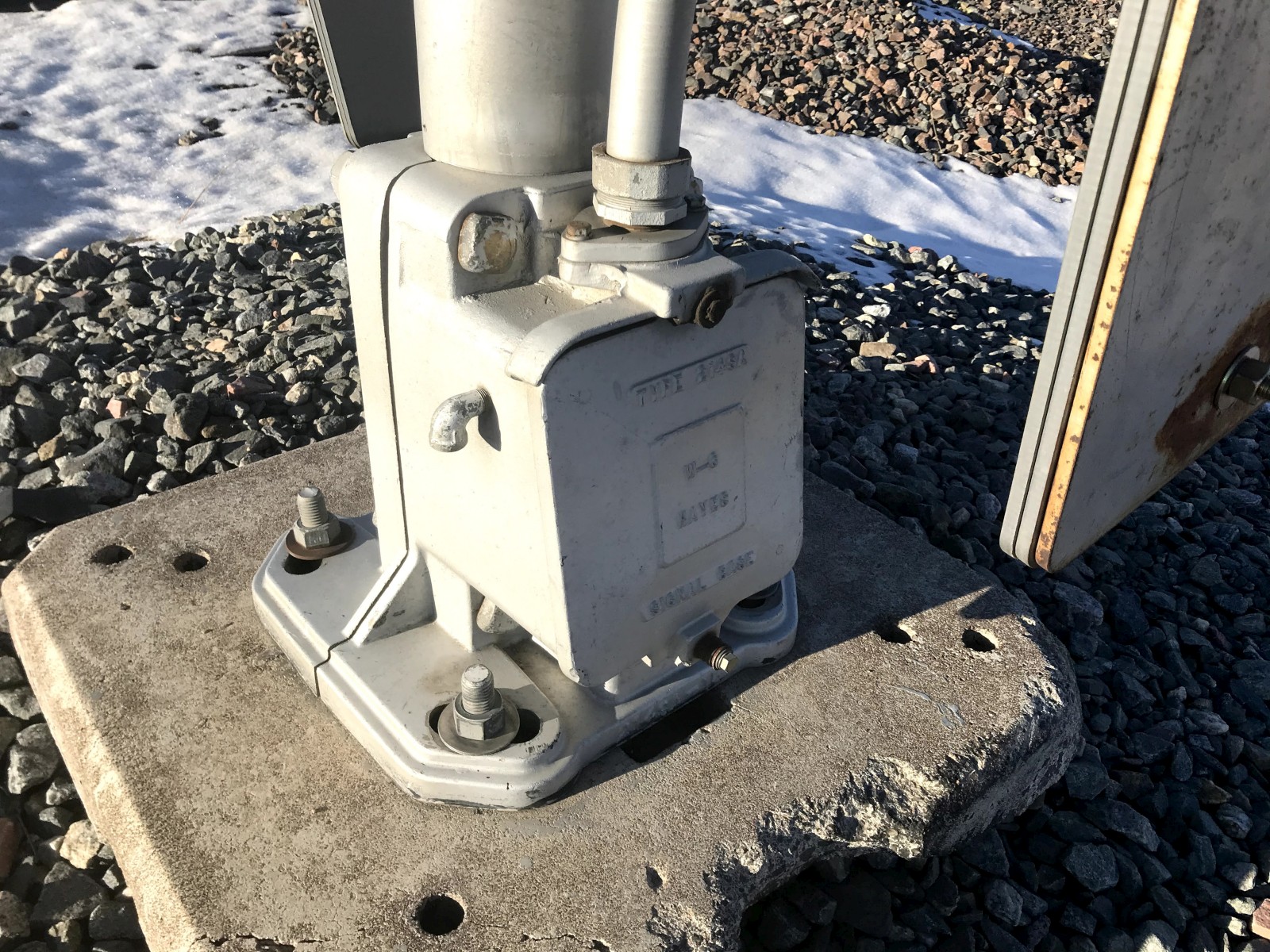

| It has a WCH base. |

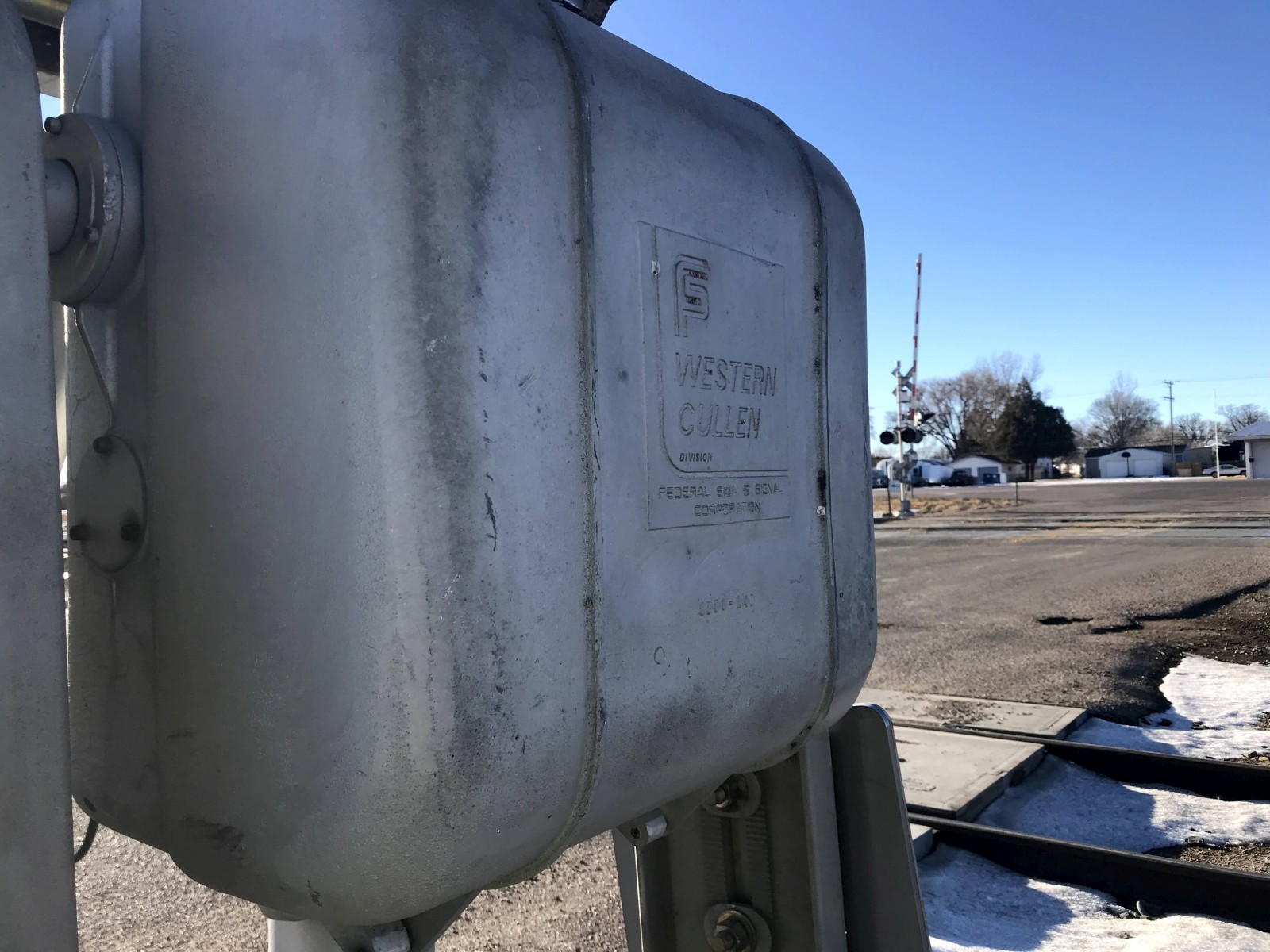

A Federal Signal gate mechanism! |

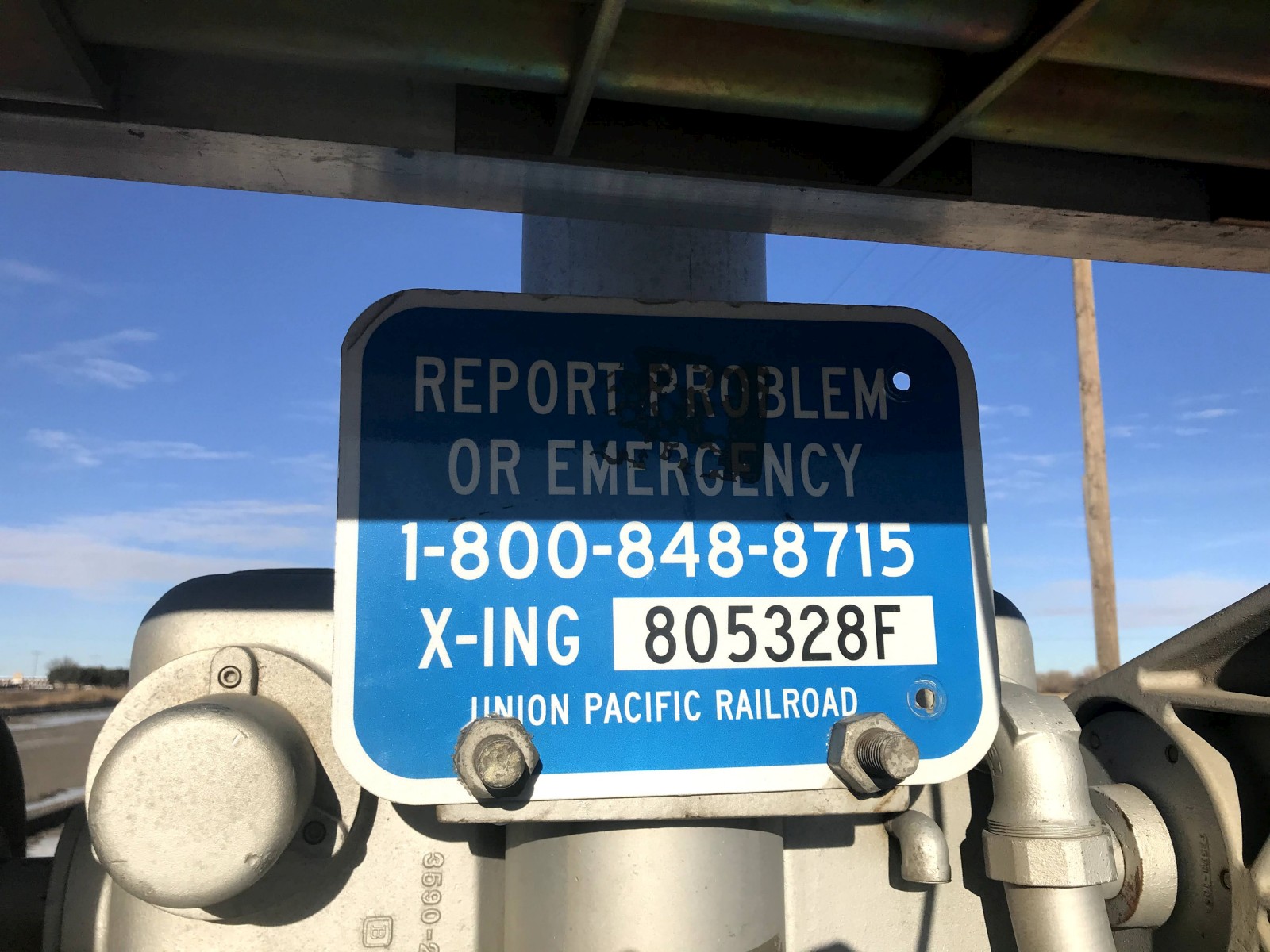

The emergency info. |
The lights here are... |
|
9 |
10 |
11 |
12 |

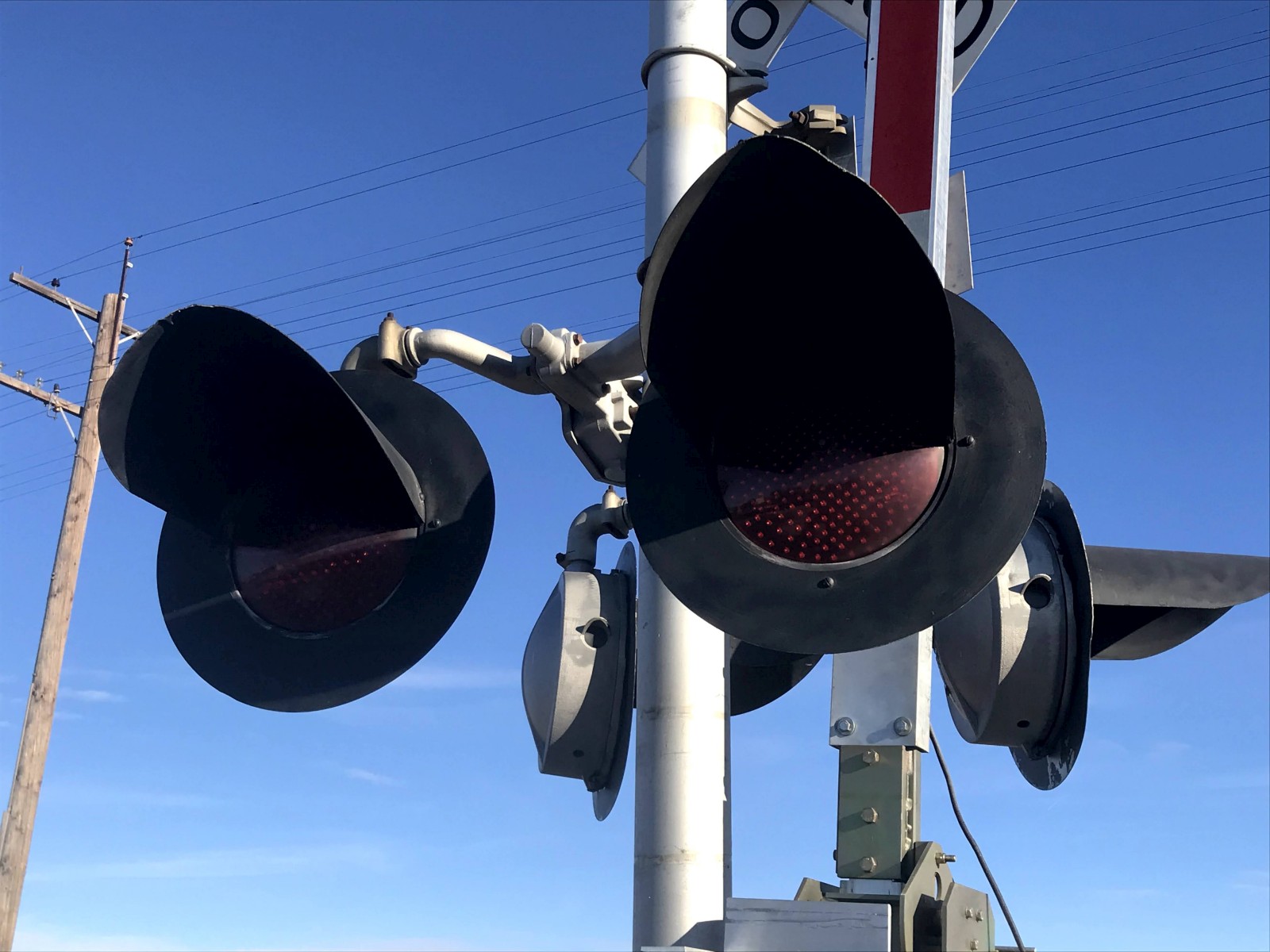

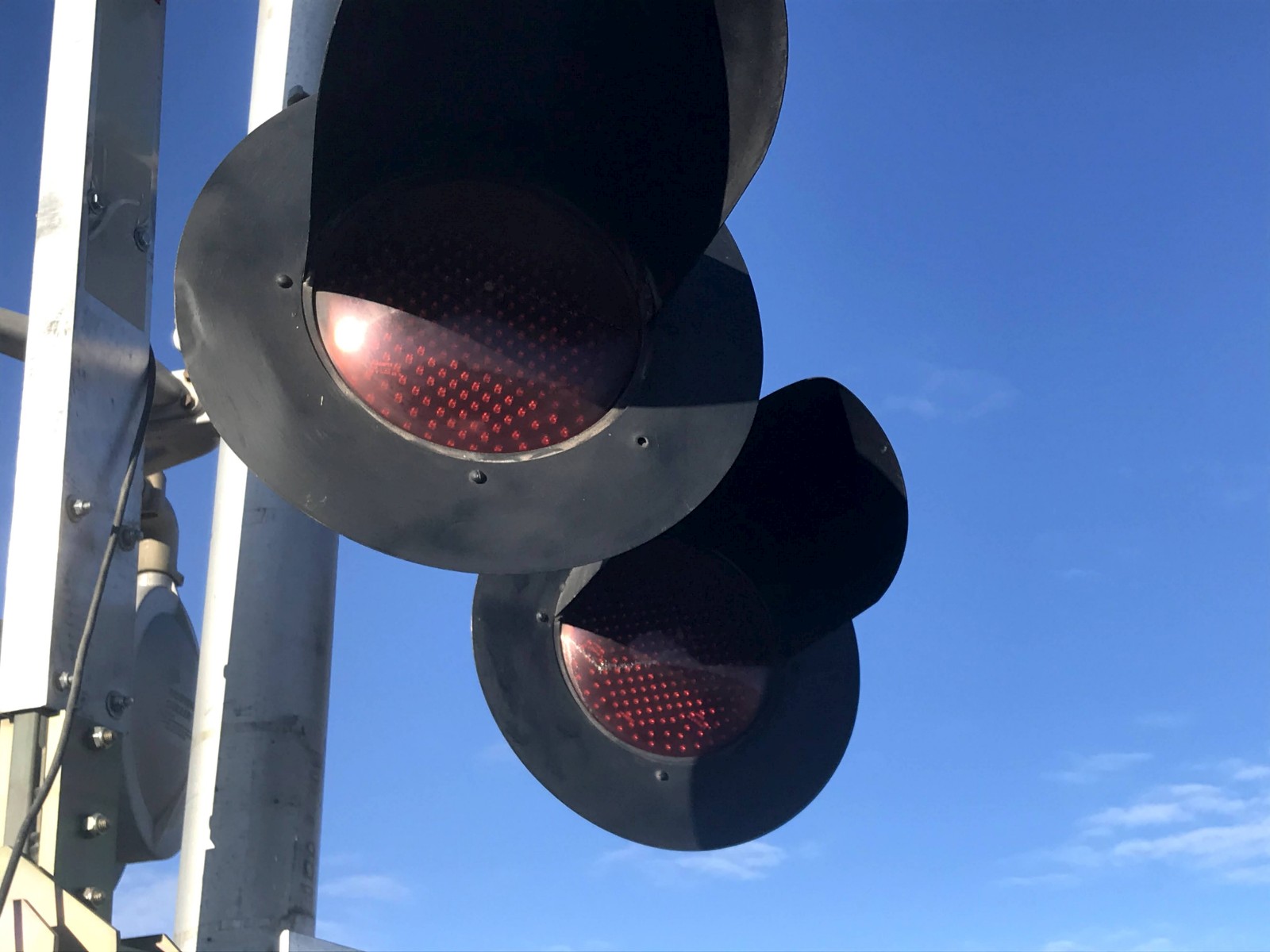

| ...Federal Signal 12x20
inch lights with Electrotech LEDs. |

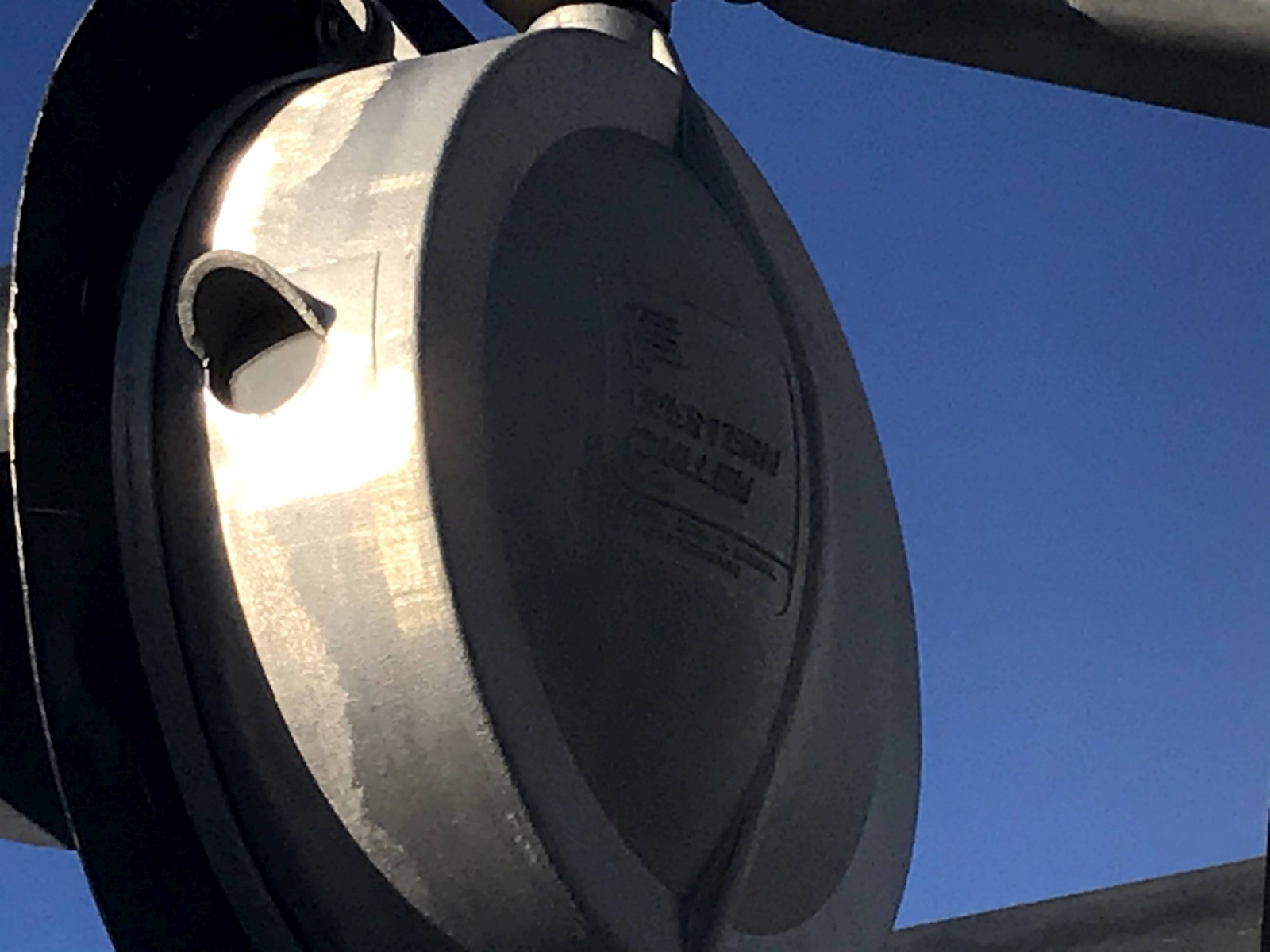

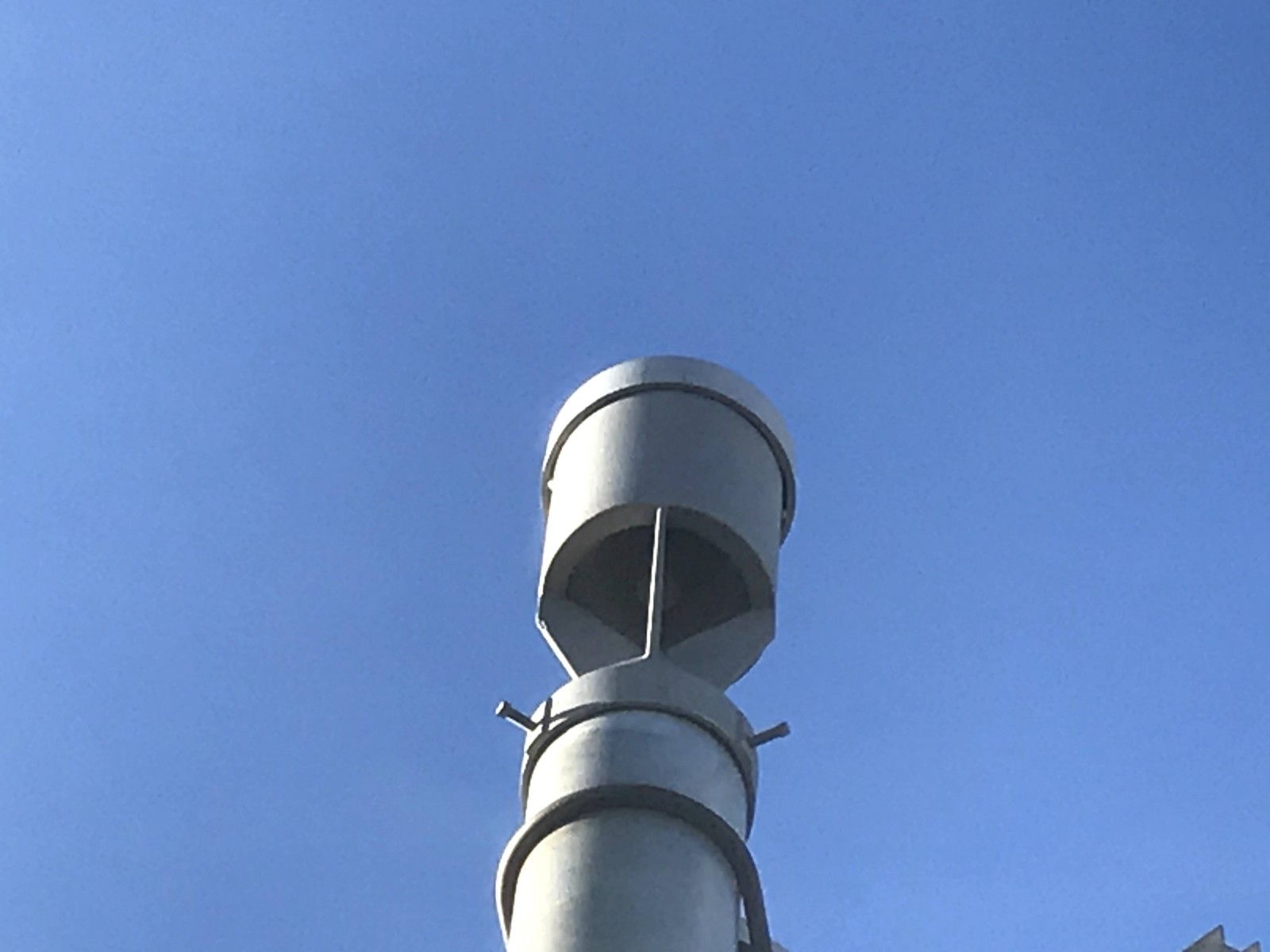

The bell on this signal is a WCH
type 3 electronic bell. |

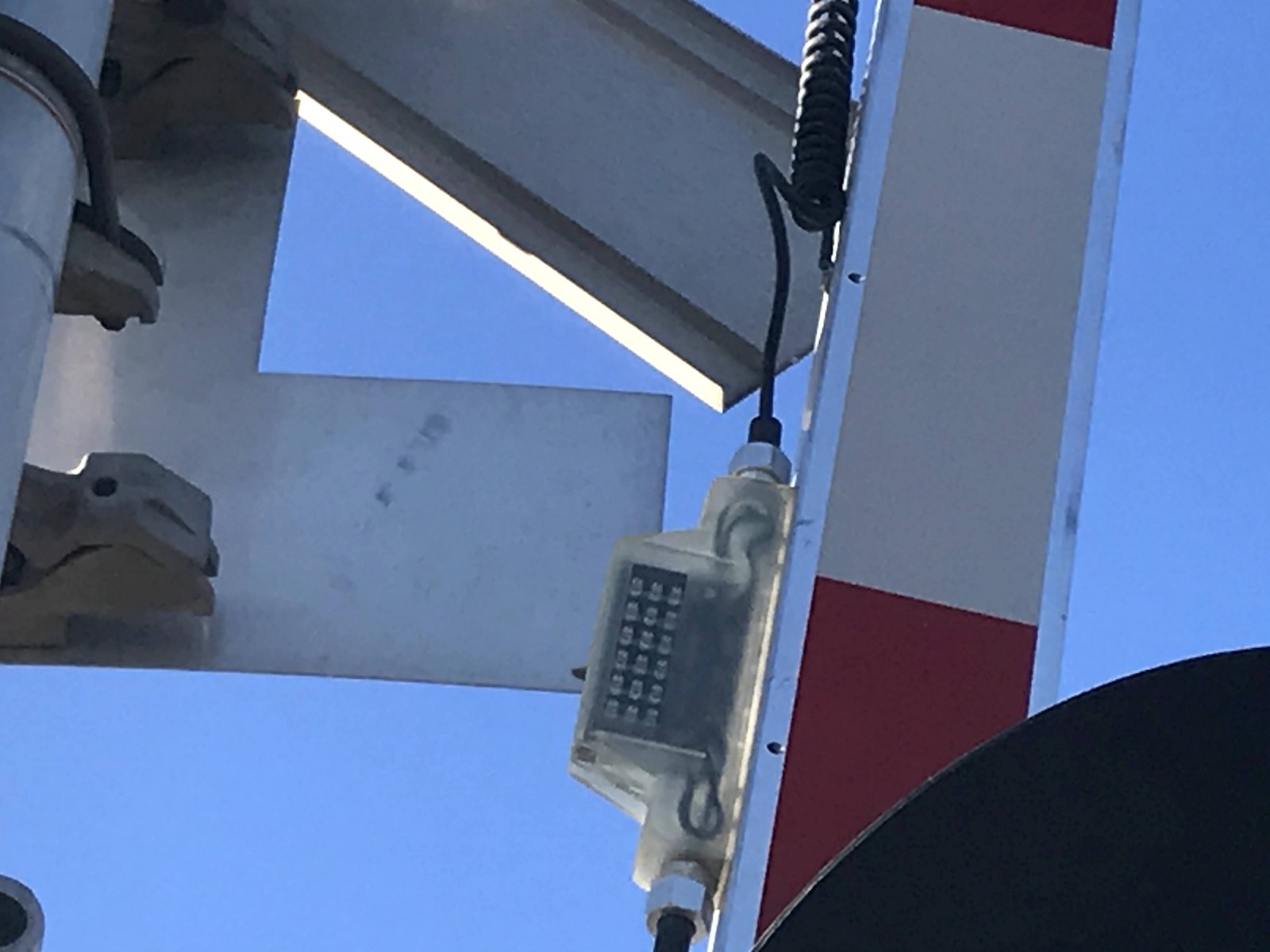

This signal uses Alstom LED gate
lights. |
|
|
13 |
14 |
15 |
16 |

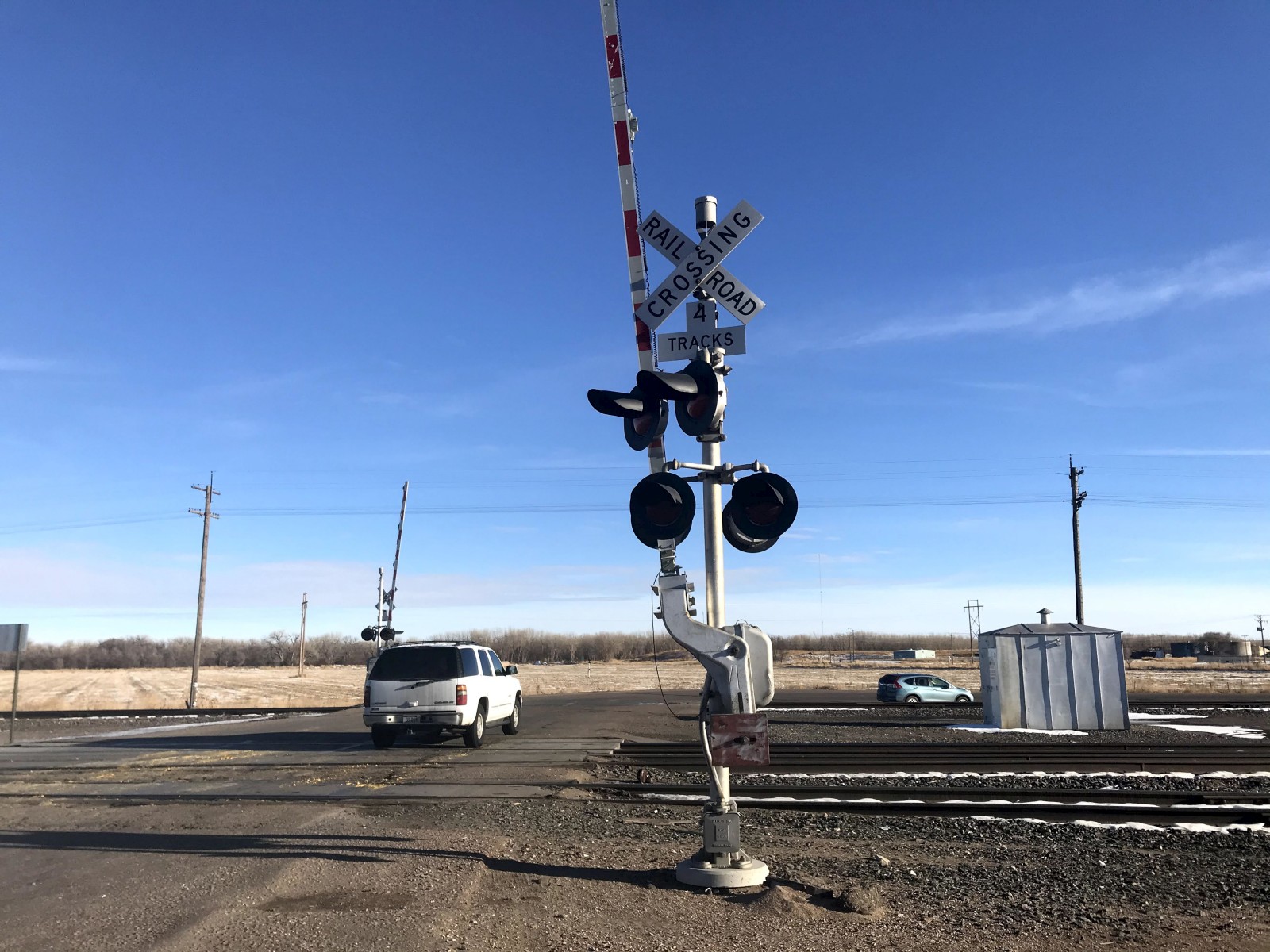

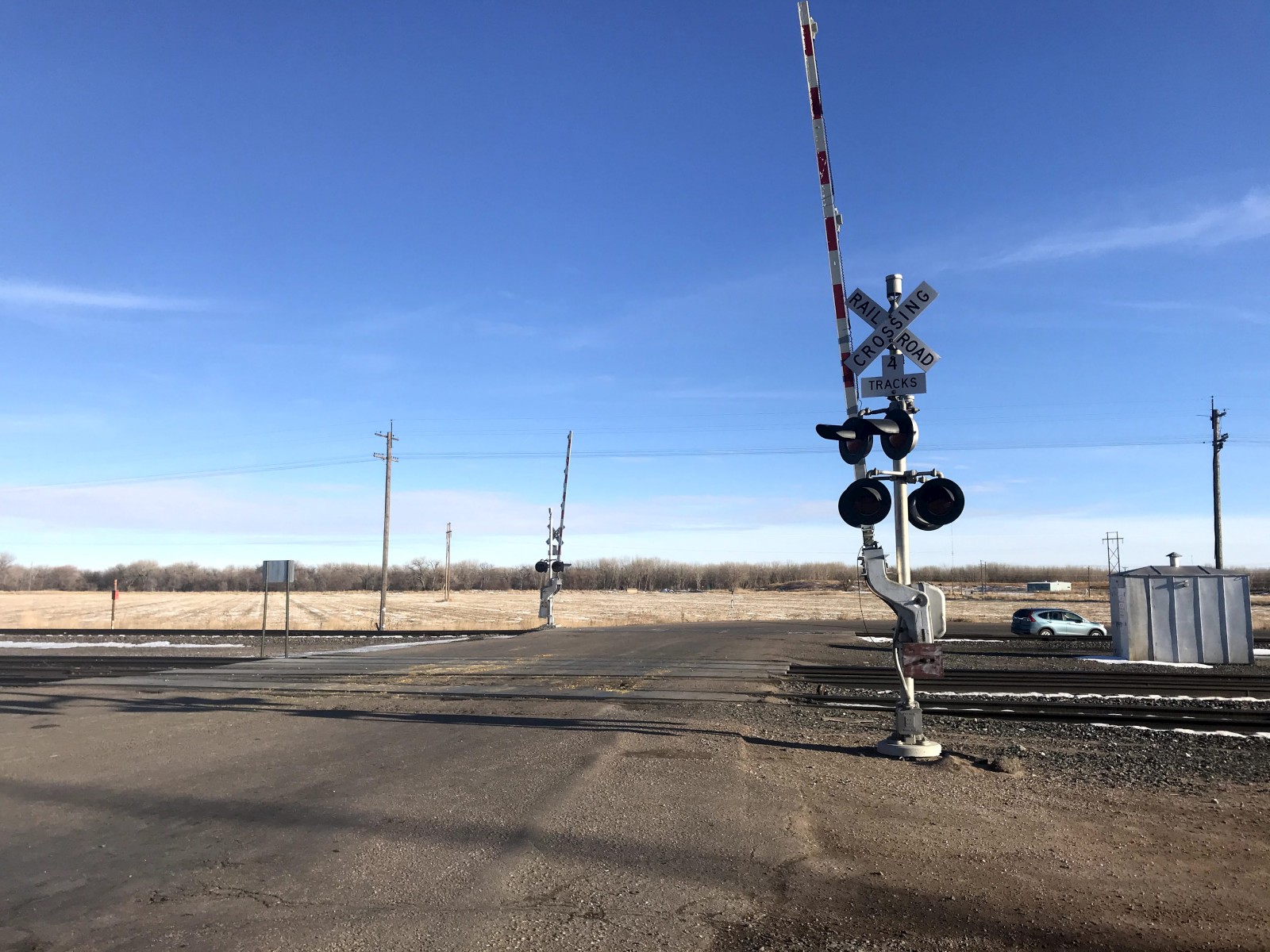

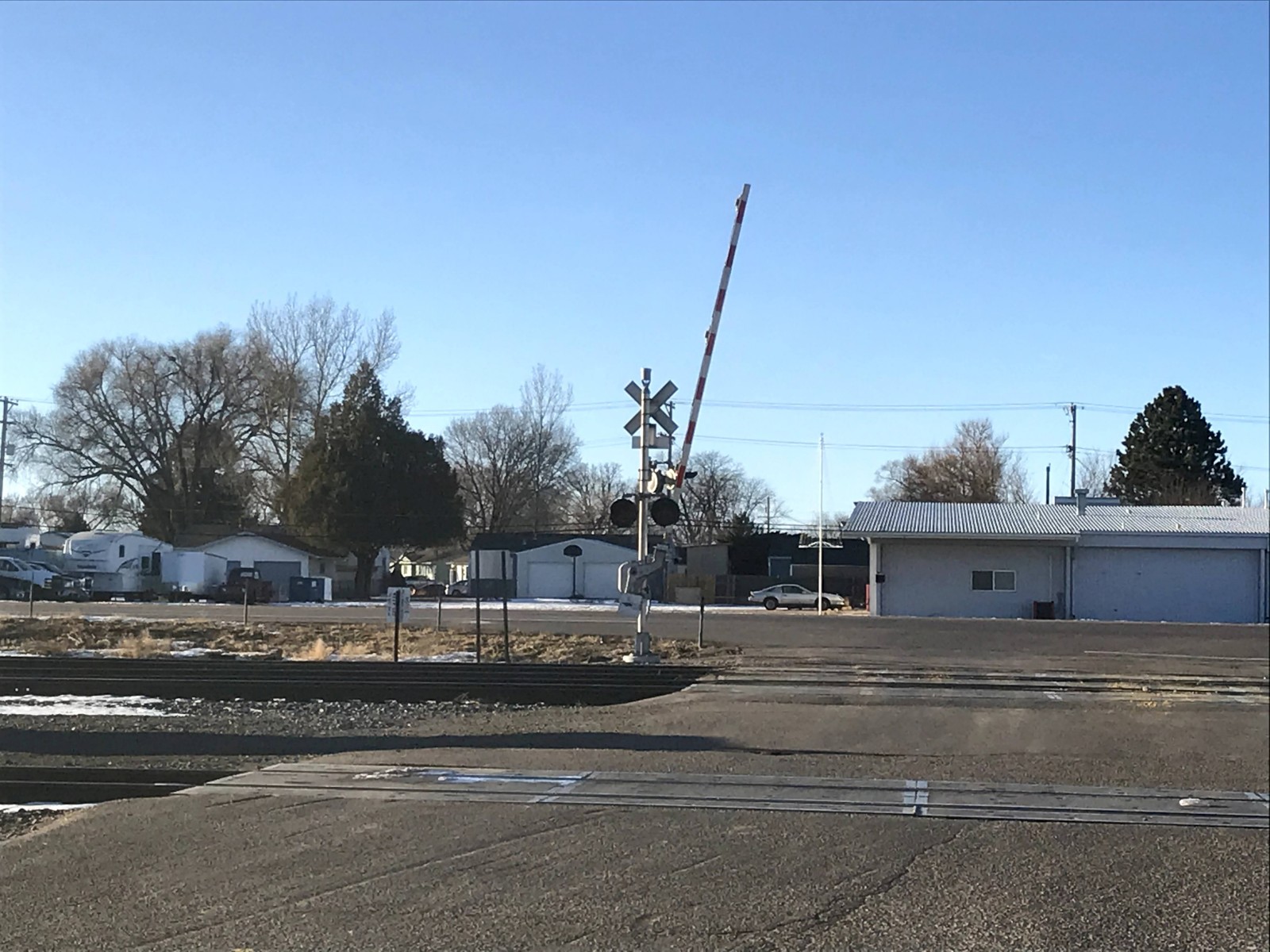

| The northern signal. |

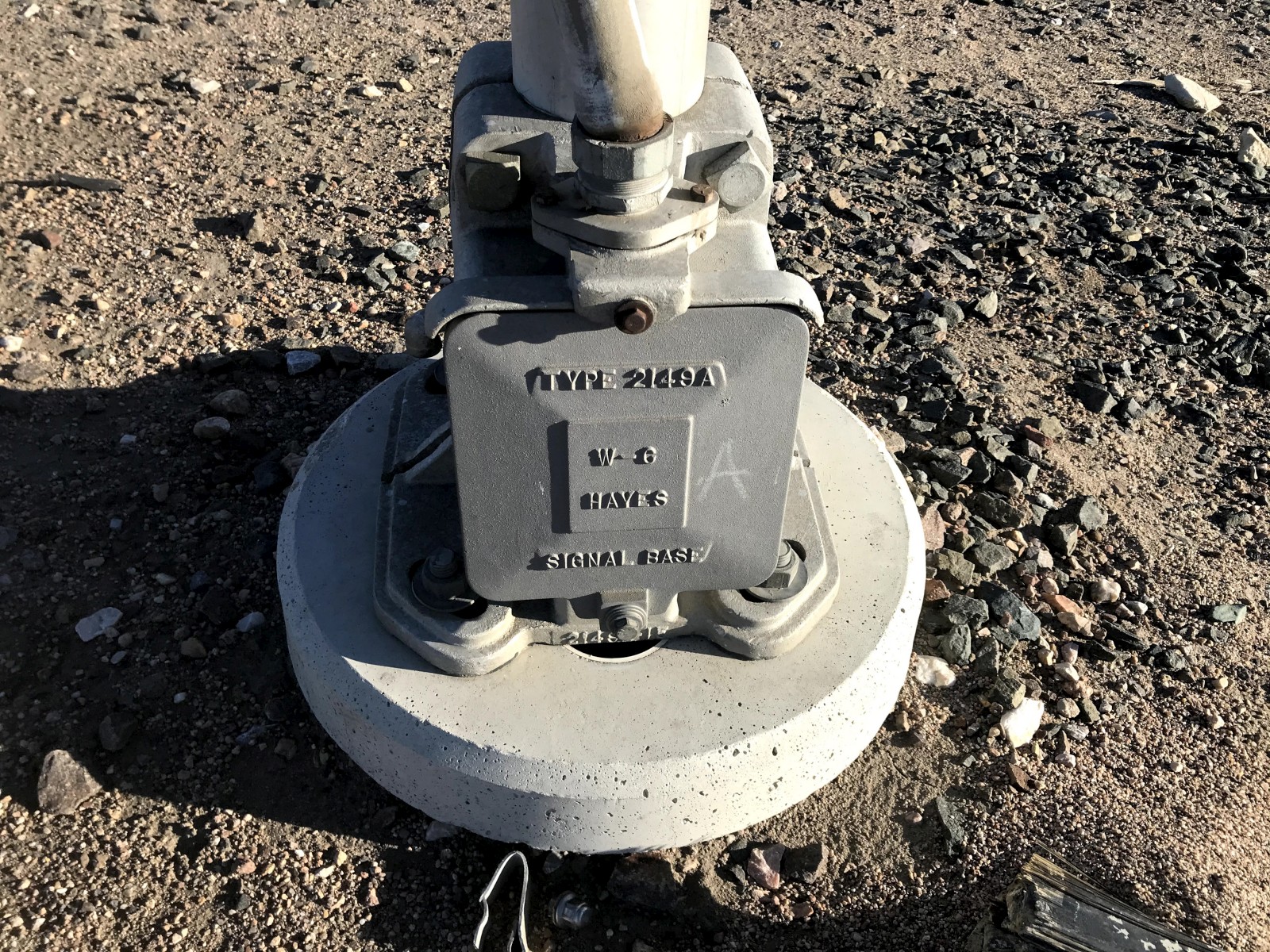

It has another WCH base. |
A WCH gate mechanism. |
|
|
17 |
18 |
19 |
20 |

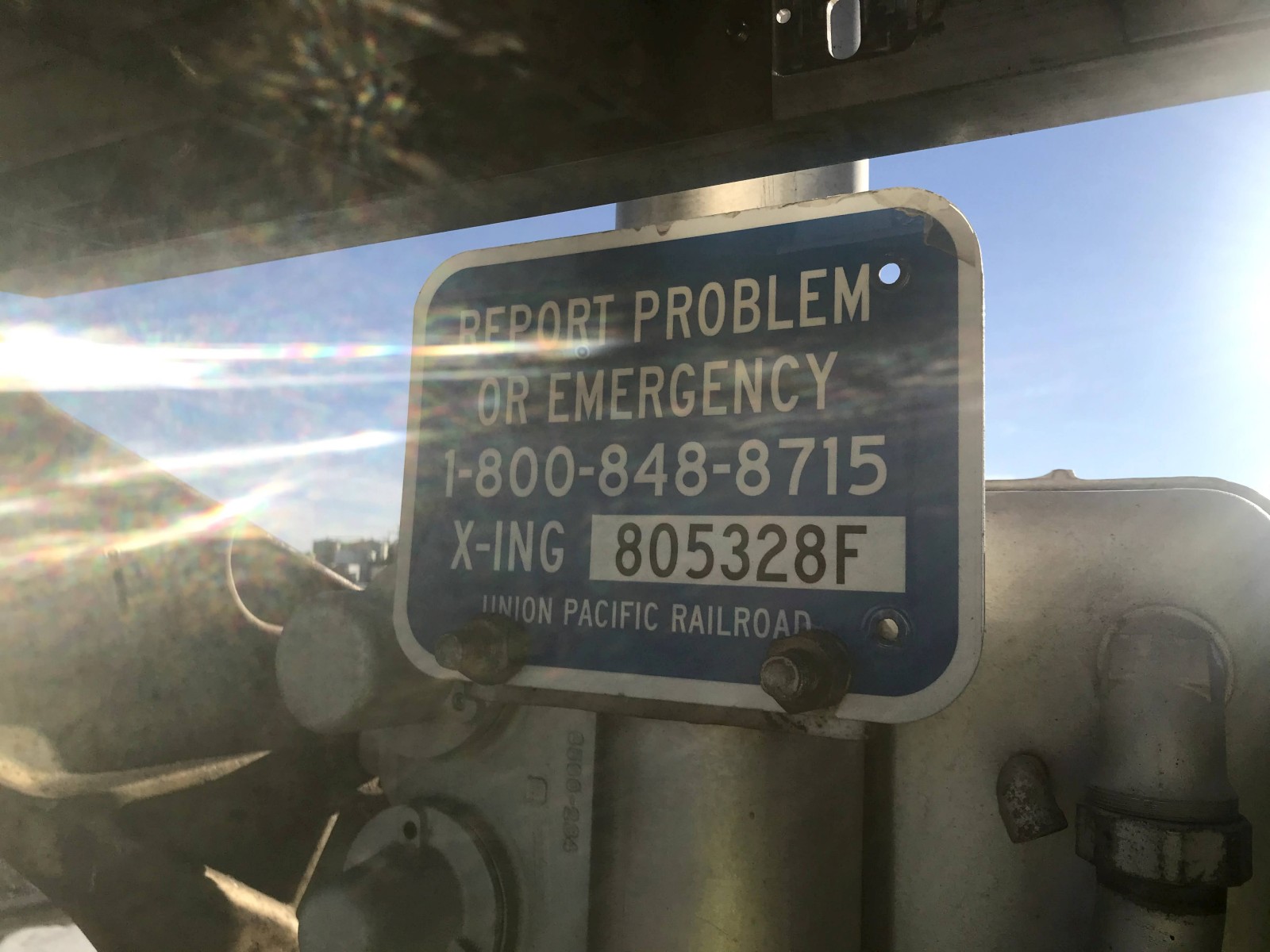

| The emergency info. |

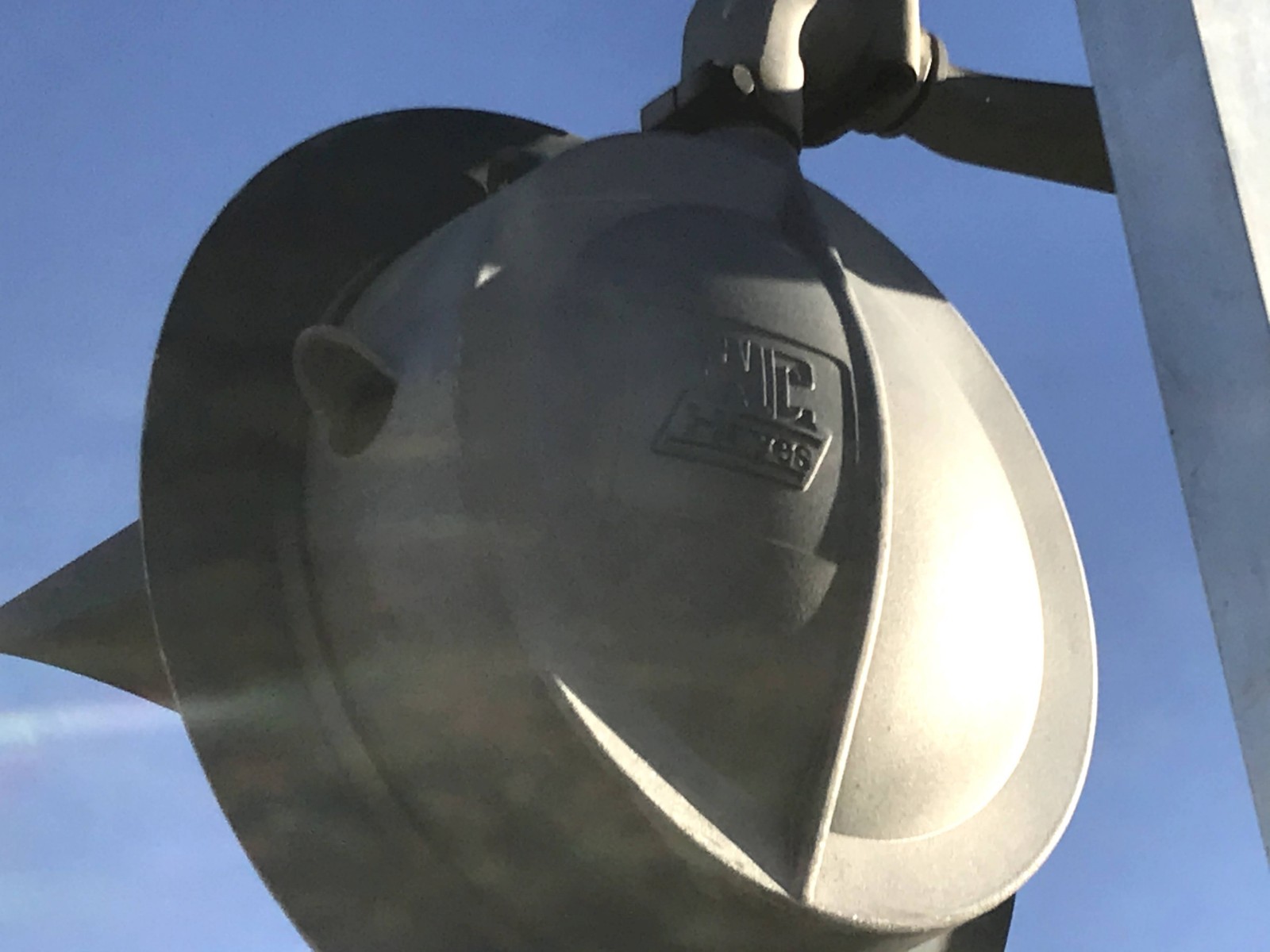

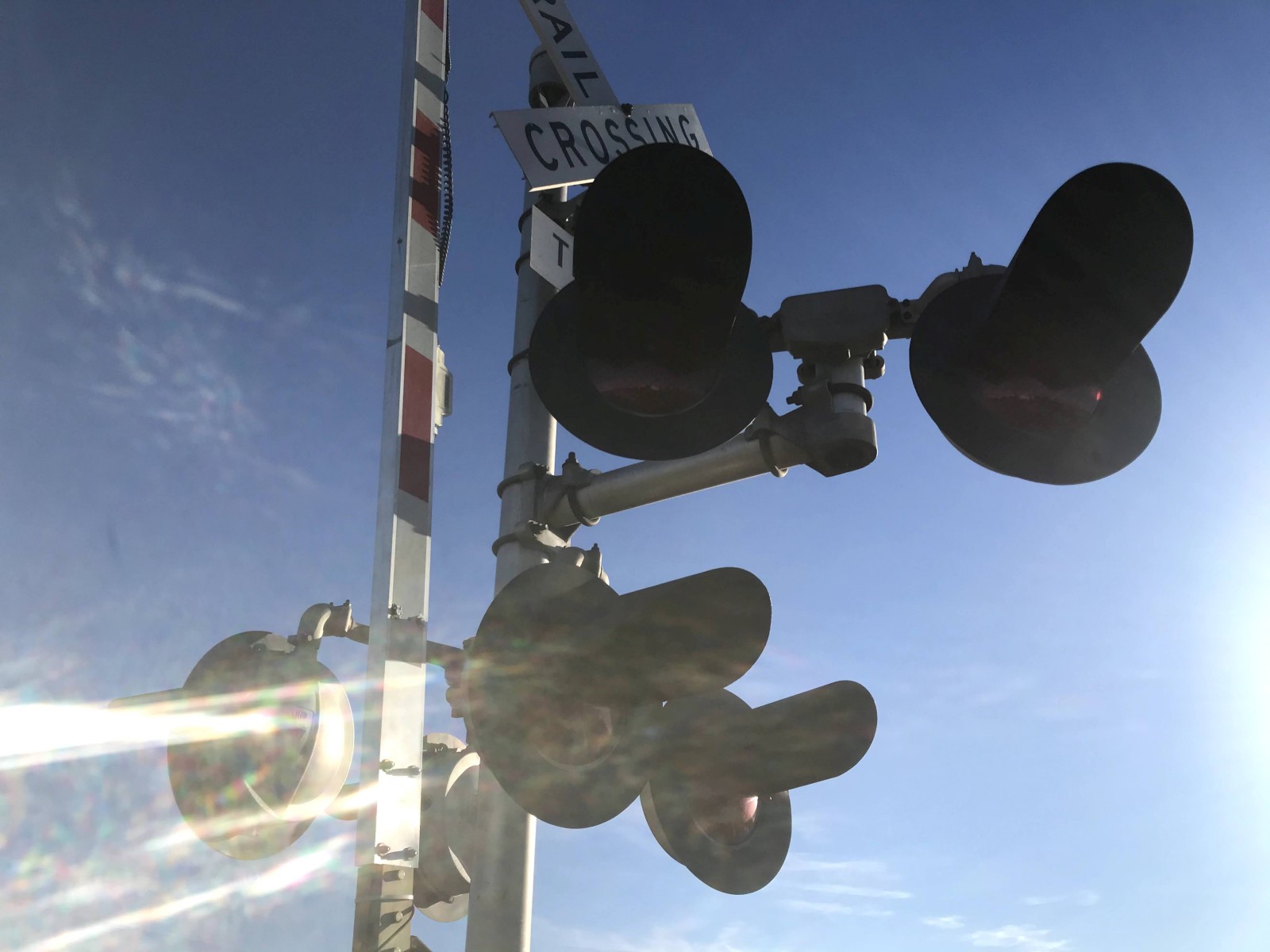

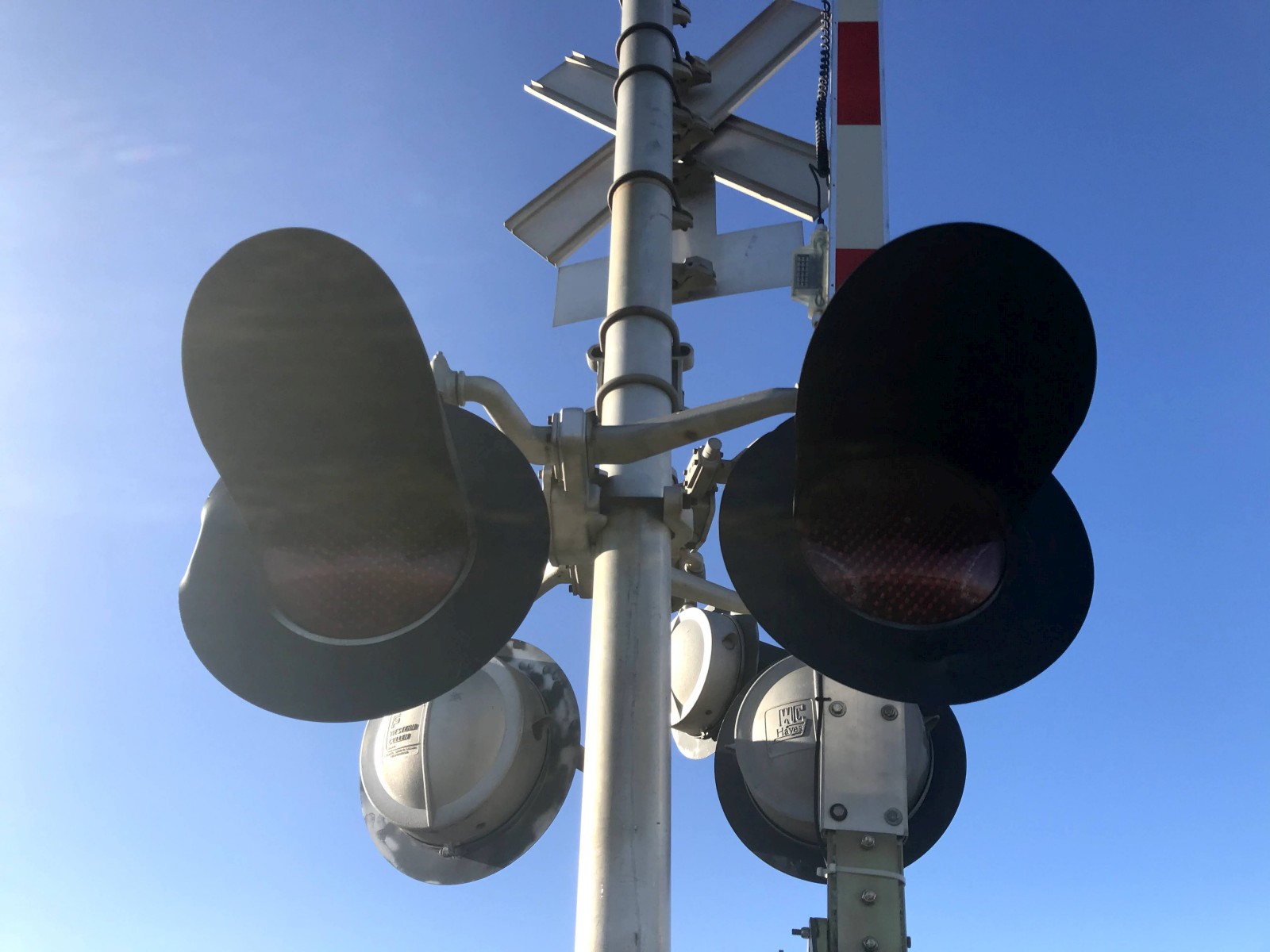

The lights on this signal are a mixture of Federal Signal and WCH 12x20 inch lights with Electrotech LEDs. | ||
|
21 |
22 |
23 |
24 |
| |

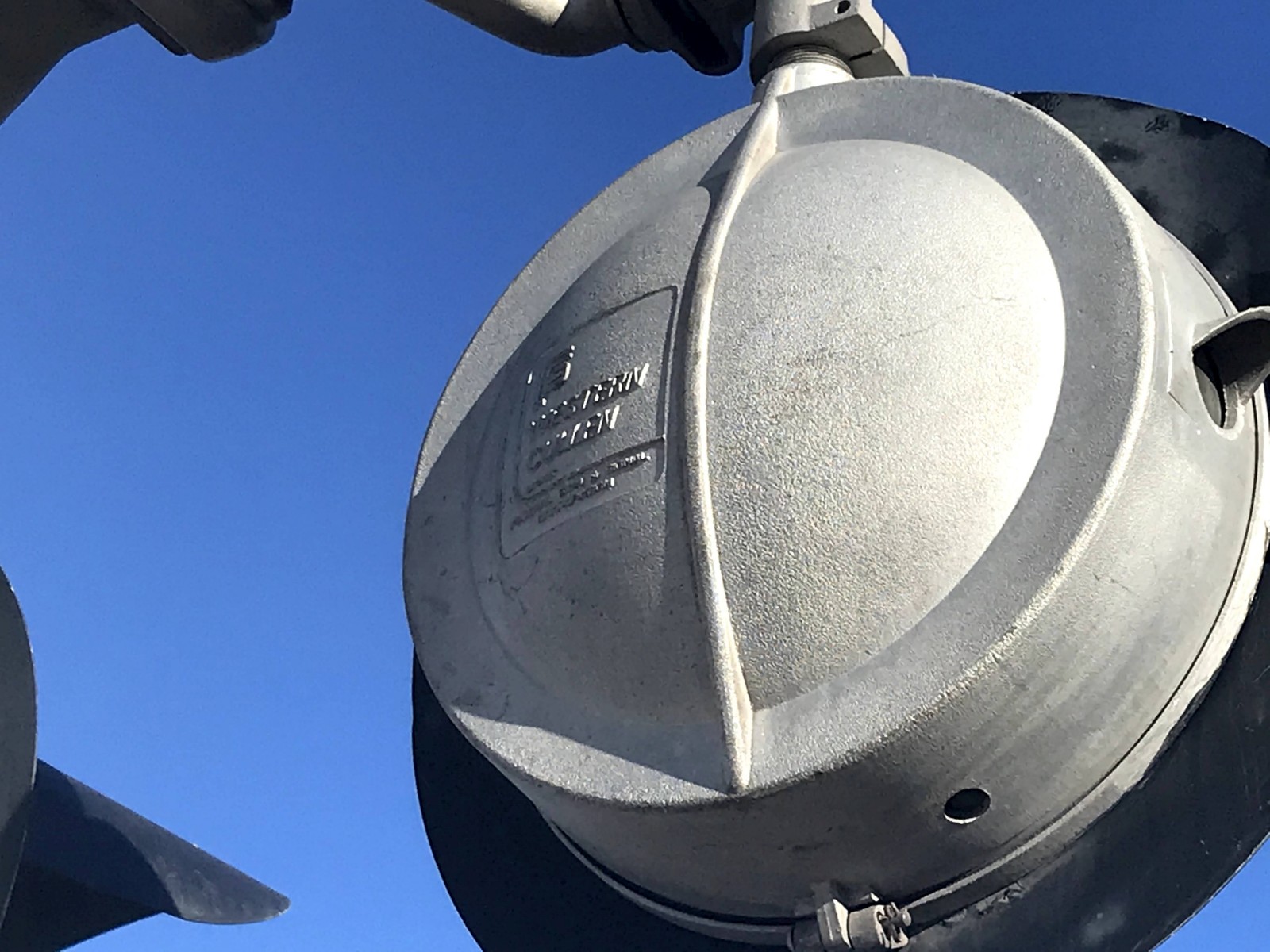

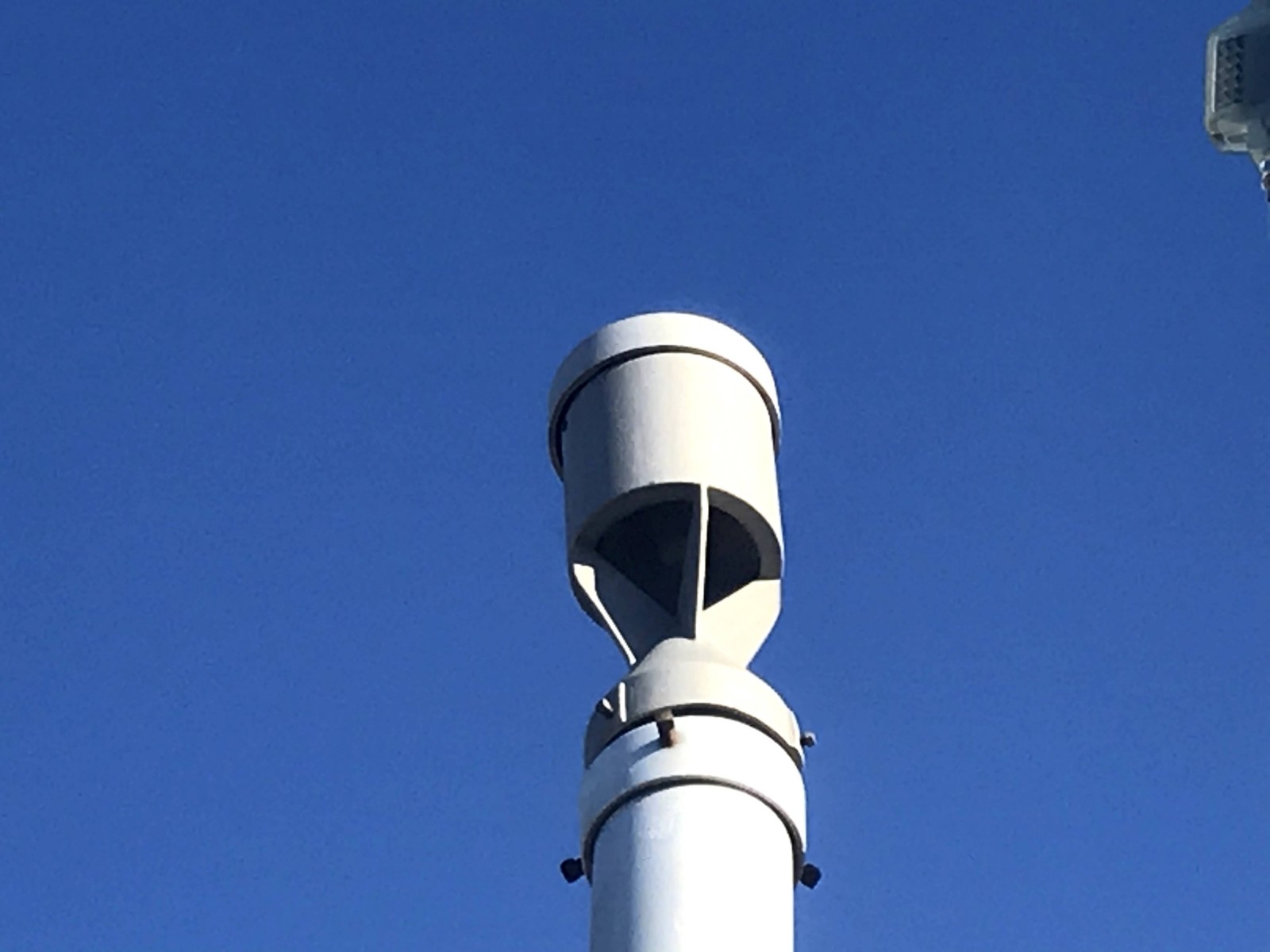

The bell over here is another WCH
type 3 electronic bell. |

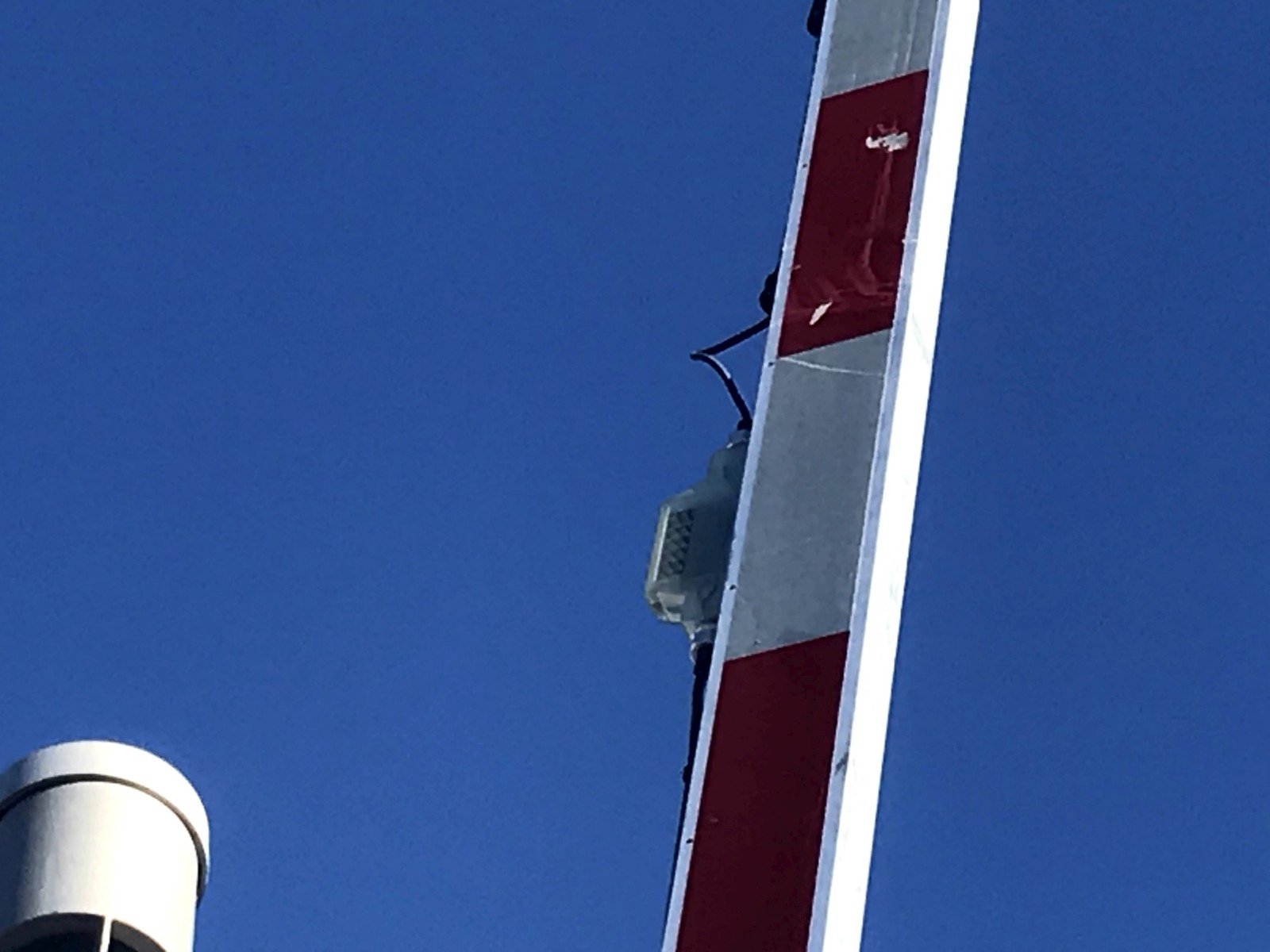

This signal also uses Alstom LED
gate lights. |

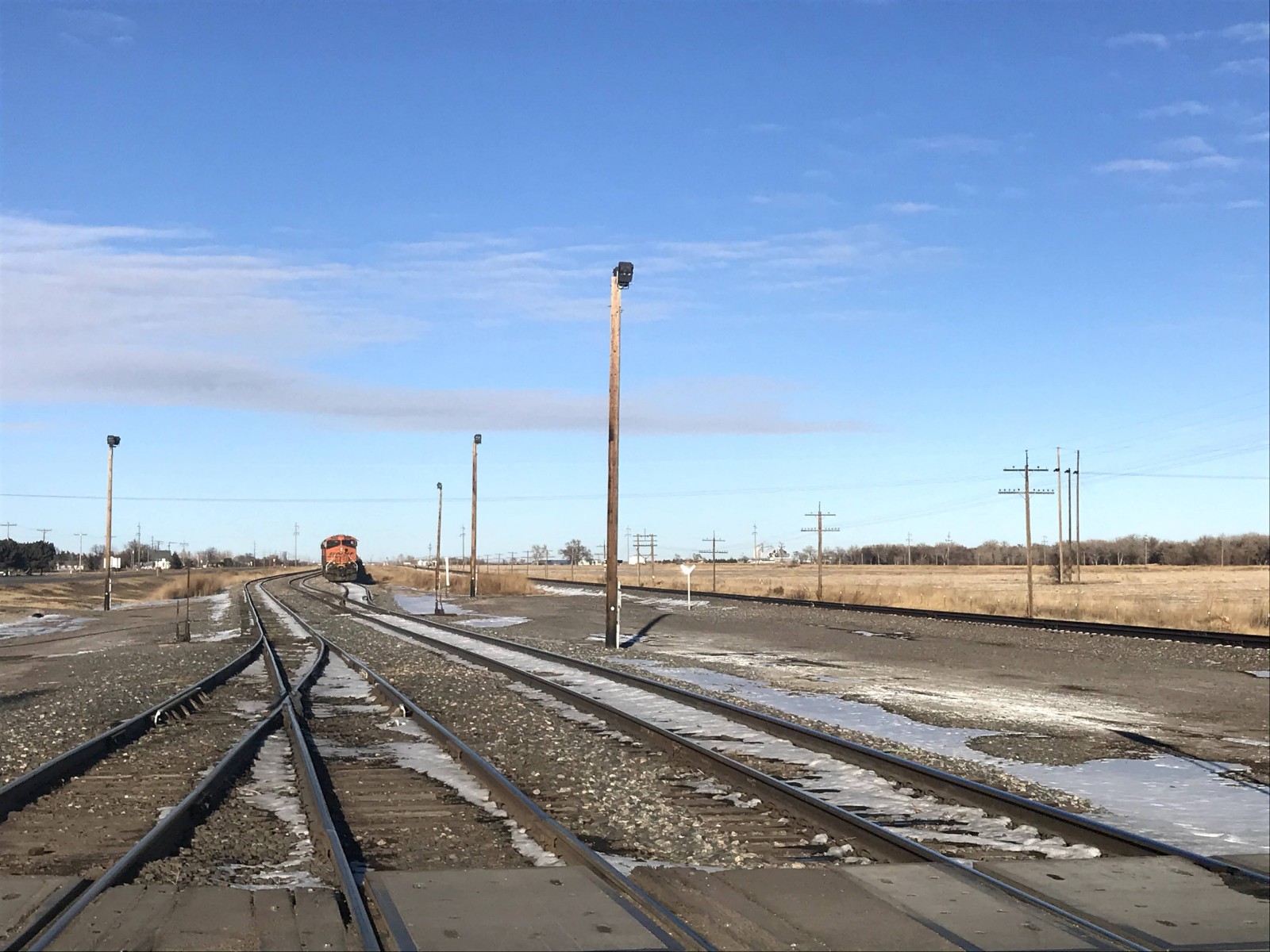

Track view looking east towards CR
32.2. |
|
25 |
26 |
27 |
28 |
| Track view looking west towards Chestnut St. #1, Chestnut
St. #2, Right Of Way Rd. #4,
and 2nd St. |

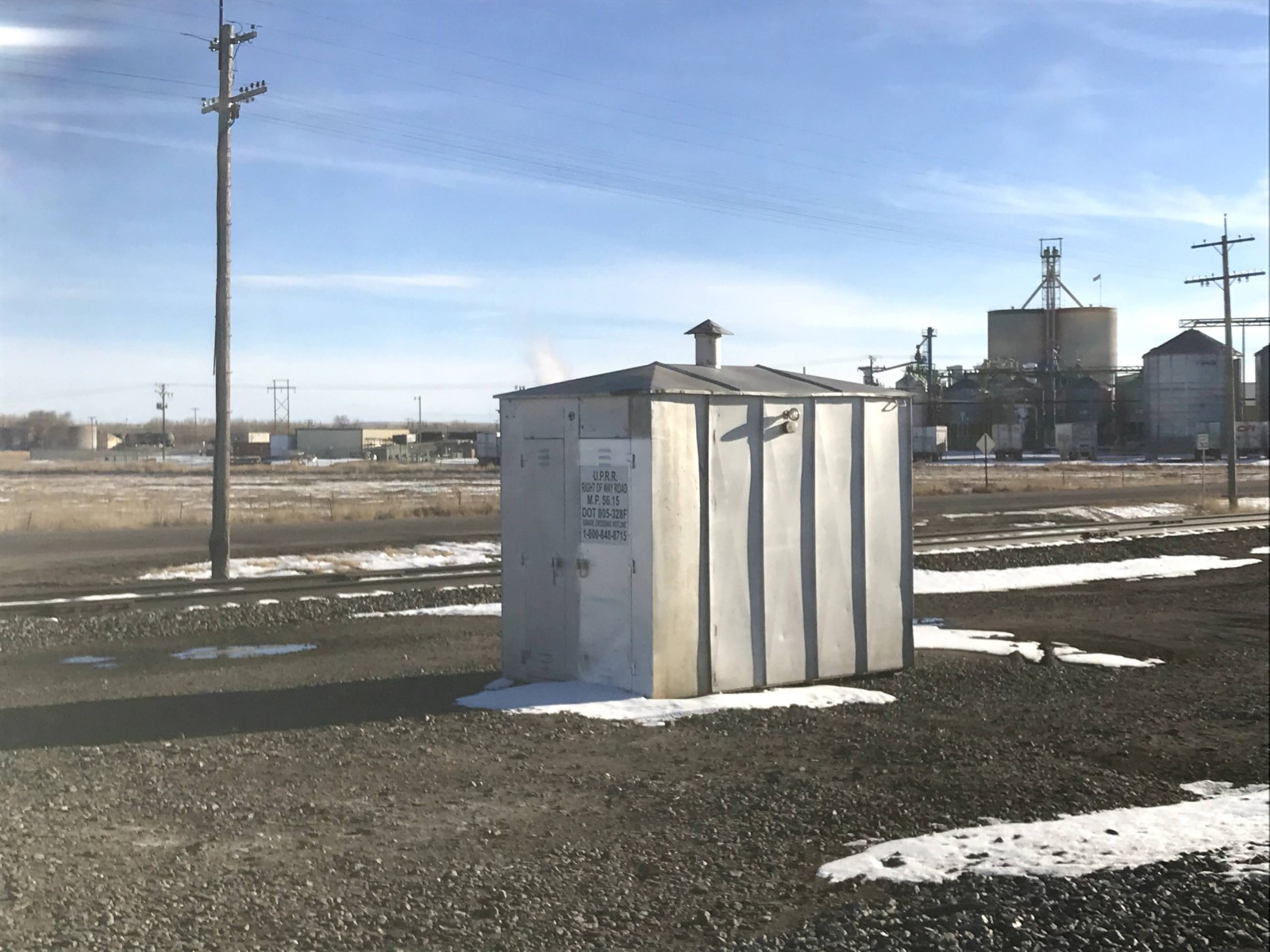

The relay case. |

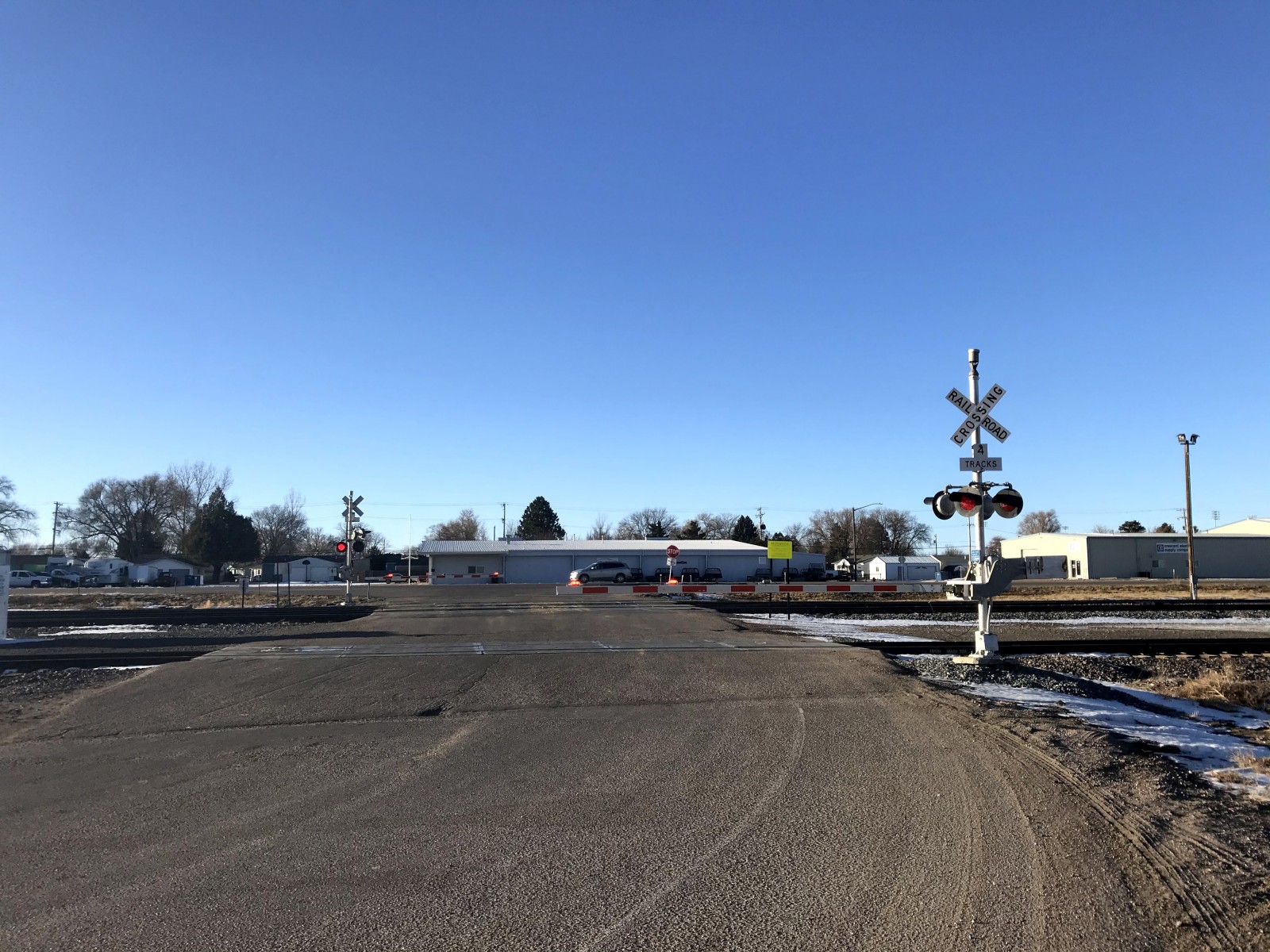

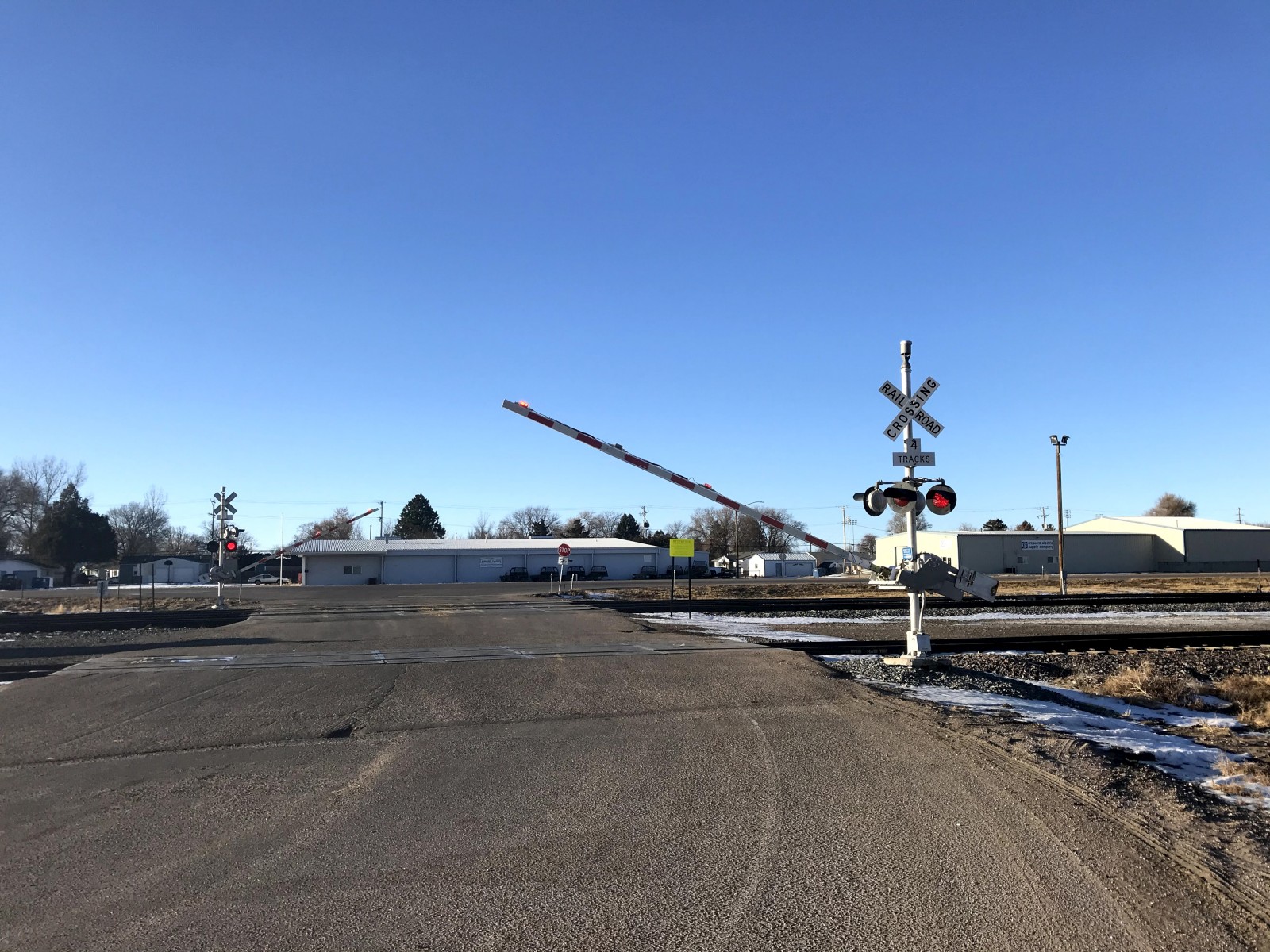

The crossing activates! |
|
|
29 |
30 |
31 |
32 |
|
33 |
34 |
35 |
36 |

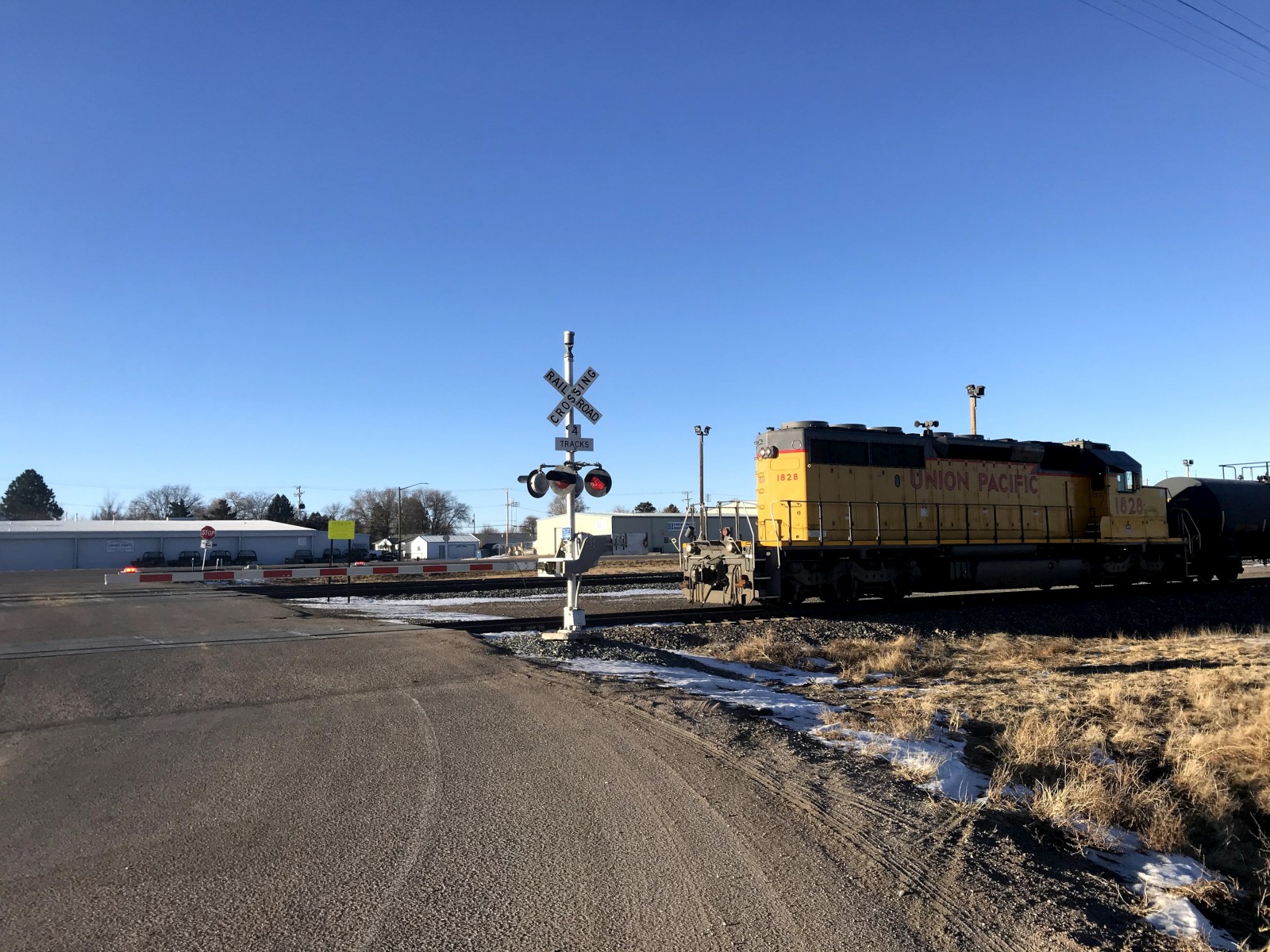

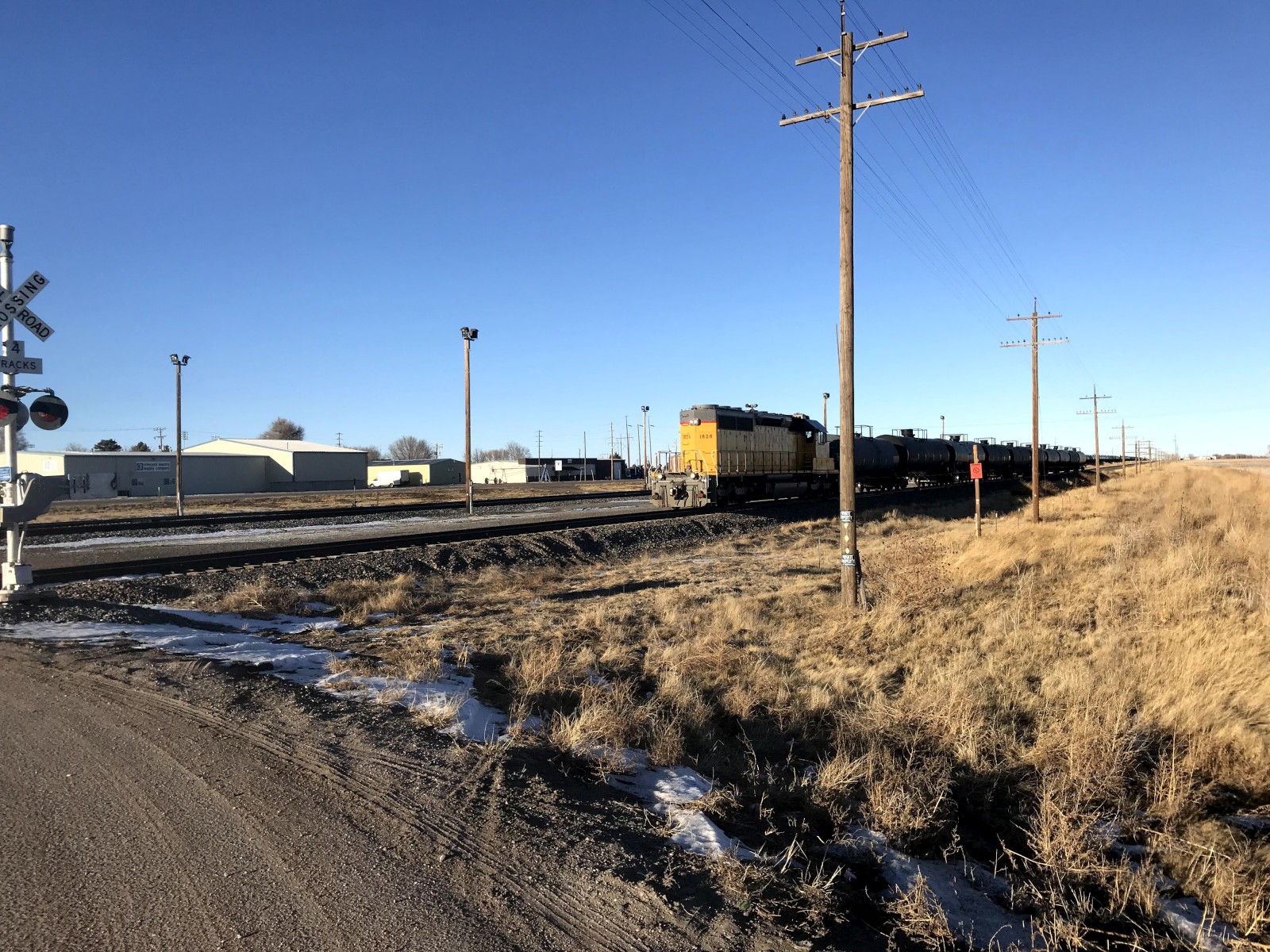

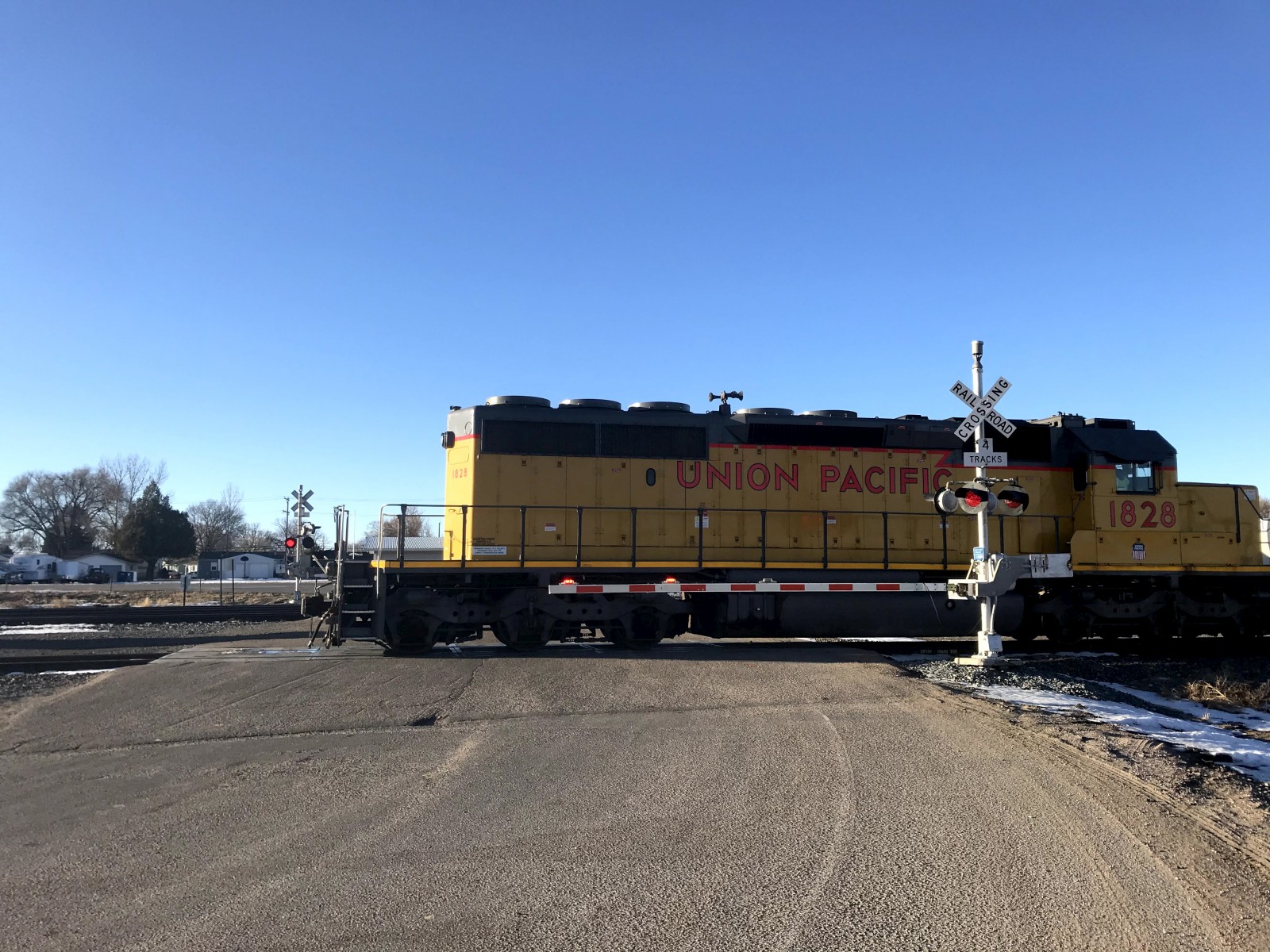

| Here comes the UP
Julesburg local, using a single SD40N for power! |
|||
|
37 |
38 |
39 |
40 |

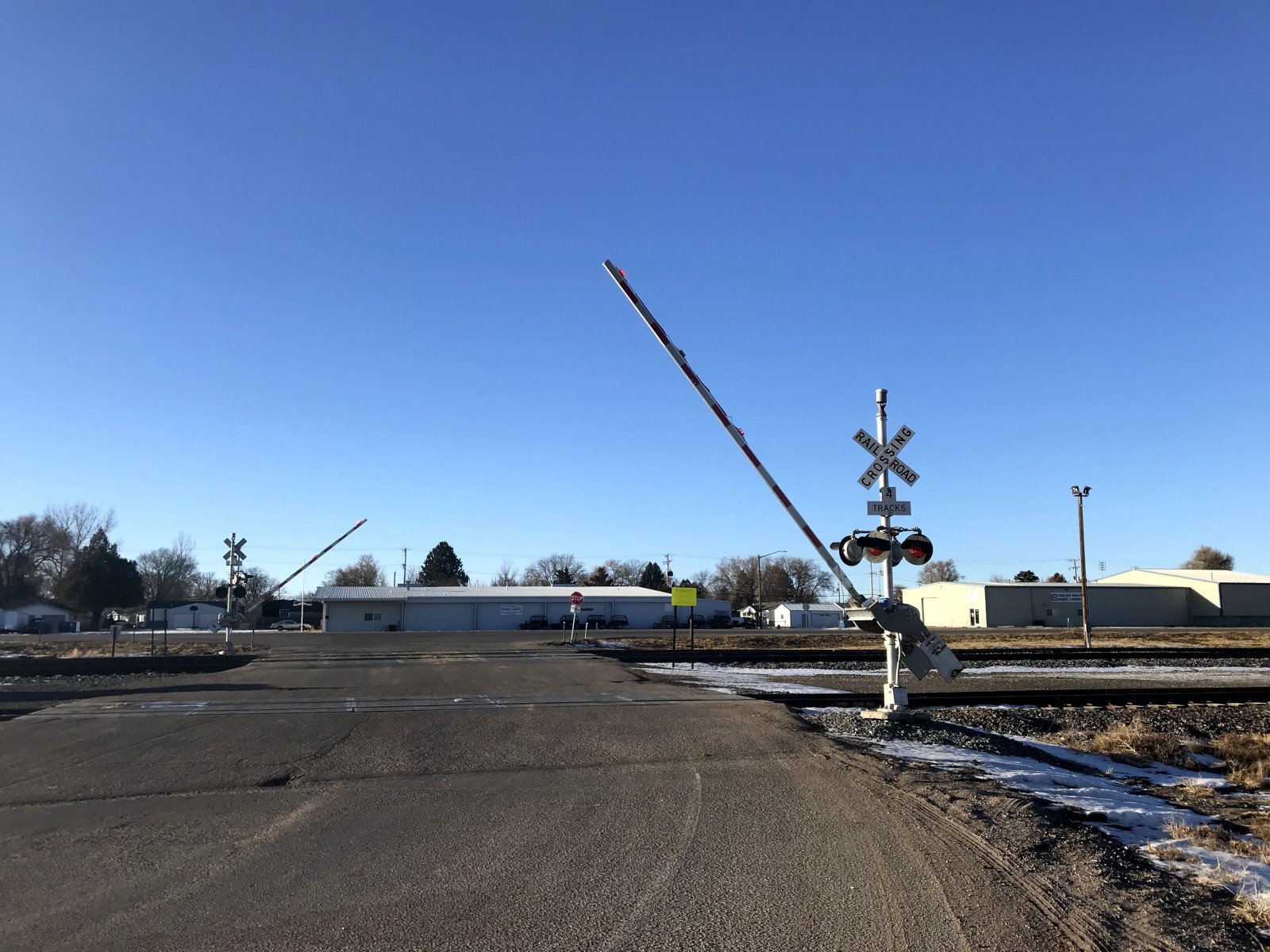

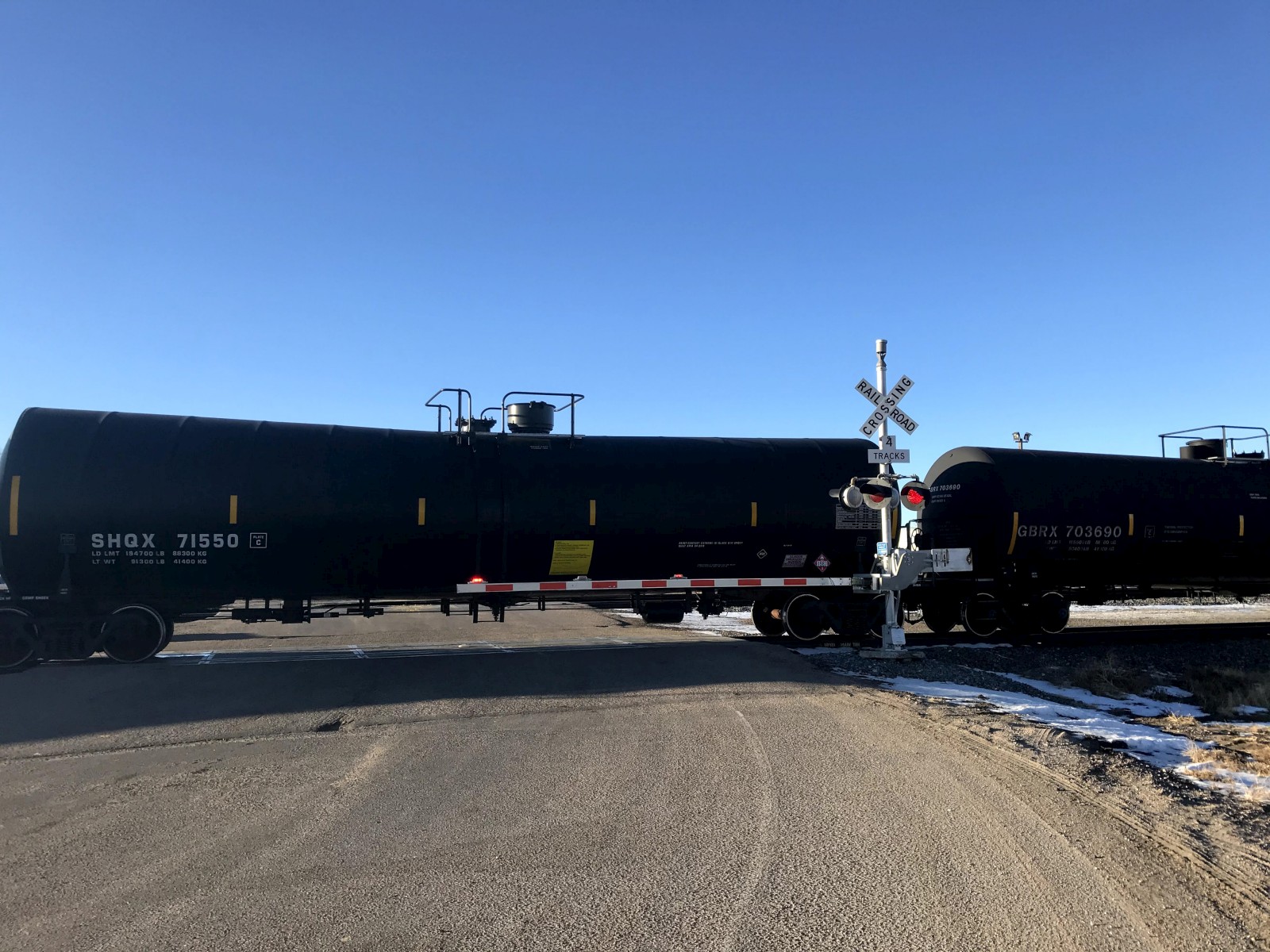

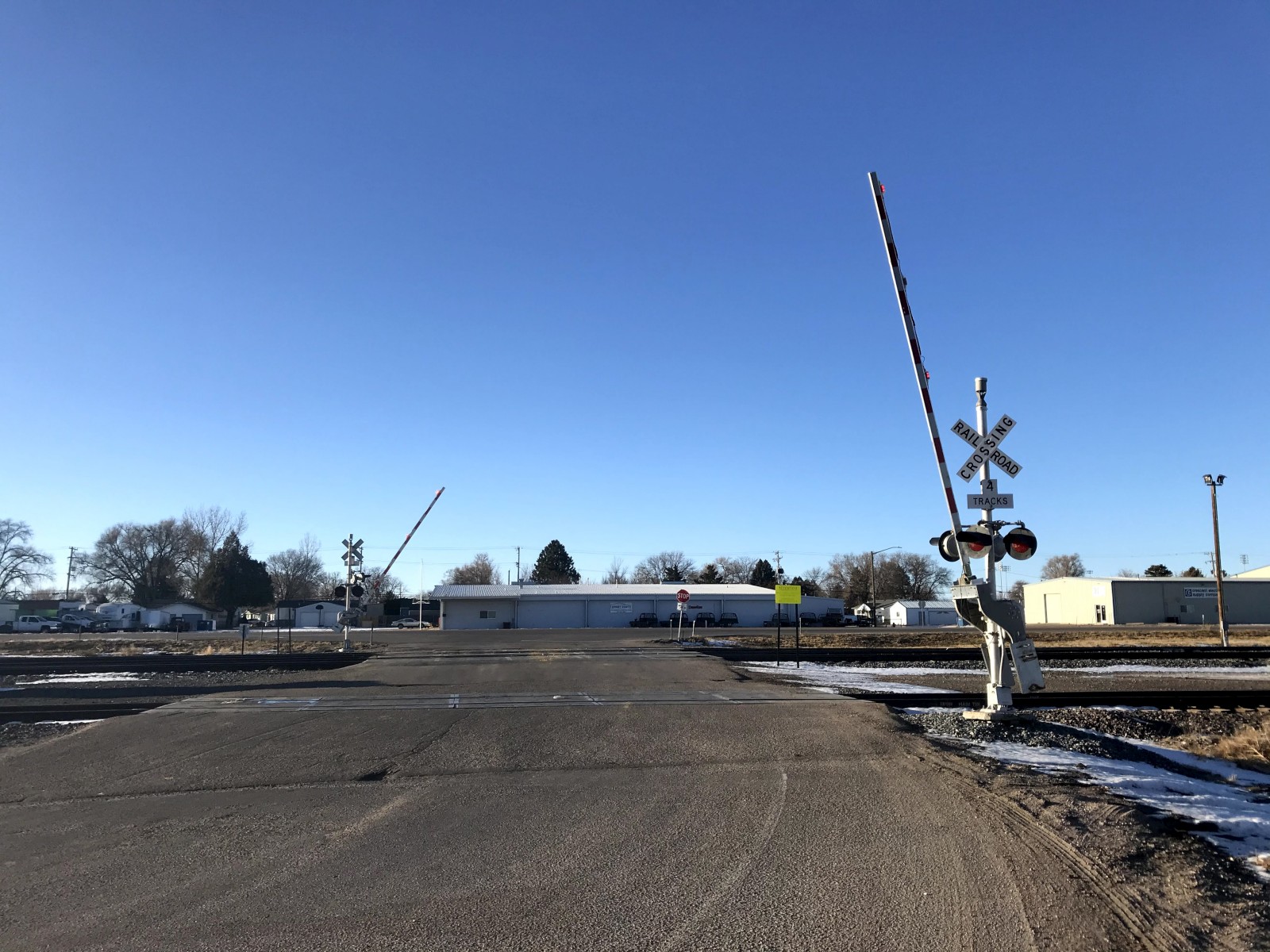

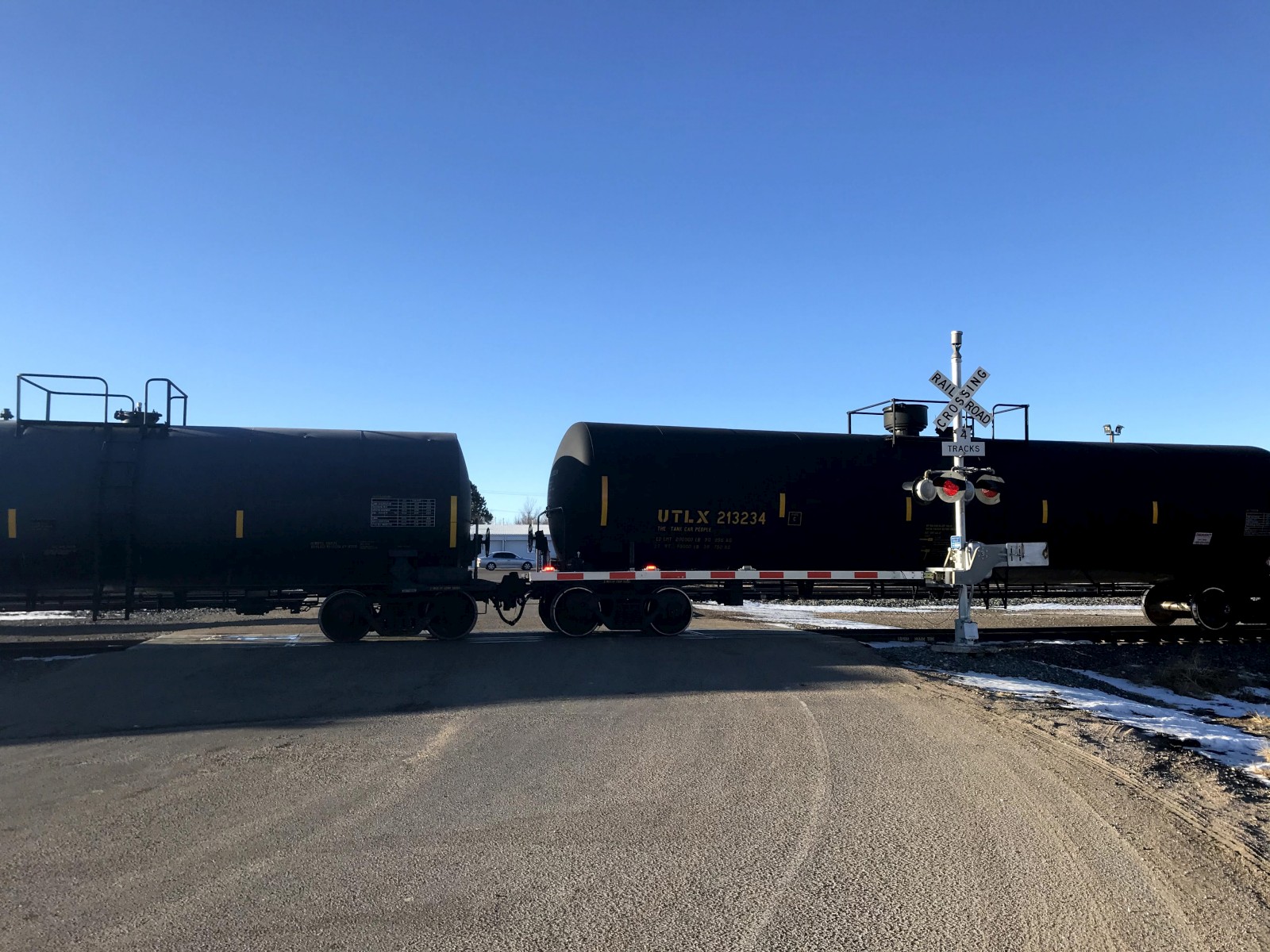

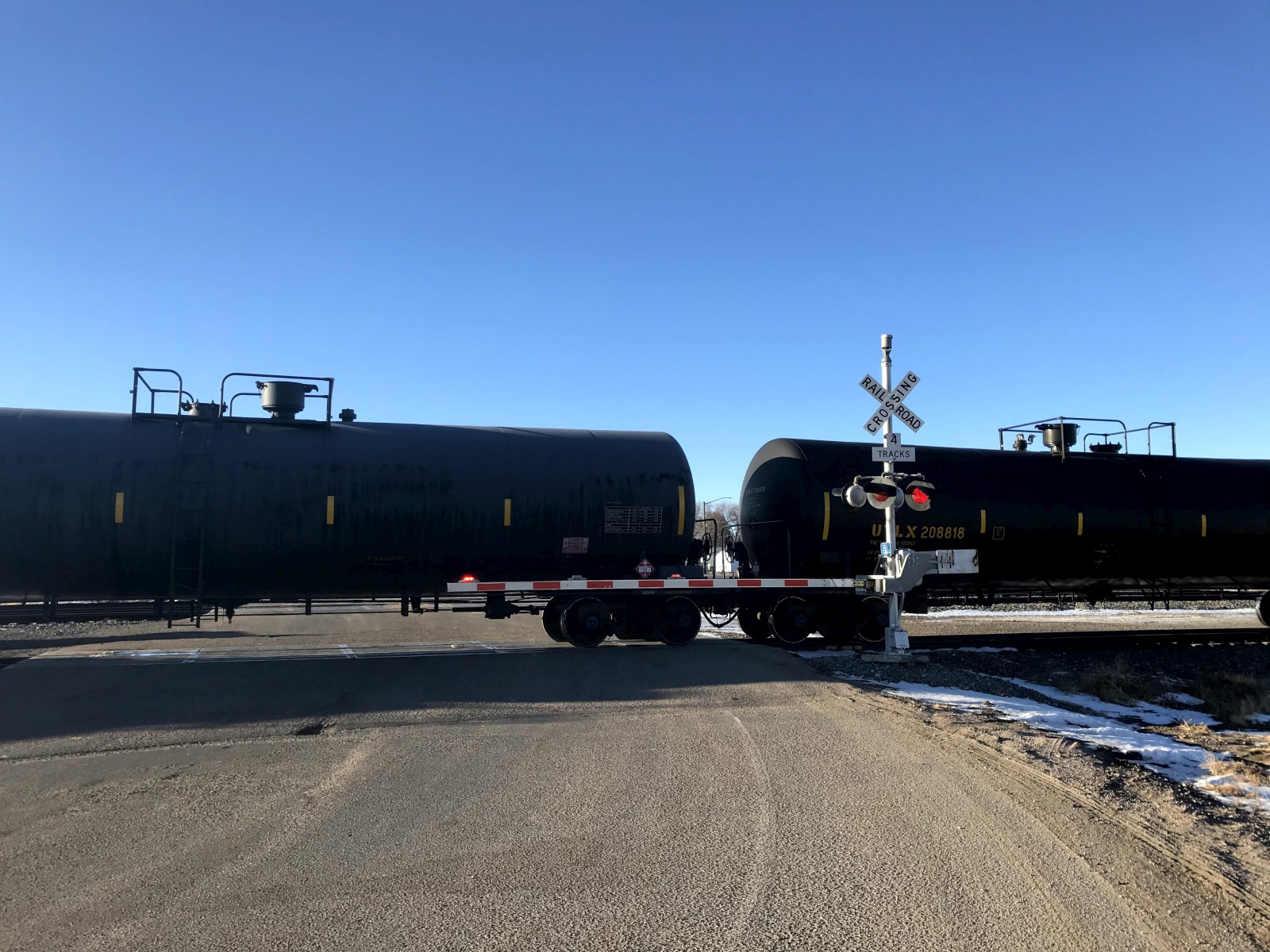

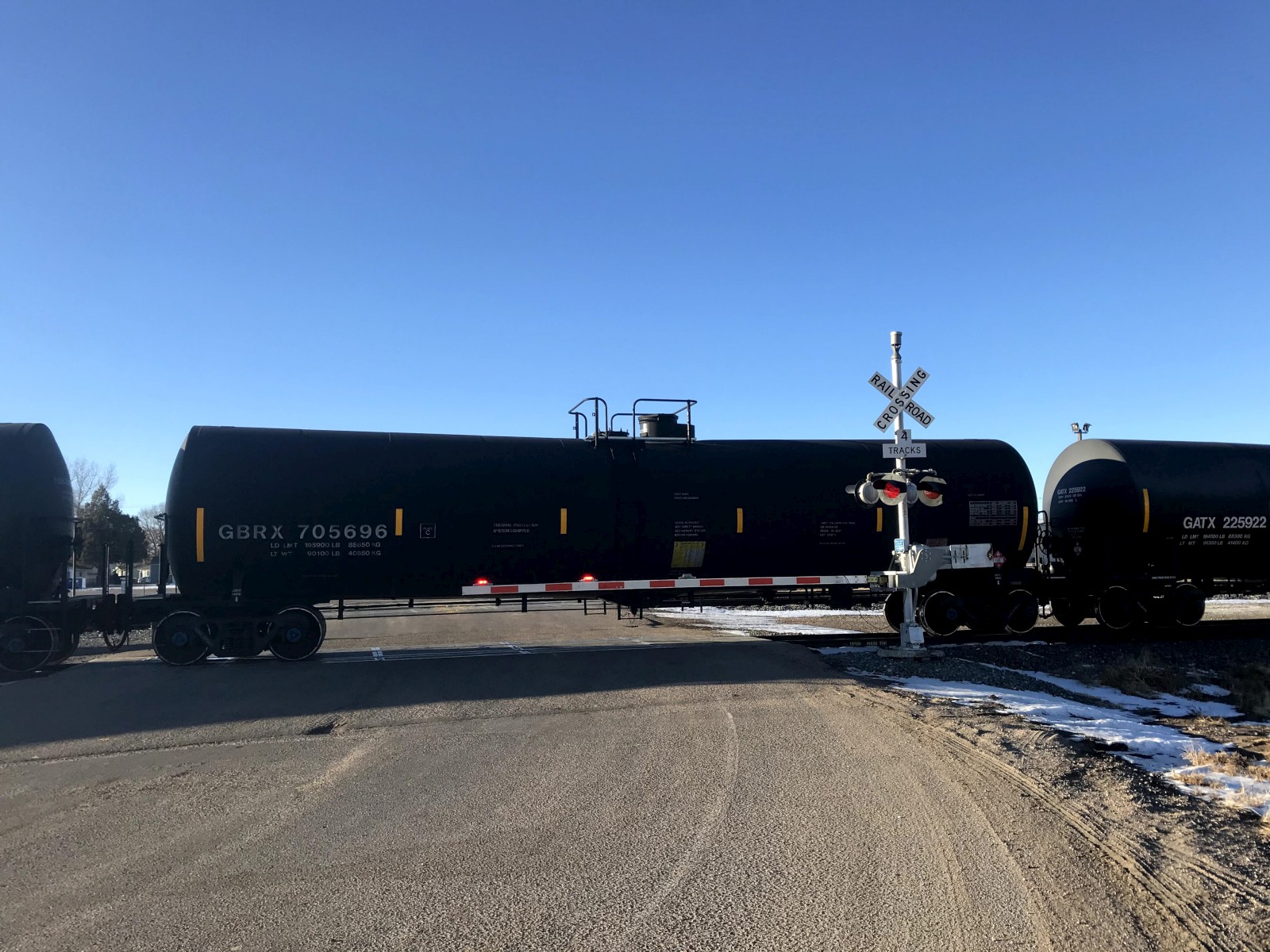

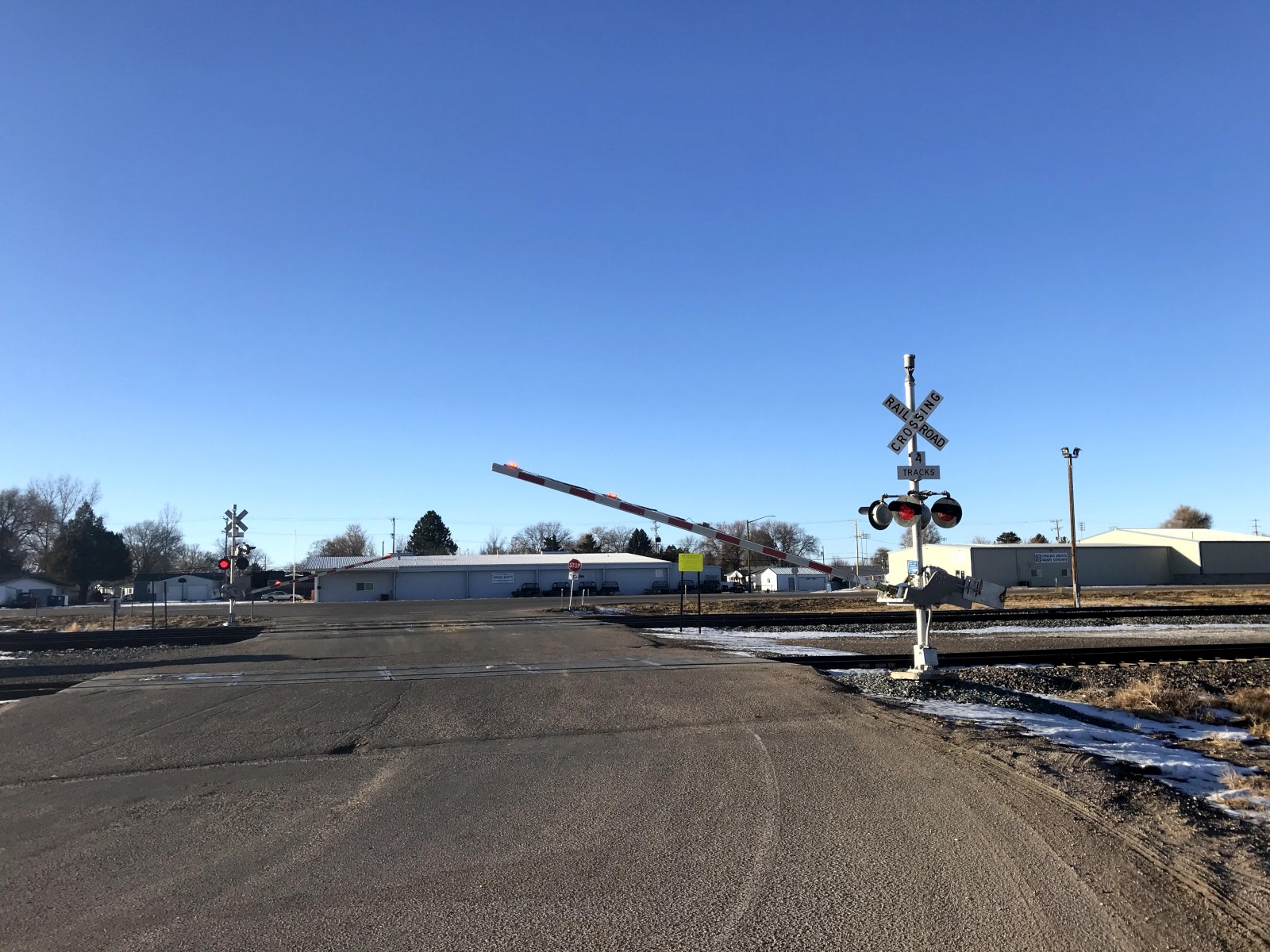

| The train passes

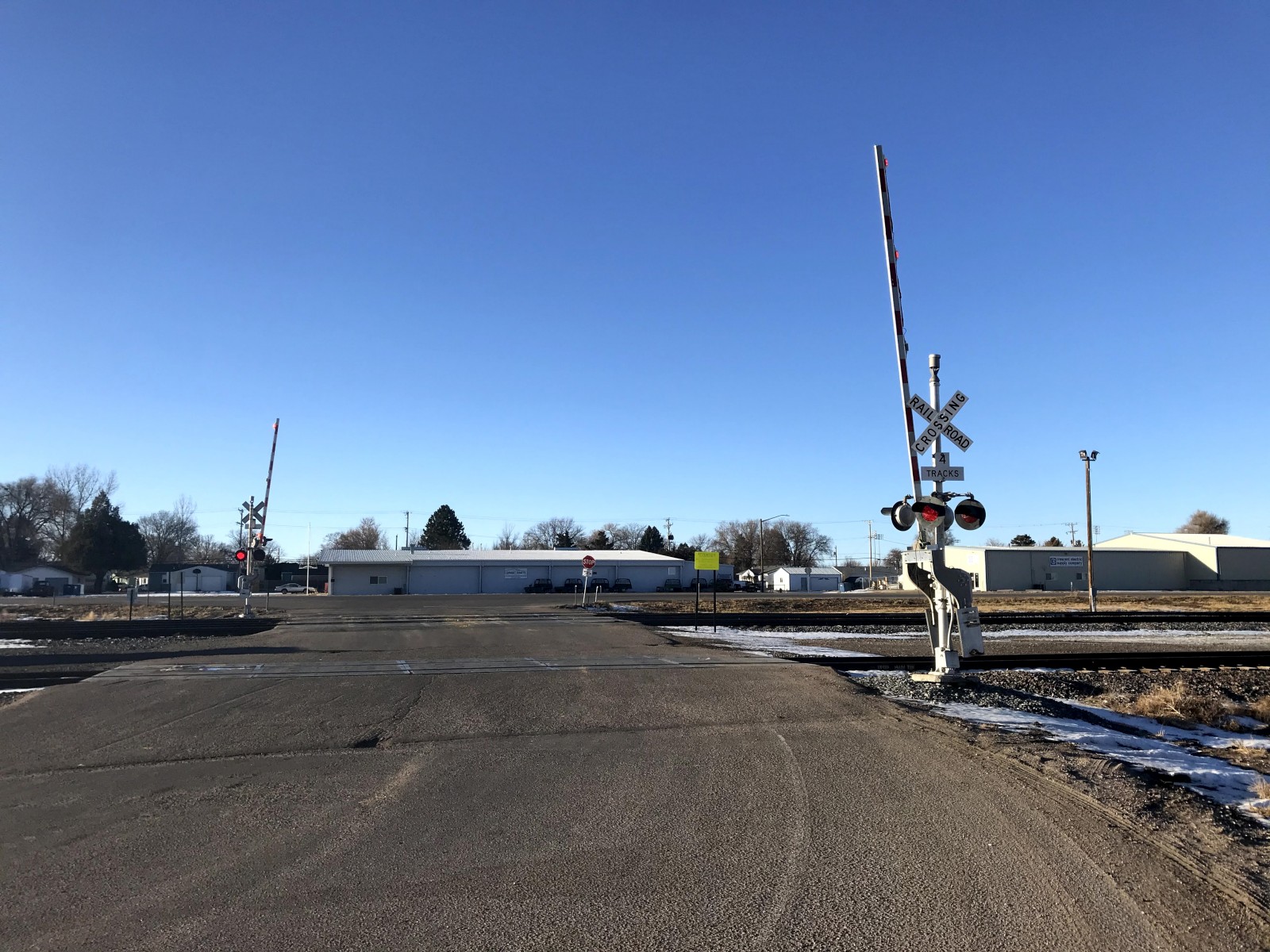

briefly. The gates rise soon after. |
|||
|
