MP:  0015.95



Created July 31, 2026



Total Accidents:   1
Crossing DOT #:  273260W
TOTAL DAILY TRAINS:   24   (AS OF 2025)



>>>>>>>>>>>>>> Western Main Signal Eastern Main Signal

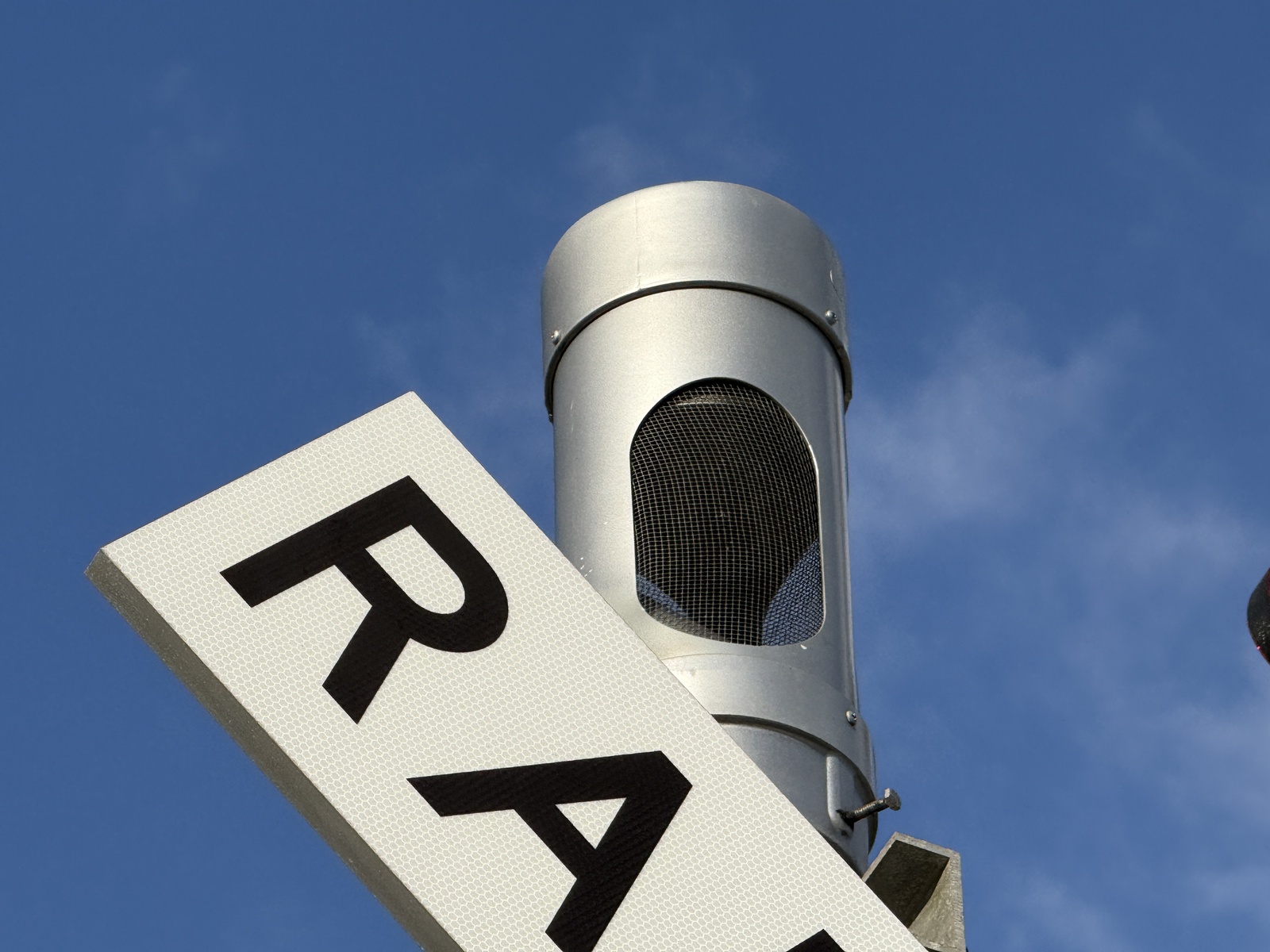

Bell: General Signals E-Bell General Signals E-Bell
Base: Unmared Cantilever, Lincoln Industries Base Unmared Cantilever, Lincoln Industries Base

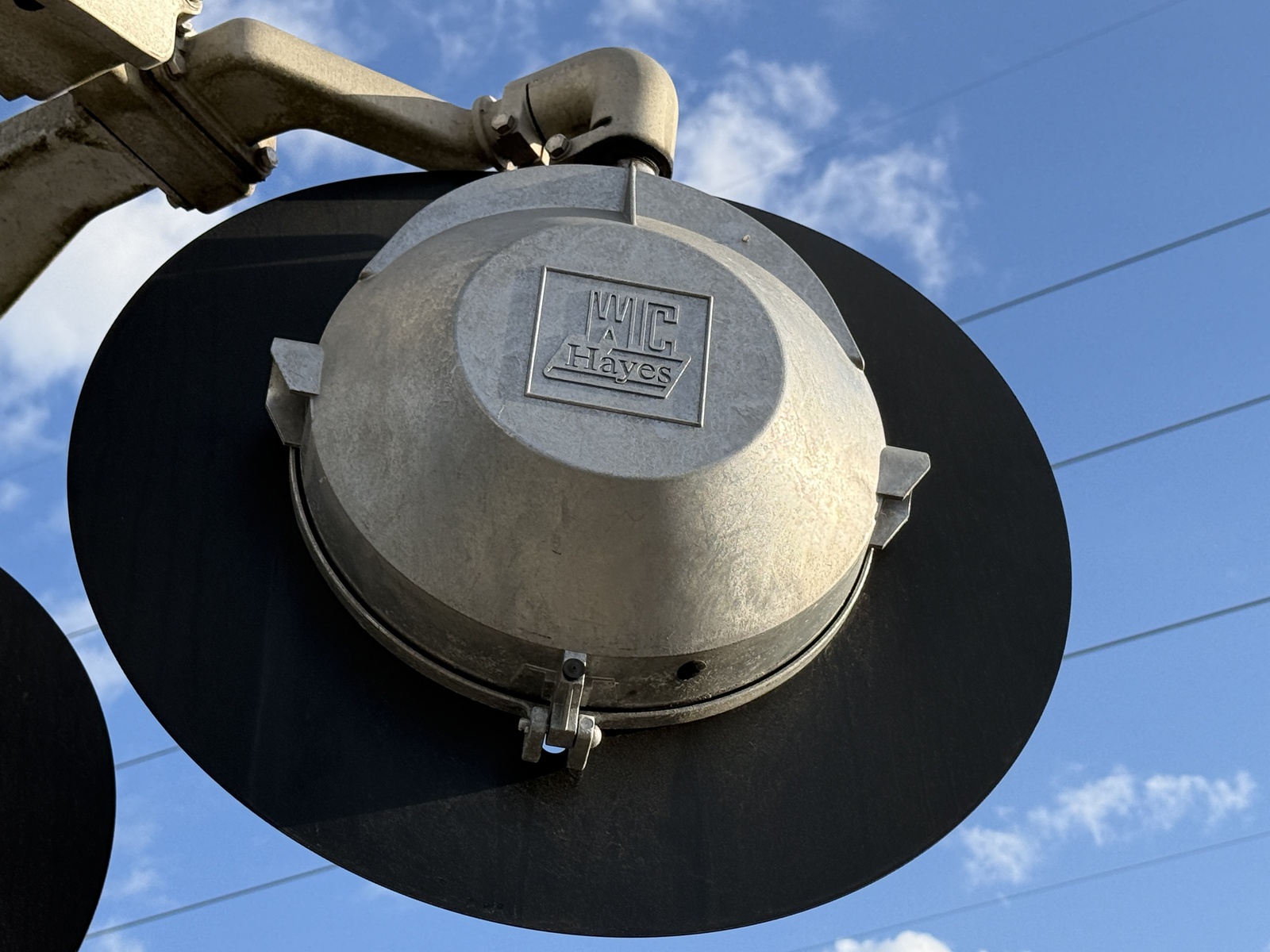

Lights: 14 - 12"x24" WCH Flatback w/ Leotek IL series LEDs 16 - 12"x24" WCH Flatback w/ Leotek IL series LEDs

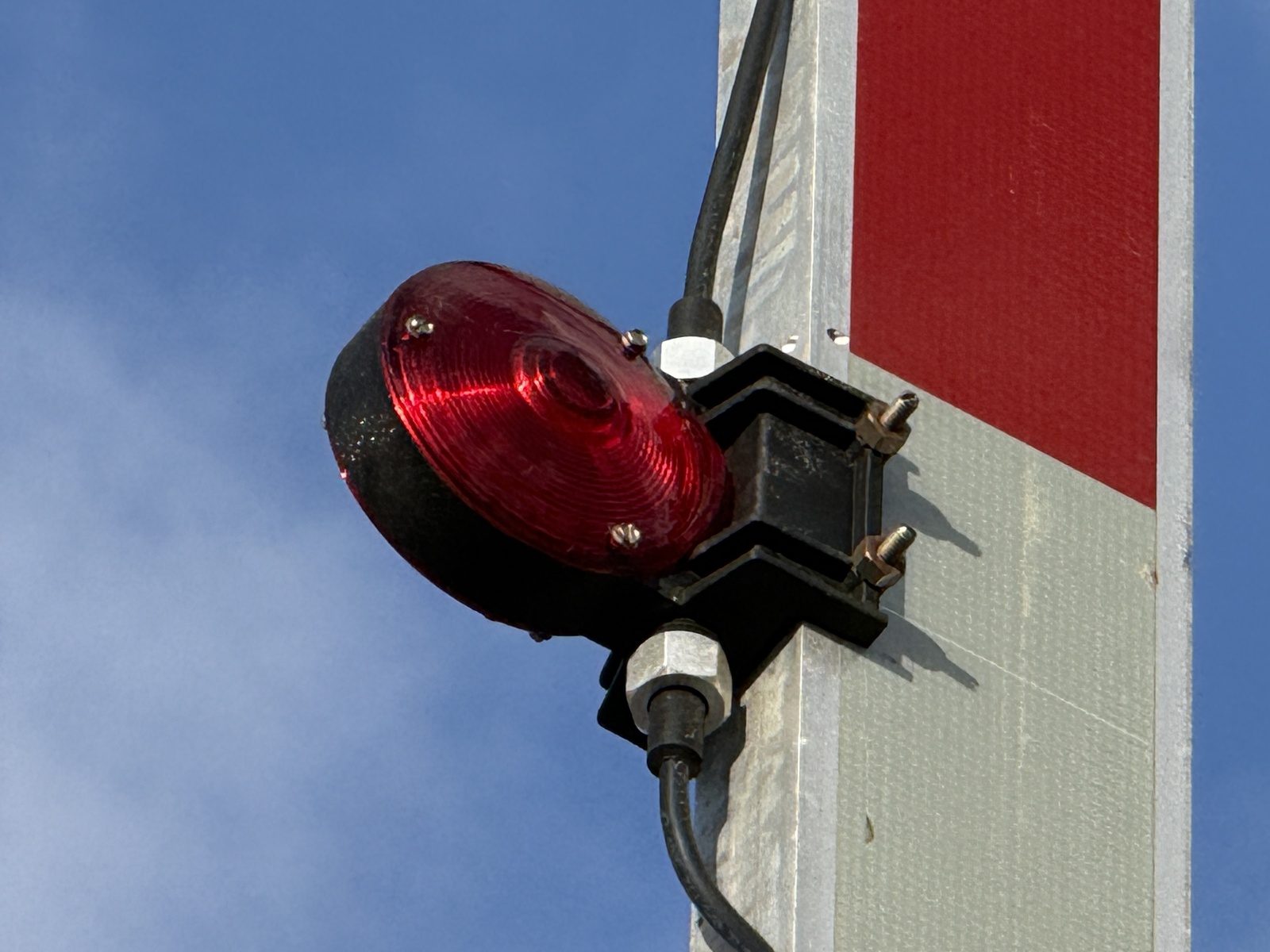

Gate Lights: 4" NEG LEDs 4" NEG LEDs

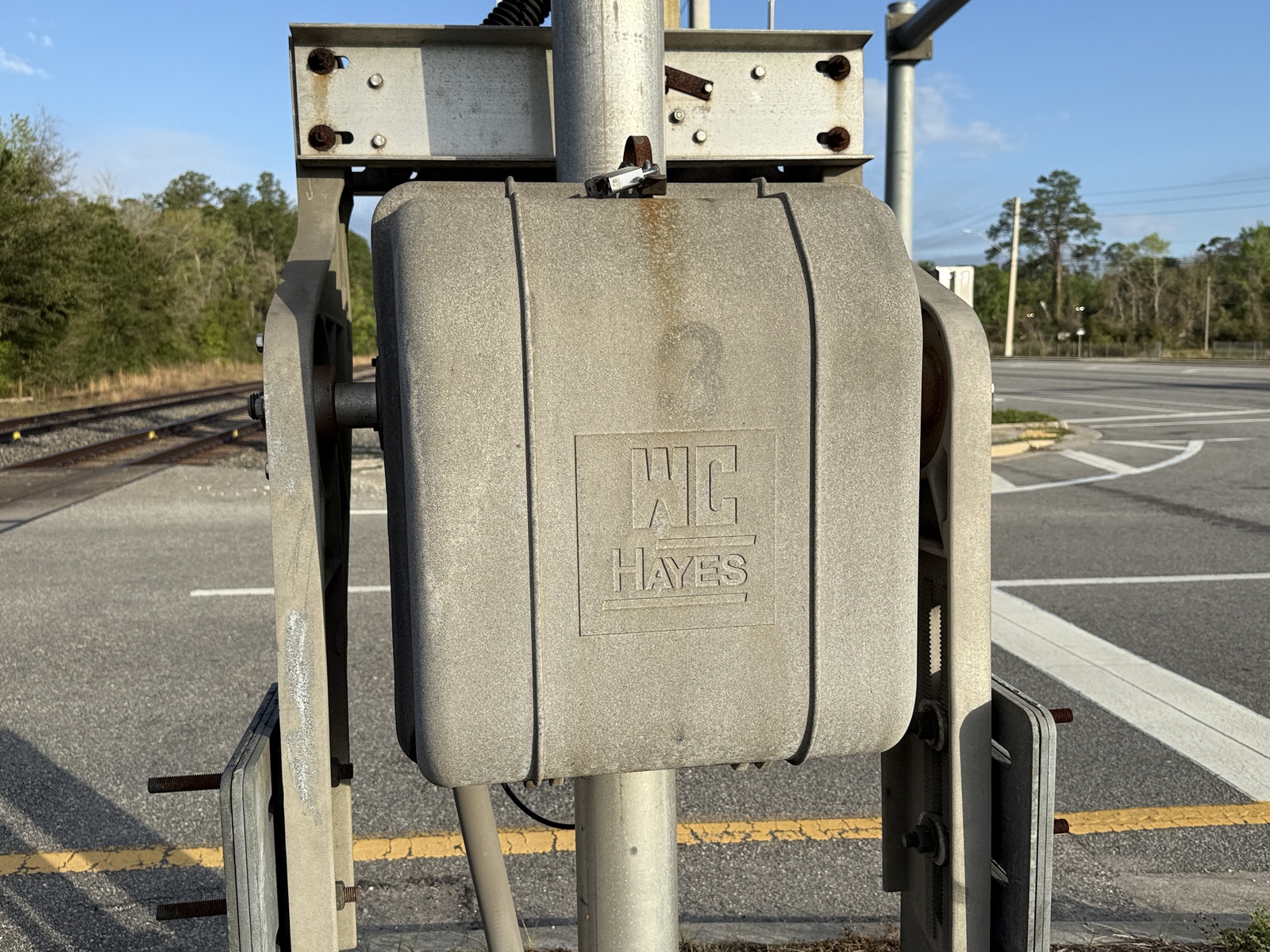

Gate Mechanism: WCH Style 3.5 WCH Style 3.5
Gate Striping: Vertical Striping Vertical Striping



>>>>>>>>>>>>>> Pedestrian Signal Western Median Signal Eastern Median Signal

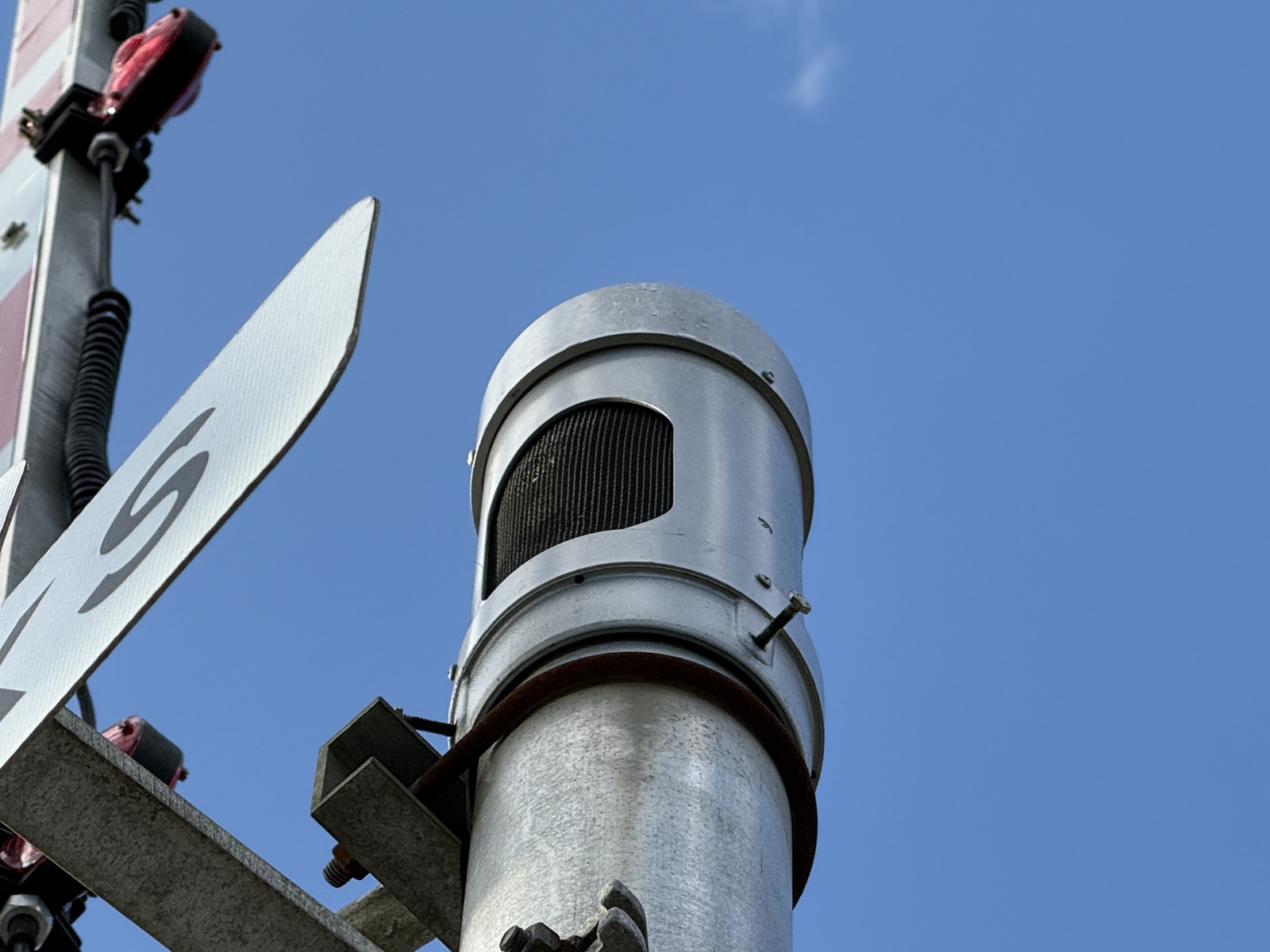

Bell: General Signals E-Bell General Signals E-Bell General Signals E-Bell

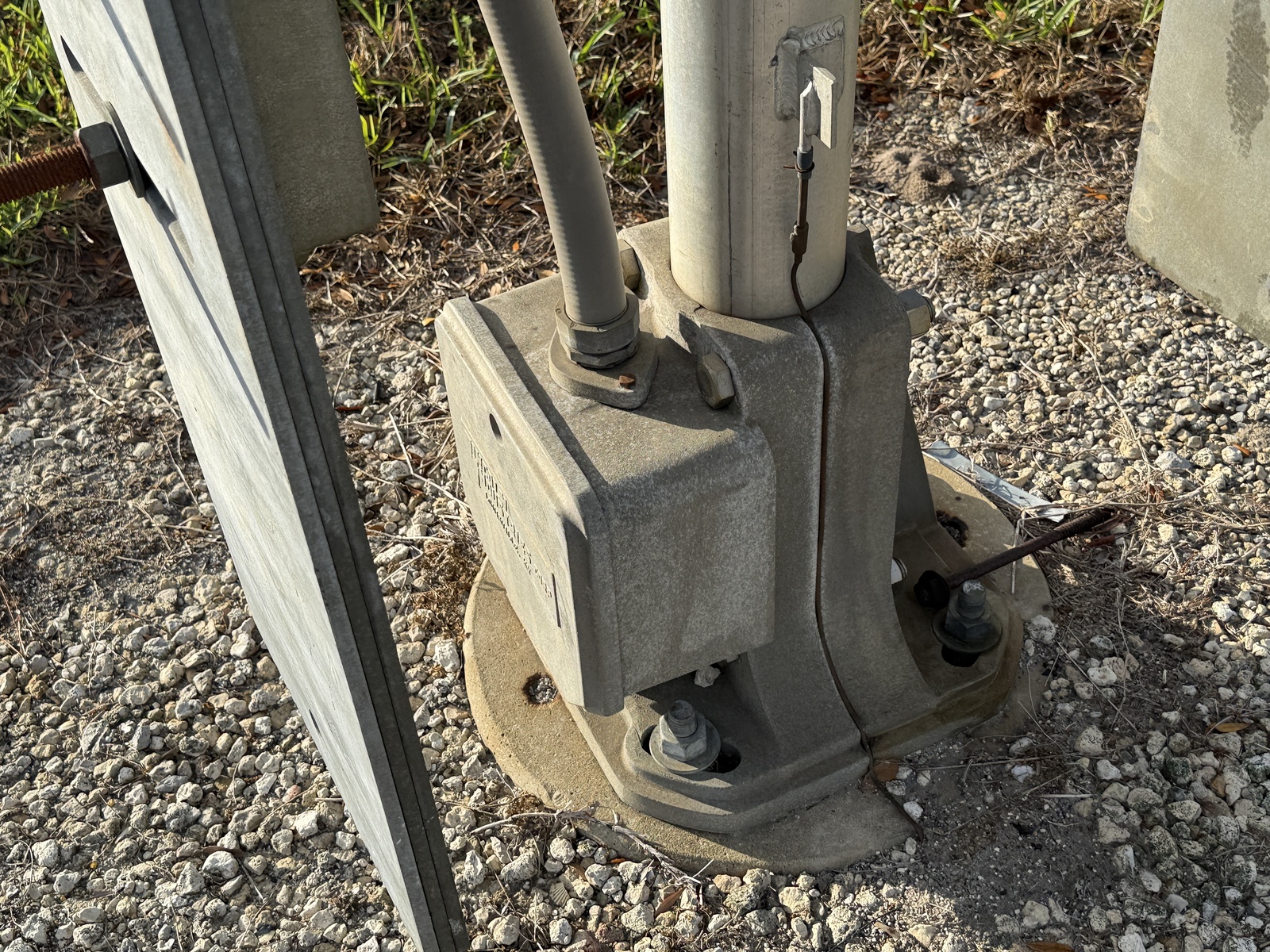

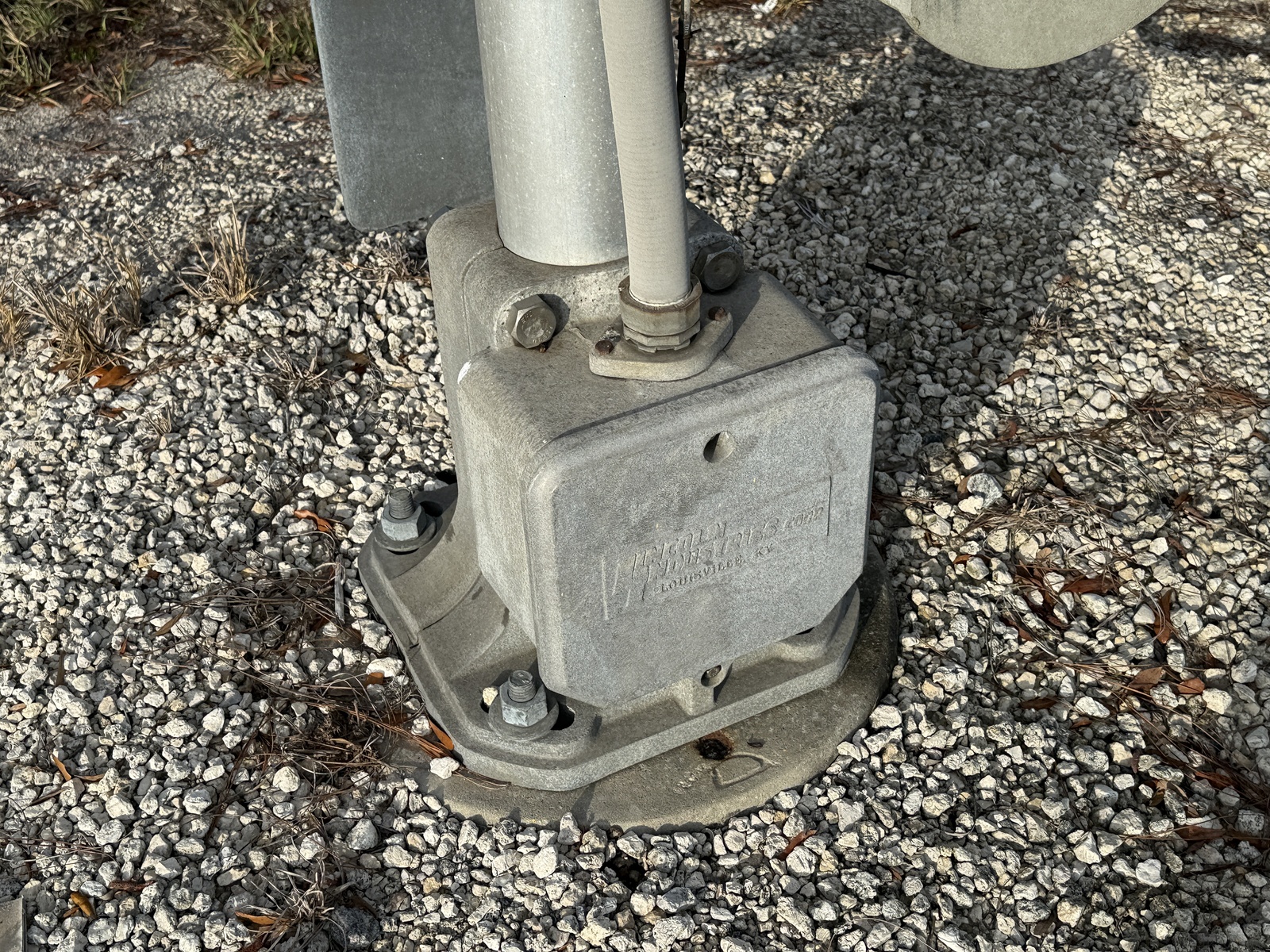

Base: Lincoln Industries Lincoln Industries Lincoln Industries
Lights: 4 - 12"x24" WCH Flatback w/ Leotek IL series LEDs 4 - 12"x24" WCH Flatback w/ Leotek IL series LEDs 4 - 12"x24" WCH Flatback w/ Leotek IL series LEDs
Gate Lights: 4" NEG LEDs 4" NEG LEDs 4" NEG LEDs

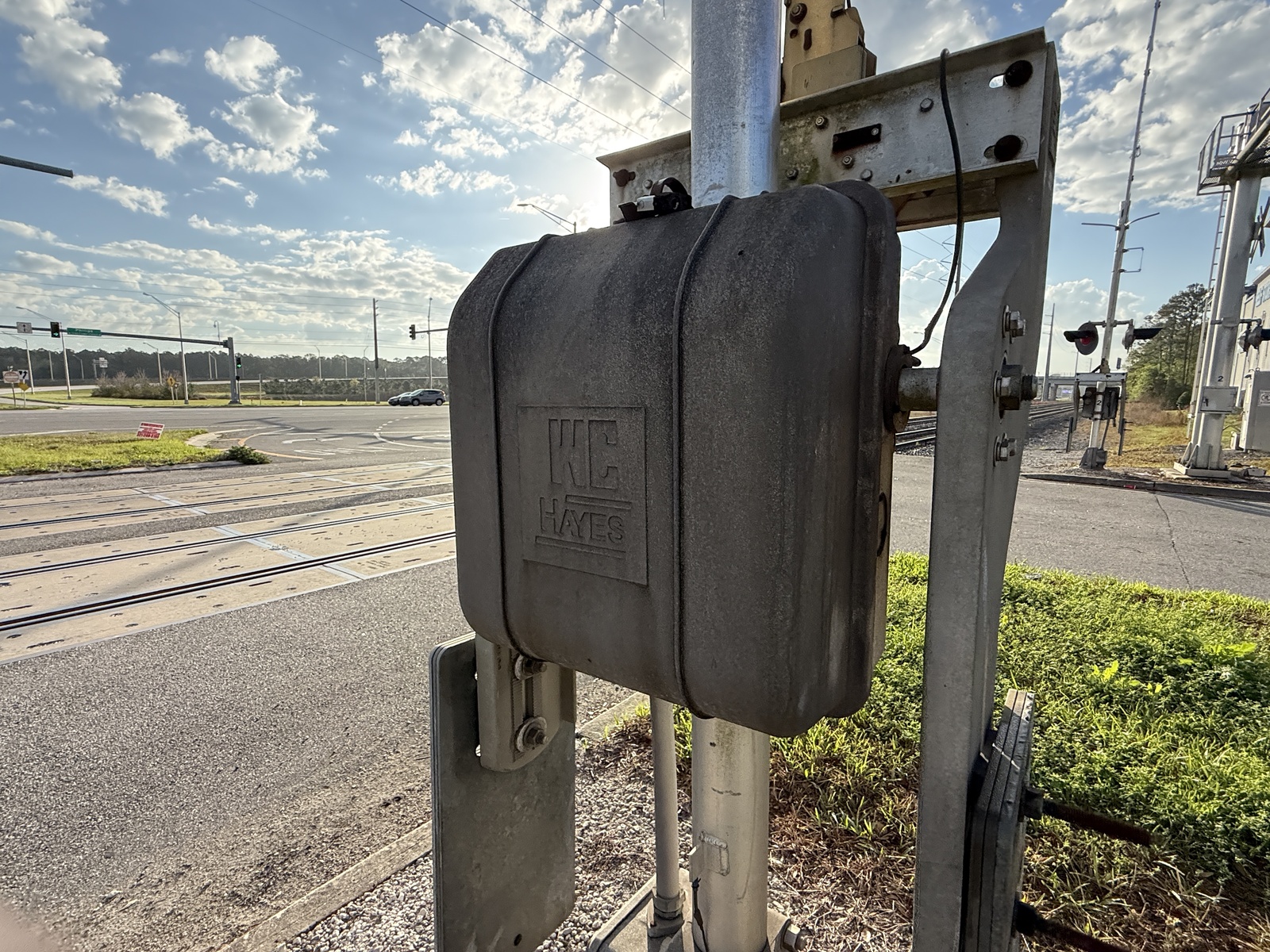

Gate Mechanism: WCH Style 3.5 WCH Style 3.5 WCH Style 3.5
Gate Striping: Vertical Striping Vertical Striping Vertical Striping



Page created by: Ethan the Railfanner

This crossing is located on the FEC Mainline.



1

2
Overview of 2 gated cantilevers, 2 median masts, and an extra pedestrian signal facing east.
Overview facing west.

3

4

5

6

7

8

9

10

11

12

13

14

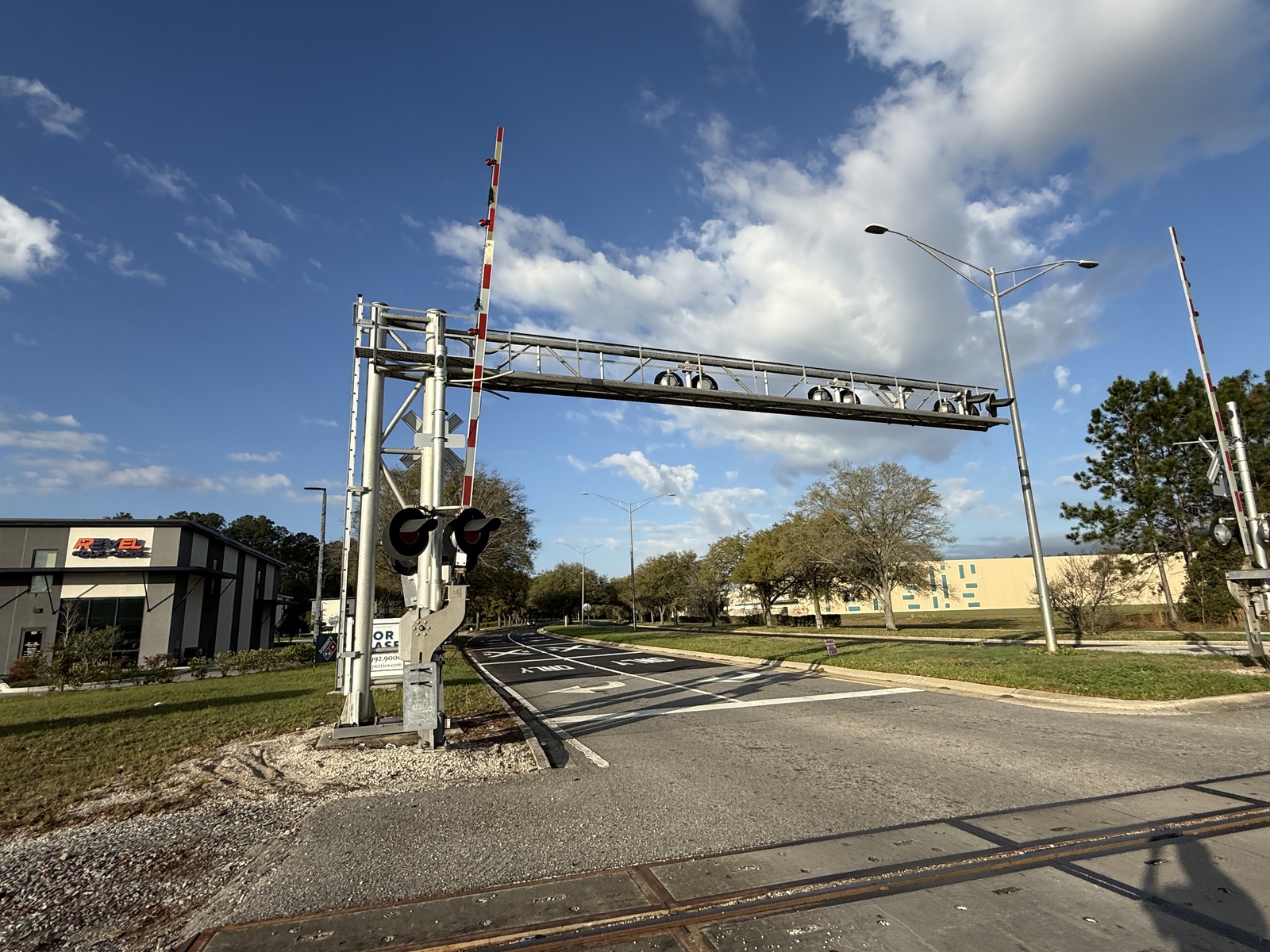

The western main signal.

15

16

17

18

19

20

21

22
The eastern median signal.

23

24

25

26

27

28

29

30

31

32

33

34
The eastern main signal.

35

36

37

38

39

40

41
The western median signal.

42

43

44

45

46

47

48

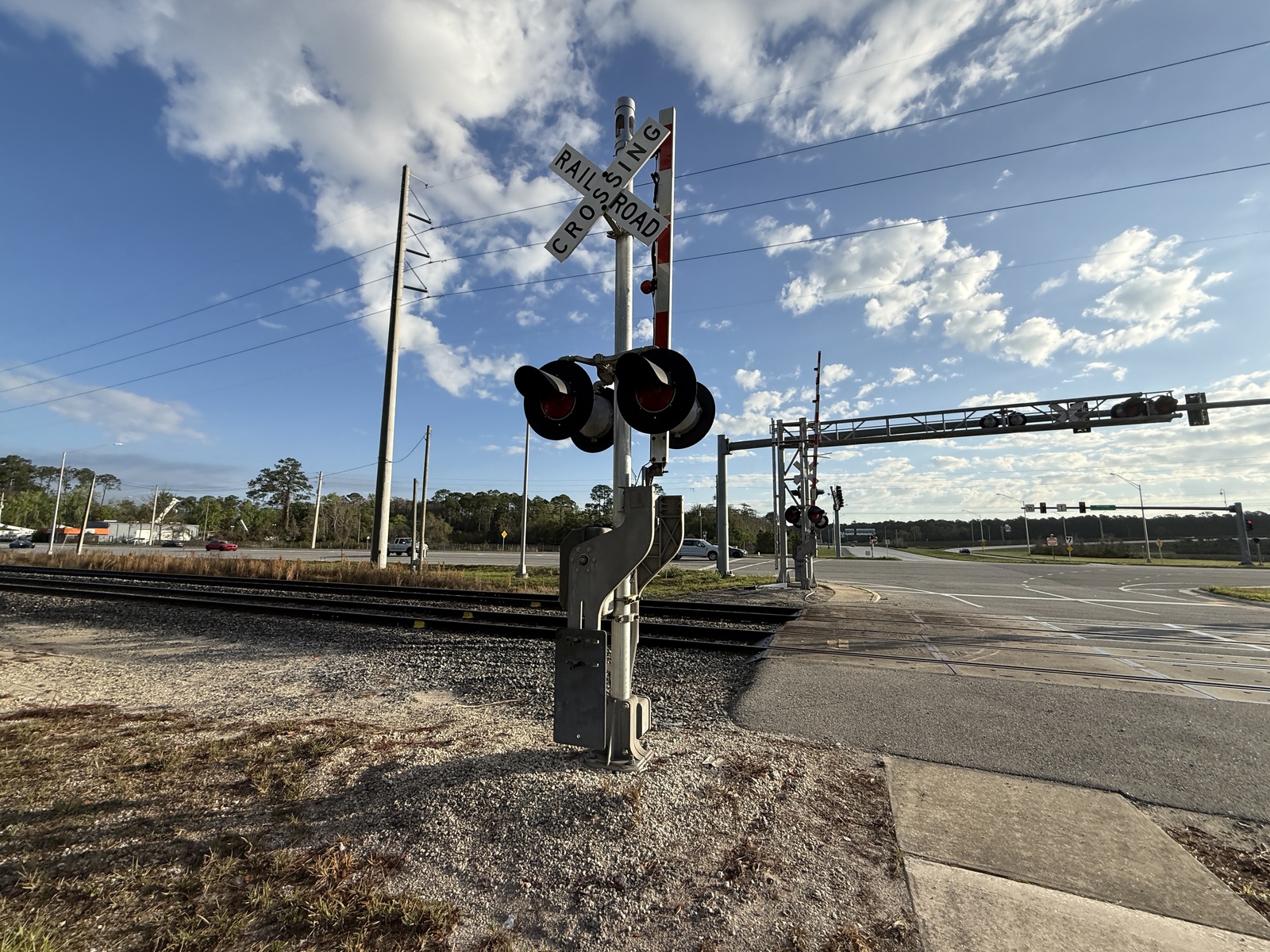

The pedestrian signal.

49

50

51

52
The relay bungalow.
Track view facing south towards Race Track Road.
Track view facing north towards Old St Augustine Road and Flagler Central Boulevard.
An M.P. marker stands near the crossing.



All pictures were taken on 3-15-26.
