MP: 0WA70.960 |
Updated March 9, 2024
Total Accidents: 3
Crossing
DOT #: 340494J
TOTAL
DAILY TRAINS: 18 (AS OF 2017)
| >>>>>>>>>>>>>> | Western Signal | Eastern Signal |
| Bell: | N/A | NEG E-Bell |
| Base: | WCH | WCH |
| Lights: | 1 - 12"x24" WCH Flatback w/ Leotek EV series LED 3 - 12"x24" WCH w/ WCH 2nd Gen. LEDs |
1 - 12"x24" Safetran w/ WCH 2nd Gen. LED 3 - 12"x24" WCH Flatbacks w/ Leotek EV series LED |
| Gate Lights: | 4" RECO | 4" RECO |
| Gate Mechanism: | Safetran 2000s | Safetran 2000s |
| Gate Striping: | Vertical Striping | Vertical Striping |
Page created by: freebrickproductions
This crossing is located along the CSX W&A Subdivision.
1 |
2 |
3 |
4 |

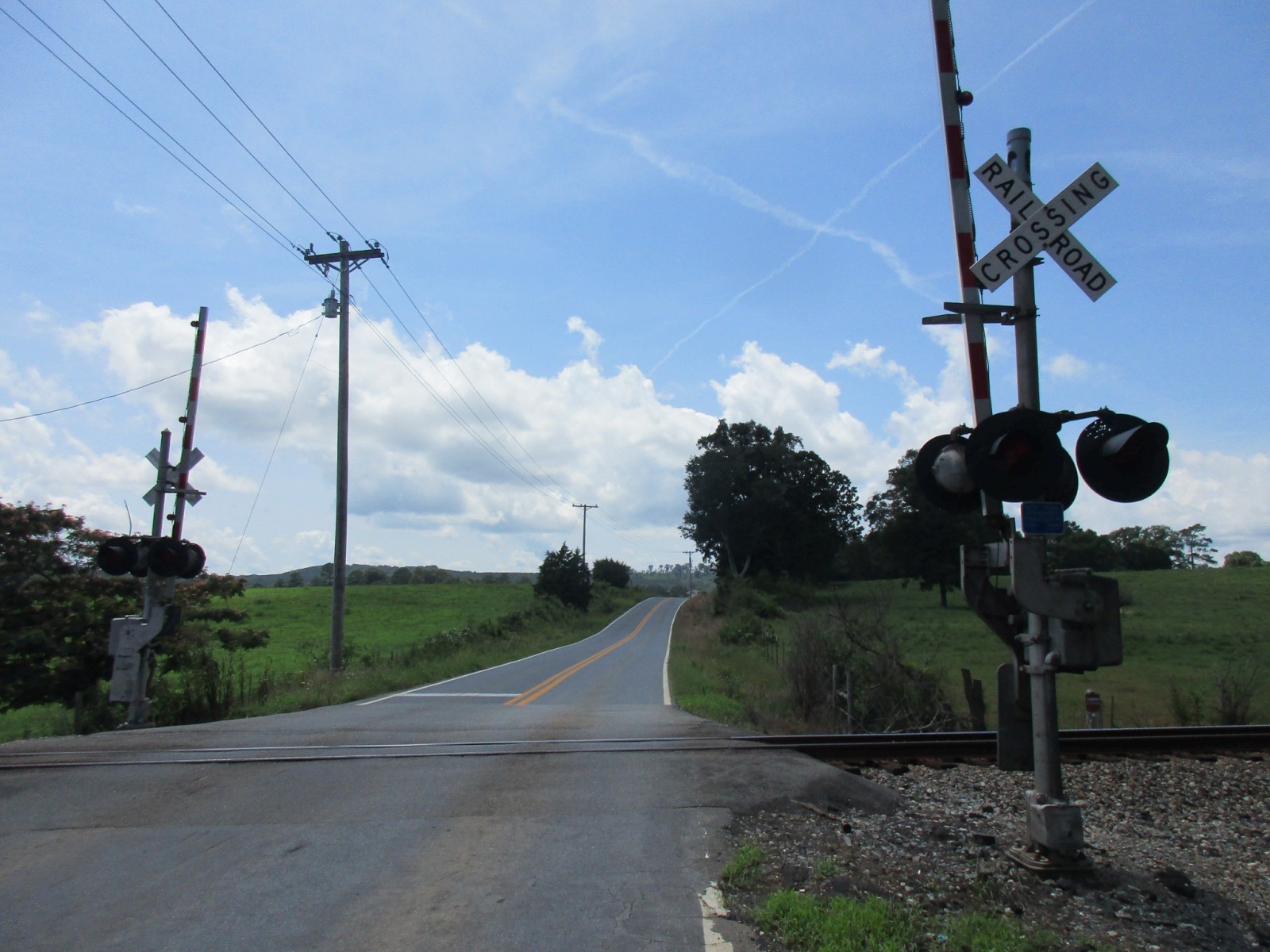

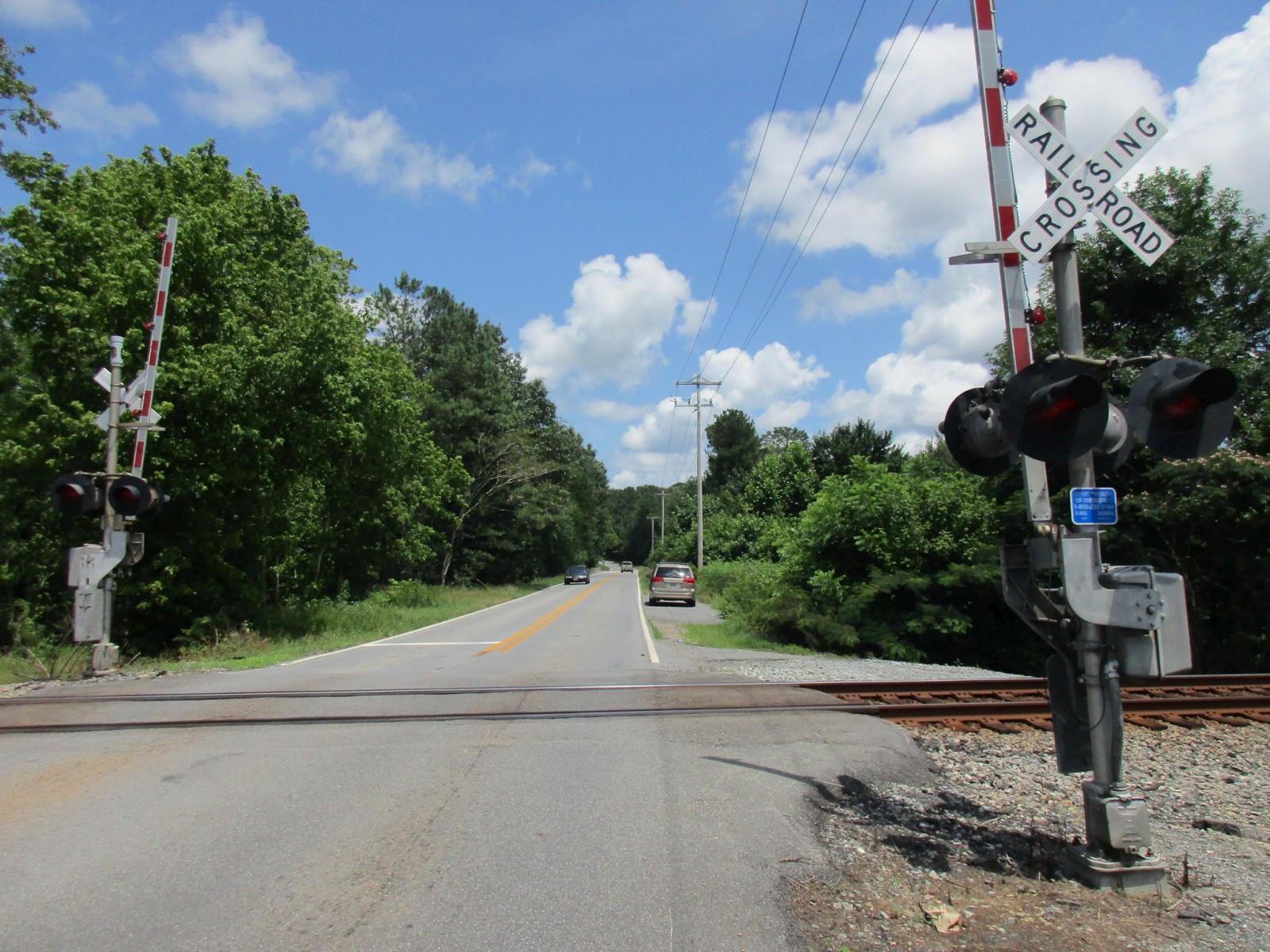

Overviews of the crossing. |

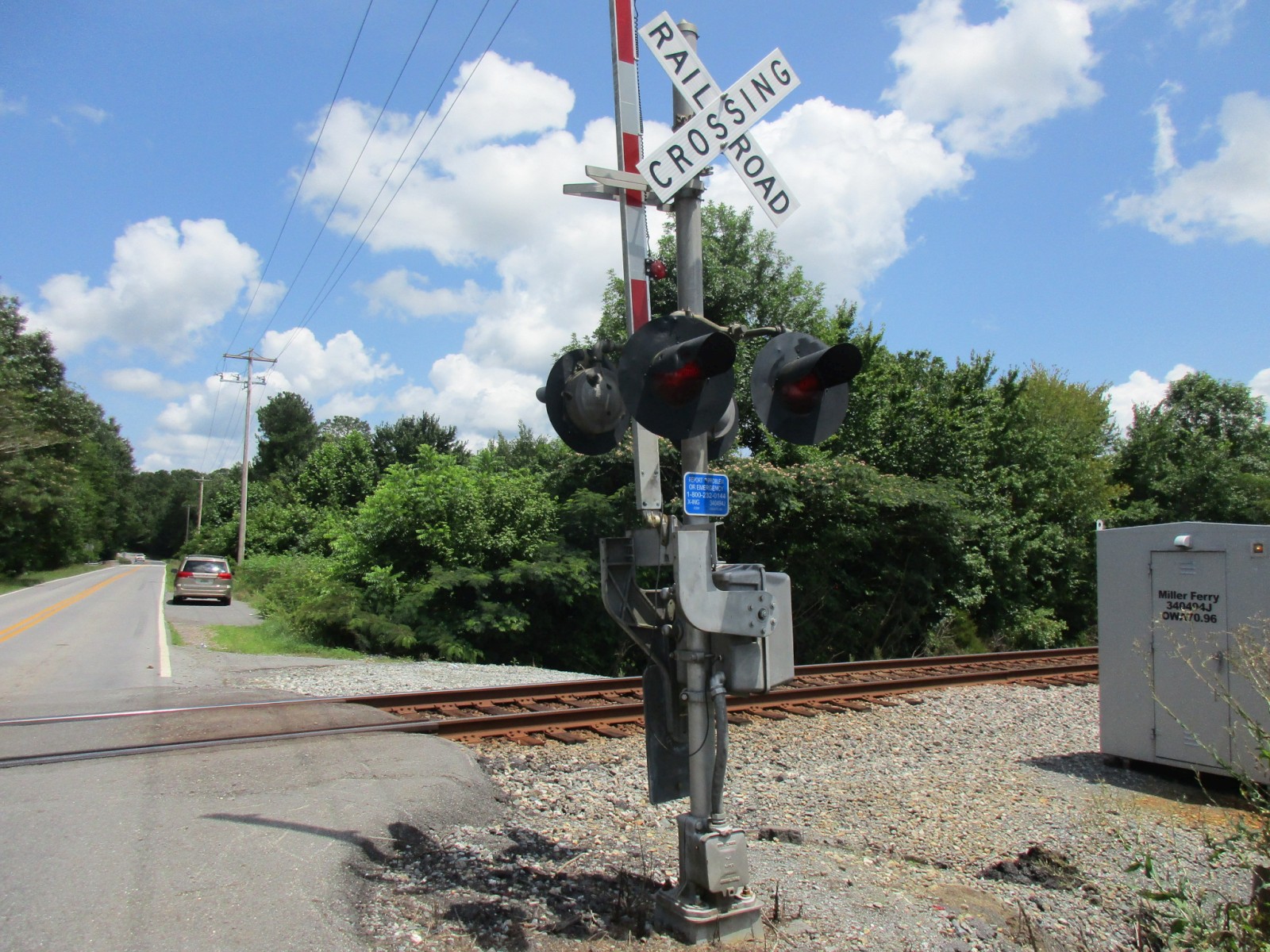

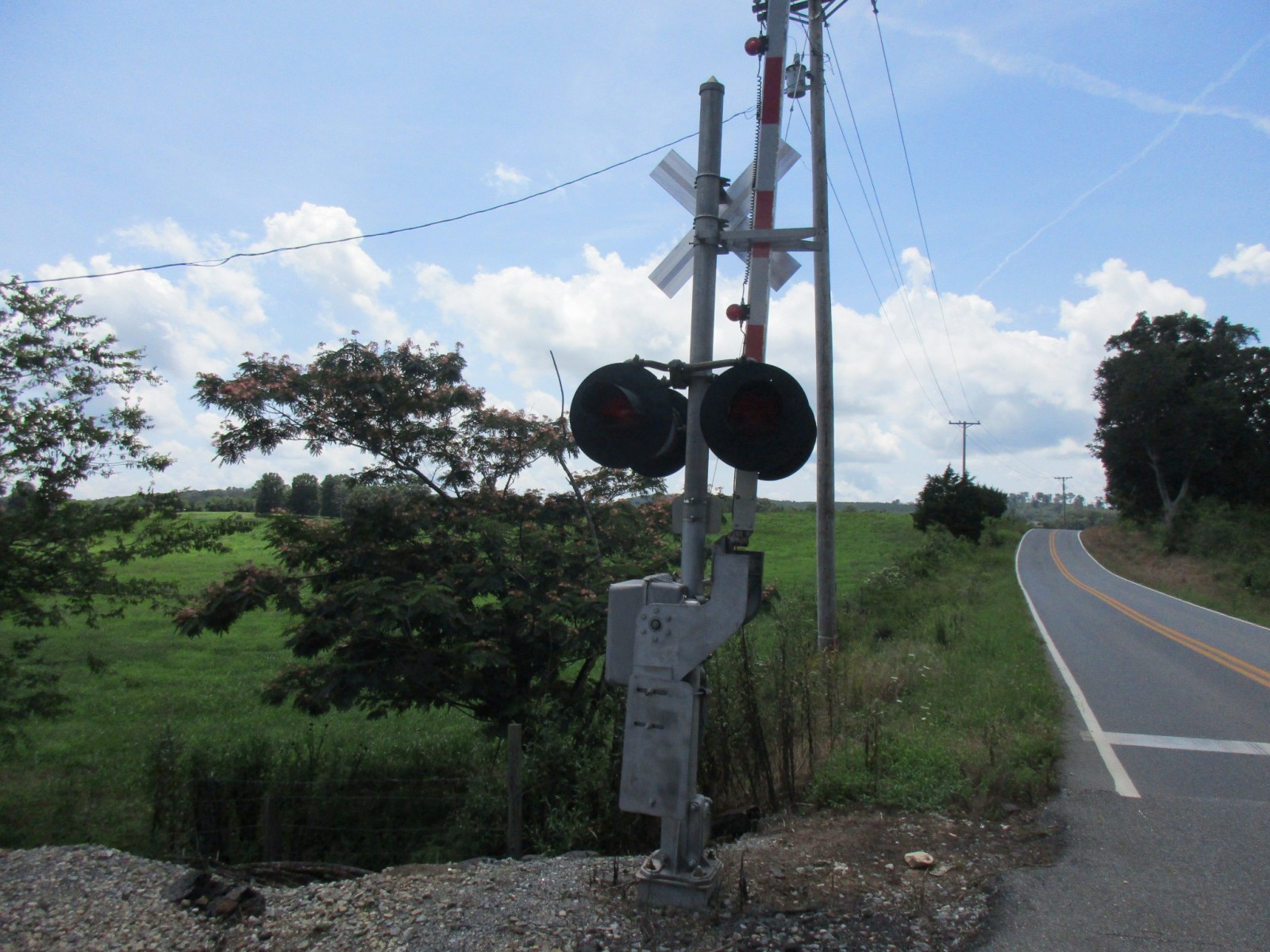

The first signal. |
||
5 |
6 |
7 |
8 |

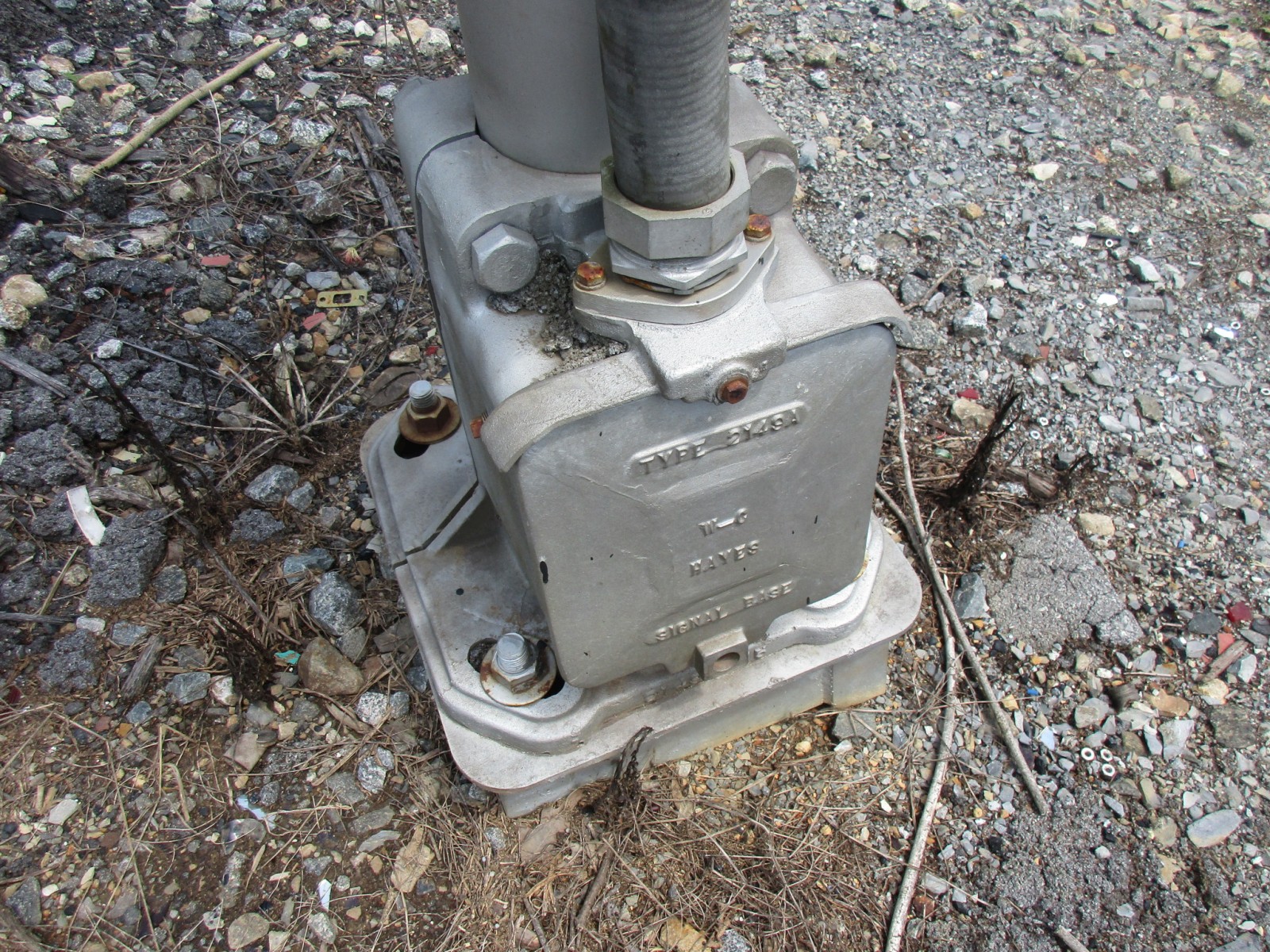

A WCH base. |

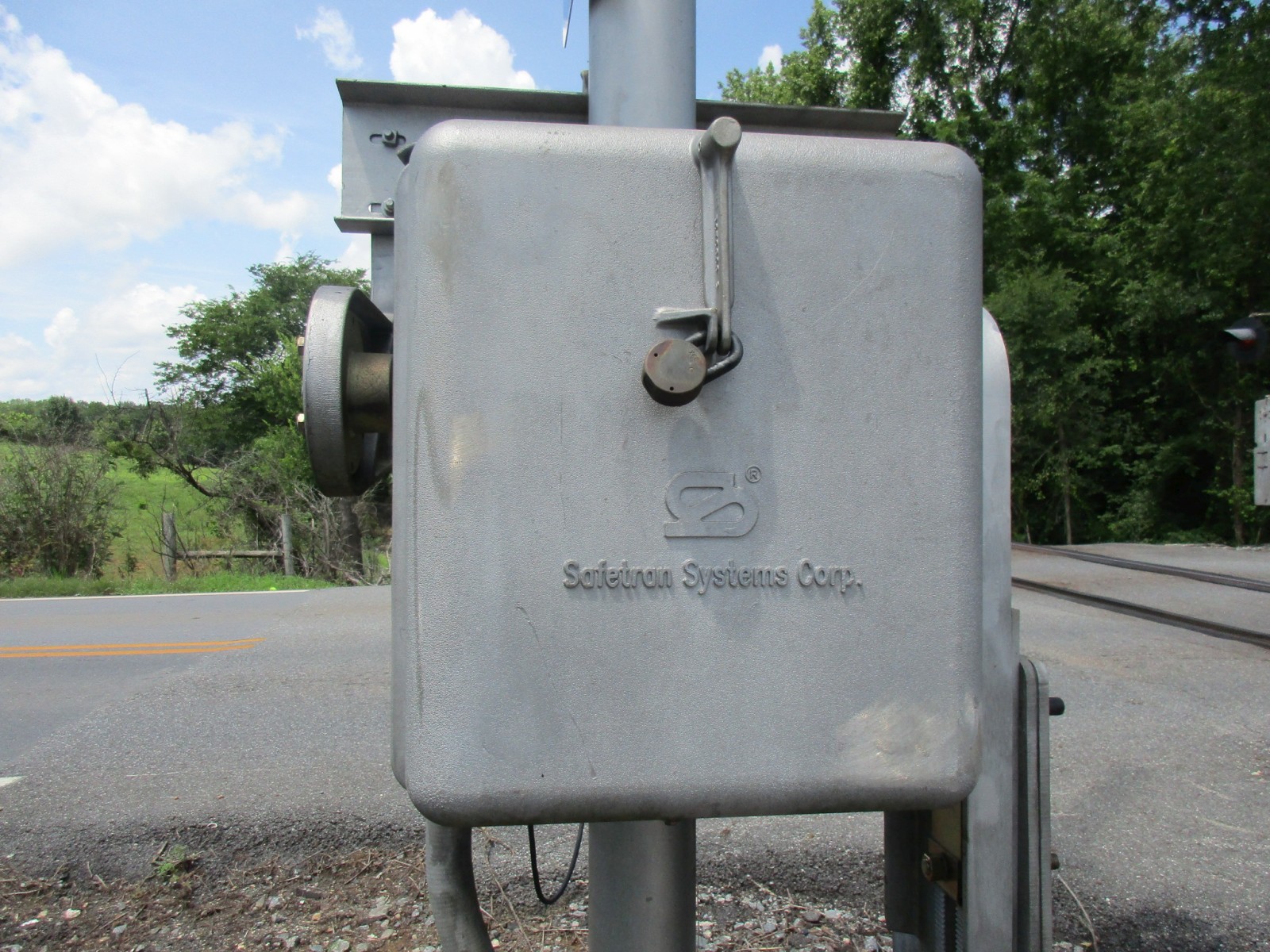

The gate mechanism is frm Safetran. |

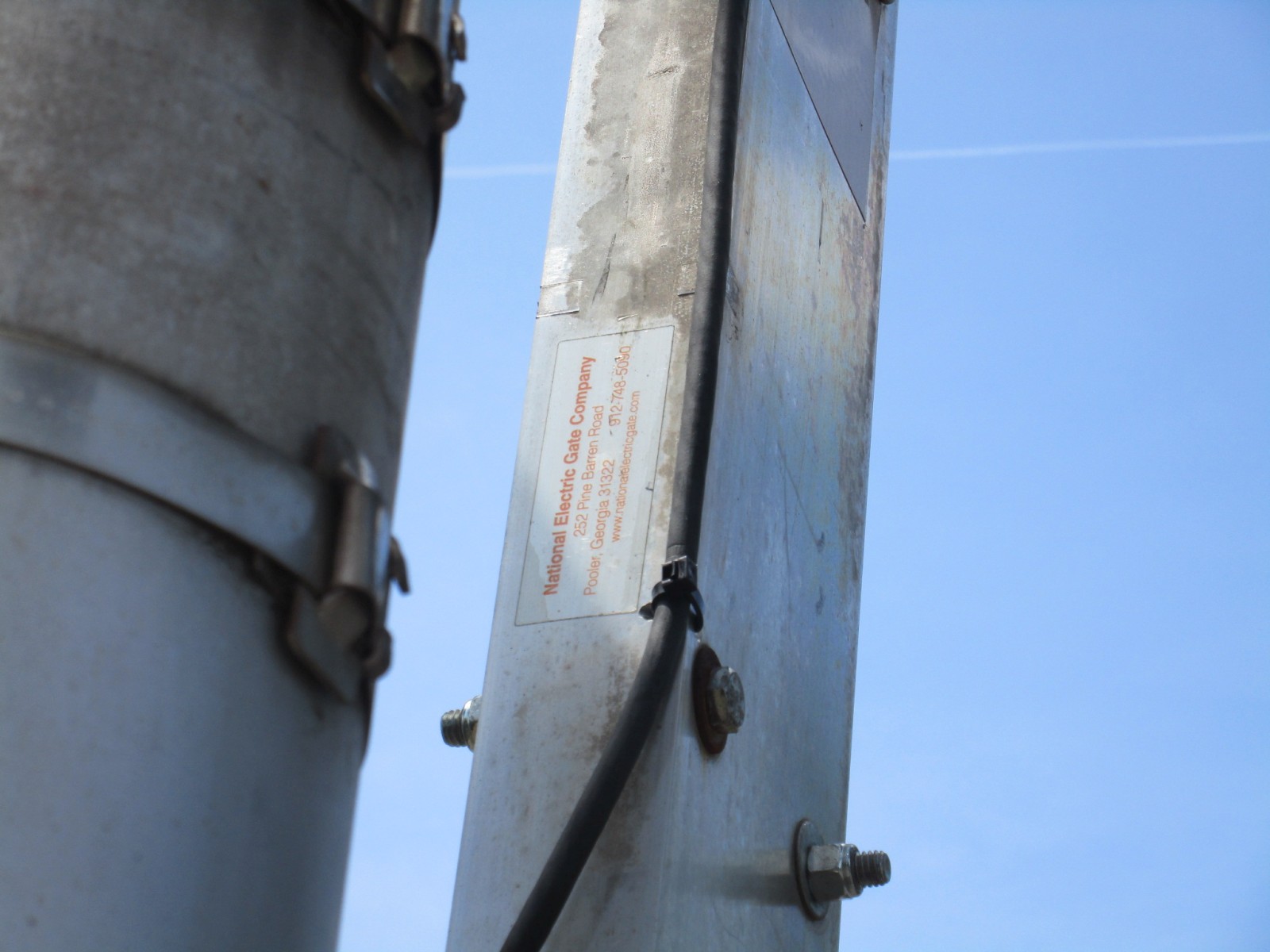

An NEG gate arm. |

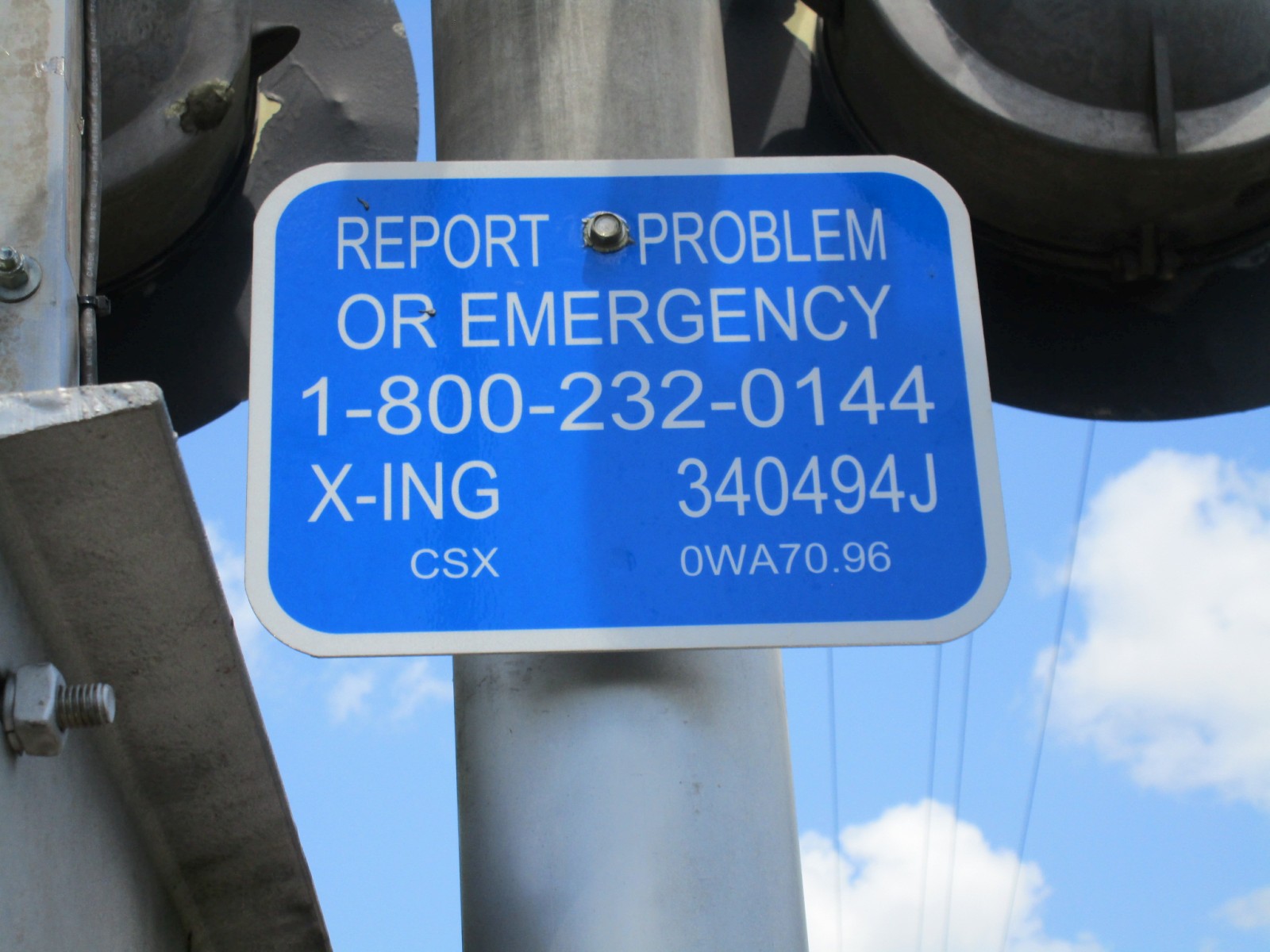

The emergency information. |
9 |
10 |
11 |
12 |

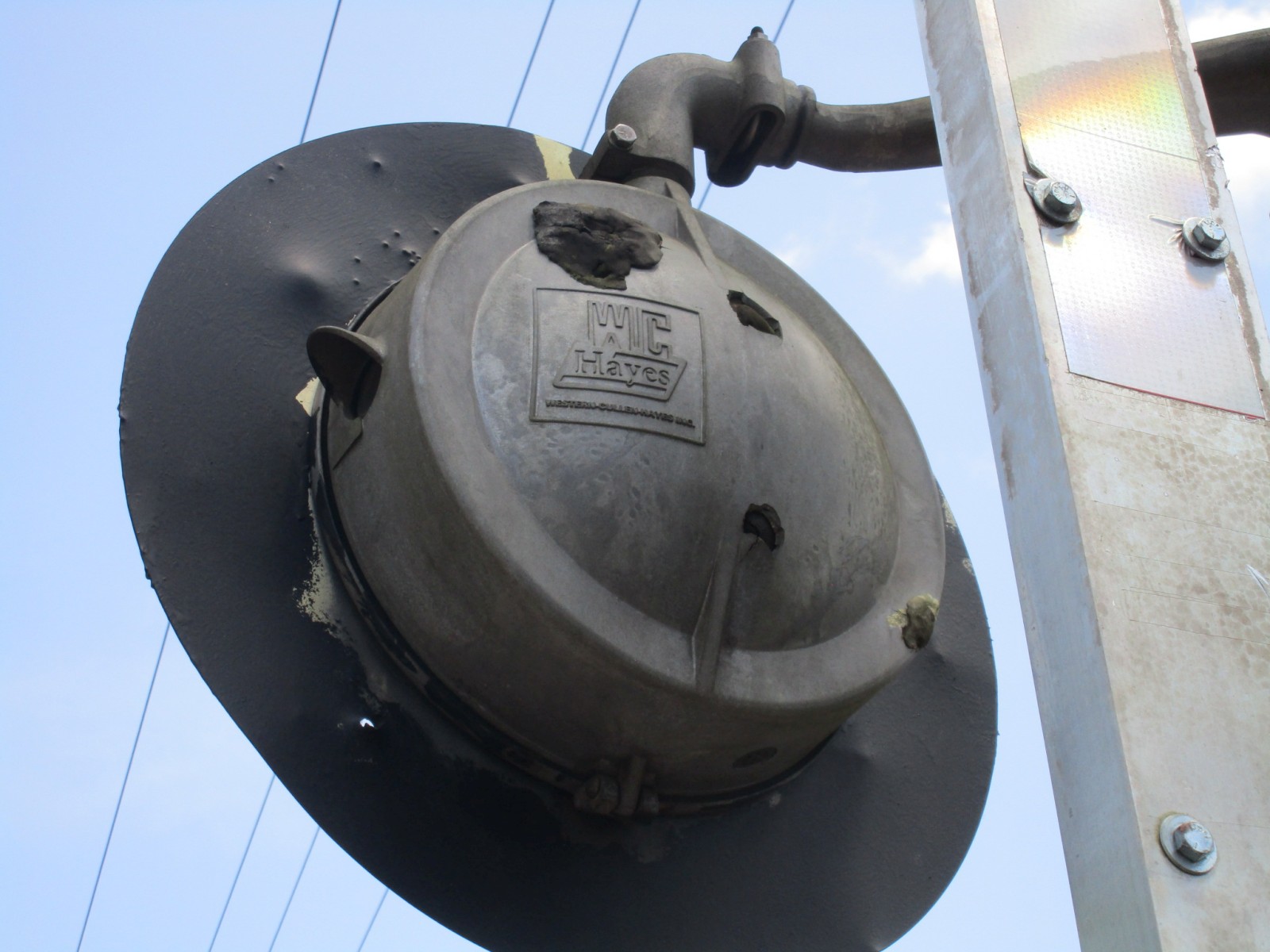

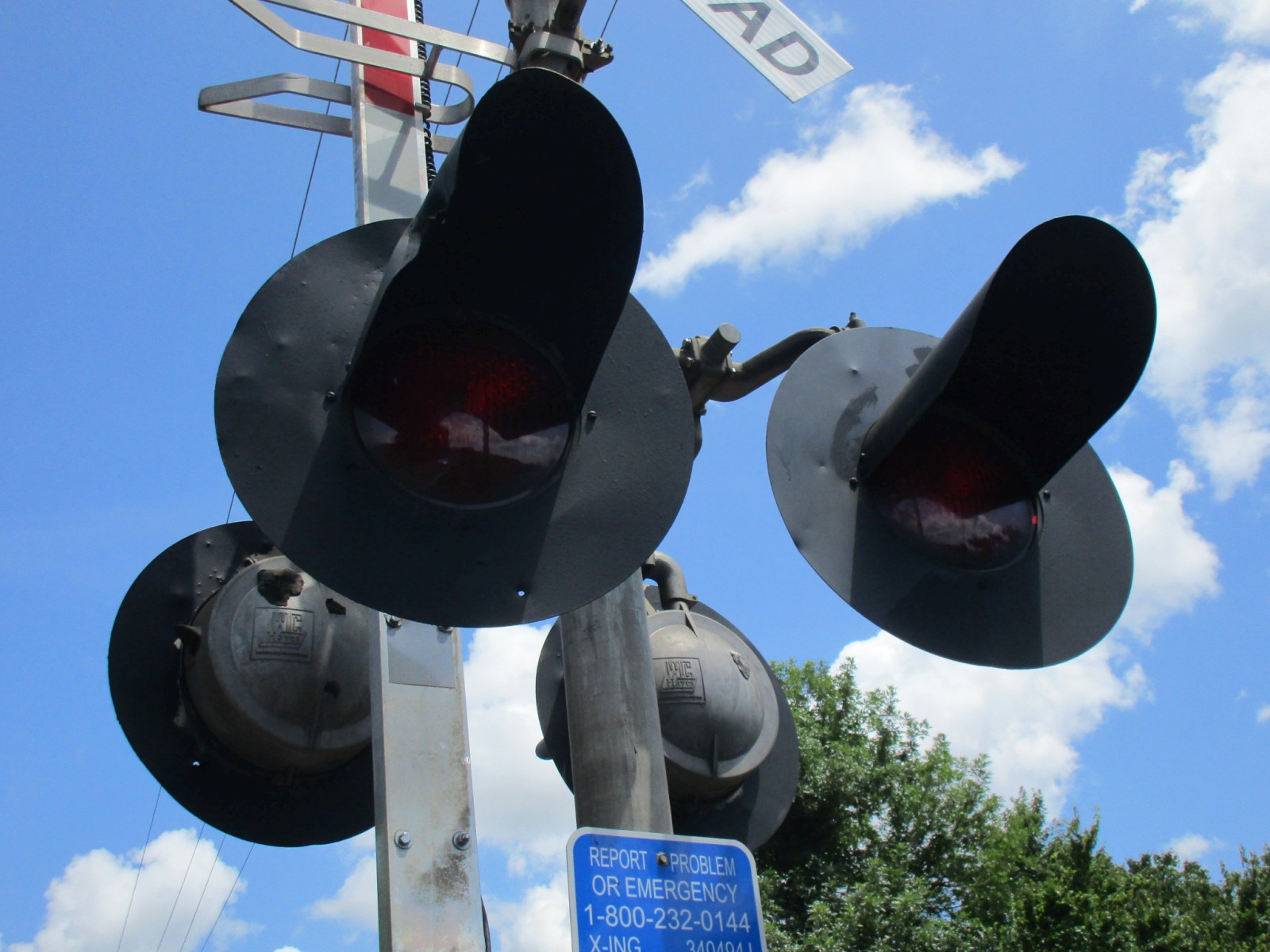

This signal has all incandescent WCH 12x24 inch lights. |
The gate lights are from RECO. |

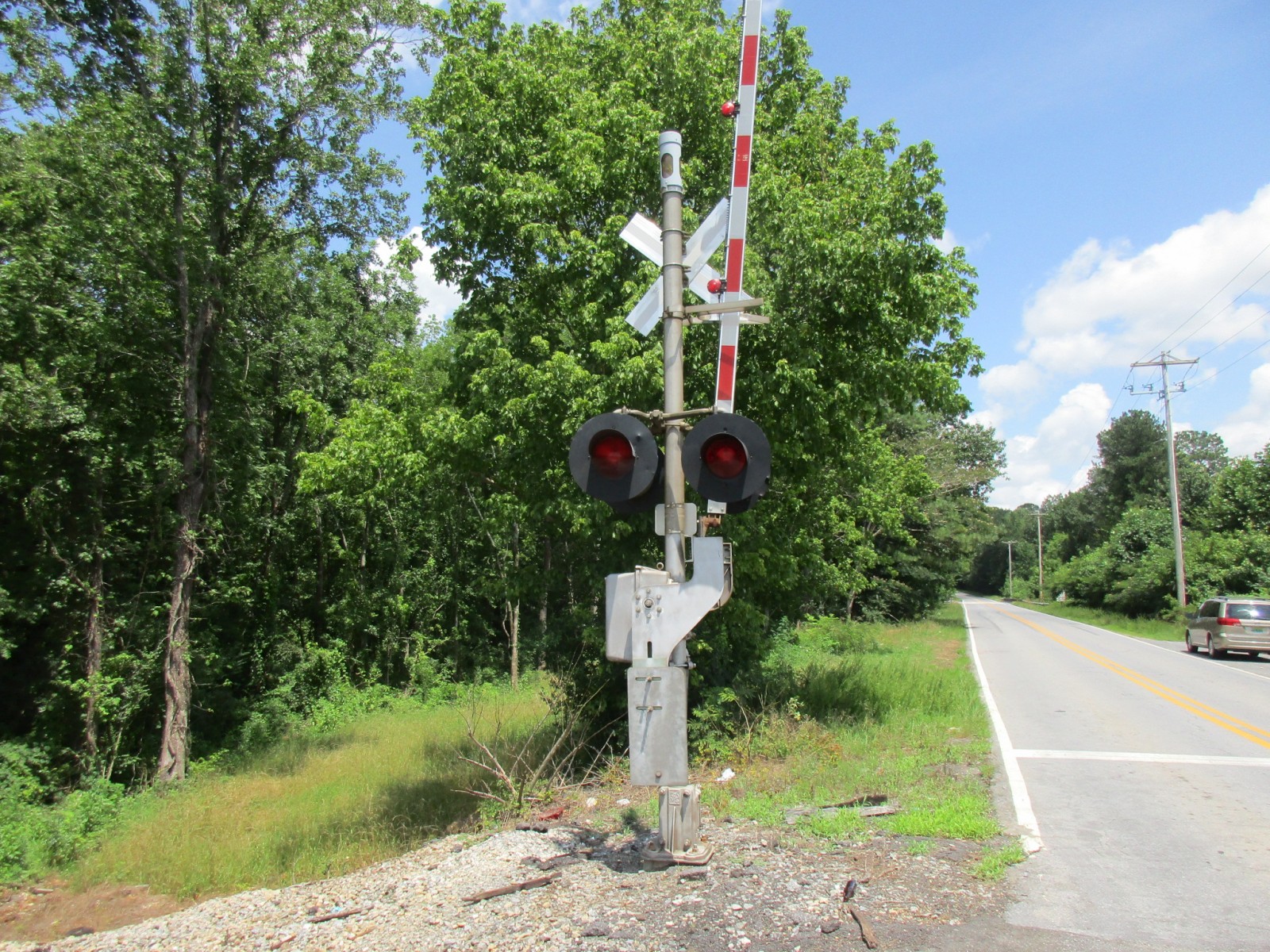

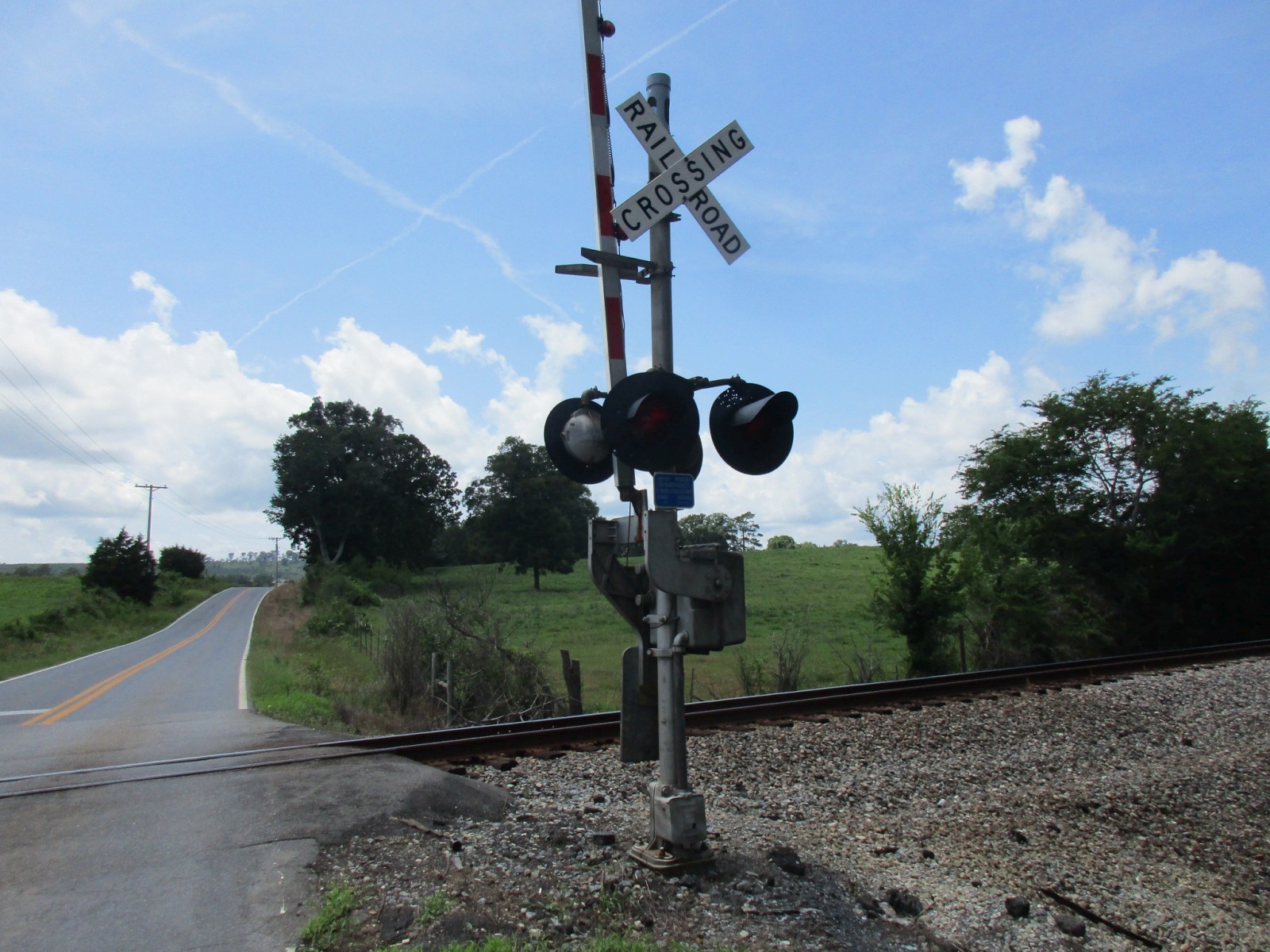

The second signal. |
|
13 |
14 |
15 |
16 |

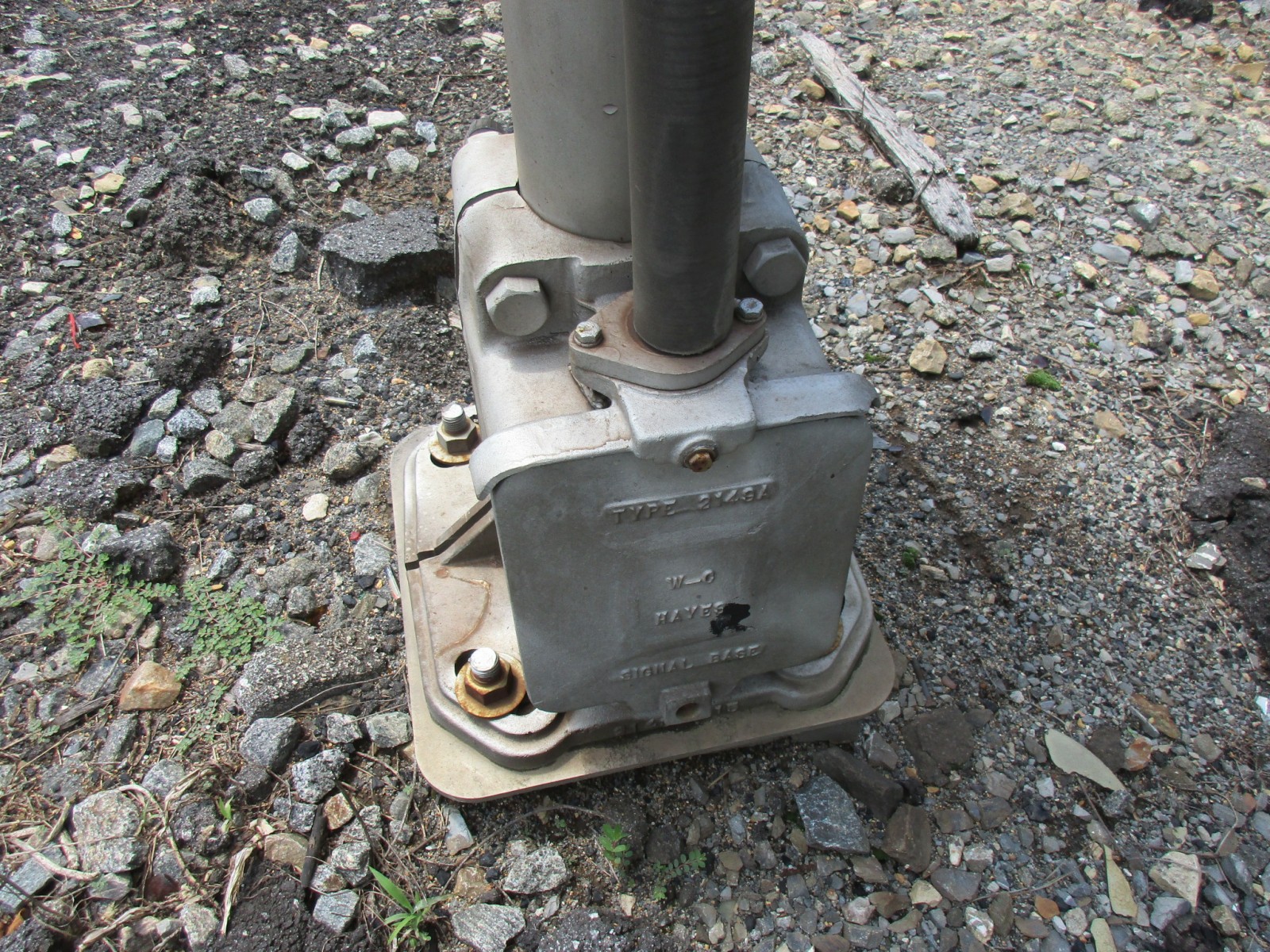

Another WCH base. |
The remains of a DOT tag. |

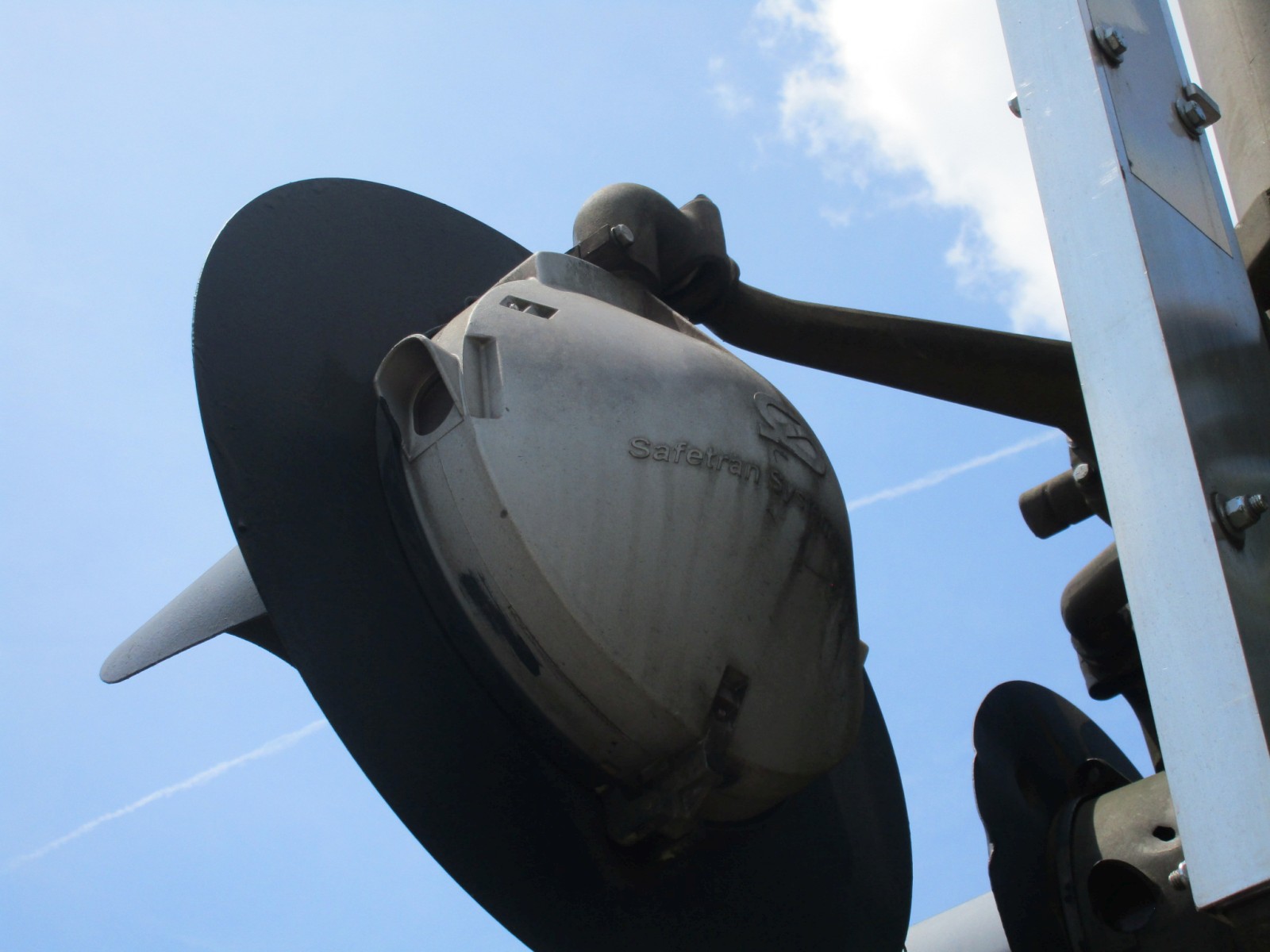

Another Safetran gate mechanism. |
17 |
18 |
19 |
20 |

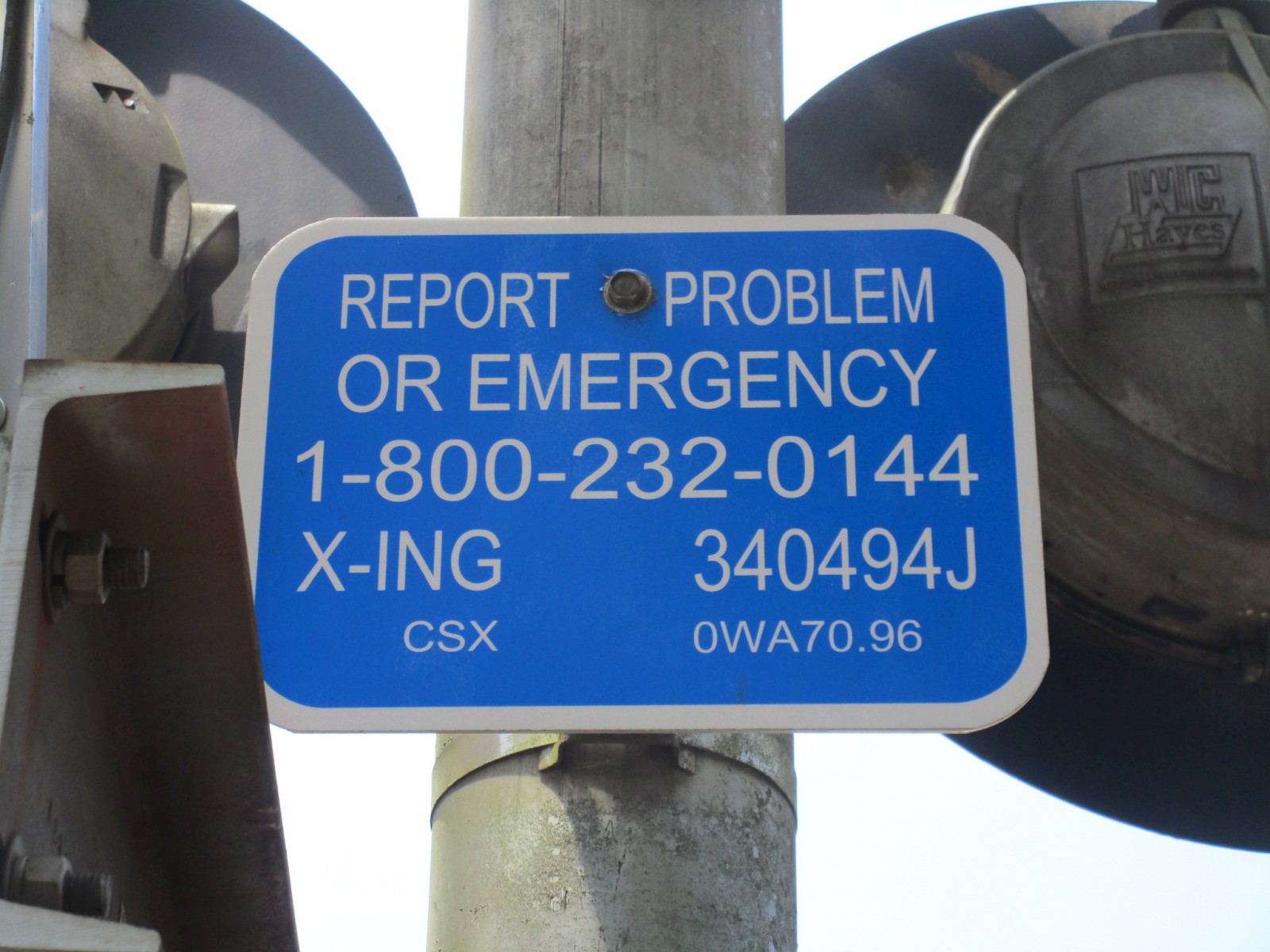

The emergency information. |

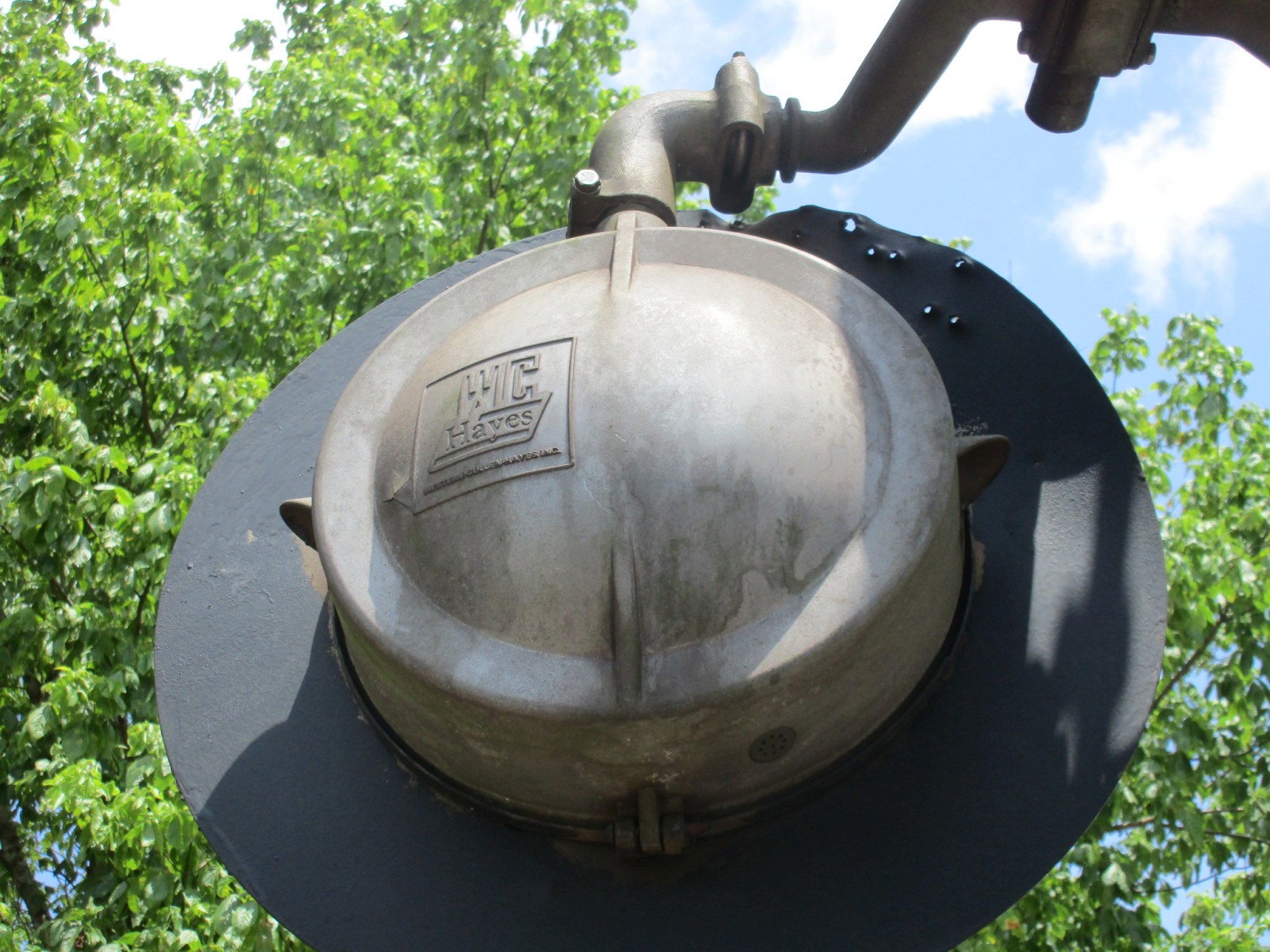

This signal has a mixture of three WCH 12x24 inch lights and one Safetran 12x24 inch light, all incandescent. |
||
21 |
22 |
23 |
24 |

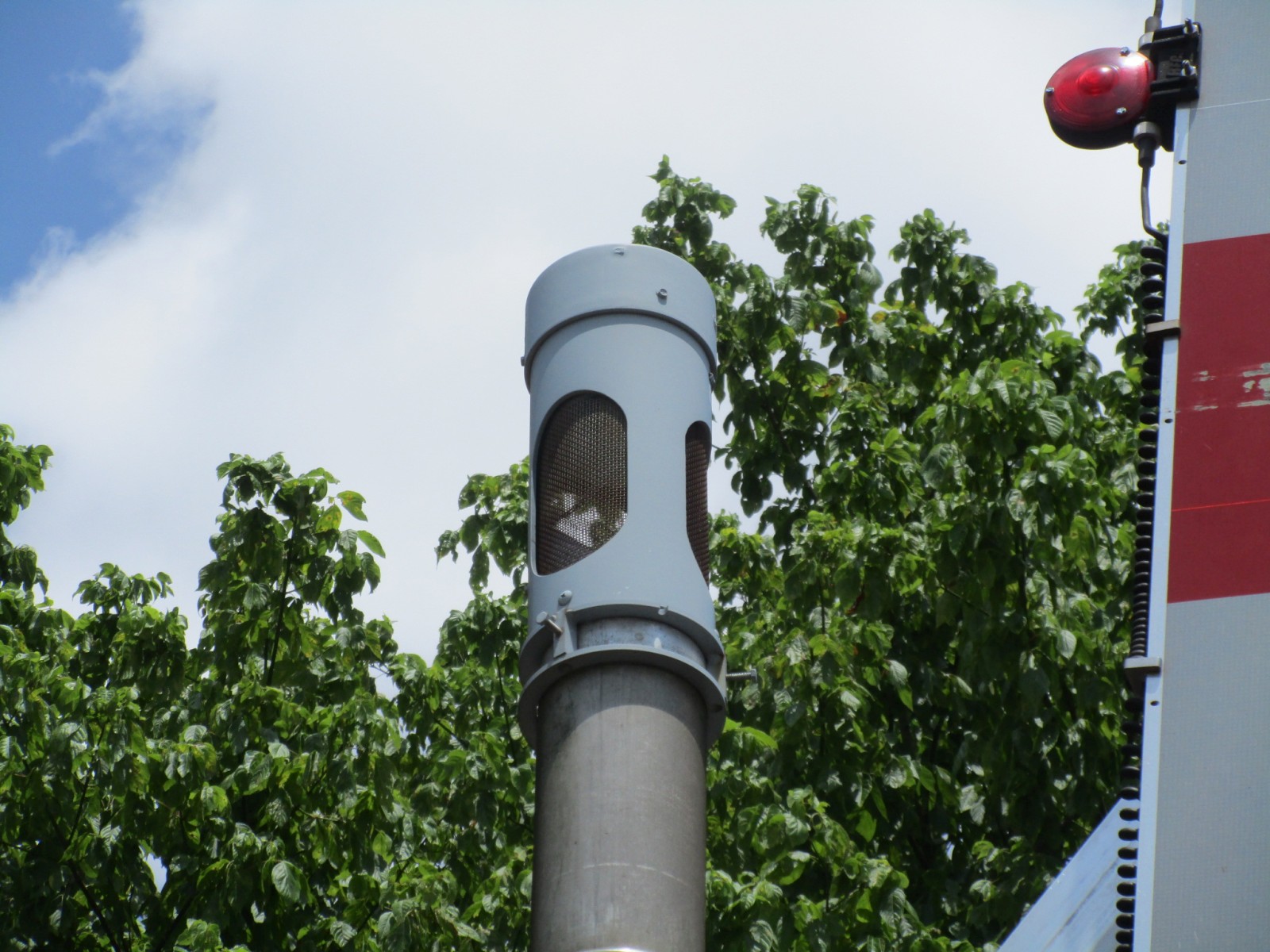

The NEG electronic bell. |
More RECO gate lights over here. |

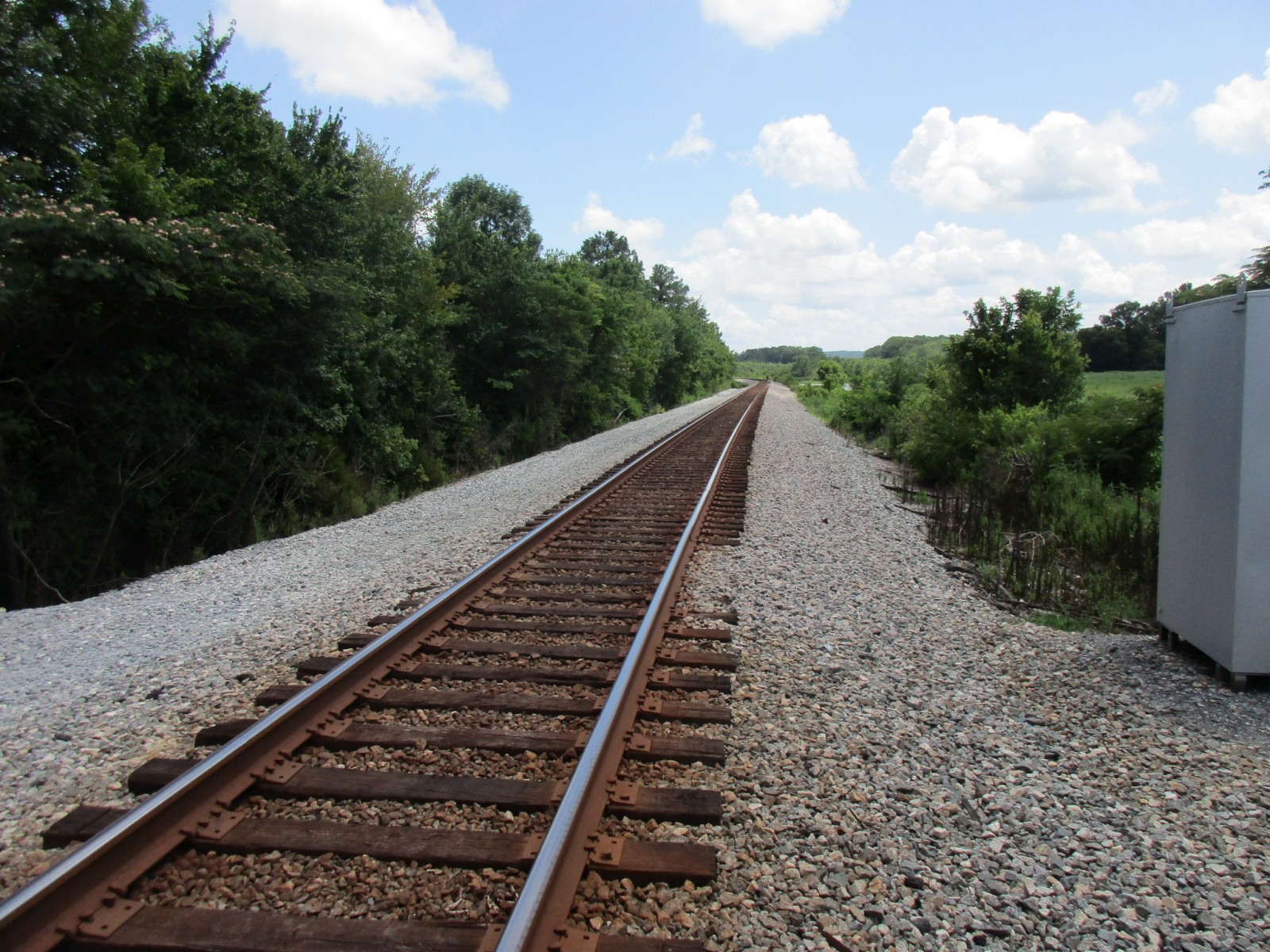

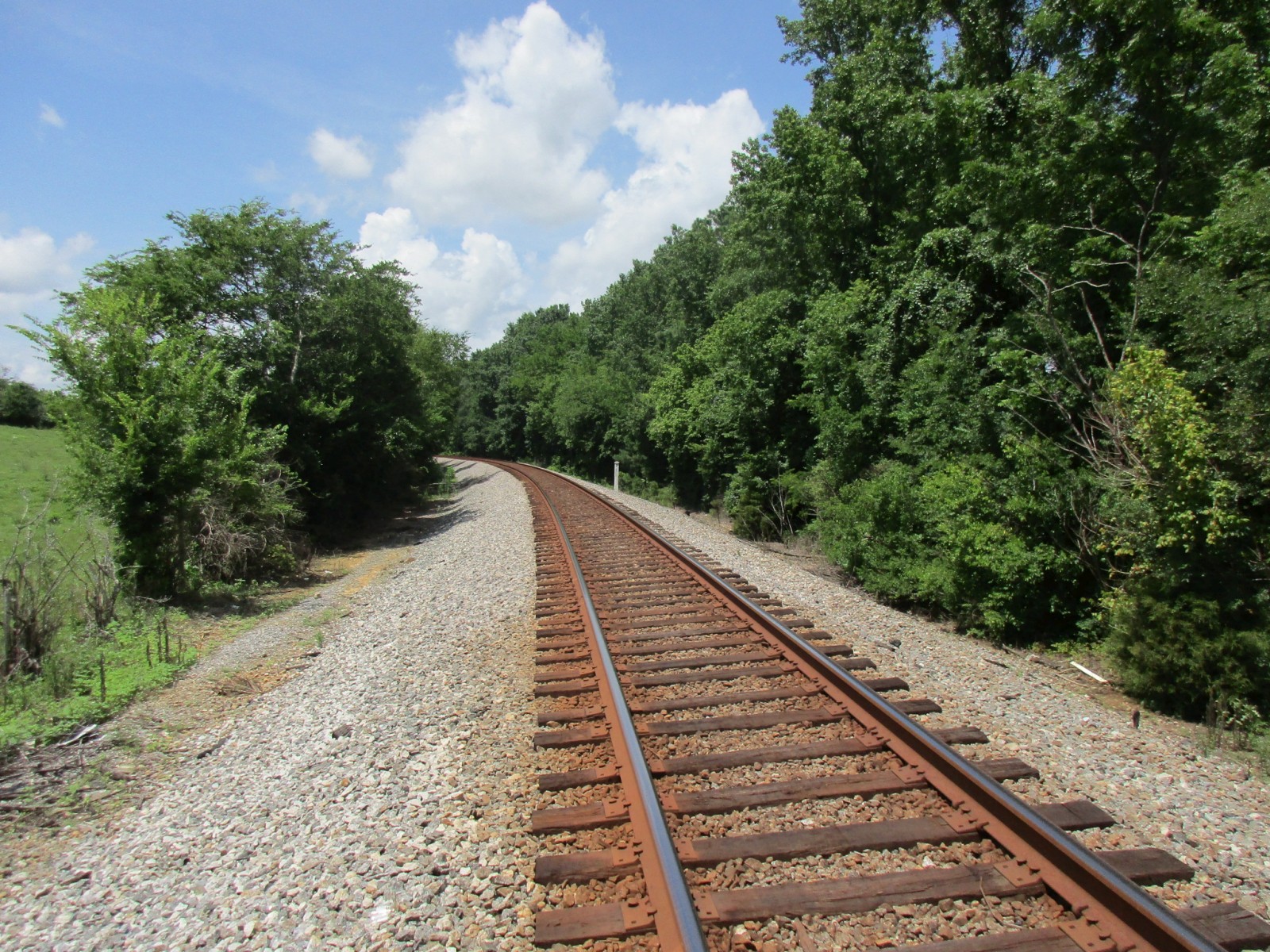

Track view looking south towards Woody Road. |
Looking north towards Holcomb Road near Calhoun, GA. |
25 |
26 |
27 |
28 |
The relay case. |

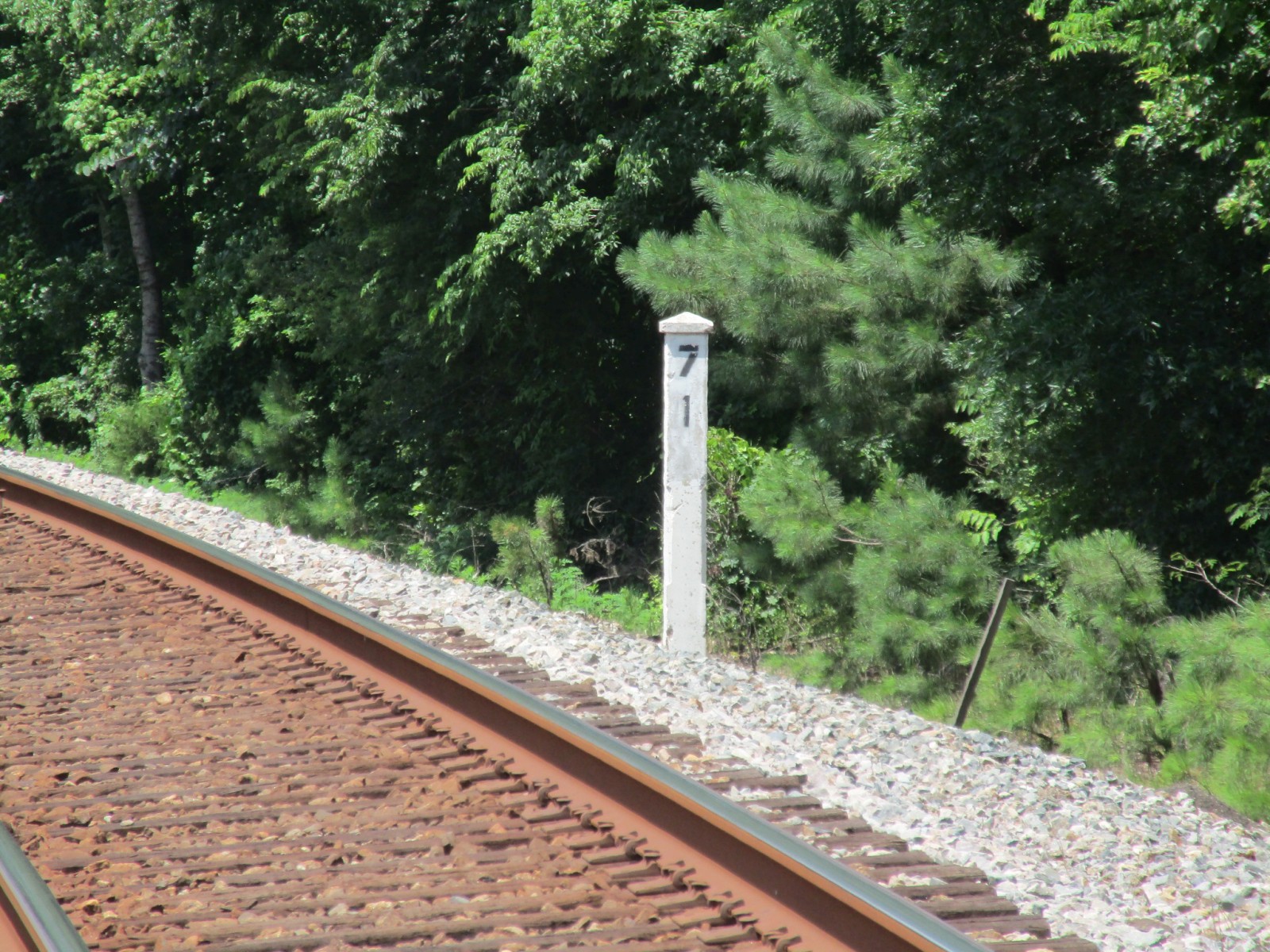

M.P. 71 is located near the crossing. |

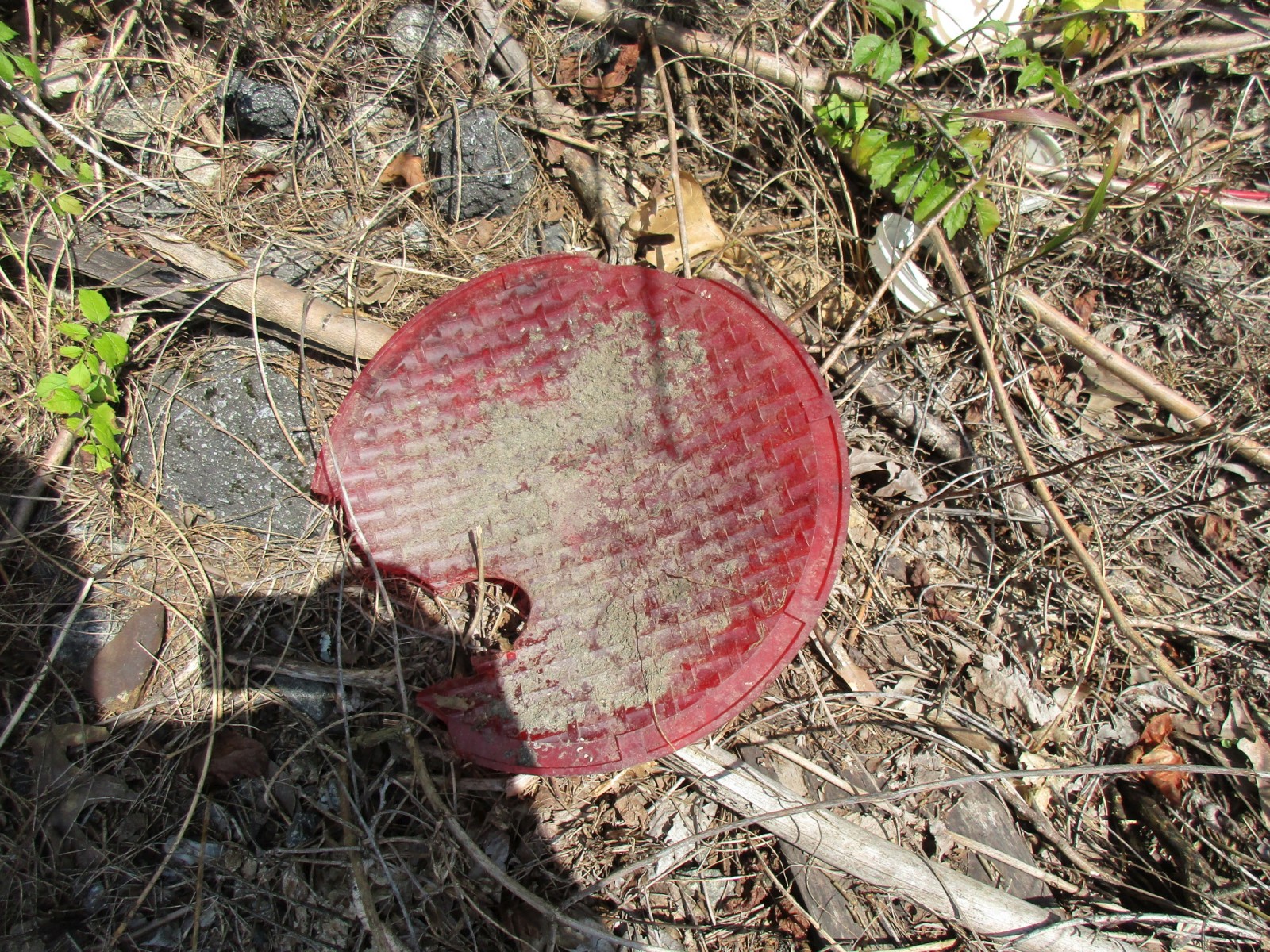

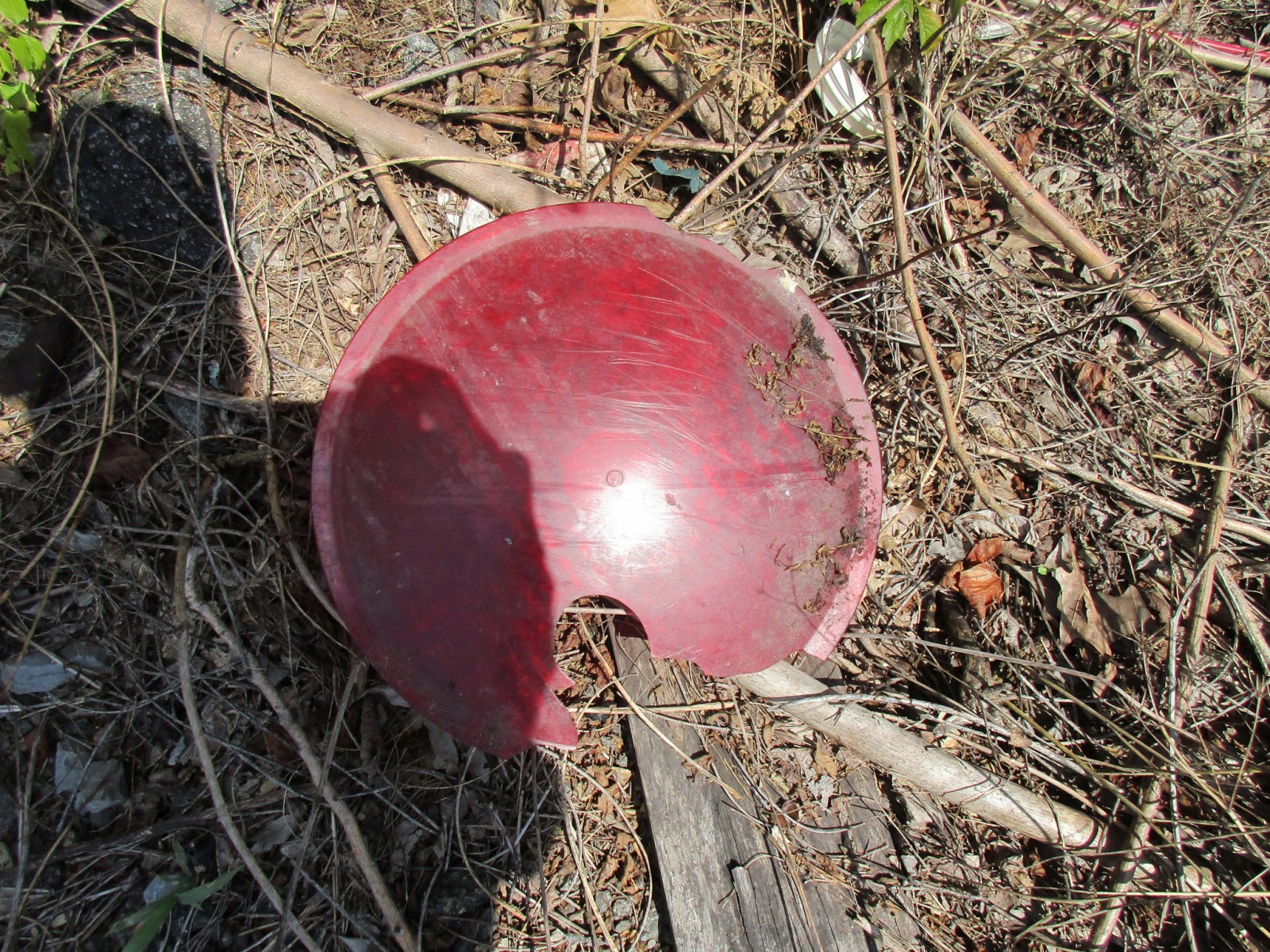

A damaged General Signals 12 inch lens lays near the crossing. |
|
29 |
30 |

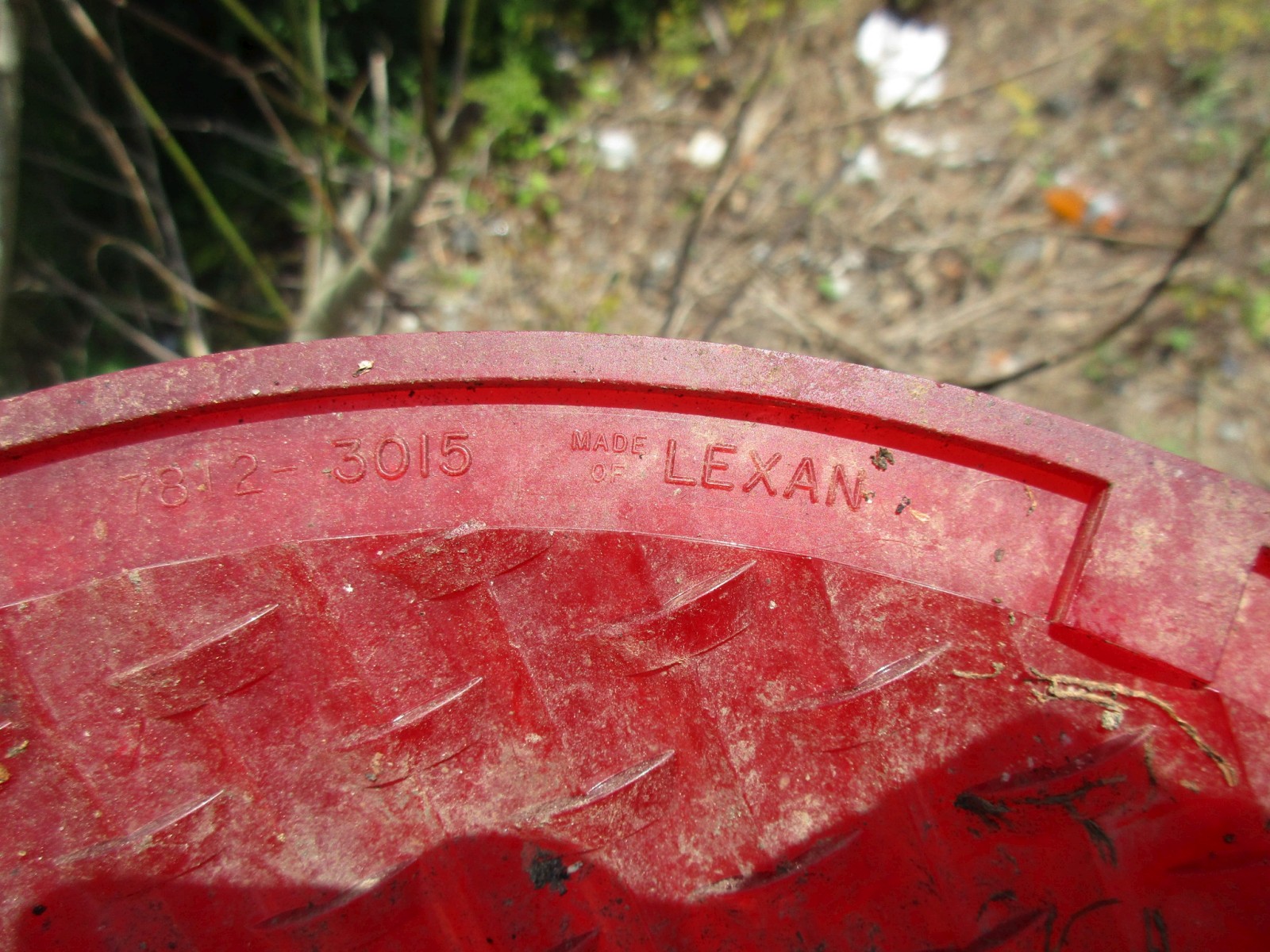

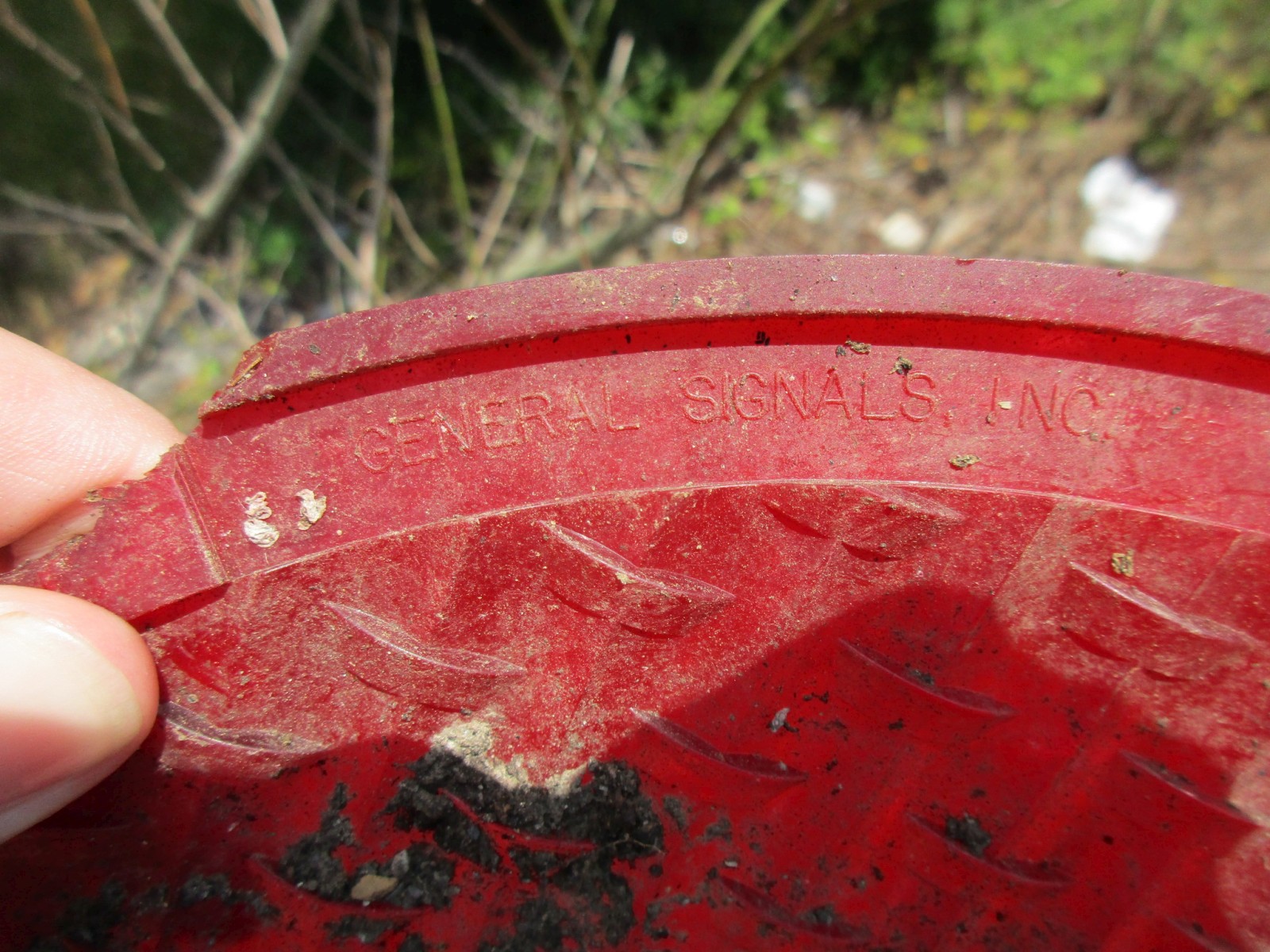

Some close-ups at the markings on the rim of the lens, showing that it was made by General Signals using Lexan. This lens appears to have come from the fourth WCH 12x24 inch light that would've originally been on the second signal (where the Safetran 12x24 inch light is now). |
|
On September 13, 2023, Ethan the Railfanner made a return trip to this crossing to find the incandescents have been upgraded to LEDs.
31 |
32 |

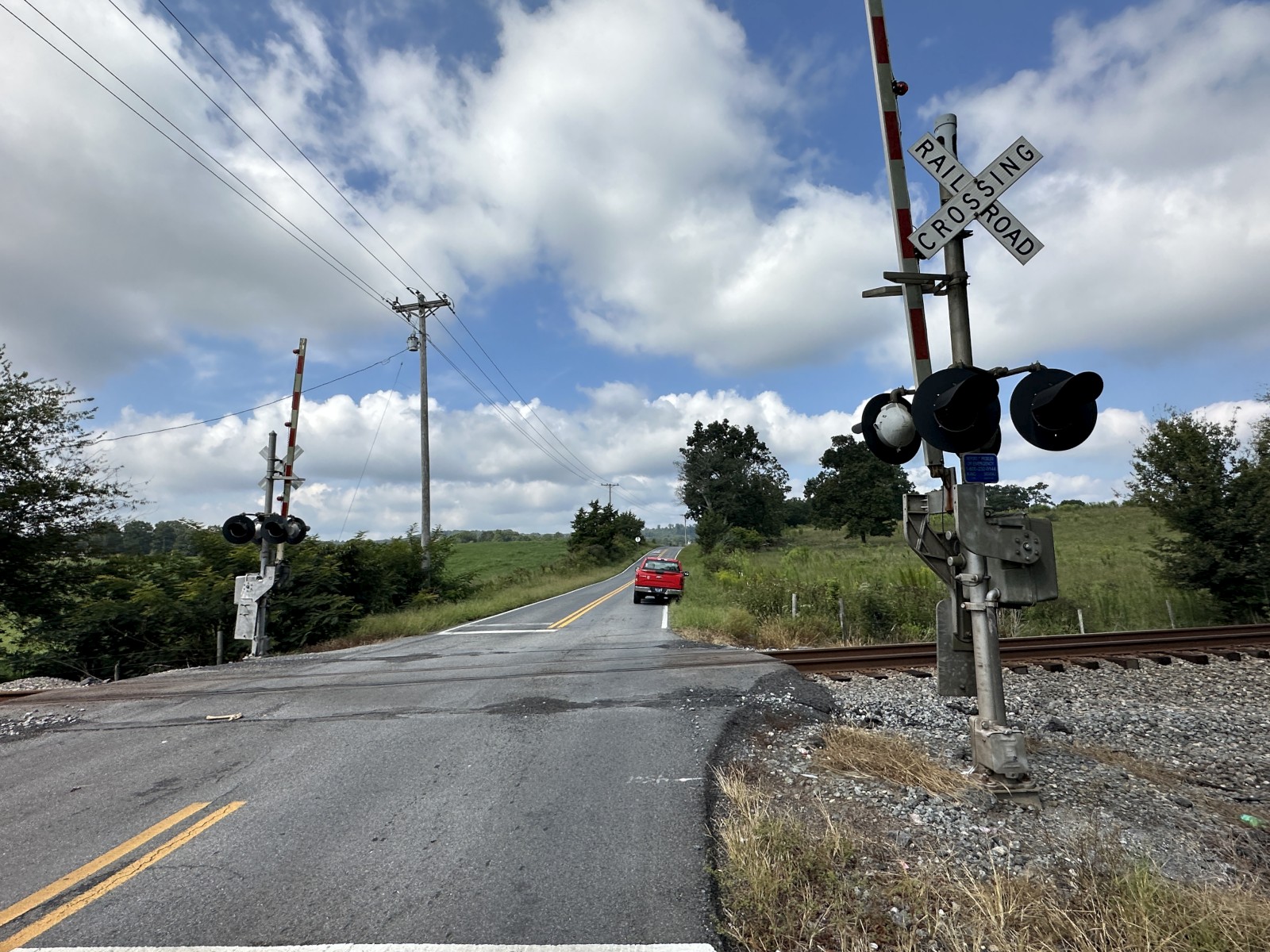

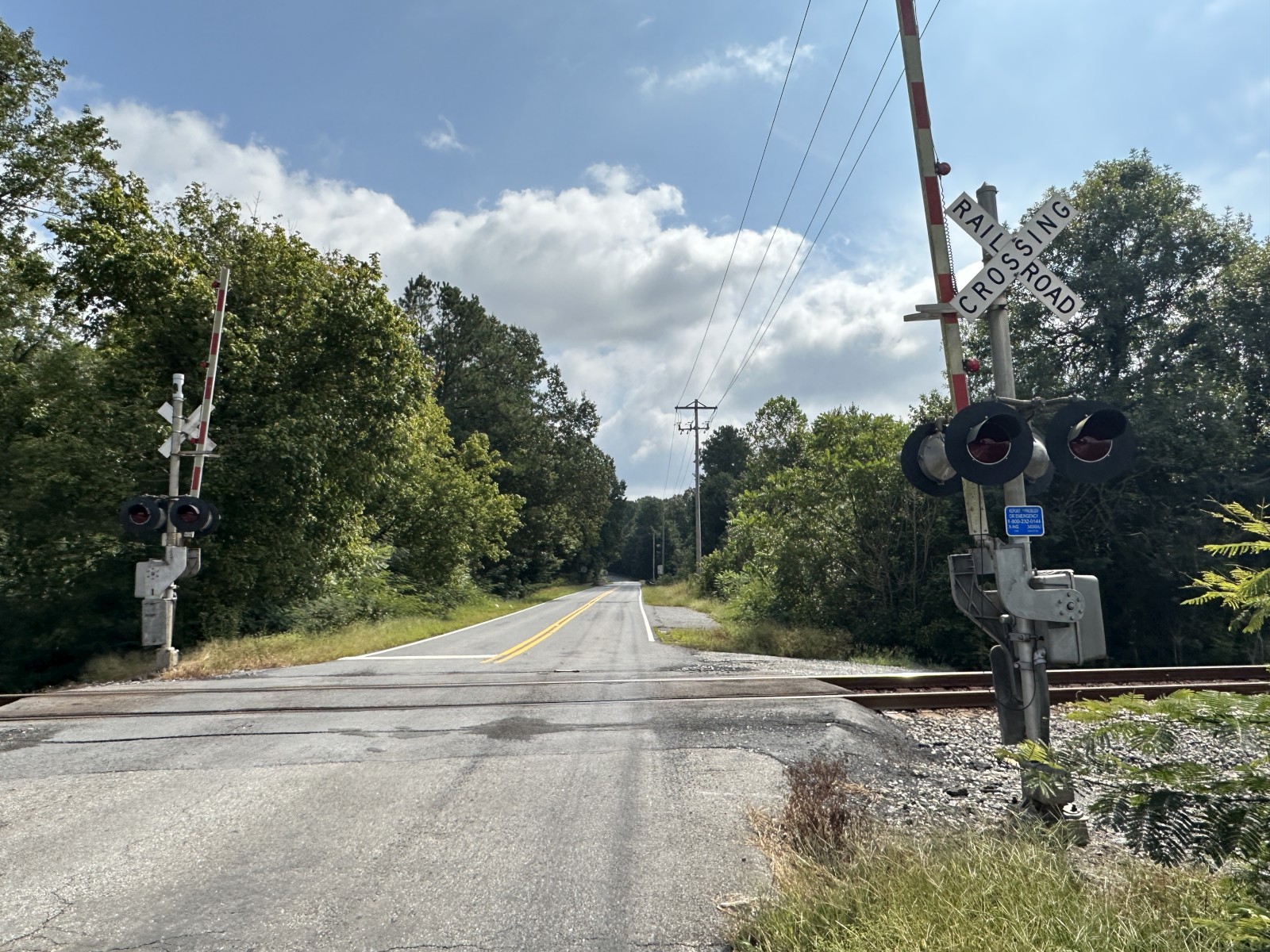

Overview of 2 gated signals facing east. |
Overview facing west. |
33 |
34 |
35 |
36 |
37 |
38 |

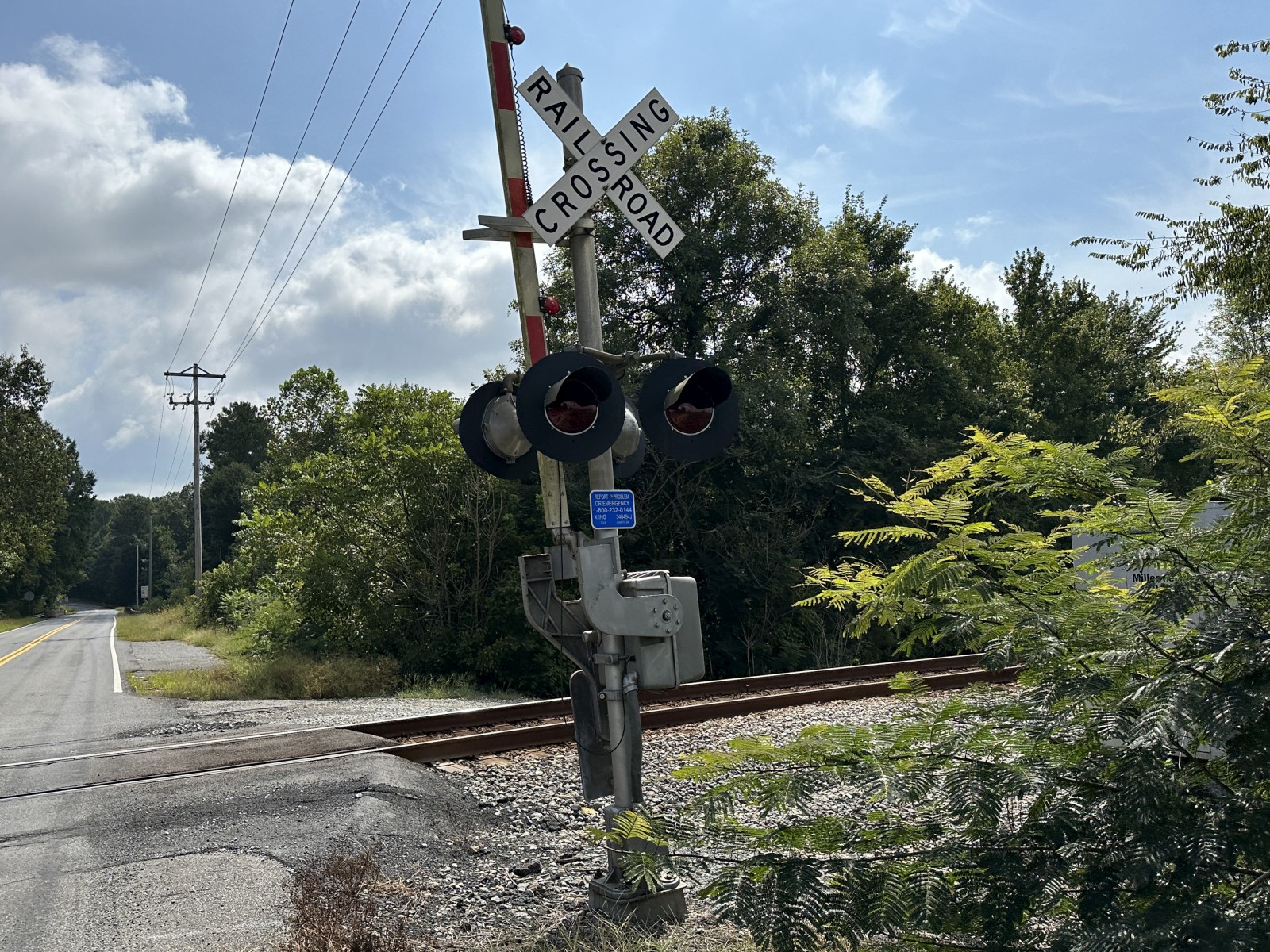

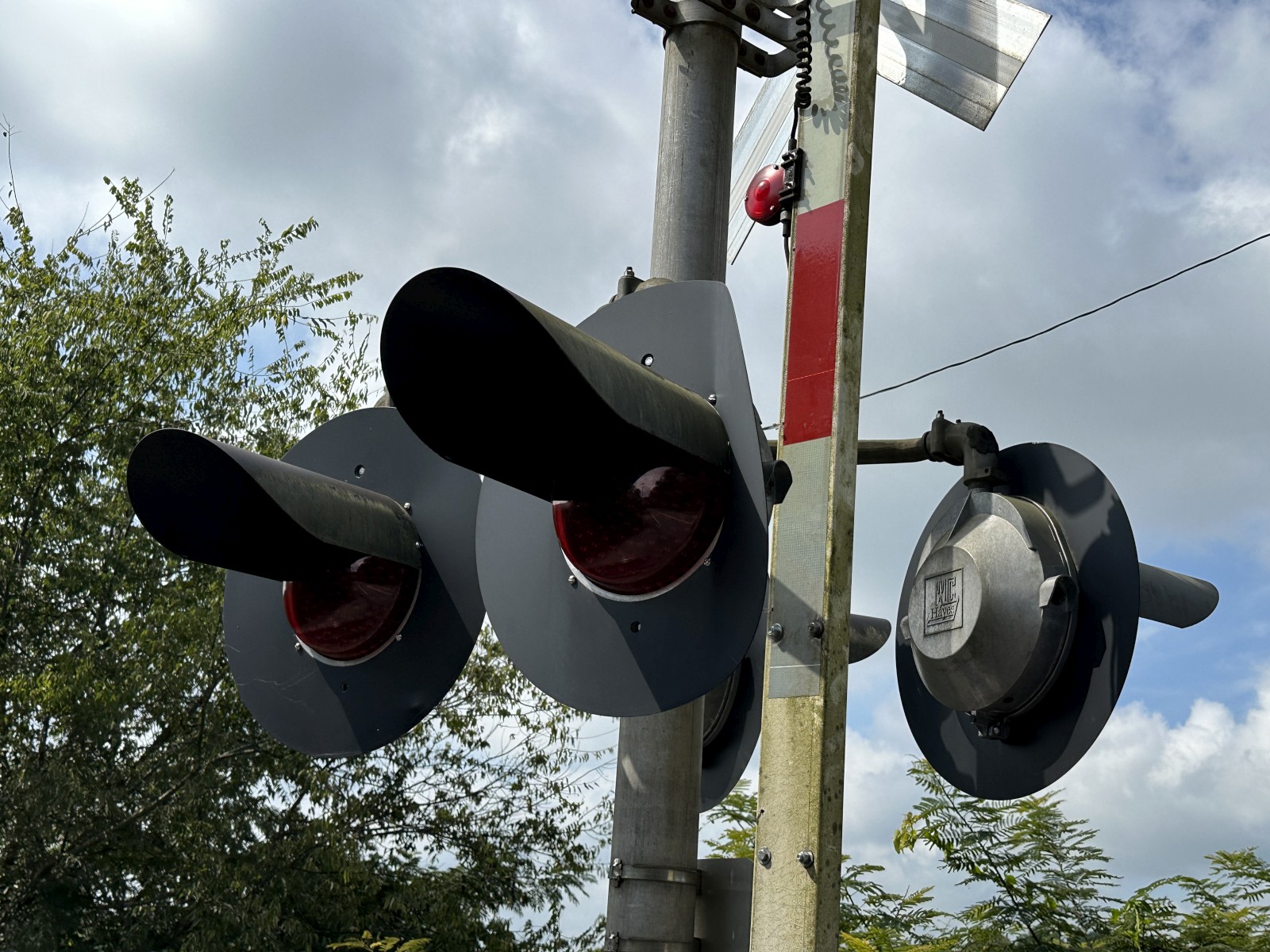

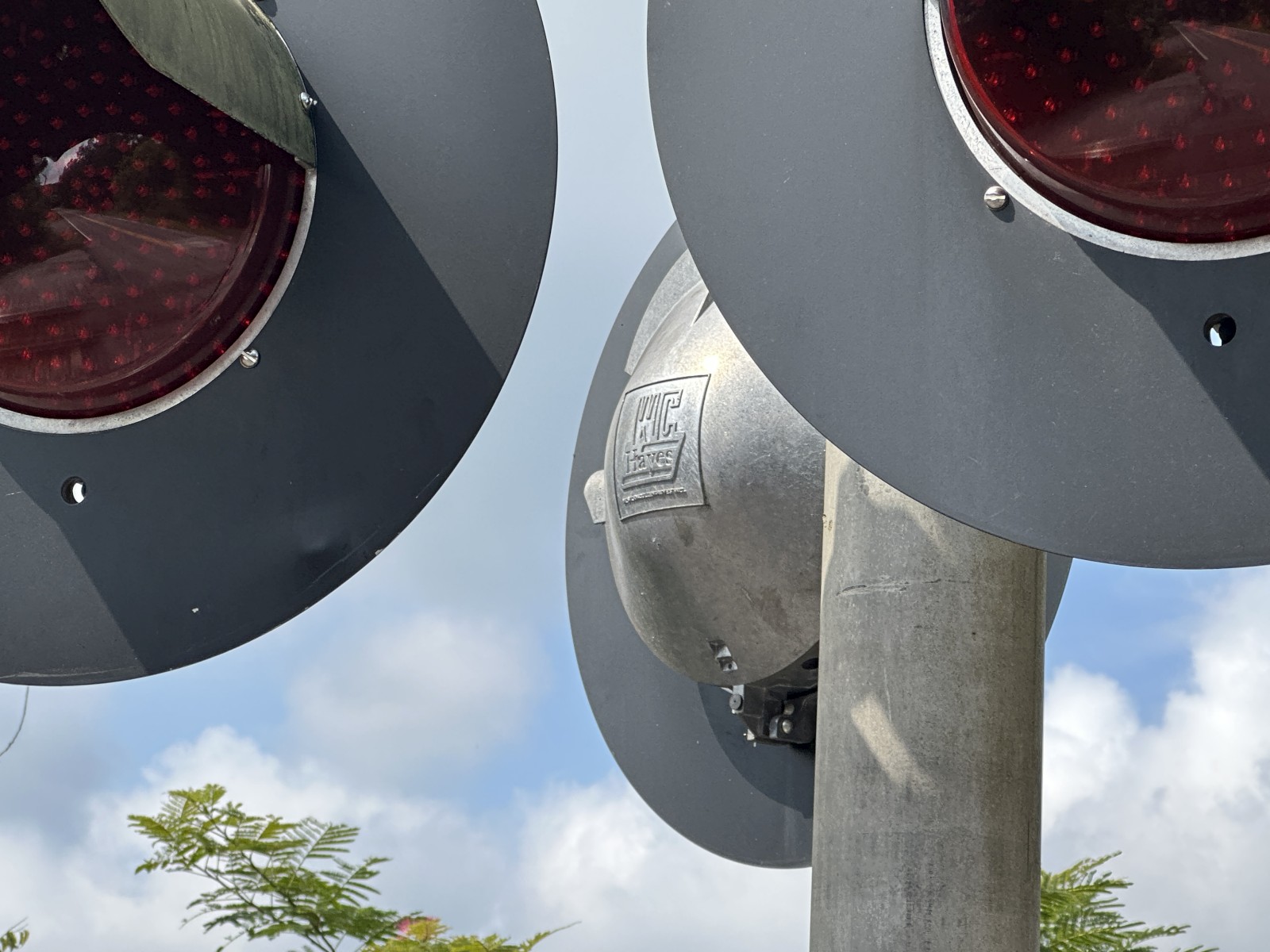

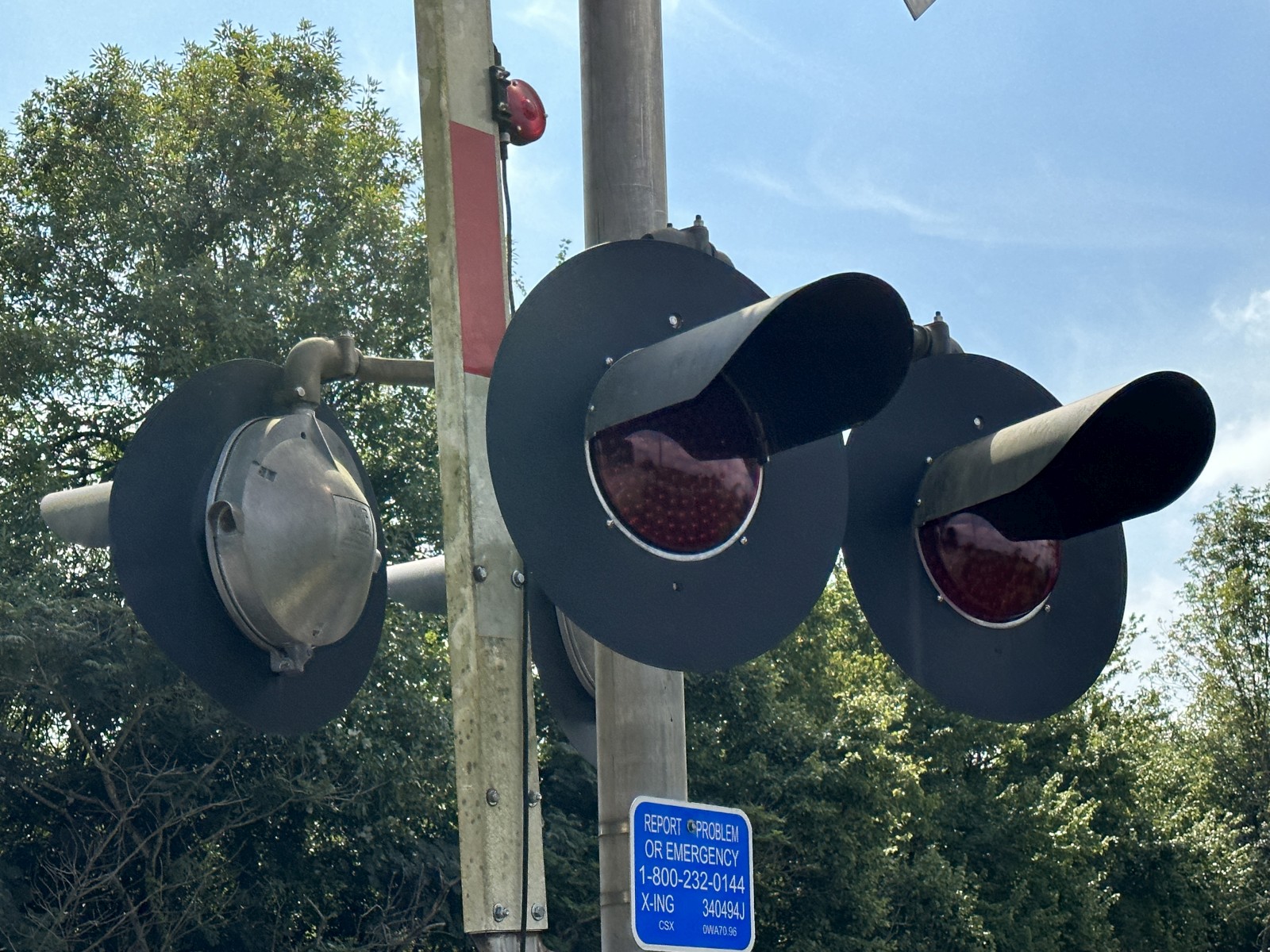

The western signal with new lights and LEDs. |
||
39 |
40 |
41 |
42 |
43 |
44 |

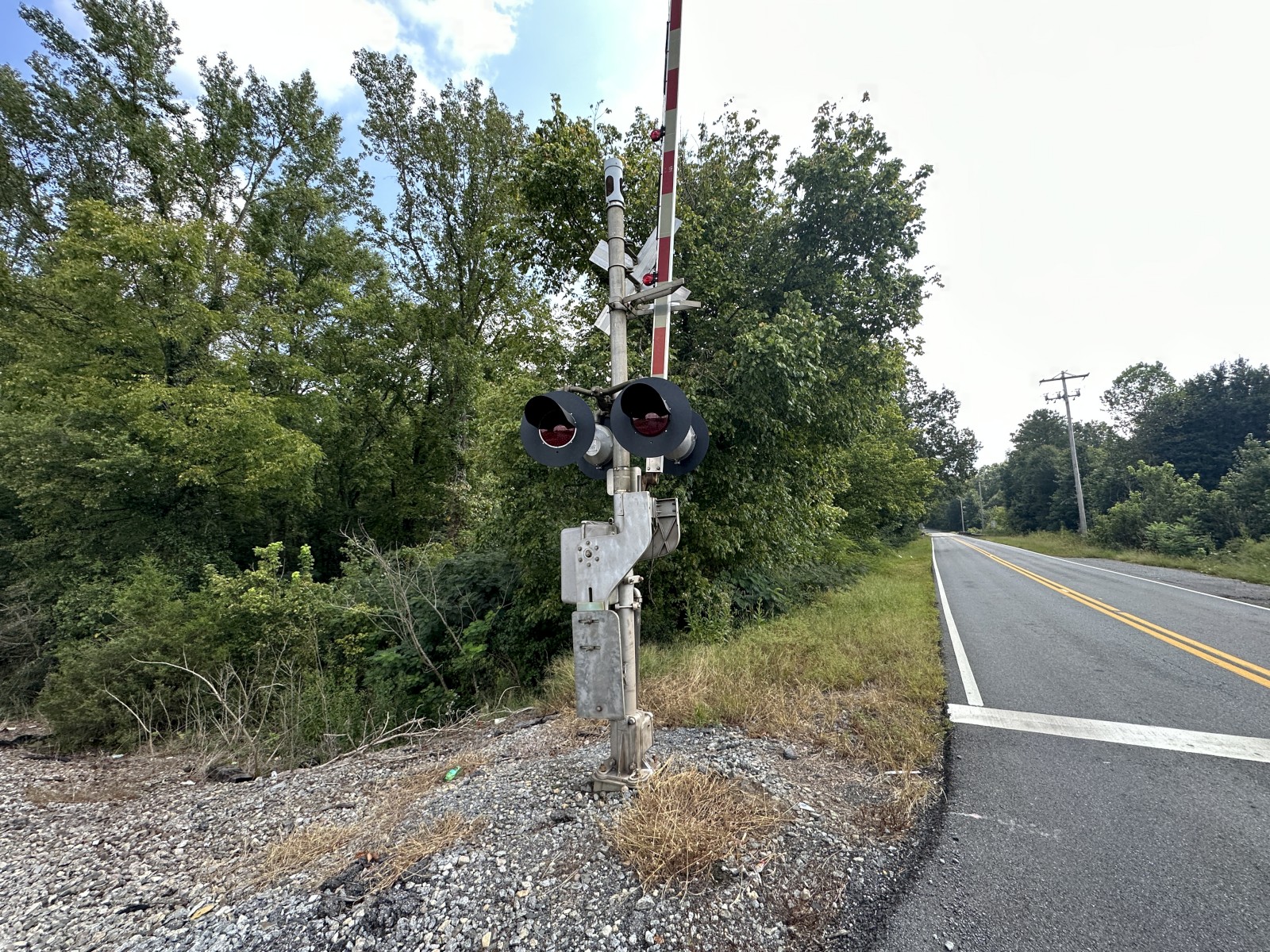

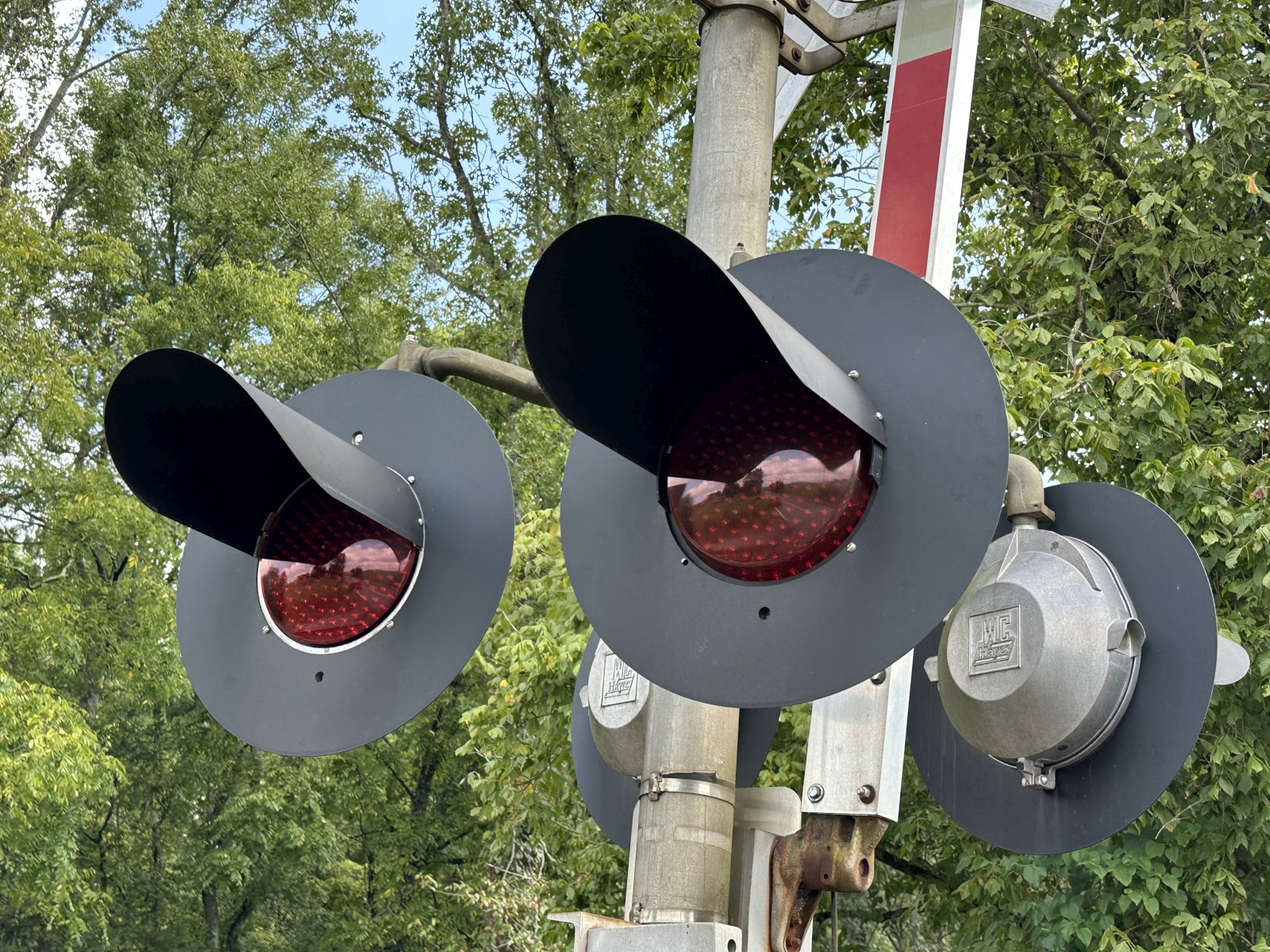

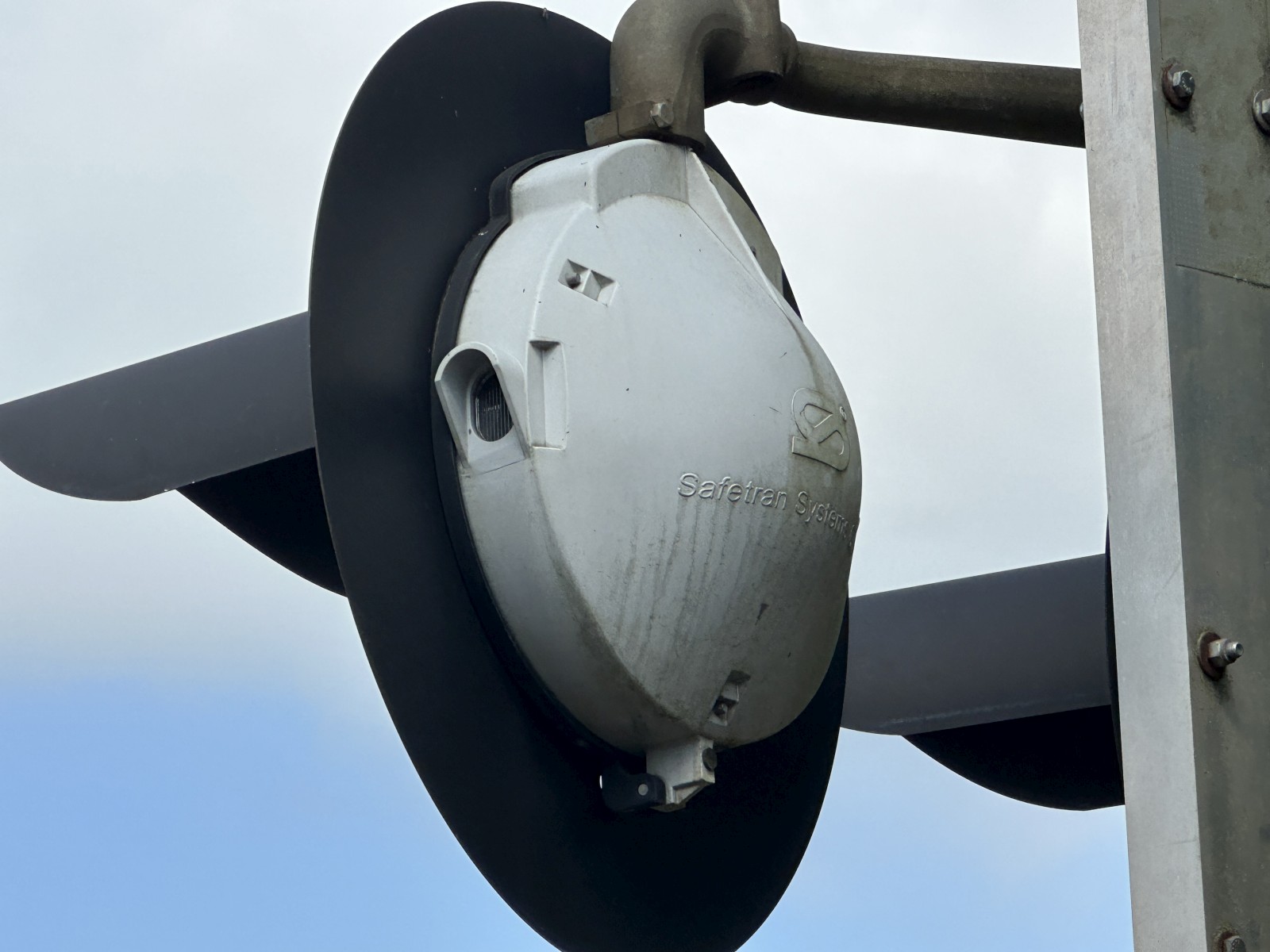

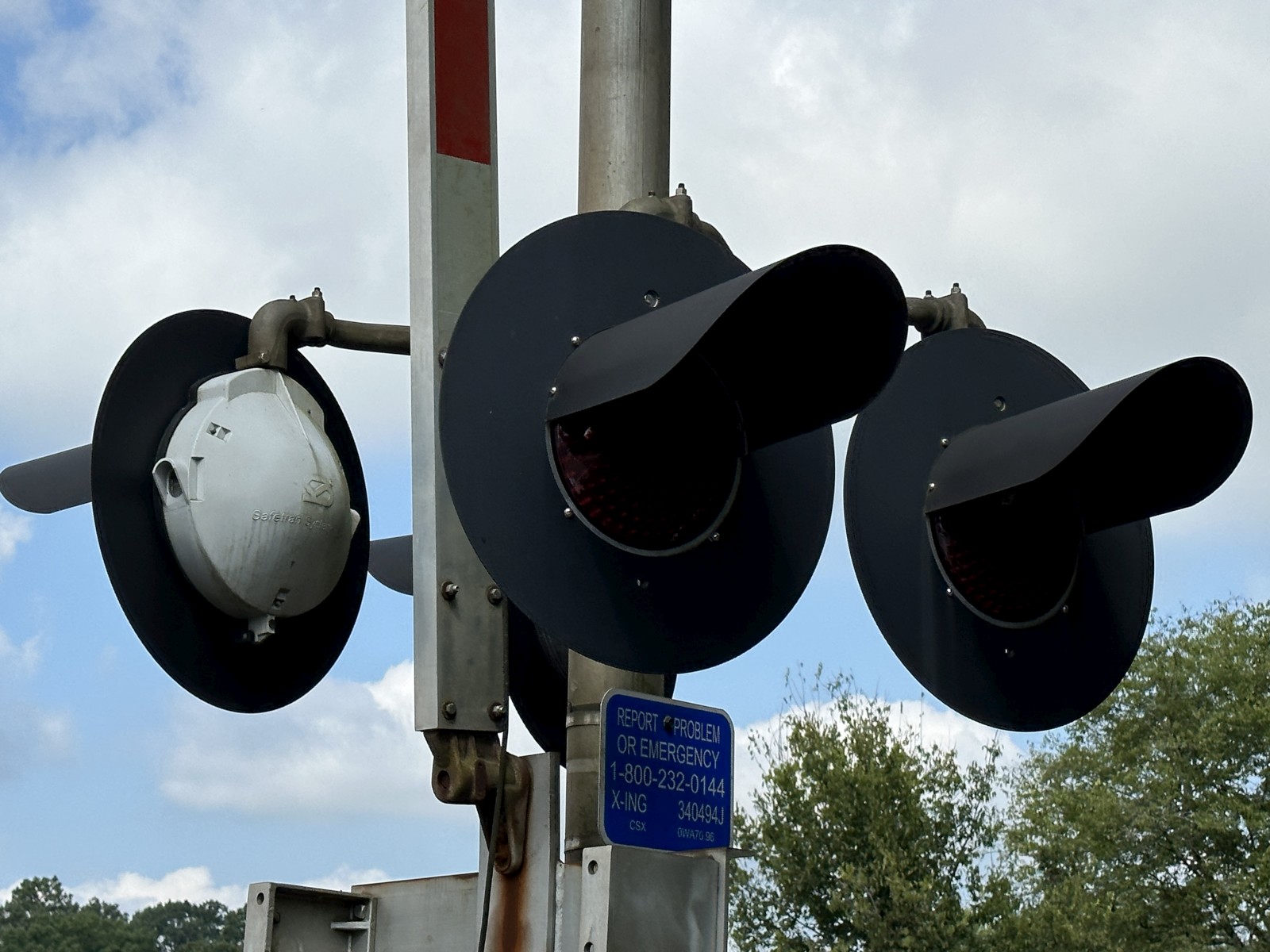

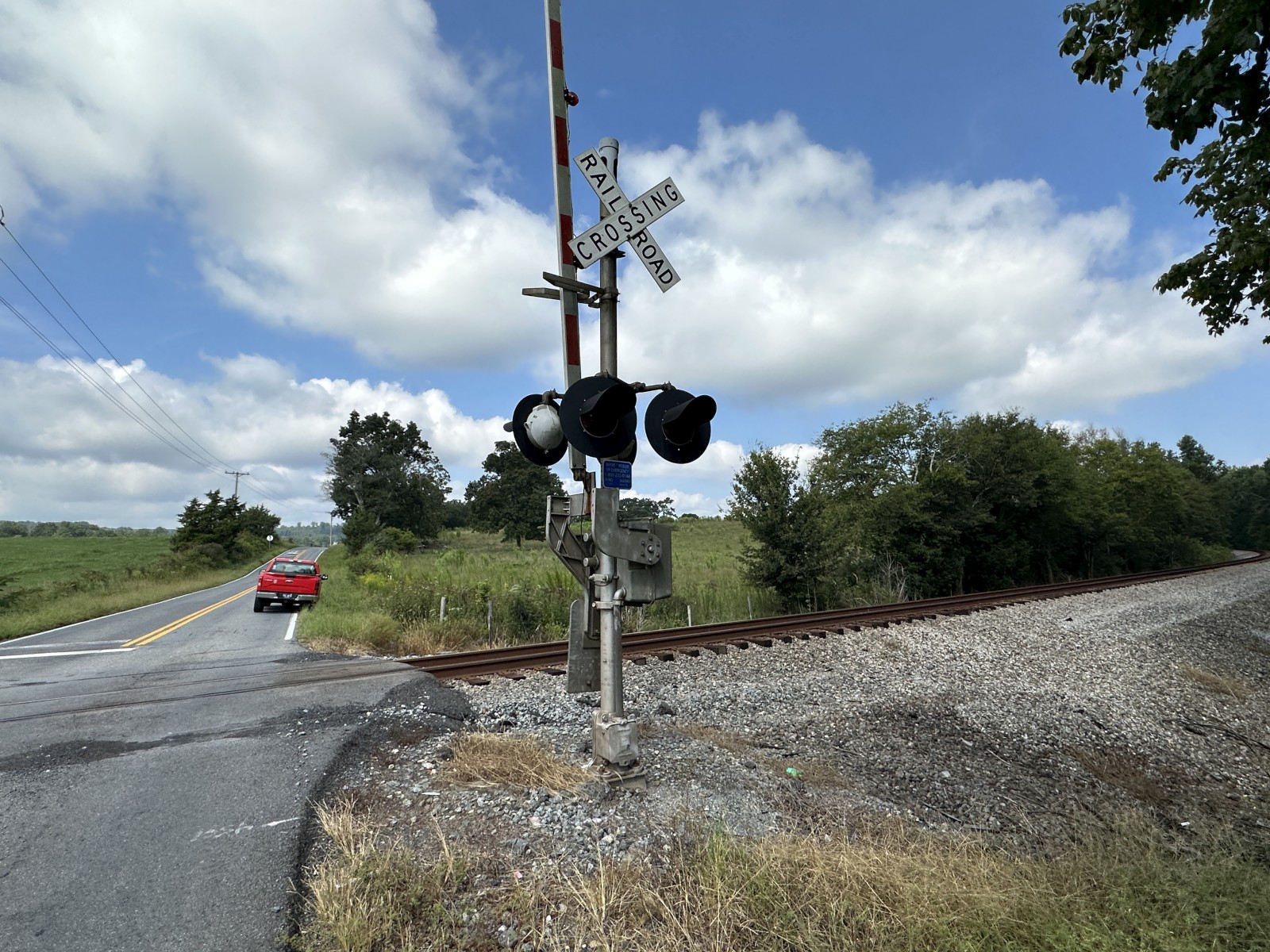

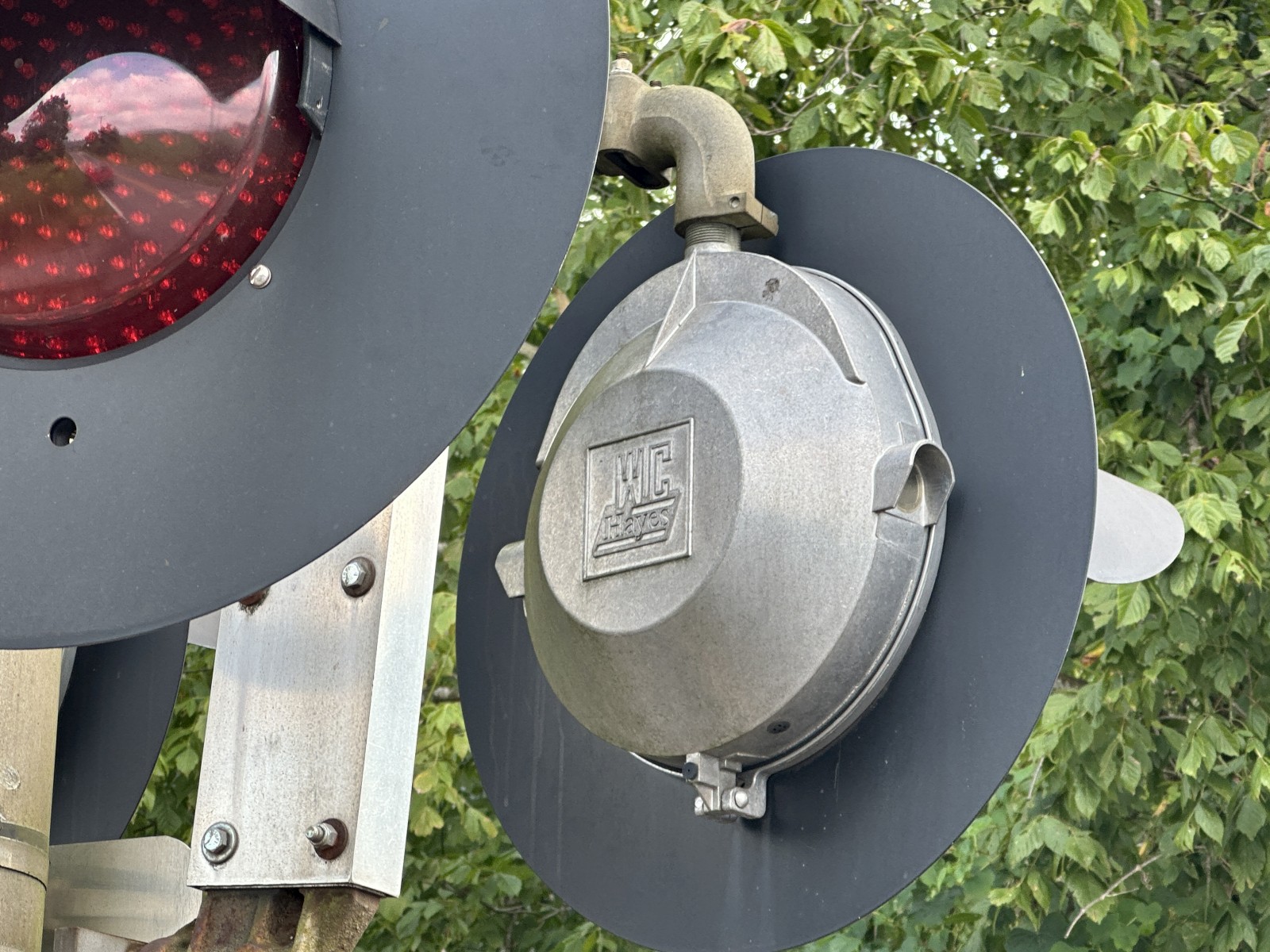

The eastern signal with new lights and LEDs. |
||
Pictures 1-30 were taken on 7-3-17.
Pictures 31-44 were taken on 9-13-23 by Ethan the Railfanner.
