MP: 0WA73.240 |
Updated March 9, 2024
Total Accidents: 1
Crossing
DOT #: 340498L
TOTAL
DAILY TRAINS: 20 (AS OF 2017)
| >>>>>>>>>>>>>> | First Signal | Second Signal |
| Bell: | NEG E-Bell | N/A |
| Base: | WCH | WCH |
| Lights: | 2 - 12"x24" Safetran w/ WCH 2nd Gen LEDs 6 - 12"x24" WCH Flatback w/ Leotek EV series LEDs |
4 - 12"x24" WCH Flatback w/ Leotek EV series LEDs |
| Gate Lights: | 4" NEG LEDs | 4" NEG LEDs |
| Gate Mechanism: | Siemens Sticker Style 2 | Siemens Sticker Style 2 |
| Gate Striping: | Vertical Striping | Vertical Striping |
Page created by: freebrickproductions
This crossing is located along the CSX W&A Subdivision.
1 |
2 |
3 |
4 |

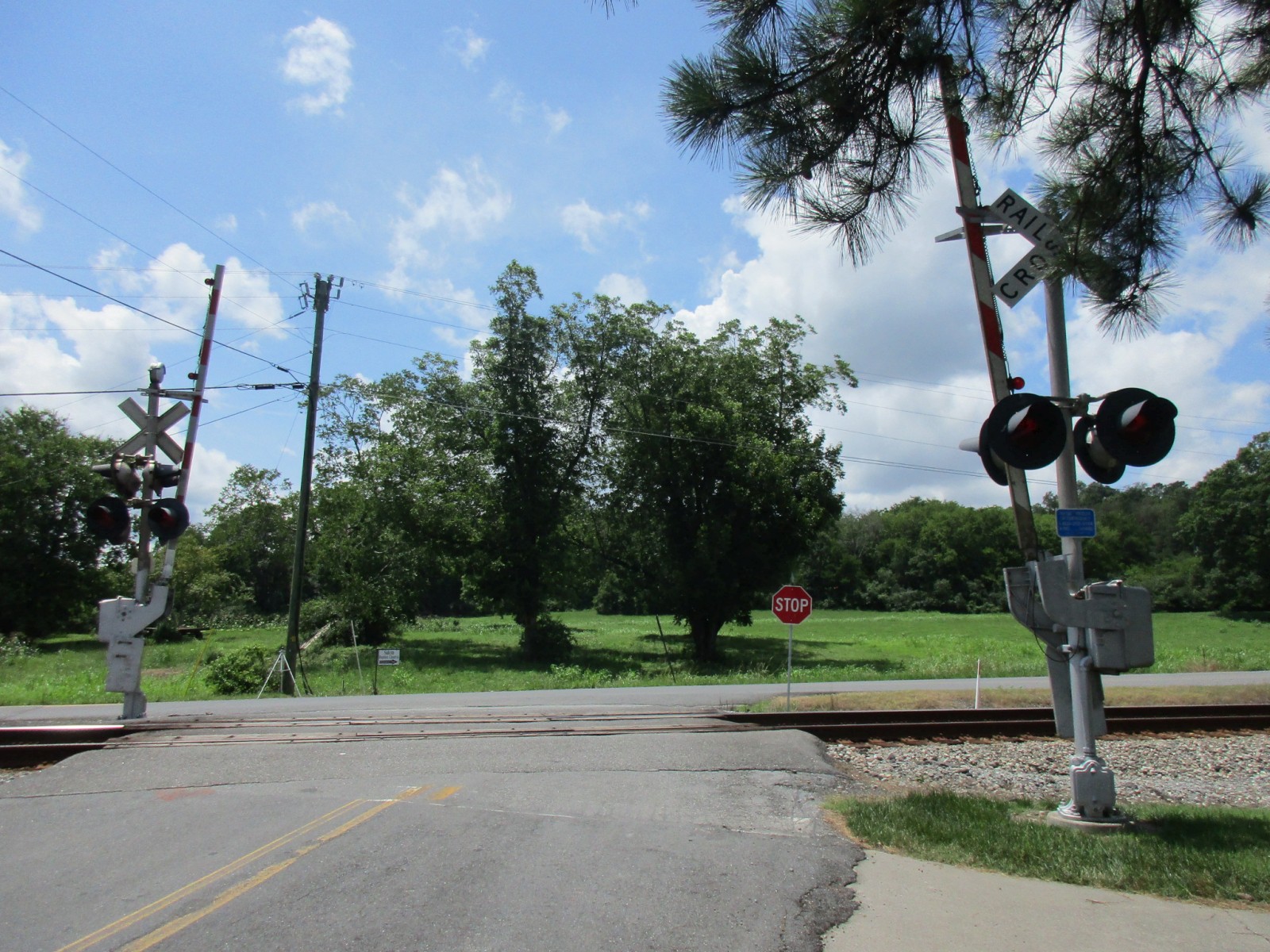

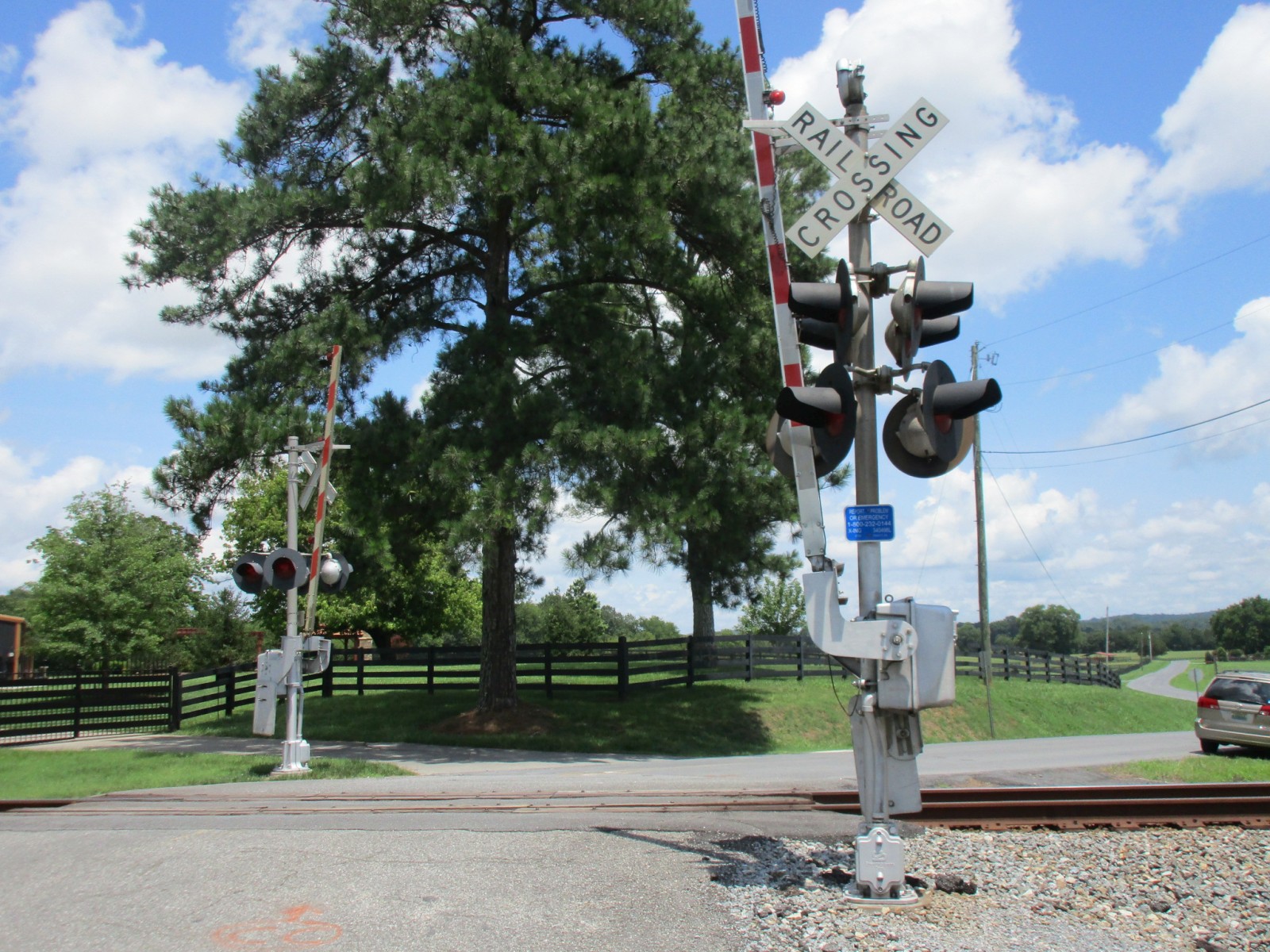

Overviews of a rather nice 1990s CSX install. |

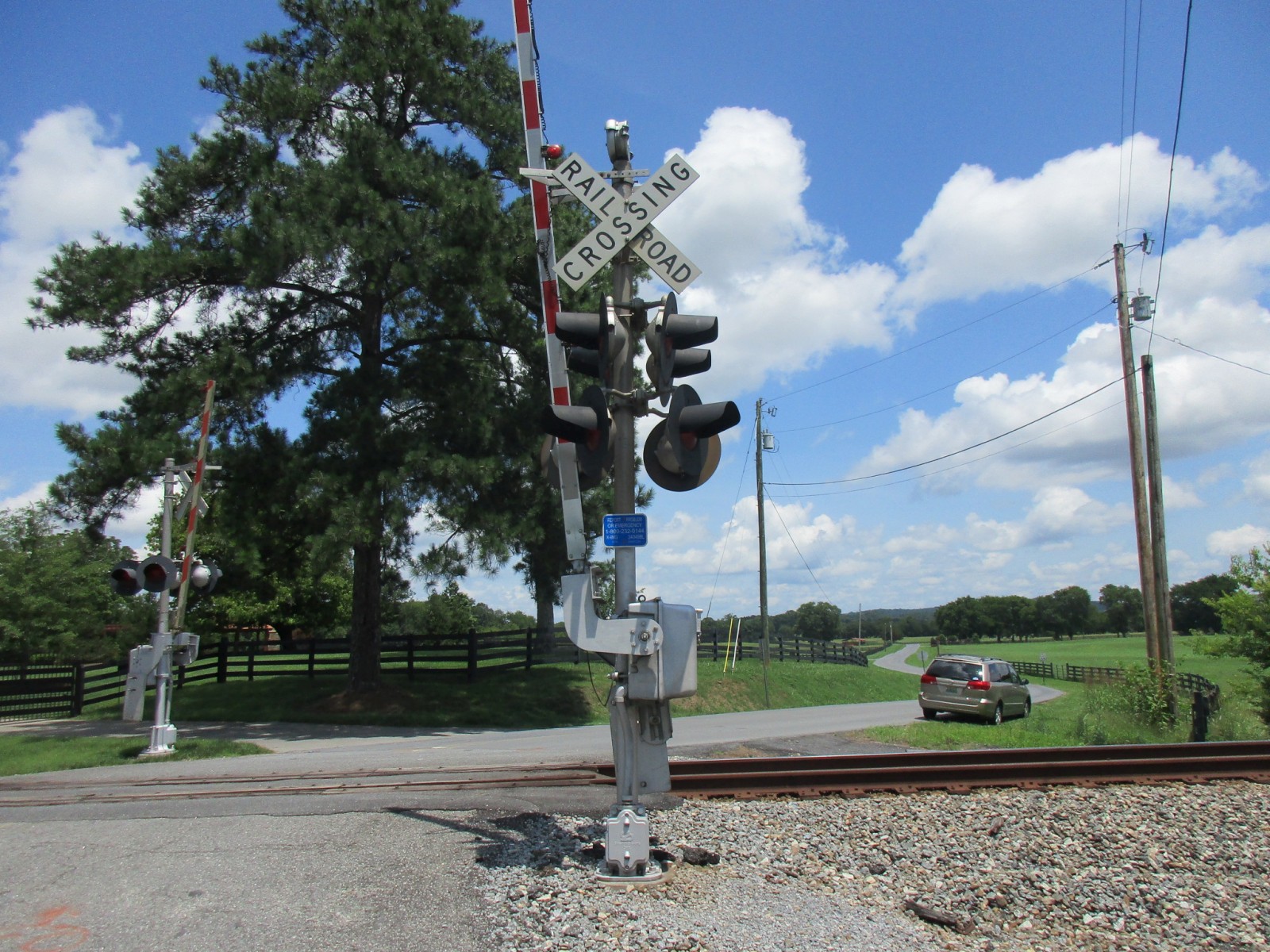

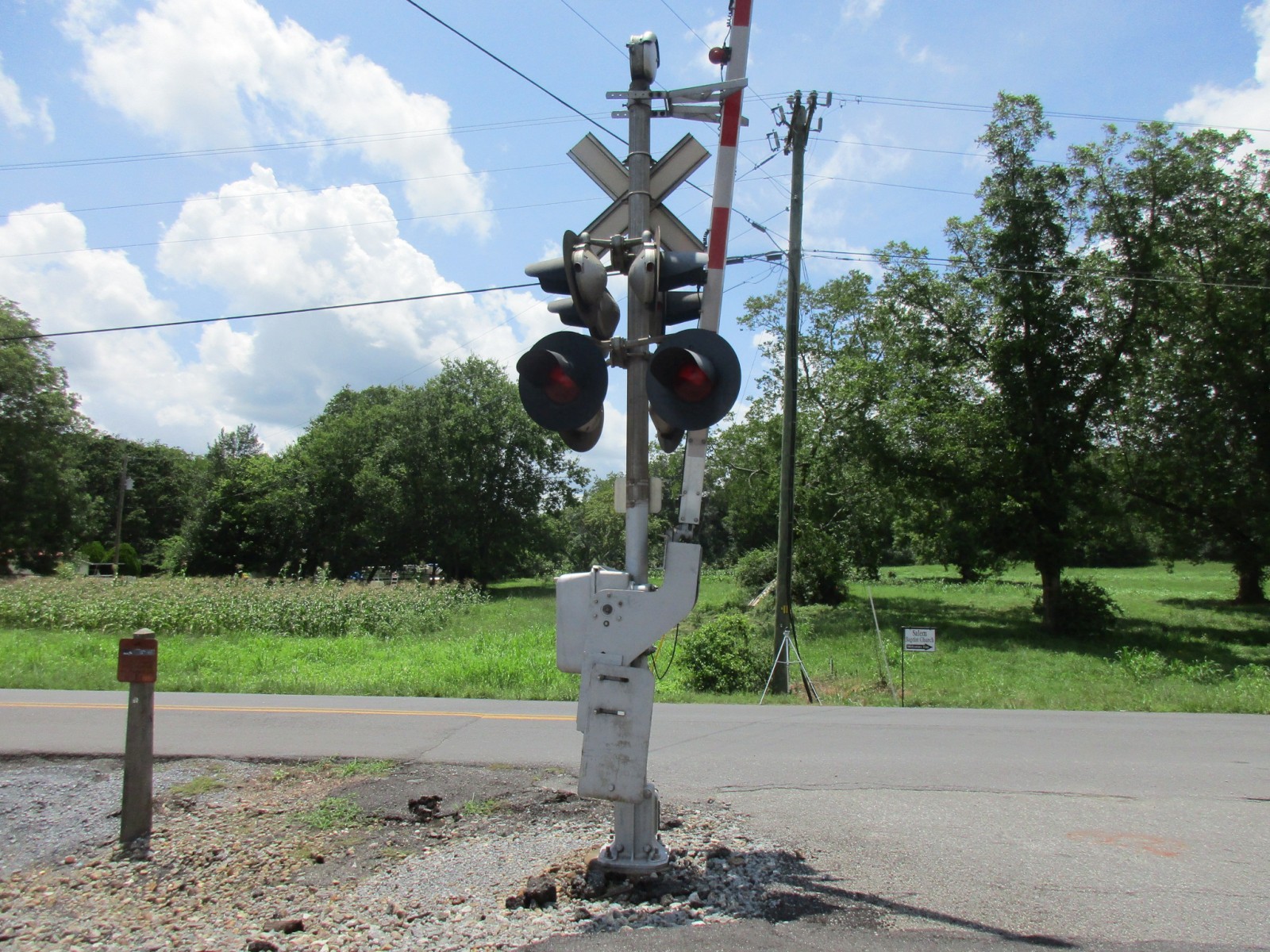

The first signal, which has a rather funky (and ugly!) light arrangement. |
||
5 |
6 |
7 |
8 |

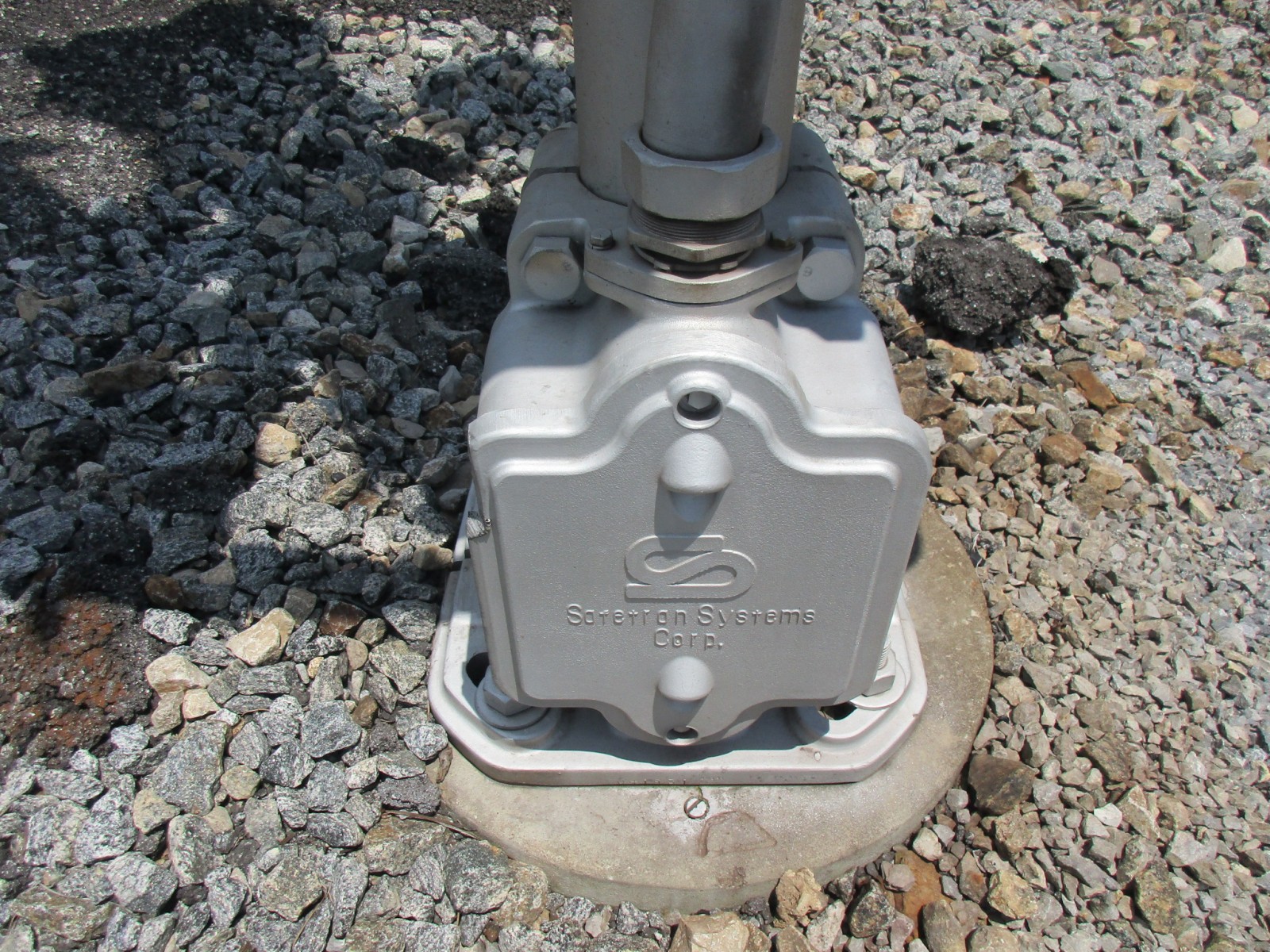

It has a Safetran base. |

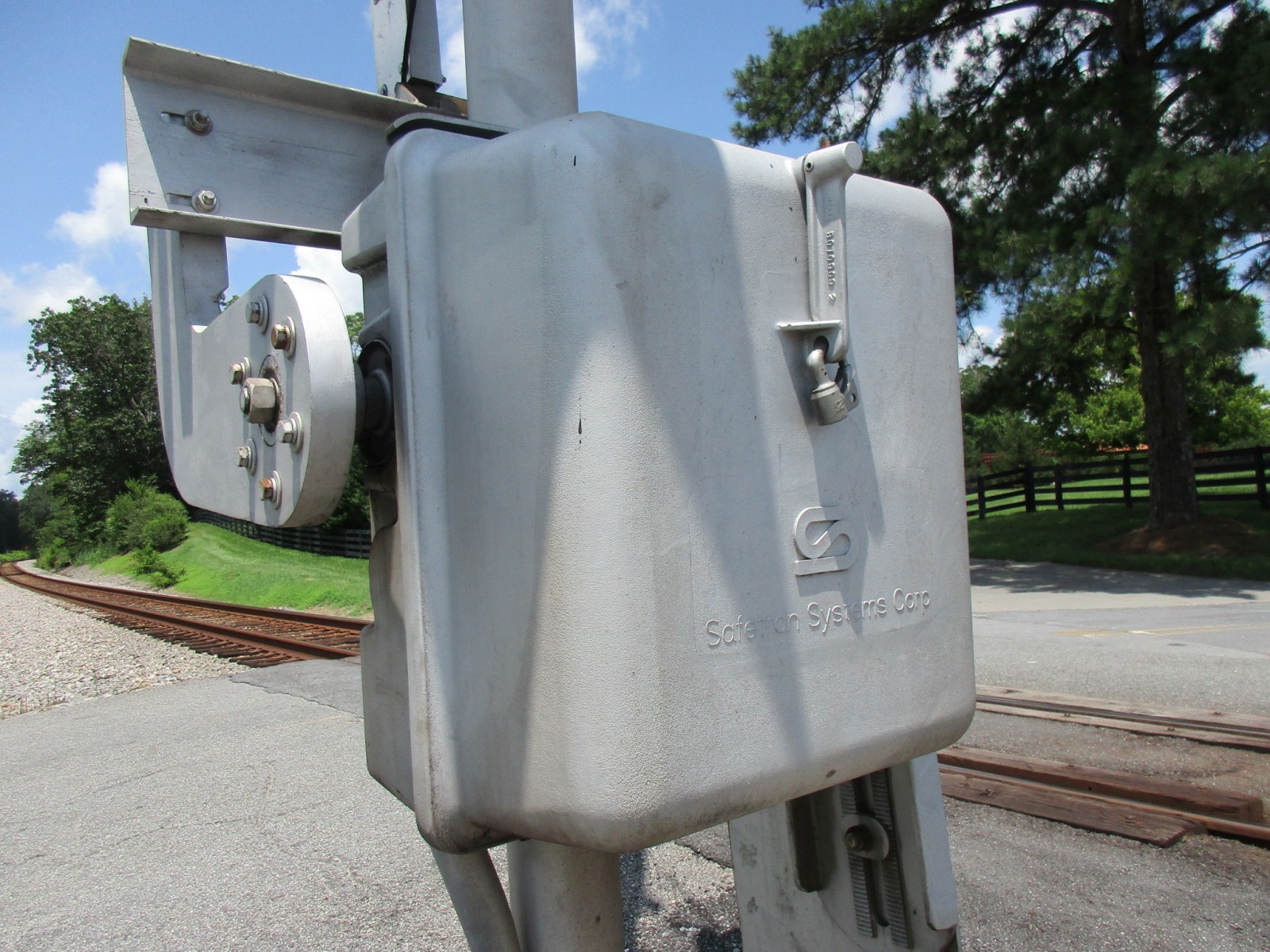

A Safetran gate mechanism. |

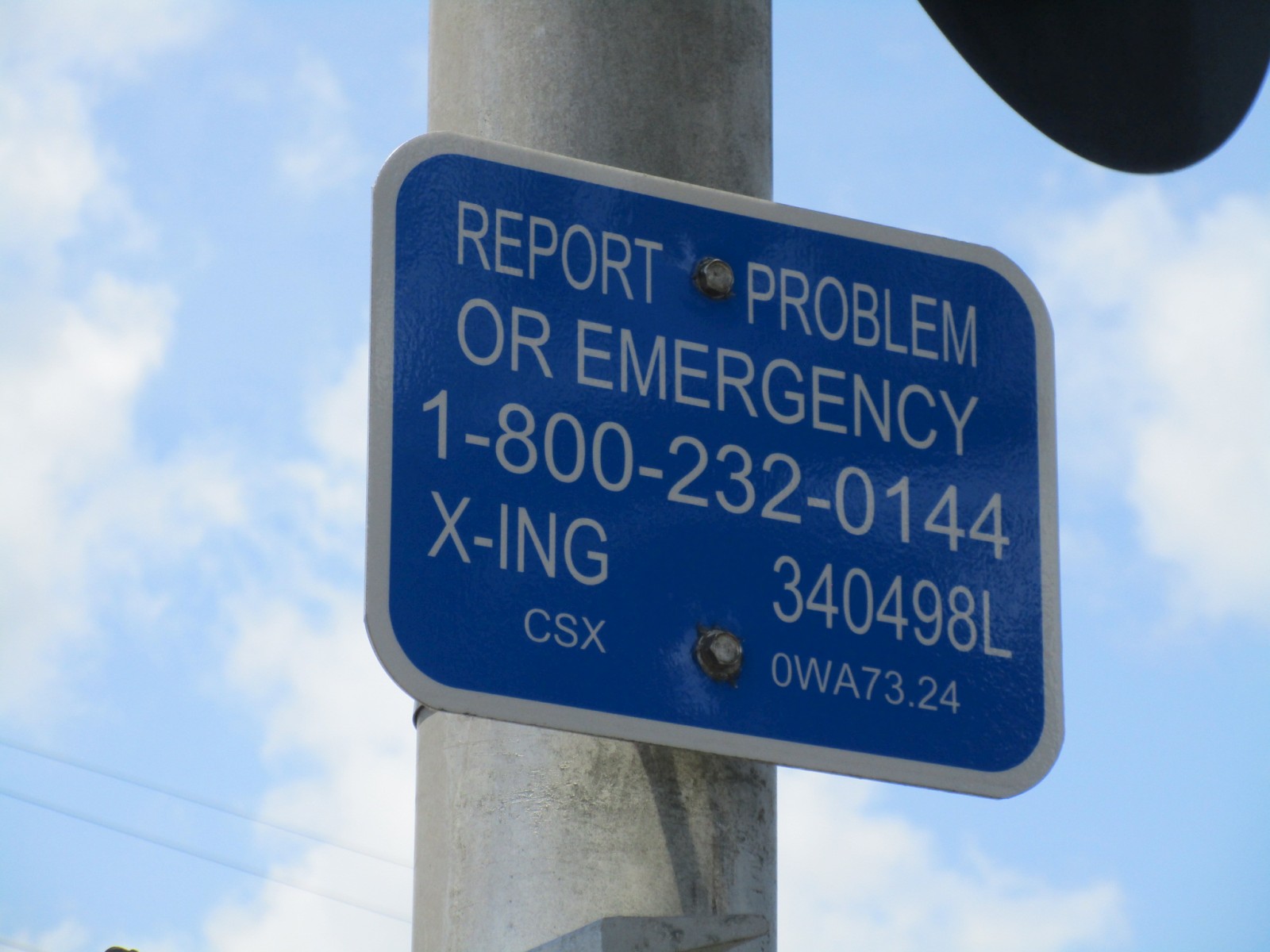

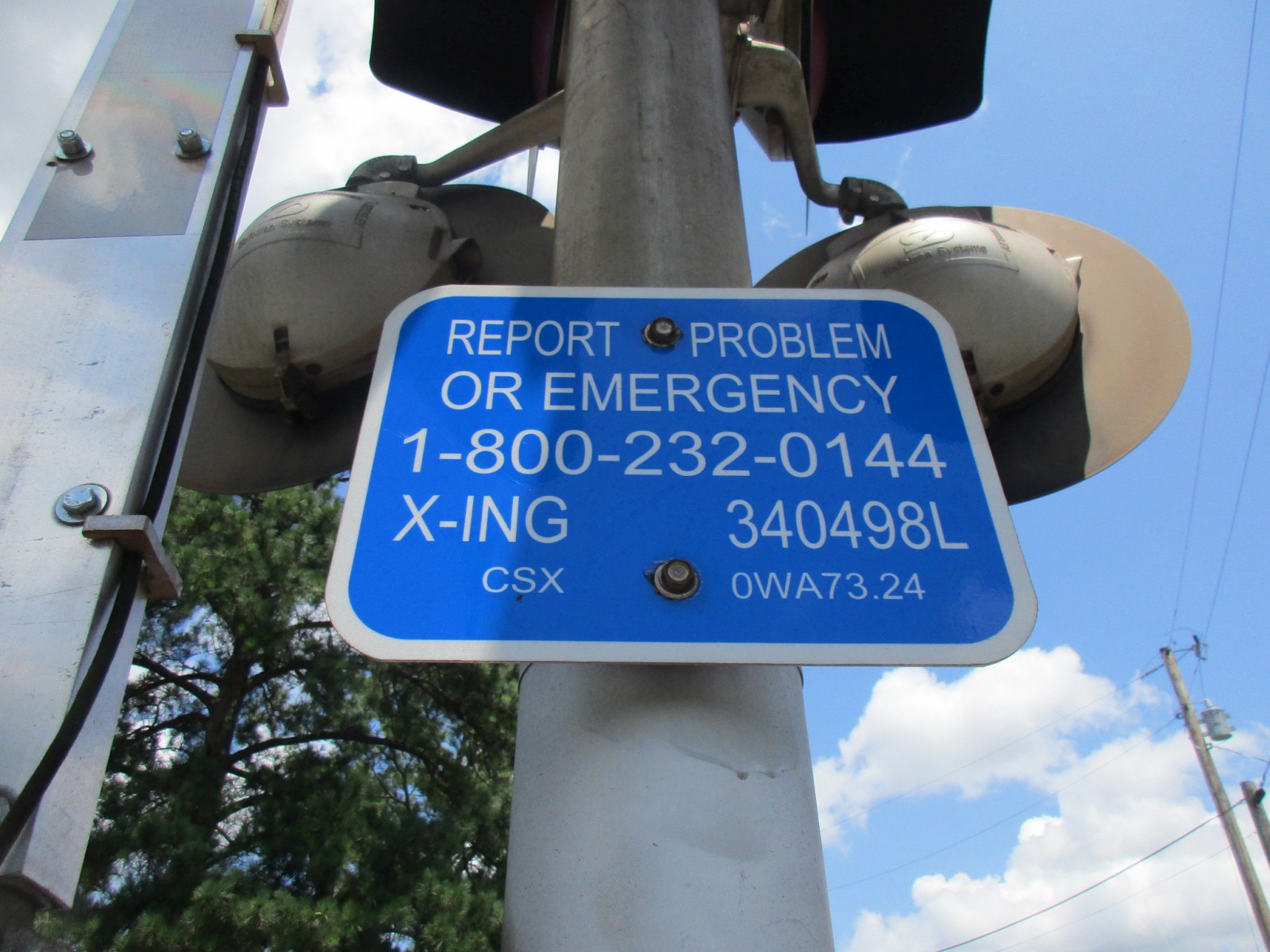

The emergency information. |
9 |
10 |
11 |
12 |

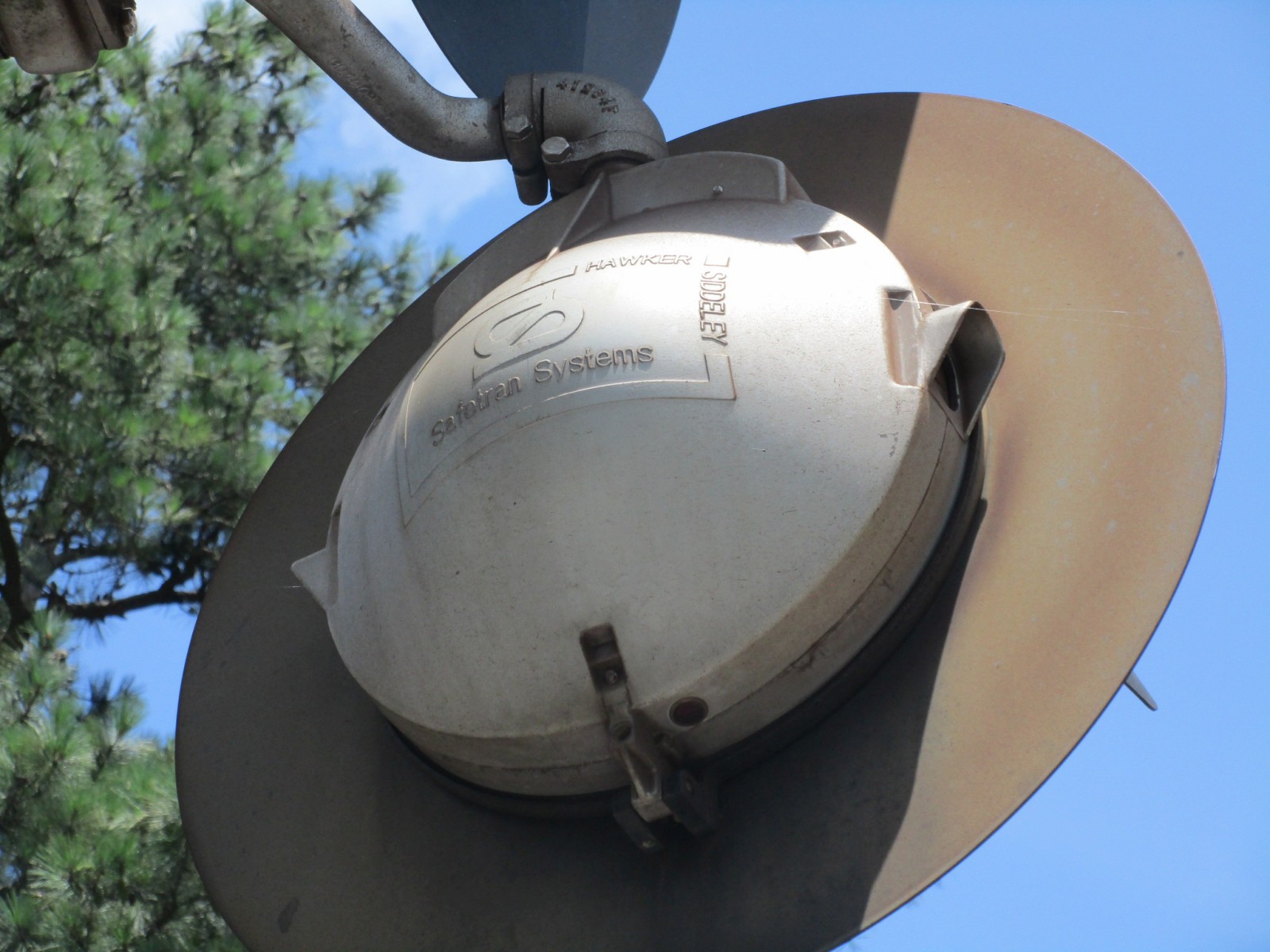

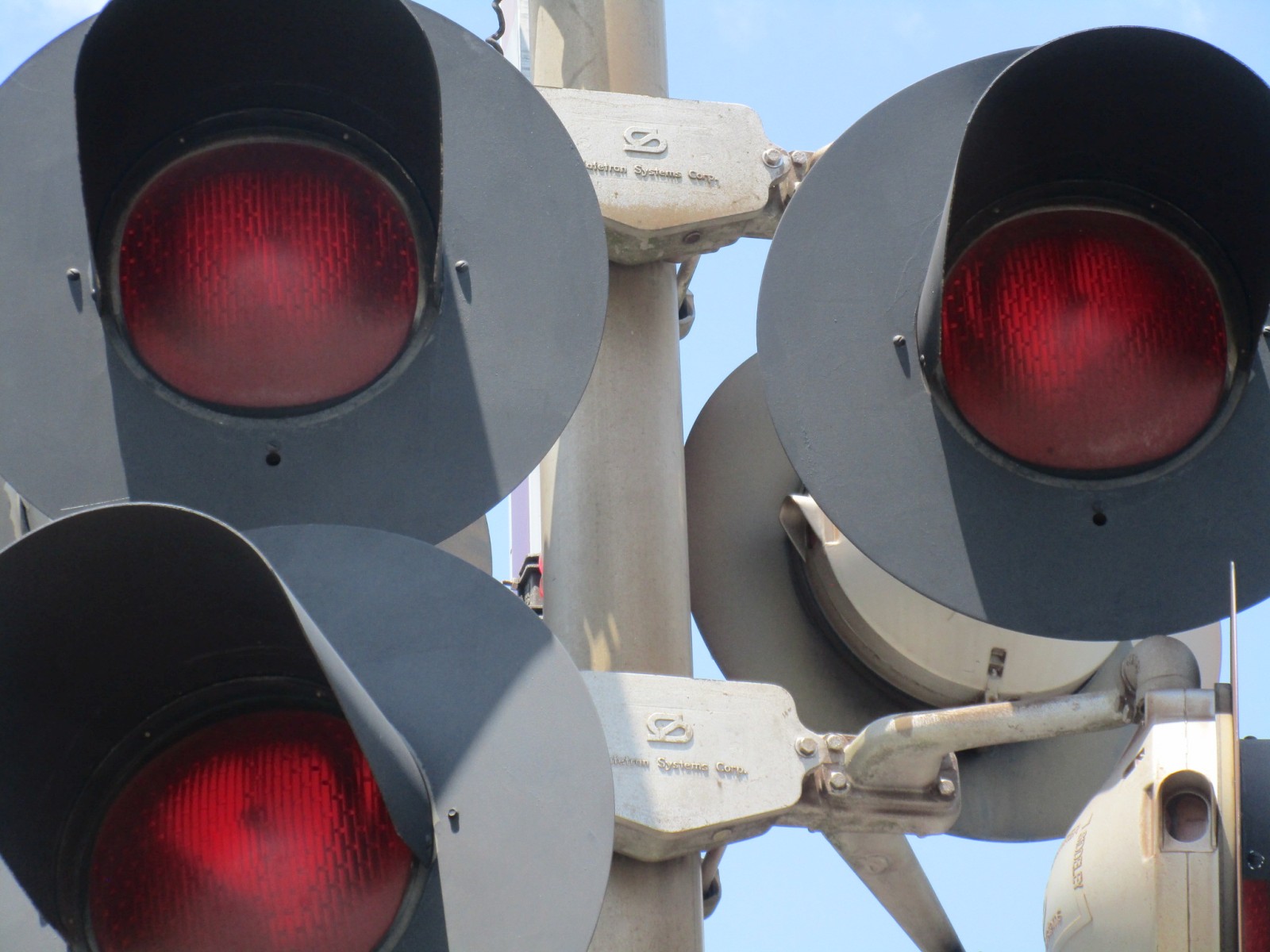

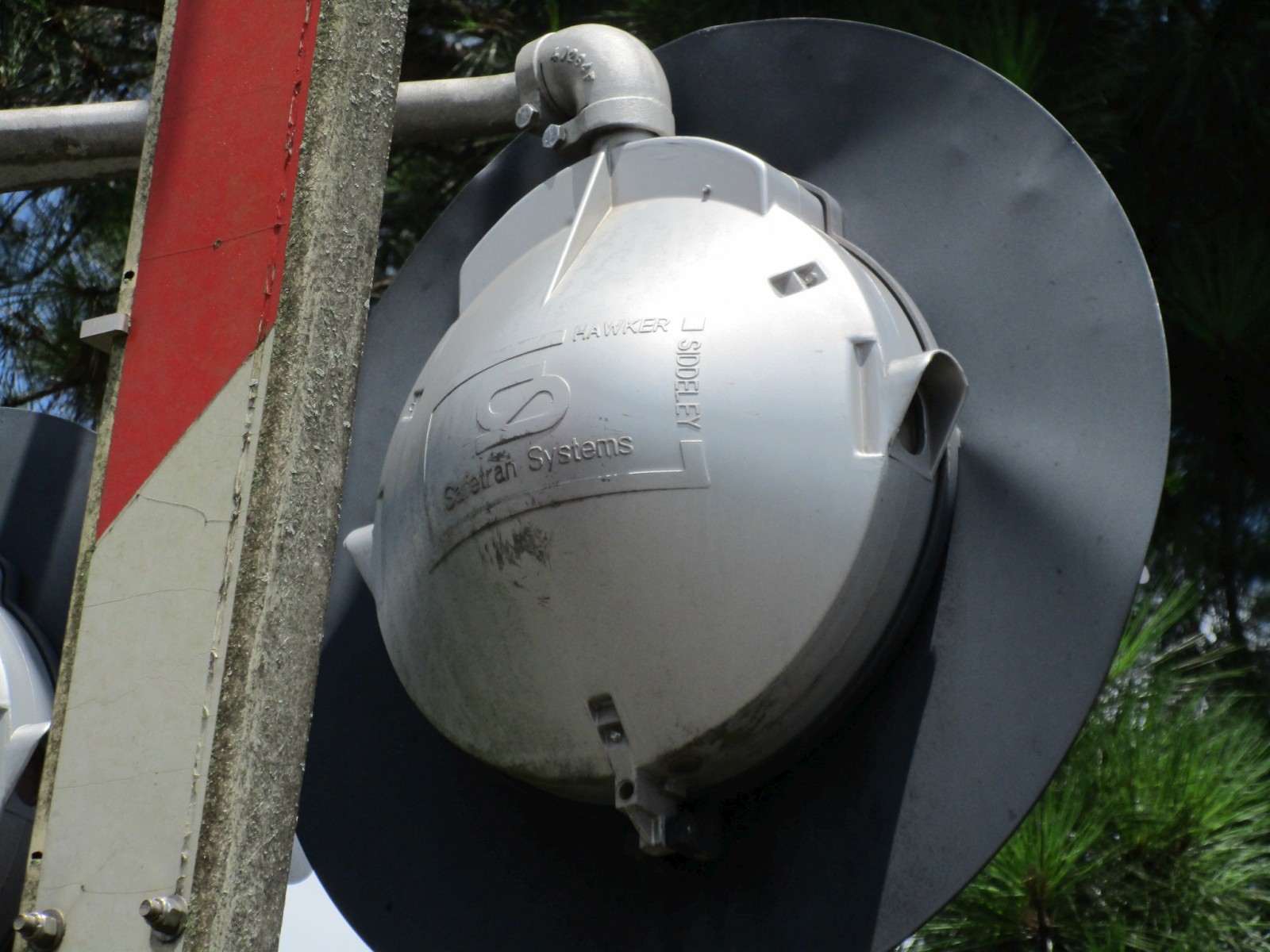

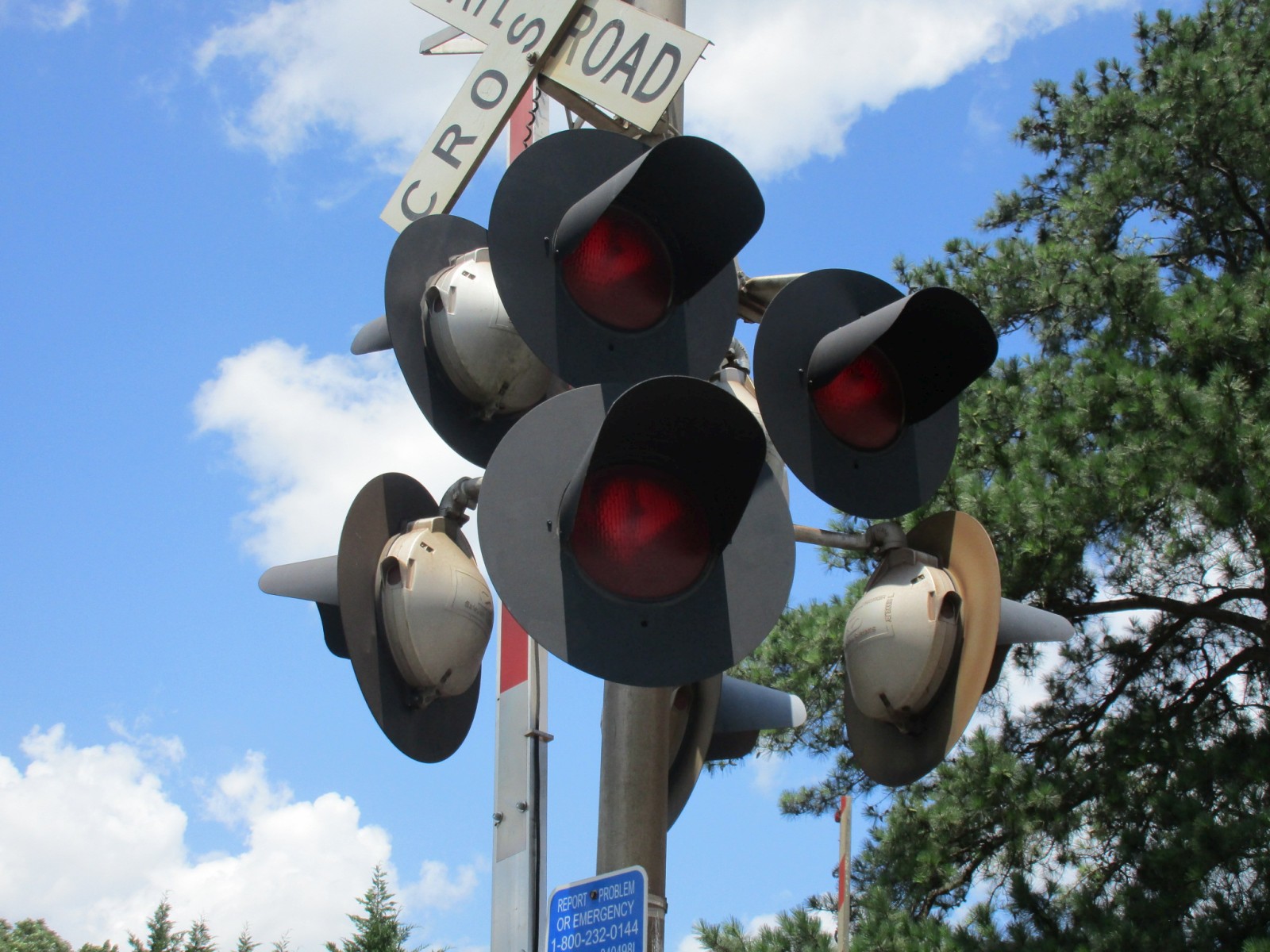

The lights are all Safetran 12x24 inch lights. Don't the front lights very look ugly turned like that? |

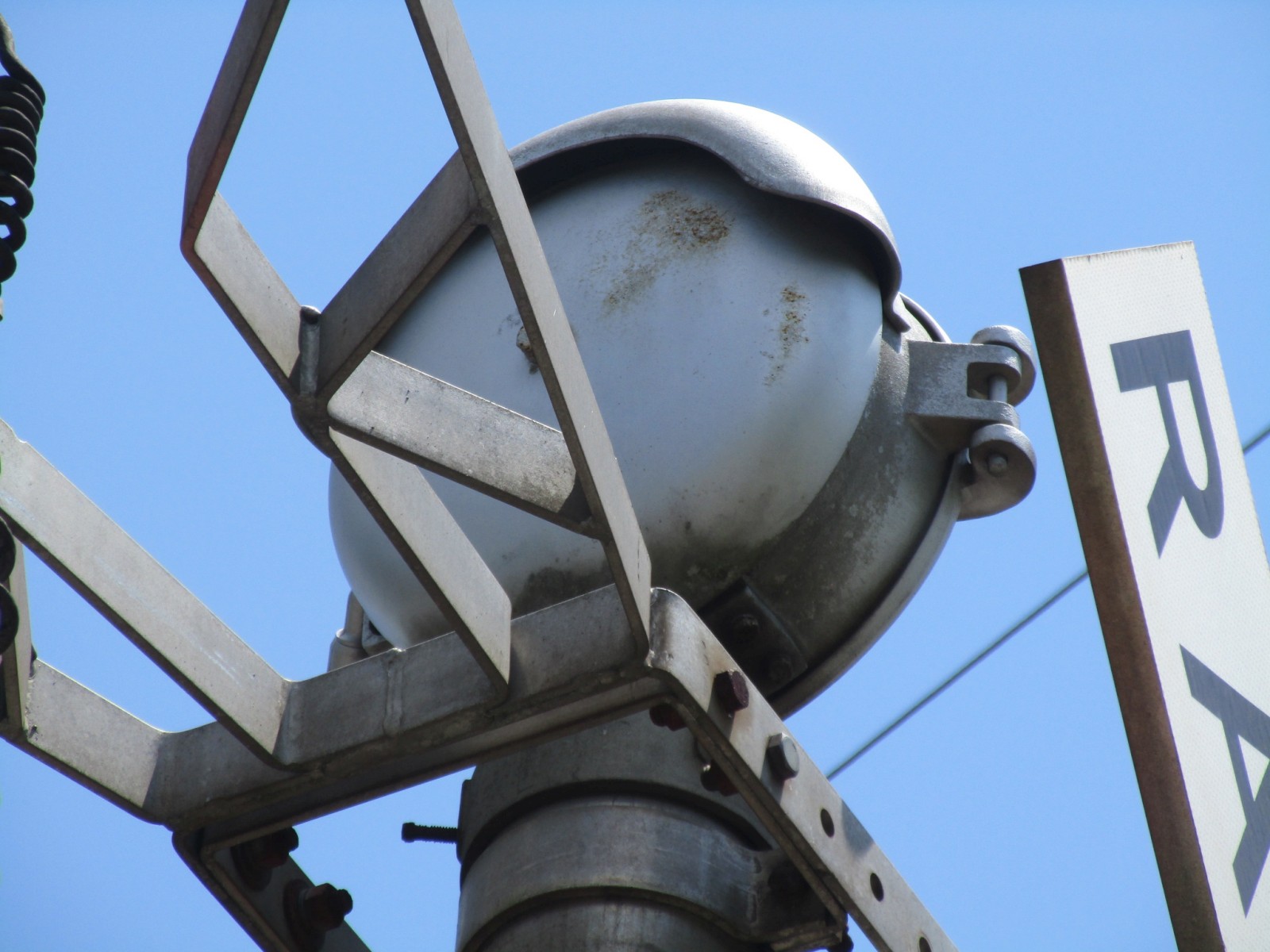

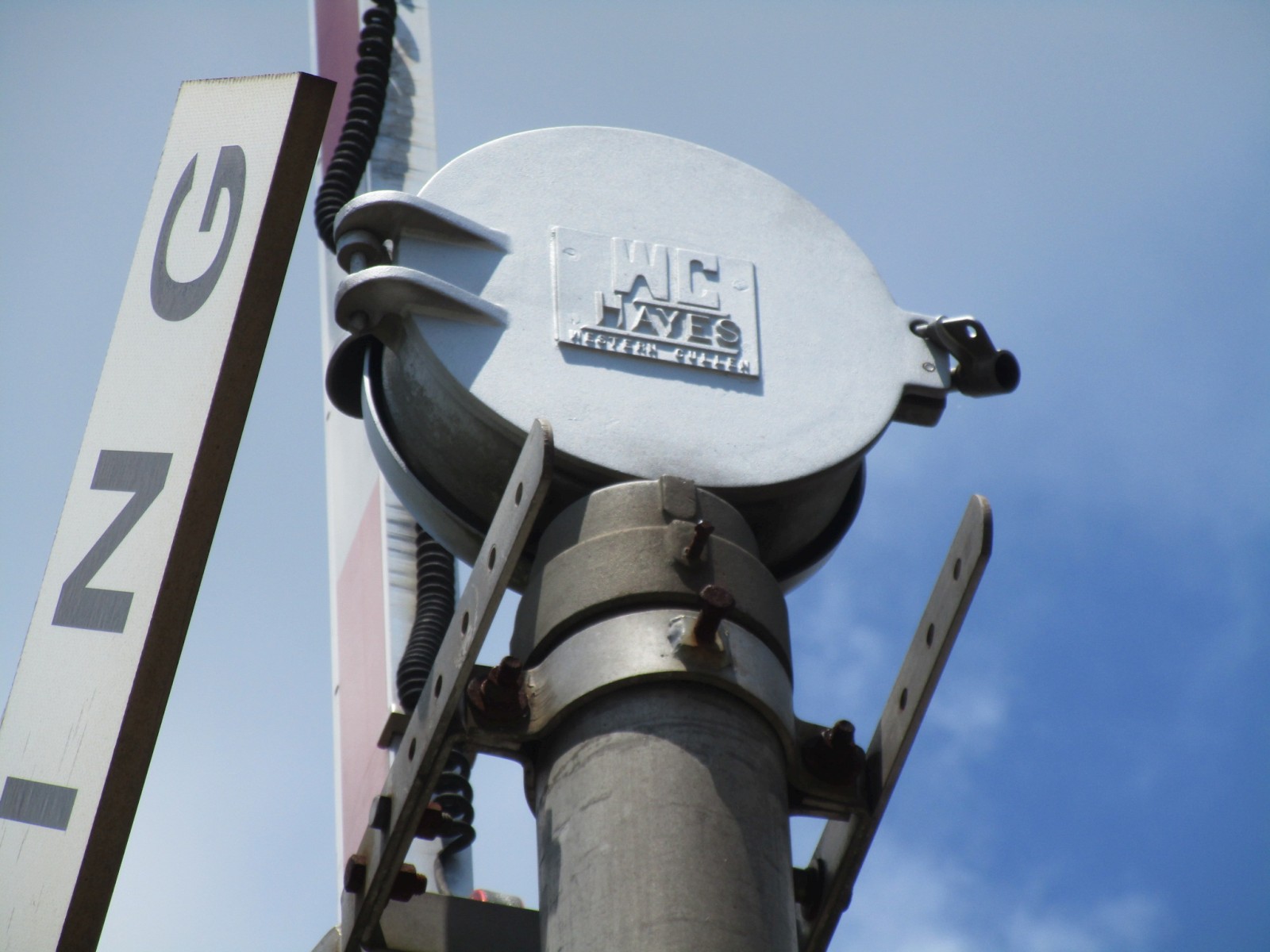

The bell here is a WCH mechanical bell! |
||
The front lights on a signal like this would normally be useless due to it being next to a T-intersection, but rather than removing them or aiming them in the same direction, CSX decided to turn one in each direction, which just looks really, really bad, IMHO.
13 |
14 |
15 |
16 |

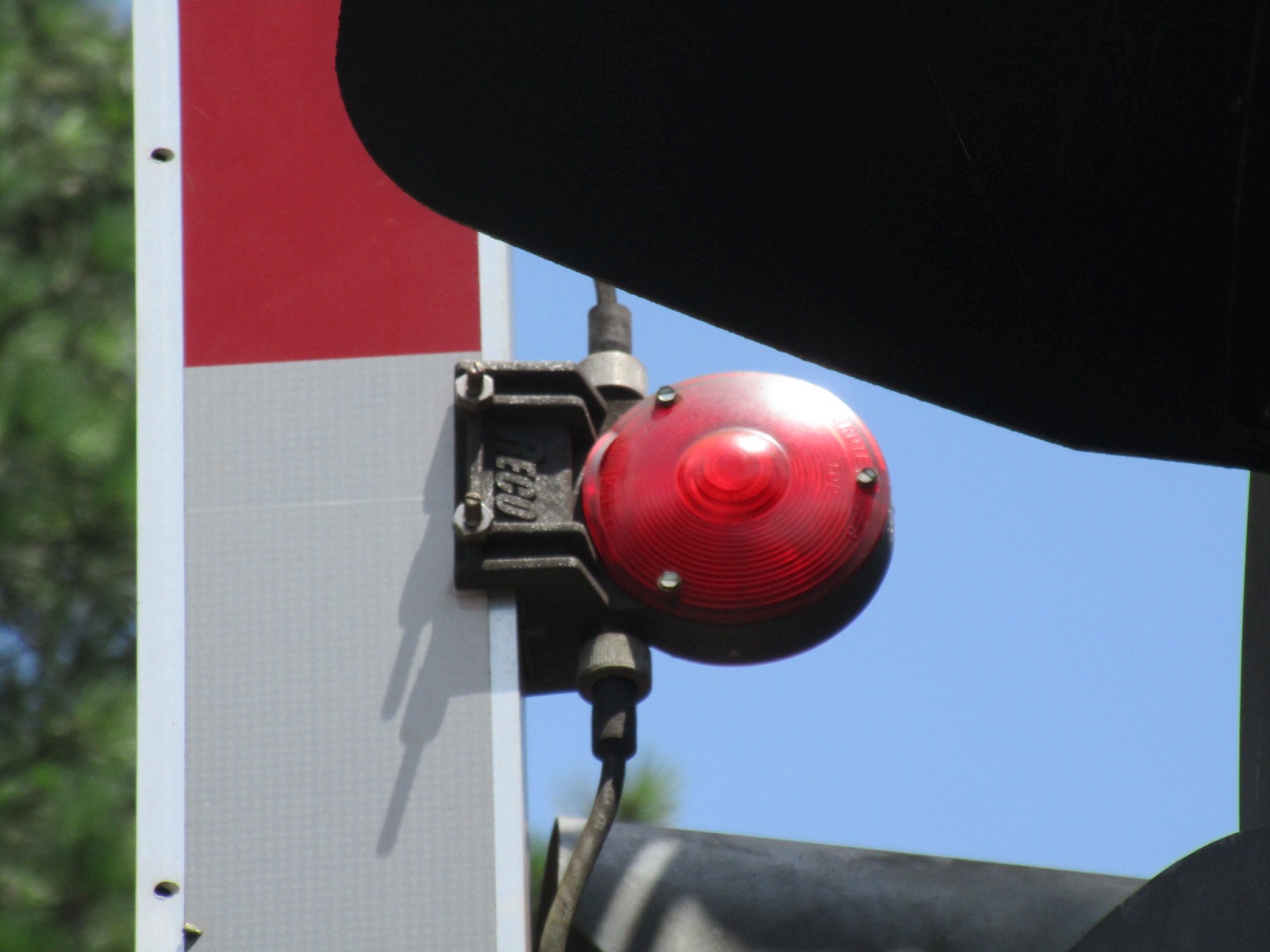

This signal has RECO gate lights. |

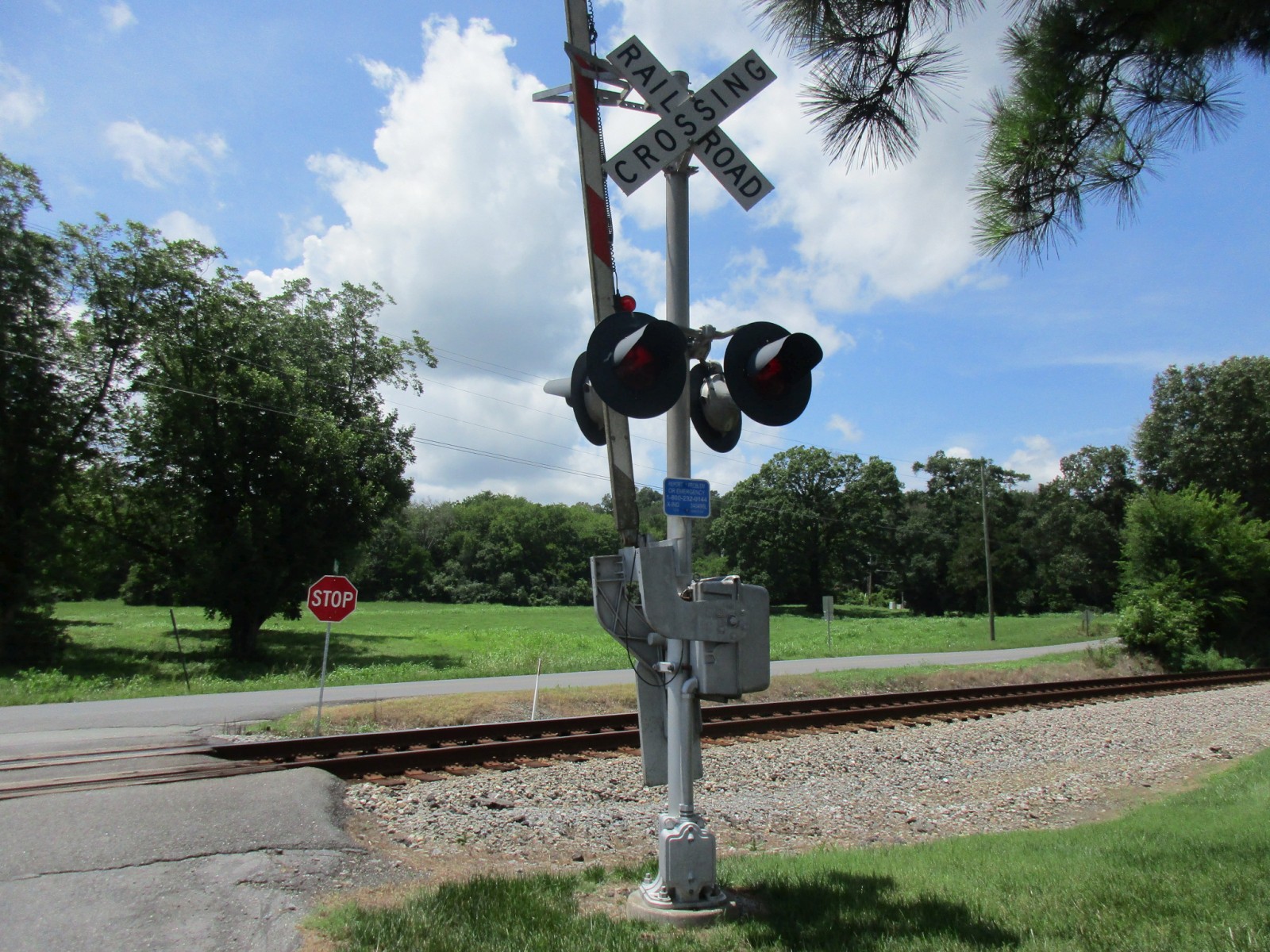

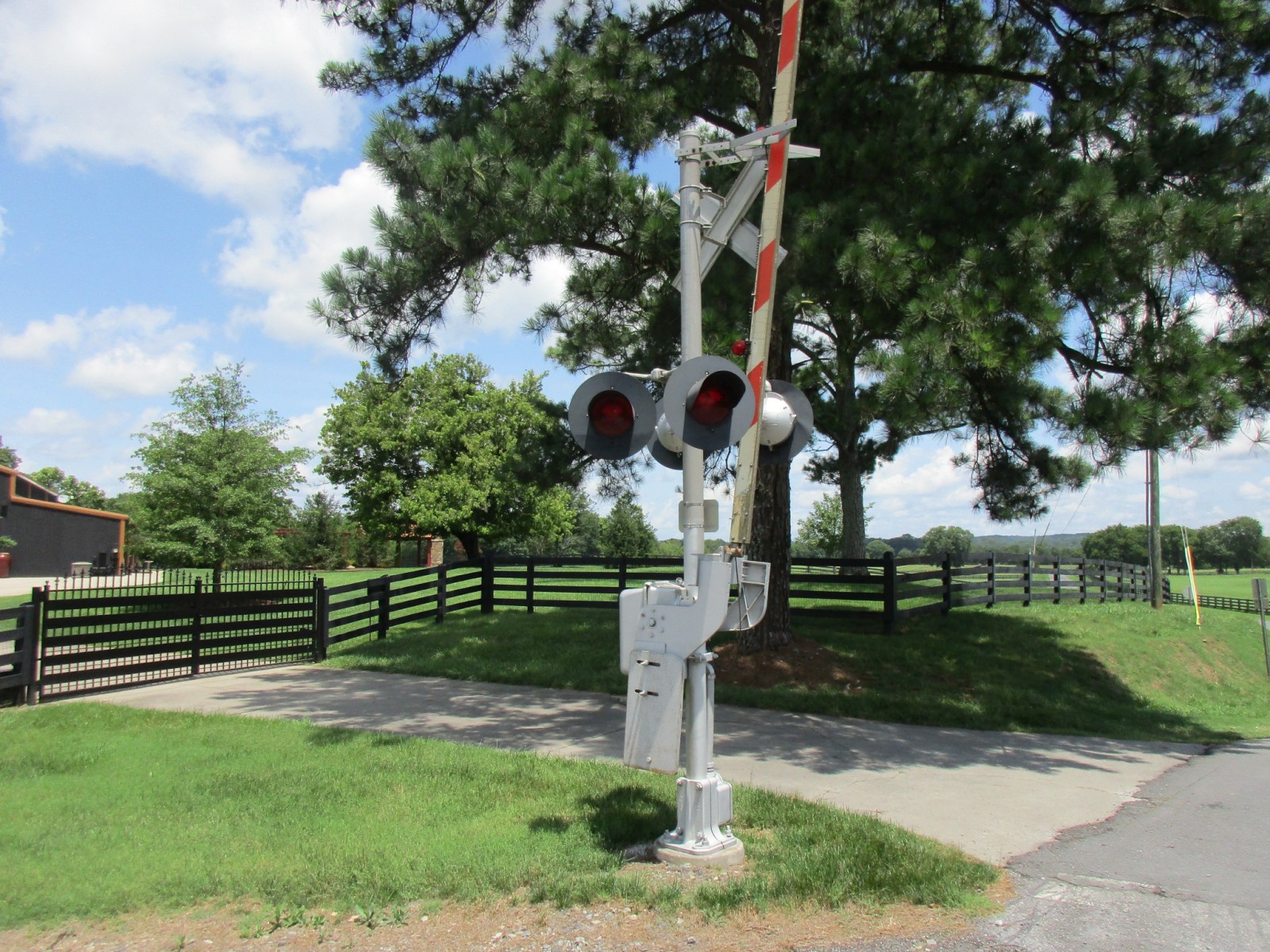

The second signal. |

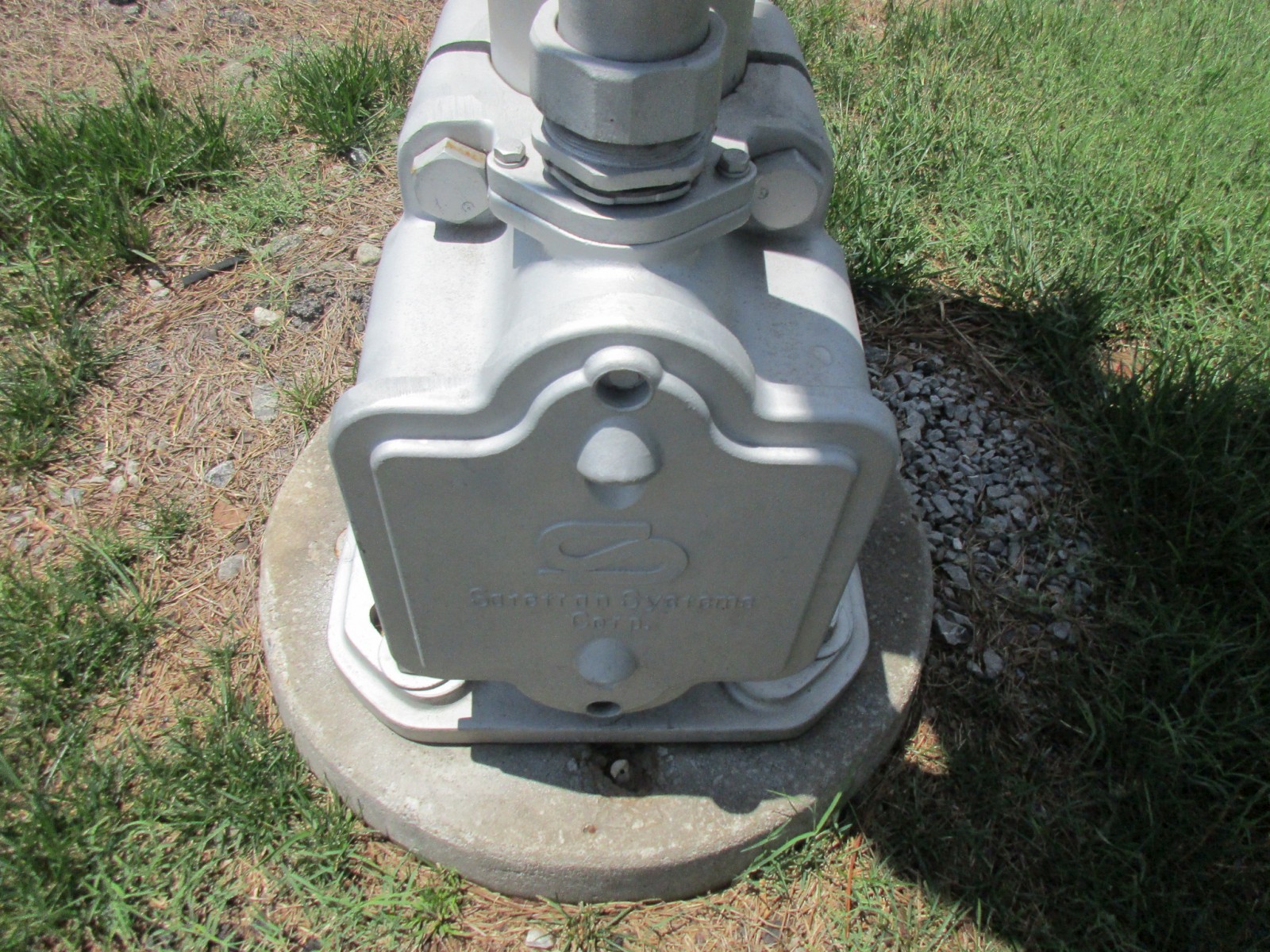

Another Safetran base. |
|
17 |
18 |
19 |
20 |

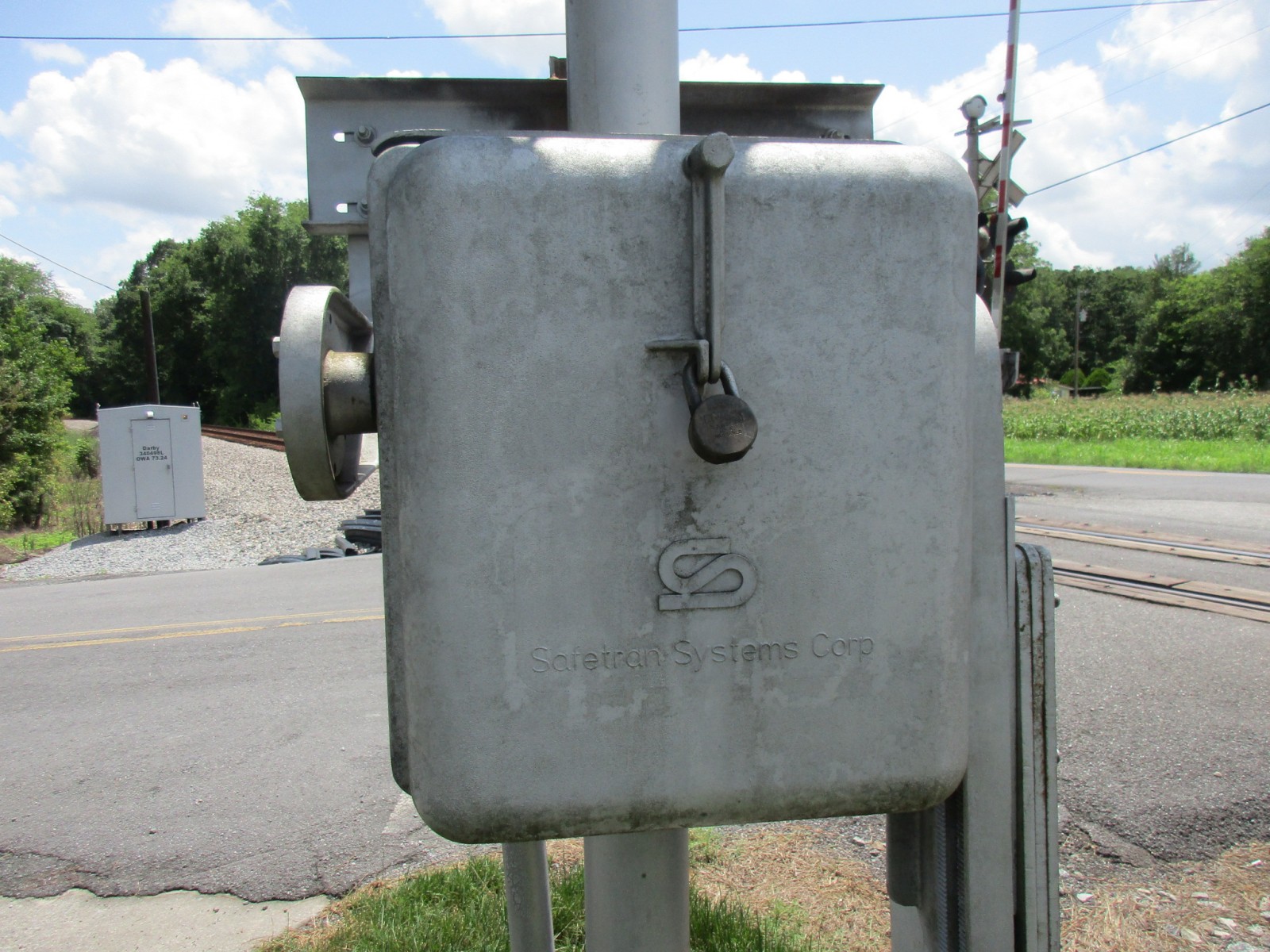

Another Safetran gate mechanism. |
The emergency information. |

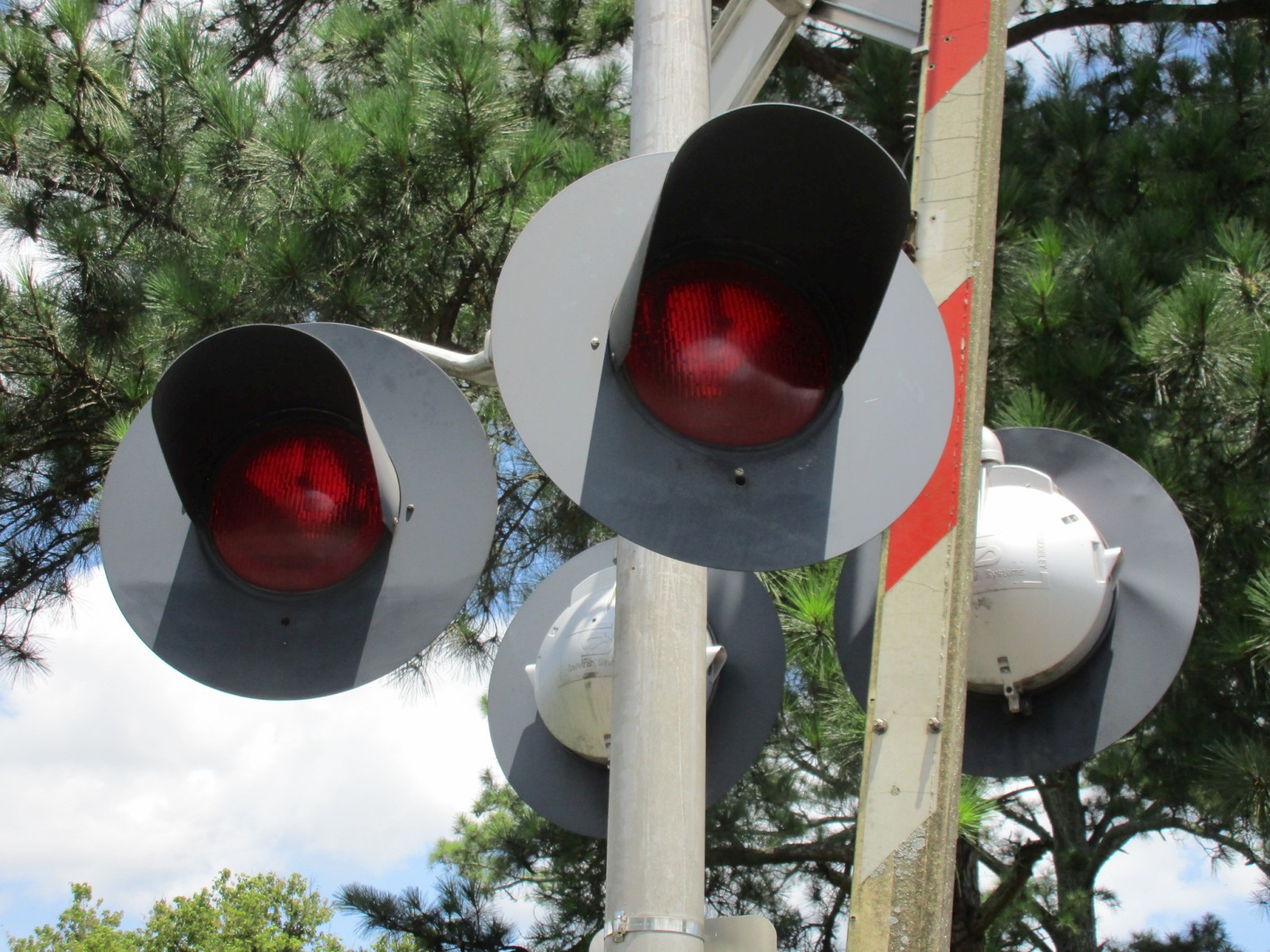

It has more Safetran 12x24 inch lights, in a more typical arrangement. |
|
21 |
22 |
23 |
24 |

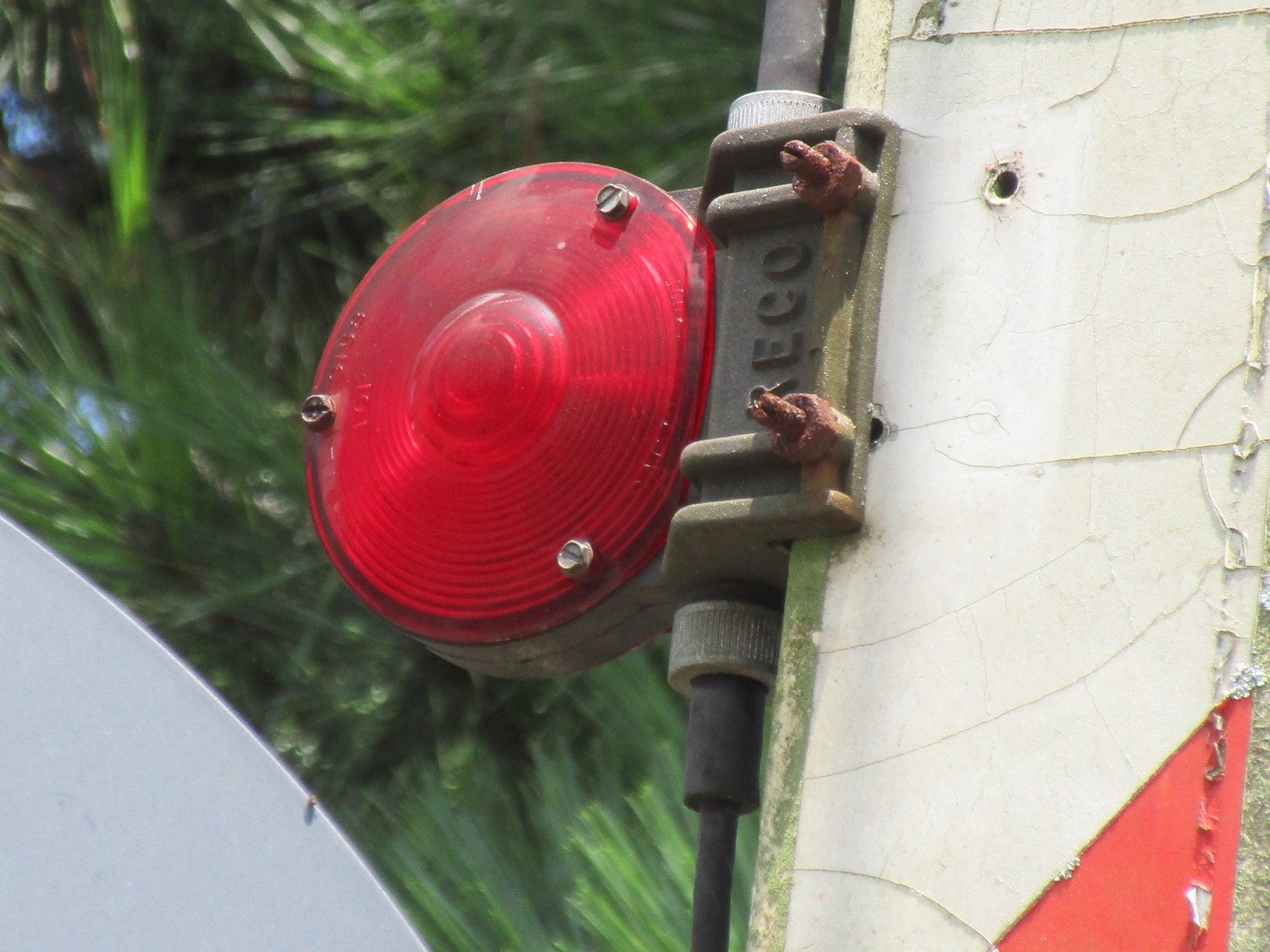

This signal features incandescent RECO gate lights! |

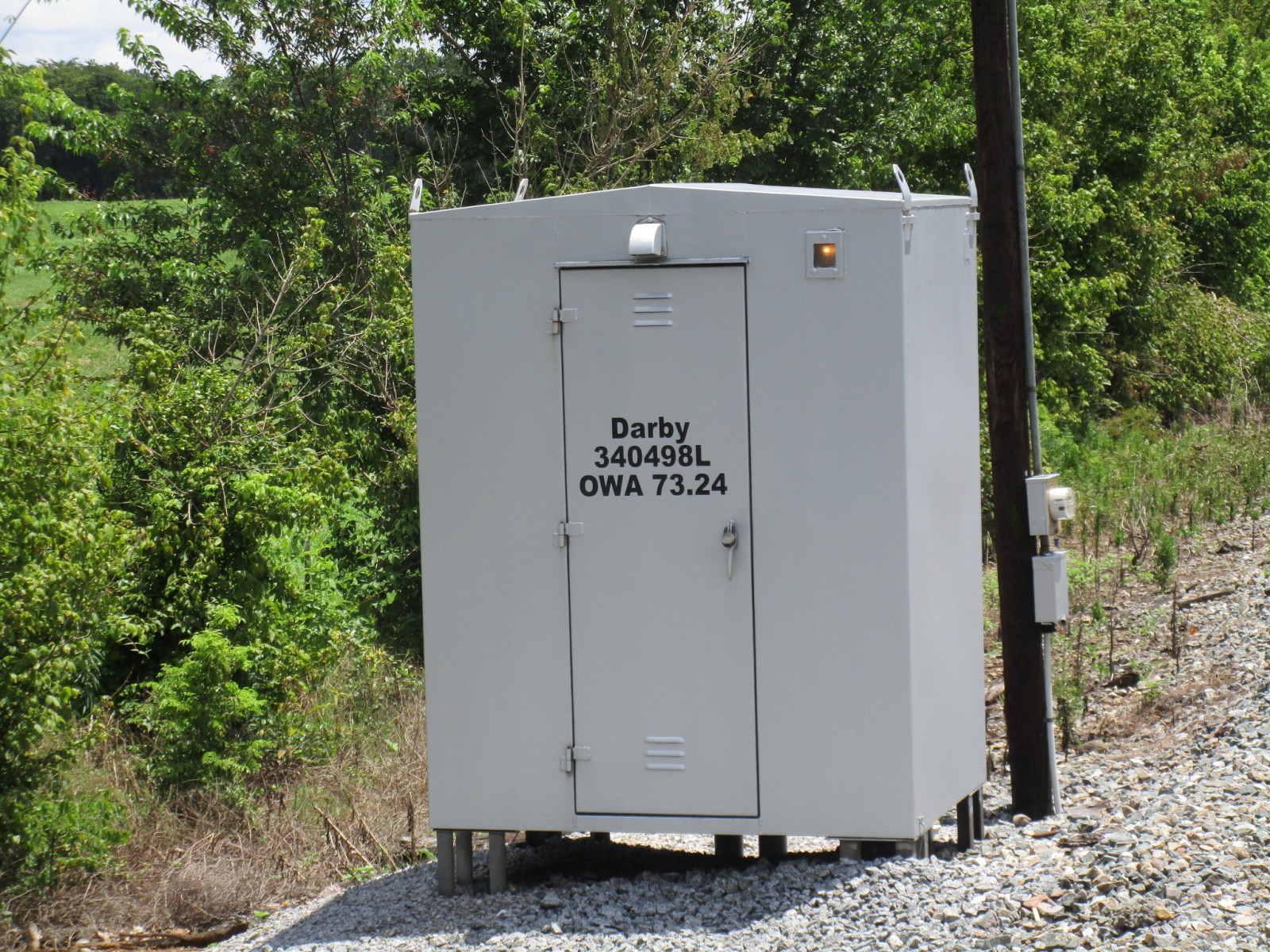

The relay case. |

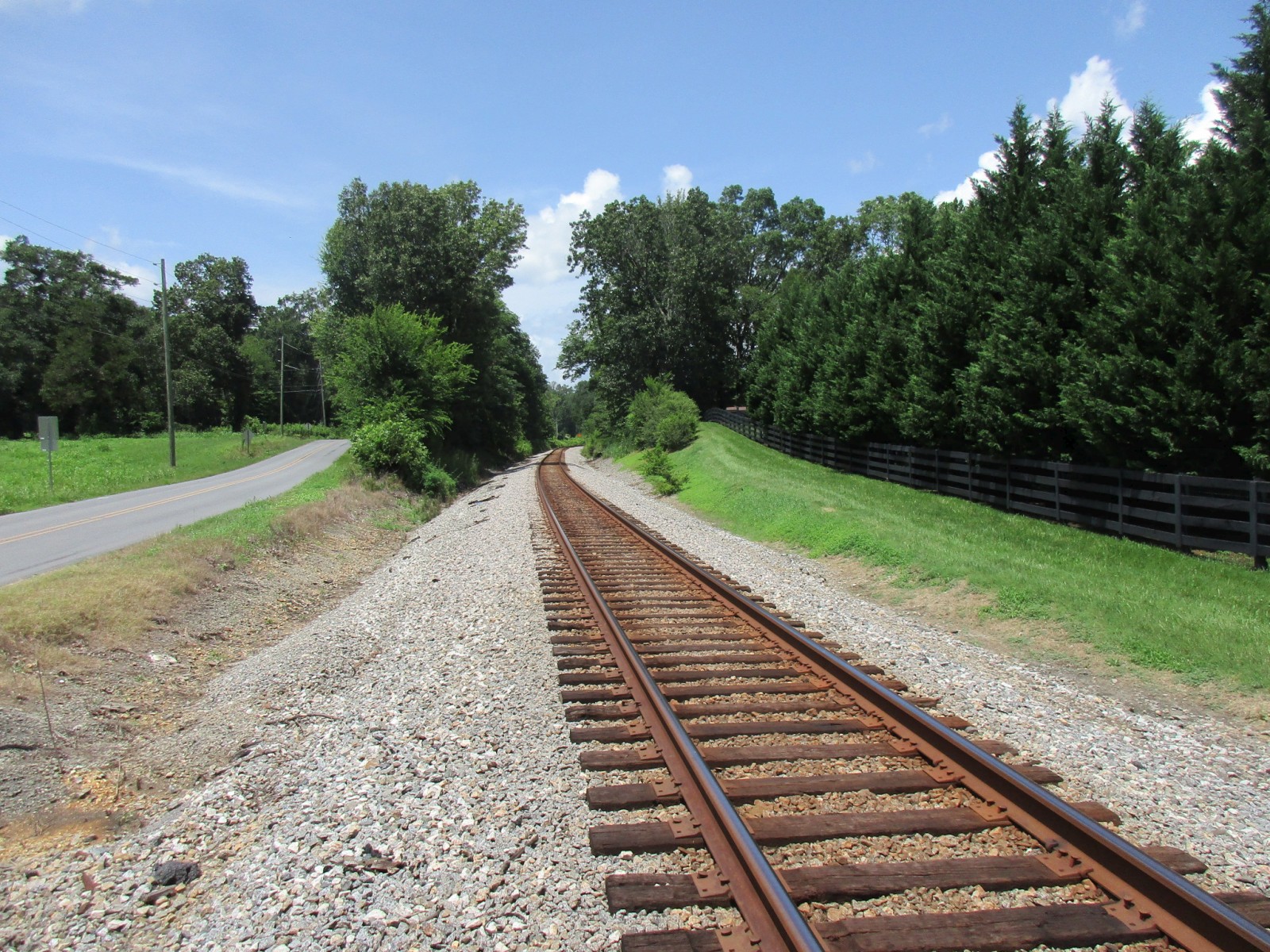

Track view looking south towards Holcomb Road. |

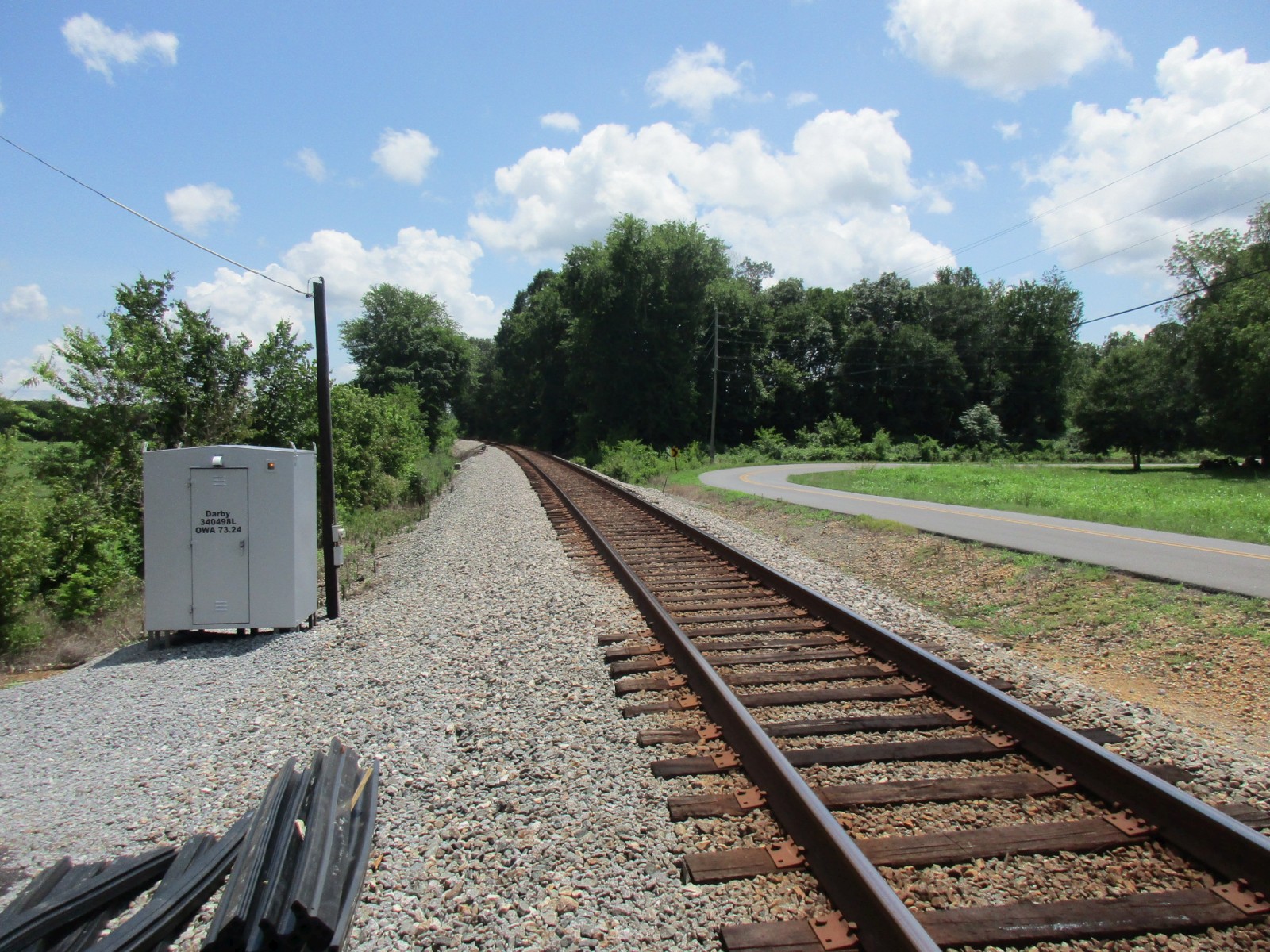

Track view looking north towards Salem Road in Calhoun, GA. |
On September 13, 2023, Ethan the Railfanner made a return trip to this crossing to find that the entire crossing has been replaced with new signals.
25 |
26 |

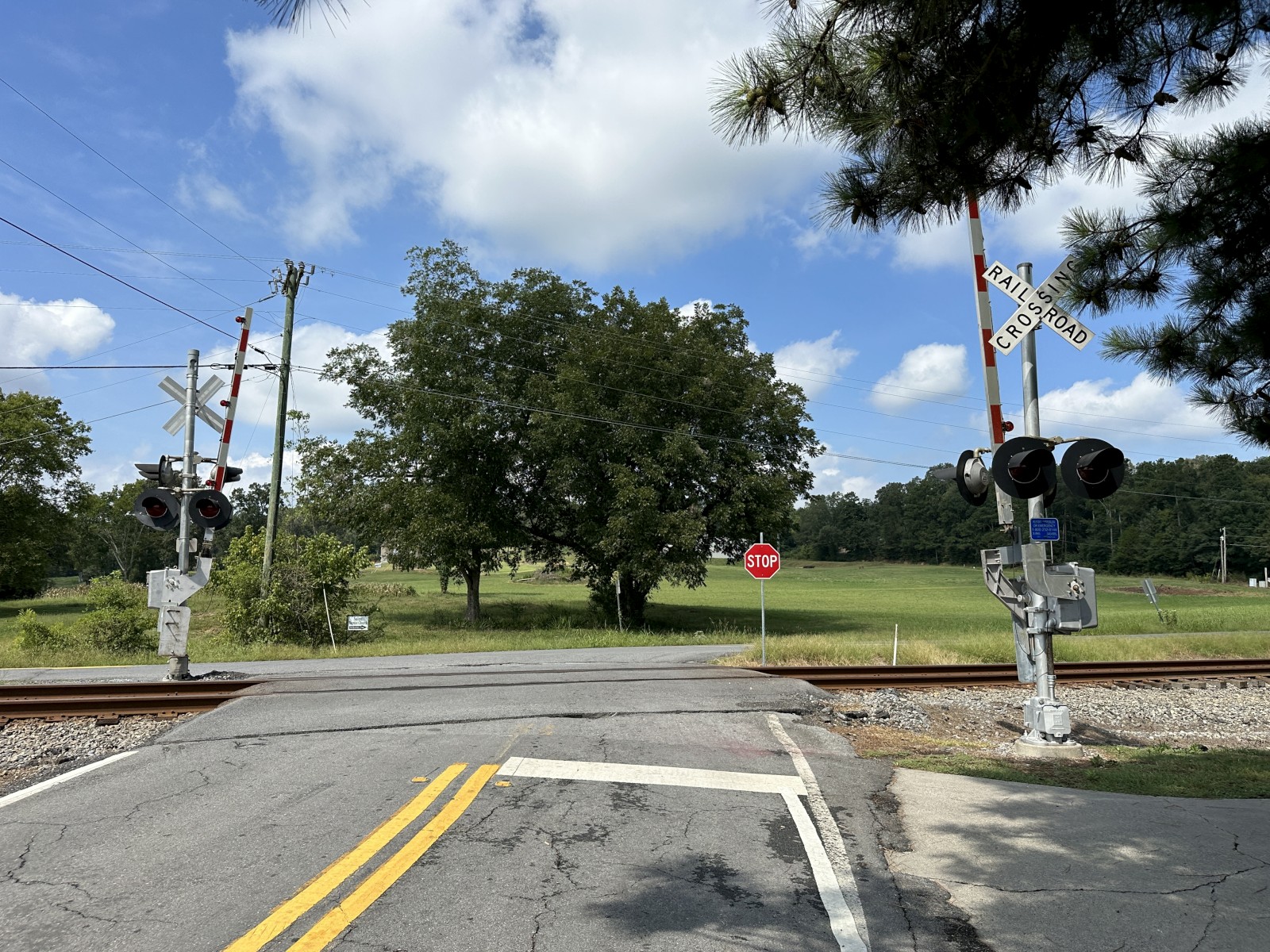

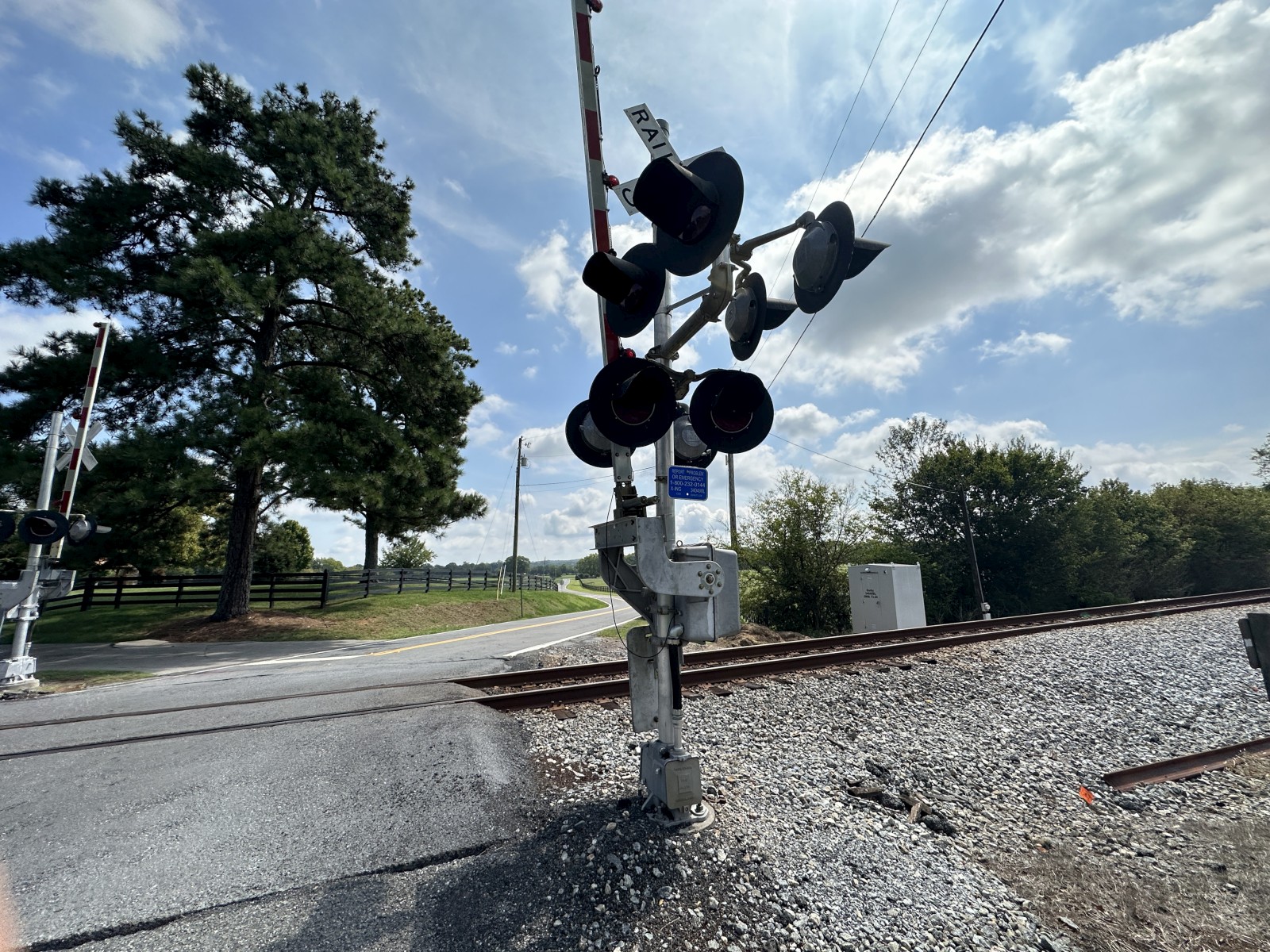

Overview of 2 newer gated signals facing east. |
Overview facing west. |
27 |
28 |
29 |
30 |
31 |
32 |
33 |
34 |
35 |
|

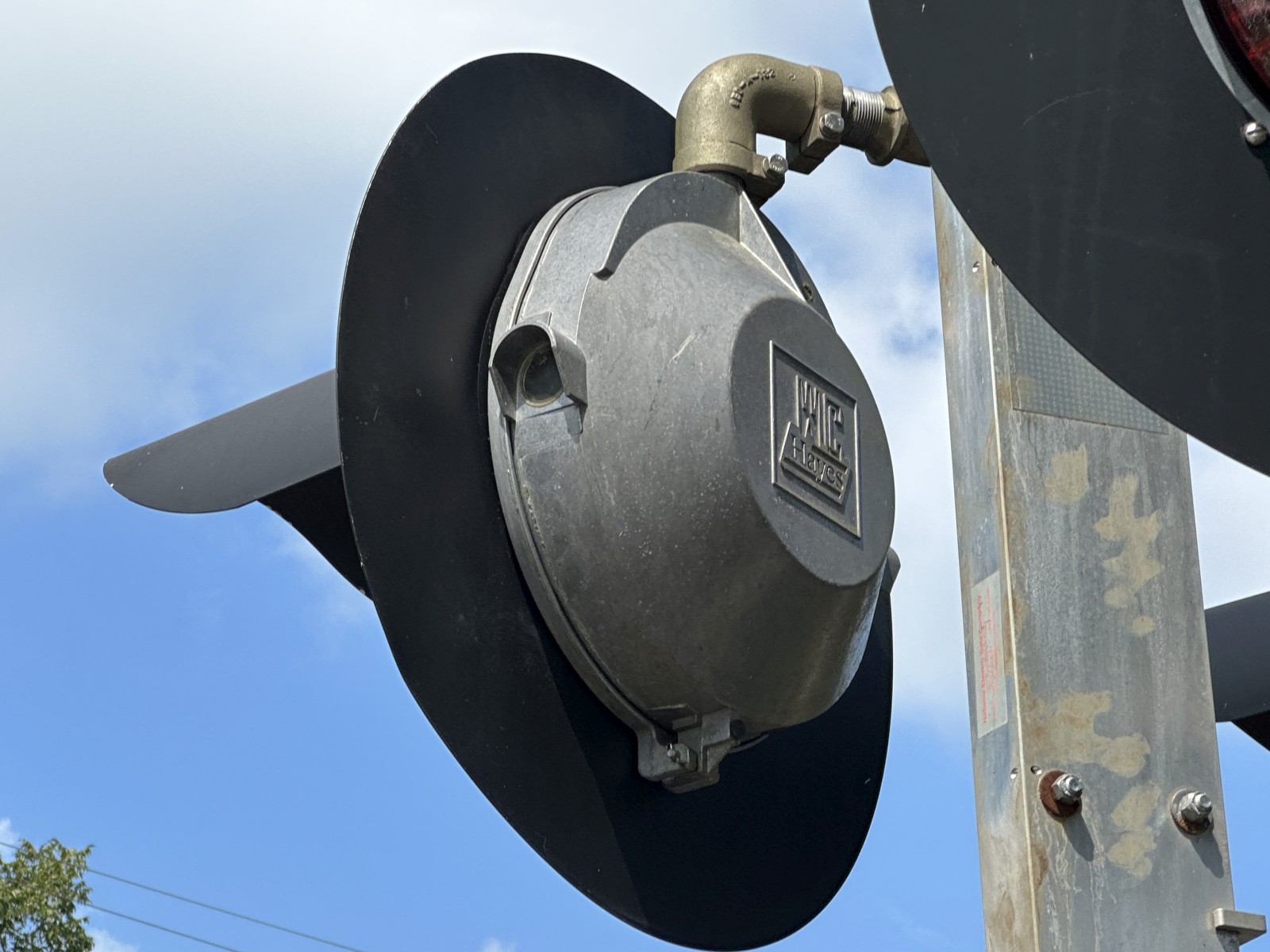

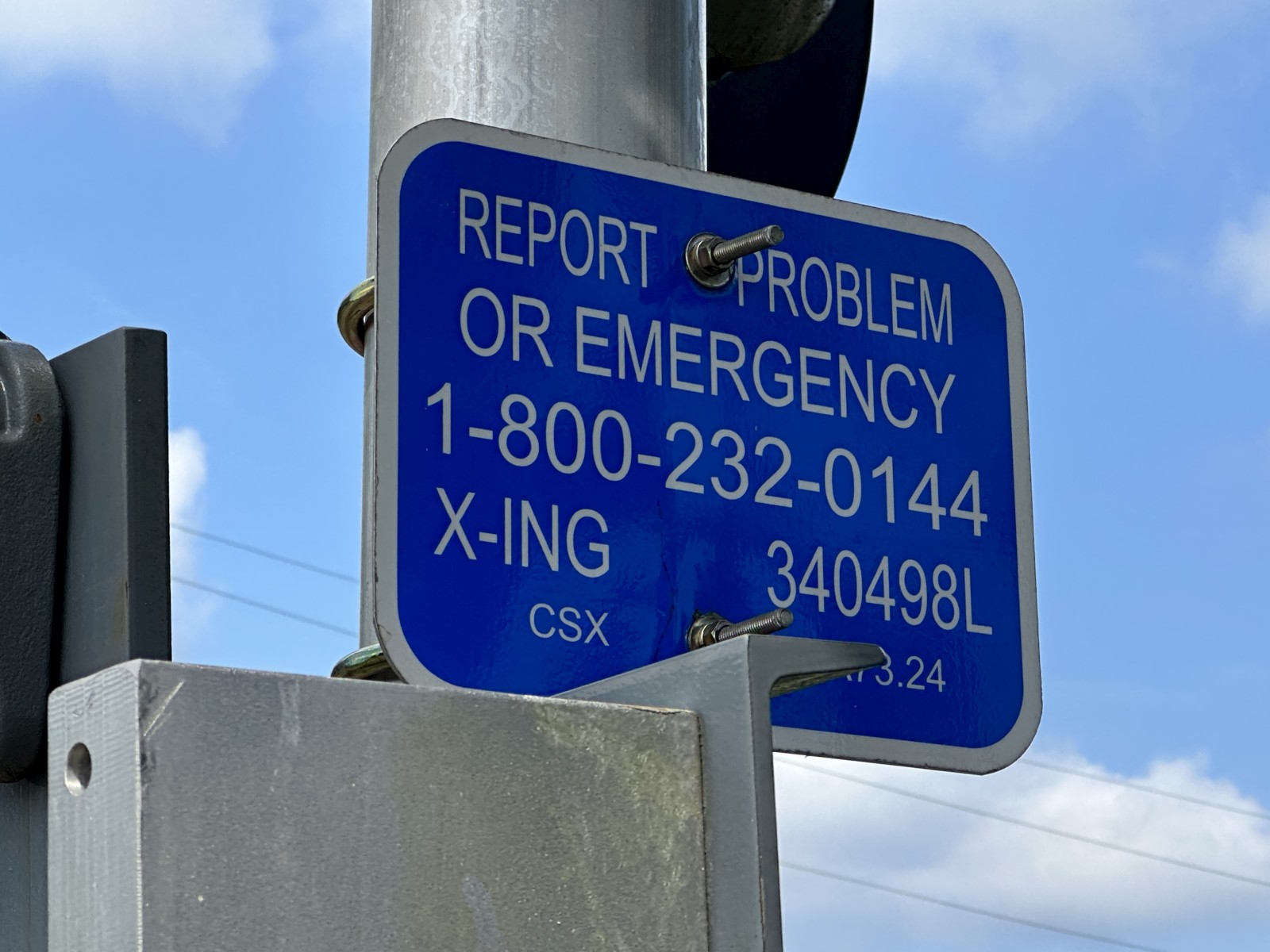

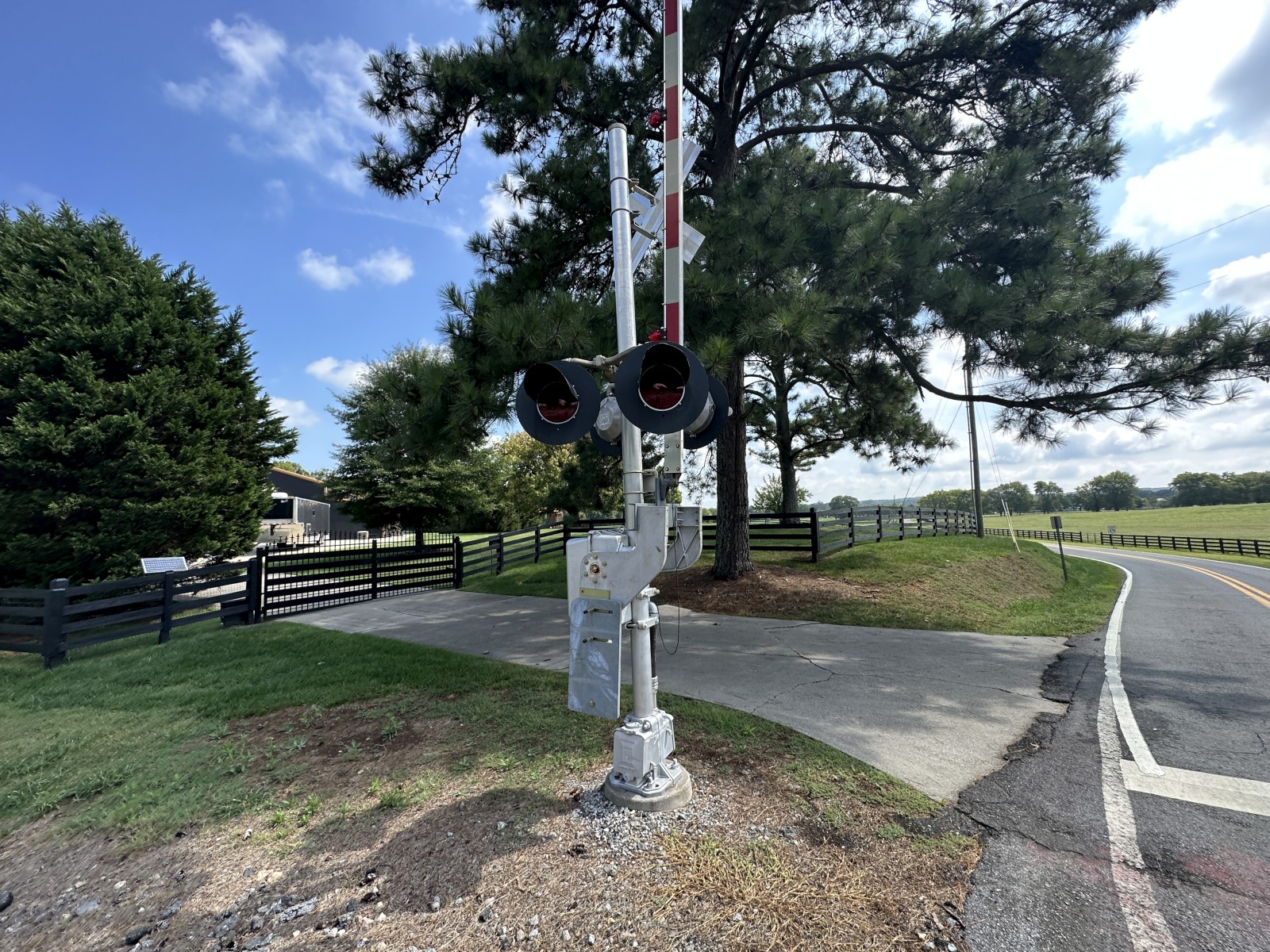

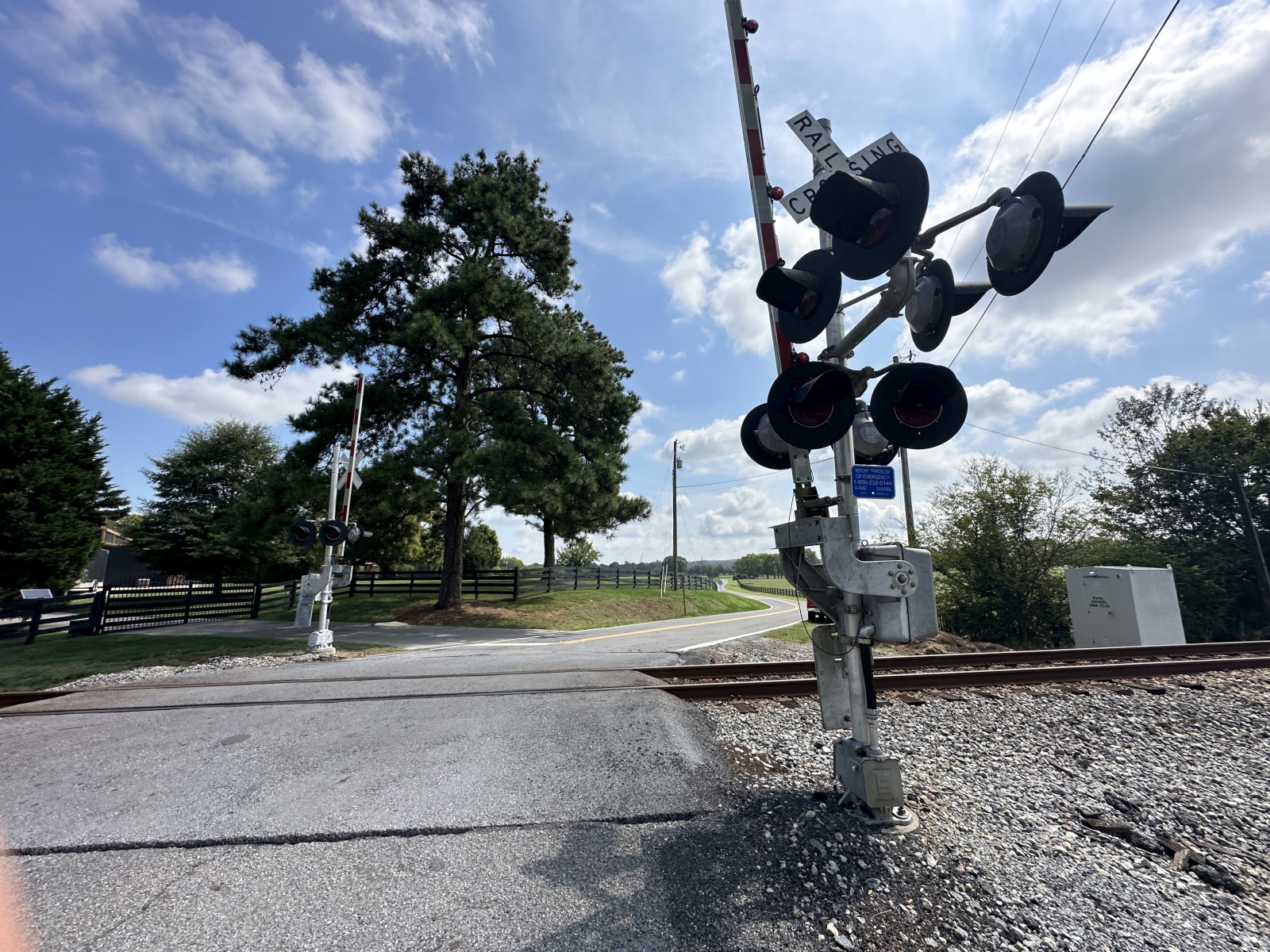

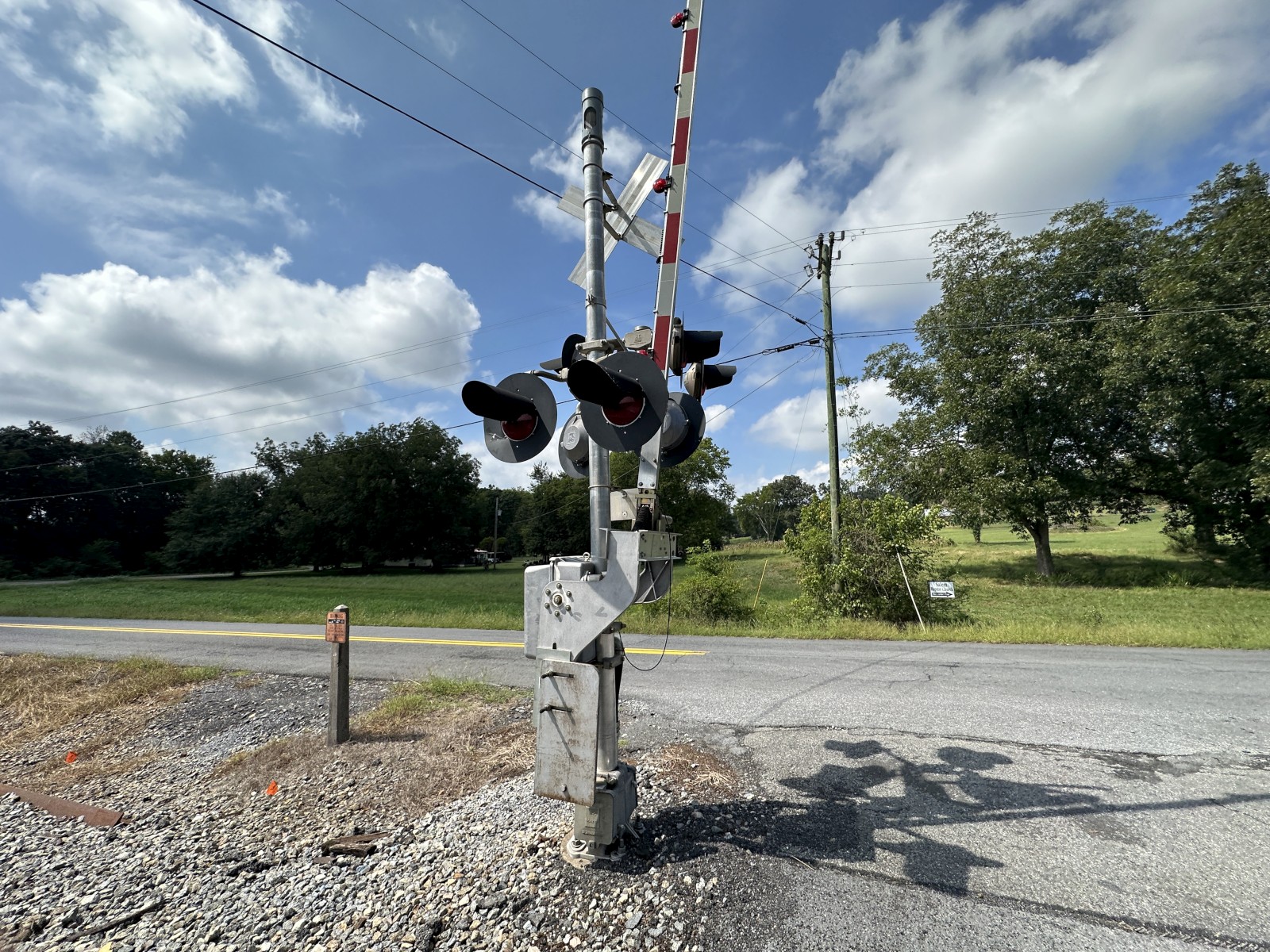

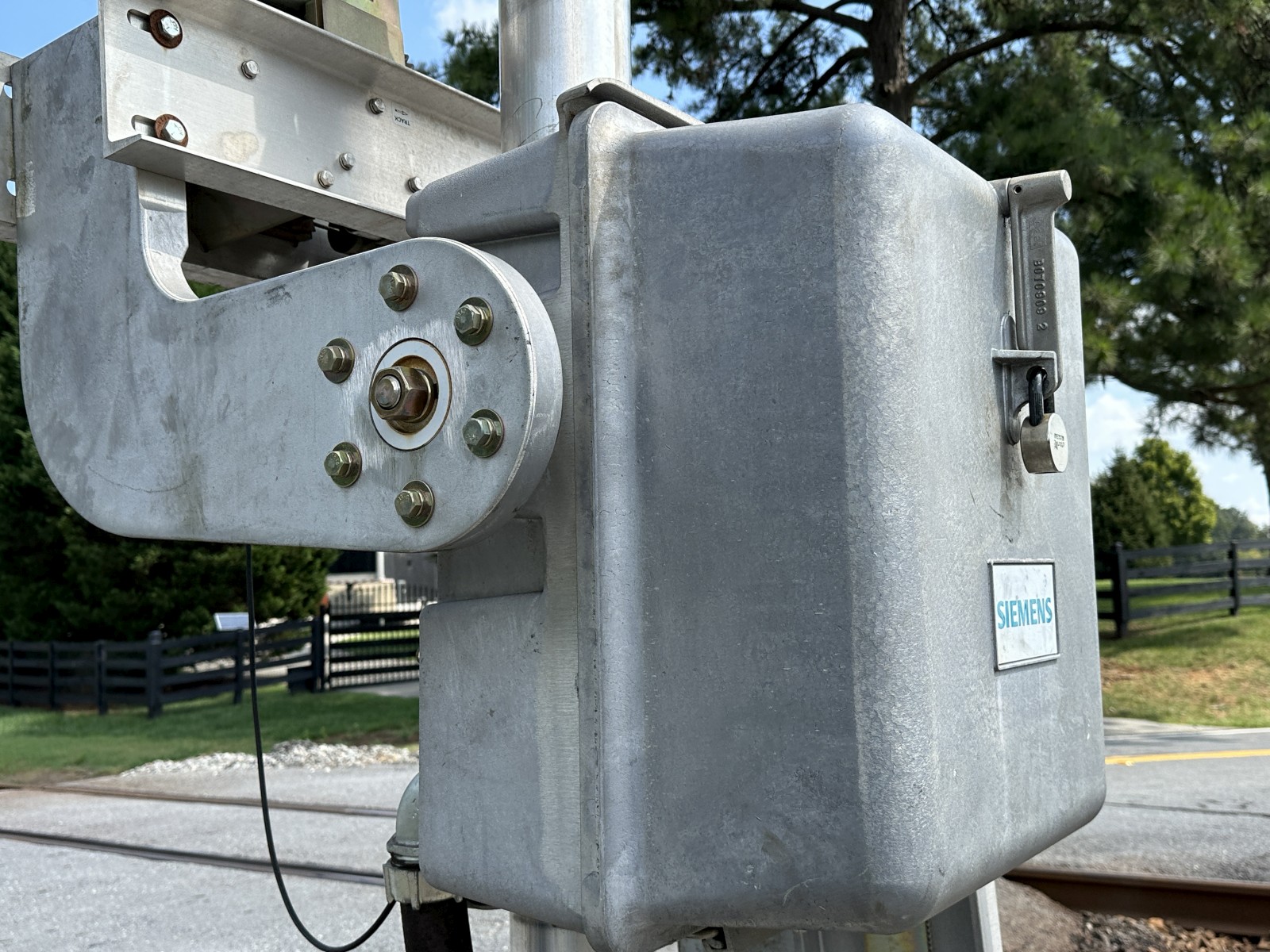

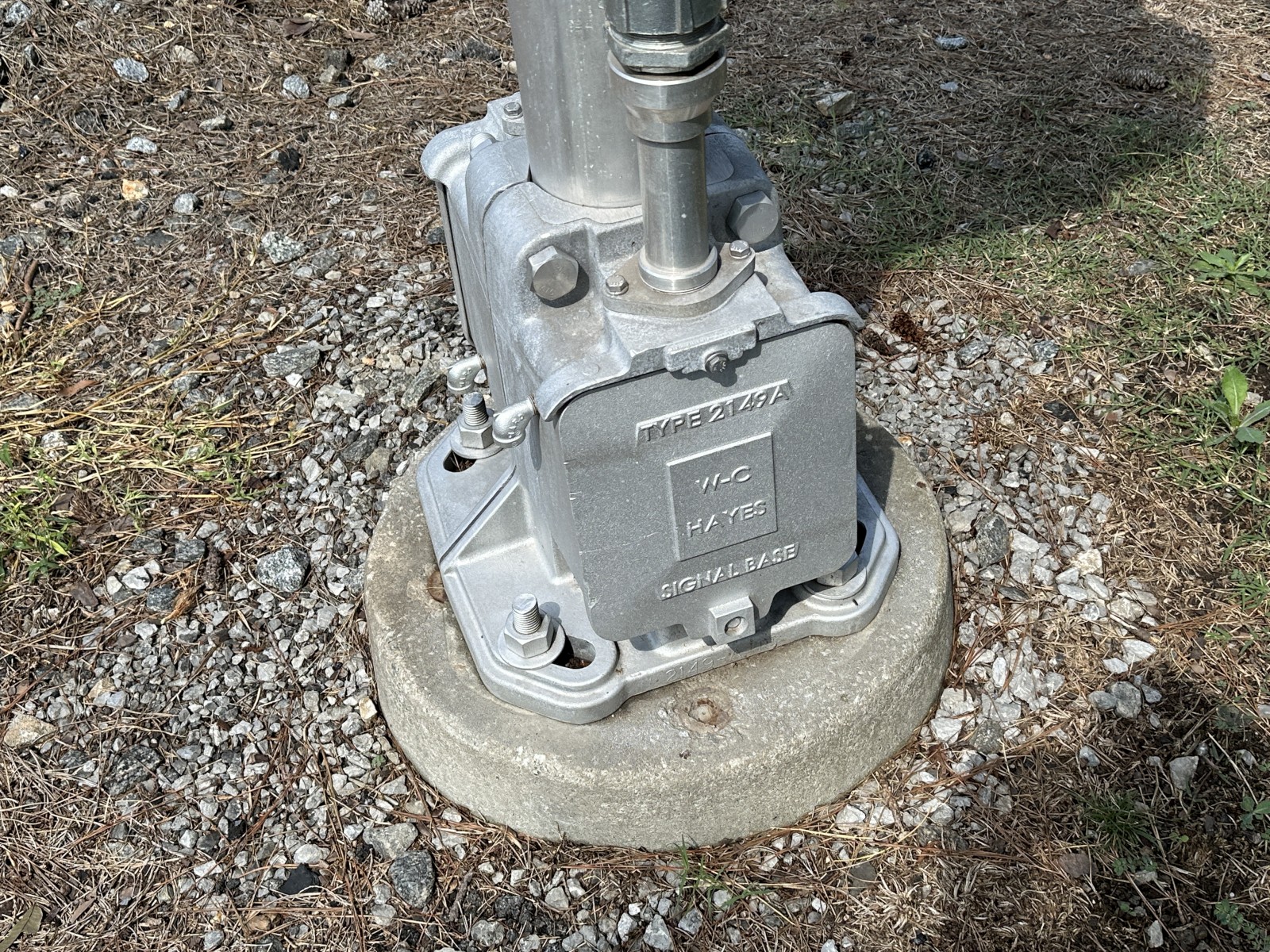

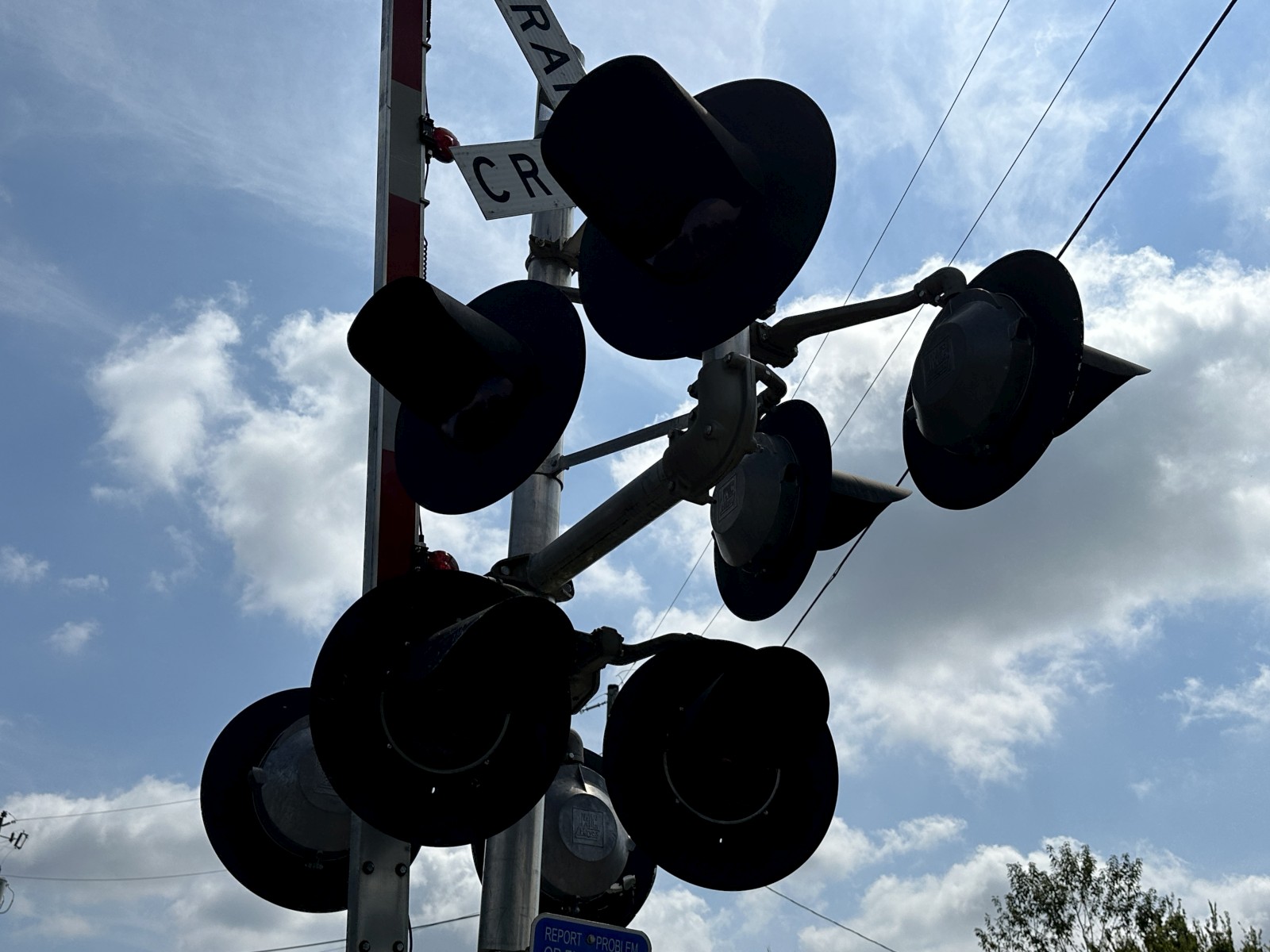

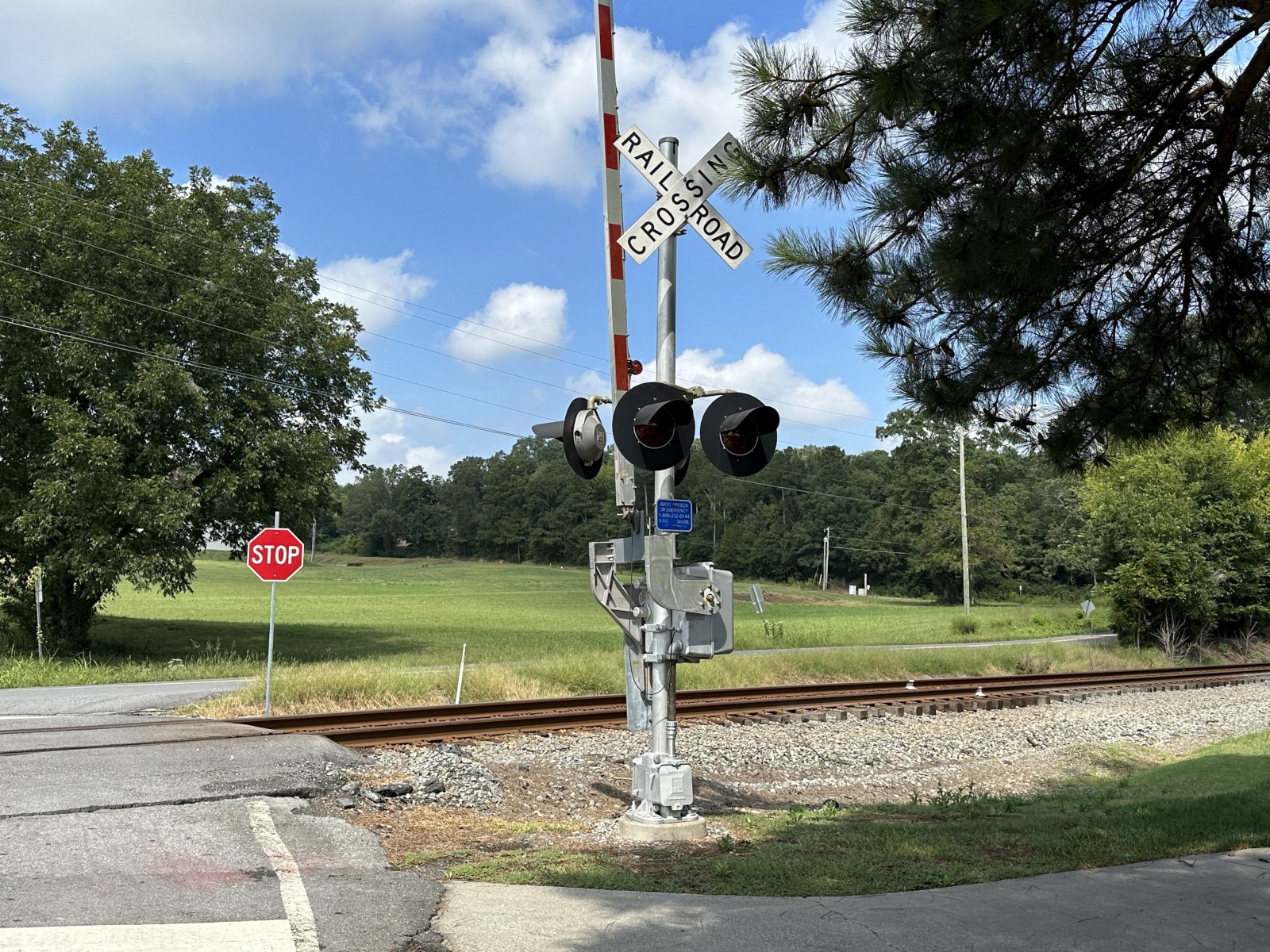

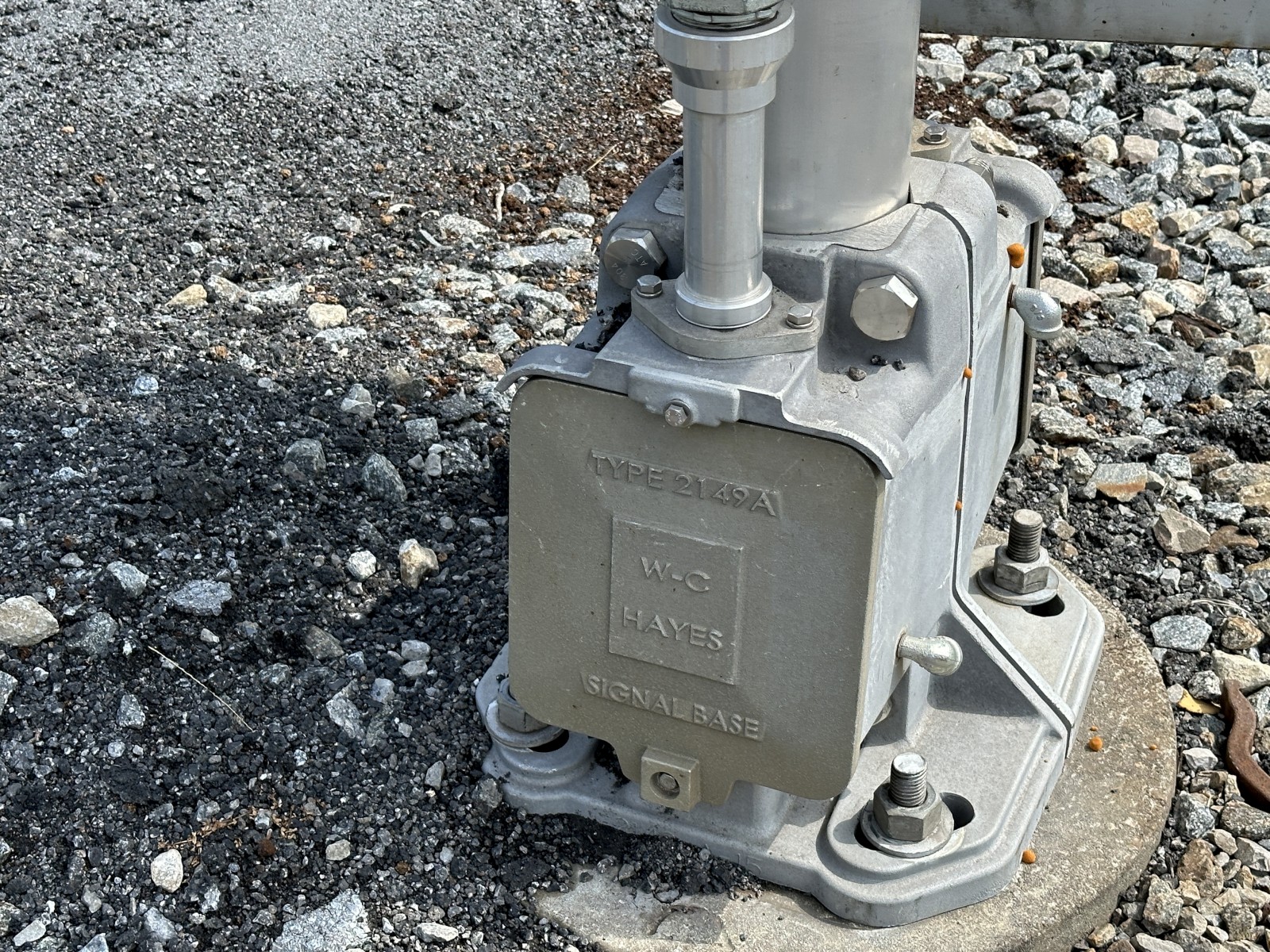

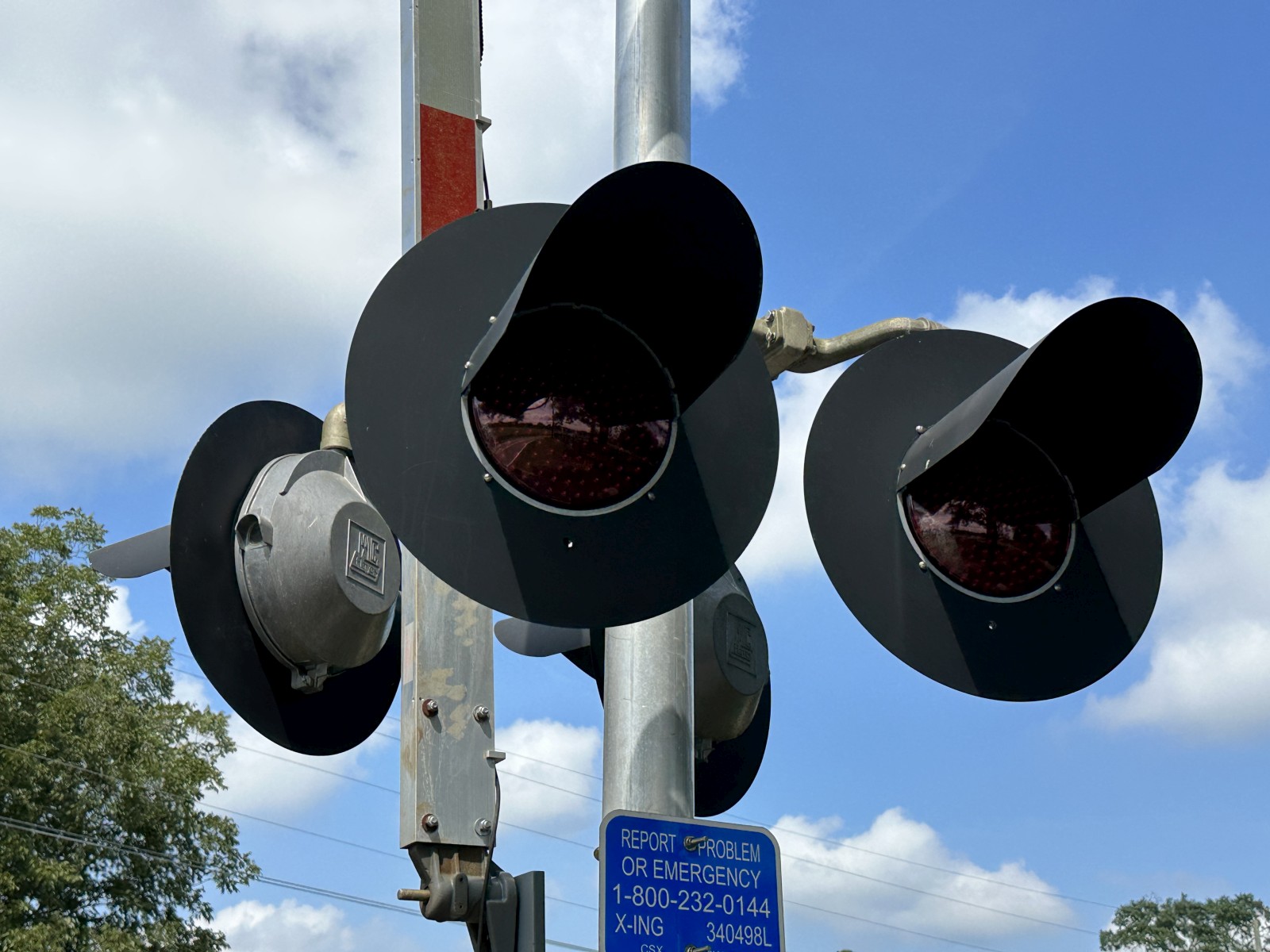

The new first signal.
|
|||
36 |
37 |
38 |
39 |
40 |
41 |
42 |
43 |
The new second signal.
|
|||
44 |
45 |
46 |

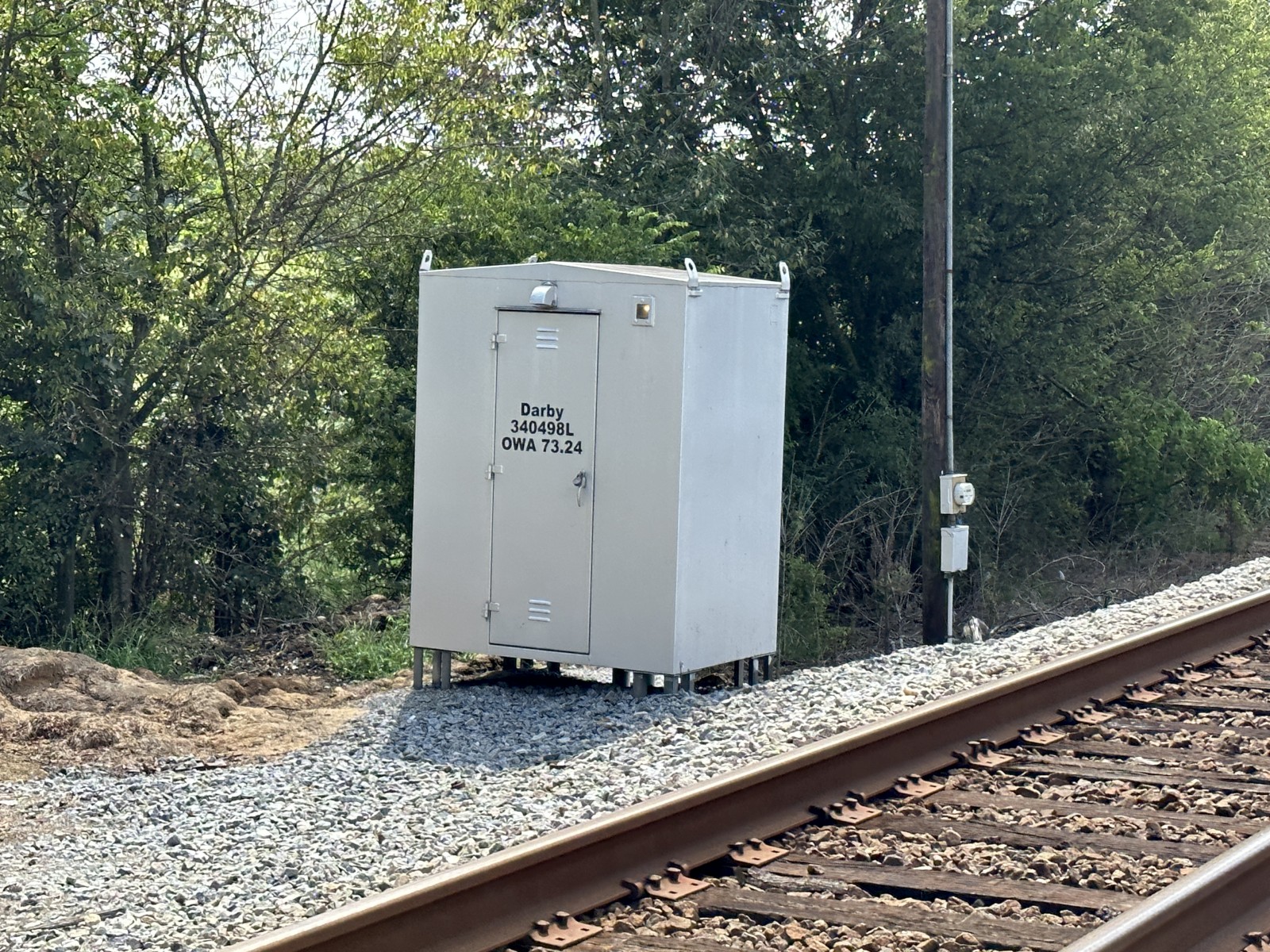

The old relay bungalow was reused. |

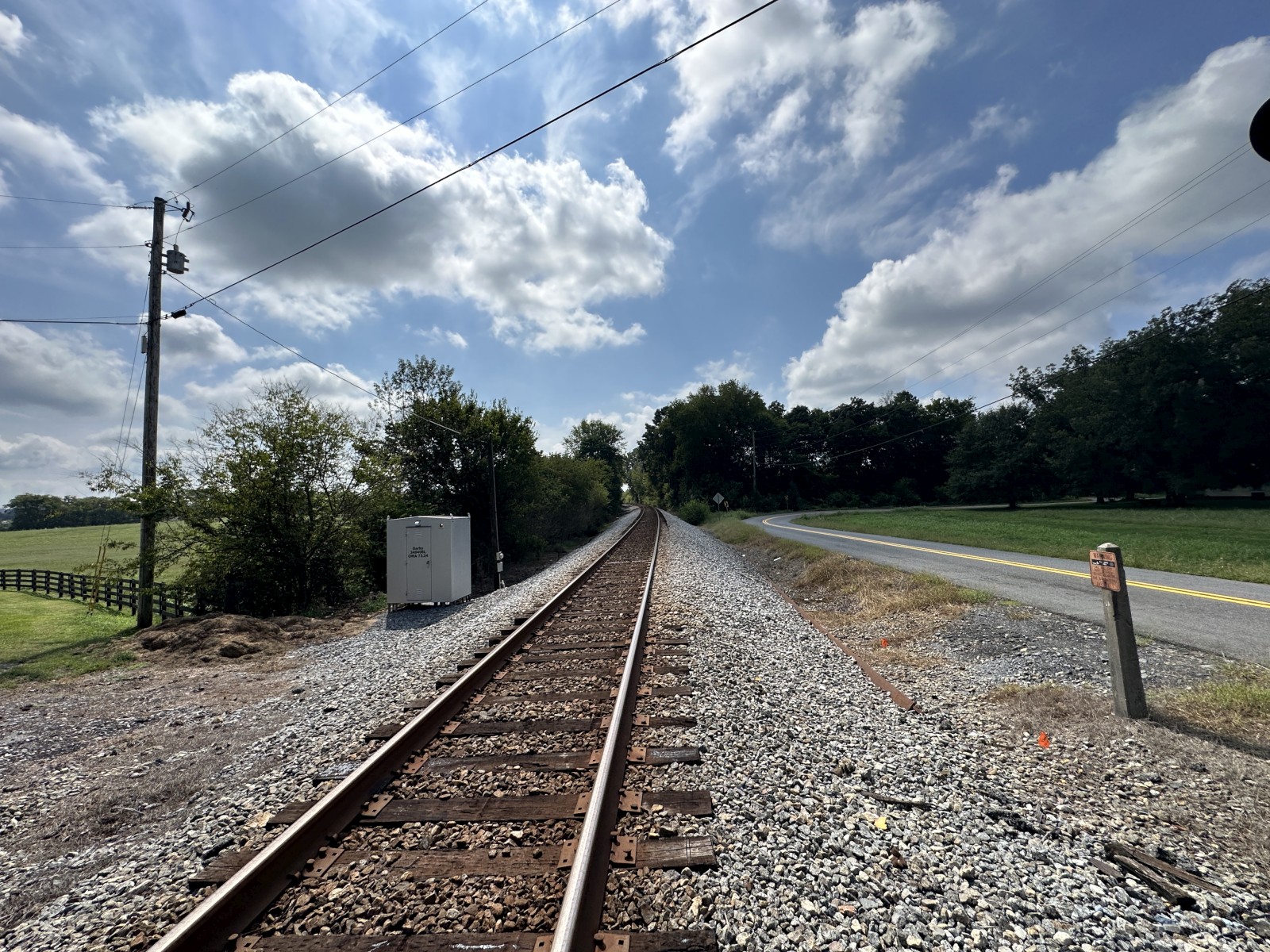

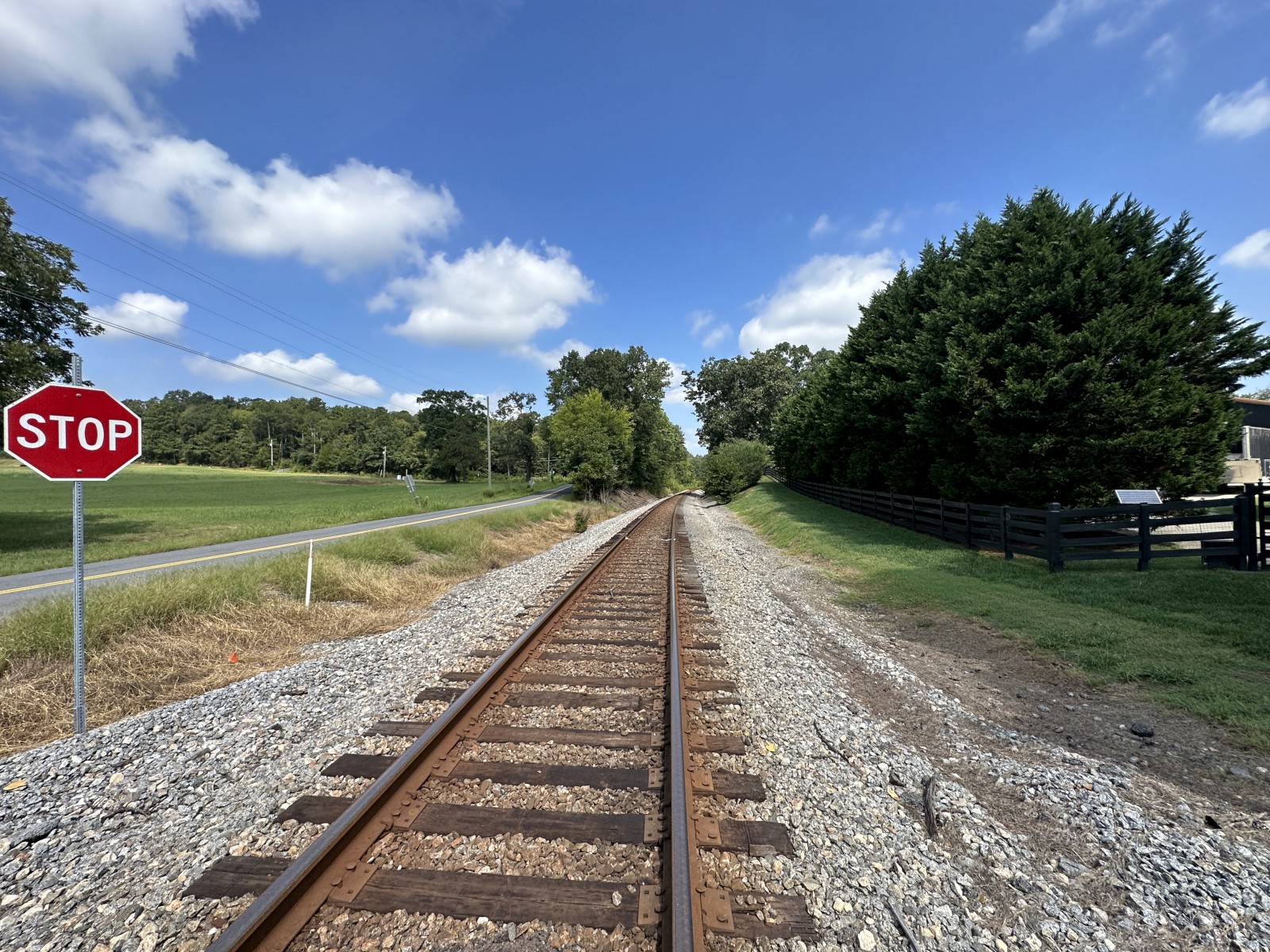

Track views. |
|
Pictures 1-24 were taken on 7-3-17.
Pictures 25-46 were taken on 9-13-23 by Ethan the Railfanner.
