MP:  SGC640.560



Updated December 28, 2023



Total Accidents:   1
Crossing DOT #:  639342U
TOTAL DAILY TRAINS:   1   (AS OF 2021)



Page created by: freebrickproductions



This crossing is located on the CSX Cartersville Subdivision.



>>>>>>>>>>>>> Signal #1 Signal #2
Bell: NEG electronic NEG electronic
Base: WCH WCH
Light Frames: 4 - 12x24" WCH w/ Leotek EV Series LEDs 4 - 12x24" WCH w/ Leotek EV Series LEDs
Gate Lights: NEG LED NEG LED
Gate Mechanism: Siemens Imprinted Siemens Imprinted
Gate Striping: Vertical Vertical



1

2

3

4

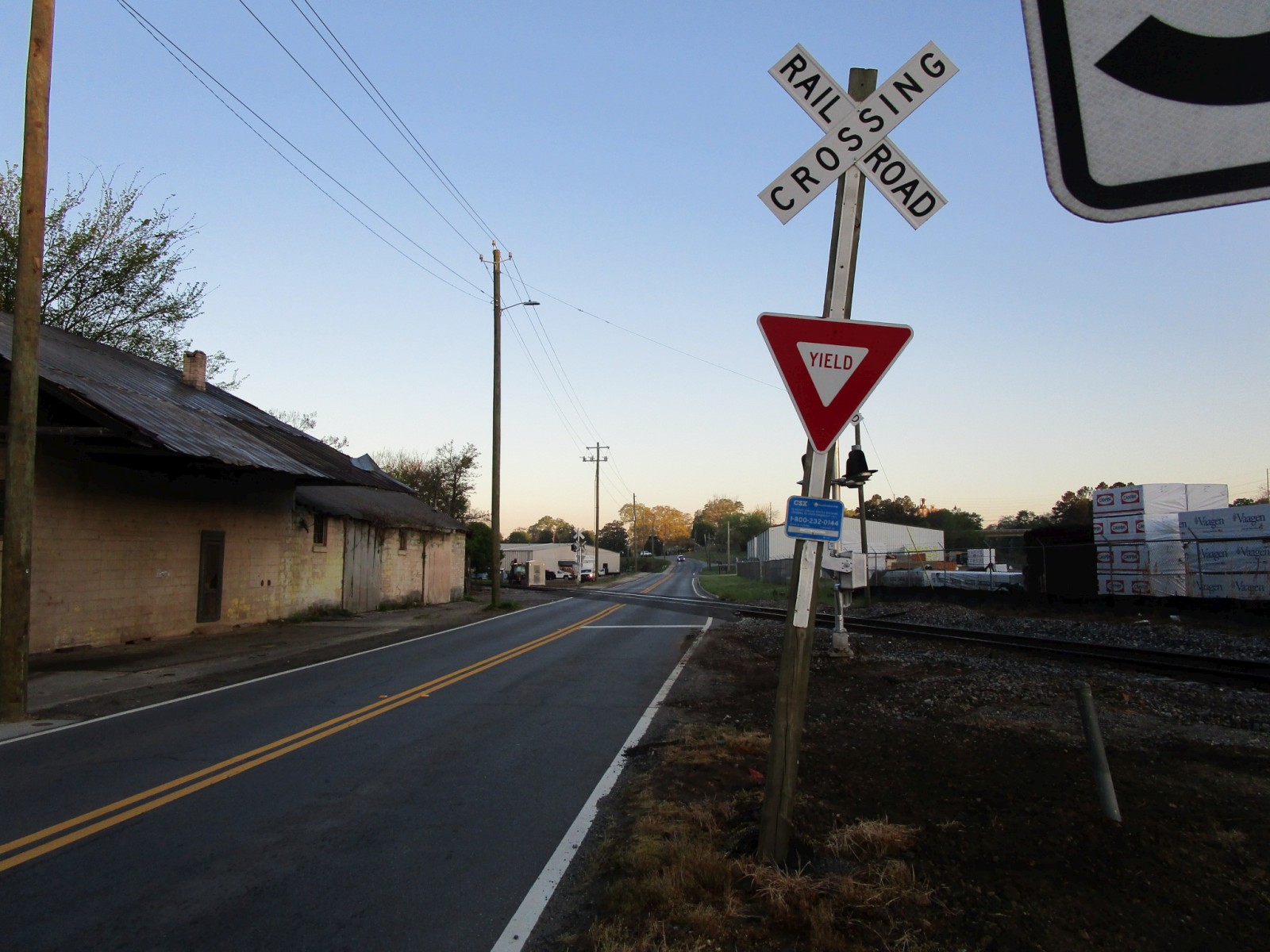

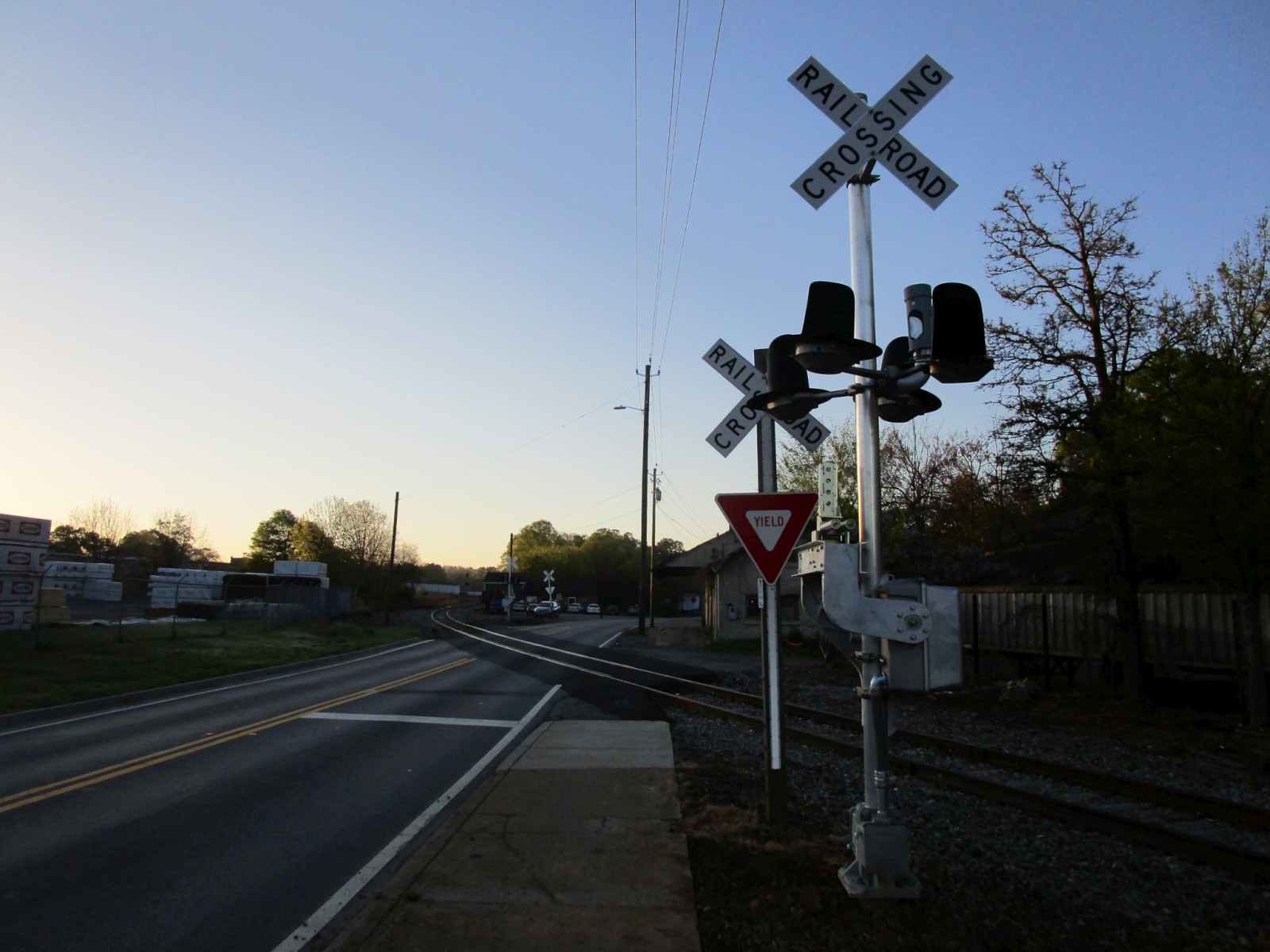

Overviews of the crossing.

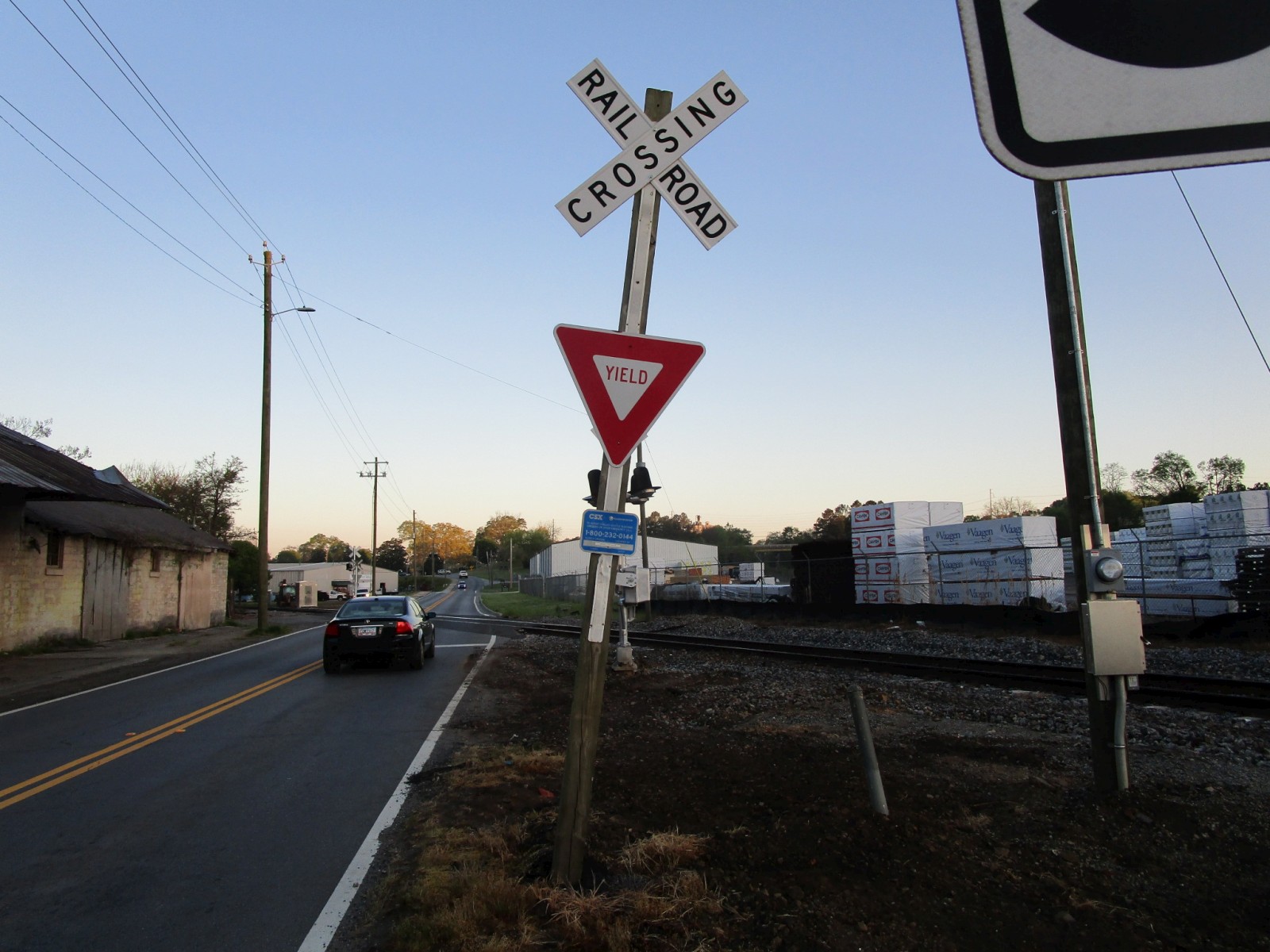

The first crossbuck.

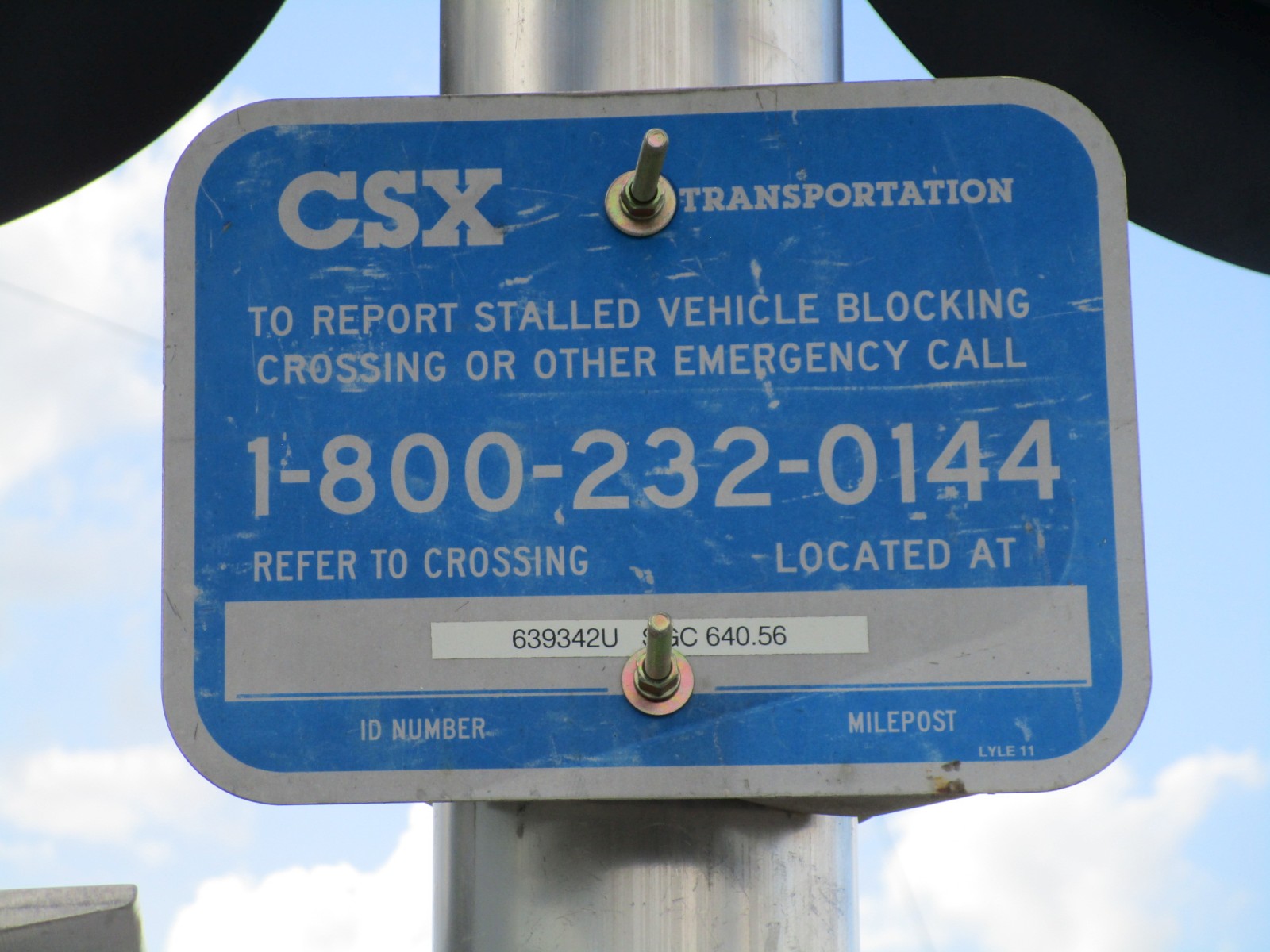

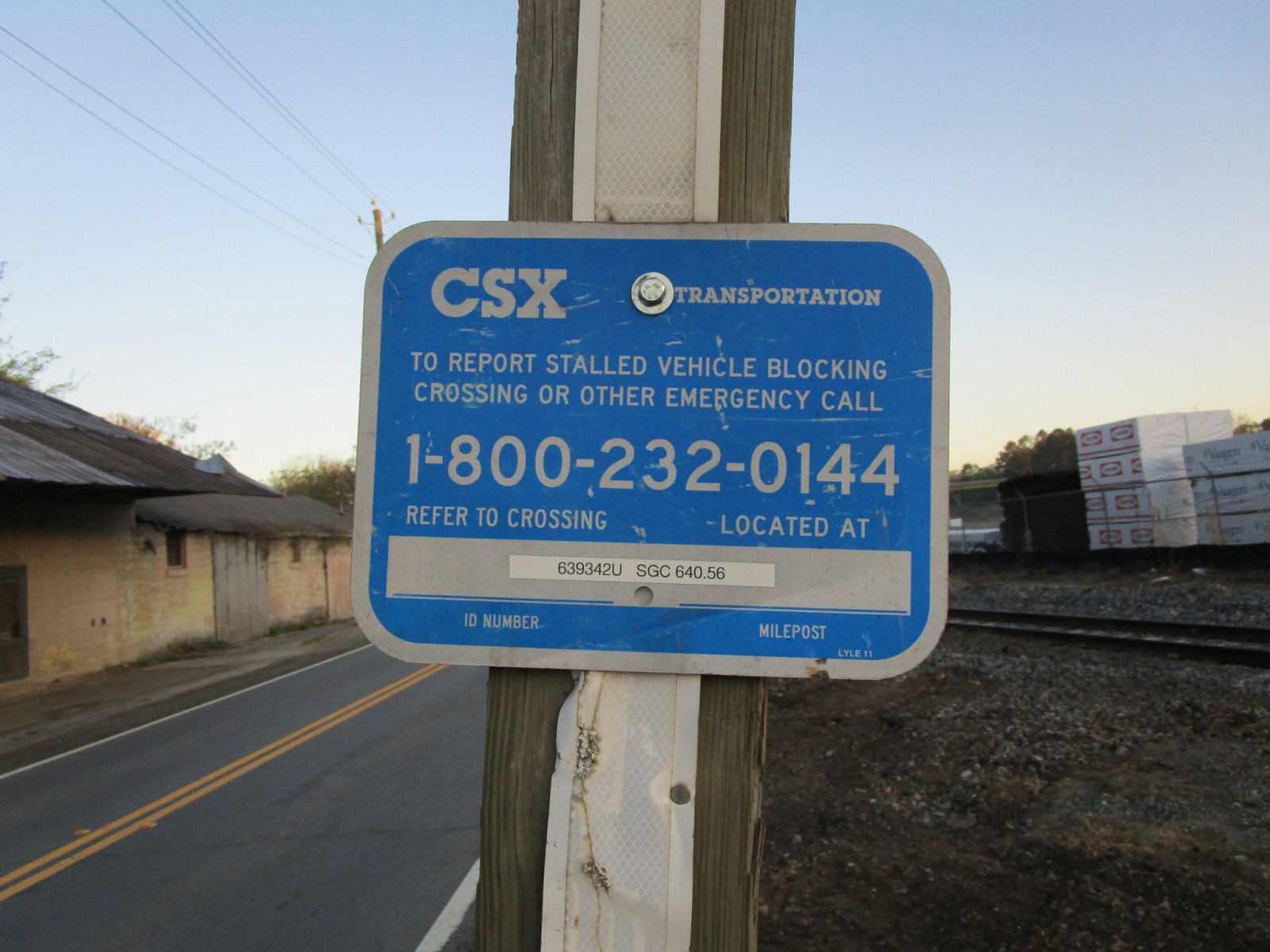

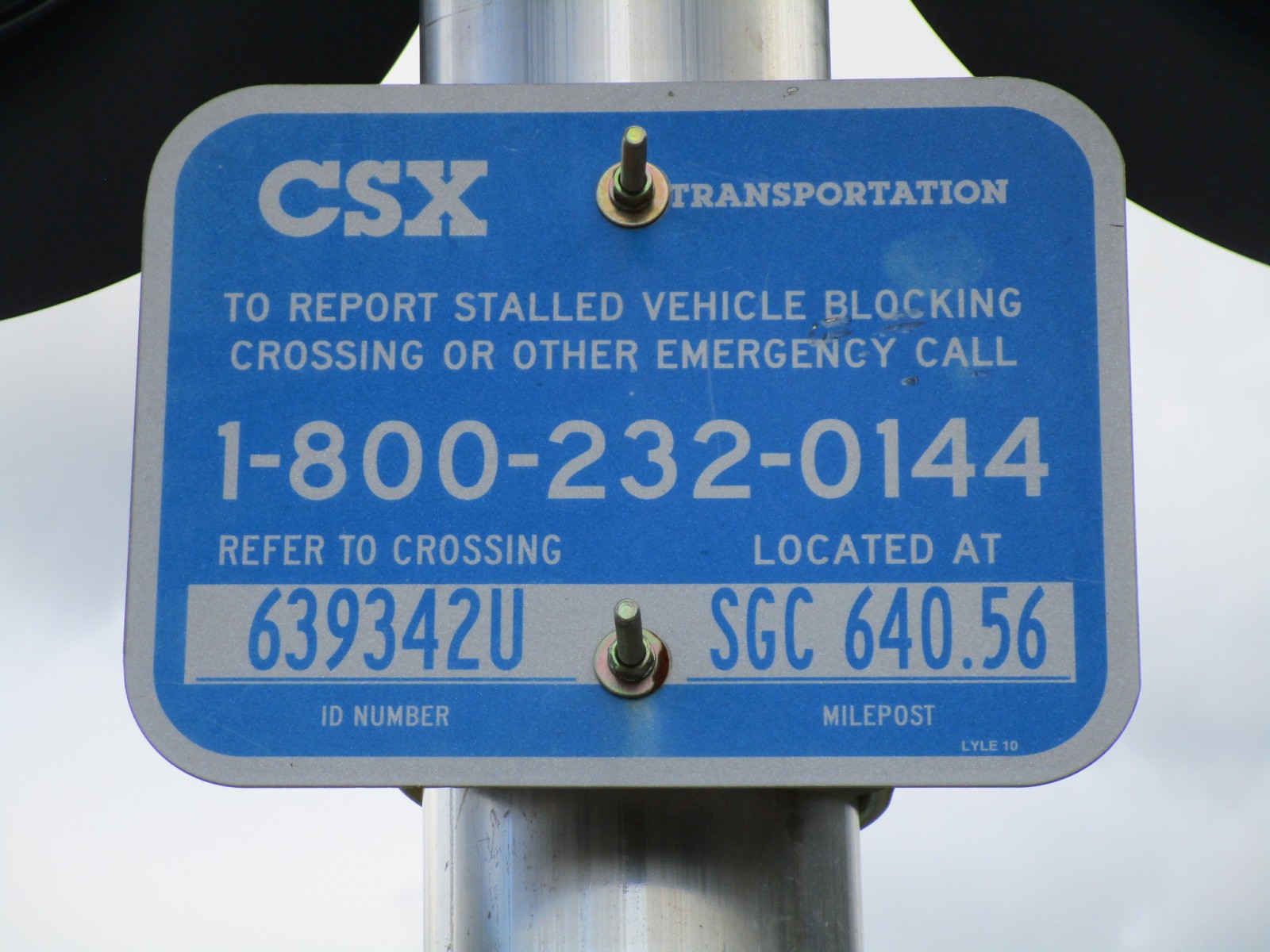

The emergency information.

5

6

7

8

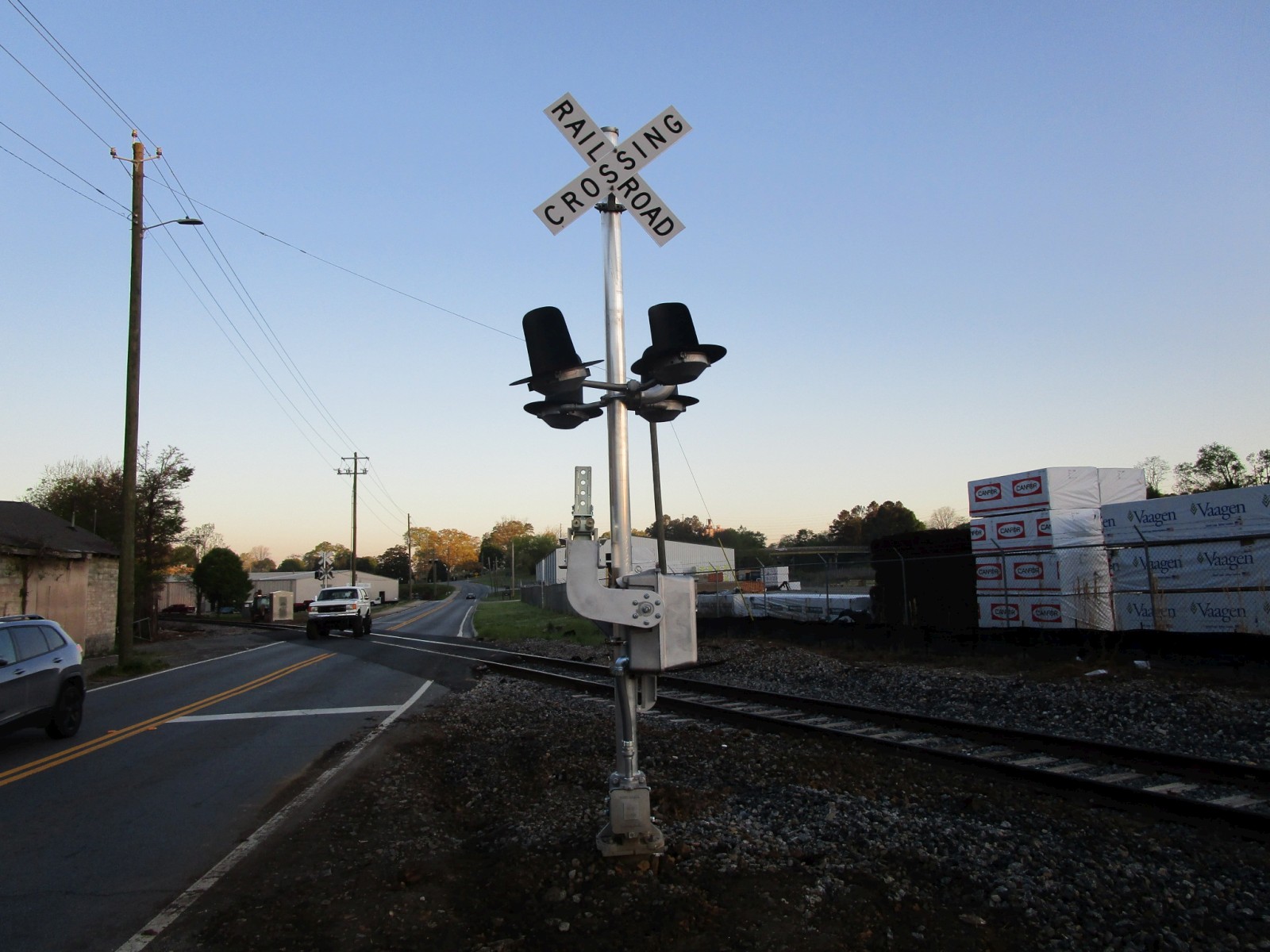

The first new signal.

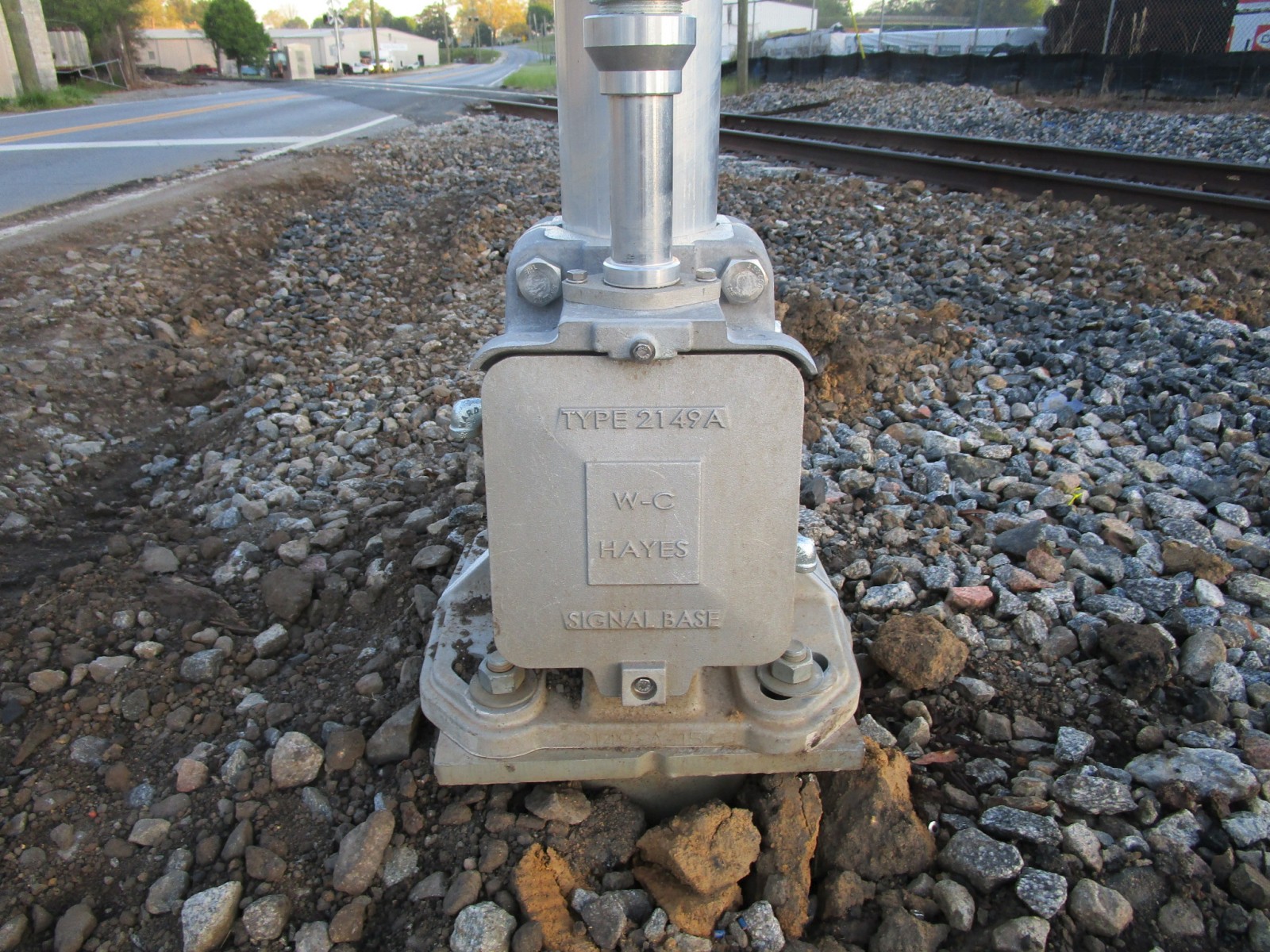

It has a WCH base.

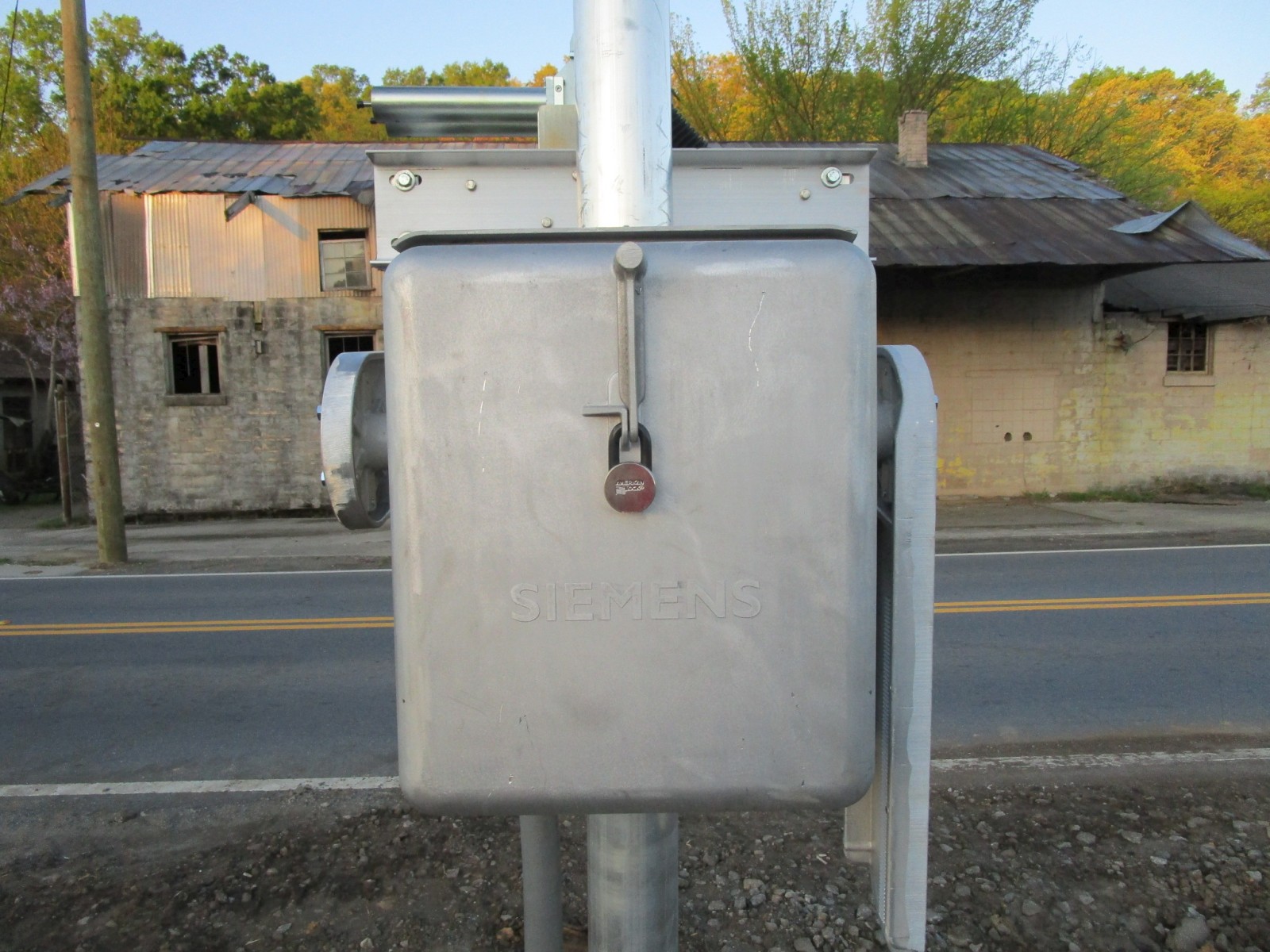

A Siemens gate mechanism.

9

10

11

12

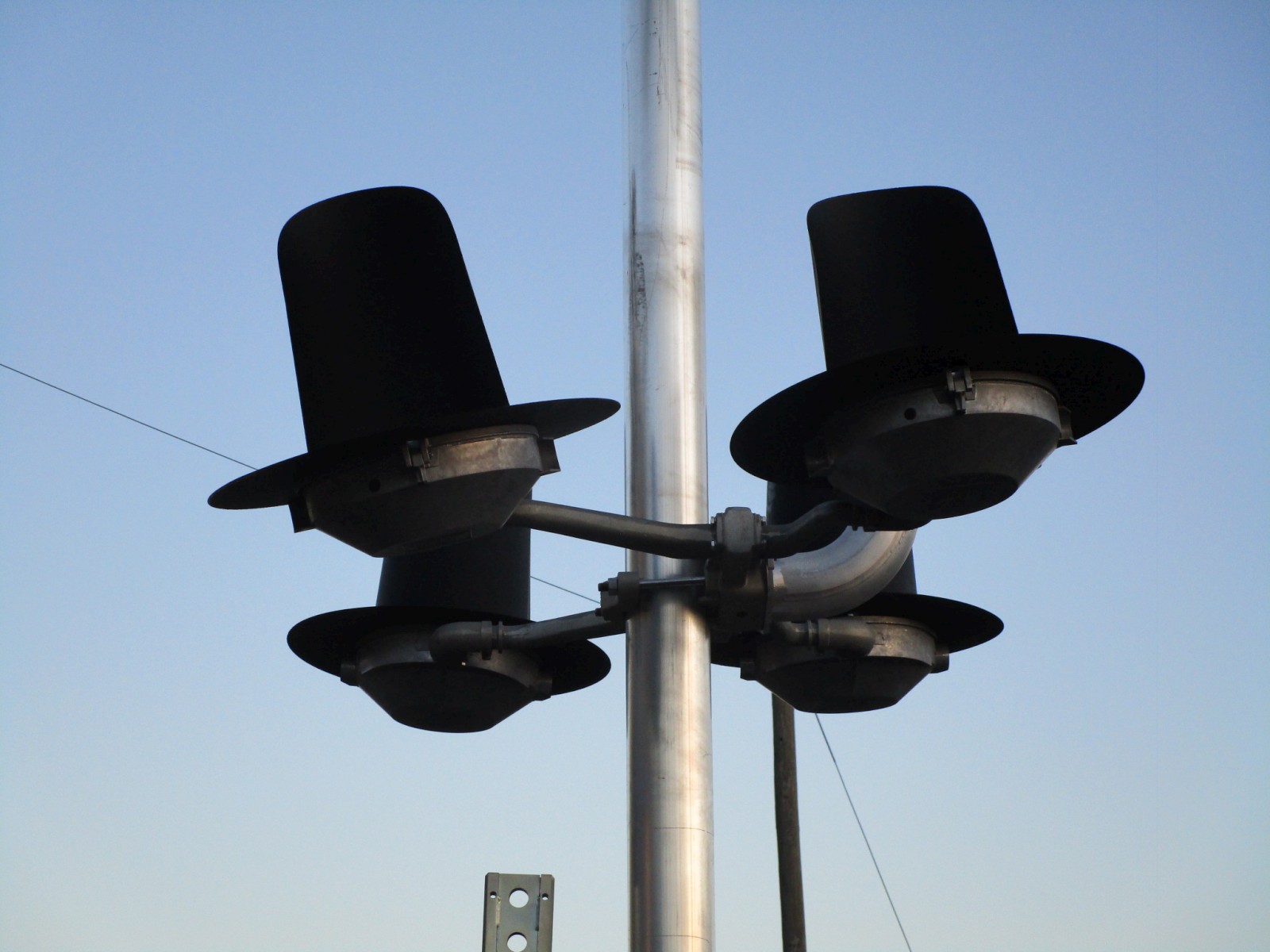

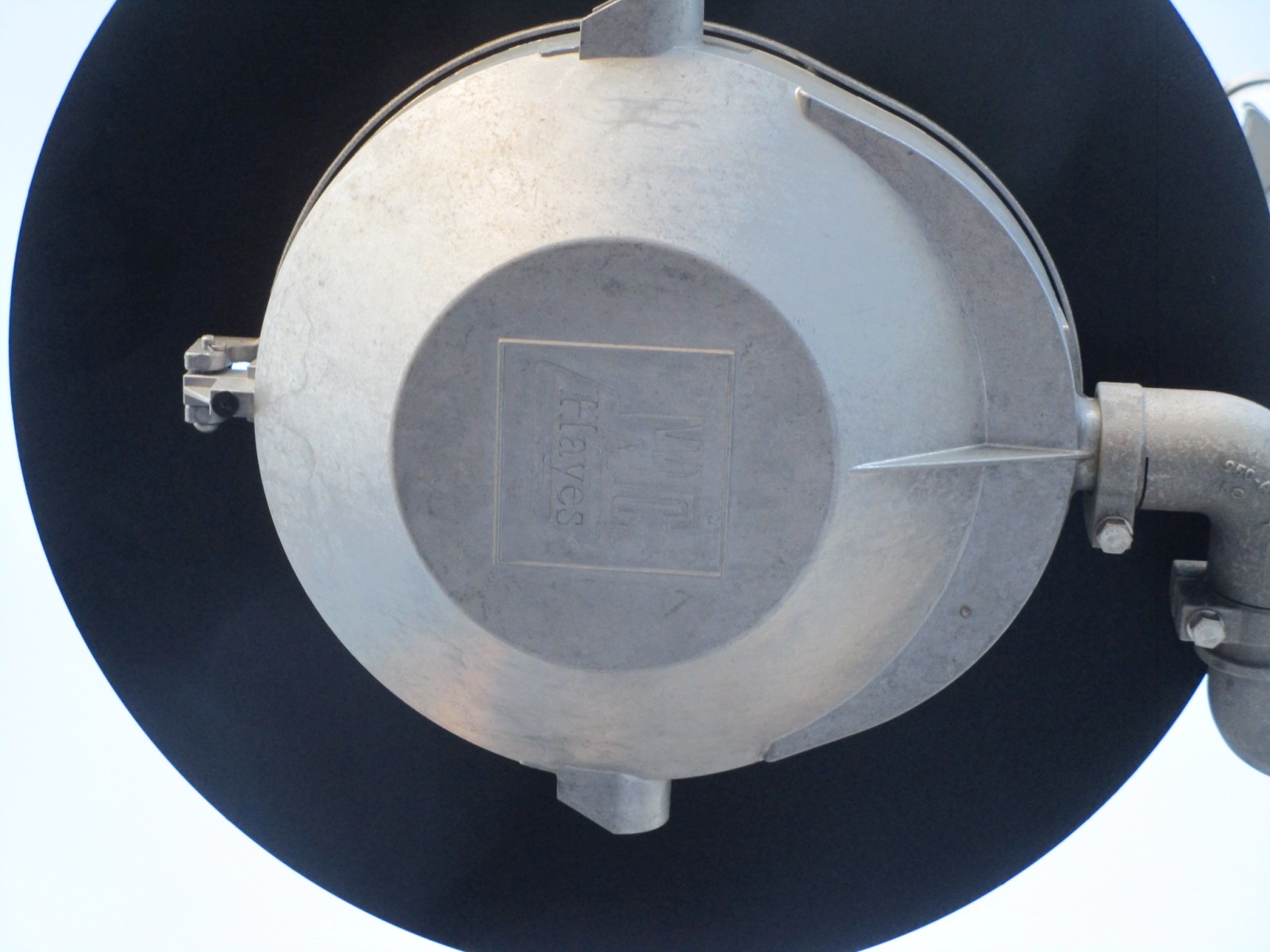

The lights are all WCH 12x24 inch lights, most likely with Leotek EV Series LEDs.

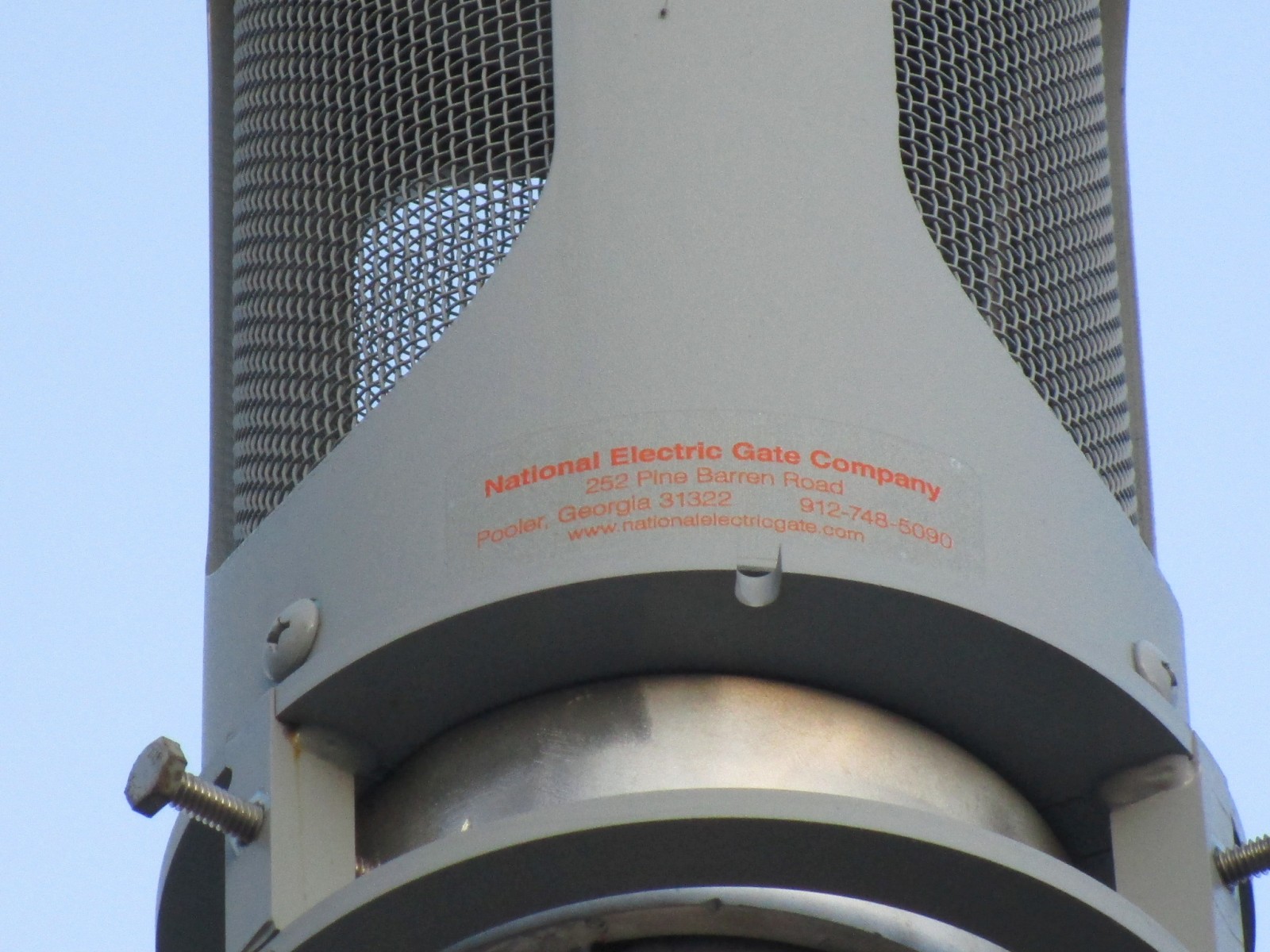

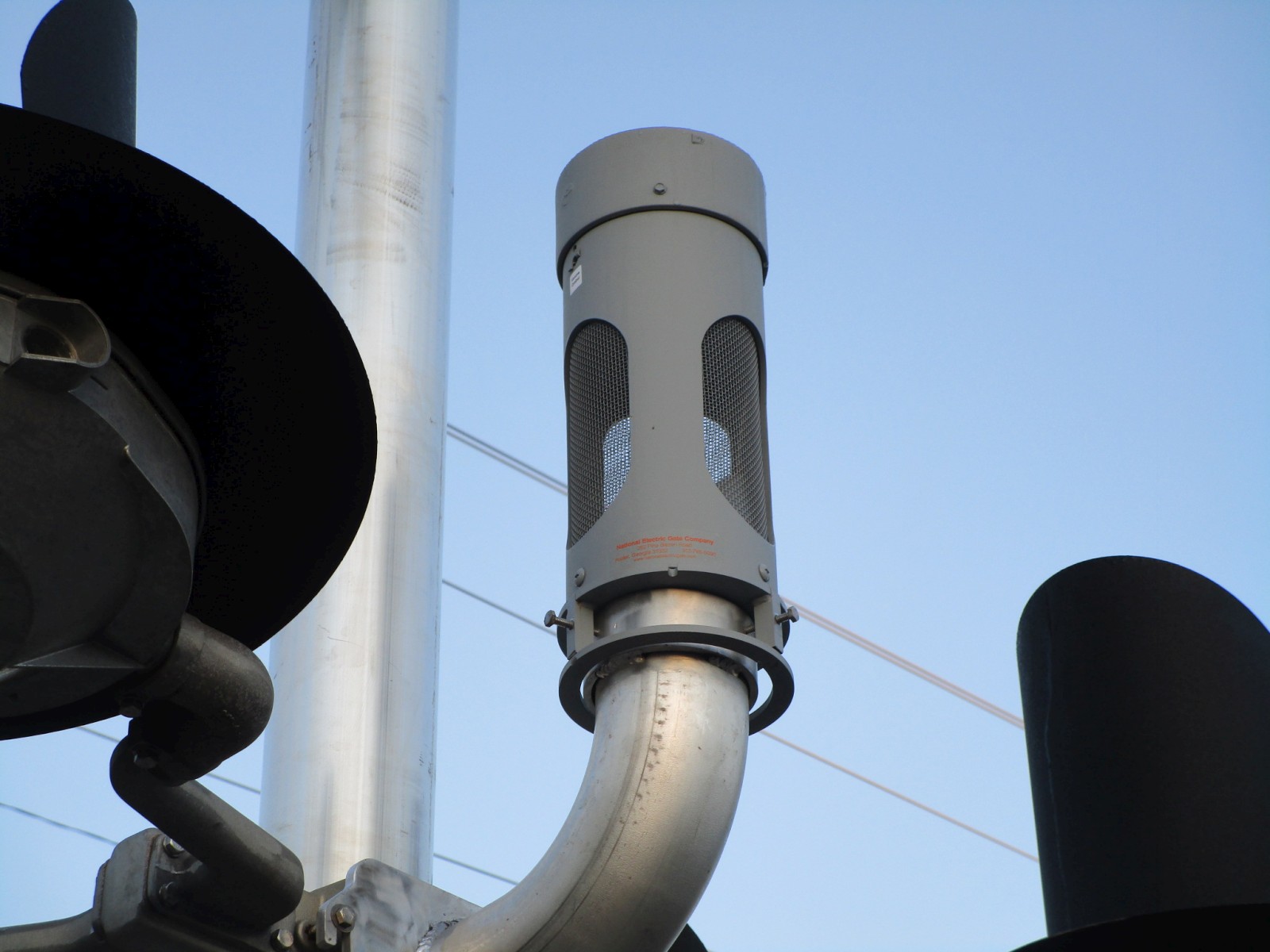

This signal has an NEG electronic bell.

13

14

15

16

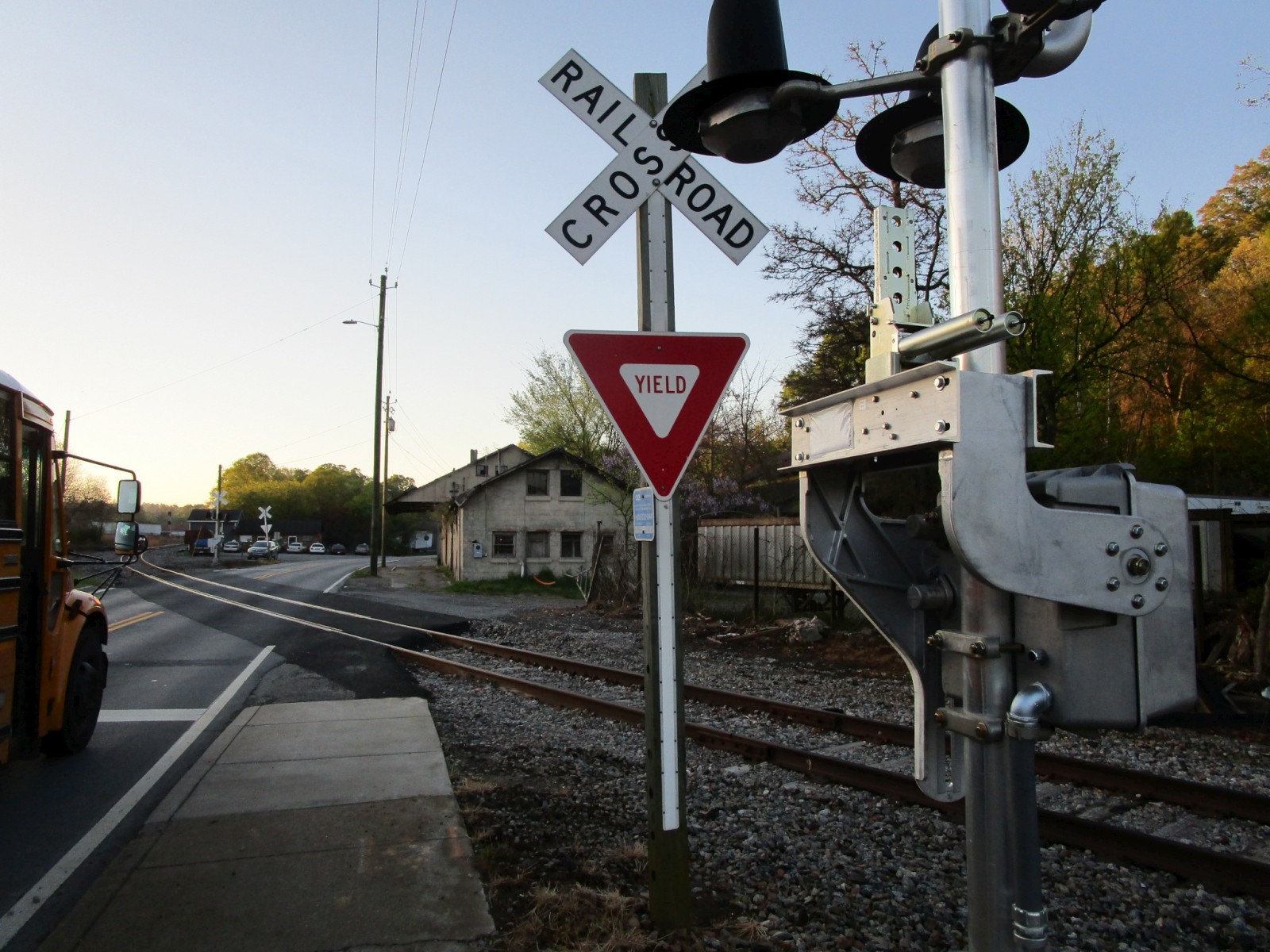

The second crossbuck.

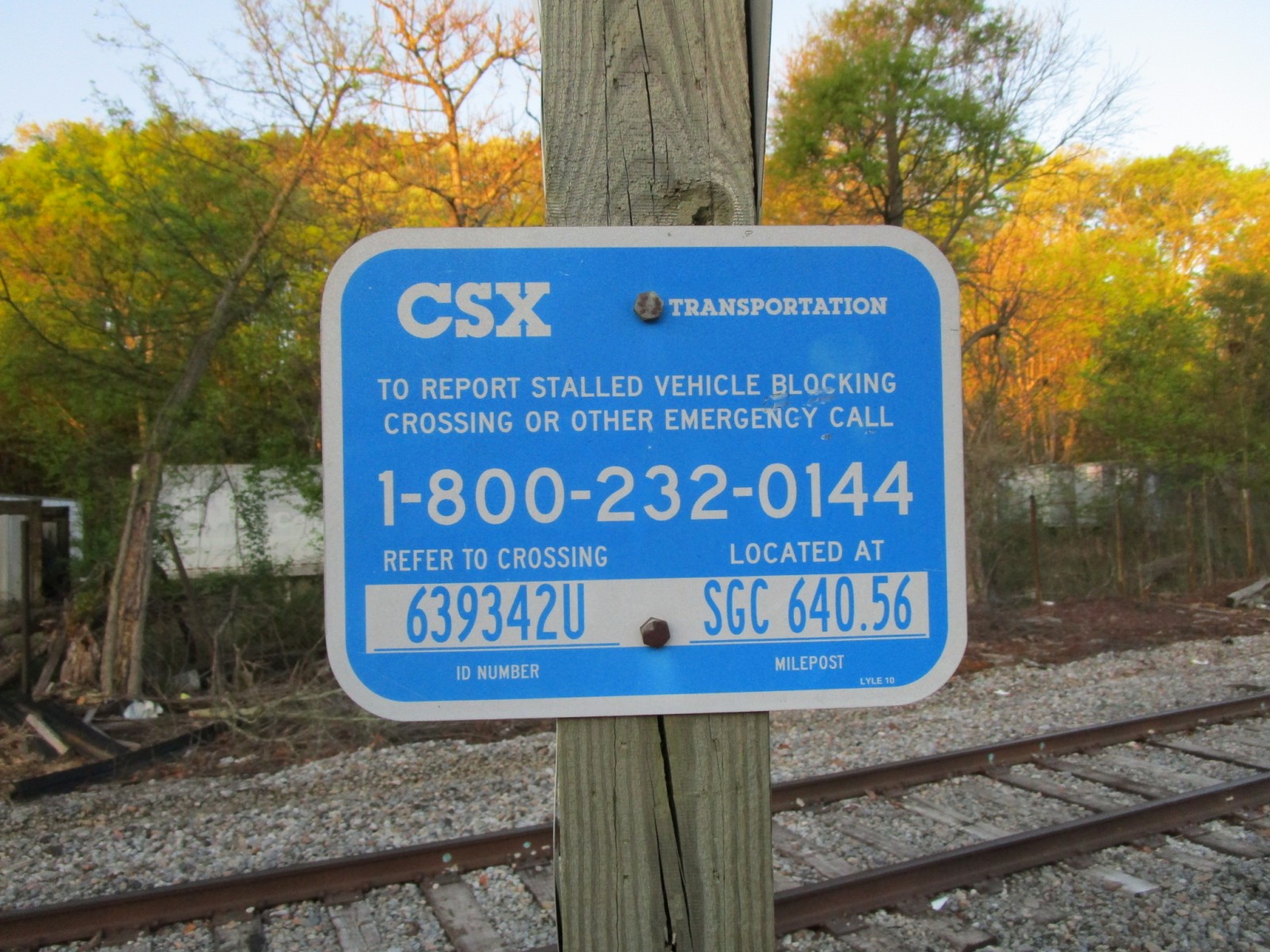

The emergency information.

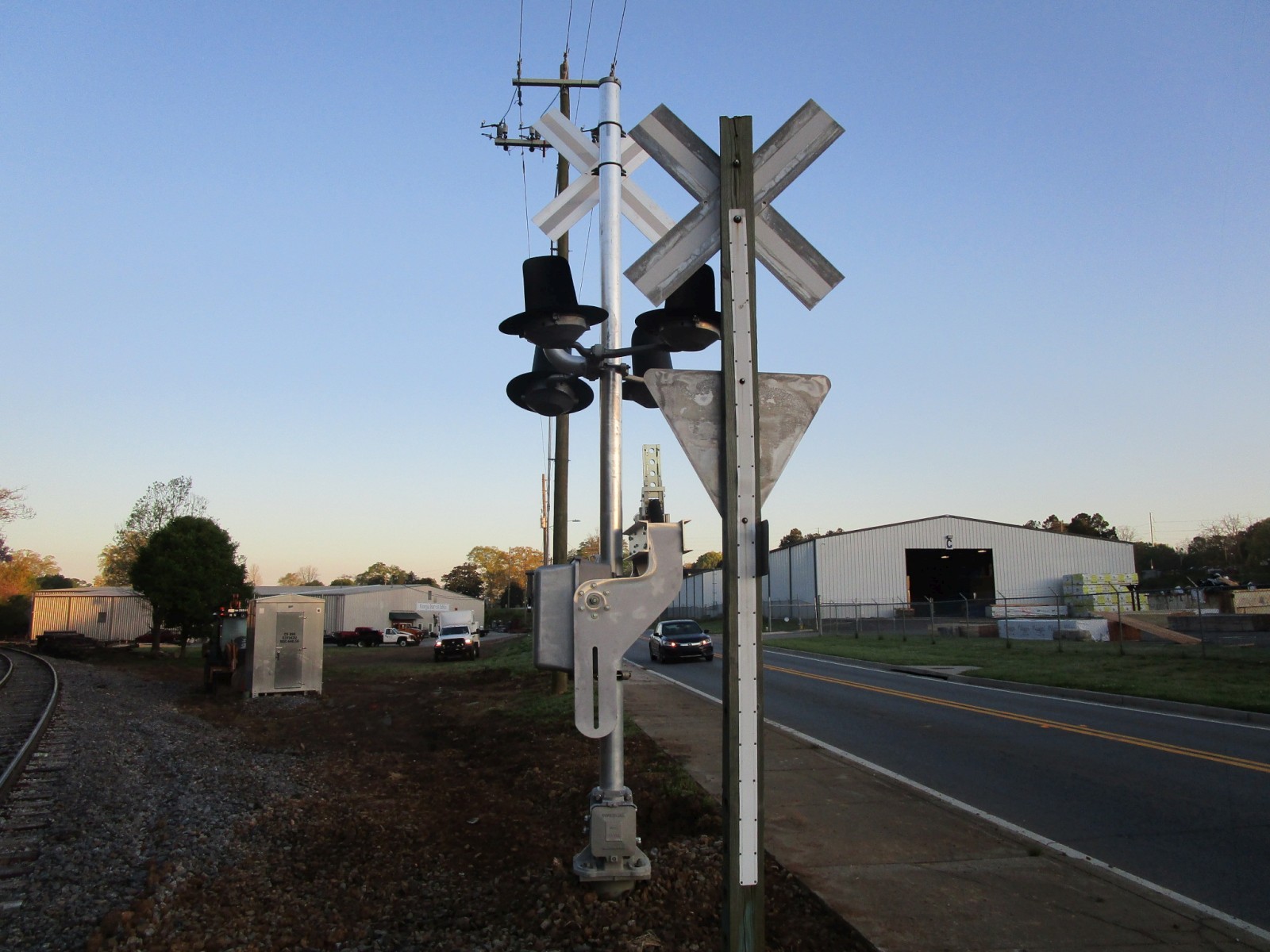

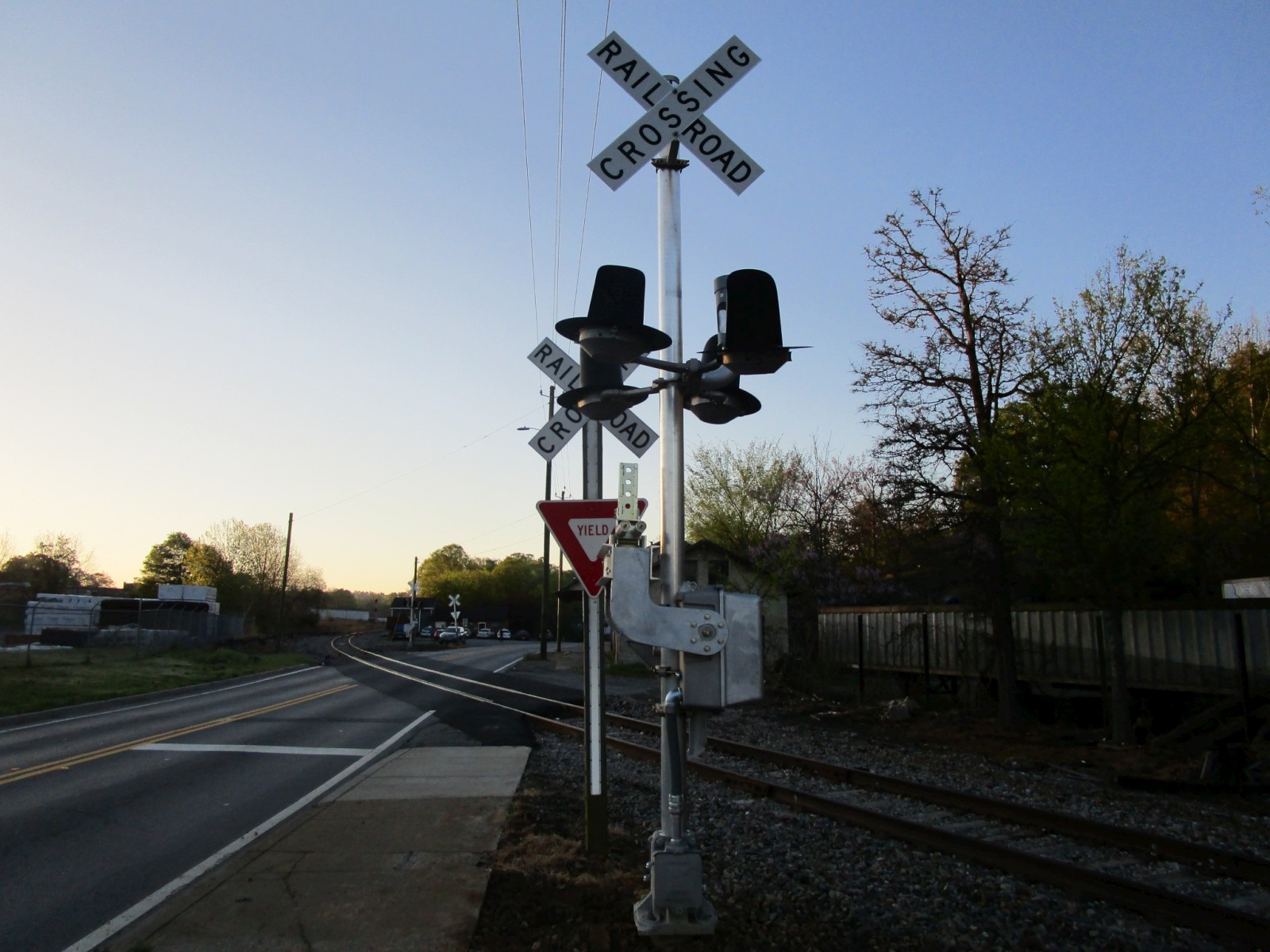

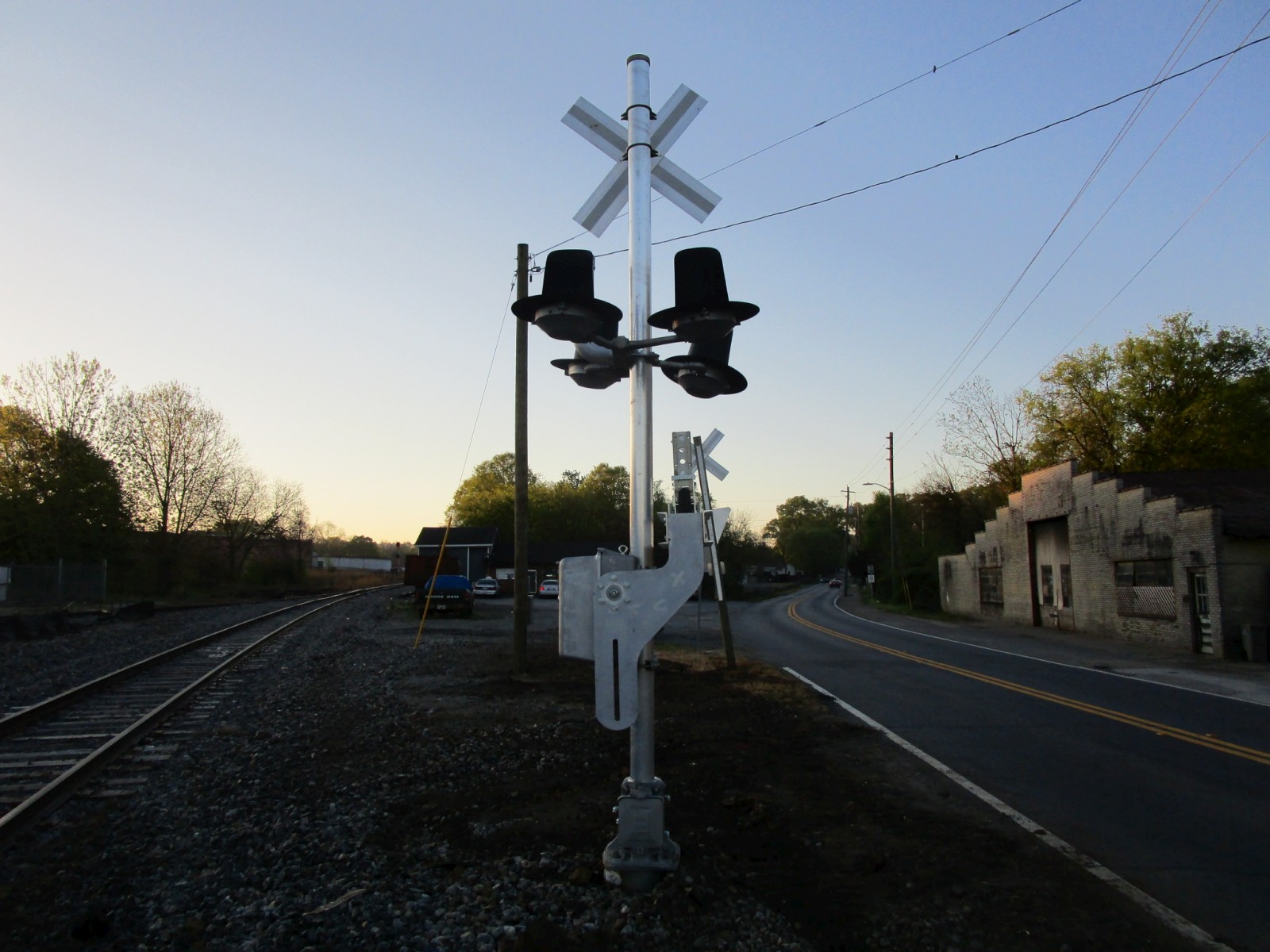

The second new signal.

17

18

19

20

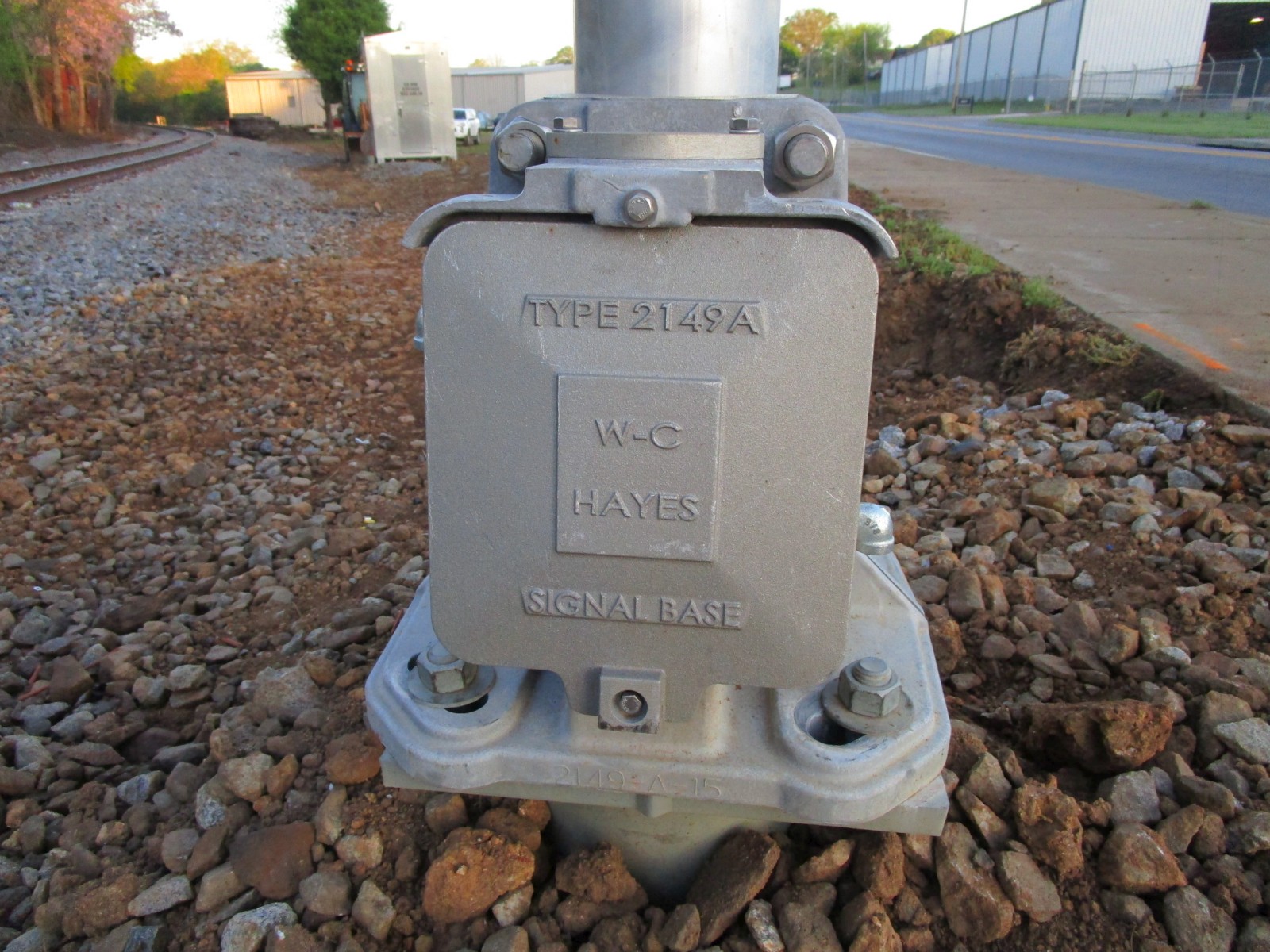

It has another WCH base.

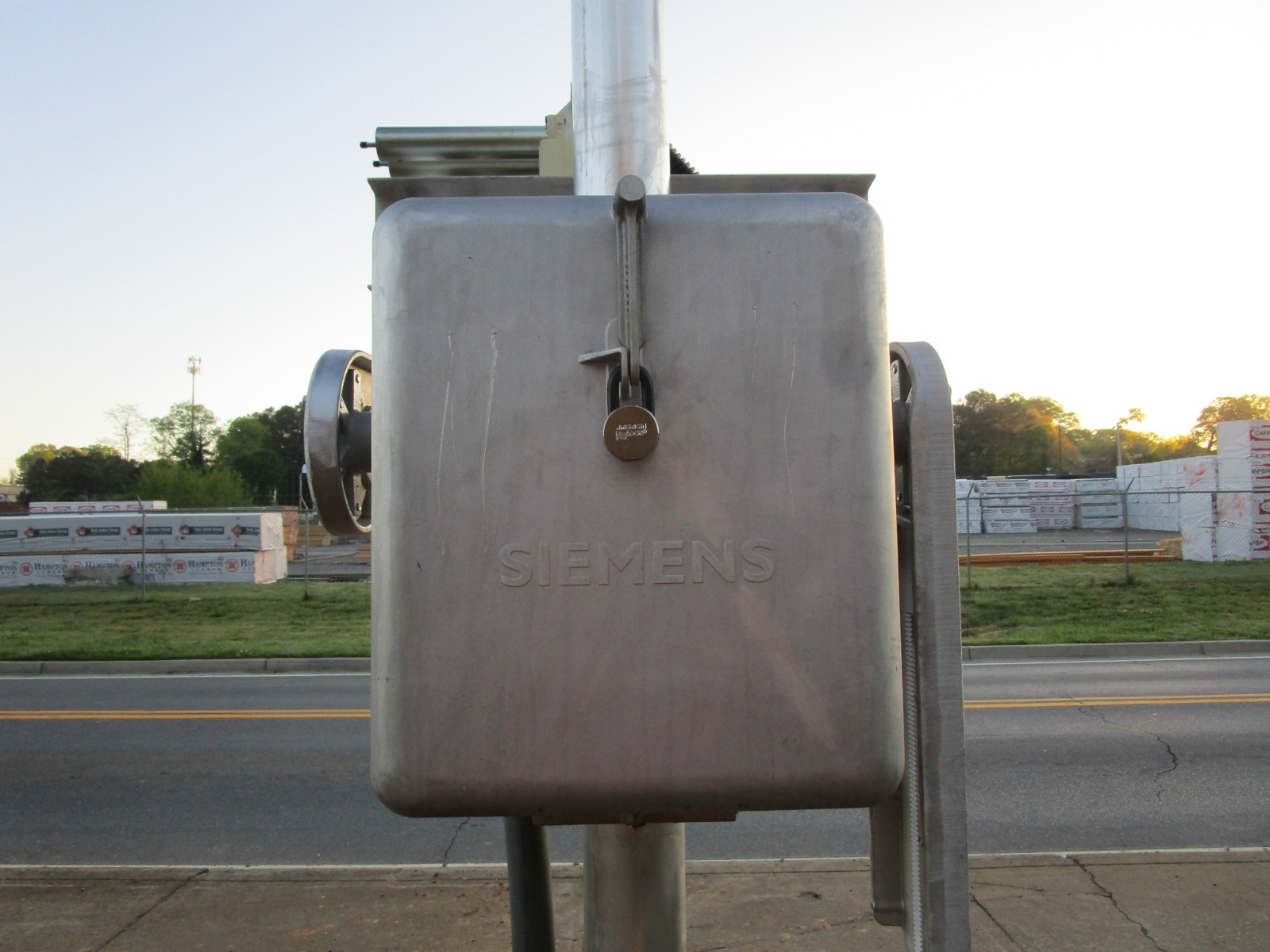

Another Siemens gate mechanism.

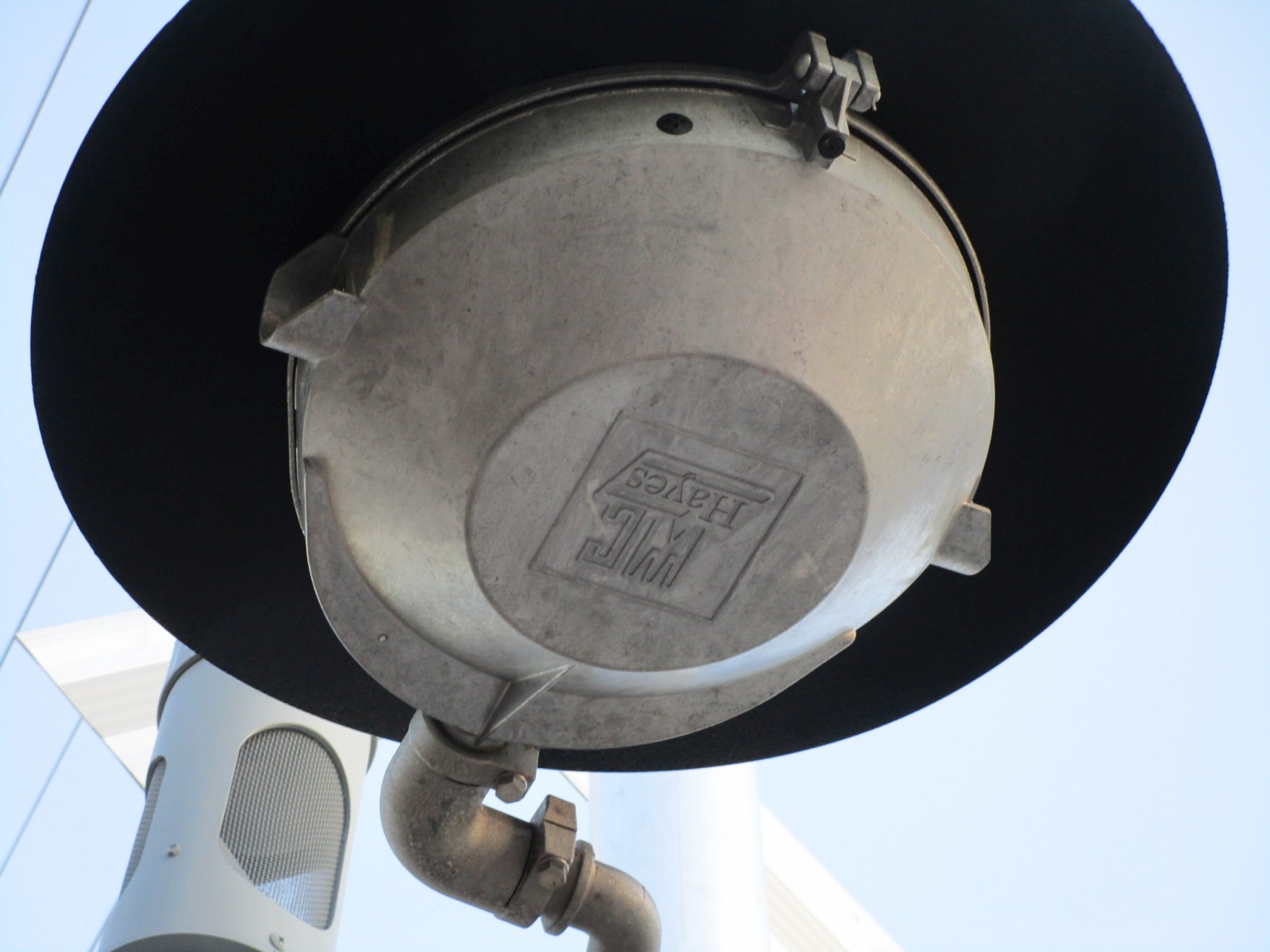

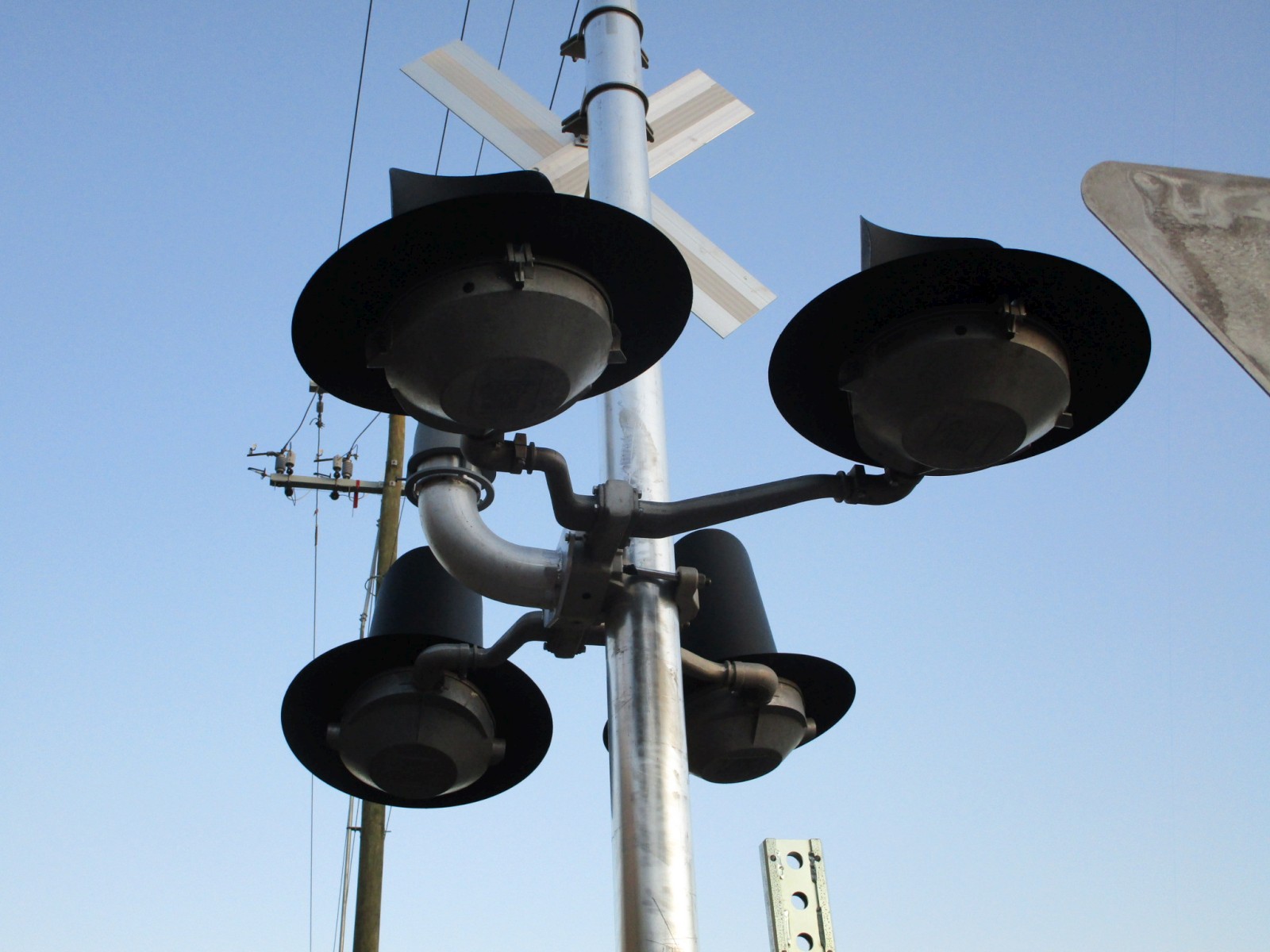

The lights are all more WCH 12x24 inch lights, most likely with Leotek EV Series LEDs as well.

21

22

23

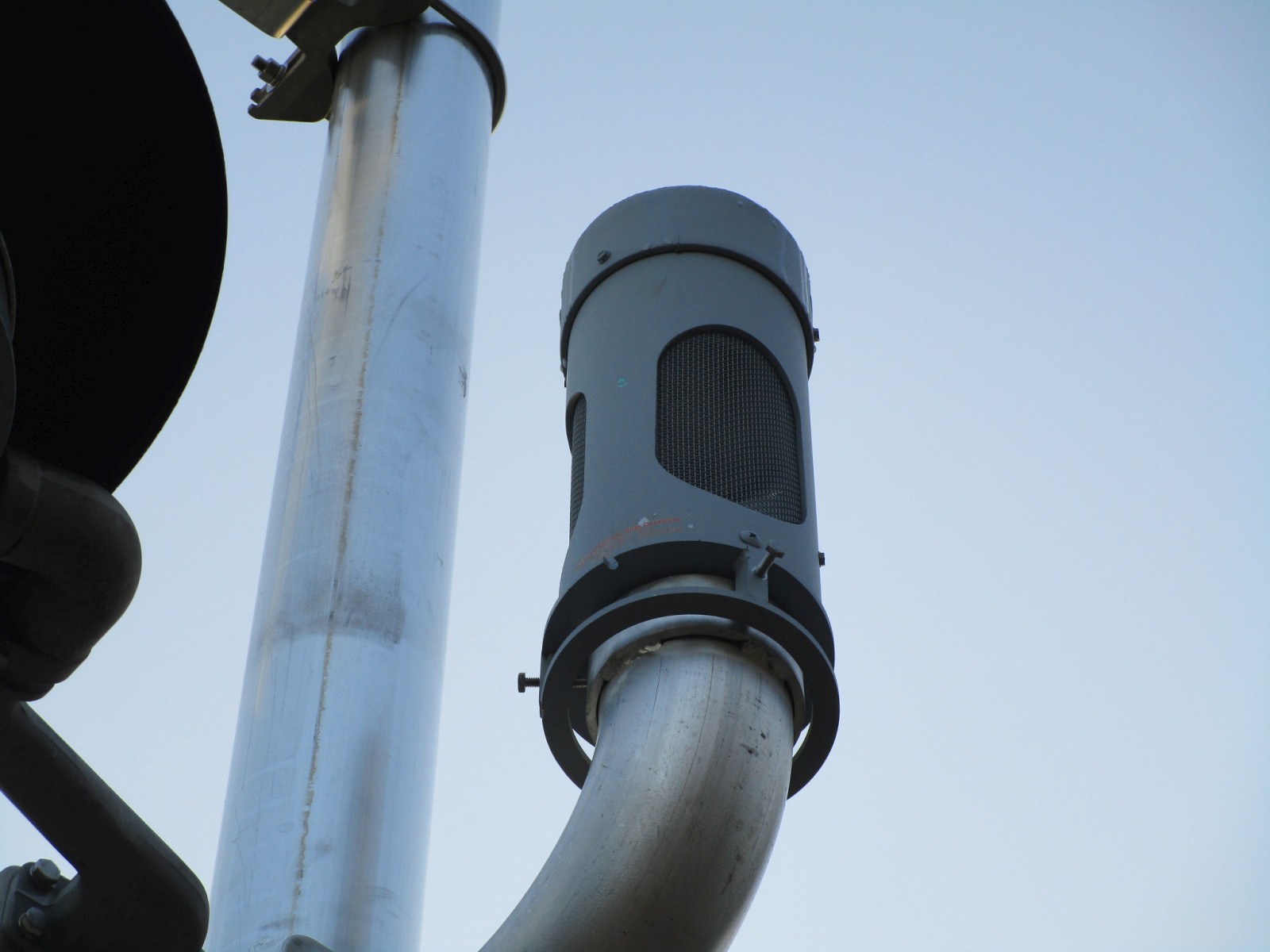

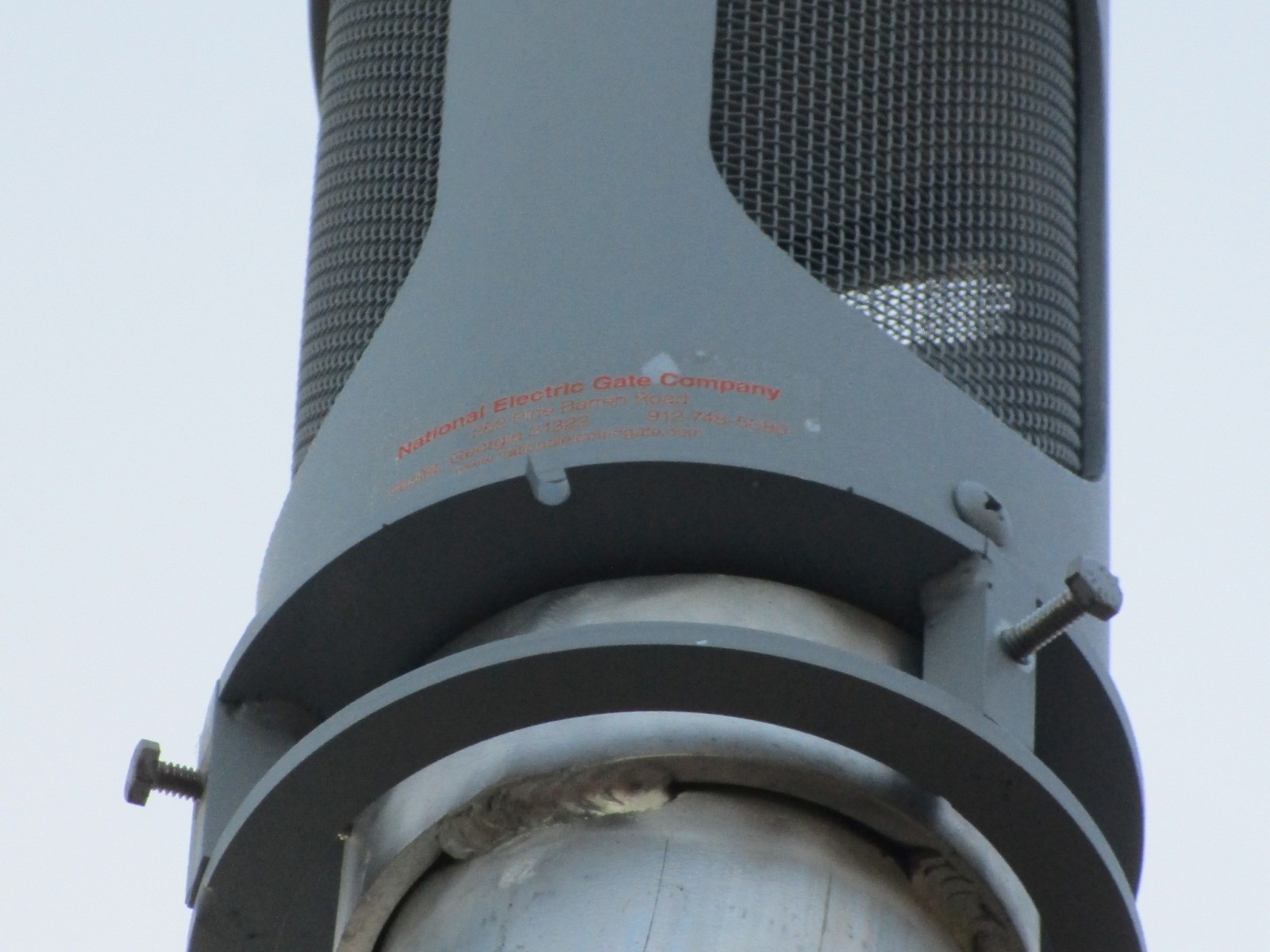

This signal has another NEG electronic bell.

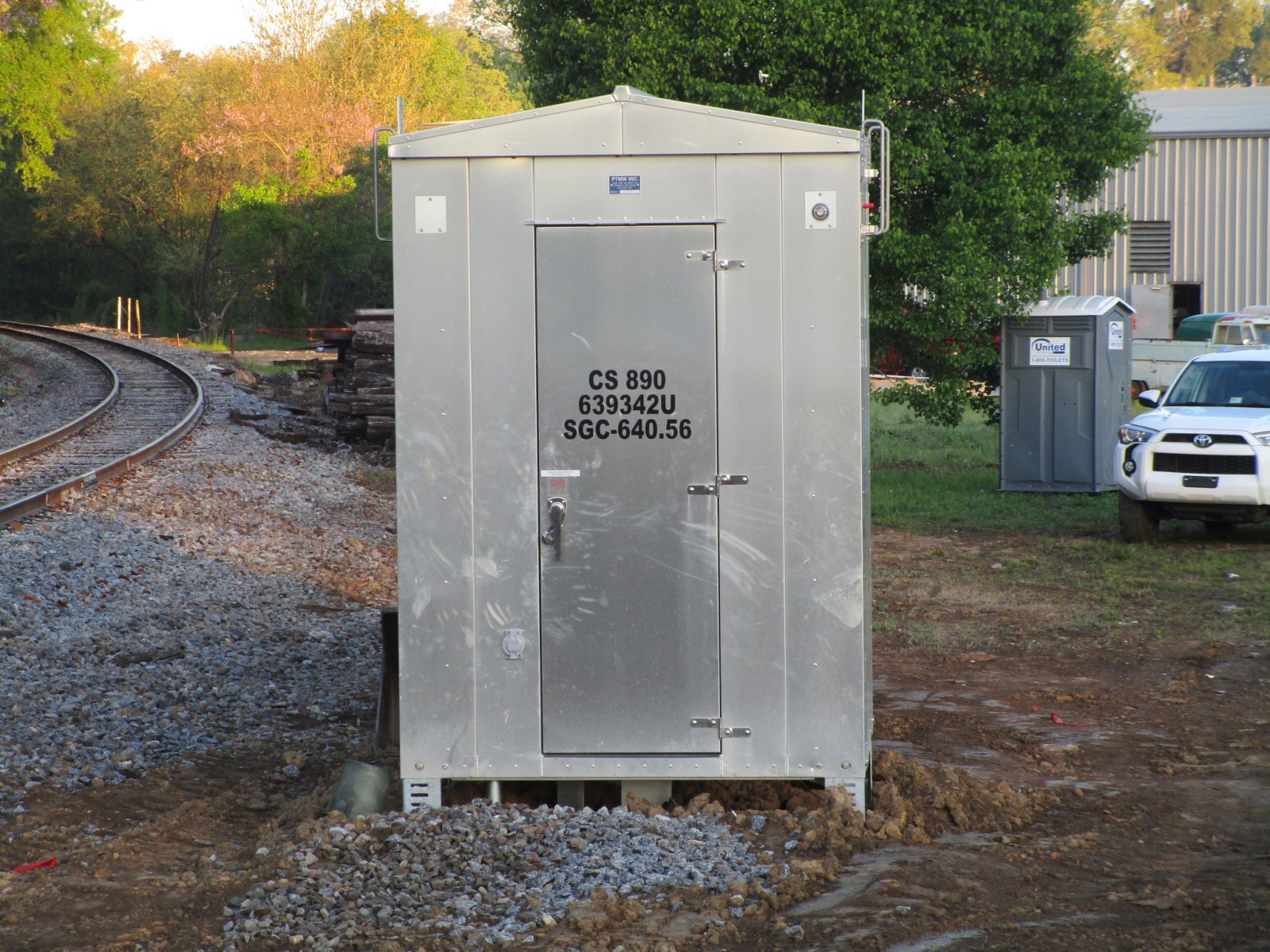

The relay case.

24

25

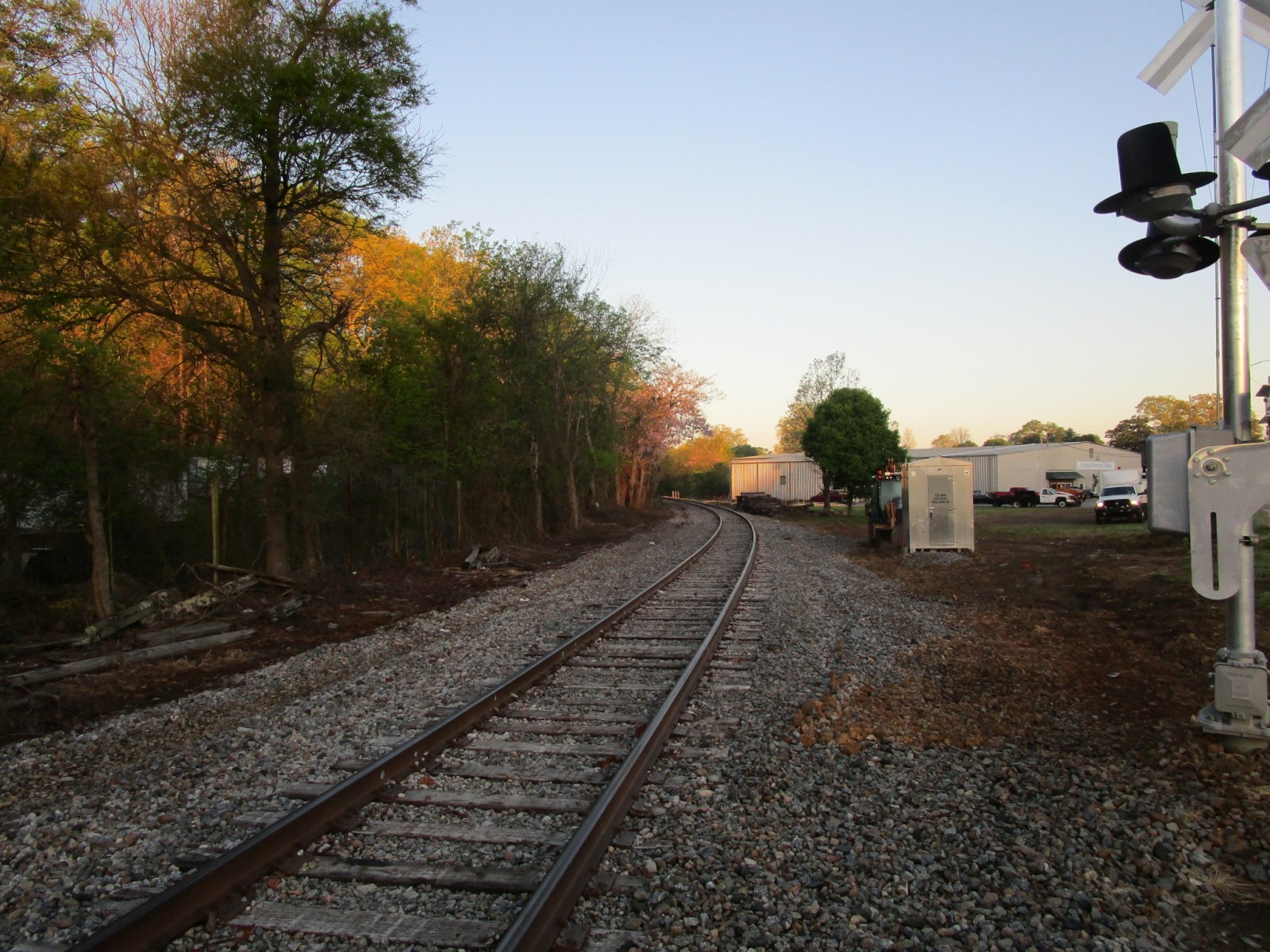

Looking southeast towards Carter Street.
Looking northwest towards Cassville Road.

26

27
A return trip to this crossing on 8-15-23 finds that CSX has activated the signals here.

28

29

30

31

32

33

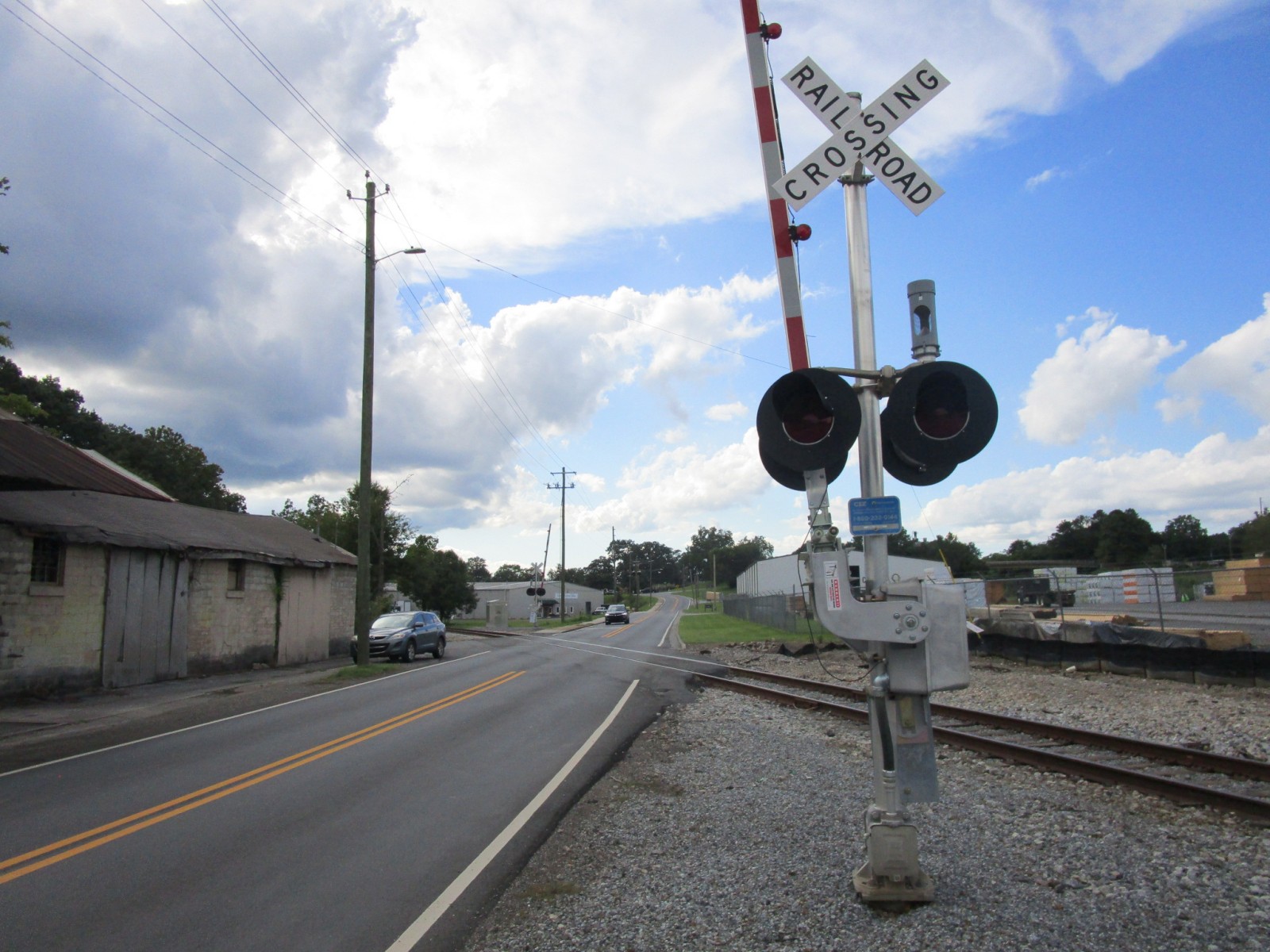

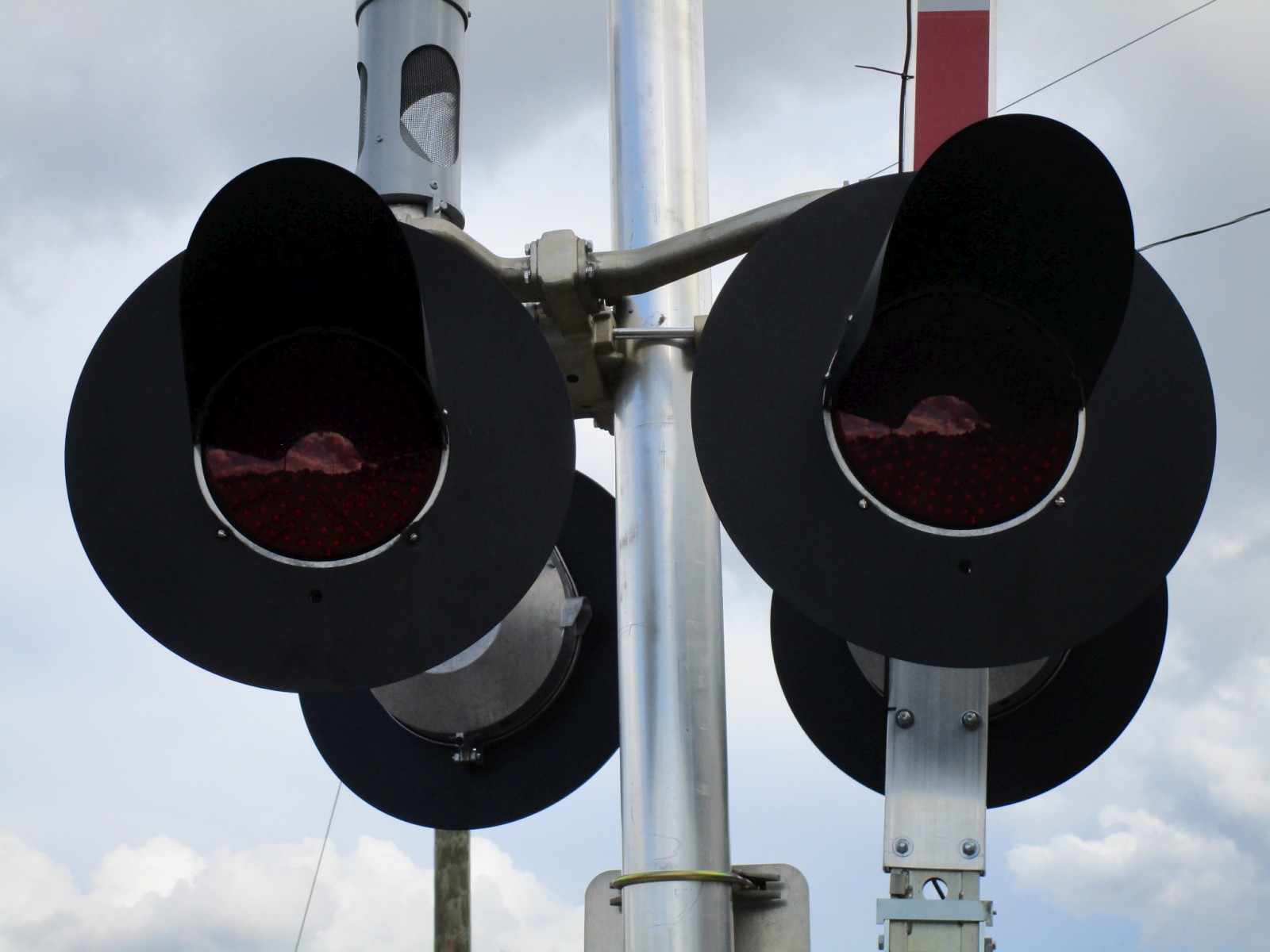

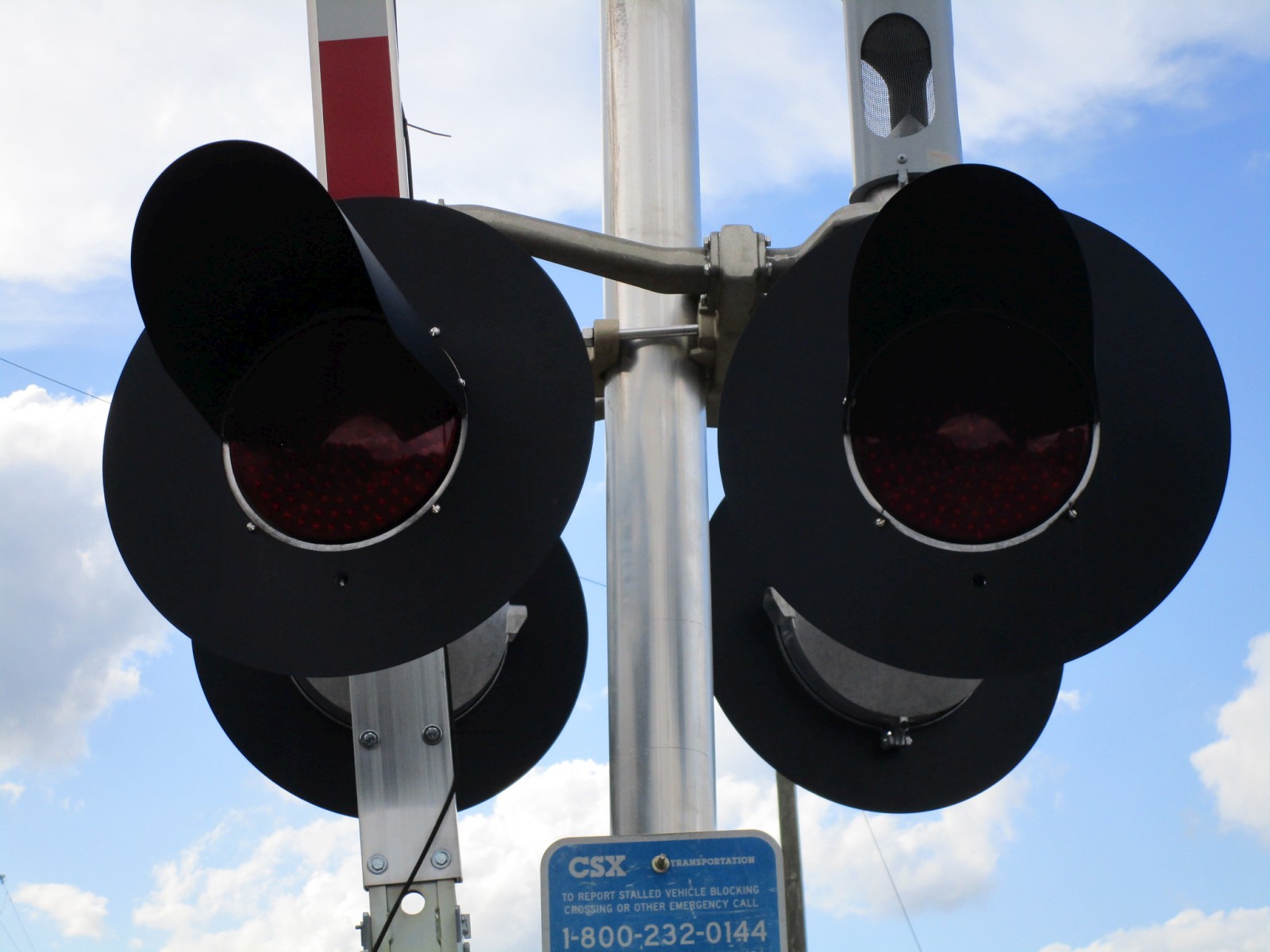

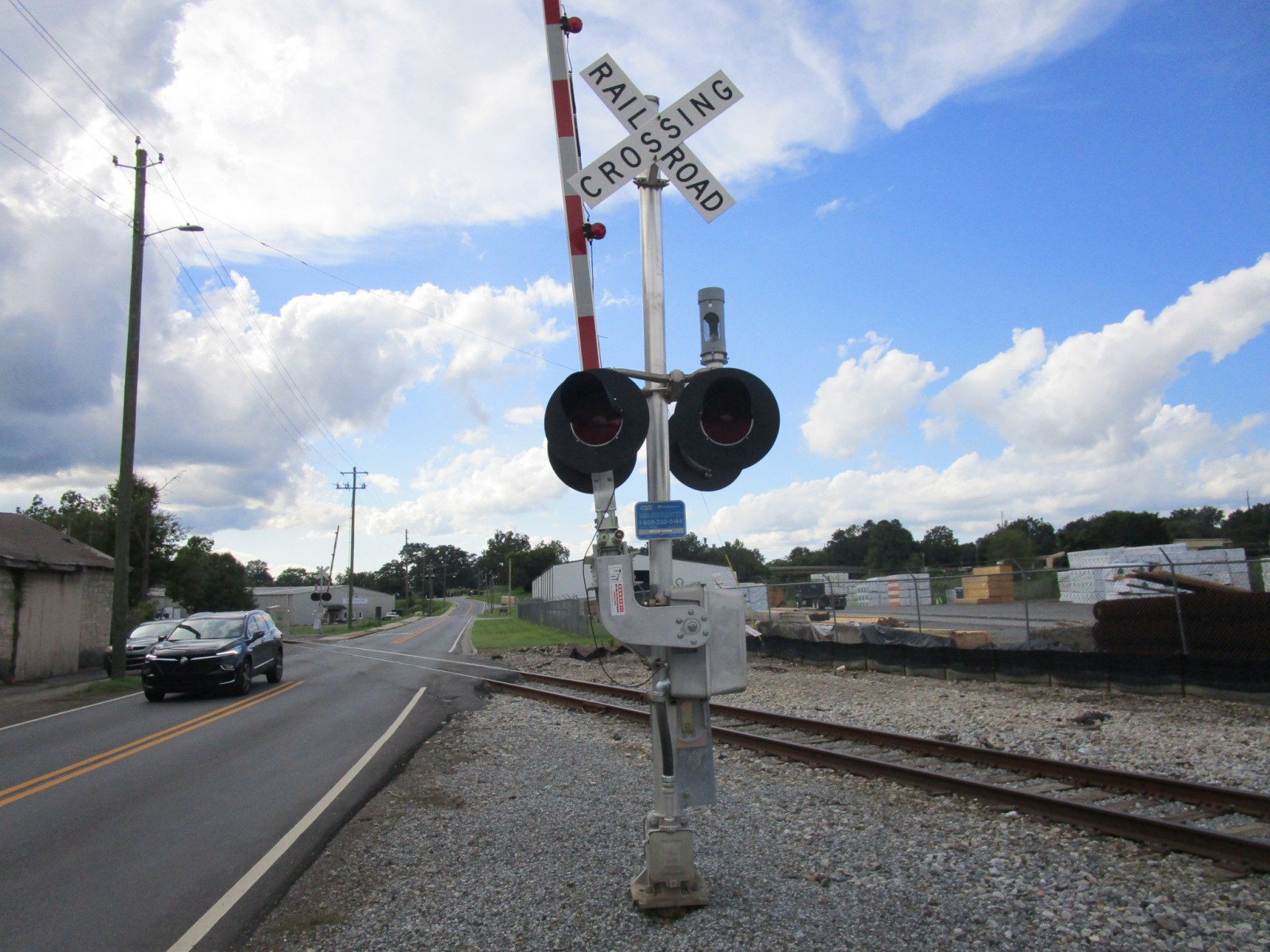

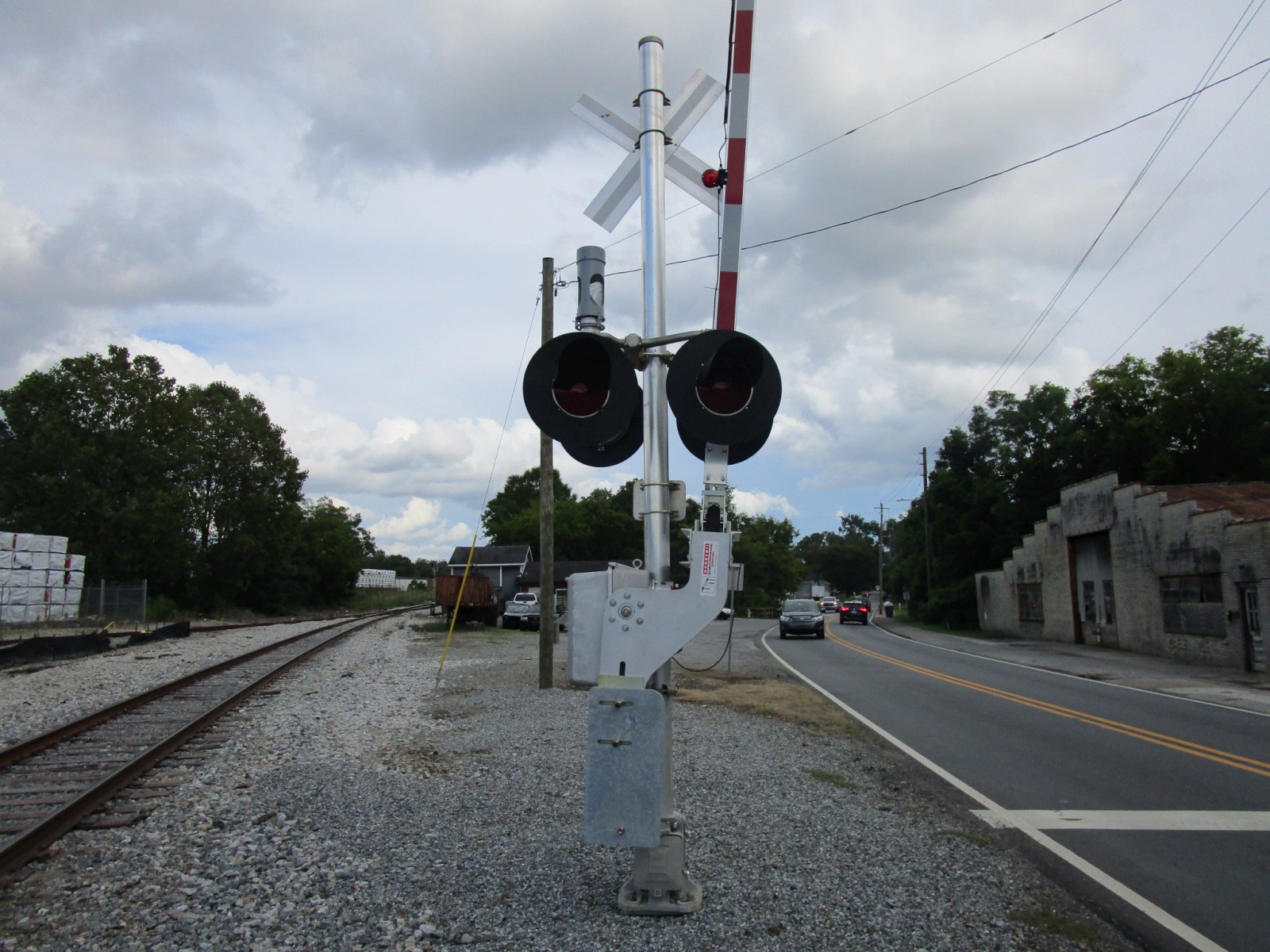

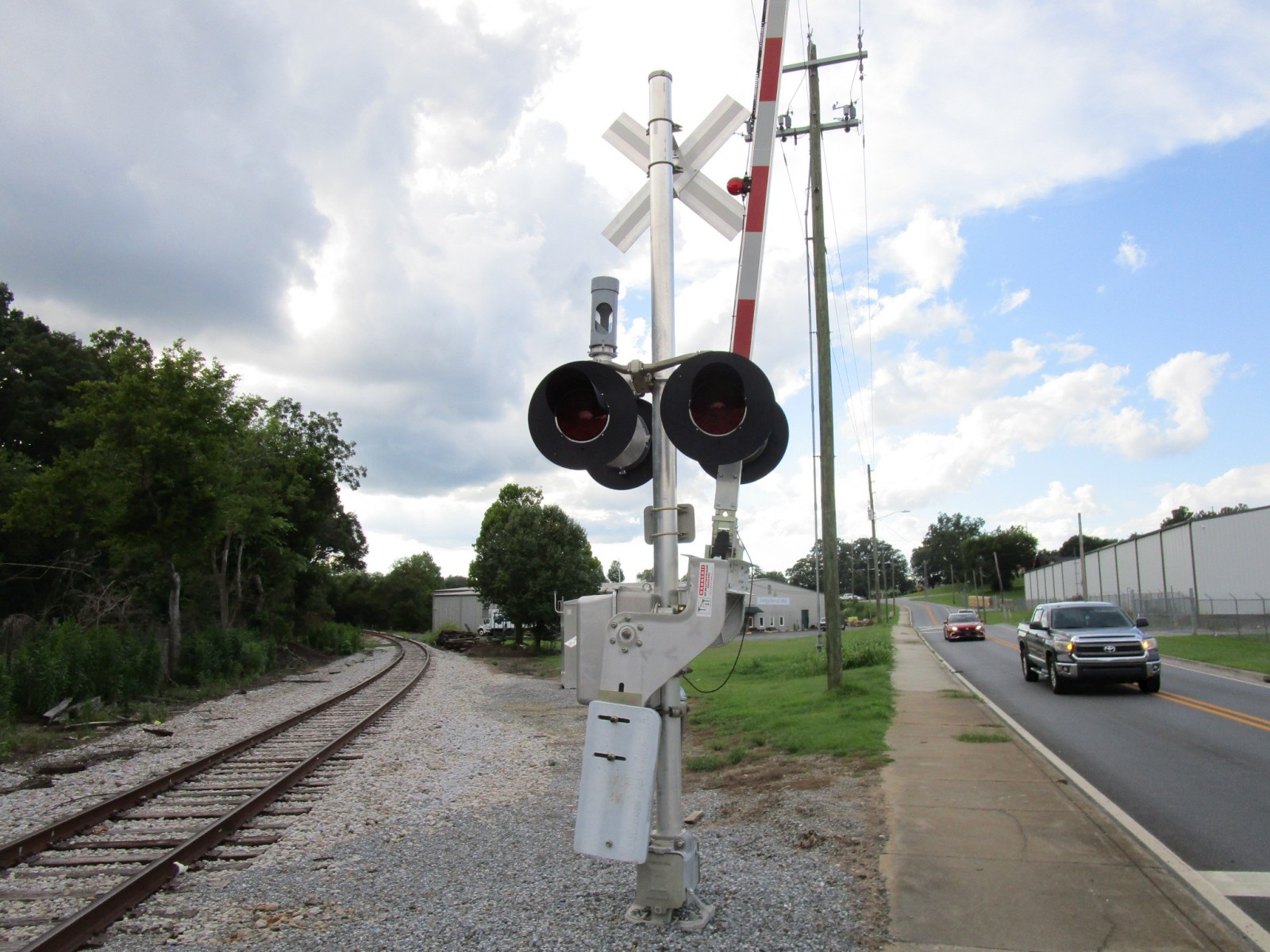

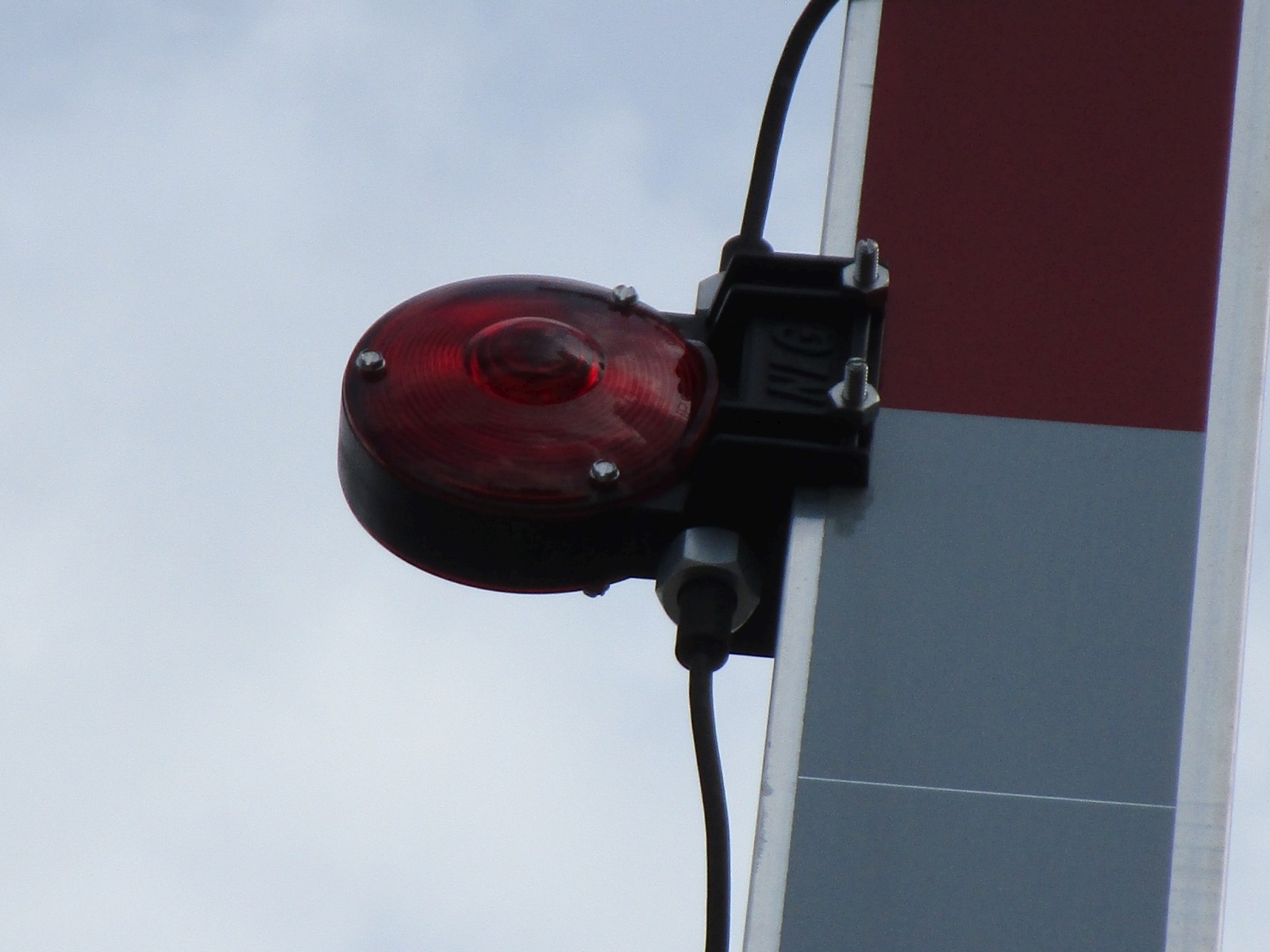

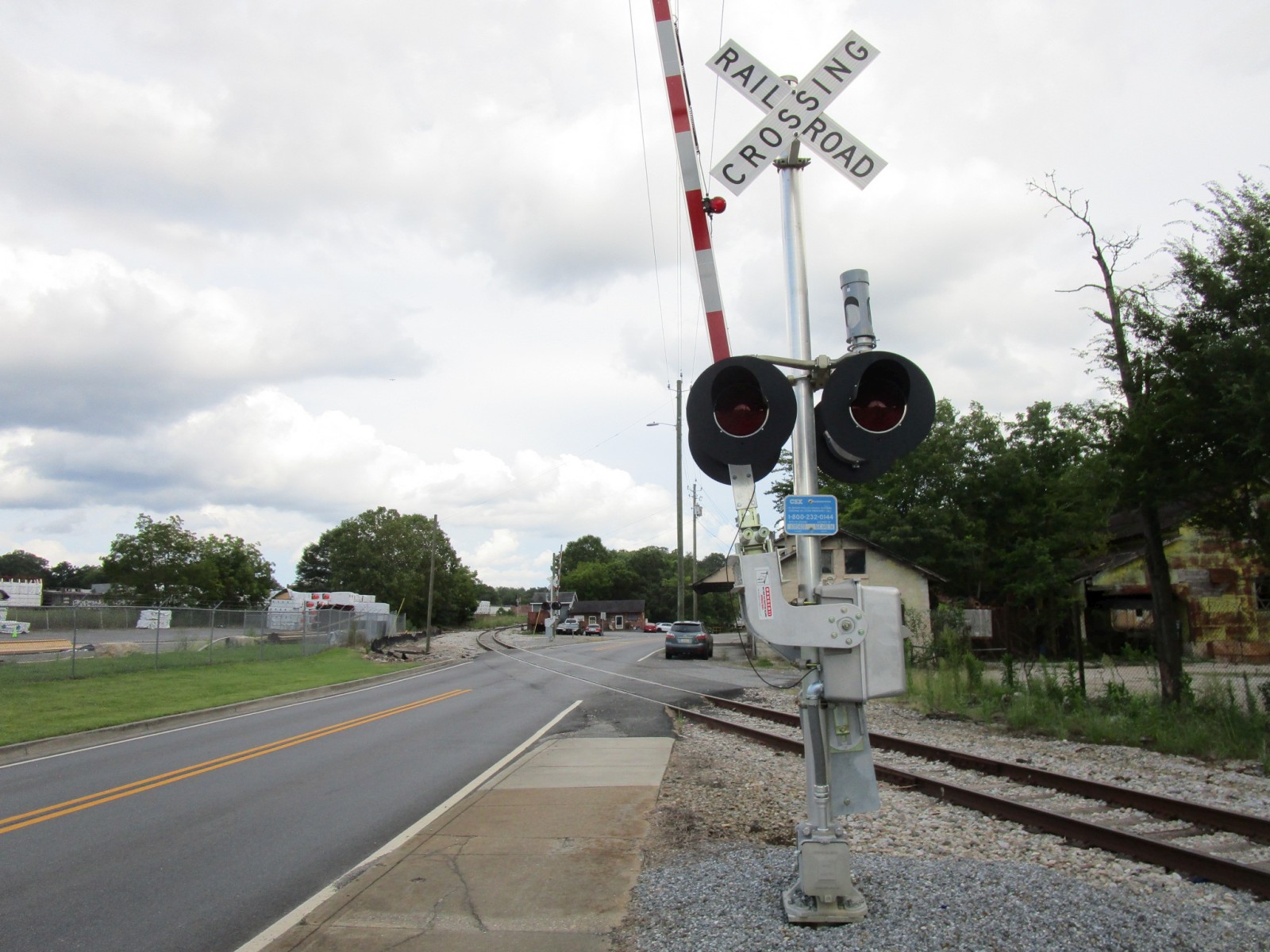

The activated first signal. The ENS sign was reused from the old crossbuck post.

34

35

36

37

38

39

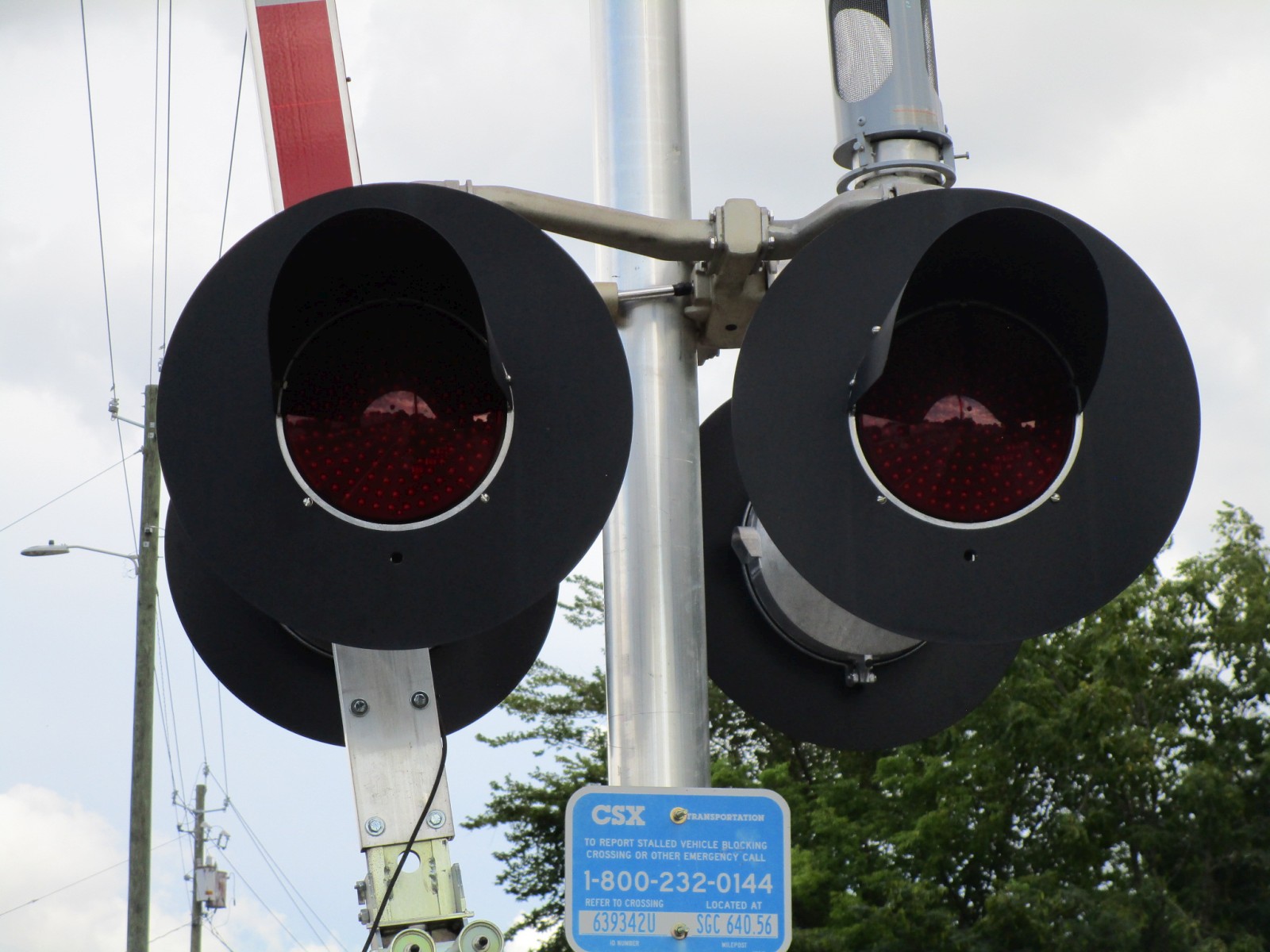

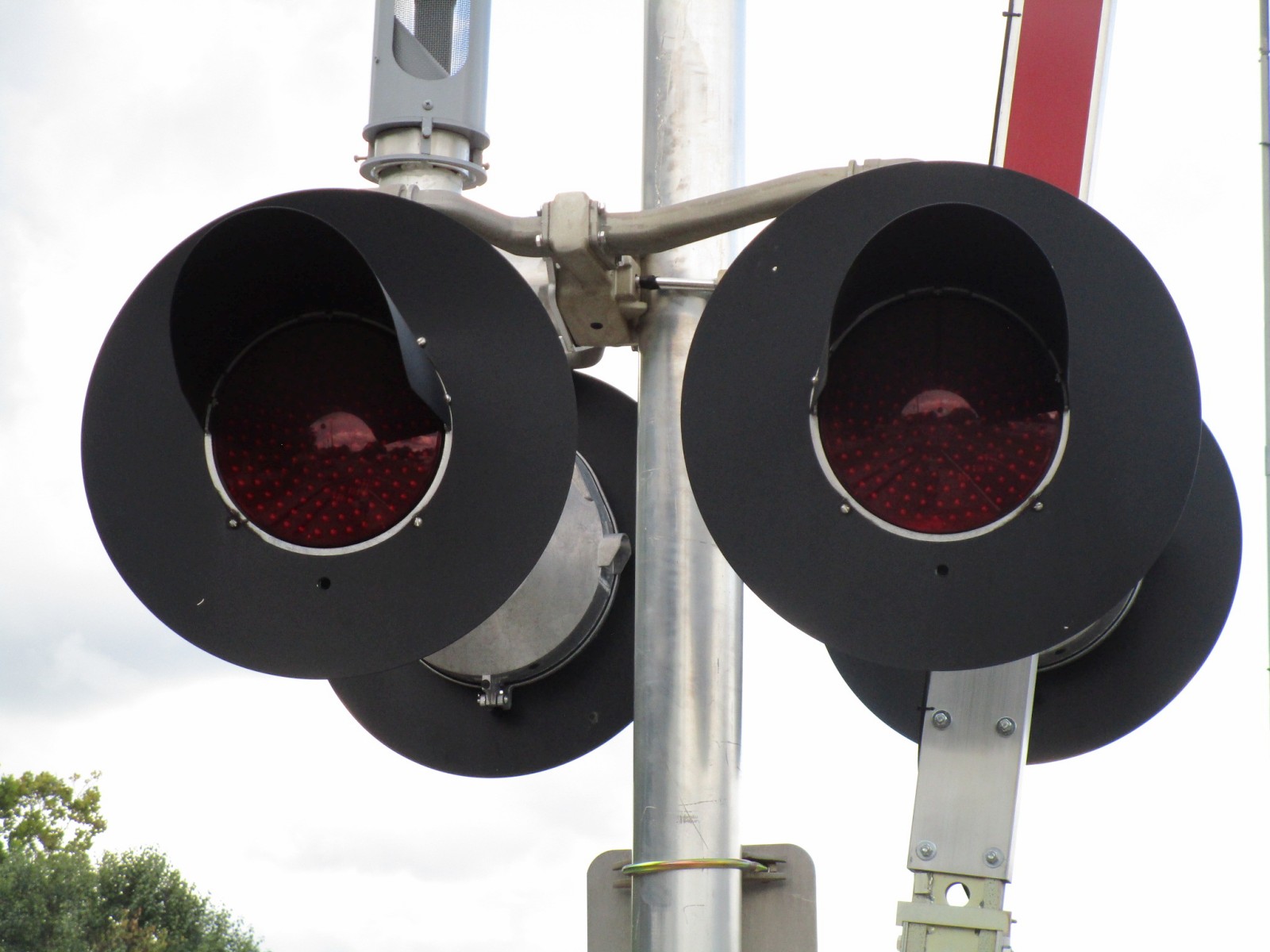

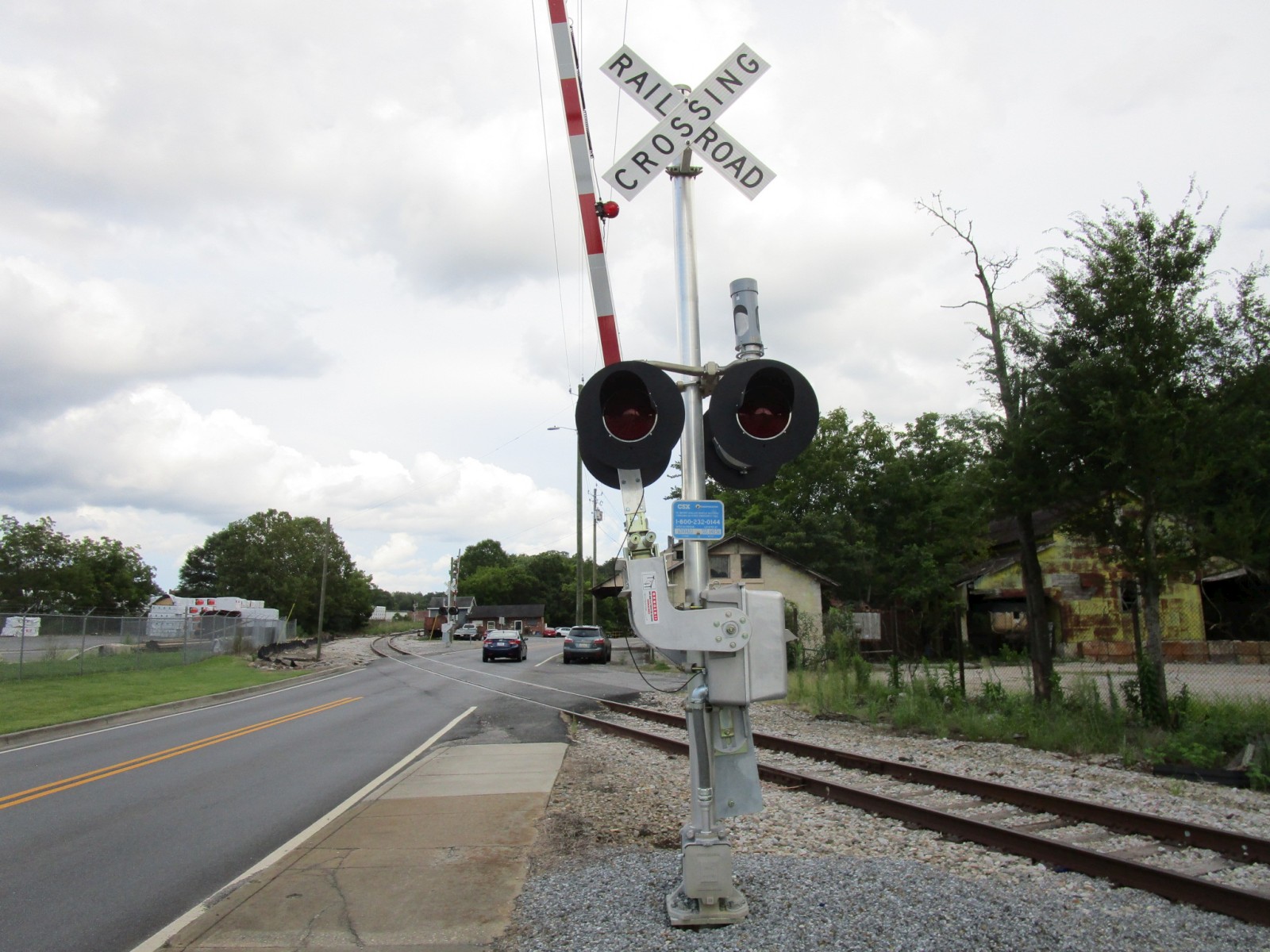

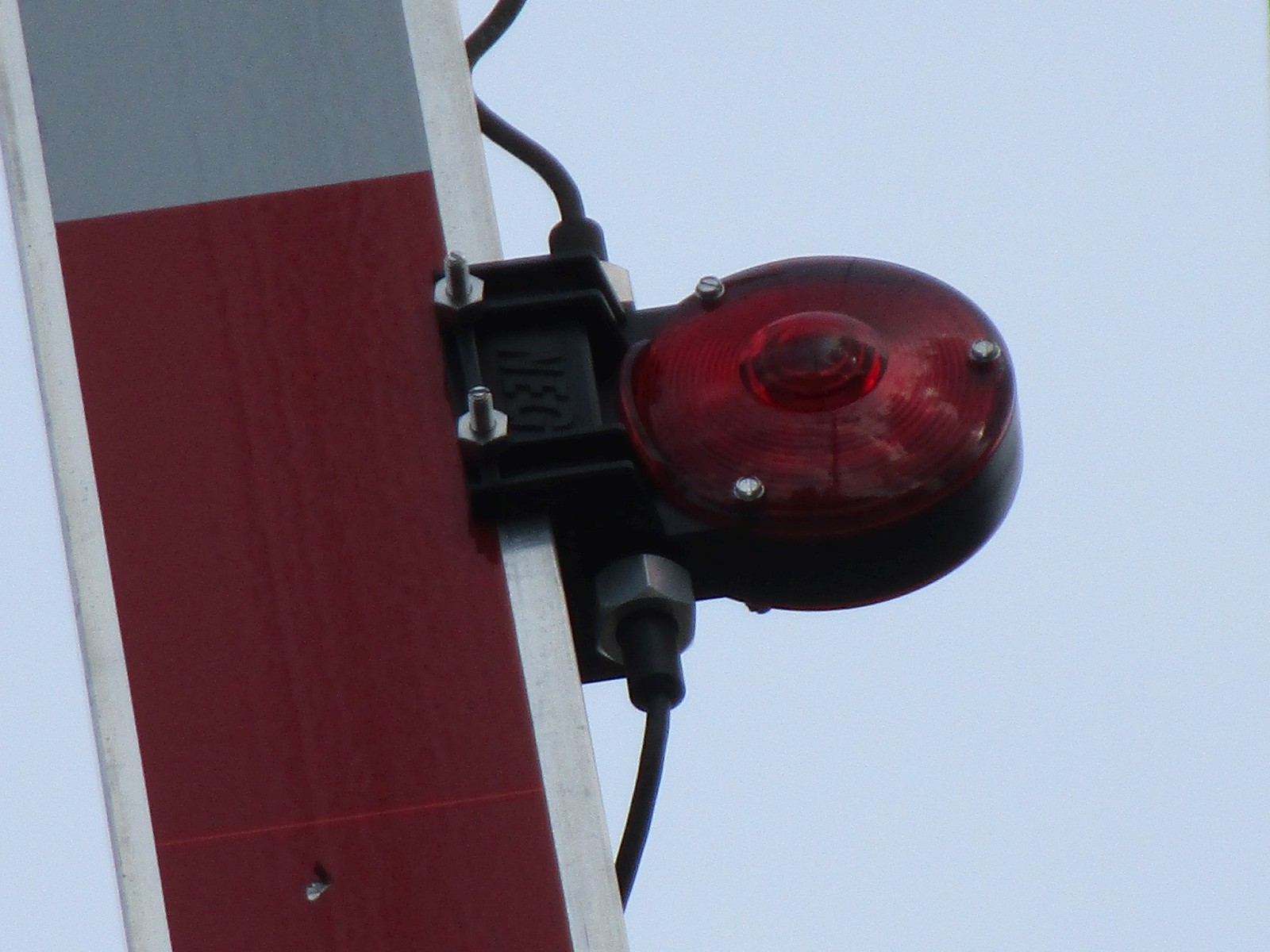

The activated second signal. The ENS sign was also reused from the old crossbuck post.

40

41

42

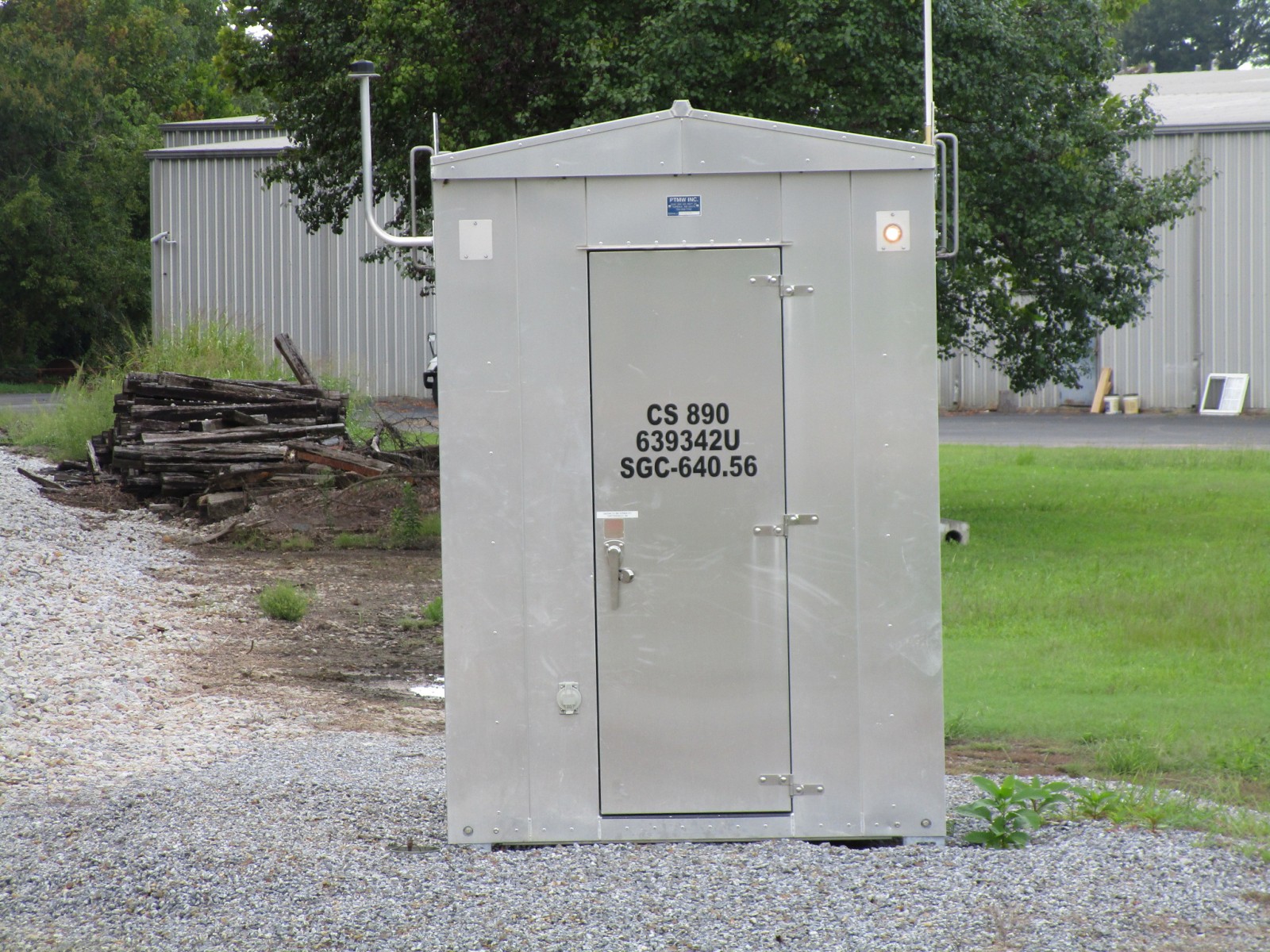

The relay case.

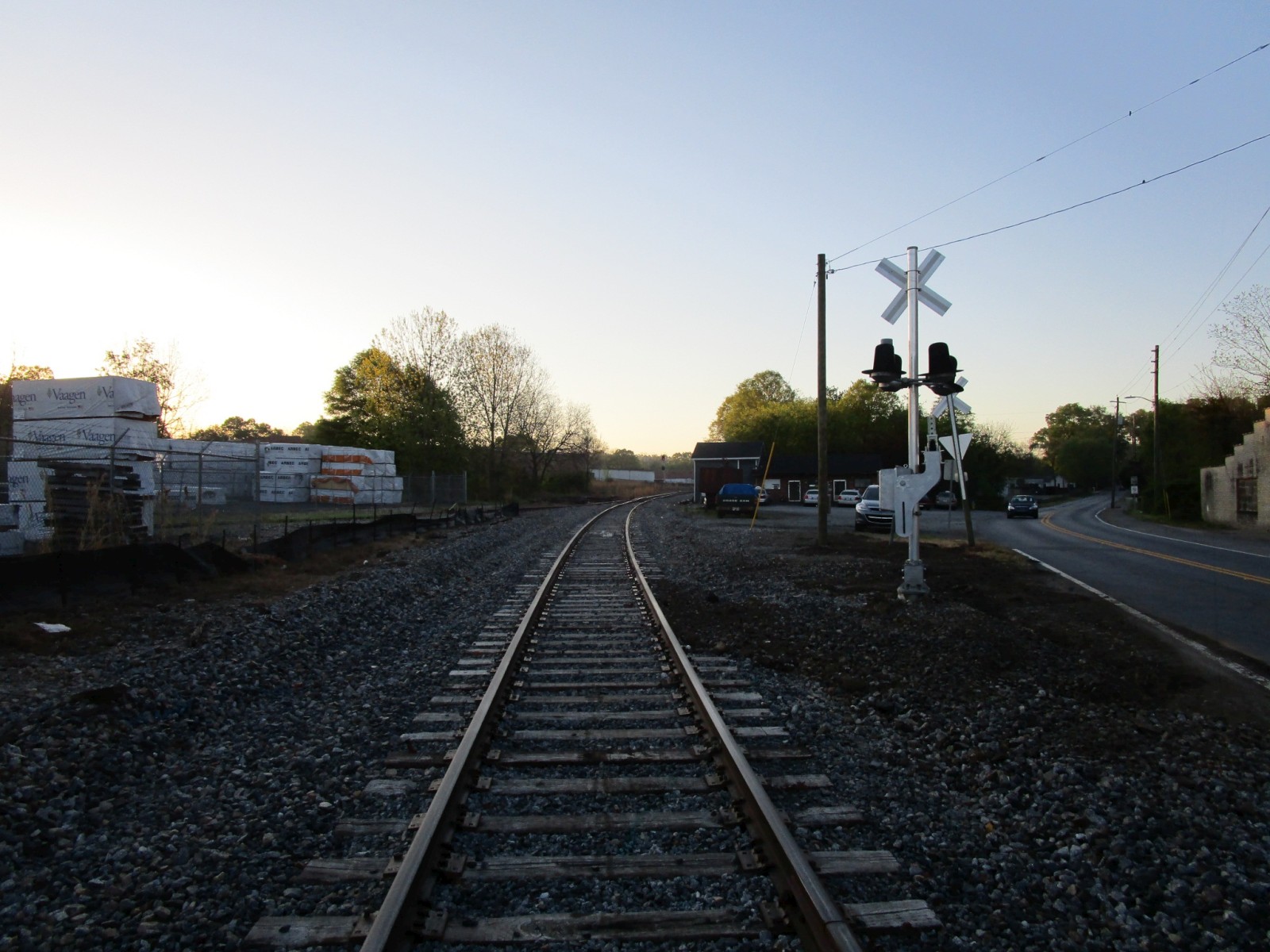

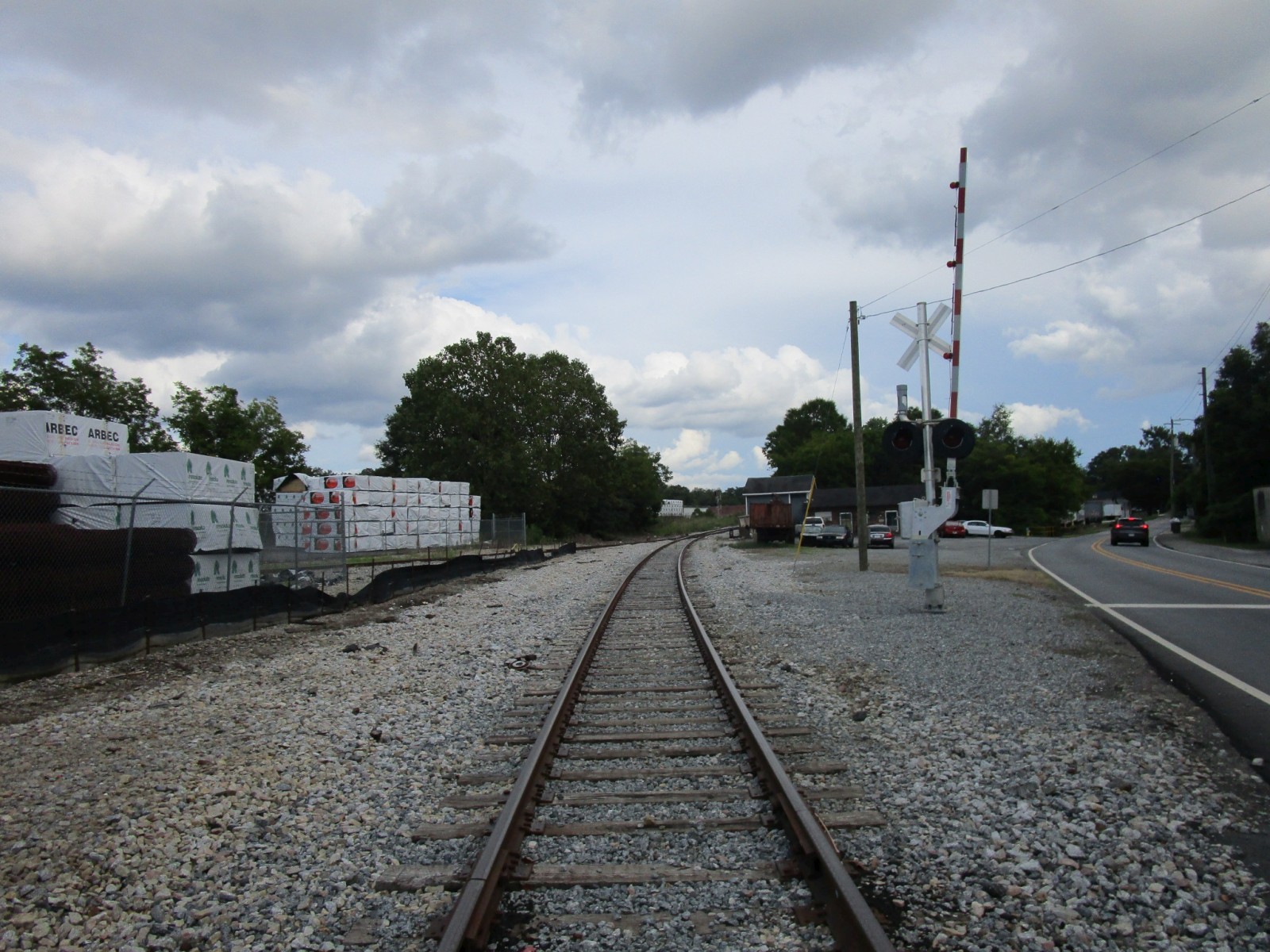

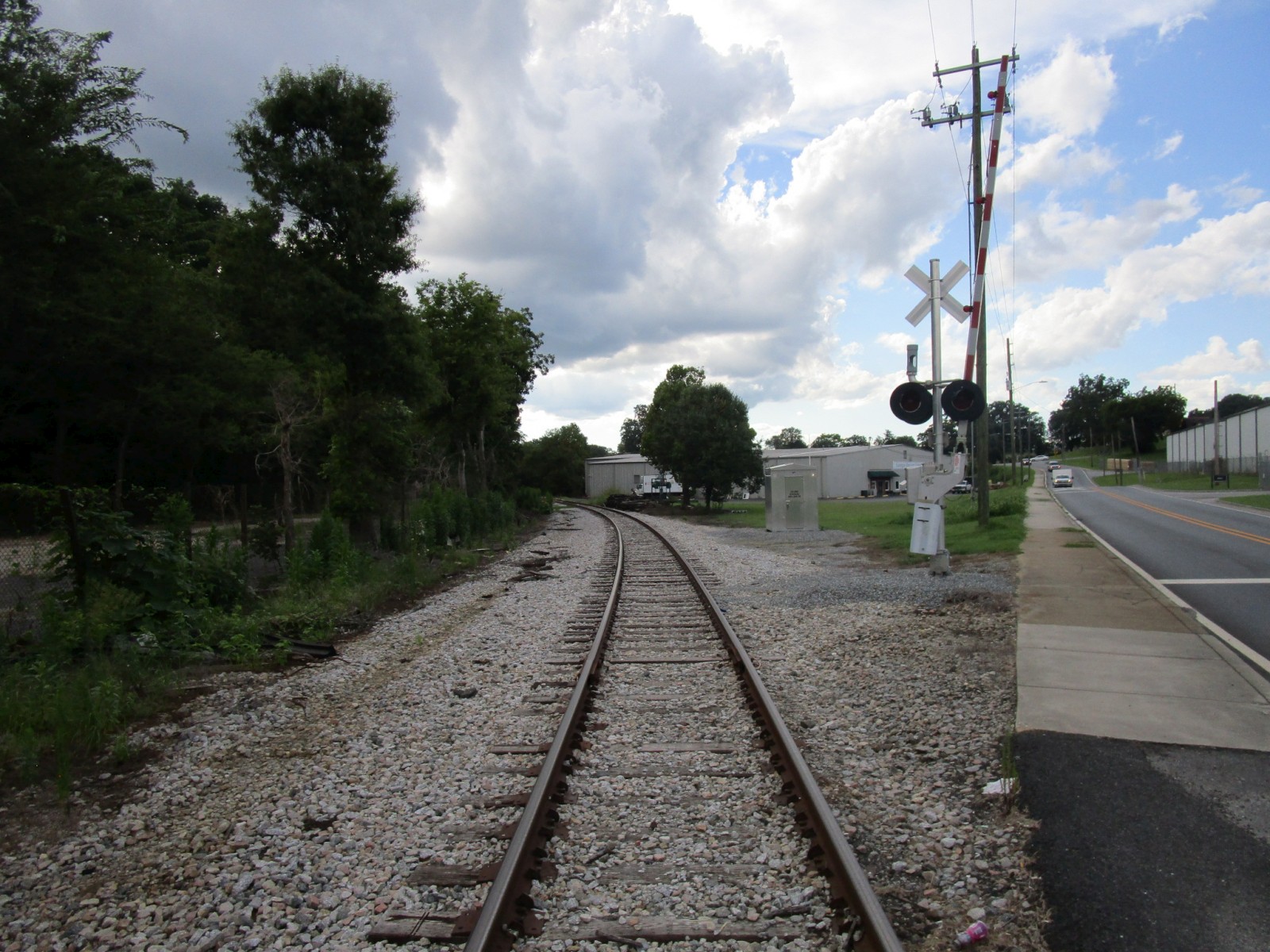

Track views.



Pictures 1-25 were taken on 4-12-21.

Pictures 26-42 were taken on 8-15-23.
