MP:  0WA95.710



Updated March 9, 2024



Total Accidents:   1
Crossing DOT #:  340541P
TOTAL DAILY TRAINS:   50   (ESTIMATED)



>>>>>>>>>>>>>>	Western Signal	Eastern Signal
Bell:	General Signals E-Bell	NEG E-Bell
Base:	Safetran	Safetran, Modern Industries
Lights:	4 - 12"x20" Safetran incandescents	4 - 12"x24" Safetran w/ WCH 2nd Gen. LEDs
Gate Lights:	4" NEG LEDs, 4" RECO	4" RECO
Gate Mechanism:	Safetran 2000s	Safetran 2000s
Gate Striping:	Vertical Striping	Vertical Striping



Page created by: Ethan the Railfanner

This crossing is located on the CSX W&A Subdivision along with the NS Atlanta North District.



1	2	3	4

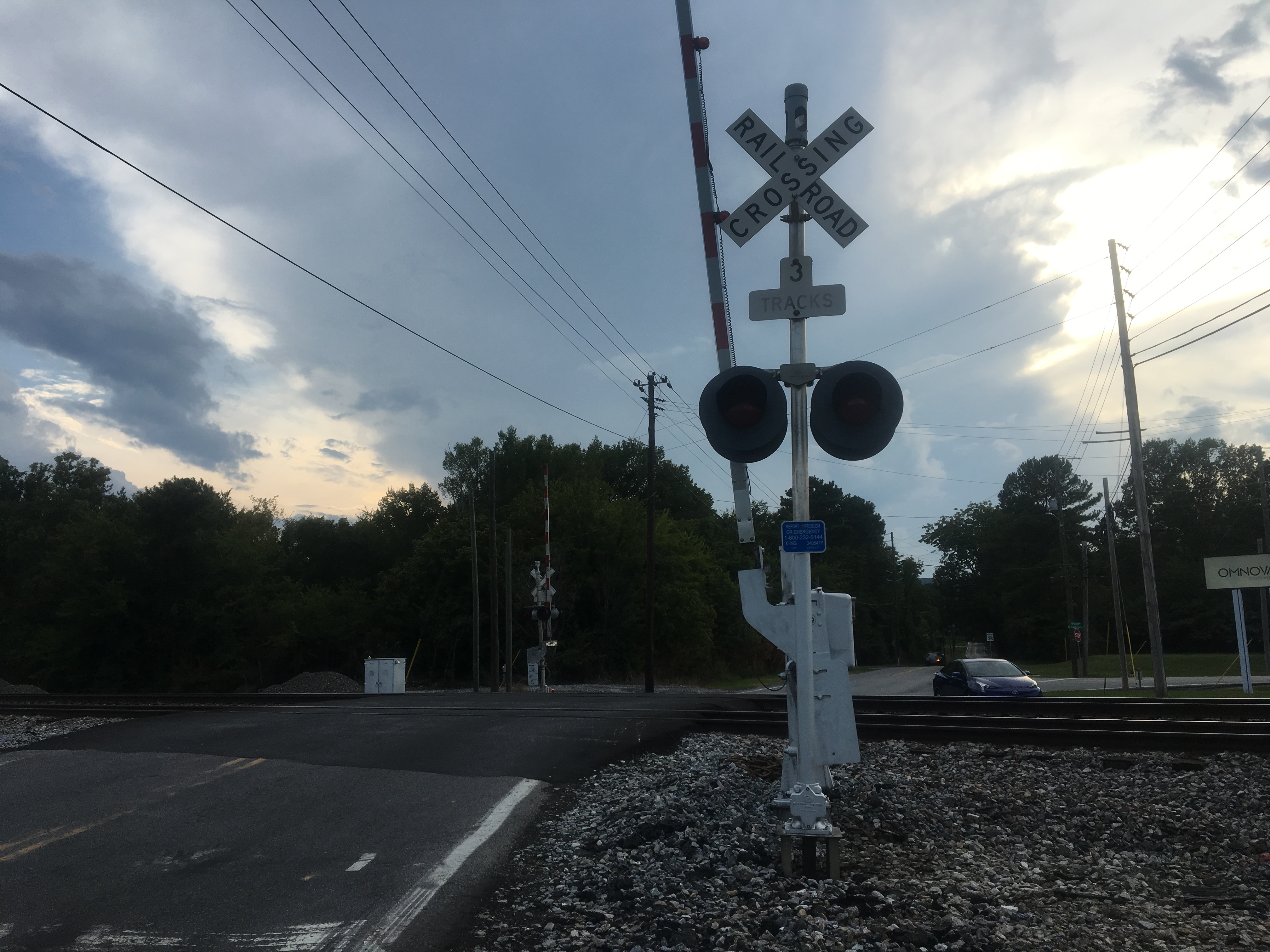

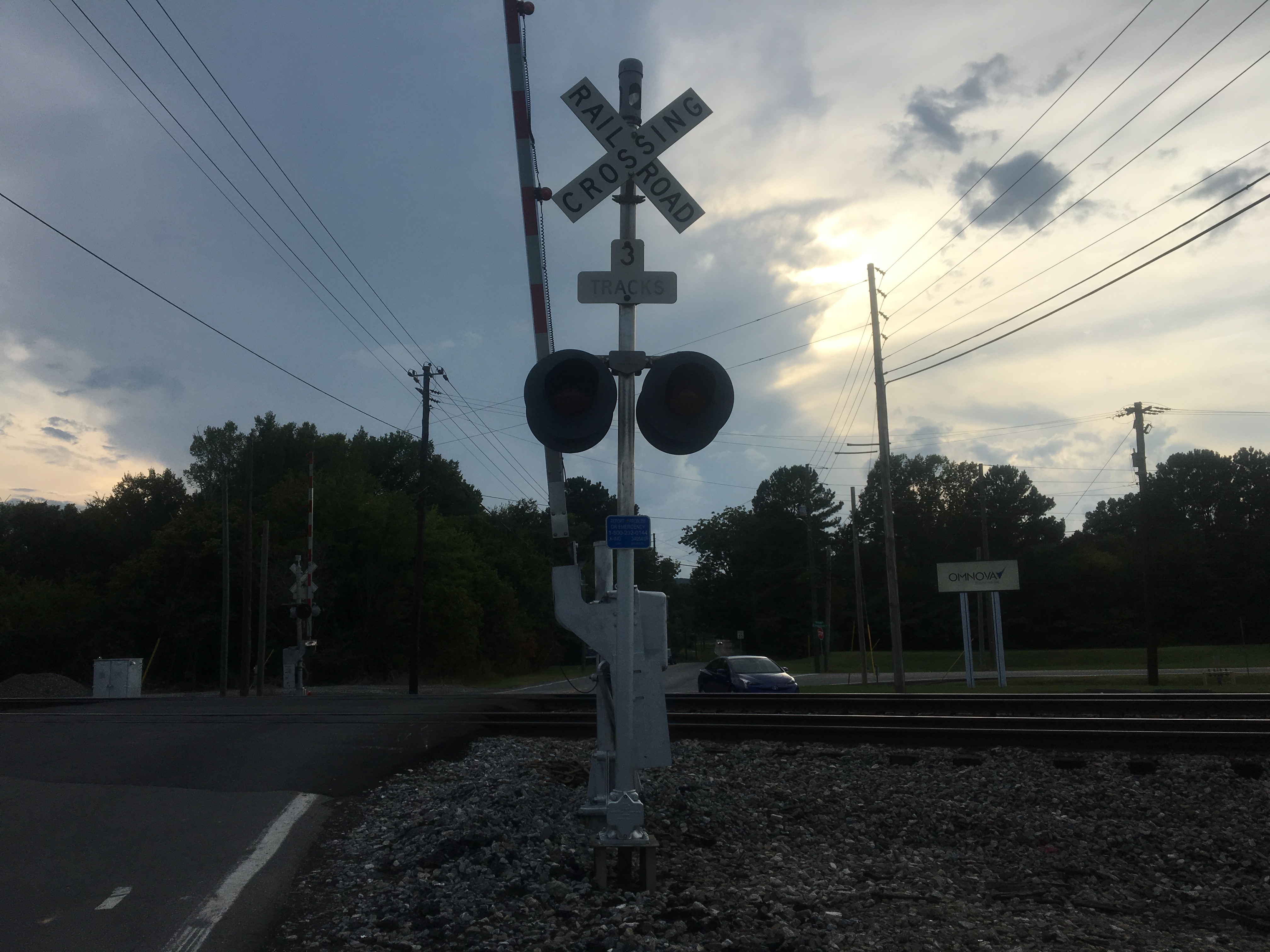

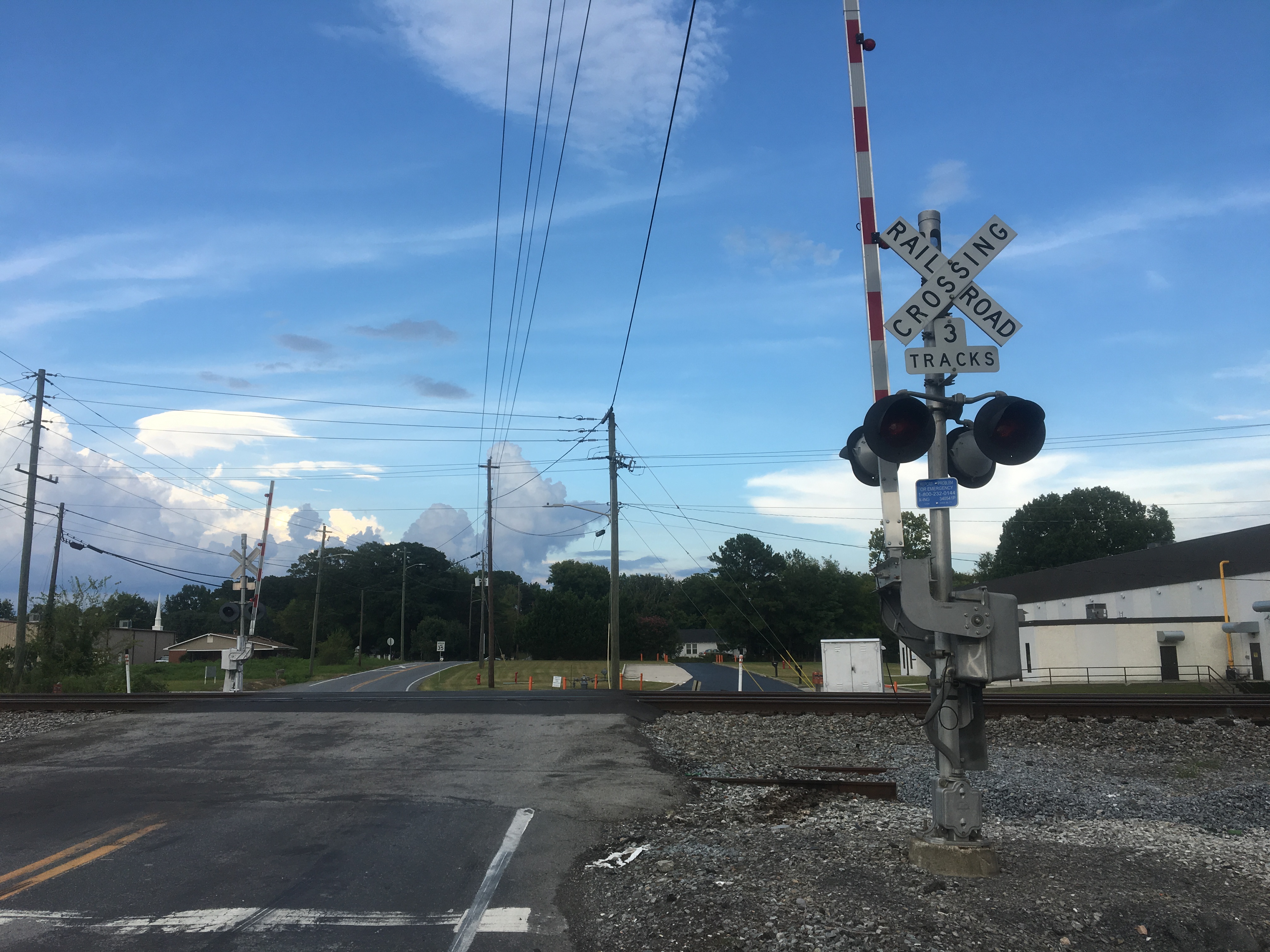

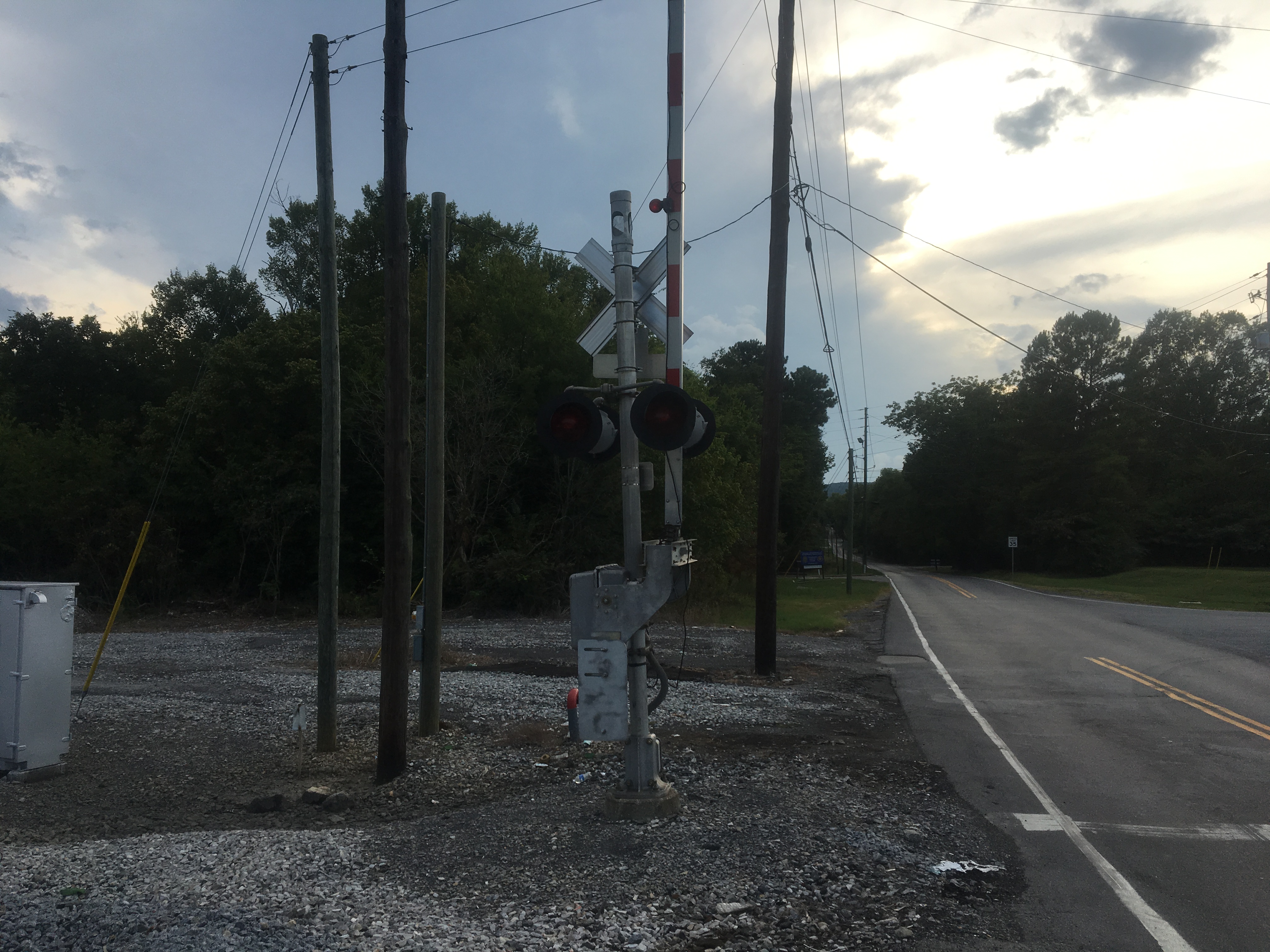

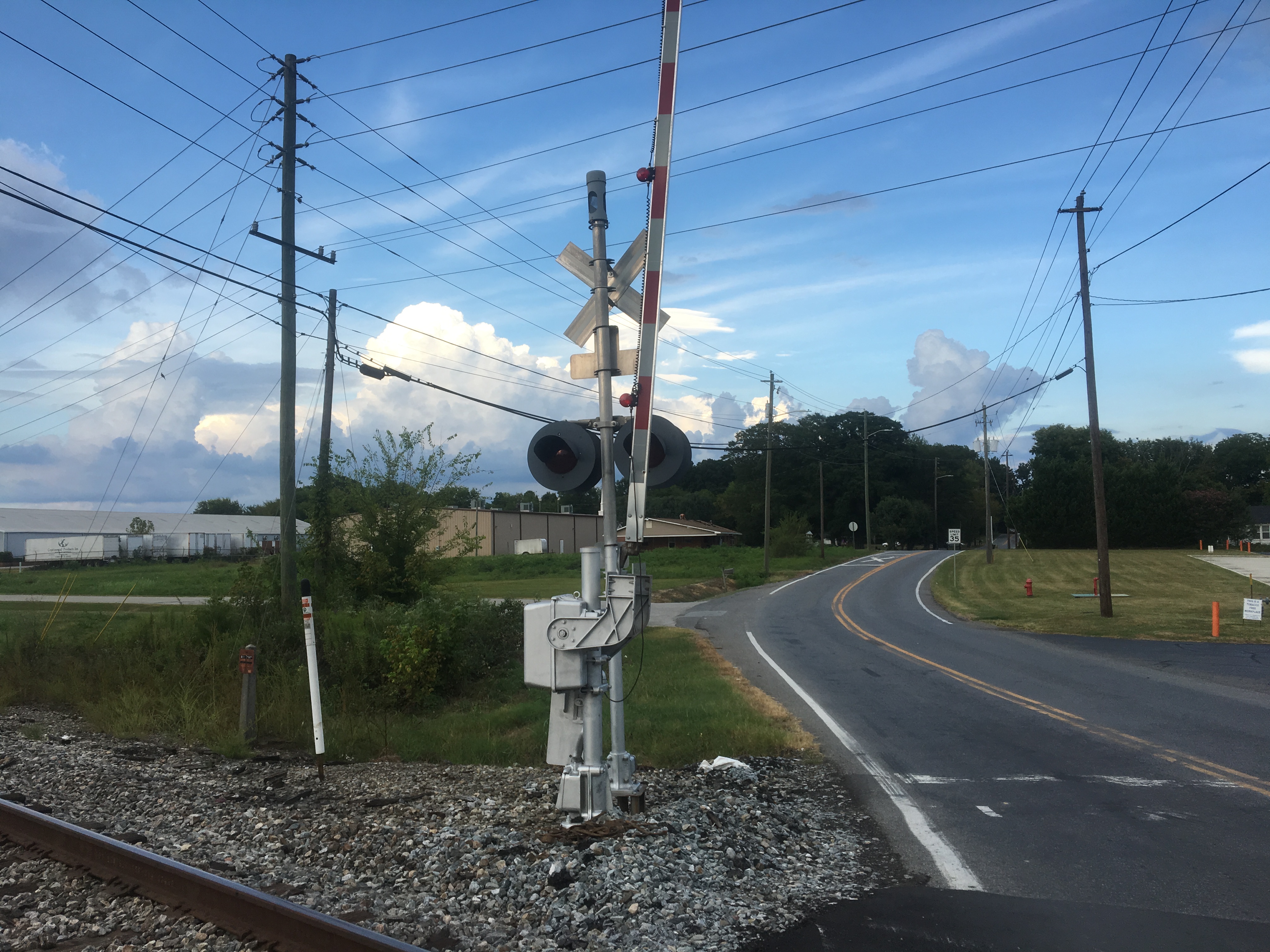

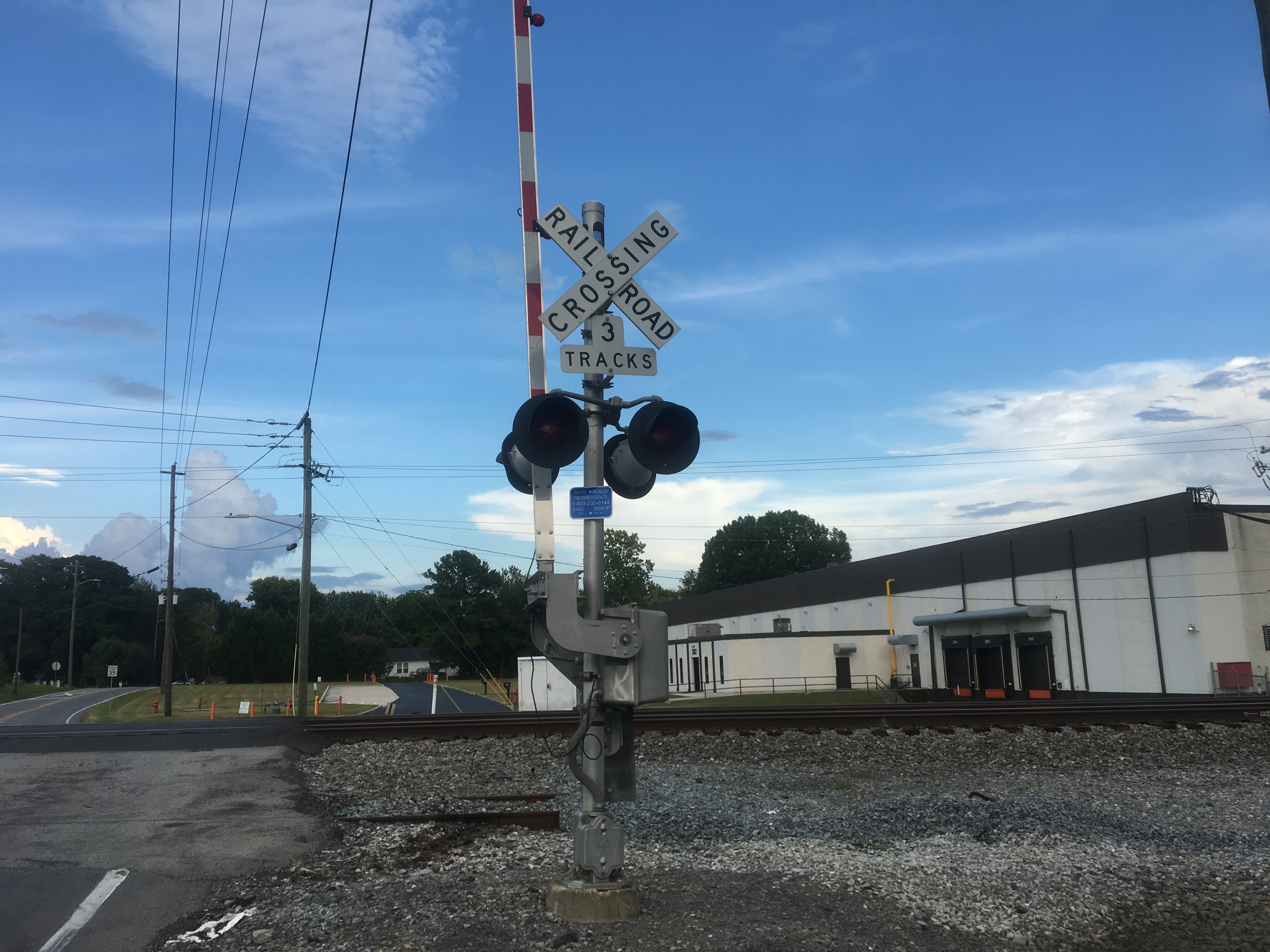

Overviews of this crossing.		The western signal, which is owned by NS.

5	6	7	8

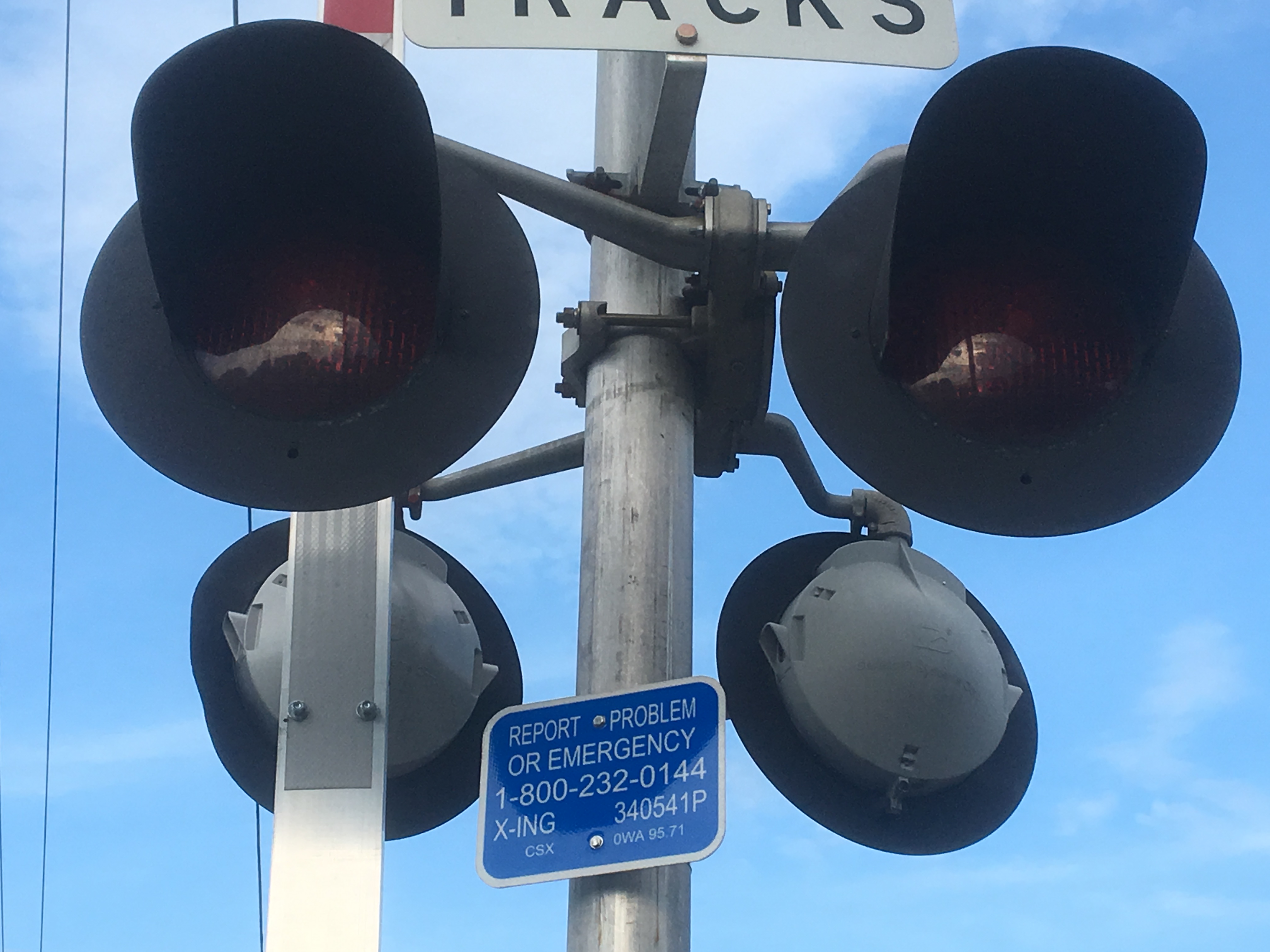

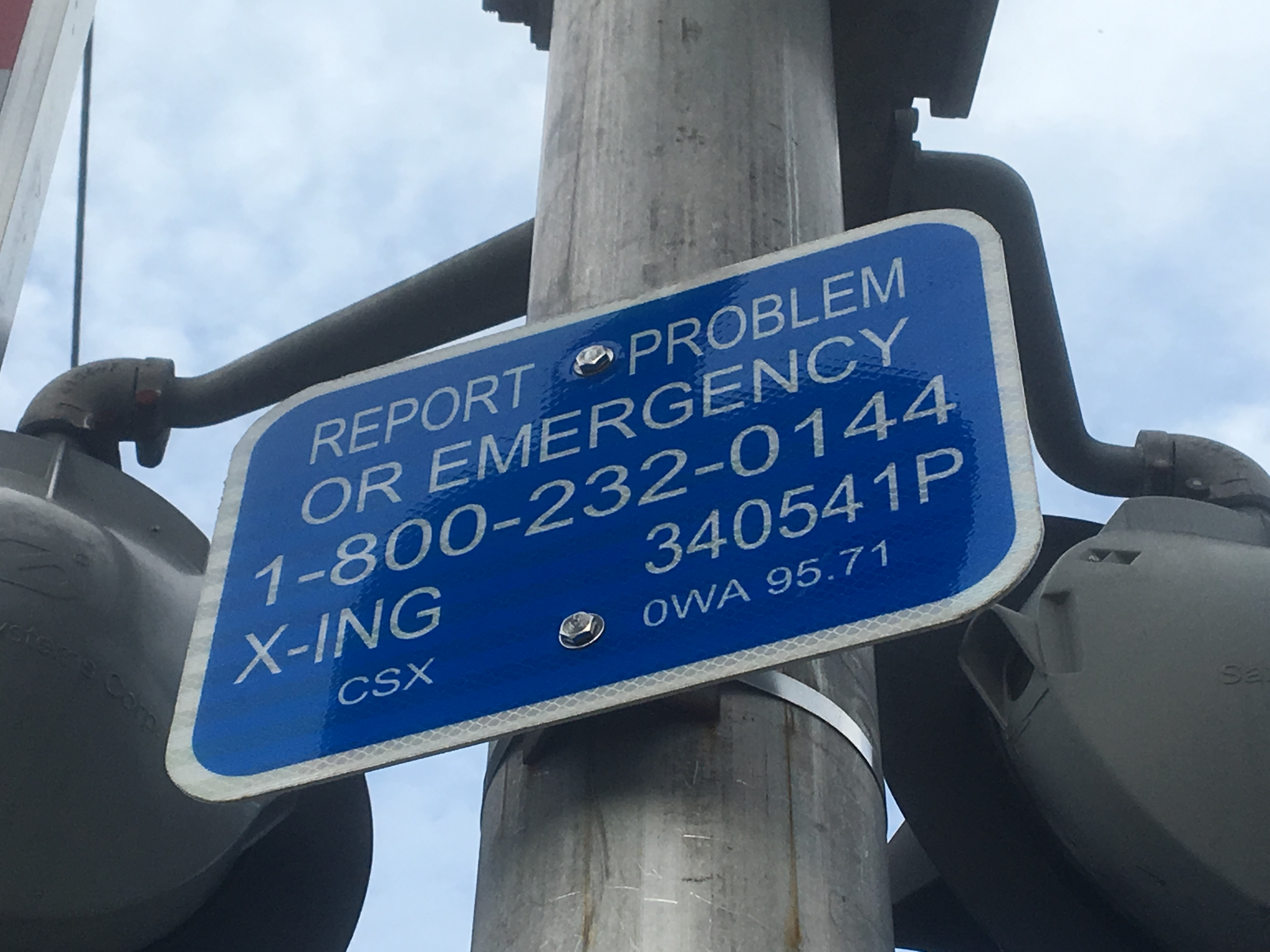

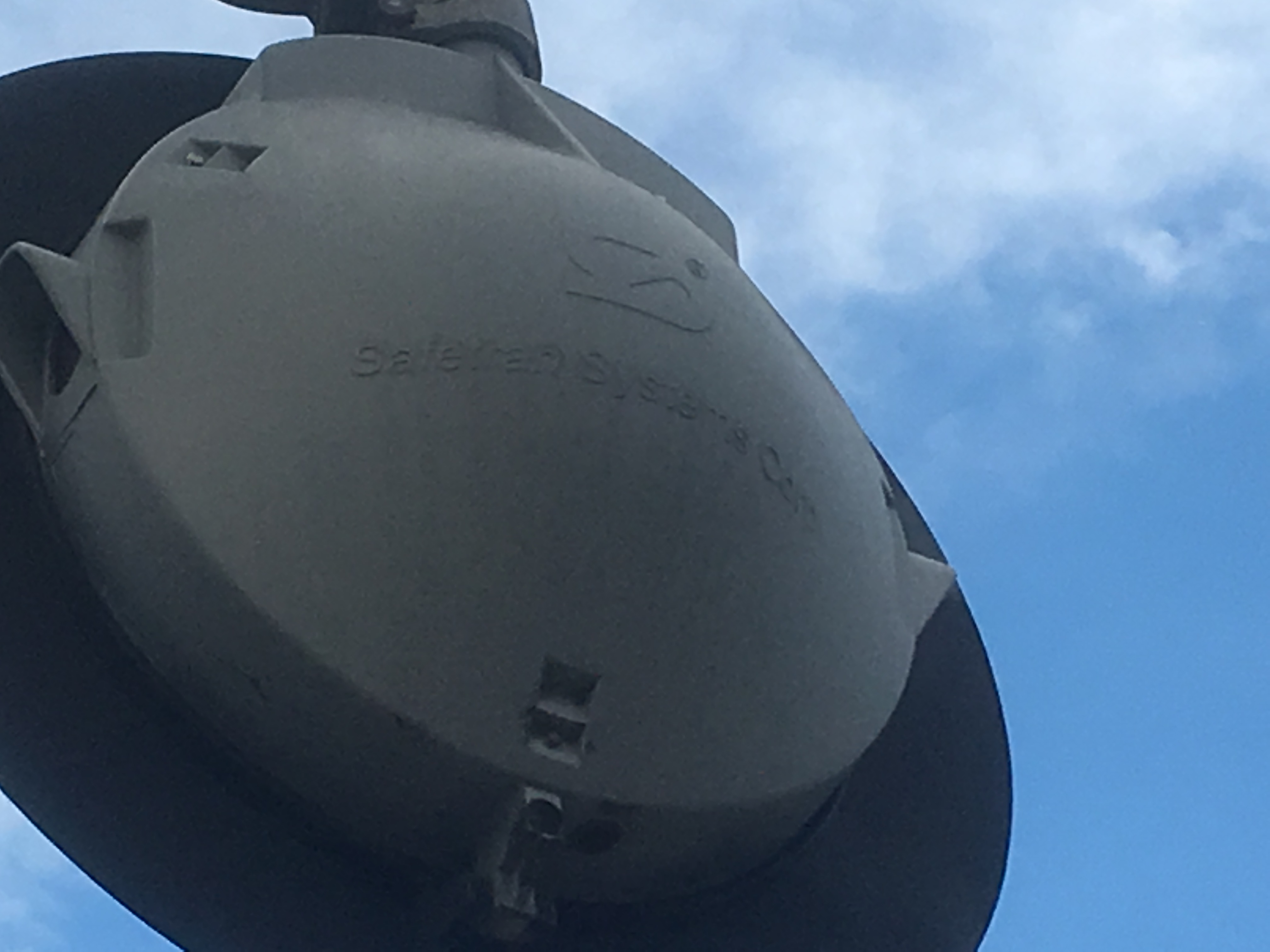

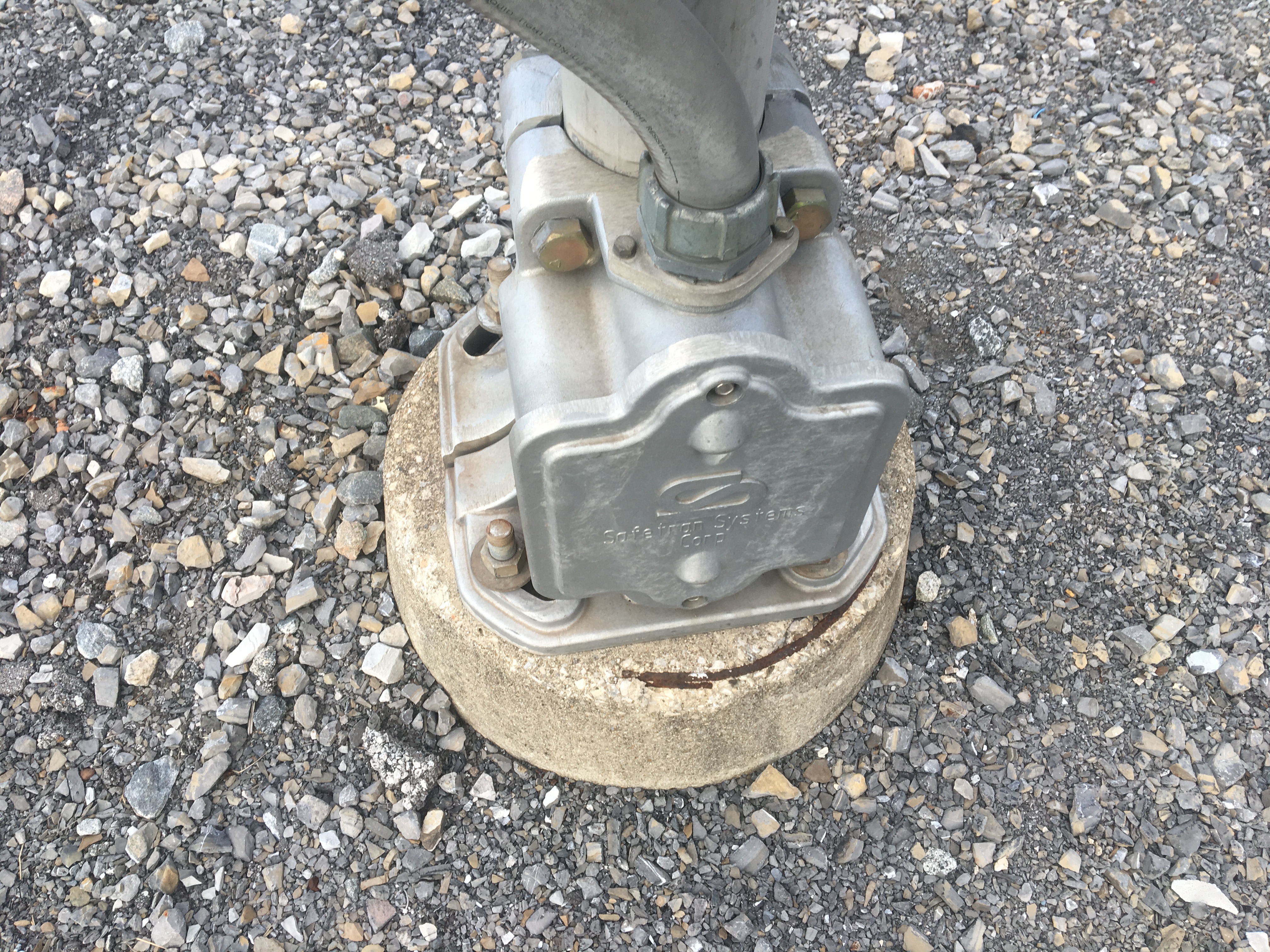

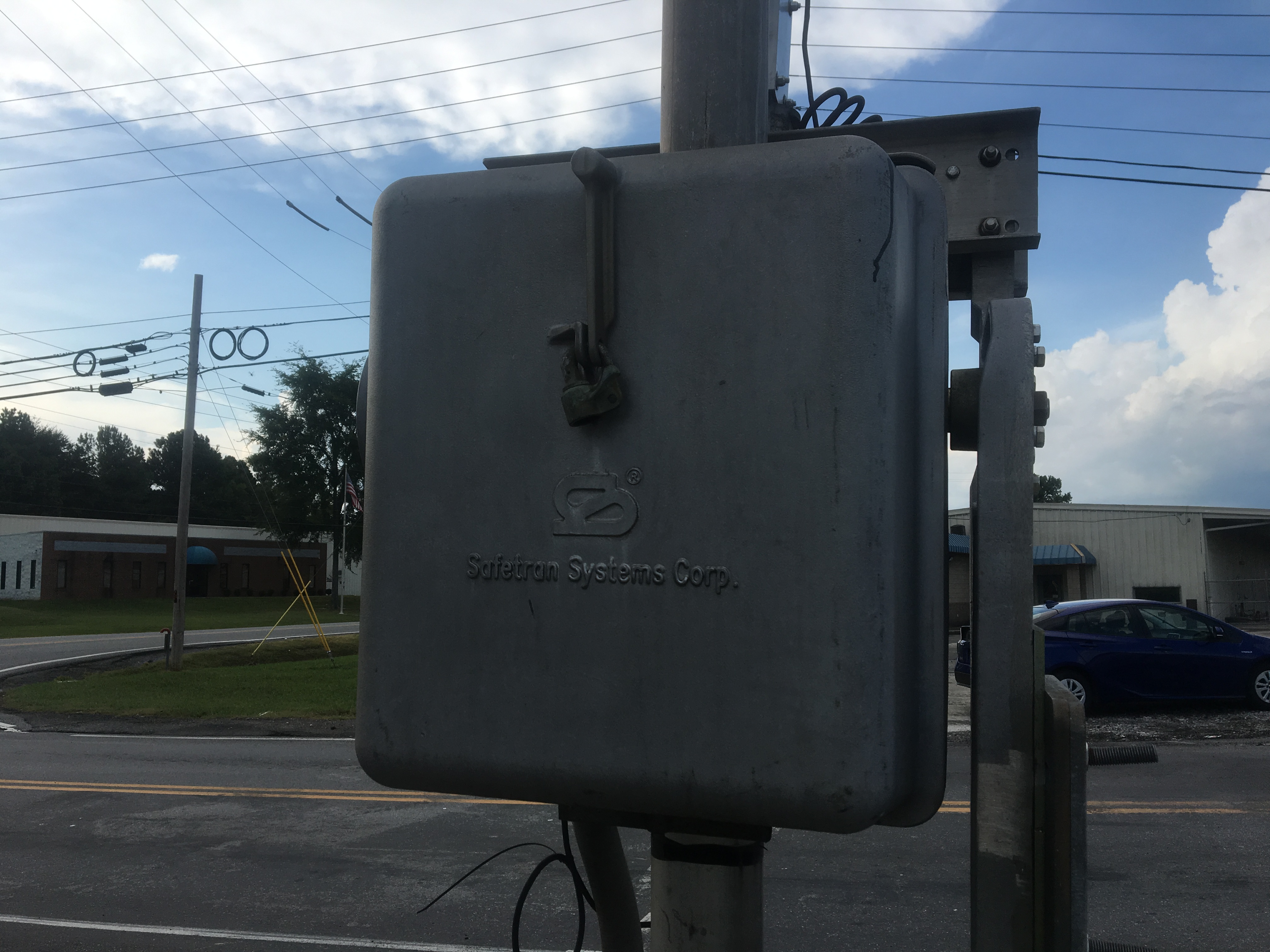

It has a 5-inch Safetran base.	A Safetran gate mechanism.	The emergency information.	This signal has Safetran 12x20 incandescent lights.

9	10	11	12

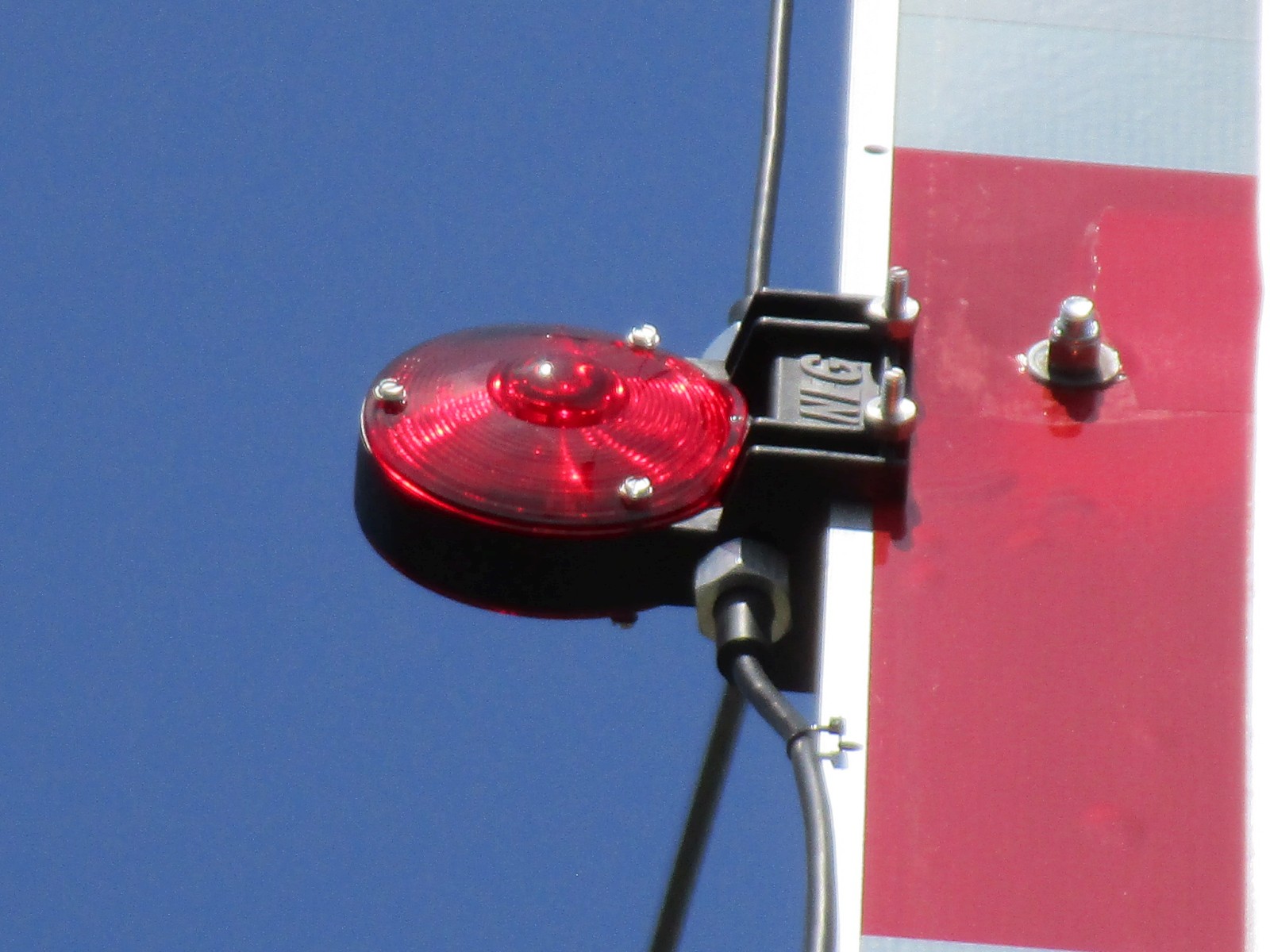

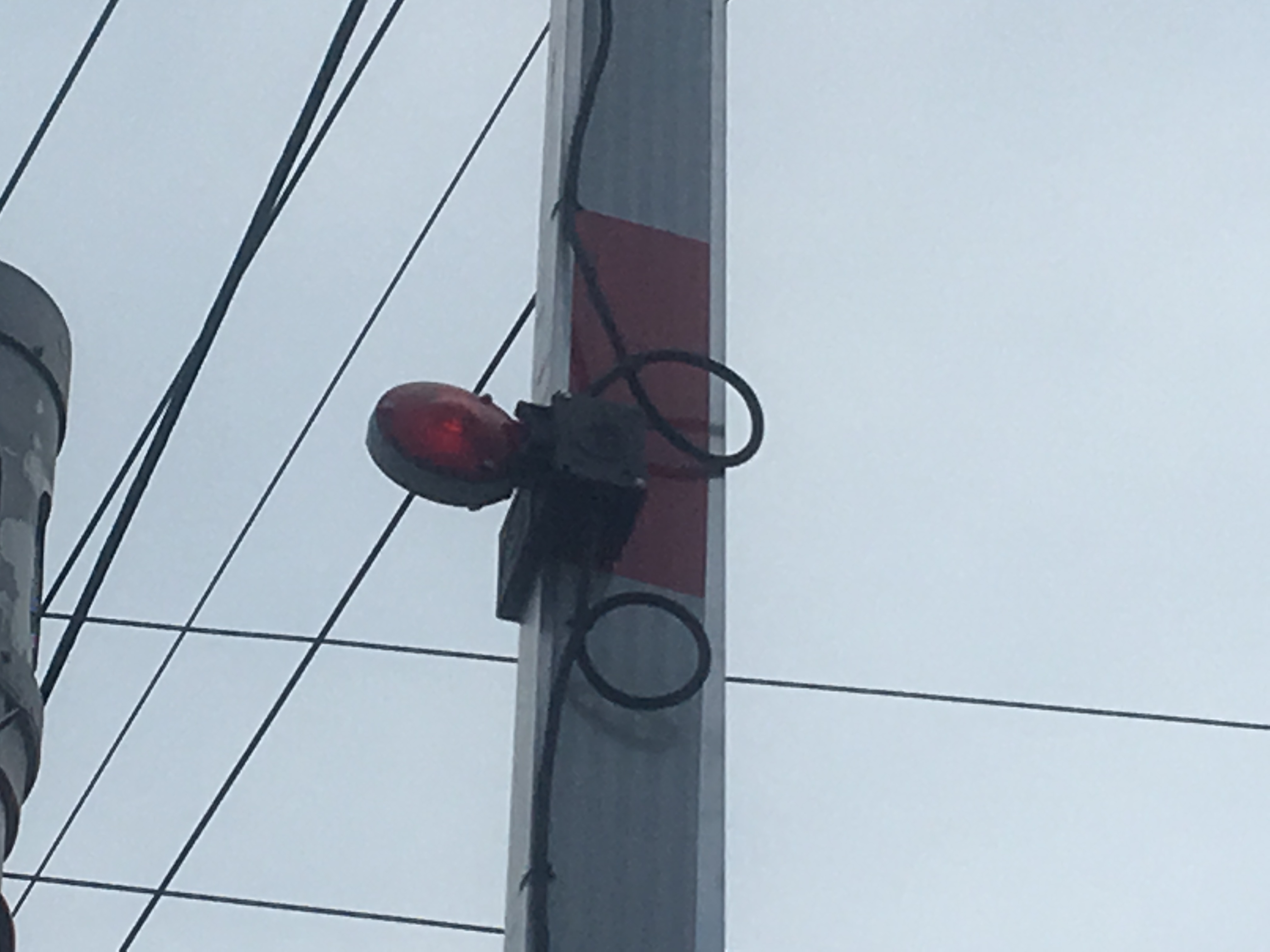

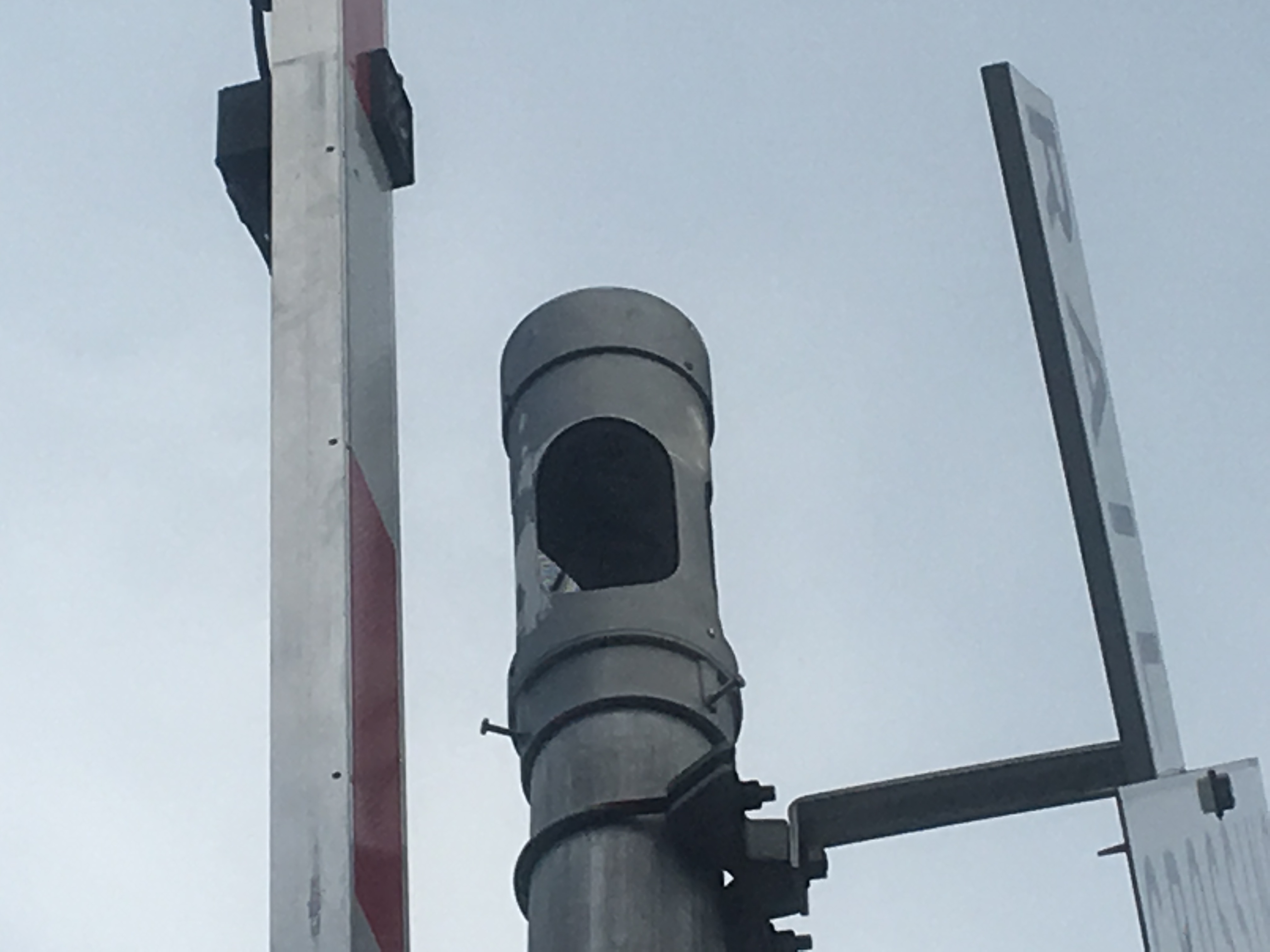

	The gatelights are NEG incandescents.	The bell on this signal is a General Signals E-Bell.	The eastern signal, which is owned by CSX.

13	14	15	16

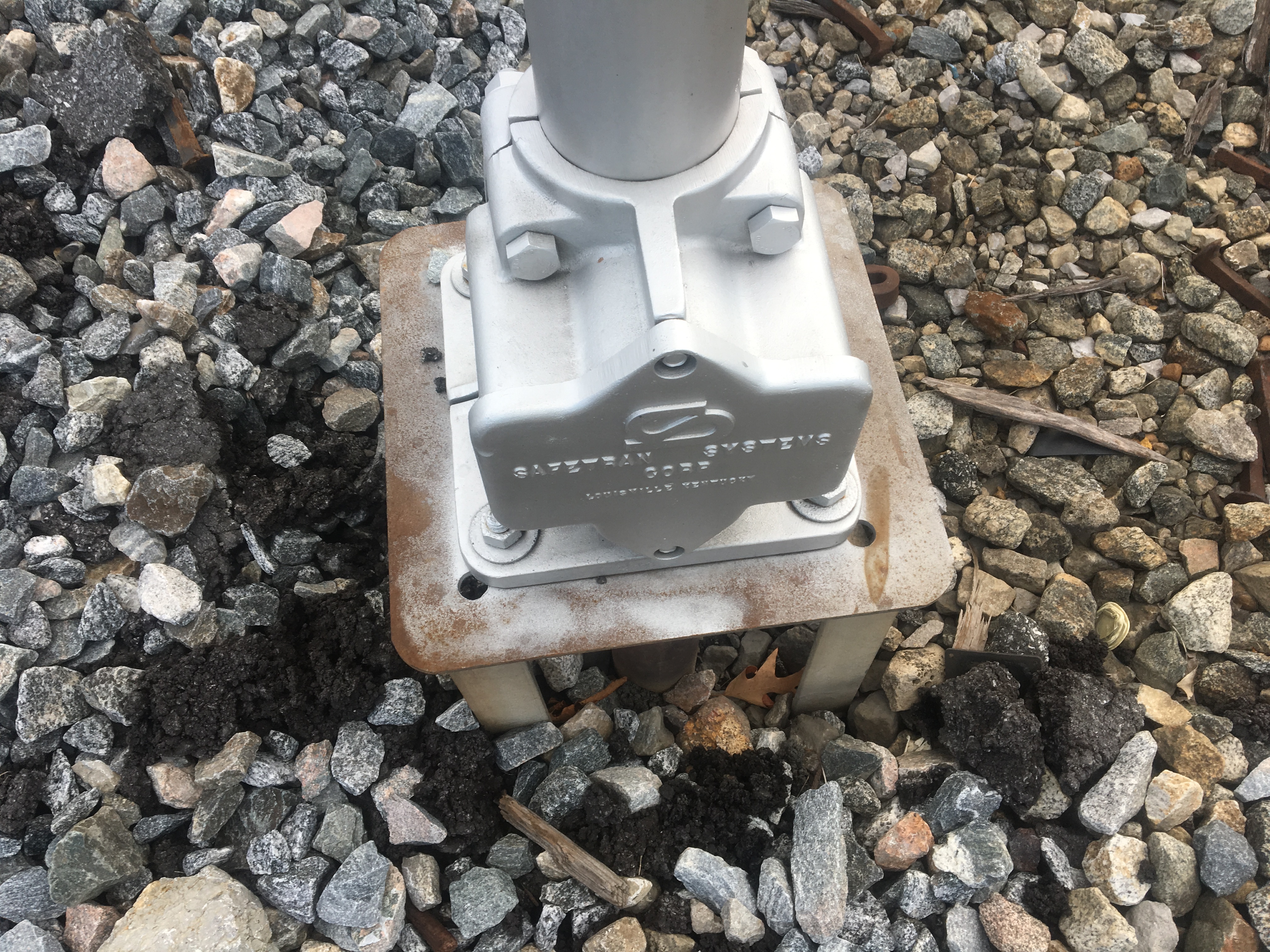

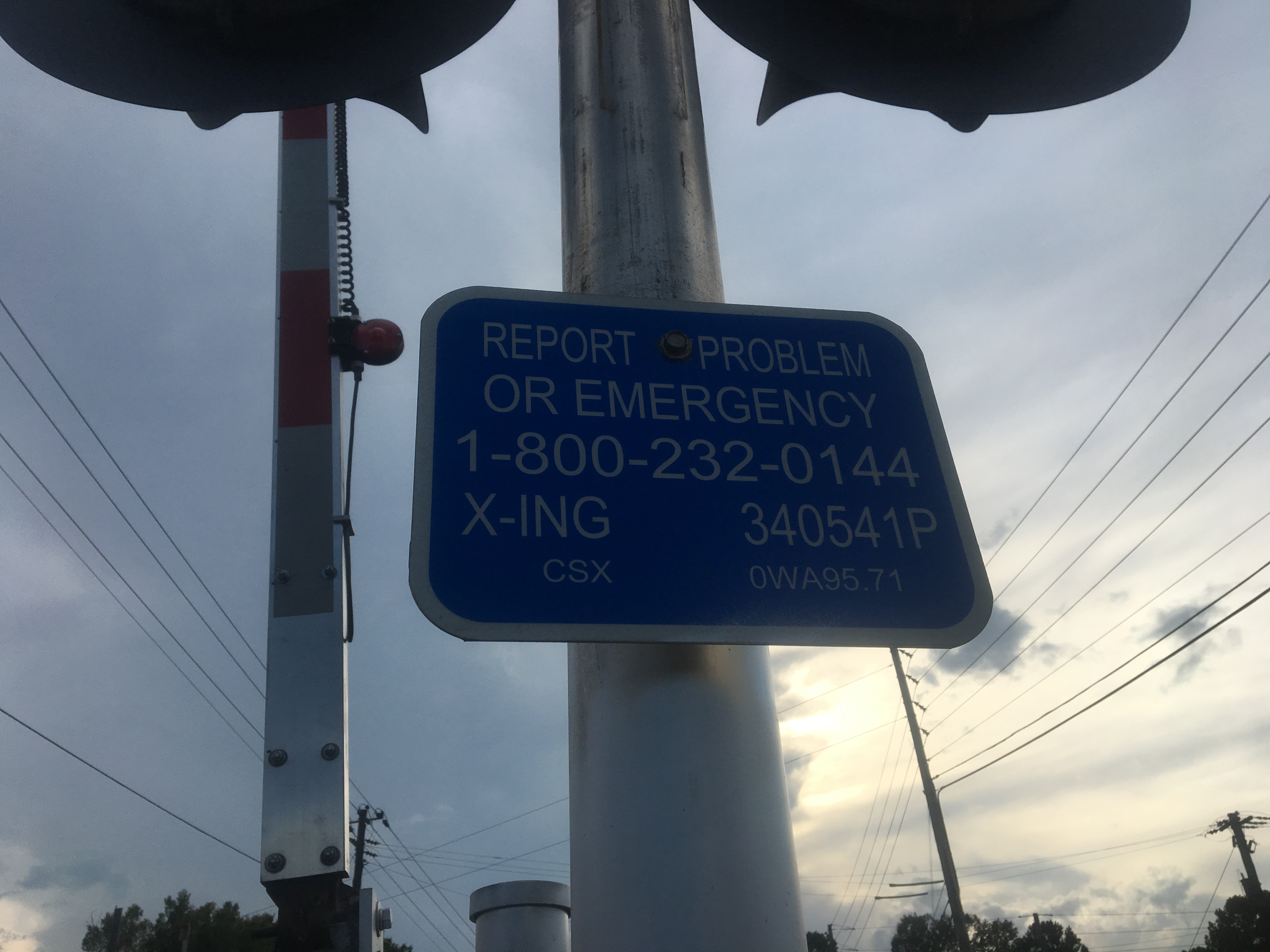

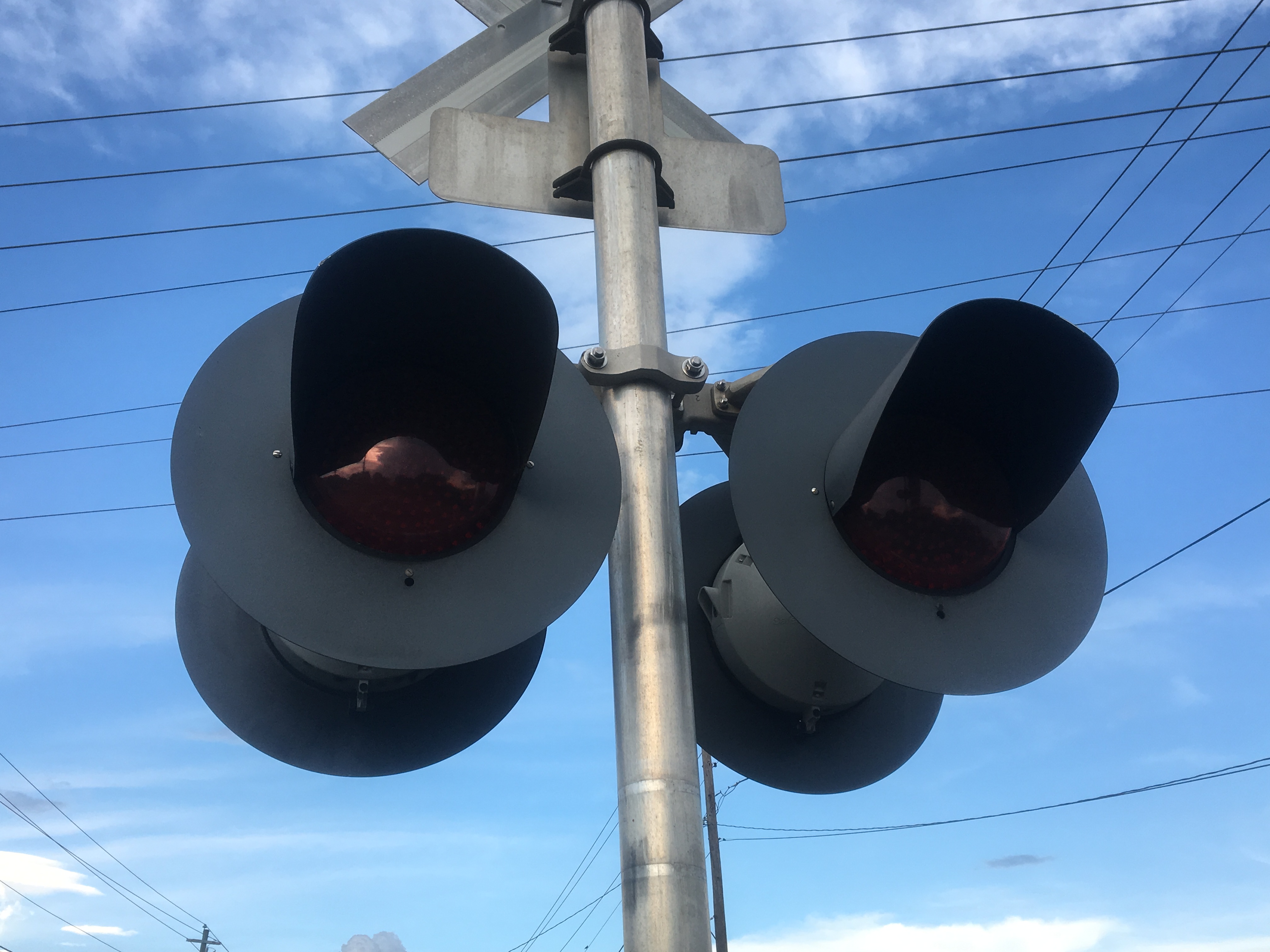

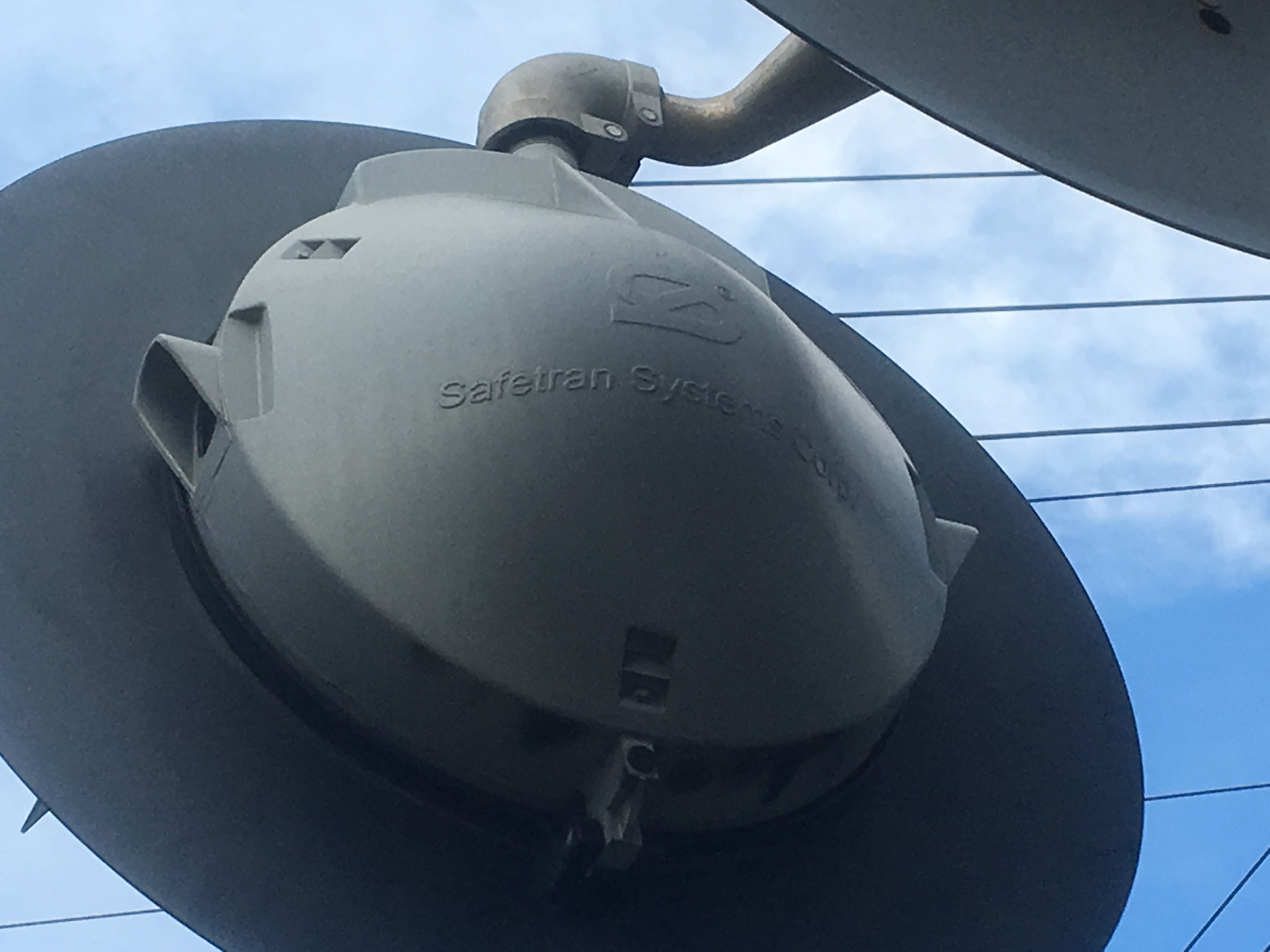

	It has a 4-inch Safetran base.	The emergency information.	This signal has Safetran 12x24 lights with WCH 2nd Gen. LEDs.

17	18	19	20

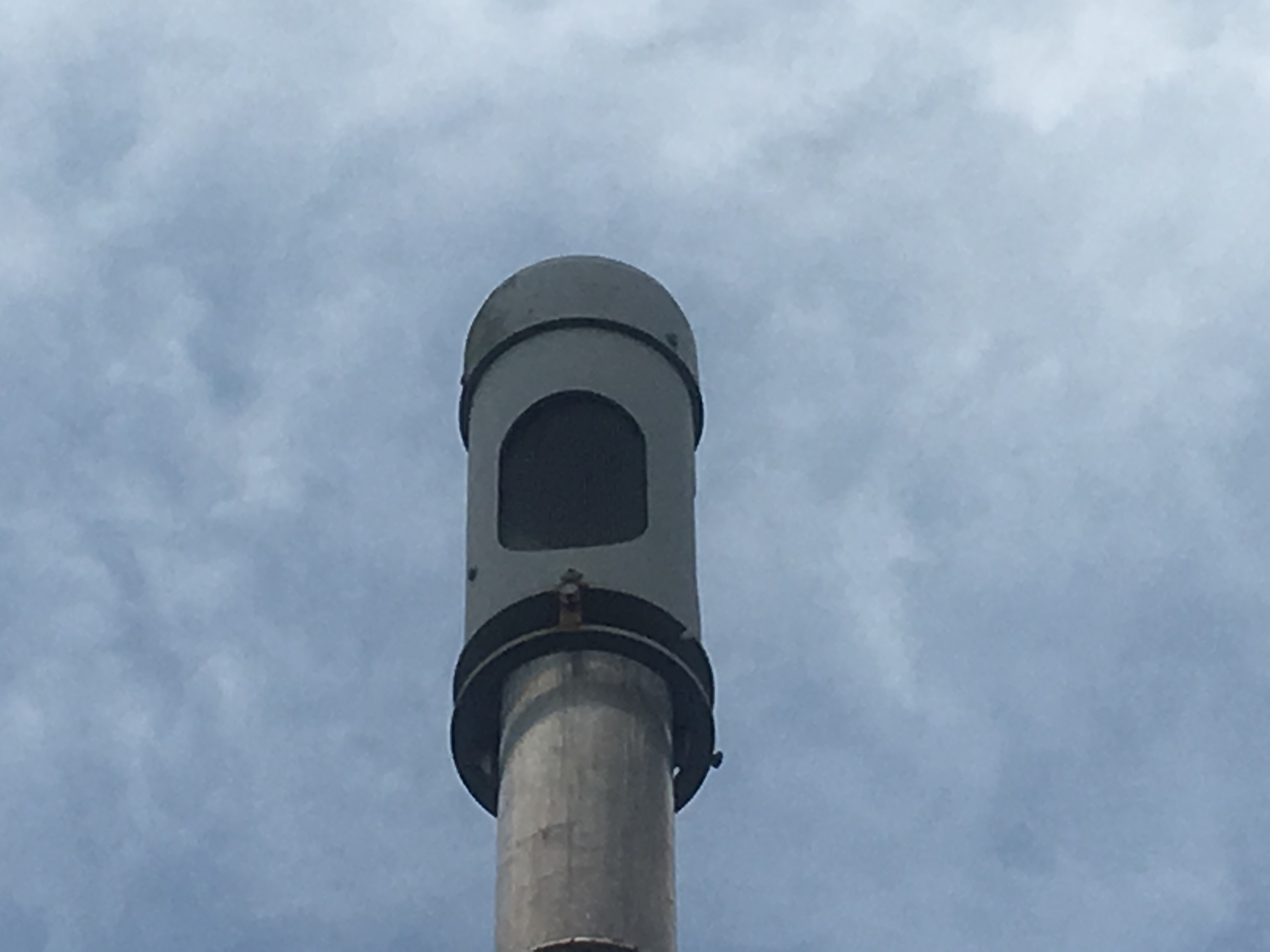

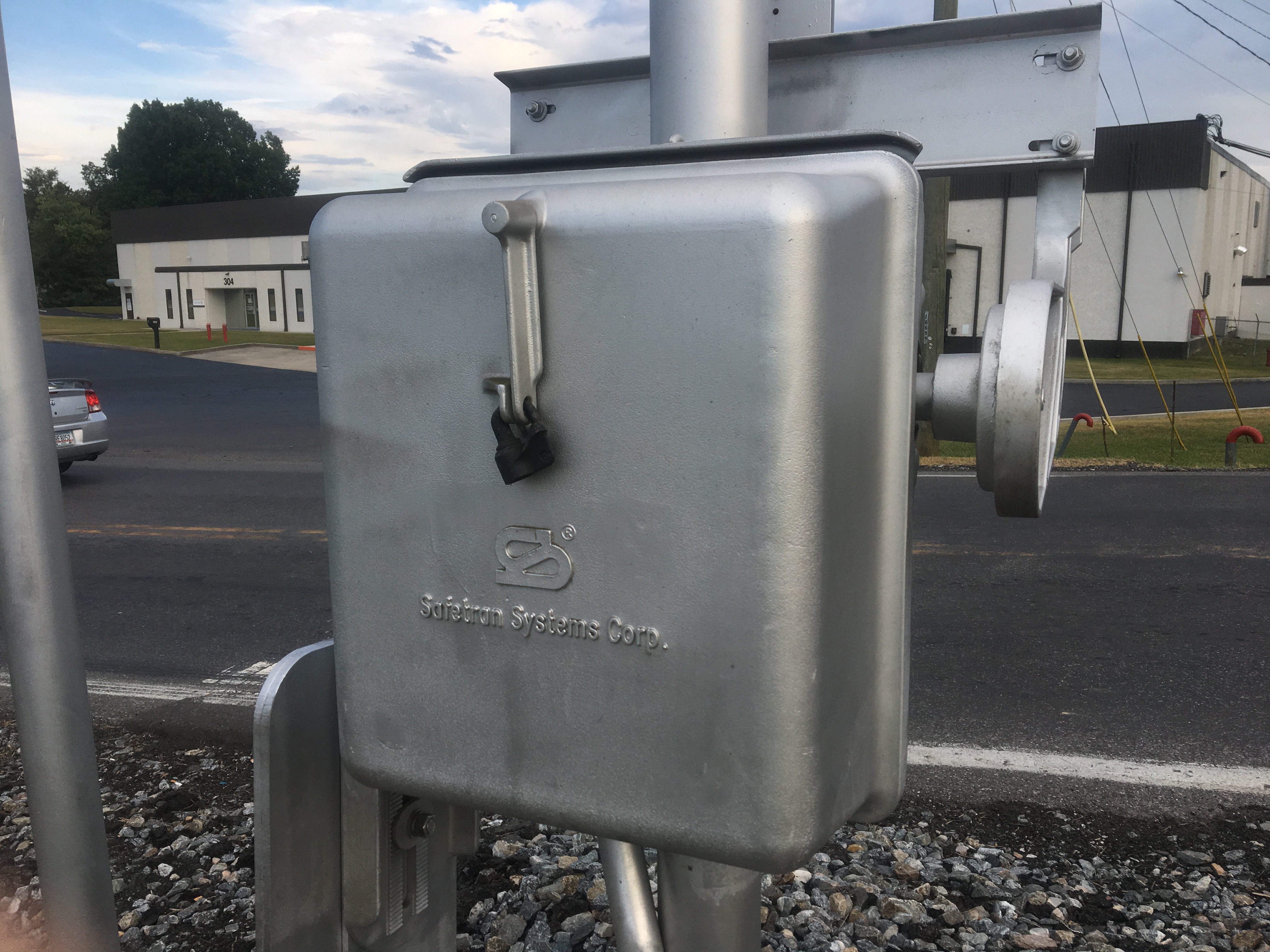

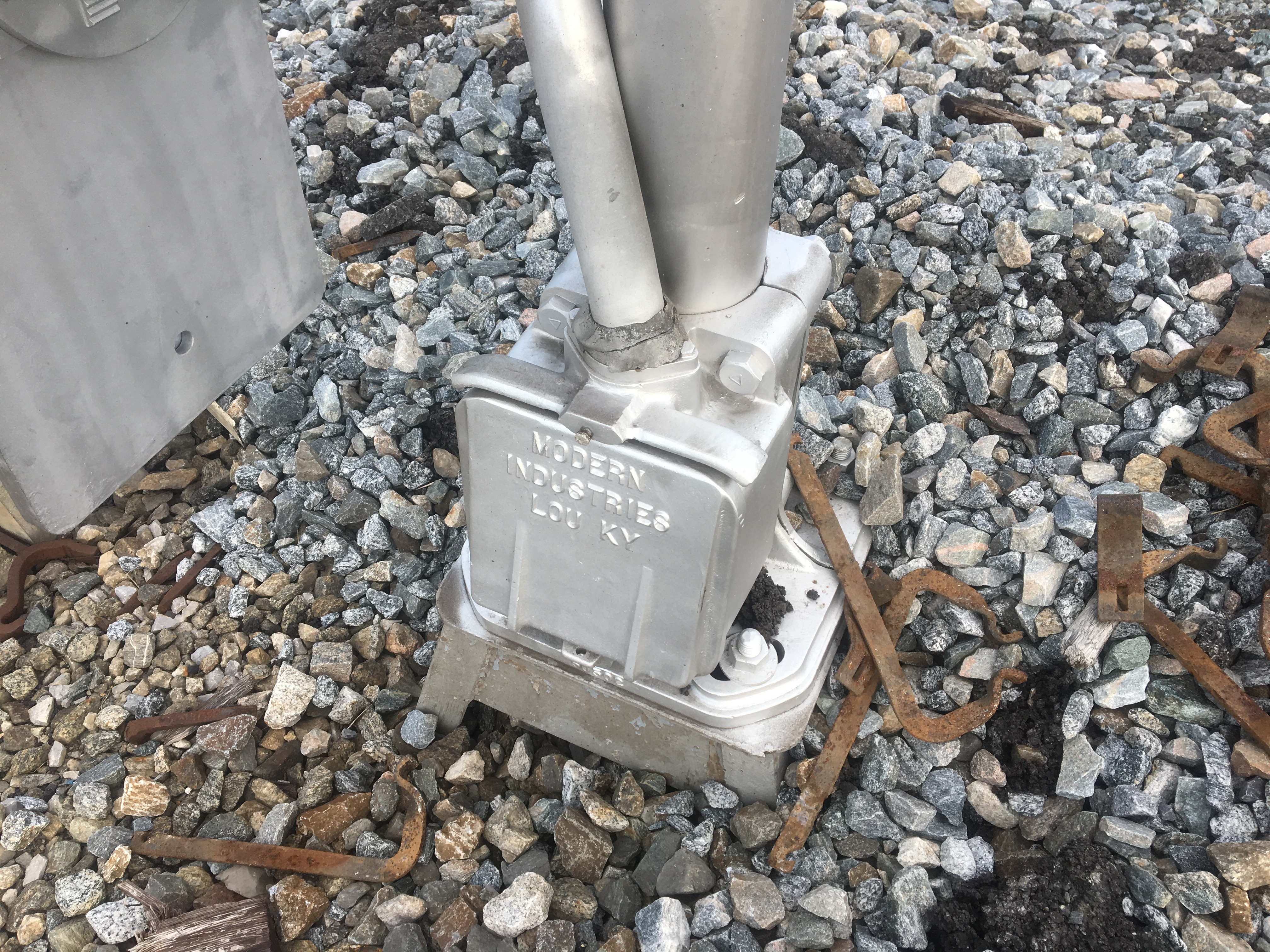

	This signal has an NEG E-Bell.	A Modern Industries base.	Another Safetran gate mechanism.

21	22	23	24

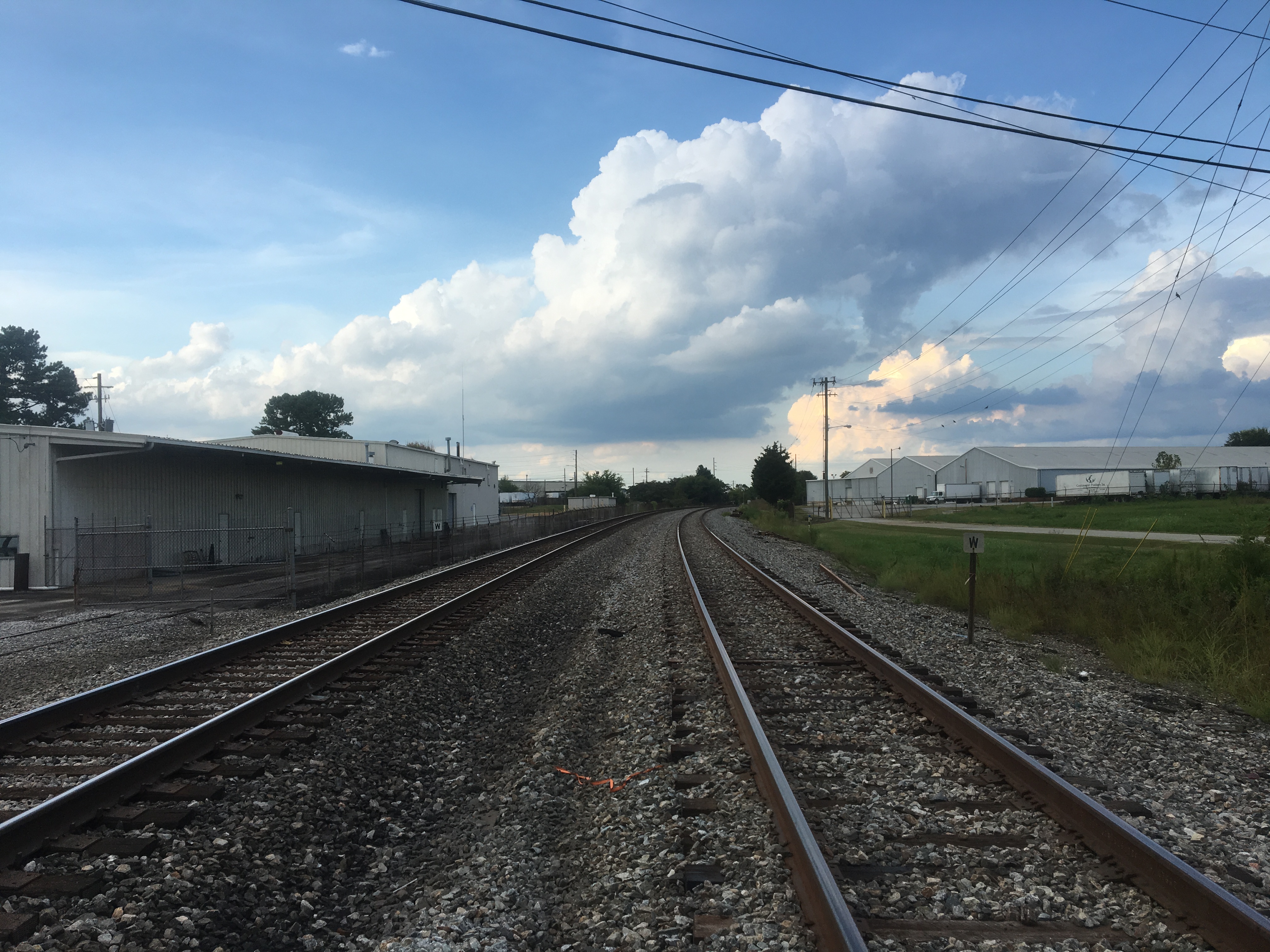

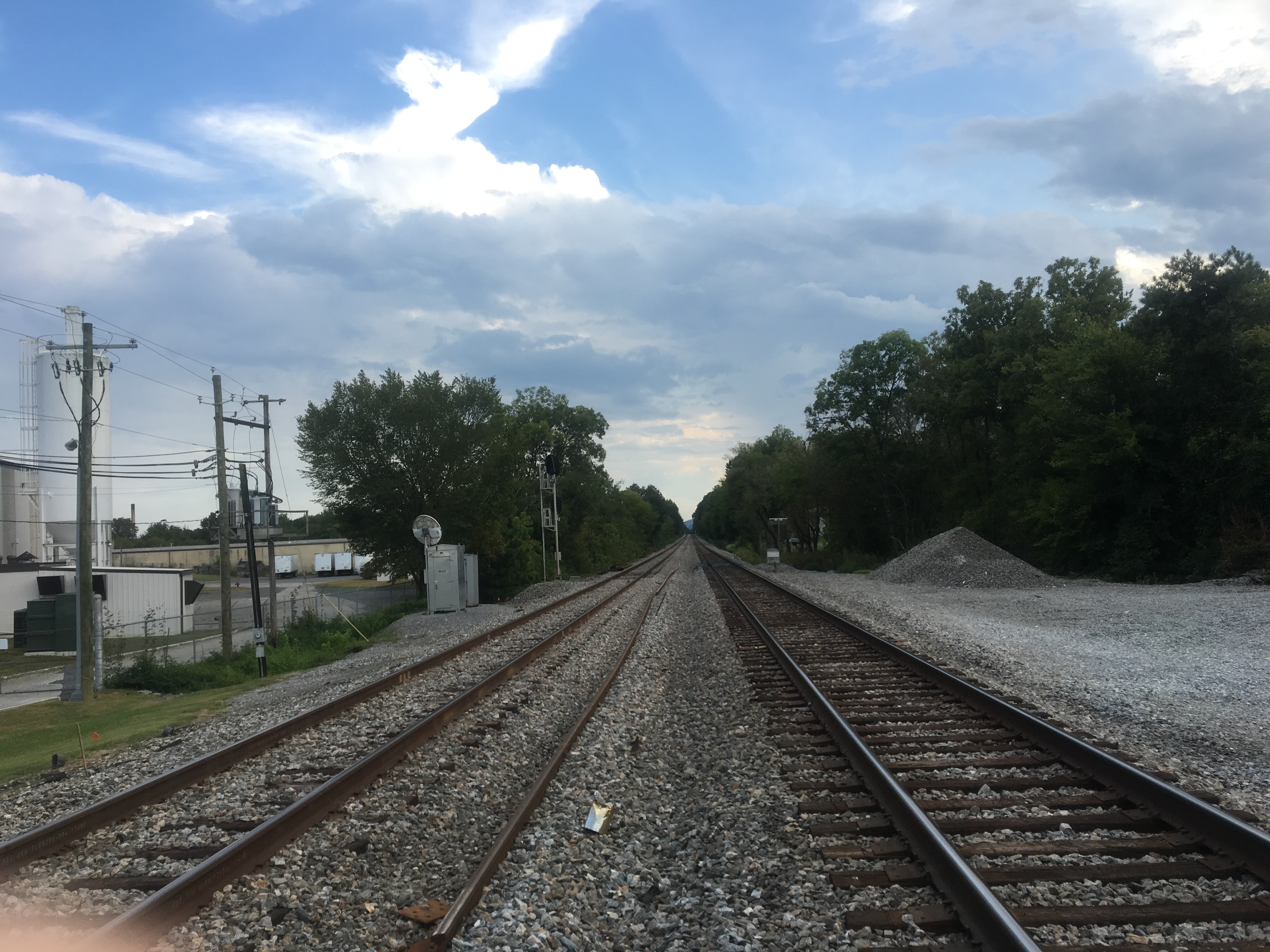

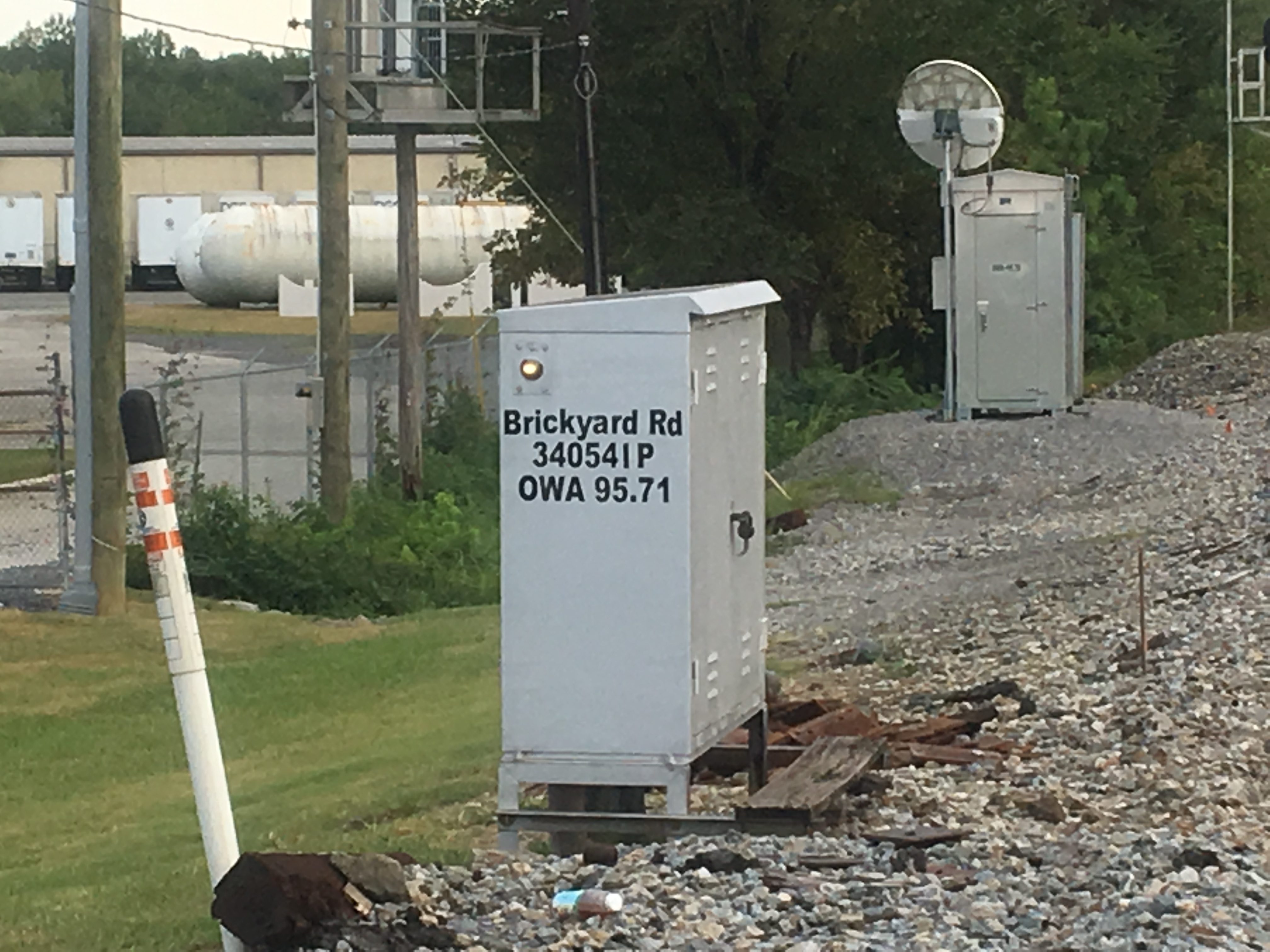

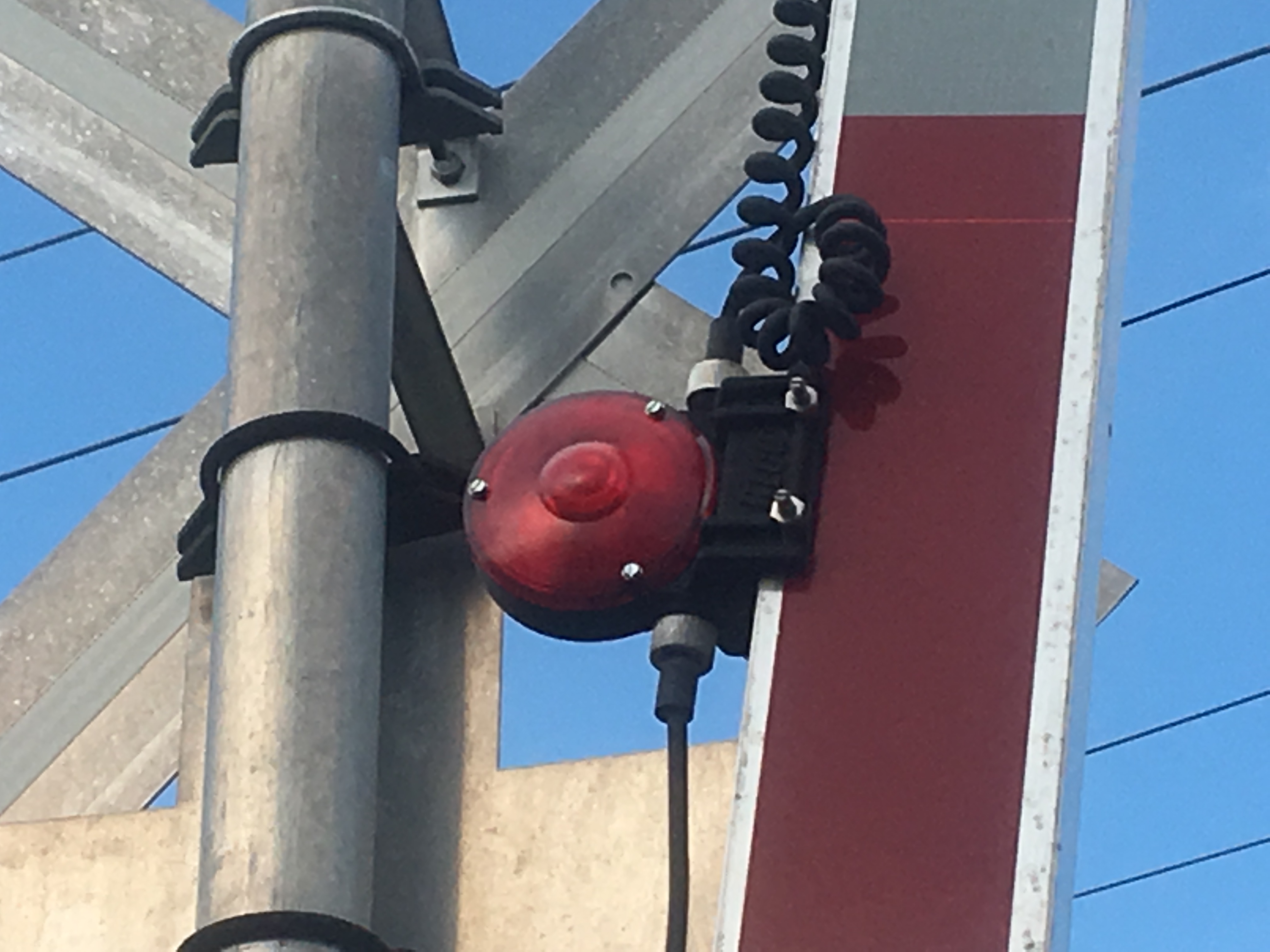

This signal uses RECO LED? gatelights.	Track view facing north towards McFarland Road.	Track view facing south towards Five Springs Road.	The relay case for the CSX signal.

25	26	27

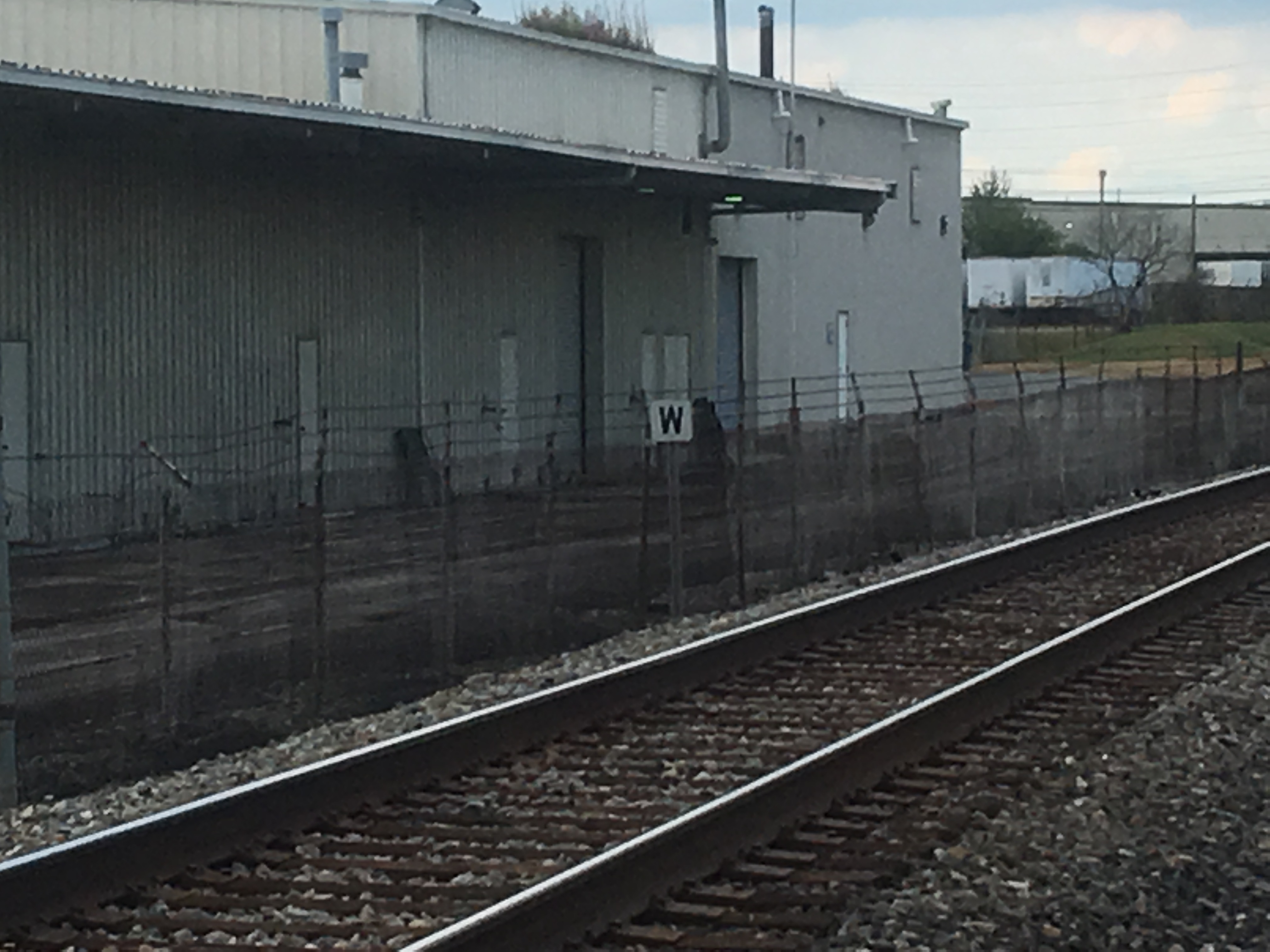

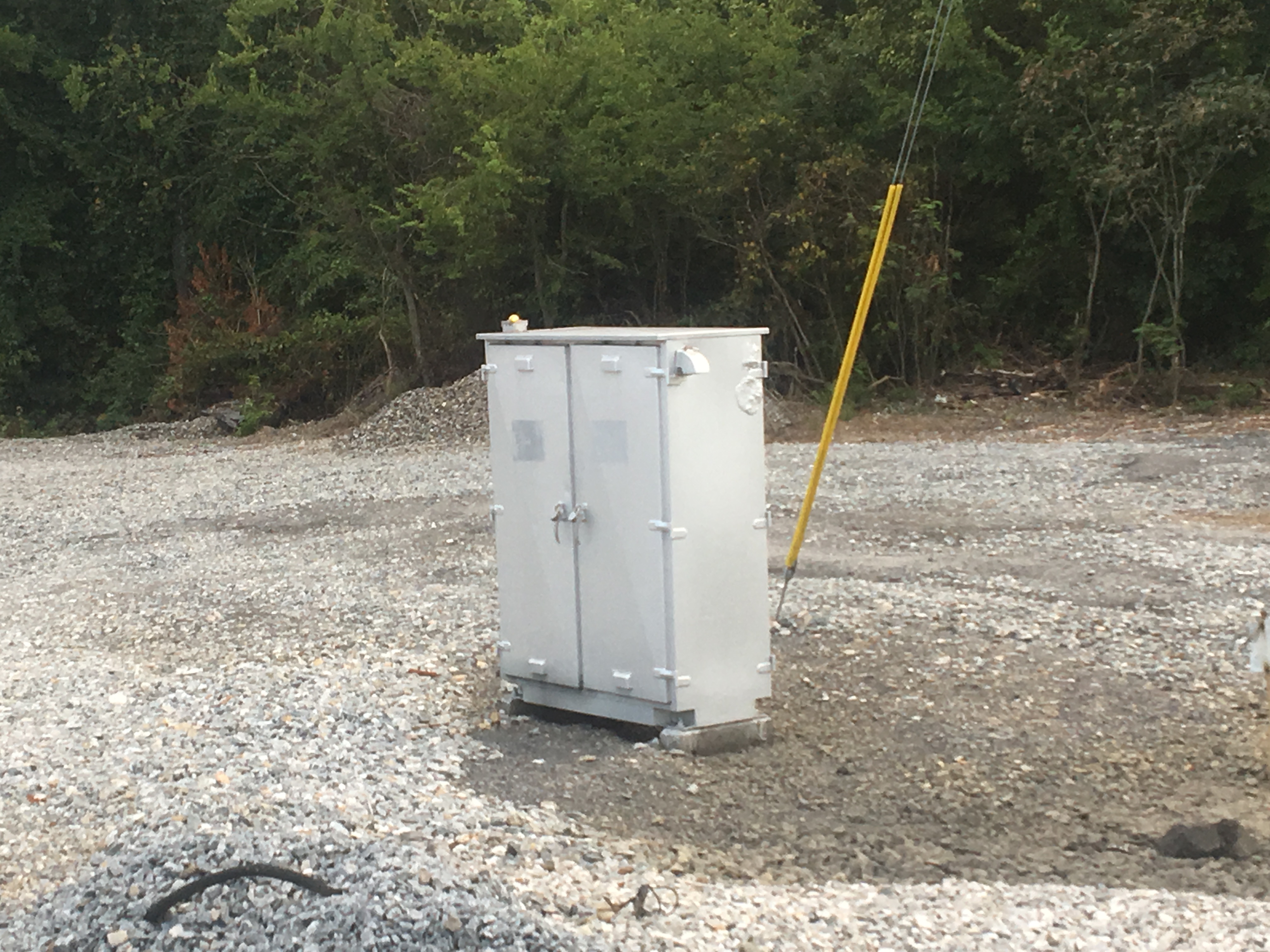

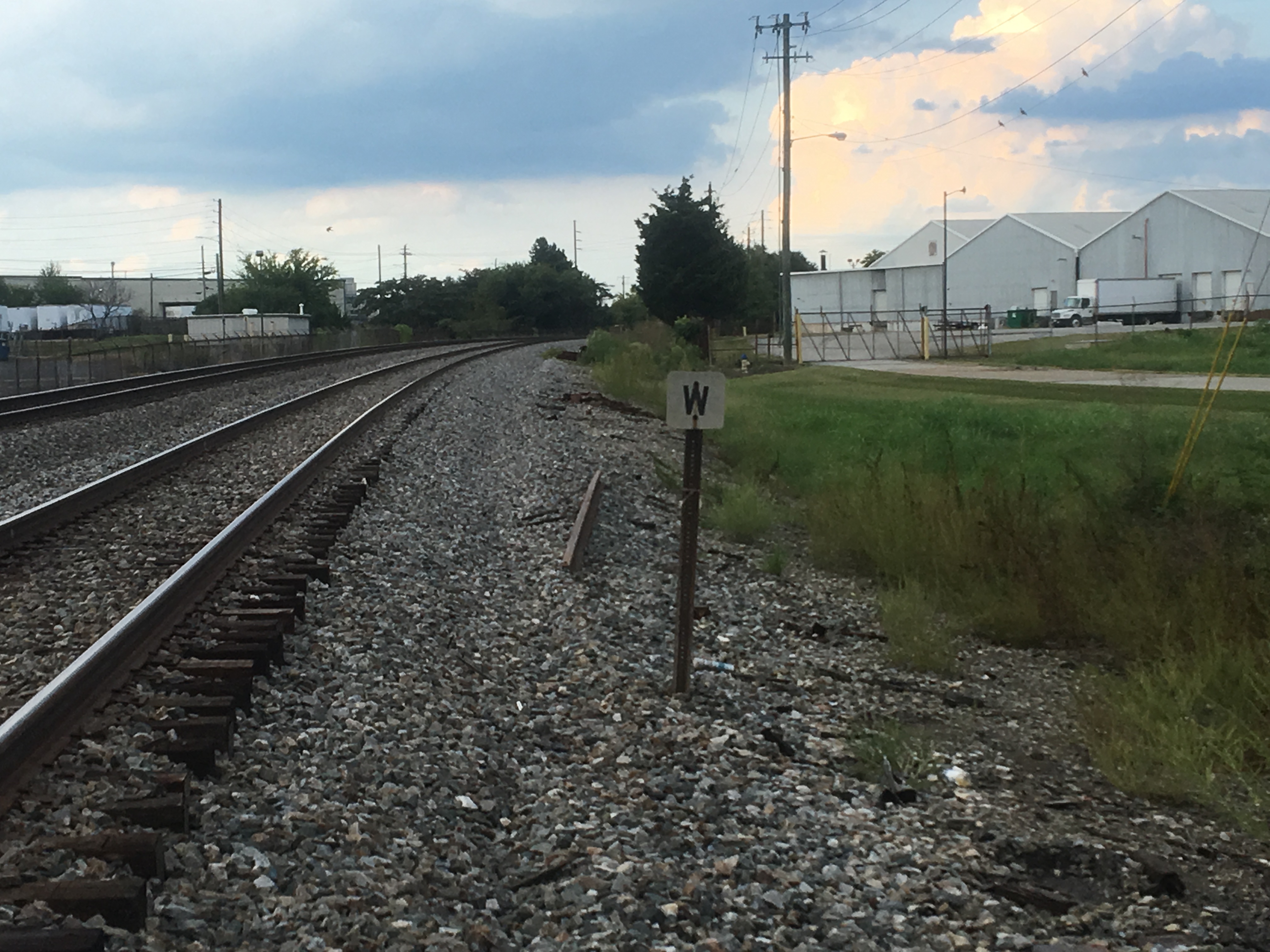

The relay case for the NS signal.	Two whistle posts located near the crossing.

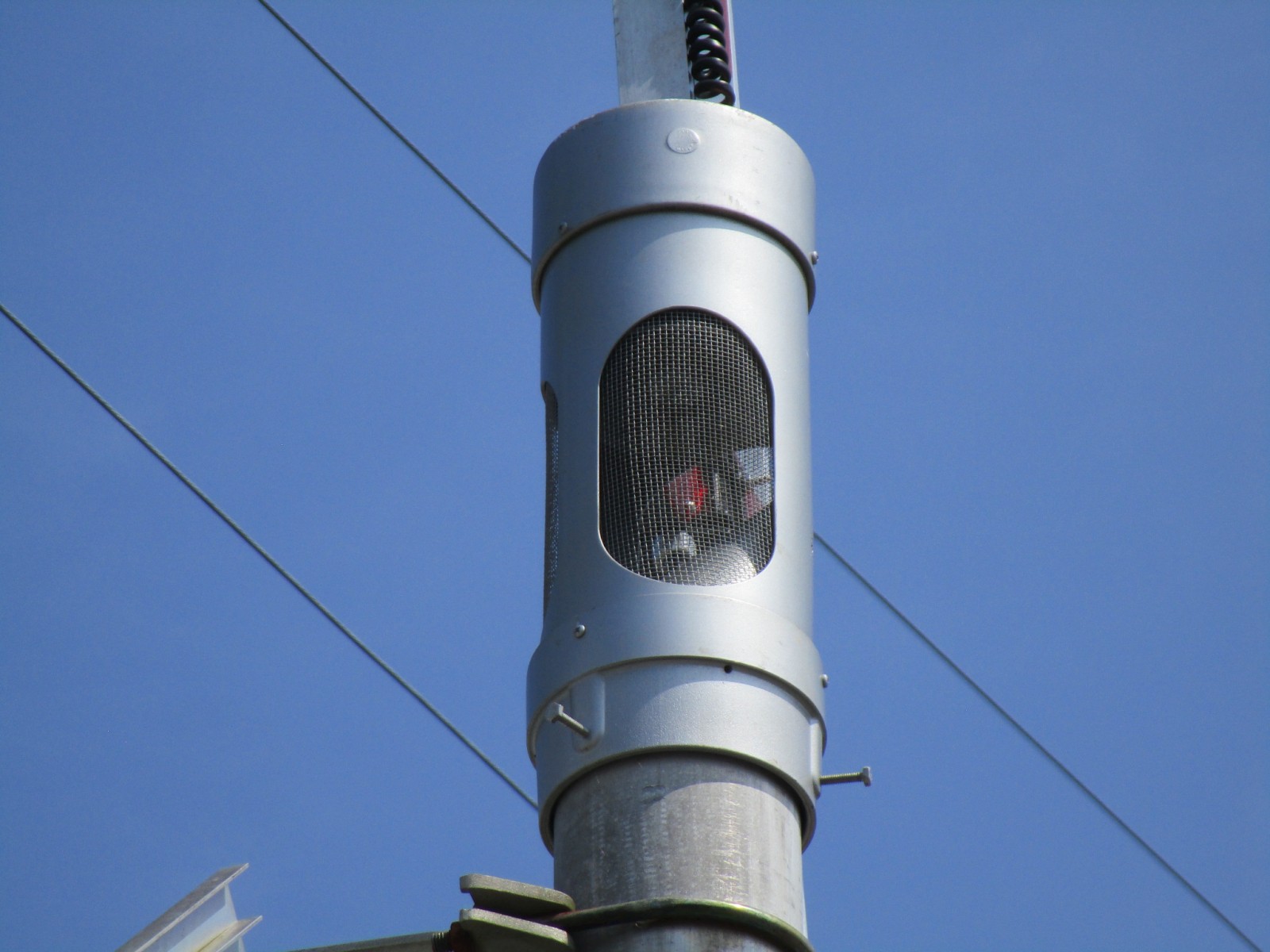

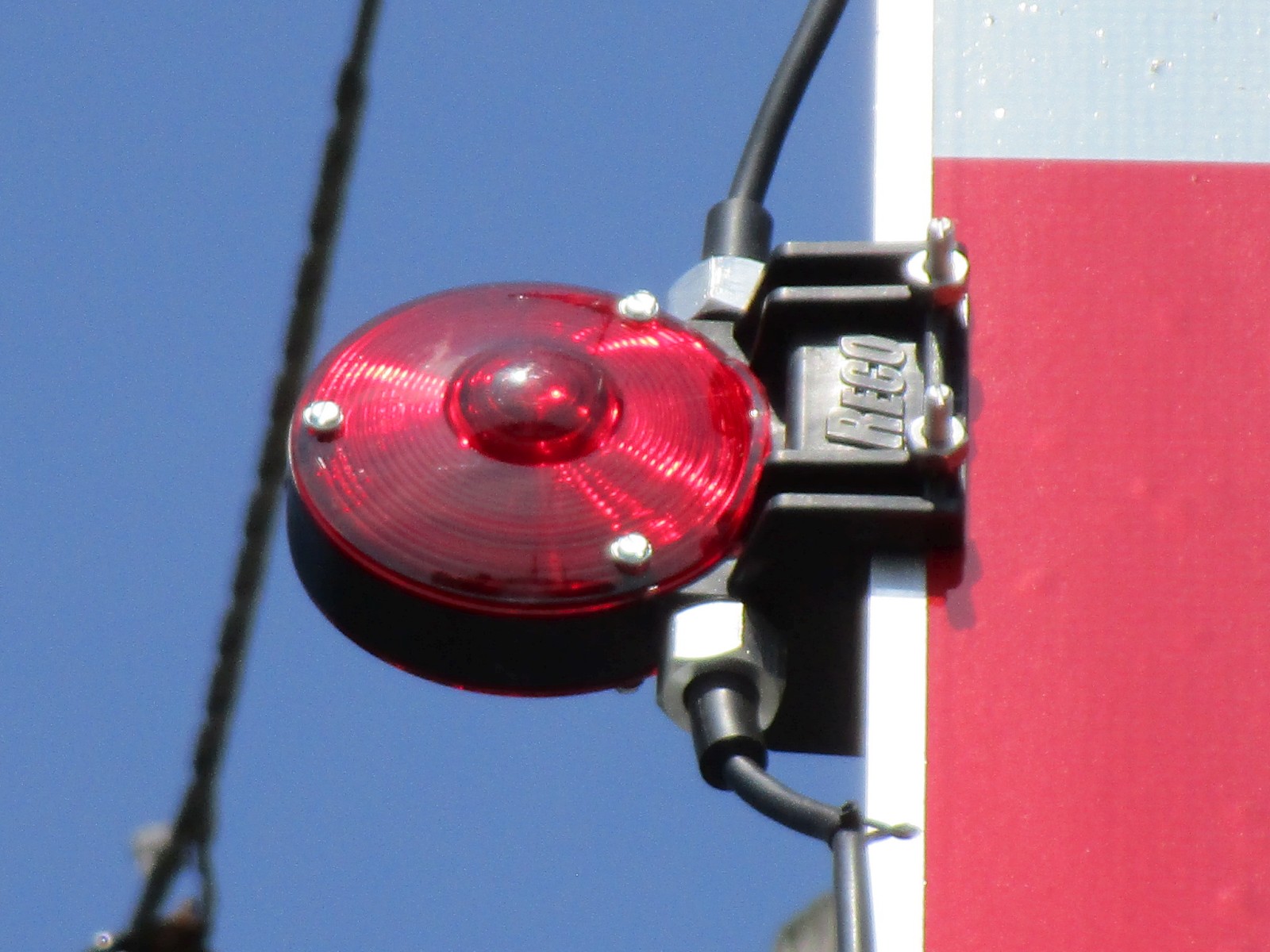

On July 1, 2023, freebrickproductions made a return trip to this crossing to see a few changes to the eastern signal, including new gatelights, and a newer General Signals E-Bell.



28	29

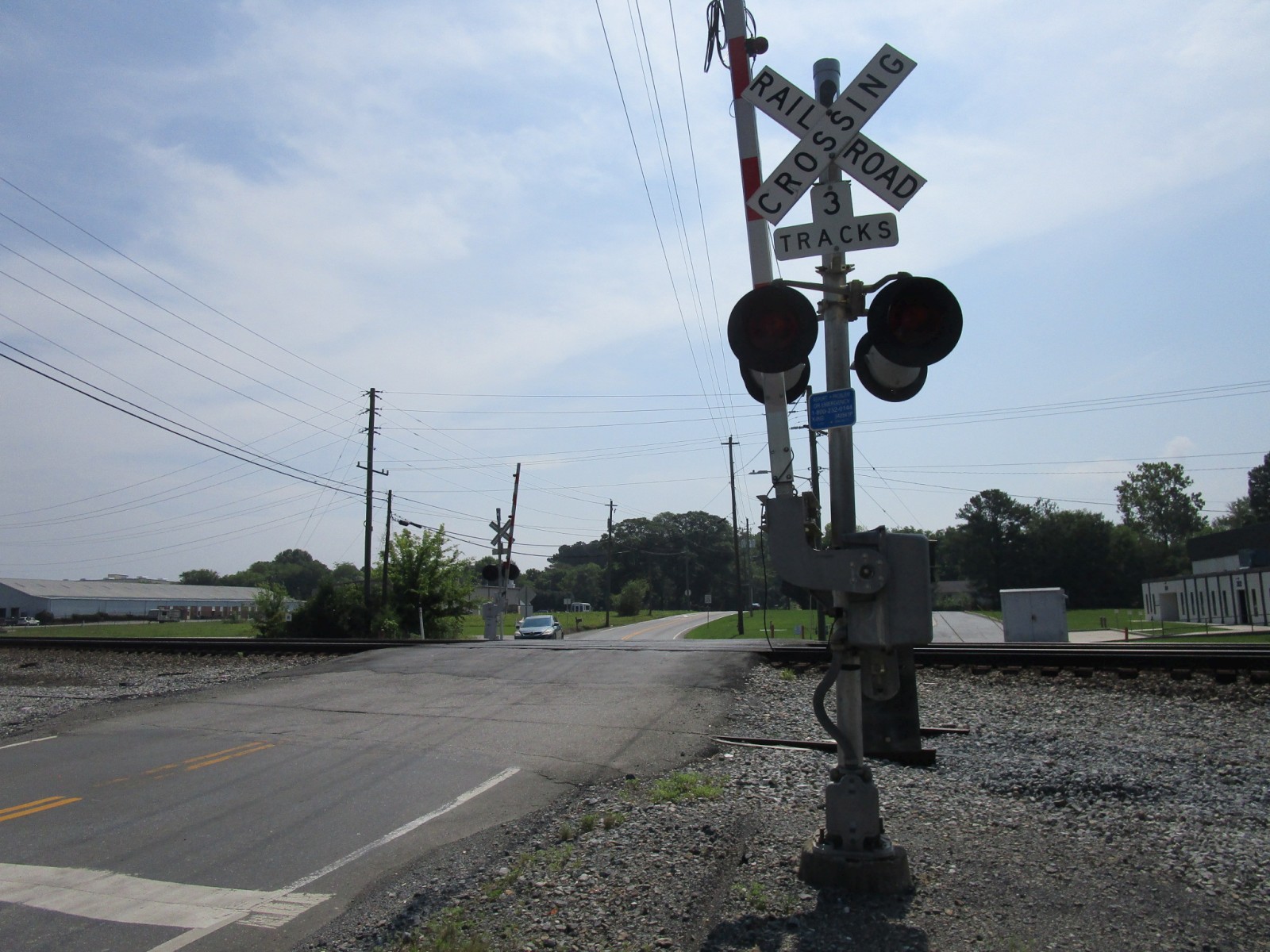

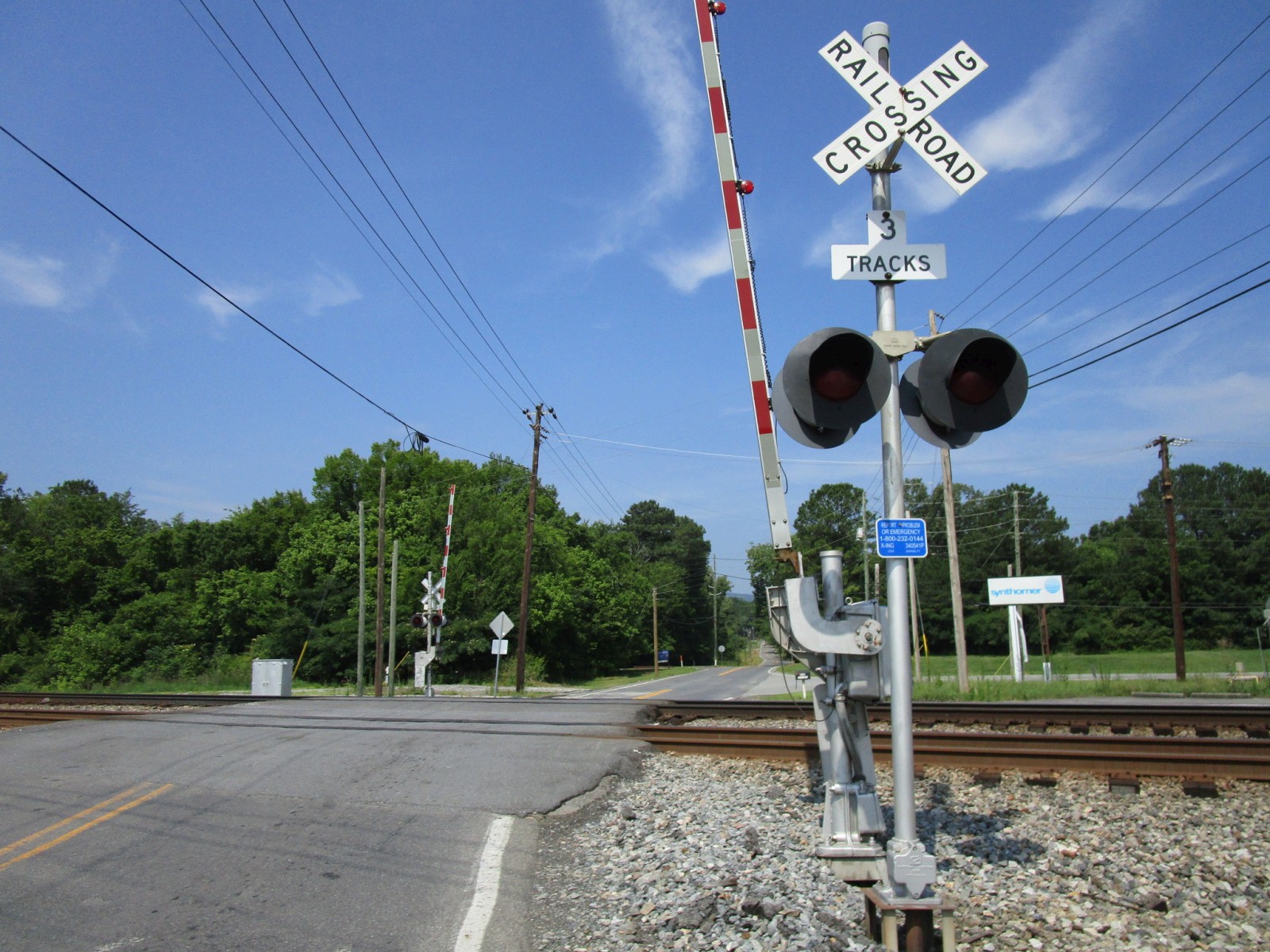

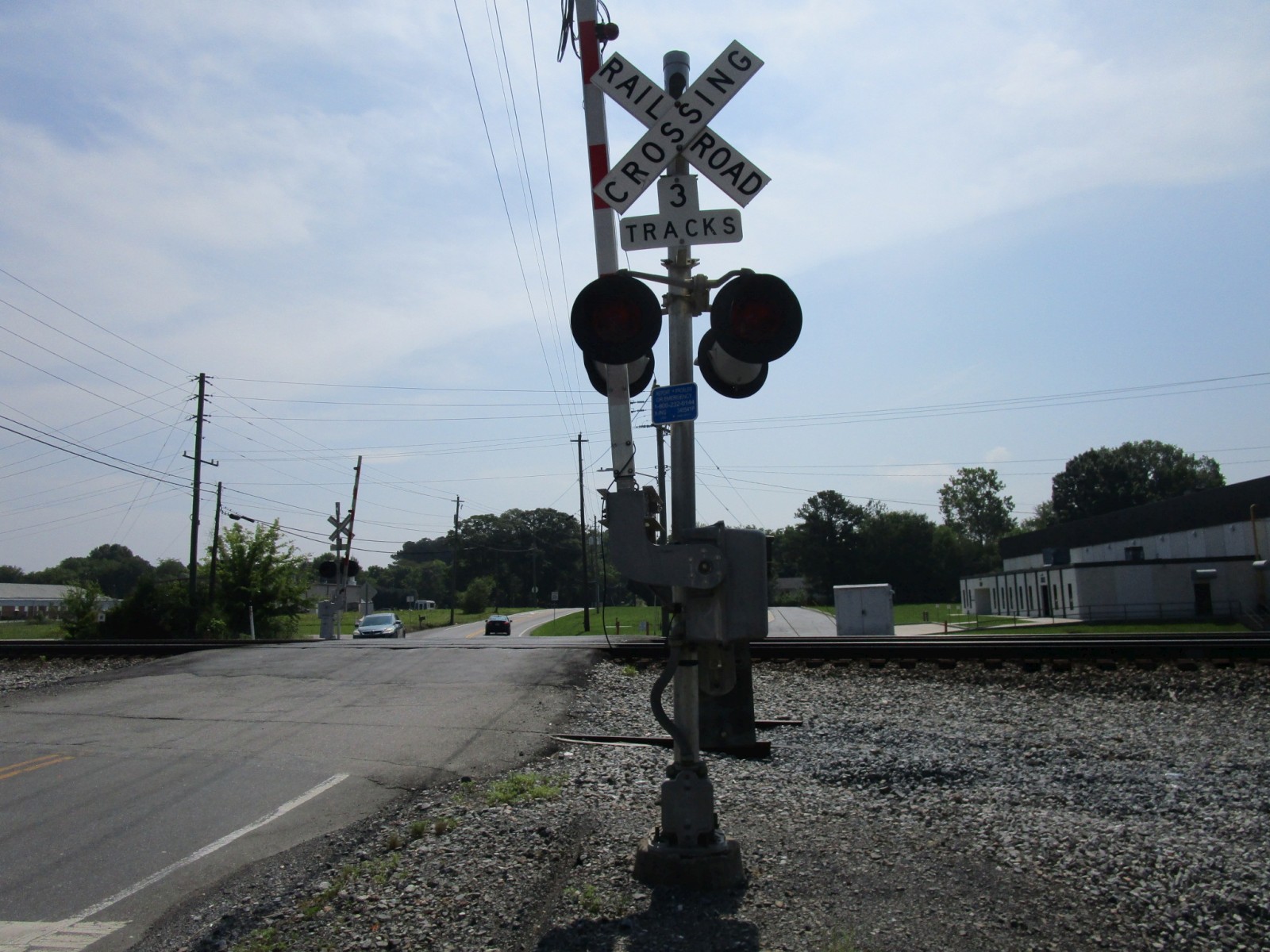

Overview facing east.	Overview facing west.

30

31

32

33	34	35

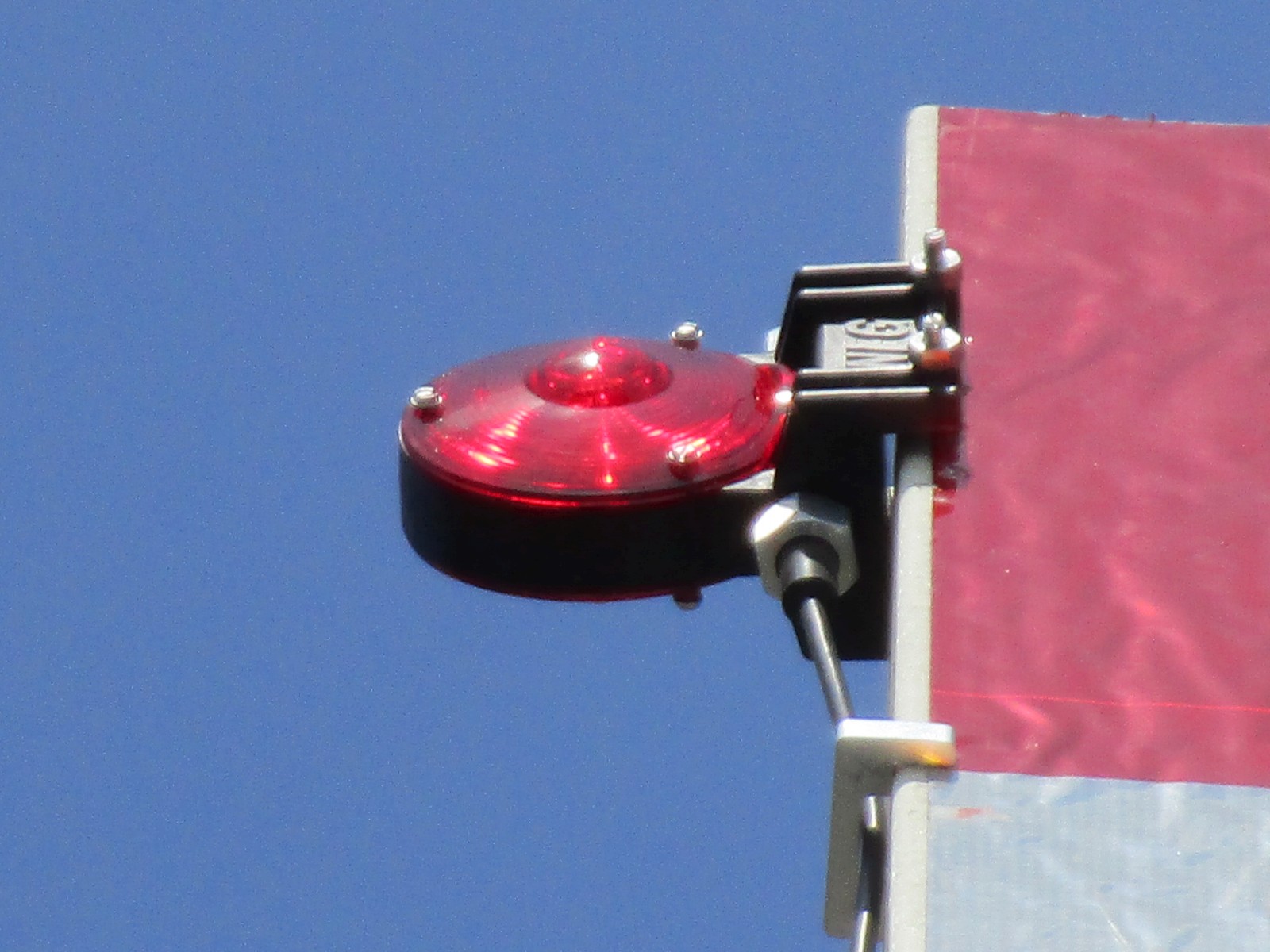

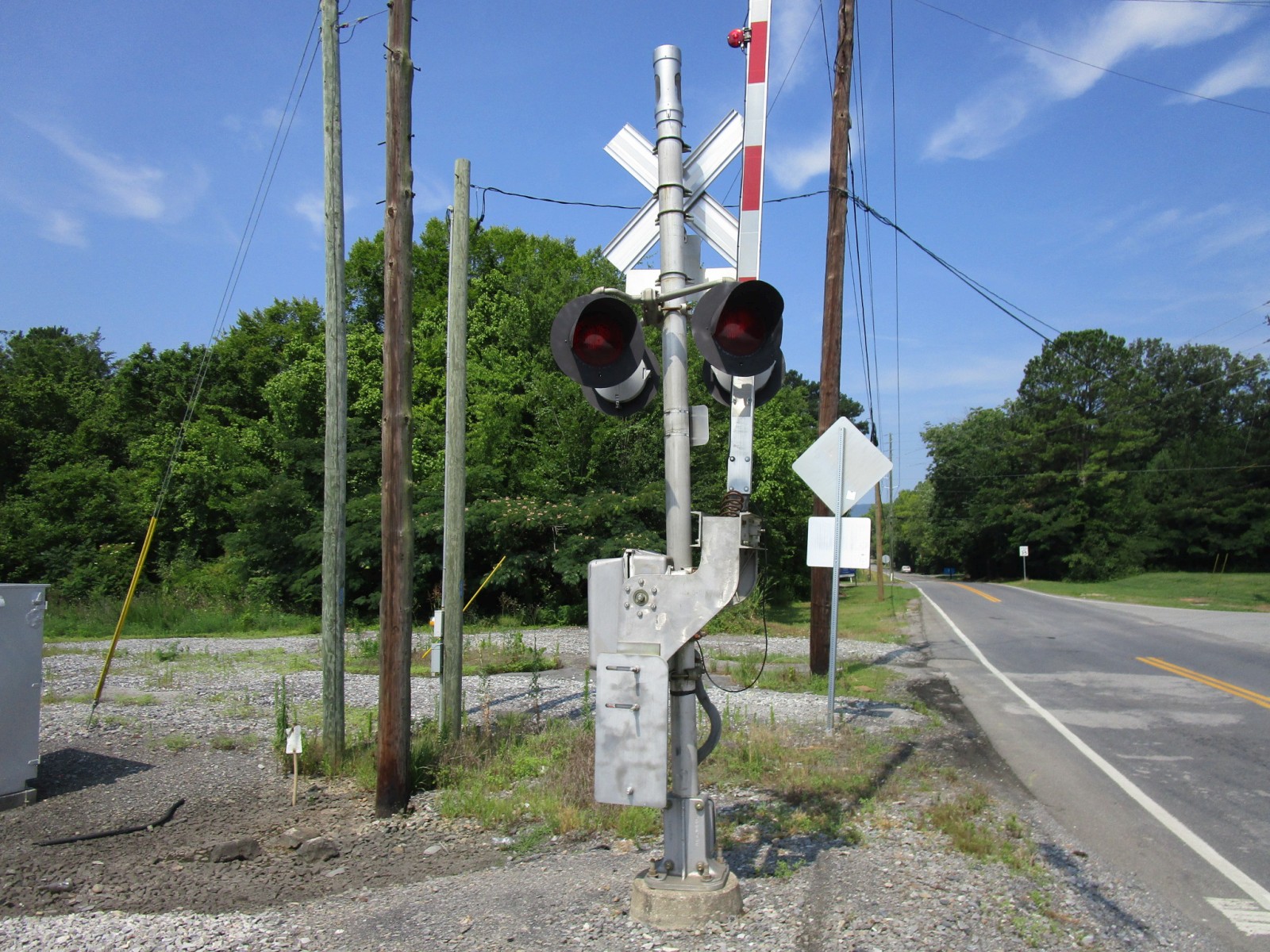

The eastern signal.

36	37

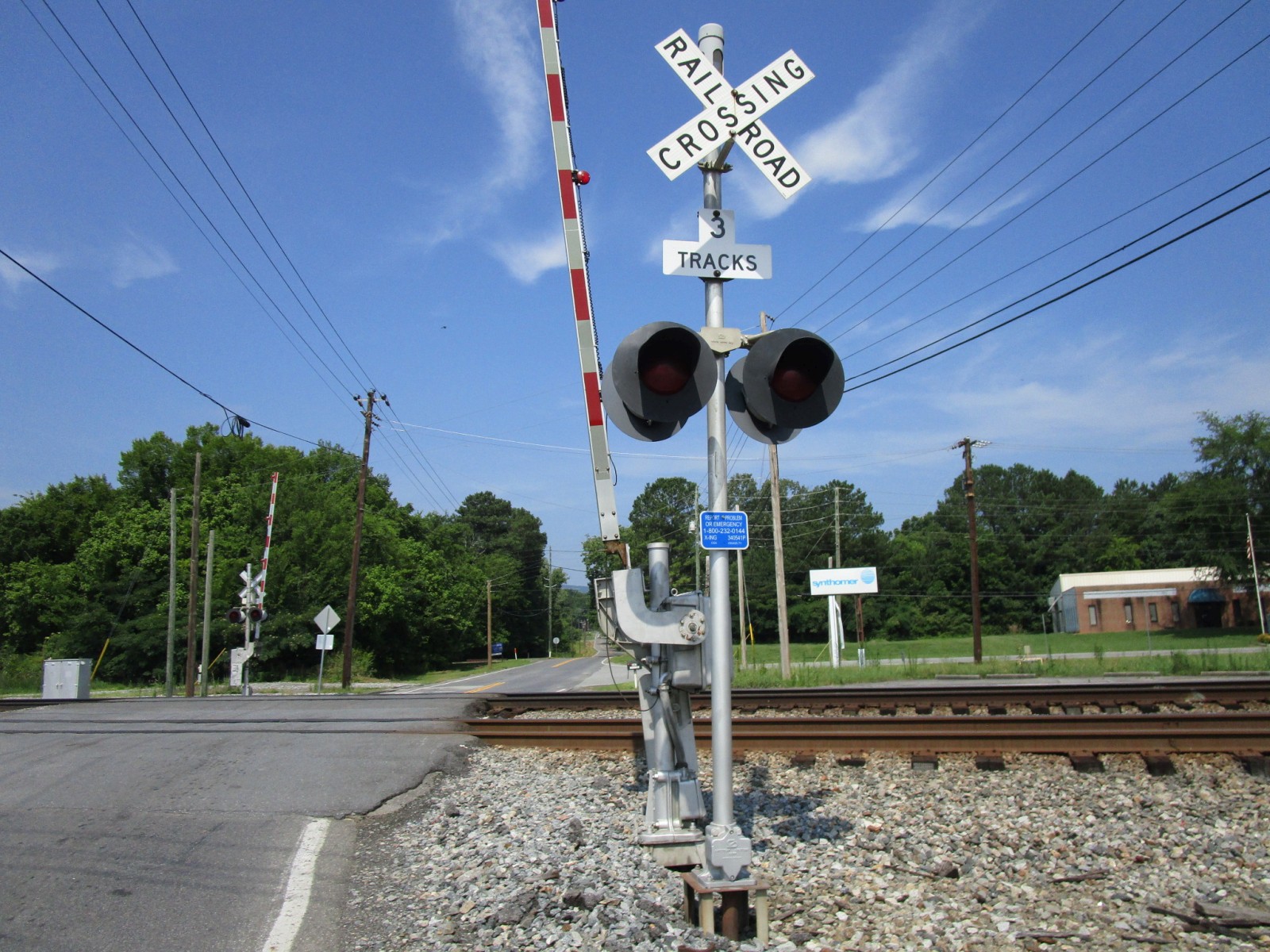

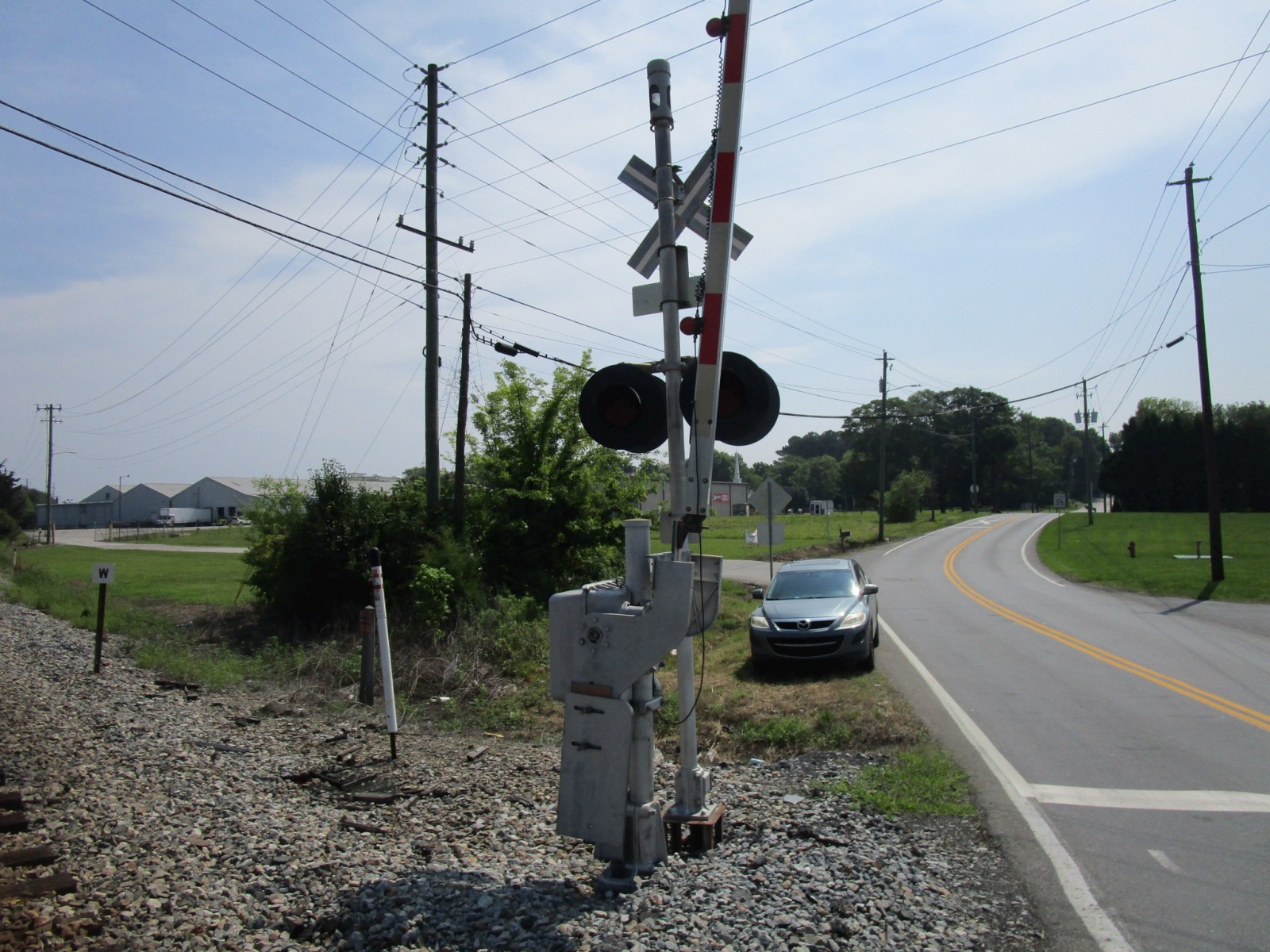

The western signal. No changes to it unlike the other signal.

38	39	40

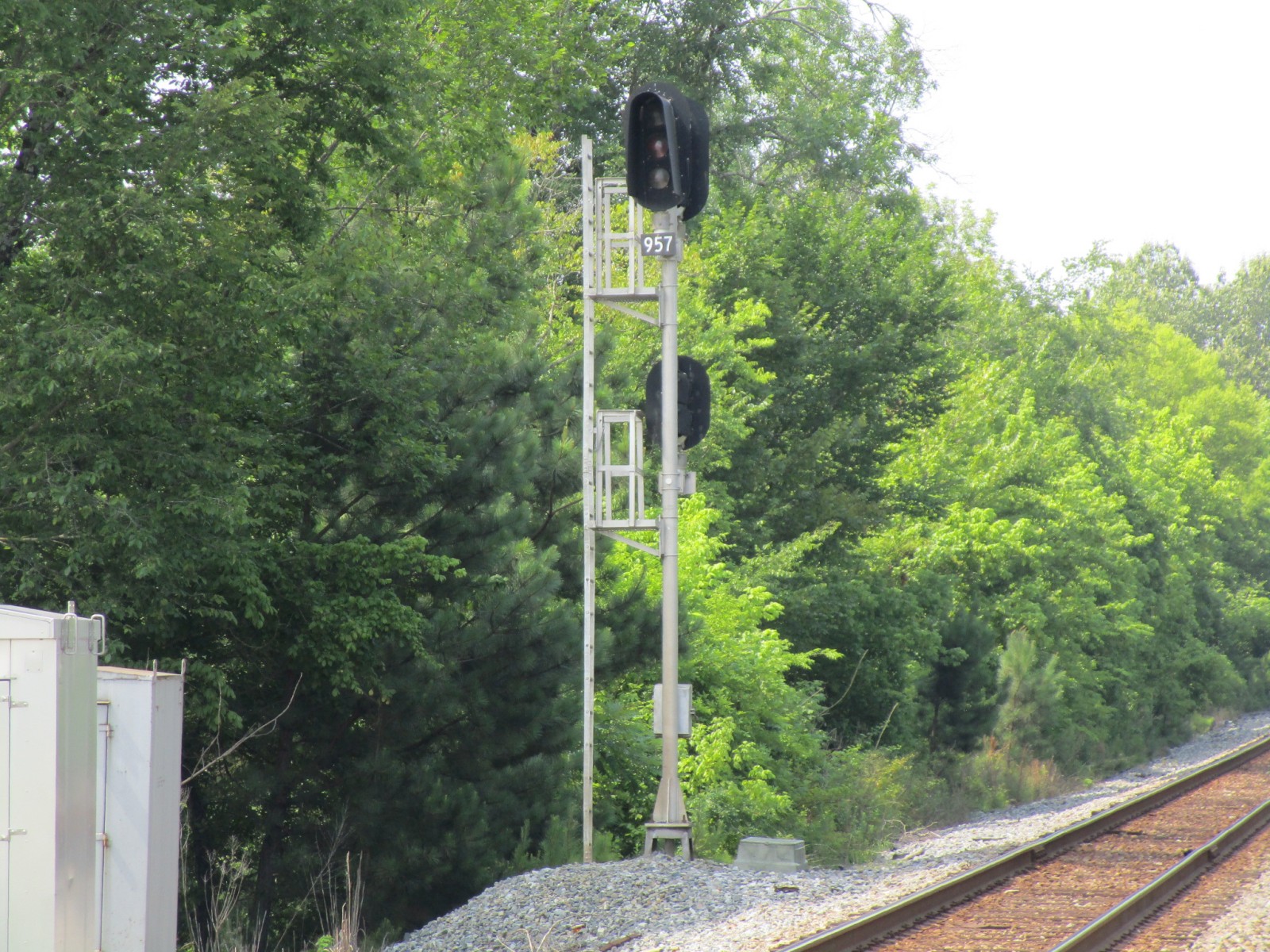

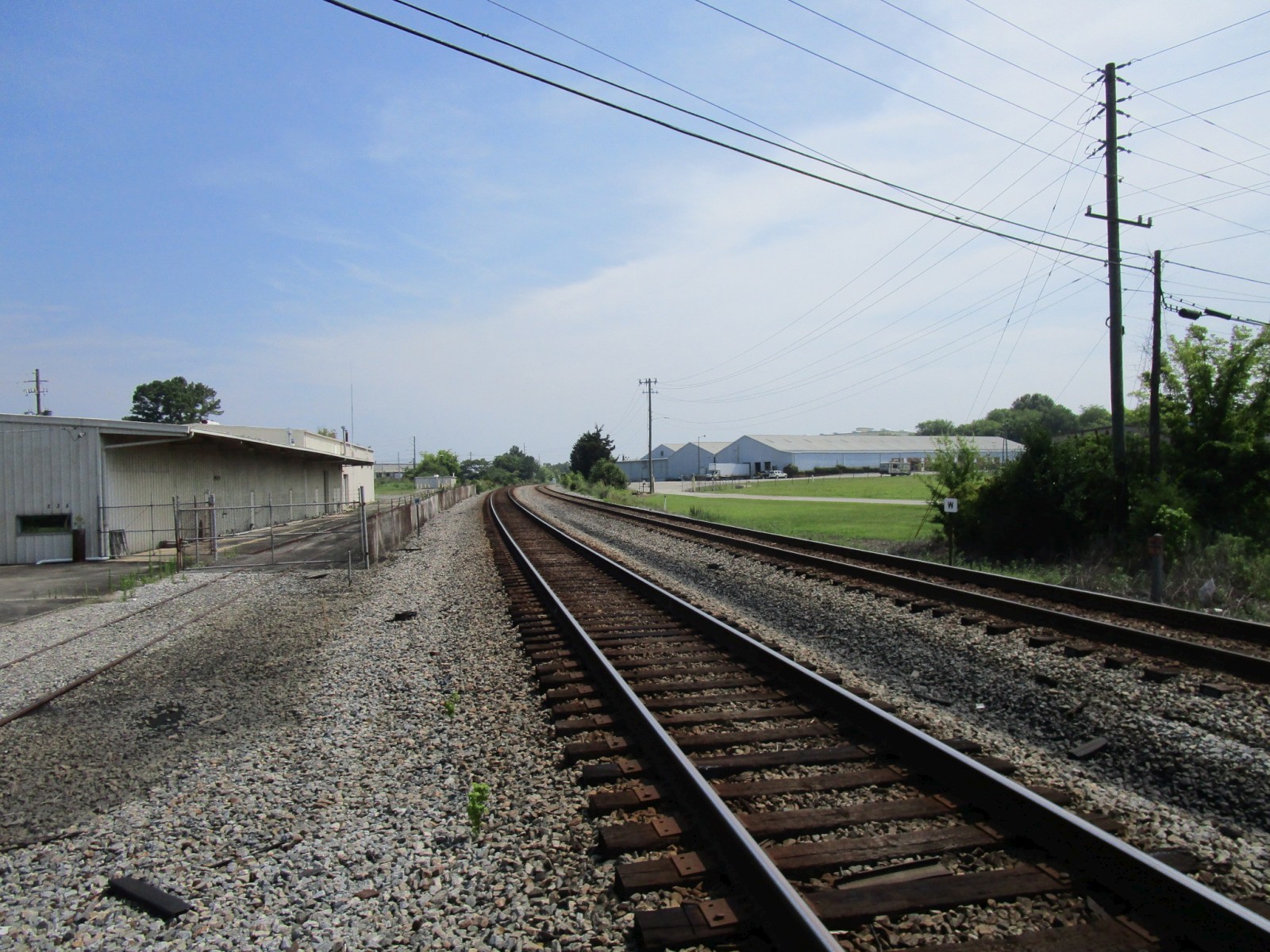

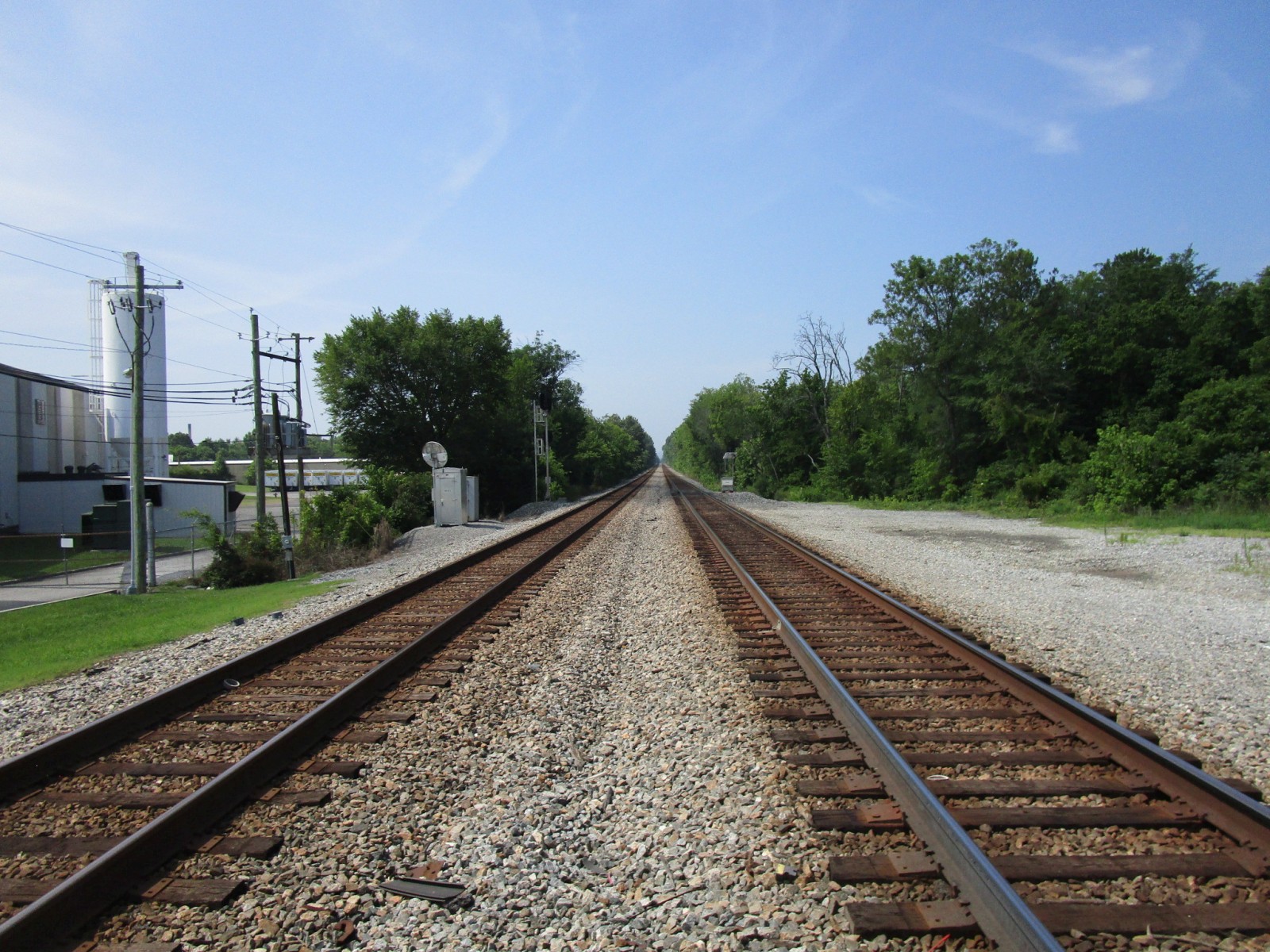

Track views.		A block signal on the CSX track stands near the crossing.



Pictures 1-28 were taken on 8-24-19.

Pictures 28-40 were taken 7-1-23 by freebrickproductions.
