MP: XXB71.130 |
Created December 28, 2022
Total Accidents: 2
Crossing
DOT #: 050490F
TOTAL
DAILY TRAINS: 27 (AS OF 2019)
Page created by: Ethan the Railfanner
This crossing is located on the CSX Lineville and A&WP Subdivisions.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | NEG electronic | NEG electronic |
| Base: | WCH | WCH |
| Light Frames: | 4 - 12x24" Safetran w/ WCH 2nd Gen LEDs | 6 - 12x24" WCH w/ Leotek EV Series LEDs |
| Gate Lights: | 3 - NEG LEDs | 3 - NEG LEDs |
| Gate Mechanism: | Siemens Sticker Style 2 | Siemens Sticker Style 2 |
| Gate Striping: | Vertical | Vertical |
1 |
2 |
3 |
4 |

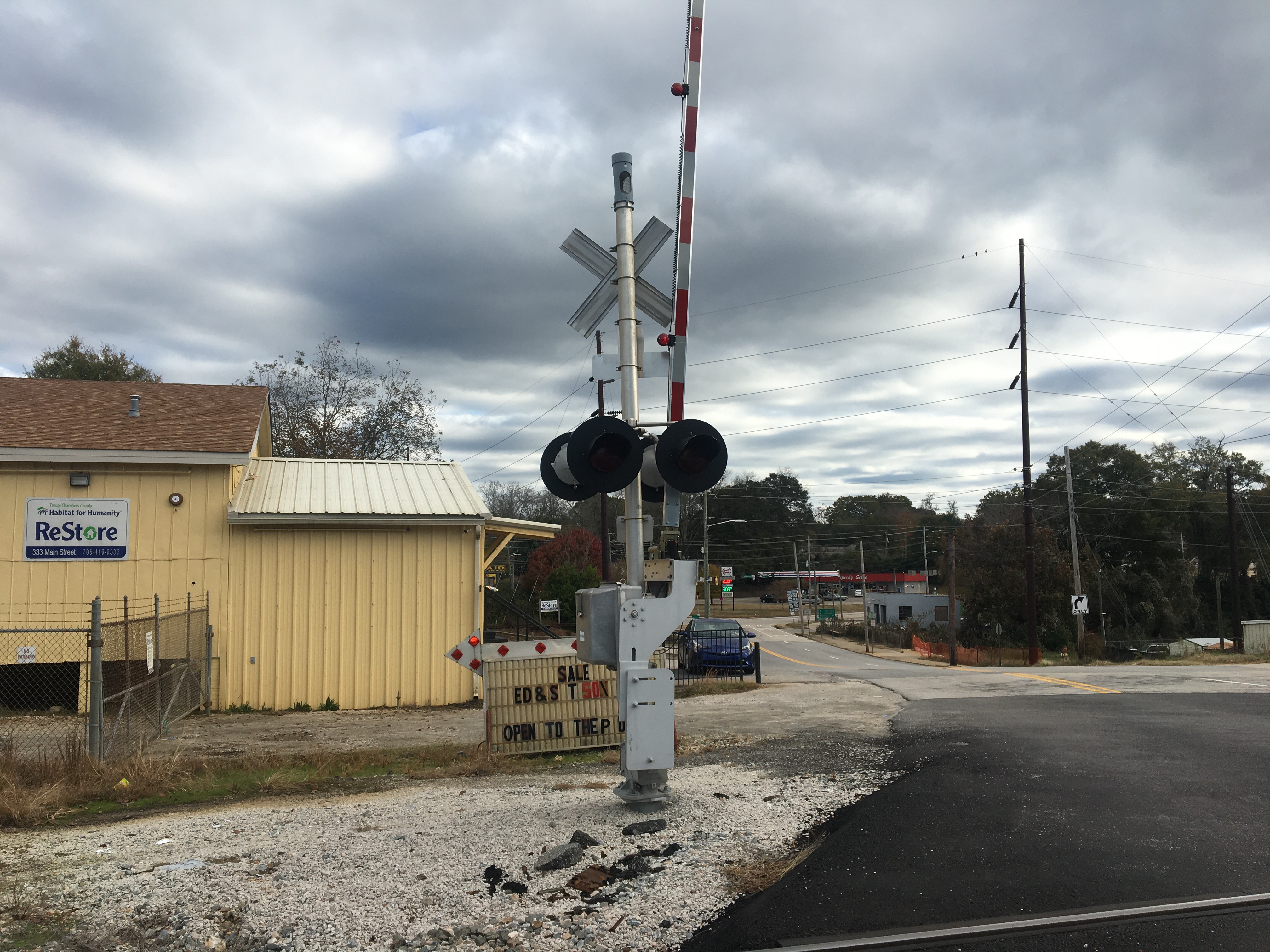

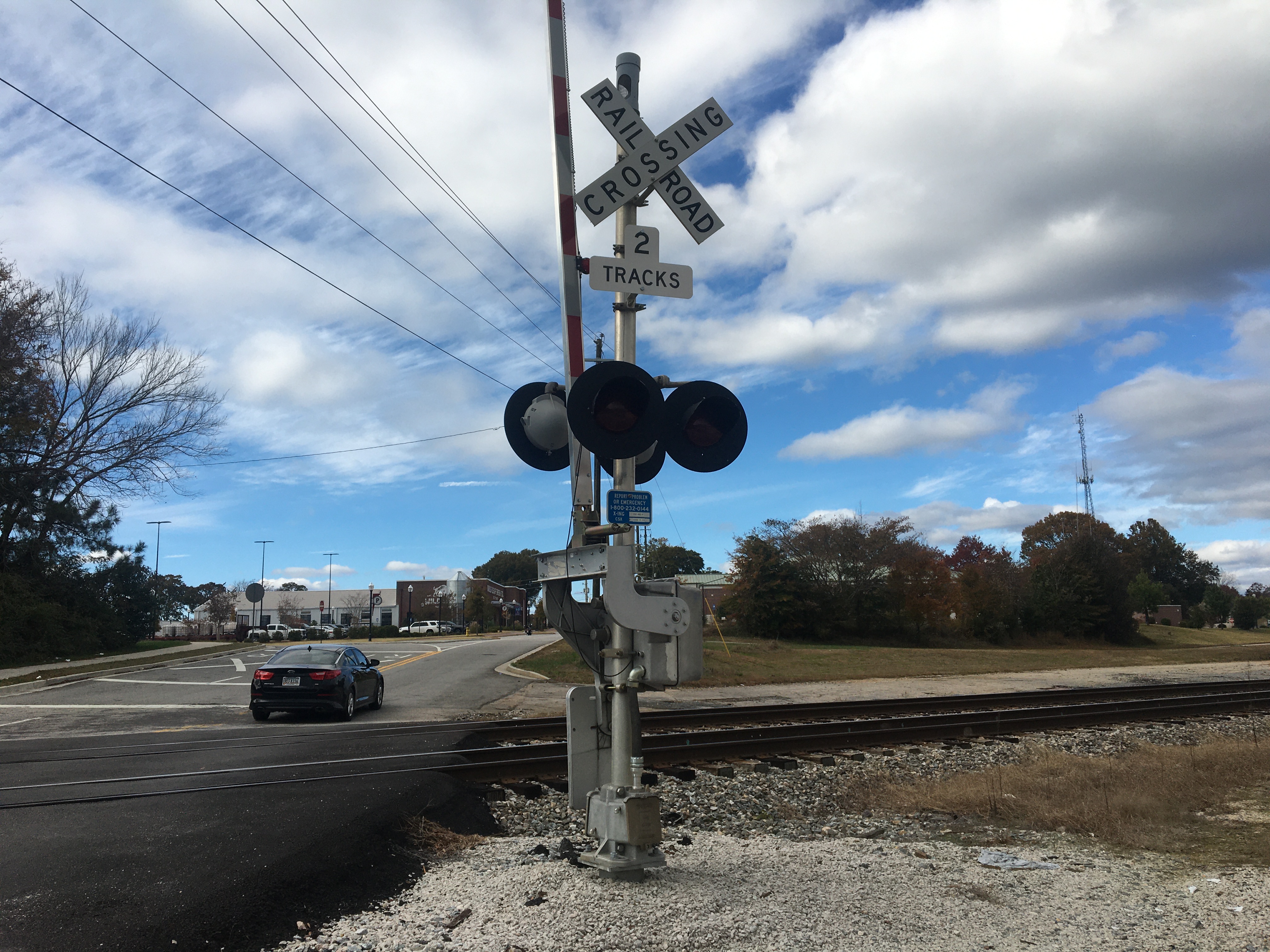

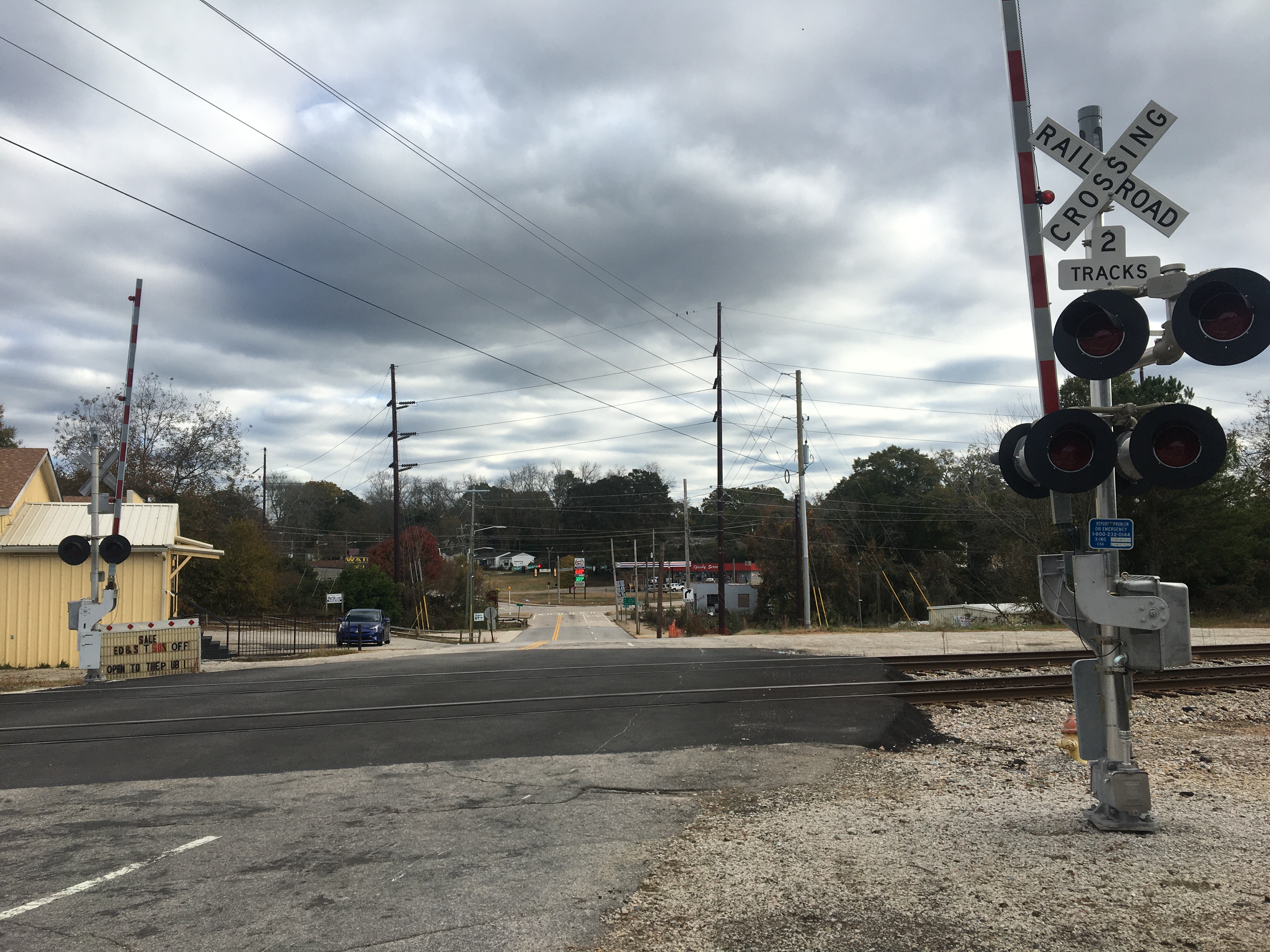

Overviews of this crossing. |
The eastern signal. |
||
5 |
6 |
7 |
8 |

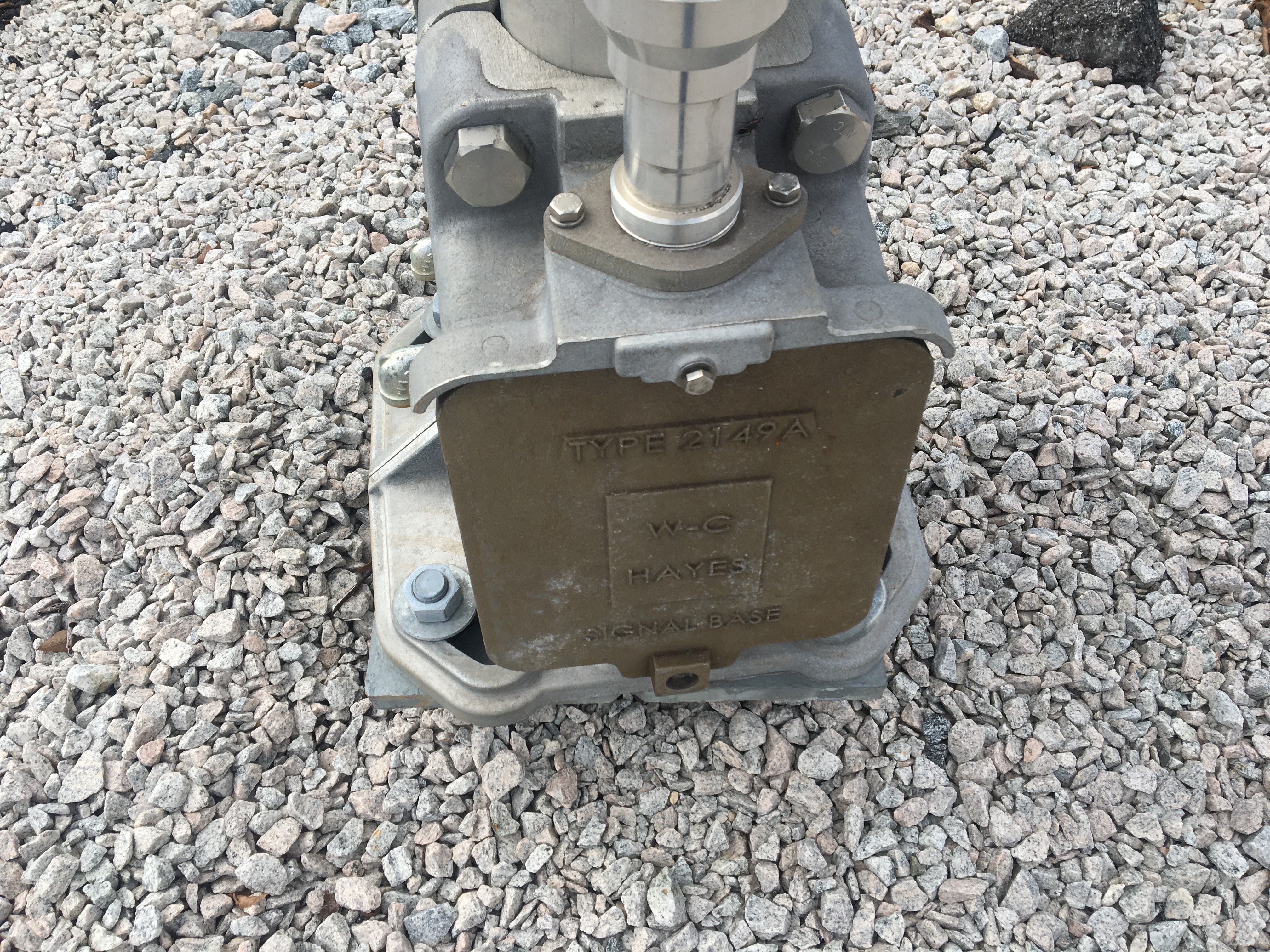

It has a WCH base. |

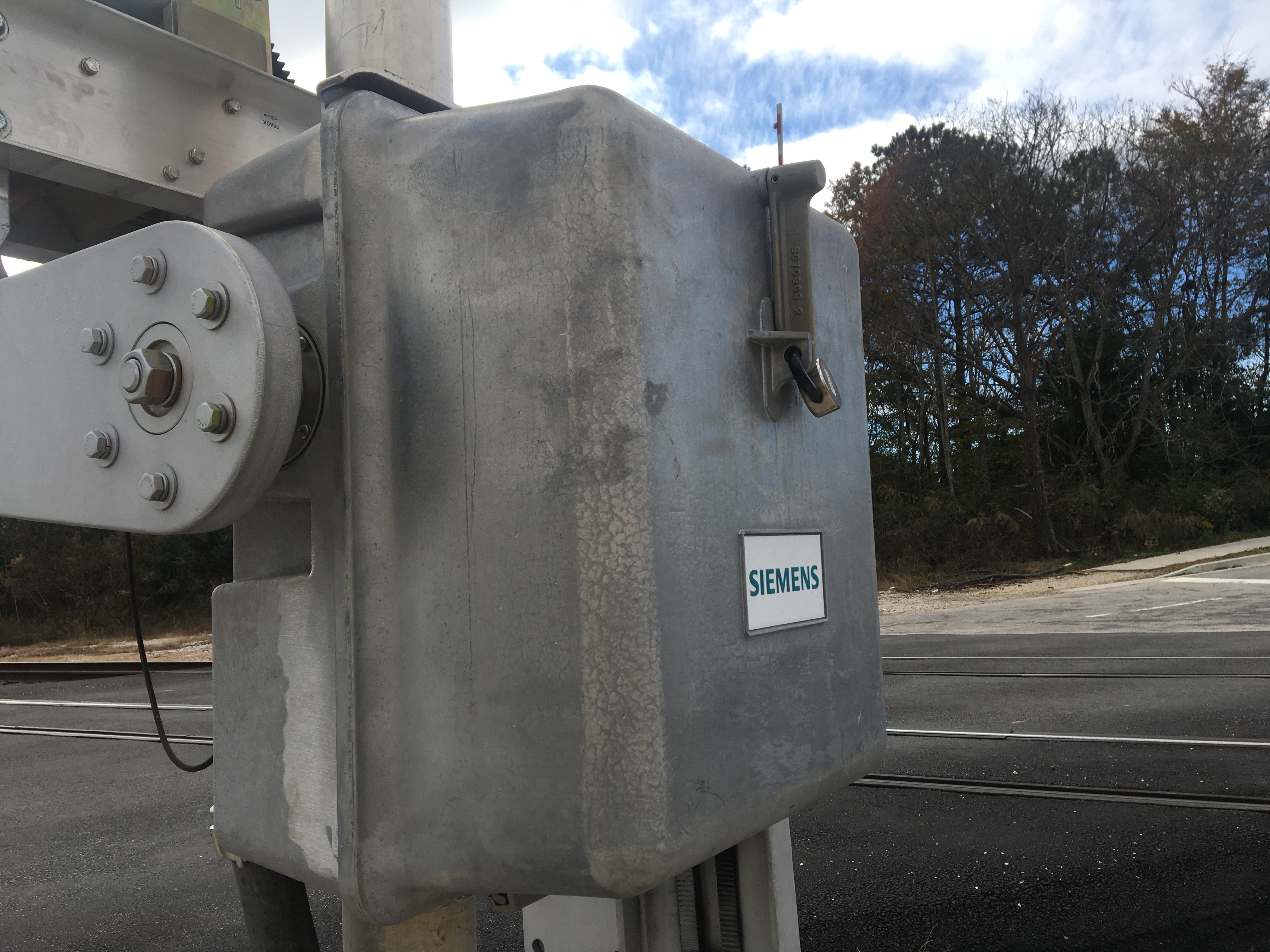

A Siemens gate mechanism. |

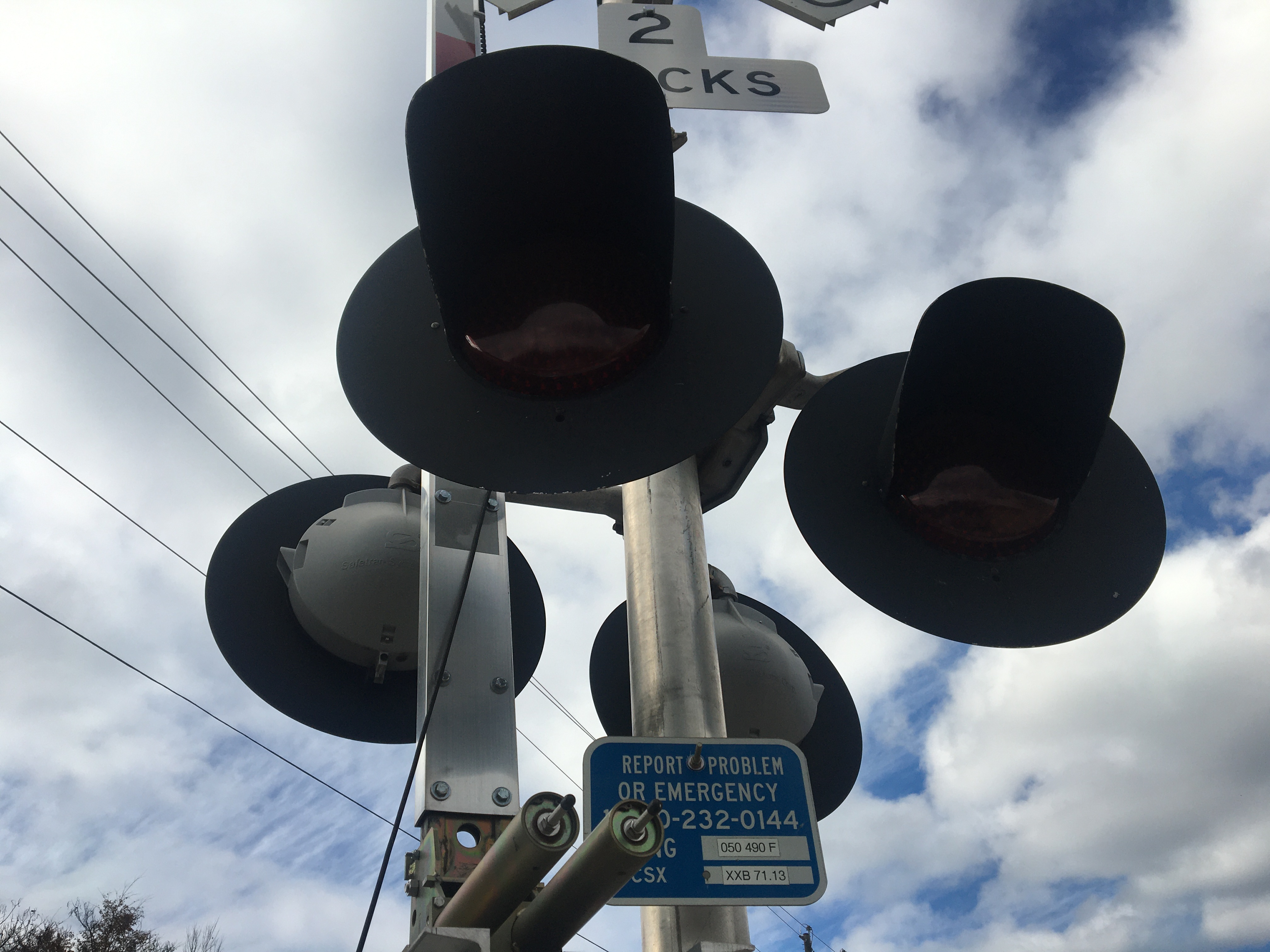

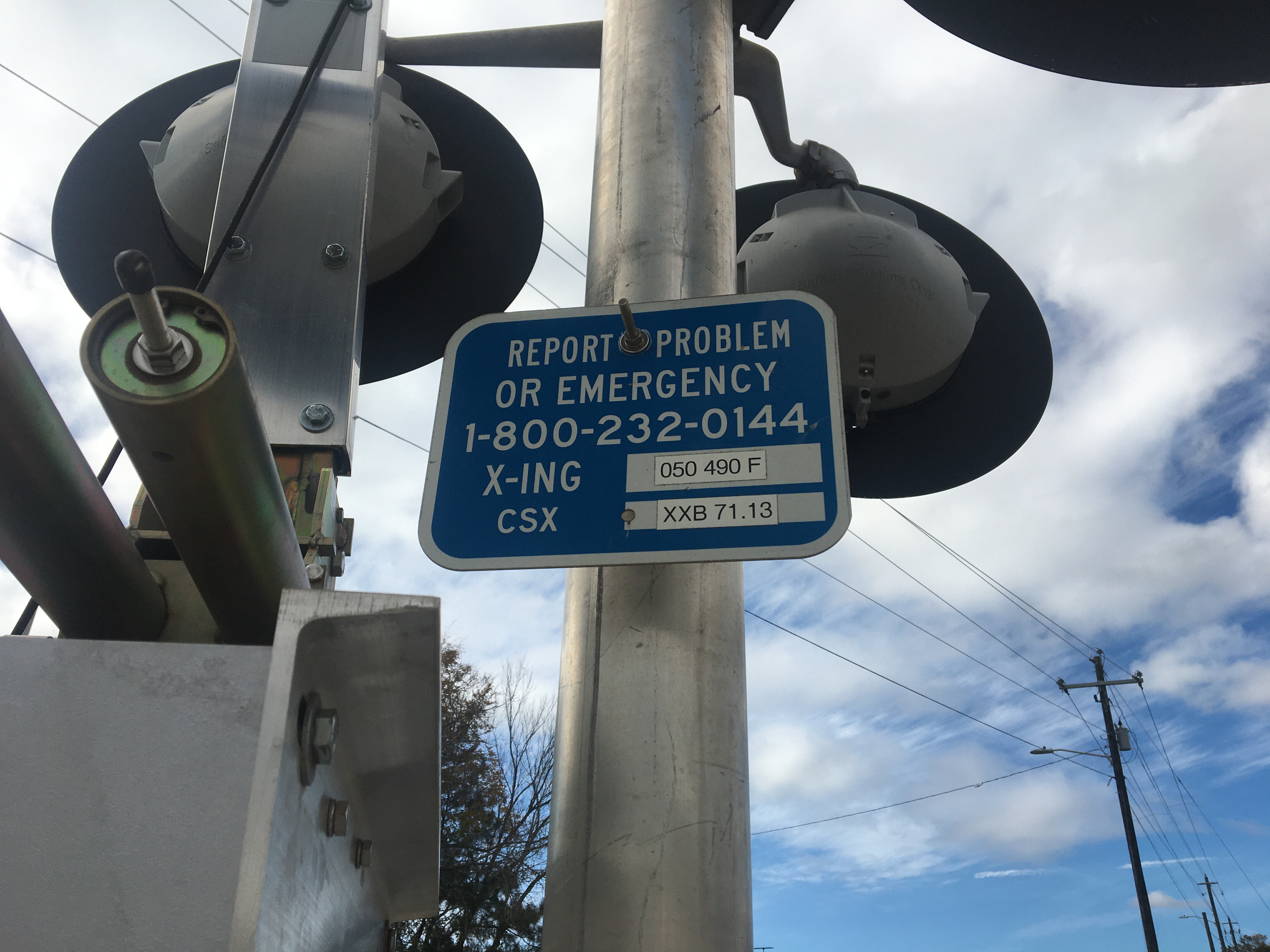

The emergency information. |
9 |
10 |
11 |
12 |

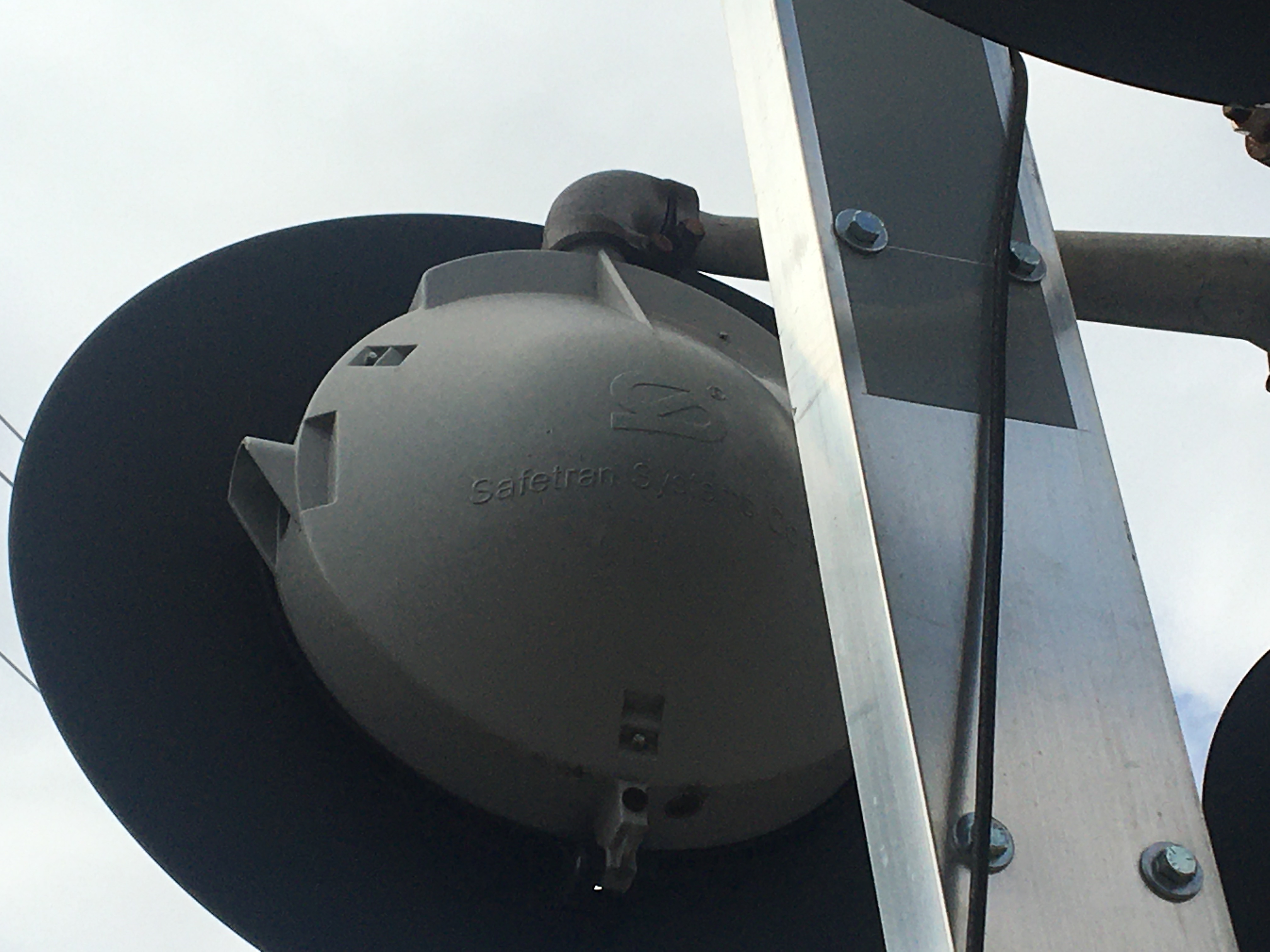

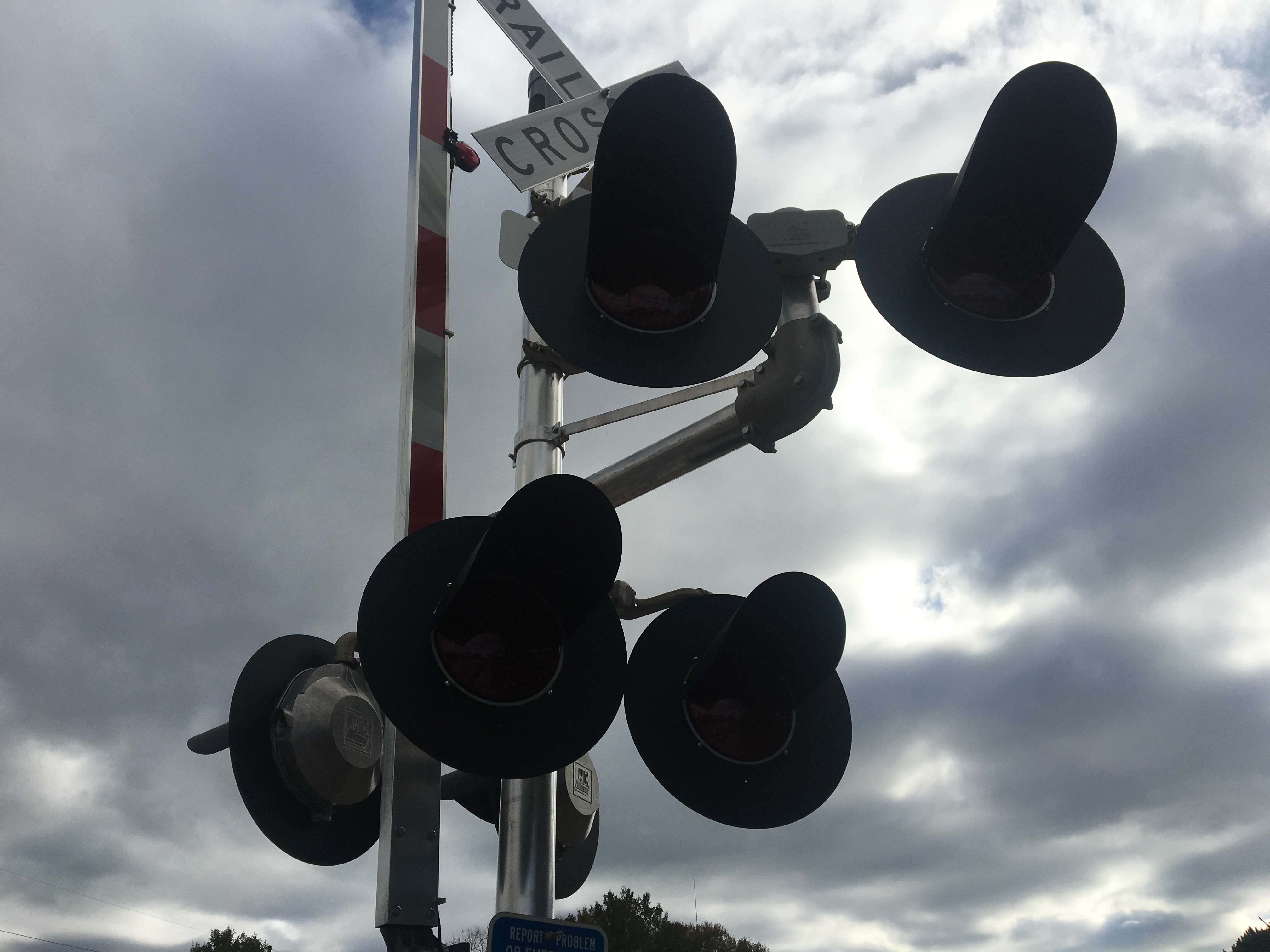

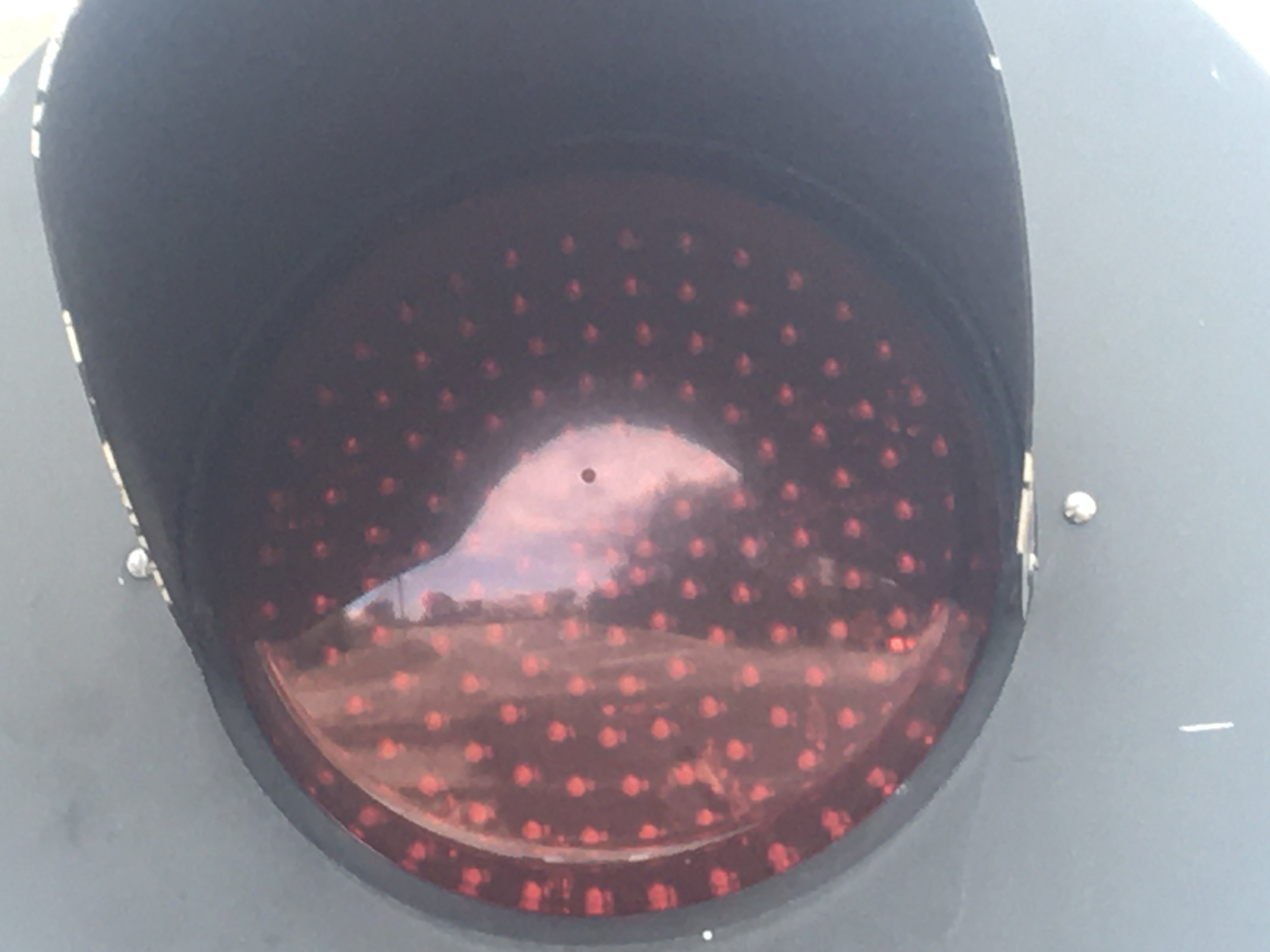

The lights on this signal are Safetran 12x24s with WCH 2nd Gen. LEDs. |
The bell here is an NEG E-bell. |

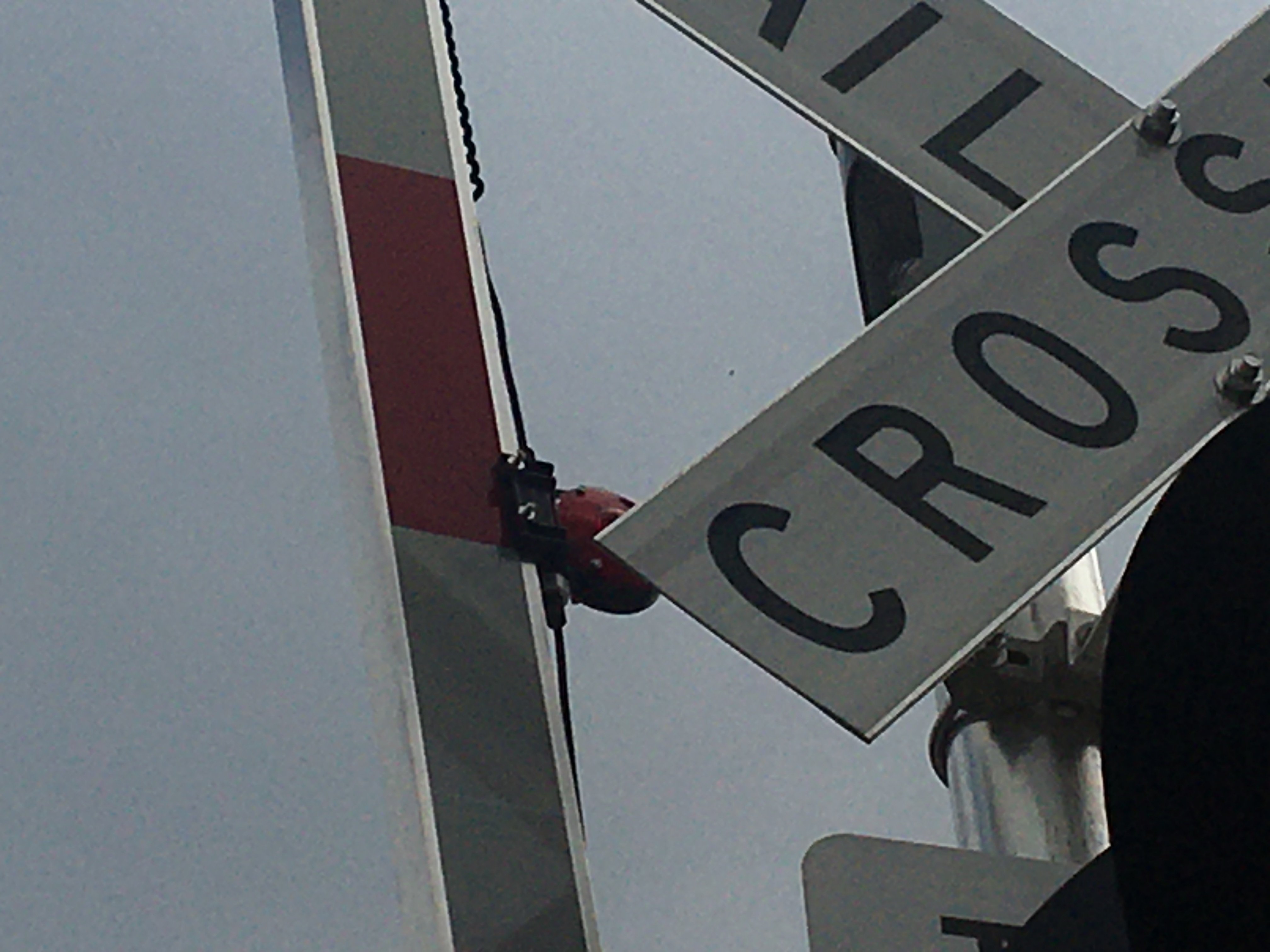

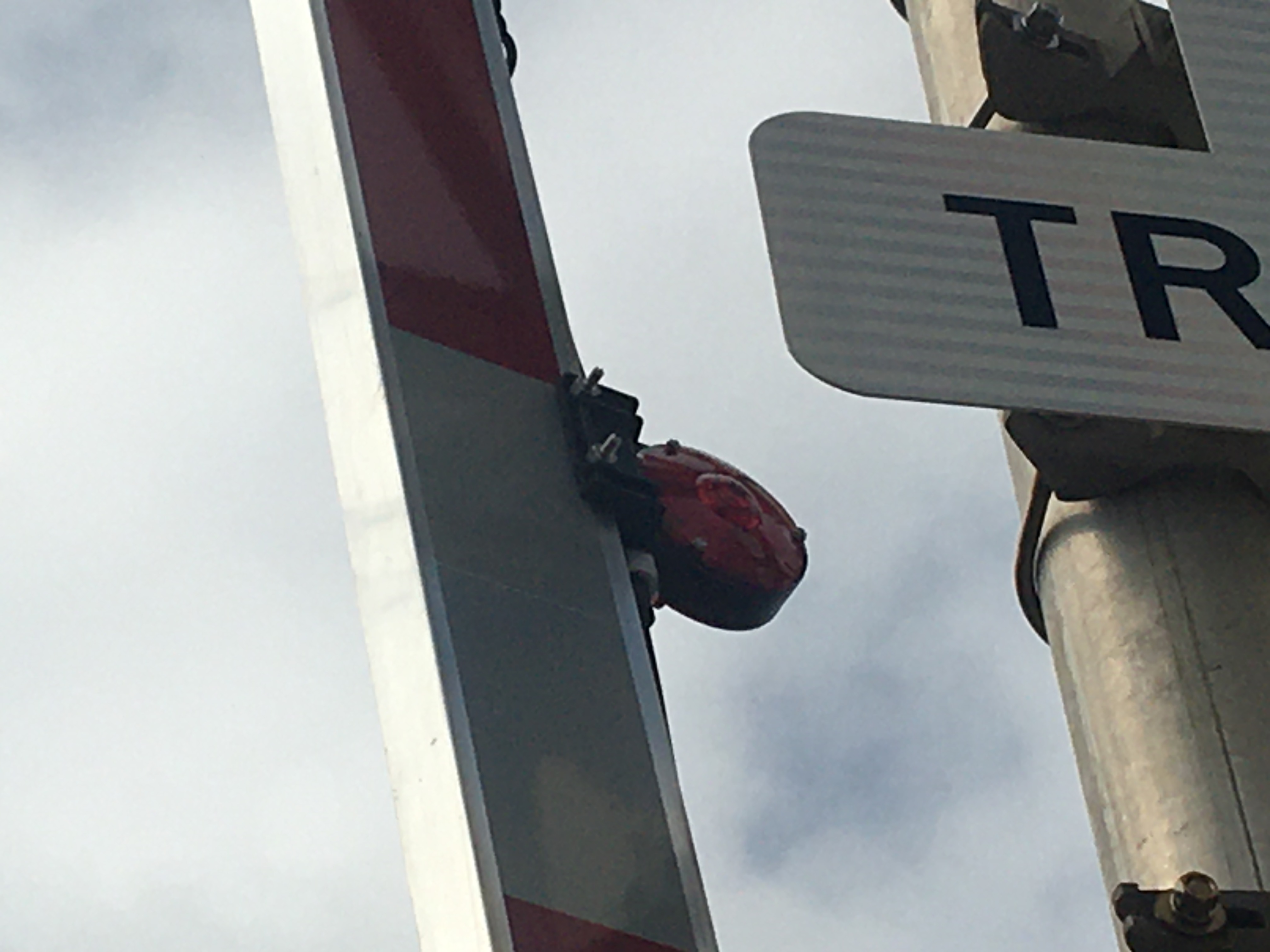

The gate lights are from NEG. |
|
13 |
14 |
15 |
16 |

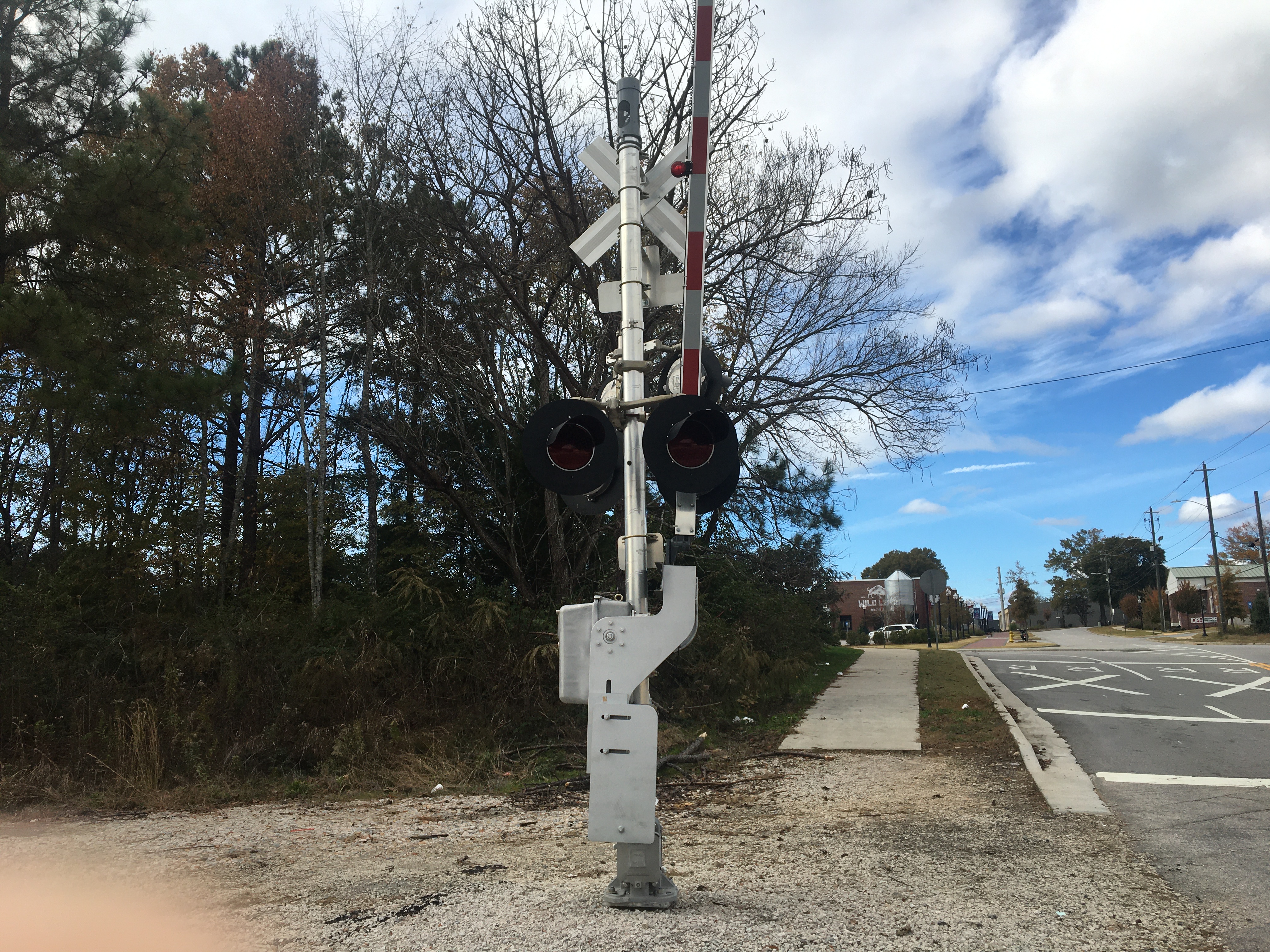

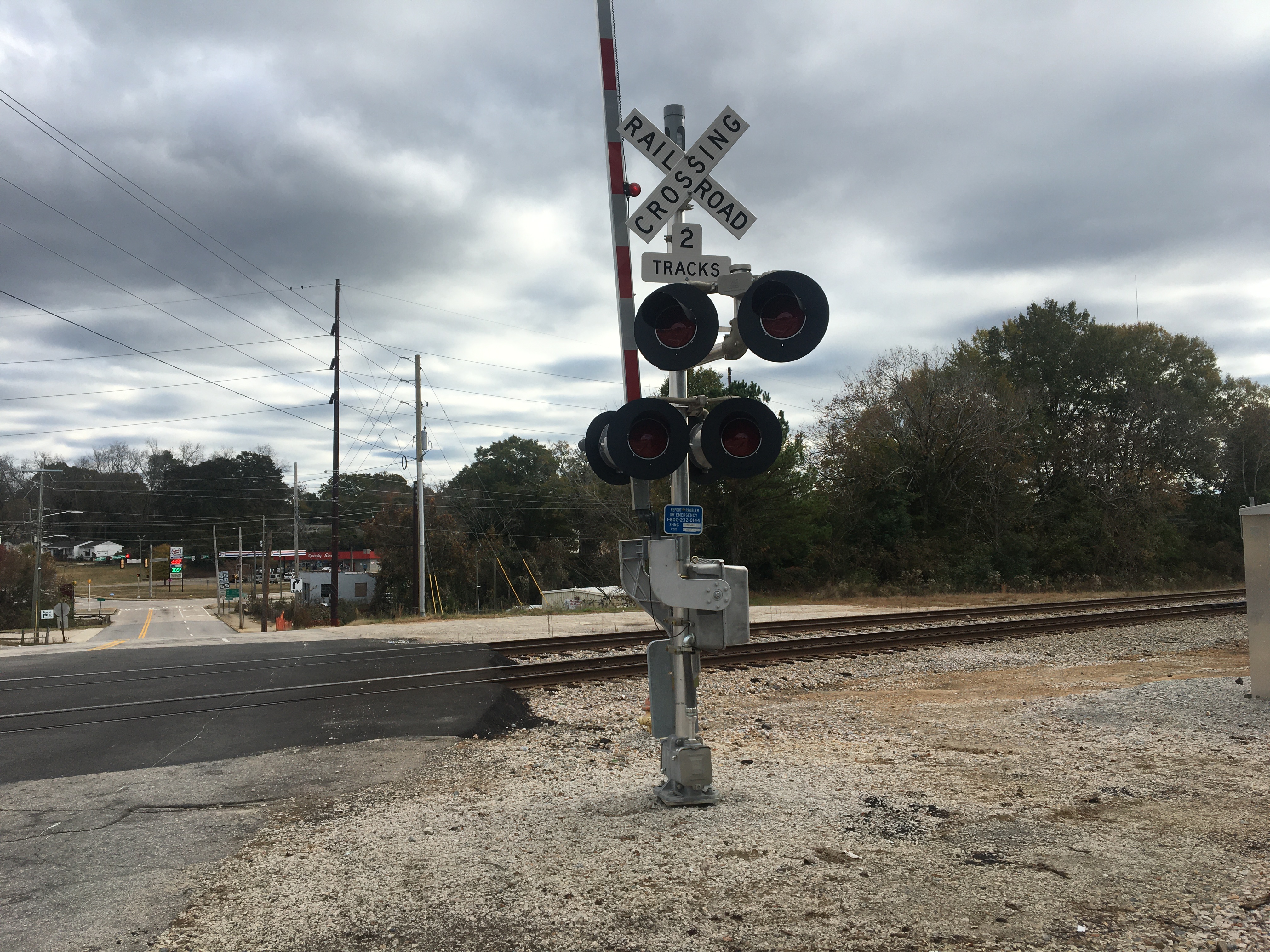

The western signal. |

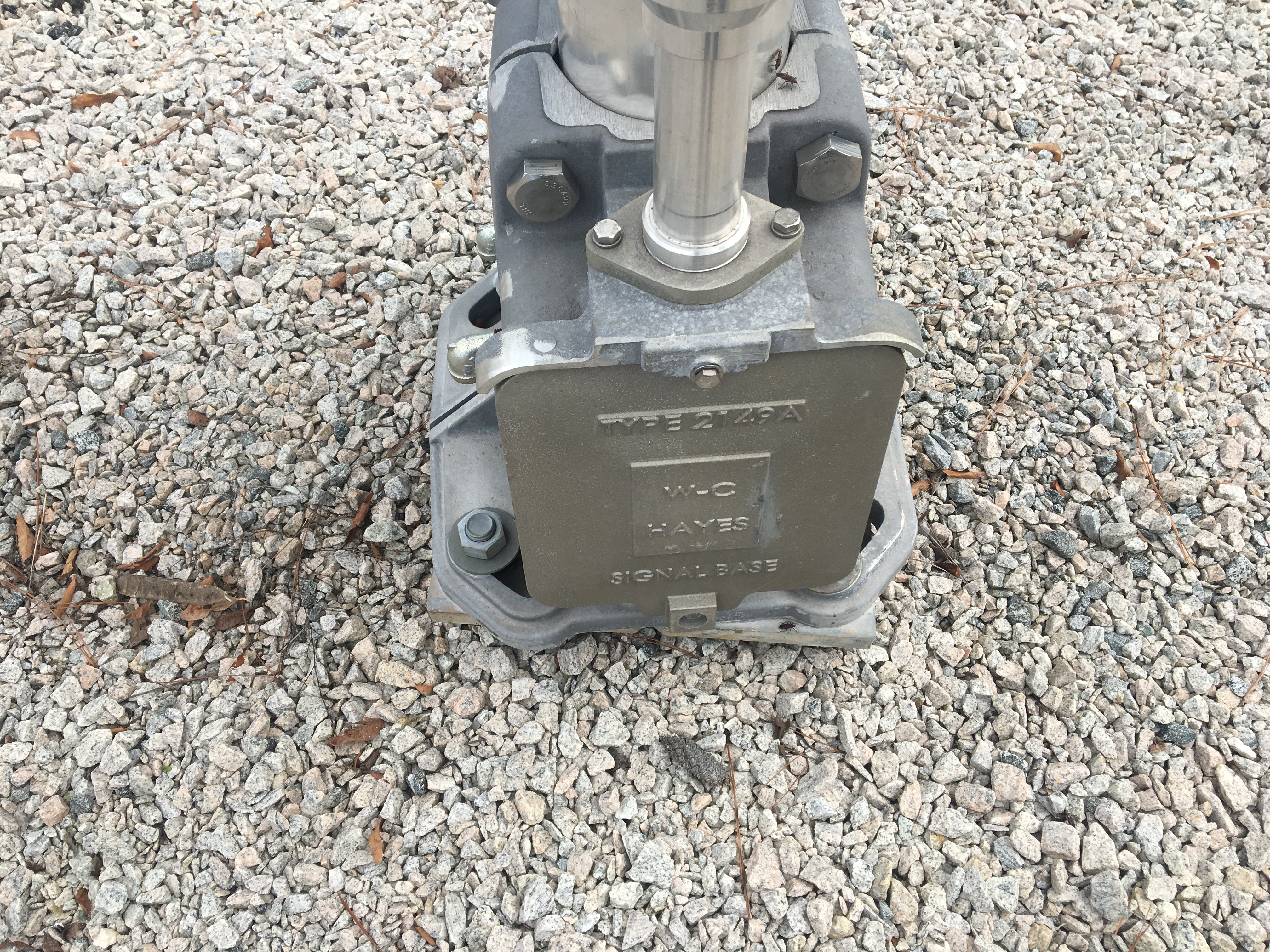

It has another WCH base. |
Another Siemens gate mechanism. |
|
17 |
18 |
19 |
20 |

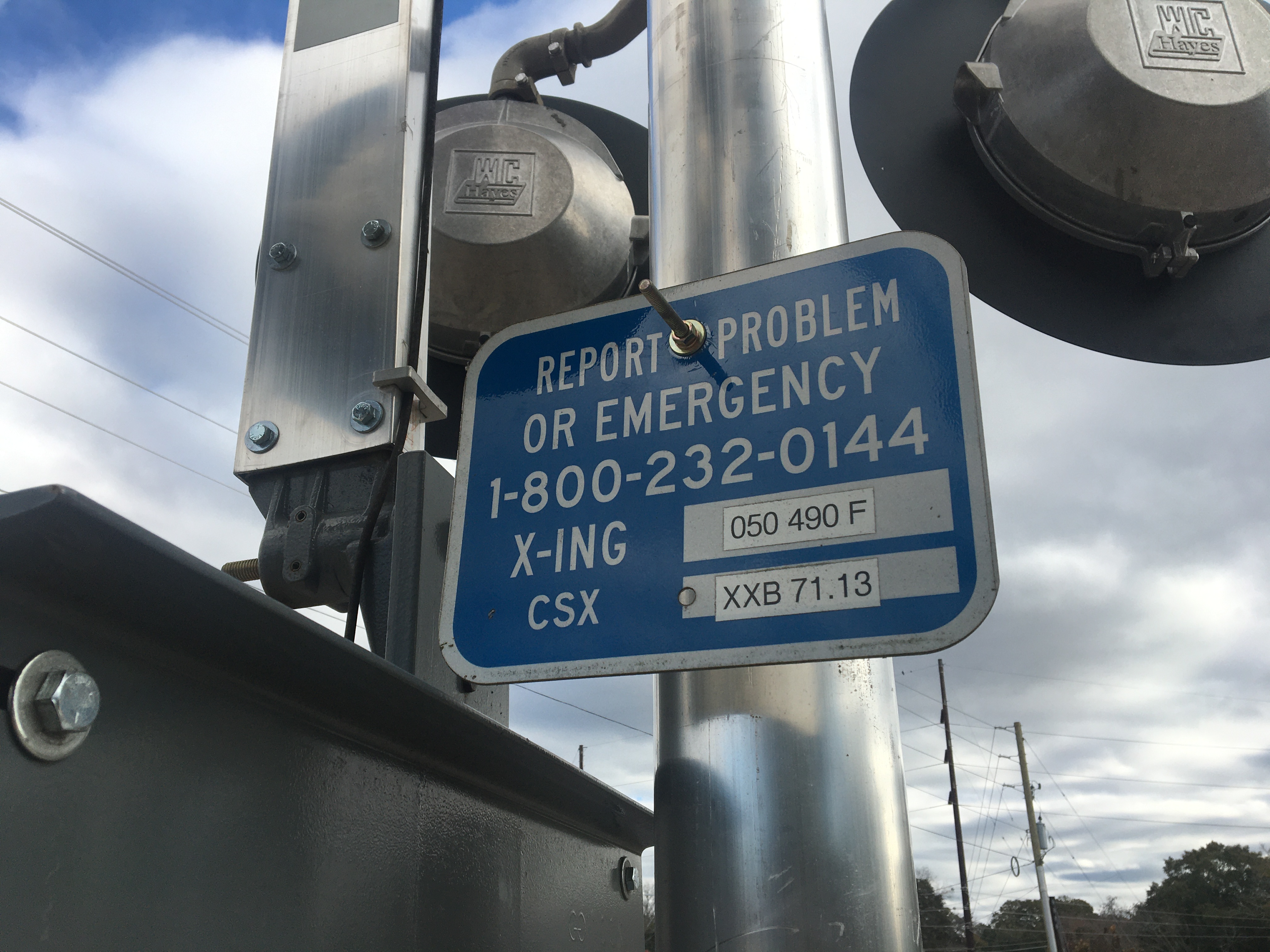

The emergency information. |

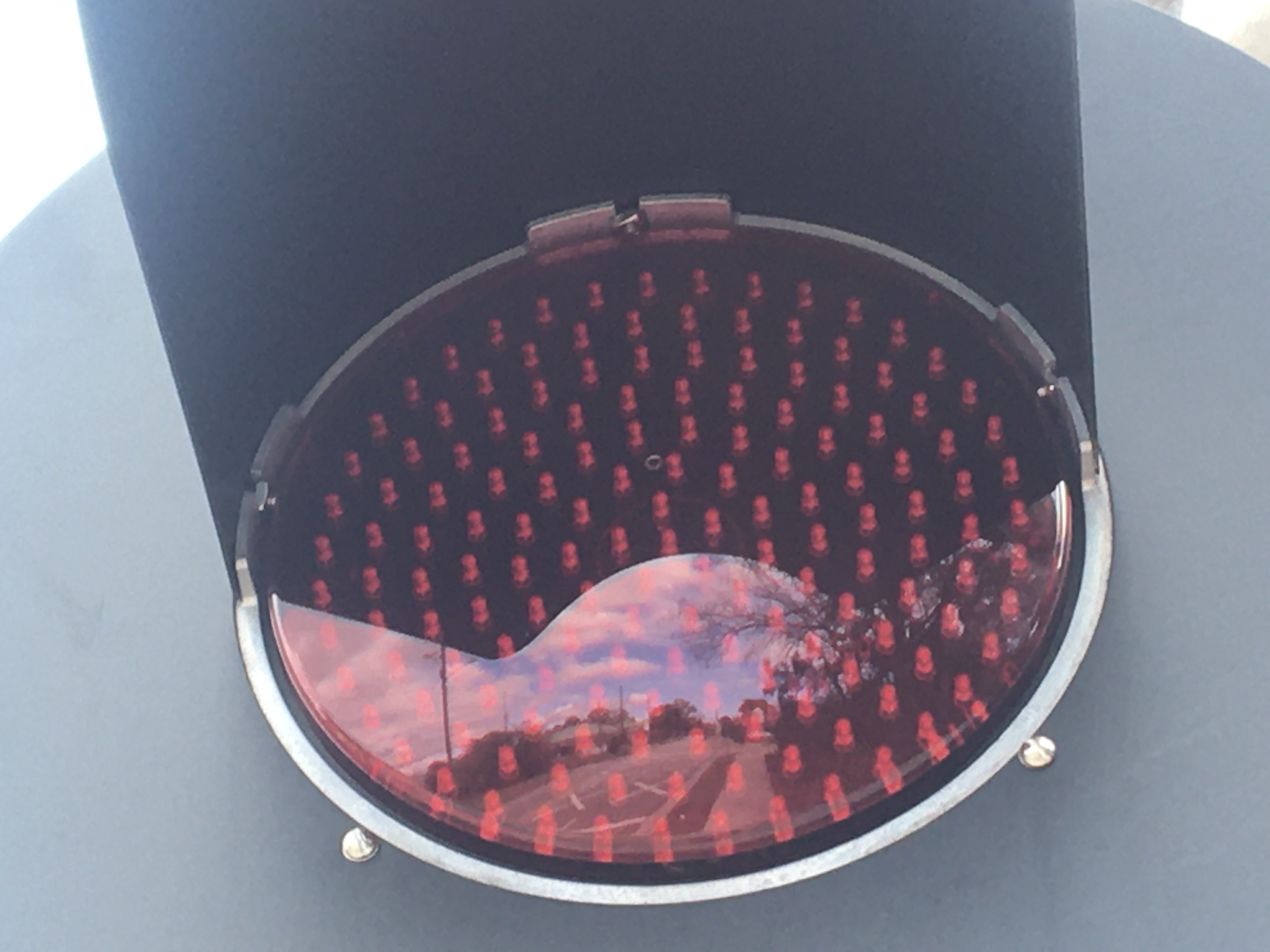

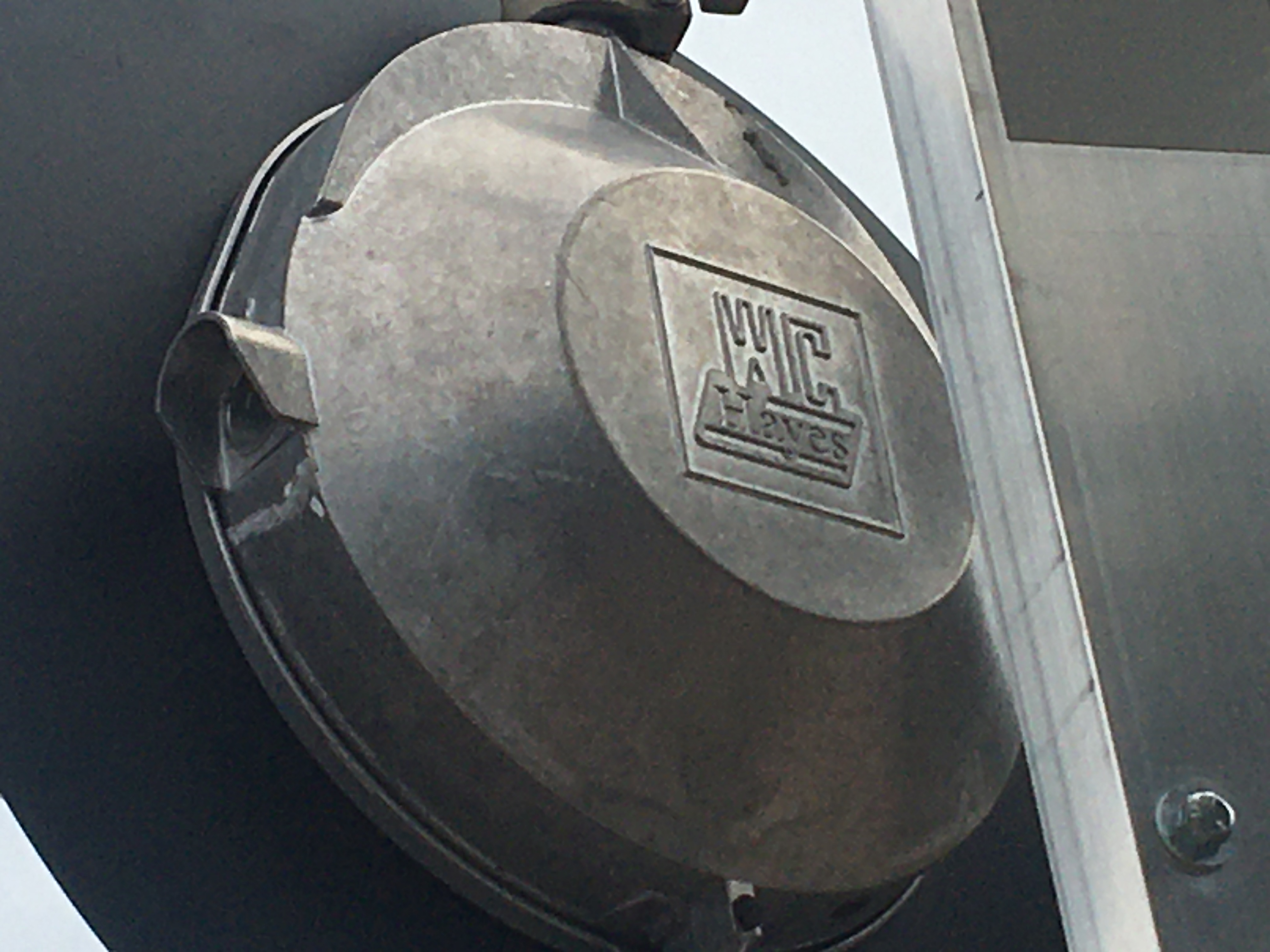

This signal has WCH 12x24 lights with Leotek EV series LEDs. |
||
21 |
22 |
23 |
24 |

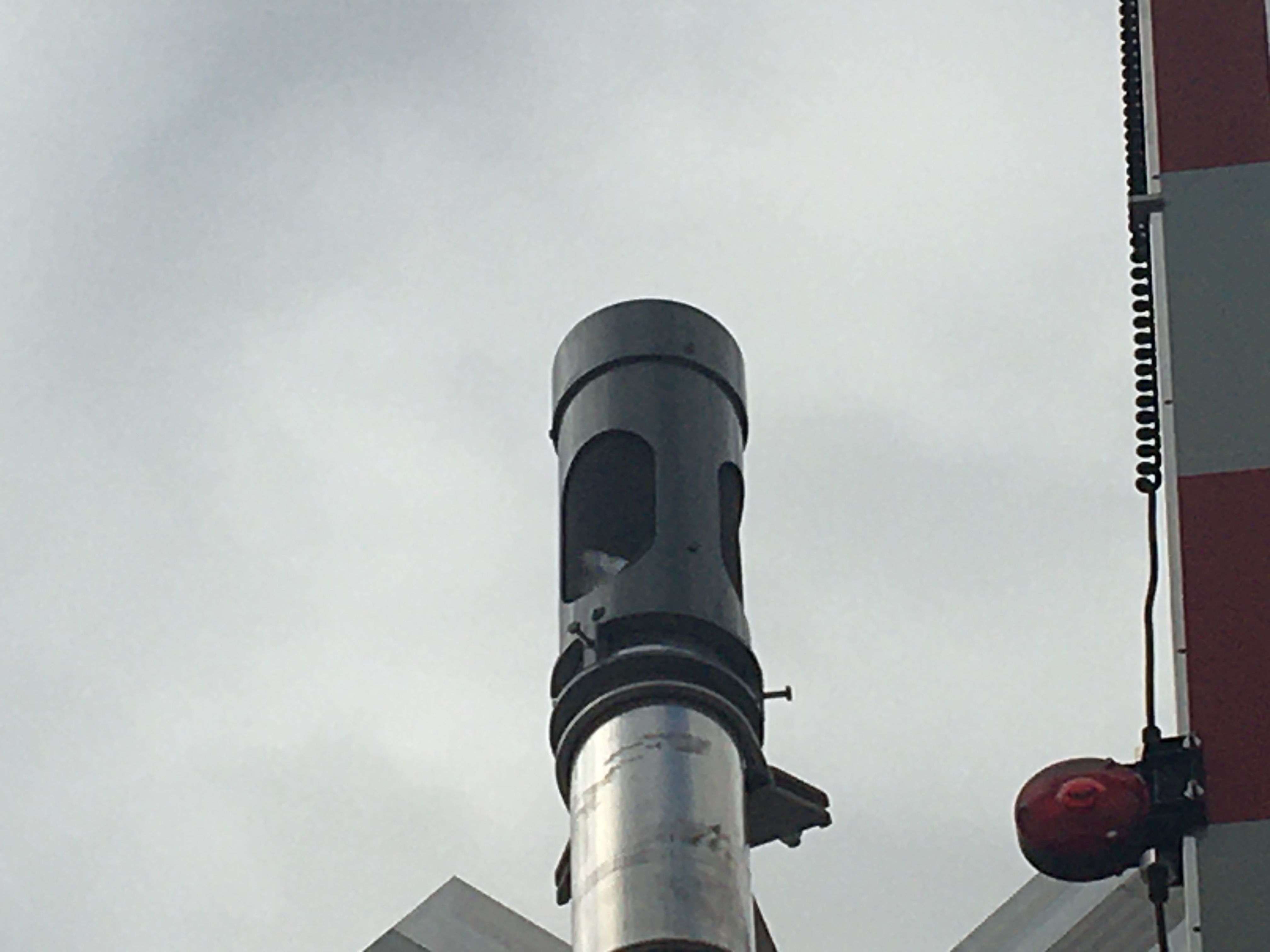

This signal uses another NEG E-bell. |
More NEG gate lights over here. |

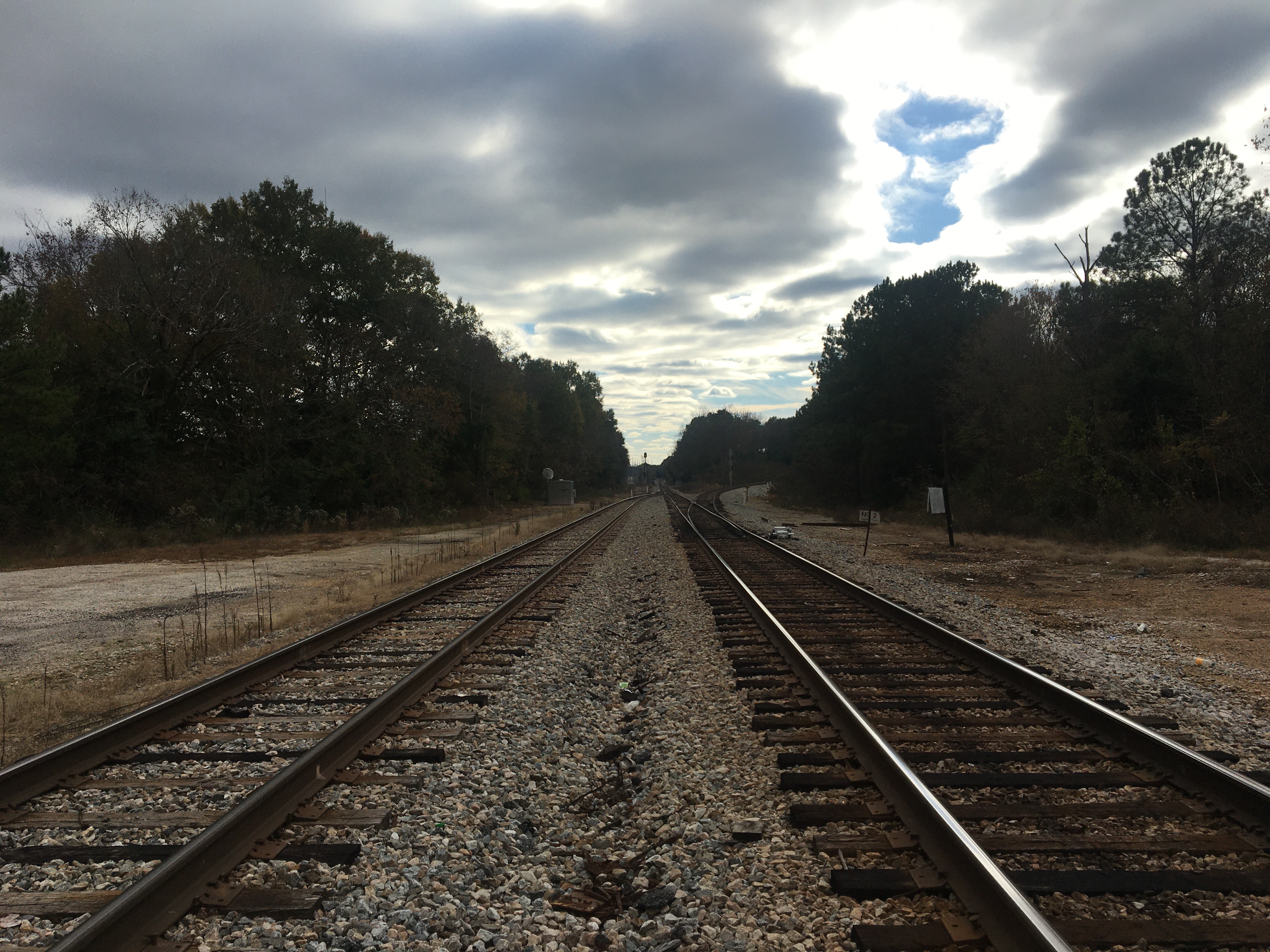

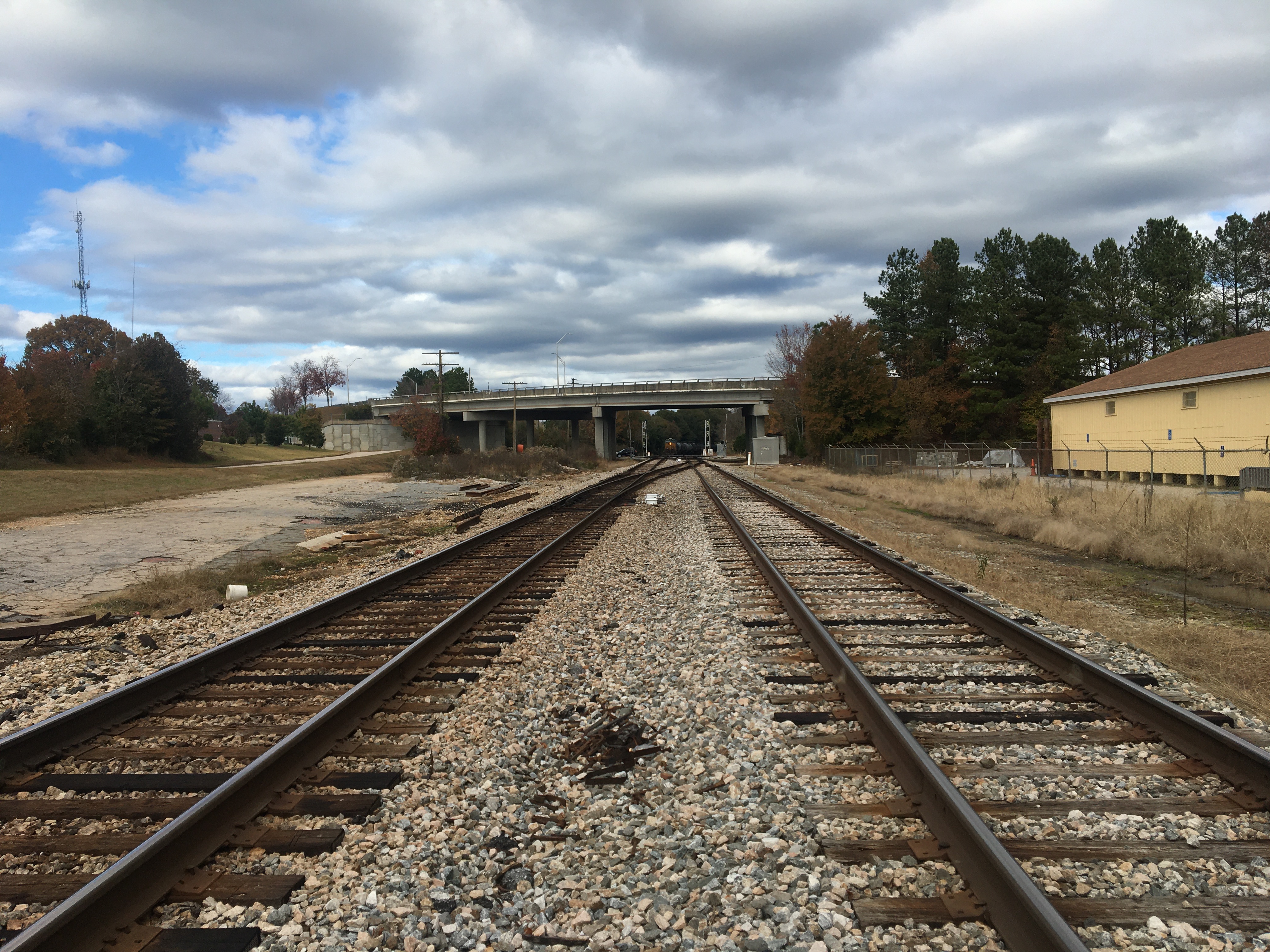

Track view facing north towards Depot Street & Barnard Avenue. |
Track view facing south towards Douglas Street on the CSX Lineville Subdivision and Mulberry Street on the CSX WofA Subdivision. |
25 |

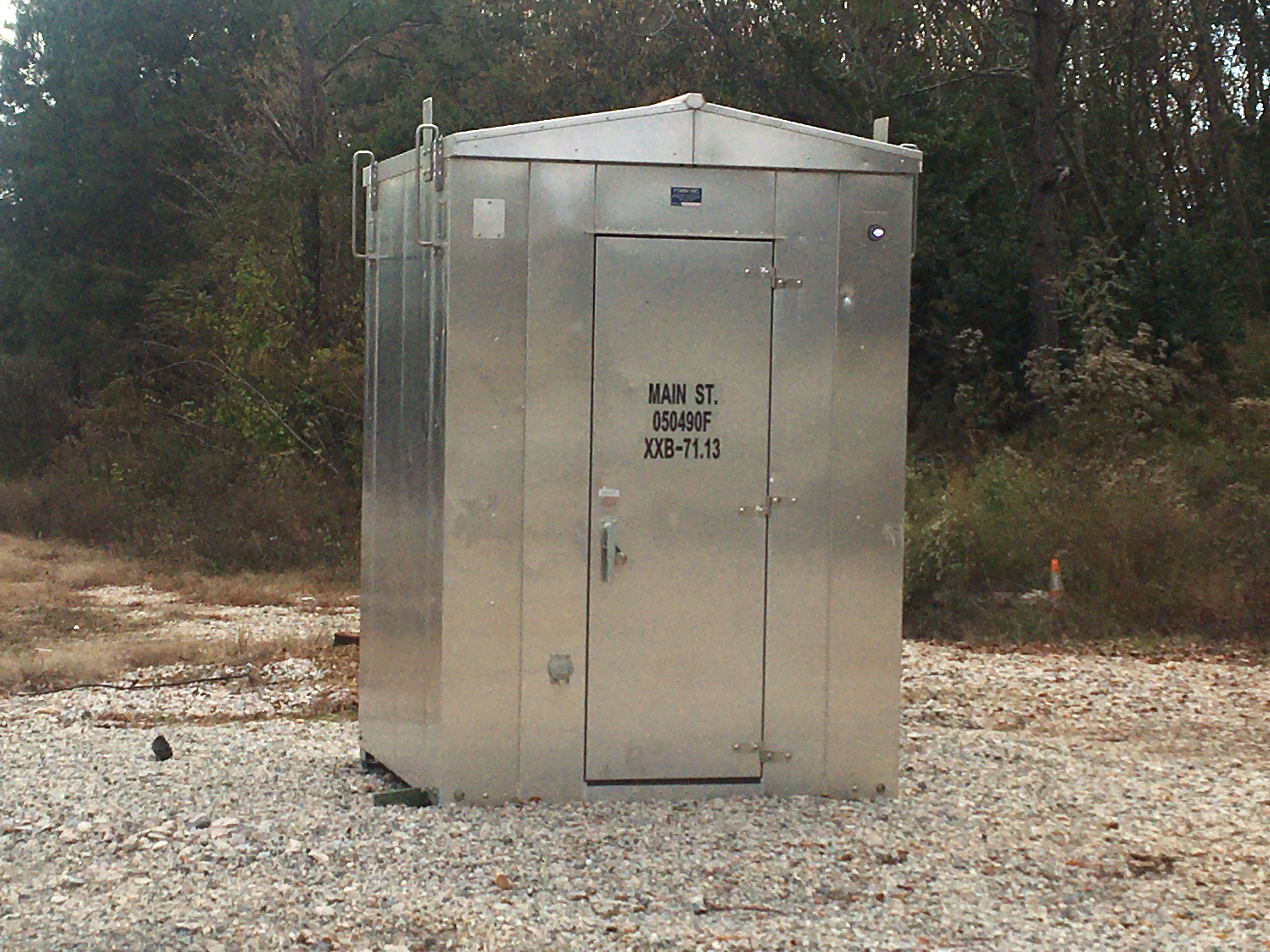

The relay bungalow. |
All pictures were taken on 11-17-19.
