MP: ANJ821.660 |
Created December 13, 2022
Total Accidents: 1
Crossing
DOT #: 638733K
TOTAL
DAILY TRAINS: 19 (AS OF 2020)
Page created by: freebrickproductions
This crossing is located on the CSX Lineville Subdivision.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | NEG electronic | NEG electronic |
| Base: | WCH | WCH |
| Light Frames: | 4 - 12x24" WCH w/ Leotek EV Series LEDs | 4 - 12x24" WCH w/ Leotek EV Series LEDs |
| Gate Lights: | 3 - NEG LEDs | 3 - NEG LEDs |
| Gate Mechanism: | Siemens Imprinted | Siemens Imprinted |
| Gate Striping: | Vertical | Vertical |
1 |
2 |
3 |
4 |

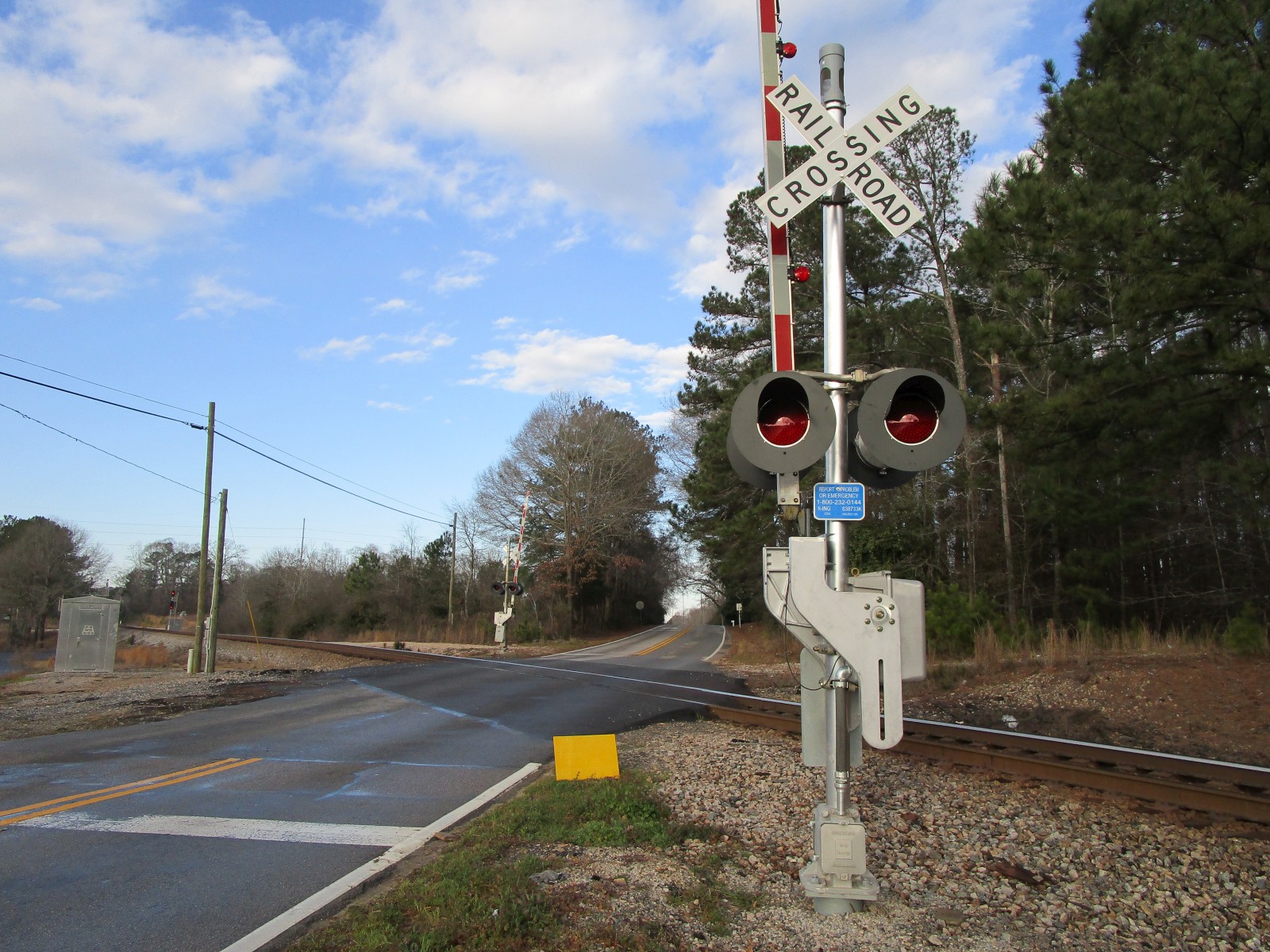

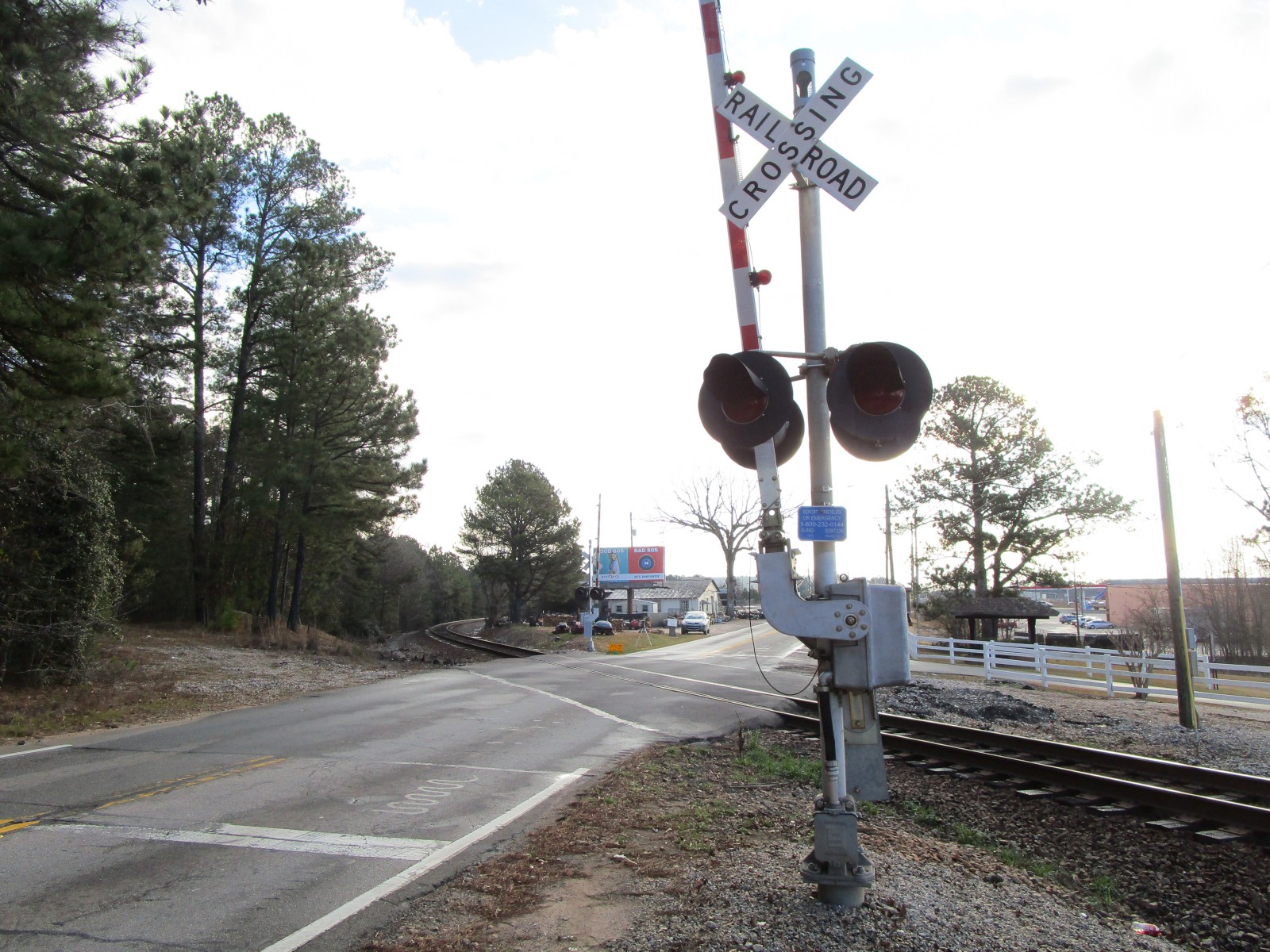

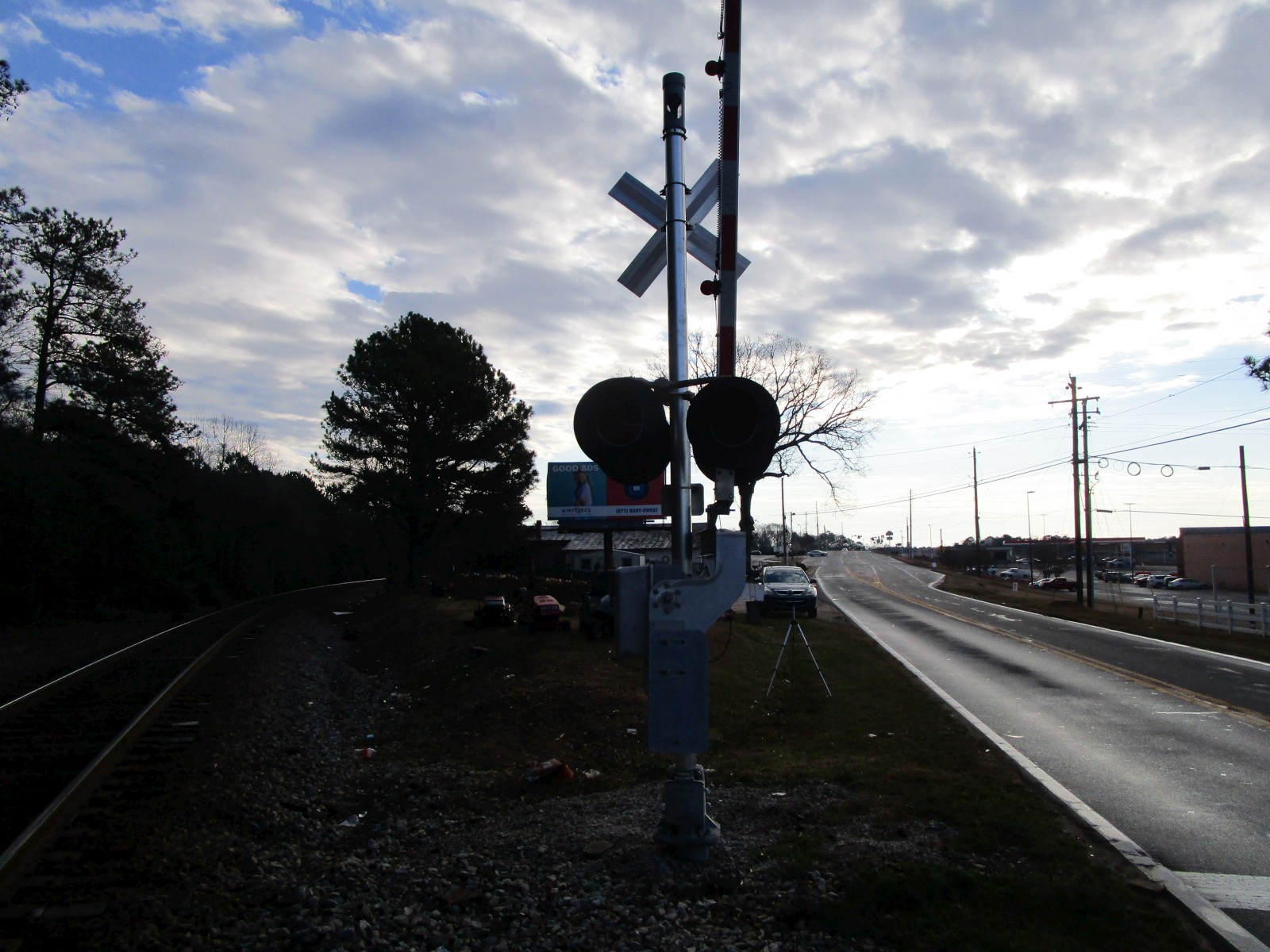

Overviews of this crossing. |

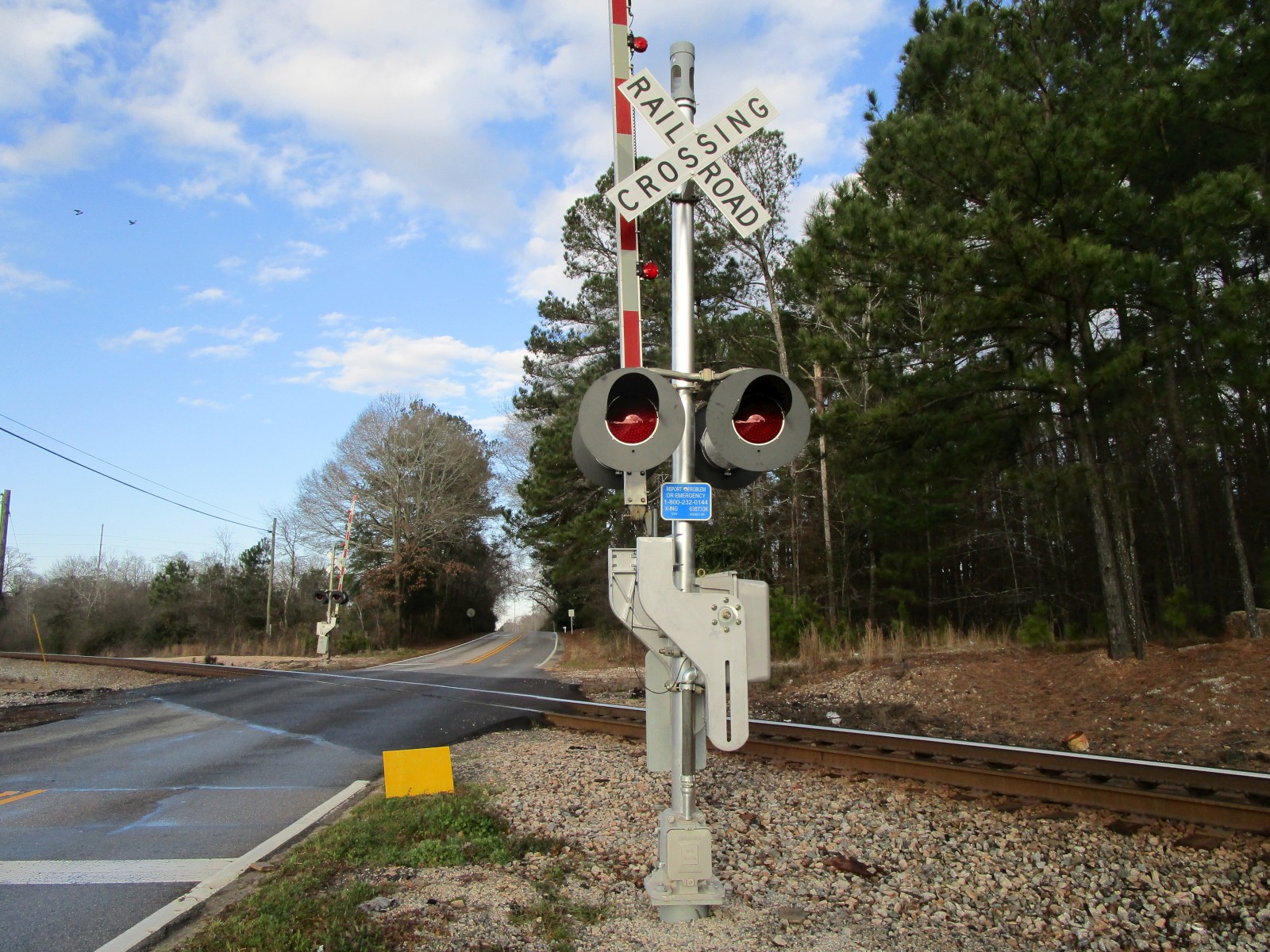

The first signal. |
||
5 |
6 |
7 |
8 |

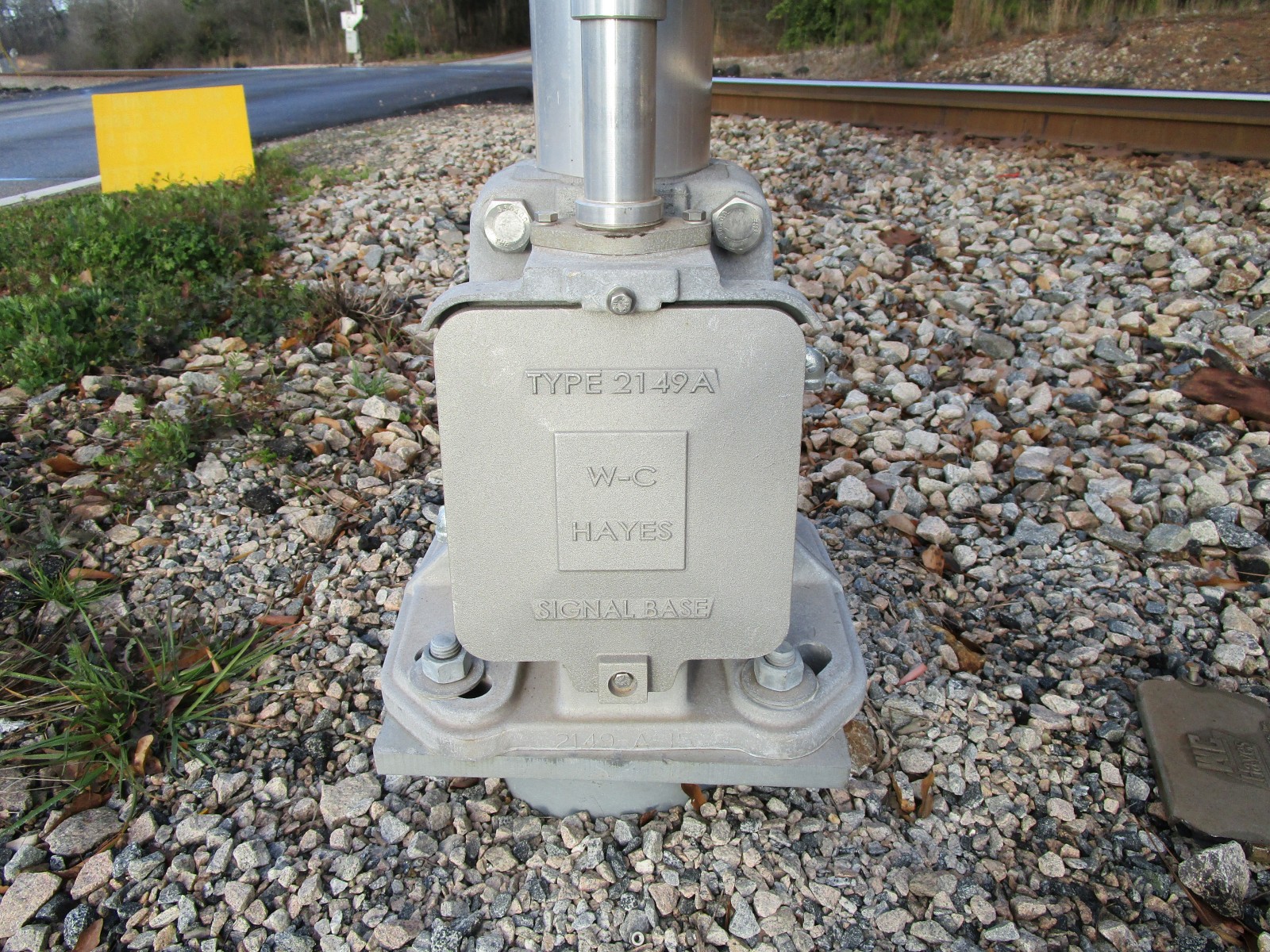

It has a WCH base. |

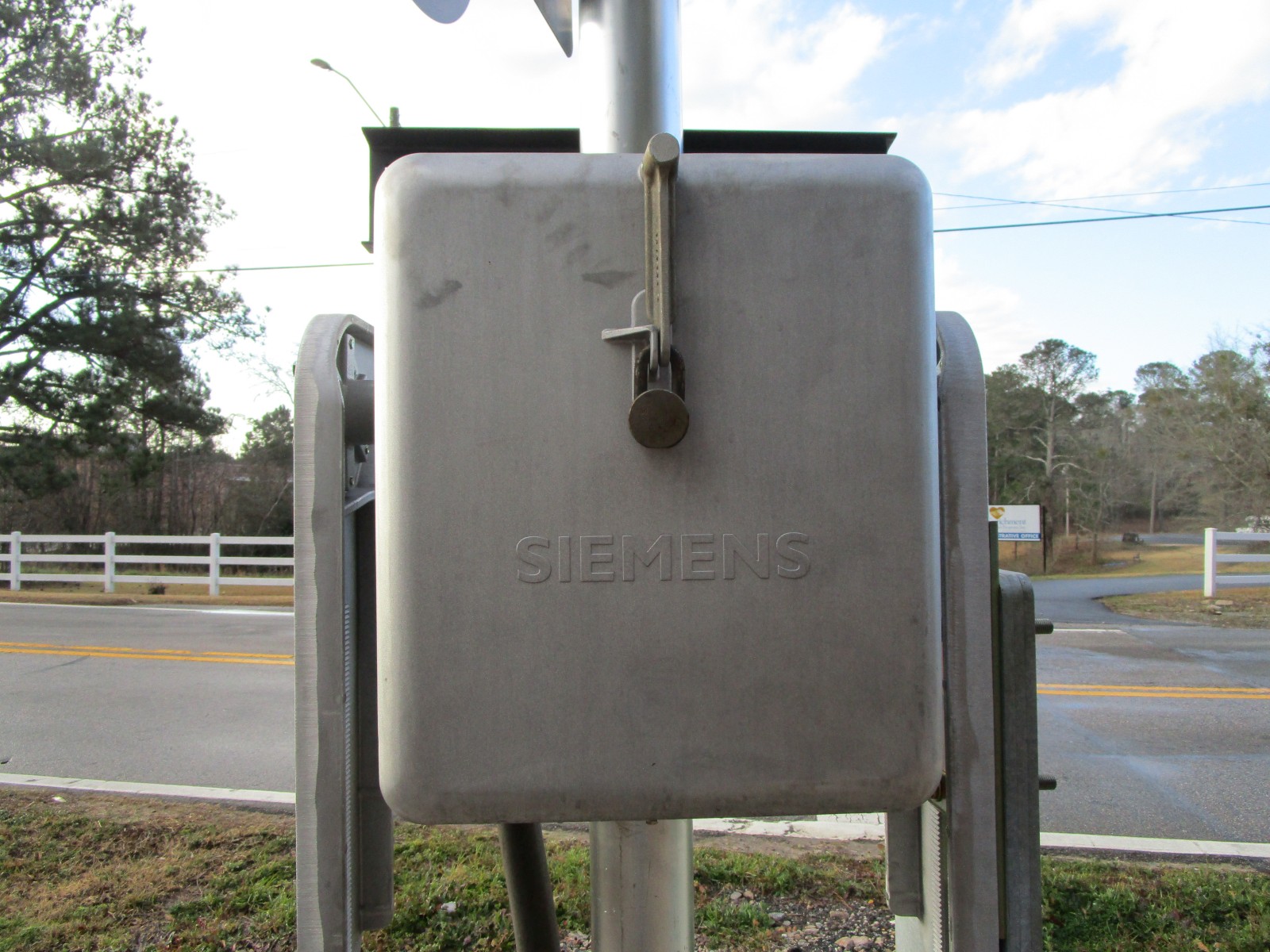

A newer Siemens gate mechanism. |

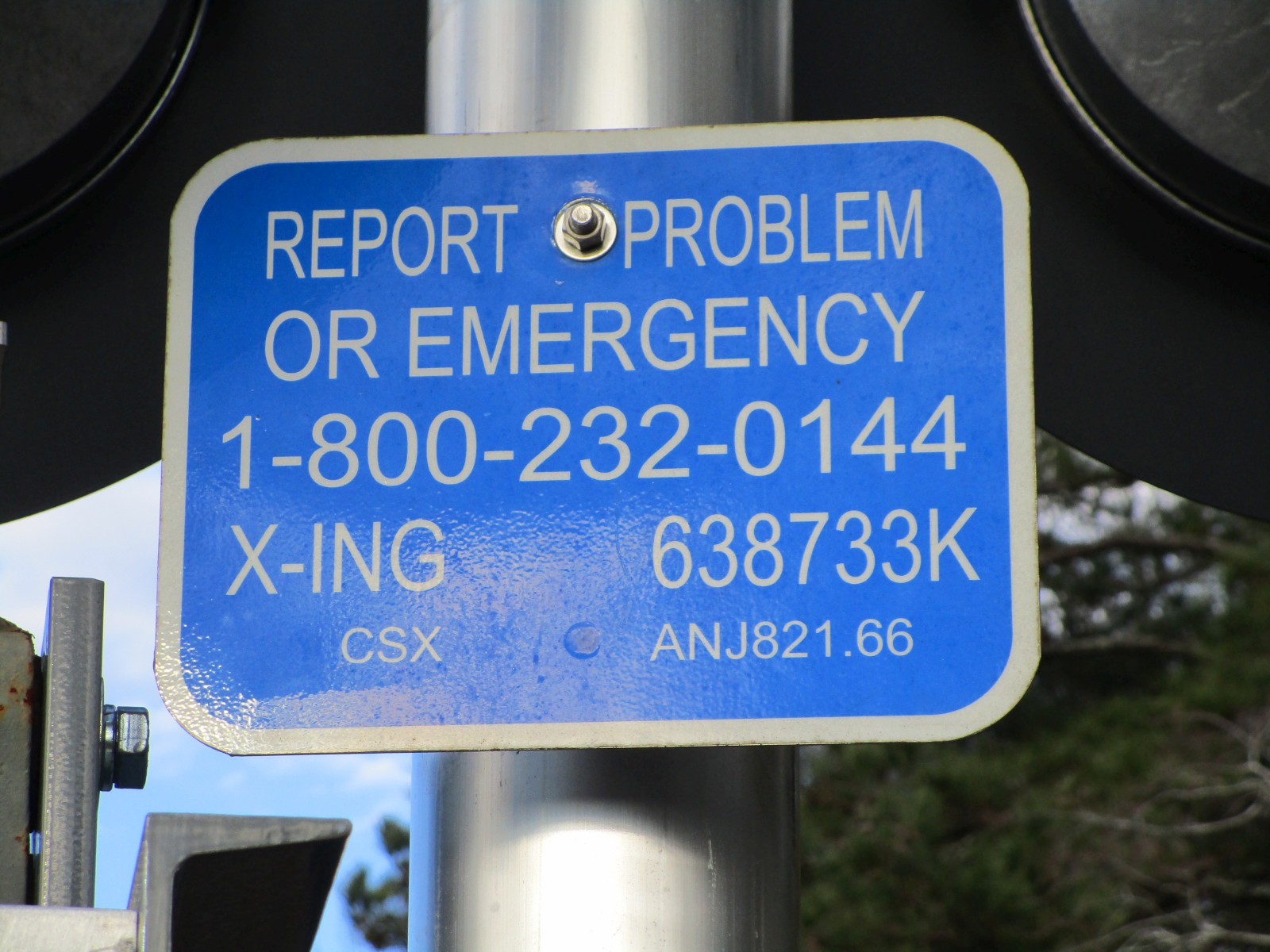

The emergency information. |

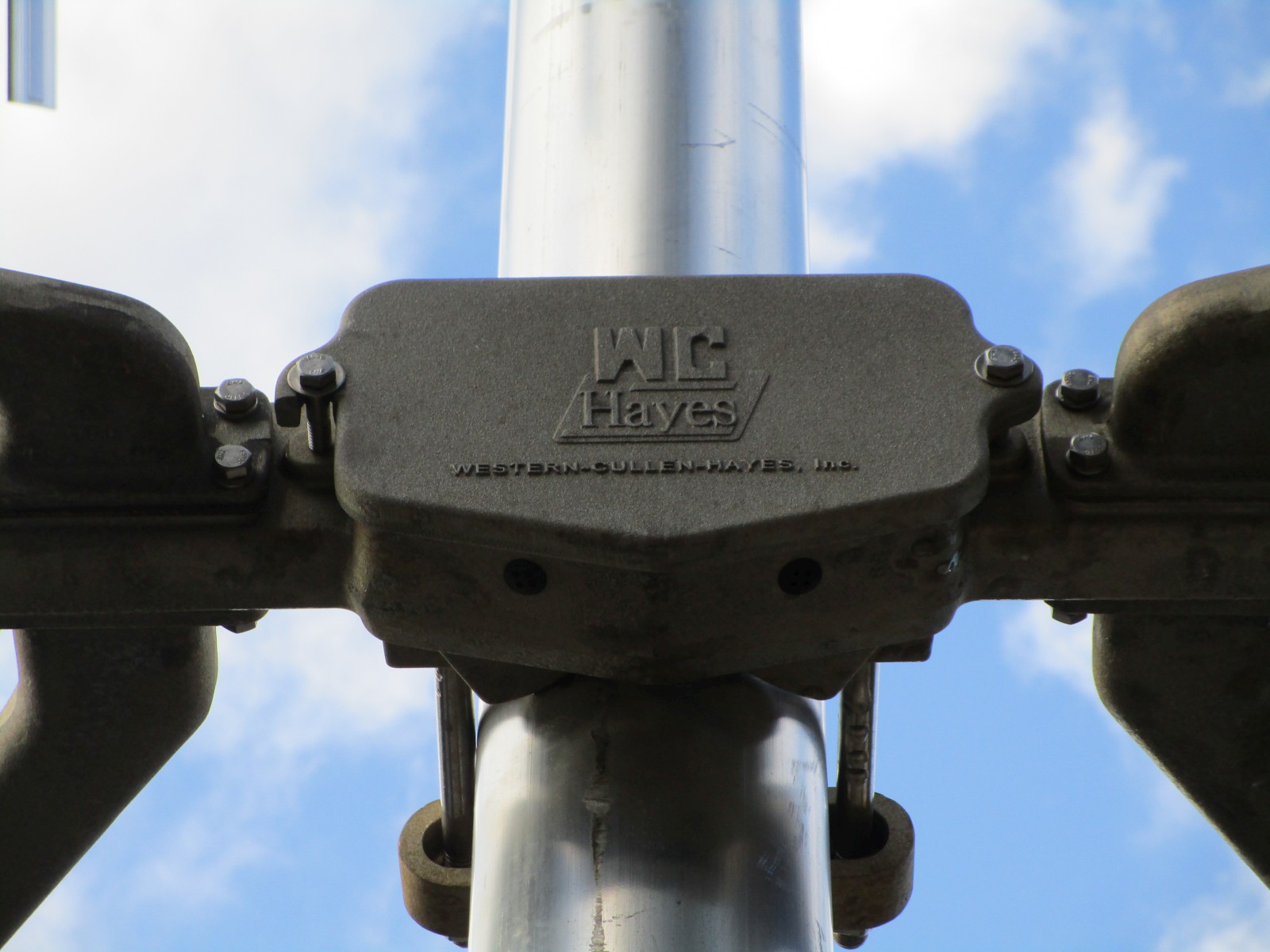

A WCH bracket. |
9 |
10 |
11 |
12 |

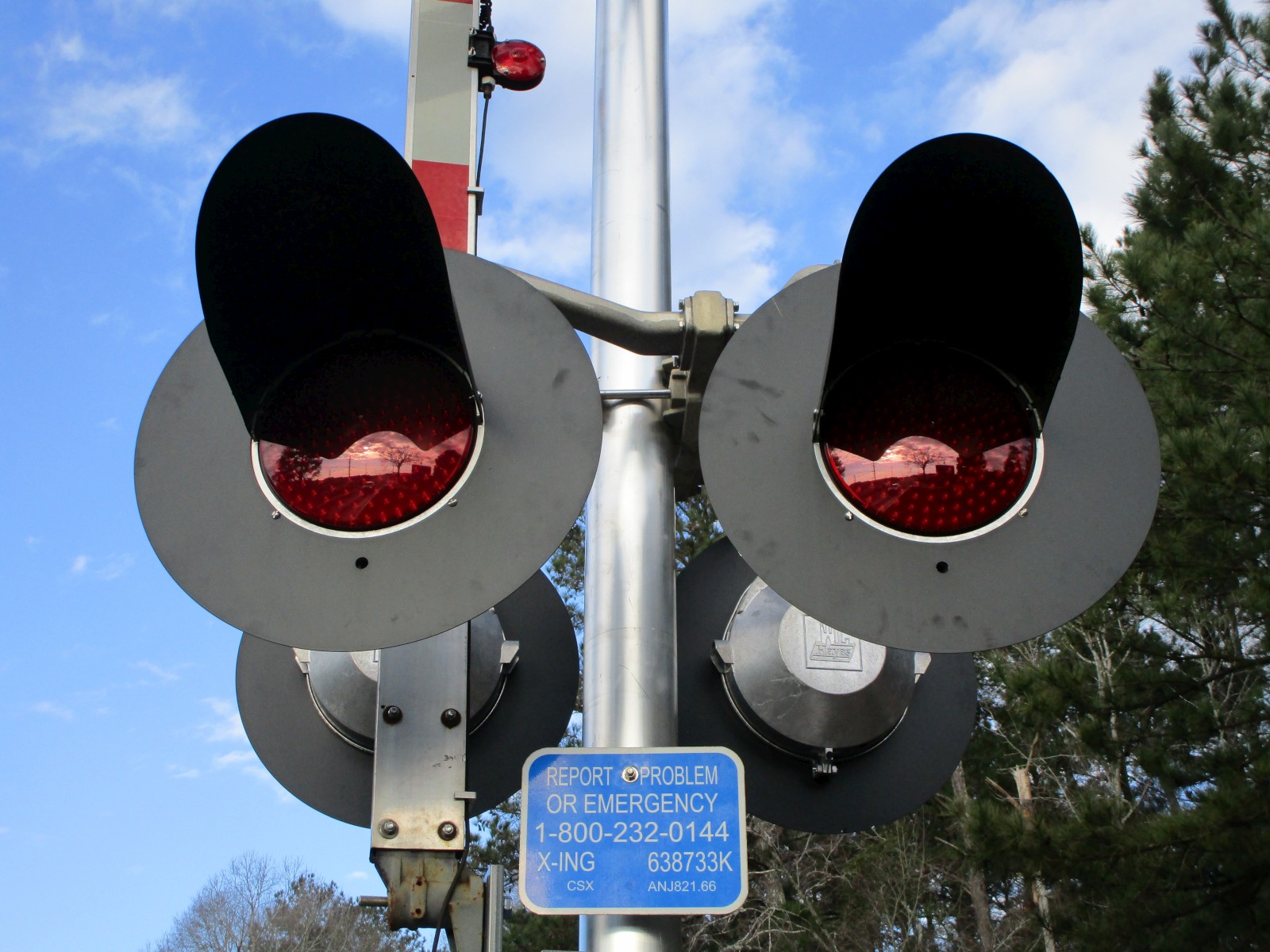

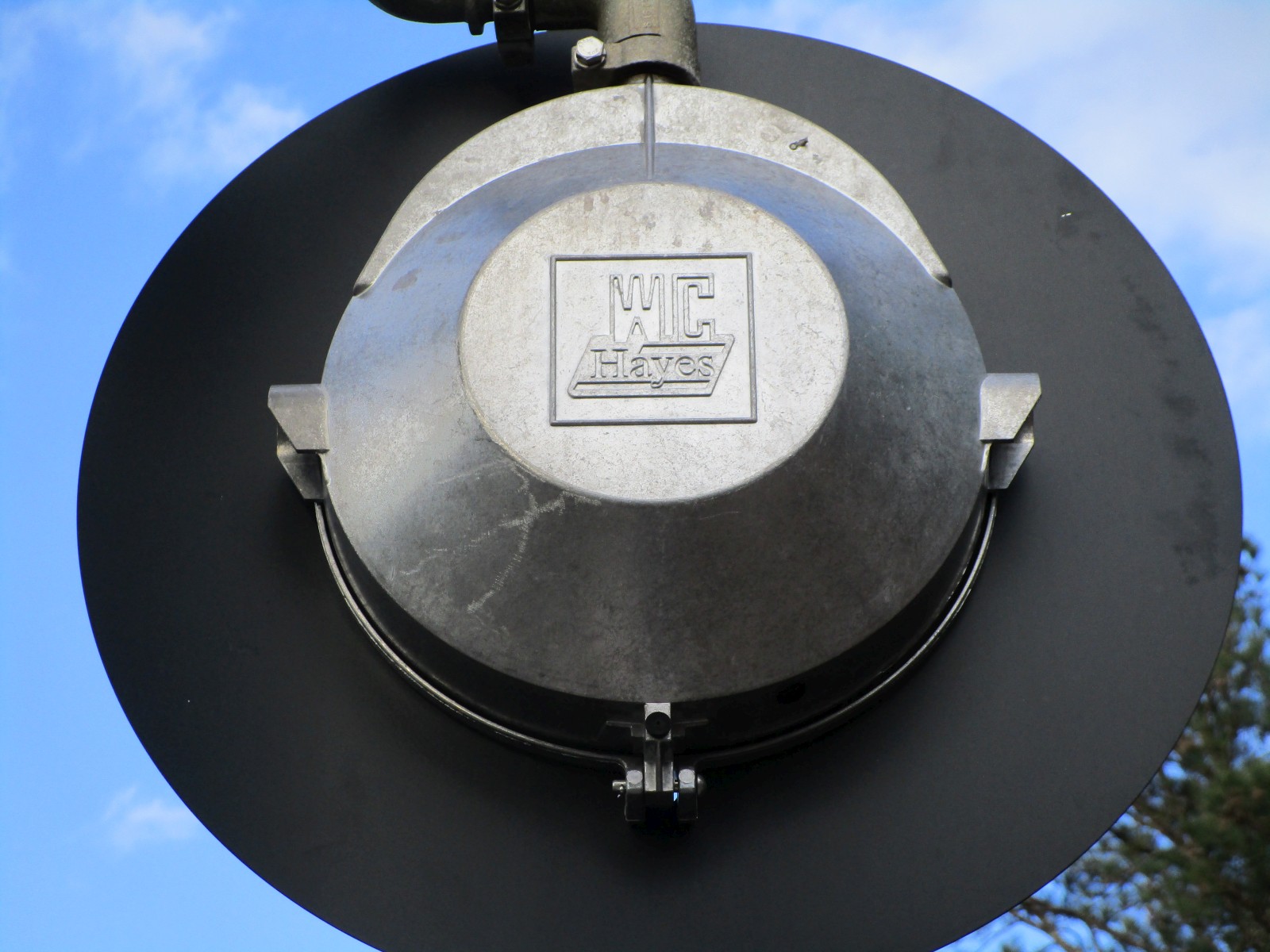

The lights on this signal are all WCH 12x24 inch lights with Leotek EV Series LEDs. |

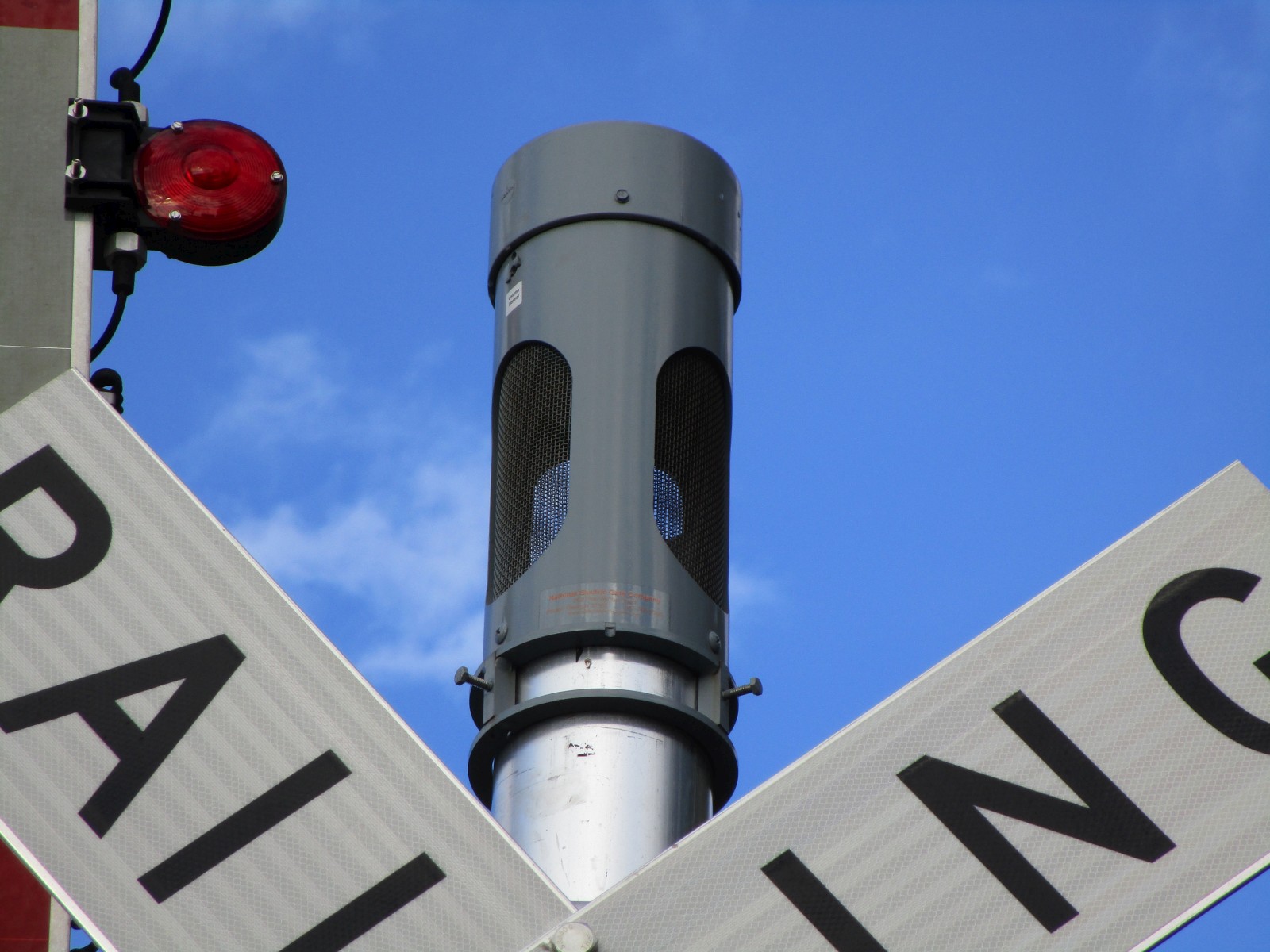

This signal has an NEG electronic bell. |

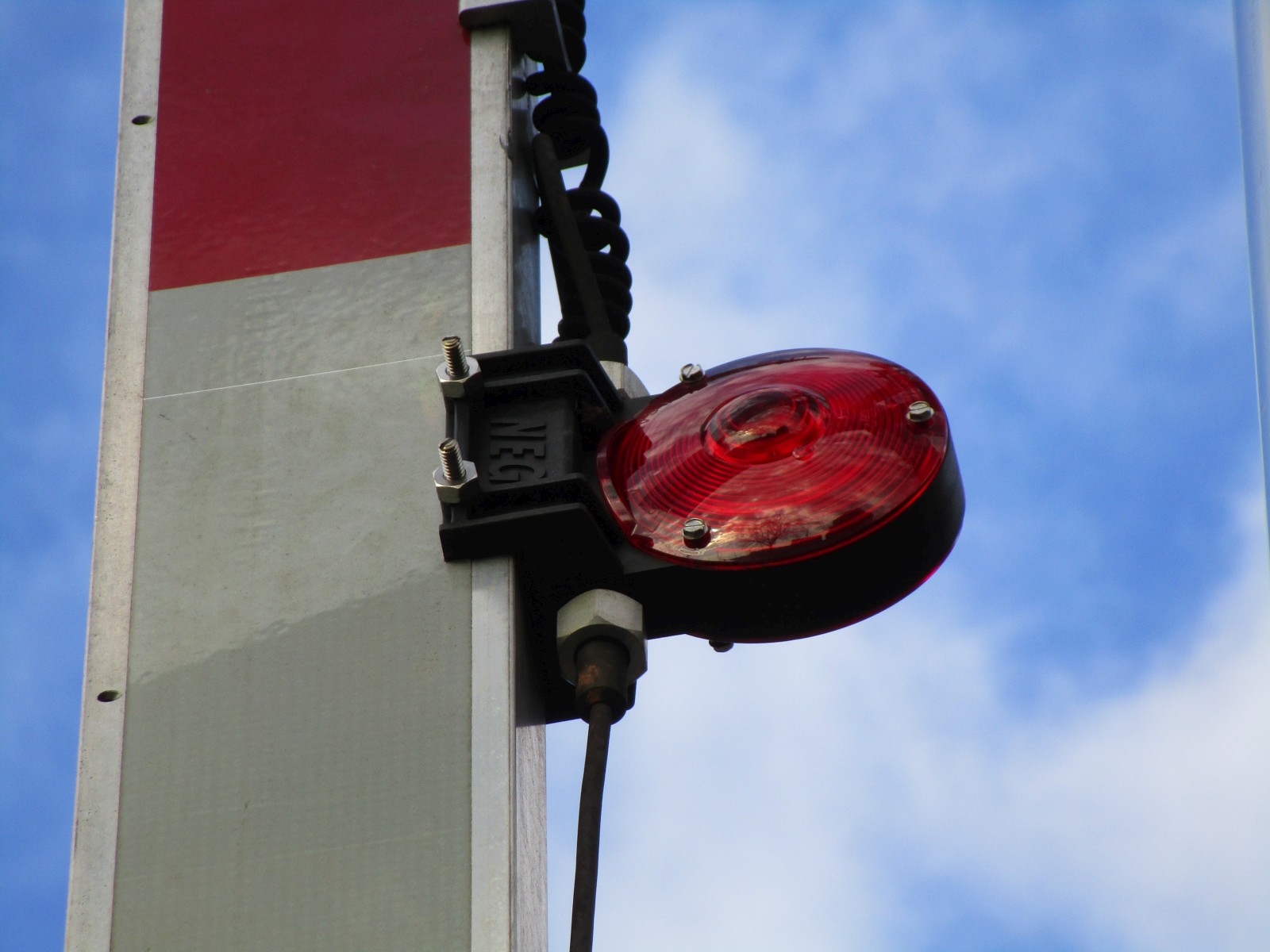

This signal uses NEG LED gate lights. |
|
13 |
14 |
15 |
16 |

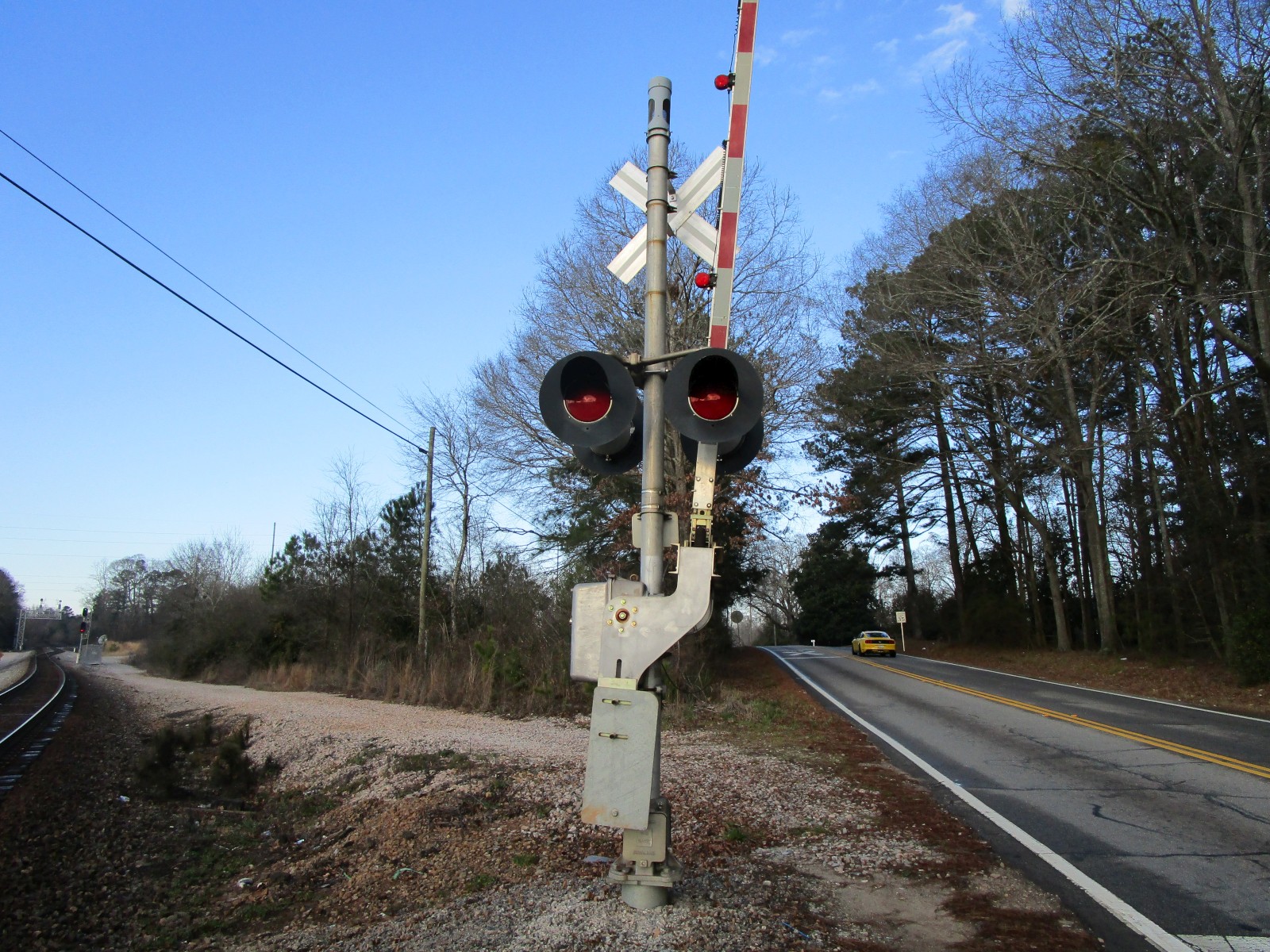

The second signal. |

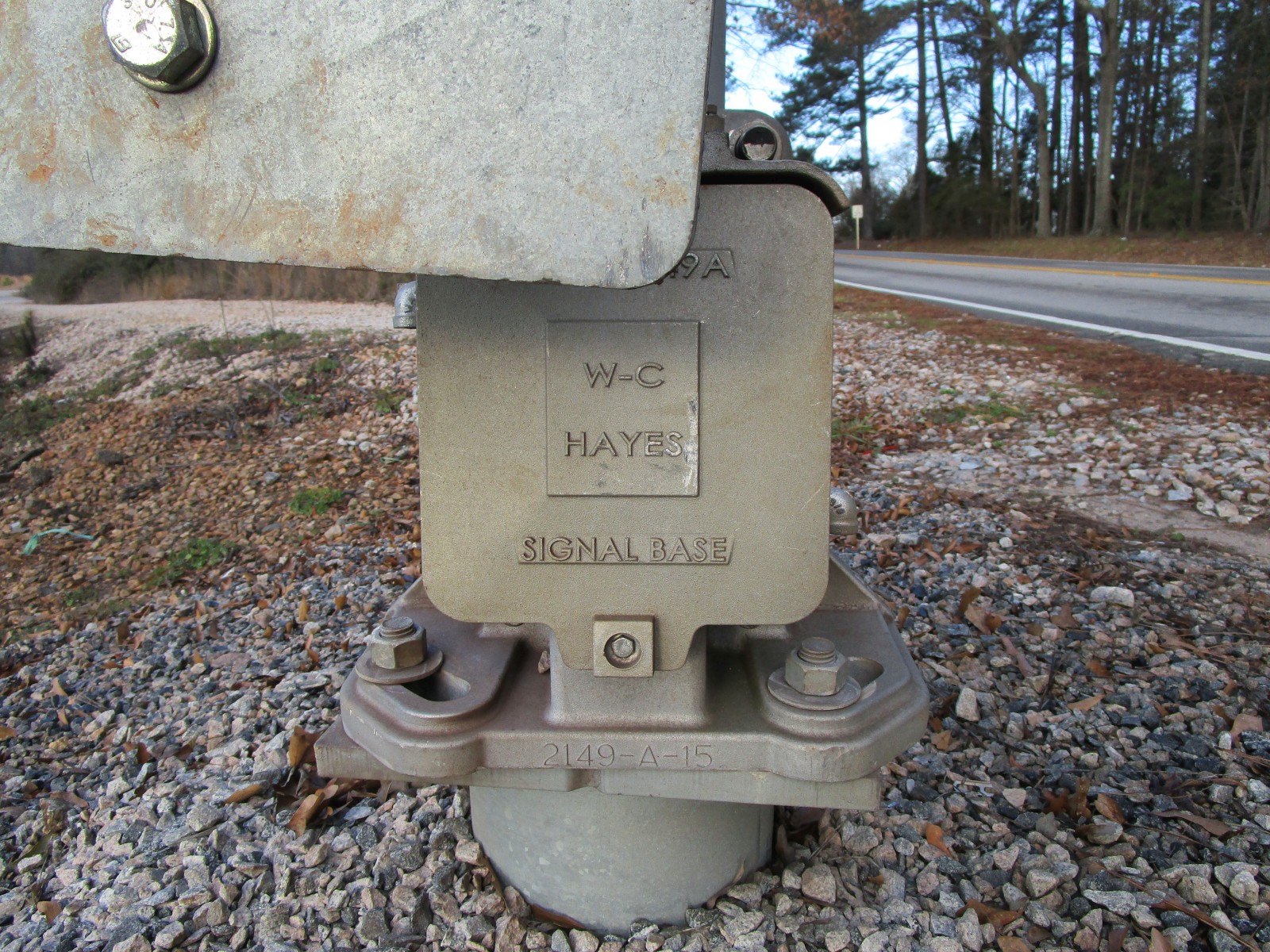

It has another WCH base. |

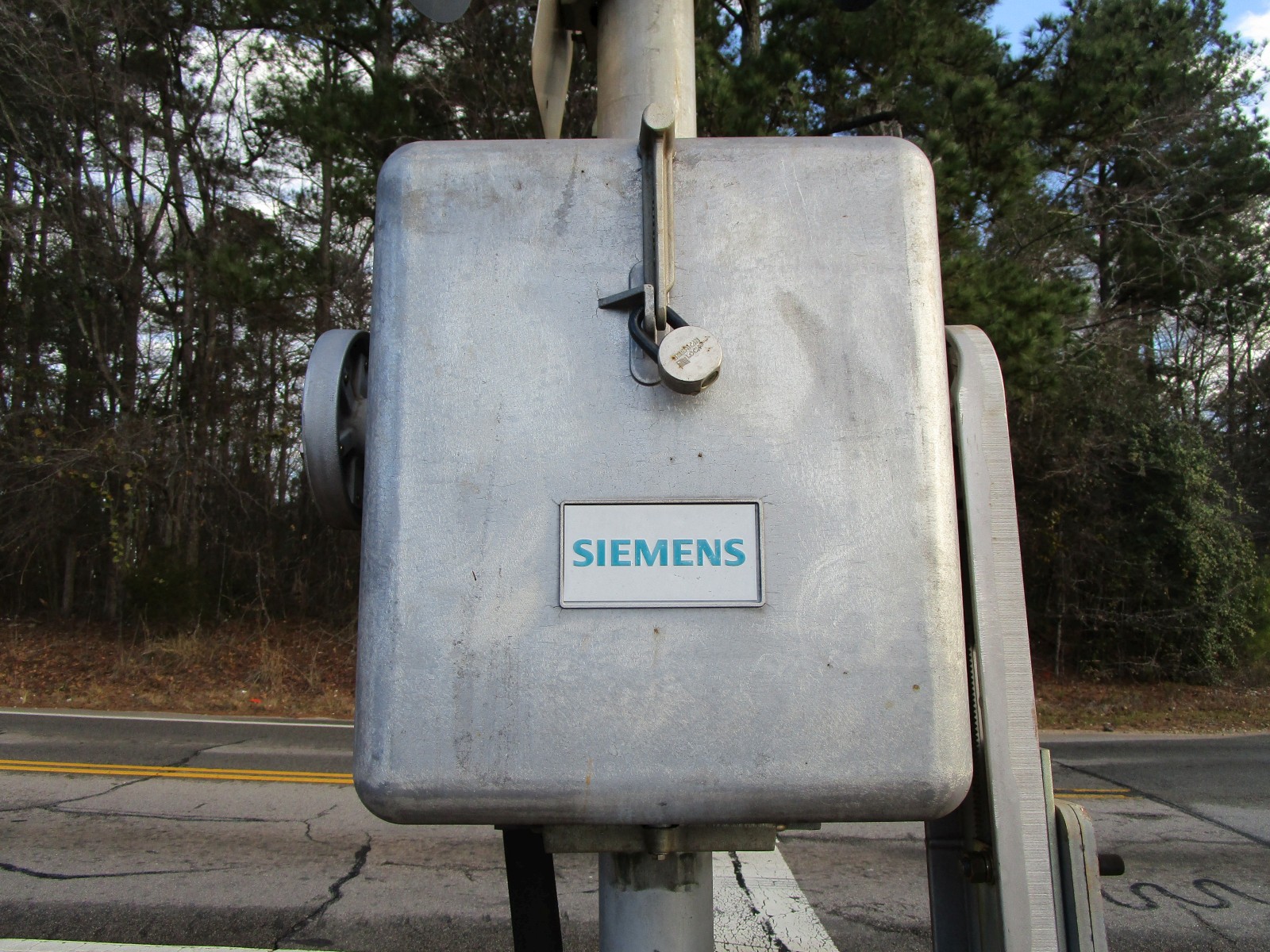

An older Siemens gate mechanism. |
|
17 |
18 |
19 |
20 |

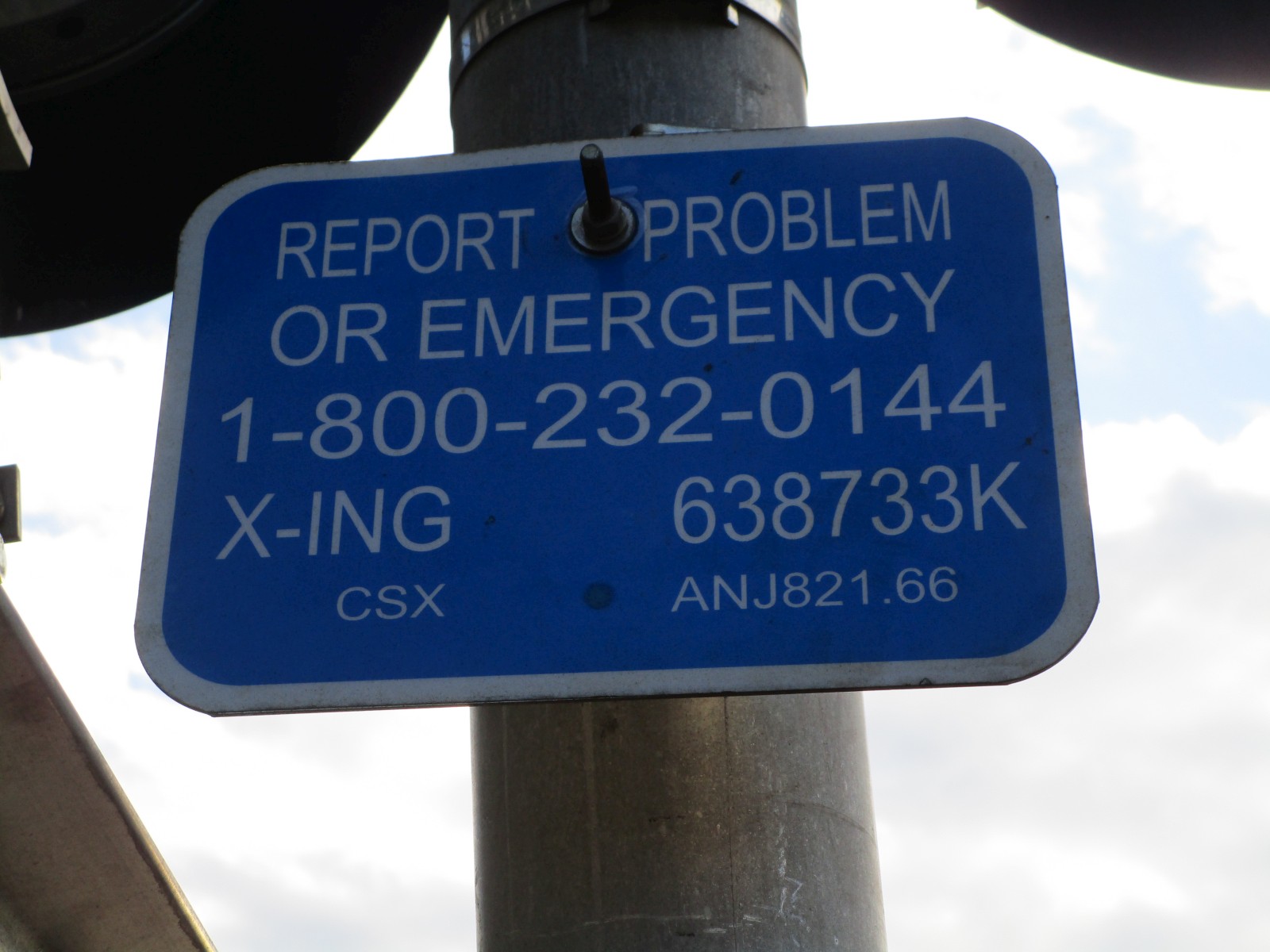

The emergency information. |

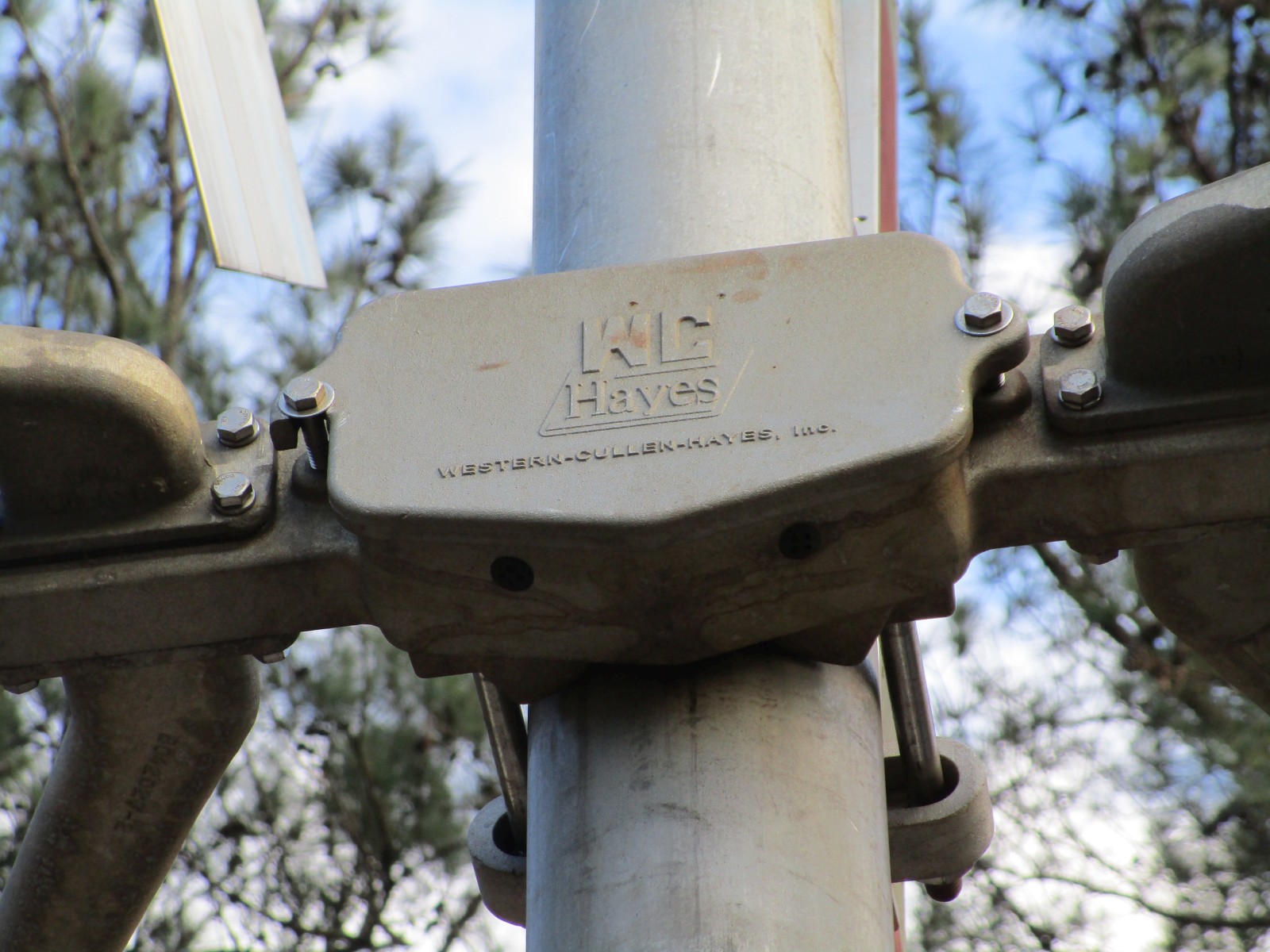

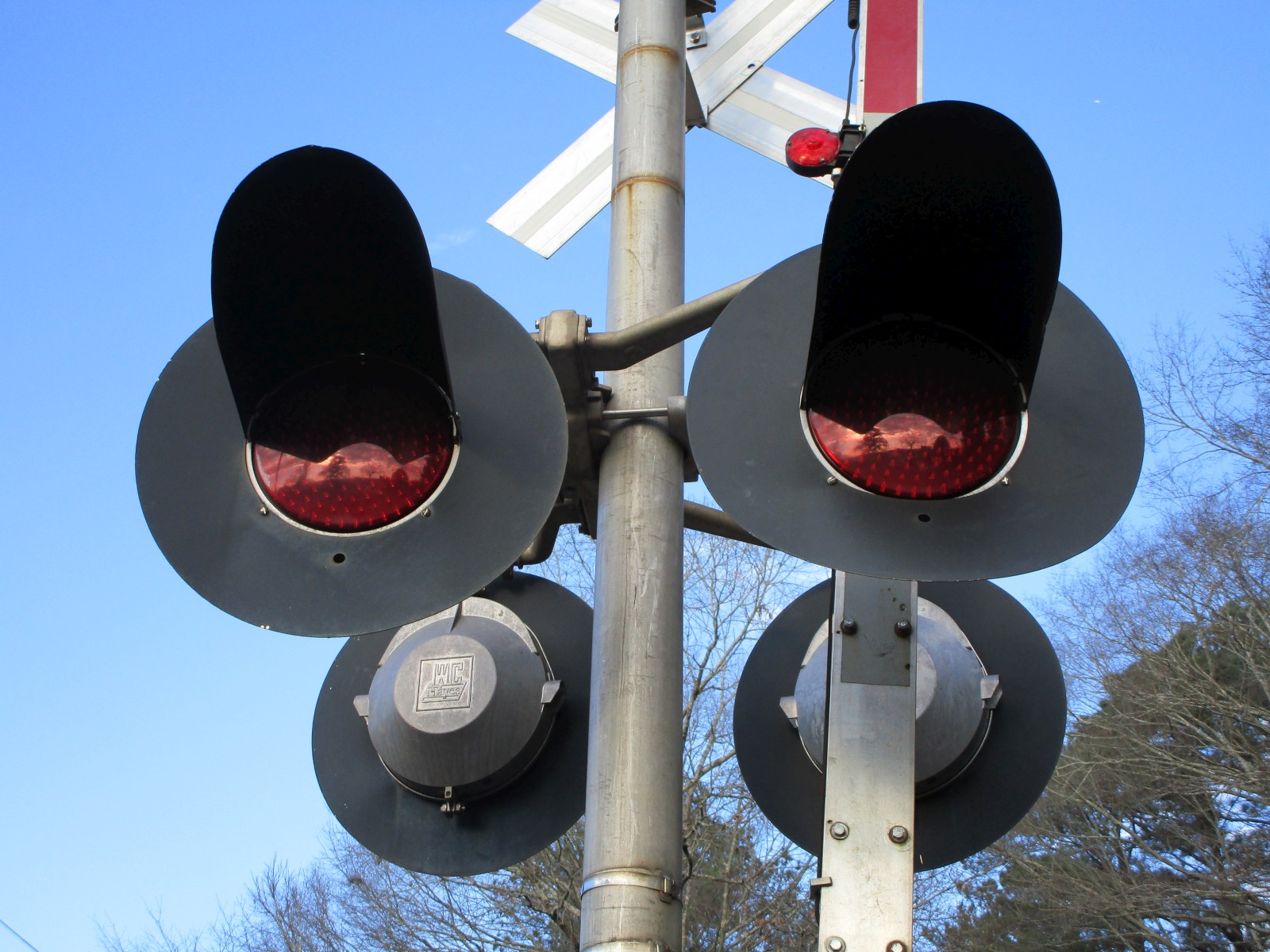

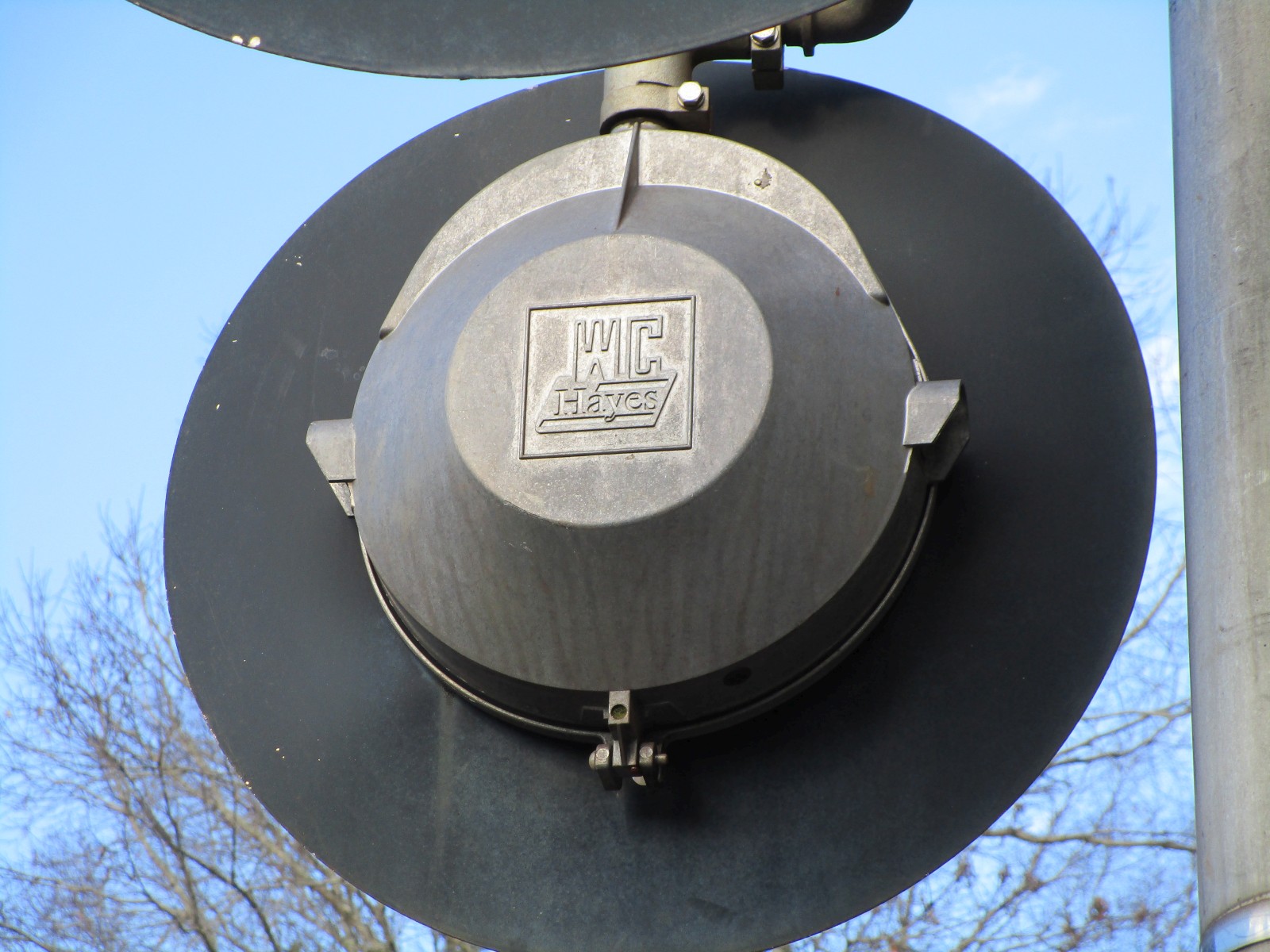

The lights on this signal are more WCH 12x24 inch lights with Leotek EV Series LEDs mounted on another WCH bracket. |
||
21 |
22 |
23 |

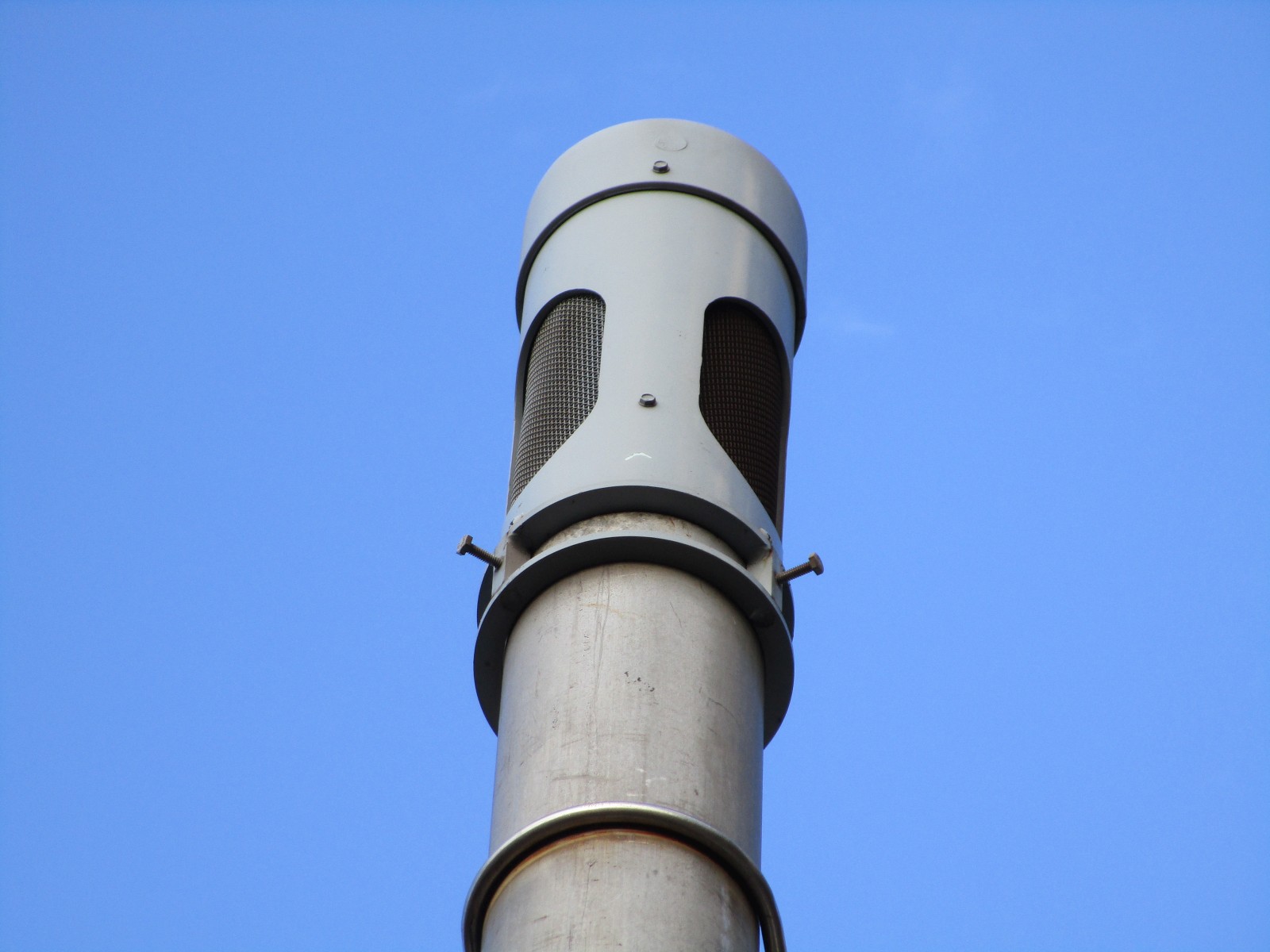

This signal has another NEG electronic bell. |

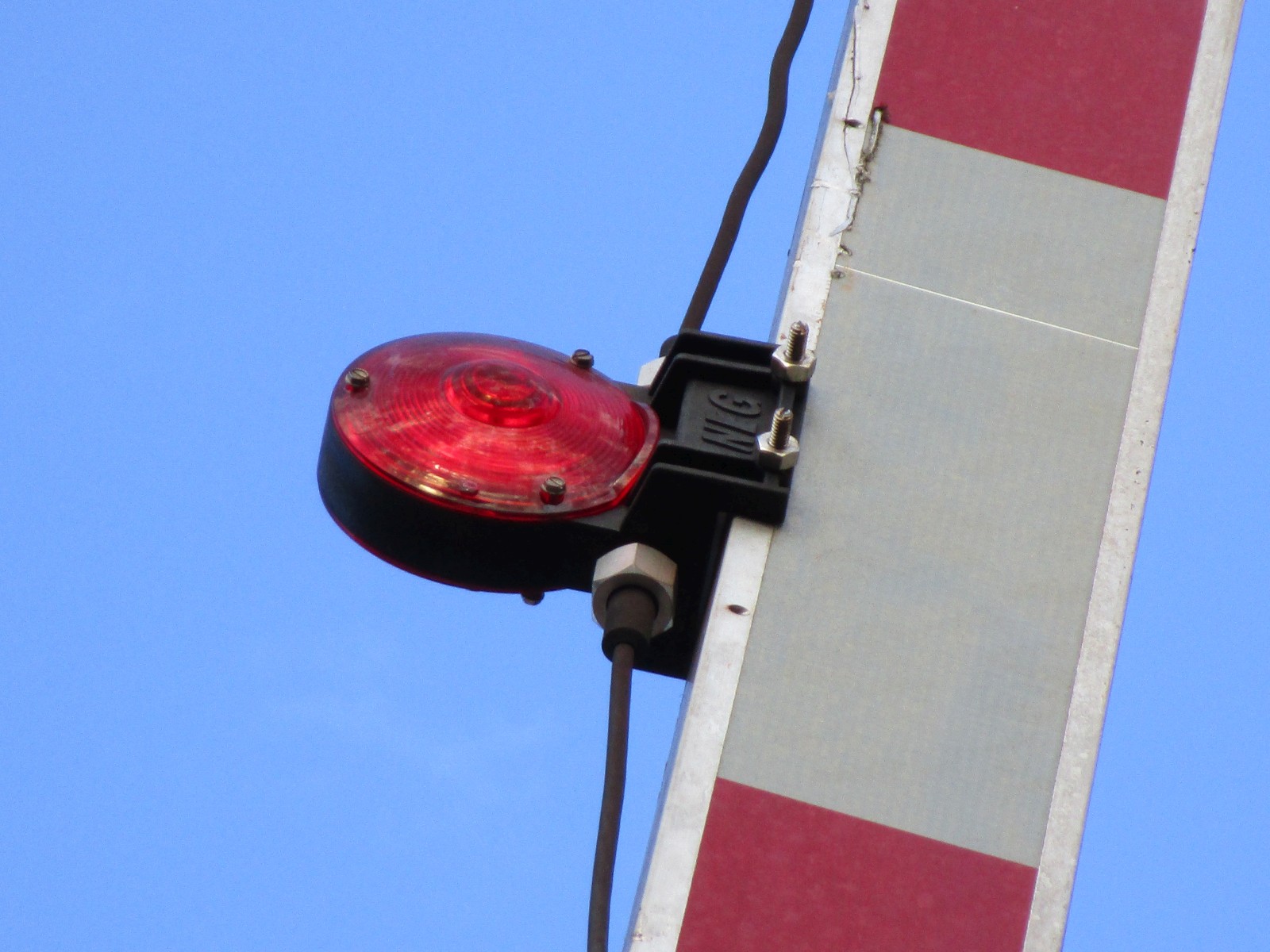

More NEG LED gate lights over here. |

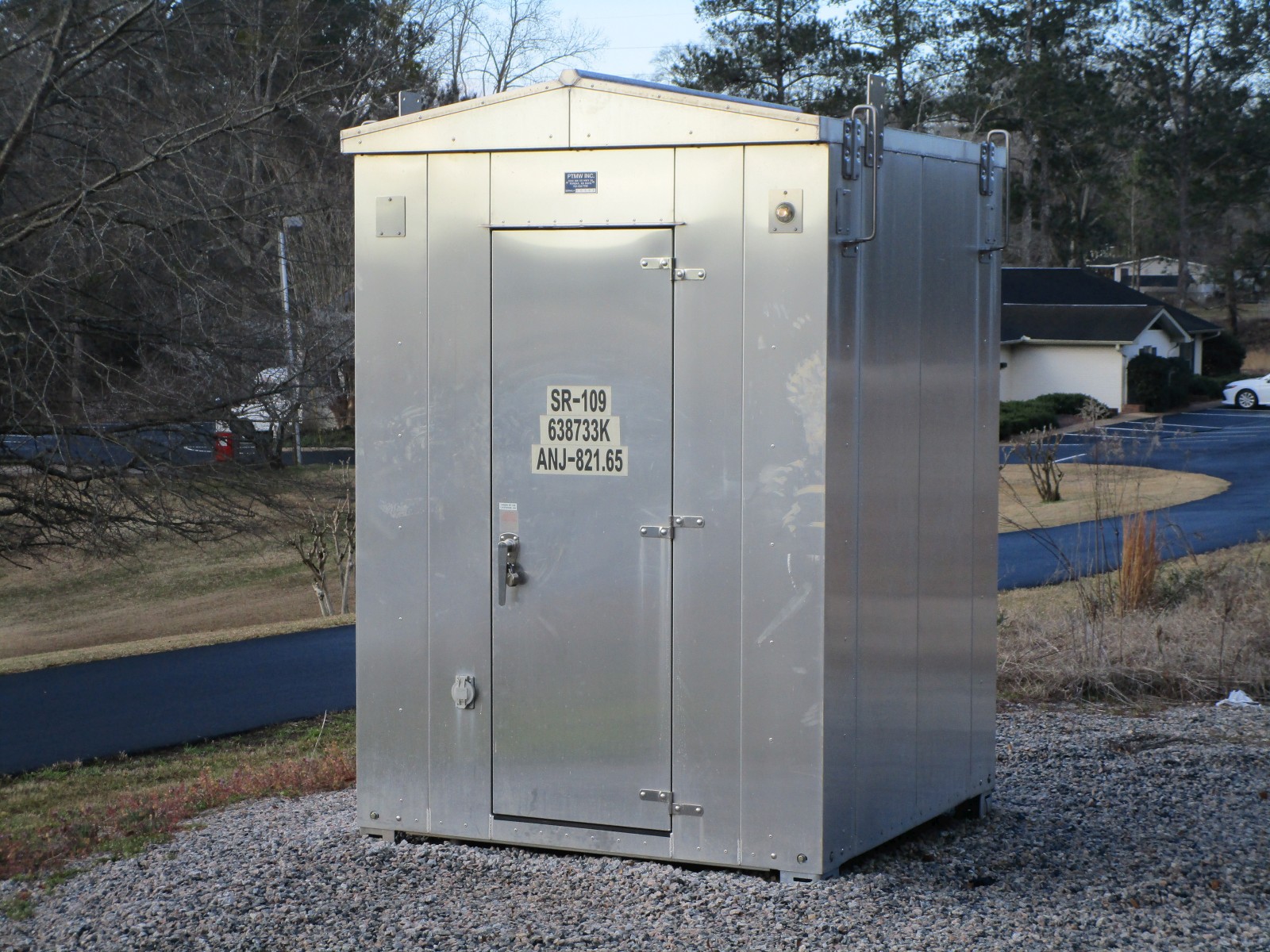

The relay case. |
24 |
25 |
26 |

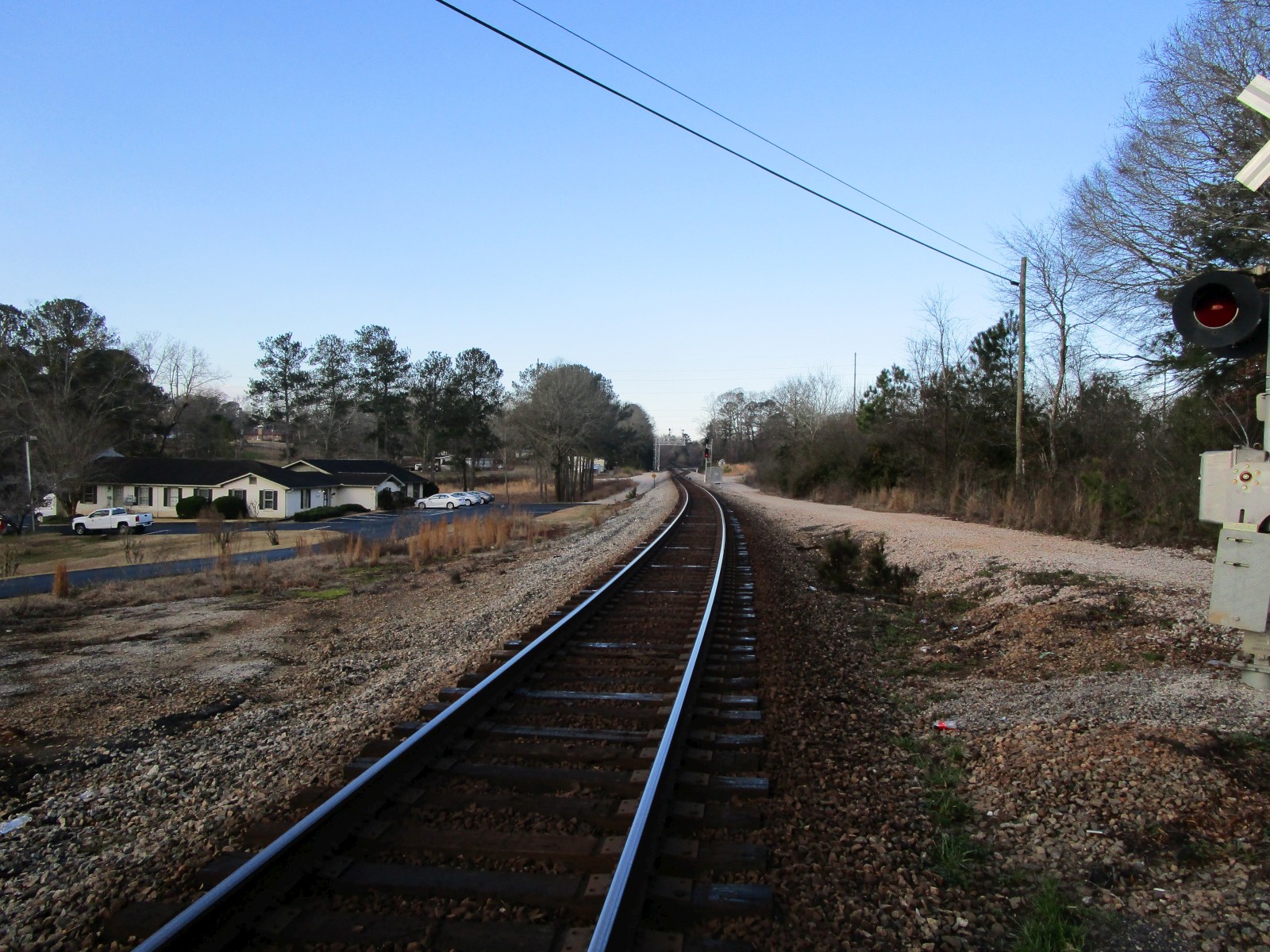

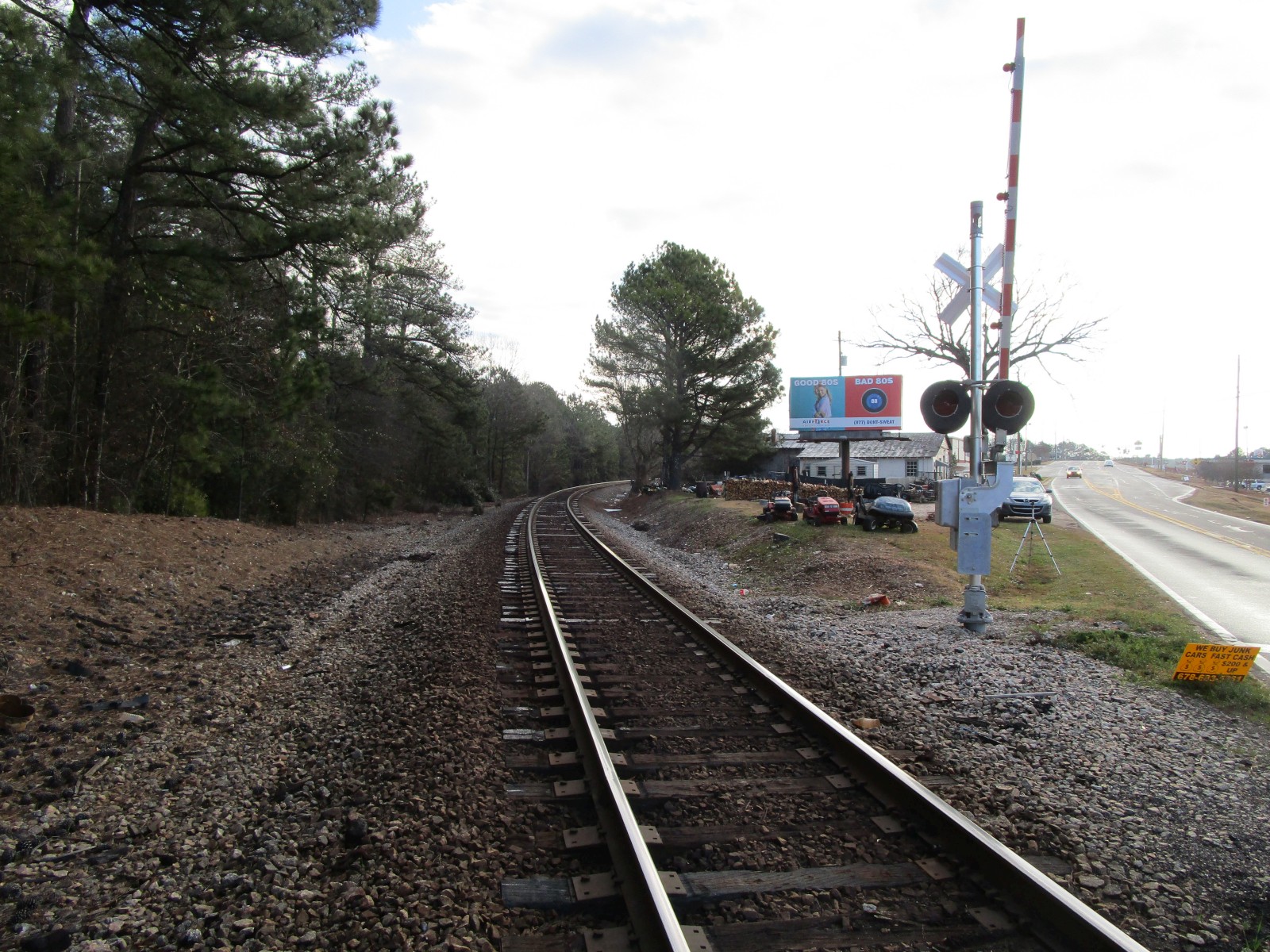

Looking northeast towards Vernon Road. |
Looking southwest towards Harmony Church Road in Abbottsford. |

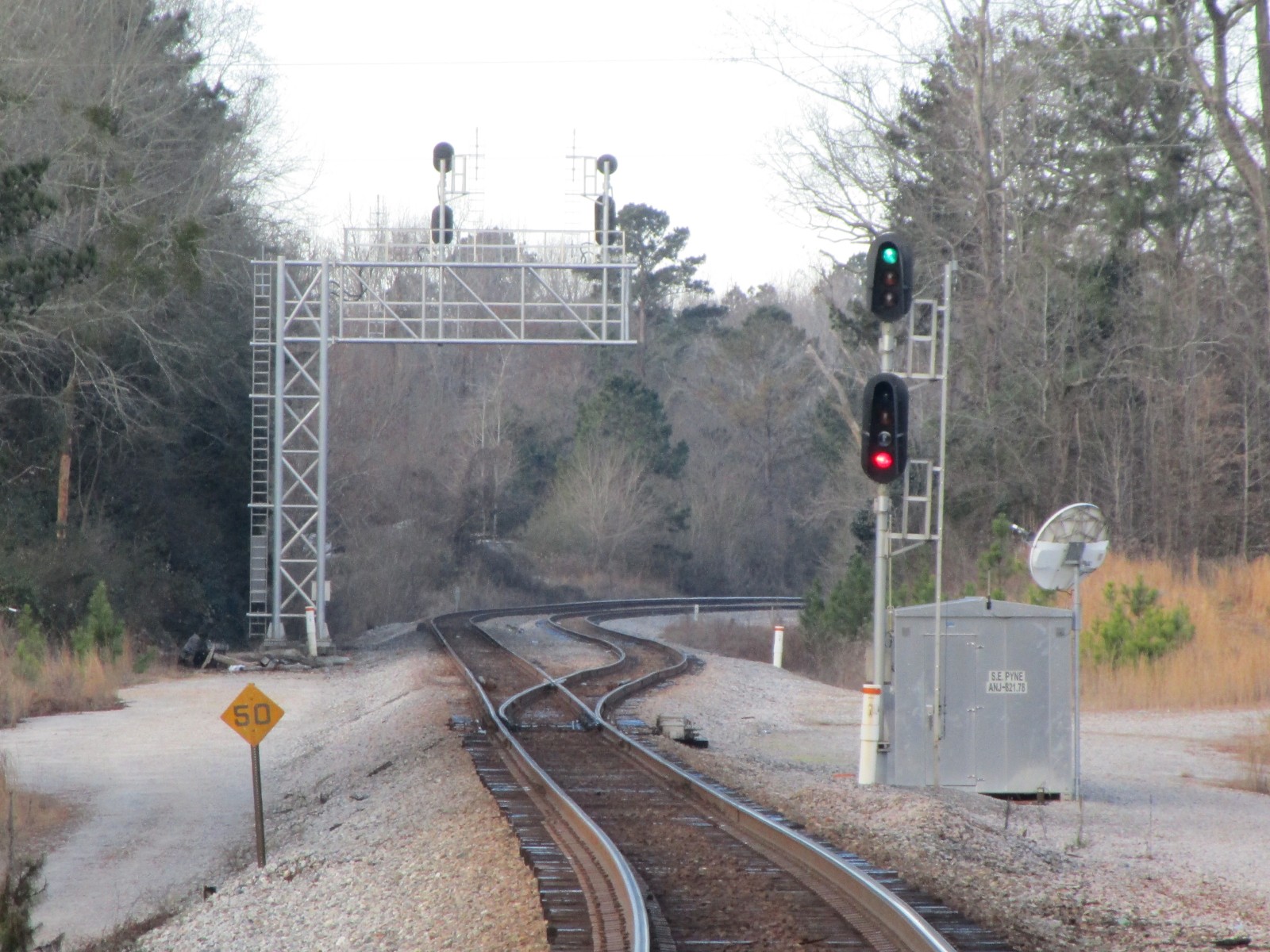

South End Pyne is located to the southwest of the crossing. |
All pictures were taken on 2-13-22.
