MP: ANB723.400 |
Created December 28, 2022
Total Accidents: 2
Crossing
DOT #: 638374W
TOTAL
DAILY TRAINS: 24 (AS OF 2020)
Page created by: Ethan the Railfanner
This crossing is located on the CSX Fitzgerald Subdivision.
| >>>>>>>>>>>>> | Eastern Signal | Western Signal |
| Bell: | N/A | NEG electronic |
| Base: | WCH | WCH |
| Light Frames: | 4 - 12x24" WCH w/ Leotek EV Series LEDs | 8 - 12x24" WCH w/ Leotek EV Series LEDs |
| Gate Lights: | 3 - NEG LEDs | 3 - NEG LEDs |
| Gate Mechanism: | Siemens Imprinted | Siemens Imprinted |
| Gate Striping: | Vertical | Vertical |
1 |
2 |
3 |
4 |

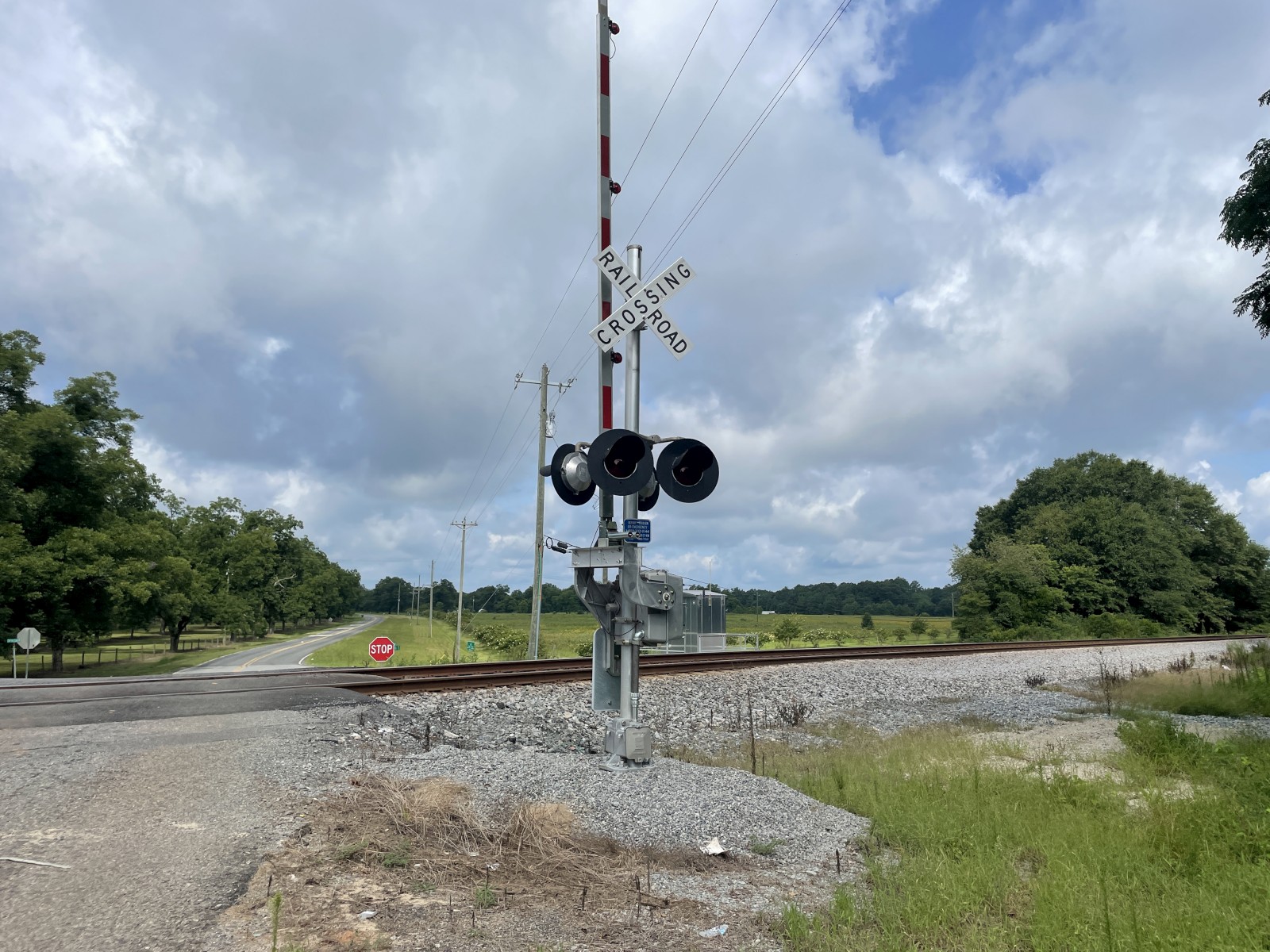

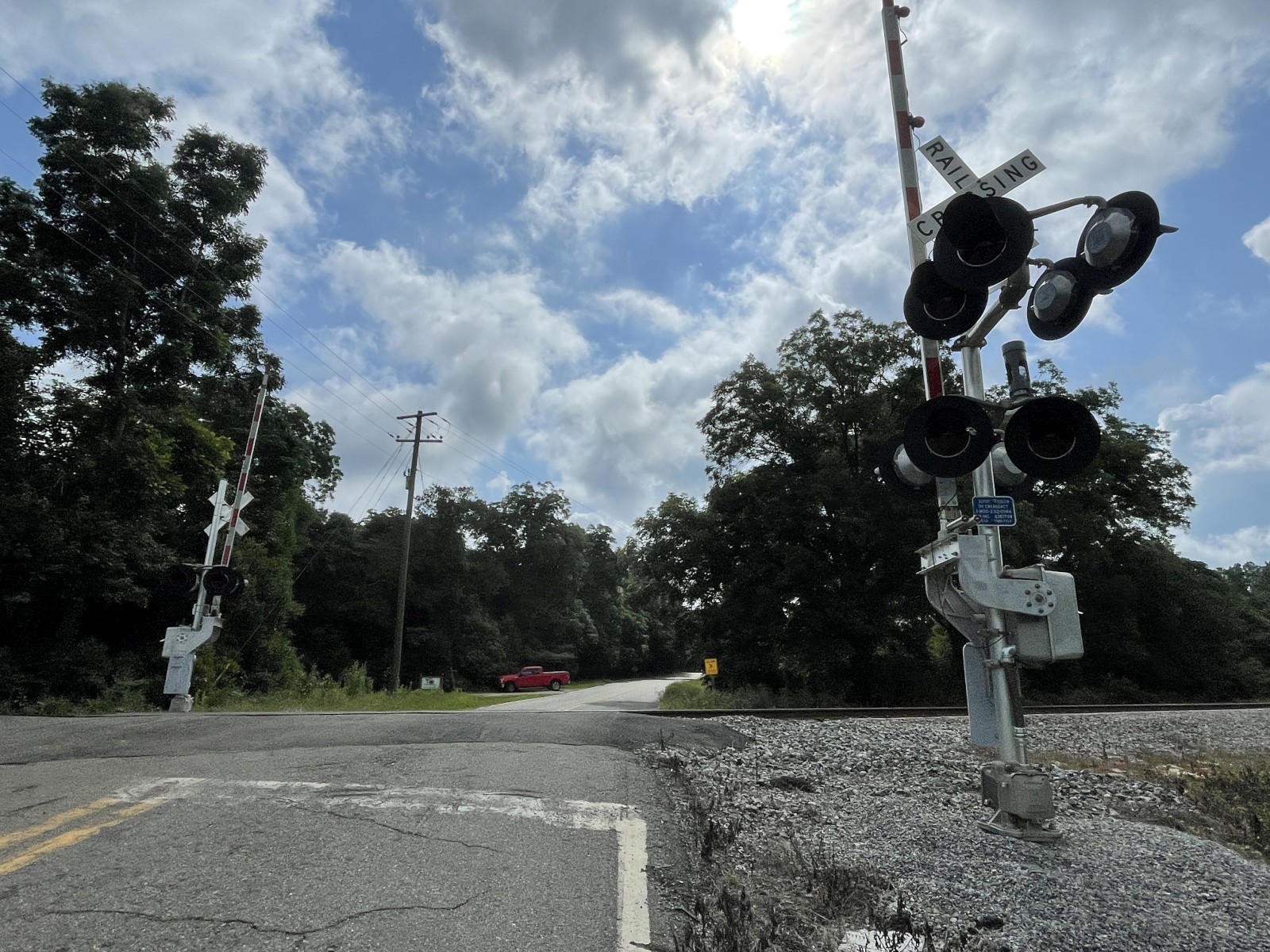

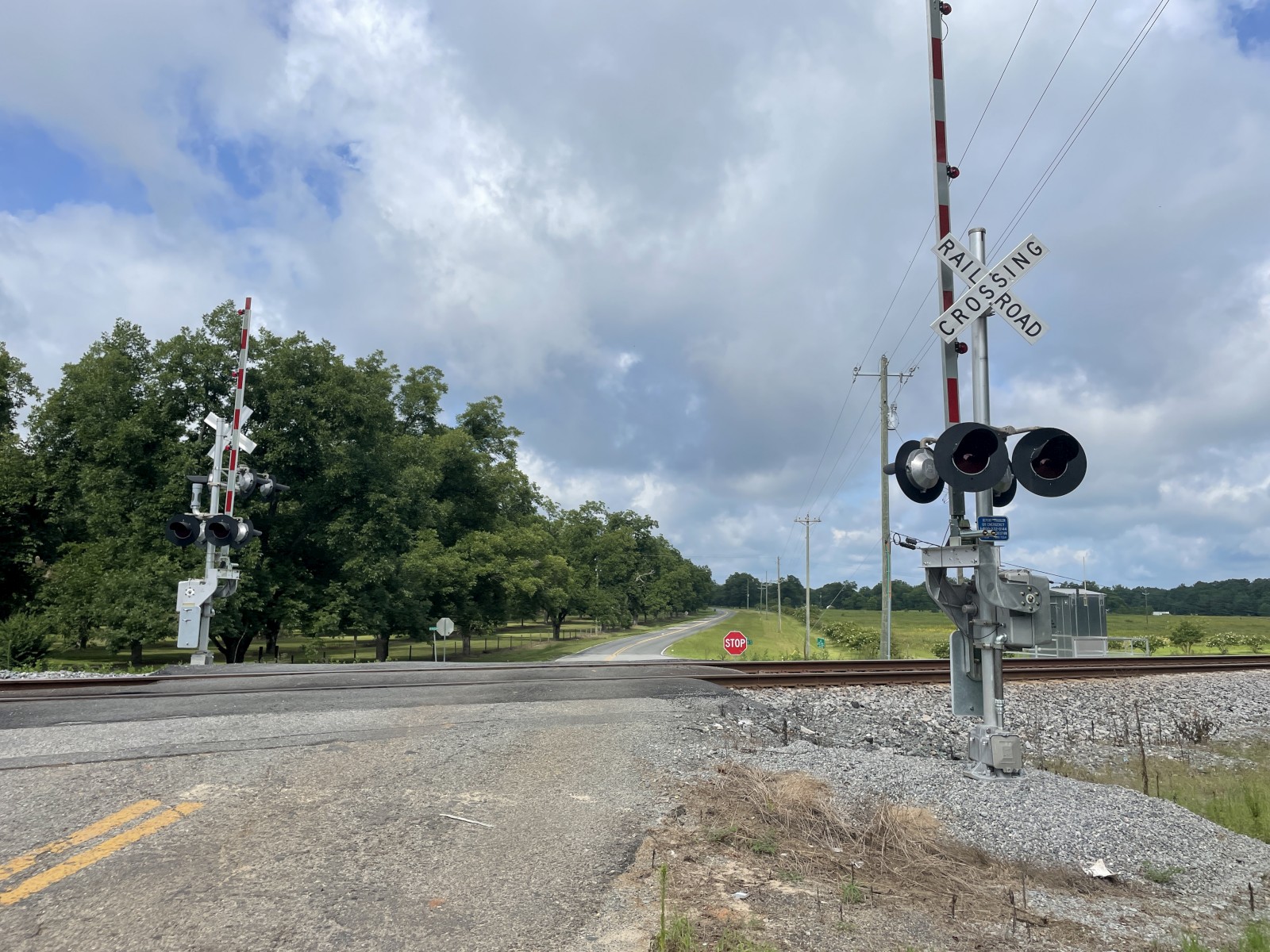

Overviews of this crossing. |

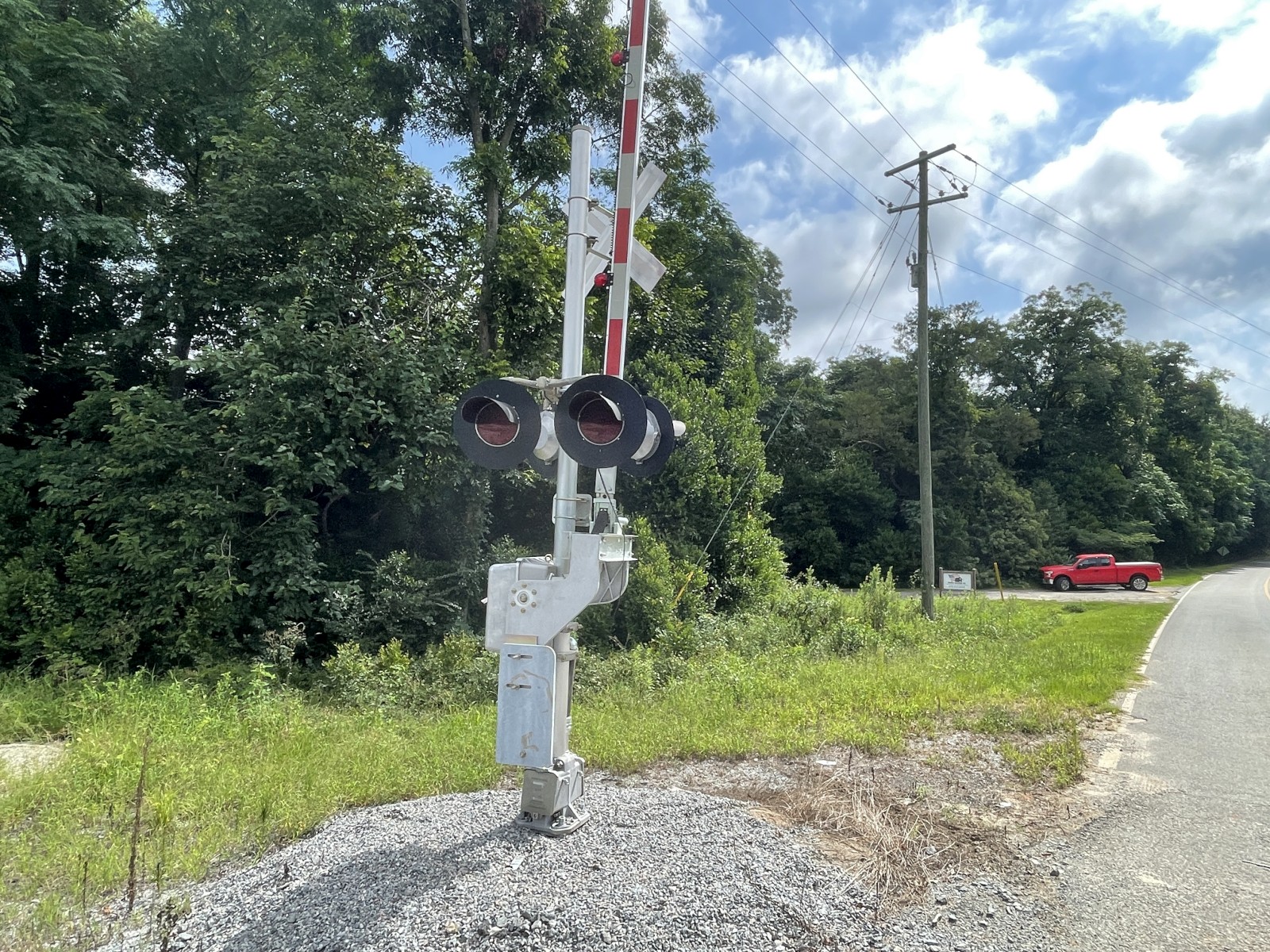

The eastern signal. |
||
5 |
6 |
7 |
8 |

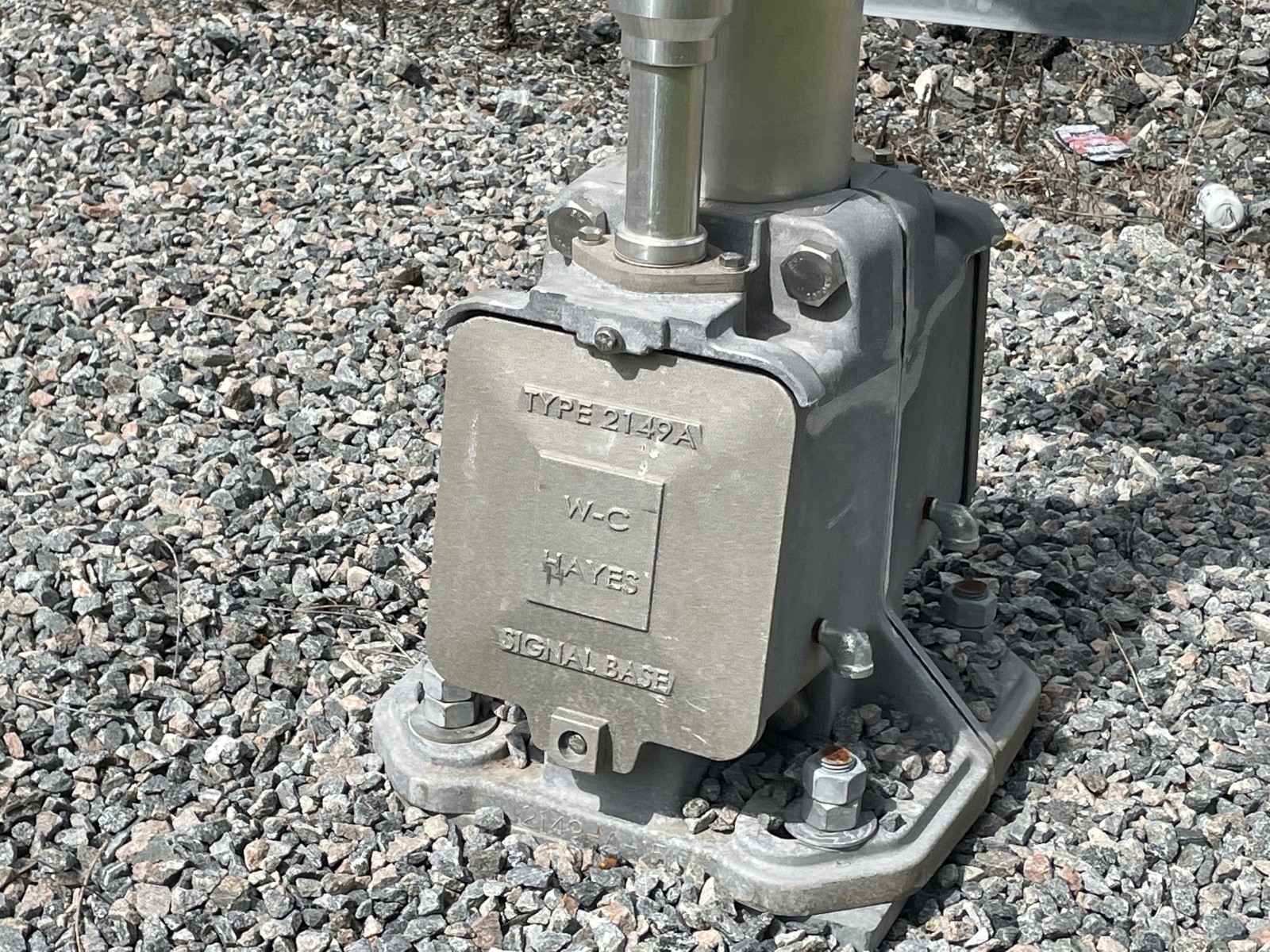

It has a WCH base. |

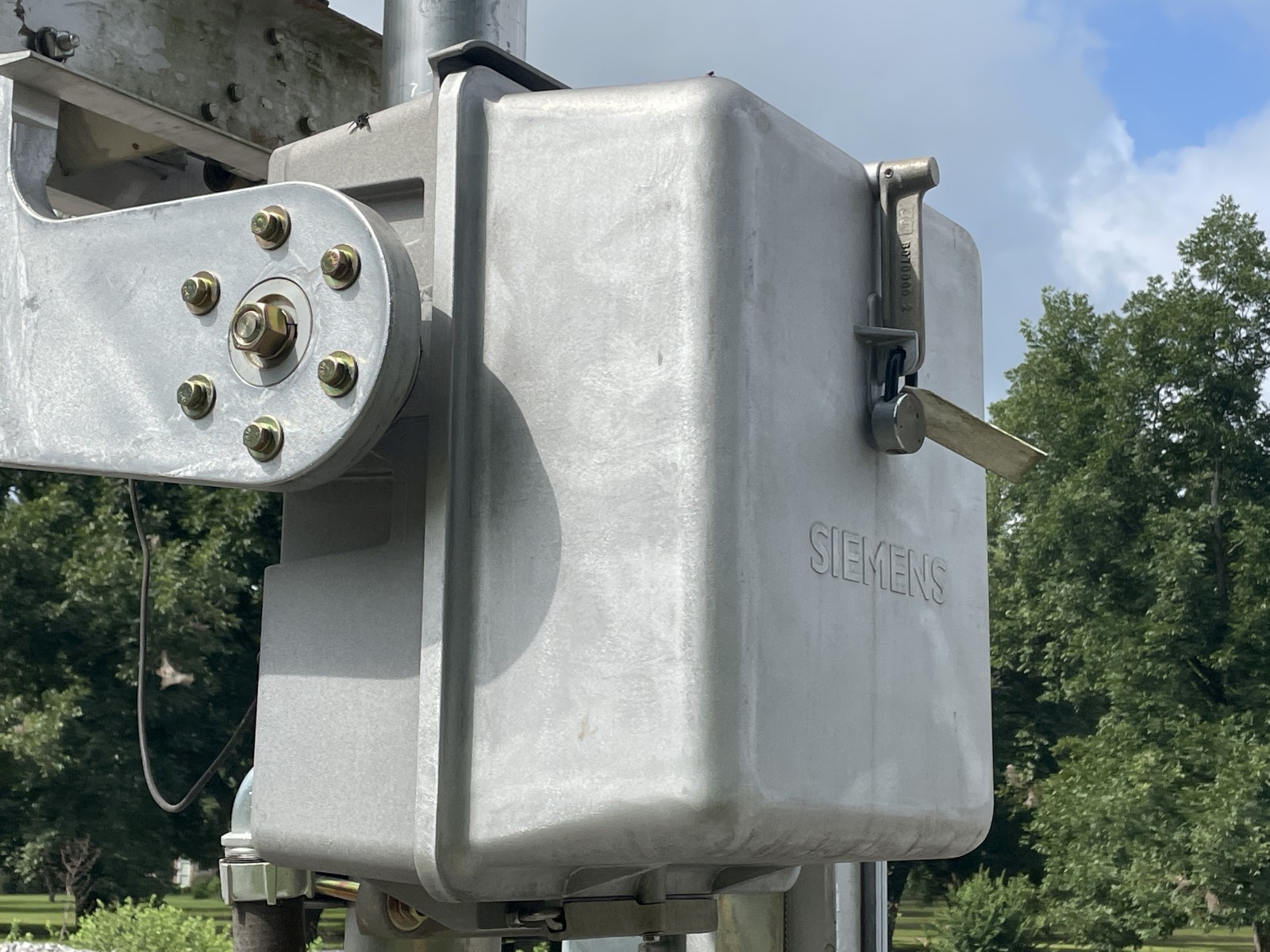

A Siemens gate mechanism. |

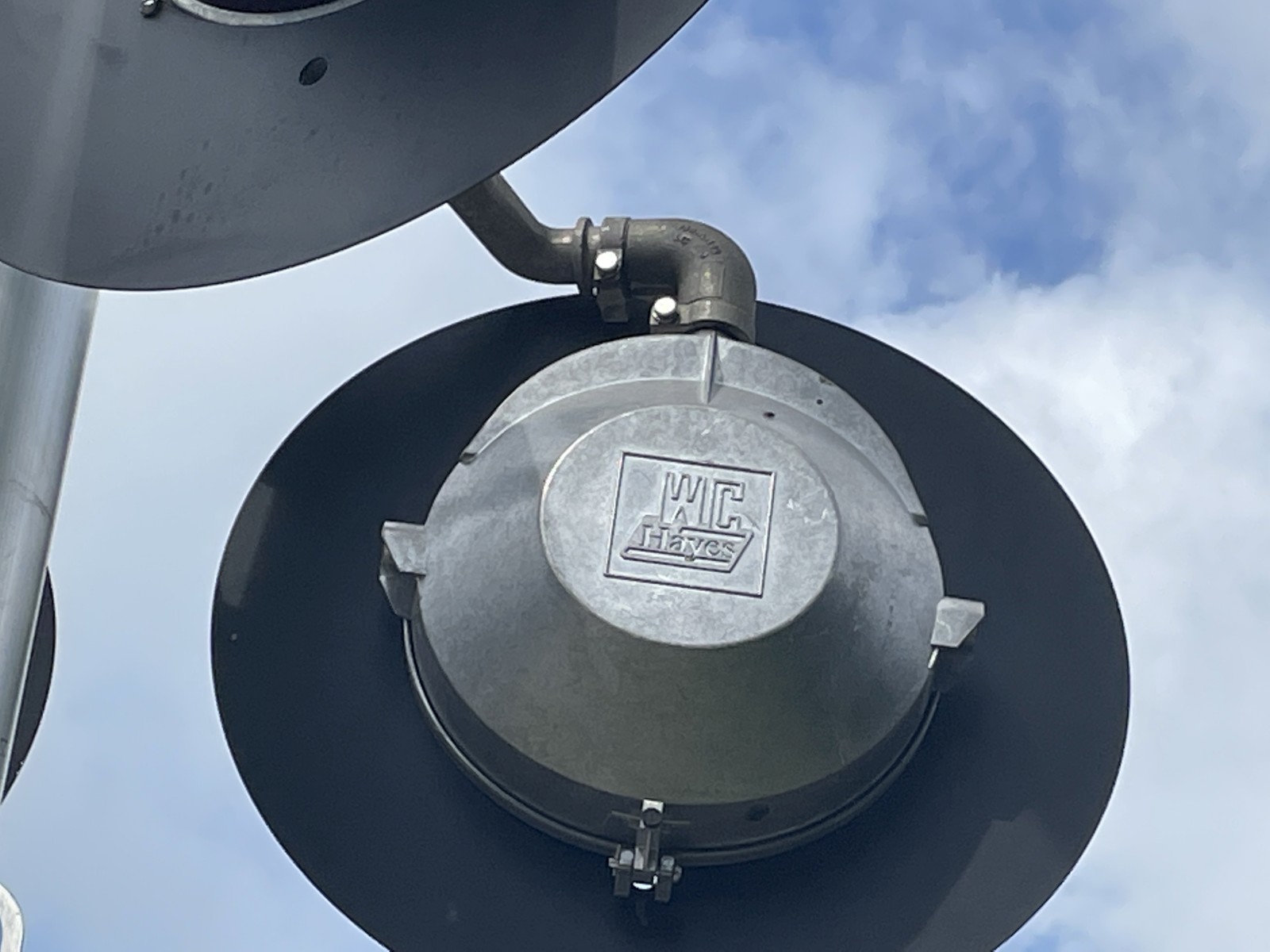

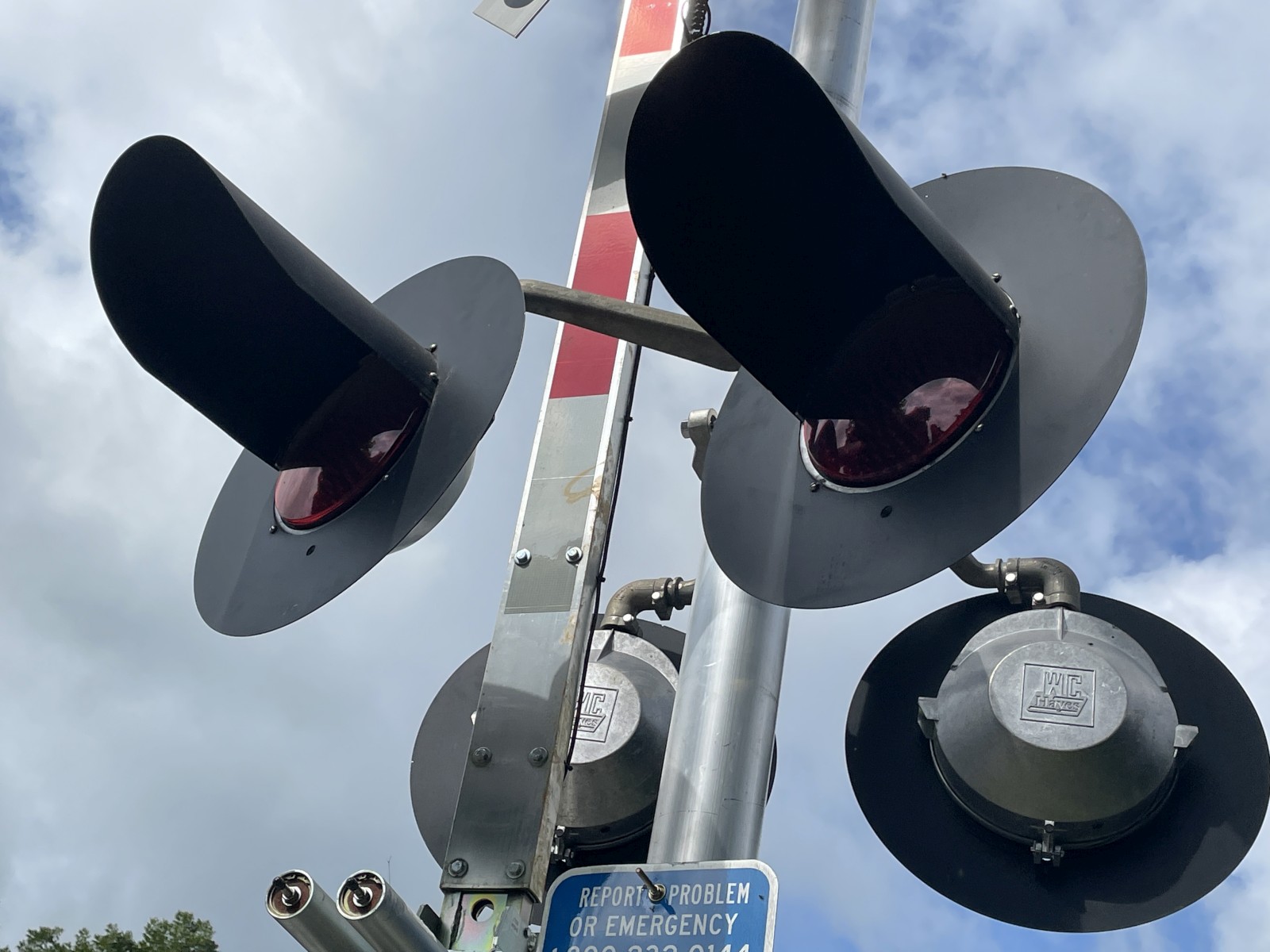

The lights on this signal are WCH 12x24s with Leotek EV series LEDs. |
|
9 |
10 |
11 |
12 |

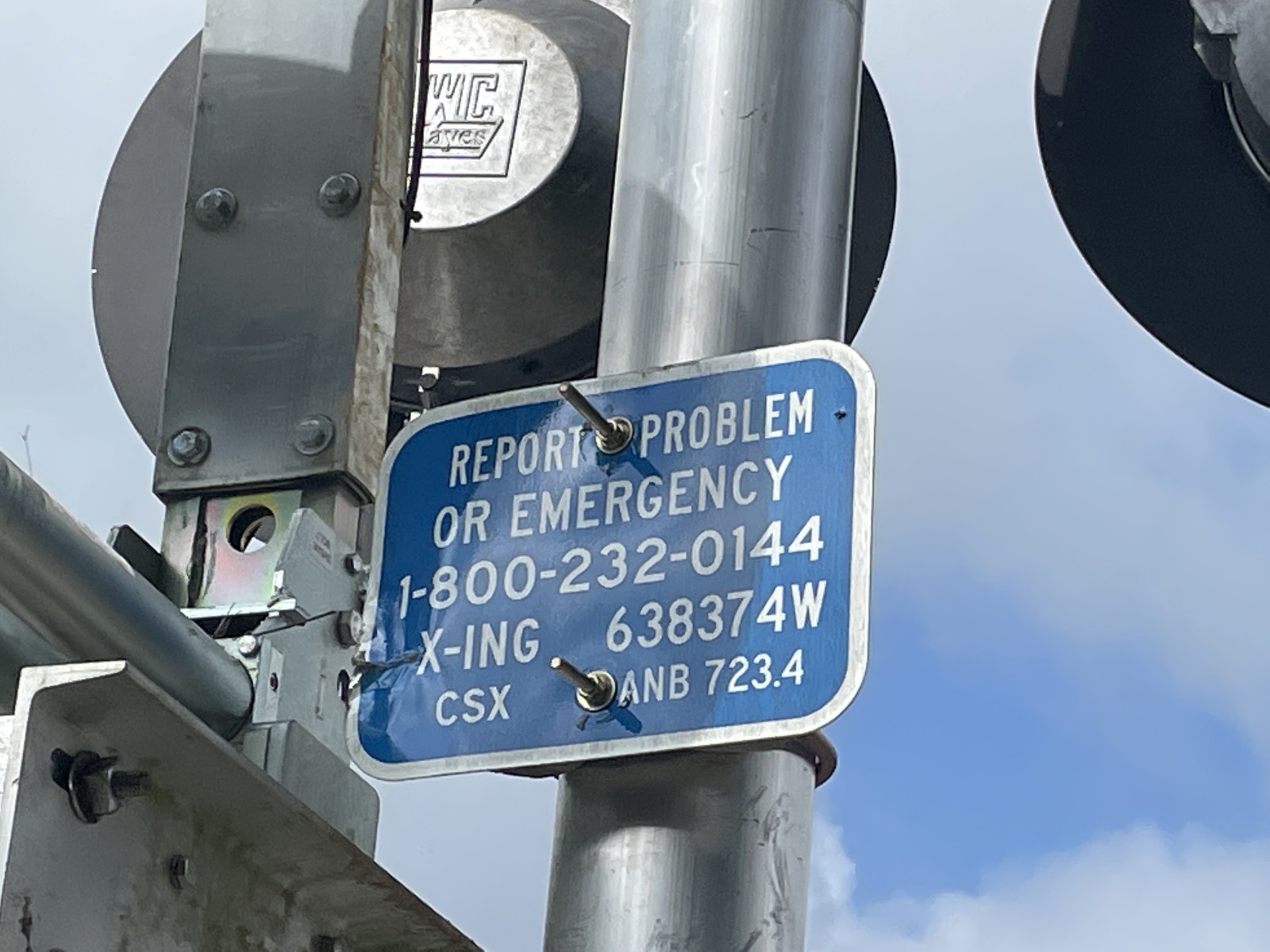

The emergency information. |

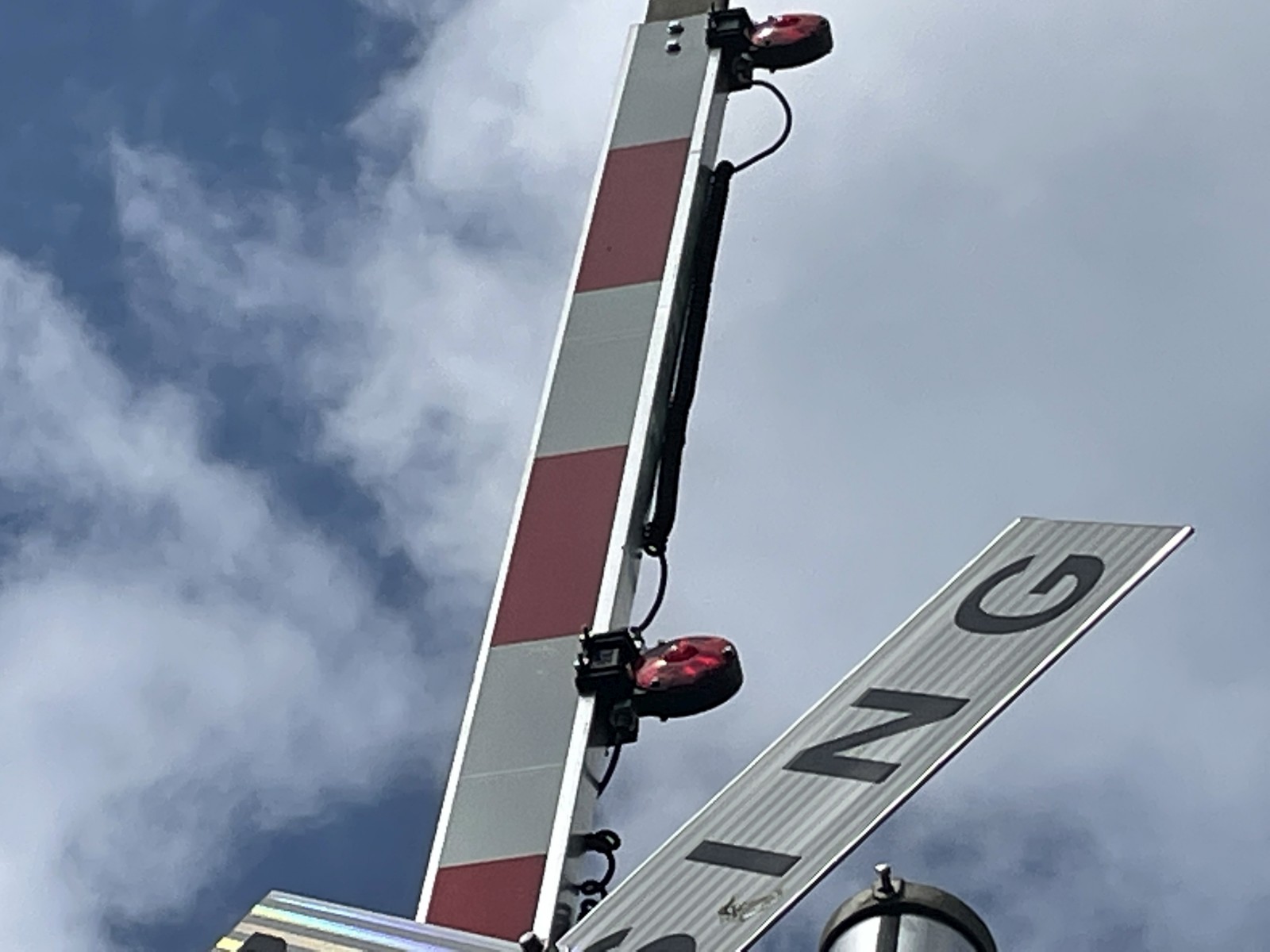

The gatelights are NEG LEDs. |

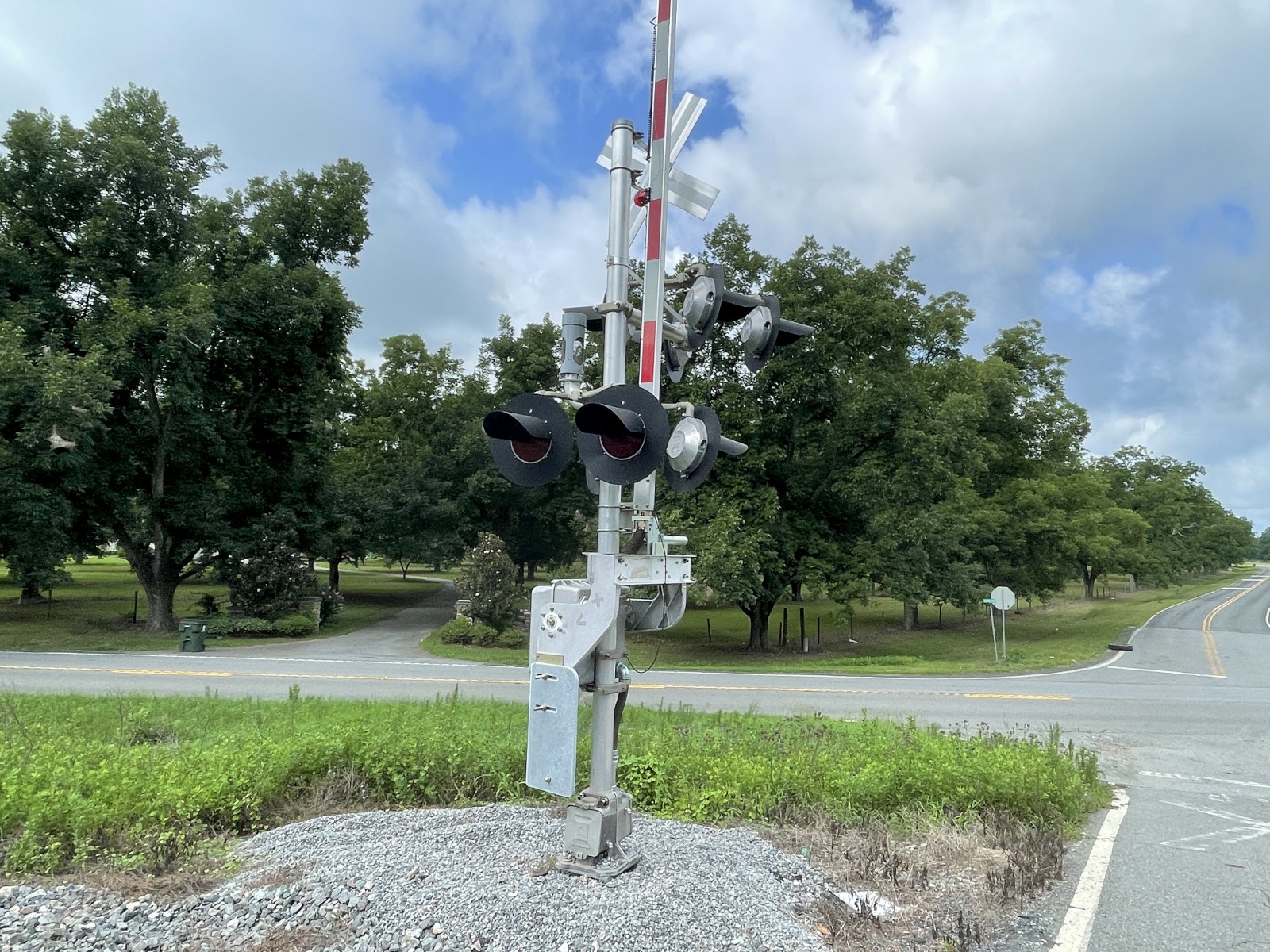

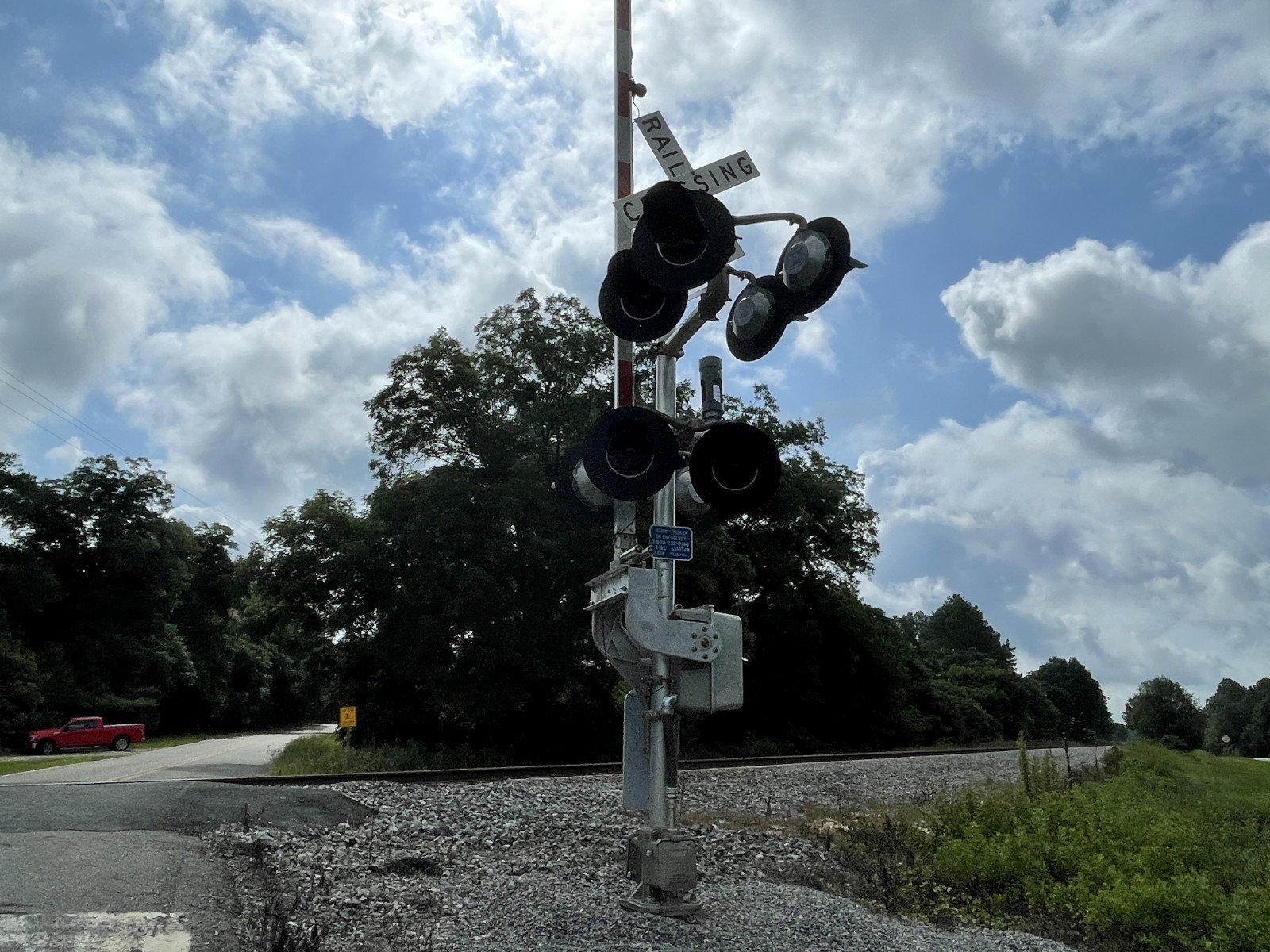

The western signal. |
|
13 |
14 |
15 |
16 |

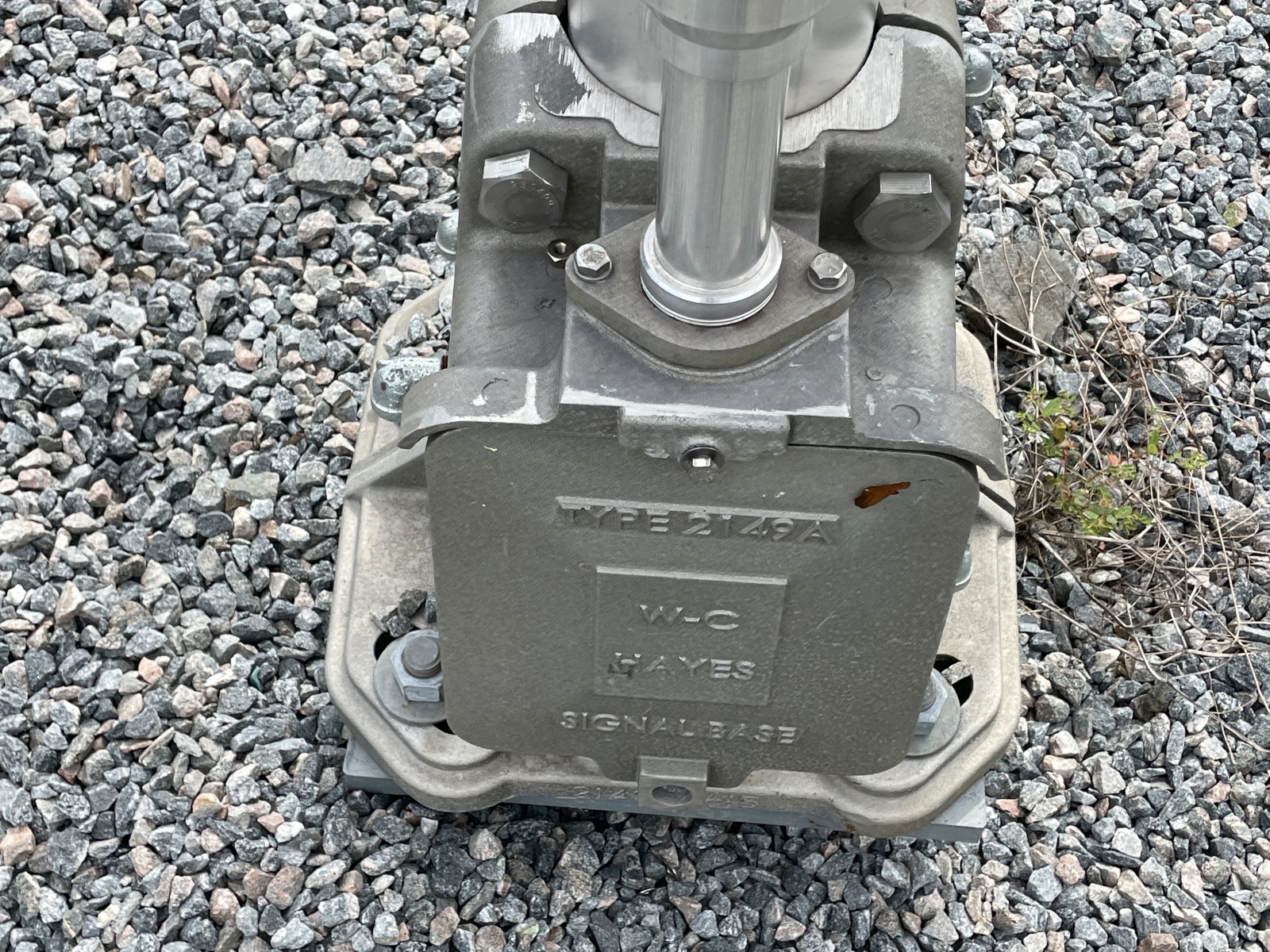

It has another WCH base. |

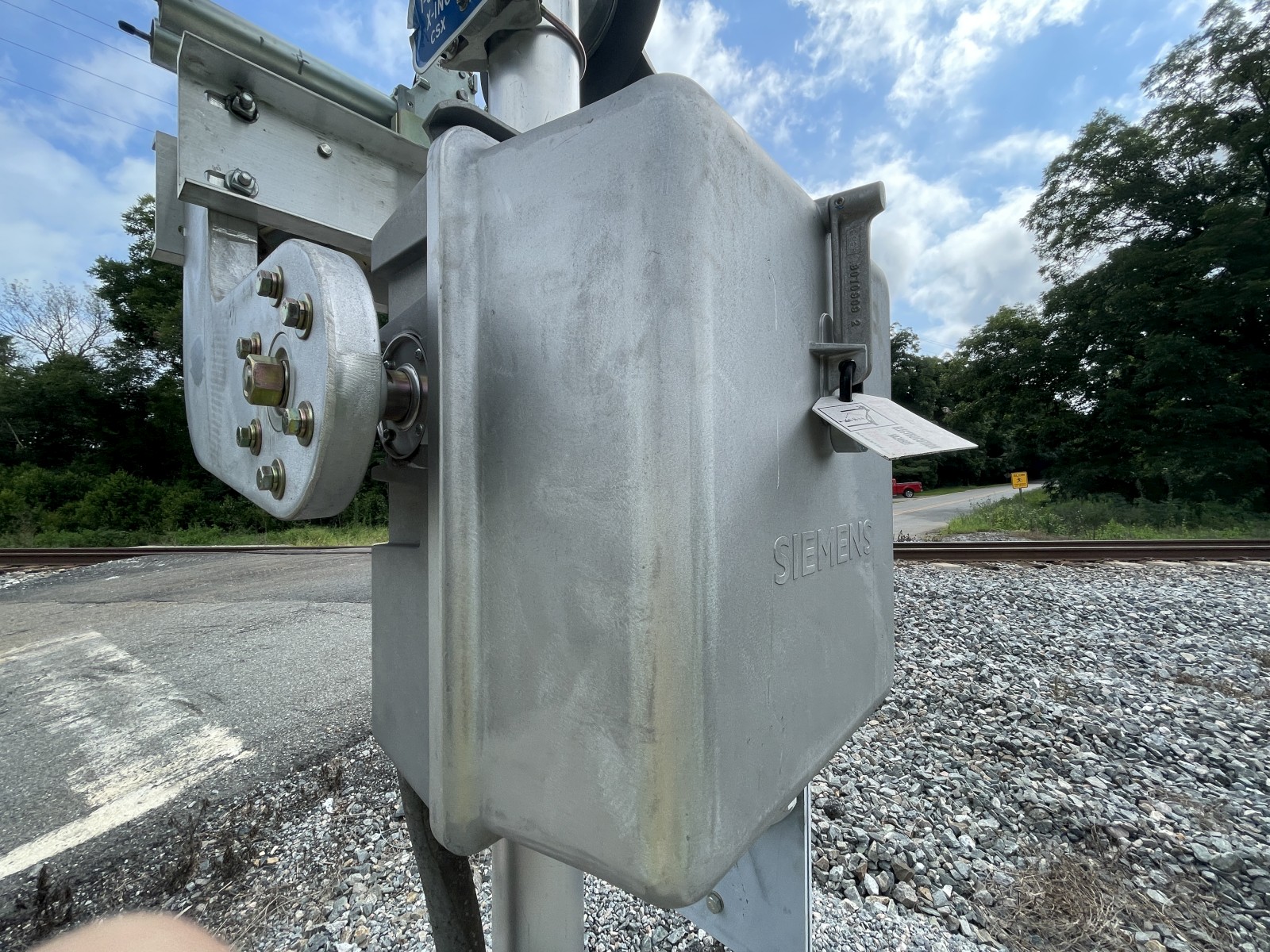

Another Siemens gate mechansim. |

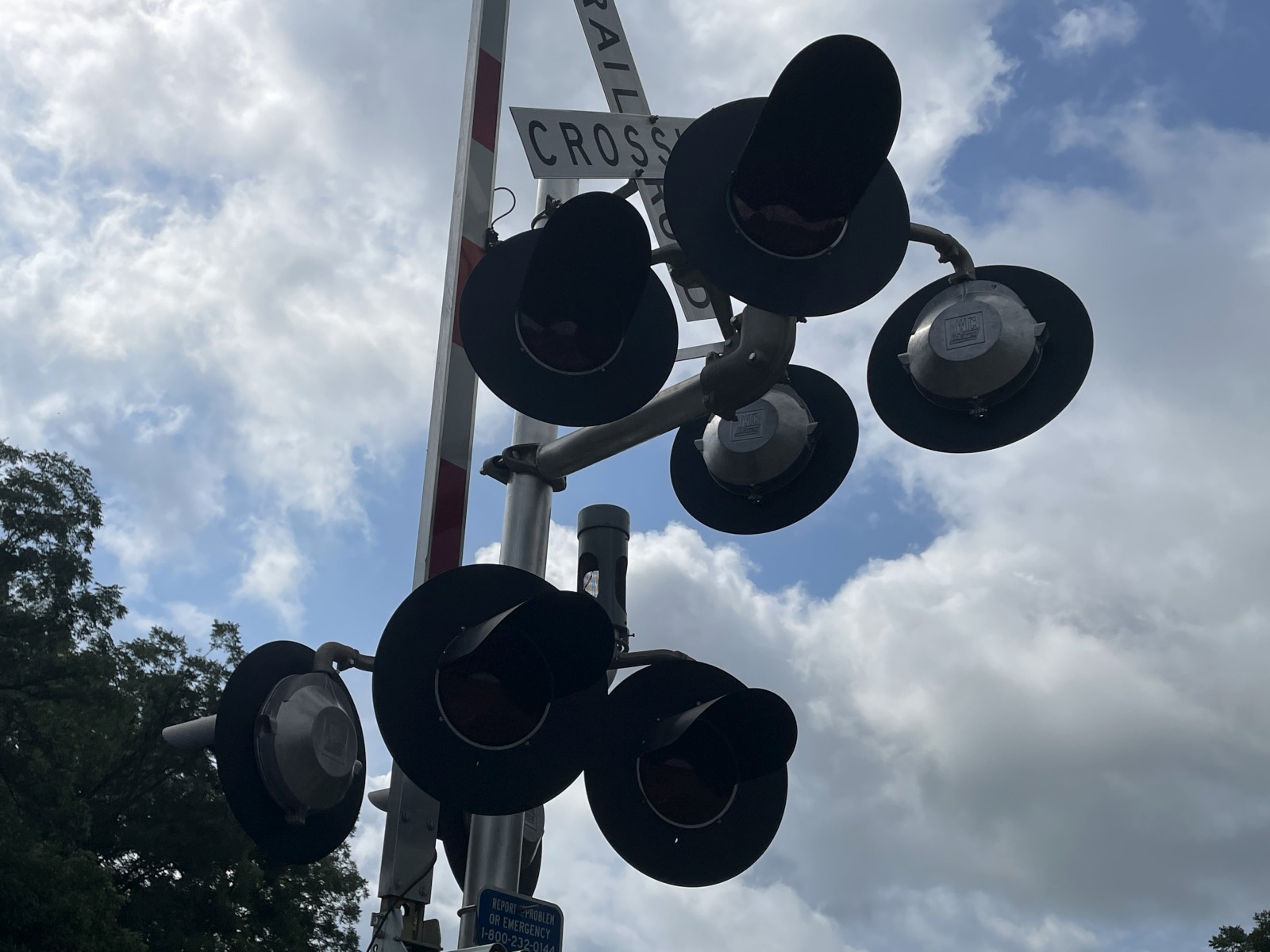

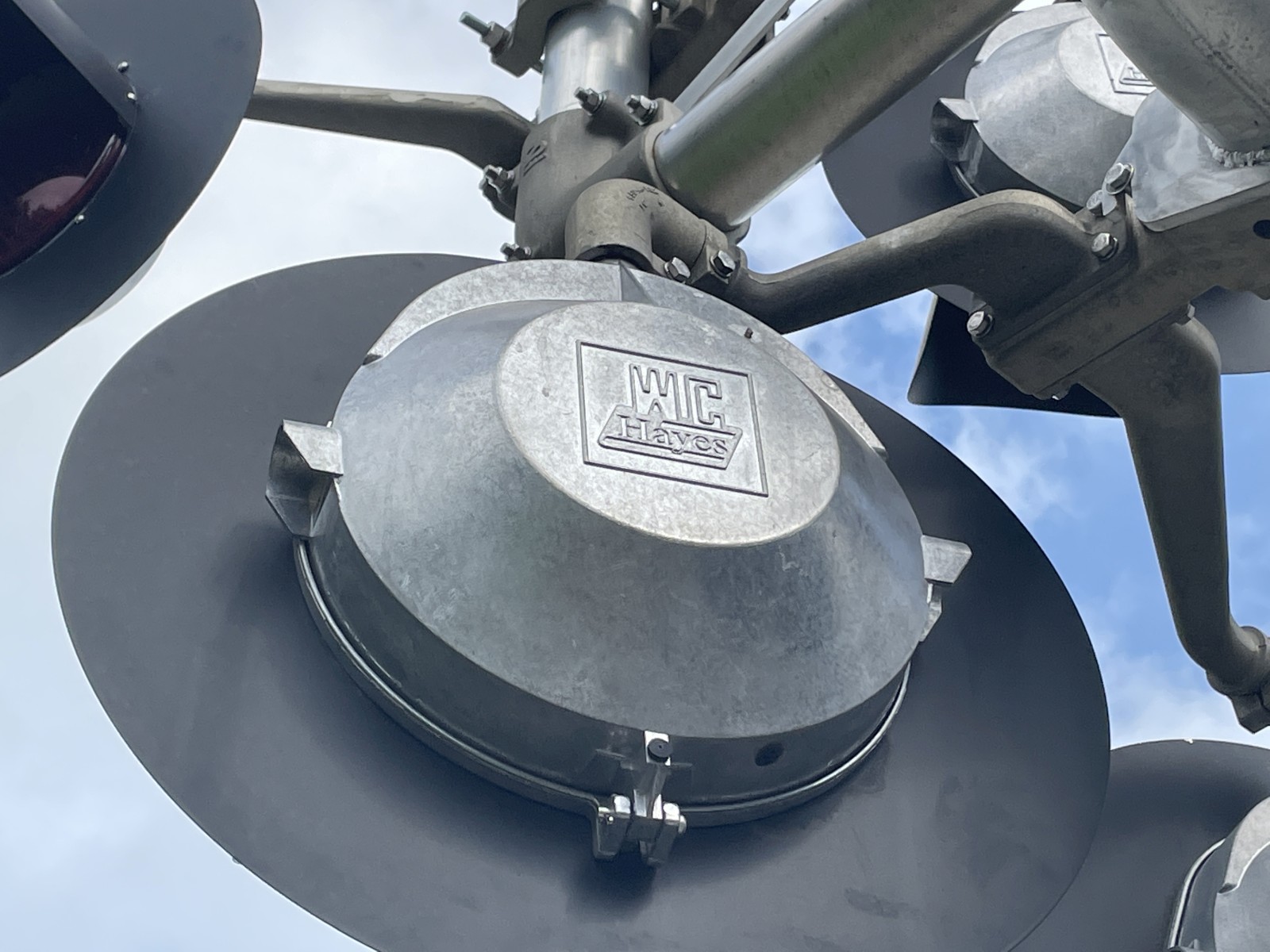

This signal has more WCH 12x24 lights with Leotek EV series LEDs. |
|
17 |
18 |
19 |
20 |

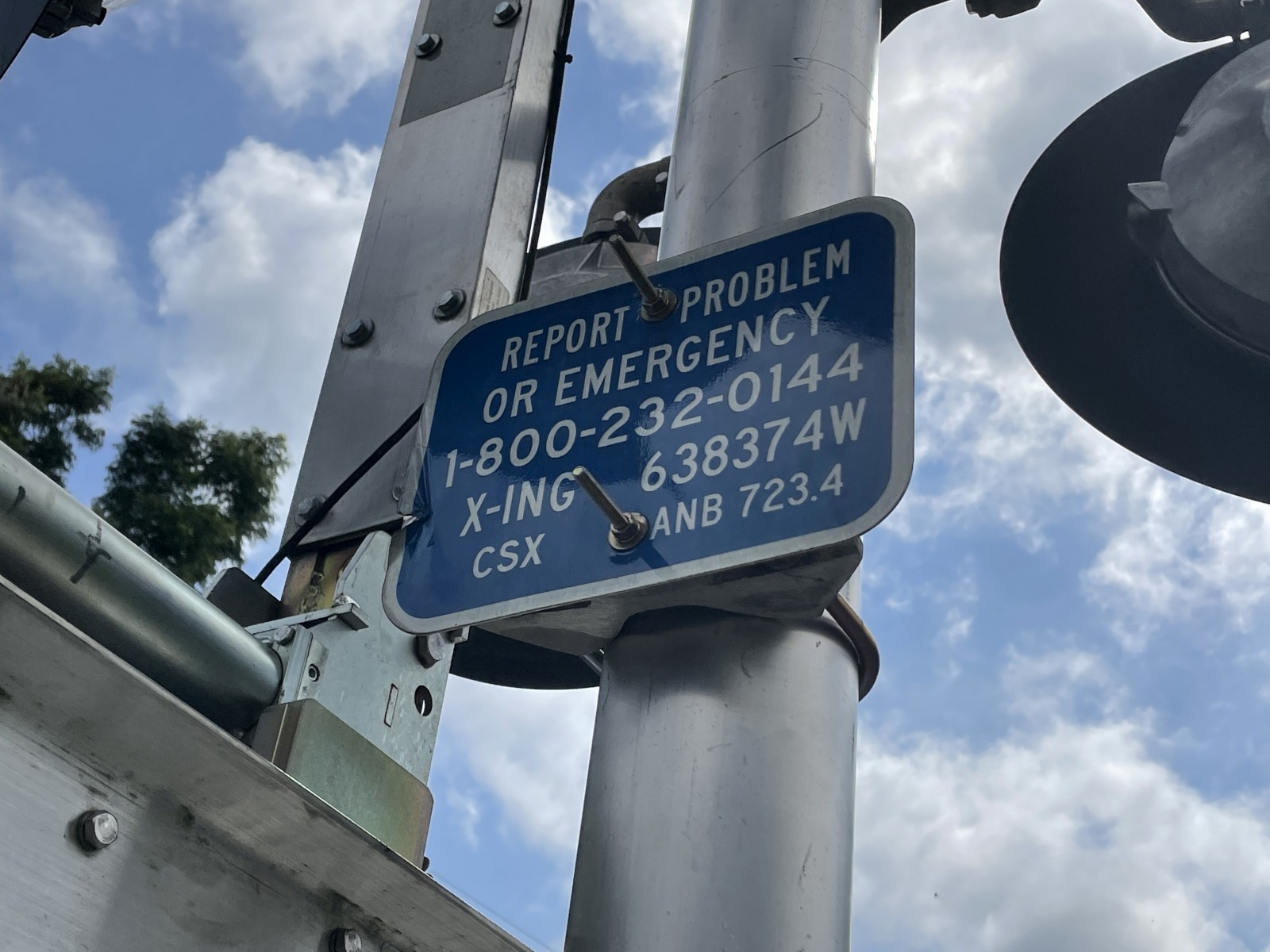

The emergency information |

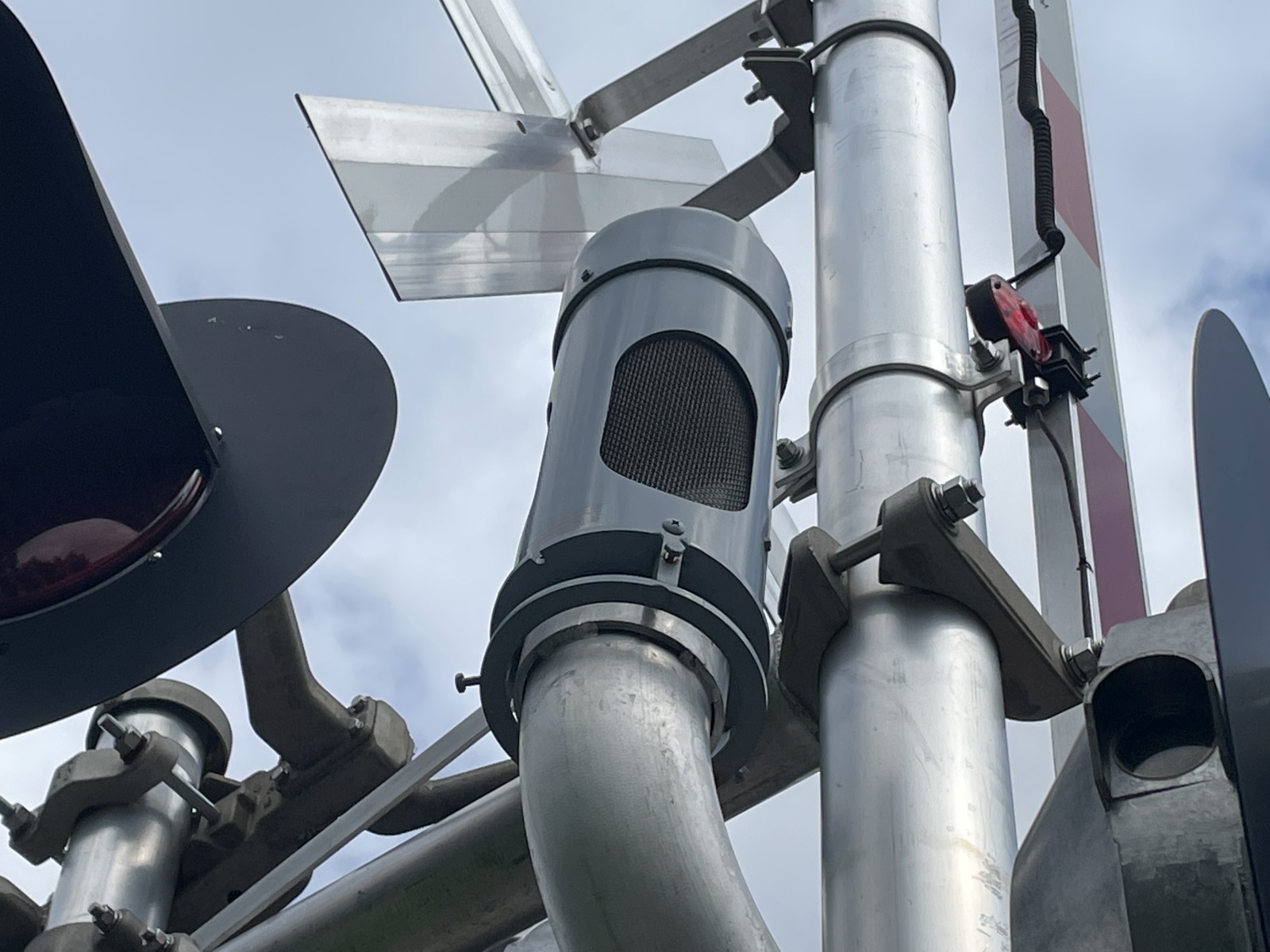

The bell on this signal is an NEG E-Bell. |

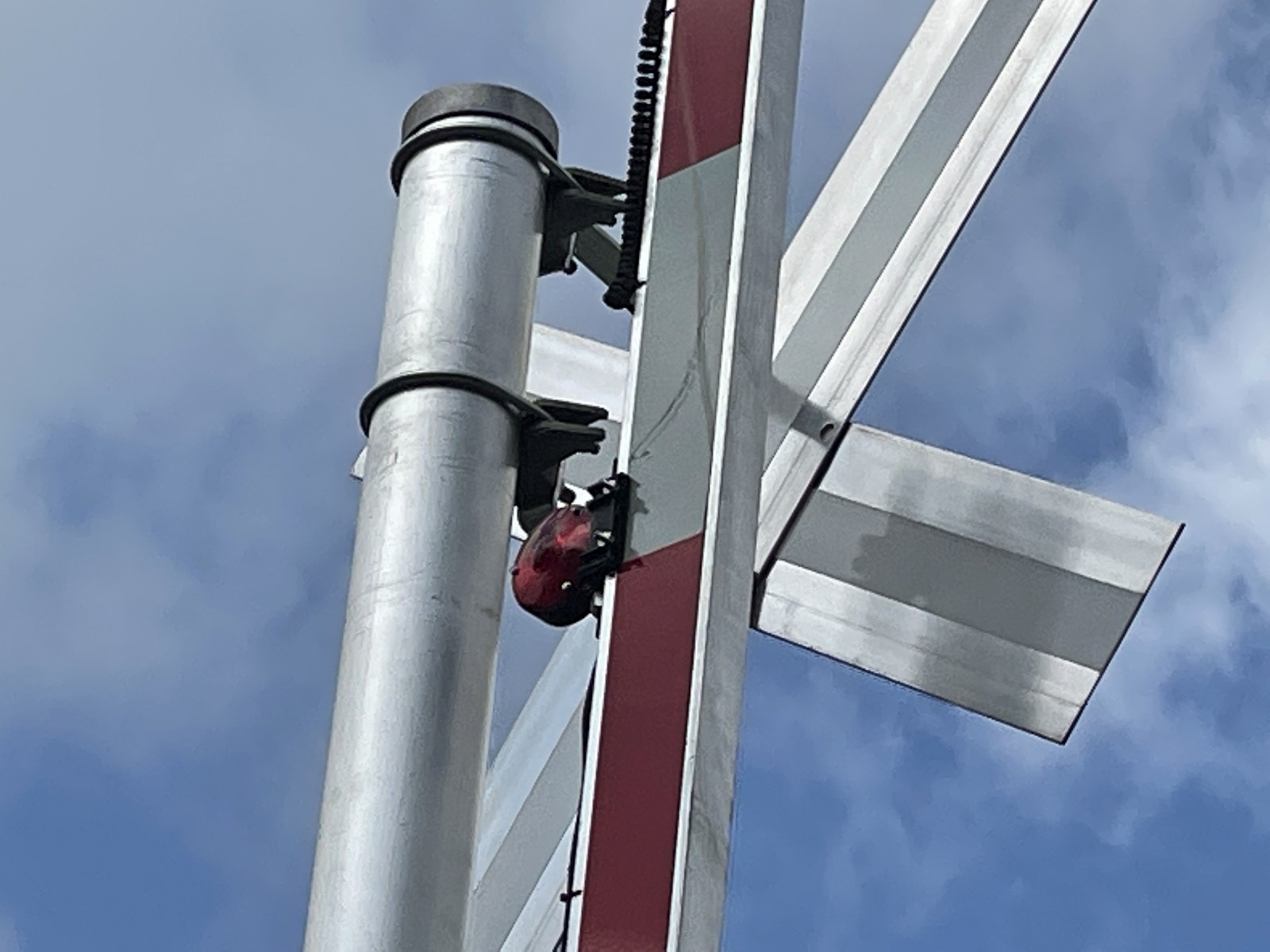

More NEG LED gatelights over here. |

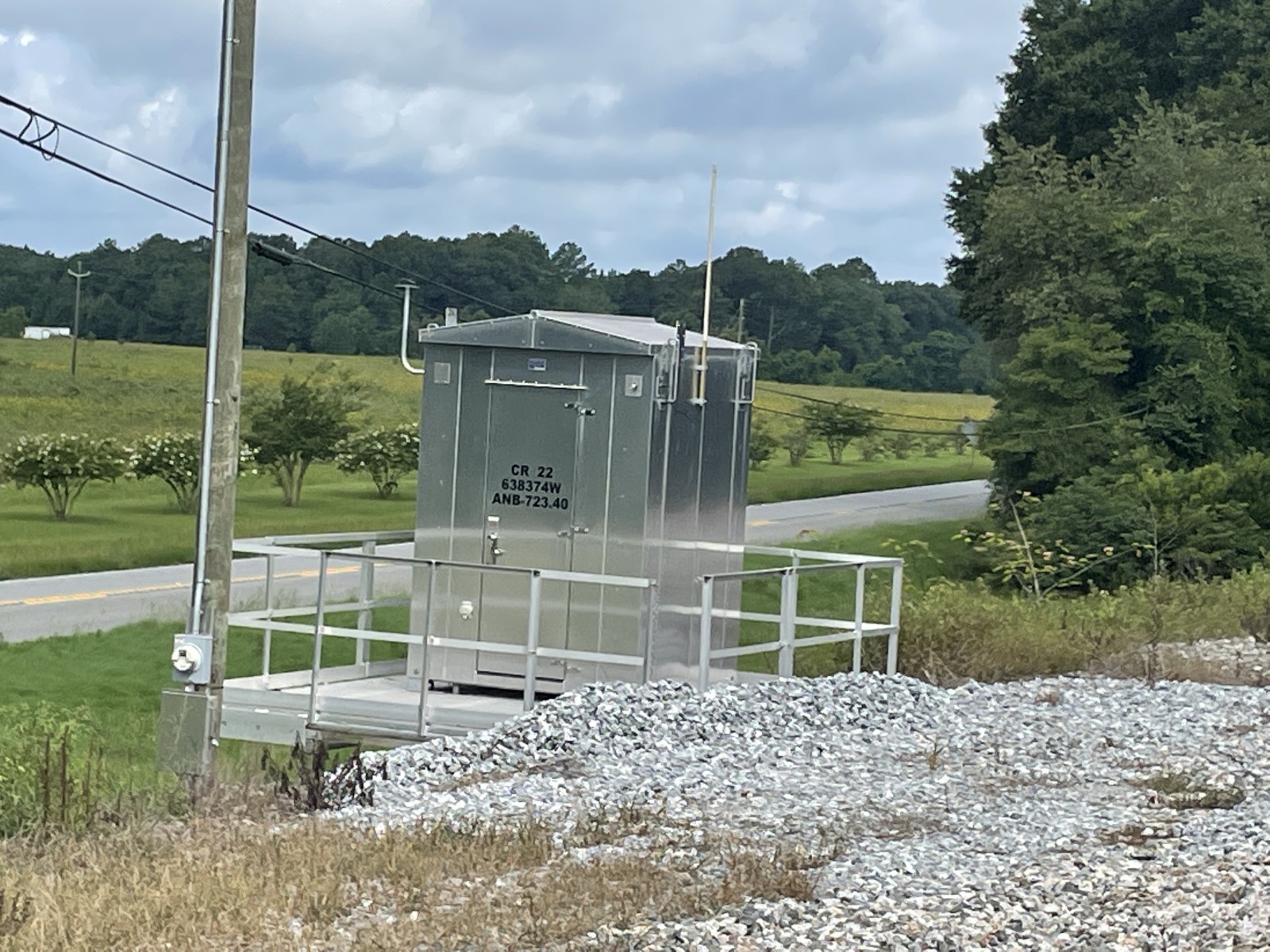

The relay bungalow. |
21 |
22 |

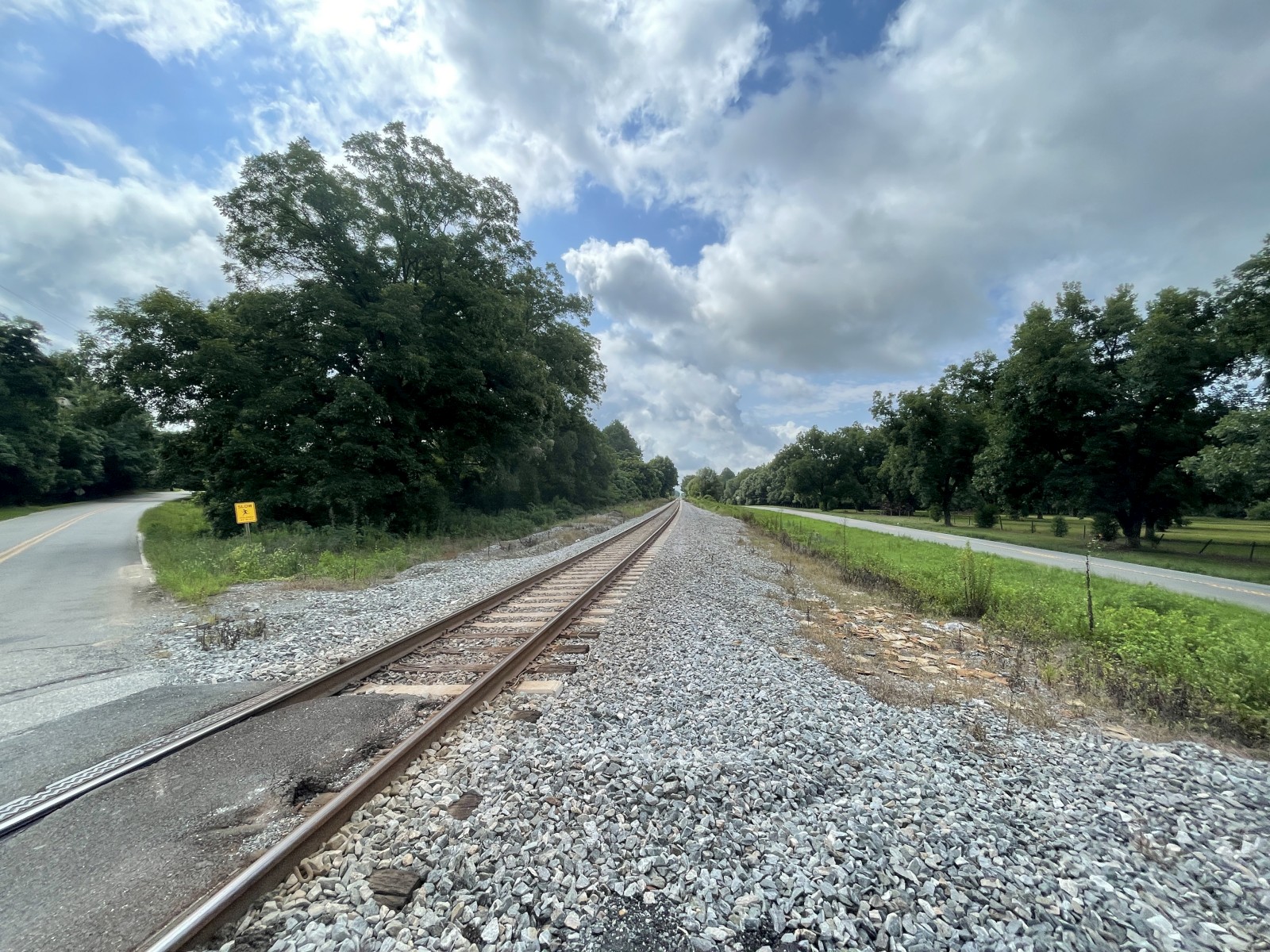

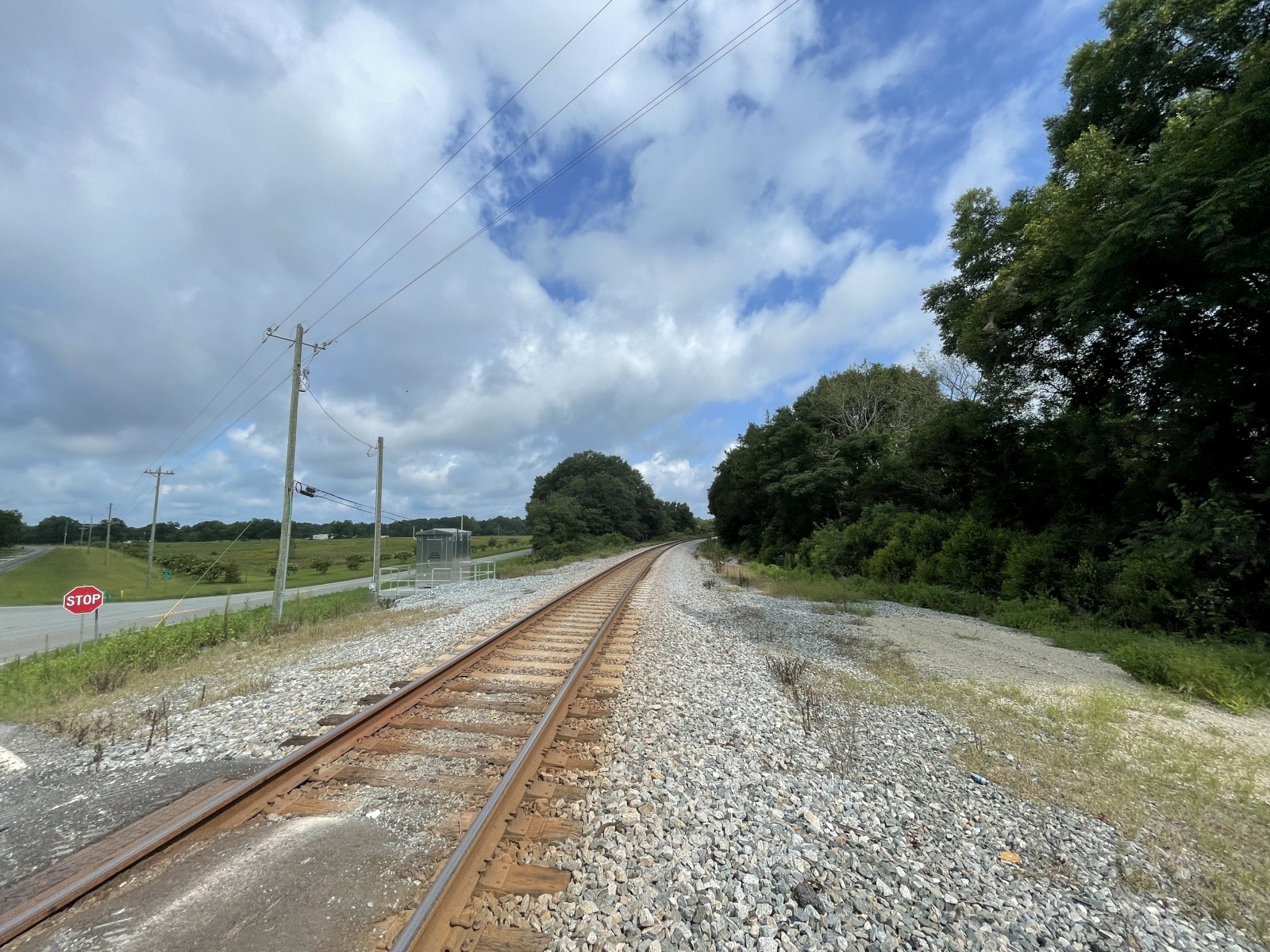

Track view facing north towards Travelers Rest Road. |
Track view facing south towards Grab All Hill Road near Dooling. |
All pictures were taken on 7-20-22.
