MP: ANB724.310 |
Created December 28, 2022
Total Accidents: 1
Crossing
DOT #: 638376K
TOTAL
DAILY TRAINS: 24 (AS OF 2020)
Page created by: Ethan the Railfanner
This crossing is located on the CSX Fitzgerald Subdivision.
| >>>>>>>>>>>>> | Eastern Signal | Western Signal |
| Bell: | NEG electronic | NEG electronic |
| Base: | WCH | WCH |
| Light Frames: | 4 - 12x24" WCH w/ WCH 2nd Gen LEDs | 3 - 12x24" WCH w/ WCH 2nd Gen LEDs 1 - 12x24" WCH w/ Leotek EV Series LED |
| Gate Lights: | 3 - NEG LEDs | 3 - NEG LEDs |
| Gate Mechanism: | WCH Style 3 | Safetran 2000s |
| Gate Striping: | Vertical | Vertical |
1 |
2 |
3 |
4 |

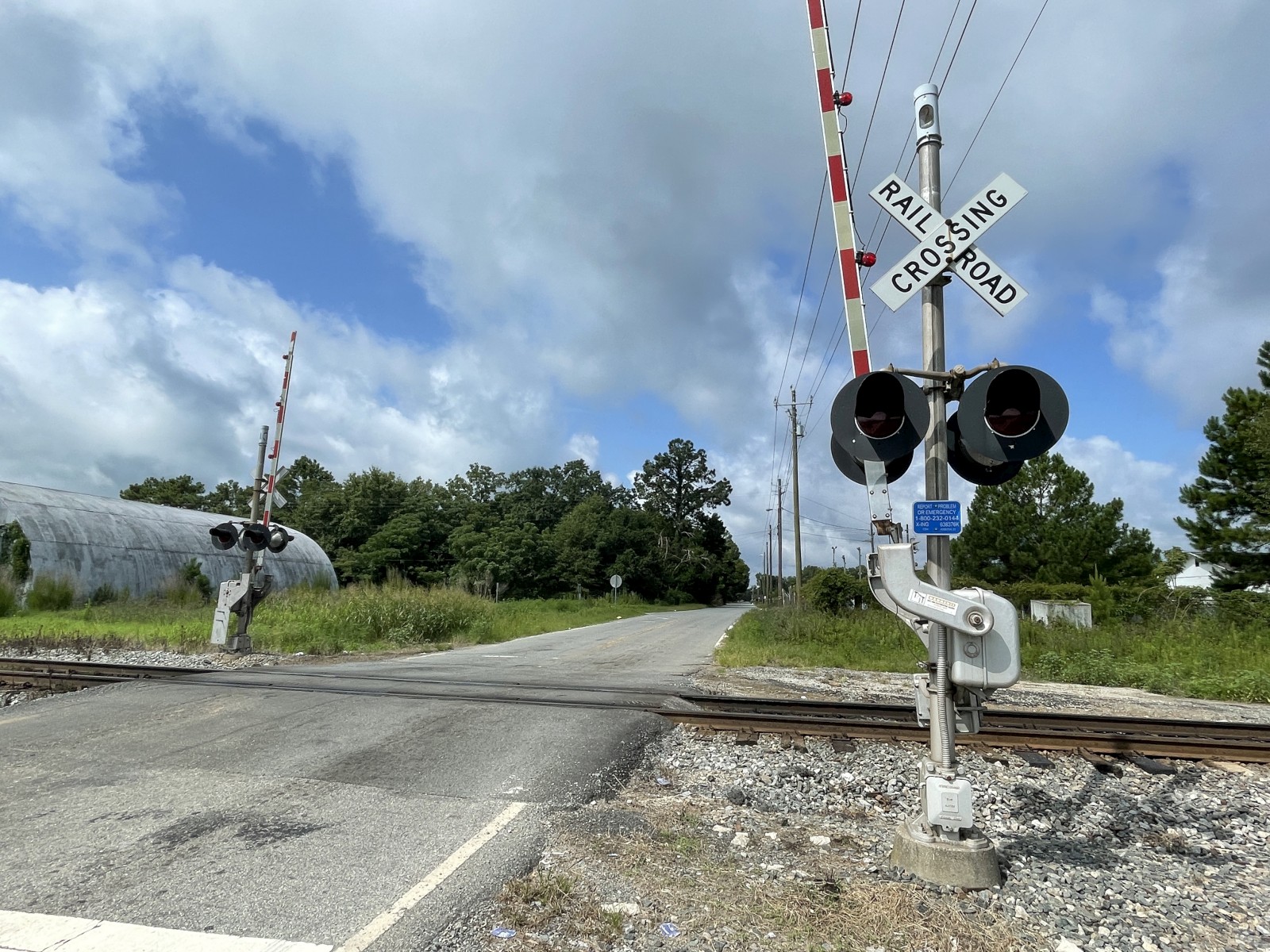

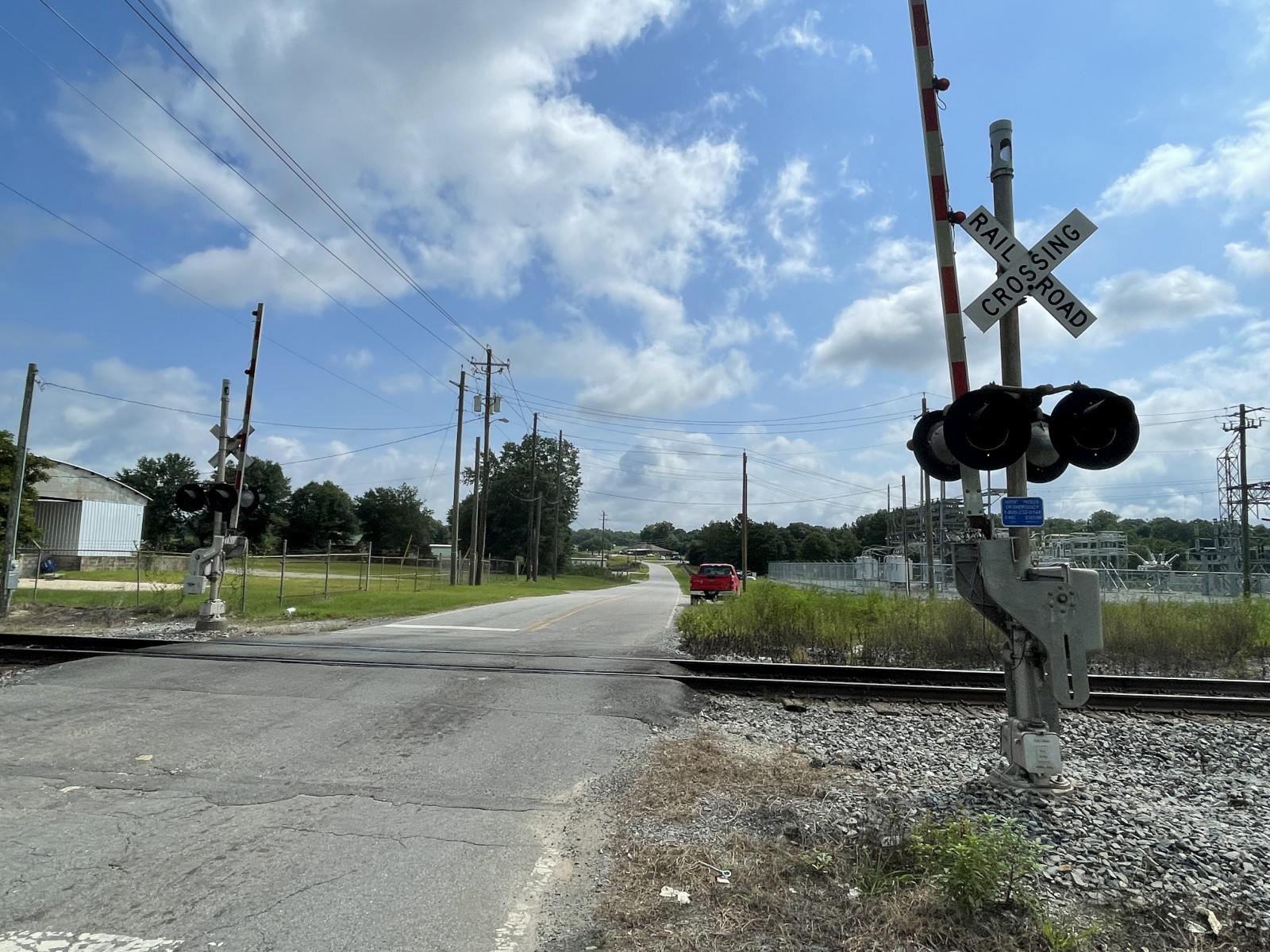

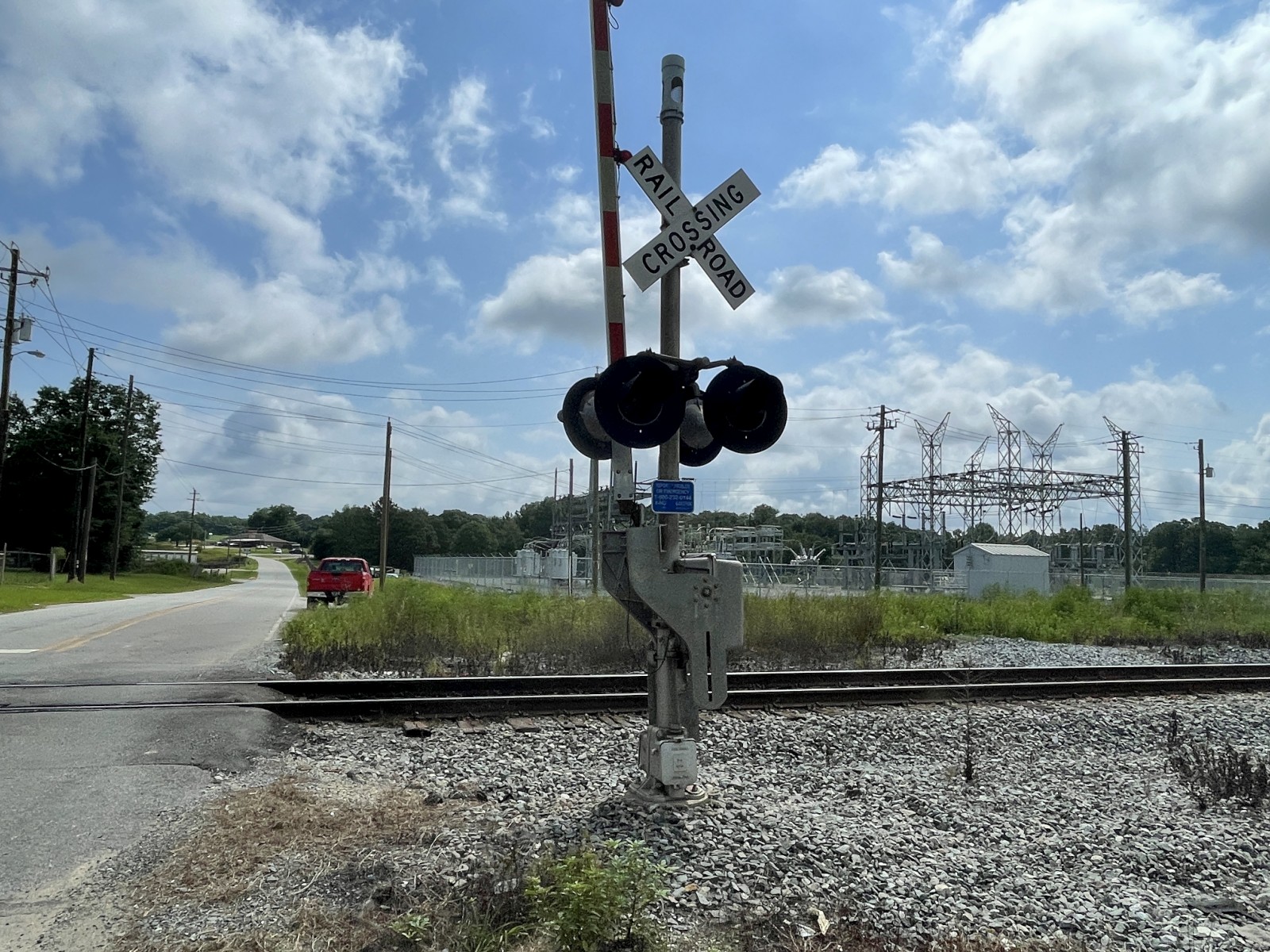

Overviews of this crossing. |

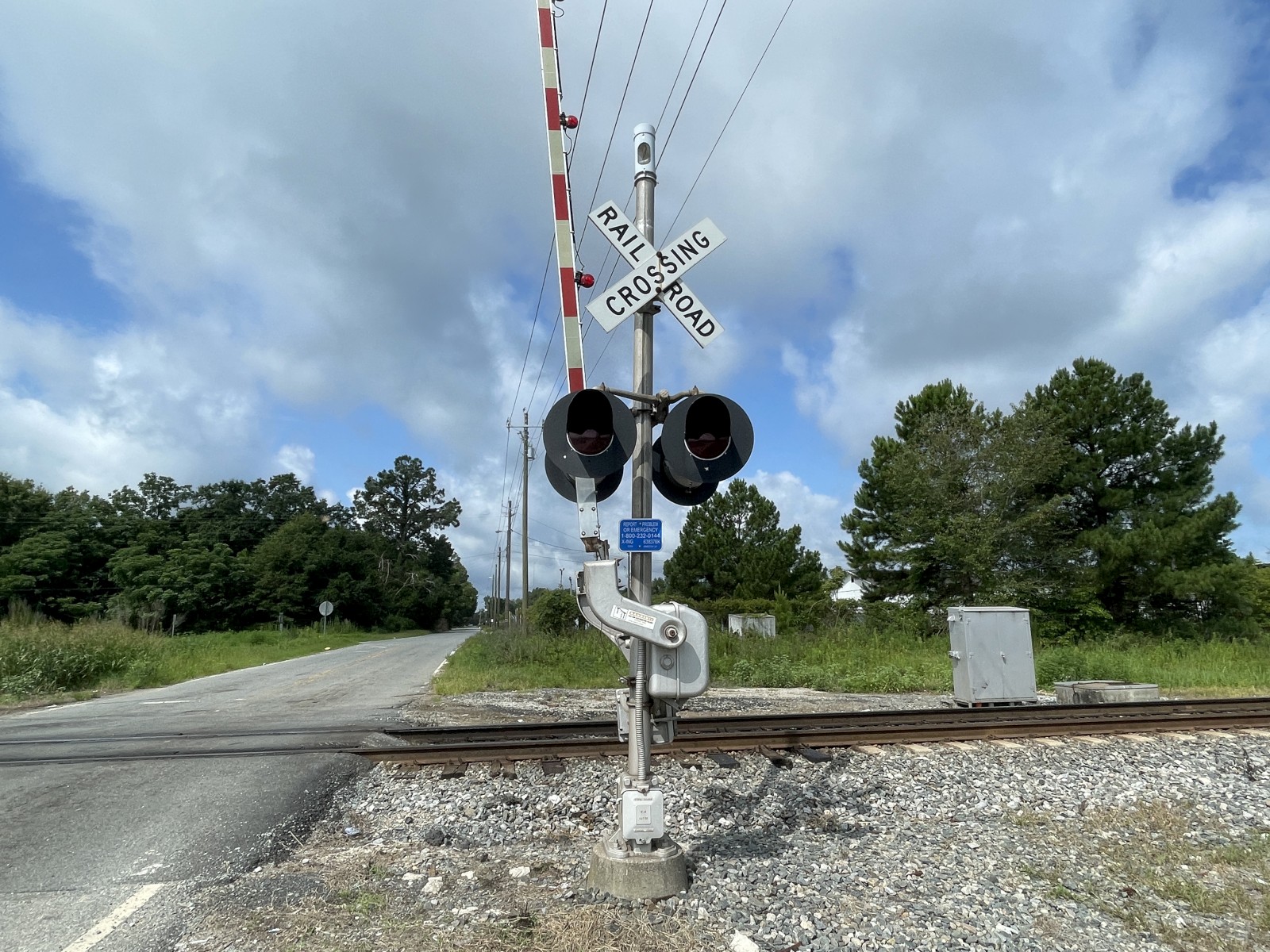

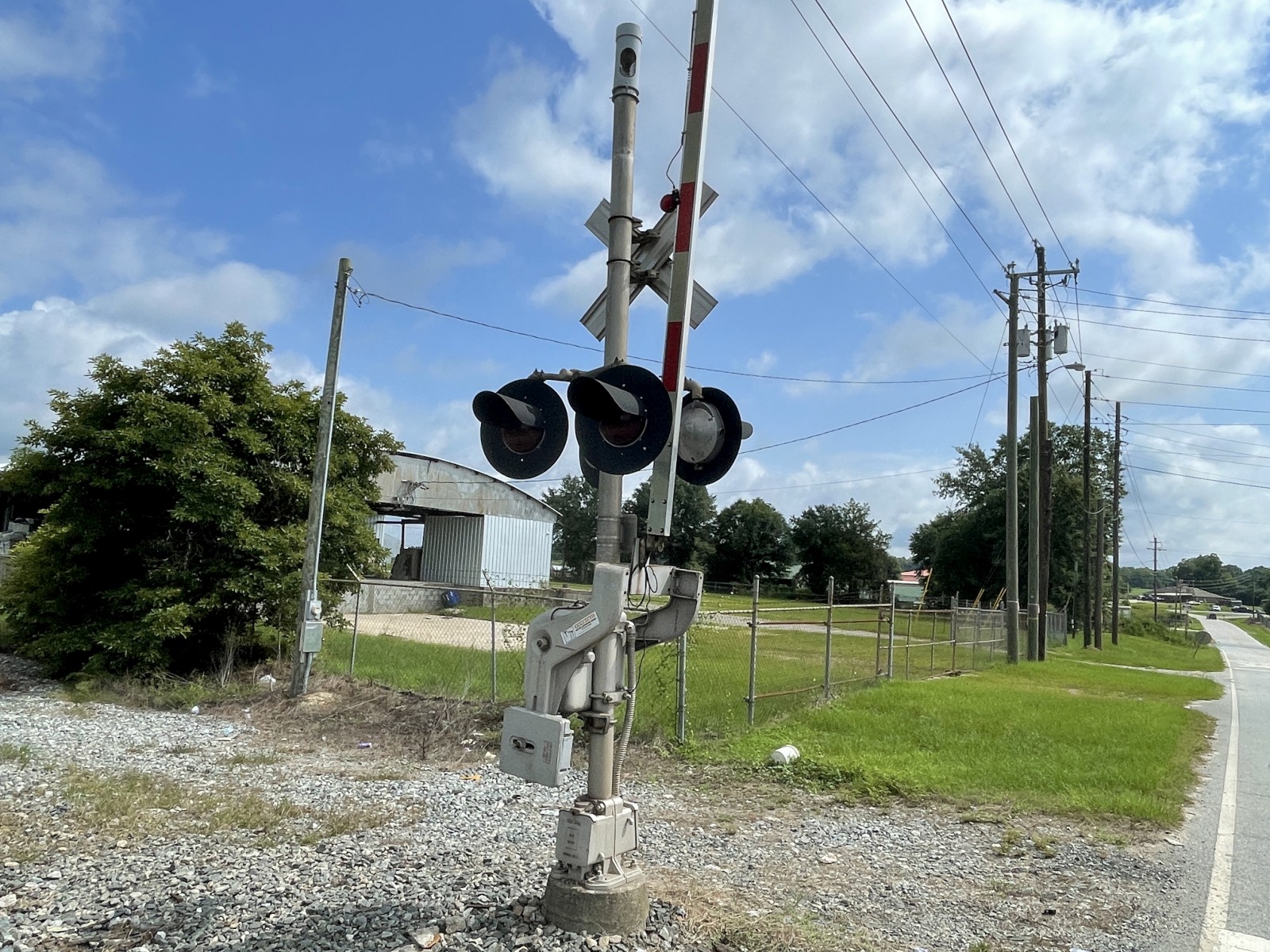

The eastern signal. |
||
5 |
6 |
7 |
8 |

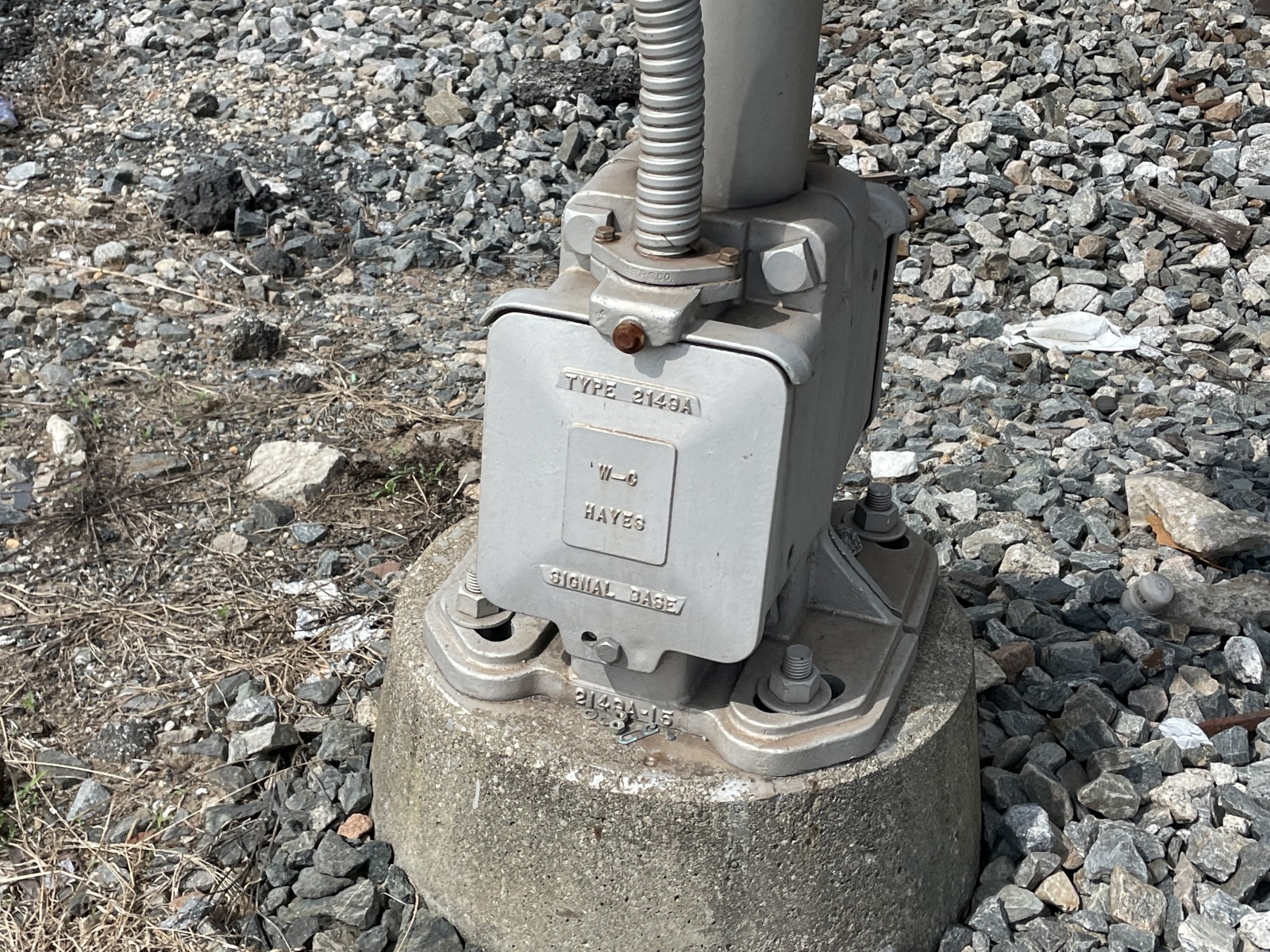

It has a WCH base. |

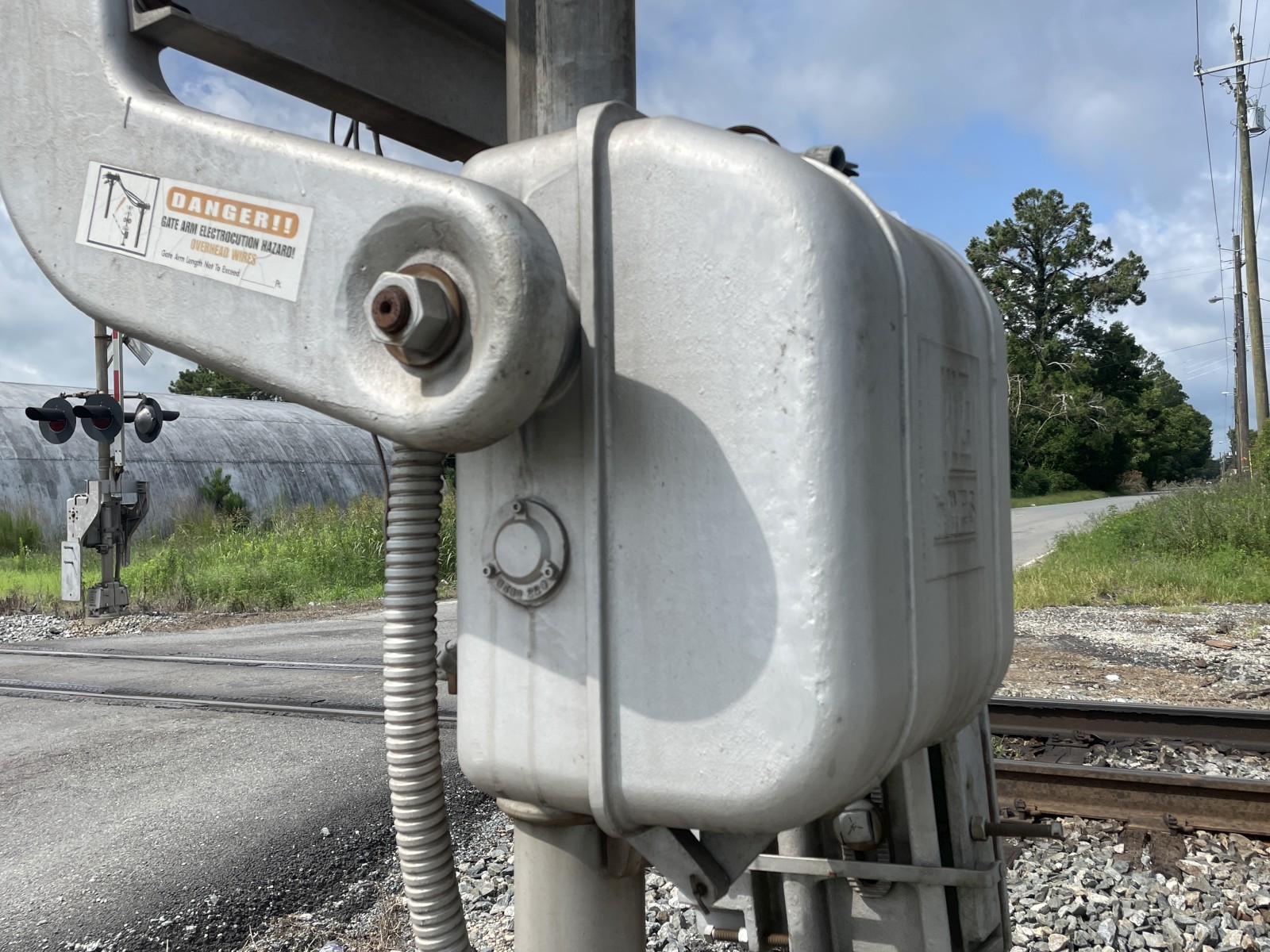

A WCH gate mechansim. |

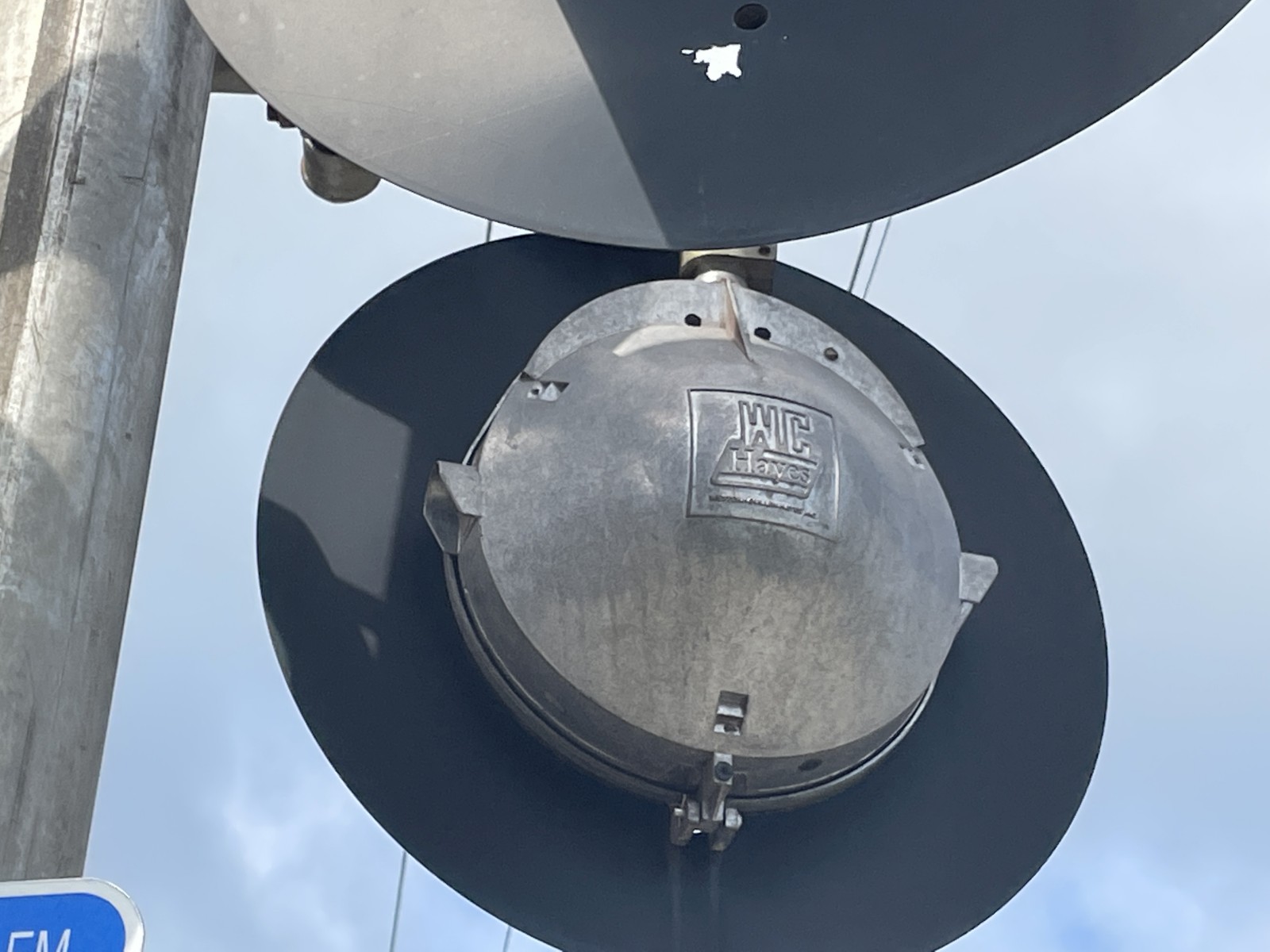

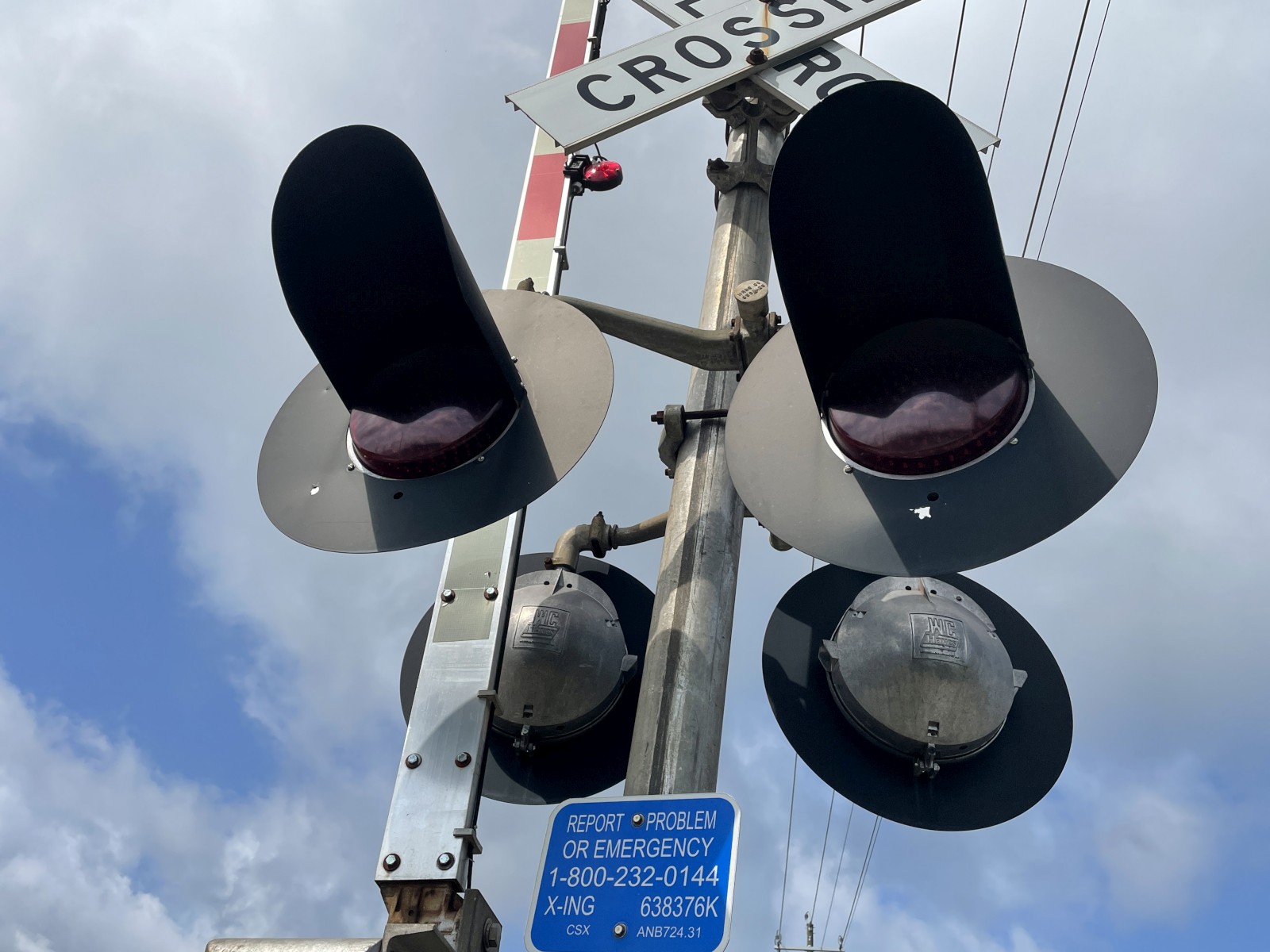

The lights on this signal are WCH 12x24s with WCH 2nd Gen. LEDs. |
|
9 |
10 |
11 |

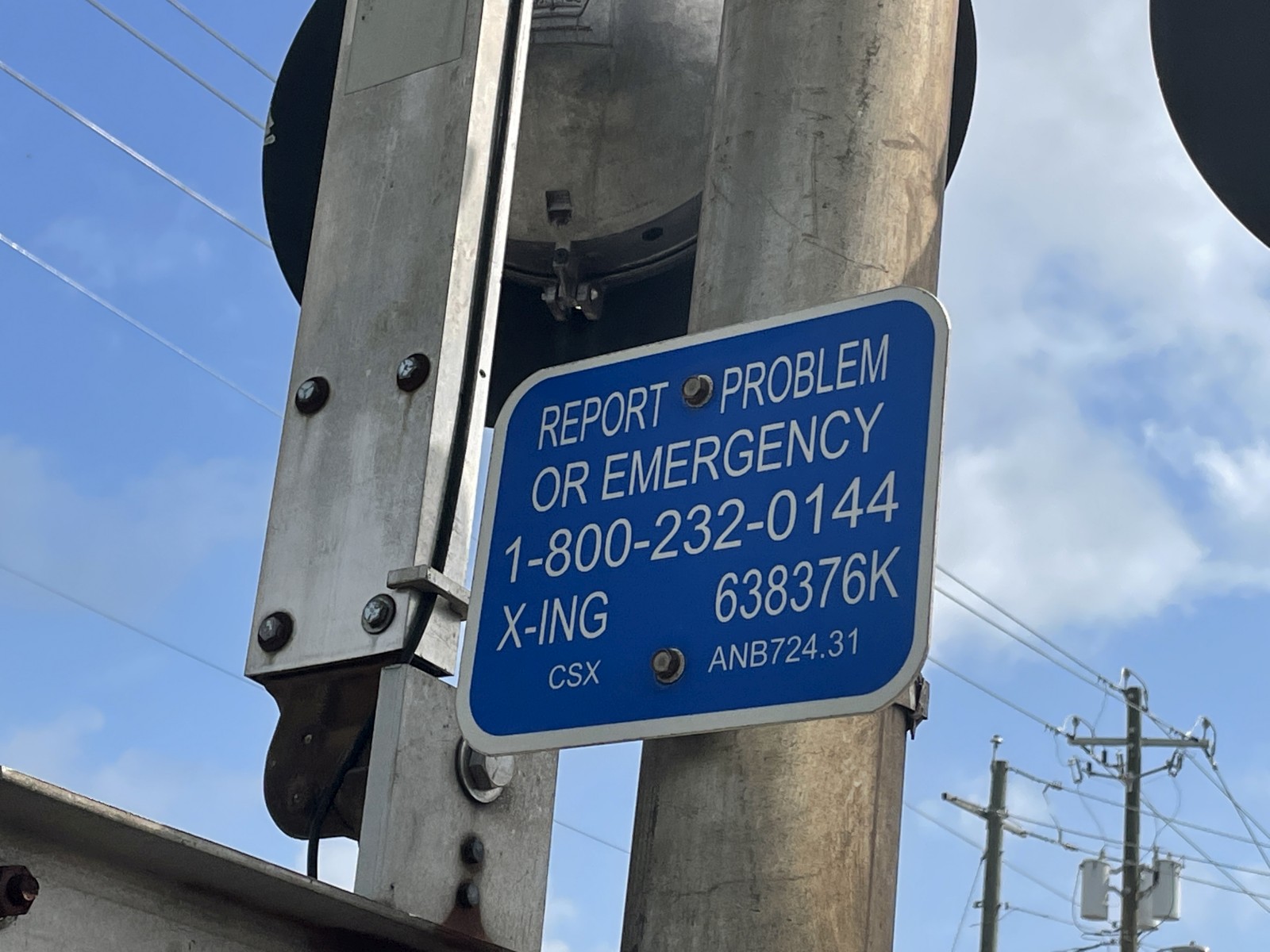

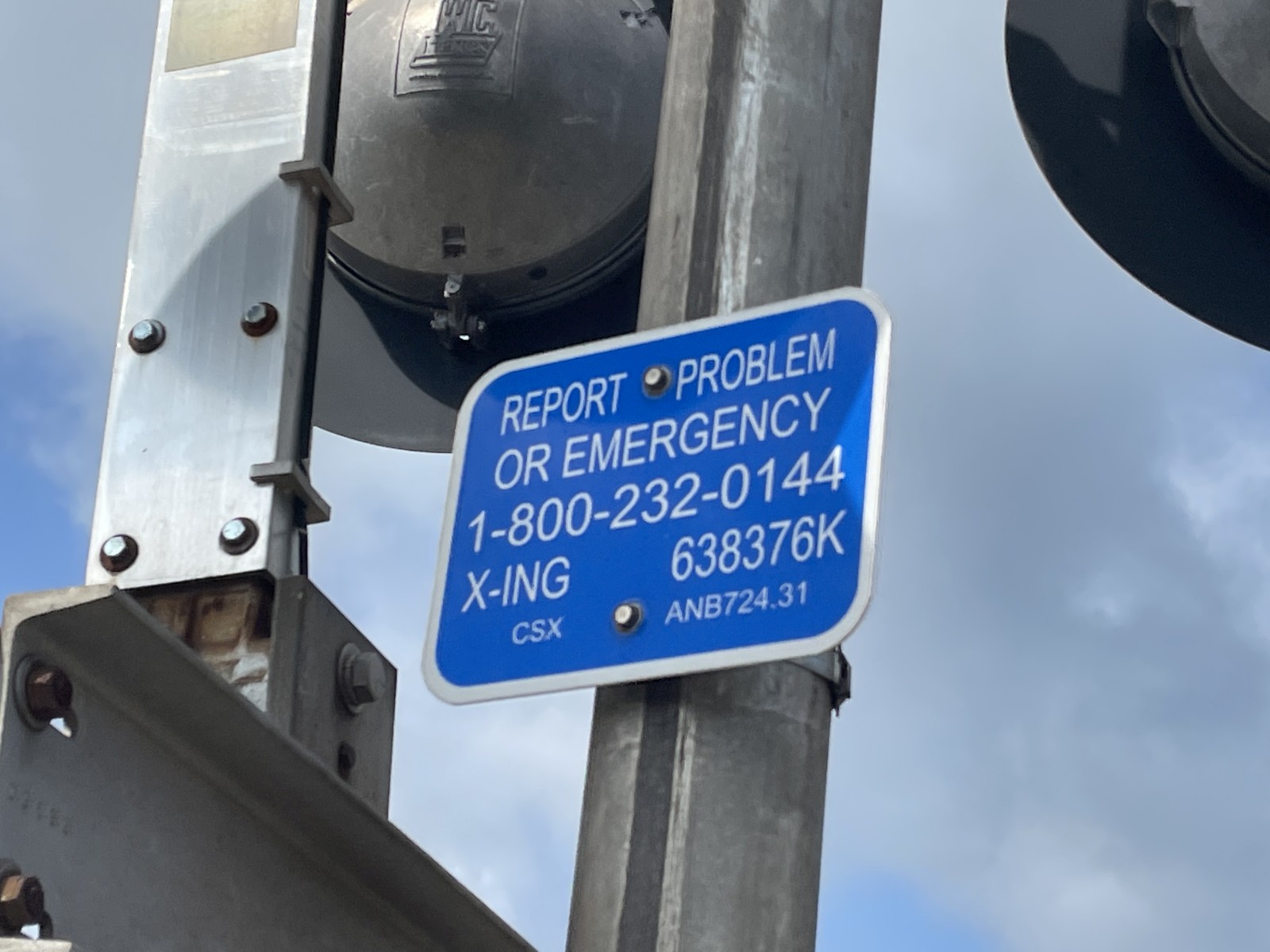

The emergency information. |

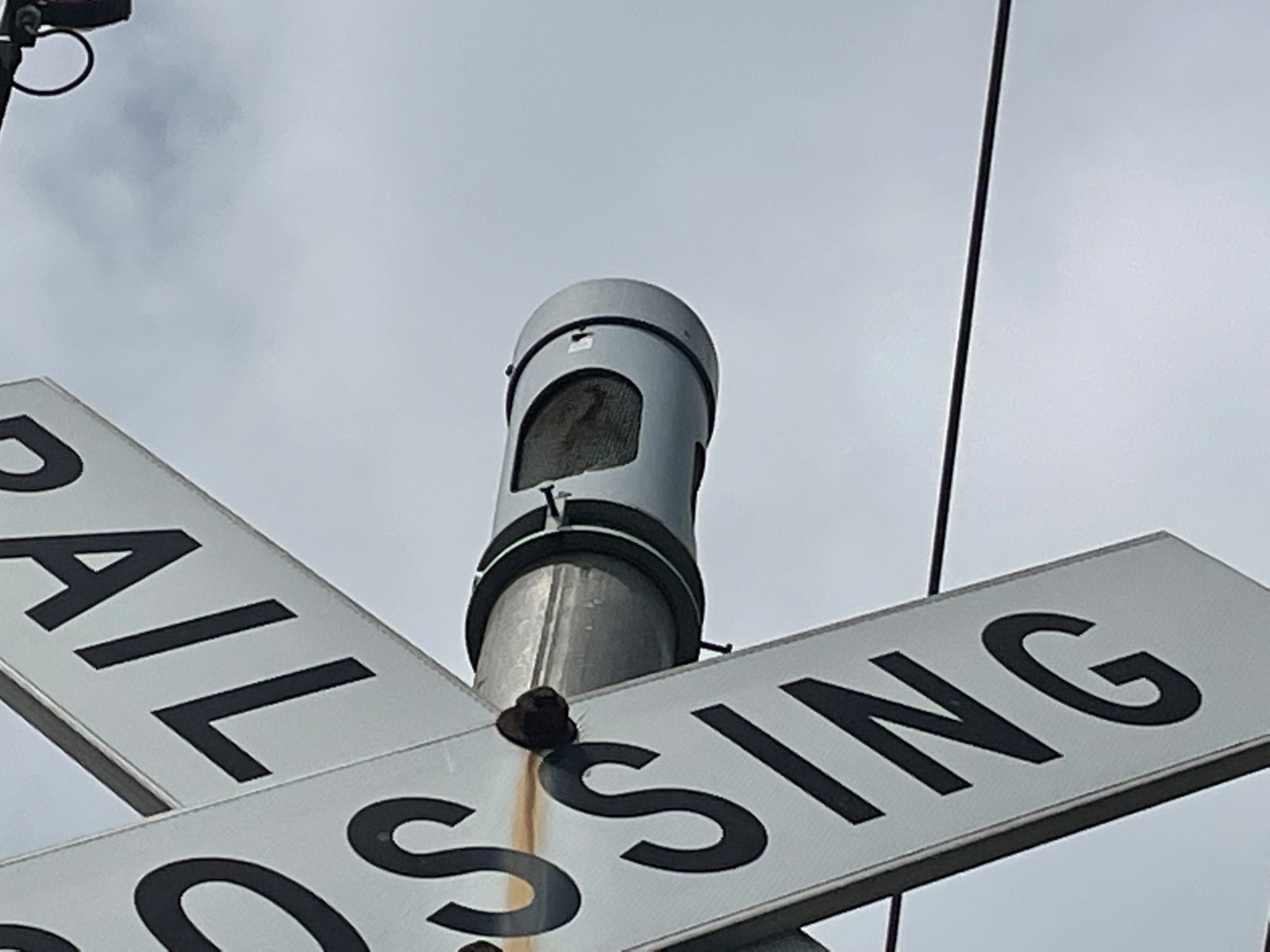

The bell on this signal is an NEG E-Bell. |

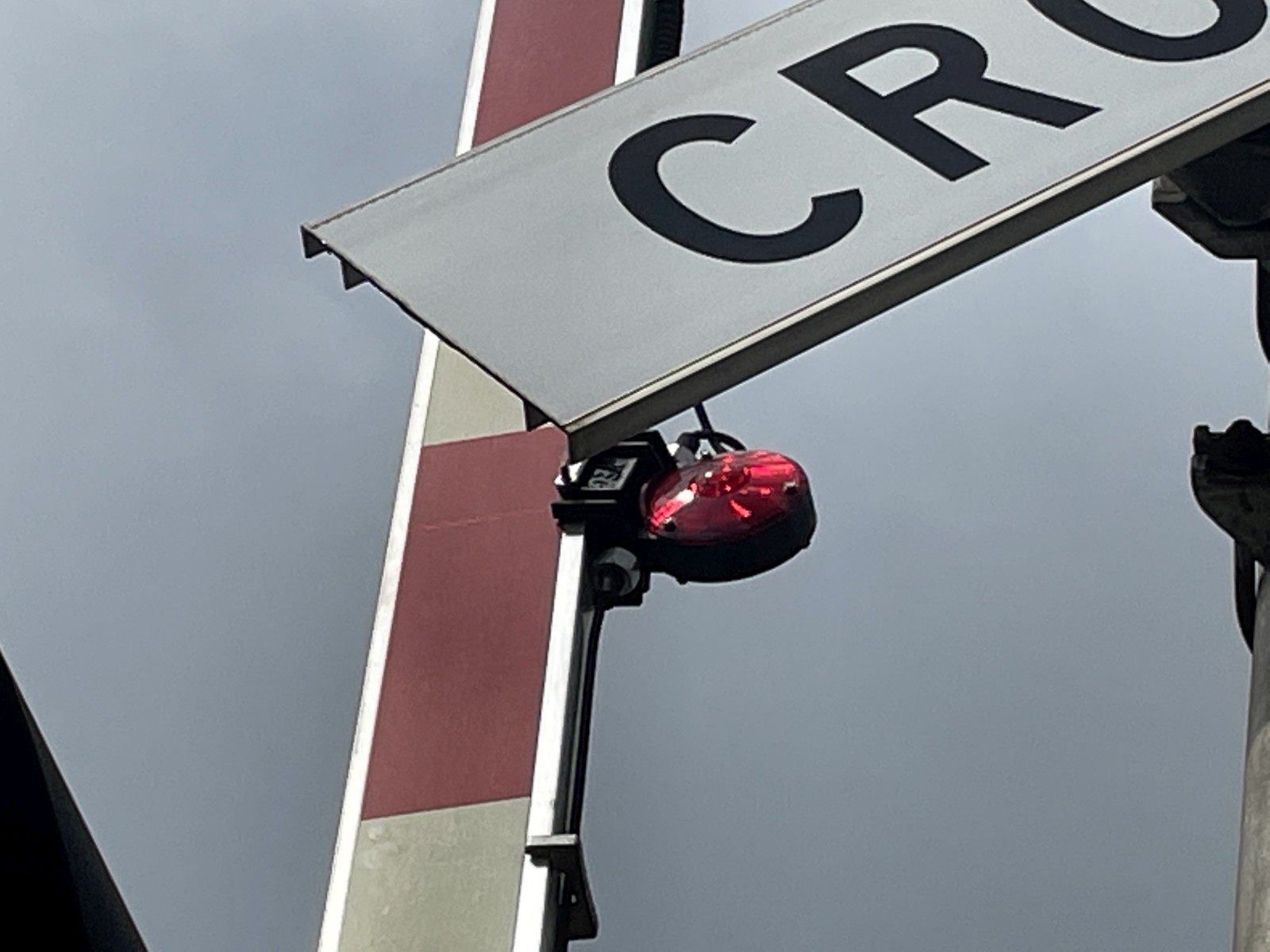

The gatelights are NEG LEDs. |
12 |
13 |
14 |
15 |

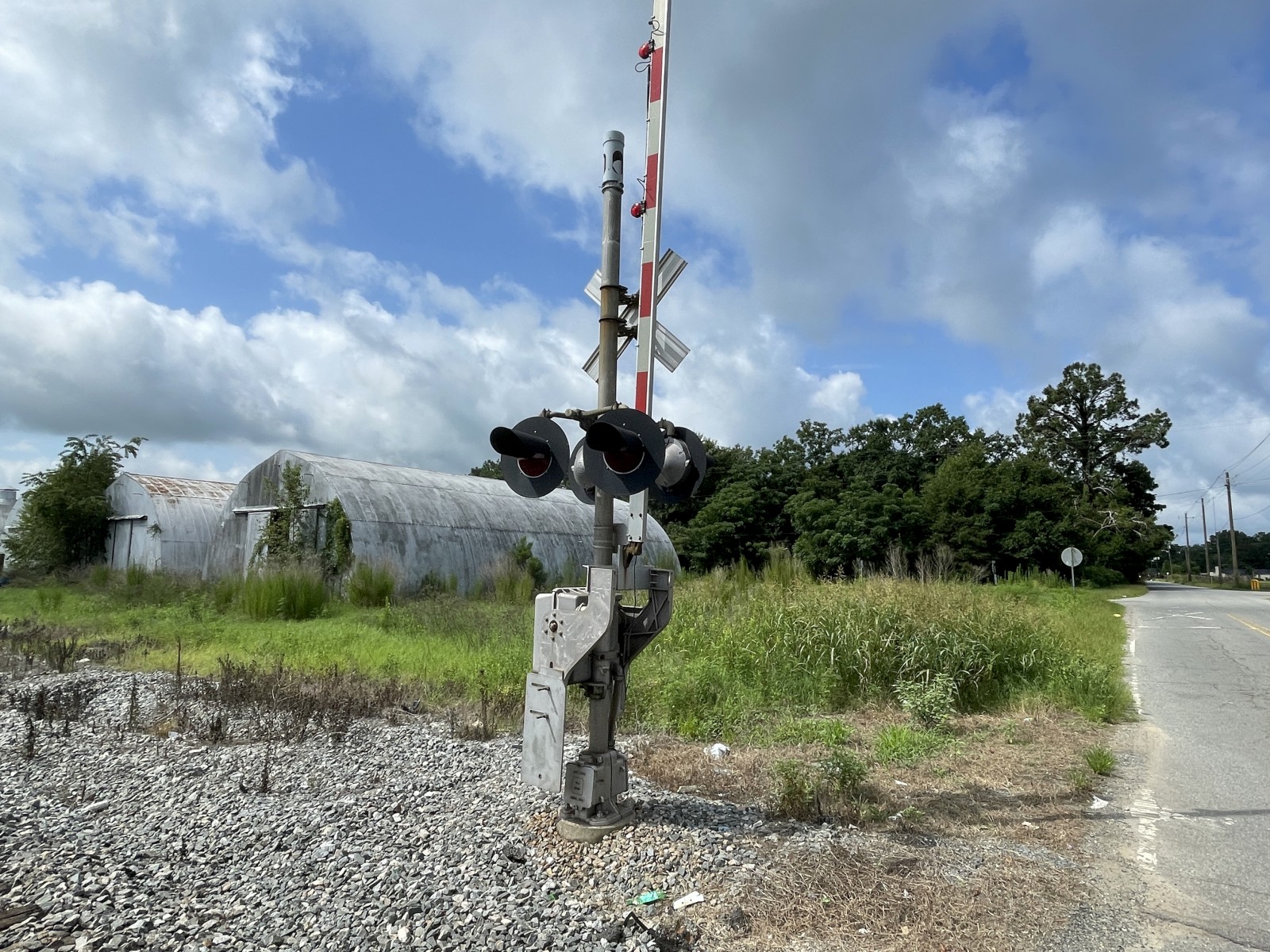

The western signal. |

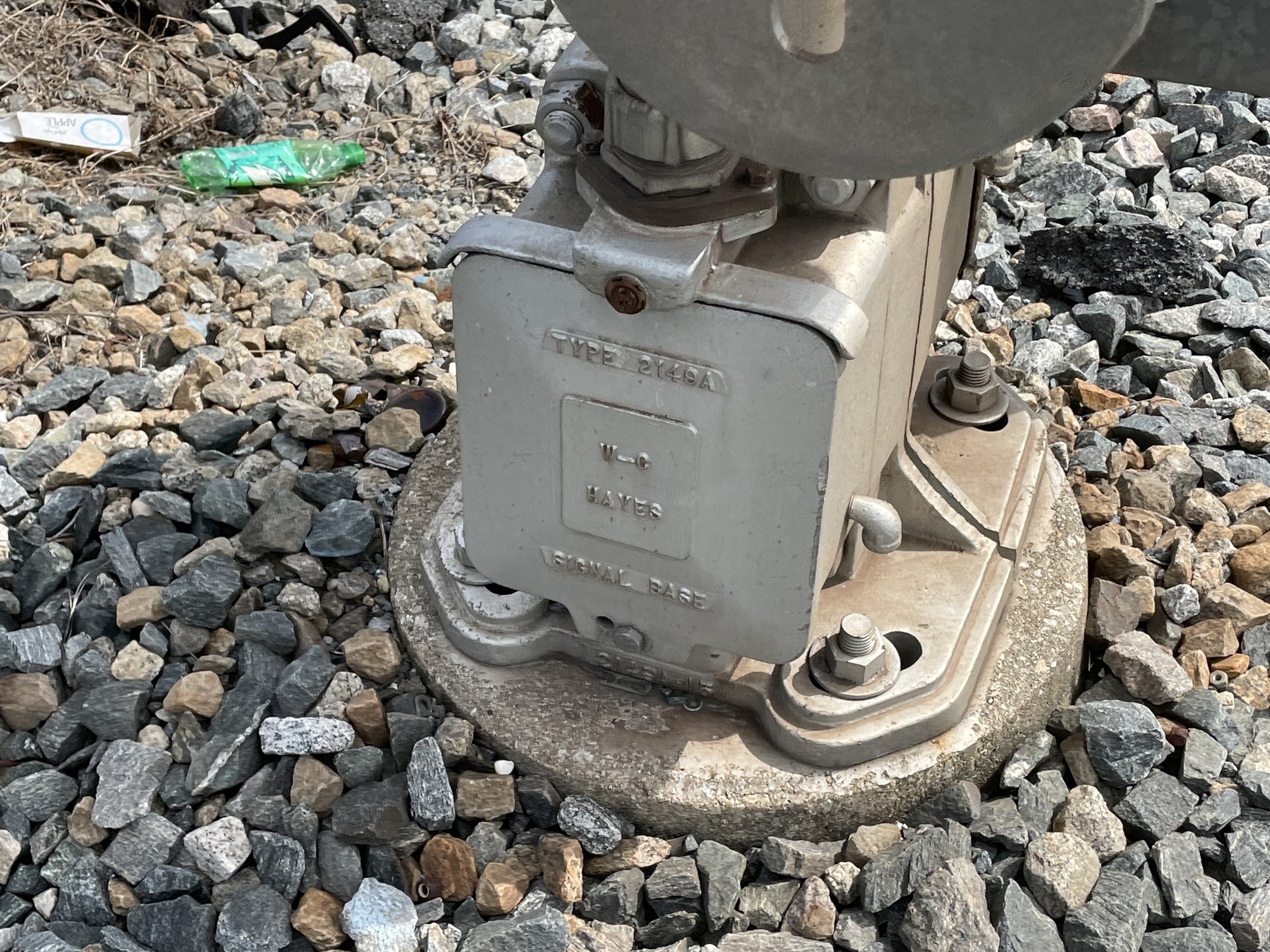

It has another WCH base. |

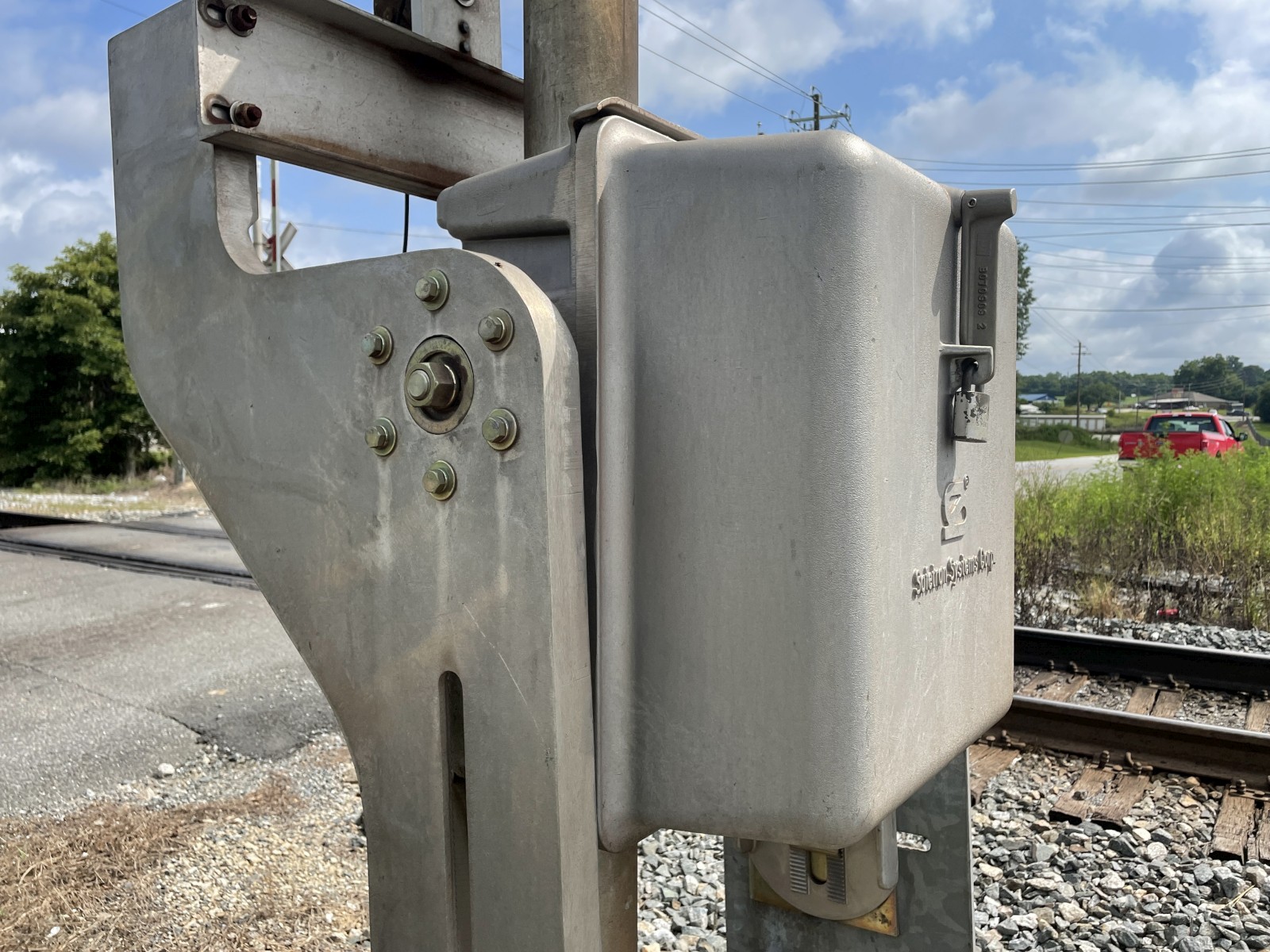

A Safetran gate mechanism. |
|
16 |
17 |
18 |
19 |
The emergency information. |

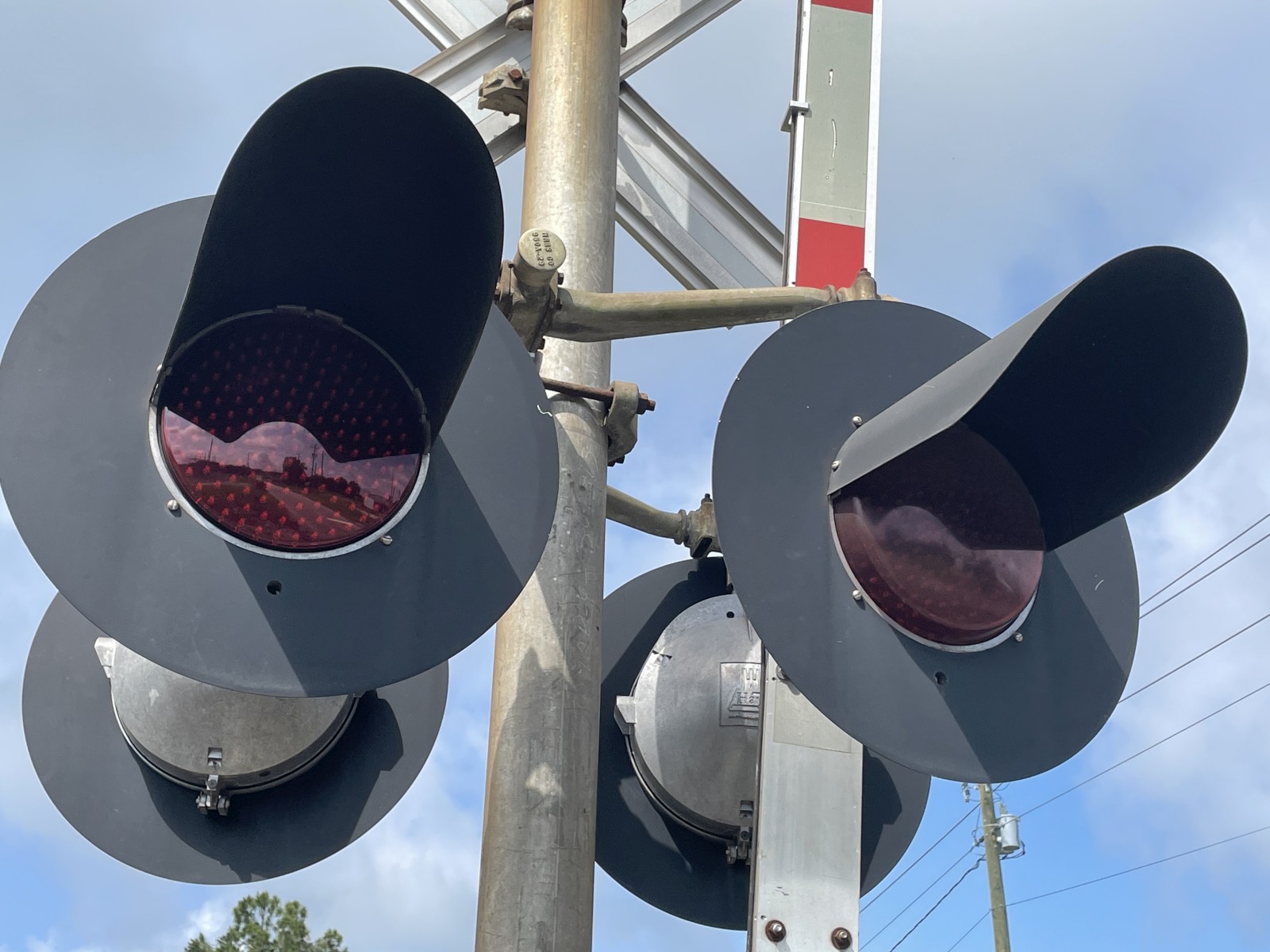

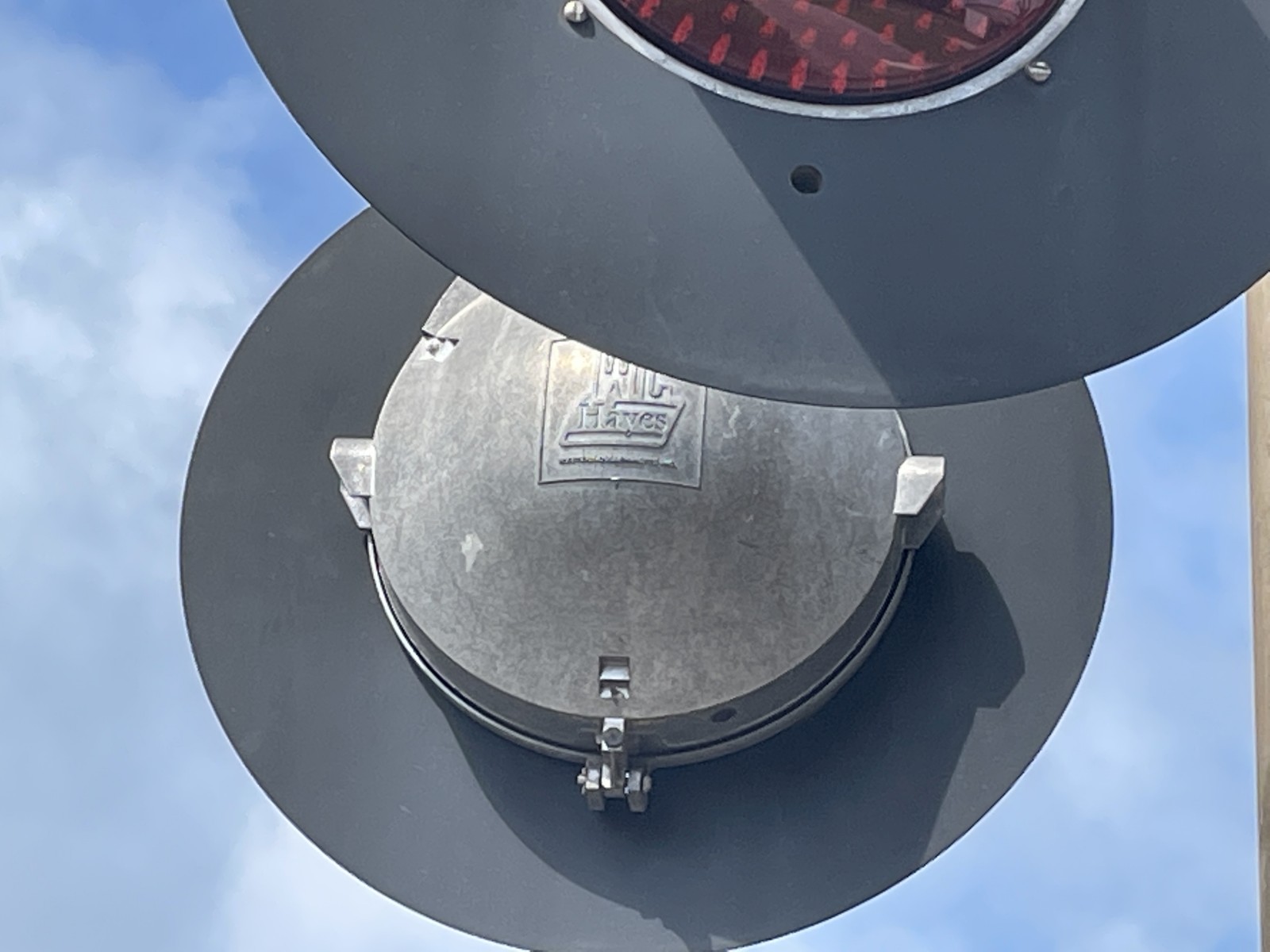

This signal has more WCH 12x24 lights with a mixture of WCH 2nd Gen. and Leotek EV series LEDs. |

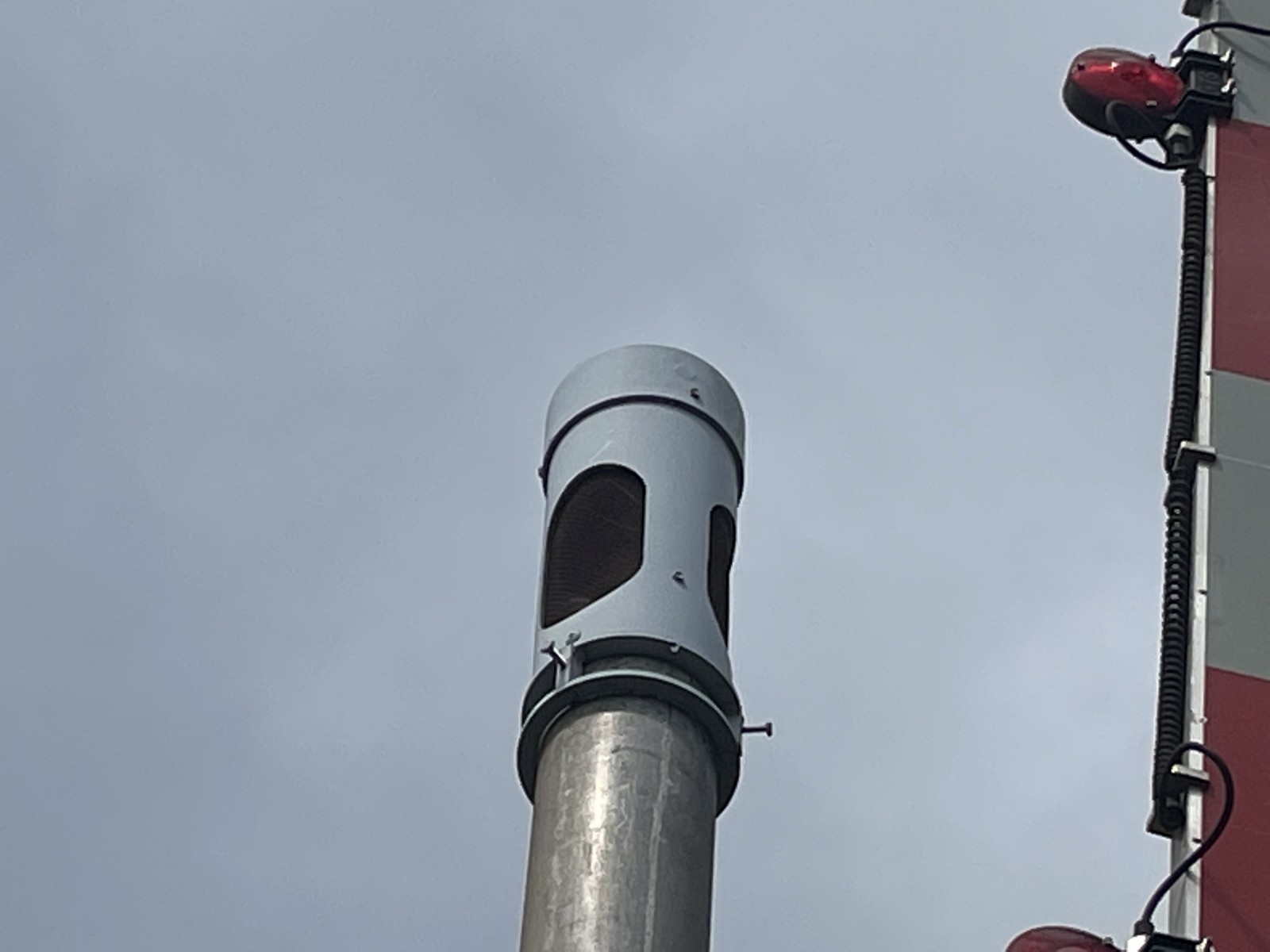

This signal has another NEG E-Bell. |
|
20 |
21 |
22 |
23 |

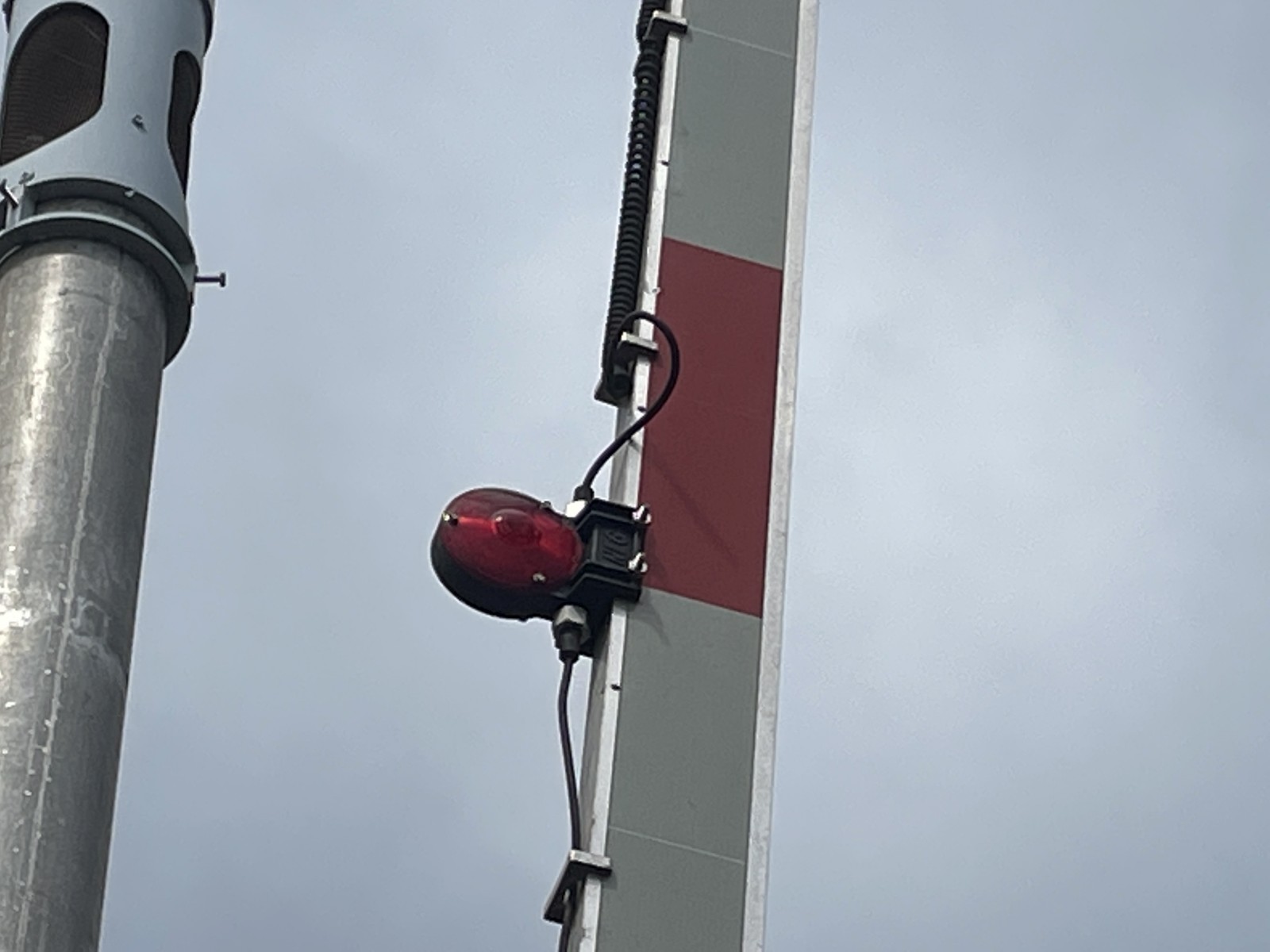

More NEG LED gatelights over here. |

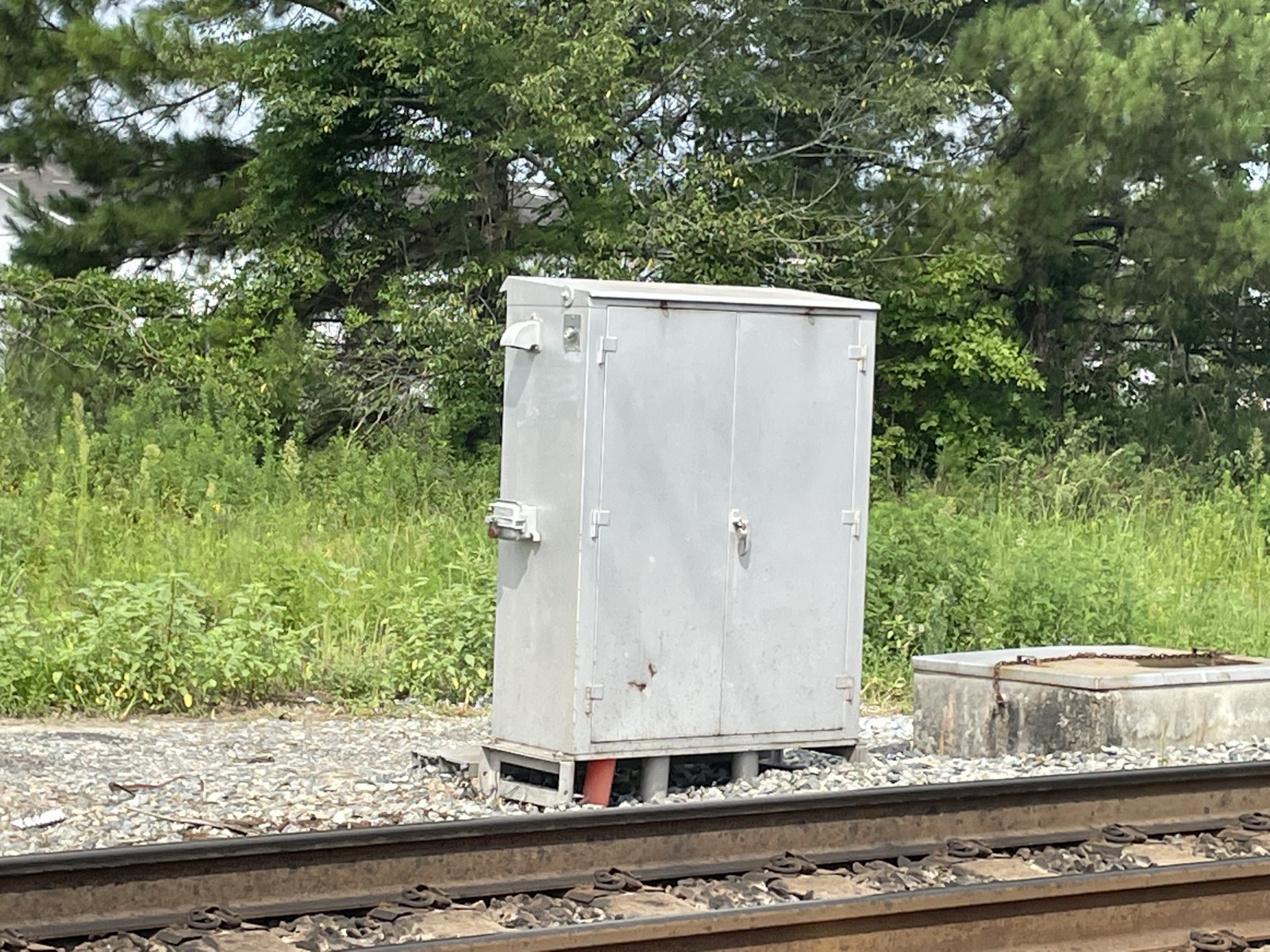

The relay case. |

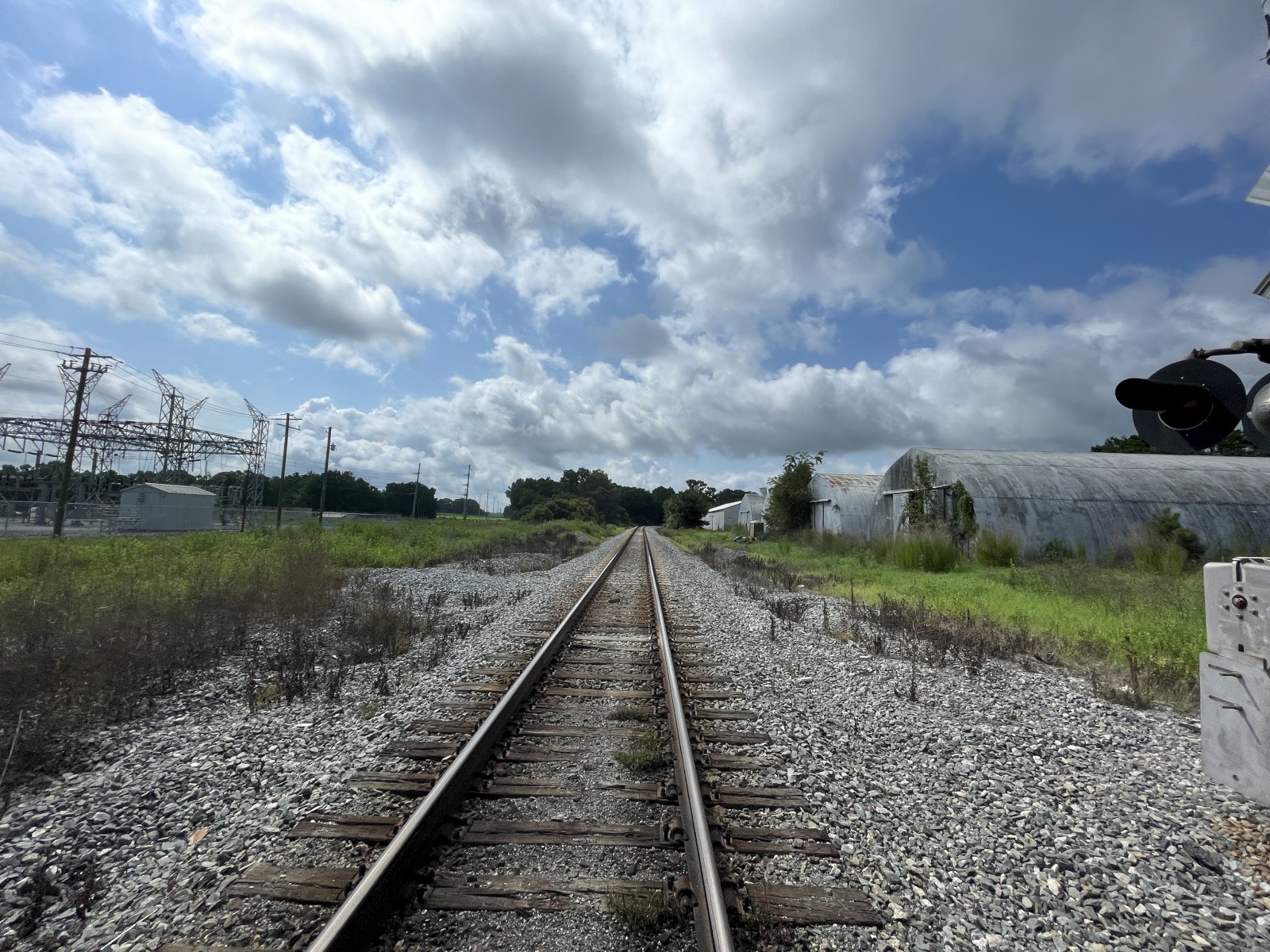

Track view facing north towards Spaulding Road. |

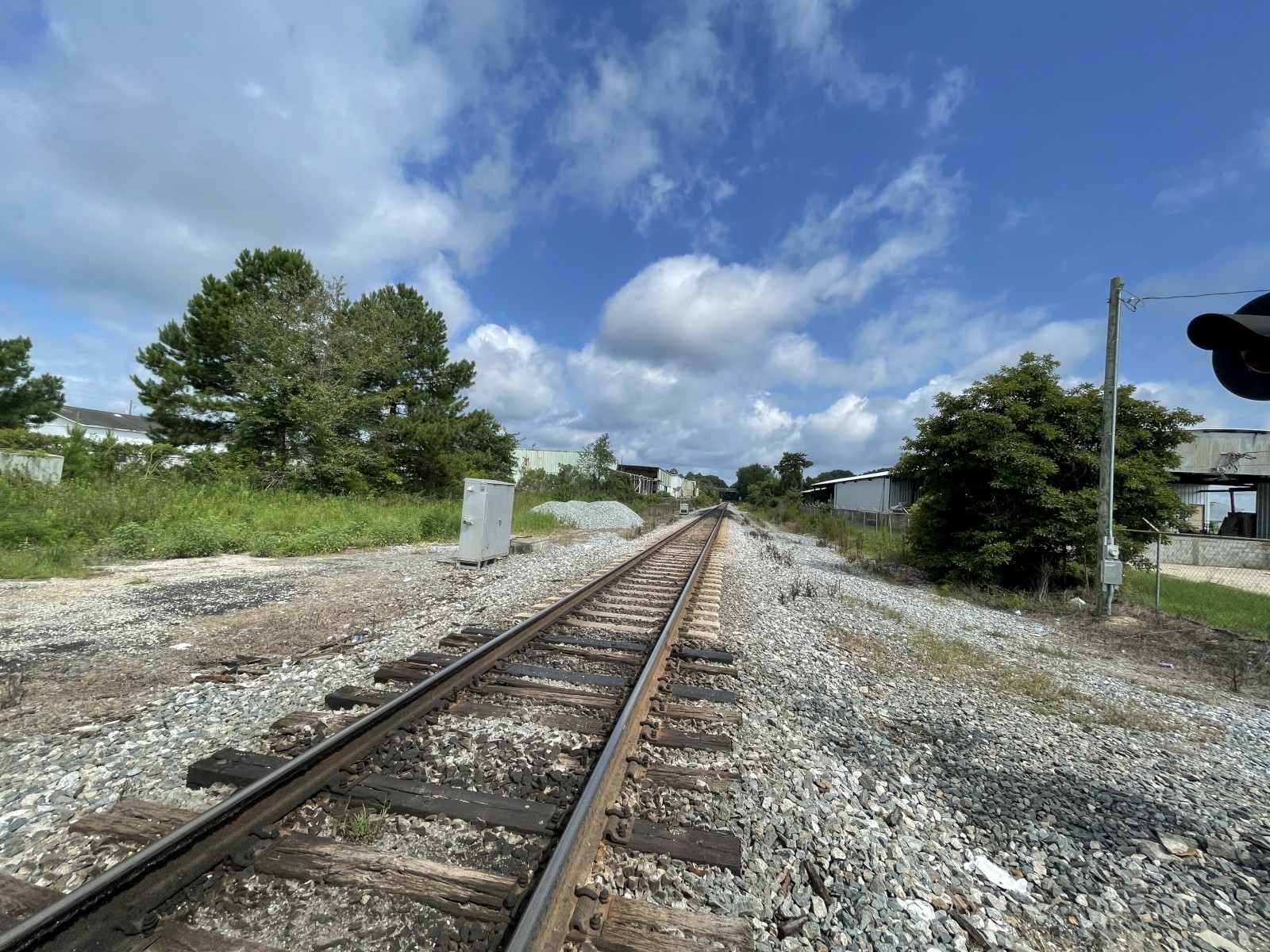

Track view facing south towards Fields Crossing Road. |
All pictures were taken on 7-20-22.
