MP:  S277.080



Created October 8, 2021



Total Accidents:   2
Crossing DOT #:  904843D
TOTAL DAILY TRAINS:   1   (AS OF 2021)



Page created by: Ethan the Railfanner



This crossing is located on the NS Griffin District.



1

2

3

4

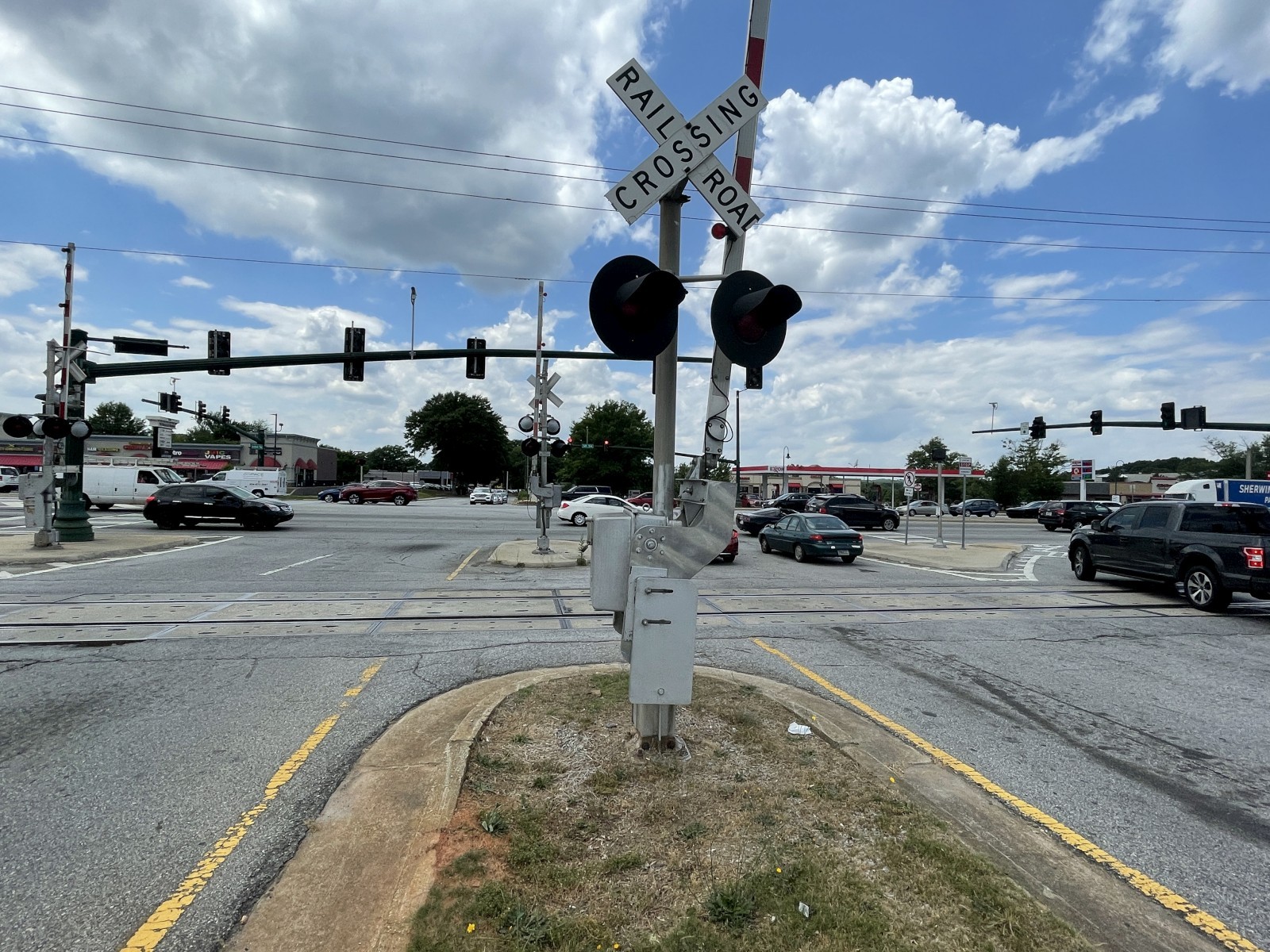

Overviews of this crossing.
The turn signal on Jonesboro Road.

5

6

7

8

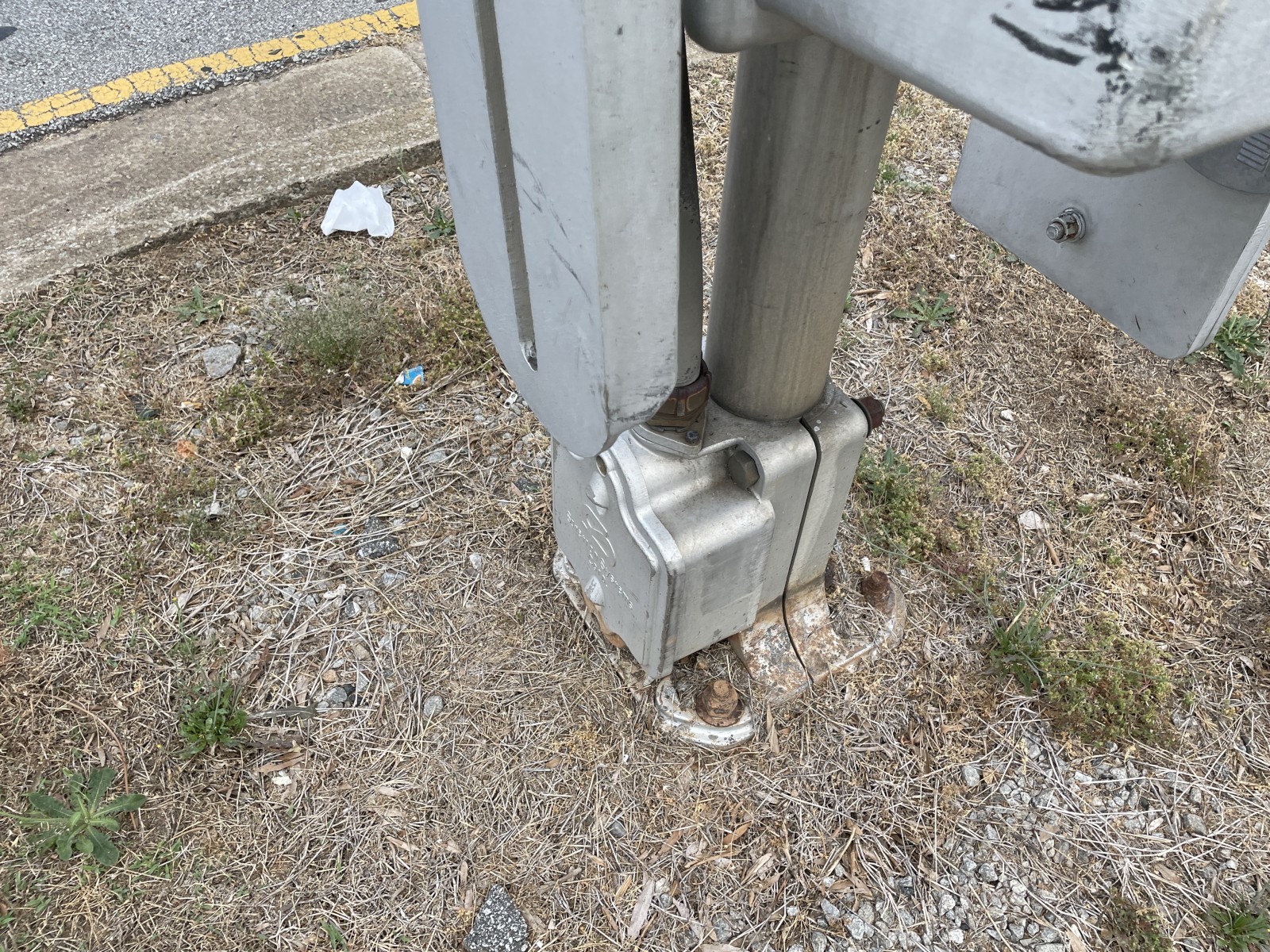

It has a Safetran base.

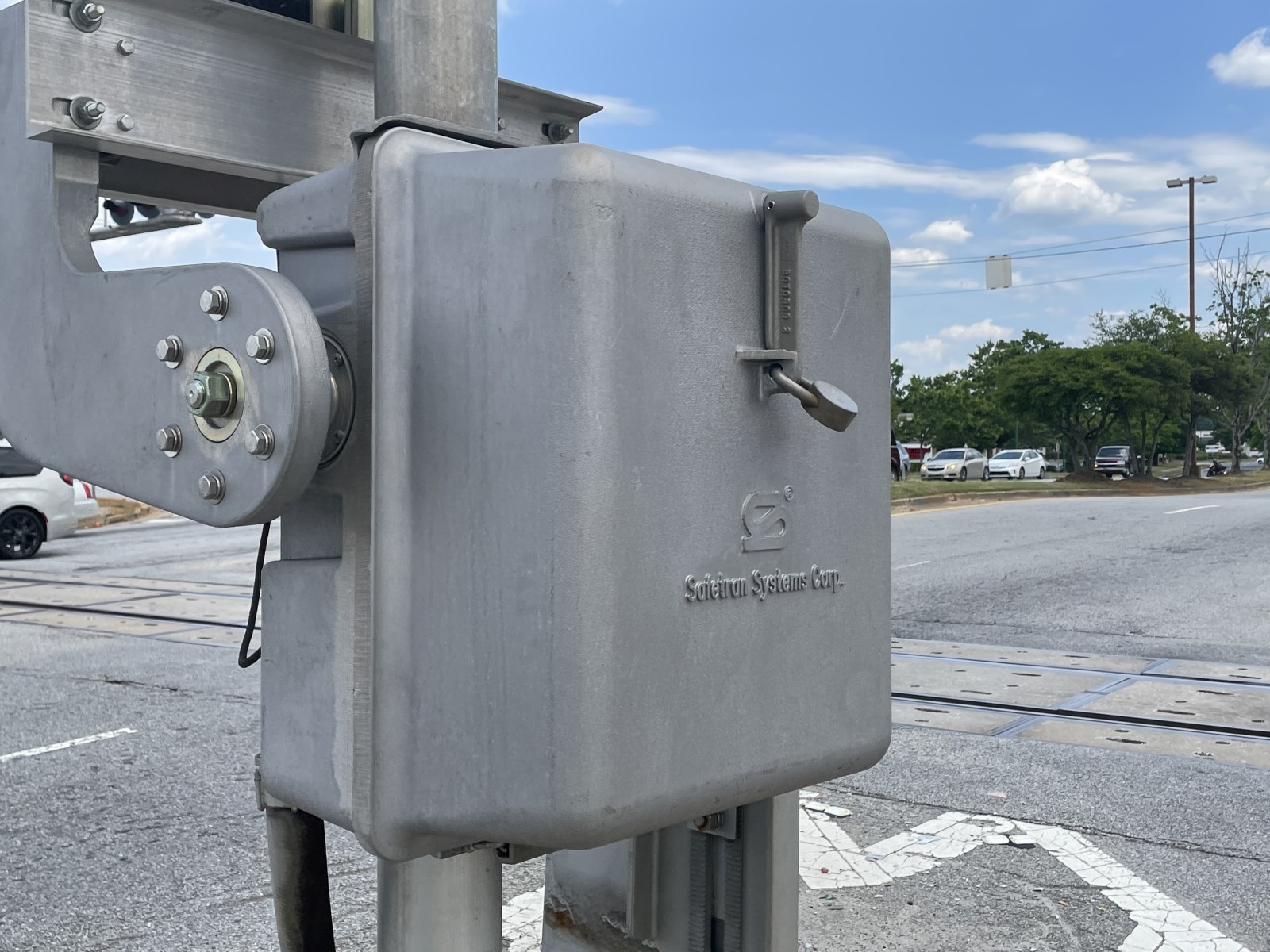

A Safetran gate mechanism.

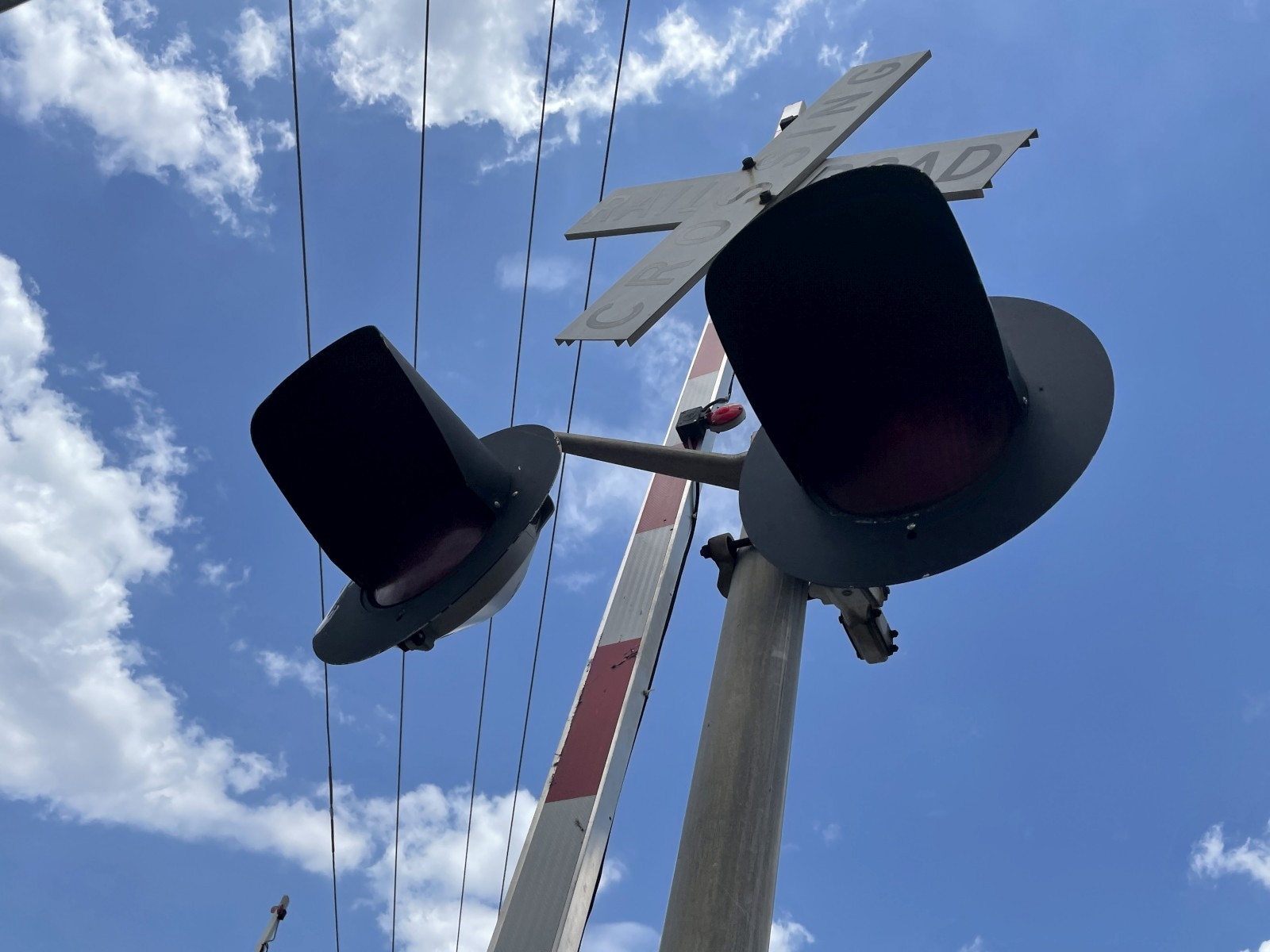

The lights on this signal are a pair Safetran 12x20 incandescents.

9

10

11

12

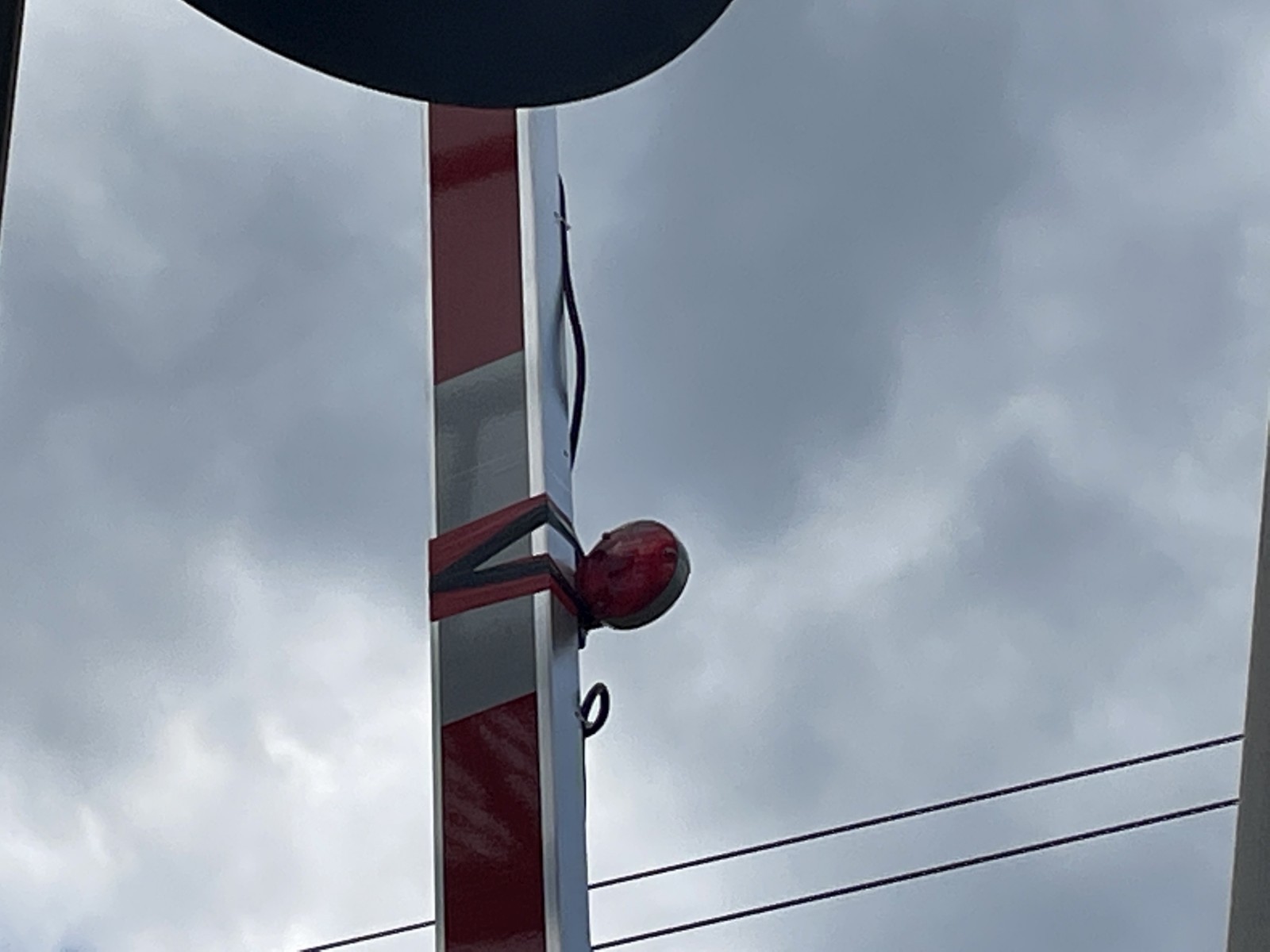

The gatleights are from NEG.
The western main signal.
It has another Safetran base.

13

14

15

16
Another Safetran gate mechanism.

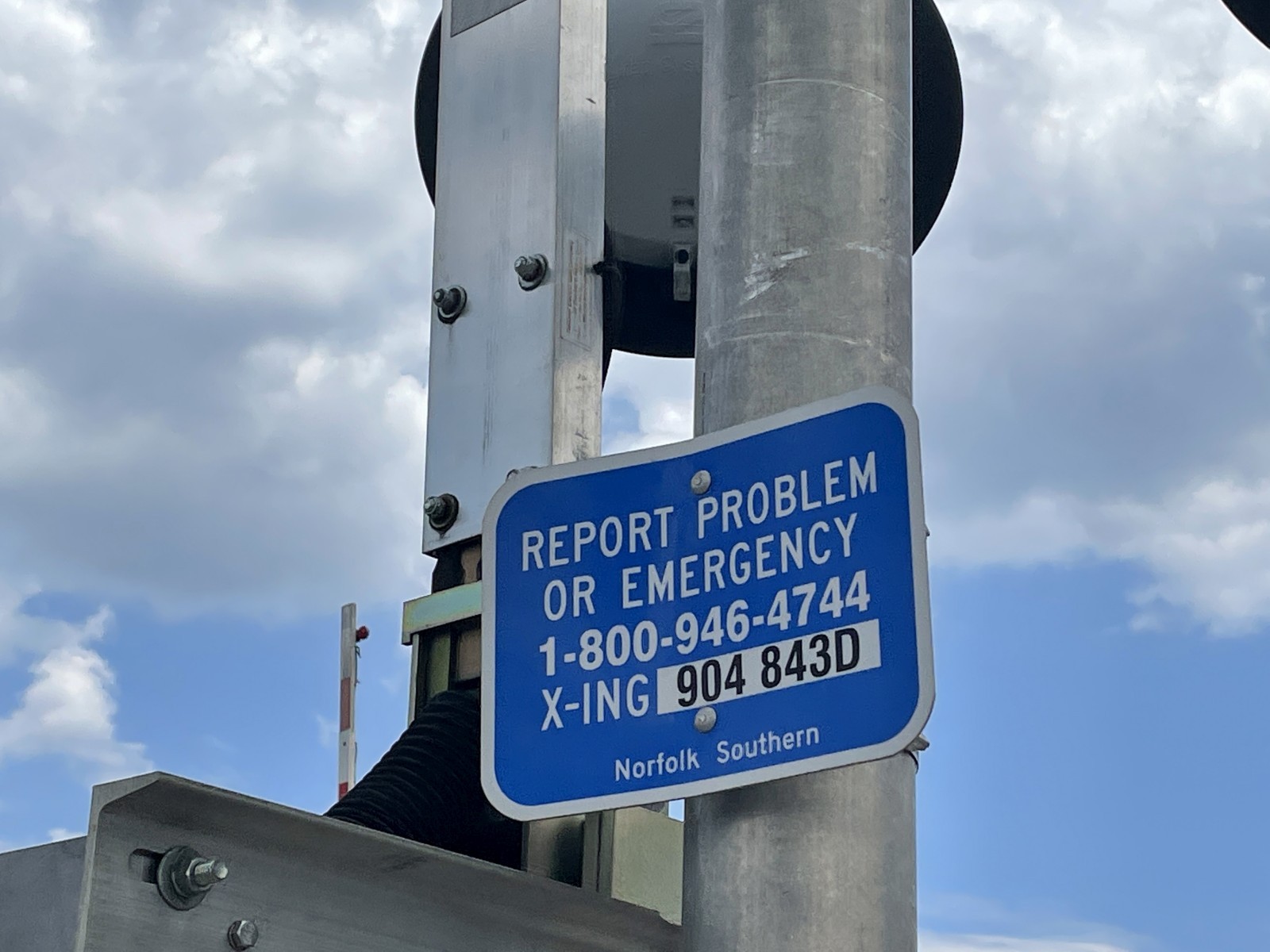

The emergency information.
This signal has more Safetran 12x20 incandescent lights.

17

18

19

20
More NEG gatelights over here.
The western median signal.
It has a third Safetran base. It has an Invensys Rail gate mechanism.

21

22

23

24
The lights are even more Safetran 12x20 incandescents.
The bell is a leaning Safetran Type 3 (Invensys-Rail) E-Bell.
A third set of NEG gatelights over here.
The eastern median signal.

25

26

27

28
It has a fourth Safetran base.
A third Safetran gate mechanism.
This signal has a pair of Safetran 12x24 incandescent lights.

29

30

31

32
A fourth set of NEG gatelights overhere.
The eastern main signal.

33

34

35

36
The cantilever is from Safetran base.
The emergency information.
The lights on the cantilever are all Safetran 12x24 incandescents.

37

38

39

40
The bell on top of the cantilever is a Safetran mechanical bell!
A fifth Safetran base.
A fourth Safetran gate mechanism.

41

42

43

44
A fifth set of NEG gatelights over here.

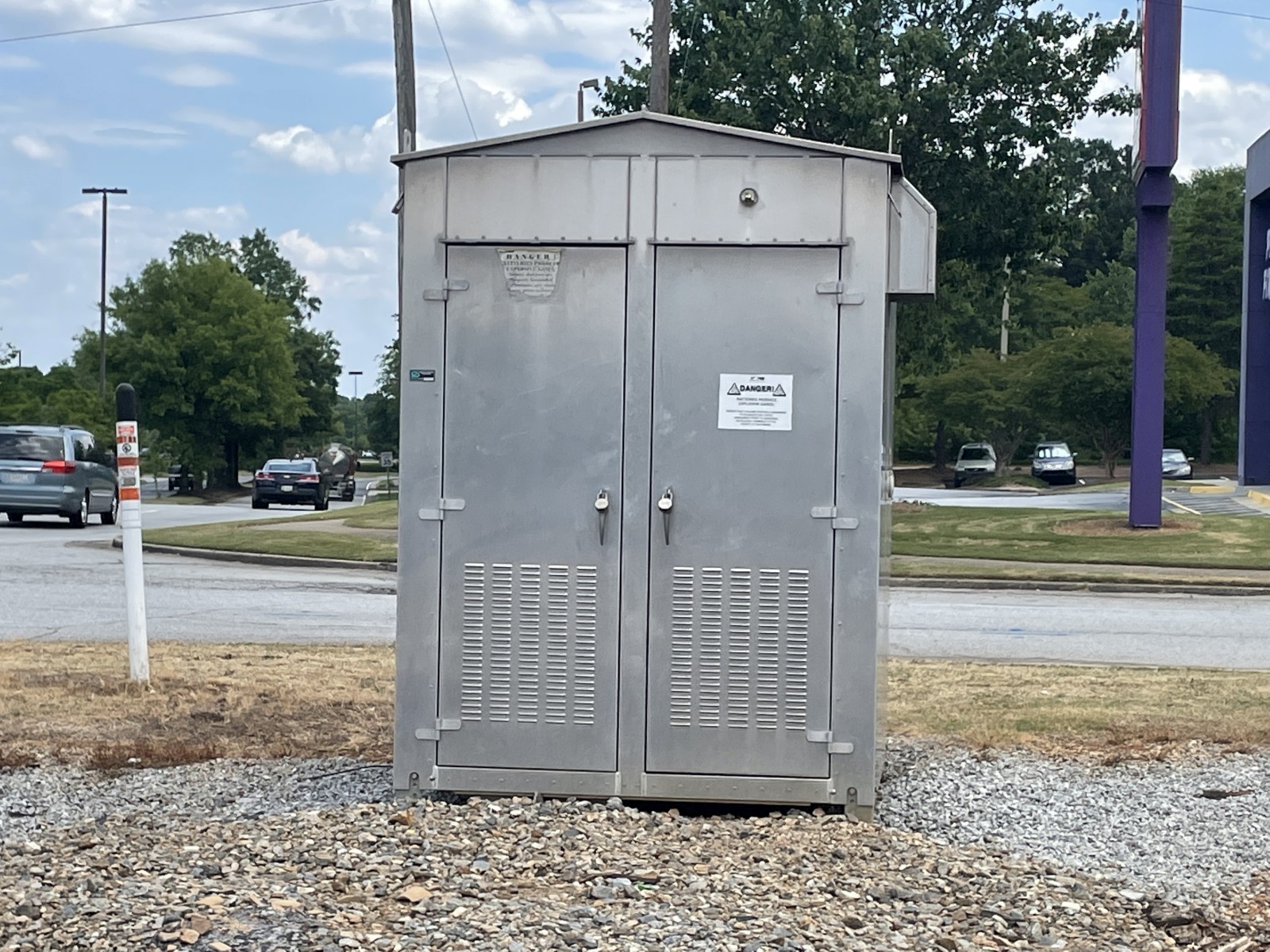

The relay bungalow.

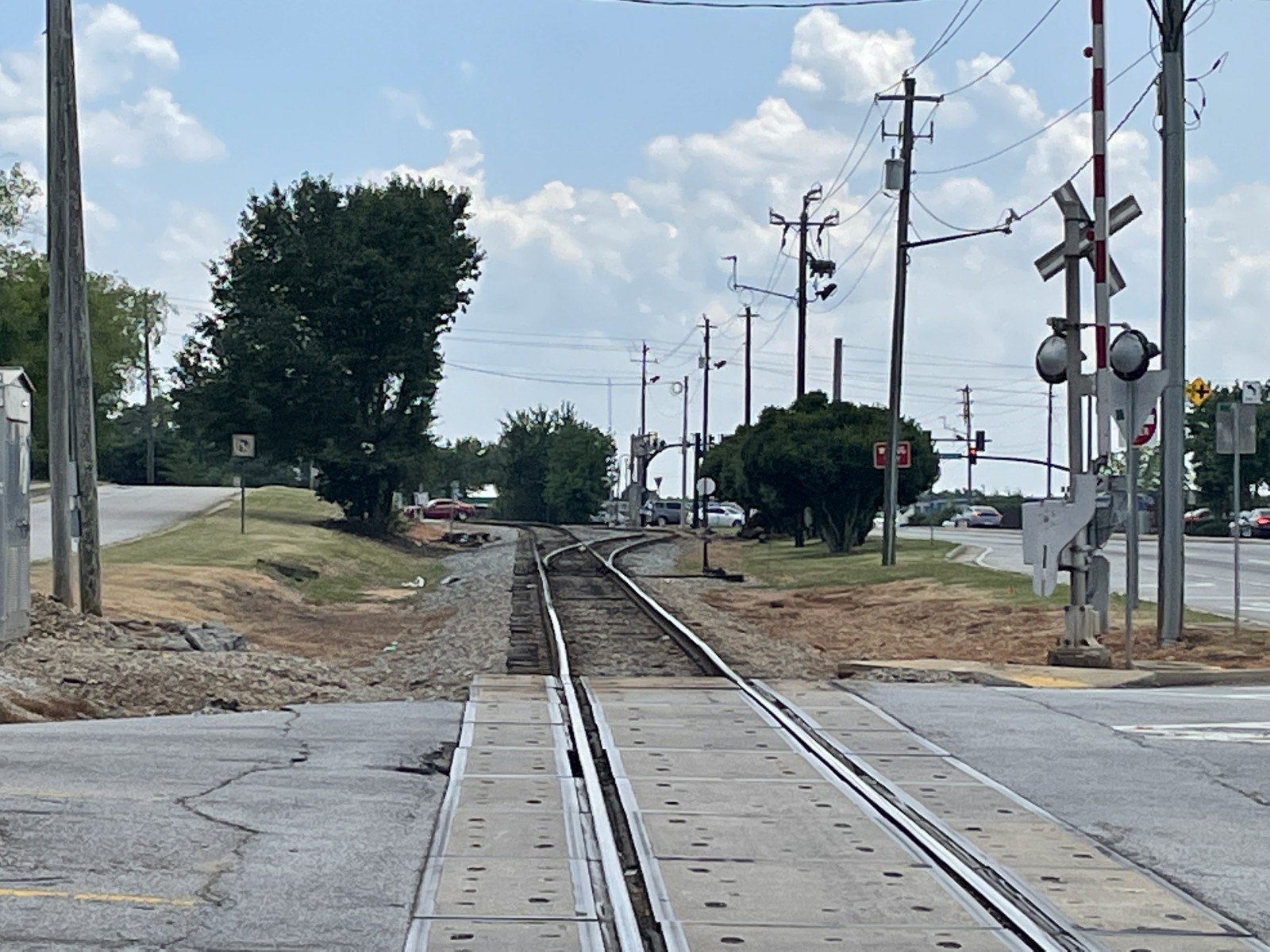

Track view facing north towards Adamson Parkway.
Track view facing south towards Mt. Zion Road.



All pictures were taken on 5-27-21.
