MP: XXB26.740 |
Created March 9, 2024
Total Accidents: 17
Crossing
DOT #: 050409R
TOTAL
DAILY TRAINS: 8 (AS OF 2022)
| >>>>>>>>>>>>>> | Western Signal | Eastern Signal |
| Bell: | NEG E-Bell | NEG E-Bell |
| Base: | WCH | Lincoln Industries Cantilever, Safetran Base |
| Lights: | 8 - 12"x24" WCH Flatback w/ Leotek EV series LEDs | 11 - 12"x24" Safetran w/ Dialight Ball LEDs 1 - 12"x24" Safetran w/ WCH 2nd Gen. LEDs |
| Gate Lights: | 4" NEG LEDs | 4" NEG LEDs |
| Gate Mechanism: | Safetran 1990's | Safetran 2000's |
| Gate Striping: | Vertical Striping | Vertical Striping |
Page created by: Ethan the Railfanner
This crossing is located on the CSX AWP Subdivision.
1 |
2 |

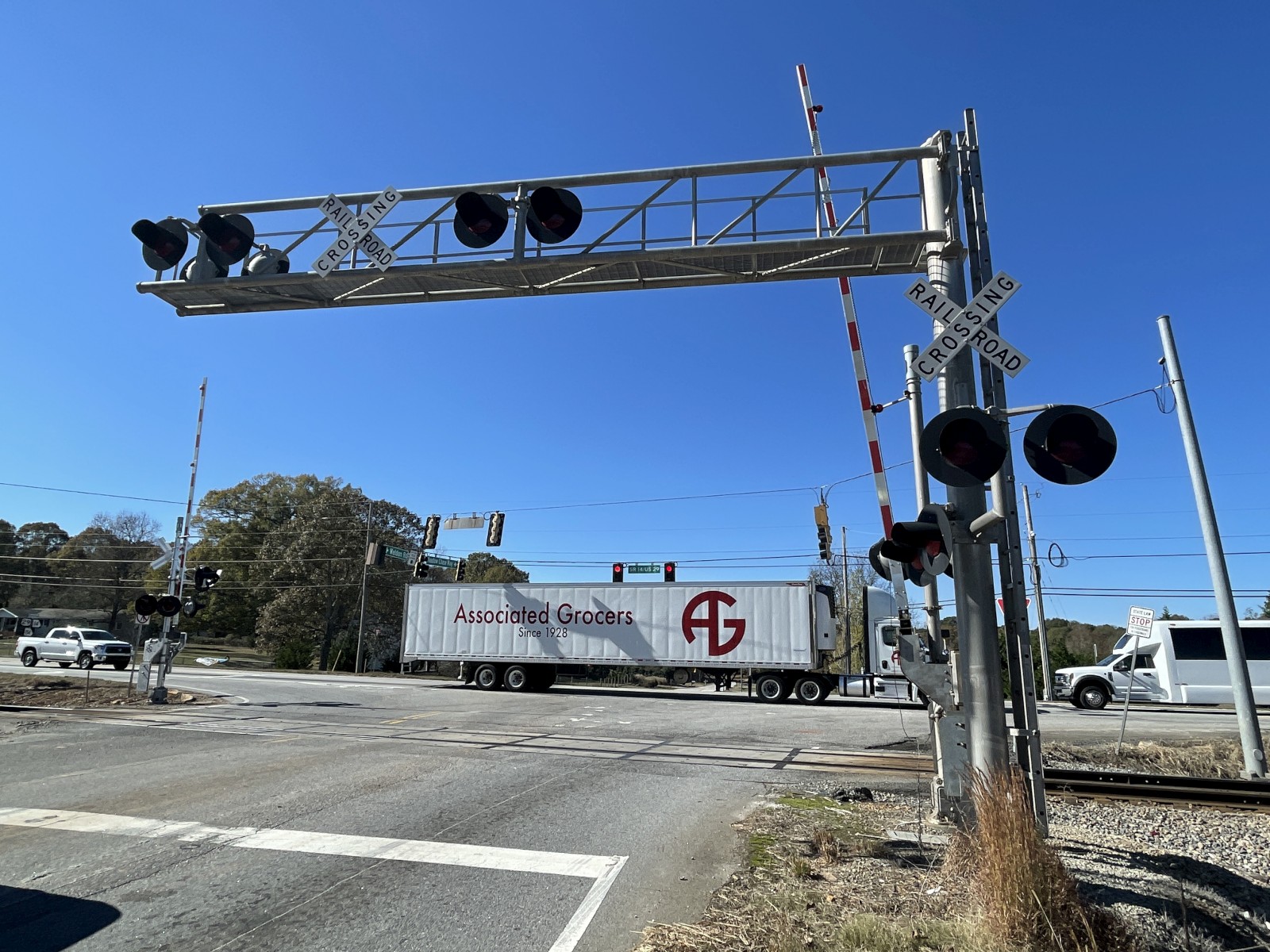

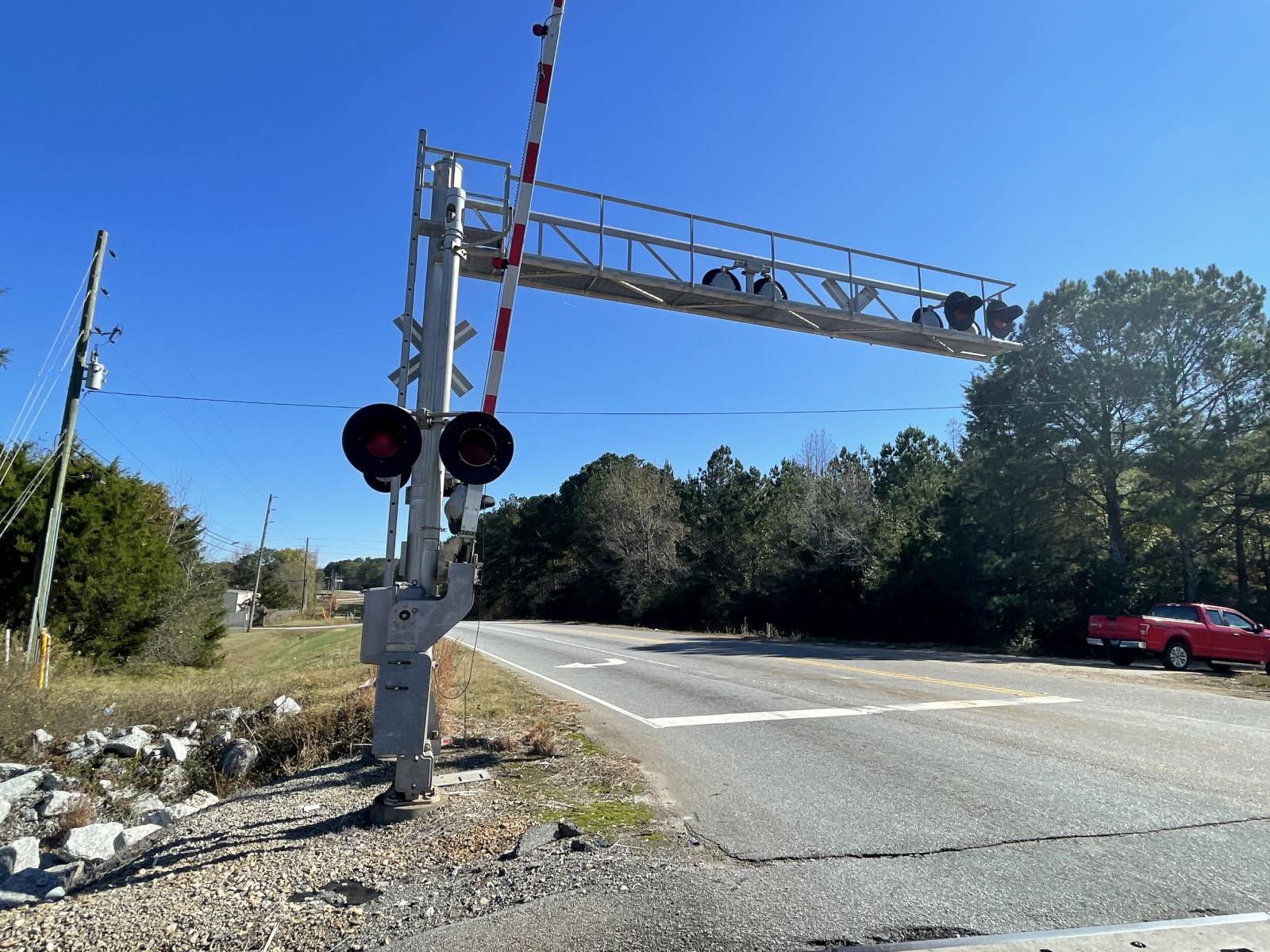

Overview of a gated cantilever and mast set-up facing west. |
Overview facing east. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |

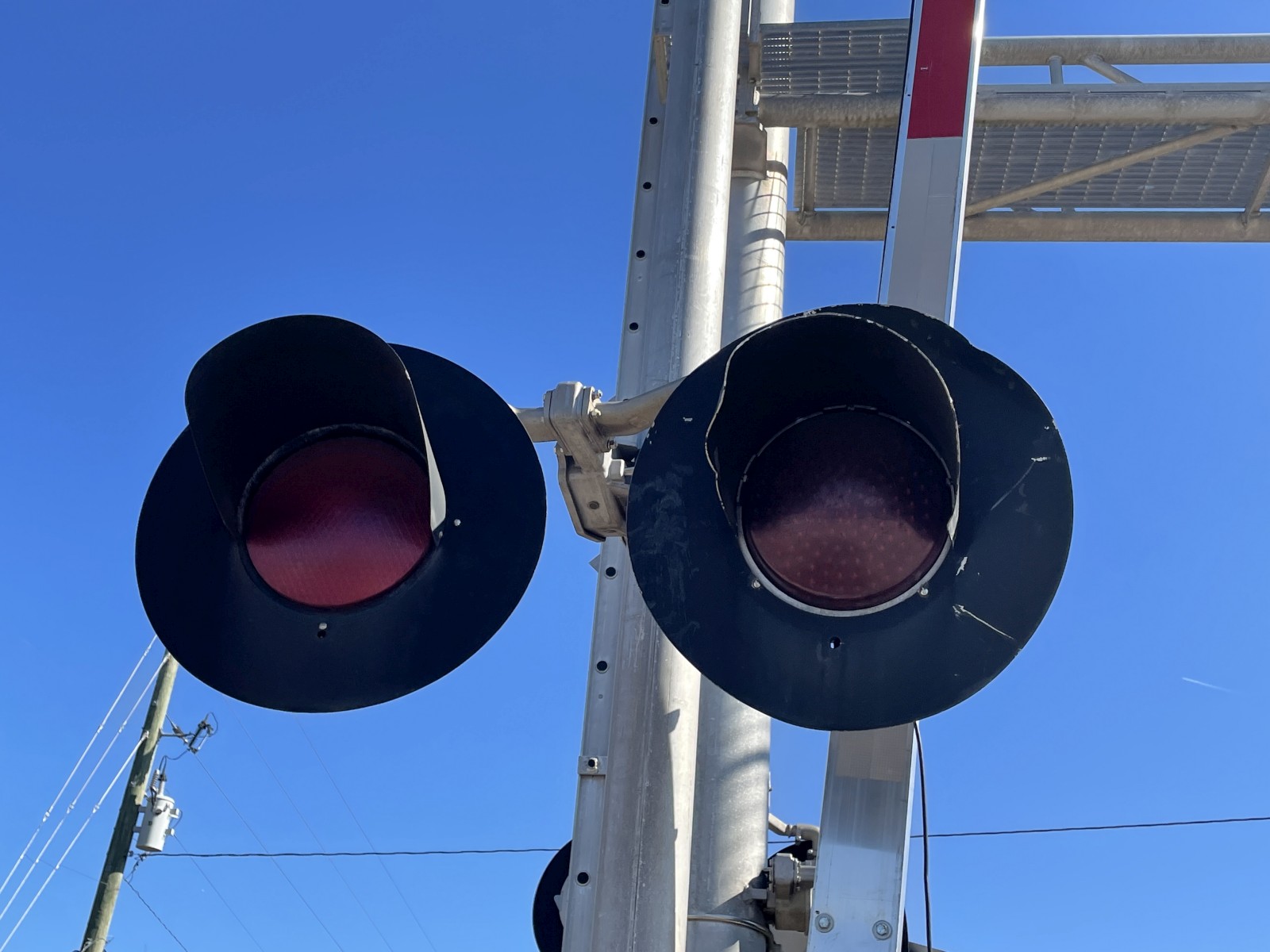

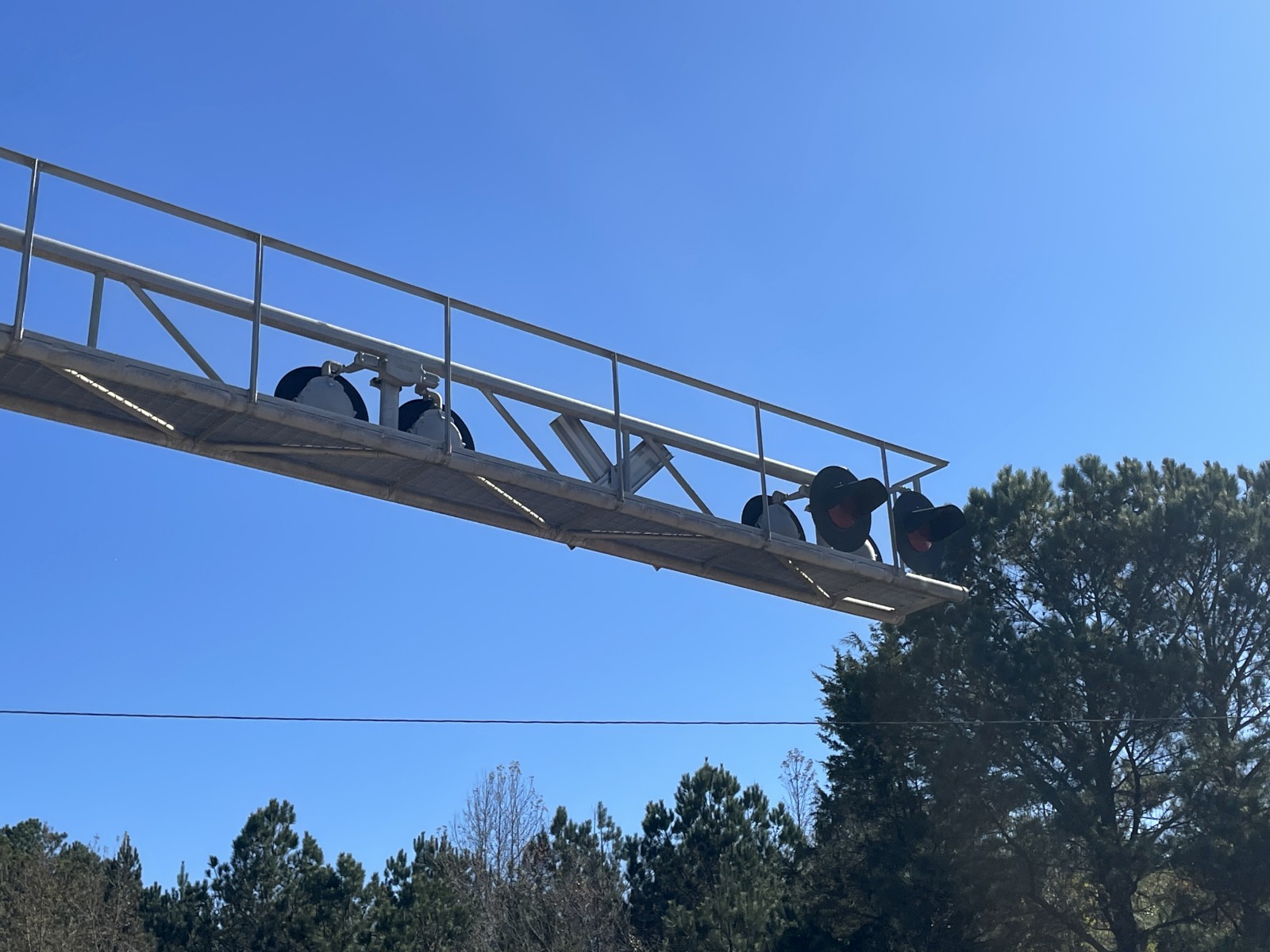

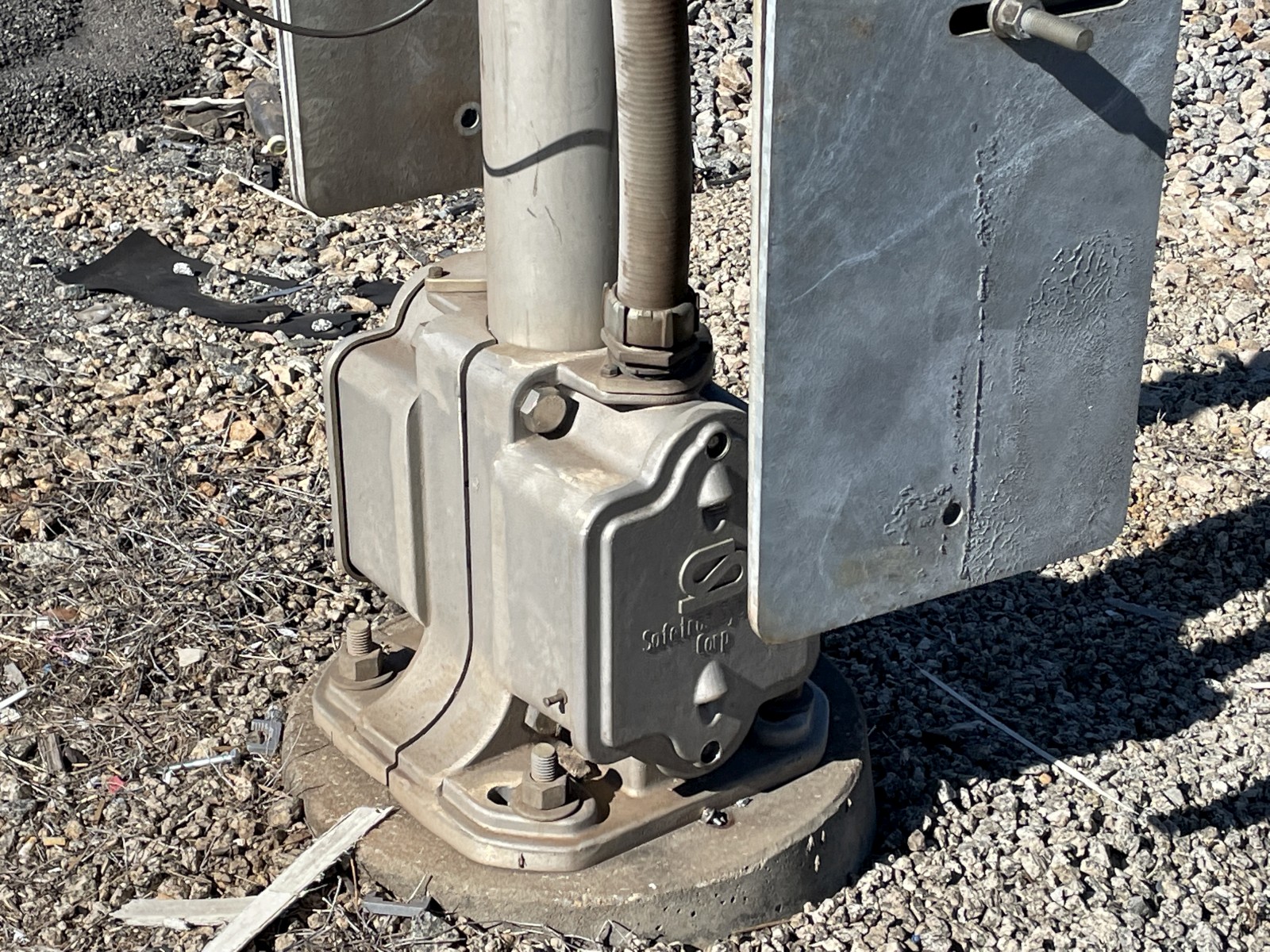

The eastern signal. |
|||
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |

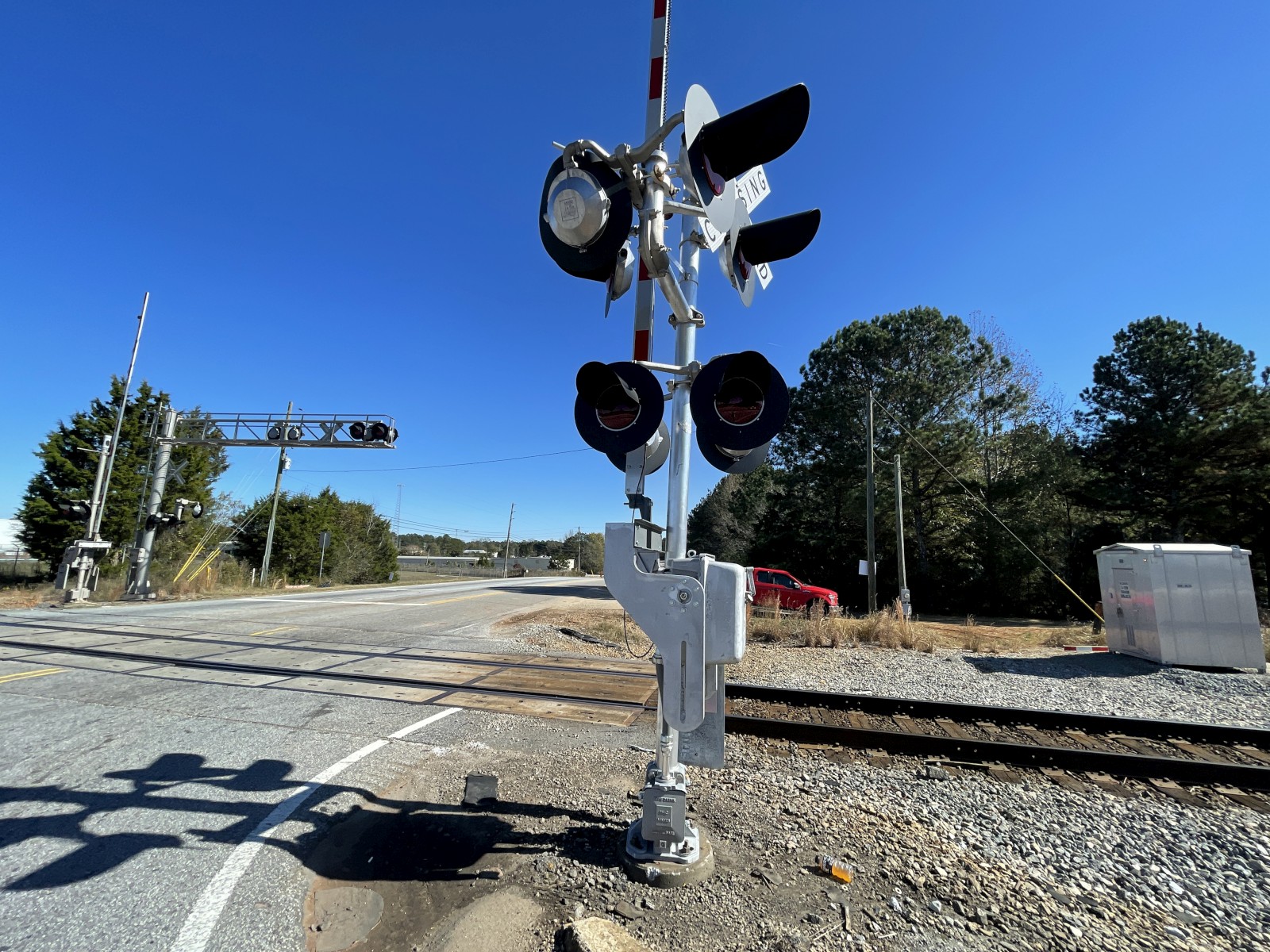

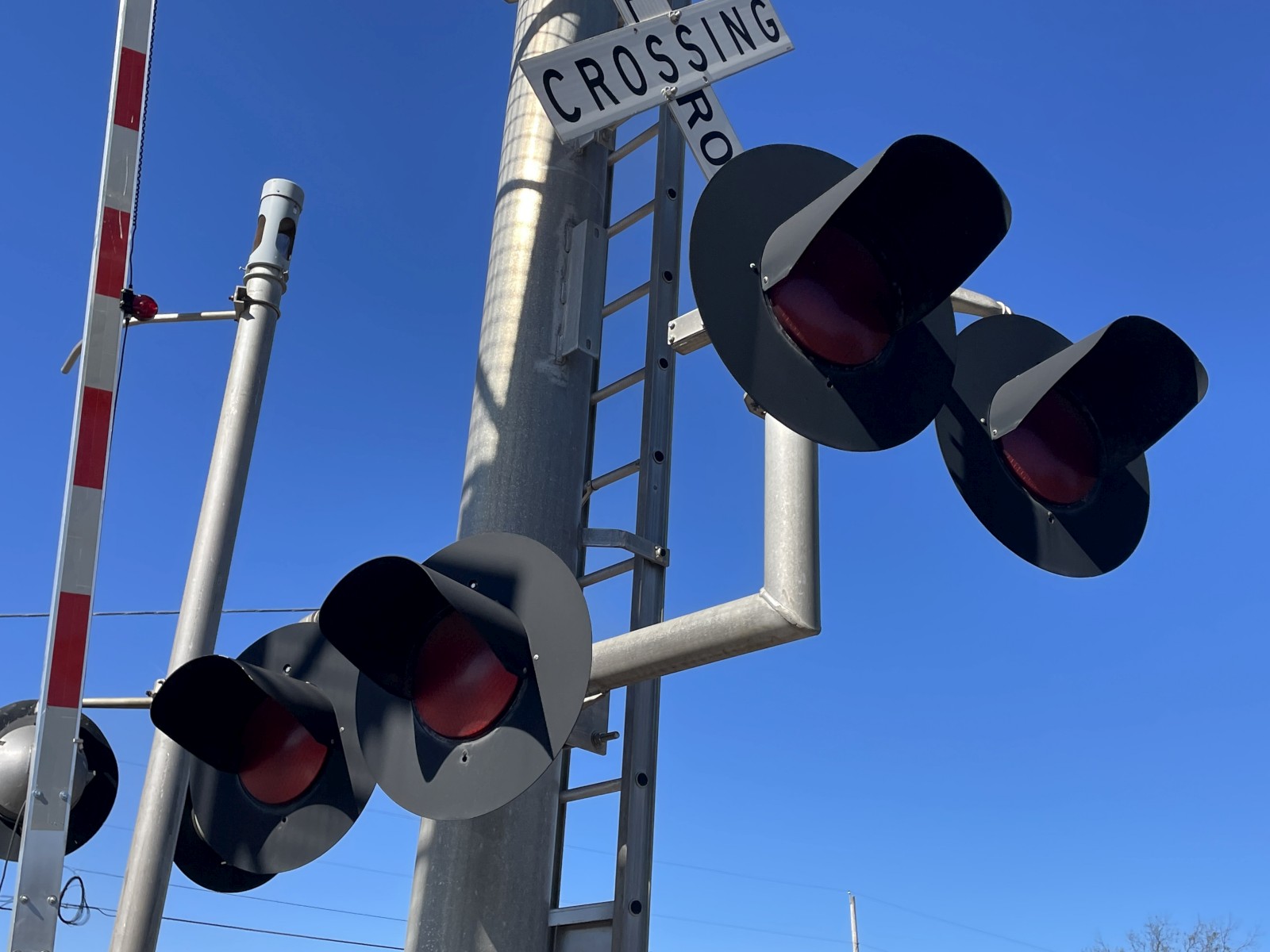

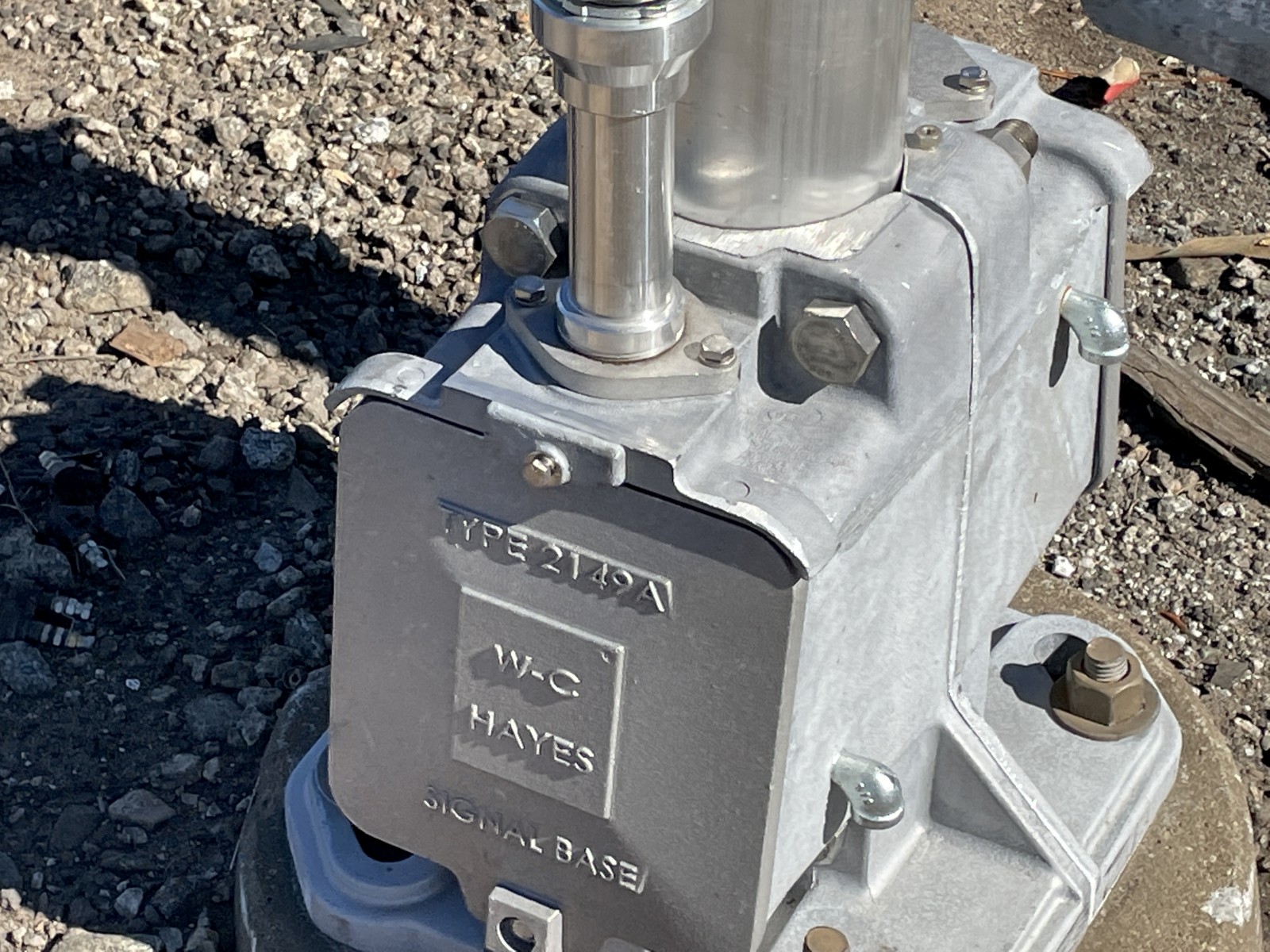

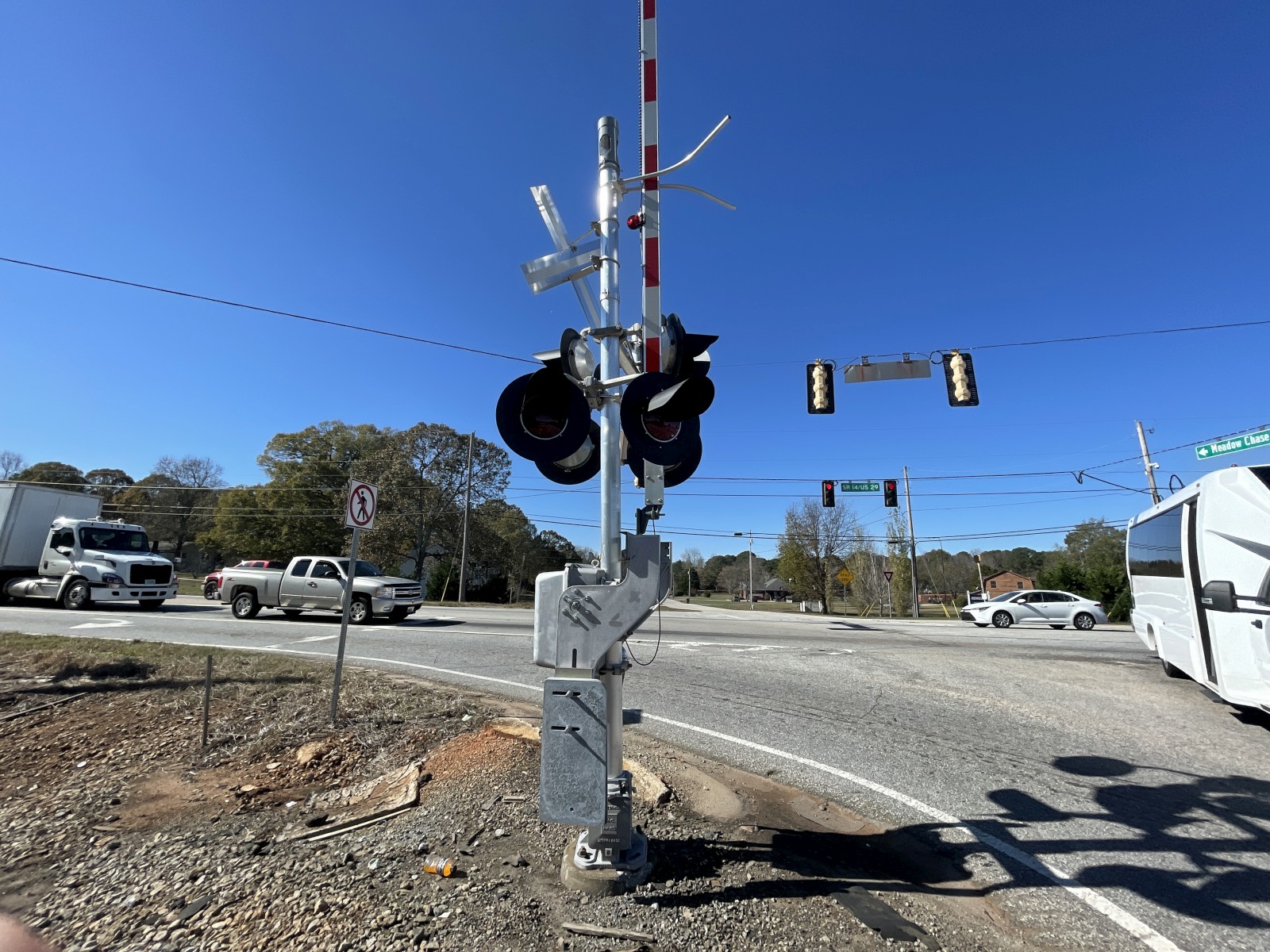

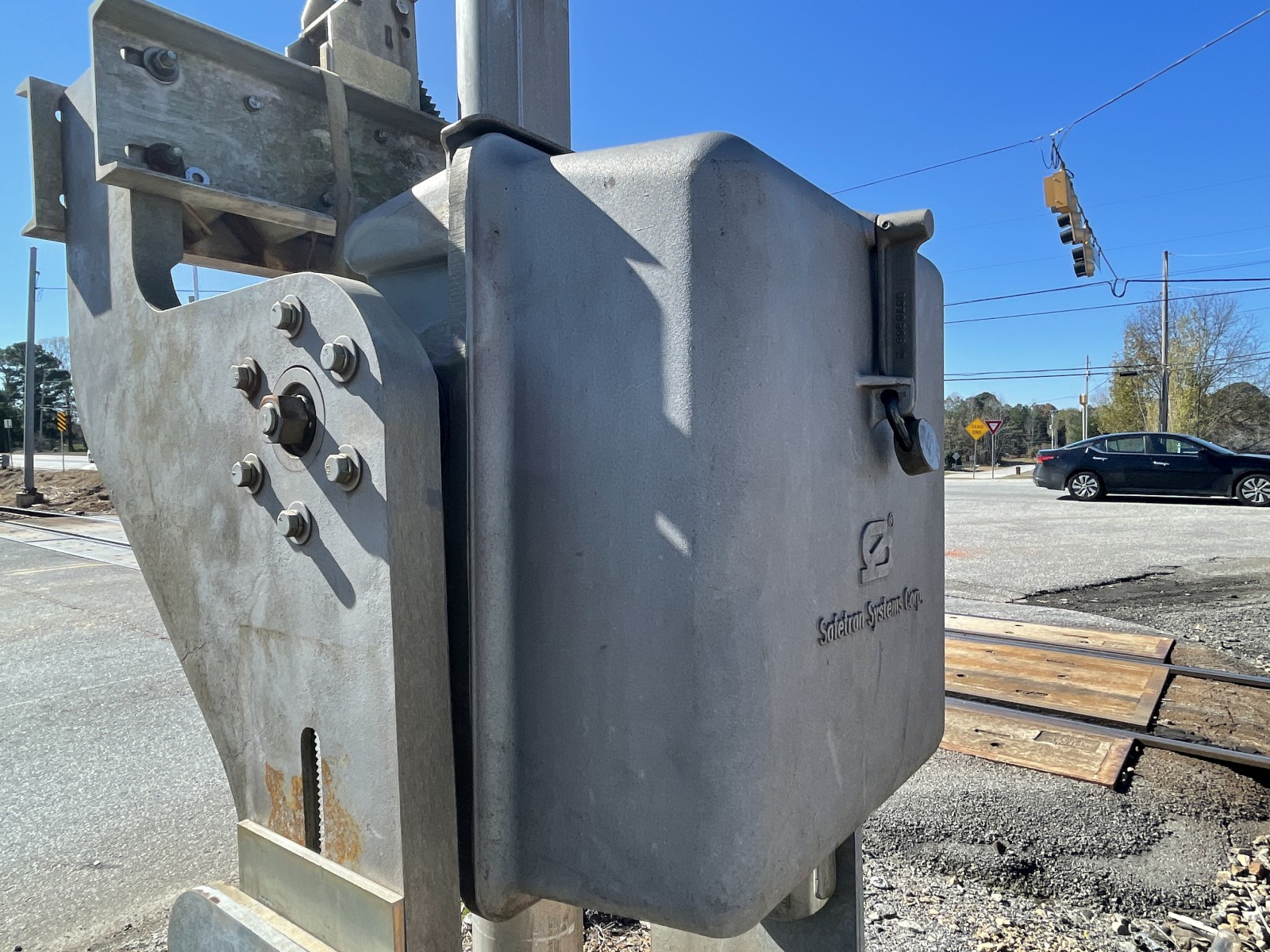

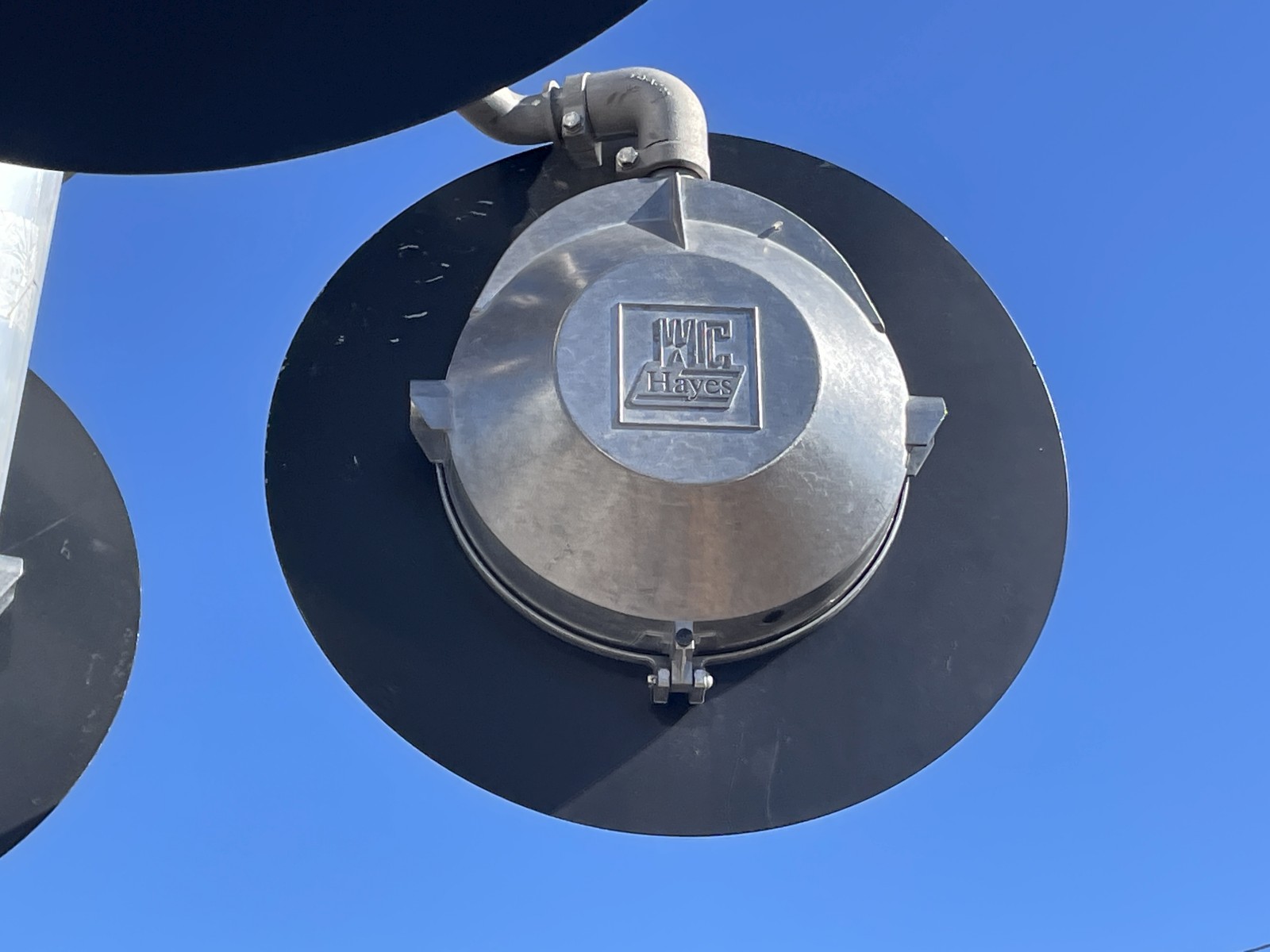

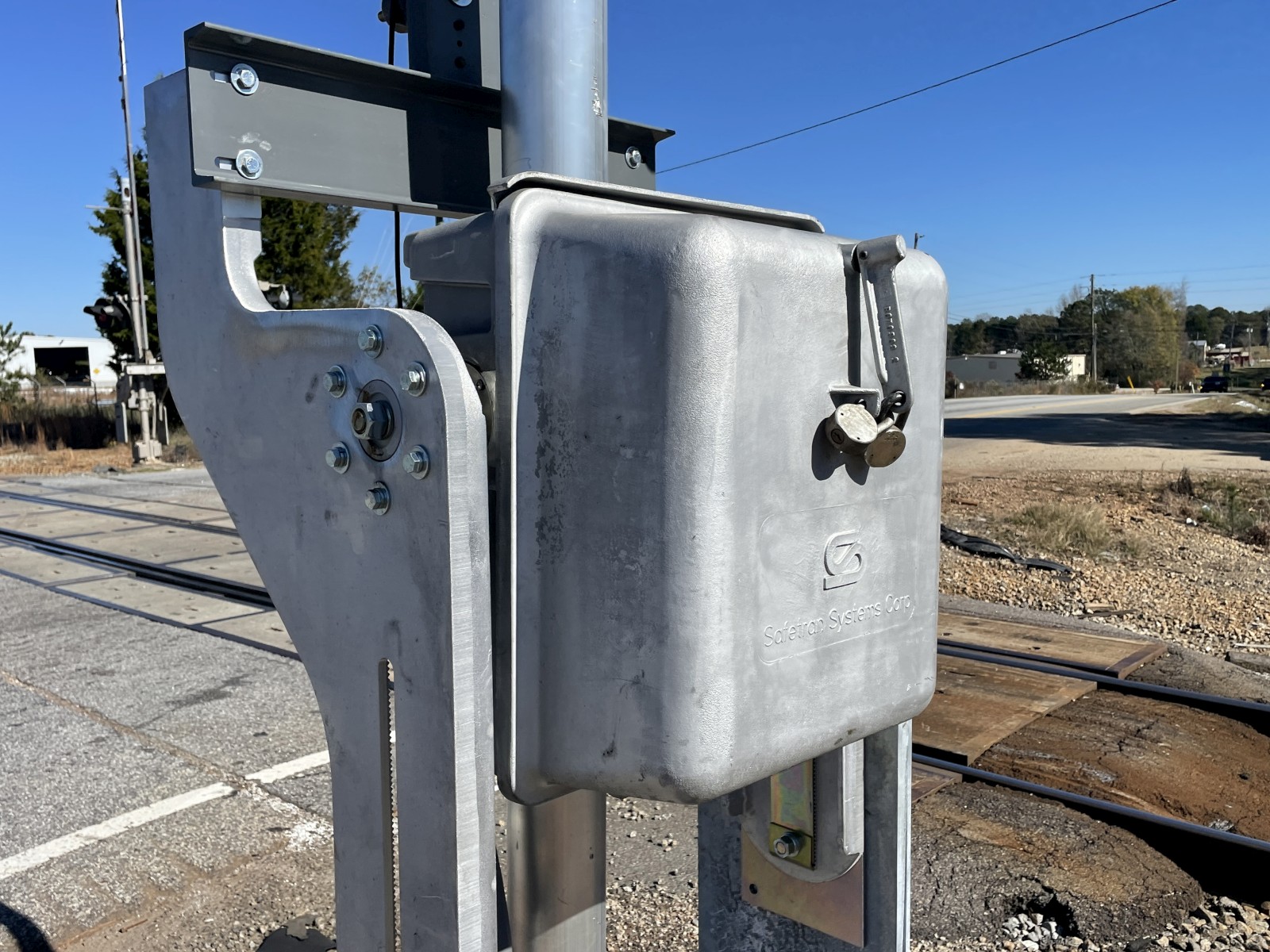

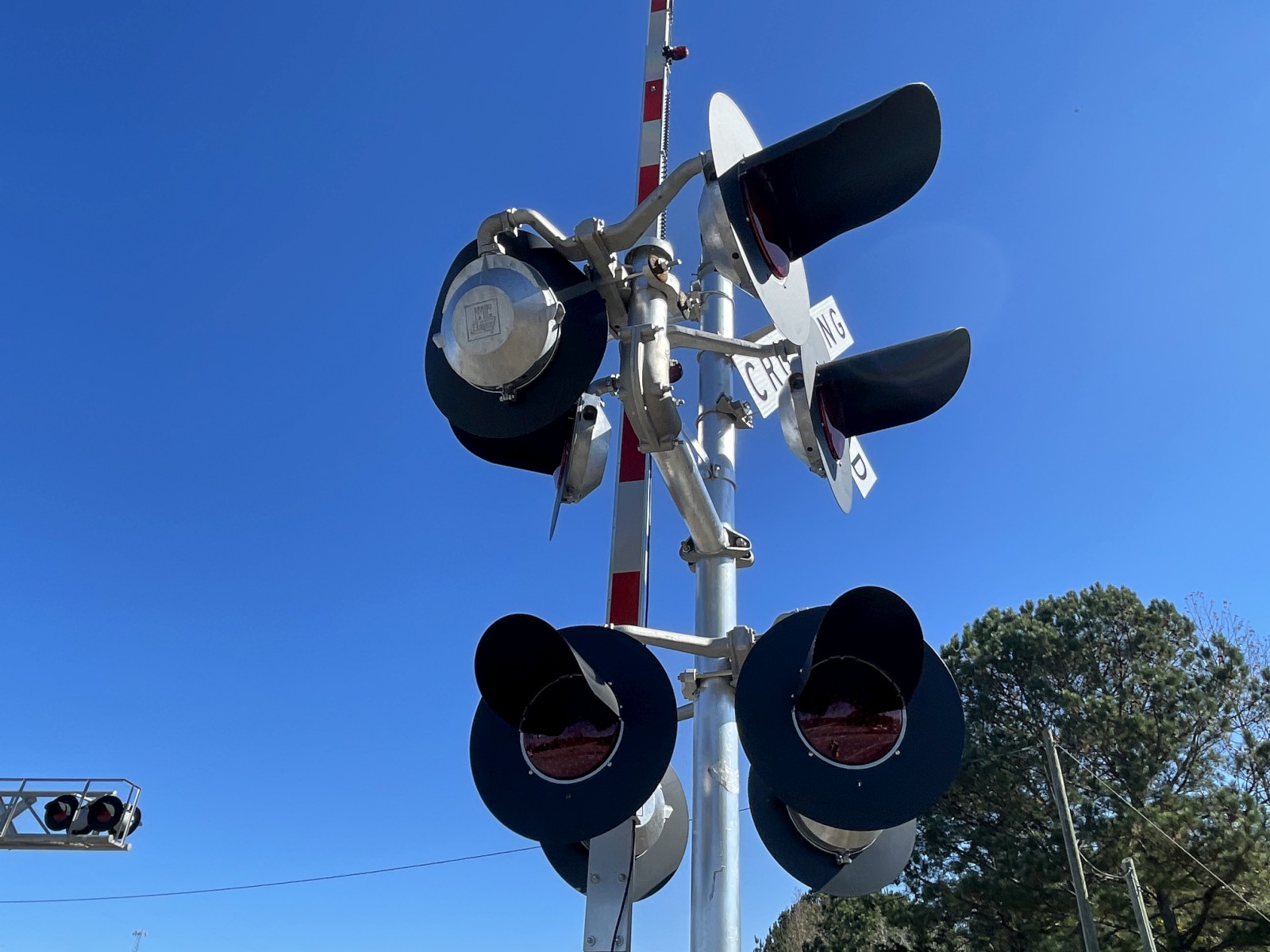

The western signal. The gate mechanism was reused from another crossing, or somewhere as everything else on the mast is newer. |
|||
23 |
24 |
25 |

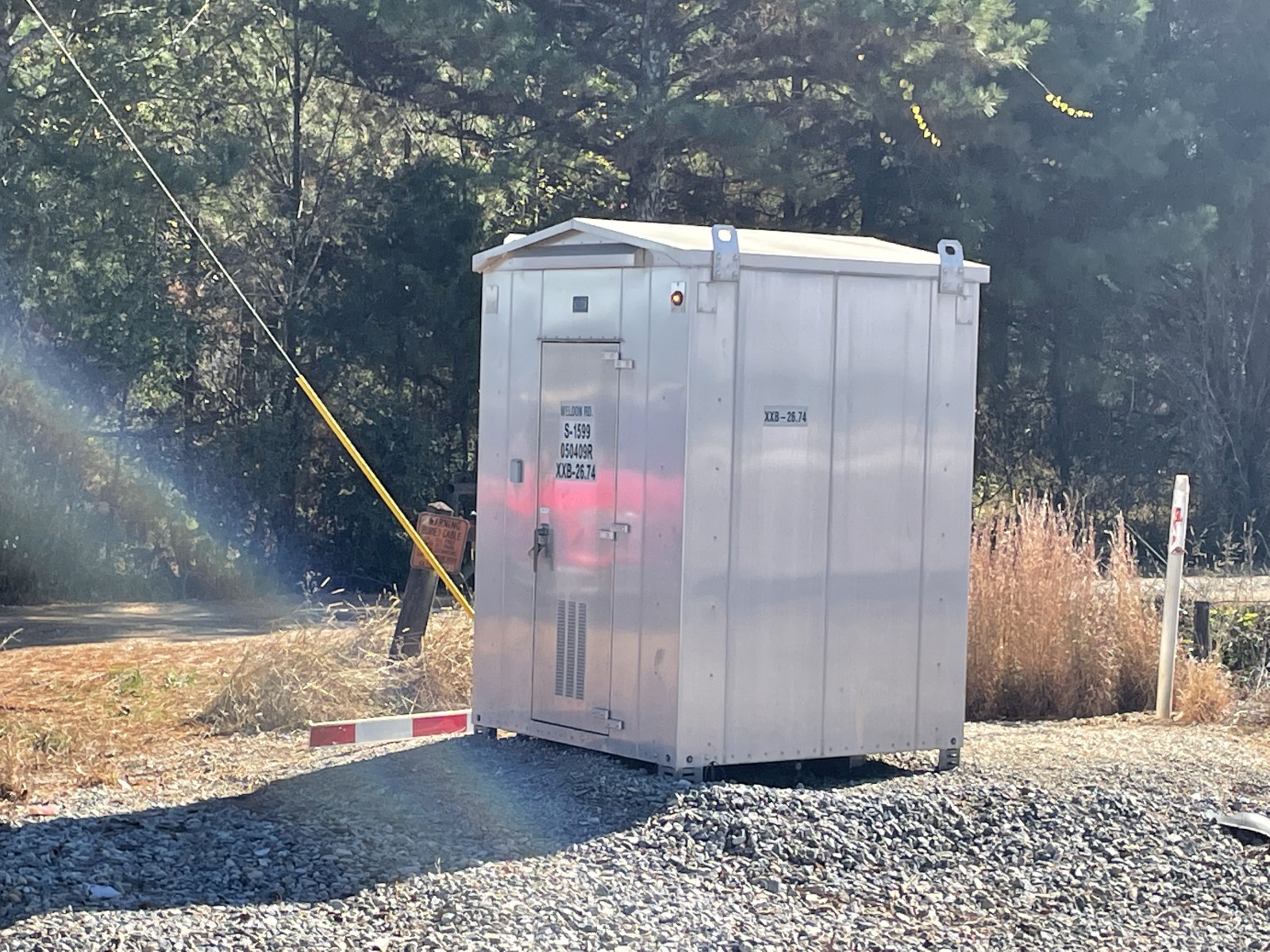

The relay bungalow. |

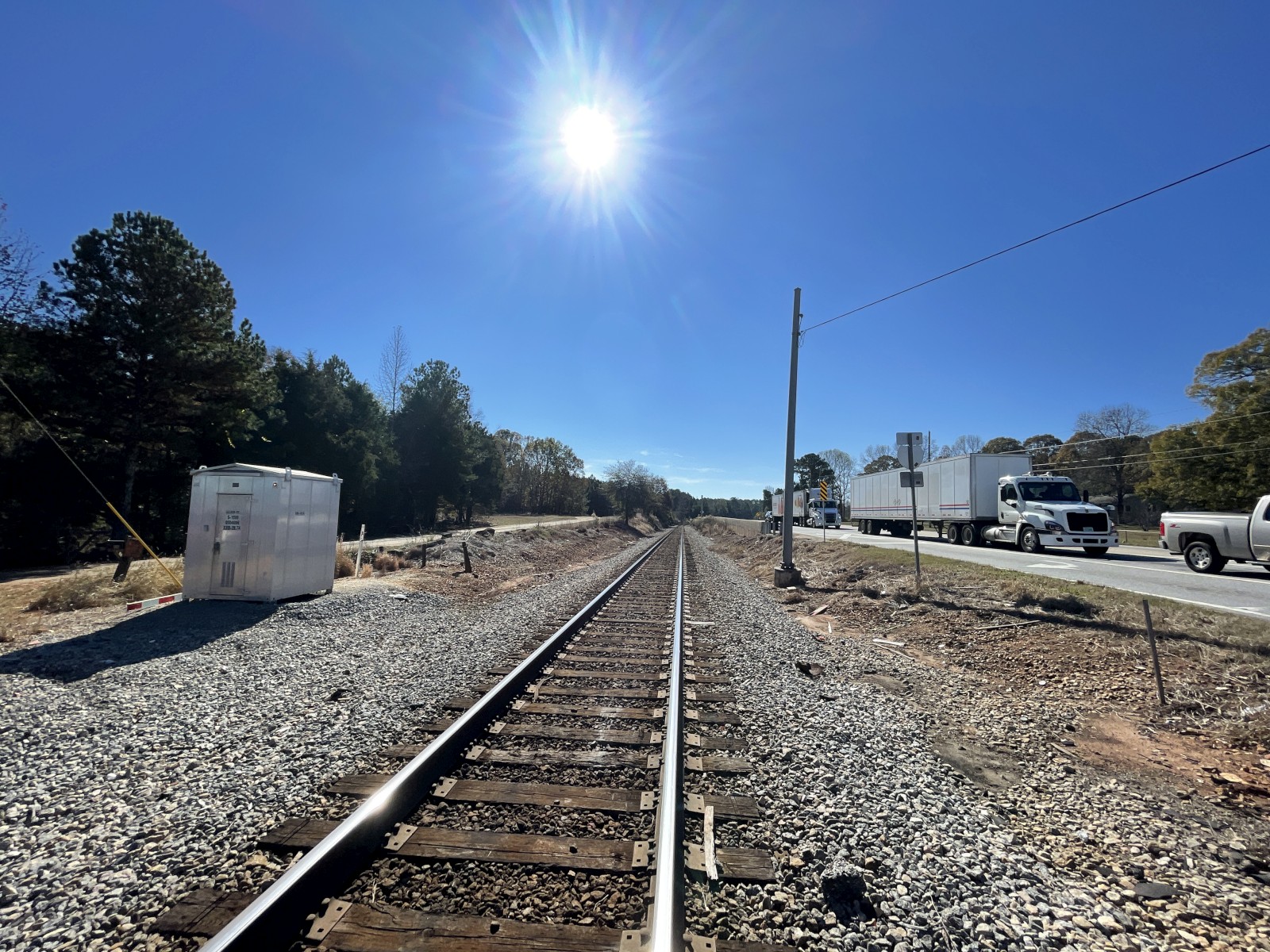

Track view facing north towards Johnston Circle. |
Track view facing south towards Bagley Road. |
All pictures were taken on 11-18-22.
