MP: 0WA84.010 |
Updated March 9, 2024
Total Accidents: 1
Crossing
DOT #: 340521D
TOTAL
DAILY TRAINS: 19 (AS OF 2017)
| >>>>>>>>>>>>>> | Western Signal | Eastern Signal | Extra Signal |
| Bell: | N/A | NEG E-Bell | N/A |
| Base: | Lincoln Industries Cantilever, Modern Industries Base | Modern Industries (Both Masts) | Safetran |
| Lights: | 6 - 12"x24" WCH Flatback w/ WCH 2nd Gen. LEDs | 4 - 12"x24" WCH Flatback w/ Leotek EV series LEDs | 4 - 12"x24" Safetran w/ Leotek EV series LEDs |
| Gate Lights: | 4" RECO, 4" NEG LEDs mix | 4" RECO, 4" NEG LEDs mix | N/A |
| Gate Mechanism: | Invensys Rail | GRS Type D | N/A |
| Gate Striping: | Vertical Striping | Vertical Striping | N/A |
Page created by: freebrickproductions
This crossing is located along the CSX W&A Subdivision.
1 |
2 |
3 |
4 |

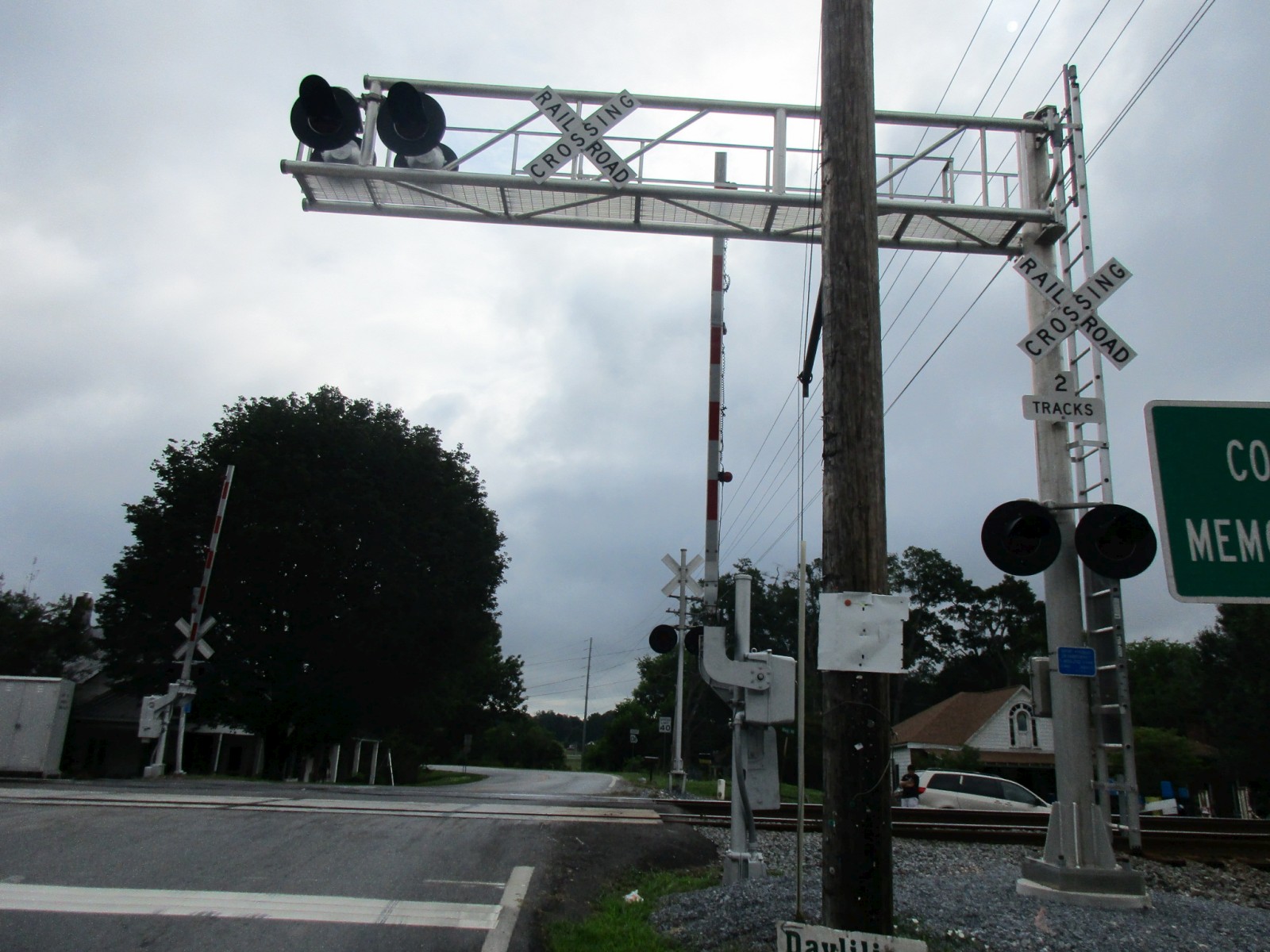

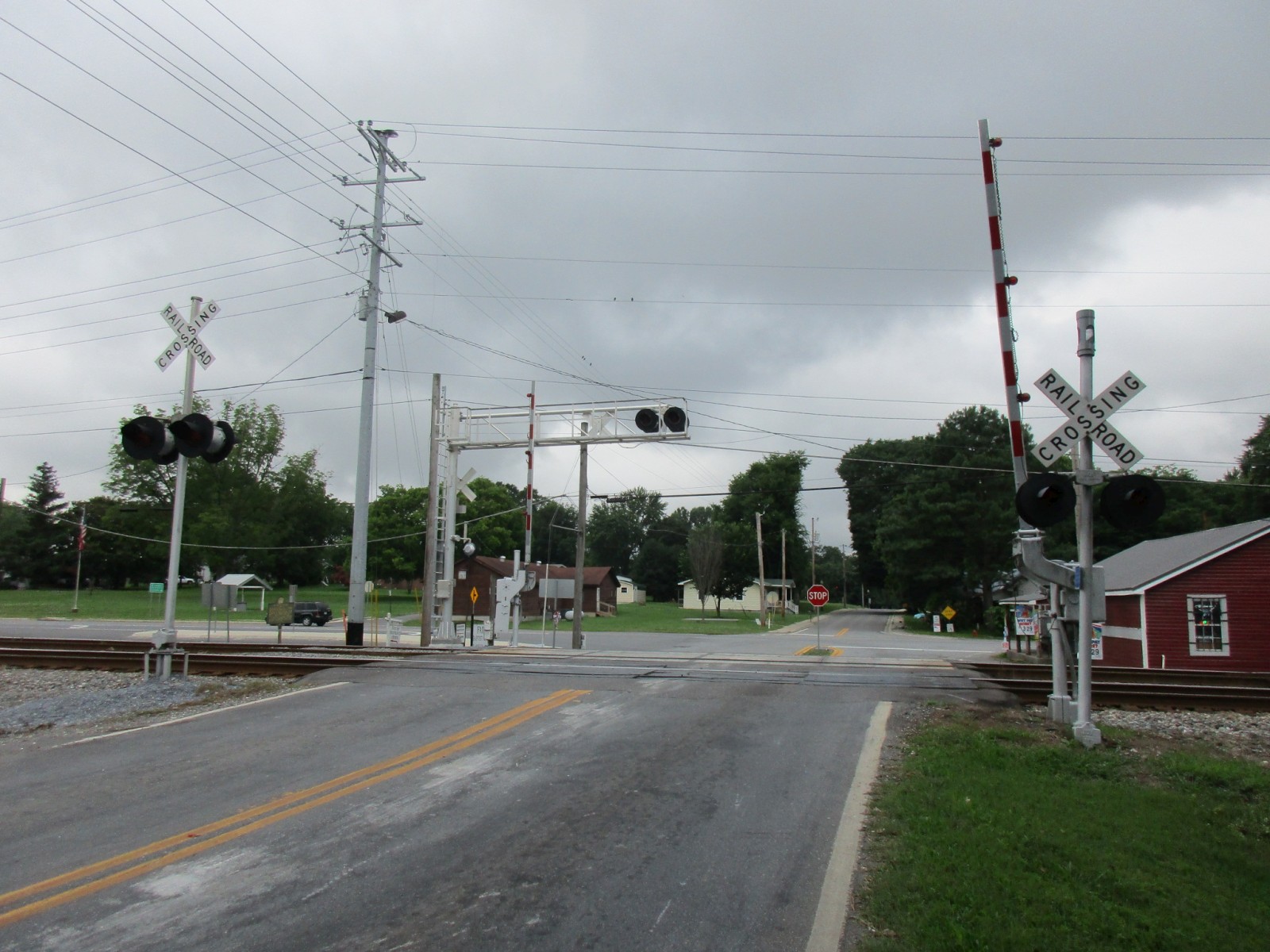

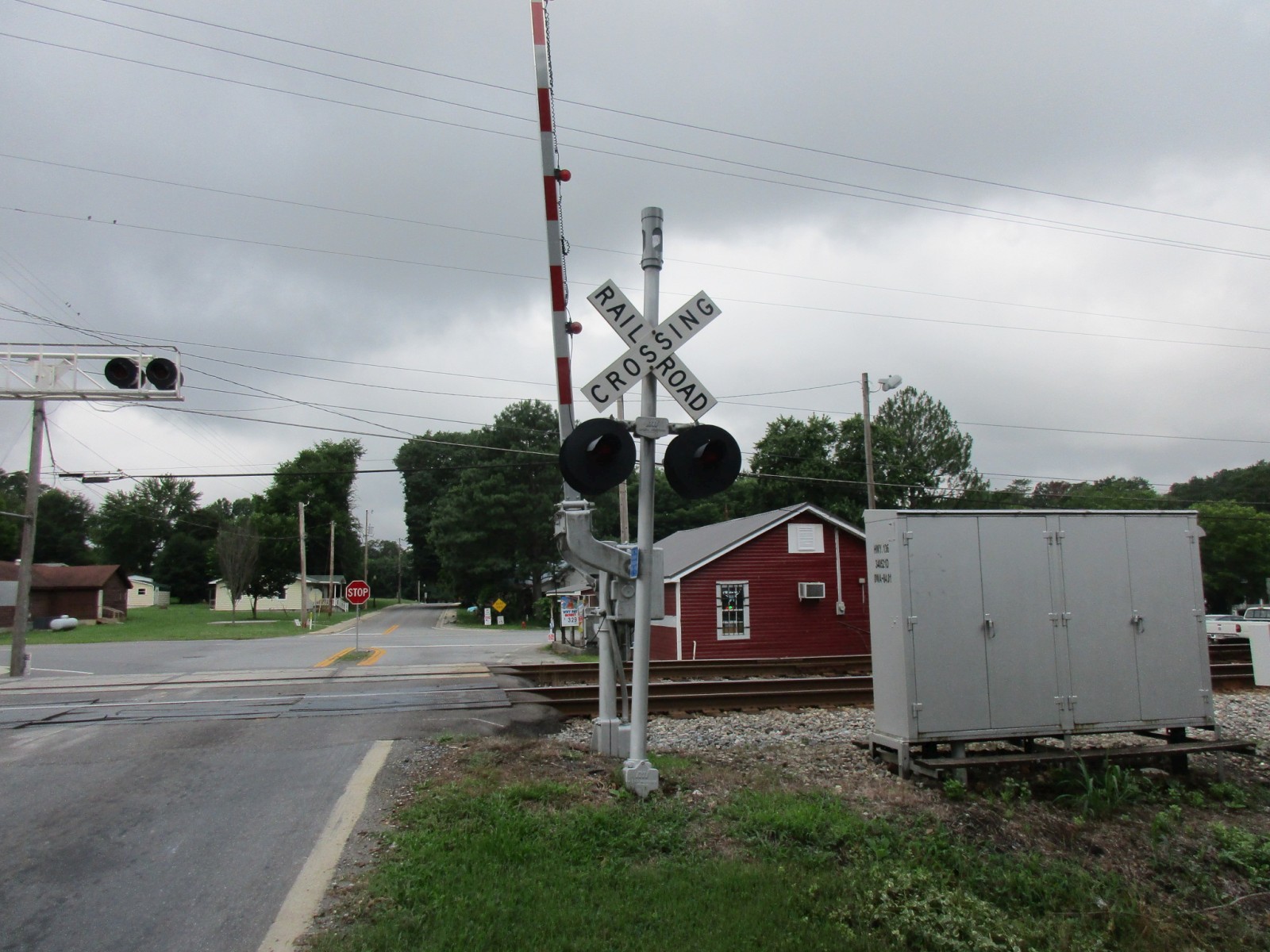

Overviews of the crossing, which has a small variety of equipment at it. |

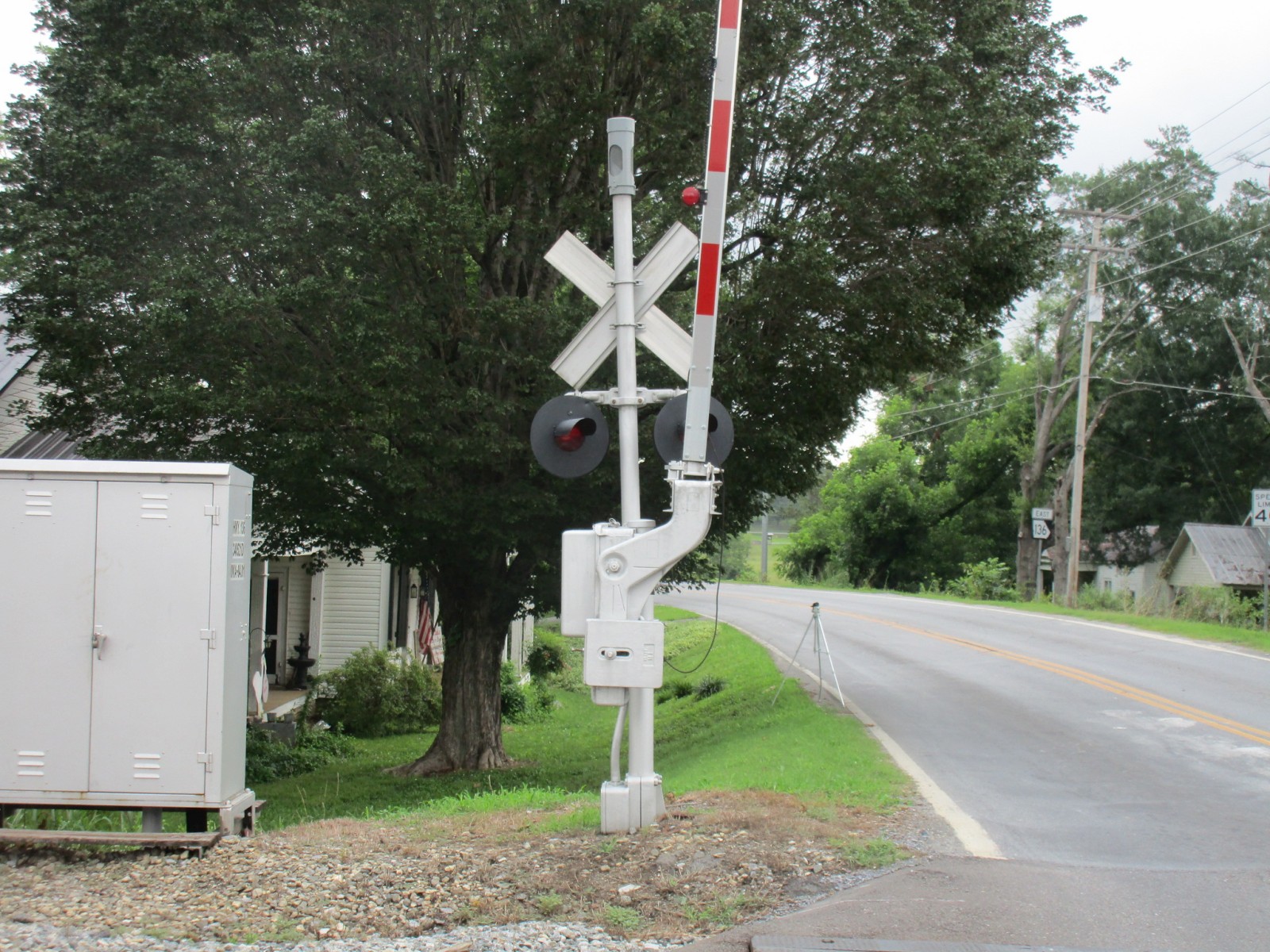

The first signal. |
||
5 |
6 |
7 |
8 |

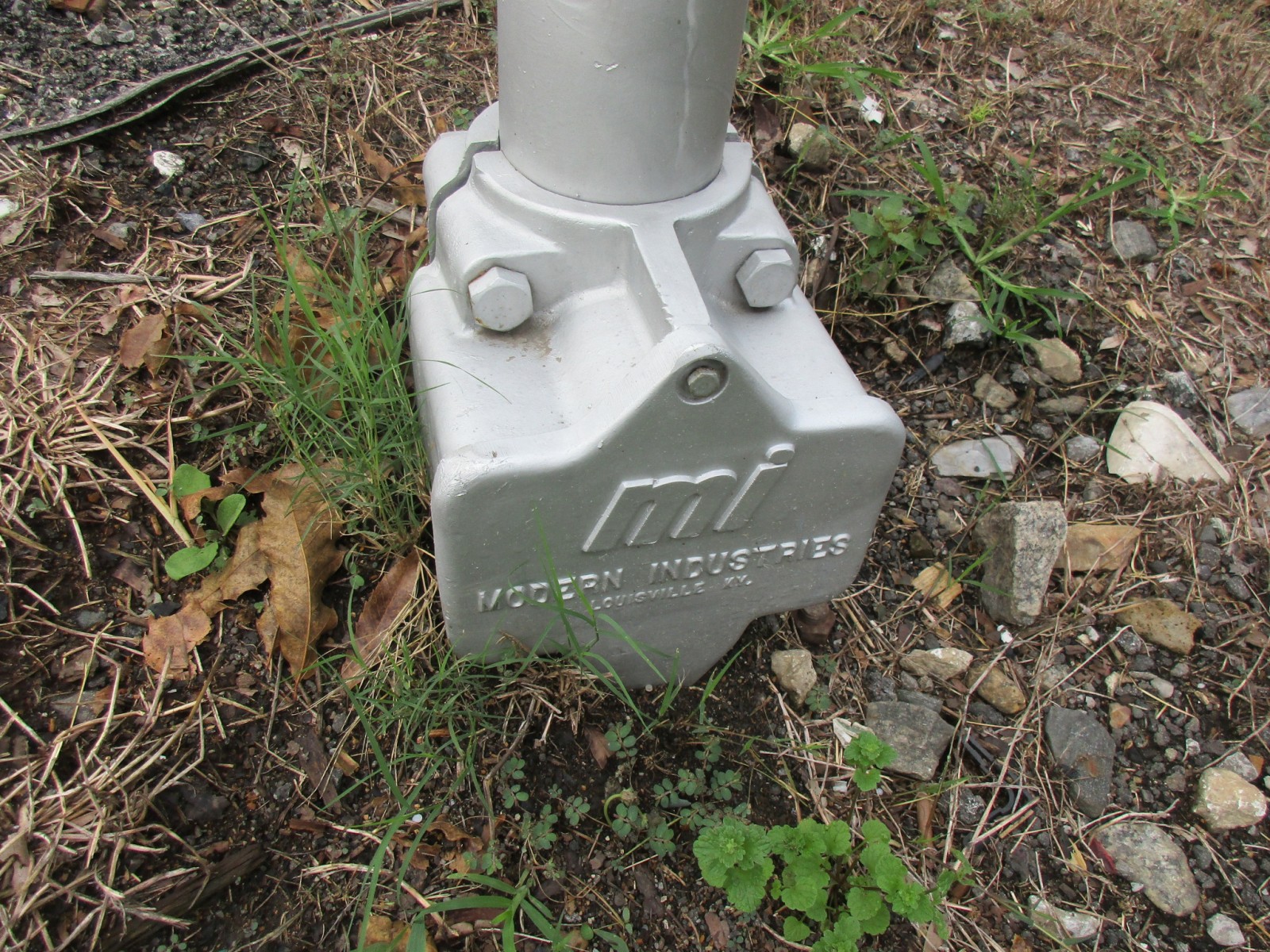

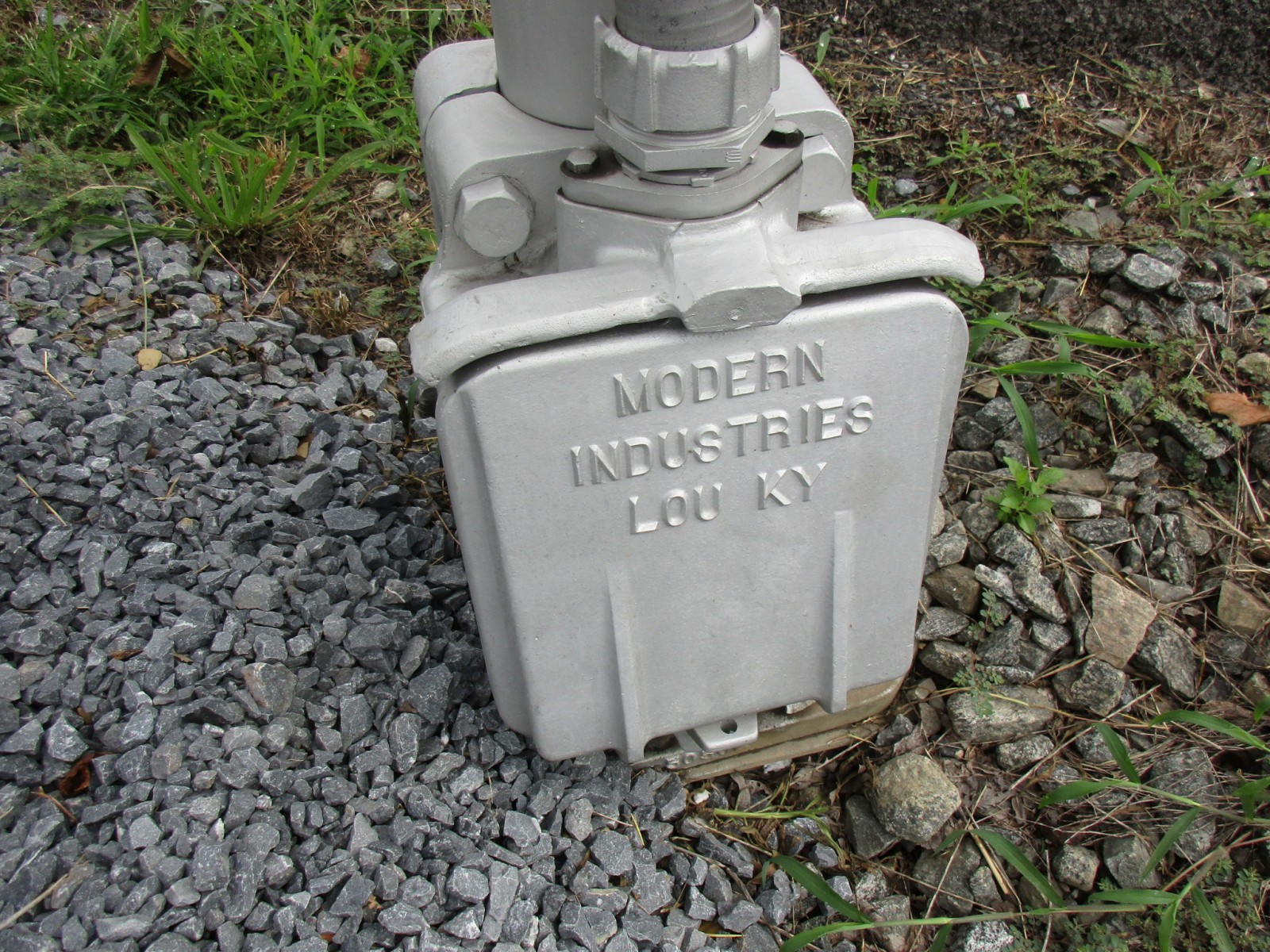

It has a Modern Industries 4 inch base. |

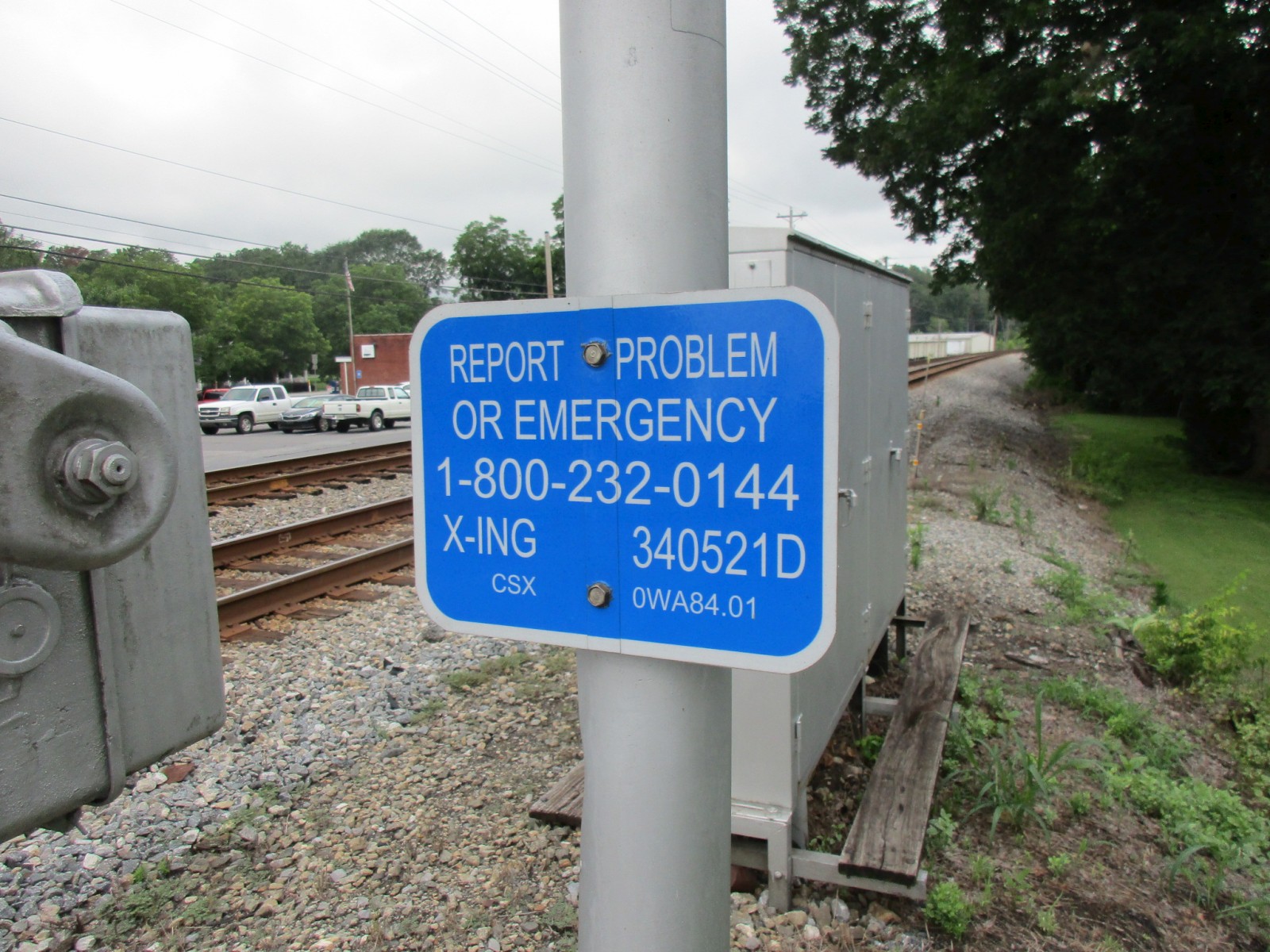

The emergency information. |

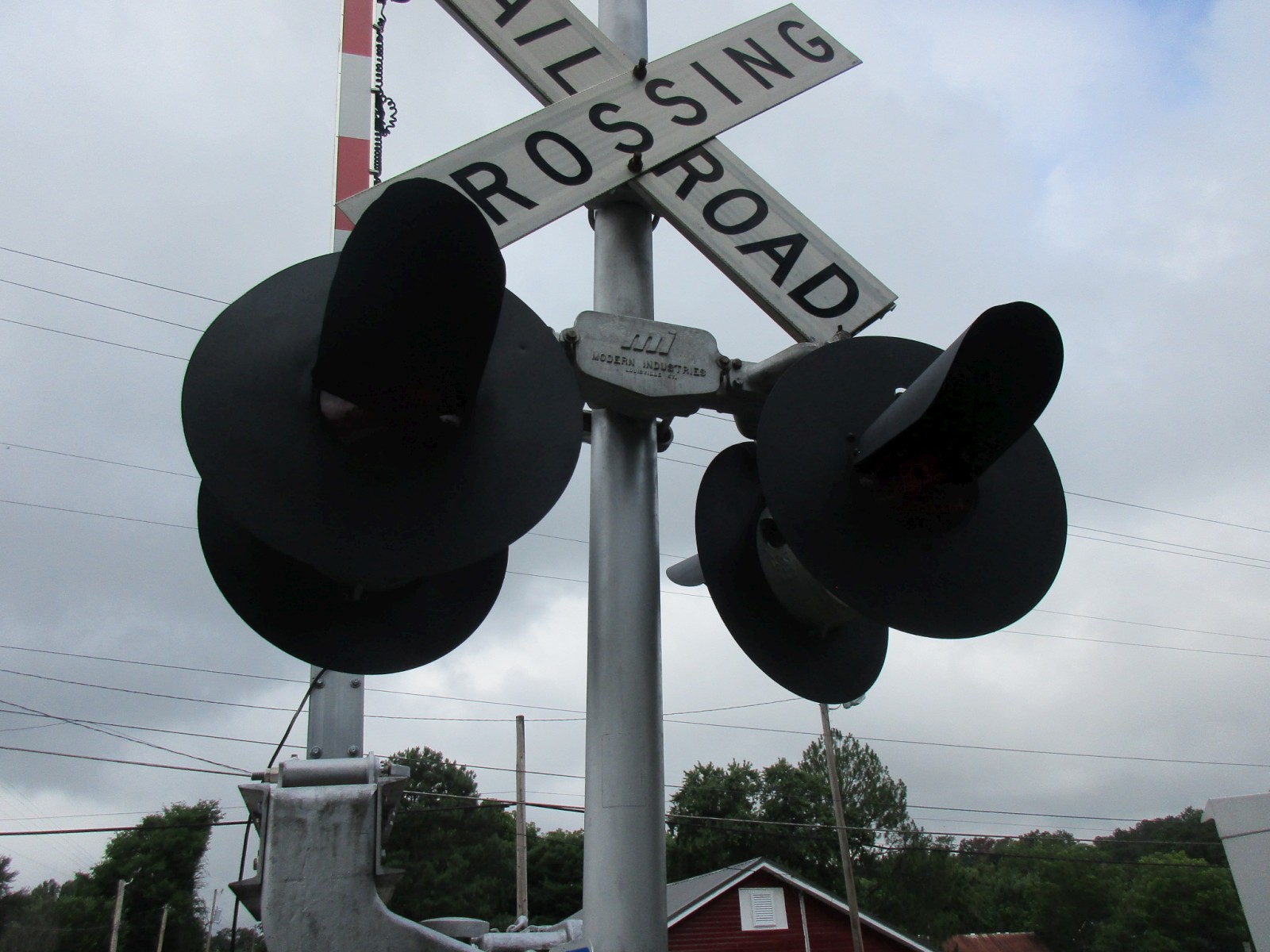

This signal has WRRS 8 inch incandescent lights on it! |
|
9 |
10 |
11 |
12 |

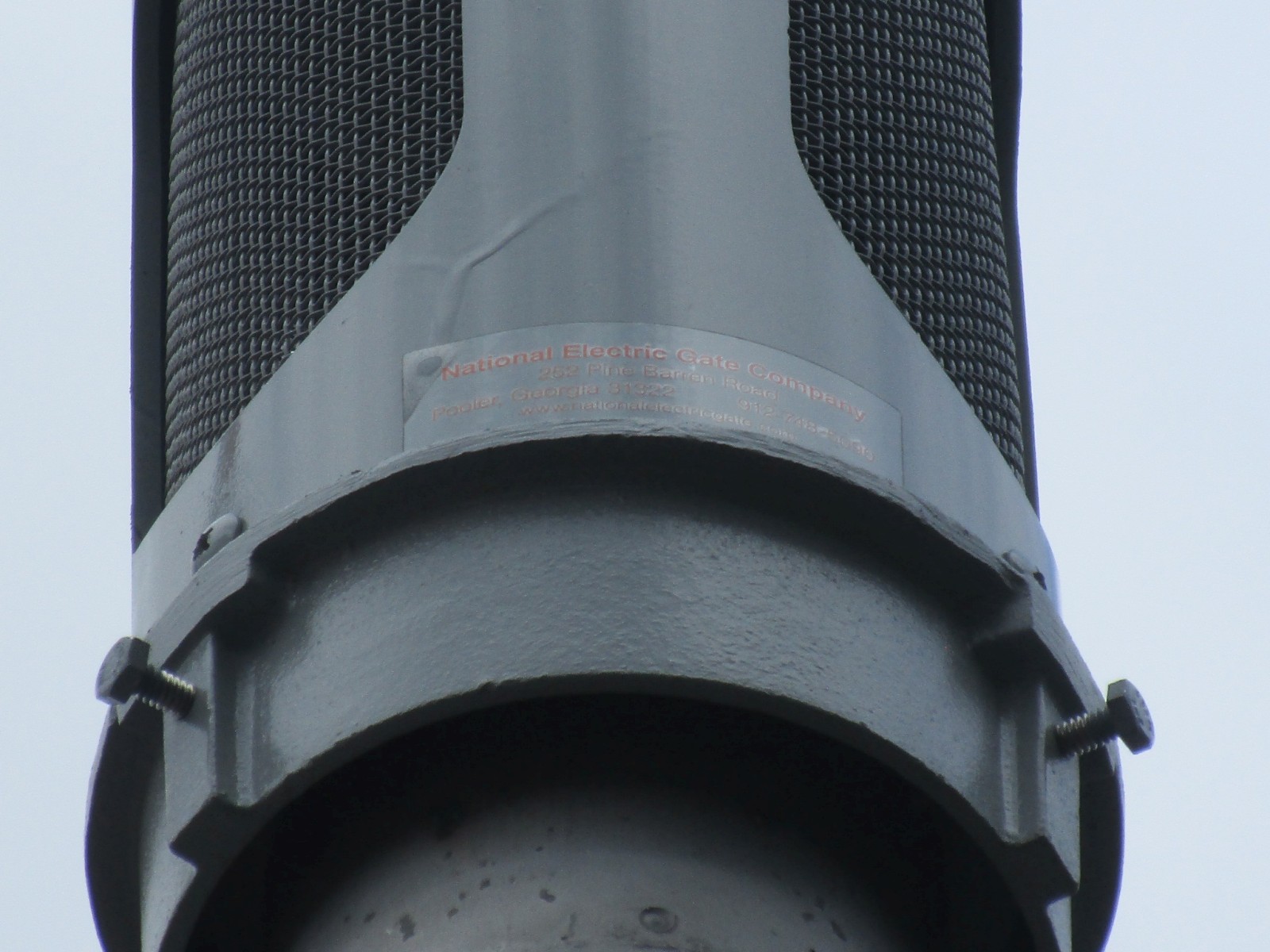

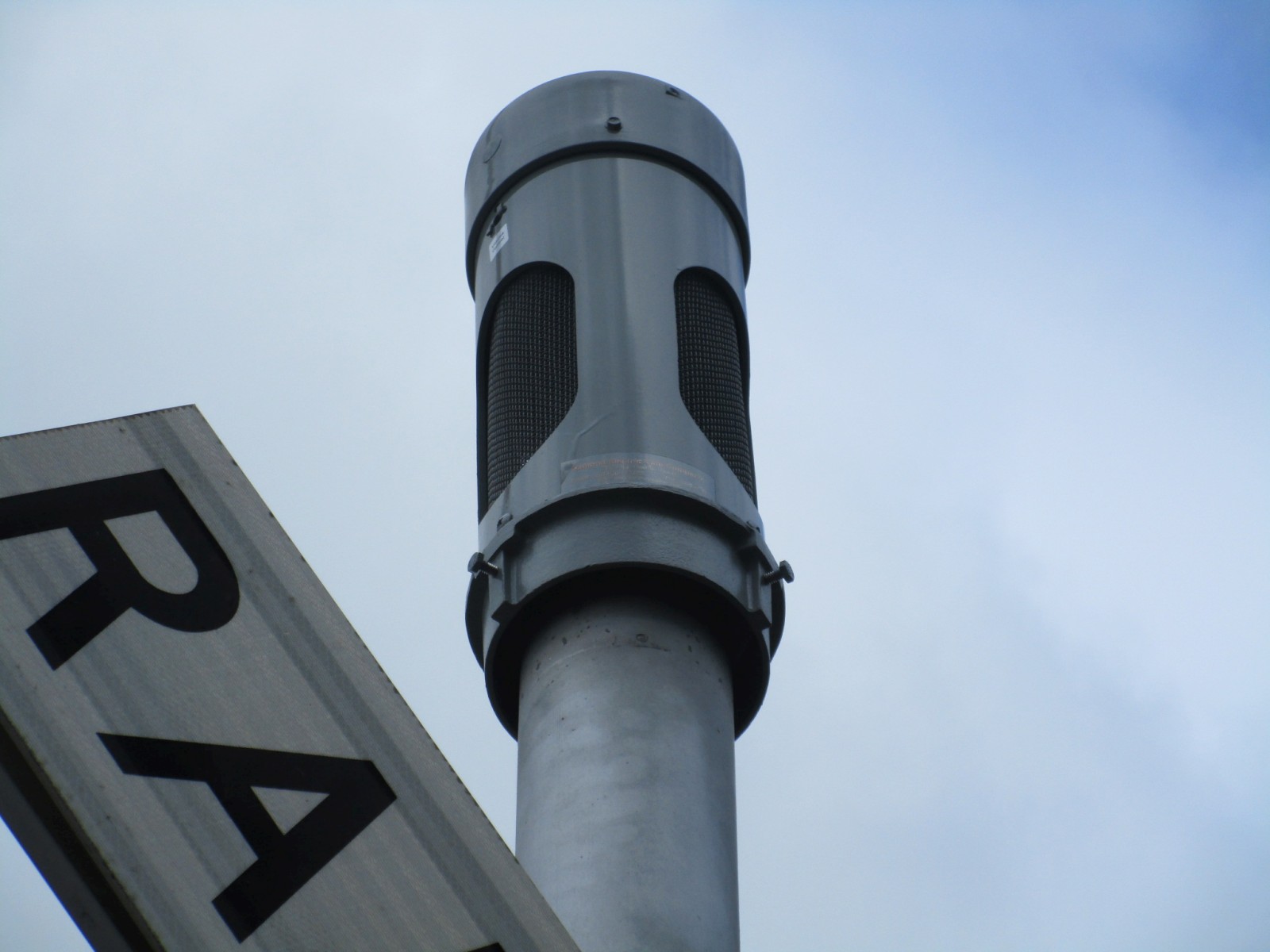

The bell is an NEG electronic bell. |

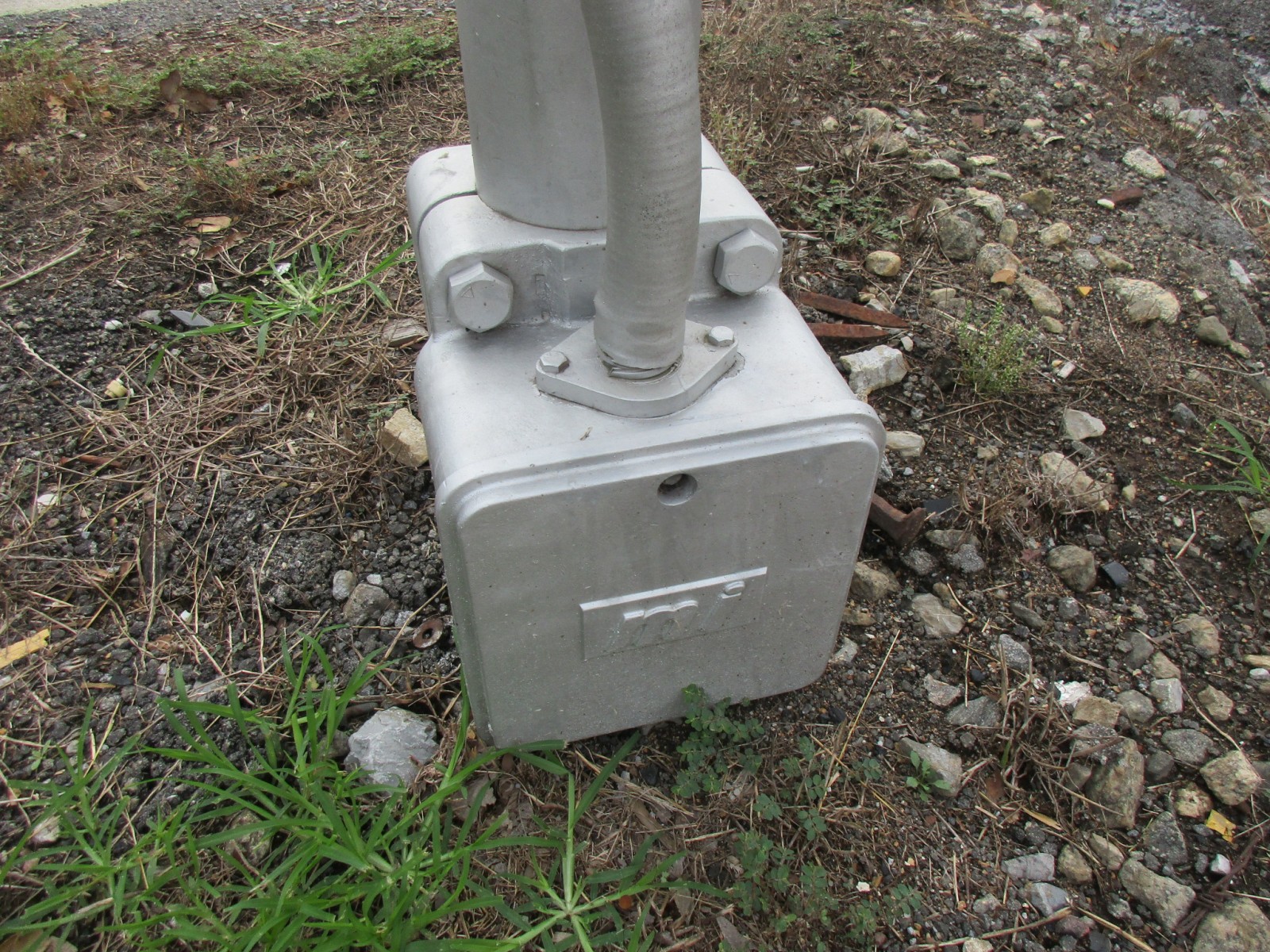

A newer Modern Industries 5 inch base for the gate mast. |

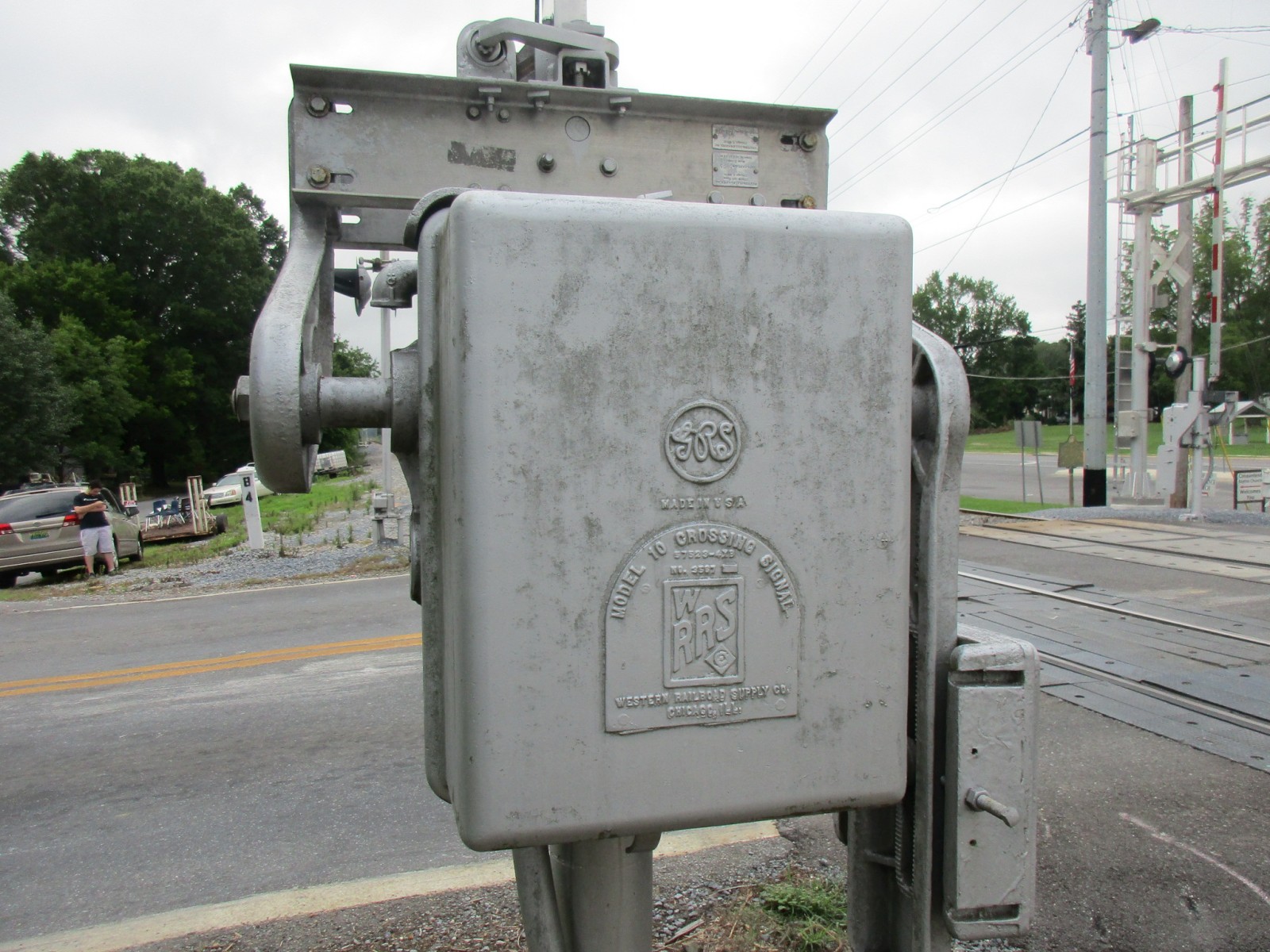

The gate mechanism is a GRS/WRRS gate mechanism! |
|
13 |
14 |
15 |
16 |

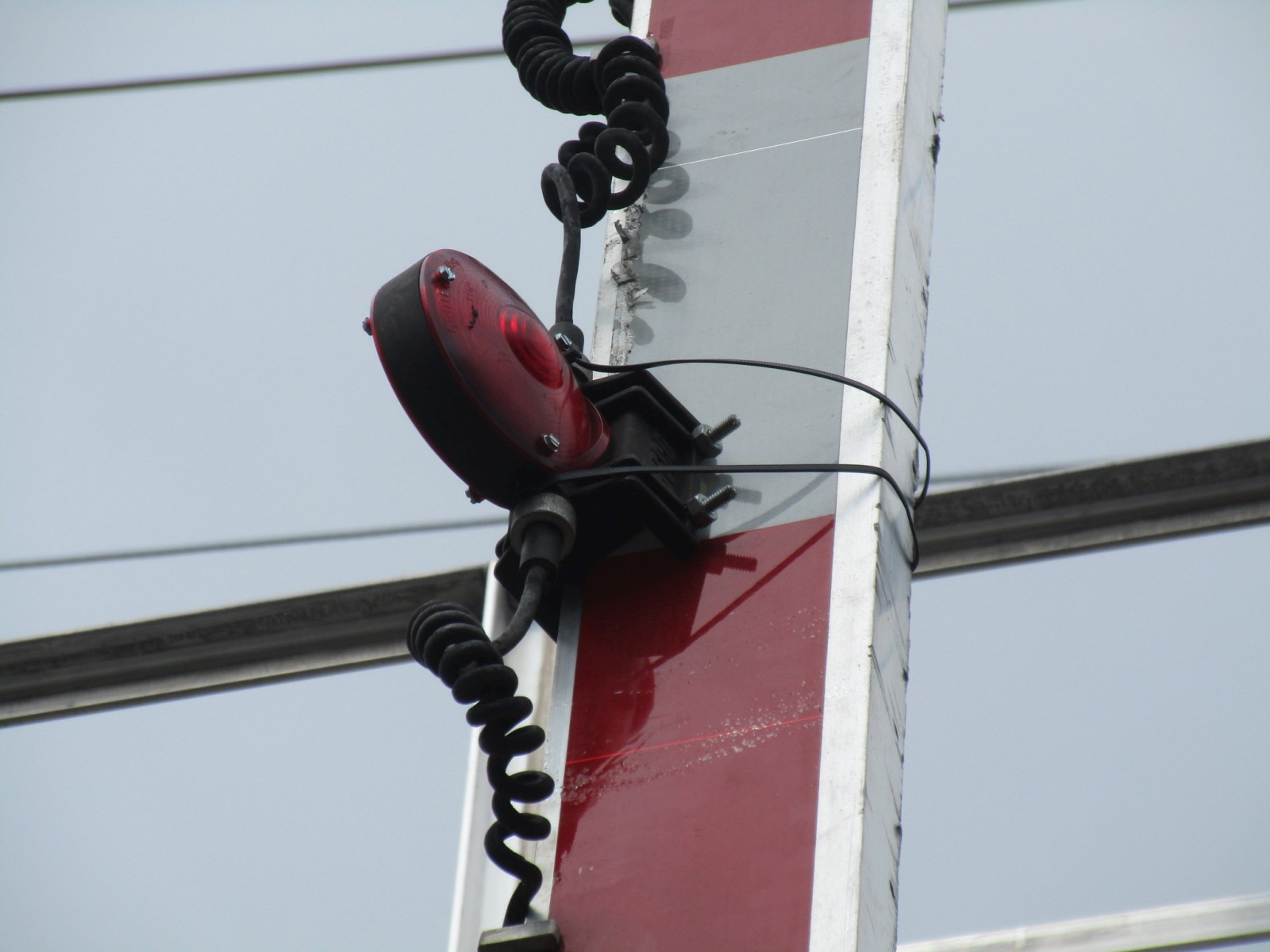

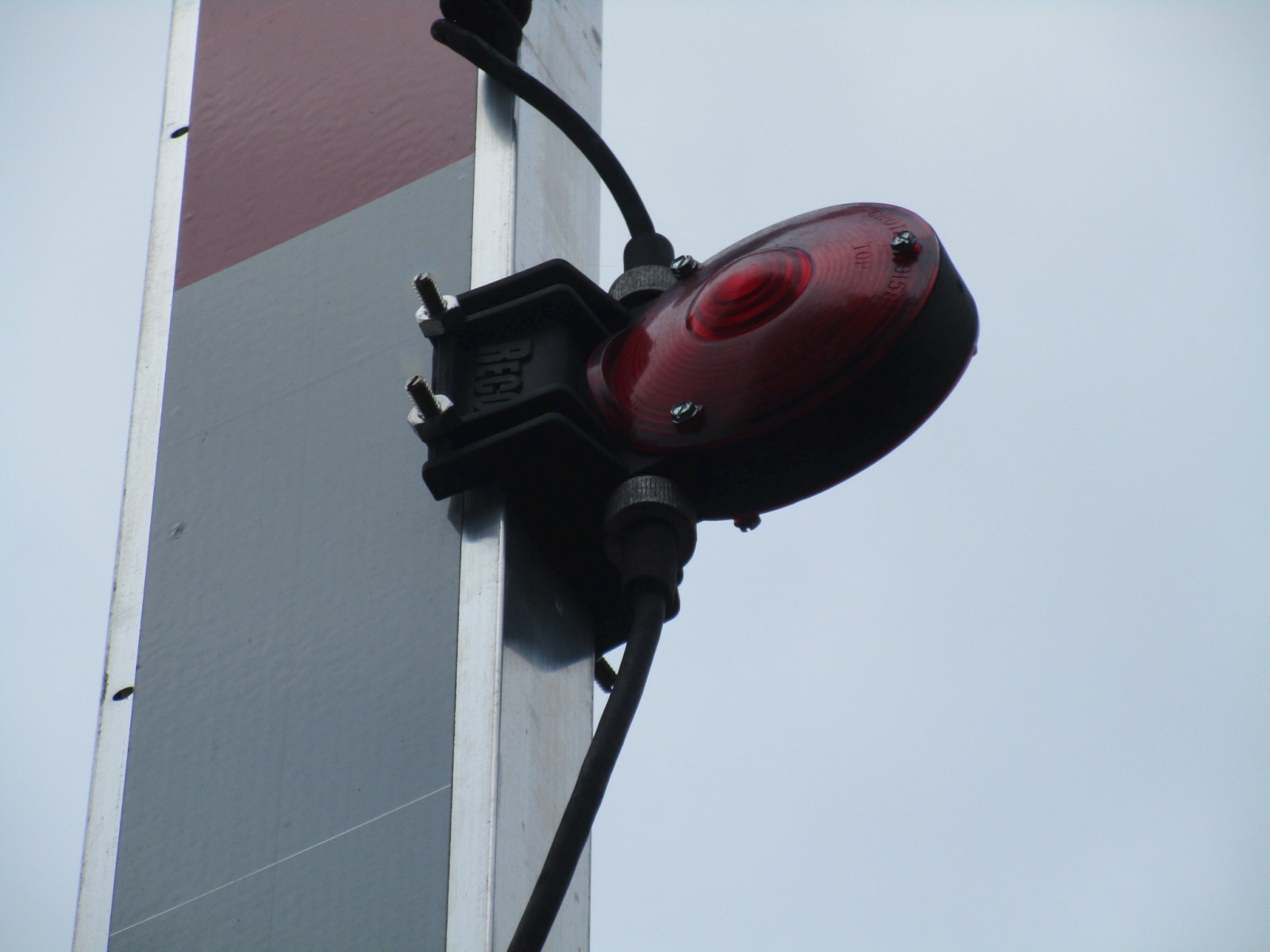

This signal has RECO gate lights. |

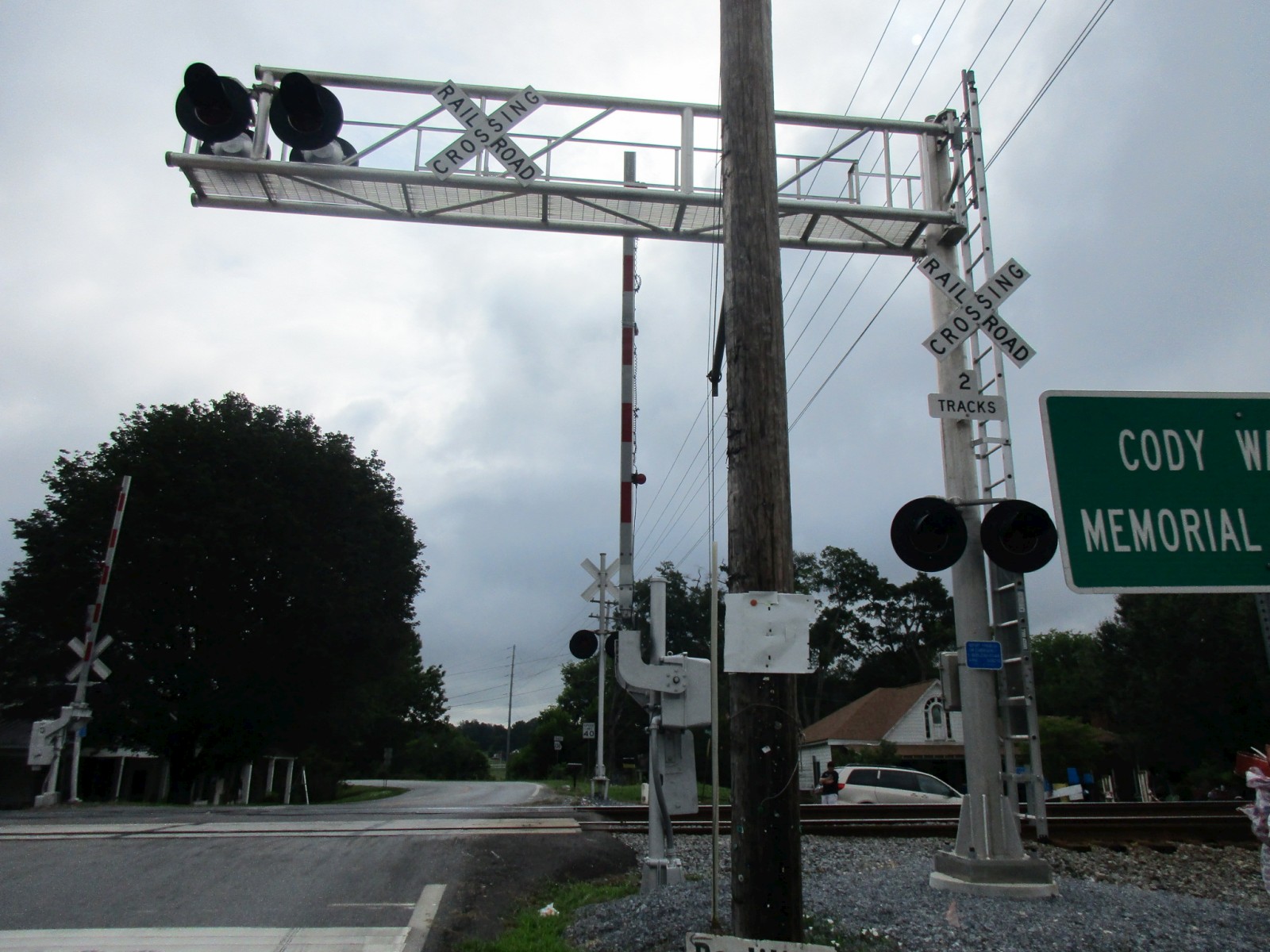

The second signal. |

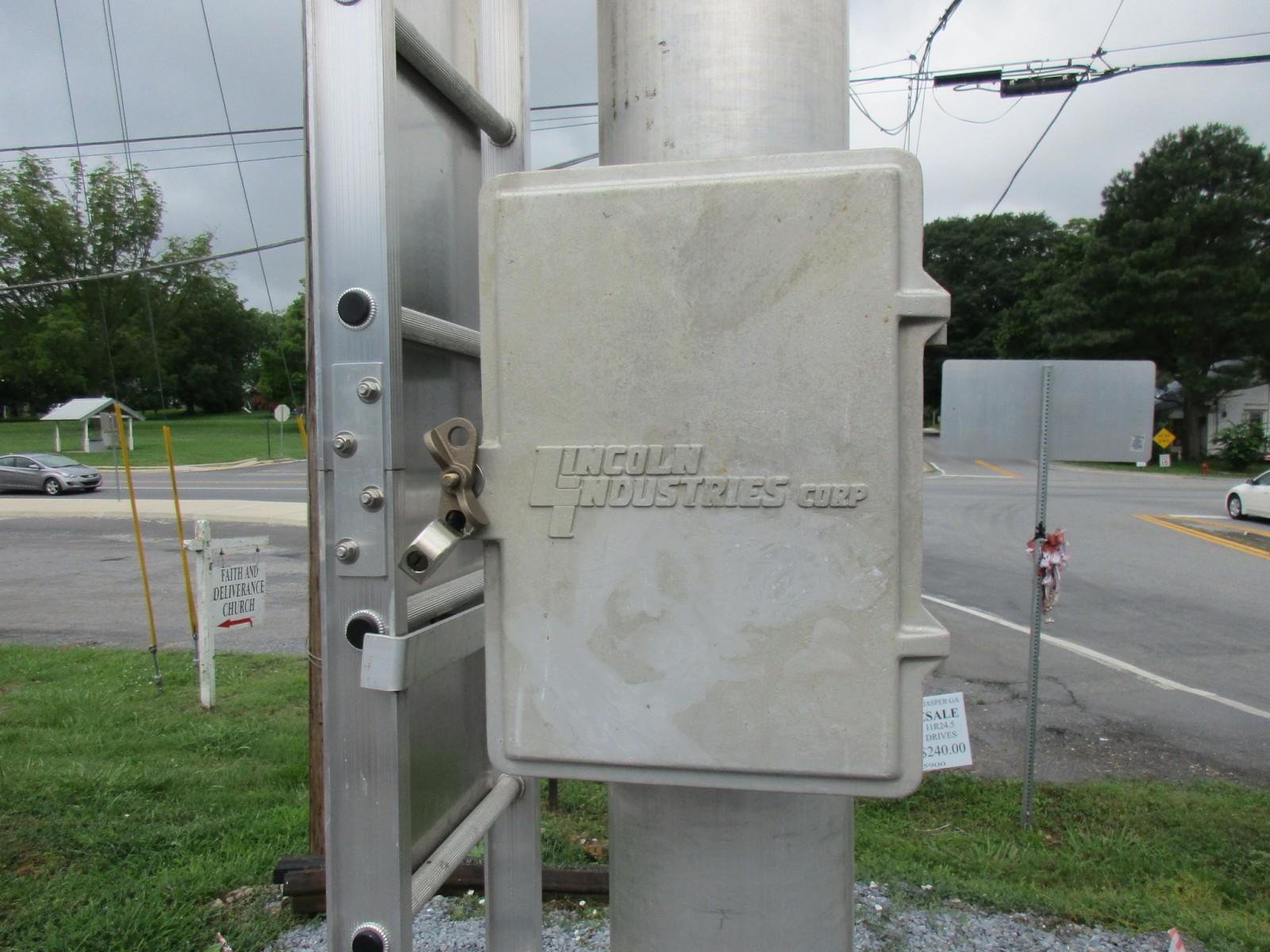

It's a Lincoln Industries cantilever. |
|
17 |
18 |
19 |
20 |

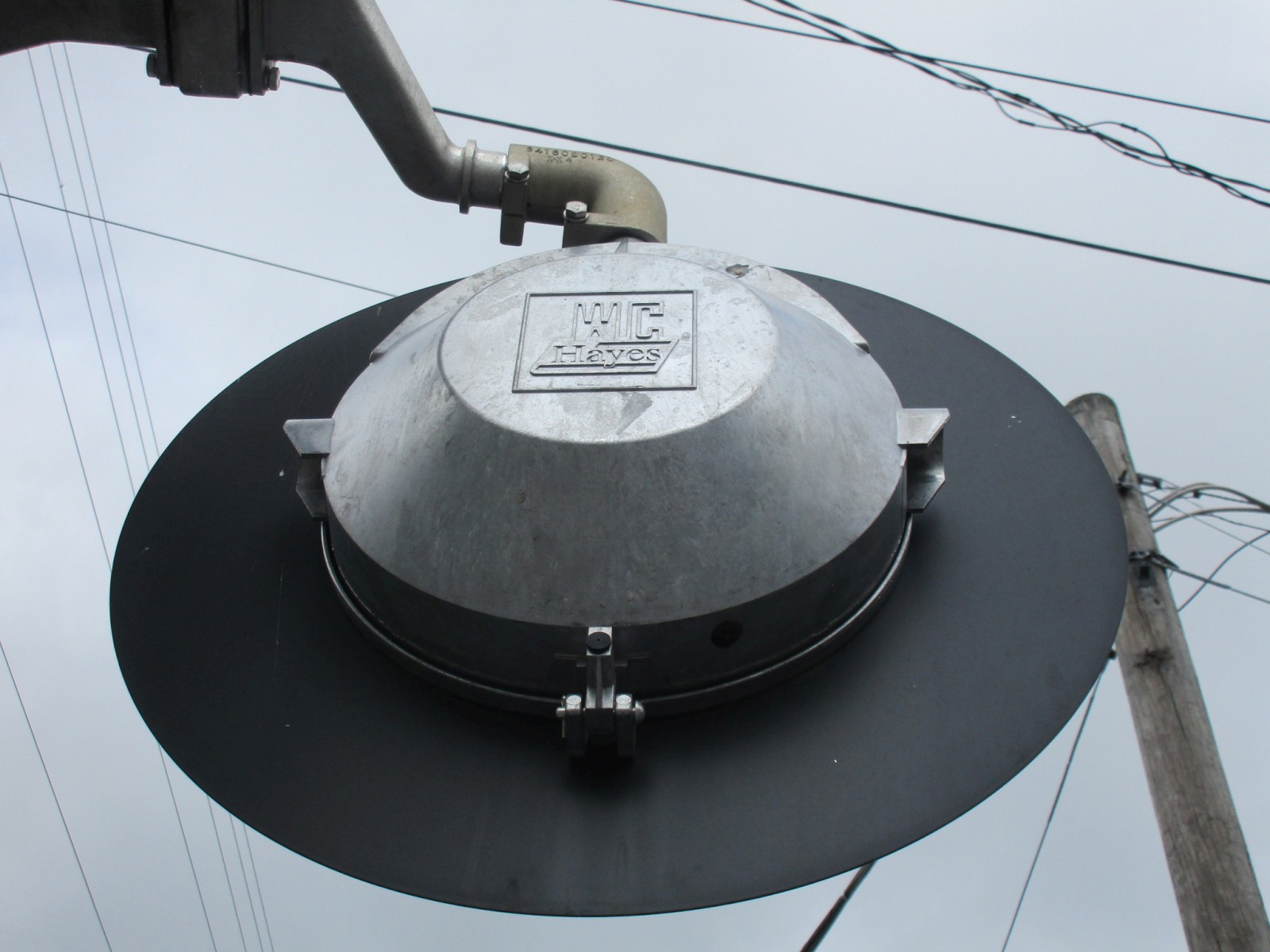

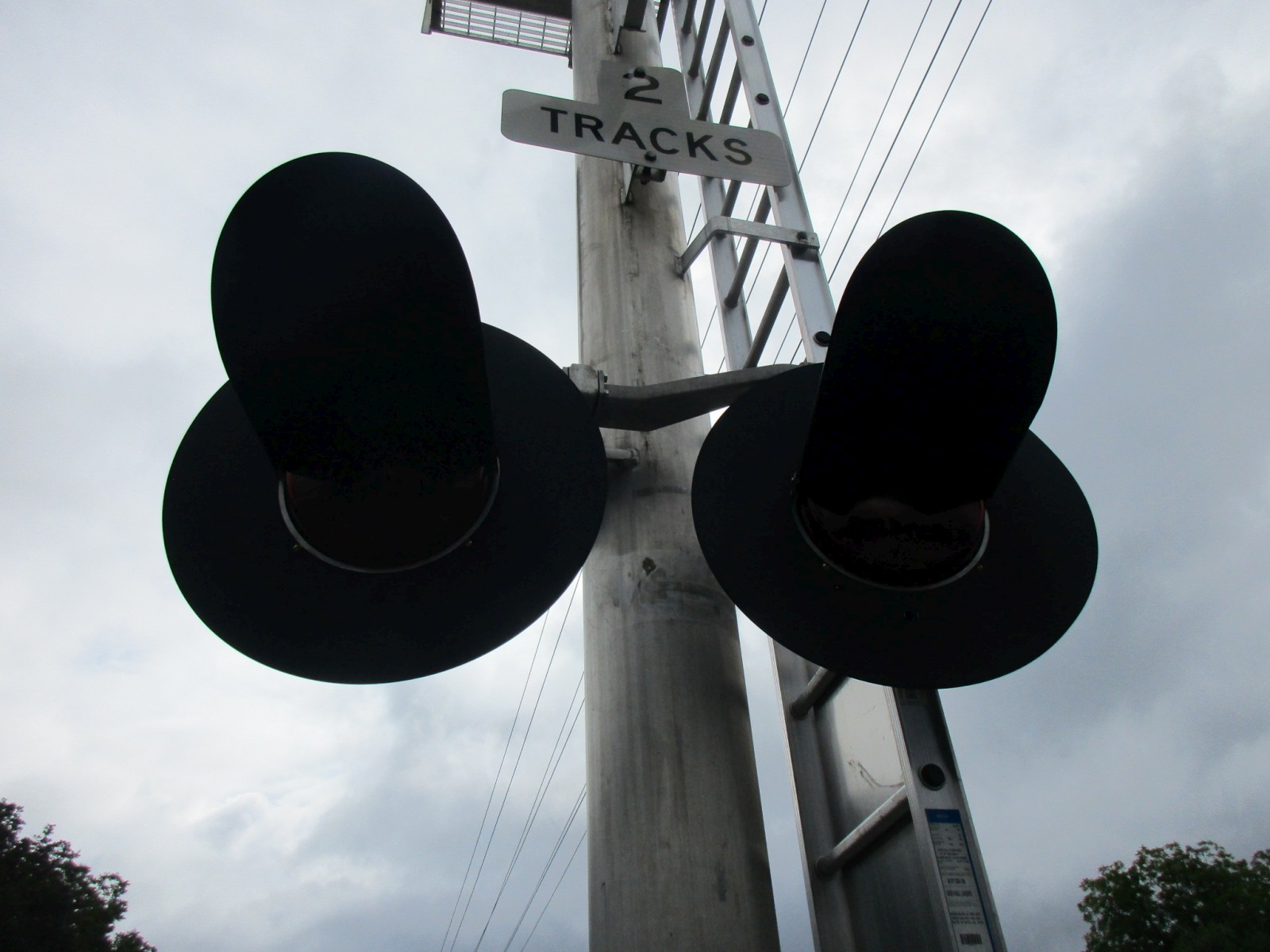

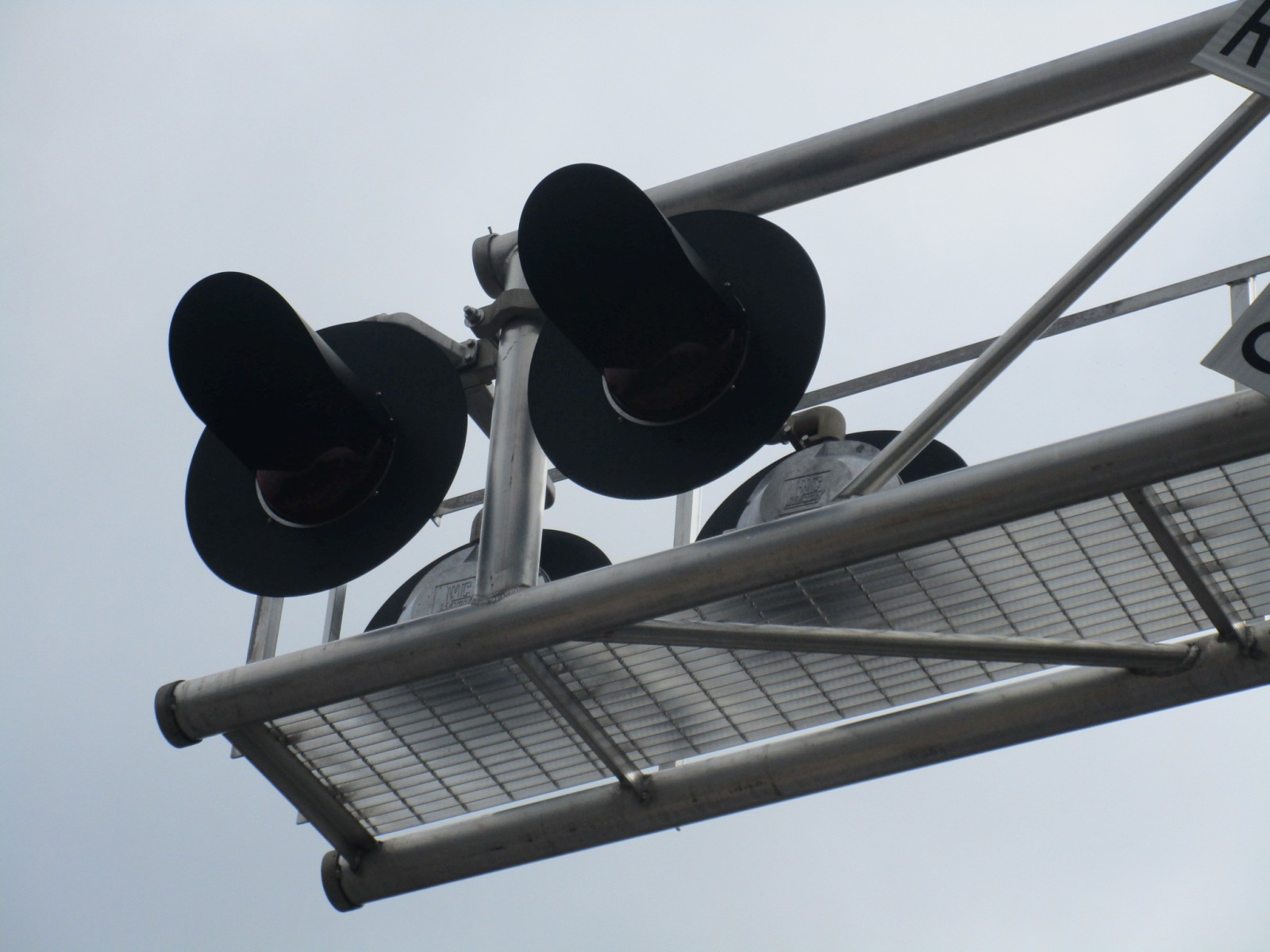

This signal has all WCH 12x24 inch lights with WCH 2nd Generation LEDs in them. |
|||
21 |
22 |
23 |
24 |

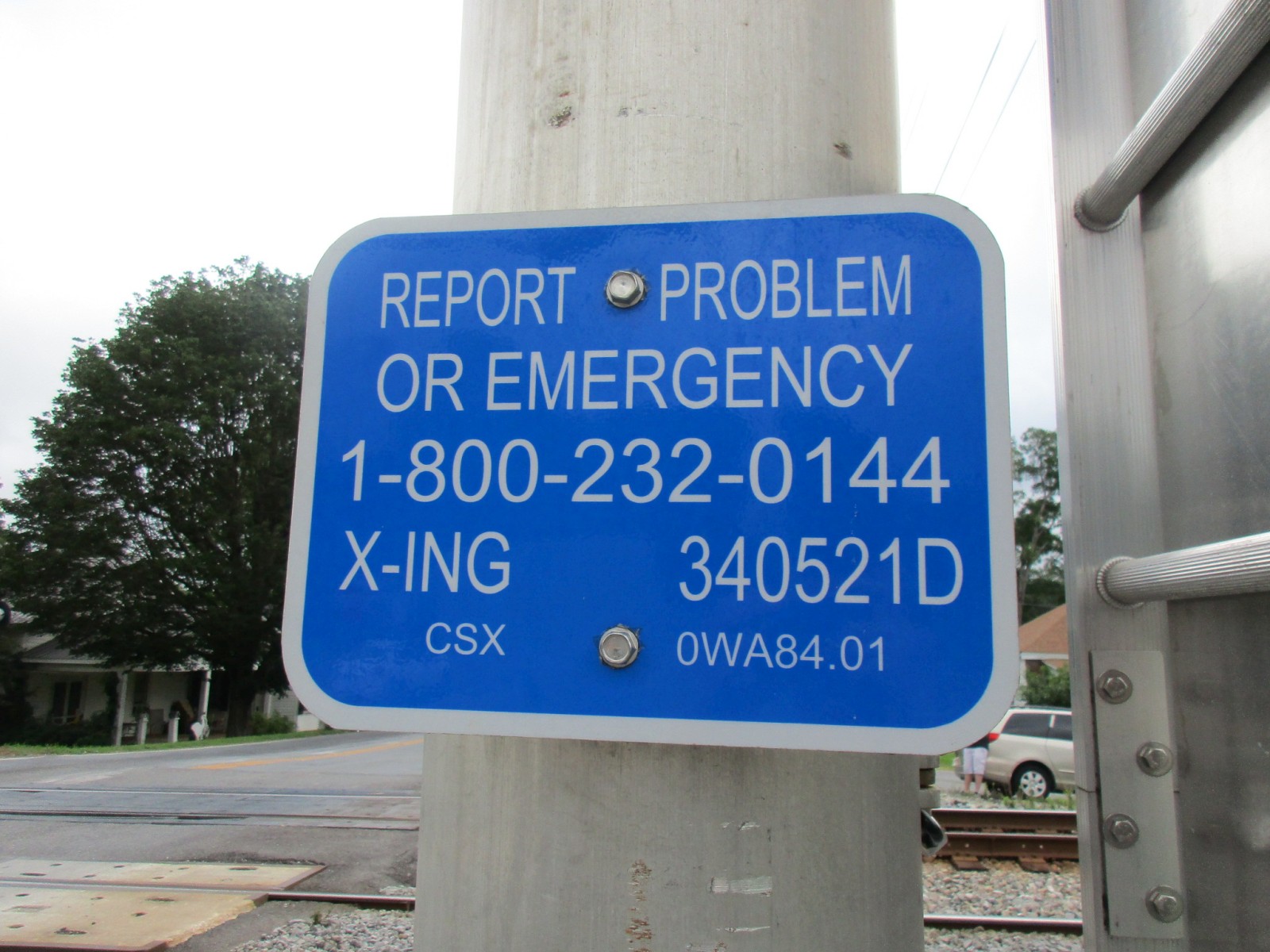

The emergency information. |
An older Modern Industries 5 inch base for the gate mast. |

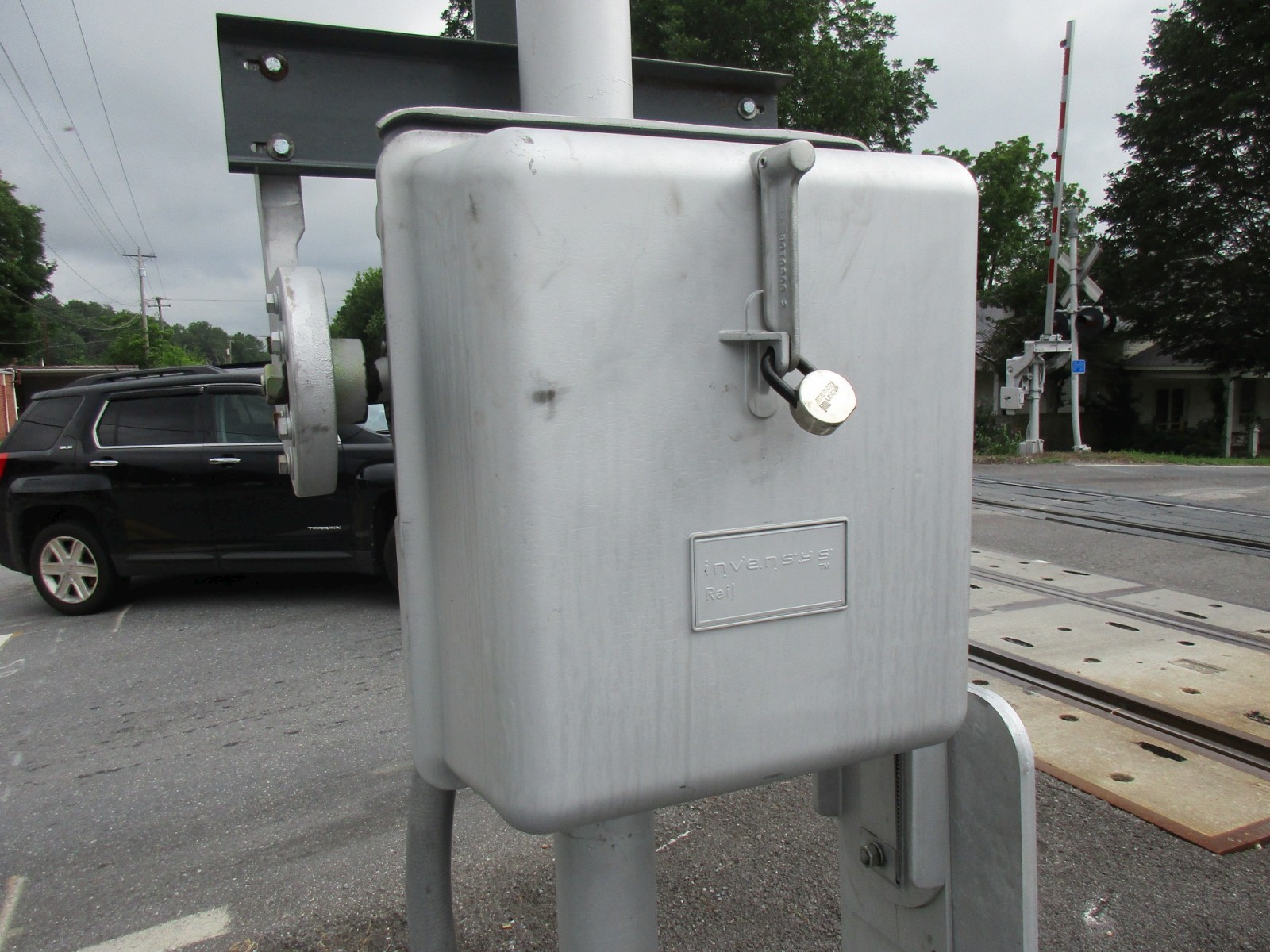

This signal uses an Invensys Rail gate mechanism. |
This signal uses RECO gate lights as well. |
25 |
26 |
27 |
28 |
This one came off at least one before! |

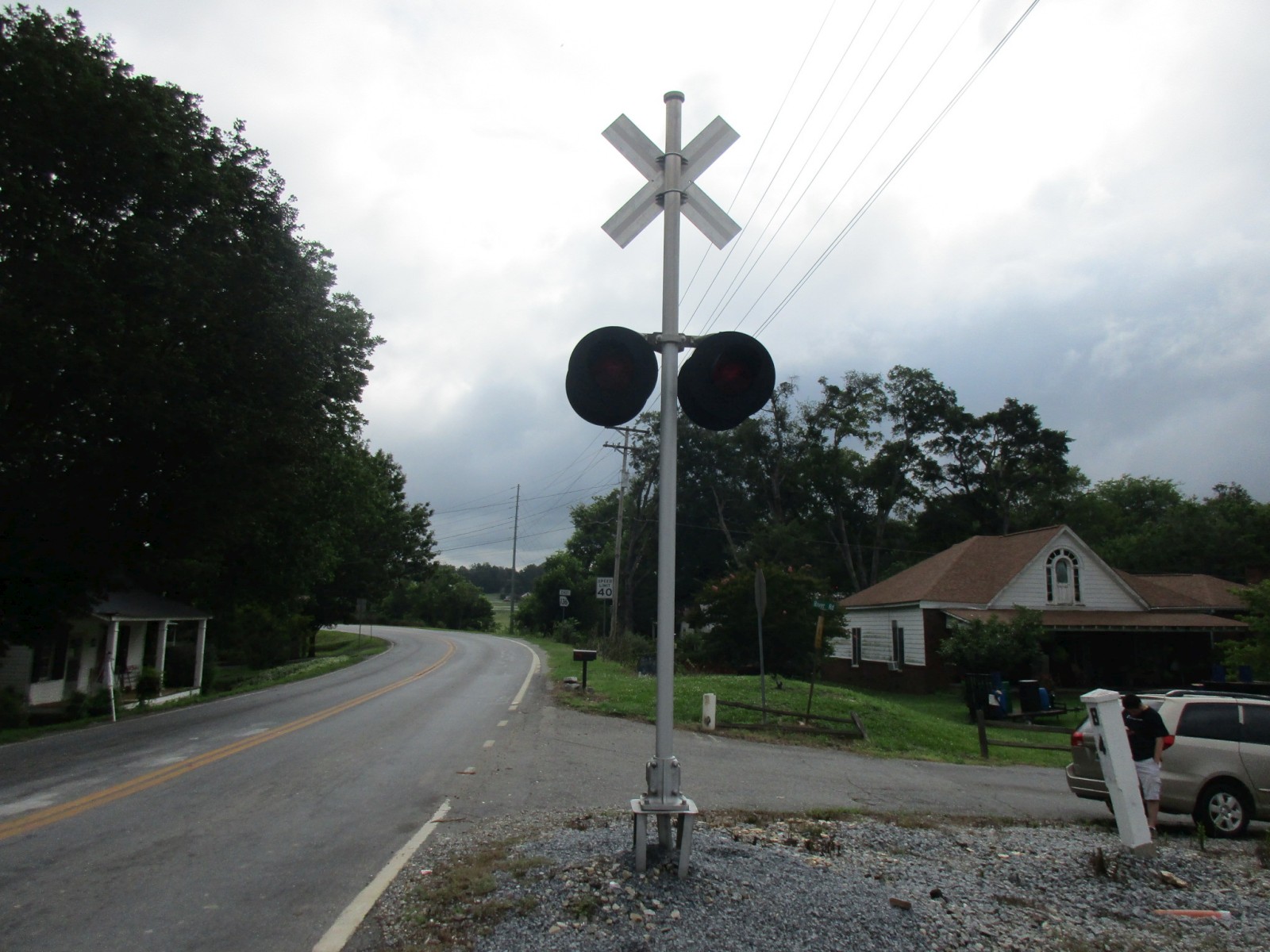

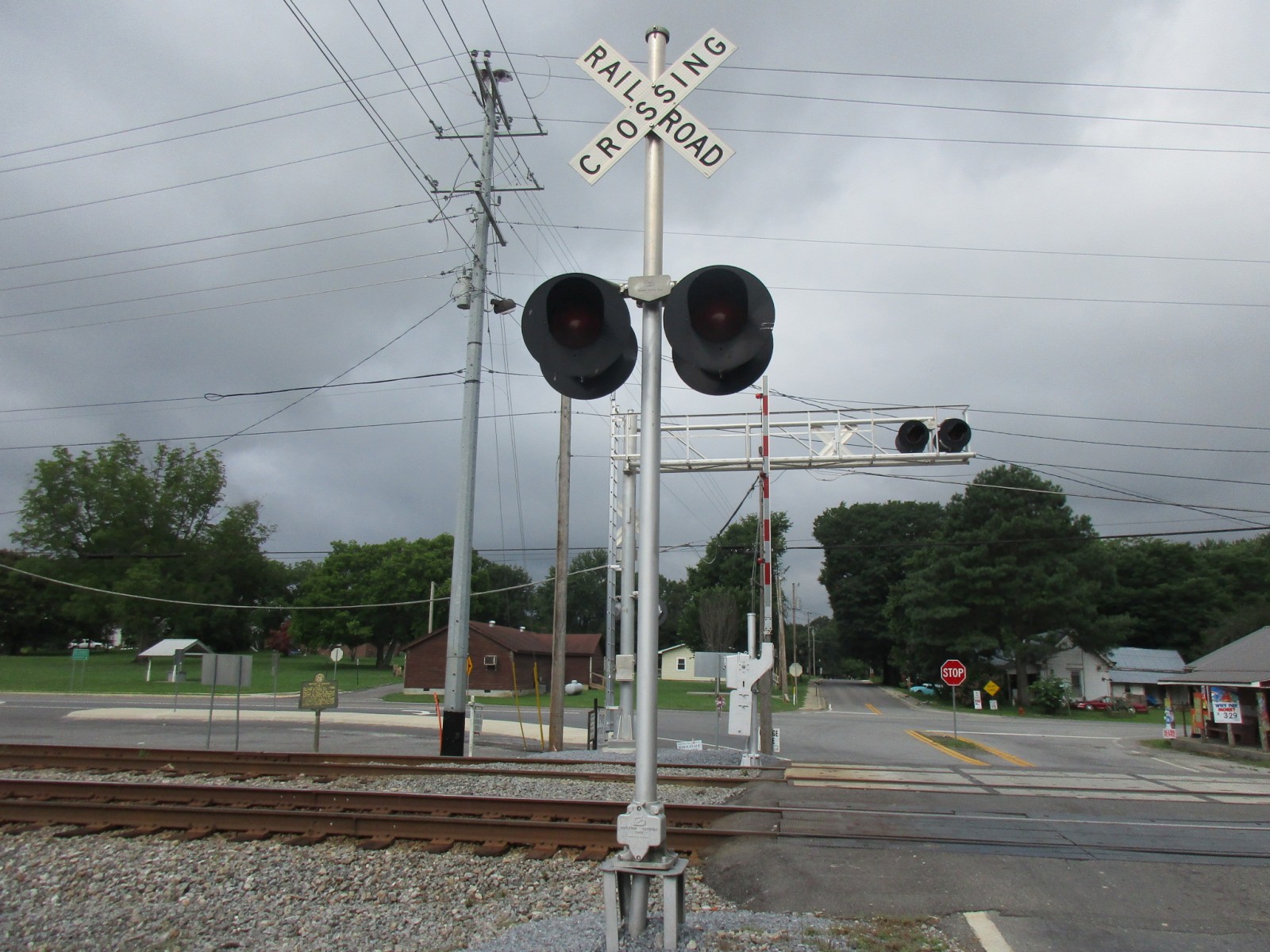

The third signal, which is also a gateless signal. |

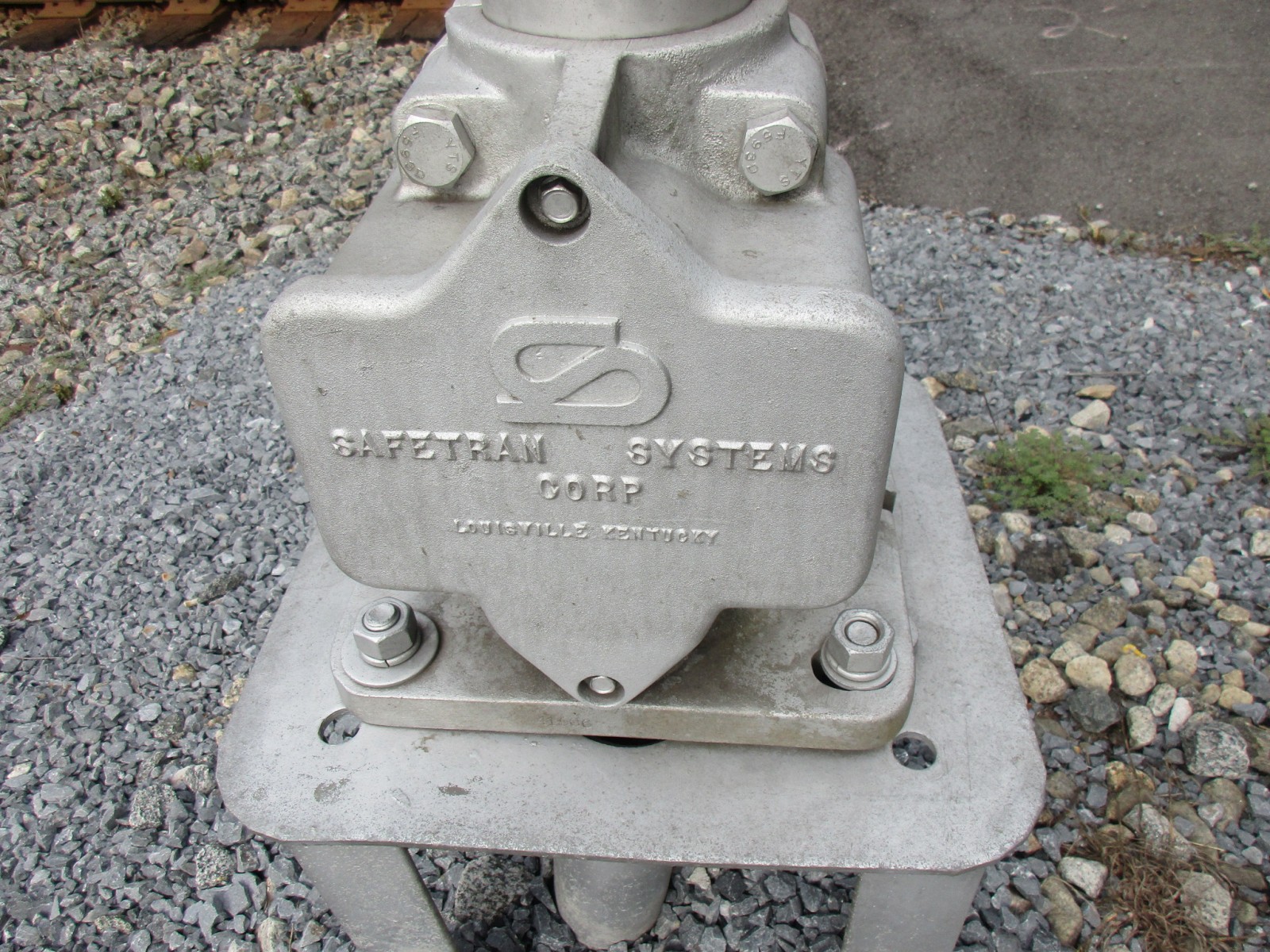

It has a Safetran 4 inch base. |
|
29 |
30 |
31 |
32 |

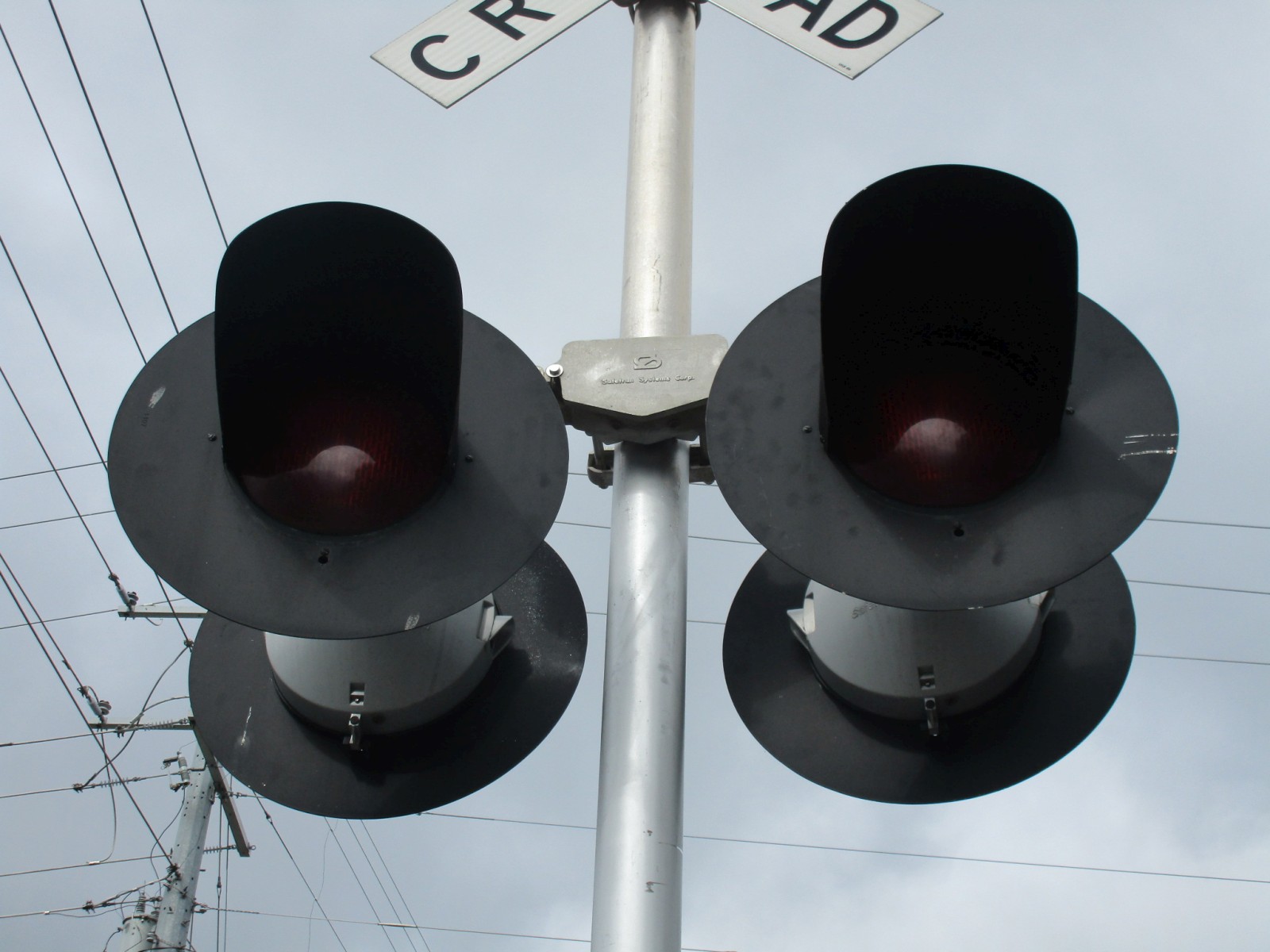

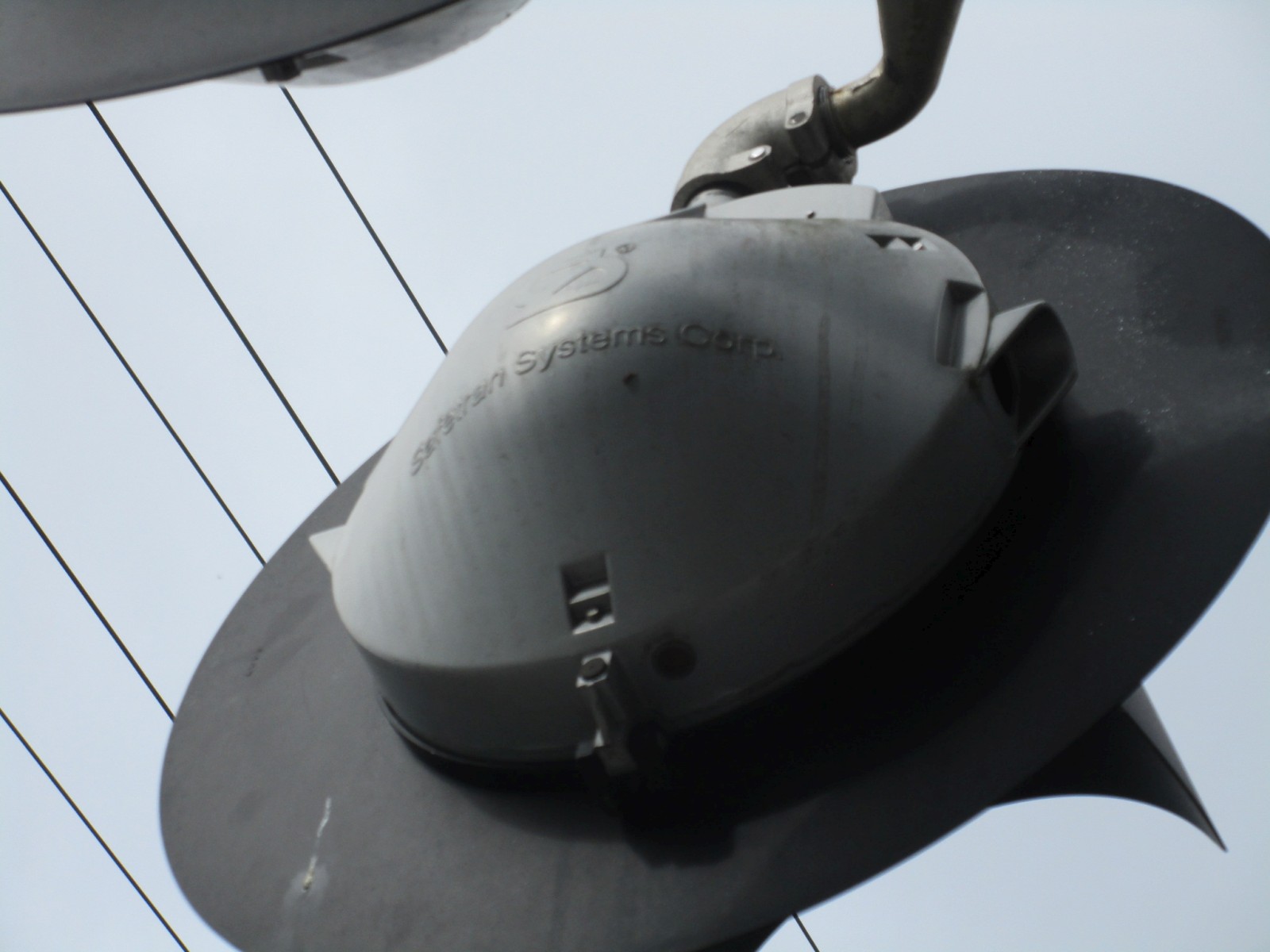

This signal also has Safetran 12x24 inch incandescent lights. |

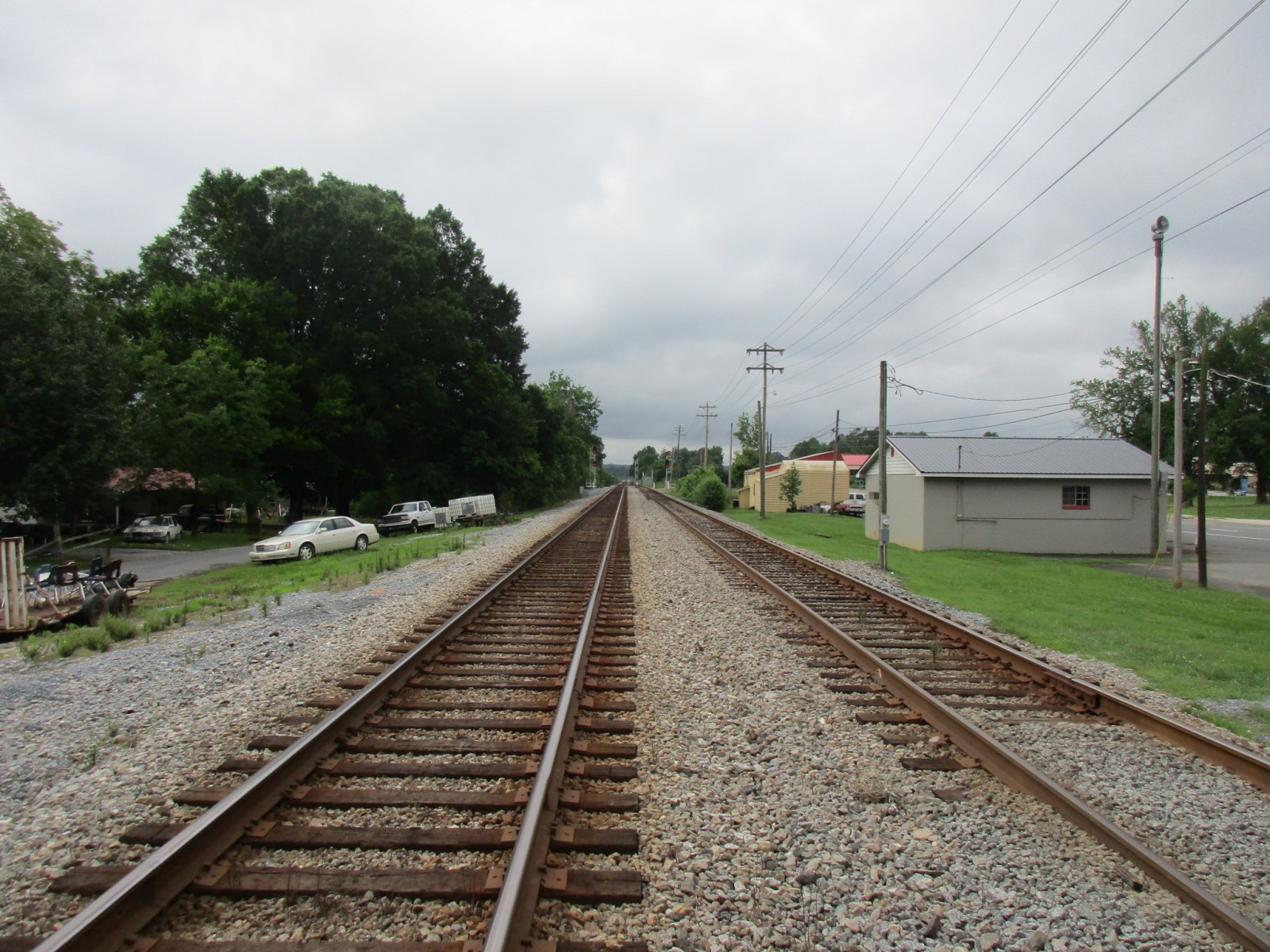

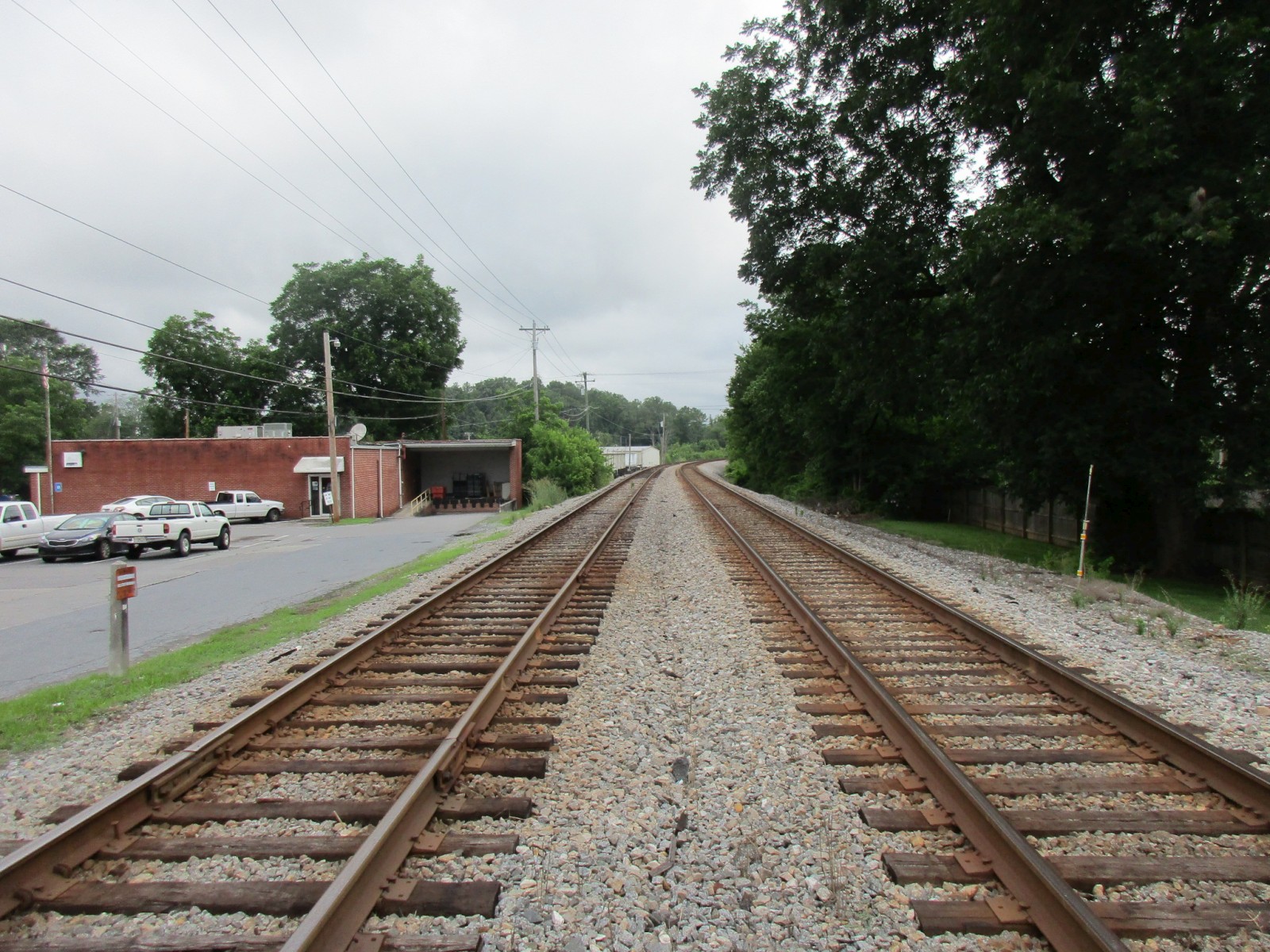

Track view looking north towards Gazaway Drive near Tilton. |
Track view looking south towards Craigtown Road in Calhoun, GA. |
|
33 |
34 |

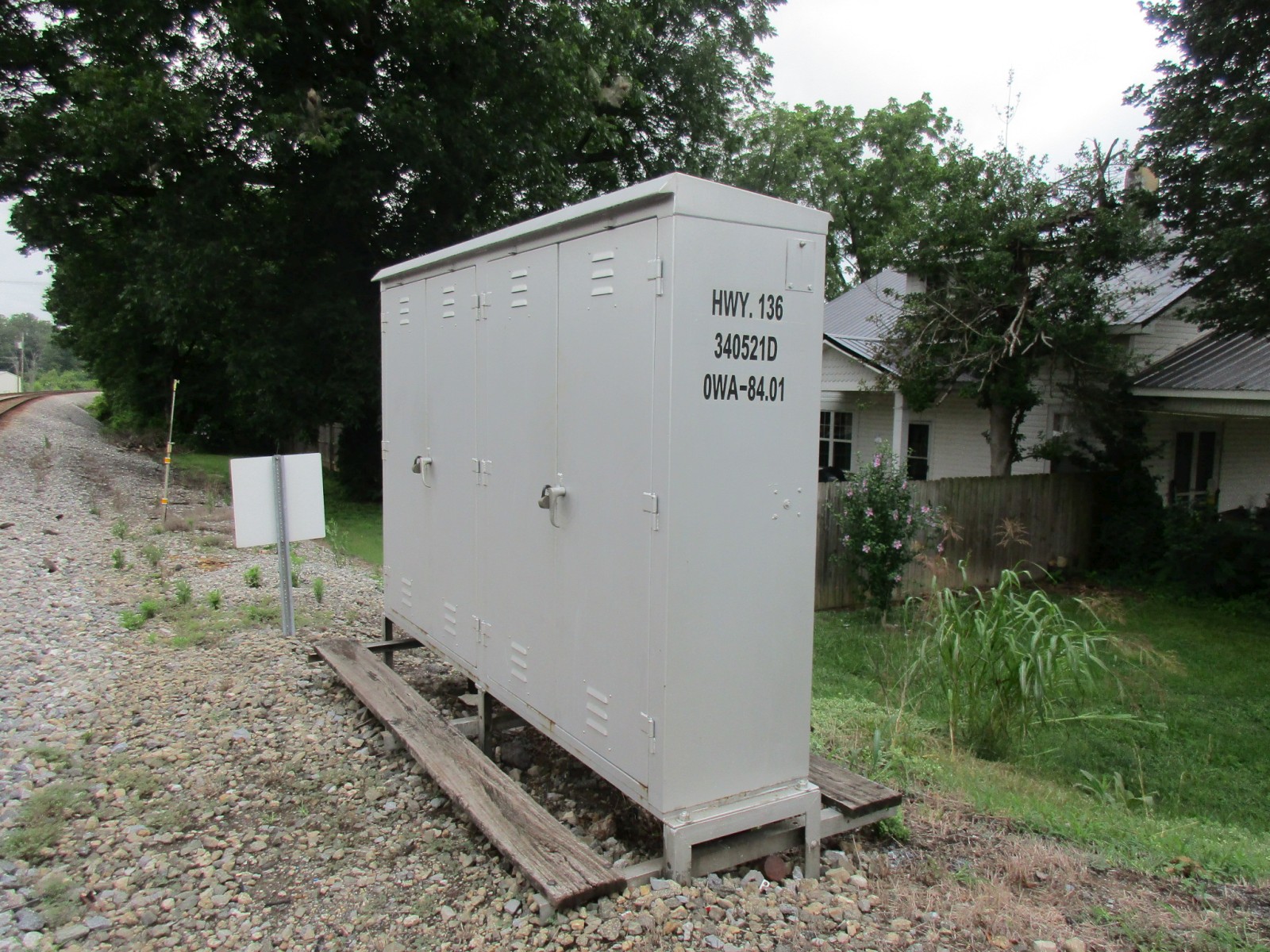

The relay case. |

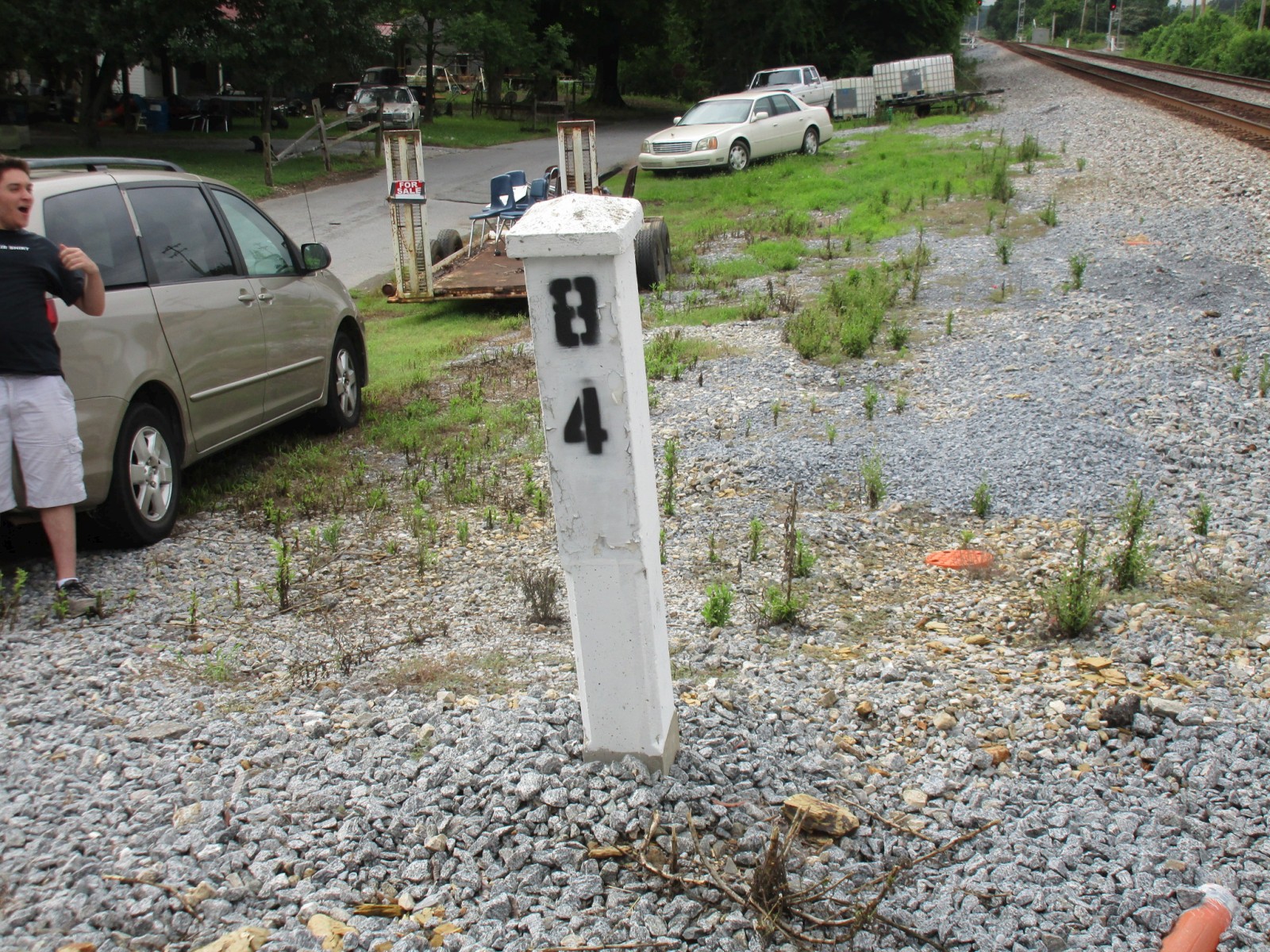

A milepost at the crossing. |
35 |
36 |
37 |
38 |
39 |

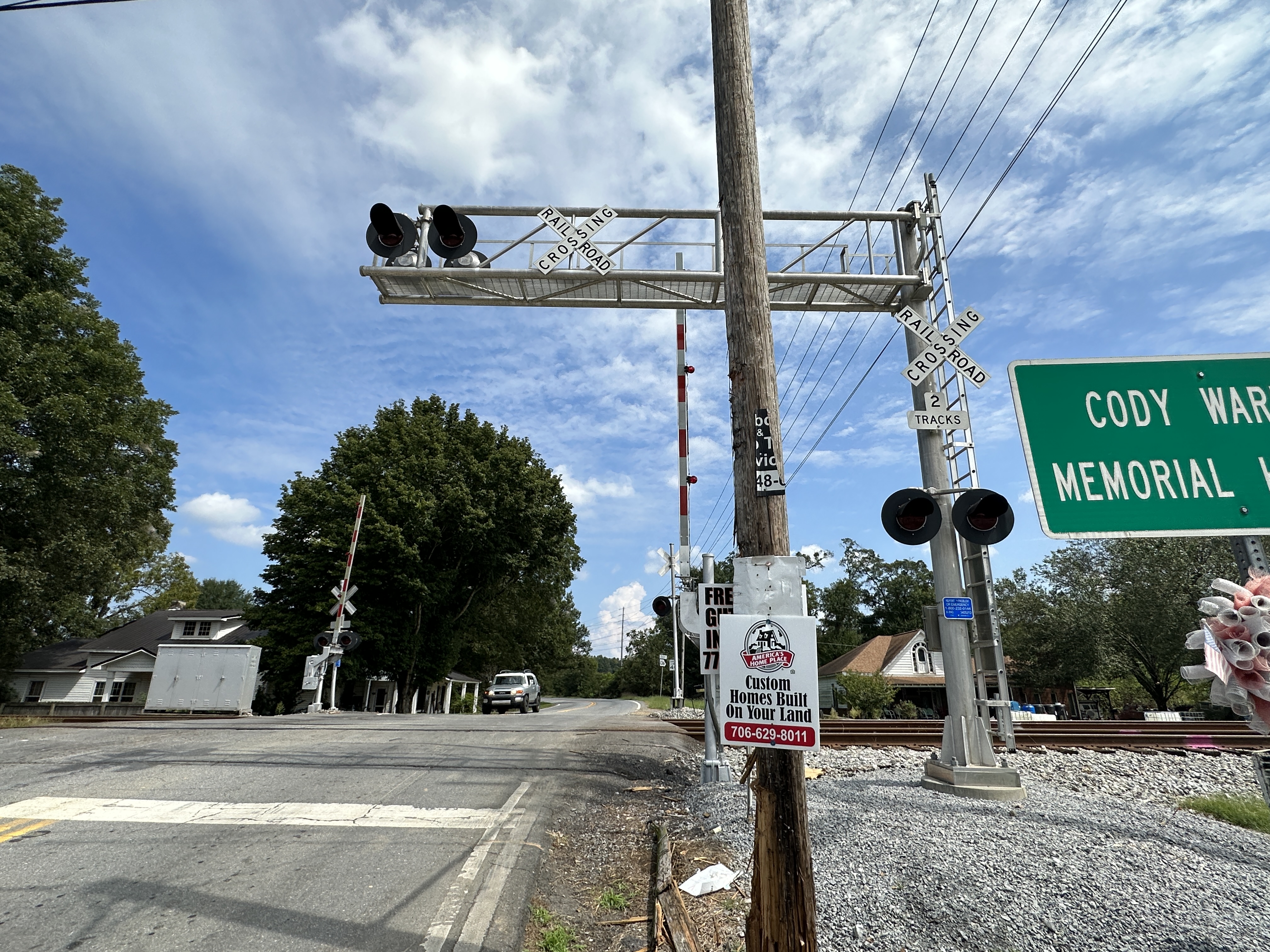

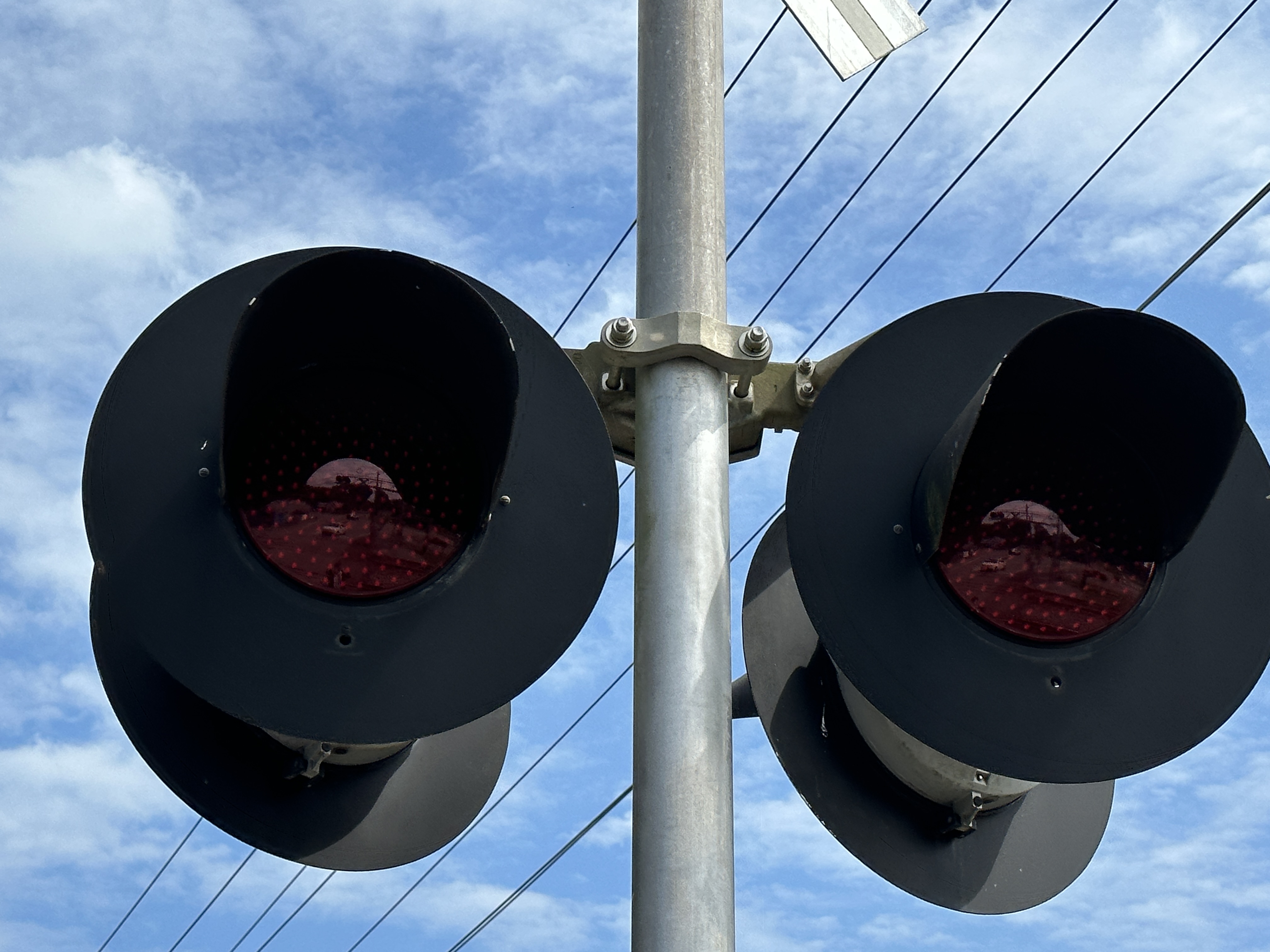

On September 13, 2023, Ethan the Railfanner made a return trip to find that the remaining incandescent lights have been upgraded to Leotek EV series LEDs; the extra mast signal retains the lights but with the new LEDs, though the eastern signal has had its 8" lights replaced with 12"x24" WCH Flatbacks with the said LEDs. Some of the gatelights appear to have been replaced with 4" NEG LEDs. |
||||
Pictures 1-34 were taken on 7-3-17.
Picture 35-39 were taken on 9-13-23 by Ethan the Railfanner.
