MP: XXB16.220 |
Created December 28, 2022
Total Accidents: 2
Crossing
DOT #: 050376F
TOTAL
DAILY TRAINS: 8 (AS OF 2021)
Page created by: Ethan the Railfanner
This crossing is located on the CSX Atlanta Terminal Subdivision.
1 |
2 |
3 |
4 |

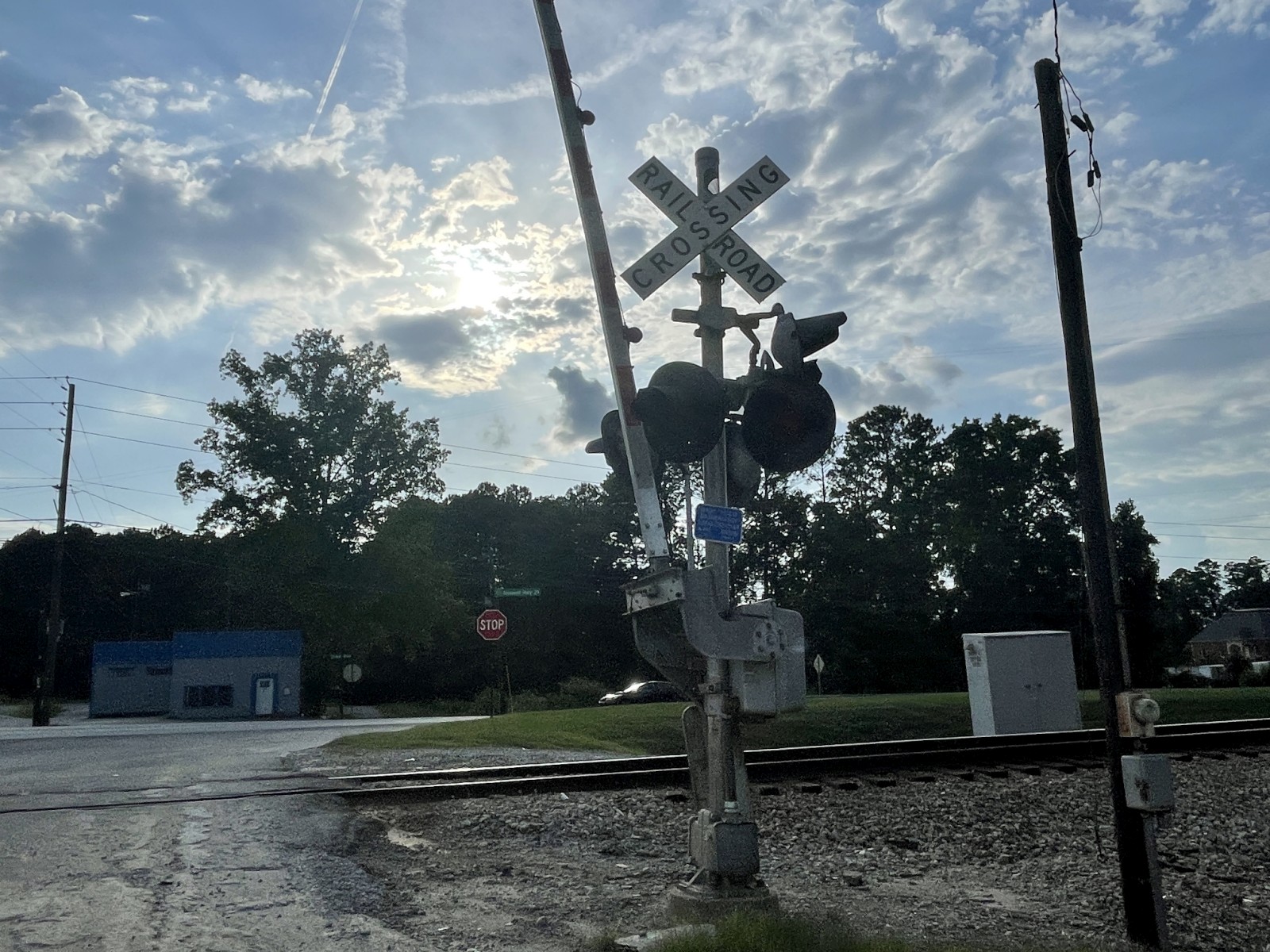

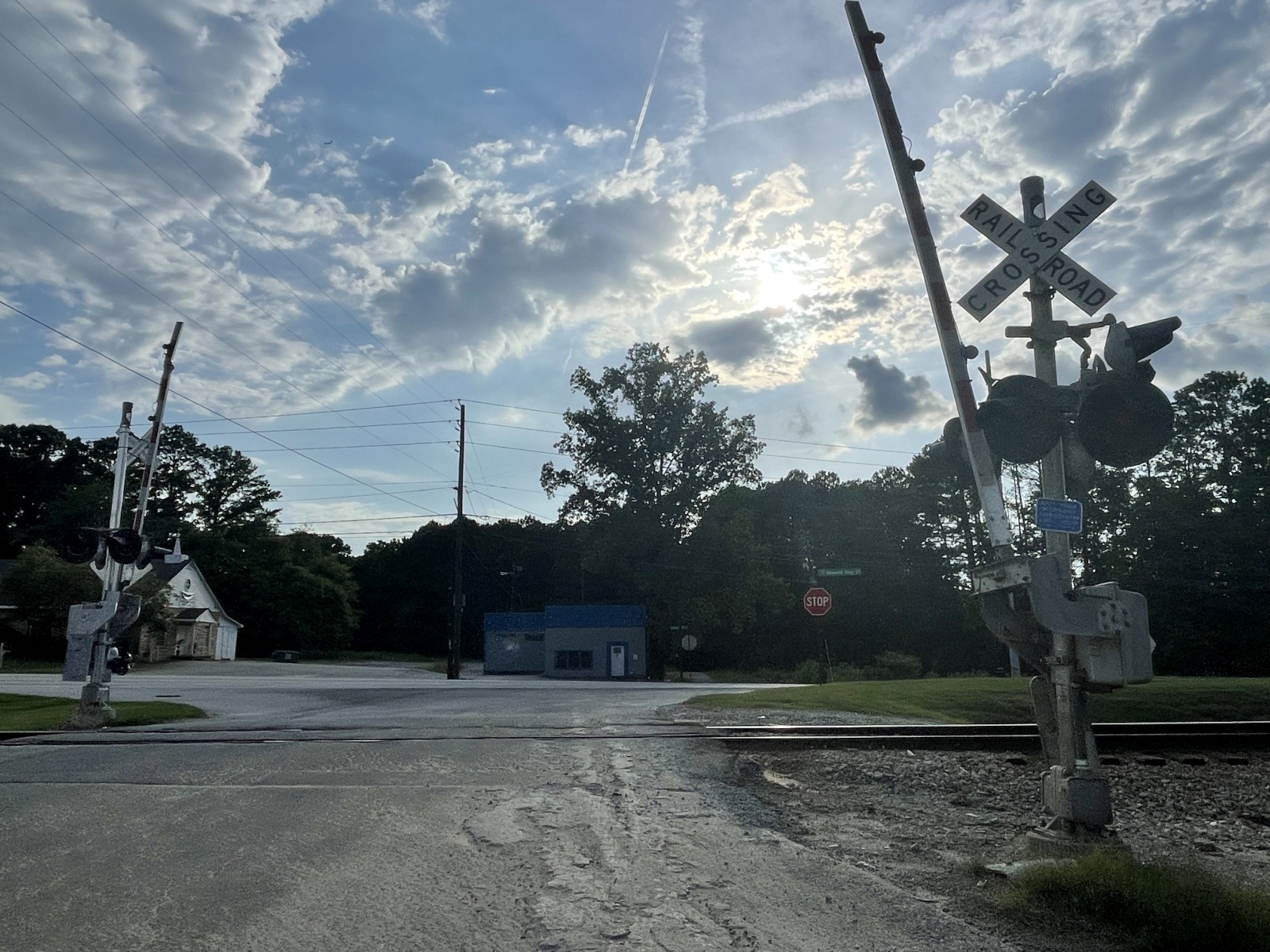

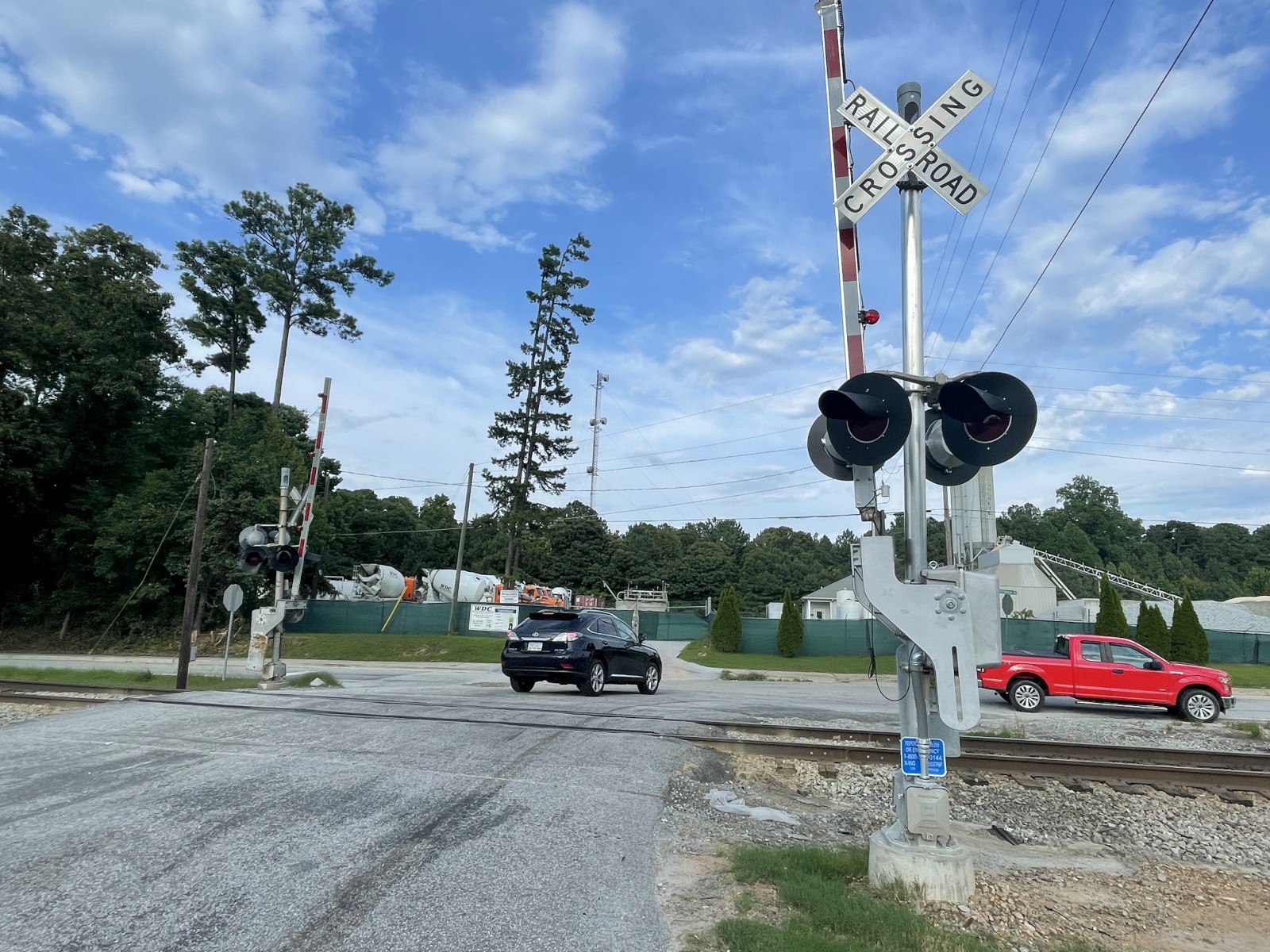

Overviews of this crossing. |

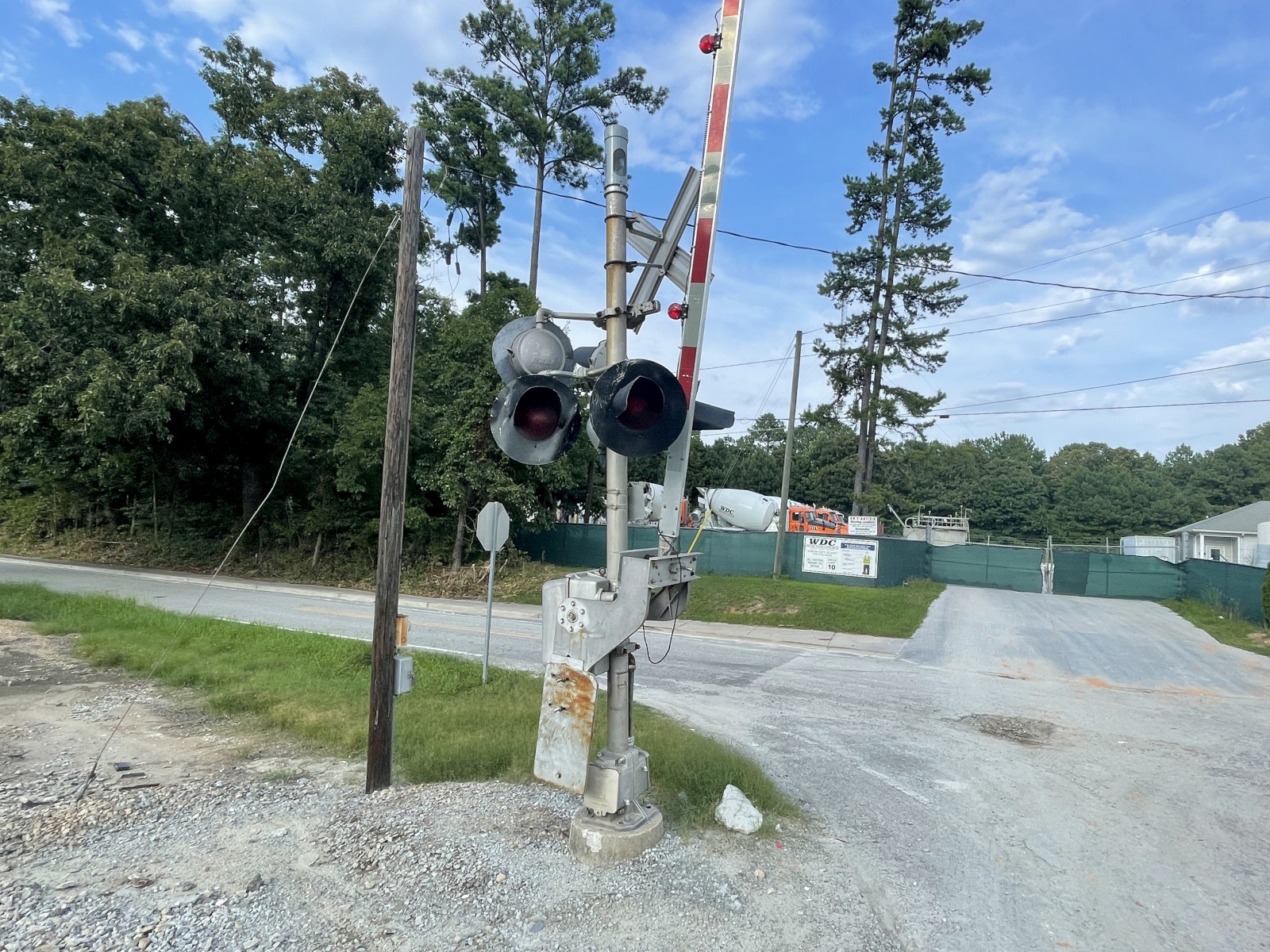

The eastern signal. |
||
5 |
6 |
7 |

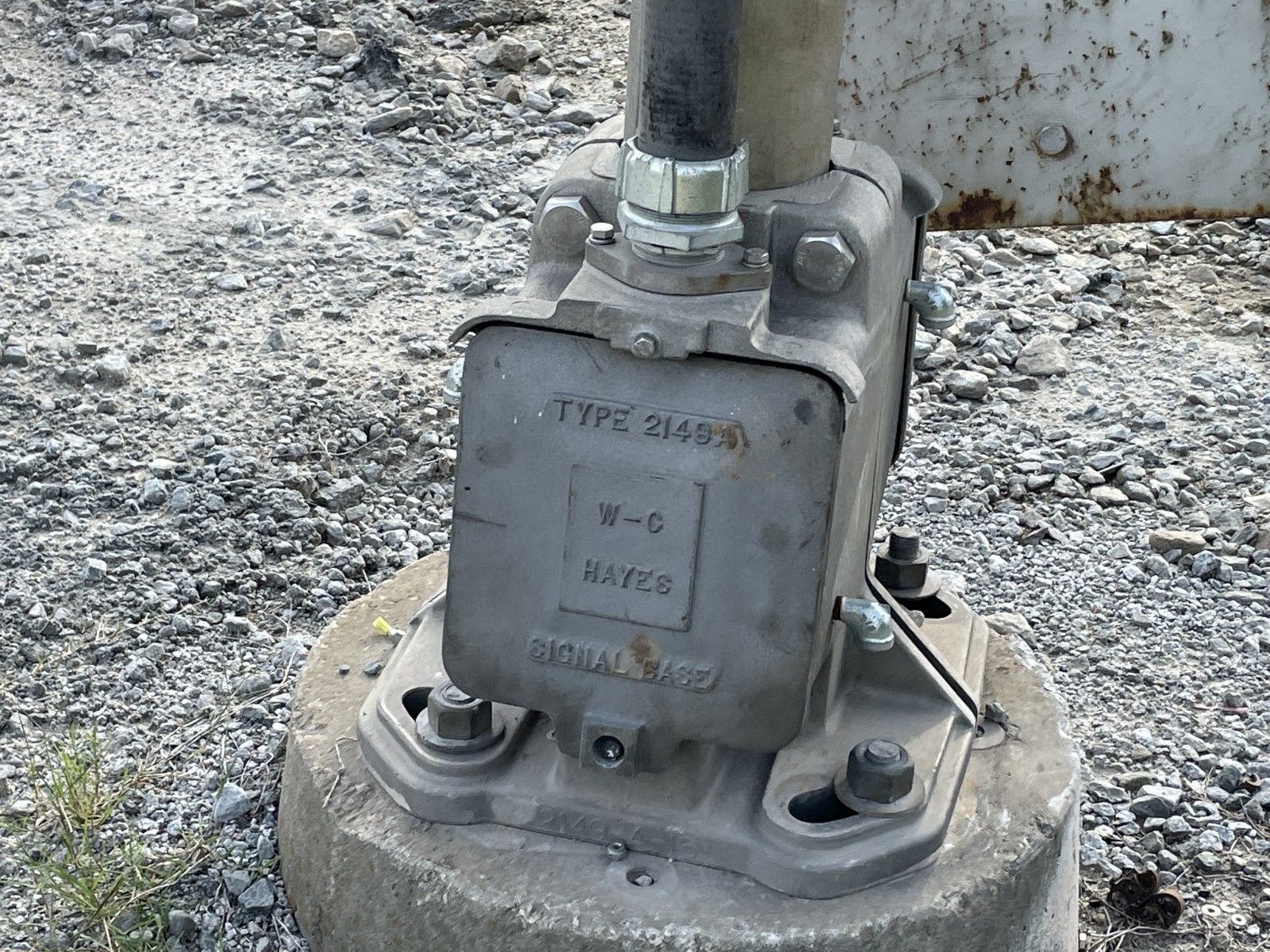

It has a WCH base. |

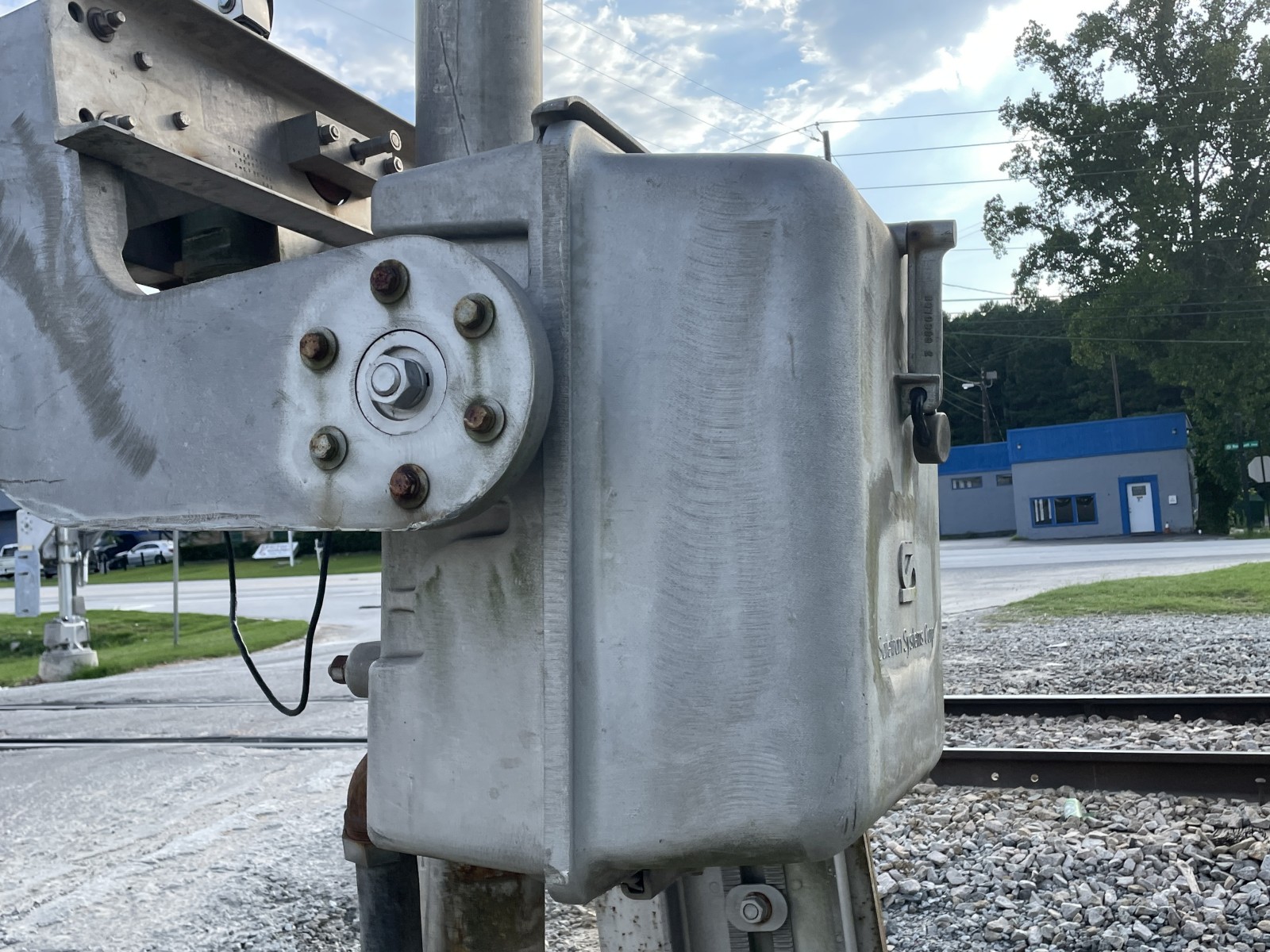

A Safetran gate mechanism. |

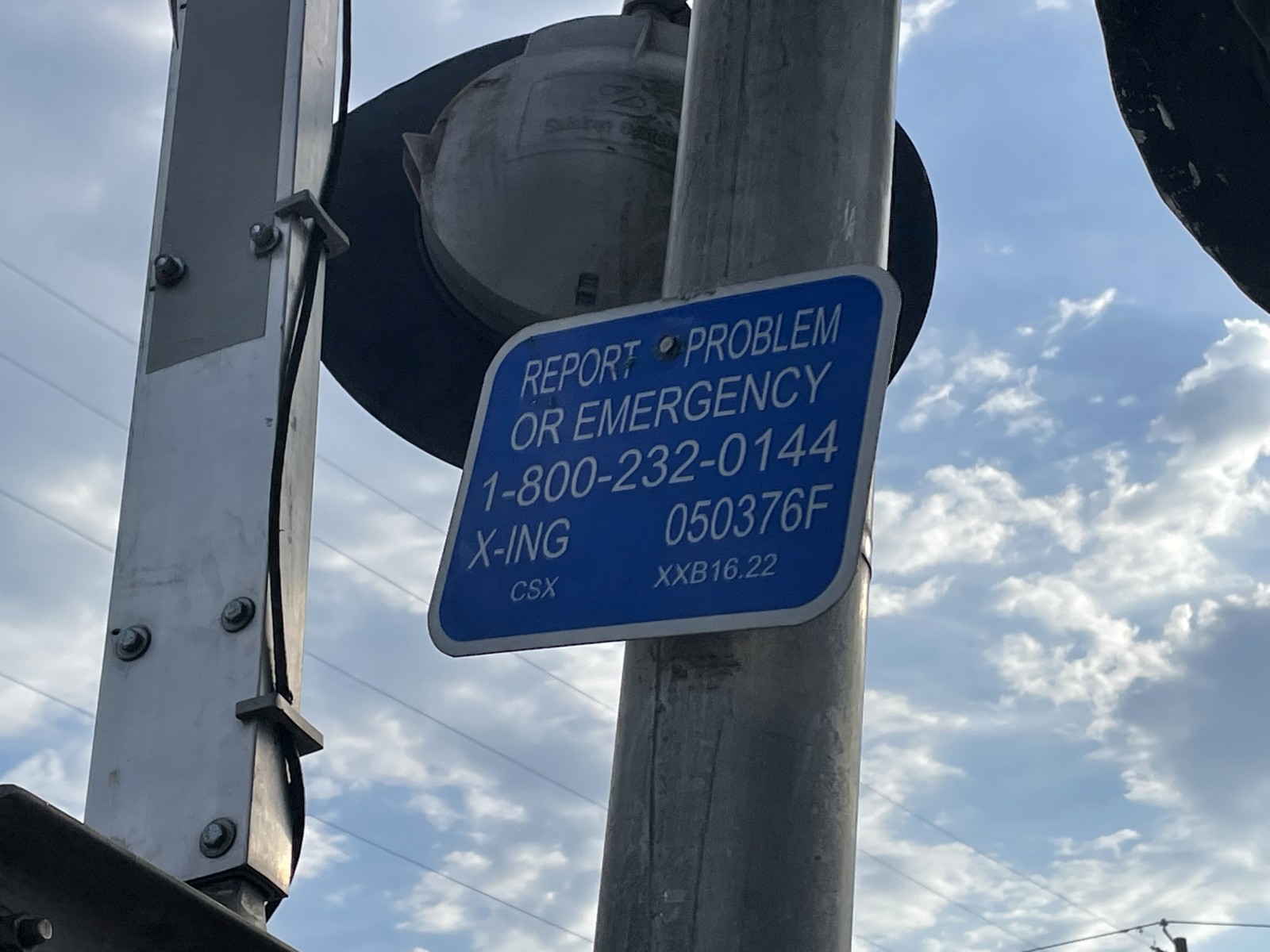

The emergency information. |
8 |
9 |
10 |
11 |

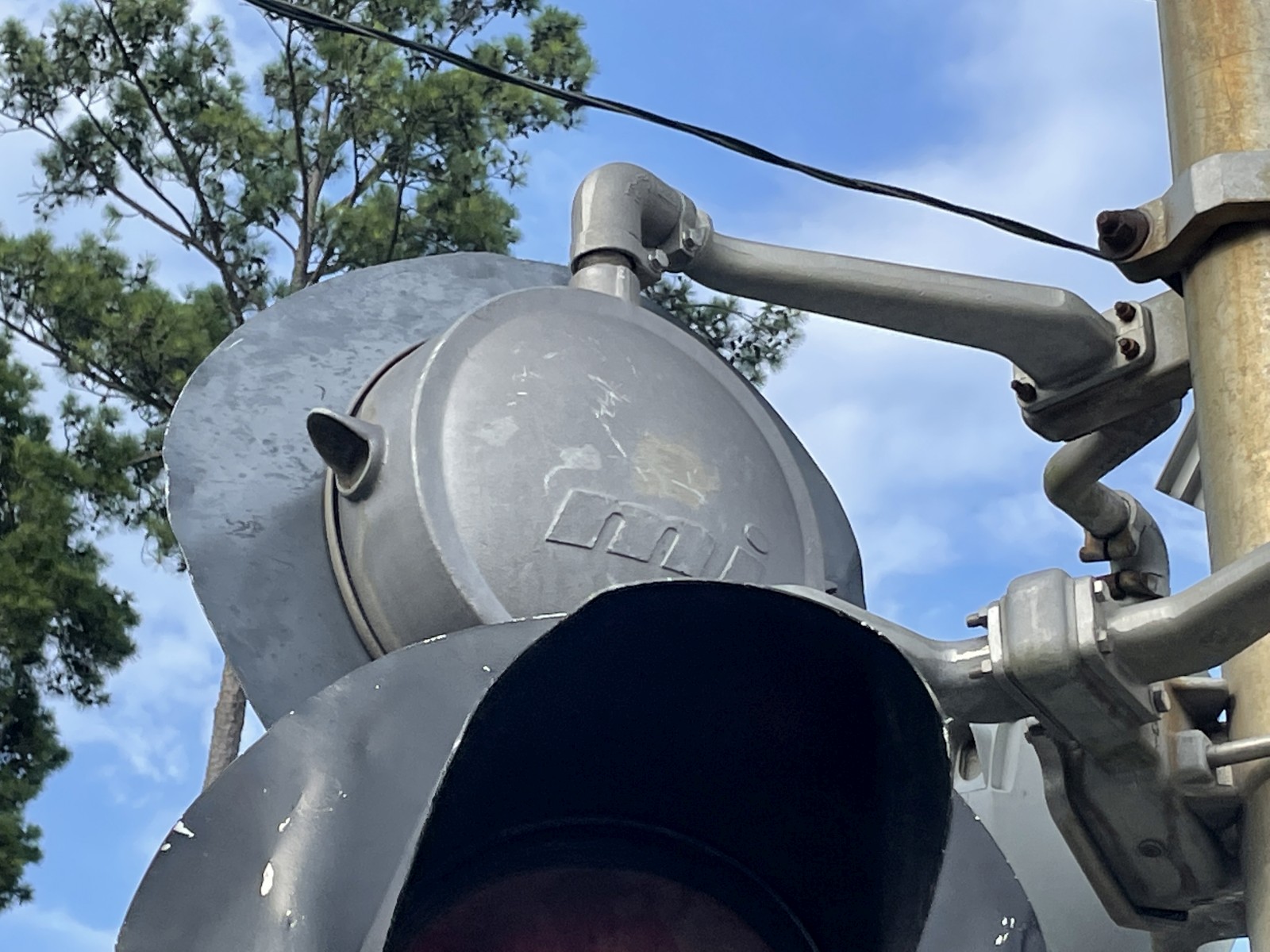

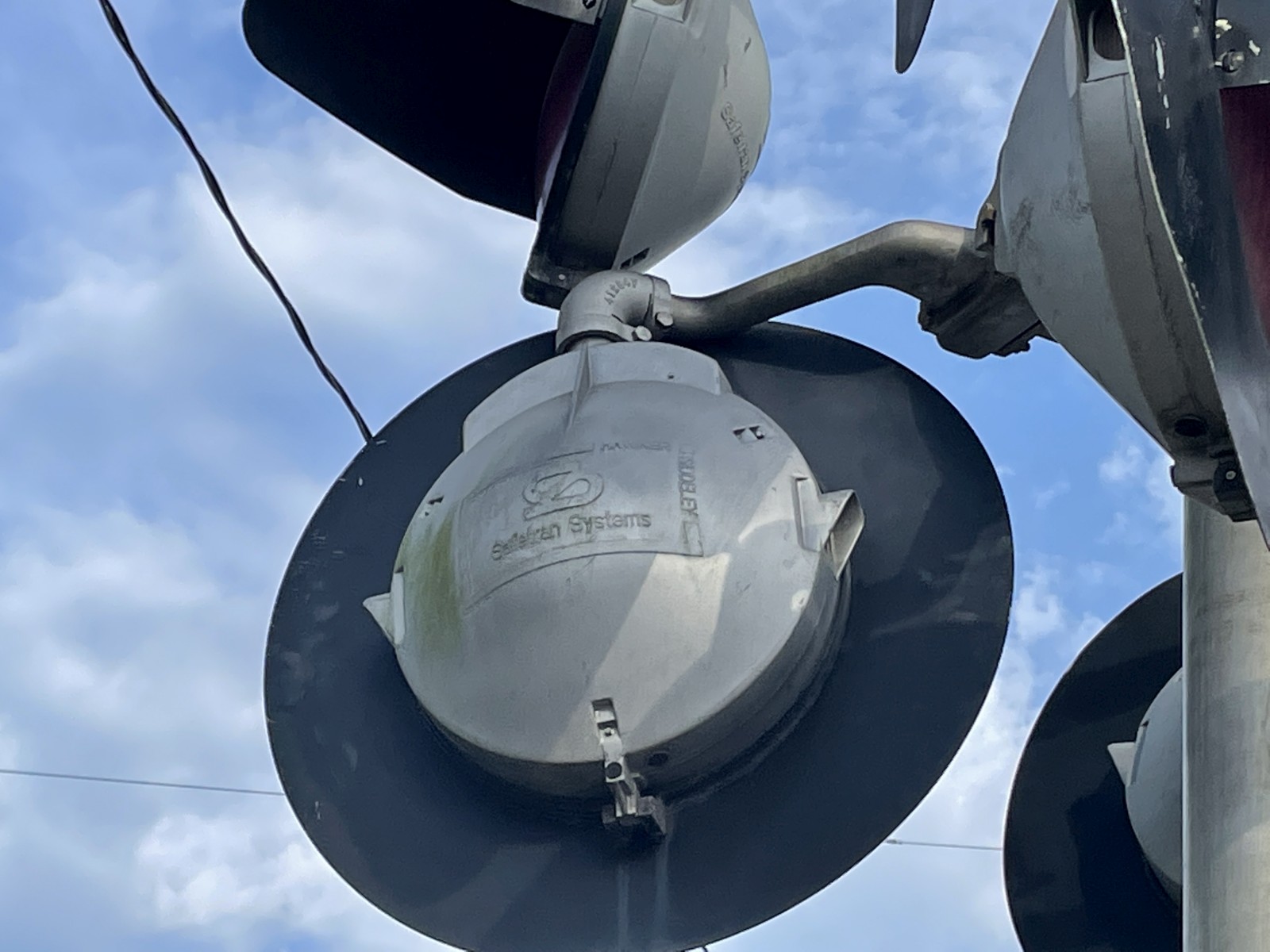

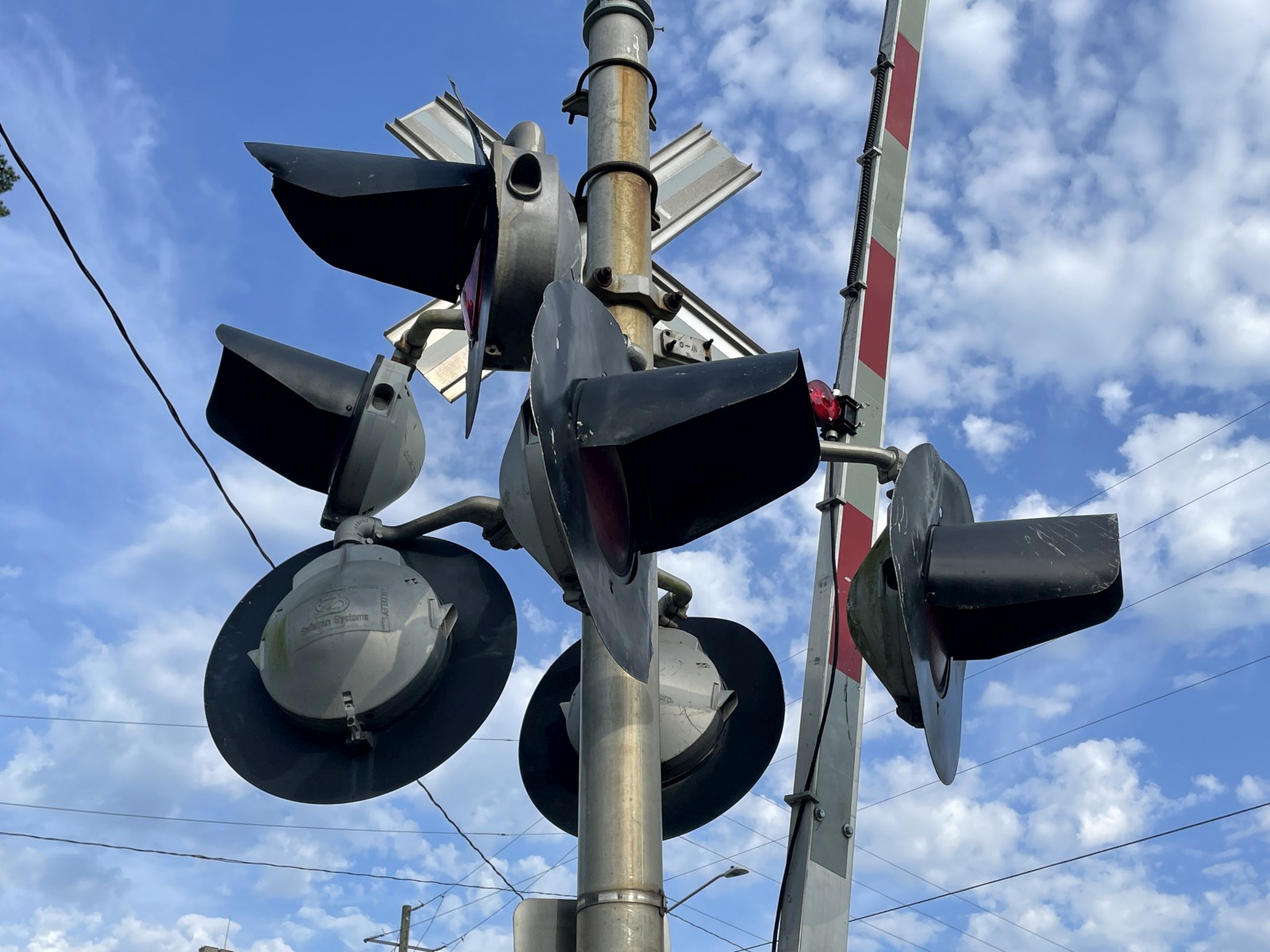

The lights on this signal are Safetran 12x24 incandescents and a Modern Industries 12x24s with Leotek EV series LEDs. |

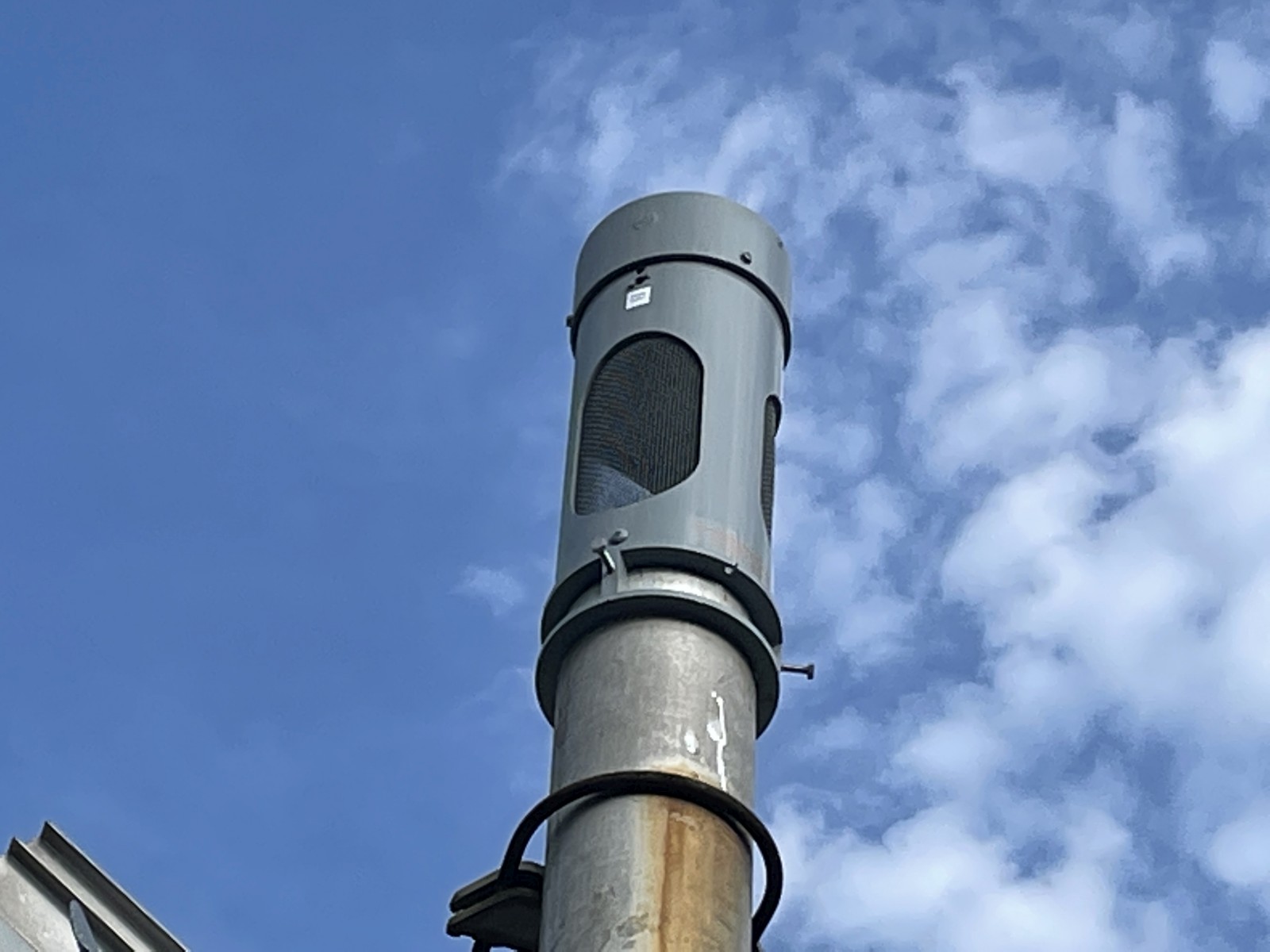

The bell on this signal is an NEG E-Bell. |
||
12 |
13 |
14 |
15 |

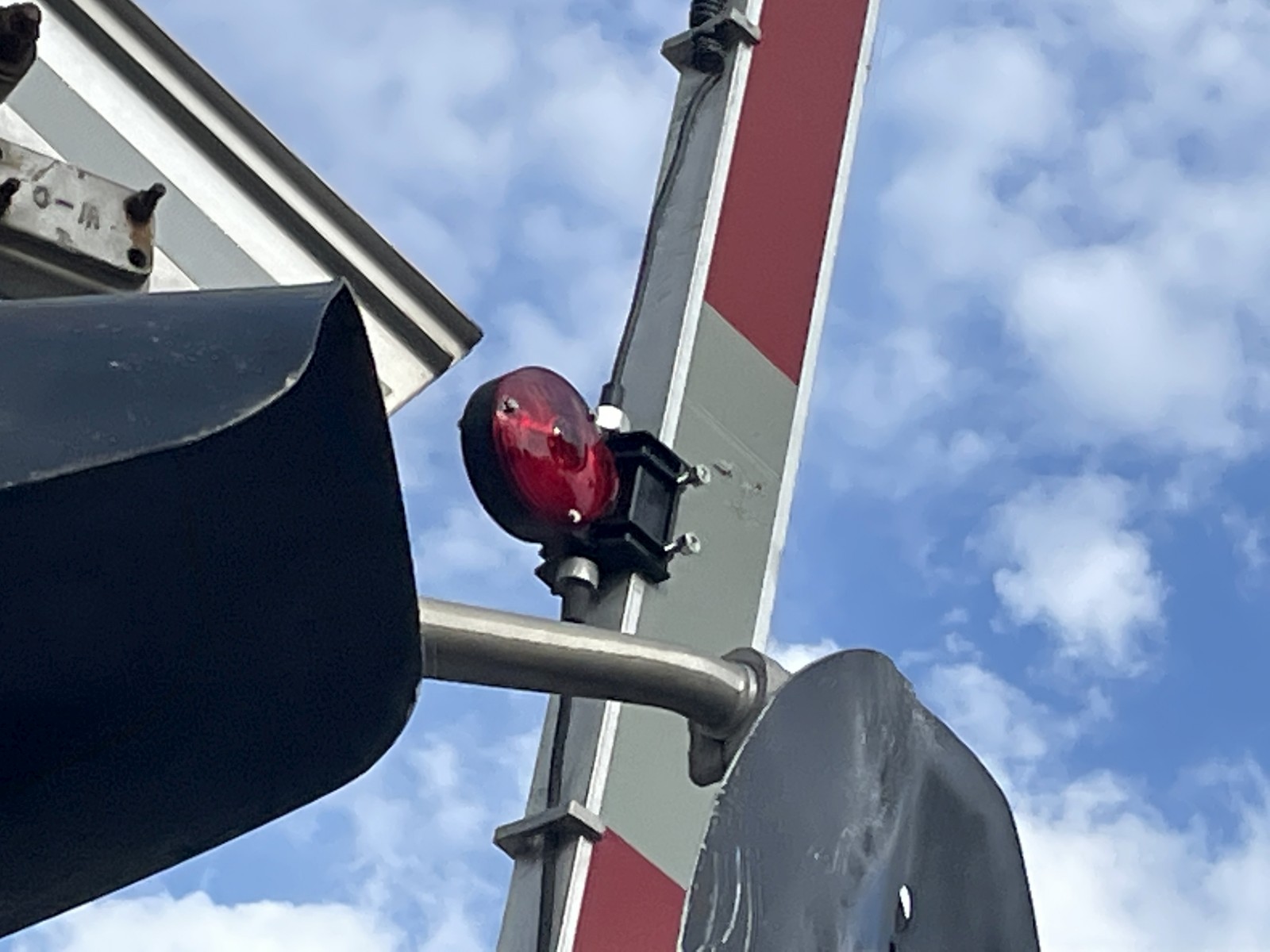

The gatelights are NEG LEDs. |

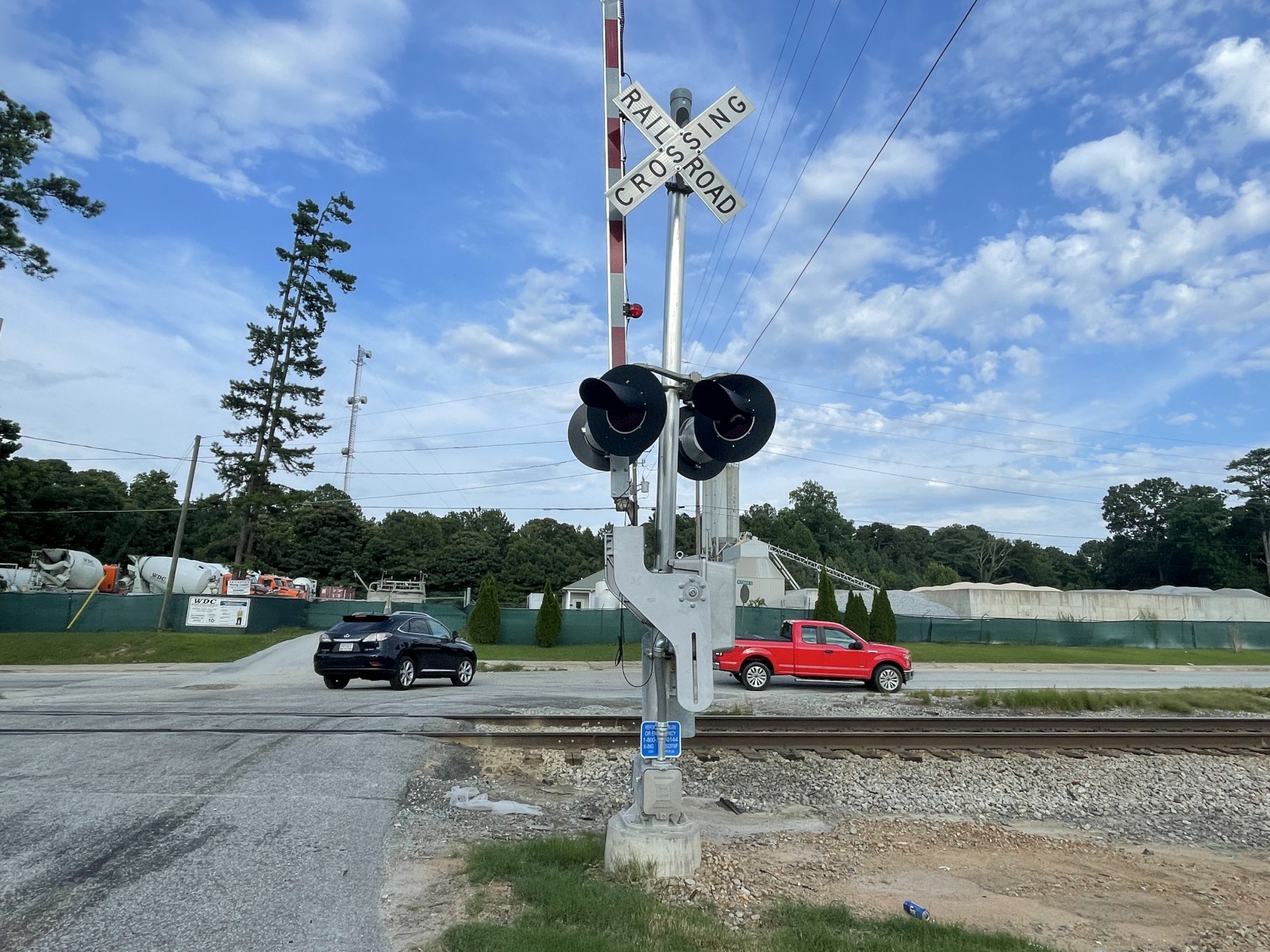

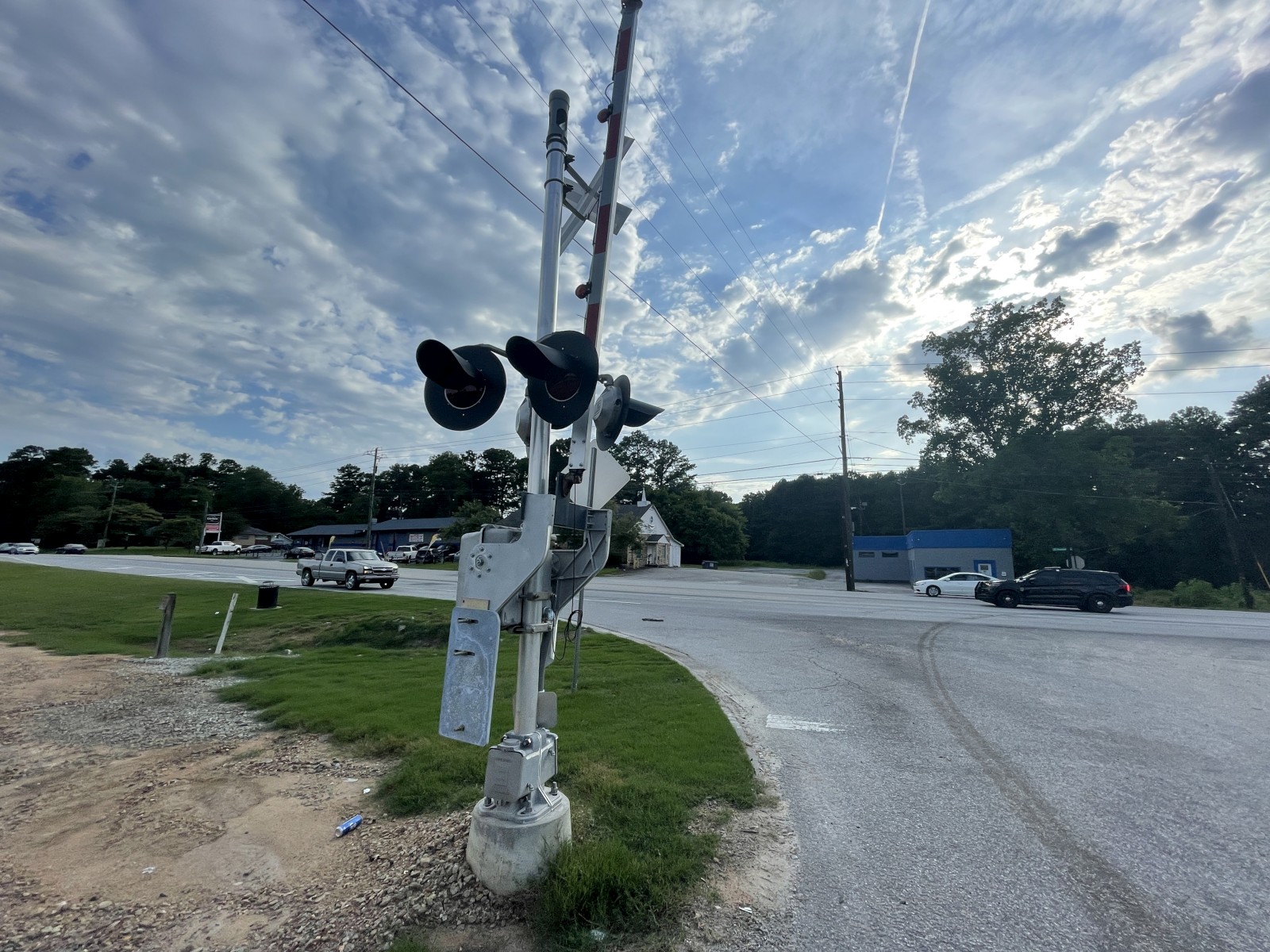

The western signal. |

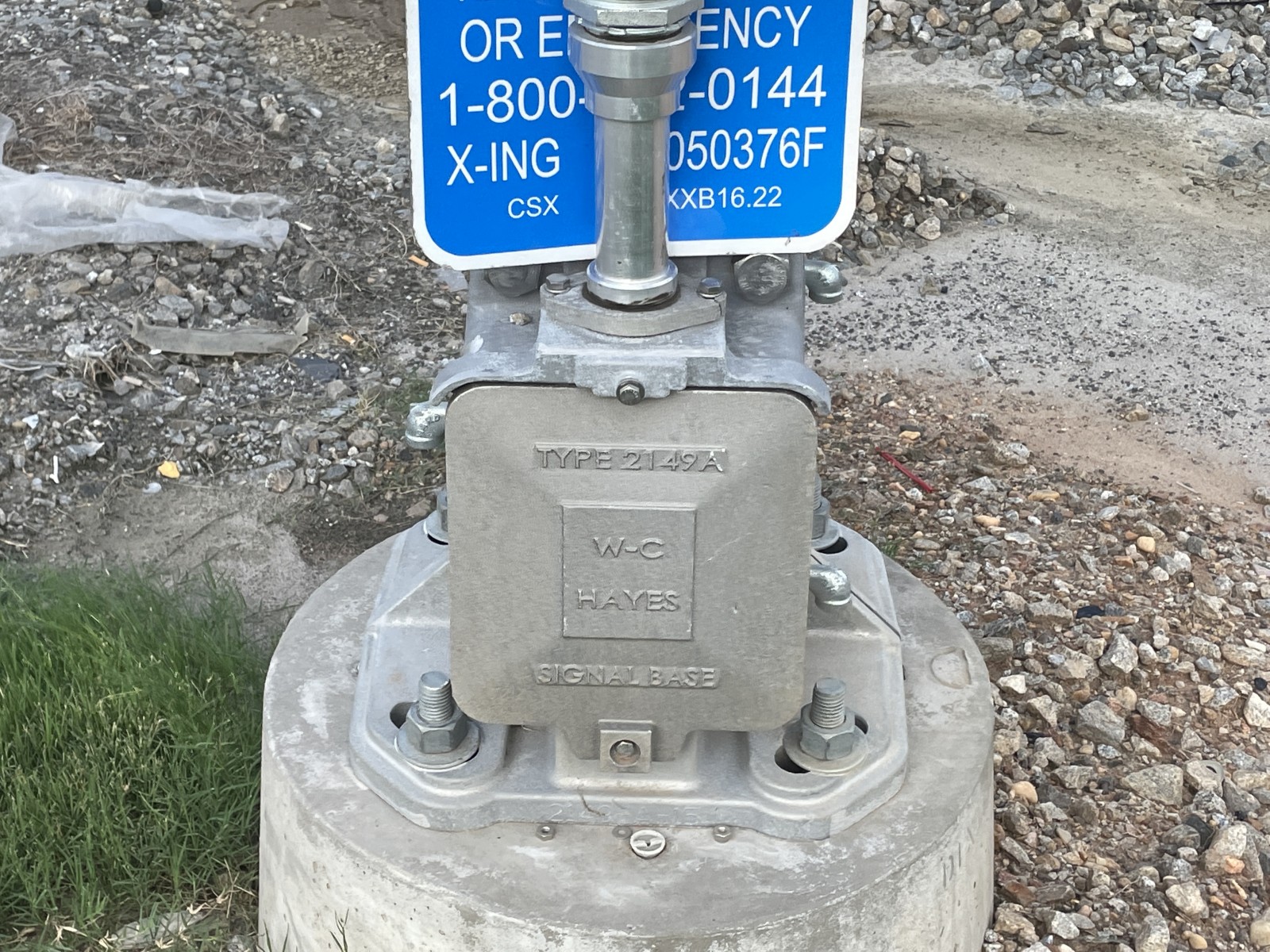

It has another WCH base |
|
16 |
17 |
18 |
19 |

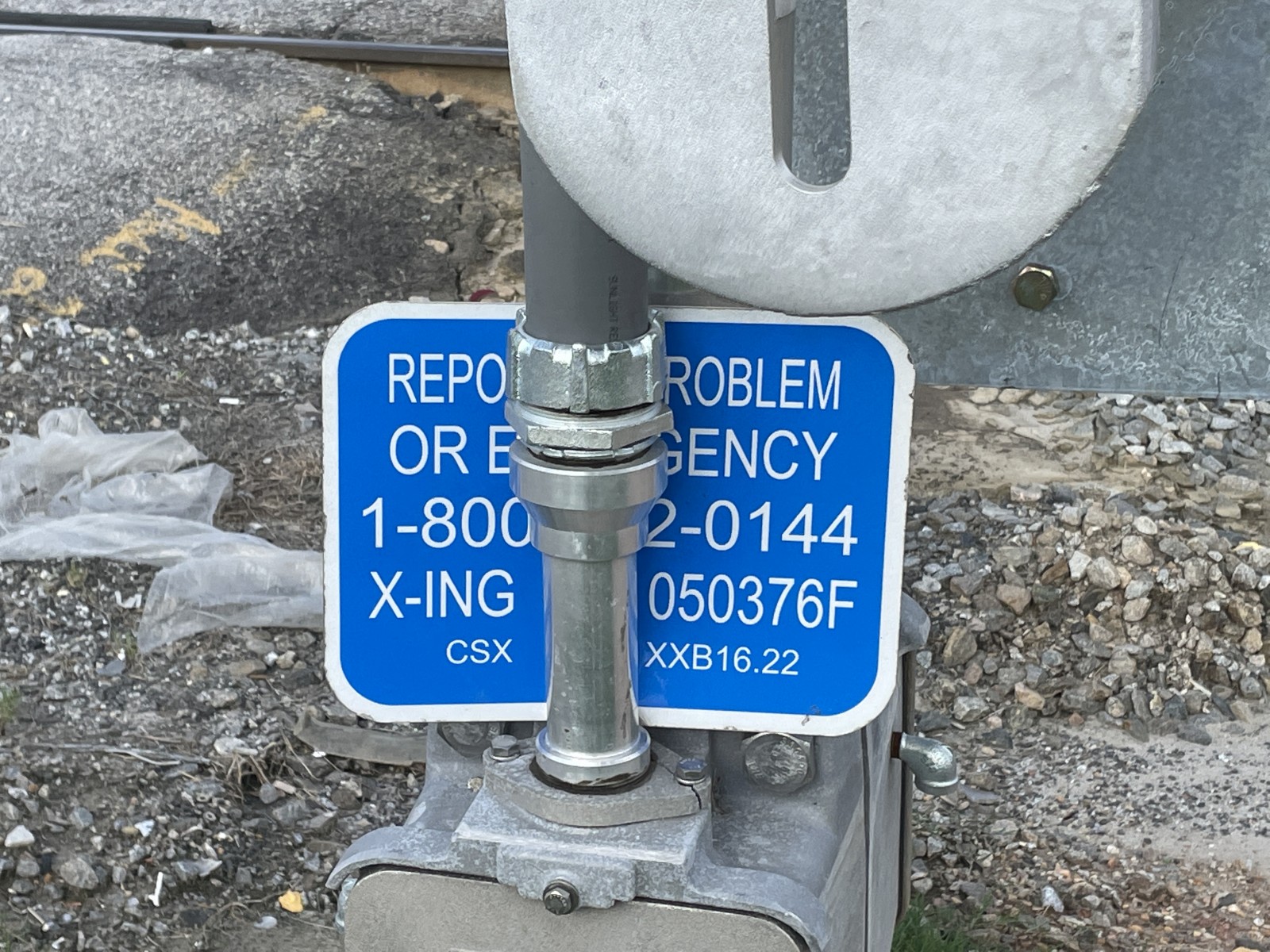

The emergency information. |

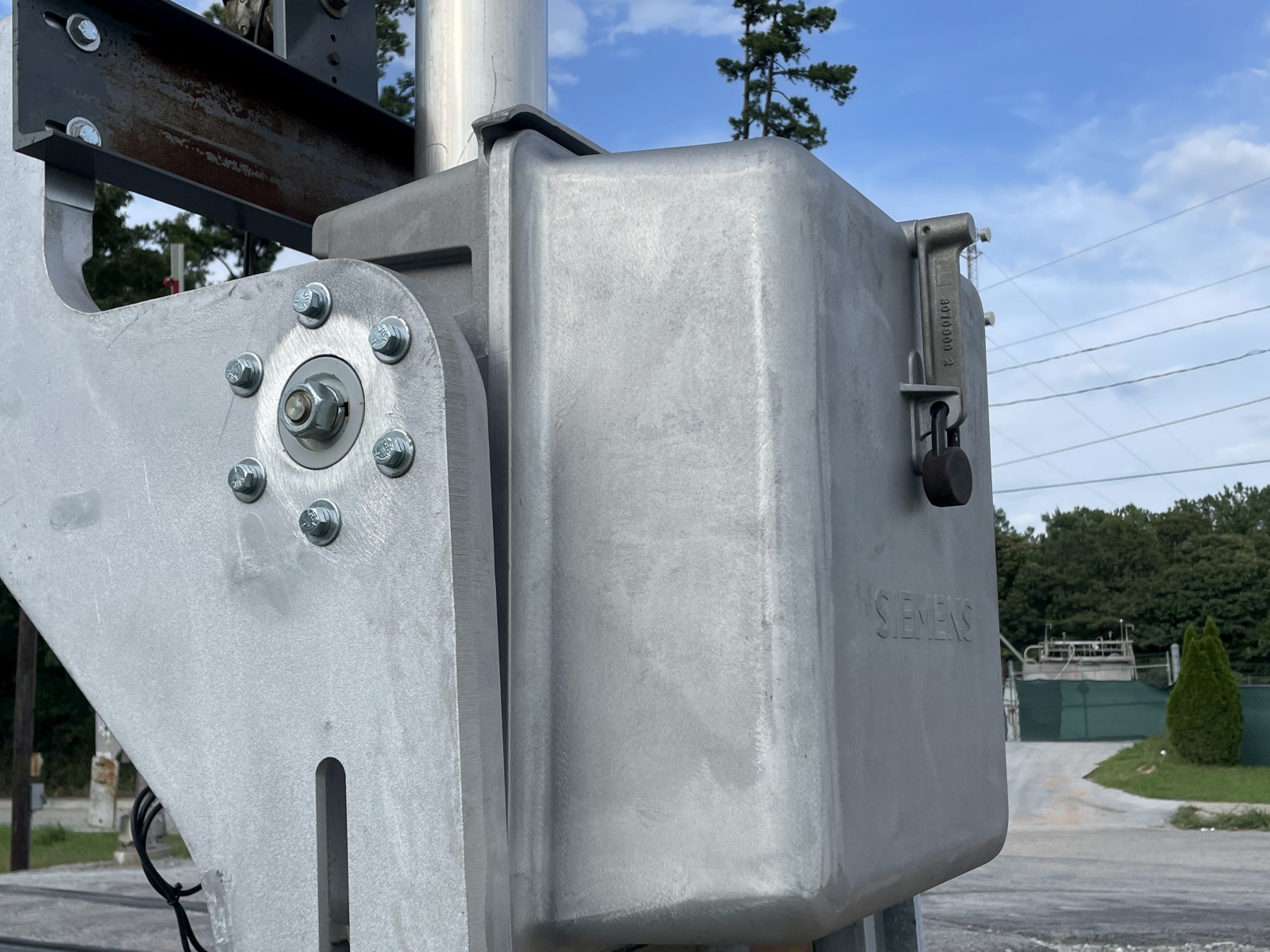

A Siemens gate mechanism. |

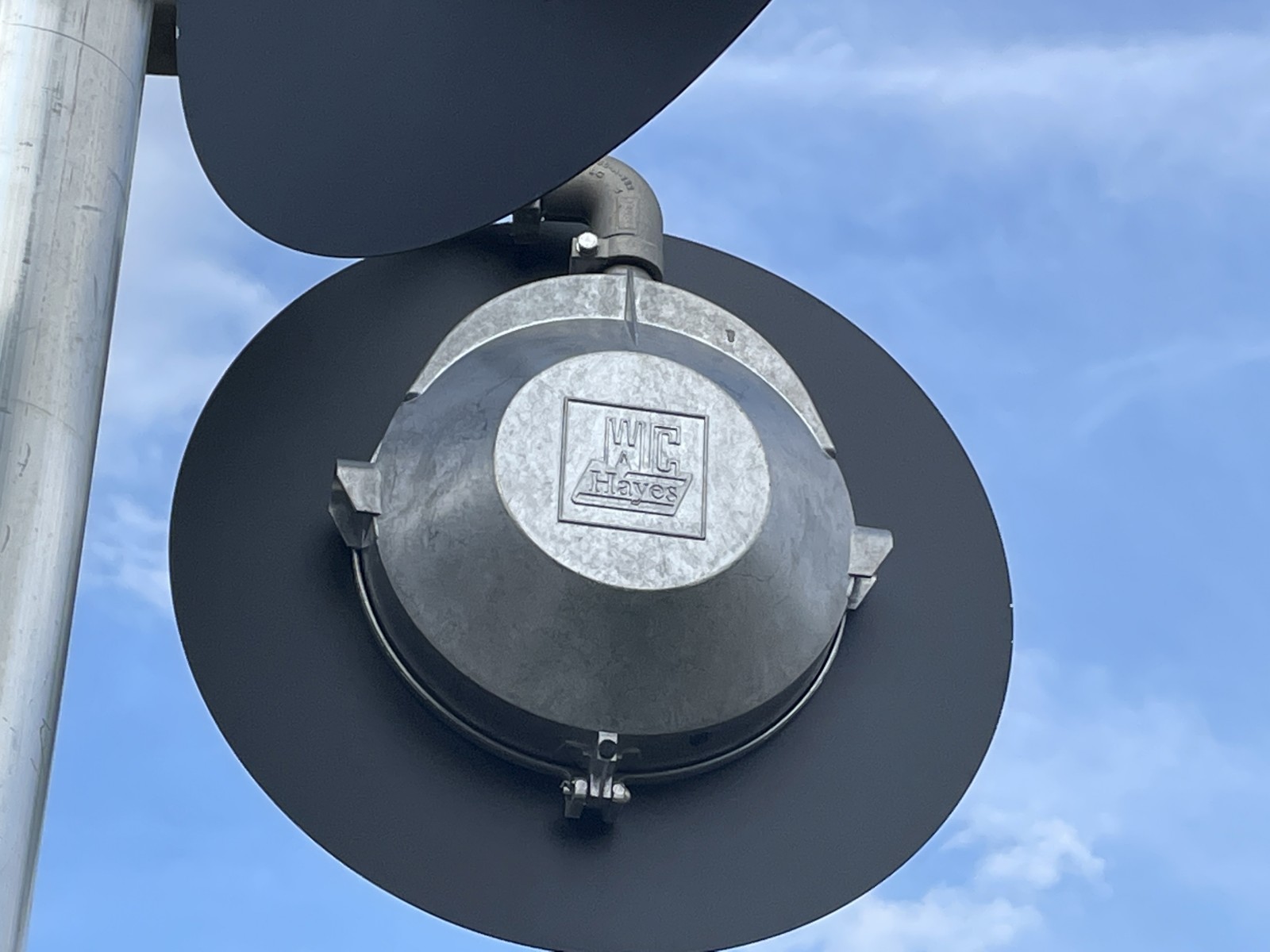

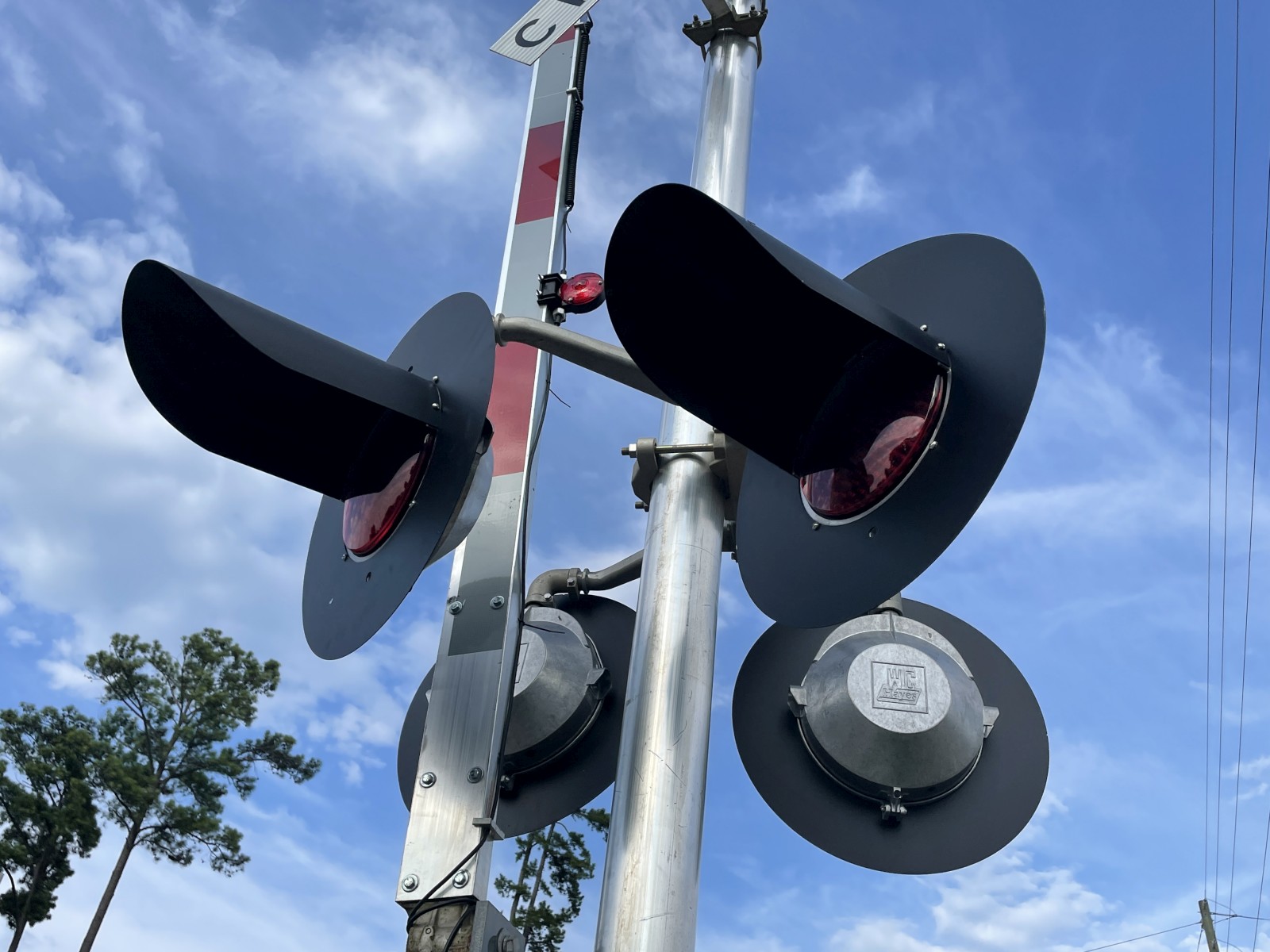

This signal has WCH 12x24 lights with Leotek EV series LEDs. |
|
20 |
21 |
22 |
23 |

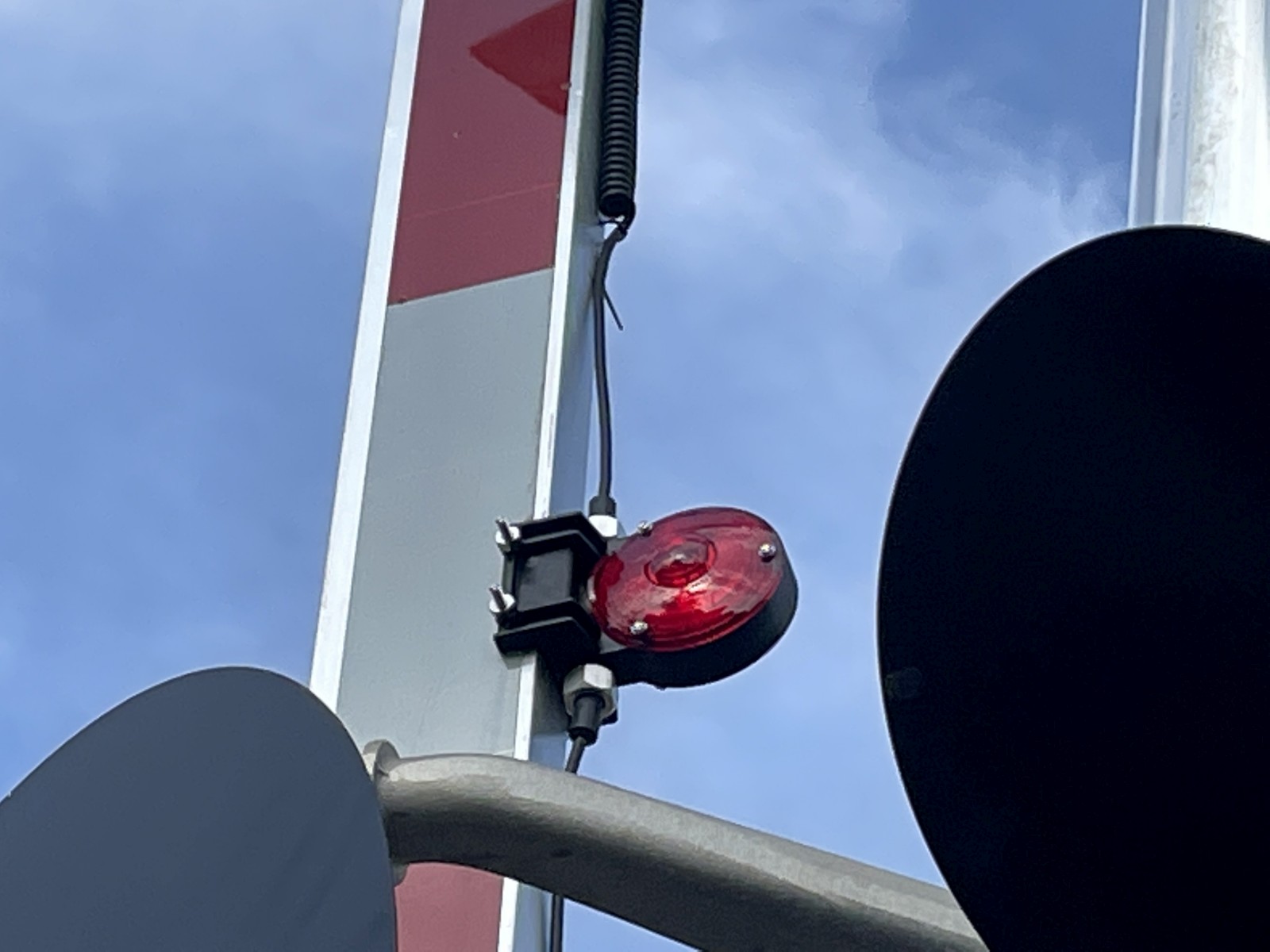

More NEG LED gatelights. |

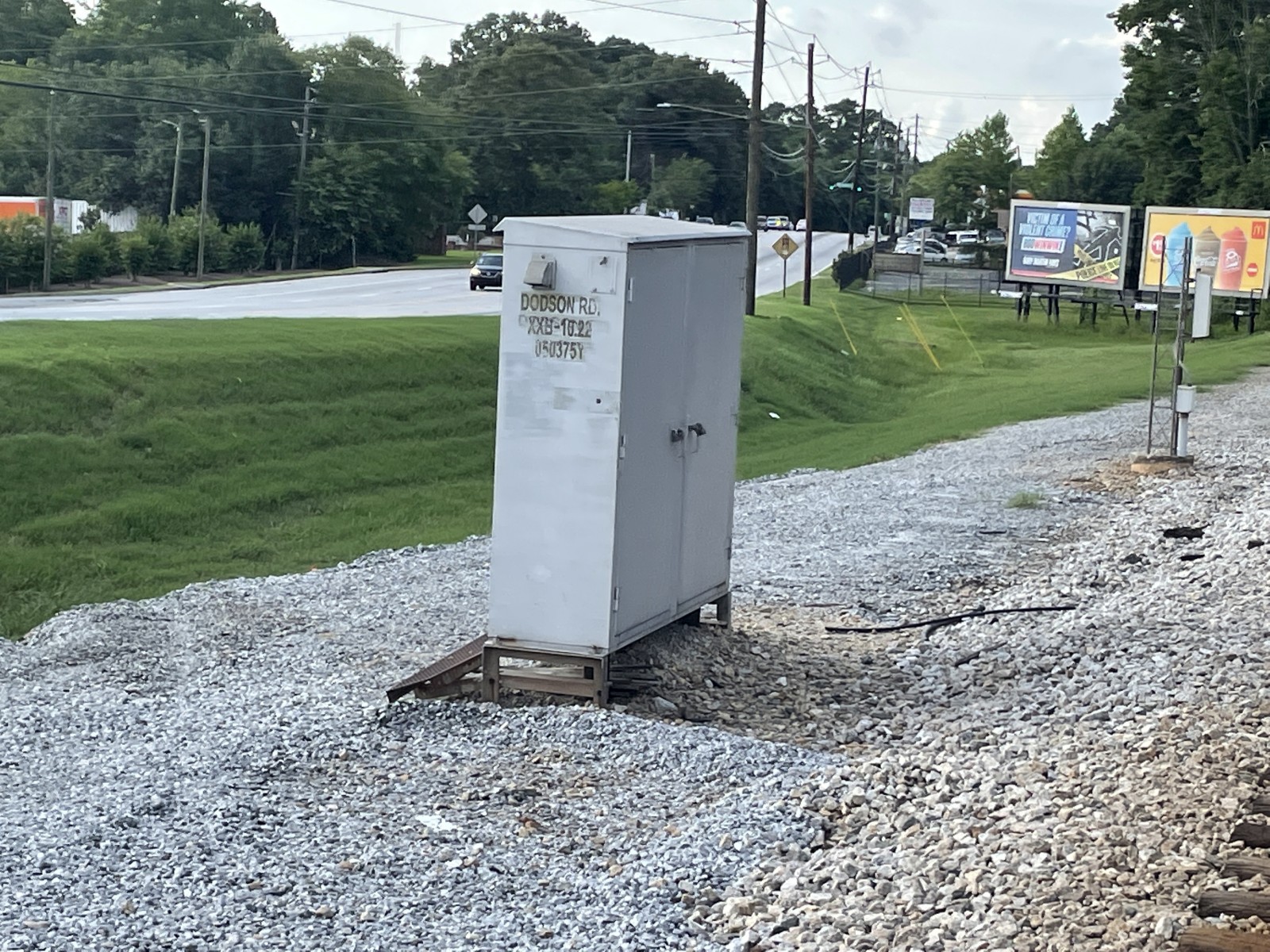

The relay case. |

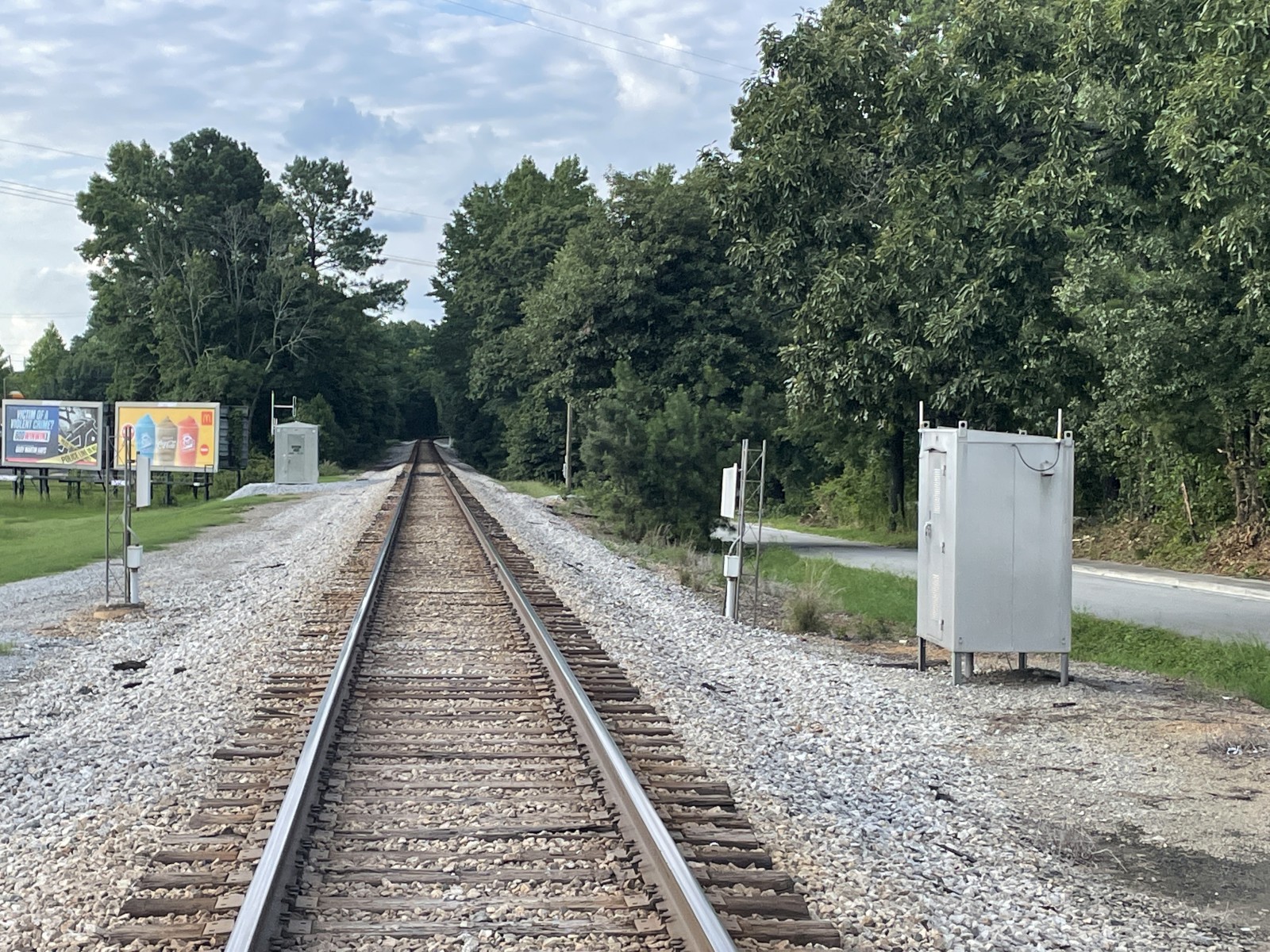

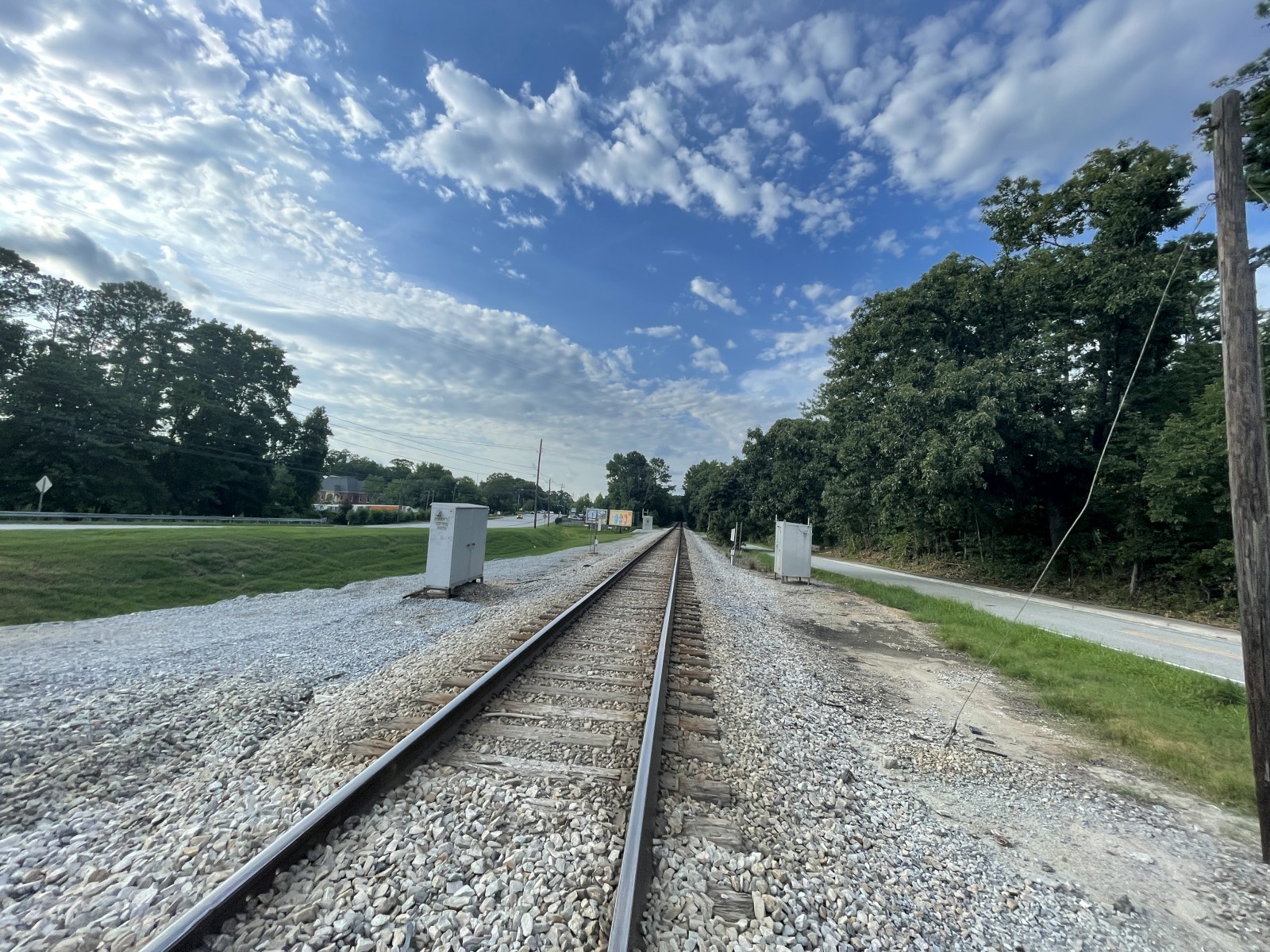

Track view facing north towards Stonewall Tell Road. |

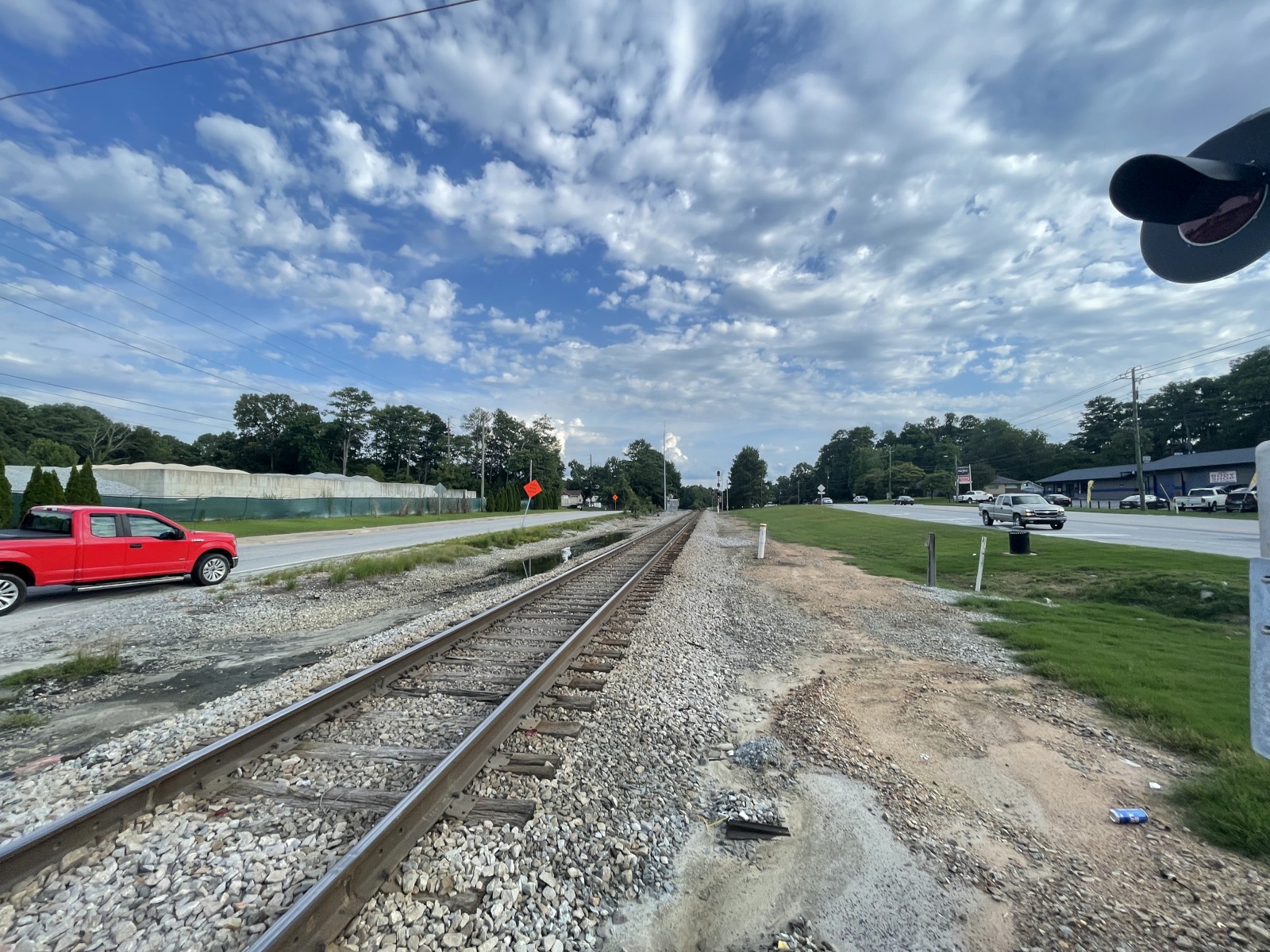

Track view facing south towards Flat Shoals Road & Watson Street. |
24 |
An AEI detector stands near the crossing. |
All pictures were taken on 7-20-22.
