MP:  ANJ794.490



Created December 13, 2022



Total Accidents:   3
Crossing DOT #:  638679U
TOTAL DAILY TRAINS:   19   (AS OF 2021)



Page created by: freebrickproductions



This crossing is located on the CSX Lineville Subdivision.



>>>>>>>>>>>>> Signal #1 Signal #2 Signal #3 Signal #4
Bell: NEG electronic N/A NEG electronic N/A
Base: WCH WCH WCH WCH
Light Frames: 4 - 12x24" WCH w/ Leotek EV Series LEDs 2 - 12x24" WCH w/ Leotek EV Series LEDs 4 - 12x24" WCH w/ Leotek EV Series LEDs 2 - 12x24" WCH w/ Leotek EV Series LEDs
Gate Lights: 3 - NEG LEDs N/A 3 - NEG LEDs N/A
Gate Mechanism: Siemens Imprinted N/A Siemens Imprinted N/A
Gate Striping: Vertical N/A Vertical N/A



1

2

3

4

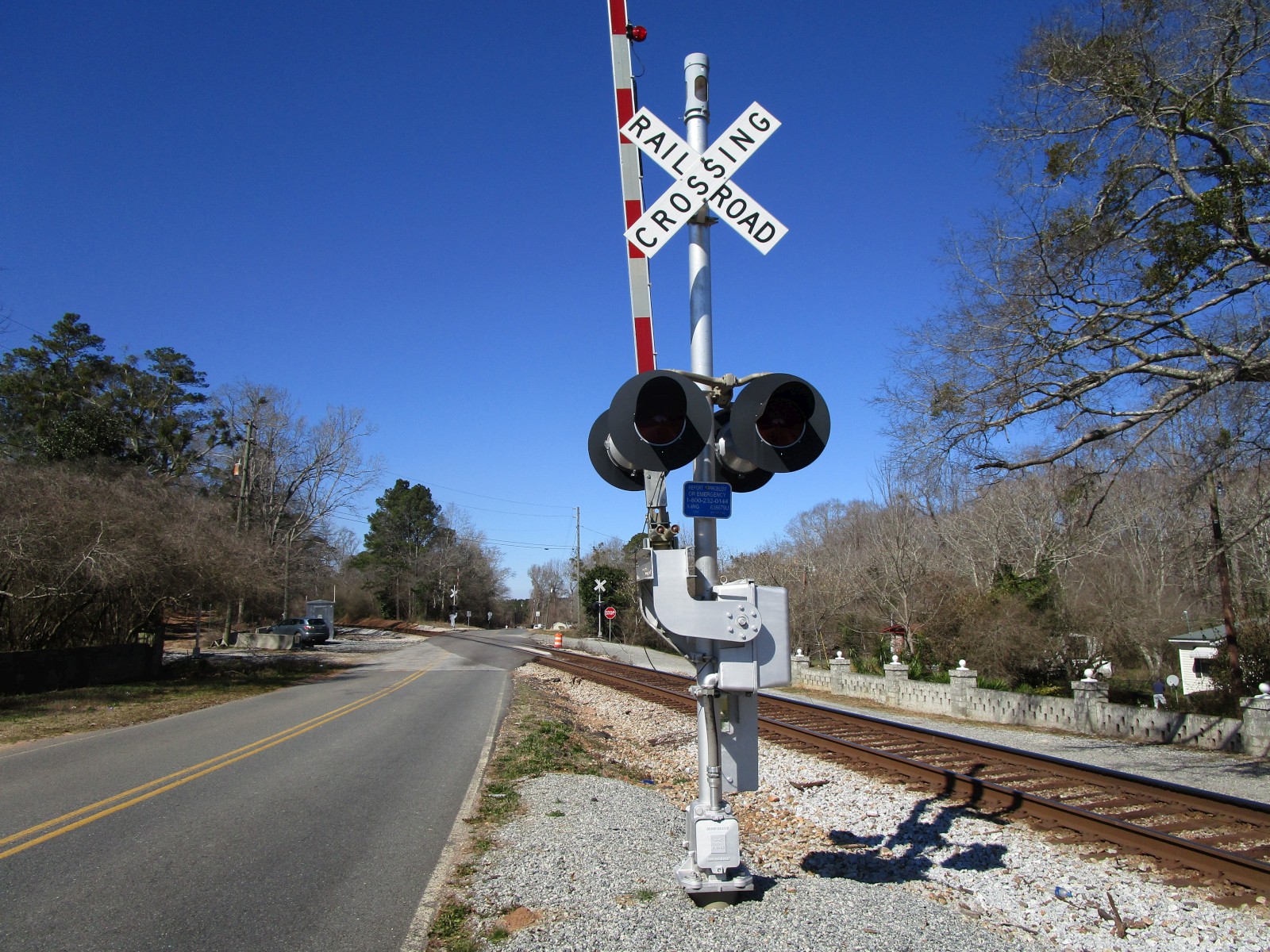

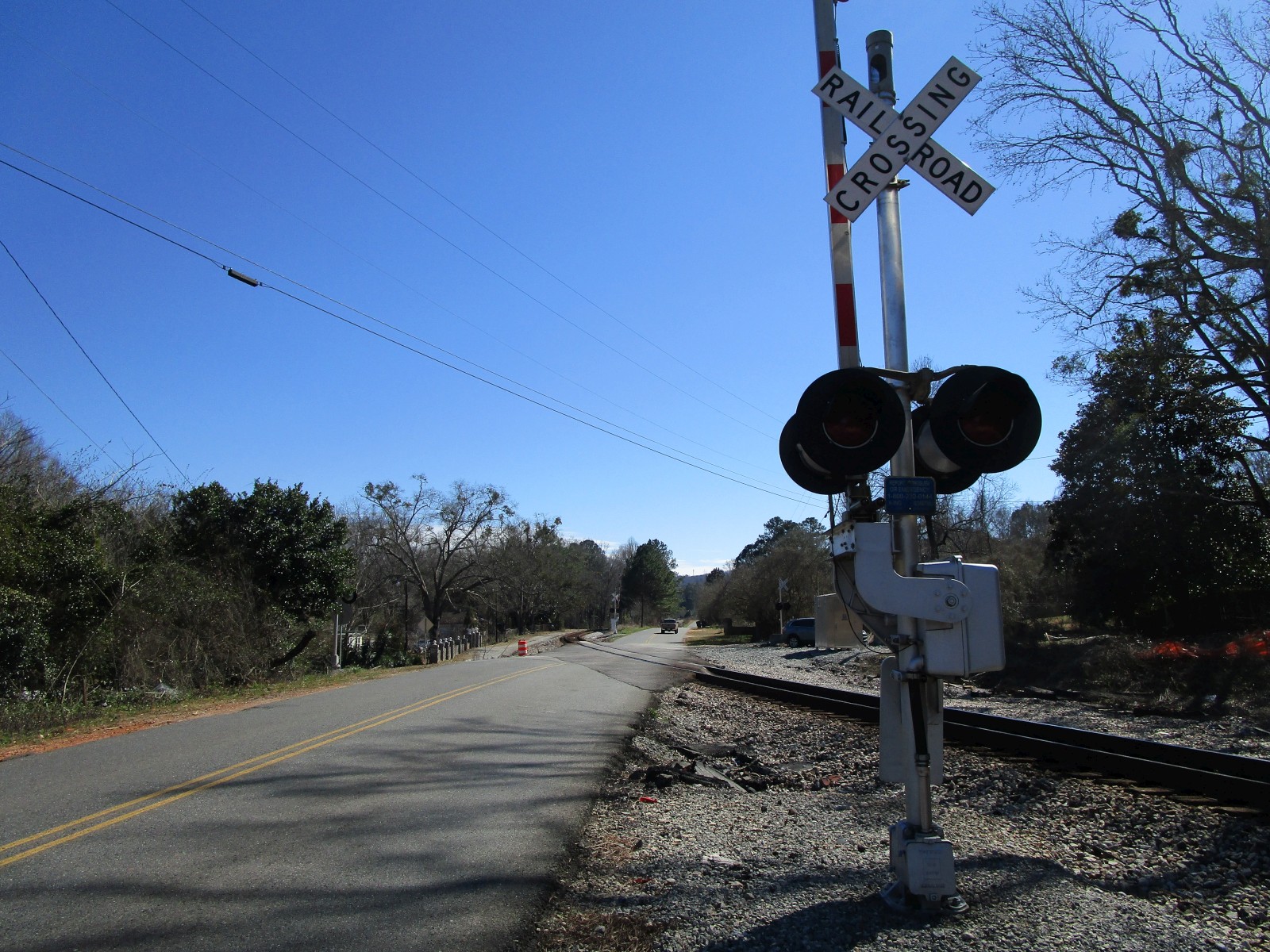

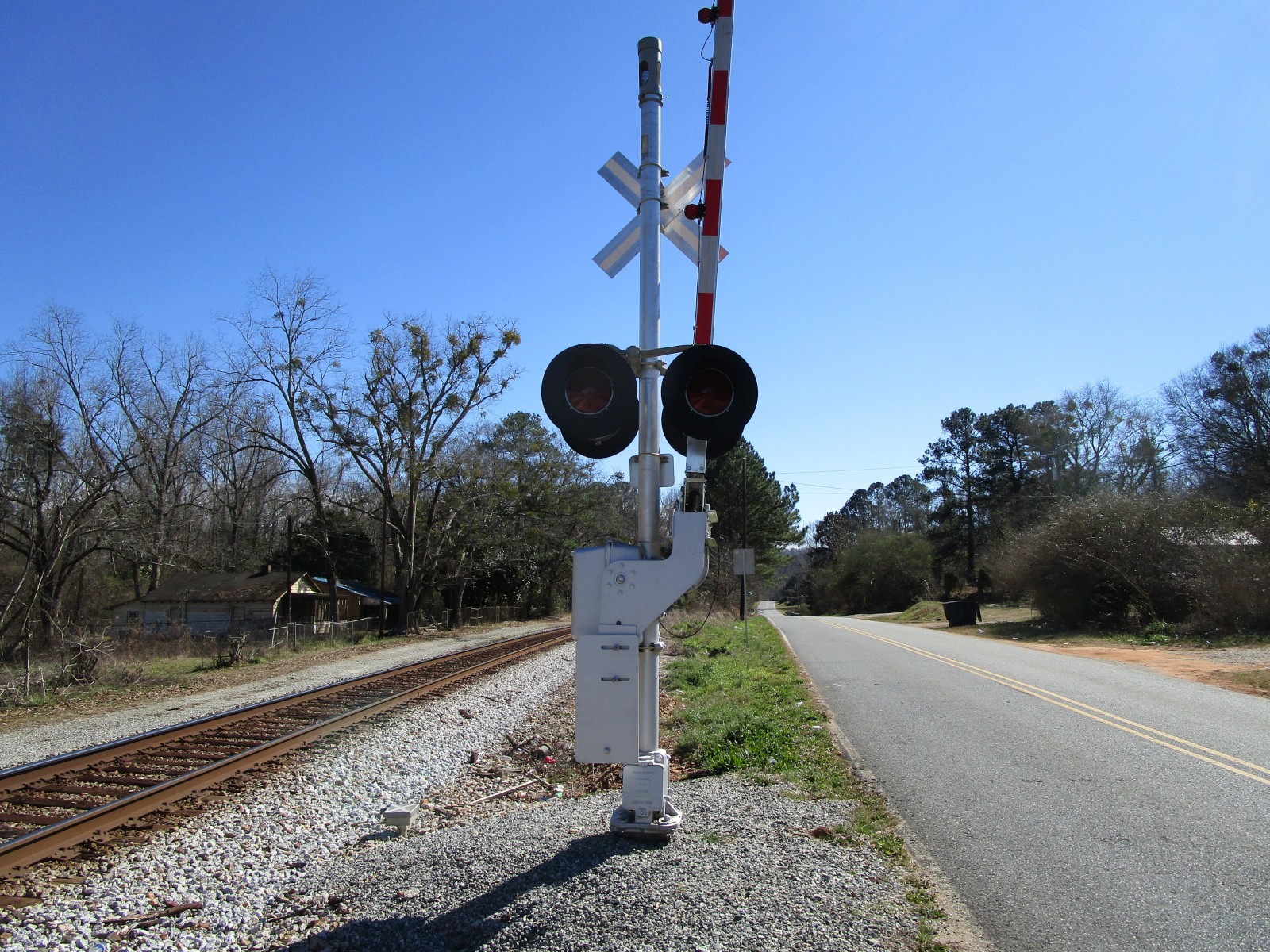

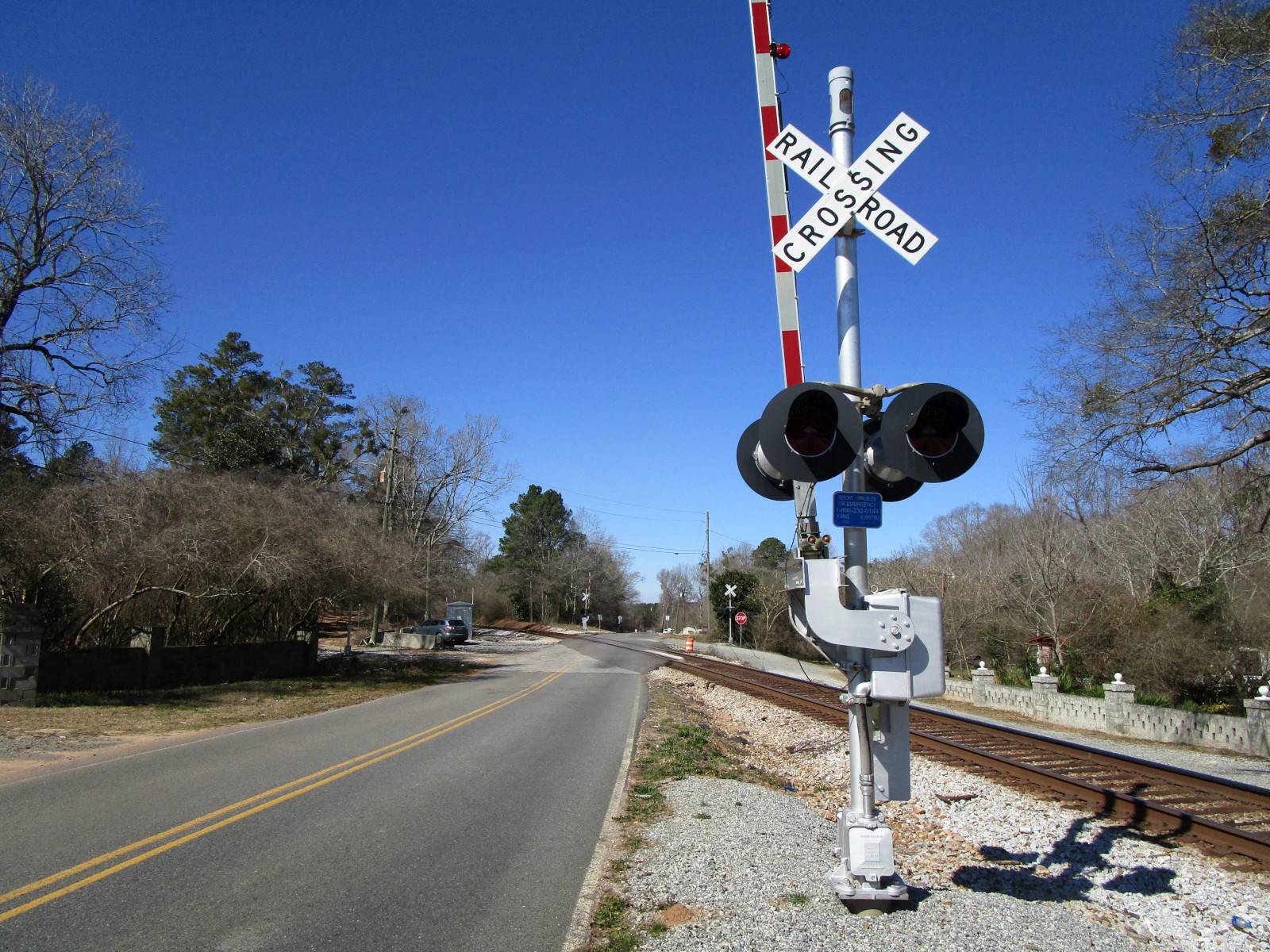

Overviews of the crossing.
The first signal.

5

6

7

8

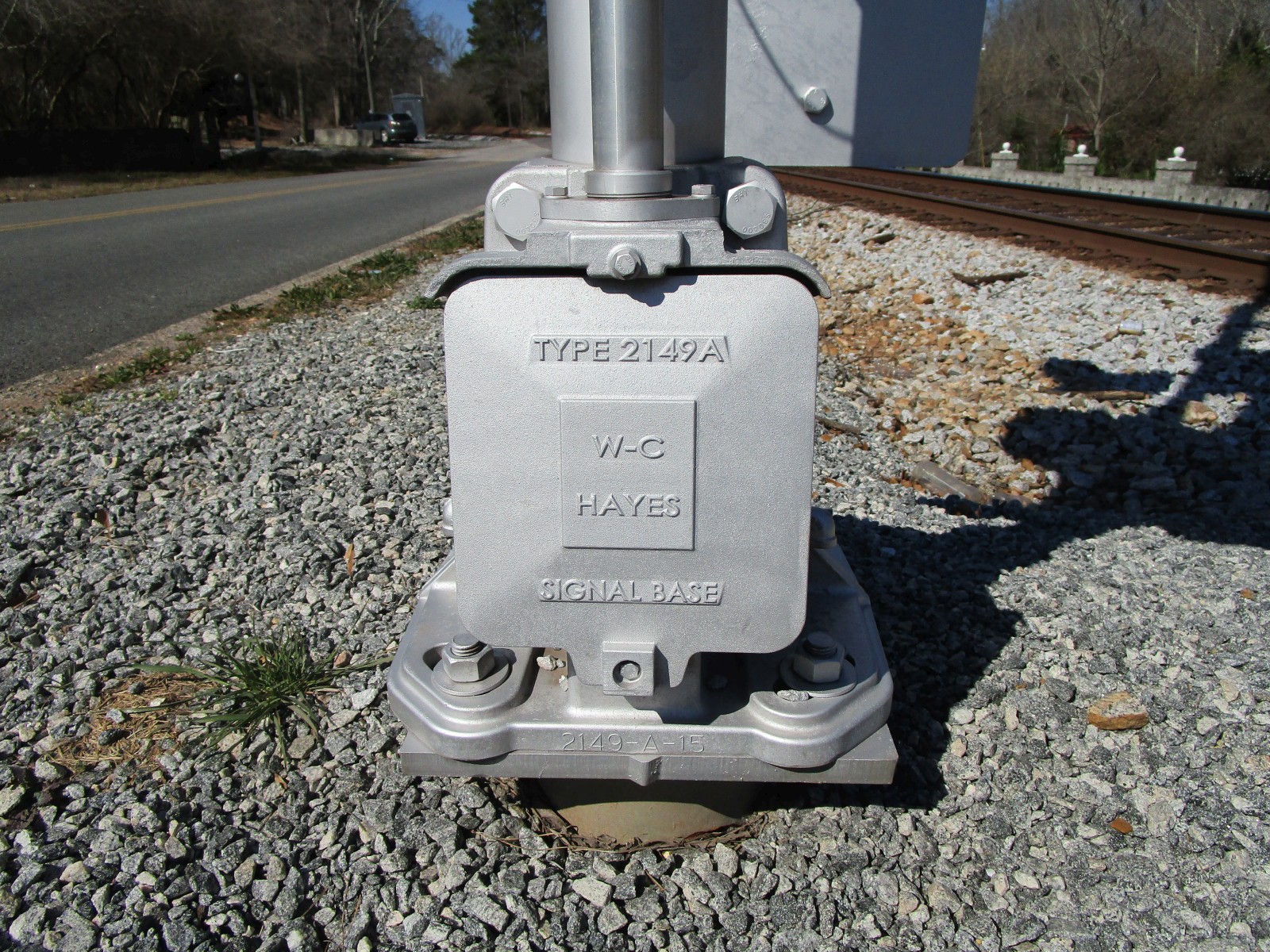

It has a WCH base.

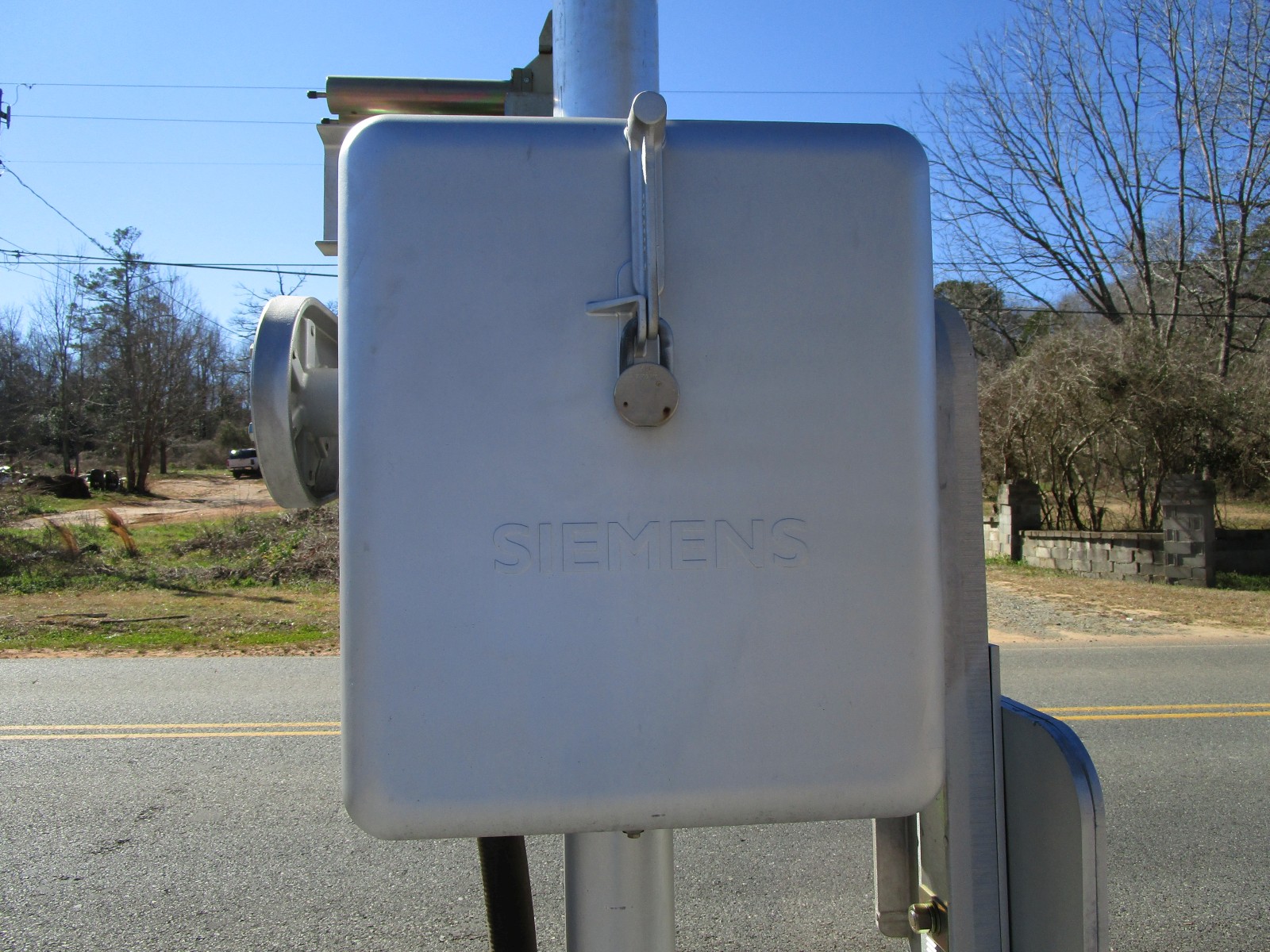

A Siemens gate mechanism.

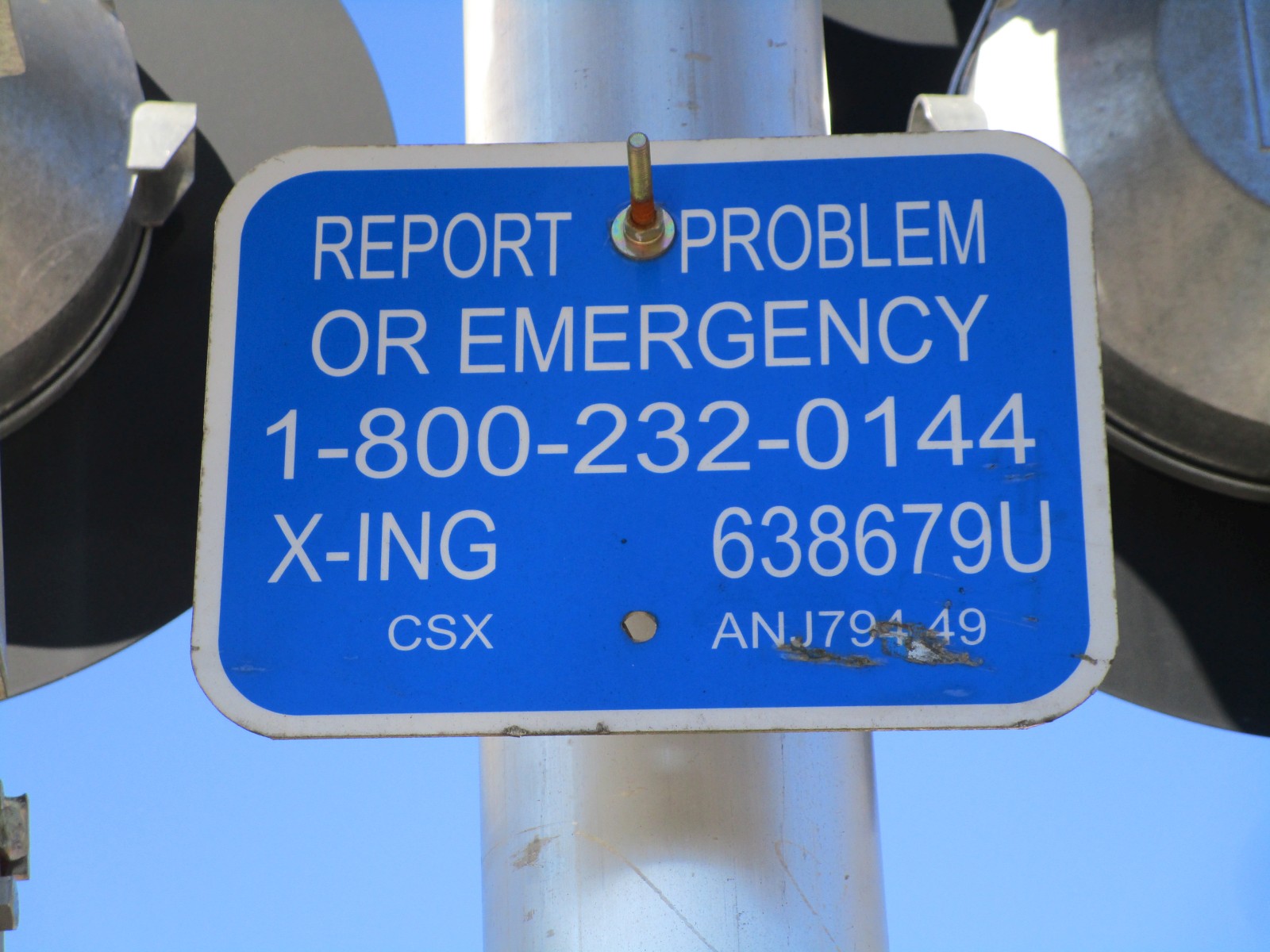

The emergency information.

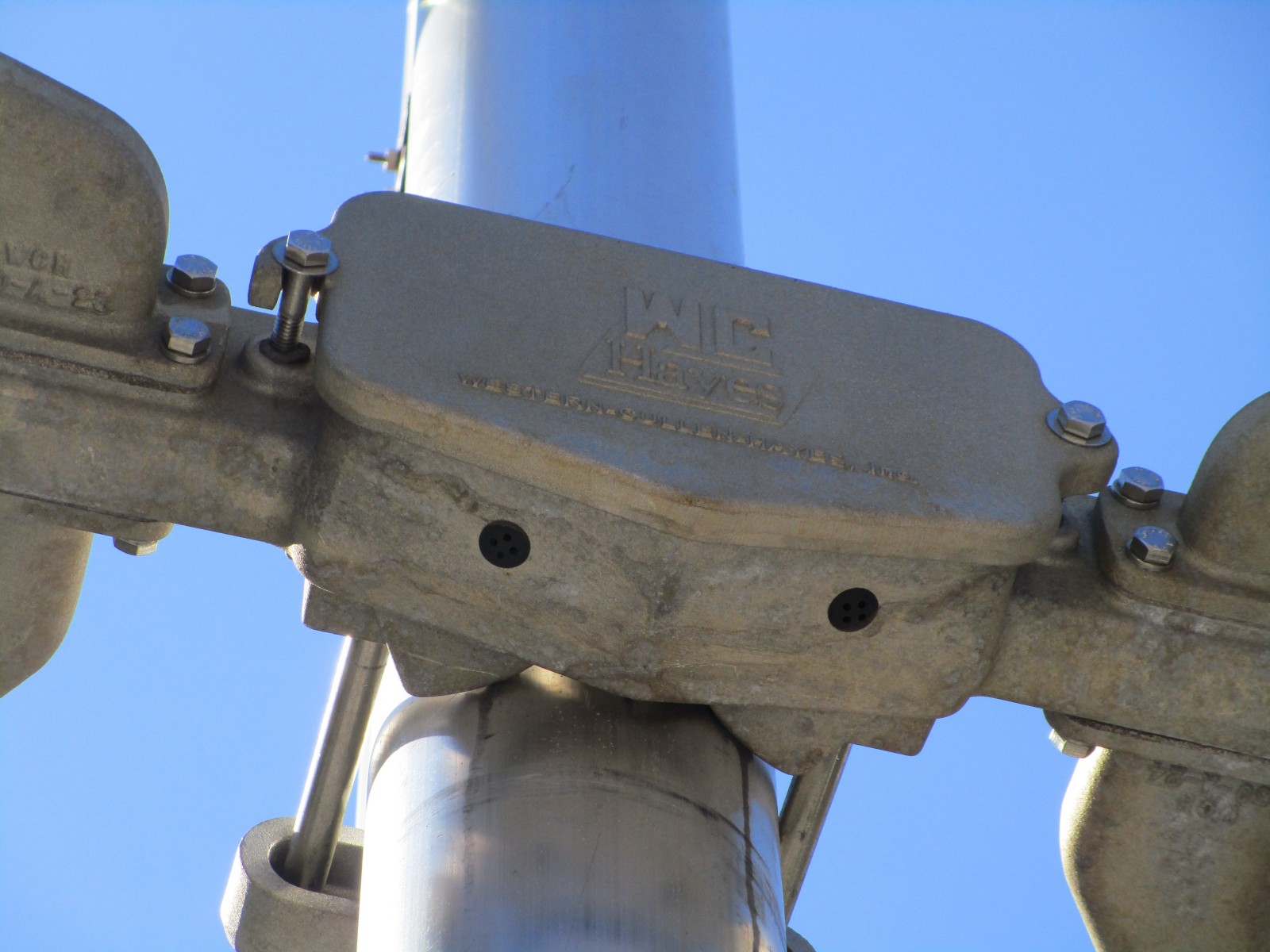

A WCH bracket.

9

10

11

12

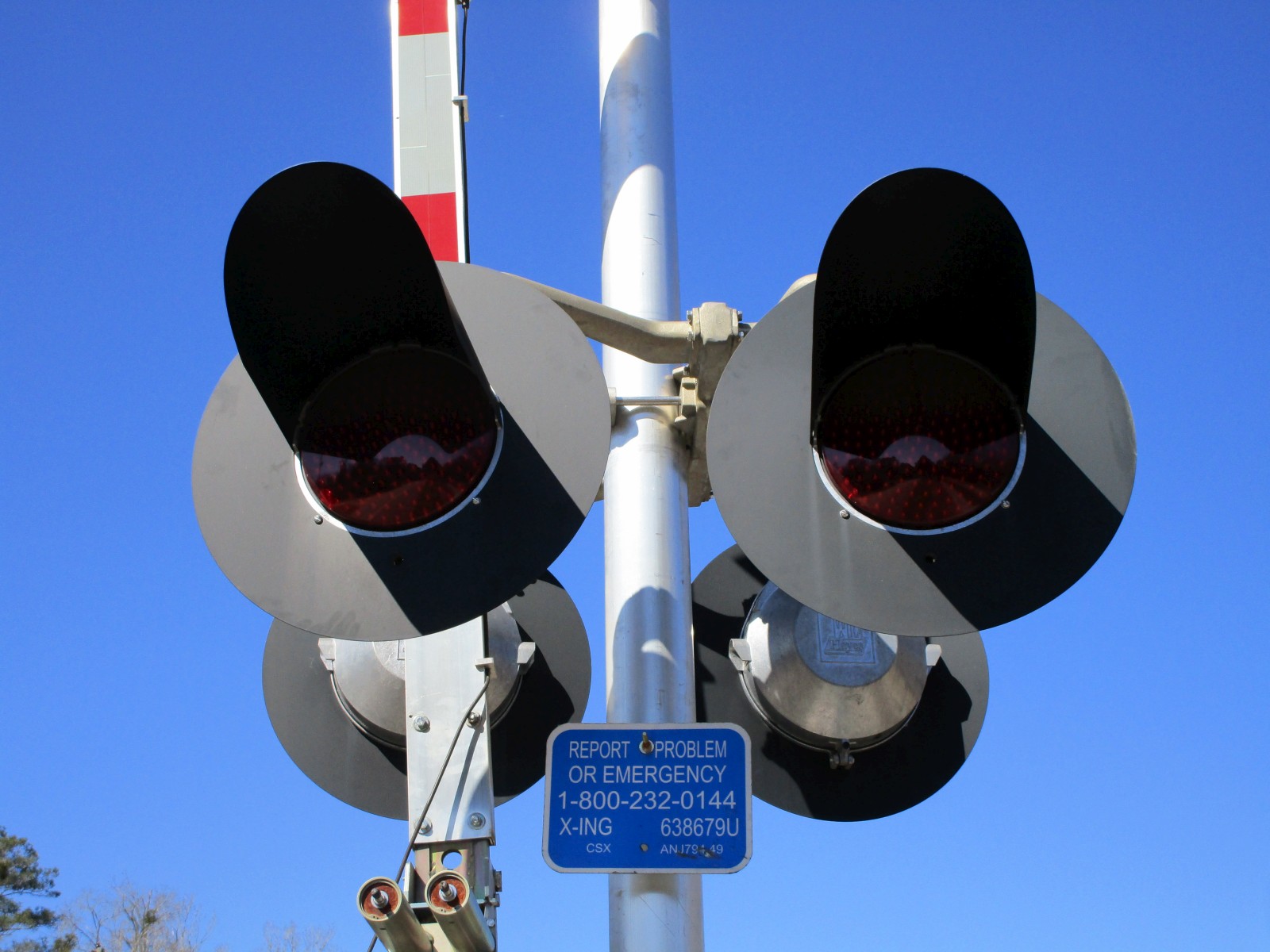

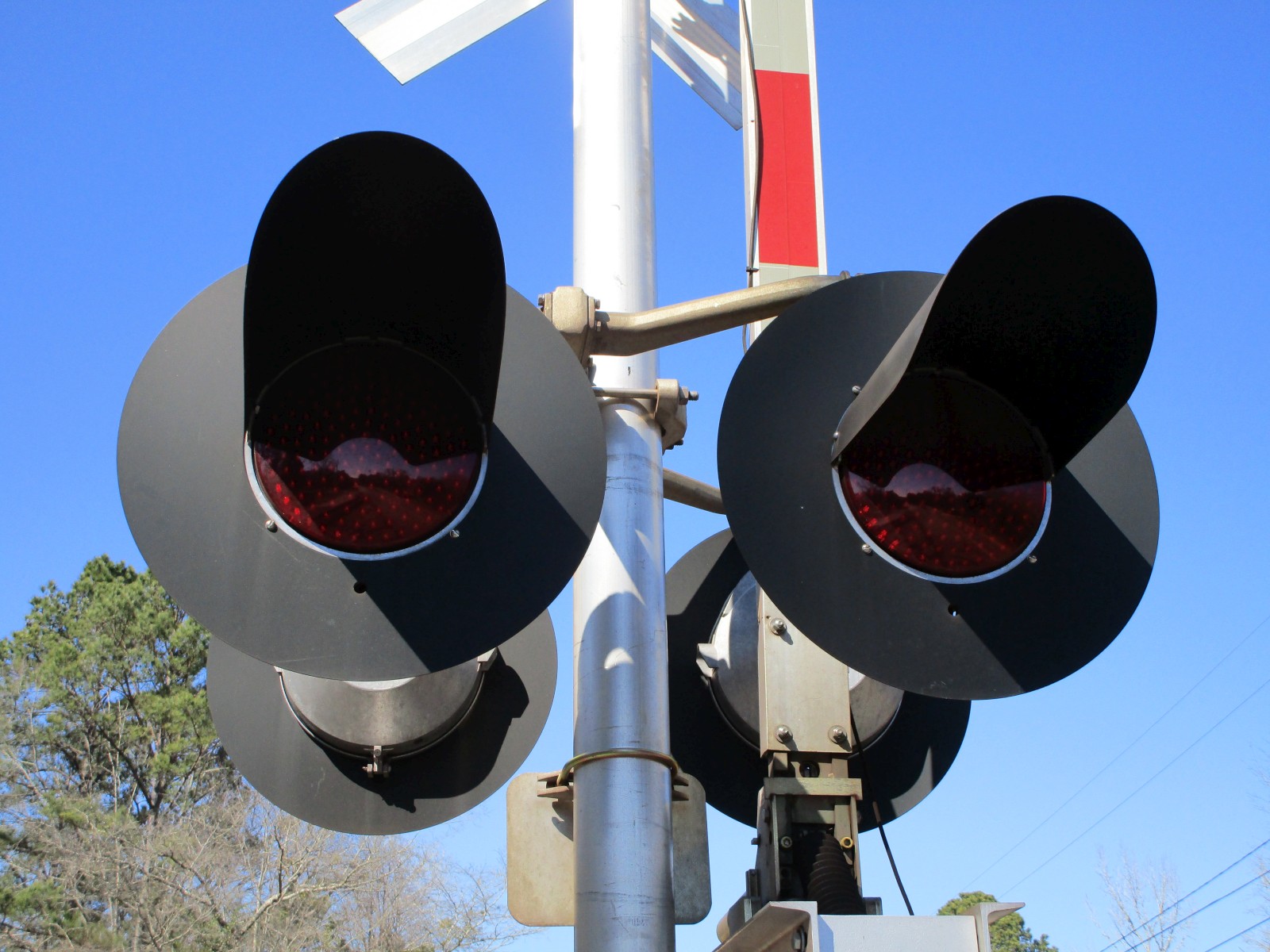

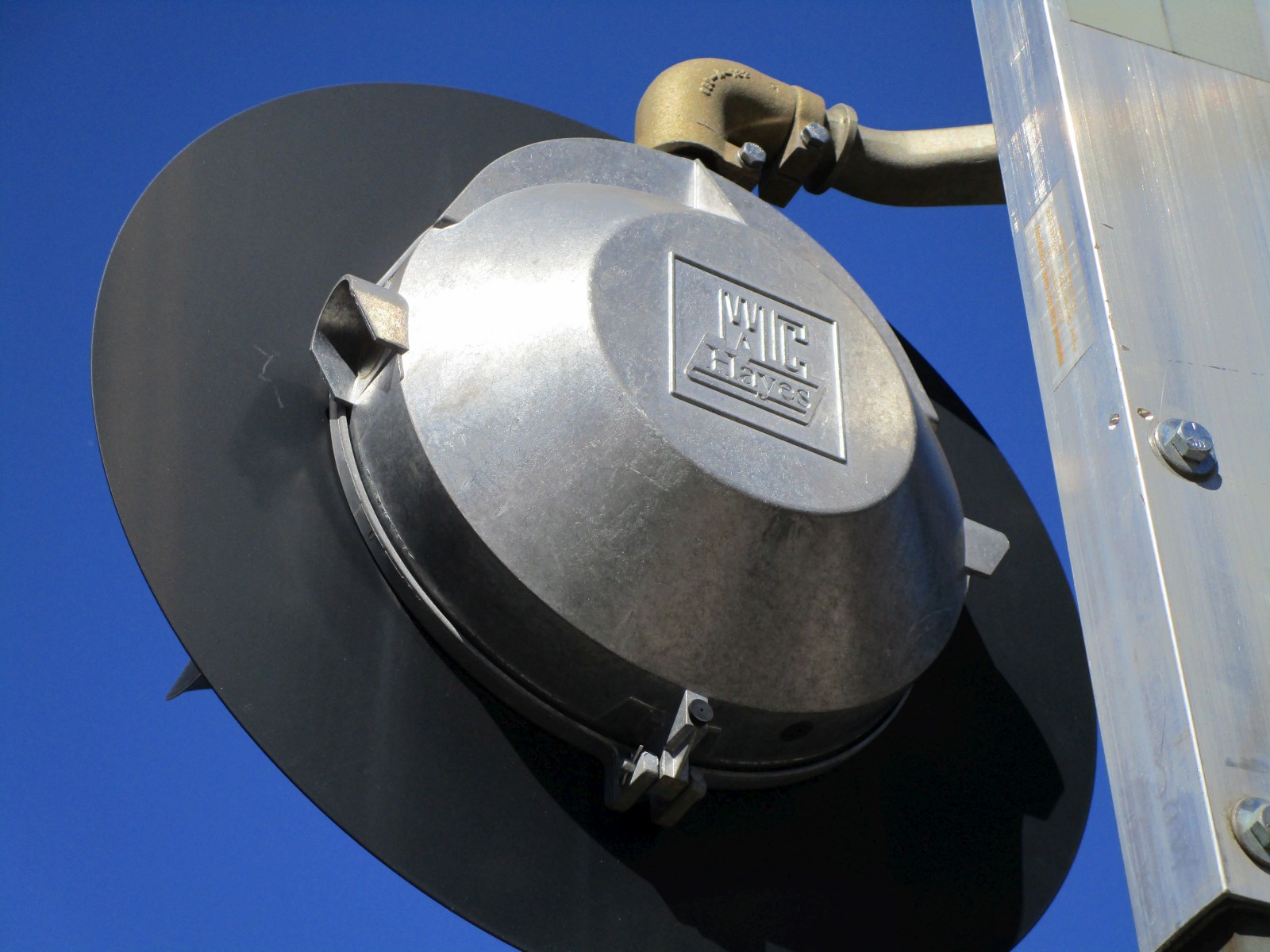

The lights on this signal are all WCH 12x24 inch lights with Leotek EV Series LEDs.

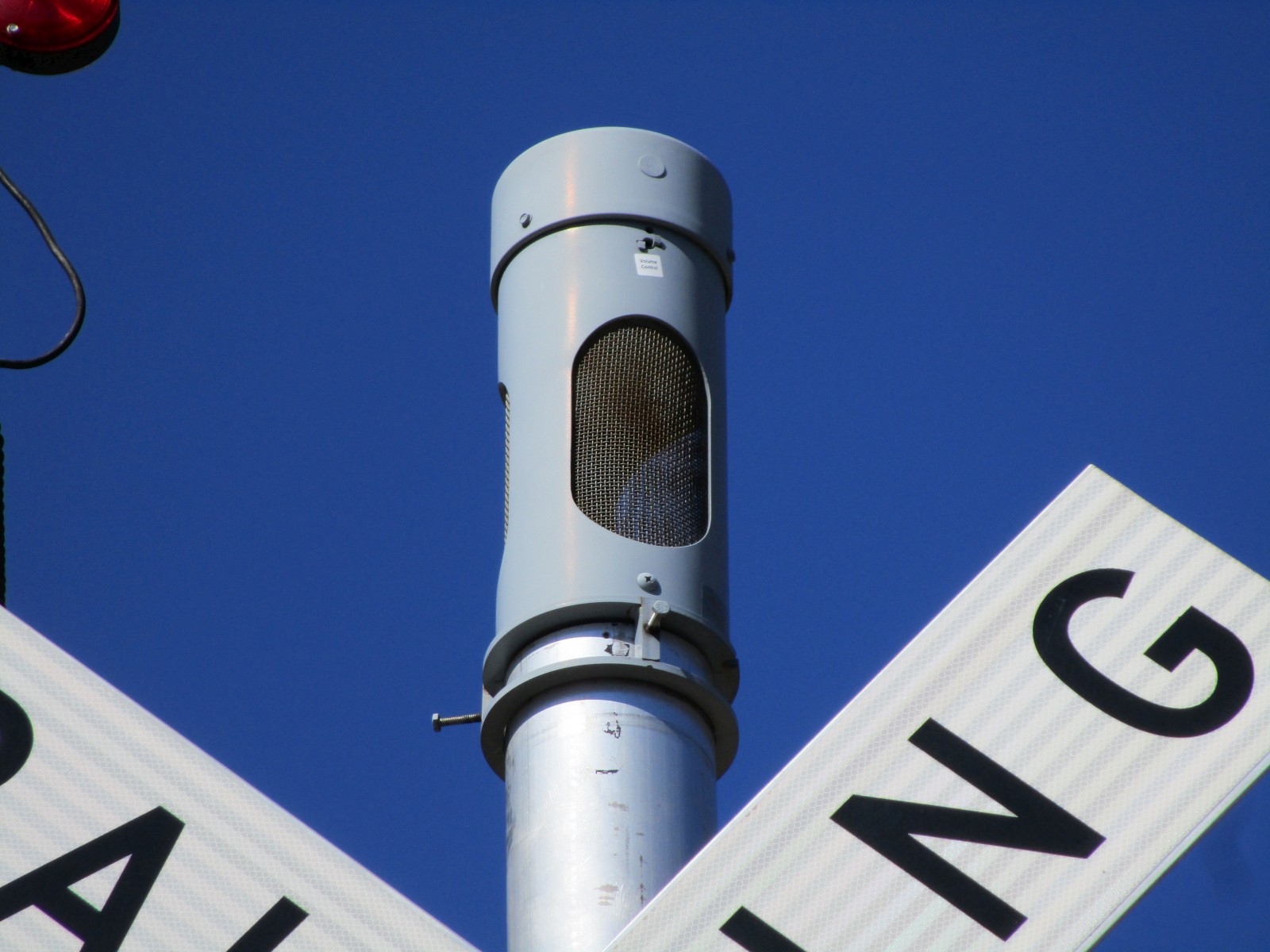

This signal has an NEG electronic bell.

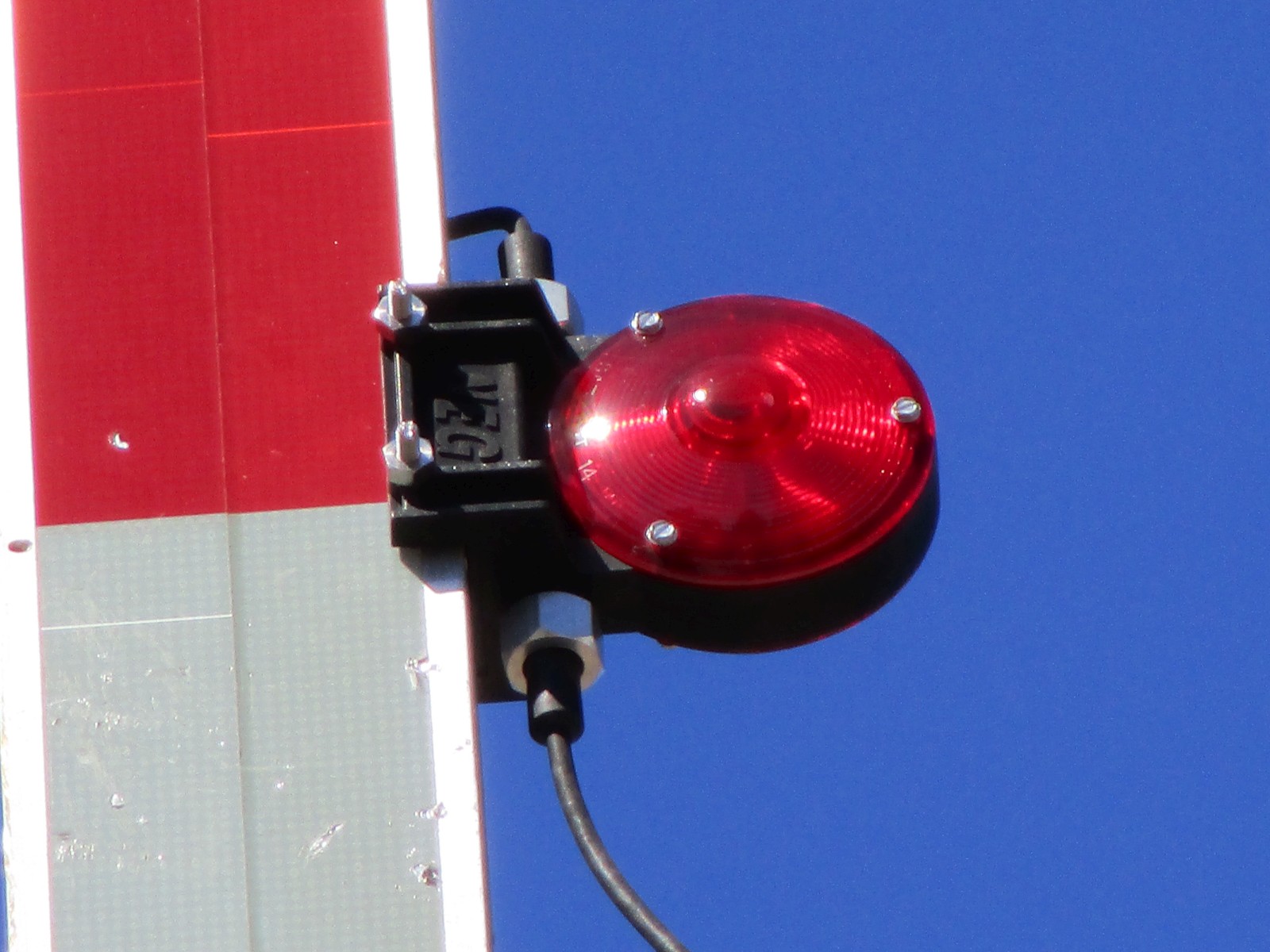

This signal uses NEG LED gate lights.

13

14

15

16

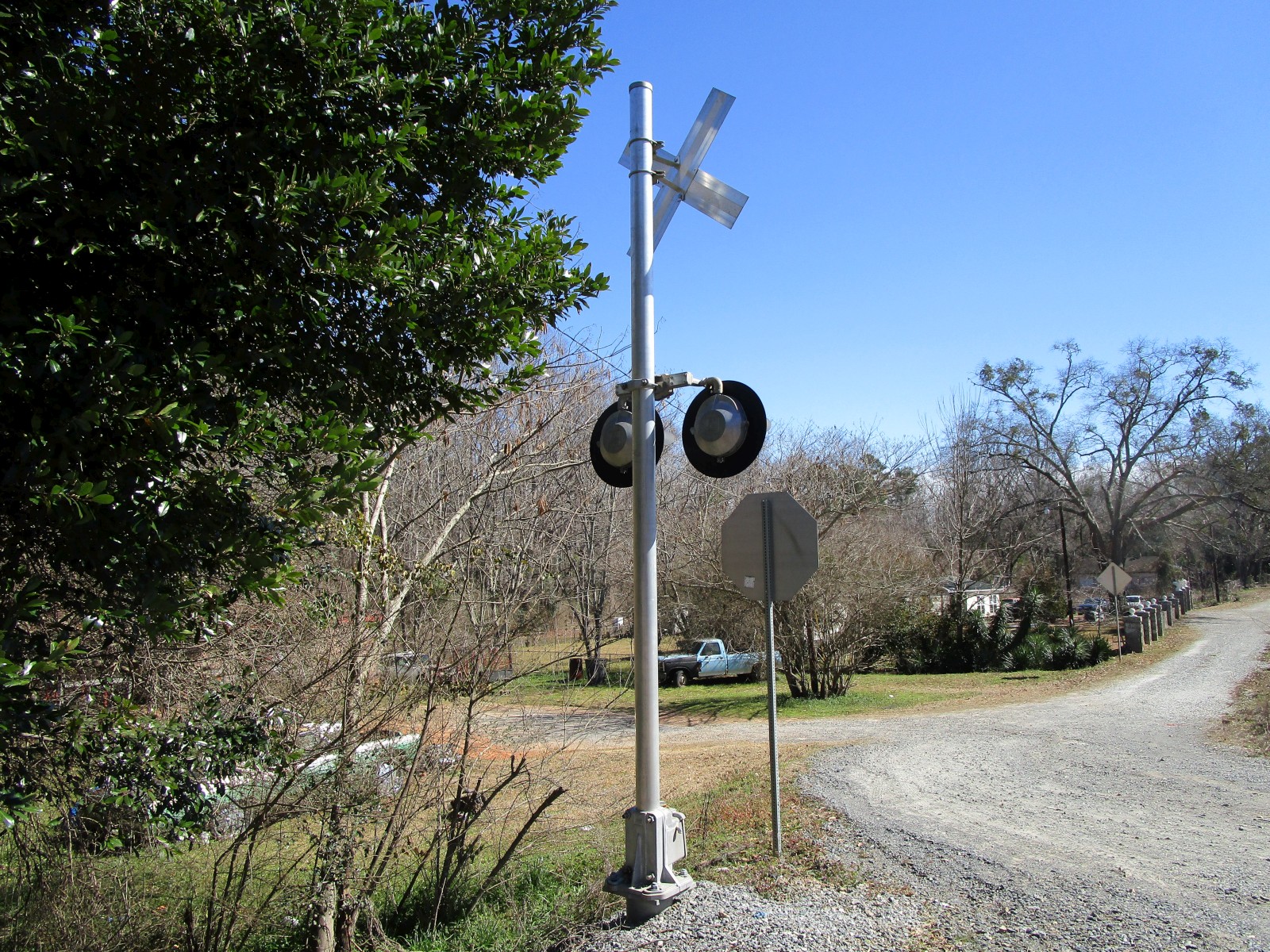

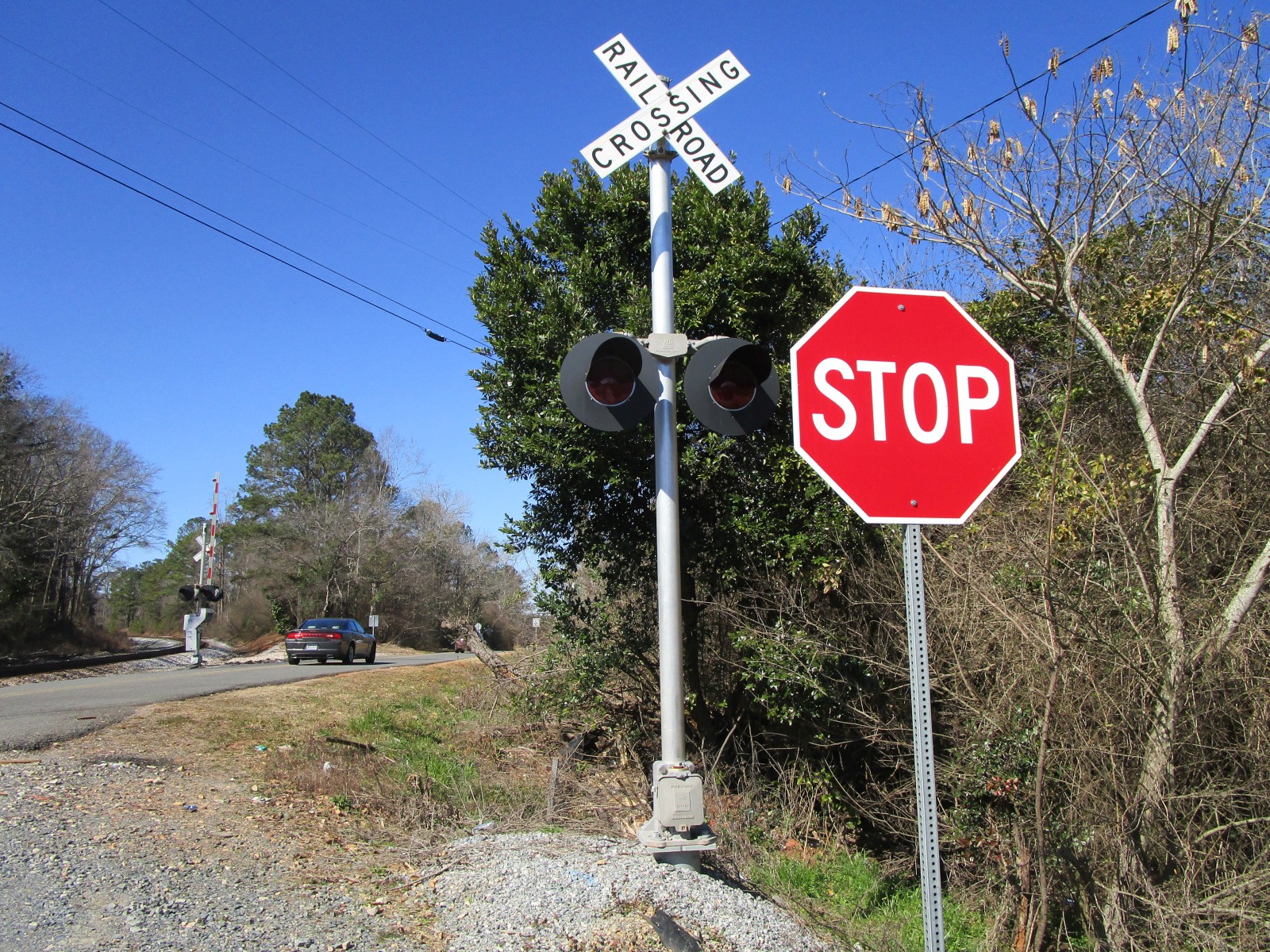

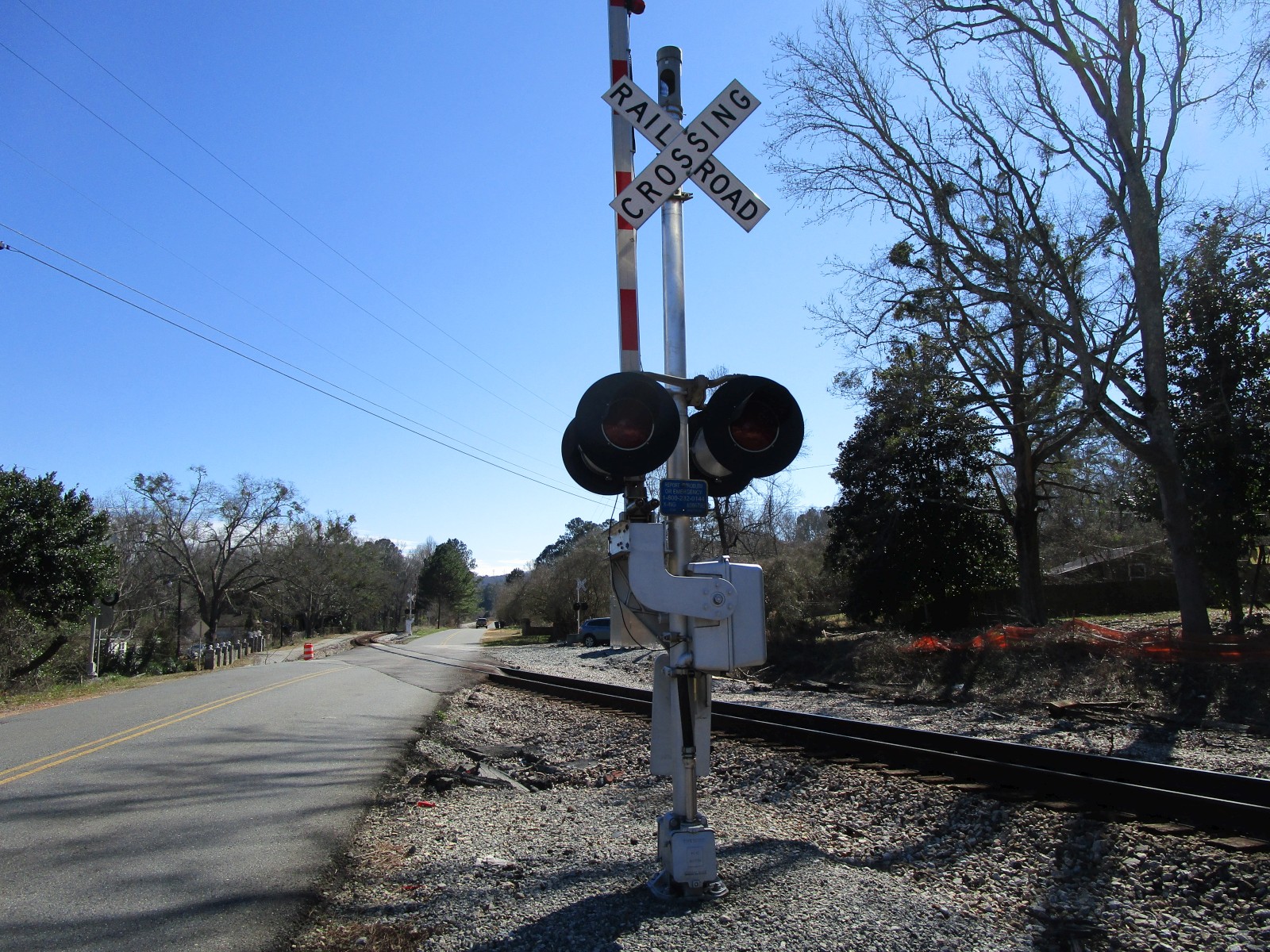

The second signal.

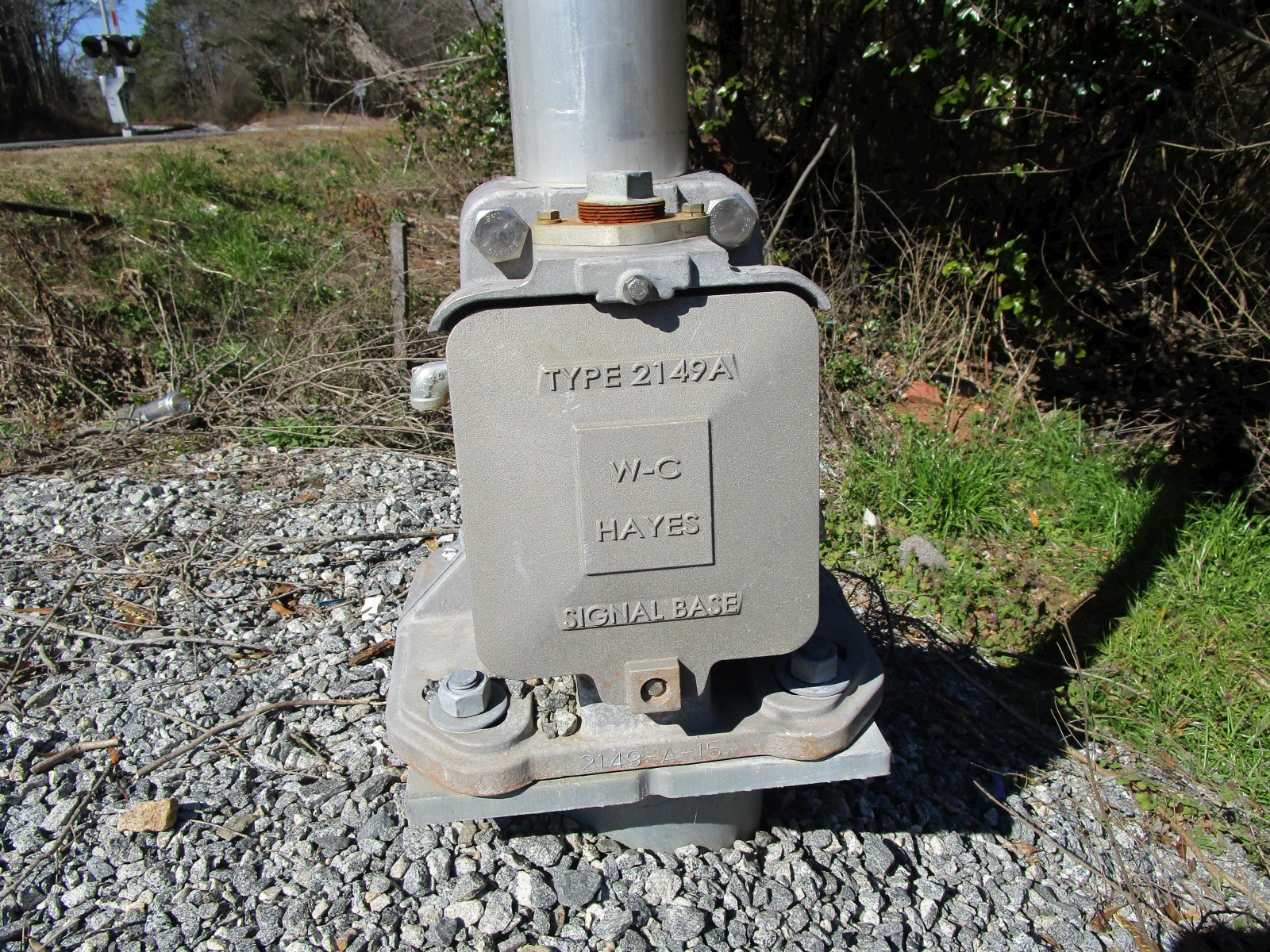

It has another WCH base.

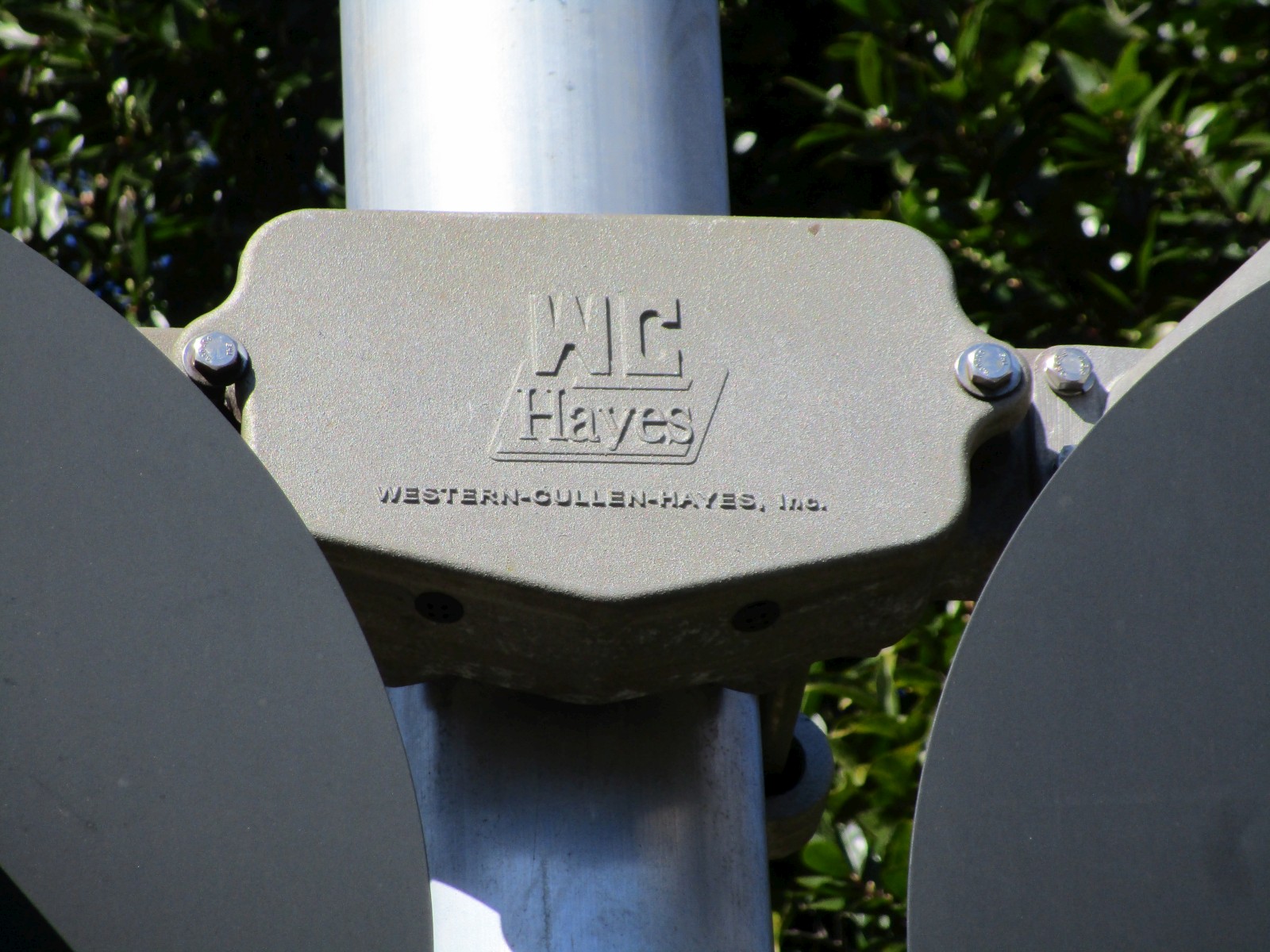

Another WCH bracket.

17

18

19

20

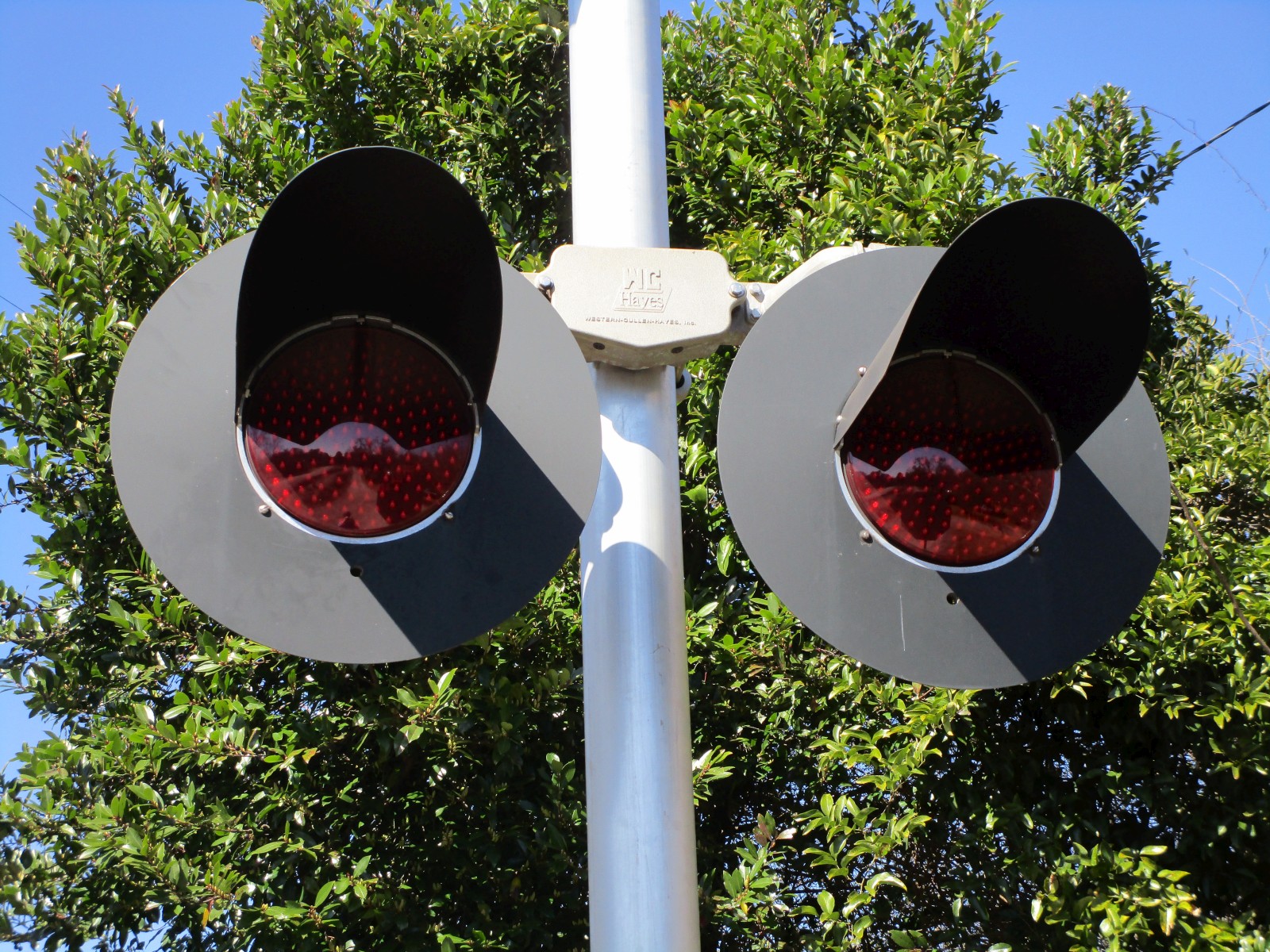

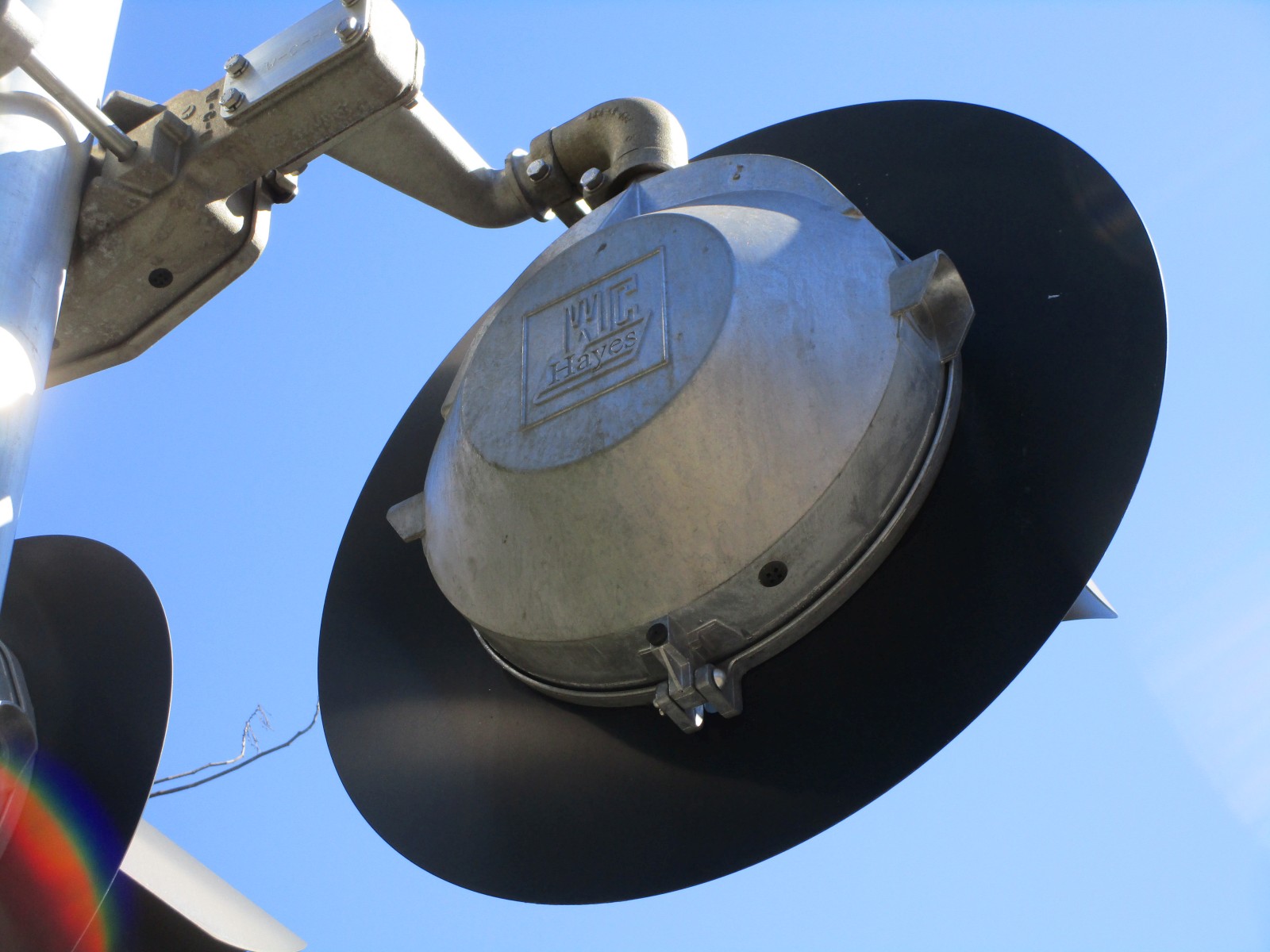

The lights on this signal are another pair of WCH 12x24 inch lights with Leotek EV Series LEDs.

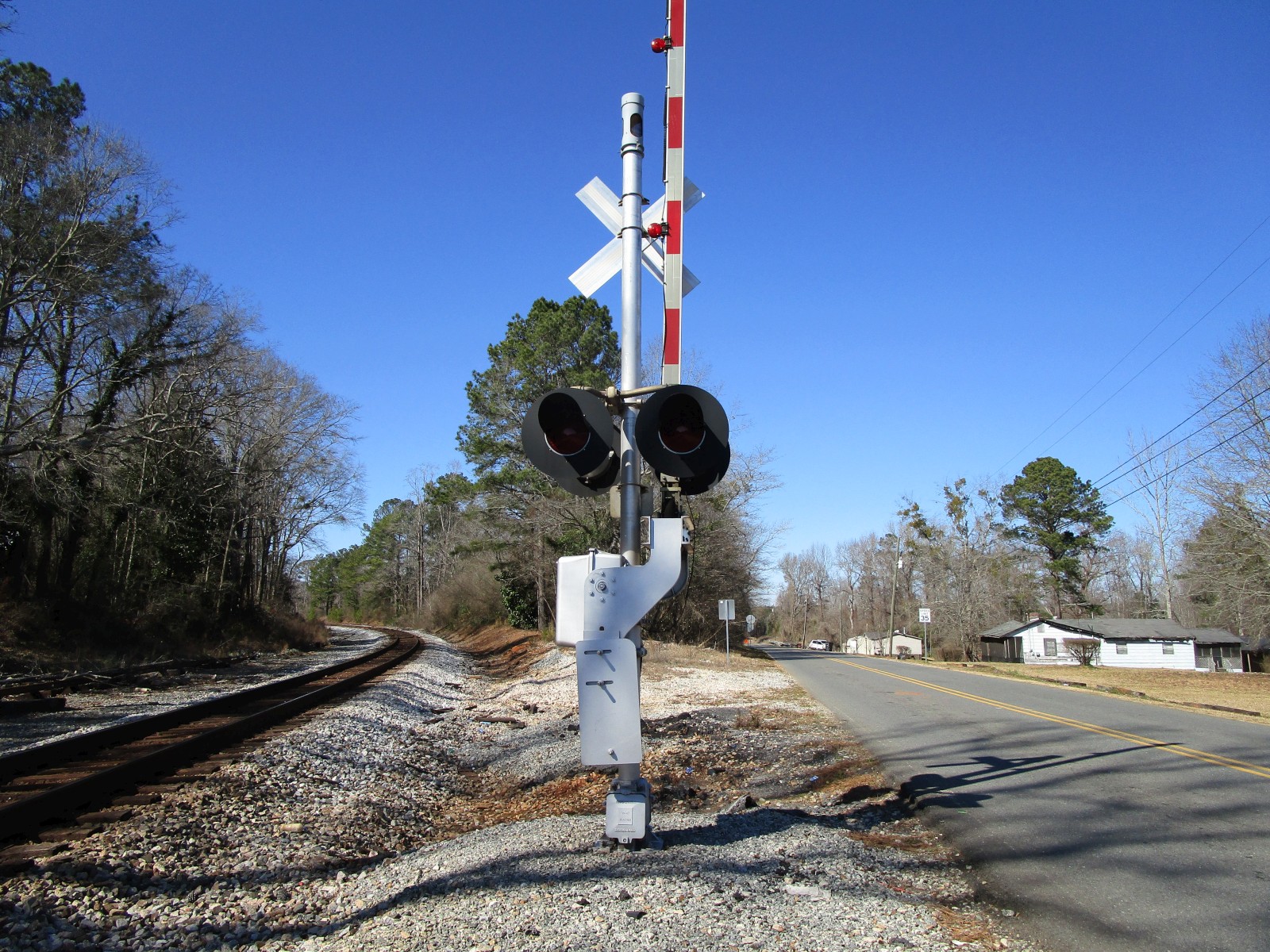

The third signal.

21

22

23

24

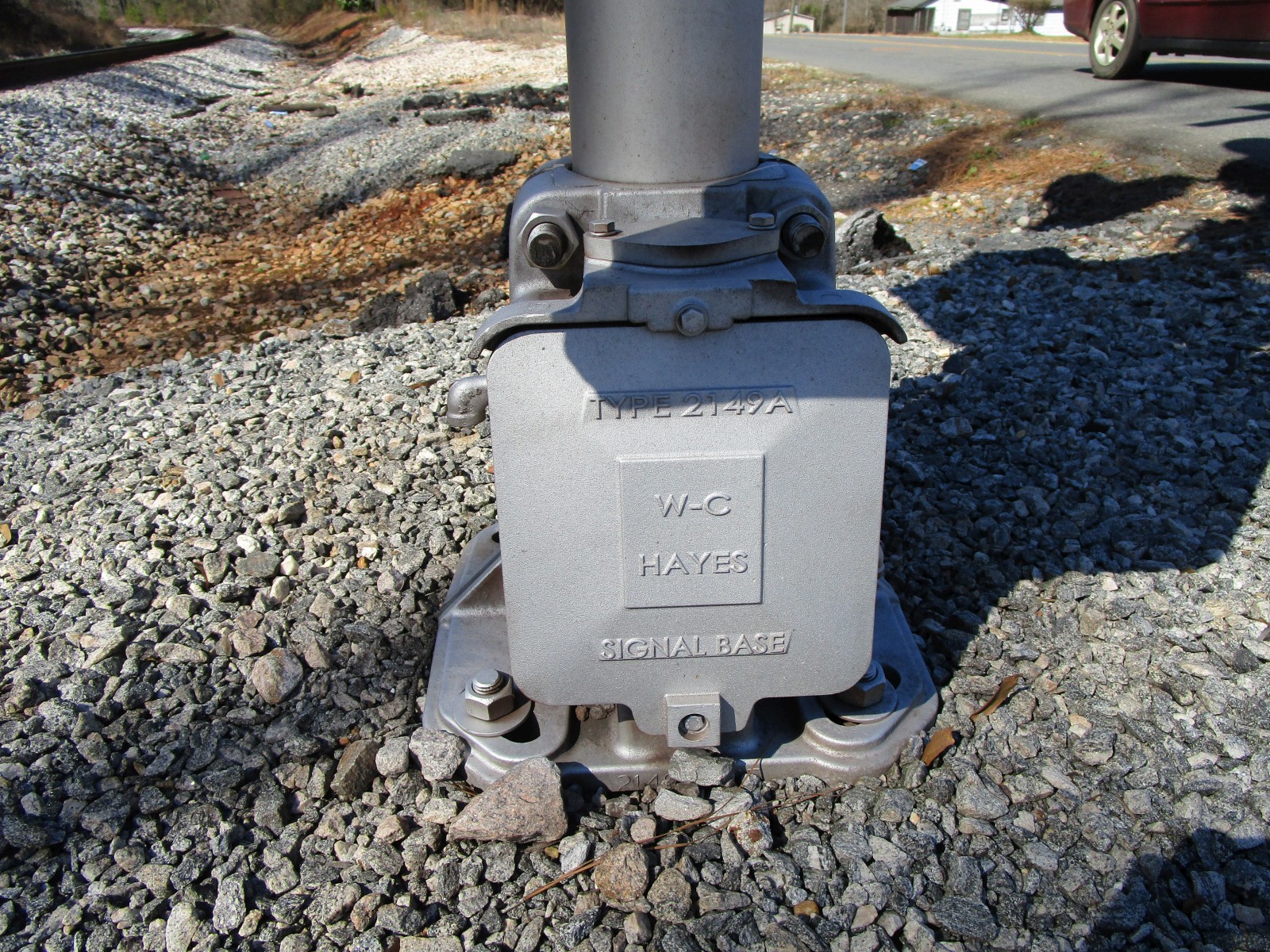

It has yet another WCH base.

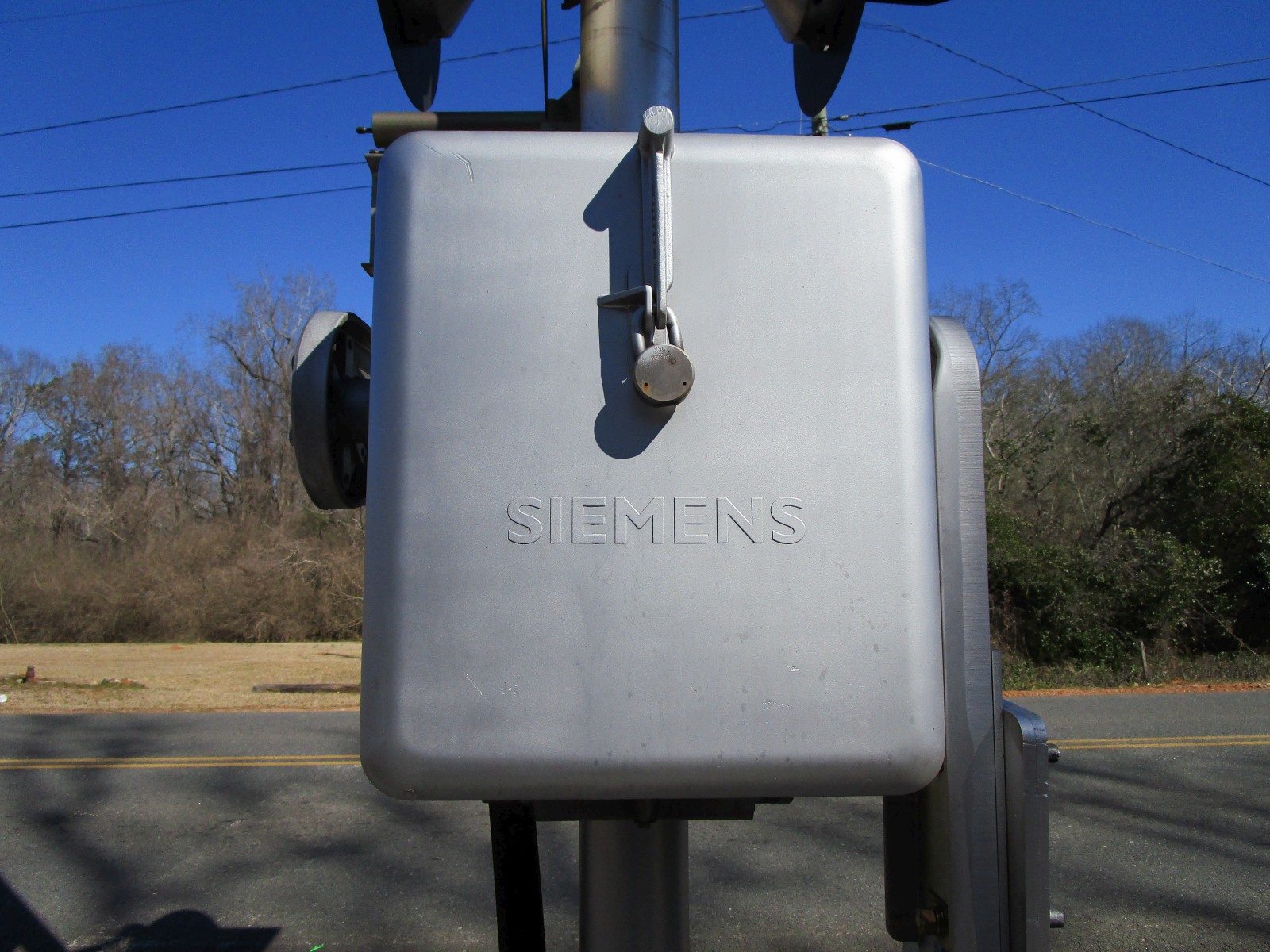

Another Siemens gate mechanism.

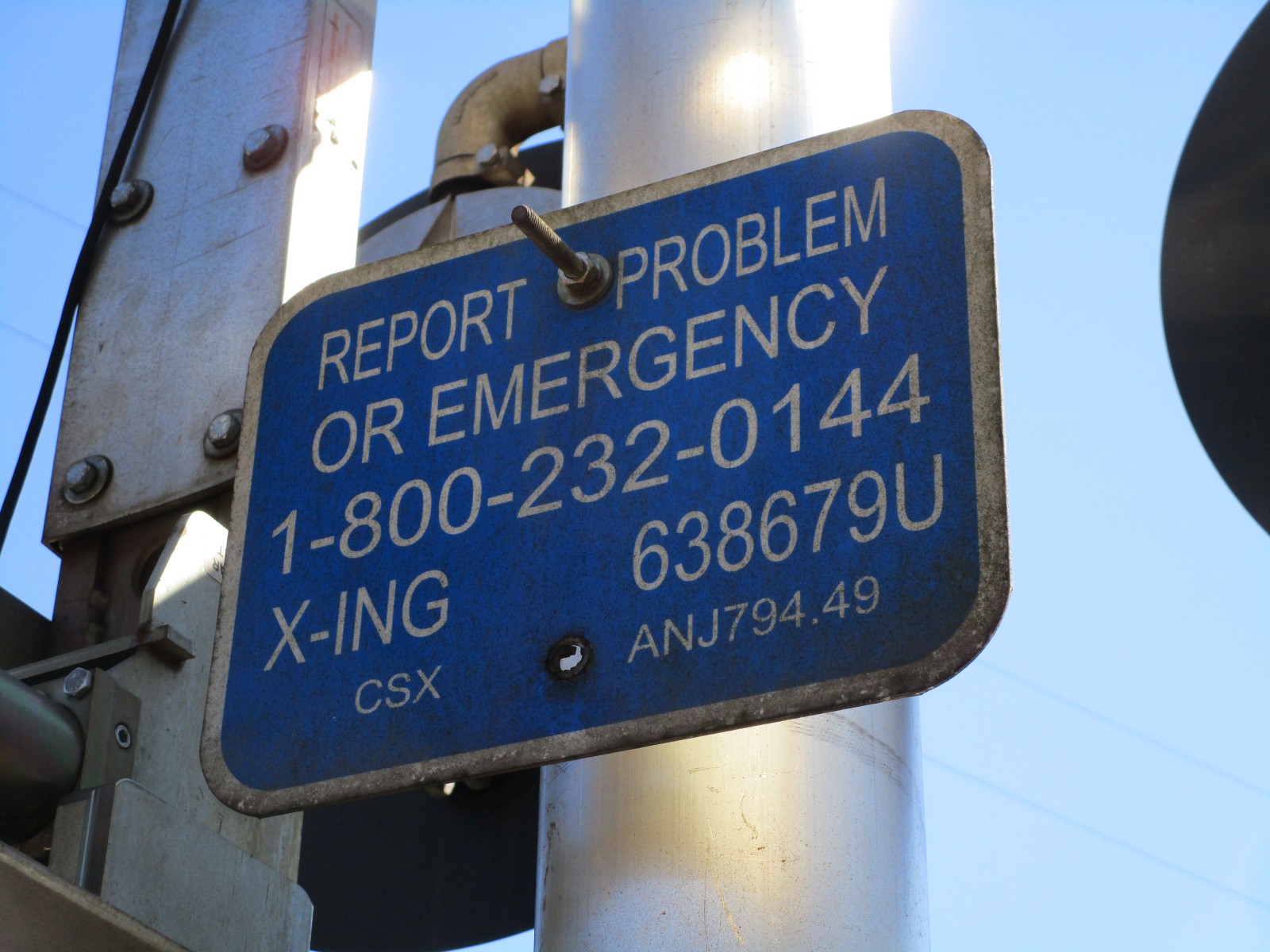

The emergency information.

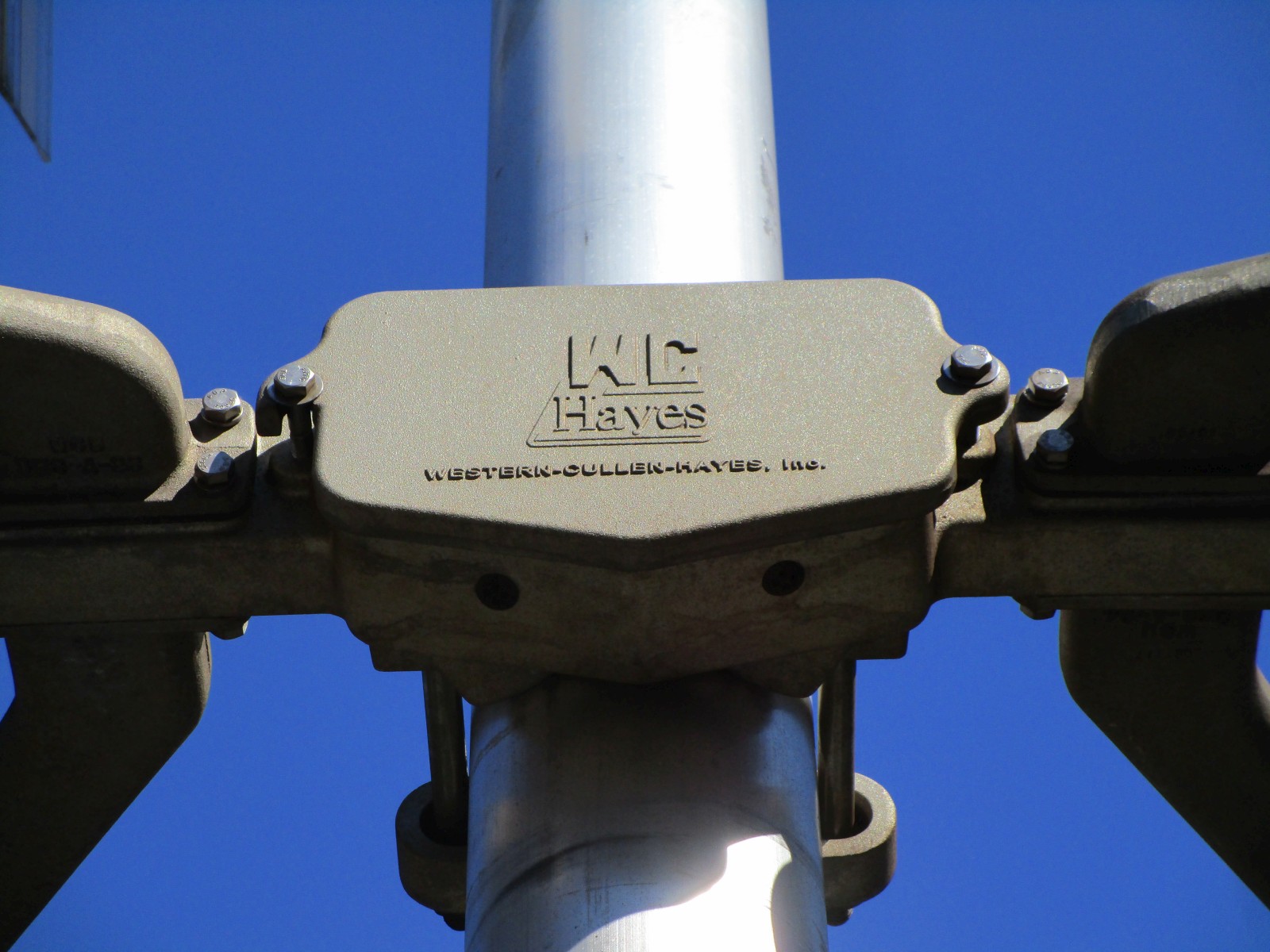

A third WCH bracket.

25

26

27

28

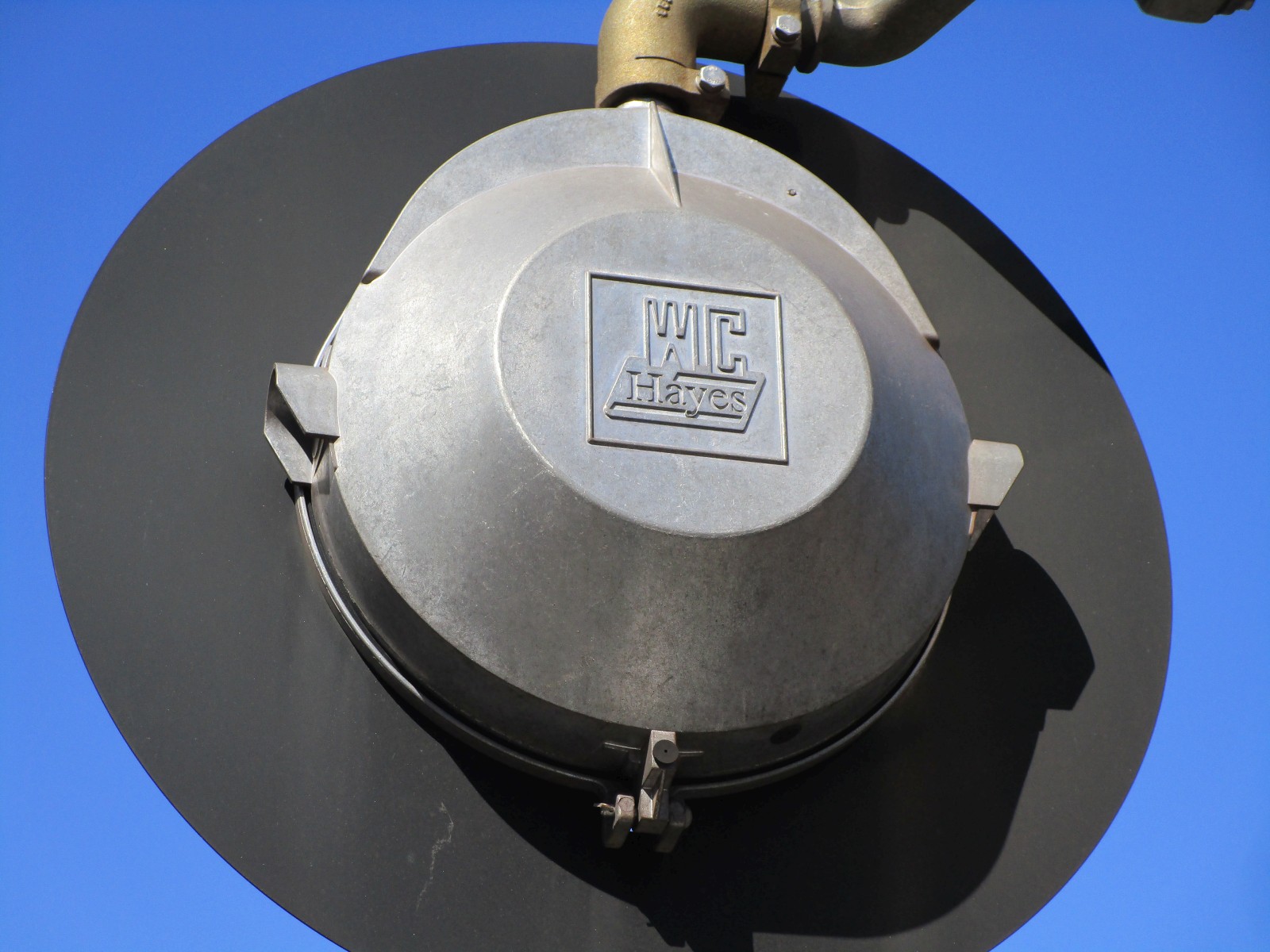

The lights on this signal are more WCH 12x24 inch lights with Leotek EV Series LEDs.

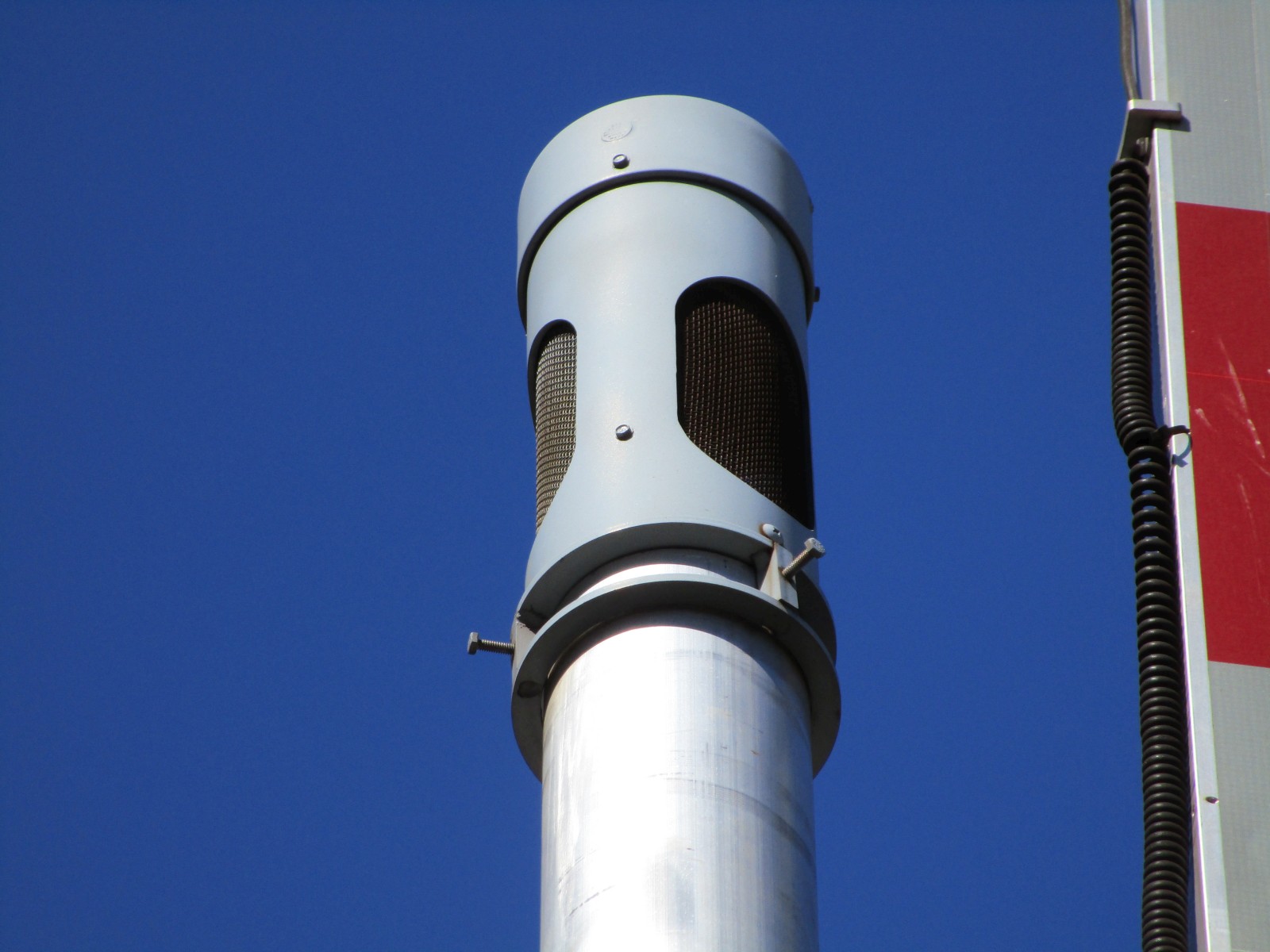

It has another NEG electronic bell.

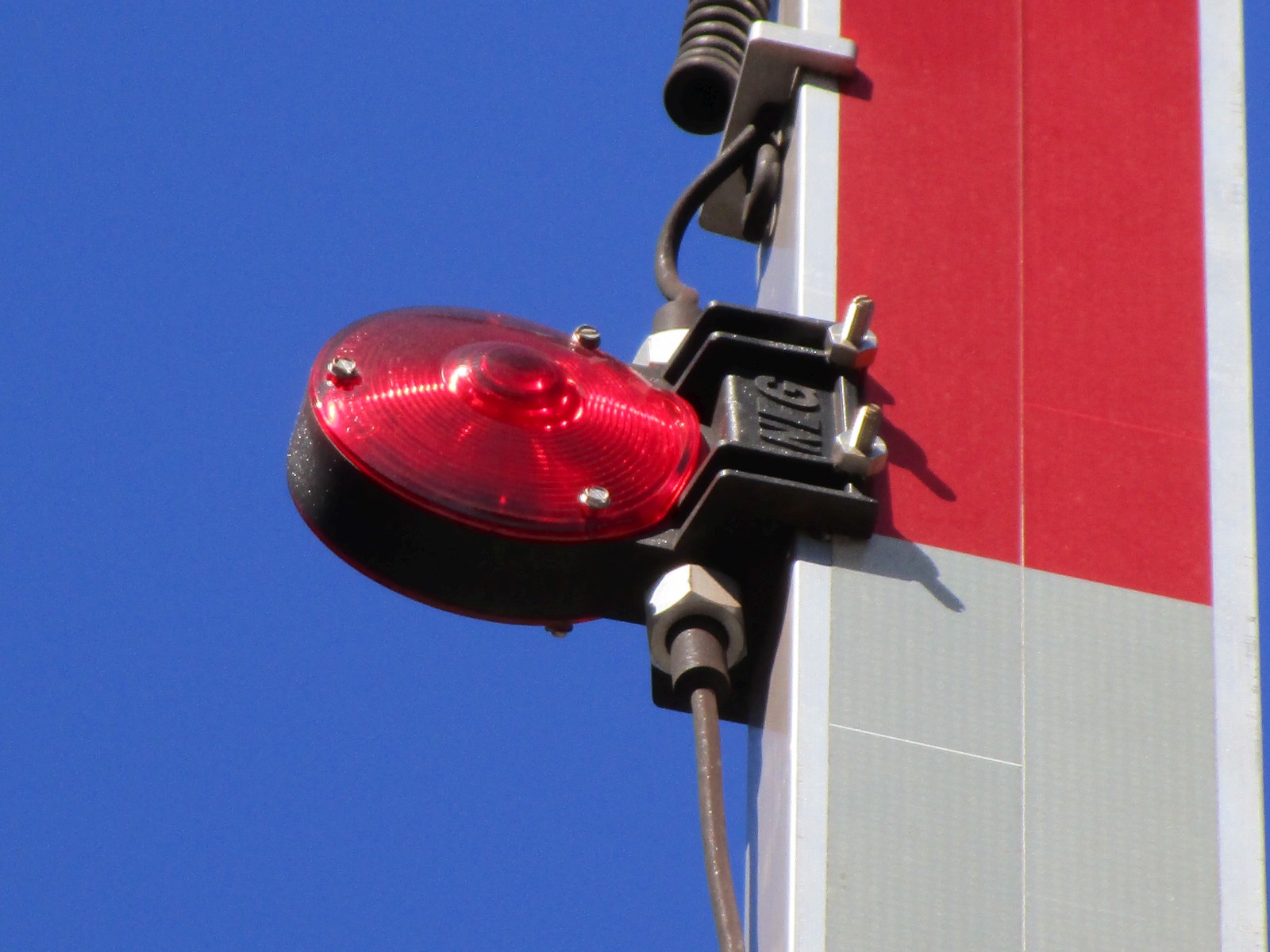

More NEG LED gate lights over here.

29

30

31

32

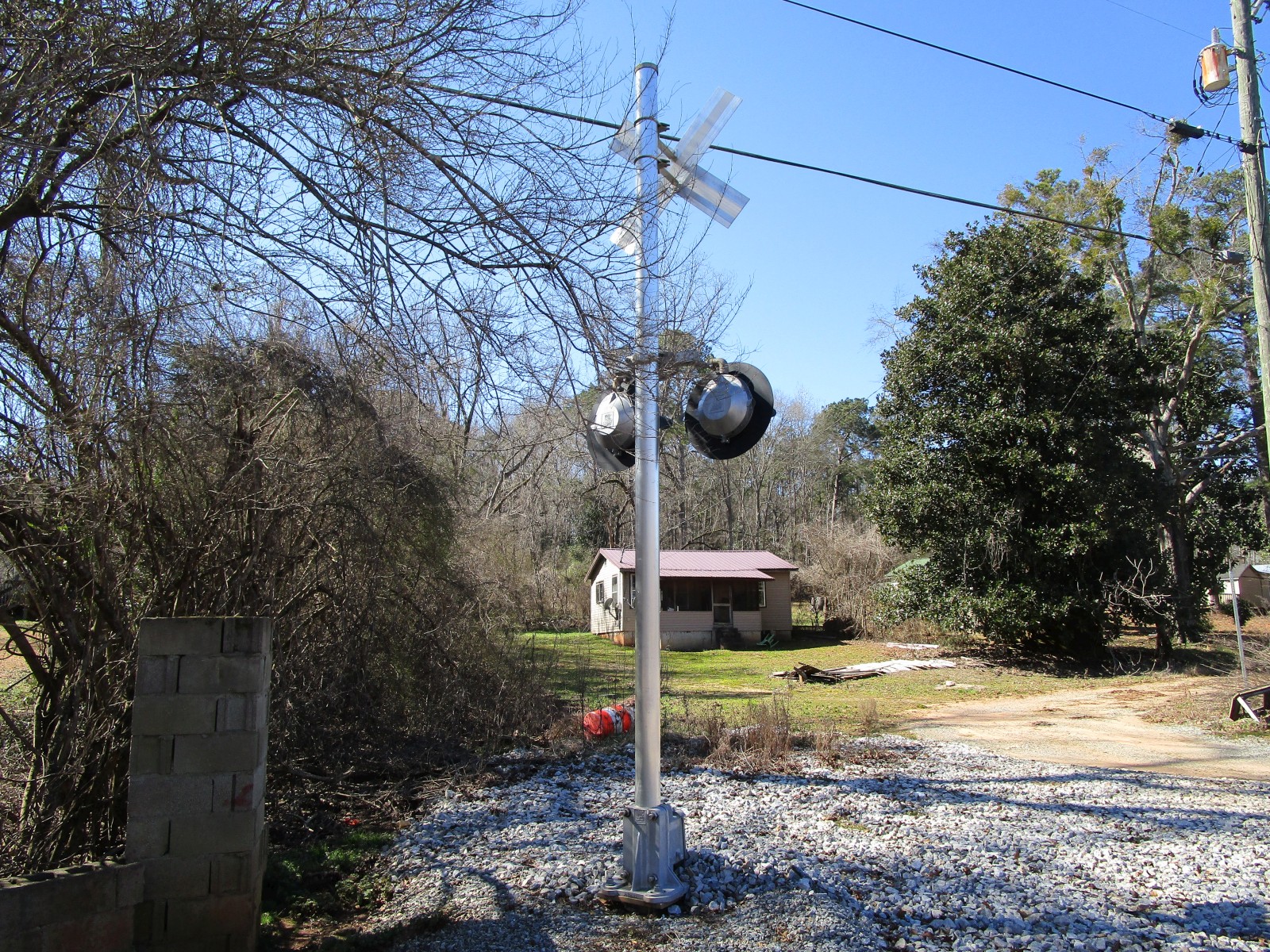

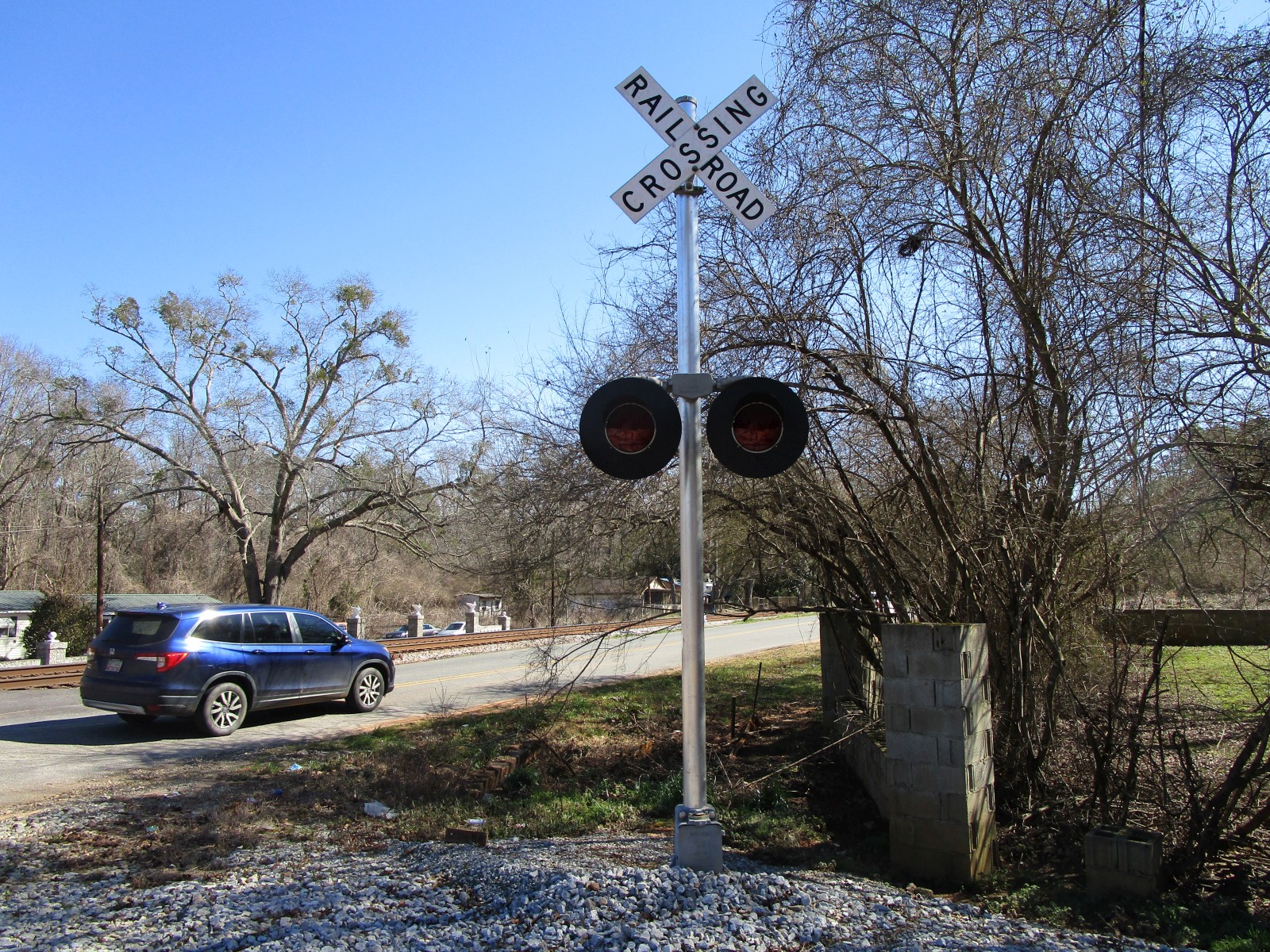

The fourth signal.

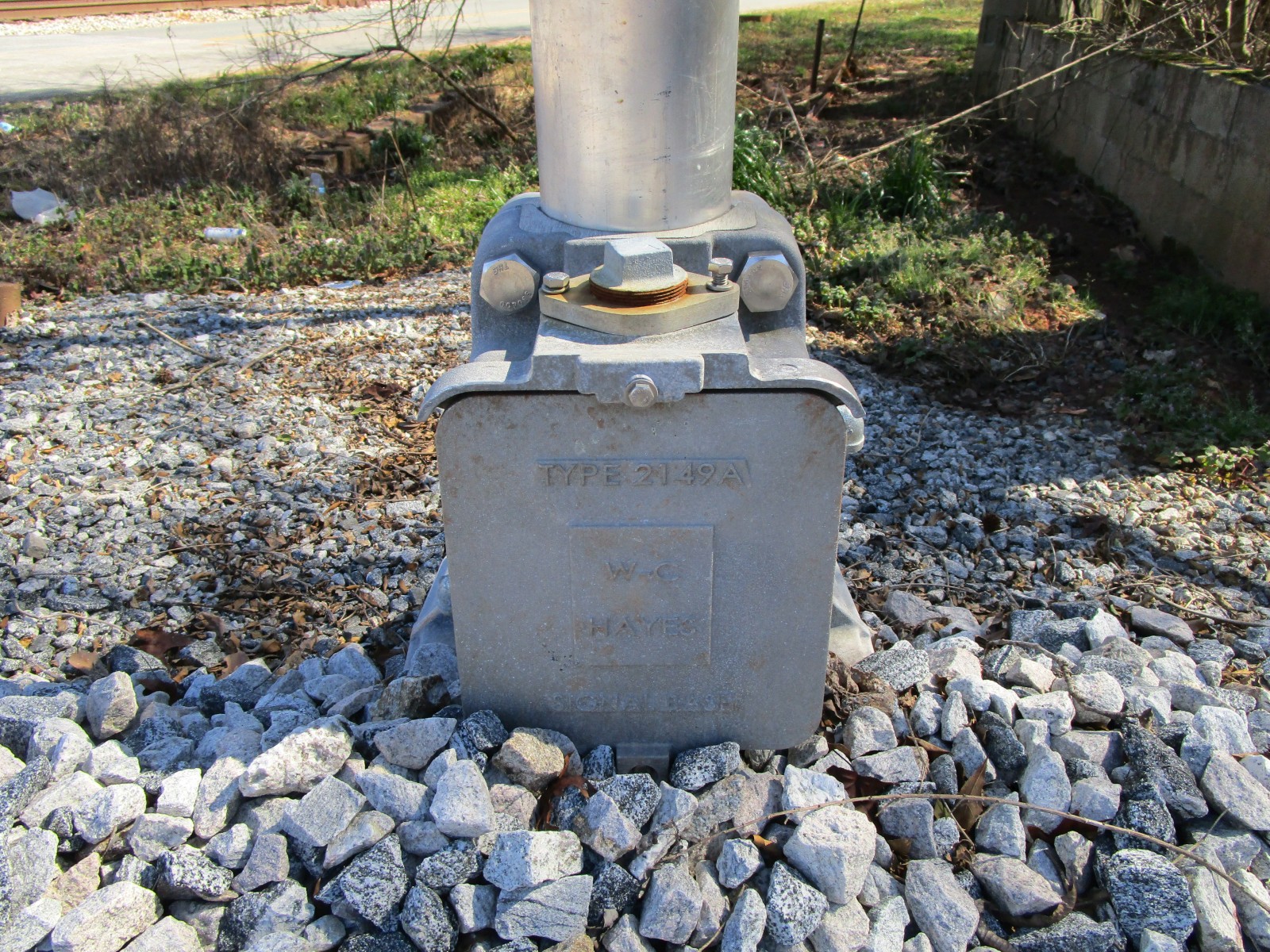

It has a fourth WCH base.

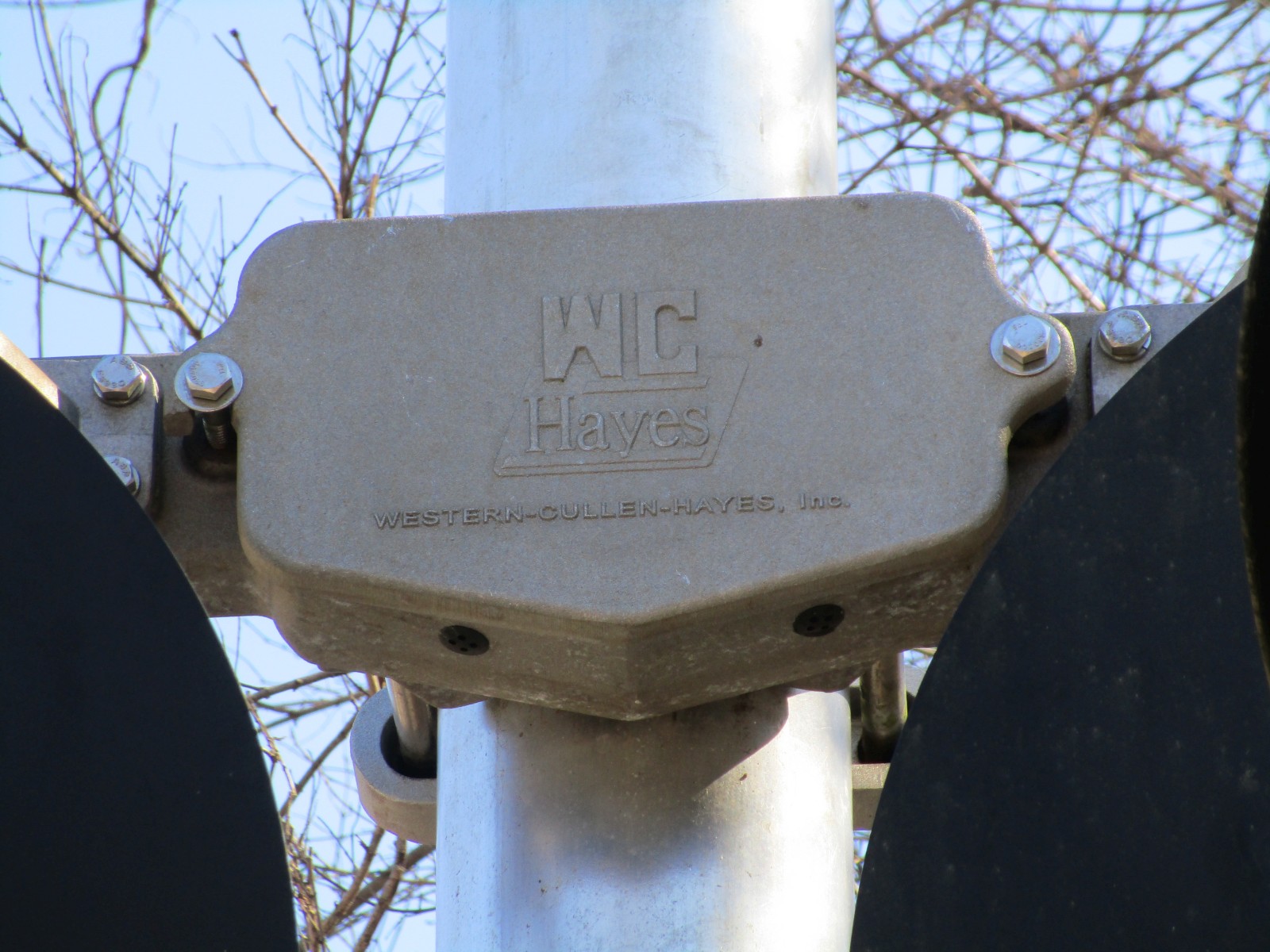

A fourth WCH bracket.

33

34

35

36

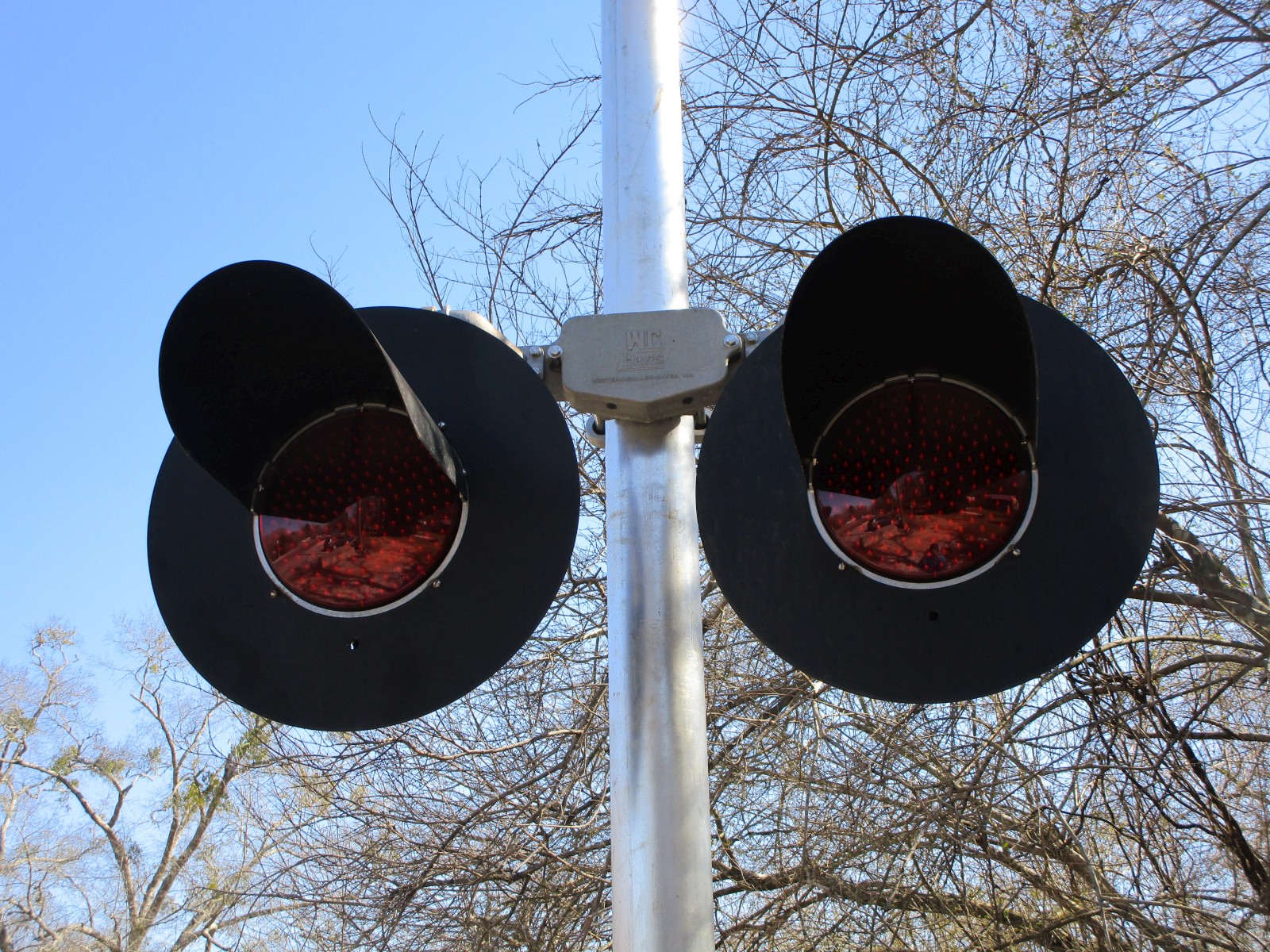

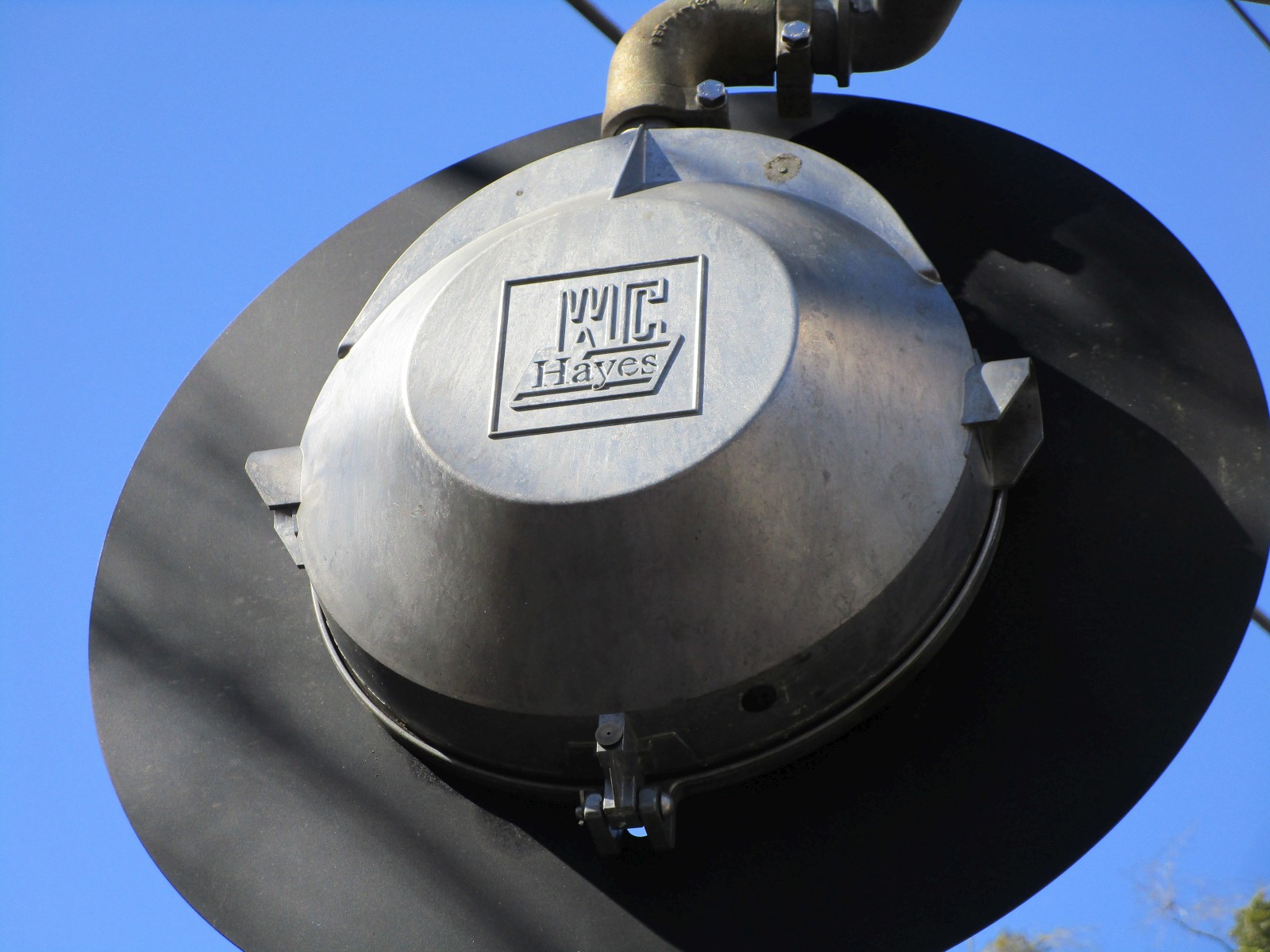

The lights on this signal are yet another pair of WCH 12x24 inch lights with Leotek EV Series LEDs.

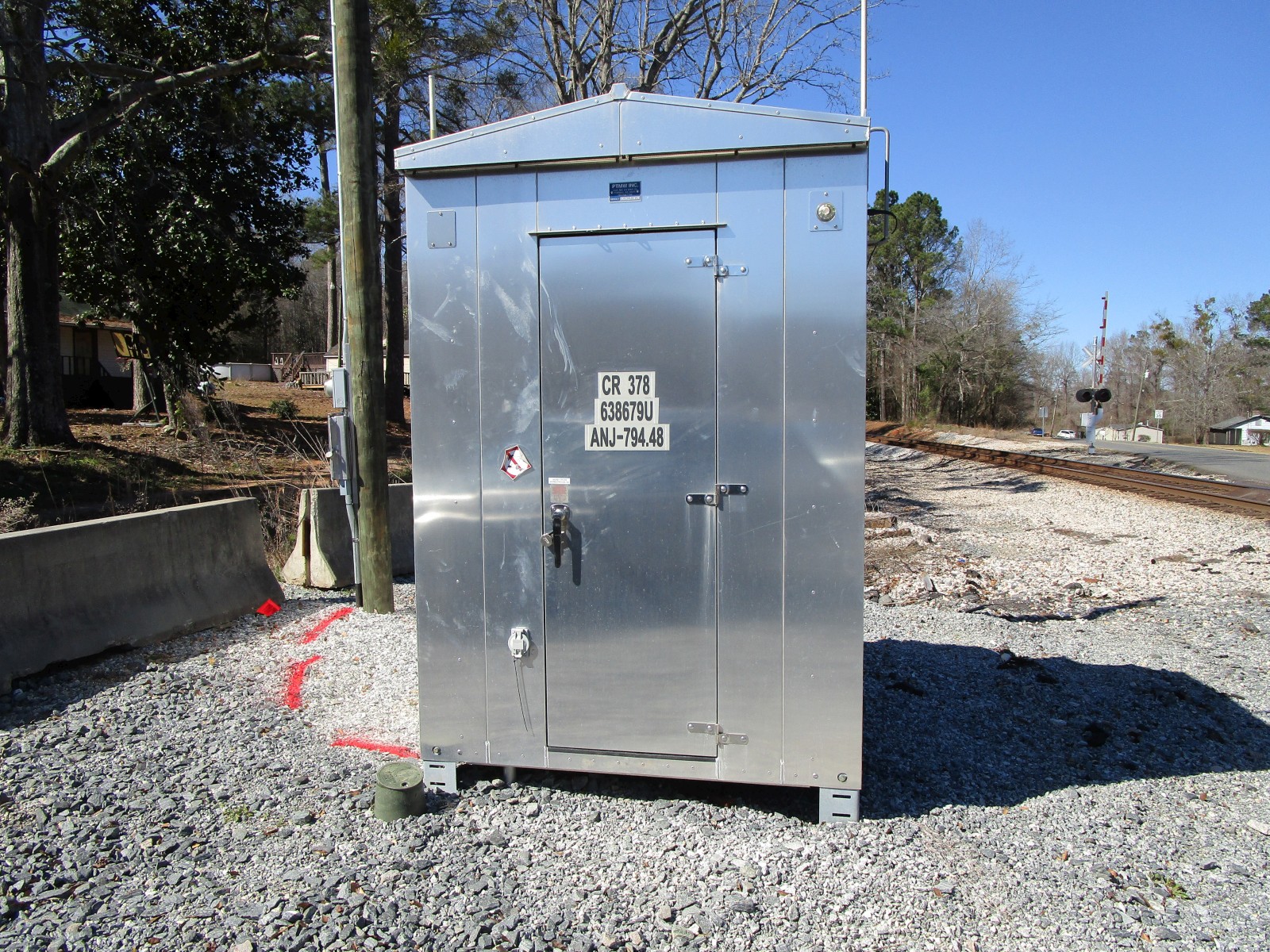

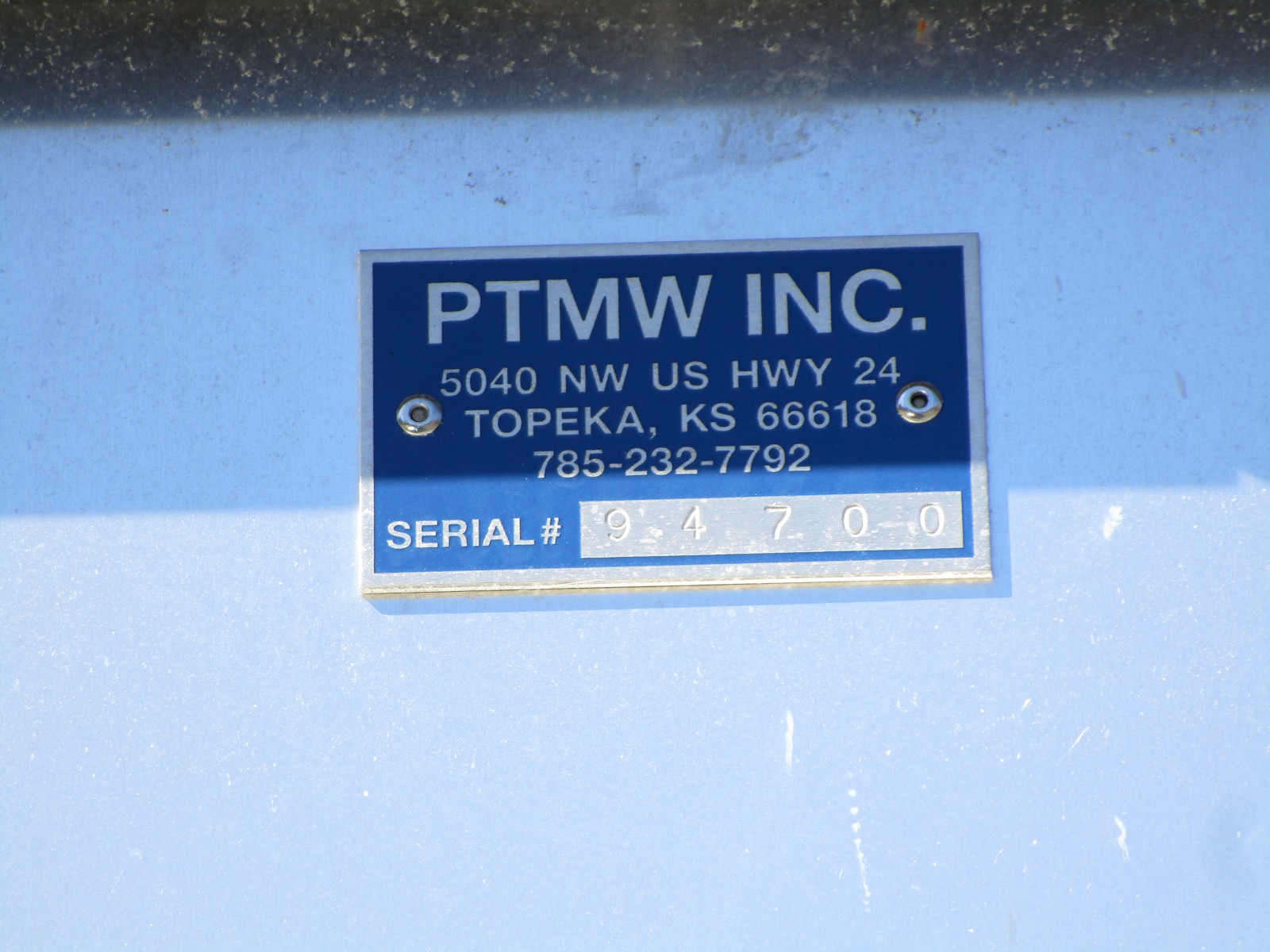

The relay case, which is from PTMW Inc.

37

38

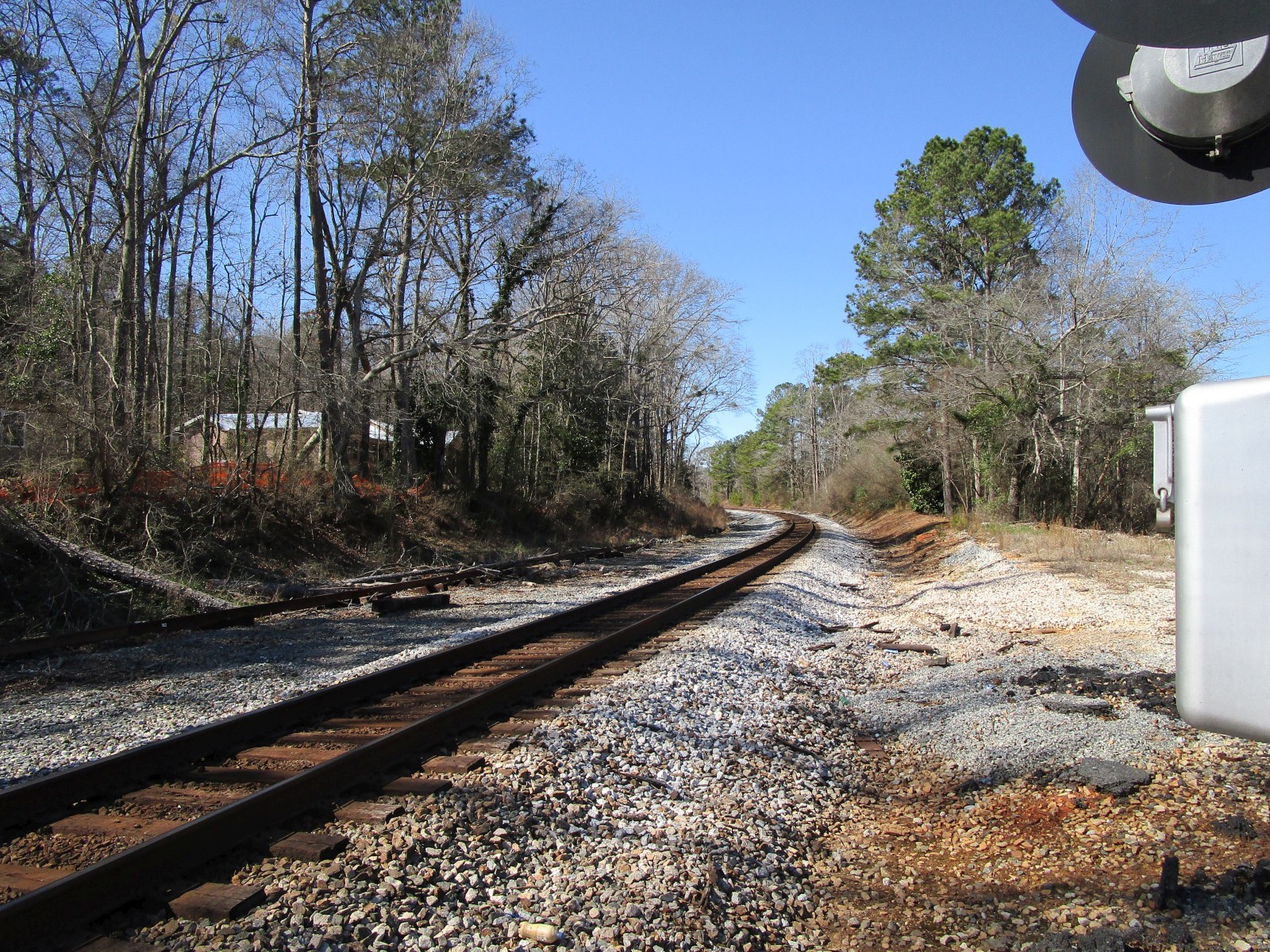

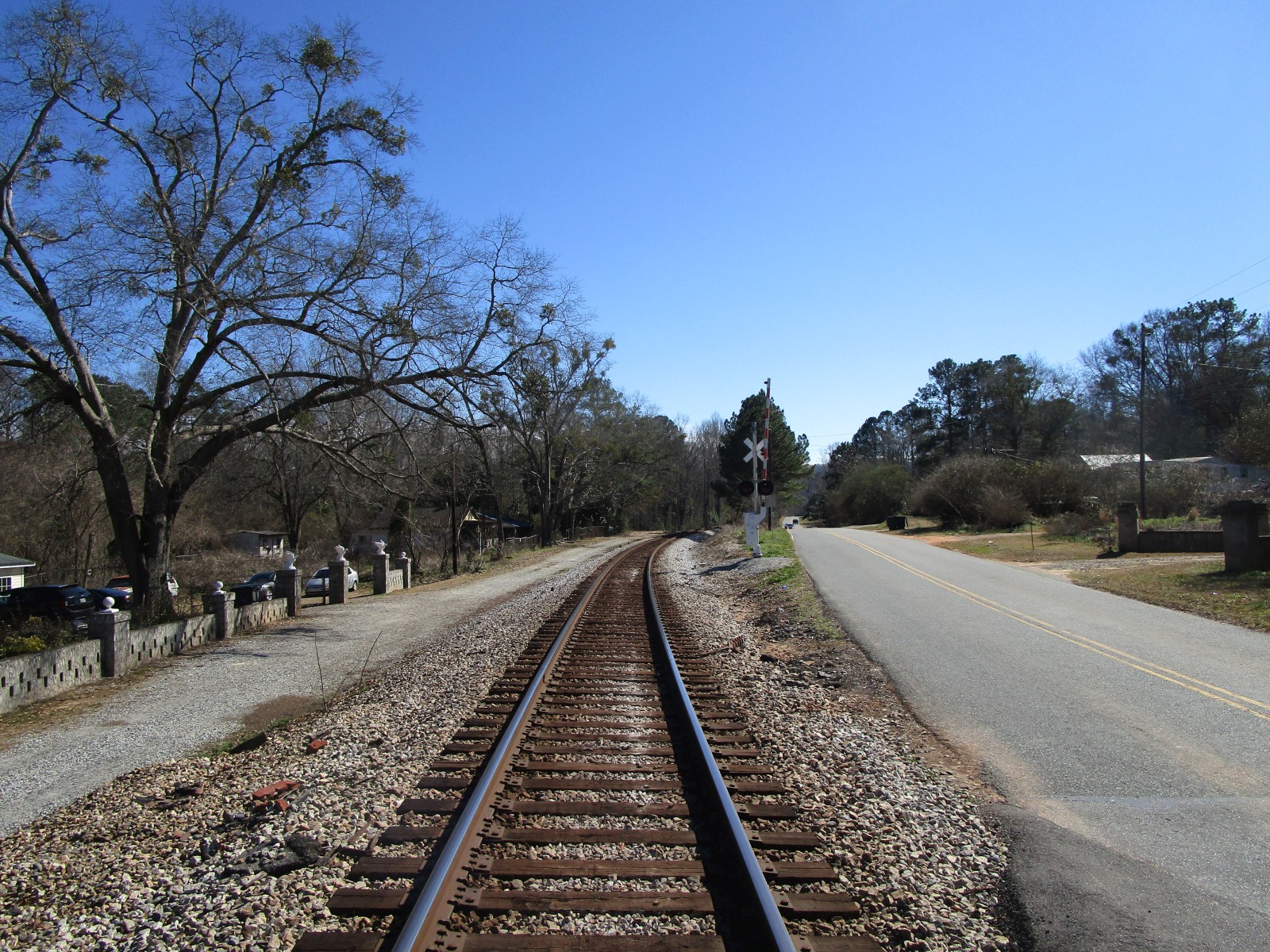

Looking southeast towards Broad Street.
Looking northwest towards Durand Highway.



All pictures were taken on 2-13-22.
