79.07


288984L

>>>>>>>>>>>>>> Western Signal Eastern Signal

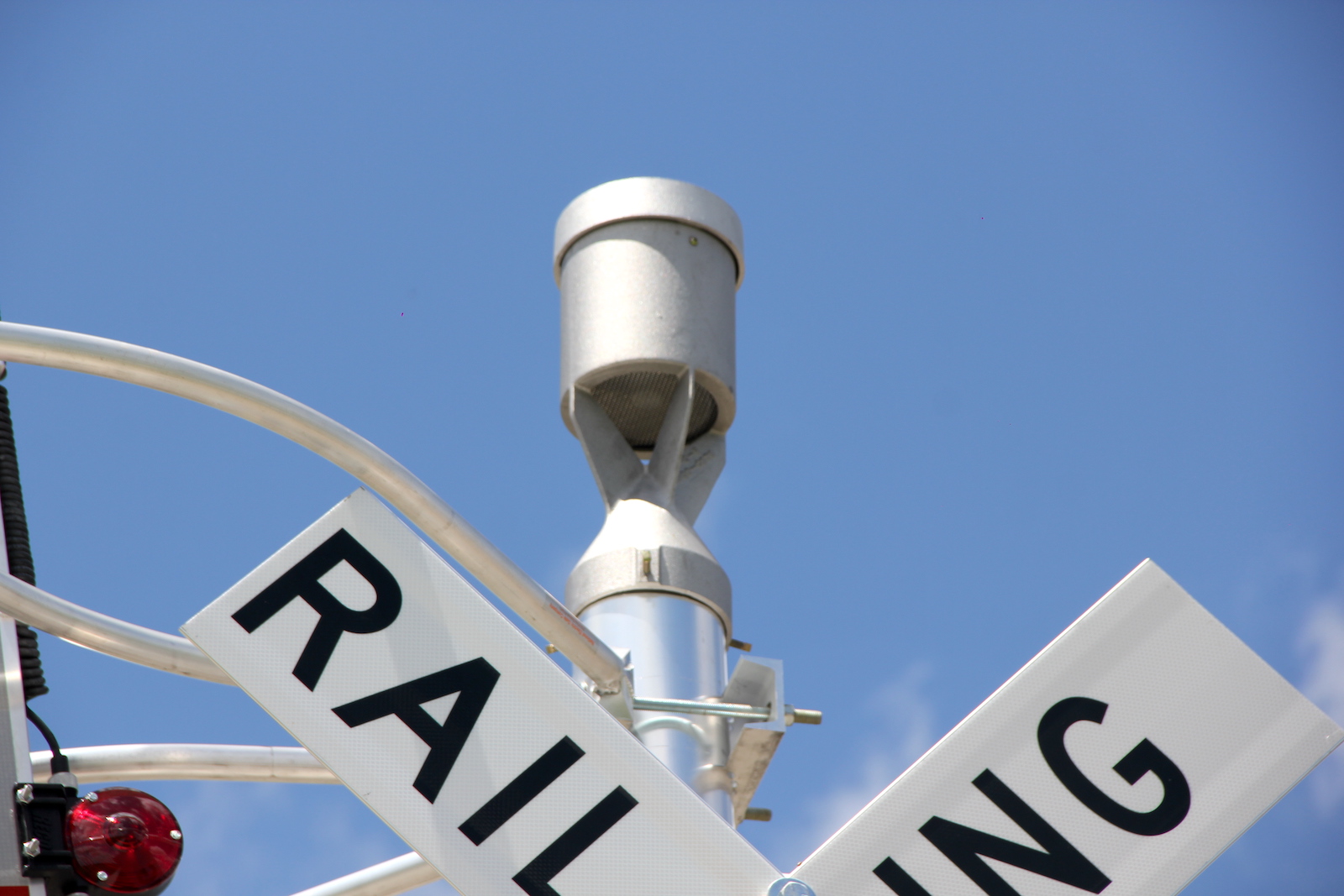

Bell: None Slow WCH Type 2 E-Bell
Base: WCH 5" Single Sided > WCH 5" Single Sided >

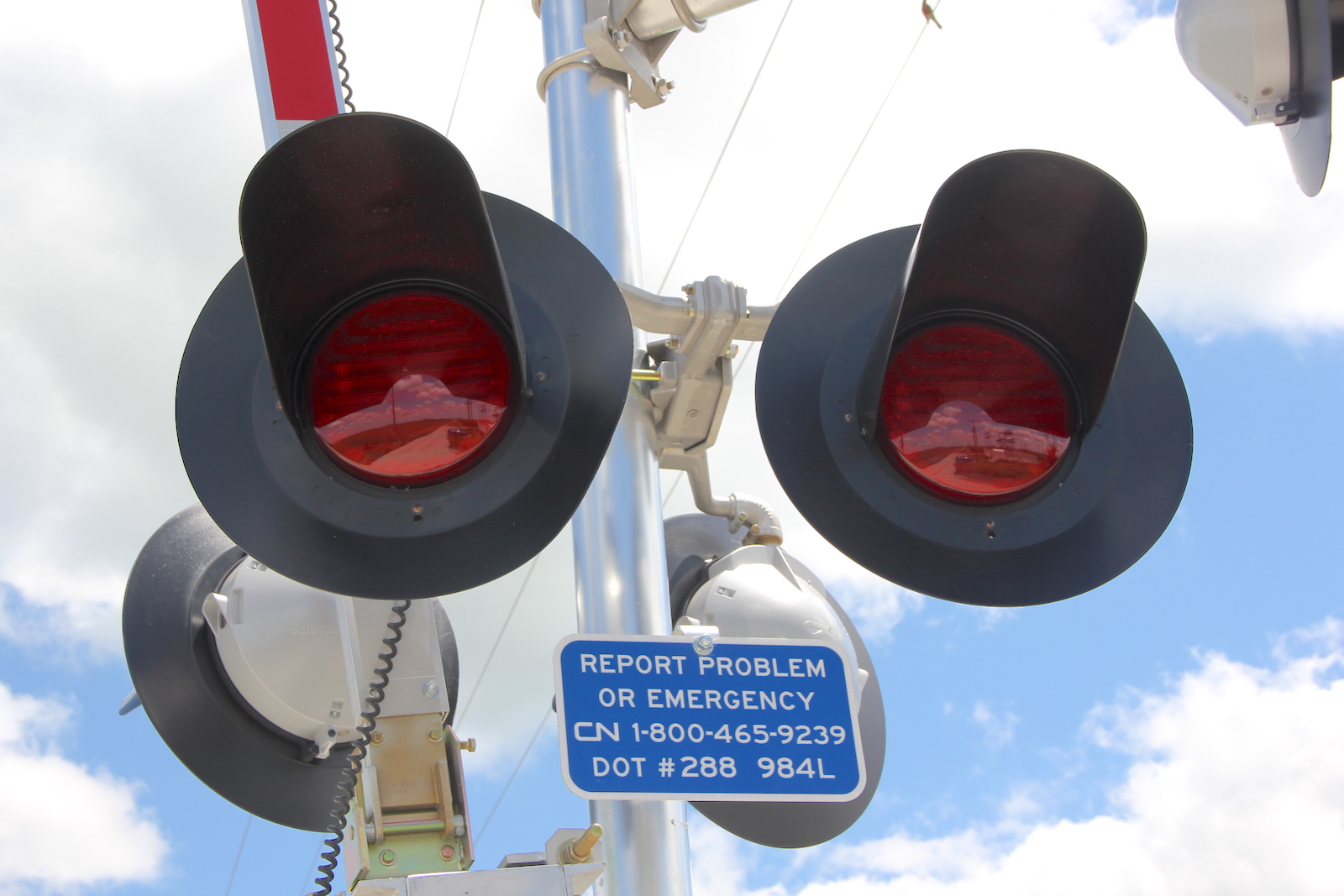

Lights: 6 - 12"x24" Safetran w/ GE Uniform Look LEDs 4 - 12"x24" Safetran w/ GE Uniform Look LEDs
Junction Boxes: Safetran Safetran
Gate Lights: 4" RECO LEDs 4" RECO LEDs
Gate Mechanism: WCH Style 4 w/ WCH Gate Saver WCH Style 4 w/ WCH Gate Saver
Gate Striping: Vertical Striping Vertical Striping

Pictures 1-11 were taken on December 10, 2017.
Pictures 12-38 were taken on July 23, 2020.
The video was taken on February 24, 2021.
All pictures and video were taken by Tommy McGowan.
This crossing is located on the CN Chicago Sub.

1 2

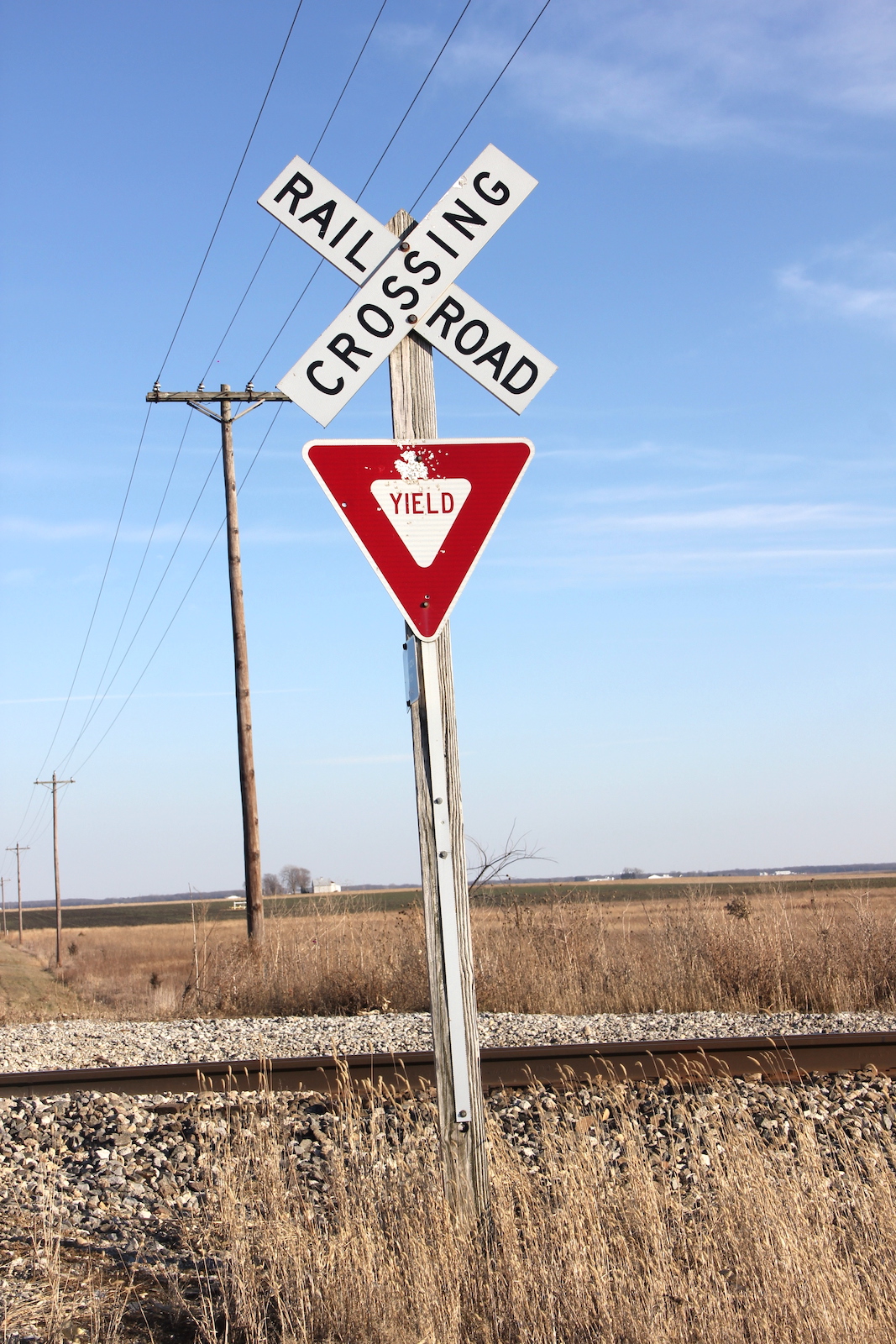

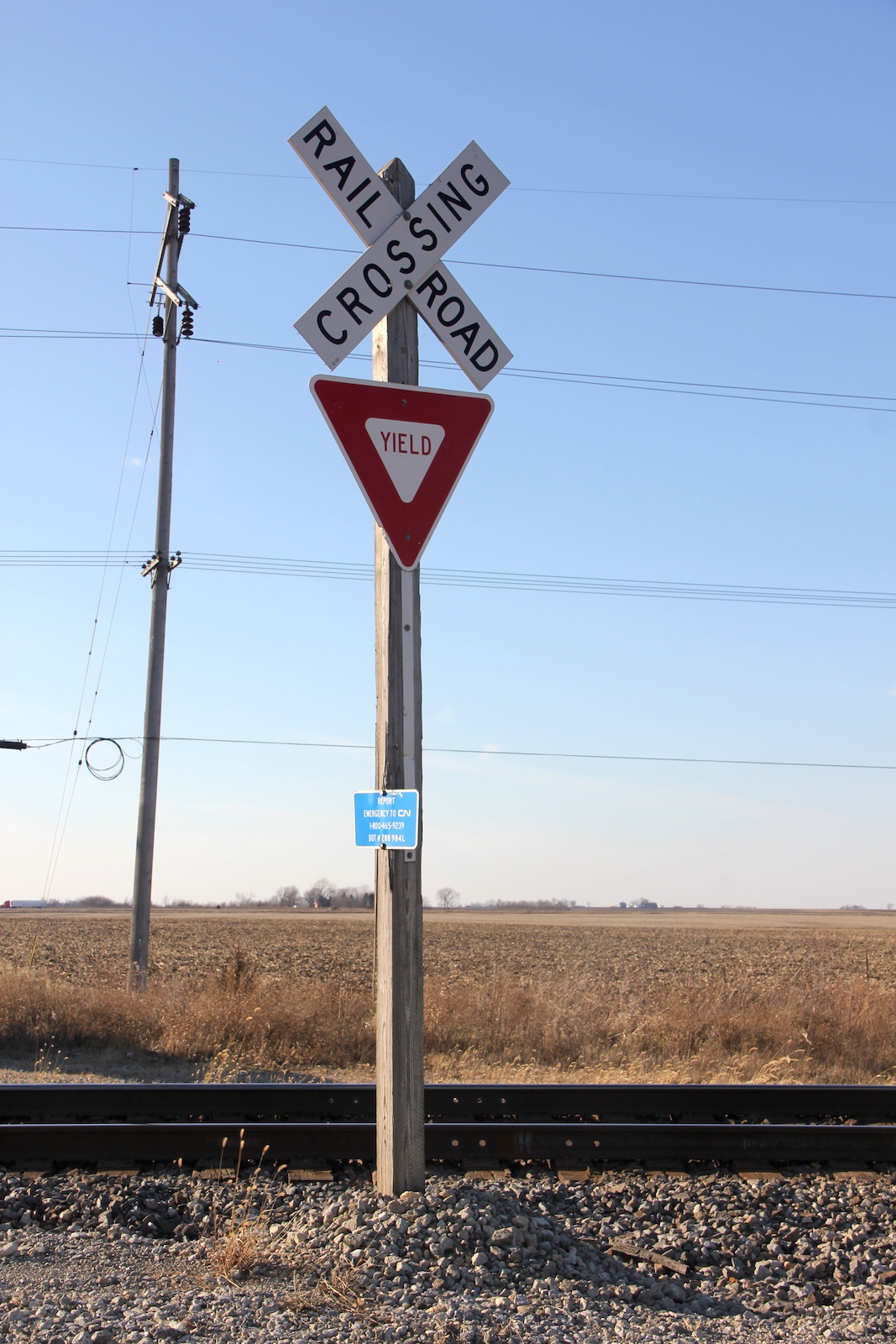

Overview of 2 crossbucks with yield signs facing east.
 Overview facing west.
3 4 5
The western signal.
6 7 8
The eastern signal.
9 10 11
The grade is all wood.

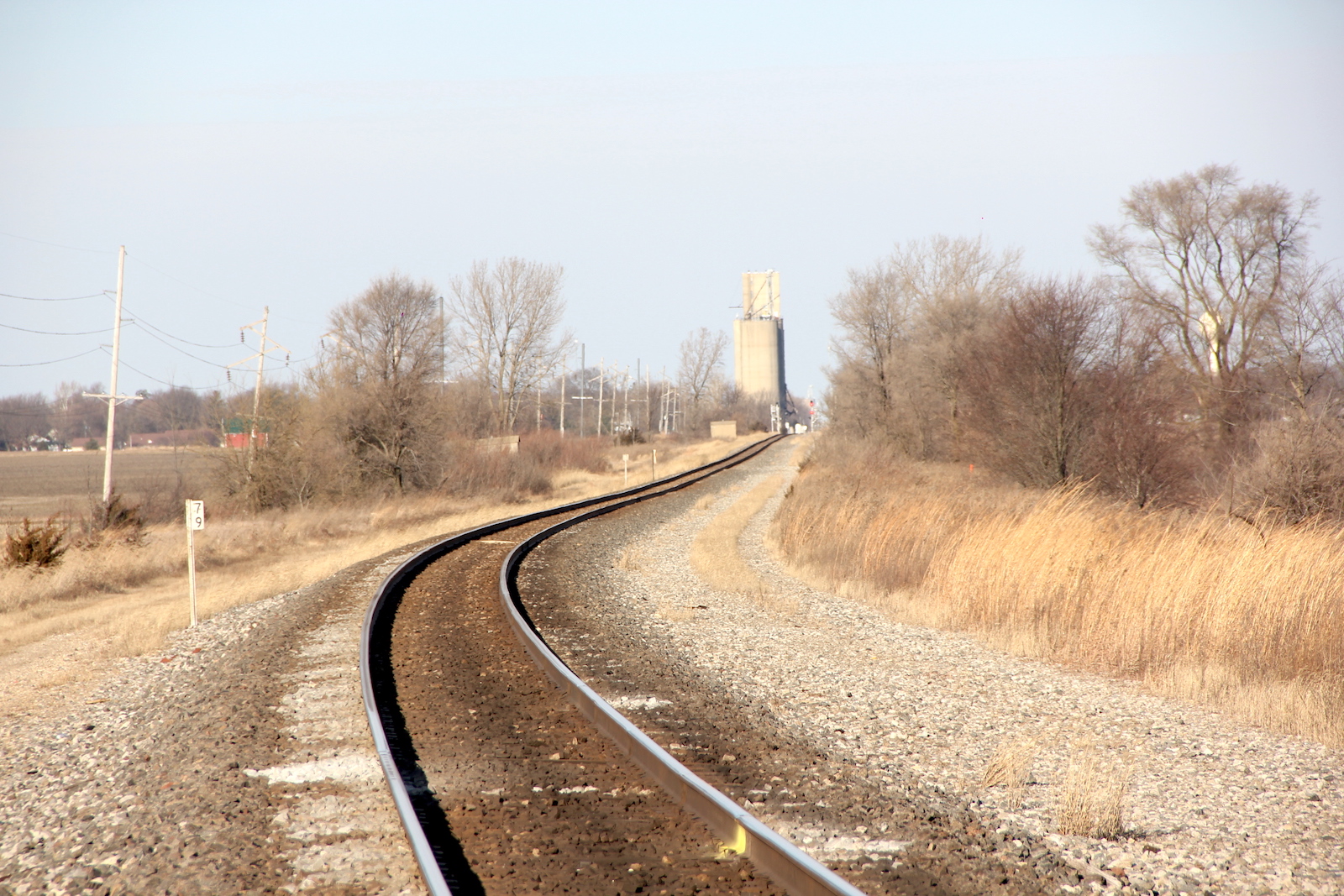

 Track view facing north towards E. 2100 N. Rd.
 Track view facing south towards 6th St. in Gilman.

In 2020, new WCH signals were installed here.

12 13
Overview of the new signals facing east. Overview facing west.
14 15 16
17 18 19 20
21 22 23 24

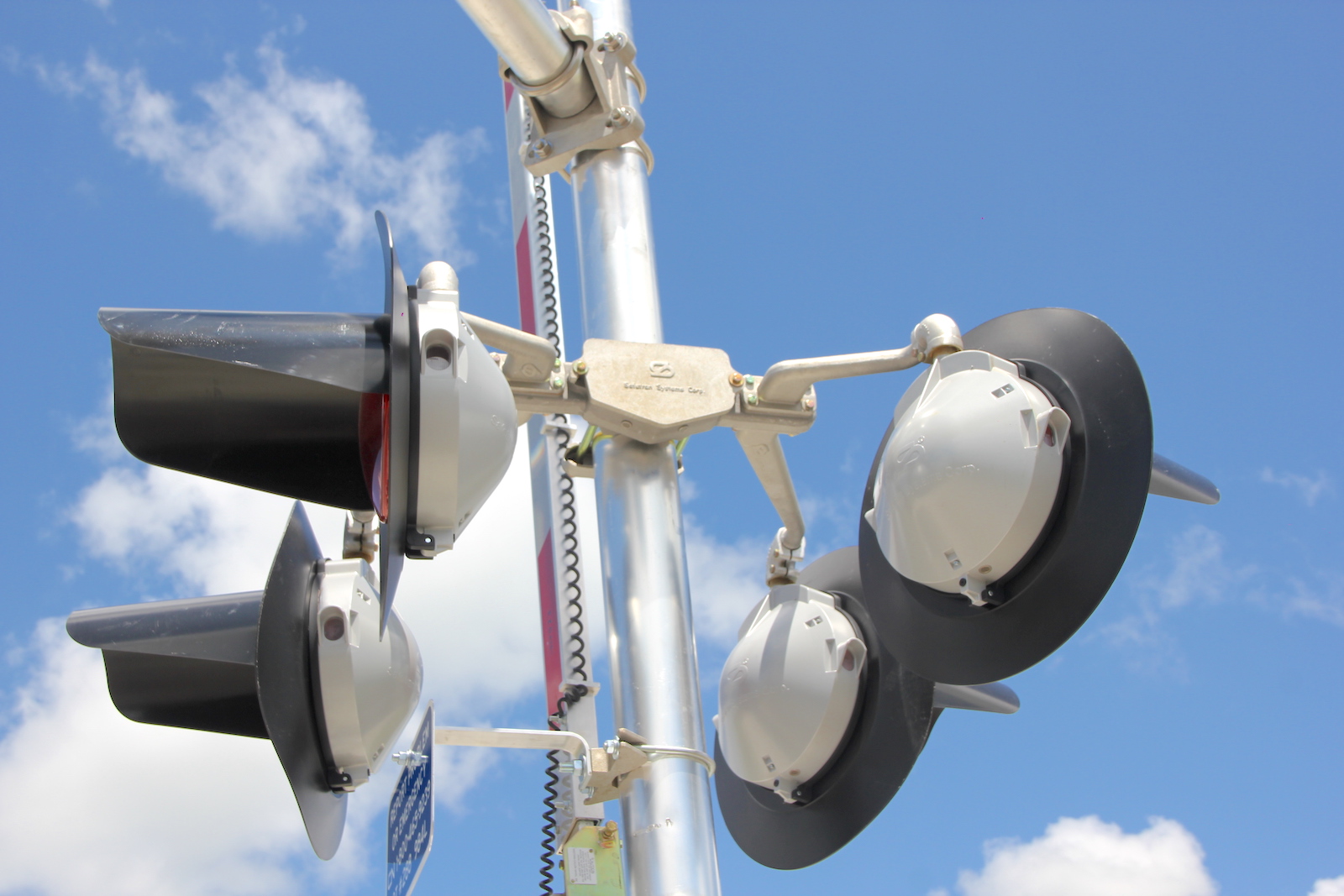

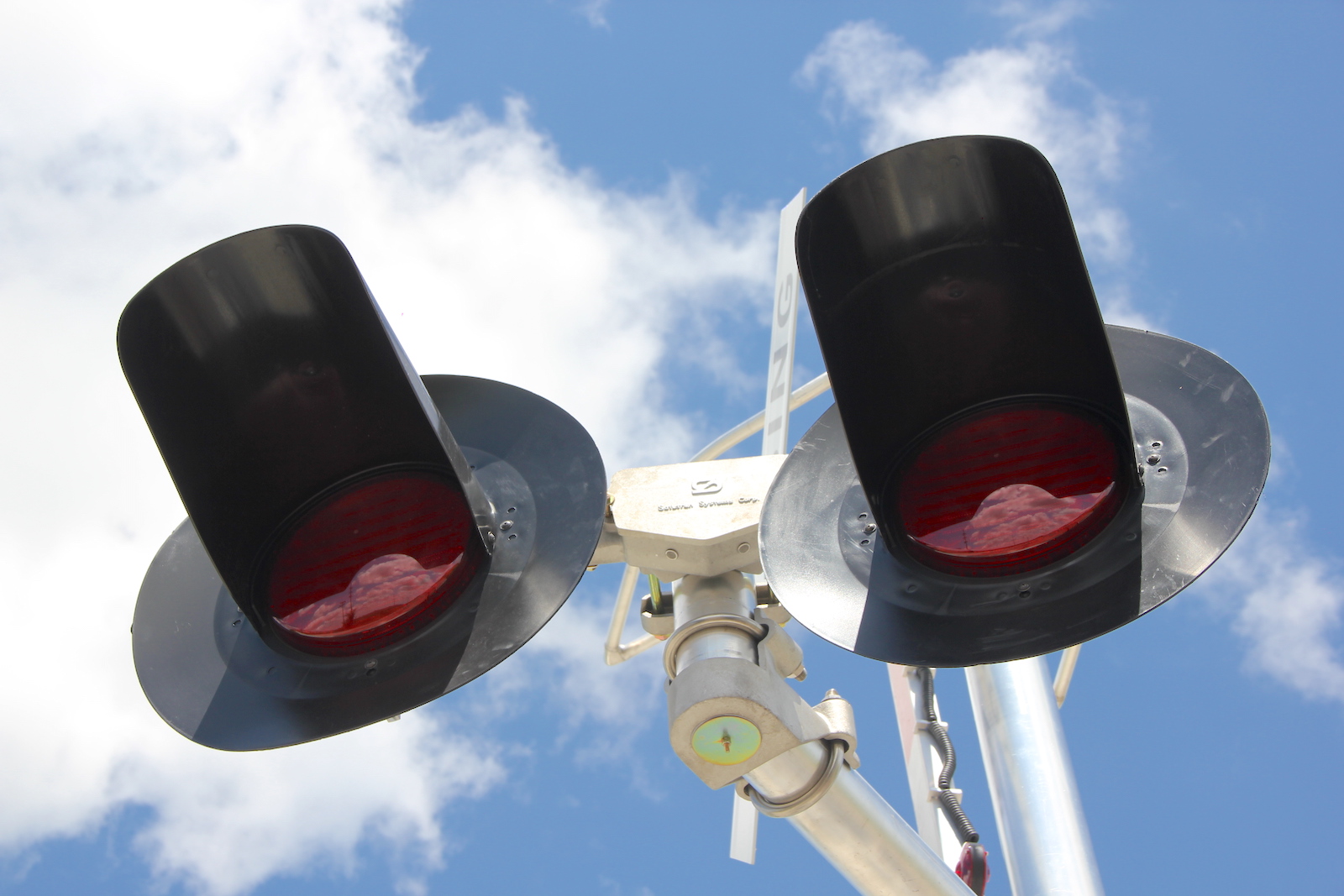

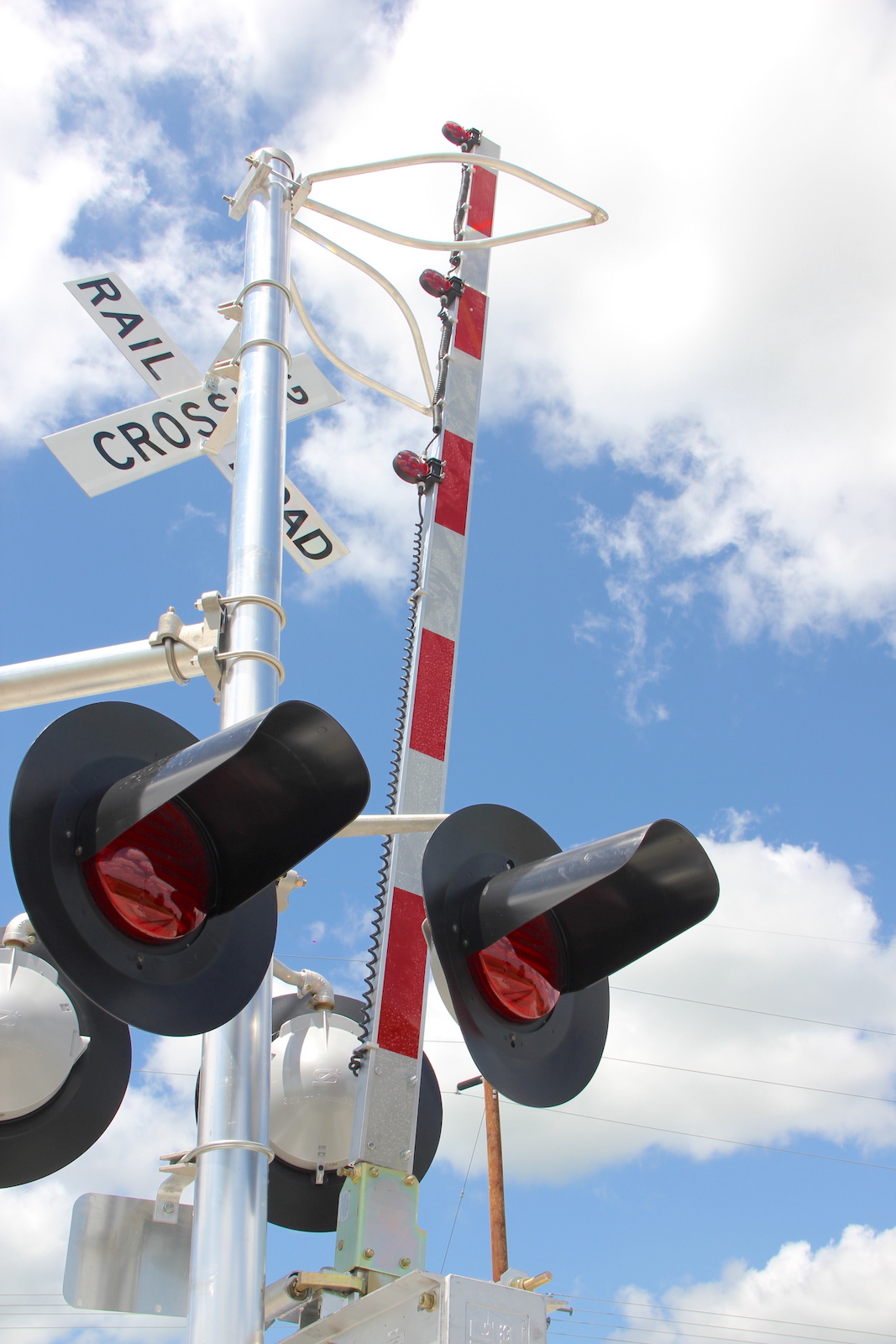

The new western signal.
25 26 27
28 29 30
31 32 33 34

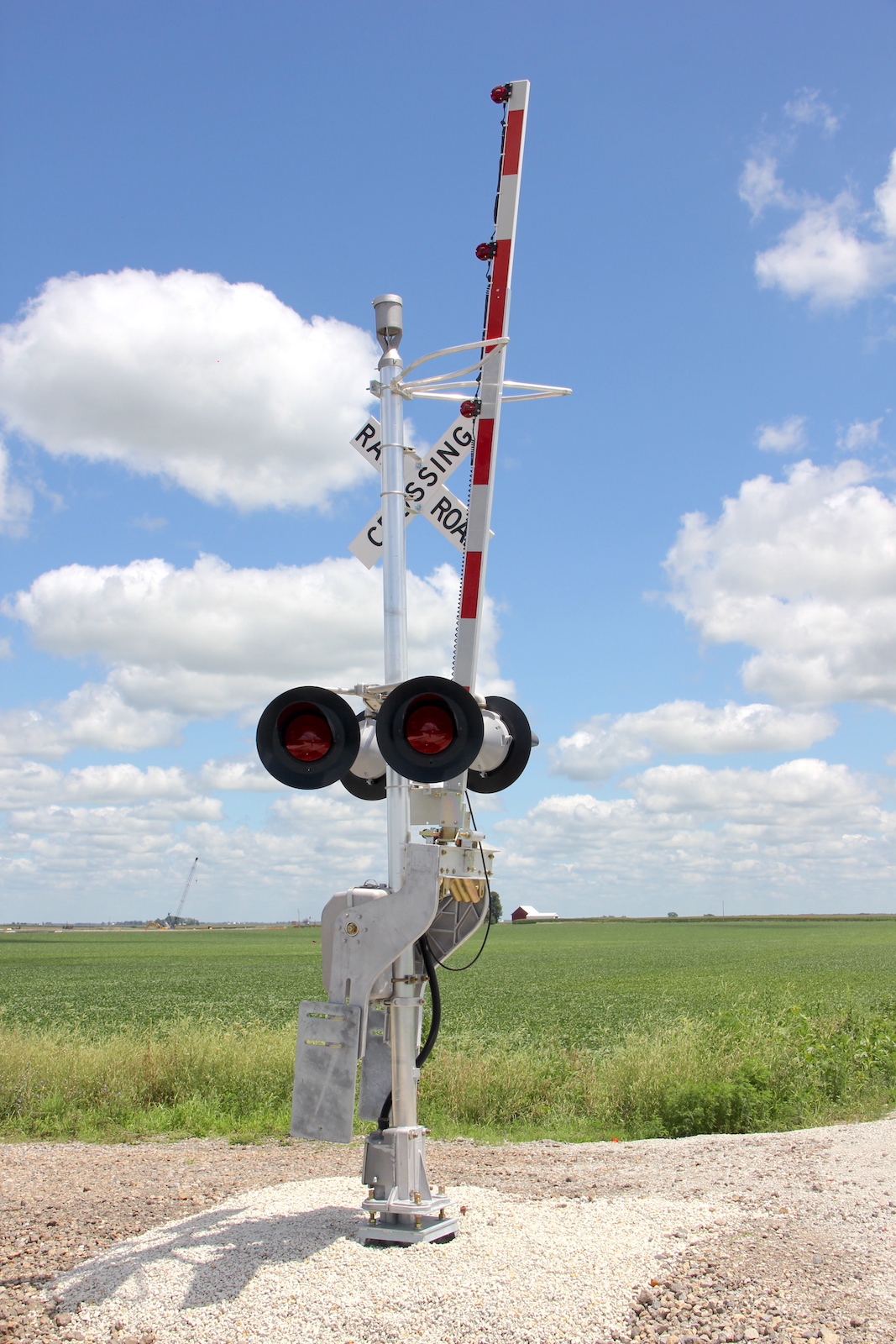

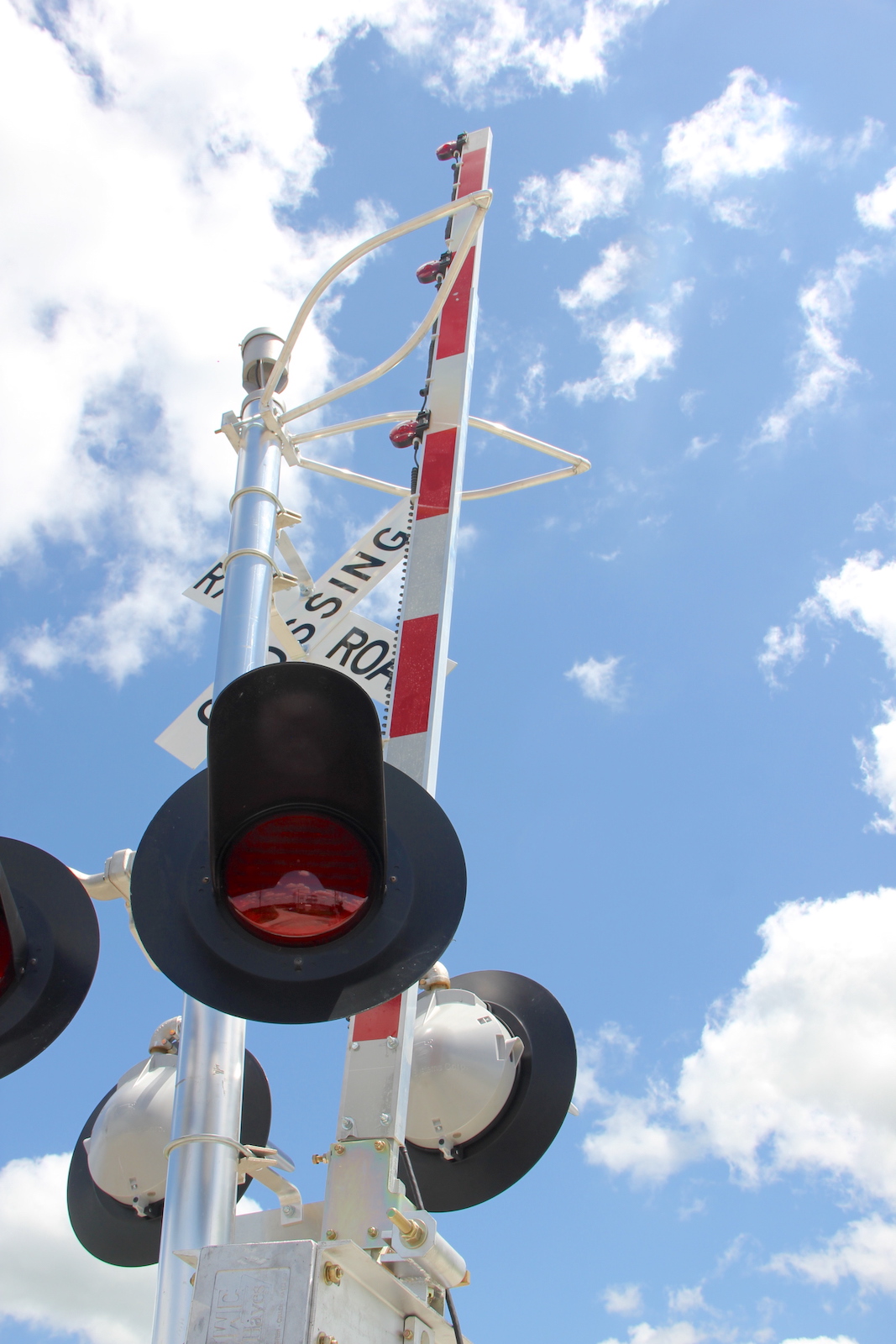

The new eastern signal.
35 36 37 38
The relay bungalow in the northwest quadrant. The grade is all wood.
 Track view facing north towards E. 2100 N. Rd.

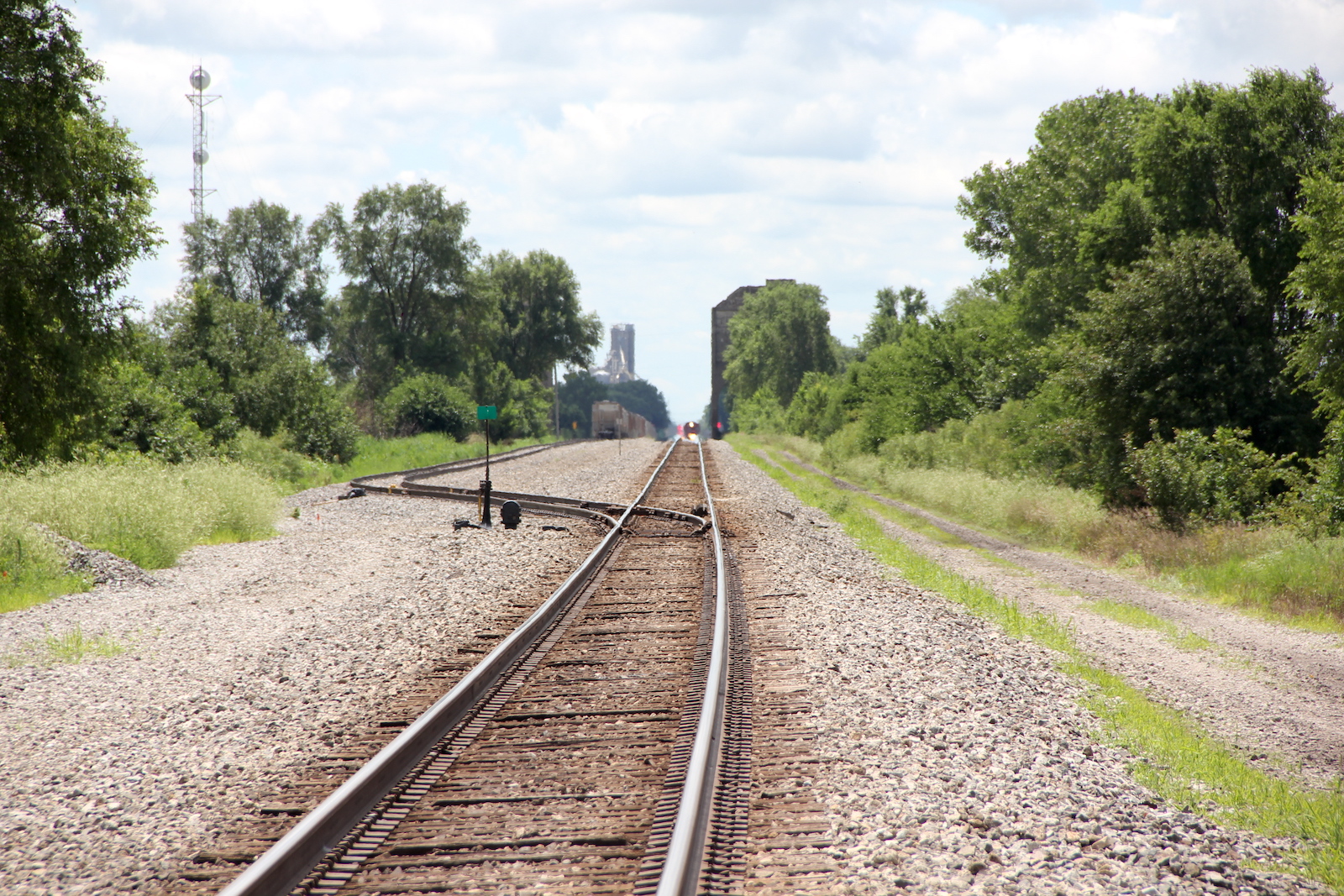

 Track view facing south towards 6th St. in Gilman.
