78.00


288983E

>>>>>>>>>>>>>> Western Signal Eastern Signal
Bell: GS Type 2 E-Bell None
Base: Safetran 5" Single Sided > Safetran 5" Single Sided >
Lights: 5 - 12"x24" Safetran w/ Dialight Ball LEDs
1 - 12"x24" Safetran w/ GE Uniform Look LED		 4 - 12"x24" Safetran w/ Dialight Ball LEDs
Junction Boxes: Safetran Safetran
Gate Lights: 4" RECO LEDs 4" RECO LEDs
Gate Mechanism: Safetran 2000s w/ GSI Gate Saver Safetran 2000s w/ GSI Gate Saver
Gate Striping: Vertical Striping Vertical Striping

All pictures were taken on December 10, 2017, by Tommy McGowan.
The video was taken on March 30, 2020, by Tommy McGowan.
This crossing is located on the CN Chicago Sub.

1
 2

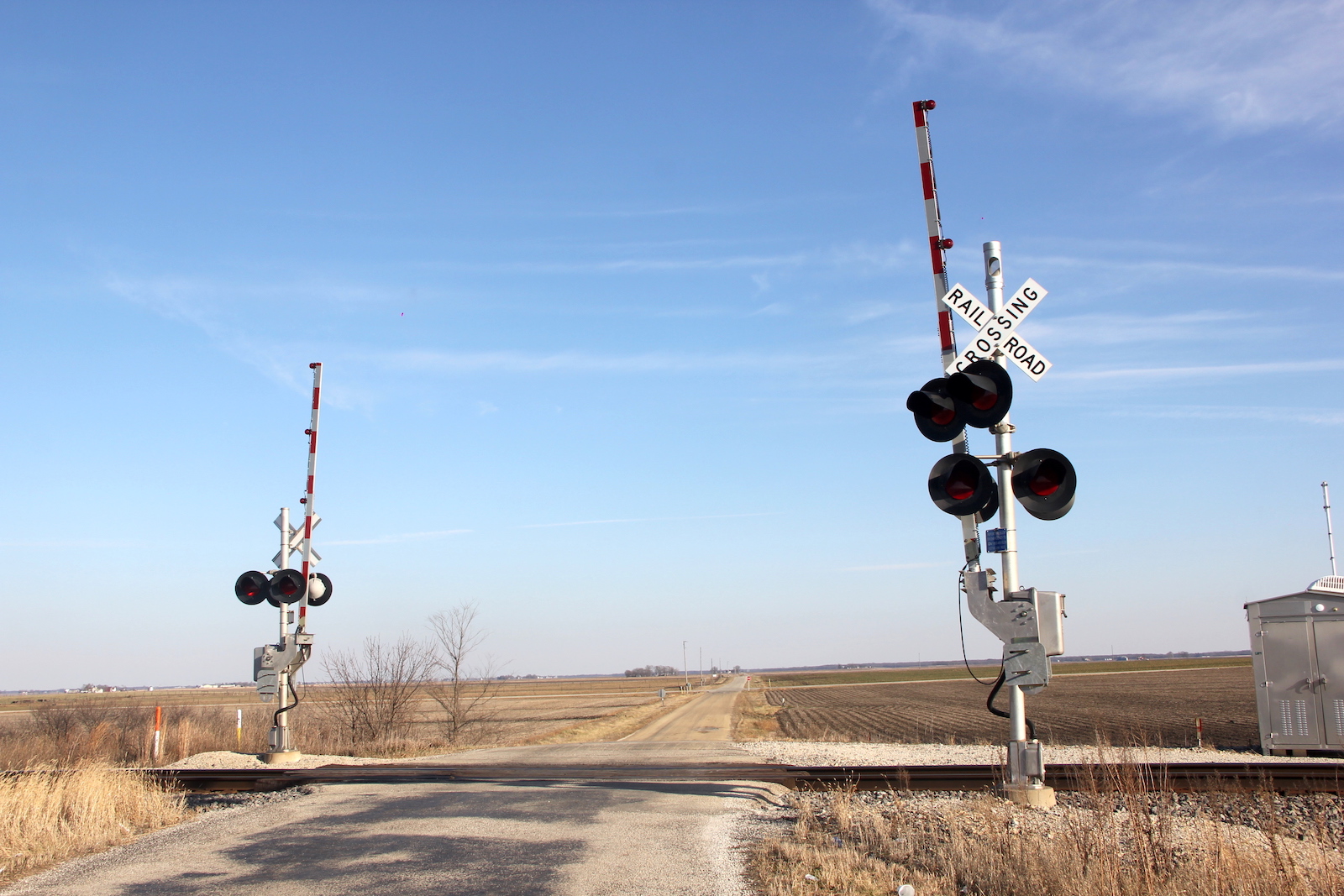

Overview of 2 gated signals facing west.
 Overview facing east.
3 4 5
6 7 8
9 10 11
The eastern signal.
12 13 14 15
16 17 18 19
20 21 22 23

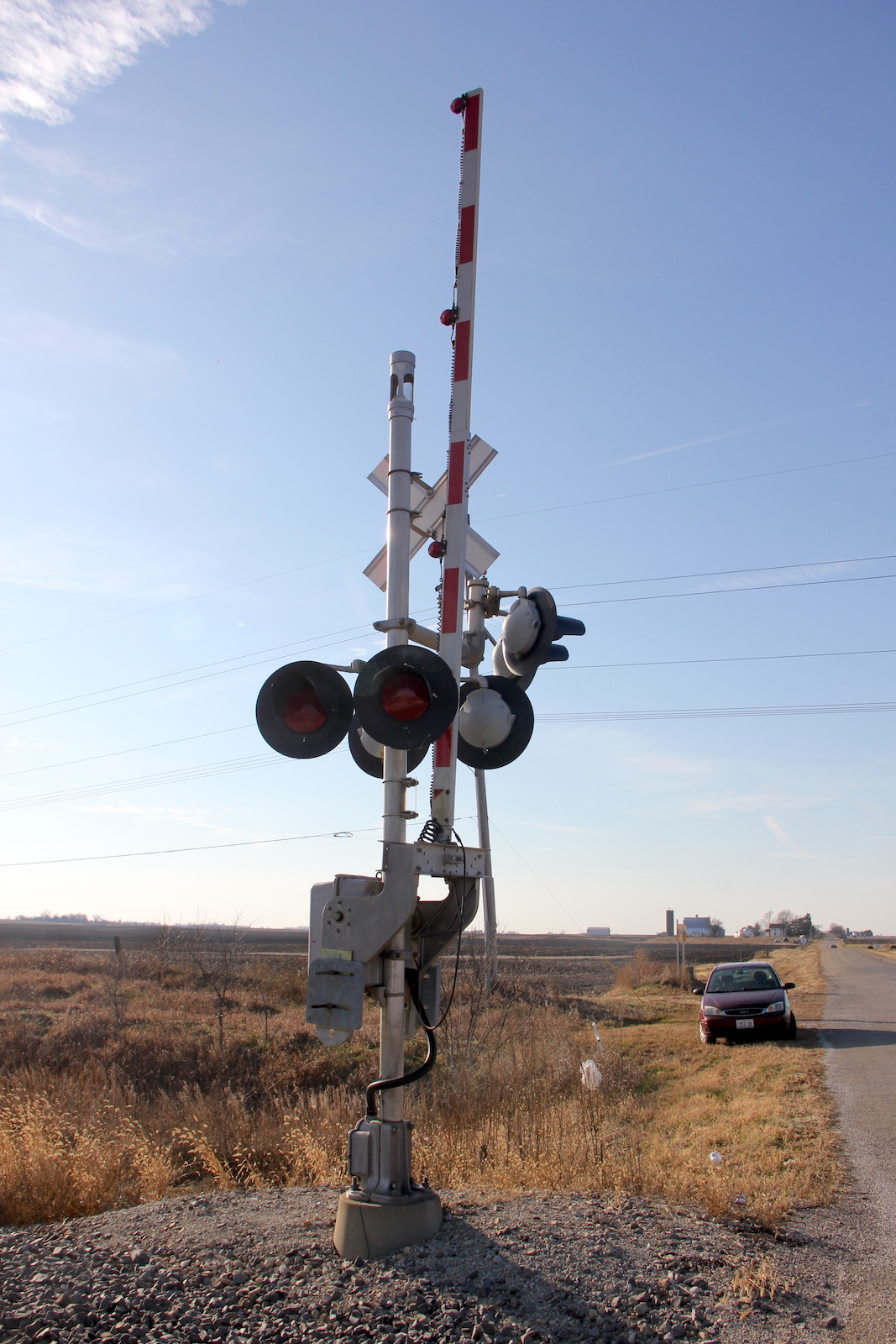

The western signal.
24 25 26 27
The relay bungalows in the southeast quadrant.
 The grade is all wood.
 Track view facing north towards Jefferson St.
 Track view facing south towards E. 2000 N. Rd.
28
29

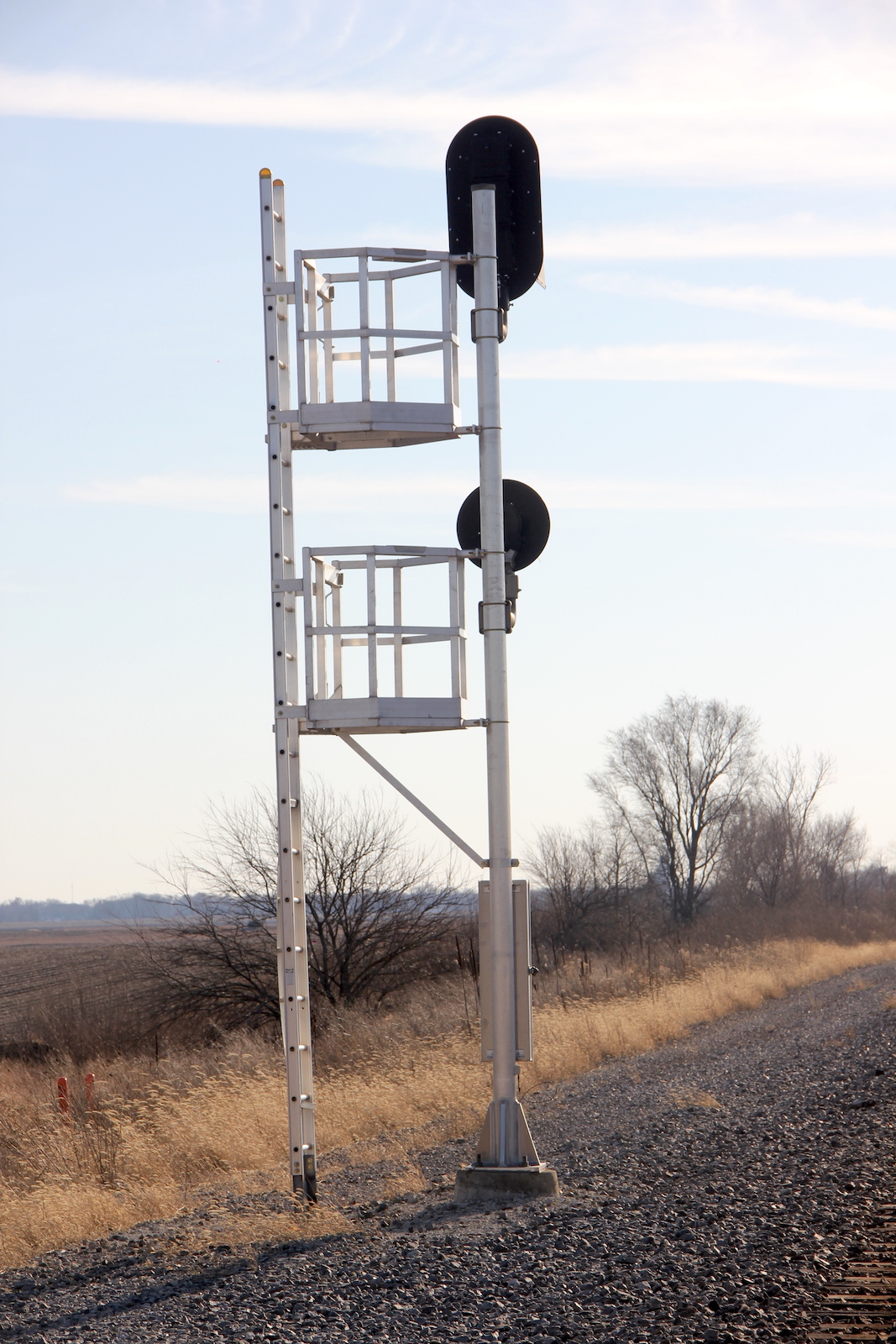

For some odd reason, the wayside ABS signals here are split apart on opposite sides of the crossing, instead of being on the same mast, or even being directly across from each other.
