12.04


175734K

>>>>>>>>>>>>>> Western Signal Eastern Signal
Bell: GS Type 2 E-Bell WCH Type 3 E-Bell
Base: WCH 5" Single Sided > WCH 5" Single Sided >
Lights: 6 - 12"x24" WCH w/ 2nd Gen WCH LEDs 4 - 12"x24" WCH w/ 2nd Gen WCH LEDs
Junction Boxes: WCH WCH
Gate Lights: NEG Clear LEDs NEG Clear LEDs
Gate Mechanism: WCH Style 4 w/ WCH Gate Saver WCH Style 4 w/ WCH Gate Saver
Gate Striping: Diagonal Striping Diagonal Striping

All pictures were taken on November 11, 2020, by Tommy McGowan.
The video was taken on September 29, 2020, by Tommy McGowan.
This crossing is located on the UP Peoria Sub.

1
 2

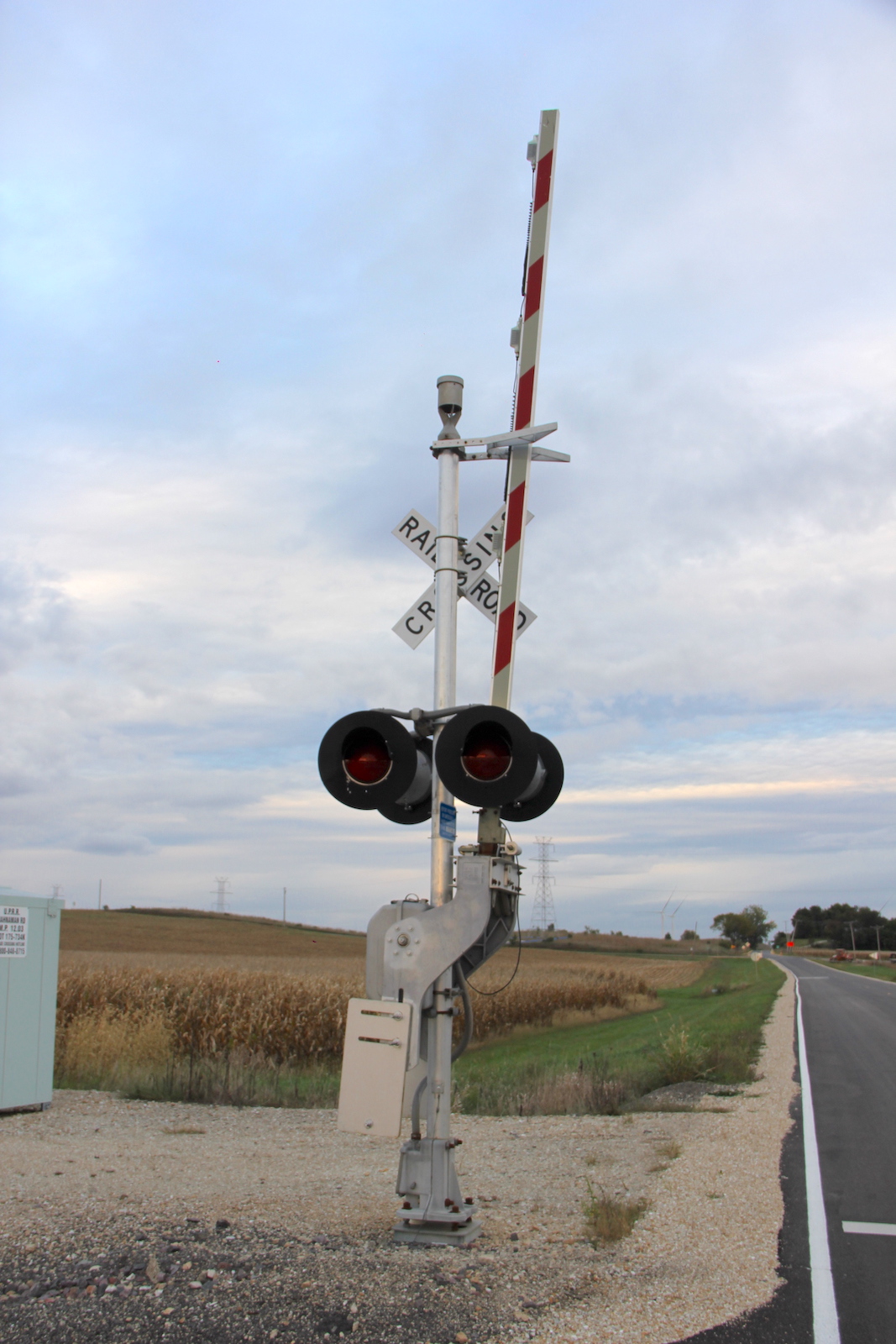

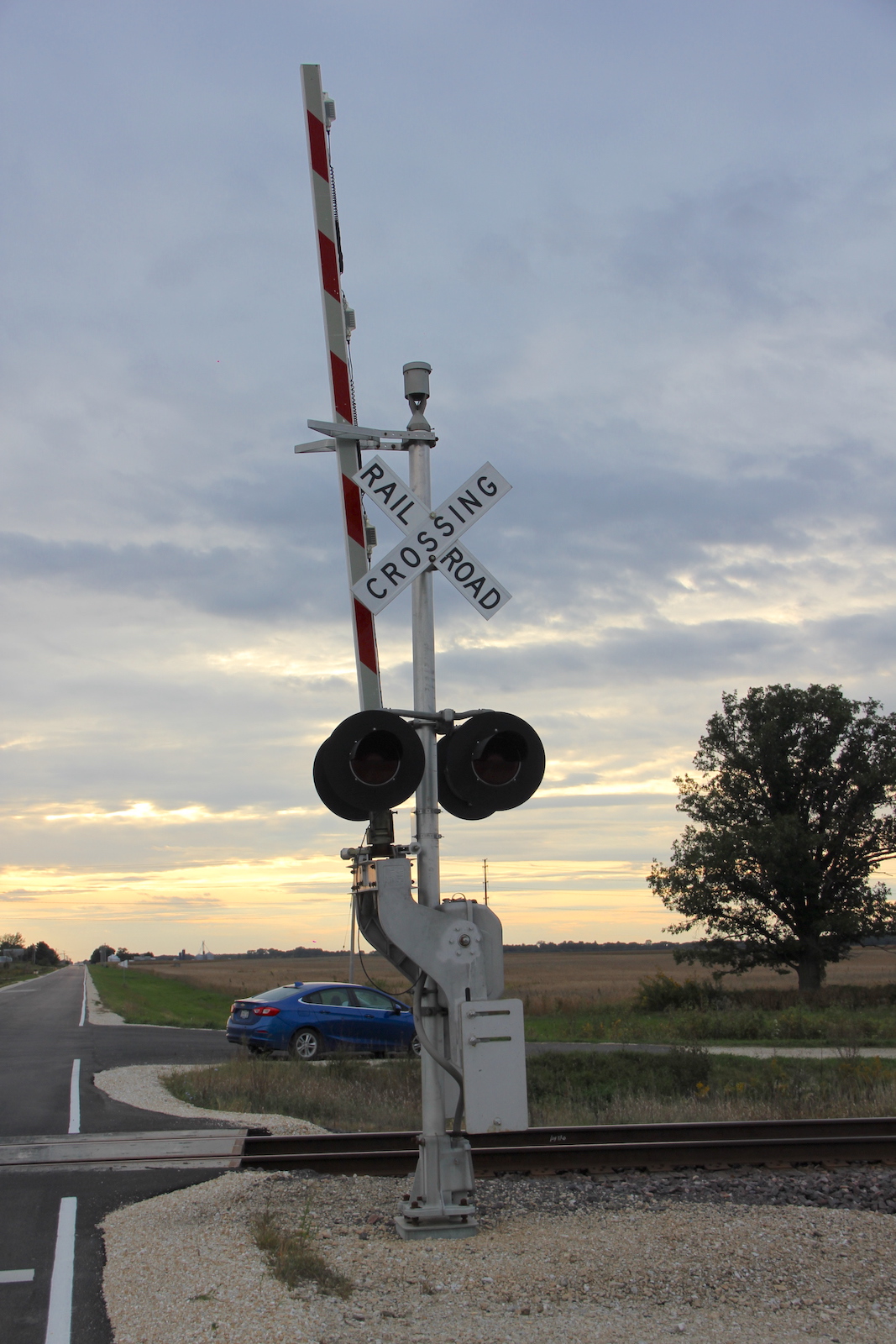

Overview of 2 WCH gated signals facing west. Overview facing east.
3 4 5
6 7 8
9 10 11 12

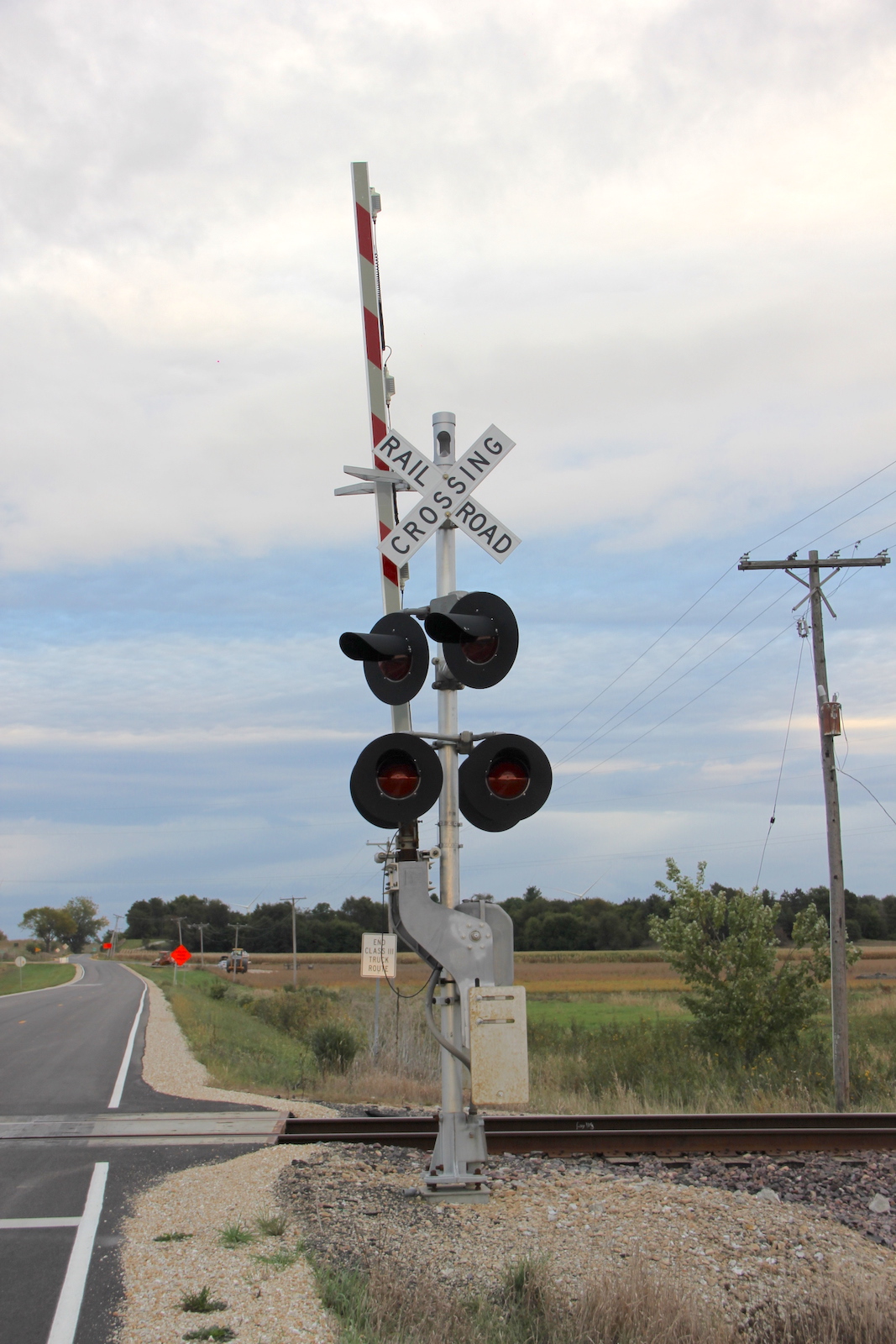

The eastern signal.
13 14 15 16
17 18 19 20
21 22 23 24
The western signal.
25 26 27 28
The PTMW relay bungalow in the northesat quadrant, S/N 47464. The grade is all asphalt. Track view facing north towards Cooper Rd. Track view facing south towards Jersey Rd.
